AMD Zen 5 Strix Point iGPU 分析 - Radeon 890M 与英特尔 Arc Graphics、Apple M3 和高通 Adreno X1-85 的比较

AMD 提供最快的游戏 iGPU。 在推出全新 Zen 5 移动处理器的同时,AMD 还更新了集成显卡。Ryzen AI 9 HX 370 等顶级机型采用了全新的 Radeon 890M。我们已对多款笔记本电脑内的这款新 iGPU 进行了详细分析。
AMD AI Laptop / Notebook Launch Zen 5

新的 AMD Zen 5 移动处理器终于上市了,除了新的 CPU 之外,自然还有新版本的 iGPU。新的 Radeon 890M 是 780M 的继任者,旨在大幅提升性能,尤其是在低 TDP 值的情况下,这对于紧凑型笔记本电脑和游戏掌上电脑来说尤为重要。例如,我们已经全面测试过的新款华硕 Zenbook S 16 就是一款相应的笔记本电脑。本文仅讨论新的 iGPU,我们在以下文章中详细介绍了新 Ryzen AI 9 HX 370 的处理器部分 处理器分析.

概述 - AMD Radeon 890M

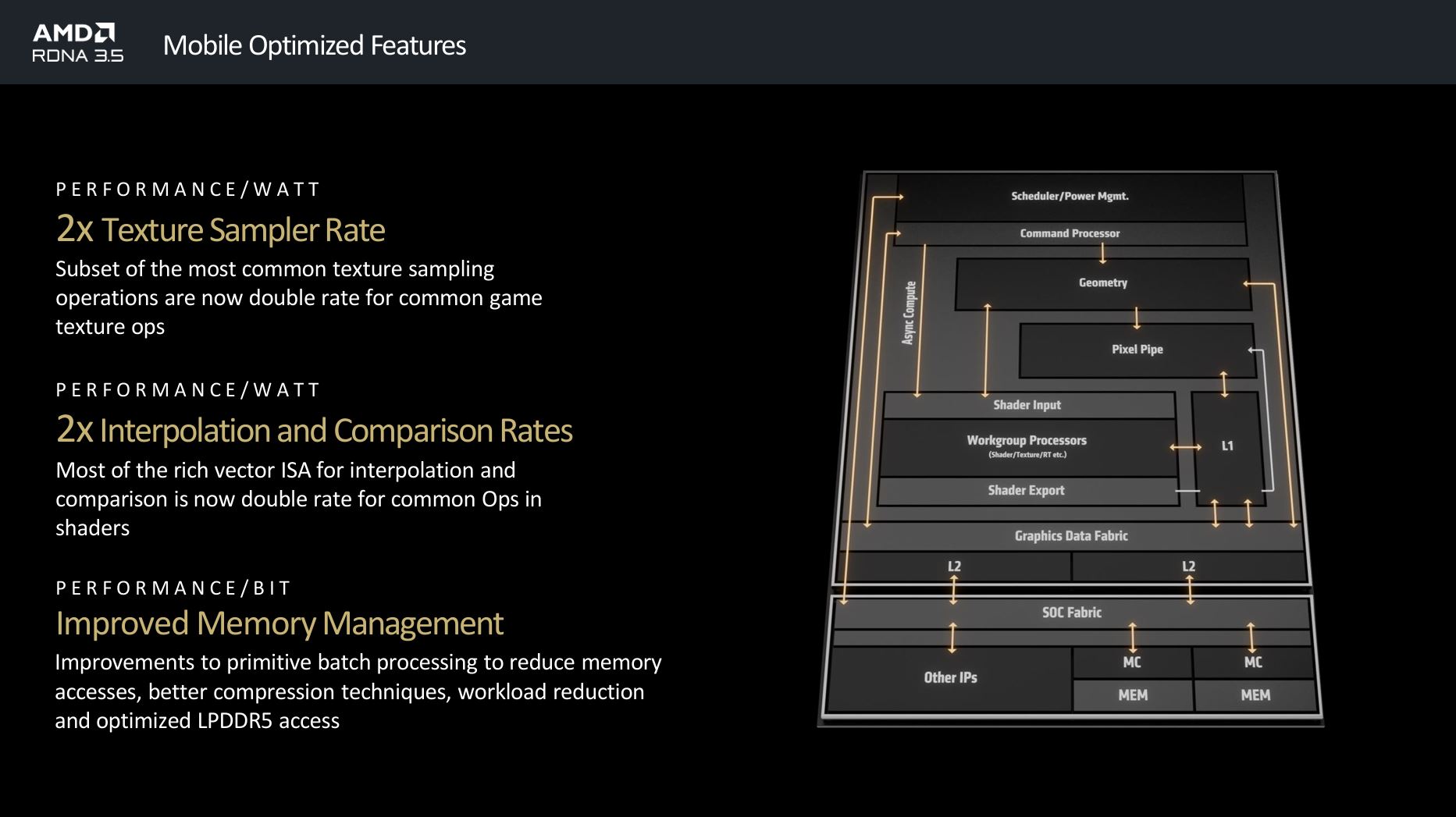

旧版 Radeon 780M 基于 RDNA-3 架构,而 Radeon 890M 和性能较弱的 Radeon 880M 则使用 RDNA-3.5 架构。根据 AMD 的说法,与旧版 Radeon 780M 相比,Radeon 890M 具有很多优势,包括更高的效率(每瓦性能)、优化的内存使用和更好的运行时间。

新的 Radeon 890M 现在拥有 16 个 CU 内核,最高时钟频率为 2.9 GHz,而 Radeon 880M 拥有 12 个 CU 内核(也是 2.9 GHz),与旧版 Radeon 780M 的配置一致。不过,后者的最高时钟频率只有 2.8 GHz,或者在大多数情况下只有 2.7 GHz。正如我们过去所看到的那样,其性能在很大程度上也取决于内存配置。我们已经在三台设备中测试了 Radeon 890M,它们都配备了快速 LDPPR5x-7500 内存。我们还没有机会测试 Radeon 880M(与 Ryzen AI 9 365 结合使用)。

测试系统

华硕的三款新笔记本电脑均配备了 AMD Ryzen AI 9 HX 370,作为我们此次分析的测试系统。Zenbook S 16 和 ProArt PX13 配备 32 GB 内存(LPDDR5x-7500),而较大的 ProArt P16 则配备 64 GB 内存(也是 LPDDR5x-7500)。我们通过 ProArt 软件停用了两款 ProArt 机型的专用 Nvidia GPU,这样外接显示器上的效率值就不会受到 dGPU 的影响。

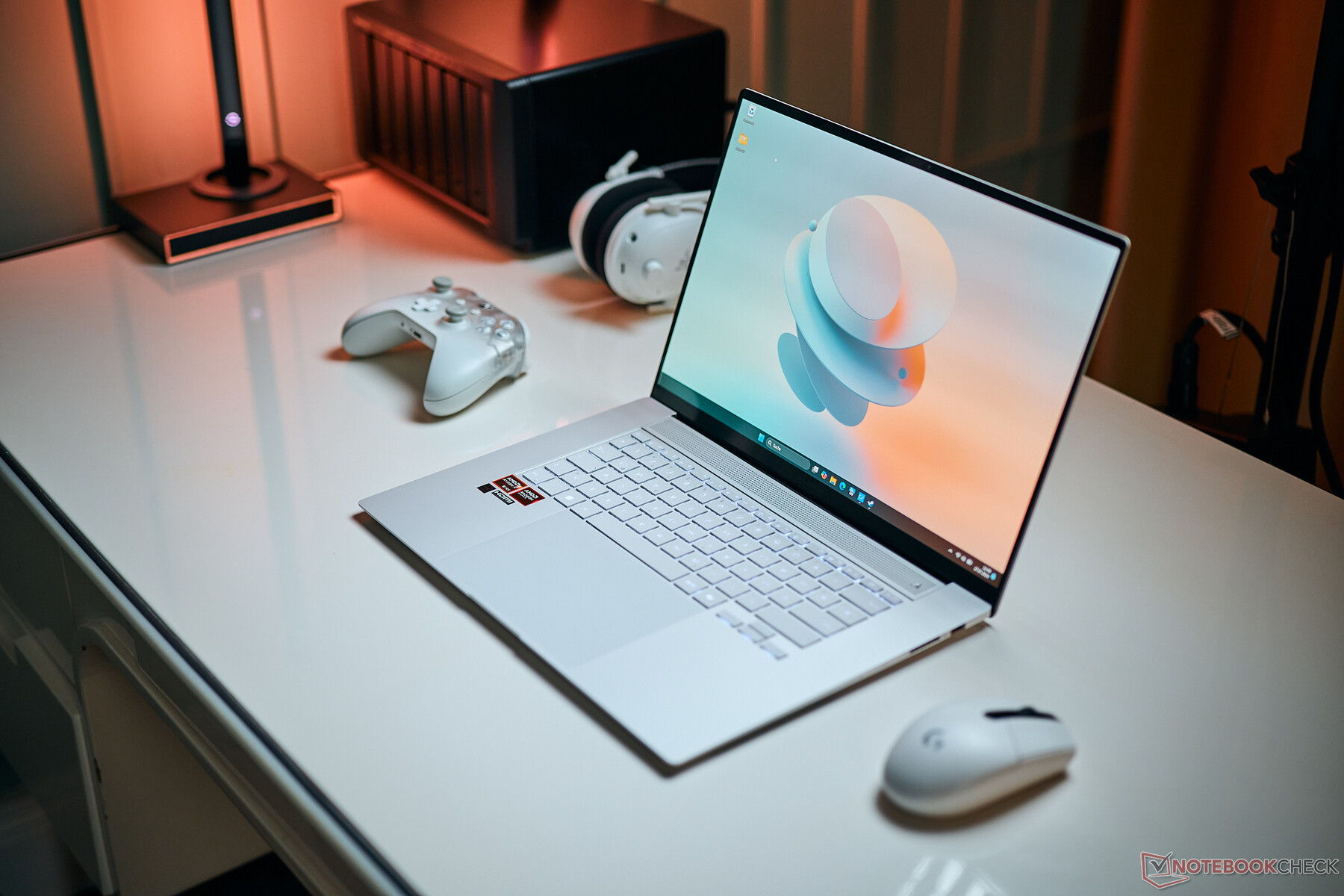

华硕 Zenbook S 16
华硕 Zenbook S 16

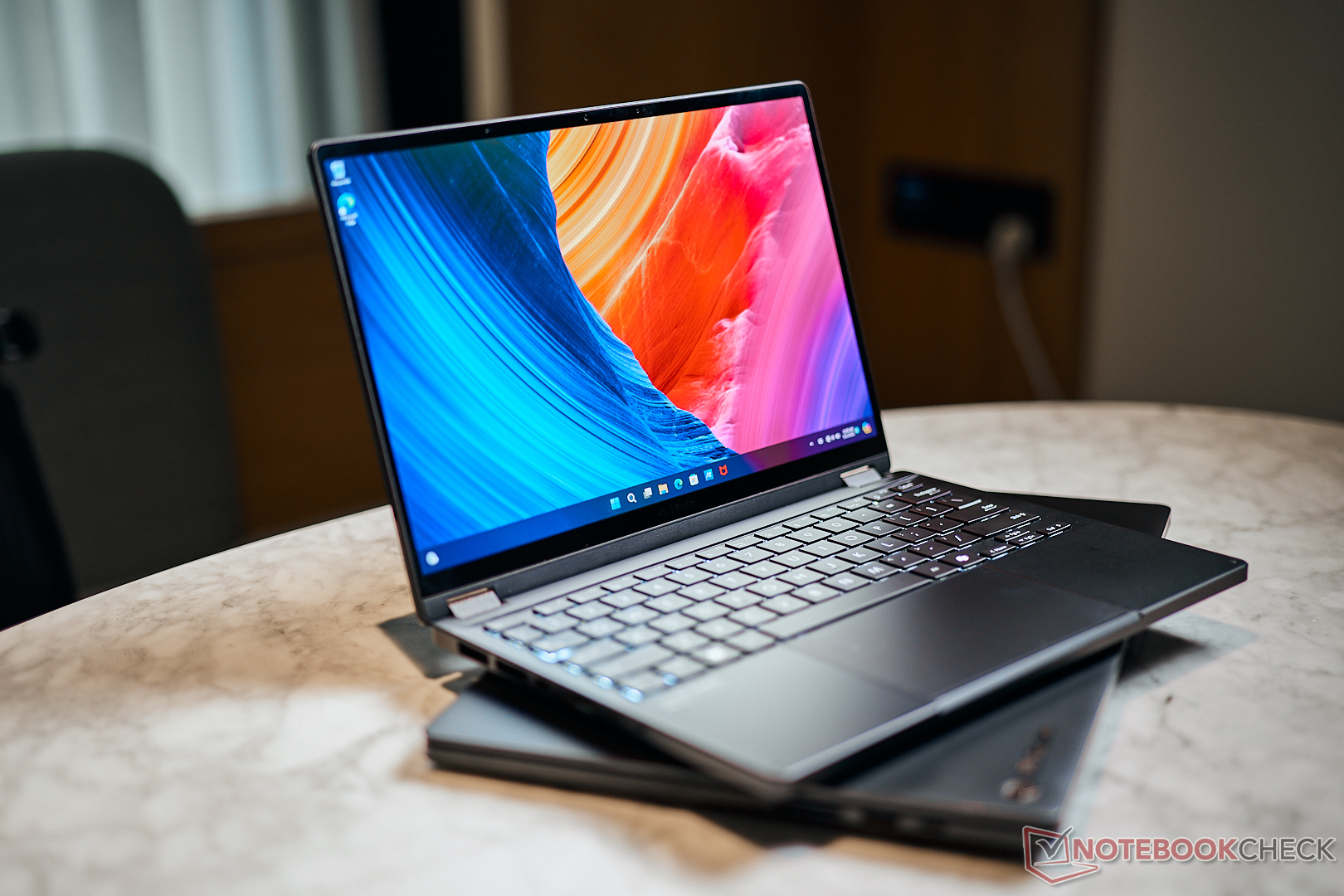

华硕 ProArt PX13
华硕 ProArt PX13

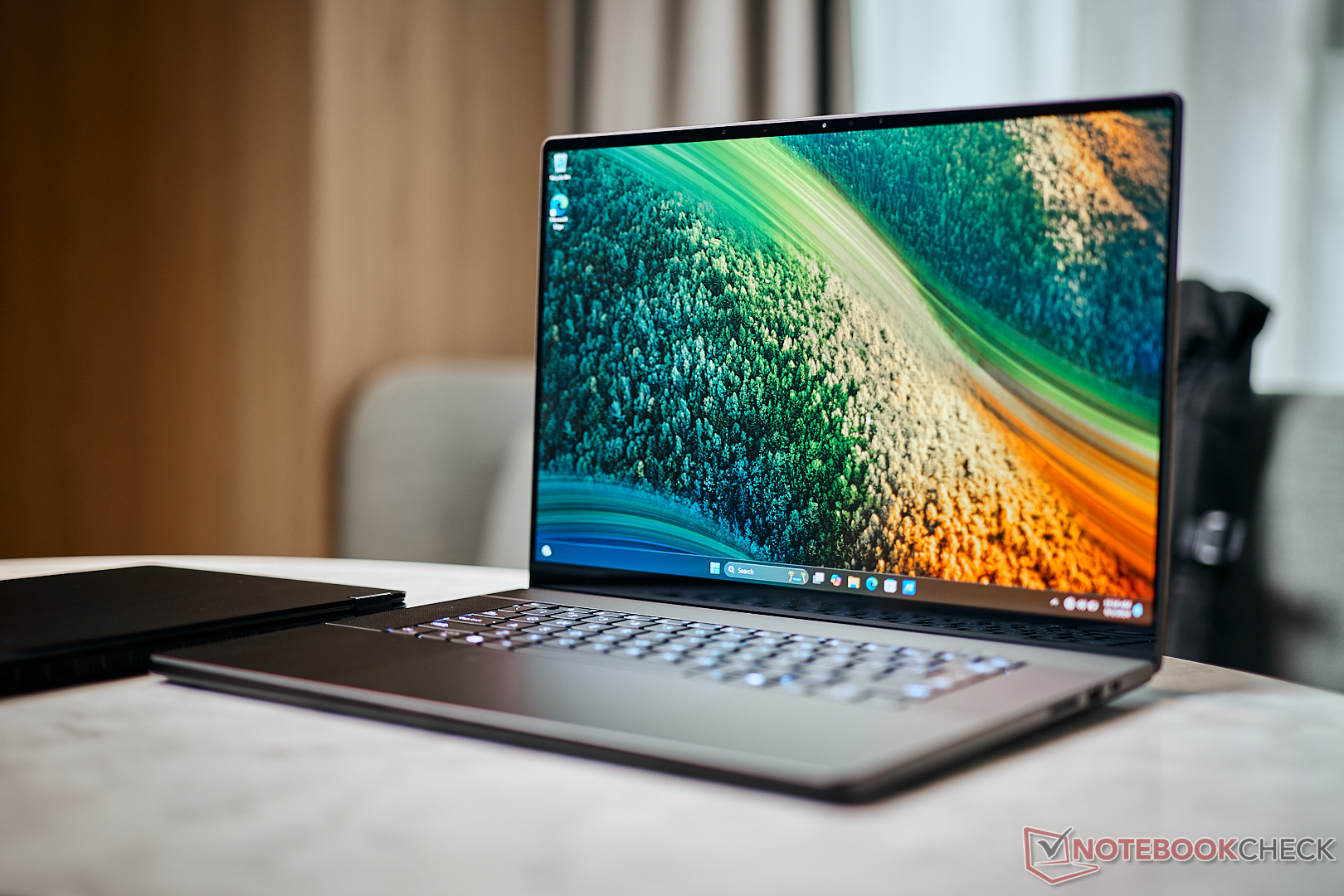

华硕 ProArt P16
华硕 ProArt P16

在 Zenbook S 16 中,全新 Zen 5 APU 的 TDP 值为 33/28 瓦,而两款 ProArt 机型中的 Radeon 890M 则不受限制。根据 GPU-Z 和 HWiNFO 这两个工具,iGPU 的最大功耗高达 46 瓦。测试使用的是 Adrenalin 驱动程序 24.10.18.08 版。

测试程序

为了在不同显卡之间进行有意义的比较,我们除了考察它们在合成基准测试中的纯性能外,还考察了它们的功耗,并据此确定了它们的效率。我们的功耗测量都是在外部显示器上进行的,这样可以排除不同内部显示器的影响因素。不过,我们也测量了测试系统的整体功耗,而不仅仅是单纯的 TDP 值。

合成基准

现在开始进行合成基准测试,即 3DMark 的新 Steel Nomad 测试。这些测试也是在骁龙笔记本电脑上运行的,因此可以为我们提供准确的比较。不过,由于这项基准测试还相对较新,我们的数据库中还没有太多来自旧版 GPU 的比较值。我们使用配备 LPDDR5x-7500 内存的新 ROG Ally X 作为旧版 Radeon 780M 的参考,因为这是 780M 的最快版本。相比之下,新的 890M 快了 7-15 %(在 Light 测试中快了 8-18%)。配备 8 个 Xe 内核的英特尔 Arc Graphics 图形处理器在普通测试中的速度提高了 26%,但在 Light 测试中的表现相同。在这两种情况下,Adreno X1-85 的表现都要好于其他显卡。

3DMark / Steel Nomad Score
NVIDIA GeForce RTX 4050 Laptop GPU
Lenovo Yoga Pro 9 16IMH9 RTX 4050
1846 Points +221%
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
981 Points +71%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
757 Points +32%
AMD Radeon 890M
Asus ProArt P16 H7606WI
599 Points +4%
Intel Arc 7-Core iGPU
Minisforum UH125 Pro
598 Points +4%
AMD Radeon 890M
Asus ProArt PX13 HN7306
575 Points
AMD Radeon 890M
Asus Zenbook S16 UM5606
557 Points -3%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
538 Points -6%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Samsung Galaxy Book4 Edge 16
534 Points -7%
AMD Radeon 780M
Asus ROG Ally X
519 Points -10%
AMD Radeon 780M
Geekom AE7
495 Points -14%
NVIDIA GeForce RTX 3050 4GB Laptop GPU
LG gram Pro 16Z90SP
223 Points -61%
NVIDIA GeForce RTX 3050 4GB Laptop GPU
LG gram Pro 16Z90SP
47 Points -92%
Intel Iris Xe Graphics G7 96EUs
Geekom GT13 Pro
186 Points -68%
3DMark / Steel Nomad Light Score
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
5441 Points +66%
NVIDIA GeForce RTX 3050 4GB Laptop GPU
LG gram Pro 16Z90SP
3940 Points +20%
NVIDIA GeForce RTX 3050 4GB Laptop GPU
LG gram Pro 16Z90SP
3903 Points +19%
Apple M4 10-core GPU
Apple iPad Pro 13 2024
3583 Points +10%
AMD Radeon 890M
Asus ProArt P16 H7606WI
3510 Points +7%
AMD Radeon 890M
Asus ProArt PX13 HN7306
3272 Points
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
3248 Points -1%
AMD Radeon 890M
Asus Zenbook S16 UM5606
3198 Points -2%
AMD Radeon 780M
Asus ROG Ally X
2972 Points -9%
AMD Radeon 780M
Geekom AE7
2869 Points -12%
Intel Arc 7-Core iGPU
Minisforum UH125 Pro
2436 Points -26%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
2194 Points -33%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Samsung Galaxy Book4 Edge 16
2189 Points -33%
Intel Iris Xe Graphics G7 96EUs
Geekom GT13 Pro
1283 Points -61%

AMD 在 3DMarkTime Spy 测试中再次取得进步,我们注意到它比 ROG Ally X 内的 780M 领先 7-13%。因此,AMD 几乎完全缩小了与英特尔 Arc Graphics 的差距,但英特尔仍保持领先。

3DMark - 2560x1440 Time Spy Graphics
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
5278 Points +53%
NVIDIA GeForce RTX 4050 Laptop GPU
Dell XPS 14 2024 OLED
5107 Points +48%
NVIDIA GeForce RTX 3050 6GB Laptop GPU
SCHENKER Vision 14 M23 RTX 3050
4501 Points +30%
NVIDIA GeForce RTX 3050 4GB Laptop GPU
LG gram Pro 16Z90SP
3786 Points +10%
Intel Arc 8-Core iGPU
Huawei MateBook X Pro 2024
3719 Points +8%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
3690 Points +7%
Intel Arc 8-Core iGPU
Xiaomi RedmiBook Pro 14 2024
3671 Points +6%
Intel Arc 8-Core iGPU
Xiaomi RedmiBook Pro 16 2024
3656 Points +6%
AMD Radeon 890M
Asus ProArt P16 H7606WI
3601 Points +4%
AMD Radeon 890M
Asus ProArt PX13 HN7306
3451 Points
AMD Radeon 890M
Asus Zenbook S16 UM5606
3421 Points -1%
AMD Radeon 780M
Asus ROG Ally X
3196 Points -7%
AMD Radeon 780M
SCHENKER VIA 14 Pro (M24)
2915 Points -16%
Intel Arc 7-Core iGPU
Minisforum UH125 Pro
2796 Points -19%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
1739 Points -50%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Samsung Galaxy Book4 Edge 16
1739 Points -50%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Asus Vivobook S 15 OLED Snapdragon
1698 Points -51%

Wildlife Extreme Unlimited 测试可在本次比较的所有 GPU 上原生运行,因此是比较它们的一个非常好的方法。Radeon 890M 比 Radeon 780M 快 15-28%,也比配备 8 个 Xe 内核的 Intel Arc Graphics 快。Apple拥有 8 个内核的小型 M3 GPU 也被击败,但 M3 GPU 的其他变体和新型 M4 GPU 的速度更快。Adreno X1-85 落后 8-18%。

3DMark - Wild Life Extreme Unlimited
Apple M3 Pro 18-Core GPU
Apple MacBook Pro 16 2023 M3 Pro
14545 Points
Apple M3 Pro 14-Core GPU
Apple MacBook Pro 14 2023 M3 Pro
12094 Points
NVIDIA GeForce RTX 4050 Laptop GPU
Samsung Galaxy Book4 Ultra
11948 Points
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
10353 Points
NVIDIA GeForce RTX 4050 Laptop GPU
Dell XPS 14 2024 OLED
9394 Points
NVIDIA GeForce RTX 3050 6GB Laptop GPU
SCHENKER Vision 14 M23 RTX 3050
8916 Points
Apple M4 10-core GPU
Apple iPad Pro 13 2024
8889 Points
Apple M3 10-Core GPU
Apple MacBook Air 15 M3
8286 Points
AMD Radeon 890M
Asus ProArt P16 H7606WI
7623 Points
Apple M3 8-Core GPU
Apple MacBook Air 13 M3 8C GPU
6968 Points
AMD Radeon 890M
Asus Zenbook S16 UM5606
6855 Points
Intel Arc 8-Core iGPU
Xiaomi RedmiBook Pro 14 2024
6529 Points
Intel Arc 8-Core iGPU
Huawei MateBook X Pro 2024
6363 Points
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Microsoft Surface Laptop 7 13.8 Copilot+
6335 Points
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Asus Vivobook S 15 OLED Snapdragon
6323 Points
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Samsung Galaxy Book4 Edge 16
6276 Points
AMD Radeon 780M
SCHENKER VIA 14 Pro (M24)
5972 Points
Intel Arc 7-Core iGPU
Lenovo ThinkBook 13x G4 21KR0008GE
5654 Points

GFXBench 测试也在所有 GPU 上原生运行。不过,新的 890M 在这里的表现并不理想。虽然与 780M 相比,它的 OpenGL 性能有了显著提高(高达约 30%),但这只足以将配备 7 个 Xe 核心的 Intel Arc Graphics 图形处理器甩在后面,而其他所有 GPU 的速度都更快。

GFXBench / 4K Aztec Ruins High Tier Offscreen
Apple M3 Pro 18-Core GPU
MacBook Pro 16 2023 M3 Pro, Apple M3 Pro 12-Core
97.8 fps
Apple M3 Pro 14-Core GPU
MacBook Pro 14 2023 M3 Pro, Apple M3 Pro 11-Core
79 fps
Apple M4 10-core GPU
iPad Pro 13 2024, Apple M4 (10 cores)
55.1 fps
Nvidia RTX 500 Ada Generation Laptop GPU
ThinkPad P14s G5 21G3S00A00, Intel Core Ultra 7 155H
52.7 fps
Apple M3 10-Core GPU
MacBook Air 15 M3, Apple M3
52.6 fps
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Vivobook S 15 OLED Snapdragon, Qualcomm Snapdragon X Elite X1E-78-100
49.6 fps
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Surface Pro OLED Copilot+, Qualcomm Snapdragon X Elite X1E-80-100
48.8 fps
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Surface Laptop 7 13.8 Copilot+, Qualcomm Snapdragon X Elite X1E-80-100
48.6 fps
Apple M3 8-Core GPU
MacBook Air 13 M3 8C GPU, Apple M3
44.5 fps
Apple M2 10-Core GPU
iPad Air 13 2024, Apple M2
42.8 fps
Intel Arc 8-Core iGPU
RedmiBook Pro 14 2024, Intel Core Ultra 7 155H
41.6 fps
AMD Radeon 890M
ProArt P16 H7606WI, AMD Ryzen AI 9 HX 370
39.7 fps
Intel Arc 7-Core iGPU
Galaxy Book4 Pro 360, Intel Core Ultra 5 125H
33.9 fps
AMD Radeon 780M
VIA 14 Pro (M24), AMD Ryzen 7 8845HS
27.1 fps
GFXBench / Aztec Ruins High Tier Offscreen
Apple M3 Pro 18-Core GPU
MacBook Pro 16 2023 M3 Pro, Apple M3 Pro 12-Core
219.7 fps
Apple M3 Pro 14-Core GPU
MacBook Pro 14 2023 M3 Pro, Apple M3 Pro 11-Core
178.7 fps
Nvidia RTX 500 Ada Generation Laptop GPU
ThinkPad P14s G5 21G3S00A00, Intel Core Ultra 7 155H
126.4 fps
Apple M3 10-Core GPU
MacBook Air 15 M3, Apple M3
120 fps
Apple M4 10-core GPU
iPad Pro 13 2024, Apple M4 (10 cores)
114.5 fps
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Surface Pro OLED Copilot+, Qualcomm Snapdragon X Elite X1E-80-100
106.7 fps
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Surface Laptop 7 13.8 Copilot+, Qualcomm Snapdragon X Elite X1E-80-100
106.6 fps
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Vivobook S 15 OLED Snapdragon, Qualcomm Snapdragon X Elite X1E-78-100
105.7 fps
Apple M3 8-Core GPU
MacBook Air 13 M3 8C GPU, Apple M3
101.7 fps
Apple M2 10-Core GPU
iPad Air 13 2024, Apple M2
97.4 fps
Intel Arc 8-Core iGPU
RedmiBook Pro 14 2024, Intel Core Ultra 7 155H
91.5 fps
AMD Radeon 890M
ProArt P16 H7606WI, AMD Ryzen AI 9 HX 370
84.6 fps
Intel Arc 7-Core iGPU
Galaxy Book4 Pro 360, Intel Core Ultra 5 125H
77.4 fps
AMD Radeon 780M
VIA 14 Pro (M24), AMD Ryzen 7 8845HS
60.8 fps
GFXBench / Aztec Ruins Normal Tier Offscreen
Apple M3 Pro 18-Core GPU
MacBook Pro 16 2023 M3 Pro, Apple M3 Pro 12-Core
580 fps
Apple M3 Pro 14-Core GPU
MacBook Pro 14 2023 M3 Pro, Apple M3 Pro 11-Core
481.9 fps
Nvidia RTX 500 Ada Generation Laptop GPU
ThinkPad P14s G5 21G3S00A00, Intel Core Ultra 7 155H
353.2 fps
Apple M4 10-core GPU
iPad Pro 13 2024, Apple M4 (10 cores)
339.7 fps
Apple M3 10-Core GPU
MacBook Air 15 M3, Apple M3
331 fps
Apple M3 8-Core GPU
MacBook Air 13 M3 8C GPU, Apple M3
282.3 fps
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Surface Laptop 7 13.8 Copilot+, Qualcomm Snapdragon X Elite X1E-80-100
274.5 fps
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Vivobook S 15 OLED Snapdragon, Qualcomm Snapdragon X Elite X1E-78-100
269.4 fps
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Surface Pro OLED Copilot+, Qualcomm Snapdragon X Elite X1E-80-100
266.9 fps
Apple M2 10-Core GPU
iPad Air 13 2024, Apple M2
243.1 fps
Intel Arc 8-Core iGPU
RedmiBook Pro 14 2024, Intel Core Ultra 7 155H
206.4 fps
AMD Radeon 890M
ProArt P16 H7606WI, AMD Ryzen AI 9 HX 370
194 fps
Intel Arc 7-Core iGPU
Galaxy Book4 Pro 360, Intel Core Ultra 5 125H
193.7 fps
AMD Radeon 780M
VIA 14 Pro (M24), AMD Ryzen 7 8845HS
146.7 fps

在 Geekbench 的 OpenCL 性能测试中,我们发现与旧版 780M 相比,新版 890M 的性能提高了 40%。这意味着,新的 890M 不仅超越了拥有 14 个核心的 M3 Pro GPU,还远远领先于所有其他 iGPU。在 Vulkan 测试中,我们也测得了高达 35% 的改进,其他 iGPU 再一次无法跟上。

Geekbench 6.2 / GPU OpenCL
Nvidia RTX 500 Ada Generation Laptop GPU
ThinkPad P14s G5 21G3S00A00, Intel Core Ultra 7 155H
61467 Points
Apple M3 Pro 18-Core GPU
MacBook Pro 16 2023 M3 Pro, Apple M3 Pro 12-Core
50373 Points
AMD Radeon 890M
ProArt P16 H7606WI, AMD Ryzen AI 9 HX 370
43082 Points
Apple M3 Pro 14-Core GPU
MacBook Pro 14 2023 M3 Pro, Apple M3 Pro 11-Core
42798 Points
AMD Radeon 890M
Zenbook S16 UM5606, AMD Ryzen AI 9 HX 370
34259 Points
Intel Arc 7-Core iGPU
Galaxy Book4 Pro 360, Intel Core Ultra 5 125H
31245 Points
AMD Radeon 780M
VIA 14 Pro (M24), AMD Ryzen 7 8845HS
30818 Points
AMD Radeon 780M
VIA 14 Pro (M24), AMD Ryzen 7 8845HS
27410 Points
Apple M3 10-Core GPU
MacBook Air 15 M3, Apple M3
30470 Points
Intel Arc 8-Core iGPU
RedmiBook Pro 14 2024, Intel Core Ultra 7 155H
29233 Points
Apple M3 8-Core GPU
MacBook Air 13 M3 8C GPU, Apple M3
25825 Points
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Vivobook S 15 OLED Snapdragon, Qualcomm Snapdragon X Elite X1E-78-100
20551 Points
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Surface Laptop 7 13.8 Copilot+, Qualcomm Snapdragon X Elite X1E-80-100
20147 Points
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Surface Pro OLED Copilot+, Qualcomm Snapdragon X Elite X1E-80-100
19879 Points
Geekbench 6.2 / GPU Vulkan 6.2
AMD Radeon 890M
ProArt P16 H7606WI, AMD Ryzen AI 9 HX 370
47829 Points
AMD Radeon 890M
Zenbook S16 UM5606, AMD Ryzen AI 9 HX 370
38270 Points
AMD Radeon 780M
VIA 14 Pro (M24), AMD Ryzen 7 8845HS
35544 Points
Nvidia RTX 500 Ada Generation Laptop GPU
ThinkPad P14s G5 21G3S00A00, Intel Core Ultra 7 155H
34889 Points
Intel Arc 7-Core iGPU
Galaxy Book4 Pro 360, Intel Core Ultra 5 125H
28903 Points
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Vivobook S 15 OLED Snapdragon, Qualcomm Snapdragon X Elite X1E-78-100
23712 Points
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Surface Pro OLED Copilot+, Qualcomm Snapdragon X Elite X1E-80-100
23348 Points
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Surface Laptop 7 13.8 Copilot+, Qualcomm Snapdragon X Elite X1E-80-100
23174 Points

游戏基准

在首次游戏基准测试中,我们只选择了一小部分游戏和对比设备,以便对性能进行评级。我们从低细节开始,使用 1080p 分辨率或更低分辨率,具体取决于游戏。具体设置见 技术部分.除了 iGPU 之外,我们还加入了 Nvidia RTX 500 Ada 的测试结果,它是目前 Ada Lovelace 系列中速度最慢的专用 GPU,甚至比 RTX 4050 Laptop GPU 还要慢(戴尔 XPS 14 中的GeForce RTX 4050 Laptop 由于采用了 30 瓦 TGP,在某些情况下速度甚至略慢,但并未用于测试)。

在低细节方面,Radeon 890M 的所有三个变体都领先于 iGPU 竞争对手,与我们数据库中 ROG Ally X 中最快的 Radeon 780M 相比,其优势为 7-18%。XMG Evo 15 中的英特尔 Arc Graphics 图形处理器落后 890M 6-15 %。在这项测试中,高通 SoC 明显落后(慢 36-47%)。

Gaming Benchmarks Low Performance Rating - Percent
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
100 pt
AMD Radeon 890M
Asus ProArt PX13 HN7306
73.4 pt
AMD Radeon 890M
Asus ProArt P16 H7606WI
73.4 pt
AMD Radeon 890M
Asus Zenbook S16 UM5606
66.6 pt
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
62.7 pt
AMD Radeon 780M
Asus ROG Ally X
62.4 pt
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
42.8 pt
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
39.1 pt
The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
278 fps +66%
AMD Radeon 890M
Asus ProArt P16 H7606WI
169 fps +1%
AMD Radeon 890M
Asus ProArt PX13 HN7306
167 fps
AMD Radeon 890M
Asus Zenbook S16 UM5606
155 fps -7%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
152 fps -9%
AMD Radeon 780M
Asus ROG Ally X
149 fps -11%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
104 fps -38%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
103.7 (6.54min, 21.6P0.1, 60.3P1 - 138.2max) fps -38%
Cyberpunk 2077 2.1 Phantom Liberty - 1920x1080 Low Preset (FSR off)
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
52.9 (19.6min - 81.6max) fps +3%
AMD Radeon 890M
Asus ProArt PX13 HN7306
51.5 (42.9min - 63max) fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
49.9 (41.6min - 61.2max) fps -3%
AMD Radeon 890M
Asus Zenbook S16 UM5606
46 (38.3min - 56.8max) fps -11%
AMD Radeon 780M
Asus ROG Ally X
44.1 (37.1min - 52.9max) fps -14%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
37.9 (32.7min - 44.1max) fps -26%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
24.1 (18.6min - 33max) fps -53%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
23.1 (18min - 32.1max) fps -55%
Far Cry 5 - 1280x720 Low Preset AA:T
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
135 fps +38%
AMD Radeon 890M
Asus ProArt PX13 HN7306
98 fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
98 fps 0%
AMD Radeon 890M
Asus Zenbook S16 UM5606
81 fps -17%
AMD Radeon 780M
Asus ROG Ally X
78 fps -20%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
77 fps -21%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
44 fps -55%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
35 (4min - 50max) fps -64%
Dota 2 Reborn - 1280x720 min (0/3) fastest
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
176.2 (154.8min) fps +13%
AMD Radeon 890M
Asus Zenbook S16 UM5606
161.1 (133min) fps +4%
AMD Radeon 890M
Asus ProArt P16 H7606WI
158.1 (132.6min) fps +2%
AMD Radeon 890M
Asus ProArt PX13 HN7306
155.6 (134.5min) fps
AMD Radeon 780M
Asus ROG Ally X
120.7 (109.6min) fps -22%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
107.4 (68.1min) fps -31%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
81.6 (57.1min) fps -48%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
81 (56.9min) fps -48%
Baldur's Gate 3 - 1920x1080 Low Preset
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
69.4 fps +56%
AMD Radeon 890M
Asus ProArt P16 H7606WI
47.1 fps +6%
AMD Radeon 890M
Asus Zenbook S16 UM5606
45.2 fps +2%
AMD Radeon 890M
Asus ProArt PX13 HN7306
44.5 fps
AMD Radeon 780M
Asus ROG Ally X
41.1 fps -8%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
40.3 fps -9%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
24.2 fps -46%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
19.4 (6.09min, 7.01P0.1, 9.52P1 - 83.3max) fps -56%
Total War Pharaoh - 1920x1080 Low Preset
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
199 fps +99%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
101.4 fps +1%
AMD Radeon 890M
Asus ProArt P16 H7606WI
101.4 fps +1%
AMD Radeon 890M
Asus ProArt PX13 HN7306
100 fps
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
92.9 fps -7%
AMD Radeon 780M
Asus ROG Ally X
92.2 fps -8%
AMD Radeon 890M
Asus Zenbook S16 UM5606
90.3 fps -10%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
79.2 fps -21%
GTA V - 1024x768 Lowest Settings possible
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
182.7 (2.48min, 125P1 - 409max) fps +8%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
169.3 (5.12min, 100P1 - 470max) fps 0%
AMD Radeon 890M
Asus ProArt PX13 HN7306
168.9 (4.46min, 111.1P1 - 319max) fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
166.6 (4.72min, 111.1P1 - 277max) fps -1%
AMD Radeon 890M
Asus Zenbook S16 UM5606
161.3 (4.39min, 83.3P1 - 276max) fps -4%
AMD Radeon 780M
Asus ROG Ally X
144.5 (4.52min, 76.9P1 - 244max) fps -14%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
103.2 (1.119min, 34.5P1 - 162.6max) fps -39%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
102.6 (10.7min, 52.6P1 - 157.9max) fps -39%
Strange Brigade - 1280x720 lowest AF:1
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
316 fps +64%
AMD Radeon 890M
Asus ProArt PX13 HN7306
193 (98.8min, 168.6P1 - 282max) fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
189.2 (92.8min, 166.6P1 - 282max) fps -2%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
171 fps -11%
AMD Radeon 890M
Asus Zenbook S16 UM5606
165.1 (71.8min, 139.9P1 - 231max) fps -14%
AMD Radeon 780M
Asus ROG Ally X
161.1 (106.7min, 128.1P1 - 249max) fps -17%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
135 fps -30%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
121.3 (25.7min, 55.7P1 - 437max) fps -37%
F1 22 - 1920x1080 Low Preset AA:T AF:16x
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
150.4 (126min, 88P1 - 175max) fps +35%
AMD Radeon 890M
Asus ProArt PX13 HN7306
111.2 (95min, 60P1 - 136max) fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
110.5 (87min, 53P1 - 132max) fps -1%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
96.1 (74min, 75P1 - 116max) fps -14%
AMD Radeon 780M
Asus ROG Ally X
94.9 (81min, 70P1 - 112max) fps -15%
AMD Radeon 890M
Asus Zenbook S16 UM5606
81 (59min, 35P1 - 99max) fps -27%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
64 (39min, 33P1 - 86max) fps -42%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
55.2 (32min, 33P1 - 71max) fps -50%

然而,从中度细节开始,情况就发生了变化,因为 Zenbook S 16 上较慢的 Radeon 890M 现在的性能几乎与 780M 相同,英特尔 Arc Graphics 也是如此。这两种速度更快的图形处理器领先约 18%,而 Adreno 图形处理器则继续落后。

Gaming Benchmarks Medium Performance Rating - Percent
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
99.1 pt
AMD Radeon 890M
Asus ProArt P16 H7606WI
76.4 pt
AMD Radeon 890M
Asus ProArt PX13 HN7306
76.2 pt
AMD Radeon 890M
Asus Zenbook S16 UM5606
65 pt
AMD Radeon 780M
Asus ROG Ally X
64.9 pt
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
64.6 pt
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
43.9 pt
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
39.6 pt
Cyberpunk 2077 2.1 Phantom Liberty - 1920x1080 Medium Preset (FSR off)
AMD Radeon 890M
Asus ProArt PX13 HN7306
40.7 (34.2min - 49.7max) fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
39.4 (33.7min - 47.2max) fps -3%
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
37.7 (22.6min - 54.4max) fps -7%
AMD Radeon 780M
Asus ROG Ally X
34.3 (30min - 40.3max) fps -16%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
31.4 (27.7min - 36.2max) fps -23%
AMD Radeon 890M
Asus Zenbook S16 UM5606
31.3 (19.7min - 43.2max) fps -23%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
19.7 (15.8min - 25.7max) fps -52%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
19 (15.1min - 25.4max) fps -53%
Far Cry 5 - 1920x1080 Medium Preset AA:T
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
86 fps +46%
AMD Radeon 890M
Asus ProArt PX13 HN7306
59 fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
58 fps -2%
AMD Radeon 890M
Asus Zenbook S16 UM5606
50 fps -15%
AMD Radeon 780M
Asus ROG Ally X
46 fps -22%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
43 fps -27%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
34 fps -42%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
26 (5min - 38max) fps -56%
Dota 2 Reborn - 1366x768 med (1/3)
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
156.1 (135.6min) fps +22%
AMD Radeon 890M
Asus ProArt P16 H7606WI
134.1 (106.3min) fps +5%
AMD Radeon 890M
Asus ProArt PX13 HN7306
128 (112.6min) fps
AMD Radeon 890M
Asus Zenbook S16 UM5606
123.1 (103min) fps -4%
AMD Radeon 780M
Asus ROG Ally X
105.3 (93.9min) fps -18%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
90.8 (58.7min) fps -29%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
63.5 (43.8min) fps -50%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
63 (43.8min) fps -51%
Baldur's Gate 3 - 1920x1080 Medium Preset
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
53.6 fps +47%
AMD Radeon 890M
Asus ProArt P16 H7606WI
37.5 fps +3%
AMD Radeon 890M
Asus ProArt PX13 HN7306
36.4 fps
AMD Radeon 890M
Asus Zenbook S16 UM5606
35.8 fps -2%
AMD Radeon 780M
Asus ROG Ally X
32.1 fps -12%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
31.1 fps -15%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
20.1 fps -45%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
17.2 (2.28min, 4.1P0.1, 9.65P1 - 79.7max) fps -53%
Total War Pharaoh - 1920x1080 Medium Preset
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
129 fps +56%
AMD Radeon 890M
Asus ProArt PX13 HN7306
82.6 fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
81.9 fps -1%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
77.6 fps -6%
AMD Radeon 780M
Asus ROG Ally X
68 fps -18%
AMD Radeon 890M
Asus Zenbook S16 UM5606
67.9 fps -18%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
64.9 fps -21%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
53.7 fps -35%
GTA V - 1366x768 Normal/Off AF:4x
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
177.4 (3.56min, 125P1 - 393max) fps +13%
AMD Radeon 890M
Asus ProArt P16 H7606WI
160.8 (4.46min, 111.1P1 - 276max) fps +2%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
160.2 (5.65min, 100P1 - 371max) fps +2%
AMD Radeon 890M
Asus ProArt PX13 HN7306
157.2 (4.08min, 100P1 - 269max) fps
AMD Radeon 780M
Asus ROG Ally X
144 (6.34min, 83.3P1 - 260max) fps -8%
AMD Radeon 890M
Asus Zenbook S16 UM5606
129.6 (5.51min, 76.9P1 - 222max) fps -18%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
97.3 (5.95min, 47.6P1 - 157max) fps -38%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
89.2 (4.95min, 43.5P1 - 147.8max) fps -43%
Strange Brigade - 1920x1080 medium AA:medium AF:4
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
126 fps +62%
AMD Radeon 890M
Asus ProArt P16 H7606WI
79 (48min, 66.9P1 - 118.3max) fps +2%
AMD Radeon 890M
Asus ProArt PX13 HN7306
77.7 (54.6min, 64.9P1 - 140.9max) fps
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
73 fps -6%
AMD Radeon 890M
Asus Zenbook S16 UM5606
71.1 (42.9min, 59.3P1 - 126.5max) fps -8%
AMD Radeon 780M
Asus ROG Ally X
70.1 (36.7min, 60.4P1 - 100.1max) fps -10%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
50 fps -36%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
47.5 (16.6min, 26.7P1 - 224max) fps -39%
F1 22 - 1920x1080 Medium Preset AA:T AF:16x
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
134.4 (115min, 84P1 - 158max) fps +31%
AMD Radeon 890M
Asus ProArt PX13 HN7306
102.9 (80min, 52P1 - 127max) fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
100.3 (76min, 55P1 - 118max) fps -3%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
87 (59min, 69P1 - 106max) fps -15%
AMD Radeon 780M
Asus ROG Ally X
86.7 (75min, 66P1 - 102max) fps -16%
AMD Radeon 890M
Asus Zenbook S16 UM5606
76.8 (42min, 42P1 - 102max) fps -25%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
54.3 (33min, 30P1 - 69max) fps -47%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
50.1 (31min, 31P1 - 65max) fps -51%

在高分辨率下,速度较慢的 Radeon 890M 的游戏性能最终落后于 ROG Ally X 内的 Radeon 780M 和英特尔 Arc Graphics(8 Xe 核心),在我们测试的游戏中差距为 3-5%。两个更快的变体仅比 780M 和 Arc Graphics 快 9-12%。在这项测试中,高通 SoC 也落在了后面,但它能在一定程度上缩小差距。

Gaming Benchmarks High Performance Rating - Percent
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
97.8 pt
AMD Radeon 890M
Asus ProArt P16 H7606WI
67.7 pt
AMD Radeon 890M
Asus ProArt PX13 HN7306
67.3 pt
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
61.8 pt
AMD Radeon 780M
Asus ROG Ally X
60.7 pt
AMD Radeon 890M
Asus Zenbook S16 UM5606
58.6 pt
Qualcomm SD X Adreno X1-85 3.8 TFLOPS -1!
Lenovo Yoga Slim 7X 14Q8X9
41.8 pt
Qualcomm SD X Adreno X1-85 3.8 TFLOPS -1!
Lenovo ThinkPad T14s Gen 6 21N10007GE
38.4 pt
The Witcher 3 - 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
91 fps +90%
AMD Radeon 890M
Asus Zenbook S16 UM5606
52 fps +8%
AMD Radeon 890M
Asus ProArt P16 H7606WI
51 fps +6%
AMD Radeon 780M
Asus ROG Ally X
49 fps +2%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
49 fps +2%
AMD Radeon 890M
Asus ProArt PX13 HN7306
48 fps
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
40 fps -17%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
39.9 (1.229min, 13P0.1, 22P1 - 100.9max) fps -17%
Cyberpunk 2077 2.1 Phantom Liberty - 1920x1080 High Preset (FSR off)
AMD Radeon 890M
Asus ProArt PX13 HN7306
31.6 (26.6min - 38.7max) fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
30.8 (26.2min - 37.4max) fps -3%
AMD Radeon 780M
Asus ROG Ally X
27.2 (23.2min - 32.8max) fps -14%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
26.7 (22.9min - 32max) fps -16%
AMD Radeon 890M
Asus Zenbook S16 UM5606
25.4 (15.6min - 36.3max) fps -20%
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
25.4 (17.3min - 37.5max) fps -20%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
17 (13.4min - 23.2max) fps -46%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
16.1 (12.6min - 22.9max) fps -49%
Far Cry 5 - 1920x1080 High Preset AA:T
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
78 fps +44%
AMD Radeon 890M
Asus ProArt PX13 HN7306
54 fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
53 fps -2%
AMD Radeon 890M
Asus Zenbook S16 UM5606
46 fps -15%
AMD Radeon 780M
Asus ROG Ally X
42 fps -22%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
41 fps -24%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
31 fps -43%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
24 (19min - 37max) fps -56%
Dota 2 Reborn - 1920x1080 high (2/3)
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
148.1 (129.1min) fps +291%
AMD Radeon 780M
Asus ROG Ally X
86.5 (77.6min) fps +128%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
83.3 (53.4min) fps +120%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
59.2 (40.8min) fps +56%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
58.6 (41min) fps +55%
AMD Radeon 890M
Asus ProArt PX13 HN7306
37.9 (20.4min) fps
AMD Radeon 890M
Asus Zenbook S16 UM5606
35.8 (19.8min) fps -6%
AMD Radeon 890M
Asus ProArt P16 H7606WI
34.8 (19.1min) fps -8%
Baldur's Gate 3 - 1920x1080 High Preset
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
39 fps +37%
AMD Radeon 890M
Asus ProArt P16 H7606WI
30.2 fps +6%
AMD Radeon 890M
Asus ProArt PX13 HN7306
28.5 fps
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
27.5 fps -4%
AMD Radeon 780M
Asus ROG Ally X
26.6 fps -7%
AMD Radeon 890M
Asus Zenbook S16 UM5606
25.6 fps -10%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
17.3 fps -39%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
15 (7.53min, 7.54P0.1, 8.35P1 - 61.1max) fps -47%
Total War Pharaoh - 1920x1080 High Preset
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
73 fps +15%
AMD Radeon 890M
Asus ProArt PX13 HN7306
63.7 fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
63.2 fps -1%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
58.9 fps -8%
AMD Radeon 890M
Asus Zenbook S16 UM5606
50.7 fps -20%
AMD Radeon 780M
Asus ROG Ally X
40.4 fps -37%
GTA V - 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
138.2 (5.26min, 90.9P1 - 238max) fps +73%
AMD Radeon 890M
Asus ProArt P16 H7606WI
80.2 (3.21min, 55.6P1 - 156.5max) fps 0%
AMD Radeon 890M
Asus ProArt PX13 HN7306
79.9 (3.08min, 55.6P1 - 144.3max) fps
AMD Radeon 890M
Asus Zenbook S16 UM5606
68.4 (2.59min, 41.7P1 - 123.5max) fps -14%
AMD Radeon 780M
Asus ROG Ally X
66.5 (11.6min, 43.5P1 - 176.5max) fps -17%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
49.3 (0.699min, 15.4P1 - 98.8max) fps -38%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
44.7 (3.17min, 32.3P1 - 131.7max) fps -44%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
42.1 (0.601min, 12.2P1 - 100.5max) fps -47%
Strange Brigade - 1920x1080 high AA:high AF:8
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
104 fps +60%
AMD Radeon 890M
Asus ProArt P16 H7606WI
66.7 (42.5min, 51.3P1 - 115.3max) fps +2%
AMD Radeon 890M
Asus ProArt PX13 HN7306
65.2 (45.6min, 50P1 - 131.2max) fps
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
62 fps -5%
AMD Radeon 890M
Asus Zenbook S16 UM5606
60.2 (33min, 45.5P1 - 126.3max) fps -8%
AMD Radeon 780M
Asus ROG Ally X
60 (38.9min, 46.3P1 - 89.4max) fps -8%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
41 fps -37%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
39.1 (9.2min, 18.3P1 - 219max) fps -40%
F1 22 - 1920x1080 High Preset AA:T AF:16x
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
99.6 (83min, 66P1 - 116max) fps +29%
AMD Radeon 890M
Asus ProArt P16 H7606WI
78.1 (58min, 42P1 - 96max) fps +1%
AMD Radeon 890M
Asus ProArt PX13 HN7306
77 (54min, 54P1 - 90max) fps
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
65.2 (56min, 53P1 - 77max) fps -15%
AMD Radeon 780M
Asus ROG Ally X
64.6 (55min, 53P1 - 76max) fps -16%
AMD Radeon 890M
Asus Zenbook S16 UM5606
64.2 (44min, 27P1 - 79max) fps -17%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
38.1 (26min, 24P1 - 48max) fps -51%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
35.3 (25min, 25P1 - 43max) fps -54%

在 1080p 分辨率的最高设置下,情况依然如此,速度较慢的 Radeon 890M 再次落后于速度较快的 780M 和 Intel Arc Graphics。即便如此,Radeon 890M 的两个快速型号仍有两位数的领先优势。

Gaming Benchmarks Ultra Performance Rating - Percent
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
98.9 pt
AMD Radeon 890M
Asus ProArt PX13 HN7306
67.9 pt
AMD Radeon 890M
Asus ProArt P16 H7606WI
67.1 pt
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
60.3 pt
AMD Radeon 780M
Asus ROG Ally X
58.8 pt
AMD Radeon 890M
Asus Zenbook S16 UM5606
56.1 pt
Qualcomm SD X Adreno X1-85 3.8 TFLOPS -1!
Lenovo Yoga Slim 7X 14Q8X9
46 pt
Qualcomm SD X Adreno X1-85 3.8 TFLOPS -1!
Lenovo ThinkPad T14s Gen 6 21N10007GE
42.2 pt
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
51 fps +50%
AMD Radeon 890M
Asus ProArt PX13 HN7306
34 fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
32 fps -6%
AMD Radeon 780M
Asus ROG Ally X
31.1 fps -9%
AMD Radeon 890M
Asus Zenbook S16 UM5606
31 fps -9%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
26 fps -24%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
19.5 fps -43%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
18.1 (8.6min, 8.76P0.1, 14P1 - 67max) fps -47%
Cyberpunk 2077 2.1 Phantom Liberty - 1920x1080 Ultra Preset (FSR off)
AMD Radeon 890M
Asus ProArt PX13 HN7306
27.8 (23.1min - 35.6max) fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
27 (22.4min - 34.9max) fps -3%
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
25 (15.3min - 40.5max) fps -10%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
23.7 (20.1min - 29.4max) fps -15%
AMD Radeon 890M
Asus Zenbook S16 UM5606
23.1 (18.2min - 30.5max) fps -17%
AMD Radeon 780M
Asus ROG Ally X
22.9 (19.3min - 28.9max) fps -18%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
14.9 (11.7min - 20.9max) fps -46%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
13.9 (10.2min - 20.4max) fps -50%
Far Cry 5 - 1920x1080 Ultra Preset AA:T
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
74 fps +45%
AMD Radeon 890M
Asus ProArt PX13 HN7306
51 fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
50 fps -2%
AMD Radeon 780M
Asus ROG Ally X
40 fps -22%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
38 fps -25%
AMD Radeon 890M
Asus Zenbook S16 UM5606
33 fps -35%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
29 fps -43%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
22 (9min - 34max) fps -57%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
137.4 (96.9min) fps +282%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
80.5 (54.8min) fps +124%
AMD Radeon 780M
Asus ROG Ally X
76.2 (68.4min) fps +112%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
52 (38.6min) fps +44%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
51 (38min) fps +42%
AMD Radeon 890M
Asus ProArt PX13 HN7306
36 (20.4min) fps
AMD Radeon 890M
Asus Zenbook S16 UM5606
33.1 (18.7min) fps -8%
AMD Radeon 890M
Asus ProArt P16 H7606WI
32.4 (17.9min) fps -10%
Baldur's Gate 3 - 1920x1080 Ultra Preset
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
38.9 fps +34%
AMD Radeon 890M
Asus ProArt P16 H7606WI
29.6 fps +2%
AMD Radeon 890M
Asus ProArt PX13 HN7306
29.1 fps
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
26.2 fps -10%
AMD Radeon 780M
Asus ROG Ally X
25.8 fps -11%
AMD Radeon 890M
Asus Zenbook S16 UM5606
24.9 fps -14%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
16.6 fps -43%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
14.7 (7.34min, 7.48P0.1, 8.06P1 - 62.4max) fps -49%
Total War Pharaoh - 1920x1080 Ultra Preset
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
56 fps +2%
AMD Radeon 890M
Asus ProArt PX13 HN7306
54.7 fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
54.4 fps -1%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
52 fps -5%
AMD Radeon 890M
Asus Zenbook S16 UM5606
42.2 fps -23%
AMD Radeon 780M
Asus ROG Ally X
32 fps -41%
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
64.6 (4.52min, 41.7P1 - 112.7max) fps +104%
AMD Radeon 890M
Asus ProArt P16 H7606WI
32.2 (1.969min, 22.7P1 - 86.5max) fps +2%
AMD Radeon 890M
Asus ProArt PX13 HN7306
31.6 (2.04min, 22.7P1 - 82.3max) fps
AMD Radeon 890M
Asus Zenbook S16 UM5606
30.4 (3.23min, 21.7P1 - 69.7max) fps -4%
AMD Radeon 780M
Asus ROG Ally X
27.1 (7.11min, 18.9P1 - 51.4max) fps -14%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
21.1 (3.6min, 13P1 - 50max) fps -33%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
18.1 (3.68min, 11.1P1 - 46.2max) fps -43%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
17.8 (3.01min, 13.5P1 - 83.6max) fps -44%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
91 fps +63%
AMD Radeon 890M
Asus ProArt P16 H7606WI
57.6 (36.7min, 44.1P1 - 119.3max) fps +3%
AMD Radeon 890M
Asus ProArt PX13 HN7306
55.7 (36min, 42.8P1 - 106.5max) fps
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
52 fps -7%
AMD Radeon 780M
Asus ROG Ally X
51.6 (35.6min, 40.1P1 - 79.5max) fps -7%
AMD Radeon 890M
Asus Zenbook S16 UM5606
49.8 (31.1min, 37.7P1 - 106.1max) fps -11%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
34 fps -39%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
33.9 (6.3min, 9.52P1 - 251max) fps -39%
F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x
Nvidia RTX 500 Ada Generation Laptop GPU
Lenovo ThinkPad P14s G5 21G3S00A00
32.9 (27min, 26P1 - 39max) fps +50%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo Yoga Slim 7X 14Q8X9
28.6 (20min, 19P1 - 35max) fps +30%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
Lenovo ThinkPad T14s Gen 6 21N10007GE
26.8 (20min, 20P1 - 34max) fps +22%
AMD Radeon 890M
Asus ProArt PX13 HN7306
22 (14min, 13P1 - 27max) fps
AMD Radeon 890M
Asus ProArt P16 H7606WI
22 (15min, 15P1 - 27max) fps 0%
AMD Radeon 780M
Asus ROG Ally X
17.8 (14min, 14P1 - 21max) fps -19%
Intel Arc 8-Core iGPU
SCHENKER XMG Evo 15 (M24)
16.9 (12min, 12P1 - 20max) fps -23%
AMD Radeon 890M
Asus Zenbook S16 UM5606
16.7 (12min, 10P1 - 21max) fps -24%

运行Witcher 3

我们使用《 Witcher 3 》这款游戏进行能效分析已经有相当长的一段时间了,因此我们可以借鉴大量的对比数据。不过,新款 Radeon 890M 的结果有点令人沮丧,因为 28 瓦版本与旧款 Radeon 780M 相比优势微乎其微。高通 Adreno X1-85 的工作效率更高,就像Apple GPU 一样。如果你看看快速的 Radeon 890M,其效率会迅速下降。

Power Consumption - Witcher 3 ultra Efficiency (external Monitor)
Apple MacBook Pro 14 2023 M3 Pro
M3 Pro 14-Core GPU, Apple M3 Pro 11-Core, Apple SSD AP0512Z
1.189 fps per Watt +158%
Apple MacBook Air 15 M3
M3 10-Core GPU, M3, Apple SSD AP0512Z
1.096 fps per Watt +138%
Apple MacBook Pro 16 2023 M3 Pro
M3 Pro 18-Core GPU, Apple M3 Pro 12-Core, Apple SSD AP0512Z
1.075 fps per Watt +133%
Dell XPS 14 2024 OLED
NVIDIA GeForce RTX 4050 Laptop GPU, Ultra 7 155H, Samsung PM9A1 MZVL21T0HCLR
0.847 fps per Watt +84%
Lenovo Yoga Slim 7X 14Q8X9
Adreno X1-85 3.8 TFLOPS, SD X Elite X1E-78-100, Samsung PM9C1a MZAL81T0HDLB
0.771 fps per Watt +67%
Asus Vivobook S 15 OLED Snapdragon
Adreno X1-85 3.8 TFLOPS, SD X Elite X1E-78-100, Micron 2400 MTFDKBA1T0QFM
0.725 fps per Watt +57%
Samsung Galaxy Book4 Ultra
NVIDIA GeForce RTX 4050 Laptop GPU, Ultra 7 155H, Samsung PM9A1 MZVL2512HCJQ
0.717 fps per Watt +55%
Asus Zenbook S16 UM5606
Radeon 890M, Ryzen AI 9 HX 370, Micron 2400 MTFDKBA1T0QFM
0.677 fps per Watt +47%
Lenovo ThinkPad T14s Gen 6 21N10007GE
Adreno X1-85 3.8 TFLOPS, SD X Elite X1E-78-100, Samsung PM9C1a MZAL81T0HDLB
0.663 fps per Watt +44%
Lenovo ThinkPad T14s G4-21F8002TGE
Radeon 780M, R7 7840U, Samsung PM9A1a MZVL21T0HDLU
0.658 fps per Watt +43%
Asus Zenbook 14 OLED UM3406HA
Radeon 780M, R7 8840HS, Micron 2400 MTFDKBA1T0QFM
0.658 fps per Watt +43%
Lenovo ThinkPad P14s G5 21G3S00A00
Nvidia RTX 500 Ada Generation Laptop GPU, Ultra 7 155H, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
0.626 fps per Watt +36%
Lenovo ThinkBook 13x G4 21KR0008GE
Arc 7-Core, Ultra 5 125H, Samsung PM9C1a MZAL8512HDLU
0.589 fps per Watt +28%
SCHENKER Vision 14 M23 RTX 3050
GeForce RTX 3050 6GB Laptop GPU, i7-13700H, Samsung 990 Pro 1 TB
0.527 fps per Watt +14%
Asus ExpertBook B3 B3404CVF
GeForce RTX 2050 Mobile, i7-1355U, Micron 2400 MTFDKBA1T0QFM
0.522 fps per Watt +13%
Xiaomi RedmiBook Pro 16 2024
Arc 8-Core, Ultra 7 155H, YMTC PC300-1TB
0.519 fps per Watt +13%
Asus ROG Ally X
Radeon 780M, Z1 Extreme, WD PC SN560 SDDPNQE-1T00
0.511 fps per Watt +11%
Asus ProArt PX13 HN7306
Radeon 890M, Ryzen AI 9 HX 370
0.4613 fps per Watt
SCHENKER XMG Evo 15 (M24)
Arc 8-Core, Ultra 7 155H, Samsung 990 Pro 1 TB
0.4377 fps per Watt -5%
Lenovo IdeaPad Pro 5 14AHP9
Radeon 780M, R7 8845HS, SK hynix BC901 HFS001TEJ4X164N
0.437 fps per Watt -5%
Huawei MateBook X Pro 2024
Arc 8-Core, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
0.4246 fps per Watt -8%
Lenovo ThinkPad T14s G4 i7-1365U
Iris Xe G7 96EUs, i7-1365U
0.4083 fps per Watt -11%

不同功率极限下的性能

此外,我们还测试了新款 Radeon 890M 在不同功率限制下的性能。我们选择了 15、20、28 和 35 瓦的数值,然后在每种情况下执行了Time Spy 基准测试。我们还对 Radeon 780M 和英特尔 Arc Graphics(8 Xe 内核)进行了测试。测试系统的详细信息见下表。

3DMark Time Spy Graphics
笔记本电脑 iGPU 内存 15 瓦 20 瓦 28 瓦 35 瓦
华硕 ProArt P16 Radeon 890M 64 GB LPDDR5x-7500 2,514 分 2,946 分 3,235 分 3,369 分
华硕 ROG Ally X Radeon 780M 24 GB LPDDR5x-7500 2,215 分 2,656 分 2,947 分 3,063 分
华硕 Zenbook 14 Intel Arc Graphics (8 Xe cores) 32 GB LPDDR5x-7467 1,827 分 2,246 分 2,925 分 3,285 分
申克 XMG Evo 15 Intel Arc Graphics (8 Xe 核心) 32 GB DDR5-5600 1,632 分 2,471 分 3,113 分 3,428 分

首先,很明显,Intel Arc Graphics 需要高 TDP 值才能在竞争中立于不败之地。然而,新的 Radeon 890M 在低 TDP 值下表现出色,在 15 瓦时比 Radeon 780M 性能高出 12%。在 20 瓦时,性能比 Radeon 780M 高出 10%;在 28 瓦和 35 瓦时,性能比 Radeon 780M 各高出 9%。

结论 - Radeon 890M 速度更快,但在低 TDP 值下效率更高

AMD Radeon 890M 图形处理器评测
AMD Radeon 890M 图形处理器评测

新款 Radeon 890M 发布之前,人们对它寄予了很高的期望,但在实际应用中却未能完全实现。没错,它的整体性能比 Radeon 780M 和英特尔 Arc Graphics 更好(尤其是在游戏时),但尚未出现大的变革。特别是,它在 28 瓦时的能效几乎没有超过老款 780M--尽管根据笔记本电脑的不同可能会有一些细微的差别。即便如此,Radeon 890M 也需要 46 瓦左右的功耗才能发挥全部性能,导致 iGPU 的工作效率不再特别高。在 15-20 瓦的低功耗范围内(这对游戏手持设备尤为重要),该组件在合成测试中的优势约为前代产品的 10-12%。

这进一步扩大了它对英特尔的领先优势(在效率方面也是如此),但新的 Lunar Lake 移动处理器很快就会上市。由于效率是这些显卡的主要关注点,我们非常期待这些设备的表现。Apple 在效率方面仍然遥遥领先。

新的 Radeon 890M 比老的 Radeon 780M 性能更强,但要充分发挥其潜力,也需要大量的电力。当 TDP 值低于 30 瓦时,它的优势通常只有 10%左右。

在接下来的几天里,我们将进一步进行游戏基准测试,并将对 Radeon 890M 的 FSR 和内存手动分配等问题进行研究,届时我们将对本文进行相应的更新。

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > AMD Zen 5 Strix Point iGPU 分析 - Radeon 890M 与英特尔 Arc Graphics、Apple M3 和高通 Adreno X1-85 的比较
Andreas Osthoff, 2024-07-30 (Update: 2024-07-30)
