申克 Vision 14 M23 评测--配备GeForce RTX 3050 6 GB 的镁合金超极本
我们已经测试过目前申克 Vision 14 的 iGPU 版本,所以现在要评测的只剩下使用GeForce RTX 3050(刷新,6 GB VRAM)取代GeForce RTX 3050 Ti(4 GB VRAM)的型号。但这真的是升级吗?与现在主要使用新版GeForce RTX 4050 笔记本电脑的竞争对手相比,差距有多大?我们的测试设备配备了酷睿 i7-13700H、GeForce RTX 3050、32 GB 内存、1 TB 固态硬盘和雾面 3K IPS 显示屏,价格约为 2200 美元。
与我们之前测试过的 iGPU 版本相比,它在机箱、连接、输入设备、屏幕和扬声器等许多方面都没有任何差异。因此,在本次评测中,我们将重点关注这款笔记本电脑的性能以及专用 GPU 对其排放的影响。欲了解更多信息,请访问我们的Vision 14 M23 iGPU 评测 。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
---|---|---|---|---|---|---|---|
88.2 % | 01/2024 | SCHENKER Vision 14 M23 RTX 3050 i7-13700H, GeForce RTX 3050 6GB Laptop GPU | 1.3 kg | 16.6 mm | 14.00" | 2880x1800 | |
89.8 % | 07/2023 | Lenovo Yoga Pro 9-14IRP G8 i7-13705H, NVIDIA GeForce RTX 4050 Laptop GPU | 1.7 kg | 17.6 mm | 14.50" | 3072x1920 | |
90.2 % | 05/2023 | Lenovo Yoga Pro 7 14IRH G8 i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU | 1.5 kg | 15.6 mm | 14.50" | 3072x1920 | |
86.3 % | 07/2023 | Acer Swift X SFX14-71G i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU | 1.5 kg | 17.9 mm | 14.50" | 2880x1800 | |
85.6 % | 08/2023 | Asus VivoBook 14X K3405 i5-13500H, GeForce RTX 3050 4GB Laptop GPU | 1.4 kg | 18.9 mm | 14.00" | 2880x1800 | |
89.4 % | 05/2023 | Gigabyte Aero 14 OLED BMF i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU | 1.4 kg | 17 mm | 14.00" | 2880x1800 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
与 iGPU 型号的区别

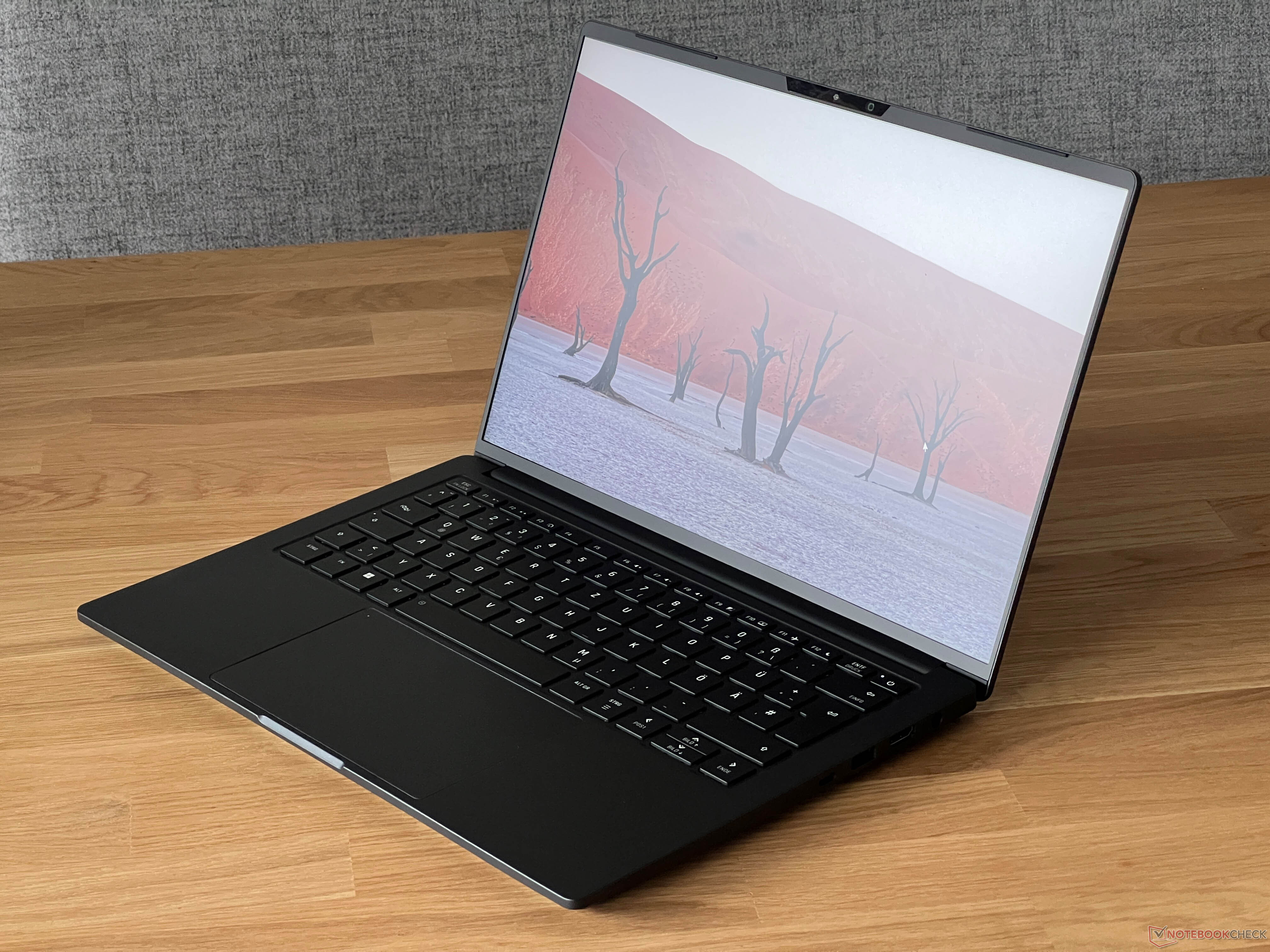

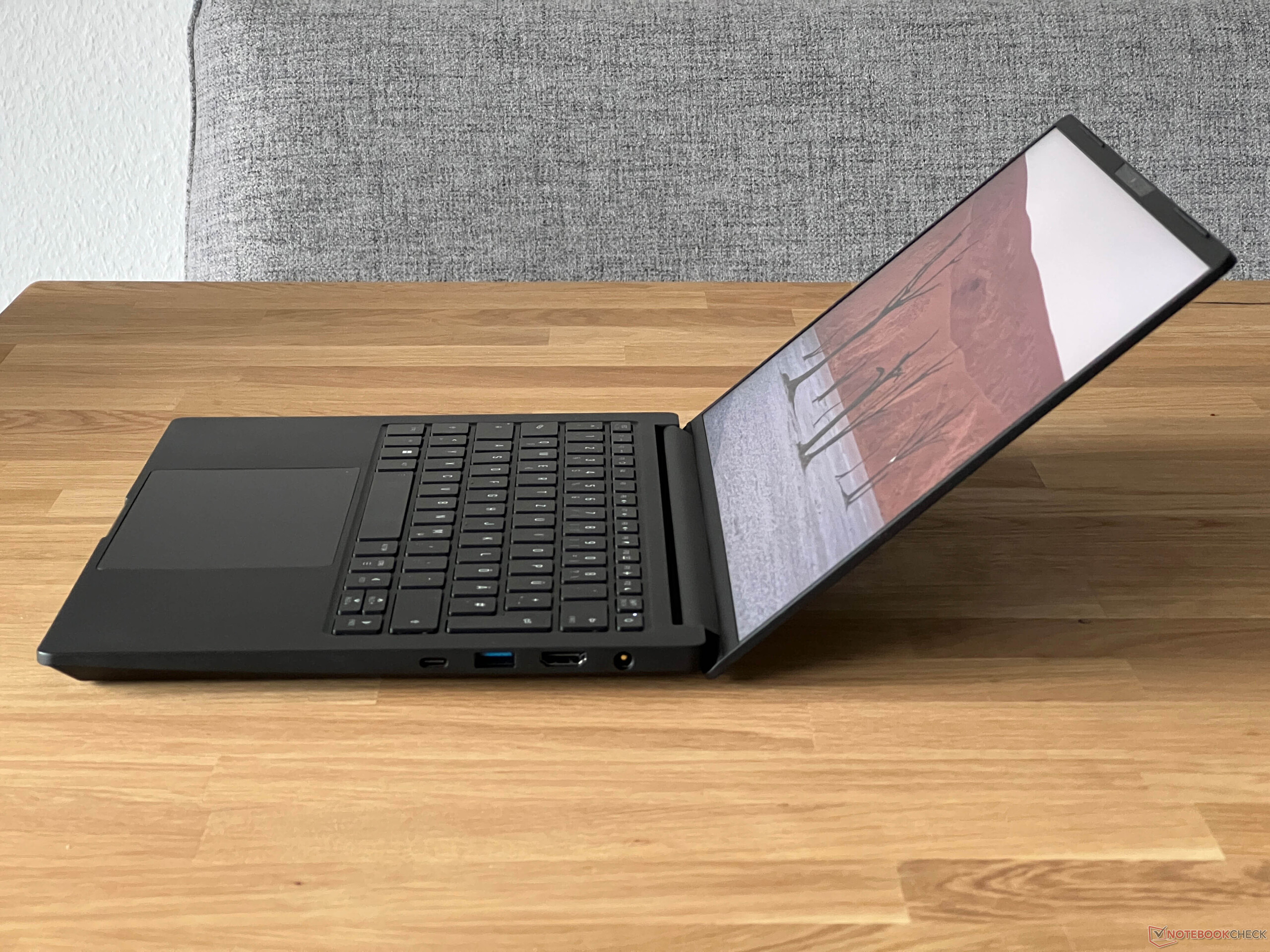

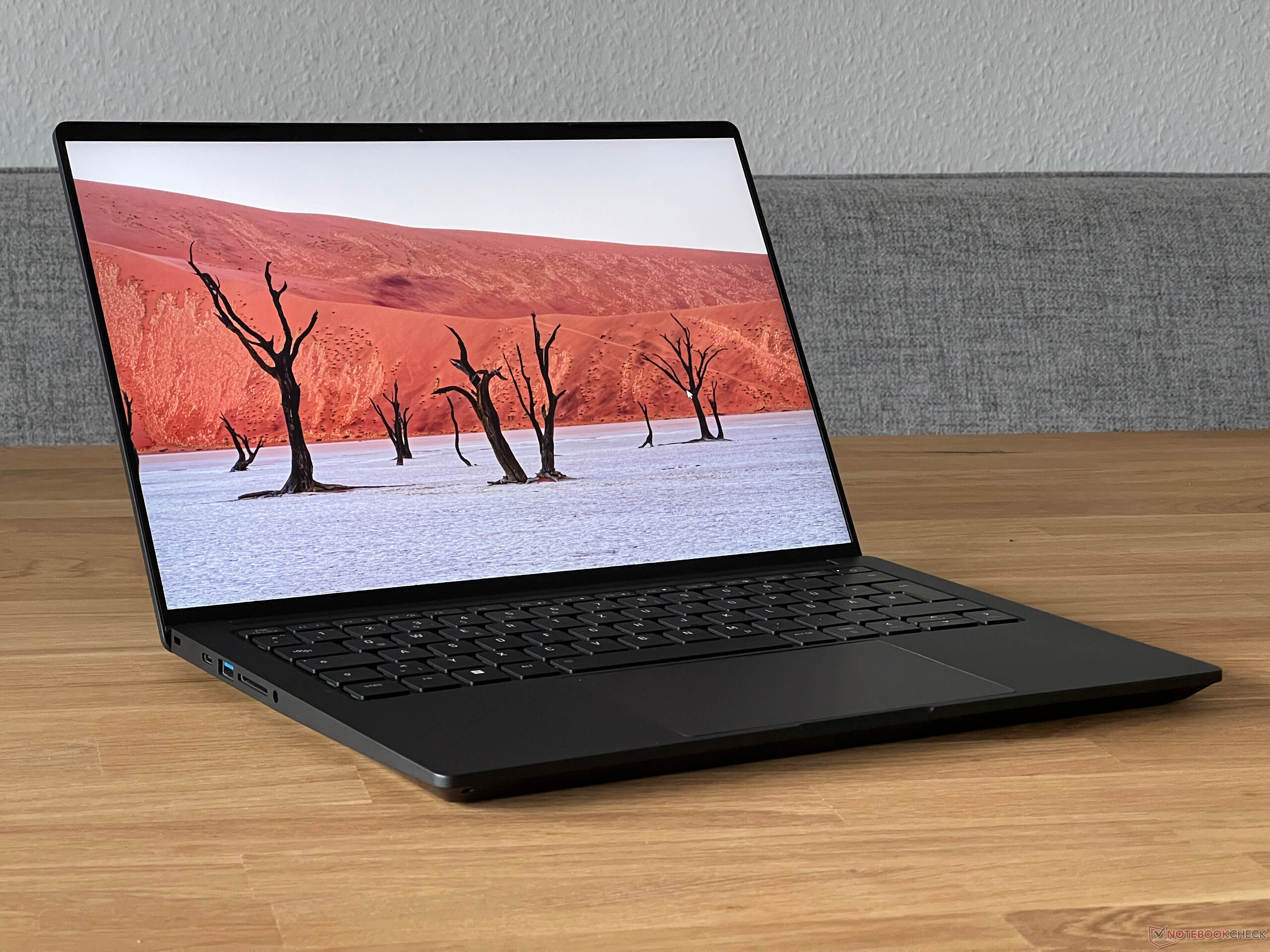

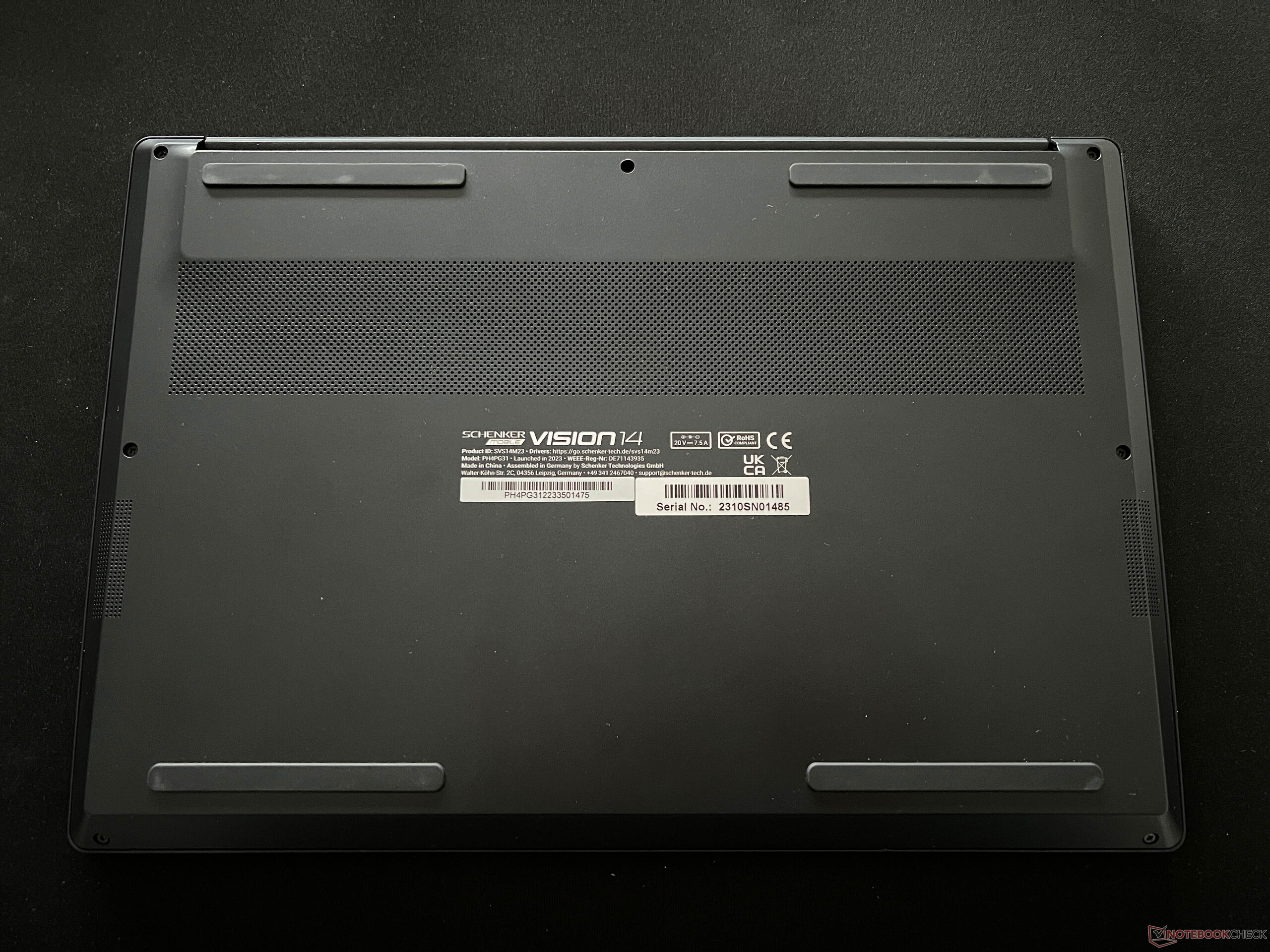

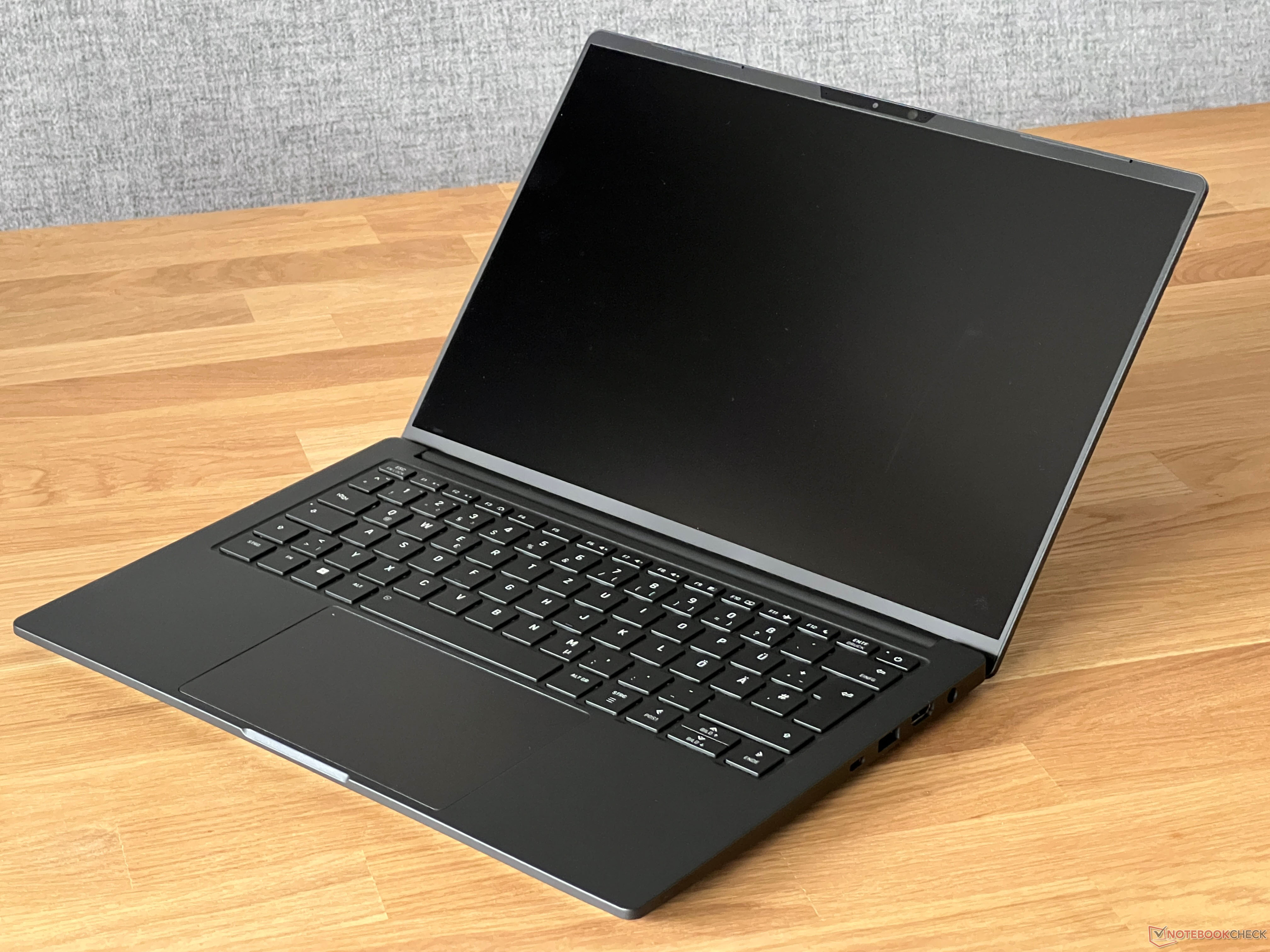

我们目前测试的设备是 Vision 14 的黑色版本,其外壳(镁合金)与之前测试的 iGPU 型号完全相同。 之前测试的 iGPU 型号完全相同。主观而言,我们更喜欢银色版本,因为它更不容易沾染灰尘和指纹。在机身内部,冷却系统也有所改动,当然还安装了专用的 Nvidia GPU。因此,它的重量增加了约 80 克,总重约为 1.35 千克。此外,dGPU 版本配备了功率更大的 150 瓦电源,实际上比 120 瓦版本更紧凑、更轻巧。

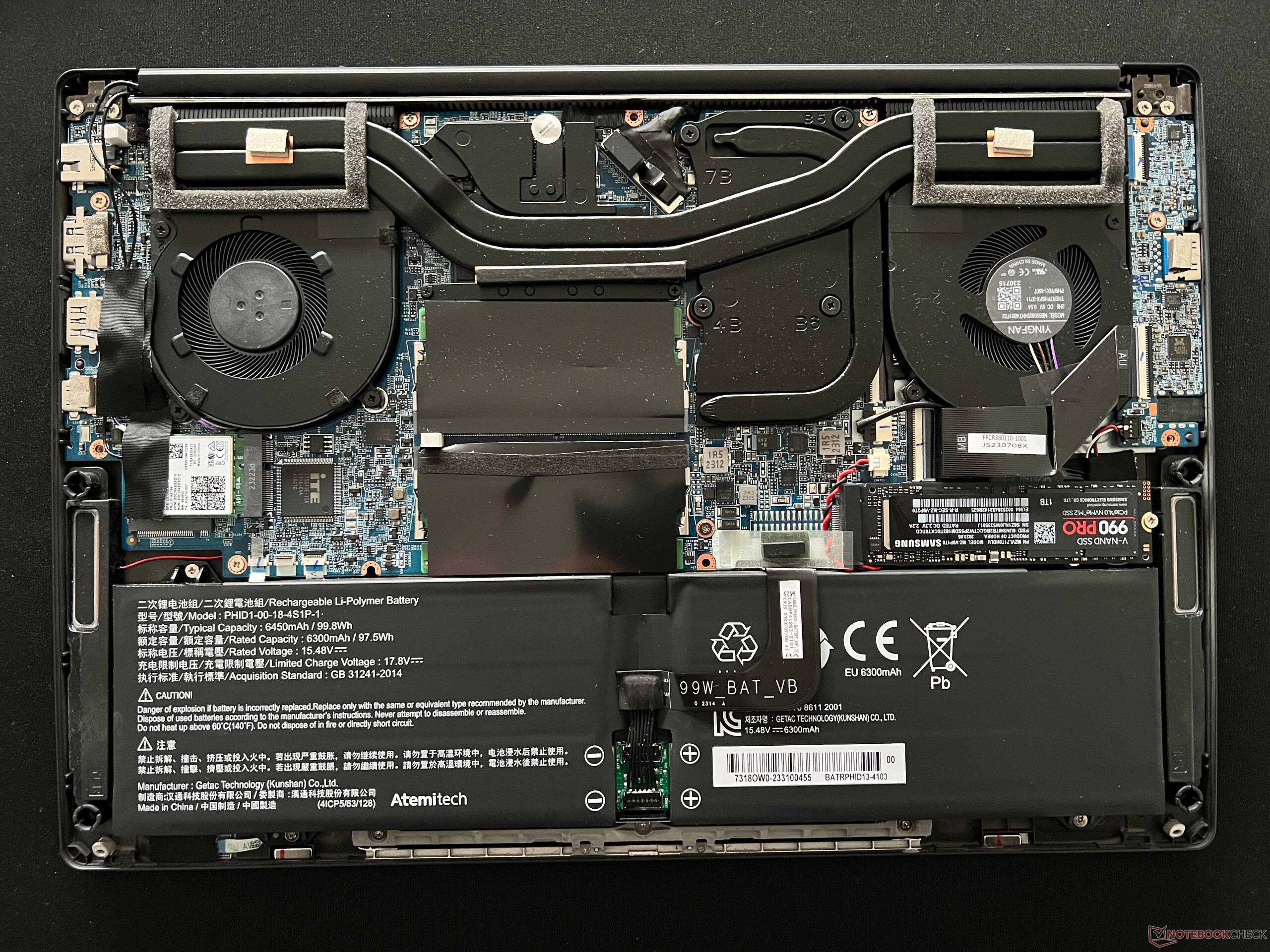

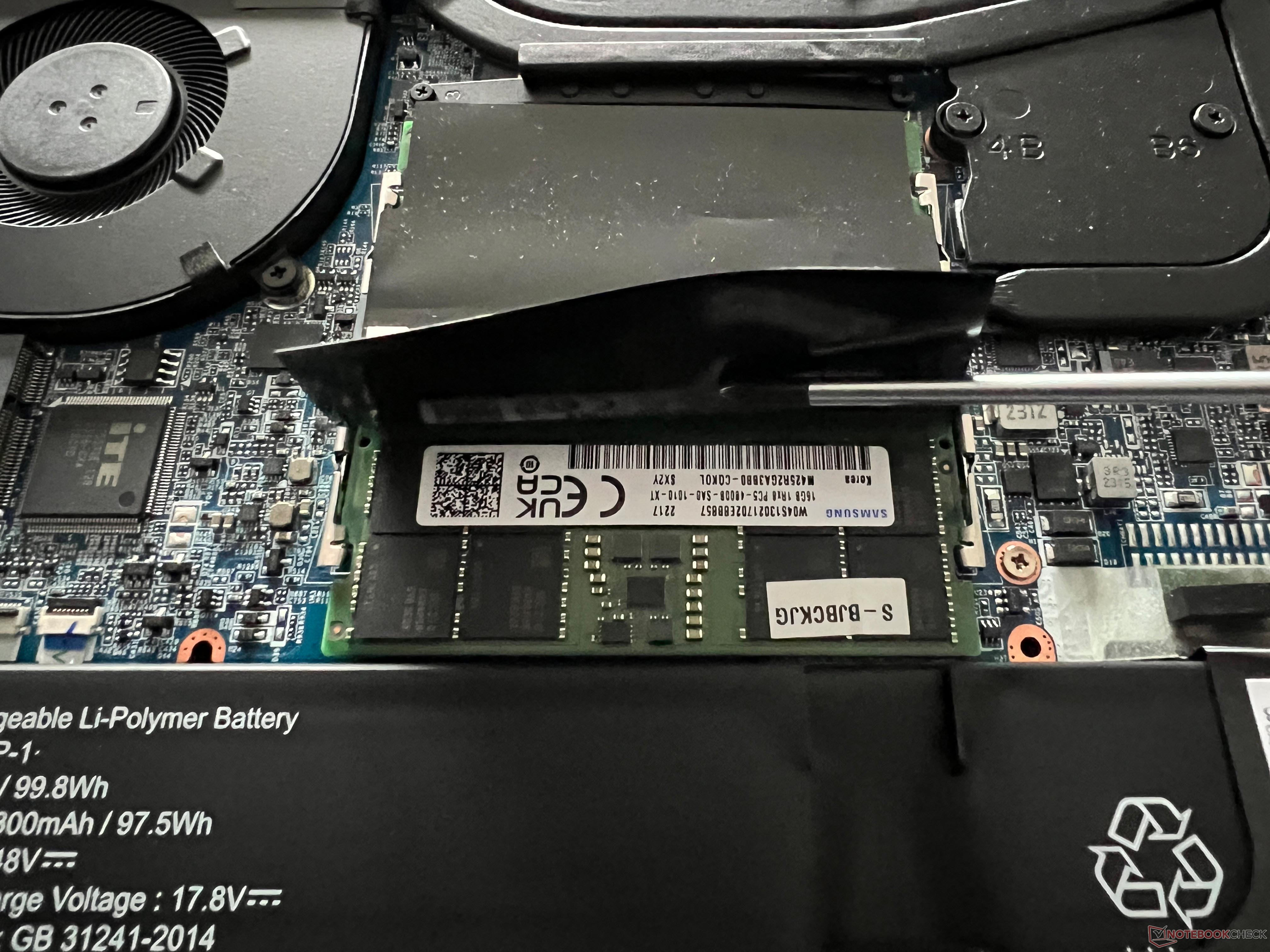

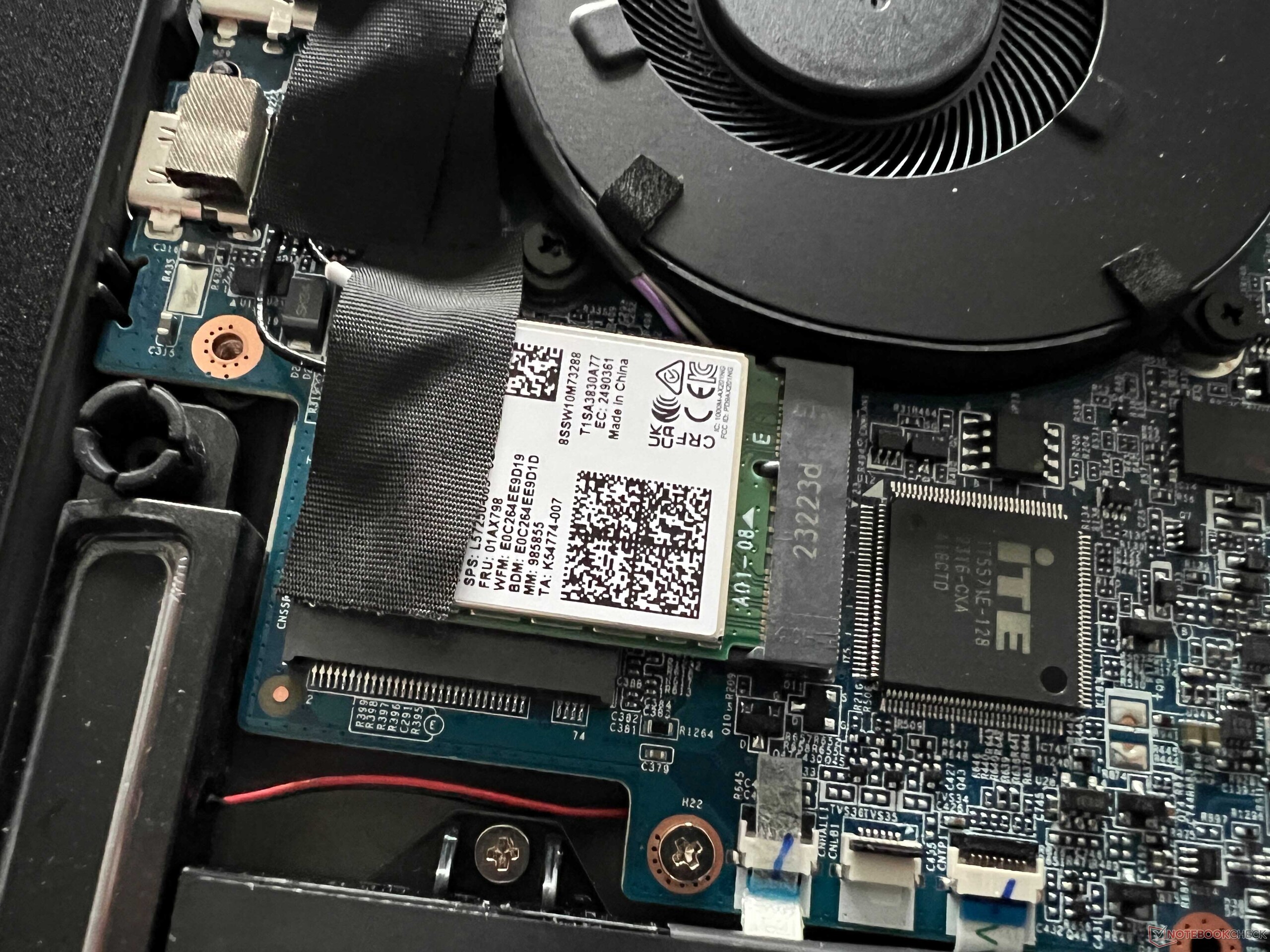

与竞争对手相比,Vision 14 dGPU 仍然是最紧凑、最轻便的设备,此外,由于它有两个内存插槽,因此在连接和维护选项方面具有很多优势。
性能 - Raptor Lake 和 RTX 3050
测试条件
预装的控制中心提供两个配置文件--安静和性能,其中 性能配置文件有两个子配置文件,即均衡和发烧。我们在下表中总结了这些配置文件的效果。如果你的目标是最大限度地提高 GPU 性能,那么你应该使用性能/发烧配置文件,我们在下面的基准测试和测量中就是这样做的。在较简单的任务中,您也可以轻松使用 "安静"配置文件。
配置文件 | CPU 负载 | CB R23 Multi | GPU 负载 | Time Spy 图形 | W3 Ultra | 最大风扇噪音排放 |
---|---|---|---|---|---|---|
静音 | 15 瓦 | 5,509 分 | 35 瓦 | 3,811 分 | 36.7 fps | 35.7 dB(A) |
性能 (平衡型) |
45 瓦 | 12,692 分 | 35 瓦 | 3,814 分 | 37.2 fps | 46.9 dB(A) |
性能 (发烧级) |
45 瓦 | 13,401 分 | 50 瓦 | 4,501 分 | 43.7 fps | 49.1 dB(A) |

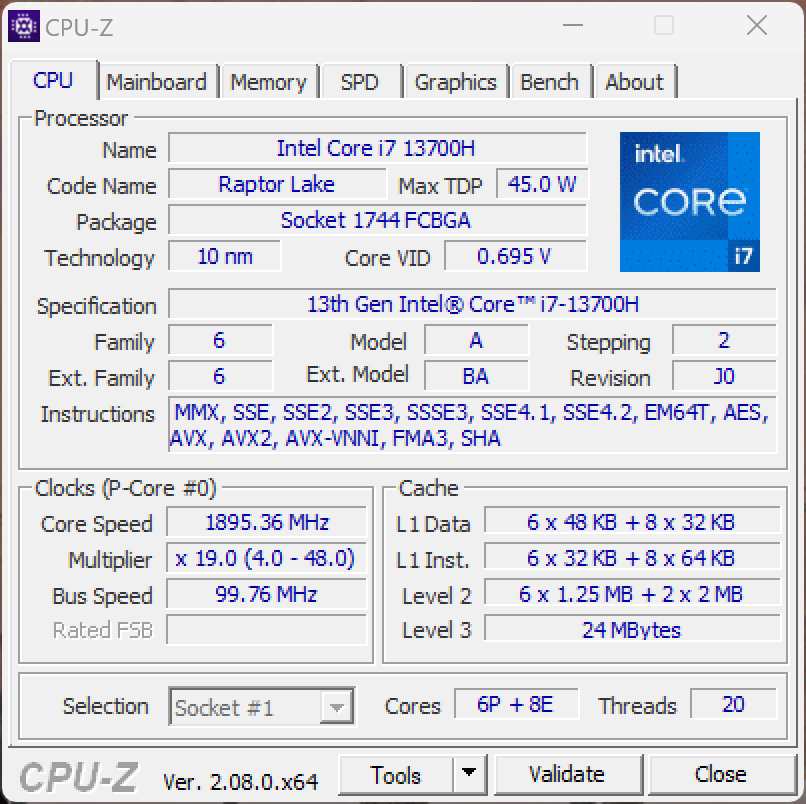

处理器 - 酷睿 i7-13700H
酷睿 i7-13700H 酷睿 i7-13700H(Raptor Lake)共有 14 个内核(6 个性能内核、8 个效率内核),可同时处理 20 个线程。在当前版本的 Vision 14 中,处理器在短时间内的最大功耗为 45 瓦,随后降至 40 瓦。总的来说,这比前一代的 前代相比,功耗限制为 60/40 瓦。因此,配备 酷睿 i7-12700H的旧机型在多核负载的最初几分钟内速度稍快,但总的来说,这被其较差的单核性能所抵消。这使得它的性能总体上还不错,但我们希望能再好一些。在电池使用情况下,该处理器的最大功耗为 36 瓦,导致其多核性能降低约 15%。更多的 CPU 基准测试可 技术部分。
Cinebench R15 Multi continuous test
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Gigabyte Aero 14 OLED BMF | |
Acer Swift X SFX14-71G | |
Average Intel Core i7-13700H | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Asus VivoBook 14X K3405 | |
Average of class Subnotebook |
Cinebench R23 / Multi Core | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Acer Swift X SFX14-71G | |
Average Intel Core i7-13700H (5890 - 20034, n=27) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Asus VivoBook 14X K3405 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
Average of class Subnotebook (2485 - 16201, n=68, last 2 years) |
Cinebench R23 / Single Core | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Acer Swift X SFX14-71G | |
Lenovo Yoga Pro 7 14IRH G8 | |
Lenovo Yoga Pro 9-14IRP G8 | |
Gigabyte Aero 14 OLED BMF | |
Average Intel Core i7-13700H (1323 - 1914, n=27) | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average of class Subnotebook (598 - 1934, n=68, last 2 years) |
Cinebench R20 / CPU (Multi Core) | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Acer Swift X SFX14-71G | |
Average Intel Core i7-13700H (2322 - 7674, n=27) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Asus VivoBook 14X K3405 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
Average of class Subnotebook (810 - 6314, n=64, last 2 years) |
Cinebench R20 / CPU (Single Core) | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
Acer Swift X SFX14-71G | |
Lenovo Yoga Pro 7 14IRH G8 | |
Lenovo Yoga Pro 9-14IRP G8 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average Intel Core i7-13700H (508 - 741, n=27) | |
Asus VivoBook 14X K3405 | |
Average of class Subnotebook (216 - 738, n=64, last 2 years) |
Cinebench R15 / CPU Multi 64Bit | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Gigabyte Aero 14 OLED BMF | |
Acer Swift X SFX14-71G | |
Average Intel Core i7-13700H (905 - 2982, n=27) | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Average of class Subnotebook (514 - 2581, n=70, last 2 years) |
Cinebench R15 / CPU Single 64Bit | |
SCHENKER Vision 14 2023 | |
Acer Swift X SFX14-71G | |
Lenovo Yoga Pro 7 14IRH G8 | |
Lenovo Yoga Pro 9-14IRP G8 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average Intel Core i7-13700H (213 - 276, n=27) | |
Asus VivoBook 14X K3405 | |
Average of class Subnotebook (91.8 - 280, n=62, last 2 years) |
Blender / v2.79 BMW27 CPU | |
Average of class Subnotebook (201 - 1600, n=66, last 2 years) | |
Acer Swift X SFX14-71G | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 M23 RTX 3050 | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 2023 | |
Gigabyte Aero 14 OLED BMF | |
Average Intel Core i7-13700H (169 - 555, n=27) | |
Lenovo Yoga Pro 7 14IRH G8 | |
Lenovo Yoga Pro 9-14IRP G8 |
7-Zip 18.03 / 7z b 4 | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H (27322 - 76344, n=27) | |
Gigabyte Aero 14 OLED BMF | |
Acer Swift X SFX14-71G | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average of class Subnotebook (16223 - 67444, n=57, last 2 years) |
7-Zip 18.03 / 7z b 4 -mmt1 | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Acer Swift X SFX14-71G | |
Lenovo Yoga Pro 9-14IRP G8 | |
Gigabyte Aero 14 OLED BMF | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H (4825 - 6238, n=27) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Asus VivoBook 14X K3405 | |
Average of class Subnotebook (2197 - 6403, n=58, last 2 years) |
Geekbench 5.5 / Multi-Core | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H (6165 - 14215, n=27) | |
Acer Swift X SFX14-71G | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Asus VivoBook 14X K3405 | |
Average of class Subnotebook (4274 - 12580, n=65, last 2 years) |
Geekbench 5.5 / Single-Core | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Gigabyte Aero 14 OLED BMF | |
Acer Swift X SFX14-71G | |
SCHENKER Vision 14 2023 | |
Average Intel Core i7-13700H (1362 - 1919, n=27) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average of class Subnotebook (672 - 2350, n=65, last 2 years) | |
Asus VivoBook 14X K3405 |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Lenovo Yoga Pro 7 14IRH G8 | |
Lenovo Yoga Pro 9-14IRP G8 | |
Average Intel Core i7-13700H (6.72 - 21.2, n=27) | |
Asus VivoBook 14X K3405 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Acer Swift X SFX14-71G | |
Average of class Subnotebook (1.5 - 19.4, n=56, last 2 years) |
LibreOffice / 20 Documents To PDF | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
Average of class Subnotebook (40.1 - 120.5, n=57, last 2 years) | |
Asus VivoBook 14X K3405 | |
Average Intel Core i7-13700H (31.3 - 62.4, n=27) | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Gigabyte Aero 14 OLED BMF | |
Acer Swift X SFX14-71G |
R Benchmark 2.5 / Overall mean | |
Average of class Subnotebook (0.4397 - 1.236, n=57, last 2 years) | |
Asus VivoBook 14X K3405 | |
Average Intel Core i7-13700H (0.4308 - 0.607, n=27) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 M23 RTX 3050 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2023 | |
Acer Swift X SFX14-71G | |
Lenovo Yoga Pro 7 14IRH G8 | |
Lenovo Yoga Pro 9-14IRP G8 |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Gigabyte Aero 14 OLED BMF | |
Average Intel Core i7-13700H | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 2023 | |
Acer Swift X SFX14-71G | |
Average of class Subnotebook |
AIDA64 / FP32 Ray-Trace | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H (4986 - 18908, n=27) | |
Asus VivoBook 14X K3405 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average of class Subnotebook (343 - 25961, n=57, last 2 years) | |
Acer Swift X SFX14-71G |
AIDA64 / FPU Julia | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H (25360 - 92359, n=27) | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average of class Subnotebook (11867 - 111109, n=57, last 2 years) | |
Acer Swift X SFX14-71G |
AIDA64 / CPU SHA3 | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Asus VivoBook 14X K3405 | |
Average Intel Core i7-13700H (1339 - 4224, n=27) | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Acer Swift X SFX14-71G | |
Average of class Subnotebook (453 - 4646, n=57, last 2 years) |
AIDA64 / CPU Queen | |
Gigabyte Aero 14 OLED BMF | |
Lenovo Yoga Pro 7 14IRH G8 | |
Lenovo Yoga Pro 9-14IRP G8 | |
Acer Swift X SFX14-71G | |
Average Intel Core i7-13700H (68763 - 107159, n=27) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 M23 RTX 3050 | |
Asus VivoBook 14X K3405 | |
Average of class Subnotebook (15447 - 115300, n=57, last 2 years) | |
SCHENKER Vision 14 2023 |
AIDA64 / FPU SinJulia | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H (4800 - 11050, n=27) | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 M23 RTX 3050 | |
Average of class Subnotebook (1223 - 14944, n=57, last 2 years) | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 2023 | |
Acer Swift X SFX14-71G |
AIDA64 / FPU Mandel | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H (12321 - 45118, n=27) | |
Asus VivoBook 14X K3405 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average of class Subnotebook (6379 - 59053, n=57, last 2 years) | |
Acer Swift X SFX14-71G |
AIDA64 / CPU AES | |
Gigabyte Aero 14 OLED BMF | |
Asus VivoBook 14X K3405 | |
Acer Swift X SFX14-71G | |
Average Intel Core i7-13700H (28769 - 151254, n=27) | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
Average of class Subnotebook (638 - 161430, n=57, last 2 years) |
AIDA64 / CPU ZLib | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average Intel Core i7-13700H (389 - 1215, n=27) | |
Asus VivoBook 14X K3405 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Acer Swift X SFX14-71G | |
Average of class Subnotebook (270 - 1123, n=57, last 2 years) |
AIDA64 / FP64 Ray-Trace | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H (2540 - 10135, n=27) | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average of class Subnotebook (204 - 14018, n=57, last 2 years) | |
Acer Swift X SFX14-71G |
AIDA64 / CPU PhotoWorxx | |
Gigabyte Aero 14 OLED BMF | |
Lenovo Yoga Pro 9-14IRP G8 | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Average Intel Core i7-13700H (19552 - 52727, n=27) | |
Lenovo Yoga Pro 7 14IRH G8 | |
Acer Swift X SFX14-71G | |
Average of class Subnotebook (7622 - 53954, n=57, last 2 years) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Asus VivoBook 14X K3405 |
系统性能
主观上,Vision 14 表现出了出色的性能,在合成基准测试中,它没有表现出任何问题--尽管配备 RTX 4050 笔记本电脑的竞争对手大多表现得更好。另一方面,在日常使用中,你可能不会注意到这些差异。
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
PCMark 10 / Score | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Gigabyte Aero 14 OLED BMF | |
Acer Swift X SFX14-71G | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU (6290 - 6597, n=2) | |
SCHENKER Vision 14 M23 RTX 3050 | |
Average of class Subnotebook (4384 - 7428, n=55, last 2 years) | |
SCHENKER Vision 14 2023 |
PCMark 10 / Essentials | |
Gigabyte Aero 14 OLED BMF | |
Acer Swift X SFX14-71G | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 2023 | |
Average of class Subnotebook (8890 - 11168, n=55, last 2 years) | |
Asus VivoBook 14X K3405 | |
Average Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU (9943 - 10112, n=2) | |
SCHENKER Vision 14 M23 RTX 3050 |
PCMark 10 / Productivity | |
Acer Swift X SFX14-71G | |
Gigabyte Aero 14 OLED BMF | |
Lenovo Yoga Pro 7 14IRH G8 | |
Lenovo Yoga Pro 9-14IRP G8 | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Average Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU (8803 - 8950, n=2) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Average of class Subnotebook (6213 - 10279, n=55, last 2 years) | |
SCHENKER Vision 14 2023 |
PCMark 10 / Digital Content Creation | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Acer Swift X SFX14-71G | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Asus VivoBook 14X K3405 | |
Average Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU (7590 - 8752, n=2) | |
SCHENKER Vision 14 M23 RTX 3050 | |
Average of class Subnotebook (4093 - 9749, n=55, last 2 years) | |
SCHENKER Vision 14 2023 |
CrossMark / Overall | |
Acer Swift X SFX14-71G | |
Lenovo Yoga Pro 9-14IRP G8 | |
Gigabyte Aero 14 OLED BMF | |
Lenovo Yoga Pro 7 14IRH G8 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Asus VivoBook 14X K3405 | |
Average Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU (1504 - 1752, n=2) | |
Average of class Subnotebook (718 - 1876, n=61, last 2 years) | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 M23 RTX 3050 |
CrossMark / Productivity | |
Acer Swift X SFX14-71G | |
Gigabyte Aero 14 OLED BMF | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Asus VivoBook 14X K3405 | |
Average Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU (1417 - 1657, n=2) | |
Average of class Subnotebook (685 - 1829, n=61, last 2 years) | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 M23 RTX 3050 |
CrossMark / Creativity | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Acer Swift X SFX14-71G | |
Gigabyte Aero 14 OLED BMF | |
Average Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU (1711 - 1970, n=2) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 M23 RTX 3050 | |
Asus VivoBook 14X K3405 | |
Average of class Subnotebook (776 - 2210, n=61, last 2 years) | |
SCHENKER Vision 14 2023 |
CrossMark / Responsiveness | |
Acer Swift X SFX14-71G | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Lenovo Yoga Pro 9-14IRP G8 | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 2023 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU (1220 - 1458, n=2) | |
Average of class Subnotebook (652 - 1899, n=61, last 2 years) | |
SCHENKER Vision 14 M23 RTX 3050 |
WebXPRT 3 / Overall | |
Acer Swift X SFX14-71G | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
Average Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU (286 - 300, n=2) | |
Gigabyte Aero 14 OLED BMF | |
Average of class Subnotebook (119.2 - 448, n=63, last 2 years) | |
Asus VivoBook 14X K3405 |
WebXPRT 4 / Overall | |
SCHENKER Vision 14 M23 RTX 3050 | |
Average Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU (273 - 325, n=2) | |
Acer Swift X SFX14-71G | |
Lenovo Yoga Pro 9-14IRP G8 | |
SCHENKER Vision 14 2023 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Asus VivoBook 14X K3405 | |
Average of class Subnotebook (67.2 - 325, n=50, last 2 years) |
Mozilla Kraken 1.1 / Total | |
Average of class Subnotebook (363 - 1913, n=67, last 2 years) | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2023 | |
Lenovo Yoga Pro 9-14IRP G8 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Acer Swift X SFX14-71G | |
Average Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU (490 - 496, n=2) |
* ... smaller is better
PCMark 10 Score | 6290 points | |
Help |
AIDA64 / Memory Copy | |
Lenovo Yoga Pro 9-14IRP G8 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H (40018 - 78081, n=27) | |
Acer Swift X SFX14-71G | |
Average of class Subnotebook (22781 - 95353, n=57, last 2 years) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Asus VivoBook 14X K3405 |
AIDA64 / Memory Read | |
Gigabyte Aero 14 OLED BMF | |
Lenovo Yoga Pro 9-14IRP G8 | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H (44583 - 79656, n=27) | |
Acer Swift X SFX14-71G | |
Average of class Subnotebook (23831 - 86433, n=57, last 2 years) | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 2022 RTX 3050 Ti |
AIDA64 / Memory Write | |
Gigabyte Aero 14 OLED BMF | |
Lenovo Yoga Pro 9-14IRP G8 | |
Acer Swift X SFX14-71G | |
Average Intel Core i7-13700H (42710 - 99898, n=27) | |
Lenovo Yoga Pro 7 14IRH G8 | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
Average of class Subnotebook (23474 - 93382, n=57, last 2 years) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Asus VivoBook 14X K3405 |
AIDA64 / Memory Latency | |
Acer Swift X SFX14-71G | |
Average of class Subnotebook (18.8 - 172, n=52, last 2 years) | |
Lenovo Yoga Pro 7 14IRH G8 | |
Average Intel Core i7-13700H (82.4 - 136.8, n=27) | |
Lenovo Yoga Pro 9-14IRP G8 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 2023 | |
SCHENKER Vision 14 M23 RTX 3050 |
* ... smaller is better

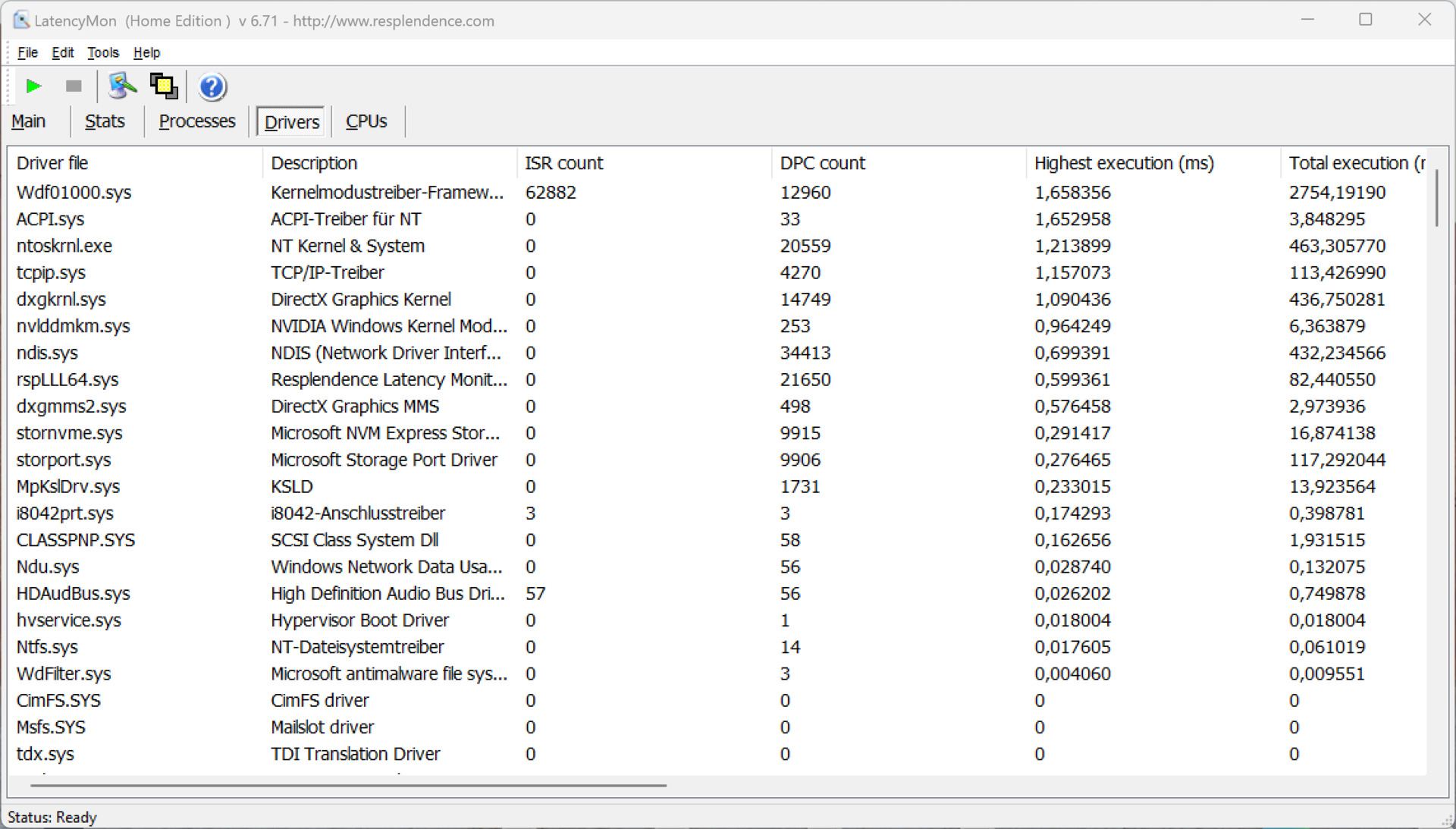

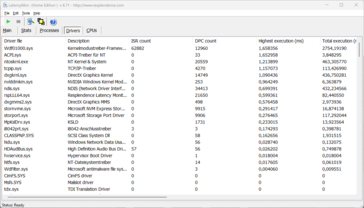

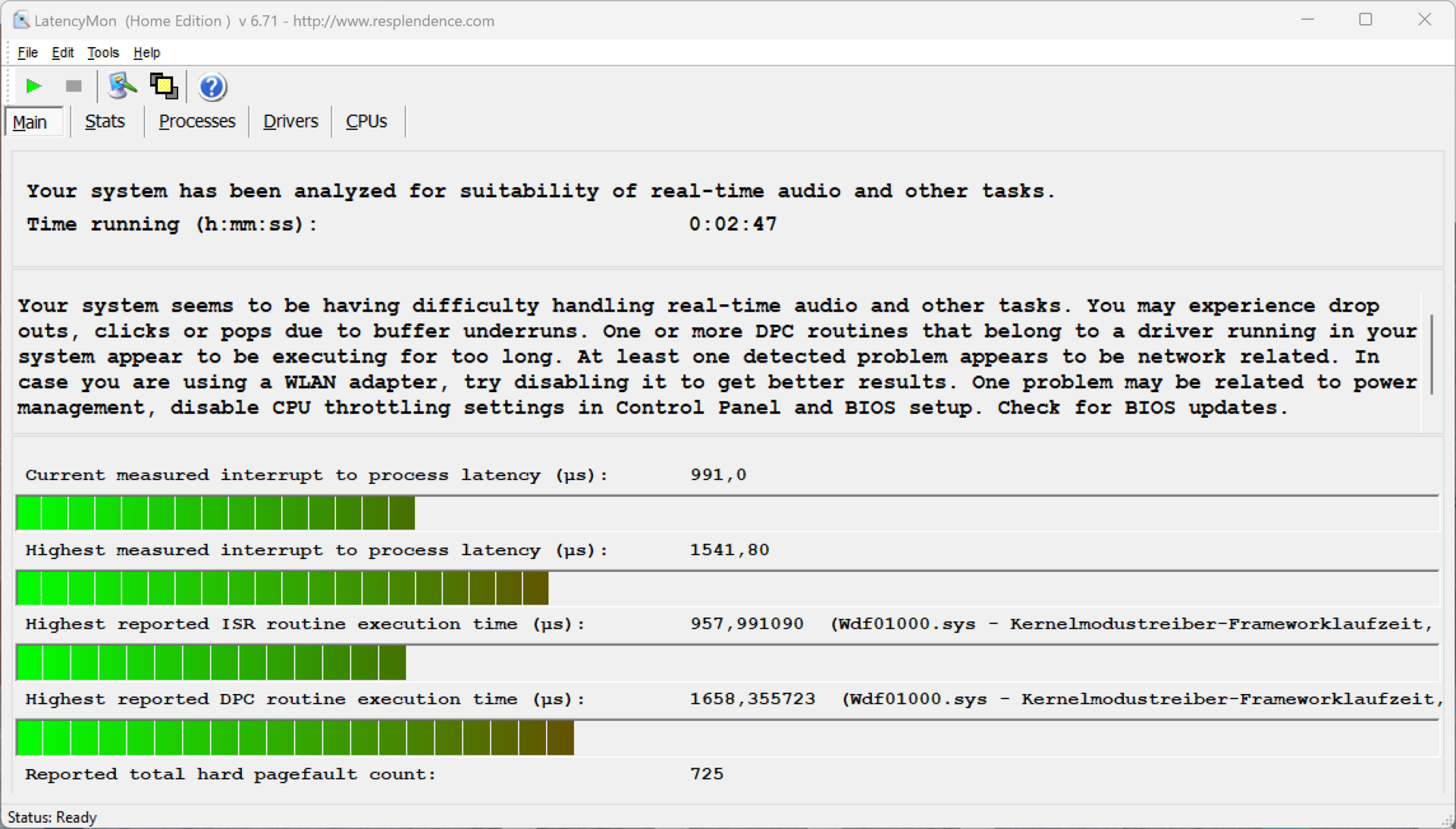

DPC 延迟
在我们的标准化延迟测试(网上冲浪、4K YouTube 播放、CPU 负载)中,使用当前 BIOS 版本的测试设备在使用实时音频应用程序时显示出轻微的限制。此外,在视频播放过程中还出现了许多跳帧现象(3,683 帧中有 111 帧跳帧)。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Acer Swift X SFX14-71G | |
SCHENKER Vision 14 2023 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 M23 RTX 3050 | |
Asus VivoBook 14X K3405 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Lenovo Yoga Pro 9-14IRP G8 | |
SCHENKER Vision 14 2022 RTX 3050 Ti |
* ... smaller is better
存储设备
我们测试的 Vision 14 配备了 1-TB 版本的三星 990 Pro。PCIe-4.0 固态硬盘的传输速率非常高,而且在长时间负载的情况下仍能保持稳定的性能。总的来说,它的性能略逊于 iGPU 版本稍差、虽然在日常使用中不会受到任何限制。首次启动设备后,有 873 GB 的空间可供自由使用。更多固态硬盘基准测试 这里。
* ... smaller is better
Reading continuous performance: DiskSpd Read Loop, Queue Depth 8
图形卡

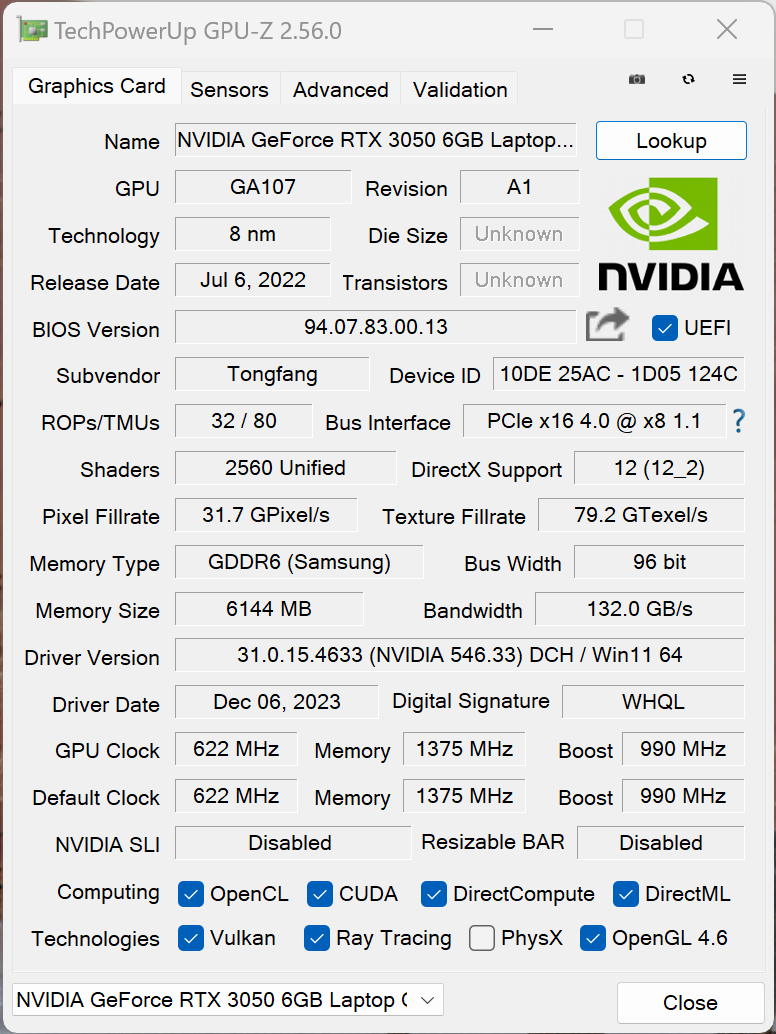

申克更换了 RTX 3050 Ti(4 GB)换成了 RTX 3050刷新版,配备 6GB VRAM。这是一个相当大的惊喜,因为按照逻辑,它肯定会换成新的 RTX 4050 Laptop(这也是其竞争对手的做法)。得益于额外的 RAM,该 GPU 在更高分辨率方面具有优势,但在合成基准测试中,其性能实际上略逊于旧版 RTX 3050 Ti。尽管它的 TGP 达到了 50 瓦。根据 TGP 的不同,新的 RTX 4050 笔记本电脑要快得多(33%-87%)。
在游戏基准测试中,我们的发现得到了证实,在 1080p 和最大细节的标准化测试中,RTX 3050 6 GB 再次略低于旧版 RTX 3050 Ti。RTX-4050笔记本电脑的竞争对手都做得更好,使它们更具有未来性。在目前的游戏中,如《赛博朋克 2077》,要想流畅地玩游戏,就必须在 1080p 下做到没有最大细节。

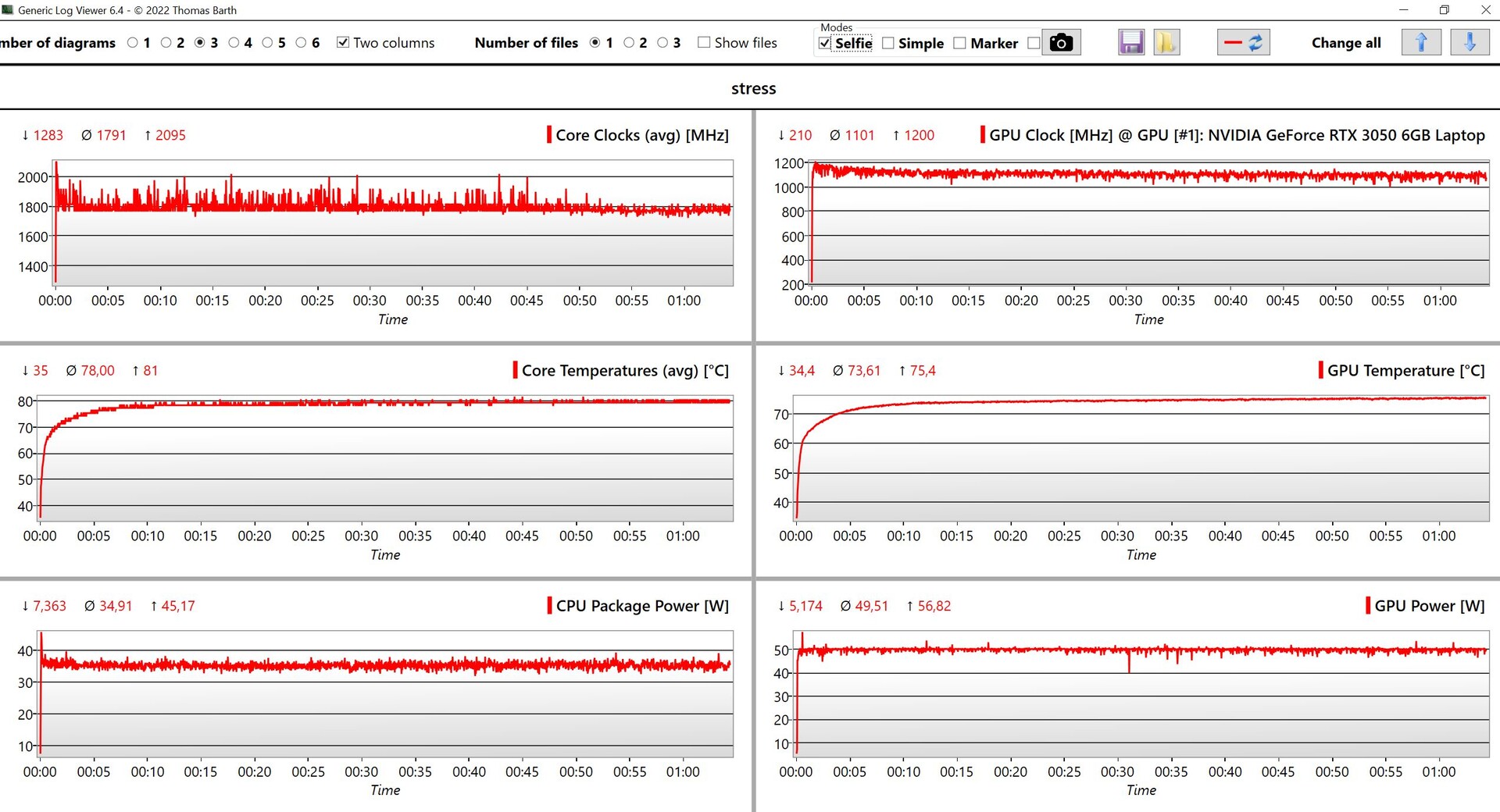

在永久负载下,其图形性能至少保持稳定。在电池模式下,GPU 的最大功耗为 35 瓦,性能下降了 17%。更多 GPU 基准测试,请访问移动显示芯片——基准测试成绩列表 。
3DMark 11 Performance | 15844 points | |
3DMark Fire Strike Score | 10765 points | |
3DMark Time Spy Score | 4933 points | |
Help |
Blender / v3.3 Classroom OPTIX/RTX | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Average NVIDIA GeForce RTX 3050 6GB Laptop GPU (68 - 72, n=3) | |
Average of class Subnotebook (53 - 72, n=3, last 2 years) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Gigabyte Aero 14 OLED BMF | |
Lenovo Yoga Pro 7 14IRH G8 | |
Acer Swift X SFX14-71G | |
Lenovo Yoga Pro 9-14IRP G8 |
Blender / v3.3 Classroom CUDA | |
Asus VivoBook 14X K3405 | |
Asus VivoBook 14X K3405 | |
SCHENKER Vision 14 M23 RTX 3050 | |
Average NVIDIA GeForce RTX 3050 6GB Laptop GPU (107 - 115, n=3) | |
Average of class Subnotebook (91 - 115, n=3, last 2 years) | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Gigabyte Aero 14 OLED BMF | |
Acer Swift X SFX14-71G | |
Lenovo Yoga Pro 7 14IRH G8 | |
Lenovo Yoga Pro 9-14IRP G8 |
Blender / v3.3 Classroom CPU | |
Average of class Subnotebook (336 - 1548, n=54, last 2 years) | |
Acer Swift X SFX14-71G | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
SCHENKER Vision 14 M23 RTX 3050 | |
SCHENKER Vision 14 2023 | |
Gigabyte Aero 14 OLED BMF | |
Asus VivoBook 14X K3405 | |
Average NVIDIA GeForce RTX 3050 6GB Laptop GPU (384 - 434, n=3) | |
Lenovo Yoga Pro 7 14IRH G8 | |
Lenovo Yoga Pro 9-14IRP G8 |
* ... smaller is better
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Lenovo Yoga Pro 9-14IRP G8 | |
Lenovo Yoga Pro 7 14IRH G8 | |
Gigabyte Aero 14 OLED BMF | |
SCHENKER Vision 14 2022 RTX 3050 Ti | |
Acer Swift X SFX14-71G | |
SCHENKER Vision 14 M23 RTX 3050 | |
Asus VivoBook 14X K3405 | |
Average of class Subnotebook (5.01 - 67.5, n=47, last 2 years) | |
SCHENKER Vision 14 2023 |

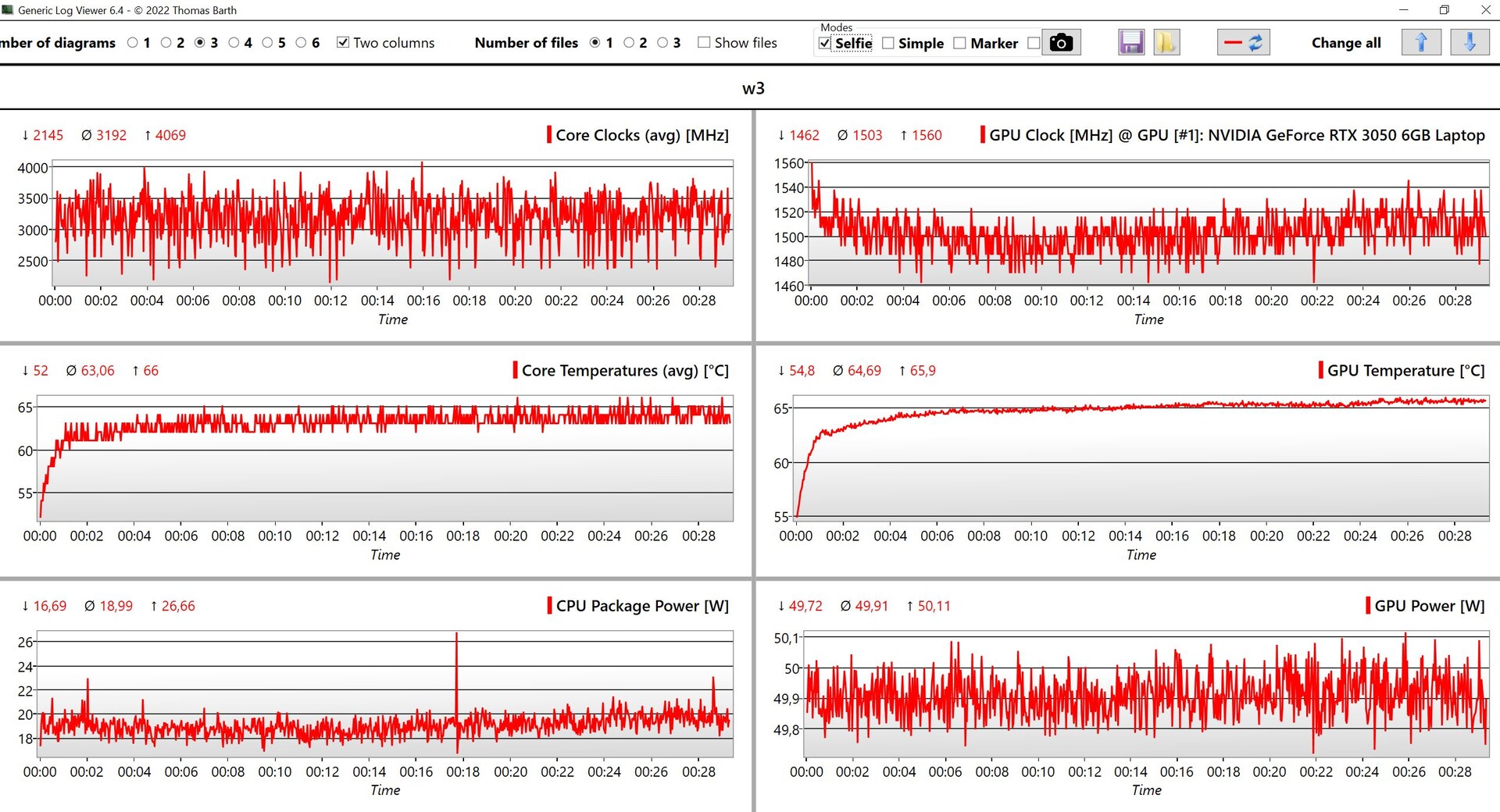

Witcher 3 FPS diagram
low | med. | high | ultra | QHD | |
GTA V (2015) | 178.2 | 172.6 | 95.3 | 53 | 36.5 |
The Witcher 3 (2015) | 187 | 118 | 71 | 43.7 | |
Dota 2 Reborn (2015) | 152.8 | 137.8 | 112.6 | 99.5 | |
Final Fantasy XV Benchmark (2018) | 111.6 | 59.9 | 44.2 | 32 | |
X-Plane 11.11 (2018) | 144.7 | 116.2 | 97.1 | ||
Far Cry 5 (2018) | 132 | 76 | 70 | 65 | |
Strange Brigade (2018) | 210 | 96.5 | 80.9 | 70.7 | |
F1 2021 (2021) | 218 | 127.4 | 104.8 | 61.9 | 40 |
F1 22 (2022) | 110.9 | 106.1 | 85.5 | 30.7 | 18.1 |
F1 23 (2023) | 113.9 | 109 | 86.9 | 20.5 | 10.6 |
Cyberpunk 2077 2.0 Phantom Liberty (2023) | 55.2 | 43.7 | 36.6 | 31.4 |
排放与动力
噪音排放
笔记本电脑风扇的噪音排放和活动取决于您使用的能源配置文件。如果您使用的是性能配置文件,那么即使在执行简单的任务时,您也会发现风扇在呼呼作响。因此,我们建议在日常使用时使用 "安静"配置文件。检查游戏时的性能也很有意义,因为许多游戏主要依靠 GPU。在负载情况下和运行游戏时,声音会变得相当大--我们测得约为 49 dB(A)。在使用两种较弱的模式时,我们测得最大噪音为 46.9 dB(A)(性能/平衡)和 35.7 dB(A)(安静)。我们没有注意到任何额外的电子噪音。
Noise Level
Idle |
| 23.5 / 23.5 / 26 dB(A) |
Load |
| 43.6 / 49.1 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.5 dB(A) |
SCHENKER Vision 14 M23 RTX 3050 GeForce RTX 3050 6GB Laptop GPU, i7-13700H, Samsung 990 Pro 1 TB | Lenovo Yoga Pro 9-14IRP G8 NVIDIA GeForce RTX 4050 Laptop GPU, i7-13705H, Samsung PM9A1 MZVL21T0HCLR | Acer Swift X SFX14-71G NVIDIA GeForce RTX 4050 Laptop GPU, i7-13700H, Samsung PM9A1 MZVL21T0HCLR | Asus VivoBook 14X K3405 GeForce RTX 3050 4GB Laptop GPU, i5-13500H, Samsung PM9B1 512GB MZVL4512HBLU | Gigabyte Aero 14 OLED BMF NVIDIA GeForce RTX 4050 Laptop GPU, i7-13700H, Gigabyte AG470S1TB-SI B10 | SCHENKER Vision 14 2022 RTX 3050 Ti GeForce RTX 3050 Ti Laptop GPU, i7-12700H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW | SCHENKER Vision 14 2023 Iris Xe G7 96EUs, i7-13700H, Samsung 990 Pro 1 TB | Lenovo Yoga Pro 7 14IRH G8 NVIDIA GeForce RTX 4050 Laptop GPU, i7-13700H, Samsung PM9A1 MZVL21T0HCLR | |
---|---|---|---|---|---|---|---|---|
Noise | -6% | -11% | -0% | -5% | -2% | 0% | -3% | |
off / environment * | 23.5 | 24.8 -6% | 24.8 -6% | 21.46 9% | 24 -2% | 24.4 -4% | 24.5 -4% | 22.9 3% |
Idle Minimum * | 23.5 | 24.8 -6% | 28.2 -20% | 22.08 6% | 24 -2% | 24.4 -4% | 24.5 -4% | 22.9 3% |
Idle Average * | 23.5 | 24.8 -6% | 31.8 -35% | 22.08 6% | 24 -2% | 24.4 -4% | 24.5 -4% | 22.9 3% |
Idle Maximum * | 26 | 24.8 5% | 31.8 -22% | 22.08 15% | 35.71 -37% | 27.8 -7% | 30.4 -17% | 36.8 -42% |
Load Average * | 43.6 | 47.4 -9% | 38.2 12% | 52.98 -22% | 43.3 1% | 39.5 9% | 43.7 -0% | |
Witcher 3 ultra * | 48.7 | 52.9 -9% | 50 -3% | 52.7 -8% | 40.22 17% | 48.2 1% | 41.7 14% | 46.2 5% |
Load Maximum * | 49.1 | 52.9 -8% | 52.2 -6% | 52.67 -7% | 51.93 -6% | 48.8 1% | 44.9 9% | 46.2 6% |
* ... smaller is better
温度

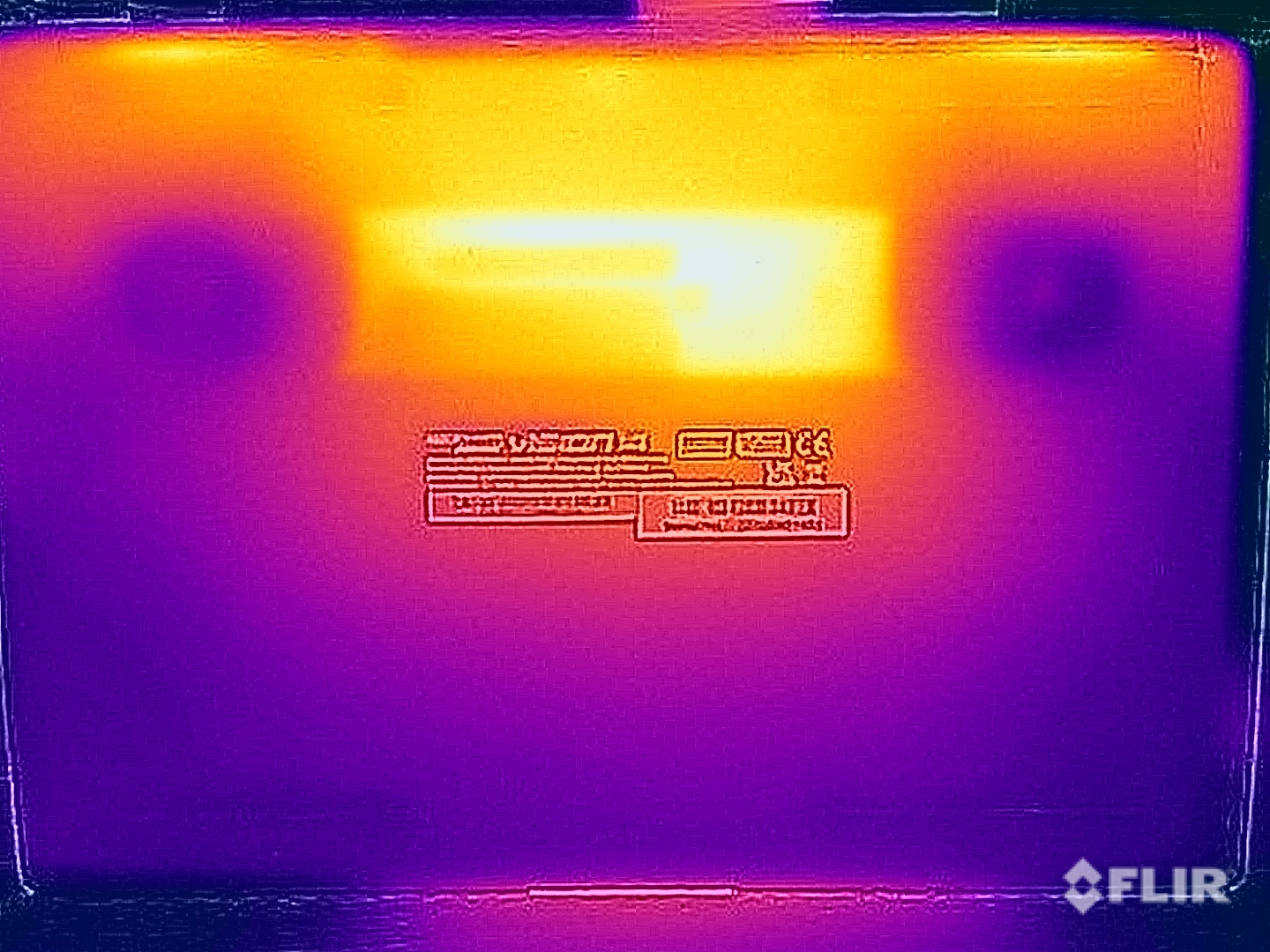

在低负载情况下,Vision 14 的表面温度完全正常,但一旦对组件提出更高的要求,散热就会接近极限。我们在底座顶部测得的温度超过 45 °C,底部中间测得的温度超过 50 °C。此时,应避免将设备放在大腿上。
在压力测试中,显卡更受青睐,因为它一直以 50 瓦的最大功率运行。而处理器则以 45 瓦开始测试,然后立即平衡到 35 瓦。
(-) The maximum temperature on the upper side is 48.5 °C / 119 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 52.8 °C / 127 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.8 °C / 78 F, compared to the device average of 30.7 °C / 87 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.9 °C / 97 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.3 °C / 79.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+2 °C / 3.6 F).
SCHENKER Vision 14 M23 RTX 3050 Intel Core i7-13700H, NVIDIA GeForce RTX 3050 6GB Laptop GPU | Lenovo Yoga Pro 9-14IRP G8 Intel Core i7-13705H, NVIDIA GeForce RTX 4050 Laptop GPU | Acer Swift X SFX14-71G Intel Core i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU | Asus VivoBook 14X K3405 Intel Core i5-13500H, NVIDIA GeForce RTX 3050 4GB Laptop GPU | Gigabyte Aero 14 OLED BMF Intel Core i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU | SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3050 Ti Laptop GPU | SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs | Lenovo Yoga Pro 7 14IRH G8 Intel Core i7-13700H, NVIDIA GeForce RTX 4050 Laptop GPU | |
---|---|---|---|---|---|---|---|---|
Heat | 0% | 4% | -16% | 5% | -4% | 7% | 3% | |
Maximum Upper Side * | 48.5 | 41 15% | 46.4 4% | 49.2 -1% | 42 13% | 48.4 -0% | 45.8 6% | 41.6 14% |
Maximum Bottom * | 52.8 | 56.7 -7% | 49 7% | 54 -2% | 52 2% | 57.1 -8% | 42 20% | 55.7 -5% |
Idle Upper Side * | 27.6 | 27.4 1% | 26.5 4% | 33.6 -22% | 26 6% | 28.1 -2% | 27.5 -0% | 25.9 6% |
Idle Bottom * | 27 | 29.1 -8% | 26.6 1% | 37.6 -39% | 27 -0% | 29 -7% | 27.1 -0% | 28 -4% |
* ... smaller is better
耗电量

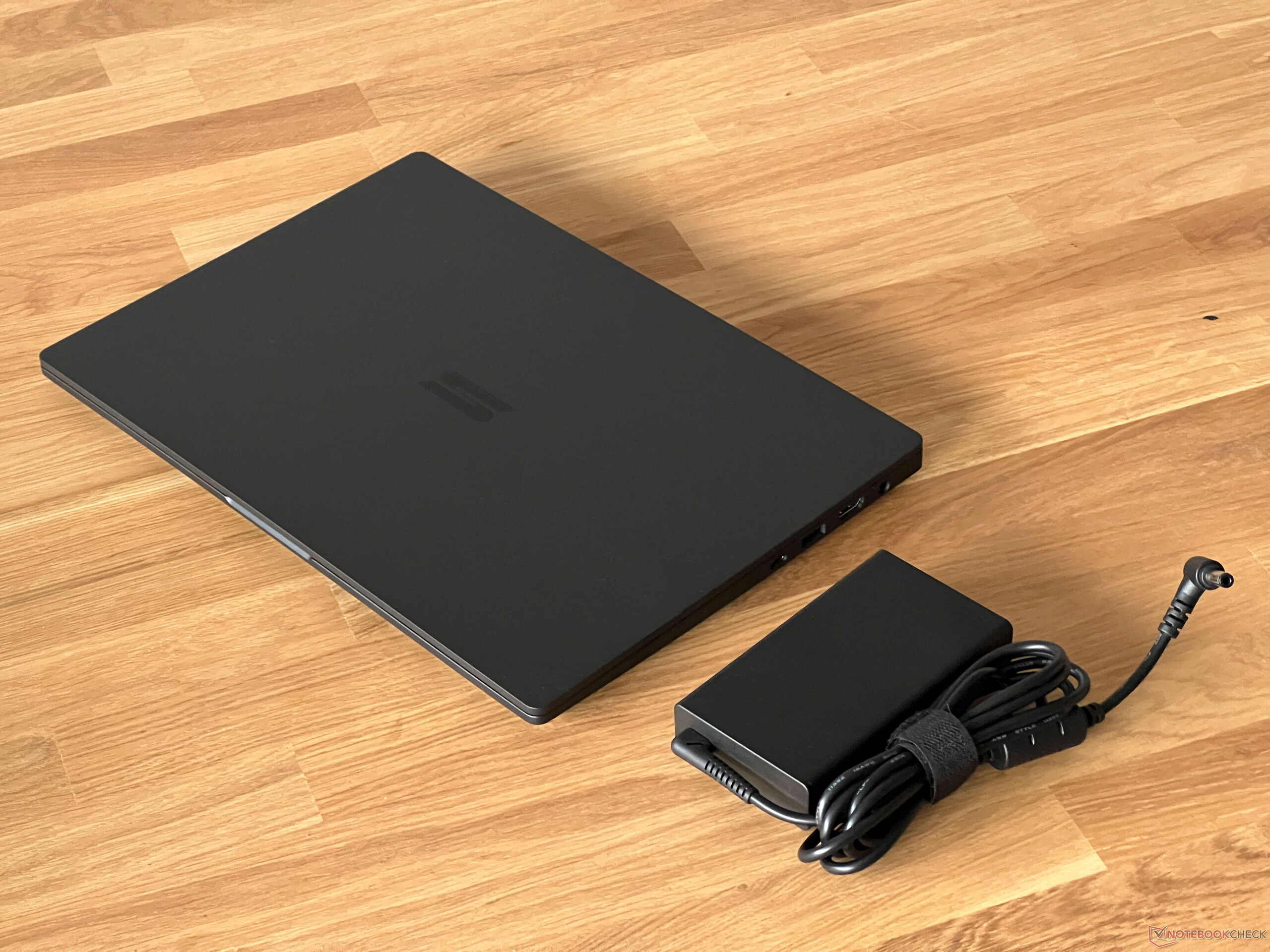

测试设备的闲置功耗略高于 iGPU 版本但总的来说,两者的差距并不大。在压力测试中,Vision 14 的最大功耗为 121 瓦,然后很快平衡到 110 瓦,并保持在这一水平。因此,所提供的 150 瓦电源足够大,甚至还有一点回旋余地,可以在苛刻条件下为电池充电--如果需要的话。
Off / Standby | 0.53 / 0.78 Watt |
Idle | 5.2 / 7.8 / 9 Watt |
Load |
78.6 / 121.2 Watt |
Power consumption Witcher 3 / stress test
Power consumption with external monitor
运行时间
由于空闲消耗较高,其运行时间略低于 iGPU 版本相比 Vision 14(配备 RTX 3050 Ti相比,运行时间有所改善。在 WLAN 测试中,测试设备使用 99 瓦时电池,在 150 cd/m²(测试样本最大亮度的 35%)的适应亮度条件下实现了 12 小时的良好运行时间,即使在全亮度条件下,也能达到 09:40 小时。这些结果使 Vision 14 在同类设备中脱颖而出。
Pros
Cons
评语 - 申克 Vision 14 落后于竞争对手
全球国际货运代理 2022 型号的申克 Vision 14特别是它的英特尔-H45 处理器与 NvidiaGeForce RTX 3050 T--全部安装在一个小巧的机箱内,是一个极其出色的组合。其高品质的机箱、丰富的连接选项、良好的维护选项(两个内存插槽如今尤其值得称赞)、高分辨率显示屏以及超长的运行时间都是值得一提的积极方面。
不过,2023 型号现在已经开始慢慢显出老态。由于功耗限制降低,猛禽湖处理器 酷睿 i7-13700H甚至比前代 Alder-Lake 处理器还要稍慢一些,此外,其配备 6GB VRAM 的 "新 "GeForce RTX 3050 与配备 4GB VRAM 的旧GeForce RTX 3050 Ti 完全处于同一水平。最大的问题是,其多媒体竞争对手已经继续转向新的GeForce RTX 4050 笔记本电脑,后者只是提供了更高的图形性能。
Vision 14 M23 在图形性能方面落后于竞争对手,因为它的GeForce RTX 3050 6GB 笔记本电脑跟不上新的GeForce RTX 4050 笔记本电脑。
就其本身而言,配备 RTX 3050 Refresh 的 Vision 14 仍然是一款非常出色的子笔记本电脑,尤其是由于其良好的维护选项,它可以在竞争中脱颖而出。遗憾的是,竞争对手的性能更胜一筹,如果你正在寻找一款配备专用 GPU 的紧凑型子笔记本/多媒体笔记本,那么你最好选择这些设备中的一款。它最大的竞争对手可能是 Yoga Pro 7 14它配备了酷睿 i7-13700H、RTX 4050 笔记本电脑和刷新率为 120Hz 的 3K IPS 显示屏。它的价格也略低,但电池续航时间没有那么好,内存(16 GB)也无法扩展。
价格和供应情况
全球国际货运代理 Vision 14 M23 可通过Bestware 进行配置。配置,价格约为 1,500 美元起。
SCHENKER Vision 14 M23 RTX 3050
-
01/11/2024 v7
Andreas Osthoff
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
