Qualcomm Adreno 510

Qualcomm Adreno 510

高通Adreno 510是一款智能手机和平板电脑的中档移动显卡(大部分为安卓系统)。它搭配于高通骁龙650和652处理器中,基于Adreno 500架构(如S820中的Adreno 520,它们在软件上应该完全兼容)。

该显卡支持最新标准,如Vulkan1.0(根据维基百科的信息),OpenGL ES 3.1 + AE (其他来源称3.2), OpenCL 2.0和DirectX 12(FL 12.1根据维基百科, 11.1根据高通)。此外,这款显卡支持通用带宽压缩(UBWC)以节省内存带宽。

相比更快的Adreno 530,510目前仍使用较老的28纳米工艺(650和652),应该搭配了较少的ALU。它的时钟频率尚未透露。

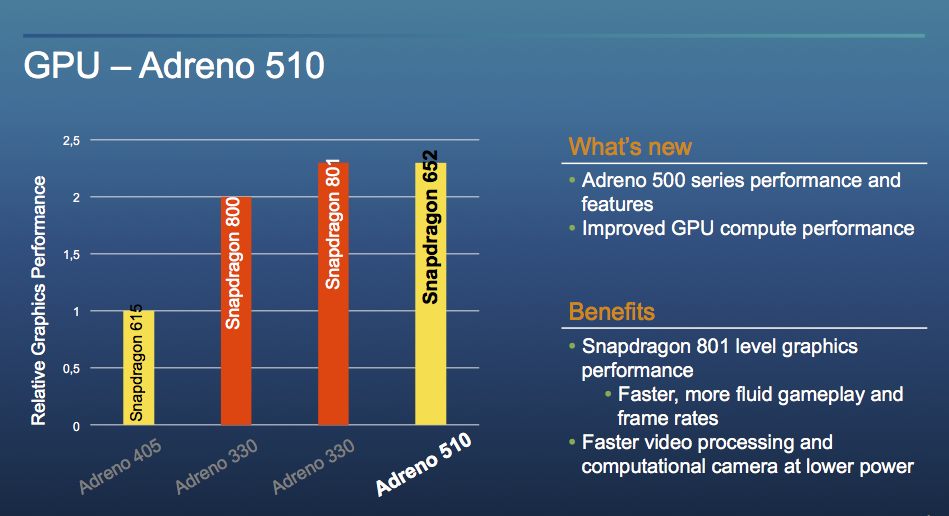

来自高通的早期基准测试成绩表明它与较老的Adreno 330(骁龙810)相当。

 因此它应该能够在全高清分辨率下流畅运行大部分安卓游戏。

ManufacturerQualcomm
Adreno 500 Series
Adreno 540 @ 710 MHz
Adreno 530 @ 624 MHz
Adreno 512
Adreno 510
Adreno 509
Adreno 508 @ 650 MHz
Adreno 506 @ 650 MHz
Adreno 505 @ 450 MHz
Adreno 504 @ 450 MHz
ArchitectureAdreno 500
Shared Memoryyes
DirectXDirectX 12.1
technology14 nm
FeaturesOpenGL ES 3.2, OpenCL 2.0, Direct3D 12 (FL 12_1)
Date of Announcement15.12.2015
CPUGPU Base SpeedGPU Boost / Turbo
Qualcomm Snapdragon 652 MSM89768 x 1800 MHz? MHz? MHz
Qualcomm Snapdragon 650 MSM89566 x 1800 MHz? MHz? MHz
min. - max.? - ? MHz? - ? MHz

Benchmarks

3DMark - Ice Storm Unlimited Graphics Score 1280x720 offscreen
min: 21087     avg: 21766     median: 21533 (4%)     max: 23175 Points
3DMark - Sling Shot OpenGL ES 3.0 Unlimited 2560x1440
min: 1381     avg: 1454     median: 1441.5 (11%)     max: 1579 Points
3DMark - Sling Shot OpenGL ES 3.0 Unlimited Graphics 2560x1440
min: 1354     avg: 1395     median: 1389.5 (5%)     max: 1459 Points
3DMark - Sling Shot Extreme (ES 3.1) Unlimited 2560x1440
971 Points (12%)
3DMark - Sling Shot Extreme (ES 3.1) Unlimited Graphics 2560x1440
867 Points (10%)
GFXBench (DX / GLBenchmark) 2.7
T-Rex HD Offscreen C24Z16 1920x1080 +
T-Rex HD Onscreen C24Z16 +
GFXBench 3.0 - Manhattan Offscreen OGL off screen
min: 9.2     avg: 14.2     median: 14.5 (3%)     max: 17 fps
GFXBench 3.0 - Manhattan Onscreen OGL on screen
min: 8.6     avg: 14.3     median: 12.5 (3%)     max: 30 fps
GFXBench - Car Chase Offscreen off screen
min: 3.2     avg: 5.2     median: 5.4 (1%)     max: 6 fps
GFXBench - Car Chase Onscreen on screen
min: 3.3     avg: 5.7     median: 5.5 (2%)     max: 12 fps
Basemark ES 2.0 - Taiji Free
44.8 fps (74%)
Basemark X 1.1 - High Quality
15120 fps (34%)
Basemark X 1.1 - Medium Quality
26078 fps (58%)
PassMark PerformanceTest Mobile V1 - 2D Graphics Tests
6078 Points (29%)
PassMark PerformanceTest Mobile V1 - 3D Graphics Tests
2559 Points (41%)
Smartbench 2012 - Gaming Index
4270 points (93%)
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Dead Trigger 2

Dead Trigger 2

2013
high
30 50 57 60 ~ 49 fps    + Compare
» With most tested laptops playable in detail settings high.
Asphalt 8: Airborne

Asphalt 8: Airborne

2013
low
29 30 30 ~ 30 fps    + Compare
high
20 29 30 30 ~ 27 fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
v1.9

Notebook reviews with Qualcomm Adreno 510 graphics card

Alcatel One Touch Idol 4S: Qualcomm Snapdragon 652 MSM8976, 5.5", 0.1 kg
  Review » 阿尔卡特 One Touch Idol 4S 智能手机简短评测

Asus ZenPad 3 8.0 Z581KL-1A001A: Qualcomm Snapdragon 650 MSM8956, 7.9", 0.3 kg
  Review » 华硕 ZenPad 3 8.0 Z581KL 平板电脑简短评测

Asus ZenPad 3S 10 Z500KL: Qualcomm Snapdragon 650 MSM8956, 9.7", 0.5 kg
  Review » 华硕 ZenPad 3S 10 LTE (Z500KL) 平板电脑简短评测

BQ Aquaris X5 Plus: Qualcomm Snapdragon 652 MSM8976, 5", 0.1 kg
  Review » BQ Aquaris X5 Plus 智能手机简短评测

Lenovo Phab 2 Pro: Qualcomm Snapdragon 652 MSM8976, 6.4", 0.3 kg
  Review » 联想 Phab 2 Pro 智能手机简短评测

Sony Xperia X: Qualcomm Snapdragon 650 MSM8956, 5", 0.2 kg
  Review » 索尼 Xperia X 智能手机简短评测

Sony Xperia X Compact: Qualcomm Snapdragon 650 MSM8956, 4.6", 0.1 kg
  Review » 索尼 Xperia X Compact 智能手机简短评测

AGM X2: Qualcomm Snapdragon 652 MSM8976, 5.5", 0.3 kg
  External Review » AGM X2

Alcatel One Touch Idol 4S: Qualcomm Snapdragon 652 MSM8976, 5.5", 0.1 kg
  External Review » Alcatel Idol 4S

Archos Diamond Alpha: Qualcomm Snapdragon 652 MSM8976, 5.2", 0.2 kg
  External Review » Archos Diamond Alpha

Archos Diamond Alpha Plus: Qualcomm Snapdragon 652 MSM8976, 5.2", 0.2 kg
  External Review » Archos Diamond Alpha Plus

Asus Zenfone 3 Ultra ZU680KL: Qualcomm Snapdragon 652 MSM8976, 6.8", 0.2 kg
  External Review » Asus Zenfone 3 Ultra ZU680KL

Asus ZenPad 3 8.0 Z581KL-1A001A: Qualcomm Snapdragon 650 MSM8956, 7.9", 0.3 kg
  External Review » Asus ZenPad 3 8.0 Z581KL-1A001A

Asus ZenPad 3 8.0 Z582KL: Qualcomm Snapdragon 652 MSM8976, 7.9", 0.3 kg
  External Review » Asus ZenPad 3 8.0 Z582KL

Asus ZenPad 3S 10 Z500KL: Qualcomm Snapdragon 650 MSM8956, 9.7", 0.5 kg
  External Review » Asus ZenPad 3S 10 Z500KL

Asus Zenpad Z10 ZT500KL: Qualcomm Snapdragon 650 MSM8956, 9.7", 0.5 kg
  External Review » Asus Zenpad Z10 ZT500KL

Asus ZenPad Z8-ZT581KL: Qualcomm Snapdragon 650 MSM8956, 7.9", 0.3 kg
  External Review » Asus ZenPad Z8-ZT581KL

Asus ZenPad Z8s ZT582KL: Qualcomm Snapdragon 652 MSM8976, 7.9", 0.3 kg
  External Review » Asus ZenPad Z8s ZT582KL

BQ Aquaris X5 Plus: Qualcomm Snapdragon 652 MSM8976, 5", 0.1 kg
  External Review » BQ Aquaris X5 Plus

Coolpad Cool 1: Qualcomm Snapdragon 652 MSM8976, 5.5", 0.2 kg
  External Review » Coolpad Cool 1

Coolpad Cool Changer 1C: Qualcomm Snapdragon 652 MSM8976, 5.5", 0.2 kg
  External Review » Coolpad Cool Changer 1C

Coolpad Cool Play 6: Qualcomm Snapdragon 652 MSM8976, 5.5", 0.2 kg
  External Review » Coolpad Cool Play 6

Elephone U Pro: Qualcomm Snapdragon 652 MSM8976, 5.99", 0.2 kg
  External Review » Elephone U Pro

HTC U11 EYEs: Qualcomm Snapdragon 652 MSM8976, 6", 0.2 kg
  External Review » HTC U11 EYEs

LeEco Cool1 Dual: Qualcomm Snapdragon 652 MSM8976, 5.5", 0.2 kg
  External Review » LeEco Cool1 Dual

LeEco Le 2 X526: Qualcomm Snapdragon 652 MSM8976, 5.5", 0.2 kg
  External Review » LeEco Le 2 X526

LeEco Le S3: Qualcomm Snapdragon 652 MSM8976, 5.5", 0.2 kg
  External Review » LeEco Le S3

LeEco LeRee Le 3: Qualcomm Snapdragon 652 MSM8976, 5.5", 0.2 kg
  External Review » LeEco LeRee Le 3

Lenovo Phab 2 Pro: Qualcomm Snapdragon 652 MSM8976, 6.4", 0.3 kg
  External Review » Lenovo Phab 2 Pro

Lenovo Yoga Tab 3 Plus 10 YT-X703: Qualcomm Snapdragon 652 MSM8976, 10.1", 0.6 kg
  External Review » Lenovo Yoga Tab 3 Plus 10 YT-X703

Lenovo Yoga Tab 3 Plus ZA1N0015SE: Qualcomm Snapdragon 652 MSM8976, 10.1", 0.6 kg
  External Review » Lenovo Yoga Tab 3 Plus ZA1N0015SE

Lenovo Yoga Tab 3 Plus ZA1N0022UA: Qualcomm Snapdragon 652 MSM8976, 10.1", 0.6 kg
  External Review » Lenovo Yoga Tab 3 Plus ZA1N0022UA

LG G5 SE H840: Qualcomm Snapdragon 652 MSM8976, 5.3", 0.2 kg
  External Review » LG G5 SE H840

Oppo F3 Plus: Qualcomm Snapdragon 652 MSM8976, 6", 0.2 kg
  External Review » Oppo F3 Plus

Oppo R9 Plus: Qualcomm Snapdragon 652 MSM8976, 6", 0.2 kg
  External Review » Oppo R9 Plus

Oppo R9s Plus: Qualcomm Snapdragon 652 MSM8976, 6", 0.2 kg
  External Review » Oppo R9s Plus

Samsung Galaxy A9 Pro: Qualcomm Snapdragon 652 MSM8976, 6", 0.2 kg
  External Review » Samsung Galaxy A9 Pro

Samsung Galaxy C9 Pro: Qualcomm Snapdragon 652 MSM8976, 6", 0.2 kg
  External Review » Samsung Galaxy C9 Pro

Samsung Galaxy Tab S2 9.7 T813N: Qualcomm Snapdragon 652 MSM8976, 9.7", 0.4 kg
  External Review » Samsung Galaxy Tab S2 9.7 T813N

Sony Xperia X: Qualcomm Snapdragon 650 MSM8956, 5", 0.2 kg
  External Review » Sony Xperia X

Sony Xperia X Compact: Qualcomm Snapdragon 650 MSM8956, 4.6", 0.1 kg
  External Review » Sony Xperia X Compact

Vivo V9 Pro: Qualcomm Snapdragon 650 MSM8956, 6.3", 0.2 kg
  External Review » Vivo V9 Pro

Xiaomi Mi Max Prime: Qualcomm Snapdragon 652 MSM8976, 6.44", 0.2 kg
  External Review » Xiaomi Mi Max Prime

Xiaomi Mi Note 3: Qualcomm Snapdragon 650 MSM8956, 5.5", 0.2 kg
  External Review » Xiaomi Mi Note 3

Xiaomi Redmi Note 3 Pro: Qualcomm Snapdragon 650 MSM8956, 5.5", 0.2 kg
  External Review » Xiaomi Redmi Note 3 Pro

ZTE Nubia Z11 Max: Qualcomm Snapdragon 652 MSM8976, 6", 0.2 kg
  External Review » ZTE Nubia Z11 Max

ZTE Nubia Z17 Lite: Qualcomm Snapdragon 652 MSM8976, 5.5", 0.2 kg
  External Review » ZTE Nubia Z17 Lite

ZTE Nubia Z17 Mini: Qualcomm Snapdragon 652 MSM8976, 5.2", 0.2 kg
  External Review » ZTE Nubia Z17 Mini

ZTE Nubia Z17 miniS: Qualcomm Snapdragon 652 MSM8976, 5.2", 0.2 kg
  External Review » ZTE Nubia Z17 miniS
