Qualcomm Adreno 420

Qualcomm Adreno 420

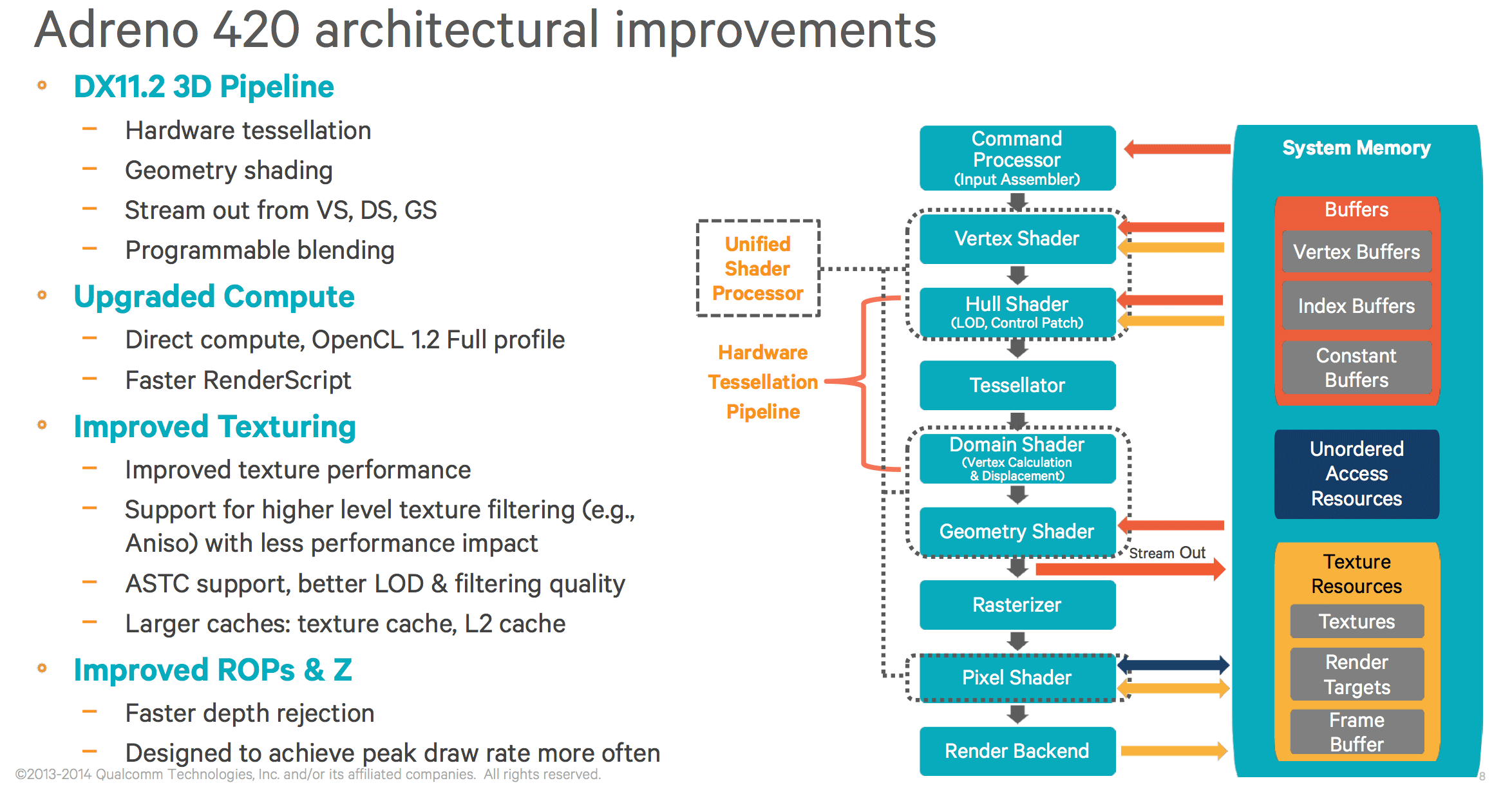

高通Adreno 420是一款为（主要基于安卓系统的）智能手机和平板设计的集成显卡。它最早发布于2014年中，集成于高通Snapdragon 805整合芯片中。这款显卡采用了名为FlexRender的技术。它可以“智能地”在TBR(Tile Based Renderer,基于区块的渲染器)和传统的直接渲染之间切换。它提供了对OpenGL ES 3.1和DirectX 11 11_2功能级的支持（Adreno 330则仅支持ES 3.0和DirectX 9_3）。


Adreno 420的核心频率根据它所集成于的系统芯片的不同而不同。在Snapdragon 805 APQ8084中，它的频率介于500MHz到600MHz之间。


根据高通提供的信息，相比Snapdragon 800它的功耗在运行GFXBench 2.7 T-Rex时降低了最高20%，但提供了高出40%的性能。最早的一些基准测试成绩显示它在性能上甚至提高了更多；不过，它的性能会在使用中逐渐降低以避免过高的系统温度（特别是在智能手机中）。这对于其他的ARM系统芯片来说十分普遍。不论如何，Adreno 420超越了Mali-T628 MP6 (Samsung Exynos 5420/5430)和 PowerVR G6430 (Apple A7)，是2014年年中最快的一款移动显卡之一，但仍然显著慢于Nvidia Tegra K1或在Apple的A8X系统芯片中的PowerVR GX6650（这两款均主要为平板显卡）。

Adreno 400 Series

Adreno 430 192 @ 0.65 GHz
Adreno 420 128 @ 0.6 GHz
Adreno 418 128 @ 0.6 GHz
Adreno 405 48 @ 0.55 GHz
iGPUIntegrated Graphics
Pipelines128 - unified
Core Speed600 (Boost) MHz
Shared Memoryyes
APIDirectX 11, OpenGL ES 3.1
Man. Technology28 nm
FeaturesOpenCL 1.2
Date of Announcement23.06.2014
Link to Manufacturer Pagewww.qualcomm.com
CPU in Adreno 420GPU Base SpeedGPU Boost / Turbo
Qualcomm Snapdragon 805 APQ80844 x 2700 MHz600 MHz? MHz

Benchmarks

3DMark - 3DMark Ice Storm Unlimited Graphics
min: 19019     avg: 21258     median: 20733 (2%)     max: 25480 Points
+ 5 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Sling Shot (ES 3.0)
0 Points (0%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Sling Shot Extreme (ES 3.1)
0 Points (0%)
+ 1 benchmarks and specifications   + Show comparison chart
GFXBench 3.1 - GFXBench Manhattan ES 3.1 Offscreen
0 fps (0%)
+ 1 benchmarks and specifications   + Show comparison chart
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
min: 17.7     avg: 18.1     median: 17.9 (1%)     max: 19 fps
+ 5 benchmarks and specifications   + Show comparison chart
GFXBench (DX / GLBenchmark) 2.7
GFXBench T-Rex HD Offscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
min: 39     avg: 41     median: 41.4 (0%)     max: 42.4 fps
+ 5 benchmarks and specifications   + Show comparison chart
Basemark ES 2.0 - Basemark ES 2.0
59.5 fps (98%)
+ 1 benchmarks and specifications   + Show comparison chart
Basemark X 1.0 - Basemark X 1.0 Off-Screen
min: 21.1     avg: 21.1     median: 21.1 (99%)     max: 21.26 fps
+ 1 benchmarks and specifications   + Show comparison chart
Basemark X 1.1 - Basemark X 1.1 High Quality
min: 17868     avg: 18483     median: 18680 (42%)     max: 18900 Points
+ 3 benchmarks and specifications   + Show comparison chart
Basemark X 1.1 - Basemark X 1.1 Medium Quality
min: 29551     avg: 31186     median: 31806 (71%)     max: 32200 Points
+ 3 benchmarks and specifications   + Show comparison chart
NenaMark2 - NenaMark2 Score
59.9 fps (89%)
+ 1 benchmarks and specifications   + Show comparison chart
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile V1 2D Graphics Tests
min: 2283     avg: 3091     median: 3436 (1%)     max: 3554 Points
+ 3 benchmarks and specifications   + Show comparison chart
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile V1 3D Graphics Tests
min: 1129     avg: 1732     median: 1979 (3%)     max: 2088 Points
+ 3 benchmarks and specifications   + Show comparison chart
Smartbench 2012 - Smartbench 2012 Gaming Index
min: 2108     avg: 3733     median: 4224.5 (92%)     max: 4375 points
+ 4 benchmarks and specifications   + Show comparison chart
