框架笔记本电脑13.5英特尔第12代回顾。像微软的Surface,但实际上是可以维修的

围绕社区建设。 当最初的Framework Laptop在去年推出时,它的关键承诺之一是用户只需简单更换主板就能升级到更新的处理器。制造商在2022年的更新中坚守自己的主张。
Alder Lake Business Windows Laptop / Notebook

最初的13.5英寸框架笔记本电脑于2021年推出,配备了英特尔第11代Tiger Lake-U处理器。与其他大型制造商的超薄机型形成鲜明对比,这些机型通常是封闭的,难以维修,Framework的设计将优先考虑可维修性,并鼓励终端用户的升级。事实上,制造商,公开销售如果用户需要更换任何部件,Framework笔记本电脑的各个部件可以按需销售。最新的2022型号现在可以使用更快的英特尔第12代Alder Lake-P CPU,但整体机箱设计相同,以保持与现有配件和组件的向后兼容性。

由于骨架没有改变,我们建议查看我们对2021年型号 的现有评论,以了解2022年型号的物理属性的更多信息。从显示屏到键盘和大多数材料都回归了,没有重大变化。我们的特定审查单位配备了酷睿i7-1260P,价格约为1450美元,但如果需要,用户可以配置较小的i5-1240P或更高的i7-1280P。然而,所有SKU仍然配备相同的2256 x 1504 IPS面板。

框架笔记本电脑的替代品包括其他13英寸超极本,如HP Spectre x360 14,联想ThinkPad X1,华硕Zenbook S13, 当然还有微软Surface Laptop 4 13

Framework Laptop 13.5 12th Gen Intel
Processor
Intel Core i7-1260P 12 x 1.5 - 4.7 GHz, 52 W PL2 / Short Burst, 30 W PL1 / Sustained, Alder Lake-P
Graphics adapter
Intel Iris Xe Graphics G7 96EUs, Core: 1400 MHz, Memory: 2667 MHz, DDR4, 30.0.101.1314

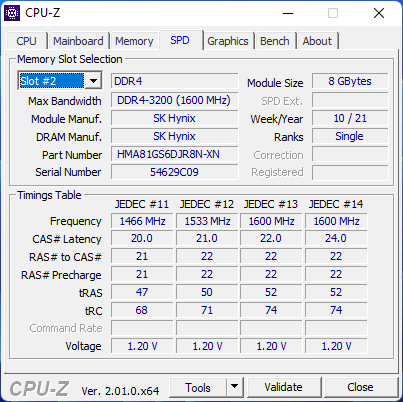

Memory
16384 MB
, SK Hynix, DDR4-3200, 21-21-21-47, Dual-Channel
Display
13.50 inch 3:2, 2256 x 1504 pixel 201 PPI, BOE CQ NE135FBM-N41, IPS, BOE095F, glossy: yes, 60 Hz
Mainboard
Intel Alder Lake-P PCH
Storage
WDC PC SN730 SDBPNTY-512G, 512 GB
Soundcard
Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)
Connections
4 USB 3.0 / 3.1 Gen1, 4 USB 3.1 Gen2, 4 USB 3.2 Gen 2x2 20Gbps, 4 Thunderbolt, USB-C Power Delivery (PD), 4 DisplayPort, Audio Connections: 3.5 mm combo, Card Reader: MicroSD
Networking
Intel Wi-Fi 6E AX210 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.2
Size
height x width x depth (in mm): 15.85 x 296.63 x 228.98
Battery
55 Wh Lithium-Polymer
Operating System
Microsoft Windows 11 Home
Camera
Webcam: 1080p
Primary Camera: 2.1 MPix
Additional features
Speakers: 2x 2 W stereo, Keyboard: Chiclet, Keyboard Light: yes, 12 Months Warranty
Weight
1.325 kg, Power Supply: 313 g
Price
1450 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
85.1 %
07/2022
Framework Laptop 13.5 12th Gen Intel
i7-1260P, Iris Xe G7 96EUs
1.3 kg15.85 mm13.50"2256x1504
85.4 %
08/2021
Framework Laptop 13.5
i7-1165G7, Iris Xe G7 96EUs
1.3 kg15.85 mm13.50"2256x1504
88.5 %
03/2022
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
i5-1140G7, Iris Xe G7 80EUs
1.2 kg11.5 mm13.50"2256x1504
84 %
08/2021
HP EliteBook Folio 13.5-3G2L2EA
SD 8cx Gen 2 5G, Adreno 680
1.3 kg16 mm13.50"1920x1280
85.2 %
06/2021
Microsoft Surface Laptop 4 13 Ryzen 5
R5 4680U, Vega 7
1.3 kg14 mm13.50"2256x1504
89.5 %
HP Spectre x360 14-ea0378ng
i7-1165G7, Iris Xe G7 96EUs
1.3 kg16.9 mm13.50"3000x2000

案例

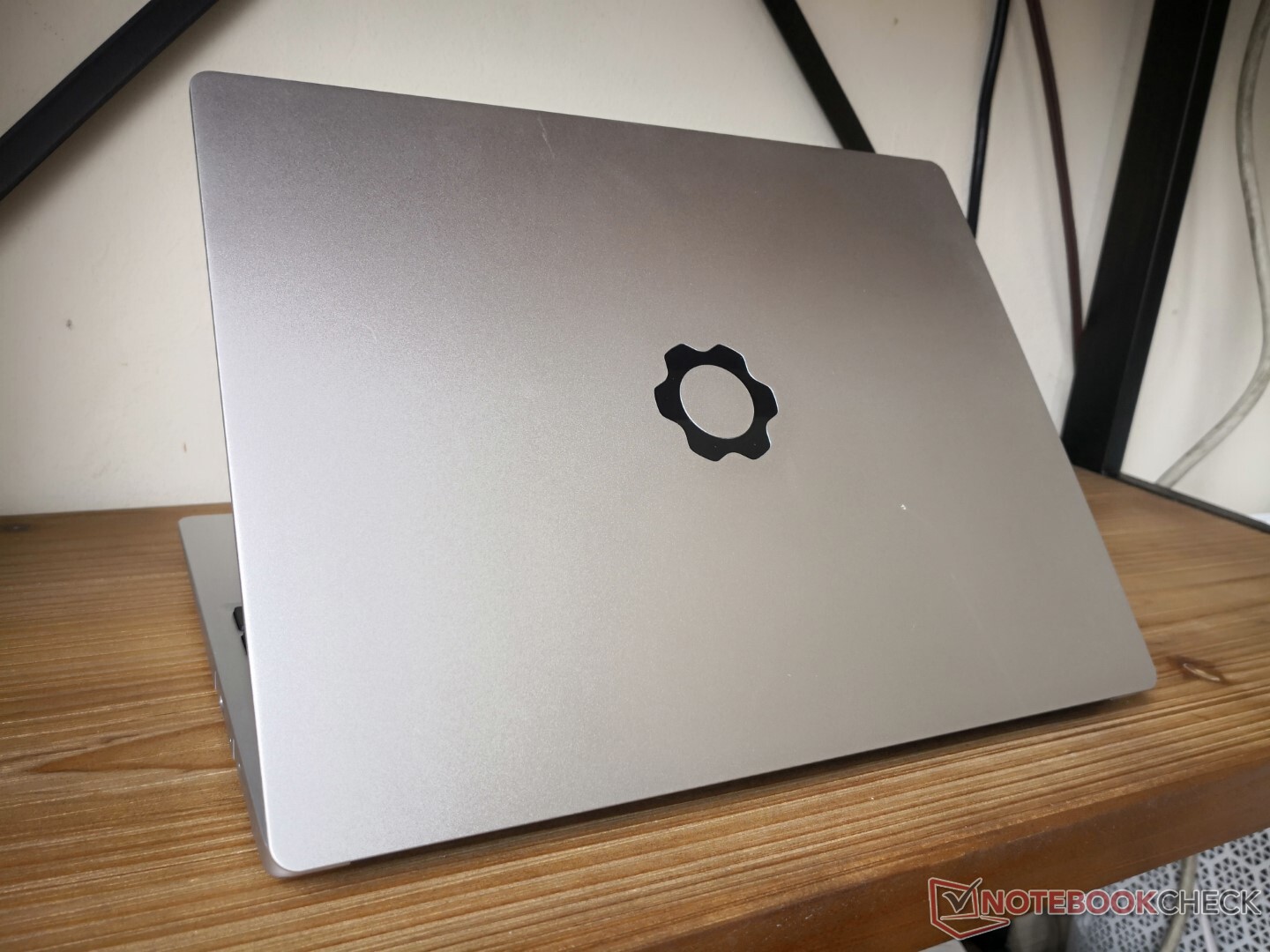

底盘的唯一变化涉及到顶盖改用CNC制造和组装,以提高盖子的刚性,而不改变整体尺寸。我们发现2021年版本的盖子很脆弱,因此较新的设计是一个受欢迎的变化。即便如此,大多数竞争产品的盖子,如XPS 13、Spectre x360 14、Zenbook S13。 RazerBlade Stealth,或 MateBook X系列继续更强大、更坚硬。框架设计明显缺乏任何大猩猩玻璃选项,而这些选项会加强和僵化盖子。

尺寸比较

308 mm 223 mm 14 mm 1.3 kg298.3 mm 220.1 mm 16.9 mm 1.3 kg298 mm 230 mm 16 mm 1.3 kg296.63 mm 228.98 mm 15.85 mm 1.3 kg296.63 mm 228.98 mm 15.85 mm 1.3 kg297.5 mm 232.7 mm 11.5 mm 1.2 kg

SD卡阅读器

SD Card Reader
average JPG Copy Test (av. of 3 runs)
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7 (Toshiba Exceria Pro M501 microSDXC 64GB)
201 MB/s ∼100% +306%
Framework Laptop 13.5
Intel Core i7-1165G7 (AV Pro UHS-II V60)
73.8 MB/s ∼37% +49%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P (AV Pro UHS-II V60)
49.5 MB/s ∼25%
maximum AS SSD Seq Read Test (1GB)
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7 (Toshiba Exceria Pro M501 microSDXC 64GB)
196.7 MB/s ∼100% +130%
Framework Laptop 13.5
Intel Core i7-1165G7 (AV Pro UHS-II V60)
90.3 MB/s ∼46% +6%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P (AV Pro UHS-II V60)
85.5 MB/s ∼43%

沟通

虽然英特尔AX210模块与去年的型号没有变化,但我们后来升级了测试路由器,以支持6GHz的连接,因此可以记录更快的平均传输速率,如下图所示。

目前仍然没有4G或WAN选项。

Networking
iperf3 transmit AX12
Microsoft Surface Laptop 4 13 Ryzen 5
Intel Wi-Fi 6 AX200
1322 (651min - 1396max) MBit/s ∼100%
Framework Laptop 13.5
Intel Wi-Fi 6E AX210
956 (902min - 1037max) MBit/s ∼72%
HP Spectre x360 14-ea0378ng
Intel Wi-Fi 6 AX201
919 (659min - 1009max) MBit/s ∼70%
HP EliteBook Folio 13.5-3G2L2EA
802.11 a/b/g/n/ac/ax
479 (314min - 586max) MBit/s ∼36%
iperf3 receive AX12
Microsoft Surface Laptop 4 13 Ryzen 5
Intel Wi-Fi 6 AX200
1279 (603min - 1378max) MBit/s ∼100%
Framework Laptop 13.5
Intel Wi-Fi 6E AX210
914 (734min - 1050max) MBit/s ∼71%
HP Spectre x360 14-ea0378ng
Intel Wi-Fi 6 AX201
615 (593min - 637max) MBit/s ∼48%
HP EliteBook Folio 13.5-3G2L2EA
802.11 a/b/g/n/ac/ax
284 (169min - 380max) MBit/s ∼22%
iperf3 receive AXE11000 6GHz
Framework Laptop 13.5 12th Gen Intel
Intel Wi-Fi 6E AX210
1472 (1435min - 1534max) MBit/s ∼100%
iperf3 transmit AXE11000 6GHz
Framework Laptop 13.5 12th Gen Intel
Intel Wi-Fi 6E AX210
1299 (1163min - 1349max) MBit/s ∼100%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500Tooltip
; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1299 (1163-1349)
; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1471 (1435-1534)

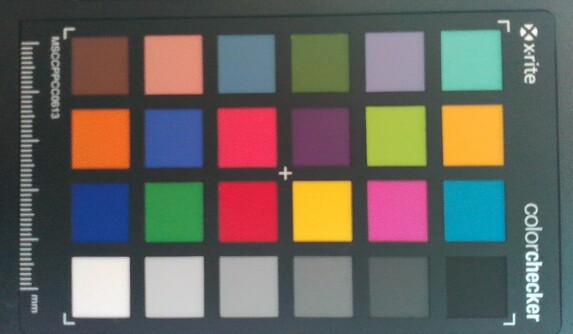

网络摄像头

ColorChecker
4.2 ∆E
7.7 ∆E
8.5 ∆E
6.6 ∆E
12.9 ∆E
4.5 ∆E
9.1 ∆E
3.5 ∆E
9.2 ∆E
8.1 ∆E
3.4 ∆E
6 ∆E
4.5 ∆E
2.1 ∆E
9.5 ∆E
6.1 ∆E
9.1 ∆E
8.6 ∆E
2.7 ∆E
1.4 ∆E
5.4 ∆E
8.1 ∆E
9.6 ∆E
10.1 ∆E
ColorChecker Framework Laptop 13.5 12th Gen Intel: 6.7 ∆E min: 1.36 - max: 12.94 ∆E

维护

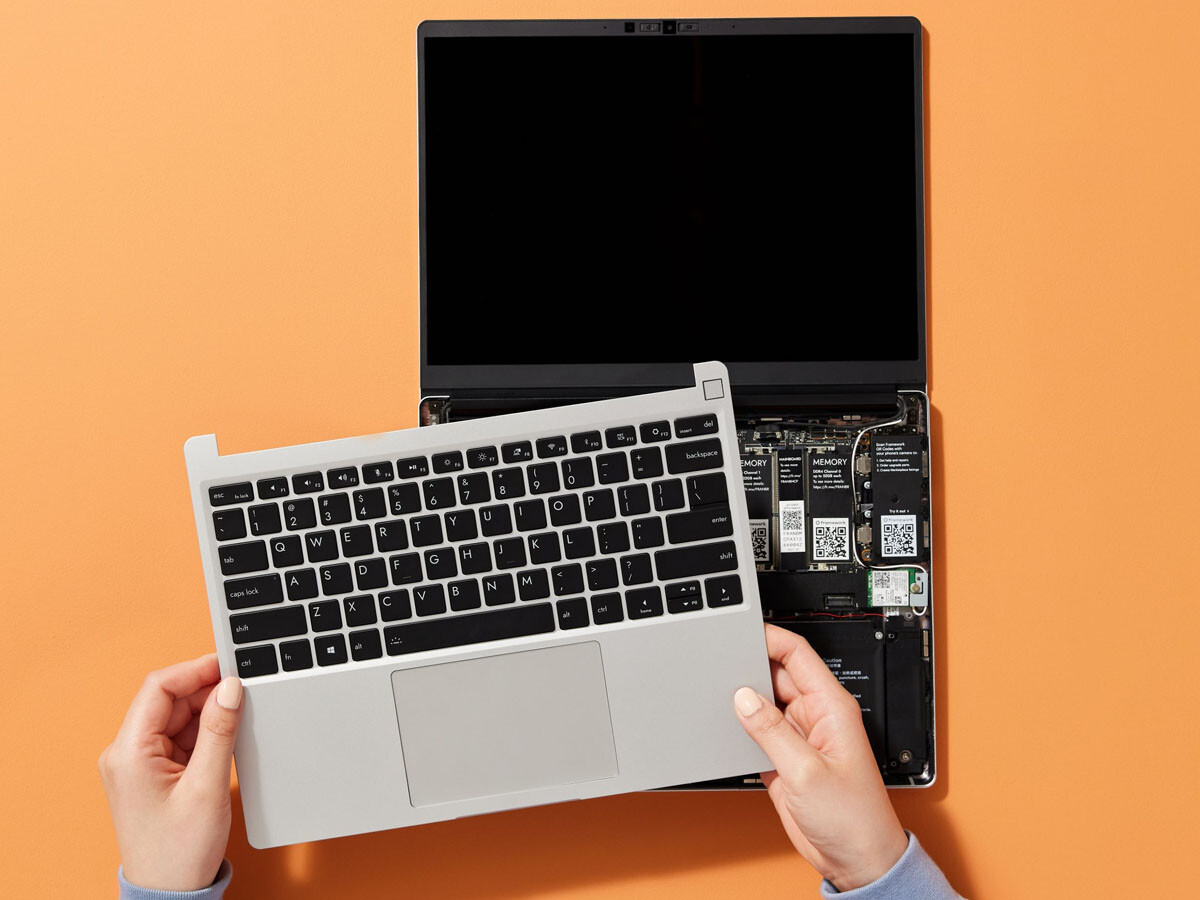

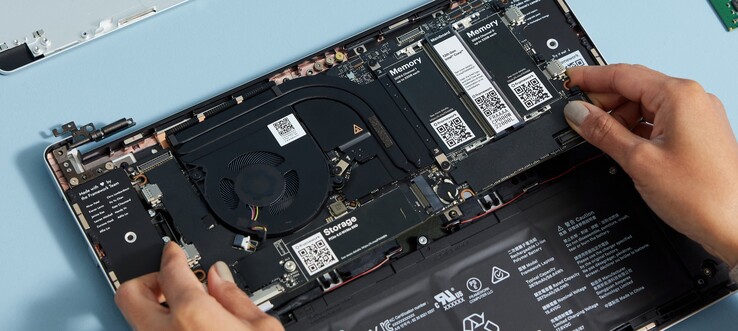

正如人们所期望的那样,该设备是最容易维修的笔记本电脑型号之一。框架还为希望自己组装笔记本电脑的用户销售主板和DIY套件。

辅料

基于USB-C的独特扩展卡今年全部回归,此外还有一个新的以太网扩展卡,支持高达2.5Gbit的速度。所有这些都是可选的,在结账时可以配置。制造商将继续根据用户需求开发不同的扩展卡。

每个零售盒都包括一个用于维修设备的Torx扳手。

显示

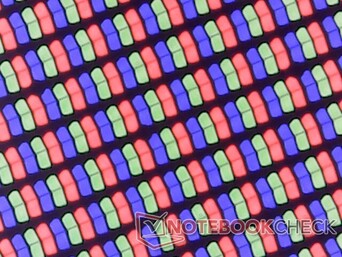

夏普RGB子像素阵列。尽管有光泽的覆盖层,但该显示屏不是触摸屏
夏普RGB子像素阵列。尽管有光泽的覆盖层,但该显示屏不是触摸屏

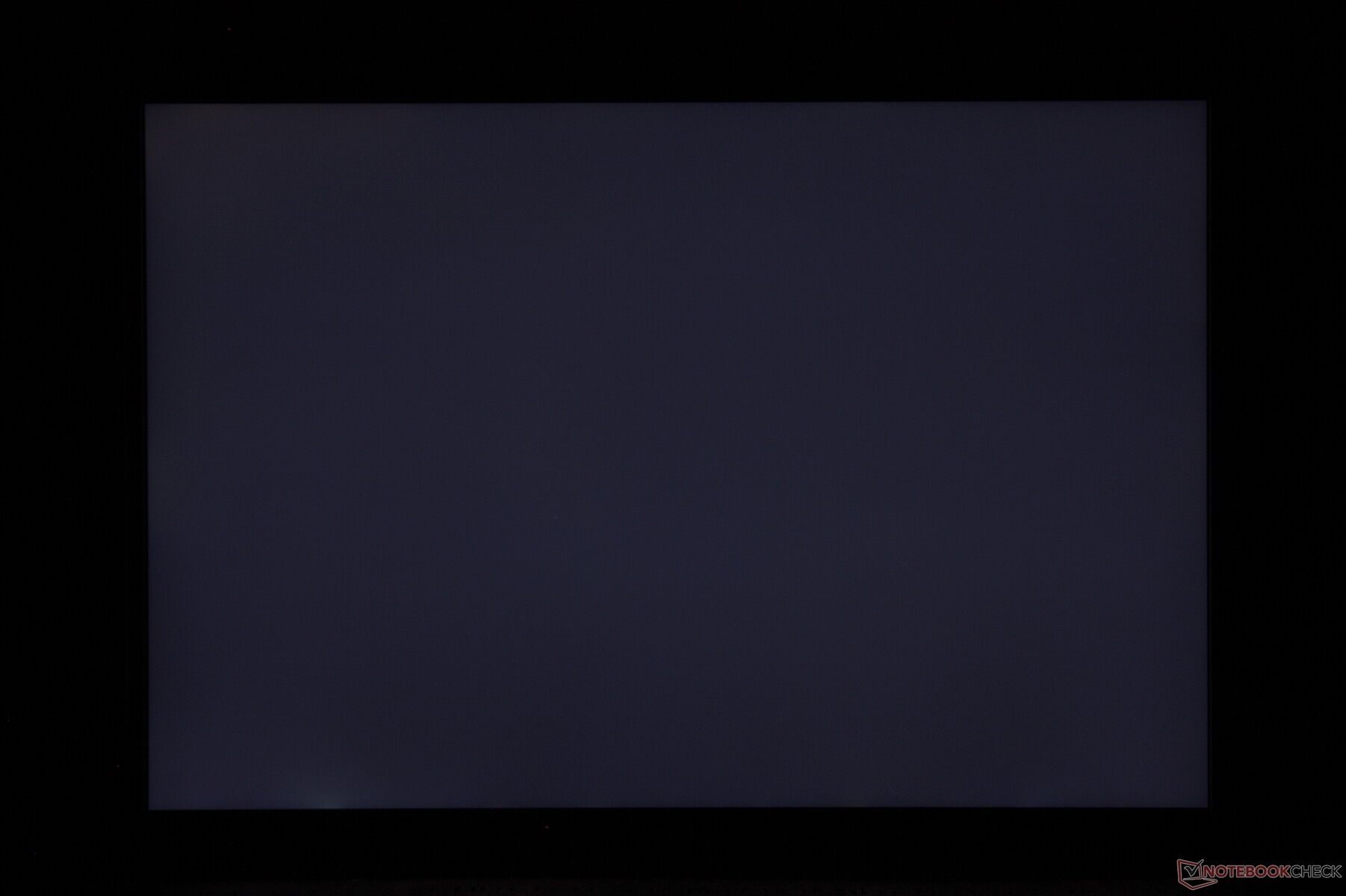

没有重大的背光不均匀出血问题
没有重大的背光不均匀出血问题
424.4
cd/m²
442.7
cd/m²
413.3
cd/m²
452.5
cd/m²
449.6
cd/m²
436.6
cd/m²
425
cd/m²
421.9
cd/m²
408.9
cd/m²
Distribution of brightness
BOE CQ NE135FBM-N41
X-Rite i1Pro 2
Maximum: 452.5 cd/m² (Nits) Average: 430.5 cd/m² Minimum: 9.37 cd/m²
Brightness Distribution: 90 %
Center on Battery: 449.6 cd/m²
Contrast: 1450:1 (Black: 0.31 cd/m²)
ΔE Color 2.76 | 0.59-29.43 Ø5.3, calibrated: 0.58
ΔE Greyscale 5.2 | 0.64-98 Ø5.6

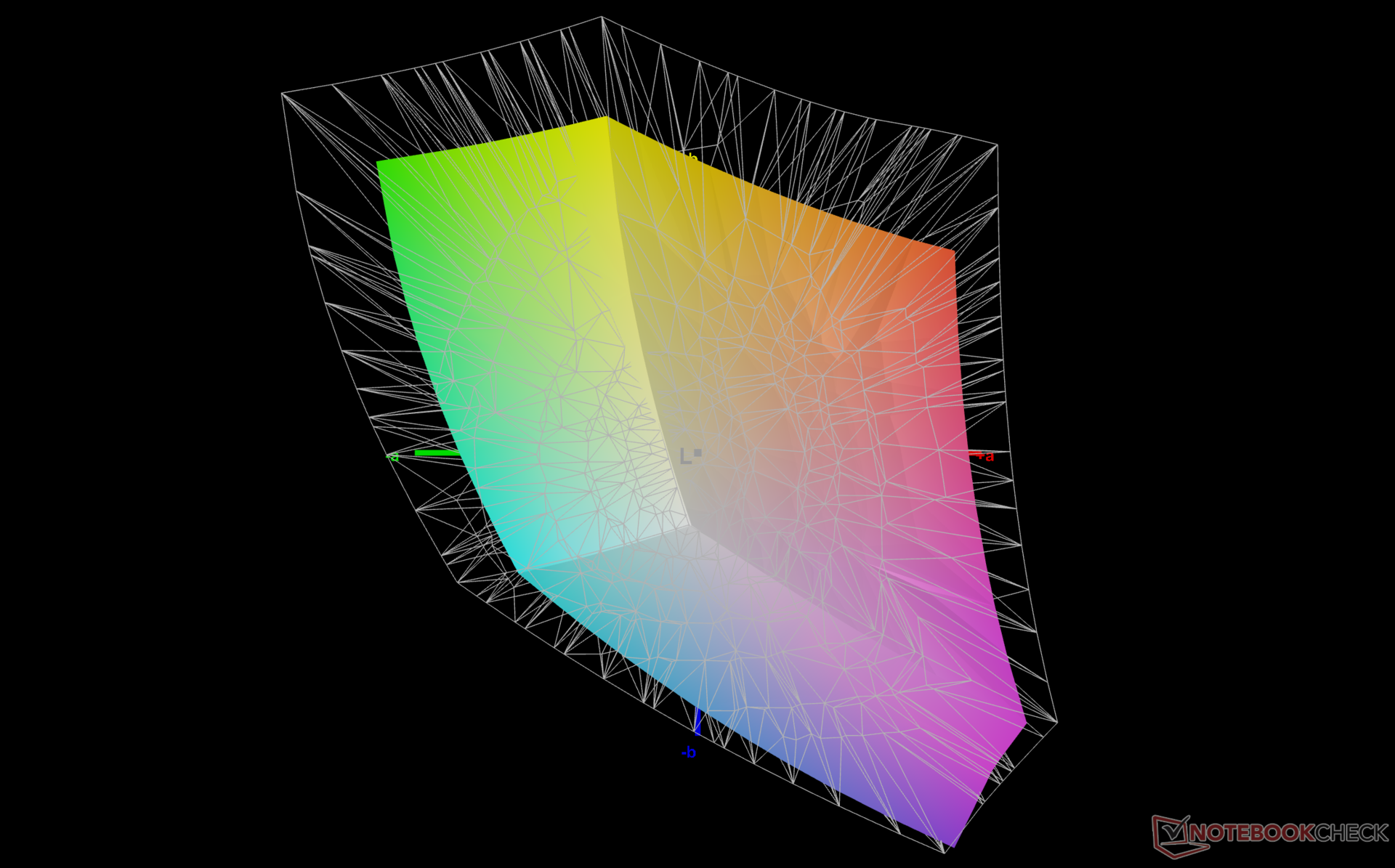

71.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.4% sRGB (Argyll 2.2.0 3D)
69.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23
Framework Laptop 13.5 12th Gen Intel
BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.50
Framework Laptop 13.5
BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.50
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
LPM135M467, IPS LED, 2256x1504, 13.50
HP EliteBook Folio 13.5-3G2L2EA
LGD0663, IPS, 1920x1280, 13.50
HP Spectre x360 14-ea0378ng
Samsung SDC4148, OLED, 3000x2000, 13.50
Microsoft Surface Laptop 4 13 i7
LQ135P1JX51, IPS, 2256x1504, 13.50
Display
-1%
-3%
26%
-5%
Display P3 Coverage
69.9
69
-1%
66.8
-4%
99.9
43%
64.7
-7%
sRGB Coverage
99.4
99.3
0%
98
-1%
100
1%
97.2
-2%
AdobeRGB 1998 Coverage
71.1
70.3
-1%
68.6
-4%
96.1
35%
66.9
-6%
Response Times
-46%
-72%
-13%
94%
-63%
Response Time Grey 50% / Grey 80% *
34.7 ?(17.7, 17)
55.6 ?(27.2, 28.4)
-60%
64 ?(34, 30)
-84%
44 ?(19, 25)
-27%
2 ?(1, 1)
94%
62.8 ?(30.4, 32.4)
-81%
Response Time Black / White *
27.5 ?(14.8, 12.7)
36 ?(21.2, 14.8)
-31%
44 ?(22, 22)
-60%
27 ?(14, 13)
2%
2 ?(1, 1)
93%
39.8 ?(21.2, 18)
-45%
PWM Frequency
250 ?(10)
21930 ?(50)
Screen
-8%
14%
-9%
259%
3%
Brightness middle
449.6
449
0%
465
3%
250
-44%
370
-18%
413
-8%
Brightness
431
435
1%
451
5%
226
-48%
374
-13%
400
-7%
Brightness Distribution
90
93
3%
92
2%
82
-9%
90
0%
94
4%
Black Level *
0.31
0.39
-26%
0.28
10%
0.215
31%
0.01
97%
0.29
6%
Contrast
1450
1151
-21%
1661
15%
1163
-20%
37000
2452%
1424
-2%
Colorchecker dE 2000 *
2.76
2.34
15%
2
28%
3.59
-30%
2.57
7%
2.8
-1%
Colorchecker dE 2000 max. *
7.96
7.07
11%
4.7
41%
5.9
26%
4.52
43%
7.2
10%
Colorchecker dE 2000 calibrated *
0.58
0.96
-66%
0.7
-21%
2.31
-298%
0.8
-38%
Greyscale dE 2000 *
5.2
4.7
10%
2.9
44%
3.99
23%
2.2
58%
1.9
63%
Gamma
2.23 99%
2.29 96%
2.09 105%
2.98 74%
2.36 93%
2.12 104%
CCT
6475 100%
6760 96%
6181 105%
6765 96%
6154 106%
6510 100%
Color Space (Percent of AdobeRGB 1998)
85.8
61.6
Color Space (Percent of sRGB)
100
97.2
Total Average (Program / Settings)
-18% / -12%
-20% / -2%
-11% / -10%
126% / 185%
-22% / -8%

* ... smaller is better

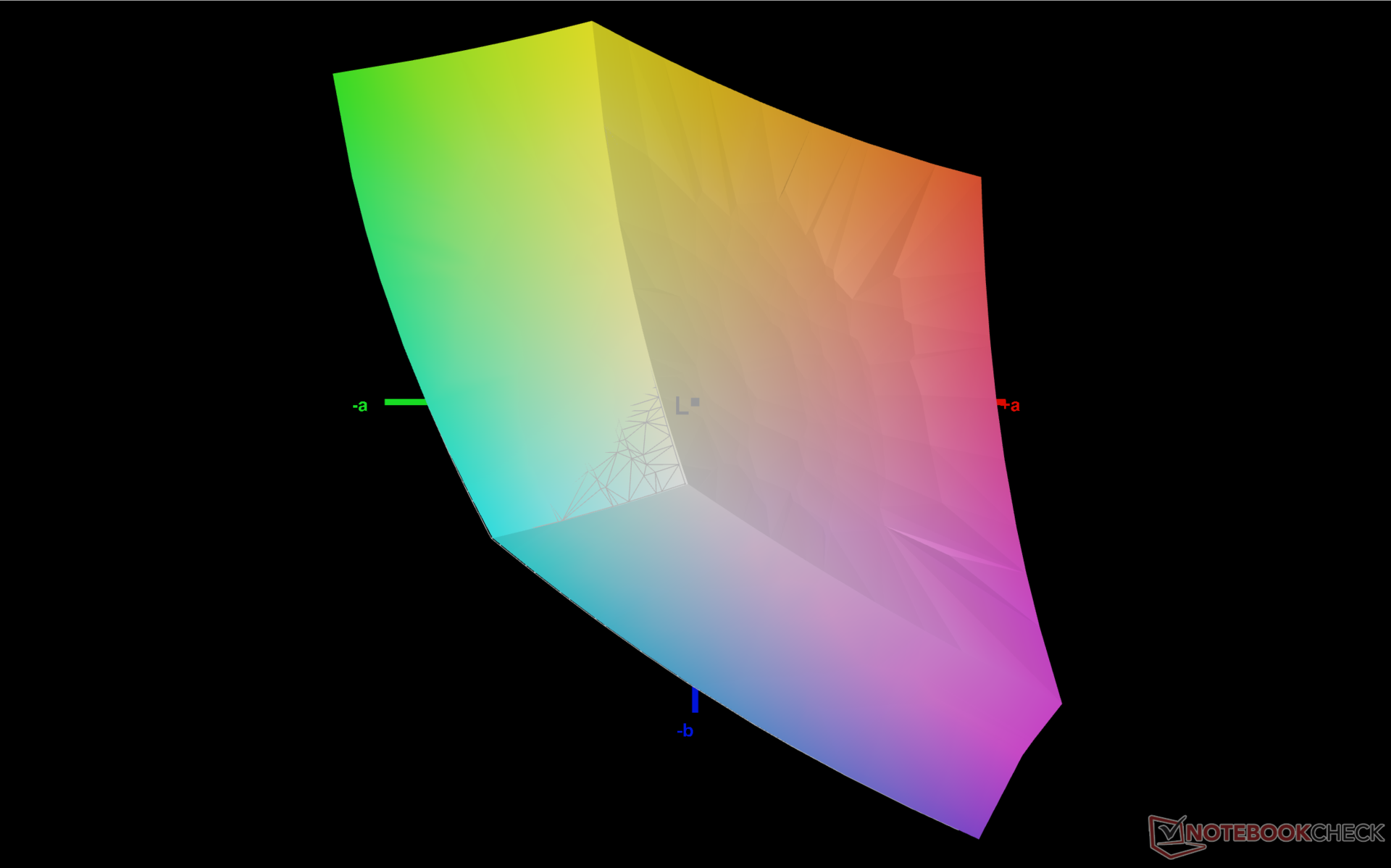

vs. sRGB
vs. sRGB
vs. DCI-P3
vs. DCI-P3

制造商没有在工厂对其框架笔记本电脑进行校准,这是一个耻辱,因为该面板提供了完整的sRGB覆盖。我们的测试设备的平均灰度和色彩DeltaE值分别为5.2和2.76,而在我们自己校准面板之后,只有0.9和0.58。特别是色温,在没有适当校准的情况下太暖了。我们建议应用我们的上述ICM配置文件,以获得显示器的最大效益。

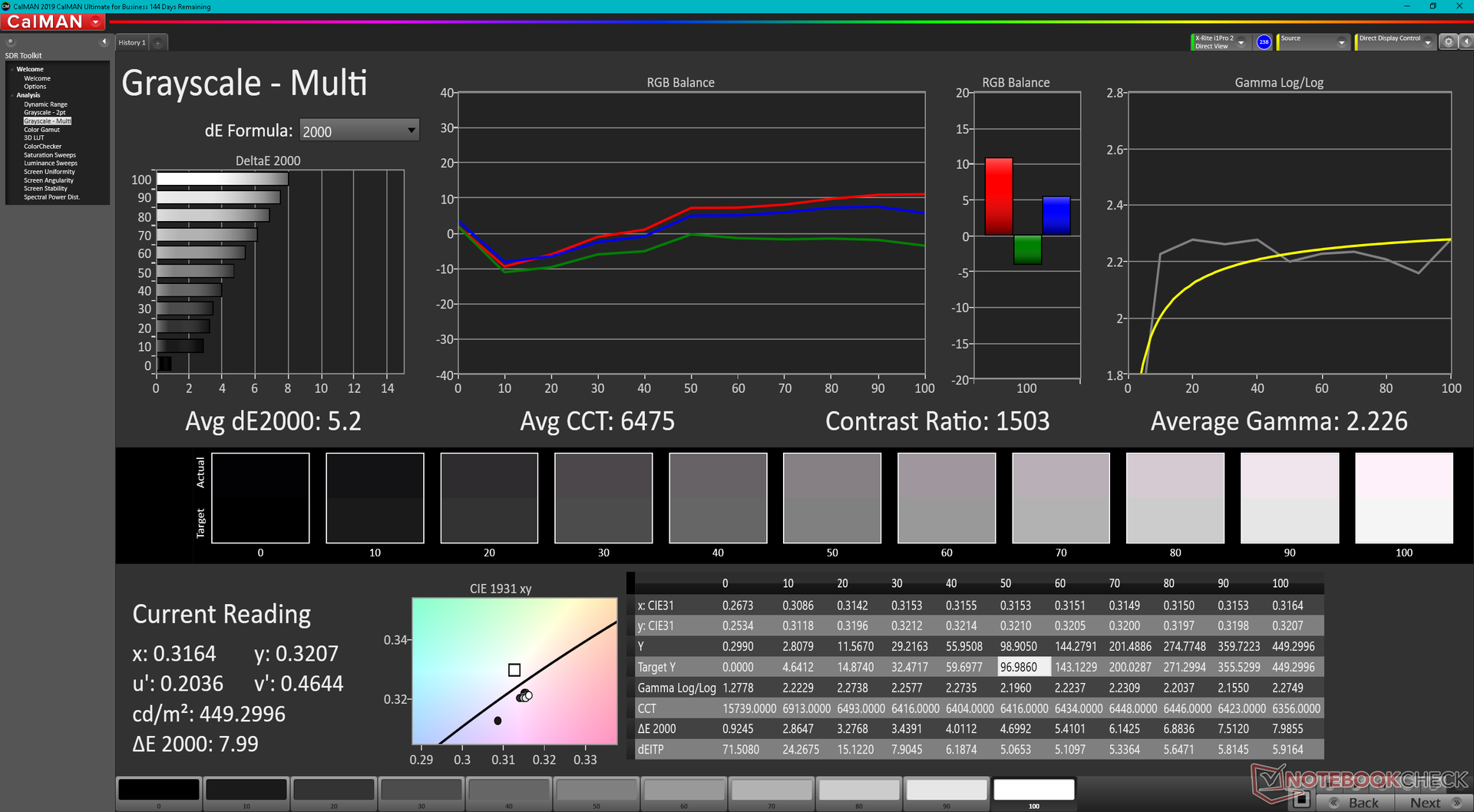

校准前的灰度
校准前的灰度

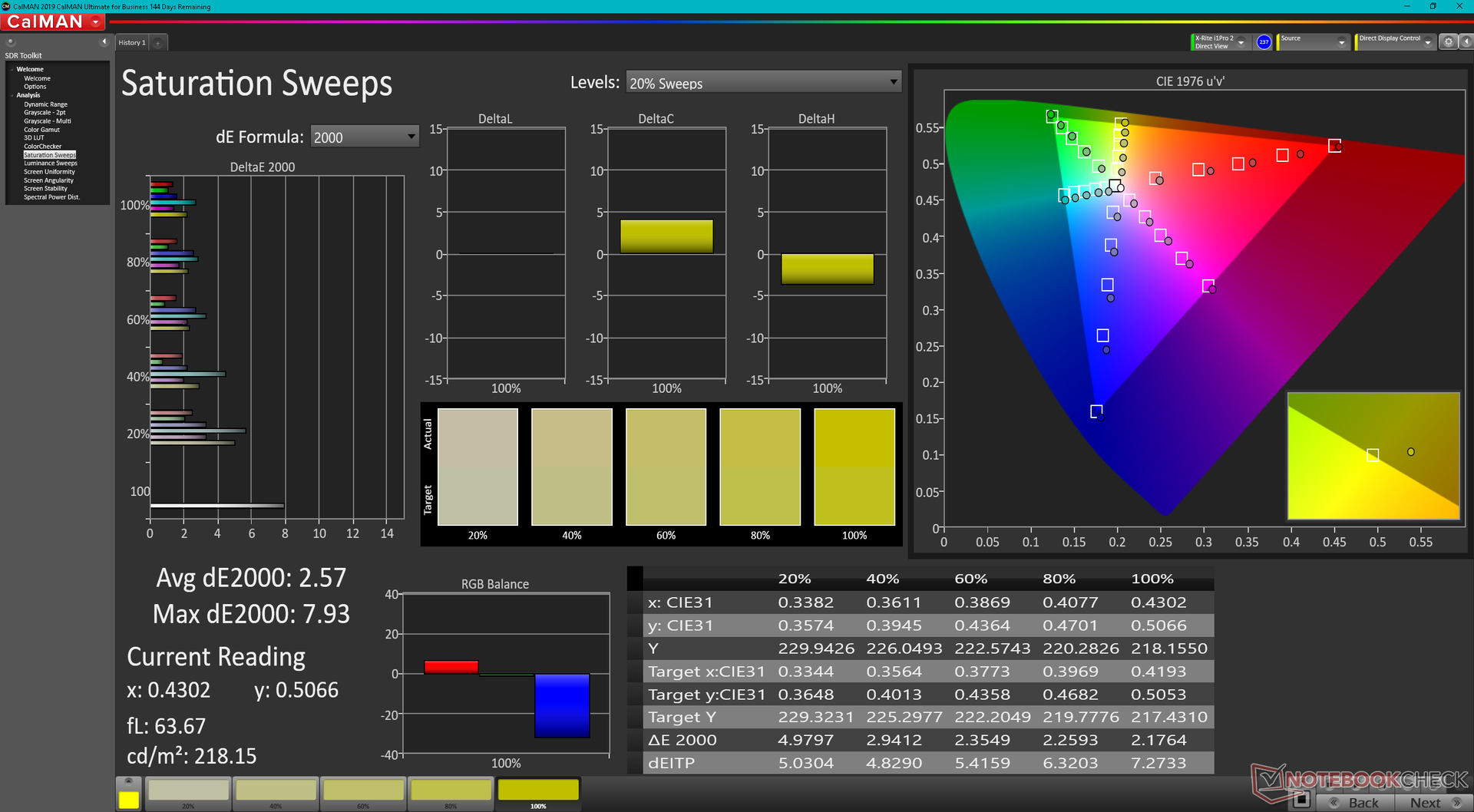

校准前的饱和扫频
校准前的饱和扫频

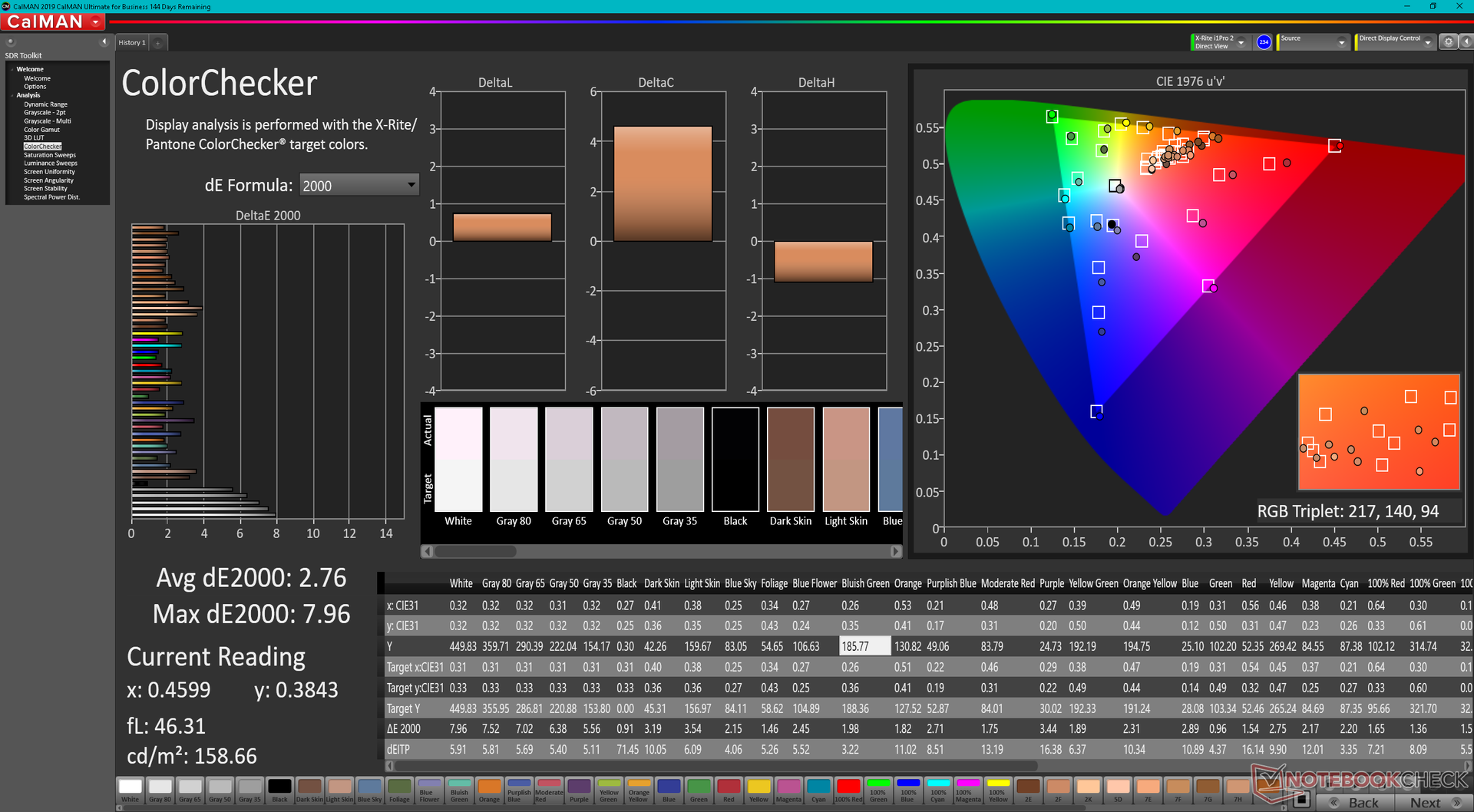

校准前的ColorChecker
校准前的ColorChecker

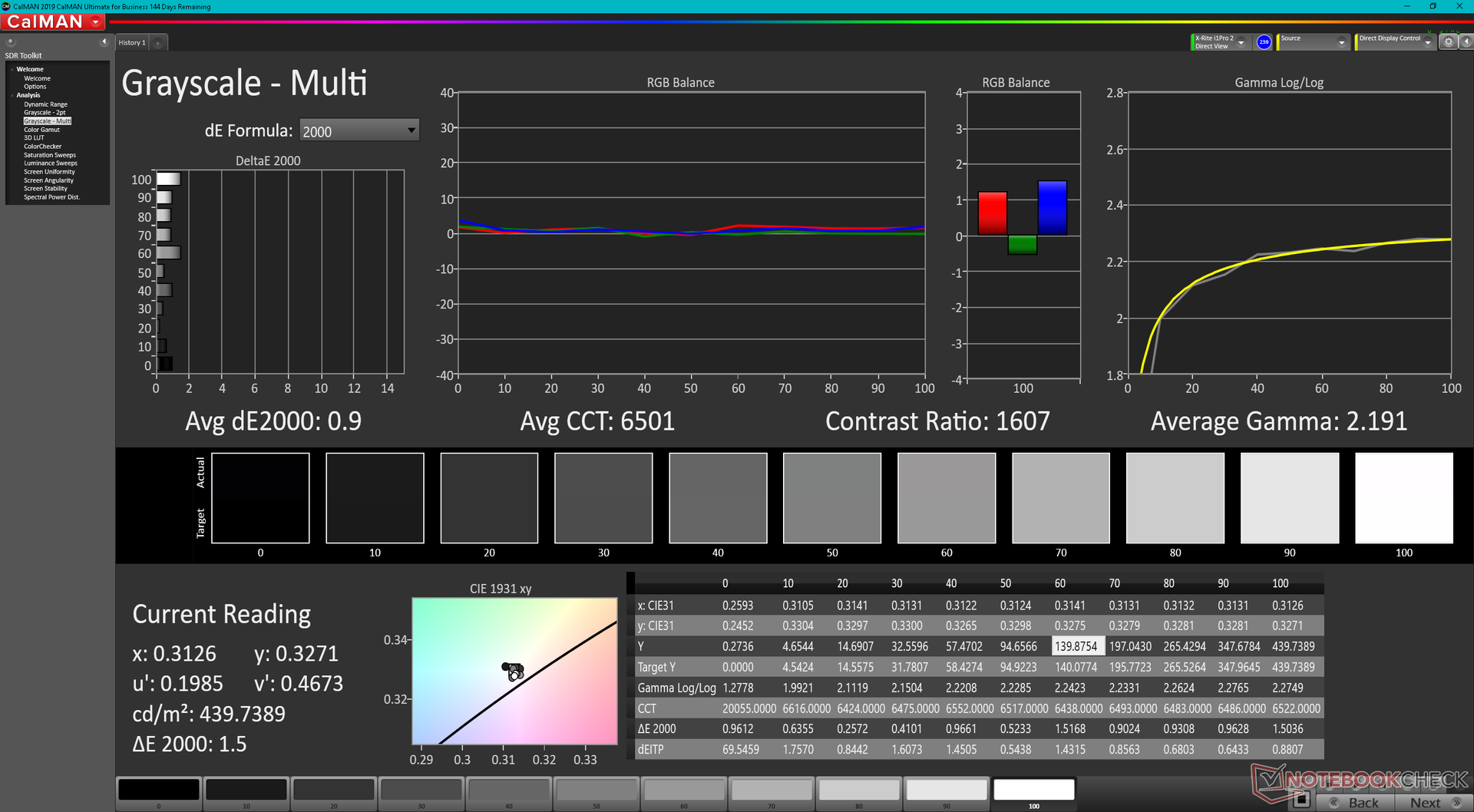

校准后的灰度
校准后的灰度
校准后的饱和扫频
校准后的饱和扫频

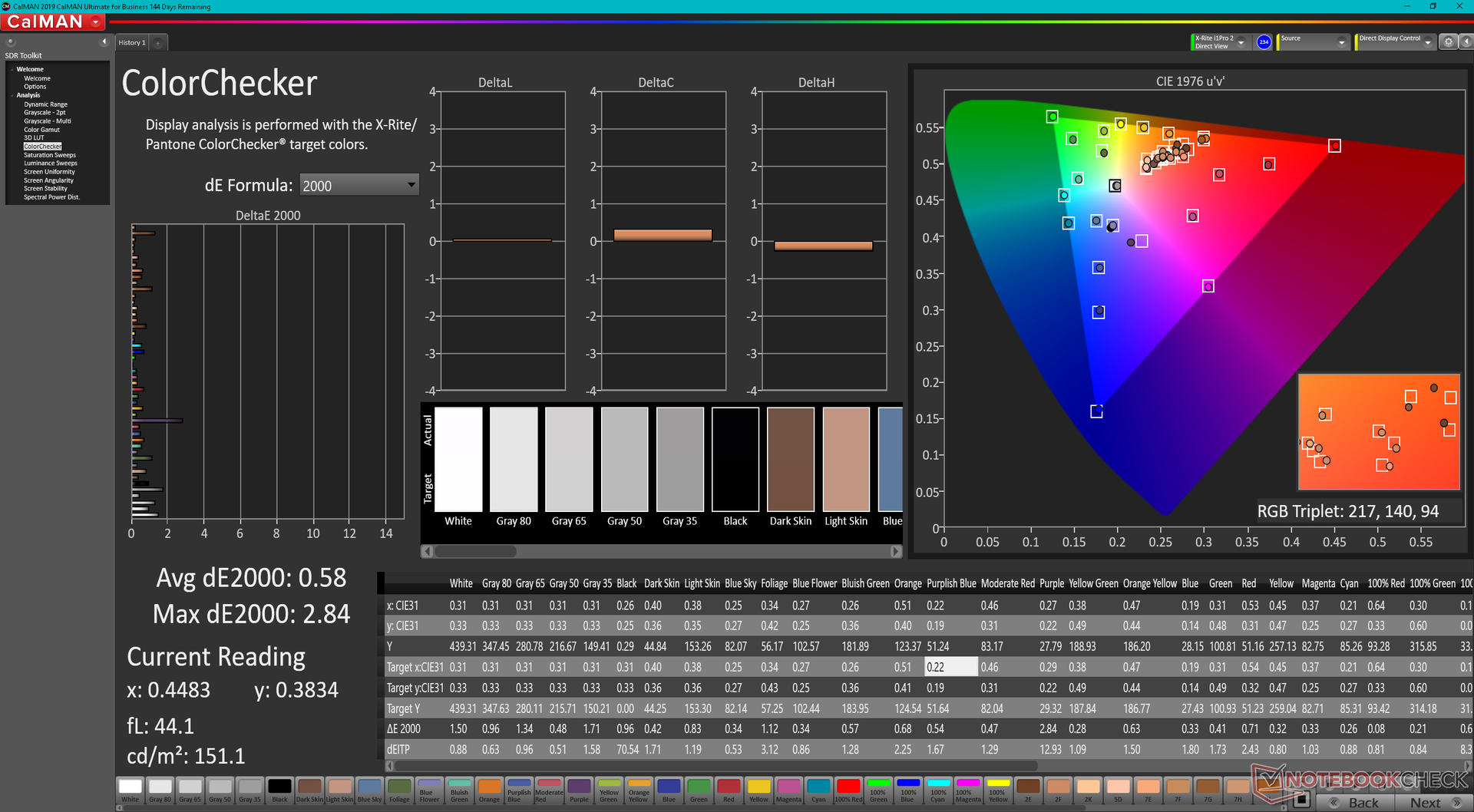

校准后的ColorChecker
校准后的ColorChecker

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

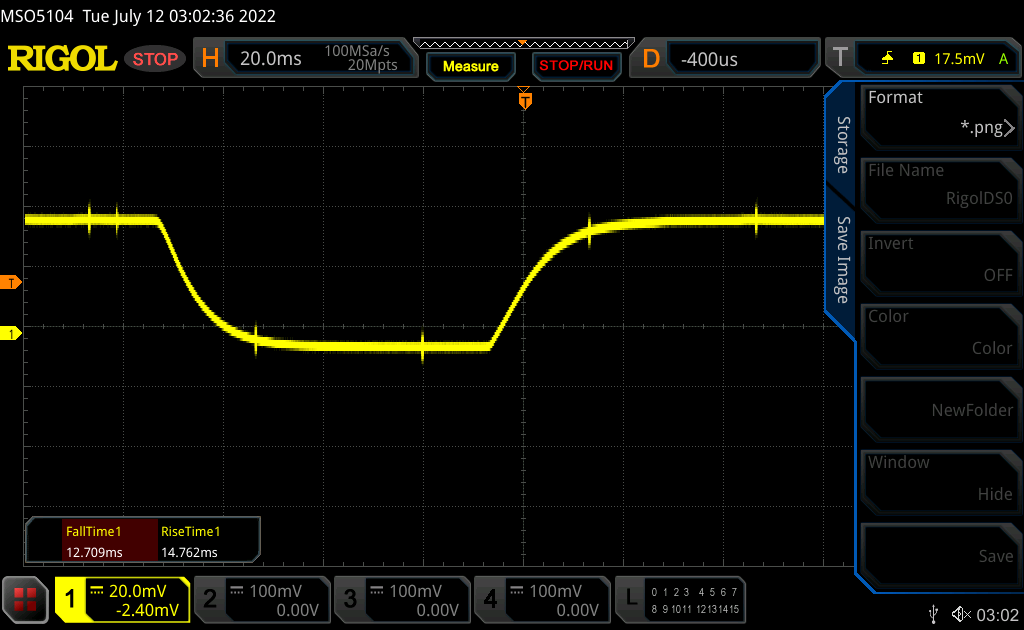

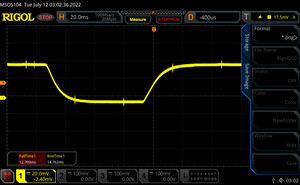

       Response Time Black to White
27.5 ms ... rise ↗ and fall ↘ combined↗ 14.8 ms rise
↘ 12.7 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.4 (minimum) to 240 (maximum) ms. » 61 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (23.1 ms).

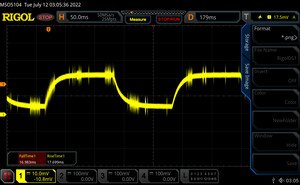

       Response Time 50% Grey to 80% Grey
34.7 ms ... rise ↗ and fall ↘ combined↗ 17.7 ms rise
↘ 17 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.25 (minimum) to 636 (maximum) ms. » 35 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (36.5 ms).

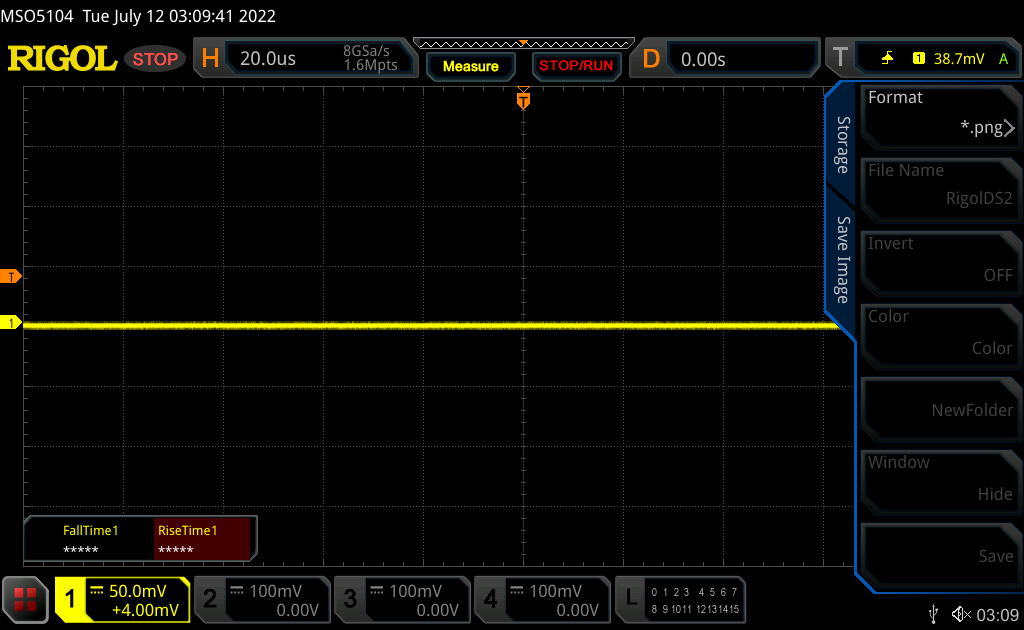

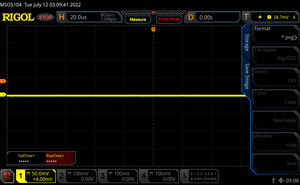

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 19971 (minimum: 5 - maximum: 3846000) Hz was measured.

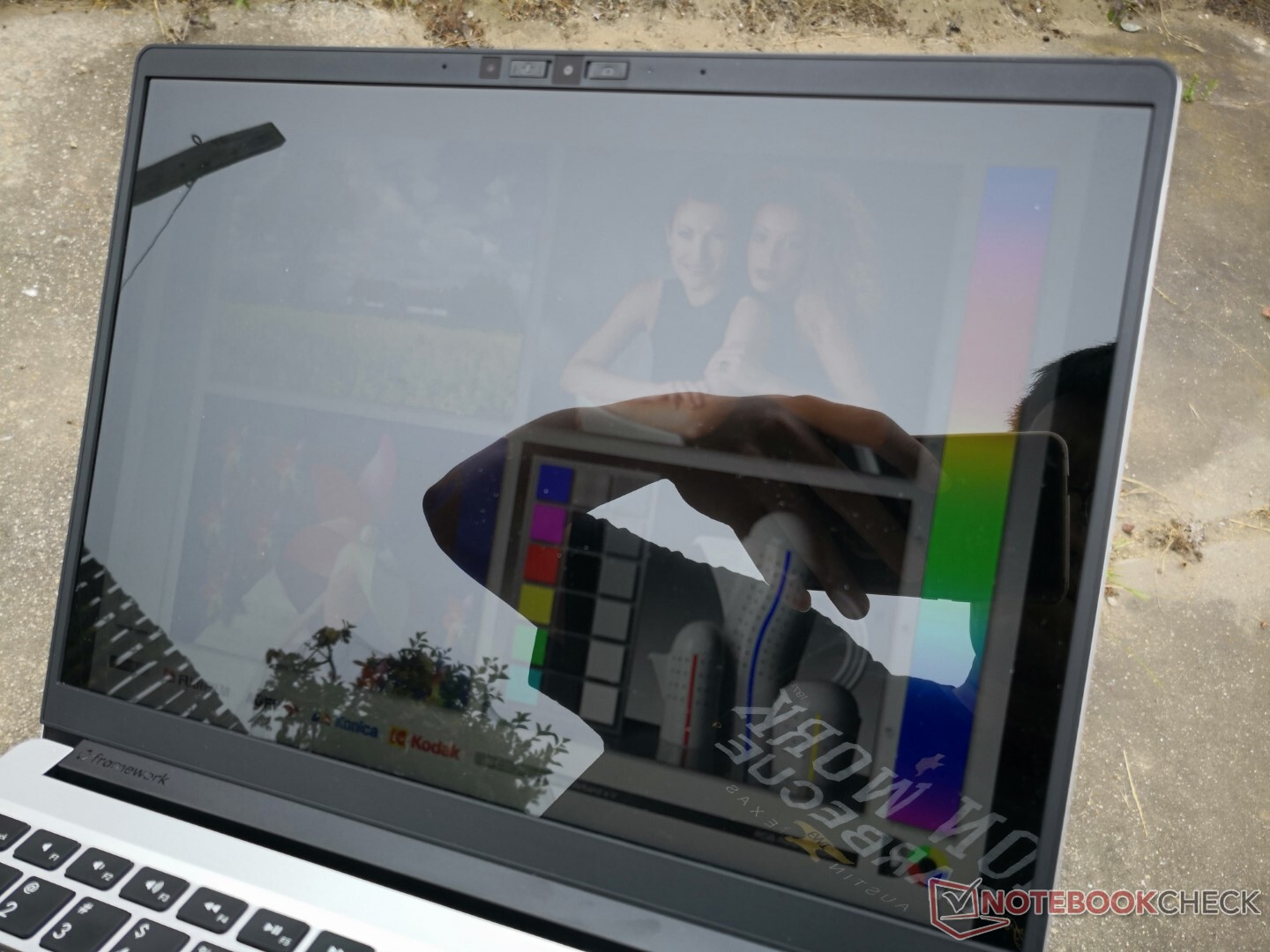

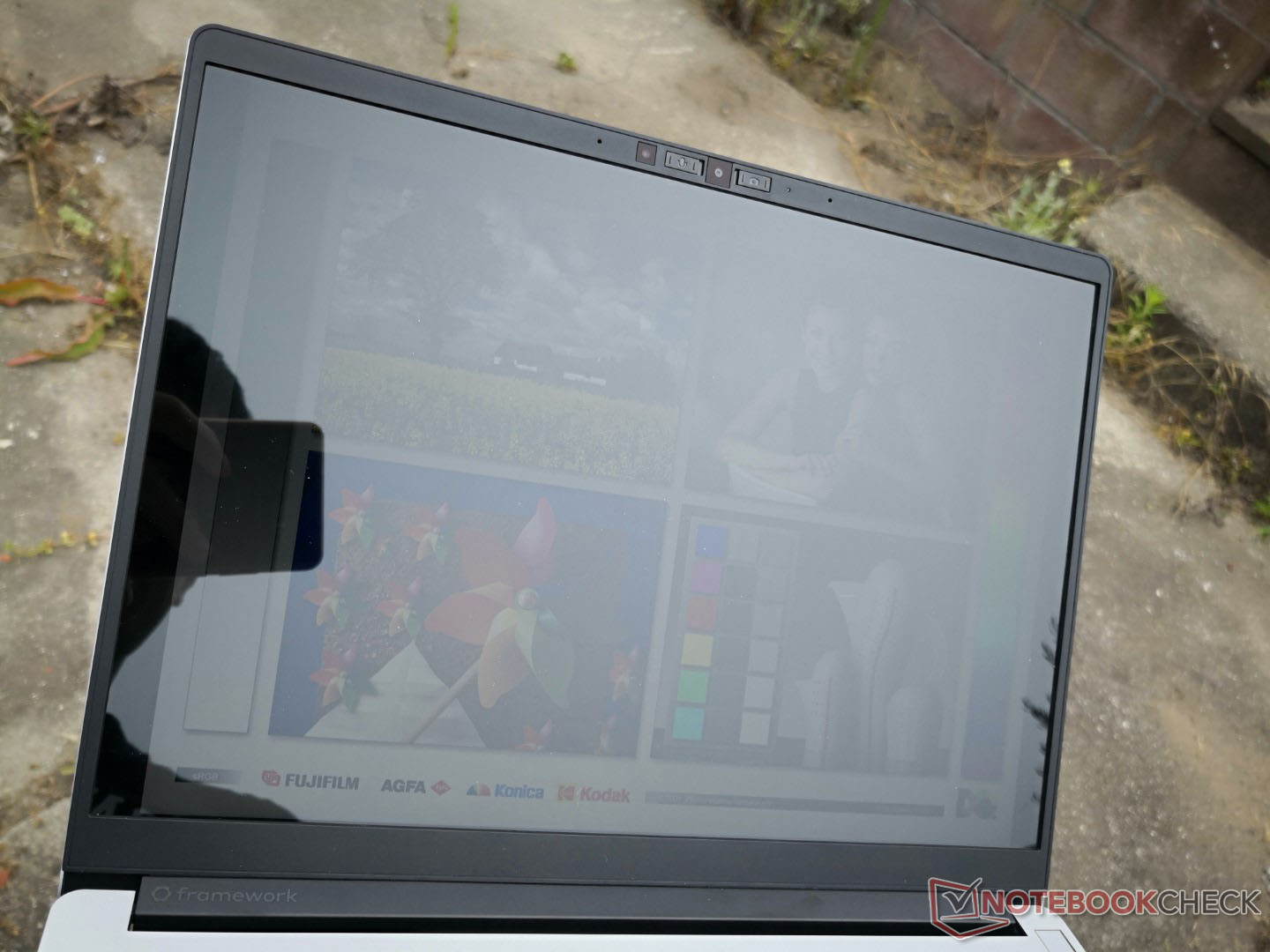

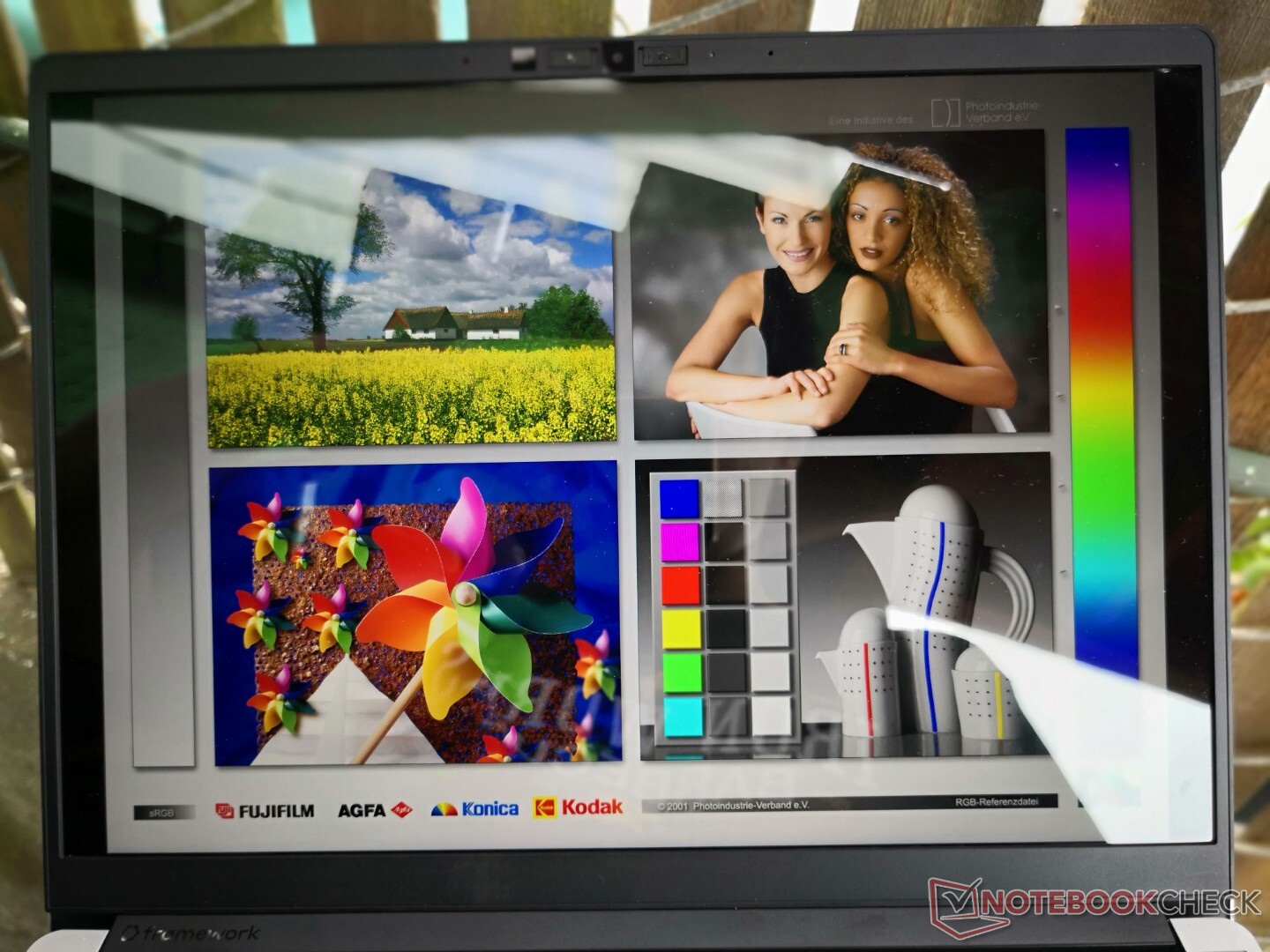

在一个明亮的阴天,在户外
在一个明亮的阴天,在户外
在户外的阴凉处。光滑的显示屏难免会产生眩光。
在户外的阴凉处。光滑的显示屏难免会产生眩光。
在一个明亮的阴天,在户外
在一个明亮的阴天,在户外

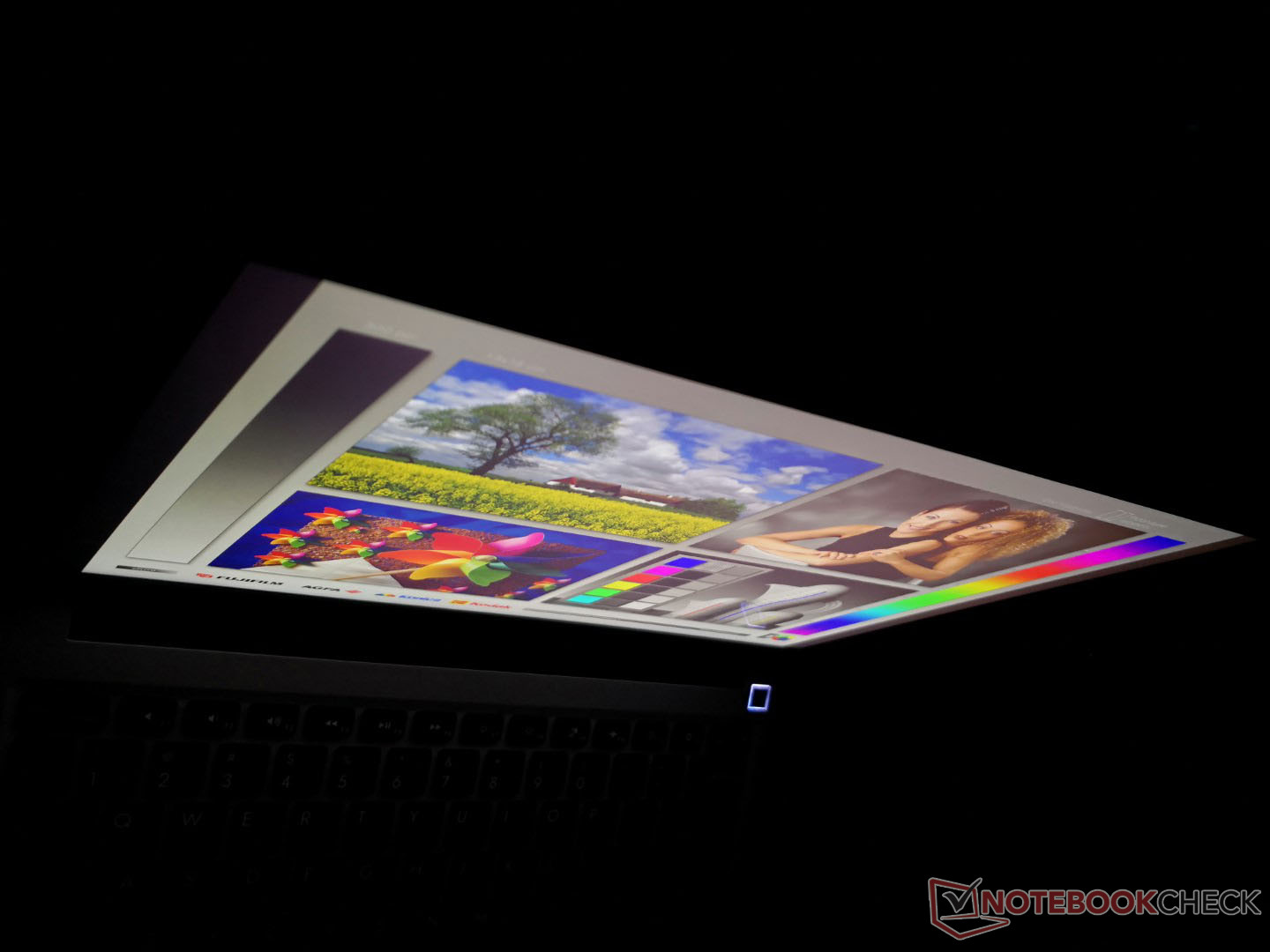

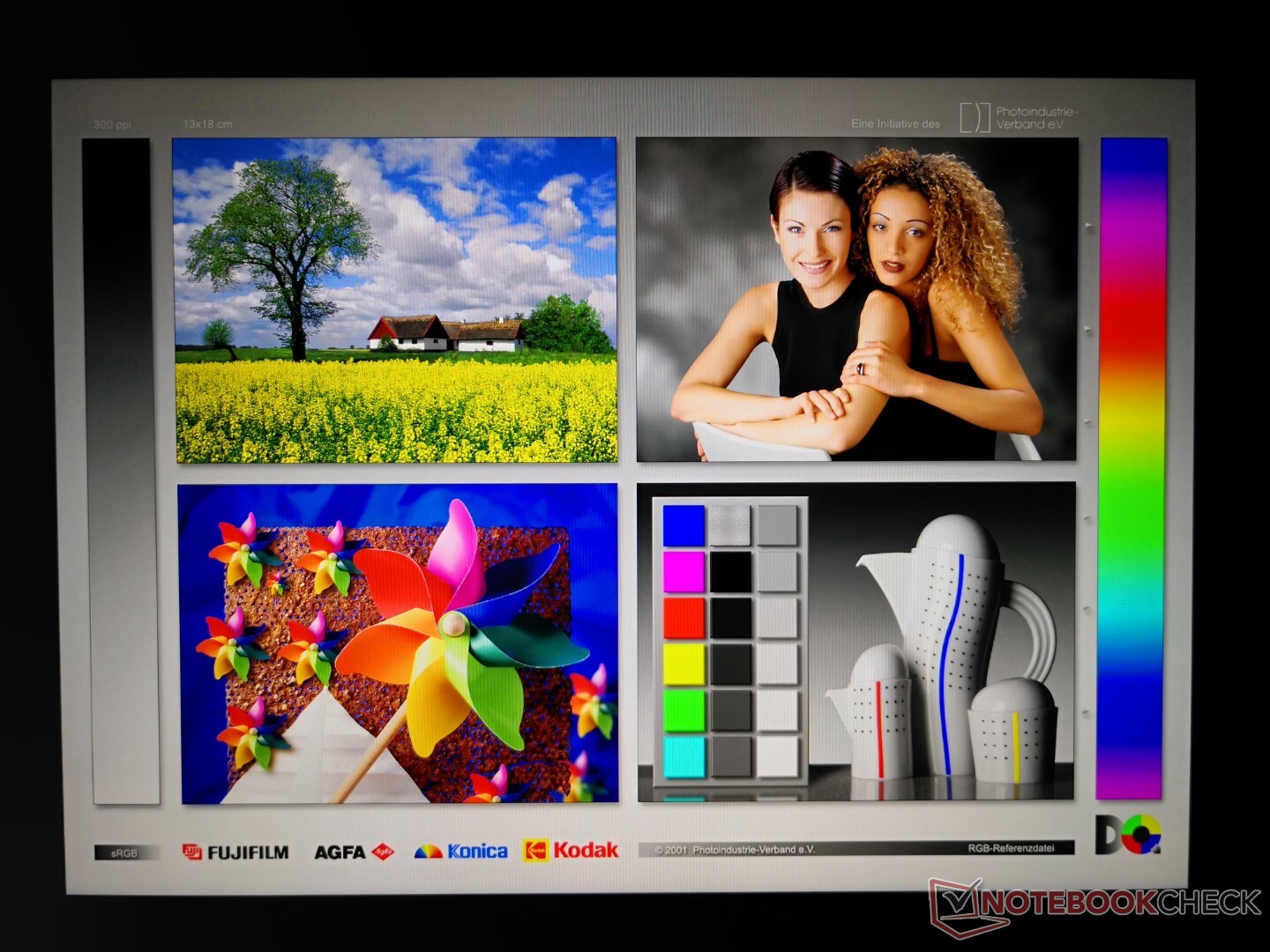

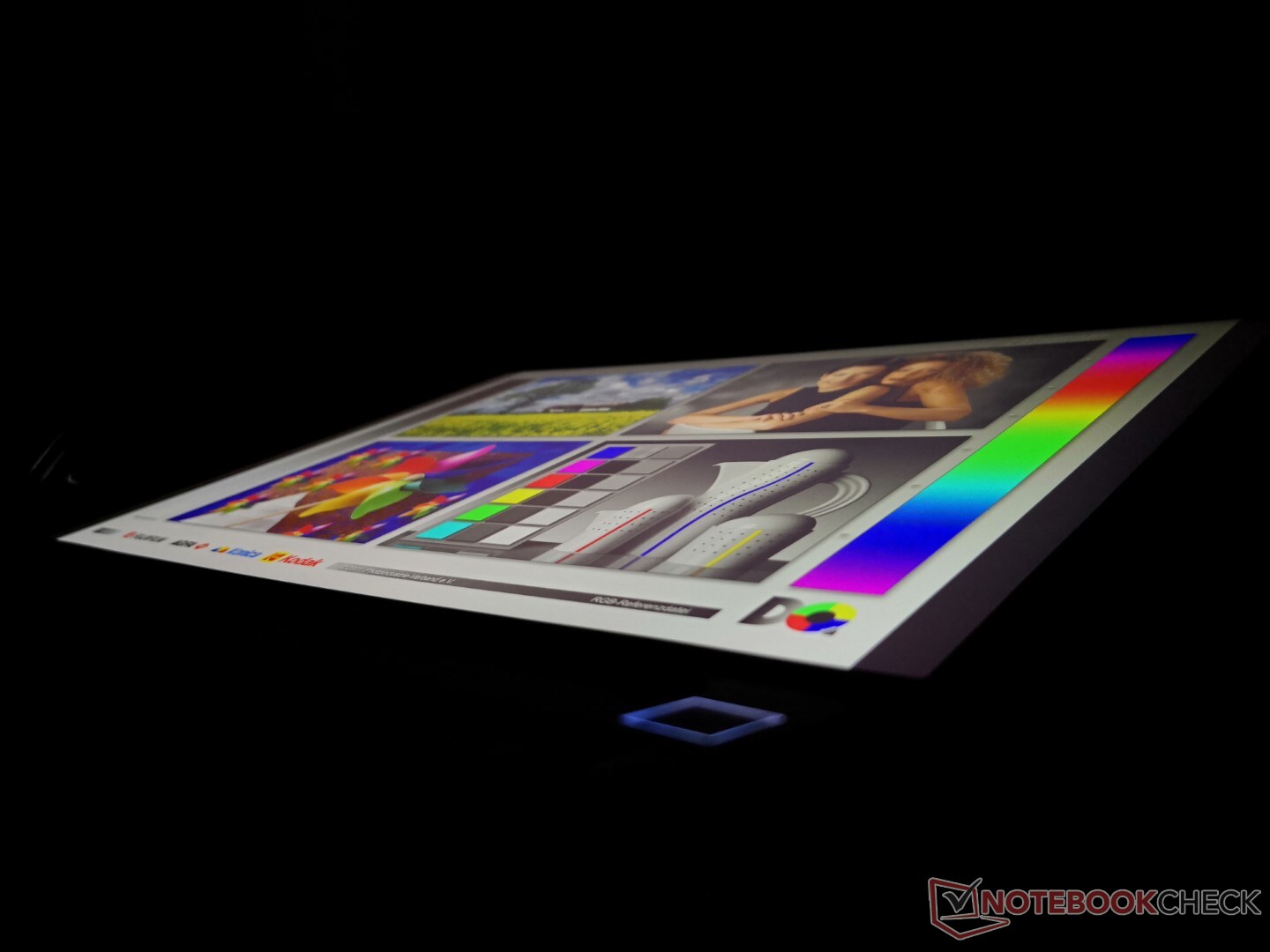

宽广的IPS可视角度。除非从极端角度观看,否则颜色和对比度不会降低。
宽广的IPS可视角度。除非从极端角度观看,否则颜色和对比度不会降低。

业绩




测试条件

在运行以下任何性能基准测试之前,我们通过Windows将我们的设备设置为性能模式。

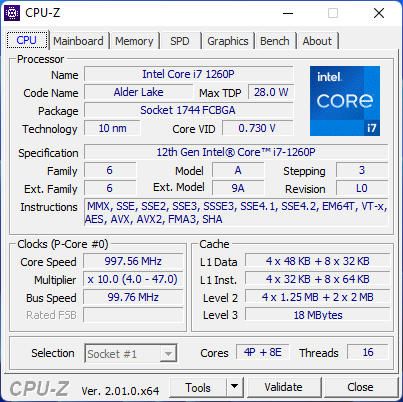

处理器

当与 酷睿i7-1165G7相比,原框架笔记本电脑中的 酷睿i7-1260P在2022年框架模型中可以分别提供20%和90%的单线程和多线程性能。事实上,到目前为止,Framework型号的运行速度比我们数据库中在相同的Core i7-1260P CPU上运行的普通笔记本电脑快20%到25%。我们很高兴看到制造商提供12代P系列CPU,而不是12代U系列,因为 酷睿i5-1235Ui7-1255U比第11代U系列的性能优势要小得多。

降级到 酷睿i5-1240P的选择,预计会导致45%的多线程性能下降,而升级到 酷睿i7-1280P只会增加约10%的性能。因此,酷睿i7-1260P SKU是最值得推荐的选择。

Cinebench R15 Multi Loop

08517025534042551059568076585093510201105119012751360144515301615Tooltip
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P: Ø1585 (1546.61-1622.59)
Dell Inspiron 16 7620 2-in-1 Intel Core i7-1260P: Ø1409 (1241.97-1689.4)
Lenovo Yoga 9 14IAP7 82LU0001US Intel Core i7-1260P: Ø1361 (1340.62-1461.29)
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7: Ø897 (888.08-962.9)
Dell Inspiron 14 7420 2-in-1 Intel Core i7-1255U: Ø1118 (1067.98-1158.61)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
4060 Points ∼100% +1%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
4033 Points ∼99%
Average Intel Core i7-1260P
  (1234 - 4748, n=13)
3424 Points ∼84% -15%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
3092 Points ∼76% -23%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
2913 Points ∼72% -28%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
2870 Points ∼71% -29%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
2418 Points ∼60% -40%
Dell XPS 13 7390 Core i7-10710U
Intel Core i7-10710U
2410 Points ∼59% -40%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
2178 Points ∼54% -46%
Framework Laptop 13.5
Intel Core i7-1165G7
2119 Points ∼52% -47%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
2101 Points ∼52% -48%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
1949 Points ∼48% -52%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
1688 Points ∼42% -58%
HP Envy 13-ba0001ng
Intel Core i7-10510U
1237 Points ∼30% -69%
HP Envy 13-aq0003ng
Intel Core i7-8565U
1166 Points ∼29% -71%
Cinebench R20 / CPU (Single Core)
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
690 Points ∼100%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
682 Points ∼99% -1%
Average Intel Core i7-1260P
  (448 - 690, n=13)
633 Points ∼92% -8%
Framework Laptop 13.5
Intel Core i7-1165G7
580 Points ∼84% -16%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
570 Points ∼83% -17%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
566 Points ∼82% -18%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
564 Points ∼82% -18%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
557 Points ∼81% -19%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
552 Points ∼80% -20%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
489 Points ∼71% -29%
Dell XPS 13 7390 Core i7-10710U
Intel Core i7-10710U
460 Points ∼67% -33%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
456 Points ∼66% -34%
HP Envy 13-ba0001ng
Intel Core i7-10510U
429 Points ∼62% -38%
HP Envy 13-aq0003ng
Intel Core i7-8565U
354 Points ∼51% -49%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
251 Points ∼36% -64%
Cinebench R23 / Multi Core
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
10468 Points ∼100% +1%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
10405 (10008.9min - 10404.6max) Points ∼99%
Average Intel Core i7-1260P
  (3173 - 12150, n=14)
8965 Points ∼86% -14%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
7872 (7780.83min - 7871.73max) Points ∼75% -24%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
7451 (6931.1min - 7450.97max) Points ∼71% -28%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
7385 (7081.74min - 7384.56max) Points ∼71% -29%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
6348 (5673.44min - 6347.79max) Points ∼61% -39%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
5680 Points ∼54% -45%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
5504 (5281.5min - 5504.22max) Points ∼53% -47%
Framework Laptop 13.5
Intel Core i7-1165G7
5477 (5385.09min - 5477.06max) Points ∼52% -47%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
5085 (4711.28min - 5085.37max) Points ∼49% -51%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
4317 Points ∼41% -59%
Cinebench R23 / Single Core
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
1775 Points ∼100% +8%
Average Intel Core i7-1260P
  (1155 - 1796, n=13)
1646 Points ∼93% 0%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
1640 Points ∼92%
Framework Laptop 13.5
Intel Core i7-1165G7
1507 Points ∼85% -8%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
1488 Points ∼84% -9%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
1464 Points ∼82% -11%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
1457 Points ∼82% -11%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
1444 Points ∼81% -12%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
1415 Points ∼80% -14%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
1256 Points ∼71% -23%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
1172 Points ∼66% -29%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
640 Points ∼36% -61%
Cinebench R15 / CPU Multi 64Bit
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
1742 Points ∼100% +7%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
1623 (1546.61min - 1622.59max) Points ∼93%
Average Intel Core i7-1260P
  (549 - 1932, n=15)
1408 Points ∼81% -13%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
1390 (1297.77min - 1389.66max) Points ∼80% -14%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
1196 (1169.93min - 1196.39max) Points ∼69% -26%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
1159 (1067.98min - 1158.61max) Points ∼67% -29%
Dell XPS 13 7390 Core i7-10710U
Intel Core i7-10710U
1051 Points ∼60% -35%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
995 (551.99min - 995.3max) Points ∼57% -39%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
884 (859.75min - 883.65max) Points ∼51% -46%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
852 (828.74min - 851.79max) Points ∼49% -48%
Framework Laptop 13.5
Intel Core i7-1165G7
850 (812.27min - 850.43max) Points ∼49% -48%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
812 (754.47min - 811.64max) Points ∼47% -50%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
805 (677.64min - 805.46max) Points ∼46% -50%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
702 (669.21min - 702.47max) Points ∼40% -57%
HP Envy 13-ba0001ng
Intel Core i7-10510U
539 (532.18min - 539.24max) Points ∼31% -67%
HP Envy 13-aq0003ng
Intel Core i7-8565U
517 Points ∼30% -68%
Cinebench R15 / CPU Single 64Bit
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
252 Points ∼100%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
251 Points ∼100% 0%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
237 Points ∼94% -6%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
229 Points ∼91% -9%
Average Intel Core i7-1260P
  (165.4 - 256, n=14)
229 Points ∼91% -9%
Framework Laptop 13.5
Intel Core i7-1165G7
224 Points ∼89% -11%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
224 Points ∼89% -11%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
209 Points ∼83% -17%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
217 Points ∼86% -14%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
195.8 Points ∼78% -22%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
188 Points ∼75% -25%
Dell XPS 13 7390 Core i7-10710U
Intel Core i7-10710U
180 Points ∼71% -29%
HP Envy 13-ba0001ng
Intel Core i7-10510U
177 Points ∼70% -30%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
177 Points ∼70% -30%
HP Envy 13-aq0003ng
Intel Core i7-8565U
172 Points ∼68% -32%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
91.8 Points ∼36% -64%
Blender / v2.79 BMW27 CPU
HP Envy 13-ba0001ng
Intel Core i7-10510U
856 Seconds * ∼100% -184%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
655 Seconds * ∼77% -118%
Dell XPS 13 7390 Core i7-10710U
Intel Core i7-10710U
585 Seconds * ∼68% -94%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
583 Seconds * ∼68% -94%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
559 Seconds * ∼65% -86%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
554 Seconds * ∼65% -84%
Framework Laptop 13.5
Intel Core i7-1165G7
551 Seconds * ∼64% -83%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
469 Seconds * ∼55% -56%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
416 Seconds * ∼49% -38%
Average Intel Core i7-1260P
  (264 - 906, n=13)
396 Seconds * ∼46% -32%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
374 Seconds * ∼44% -24%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
331 Seconds * ∼39% -10%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
310 Seconds * ∼36% -3%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
301 Seconds * ∼35%
7-Zip 18.03 / 7z b 4
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
47500 MIPS ∼100% +7%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
44426 MIPS ∼94%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
43633 MIPS ∼92% -2%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
39258 MIPS ∼83% -12%
Average Intel Core i7-1260P
  (16146 - 46108, n=13)
37973 MIPS ∼80% -15%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
33250 MIPS ∼70% -25%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
29874 MIPS ∼63% -33%
Dell XPS 13 7390 Core i7-10710U
Intel Core i7-10710U
27115 MIPS ∼57% -39%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
25319 MIPS ∼53% -43%
Framework Laptop 13.5
Intel Core i7-1165G7
24436 MIPS ∼51% -45%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
24325 MIPS ∼51% -45%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
23132 MIPS ∼49% -48%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
20746 MIPS ∼44% -53%
HP Envy 13-ba0001ng
Intel Core i7-10510U
16152 MIPS ∼34% -64%
7-Zip 18.03 / 7z b 4 -mmt1
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
5767 MIPS ∼100%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
5529 MIPS ∼96% -4%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
5431 MIPS ∼94% -6%
Framework Laptop 13.5
Intel Core i7-1165G7
5405 MIPS ∼94% -6%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
5405 MIPS ∼94% -6%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
5208 MIPS ∼90% -10%
Average Intel Core i7-1260P
  (4064 - 5767, n=13)
5174 MIPS ∼90% -10%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
5096 MIPS ∼88% -12%
HP Envy 13-ba0001ng
Intel Core i7-10510U
4722 MIPS ∼82% -18%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
4567 MIPS ∼79% -21%
Dell XPS 13 7390 Core i7-10710U
Intel Core i7-10710U
4425 MIPS ∼77% -23%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
4371 MIPS ∼76% -24%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
4325 MIPS ∼75% -25%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
2197 MIPS ∼38% -62%
Geekbench 5.4 / Multi-Core
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
9687 Points ∼100%
Average Intel Core i7-1260P
  (3866 - 10452, n=13)
8416 Points ∼87% -13%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
7613 Points ∼79% -21%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
6778 Points ∼70% -30%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
5801 Points ∼60% -40%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
5691 Points ∼59% -41%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
5583 Points ∼58% -42%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
4819 Points ∼50% -50%
HP Envy 13-ba0001ng
Intel Core i7-10510U
4008 Points ∼41% -59%
Geekbench 5.4 / Single-Core
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
1759 Points ∼100%
Average Intel Core i7-1260P
  (1436 - 1764, n=13)
1692 Points ∼96% -4%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
1640 Points ∼93% -7%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
1537 Points ∼87% -13%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
1514 Points ∼86% -14%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
1498 Points ∼85% -15%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
1456 Points ∼83% -17%
HP Envy 13-ba0001ng
Intel Core i7-10510U
1225 Points ∼70% -30%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
672 Points ∼38% -62%
HWBOT x265 Benchmark v2.2 / 4k Preset
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
12.6 fps ∼100% +3%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
12.2 fps ∼97%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
10.4 fps ∼83% -15%
Average Intel Core i7-1260P
  (3.45 - 13.5, n=13)
10.4 fps ∼83% -15%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
9.2 fps ∼73% -25%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
8.73 fps ∼69% -28%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
7.59 fps ∼60% -38%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
7.06 fps ∼56% -42%
Framework Laptop 13.5
Intel Core i7-1165G7
7.05 fps ∼56% -42%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
6.92 fps ∼55% -43%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
6.14 fps ∼49% -50%
Dell XPS 13 7390 Core i7-10710U
Intel Core i7-10710U
6.032 fps ∼48% -51%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
5.88 fps ∼47% -52%
HP Envy 13-ba0001ng
Intel Core i7-10510U
4.31 fps ∼34% -65%
LibreOffice / 20 Documents To PDF
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
120.5 s * ∼100% -181%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
66.4 s * ∼55% -55%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
65.5 s * ∼54% -53%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
61.6 s * ∼51% -44%
HP Envy 13-ba0001ng
Intel Core i7-10510U
55.8 s * ∼46% -30%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
54.1 s * ∼45% -26%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
53.9 s * ∼45% -26%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
49.3 s * ∼41% -15%
Average Intel Core i7-1260P
  (42.9 - 64.5, n=13)
47.9 s * ∼40% -12%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
46.5 s * ∼39% -8%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
46.2 s * ∼38% -8%
Framework Laptop 13.5
Intel Core i7-1165G7
45.1 s * ∼37% -5%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
42.9 s * ∼36%
R Benchmark 2.5 / Overall mean
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Core i5-1240P
1.236 sec * ∼100% -167%
HP Envy 13-ba0001ng
Intel Core i7-10510U
0.67 sec * ∼54% -45%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U
0.636 sec * ∼51% -37%
Gateway Ultra Slim 14.1 GWTC51427
Intel Core i5-1235U
0.603 sec * ∼49% -30%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
0.587 sec * ∼47% -27%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U
0.587 sec * ∼47% -27%
Dell Inspiron 13 7306-6TYH5
Intel Core i7-1165G7
0.574 sec * ∼46% -24%
Framework Laptop 13.5
Intel Core i7-1165G7
0.566 sec * ∼46% -22%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
0.54 sec * ∼44% -17%
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U
0.529 sec * ∼43% -14%
Average Intel Core i7-1260P
  (0.4559 - 0.727, n=13)
0.509 sec * ∼41% -10%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
0.4688 sec * ∼38% -1%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P
0.4634 sec * ∼37%
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1623 Points
Cinebench R15 OpenGL 64Bit
122.7 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
252 Points
Help
Performance Rating
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
86.9 pt ∼87%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
76.3 pt ∼76%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
69.1 pt ∼69%
Average Intel Core i7-1260P

67.2 pt ∼67%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
59.1 pt ∼59%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
54.8 pt ∼55%
AIDA64 / FP32 Ray-Trace
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
9167 KRay/s ∼100% +62%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
6926 KRay/s ∼76% +23%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
5648 KRay/s ∼62%
Average Intel Core i7-1260P
  (2176 - 7948, n=13)
5141 KRay/s ∼56% -9%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
5025 KRay/s ∼55% -11%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
4324 KRay/s ∼47% -23%
AIDA64 / FPU Julia
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
50584 Points ∼100% +92%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
29808 Points ∼59% +13%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
26279 Points ∼52%
Average Intel Core i7-1260P
  (11015 - 43394, n=13)
23615 Points ∼47% -10%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
22541 Points ∼45% -14%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
21608 Points ∼43% -18%
AIDA64 / CPU SHA3
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
1988 MB/s ∼100% +4%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
1919 MB/s ∼97%
Average Intel Core i7-1260P
  (669 - 2287, n=13)
1632 MB/s ∼82% -15%
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
1629 MB/s ∼82% -15%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
1540 MB/s ∼77% -20%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
1445 MB/s ∼73% -25%
AIDA64 / CPU Queen
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
74983 Points ∼100%
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
72574 Points ∼97% -3%
Average Intel Core i7-1260P
  (42571 - 79538, n=13)
70224 Points ∼94% -6%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
50504 Points ∼67% -33%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
50212 Points ∼67% -33%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
37316 Points ∼50% -50%
AIDA64 / FPU SinJulia
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
10151 Points ∼100% +59%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
6386 Points ∼63%
Average Intel Core i7-1260P
  (2901 - 6975, n=13)
5615 Points ∼55% -12%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
4790 Points ∼47% -25%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
3564 Points ∼35% -44%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
3110 Points ∼31% -51%
AIDA64 / FPU Mandel
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
26412 Points ∼100% +71%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
18008 Points ∼68% +17%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
15417 Points ∼58%
Average Intel Core i7-1260P
  (5950 - 21407, n=13)
13470 Points ∼51% -13%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
13133 Points ∼50% -15%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
12447 Points ∼47% -19%
AIDA64 / CPU AES
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
67684 MB/s ∼100% +6%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
64120 MB/s ∼95%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
54364 MB/s ∼80% -15%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
50996 MB/s ∼75% -20%
Average Intel Core i7-1260P
  (16041 - 76648, n=13)
40281 MB/s ∼60% -37%
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
33200 MB/s ∼49% -48%
AIDA64 / CPU ZLib
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
682 MB/s ∼100%
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
592 MB/s ∼87% -13%
Average Intel Core i7-1260P
  (259 - 702, n=13)
591 MB/s ∼87% -13%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
398 MB/s ∼58% -42%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
253 MB/s ∼37% -63%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
235 MB/s ∼34% -66%
AIDA64 / FP64 Ray-Trace
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
4894 KRay/s ∼100% +51%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
3759 KRay/s ∼77% +16%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
3235 KRay/s ∼66%
Average Intel Core i7-1260P
  (1237 - 4339, n=13)
2893 KRay/s ∼59% -11%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
2744 KRay/s ∼56% -15%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
2287 KRay/s ∼47% -29%
AIDA64 / CPU PhotoWorxx
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
36792 MPixel/s ∼100% +41%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
32979 MPixel/s ∼90% +27%
Average Intel Core i7-1260P
  (13261 - 43652, n=13)
30079 MPixel/s ∼82% +15%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
26054 MPixel/s ∼71%
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
20098 MPixel/s ∼55% -23%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
14295 MPixel/s ∼39% -45%

系统性能

PCMark 10的结果一直高于去年的Framework Laptop和其他大多数运行在11代或更早CPU上的超极本。

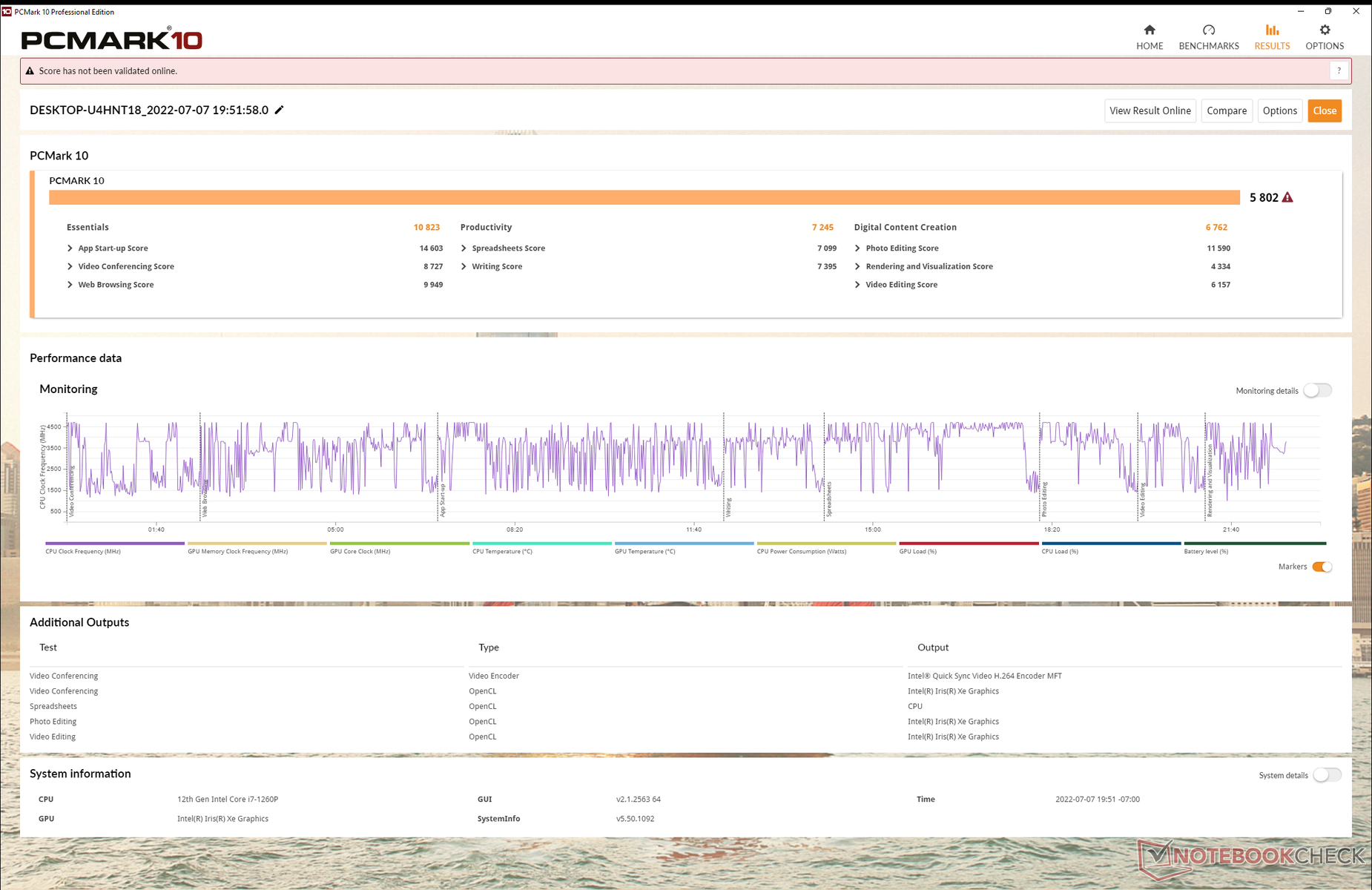

PCMark 10 / Score
Framework Laptop 13.5 12th Gen Intel
Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G
5802 Points ∼100%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
  (5000 - 5830, n=9)
5474 Points ∼94% -6%
Framework Laptop 13.5
Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E
4768 Points ∼82% -18%
Microsoft Surface Laptop 4 13 Ryzen 5
Vega 7, R5 4680U, Samsung PM991 MZ9LQ256HBJQ
4700 Points ∼81% -19%
HP Spectre x360 14-ea0378ng
Iris Xe G7 96EUs, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
4531 Points ∼78% -22%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
4471 Points ∼77% -23%
PCMark 10 / Essentials
Framework Laptop 13.5 12th Gen Intel
Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G
10823 Points ∼100%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
  (9429 - 11251, n=9)
10535 Points ∼97% -3%
Framework Laptop 13.5
Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E
10260 Points ∼95% -5%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
9832 Points ∼91% -9%
HP Spectre x360 14-ea0378ng
Iris Xe G7 96EUs, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
9450 Points ∼87% -13%
Microsoft Surface Laptop 4 13 Ryzen 5
Vega 7, R5 4680U, Samsung PM991 MZ9LQ256HBJQ
8365 Points ∼77% -23%
PCMark 10 / Productivity
Framework Laptop 13.5 12th Gen Intel
Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G
7245 Points ∼100%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
  (6167 - 7339, n=9)
6824 Points ∼94% -6%
Microsoft Surface Laptop 4 13 Ryzen 5
Vega 7, R5 4680U, Samsung PM991 MZ9LQ256HBJQ
6661 Points ∼92% -8%
HP Spectre x360 14-ea0378ng
Iris Xe G7 96EUs, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
6291 Points ∼87% -13%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
6135 Points ∼85% -15%
Framework Laptop 13.5
Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E
5570 Points ∼77% -23%
PCMark 10 / Digital Content Creation
Framework Laptop 13.5 12th Gen Intel
Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G
6762 Points ∼100%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
  (5421 - 6897, n=9)
6207 Points ∼92% -8%
Framework Laptop 13.5
Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E
5146 Points ∼76% -24%
Microsoft Surface Laptop 4 13 Ryzen 5
Vega 7, R5 4680U, Samsung PM991 MZ9LQ256HBJQ
5058 Points ∼75% -25%
HP Spectre x360 14-ea0378ng
Iris Xe G7 96EUs, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
4247 Points ∼63% -37%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
4021 Points ∼59% -41%
CrossMark / Overall
Framework Laptop 13.5 12th Gen Intel
Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G
1678 Points ∼100%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
  (1495 - 1751, n=9)
1644 Points ∼98% -2%
CrossMark / Productivity
Framework Laptop 13.5 12th Gen Intel
Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G
1622 Points ∼100%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
  (1486 - 1689, n=9)
1587 Points ∼98% -2%
CrossMark / Creativity
Framework Laptop 13.5 12th Gen Intel
Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G
1811 Points ∼100%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
  (1596 - 1872, n=9)
1777 Points ∼98% -2%
CrossMark / Responsiveness
Framework Laptop 13.5 12th Gen Intel
Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G
1480 Points ∼100%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
  (1253 - 1654, n=9)
1454 Points ∼98% -2%
PCMark 10 Score
5802 points
Help
AIDA64 / Memory Copy
Average Intel Core i7-1260P
  (25125 - 71544, n=12)
57083 MB/s ∼100% +25%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
56967 MB/s ∼100% +25%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
55822 MB/s ∼98% +23%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
45554 MB/s ∼80%
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
37198 MB/s ∼65% -18%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
24957 MB/s ∼44% -45%
AIDA64 / Memory Read
Average Intel Core i7-1260P
  (25145 - 72065, n=12)
58634 MB/s ∼100% +23%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
57202 MB/s ∼98% +20%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
55678 MB/s ∼95% +16%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
47809 MB/s ∼82%
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
44646 MB/s ∼76% -7%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
25785 MB/s ∼44% -46%
AIDA64 / Memory Write
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
61910 MB/s ∼100% +31%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
58228 MB/s ∼94% +23%
Average Intel Core i7-1260P
  (23664 - 66799, n=12)
56075 MB/s ∼91% +19%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
47190 MB/s ∼76%
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
39104 MB/s ∼63% -17%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
23454 MB/s ∼38% -50%
AIDA64 / Memory Latency
Microsoft Surface Laptop 4 13 Ryzen 5
AMD Ryzen 5 4680U, Vega 7
122 ns * ∼100% -54%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
92.6 ns * ∼76% -17%
HP Spectre x360 14-ea0378ng
Intel Core i7-1165G7, Iris Xe G7 96EUs
91.8 ns * ∼75% -16%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Iris Xe G7 96EUs
79.2 ns * ∼65%
Framework Laptop 13.5
Intel Core i7-1165G7, Iris Xe G7 96EUs
74.2 ns * ∼61% +6%
Average Intel Core i7-1260P
  (104.5 - 107.3, n=14)
27.3 (104.5min - 107.3max) ns * ∼22% +66%

* ... smaller is better

DPC延时

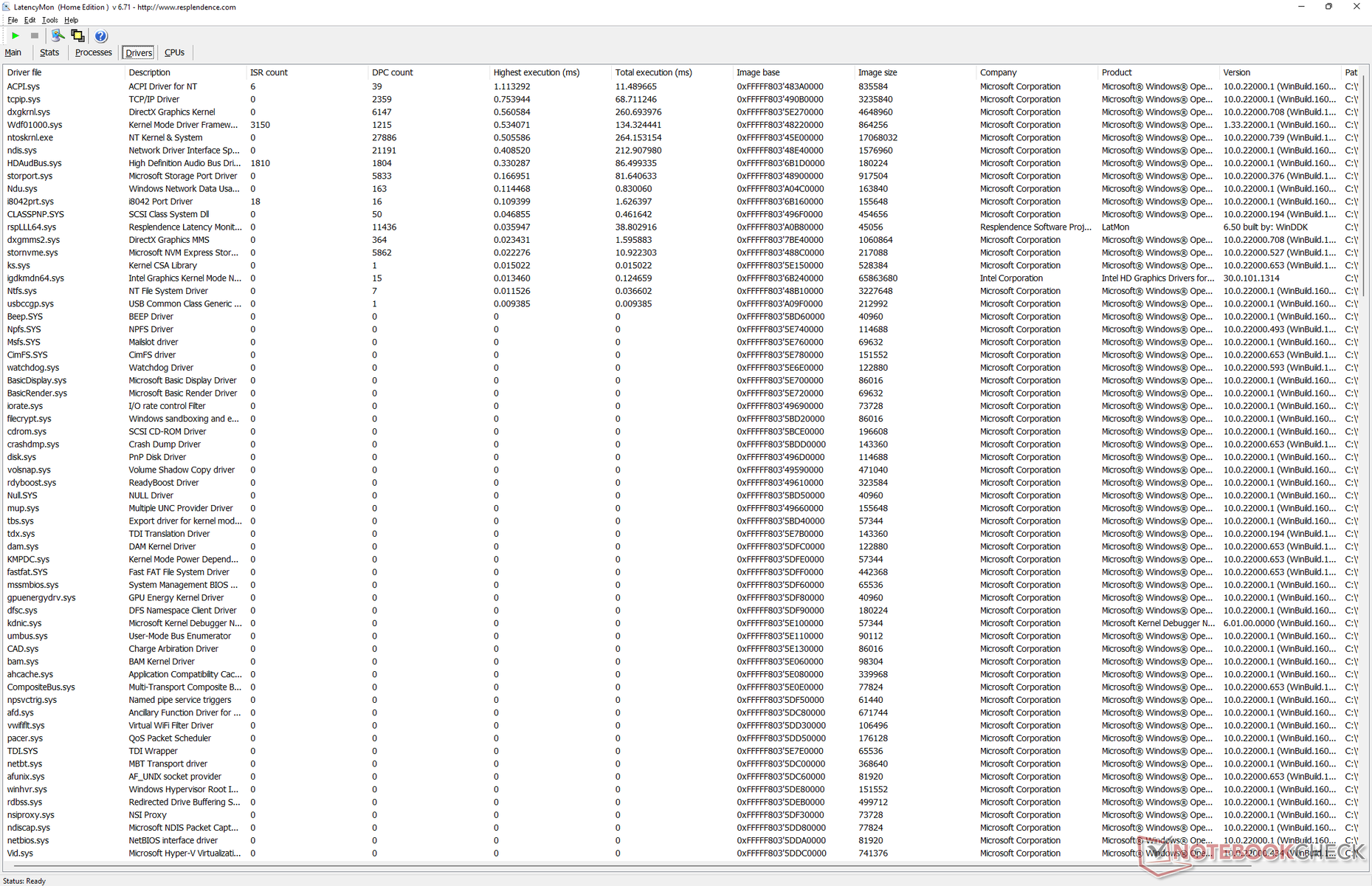

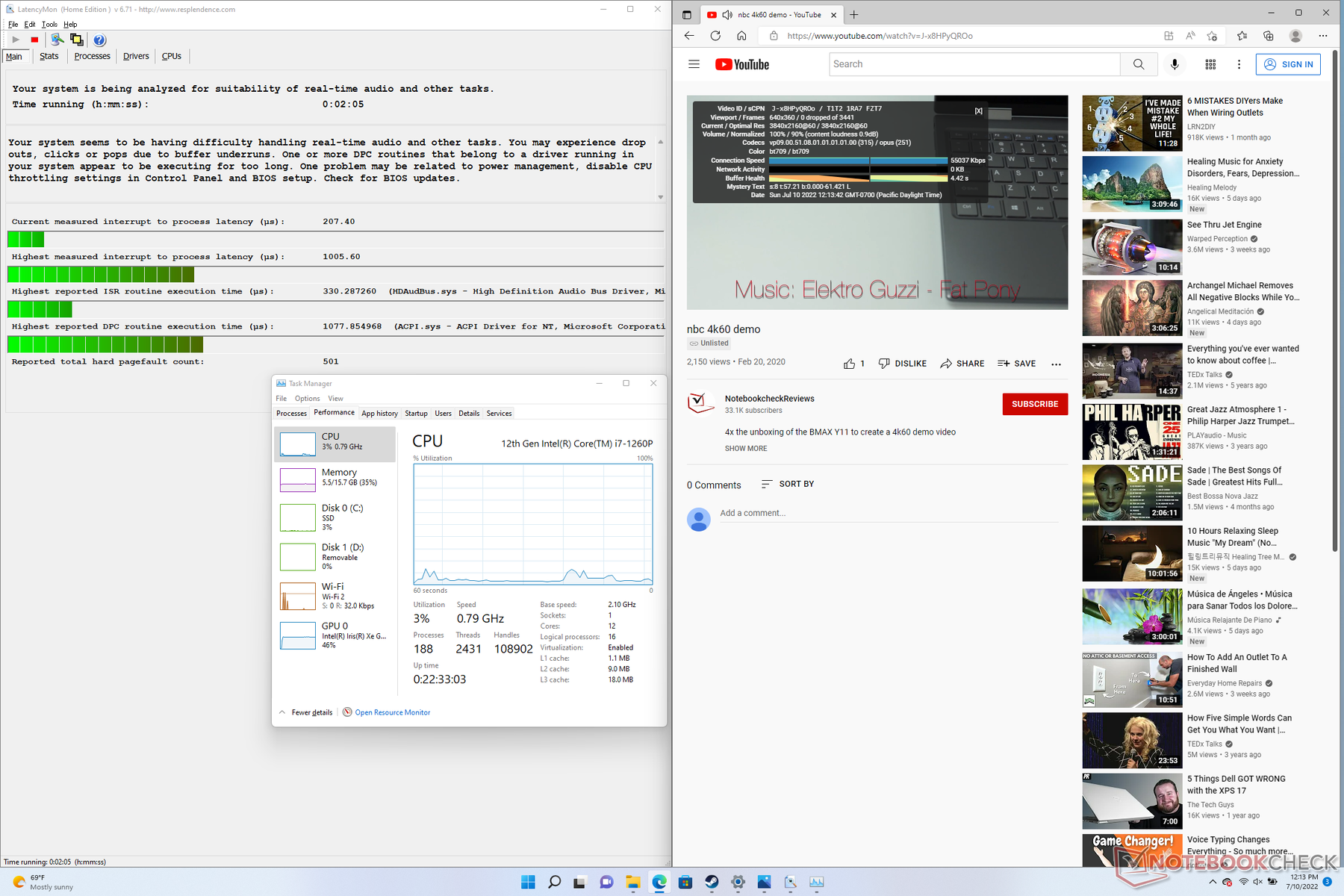

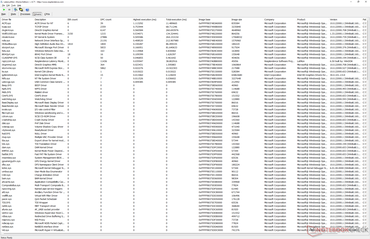

LatencyMon显示,在打开我们主页的多个浏览器标签时,存在轻微的DPC问题。在60 FPS的情况下,4K视频播放是完美的,没有掉帧。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Framework Laptop 13.5
Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E
1918 μs * ∼100% -91%
HP Spectre x360 14-ea0378ng
Iris Xe G7 96EUs, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1641 μs * ∼86% -63%
Framework Laptop 13.5 12th Gen Intel
Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G
1005.6 μs * ∼52%
Microsoft Surface Laptop 4 13 Ryzen 5
Vega 7, R5 4680U, Samsung PM991 MZ9LQ256HBJQ
873 μs * ∼46% +13%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
816 μs * ∼43% +19%

* ... smaller is better

存储设备

虽然我们2021年的框架单元将配备PCIe4 x4 WD SN850 M.2 NVMe SSD,但我们2022年的单元将配备较慢的PCIe3 x4WD SN730SSD来代替。当然,用户仍然可以升级到更快的PCIe4 x4 SSD。

只支持一个内部驱动器。

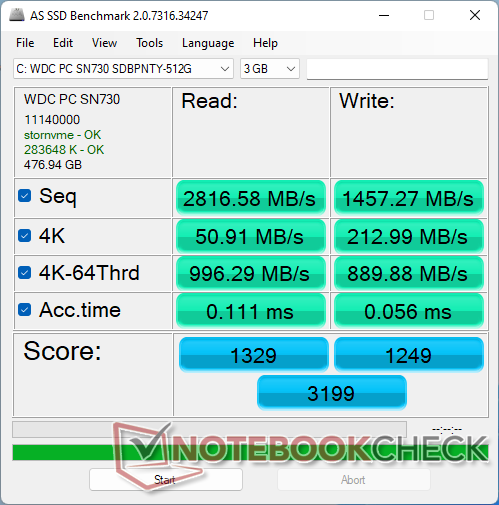

AS SSD
AS SSD

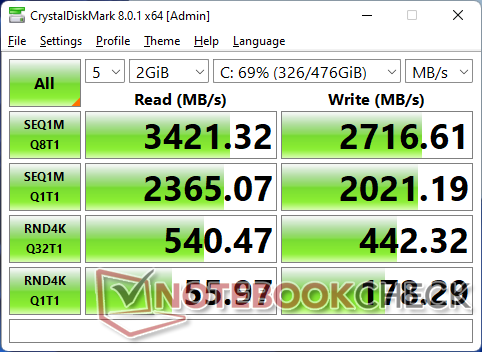

CDM 8
CDM 8
WDC PC SN730 SDBPNTY-512G
CDM 5/6 Read Seq Q32T1: 3403 MB/s
CDM 5/6 Write Seq Q32T1: 2704 MB/s
CDM 5/6 Read 4K Q32T1: 539.7 MB/s
CDM 5/6 Write 4K Q32T1: 452.4 MB/s
CDM 5 Read Seq: 1906 MB/s
CDM 5 Write Seq: 2127 MB/s
CDM 5/6 Read 4K: 48.53 MB/s
CDM 5/6 Write 4K: 179.1 MB/s
Drive Performance Rating - Percent
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
93.9 pt ∼94%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
44.3 pt ∼44%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
42.4 pt ∼42%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
37.6 pt ∼38%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
27.8 pt ∼28%
HP EliteBook Folio 13.5-3G2L2EA -8!
Toshiba XG6 KXG60ZNV512G
22.8 pt ∼23%
DiskSpd
seq read
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
4346 (4237.84min - 4346.35max) MB/s ∼100% +153%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1912 (1401.74min - 1912.39max) MB/s ∼44% +11%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1849 (1839.72min - 1848.93max) MB/s ∼43% +8%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
1717 (1644.8min - 1716.65max) MB/s ∼40%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
890 (866.12min - 889.5max) MB/s ∼20% -48%
seq write
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
4947 (4825.12min - 4946.55max) MB/s ∼100% +130%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
2153 (2100.93min - 2152.94max) MB/s ∼44%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1540 (1517.82min - 1539.73max) MB/s ∼31% -28%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1286 (852.26min - 1285.5max) MB/s ∼26% -40%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
855 (766.36min - 854.83max) MB/s ∼17% -60%
seq q8 t1 read
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
6952 (6547.73min - 6952.06max) MB/s ∼100% +103%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
3426 (2707.21min - 3425.7max) MB/s ∼49%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
2147 (1698.69min - 2146.76max) MB/s ∼31% -37%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
2135 (2000.05min - 2134.62max) MB/s ∼31% -38%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
2075 (1045.44min - 2074.71max) MB/s ∼30% -39%
seq q8 t1 write
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
5160 (5028.55min - 5159.62max) MB/s ∼100% +90%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
2711 (1214.13min - 2710.57max) MB/s ∼53%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1665 (1650.51min - 1665.19max) MB/s ∼32% -39%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
1076 (1035.57min - 1076.31max) MB/s ∼21% -60%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
892 (620.13min - 891.92max) MB/s ∼17% -67%
4k q1 t1 read
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
135 (54.27min - 134.72max) MB/s ∼100% +166%
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
88.5 (86.28min - 88.45max) MB/s ∼66% +75%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
61 (60.92min - 60.96max) MB/s ∼45% +20%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
50.7 (49.53min - 50.73max) MB/s ∼38%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
40.4 (35.69min - 40.39max) MB/s ∼30% -20%
4k q1 t1 write
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
310 (307.53min - 309.65max) MB/s ∼100% +85%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
250 (246.91min - 249.91max) MB/s ∼81% +49%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
167.5 (166.11min - 167.53max) MB/s ∼54%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
127 (125.25min - 126.67max) MB/s ∼41% -24%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
106 (101.86min - 106.41max) MB/s ∼34% -37%
4k q32 t16 read
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
2946 (2796.46min - 2946.05max) MB/s ∼100% +176%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
1067 (1040.91min - 1067.32max) MB/s ∼36%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
866 (758.43min - 866.28max) MB/s ∼29% -19%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
583 (579.13min - 582.59max) MB/s ∼20% -45%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
486 (485.16min - 486.03max) MB/s ∼16% -54%
4k q32 t16 write
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
2253 (1847.93min - 2253.22max) MB/s ∼100% +391%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1000 (886.78min - 1000.24max) MB/s ∼44% +118%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
936 (598.35min - 935.85max) MB/s ∼42% +104%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
459 (401.81min - 458.57max) MB/s ∼20%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
278 (263.54min - 278.35max) MB/s ∼12% -39%
AS SSD
Score Total
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
7098 Points ∼100% +122%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
3199 Points ∼45%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
2155 Points ∼30% -33%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
2081 Points ∼29% -35%
HP EliteBook Folio 13.5-3G2L2EA
Toshiba XG6 KXG60ZNV512G
1685 Points ∼24% -47%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1675 Points ∼24% -48%
Score Read
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
2864 Points ∼100% +116%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
1329 Points ∼46%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
885 Points ∼31% -33%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
740 Points ∼26% -44%
HP EliteBook Folio 13.5-3G2L2EA
Toshiba XG6 KXG60ZNV512G
717 Points ∼25% -46%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
615 Points ∼21% -54%
Score Write
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
2797 Points ∼100% +124%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
1249 Points ∼45%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
975 Points ∼35% -22%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
858 Points ∼31% -31%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
726 Points ∼26% -42%
HP EliteBook Folio 13.5-3G2L2EA
Toshiba XG6 KXG60ZNV512G
672 Points ∼24% -46%
Seq Read
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
5613 MB/s ∼100% +99%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
2816.58 MB/s ∼50%
HP EliteBook Folio 13.5-3G2L2EA
Toshiba XG6 KXG60ZNV512G
2376 MB/s ∼42% -16%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1887 MB/s ∼34% -33%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
1687 MB/s ∼30% -40%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1343 MB/s ∼24% -52%
Seq Write
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
4909 MB/s ∼100% +237%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
1457.27 MB/s ∼30%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1222 MB/s ∼25% -16%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1198 MB/s ∼24% -18%
HP EliteBook Folio 13.5-3G2L2EA
Toshiba XG6 KXG60ZNV512G
881 MB/s ∼18% -40%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
675 MB/s ∼14% -54%
4K Read
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
80.6 MB/s ∼100% +58%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
63.6 MB/s ∼79% +25%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
62.1 MB/s ∼77% +22%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
50.91 MB/s ∼63%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
40.1 MB/s ∼50% -21%
HP EliteBook Folio 13.5-3G2L2EA
Toshiba XG6 KXG60ZNV512G
25.86 MB/s ∼32% -49%
4K Write
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
256.6 MB/s ∼100% +20%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
215.6 MB/s ∼84% +1%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
212.99 MB/s ∼83%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
110.3 MB/s ∼43% -48%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
107.8 MB/s ∼42% -49%
HP EliteBook Folio 13.5-3G2L2EA
Toshiba XG6 KXG60ZNV512G
55.6 MB/s ∼22% -74%
4K-64 Read
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
2222 MB/s ∼100% +123%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
996.29 MB/s ∼45%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
676 MB/s ∼30% -32%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
489.4 MB/s ∼22% -51%
HP EliteBook Folio 13.5-3G2L2EA
Toshiba XG6 KXG60ZNV512G
453.2 MB/s ∼20% -55%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
417.5 MB/s ∼19% -58%
4K-64 Write
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
2050 MB/s ∼100% +130%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
889.88 MB/s ∼43%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
680 MB/s ∼33% -24%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
639 MB/s ∼31% -28%
HP EliteBook Folio 13.5-3G2L2EA
Toshiba XG6 KXG60ZNV512G
529 MB/s ∼26% -41%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
496 MB/s ∼24% -44%
Access Time Read
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
0.179 ms * ∼100% -61%
HP EliteBook Folio 13.5-3G2L2EA
Toshiba XG6 KXG60ZNV512G
0.148 ms * ∼83% -33%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
0.111 ms * ∼62%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
0.103 ms * ∼58% +7%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
0.06 ms * ∼34% +46%
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
0.032 ms * ∼18% +71%
Access Time Write
HP EliteBook Folio 13.5-3G2L2EA
Toshiba XG6 KXG60ZNV512G
0.07 ms * ∼100% -25%
Framework Laptop 13.5 12th Gen Intel
WDC PC SN730 SDBPNTY-512G
0.056 ms * ∼80%
Framework Laptop 13.5
Western Digital WD_BLACK SN850 WDS100T1X0E
0.044 ms * ∼63% +21%
HP Spectre x360 14-ea0378ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
0.043 ms * ∼61% +23%
Microsoft Surface Laptop 4 13 Ryzen 5
Samsung PM991 MZ9LQ256HBJQ
0.035 ms * ∼50% +37%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
0.019 ms * ∼27% +66%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

017535052570087510501225140015751750192521002275245026252800297531503325Tooltip
: Ø3421 (2967.83-3431.36)

GPU性能

图形性能比我们数据库中配备同样集成的笔记本电脑的平均速度快5%至15%。 Iris Xe 96 EUs.由于在单通道内存上运行,我们最初的2021年测试装置的性能要慢得多。如果图形对你的工作负荷很重要,那么强烈建议配置双通道内存。

3DMark 11
3DMark 11
Cloud Gate
Cloud Gate
Time Spy
Time Spy
Fire Strike
Fire Strike
Fire Strike 超强
Fire Strike 超强

3DMark 11 - 1280x720 Performance GPU
Asus Zenbook S 13 OLED
AMD Radeon 680M, AMD Ryzen 7 6800U
9095 Points ∼100% +34%
MSI Summit E13 Flip Evo A11MT
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
6983 Points ∼77% +3%
Framework Laptop 13.5 12th Gen Intel
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
6779 Points ∼75%
Average Intel Iris Xe Graphics G7 96EUs
  (2867 - 7134, n=110)
6338 Points ∼70% -7%
HP Pavilion Aero 13 be0097nr
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
5842 Points ∼64% -14%
Framework Laptop 13.5
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5702 Points ∼63% -16%
Lenovo Yoga 6 13ALC6
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
5693 Points ∼63% -16%
Lenovo Yoga 6 13 82ND0009US
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
5220 Points ∼57% -23%
HP Envy 13-ba0001ng
NVIDIA GeForce MX350, Intel Core i7-10510U
5191 Points ∼57% -23%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
4895 Points ∼54% -28%
Gateway Ultra Slim 14.1 GWTC51427
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
4695 Points ∼52% -31%
HP Envy 13-aq0003ng
NVIDIA GeForce MX250, Intel Core i7-8565U
3622 Points ∼40% -47%
Dell XPS 13 7390 Core i7-10710U
Intel UHD Graphics 620, Intel Core i7-10710U
1940 Points ∼21% -71%
3DMark
1280x720 Cloud Gate Standard Graphics
MSI Summit E13 Flip Evo A11MT
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
31621 Points ∼100% +21%
HP Pavilion Aero 13 be0097nr
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
27008 Points ∼85% +3%
Framework Laptop 13.5 12th Gen Intel
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
26191 Points ∼83%
Average Intel Iris Xe Graphics G7 96EUs
  (13162 - 38040, n=101)
26154 Points ∼83% 0%
Lenovo Yoga 6 13ALC6
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
26080 Points ∼82% 0%
Lenovo Yoga 6 13 82ND0009US
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
25140 Points ∼80% -4%
HP Envy 13-ba0001ng
NVIDIA GeForce MX350, Intel Core i7-10510U
23194 Points ∼73% -11%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
20986 Points ∼66% -20%
HP Envy 13-aq0003ng
NVIDIA GeForce MX250, Intel Core i7-8565U
20618 Points ∼65% -21%
Framework Laptop 13.5
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
19942 Points ∼63% -24%
Gateway Ultra Slim 14.1 GWTC51427
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
18340 Points ∼58% -30%
Dell XPS 13 7390 Core i7-10710U
Intel UHD Graphics 620, Intel Core i7-10710U
9882 Points ∼31% -62%
1920x1080 Fire Strike Graphics
Asus Zenbook S 13 OLED
AMD Radeon 680M, AMD Ryzen 7 6800U
6683 Points ∼100% +29%
MSI Summit E13 Flip Evo A11MT
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
5577 Points ∼83% +7%
Framework Laptop 13.5 12th Gen Intel
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
5200 Points ∼78%
Average Intel Iris Xe Graphics G7 96EUs
  (2286 - 5955, n=120)
4815 Points ∼72% -7%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
4408 Points ∼66% -15%
HP Envy 13-ba0001ng
NVIDIA GeForce MX350, Intel Core i7-10510U
3999 Points ∼60% -23%
Framework Laptop 13.5
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
3709 Points ∼55% -29%
Lenovo Yoga 6 13ALC6
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
3572 Points ∼53% -31%
HP Pavilion Aero 13 be0097nr
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
3399 Points ∼51% -35%
Gateway Ultra Slim 14.1 GWTC51427
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
3327 Points ∼50% -36%
Lenovo Yoga 6 13 82ND0009US
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
3200 Points ∼48% -38%
HP Envy 13-aq0003ng
NVIDIA GeForce MX250, Intel Core i7-8565U
2988 Points ∼45% -43%
Dell XPS 13 7390 Core i7-10710U
Intel UHD Graphics 620, Intel Core i7-10710U
1339 Points ∼20% -74%
2560x1440 Time Spy Graphics
Asus Zenbook S 13 OLED
AMD Radeon 680M, AMD Ryzen 7 6800U
2287 Points ∼100% +37%
Framework Laptop 13.5 12th Gen Intel
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
1675 Points ∼73%
MSI Summit E13 Flip Evo A11MT
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1607 Points ∼70% -4%
Average Intel Iris Xe Graphics G7 96EUs
  (707 - 1830, n=118)
1458 Points ∼64% -13%
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
1285 Points ∼56% -23%
Framework Laptop 13.5
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1216 Points ∼53% -27%
HP Envy 13-ba0001ng
NVIDIA GeForce MX350, Intel Core i7-10510U
1139 Points ∼50% -32%
HP Pavilion Aero 13 be0097nr
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
1128 Points ∼49% -33%
Lenovo Yoga 6 13ALC6
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
1112 Points ∼49% -34%
Gateway Ultra Slim 14.1 GWTC51427
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
1079 Points ∼47% -36%
Lenovo Yoga 6 13 82ND0009US
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
978 Points ∼43% -42%
HP Envy 13-aq0003ng
NVIDIA GeForce MX250, Intel Core i7-8565U
899 Points ∼39% -46%
Dell XPS 13 7390 Core i7-10710U
Intel UHD Graphics 620, Intel Core i7-10710U
425 Points ∼19% -75%
3DMark 11 Performance
7359 points
3DMark Cloud Gate Standard Score
22502 points
3DMark Fire Strike Score
4839 points
3DMark Time Spy Score
1896 points
Help
Final Fantasy XV Benchmark
1280x720 Lite Quality
Asus Zenbook S 13 OLED
AMD Ryzen 7 6800U, AMD Radeon 680M
59.8 fps ∼100% +41%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
44.7 fps ∼75% +5%
Framework Laptop 13.5 12th Gen Intel
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
42.5 fps ∼71%
Average Intel Iris Xe Graphics G7 96EUs
  (14.9 - 56.5, n=92)
37.8 fps ∼63% -11%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
33.1 fps ∼55% -22%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31.7 fps ∼53% -25%
Lenovo Yoga 6 13 82ND0009US
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
29.7 fps ∼50% -30%
