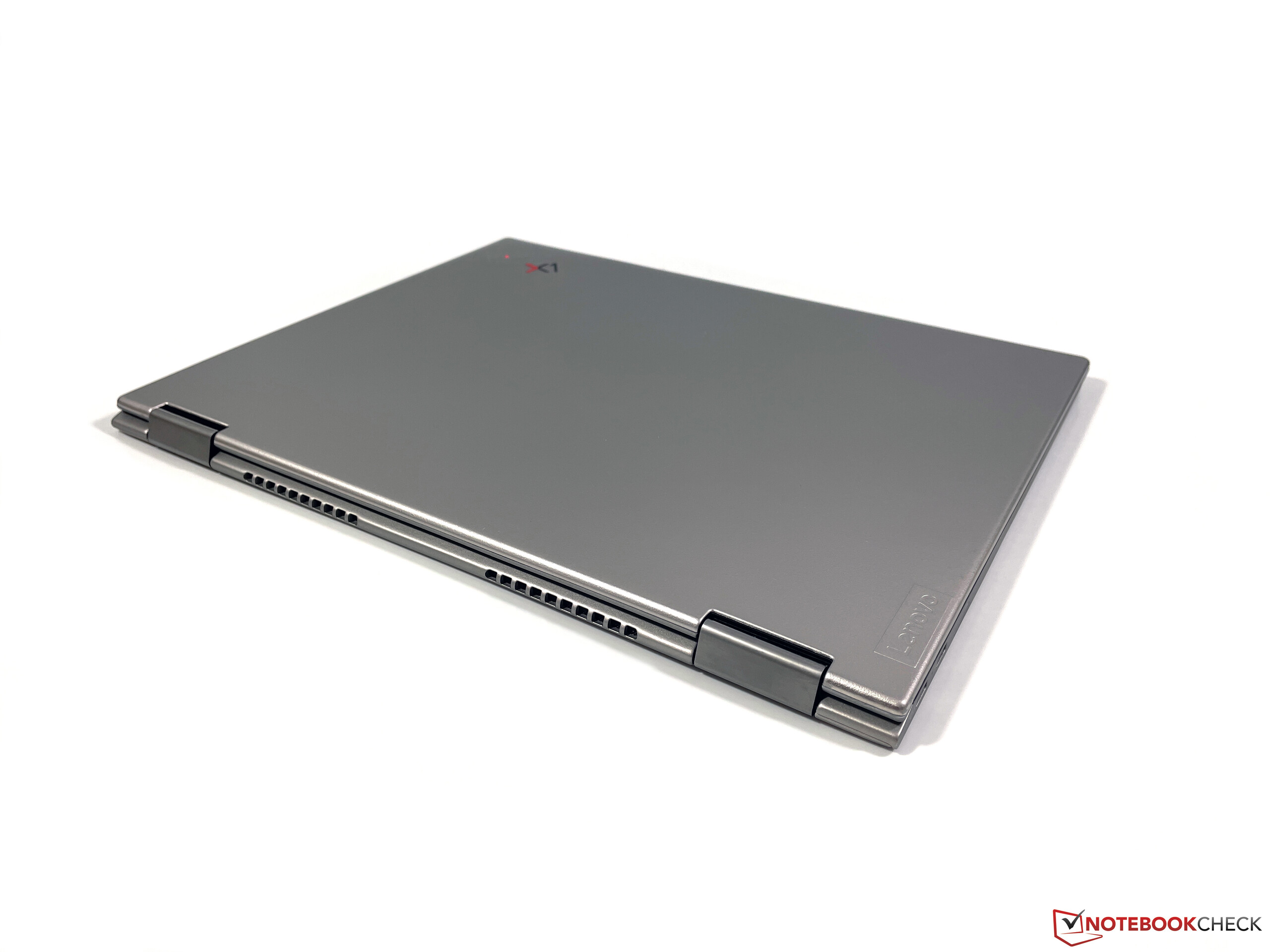

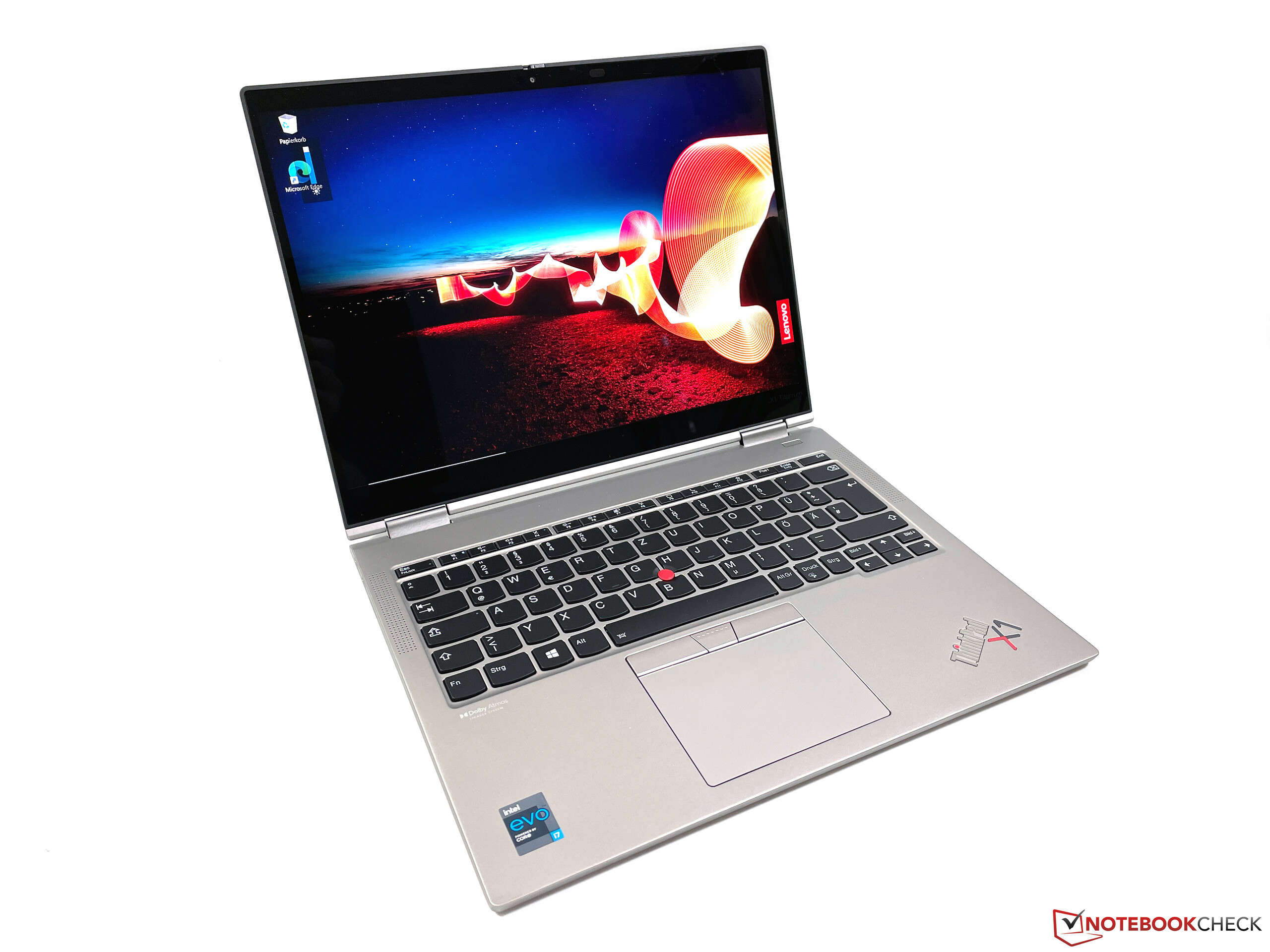

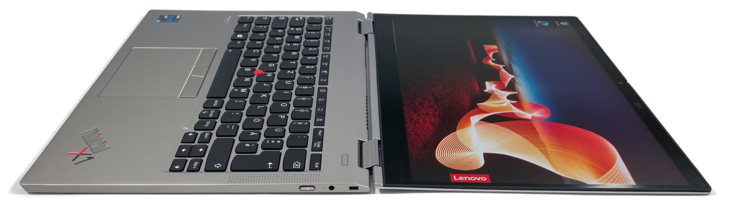

Magyar联想ThinkPad X1 Titanium Yoga回顾。配备i5的超薄可转换钛合金
在2021年的X1 ThinkPads中，联想ThinkPad X1 Titanium Yoga不是最成功的。X1 Titanium是唯一没有在CES上获得更新版本的机型。我们已经用英特尔酷睿i7测试过一次ThinkPad X1 Titanium Yoga，现在对i5版本进行简短的测试更新。由于我们已经在前述的评测中对设计、配置和输入设备进行了审查，因此，我们对i7的X1 Titanium Yoga进行了测试。 X1 Titanium Yoga with i7我们将跳过这些部分，直接从显示器开始。
ThinkPad X1 Titanium Yoga G1 i5-1140G7 (ThinkPad X1 Titanium Yoga G1 Series)
Processor
Intel Core i5-1140G7 4 x 1.8 - 4.2 GHz, 35 W PL2 / Short Burst, 12 W PL1 / Sustained, Tiger Lake-UP4
Graphics adapter
Memory
16 GB
, LPDDR4X-4266, on-board, dual-channel
Display
13.50 inch 3:2, 2256 x 1504 pixel 200 PPI, 10-point multitouch, native pen support, LPM135M467, IPS LED, glossy: yes, HDR

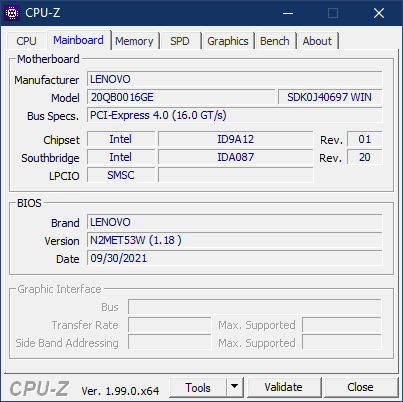

Mainboard
Intel Tiger Lake-UP4 PCH-LP
Storage
Lenovo UMIS RPJTJ256MEE1OWX, 256 GB
, M.2 2242, NVMe PCIe 3.0, 130 GB free
Weight
1.196 kg, Power Supply: 323 g
Price
3191 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
|---|---|---|---|---|---|---|---|
| 88.5 % | 03/2022 | Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE i5-1140G7, Iris Xe G7 80EUs | 1.2 kg | 11.5 mm | 13.50" | 2256x1504 | |
| 91.4 % | 09/2021 | Lenovo ThinkPad X1 Yoga G6-20Y0S00200 i7-1165G7, Iris Xe G7 96EUs | 1.4 kg | 15 mm | 14.00" | 1920x1200 | |
| 91.1 % | Lenovo ThinkPad X13 Yoga G2 i7-1165G7, Iris Xe G7 96EUs | 1.2 kg | 15.39 mm | 13.30" | 2560x1600 | ||
| 90.8 % | 06/2021 | HP Elite Dragonfly Max i7-1185G7, Iris Xe G7 96EUs | 1.2 kg | 16 mm | 13.30" | 1920x1080 | |
| 89.5 % | 08/2021 | Dell Latitude 12 7210 2-in-1 i7-10610U, UHD Graphics 620 | 850 g | 9.35 mm | 12.30" | 1920x1280 |
| Networking | |
| iperf3 transmit AX12 | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Average Intel Wi-Fi 6 AX201 (49.8 - 1775, n=324) | |
| Average of class Convertible (last 2 years) | |
| iperf3 receive AX12 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| HP Elite Dragonfly Max | |
| Average Intel Wi-Fi 6 AX201 (136 - 1743, n=324) | |
| Average of class Convertible (last 2 years) | |
| Dell Latitude 12 7210 2-in-1 | |
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1332 (764-1537)
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1429 (1337-1478)
3.7 ∆E
6 ∆E
9.4 ∆E
10 ∆E
10.3 ∆E
6.6 ∆E
10.4 ∆E
6.6 ∆E
8.3 ∆E
2.2 ∆E
6.9 ∆E
5.6 ∆E
4.7 ∆E
3.3 ∆E
5.5 ∆E
5.2 ∆E
5 ∆E
4 ∆E
4.4 ∆E
1.7 ∆E
2.2 ∆E
2 ∆E
2.4 ∆E
5.8 ∆E

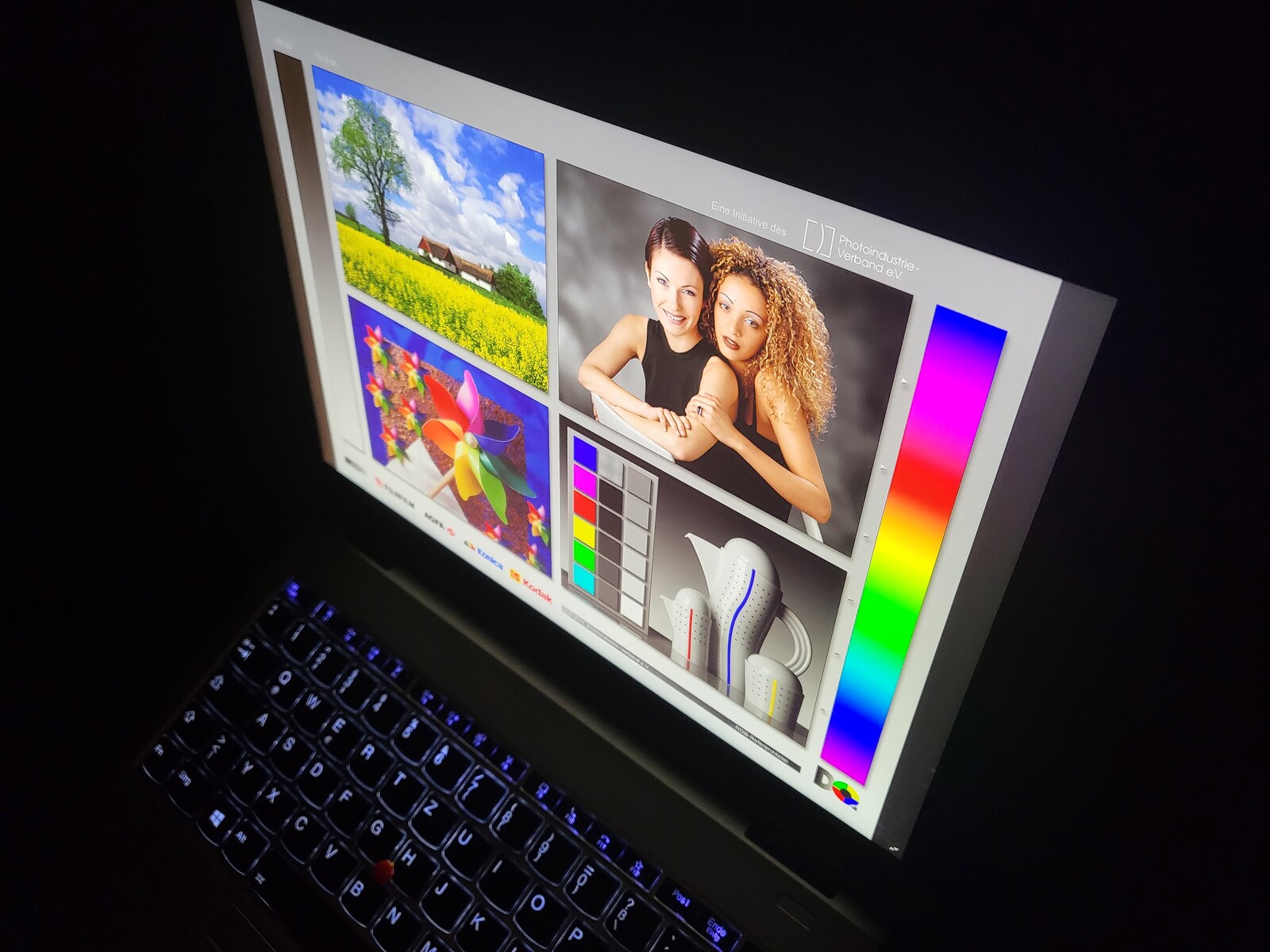

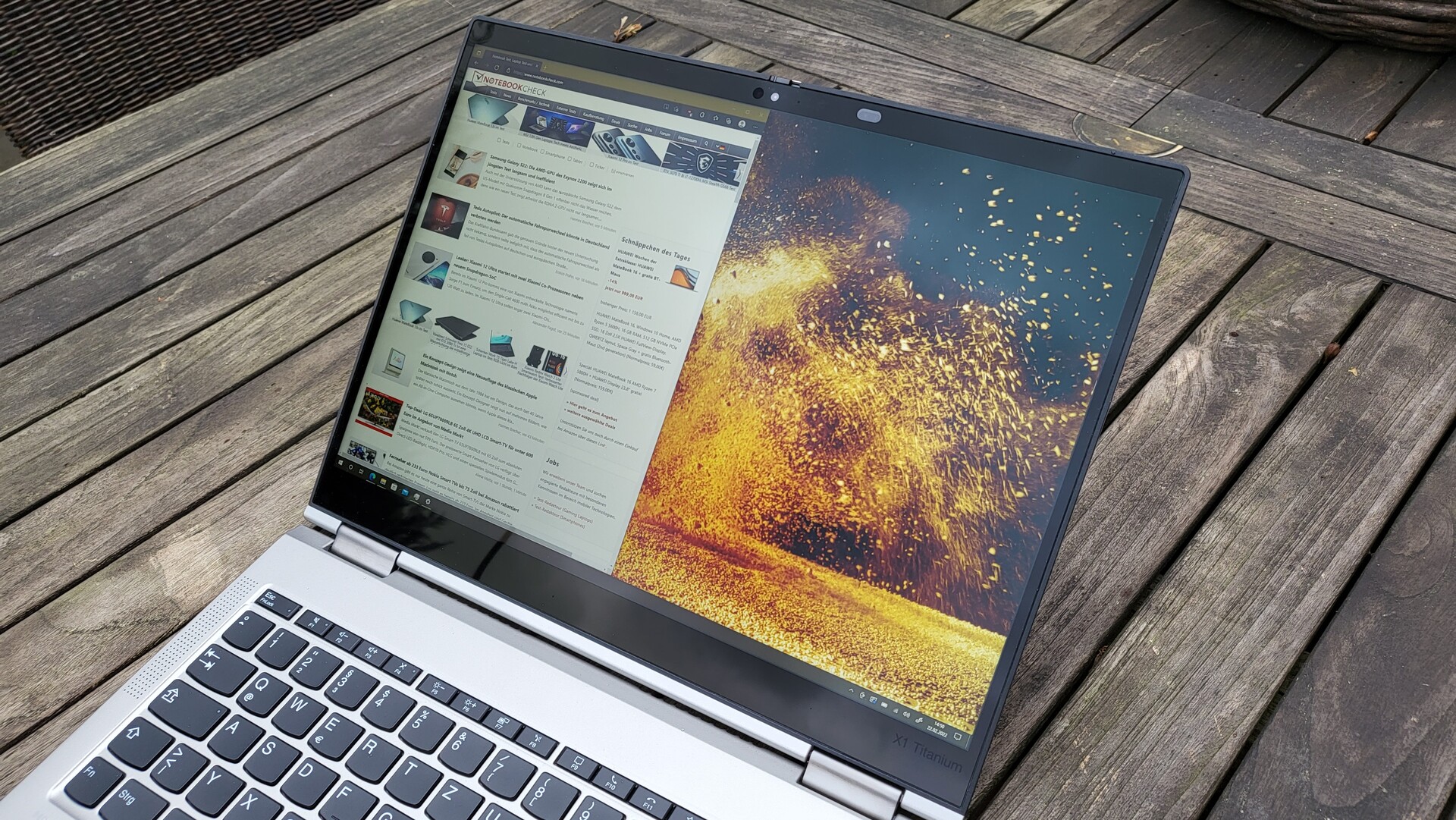

显示屏 - 3:2格式是ThinkPad笔记本电脑中的一个独特卖点
显示器仍然是联想ThinkPad X1 Titanium Yoga的主要吸引力。它是唯一拥有3:2长宽比的ThinkPad笔记本电脑。即使除此之外，联想ThinkPad X1 Titanium Yoga G1对ThinkPad来说也相当特别，因为只有一种屏幕选择：这里测试的13.5英寸LCD，分辨率为2.2K（2,256 x 1,504），是一种带有防反射涂层的光面面板。
另一方面，对于ThinkPads来说，有一个以上的显示屏供应商是很典型的。不幸的是，我们的测试设备包含来自日本显示器（JDI）的相同的IPS面板，与之前评测的型号相同。因此，我们无法测试替代性使用的友达面板。尽管如此，看到这里安装的面板是否能确认第一个样品的速率，还是令人激动。
它实现了目标，即使响应时间稍低。总的来说，这块高质量IPS面板的系列色散似乎很弱，而且亮度值几乎是相同的。
| |||||||||||||||||||||||||

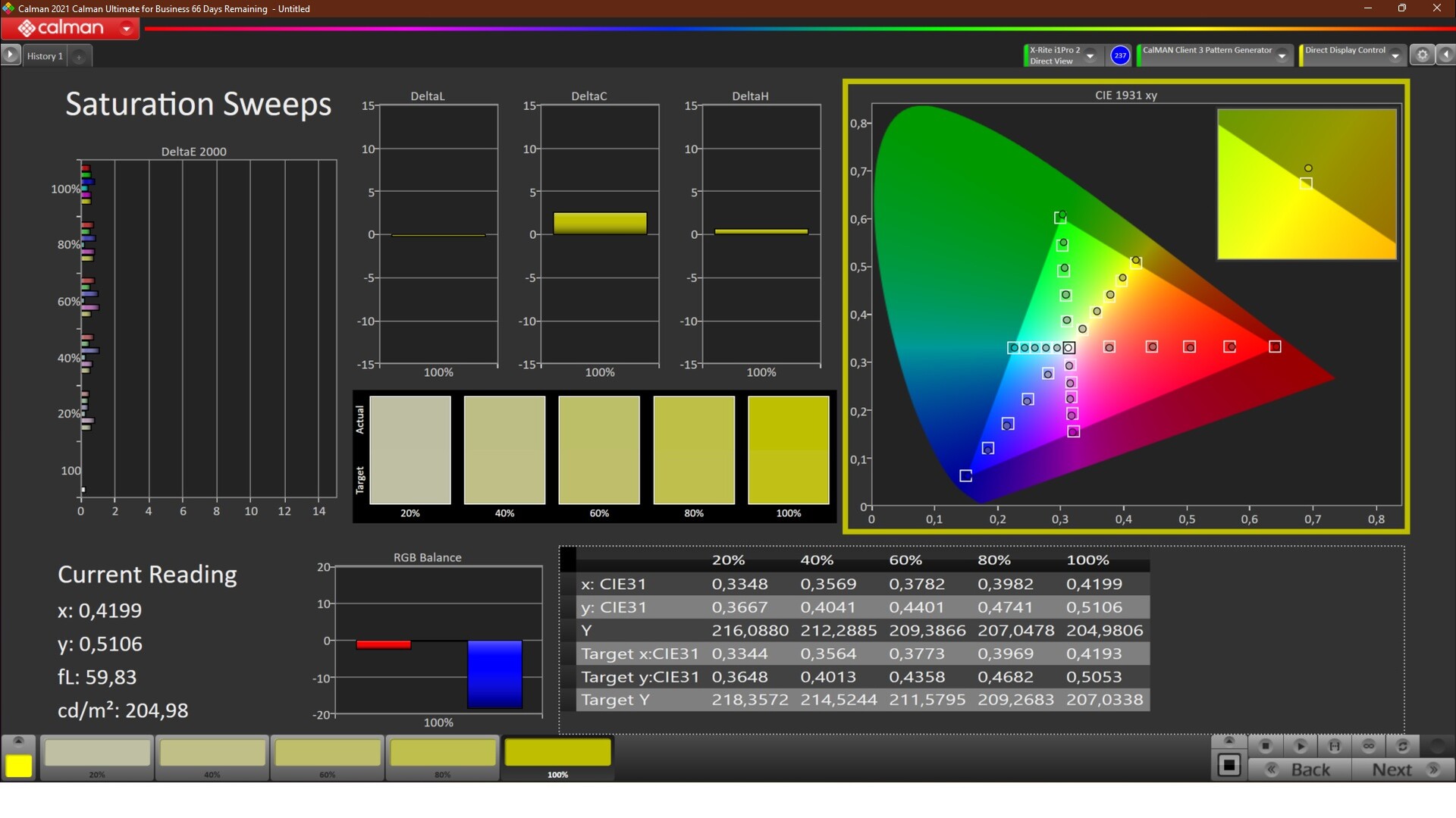

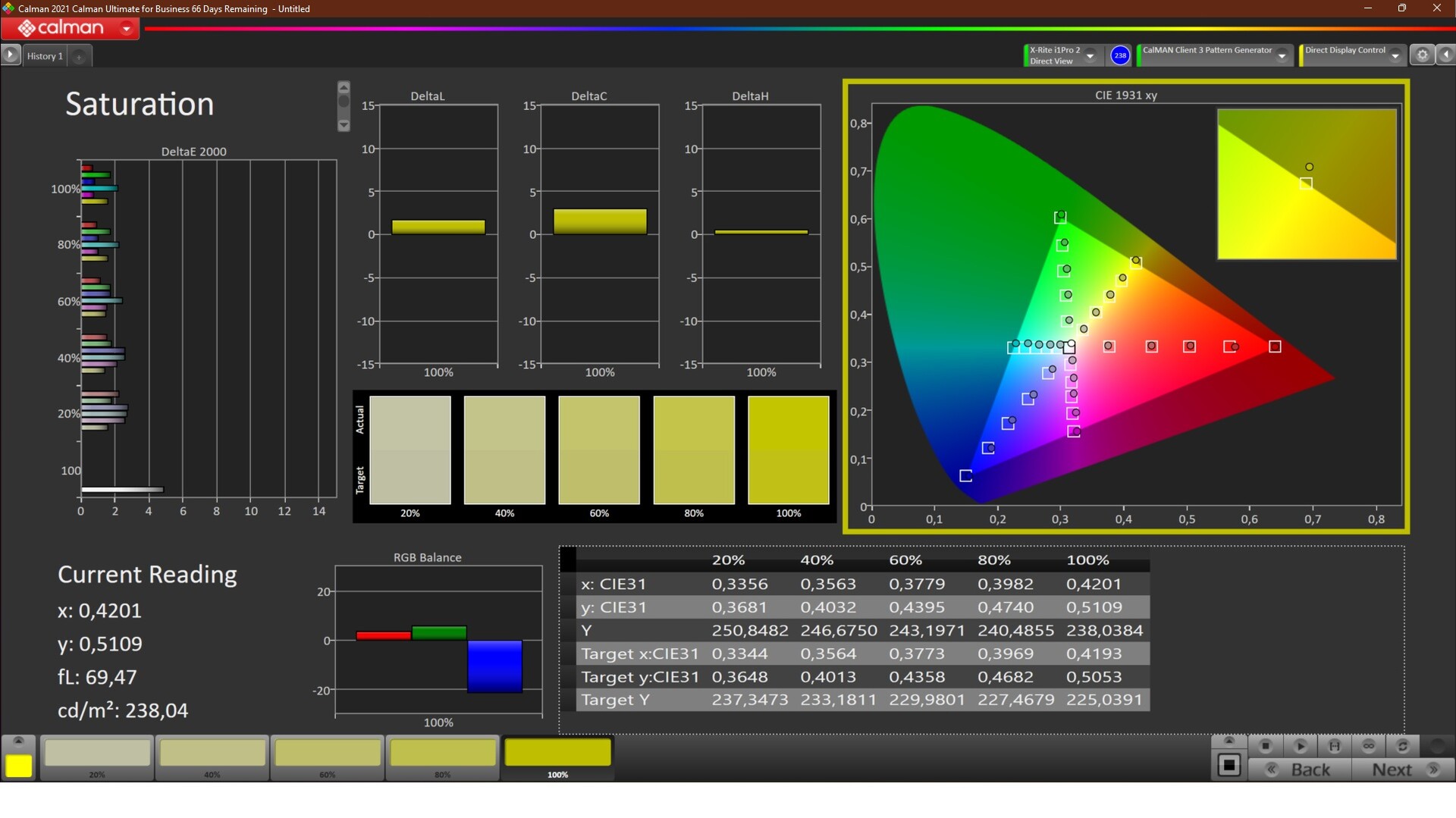

LPM135M467 tested with X-Rite i1Pro 2
Maximum: 465 cd/m² (Nits) Average: 450.6 cd/m² Minimum: 6.7 cd/m²Brightness Distribution: 92 %
Center on Battery: 465 cd/m²
Contrast: 1661:1 (Black: 0.28 cd/m²)
ΔE Color 2 | 0.5-29.43 Ø5, calibrated: 0.7

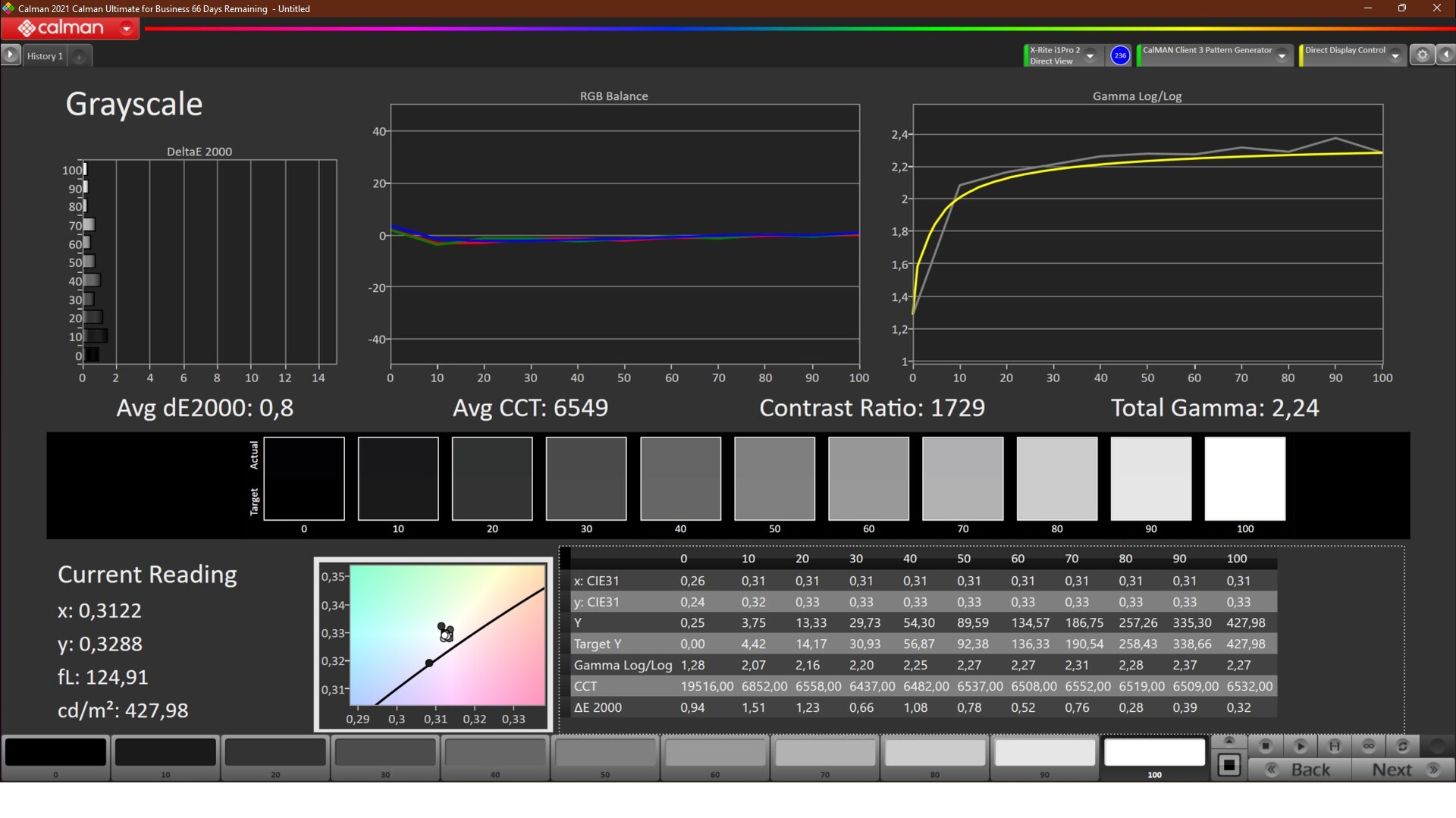

ΔE Greyscale 2.9 | 0.57-98 Ø5.3
68.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
98% sRGB (Argyll 2.2.0 3D)
66.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.09
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE LPM135M467, IPS LED, 2256x1504, 13.50 | Lenovo ThinkPad X1 Yoga G6-20Y0S00200 LP140WU1-SPB1, IPS, 1920x1200, 14.00 | Lenovo ThinkPad X13 Yoga G2 LP133WQ1-SPF2, IPS LED, 2560x1600, 13.30 | HP Elite Dragonfly Max InfoVision X133NVFL R0, IPS, 1920x1080, 13.30 | Dell Latitude 12 7210 2-in-1 Sharp LQ123N1, IPS, 1920x1280, 12.30 | Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE LPM135M467, IPS, 2256x1504, 13.50 | |
|---|---|---|---|---|---|---|
| Display | 3% | 2% | 0% | |||
| Display P3 Coverage | 66.8 | 69.8 4% | 68.3 2% | 67.9 2% | ||
| sRGB Coverage | 98 | 97.1 -1% | 99.1 1% | 96.8 -1% | ||
| AdobeRGB 1998 Coverage | 68.6 | 72.2 5% | 70.3 2% | 68.8 0% | ||
| Response Times | 37% | 23% | 29% | 60% | 31% | |
| Response Time Grey 50% / Grey 80% * | 64 ? | 49.2 ? 23% | 52 ? 19% | 44.8 ? 30% | 29 ? 55% | 53.6 ? 16% |
| Response Time Black / White * | 44 ? | 22 ? 50% | 32 ? 27% | 32 ? 27% | 16 ? 64% | 24 ? 45% |
| PWM Frequency | 1250 ? | |||||
| Screen | -20% | 13% | 2% | -11% | 6% | |
| Brightness middle | 465 | 417 -10% | 460 -1% | 777.5 67% | 380 -18% | 466 0% |
| Brightness | 451 | 404 -10% | 423 -6% | 727 61% | 378 -16% | 454 1% |
| Brightness Distribution | 92 | 93 1% | 85 -8% | 75 -18% | 86 -7% | 94 2% |
| Black Level * | 0.28 | 0.22 21% | 0.33 -18% | 0.44 -57% | 0.31 -11% | 0.23 18% |
| Contrast | 1661 | 1895 14% | 1394 -16% | 1767 6% | 1226 -26% | 2026 22% |

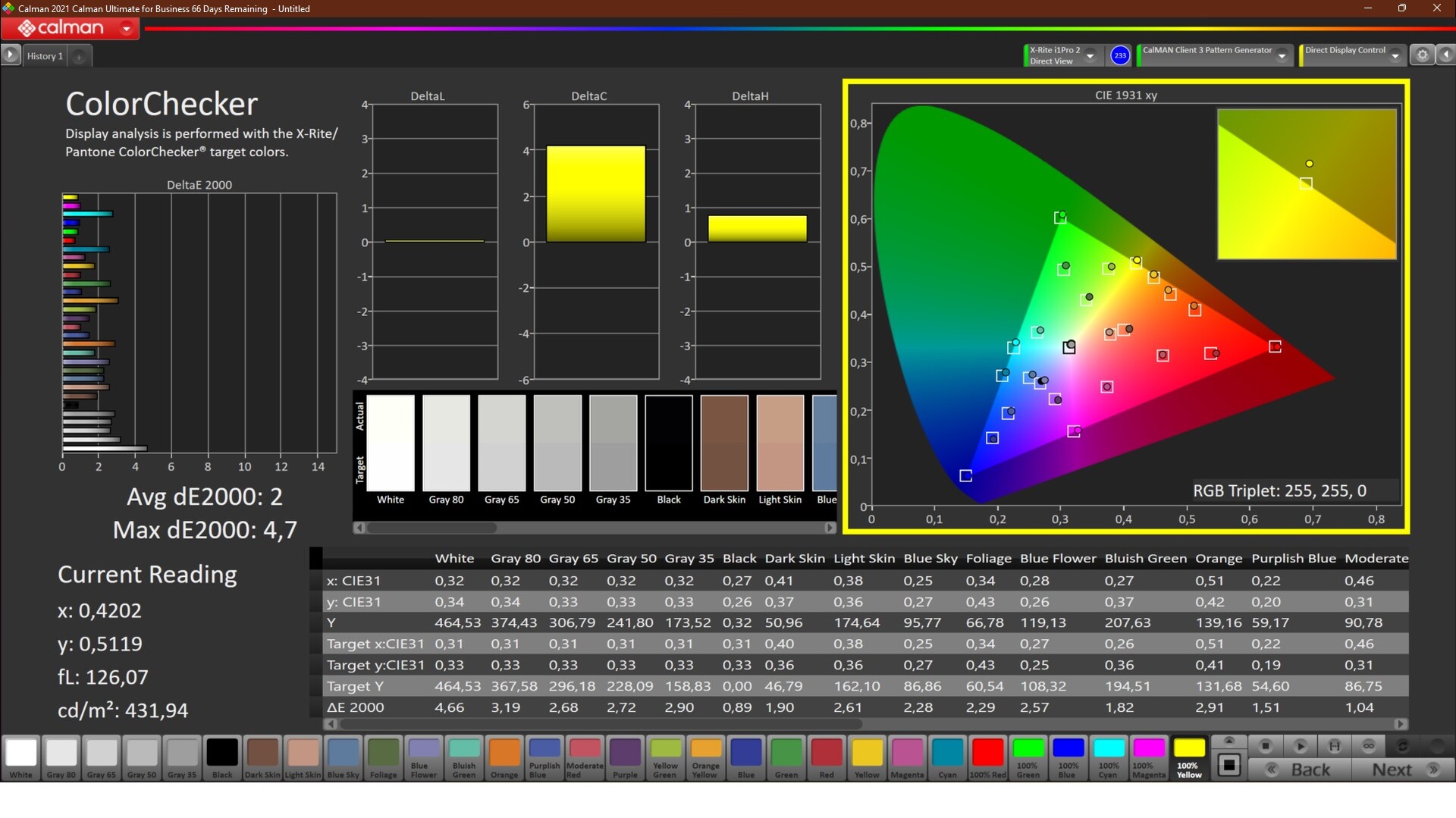

| Colorchecker dE 2000 * | 2 | 2.8 -40% | 1 50% | 1.62 19% | 2.28 -14% | 2.1 -5% |
| Colorchecker dE 2000 max. * | 4.7 | 4.7 -0% | 1.5 68% | 5.26 -12% | 3.93 16% | 4.5 4% |
| Colorchecker dE 2000 calibrated * | 0.7 | 1.6 -129% | 0.8 -14% | 1.32 -89% | 0.97 -39% | |
| Greyscale dE 2000 * | 2.9 | 3.7 -28% | 1.2 59% | 1.6 45% | 2.56 12% | 2.7 7% |
| Gamma | 2.09 105% | 2.08 106% | 2.26 97% | 2.2 100% | 2.32 95% | 2.08 106% |
| CCT | 6181 105% | 6545 99% | 6652 98% | 6538 99% | 6130 106% | 6210 105% |
| Color Space (Percent of AdobeRGB 1998) | 65.9 | 64.4 | 72.3 | 63 | 61.1 | |
| Color Space (Percent of sRGB) | 96.6 | 99.12 | 94.8 | 97 | 94.9 | |
| Total Average (Program / Settings) | 7% /
-7% | 13% /
12% | 16% /
7% | 16% /
1% | 19% /
11% |
* ... smaller is better
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|

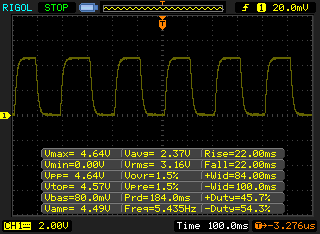

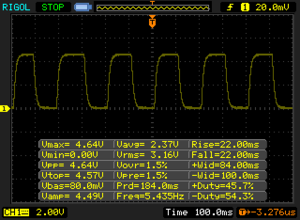

| 44 ms ... rise ↗ and fall ↘ combined | ↗ 22 ms rise |  |
| ↘ 22 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 98 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms). | ||

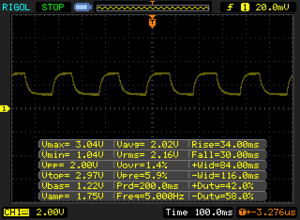

| ↔ Response Time 50% Grey to 80% Grey | ||
| 64 ms ... rise ↗ and fall ↘ combined | ↗ 34 ms rise |  |
| ↘ 30 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 97 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms). | ||

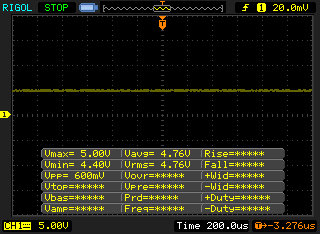

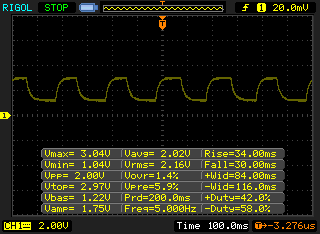

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17915 (minimum: 5 - maximum: 3846000) Hz was measured. | |||
性能--联想X1 Titanium的致命弱点
ThinkPad X1 Titanium Yoga有四款英特尔Tiger-Lake UP4处理器可供选择：Core i5-1130G7 酷睿i5-1130G7笔记本，以及 i5-1140G7，以及 i7-1160G7，以及 i7-1180G7.诚然，这款超薄的ThinkPad没有配备独立的GPU。用户必须使用集成的iGPU。 英特尔Iris Xe，80个EUsi5的配置，而使用 虹膜Xe，96EUs如果是i7配置，则为96 EUs。
联想为处理器和GPU提供8至16GB的快速LPDDR4X-4266内存，该内存焊接在主板上。8GB的工作内存是专门与i5 CPU结合提供的。对于固态硬盘，联想选择了不寻常的M.2 2242外形尺寸，单面安装。固态硬盘只有一个M.2插槽。
测试条件

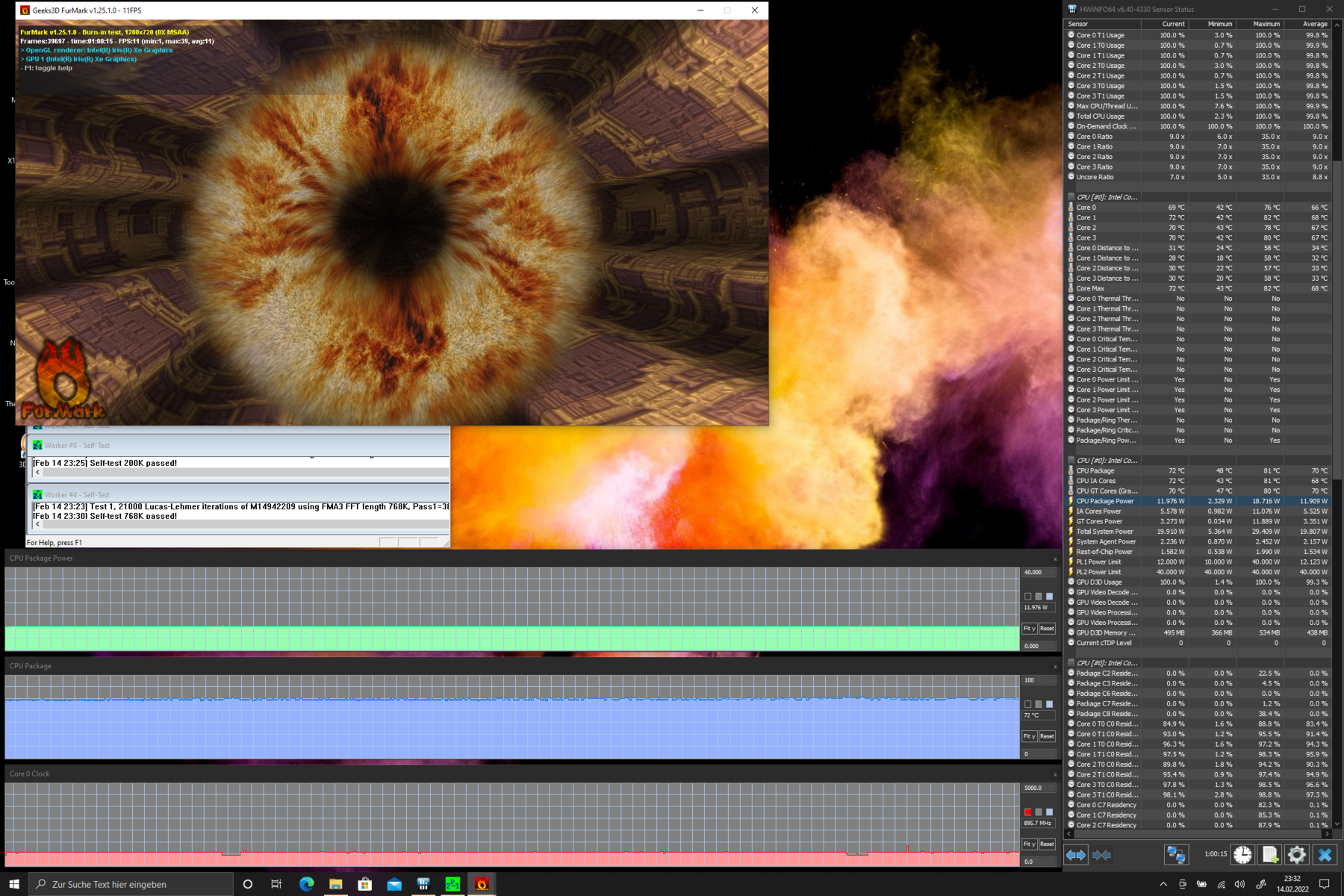

联想ThinkPad X1 Titanium Yoga有三种不同的工作模式，可以通过Windows的能源设置进行设置。在 "最佳节能 "模式下，Boost TDP只有10瓦，而永久消耗7瓦。在 "平衡 "设置中，提升TDP增加到15瓦，永久功耗限制为10瓦。为了获得最大的性能，"最佳性能 "配置文件必须被激活。在这里，升压TDP为35瓦，而CPU在较长时间的负载下有12瓦的热预算。

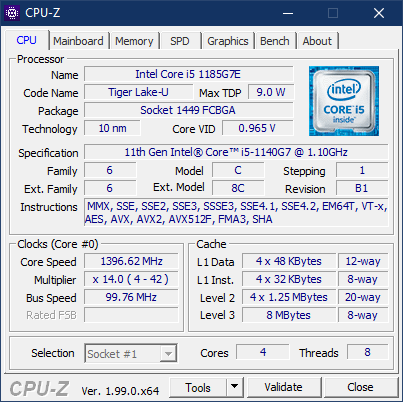

处理器
ǞǞǞ 英特尔酷睿i5-1140G7是酷睿i5-1130G7的vPro变体。与后者相比，四个Tiger Lake 核心的最大时钟高出约200 MHz（1.8至4.2 GHz）。由于它是一个UP4处理器，典型的TDP只有15瓦，但正如我们在 ThinkPad X1 Nano制造商可以无视这一规格，而使用更高的数值。
ThinkPad X1 Titanium Yoga的情况正好相反，正如在测试条件中已经描述的那样：联想笔记本电脑的冷却功率长期不超过12瓦。性能曲线也变成了不稳定的：在第一次测试后下降，然后变得恒定。在这方面，与之前测试的样品相比没有变化，自第一次测试以来的任何固件更新都没有引起任何变化。总的来说，与配备i7的X1 Titanium相比，性能略低，由于更高的时钟速率，X1 Titanium在提升性能和单核运行方面具有优势。
Cinebench R15 Multi Constant Load Test
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7: Ø472 (411.56-629.91)
Lenovo ThinkPad X1 Yoga G6-20Y0S00200 Intel Core i7-1165G7: Ø804 (719.39-910.5)
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7: Ø654 (610.84-834.6)
HP Elite Dragonfly Max Intel Core i7-1185G7: Ø569 (508.72-617.22)
Dell Latitude 12 7210 2-in-1 Intel Core i7-10610U: Ø549 (532.2-581.16)
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE Intel Core i7-1160G7: Ø515 (481.9-753.14)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Convertible | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 | |
| Dell Latitude 12 7210 2-in-1 | |
| Cinebench R23 / Multi Core | |
| Average of class Convertible (616 - 18070, n=66, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| HP Elite Dragonfly Max | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Cinebench R23 / Single Core | |
| Average of class Convertible (307 - 1970, n=66, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Dell Latitude 12 7210 2-in-1 | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Convertible (242 - 6954, n=66, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Convertible (116.8 - 755, n=65, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Convertible (110.1 - 2889, n=67, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| HP Elite Dragonfly Max | |
| Dell Latitude 12 7210 2-in-1 | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Convertible (68.6 - 287, n=65, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| HP Elite Dragonfly Max | |
| Dell Latitude 12 7210 2-in-1 | |
| Blender / v2.79 BMW27 CPU | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average of class Convertible (193 - 3620, n=61, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Convertible (7703 - 72400, n=63, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Dell Latitude 12 7210 2-in-1 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average of class Convertible (2046 - 6417, n=63, last 2 years) | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Dell Latitude 12 7210 2-in-1 | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Convertible (663 - 14016, n=67, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Geekbench 5.5 / Single-Core | |
| Average of class Convertible (319 - 1981, n=67, last 2 years) | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Dell Latitude 12 7210 2-in-1 | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Convertible (0.61 - 20.1, n=65, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| LibreOffice / 20 Documents To PDF | |
| Dell Latitude 12 7210 2-in-1 | |
| Average of class Convertible (42 - 223, n=63, last 2 years) | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| R Benchmark 2.5 / Overall mean | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average of class Convertible (0.4102 - 1.967, n=63, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Convertible | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 | |
| Dell Latitude 12 7210 2-in-1 | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Convertible (109 - 25226, n=66, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Dell Latitude 12 7210 2-in-1 | |
| AIDA64 / FPU Julia | |
| Average of class Convertible (2644 - 106512, n=65, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Dell Latitude 12 7210 2-in-1 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| AIDA64 / CPU SHA3 | |
| Average of class Convertible (121 - 4764, n=65, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Dell Latitude 12 7210 2-in-1 | |
| AIDA64 / CPU Queen | |
| Average of class Convertible (3256 - 120368, n=65, last 2 years) | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| AIDA64 / FPU SinJulia | |
| Average of class Convertible (549 - 14835, n=65, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Dell Latitude 12 7210 2-in-1 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| AIDA64 / FPU Mandel | |
| Average of class Convertible (1420 - 56839, n=65, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| AIDA64 / CPU AES | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Average of class Convertible (191 - 169089, n=65, last 2 years) | |
| Dell Latitude 12 7210 2-in-1 | |
| AIDA64 / CPU ZLib | |
| Average of class Convertible (61.4 - 1088, n=65, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Dell Latitude 12 7210 2-in-1 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Lenovo ThinkPad X13 Yoga G2 | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Convertible (59 - 13175, n=65, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Dell Latitude 12 7210 2-in-1 | |
| AIDA64 / CPU PhotoWorxx | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average of class Convertible (2185 - 52599, n=65, last 2 years) | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Dell Latitude 12 7210 2-in-1 | |
系统性能
与CPU性能不同，在系统性能方面与i7机型没有太大区别。联想ThinkPad X1 Titanium Yoga在日常使用中运行很快。
| PCMark 10 / Score | |
| Average of class Convertible (1486 - 7963, n=60, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs () | |
| Dell Latitude 12 7210 2-in-1 | |
| PCMark 10 / Essentials | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| HP Elite Dragonfly Max | |
| Average of class Convertible (3975 - 12059, n=60, last 2 years) | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs () | |
| Dell Latitude 12 7210 2-in-1 | |
| PCMark 10 / Productivity | |
| Average of class Convertible (2764 - 10800, n=60, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs () | |
| PCMark 10 / Digital Content Creation | |
| Average of class Convertible (811 - 12360, n=60, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs () | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Dell Latitude 12 7210 2-in-1 | |
| PCMark 10 Score | 4471 points | |
Help | ||
| AIDA64 / Memory Copy | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average of class Convertible (14439 - 95631, n=65, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Dell Latitude 12 7210 2-in-1 | |
| AIDA64 / Memory Read | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Average of class Convertible (12706 - 87812, n=65, last 2 years) | |
| Dell Latitude 12 7210 2-in-1 | |
| AIDA64 / Memory Write | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Average of class Convertible (10177 - 93451, n=65, last 2 years) | |
| Dell Latitude 12 7210 2-in-1 | |
| AIDA64 / Memory Latency | |
| Dell Latitude 12 7210 2-in-1 | |
| HP Elite Dragonfly Max | |
| Average of class Convertible (10.2 - 260, n=62, last 2 years) | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Average Intel Core i5-1140G7 () | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
* ... smaller is better

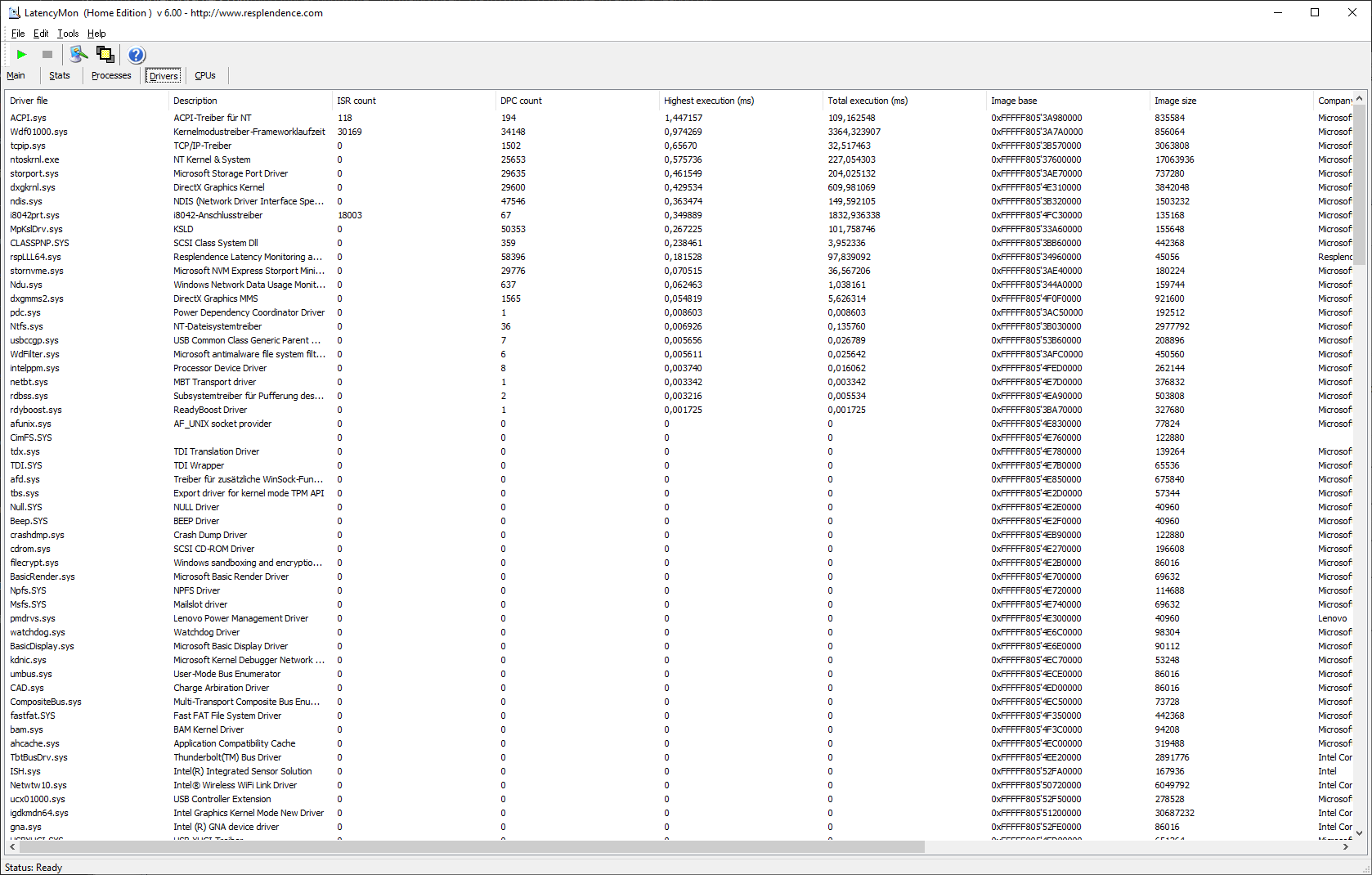

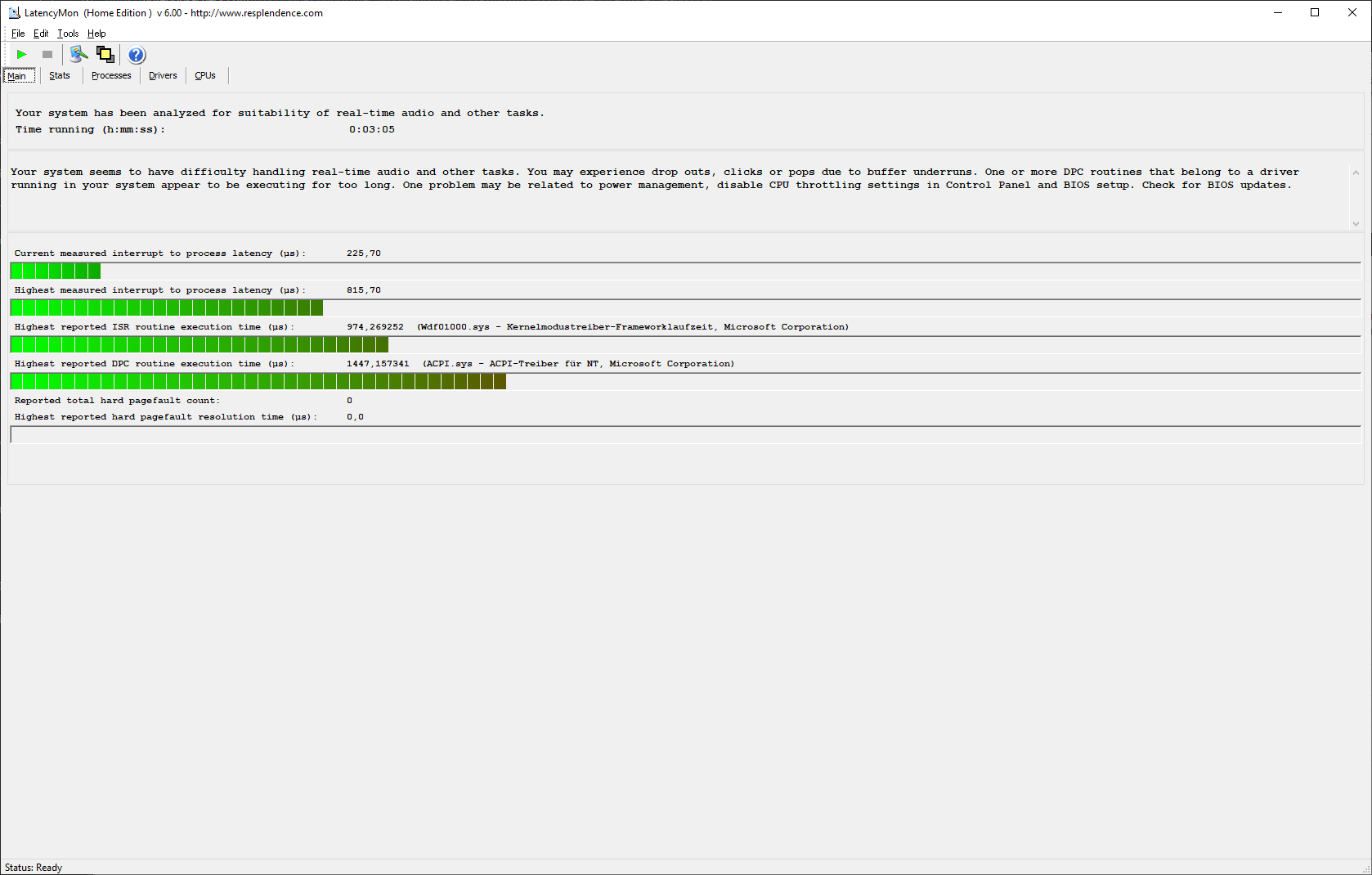

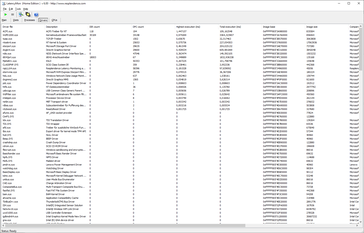

DPC延迟
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Dell Latitude 12 7210 2-in-1 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Lenovo ThinkPad X13 Yoga G2 | |
* ... smaller is better
存储解决方案

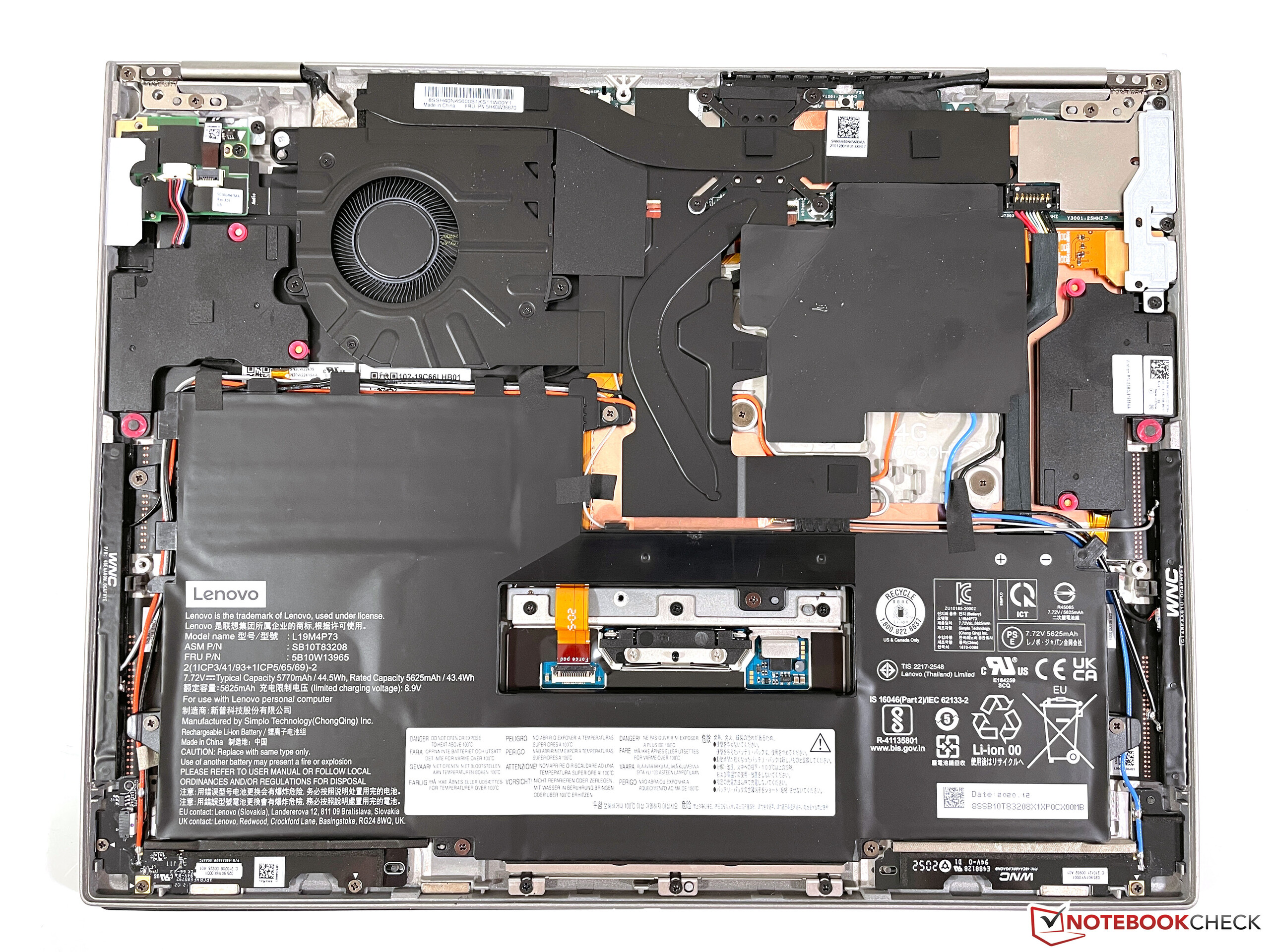

联想ThinkPad X1 Titanium Yoga使用了不寻常的M.2 2242外形尺寸，由于插槽高度较低，SSD只能有单面配置。此外，NVMe SSD被限制在PCIe 3.0。因此，与ThinkPad X1 Yoga G6相比，SSD的性能要弱一些。 ThinkPad X1 Yoga G6配备了PCIe 4.0固态硬盘。
Lenovo UMIS RPJTJ256MEE1OWX
Sequential Read:
1887MB/s
Sequential Write:
1198MB/s
4K Read:
62.1MB/s
4K Write:
215.6MB/s
4K-64 Read:
489.4MB/s
4K-64 Write:
639MB/s
Access Time Read:
0.06ms
Access Time Write:
0.019ms
Score Read:
740Points
Score Write:
975Points
Score Total:
2081Points
| Drive Performance Rating - Percent | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Average of class Convertible | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Dell Latitude 12 7210 2-in-1 | |
| Average Lenovo UMIS RPJTJ256MEE1OWX | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
* ... smaller is better
Continuous load read: DiskSpd Read Loop, Queue Depth 8
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE: Ø1889 (1670.19-1913.6)

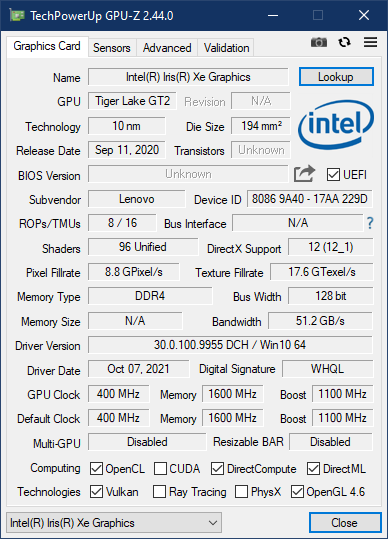

图形卡
与配备i7-1160G7的X1 Titanium相比，性能上的最大差异在于iGPU。这并不令人惊讶：毕竟i7的iGPU稍强，有更多的执行单元。然而，该测试设备的GPU性能也低于其他的 带有80个EU的英特尔Xe这可能是因为UP4版本的Tiger-Lake的iGPU时钟稍低。
| 3DMark Performance Rating - Percent | |
| Average of class Convertible | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Average Intel Iris Xe Graphics G7 80EUs | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| Dell Latitude 12 7210 2-in-1 | |
| 3DMark 11 Performance | 4315 points | |
| 3DMark Fire Strike Score | 2864 points | |
| 3DMark Time Spy Score | 1146 points | |
Help | ||
The Witcher 3: 1024x768 Low Graphics & Postprocessing | 1366x768 Medium Graphics & Postprocessing | 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
| The Witcher 3 / Low Graphics & Postprocessing | |
| Average of class Convertible (35 - 354, n=58, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Average Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=98) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| The Witcher 3 / Medium Graphics & Postprocessing | |
| Average of class Convertible (28 - 257, n=56, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Average Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=100) | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| The Witcher 3 / High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| Average of class Convertible (16 - 155.3, n=57, last 2 years) | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Average Intel Iris Xe Graphics G7 80EUs (9.3 - 33.5, n=98) | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
| The Witcher 3 / Ultra Graphics & Postprocessing (HBAO+) | |
| Average of class Convertible (8.5 - 123.3, n=60, last 2 years) | |
| HP Elite Dragonfly Max | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average Intel Iris Xe Graphics G7 80EUs (6.26 - 15.7, n=89) | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE | |
The Witcher 3 FPS Chart
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE i5-1140G7, Iris Xe G7 80EUs: Ø9.83 (8-11)
| low | med. | high | ultra | |
| The Witcher 3 (2015) | 45.6 | 32.1 | 18.3 | 9.53 |
| Dota 2 Reborn (2015) | 87.8 | 63.9 | 40.6 | 36.1 |
| X-Plane 11.11 (2018) | 17.1 | 15.1 | 14.2 |
排放和电源管理 - 更大的风扇使联想笔记本电脑散热更好
噪声排放
与第一次使用i7的测试样本相比，风扇的噪音在负载下增加了一些--在40dB(A)时，风扇是相当可闻的。作为回报，它现在总是在空闲时保持关闭状态。
Noise Level
| Idle |
| 25.61 / 25.61 / 25.61 dB(A) |
| Load |
| 40.14 / 40.14 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25.61 dB(A) | ||
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX | Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE Iris Xe G7 96EUs, i7-1160G7, Toshiba BG4 KBG40ZNT512G | Lenovo ThinkPad X1 Yoga G6-20Y0S00200 Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR | Lenovo ThinkPad X13 Yoga G2 Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00 | HP Elite Dragonfly Max Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G | Dell Latitude 12 7210 2-in-1 UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G | |
|---|---|---|---|---|---|---|
| Noise | 5% | 4% | 10% | 10% | 9% | |
| off / environment * | 25.61 | 25.1 2% | 24.2 6% | 24 6% | 24.9 3% | 25 2% |
| Idle Minimum * | 25.61 | 25.1 2% | 24.2 6% | 24 6% | 24.9 3% | 25 2% |
| Idle Average * | 25.61 | 25.1 2% | 24.2 6% | 24 6% | 24.9 3% | 25 2% |
| Idle Maximum * | 25.61 | 27.1 -6% | 29.9 -17% | 24 6% | 24.9 3% | 25 2% |
| Load Average * | 40.14 | 32.7 19% | 33.7 16% | 32.72 18% | 29.7 26% | 28.7 29% |
| Load Maximum * | 40.14 | 35.8 11% | 36.7 9% | 33.88 16% | 31.3 22% | 34.5 14% |
| Witcher 3 ultra * | 32.7 | 33.7 | 31.3 |
* ... smaller is better
温度
负载下的温度比使用i7的对比设备的温度略低。最高温度几乎一样高，但机箱的其他部分仍然较冷。运行中的风扇稍强，这可能是配备i5的ThinkPad X1 Titanium运行时不那么热的原因。
压力测试证实了CPU测试的结果：处理器在长期运行中的消耗不能超过12瓦特。

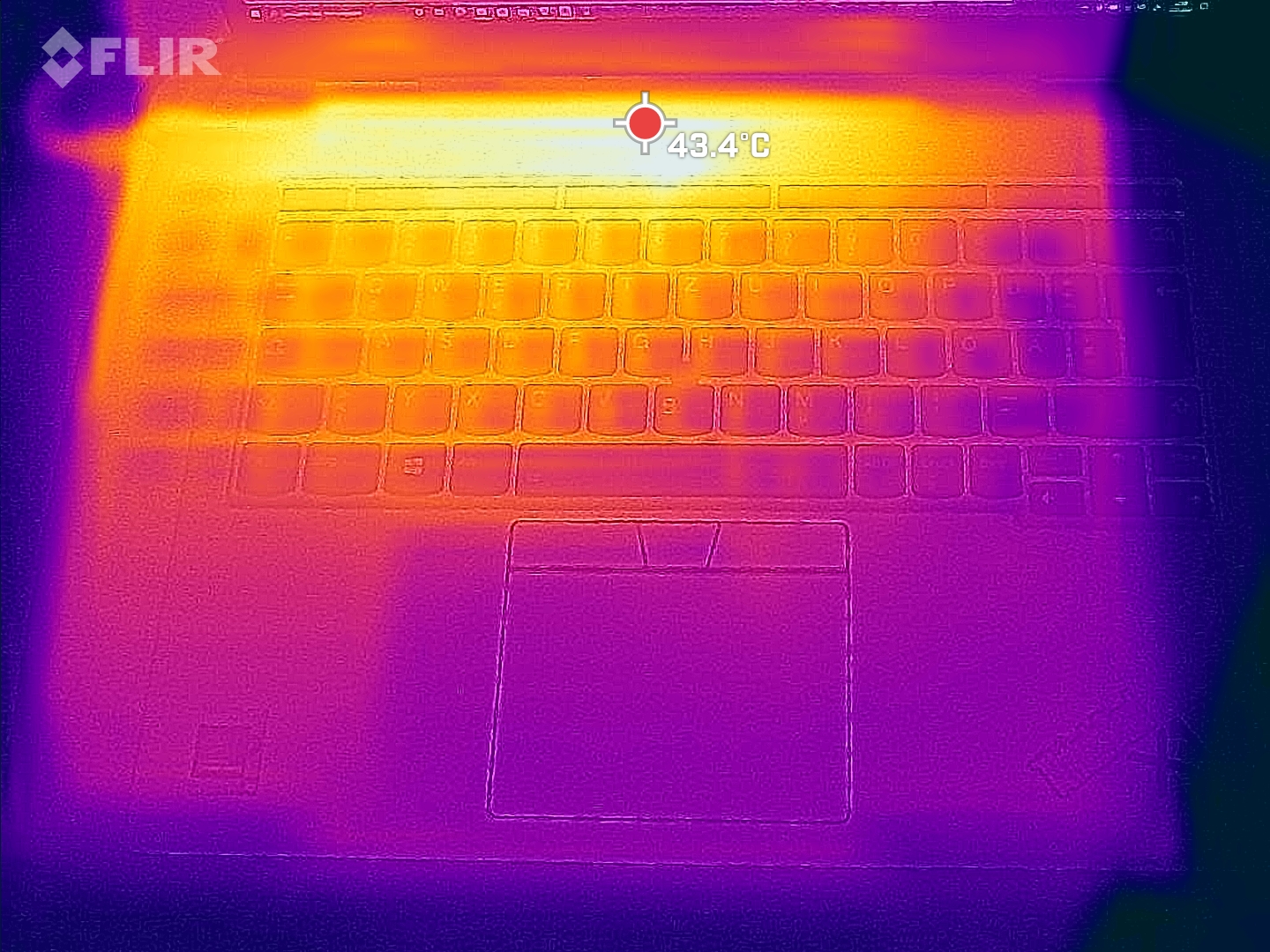

(±) The average temperature for the upper side under maximal load is 32.7 °C / 91 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(-) The maximum temperature on the upper side is 46.3 °C / 115 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.

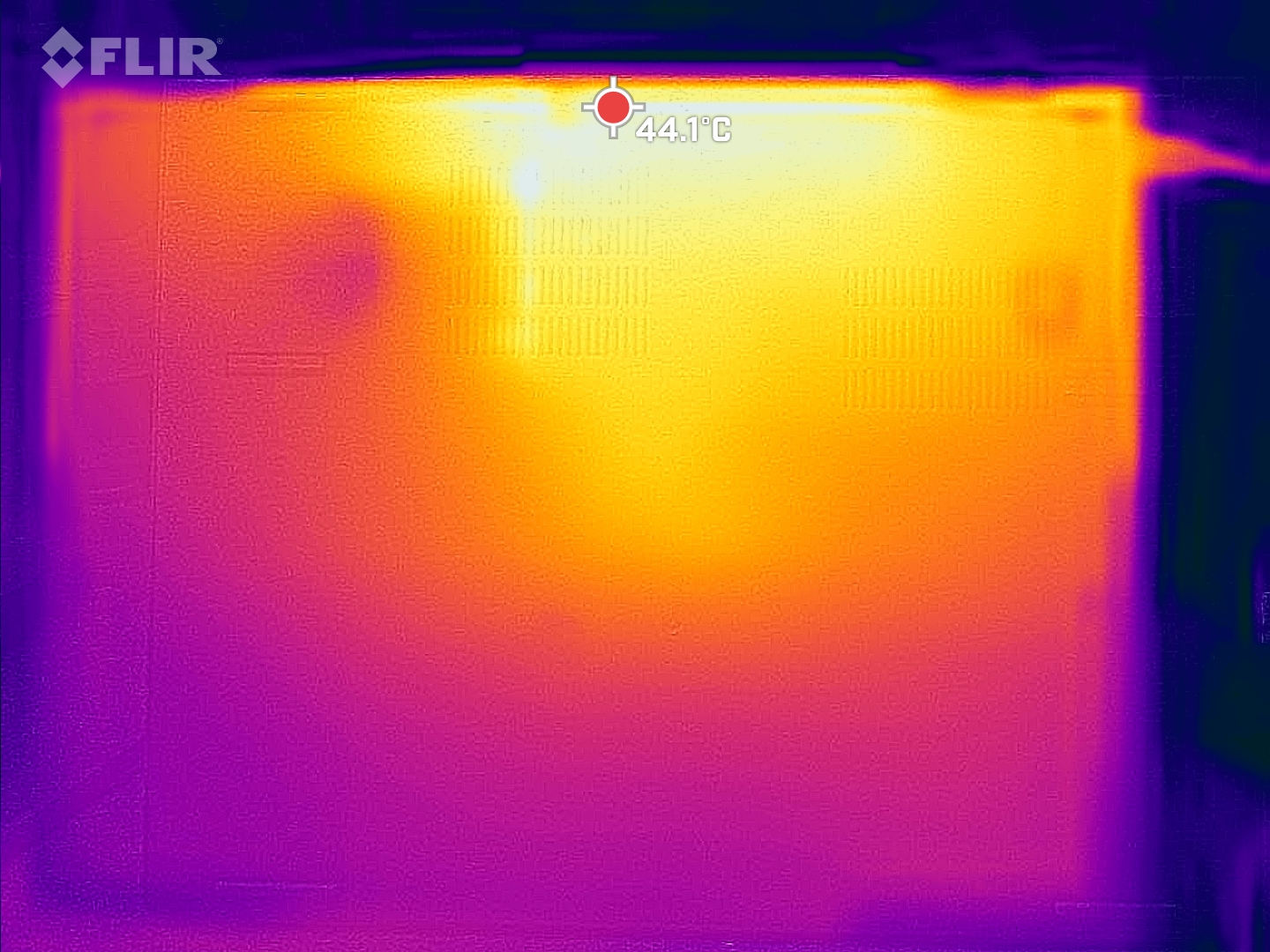

(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.8 °C / 75 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.6 °C / 83.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-0.5 °C / -0.9 F).
(-) The maximum temperature on the upper side is 46.3 °C / 115 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.8 °C / 75 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.6 °C / 83.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-0.5 °C / -0.9 F).
| Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs | Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkPad X1 Yoga G6-20Y0S00200 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | HP Elite Dragonfly Max Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs | Dell Latitude 12 7210 2-in-1 Intel Core i7-10610U, Intel UHD Graphics 620 | |
|---|---|---|---|---|---|---|
| Heat | -1% | 2% | -10% | -9% | 13% | |
| Maximum Upper Side * | 46.3 | 46.5 -0% | 44.1 5% | 47.2 -2% | 39.4 15% | 37.5 19% |
| Maximum Bottom * | 43.3 | 45.2 -4% | 47.3 -9% | 51.5 -19% | 50 -15% | 36.2 16% |
| Idle Upper Side * | 26.8 | 27.3 -2% | 25.5 5% | 30 -12% | 31.6 -18% | 25.7 4% |
| Idle Bottom * | 28.3 | 27.7 2% | 26.6 6% | 30.5 -8% | 33.4 -18% | 24.3 14% |
* ... smaller is better
发言人
关于扬声器质量的描述，我们可以参考之前对 ThinkPad X1 Titanium Yoga with i7.
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE audio analysis
(±) | speaker loudness is average but good (77.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.1% lower than median
(±) | linearity of bass is average (7.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6% higher than median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.8% away from median
(+) | highs are linear (4.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.2% difference to median)
Compared to same class
» 52% of all tested devices in this class were better, 12% similar, 36% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 54% of all tested devices were better, 7% similar, 39% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200 audio analysis
(±) | speaker loudness is average but good (81.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.8% lower than median
(±) | linearity of bass is average (11.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (4.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.1% difference to median)
Compared to same class
» 14% of all tested devices in this class were better, 2% similar, 84% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 10% of all tested devices were better, 2% similar, 88% worse
» The best had a delta of 4%, average was 25%, worst was 134%
消耗功率
能量测量结果大致上证实了第一次测试的结果，尽管这个样品在这里的负载消耗略低。长时间负载时的能量测量结果很有趣：在这里，一开始可以达到35瓦，之后总消耗被限制在25瓦。X1 Titanium在发货时配备了65瓦的电源，但45瓦的型号也很容易满足。
Power Consumption
| Off / Standby | 0.28 / 0.45 Watt |
| Idle | 3.75 / 7.75 / 8.69 Watt |
| Load |
33.12 / 35.19 Watt |

| |
Power Consumption: The Witcher 3 / Stress Test
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; Witcher 3 ultra: Ø28.7 (24.6-36.4)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; 1280x720 Prime95 28.10 and Furmark 1.25: Ø28 (23.8-35.2)
Power Consumption With External Montitor
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; Prime95 V2810 Stress (external Monitor): Ø29.1 (22.1-34.3)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; Cinebench R15 Multi (external Monitor): Ø27.3 (21.1-30.8)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø28.3 (21.6-34)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; 1920x1080 The Witcher 3 ultra (external Monitor): Ø25.2 (20.4-33.9)
电池寿命
我们没有再次测试电池的运行时间。毕竟，目前的配置与已经测试过的配置没有本质区别 配置i7的联想ThinkPad X1 Titanium Yoga.
| Battery Runtime - WiFi v1.3 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| HP Elite Dragonfly Max | |
| Average of class Convertible (329 - 876, n=63, last 2 years) | |
| Lenovo ThinkPad X13 Yoga G2 | |
| Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE | |
| Dell Latitude 12 7210 2-in-1 | |
Pros
+ 高质量和薄的外壳
+ 雷电4 & USB 4
+ 非常好的3:2触摸屏
+ LTE调制解调器
+ 在平板电脑模式下很舒适
Cons
- 只有2个USB-C
- 没有PCIe 4.0固态硬盘
- 显示器盖子有轻微偏移
- 性能弱于其他型号
评语。为特殊情况下使用而制造
即使一年过去了，我们对联想ThinkPad X1 Titanium Yoga的评价也没有根本性的改变。这个评测样本没有盖子上的油漆缺陷，但它确实存在盖子略微向左偏移的问题。所以这似乎是一个标准的设计问题。然而，这次我们无法确定触摸板的制造缺陷，我们的第一台测试设备就有这种缺陷。在重新测试中，我们并没有发现触觉触摸板像第一次评测时那样令人不快。联想可能已经在这里改进了驱动程序。
总的来说，ThinkPad X1 Titanium Yoga是一台只适合于某些任务的笔记本电脑。由于其低矮的外形和重量，它比其他型号（包括ThinkPad X1 Yoga G6）更好地完成了其作为可转换的角色，3:2的屏幕非常适合阅读和撰写文本。买家将不得不在连接性和性能上做出妥协，作为回报。
打字员的工作主力，以及具有许多功能的良好的可转换产品--联想ThinkPad X1 Titanium Yoga以这一点说服了人们。如果性能或配备的内存和端口非常重要的话，其他机型会更好一些
我们仍然可以推荐ThinkPad X1 Titanium Yoga G1，尽管由于Alder Lake和Rembrandt ThinkPads的发布，性能上的劣势很快会更大。令人遗憾的是，联想显然只在一年后就放弃了这个平台。
第一个选择是 联想ThinkPad X1 Yoga G6它的价格稍便宜，提供更好的扬声器，更舒适的键盘，以及更多的性能和端口。然而，它的体积也要大得多。这款 ThinkPad X13 Yoga G2价格更有吸引力，而且在重量方面与X1 Titanium更有可比性。虽然它作为平板电脑使用起来不那么令人愉快，而且只有13.3英寸的16:10显示屏，但X13 Yoga G2总体看来更强大一些，在移动性方面可能是最接近X1 Titanium的产品。来自其他制造商的 HP Elite Dragonfly Max与X1 Titanium Yoga相差不大，但16:9的LCD是一个主要缺点。
价格和可用性
联想ThinkPad X1 Titanium Yoga G1的测试配置目前在联想自己的网上商店售价2240欧元（约合2000美元）。亚马逊目前有X1 Titanium Yoga价格约为1,846美元。
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
-
03/16/2022 v7
Benjamin Herzig
Convertible - Weighted Average
Pricecompare
