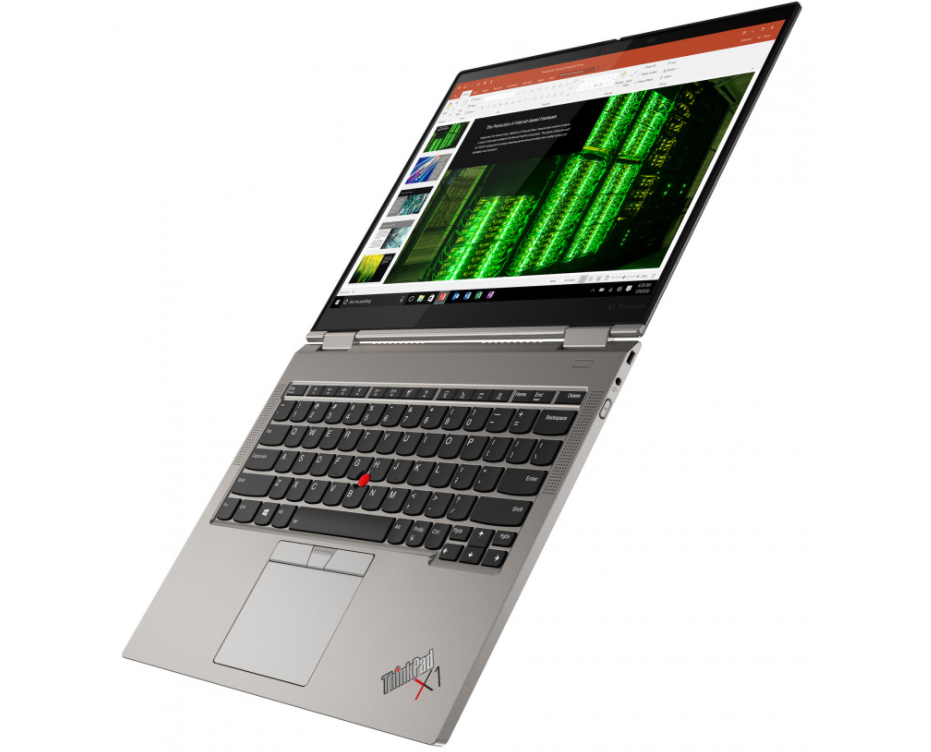

Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE

Specifications

Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE (ThinkPad X1 Titanium Yoga G1 Series)
Processor
Intel Core i7-1160G7 4 x 2.1 - 4.4 GHz, 40 W PL2 / Short Burst, 12 W PL1 / Sustained, Tiger Lake-UP4
Graphics adapter
Intel Iris Xe Graphics G7 96EUs, Core: 1100 MHz, Memory: 1600 MHz
Memory
16 GB
, LPDDR4X-4266 onBoard, Quad-Channel
Display
13.50 inch 3:2, 2256 x 1504 pixel 201 PPI, capacitive, LPM135M467, IPS, glossy: yes, HDR, 60 Hz
Mainboard
Intel Tiger Lake-UP4 PCH-LP
Storage
Toshiba BG4 KBG40ZNT512G, 512 GB
, 434 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
2 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm STereo, 1 Fingerprint Reader, Sensors: Gyroscope, Accelerometer
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2, LTE Cat.9, LTE
Size
height x width x depth (in mm): 11.5 x 297.5 x 232.7
Battery
44.5 Wh, 5625 mAh Lithium-Polymer
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p IR
Primary Camera: 0.9 MPix
Additional features
Speakers: Stereo. Dolby Atmos, Keyboard: Chiclet, Keyboard Light: yes, 65W PSU, 36 Months Warranty
Weight
1.189 kg, Power Supply: 322 g
Price
2800 Euro



Pricecompare

Average Score: 74.86% - average
Average of 5 scores (from 8 reviews)
price: 33%, performance: 67%, features: 65%, display: 88% mobility: 79%, workmanship: 81%, ergonomy: 85%, emissions: 93%

Reviews for the Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE

87.3% Lenovo ThinkPad X1 Titanium Yoga Review: High-End-Business-Convertible with Intel EVO and Titanium chassis | Notebookcheck
The new ThinkPad X1 Titanium Yoga uses expensive materials and is Lenovo’s new flagship business convertible. It is also the thinnest ThinkPad so far, but that results in some compromises, for example in terms of performance as well as input devices.
60% Lenovo ThinkPad X1 Titanium Yoga review: Slim, light, but only alright
Source: It Pro English EN→zh-CN
Lenovo has succeeded in producing the slimmest ThinkPad ever, and the eminently portable X1 has a robust design and a smooth convertible action. Elsewhere, it has a great keyboard, a bright display with a helpful aspect ratio and good security features. There are too many areas where this machine is merely ordinary, though. The low-power processor is fine for everyday computing but nothing more, and the ThinkPad lacks the physical connectivity offered by rivals. Battery life is fine but not outstanding, and the haptic trackpad isn’t particularly good. This machine is expensive, too: several rival machines are significantly cheaper. The Lenovo ThinkPad X1 Titanium Yoga has impressive design, a good display and a satisfying keyboard, but the high price and inconsistencies elsewhere make it hard to recommend unless you need the slimmest, lightest laptop you can get your hands on.
Single Review, online available, Medium, Date: 09/28/2021
Rating: Total score: 60%
80% Lenovo ThinkPad X1 Titanium Yoga review: A first-class 2-in-1 for business travelers
Source: CNet English EN→zh-CN
The X1 Titanium Yoga is the thinnest ThinkPad ever. At 11.5 millimeters (0.45 inch) and with a 13.5-inch 2K-resolution 450-nit display with a 3:2 aspect ratio, it doesn't take up much more space in a backpack than a spiral-bound single-subject notebook. It also weighs just 2.5 pounds (1.1 kilograms), which is barely more than the X1 Nano, Lenovo's lightest ThinkPad to date at 2 pounds (907 grams). Despite the thin-and-light frame, though, the X1 feels solid enough to hold up to being banged around on flights or an everyday transit commute. And that tall screen means you're getting more vertical space to work but the laptop is no wider than a 13.3-inch laptop. My point is, this is a great design for frequent business travelers and I didn't even mention all the privacy and security features yet. The X1 Titanium Yoga is a first-gen model, however, and while it's good, there's some room for improvement.
Single Review, online available, Short, Date: 07/25/2021
Rating: Total score: 80%
Lenovo ThinkPad X1 Titanium Yoga Gen 1 review – exploring new materials
Source: Laptop Media English EN→zh-CN
One thing we found really cumbersome is to find the specific target group of people for this notebook. And what is its biggest selling point? Is it the titanium material partially used for the build of this device. In that case, the laptop would be nothing more than a posh alternative. Or is it the 11.5mm profile? By itself, this is not a good enough reason to spend nearly $2000.
Single Review, online available, Very Long, Date: 06/11/2021
Lenovo ThinkPad X1 Titanium Yoga Gen 1 - disassembly and upgrade options
Source: Laptop Media English
Support, online available, Short, Date: 06/10/2021
Lenovo ThinkPad X1 Titanium Yoga
Source: PC Mag English EN→zh-CN
The ThinkPad X1 Titanium is a showcase of what Lenovo thinks business computing will look like in the near future. People want thinner, lighter laptops with high-quality screens and enough computing power to get their work done. The X1 Titanium achieves these goals with some controversial but innovative design choices, including a redesigned keyboard and a pared-down port selection. Will more 2-in-1 business laptops look like this next year? Probably, but we'd bet that the larger ThinkPad T series, as well as the ThinkPad X1 Yoga, will continue to be the go-tos in Lenovo's lineup.
Single Review, online available, Long, Date: 04/10/2021
80% Lenovo Thinkpad X1 Titanium Yoga Dünner und robuster Convertible mit tollem Display
Source: Tech Stage German DE→zh-CN
Single Review, online available, Long, Date: 05/17/2021
Rating: Total score: 80%
Laptop ThinkPad '2 trong 1' giá 71 triệu đồng
Source: Sohoa VN Express VN→zh-CN
Single Review, online available, Long, Date: 08/25/2021
67% Lenovo ThinkPad X1 Titanium Yoga 20QA [TEST]: Gennemført minimalistisk 2-i-1-luksuscomputer
Source: Alt om Data DA→zh-CN
Single Review, online available, Very Short, Date: 06/30/2022
Rating: Total score: 67% price: 33% performance: 67%

Comment

Intel Iris Xe G7 96EUs:

基于96个EU(执行单元/着色器集群)的新Gen.12体系结构的英特尔Tiger Lake G4 SoC内置显卡。 时钟速率因处理器型号而异。 Tiger Lake芯片采用英特尔10纳米以上的现代工艺生产。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-1160G7:

基于Tiger Lake的低功耗四核处理器,适用于轻薄笔记本电脑。 4个核心时钟为1.2~4.4GHz。 内置GPU提供96个EU和400~1100MHz的时钟。英特尔以10nm以上的速度生产。

» Further information can be found in our Comparison of Mobile Processsors.


13.50":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.189 kg: 这是10到11寸大尺寸平板电脑,小型亚笔记本,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
