华硕ZenBook 14X OLED AMD笔记本电脑评测中。颜色多，电池寿命长，价格低

Name: Asus ZenBook 14X UM5401QA-KN162
Brand: Asus

负担得起的OLED笔记本电脑。 除了使用英特尔处理器，华硕还为其Zenbook 14X提供AMD处理器。这导致了价格上的优势；该机型的售价不到1000欧元（约合1,018美元）。然而，一些功能被省略了，如Thunderbolt端口、Nvidia显卡和Screenpad--即集成在ClickPad上的第二个显示屏。

Sebastian Jentsch, 👁 Sebastian Jentsch (translated by DeepL / Ninh Duy), Published 07/10/2022 🇺🇸 🇩🇪 ...

AMD Ultrabook Touchscreen Windows

华硕在OLED上下注。许多笔记本电脑系列都默认配备了OLED显示屏。不仅是高端的Zenbook受益于更多的色彩和对比度，Vivobooks也是如此，例如 Vivobook Pro 14 M3401QC.

这将OLED和3K/4K带入了较低的价格区域，而更多的制造商将效仿。当与没有OLED的设备的差异只达到200至300欧元（约204至约305美元）时，中端客户将开始认真考虑购买OLED。

也就是说，华硕的Zenbook 14X并没有呈现出中档的硬件和做工。机箱特别坚固，质量很高。输入设备是一流的，Ryzen 7的性能在顶级次笔记本联盟中排名靠前--这要归功于45瓦的处理器。

竞争对手也有OLED，如戴尔XPS 13 9310 OLED或联想Yoga Slim 7 Pro 14，它也有一个GeForce MX450.在内部，有一个几乎相同结构的 Zenbook 14X UX5400EA，它的顶级配置中也有一个MX450。

由于没有那么多的OLED 14英寸机，我们也会考虑IPS的对手。这款HP Envy 14-eb0010nr配有英特尔处理器和GeForce GTX 1650 Ti Max-Q对于游戏爱好者来说可能是最有趣的。这款Vivobook Pro 14 M3401QC配备了名义上更强大的RTX 3050和OLED，但它的外壳并不像Zenbook 14X那样纤薄和高质量。

我们审查过的其他华硕Zenbook。

华硕Zenbook 14X OLED UX5400EA与Tiger Lake MX450
华硕ZenBook 14 UX435EGTiger Lake MX450 IPS
华硕ZenBook 13 OLED UX325EATiger Lake MX450
华硕Zenbook S13 OLEDRyzen 6800U

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

Asus ZenBook 14X UM5401QA-KN162 (Zenbook 14X Series)

Processor

AMD Ryzen 7 5800H 8 x 3.2 - 4.4 GHz, Cezanne-H (Zen 3)

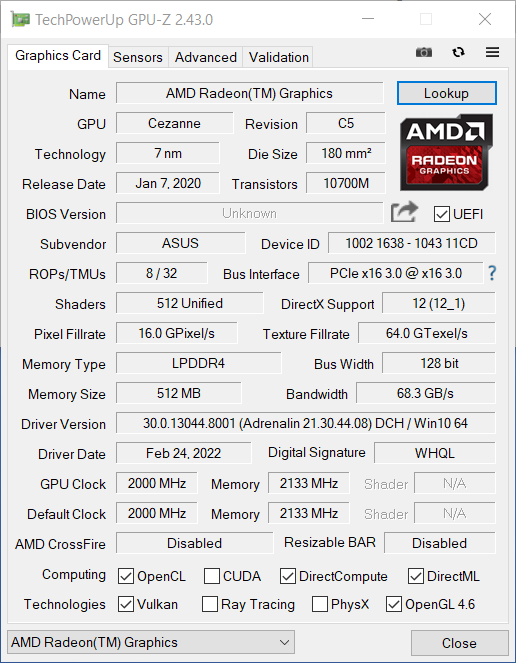

Graphics adapter

AMD Radeon RX Vega 8 (Ryzen 4000/5000) - 512 MB VRAM, Memory: 2133 MHz, DDR4, Adrenalin 21.30.44.08

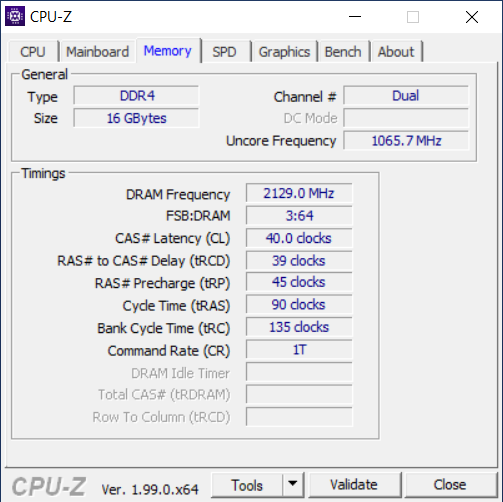

Memory

16 GB

, LPDD4 dual channel, onboard

Display

14.00 inch 16:10, 2880 x 1800 pixel 243 PPI, 10-finger multi, native pen support, Samsung SDC4154 ATNA40YK04-0, OLED, 100% DCI-P3, Pantone, glossy: yes, HDR, 90 Hz

Mainboard

AMD Promontory/Bixby FCH

Storage

Intel SSD 670p SSDPEKNU512GZ, 512 GB

, 470 GB free

Soundcard

AMD Raven/Renoir/Van Gogh/Cezanne/Rembrandt/Raphael - HD Audio Controller

Connections

1 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, Audio Connections: combo, Card Reader: microSD

Networking

Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.0

Size

height x width x depth (in mm): 15.9 x 311 x 221

Battery

63 Wh Lithium-Ion

Charging

fast charging / Quickcharge

Operating System

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: 720p

Additional features

Speakers: stereo, Keyboard: chiclet, Keyboard Light: yes, sleeve bag, touch pen, Ethernet adapter, 24 Months Warranty

Weight

1.406 kg, Power Supply: 409 g

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Size	Resolution
87.3 %	07/2022	Asus ZenBook 14X UM5401QA-KN162 R7 5800H, Vega 8	1.4 kg	15.9 mm	14.00"	2880x1800
88.3 %	06/2021	Dell XPS 13 9310 OLED i7-1185G7, Iris Xe G7 96EUs	1.2 kg	14.8 mm	13.40"	3456x2160
87.7 %	04/2022	Asus ZenBook 14X OLED UX5400EA-L7154W i7-1165G7, GeForce MX450	1.4 kg	16.9 mm	14.00"	2880x1800
86.5 %	02/2021	HP Envy 14-eb0010nr i5-1135G7, GeForce GTX 1650 Ti Max-Q	1.6 kg	17.9 mm	14.00"	1920x1200
86.3 %	07/2022	Asus Vivobook Pro 14 M3401QC-KM007T R5 5600H, GeForce RTX 3050 4GB Laptop GPU	1.5 kg	19 mm	14.00"	2880x1800
84.8 %	03/2022	Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 R9 5900HS, GeForce MX450	1.4 kg	17.9 mm	14.00"	2880x1800
82.2 %		MSI Modern 14 B11SB-085 i7-1165G7, GeForce MX450	1.3 kg	16.9 mm	14.00"	1920x1080

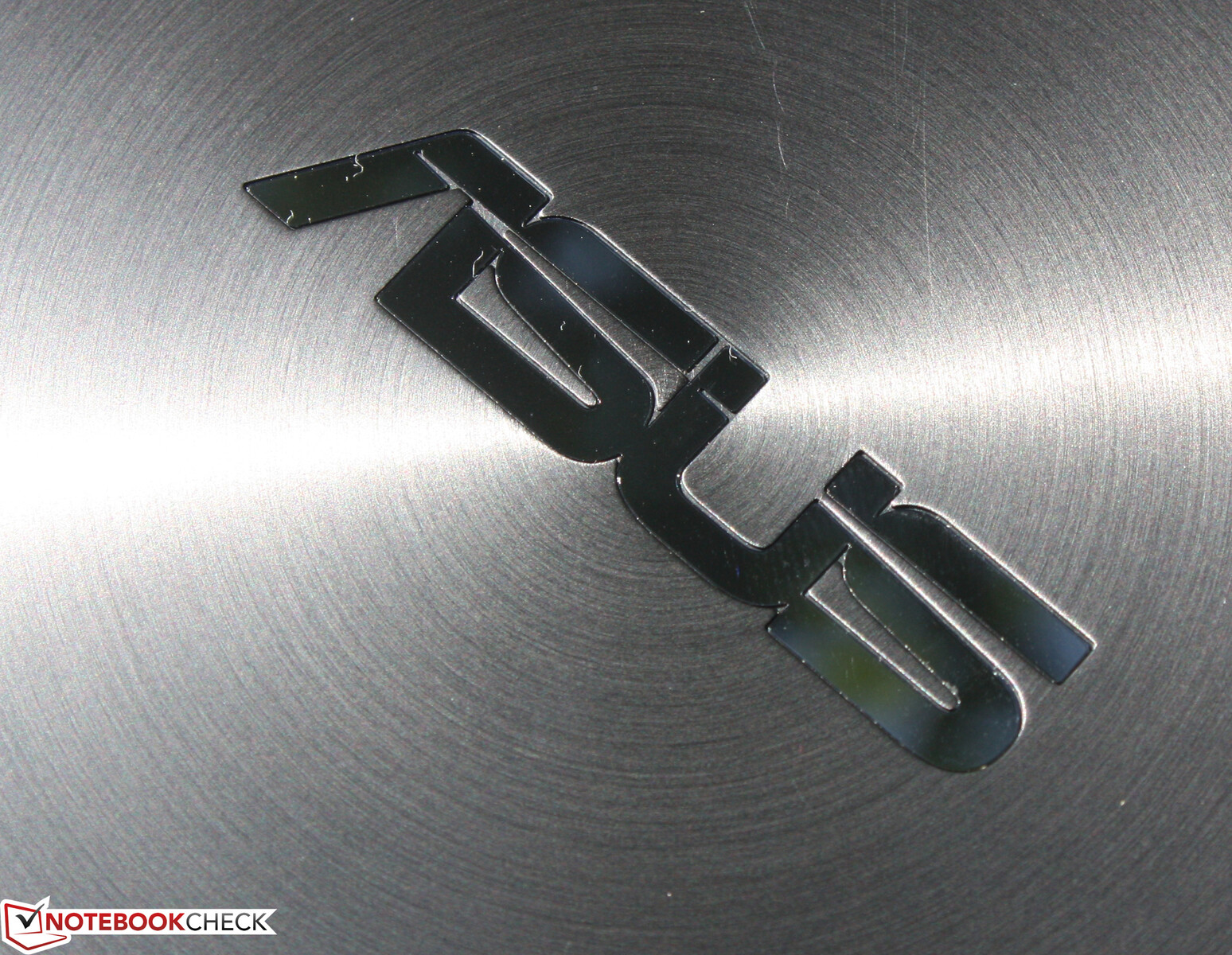

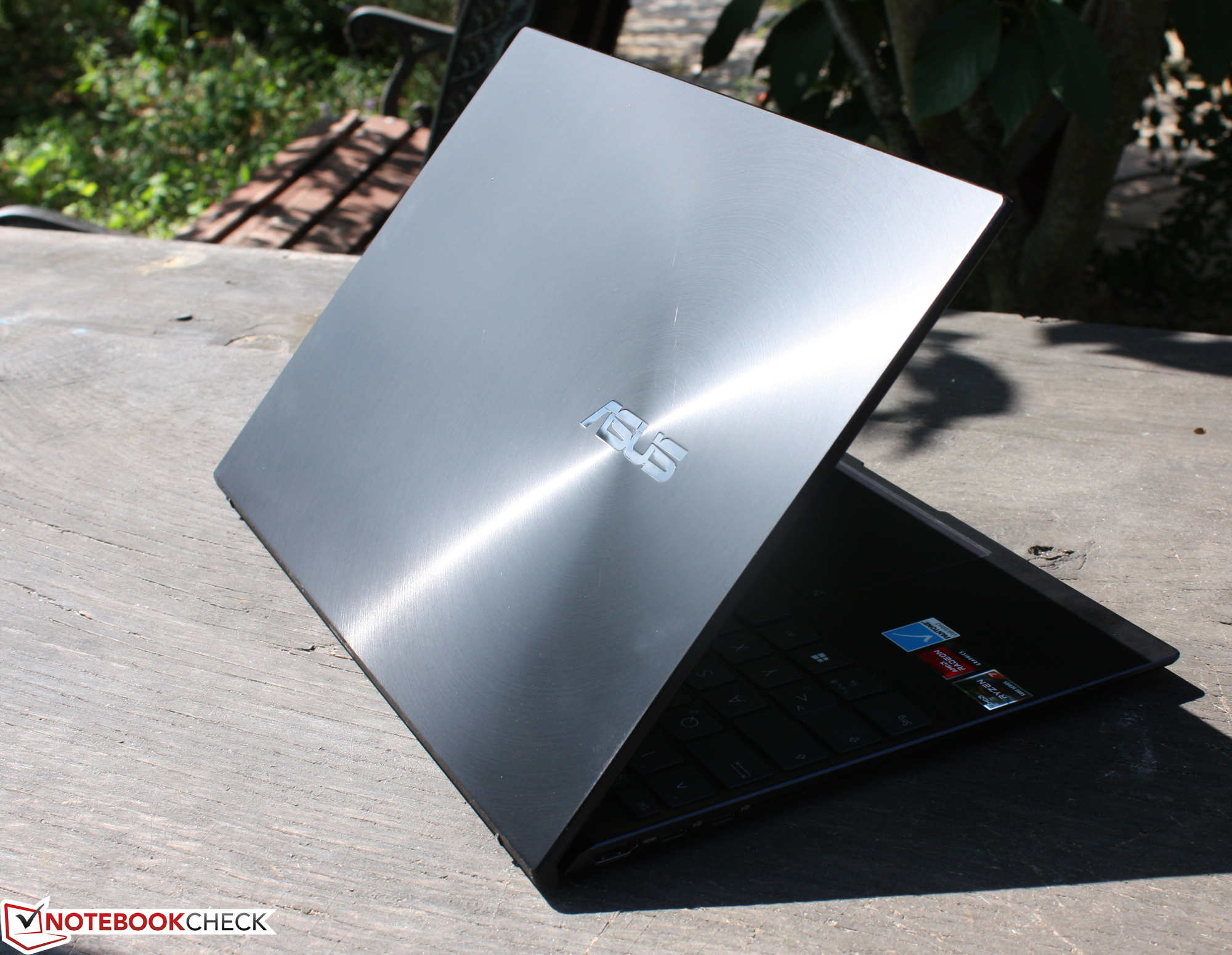

外壳 - 高品质的华硕电脑

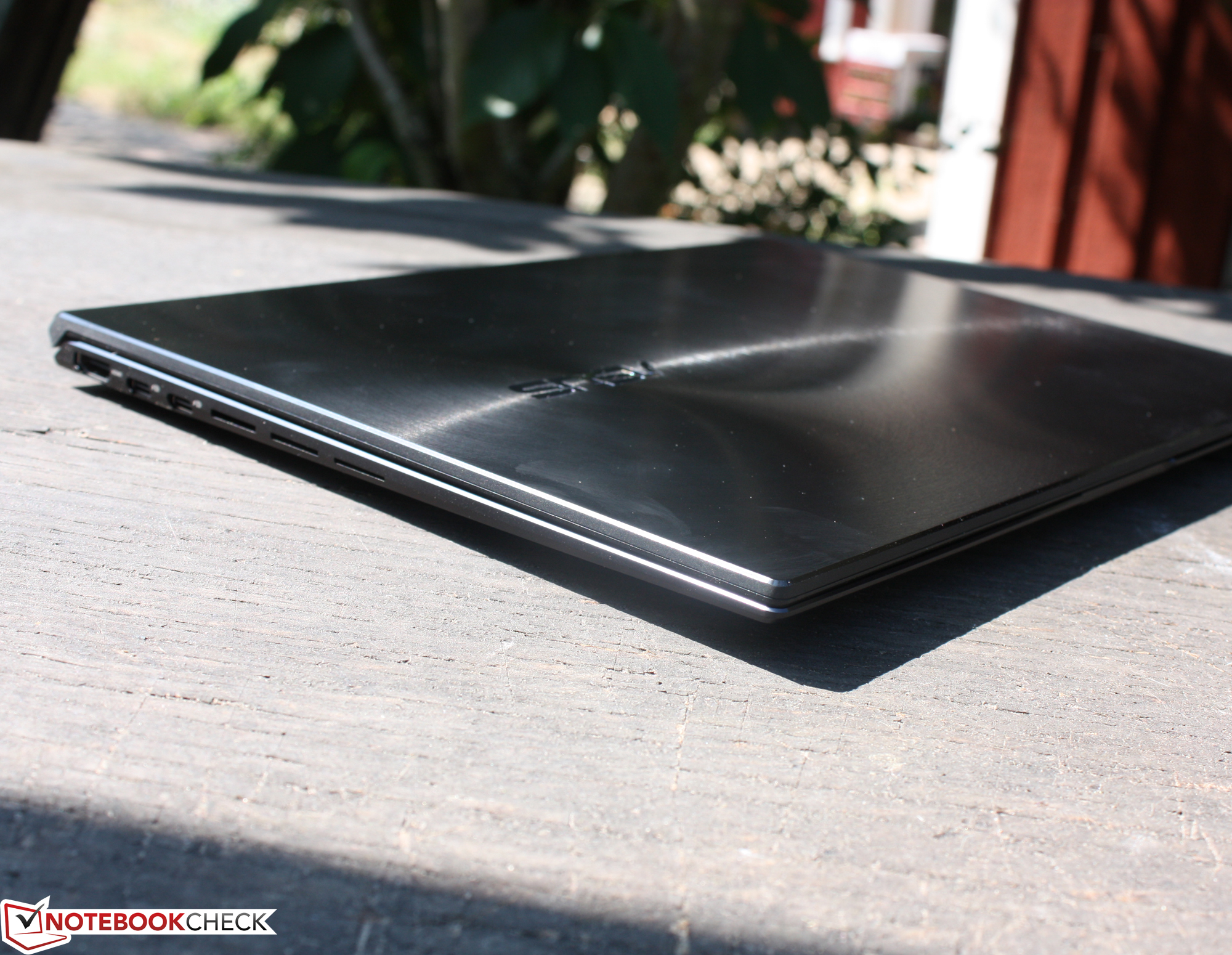

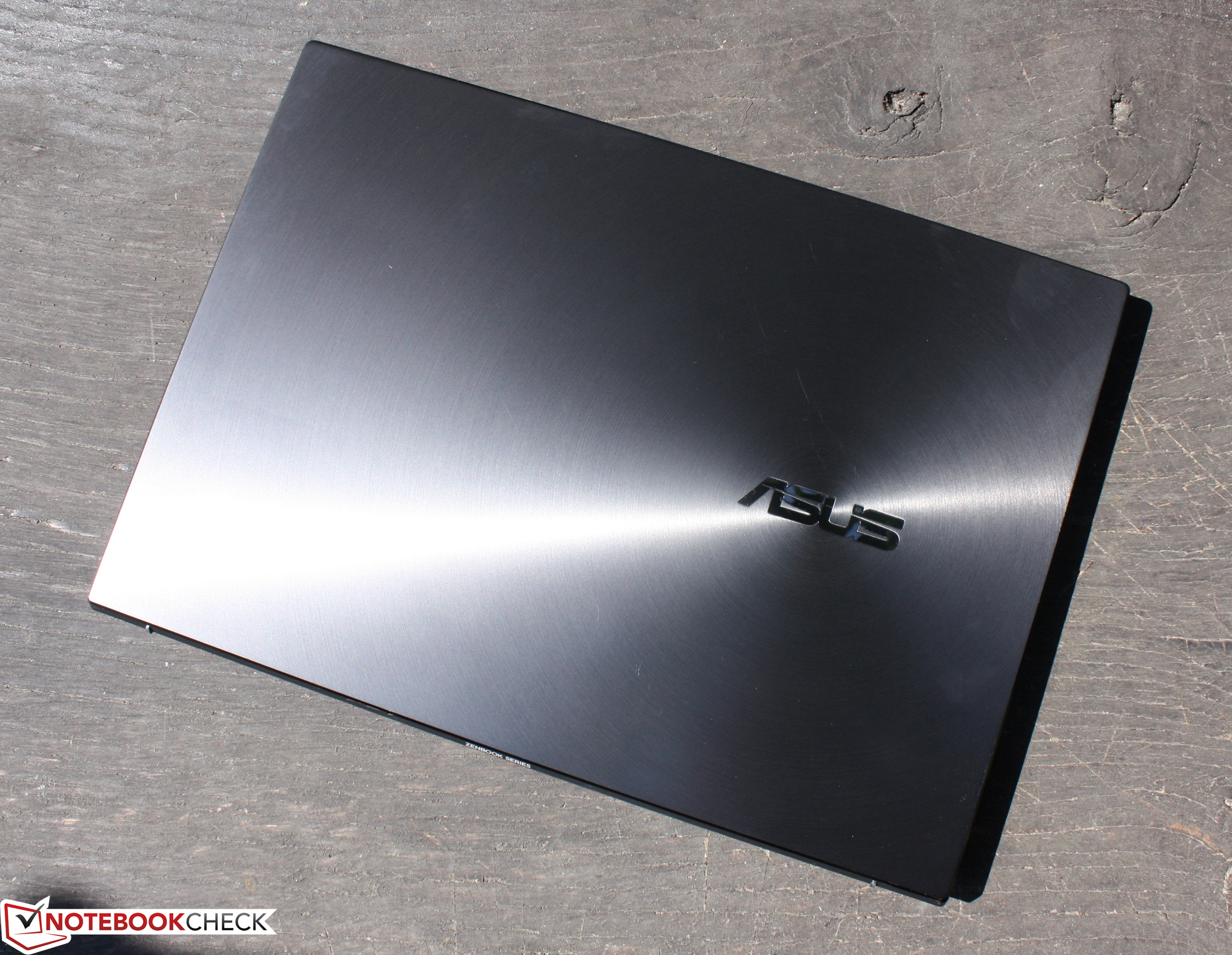

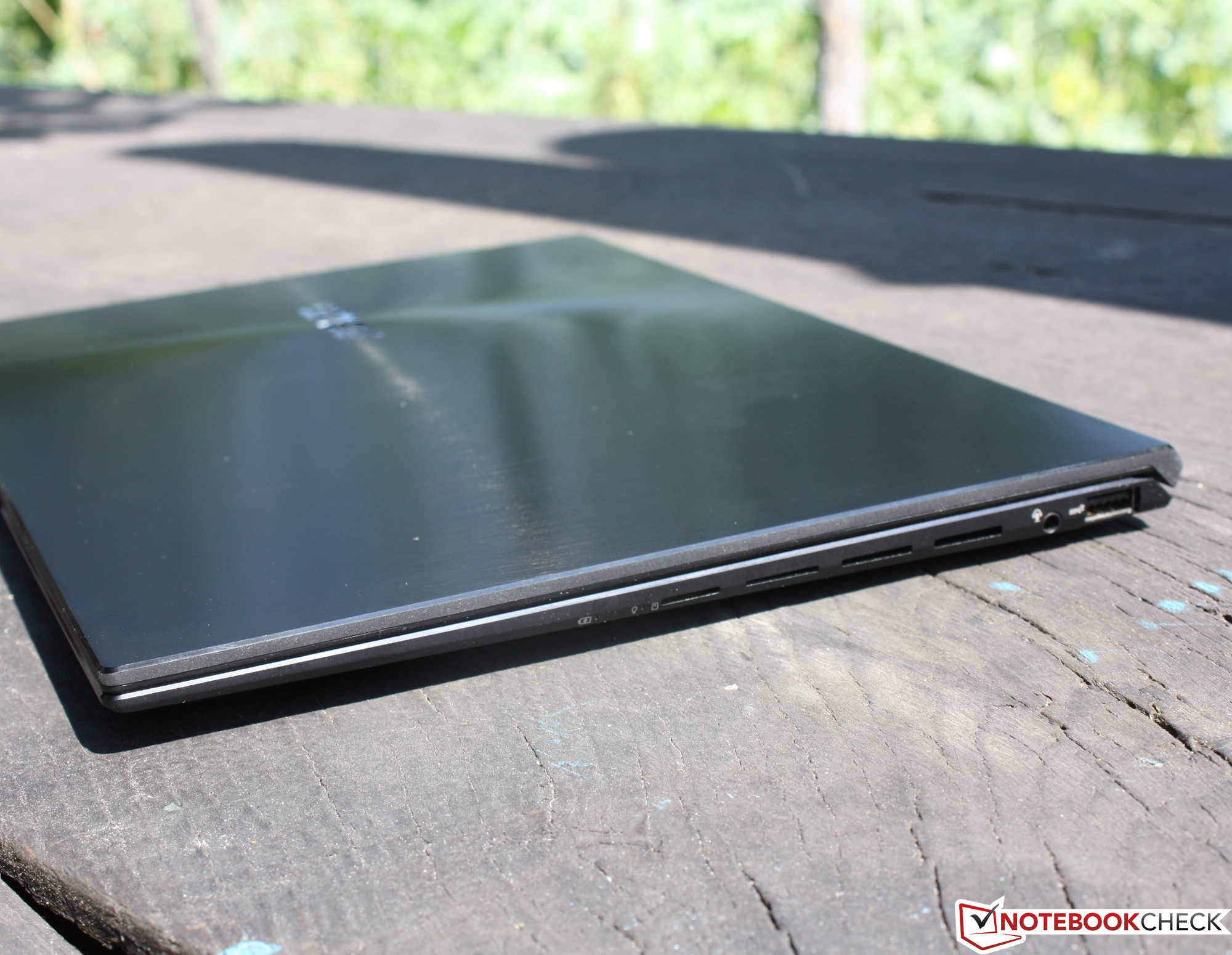

该机箱与14X英特尔版本完全相同，甚至在端口方面也没有任何区别。华硕避免让机箱尽可能地轻，但这导致了机箱的抗扭性。盖子不能用普通的力气翘起来。盖子的铝制背面与内置的显示面板形成一个看似坚不可摧的单元。对背部施加的压力或扭转的尝试不会对屏幕产生任何影响。

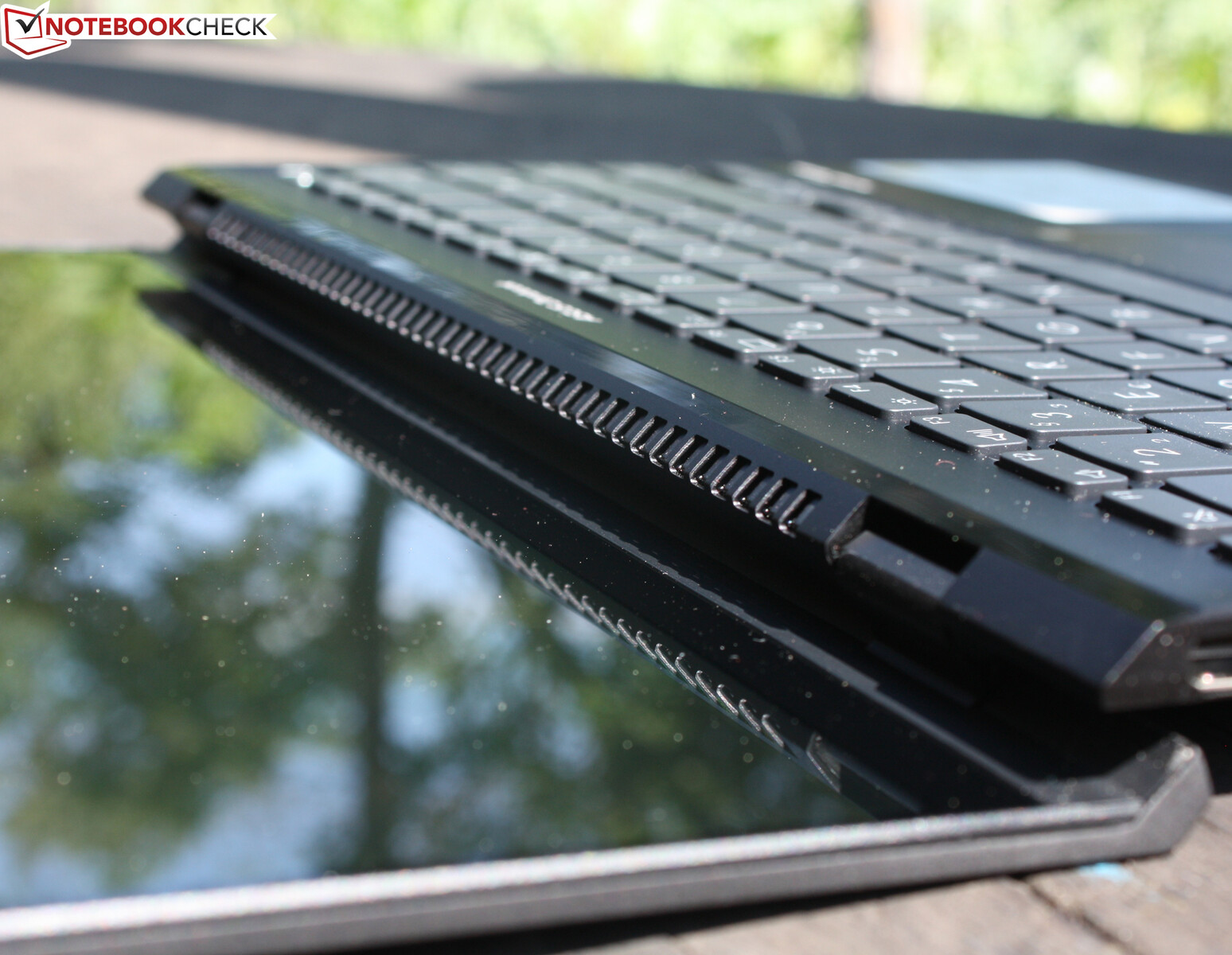

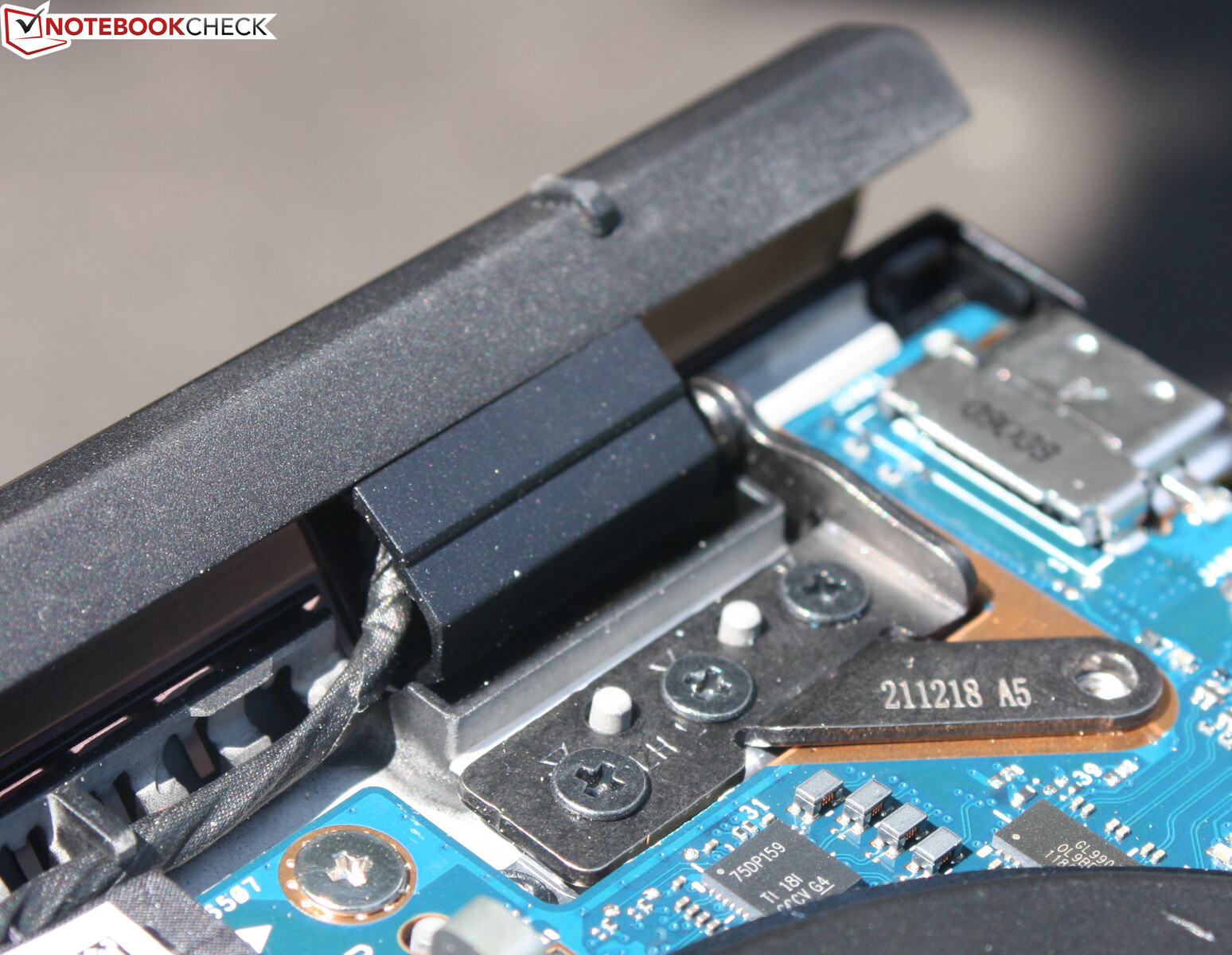

铰链的质量也很牢固。关闭的位置以磁力固定在底座上；上面的小缝隙可以用一根手指拉开。之后，铰链就紧紧地固定在那里，在携带或提起设备时没有任何晃动或移动。

底部装置也是如此，它完全由铝制成，包括可拆卸的底盖。键盘在任何时候都不会屈服，而底座本身也是完全坚硬的。

Zenbook的重量为1.406公斤，是较重的子笔记本之一。在比较领域中，它只被以下产品超过了HP Envy 14-eb0010nr其1.6公斤。与较轻的14英寸和13英寸笔记本的平均值相比，有100克的差异。然而，作为回报，你会得到一个更坚固的底座。比较中最薄的机型是戴尔XPS 13 9310 OLED14.8毫米，只有1.2公斤。Zenbook 14X的厚度为17毫米，属于平均水平，但华硕并没有用它建立新的标准。

尺寸比较

Asus Vivobook Pro 14 M3401QC-KM007T MSI Modern 14 B11SB-085 HP Envy 14-eb0010nr Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 Asus ZenBook 14X OLED UX5400EA-L7154W Asus ZenBook 14X UM5401QA-KN162 Dell XPS 13 9310 OLED DIN A4 ❌

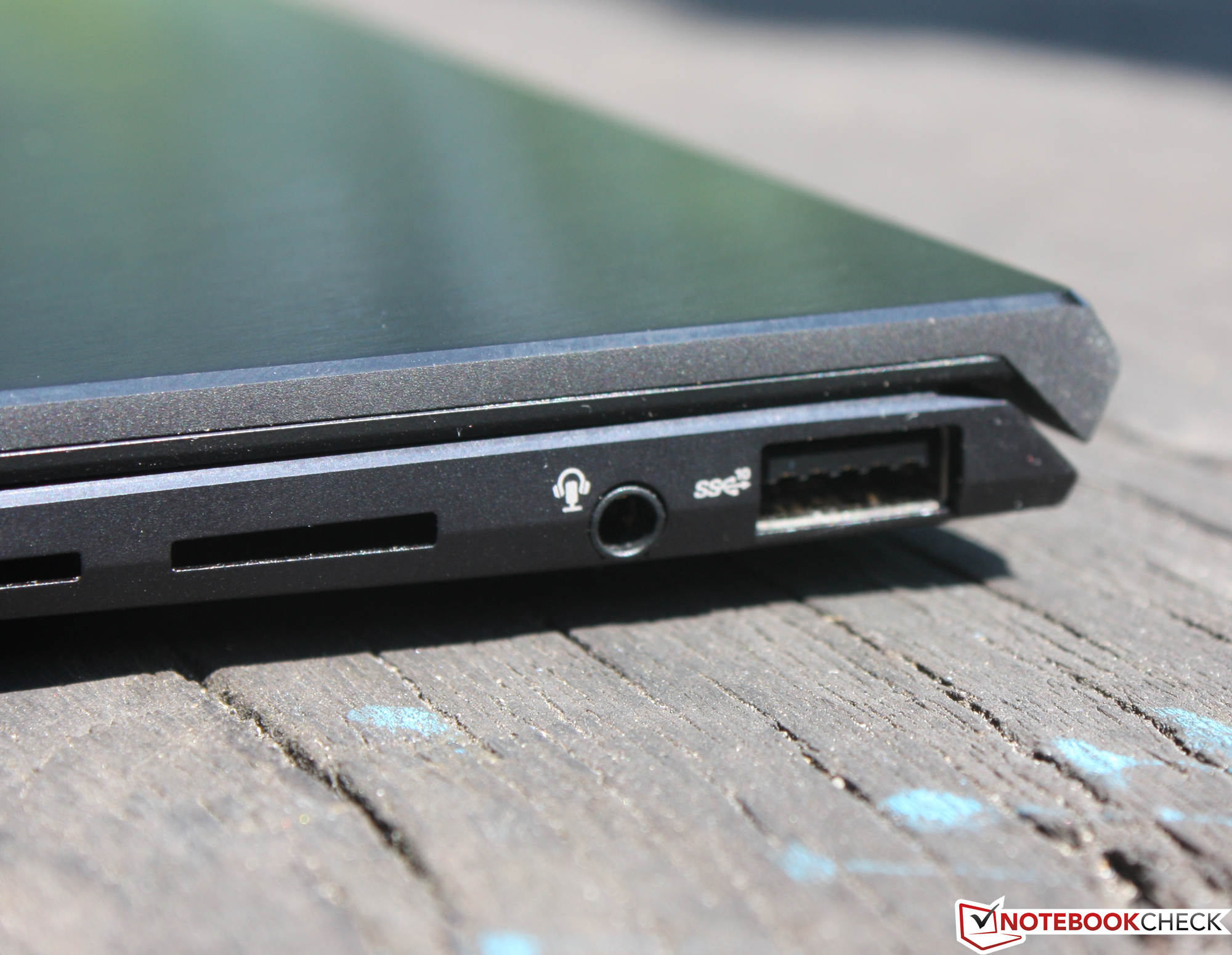

连接性 - 没有Thunderbolt

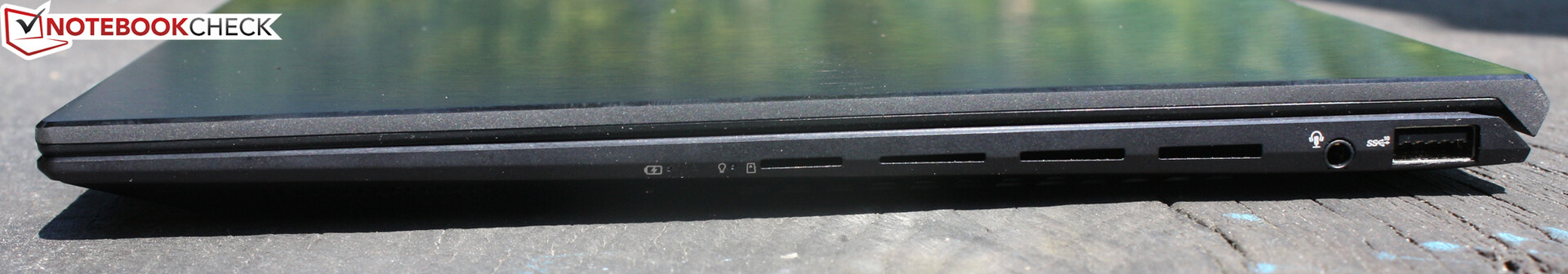

AMD版本没有Thunderbolt端口，但从外部看，这些端口是一样的。两个Type-C端口支持DisplayPort，这意味着理论上可以连接三个显示器，因为还有HDMI。然而，在实践中，这种情况不会发生，因为一个Type-C接口会被电源适配器挡住。不再有一个用于电源适配器的空心连接器。

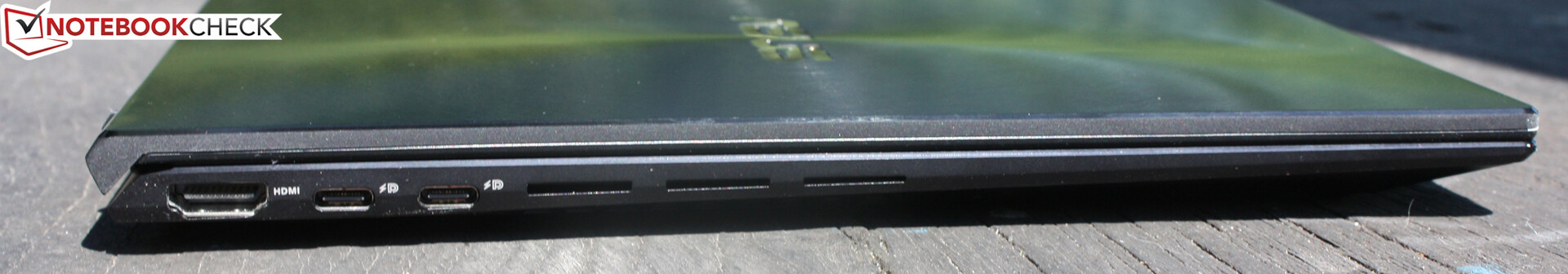

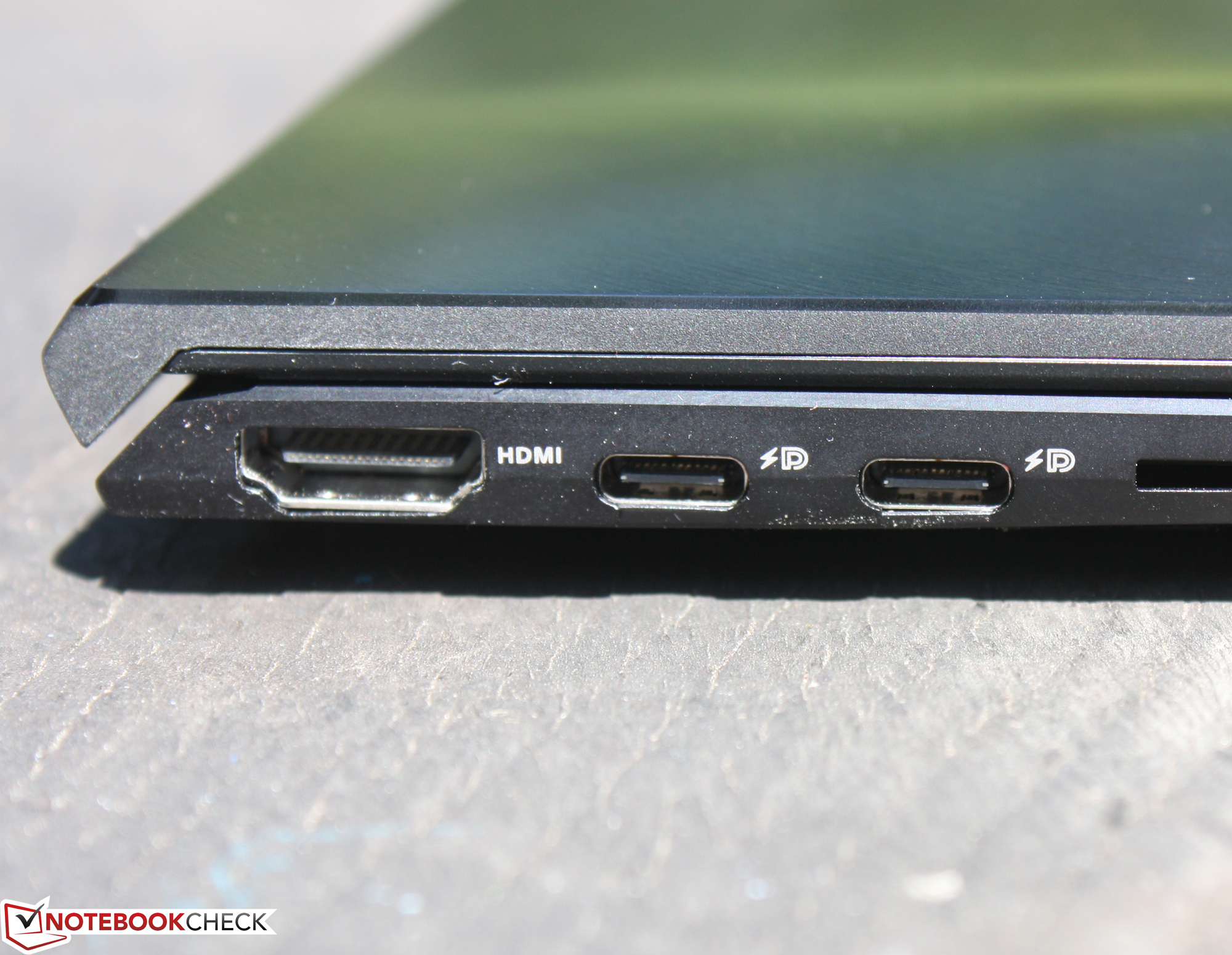

左边：HDMI 2.1，2个USB-C 3.1 Gen 2，带DisplayPort和Power Delivery。

SD卡阅读器

microSD读卡器的表现一般，但不如戴尔XPS的表现好。我们使用AV PRO microSD 128 GB V60进行测试。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell XPS 13 9310 OLED Intel Core i7-1185G7 (AV PRO microSD 128 GB V60)	164.4 MB/s +100%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	82.1 MB/s
HP Envy 14-eb0010nr Intel Core i5-1135G7 (Toshiba Exceria Pro M501 microSDXC 32GB)	75.9 MB/s -8%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	75.1 MB/s -9%
Average of class Subnotebook (18.9 - 193.9, n=17, last 2 years)	66.7 MB/s -19%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H (AV Pro SD microSD 128 GB V60)	37.1 MB/s -55%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7 (Toshiba Exceria Pro M501 microSDXC 64GB)	24.9 MB/s -70%
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13 9310 OLED Intel Core i7-1185G7 (AV PRO microSD 128 GB V60)	173.9 MB/s +96%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	88.8 MB/s
HP Envy 14-eb0010nr Intel Core i5-1135G7 (Toshiba Exceria Pro M501 microSDXC 32GB)	85.3 MB/s -4%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	84.1 MB/s -5%
Average of class Subnotebook (23.6 - 239, n=17, last 2 years)	81.3 MB/s -8%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H (AV Pro SD microSD 128 GB V60)	38.1 MB/s -57%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7 (Toshiba Exceria Pro M501 microSDXC 64GB)	24.2 MB/s -73%

沟通

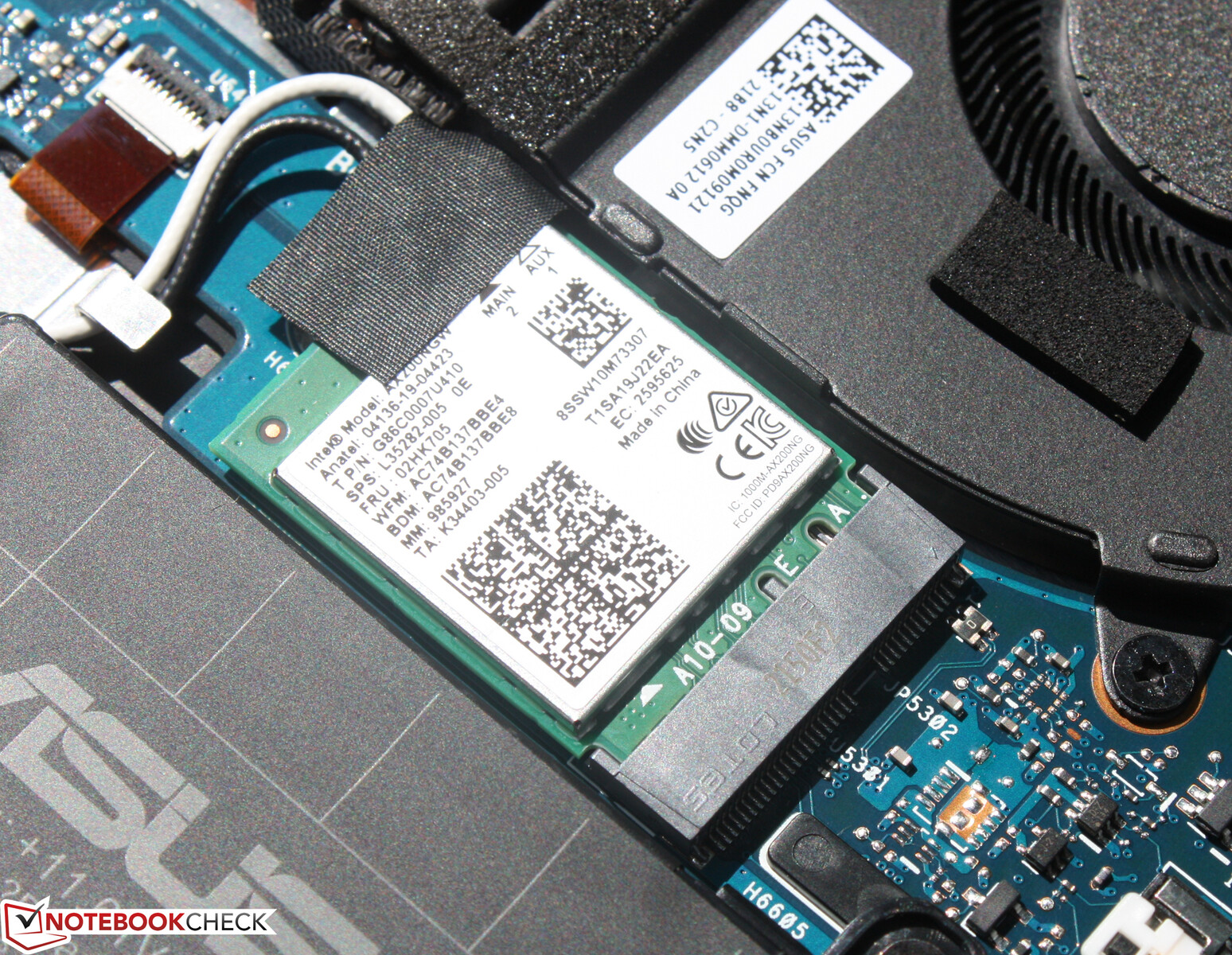

英特尔AX200 Wi-Fi模块被插入，它甚至可以被交换。我们在全新的华硕GT-AXE11000 Wi-Fi 6路由器和我们的Zenbook之间没有遇到任何连接问题。速度高于该芯片的平均水平。英特尔版本在板上有一个AX201，但它是焊接的。

Networking
iperf3 transmit AX12
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Wi-Fi 6 AX201	1339 (1161^min - 1534^max) MBit/s
MSI Modern 14 B11SB-085 Intel Wi-Fi 6 AX201	1336 (1053^min - 1440^max) MBit/s
HP Envy 14-eb0010nr Intel Wi-Fi 6 AX201	1192 (526^min - 1384^max) MBit/s
Average Intel Wi-Fi 6 AX200 (447 - 1645, n=127)	1104 MBit/s
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 RealTek Semiconductor RTL8852AE	739 (350^min - 775^max) MBit/s
Dell XPS 13 9310 OLED Intel Killer Wi-Fi 6 AX1650s	617 (220^min - 685^max) MBit/s
iperf3 receive AX12
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Wi-Fi 6 AX201	1690 (1668^min - 1708^max) MBit/s
Dell XPS 13 9310 OLED Intel Killer Wi-Fi 6 AX1650s	1368 (681^min - 1483^max) MBit/s
HP Envy 14-eb0010nr Intel Wi-Fi 6 AX201	1336 (1246^min - 1419^max) MBit/s
MSI Modern 14 B11SB-085 Intel Wi-Fi 6 AX201	1313 (1251^min - 1558^max) MBit/s
Average Intel Wi-Fi 6 AX200 (523 - 1684, n=128)	1191 MBit/s
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 RealTek Semiconductor RTL8852AE	702 (662^min - 735^max) MBit/s
iperf3 receive AXE11000 6GHz
Asus ZenBook 14X UM5401QA-KN162 Intel Wi-Fi 6 AX200	1690 (1668^min - 1708^max) MBit/s
Average Intel Wi-Fi 6 AX200 (1347 - 1700, n=5)	1536 MBit/s -9%
Average of class Subnotebook (951 - 1771, n=29, last 2 years)	1527 MBit/s -10%
Asus Vivobook Pro 14 M3401QC-KM007T MediaTek MT7921	920 (911^min - 931^max) MBit/s -46%
iperf3 transmit AXE11000 6GHz
Asus ZenBook 14X UM5401QA-KN162 Intel Wi-Fi 6 AX200	1402 (1181^min - 1498^max) MBit/s
Average Intel Wi-Fi 6 AX200 (1006 - 1696, n=5)	1388 MBit/s -1%
Average of class Subnotebook (642 - 1735, n=29, last 2 years)	1299 MBit/s -7%
Asus Vivobook Pro 14 M3401QC-KM007T MediaTek MT7921	966 (467^min - 1030^max) MBit/s -31%

Asus ZenBook 14X UM5401QA-KN162 Intel Wi-Fi 6 AX200; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1402 (1181-1498)

Asus ZenBook 14X UM5401QA-KN162 Intel Wi-Fi 6 AX200; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1690 (1668-1708)

Dell XPS 13 9310 OLED Intel Killer Wi-Fi 6 AX1650s; iperf3 receive AX12; iperf 3.1.3: Ø1368 (681-1483)

Asus ZenBook 14X OLED UX5400EA-L7154W Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1690 (1668-1708)

Dell XPS 13 9310 OLED Intel Killer Wi-Fi 6 AX1650s; iperf3 transmit AX12; iperf 3.1.3: Ø617 (220-685)

Asus ZenBook 14X OLED UX5400EA-L7154W Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1323 (1099-1534)

网络摄像头

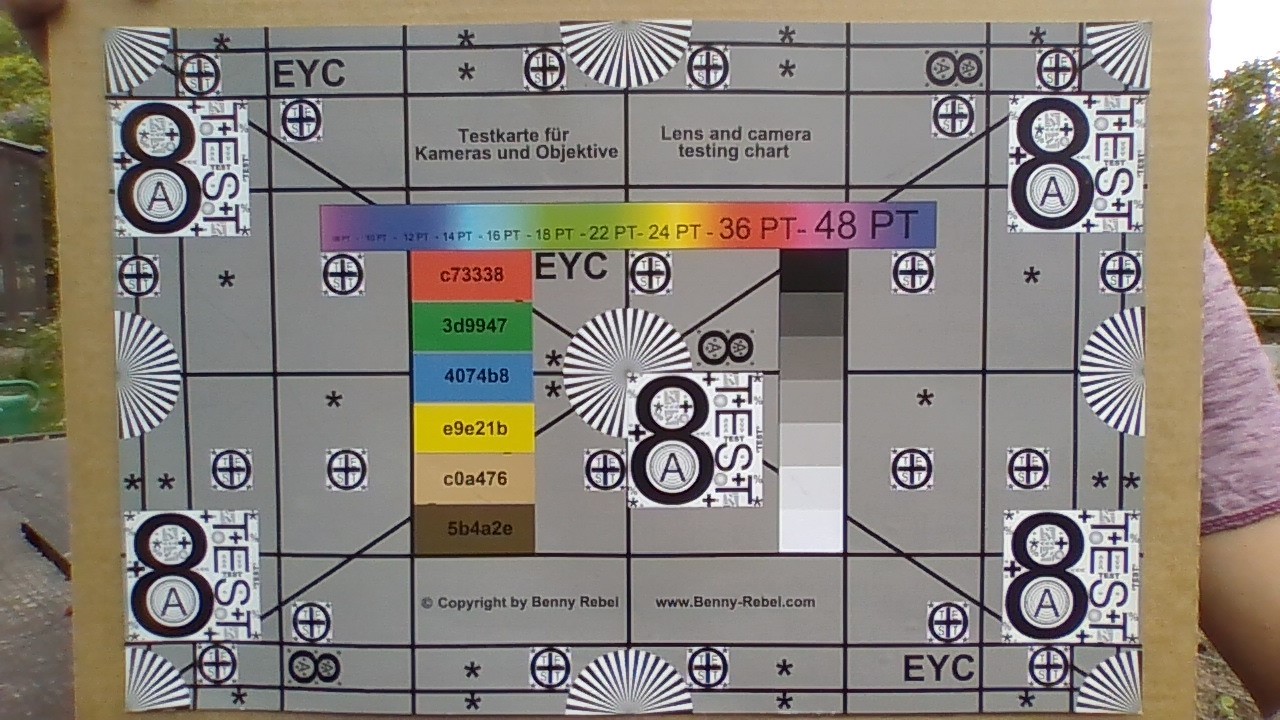

E-Shutter网络摄像机即使在最好的照明条件下，也会产生低分辨率和有噪音的720p图像。电子快门意味着，当按下相应的F键时，摄像头被电动关闭。不幸的是，你不能像机械快门那样在相机镜头前直观地检测到这一点，机械快门会显示一个红色的 "帘子"。然而，正如戴尔XPS 13所显示的那样，在竞争者中质量并没有好到哪里去。

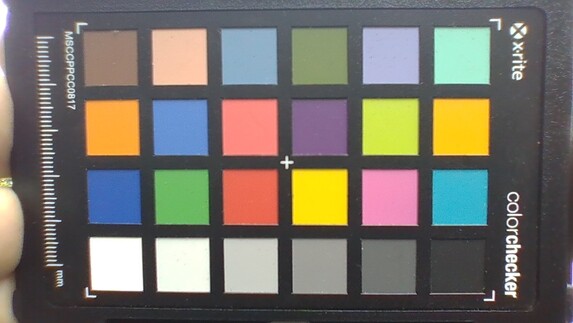

ColorChecker Asus ZenBook 14X UM5401QA-KN162: 14.32 ∆E min: 2.33 - max: 21.44 ∆E

辅料

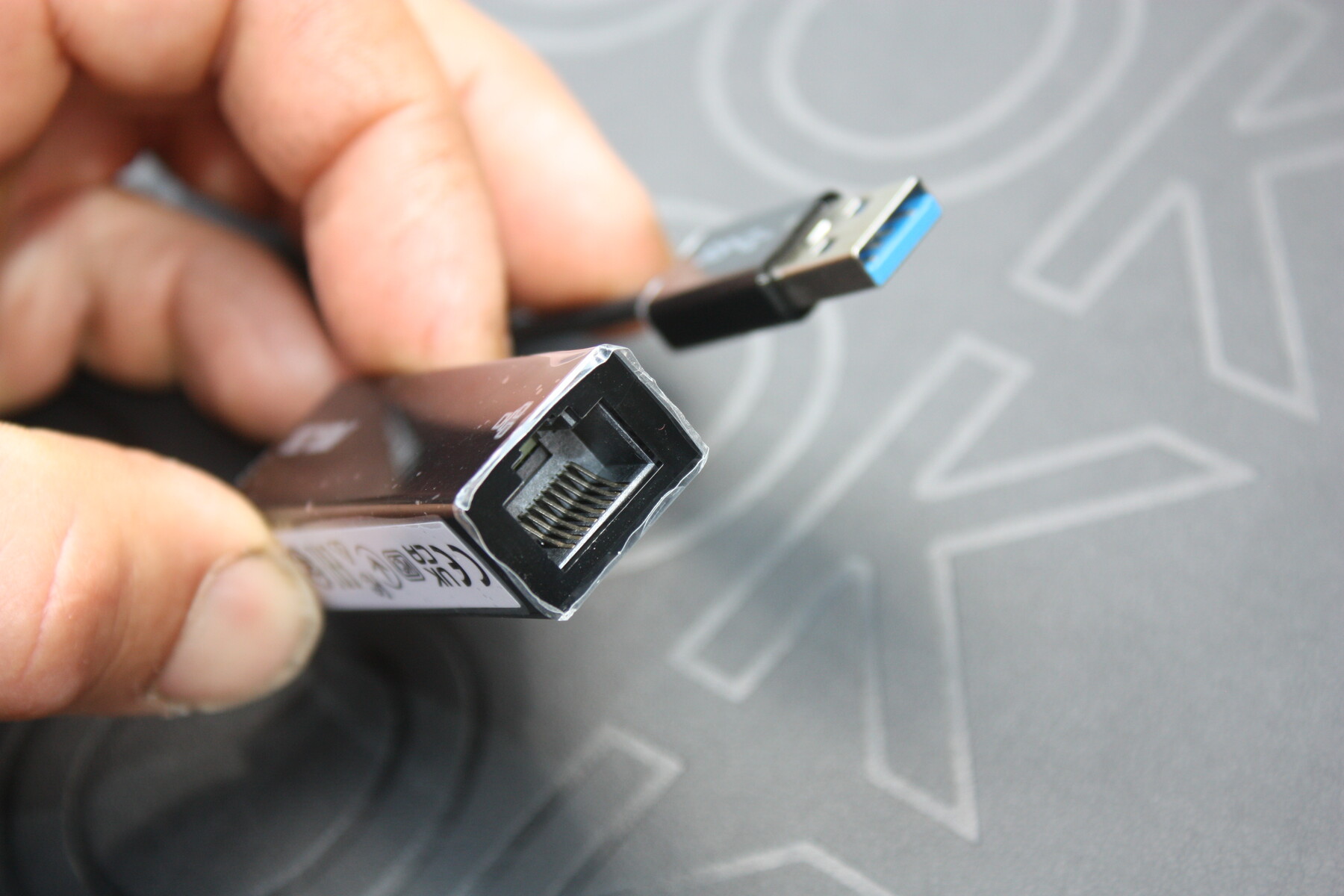

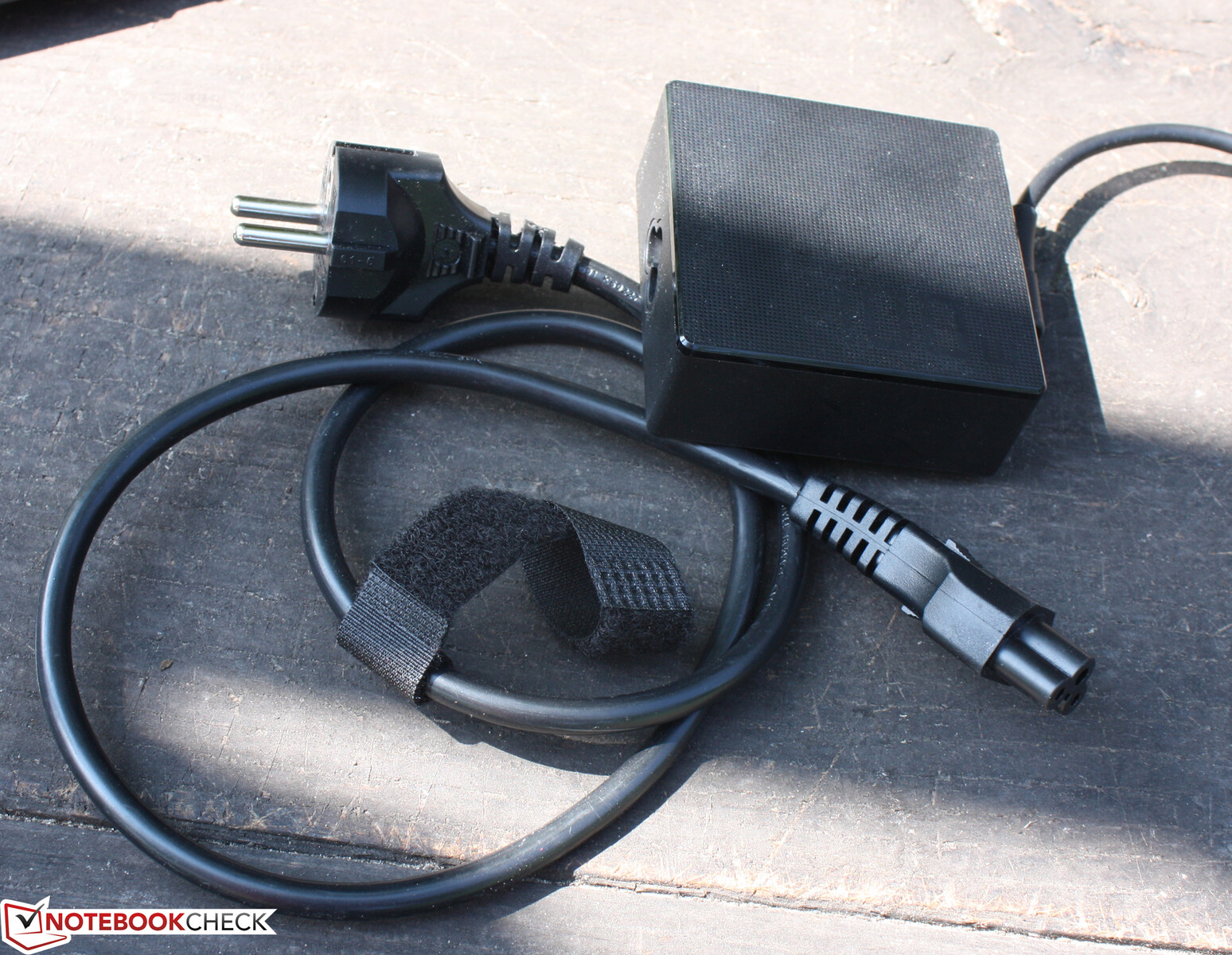

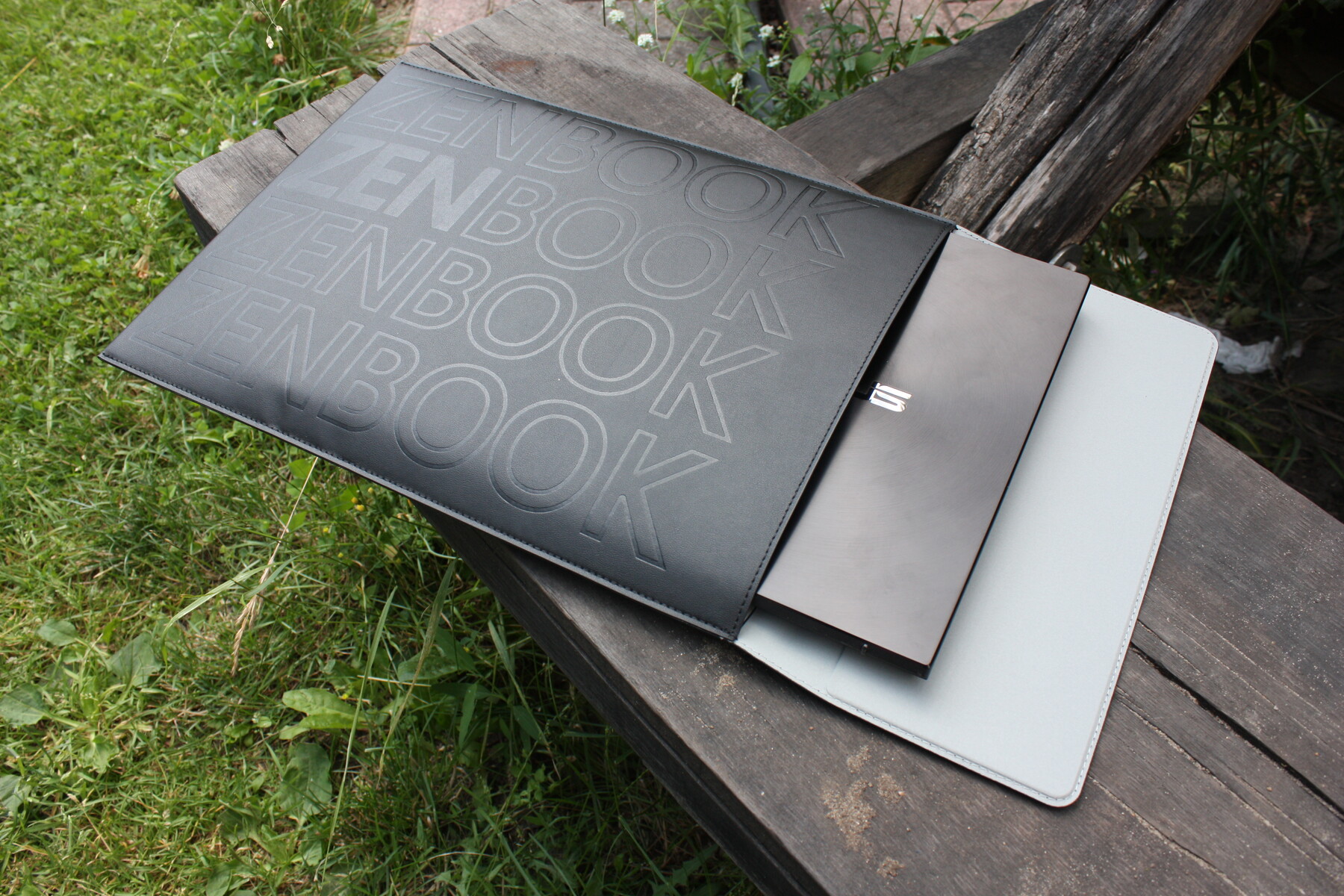

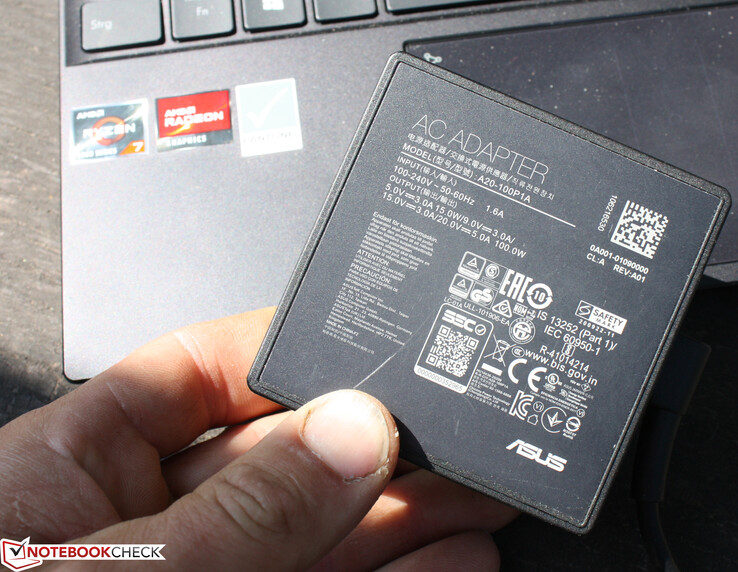

配件包括100瓦的电源适配器，一个USB Type-A以太网加密狗，以及一个设备的套筒。一支带电池和可更换笔尖的数字笔--与英特尔版本的14X一样--并不包括在AMD版本中。英特尔和AMD版本的Zenbook目前都配备了触摸屏。

维护

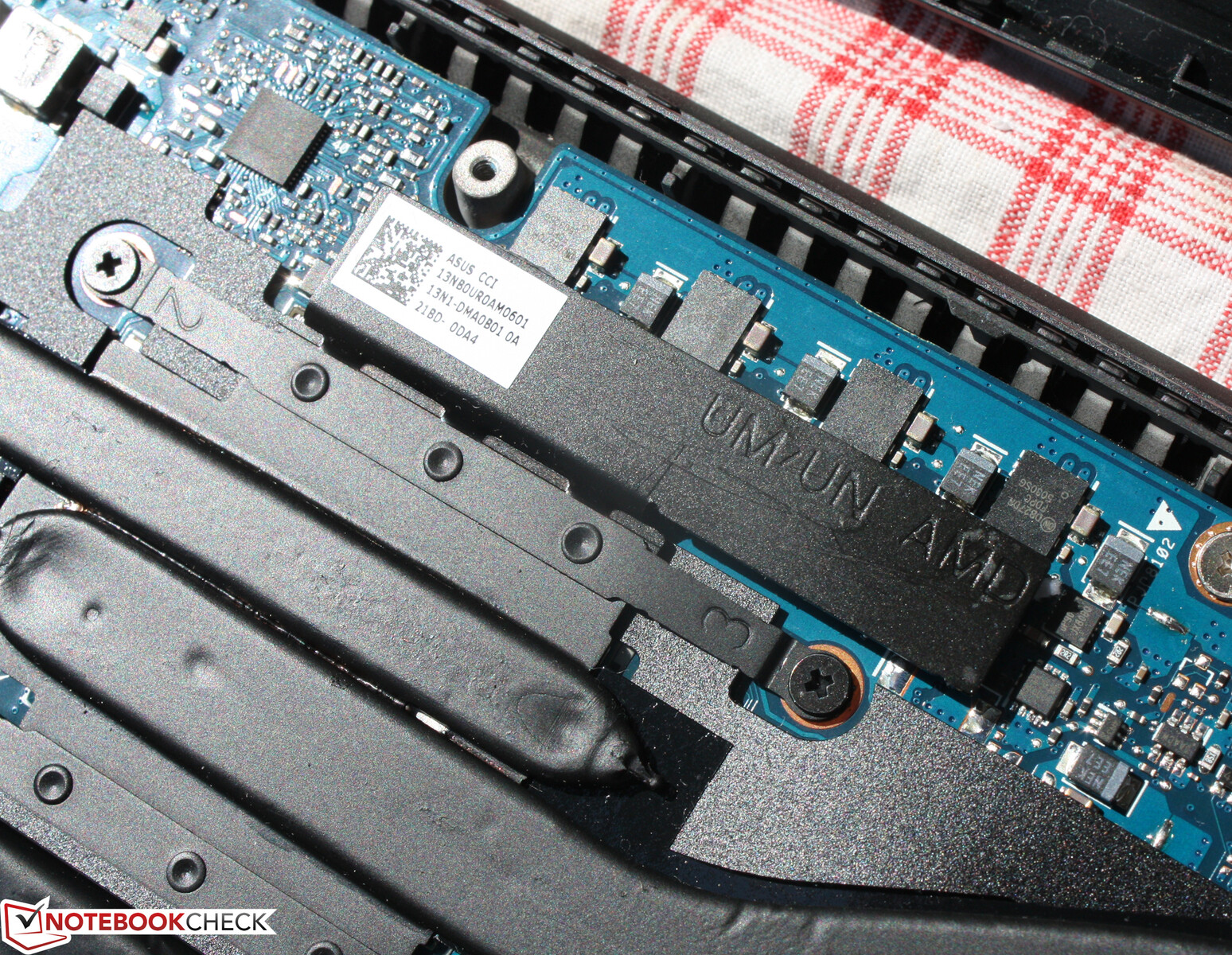

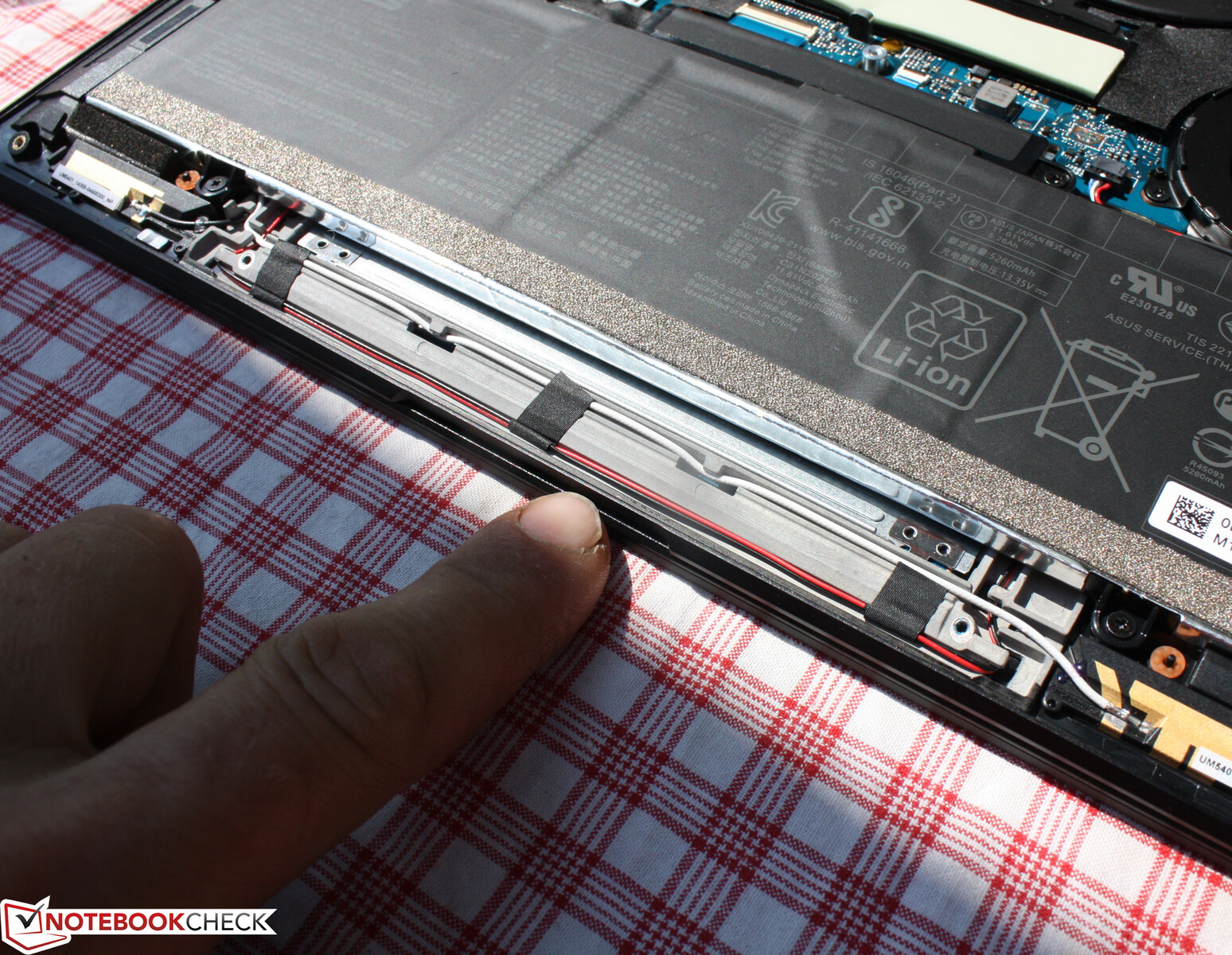

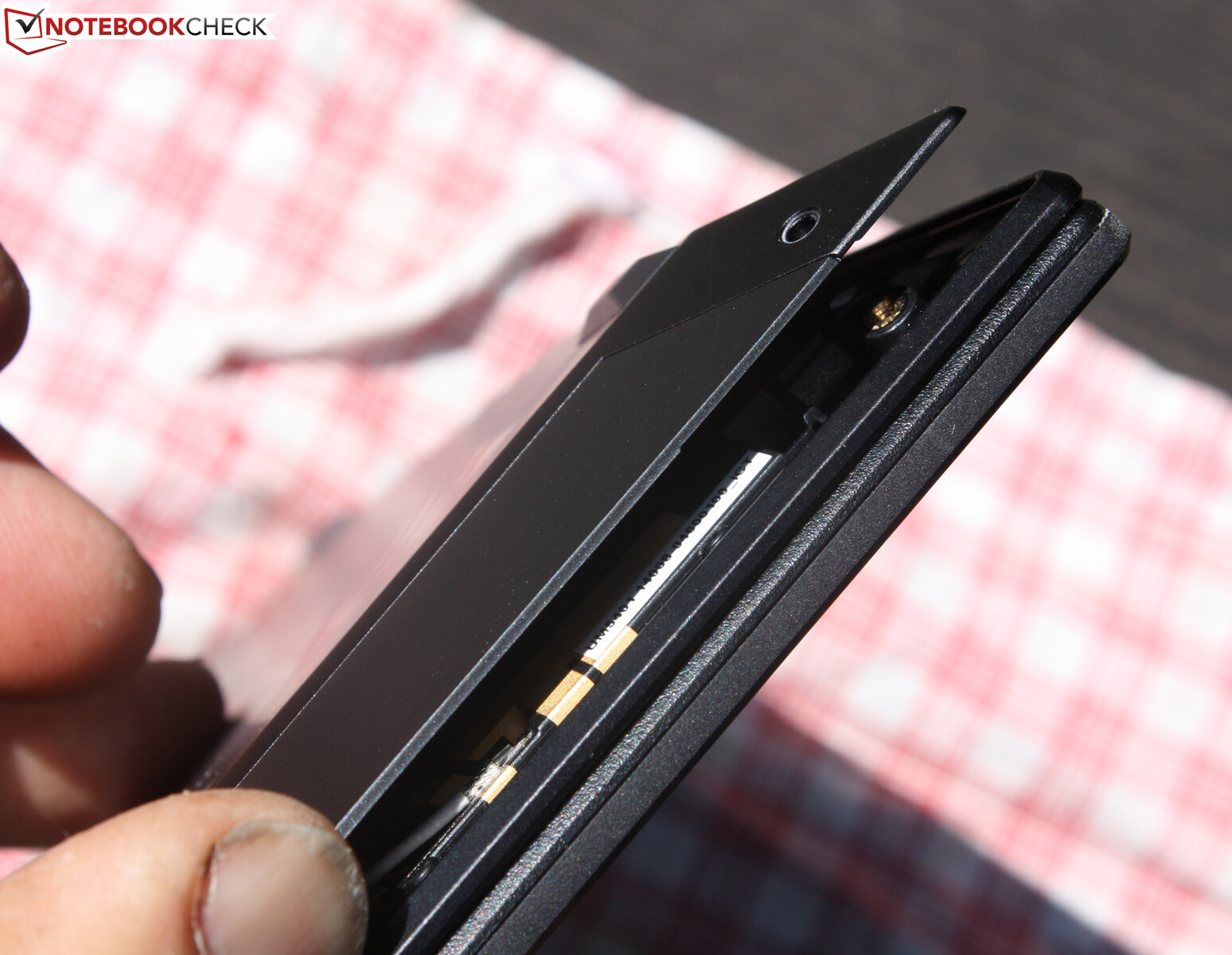

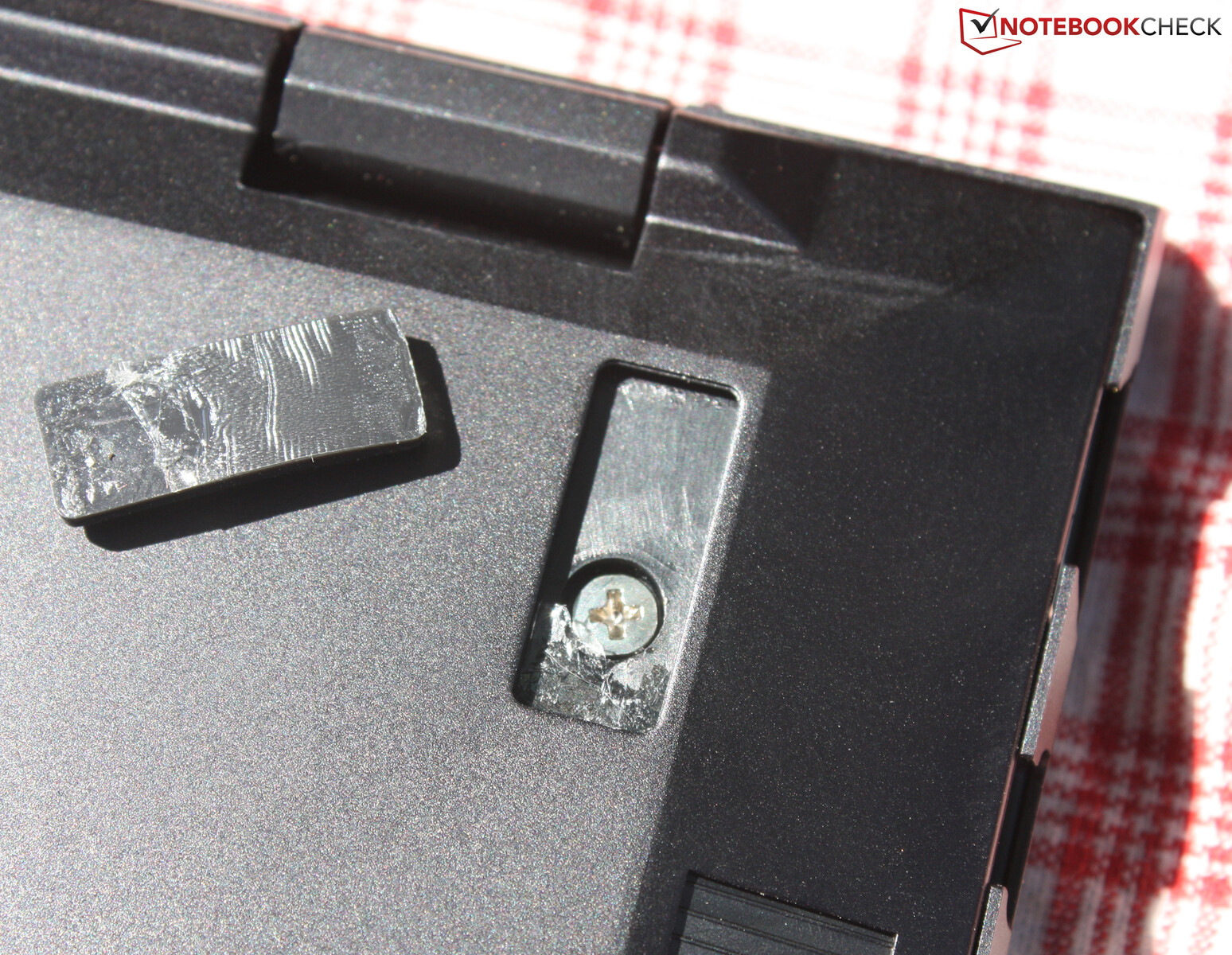

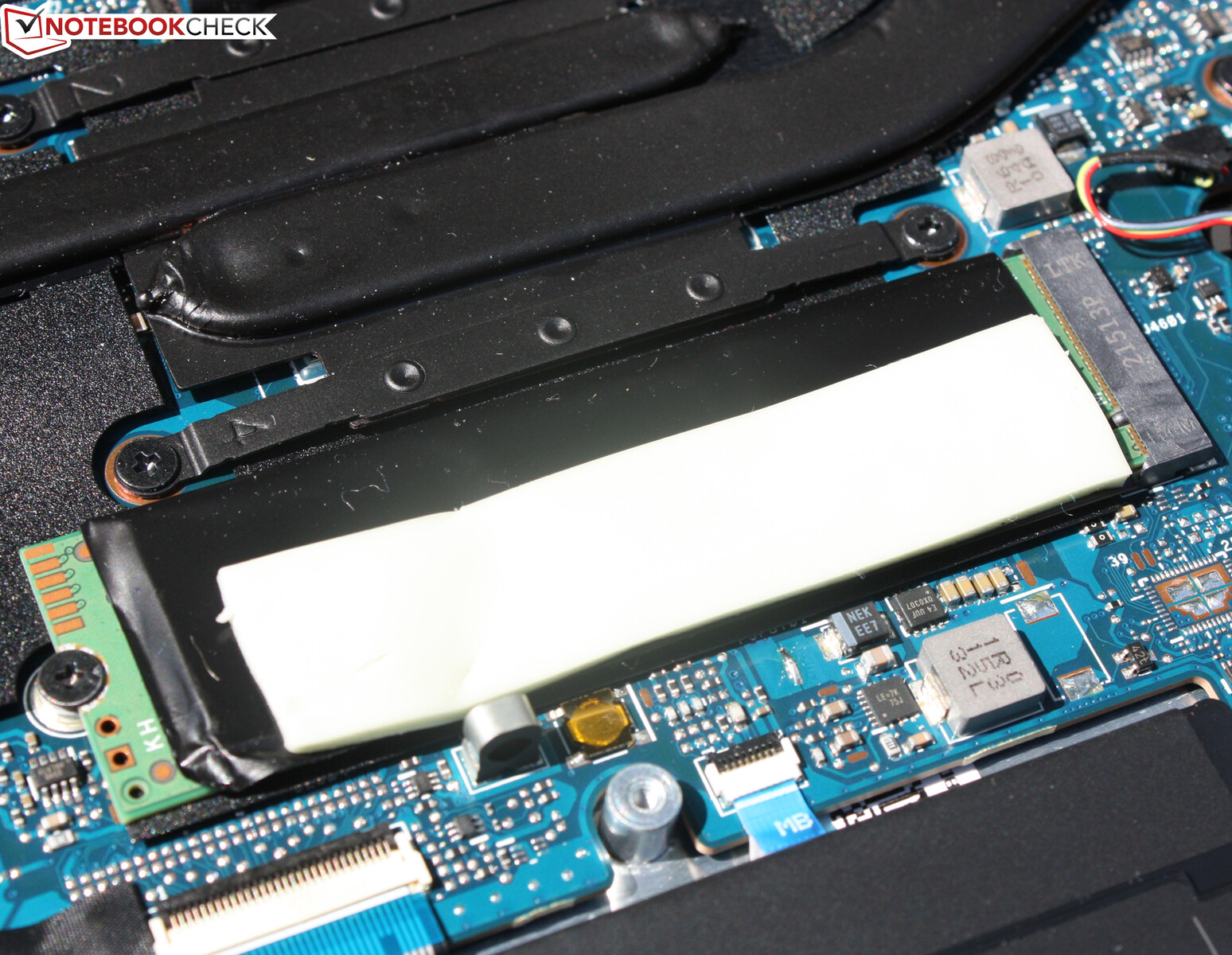

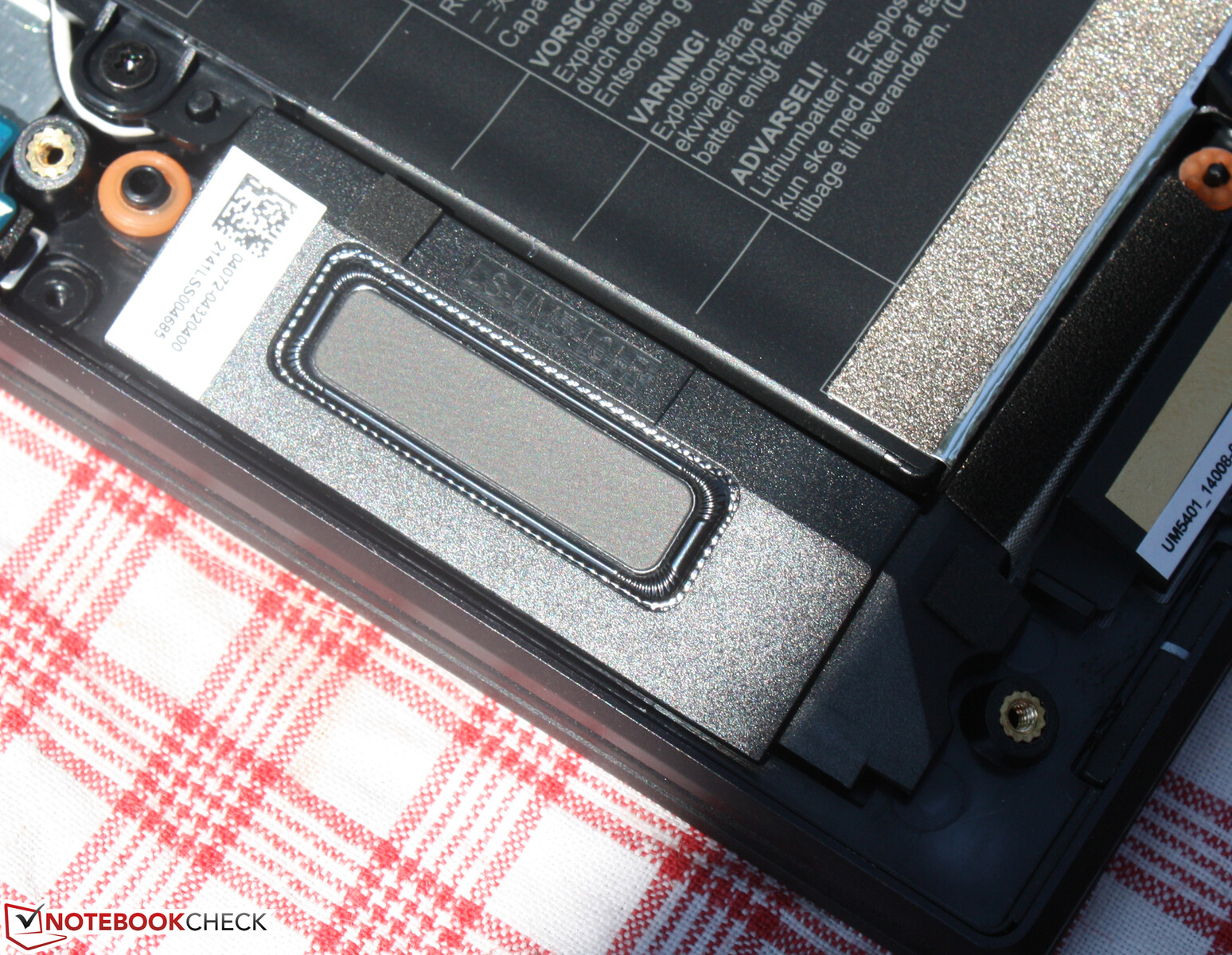

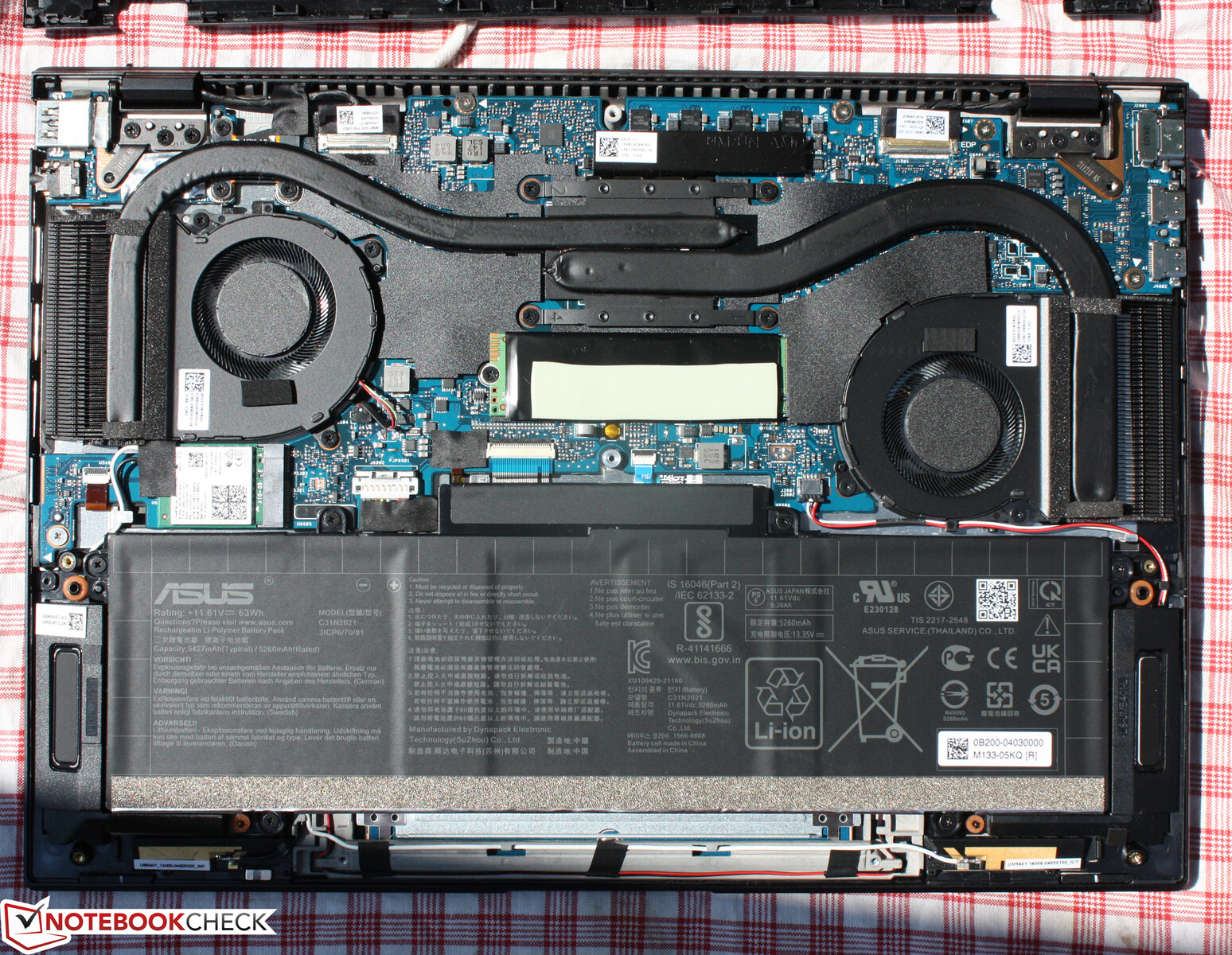

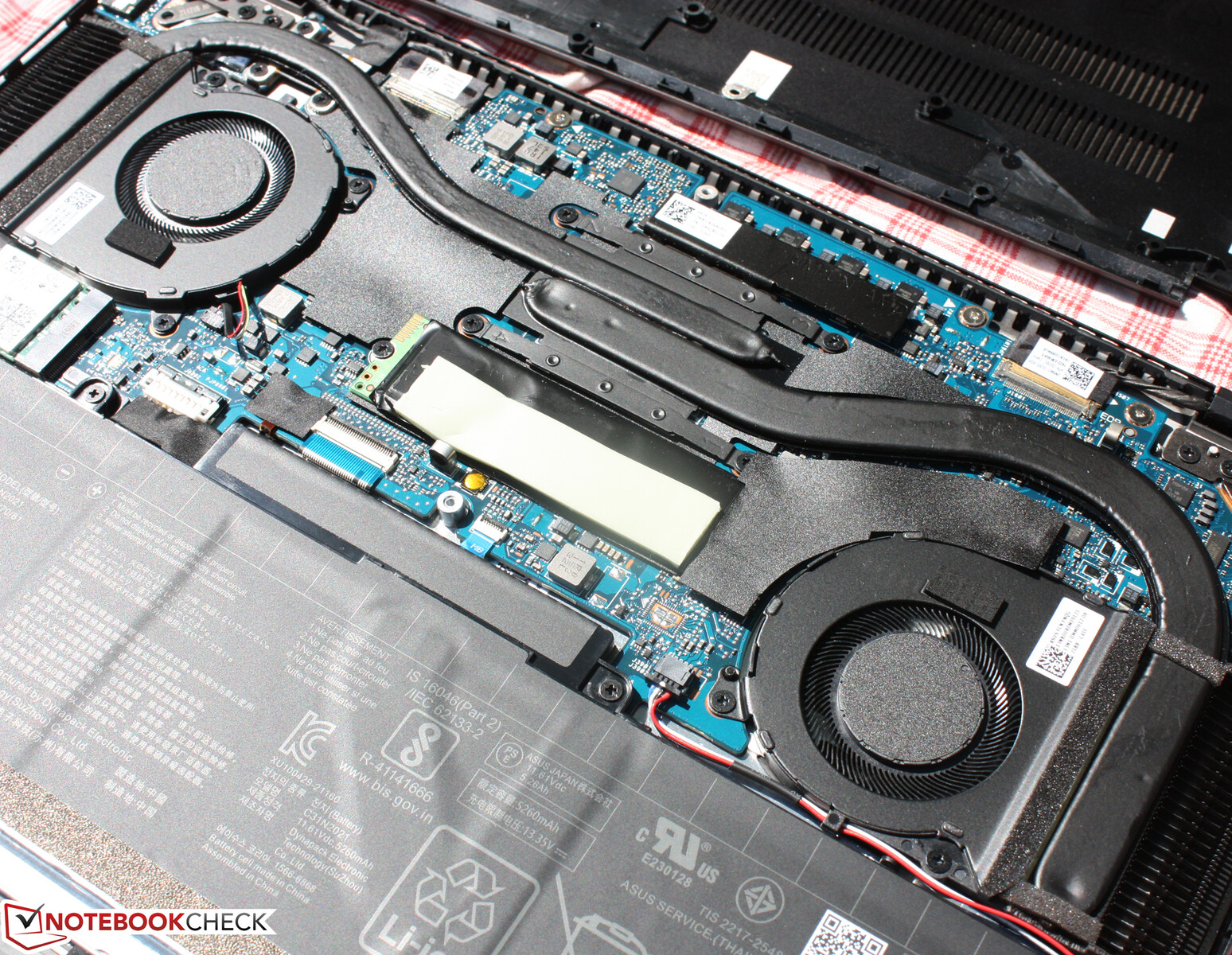

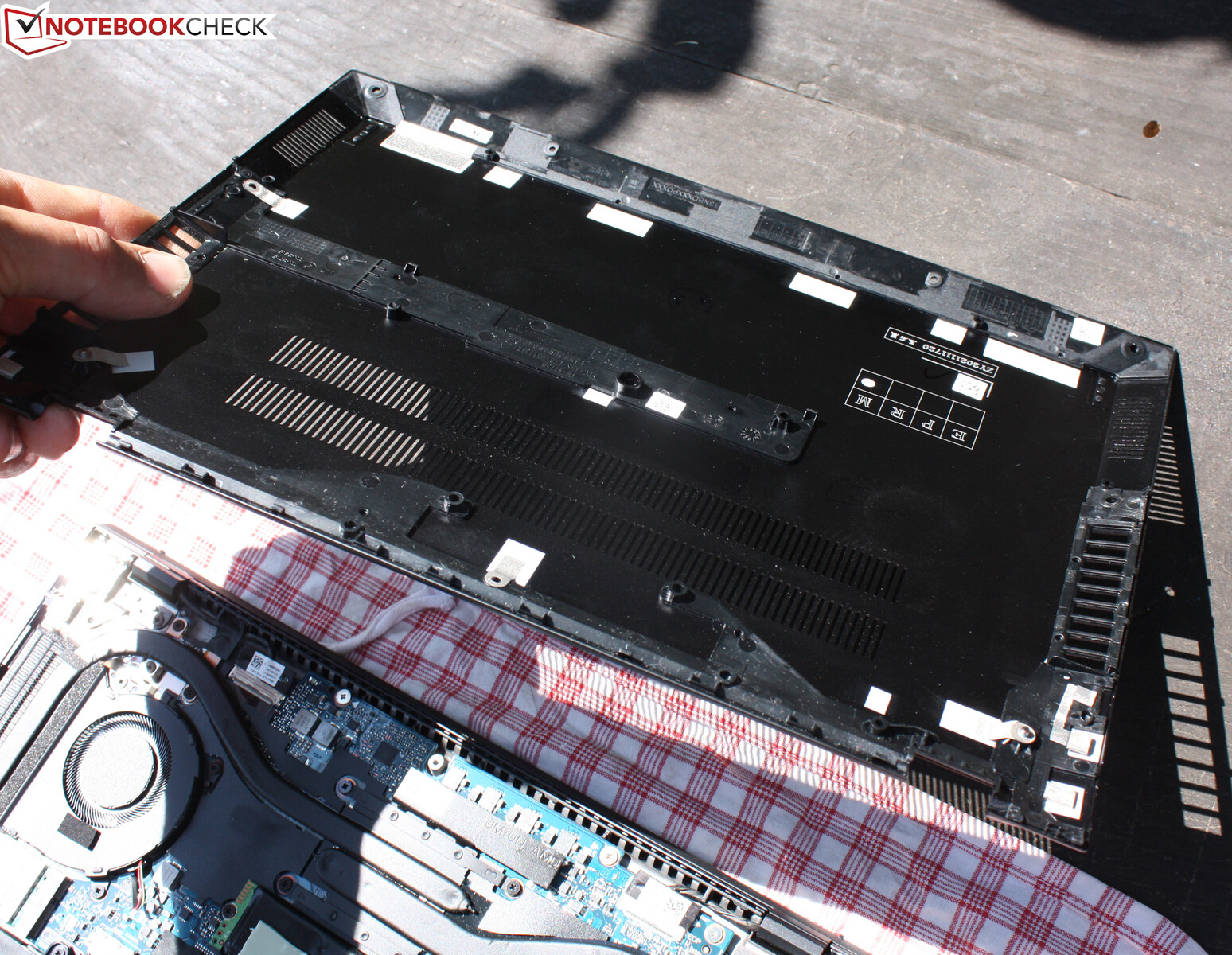

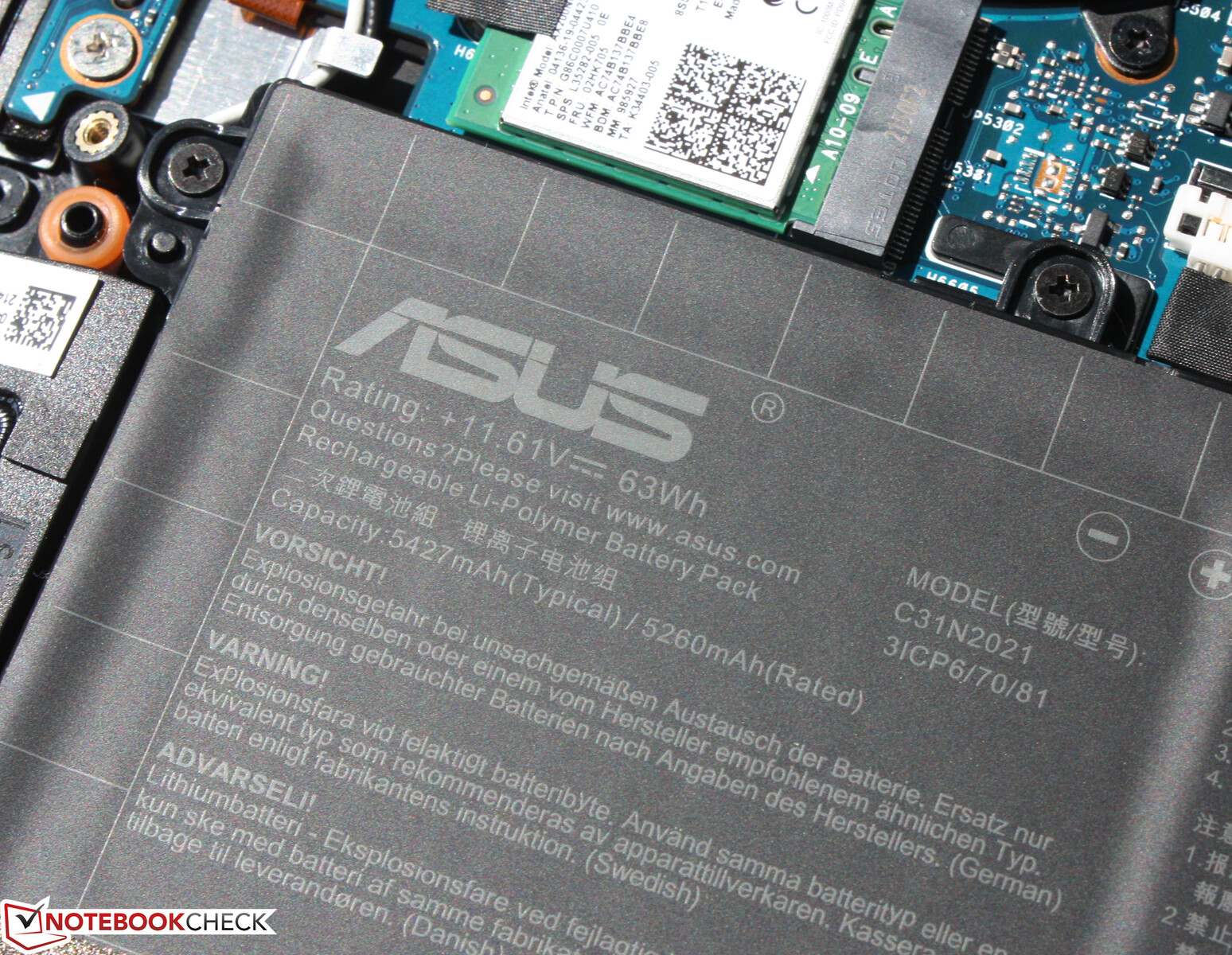

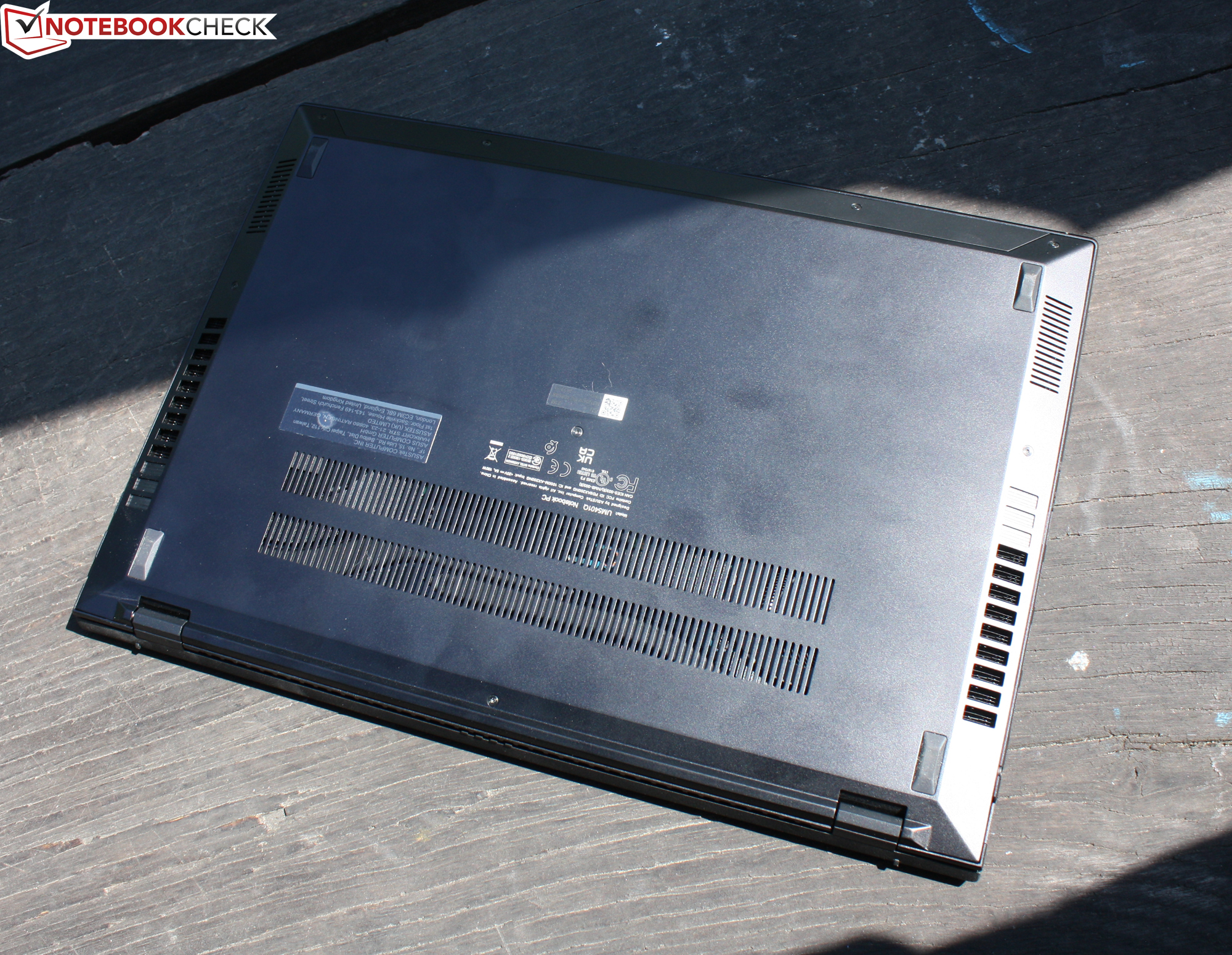

松开螺丝，在前面打开一个缺口，就可以拆下底盖。Wi-Fi模块、电池和固态硬盘可以被替换，而内存则在机身上。

担保

华硕在德国给予两年的提货和退货保证。

Input devices - Fast typing on the laptop

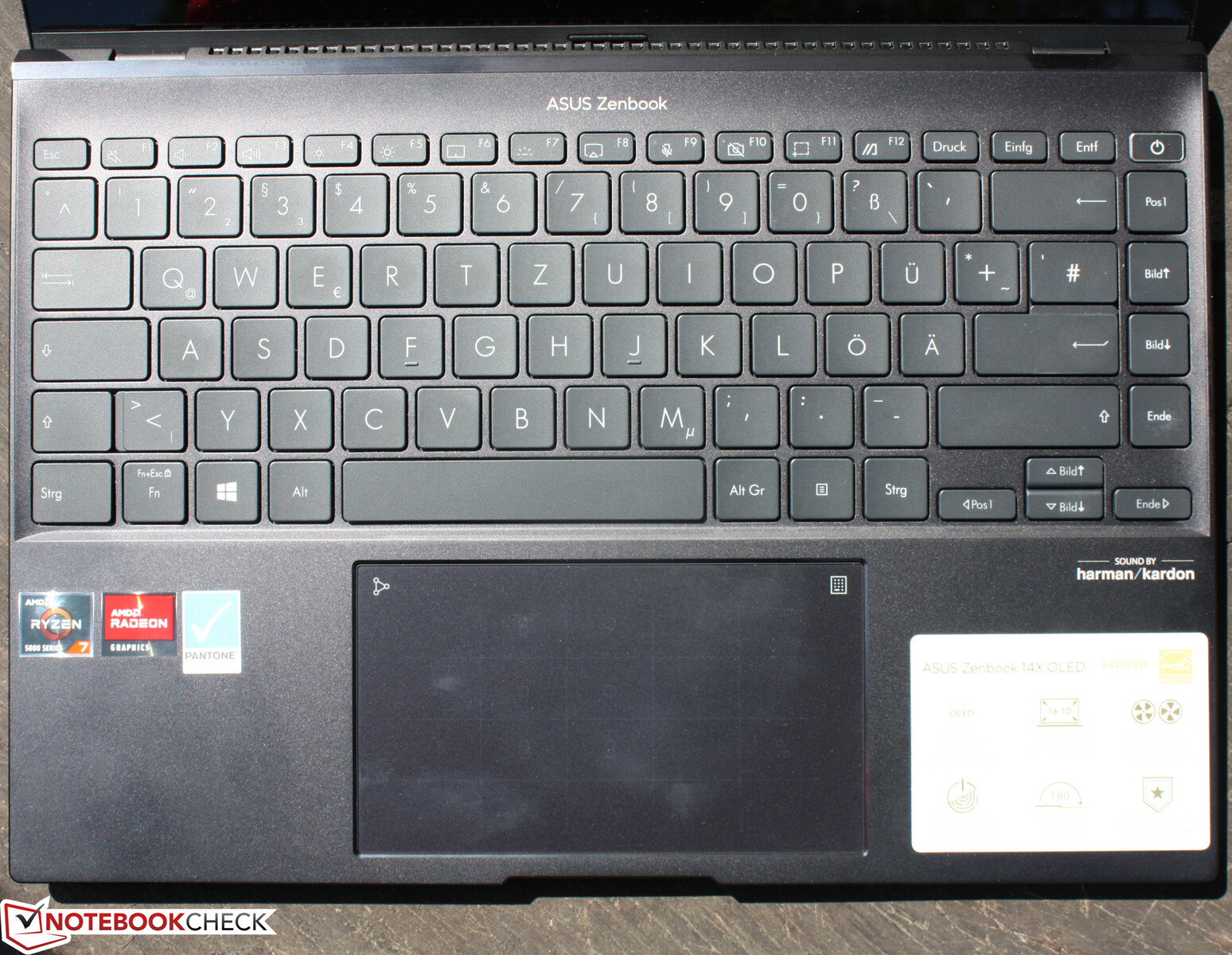

键盘

哑光的防滑键有一个独特的压力点，行程适中，冲程有力。打字时几乎没有声音。由于采用了三段式白色背光，在黑暗环境中工作是可能的。使用方向键需要一点灵巧性，这对换挡键的好处是异常小的。

按笔记本电脑的标准，按键间距相当大（2.5毫米），因为这里使用的是底座的整个宽度。右侧甚至有足够的空间用于上/下页和主页/末页--这是在实际使用中完成的布局。键盘坚实的底座是一个非常积极的方面；这里没有任何东西产生，没有任何一点。

总而言之，结果是一个宽敞的键盘，只是在压力点方面有点落后于商业专业人士。在Zenbook上快速打字是绝对可能的。华硕用一个可以在ClickPad上启用的小键盘来补充这个键盘。

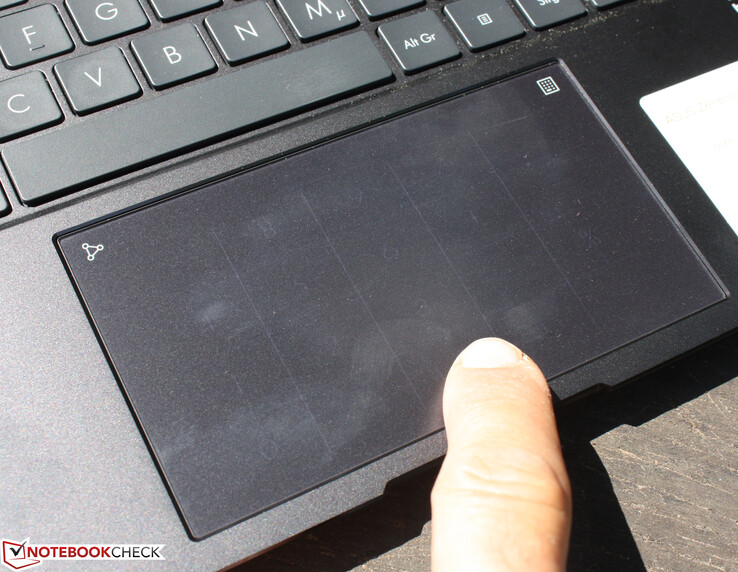

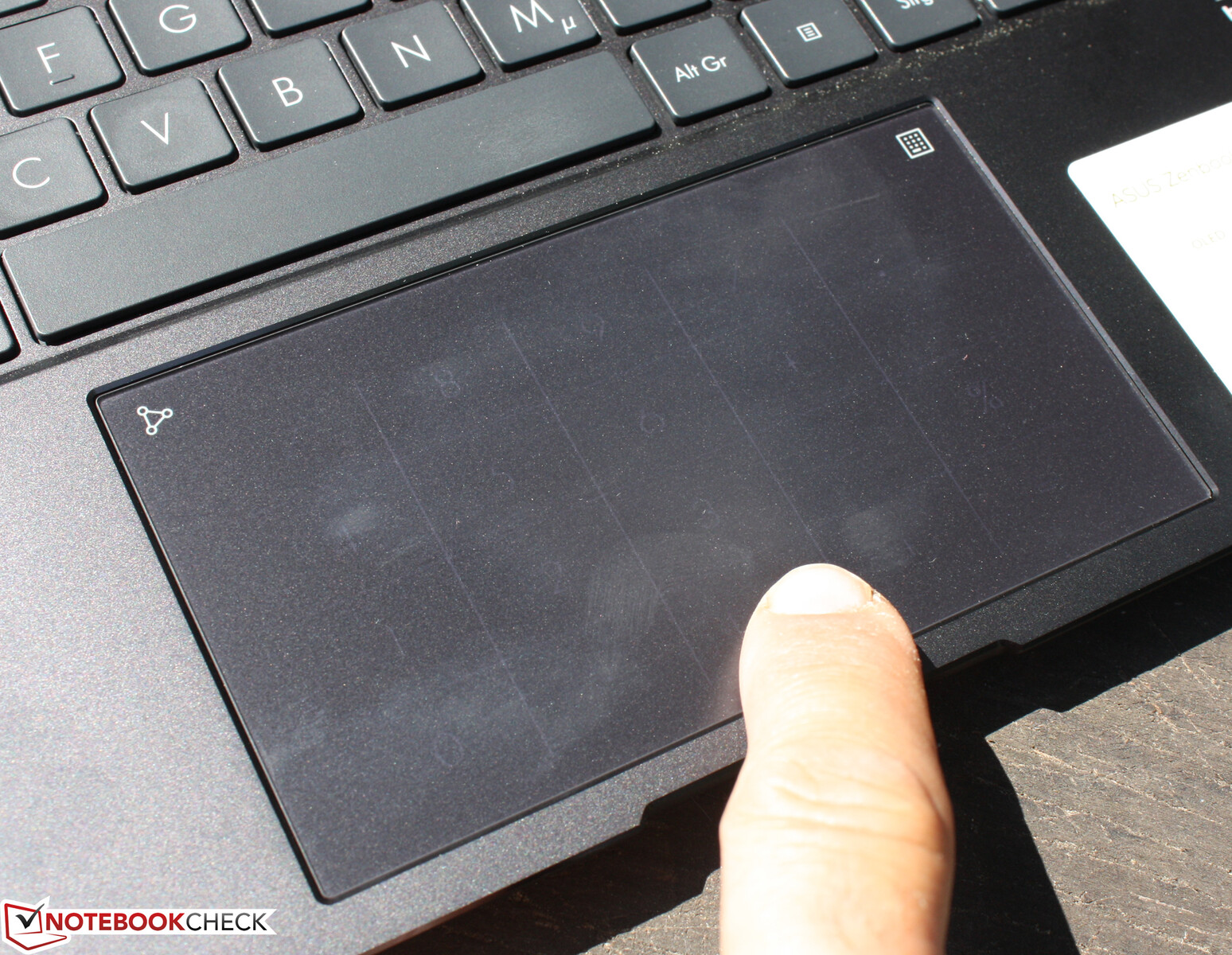

触摸板

ClickPad的敏感度一直到边缘，而且它的行程很短。它的操作有一种沉闷、安静的噪音。哑光表面很光滑，只是接近于滑溜。它能舒适地引导手指。不过，我们发现短距离的移动是不令人满意的。

显示 - 大量的色彩，大量的对比度

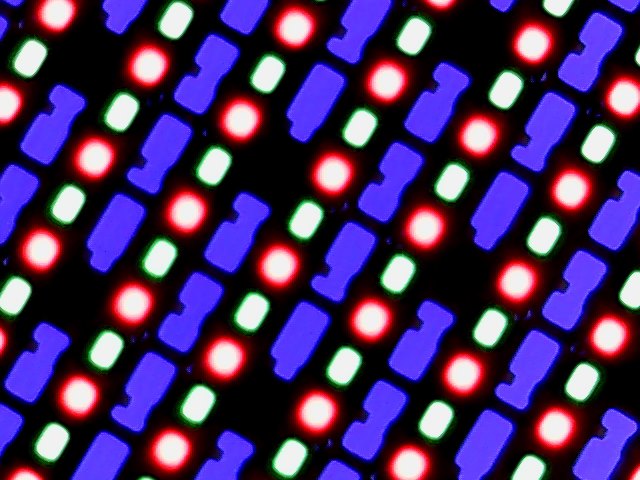

三星SDC4154 OLED面板的像素网格 - 与ZenBook 14X OLED英特尔相同

购买Zenbook 14X的主要理由是其14英寸OLED面板。三星提供了一个WQXGA+面板，像素为2880x1,800（16:10）。刷新率为90赫兹，响应时间为2毫秒，该显示器超过了任何IPS面板。

它还承诺100%的DCI-P3色域，这一点我们也可以通过测量确认。华硕报告的亮度为400尼特，而我们测量的平均亮度为366cd/m²，最大亮度为372cd/m²。尼特和cd/m²是1:1转换的，所以制造商宣传的亮度几乎没有。亮度是均匀分布的，这是典型的OLED（97%的亮度分布）。

无论如何，高亮度对OLED显示器是有害的，所以你不应该连续使用它。华硕用一个不能禁用的OLED屏保来应对烧毁问题。它在15分钟后开启。用户可以在评估风险后停用屏保（警告通知）。这只能通过个人的MyAsus设置来实现。这迫使用户创建一个账户。

屏占比为92%；这意味着很多显示屏周围的边框非常小。三星的面板使用直流调光来降低亮度。这种行为也可以在MyAsus中调整。


372 cd/m²	370 cd/m²	370 cd/m²
367 cd/m²	363 cd/m²	368 cd/m²
362 cd/m²	359 cd/m²	370 cd/m²

Distribution of brightness

Samsung SDC4154 ATNA40YK04-0 tested with X-Rite i1Pro 2

Maximum: 372 cd/m² (Nits) Average: 366.8 cd/m² Minimum: 4.9 cd/m²
Brightness Distribution: 97 %
Center on Battery: 363 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 2.92 | 0.5-29.43 Ø5, calibrated: 2.92
ΔE Greyscale 2.45 | 0.57-98 Ø5.3
98% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
100% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.38

Download ICC File (X-Rite i1Pro 2)

	Asus ZenBook 14X UM5401QA-KN162 Samsung SDC4154 ATNA40YK04-0, OLED, 2880x1800, 14.00	Dell XPS 13 9310 OLED Samsung 134XK01, OLED, 3456x2160, 13.40	Asus ZenBook 14X OLED UX5400EA-L7154W Samsung SDC415B ATNA40YN04-0, OLED, 2880x1800, 14.00	HP Envy 14-eb0010nr AU Optronics AUOF392, IPS, 1920x1200, 14.00	Asus Vivobook Pro 14 M3401QC-KM007T SAMSUNG: SDC4171, OLED, 2880x1800, 14.00	Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 LEN140WQ+, OLED, 2880x1800, 14.00	MSI Modern 14 B11SB-085 BOE CQ NV140FHM-N4V, IPS, 1920x1080, 14.00
Display		0%	0%	-15%	-1%	0%	-53%
Display P3 Coverage	100	99.7 0%	100 0%	77.1 -23%	99.41 -1%	99.9 0%	39.9 -60%
sRGB Coverage	100	100 0%	100 0%	99.8 0%	99.94 0%	100 0%	58.8 -41%
AdobeRGB 1998 Coverage	98	97.7 0%	98 0%	76.7 -22%	94.79 -3%	97.6 0%	41.2 -58%
Response Times		39%	44%	-2197%	50%	67%	-535%
Response Time Grey 50% / Grey 80% *	2 ?(1, 1)	2.2 ?(1.2, 1) -10%	2 ?(1, 1) -0%	61.2 ?(30, 31.2) -2960%	3 ?(1, 2) -50%	2.4 ?(1.2, 1.2) -20%	25 ?(11, 14) -1150%
Response Time Black / White *	3 ?(2, 1)	2.2 ?(1, 1.2) 27%	2 ?(1, 1) 33%	46 ?(24, 22) -1433%	3 ?(1, 2) -0%	2.4 20%	16 ?(9, 7) -433%
PWM Frequency	120 ?(50)	240.4 ?(51) 100%	240 ?(40) 100%		360 200%	362.3 ?(80) 202%	92 ?(10) -23%
Screen		-14%	17%	18%	24%	14%	-49%
Brightness middle	363	384 6%	345 -5%	412 13%	384 6%	399 10%	347 -4%
Brightness	367	387 5%	348 -5%	392 7%	385 5%	401 9%	311 -15%
Brightness Distribution	97	97 0%	98 1%	81 -16%	98 1%	98 1%	81 -16%
Black Level *				0.32	0.07	0.001	0.12
Colorchecker dE 2000 *	2.92	4.56 -56%	1.92 34%	1.88 36%	1.75 40%	2.5 14%	5.05 -73%
Colorchecker dE 2000 max. *	5.34	7.27 -36%	4.72 12%	3.06 43%	3.41 36%	4.6 14%	16.98 -218%
Colorchecker dE 2000 calibrated *	2.92	4.52 -55%		1.96 33%	2.32 21%	2.2 25%
Greyscale dE 2000 *	2.45	1.5 39%	0.85 65%	2.2 10%	1.06 57%	1.8 27%	1.63 33%
Gamma	2.38 ^92%	2.26 ^97%	2.37 ^93%	2.1 ^105%	2.39 ^92%	2.17 ^101%	2.3 ^96%
CCT	6109 ^106%	6219 ^105%	6475 ^100%	6650 ^98%	6440 ^101%	6368 ^102%	6666 ^98%
Color Space (Percent of AdobeRGB 1998)		87.1		68.7			38
Color Space (Percent of sRGB)		100		99.8			58
Contrast				1288	5486	399000	2892
Total Average (Program / Settings)		8% / 2%	20% / 20%	-731% / -359%	24% / 24%	27% / 23%	-212% / -172%

* ... smaller is better

正如预期的那样，OLED显示屏表现出出色的对比度（∞：1）；黑色是深黑色，颜色是鲜艳的。作为OLED的典型，响应时间也很好。MyAsus处理颜色和OLED的问题。

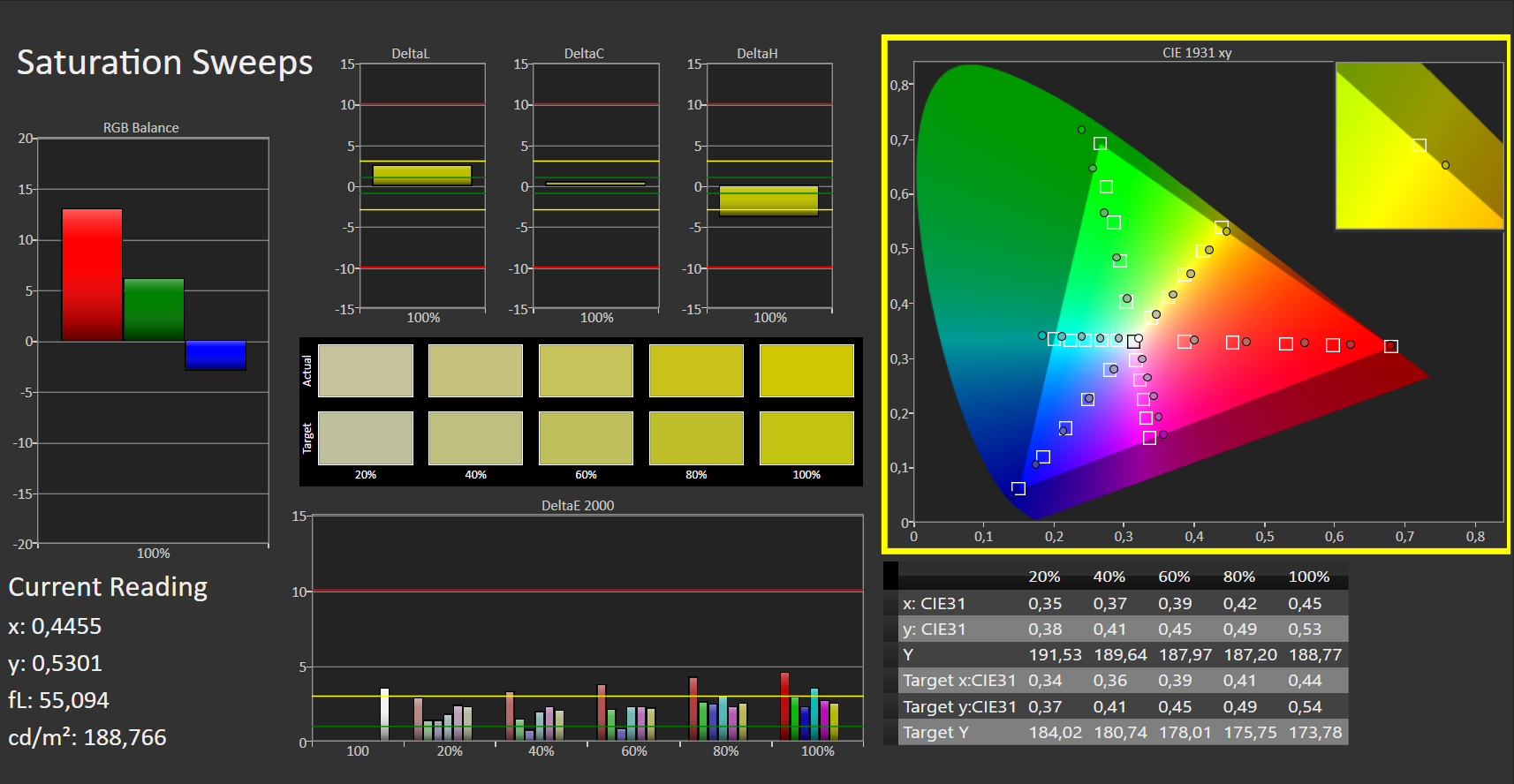

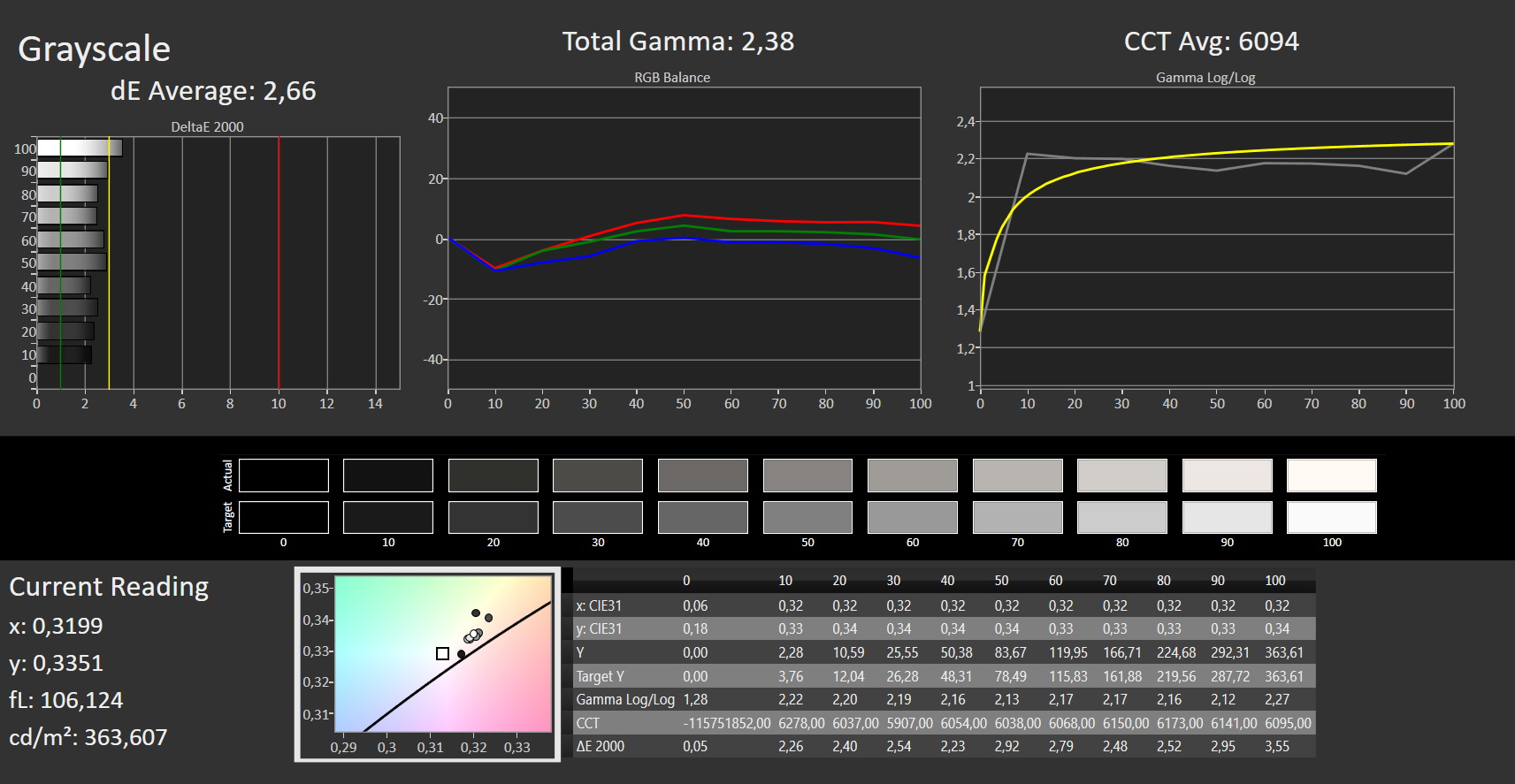

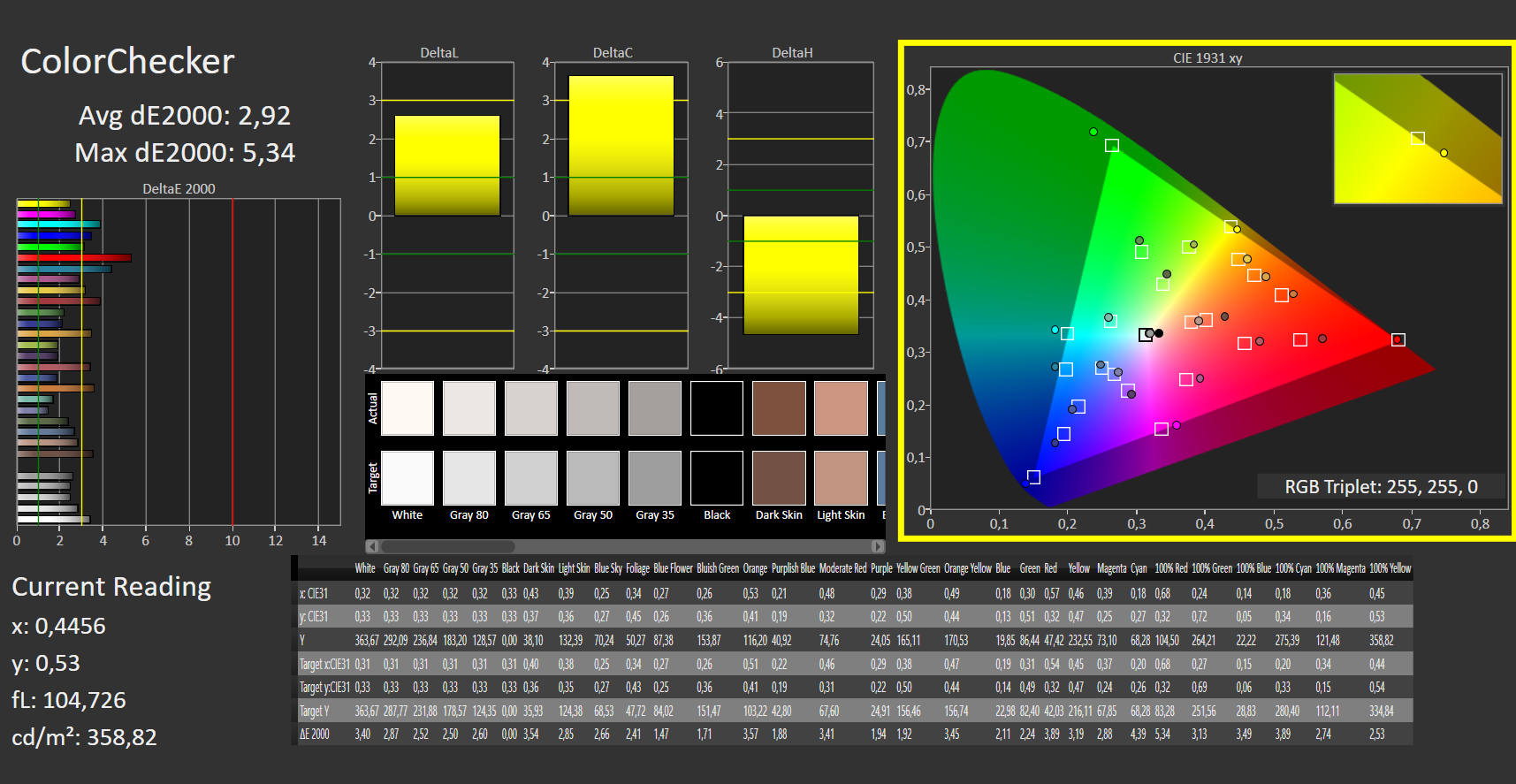

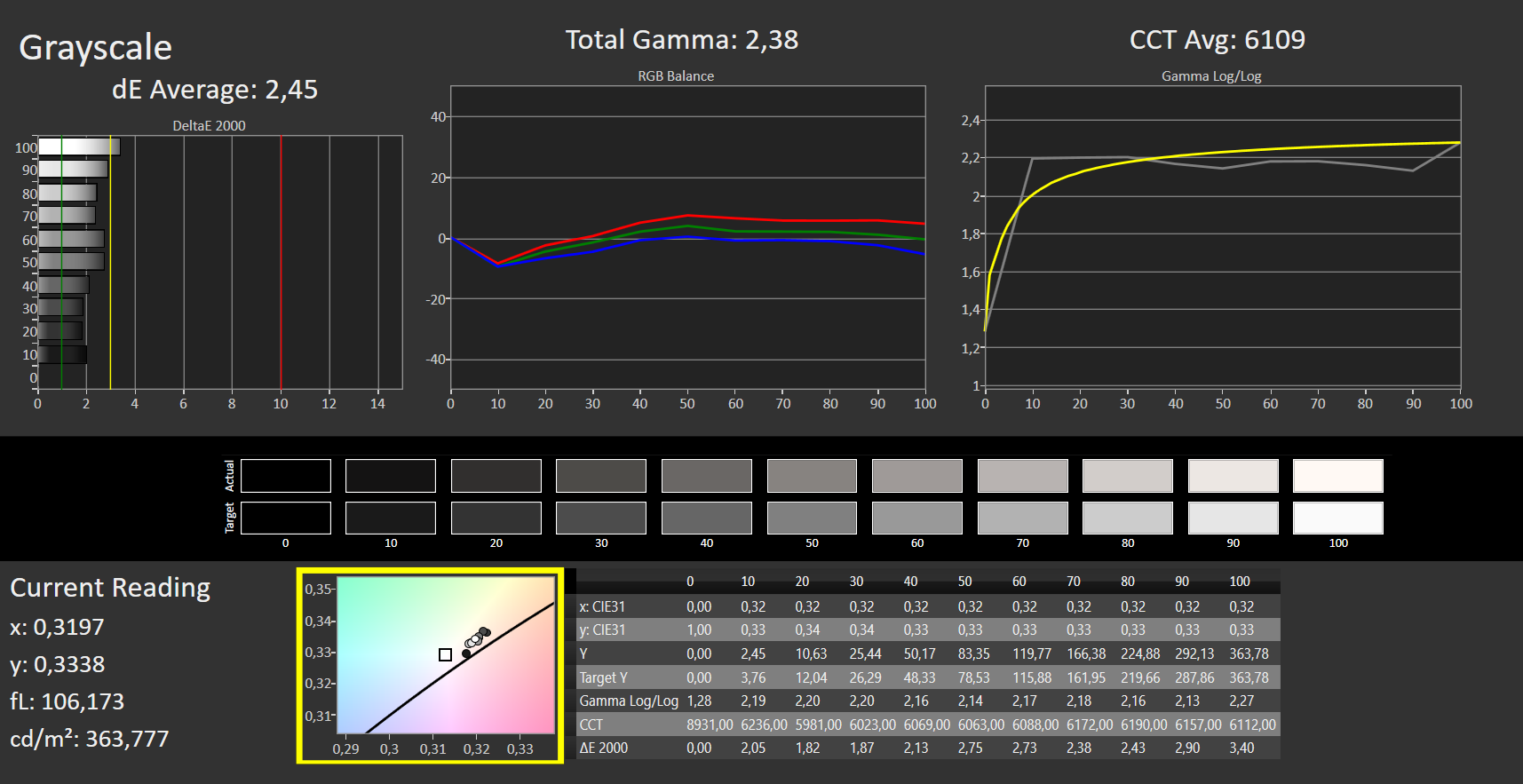

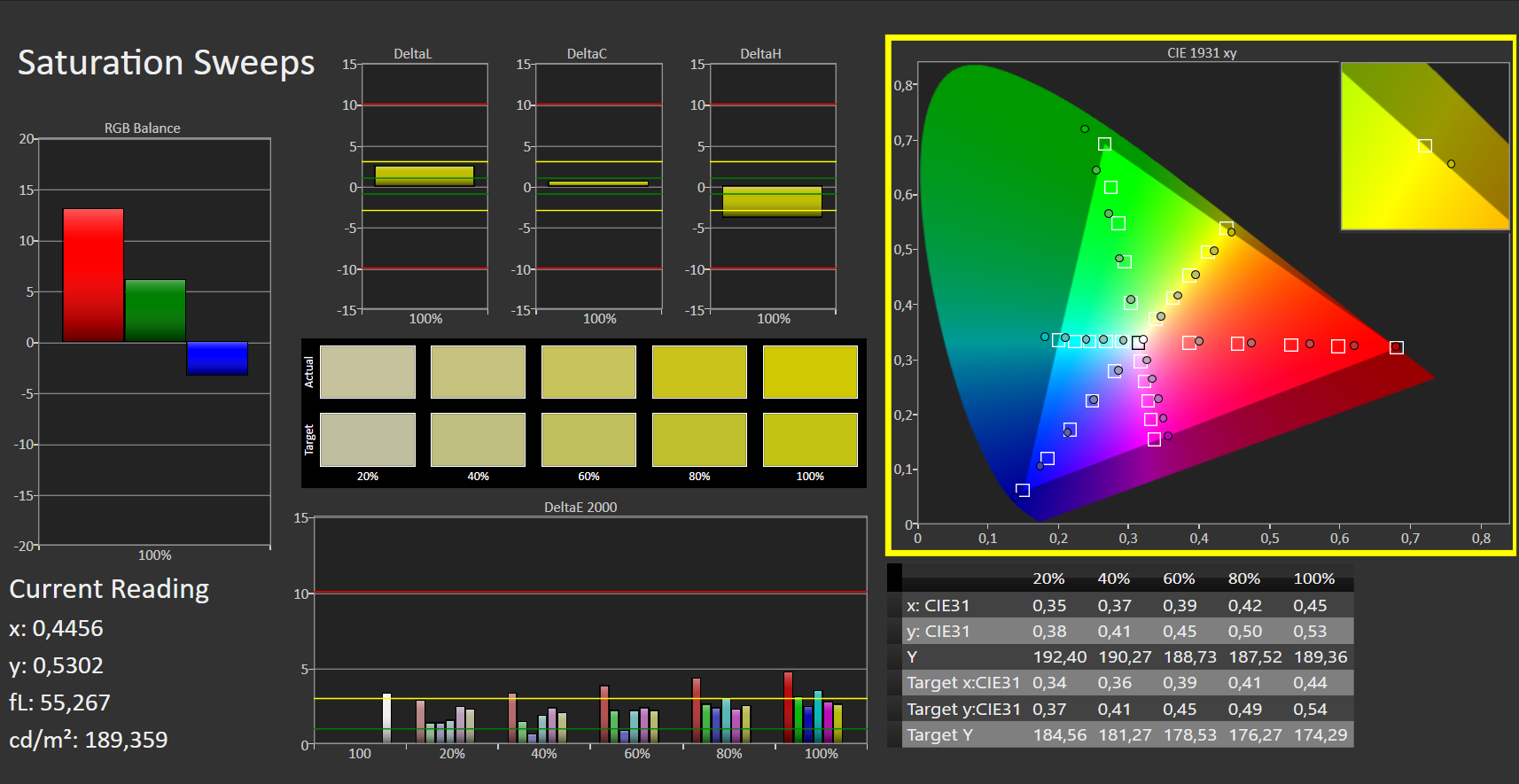

在校准之前，我们确定灰度和颜色的DeltaE值分别为2.5和2.9--这些是好的比率，因为它们低于3.0。校准并不能改善结果。

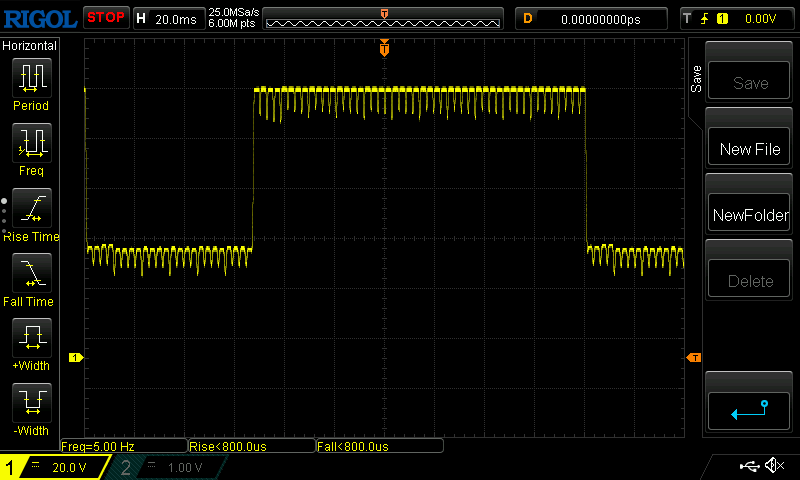

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
3 ms ... rise ↗ and fall ↘ combined	↗ 2 ms rise
3 ms ... rise ↗ and fall ↘ combined	↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 9 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21.5 ms).
↔ Response Time 50% Grey to 80% Grey
2 ms ... rise ↗ and fall ↘ combined	↗ 1 ms rise
2 ms ... rise ↗ and fall ↘ combined	↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 5 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms).

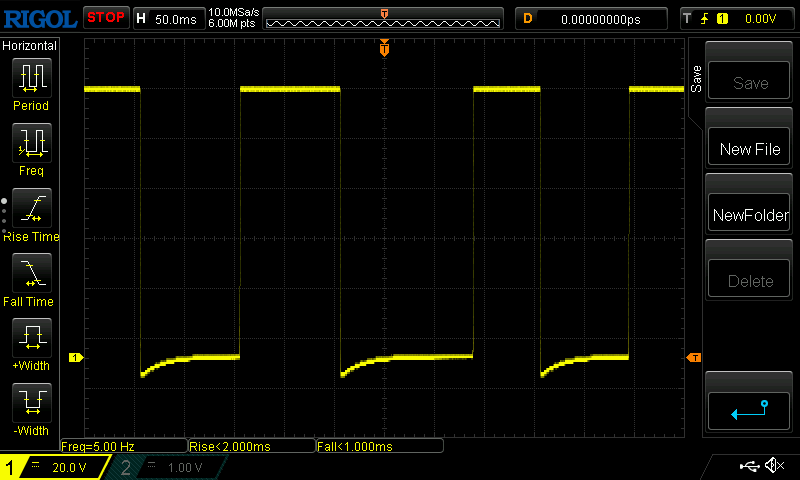

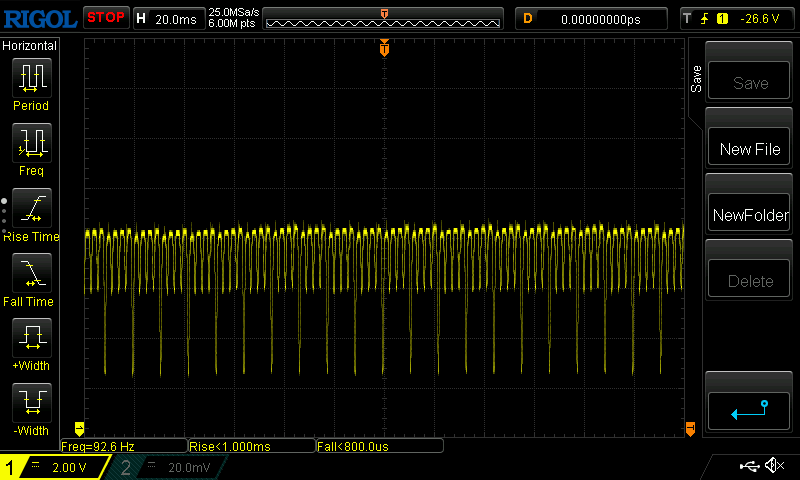

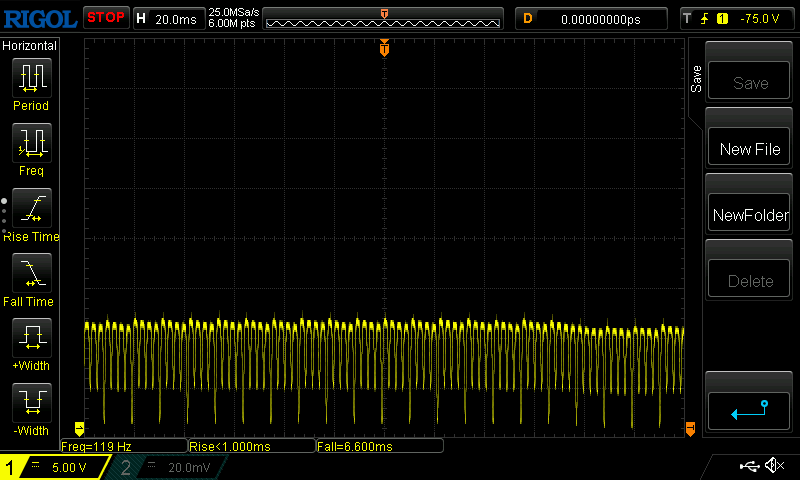

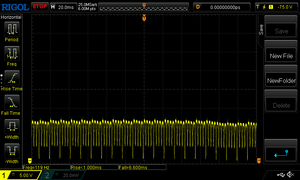

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

120 Hz

≤ 50 % brightness setting

The display backlight flickers at 120 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 120 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured.

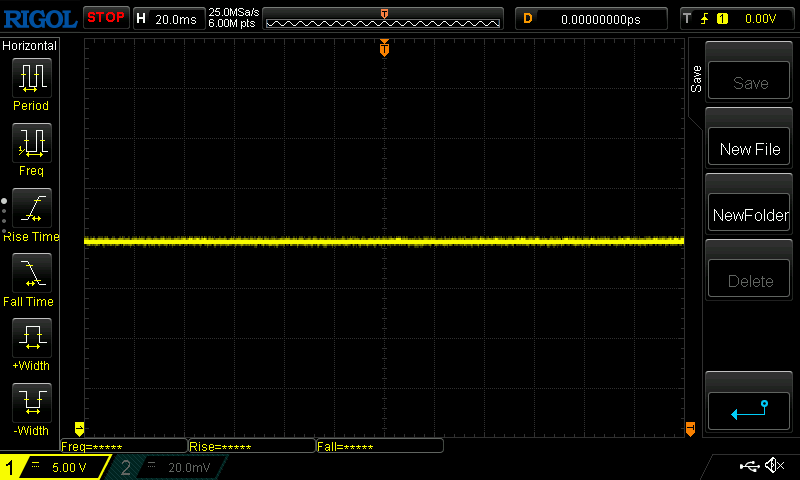

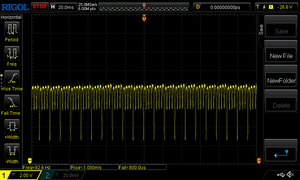

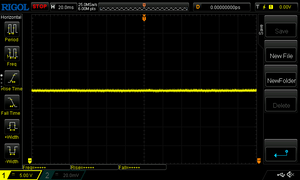

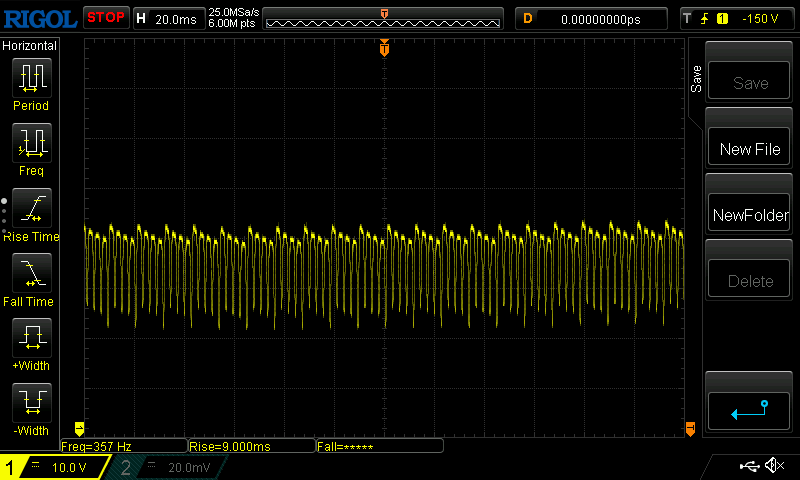

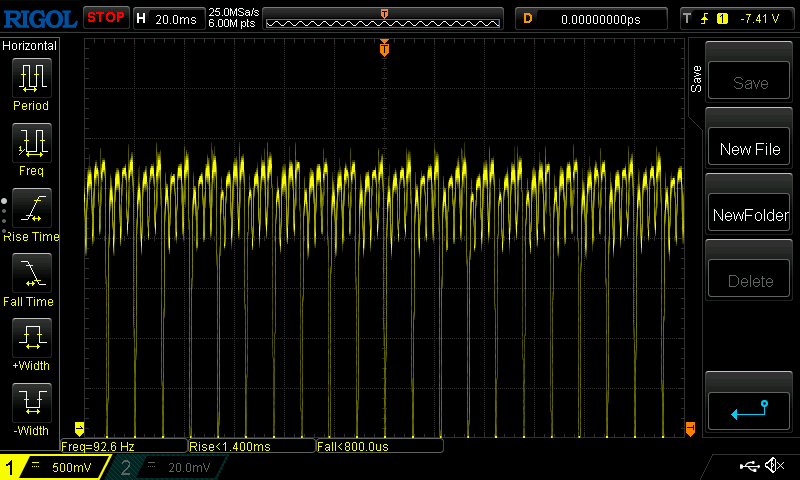

用于降低亮度的PWM在360赫兹下用于0到5的亮度水平（10，见上下图）；高于这个水平，则使用直流调光（无图像，用线代替波）。这种技术是PWM的一种替代方法，即像素在短时间内被关闭。直流调光会降低电压，这就是为什么像素发出的亮度较低。低于60%的亮度，直流调光将导致色彩再现的显著恶化，这就是为什么OLED面板在这里使用PWM（360Hz）。敏感的用户可能会受此影响，尽管我们在实践中很少将亮度设置在60%以下。在有日光的正常办公环境中，我们使用的亮度为70%-80%。用户可以通过 "无闪烁OLED调光 "选项调整显示器的调光水平。

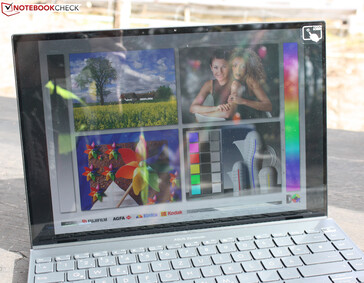

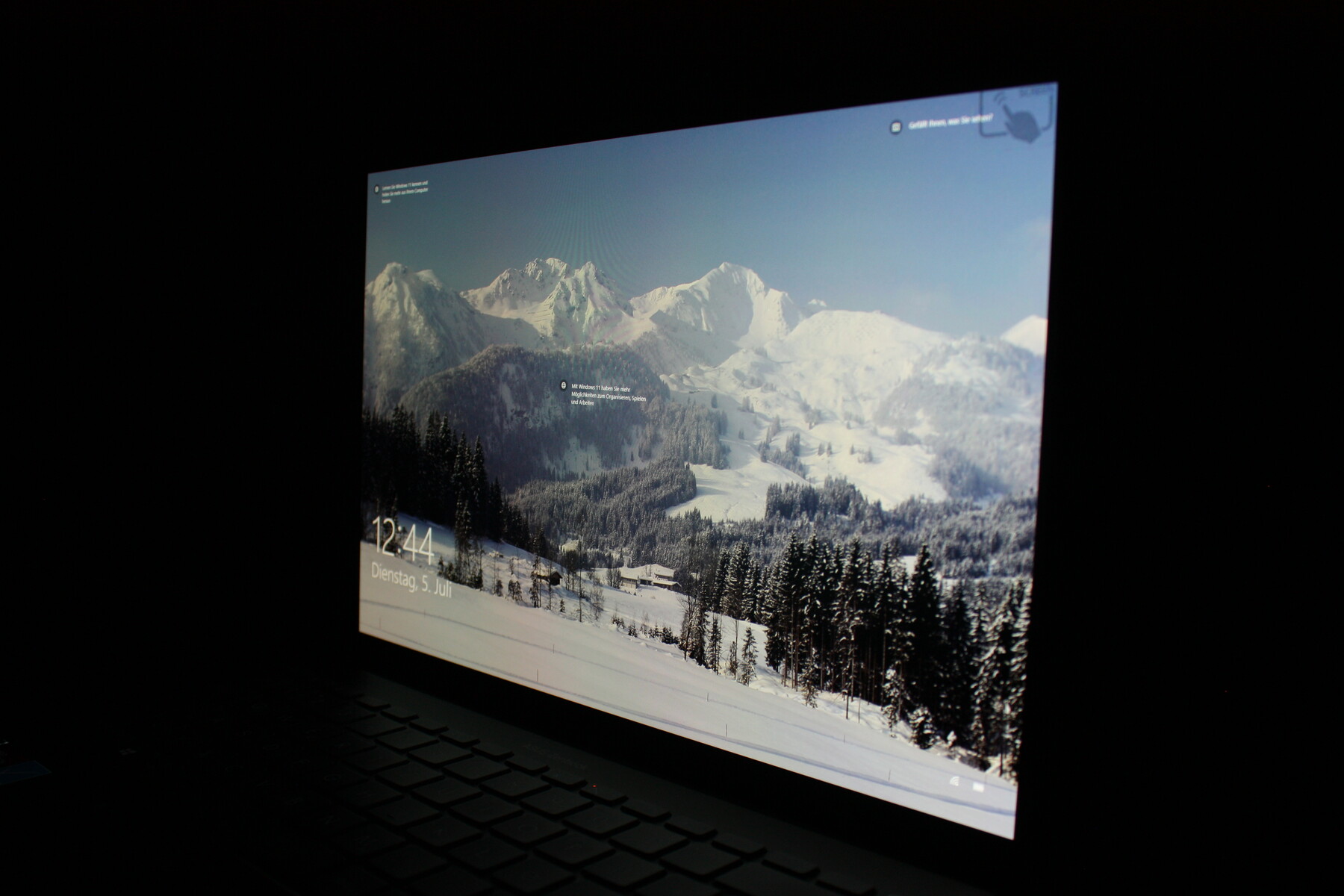

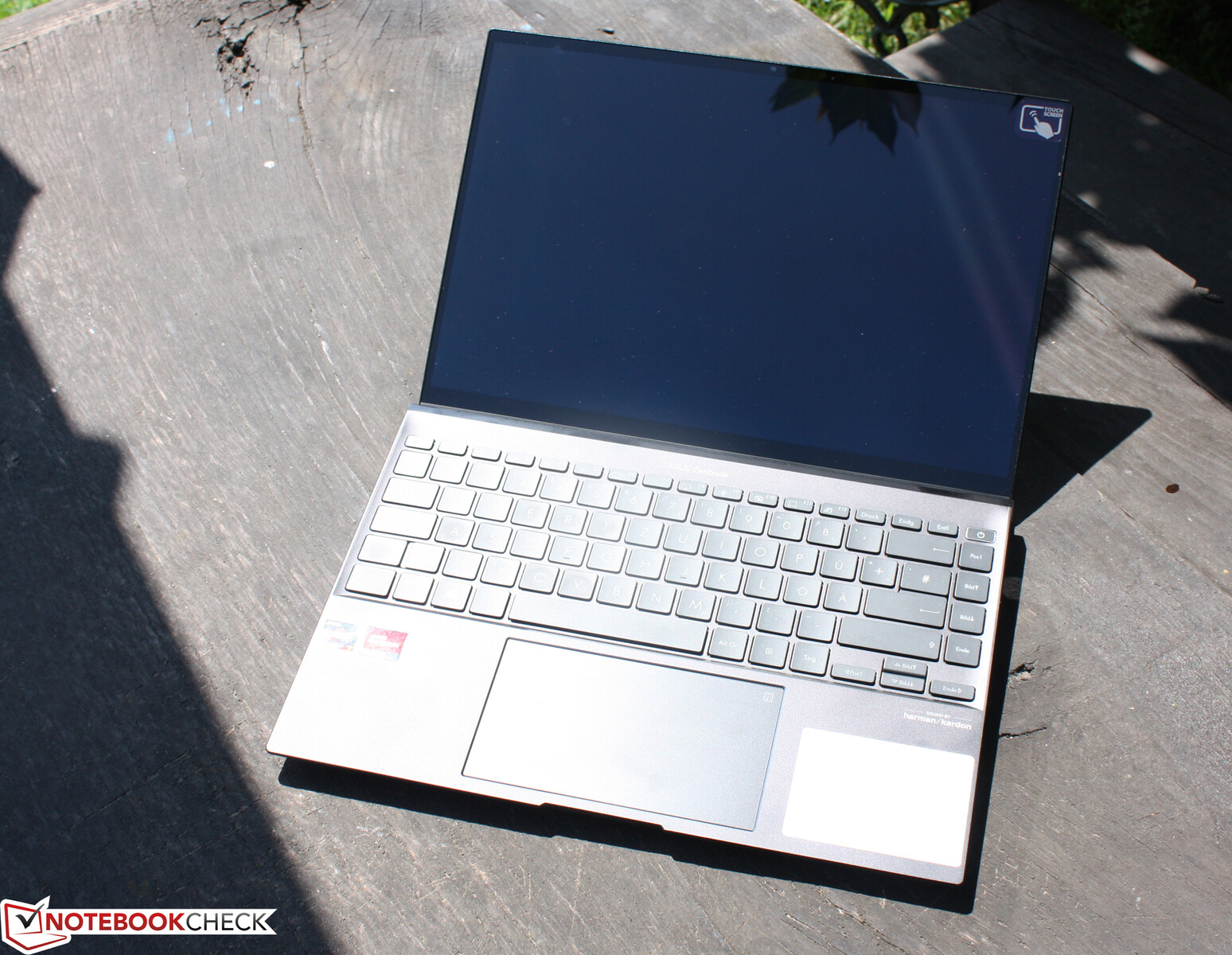

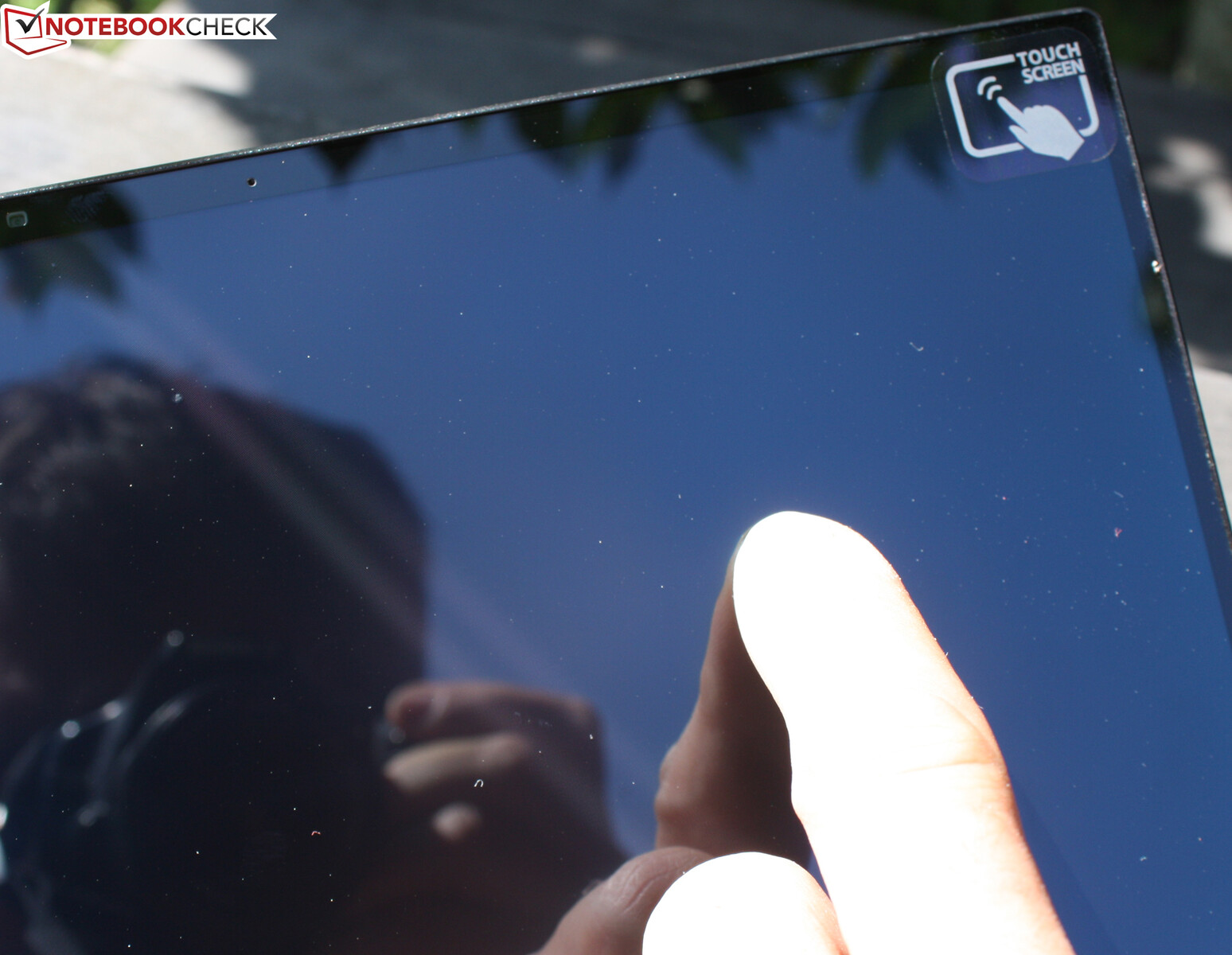

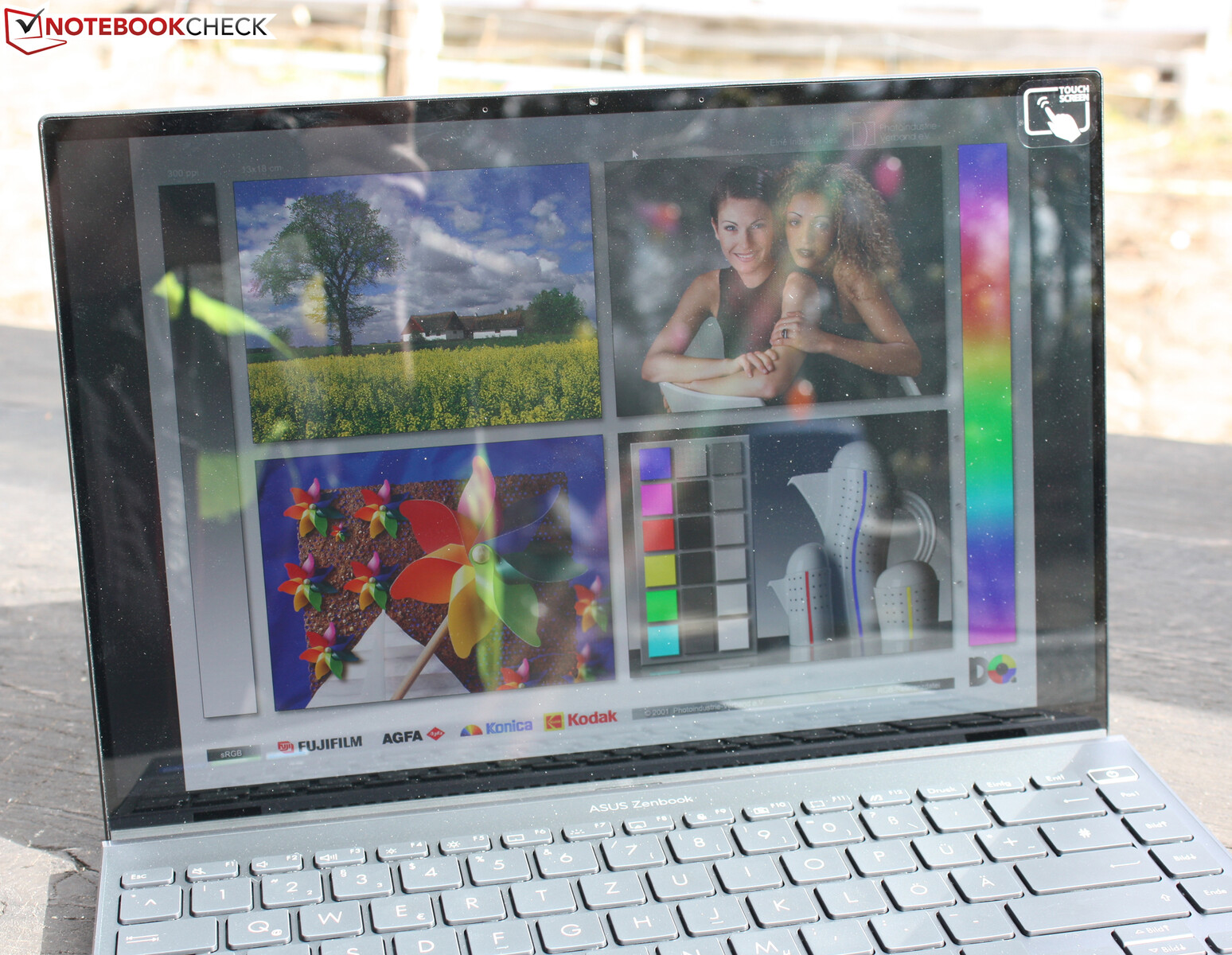

眩光型表面在户外受到反射的影响，即使是良好的亮度也没有什么帮助。该面板可以在阴暗的地方很好地使用，这也是因为在电池供电的情况下亮度不会降低（屏幕中心的亮度为363cd/m²）。

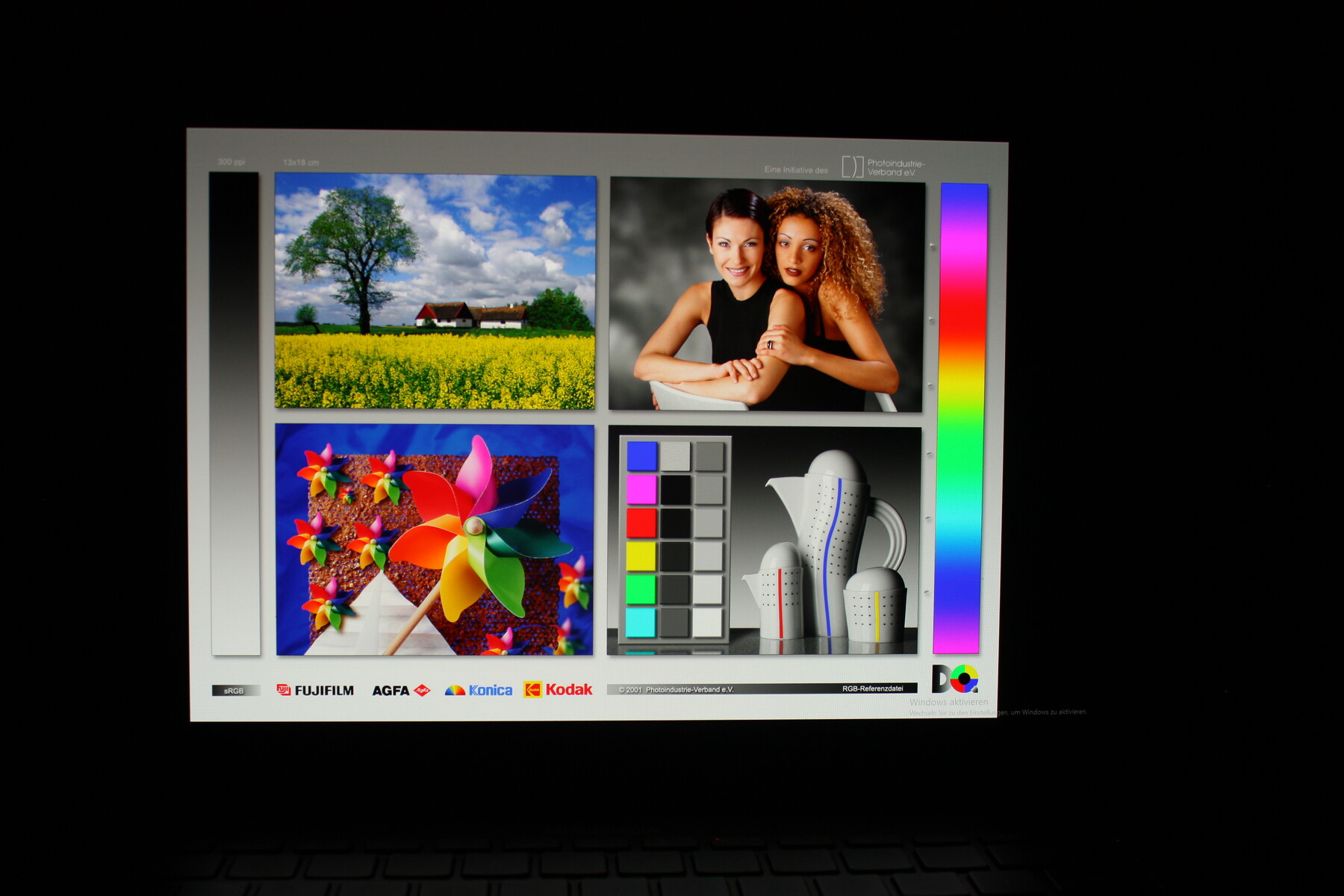

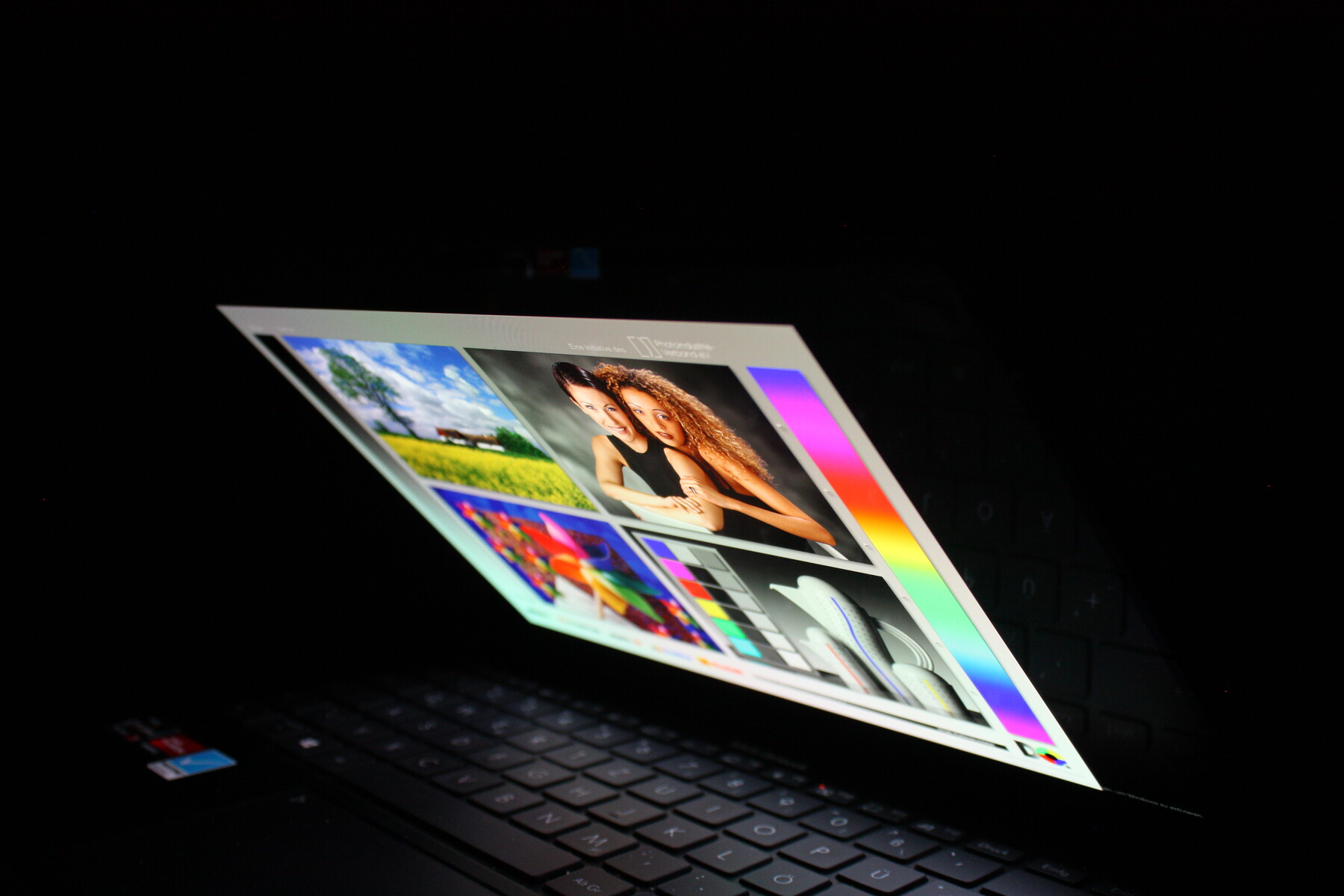

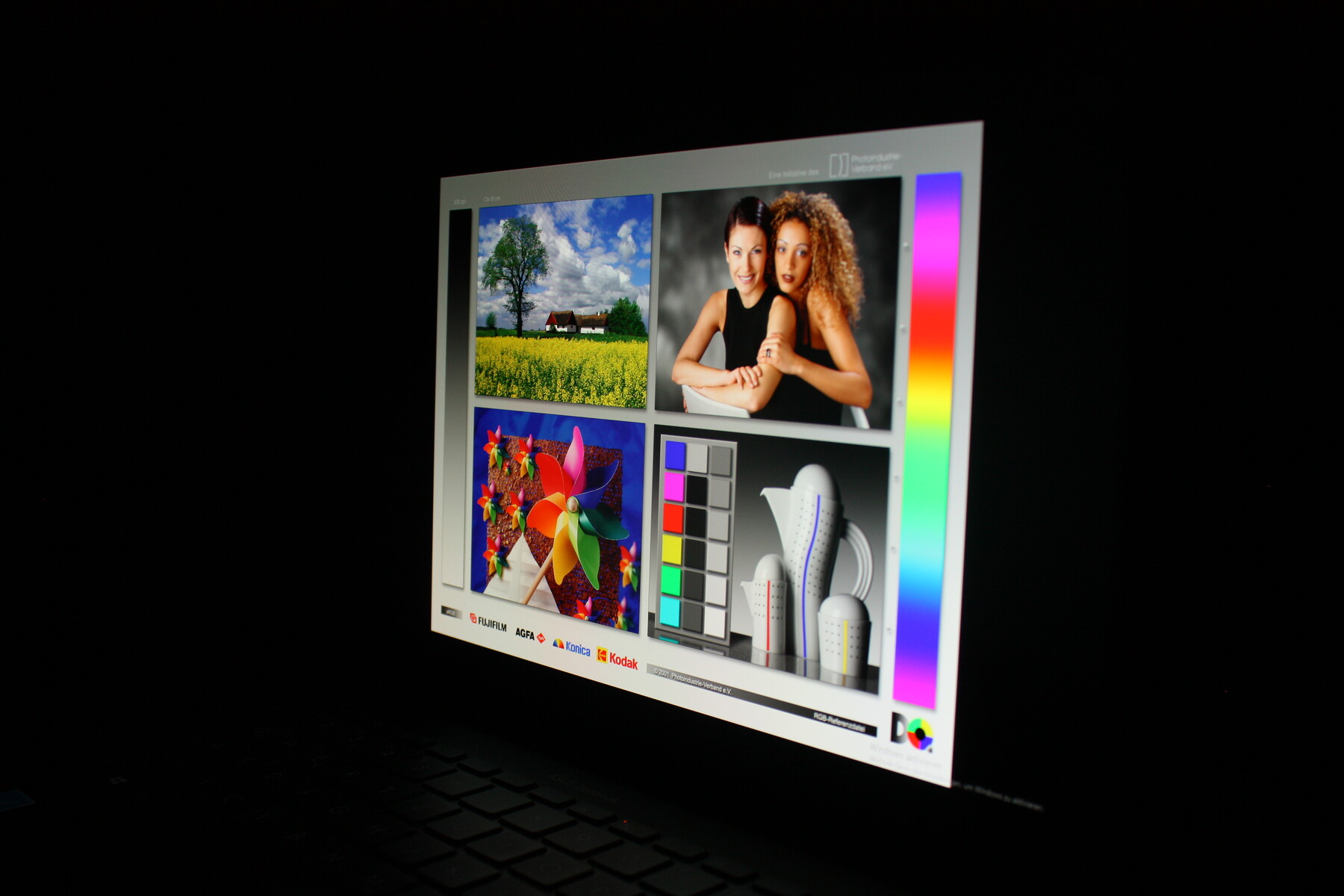

毫无疑问，OLED面板的可视角度是目前最好的。即使从平坦的角度看，颜色也保持稳定，而且亮度也不会失去强度。

性能--得益于AMD Ryzen的更大提升

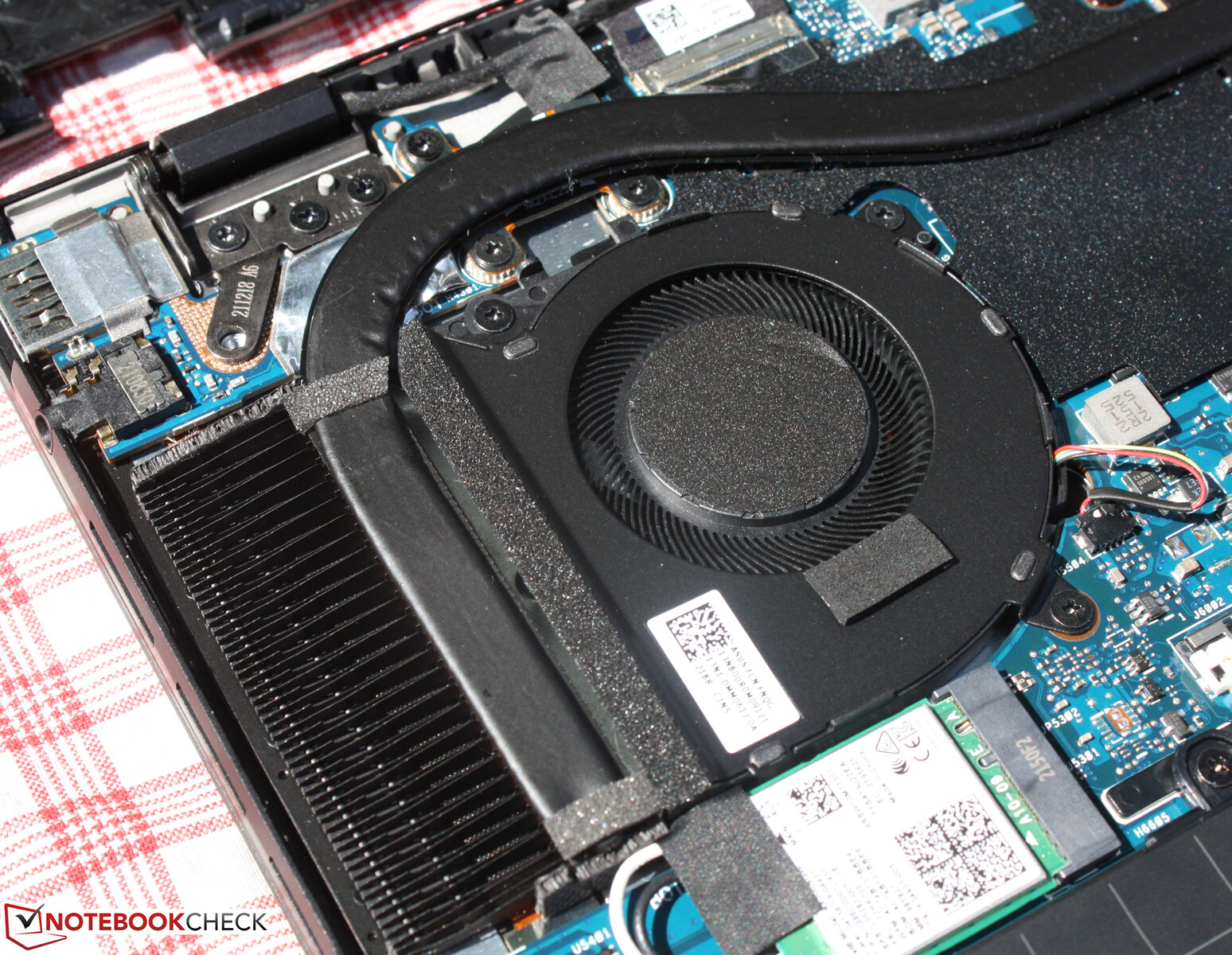

的锐龙7 5800H是一款适用于大型笔记本电脑的处理器，但这并不妨碍华硕把它放在一个14英寸的设备中。然而，该处理器享有双风扇的奢侈，这对于没有专用图形的笔记本电脑SOC来说是不寻常的。该芯片包括八个Zen 3核心，运行速度高达4.4GHz。5800H是唯一的芯片选择，不包括英特尔版本。甚至16GB内存（板载）和512GB固态硬盘似乎也是标准配置；没有其他选择。

测试条件

在MyASUS应用程序中可以选择三种不同的性能模式。这里有性能模式、标准模式和耳语模式。性能模式只适用于外部电源。根据测试要求，我们选择了不同的性能模式。这样，基准测试是在性能模式下进行的。负载下的电池耐久性和平均负载下的能量测量是在标准模式下进行的。悄悄话模式被选作电池运行时间测量和空闲能量测量。最大能量消耗是在性能模式下测量的。所有三种性能模式也进行了噪声排放测试。

处理器

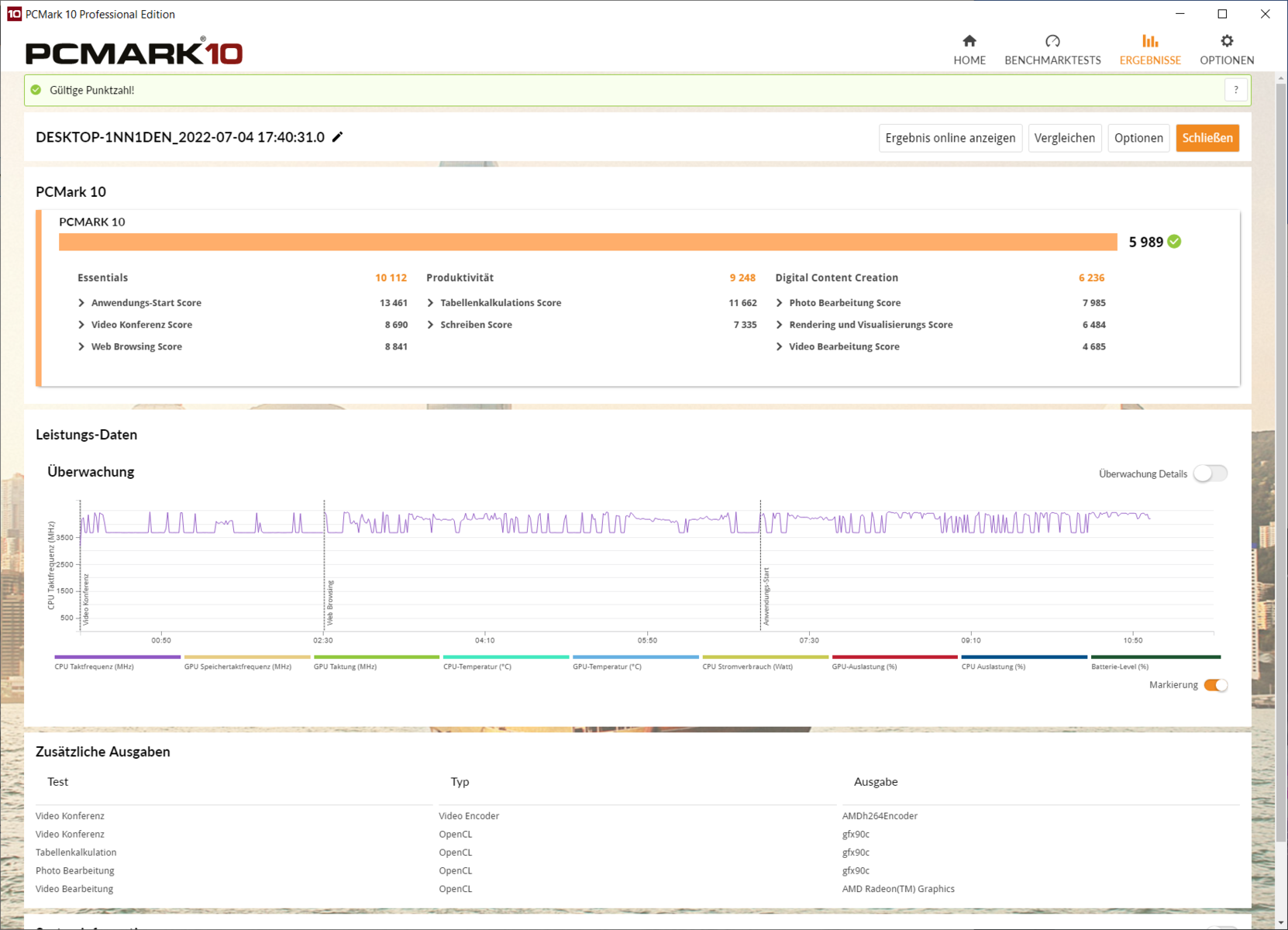

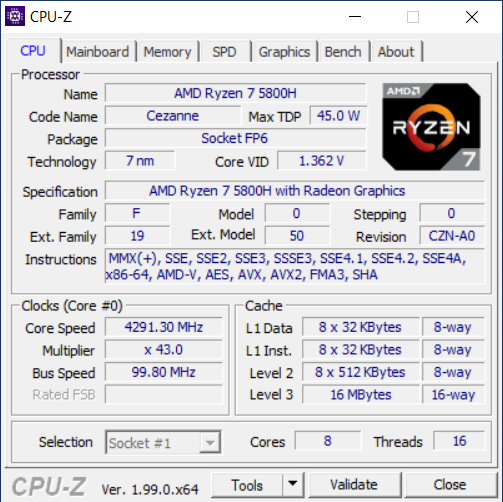

AMD Ryzen 7 5800H是一款强大的移动处理器，有八个核心和16个线程。在日常使用中，Ryzen 7可以轻松处理所有负载。在性能基准测试中，该处理器显示了AMD典型的高多核性能，而在单核基准测试中，它与英特尔的处理器相当。

在这方面，正如Cinebench R15循环所显示的那样，AMD处理器即使在长时间的负载下也能保持其高性能。然而，有一些笔记本电脑的AMD Ryzen 7 5800H在我们的数据库中，有一些配备AMD Ryzen 7 5800H的笔记本电脑从该处理器中获取了更多的性能（与平均水平相比为-8%）。在这台Zenbook中，根据性能模式，Ryzen 7被允许以45瓦的功率运行，甚至在更远的距离上也是如此。在电池供电时，系统只允许处理器以24瓦的功率运行。

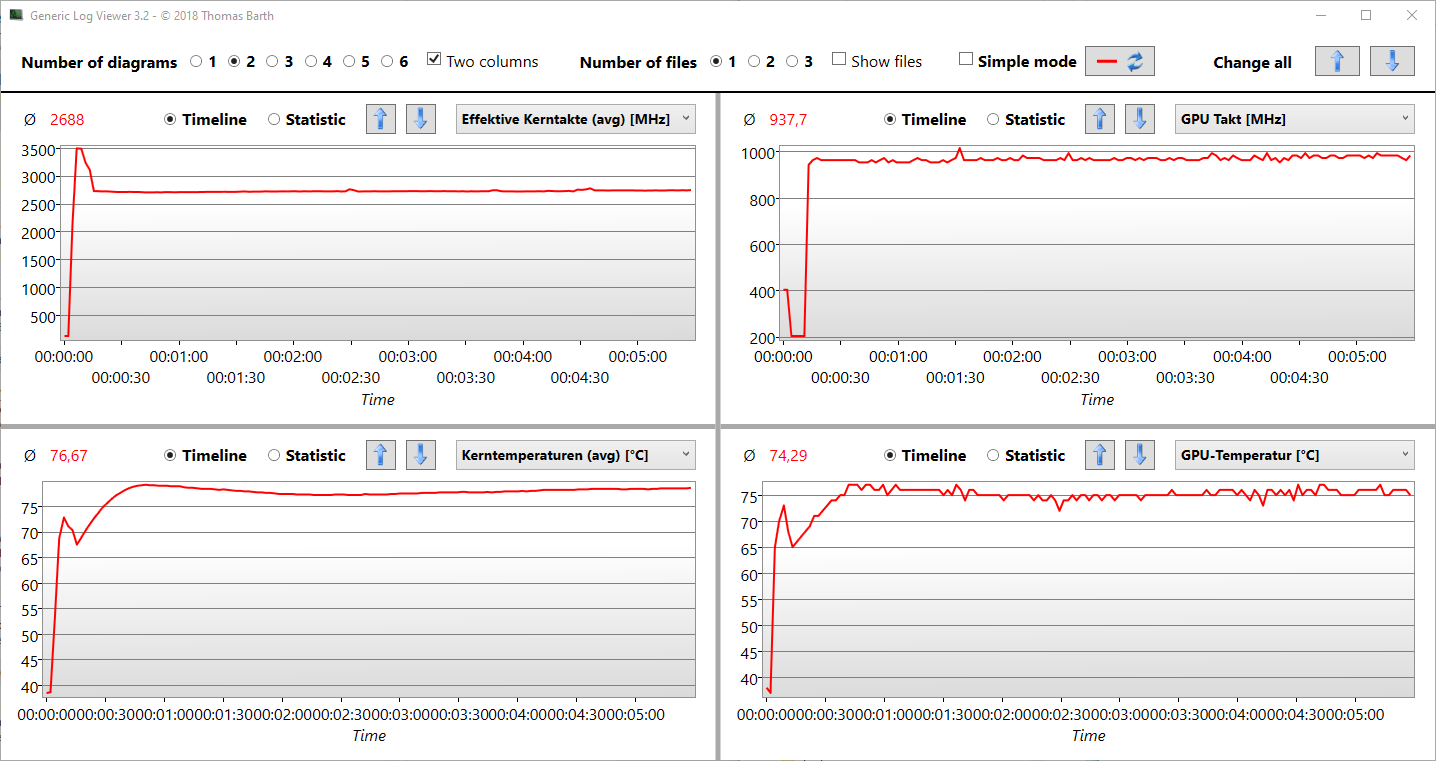

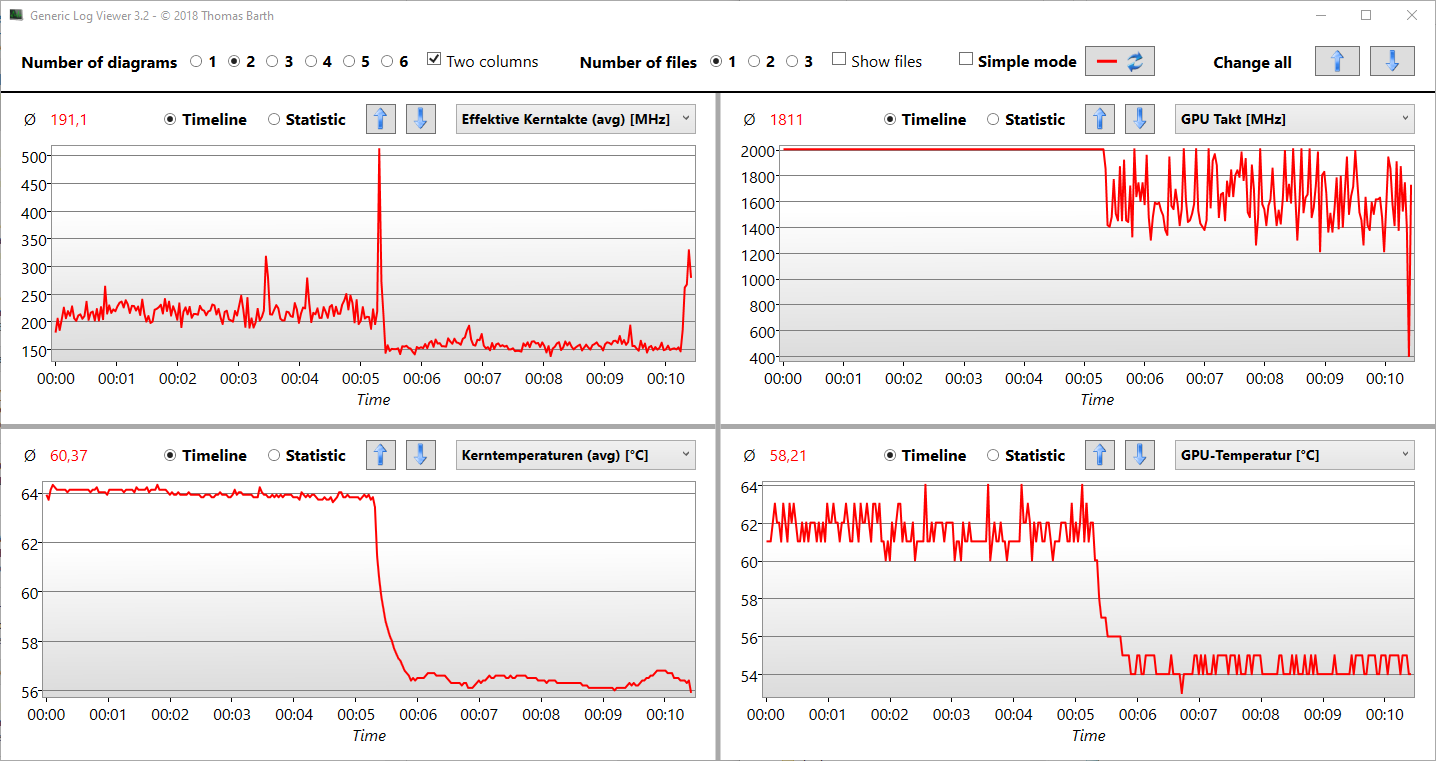

Logviewer @Prime95。屡次低于60瓦，长期处于45瓦（MyAsus: Performance）。

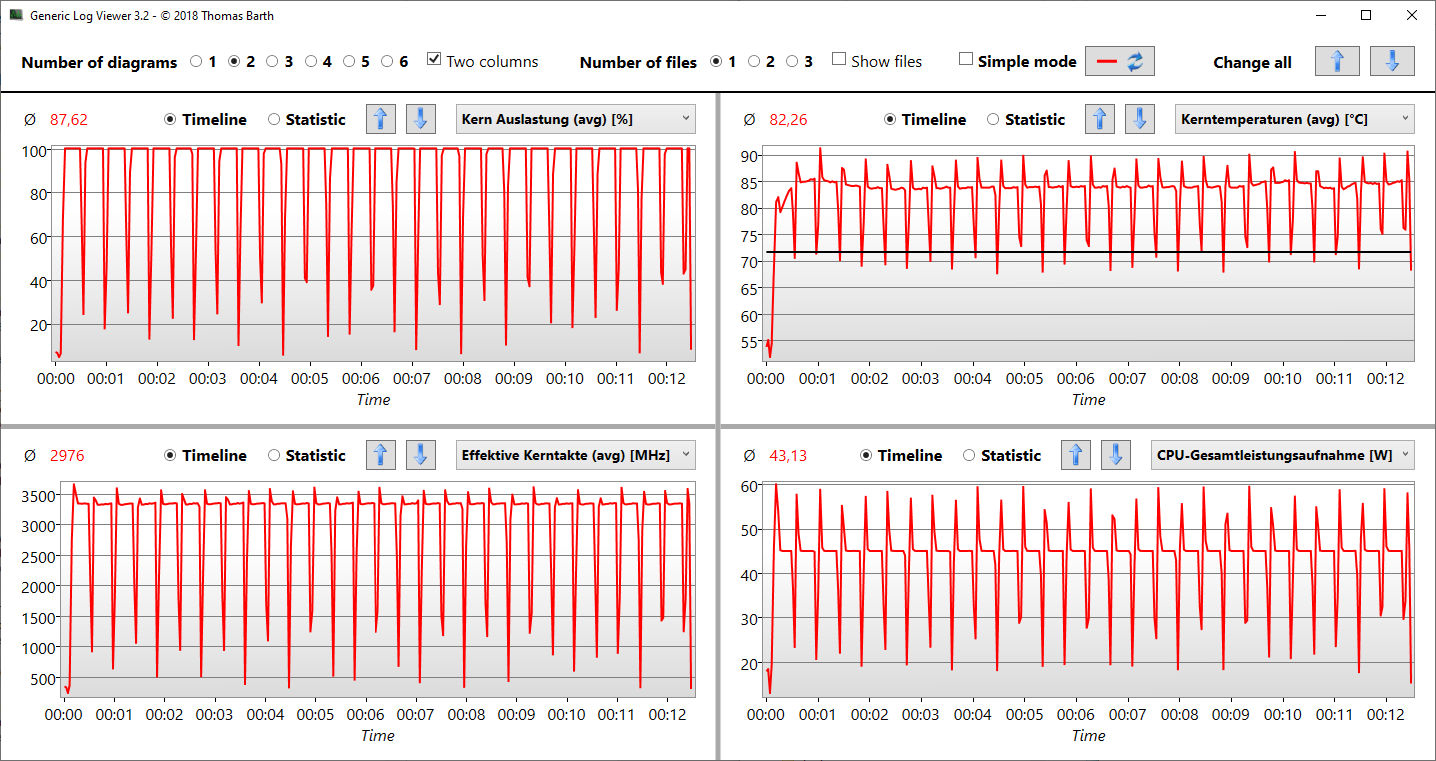

Cinebench R15 Multi endurance test

Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H: Ø1738 (1721.32-1768.58)

Dell XPS 13 9310 OLED Intel Core i7-1185G7: Ø695 (607.28-765.86)

Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7: Ø897 (888.08-962.9)

HP Envy 14-eb0010nr Intel Core i5-1135G7: Ø919 (891.54-924.6)

Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H: Ø1460 (1451.69-1497.57)

Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS: Ø1911 (1860.38-1927.62)

MSI Modern 14 B11SB-085 Intel Core i7-1165G7: Ø771 (684.76-915.3)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Average AMD Ryzen 7 5800H	80.9 pt
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	80.7 pt
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	79.4 pt
Average of class Subnotebook	79.3 pt
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	67 pt
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	56.5 pt
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	55.4 pt
HP Envy 14-eb0010nr Intel Core i5-1135G7	55 pt
Dell XPS 13 9310 OLED Intel Core i7-1185G7	53.1 pt

Cinebench R23 / Multi Core
Average AMD Ryzen 7 5800H (8812 - 13214, n=29)	11794 Points +8%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	11426 Points +4%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	10936 Points
Average of class Subnotebook (2485 - 16201, n=68, last 2 years)	10289 Points -6%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	8276 Points -24%
HP Envy 14-eb0010nr Intel Core i5-1135G7	6136 (5867.5^min - 6136.37^max) Points -44%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	6110 Points -44%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	5590 Points -49%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	5013 (4398.92^min - 5012.66^max) Points -54%

Cinebench R23 / Single Core
Average of class Subnotebook (598 - 1934, n=68, last 2 years)	1627 Points +15%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	1500 Points +6%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	1468 Points +4%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	1457 Points +3%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	1455 Points +3%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	1413 Points
Average AMD Ryzen 7 5800H (1294 - 1441, n=29)	1410 Points 0%
HP Envy 14-eb0010nr Intel Core i5-1135G7	1337 Points -5%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	1316 Points -7%

Cinebench R20 / CPU (Multi Core)
Average AMD Ryzen 7 5800H (3430 - 5020, n=31)	4568 Points +8%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	4414 Points +4%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	4235 Points
Average of class Subnotebook (810 - 6314, n=64, last 2 years)	3963 Points -6%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	3316 Points -22%
HP Envy 14-eb0010nr Intel Core i5-1135G7	2382 Points -44%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	2361 Points -44%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	2108 Points -50%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	1873 Points -56%

Cinebench R20 / CPU (Single Core)
Average of class Subnotebook (216 - 738, n=64, last 2 years)	610 Points +11%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	581 Points +6%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	575 Points +5%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	562 Points +2%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	556 Points +1%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	550 Points
Average AMD Ryzen 7 5800H (502 - 560, n=30)	550 Points 0%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	528 Points -4%
HP Envy 14-eb0010nr Intel Core i5-1135G7	503 Points -9%

Cinebench R15 / CPU Multi 64Bit
Average AMD Ryzen 7 5800H (1487 - 2119, n=28)	1963 Points +11%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	1927 (1860.38^min - 1927^max) Points +9%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	1768 Points
Average of class Subnotebook (514 - 2581, n=70, last 2 years)	1757 Points -1%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	1498 (1451.69^min - 1497.57^max) Points -15%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	963 (888.08^min - 962.9^max) Points -46%
HP Envy 14-eb0010nr Intel Core i5-1135G7	925 (891.54^min - 924.6^max) Points -48%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	915 Points -48%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	766 (607.28^min - 765.86^max) Points -57%

Cinebench R15 / CPU Single 64Bit
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	238 Points +8%
Average of class Subnotebook (91.8 - 280, n=62, last 2 years)	237 Points +8%
Average AMD Ryzen 7 5800H (209 - 234, n=29)	228 Points +4%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	221 Points 0%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	220 Points
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	218 Points -1%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	216 Points -2%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	202 Points -8%
HP Envy 14-eb0010nr Intel Core i5-1135G7	198 Points -10%

Blender / v2.79 BMW27 CPU
Dell XPS 13 9310 OLED Intel Core i7-1185G7	637 Seconds * -128%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	543 Seconds * -95%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	525 Seconds * -88%
HP Envy 14-eb0010nr Intel Core i5-1135G7	499 Seconds * -79%
Average of class Subnotebook (201 - 1600, n=66, last 2 years)	386 Seconds * -38%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	341 Seconds * -22%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	305 Seconds * -9%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	279 Seconds *
Average AMD Ryzen 7 5800H (237 - 340, n=29)	260 Seconds * +7%

7-Zip 18.03 / 7z b 4
Average AMD Ryzen 7 5800H (45773 - 59986, n=28)	54117 MIPS +3%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	52732 MIPS
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	47553 MIPS -10%
Average of class Subnotebook (16223 - 67444, n=57, last 2 years)	44459 MIPS -16%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	41459 MIPS -21%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	26210 MIPS -50%
HP Envy 14-eb0010nr Intel Core i5-1135G7	24188 MIPS -54%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	24151 MIPS -54%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	18812 MIPS -64%

7-Zip 18.03 / 7z b 4 -mmt1
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	5540 MIPS +3%
Average AMD Ryzen 7 5800H (5038 - 5632, n=29)	5472 MIPS +1%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	5402 MIPS
Average of class Subnotebook (2197 - 6403, n=58, last 2 years)	5328 MIPS -1%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	5274 MIPS -2%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	5225 MIPS -3%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	4943 MIPS -8%
HP Envy 14-eb0010nr Intel Core i5-1135G7	4694 MIPS -13%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	3678 MIPS -32%

Geekbench 5.5 / Multi-Core
Average of class Subnotebook (4274 - 12580, n=65, last 2 years)	9084 Points +13%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	8053 Points
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	7867 Points -2%
Average AMD Ryzen 7 5800H (6551 - 9062, n=28)	7793 Points -3%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	6084 Points -24%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	5771 Points -28%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	5626 Points -30%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	4213 Points -48%
HP Envy 14-eb0010nr Intel Core i5-1135G7	4695 Points -42%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	4693 Points -42%

Geekbench 5.5 / Single-Core
Average of class Subnotebook (672 - 2350, n=65, last 2 years)	1701 Points +17%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	1541 Points +6%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	1514 Points +4%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	1498 Points +3%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	1478 Points +1%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	1497 Points +3%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	1459 Points
Average AMD Ryzen 7 5800H (1336 - 1505, n=28)	1450 Points -1%
HP Envy 14-eb0010nr Intel Core i5-1135G7	1406 Points -4%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	1390 Points -5%

HWBOT x265 Benchmark v2.2 / 4k Preset
Average AMD Ryzen 7 5800H (11.6 - 16.1, n=29)	14.5 fps +5%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	13.8 fps
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	12.7 fps -8%
Average of class Subnotebook (1.5 - 19.4, n=56, last 2 years)	11.9 fps -14%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	11.3 fps -18%
HP Envy 14-eb0010nr Intel Core i5-1135G7	7.6 fps -45%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	7.57 fps -45%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	6.73 fps -51%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	6.34 fps -54%

LibreOffice / 20 Documents To PDF
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	74.1 s * -39%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	67.3 s * -26%
Average AMD Ryzen 7 5800H (47.4 - 113, n=29)	64.3 s * -21%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	53.3 s *
Average of class Subnotebook (40.1 - 120.5, n=57, last 2 years)	52.6 s * +1%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	51.4 s * +4%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	50.7 s * +5%
HP Envy 14-eb0010nr Intel Core i5-1135G7	49.6 s * +7%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	43.2 s * +19%

R Benchmark 2.5 / Overall mean
HP Envy 14-eb0010nr Intel Core i5-1135G7	0.634 sec * -21%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7	0.624 sec * -19%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H	0.596 sec * -14%
Dell XPS 13 9310 OLED Intel Core i7-1185G7	0.594 sec * -13%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7	0.585 sec * -12%
Average AMD Ryzen 7 5800H (0.511 - 0.559, n=28)	0.525 sec * -0%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H	0.524 sec *
Average of class Subnotebook (0.4397 - 1.236, n=57, last 2 years)	0.52 sec * +1%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS	0.511 sec * +2%

* ... smaller is better

Cinebench R15 CPU Single 64Bit

220 Points

Cinebench R15 CPU Multi 64Bit

1768 Points

Cinebench R15 OpenGL 64Bit

89.65 fps

Cinebench R15 Ref. Match 64Bit

98 %

Help

... in comparison

Performance Rating
Average AMD Ryzen 7 5800H	94.2 pt
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	91.6 pt
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	90.6 pt
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	72.5 pt
Average of class Subnotebook	71 pt
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	57 pt
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	44.2 pt
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	42.4 pt

AIDA64 / FP32 Ray-Trace
Average AMD Ryzen 7 5800H (10349 - 15169, n=29)	13933 KRay/s +8%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	12925 KRay/s 0%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	12901 KRay/s
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	10854 KRay/s -16%
Average of class Subnotebook (343 - 25961, n=57, last 2 years)	10054 KRay/s -22%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	7770 KRay/s -40%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	7013 KRay/s -46%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	5909 KRay/s -54%

AIDA64 / FPU Julia
Average AMD Ryzen 7 5800H (63663 - 95954, n=29)	87478 Points +6%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	83152 Points +1%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	82243 Points
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	66913 Points -19%
Average of class Subnotebook (11867 - 111109, n=57, last 2 years)	52488 Points -36%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	31615 Points -62%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	29371 Points -64%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	23248 Points -72%

AIDA64 / CPU SHA3
Average AMD Ryzen 7 5800H (2096 - 3287, n=29)	2979 MB/s +7%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	2863 MB/s +2%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	2795 MB/s
Average of class Subnotebook (453 - 4646, n=57, last 2 years)	2361 MB/s -16%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	2284 MB/s -18%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	2159 MB/s -23%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	1916 MB/s -31%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	1530 MB/s -45%

AIDA64 / CPU Queen
Average AMD Ryzen 7 5800H (91846 - 99215, n=29)	95793 Points +2%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	94614 Points +1%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	93584 Points
Average of class Subnotebook (15447 - 115300, n=57, last 2 years)	79878 Points -15%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	73483 Points -21%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	50107 Points -46%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	47827 Points -49%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	44677 Points -52%

AIDA64 / FPU SinJulia
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	11747 Points +3%
Average AMD Ryzen 7 5800H (9962 - 11871, n=29)	11517 Points +1%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	11412 Points
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	8490 Points -26%
Average of class Subnotebook (1223 - 14944, n=57, last 2 years)	7617 Points -33%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	4790 Points -58%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	4565 Points -60%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	4063 Points -64%

AIDA64 / FPU Mandel
Average AMD Ryzen 7 5800H (36083 - 52732, n=29)	48035 Points +6%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	45310 Points
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	45121 Points 0%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	36796 Points -19%
Average of class Subnotebook (6379 - 59053, n=57, last 2 years)	27533 Points -39%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	19071 Points -58%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	17773 Points -61%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	14612 Points -68%

AIDA64 / CPU AES
Average AMD Ryzen 7 5800H (50226 - 127832, n=29)	114346 MB/s +3%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	113708 MB/s +2%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	111310 MB/s
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	88982 MB/s -20%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	73360 MB/s -34%
Average of class Subnotebook (638 - 161430, n=57, last 2 years)	53217 MB/s -52%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	52436 MB/s -53%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	41563 MB/s -63%

AIDA64 / CPU ZLib
Average AMD Ryzen 7 5800H (591 - 828, n=29)	768 MB/s +7%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	743 MB/s +4%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	717 MB/s
Average of class Subnotebook (270 - 1123, n=57, last 2 years)	666 MB/s -7%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	567 MB/s -21%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	395 MB/s -45%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	334 MB/s -53%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	258 MB/s -64%

AIDA64 / FP64 Ray-Trace
Average AMD Ryzen 7 5800H (5457 - 7884, n=29)	7343 KRay/s +6%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	7060 KRay/s +2%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	6936 KRay/s
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	5762 KRay/s -17%
Average of class Subnotebook (204 - 14018, n=57, last 2 years)	5239 KRay/s -24%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	4189 KRay/s -40%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	3711 KRay/s -46%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	3272 KRay/s -53%

AIDA64 / CPU PhotoWorxx
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	40335 MPixel/s +97%
Average of class Subnotebook (7622 - 53954, n=57, last 2 years)	35760 MPixel/s +75%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	27619 MPixel/s +35%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	20467 MPixel/s
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	19116 MPixel/s -7%
Average AMD Ryzen 7 5800H (14445 - 25421, n=29)	17883 MPixel/s -13%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	15359 MPixel/s -25%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	15096 MPixel/s -26%

系统性能

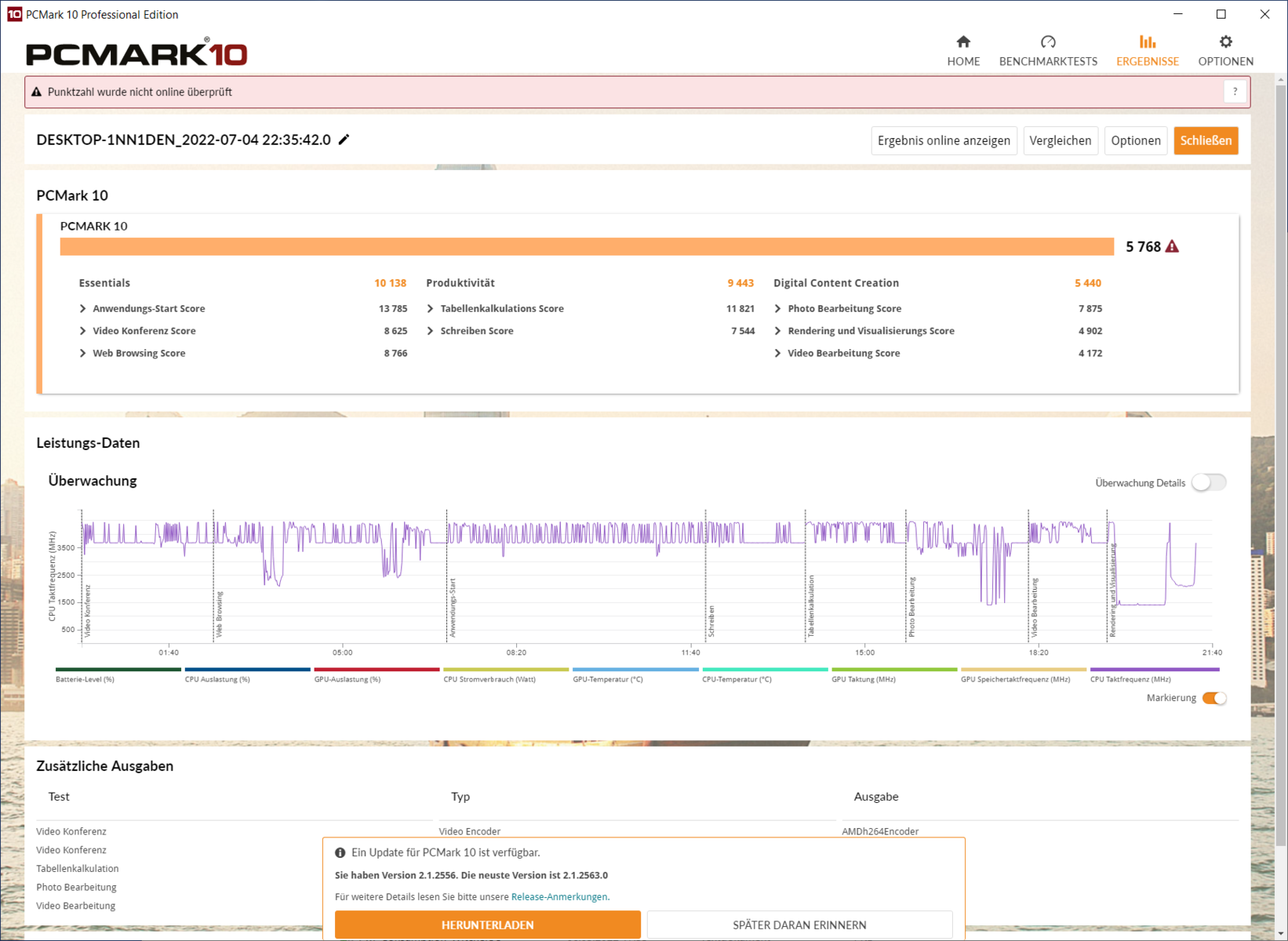

根据PCMark 10，Zenbook 14X在应用性能方面处于最顶端，它甚至可以在生产力方面领先于AMD Ryzen 9和XPS 13，占据首位。这不一定是英特尔670p固态硬盘的功劳，下面关于固态硬盘的部分将显示。

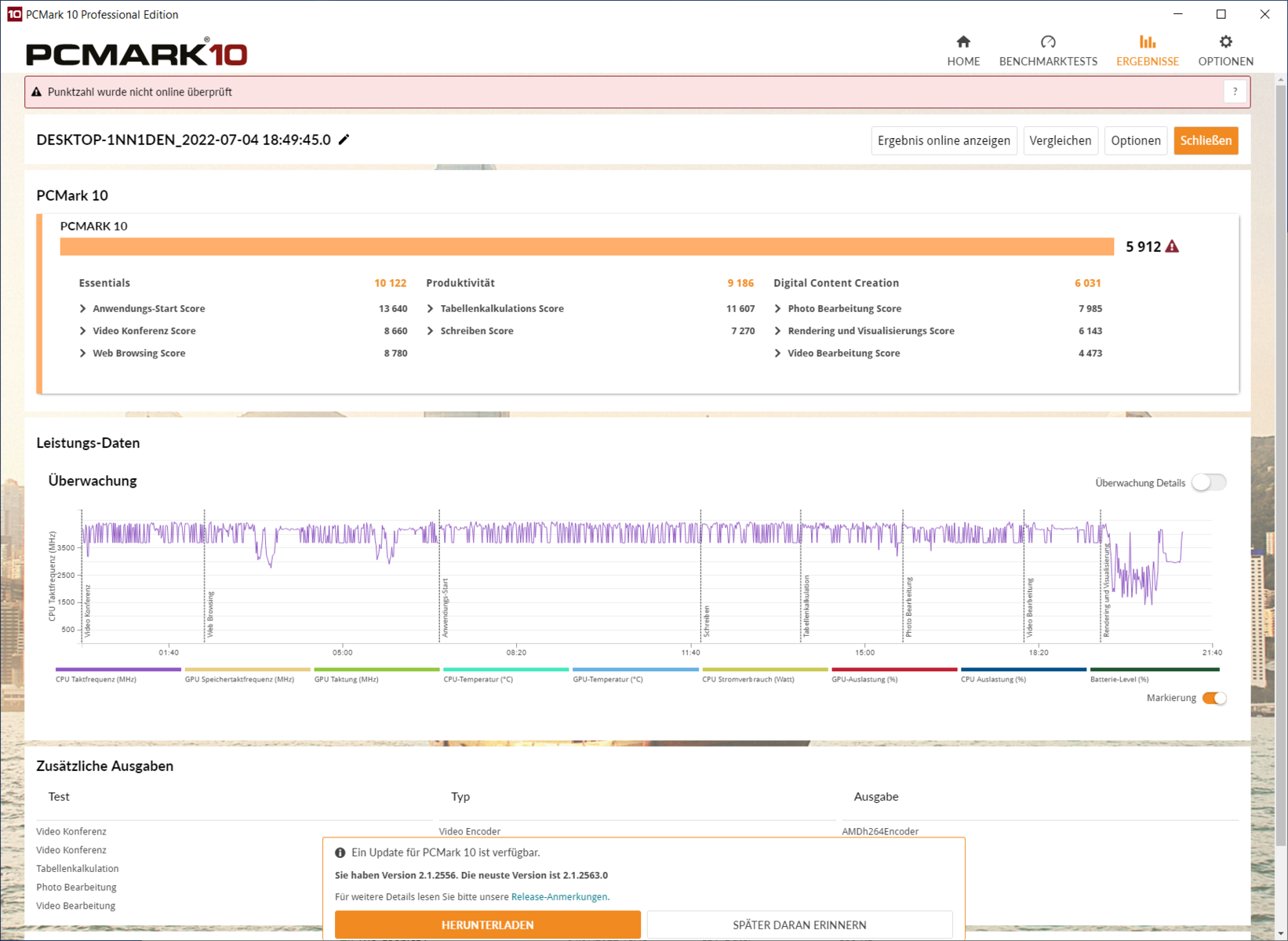

PCMark 10 / Score
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (5989 - 6365, n=5)	6117 Points +2%
Asus ZenBook 14X UM5401QA-KN162 Vega 8, R7 5800H, Intel SSD 670p SSDPEKNU512GZ	5989 Points
Average of class Subnotebook (4384 - 7428, n=55, last 2 years)	5879 Points -2%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 GeForce MX450, R9 5900HS, SK Hynix PC711 1TB HFS001TDE9X084N	5844 Points -2%
Asus Vivobook Pro 14 M3401QC-KM007T GeForce RTX 3050 4GB Laptop GPU, R5 5600H, Intel SSD 670p SSDPEKNU512GZ	5748 Points -4%
Asus ZenBook 14X OLED UX5400EA-L7154W GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	5554 Points -7%
HP Envy 14-eb0010nr GeForce GTX 1650 Ti Max-Q, i5-1135G7, Samsung SSD PM981a MZVLB256HBHQ	5410 Points -10%
Dell XPS 13 9310 OLED Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G	5226 Points -13%
MSI Modern 14 B11SB-085 GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB	4823 Points -19%

PCMark 10 / Essentials
Dell XPS 13 9310 OLED Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G	10492 Points +4%
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (10112 - 10690, n=5)	10320 Points +2%
Average of class Subnotebook (8890 - 11168, n=55, last 2 years)	10247 Points +1%
Asus ZenBook 14X UM5401QA-KN162 Vega 8, R7 5800H, Intel SSD 670p SSDPEKNU512GZ	10112 Points
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 GeForce MX450, R9 5900HS, SK Hynix PC711 1TB HFS001TDE9X084N	9941 Points -2%
Asus Vivobook Pro 14 M3401QC-KM007T GeForce RTX 3050 4GB Laptop GPU, R5 5600H, Intel SSD 670p SSDPEKNU512GZ	9372 Points -7%
Asus ZenBook 14X OLED UX5400EA-L7154W GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	9226 Points -9%
HP Envy 14-eb0010nr GeForce GTX 1650 Ti Max-Q, i5-1135G7, Samsung SSD PM981a MZVLB256HBHQ	9036 Points -11%
MSI Modern 14 B11SB-085 GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB	8088 Points -20%

PCMark 10 / Productivity
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (9198 - 9729, n=5)	9342 Points +1%
Asus ZenBook 14X UM5401QA-KN162 Vega 8, R7 5800H, Intel SSD 670p SSDPEKNU512GZ	9248 Points
Asus ZenBook 14X OLED UX5400EA-L7154W GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	9211 Points 0%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 GeForce MX450, R9 5900HS, SK Hynix PC711 1TB HFS001TDE9X084N	8555 Points -7%
HP Envy 14-eb0010nr GeForce GTX 1650 Ti Max-Q, i5-1135G7, Samsung SSD PM981a MZVLB256HBHQ	8342 Points -10%
Asus Vivobook Pro 14 M3401QC-KM007T GeForce RTX 3050 4GB Laptop GPU, R5 5600H, Intel SSD 670p SSDPEKNU512GZ	7975 Points -14%
Average of class Subnotebook (6213 - 10279, n=55, last 2 years)	7857 Points -15%
MSI Modern 14 B11SB-085 GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB	7826 Points -15%
Dell XPS 13 9310 OLED Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G	6964 Points -25%

PCMark 10 / Digital Content Creation
Average of class Subnotebook (4093 - 9749, n=55, last 2 years)	6923 Points +11%
Asus Vivobook Pro 14 M3401QC-KM007T GeForce RTX 3050 4GB Laptop GPU, R5 5600H, Intel SSD 670p SSDPEKNU512GZ	6897 Points +11%
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (6236 - 6730, n=5)	6444 Points +3%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 GeForce MX450, R9 5900HS, SK Hynix PC711 1TB HFS001TDE9X084N	6371 Points +2%
Asus ZenBook 14X UM5401QA-KN162 Vega 8, R7 5800H, Intel SSD 670p SSDPEKNU512GZ	6236 Points
HP Envy 14-eb0010nr GeForce GTX 1650 Ti Max-Q, i5-1135G7, Samsung SSD PM981a MZVLB256HBHQ	5701 Points -9%
Asus ZenBook 14X OLED UX5400EA-L7154W GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	5472 Points -12%
Dell XPS 13 9310 OLED Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G	5304 Points -15%
MSI Modern 14 B11SB-085 GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB	4812 Points -23%

CrossMark / Overall
Average of class Subnotebook (718 - 1876, n=61, last 2 years)	1553 Points +14%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 GeForce MX450, R9 5900HS, SK Hynix PC711 1TB HFS001TDE9X084N	1414 Points +4%
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1352 - 1429, n=3)	1382 Points +1%
Asus ZenBook 14X UM5401QA-KN162 Vega 8, R7 5800H, Intel SSD 670p SSDPEKNU512GZ	1366 Points
Asus Vivobook Pro 14 M3401QC-KM007T GeForce RTX 3050 4GB Laptop GPU, R5 5600H, Intel SSD 670p SSDPEKNU512GZ	1295 Points -5%
Asus ZenBook 14X OLED UX5400EA-L7154W GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	1225 Points -10%

CrossMark / Productivity
Average of class Subnotebook (685 - 1829, n=61, last 2 years)	1507 Points +11%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 GeForce MX450, R9 5900HS, SK Hynix PC711 1TB HFS001TDE9X084N	1445 Points +6%
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1356 - 1408, n=3)	1375 Points +1%
Asus ZenBook 14X UM5401QA-KN162 Vega 8, R7 5800H, Intel SSD 670p SSDPEKNU512GZ	1362 Points
Asus Vivobook Pro 14 M3401QC-KM007T GeForce RTX 3050 4GB Laptop GPU, R5 5600H, Intel SSD 670p SSDPEKNU512GZ	1333 Points -2%
Asus ZenBook 14X OLED UX5400EA-L7154W GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	1279 Points -6%

CrossMark / Creativity
Average of class Subnotebook (776 - 2210, n=61, last 2 years)	1690 Points +16%
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1444 - 1523, n=3)	1473 Points +1%
Asus ZenBook 14X UM5401QA-KN162 Vega 8, R7 5800H, Intel SSD 670p SSDPEKNU512GZ	1453 Points
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 GeForce MX450, R9 5900HS, SK Hynix PC711 1TB HFS001TDE9X084N	1436 Points -1%
Asus Vivobook Pro 14 M3401QC-KM007T GeForce RTX 3050 4GB Laptop GPU, R5 5600H, Intel SSD 670p SSDPEKNU512GZ	1320 Points -9%
Asus ZenBook 14X OLED UX5400EA-L7154W GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	1235 Points -15%

CrossMark / Responsiveness
Average of class Subnotebook (652 - 1899, n=61, last 2 years)	1329 Points +16%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 GeForce MX450, R9 5900HS, SK Hynix PC711 1TB HFS001TDE9X084N	1262 Points +10%
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1105 - 1233, n=3)	1161 Points +1%
Asus ZenBook 14X UM5401QA-KN162 Vega 8, R7 5800H, Intel SSD 670p SSDPEKNU512GZ	1144 Points
Asus Vivobook Pro 14 M3401QC-KM007T GeForce RTX 3050 4GB Laptop GPU, R5 5600H, Intel SSD 670p SSDPEKNU512GZ	1120 Points -2%
Asus ZenBook 14X OLED UX5400EA-L7154W GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	1049 Points -8%

PCMark 10 Score		5989 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	64185 MB/s +70%
Average of class Subnotebook (22781 - 95353, n=57, last 2 years)	61239 MB/s +62%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	57332 MB/s +51%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	39645 MB/s +5%
Average AMD Ryzen 7 5800H (34964 - 44180, n=29)	39512 MB/s +4%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	38060 MB/s +1%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	37858 MB/s
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	21114 MB/s -44%

AIDA64 / Memory Read
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	60706 MB/s +53%
Average of class Subnotebook (23831 - 86433, n=57, last 2 years)	57245 MB/s +45%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	52798 MB/s +34%
Average AMD Ryzen 7 5800H (39548 - 47260, n=29)	44498 MB/s +13%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	43129 MB/s +9%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	40111 MB/s +1%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	39548 MB/s
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	23314 MB/s -41%

AIDA64 / Memory Write
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	66169 MB/s +107%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	65335 MB/s +104%
Average of class Subnotebook (23474 - 93382, n=57, last 2 years)	64603 MB/s +102%
Average AMD Ryzen 7 5800H (28456 - 47022, n=29)	37769 MB/s +18%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	36826 MB/s +15%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	34613 MB/s +8%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	32005 MB/s
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	22327 MB/s -30%

AIDA64 / Memory Latency
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Iris Xe G7 96EUs	117 ns * -17%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, GeForce MX450	105.2 ns * -5%
Average of class Subnotebook (18.8 - 172, n=52, last 2 years)	104 ns * -4%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, GeForce MX450	101 ns * -1%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, Vega 8	99.9 ns *
Average AMD Ryzen 7 5800H (76.3 - 105.1, n=29)	83.3 ns * +17%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, GeForce RTX 3050 4GB Laptop GPU	81 ns * +19%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, GeForce MX450	75.3 ns * +25%

* ... smaller is better

DPC延迟

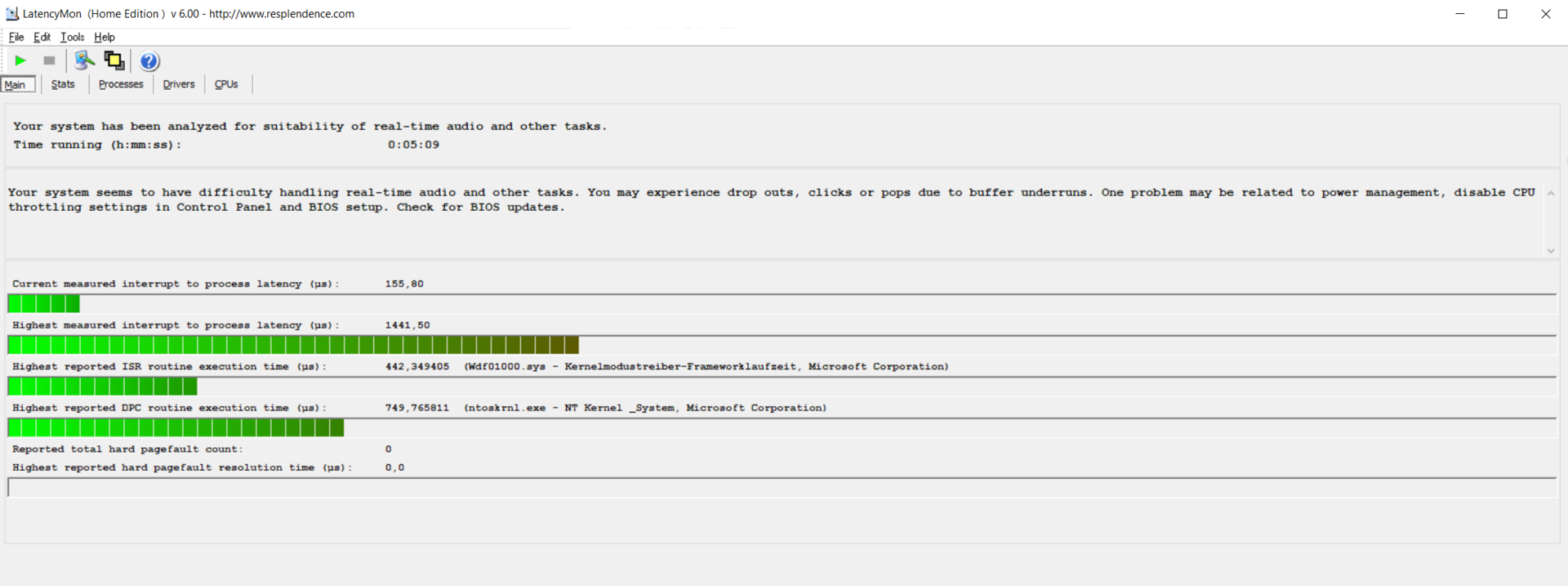

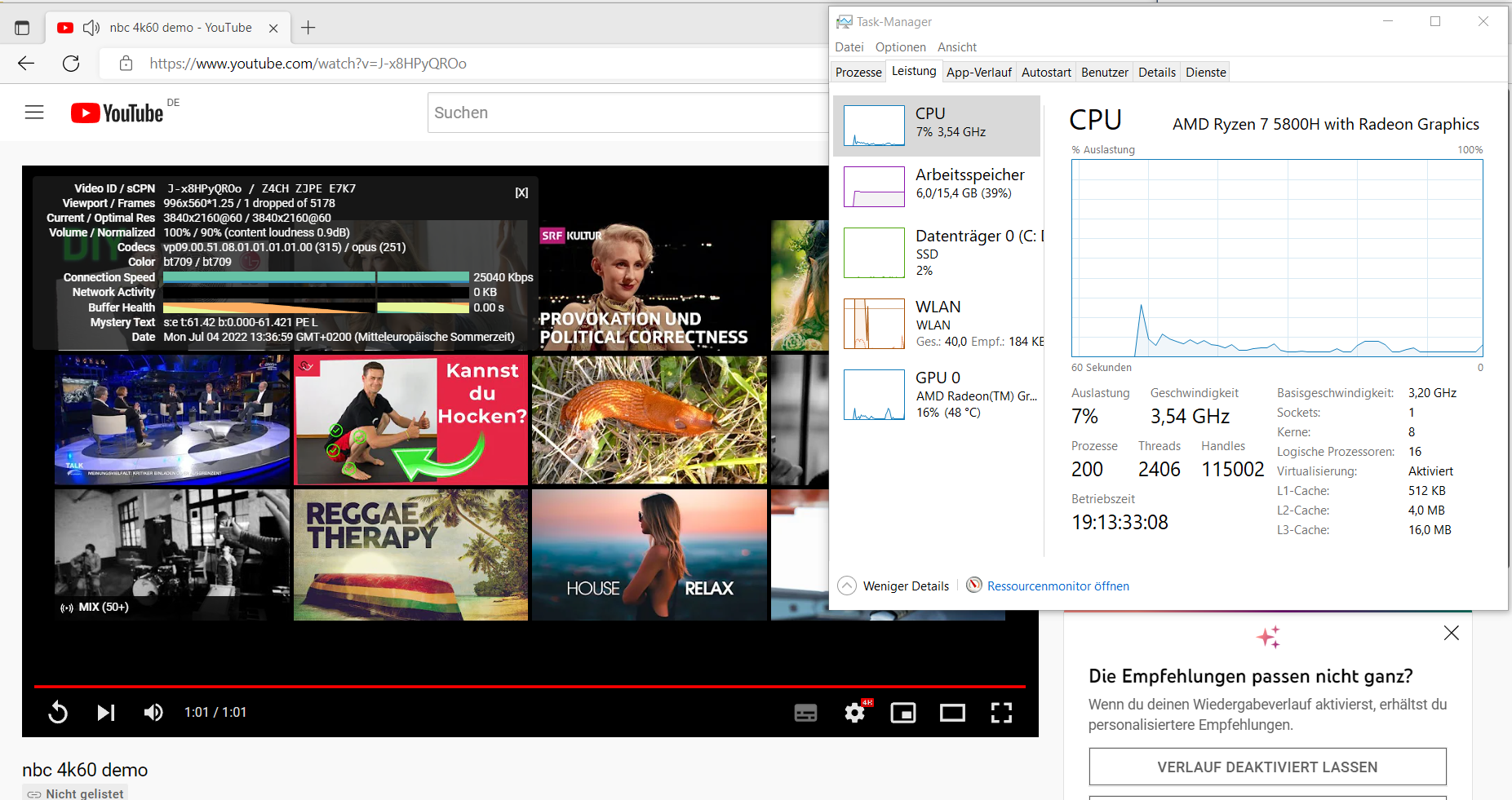

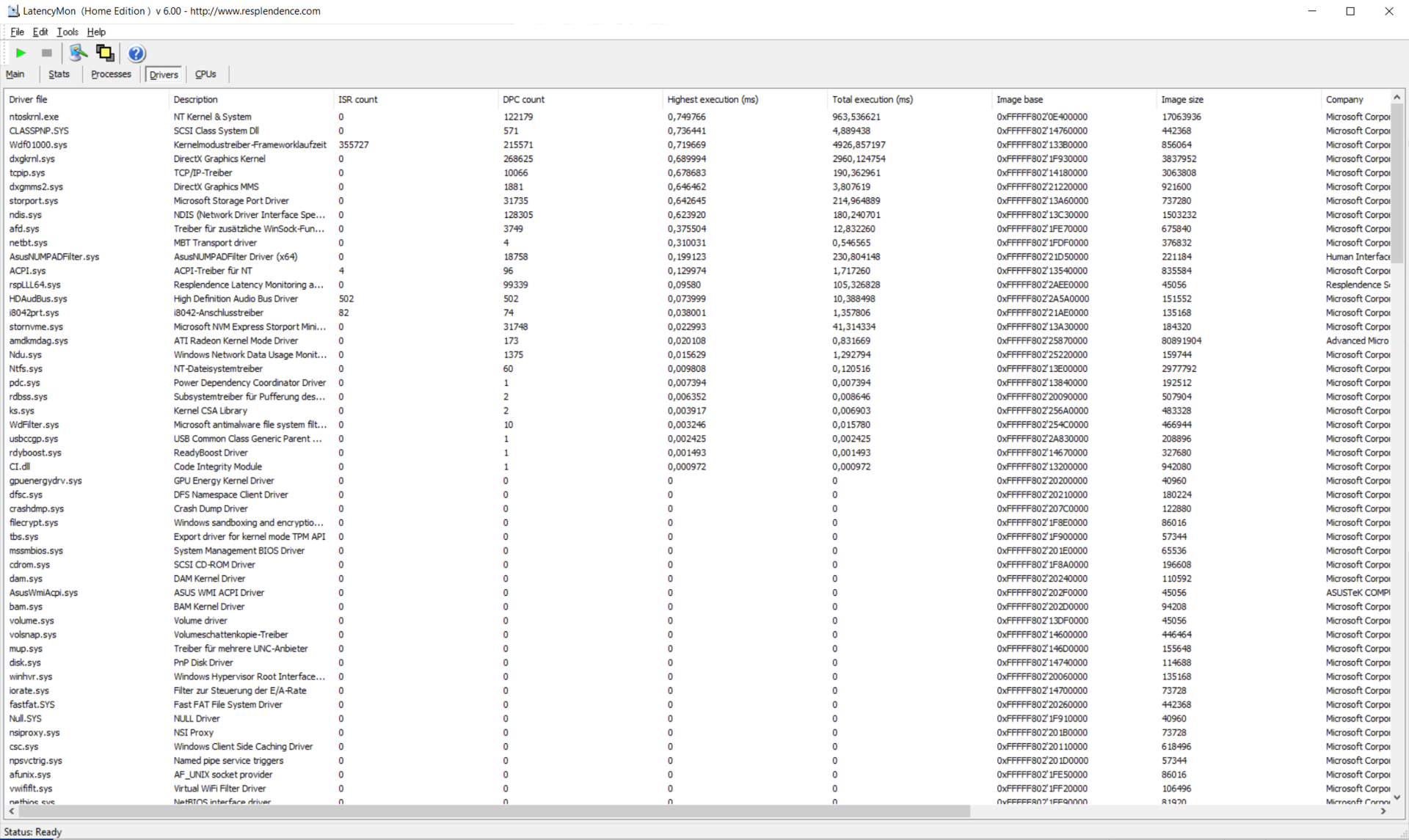

用LatencyMon进行的延迟测试的结果是略低于两毫秒的延迟。因此，在我们测试的硬件和软件配置中，笔记本电脑有能力处理实时应用。在播放我们的4K 60 Hz YouTube测试视频时，只有一帧被丢弃。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP Envy 14-eb0010nr GeForce GTX 1650 Ti Max-Q, i5-1135G7, Samsung SSD PM981a MZVLB256HBHQ	3239 μs * -125%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 GeForce MX450, R9 5900HS, SK Hynix PC711 1TB HFS001TDE9X084N	2646 μs * -84%
Asus ZenBook 14X OLED UX5400EA-L7154W GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	2196 μs * -52%
Asus ZenBook 14X UM5401QA-KN162 Vega 8, R7 5800H, Intel SSD 670p SSDPEKNU512GZ	1441 μs *
Dell XPS 13 9310 OLED Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G	1059 μs * +27%
Asus Vivobook Pro 14 M3401QC-KM007T GeForce RTX 3050 4GB Laptop GPU, R5 5600H, Intel SSD 670p SSDPEKNU512GZ	987.7 μs * +31%
MSI Modern 14 B11SB-085 GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB	973 μs * +32%

* ... smaller is better

储存

内置的英特尔670p固态硬盘排名在中游。在我们的SSD和HDD的基准表中，英特尔SSD占据了较低的位置之一。

AS SSD

DiskSpd

Intel SSD 670p SSDPEKNU512GZ

Sequential Read: 2521MB/s

Sequential Write: 1038MB/s

4K Read: 56.55MB/s

4K Write: 139.46MB/s

4K-64 Read: 448.93MB/s

4K-64 Write: 1185MB/s

Access Time Read: 0.096ms

Access Time Write: 0.034ms

Score Read: 758Points

Score Write: 1428Points

Score Total: 2519Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	82.6 pt
Average of class Subnotebook	71.3 pt
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	57.4 pt
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	49.4 pt
Average Intel SSD 670p SSDPEKNU512GZ	48.7 pt
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	48.1 pt
Asus ZenBook 14X OLED UX5400EA-L7154W ^-1! Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	45.8 pt
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	44.1 pt
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	43 pt

DiskSpd
seq read
Average of class Subnotebook (452 - 4501, n=58, last 2 years)	2872 MB/s +29%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	2237 (2200.54^min - 2236.82^max) MB/s 0%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	2233 (2191.31^min - 2233.19^max) MB/s
Average Intel SSD 670p SSDPEKNU512GZ (1629 - 2549, n=10)	2206 MB/s -1%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	2047 (1984.31^min - 2046.51^max) MB/s -8%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	1905 (1896.24^min - 1905.26^max) MB/s -15%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	1874 (1863.32^min - 1874.22^max) MB/s -16%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	1370 (894.76^min - 1370.29^max) MB/s -39%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	1208 (1142.95^min - 1208.38^max) MB/s -46%
seq write
Average of class Subnotebook (153.3 - 5344, n=58, last 2 years)	2808 MB/s +70%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	2237 (2148.74^min - 2237.03^max) MB/s +35%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	1926 (1895.18^min - 1925.89^max) MB/s +16%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	1706 (1656.37^min - 1706.24^max) MB/s +3%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	1675 (1661.96^min - 1674.57^max) MB/s +1%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	1654 (1644.44^min - 1654.23^max) MB/s
Average Intel SSD 670p SSDPEKNU512GZ (1586 - 1675, n=10)	1636 MB/s -1%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	1032 (1013.97^min - 1032.19^max) MB/s -38%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	1001 (967.63^min - 1001.07^max) MB/s -39%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	969 (957.77^min - 969.09^max) MB/s -41%
seq q8 t1 read
Average of class Subnotebook (558 - 7134, n=58, last 2 years)	4958 MB/s +63%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	3542 (2982.57^min - 3541.88^max) MB/s +17%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	3379 (3093.19^min - 3379.09^max) MB/s +11%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	3261 (2825.7^min - 3261.07^max) MB/s +8%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	3033 (2120.17^min - 3032.71^max) MB/s
Average Intel SSD 670p SSDPEKNU512GZ (2132 - 3041, n=10)	2684 MB/s -12%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	2617 (2262.95^min - 2617.24^max) MB/s -14%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	1983 (135.69^min - 1982.86^max) MB/s -35%
seq q8 t1 write
Average of class Subnotebook (60 - 6751, n=58, last 2 years)	3775 MB/s +128%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	3261 (3225.63^min - 3261.07^max) MB/s +97%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	2544 (2480.09^min - 2543.64^max) MB/s +54%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	2342 (2272.54^min - 2342.38^max) MB/s +41%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	1777 (1729^min - 1776.93^max) MB/s +7%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	1688 (1666.37^min - 1687.79^max) MB/s +2%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	1656 (1643.19^min - 1656.37^max) MB/s
Average Intel SSD 670p SSDPEKNU512GZ (1621 - 1688, n=10)	1650 MB/s 0%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	970 (966.16^min - 970.2^max) MB/s -41%
4k q1 t1 read
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	141.9 (51.37^min - 141.93^max) MB/s +138%
Average Intel SSD 670p SSDPEKNU512GZ (55.2 - 86.1, n=10)	71.1 MB/s +19%
Average of class Subnotebook (12.6 - 88.6, n=58, last 2 years)	61.6 MB/s +3%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	60.5 (60.22^min - 60.48^max) MB/s +1%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	59.7 (59.29^min - 59.71^max) MB/s
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	57.8 (57.74^min - 57.81^max) MB/s -3%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	56.5 (55.75^min - 56.46^max) MB/s -5%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	47.1 (46.59^min - 47.14^max) MB/s -21%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	35.4 (35.31^min - 35.41^max) MB/s -41%
4k q1 t1 write
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	240 (239.19^min - 240.13^max) MB/s +79%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	169 (163.4^min - 169.13^max) MB/s +26%
Average Intel SSD 670p SSDPEKNU512GZ (82.2 - 260, n=10)	169 MB/s +26%
Average of class Subnotebook (22.5 - 360, n=58, last 2 years)	154.8 MB/s +15%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	149 (148.48^min - 149.46^max) MB/s +11%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	134.2 (124.19^min - 134.23^max) MB/s
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	124.2 (123.5^min - 124.16^max) MB/s -7%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	113.1 (112.24^min - 113.09^max) MB/s -16%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	84 (79.02^min - 83.98^max) MB/s -37%
4k q32 t16 read
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	2445 (2440.19^min - 2445.29^max) MB/s +415%
Average of class Subnotebook (283 - 4286, n=58, last 2 years)	1215 MB/s +156%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	739 (720.09^min - 739.43^max) MB/s +56%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	666 (636.69^min - 665.57^max) MB/s +40%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	601 (599.59^min - 601.19^max) MB/s +27%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	477 (476.37^min - 477.47^max) MB/s 0%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	475 (474.46^min - 475.25^max) MB/s
Average Intel SSD 670p SSDPEKNU512GZ (466 - 481, n=10)	475 MB/s 0%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	301 (262.87^min - 300.79^max) MB/s -37%
4k q32 t16 write
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	2073 (2059.51^min - 2072.78^max) MB/s +337%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	971 (955.16^min - 970.55^max) MB/s +105%
Average of class Subnotebook (157 - 4189, n=58, last 2 years)	869 MB/s +83%
Average Intel SSD 670p SSDPEKNU512GZ (221 - 1306, n=10)	828 MB/s +75%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	506 (494.75^min - 505.64^max) MB/s +7%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	487 (480.67^min - 486.95^max) MB/s +3%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	474 (431.58^min - 473.64^max) MB/s
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	469 (457.84^min - 469.35^max) MB/s -1%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	426 (410.25^min - 425.93^max) MB/s -10%

AS SSD
Score Total
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	6546 Points +160%
Average of class Subnotebook (707 - 8892, n=56, last 2 years)	4437 Points +76%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	3692 Points +47%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	3674 Points +46%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	2525 Points 0%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	2519 Points
Average Intel SSD 670p SSDPEKNU512GZ (1486 - 2597, n=9)	2415 Points -4%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	2228 Points -12%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	2144 Points -15%
Score Read
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	2309 Points +205%
Average of class Subnotebook (253 - 3307, n=56, last 2 years)	1464 Points +93%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	1416 Points +87%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	1212 Points +60%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	857 Points +13%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	758 Points
Average Intel SSD 670p SSDPEKNU512GZ (669 - 801, n=9)	758 Points 0%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	722 Points -5%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	655 Points -14%
Score Write
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	3060 Points +114%
Average of class Subnotebook (327 - 3972, n=56, last 2 years)	2285 Points +60%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	1864 Points +31%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	1606 Points +12%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	1484 Points +4%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	1428 Points
Average Intel SSD 670p SSDPEKNU512GZ (384 - 1492, n=9)	1310 Points -8%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	1178 Points -18%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	939 Points -34%
Seq Read
Average of class Subnotebook (508 - 5525, n=56, last 2 years)	3827 MB/s +52%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	3006 MB/s +19%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	2694 MB/s +7%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	2525.69 MB/s 0%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	2521 MB/s
Average Intel SSD 670p SSDPEKNU512GZ (1718 - 2736, n=9)	2496 MB/s -1%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	2127 MB/s -16%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	1610 MB/s -36%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	1221 MB/s -52%
Seq Write
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	2886 MB/s +178%
Average of class Subnotebook (386 - 4961, n=56, last 2 years)	2355 MB/s +127%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	1427 MB/s +37%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	1407 MB/s +36%
Average Intel SSD 670p SSDPEKNU512GZ (1021 - 1495, n=9)	1225 MB/s +18%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	1118.9 MB/s +8%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	1038 MB/s
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	931 MB/s -10%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	598 MB/s -42%
4K Read
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	69.7 MB/s +23%
Average Intel SSD 670p SSDPEKNU512GZ (51.7 - 77.9, n=9)	64 MB/s +13%
Average of class Subnotebook (14.8 - 96.2, n=56, last 2 years)	59.4 MB/s +5%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	56.55 MB/s
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	56.06 MB/s -1%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	55.7 MB/s -2%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	54.4 MB/s -4%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	52.5 MB/s -7%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	36.18 MB/s -36%
4K Write
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	195.8 MB/s +40%
Average of class Subnotebook (65.5 - 256, n=56, last 2 years)	173.2 MB/s +24%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	170.5 MB/s +22%
Average Intel SSD 670p SSDPEKNU512GZ (101.8 - 219, n=9)	151.4 MB/s +9%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	144.8 MB/s +4%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	139.46 MB/s
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	135.06 MB/s -3%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	128 MB/s -8%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	122.9 MB/s -12%
4K-64 Read
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	1953 MB/s +335%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	1092 MB/s +143%
Average of class Subnotebook (187.3 - 2682, n=56, last 2 years)	1022 MB/s +128%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	947 MB/s +111%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	664 MB/s +48%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	457.3 MB/s +2%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	448.93 MB/s
Average Intel SSD 670p SSDPEKNU512GZ (413 - 457, n=9)	444 MB/s -1%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	413.48 MB/s -8%
4K-64 Write
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	2627 MB/s +122%
Average of class Subnotebook (223 - 3410, n=56, last 2 years)	1873 MB/s +58%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	1598 MB/s +35%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	1269 MB/s +7%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	1237.33 MB/s +4%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	1185 MB/s
Average Intel SSD 670p SSDPEKNU512GZ (169 - 1237, n=9)	1036 MB/s -13%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	914 MB/s -23%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	751 MB/s -37%
Access Time Read
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	0.137 ms * -43%
Average Intel SSD 670p SSDPEKNU512GZ (0.074 - 0.157, n=9)	0.1071 ms * -12%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	0.096 ms *
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	0.092 ms * +4%
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	0.072 ms * +25%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	0.066 ms * +31%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	0.064 ms * +33%
Average of class Subnotebook (0.021 - 0.257, n=56, last 2 years)	0.06214 ms * +35%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	0.058 ms * +40%
Access Time Write
HP Envy 14-eb0010nr Samsung SSD PM981a MZVLB256HBHQ	0.09 ms * -165%
Average of class Subnotebook (0.016 - 0.523, n=56, last 2 years)	0.07618 ms * -124%
Dell XPS 13 9310 OLED Toshiba XG6 KXG60ZNV512G	0.062 ms * -82%
Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ	0.056 ms * -65%
Average Intel SSD 670p SSDPEKNU512GZ (0.033 - 0.102, n=9)	0.05422 ms * -59%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	0.039 ms * -15%
Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ	0.034 ms *
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N	0.026 ms * +24%
MSI Modern 14 B11SB-085 Kingston OM8PCP3512F-AB	0.019 ms * +44%

* ... smaller is better

Continuous load read: DiskSpd Read Loop, Queue Depth 8

Asus ZenBook 14X UM5401QA-KN162 Intel SSD 670p SSDPEKNU512GZ: Ø3034 (2829.27-3059.29)

Asus ZenBook 14X OLED UX5400EA-L7154W Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H): Ø2868 (1309.67-2927.2)

Asus Vivobook Pro 14 M3401QC-KM007T Intel SSD 670p SSDPEKNU512GZ: Ø2383 (2114.17-2504.18)

Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 SK Hynix PC711 1TB HFS001TDE9X084N: Ø3514 (3381.03-3526.36)

图形卡

AMD Radeon RX Vega 8显卡存在于Ryzen APU（iGPU）中。

内置的Vega 8 iGPU是更强大的iGPU之一，它可以将许多游戏流畅地带到屏幕上--在低分辨率和设置下。以最大速度（1900MHz）长时间运行是可能的--这在我们的TheWitcher 3测试中显示。然而，这只适用于 "性能模式 "配置文件处于激活状态，并且笔记本电脑被插上。基准测试结果与我们迄今为止确定的Vega 8 iGPU的平均值相对应。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Asus Vivobook Pro 14 M3401QC-KM007T NVIDIA GeForce RTX 3050 4GB Laptop GPU, AMD Ryzen 5 5600H	100 pt
HP Envy 14-eb0010nr NVIDIA GeForce GTX 1650 Ti Max-Q, Intel Core i5-1135G7	70.6 pt
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 NVIDIA GeForce MX450, AMD Ryzen 9 5900HS	52 pt
Asus ZenBook 14X OLED UX5400EA-L7154W NVIDIA GeForce MX450, Intel Core i7-1165G7	50.2 pt
Average of class Subnotebook	48.1 pt
MSI Modern 14 B11SB-085 NVIDIA GeForce MX450, Intel Core i7-1165G7	44.6 pt
Dell XPS 13 9310 OLED Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	38.5 pt
Asus ZenBook 14X UM5401QA-KN162 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	35 pt
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.6 pt

3DMark 11 - 1280x720 Performance GPU
Asus Vivobook Pro 14 M3401QC-KM007T NVIDIA GeForce RTX 3050 4GB Laptop GPU, AMD Ryzen 5 5600H	15552 Points +146%
HP Envy 14-eb0010nr NVIDIA GeForce GTX 1650 Ti Max-Q, Intel Core i5-1135G7	11055 Points +75%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 NVIDIA GeForce MX450, AMD Ryzen 9 5900HS	9546 Points +51%
MSI Modern 14 B11SB-085 NVIDIA GeForce MX450, Intel Core i7-1165G7	8435 Points +34%
Average of class Subnotebook (2979 - 16904, n=55, last 2 years)	8227 Points +30%
Asus ZenBook 14X OLED UX5400EA-L7154W NVIDIA GeForce MX450, Intel Core i7-1165G7	8079 Points +28%
Dell XPS 13 9310 OLED Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	6647 Points +5%
Asus ZenBook 14X UM5401QA-KN162 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	6315 Points
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3459 - 7591, n=54)	5910 Points -6%

3DMark
1280x720 Cloud Gate Standard Graphics
Asus Vivobook Pro 14 M3401QC-KM007T NVIDIA GeForce RTX 3050 4GB Laptop GPU, AMD Ryzen 5 5600H	69737 Points +165%
HP Envy 14-eb0010nr NVIDIA GeForce GTX 1650 Ti Max-Q, Intel Core i5-1135G7	51846 Points +97%
Asus ZenBook 14X OLED UX5400EA-L7154W NVIDIA GeForce MX450, Intel Core i7-1165G7	33598 Points +28%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 NVIDIA GeForce MX450, AMD Ryzen 9 5900HS	32959 Points +25%
Average of class Subnotebook (13768 - 65911, n=39, last 2 years)	29386 Points +12%
MSI Modern 14 B11SB-085 NVIDIA GeForce MX450, Intel Core i7-1165G7	27570 Points +5%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13941 - 36134, n=46)	26903 Points +2%
Asus ZenBook 14X UM5401QA-KN162 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	26290 Points
Dell XPS 13 9310 OLED Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	24591 Points -6%
1920x1080 Fire Strike Graphics
Asus Vivobook Pro 14 M3401QC-KM007T NVIDIA GeForce RTX 3050 4GB Laptop GPU, AMD Ryzen 5 5600H	11485 Points +196%
HP Envy 14-eb0010nr NVIDIA GeForce GTX 1650 Ti Max-Q, Intel Core i5-1135G7	8131 Points +110%
Average of class Subnotebook (2837 - 12349, n=59, last 2 years)	6026 Points +55%
Asus ZenBook 14X OLED UX5400EA-L7154W NVIDIA GeForce MX450, Intel Core i7-1165G7	5753 Points +48%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 NVIDIA GeForce MX450, AMD Ryzen 9 5900HS	5540 Points +43%
Dell XPS 13 9310 OLED Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	5191 Points +34%
MSI Modern 14 B11SB-085 NVIDIA GeForce MX450, Intel Core i7-1165G7	4689 Points +21%
Asus ZenBook 14X UM5401QA-KN162 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	3876 Points
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1694 - 5041, n=54)	3676 Points -5%
2560x1440 Time Spy Graphics
Asus Vivobook Pro 14 M3401QC-KM007T NVIDIA GeForce RTX 3050 4GB Laptop GPU, AMD Ryzen 5 5600H	4497 Points +256%
HP Envy 14-eb0010nr NVIDIA GeForce GTX 1650 Ti Max-Q, Intel Core i5-1135G7	2982 Points +136%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 NVIDIA GeForce MX450, AMD Ryzen 9 5900HS	2297 Points +82%
Asus ZenBook 14X OLED UX5400EA-L7154W NVIDIA GeForce MX450, Intel Core i7-1165G7	2276 Points +80%
Average of class Subnotebook (811 - 4773, n=58, last 2 years)	2027 Points +60%
MSI Modern 14 B11SB-085 NVIDIA GeForce MX450, Intel Core i7-1165G7	1968 Points +56%
Dell XPS 13 9310 OLED Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1382 Points +9%
Asus ZenBook 14X UM5401QA-KN162 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1263 Points
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (540 - 1557, n=54)	1156 Points -8%

3DMark 11 Performance		6542 points
3DMark Cloud Gate Standard Score		23278 points
3DMark Fire Strike Score		3554 points
3DMark Time Spy Score		1444 points
Help

... in comparison

游戏性能

在像《东京幽灵》这样的现代游戏中，FPS下降到了膝盖，在低设置下甚至不可能有可玩的速率。在较早的作品中，情况有所不同；在全高清分辨率下使用中等设置时，最多可以达到25至35FPS。Radeon iGPU的性能对其设计来说是平均水平。对这一点不满意的用户可以考虑英特尔14X兄弟姐妹机型的MX450，或华硕的 Vivobook Pro 14 M3401QC，它没有那么苗条，但它确实配备了OLED面板。

The Witcher 3 | GTA V | Far Cry 5 | Strange Brigade | Ghostwire Tokyo

The Witcher 3
1024x768 Low Graphics & Postprocessing
HP Envy 14-eb0010nr Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q	156.8 (144^min) fps +130%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, NVIDIA GeForce MX450	140 fps +106%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450	103 (11.1^min, 31.1^P0.1, 58^P1) fps +51%
Average of class Subnotebook (37 - 249, n=53, last 2 years)	102.1 fps +50%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	98.6 (83^min) fps +45%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	68.1 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (27.2 - 89, n=47)	65.9 fps -3%
1366x768 Medium Graphics & Postprocessing
HP Envy 14-eb0010nr Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q	90 (83^min) fps +105%
Average of class Subnotebook (29 - 264, n=46, last 2 years)	63.7 fps +45%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	61.1 (55^min) fps +39%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450	59.9 (30.6^min, 32.9^P0.1, 40.4^P1) fps +36%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (19.6 - 55.2, n=35)	40.8 fps -7%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	67.4 fps +221%
HP Envy 14-eb0010nr Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q	53.6 (50^min) fps +155%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, NVIDIA GeForce MX450	46 fps +119%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, NVIDIA GeForce MX450	43.5 fps +107%
Average of class Subnotebook (11.2 - 92, n=56, last 2 years)	34.9 fps +66%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450	33 (14.9^min, 15.6^P0.1, 16^P1) fps +57%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32 (29^min) fps +52%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8.7 - 26.8, n=46)	20.6 fps -2%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	47.7 fps +231%
HP Envy 14-eb0010nr Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q	31.5 (28^min) fps +119%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, NVIDIA GeForce MX450	24.8 (23^min, 23^P1) fps +72%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, NVIDIA GeForce MX450	23.8 fps +65%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450	19.9 (13.2^min, 13.9^P0.1, 15.4^P1) fps +38%
Average of class Subnotebook (8 - 44.2, n=57, last 2 years)	18.9 fps +31%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.4 fps
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	13.9 (12^min) fps -3%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7.07 - 17.6, n=49)	13.7 fps -5%

GTA V - 1366x768 Normal/Off AF:4x
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, NVIDIA GeForce MX450	160 (4.63^min, 90.9^P1) fps +371%
HP Envy 14-eb0010nr Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q	145 (4.59^min, 83.3^P1) fps +326%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450	135 (48.1^min, 71.4^P1) fps +297%
Average of class Subnotebook (31 - 172.6, n=52, last 2 years)	104.1 fps +206%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (34 - 148, n=42)	87.7 fps +158%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	34 fps

Far Cry 5
1280x720 Low Preset AA:T
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, NVIDIA GeForce MX450	91 fps +98%
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	90 fps +96%
Average of class Subnotebook (22 - 132, n=38, last 2 years)	60.4 fps +31%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46 (31^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (22 - 71, n=31)	46 fps 0%
1920x1080 Medium Preset AA:T
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	68 fps +162%
Average of class Subnotebook (12 - 87, n=38, last 2 years)	36 fps +38%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, NVIDIA GeForce MX450	34 fps +31%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26 (17^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13 - 34, n=31)	22.2 fps -15%

Strange Brigade
1280x720 lowest AF:1
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	239 (86.1^min, 164.8^P1) fps +186%
HP Envy 14-eb0010nr Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q	188 (61.8^min, 146^P1) fps +125%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, NVIDIA GeForce MX450	137.7 (75.1^min, 115.2^P1) fps +65%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, NVIDIA GeForce MX450	135 (69.5^min, 117^P1) fps +61%
Average of class Subnotebook (65.6 - 259, n=54, last 2 years)	112.2 fps +34%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450	106 (78.7^min, 88.7^P1) fps +27%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	88.4 (19.6^min, 30.6^P1) fps +6%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	83.7 (54.2^min, 74.5^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43 - 117, n=50)	78.6 fps -6%
1920x1080 medium AA:medium AF:4
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	114.1 (80.9^min, 93.7^P1) fps +250%
HP Envy 14-eb0010nr Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q	76.5 (46.5^min, 66.4^P1) fps +135%
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, NVIDIA GeForce MX450	53.1 (44.4^min, 47^P1) fps +63%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, NVIDIA GeForce MX450	53.1 (43.6^min, 45.8^P1) fps +63%
Average of class Subnotebook (29.4 - 126.9, n=55, last 2 years)	48.3 fps +48%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450	40.5 (34.9^min, 35.9^P1) fps +24%
Dell XPS 13 9310 OLED Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	33.2 (8.8^min, 17.6^P1) fps +2%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.6 (26.8^min, 29.2^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (16.9 - 45.3, n=49)	30.9 fps -5%

Ghostwire Tokyo - 1920x1080 Low Settings
Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	75.1 fps +327%
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, NVIDIA GeForce MX450	32.7 fps +86%
Average of class Subnotebook (16.1 - 25.8, n=3, last 2 years)	19.8 fps +13%
Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.6 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13 - 21.3, n=4)	17.4 fps -1%

不管这是否是一个游戏设备，我们测试了一次iGPU的稳定性。 Witcher 3，在这里以全高清分辨率和Ultra设置循环运行。在测试过程中，我们中途拔掉了笔记本的插头。起初，iGPU不断让自己的2000MHz时钟速率，伴随着62℃（~144°F）的适度温度。在电池供电的情况下，时钟速率不得不下降，即使是在性能模式下。现在它在1,400和1,800MHz之间波动。

The Witcher 3 FPS diagram

Asus ZenBook 14X UM5401QA-KN162 R7 5800H, Vega 8: Ø14.4 (13-16)

Asus ZenBook 14X OLED UX5400EA-L7154W i7-1165G7, GeForce MX450: Ø23 (21-25)

Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 R9 5900HS, GeForce MX450: Ø24.8 (23-27)

MSI Modern 14 B11SB-085 i7-1165G7, GeForce MX450: Ø23 (20-25)

	low	med.	high	ultra	4K
GTA V (2015)	101	34
The Witcher 3 (2015)	68.1	44	21	14.4
Dota 2 Reborn (2015)	117.5	100.2	58.1	53.6	14.9
Final Fantasy XV Benchmark (2018)	38.1	19.2
X-Plane 11.11 (2018)	50.1	39.2	35.2		25.3
Far Cry 5 (2018)	46	26	22
Strange Brigade (2018)	83.7	32.6	27.8	23.2
Ghostwire Tokyo (2022)	17.6	16.6

排放 - 应要求提供无声的Windows笔记本电脑

噪声排放

在整个负载范围内，Zenbook并没有产生过多的噪音。在日常使用中（办公室、互联网），风扇是安静的，没有噪音。这也适用于性能模式，所以用户不必不断地来回切换。在负载情况下，声压级上升到45 dB(A)--这比英特尔版本的声音要大一些。

积极的一面。风扇需要相对较长的时间才会启动。负载下的噪音发展可以通过使用 "耳语模式 "性能配置文件来减少--以牺牲处理能力为代价。然而，正如我们在上面的PCMarks中看到的那样，性能的下降是很小的。

Noise Level

Idle		24.6 / 24.6 / 24.6 dB(A)
Load		45 / 51.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24.6 dB(A)

	Asus ZenBook 14X UM5401QA-KN162 Vega 8, R7 5800H, Intel SSD 670p SSDPEKNU512GZ	Dell XPS 13 9310 OLED Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G	Asus ZenBook 14X OLED UX5400EA-L7154W GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	HP Envy 14-eb0010nr GeForce GTX 1650 Ti Max-Q, i5-1135G7, Samsung SSD PM981a MZVLB256HBHQ	Asus Vivobook Pro 14 M3401QC-KM007T GeForce RTX 3050 4GB Laptop GPU, R5 5600H, Intel SSD 670p SSDPEKNU512GZ	Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 GeForce MX450, R9 5900HS, SK Hynix PC711 1TB HFS001TDE9X084N	MSI Modern 14 B11SB-085 GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB
Noise		11%	-0%	1%	-11%	2%	-5%
off / environment *	24.6	24.8 -1%	26.6 -8%	25.9 -5%	25.4 -3%	24.7 -0%	26 -6%
Idle Minimum *	24.6	25 -2%	26.6 -8%	26 -6%	25.4 -3%	24.7 -0%	26 -6%
Idle Average *	24.6	25 -2%	26.6 -8%	26 -6%	25.4 -3%	24.7 -0%	26 -6%
Idle Maximum *	24.6	25 -2%	27.2 -11%	26 -6%	30.9 -26%	27.3 -11%	26 -6%
Load Average *	45	25.3 44%	40.1 11%	34.9 22%	56 -24%	41 9%	46.3 -3%
Load Maximum *	51.5	35.8 30%	40.4 22%	48.7 5%	56 -9%	43.5 16%	52.9 -3%
Witcher 3 ultra *		35.8		34.5		43.5	46.3

* ... smaller is better

温度

在日常使用中（办公室、互联网），温度处于绿色区域内。在压力测试中，某些区域的温度上升。双风扇做得很好；它们在键盘上方吸入空气，并通过左右两边将废热吹出机箱。这样一来，掌托始终保持凉爽。

Max. Load

Idle


31.1 °C	30.6 °C	29.3 °C
29.1 °C	28.6 °C	28.5 °C
27.5 °C	26.7 °C	26.6 °C

Maximum: 31.1 °C
Average: 28.7 °C


30 °C	32 °C	30.4 °C
29.9 °C	28.9 °C	28.8 °C
27.1 °C	26.8 °C	26.3 °C

Maximum: 32 °C
Average: 28.9 °C

Power Supply (max.) 33.2 °C | Room Temperature 22.8 °C | FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 34 °C / 93 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 42.5 °C / 109 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 43.7 °C / 111 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 28.7 °C / 84 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.7 °C / 87.3 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2.4 °C / -4.4 F).

	Asus ZenBook 14X UM5401QA-KN162 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	Dell XPS 13 9310 OLED Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7, NVIDIA GeForce MX450	HP Envy 14-eb0010nr Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q	Asus Vivobook Pro 14 M3401QC-KM007T AMD Ryzen 5 5600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 AMD Ryzen 9 5900HS, NVIDIA GeForce MX450	MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450
Heat		2%	-11%	-5%	-11%	-9%	-17%
Maximum Upper Side *	42.5	46.6 -10%	49.1 -16%	41.2 3%	42.3 -0%	44.5 -5%	55.6 -31%
Maximum Bottom *	43.7	46 -5%	50.4 -15%	45.6 -4%	49.6 -14%	56.4 -29%	67.8 -55%
Idle Upper Side *	31.1	26.6 14%	33.6 -8%	31.8 -2%	34.2 -10%	29.1 6%	28.3 9%
Idle Bottom *	32	29.2 9%	33.6 -5%	37.8 -18%	37.9 -18%	34 -6%	28.9 10%

* ... smaller is better

压力测试

CPU和GPU分别以3.5GHz和930MHz的频率开始压力测试（Prime95和FurMark）。在这种情况下，优先考虑的是CPU，当出现瓶颈时，iGPU不得不退居次席。随着测试的进行，时钟速率下降到2.7 GHz（CPU），而iGPU保持在900 MHz。压力测试代表了一种极端情况。我们用这个测试来检查系统是否在全负荷下保持稳定。

发言人

Zenbook提供了音量，一定量的低频和低音，它以一种平衡的方式再现了高音。小型扬声器位于掌托下的左右两边，将表面作为反射器。在这方面，声音在桌子的硬表面上比在地毯上更好。双阵列麦克风可以无噪音地拾取声音，是视频通话和会议的理想选择。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Asus ZenBook 14X UM5401QA-KN162 audio analysis

(-) | not very loud speakers (65.71 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.7% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(+) | mids are linear (4.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.8% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.1% difference to median)
Compared to same class
» 38% of all tested devices in this class were better, 9% similar, 53% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 26% of all tested devices were better, 8% similar, 66% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Dell XPS 13 9310 OLED audio analysis

(±) | speaker loudness is average but good (81.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.6% lower than median
(±) | linearity of bass is average (12.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(+) | mids are linear (3.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (3.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.4% difference to median)
Compared to same class
» 17% of all tested devices in this class were better, 5% similar, 78% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 11% of all tested devices were better, 3% similar, 86% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理 - 偶尔耗电，长期节俭

能源消耗

最大空闲功耗为11瓦，与其他OLED设备持平。在其他方面，可实现的最大亮度在这里发挥了作用，我们的Zenbook比Yoga Slim或戴尔XPS 13低。令人遗憾的是。OLED强制屏保导致空闲时不必要的6-8瓦的高额外消耗。

Witcher 3Ultra，即最大游戏负荷，是54瓦，这是由于适度强大的iGPU。图形负载在开始时没有峰值，但在Prime95和FurMark的压力测试中，处理器部分有。在压力测试的最大负载期间，100瓦的电源适配器并没有被过度消耗。我们在开始的很短的时间内测量到81瓦，然后它就稳定在65-70瓦的水平。

使用外部显示器的功耗显示了一个全面的情况。在CPU负载期间，SoC允许自己在开始时有5秒钟的80-85瓦的峰值，然后不断下降到60-65瓦。在英特尔酷睿i7-1185G7（戴尔XPS 13，Zenbook 14X英特尔）中没有观察到如此高的初始启动。

Power Consumption

Off / Standby	0.17 / 0.25 Watt
Idle	6.7 / 9.3 / 11.1 Watt
Load	53.5 / 81 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Asus ZenBook 14X UM5401QA-KN162 R7 5800H, Vega 8, Intel SSD 670p SSDPEKNU512GZ, OLED, 2880x1800, 14.00	Dell XPS 13 9310 OLED i7-1185G7, Iris Xe G7 96EUs, Toshiba XG6 KXG60ZNV512G, OLED, 3456x2160, 13.40	Asus ZenBook 14X OLED UX5400EA-L7154W i7-1165G7, GeForce MX450, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H), OLED, 2880x1800, 14.00	HP Envy 14-eb0010nr i5-1135G7, GeForce GTX 1650 Ti Max-Q, Samsung SSD PM981a MZVLB256HBHQ, IPS, 1920x1200, 14.00	Asus Vivobook Pro 14 M3401QC-KM007T R5 5600H, GeForce RTX 3050 4GB Laptop GPU, Intel SSD 670p SSDPEKNU512GZ, OLED, 2880x1800, 14.00	Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 R9 5900HS, GeForce MX450, SK Hynix PC711 1TB HFS001TDE9X084N, OLED, 2880x1800, 14.00	MSI Modern 14 B11SB-085 i7-1165G7, GeForce MX450, Kingston OM8PCP3512F-AB, IPS, 1920x1080, 14.00	Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)	Average of class Subnotebook
Power Consumption		22%	-15%	-40%	-15%	-39%	6%	19%	15%
Idle Minimum *	6.7	5.7 15%	8.1 -21%	4.2 37%	6.6 1%	9.5 -42%	3 55%	5.25 ?(3 - 12.5, n=45) 22%	4.9 ?(1.77 - 11.8, n=61, last 2 years) 27%
Idle Average *	9.3	6 35%	10 -8%	18.3 -97%	9.6 -3%	14.1 -52%	6.3 32%	7.82 ?(4.1 - 12.8, n=45) 16%	8.36 ?(4.6 - 17.4, n=61, last 2 years) 10%
Idle Maximum *	11.1	12.3 -11%	11 1%	19.2 -73%	7.3 34%	14.9 -34%	10.3 7%	9.25 ?(4.6 - 15.7, n=45) 17%	10.4 ?(5.1 - 22.4, n=61, last 2 years) 6%
Load Average *	53.5	44.4 17%	67.8 -27%	72.9 -36%	73 -36%	79.5 -49%	66 -23%	45.3 ?(29.4 - 98.9, n=45) 15%	45.9 ?(19.1 - 83.3, n=60, last 2 years) 14%
Witcher 3 ultra *	54.8	36.5 33%	57 -4%	61.5 -12%	74.4 -36%	73.5 -34%	66.6 -22%
Load Maximum *	81	47.8 41%	104 -28%	127.8 -58%	119 -47%	98.5 -22%	90.6 -12%	60.1 ?(37.2 - 101.8, n=45) 26%	66 ?(24.2 - 121.2, n=61, last 2 years) 19%

* ... smaller is better

Energy consumption during our The Witcher 3 test / stress test

Asus ZenBook 14X UM5401QA-KN162 R7 5800H, Vega 8; Witcher 3 ultra: Ø54.8 (53-71.8)

Dell XPS 13 9310 OLED i7-1185G7, Iris Xe G7 96EUs; Witcher 3 ultra: Ø36.5 (27.6-45.2)

Asus ZenBook 14X UM5401QA-KN162 R7 5800H, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø69.6 (67.1-85.4)

Energy consumption with an external monitor

Asus ZenBook 14X UM5401QA-KN162 R7 5800H, Vega 8; Prime95 V2810 Stress (external Monitor): Ø65.1 (60.7-80.2)

Dell XPS 13 9310 OLED i7-1185G7, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø47.6 (46-48)

Dell XPS 13 9310 OLED i7-1185G7, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø42.1 (40.2-52.1)

Asus ZenBook 14X UM5401QA-KN162 R7 5800H, Vega 8; Cinebench R15 Multi (external Monitor): Ø63.9 (45-79.1)

Dell XPS 13 9310 OLED i7-1185G7, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø46.9 (45.3-47.8)

Asus ZenBook 14X UM5401QA-KN162 R7 5800H, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø53.2 (51.9-74.5)

Dell XPS 13 9310 OLED i7-1185G7, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.6 (37.3-46.8)

Asus ZenBook 14X UM5401QA-KN162 R7 5800H, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø53.8 (52.4-68)

Dell XPS 13 9310 OLED i7-1185G7, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø41.6 (33.5-47.3)

电池寿命

在我们的实际Wi-Fi测试中，这款14英寸的手机实现了8小时的良好运行时间。一个脚本被用来重现访问网站引起的负载。英特尔版本没有那么长的时间：在相同容量的情况下为5:30小时。这对于OLED 14英寸显示器来说是一个非常好的结果；其他OLED机型的持续时间要少20%到30%。

Battery Runtime

WiFi Websurfing		8h 16min
WiFi Websurfing max. Brightness		5h 52min
Load (maximum brightness)		1h 34min

	Asus ZenBook 14X UM5401QA-KN162 R7 5800H, Vega 8, 63 Wh	Dell XPS 13 9310 OLED i7-1185G7, Iris Xe G7 96EUs, 52 Wh	Asus ZenBook 14X OLED UX5400EA-L7154W i7-1165G7, GeForce MX450, 63 Wh	HP Envy 14-eb0010nr i5-1135G7, GeForce GTX 1650 Ti Max-Q, 63.3 Wh	Asus Vivobook Pro 14 M3401QC-KM007T R5 5600H, GeForce RTX 3050 4GB Laptop GPU, 63 Wh	Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 R9 5900HS, GeForce MX450, 61 Wh	MSI Modern 14 B11SB-085 i7-1165G7, GeForce MX450, 52.4 Wh	Average of class Subnotebook
Battery Runtime		-21%	-19%	14%	17%	-34%	5%	25%
WiFi v1.3	496	391 -21%	334 -33%	649 31%	569 15%	327 -34%	523 5%	629 ?(303 - 1144, n=63, last 2 years) 27%
Load	94		89 -5%	90 -4%	112 19%			115.4 ?(61 - 197, n=47, last 2 years) 23%
Reader / Idle			675	1661	687			1252 ?(581 - 2550, n=9, last 2 years)
Witcher 3 ultra			98

Pros

+ 鲜艳的OLED面板

+ 98% AdobeRGB和100% P3

+ 优秀的坚固性和制造质量

+ 高效的键盘

+ 性能和排放可以自适应调整

+ 非常好的扬声器

Cons

- 内存不能升级

- 没有Thunderbolt 4

- 由于OLED屏保而产生的功耗

- 必须创建账户。MyAsus软件中的能源和OLED设置

- 网络摄像头质量差

- e-shutter不可见

结论 - 比英特尔的电池寿命更好

AMD版本的ZenBook 14X OLED(UM5401QA-XXX)保持了英特尔版本的成功。英特尔版本，但它的重点是价格。其结果是一个高质量的入门级ZenBook，价格约为1,000欧元（约合1,022美元），提供明显更长的电池寿命，具有相同的显示屏和制造质量。除了缺少Thunderbolt，外壳、输入设备和端口都与英特尔版本相同。英特尔版本有Thunderbolt 4和一个小型专用MX450 GPU的优势。这可以让游戏运行得更流畅一些。

处理能力将英特尔的同类产品甩在后面；Ryzen APU有更多的提升，在更长的时间内有更高的持续处理能力。这伴随着更高的负载量--但这可以通过华硕提供的性能模式来调整。如果需要，Zenbook 14X AMD可以像耳语一样安静，即使在高活动期间。由于保守的设置而导致的性能损失很低。

选择Zenbook 14X的用户将获得大量的显示效果，加上强大的45瓦处理能力，以及坚固的高质量构造。

和以前一样，我们不得不批评MyAsus的强制账户。没有注册的用户无法访问基本的性能、电池和OLED设置。这是唯一可以激活性能模式的地方，也是唯一可以禁用恼人的OLED屏保的地方。

再多花300欧元（约306美元），就可以买到没有dGPU的入门级英特尔版Zenbook 14X，但它已经配备了Core i7和512GB的存储空间。如果你想要MX450，你至少要花1800欧元（约1833美元）。这种价格上的巨大飞跃使AMD版本（UM5401QA-XXX）变得有趣，即使不包括Thunderbolt。

如果OLED没有发挥很大的作用，那么强大的14英寸产品如华硕Zenbook 14 UX435EG(MX450)或 HP Envy 14-eb0010nr(GTX 1650 Ti Max-Q）成为问题，其中羡慕14拥有更好的IPS显示屏和最好的显卡，到目前为止在比较领域。

价格和可用性

在撰写本文时，华硕Zenbook 14X OLED AMD机型似乎在美国境内没有销售。尽管如此，你可以浏览类似的机型，包括英特尔版本，在亚马逊或百思买，例如。

Asus ZenBook 14X UM5401QA-KN162 - 2022-08-30 08/30/2022 v7
Sebastian Jentsch

Chassis

90 / 98 → 91%

Keyboard

91%

Pointing Device

92%

Connectivity

62 / 75 → 82%

Weight

70 / 20-75 → 91%

Battery

81%

Display

89%

Games Performance

64 / 78 → 82%

Application Performance

94 / 85 → 100%

Temperature

90%

Noise

82%

Audio

55 / 91 → 61%

Camera

24 / 85 → 28%

Average

76%

87%

Subnotebook - Weighted Average

Pricecompare

Editor of the original article: Stephanie Chamberlain - Translator - 571 articles published on Notebookcheck since 2020

contact me via: LinkedIn

Translator: Ninh Ngoc Duy - Editorial Assistant - 388744 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 华硕ZenBook 14X OLED AMD笔记本电脑评测中。颜色多，电池寿命长，价格低

Sebastian Jentsch, 2022-07-10 (Update: 2022-07-10)

华硕ZenBook 14X OLED AMD笔记本电脑评测中。颜色多，电池寿命长，价格低

潜在的竞争对手比较

外壳 - 高品质的华硕电脑

尺寸比较

连接性 - 没有Thunderbolt

SD卡阅读器

沟通

网络摄像头

辅料

维护

担保

Input devices - Fast typing on the laptop

键盘

触摸板

显示 - 大量的色彩，大量的对比度

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能--得益于AMD Ryzen的更大提升

测试条件

处理器

Cinebench R15 Multi endurance test

系统性能

DPC延迟

储存

Continuous load read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

The Witcher 3 FPS diagram

排放 - 应要求提供无声的Windows笔记本电脑

噪声排放

温度

压力测试

发言人

Asus ZenBook 14X UM5401QA-KN162 audio analysis

Dell XPS 13 9310 OLED audio analysis

能源管理 - 偶尔耗电，长期节俭

能源消耗

Energy consumption during our The Witcher 3 test / stress test

Energy consumption with an external monitor

电池寿命

Pros

Cons

结论 - 比英特尔的电池寿命更好

价格和可用性

More articles related to this device

Pricecompare
