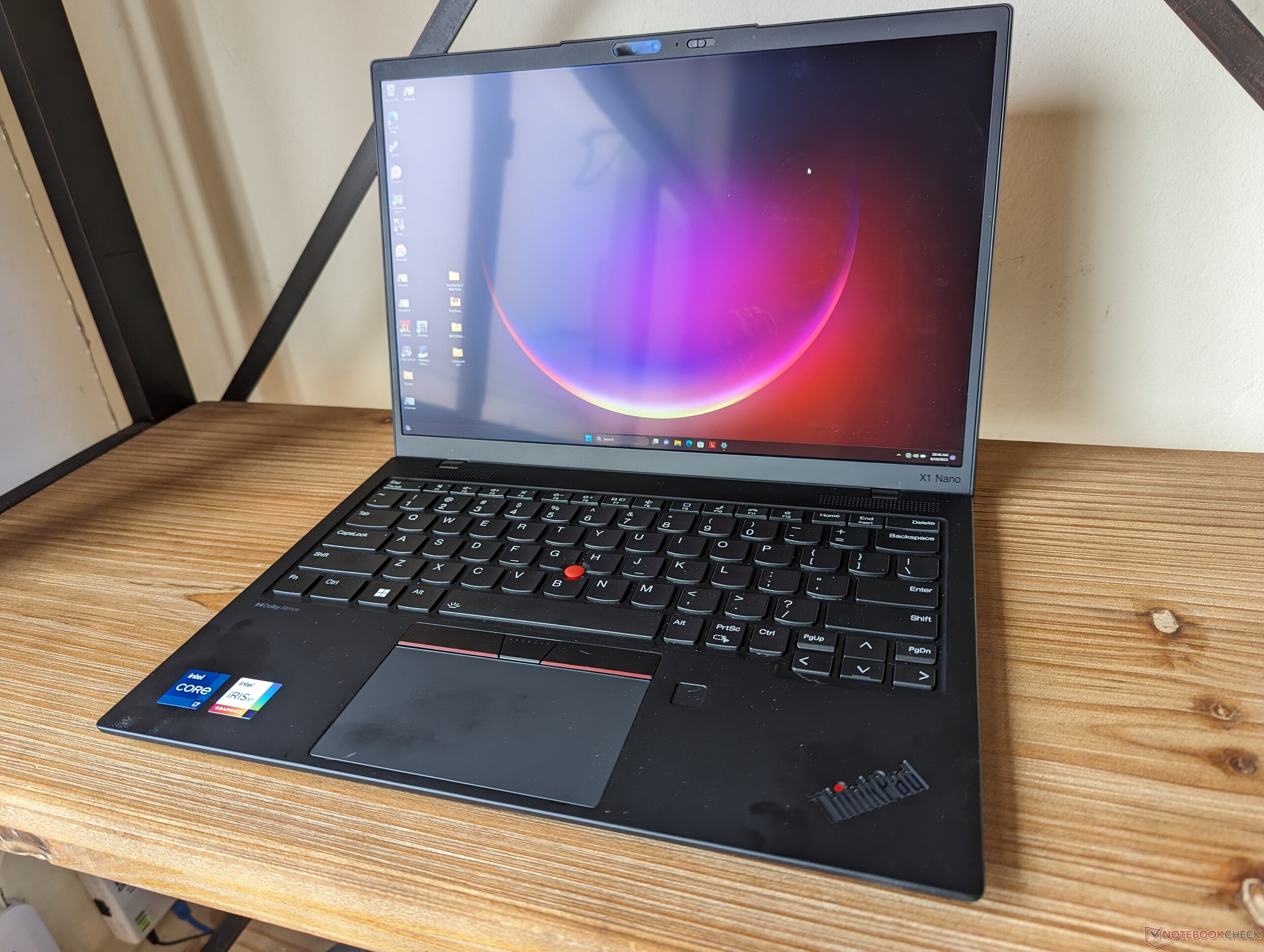

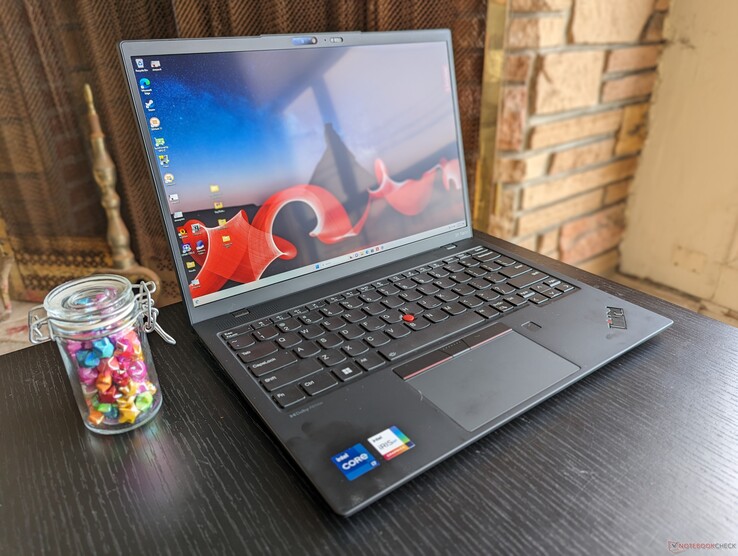

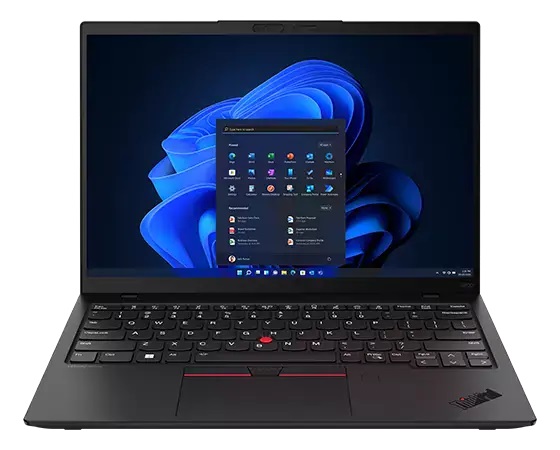

联想 ThinkPad X1 Nano Gen 3 笔记本电脑评测:不到 1 千克的英特尔酷睿处理器
ThinkPad X1 Nano Gen 3 继承了去年的 ThinkPad X1 Nano Gen 2,用较新的第 13 代 Raptor Lake CPU 取代了第 12 代 Alder Lake CPU。除更换 CPU 外,超轻机身保持不变,因此我们的 现有评论X1 Nano Gen 2 的端口和其他物理特性仍然适用于 X1 Nano Gen 3。本页将重点介绍两款机型的性能差异以及其他显著变化。
我们的测试机配置了酷睿 i7-1360P,零售价约为 1400 美元。其他 SKU 包括酷睿 i5-1340P,有 vPro 和非 vPro 两种选择,最高可达 i7-1370P,但目前所有配置都包括相同的 16 GB 焊接内存和 13 英寸 2K (2160 x 1350) IPS 显示屏(可选触摸屏)。
ThinkPad X1 Nano Gen 3 的替代产品包括其他超轻型子笔记本,如 LG Gram 13, Dynabook Portege X30L, 戴尔Latitude 9330或 HP Dragonfly G4.
更多联想评论:
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
---|---|---|---|---|---|---|---|
89.5 % | 08/2023 | Lenovo ThinkPad X1 Nano Gen 3 i7-1360P, Iris Xe G7 96EUs | 989 g | 14.8 mm | 13.00" | 2160x1350 | |
88.9 % | 09/2022 | Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P i7-1280P, Iris Xe G7 96EUs | 958 g | 14.4 mm | 13.00" | 2160x1350 | |
91.9 % | 07/2023 | HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs | 1.1 kg | 16.3 mm | 13.50" | 1920x1280 | |
86.2 % | 05/2023 | Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs | 1.3 kg | 15.85 mm | 13.50" | 2256x1504 | |
89 % | 11/2022 | Dell Latitude 9330 i7-1260U, Iris Xe G7 96EUs | 1.2 kg | 14.1 mm | 13.30" | 2560x1600 | |
92 % | 08/2022 | Apple MacBook Air M2 10C GPU M2, M2 10-Core GPU | 1.2 kg | 11.3 mm | 13.60" | 2560x1664 | |
86.6 % | 10/2022 | LG Gram 14Z90Q i5-1240P, Iris Xe G7 80EUs | 980 g | 16.8 mm | 14.00" | 1920x1200 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名

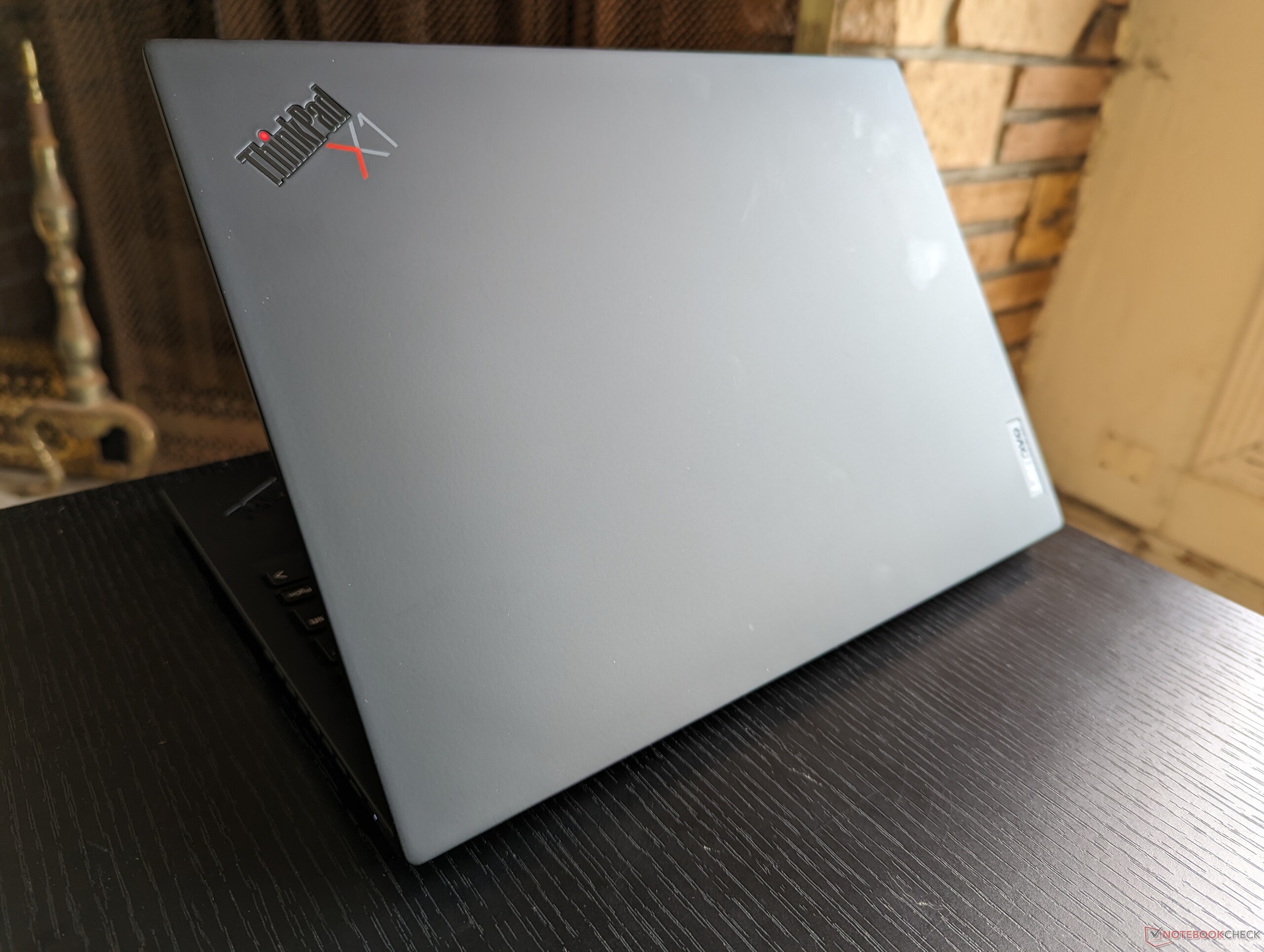

箱体 - 仍是最轻的箱体之一
虽然与前一年相比外观没有大的变化,但触摸屏版本要比非触摸屏版本稍大一些。在实际使用中,几乎感觉不到额外的厚度和重量。
触摸屏配置 | 208.1 毫米(长) | 293.3 毫米(宽) | 14.8 毫米(高) |
非触摸屏配置 | 208.0 毫米(长) | 293.2 毫米(宽) | 14.4 毫米(高) |
交流
网络摄像头

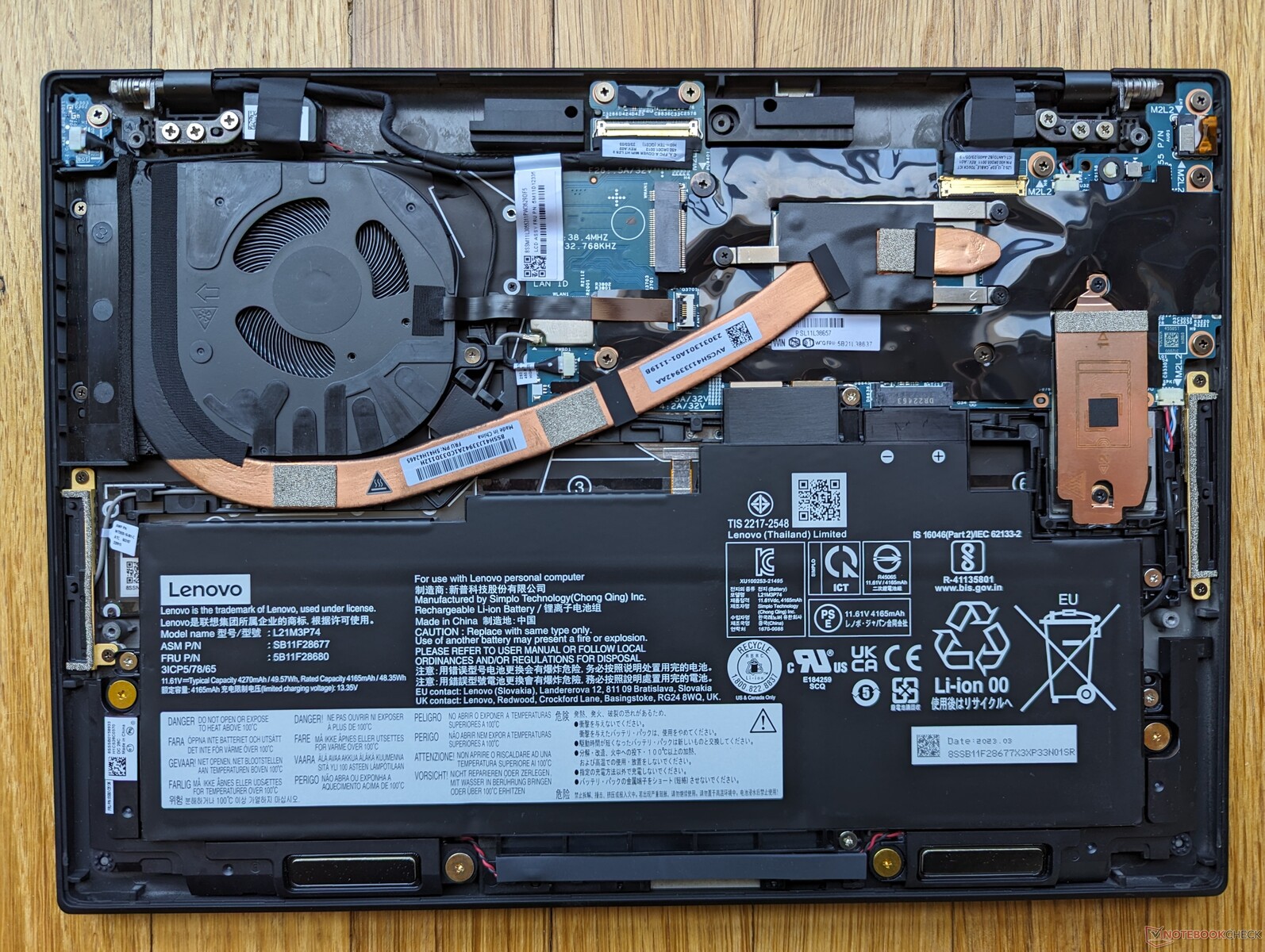

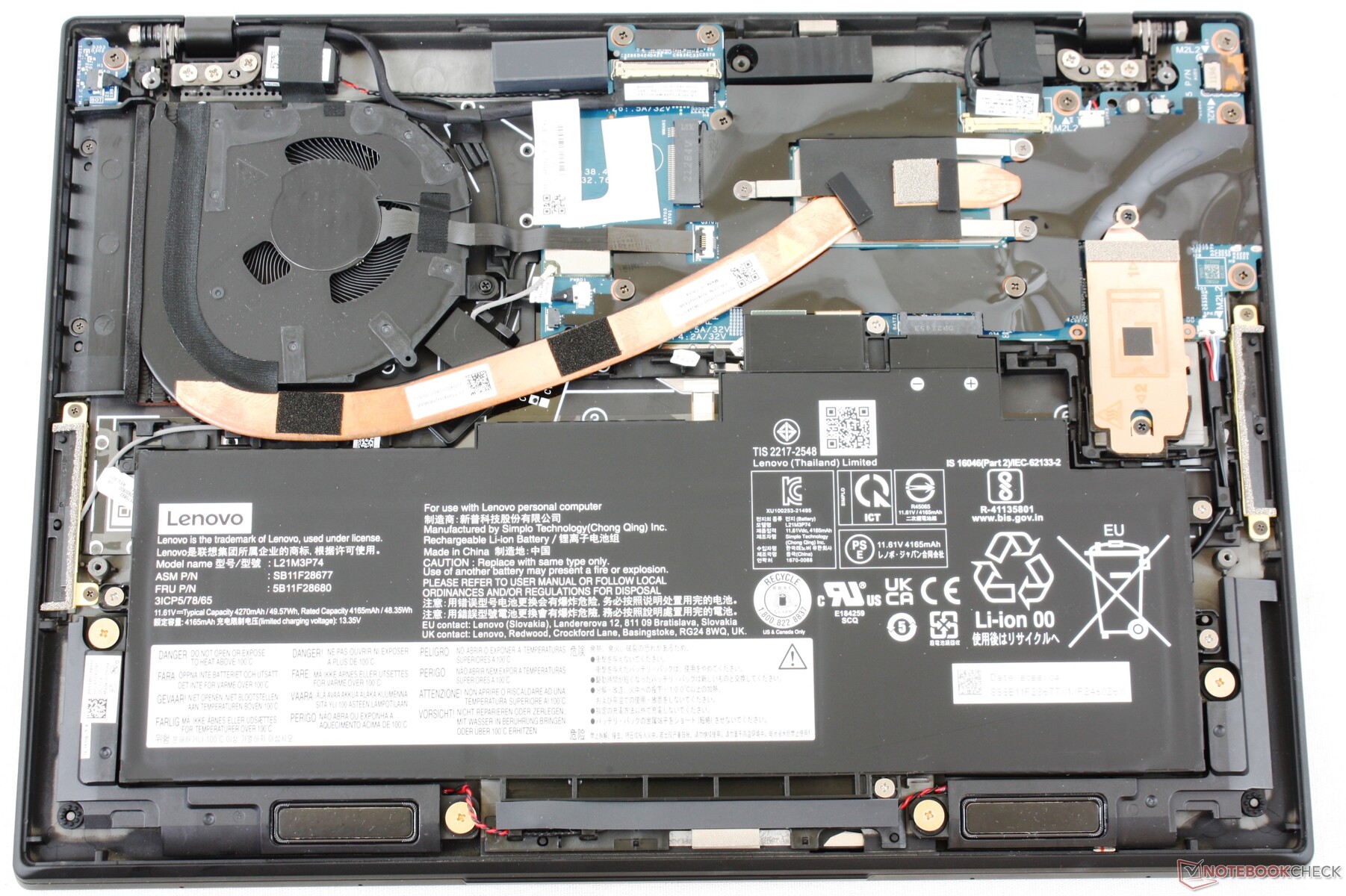

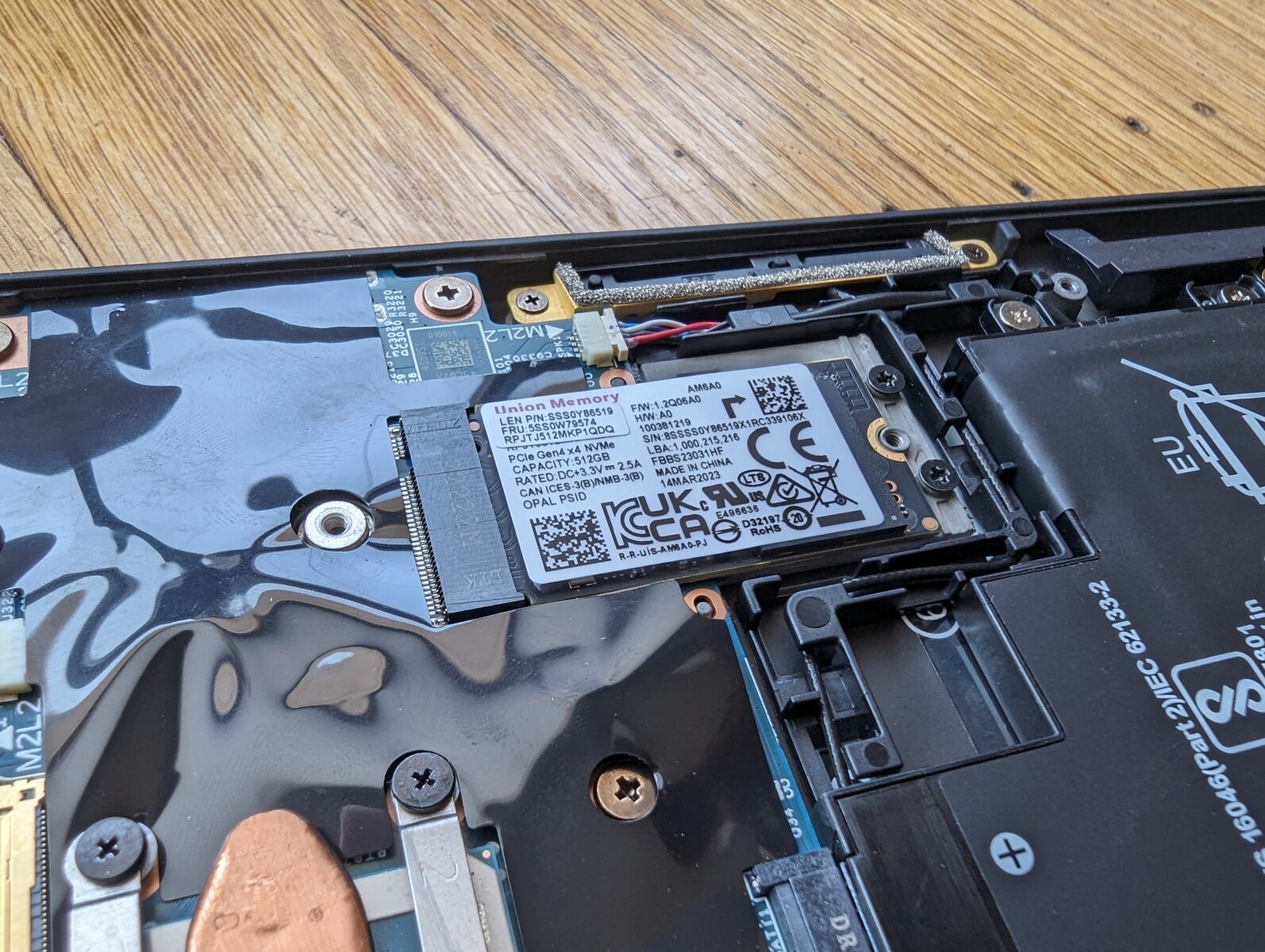

维护

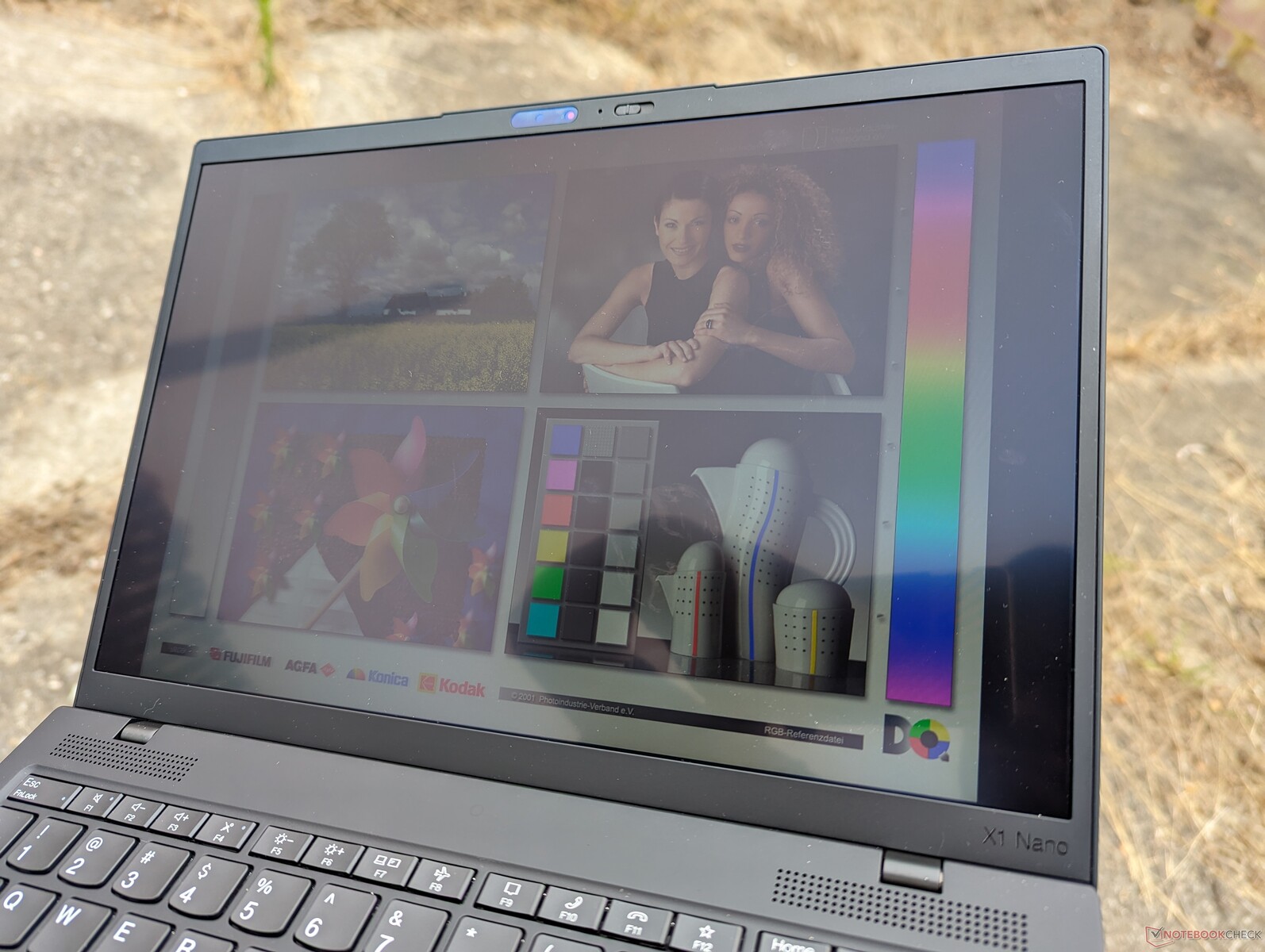

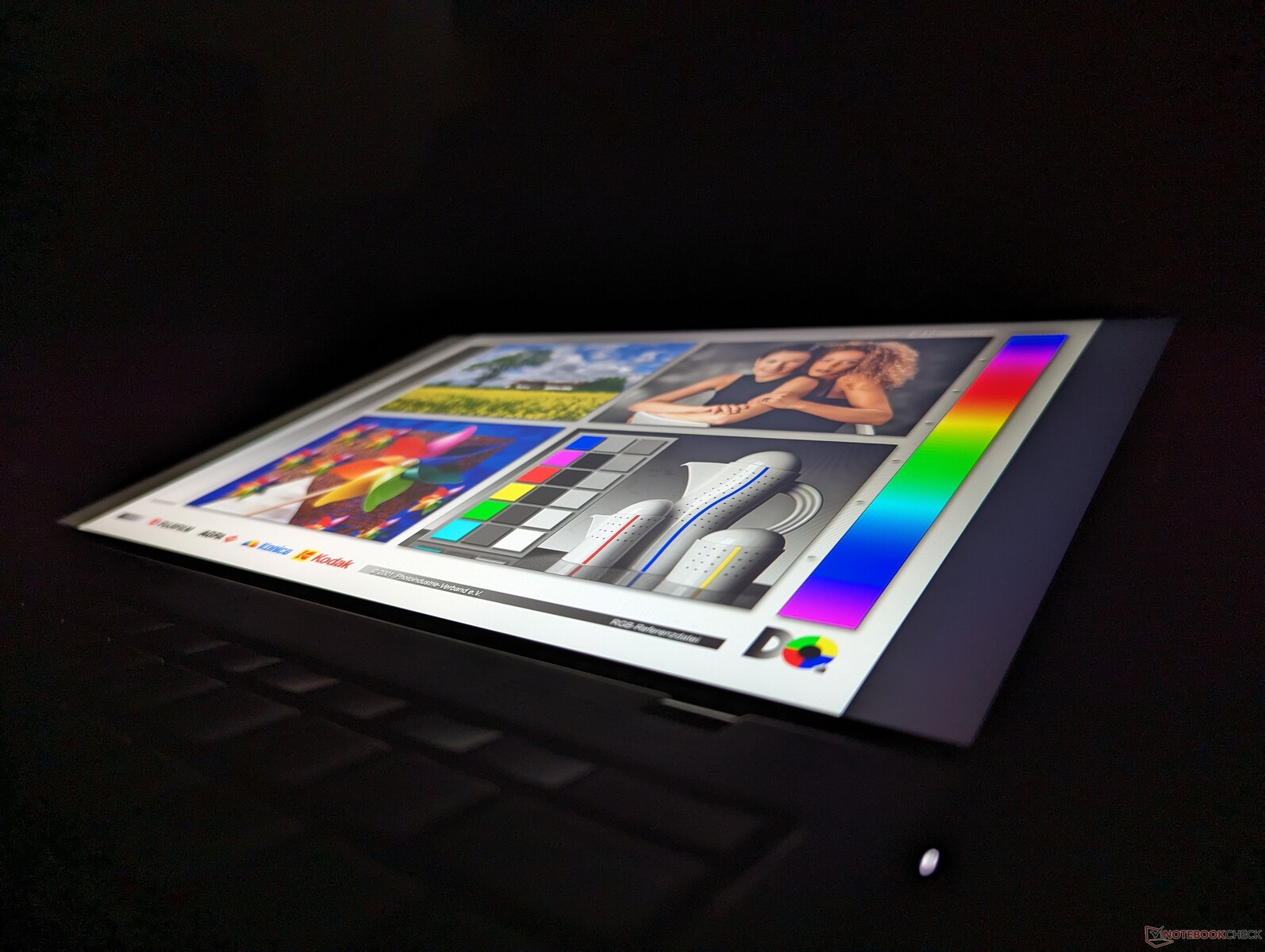

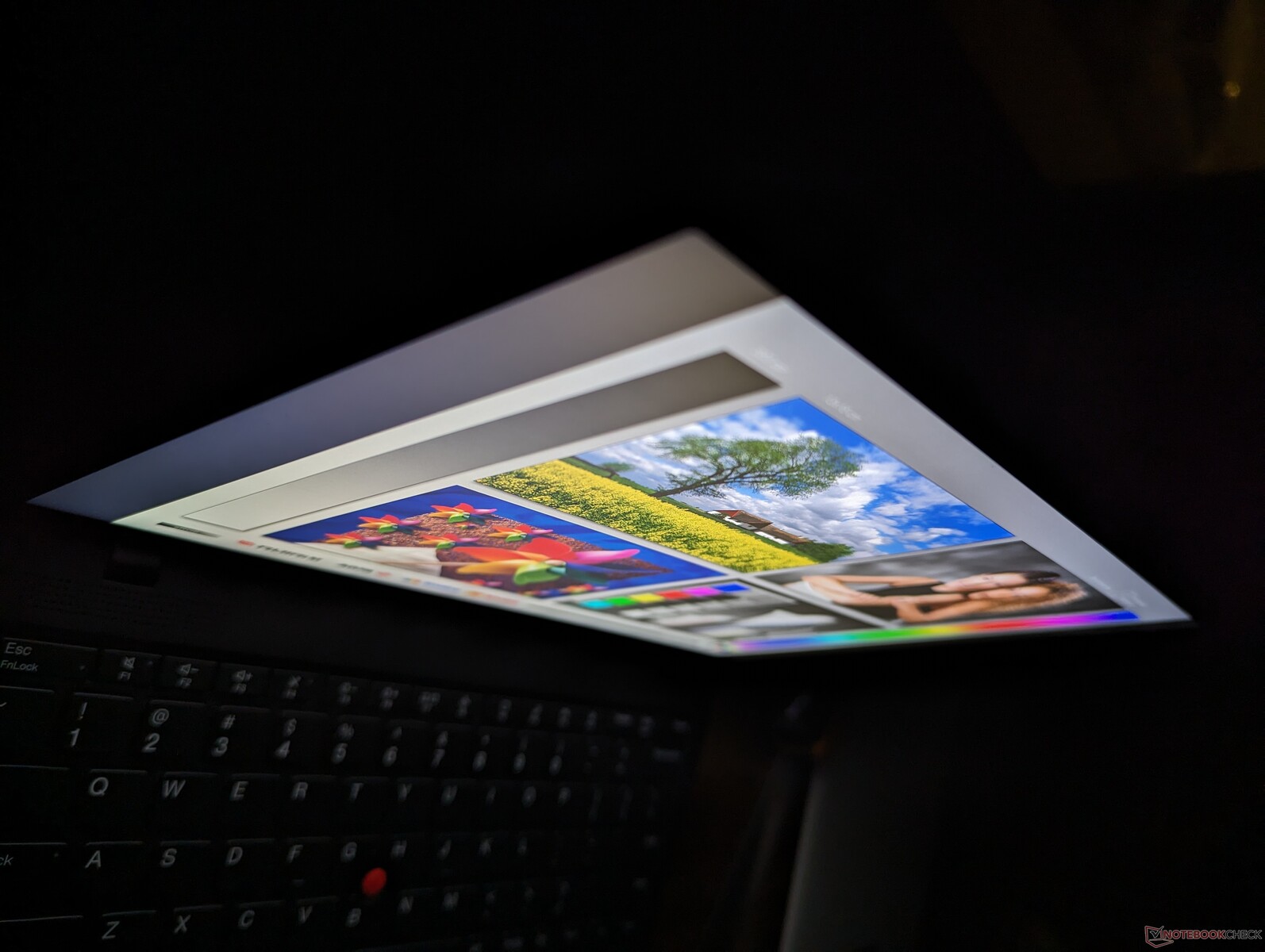

显示屏 - 无其他选项

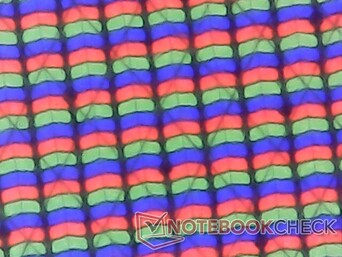

有趣的是,今年机型的 IPS 面板与去年机型的面板不同(MND007ZA1-3 与 P101ZFZ-BH2)。不过,除了名称上的变化,两款显示屏的色彩范围、响应时间、亮度水平和对比度都很相似,可带来类似的观看体验。
|

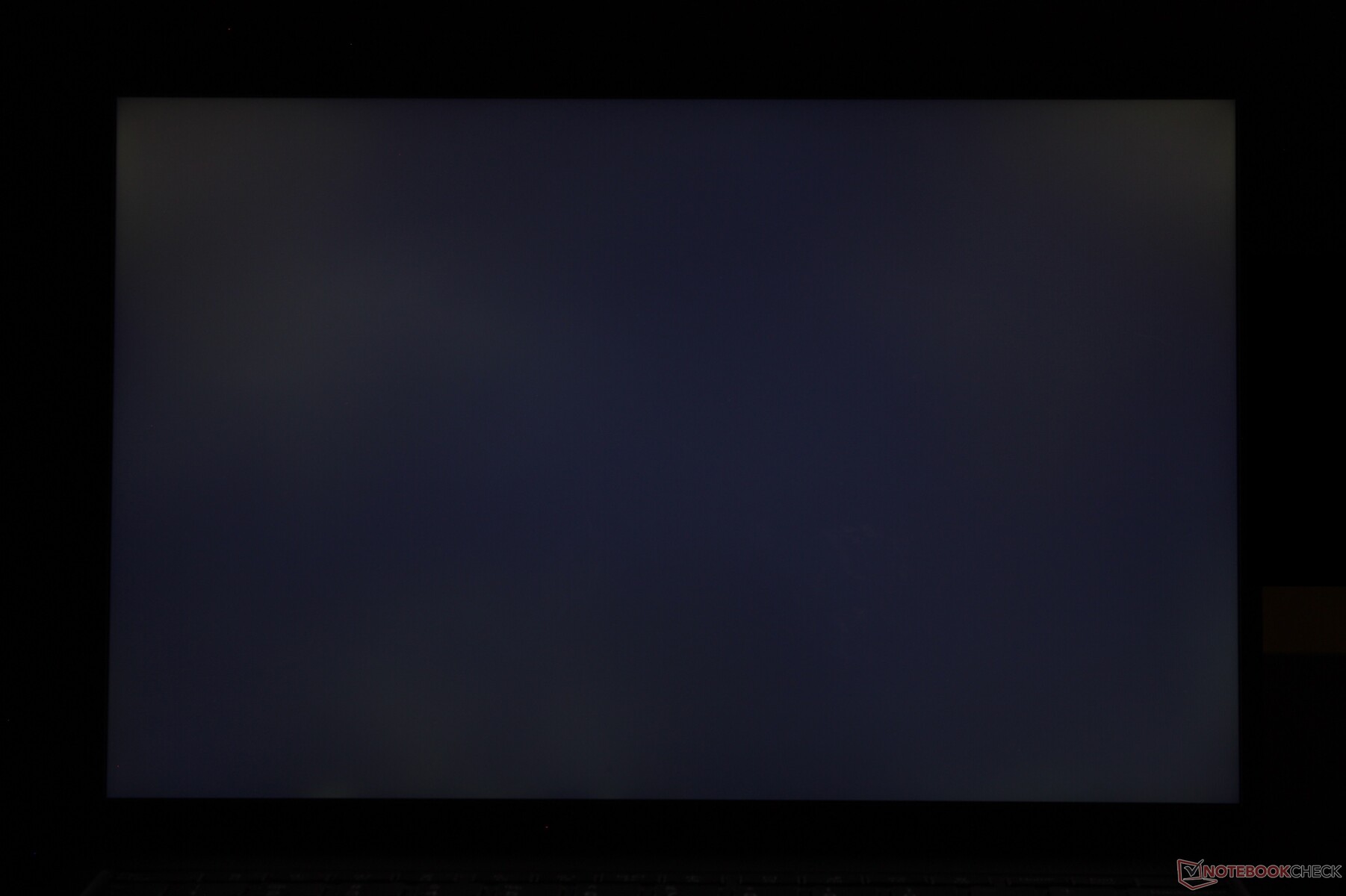

Brightness Distribution: 86 %
Center on Battery: 461.2 cd/m²
Contrast: 1590:1 (Black: 0.29 cd/m²)
ΔE Color 1.79 | 0.5-29.43 Ø5, calibrated: 0.47
ΔE Greyscale 1.8 | 0.57-98 Ø5.3

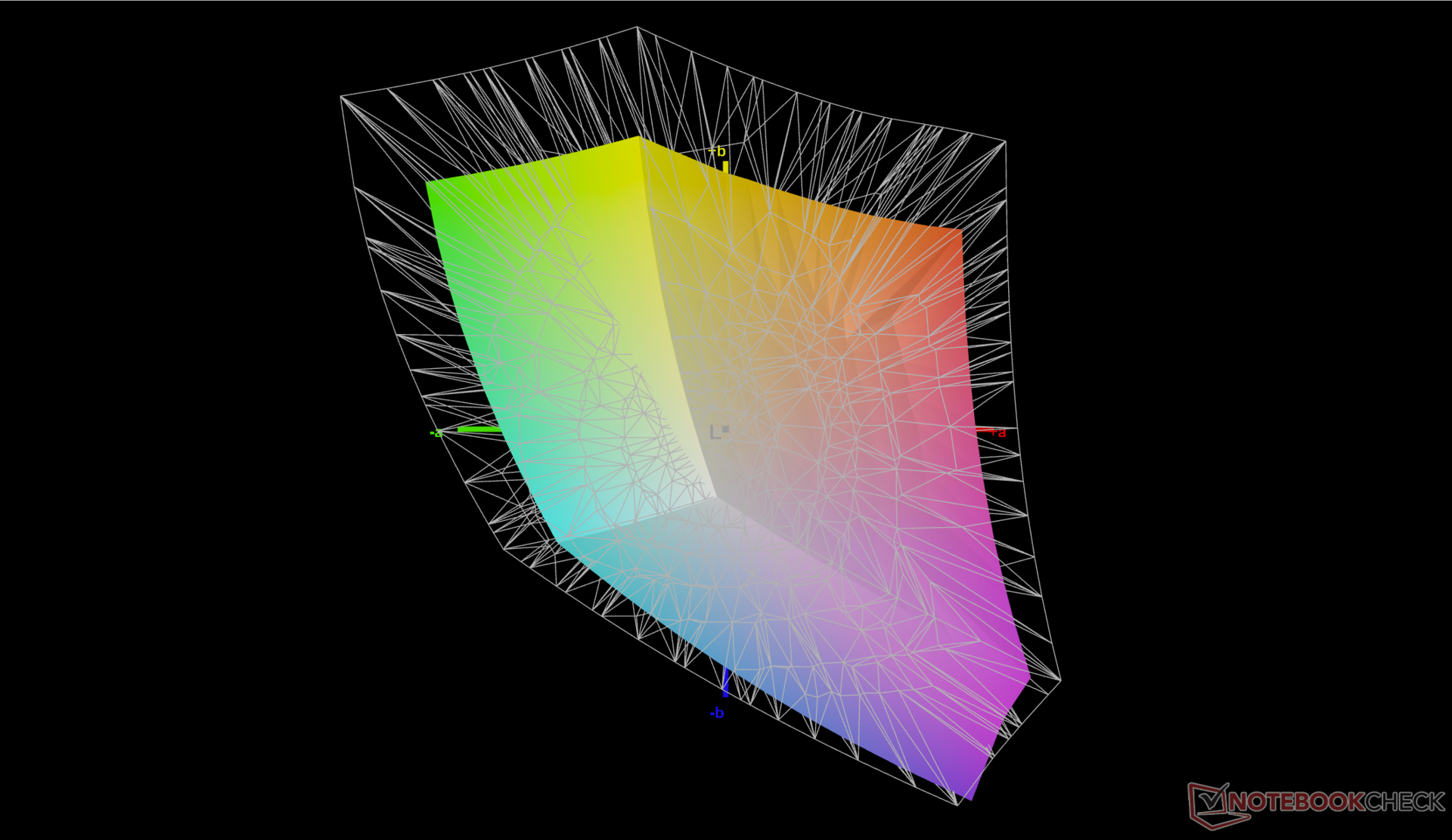

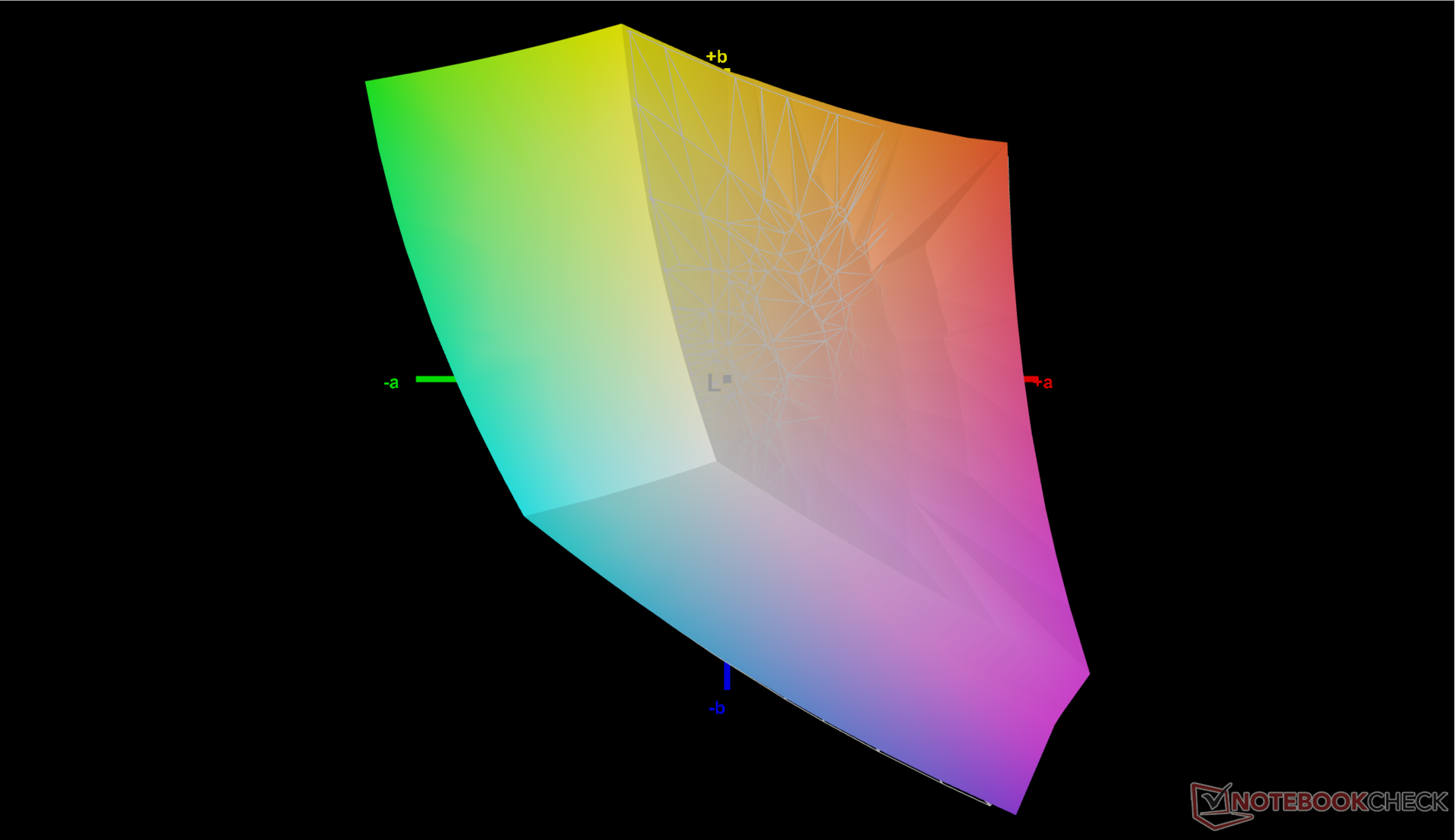

69.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.5% sRGB (Argyll 2.2.0 3D)
68.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.24
Lenovo ThinkPad X1 Nano Gen 3 MND007ZA1-3, IPS, 2160x1350, 13.00 | Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P P101ZFZ-BH2, IPS, 2160x1350, 13.00 | HP Dragonfly G4 Chi Mei CMN13C0, IPS, 1920x1280, 13.50 | Framework Laptop 13.5 13th Gen Intel BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.50 | Dell Latitude 9330 AU Optronics B133QAA, IPS, 2560x1600, 13.30 | LG Gram 14Z90Q LG LP140WU1-SPF1, IPS, 1920x1200, 14.00 | |
---|---|---|---|---|---|---|
Display | -3% | 0% | 0% | 8% | 22% | |
Display P3 Coverage | 68.5 | 66.2 -3% | 68.4 0% | 68.9 1% | 77.8 14% | 98.4 44% |
sRGB Coverage | 99.5 | 96.1 -3% | 98.3 -1% | 97.5 -2% | 99.9 0% | 99.9 0% |
AdobeRGB 1998 Coverage | 69.7 | 68.3 -2% | 70.4 1% | 71.1 2% | 77.5 11% | 85.9 23% |
Response Times | -4% | -22% | -34% | -82% | -7% | |
Response Time Grey 50% / Grey 80% * | 39.9 ? | 43.6 ? -9% | 48.8 ? -22% | 54.9 ? -38% | 67.6 ? -69% | 47.5 ? -19% |
Response Time Black / White * | 25.8 ? | 25.6 ? 1% | 31.3 ? -21% | 33.5 ? -30% | 50.4 ? -95% | 24.5 ? 5% |
PWM Frequency | ||||||
Screen | -79% | -14% | -60% | -31% | -62% | |
Brightness middle | 461.2 | 469.6 2% | 408.8 -11% | 503 9% | 542.3 18% | 341 -26% |
Brightness | 428 | 460 7% | 399 -7% | 472 10% | 516 21% | 305 -29% |
Brightness Distribution | 86 | 94 9% | 90 5% | 87 1% | 85 -1% | 87 1% |
Black Level * | 0.29 | 0.37 -28% | 0.32 -10% | 0.36 -24% | 0.38 -31% | 0.26 10% |
Contrast | 1590 | 1269 -20% | 1278 -20% | 1397 -12% | 1427 -10% | 1312 -17% |
Colorchecker dE 2000 * | 1.79 | 4.85 -171% | 2.02 -13% | 3.38 -89% | 3.18 -78% | 3.11 -74% |
Colorchecker dE 2000 max. * | 3.3 | 7.62 -131% | 3.84 -16% | 7.08 -115% | 6.05 -83% | 8.29 -151% |
Colorchecker dE 2000 calibrated * | 0.47 | 1.22 -160% | 0.61 -30% | 1.21 -157% | 0.67 -43% | 0.83 -77% |
Greyscale dE 2000 * | 1.8 | 5.7 -217% | 2.3 -28% | 4.8 -167% | 3.1 -72% | 5.3 -194% |
Gamma | 2.24 98% | 2.13 103% | 2.2 100% | 2.13 103% | 2.08 106% | 2.037 108% |
CCT | 6588 99% | 6931 94% | 6203 105% | 6235 104% | 6140 106% | 7571 86% |
Total Average (Program / Settings) | -29% /
-52% | -12% /
-12% | -31% /
-44% | -35% /
-30% | -16% /
-36% |
* ... smaller is better

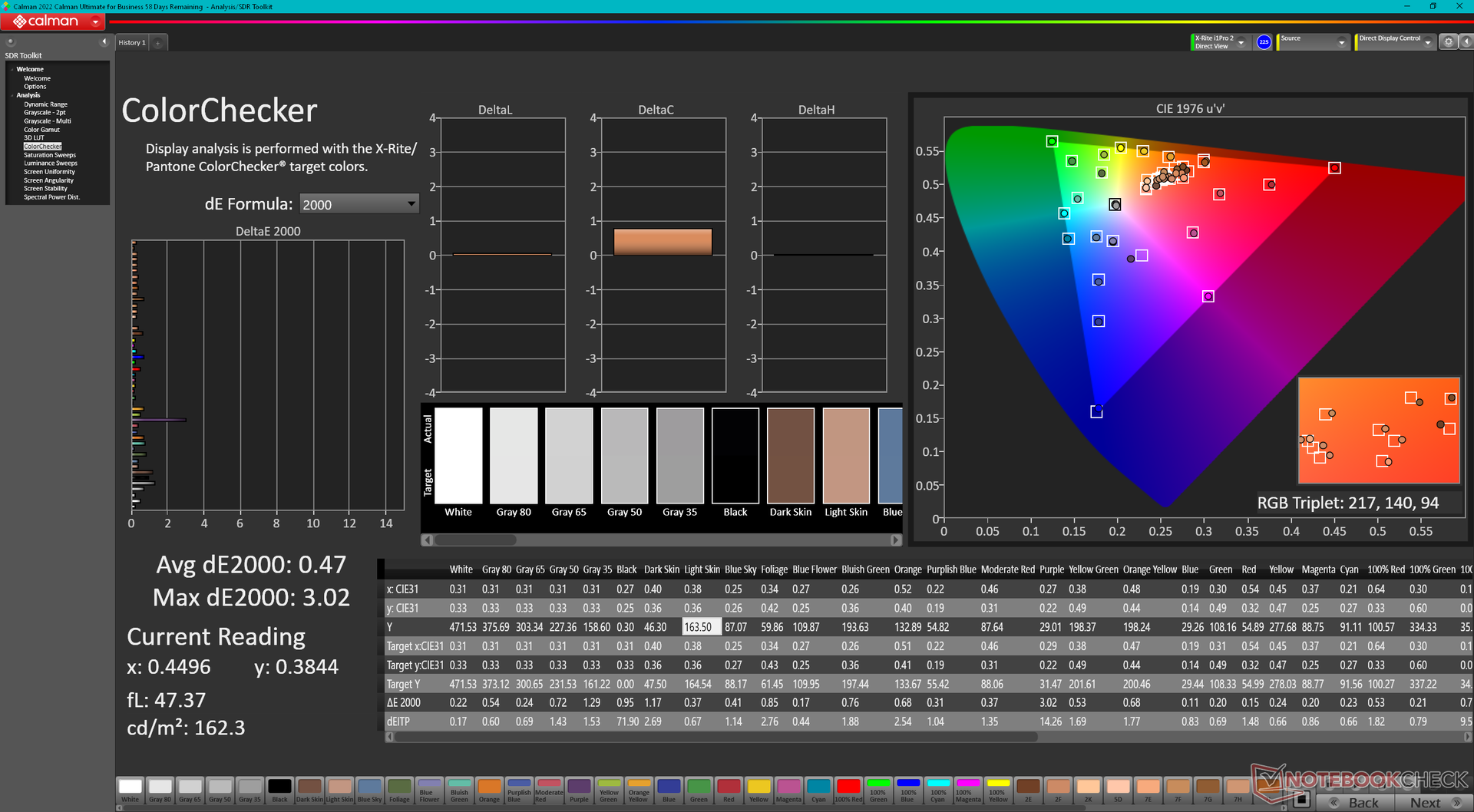

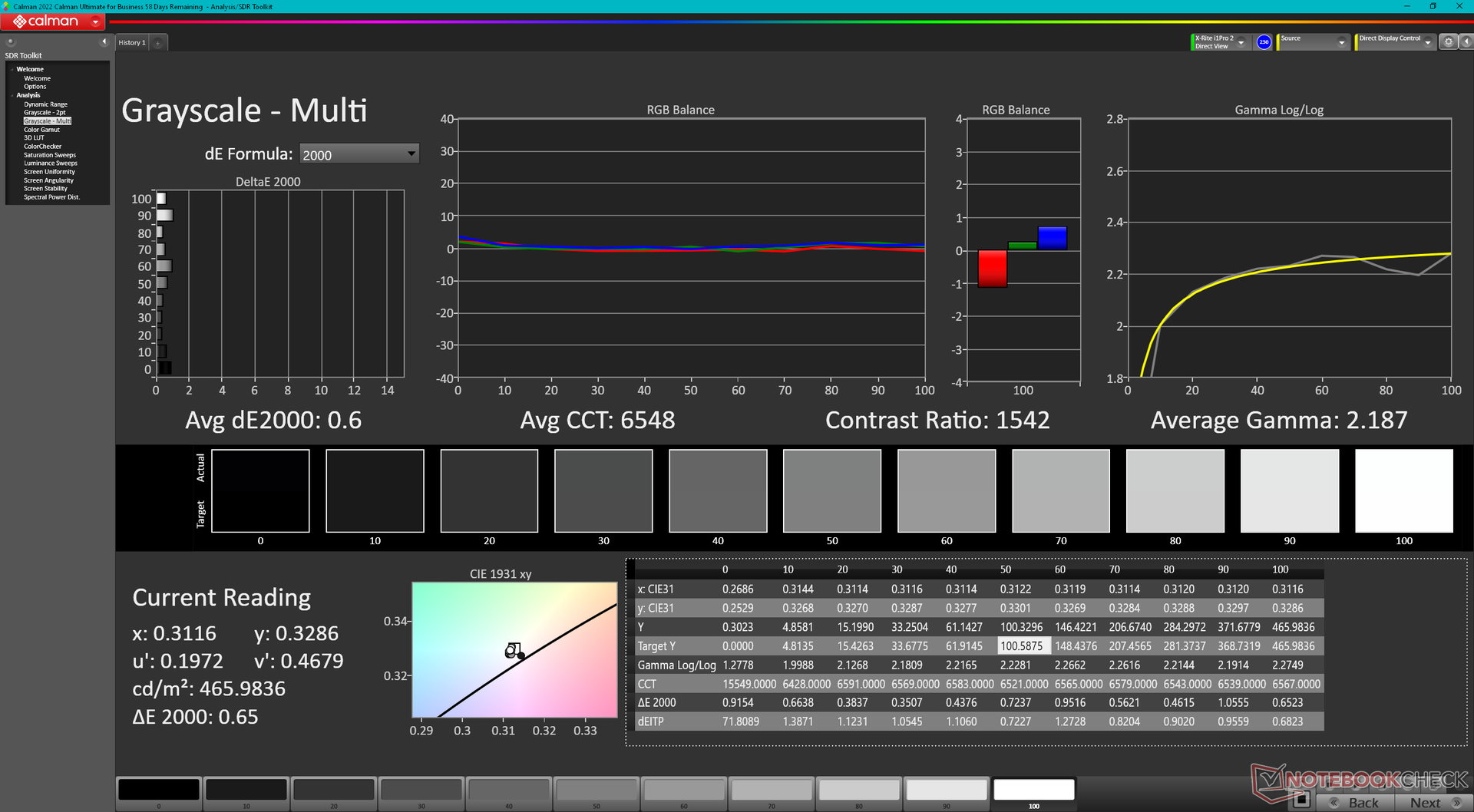

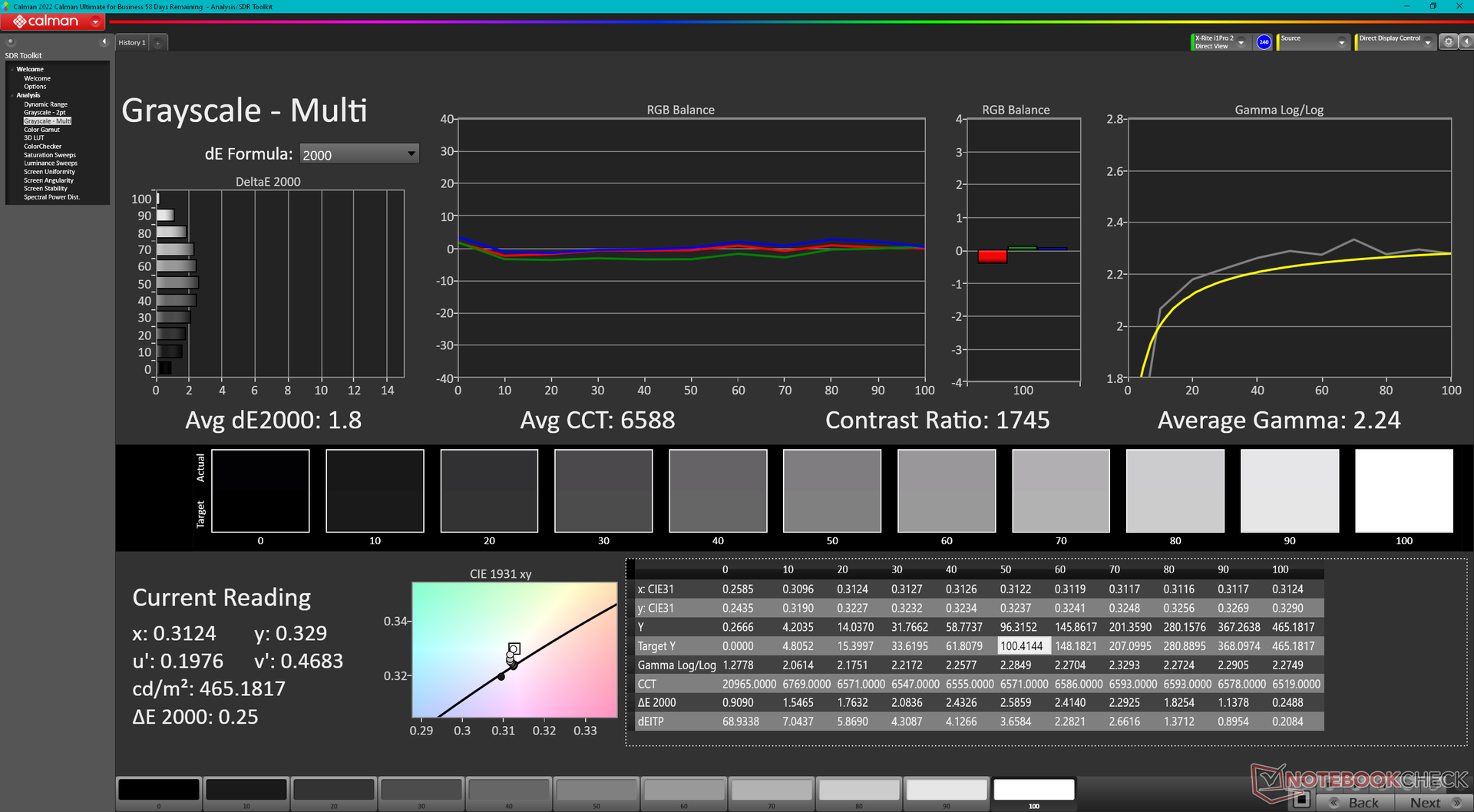

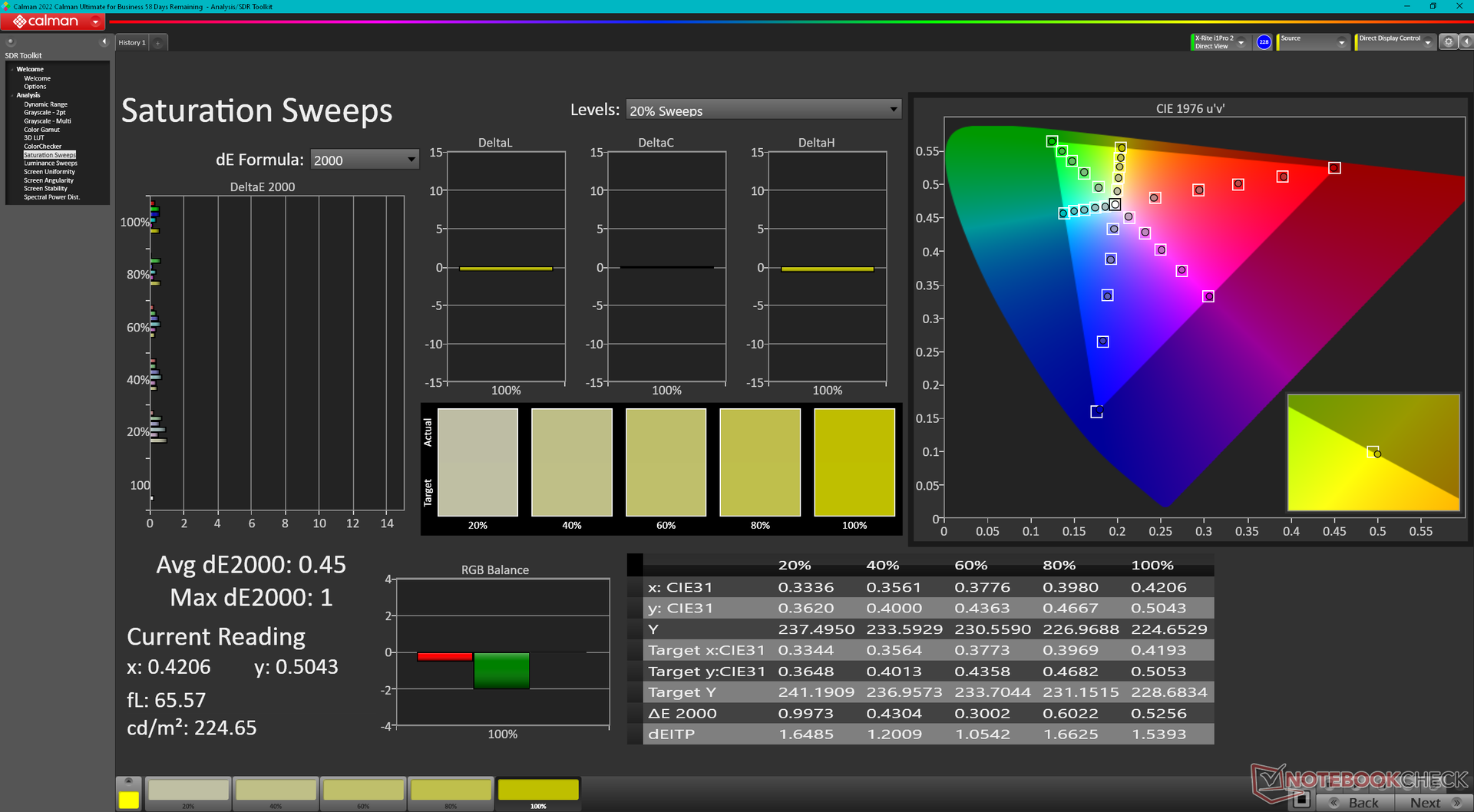

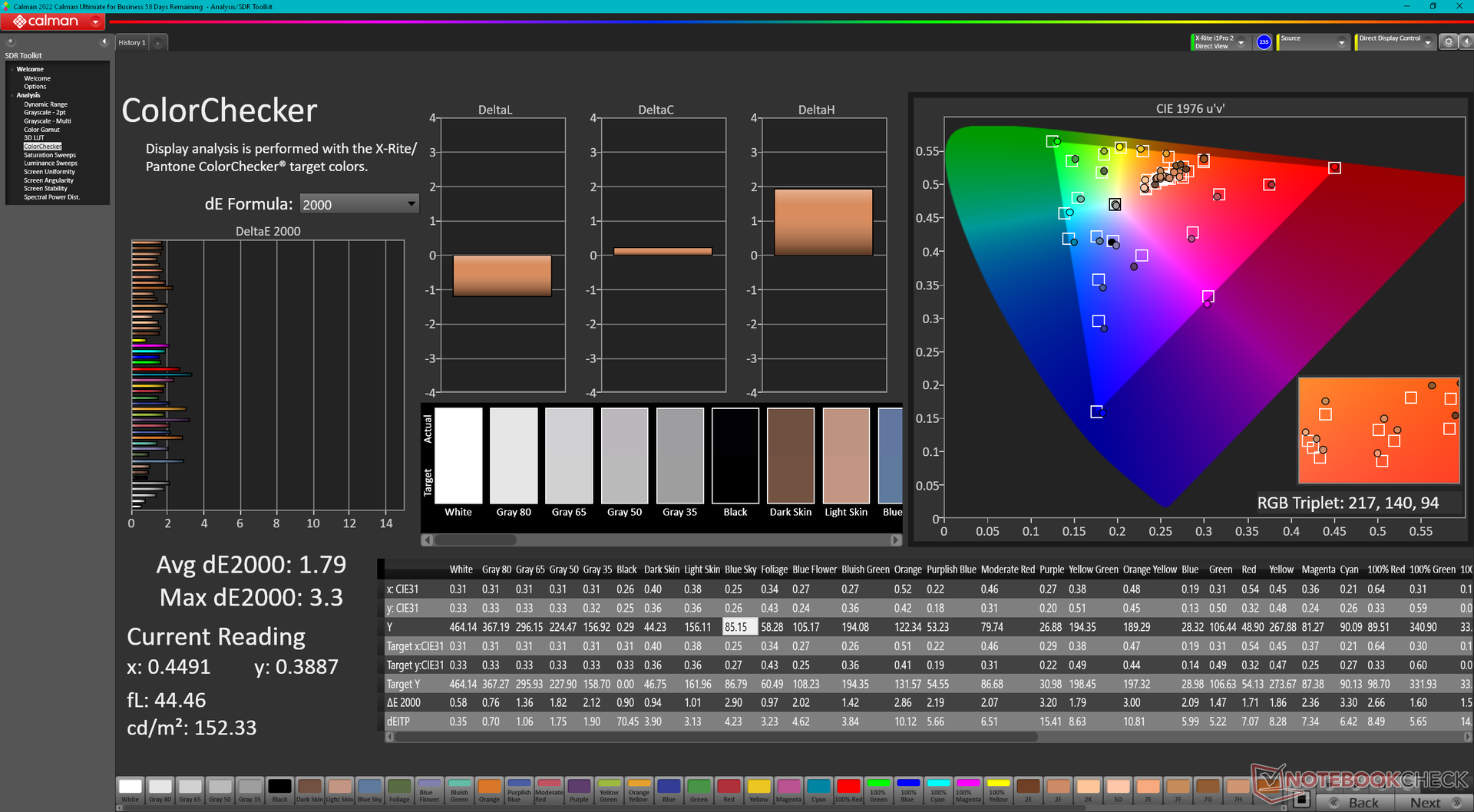

与去年的机型相比,这款显示器的开箱校准效果更好,色彩准确度也有所提高。平均灰度和色彩 deltaE 值分别仅为 1.8 和 1.79,而 X1 Nano Gen 2 则分别为 5.7 和 4.85。

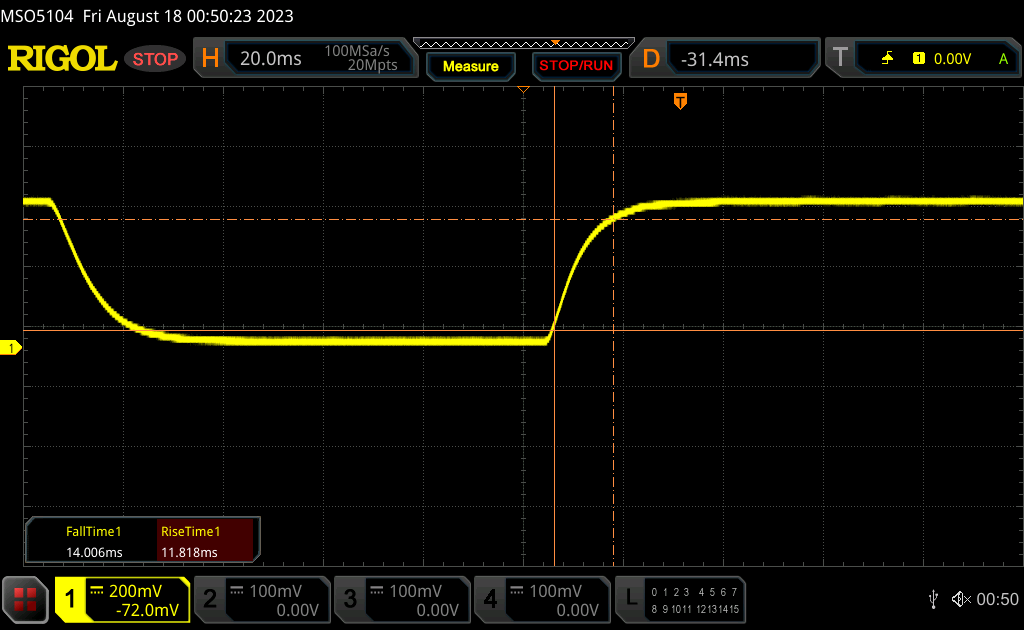

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
25.8 ms ... rise ↗ and fall ↘ combined | ↗ 11.8 ms rise | |
↘ 14 ms fall | ||
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 57 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms). | ||

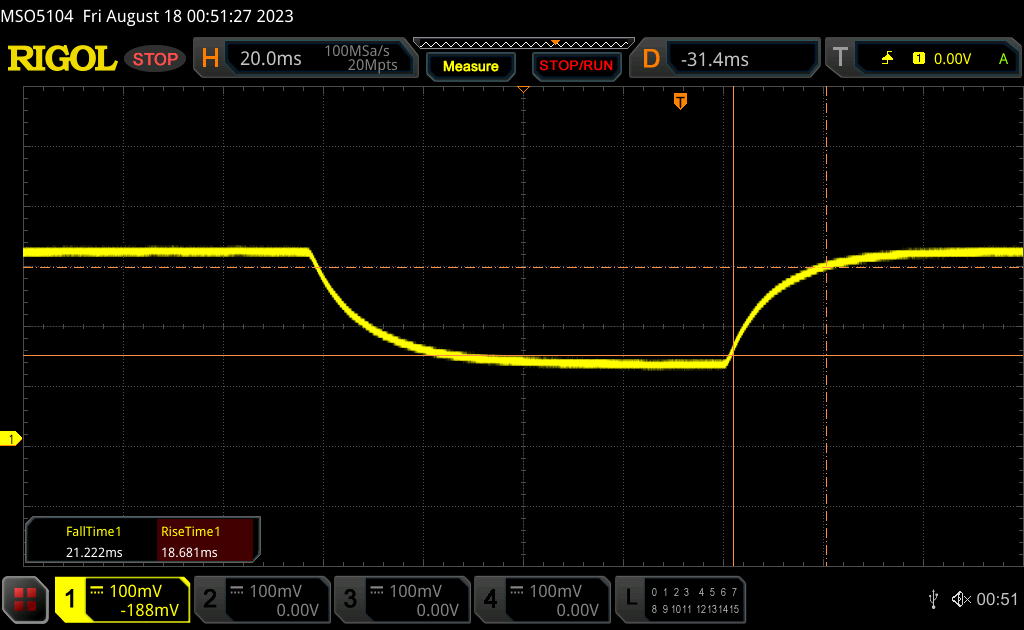

↔ Response Time 50% Grey to 80% Grey | ||
39.9 ms ... rise ↗ and fall ↘ combined | ↗ 18.7 ms rise | |
↘ 21.2 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 56 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms). |

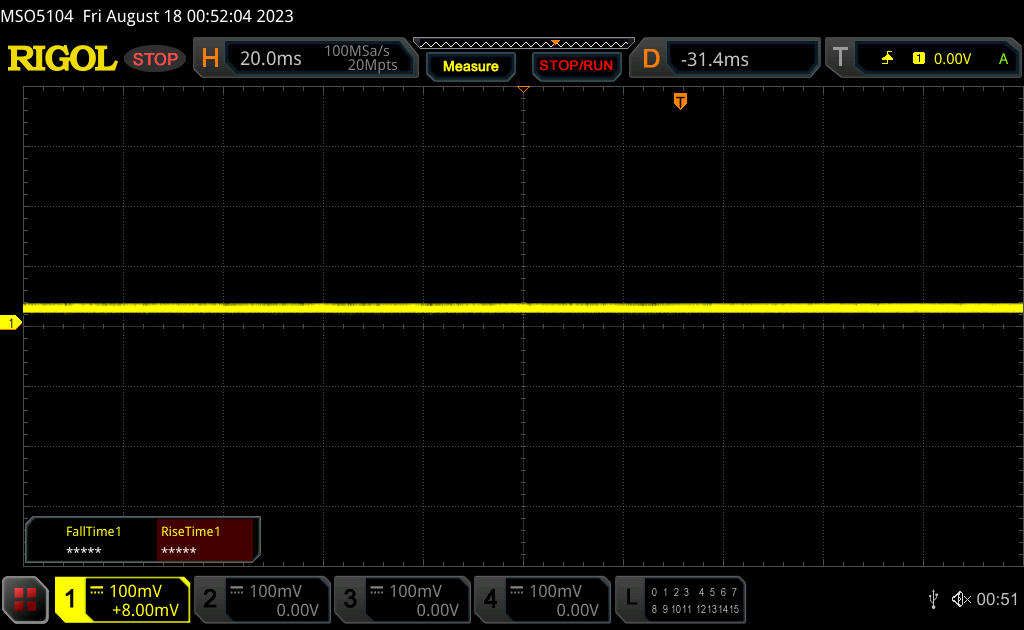

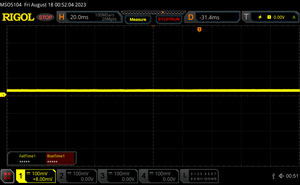

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17903 (minimum: 5 - maximum: 3846000) Hz was measured. |
性能 - 英特尔猛禽湖升级版
测试条件

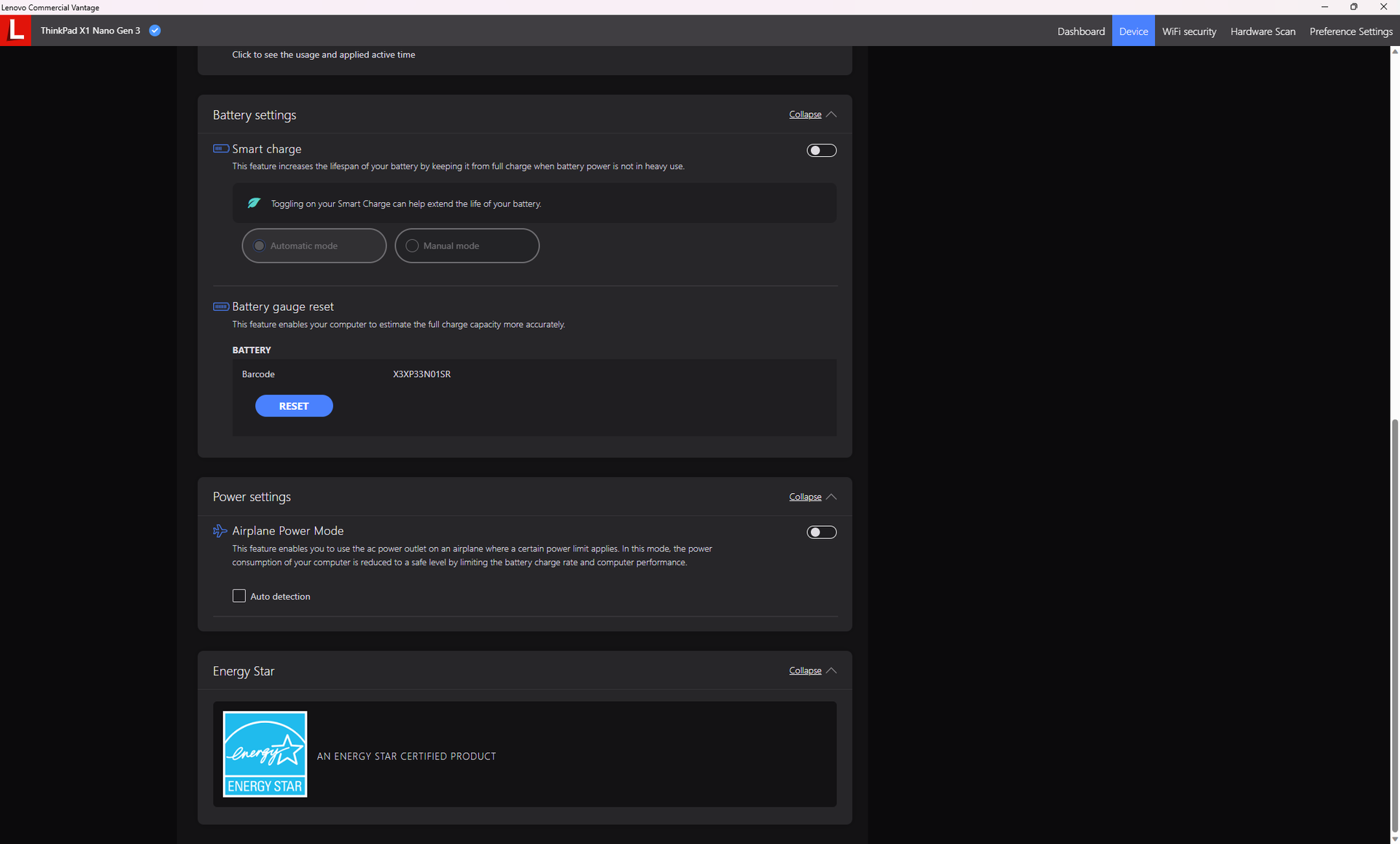

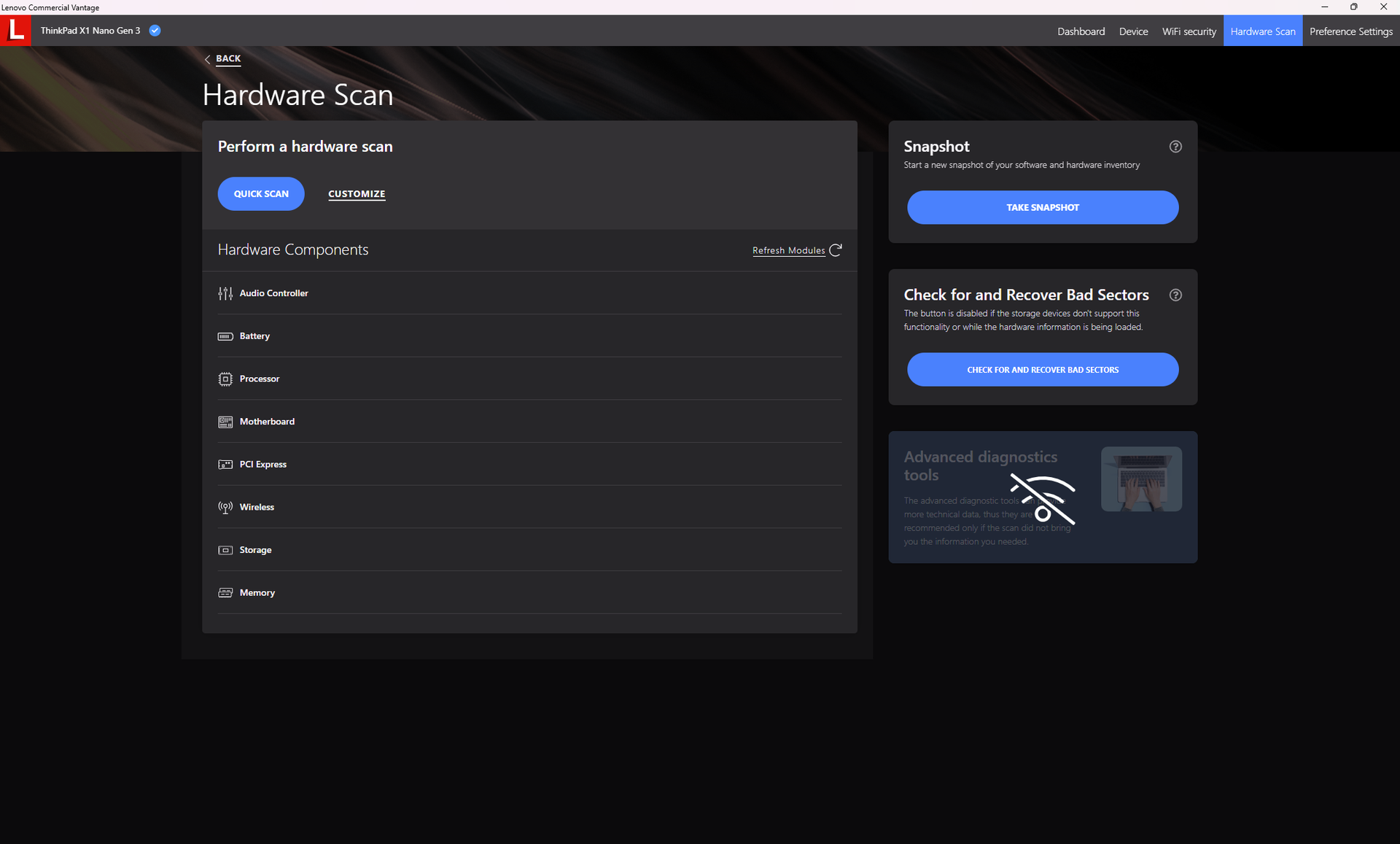

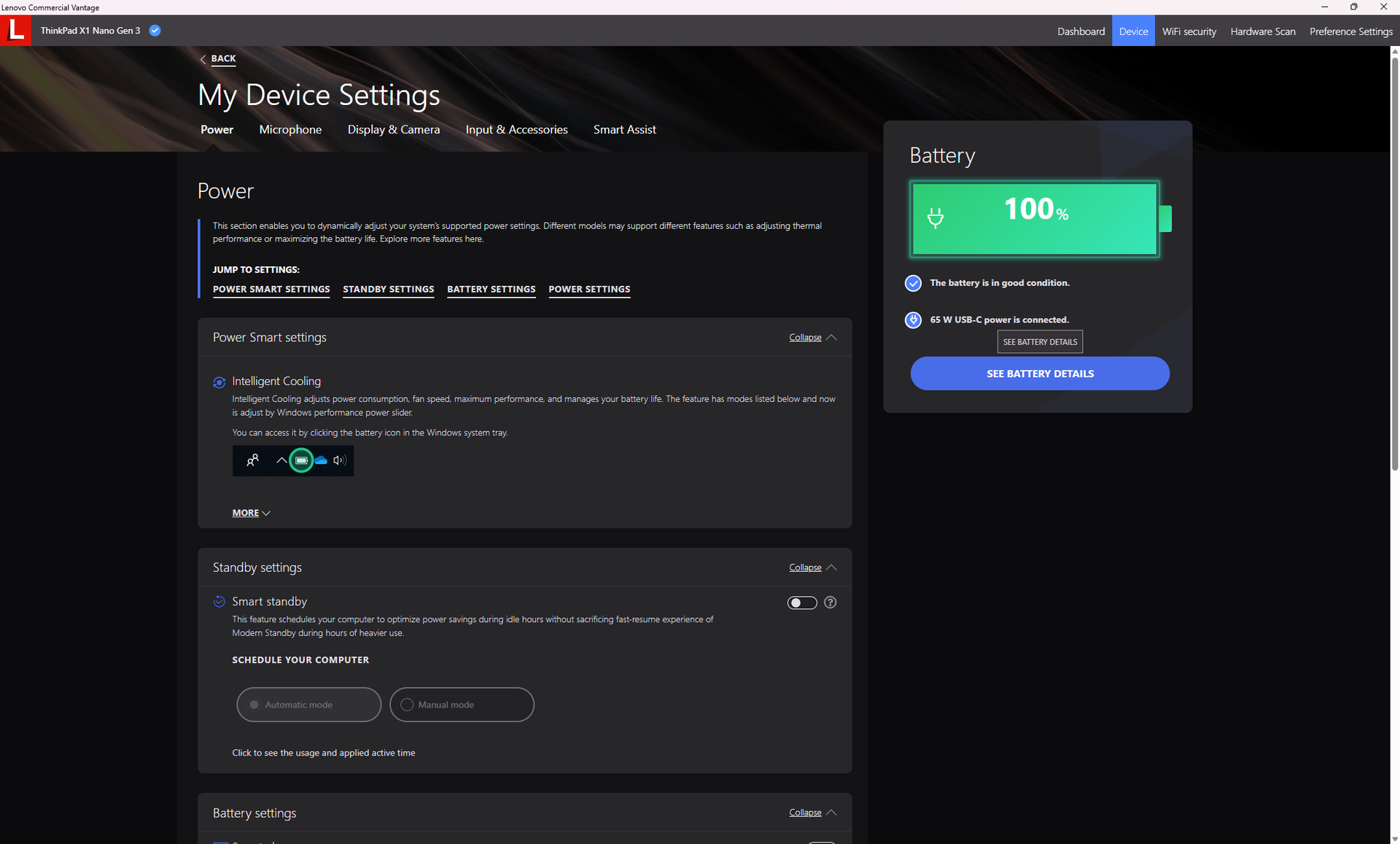

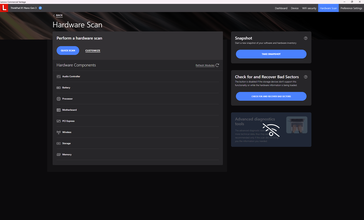

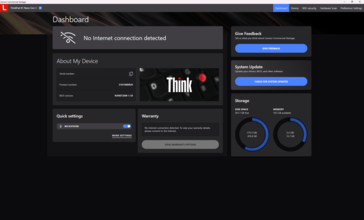

在运行下面的基准测试之前,我们将 Windows 设置为性能模式。在大多数其他联想笔记本电脑上,Vantage 软件除了通常的 Windows 电源设置外,还有特殊的电源设置。但在 ThinkPad X1 Nano 上,Vantage 没有特殊的电源设置,以减少混淆。

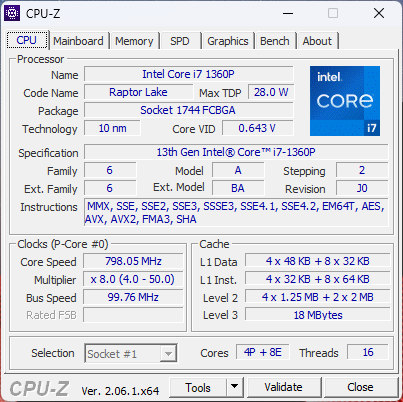

处理器
我们的第 13 代 酷睿 i7-1360P性能几乎与第 12 代 酷睿 i7-1280P几乎完全相同。正如下面的 CineBench R15 xT 循环结果所示,由于节流较快,它有时甚至会落后于旧处理器。尽管如此,与搭载酷睿 U 系列处理器的同类超极本相比,它的速度仍然更快,例如惠普蜻蜓 G4或戴尔Latitude 9330快达 20%。
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Asus Zenbook S 13 OLED | |
Lenovo ThinkPad X1 Nano Gen 3 | |
HP Dragonfly G4 | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Apple MacBook Air M2 10C GPU -5! | |
Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
Dell Latitude 9330 | |
Lenovo ThinkPad X13 G3 21BN0046GE | |
Lenovo ThinkPad X13 G3 21CM002UGE | |
Dell Inspiron 13 7306-6TYH5 | |
LG Gram 14Z90Q | |
Lenovo IdeaPad S540-13ARE-82DL000YGE -2! |
Cinebench R20 / CPU (Multi Core) | |
Framework Laptop 13.5 13th Gen Intel | |
Asus Zenbook S 13 OLED | |
Average Intel Core i7-1360P (2474 - 4887, n=16) | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkPad X13 G3 21BN0046GE | |
Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Lenovo ThinkPad X13 G3 21CM002UGE | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
HP Dragonfly G4 | |
Dell Latitude 9330 | |
Lenovo IdeaPad S540-13ARE-82DL000YGE | |
Apple MacBook Air M2 10C GPU | |
Dell Inspiron 13 7306-6TYH5 | |
LG Gram 14Z90Q |
Cinebench R20 / CPU (Single Core) | |
Framework Laptop 13.5 13th Gen Intel | |
HP Dragonfly G4 | |
Average Intel Core i7-1360P (611 - 736, n=16) | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkPad X13 G3 21BN0046GE | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
Dell Latitude 9330 | |
Dell Inspiron 13 7306-6TYH5 | |
Asus Zenbook S 13 OLED | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Lenovo ThinkPad X13 G3 21CM002UGE | |
Lenovo IdeaPad S540-13ARE-82DL000YGE | |
LG Gram 14Z90Q | |
Apple MacBook Air M2 10C GPU |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Framework Laptop 13.5 13th Gen Intel | |
HP Dragonfly G4 | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Average Intel Core i7-1360P (4647 - 5973, n=16) | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Asus Zenbook S 13 OLED | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Lenovo ThinkPad X13 G3 21BN0046GE | |
Lenovo ThinkPad X13 G3 21CM002UGE | |
Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
Dell Inspiron 13 7306-6TYH5 | |
Dell Latitude 9330 | |
LG Gram 14Z90Q | |
Lenovo IdeaPad S540-13ARE-82DL000YGE |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Framework Laptop 13.5 13th Gen Intel | |
Asus Zenbook S 13 OLED | |
Average Intel Core i7-1360P (6.9 - 14.2, n=16) | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Lenovo ThinkPad X13 G3 21CM002UGE | |
Lenovo ThinkPad X13 G3 21BN0046GE | |
Lenovo IdeaPad S540-13ARE-82DL000YGE | |
HP Dragonfly G4 | |
Dell Latitude 9330 | |
Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
LG Gram 14Z90Q | |
Dell Inspiron 13 7306-6TYH5 |
LibreOffice / 20 Documents To PDF | |
Lenovo IdeaPad S540-13ARE-82DL000YGE | |
Lenovo ThinkPad X13 G3 21CM002UGE | |
Asus Zenbook S 13 OLED | |
LG Gram 14Z90Q | |
Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
Dell Latitude 9330 | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Dell Inspiron 13 7306-6TYH5 | |
Average Intel Core i7-1360P (40.3 - 57.2, n=16) | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
HP Dragonfly G4 | |
Lenovo ThinkPad X13 G3 21BN0046GE | |
Framework Laptop 13.5 13th Gen Intel |
R Benchmark 2.5 / Overall mean | |
Lenovo IdeaPad S540-13ARE-82DL000YGE | |
Lenovo ThinkPad X13 G3 21CM002UGE | |
Dell Inspiron 13 7306-6TYH5 | |
LG Gram 14Z90Q | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Dell Latitude 9330 | |
Asus Zenbook S 13 OLED | |
Lenovo ThinkPad X13 Yoga G4 21F20017GE | |
Lenovo ThinkPad X13 G3 21BN0046GE | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Average Intel Core i7-1360P (0.445 - 0.583, n=16) | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
HP Dragonfly G4 | |
Framework Laptop 13.5 13th Gen Intel |
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... smaller is better
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Lenovo ThinkPad X1 Nano Gen 3 | |
HP Dragonfly G4 | |
Dell Latitude 9330 | |
LG Gram 14Z90Q |
AIDA64 / FP32 Ray-Trace | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P (5610 - 11188, n=17) | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
HP Dragonfly G4 | |
Dell Latitude 9330 | |
LG Gram 14Z90Q |
AIDA64 / FPU Julia | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P (29251 - 56942, n=16) | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Dell Latitude 9330 | |
HP Dragonfly G4 | |
LG Gram 14Z90Q |
AIDA64 / CPU SHA3 | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P (1444 - 2728, n=16) | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Dell Latitude 9330 | |
HP Dragonfly G4 | |
LG Gram 14Z90Q |
AIDA64 / CPU Queen | |
Framework Laptop 13.5 13th Gen Intel | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Average Intel Core i7-1360P (65324 - 89266, n=16) | |
LG Gram 14Z90Q | |
HP Dragonfly G4 | |
Dell Latitude 9330 |
AIDA64 / FPU SinJulia | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P (4370 - 7269, n=16) | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Lenovo ThinkPad X1 Nano Gen 3 | |
HP Dragonfly G4 | |
LG Gram 14Z90Q | |
Dell Latitude 9330 |
AIDA64 / FPU Mandel | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P (14104 - 28019, n=16) | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Dell Latitude 9330 | |
HP Dragonfly G4 | |
LG Gram 14Z90Q |
AIDA64 / CPU AES | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P (30391 - 99244, n=16) | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Lenovo ThinkPad X1 Nano Gen 3 | |
HP Dragonfly G4 | |
Dell Latitude 9330 | |
LG Gram 14Z90Q |
AIDA64 / CPU ZLib | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P (420 - 807, n=16) | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
HP Dragonfly G4 | |
Dell Latitude 9330 | |
LG Gram 14Z90Q |
AIDA64 / FP64 Ray-Trace | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P (2906 - 5957, n=16) | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Dell Latitude 9330 | |
HP Dragonfly G4 | |
LG Gram 14Z90Q |
AIDA64 / CPU PhotoWorxx | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Average Intel Core i7-1360P (29108 - 49328, n=16) | |
HP Dragonfly G4 | |
Dell Latitude 9330 | |
Framework Laptop 13.5 13th Gen Intel | |
LG Gram 14Z90Q |
系统性能
尽管 CPU 和集成 GPU 的运行速度较慢,但 PCMark 分数仍略高于去年的机型。这可能要归功于 2023 机型的固态硬盘,它比 2022 机型的固态硬盘速度更快,这一点在下面的存储设备部分有所体现。
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs (5360 - 6281, n=14) | |
Lenovo ThinkPad X1 Nano Gen 3 | |
HP Dragonfly G4 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Dell Latitude 9330 | |
LG Gram 14Z90Q |
PCMark 10 / Essentials | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs (9883 - 12059, n=14) | |
HP Dragonfly G4 | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Dell Latitude 9330 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
LG Gram 14Z90Q |
PCMark 10 / Productivity | |
Framework Laptop 13.5 13th Gen Intel | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs (6572 - 8161, n=14) | |
HP Dragonfly G4 | |
Dell Latitude 9330 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
LG Gram 14Z90Q |
PCMark 10 / Digital Content Creation | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs (5723 - 7612, n=14) | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
HP Dragonfly G4 | |
LG Gram 14Z90Q | |
Dell Latitude 9330 |
CrossMark / Overall | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs (1527 - 1891, n=15) | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
HP Dragonfly G4 | |
Apple MacBook Air M2 10C GPU |
CrossMark / Productivity | |
Framework Laptop 13.5 13th Gen Intel | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs (1503 - 1842, n=15) | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
HP Dragonfly G4 | |
Apple MacBook Air M2 10C GPU |
CrossMark / Creativity | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs (1558 - 2003, n=15) | |
Apple MacBook Air M2 10C GPU | |
HP Dragonfly G4 |
CrossMark / Responsiveness | |
Average Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs (1311 - 1899, n=15) | |
Framework Laptop 13.5 13th Gen Intel | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
HP Dragonfly G4 | |
Apple MacBook Air M2 10C GPU |

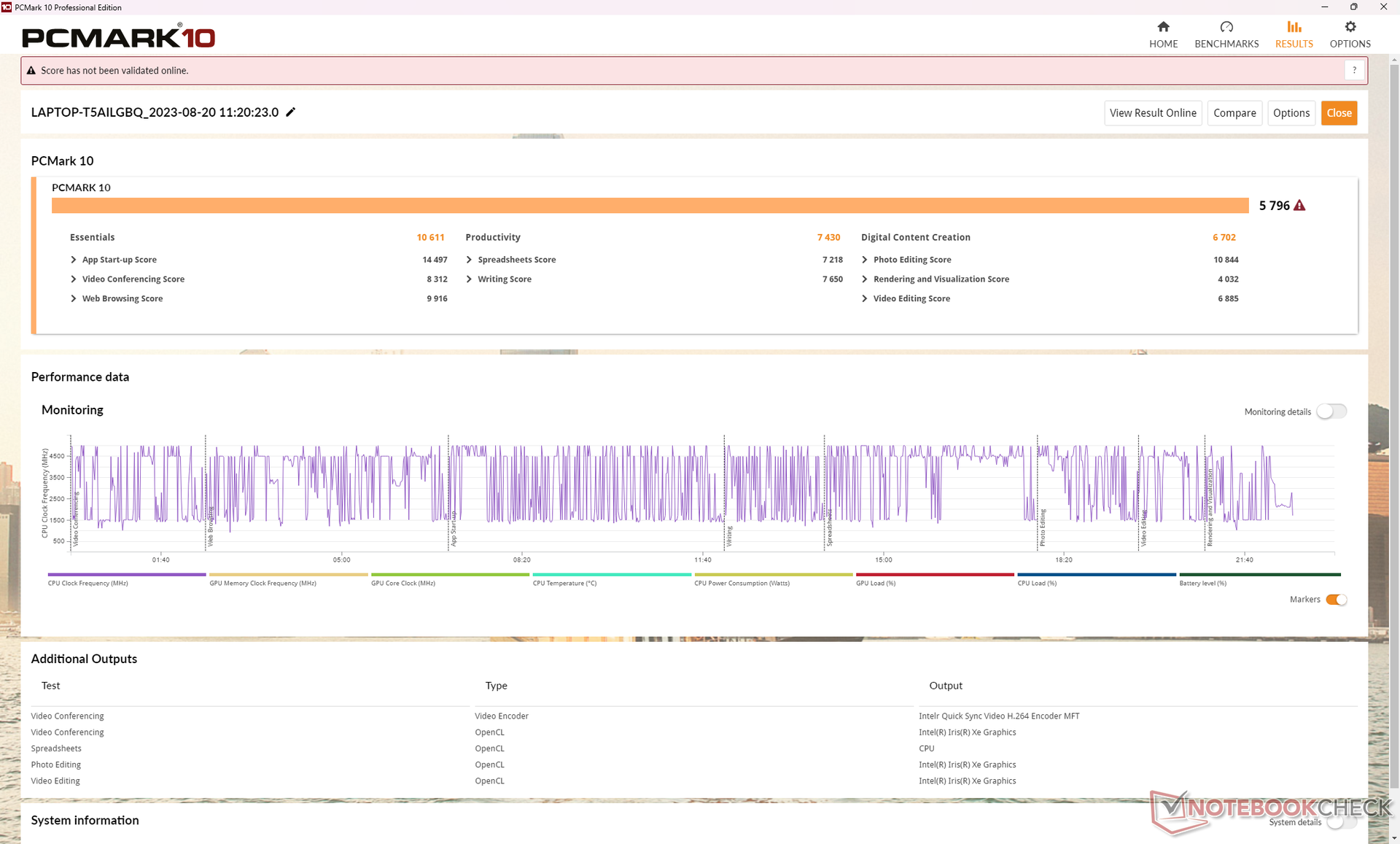

PCMark 10 Score | 5796 points | |
Help |

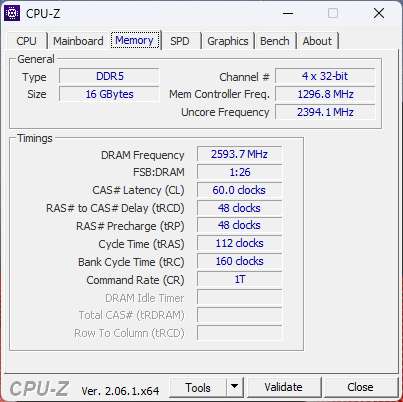

AIDA64 / Memory Copy | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Dell Latitude 9330 | |
Average Intel Core i7-1360P (44299 - 72748, n=16) | |
HP Dragonfly G4 | |
LG Gram 14Z90Q | |
Framework Laptop 13.5 13th Gen Intel |
AIDA64 / Memory Read | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
LG Gram 14Z90Q | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Dell Latitude 9330 | |
Average Intel Core i7-1360P (44751 - 68945, n=16) | |
Framework Laptop 13.5 13th Gen Intel | |
HP Dragonfly G4 |
AIDA64 / Memory Write | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Average Intel Core i7-1360P (45887 - 93331, n=16) | |
HP Dragonfly G4 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Dell Latitude 9330 | |
LG Gram 14Z90Q | |
Framework Laptop 13.5 13th Gen Intel |
AIDA64 / Memory Latency | |
LG Gram 14Z90Q | |
Dell Latitude 9330 | |
Average Intel Core i7-1360P (85 - 110.5, n=16) | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
HP Dragonfly G4 | |
Framework Laptop 13.5 13th Gen Intel |
* ... smaller is better
DPC 延迟

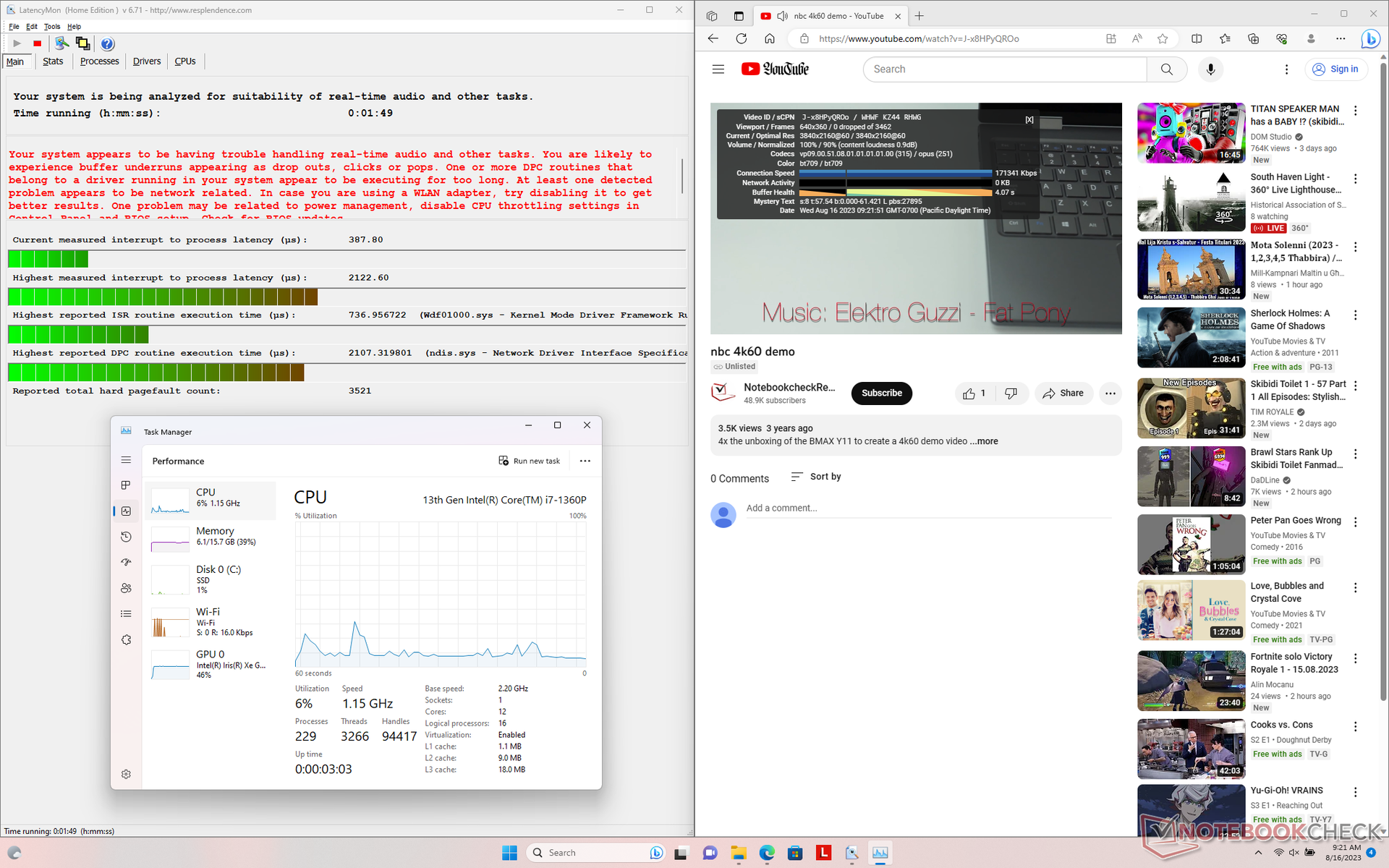

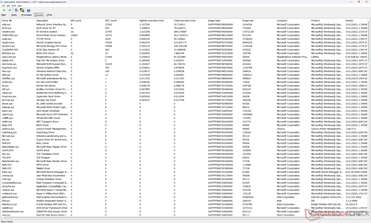

LatencyMon 显示,在打开我们主页的多个浏览器标签页时,会出现轻微的 DPC 问题。在其他方面,以 60 FPS 播放 4K 视频也很流畅,没有掉帧记录。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Dell Latitude 9330 | |
Lenovo ThinkPad X1 Nano Gen 3 | |
HP Dragonfly G4 | |
LG Gram 14Z90Q | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P | |
Framework Laptop 13.5 13th Gen Intel |
* ... smaller is better

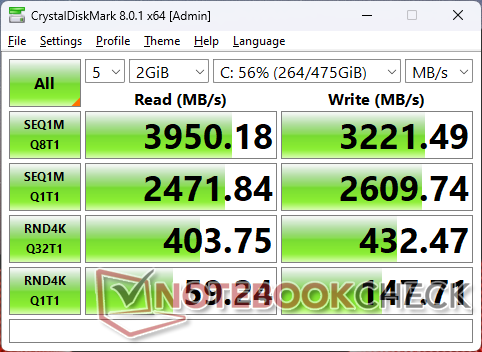

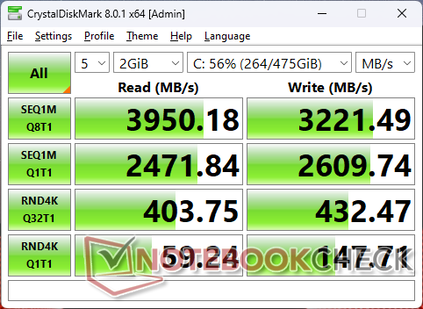

存储设备 - 最多仅支持一个固态硬盘
联想已将固态硬盘从去年型号上的 1 TB Kioxia KBG5AZNT1T02 改为 1 TB KXG80ZNV1T02上的 1 TB Kioxia KXG80ZNV1T02。与旧款硬盘的 3000 MB/s 速度相比,新款硬盘的速度最高可达 4000 MB/s,但在重度使用一分钟左右后,性能最终会有所下降。
Drive Performance Rating - Percent | |
LG Gram 14Z90Q | |
Framework Laptop 13.5 13th Gen Intel | |
HP Dragonfly G4 | |
Dell Latitude 9330 | |
Lenovo ThinkPad X1 Nano Gen 3 | |
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8

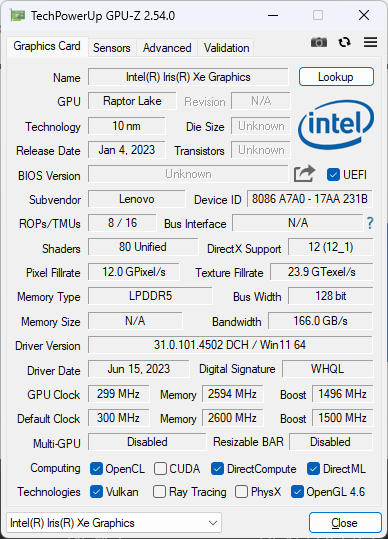

图形处理器性能

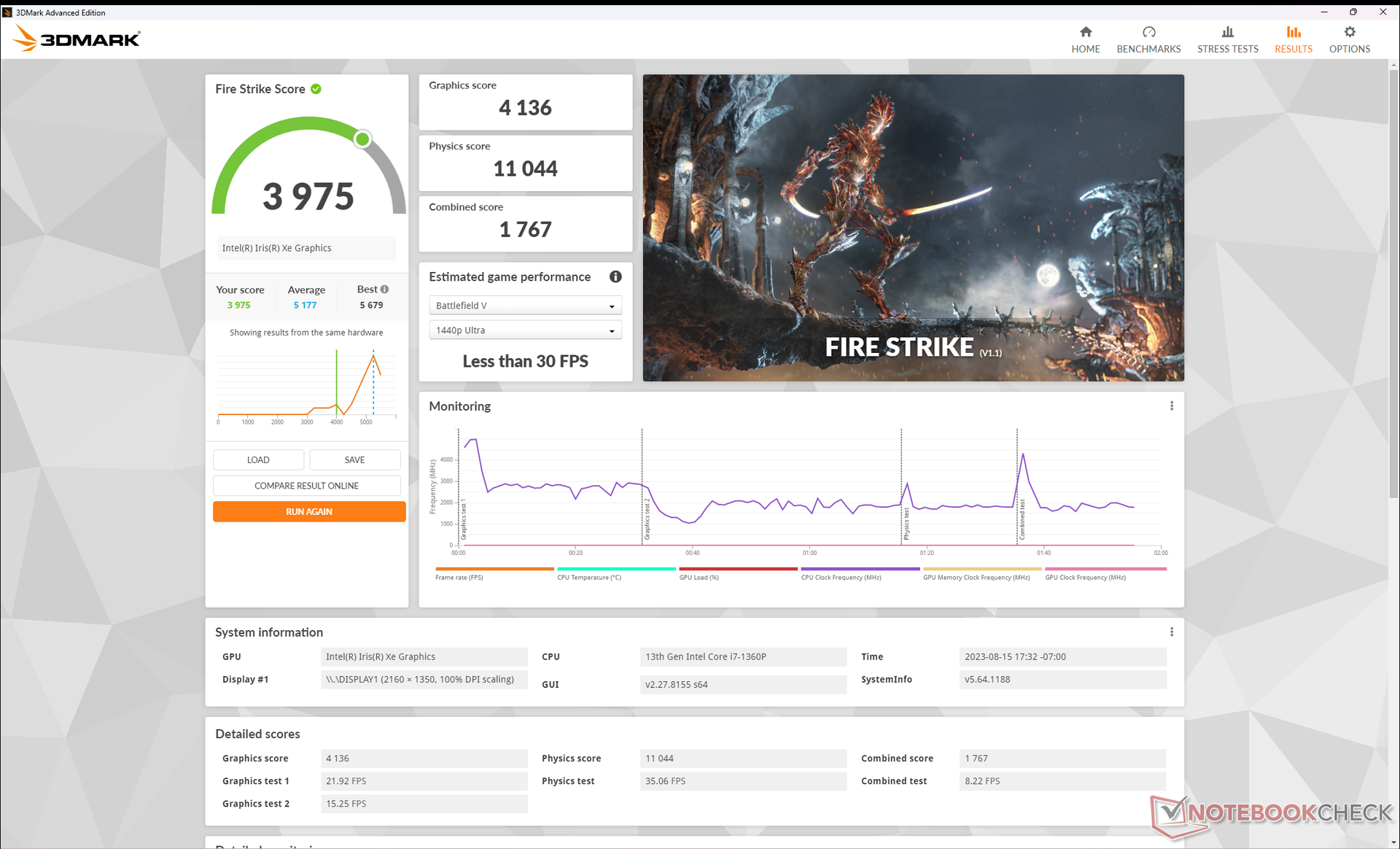

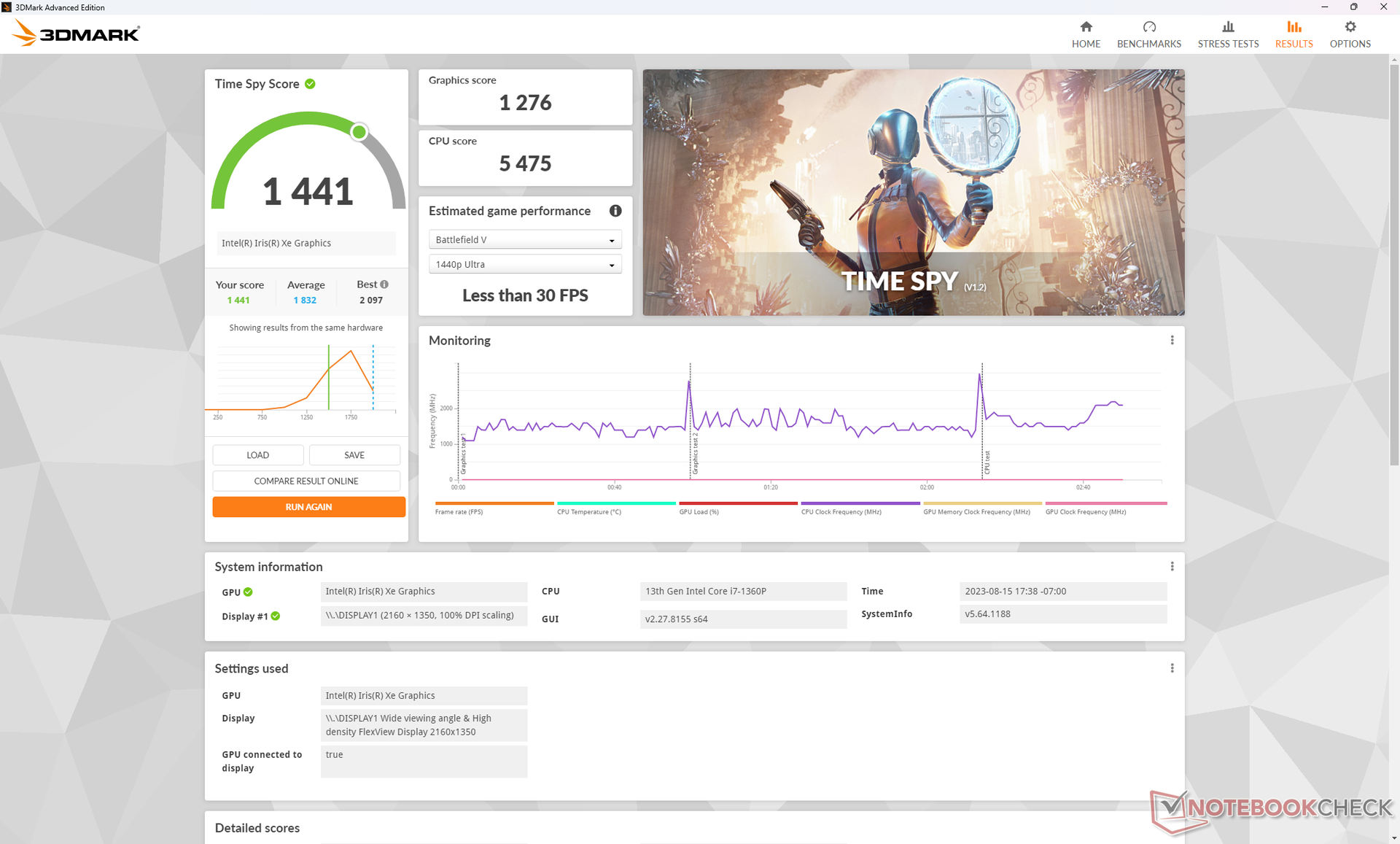

3DMarkFire Strike 和Time Spy 的结果比去年的机型慢了大约 25%,尽管这两款机型配备了相同的 Iris Xe 96EUs GPU。造成这种差异的原因是我们的第 3 代机型的节流行为有所增加。
有趣的是,3DMark 11 分数与去年相比更为接近。这可能表明,在节流不可避免地出现之前,3 代机型的 GPU 性能在冷却状态下会有一个短暂的稳定期。
遗憾的是,联想没有为其 X1 Nano 系列提供任何 AMD 选项,因为最新的 Radeon 680M或 780M 集成 GPU 明显领先于老旧的 Iris Xe 系列。
电源配置文件 | 图形得分 | 物理得分 | 综合得分 |
电池电量 | 6525 (-0%) | 13950 (+25%) | 6222 (+7%) |
平衡模式 | 5316 (-19%) | 8919 (-20%) | 4336 (-25%) |
绩效模式 | 6568 | 11143 | 5799 |

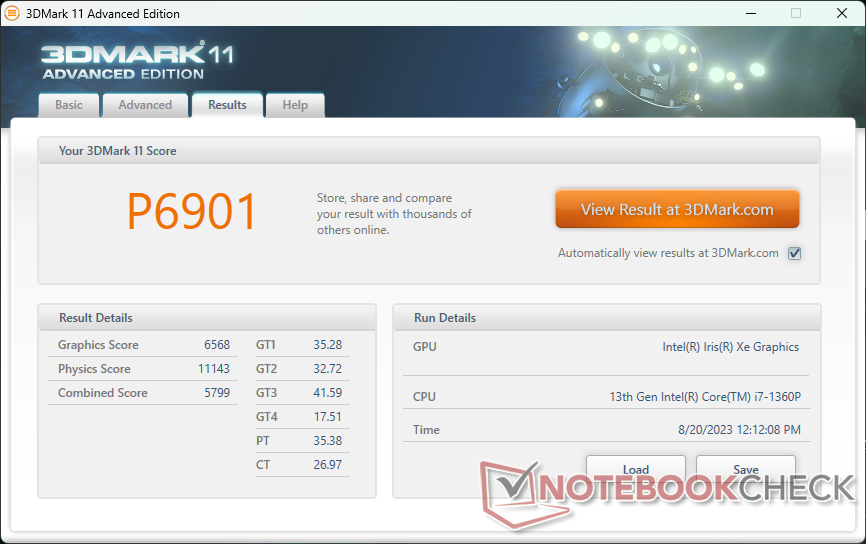

3DMark 11 Performance | 6901 points | |

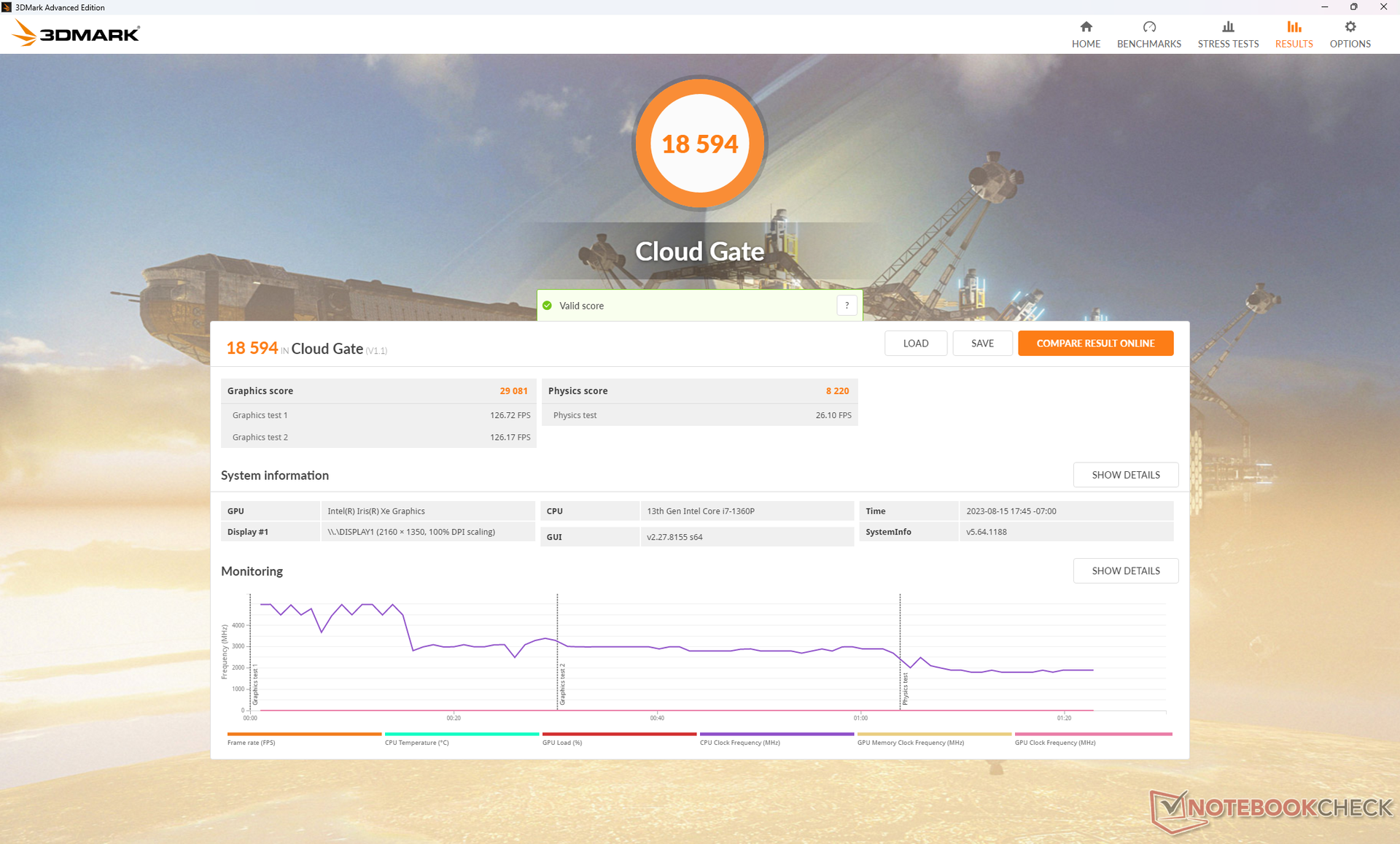

3DMark Cloud Gate Standard Score | 18594 points | |
3DMark Fire Strike Score | 3975 points | |
3DMark Time Spy Score | 1441 points | |
Help |
Tiny Tina's Wonderlands | |
1280x720 Lowest Preset (DX12) | |
HP Dragonfly G4 | |
Average Intel Iris Xe Graphics G7 96EUs (35.9 - 59.8, n=24) | |
Lenovo ThinkPad X1 Nano Gen 3 | |
1920x1080 Low Preset (DX12) | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Iris Xe Graphics G7 96EUs (22.3 - 33.1, n=24) | |
HP Dragonfly G4 | |
Lenovo ThinkPad X1 Nano Gen 3 | |
1920x1080 Medium Preset (DX12) | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Iris Xe Graphics G7 96EUs (17 - 28.2, n=23) | |
HP Dragonfly G4 | |
Lenovo ThinkPad X1 Nano Gen 3 | |
1920x1080 High Preset (DX12) | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Iris Xe Graphics G7 96EUs (10.6 - 18.1, n=22) | |
HP Dragonfly G4 | |
Lenovo ThinkPad X1 Nano Gen 3 | |
1920x1080 Badass Preset (DX12) | |
Framework Laptop 13.5 13th Gen Intel | |
Average Intel Iris Xe Graphics G7 96EUs (8.4 - 14.3, n=19) | |
HP Dragonfly G4 | |
Lenovo ThinkPad X1 Nano Gen 3 |
空载运行时的帧速率 Witcher 3在 62 到 88 FPS 之间循环,而如下图所示,去年的 ThinkPad X1 Nano Gen 2 的帧速率要稳定得多。帧率不稳定并不是大问题,因为 ThinkPad X1 Nano 系列并不是为游戏而设计的,用户仍然可以通过云端流畅地串流游戏,但稳定的 GPU 性能总是更好的。
Witcher 3 FPS Chart
low | med. | high | ultra | |
The Witcher 3 (2015) | 90.7 | 60.9 | 32.4 | 12.6 |
Dota 2 Reborn (2015) | 103.2 | 65.1 | 59 | 45.7 |
Final Fantasy XV Benchmark (2018) | 35.2 | 20.6 | 14.6 | |
X-Plane 11.11 (2018) | 40.1 | 32.6 | 30.2 | |
Far Cry 5 (2018) | 41 | 24 | 22 | 22 |
Strange Brigade (2018) | 78.5 | 35.1 | 27.3 | 21 |
Cyberpunk 2077 1.6 (2022) | 13 | 10.8 | ||
Tiny Tina's Wonderlands (2022) | 23.1 | 18.3 | 11.9 | 8.9 |
F1 22 (2022) | 41.2 | 36.6 | 27.1 | 18.5 |
排放 - 更安静一些
系统噪音

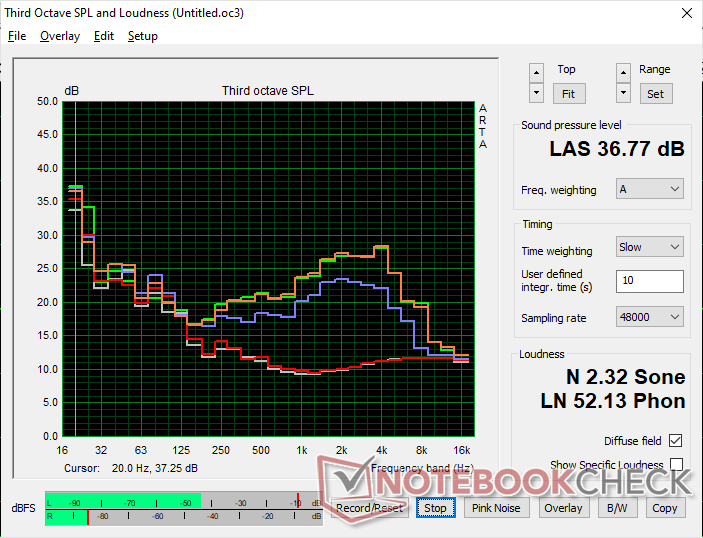

风扇噪音在冷却状态下为静音,但在实际浏览或视频流场景中通常徘徊在 25.6 dB(A)左右,在办公空间或教室环境中基本上听不到。有趣的是,较新的型号在运行较高负载时比较旧的型号更安静(37 dB(A) 对 41 dB(A)),这与上述较慢的性能有关。
Noise Level
Idle |
| 23 / 23 / 23 dB(A) |
Load |
| 32.8 / 36.9 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 22.9 dB(A) |
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ | Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Iris Xe G7 96EUs, i7-1280P, Kioxia BG5 KBG5AZNT1T02 | HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB | Framework Laptop 13.5 13th Gen Intel Iris Xe G7 96EUs, i7-1370P, WD PC SN740 SDDPNQD-1T00 | Dell Latitude 9330 Iris Xe G7 96EUs, i7-1260U | Apple MacBook Air M2 10C GPU M2 10-Core GPU, M2, Apple SSD AP1024Z | LG Gram 14Z90Q Iris Xe G7 80EUs, i5-1240P, Samsung PM9A1 MZVL2512HCJQ | |
---|---|---|---|---|---|---|---|
Noise | -1% | 1% | -15% | -5% | -9% | ||
off / environment * | 22.9 | 23.3 -2% | 23.3 -2% | 23.2 -1% | 23 -0% | 25 -9% | |
Idle Minimum * | 23 | 23.9 -4% | 23.5 -2% | 23.2 -1% | 23 -0% | 26 -13% | |
Idle Average * | 23 | 23.9 -4% | 23.5 -2% | 23.2 -1% | 23.1 -0% | 27 -17% | |
Idle Maximum * | 23 | 23.9 -4% | 26.8 -17% | 23.2 -1% | 23.1 -0% | 28 -22% | |
Load Average * | 32.8 | 23.3 29% | 27.2 17% | 45.3 -38% | 37.1 -13% | 35 -7% | |
Witcher 3 ultra * | 36.9 | 40.9 -11% | 32.7 11% | 47.9 -30% | 40.6 -10% | 36 2% | |
Load Maximum * | 36.9 | 40.9 -11% | 35 5% | 49.2 -33% | 40.5 -10% | 36 2% |
* ... smaller is better
温度

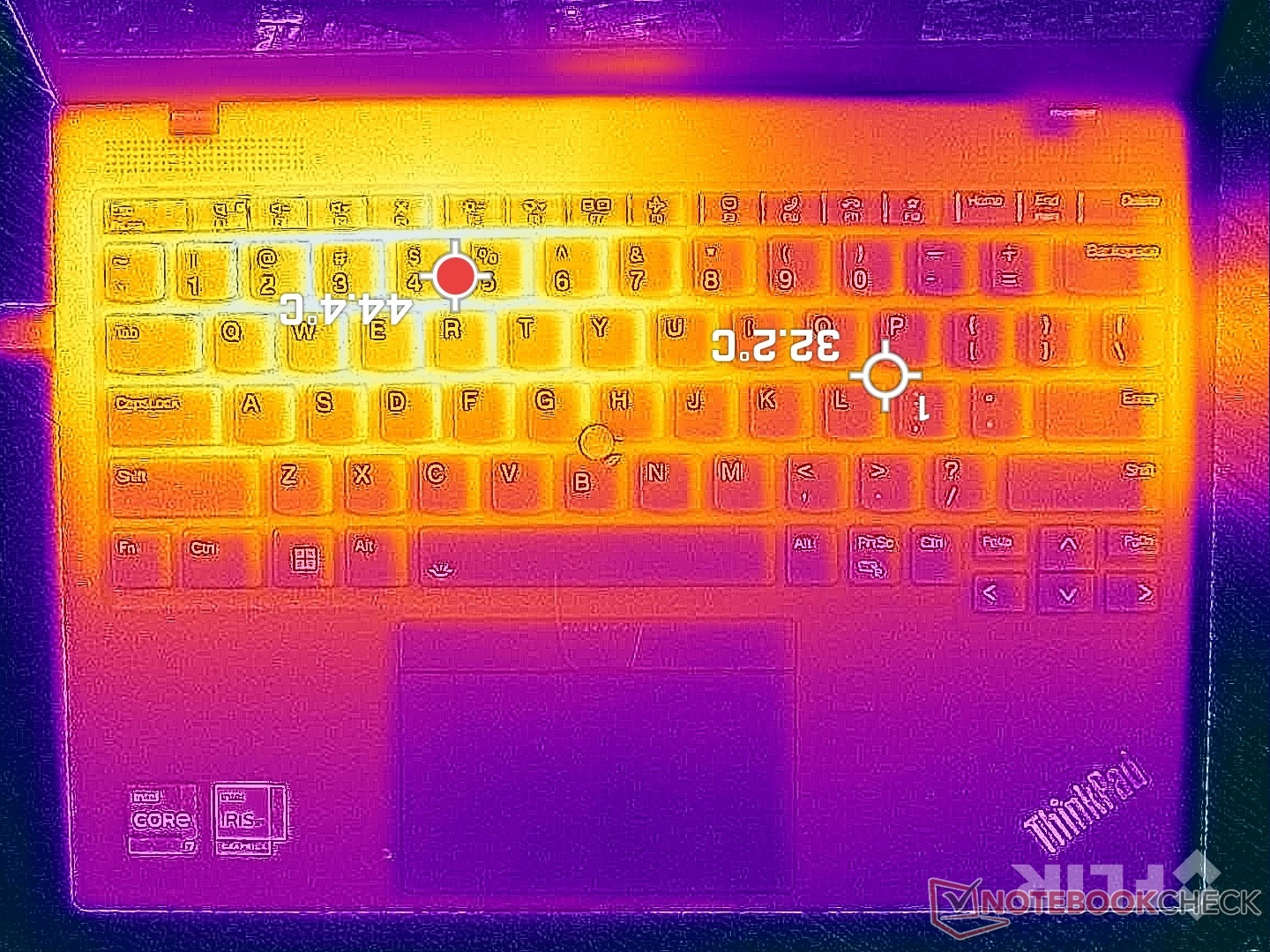

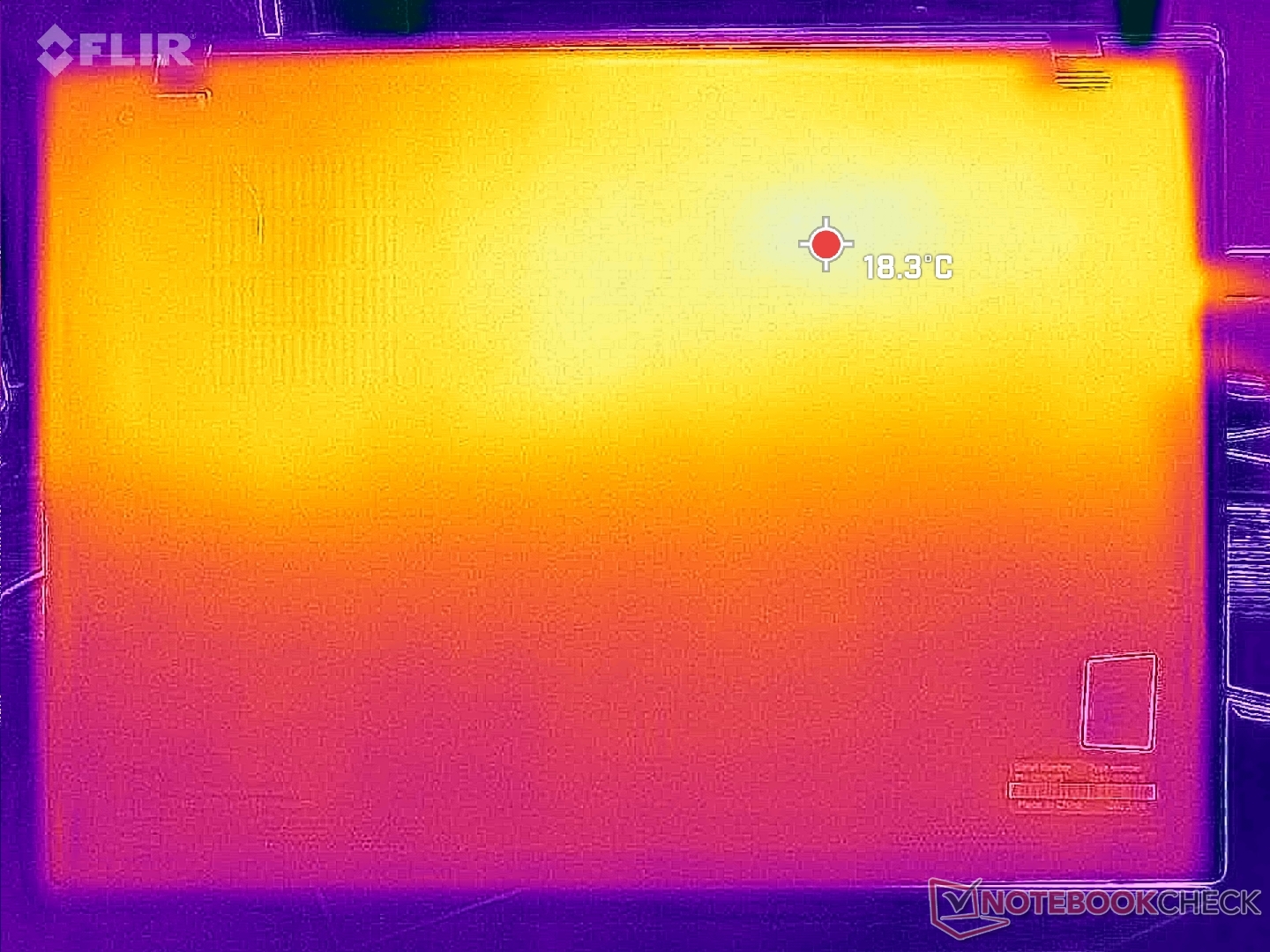

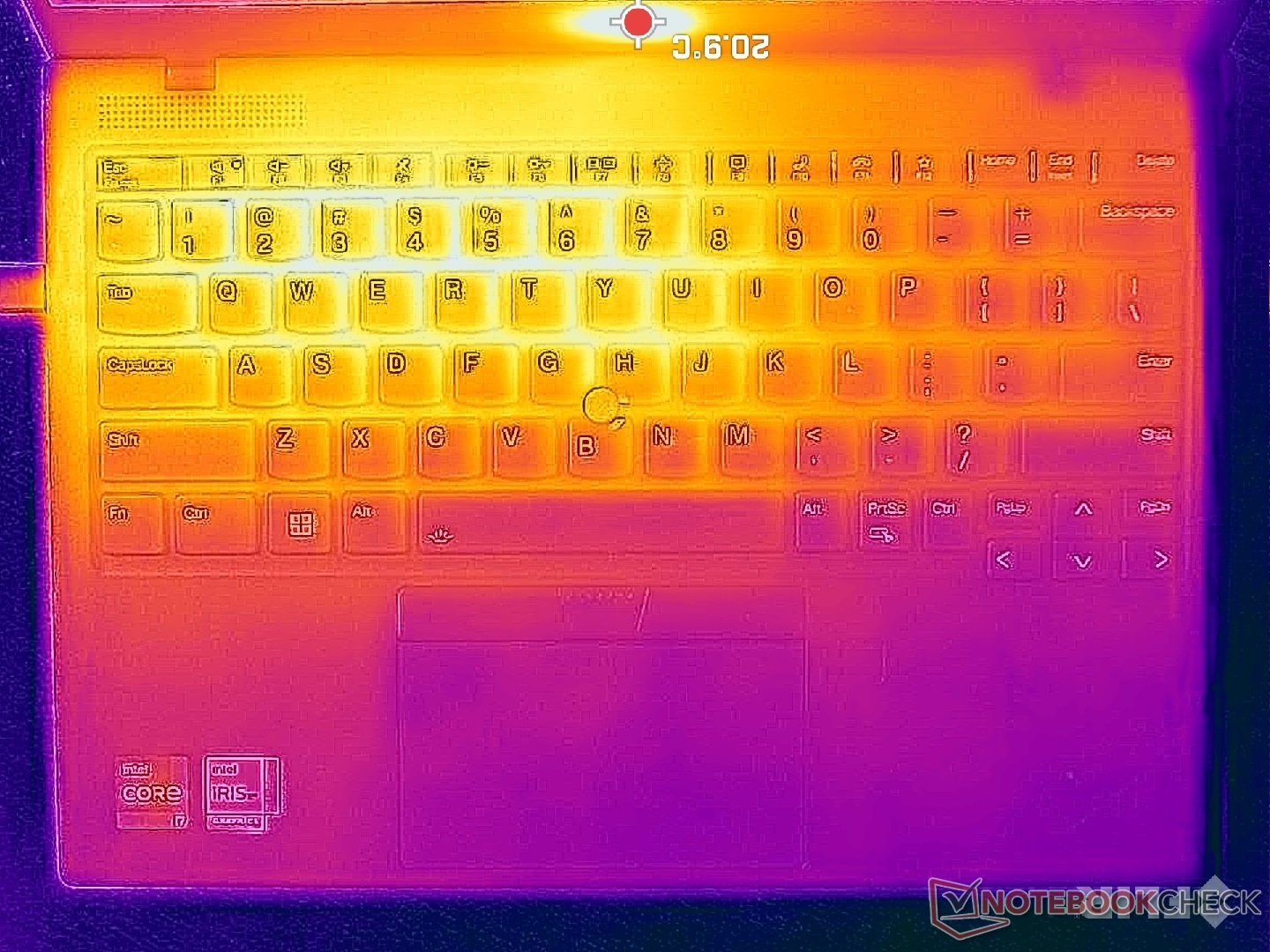

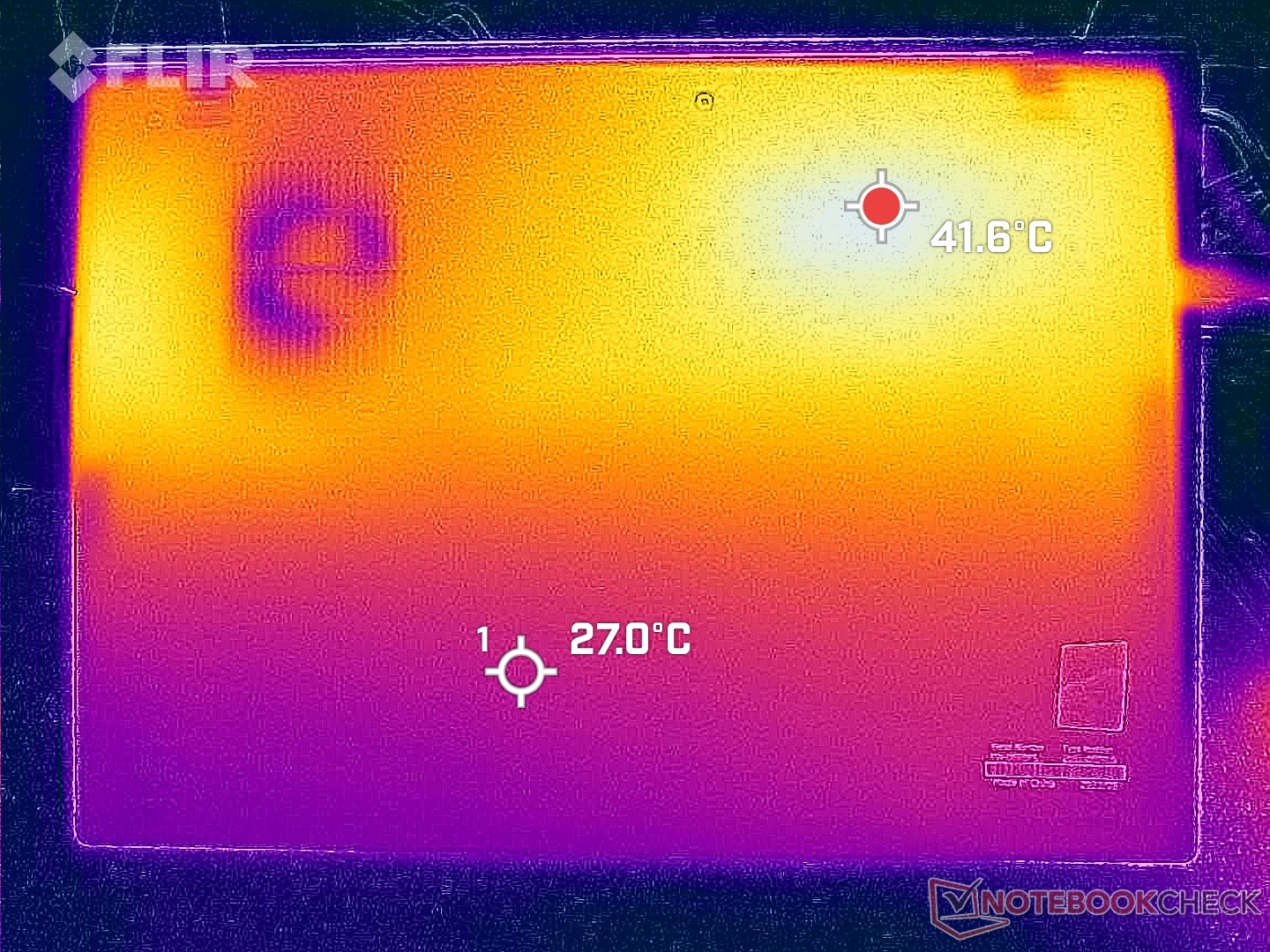

由于 ThinkPad X1 Nano 的散热解决方案非常小,因此表面温度比其他大多数超极本都要高。键盘和底面的温度可达 38 至 43 摄氏度,比 HP Dragonfly G4 的温度高出几度。 惠普蜻蜓 G4的温度高出几度。
(±) The maximum temperature on the upper side is 44 °C / 111 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 43.2 °C / 110 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24 °C / 75 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32 °C / 89.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-3.7 °C / -6.7 F).
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs | HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs | Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs | Dell Latitude 9330 Intel Core i7-1260U, Intel Iris Xe Graphics G7 96EUs | Apple MacBook Air M2 10C GPU Apple M2, Apple M2 10-Core GPU | LG Gram 14Z90Q Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs | |
---|---|---|---|---|---|---|---|
Heat | -2% | -1% | 2% | -4% | -1% | -4% | |
Maximum Upper Side * | 44 | 42.4 4% | 38.6 12% | 38.2 13% | 40.6 8% | 44.7 -2% | 43 2% |
Maximum Bottom * | 43.2 | 40.2 7% | 40.4 6% | 41.4 4% | 50.2 -16% | 44.6 -3% | 45 -4% |
Idle Upper Side * | 25.6 | 27.8 -9% | 28.2 -10% | 25.8 -1% | 25 2% | 25.1 2% | 27 -5% |
Idle Bottom * | 25.6 | 27.8 -9% | 29 -13% | 27.6 -8% | 27.6 -8% | 25.3 1% | 28 -9% |
* ... smaller is better

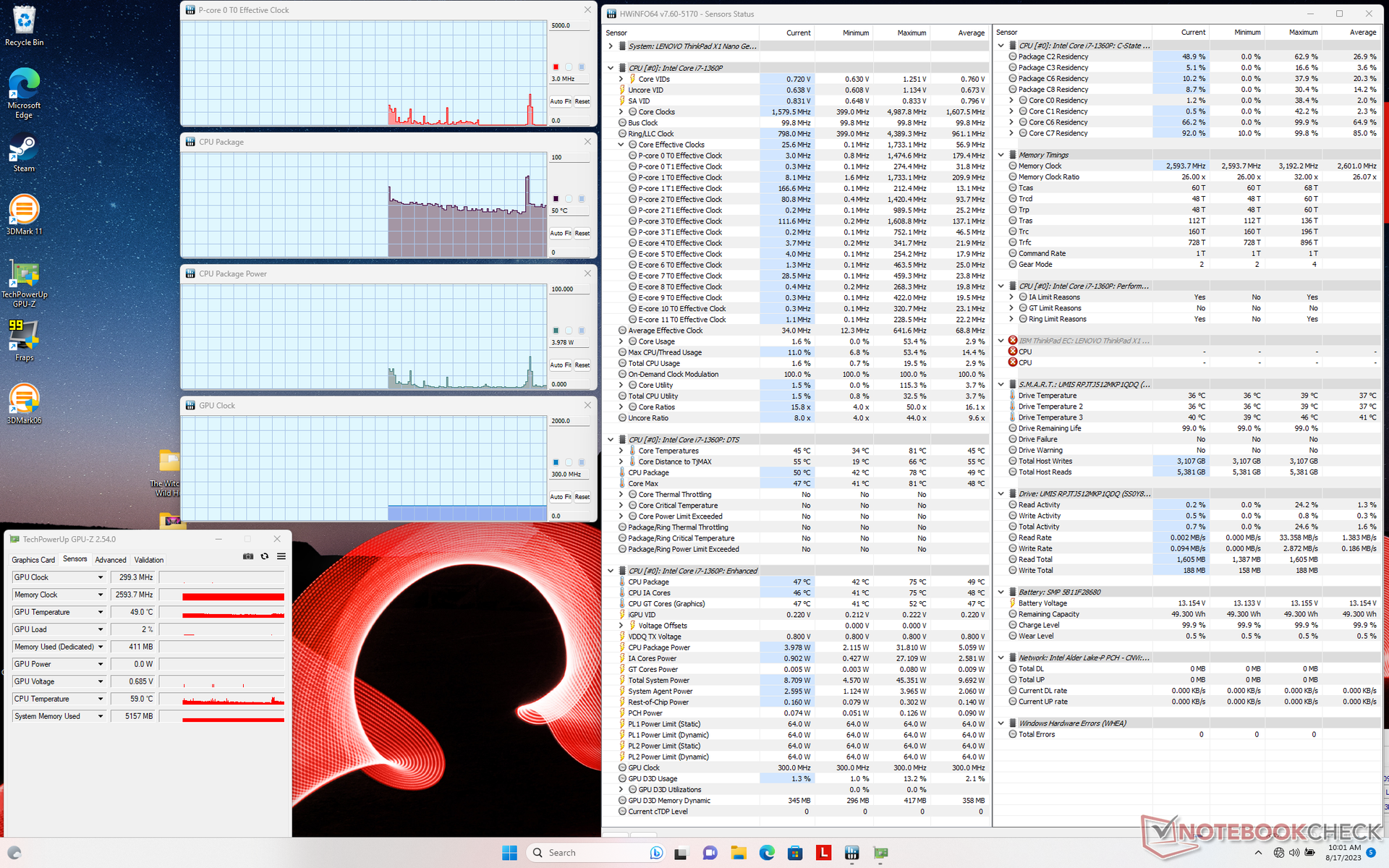

压力测试

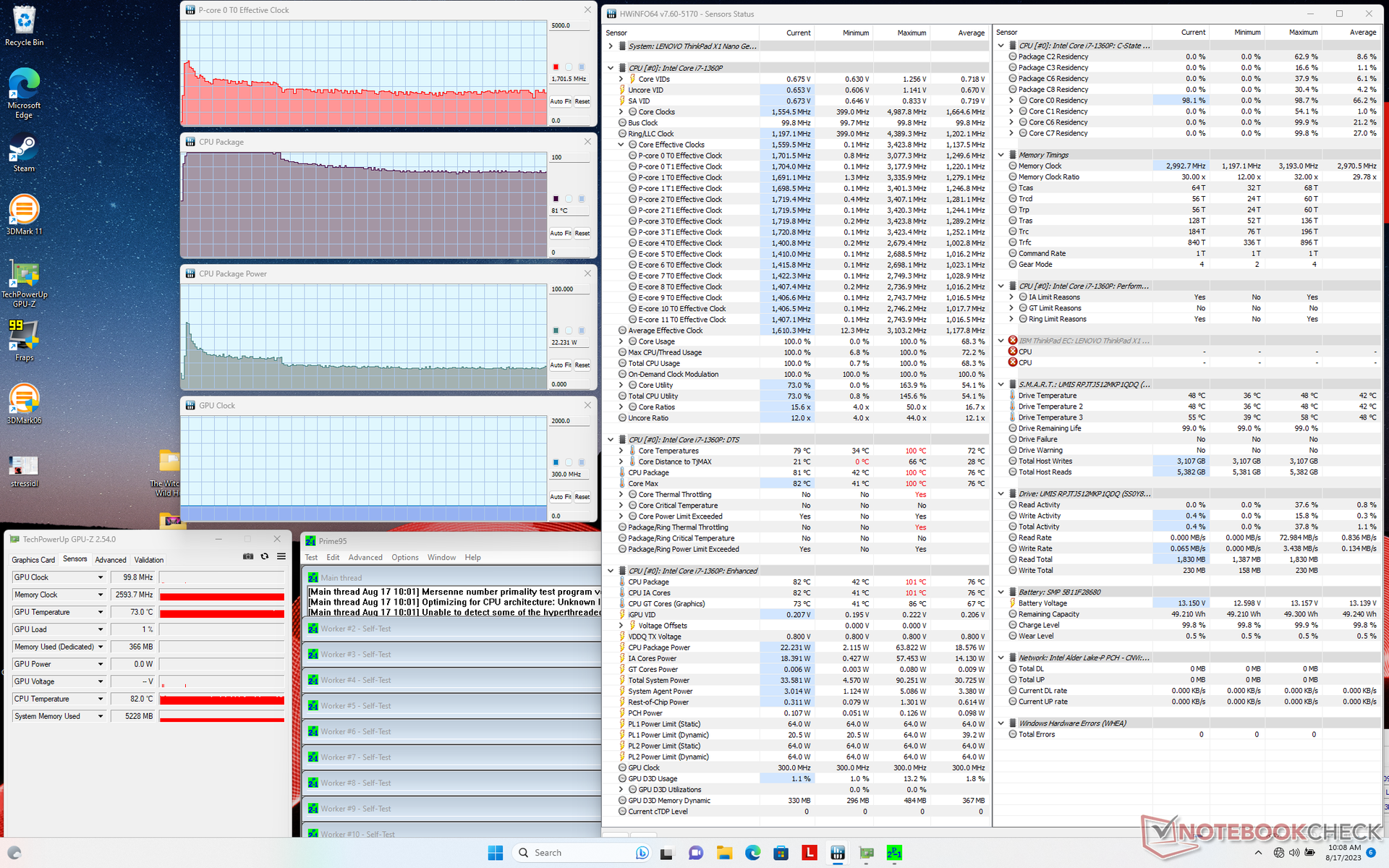

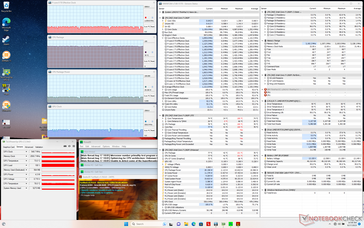

当运行 Prime95 对 CPU 施加压力时,时钟频率和主板功耗将分别飙升至 3.1 GHz 和 64 W,但由于核心温度高达 100 C,因此仅持续了几秒钟。随后,CPU 将稳定在 1.5 GHz 和 23 W,以保持 90 C 的较易管理的核心温度。这些极高的核心温度比 Dragonfly G4 的温度还要高,可与 Latitude 9330在类似条件下的温度相当。
CPU 时钟 (GHz) | GPU 时钟 (MHz) | CPU 平均温度 (°C) | |
系统闲置 | -- | -- | 50 |
Prime95 压力 | 1.7 | -- | 81 |
Prime95 + FurMark 压力 | ~1.0 | 549 | 78 |
Witcher 3 应力 | ~1.0 | 850 - 1150 | 70 - 78 |
发言人

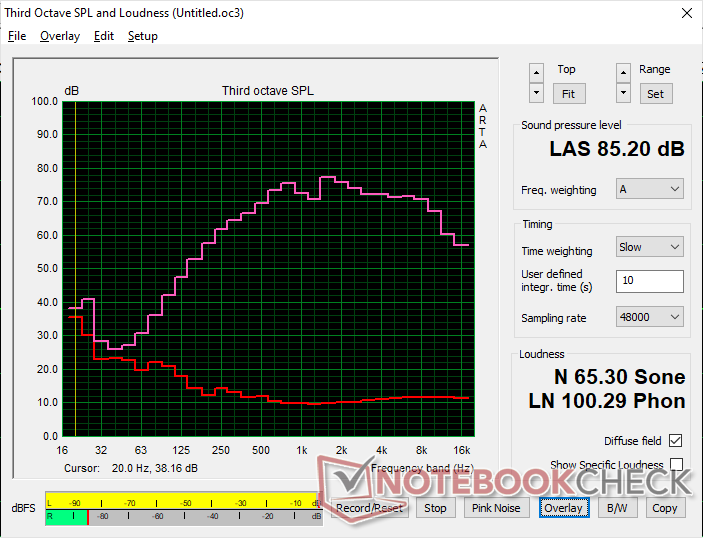

Lenovo ThinkPad X1 Nano Gen 3 audio analysis
(+) | speakers can play relatively loud (85.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.3% lower than median
(±) | linearity of bass is average (7.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.6% away from median
(+) | highs are linear (2.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.2% difference to median)
Compared to same class
» 12% of all tested devices in this class were better, 4% similar, 85% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 7% of all tested devices were better, 2% similar, 91% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%

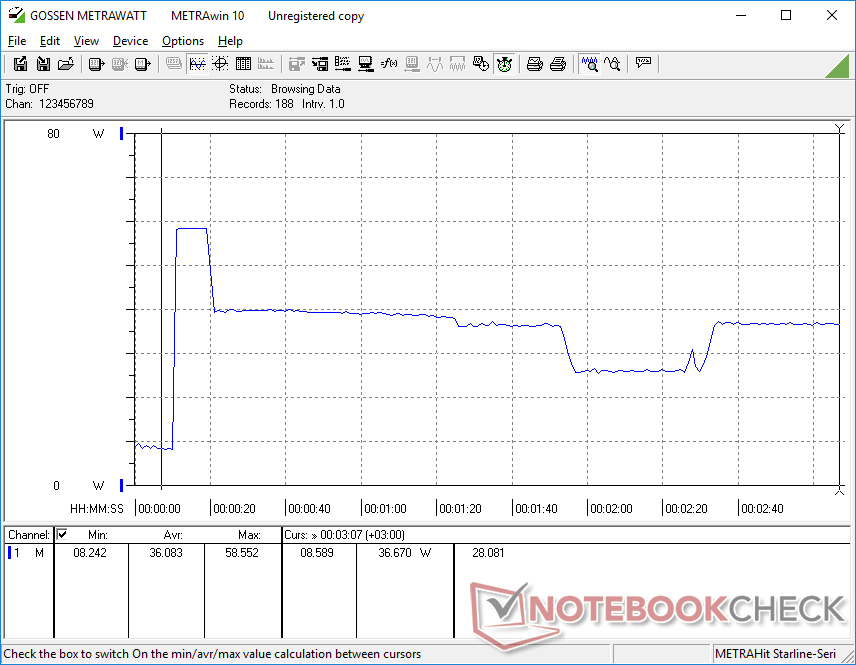

能源管理 - 高能效弥补了电池体积小的不足

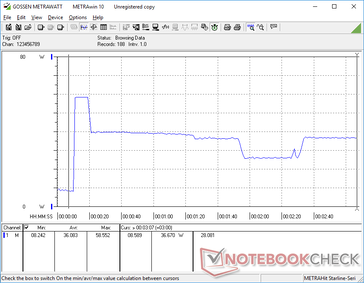

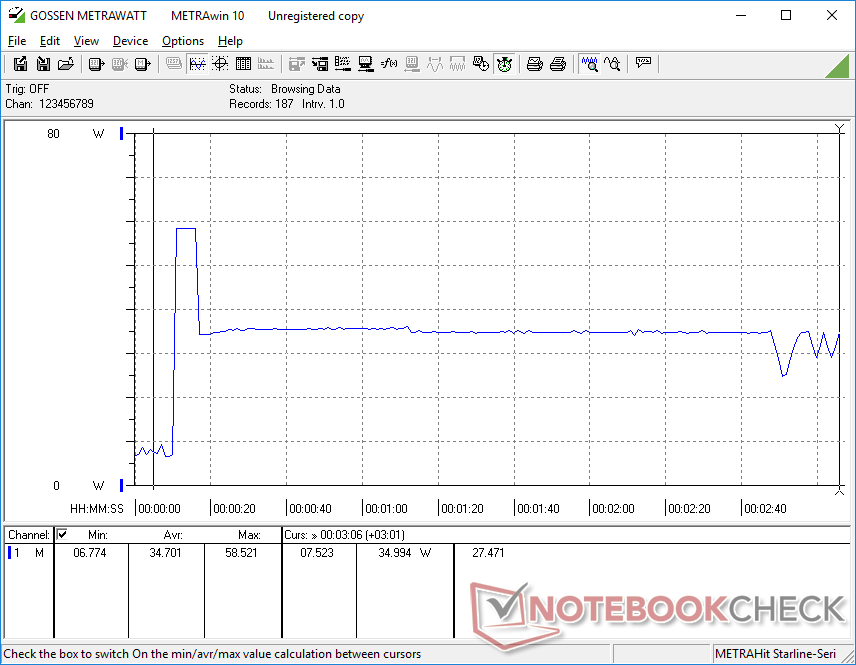

耗电量

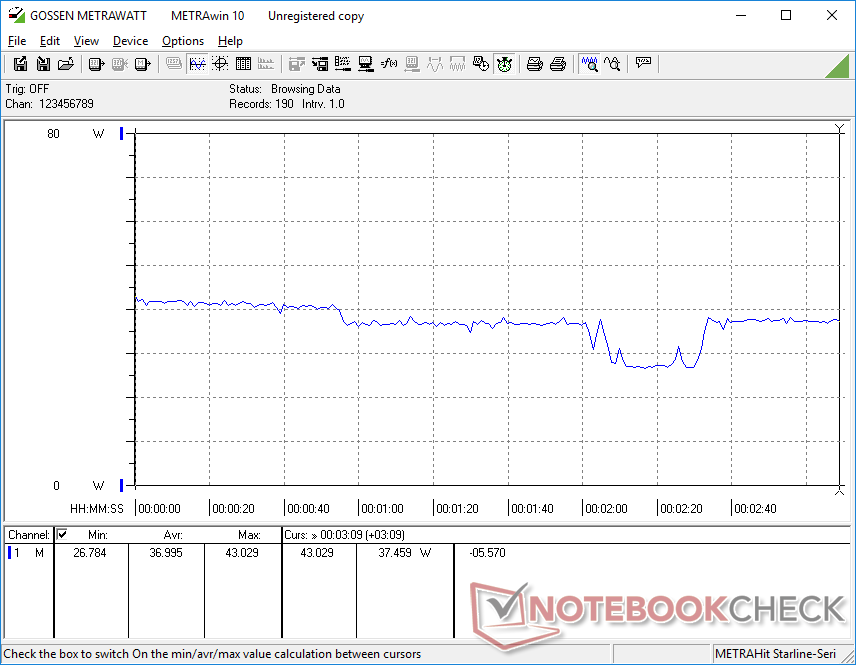

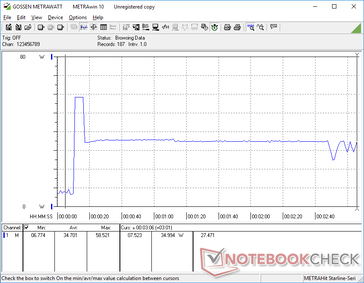

如下表所示,我们的第 3 代机型明显比第 2 代机型更省电。这些节省的电量很可能是电池总体寿命延长的原因。

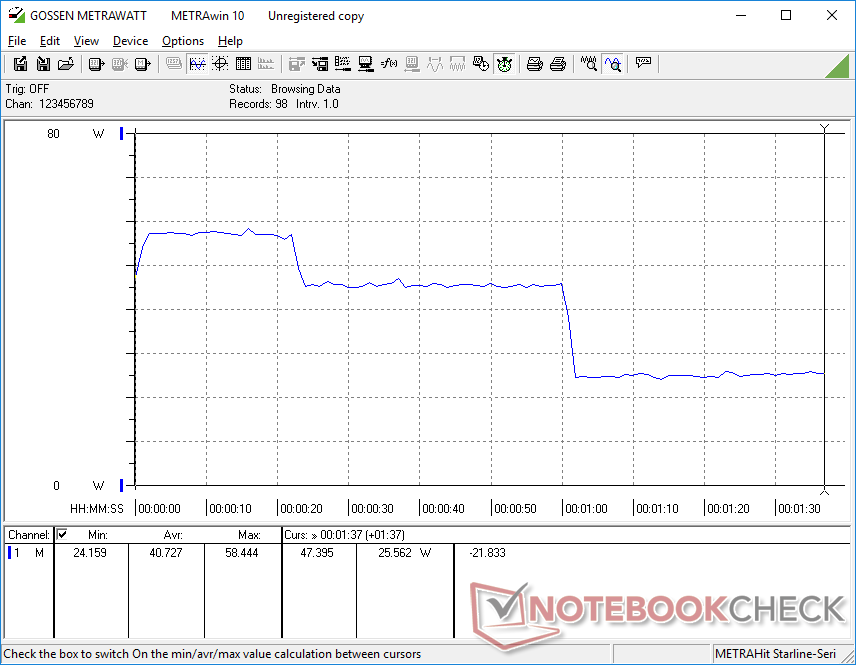

在游戏等高负载情况下,我们的设备所需的能耗比前一年降低了 25%。这些结果与前面提到的图形性能降低 25% 和我们系统的节流行为相吻合。
Off / Standby | 0.27 / 0.51 Watt |
Idle | 3.3 / 6.5 / 7.1 Watt |
Load |
40.7 / 58.6 Watt |
Lenovo ThinkPad X1 Nano Gen 3 i7-1360P, Iris Xe G7 96EUs, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ, IPS, 2160x1350, 13.00 | Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P i7-1280P, Iris Xe G7 96EUs, Kioxia BG5 KBG5AZNT1T02, IPS, 2160x1350, 13.00 | HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs, Micron 3400 MTFDKBA512TFH 512GB, IPS, 1920x1280, 13.50 | Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs, WD PC SN740 SDDPNQD-1T00, IPS, 2256x1504, 13.50 | Dell Latitude 9330 i7-1260U, Iris Xe G7 96EUs, , IPS, 2560x1600, 13.30 | Apple MacBook Air M2 10C GPU M2, M2 10-Core GPU, Apple SSD AP1024Z, IPS, 2560x1664, 13.60 | LG Gram 14Z90Q i5-1240P, Iris Xe G7 80EUs, Samsung PM9A1 MZVL2512HCJQ, IPS, 1920x1200, 14.00 | |
---|---|---|---|---|---|---|---|
Power Consumption | -29% | -9% | -20% | -7% | 6% | -10% | |
Idle Minimum * | 3.3 | 3.4 -3% | 4.1 -24% | 2.9 12% | 4.7 -42% | 1.9 42% | 3 9% |
Idle Average * | 6.5 | 6.5 -0% | 7.5 -15% | 6.3 3% | 8.2 -26% | 9.6 -48% | 6 8% |
Idle Maximum * | 7.1 | 14.4 -103% | 8.2 -15% | 9.9 -39% | 8.4 -18% | 9.7 -37% | 12 -69% |
Load Average * | 40.7 | 54.5 -34% | 35.5 13% | 56.2 -38% | 36.8 10% | 32.4 20% | 40 2% |
Witcher 3 ultra * | 37 | 44 -19% | 37.5 -1% | 56.6 -53% | 30.4 18% | 30.8 17% | 36.5 1% |
Load Maximum * | 58.6 | 65.4 -12% | 66.5 -13% | 60.8 -4% | 49.9 15% | 35.7 39% | 63 -8% |
* ... smaller is better
Power Consumption Witcher 3 / Stresstest
Power Consumption external Monitor
电池寿命
为了保持极低的重量,电池容量很小,不到 50 Wh。尽管如此,电池续航时间仍然很不错,实际 WLAN 浏览时间接近 8 小时,比去年的机型提高了几个小时。
使用随附的交流适配器,从空电到充满电大约需要 90 分钟。
Lenovo ThinkPad X1 Nano Gen 3 i7-1360P, Iris Xe G7 96EUs, 49.5 Wh | Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P i7-1280P, Iris Xe G7 96EUs, 49.5 Wh | HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs, 68 Wh | Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs, 61 Wh | Dell Latitude 9330 i7-1260U, Iris Xe G7 96EUs, 50 Wh | Apple MacBook Air M2 10C GPU M2, M2 10-Core GPU, 52.6 Wh | LG Gram 14Z90Q i5-1240P, Iris Xe G7 80EUs, 72 Wh | |
---|---|---|---|---|---|---|---|
Battery Runtime | -35% | 105% | 13% | 21% | 90% | 53% | |
WiFi v1.3 | 465 | 303 -35% | 954 105% | 527 13% | 564 21% | 884 90% | 712 53% |
Reader / Idle | 2550 | 923 | 1736 | ||||
Load | 192 | 140 | 169 | ||||
H.264 | 946 |
Pros
Cons
结论--小于 1 千克重量的性能权衡
与 2022 版相比,2023 版 ThinkPad X1 Nano 有了一些改进。风扇噪音、电池续航时间和固态硬盘性能都得到了改善,这对经常远离电源移动办公的用户应该会有好处。
请记住,尽管更新到了较新的第 13 代英特尔平台,但任何性能上的同比提升充其量都是微不足道的。这并不是说联想的速度慢,因为它的酷睿 P 系列 CPU 比其他大多数子笔记本上更常见的酷睿 U 系列 CPU 性能要高,但由于 ThinkPad X1 Nano 设计的散热能力有限,因此差距并没有想象中那么大。毕竟,在追求低于千克的最终重量时,让步是不可避免的。因此,ThinkPad X1 Nano 的酷睿 P CPU 最适合在启动应用程序或编辑照片等短时间内发挥 Turbo Boost 性能。
ThinkPad X1 Nano Gen 3 是唯一配备酷睿 P 处理器的 1 千克以下 13 英寸笔记本电脑之一。在发热和节流现象出现之前,短时间内的性能表现非常出色。
如果你想省点钱,那么选择旧款的 ThinkPad X1 Nano Gen 2 也能获得基本相同的用户体验,尤其是联想没有对该机型的显示屏或其他物理方面进行任何改动。
价格和供应情况
联想的 ThinkPad X1 Nano Gen 3 基础版酷睿 i5-1340P 配置的起价为 1270 美元,最高版酷睿 i7-1370P 配置的起价为 2000 美元。
Lenovo ThinkPad X1 Nano Gen 3
-
08/25/2023 v7
Allen Ngo
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
