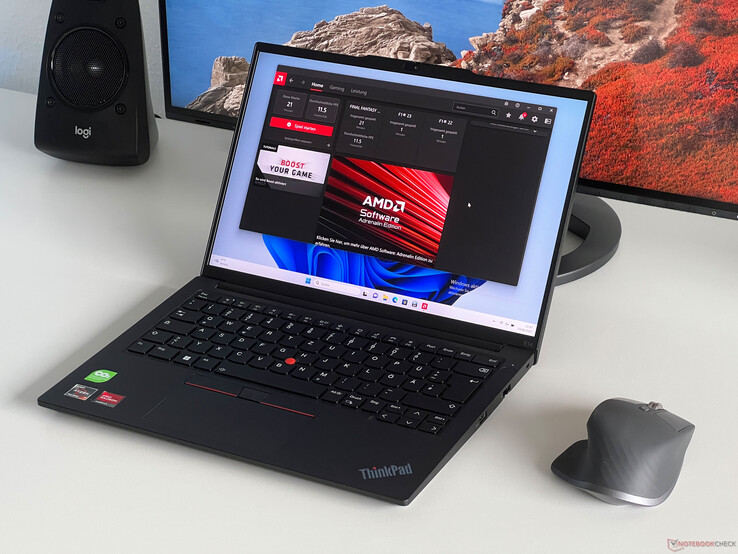

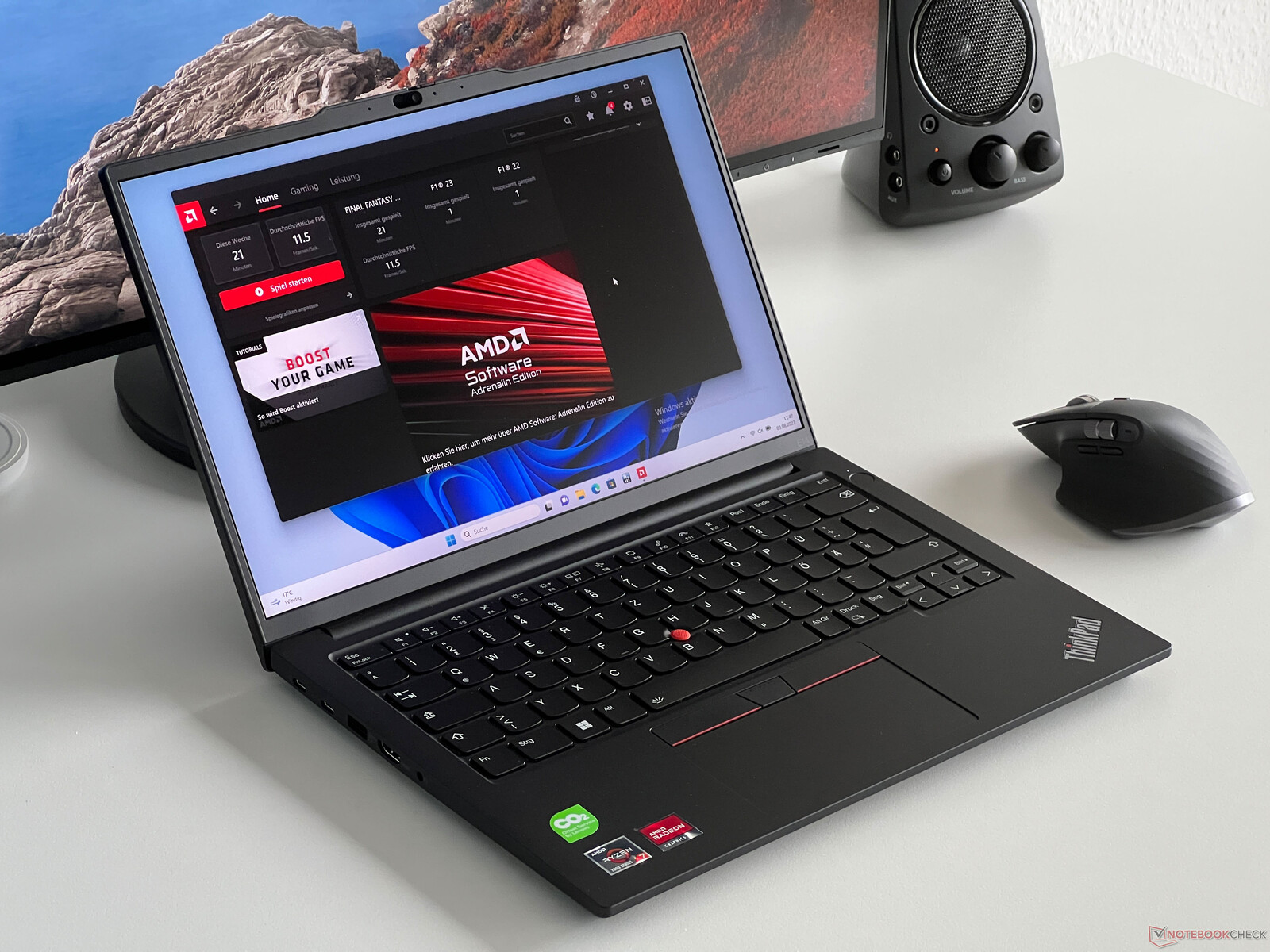

联想 ThinkPad E14 G5 AMD 评测：价格实惠、显示效果更佳的办公笔记本电脑

现在采用 16:10 显示屏。 联想更新了廉价的 ThinkPad E14 办公笔记本电脑，配备了新的外壳和 16:10 显示屏。处理器安装了 AMD 的 Ryzen 7000 芯片，这是一款知名的处理器。不过，键盘变得更糟了。
AMD Laptop / Notebook Ultrabook Windows ThinkPad

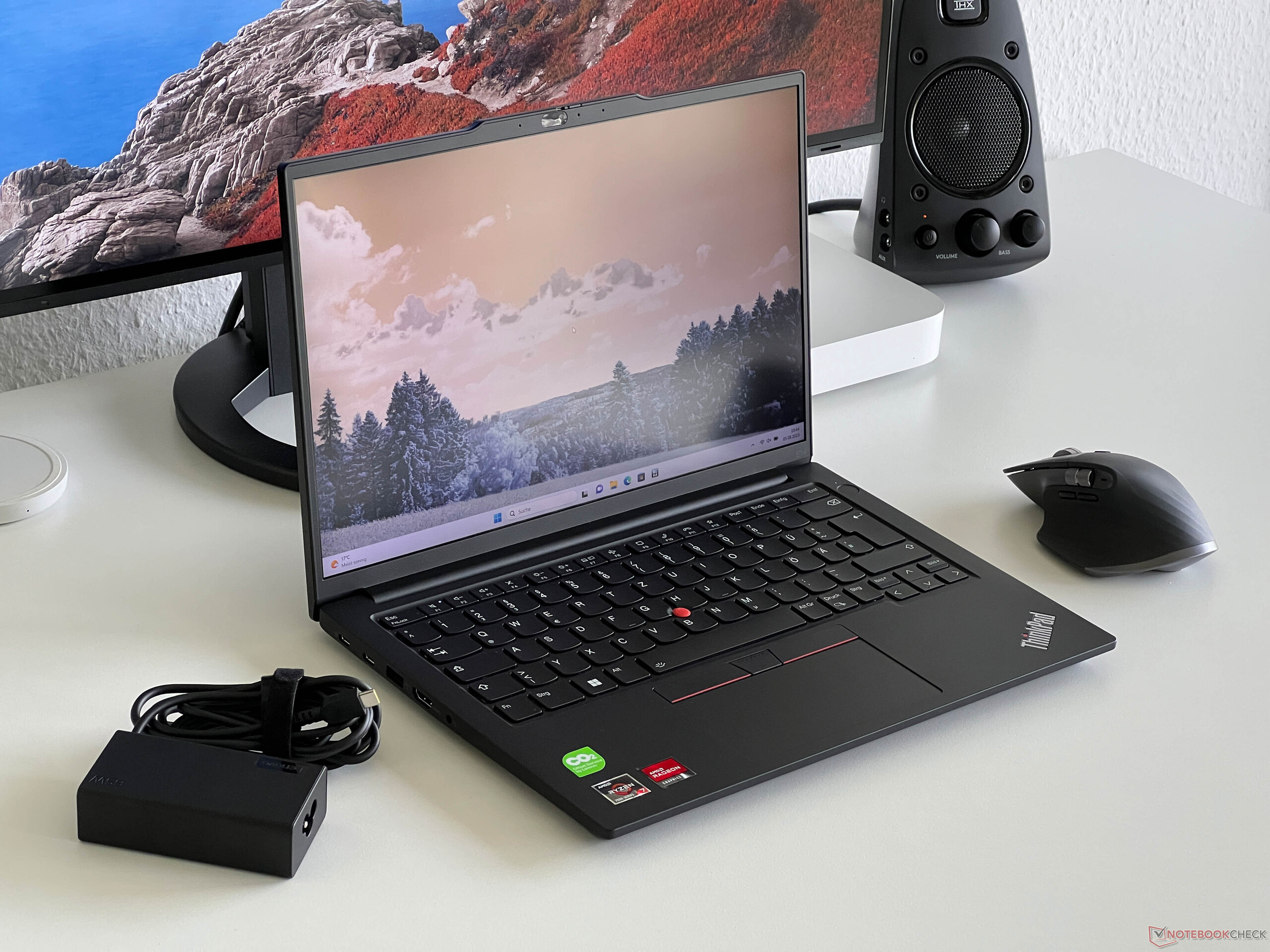

联想为其价格低廉的 ThinkPad E14 办公笔记本电脑的第五代产品进行了全面升级，除了全新的外壳外，现在还包括 16:10 显示屏。此外，联想还摒弃了 TN 面板，甚至提供了可选的更高分辨率屏幕，完全覆盖 sRGB。同时，还推出了一款更大的 16 英寸机型，我们也将在近期对其进行评测。我们的测试设备是不带操作系统的 ThinkPad E14 G5 21JSS05C00（校园版），售价 899 欧元。它配备了新的 2.2K 显示屏（16:10 格式）、AMD 处理器 Ryzen 7 7730U、24 GB 内存和 1 TB PCIe 固态硬盘。

Lenovo ThinkPad E14 G5-21JSS05C00 (ThinkPad E14 G5 Series)
Processor
AMD Ryzen 7 7730U 8 x 2 - 4.5 GHz, 30 W PL2 / Short Burst, 30 W PL1 / Sustained, Barcelo-U Refresh
Graphics adapter
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Memory
24 GB
, DDR4-3200, 8GB soldered + 1 slot, max. 40 GB
Display
14.00 inch 16:10, 2240 x 1400 pixel 189 PPI, M140NWHE R1, IPS, glossy: no, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
WD PC SN740 SDDPNQD-1T00, 1024 GB
, 913 GB free
Soundcard
AMD Zen - Audio Processor - HD Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm Audio, 1 Fingerprint Reader
Networking
Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), MediaTek RZ616 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Size
height x width x depth (in mm): 18 x 313 x 219.3
Battery
57 Wh Lithium-Polymer
Camera
Webcam: 1080p + IR
Primary Camera: 2 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 65W PSU, 24 Months Warranty
Weight
1.448 kg, Power Supply: 321 g
Price
899 Euro
Links
Lenovo homepage
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
88.3 %
08/2023
Lenovo ThinkPad E14 G5-21JSS05C00
R7 7730U, Vega 8		1.4 kg18 mm14.00"2240x1400
85.3 %
06/2023
Dell Latitude 3440
i5-1345U, Iris Xe G7 80EUs		1.5 kg19.4 mm14.00"1920x1080
88.6 %
08/2023
Lenovo ThinkPad L14 G4 21H6S00900
R5 7530U, Vega 7		1.5 kg19.83 mm14.00"1920x1080
82.1 %
06/2023
Fujitsu LifeBook E5412A E542AMHAAMDE
R5 PRO 5675U, Vega 7		1.4 kg19.9 mm14.00"1920x1080
85.3 %
03/2023
HP ProBook 440 G9-5Y3Z3EA
i7-1255U, Iris Xe G7 96EUs		1.4 kg20.4 mm14.00"1920x1080

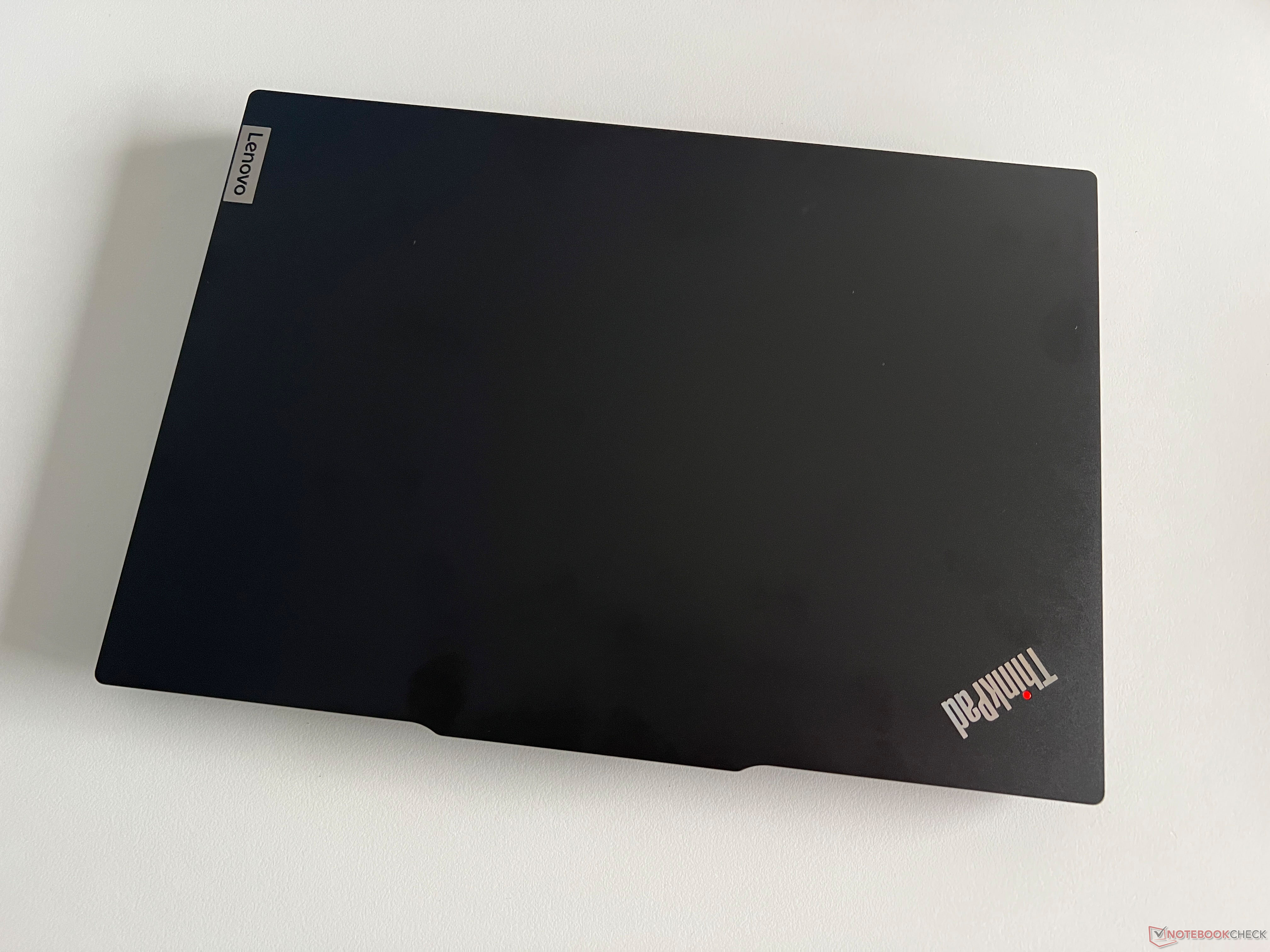

机箱 - E14 现在带有相机驼峰

该机的外壳设计经过了修改，现在基于当前的其他 ThinkPad 系列，采用 16:10 面板，屏幕边缘更窄，还包括显示屏上方的摄像头驼峰。虽然这有助于打开盖子，但看起来并不特别好。除此之外，这就是一台典型的黑色 ThinkPad，在视觉上并不突出。联想使用铝制材料制作机盖，光滑的表面很容易留下指纹。底座由塑料制成，尤其是底盖非常粗糙。指纹在这里也很快就能看到，因此你不得不经常拿抹布擦拭。

ThinkPad E14 的稳定性和做工完美无瑕，是一款小巧、稳定的 14 英寸笔记本电脑。显示屏的盖子比底座灵活一些，但我们无法看到任何图像失真，在日常使用中也不会造成任何问题。两个铰链的调节基本良好，允许最大打开角度为 180 度，但无法避免轻微的晃动。

通过尺寸对比，您可以清楚地看到，第五代 E14 无论在厚度还是宽度上都变得更加紧凑。这使得它比目前的ThinkPad L14更紧凑，厚度也更厚一些。重量减少了 100 多克，65 瓦的电源适配器重 321 克。

尺寸比较

❌
325.4 mm 217 mm 19.83 mm 1.5 kg325 mm 232 mm 17.9 mm 1.6 kg322 mm 213 mm 20.4 mm 1.4 kg322 mm 211 mm 19.9 mm 1.4 kg322.2 mm 219.4 mm 19.4 mm 1.5 kg313 mm 219.3 mm 18 mm 1.4 kg297 mm 210 mm 1 mm 5.7 g

设备 - AMD ThinkPad，无 USB 4

虽然机身变得更加小巧，还多了一个 USB-C 端口（与旧型号不同），但标准仍有限制，USB 4.0 不可用。至少，该设备可以通过两个 USB-C 端口充电，而且还支持通过 DisplayPort ALT 模式输出图像。由于有两个普通的 USB-A 端口，日常使用时无需使用适配器。不过，这款价格低廉的办公笔记本没有读卡器或智能卡读卡器。

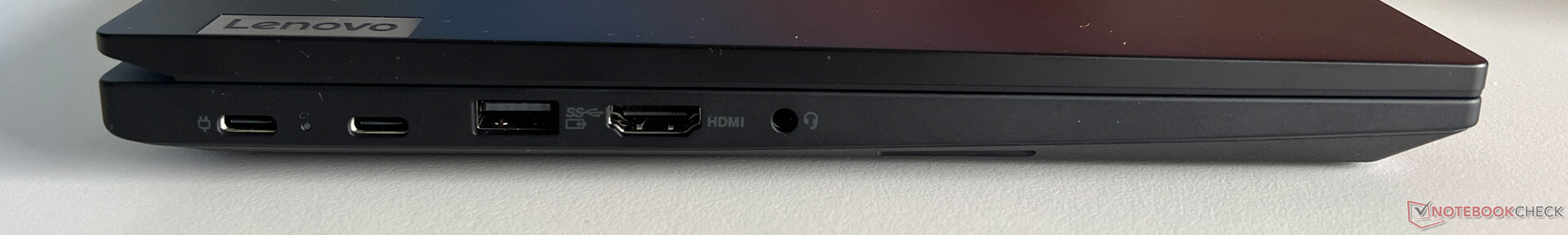

左：USB-C 3.2 Gen 1（5 Gbps、DisplayPort ALT 模式 1.4、电力传输）、USB-C 3.2 Gen 2（10 Gbps、DisplayPort ALT 模式 1.4、电力传输）、USB-A 3.2 Gen.1（5 Gbps、电力传输）、HDMI 1.4b、3.5 mm 音频
左：USB-C 3.2 Gen 1（5 Gbps、DisplayPort ALT 模式 1.4、电力传输）、USB-C 3.2 Gen 2（10 Gbps、DisplayPort ALT 模式 1.4、电力传输）、USB-A 3.2 Gen.1（5 Gbps、电力传输）、HDMI 1.4b、3.5 mm 音频

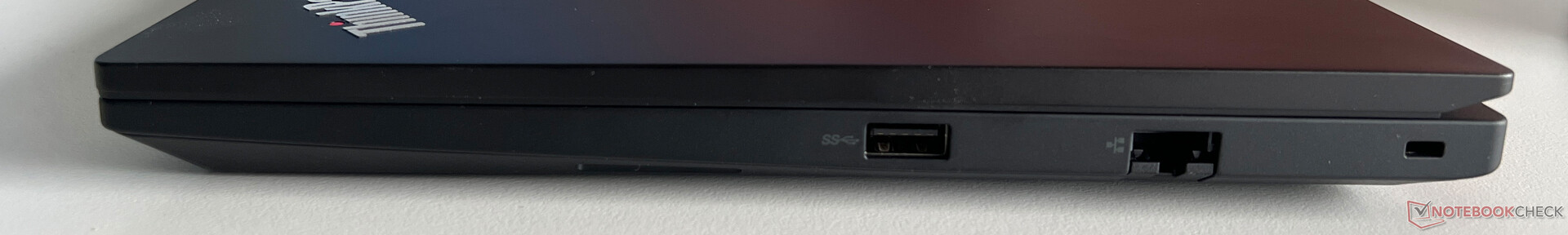

右侧USB-A 3.2 Gen.1（5 GBit/s）、千兆位以太网、Kensington Nano 安全插槽
右侧USB-A 3.2 Gen.1（5 GBit/s）、千兆位以太网、Kensington Nano 安全插槽

交流

除千兆以太网端口外，E14 G5 还配备了 RealTek（RZ616）现代无线局域网模块，除蓝牙 5.1 外，还支持当前 6 GHz 网络的 Wi-Fi 6E 标准。与我们的华硕参考路由器配合使用时，传输速率极高且稳定，因此这款价格低廉的 ThinkPad 在这方面并不落后于价格较高的同类产品。E14 没有 WWAN 模块。

Networking
Lenovo ThinkPad E14 G5-21JSS05C00
MediaTek RZ616
iperf3 transmit AXE11000
1744 (min: 1681) MBit/s ∼100%
iperf3 receive AXE11000
1703 (min: 1660) MBit/s ∼100%
Dell Latitude 3440
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
1180 (min: 1037) MBit/s ∼68%
iperf3 receive AXE11000
1075 (min: 897) MBit/s ∼63%
iperf3 transmit AXE11000 6GHz
1303 (min: 995) MBit/s ∼82%
iperf3 receive AXE11000 6GHz
1254 (min: 1121) MBit/s ∼72%
Lenovo ThinkPad L14 G4 21H6S00900
MediaTek RZ616
iperf3 transmit AXE11000
783 (min: 529) MBit/s ∼45%
iperf3 receive AXE11000
1660 (min: 1594) MBit/s ∼97%
iperf3 transmit AXE11000 6GHz
960 (min: 629) MBit/s ∼60%
iperf3 receive AXE11000 6GHz
1735 (min: 1685) MBit/s ∼100%
Fujitsu LifeBook E5412A E542AMHAAMDE
Realtek RTL8852BE
iperf3 transmit AXE11000
873 (min: 831) MBit/s ∼50%
iperf3 receive AXE11000
918 (min: 884) MBit/s ∼54%
HP ProBook 440 G9-5Y3Z3EA
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
1471 (min: 1299) MBit/s ∼84%
iperf3 receive AXE11000
1673 (min: 1649) MBit/s ∼98%
iperf3 transmit AXE11000 6GHz
1596 (min: 1404) MBit/s ∼100%
iperf3 receive AXE11000 6GHz
1665 (min: 868) MBit/s ∼96%
Lenovo ThinkPad E14 G4 21EB0041GE
Realtek RTL8852BE
iperf3 transmit AXE11000
859 (min: 455) MBit/s ∼49%
iperf3 receive AXE11000
982 (min: 971) MBit/s ∼58%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650170017501800Tooltip
Lenovo ThinkPad E14 G5-21JSS05C00; iperf3 transmit AXE11000; iperf 3.1.3: Ø1744 (1681-1832)
Lenovo ThinkPad E14 G5-21JSS05C00; iperf3 receive AXE11000; iperf 3.1.3: Ø1702 (1660-1717)

网络摄像头

1080p 网络摄像头不会带来任何惊喜，拍照效果也不错，尤其是与以前的 720p 机型相比。除了机械快门外，E14 G5 还配备了红外传感器，可通过 Windows Hello 进行面部识别。

ColorChecker
9.6 ∆E
10.9 ∆E
14.5 ∆E
16.3 ∆E
10.6 ∆E
11.9 ∆E
6.8 ∆E
16.3 ∆E
13.7 ∆E
13.6 ∆E
10.5 ∆E
8.5 ∆E
9.8 ∆E
13.2 ∆E
13.8 ∆E
9.7 ∆E
10.4 ∆E
13 ∆E
5.2 ∆E
8.4 ∆E
10.8 ∆E
13.3 ∆E
11.3 ∆E
6.8 ∆E
ColorChecker Lenovo ThinkPad E14 G5-21JSS05C00: 11.2 ∆E min: 5.19 - max: 16.27 ∆E

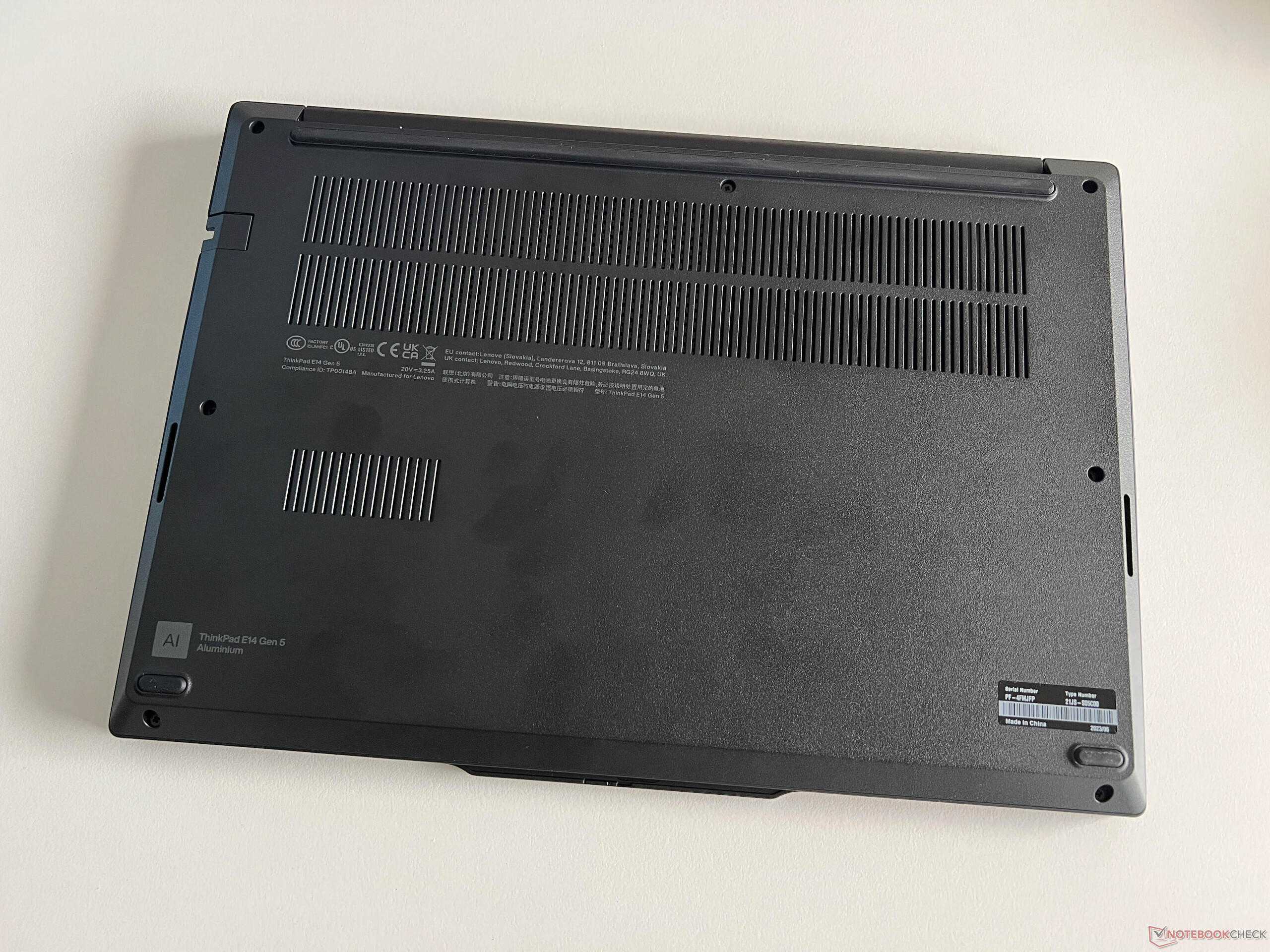

维护

底盖由几颗十字螺丝固定，只能拧松，不能完全拧开。底板也是用塑料挂钩固定的，非常紧。底板可以用适当的工具取下，但必须小心不要弄断任何挂钩。内部有风扇、焊接 RAM 旁的 RAM 插槽（在一个额外的盖子下）和可更换的 WLAN 模块。

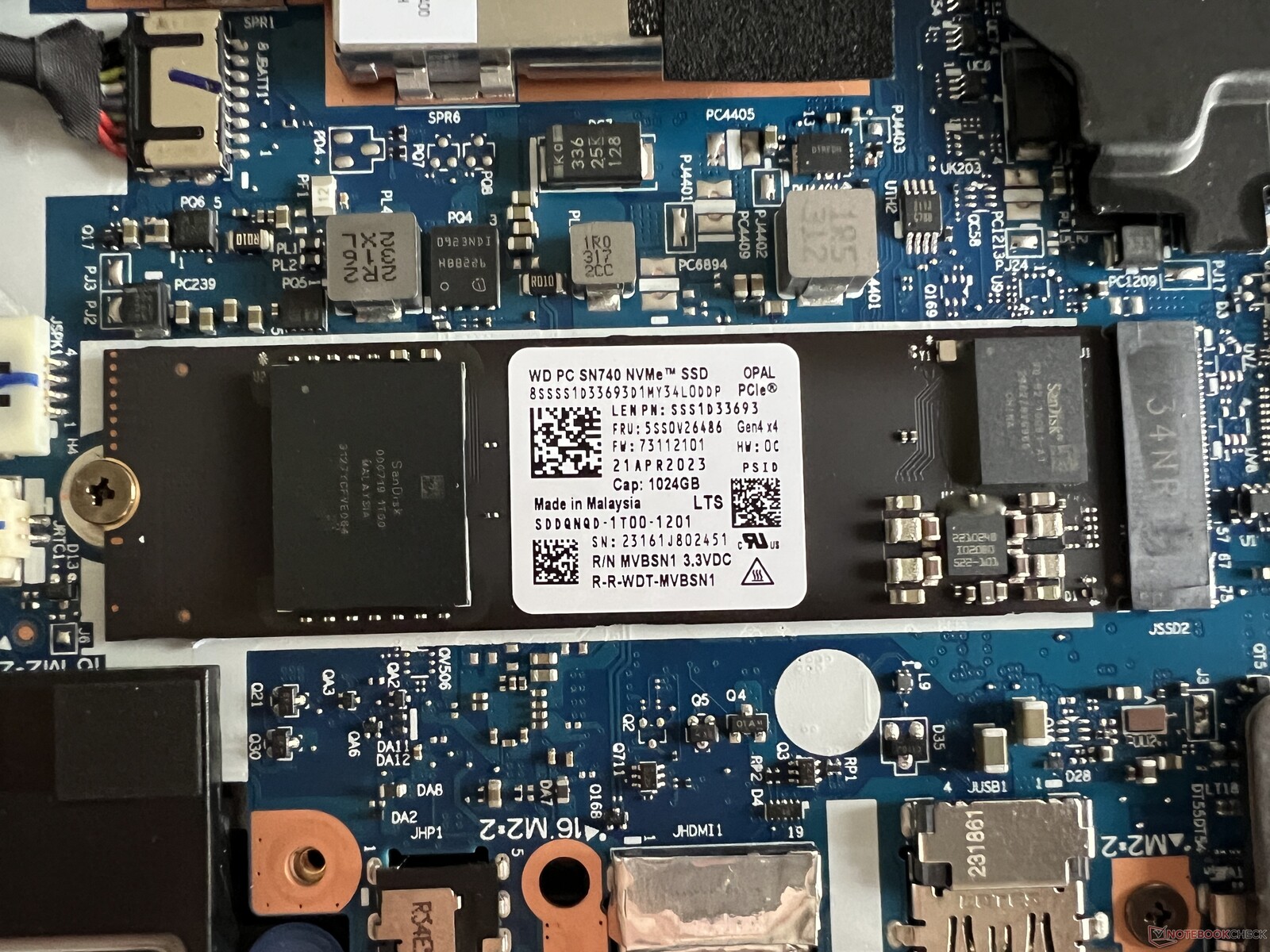

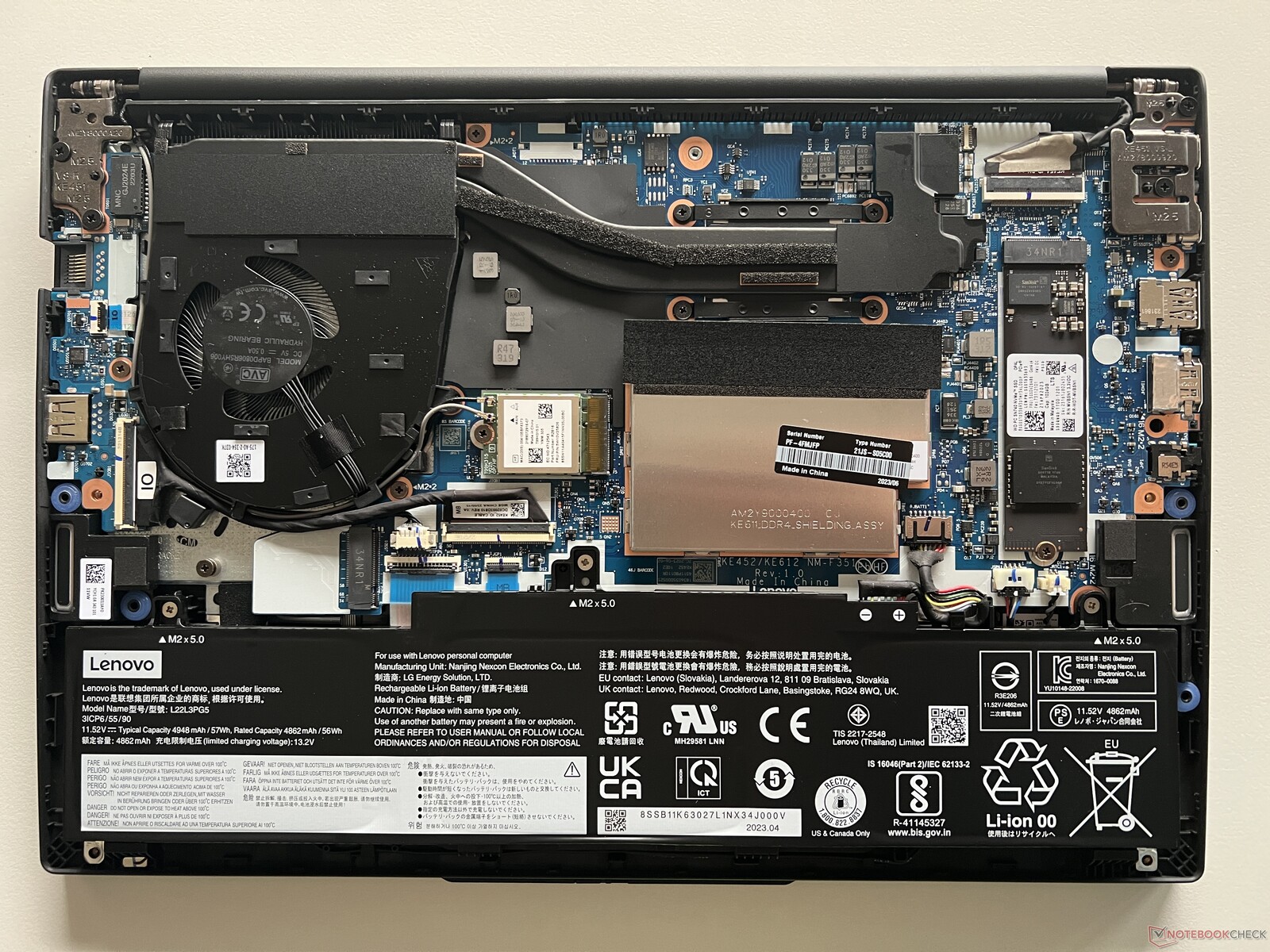

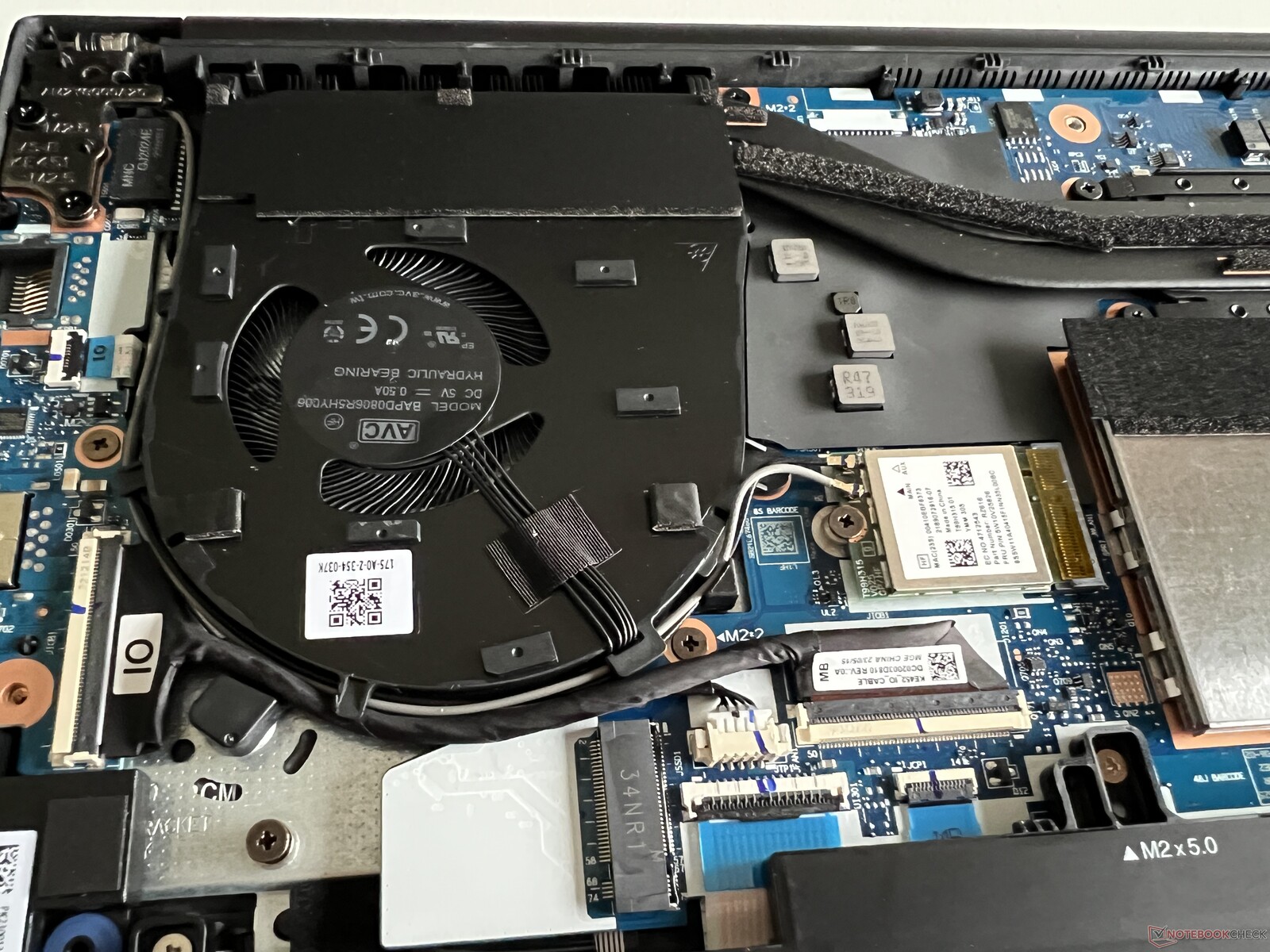

内部结构
内部结构

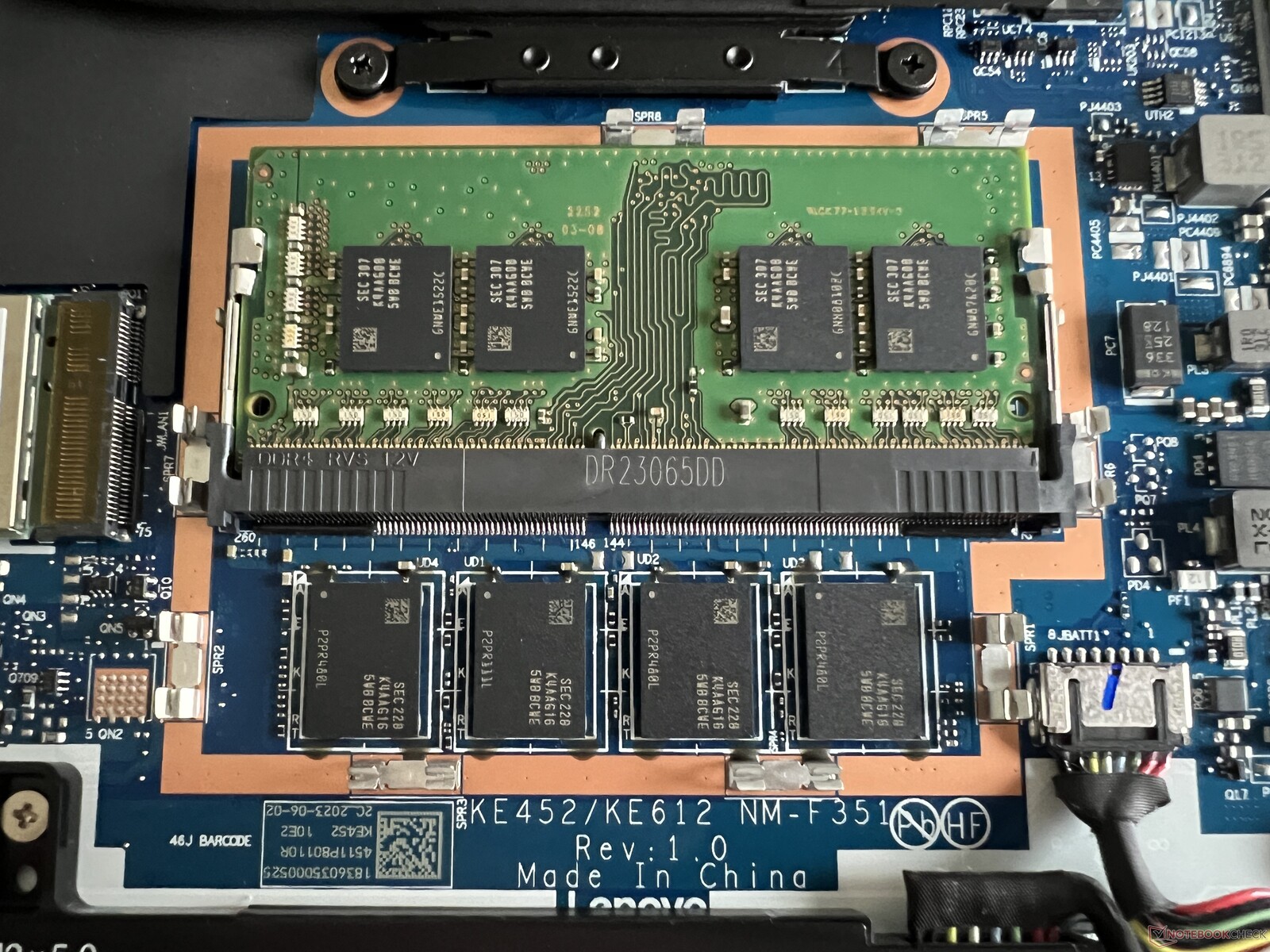

内存插槽和焊接内存
内存插槽和焊接内存

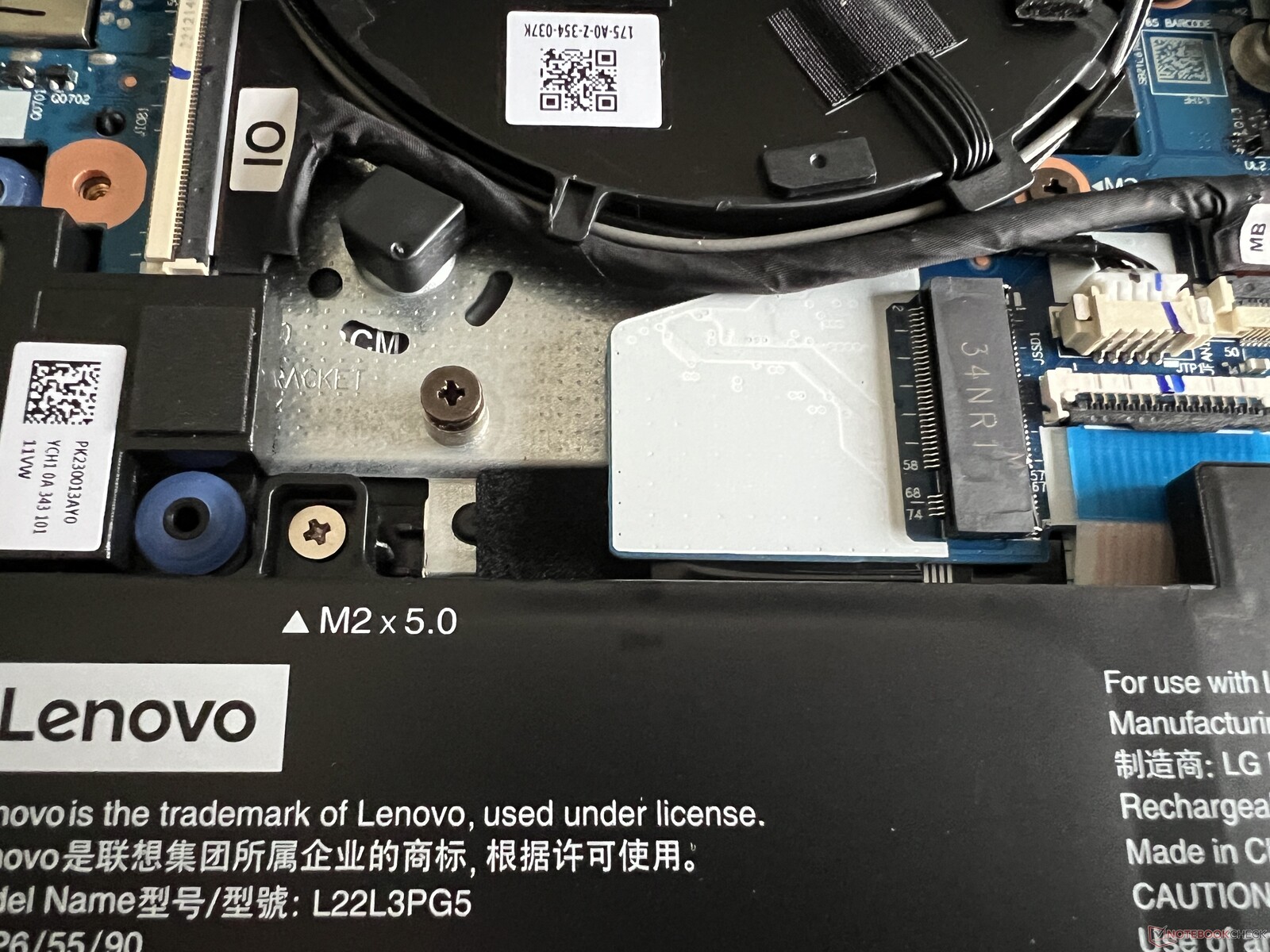

空闲的 M.2 2242 插槽
空闲的 M.2 2242 插槽

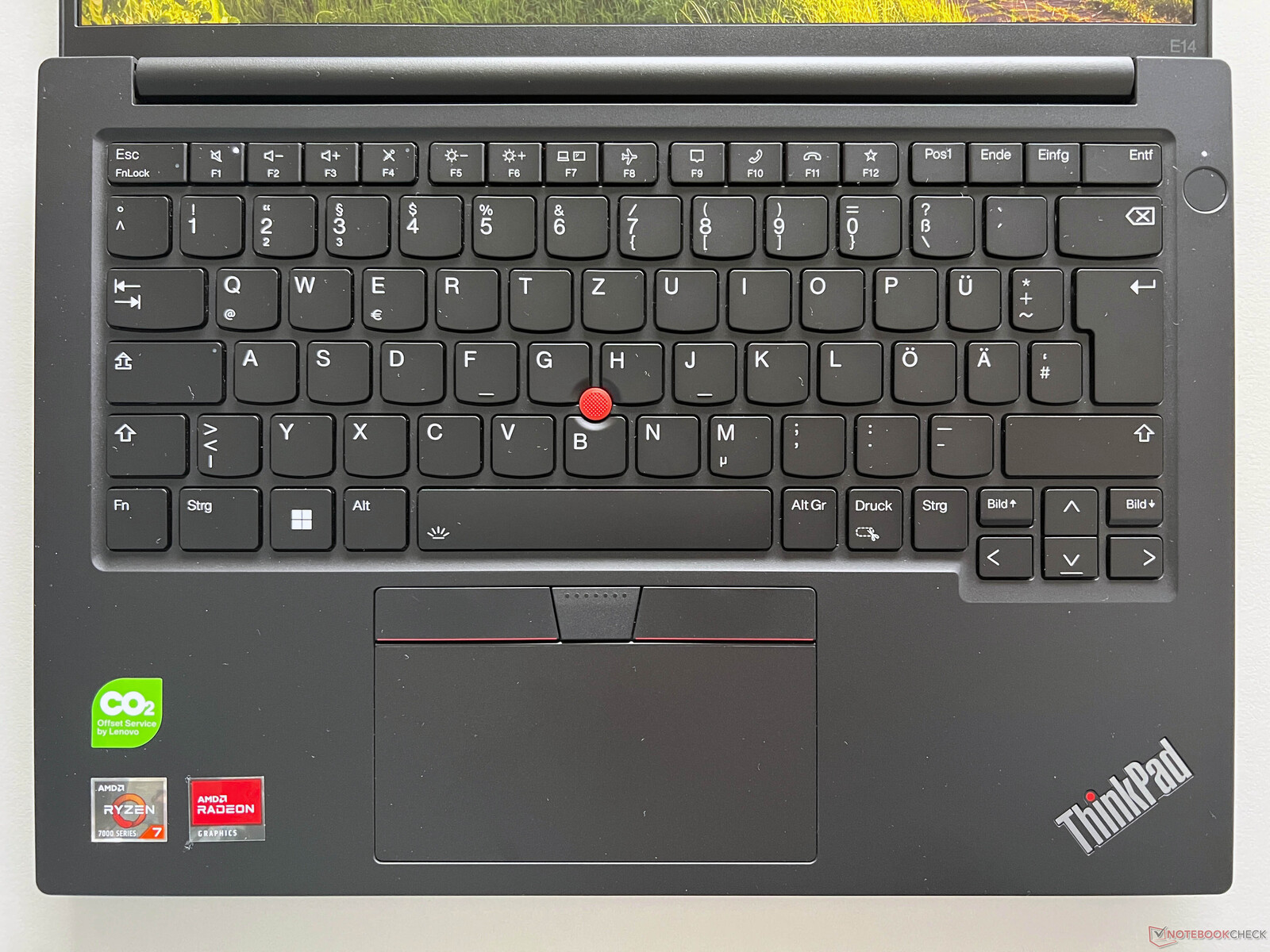

输入设备 - E 系列现在也有 1.5 毫米的行程

去年的 ThinkPad E14 G4是最后几款仍在使用键程为 1.8 毫米的出色键盘的机型之一。现在，新机型采用了我们从许多其他 ThinkPad 上了解到的 1.5 毫米键程的劣质键盘。键盘并不差，但就是不如旧款，也不比竞争对手好多少。键盘采用两段式白色背光，适用于黑暗环境。

输入设备
输入设备

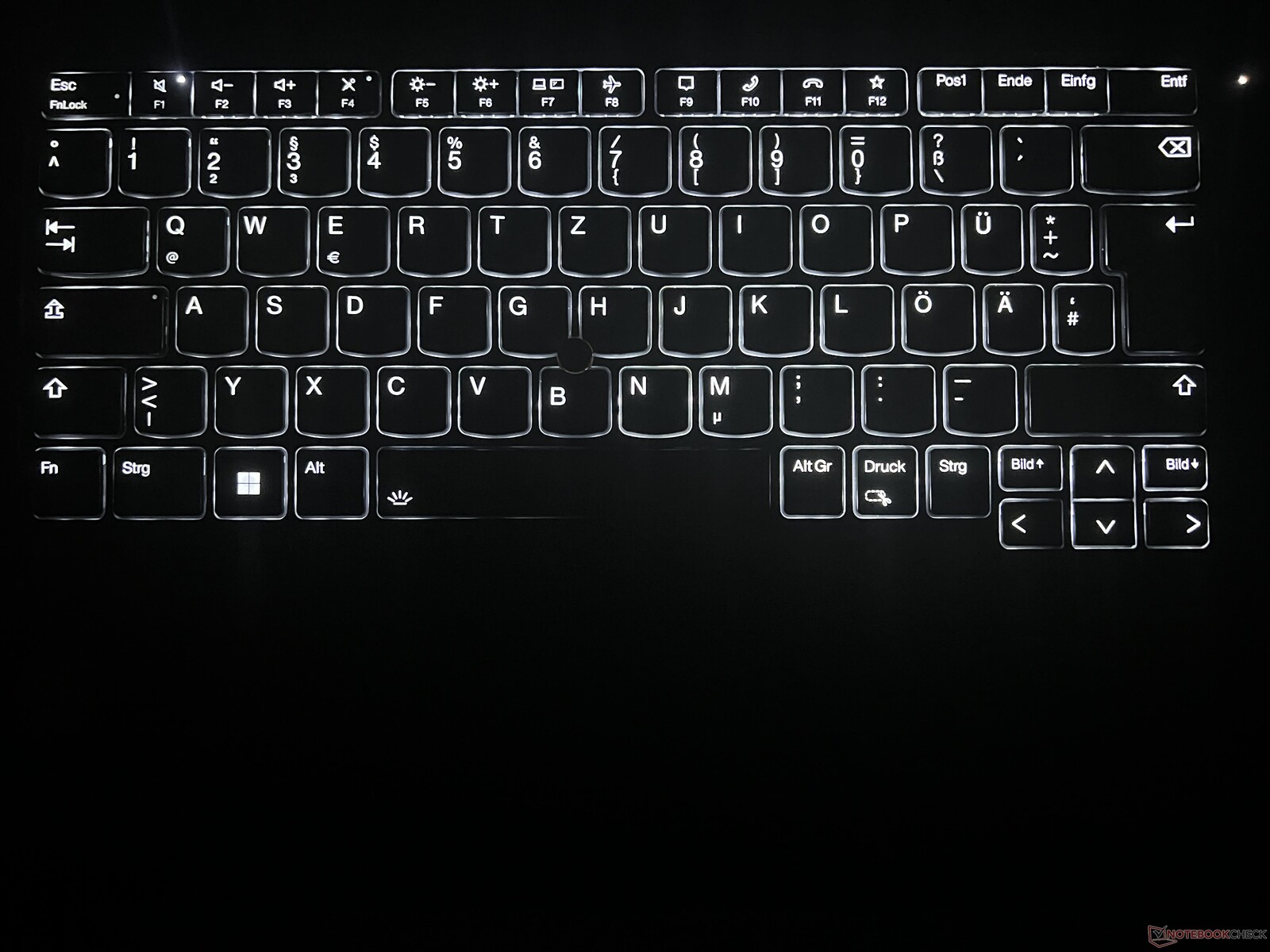

键盘背光
键盘背光

你可以使用 ClickPad 或红色 TrackPoint 控制指针，后者仍然提供专用的鼠标按键。不过，现在这里也使用了完全扁平化的按键，我们已经从其他 ThinkPad 上了解到这种按键，在手感上有所退步。但另一方面，操作仍然非常灵活。由于采用了专用按键，ClickPad 的尺寸也小于许多竞争对手，仅为 11.5 x 5.6 厘米。键盘下部可以向下按压，发出丰富的咔嗒声，但滑动性能比玻璃触摸板差，我们偶尔会遇到输入卡住的小问题。

显示屏 - 2.2K IPS，100% sRGB

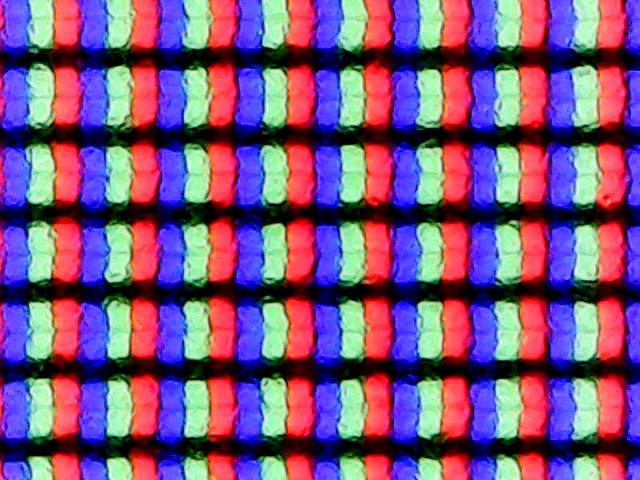

子像素网格
子像素网格

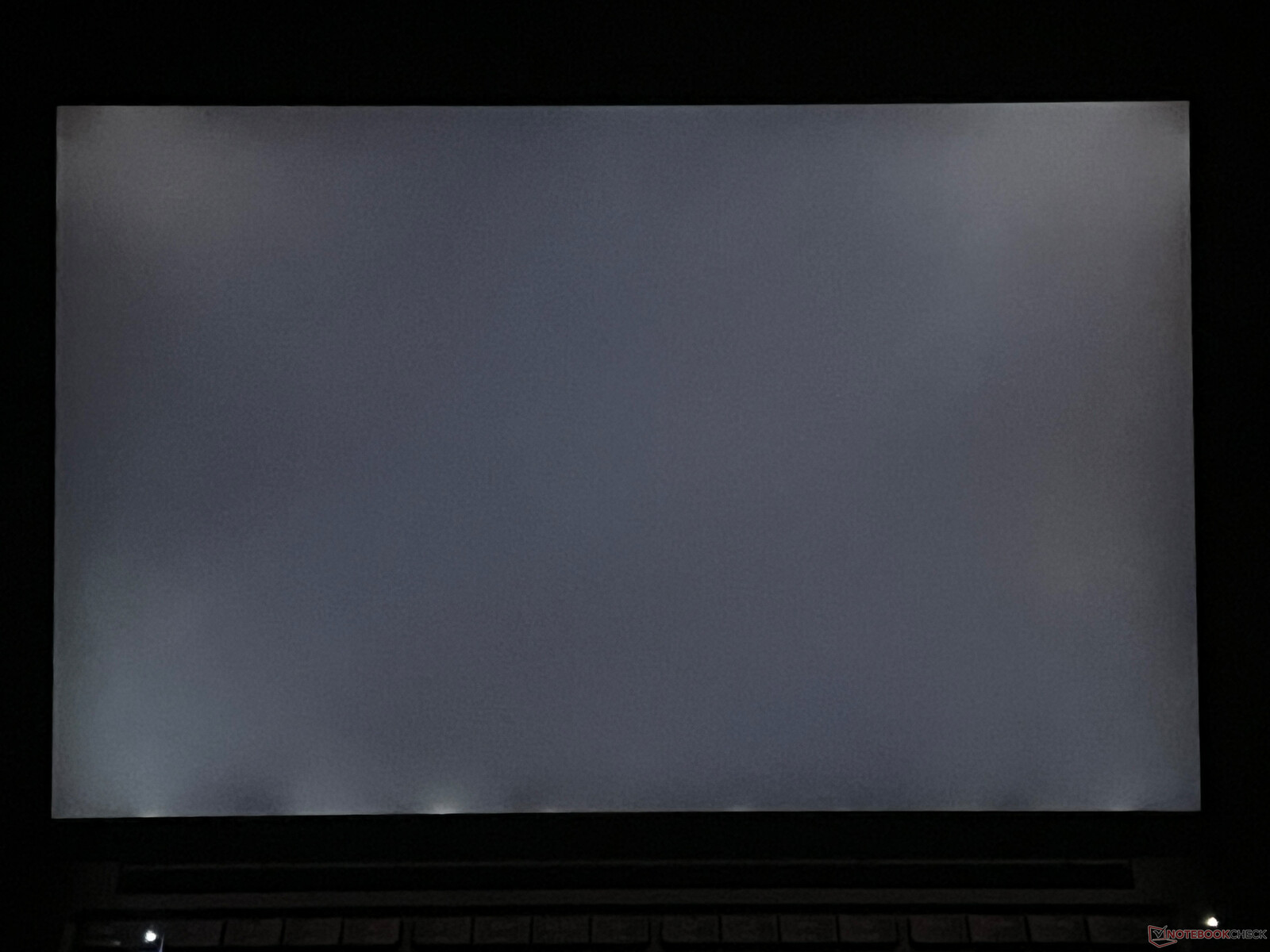

可见光晕
可见光晕

联想为新款 ThinkPad E14 提供了三种不同的 IPS 面板，现在均采用 16:10 格式。其中有两款 1080p 机型（带触控和不带触控），色彩空间覆盖率较低，还有一款新的可选 2.2K IPS 显示屏，色彩空间完全覆盖 sRGB。三种型号的亮度均为 300 cd/m²。E 系列的分类在面板的选择上得到了很好的体现，因为从理论上讲，联想本可以使用著名的低功耗 1080p 面板的T 系列甚至 L14 系列甚至 L14 系列也配备了这种显示屏（尽管是旧式的 16:9 格式）。

我们的测试设备采用了新的 2.2K 显示屏，分辨率为 2,240 x 1,400，主观画质非常出色。尽管表面是磨砂的，但明亮区域不会出现颗粒感，所有内容都能清晰显示。我们测得的平均亮度约为 350 cd/m²，对于明亮的房间来说也足够了。同时，0.18 cd/m² 的黑色值非常低，最大对比度约为 2000:1。由于没有使用 PWM，响应时间并不明显，但在高亮度和黑暗内容中，可以看到边缘有轻微的光晕。

368
cd/m²		363
cd/m²		346
cd/m²
357
cd/m²		362
cd/m²		334
cd/m²
363
cd/m²		335
cd/m²		355
cd/m²
Distribution of brightness
M140NWHE R1 tested with X-Rite i1Pro 2
Maximum: 368 cd/m² (Nits) Average: 353.7 cd/m² Minimum: 3.7 cd/m²
Brightness Distribution: 91 %
Center on Battery: 362 cd/m²
Contrast: 2011:1 (Black: 0.18 cd/m²)
ΔE Color 2.6 | 0.5-29.43 Ø5, calibrated: 1.1
ΔE Greyscale 3.3 | 0.57-98 Ø5.3
70.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.6% sRGB (Argyll 2.2.0 3D)
69.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.28
Lenovo ThinkPad E14 G5-21JSS05C00
M140NWHE R1, IPS, 2240x1400, 14.00		Dell Latitude 3440
BOE NE140FH, IPS, 1920x1080, 14.00		Lenovo ThinkPad L14 G4 21H6S00900
B140HAN06.9, IPS LED, 1920x1080, 14.00		Fujitsu LifeBook E5412A E542AMHAAMDE
LP140WFH-SPD1, IPS, 1920x1080, 14.00		HP ProBook 440 G9-5Y3Z3EA
AUO559C, , 1920x1080, 14.00		Lenovo ThinkPad E14 G4 21EB0041GE
NV140FHM-N4V, IPS-LED, 1920x1080, 14.00
Display
-40%
4%
-45%
-45%
-40%
Display P3 Coverage
69.3
40.4
-42%
73.2
6%
37.5
-46%
37
-47%
40.6
-41%
sRGB Coverage
97.6
60.7
-38%
98.9
1%
56.1
-43%
55.5
-43%
59.4
-39%
AdobeRGB 1998 Coverage
70.4
41.8
-41%
73.9
5%
38.8
-45%
38.2
-46%
41.9
-40%
Response Times
-25%
-64%
-14%
4%
12%
Response Time Grey 50% / Grey 80% *
36.3 ?(17, 19.5)
35.3 ?(16.3, 19)
3%
58.1 ?(27.2, 30.9)
-60%
35 ?(17.8, 17.2)
4%
42 ?(18, 24)
-16%
26.1 ?(12.9, 13.2)
28%
Response Time Black / White *
19.5 ?(9.9, 9.6)
29.8 ?(17.1, 12.7)
-53%
32.7 ?(15.4, 17.3)
-68%
25.6 ?(13.2, 12.4)
-31%
15 ?(4, 11)
23%
20.3 ?(11, 9.3)
-4%
PWM Frequency
60 ?(60)
Screen
-67%
-12%
-147%
-115%
-95%
Brightness middle
362
292.6
-19%
430
19%
231
-36%
255
-30%
352
-3%
Brightness
354
270
-24%
409
16%
228
-36%
233
-34%
330
-7%
Brightness Distribution
91
88
-3%
88
-3%
77
-15%
86
-5%
89
-2%
Black Level *
0.18
0.19
-6%
0.31
-72%
0.31
-72%
0.34
-89%
Contrast
2011
1540
-23%
1387
-31%
745
-63%
1035
-49%
Colorchecker dE 2000 *
2.6
4.63
-78%
2.4
8%
7.2
-177%
8.41
-223%
4.9
-88%
Colorchecker dE 2000 max. *
3.7
17.1
-362%
4.7
-27%
20.8
-462%
13.51
-265%
16.8
-354%
Colorchecker dE 2000 calibrated *
1.1
2.13
-94%
1.4
-27%
5.5
-400%
4.6
-318%
Greyscale dE 2000 *
3.3
3.2
3%
3
9%
5.3
-61%
7.6
-130%
1.4
58%
Gamma
2.28 96%
2.34 94%
2.3 96%
2.16 102%
3.12 71%
2.12 104%
CCT
6761 96%
7184 90%
6489 100%
6407 101%
6233 104%
6665 98%
Total Average (Program / Settings)
-44% / -56%
-24% / -16%
-69% / -106%
-52% / -74%
-41% / -68%

* ... smaller is better

卡尔曼灰度
卡尔曼灰度

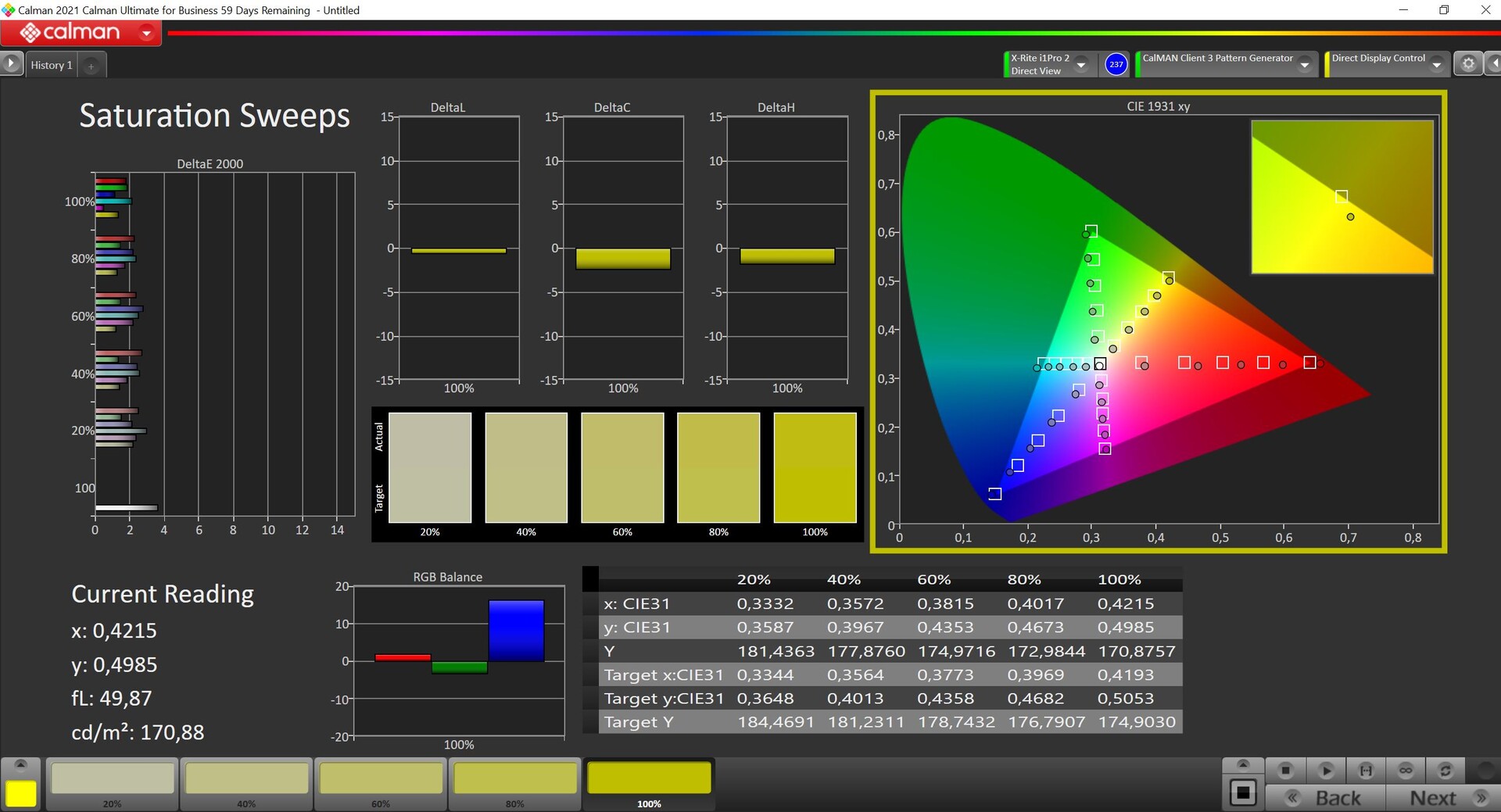

CalMAN 饱和度
CalMAN 饱和度

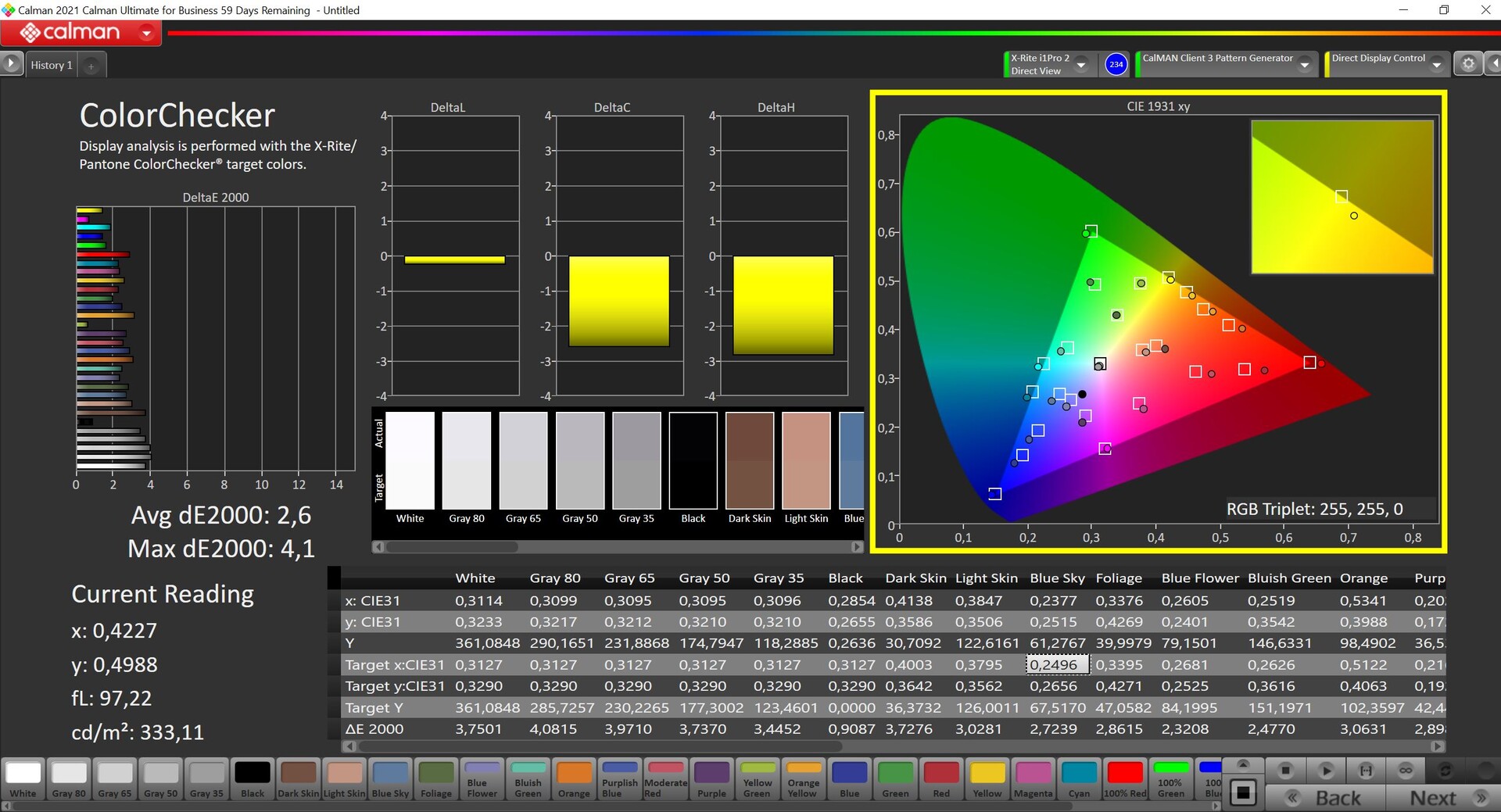

CalMAN 色彩检查器
CalMAN 色彩检查器
CalMAN 灰度（校准）
CalMAN 灰度（校准）
CalMAN 饱和度（校准）
CalMAN 饱和度（校准）
CalMAN ColorChecker（已校准）
CalMAN ColorChecker（已校准）

我们使用专业的 CalMAN 软件（X-Rite i1 Pro 2）对显示器进行了分析；显示器在出厂状态下已经非常出色，因为没有偏色，色彩偏差已经非常小。由于完全覆盖了 sRGB，因此您可以毫不犹豫地使用 ThinkPad 编辑图片/视频。不过，在正常办公使用中，校准并不是必须的。总之，对于一款廉价的办公笔记本电脑来说，这是一块非常可靠的面板。

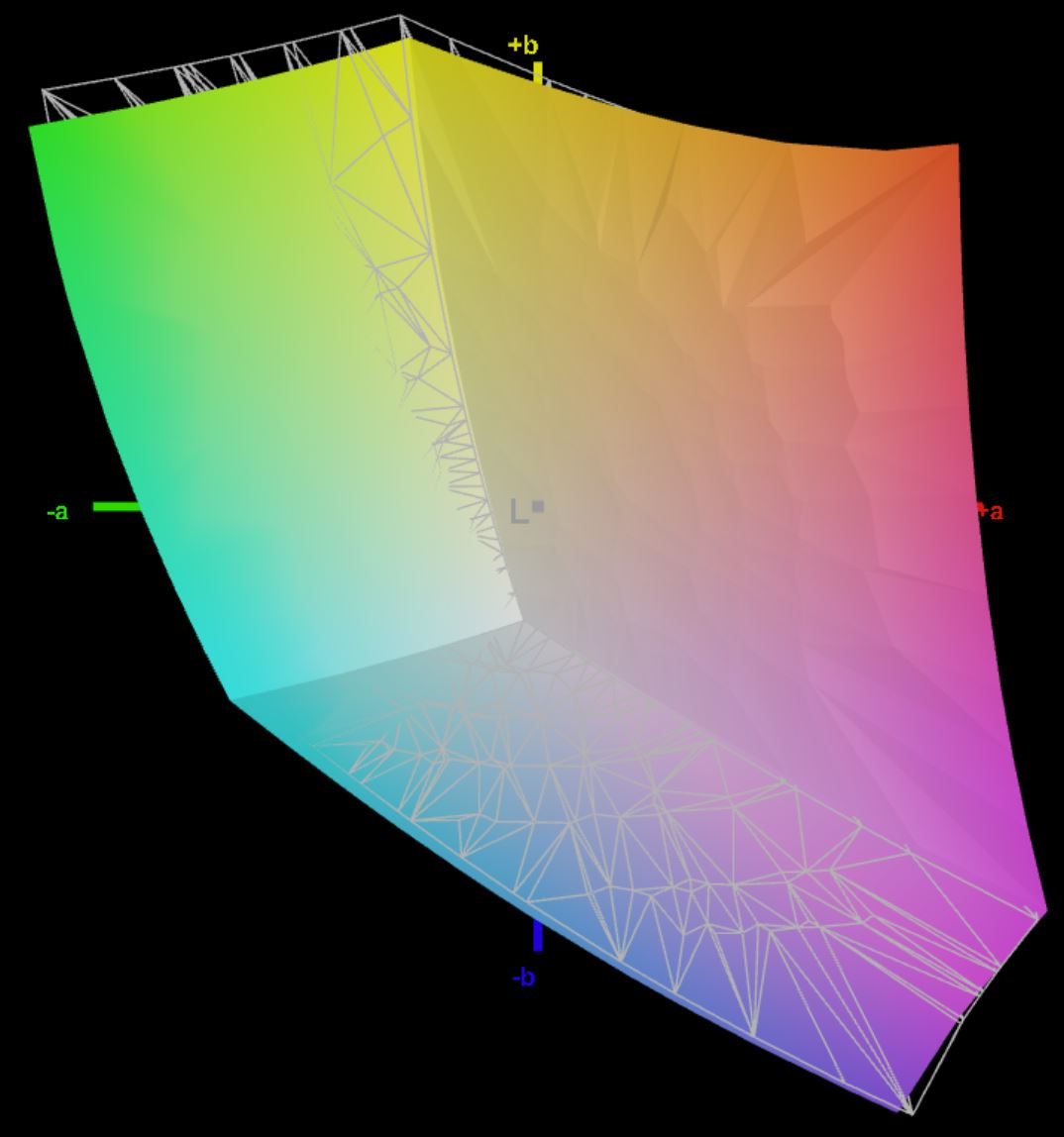

对比 sRGB
对比 sRGB

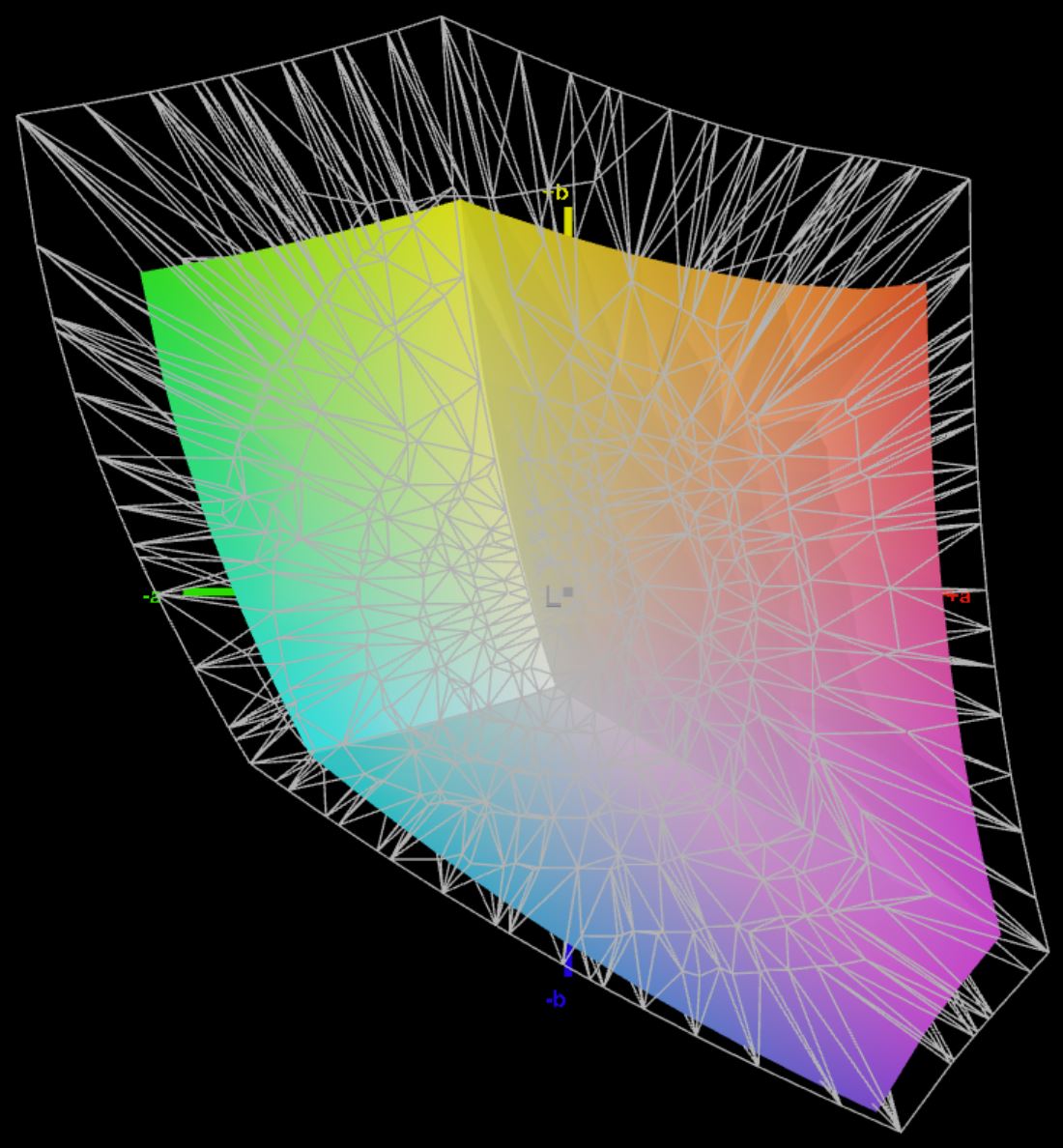

对 P3
对 P3

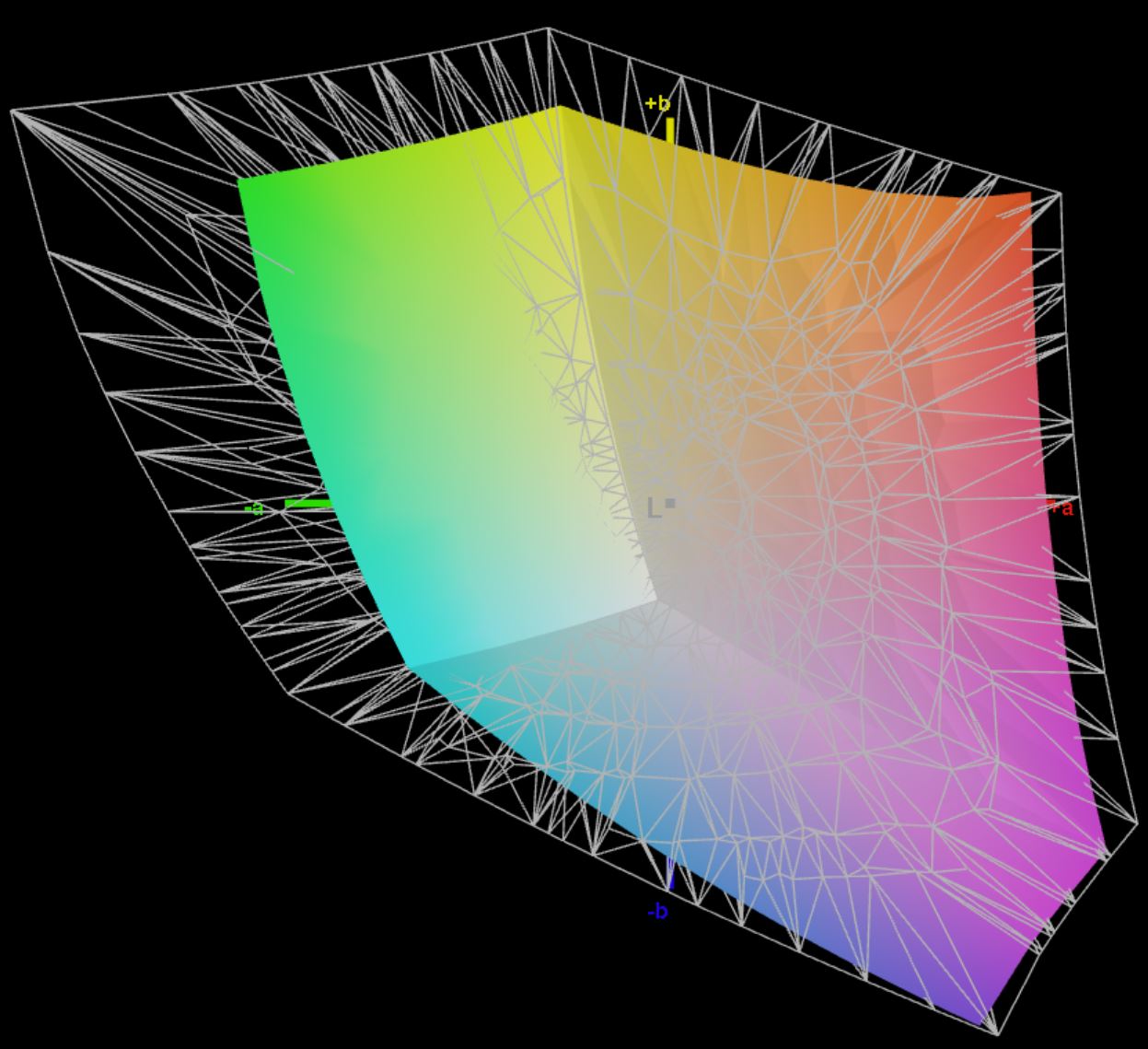

对比 AdobeRGB
对比 AdobeRGB

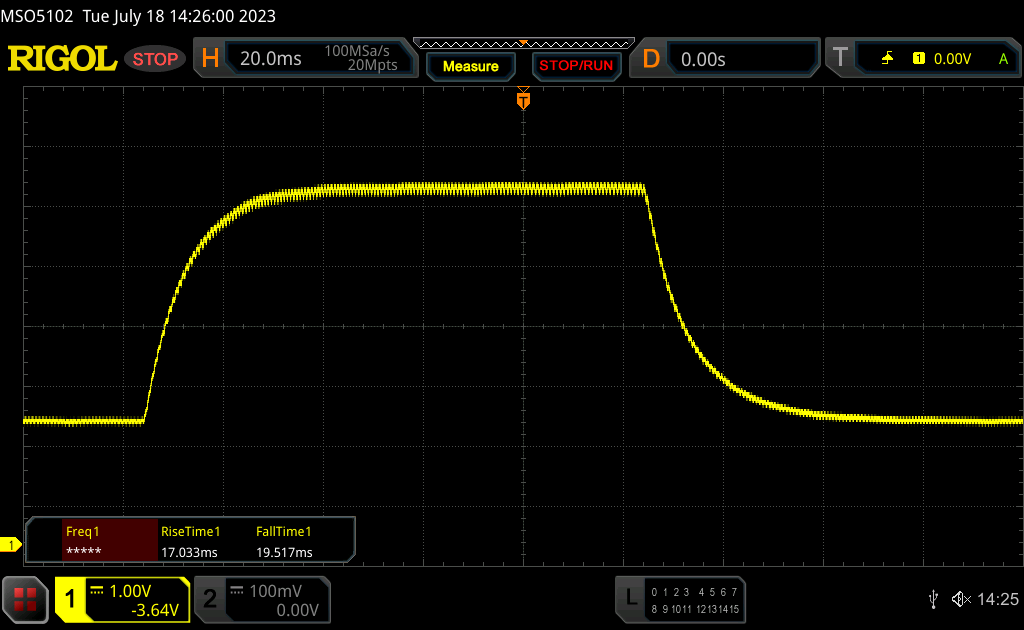

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

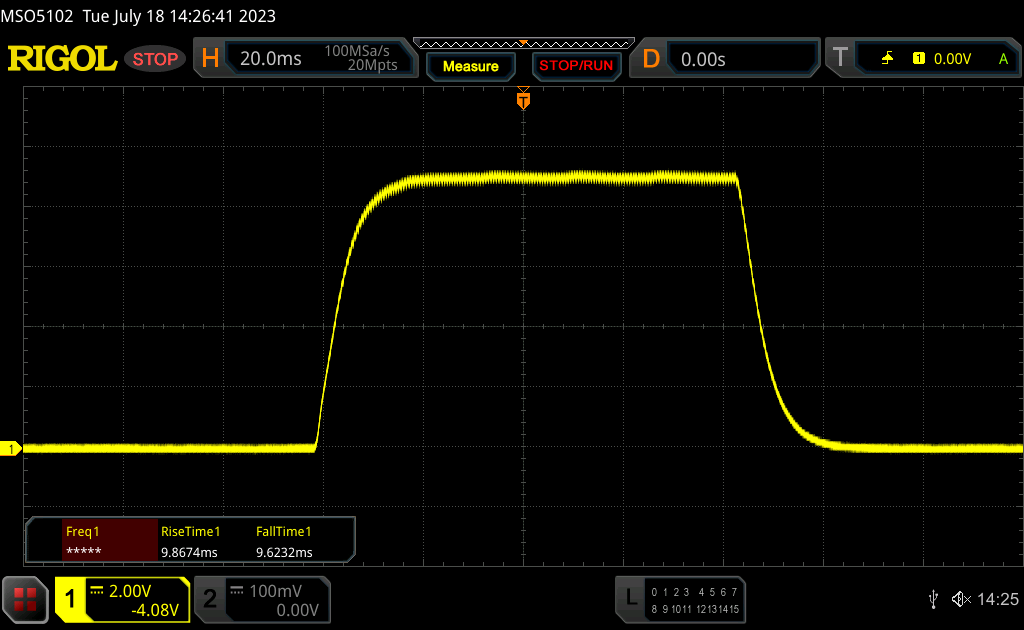

   ↔    Response Time Black to White
19.5 ms ... rise ↗ and fall ↘ combined↗ 9.9 ms rise
↘ 9.6 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 37 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21.5 ms).

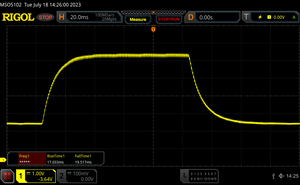

   ↔    Response Time 50% Grey to 80% Grey
36.3 ms ... rise ↗ and fall ↘ combined↗ 17 ms rise
↘ 19.5 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 46 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (33.7 ms).

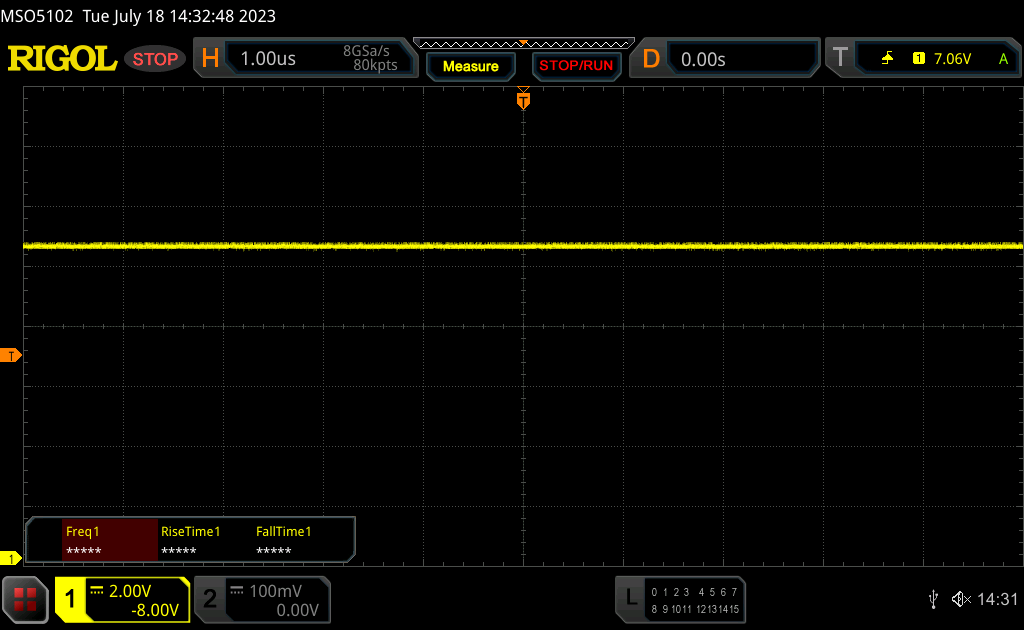

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17853 (minimum: 5 - maximum: 3846000) Hz was measured.

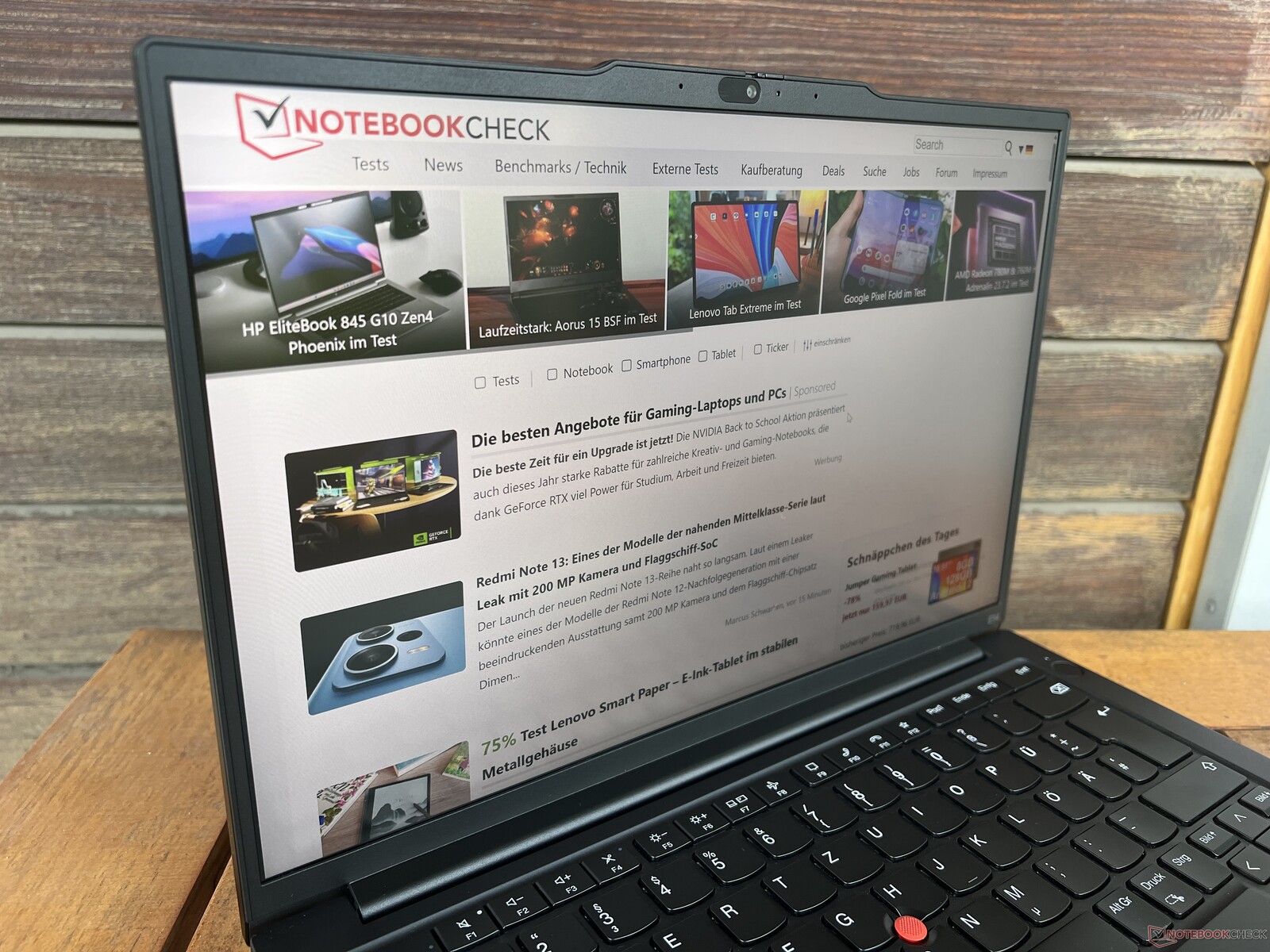

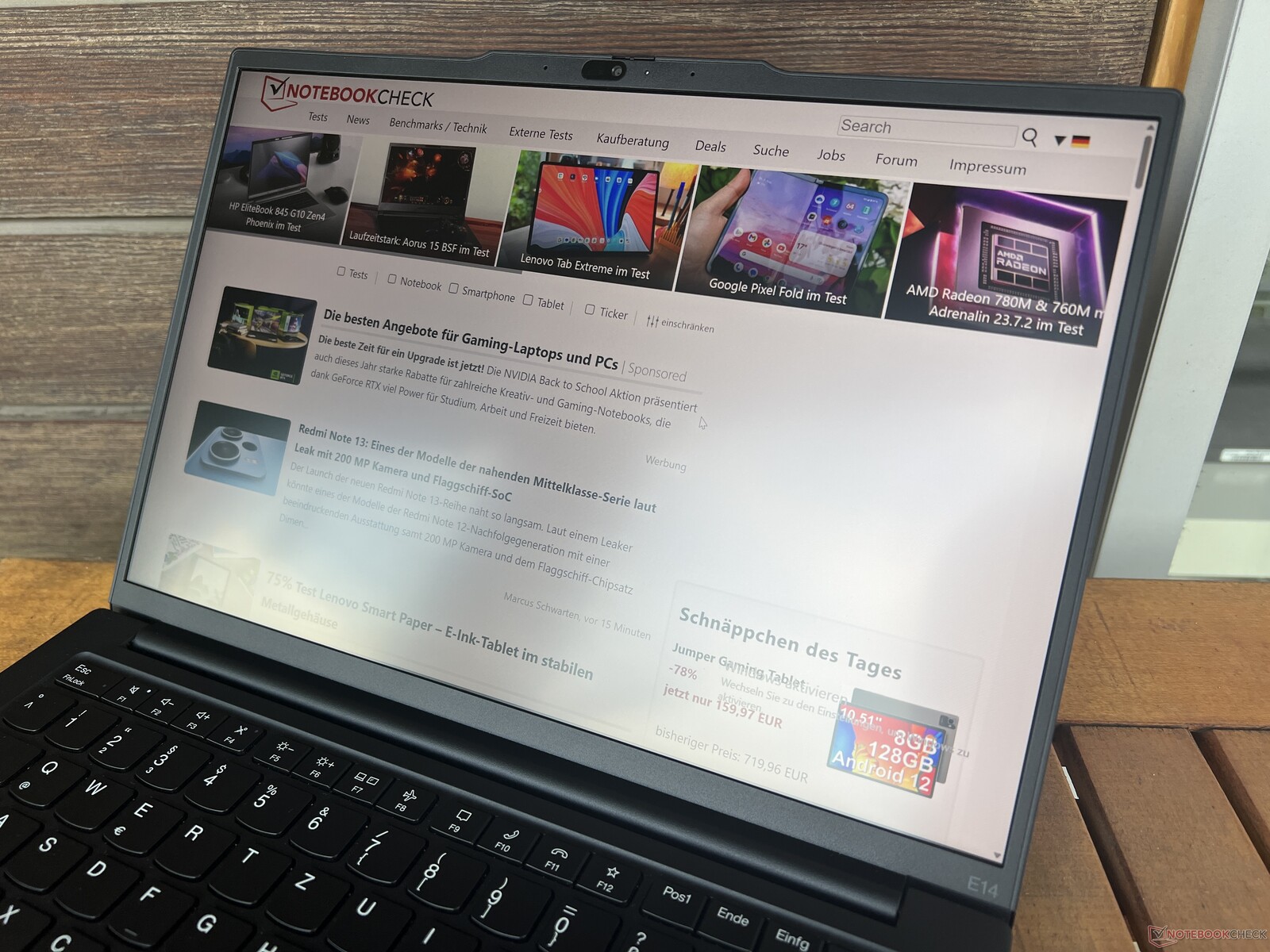

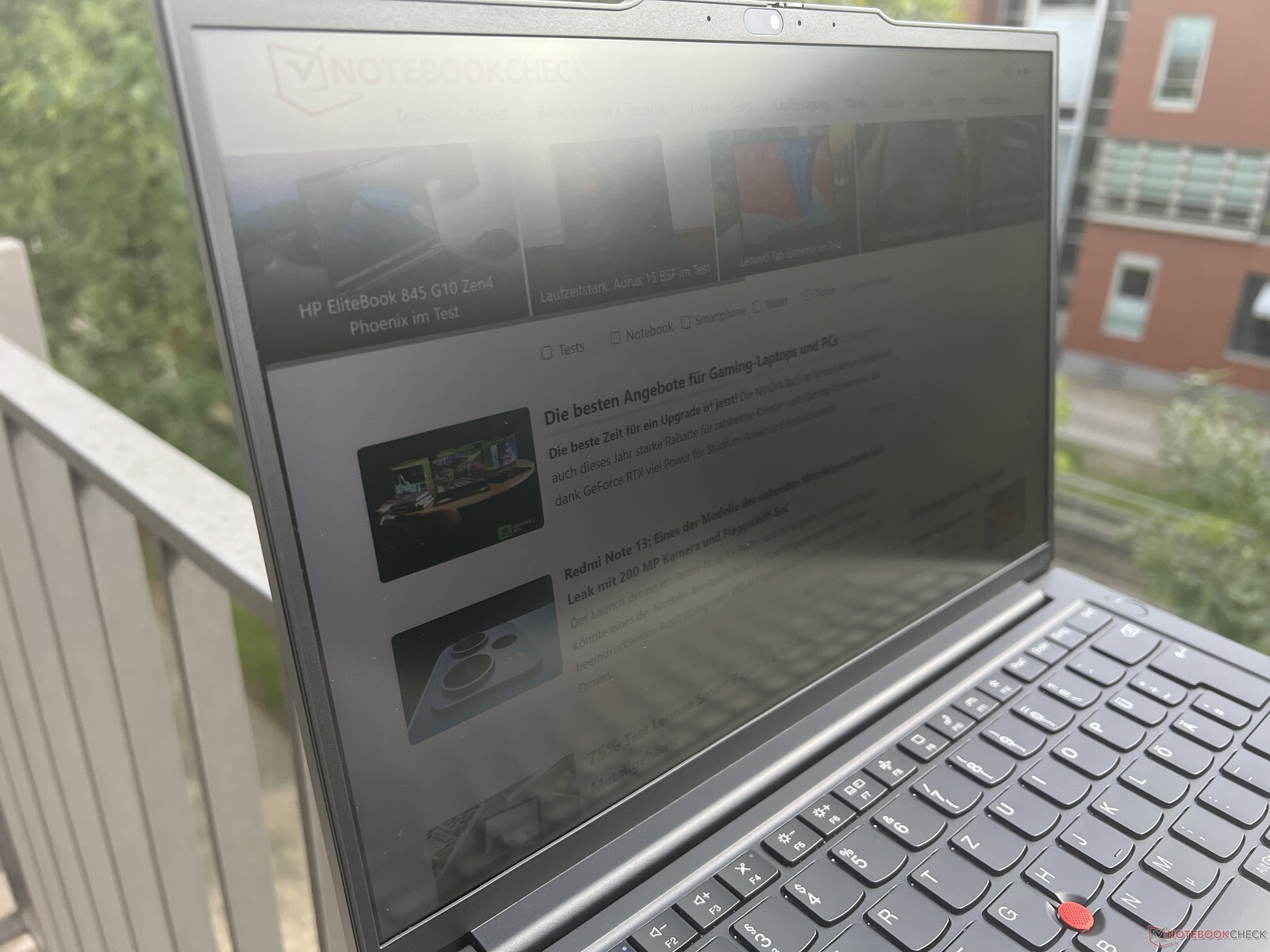

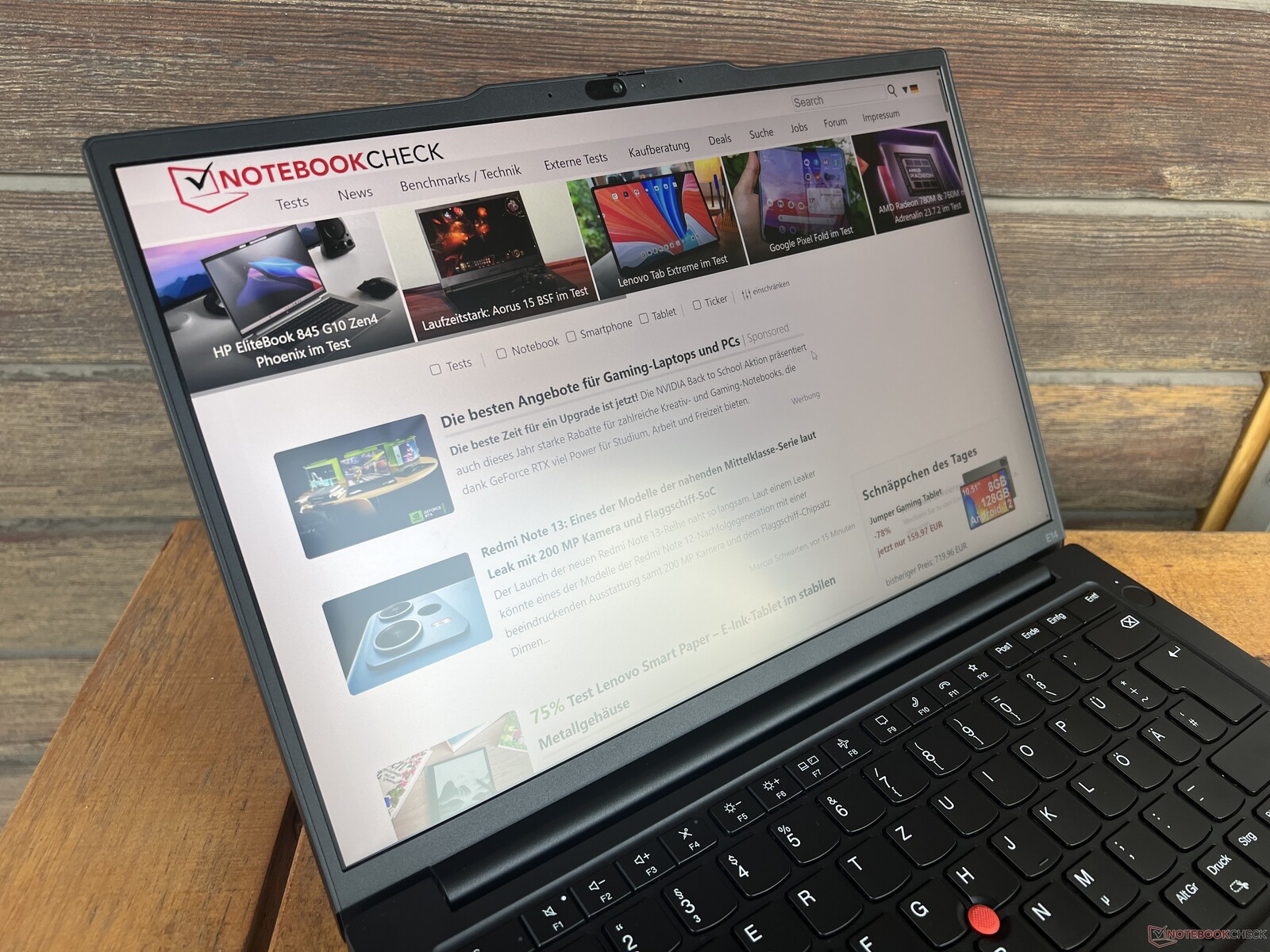

在树荫下
在树荫下

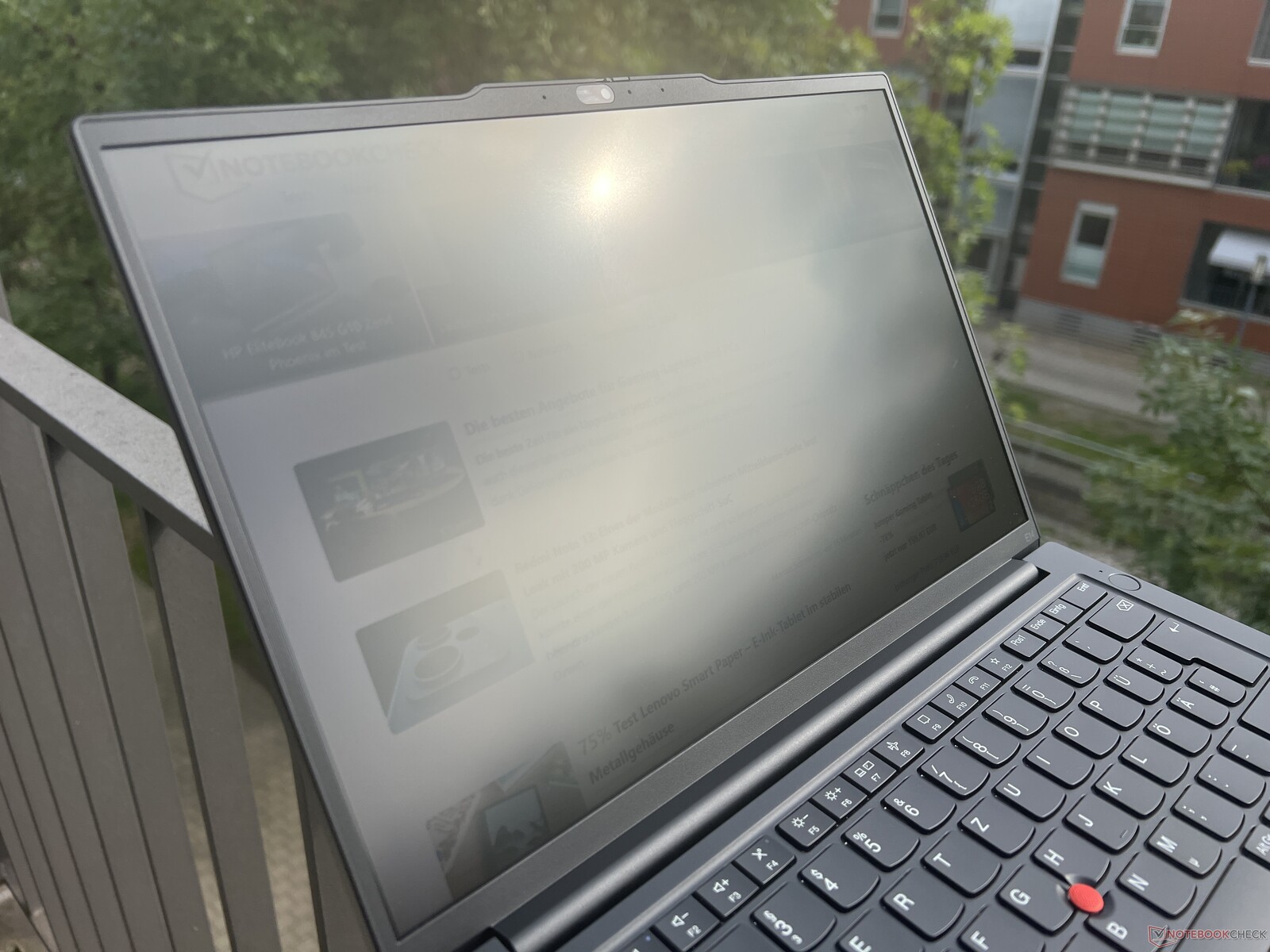

在阳光下
在阳光下

当然，哑光屏幕在户外也有帮助，但您还是应该找个阴凉的地方。在阳光充足的日子里，面板的亮度根本不足以舒适地观看屏幕内容。除此之外，IPS 面板的可视角度稳定性还是不错的。

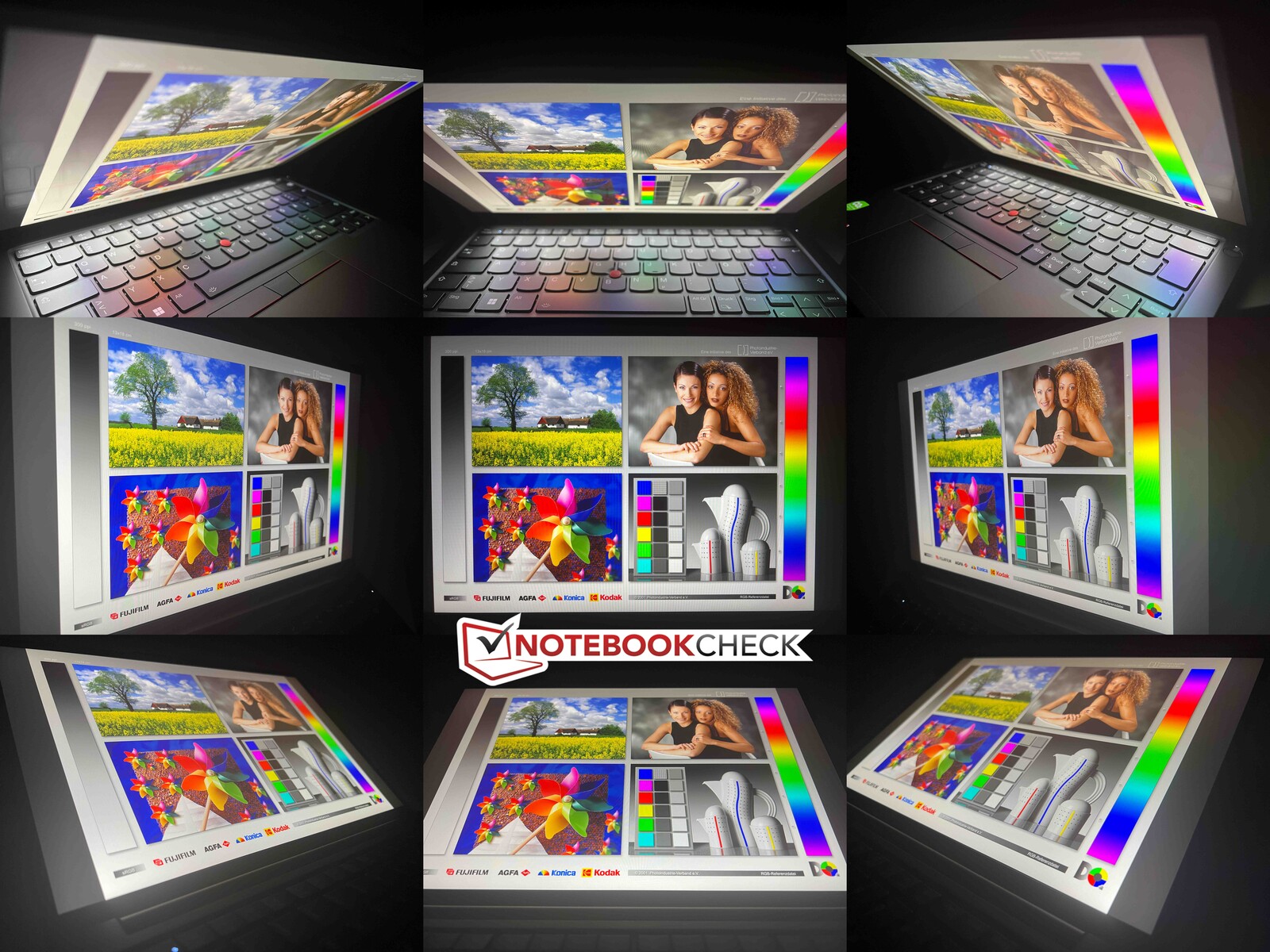

视角稳定性
视角稳定性

性能 - Ryzen 7000 又名 Ryzen 5000

联想为 ThinkPad E14 G5 提供了来自 AMD 的 Ryzen 7000 处理器（Ryzen 3、5 和 7），但这些处理器实际上是 5000 系列的 Ryzen CPU 重命名。每台 E14 配备 8GB DDR4-3200 内存，但还有一个额外的插槽。因此，内存最大可增至 40GB。





测试条件

Lenovo Commercial Vantage 应用程序功耗配置文件与 Windows 功耗配置文件相关联。我们在"最佳性能"下进行了以下基准测试和测量，处理器的功耗始终为 30 瓦。您也可以使用较弱的配置文件（最佳节能：10 瓦，平衡：25/20 瓦）执行简单的任务并降低风扇活动。

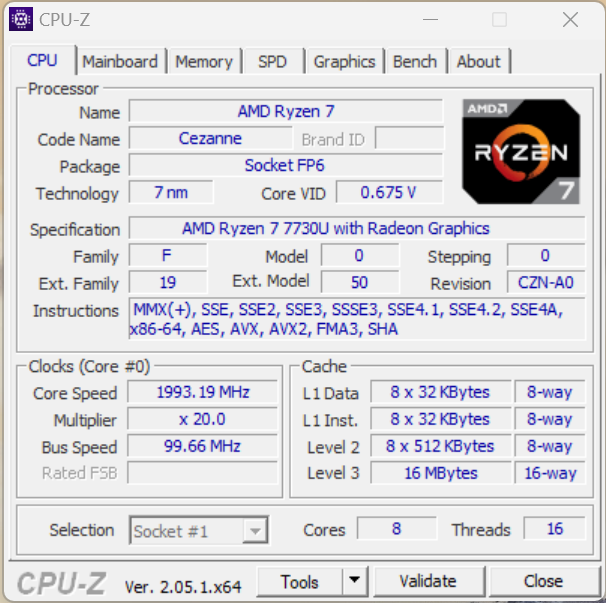

处理器 - Ryzen 7 7730U

AMD 移动处理器的命名令人困惑，因为Ryzen 7 7730U实际上是旧版 Ryzen 7 5825U配备了 Zen3 内核。该处理器共有 8 个内核，因此最多可同时处理 16 个线程。该处理器的功耗稳定在 30 瓦，因此在任何情况下都能保持稳定的性能。多核性能也非常出色，但与配备 Ryzen 7 5825U 的旧款 ThinkPad E14 G4 相比，性能上没有优势。采用英特尔 U 系列 CPU 的竞争对手在多核测试中明显处于劣势，但单核性能更强（这又是以高消耗为代价的）。

在电池模式下，处理器的最大功耗为 25/20 瓦，这就是为什么在不插电的情况下，多核性能会降低约 15%。更多 CPU 基准测试在这里。

Cinebench R15 Multi Sustained Load

09018027036045054063072081090099010801170126013501440153016201710Tooltip
Lenovo ThinkPad E14 G5-21JSS05C00 AMD Ryzen 7 7730U: Ø1758 (1747.03-1776.59)
Dell Latitude 3440 Intel Core i5-1345U: Ø923 (844.18-1192.53)
Lenovo ThinkPad L14 G4 21H6S00900 AMD Ryzen 5 7530U: Ø1246 (1194.78-1499.93)
Fujitsu LifeBook E5412A E542AMHAAMDE AMD Ryzen 5 PRO 5675U: Ø1232 (1213.11-1286.26)
HP ProBook 440 G9-5Y3Z3EA Intel Core i7-1255U: Ø1166 (1136.78-1371.84)
Lenovo ThinkPad E14 G4 21EB0041GE AMD Ryzen 7 5825U: Ø1745 (1717.03-1757.16)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
79.4 pt
Average AMD Ryzen 7 7730U

78.3 pt
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
76.7 pt
Dell Latitude 3440
Intel Core i5-1345U
69.8 pt
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
69.3 pt
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
67.2 pt
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
64.6 pt
Average of class Office

64.4 pt
Cinebench R23 / Multi Core
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
10654 Points
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
10395 Points -2%
Average AMD Ryzen 7 7730U
  (7286 - 11490, n=6)
10291 Points -3%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
8291 (7179.95min - 8290.57max) Points -22%
Average of class Office
  (1056 - 15743, n=123, last 2 years)
8109 Points -24%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
7801 Points -27%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
7794 Points -27%
Dell Latitude 3440
Intel Core i5-1345U
7710 (5593.75min - 7710.23max) Points -28%
Cinebench R23 / Single Core
Dell Latitude 3440
Intel Core i5-1345U
1716 Points +18%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
1671 Points +15%
Average of class Office
  (529 - 1995, n=122, last 2 years)
1463 Points +1%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
1455 Points
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
1441 Points -1%
Average AMD Ryzen 7 7730U
  (1335 - 1466, n=6)
1435 Points -1%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
1433 Points -2%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
1382 Points -5%
Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
4156 Points
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
4034 Points -3%
Average AMD Ryzen 7 7730U
  (2849 - 4267, n=6)
3885 Points -7%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
3295 Points -21%
Average of class Office
  (356 - 5904, n=121, last 2 years)
3118 Points -25%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
2975 Points -28%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
2901 Points -30%
Dell Latitude 3440
Intel Core i5-1345U
2806 Points -32%
Cinebench R20 / CPU (Single Core)
Dell Latitude 3440
Intel Core i5-1345U
660 Points +17%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
643 Points +14%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
566 Points
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
564 Points 0%
Average of class Office
  (181.3 - 764, n=121, last 2 years)
562 Points -1%
Average AMD Ryzen 7 7730U
  (533 - 573, n=6)
560 Points -1%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
547 Points -3%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
534 Points -6%
Cinebench R15 / CPU Multi 64Bit
Average AMD Ryzen 7 7730U
  (1588 - 1942, n=6)
1800 Points +1%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
1777 (1747.03min - 1776.59max) Points
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
1757 (1717.03min - 1757.16max) Points -1%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
1500 (1194.78min - 1499.93max) Points -16%
Average of class Office
  (160.8 - 2642, n=121, last 2 years)
1402 Points -21%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
1372 (1136.78min - 1371.84max) Points -23%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
1286 (1213.11min - 1286.26max) Points -28%
Dell Latitude 3440
Intel Core i5-1345U
1193 (844.18min - 1192.53max) Points -33%
Cinebench R15 / CPU Single 64Bit
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
238 Points +3%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
161 Points -30%
Dell Latitude 3440
Intel Core i5-1345U
237 Points +3%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
231 Points
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
230 Points 0%
Average AMD Ryzen 7 7730U
  (221 - 233, n=6)
229 Points -1%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
228 Points -1%
Average of class Office
  (82.6 - 284, n=119, last 2 years)
218 Points -6%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
209 Points -10%
Blender / v2.79 BMW27 CPU
Average of class Office
  (214 - 2844, n=122, last 2 years)
534 Seconds * -87%
Dell Latitude 3440
Intel Core i5-1345U
415 Seconds * -46%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
408 Seconds * -43%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
396 Seconds * -39%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
387 Seconds * -36%
Average AMD Ryzen 7 7730U
  (277 - 374, n=5)
307 Seconds * -8%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
292 Seconds * -2%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
285 Seconds *
7-Zip 18.03 / 7z b 4
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
48888 MIPS
Average AMD Ryzen 7 7730U
  (40263 - 51898, n=6)
48295 MIPS -1%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
47000 MIPS -4%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
37273 MIPS -24%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
37126 MIPS -24%
Dell Latitude 3440
Intel Core i5-1345U
34915 MIPS -29%
Average of class Office
  (4226 - 62349, n=122, last 2 years)
34790 MIPS -29%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
30138 MIPS -38%
7-Zip 18.03 / 7z b 4 -mmt1
Dell Latitude 3440
Intel Core i5-1345U
5626 MIPS +4%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
5421 MIPS
Average AMD Ryzen 7 7730U
  (5222 - 5426, n=6)
5348 MIPS -1%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
5339 MIPS -2%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
5218 MIPS -4%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
5208 MIPS -4%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
5093 MIPS -6%
Average of class Office
  (2233 - 6687, n=122, last 2 years)
5028 MIPS -7%
Geekbench 5.5 / Multi-Core
Average AMD Ryzen 7 7730U
  (6747 - 8257, n=6)
7546 Points +8%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
6970 Points
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
6782 Points -3%
Average of class Office
  (1018 - 11980, n=123, last 2 years)
6677 Points -4%
Dell Latitude 3440
Intel Core i5-1345U
6300 Points -10%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
6209 Points -11%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
5941 Points -15%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
5475 Points -21%
Geekbench 5.5 / Single-Core
Dell Latitude 3440
Intel Core i5-1345U
1653 Points +10%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
1566 Points +4%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
1500 Points
Average of class Office
  (510 - 1974, n=123, last 2 years)
1481 Points -1%
Average AMD Ryzen 7 7730U
  (1464 - 1500, n=6)
1480 Points -1%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
1468 Points -2%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
1434 Points -4%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
1427 Points -5%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
13 fps
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
12.7 fps -2%
Average AMD Ryzen 7 7730U
  (9.91 - 13.7, n=6)
12.4 fps -5%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
10.1 fps -22%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
10 fps -23%
Average of class Office
  (1.55 - 17.4, n=121, last 2 years)
9.26 fps -29%
Dell Latitude 3440
Intel Core i5-1345U
8.78 fps -32%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
8.6 fps -34%
LibreOffice / 20 Documents To PDF
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
56.7 s * -10%
Average of class Office
  (31.3 - 117.5, n=121, last 2 years)
56.3 s * -10%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
56.2 s * -9%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
52 s * -1%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
51.4 s *
Average AMD Ryzen 7 7730U
  (48.4 - 53.6, n=6)
51 s * +1%
Dell Latitude 3440
Intel Core i5-1345U
49.8 s * +3%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
44.6 s * +13%
R Benchmark 2.5 / Overall mean
Average of class Office
  (0.4244 - 1.397, n=120, last 2 years)
0.586 sec * -12%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U
0.553 sec * -5%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U
0.537 sec * -2%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U
0.536 sec * -2%
Average AMD Ryzen 7 7730U
  (0.515 - 0.543, n=6)
0.529 sec * -1%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U
0.525 sec *
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U
0.515 sec * +2%
Dell Latitude 3440
Intel Core i5-1345U
0.4979 sec * +5%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1777 Points
Cinebench R15 OpenGL 64Bit
109.4 fps
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 CPU Single 64Bit
231 Points
Help
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating
Average AMD Ryzen 7 7730U

92.1 pt
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
90.5 pt
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
89.3 pt
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
74.4 pt
Average of class Office

69 pt
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
68.9 pt
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
60 pt
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
54.4 pt
AIDA64 / FP32 Ray-Trace
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
12313 KRay/s
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
12144 KRay/s -1%
Average AMD Ryzen 7 7730U
  (11322 - 13069, n=6)
12118 KRay/s -2%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
9144 KRay/s -26%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
8845 KRay/s -28%
Average of class Office
  (763 - 24250, n=121, last 2 years)
8354 KRay/s -32%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
7101 KRay/s -42%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
6731 KRay/s -45%
AIDA64 / FPU Julia
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
77932 Points
Average AMD Ryzen 7 7730U
  (72772 - 83307, n=6)
77576 Points 0%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
76634 Points -2%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
58914 Points -24%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
57571 Points -26%
Average of class Office
  (4027 - 102228, n=121, last 2 years)
44446 Points -43%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
35329 Points -55%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
34037 Points -56%
AIDA64 / CPU SHA3
Average AMD Ryzen 7 7730U
  (2424 - 2782, n=6)
2576 MB/s 0%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
2571 MB/s
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
2535 MB/s -1%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
2060 MB/s -20%
Average of class Office
  (279 - 4442, n=120, last 2 years)
1951 MB/s -24%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
1916 MB/s -25%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
1902 MB/s -26%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
1786 MB/s -31%
AIDA64 / CPU Queen
Average AMD Ryzen 7 7730U
  (86118 - 95529, n=6)
90813 Points +4%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
87147 Points
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
86188 Points -1%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
75683 Points -13%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
69172 Points -21%
Average of class Office
  (8031 - 113016, n=121, last 2 years)
66926 Points -23%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
64367 Points -26%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
61382 Points -30%
AIDA64 / FPU SinJulia
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
11336 Points
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
11232 Points -1%
Average AMD Ryzen 7 7730U
  (10753 - 11716, n=6)
11215 Points -1%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
8303 Points -27%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
8259 Points -27%
Average of class Office
  (404 - 14288, n=121, last 2 years)
6599 Points -42%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
4656 Points -59%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
4382 Points -61%
AIDA64 / FPU Mandel
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
42888 Points
Average AMD Ryzen 7 7730U
  (40080 - 45955, n=6)
42662 Points -1%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
42451 Points -1%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
32676 Points -24%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
31280 Points -27%
Average of class Office
  (2054 - 54365, n=121, last 2 years)
23379 Points -45%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
17651 Points -59%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
16371 Points -62%
AIDA64 / CPU AES
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
83182 MB/s +88%
Average of class Office
  (5226 - 147611, n=121, last 2 years)
46831 MB/s +6%
Average AMD Ryzen 7 7730U
  (42560 - 56403, n=6)
45985 MB/s +4%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
44672 MB/s +1%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
44154 MB/s
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
36719 MB/s -17%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
34999 MB/s -21%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
33224 MB/s -25%
AIDA64 / CPU ZLib
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
689 MB/s
Average AMD Ryzen 7 7730U
  (646 - 733, n=6)
686 MB/s 0%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
676 MB/s -2%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
556 MB/s -19%
Average of class Office
  (67.6 - 1018, n=121, last 2 years)
535 MB/s -22%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
511 MB/s -26%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
509 MB/s -26%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
507 MB/s -26%
AIDA64 / FP64 Ray-Trace
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
6496 KRay/s
Average AMD Ryzen 7 7730U
  (5986 - 6886, n=6)
6396 KRay/s -2%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
6355 KRay/s -2%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
4768 KRay/s -27%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
4593 KRay/s -29%
Average of class Office
  (432 - 12755, n=121, last 2 years)
4452 KRay/s -31%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
3822 KRay/s -41%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
3659 KRay/s -44%
AIDA64 / CPU PhotoWorxx
Average of class Office
  (4814 - 48177, n=121, last 2 years)
24560 MPixel/s +78%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
22065 MPixel/s +60%
Average AMD Ryzen 7 7730U
  (13747 - 19447, n=6)
17492 MPixel/s +27%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
14092 MPixel/s +2%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
13899 MPixel/s +1%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
13820 MPixel/s
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
13568 MPixel/s -2%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
9832 MPixel/s -29%

系统性能

主观的性能印象非常好，快速的 PCIe 固态硬盘自然也功不可没。在测试过程中，输入毫无延迟，也没有出现任何问题。

PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score
Lenovo ThinkPad E14 G5-21JSS05C00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
6063 Points
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (5285 - 6403, n=6)
6017 Points -1%
Lenovo ThinkPad E14 G4 21EB0041GE
Vega 8, R7 5825U, Micron 2450 512GB MTFDKCD512TFK
5935 Points -2%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
5736 Points -5%
Fujitsu LifeBook E5412A E542AMHAAMDE
Vega 7, R5 PRO 5675U, WDC PC SN530 SDBQNPZ-512G
5594 Points -8%
Average of class Office
  (2325 - 7157, n=106, last 2 years)
5344 Points -12%
HP ProBook 440 G9-5Y3Z3EA
Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU
5325 Points -12%
Dell Latitude 3440
Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ
5276 Points -13%
PCMark 10 / Essentials
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
10614 Points +1%
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (10084 - 11458, n=6)
10577 Points +1%
Dell Latitude 3440
Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ
10550 Points 0%
Lenovo ThinkPad E14 G5-21JSS05C00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
10513 Points
Lenovo ThinkPad E14 G4 21EB0041GE
Vega 8, R7 5825U, Micron 2450 512GB MTFDKCD512TFK
10202 Points -3%
Average of class Office
  (5095 - 20841, n=106, last 2 years)
9826 Points -7%
HP ProBook 440 G9-5Y3Z3EA
Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU
9724 Points -8%
Fujitsu LifeBook E5412A E542AMHAAMDE
Vega 7, R5 PRO 5675U, WDC PC SN530 SDBQNPZ-512G
9659 Points -8%
PCMark 10 / Productivity
Lenovo ThinkPad E14 G5-21JSS05C00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
9295 Points
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (8443 - 9761, n=6)
9294 Points 0%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
9292 Points 0%
Fujitsu LifeBook E5412A E542AMHAAMDE
Vega 7, R5 PRO 5675U, WDC PC SN530 SDBQNPZ-512G
9171 Points -1%
Lenovo ThinkPad E14 G4 21EB0041GE
Vega 8, R7 5825U, Micron 2450 512GB MTFDKCD512TFK
9068 Points -2%
Average of class Office
  (3041 - 10198, n=106, last 2 years)
7440 Points -20%
HP ProBook 440 G9-5Y3Z3EA
Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU
7200 Points -23%
Dell Latitude 3440
Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ
6832 Points -26%
PCMark 10 / Digital Content Creation
Lenovo ThinkPad E14 G5-21JSS05C00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
6190 Points
Lenovo ThinkPad E14 G4 21EB0041GE
Vega 8, R7 5825U, Micron 2450 512GB MTFDKCD512TFK
6132 Points -1%
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (4705 - 6561, n=6)
6029 Points -3%
HP ProBook 440 G9-5Y3Z3EA
Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU
5854 Points -5%
Average of class Office
  (1912 - 9056, n=106, last 2 years)
5804 Points -6%
Dell Latitude 3440
Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ
5530 Points -11%
Fujitsu LifeBook E5412A E542AMHAAMDE
Vega 7, R5 PRO 5675U, WDC PC SN530 SDBQNPZ-512G
5363 Points -13%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
5193 Points -16%
CrossMark / Overall
Dell Latitude 3440
Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ
1416 Points +9%
HP ProBook 440 G9-5Y3Z3EA
Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU
1338 Points +3%
Average of class Office
  (348 - 1891, n=107, last 2 years)
1325 Points +2%
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1296 - 1350, n=6)
1319 Points +2%
Lenovo ThinkPad E14 G4 21EB0041GE
Vega 8, R7 5825U, Micron 2450 512GB MTFDKCD512TFK
1298 Points 0%
Lenovo ThinkPad E14 G5-21JSS05C00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
1298 Points
Fujitsu LifeBook E5412A E542AMHAAMDE
Vega 7, R5 PRO 5675U, WDC PC SN530 SDBQNPZ-512G
1215 Points -6%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
1029 Points -21%
CrossMark / Productivity
Dell Latitude 3440
Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ
1420 Points +8%
HP ProBook 440 G9-5Y3Z3EA
Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU
1370 Points +4%
Average of class Office
  (393 - 1870, n=107, last 2 years)
1340 Points +2%
Lenovo ThinkPad E14 G4 21EB0041GE
Vega 8, R7 5825U, Micron 2450 512GB MTFDKCD512TFK
1332 Points +1%
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1301 - 1354, n=6)
1330 Points +1%
Lenovo ThinkPad E14 G5-21JSS05C00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
1319 Points
Fujitsu LifeBook E5412A E542AMHAAMDE
Vega 7, R5 PRO 5675U, WDC PC SN530 SDBQNPZ-512G
1268 Points -4%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
1115 Points -15%
CrossMark / Creativity
Dell Latitude 3440
Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ
1482 Points +8%
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1372 - 1461, n=6)
1413 Points +3%
HP ProBook 440 G9-5Y3Z3EA
Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU
1374 Points 0%
Lenovo ThinkPad E14 G5-21JSS05C00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
1372 Points
Average of class Office
  (340 - 1982, n=107, last 2 years)
1362 Points -1%
Lenovo ThinkPad E14 G4 21EB0041GE
Vega 8, R7 5825U, Micron 2450 512GB MTFDKCD512TFK
1342 Points -2%
Fujitsu LifeBook E5412A E542AMHAAMDE
Vega 7, R5 PRO 5675U, WDC PC SN530 SDBQNPZ-512G
1253 Points -9%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
992 Points -28%
CrossMark / Responsiveness
Dell Latitude 3440
Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ
1226 Points +17%
Average of class Office
  (258 - 2017, n=107, last 2 years)
1194 Points +14%
HP ProBook 440 G9-5Y3Z3EA
Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU
1150 Points +10%
Lenovo ThinkPad E14 G4 21EB0041GE
Vega 8, R7 5825U, Micron 2450 512GB MTFDKCD512TFK
1088 Points +4%
Average AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (955 - 1086, n=6)
1048 Points 0%
Lenovo ThinkPad E14 G5-21JSS05C00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
1045 Points
Fujitsu LifeBook E5412A E542AMHAAMDE
Vega 7, R5 PRO 5675U, WDC PC SN530 SDBQNPZ-512G
974 Points -7%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
900 Points -14%
PCMark 10 Score
6063 points
Help

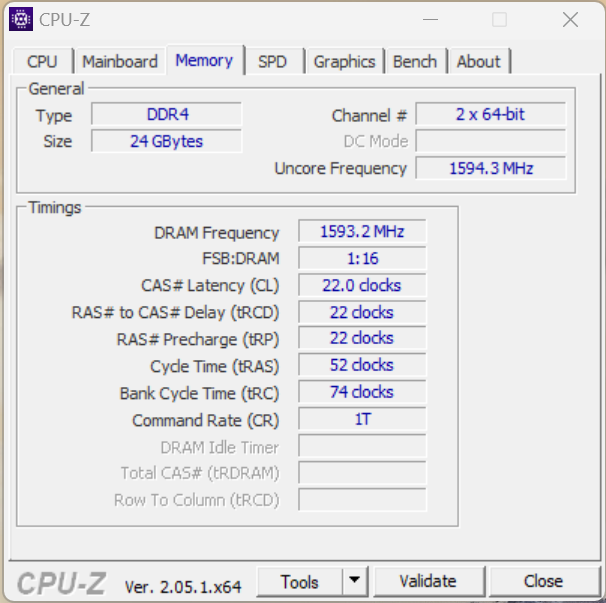

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency
AIDA64 / Memory Copy
Average of class Office
  (7158 - 88119, n=122, last 2 years)
42889 MB/s +25%
Average AMD Ryzen 7 7730U
  (34315 - 42873, n=6)
40021 MB/s +17%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
38526 MB/s +12%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
34315 MB/s
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
34271 MB/s 0%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
32472 MB/s -5%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
22846 MB/s -33%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
20155 MB/s -41%
AIDA64 / Memory Read
Average of class Office
  (7325 - 87297, n=122, last 2 years)
43205 MB/s +12%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
41894 MB/s +8%
Average AMD Ryzen 7 7730U
  (38520 - 39632, n=6)
39144 MB/s +1%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
39043 MB/s +1%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
38729 MB/s
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
38060 MB/s -2%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
23068 MB/s -40%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
22877 MB/s -41%
AIDA64 / Memory Write
Average of class Office
  (7579 - 94965, n=122, last 2 years)
46730 MB/s +56%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
44821 MB/s +49%
Average AMD Ryzen 7 7730U
  (29984 - 41796, n=6)
37934 MB/s +27%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
33683 MB/s +12%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
30673 MB/s +2%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
29984 MB/s
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
22954 MB/s -23%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
22883 MB/s -24%
AIDA64 / Memory Latency
Average AMD Ryzen 7 7730U
  (94.4 - 110.6, n=6)
103.7 ns * -10%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, Vega 8
103.5 ns * -10%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, Vega 7
101.3 ns * -7%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, Vega 7
99.4 ns * -5%
Average of class Office
  (44.3 - 188.3, n=123, last 2 years)
96.4 ns * -2%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, Vega 8
94.4 ns *
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Iris Xe G7 96EUs
81.9 ns * +13%
Dell Latitude 3440
Intel Core i5-1345U, Iris Xe G7 80EUs
73.8 ns * +22%

* ... smaller is better

DPC 延迟

在我们的标准化延迟测试（网页浏览、4K YouTube 播放、CPU 负载）中，测试设备在当前 BIOS 版本下使用实时音频应用程序时略有限制。

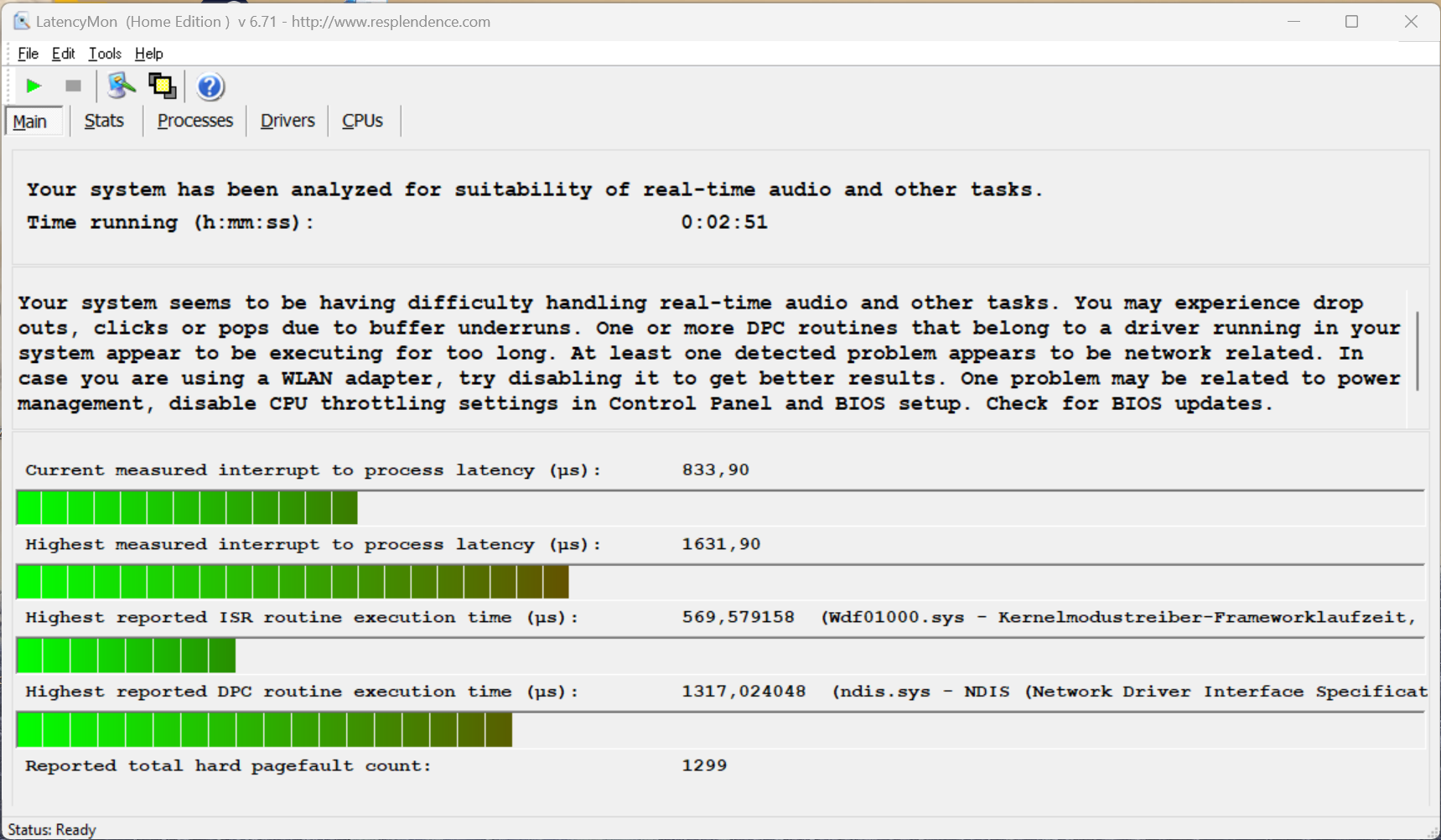

LatencyMon - 概述
LatencyMon - 概述

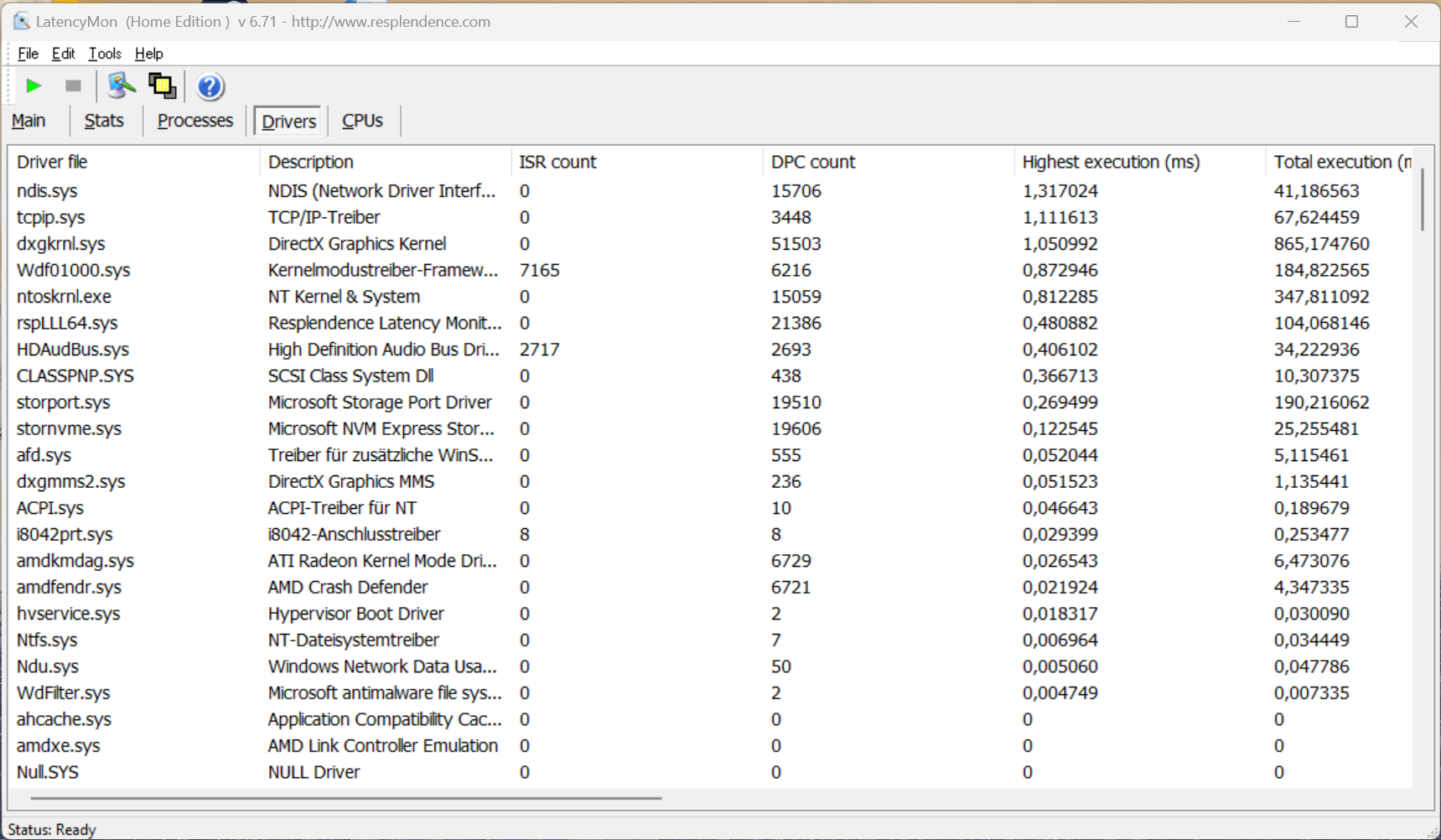

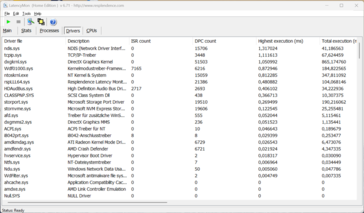

LatencyMon - 驱动程序
LatencyMon - 驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP ProBook 440 G9-5Y3Z3EA
Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU
2647 μs * -62%
Dell Latitude 3440
Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ
1815.3 μs * -11%
Fujitsu LifeBook E5412A E542AMHAAMDE
Vega 7, R5 PRO 5675U, WDC PC SN530 SDBQNPZ-512G
1792.6 μs * -10%
Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
1783.9 μs * -9%
Lenovo ThinkPad E14 G5-21JSS05C00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00
1631.9 μs *
Lenovo ThinkPad E14 G4 21EB0041GE
Vega 8, R7 5825U, Micron 2450 512GB MTFDKCD512TFK
1108 μs * +32%

* ... smaller is better

存储设备

M.2 2280 固态硬盘
M.2 2280 固态硬盘

ThinkPad E14 G5 为 M.2 固态硬盘提供了两个插槽，每个插槽都通过 PCIe 3.0x4 连接。常规的 M.2 2280 插槽在出厂时就已占用，较短的 M.2 2242 插槽可用于扩展。我们的测试 deviec 甚至有一个 PCIe 4.0 硬盘，即 WD SN740，但最大传输速率受到连接的限制。实际上，这并不重要，固态硬盘的速度仍然足够快，在长时间负载时也不会影响性能。我们的测试设备预装了 Windows 11 Home 操作系统，首次启动后硬盘可用空间为 913 GB。更多固态硬盘基准测试这里.

CrystalDiskMark 5.2 / 6
AS SSD
DiskSpd
hddimg
WD PC SN740 SDDPNQD-1T00
CDM 5/6 Read Seq Q32T1: 3725 MB/s
CDM 5/6 Write Seq Q32T1: 3152 MB/s
CDM 5/6 Read 4K Q32T1: 532 MB/s
CDM 5/6 Write 4K Q32T1: 418 MB/s
CDM 5/6 Read 4K: 53 MB/s
CDM 5/6 Write 4K: 110.3 MB/s
CDM 6 Write 4K Q8T8: 393 MB/s
CDM 6 Read 4K Q8T8: 993 MB/s
Drive Performance Rating | DiskSpd | AS SSD
Drive Performance Rating - Percent
Average WD PC SN740 SDDPNQD-1T00

85.5 pt
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
79.1 pt
Average of class Office

71.7 pt
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
63.2 pt
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
62.7 pt
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
61 pt
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
45.9 pt
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
45.6 pt
DiskSpd
seq read
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
3743 (1397.54min - 3742.93max) MB/s +54%
Average WD PC SN740 SDDPNQD-1T00
  (2314 - 3748, n=5)
3119 MB/s +28%
Average of class Office
  (482 - 4554, n=108, last 2 years)
2471 MB/s +2%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
2428 (2414.24min - 2428.05max) MB/s
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
2271 (2228.17min - 2270.87max) MB/s -6%
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
1970 (1955.88min - 1969.69max) MB/s -19%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
1674 (1668.91min - 1673.95max) MB/s -31%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
1509 (1241.55min - 1508.61max) MB/s -38%
seq write
Average WD PC SN740 SDDPNQD-1T00
  (2168 - 4403, n=5)
3229 MB/s +49%
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
3209 (2978.58min - 3209.14max) MB/s +48%
Average of class Office
  (333 - 5842, n=108, last 2 years)
2375 MB/s +10%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
2168 (2095.48min - 2168.04max) MB/s
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
2118 (1546.28min - 2117.87max) MB/s -2%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
2081 (1864.41min - 2081.25max) MB/s -4%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
1697 (1673.32min - 1697.43max) MB/s -22%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
1229 (899.05min - 1228.93max) MB/s -43%
seq q8 t1 read
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
6129 (435.96min - 6128.93max) MB/s +64%
Average WD PC SN740 SDDPNQD-1T00
  (3686 - 5226, n=5)
4594 MB/s +23%
Average of class Office
  (535 - 7120, n=108, last 2 years)
4017 MB/s +8%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
3732 (3347.49min - 3731.76max) MB/s
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
3049 (2669.79min - 3048.63max) MB/s -18%
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
2962 (2571min - 2961.97max) MB/s -21%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
2484 (2261.03min - 2483.66max) MB/s -33%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
2153 (1995.22min - 2153.45max) MB/s -42%
seq q8 t1 write
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
5006 (4859.17min - 5005.96max) MB/s +63%
Average WD PC SN740 SDDPNQD-1T00
  (3018 - 4536, n=5)
3791 MB/s +23%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
3074 (3048.82min - 3073.52max) MB/s
Average of class Office
  (276 - 6791, n=108, last 2 years)
3022 MB/s -2%
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
2266 (2121.43min - 2266.05max) MB/s -26%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
1733 (1727.53min - 1732.56max) MB/s -44%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
1620 (1138.72min - 1620.26max) MB/s -47%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
1114 (738.82min - 1113.8max) MB/s -64%
4k q1 t1 read
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
83.8 (76.57min - 83.77max) MB/s +74%
Average WD PC SN740 SDDPNQD-1T00
  (46.5 - 78.6, n=5)
61.3 MB/s +27%
Average of class Office
  (17.7 - 89.9, n=108, last 2 years)
57.7 MB/s +20%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
55 (54.07min - 55.04max) MB/s +14%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
48.2 (46.13min - 48.16max) MB/s
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
44.1 (43.66min - 44.07max) MB/s -9%
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
38.8 (38.24min - 38.83max) MB/s -20%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
36.1 (34.78min - 36.13max) MB/s -25%
4k q1 t1 write
Average WD PC SN740 SDDPNQD-1T00
  (104.6 - 254, n=5)
183.6 MB/s +76%
Average of class Office
  (32 - 429, n=108, last 2 years)
161.2 MB/s +54%
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
136.6 (136.11min - 136.6max) MB/s +31%
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
126.7 (123.31min - 126.68max) MB/s +21%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
125.1 (122.37min - 125.09max) MB/s +20%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
117.8 (112.15min - 117.79max) MB/s +13%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
106.8 (99.25min - 106.82max) MB/s +2%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
104.6 (99.67min - 104.57max) MB/s
4k q32 t16 read
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
1730 (1720.68min - 1730.47max) MB/s +94%
Average WD PC SN740 SDDPNQD-1T00
  (876 - 2620, n=5)
1559 MB/s +75%
Average of class Office
  (184.2 - 4425, n=108, last 2 years)
1276 MB/s +43%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
890 (877.23min - 889.7max) MB/s
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
771 (767.05min - 770.85max) MB/s -13%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
635 (580.48min - 635.09max) MB/s -29%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
632 (610.4min - 632.09max) MB/s -29%
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
477 (459.41min - 476.64max) MB/s -46%
4k q32 t16 write
Average WD PC SN740 SDDPNQD-1T00
  (378 - 2918, n=5)
1330 MB/s +249%
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
1309 (773.75min - 1309.1max) MB/s +244%
Average of class Office
  (192.2 - 3254, n=108, last 2 years)
938 MB/s +146%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
587 (456.04min - 586.76max) MB/s +54%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
381 (370.85min - 380.61max) MB/s
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
364 (350.56min - 364.21max) MB/s -4%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
346 (333.11min - 346max) MB/s -9%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
316 (308.42min - 316.11max) MB/s -17%
AS SSD
Score Total
Average WD PC SN740 SDDPNQD-1T00
  (2304 - 5273, n=5)
4261 Points +21%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
4138 Points +17%
Average of class Office
  (704 - 9204, n=104, last 2 years)
3983 Points +13%
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
3981 Points +13%
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
3817 Points +8%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
3524 Points
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
2471 Points -30%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
2355 Points -33%
Score Read
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
1831 Points +67%
Average of class Office
  (252 - 3364, n=104, last 2 years)
1442 Points +31%
Average WD PC SN740 SDDPNQD-1T00
  (1010 - 1768, n=5)
1403 Points +28%
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
1184 Points +8%
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
1126 Points +3%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
1097 Points
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
811 Points -26%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
756 Points -31%
Score Write
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
2245 Points +17%
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
2191 Points +15%
Average WD PC SN740 SDDPNQD-1T00
  (780 - 3001, n=5)
2157 Points +13%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
1912 Points
Average of class Office
  (320 - 4111, n=104, last 2 years)
1846 Points -3%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
1359 Points -29%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
1284 Points -33%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
1279 Points -33%
Seq Read
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
4259.64 MB/s +38%
Average WD PC SN740 SDDPNQD-1T00
  (3072 - 4491, n=5)
3856 MB/s +25%
Average of class Office
  (508 - 5796, n=104, last 2 years)
3162 MB/s +2%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
3086 MB/s
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
2698 MB/s -13%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
2339 MB/s -24%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
2289 MB/s -26%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
2089 MB/s -32%
Seq Write
Average WD PC SN740 SDDPNQD-1T00
  (1975 - 4365, n=5)
3284 MB/s +66%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
2413 MB/s +22%
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
2271.27 MB/s +15%
Average of class Office
  (304 - 5880, n=104, last 2 years)
2080 MB/s +5%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
1975 MB/s
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
1490 MB/s -25%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
1168 MB/s -41%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
837 MB/s -58%
4K Read
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
74.47 MB/s +68%
Average WD PC SN740 SDDPNQD-1T00
  (44.3 - 69.3, n=5)
56.4 MB/s +27%
Average of class Office
  (18.7 - 91.1, n=104, last 2 years)
56.3 MB/s +27%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
52.4 MB/s +18%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
44.3 MB/s
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
40.8 MB/s -8%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
35.85 MB/s -19%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
33.21 MB/s -25%
4K Write
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
194.85 MB/s +90%
Average WD PC SN740 SDDPNQD-1T00
  (86.7 - 253, n=5)
177.2 MB/s +73%
Average of class Office
  (35.4 - 350, n=104, last 2 years)
158.7 MB/s +55%
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
126 MB/s +23%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
124.4 MB/s +21%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
121.5 MB/s +19%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
102.4 MB/s
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
93.74 MB/s -8%
4K-64 Read
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
1549 MB/s +108%
Average of class Office
  (182.3 - 2713, n=104, last 2 years)
1069 MB/s +44%
Average WD PC SN740 SDDPNQD-1T00
  (656 - 1277, n=5)
961 MB/s +29%
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
874 MB/s +17%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
744 MB/s
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
625.54 MB/s -16%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
569 MB/s -24%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
485.8 MB/s -35%
4K-64 Write
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
1970 MB/s +22%
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
1768.73 MB/s +10%
Average WD PC SN740 SDDPNQD-1T00
  (411 - 2332, n=5)
1651 MB/s +2%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
1612 MB/s
Average of class Office
  (132.3 - 3394, n=104, last 2 years)
1479 MB/s -8%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
1074 MB/s -33%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
1070 MB/s -34%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
996 MB/s -38%
Access Time Read
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
0.159 ms * -342%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
0.152 ms * -322%
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
0.087 ms * -142%
Average of class Office
  (0.022 - 0.295, n=104, last 2 years)
0.07963 ms * -121%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
0.067 ms * -86%
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
0.045 ms * -25%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
0.036 ms *
Average WD PC SN740 SDDPNQD-1T00
  (0.026 - 0.044, n=5)
0.0348 ms * +3%
Access Time Write
Lenovo ThinkPad E14 G4 21EB0041GE
Micron 2450 512GB MTFDKCD512TFK
0.135 ms * -265%
Average of class Office
  (0.017 - 0.619, n=104, last 2 years)
0.06404 ms * -73%
Fujitsu LifeBook E5412A E542AMHAAMDE
WDC PC SN530 SDBQNPZ-512G
0.064 ms * -73%
Dell Latitude 3440
Samsung PM9A1 MZVL2512HCJQ
0.062 ms * -68%
Lenovo ThinkPad E14 G5-21JSS05C00
WD PC SN740 SDDPNQD-1T00
0.037 ms *
Average WD PC SN740 SDDPNQD-1T00
  (0.017 - 0.065, n=5)
0.036 ms * +3%
Lenovo ThinkPad L14 G4 21H6S00900
Kioxia BG5 KBG5AZNT512G
0.033 ms * +11%
HP ProBook 440 G9-5Y3Z3EA
Samsung PM991 MZVLQ512HBLU
0.03 ms * +19%

* ... smaller is better

Sustained Read Performance: DiskSpd Read Loop, Queue Depth 8

019038057076095011401330152017101900209022802470266028503040323034203610Tooltip
Lenovo ThinkPad E14 G5-21JSS05C00: Ø3719 (3315.89-3731.34)

图形卡

GPU-Z Vega 8
GPU-Z Vega 8

......（英文 Ryzen 7 7730U使用旧版 Radeon RX Vega 8iGPU，前代产品也使用了该 GPU。不出所料，GPU 基准测试的结果完全相同。Vega 8 的性能完全可以满足日常办公的正常使用，而且还能与 Iris Xe Graphics G7，与英特尔最新的 Raptor Lake CPU 相比也毫不逊色。

整体游戏性能非常低。即使是较老的游戏，如果你想获得 1080p 的可玩性体验，也往往会被限制在中/高细节。至少，在长时间游戏和电池模式下，图形性能依然稳定。更多 GPU 基准测试这里.

3DMark Performance Rating | 3DMark 11 | 3DMark
3DMark Performance Rating - Percent
Average of class Office

100 pt
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)

89.9 pt
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
88.1 pt
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U
88 pt
Dell Latitude 3440
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U
86.1 pt
HP ProBook 440 G9-5Y3Z3EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
84 pt
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U
79.9 pt
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
61.1 pt
3DMark 11 - 1280x720 Performance GPU
Average of class Office
  (1474 - 13132, n=114, last 2 years)
6054 Points +3%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (3459 - 7591, n=54)
5910 Points +1%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
5873 Points
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U
5800 Points -1%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U
5260 Points -10%
Dell Latitude 3440
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U
5214 Points -11%
HP ProBook 440 G9-5Y3Z3EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
5125 Points -13%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
4224 Points -28%
3DMark
1920x1080 Fire Strike Graphics
Average of class Office
  (712 - 9228, n=115, last 2 years)
4188 Points +19%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1694 - 5041, n=54)
3676 Points +5%
Dell Latitude 3440
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U
3653 Points +4%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U
3540 Points +1%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
3506 Points
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U
3250 Points -7%
HP ProBook 440 G9-5Y3Z3EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
3137 Points -11%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
2384 Points -32%
2560x1440 Time Spy Graphics
Average of class Office
  (242 - 3242, n=111, last 2 years)
1370 Points +20%
HP ProBook 440 G9-5Y3Z3EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
1268 Points +11%
Dell Latitude 3440
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U
1162 Points +1%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (540 - 1557, n=54)
1156 Points +1%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
1146 Points
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U
1145 Points 0%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U
1032 Points -10%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
775 Points -32%
3DMark 11 Performance
5997 points
3DMark Fire Strike Score
3220 points
3DMark Time Spy Score
1308 points
Help
Blender: v3.3 Classroom HIP/AMD | v3.3 Classroom CPU
Blender / v3.3 Classroom HIP/AMD
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
1123 Seconds * -63%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U
814 Seconds * -18%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U
763 Seconds * -10%
Average of class Office
  (322 - 1215, n=18, last 2 years)
739 Seconds * -7%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (477 - 1133, n=12)
702 Seconds * -2%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
691 Seconds *
Blender / v3.3 Classroom CPU
Average of class Office
  (343 - 3786, n=110, last 2 years)
910 Seconds * -83%
Dell Latitude 3440
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1345U
813 Seconds * -64%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
763 Seconds * -54%
HP ProBook 440 G9-5Y3Z3EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
741 Seconds * -49%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5675U
730 Seconds * -47%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (463 - 758, n=18)
542 Seconds * -9%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U
523 Seconds * -5%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U
496 Seconds *

* ... smaller is better

Performance Rating | The Witcher 3 | GTA V | Final Fantasy XV Benchmark | Strange Brigade | Dota 2 Reborn | X-Plane 11.11
Performance Rating - Percent
Average of class Office

97.9 pt
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
94 pt
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
89.5 pt
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7
85.6 pt
Dell Latitude 3440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
76.6 pt
HP ProBook 440 G9-5Y3Z3EA -2!
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
75.5 pt
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
61 pt
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Average of class Office
  (2.66 - 34, n=111, last 2 years)
13.7 fps +4%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.6 (12min, 12P1) fps +3%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.2 (9min, 12P1) fps
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7
11 (9min, 10P1) fps -17%
Dell Latitude 3440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
9.9 (9min) fps -25%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
9 fps -32%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
8.22 (6min) fps -38%
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Average of class Office
  (3.35 - 47.8, n=91, last 2 years)
11.6 fps +20%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11 (1.235min, 7.52P1) fps +14%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7
10.1 (3.02min, 7.3P1) fps +5%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9.63 (1.481min, 6.54P1) fps
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
6.94 (1.624min, 4.78P1) fps -28%
Dell Latitude 3440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
5.97 (2.98min, 3.75P1) fps -38%
Final Fantasy XV Benchmark - 1920x1080 High Quality
Average of class Office
  (2.03 - 35.7, n=103, last 2 years)
14.4 fps +18%
Dell Latitude 3440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
12.5 fps +2%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.2 fps
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12 fps -2%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7
11 fps -10%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
10 fps -18%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
8 fps -34%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Average of class Office
  (6.6 - 56.5, n=97, last 2 years)
23.9 fps +14%
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21 (7min, 16.4P1) fps 0%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20.9 (5min, 6.95P1) fps
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7
20.6 (6min, 8.41P1) fps -1%
Dell Latitude 3440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
18.5 (5min, 5P1) fps -11%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
12.9 (8.6min, 9.74P1) fps -38%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47.2 (43.9min) fps
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
46.5 (43.1min) fps -1%
Average of class Office
  (7.8 - 121.2, n=124, last 2 years)
46.3 fps -2%
Dell Latitude 3440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
45.4 (41.1min) fps -4%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7
43.3 (38.9min) fps -8%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
32.3 (30.5min) fps -32%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
31.3 (29.7min) fps -34%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31.5 fps +17%
HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
31 fps +15%
Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7
29 fps +7%
Average of class Office
  (5.55 - 92.6, n=124, last 2 years)
28.2 fps +4%
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
27 fps
Dell Latitude 3440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs
23.8 fps -12%
Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
22.1 fps -18%

Witcher 3 FPS chart

0123456789101112131415Tooltip
Lenovo ThinkPad E14 G5-21JSS05C00 R7 7730U, Vega 8: Ø13.2 (9-15)
low med. high ultra
GTA V (2015) 90.2 79.3 22.3 9.63
The Witcher 3 (2015) 64 20 13.2
Dota 2 Reborn (2015) 108.5 86.9 50.5 47.2
Final Fantasy XV Benchmark (2018) 32.9 17.1 12.2
X-Plane 11.11 (2018) 38.5 31.4 27
Far Cry 5 (2018) 44 20 18 17
Strange Brigade (2018) 75.5 29.1 24.6 20.9
F1 2021 (2021) 84 37.3 28 19.9
F1 22 (2022) 33.3 29.6 22.7
F1 23 (2023) 30.4 27.6 20.4

排放 - 比以前更响、更热

噪音

单风扇双热管
单风扇双热管

散热模板保持不变，由一个风扇和两根热管组成，但在最佳性能模式下，风扇的启动频率更高，声音也比旧型号更大。我们在压力测试中测得的最大噪音为 41.2 dB(A)，考虑到性能水平，这已经相当高了。建议不需要全性能的用户使用其他两种模式之一，因为风扇仍然安静得多（平衡模式：38 dB(A)，最佳节能模式：28.8 dB(A)）。风扇在正常使用时也会偶尔起动，但最大音量仍控制在约 29 dB(A)。我们的测试设备没有发出其他电子噪音。

Noise Level

Idle
24.4 / 24.4 / 25.7 dB(A)
Load
31.8 / 41.2 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 24.4 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2040.235.839.140.539.741.5253731.436.535.534.833.13133.132.83332.630.532.54030.528.426.429.127.128.25027.326.424.225.624.426632624.724.323.724.725.68022.222.621.520.620.422.410021.822.519.819.119.223.11252119.818.517.418.223.71602019.618.920.517.722.520021.621.221.21820.223.925024.122.820.91919.726.331523.62319.616.714.52840025.523.120.416.814.330.15002623.22117.112.630.863026.122.820.816.411.631.180025.723.720.816.711.230.9100024.322.619.815.811.329.1125024.822.319.815.711.328.7160024.922.620.515.811.129.3200025.523.620.316.411.330.1250027.924.722.617.511.731.8315023.120.317.714.611.628.440002421.819.616.511.928.9500024.222.719.214.212.228.2630023.719.416.214.212.528.4800017.715.315.71612.424.21000015.514.217.217.712.620.21250014.313.517.518.212.616.41600012.812.5161711.713.4SPL36.734.231.828.324.441.2N2.521.610.63.8median 24median 22.5median 19.8median 16.7median 12.4median 28.4Delta2.91.81.512.43.3hearing rangehide median Fan NoiseLenovo ThinkPad E14 G5-21JSS05C00
Lenovo ThinkPad E14 G5-21JSS05C00
Vega 8, R7 7730U, WD PC SN740 SDDPNQD-1T00		Dell Latitude 3440
Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ		Lenovo ThinkPad L14 G4 21H6S00900
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G		Fujitsu LifeBook E5412A E542AMHAAMDE
Vega 7, R5 PRO 5675U, WDC PC SN530 SDBQNPZ-512G		HP ProBook 440 G9-5Y3Z3EA
Iris Xe G7 96EUs, i7-1255U, Samsung PM991 MZVLQ512HBLU		Lenovo ThinkPad E14 G4 21EB0041GE
Vega 8, R7 5825U, Micron 2450 512GB MTFDKCD512TFK
Noise
-2%
-1%
-1%
-4%
7%
off / environment *
24.4
23.9
2%
25.2
-3%
23.6
3%
27
-11%
22.9
6%
Idle Minimum *
24.4
24.4
-0%
25.2
-3%
23.6
3%
27
-11%
22.9
6%
Idle Average *
24.4
24.4
-0%
25.2
-3%
23.6
3%
27
-11%
22.9
6%
Idle Maximum *
25.7
24.4
5%
27.3
-6%
28.7
-12%
27
-5%
22.9
11%
Load Average *
31.8
37.1
-17%
32.1
-1%
36.3
-14%
31.5
1%
30.3
5%
Witcher 3 ultra *
36.7
38.2
-4%
35.7
3%
36.3
1%
34.5
6%
Load Maximum *
41.2
40.2
2%
38.3
7%
36.3
12%
34.9
15%
37.5
9%

* ... smaller is better

温度

除了最大风扇噪音之外，我们还观察到新款 ThinkPad E14 G5 的最高温度更高。在压力测试和游戏过程中，我们测得底部温度超过 50 °C，因此应避免直接接触皮肤。键盘区域的温度保持在 40 °C左右，可以继续打字。正常的日常办公使用不会受到任何限制。在压力测试中，处理器在前 18 分钟的耗电量保持在 30 瓦，然后开始在 25-30 瓦的范围内略有波动。

CPU/iGPU 数据：压力测试
CPU/iGPU 数据：压力测试
Max. Load
 42.6 °C41.9 °C40.7 °C
 40.6 °C40.5 °C37.1 °C
 31.4 °C26.8 °C25.3 °C
Maximum: 42.6 °C
Average: 36.3 °C
42.4 °C49.6 °C55.3 °C
34 °C46.7 °C47.6 °C
25.2 °C27.6 °C29.1 °C
Maximum: 55.3 °C
Average: 39.7 °C
Power Supply (max.)  40.1 °C | Room Temperature 19.8 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 36.3 °C / 97 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 42.6 °C / 109 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 55.3 °C / 132 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 33.1 °C / 92 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.4 °C / 88.5 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-3.7 °C / -6.6 F).
表面温度应力测试（顶部）
表面温度应力测试（顶部）
表面温度应力测试（底部）
表面温度应力测试（底部）
Lenovo ThinkPad E14 G5-21JSS05C00
AMD Ryzen 7 7730U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)		Dell Latitude 3440
Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs		Lenovo ThinkPad L14 G4 21H6S00900
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7		Fujitsu LifeBook E5412A E542AMHAAMDE
AMD Ryzen 5 PRO 5675U, AMD Radeon RX Vega 7		HP ProBook 440 G9-5Y3Z3EA
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs		Lenovo ThinkPad E14 G4 21EB0041GE
AMD Ryzen 7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Heat
3%
-4%
-8%
9%
4%
Maximum Upper Side *
42.6
35.2
17%
39
8%
49.5
-16%
38.9
9%
38.8
9%
Maximum Bottom *
55.3
41
26%
46.3
16%
50.3
9%
37.4
32%
44.5
20%
Idle Upper Side *
25.8
29.8
-16%
26.3
-2%
29.6
-15%
26.7
-3%
28.1
-9%
Idle Bottom *
27.4
32
-17%
37.5
-37%
30
-9%
27.8
-1%
29
-6%

* ... smaller is better

发言人

两个立体声扬声器整体上有所改进，声音重现相当清晰。总体而言，音质仍然相当单薄，播放音乐或电影时应使用外置扬声器。您一定要激活预装的杜比应用程序，否则效果会更加单薄和安静。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2039.744.82534.835.63130.530.84027.132.75024.430.76324.725.58020.422.710019.226.712518.231.716017.733.620020.245.225019.750.231514.554.540014.356.650012.66163011.662.980011.263.9100011.367.3125011.369.3160011.170.4200011.370.2250011.770.3315011.668.5400011.967500012.264630012.563.3800012.466.11000012.6641250012.664.21600011.751.7SPL24.479.6N0.644.1median 12.4median 63.9Delta2.48.33232.23238.238.538.239.241.139.233363328.328.428.327.228.627.223.91823.926.621.326.621.519.121.530.422.530.434.513.434.532.812.532.847.612.247.66111.36161.511.461.563.612.263.660.31260.367.712.267.766.811.766.869.21269.270.812.870.871.212.971.270.613.270.667.813.767.867.914.267.970.414.670.473.416.573.481.322.581.379.923.179.969.121.769.183.927.383.952.80.852.8median 67.7median 13.2median 67.710.6310.6hearing rangehide median Pink NoiseLenovo ThinkPad E14 G5-21JSS05C00HP ProBook 440 G9-5Y3Z3EA
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad E14 G5-21JSS05C00 audio analysis

(±) | speaker loudness is average but good (79.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.6% lower than median
(±) | linearity of bass is average (10.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(+) | mids are linear (3.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.5% away from median
(+) | highs are linear (3.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.6% difference to median)
Compared to same class
» 29% of all tested devices in this class were better, 6% similar, 65% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 37% of all tested devices were better, 8% similar, 56% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP ProBook 440 G9-5Y3Z3EA audio analysis

(+) | speakers can play relatively loud (83.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 35.5% lower than median
(±) | linearity of bass is average (11.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(±) | linearity of mids is average (7.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.1% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.2% difference to median)
Compared to same class
» 61% of all tested devices in this class were better, 9% similar, 31% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 65% of all tested devices were better, 6% similar, 29% worse
» The best had a delta of 4%, average was 25%, worst was 134%

电源管理 - 耐用的 E14

耗电量

65 瓦电源
65 瓦电源

在功耗测量中没有出现意外，尽管显示屏更亮、更大，但空闲功耗仅略有增加。不过，在负载情况下，可以明显看到没有出现过高的功率限制，耗电量稳定在 55-58 瓦。在这种情况下，附带的 65 瓦电源在同时为电池充电时的剩余容量非常小，但这在日常办公使用中并不会起太大作用。

Power Consumption
Off / Standbydarklight 0.51 / 0.85 Watt
Idledarkmidlight 3.3 / 7.6 / 8.9 Watt
Load midlight 47.3 / 57.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad E14 G5-21JSS05C00
R7 7730U, Vega 8, WD PC SN740 SDDPNQD-1T00, IPS, 2240x1400, 14.00		Dell Latitude 3440
i5-1345U, Iris Xe G7 80EUs, Samsung PM9A1 MZVL2512HCJQ, IPS, 1920x1080, 14.00		Lenovo ThinkPad L14 G4 21H6S00900
R5 7530U, Vega 7, Kioxia BG5 KBG5AZNT512G, IPS LED, 1920x1080, 14.00		Fujitsu LifeBook E5412A E542AMHAAMDE
R5 PRO 5675U, Vega 7, WDC PC SN530 SDBQNPZ-512G, IPS, 1920x1080, 14.00		HP ProBook 440 G9-5Y3Z3EA
i7-1255U, Iris Xe G7 96EUs, Samsung PM991 MZVLQ512HBLU, , 1920x1080, 14.00		Lenovo ThinkPad E14 G4 21EB0041GE
R7 5825U, Vega 8, Micron 2450 512GB MTFDKCD512TFK, IPS-LED, 1920x1080, 14.00		Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
 		Average of class Office

Power Consumption
-2%
10%
6%
-7%
1%
-13%
-3%
Idle Minimum *
3.3
3.7
-12%
3.5
-6%
4.1
-24%
5.1
-55%
4.1
-24%
5.25 ?(3 - 12.5, n=45)
-59%
4.3 ?(2.2 - 9.6, n=108, last 2 years)
-30%
Idle Average *
7.6
6.5
14%
7.2
5%
6.6
13%
7.4
3%
7.1
7%
7.82 ?(4.1 - 12.8, n=45)
-3%
7.34 ?(3.8 - 20.6, n=108, last 2 years)
3%
Idle Maximum *
8.9
9.5
-7%
7.6
15%
7.4
17%
8.4
6%
8.1
9%
9.25 ?(4.6 - 15.7, n=45)
-4%
9.13 ?(5.1 - 23.9, n=108, last 2 years)
-3%
Load Average *
47.3
46.9
1%
32.2
32%
43.1
9%
42.6
10%
41.6
12%
45.3 ?(29.4 - 98.9, n=45)
4%
41 ?(8.7 - 77.9, n=107, last 2 years)
13%
Witcher 3 ultra *
45.1
42.1
7%
35.7
21%
42.6
6%
42.3
6%
43.7
3%
Load Maximum *
57.8
67
-16%
61.3
-6%
50.9
12%
64
-11%
58.4
-1%
60.1 ?(37.2 - 101.8, n=45)
-4%
58 ?(11.1 - 101.4, n=108, last 2 years)
-0%

* ... smaller is better

Power consumption Witcher 3 / Stress test

0510152025303540455055Tooltip
Lenovo ThinkPad E14 G5-21JSS05C00; Witcher 3 ultra: Ø45.1 (44-46.4)
Lenovo ThinkPad E14 G5-21JSS05C00; 1280x720 Prime95 28.10 and Furmark 1.25: Ø56.3 (54.2-57.5)
Lenovo ThinkPad E14 G5-21JSS05C00; Idle 150cd/m2: Ø5.47 (5.02-6.93)

Power consumption with an external monitor

051015202530354045Tooltip
Lenovo ThinkPad E14 G5-21JSS05C00; Prime95 V2810 Stress (external Monitor): Ø47.4 (45.5-49)
Lenovo ThinkPad E14 G5-21JSS05C00; Cinebench R15 Multi (external Monitor): Ø46.3 (45.6-47)
Lenovo ThinkPad E14 G5-21JSS05C00; Cinebench R23 Single (external Monitor): Ø26.4 (25.3-38.3)
Lenovo ThinkPad E14 G5-21JSS05C00; Cinebench R23 Multi (external Monitor): Ø47.2 (45.9-48.3)
Lenovo ThinkPad E14 G5-21JSS05C00; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø37 (35.5-37.8)
Lenovo ThinkPad E14 G5-21JSS05C00; 1920x1080 The Witcher 3 ultra (external Monitor): Ø40.5 (38.1-43.6)
Lenovo ThinkPad E14 G5-21JSS05C00; Idle 1min (external Monitor): Ø3.23 (2.7-4.98)

电池寿命

电池容量保持不变，仍为 57 Wh，运行时间与旧款 G4 机型相当。在调整亮度为 150 cd/m²（相当于最大亮度的 72在调整亮度为 150 cd/m²（相当于最大亮度的 72%）时，我们在视频测试中耗时 10:45 小时，在 WLAN 测试中耗时略低于 10 小时。WLAN 测试在显示屏亮度全开的情况下仍能运行 8 小时。总之，这些结果都很不错。

Battery Runtime
WiFi Websurfing (Edge 115)
9h 54min
WiFi Websurfing max. Brightness (Edge 115)
8h 08min
Big Buck Bunny H.264 1080p
10h 45min
Load (maximum brightness)
1h 11min
Lenovo ThinkPad E14 G5-21JSS05C00
R7 7730U, Vega 8, 57 Wh		Dell Latitude 3440
i5-1345U, Iris Xe G7 80EUs, 54 Wh		Lenovo ThinkPad L14 G4 21H6S00900
R5 7530U, Vega 7, 57 Wh		Fujitsu LifeBook E5412A E542AMHAAMDE
R5 PRO 5675U, Vega 7, 60 Wh		HP ProBook 440 G9-5Y3Z3EA
i7-1255U, Iris Xe G7 96EUs, 42 Wh		Lenovo ThinkPad E14 G4 21EB0041GE
R7 5825U, Vega 8, 57 Wh		Average of class Office

Battery Runtime
-11%
22%
-7%
-42%
9%
25%
H.264
645
493
-24%
676
5%
705 ?(348 - 1112, n=40, last 2 years)
9%
WiFi v1.3
594
528
-11%
814
37%
623
5%
344
-42%
562
-5%
592 ?(300 - 1137, n=108, last 2 years)
0%
Load
71
76
7%
70
-1%
90
27%
117.7 ?(56 - 218, n=67, last 2 years)
66%

Pros

+ 良好的（可选）2.2K 显示屏
+ 良好的系统性能
+ 可扩展内存和 2 个固态硬盘插槽
+ 快速无线局域网
+ 电池寿命长
+ 稳定小巧

Cons

- 输入设备比 G4 型差
- 非常容易沾染指纹
- 没有 WWAN 选项

结论：ThinkPad E14 G5 显示屏更好，但键盘更差

回顾：联想 ThinkPad E14 G5。测试设备由提供：
回顾：联想 ThinkPad E14 G5。测试设备由提供：

联想推出的新款 ThinkPad E14 G5 使 14 英寸办公笔记本电脑实现了现代化，并开始使用 16:10 显示屏。此外，TN 面板已成为过去，在我们的评测中，可选的 2.2K 显示屏给人留下了办公笔记本电脑的良好印象。不过，我们熟悉的 1080p 低功耗、400 cd/m² 的 T 系列显示屏仍然不是可选项。至于机箱，它现在更紧凑了，整体重量也轻了一些。键盘的改变是一种倒退，因为旧款 ThinkPad E14 是最后几款键程为 1.8 毫米的机型之一。ThinkPad E14 G5 采用了众所周知的 1.5 毫米键程版本，我们已经从其他 ThinkPad 上了解到这一点。多年来，我们一直在批评这种做法，因为以前 ThinkPad 键盘更好的优势已不复存在。

这款价格低廉的办公笔记本电脑配备了 1080p 网络摄像头和 Wi-Fi 6E，维护选项中的一个额外内存插槽和两个固态硬盘插槽也很不错。不过，性能总体保持不变。这是因为 Ryzen 7 7730U 是 Ryzen 7 5825U 的换代产品，前代产品中也安装了该芯片。当需要充分发挥性能时，单风扇也会真正启动，而且声音会相当大。但在日常使用中，可以通过更高效的性能配置文件来缓解这一问题。

ThinkPad E14 G5 为用户提供了更现代化的机箱和 2.2K 16:10 的显示屏，但键盘的键程更短，仅为 1.5 毫米。AMD 处理器的性能与旧款 G4 型号相同，即使规格表上写着 Ryzen 7000。

我们的测试配置是一款性价比不错的校园机型，但普通用户使用该配置的价格将达到四位数（译者注：美国的情况似乎并非如此，那里的价格要便宜 得多， 详见下文的"价格和供货情况"）。这是有问题的，因为它的性能实际上不够好，而且还有更有趣的替代产品，比如最小配置的惠普EliteBook 845 G10。惠普 EliteBook 845 G10 在几乎所有方面都更胜一筹，首先是更好的外壳、Zen4 处理器、更好的键盘和更亮的低功耗显示屏。

Download your licensed rating image as SVG / PNG

价格和供应情况

在联想的美国网店上，ThinkPad E14 G5 AMD 目前有多种配置可供选择，折扣高达 40%。基本版本起价 705 美元。

价格截至 2023 年 8 月 19 日，可能会有变动。

Lenovo ThinkPad E14 G5-21JSS05C00 - 08/18/2023 v7
Andreas Osthoff

Chassis
87 / 98 → 88%
Keyboard
89%
Pointing Device
87%
Connectivity
64 / 80 → 81%
Weight
70 / 20-75 → 90%
Battery
88%
Display
90%
Games Performance
63 / 78 → 80%
Application Performance
94 / 95 → 98%
Temperature
87%
Noise
94%
Audio
78%
Camera
38 / 85 → 44%
Average
79%
88%
Office - Weighted Average

More articles related to this device

Lenovo ThinkPad E14 G5-21JSS05C00 (ThinkPad E14 G5 Series)
Review
•
联想 ThinkPad E14 G5 英特尔笔记本电脑评测：...

Transparency

The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版（NBC中国） > 评测 > 联想 ThinkPad E14 G5 AMD 评测：价格实惠、显示效果更佳的办公笔记本电脑
Andreas Osthoff, 2023-08-19 (Update: 2023-08-19)
