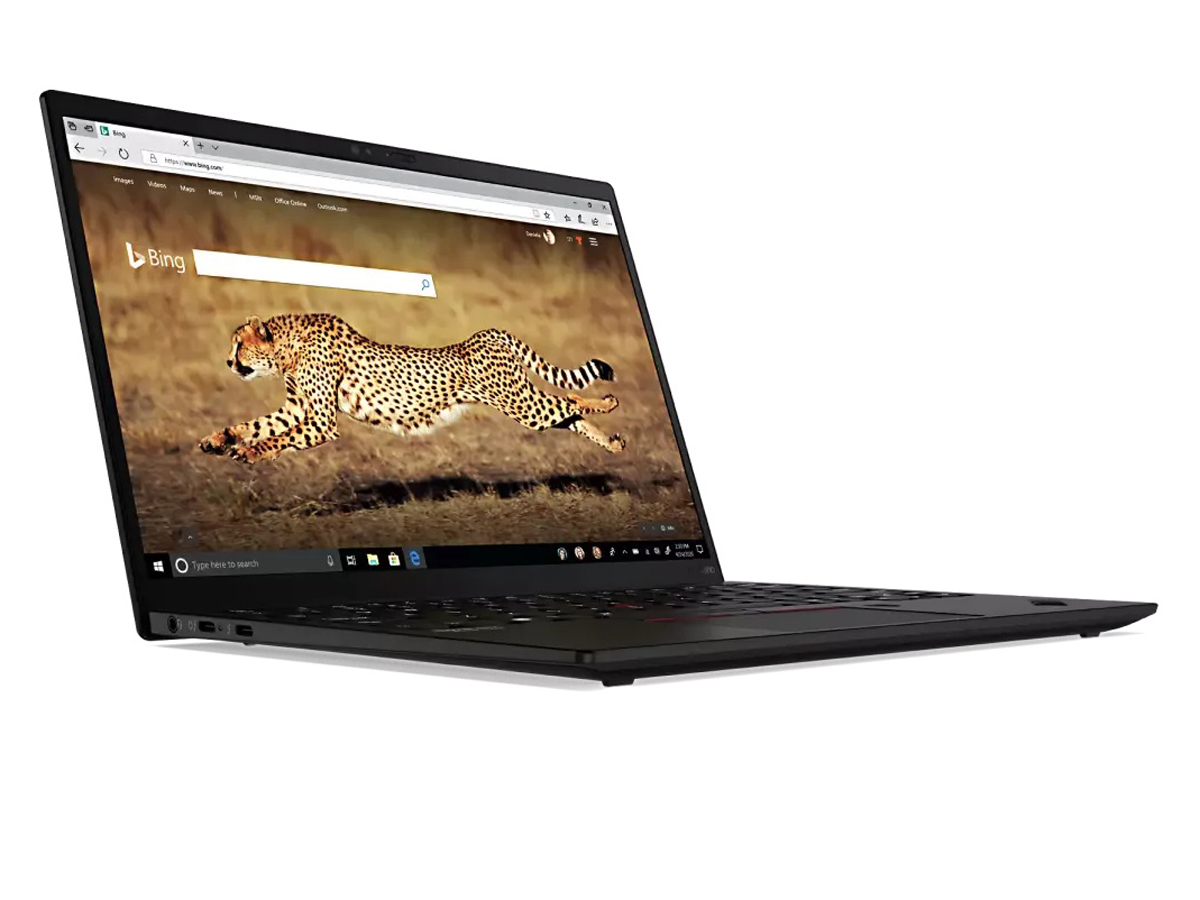

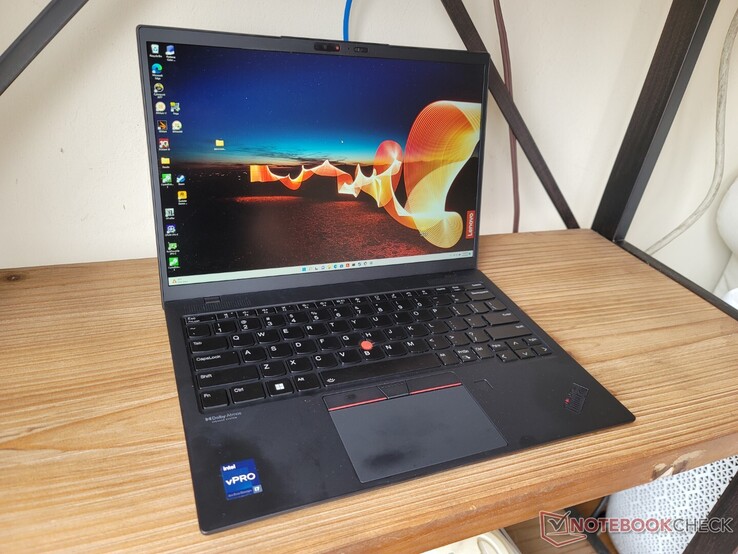

联想ThinkPad X1 Nano第二代回顾。史上最小的X1笔记本电脑

Name: Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P
Brand: Lenovo

最轻的酷睿i7-1280P笔记本电脑之一。 450尼特，全sRGB色彩，16:10长宽比，5G Sub 6广域网，以及12代酷睿P处理器，所有这些都在一个轻于1公斤的系统中。你真的能在一个小的13英寸外形尺寸中容纳所有这些功能而不走弯路吗？

Allen Ngo, 👁 Allen Ngo (translated by DeepL / Ninh Duy), Published 09/06/2022 🇺🇸 🇸🇪 ...

Alder Lake Business Laptop / Notebook

对ThinkPad X1 Nano Gen 1的最大抱怨之一是其缓慢的处理器。当大多数其他子笔记本运行在成熟的28W酷睿i5-1135G7或i7-1165G7第11代CPU时，Nano Gen 1却坚持使用15Wi7-1160G7 。该机型可能是超轻量级的，但它给人的感觉是低重量直接影响了性能水平。新的ThinkPad X1 Nano Gen 2通过将i7-1160G7换成适当的12代28W i7-1280P vPro选项来解决这个问题，这应该使X1 Nano Gen 2成为最快的13.0英寸商务笔记本电脑之一，至少在纸面上是如此。

除了CPU的升级，第2代机型还带来了其他一些变化，包括更高分辨率的网络摄像头，更快的Wi-Fi和5G广域网支持。外观设计在其他方面与2021年的第1代机型相同，因此我们建议查看我们的现有的评论，以了解更多关于该笔记本电脑的物理特性。

这一领域的竞争者包括其他超轻量级的13英寸商务笔记本电脑，如HP Elite Dragonfly G3 ，戴尔Latitude 13 7330 ，LG Gram系列，或Dynabook Portege X30L 。

更多联想评论。

Test device courtesy of Lenovo

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P (ThinkPad X1 Nano Series)

Processor

Intel Core i7-1280P 14 x 1.3 - 4.8 GHz, 64 W PL2 / Short Burst, 23 W PL1 / Sustained, Alder Lake-P

Graphics adapter

Intel Iris Xe Graphics G7 96EUs, Core: 1450 MHz, Memory: 2600 MHz, LPDDR5, 31.0.101.3413

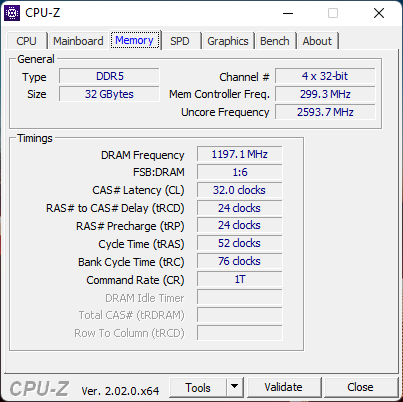

Memory

32 GB

, LPDDR5, 2133 MHz, Dual-Channel, 60-48-48-112, Soldered

Display

13.00 inch 16:10, 2160 x 1350 pixel 196 PPI, P101ZFZ-BH2, IPS, LEN4077, glossy: no, 60 Hz

Mainboard

Intel Alder Lake-P PCH

Storage

Kioxia BG5 KBG5AZNT1T02, 1024 GB

Soundcard

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Connections

2 USB 3.1 Gen2, 2 Thunderbolt, USB-C Power Delivery (PD), 2 DisplayPort, Audio Connections: 3.5, 1 Fingerprint Reader, Brightness Sensor

Networking

Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 14.4 x 293.2 x 208

Battery

49.5 Wh Lithium-Polymer

Operating System

Microsoft Windows 11 Pro

Camera

Webcam: 1080p30
Primary Camera: 2.1 MPix

Additional features

Speakers: 2x 2 W woofers + 2x 1 W tweeters, Keyboard: Chiclet, Keyboard Light: yes, Lenovo Commercial Vantage, 12 Months Warranty

Weight

958 g, Power Supply: 248 g

Price

2150 USD

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Size	Resolution
88.9 %	09/2022	Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P i7-1280P, Iris Xe G7 96EUs	958 g	14.4 mm	13.00"	2160x1350
89.8 %	02/2021	Lenovo ThinkPad X1 Nano-20UN002UGE i7-1160G7, Iris Xe G7 96EUs	946 g	16 mm	13.00"	2160x1350
91 %	08/2022	HP Elite Dragonfly G3 i7-1265U, Iris Xe G7 96EUs	1.2 kg	16.3 mm	13.50"	1920x1280
89 %	07/2022	Dell Latitude 13 7330 i7-1265U, Iris Xe G7 96EUs	1 kg	16.96 mm	13.30"	1920x1080
85.1 %	07/2022	Framework Laptop 13.5 12th Gen Intel i7-1260P, Iris Xe G7 96EUs	1.3 kg	15.85 mm	13.50"	2256x1504
87.8 %	03/2021	Huawei MateBook X Pro 2021 i7-1165G7, Iris Xe G7 96EUs	1.3 kg	14.6 mm	13.90"	3000x2000

案例

尺寸比较

Dell Latitude 13 7330 Huawei MateBook X Pro 2021 HP Elite Dragonfly G3 Framework Laptop 13.5 12th Gen Intel Lenovo ThinkPad X1 Nano-20UN002UGE Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P DIN A4 ❌

沟通

WLAN模块已经从英特尔AX201升级到AX211，支持Wi-Fi 6E。在与我们的6GHz网络配对时，我们没有遇到连接问题。

LTE 5G Cat 20或4G CAT 9是可选的WWAN升级。如果配置了该功能，将有一个Nano-SIM卡插槽。

Networking
iperf3 transmit AX12
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Wi-Fi 6 AX201	1225 (540^min - 1382^max) MBit/s
Huawei MateBook X Pro 2021 Intel Wi-Fi 6 AX201	1129 (947^min - 1229^max) MBit/s
iperf3 receive AX12
Huawei MateBook X Pro 2021 Intel Wi-Fi 6 AX201	1401 (1271^min - 1454^max) MBit/s
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Wi-Fi 6 AX201	1259 (628^min - 1412^max) MBit/s
iperf3 receive AXE11000 6GHz
Framework Laptop 13.5 12th Gen Intel Intel Wi-Fi 6E AX210	1472 (1435^min - 1534^max) MBit/s +3%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Wi-Fi 6E AX211	1424 (1057^min - 1508^max) MBit/s
HP Elite Dragonfly G3 Intel Wi-Fi 6E AX211	1331 (1021^min - 1387^max) MBit/s -7%
Dell Latitude 13 7330 Intel Wi-Fi 6E AX211	1277 (1165^min - 1323^max) MBit/s -10%
iperf3 transmit AXE11000 6GHz
Dell Latitude 13 7330 Intel Wi-Fi 6E AX211	1453 (943^min - 1600^max) MBit/s +23%
Framework Laptop 13.5 12th Gen Intel Intel Wi-Fi 6E AX210	1299 (1163^min - 1349^max) MBit/s +10%
HP Elite Dragonfly G3 Intel Wi-Fi 6E AX211	1216 (655^min - 1350^max) MBit/s +3%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Wi-Fi 6E AX211	1182 (1106^min - 1250^max) MBit/s

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1182 (1106-1250)

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1423 (1057-1508)

网络摄像头

戴尔将网络摄像头从第一代机型的720p更新为今年第二代版本的1080p。画面因此不那么浑浊，但色彩仍然不理想。

为了保护隐私，红外和物理网络摄像头快门都是标准配置。

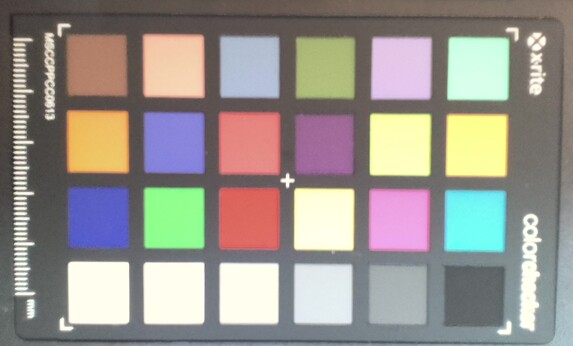

ColorChecker Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P: 21.31 ∆E min: 6.73 - max: 35.59 ∆E

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P

维护

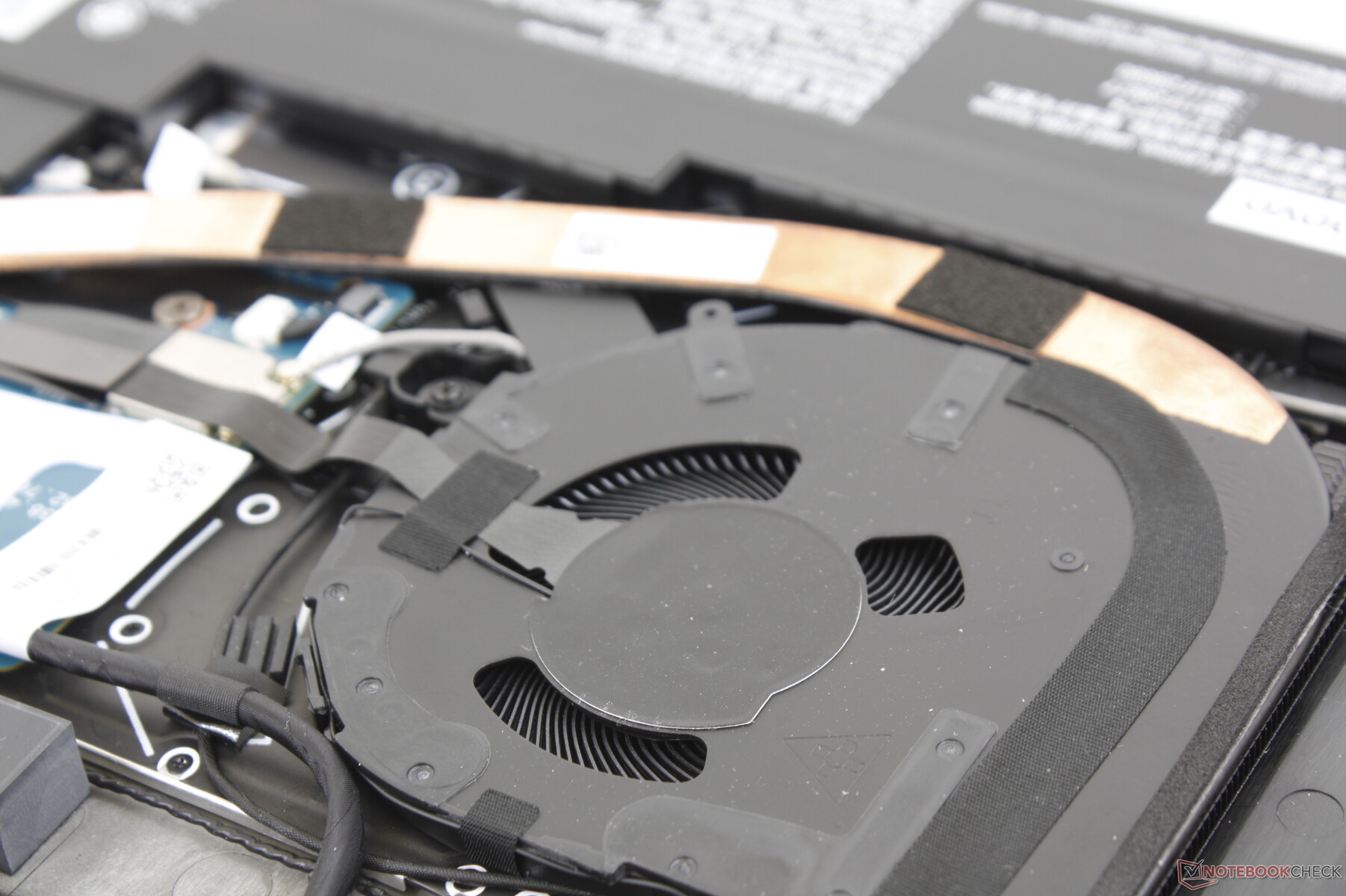

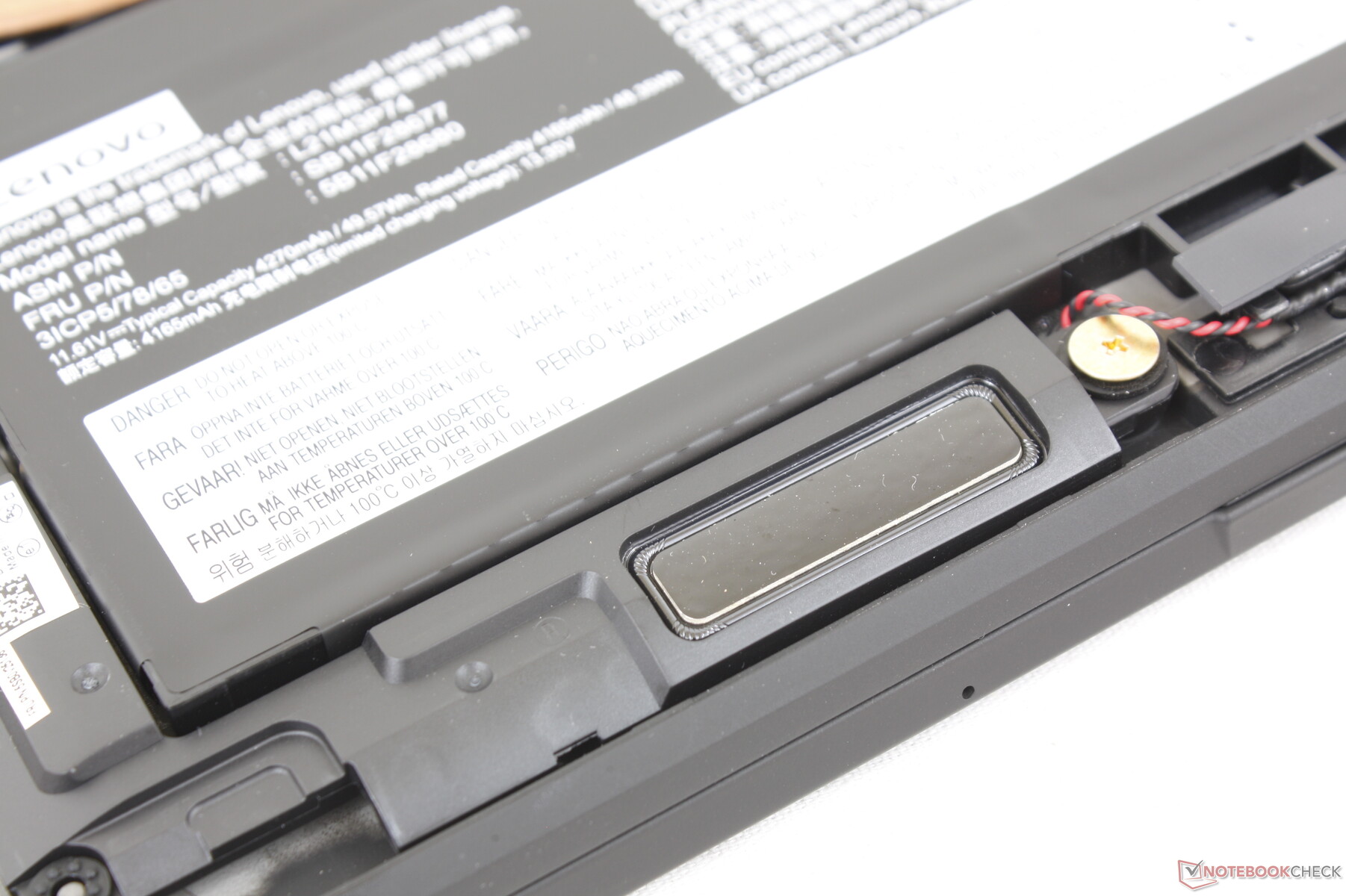

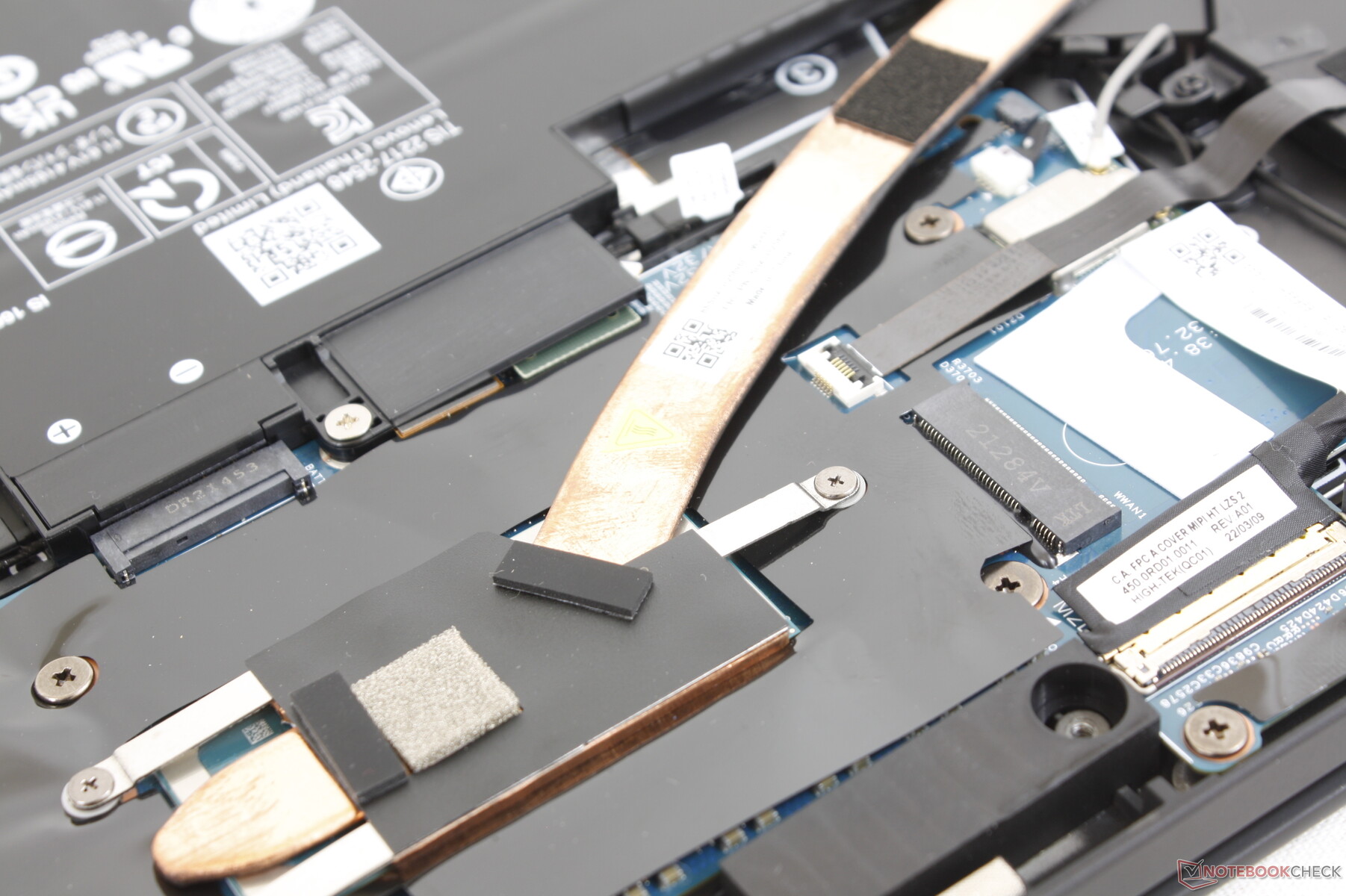

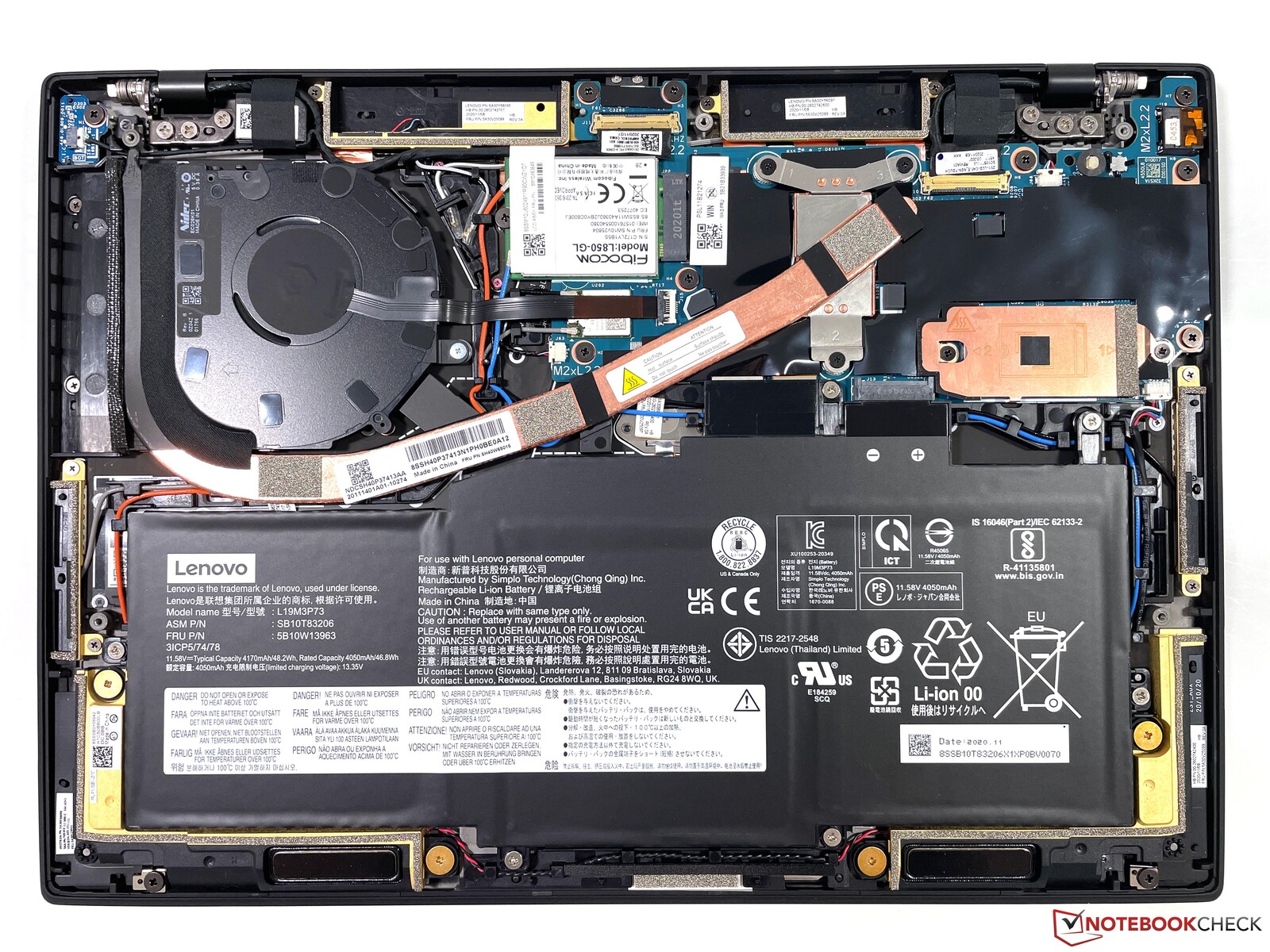

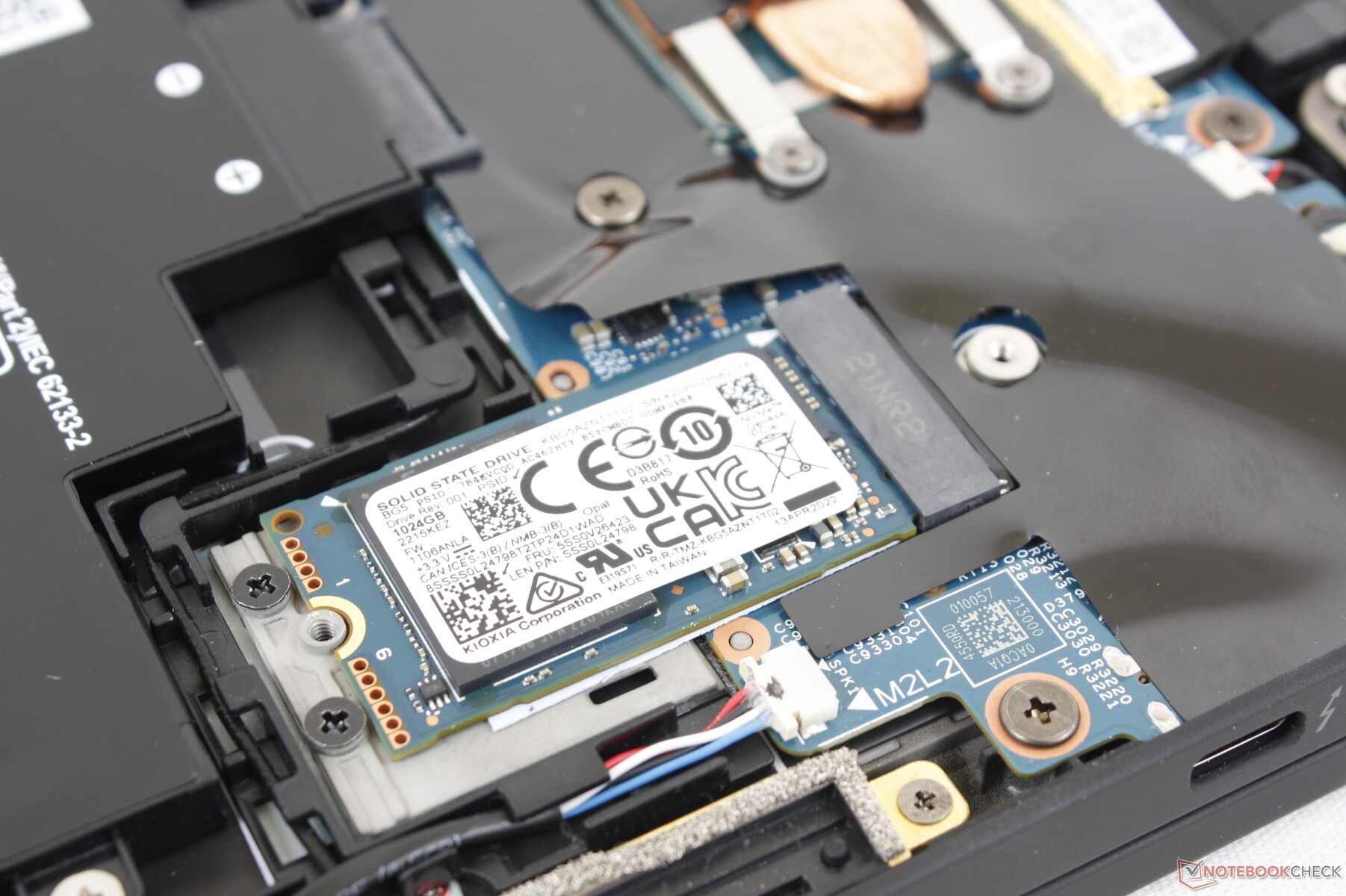

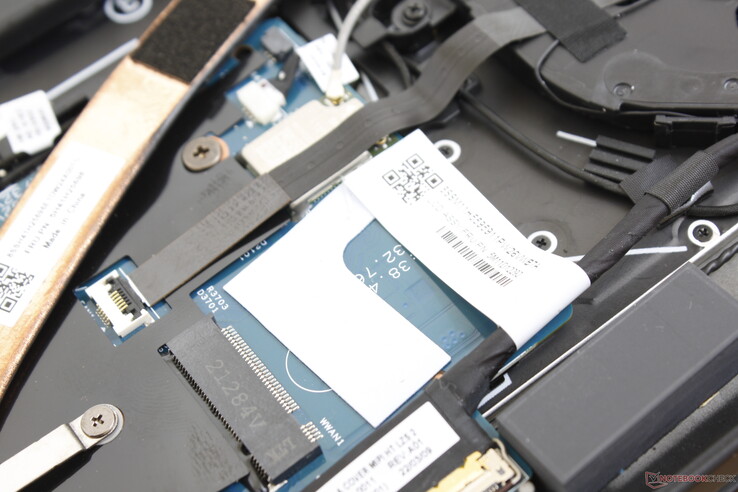

底部面板只需一把飞利浦螺丝刀就能轻松卸下。如下面的图片所示，除了重新定位的M.2 2242固态硬盘和其他小的调整外，内部结构与第一代机型基本相同。

配件和保修

除了交流电适配器和文件之外，盒子里没有任何额外的东西。考虑到该模型的高起价，一年的制造商有限保修是令人失望的。3年的保修应该是标准的。

显示

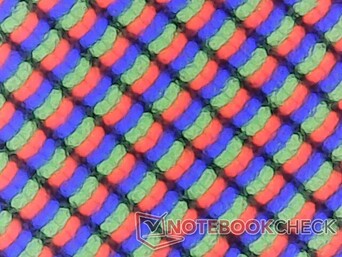

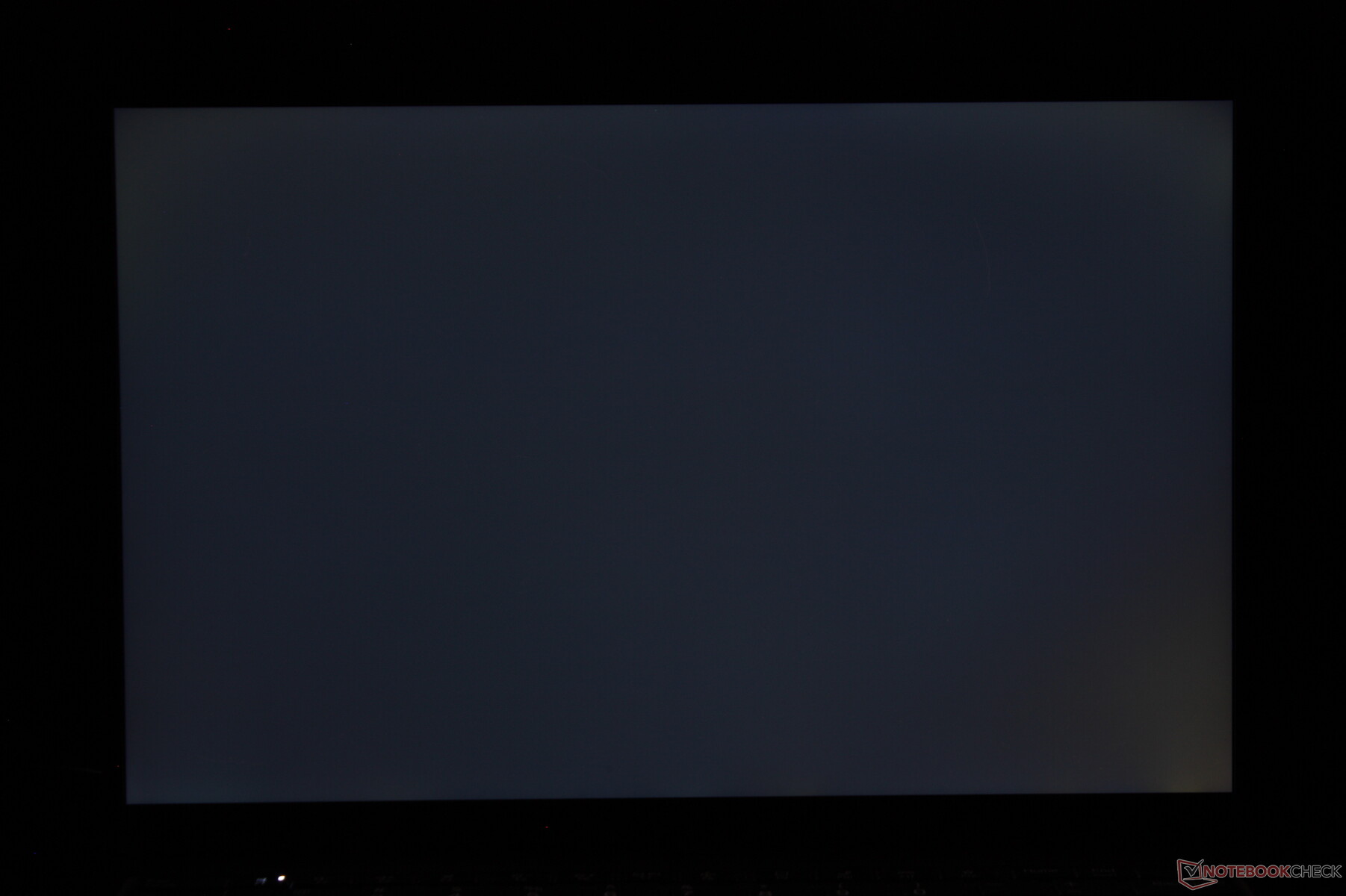

我们的第2代测试装置采用了与第1代原始版本不同的IPS面板（P101ZFZ-BH2与MND007ZA1-2）。尽管如此，它们的核心属性仍然几乎相同，基本上是相同的观看体验。用户仍然得到一个450尼特的面板，具有全sRGB覆盖和>1000:1的对比度。黑白和灰白的响应时间可能会更好，但对于浏览或办公室类型的工作负荷来说，这不是一个问题。


463.4 cd/m²	472.3 cd/m²	456.9 cd/m²
457 cd/m²	469.6 cd/m²	464.6 cd/m²
443.8 cd/m²	460 cd/m²	452.9 cd/m²

Distribution of brightness

P101ZFZ-BH2 tested with X-Rite i1Pro 2

Maximum: 472.3 cd/m² (Nits) Average: 460.1 cd/m² Minimum: 4.16 cd/m²
Brightness Distribution: 94 %
Center on Battery: 469.6 cd/m²
Contrast: 1269:1 (Black: 0.37 cd/m²)
ΔE Color 4.85 | 0.5-29.43 Ø5, calibrated: 1.22
ΔE Greyscale 5.7 | 0.57-98 Ø5.3

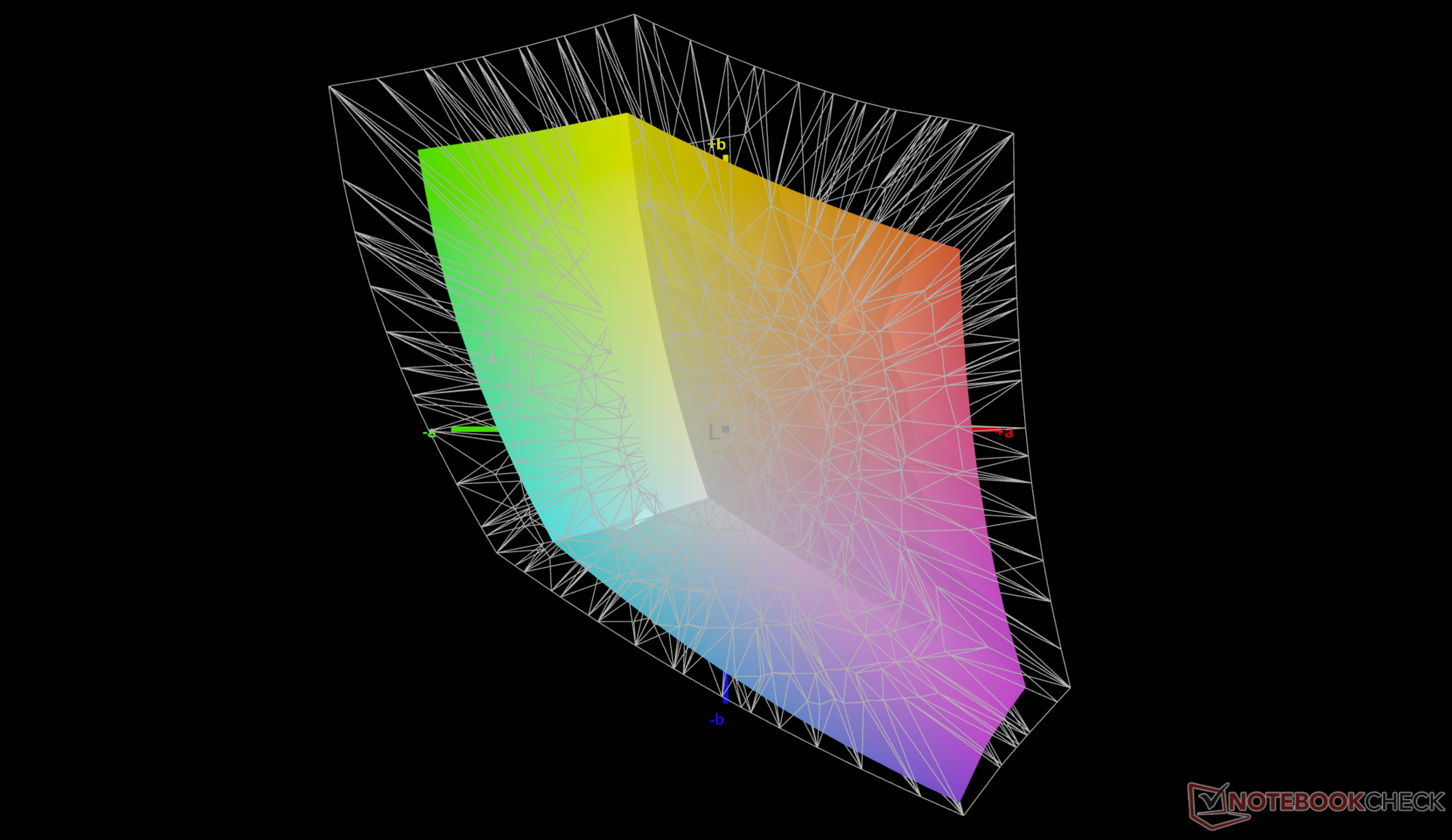

68.3% AdobeRGB 1998 (Argyll 2.2.0 3D)

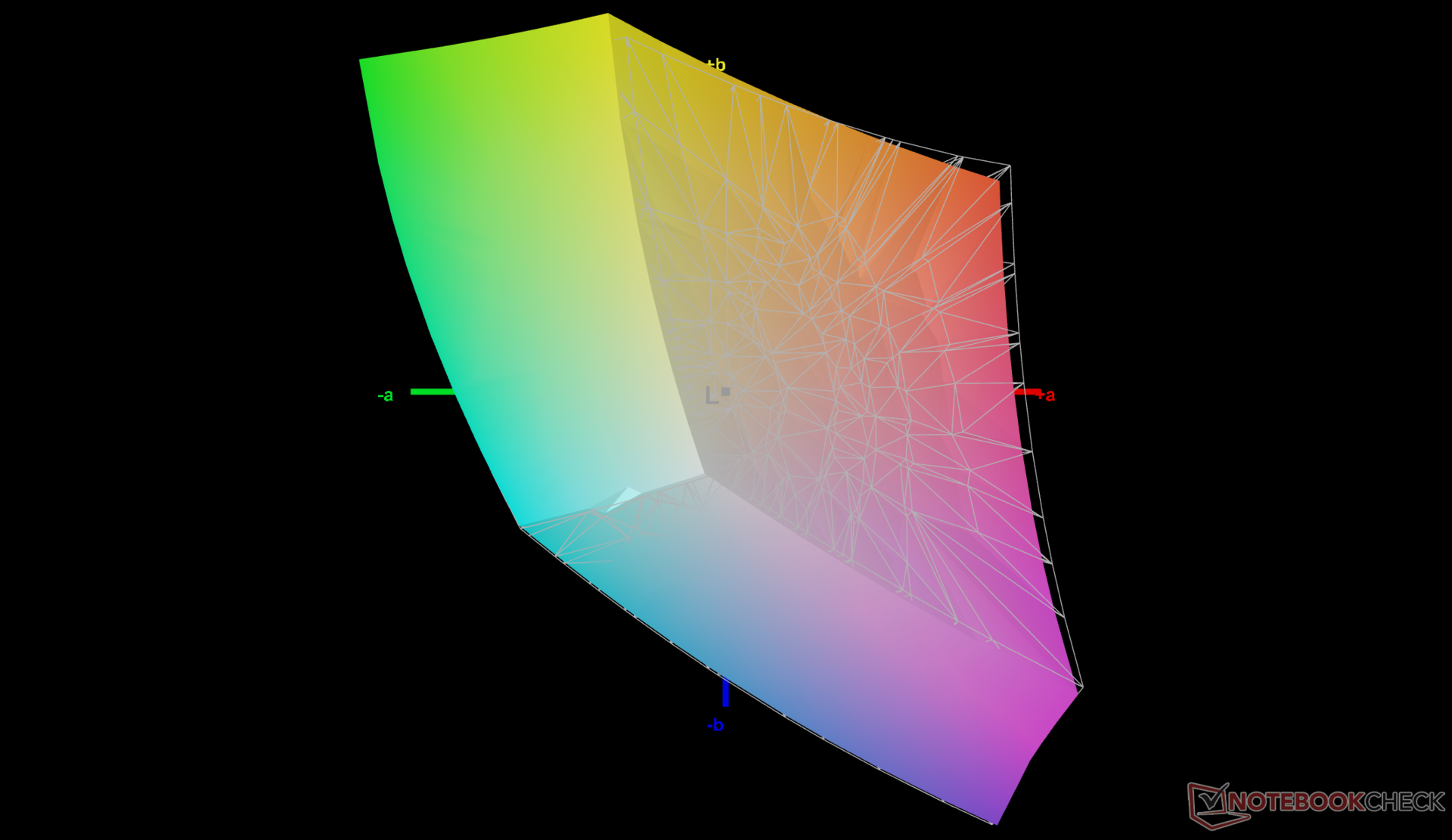

96.1% sRGB (Argyll 2.2.0 3D)
66.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.13

Download ICC File (X-Rite i1Pro 2)

	Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P P101ZFZ-BH2, IPS, 2160x1350, 13.00	Lenovo ThinkPad X1 Nano-20UN002UGE MND007ZA1-2, IPS, 2160x1350, 13.00	HP Elite Dragonfly G3 Chi Mei CMN13C0, IPS, 1920x1280, 13.50	Dell Latitude 13 7330 LG Philips 133WF9, IPS, 1920x1080, 13.30	Framework Laptop 13.5 12th Gen Intel BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.50	Huawei MateBook X Pro 2021 TIANMA XM, IPS, 3000x2000, 13.90
Display		5%	2%	-1%	4%	-2%
Display P3 Coverage	66.2	70.4 6%	68 3%	66.1 0%	69.9 6%	64.9 -2%
sRGB Coverage	96.1	99.9 4%	98.3 2%	93.5 -3%	99.4 3%	94.4 -2%
AdobeRGB 1998 Coverage	68.3	72 5%	69.9 2%	68.2 0%	71.1 4%	66.3 -3%
Response Times		-8%	-28%	-14%	7%	6%
Response Time Grey 50% / Grey 80% *	43.6 ?(22, 21.6)	46.8 ?(22, 24.8) -7%	50.8 ?(27.2, 23.6) -17%	48.4 ?(23.6, 24.8) -11%	34.7 ?(17.7, 17) 20%	37.6 ?(17.6, 20) 14%
Response Time Black / White *	25.6 ?(13.2, 12.4)	28 ?(13.2, 14.8) -9%	35.2 ?(18.8, 16.4) -38%	29.6 ?(14.8, 14.8) -16%	27.5 ?(14.8, 12.7) -7%	26.4 ?(11.6, 14.8) -3%
PWM Frequency
Screen		29%	19%	24%	13%	26%
Brightness middle	469.6	460 -2%	387.2 -18%	460.1 -2%	449.6 -4%	502 7%
Brightness	460	434 -6%	360 -22%	445 -3%	431 -6%	474 3%
Brightness Distribution	94	92 -2%	80 -15%	89 -5%	90 -4%	89 -5%
Black Level *	0.37	0.27 27%	0.26 30%	0.31 16%	0.31 16%	0.33 11%
Contrast	1269	1704 34%	1489 17%	1484 17%	1450 14%	1521 20%
Colorchecker dE 2000 *	4.85	1.1 77%	2.36 51%	2.42 50%	2.76 43%	1.35 72%
Colorchecker dE 2000 max. *	7.62	4.5 41%	4.79 37%	3.97 48%	7.96 -4%	3.67 52%
Colorchecker dE 2000 calibrated *	1.22	1 18%	0.63 48%	0.77 37%	0.58 52%	1.2 2%
Greyscale dE 2000 *	5.7	1.6 72%	3 47%	2.3 60%	5.2 9%	1.7 70%
Gamma	2.13 ^103%	2.2 ^100%	2.17 ^101%	2.23 ^99%	2.23 ^99%	2.24 ^98%
CCT	6931 ^94%	6475 ^100%	6137 ^106%	6262 ^104%	6475 ^100%	6440 ^101%
Color Space (Percent of AdobeRGB 1998)		65.7				61.1
Color Space (Percent of sRGB)		99.9				94.3
Total Average (Program / Settings)		9% / 18%	-2% / 9%	3% / 13%	8% / 10%	10% / 17%

* ... smaller is better

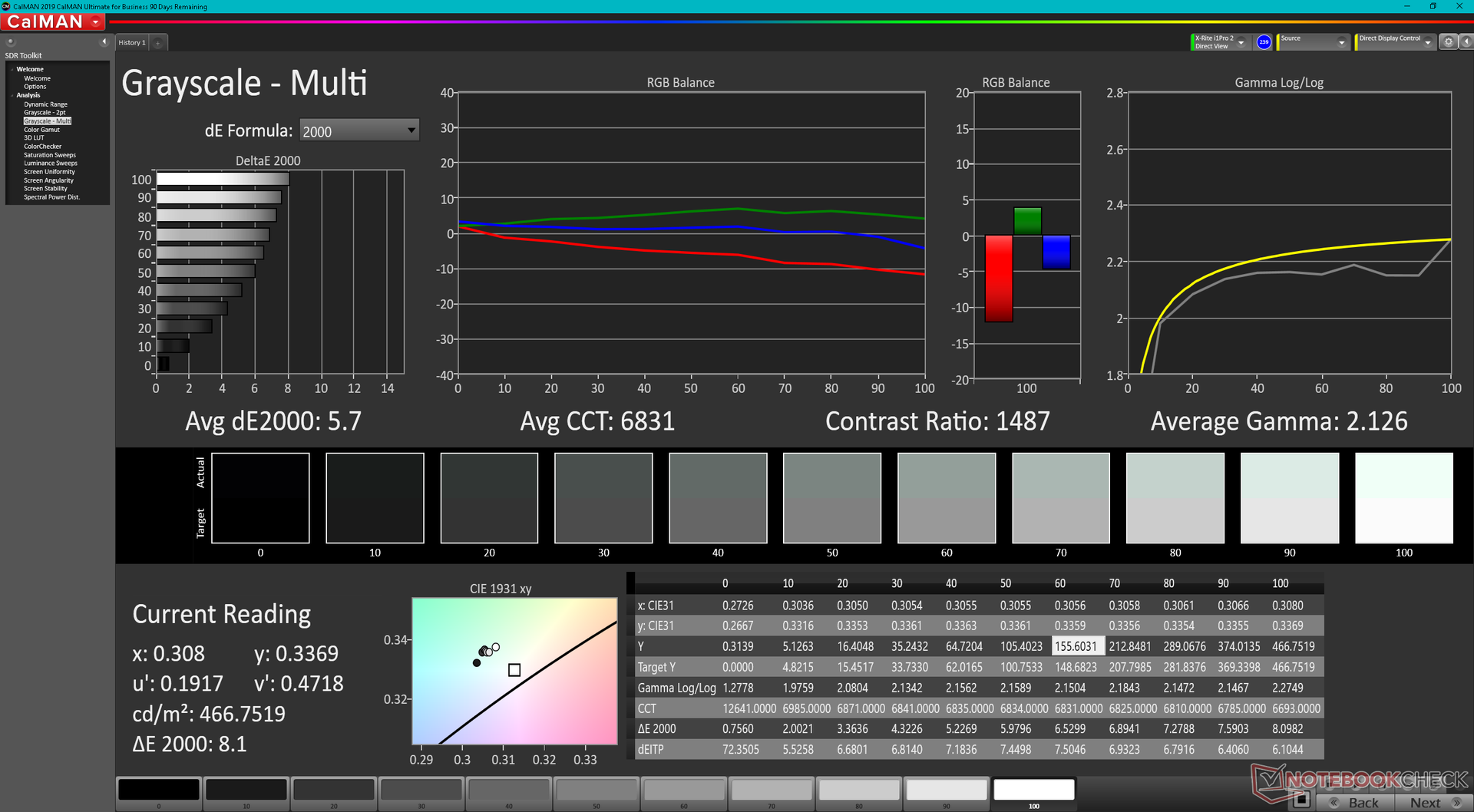

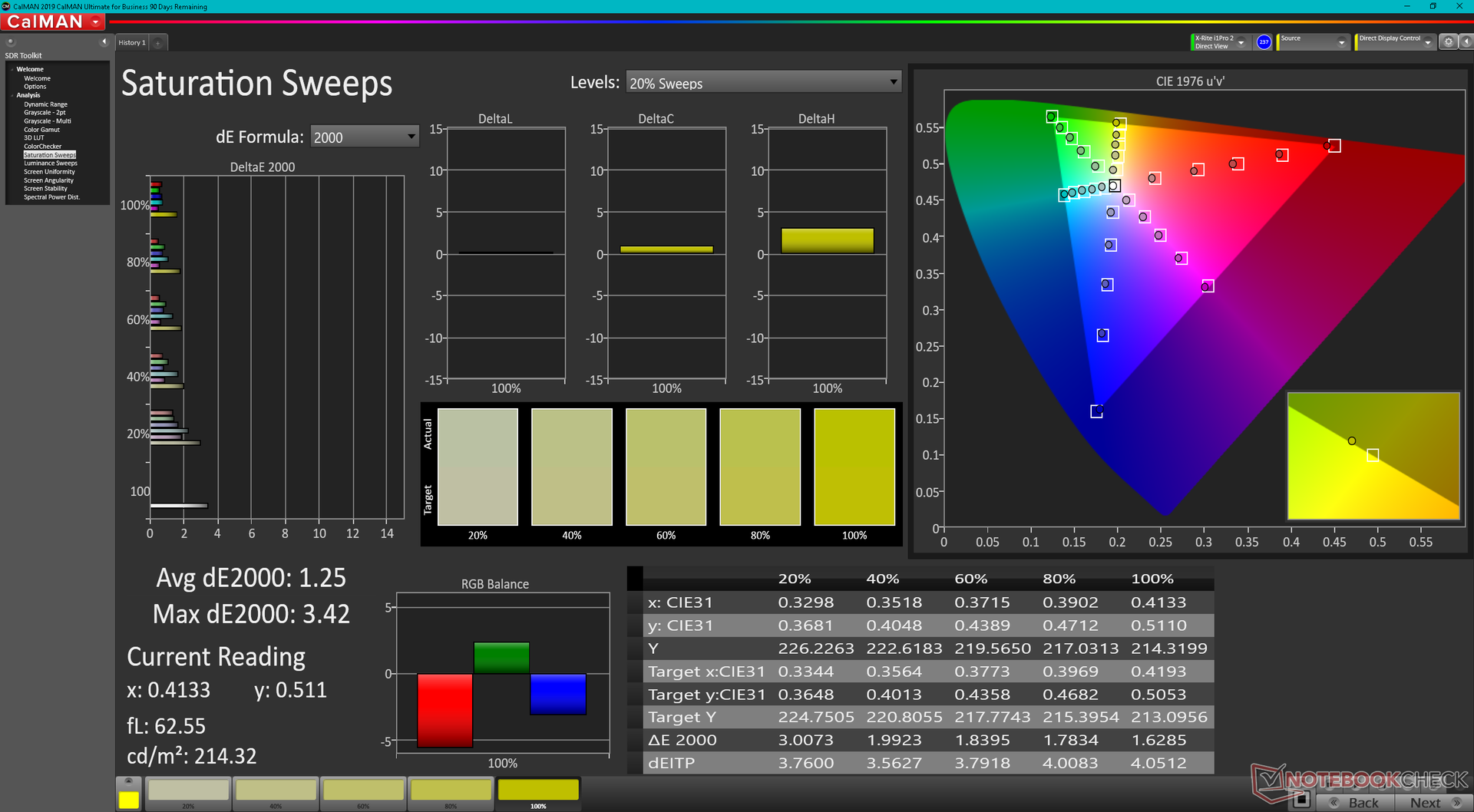

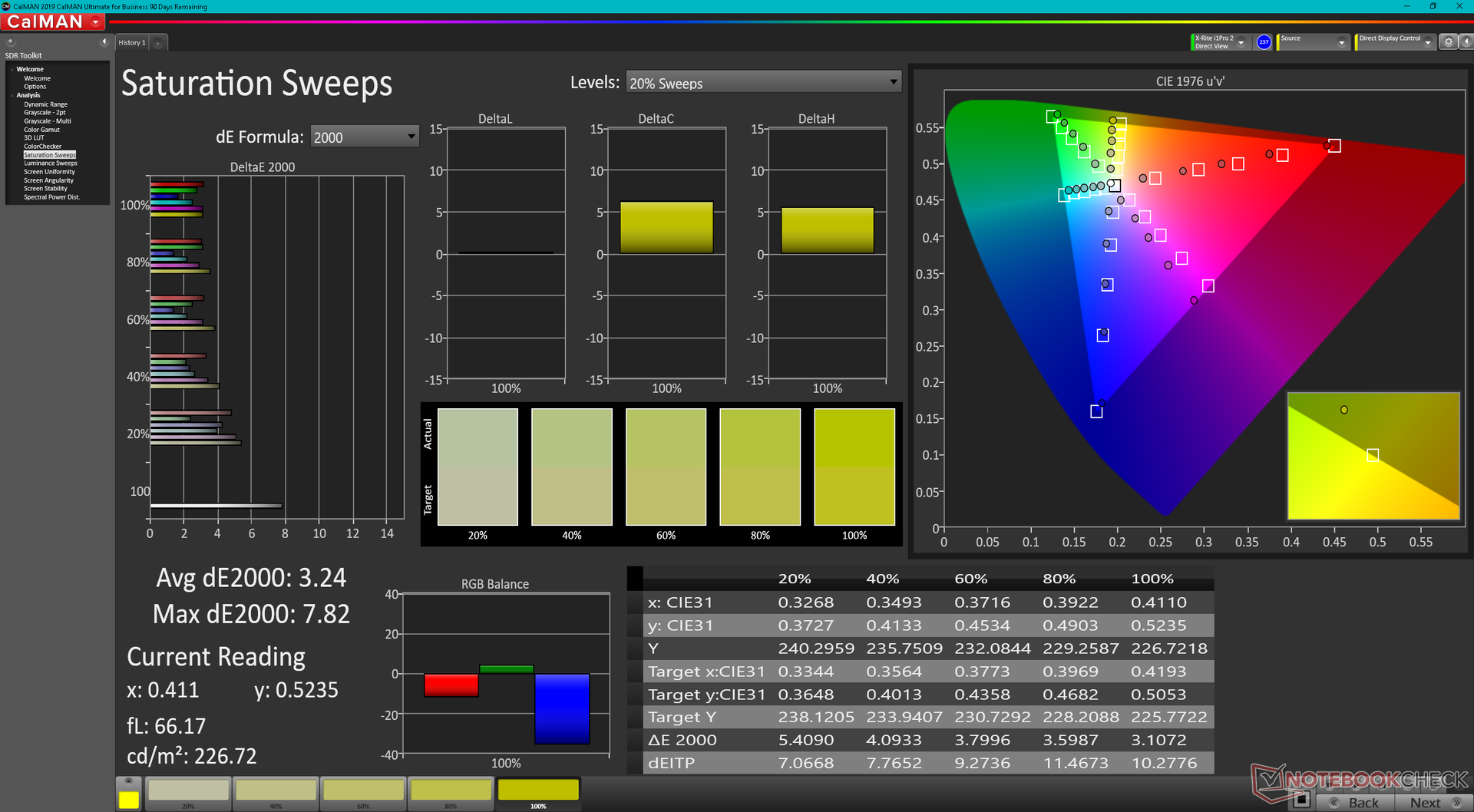

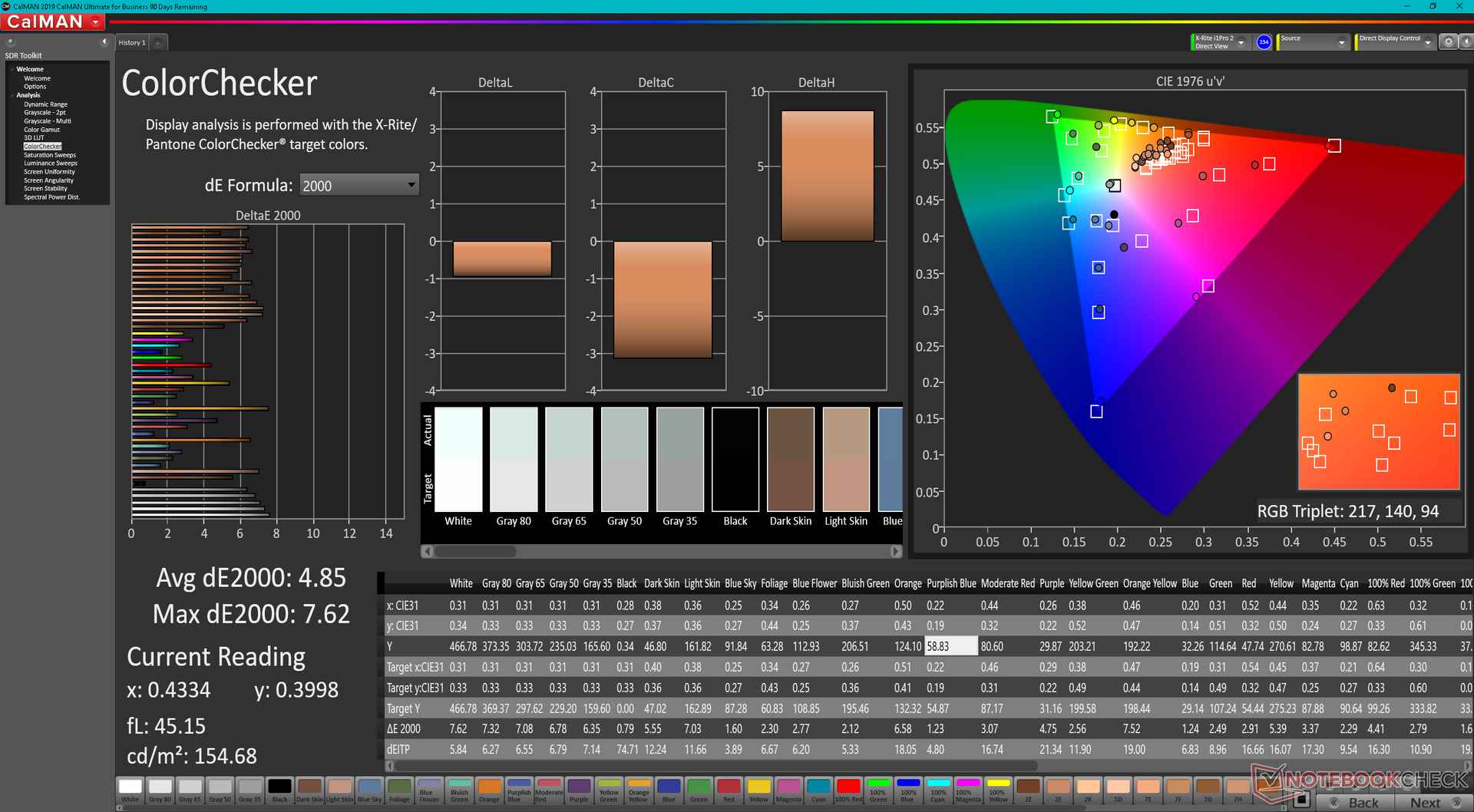

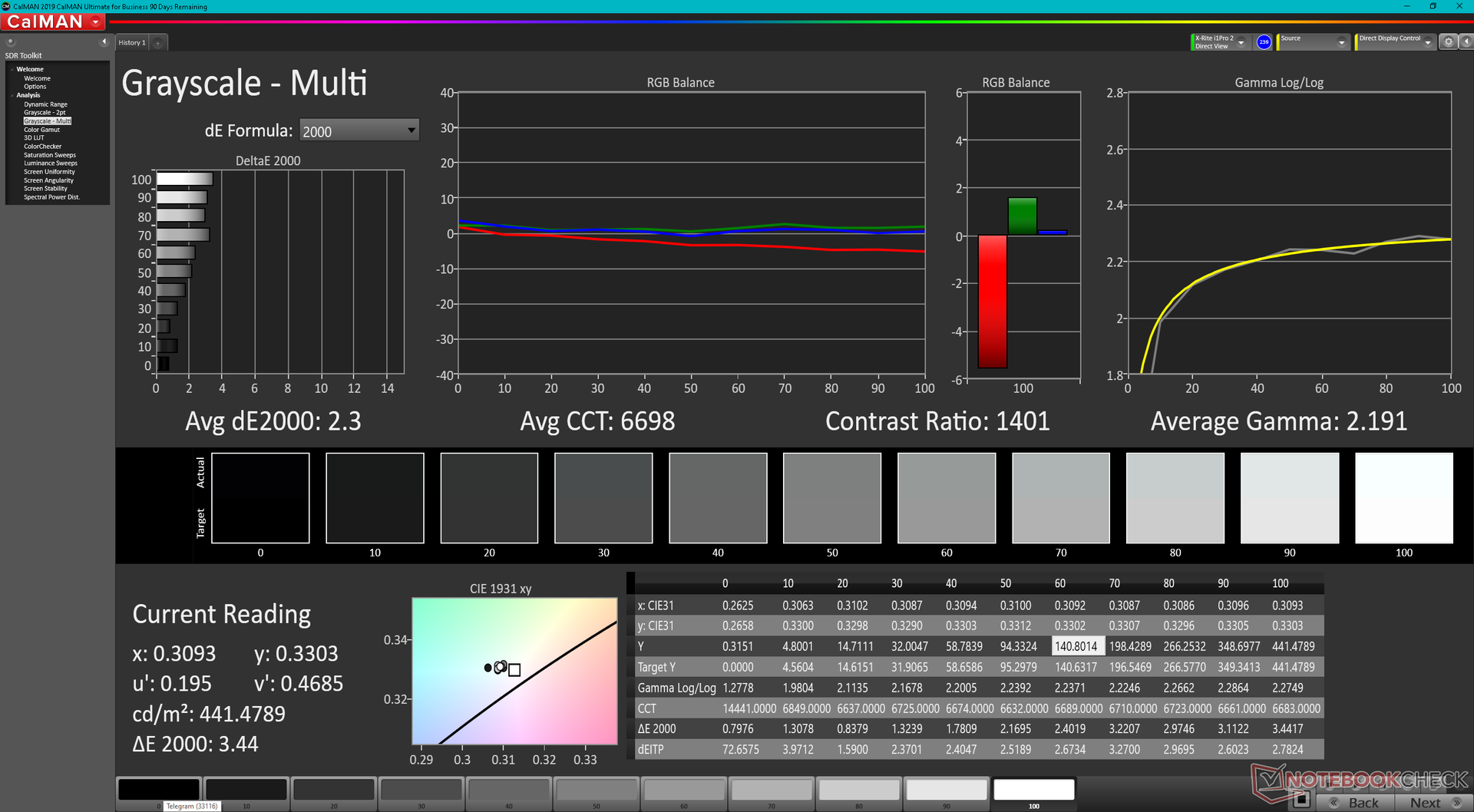

该面板开箱后没有得到很好的校准。我们自己校准它将大大改善平均灰度和色彩deltaE值，从5.7和4.85分别提高到2.3和1.22。我们建议最终用户进行校准，以更好地利用该面板的全部sRGB覆盖范围。

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

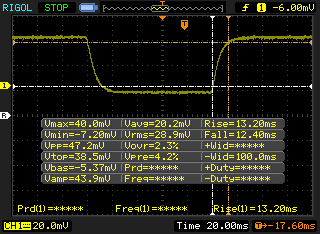

↔ Response Time Black to White
25.6 ms ... rise ↗ and fall ↘ combined	↗ 13.2 ms rise
25.6 ms ... rise ↗ and fall ↘ combined	↘ 12.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 56 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

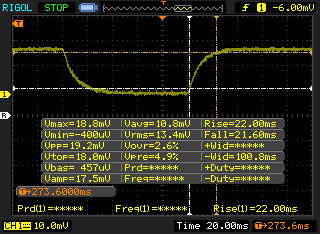

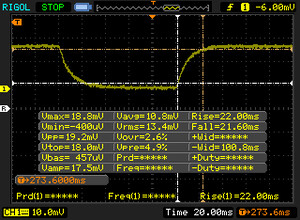

↔ Response Time 50% Grey to 80% Grey
43.6 ms ... rise ↗ and fall ↘ combined	↗ 22 ms rise
43.6 ms ... rise ↗ and fall ↘ combined	↘ 21.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 69 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms).

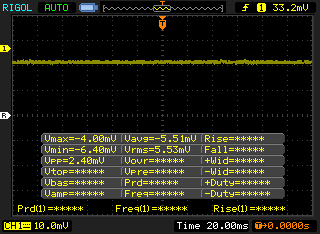

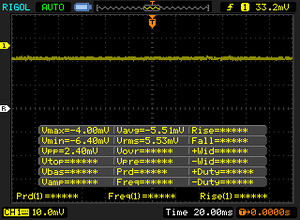

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17903 (minimum: 5 - maximum: 3846000) Hz was measured.

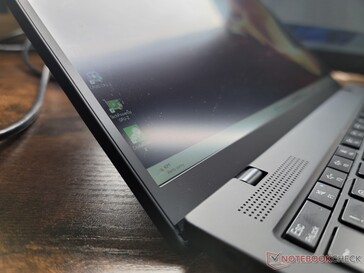

由于联想没有为今年的机型提高显示屏的亮度或对比度，因此户外可视性和可视角度与第一代机型基本相同。

业绩

测试条件

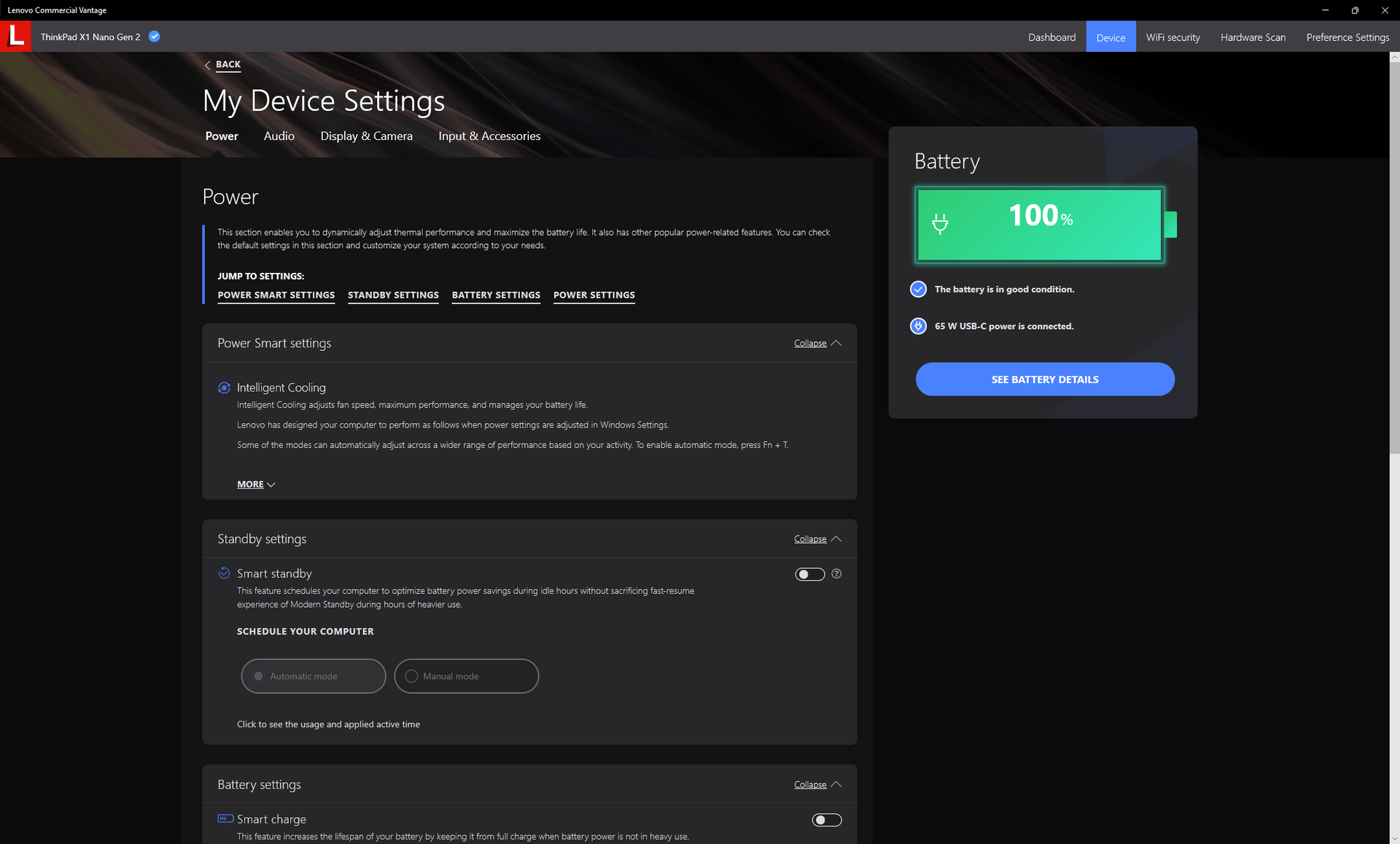

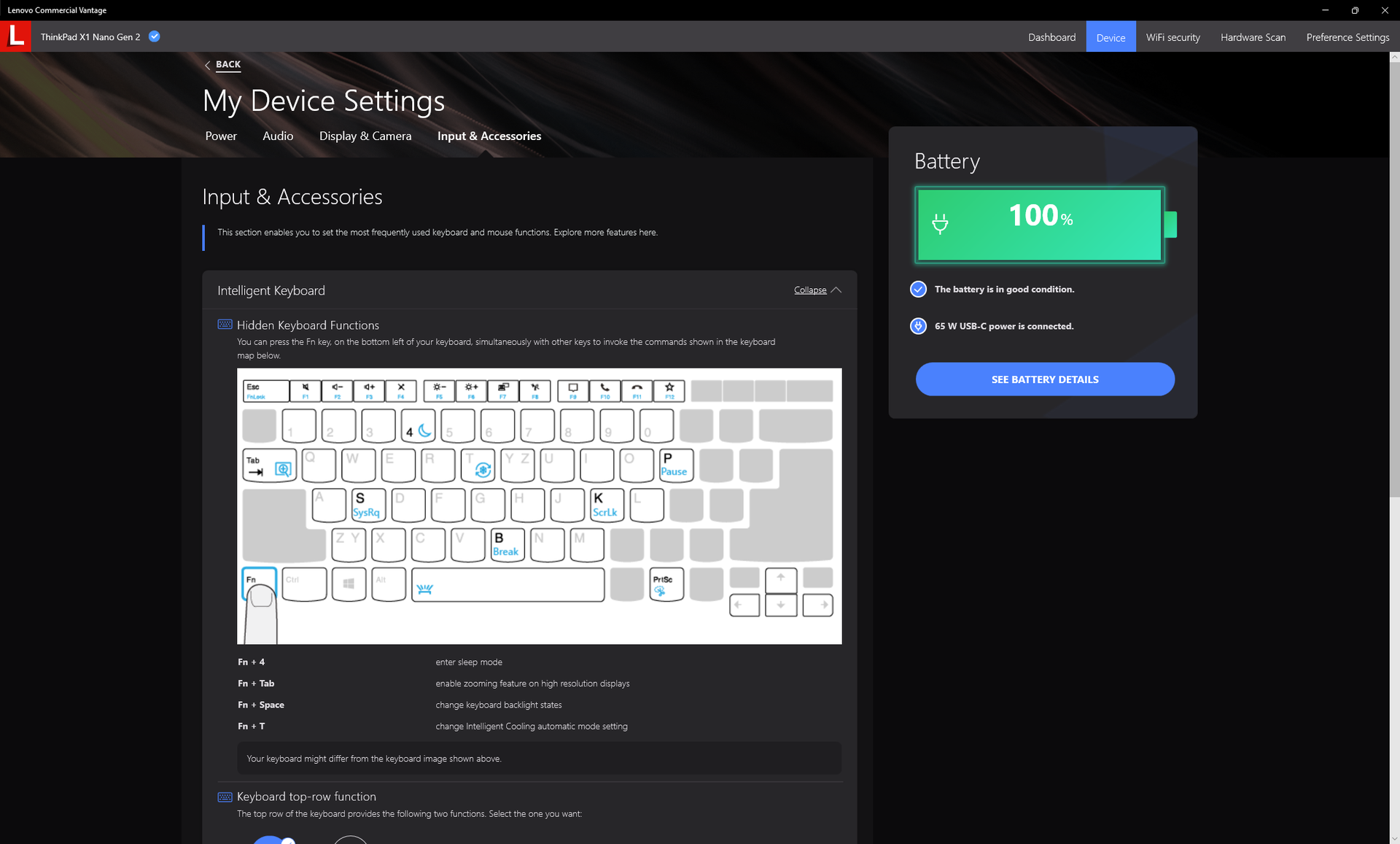

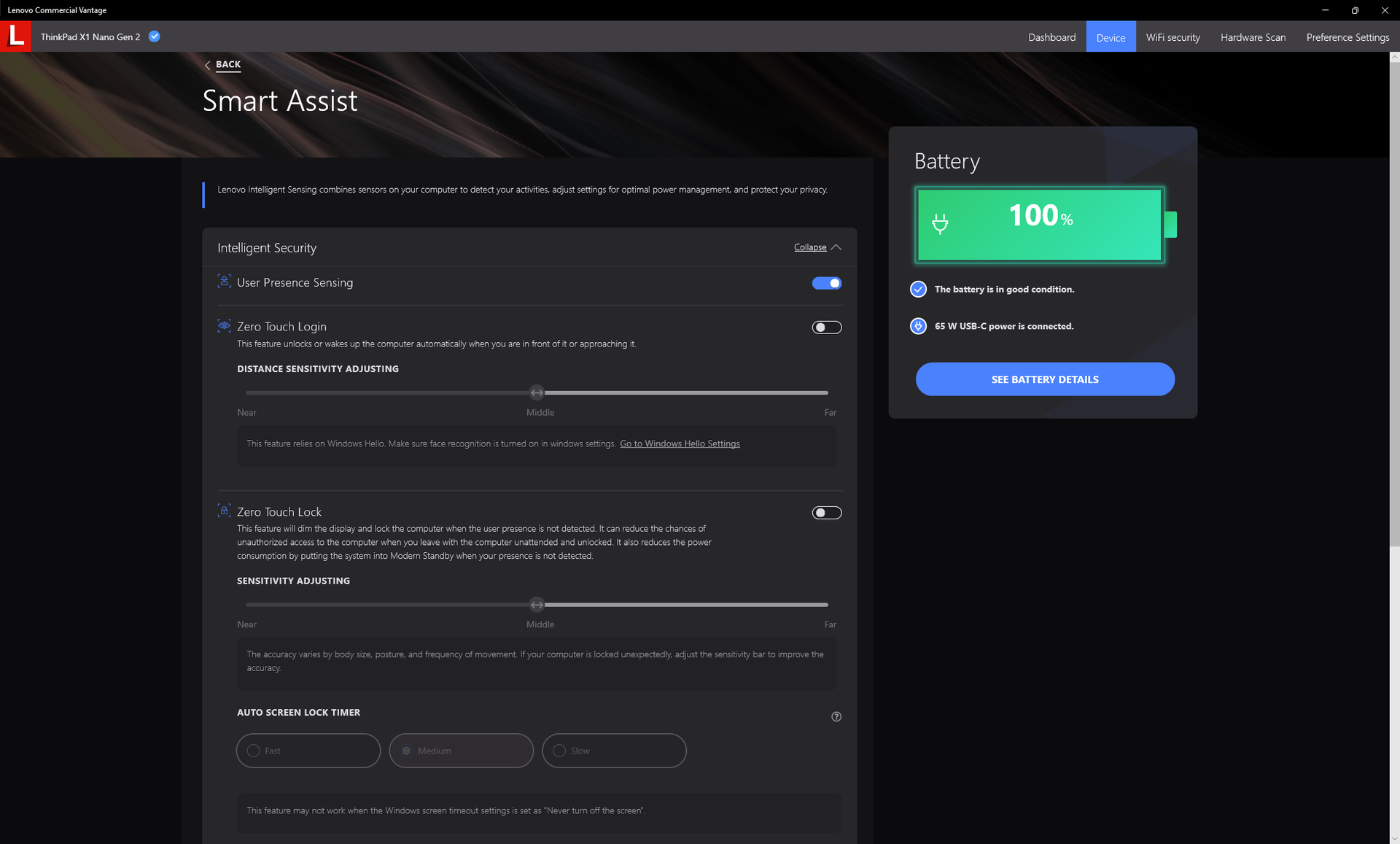

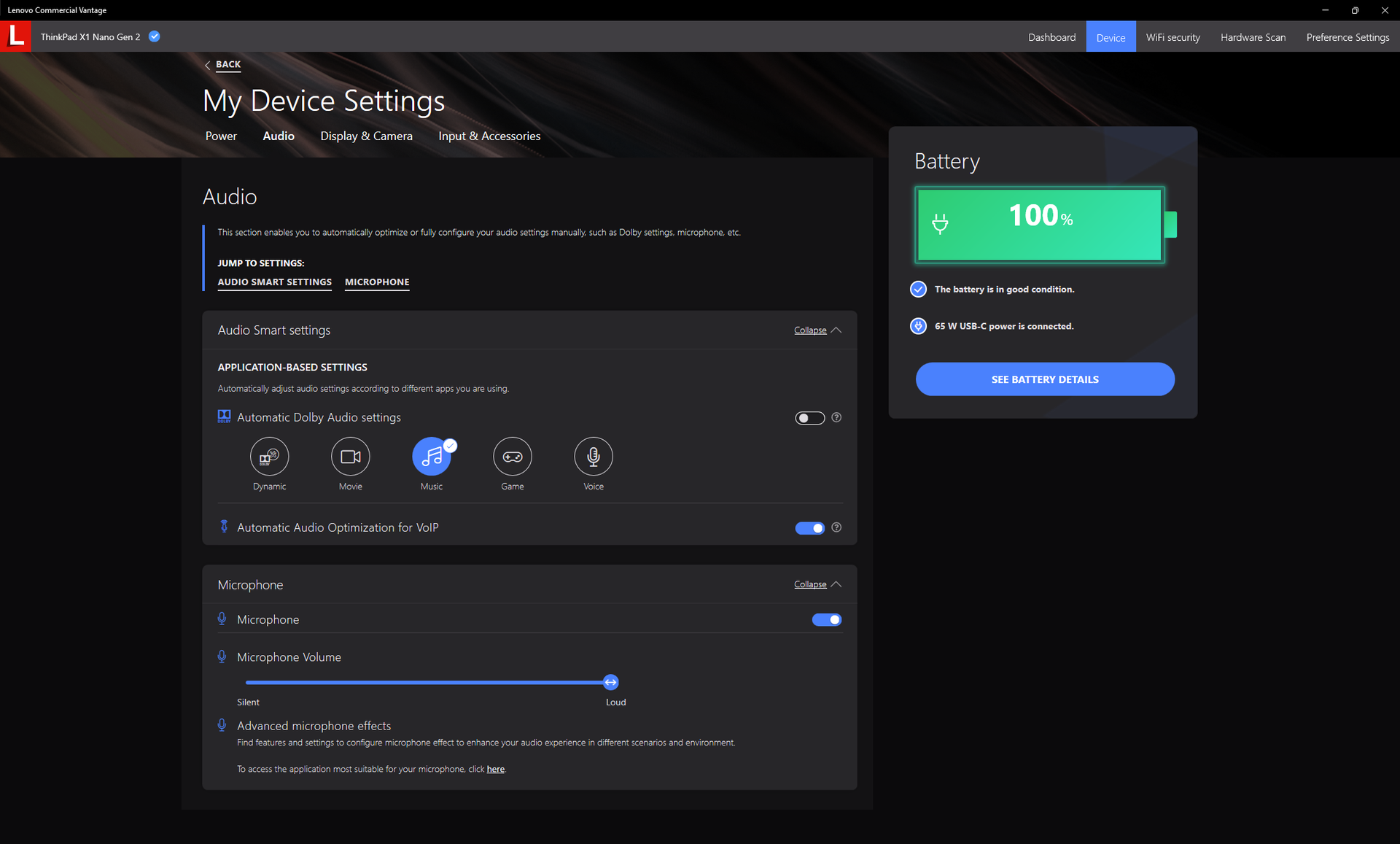

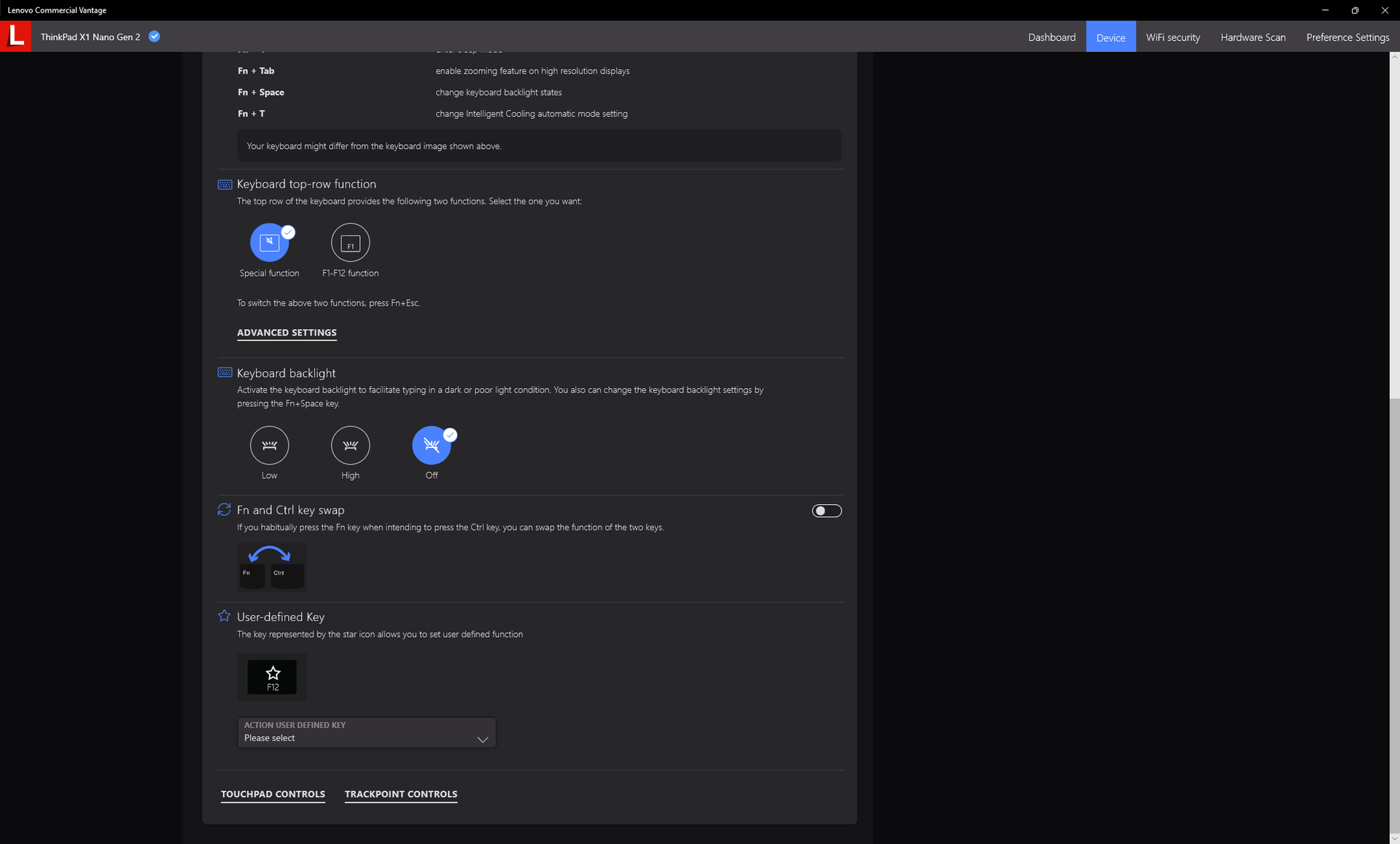

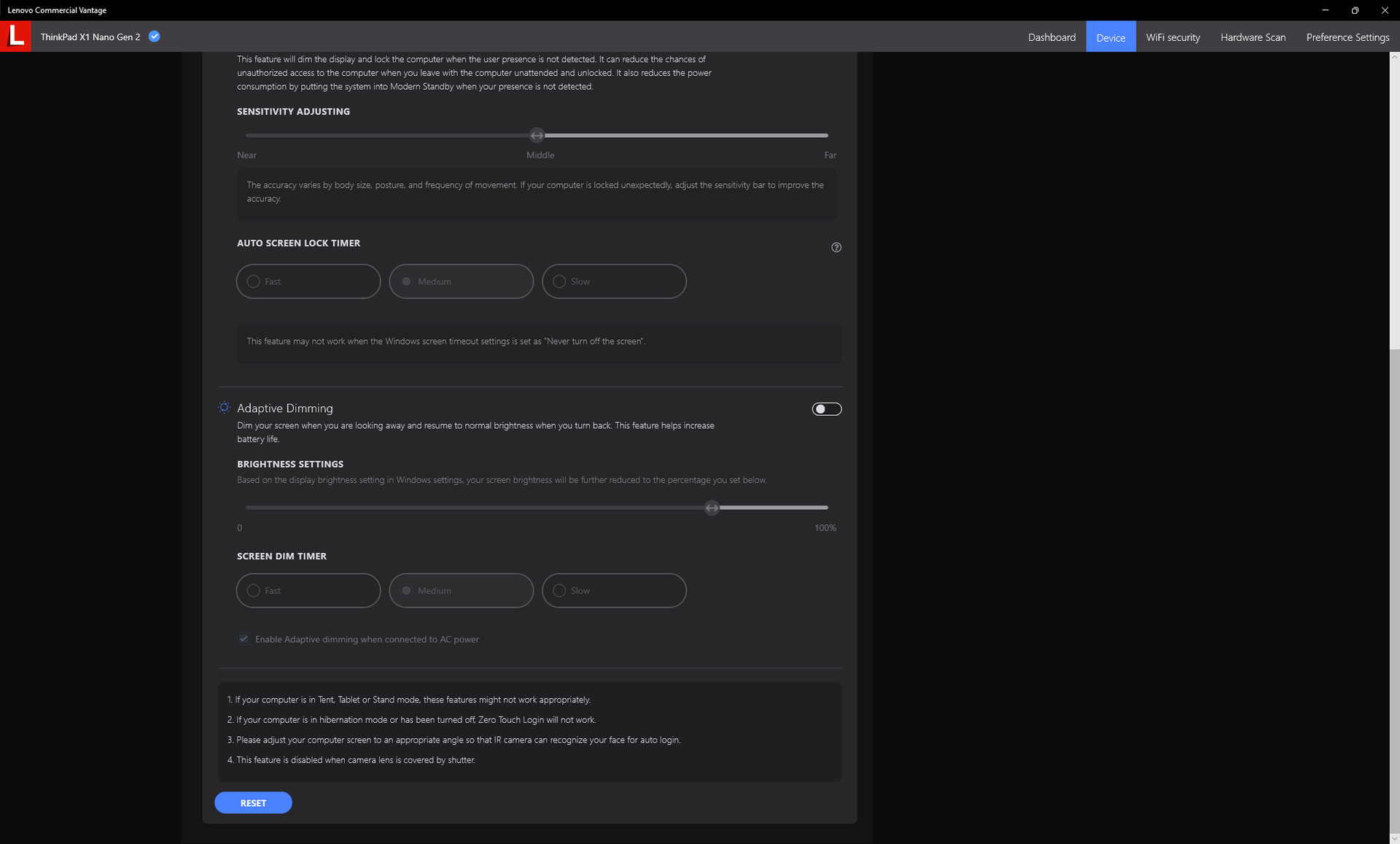

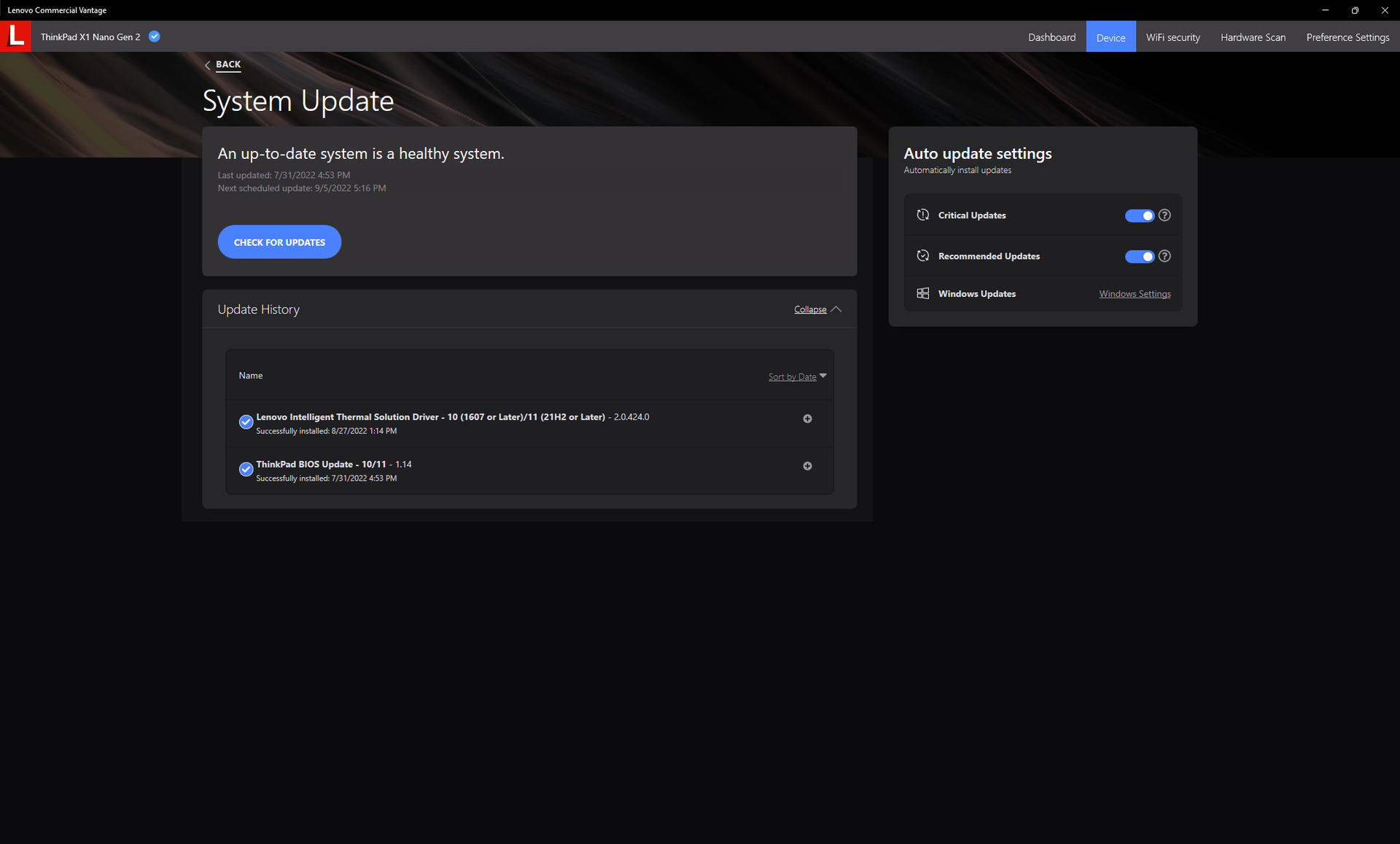

在运行以下任何性能基准之前，我们通过Windows将我们的设备设置为 "最佳性能 "模式。建议用户熟悉预装的Vantage软件，因为许多联想特有的软件更新和用户存在感等功能都是在这里切换的，如下面的屏幕截图所示。

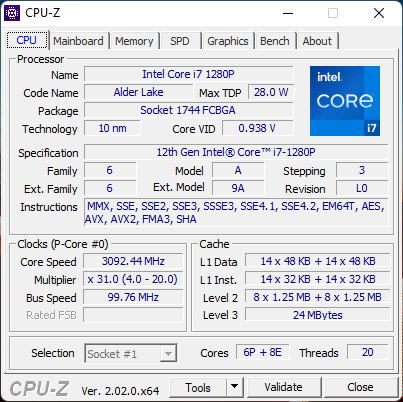

处理器

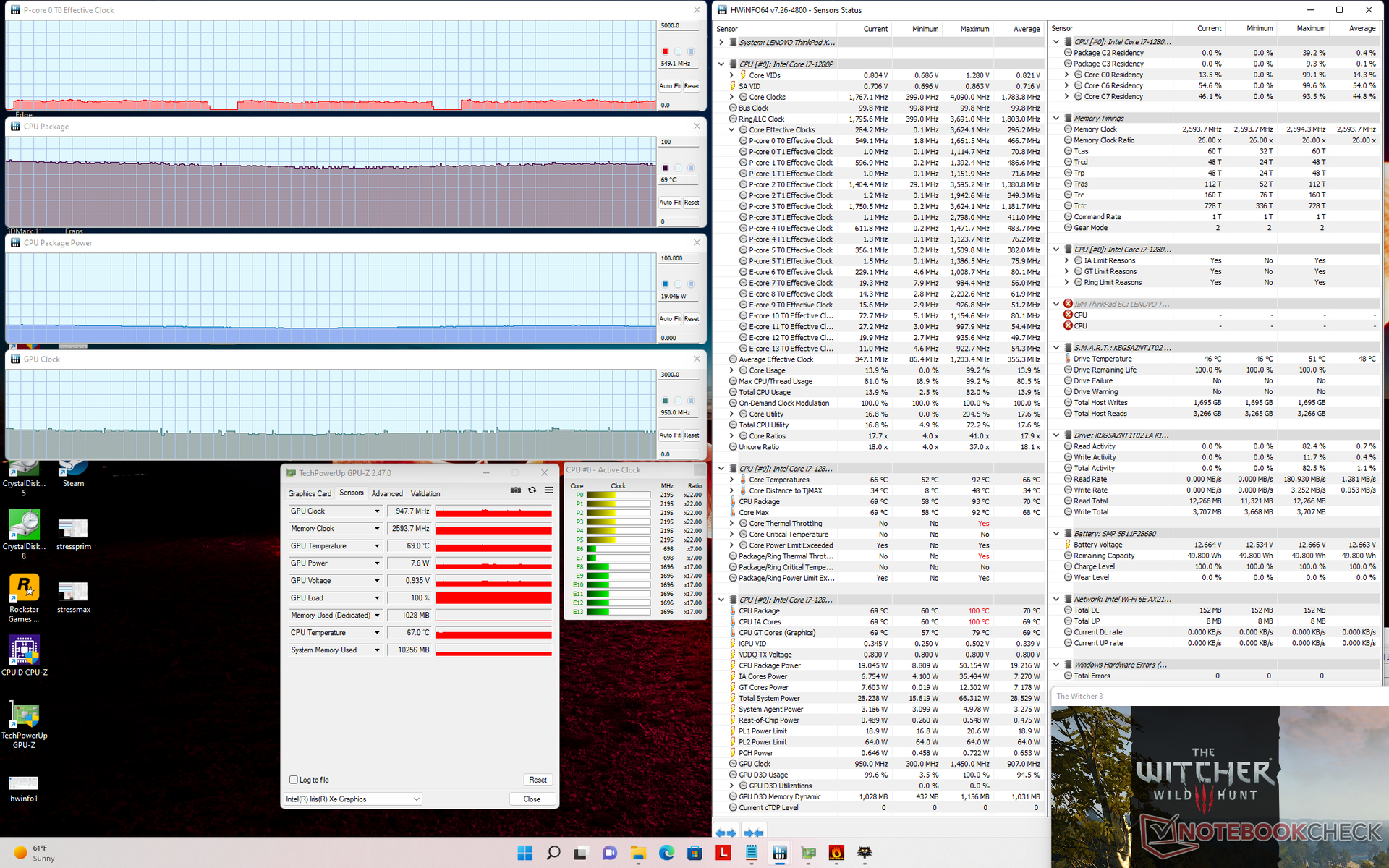

CPU性能是一个混合包。最初的CineBench R15多线程得分很高，达到2118分，但在接下来的连续运行后，这个分数急剧下降到1485分，代表涡轮增压的可持续性很差，而且比大多数其他笔记本电脑的节流更陡峭。事实上，正如我们下面的CineBench R15 xT循环测试所显示的那样，多线程性能在压力下可以下降48%。笔记本电脑框架笔记本电脑采用所谓的较慢的酷睿i7-1260P能够超过我们的i7-1280P在更长时间内的表现。换句话说，用户可以在联想的i7-1280P上享受最初的短暂速度爆发，然后再从悬崖上掉下来。

尽管性能有些令人失望，但X1 Nano Gen 2中的i7-1280P CPU仍然比以下产品快得多酷睿i7-1160G7即使考虑到任何节流问题，X1 Nano Gen 1中的i7-1280P CPU仍然比Core i7-1160G7快了约80%。

Cinebench R15 Multi Loop

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P: Ø1191 (1063.89-2118.53)

Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7: Ø659 (587.69-862.27)

Dell XPS 13 Plus 9320 i7-1280P OLED Intel Core i7-1280P: Ø1467 (1369.16-1905.49)

Framework Laptop 13.5 Intel Core i7-1165G7: Ø845 (812.27-850.43)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
Average Intel Core i7-1280P (3283 - 5415, n=8)	4627 Points +41%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	4060 Points +24%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	4033 Points +23%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	3564 Points +9%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	3283 Points
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	3131 Points -5%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	2913 Points -11%
HP Elite Dragonfly G3 Intel Core i7-1265U	2365 Points -28%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	2265 Points -31%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	1750 Points -47%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	1724 Points -47%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	1688 Points -49%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	1126 Points -66%

Cinebench R20 / CPU (Single Core)
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	690 Points +8%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	669 Points +4%
Average Intel Core i7-1280P (615 - 701, n=8)	642 Points 0%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	641 Points
HP Elite Dragonfly G3 Intel Core i7-1265U	586 Points -9%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	571 Points -11%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	570 Points -11%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	566 Points -12%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	564 Points -12%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	544 Points -15%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	489 Points -24%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	460 Points -28%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	438 Points -32%

Cinebench R23 / Multi Core
Average Intel Core i7-1280P (8632 - 14803, n=8)	11685 Points +35%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	10468 Points +21%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	10405 (10008.9^min - 10404.6^max) Points +21%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	9195 Points +7%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	8632 (7024.83^min - 8632.3^max) Points
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	8332 (8041.69^min - 8332.08^max) Points -3%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	7451 (6931.1^min - 7450.97^max) Points -14%
HP Elite Dragonfly G3 Intel Core i7-1265U	6145 (5739.99^min - 6144.82^max) Points -29%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	5871 Points -32%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	5648 (4011.45^min - 5648.13^max) Points -35%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	4317 Points -50%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	2611 Points -70%

Cinebench R23 / Single Core
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1756 Points +5%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	1675 Points
Average Intel Core i7-1280P (1609 - 1787, n=7)	1670 Points 0%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	1640 Points -2%
HP Elite Dragonfly G3 Intel Core i7-1265U	1529 Points -9%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	1488 Points -11%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	1464 Points -13%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	1451 Points -13%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	1369 Points -18%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	1256 Points -25%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	1246 Points -26%

Cinebench R15 / CPU Multi 64Bit
Average Intel Core i7-1280P (1905 - 2332, n=7)	2120 Points 0%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	2119 (1063.89^min - 2118.53^max) Points
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	1742 Points -18%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	1623 (1546.61^min - 1622.59^max) Points -23%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	1539 (1154.73^min - 1539.23^max) Points -27%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1400 (1342.78^min - 1400.12^max) Points -34%
HP Elite Dragonfly G3 Intel Core i7-1265U	1204 (961.28^min - 1204.49^max) Points -43%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	1196 (1169.93^min - 1196.39^max) Points -44%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	915 (790^min - 915.29^max) Points -57%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	862 Points -59%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	805 (677.64^min - 805.46^max) Points -62%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	702 (669.21^min - 702.47^max) Points -67%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	734 (692.03^min - 734.34^max) Points -65%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	630 (411.56^min - 629.91^max) Points -70%

Cinebench R15 / CPU Single 64Bit
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	252 Points +6%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	250 Points +5%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	238 Points
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	237 Points 0%
Average Intel Core i7-1280P (203 - 258, n=7)	237 Points 0%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	233 Points -2%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	224 Points -6%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	209 Points -12%
HP Elite Dragonfly G3 Intel Core i7-1265U	224 Points -6%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	208 Points -13%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	188 Points -21%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	184 Points -23%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	179 Points -25%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	149.7 Points -37%

Blender / v2.79 BMW27 CPU
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	993 Seconds * -235%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	675 Seconds * -128%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	655 Seconds * -121%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	625 Seconds * -111%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	486 Seconds * -64%
HP Elite Dragonfly G3 Intel Core i7-1265U	484 Seconds * -64%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	440 Seconds * -49%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	381 Seconds * -29%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	374 Seconds * -26%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	310 Seconds * -5%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	301 Seconds * -2%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	296 Seconds *
Average Intel Core i7-1280P (259 - 309, n=7)	282 Seconds * +5%

7-Zip 18.03 / 7z b 4
Average Intel Core i7-1280P (45292 - 53710, n=7)	49730 MIPS +7%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	47500 MIPS +2%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	46474 MIPS
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	44426 MIPS -4%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	39258 MIPS -16%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	37325 MIPS -20%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	32613 MIPS -30%
HP Elite Dragonfly G3 Intel Core i7-1265U	30561 MIPS -34%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	28718 MIPS -38%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	22305 MIPS -52%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	20746 MIPS -55%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	19632 MIPS -58%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	15167 MIPS -67%

7-Zip 18.03 / 7z b 4 -mmt1
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	5767 MIPS +3%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	5621 MIPS
Average Intel Core i7-1280P (4995 - 5874, n=7)	5488 MIPS -2%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	5464 MIPS -3%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	5431 MIPS -3%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	5191 MIPS -8%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	5096 MIPS -9%
HP Elite Dragonfly G3 Intel Core i7-1265U	4976 MIPS -11%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	4596 MIPS -18%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	4567 MIPS -19%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	4503 MIPS -20%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	4422 MIPS -21%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	4201 MIPS -25%

Geekbench 5.5 / Multi-Core
Average Intel Core i7-1280P (9623 - 11811, n=7)	10839 Points +4%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	10384 Points
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	9687 Points -7%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	8105 Points -22%
HP Elite Dragonfly G3 Intel Core i7-1265U	8096 Points -22%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	7613 Points -27%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	7087 Points -32%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	6664 Points -36%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	5801 Points -44%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	4660 Points -55%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	4503 Points -57%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	3921 Points -62%

Geekbench 5.5 / Single-Core
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	1799 Points
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	1759 Points -2%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1712 Points -5%
Average Intel Core i7-1280P (1571 - 1802, n=7)	1701 Points -5%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	1551 Points -14%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	1537 Points -15%
HP Elite Dragonfly G3 Intel Core i7-1265U	1515 Points -16%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	1514 Points -16%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	1463 Points -19%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	1406 Points -22%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	1353 Points -25%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	1337 Points -26%

HWBOT x265 Benchmark v2.2 / 4k Preset
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	12.6 fps +31%
Average Intel Core i7-1280P (9.62 - 14.5, n=5)	12.5 fps +30%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	12.2 fps +27%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	9.92 fps +3%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	9.62 fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	9.2 fps -4%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	8.71 fps -9%
HP Elite Dragonfly G3 Intel Core i7-1265U	7.76 fps -19%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	6.86 fps -29%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	6.06 fps -37%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	5.88 fps -39%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	5.75 fps -40%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	3.82 fps -60%

LibreOffice / 20 Documents To PDF
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	61.6 s * -35%
HP Elite Dragonfly G3 Intel Core i7-1265U	61.6 s * -35%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	56.9 s * -25%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	55.8 s * -22%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	54.1 s * -18%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	52.7 s * -15%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	51.3 s * -12%
Average Intel Core i7-1280P (41 - 61.6, n=8)	50 s * -9%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	46.4 s * -2%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	46.2 s * -1%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	45.7 s *
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	44.5 s * +3%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	42.9 s * +6%

R Benchmark 2.5 / Overall mean
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7	0.729 sec * -54%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7	0.671 sec * -42%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7	0.64 sec * -35%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	0.587 sec * -24%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7	0.574 sec * -21%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U	0.552 sec * -17%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P	0.539 sec * -14%
HP Elite Dragonfly G3 Intel Core i7-1265U	0.533 sec * -13%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U	0.529 sec * -12%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	0.4807 sec * -2%
Average Intel Core i7-1280P (0.4505 - 0.512, n=7)	0.4753 sec * -0%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P	0.4735 sec *
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	0.4634 sec * +2%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

2119 Points

Cinebench R15 OpenGL 64Bit

95 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

238 Points

Help

... in comparison

Performance Rating
Average Intel Core i7-1280P	99 pt
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	76.4 pt
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	70.5 pt
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	64.1 pt
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	63.4 pt
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	61.6 pt
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	56.6 pt

AIDA64 / FP32 Ray-Trace
Average Intel Core i7-1280P (7466 - 13068, n=6)	10624 KRay/s +42%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	7466 KRay/s
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	6940 KRay/s -7%
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	6343 KRay/s -15%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	6082 KRay/s -19%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	5648 KRay/s -24%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	5354 KRay/s -28%

AIDA64 / FPU Julia
Average Intel Core i7-1280P (38904 - 66081, n=6)	54536 Points +40%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	38904 Points
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	36027 Points -7%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	31048 Points -20%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	28020 Points -28%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	26279 Points -32%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	21672 Points -44%

AIDA64 / CPU SHA3
Average Intel Core i7-1280P (1826 - 2992, n=6)	2525 MB/s +38%
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	1972 MB/s +8%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	1945 MB/s +7%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	1919 MB/s +5%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	1826 MB/s
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	1573 MB/s -14%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	1525 MB/s -16%

AIDA64 / CPU Queen
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	98739 Points
Average Intel Core i7-1280P (80180 - 100358, n=6)	94459 Points -4%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	74983 Points -24%
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	63914 Points -35%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	63615 Points -36%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	50292 Points -49%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	43991 Points -55%

AIDA64 / FPU SinJulia
Average Intel Core i7-1280P (5880 - 8571, n=6)	7427 Points +26%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	6386 Points +9%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	5880 Points
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	4266 Points -27%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	4220 Points -28%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	4208 Points -28%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	3613 Points -39%

AIDA64 / FPU Mandel
Average Intel Core i7-1280P (18907 - 32766, n=6)	26500 Points +40%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	18907 Points
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	16923 Points -10%
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	16893 Points -11%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	15475 Points -18%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	15417 Points -18%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	13376 Points -29%

AIDA64 / CPU AES
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	64346 MB/s +58%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	64120 MB/s +58%
Average Intel Core i7-1280P (40691 - 99367, n=6)	60755 MB/s +49%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	52090 MB/s +28%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	40691 MB/s
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	37800 MB/s -7%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	32876 MB/s -19%

AIDA64 / CPU ZLib
Average Intel Core i7-1280P (540 - 880, n=6)	746 MB/s +38%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	682 MB/s +26%
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	567 MB/s +5%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	540 MB/s
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	471 MB/s -13%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	295 MB/s -45%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	272 MB/s -50%

AIDA64 / FP64 Ray-Trace
Average Intel Core i7-1280P (4006 - 7184, n=6)	5741 KRay/s +43%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	4006 KRay/s
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	3657 KRay/s -9%
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	3354 KRay/s -16%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	3246 KRay/s -19%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	3235 KRay/s -19%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	2831 KRay/s -29%

AIDA64 / CPU PhotoWorxx
Average Intel Core i7-1280P (36663 - 48416, n=6)	43344 MPixel/s +6%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	42971 MPixel/s +5%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	41009 MPixel/s
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	38648 MPixel/s -6%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	34217 MPixel/s -17%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	26054 MPixel/s -36%
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	22108 MPixel/s -46%

系统性能

由于采用了酷睿P系列CPU，PCMark 10的结果始终高于第一代机型和其他大多数13.0英寸笔记本电脑。差异在数字内容创作分测试中最为明显。

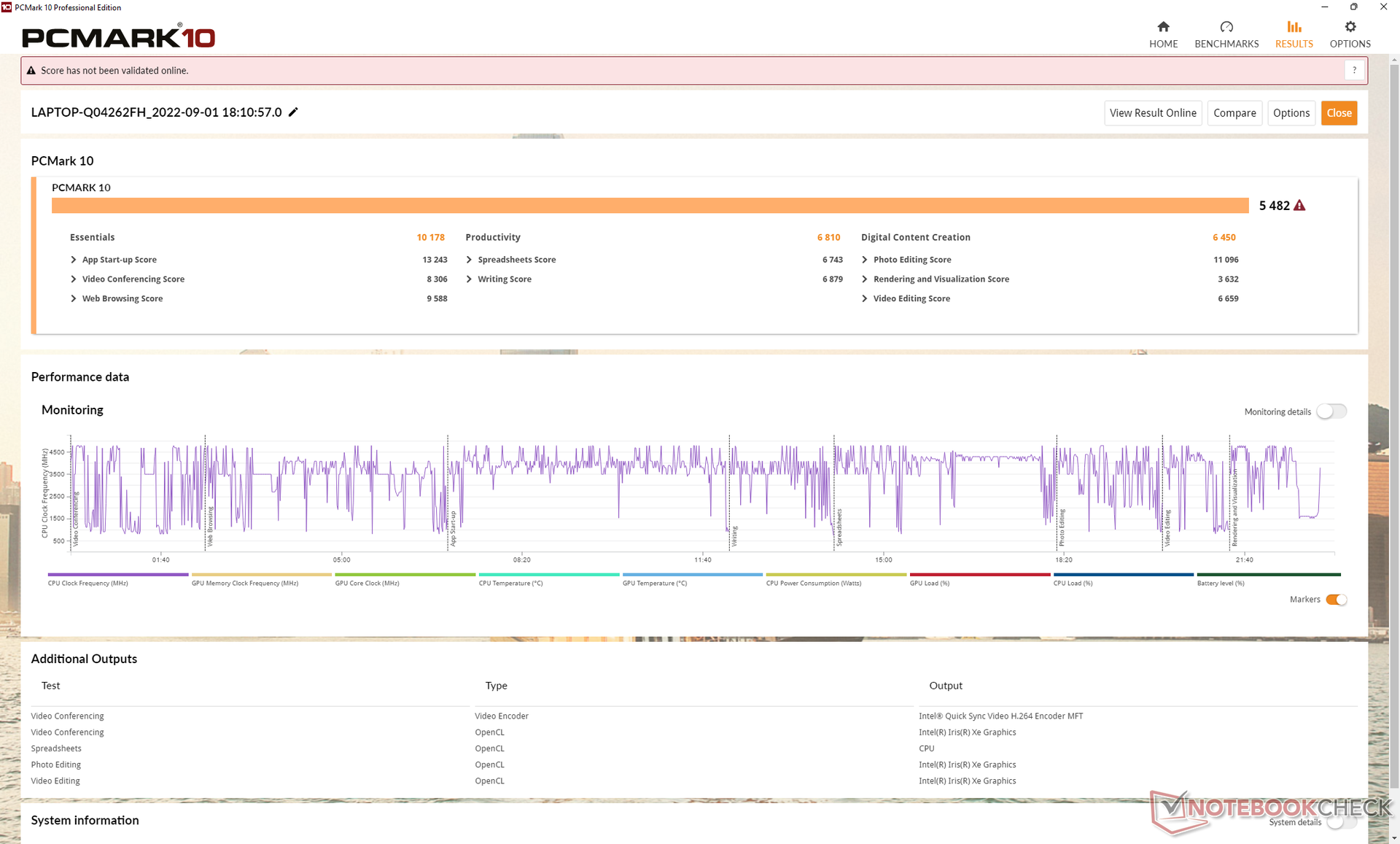

PCMark 10 / Score
Framework Laptop 13.5 12th Gen Intel Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G	5802 Points +6%
Average Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs (5410 - 5994, n=4)	5633 Points +3%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Iris Xe G7 96EUs, i7-1280P, Kioxia BG5 KBG5AZNT1T02	5482 Points
Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe	5182 Points -5%
Huawei MateBook X Pro 2021 Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR	4870 Points -11%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	4753 Points -13%
Lenovo ThinkPad X1 Nano-20UN002UGE Iris Xe G7 96EUs, i7-1160G7, WDC PC SN530 SDBPNPZ-512G	4615 Points -16%

PCMark 10 / Essentials
Framework Laptop 13.5 12th Gen Intel Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G	10823 Points +6%
Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe	10559 Points +4%
Average Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs (9719 - 10920, n=4)	10313 Points +1%
Huawei MateBook X Pro 2021 Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR	10184 Points 0%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Iris Xe G7 96EUs, i7-1280P, Kioxia BG5 KBG5AZNT1T02	10178 Points
Lenovo ThinkPad X1 Nano-20UN002UGE Iris Xe G7 96EUs, i7-1160G7, WDC PC SN530 SDBPNPZ-512G	9482 Points -7%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	9278 Points -9%

PCMark 10 / Productivity
Framework Laptop 13.5 12th Gen Intel Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G	7245 Points +6%
Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe	6978 Points +2%
Average Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs (6301 - 7453, n=4)	6816 Points 0%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Iris Xe G7 96EUs, i7-1280P, Kioxia BG5 KBG5AZNT1T02	6810 Points
Huawei MateBook X Pro 2021 Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR	6719 Points -1%
Lenovo ThinkPad X1 Nano-20UN002UGE Iris Xe G7 96EUs, i7-1160G7, WDC PC SN530 SDBPNPZ-512G	6210 Points -9%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	5828 Points -14%

PCMark 10 / Digital Content Creation
Average Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs (6450 - 7180, n=4)	6908 Points +7%
Framework Laptop 13.5 12th Gen Intel Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G	6762 Points +5%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Iris Xe G7 96EUs, i7-1280P, Kioxia BG5 KBG5AZNT1T02	6450 Points
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	5391 Points -16%
Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe	5127 Points -21%
Huawei MateBook X Pro 2021 Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR	4583 Points -29%
Lenovo ThinkPad X1 Nano-20UN002UGE Iris Xe G7 96EUs, i7-1160G7, WDC PC SN530 SDBPNPZ-512G	4530 Points -30%

CrossMark / Overall
Average Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs (1677 - 1773, n=4)	1725 Points +1%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Iris Xe G7 96EUs, i7-1280P, Kioxia BG5 KBG5AZNT1T02	1703 Points
Framework Laptop 13.5 12th Gen Intel Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G	1678 Points -1%
Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe	1474 Points -13%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	1424 Points -16%

CrossMark / Productivity
Average Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs (1585 - 1709, n=4)	1643 Points +1%
Framework Laptop 13.5 12th Gen Intel Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G	1622 Points 0%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Iris Xe G7 96EUs, i7-1280P, Kioxia BG5 KBG5AZNT1T02	1621 Points
Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe	1478 Points -9%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	1387 Points -14%

CrossMark / Creativity
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Iris Xe G7 96EUs, i7-1280P, Kioxia BG5 KBG5AZNT1T02	1897 Points
Average Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs (1849 - 1928, n=4)	1891 Points 0%
Framework Laptop 13.5 12th Gen Intel Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G	1811 Points -5%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	1550 Points -18%
Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe	1549 Points -18%

CrossMark / Responsiveness
Average Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs (1394 - 1746, n=4)	1522 Points +7%
Framework Laptop 13.5 12th Gen Intel Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G	1480 Points +4%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Iris Xe G7 96EUs, i7-1280P, Kioxia BG5 KBG5AZNT1T02	1426 Points
Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe	1260 Points -12%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	1193 Points -16%

PCMark 10 Score		5482 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	70828 MB/s
Average Intel Core i7-1280P (56337 - 73486, n=6)	67211 MB/s -5%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	65534 MB/s -7%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	64442 MB/s -9%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	46915 MB/s -34%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	45554 MB/s -36%
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	40212 MB/s -43%

AIDA64 / Memory Read
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	72530 MB/s
Average Intel Core i7-1280P (63221 - 73719, n=6)	67435 MB/s -7%
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	64497 MB/s -11%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	62550 MB/s -14%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	48771 MB/s -33%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	47809 MB/s -34%
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	41808 MB/s -42%

AIDA64 / Memory Write
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	66770 MB/s +4%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	63977 MB/s
Average Intel Core i7-1280P (58729 - 68247, n=6)	63409 MB/s -1%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	58000 MB/s -9%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	50592 MB/s -21%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	47190 MB/s -26%
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	44849 MB/s -30%

AIDA64 / Memory Latency
Average Intel Core i7-1280P (93.1 - 153.3, n=6)	107.8 ns * -16%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	105.6 ns * -13%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Iris Xe G7 96EUs	105 ns * -13%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Iris Xe G7 96EUs	93.1 ns *
Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Iris Xe G7 96EUs	90.5 ns * +3%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	79.2 ns * +15%
Dell Latitude 13 7330 Intel Core i7-1265U, Iris Xe G7 96EUs	74.6 ns * +20%

* ... smaller is better

DPC延时

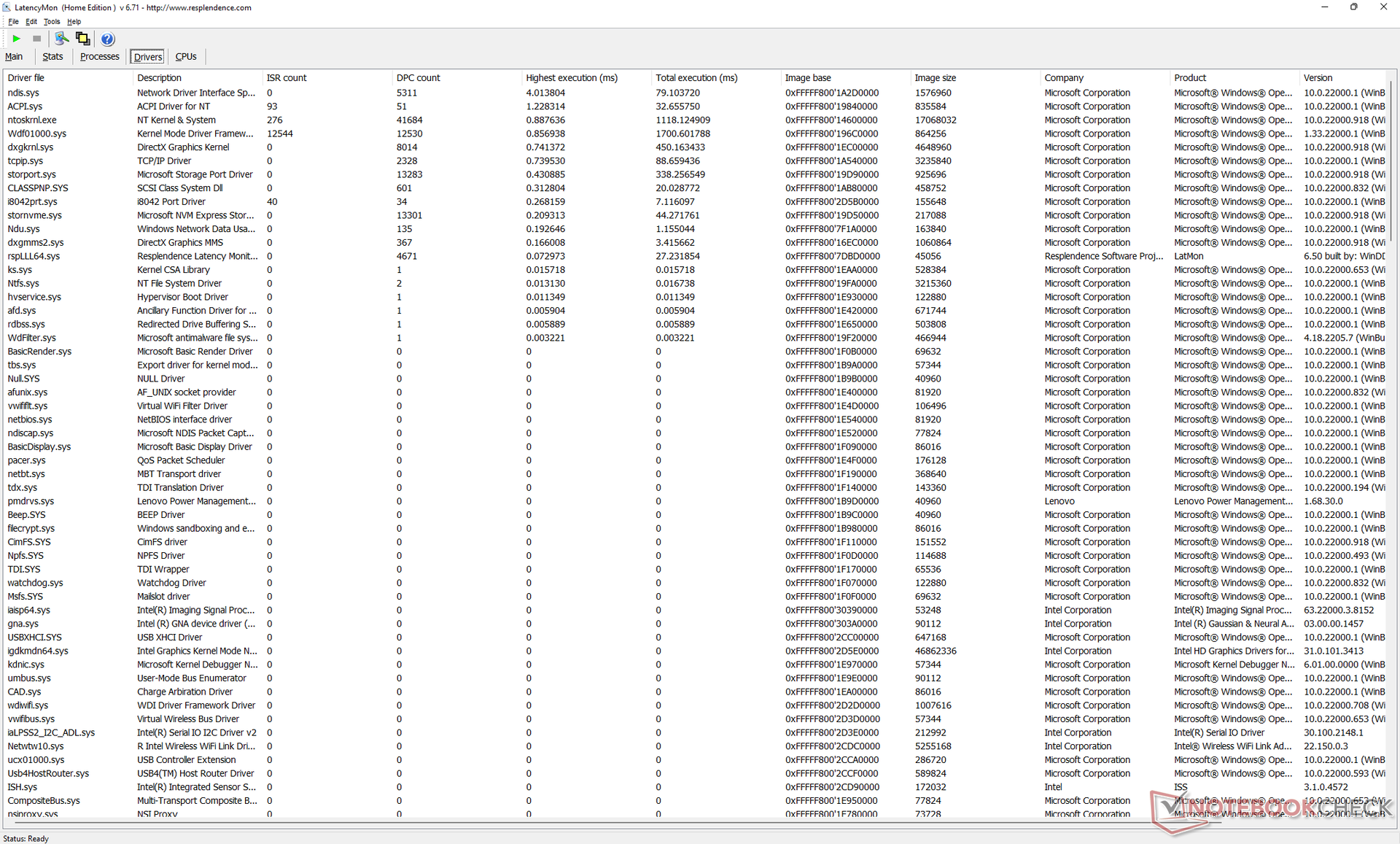

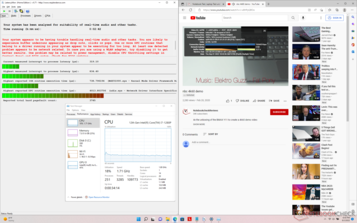

LatencyMon显示了在我们的主页上打开多个浏览器标签时的DPC问题。在60 FPS下的4K视频播放可能会更好，因为在我们长达1分钟的视频测试中，我们能够记录到56个丢帧，即使是在截至本发布日期的最新图形驱动程序上。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad X1 Nano-20UN002UGE Iris Xe G7 96EUs, i7-1160G7, WDC PC SN530 SDBPNPZ-512G	1350 μs * -62%
Huawei MateBook X Pro 2021 Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR	1225 μs * -47%
Framework Laptop 13.5 12th Gen Intel Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G	1005.6 μs * -21%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Iris Xe G7 96EUs, i7-1280P, Kioxia BG5 KBG5AZNT1T02	834.4 μs *
Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe	829.5 μs * +1%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	815.6 μs * +2%

* ... smaller is better

存储设备

我们的测试装置配备了桥夏KBG5AZNT1T02PCIe3 NVMe固态硬盘，最大持续读取率高达2700 MB/s。考虑到ThinkPad X1 Nano的高价，结账时没有PCIe4选项，这令人失望，但至少该型号的SSD上有一块铜板，有助于散热。

请记住，不支持全长的2280 M.2驱动器。

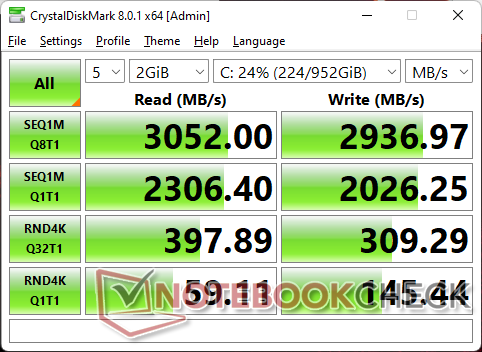

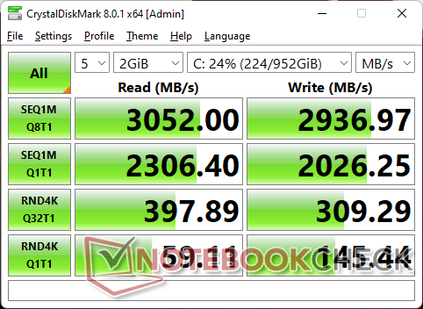

CrystalDiskMark 5.2 / 6

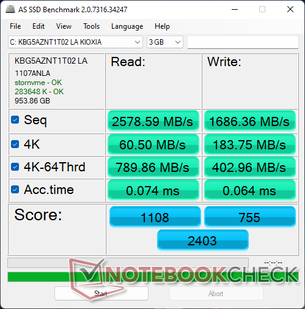

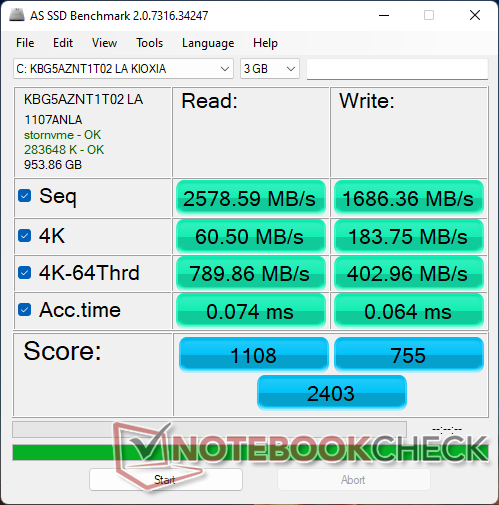

AS SSD

DiskSpd

Kioxia BG5 KBG5AZNT1T02

CDM 5/6 Read Seq Q32T1: 3119 MB/s

CDM 5/6 Write Seq Q32T1: 2954 MB/s

CDM 5/6 Read 4K Q32T1: 420.1 MB/s

CDM 5/6 Write 4K Q32T1: 301 MB/s

CDM 5 Read Seq: 2154 MB/s

CDM 5 Write Seq: 2027 MB/s

CDM 5/6 Read 4K: 52.35 MB/s

CDM 5/6 Write 4K: 142.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	87.7 pt
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	75.3 pt
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	68.7 pt
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	62.5 pt
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	59.9 pt
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	38.2 pt

DiskSpd
seq read
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	2230 (2101.55^min - 2230.47^max) MB/s
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	1958 (1947.92^min - 1957.69^max) MB/s -12%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	1862 (1714.42^min - 1862.11^max) MB/s -17%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	1842 (1735.28^min - 1841.6^max) MB/s -17%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	1748 (1276.54^min - 1748.19^max) MB/s -22%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1717 (1644.8^min - 1716.65^max) MB/s -23%
seq write
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	2672 (2636.75^min - 2672.09^max) MB/s +34%
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	2290 (2283.84^min - 2290.3^max) MB/s +15%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	2153 (2100.93^min - 2152.94^max) MB/s +8%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	1998 (1932.64^min - 1998.17^max) MB/s
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	1727 (1712.18^min - 1727.12^max) MB/s -14%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	1501 (1115.27^min - 1500.93^max) MB/s -25%
seq q8 t1 read
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	5601 (4844.63^min - 5600.99^max) MB/s +97%
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	3432 (3277.58^min - 3432.46^max) MB/s +21%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	3426 (2707.21^min - 3425.7^max) MB/s +20%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	2847 (2598.42^min - 2847.3^max) MB/s
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	2484 (2298.9^min - 2484.14^max) MB/s -13%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	2385 (2063.81^min - 2385.3^max) MB/s -16%
seq q8 t1 write
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	3996 (3842.89^min - 3996.08^max) MB/s +37%
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	2955 (2904.97^min - 2955.31^max) MB/s +1%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	2921 (2865.76^min - 2921.12^max) MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	2711 (1214.13^min - 2710.57^max) MB/s -7%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	1804 (1772.11^min - 1803.55^max) MB/s -38%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	1507 (1162.66^min - 1507.22^max) MB/s -48%
4k q1 t1 read
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	56.4 (54.89^min - 56.4^max) MB/s
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	55.7 (54.91^min - 55.74^max) MB/s -1%
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	53.8 (53.67^min - 53.82^max) MB/s -5%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	52.8 (51.11^min - 52.84^max) MB/s -6%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	50.7 (49.53^min - 50.73^max) MB/s -10%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	44.7 (44.04^min - 44.71^max) MB/s -21%
4k q1 t1 write
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	277 (263.14^min - 276.6^max) MB/s +84%
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	200 (199.55^min - 200.17^max) MB/s +33%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	167.5 (166.11^min - 167.53^max) MB/s +11%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	150.7 (149.3^min - 150.73^max) MB/s
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	139.6 (134.38^min - 139.63^max) MB/s -7%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	122.8 (118.4^min - 122.83^max) MB/s -19%
4k q32 t16 read
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	1829 (1554.44^min - 1829.01^max) MB/s +132%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	1315 (1311.7^min - 1314.99^max) MB/s +67%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1067 (1040.91^min - 1067.32^max) MB/s +36%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	787 (757.42^min - 787.17^max) MB/s
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	669 (572^min - 669.2^max) MB/s -15%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	489 (472.72^min - 489.08^max) MB/s -38%
4k q32 t16 write
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	2031 (1248.1^min - 2031.17^max) MB/s +474%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	1283 (527.3^min - 1282.99^max) MB/s +262%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	459 (401.81^min - 458.57^max) MB/s +30%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	356 (350.99^min - 356.04^max) MB/s +1%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	354 (337.45^min - 353.86^max) MB/s
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	340 (298.75^min - 340.3^max) MB/s -4%

AS SSD
Score Total
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	5392 Points +124%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	3864 Points +61%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	3431 Points +43%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	3199 Points +33%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	2403 Points
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	1685 Points -30%
Score Read
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	2108 Points +90%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1329 Points +20%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	1238 Points +12%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	1186 Points +7%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	1108 Points
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	926 Points -16%
Score Write
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	2219 Points +194%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	2117 Points +180%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	1654 Points +119%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1249 Points +65%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	755 Points
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	338 Points -55%
Seq Read
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	4698.96 MB/s +82%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	2816.58 MB/s +9%
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	2794 MB/s +8%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	2578.59 MB/s
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	2228 MB/s -14%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	1696.66 MB/s -34%
Seq Write
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	2385 MB/s +41%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	1954.78 MB/s +16%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	1707 MB/s +1%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	1686.36 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1457.27 MB/s -14%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	736.27 MB/s -56%
4K Read
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	60.7 MB/s 0%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	60.5 MB/s
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	54.52 MB/s -10%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	50.91 MB/s -16%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	47.12 MB/s -22%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	36.51 MB/s -40%
4K Write
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	237.4 MB/s +29%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	212.99 MB/s +16%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	183.75 MB/s
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	180.8 MB/s -2%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	156.67 MB/s -15%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	132.6 MB/s -28%
4K-64 Read
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	1768 MB/s +124%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	996.29 MB/s +26%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	916 MB/s +16%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	789.86 MB/s
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	713.5 MB/s -10%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	692.84 MB/s -12%
4K-64 Write
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	1800 MB/s +347%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	1764.74 MB/s +338%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	1245 MB/s +209%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	889.88 MB/s +121%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	402.96 MB/s
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	132.25 MB/s -67%
Access Time Read
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	0.111 ms * -50%
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	0.108 ms * -46%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	0.074 ms *
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	0.053 ms * +28%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	0.043 ms * +42%
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	0.037 ms * +50%
Access Time Write
Dell Latitude 13 7330 Toshiba KBG40ZNS512G NVMe	0.619 ms * -867%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	0.074 ms * -16%
Huawei MateBook X Pro 2021 Samsung PM981a MZVLB1T0HBLR	0.073 ms * -14%
Lenovo ThinkPad X1 Nano-20UN002UGE WDC PC SN530 SDBPNPZ-512G	0.069 ms * -8%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Kioxia BG5 KBG5AZNT1T02	0.064 ms *
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	0.056 ms * +12%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P: Ø2773 (2672.3-2877.62)

GPU性能

尽管有上面提到的陡峭的CPU性能节流，但图形性能还是不错的。3DMark的分数是相对于其他具有相同性能的笔记本电脑而言的。 Iris Xe 96 EUsGPU，但在运行实际游戏时，节流就开始了。例如，在最低768p设置下，空闲时的帧率 Witcher 3 在最低的768p设置下，在测试开始时帧率可以高达106 FPS，然后在几分钟后迅速下降到只有80 FPS，如下图所示。

在考虑到任何性能节流之前，总体图形性能仍然比去年的第一代机型快30%左右。

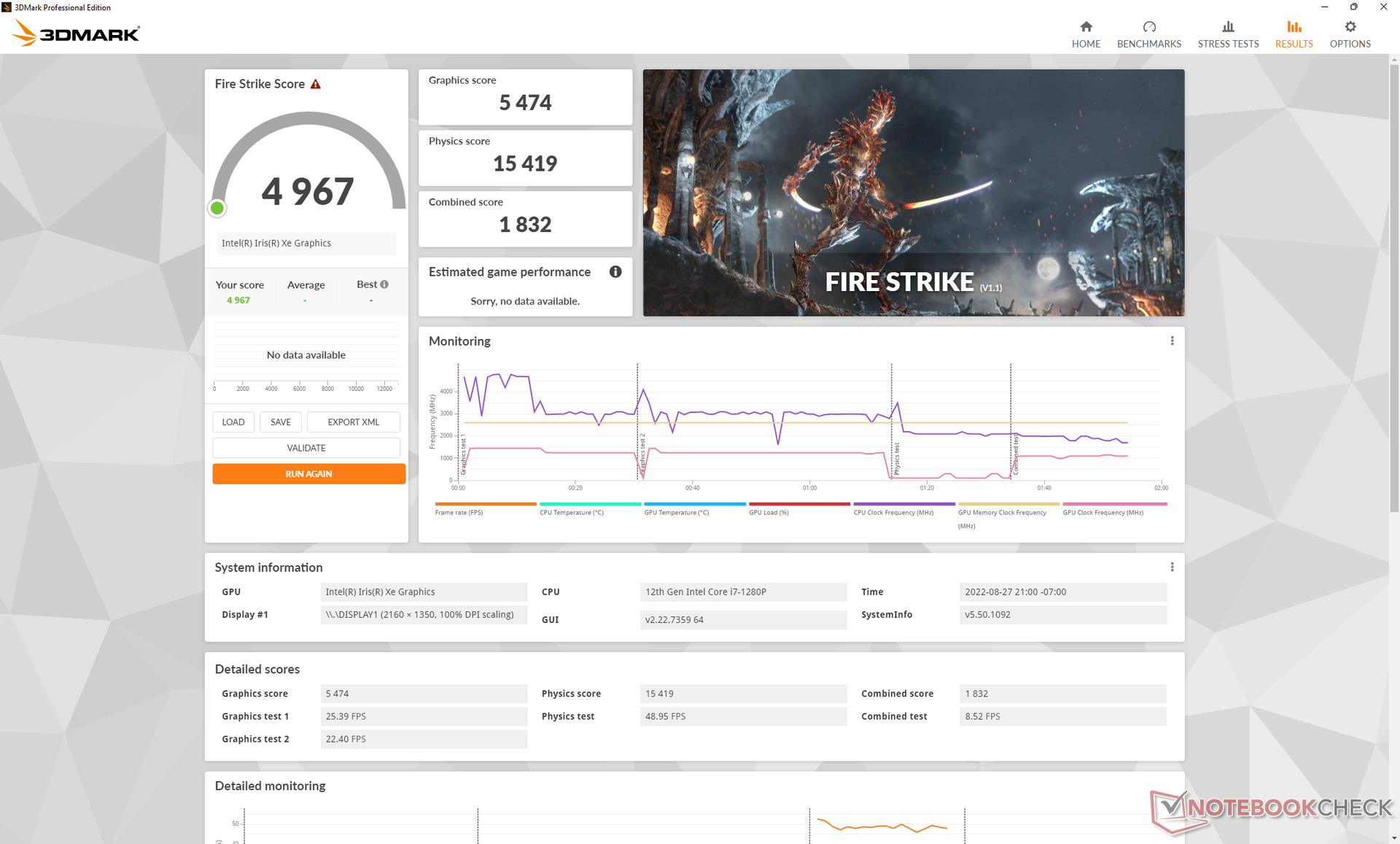

3DMark | 3DMark 11

3DMark
1920x1080 Fire Strike Graphics
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	6683 Points +22%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1280P	5474 Points
Dell Inspiron 13 7306-6TYH5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	5274 Points -4%
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	5200 Points -5%
HP Spectre x360 13.5 14t-ef000 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	5039 Points -8%
HP Elite Dragonfly G3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4954 Points -9%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6143, n=207)	4905 Points -10%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Radeon 660M, AMD Ryzen 5 PRO 6650U	4487 Points -18%
Lenovo Yoga Slim 7-14IIL05 NVIDIA GeForce MX350, Intel Core i7-1065G7	4332 Points -21%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1160G7	4192 Points -23%
Dynabook Portégé X30L-K-139 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	4142 Points -24%
Lenovo Yoga 6 13ALC6 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3572 Points -35%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7	3258 Points -40%
2560x1440 Time Spy Graphics
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	2287 Points +35%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1280P	1699 Points
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1675 Points -1%
Dell Inspiron 13 7306-6TYH5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1616 Points -5%
HP Spectre x360 13.5 14t-ef000 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	1614 Points -5%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Radeon 660M, AMD Ryzen 5 PRO 6650U	1588 Points -7%
HP Elite Dragonfly G3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1549 Points -9%
Average Intel Iris Xe Graphics G7 96EUs (707 - 1871, n=204)	1494 Points -12%
Lenovo Yoga Slim 7-14IIL05 NVIDIA GeForce MX350, Intel Core i7-1065G7	1326 Points -22%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1160G7	1260 Points -26%
Dynabook Portégé X30L-K-139 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	1181 Points -30%
Lenovo Yoga 6 13ALC6 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1112 Points -35%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7	1039 Points -39%

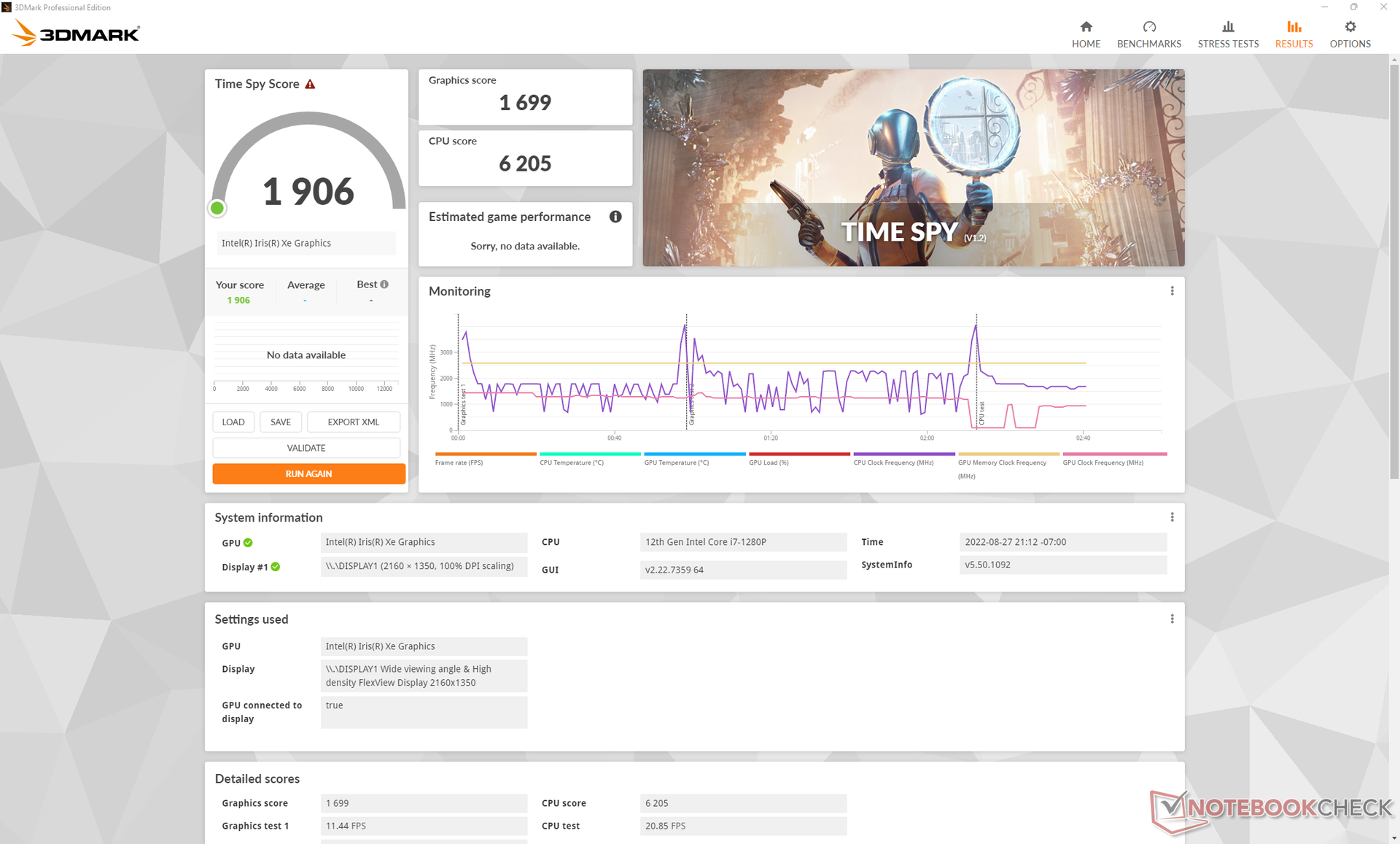

2560x1440 Time Spy Score
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	2548 Points +34%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1280P	1906 Points
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1896 Points -1%
HP Spectre x360 13.5 14t-ef000 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	1820 Points -5%
Dell Inspiron 13 7306-6TYH5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1788 Points -6%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Radeon 660M, AMD Ryzen 5 PRO 6650U	1776 Points -7%
HP Elite Dragonfly G3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1727 Points -9%
Average Intel Iris Xe Graphics G7 96EUs (789 - 2133, n=201)	1673 Points -12%
Lenovo Yoga Slim 7-14IIL05 NVIDIA GeForce MX350, Intel Core i7-1065G7	1469 Points -23%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1160G7	1401 Points -26%
Dynabook Portégé X30L-K-139 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	1333 Points -30%
Lenovo Yoga 6 13ALC6 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1263 Points -34%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7	1146 Points -40%

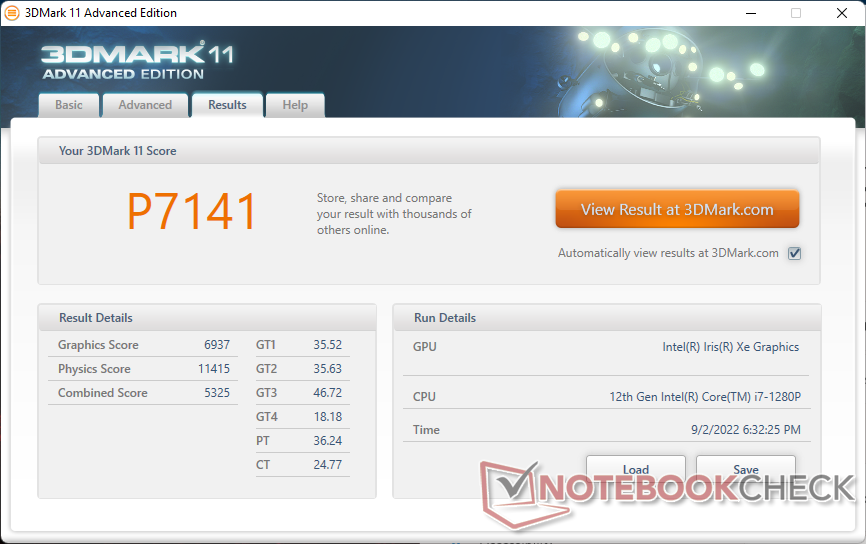

3DMark 11 - 1280x720 Performance GPU
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	9095 Points +31%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1280P	6937 Points
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6779 Points -2%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Radeon 660M, AMD Ryzen 5 PRO 6650U	6560 Points -5%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7471, n=194)	6345 Points -9%
HP Spectre x360 13.5 14t-ef000 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	6243 Points -10%
Lenovo Yoga Slim 7-14IIL05 NVIDIA GeForce MX350, Intel Core i7-1065G7	6232 Points -10%
HP Elite Dragonfly G3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6155 Points -11%
Dell Inspiron 13 7306-6TYH5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	5885 Points -15%
Lenovo Yoga 6 13ALC6 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5693 Points -18%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1160G7	5465 Points -21%
Dynabook Portégé X30L-K-139 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	4726 Points -32%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7	4265 Points -39%

3DMark | 3DMark 11

3DMark 11 Performance		7141 points
3DMark Cloud Gate Standard Score		20344 points
3DMark Fire Strike Score		4967 points
3DMark Time Spy Score		1906 points
Help

... in comparison

Final Fantasy XV Benchmark
1280x720 Lite Quality
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	59.8 fps +67%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	43.8 fps +22%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	43.5 fps +22%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	43.4 fps +21%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	42.5 fps +19%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	39.7 fps +11%
Average Intel Iris Xe Graphics G7 96EUs (14.9 - 56.5, n=175)	39.2 fps +9%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	35.8 fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.7 fps -11%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	31.1 fps -13%
1920x1080 Standard Quality
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	31.6 fps +53%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	24.2 fps +17%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	23.8 fps +15%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23.3 fps +13%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	22.7 fps +10%
Average Intel Iris Xe Graphics G7 96EUs (10.5 - 28, n=171)	21.7 fps +5%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	20.7 fps 0%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	20.7 fps
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	17.7 fps -14%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.6 fps -20%
1920x1080 High Quality
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23.3 fps +13%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	21.9 fps +6%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	20.7 fps
Average Intel Iris Xe Graphics G7 96EUs (8.15 - 27.8, n=164)	16.8 fps -19%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	16.7 fps -19%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	16.6 fps -20%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	15.8 fps -24%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	15 fps -28%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	12.5 fps -40%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11.2 fps -46%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	123 fps +15%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	107.2 (66^min) fps
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	97.5 (41^min) fps -9%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	94.8 (40^min) fps -12%
Average Intel Iris Xe Graphics G7 96EUs (28.9 - 110, n=182)	83.9 fps -22%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	82.2 (67^min) fps -23%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7, NVIDIA GeForce MX350	80.3 fps -25%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	78.5 fps -27%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	76.1 (43^min) fps -29%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	70.7 (62^min) fps -34%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	70 fps -35%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs	45.6 (31^min) fps -57%
1366x768 Medium Graphics & Postprocessing
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	67.3 (64^min) fps
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	60.5 (56^min) fps -10%
Average Intel Iris Xe Graphics G7 96EUs (21.4 - 74.1, n=180)	53.4 fps -21%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	52 (40^min) fps -23%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	50.1 (54^min) fps -26%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	47 fps -30%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	47 fps -30%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7, NVIDIA GeForce MX350	46.5 fps -31%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	45.9 (24^min, 42^P1) fps -32%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	45.9 (39^min) fps -32%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs	32.1 (27^min) fps -52%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.3 (21^min) fps -65%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	40 fps +14%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	35 (31^min) fps
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	32.7 (29^min) fps -7%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	32.3 (27^min) fps -8%
Average Intel Iris Xe Graphics G7 96EUs (10.6 - 45.9, n=185)	28.6 fps -18%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	28.4 (25^min) fps -19%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7, NVIDIA GeForce MX350	27.4 fps -22%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	26 fps -26%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	23 fps -34%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	19.7 (17^min) fps -44%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	18.5 fps -47%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs	18.3 (15^min) fps -48%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	23 (19^min, 22^P1) fps +52%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7, NVIDIA GeForce MX350	15.8 (14^min, 14^P1) fps +5%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.2 (14^min) fps +1%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	15.1 (13^min) fps 0%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	15.1 (14^min) fps
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	14.8 (14^min) fps -2%
Average Intel Iris Xe Graphics G7 96EUs (8.79 - 20.1, n=175)	14 fps -7%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps -9%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	13 fps -14%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	12.6 (10^min) fps -17%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	11 fps -27%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	10.8 (9^min, 9^P1) fps -28%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs	9.53 (7^min) fps -37%

Dota 2 Reborn
1280x720 min (0/3) fastest
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	127 (112.6^min) fps +20%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	121.7 (97.1^min) fps +15%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	117.8 (92.7^min) fps +11%
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7, NVIDIA GeForce MX350	116 (97.7^min) fps +9%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	111.2 (95.4^min) fps +5%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	106.1 (84.5^min) fps
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	101 (86.7^min) fps -5%
Average Intel Iris Xe Graphics G7 96EUs (36 - 148, n=207)	100 fps -6%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	97.4 (77.3^min) fps -8%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	95.8 (69.8^min) fps -10%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	93.7 (82^min) fps -12%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs	87.8 (77.5^min) fps -17%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	76.3 (46.8^min) fps -28%
1366x768 med (1/3)
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7, NVIDIA GeForce MX350	112 (98^min) fps +47%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	96.9 (79.9^min) fps +28%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	92.2 (73.2^min) fps +21%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.3 (73.5^min) fps +19%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	77.2 (61.6^min) fps +2%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	76 (58.6^min) fps
Average Intel Iris Xe Graphics G7 96EUs (31.6 - 108.5, n=207)	75.5 fps -1%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	74.4 (61.8^min) fps -2%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	73.7 (59.2^min) fps -3%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	71.1 (54.1^min) fps -6%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	67.7 (48.2^min) fps -11%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	65 (49.8^min) fps -14%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs	63.9 (50.4^min) fps -16%
1920x1080 high (2/3)
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7, NVIDIA GeForce MX350	84.8 (76.4^min) fps +53%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	72.3 (62.7^min) fps +30%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	68.1 (61.5^min) fps +22%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	62.6 (57.1^min) fps +13%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	57 (47.8^min) fps +3%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	55.6 (48.8^min) fps
Average Intel Iris Xe Graphics G7 96EUs (23.2 - 88.1, n=207)	53.8 fps -3%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	51.8 (42^min) fps -7%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	47.1 (40^min) fps -15%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.7 (40.4^min) fps -18%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	44 (30.8^min) fps -21%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs	40.6 (36.5^min) fps -27%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	39.9 (34^min) fps -28%
1920x1080 ultra (3/3) best looking
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7, NVIDIA GeForce MX350	76.9 (66.4^min) fps +57%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	62.7 (53.2^min) fps +28%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	62.4 (55.5^min) fps +27%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	57.7 (51.4^min) fps +18%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	50.9 (42.5^min) fps +4%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	49.9 (42.9^min) fps +2%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	49 (42.7^min) fps
Average Intel Iris Xe Graphics G7 96EUs (20.6 - 78.5, n=207)	49 fps 0%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	43.4 (38.6^min) fps -11%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	41.3 (33.3^min) fps -16%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	39.2 (32^min) fps -20%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs	36.1 (31.3^min) fps -26%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	35.8 (24.2^min) fps -27%

X-Plane 11.11
1280x720 low (fps_test=1)
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7, NVIDIA GeForce MX350	77.8 fps +101%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	62.6 fps +61%
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	46.9 fps +21%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	44.2 fps +14%
Average Intel Iris Xe Graphics G7 96EUs (13.4 - 88.4, n=207)	41.3 fps +6%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	40.4 fps +4%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	38.8 fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 fps -2%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	37.3 fps -4%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	34.8 fps -10%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	28.8 fps -26%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	25.2 fps -35%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs	17.1 fps -56%
1920x1080 med (fps_test=2)
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7, NVIDIA GeForce MX350	65.1 fps +63%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	45.9 fps +15%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	41.1 fps +3%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	40.9 fps +3%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	39.9 fps
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	39.7 fps -1%
Average Intel Iris Xe Graphics G7 96EUs (11.6 - 69.5, n=208)	35.2 fps -12%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	34.7 fps -13%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	30.8 fps -23%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	29.3 fps -27%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	28.6 fps -28%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	25 fps -37%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs	15.1 fps -62%
1920x1080 high (fps_test=3)
Lenovo Yoga Slim 7-14IIL05 Intel Core i7-1065G7, NVIDIA GeForce MX350	59.1 fps +67%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	41.3 fps +17%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	36.2 fps +2%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	35.4 fps
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	33.6 fps -5%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	31.6 fps -11%
Average Intel Iris Xe Graphics G7 96EUs (11.1 - 59.8, n=207)	31.6 fps -11%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	31.2 fps -12%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27 fps -24%
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	26.7 fps -25%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	26.5 fps -25%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	23 fps -35%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs	14.2 fps -60%

Strange Brigade
1280x720 lowest AF:1
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	125.1 (80.9^min, 106.8^P1) fps +42%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	117.7 (76.6^min, 100.9^P1) fps +34%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.2 (20.4^min, 32.1^P1) fps +2%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	89 (19.4^min, 28.4^P1) fps +1%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	88.1 (19.9^min, 28.2^P1) fps
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	84.9 (19.1^min, 27.4^P1) fps -4%
Average Intel Iris Xe Graphics G7 96EUs (48.5 - 107.3, n=161)	84.6 fps -4%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	80.1 (16.4^min, 29.2^P1) fps -9%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	74.1 (52.5^min, 62.9^P1) fps -16%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	61.8 (14.1^min, 21.4^P1) fps -30%
1920x1080 medium AA:medium AF:4
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	54.7 (25.4^min, 48.7^P1) fps +33%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	41 (16.2^min, 21.3^P1) fps
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	40.8 (14.1^min, 22.7^P1) fps 0%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	39.6 (14.6^min, 21.7^P1) fps -3%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	39.3 (14.9^min, 21.4^P1) fps -4%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	38.6 (30.6^min, 33^P1) fps -6%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	36.6 (18.9^min, 20^P1) fps -11%
Average Intel Iris Xe Graphics G7 96EUs (18.2 - 48.3, n=159)	36.4 fps -11%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.9 (20.7^min, 25.2^P1) fps -30%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	27.8 (11.5^min, 15.8^P1) fps -32%
1920x1080 high AA:high AF:8
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	46.6 (33.8^min, 36.4^P1) fps +46%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	32.7 (22.1^min, 25.2^P1) fps +2%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	32.6 (16.7^min, 18.3^P1) fps +2%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	32.4 (8.5^min, 17.9^P1) fps +1%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	32 (15.5^min, 17.5^P1) fps
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	31.4 (11.3^min, 17.1^P1) fps -2%
Average Intel Iris Xe Graphics G7 96EUs (15.4 - 38.1, n=158)	29.2 fps -9%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	28.6 (7.5^min, 14.5^P1) fps -11%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.3 (17^min, 18.8^P1) fps -24%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	22.2 (9.2^min, 12.1^P1) fps -31%
1920x1080 ultra AA:ultra AF:16
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	40.2 (17.3^min, 27.4^P1) fps +60%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	26.2 (8.5^min, 9.77^P1) fps +4%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	26.1 (7^min, 9.02^P1) fps +4%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	25.5 (17.2^min, 19.7^P1) fps +2%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25.4 (6.6^min, 8.78^P1) fps +1%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	25.1 (6.7^min, 9.19^P1) fps
Average Intel Iris Xe Graphics G7 96EUs (13.2 - 30.8, n=156)	23.6 fps -6%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	23.2 (5^min, 5.95^P1) fps -8%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20.7 (13.6^min, 15.6^P1) fps -18%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	18.1 (5.1^min, 6.22^P1) fps -28%

GTA V
1024x768 Lowest Settings possible
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	136.1 (7.35^min, 90.9^P1) fps +40%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	128.8 (7.88^min, 83.3^P1) fps +33%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	117.5 (15.6^min, 76.9^P1) fps +21%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	113.9 (22.5^min, 66.7^P1) fps +17%
Average Intel Iris Xe Graphics G7 96EUs (52 - 157, n=155)	97.5 fps 0%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	97.2 (15.3^min, 58.8^P1) fps
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.6 (14.9^min, 55.6^P1) fps -7%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	88.7 (15.2^min, 50^P1) fps -9%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	69 (10.9^min, 40^P1) fps -29%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	64.5 (10.3^min, 37^P1) fps -34%
1920x1080 Lowest Settings possible
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	91.4 (16^min, 58.8^P1) fps +24%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	86.4 (7.97^min, 52.6^P1) fps +17%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	80.6 (13.7^min, 55.6^P1) fps +10%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	74.9 (13.6^min, 52.6^P1) fps +2%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	73.6 (14.1^min, 50^P1) fps
Average Intel Iris Xe Graphics G7 96EUs (34.7 - 115.4, n=129)	72.7 fps -1%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	64.1 (14^min, 41.7^P1) fps -13%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (7.44^min, 40^P1) fps -24%
1366x768 Normal/Off AF:4x
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	120.4 (8.21^min, 76.9^P1) fps +46%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	100.9 (23.5^min, 62.5^P1) fps +23%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	99.7 (7.3^min, 58.8^P1) fps +21%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	96.9 (20.1^min, 66.7^P1) fps +18%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	82.3 (14.3^min, 52.6^P1) fps
Average Intel Iris Xe Graphics G7 96EUs (24.1 - 137, n=158)	82.2 fps 0%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	79.2 (14.8^min, 50^P1) fps -4%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	67 (12.7^min, 37^P1) fps -19%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	55.5 (9.55^min, 37^P1) fps -33%
1920x1080 Normal/Off AF:4x
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	80.8 (23.8^min, 47.6^P1) fps +24%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	78.8 (6.45^min, 50^P1) fps +21%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	70.4 (5.38^min, 47.6^P1) fps +8%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	66.4 (14^min, 40^P1) fps +2%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	65 (14.4^min, 41.7^P1) fps
Average Intel Iris Xe Graphics G7 96EUs (20 - 109, n=130)	64.2 fps -1%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	59.9 (13.4^min, 37^P1) fps -8%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	57.4 (7.36^min, 38.5^P1) fps -12%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	47 (6.64^min, 31.3^P1) fps +115%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	31.2 (3.51^min, 23.3^P1) fps +42%
Dell Inspiron 13 7306-6TYH5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	25 (5.07^min, 18.5^P1) fps +14%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.5 (3.65^min, 17.5^P1) fps +12%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	24 (8.72^min, 18.2^P1) fps +10%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	23.3 (7.35^min, 16.7^P1) fps +6%
Average Intel Iris Xe Graphics G7 96EUs (9.39 - 51.6, n=150)	22.7 fps +4%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	21.9 (6.92^min, 15.6^P1) fps
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	20 (7.33^min, 15.6^P1) fps -9%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	16.9 (3.83^min, 10.2^P1) fps -23%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	21.3 (3.35^min, 14.5^P1) fps +116%
Lenovo ThinkPad Z13 21D2CTO1WW AMD Ryzen 5 PRO 6650U, AMD Radeon 660M	14.1 (2.34^min, 10.9^P1) fps +43%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	10.3 (4.39^min, 6.58^P1) fps +5%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	10.2 (3.63^min, 6.9^P1) fps +4%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	9.84 (3.22^min, 7.69^P1) fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9.82 (2.64^min, 6.8^P1) fps 0%
Average Intel Iris Xe Graphics G7 96EUs (4.13 - 22.9, n=144)	9.47 fps -4%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	8.36 (3.96^min, 5.62^P1) fps -15%
Dynabook Portégé X30L-K-139 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	7.61 (1.936^min, 4.76^P1) fps -23%

Cyberpunk 2077 1.6
1920x1080 Low Preset
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	32 fps +75%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	22.6 (14.7^min) fps +23%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	21.9 (15.6^min) fps +20%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	19.8 (12.9^min) fps +8%
Average Intel Iris Xe Graphics G7 96EUs (13 - 25.9, n=42)	19 fps +4%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	18.3 (11.4^min) fps
1920x1080 Medium Preset
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	24 fps +49%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	18.6 (12.1^min) fps +16%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	18.5 (13.9^min) fps +15%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	16.8 (12.4^min) fps +4%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	16.1 (11.5^min) fps
Average Intel Iris Xe Graphics G7 96EUs (10.8 - 21.7, n=37)	16.1 fps 0%
1920x1080 High Preset
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	18 fps +46%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	14.2 (9.8^min) fps +15%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	13.7 (10.6^min) fps +11%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	12.8 (9.7^min) fps +4%
Average Intel Iris Xe Graphics G7 96EUs (9.8 - 16.9, n=34)	12.7 fps +3%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	12.3 (8.7^min) fps
1920x1080 Ultra Preset
Asus Zenbook S 13 OLED AMD Ryzen 7 6800U, AMD Radeon 680M	14 fps +47%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	11.2 (8^min) fps +18%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	11.2 (7.7^min) fps +18%
Average Intel Iris Xe Graphics G7 96EUs (7.4 - 16.8, n=32)	10.6 fps +12%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	10.2 (6.9^min) fps +7%
Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	9.5 (6.3^min) fps

Witcher 3 FPS Chart

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P: Ø82.4 (69-107)

	low	med.	high	ultra
GTA V (2015)	97.2	82.3	21.9	9.84
The Witcher 3 (2015)	107.2	67.3	35	15.1
Dota 2 Reborn (2015)	106.1	76	55.6	49
Final Fantasy XV Benchmark (2018)	35.8	20.7	20.7
X-Plane 11.11 (2018)	38.8	39.9	35.4
Strange Brigade (2018)	88.1	41	32	25.1
Cyberpunk 2077 1.6 (2022)	18.3	16.1	12.3	9.5

排放

系统噪音

风扇噪音与联想Vantage的三个电源配置文件有关。安静、平衡或智能冷却和最佳性能。即使在默认的智能冷却模式下，系统也比预期的要安静。例如，当运行3DMark 06的第一个基准场景时，内部风扇在整个场景中保持非常安静，就像我们在Dragonfly G3上看到的那样。蜻蜓G3或MateBook X Pro在类似条件下观察到的情况。然而，当设置为最佳性能时，当运行更高的负载（如游戏）时，预计风扇的脉冲会更频繁，最高可达40 dB(A)。否则，我们建议在大多数情况下坚持使用智能冷却。

值得注意的是，我们的测试设备在桌面上空转时，会出现电子噪音或线圈啸叫。当运行3DMark 06时，噪音会暂时消失，这就解释了为什么我们在运行基准测试时的噪音测量值低于我们在桌面上空转时的噪音测量值（23.9对23.3 dB（A））。

风扇噪音曲线（白色。背景，红色。系统空闲，蓝色：3DMark 06，橙色。Witcher 3，绿色。Prime95压力)

Noise Level

Idle		23.9 / 23.9 / 23.9 dB(A)
Load		23.3 / 40.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.3 dB(A)

	Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Iris Xe G7 96EUs, i7-1280P, Kioxia BG5 KBG5AZNT1T02	Lenovo ThinkPad X1 Nano-20UN002UGE Iris Xe G7 96EUs, i7-1160G7, WDC PC SN530 SDBPNPZ-512G	HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe	Framework Laptop 13.5 12th Gen Intel Iris Xe G7 96EUs, i7-1260P, WDC PC SN730 SDBPNTY-512G	Huawei MateBook X Pro 2021 Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
Noise		-11%	6%	-8%	-18%	-3%
off / environment *	23.3	24.9 -7%	22.8 2%	23.4 -0%	22.8 2%	25.4 -9%
Idle Minimum *	23.9	24.9 -4%	23.2 3%	23.4 2%	23 4%	25.6 -7%
Idle Average *	23.9	26.3 -10%	23.2 3%	23.4 2%	23 4%	25.6 -7%
Idle Maximum *	23.9	31.8 -33%	23.2 3%	23.4 2%	23 4%	25.6 -7%
Load Average *	23.3	34.3 -47%	25.1 -8%	37.8 -62%	47.3 -103%	28.7 -23%
Witcher 3 ultra *	40.9	34.3 16%	32 22%	39.2 4%	47.3 -16%	32 22%
Load Maximum *	40.9	37.5 8%	35.2 14%	43 -5%	49.8 -22%	38.2 7%

* ... smaller is better

温度

事实上，底部的热点更冷，只有40摄氏度，而去年的型号是48摄氏度，可能是由于上面提到的陡峭的性能节流。正如下面的温度图所示，预计键盘的左半部分总是比右半部分更热，因为CPU位于机箱的左侧。

Max. Load

Idle


42.4 °C	42.4 °C	36 °C
38.4 °C	38 °C	34 °C
30.2 °C	27.8 °C	29.2 °C

Maximum: 42.4 °C
Average: 35.4 °C


39.6 °C	39.4 °C	40.2 °C
36.6 °C	37.6 °C	37.2 °C
30.8 °C	30.6 °C	30.4 °C

Maximum: 40.2 °C
Average: 35.8 °C

Power Supply (max.) 42 °C | Room Temperature 23 °C | Fluke 62 Mini IR Thermometer

(±) The average temperature for the upper side under maximal load is 35.4 °C / 96 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 42.4 °C / 108 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 40.2 °C / 104 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.2 °C / 86.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-1.9 °C / -3.5 F).

	Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P Intel Core i7-1280P, Intel Iris Xe Graphics G7 96EUs	Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs	HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	Dell Latitude 13 7330 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	Huawei MateBook X Pro 2021 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Heat		1%	2%	8%	4%	-7%
Maximum Upper Side *	42.4	42.2 -0%	39 8%	38.6 9%	36.8 13%	42.2 -0%
Maximum Bottom *	40.2	47.5 -18%	42.2 -5%	42 -4%	42.4 -5%	40.4 -0%
Idle Upper Side *	27.8	24.3 13%	26.8 4%	23.8 14%	24.2 13%	31.2 -12%
Idle Bottom *	27.8	25.3 9%	28.2 -1%	24.6 12%	29 -4%	32.2 -16%

* ... smaller is better

压力测试

当在Prime95下受压时，CPU时钟速率和板卡功耗将分别飙升至3GHz和64W。然而，温度也会飙升到惊人的97摄氏度，因此这种最大的涡轮增压最多只能持续几秒钟，然后时钟频率和电路板功耗就会分别下降到1.3GHz和23W，核心温度也会略微降低到85摄氏度。框架笔记本电脑装备的i7-1260P CPU上进行同样的测试，将导致更高的稳定时钟速率，相比之下，约为2.5 GHz。

运行时的GPU时钟速率和温度 Witcher 3将分别稳定在948兆赫和69摄氏度，而上述Framework则为1396兆赫和83摄氏度。

如果用电池供电运行，性能不会降低。在电池上进行的3DMark 11测试将分别返回物理和图形分数13122和6668分，而在主电源上则为11415和6937分。

	CPU时钟（GHz）	GPU时钟（MHz）	CPU平均温度（°C）
系统空闲	--	--	44
Prime95压力	1.3	--	85
Prime95 + FurMark 压力	0.7	399	71
Witcher 3 应力	~0.5	948	69

发言人

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P audio analysis

(+) | speakers can play relatively loud (86.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.4% lower than median
(±) | linearity of bass is average (8.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(±) | linearity of mids is average (7.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(+) | highs are linear (3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.8% difference to median)
Compared to same class
» 15% of all tested devices in this class were better, 3% similar, 82% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 9% of all tested devices were better, 2% similar, 89% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook Pro 16 2021 M1 Pro audio analysis

(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理

消耗功率

该系统通常比其他13英寸的副笔记本要求更高，因为它是少数配备酷睿P系列CPU的产品之一。仅仅在桌面上空转就会消耗3W到15W，而 HP Dragonfly G3, Latitude 7330或原来的ThinkPad X1 Nano在类似条件下的最高功率仅为7W或9W。

在运行要求更高的负载时，功耗差异甚至进一步扩大。3DMark 06或 Witcher 3例如，需要44瓦至55瓦，明显高于上述惠普、戴尔或原始X1 Nano。酷睿i7-1280P CPU可能更快，但它肯定是有代价的。

我们能够从小型（约8.7 x 5.2 x 2.2厘米）的65瓦交流适配器中记录到65.4瓦的临时最大耗电，然后就开始节流了，如下图所示。

在启动Prime95时，消耗量跃升至65瓦，持续约10秒，然后由于系统的涡轮增压潜力有限而降至仅37瓦。

Power Consumption

Off / Standby	0.26 / 0.59 Watt
Idle	3.4 / 6.5 / 14.4 Watt
Load	54.5 / 65.4 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P i7-1280P, Iris Xe G7 96EUs, Kioxia BG5 KBG5AZNT1T02, IPS, 2160x1350, 13.00	Lenovo ThinkPad X1 Nano-20UN002UGE i7-1160G7, Iris Xe G7 96EUs, WDC PC SN530 SDBPNPZ-512G, IPS, 2160x1350, 13.00	HP Elite Dragonfly G3 i7-1265U, Iris Xe G7 96EUs, Micron 3400 MTFDKBA512TFH 512GB, IPS, 1920x1280, 13.50	Dell Latitude 13 7330 i7-1265U, Iris Xe G7 96EUs, Toshiba KBG40ZNS512G NVMe, IPS, 1920x1080, 13.30	Framework Laptop 13.5 12th Gen Intel i7-1260P, Iris Xe G7 96EUs, WDC PC SN730 SDBPNTY-512G, IPS, 2256x1504, 13.50	Huawei MateBook X Pro 2021 i7-1165G7, Iris Xe G7 96EUs, Samsung PM981a MZVLB1T0HBLR, IPS, 3000x2000, 13.90
Power Consumption		25%	16%	21%	-11%	-11%
Idle Minimum *	3.4	3.3 3%	3.4 -0%	2.8 18%	5.3 -56%	6.7 -97%
Idle Average *	6.5	5.7 12%	5.6 14%	4.8 26%	8.4 -29%	10 -54%
Idle Maximum *	14.4	9.1 37%	8.4 42%	7.3 49%	11.2 22%	10.3 28%
Load Average *	54.5	29.6 46%	40.8 25%	48.1 12%	57.4 -5%	35.7 34%
Witcher 3 ultra *	44	27.7 37%	35.5 19%	35.4 20%	46.7 -6%	32.7 26%
Load Maximum *	65.4	55.1 16%	68.4 -5%	63.6 3%	61.2 6%	67.6 -3%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P; Witcher 3 ultra: Ø44 (40.8-63.2)

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P; 1280x720 Prime95 28.10 and Furmark 1.25: Ø39.3 (35.7-65.4)

Power Consumption external Monitor

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P; Prime95 V2810 Stress (external Monitor): Ø40.8 (36.9-65.5)

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P; Cinebench R15 Multi (external Monitor): Ø45.3 (35.8-65.3)

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø38.6 (33.9-62.6)

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P; 1920x1080 The Witcher 3 ultra (external Monitor): Ø36.8 (34.1-39.3)

电池寿命

运行时间比去年的型号短了近一半（！），即使是在平衡电源配置文件上，可能是由于更苛刻的Core P系列CPU。在实际的WLAN使用中只有5个小时，X1 Nano第二代不会像其他大多数副笔记本那样持续很长时间。

Battery Runtime


WiFi Websurfing		5h 03min

	Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P i7-1280P, Iris Xe G7 96EUs, 49.5 Wh	Lenovo ThinkPad X1 Nano-20UN002UGE i7-1160G7, Iris Xe G7 96EUs, 48.2 Wh	HP Elite Dragonfly G3 i7-1265U, Iris Xe G7 96EUs, 68 Wh	Dell Latitude 13 7330 i7-1265U, Iris Xe G7 96EUs, 41 Wh	Framework Laptop 13.5 12th Gen Intel i7-1260P, Iris Xe G7 96EUs, 55 Wh	Huawei MateBook X Pro 2021 i7-1165G7, Iris Xe G7 96EUs, 56 Wh
Battery Runtime		97%	133%	64%	48%	108%
WiFi v1.3	303	596 97%	706 133%	497 64%	447 48%	629 108%
H.264		925
Load		98	209	84		182
Reader / Idle			2268	1314		1167

Pros

+ 比第1代型号的CPU快得多

+ 可选的5G Sub 6广域网支持

+ 升级的Wi-Fi 6E支持

+ 升级后的200万像素网络摄像头

+ <1公斤的重量

Cons

- 陡峭的CPU性能节流

- 基础1年保修

- 指纹磁铁

- 电池寿命较短

- 只有USB-C接口

结论 - 一个轻量级的短跑运动员，但不是一个马拉松选手

ThinkPad X1 Nano第二代是一个完美的例子，说明当你把原本设计为运行15W CPU的笔记本电脑上的15W CPU换成28W CPU时会发生什么。你会看到更快的性能，但由于冷却解决方案的限制，这种性能提升只能是短时间内的。因此，该系统在短时间内的高性能可以派上用场，如启动应用程序、偶尔的图片编辑或解压缩小文件时，处于最佳状态。然而，如果你打算使用笔记本电脑进行持续时间较长的CPU密集型工作，那么这里的CPU可能没有你所希望的那么快。请记住，这是迄今为止大多数（如果不是所有）超轻（<1公斤）笔记本电脑的一个共同缺点，如蜻蜓G3, Latitude 7330, 或LG Gram.

另一个需要考虑的重要方面是，电池寿命被大幅削减，因为尽管采用了更新、更耗电的CPU，但电池容量基本没有变化。因此，你可能需要在旅行时更注意充电。

不可否认，ThinkPad X1 Nano第2代比原来的第1代机型更快，但这是以缩短运行时间和潜在性能节流为代价的。

尽管CPU的Turbo Boost可持续性有限，X1 Nano第二代仍然是一个比旧的第一代型号快得多的系统，而不需要改变任何关于机箱、显示器或重量的东西。希望最大限度地提高处理器性能的用户可能要考虑更重的笔记本电脑，并有更强的冷却解决方案，如 ThinkPad T系列而不是。

Download your licensed rating image as SVG / PNG

价格和可用性

ThinkPad X1 Nano Gen 2现已通过经销商广泛发售，例如：Amazon 和Newegg 如果配置Core i5和FHD显示器，价格为1700美元，如果配置Core i7和2K显示器，价格为2300美元。另外，用户可以直接从联想购买https://www.lenovo.com/us/en/p/laptops/thinkpad/thinkpadx1/thinkpad-x1-nano-gen-2-(13-inch-intel)/len101t0008?org.

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P - 2022-09-04 09/04/2022 v7
Allen Ngo

Chassis

91 / 98 → 93%

Keyboard

87%

Pointing Device

89%

Connectivity

65 / 75 → 86%

Weight

76 / 20-75 → 100%

Battery

64%

Display

88%

Games Performance

72 / 78 → 92%

Application Performance

94 / 85 → 100%

Temperature

92%

Noise

96%

Audio

83 / 91 → 92%

Camera

39 / 85 → 46%

Average

80%

89%

Subnotebook - Weighted Average

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5193 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 389876 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想ThinkPad X1 Nano第二代回顾。史上最小的X1笔记本电脑

Allen Ngo, 2022-09- 6 (Update: 2022-09- 6)

联想ThinkPad X1 Nano第二代回顾。史上最小的X1笔记本电脑

潜在的竞争对手比较

案例

尺寸比较

沟通

网络摄像头

维护

配件和保修

显示

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

业绩

测试条件

处理器

Cinebench R15 Multi Loop

系统性能

DPC延时

存储设备

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU性能

Witcher 3 FPS Chart

排放

系统噪音

温度

压力测试

发言人

Lenovo ThinkPad X1 Nano Gen 2 Core i7-1280P audio analysis

Apple MacBook Pro 16 2021 M1 Pro audio analysis

能源管理

消耗功率

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

电池寿命

Pros

Cons

结论 - 一个轻量级的短跑运动员，但不是一个马拉松选手

价格和可用性

More articles related to this device

Pricecompare
