联想ThinkPad Z16 G1笔记本电脑评论。强大的AMD旗舰机，有一个小插曲

高级问题案例。

高质量，高性能，甚至相对高效地使用目前的AMD Ryzen CPU和Radeon显卡--有什么可能出错呢？事实上，有很多。但实际上，联想ThinkPad Z16 G1只有一个问题，给我们的测试评估带来了困难。
AMD Business Laptop / Notebook Zen Ryzen (Zen) Radeon ThinkPad Windows

ThinkPad和AMD--这种组合已经很久没有出现过了。然而，在过去的几年里，这种情况肯定会发生变化，现在，联想ThinkPad Z系列达到了高潮，这是第一个采用Ryzen芯片的高端系列。在今年年初，联想宣布了两种型号和尺寸。我们已经能够测试较小的联想ThinkPad Z13，现在又有了16英寸大显示屏的机型，即联想ThinkPad Z16。

Z13显然将重点放在移动性上，而Z16则针对多媒体领域，应该与笔记本电脑竞争，如戴尔XPS 15 和Apple MacBook Pro 16 ，甚至与联想ThinkPad X1 Extreme ，这是目前联想针对多媒体客户的顶级产品。

Lenovo ThinkPad Z16 G1 21D5S00T00 (ThinkPad Z16 Series)
Processor
AMD Ryzen 7 PRO 6850H 8 x 3.2 - 4.7 GHz, 65 W PL2 / Short Burst, 47 W PL1 / Sustained, Rembrandt-H (Zen 3+)
Graphics adapter
AMD Radeon RX 6500M - 4 GB VRAM, Core: 2433 MHz, RAM: 2000 MHz, 55 W TDP, Navi 24, Adrenalin 21.40.64, Switchable Graphics

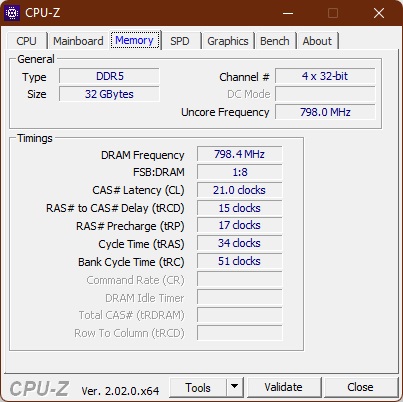

Memory
32 GB
, LPDDR5-6400, on-board, quad-channel
Display
16.00 inch 16:10, 1920 x 1200 pixel 142 PPI, NE160WUM-N62 , IPS LED, glossy: no
Mainboard
AMD Promontory/Bixby FCH
Storage
Samsung PM9A1 MZVL21T0HCLR, 1024 GB
, M.2 2280, NVMe PCIe 4.0, 893 GB free
Soundcard
Realtek ALC3306
Connections
1 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 3 DisplayPort, Audio Connections: 3.5 mm audio port, Card Reader: SD card, 1 Fingerprint Reader
Networking
Qualcomm WCN685x (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.1, Quectel EM05-G, LTE, GPS
Size
height x width x depth (in mm): 15.8 x 354.4 x 237.4
Battery
72 Wh Lithium-Polymer
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 1080p w/eShutter & IR
Additional features
Speakers: 2 Watt stereo, 135 W USB-C charger, Lenovo Commercial Vantage, 36 Months Warranty
Weight
1.887 kg, Power Supply: 541 g
Price
2450 Euro
Links
Lenovo homepage
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Price
87.3 %
v7 (old)
10 / 2022
Lenovo ThinkPad Z16 G1 21D5S00T00
R7 PRO 6850H, Radeon RX 6500M		1.9 kg15.8 mm16.00"1920x1200
89 %
v7 (old)
11 / 2021
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
i7-11800H, GeForce RTX 3050 Ti Laptop GPU		2 kg18.2 mm16.00"3840x2400
88.3 %
v7 (old)
12 / 2021
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
i9-11950H, GeForce RTX 3080 Laptop GPU		1.9 kg18.2 mm16.00"3840x2400
89.5 %
v7 (old)
05 / 2022
Dell XPS 15 9520 RTX 3050 Ti
i7-12700H, GeForce RTX 3050 Ti Laptop GPU		1.9 kg18 mm15.60"3456x2160
89.3 %
v7 (old)
06 / 2022
Dell XPS 17 9720
i7-12700H, GeForce RTX 3050 4GB Laptop GPU		2.5 kg19.5 mm17.00"3840x2400
93.2 %
v7 (old)
11 / 2021
Apple MacBook Pro 16 2021 M1 Pro
M1 Pro, M1 Pro 16-Core GPU		2.2 kg16.8 mm16.20"3456x2234
92.5 %
v7 (old)
11 / 2021
Apple MacBook Pro 16 2021 M1 Max
M1 Max, M1 Max 32-Core GPU		2.2 kg16.8 mm16.20"3456x2234

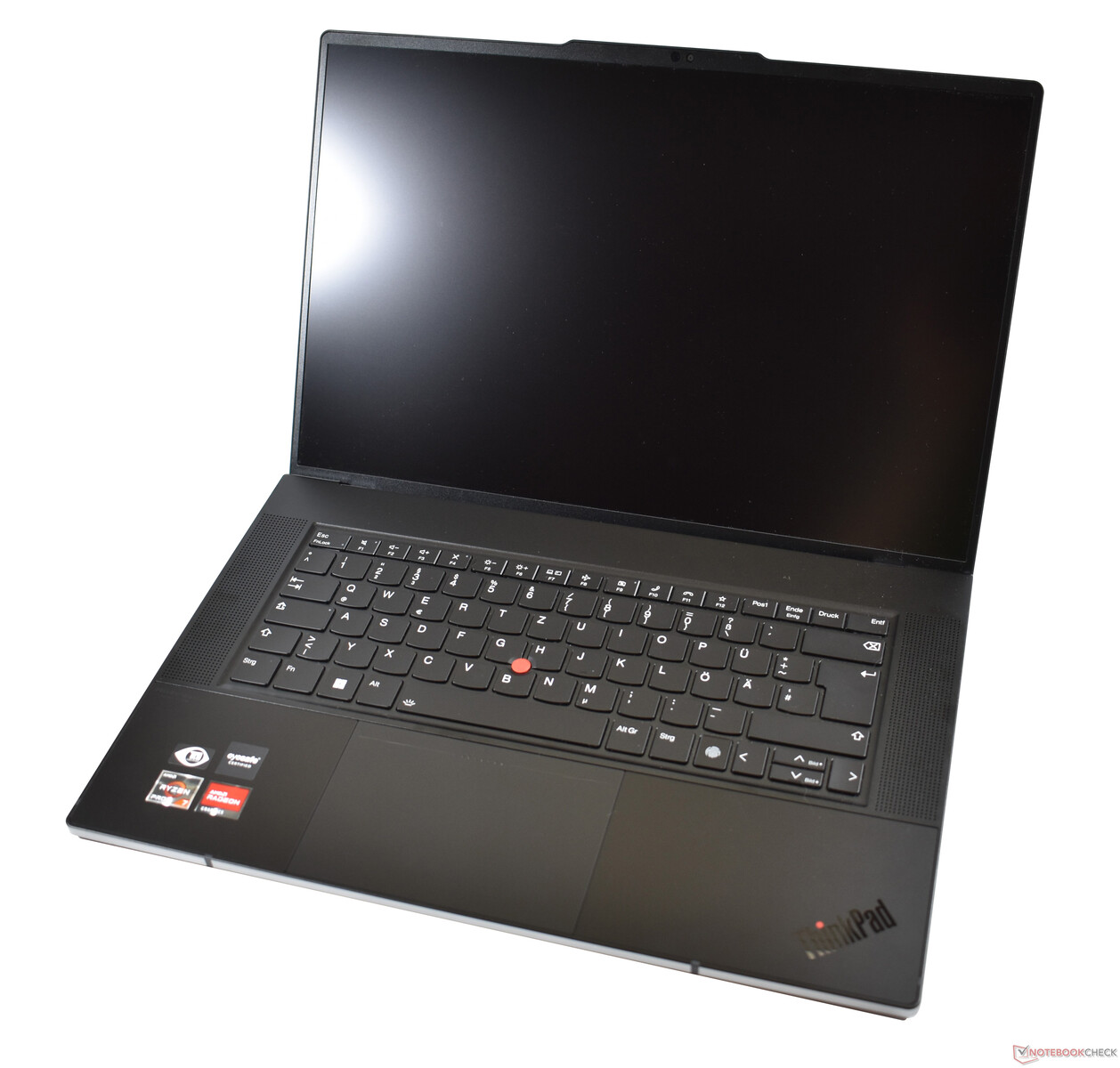

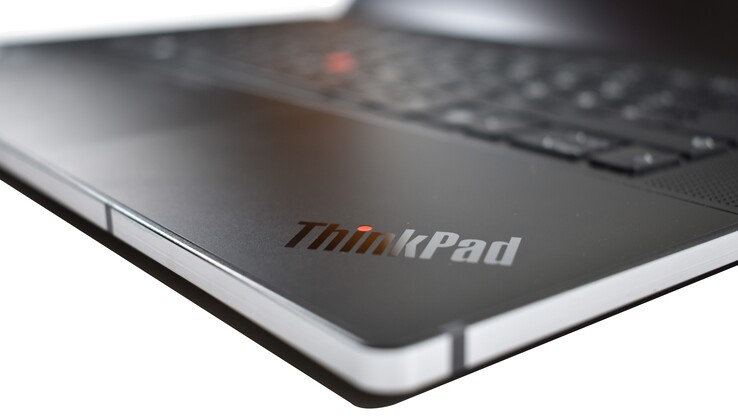

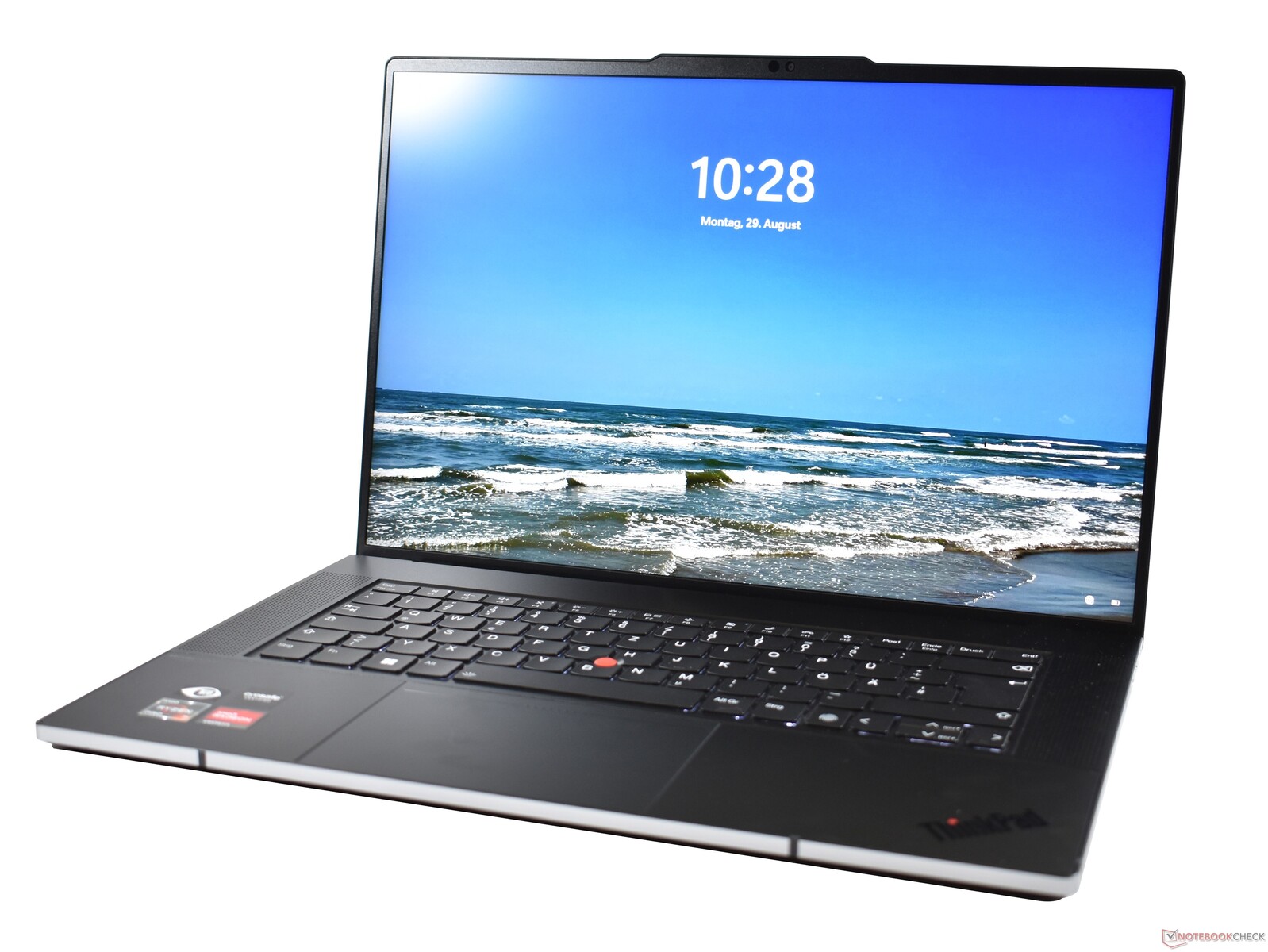

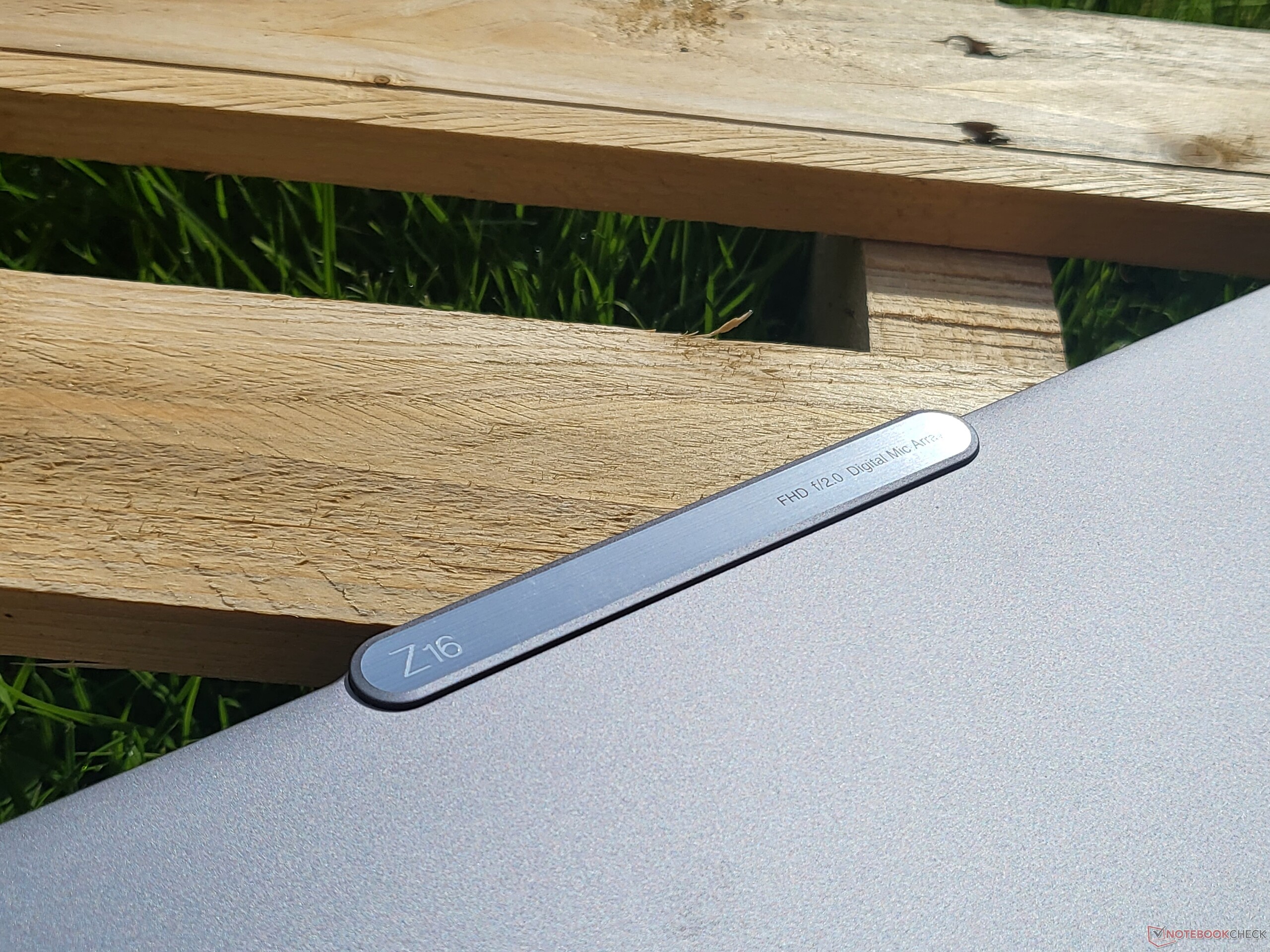

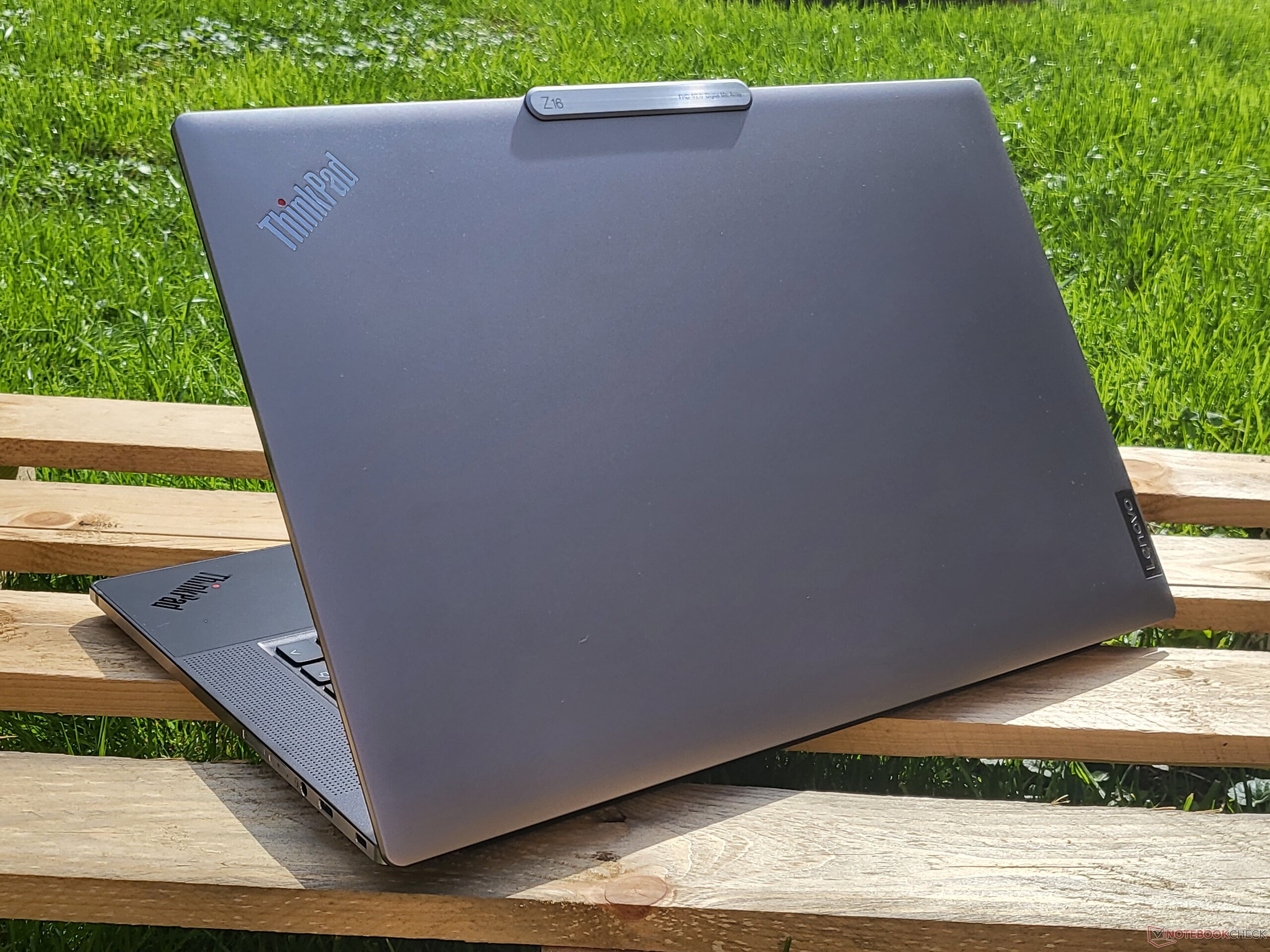

一个紧凑的铝制外壳。联想ThinkPad Z16 G1

联想ThinkPad Z16第一代
联想ThinkPad Z16第一代

与成熟的ThinkPad X1 Extreme系列相比，最大的区别在于设计。虽然 X1 Extreme使用了经典的ThinkPad属性，而ThinkPad Z16的外观则更接近于笔记本市场的主流。它的大触摸板、长方形键盘和银色显示盖，看起来像是XPS或MacBook和ThinkPad之间的混合体。当然联想也会放置自己的点缀，比如说显示盖上的摄像头凸起，用来提升盖子也非常实用。这可以用一只手轻松完成，但只能达到约135度的开启角度。180度，像其他ThinkPads一样，在这里是不可能的。

在材料的选择上，联想也采取了与X1系列不同的路径。显示屏盖由银色铝制成，键盘框架是阳极氧化黑色，底部是黑色漆面。只有显示屏框架是由塑料制成的。另一个有趣的特点是掌托，因为它们是由哑光玻璃制成的。这为Z16创造了一些触觉，比X1 Extreme高一个级别，但这也可能是一个品味问题。至少，Z16肯定会在油腻的表面上有更少的问题。机箱的稳定性也达到了很高的水平，但自然，薄薄的显示屏盖子比底座要弱一些。

ThinkPad Z16是我们比较中最紧凑的16英寸笔记本电脑。戴尔 戴尔XPS 15更小，但它 "只 "提供了一个15.6英寸的LCD。在厚度方面，Z16也是领先的，因为它比其他所有竞争对手都要薄。就其重量而言，所有竞争对手都非常接近。

尺寸比较

❌
374.5 mm 249 mm 19.5 mm 2.5 kg359.5 mm 253.8 mm 18.2 mm 2 kg355.7 mm 248.1 mm 16.8 mm 2.2 kg354.4 mm 237.4 mm 15.8 mm 1.9 kg345 mm 230 mm 18 mm 1.9 kg297 mm 210 mm 1 mm 5.7 g

设备。联想集团，端口选择稀少

连接设备与戴尔XPS 15 9520相同，这使得它成为我们测试领域中最弱的设备之一。 在这一点上，Z16明显落后于ThinkPad X1 Extreme。 ThinkPad X1 Extreme，甚至是 Apple MacBook Pro 16至少提供了HDMI。

与英特尔笔记本电脑相比，AMD没有Thunderbolt 4。另一方面，ThinkPad Z16包括USB 4，它提供与Thunderbolt 3相同的功能。然而，与Thunderbolt配件的兼容性并不保证，必须单独确定。

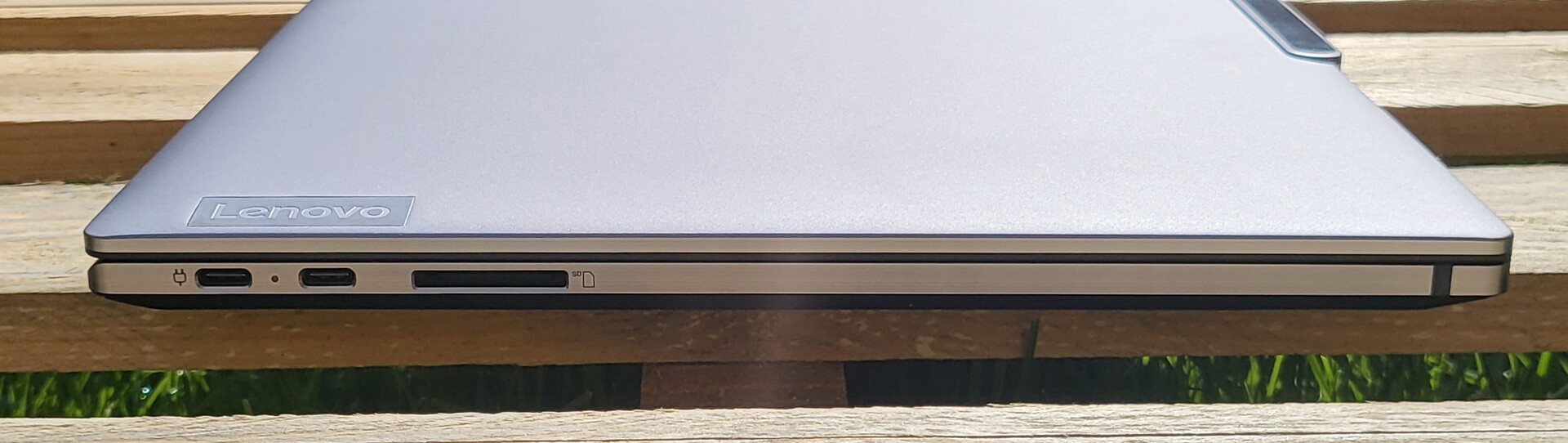

左侧：2个USB 4，SD卡
左侧：2个USB 4，SD卡

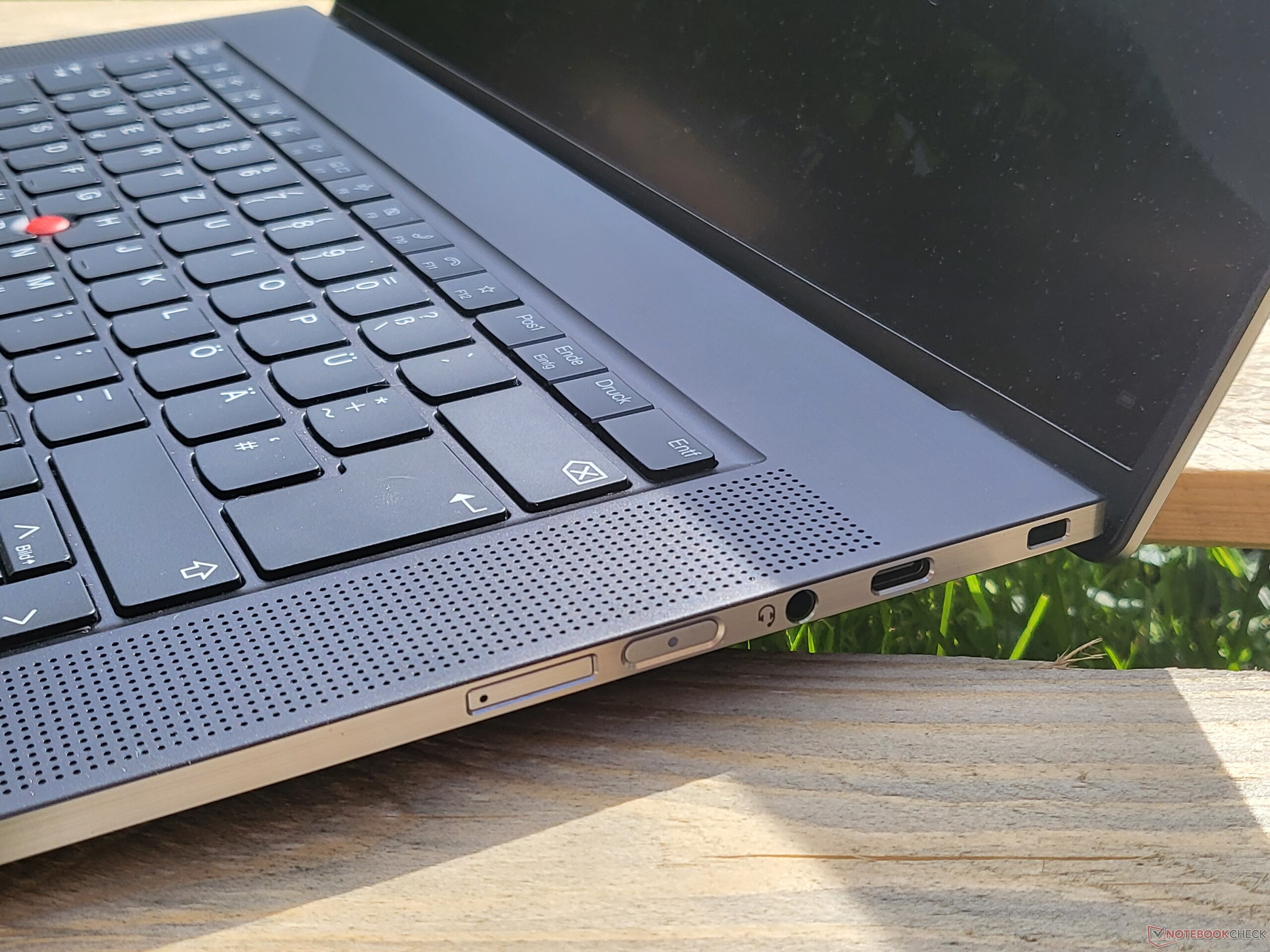

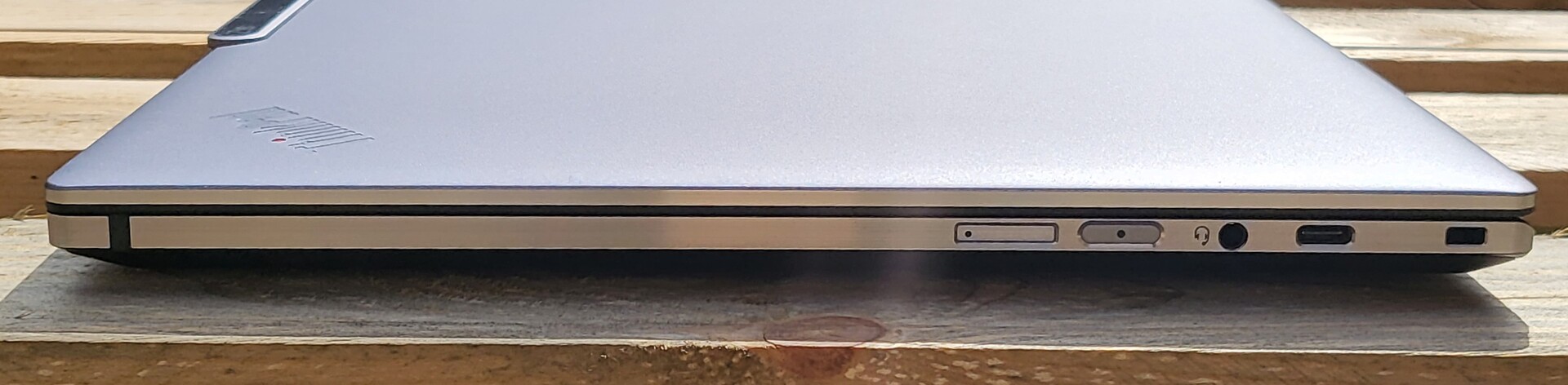

右侧。SIM卡、3.5毫米音频、USB C 3.2 Gen 1、Kensington锁
右侧。SIM卡、3.5毫米音频、USB C 3.2 Gen 1、Kensington锁

SD卡阅读器

联想ThinkPad Z16 G1包括一个全尺寸的SD读卡器，但SD卡不能完全插入。读卡器的速度非常快，尤其是在读取数据时。我们用我们的128-GB AV Pro microSD参考卡对此进行了测试。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell XPS 17 9720
Intel Core i7-12700H (Toshiba Exceria Pro SDXC 64 GB UHS-II)
198 MB/s +99%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H (AV Pro V60)
172.4 MB/s +73%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H (Toshiba Exceria Pro SDXC 64 GB UHS-II)
172.1 MB/s +73%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro (Angelbird AV Pro V60)
121 MB/s +22%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
99.55 MB/s
Average of class Multimedia
  (18.4 - 201, n=53, last 2 years)
98.8 MB/s -1%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
256.53 MB/s
Dell XPS 17 9720
Intel Core i7-12700H (Toshiba Exceria Pro SDXC 64 GB UHS-II)
195.7 MB/s -24%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H (Toshiba Exceria Pro SDXC 64 GB UHS-II)
178.5 MB/s -30%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H (AV Pro V60)
175.1 MB/s -32%
Average of class Multimedia
  (25.8 - 266, n=53, last 2 years)
142.8 MB/s -44%

沟通

联想将内置的高通WCN685x（2x2）标记为 "高通NFA-725A"。它是一个Wi-Fi 6E卡。通过一些细微的变化，ThinkPad Z16使用这种Wi-Fi模块取得了非常好的效果。

我们的测试装置还包括一个来自Quectel的4G模块。如果你需要WWAN，它必须已经包含在你的订单中，因为你不能在以后安装它。


Networking
Lenovo ThinkPad Z16 G1 21D5S00T00
Qualcomm WCN685x
iperf3 receive AXE11000 6GHz
1771 (min: 1738) MBit/s ∼100%
iperf3 receive AXE11000
1740 (min: 1591) MBit/s ∼100%
iperf3 transmit AXE11000 6GHz
1822 (min: 1515) MBit/s ∼100%
iperf3 transmit AXE11000
1490 (min: 666) MBit/s ∼100%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Wi-Fi 6E AX210
iperf3 transmit AX12
955 (min: 771) MBit/s ∼100%
iperf3 receive AX12
1315 (min: 1034) MBit/s ∼100%
Dell XPS 15 9520 RTX 3050 Ti
Intel Wi-Fi 6E AX211
iperf3 receive AXE11000
1289 (min: 1159) MBit/s ∼74%
iperf3 transmit AXE11000
833 (min: 660) MBit/s ∼56%
Dell XPS 17 9720
Intel Wi-Fi 6E AX211
iperf3 receive AXE11000
1630 (min: 1597) MBit/s ∼94%
iperf3 transmit AXE11000
1367 (min: 1038) MBit/s ∼92%
Apple MacBook Pro 16 2021 M1 Pro
802.11 a/b/g/n/ac/ax
iperf3 transmit AX12
772 (min: 748) MBit/s ∼81%
iperf3 receive AX12
760 (min: 404) MBit/s ∼58%
iperf3 receive AXE11000
874 (min: 522) MBit/s ∼50%
iperf3 transmit AXE11000
766 (min: 698) MBit/s ∼51%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650170017501800185019001950Tooltip
Lenovo ThinkPad Z16 G1 21D5S00T00; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1822 (1515-1951)
Lenovo ThinkPad Z16 G1 21D5S00T00; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1770 (1738-1792)

网络摄像头

联想在设计上给网络摄像头很大的空间，1080p的摄像头对于笔记本电脑来说也是比较好的。然而，仍有很大的改进空间，智能手机中的自拍器还是要好得多。

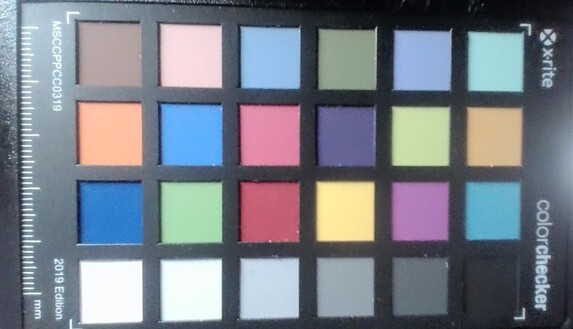

ColorChecker
32.2 ∆E
20.4 ∆E
22.2 ∆E
22.4 ∆E
17.2 ∆E
14.2 ∆E
20.1 ∆E
30.9 ∆E
17.6 ∆E
14.4 ∆E
14.9 ∆E
14 ∆E
25.4 ∆E
24.7 ∆E
15.9 ∆E
13 ∆E
12.4 ∆E
15.9 ∆E
2 ∆E
11.7 ∆E
16.9 ∆E
17 ∆E
11.8 ∆E
4.5 ∆E
ColorChecker Lenovo ThinkPad Z16 G1 21D5S00T00: 17.16 ∆E min: 2.01 - max: 32.19 ∆E

安全问题

除了dTMP，联想ThinkPad Z16还包括键盘上的指纹识别器、用于Windows Hello的红外摄像头和Kensington锁。不包括的是智能卡读卡器和物理网络摄像头快门，但你可以通过按F9键来关闭摄像头的电子功能。

辅料

除了带有USB-C接口的135瓦充电器外，没有包括其他配件。

维护

联想使接触ThinkPad Z16第一代的内部非常容易。 在卸下五颗飞利浦螺丝后，你可以直接拆下后盖。不幸的是，升级的选择不多，对于这么大的笔记本电脑，ThinkPad Z16的模块化程度一点也不高。内存和Wi-Fi模块是焊接的，而且只有一个M.2-2280插槽。WWAN卡占用了一个M.2-2242插槽。

当然，你可以清洗风扇或更换电池，但在升级选项方面，ThinkPad笔记本电脑显然让我们失望。戴尔的XPS型号和 ThinkPad X1 Extreme的模块化程度都要高得多。

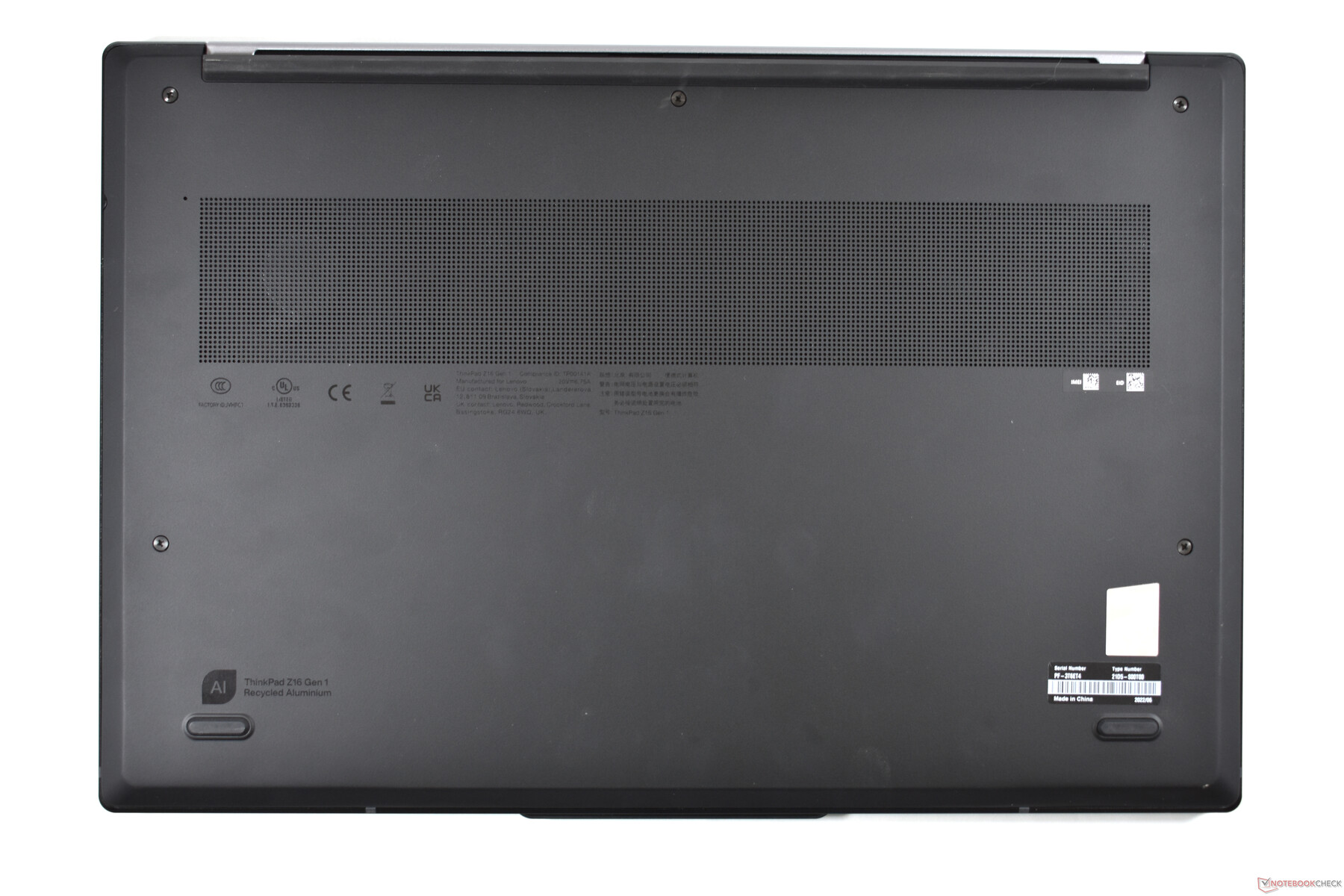

ThinkPad Z16：铝制底部
ThinkPad Z16：铝制底部

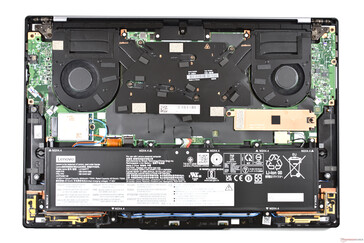

ThinkPad Z16：升级选项很少
ThinkPad Z16：升级选项很少

担保

我们的测试设备是Campuspoint公司的特殊型号，提供非常慷慨的保修方案：36个月的现场服务和 "高级支持"。保修期因国家而异，ThinkPads在美国出售时通常只有一年的保修期。但是，在所有情况下，保修期都可以扩大到五年，还可以通过更换集成电池等服务来升级。此外，Z16还包括作为ThinkPad的国际保修，但在购买国之外没有现场服务。

输入设备。联想ThinkPad中最好的触摸板

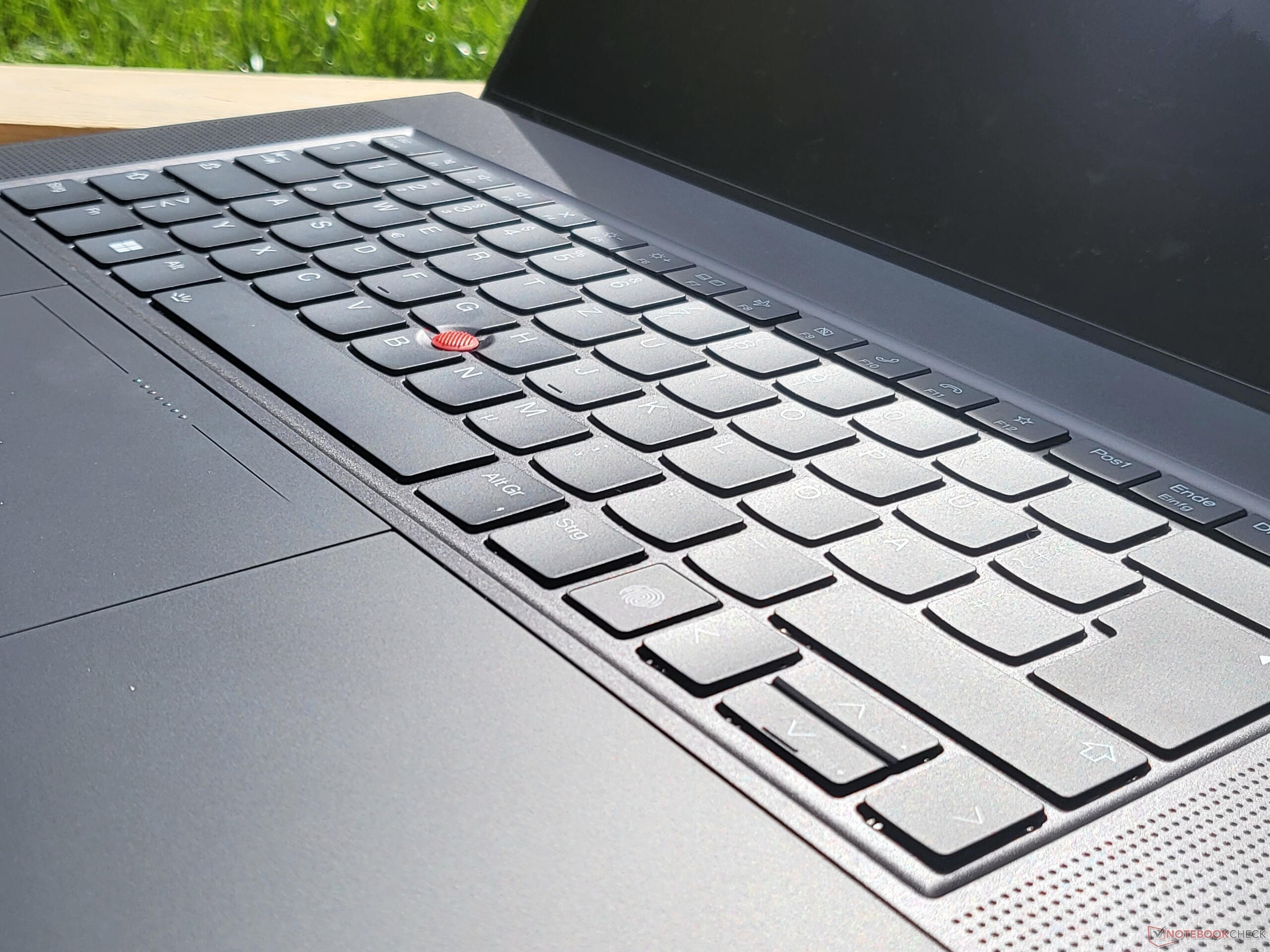

键盘

两级背光键盘也更接近笔记本电脑的主流，外侧的按键不再有ThinkPad典型的U型键形式。联想还将键盘整体强行改为矩形，并取消了ThinkPad惯用的方向键的凹槽。连同这一变化，图像上/下键也被取消。最后，联想还调换了Ctrl和Fn键，现在Ctrl键在外面。

提供的按键行程只有1.35毫米（约0.053英寸），按键又比目前许多其他ThinkPad笔记本电脑的按键更细。例如，X1 Extreme 提供1.5毫米（约0.059英寸）。此外，按键的顶部更平坦。这导致打字体验感觉不那么豪华，也不太符合ThinkPad的特点。然而，与戴尔XPS和MacBook Pro相比，该键盘仍然更好，提供了一个清晰明了的压力点，阻力也恰到好处。在28.5厘米（约11.2英寸）处，键盘也有完整的标准宽度。

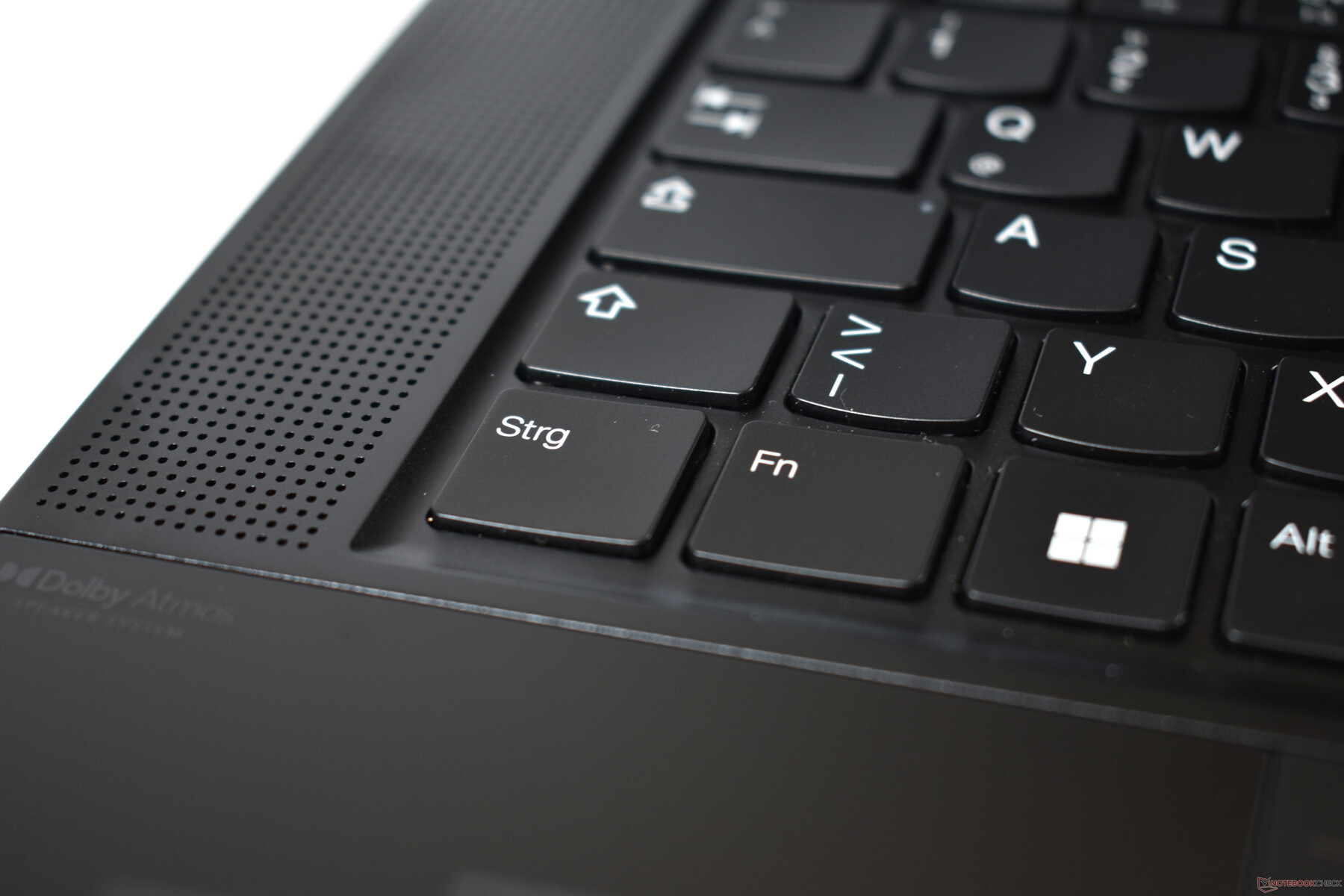

联想将FN键和Ctrl键进行了切换
联想将FN键和Ctrl键进行了切换

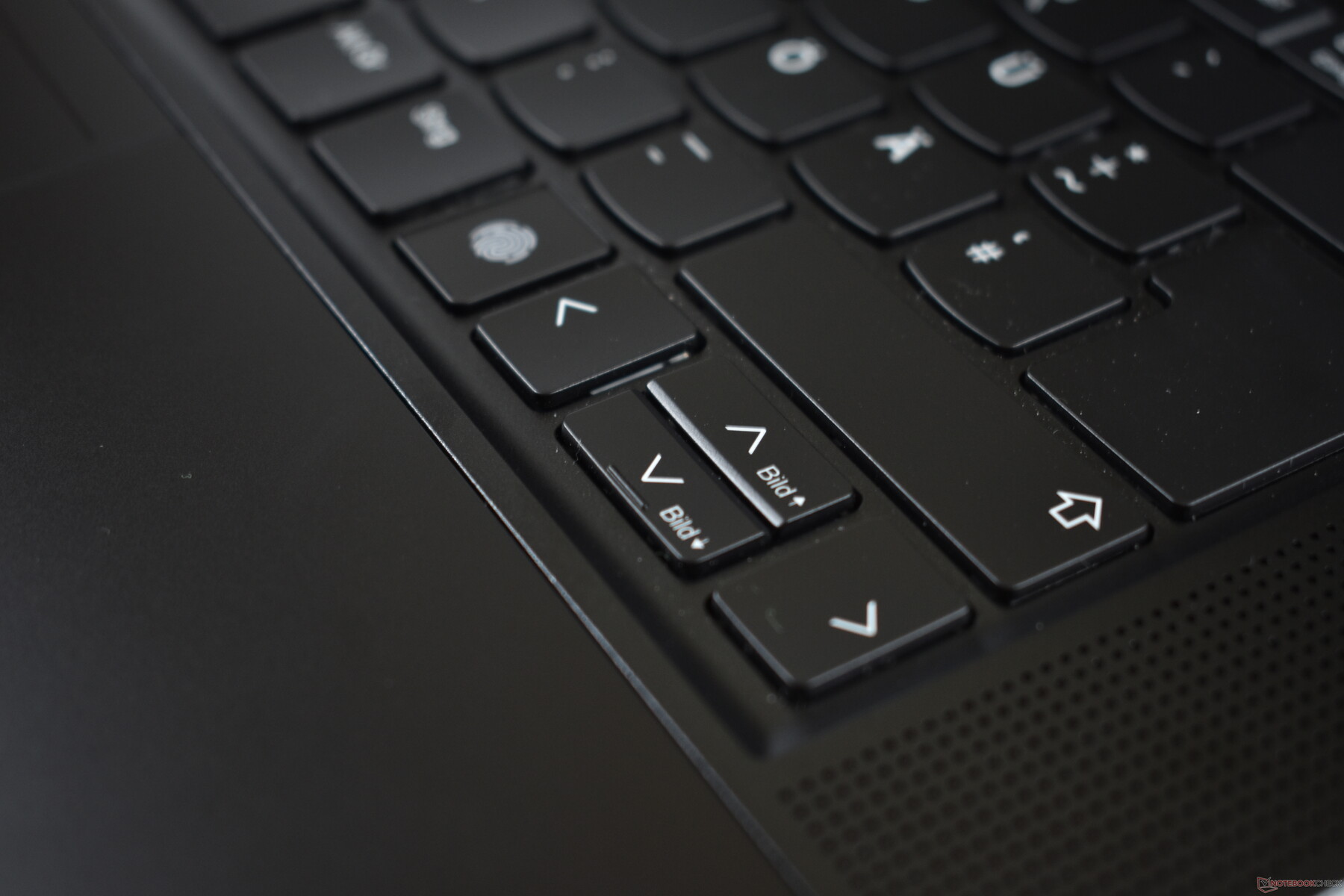

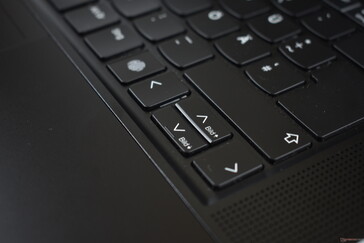

图像向上/向下。仅通过FN
图像向上/向下。仅通过FN

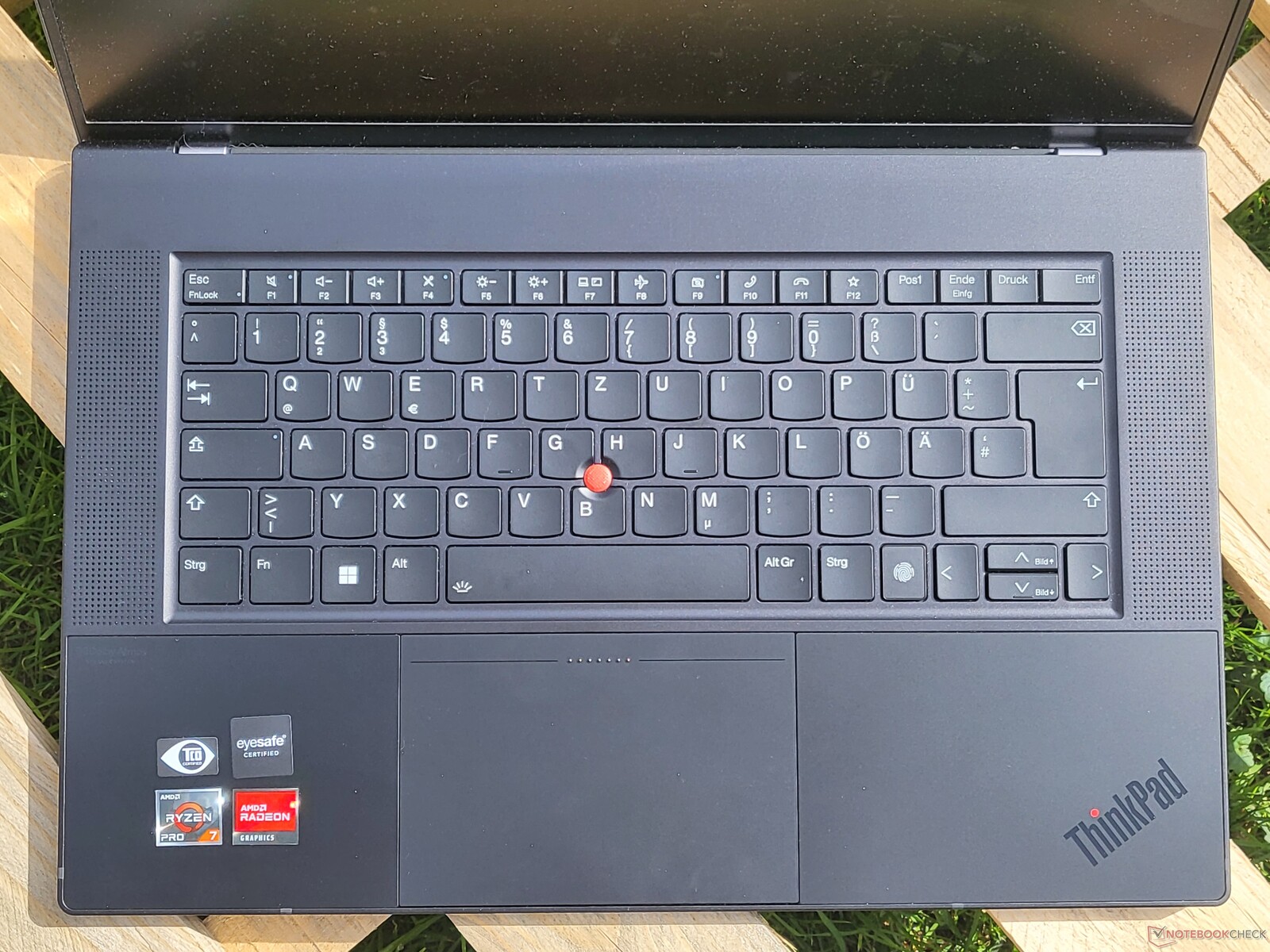

联想ThinkPad Z16：键盘
联想ThinkPad Z16：键盘


TrackPad和TrackPoint

不再多说了。Z16拥有目前所有ThinkPad中最好也是最大的TrackPad（12 x 8厘米）。其表面是由哑光玻璃制成的，就像掌托一样。这具有极高的质量，也确保了理想的滑动特性。ClickPad的触觉电机，模拟真实的点击，也非常好。ClickPad可以在任何地方均匀地点击，与通常的机械式TrackPads相比，你只能在底部区域进行点击。凭借其高质量的触觉、软件实现和宽敞的尺寸，ThinkPad笔记本电脑可以非常舒适地使用触摸板进行操作。

与其他ThinkPad相比，舒适度稍差的是没有任何专用按键的TrackPoint。另一方面，如果你必须在打字时快速移动鼠标光标，TrackPoint仍然是一个不错的选择。在这种触觉解决方案中，集成的TrackPoint键比我们之前想象的要好。

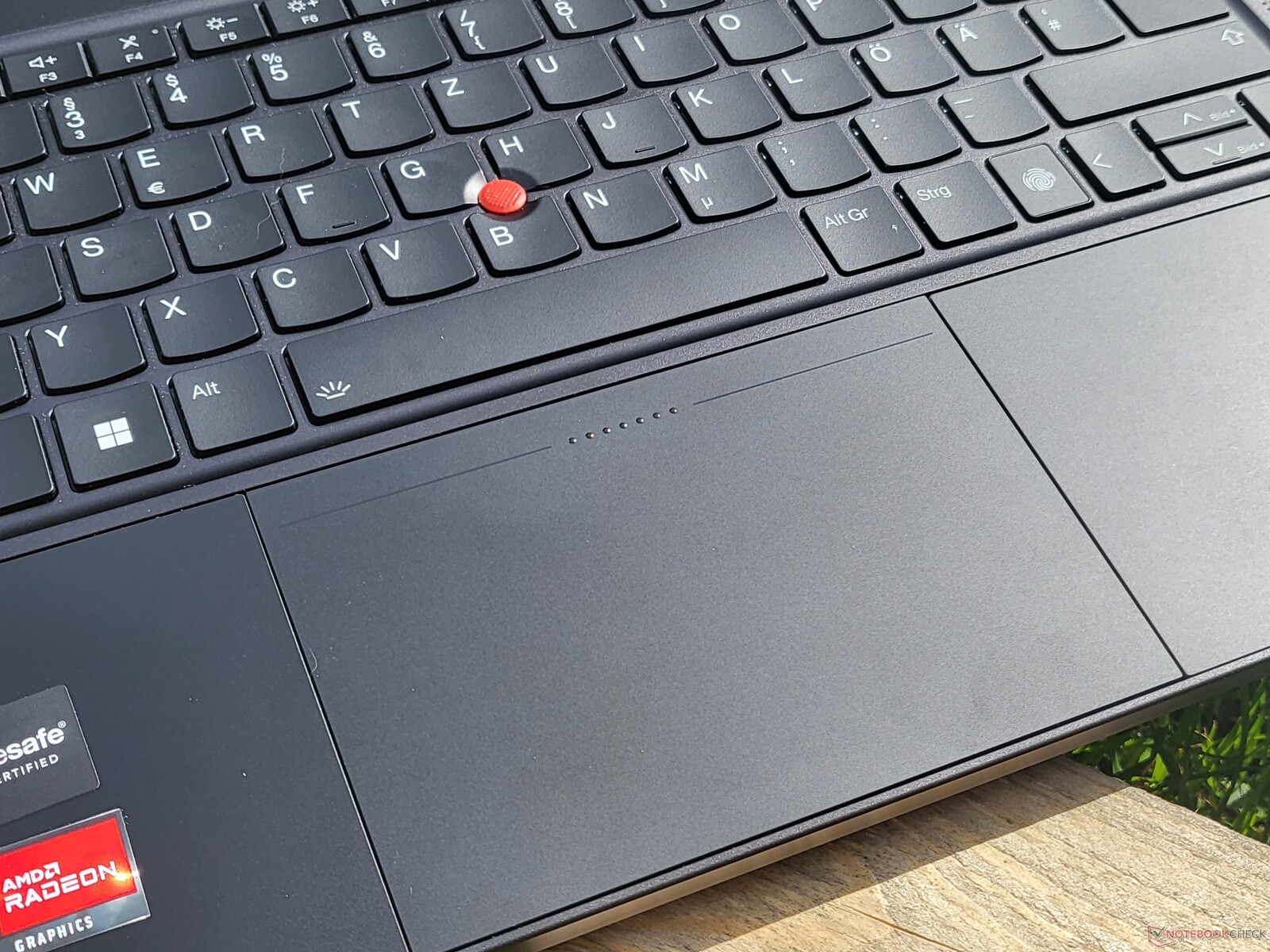

联想ThinkPad Z16: TrackPad
联想ThinkPad Z16: TrackPad

ThinkPad Z16 Gen 1: 哑光的WUXGA显示屏，亮度良好

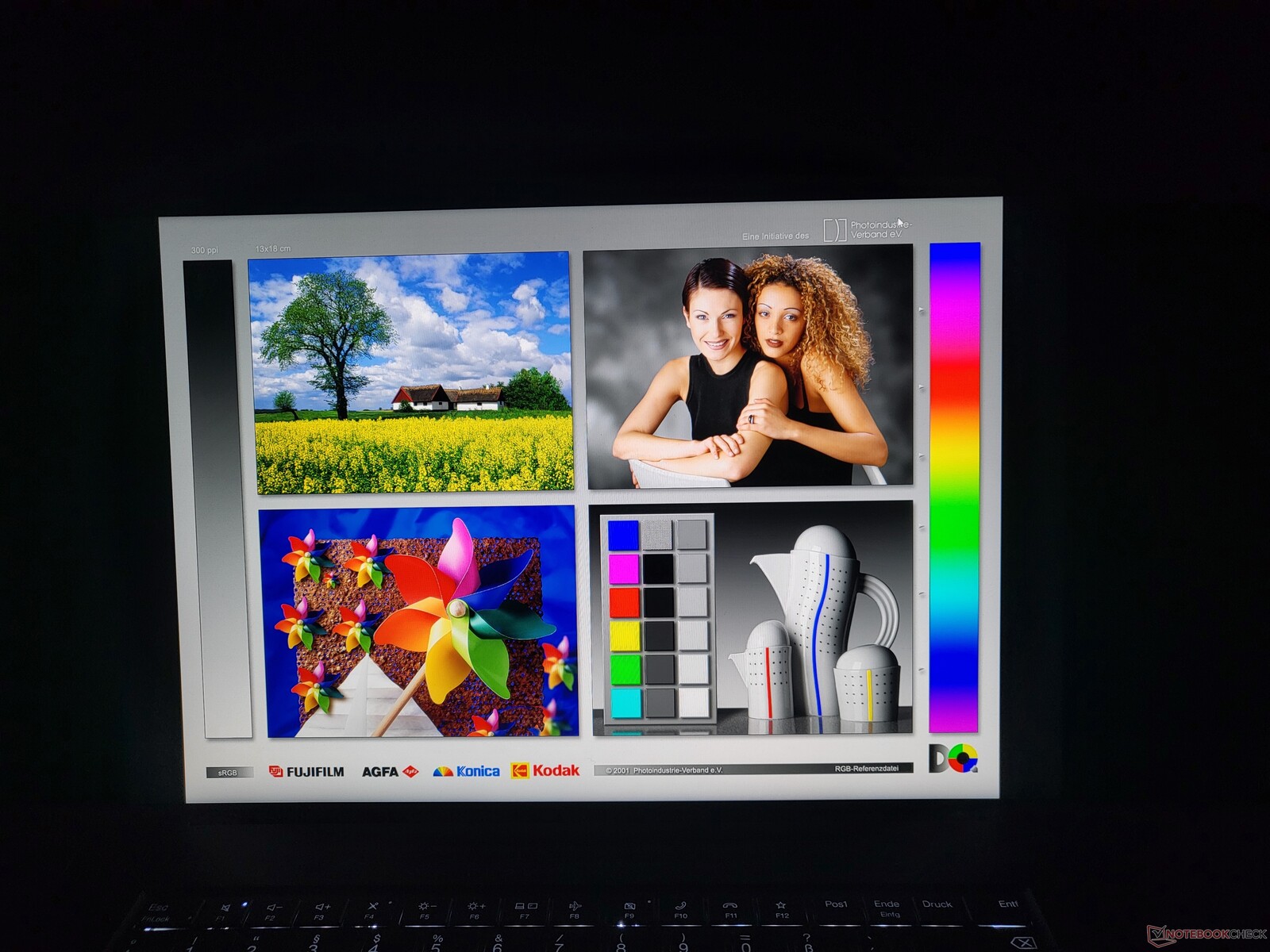

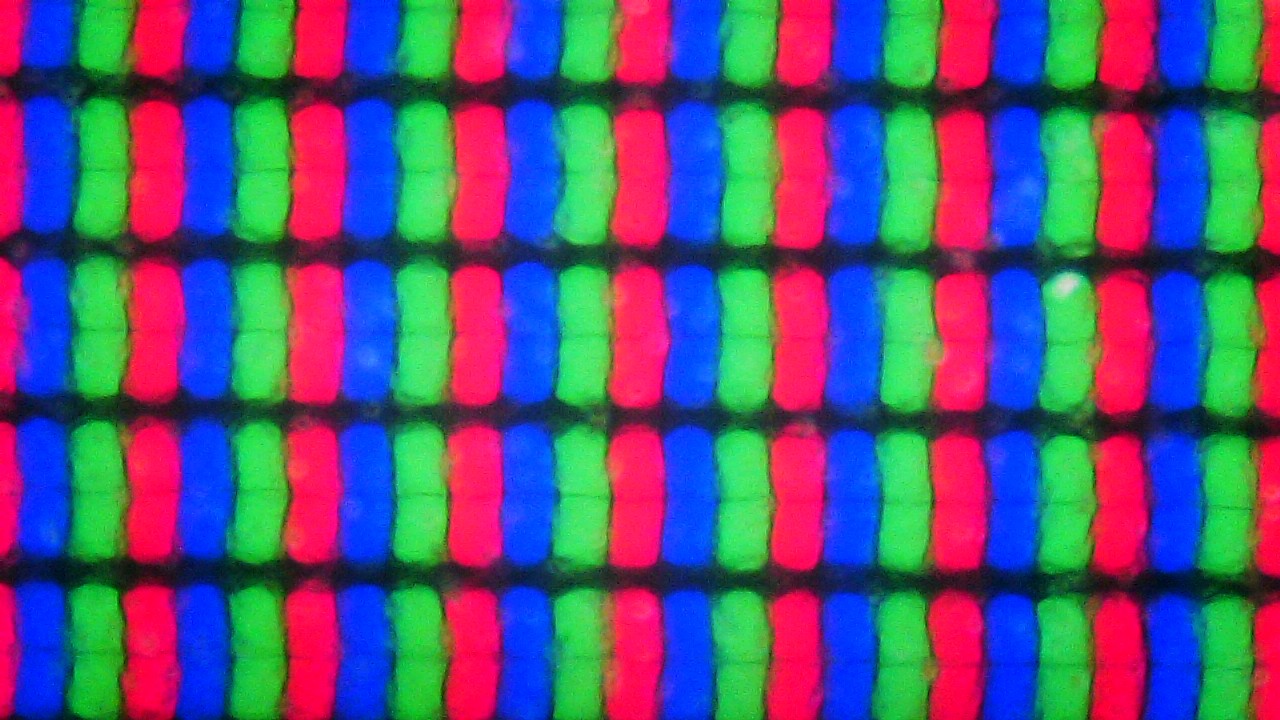

子像素网格 - 联想ThinkPad Z16 Gen 1
子像素网格 - 联想ThinkPad Z16 Gen 1

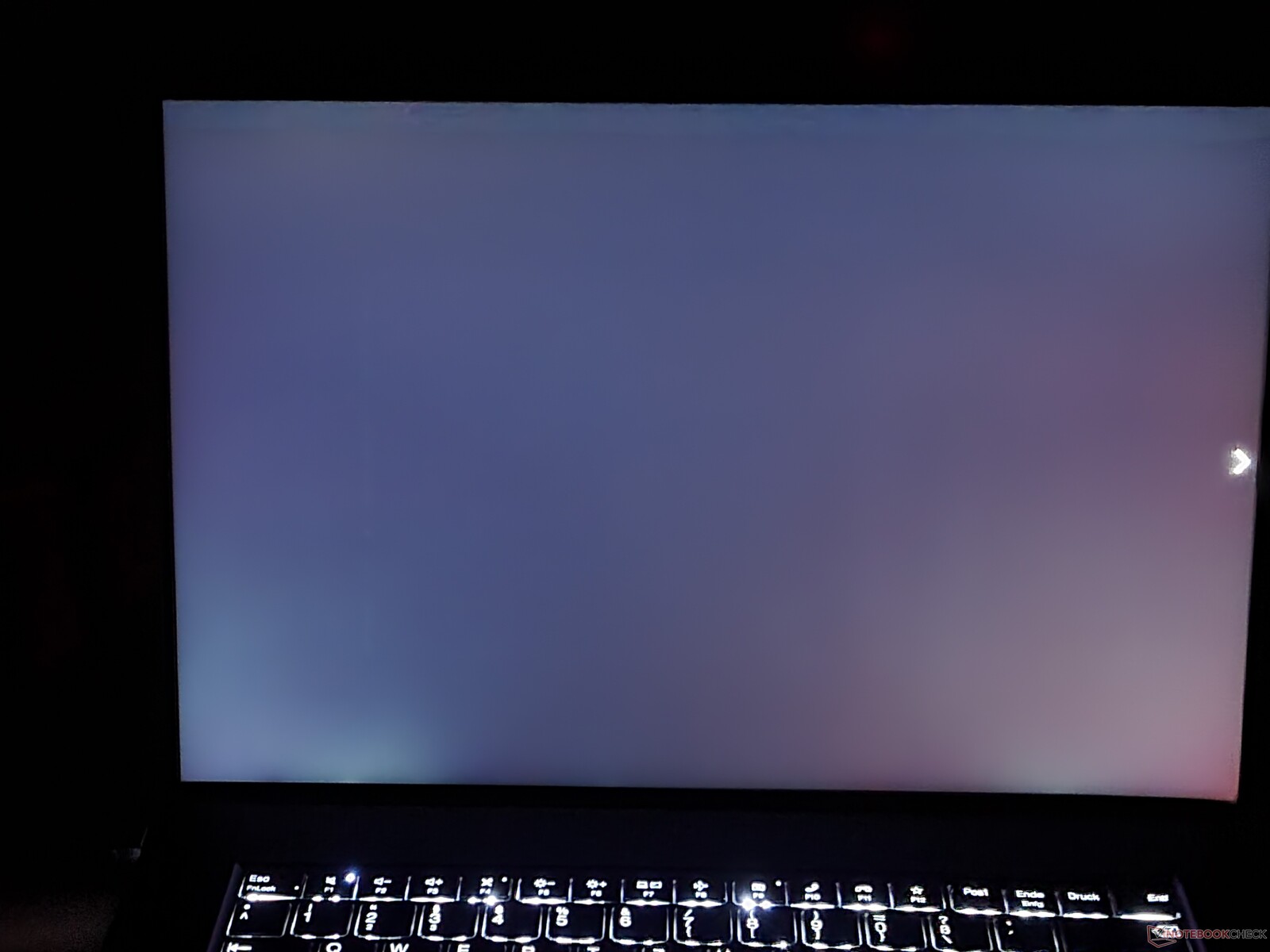

有一点背光出血（这里显示的是放大的）。
有一点背光出血（这里显示的是放大的）。

联想几乎总是为其ThinkPad笔记本电脑提供多种显示屏选择，而联想ThinkPad Z16 Gen 1也不例外。买家可以在以下显示屏中选择，这些显示屏的共同点是16:10格式和16英寸对角线。

  • IPS WUXGA (1,920 x 1,200), 400 cd/m², 哑光, 100% sRGB, 低功率
  • IPS WUXGA (1,920 x 1,200), 400 cd/m², 半光面, 100% sRGB, 低功耗, 触摸屏
  • OLED WQUXGA (3,840 x 2,400), 400 cd/m² (SDR), 半光面, 100% DCI-P3, 触摸, Dolby Vision

与ThinkPad X1 Extreme 相比，突出的是没有2.5K选项（2,560 x 1,600）。用户必须在相当低的分辨率和非常高的分辨率之间进行选择。 在我们的测试装置中，我们有基本选项。这超过了承诺的400cd/m²，因为平均亮度为446cd/m²。

467
cd/m²		452
cd/m²		477
cd/m²
445
cd/m²		487
cd/m²		439
cd/m²
405
cd/m²		437
cd/m²		408
cd/m²
Distribution of brightness
NE160WUM-N62 tested with X-Rite i1Pro 2
Maximum: 487 cd/m² (Nits) Average: 446.3 cd/m² Minimum: 21.14 cd/m²
Brightness Distribution: 83 %
Center on Battery: 487 cd/m²
Contrast: 1571:1 (Black: 0.31 cd/m²)
ΔE Color 1.8 | 0.5-29.43 Ø4.86, calibrated: 0.8
ΔE Greyscale 2.3 | 0.5-98 Ø5.1
72.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.7% sRGB (Argyll 2.2.0 3D)
70% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.16
Lenovo ThinkPad Z16 G1 21D5S00T00
NE160WUM-N62 , IPS LED, 1920x1200, 16"		Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
LP160UQ1-SPB1, IPS LED, 3840x2400, 16"		Dell XPS 15 9520 RTX 3050 Ti
Samsung 156XG01, OLED, 3456x2160, 15.6"		Dell XPS 17 9720
Sharp LQ170R1, IPS, 3840x2400, 17"		Apple MacBook Pro 16 2021 M1 Pro
Liquid Retina XDR, Mini-LED, 3456x2234, 16.2"
Display
18%
20%
25%
21%
Display P3 Coverage
70
84.3
20%
97.8
40%
94.8
35%
99.1
42%
sRGB Coverage
99.7
98.3
-1%
99.9
0%
100
0%
100
0%
AdobeRGB 1998 Coverage
72.1
97.8
36%
86
19%
100
39%
88
22%
Response Times
-59%
94%
-24%
-137%
Response Time Grey 50% / Grey 80% *
40 ?(17, 23)
60 ?(29, 31)
-50%
1.9 ?(1.1, 0.8)
95%
53.2 ?(24.8, 28.4)
-33%
42.8 ?(19.6, 23.2)
-7%
Response Time Black / White *
25 ?(12, 13)
42 ?(23, 19)
-68%
1.9 ?(1.1, 0.8)
92%
28.4 ?(12.8, 15.6)
-14%
91.6 ?(76, 15.6)
-266%

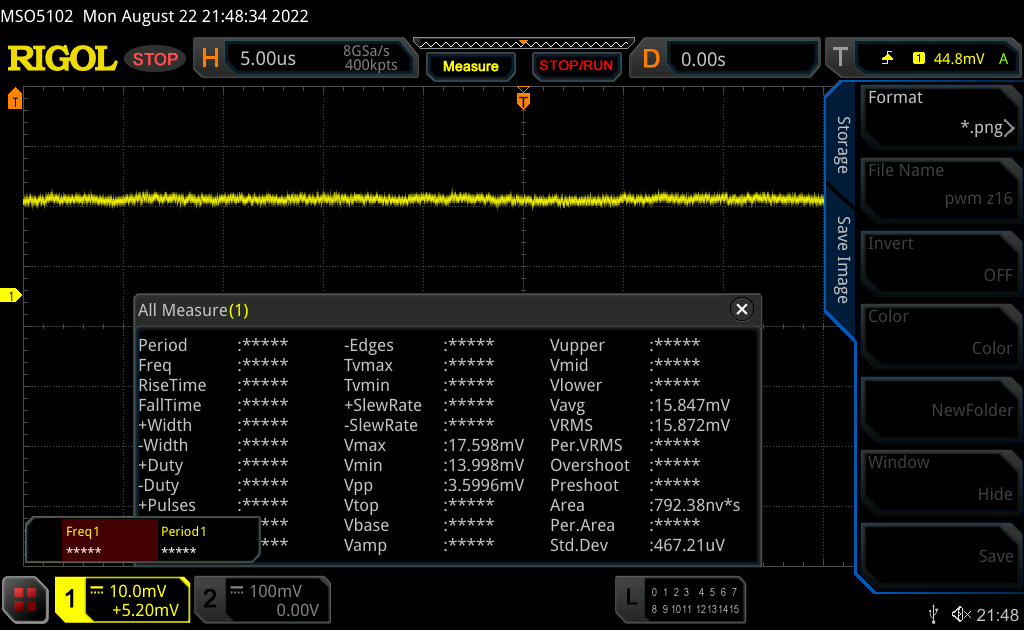

PWM Frequency
59.52 ?(100)
17990 ?(40)
14880
Screen
-14%
-55%
-23%
212%
Brightness middle
487
639
31%
381.4
-22%
438
-10%
514
6%
Brightness
446
612
37%
384
-14%
411
-8%
497
11%
Brightness Distribution
83
84
1%
95
14%
86
4%
95
14%
Black Level *
0.31
0.47
-52%
0.27
13%
0.02
94%
Contrast
1571
1360
-13%
1622
3%
25700
1536%
Colorchecker dE 2000 *
1.8
2.2
-22%
4.34
-141%
2.5
-39%
1.4
22%
Colorchecker dE 2000 max. *
3.3
5.3
-61%
9.24
-180%
6.3
-91%
2.8
15%
Colorchecker dE 2000 calibrated *
0.8
1.4
-75%
0.8
-0%
Greyscale dE 2000 *
2.3
1.7
26%
2
13%
4.2
-83%
2.3
-0%
Gamma
2.16 102%
2.31 95%
2.13 103%
2.22 99%
2.27 97%
CCT
6867 95%
6390 102%
6210 105%
7034 92%
6792 96%
Total Average (Program / Settings)
-18% / -14%
20% / -8%
-7% / -13%
32% / 115%

* ... smaller is better

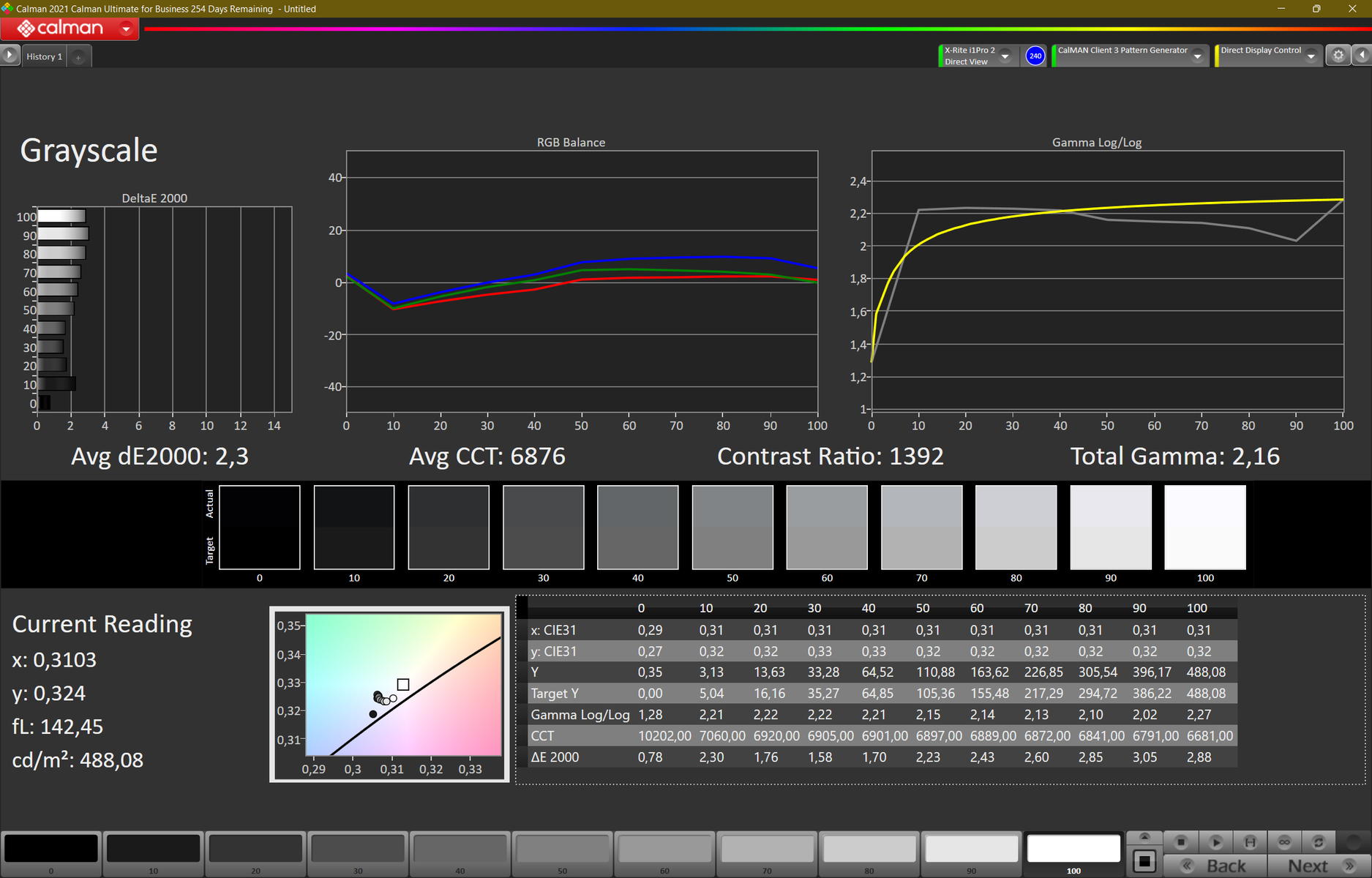

灰度
灰度

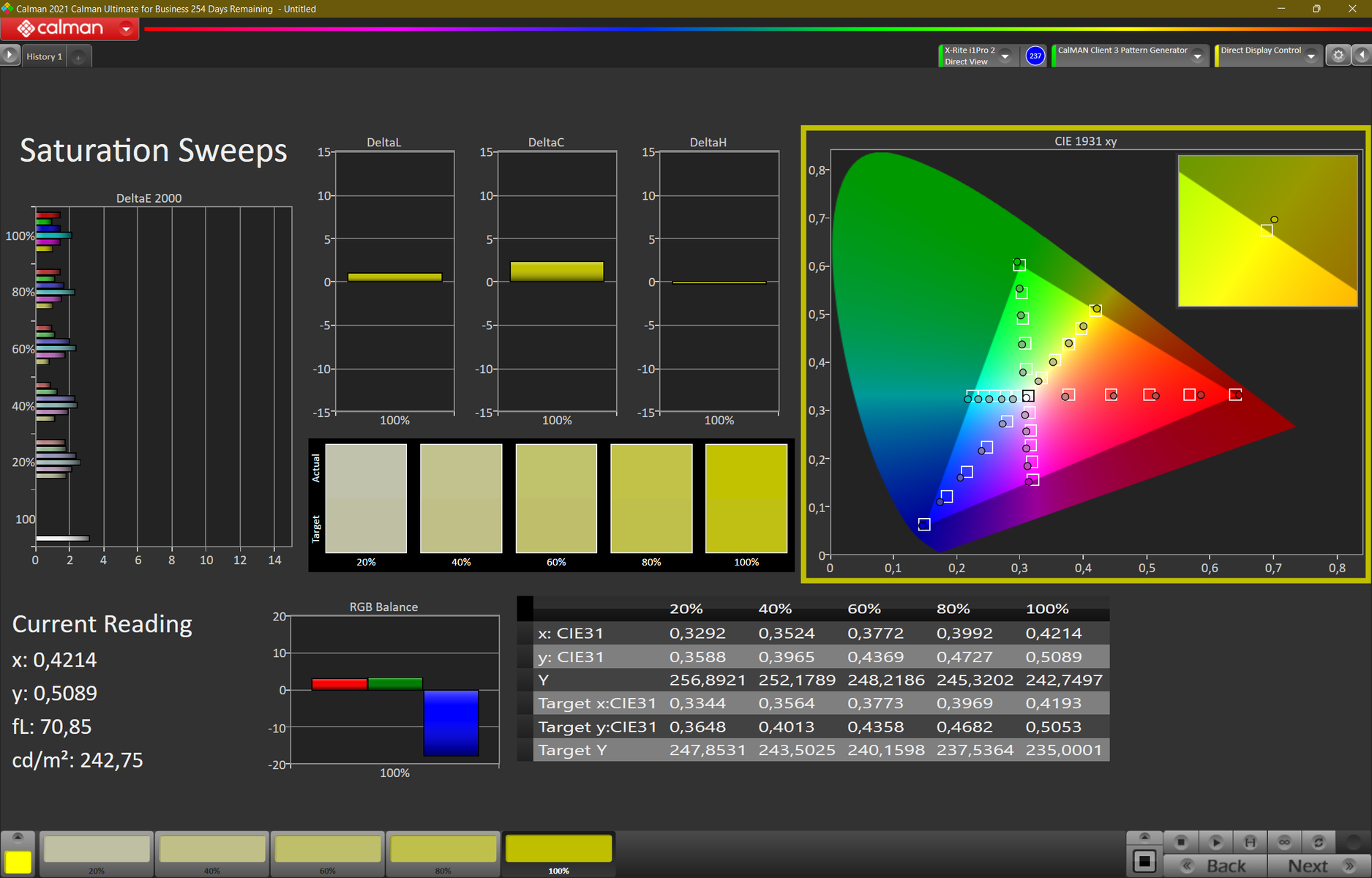

饱和度
饱和度

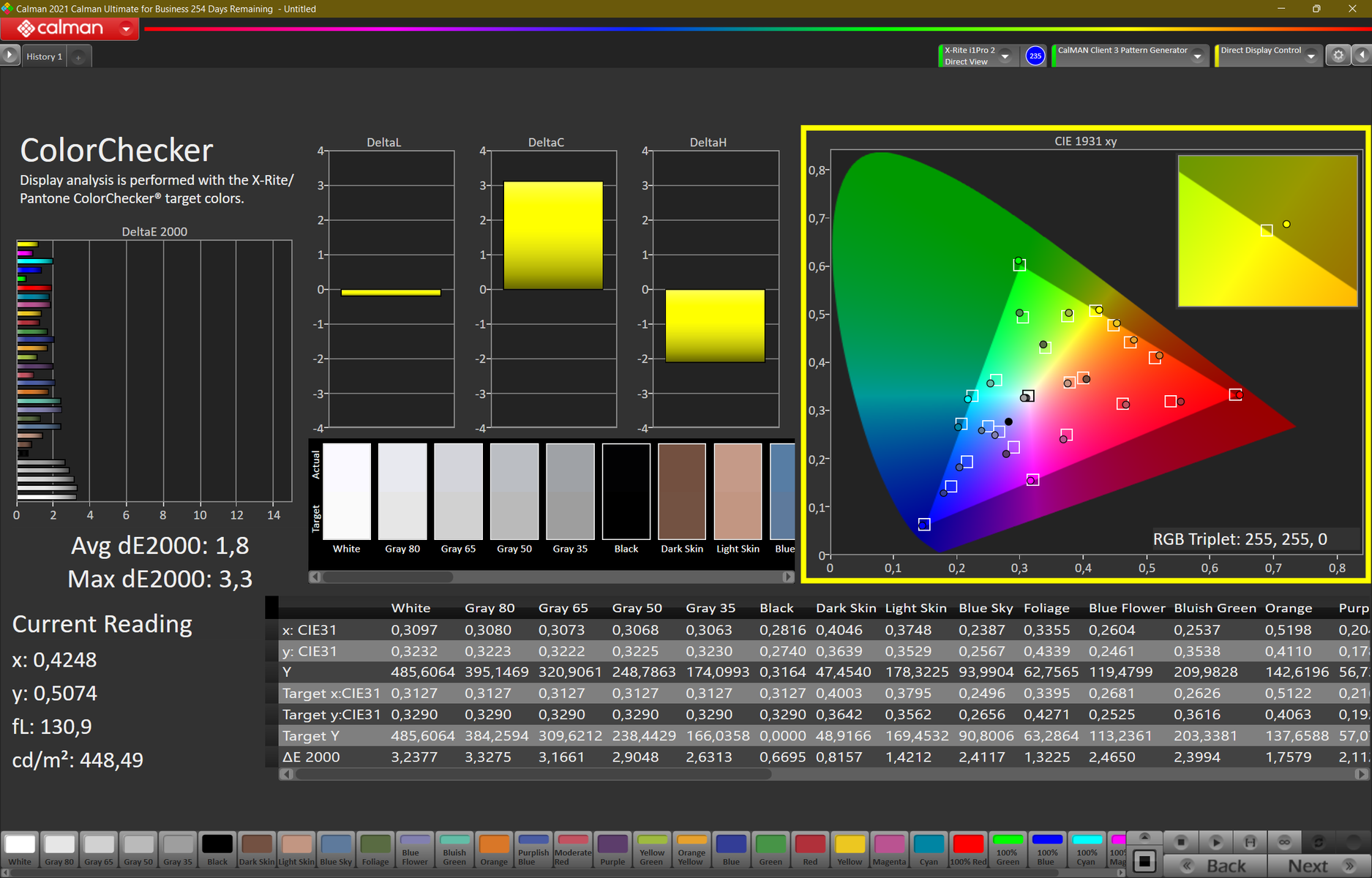

颜料检查器
颜料检查器
灰度(已校准)
灰度(已校准)

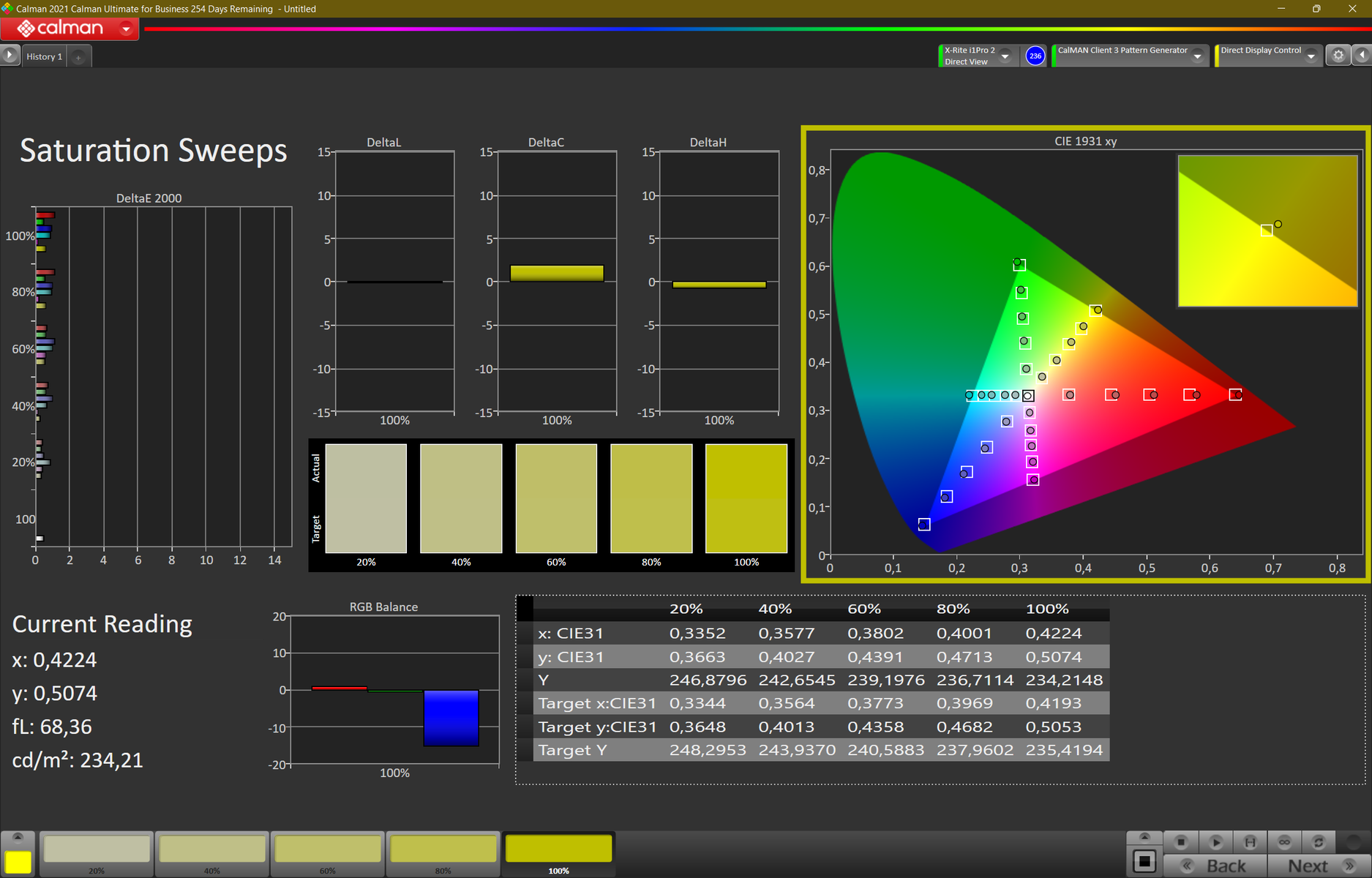

饱和度（已校准）
饱和度（已校准）
颜色检查器（已校准）
颜色检查器（已校准）

联想ThinkPad Z16 G1的显示屏在交付状态下已经有了比较好的调整，这表现在它的低Delta-E偏差上。我们使用CalMan和X-Rite i1 Pro 2色度计测量了显示器。使用i1 Profiler进行校准，能够进一步降低Delta-E值，从而实现相当准确的色彩再现。一如既往，创建的颜色配置文件可供您免费下载。

联想的营销承诺100%的sRGB色彩空间覆盖率，而我们测得的是99.7%。有了这个，液晶显示器适合简单的图像处理。为了获得更广泛的色彩空间覆盖，你必须选择可选的OLED面板。

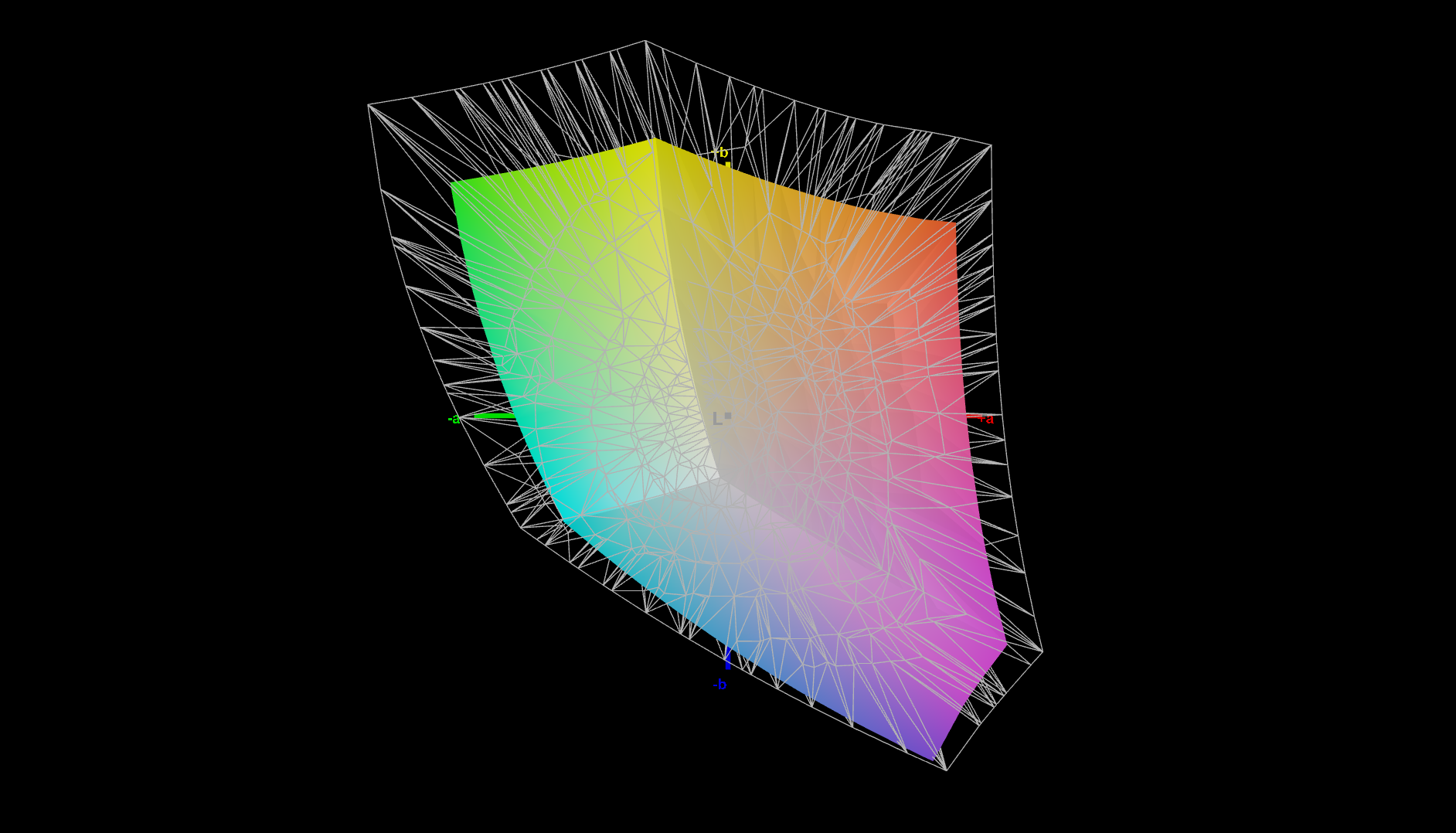

DCI P3: 70%
DCI P3: 70%

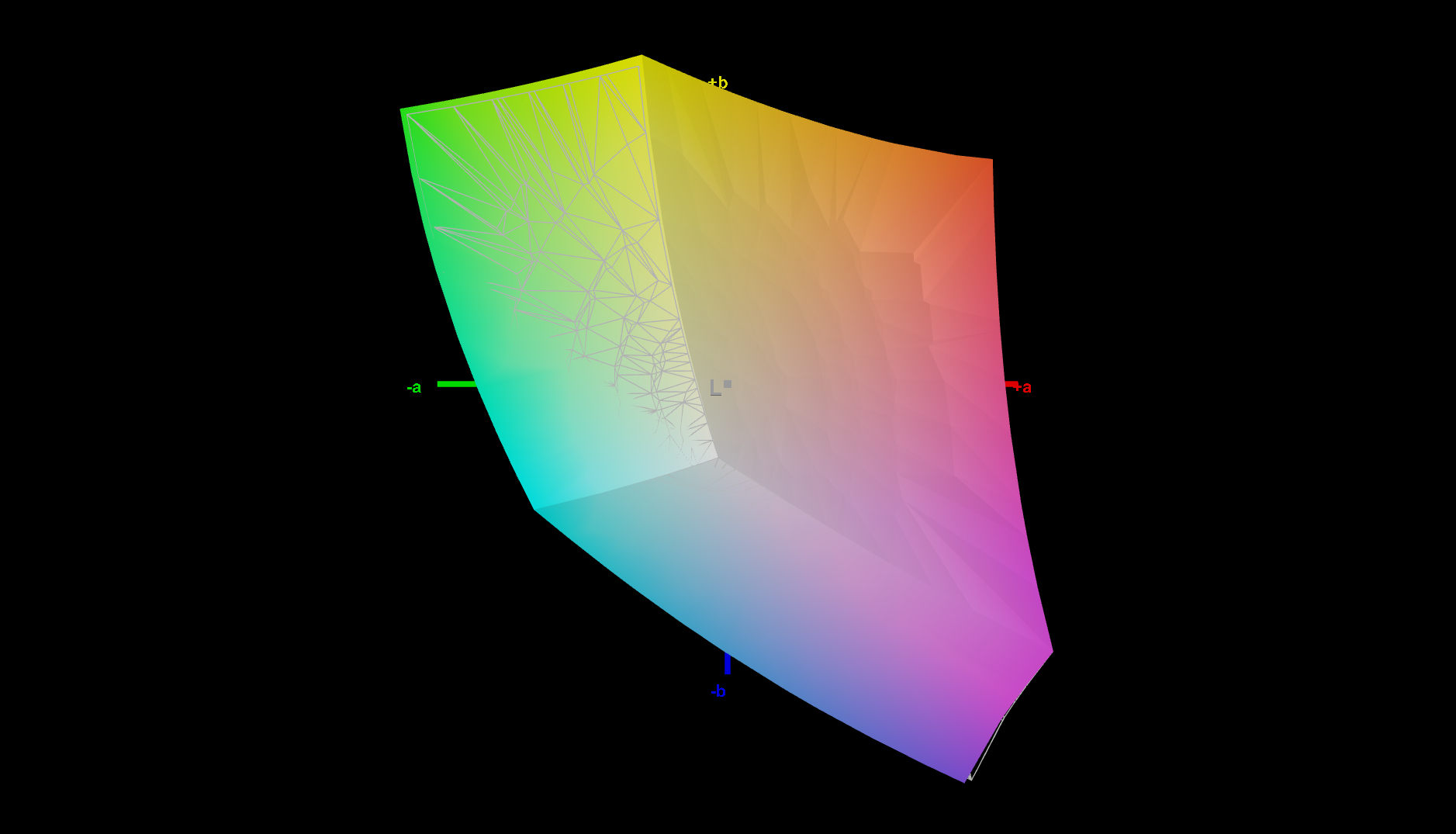

sRGB: 99.7%
sRGB: 99.7%

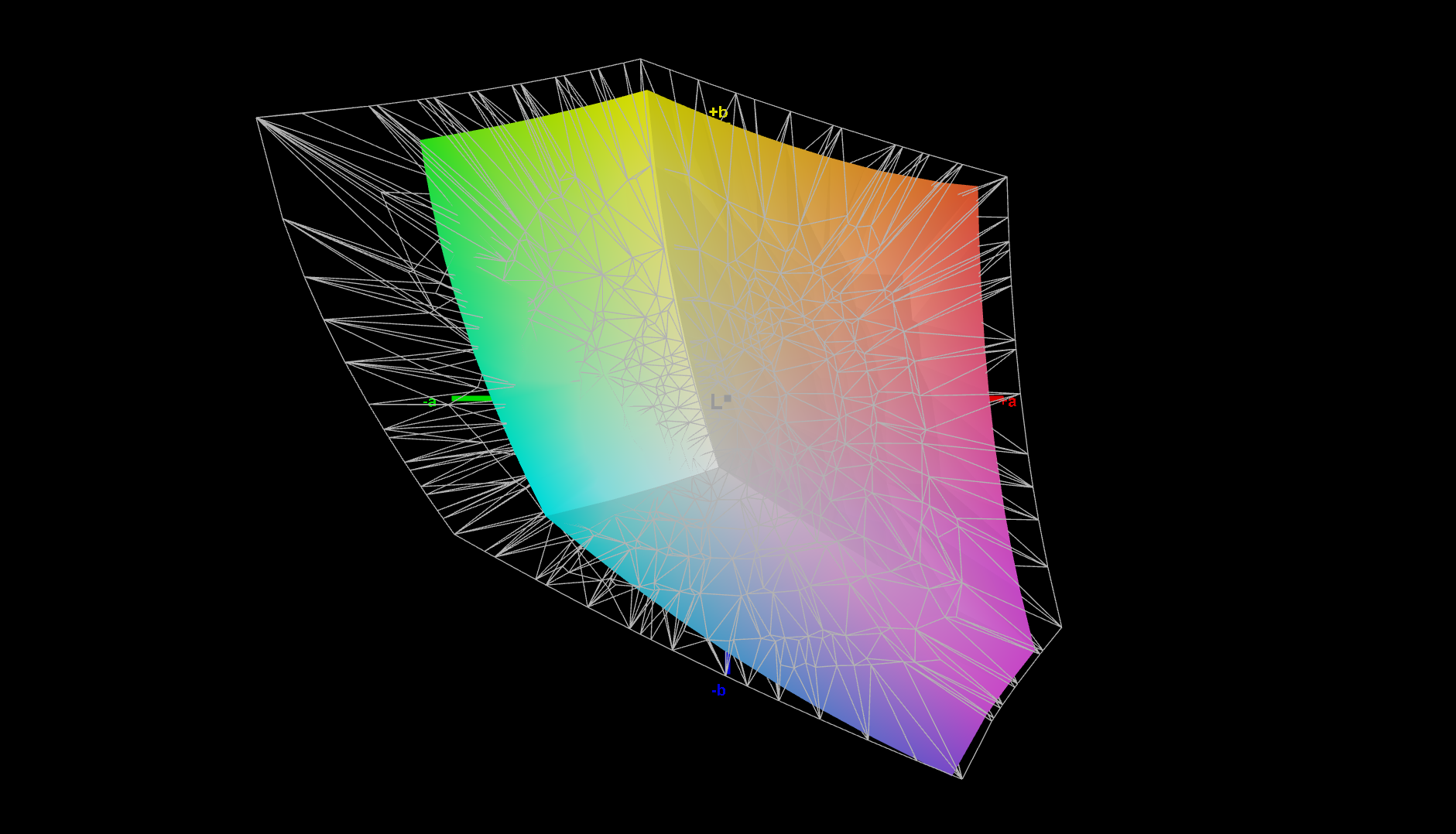

AdobeRGB: 72.1%
AdobeRGB: 72.1%

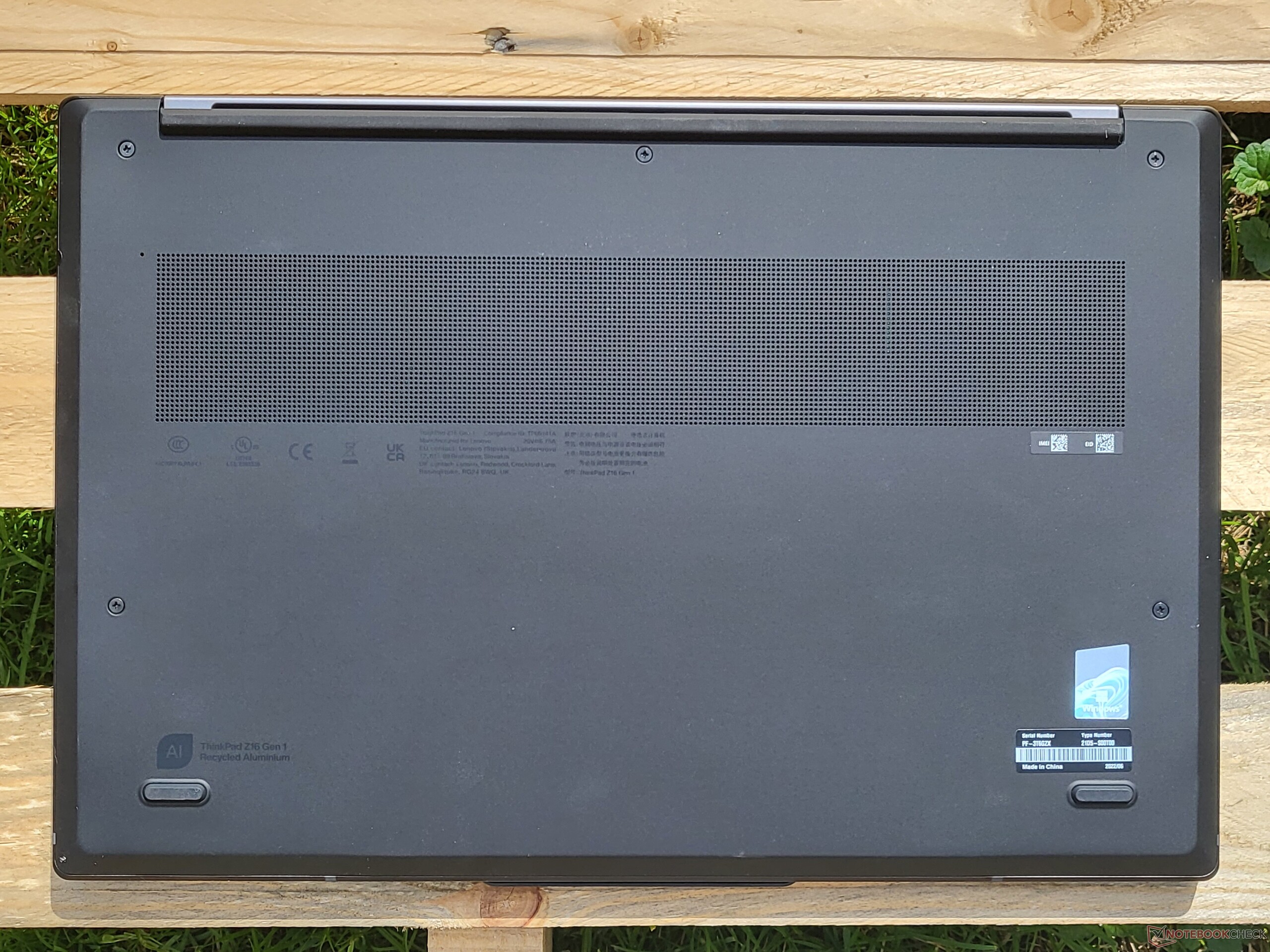

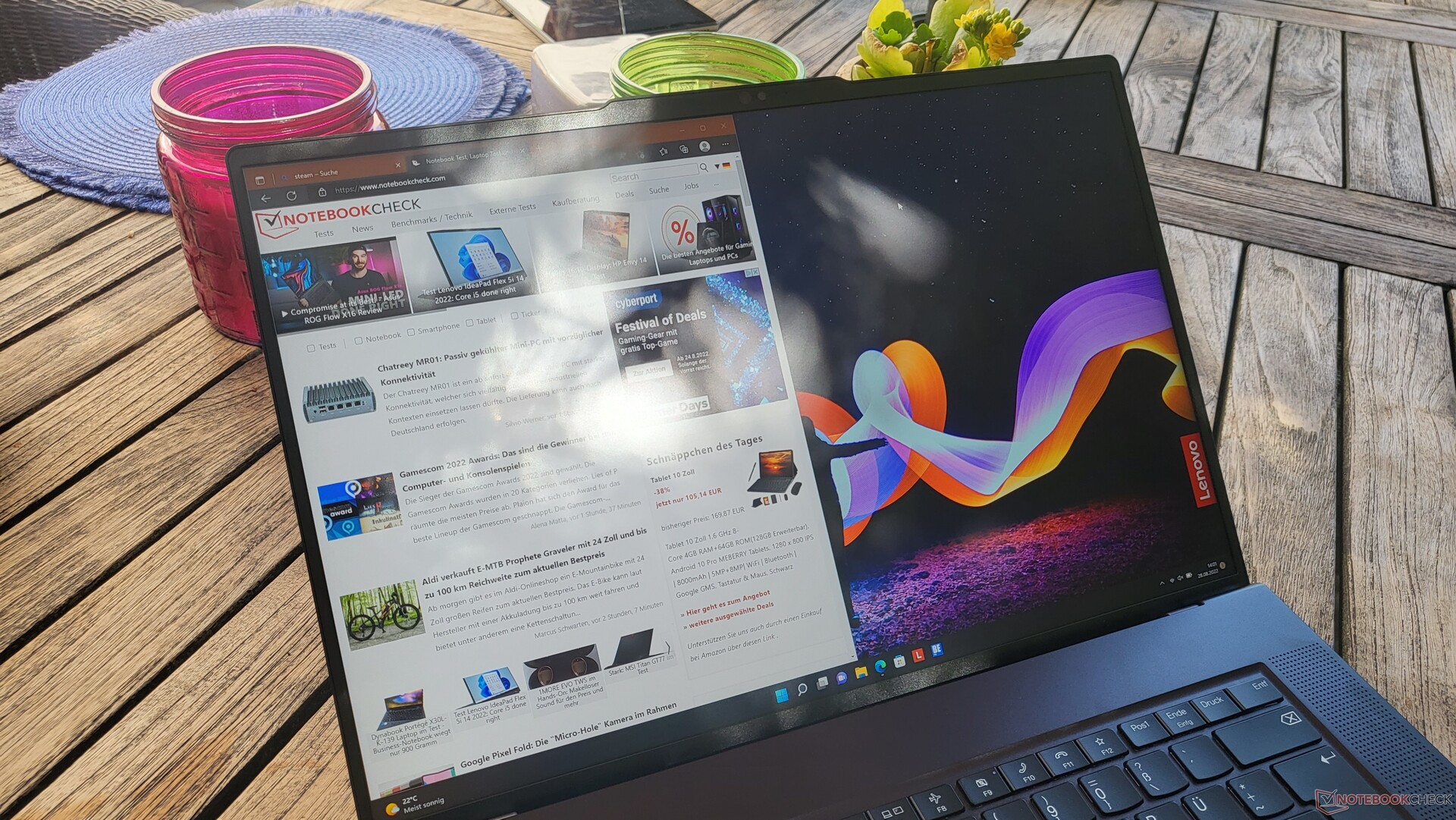

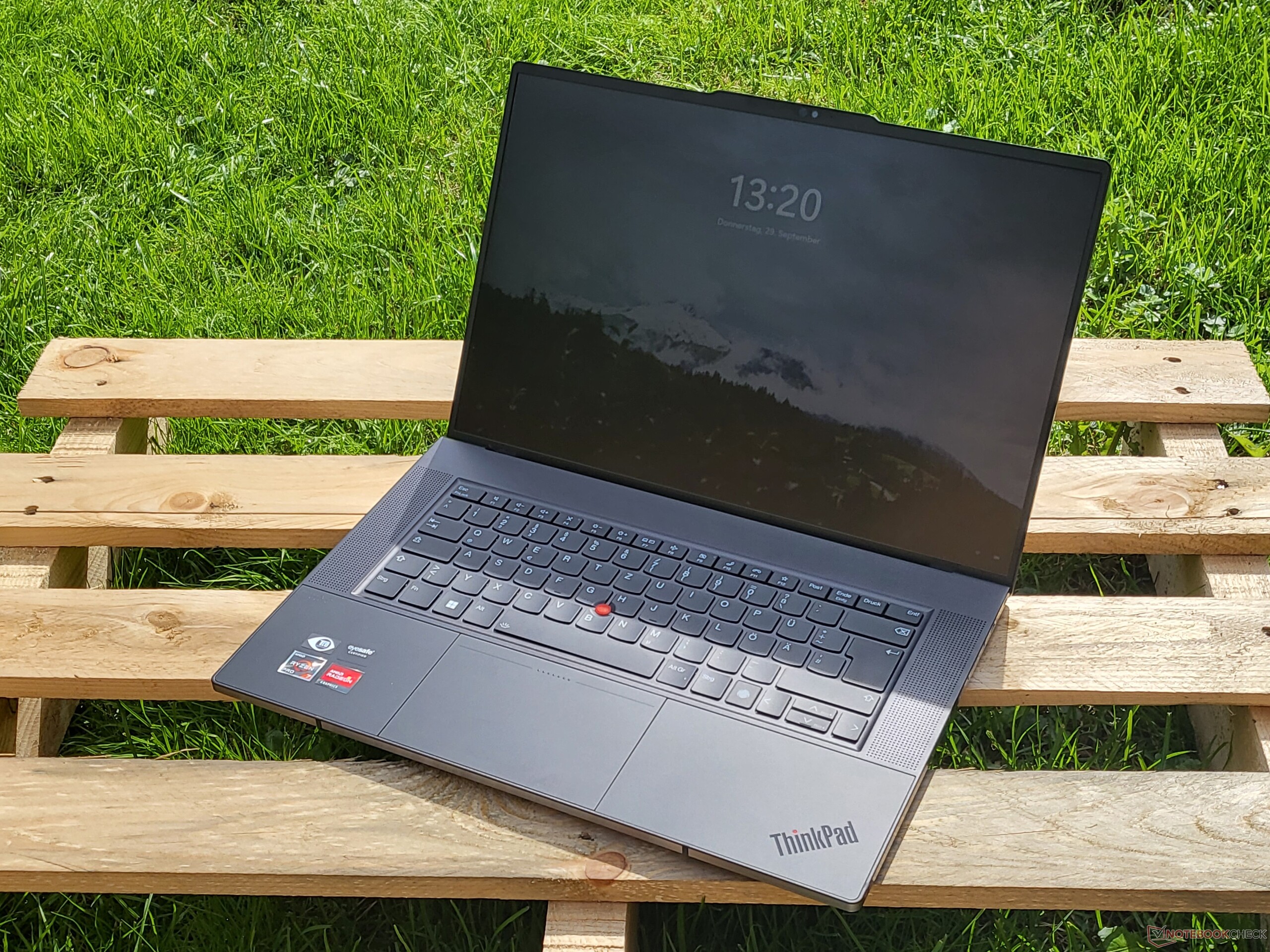

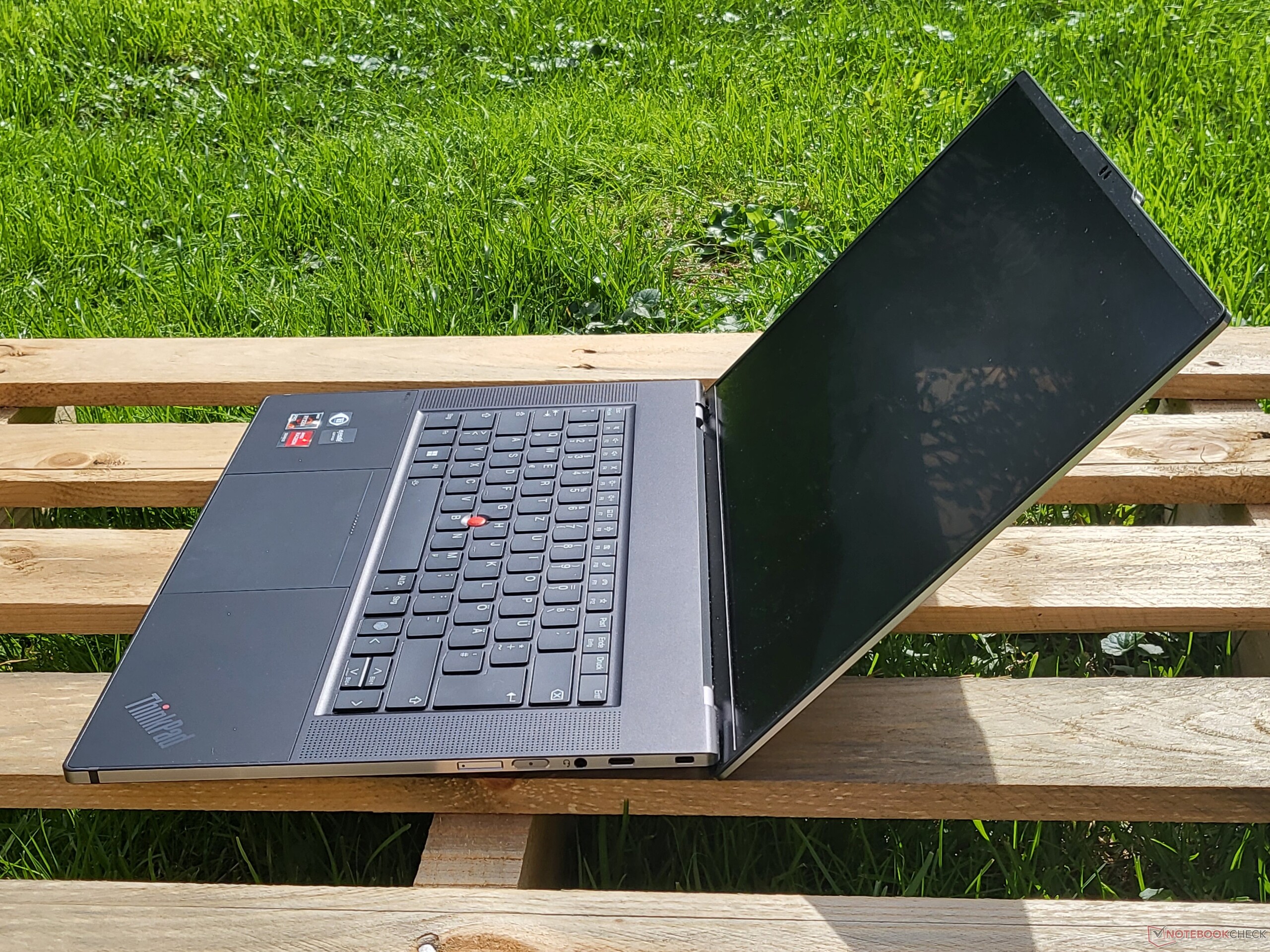

ThinkPad Z16在户外
ThinkPad Z16在户外

由于其相对较高的亮度和哑光显示表面，ThinkPad Z16笔记本电脑在户外使用没有任何问题，只要你避免阳光直射。

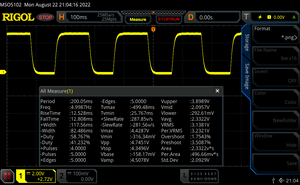

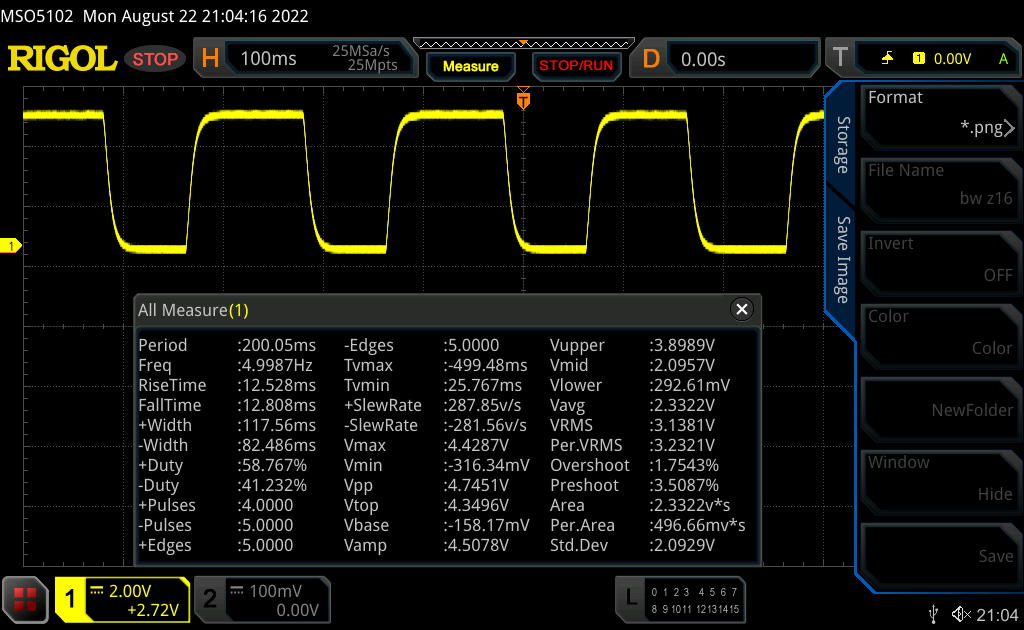

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
   ↔    Response Time Black to White
25 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 13 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 56 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (20.7 ms).

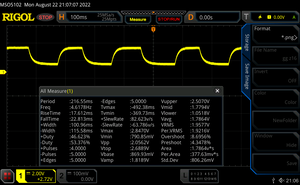

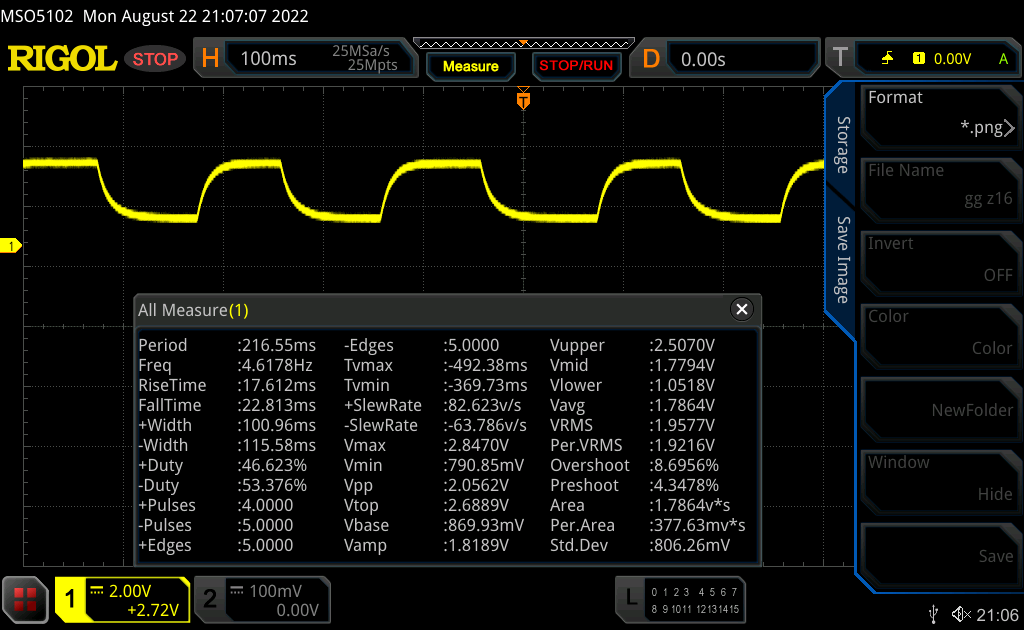

   ↔    Response Time 50% Grey to 80% Grey
40 ms ... rise ↗ and fall ↘ combined↗ 17 ms rise
↘ 23 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 58 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.4 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8456 (minimum: 5 - maximum: 343500) Hz was measured.

联想ThinkPad Z16：作为IPS的典型代表...
联想ThinkPad Z16：作为IPS的典型代表...
...没有什么可抱怨的...
...没有什么可抱怨的...

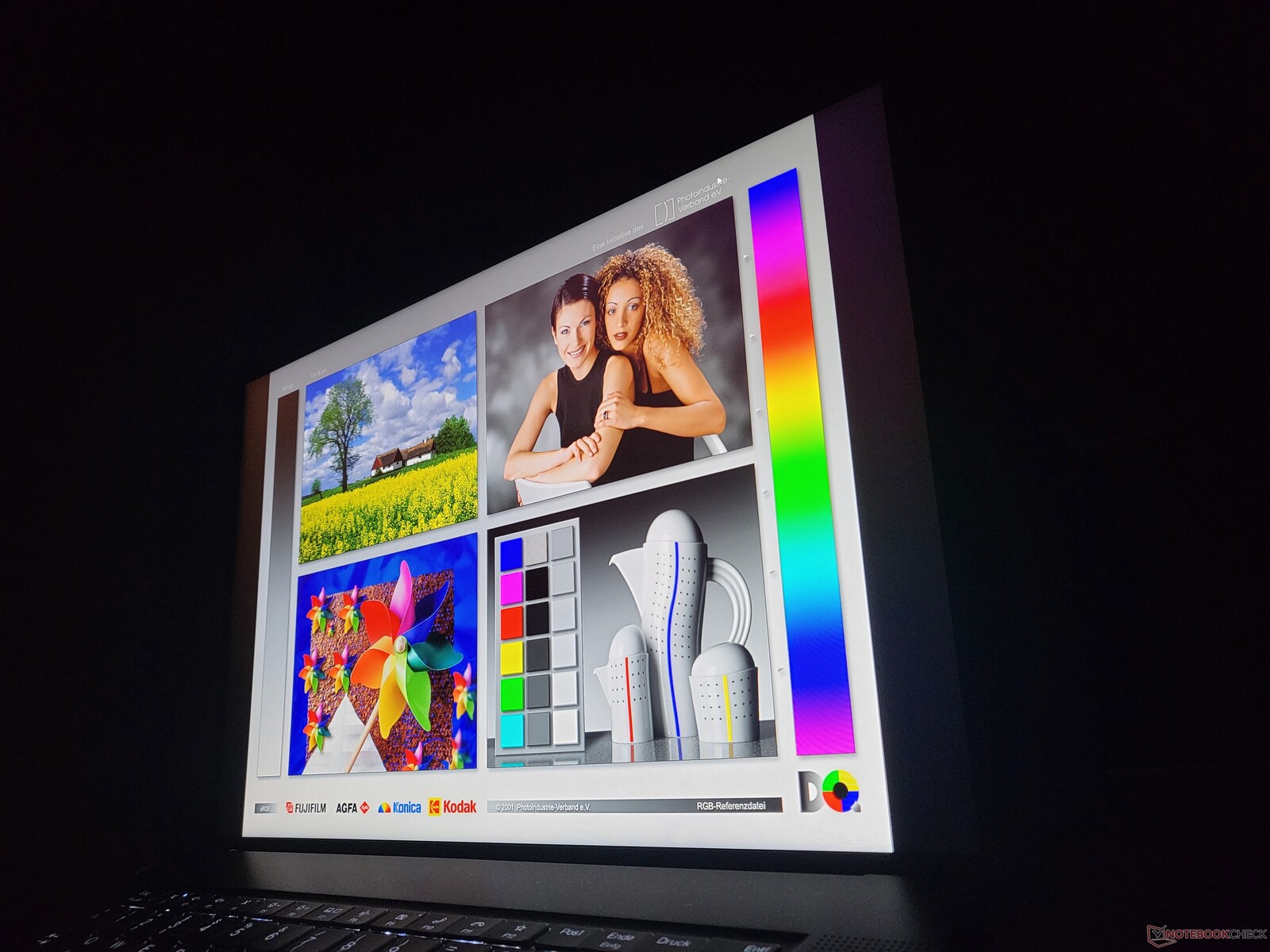

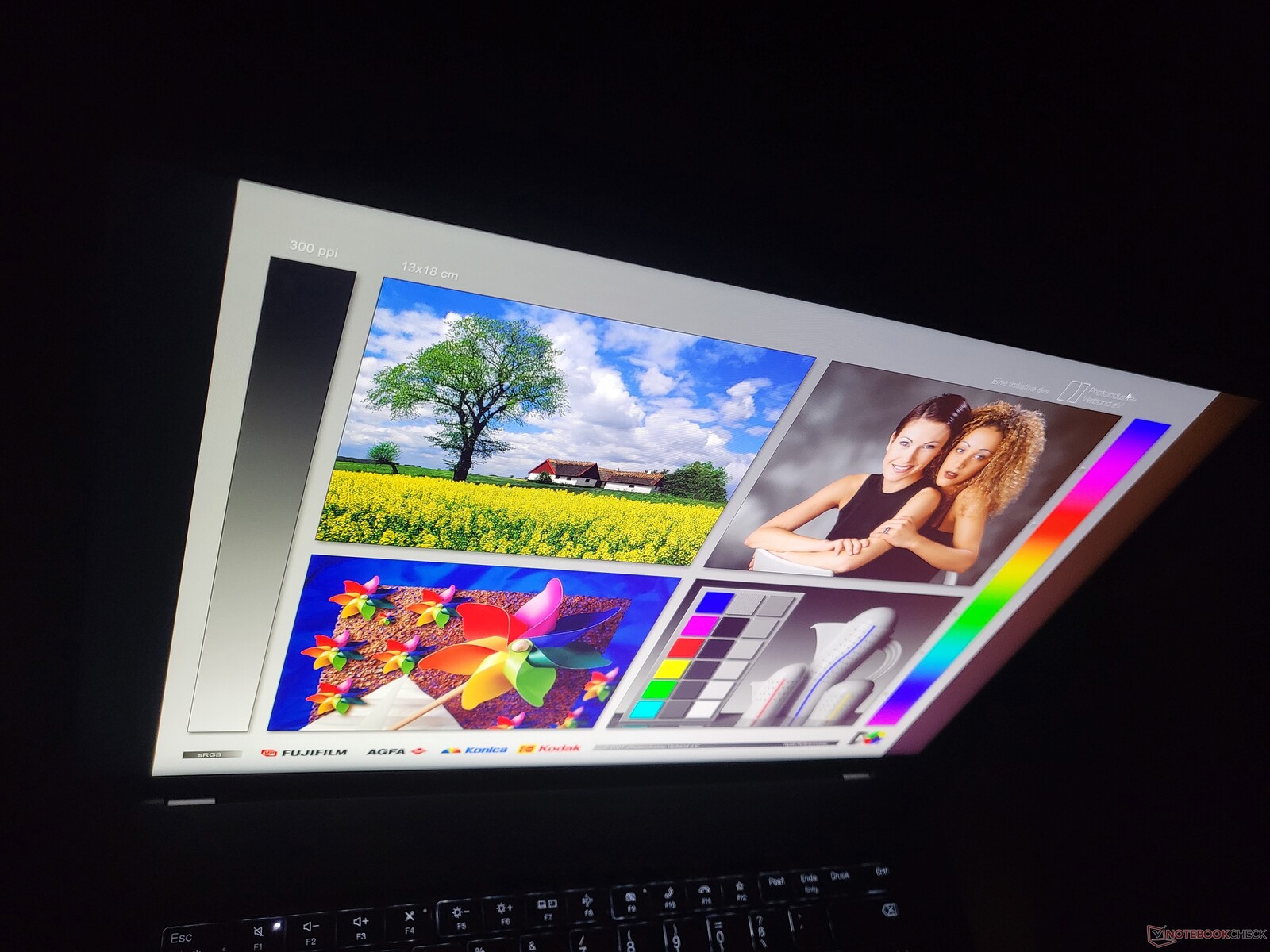

...关于视角的稳定性
...关于视角的稳定性

性能。AMD Ryzen 6000H遇上Radeon RX 6500M

ThinkPad Z16第一代的处理器有三种选择，所有的CPU都是AMD针对商业客户的Ryzen Pro系列的一部分。AMD Ryzen 5 Pro 6650H有六个核心，作为入门级，你还可以得到 Ryzen 7 Pro 6850H和Ryzen 9 Pro 6950H，两者都有八个核心。作为图形芯片，你可以使用集成的Radeon GPU或选择获得 AMD Radeon RX 6500M.联想ThinkPad Z16是你能买到的第一台结合了AMD CPU和AMD dGPU的ThinkPad。

在ThinkPad Z系列中，联想使用焊接的LPDDR5-6400内存，其中Z16提供16或32GB的内存。一块M.2-2280固态硬盘作为存储。

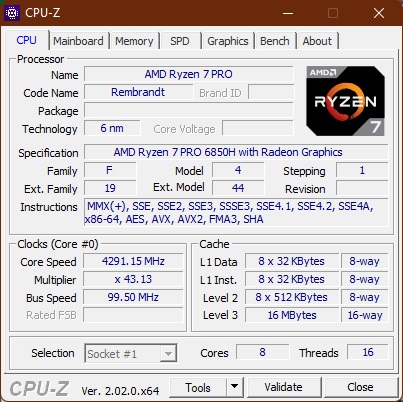

CPU-Z
CPU-Z

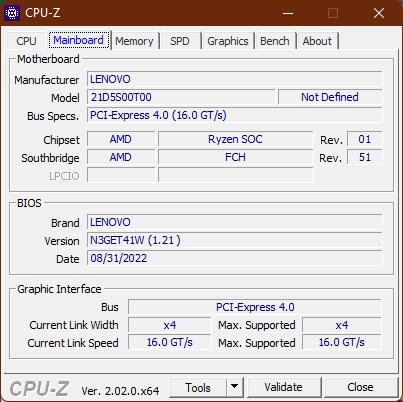

CPU-Z 主板
CPU-Z 主板
CPU-Z内存
CPU-Z内存

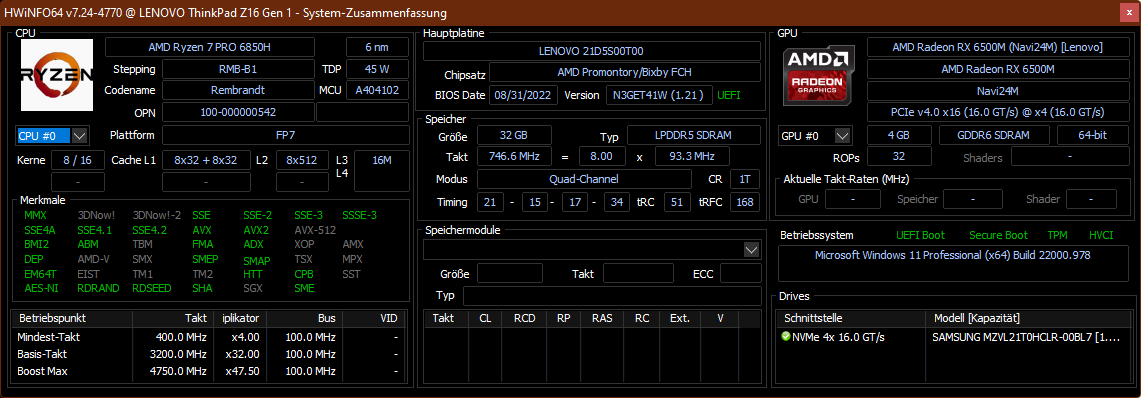

HWiNFO
HWiNFO

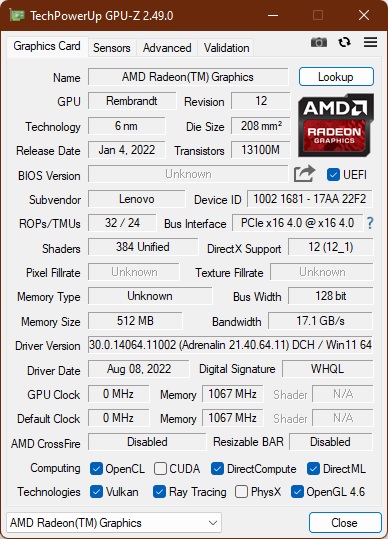

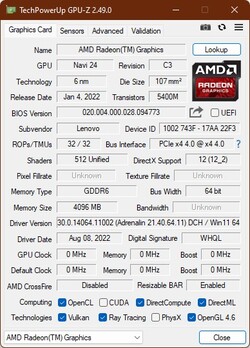

GPU-Z AMD Radeon 680M
GPU-Z AMD Radeon 680M


测试条件

我们的测试是在困难的条件下进行的，因为Z16给我们带来了一些大问题。我们的第一个测试设备在激活Wi-Fi时不断重启。后来我们收到了一个交换设备，这在很大程度上解决了问题，而且替换的ThinkPad明显更稳定。

在Windows "最佳性能 "模式下，ThinkPad Z16的CPU的短期功率限制为65瓦，从长远来看，处理器可以消耗47瓦。

处理器

的AMD Ryzen 7 Pro 6850H是2022年Rembrandt一代的处理器，作为H系列的芯片，其典型TDP为45瓦。它的八个核心（16个线程的超线程）的基本时钟速度为3.2 GHz，最高速度为4.7 GHz。关于与其他处理器的一些额外比较，我们推荐我们的 CPU比较列表.

联想ThinkPad Z16 Gen 1是第一款采用AMD-H系列的ThinkPad。在基准测试中，它取得了非常好的性能，尽管它在几个方面仍然落后于竞争对手。 英特尔第12代酷睿i处理器在单核和多核性能方面都更好，尽管在多核性能方面的优势并不持久。除了模拟基准测试外，M1 Pro和Max处理器也有优势。

即使 "超性能 "模式在电池运行中不可用，尽管如此，CPU性能在电池运行中几乎没有变化（在Cinebench R23多核测试中为11963分）。

Cinebench R15 Multi Constant Load Test

0140280420560700840980112012601400154016801820196021002240238025202660Tooltip
Lenovo ThinkPad Z16 G1 21D5S00T00 AMD Ryzen 7 PRO 6850H: Ø2035 (1986.69-2081.49)
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti) Intel Core i7-11800H: Ø1877 (1839.5-2023.47)
Dell XPS 15 9520 RTX 3050 Ti Intel Core i7-12700H: Ø1997 (1913.33-2170.14)
Dell XPS 17 9720 Intel Core i7-12700H: Ø2032 (1910.22-2715.55)
Dell XPS 17 9720 Intel Core i7-12700H; Ultra Performance: Ø2223 (2130.38-2634.35)
Apple MacBook Pro 16 2021 M1 Max Apple M1 Max; Rosetta 2: Ø1687 (1667.29-1693.05)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Average of class Multimedia

80.3 pt
Dell XPS 17 9720
Intel Core i7-12700H
79.4 pt
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
78.1 pt
Lenovo ThinkPad X1 Extreme G4-20Y50040GE -3!
Intel Core i9-11950H
70.1 pt
Apple MacBook Pro 16 2021 M1 Pro -5!
Apple M1 Pro
68.9 pt
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
68.6 pt
Apple MacBook Pro 16 2021 M1 Max -5!
Apple M1 Max
68.3 pt
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
66.7 pt
Average AMD Ryzen 7 PRO 6850H

63.4 pt
Cinebench R23 / Multi Core
Dell XPS 17 9720
Intel Core i7-12700H
16537 Points +38%
Average of class Multimedia
  (4861 - 30789, n=92, last 2 years)
15902 Points +32%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
14130 (12303.9min - 14129.8max) Points +18%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
12446 Points +4%
Average AMD Ryzen 7 PRO 6850H
  (12016 - 12770, n=2)
12393 Points +3%
Apple MacBook Pro 16 2021 M1 Max
Apple M1 Max
12385 Points +3%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
12370 Points +3%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
12048 Points 0%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
12016 Points
Cinebench R23 / Single Core
Average of class Multimedia
  (878 - 2290, n=83, last 2 years)
1808 Points +21%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
1773 Points +19%
Dell XPS 17 9720
Intel Core i7-12700H
1736 Points +16%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
1586 Points +6%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
1534 Points +3%
Apple MacBook Pro 16 2021 M1 Max
Apple M1 Max
1530 Points +3%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
1521 Points +2%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
1491 Points
Average AMD Ryzen 7 PRO 6850H
  (1469 - 1491, n=2)
1480 Points -1%
Cinebench R20 / CPU (Multi Core)
Average of class Multimedia
  (1887 - 11924, n=76, last 2 years)
5946 Points +22%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
5479 Points +12%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
4887 Points
Dell XPS 17 9720
Intel Core i7-12700H
4883 Points 0%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
4726 Points -3%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
4471 Points -9%
Average AMD Ryzen 7 PRO 6850H
  (2990 - 4946, n=3)
4274 Points -13%
Apple MacBook Pro 16 2021 M1 Max
Apple M1 Max
2735 Points -44%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
2721 Points -44%
Cinebench R20 / CPU (Single Core)
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
680 Points +17%
Average of class Multimedia
  (341 - 853, n=76, last 2 years)
671 Points +15%
Dell XPS 17 9720
Intel Core i7-12700H
657 Points +13%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
621 Points +7%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
585 Points 0%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
583 Points
Average AMD Ryzen 7 PRO 6850H
  (564 - 583, n=3)
574 Points -2%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
393 Points -33%
Apple MacBook Pro 16 2021 M1 Max
Apple M1 Max
390 Points -33%
Cinebench R15 / CPU Multi 64Bit
Dell XPS 17 9720
Intel Core i7-12700H
2715.55 (1910.22min - 2715.55max) Points +30%
Dell XPS 17 9720
Intel Core i7-12700H
2634.35 (2130.38min - 2634.35max) Points +27%
Average of class Multimedia
  (856 - 5224, n=83, last 2 years)
2515 Points +21%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
2170 (1913.33min - 2170.14max) Points +4%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
2089 (1823.99min - 2089.32max) Points 0%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
1954 (1818.43min - 1953.6max) Points -6%
Average AMD Ryzen 7 PRO 6850H
  (2081 - 2090, n=2)
2086 Points 0%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
2081 (1986.69min - 2081.49max) Points
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
2023 (1839.5min - 2023.47max) Points -3%
Apple MacBook Pro 16 2021 M1 Max
Apple M1 Max
1693 (1667min - 1693max) Points -19%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
1690 (1675min - 1690max) Points -19%
Cinebench R15 / CPU Single 64Bit
Average of class Multimedia
  (99.6 - 323, n=78, last 2 years)
264 Points +8%
Dell XPS 17 9720
Intel Core i7-12700H
253.51 Points +4%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
251 Points +3%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
244 Points 0%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
244 Points
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
230 Points -6%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
209 Points -14%
Average AMD Ryzen 7 PRO 6850H
  (166.2 - 244, n=2)
205 Points -16%
Apple MacBook Pro 16 2021 M1 Max
Apple M1 Max
197 Points -19%
Blender / v2.79 BMW27 CPU
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
252 Seconds * -7%
Average of class Multimedia
  (100 - 557, n=76, last 2 years)
251 Seconds * -7%
Average AMD Ryzen 7 PRO 6850H
  (235 - 248, n=2)
242 Seconds * -3%
Dell XPS 17 9720
Intel Core i7-12700H
238 Seconds * -1%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
235 Seconds *
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
226 Seconds * +4%
Apple MacBook Pro 16 2021 M1 Max
Apple M1 Max
189 Seconds * +20%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
183.3 Seconds * +22%
7-Zip 18.03 / 7z b 4
Average of class Multimedia
  (29095 - 130368, n=71, last 2 years)
61469 MIPS +9%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
61455 MIPS +9%
Dell XPS 17 9720
Intel Core i7-12700H
59353 MIPS +5%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
56498 MIPS
Average AMD Ryzen 7 PRO 6850H
  (52391 - 56498, n=2)
54445 MIPS -4%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
49194 MIPS -13%
7-Zip 18.03 / 7z b 4 -mmt1
Average of class Multimedia
  (3398 - 7545, n=71, last 2 years)
5779 MIPS +8%
Dell XPS 17 9720
Intel Core i7-12700H
5763 MIPS +7%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
5759 MIPS +7%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
5621 MIPS +5%
Average AMD Ryzen 7 PRO 6850H
  (5374 - 5460, n=2)
5417 MIPS +1%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
5374 MIPS
Geekbench 5.5 / Multi-Core
Dell XPS 17 9720
Intel Core i7-12700H
13491 Points +52%
Apple MacBook Pro 16 2021 M1 Max
Apple M1 Max
12708 Points +44%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
12499 Points +41%
Average of class Multimedia
  (4652 - 23059, n=75, last 2 years)
12326 Points +39%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
11827 Points +34%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
8851 Points
Average AMD Ryzen 7 PRO 6850H
  (8093 - 8851, n=2)
8472 Points -4%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
8172 Points -8%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
7969 Points -10%
Geekbench 5.5 / Single-Core
Average of class Multimedia
  (891 - 2555, n=75, last 2 years)
1858 Points +25%
Apple MacBook Pro 16 2021 M1 Max
Apple M1 Max
1782 Points +20%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
1770 Points +20%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
1768 Points +19%
Dell XPS 17 9720
Intel Core i7-12700H
1767 Points +19%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
1631 Points +10%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
1576 Points +6%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
1481 Points
Average AMD Ryzen 7 PRO 6850H
  (1474 - 1481, n=2)
1478 Points 0%
HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Multimedia
  (5.26 - 34.3, n=70, last 2 years)
16.9 fps +6%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
15.9 fps
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
15.1 fps -5%
Dell XPS 17 9720
Intel Core i7-12700H
14.7 fps -8%
Average AMD Ryzen 7 PRO 6850H
  (12.7 - 15.9, n=2)
14.3 fps -10%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
13.8 fps -13%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
13.7 fps -14%
LibreOffice / 20 Documents To PDF
Average AMD Ryzen 7 PRO 6850H
  (50.7 - 95.2, n=2)
73 s * -44%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
50.7 s *
Average of class Multimedia
  (23.9 - 146.7, n=72, last 2 years)
50.2 s * +1%
Dell XPS 17 9720
Intel Core i7-12700H
43.5 s * +14%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
41.4 s * +18%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
41.4 s * +18%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
38.6 s * +24%
R Benchmark 2.5 / Overall mean
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H
0.554 sec * -7%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H
0.545 sec * -6%
Average AMD Ryzen 7 PRO 6850H
  (0.516 - 0.524, n=2)
0.52 sec * -1%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H
0.516 sec *
Average of class Multimedia
  (0.3604 - 0.947, n=70, last 2 years)
0.4771 sec * +8%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H
0.4566 sec * +12%
Dell XPS 17 9720
Intel Core i7-12700H
0.4554 sec * +12%

* ... smaller is better

Cinebench R10 Shading 32Bit
13701
Cinebench R10 Rendering Single 32Bit
5791
Cinebench R10 Rendering Multiple CPUs 32Bit
34412
Cinebench R11.5 OpenGL 64Bit
144.15 fps
Cinebench R11.5 CPU Single 64Bit
2.6 Points
Cinebench R11.5 CPU Multi 64Bit
21.32 Points
Cinebench R15 CPU Single 64Bit
244 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
181 fps
Cinebench R15 CPU Multi 64Bit
2081 Points
Cinebench R20 CPU (Multi Core)
4887 Points
Cinebench R20 CPU (Single Core)
583 Points
Cinebench R23 Multi Core
12016 Points
Cinebench R23 Single Core
1491 Points
Help
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating
Average AMD Ryzen 7 PRO 6850H

86.3 pt
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
85.6 pt
Average of class Multimedia

85.1 pt
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
83 pt
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
80.3 pt
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
62.4 pt
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
61.7 pt
AIDA64 / FP32 Ray-Trace
Average of class Multimedia
  (5121 - 50388, n=69, last 2 years)
15555 KRay/s +2%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
15301 KRay/s
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
15282 KRay/s 0%
Average AMD Ryzen 7 PRO 6850H
  (15009 - 15301, n=2)
15155 KRay/s -1%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
14618 KRay/s -4%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
7575 KRay/s -50%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
6848 KRay/s -55%
AIDA64 / FPU Julia
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
94997 Points
Average AMD Ryzen 7 PRO 6850H
  (93021 - 94997, n=2)
94009 Points -1%
Average of class Multimedia
  (14528 - 201874, n=70, last 2 years)
76102 Points -20%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
63303 Points -33%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
61086 Points -36%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
34205 Points -64%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
32180 Points -66%
AIDA64 / CPU SHA3
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
4254 MB/s +34%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
4098 MB/s +29%
Average of class Multimedia
  (1188 - 8623, n=70, last 2 years)
3541 MB/s +12%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
3169 MB/s
Average AMD Ryzen 7 PRO 6850H
  (3155 - 3169, n=2)
3162 MB/s 0%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
2625 MB/s -17%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
2401 MB/s -24%
AIDA64 / CPU Queen
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
102905 Points
Average AMD Ryzen 7 PRO 6850H
  (100724 - 102905, n=2)
101815 Points -1%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
99917 Points -3%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
99666 Points -3%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
98176 Points -5%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
91934 Points -11%
Average of class Multimedia
  (21547 - 181505, n=70, last 2 years)
88648 Points -14%
AIDA64 / FPU SinJulia
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
12638 Points
Average AMD Ryzen 7 PRO 6850H
  (12309 - 12638, n=2)
12474 Points -1%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
10451 Points -17%
Average of class Multimedia
  (1240 - 28794, n=70, last 2 years)
9787 Points -23%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
9786 Points -23%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
8622 Points -32%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
8376 Points -34%
AIDA64 / FPU Mandel
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
51802 Points
Average AMD Ryzen 7 PRO 6850H
  (51299 - 51802, n=2)
51551 Points 0%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
38046 Points -27%
Average of class Multimedia
  (9903 - 105740, n=69, last 2 years)
37835 Points -27%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
36412 Points -30%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
20549 Points -60%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
18563 Points -64%
AIDA64 / CPU AES
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
147249 MB/s +143%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
146086 MB/s +142%
Average AMD Ryzen 7 PRO 6850H
  (60476 - 128243, n=2)
94360 MB/s +56%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
82666 MB/s +37%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
77842 MB/s +29%
Average of class Multimedia
  (26066 - 169946, n=70, last 2 years)
75025 MB/s +24%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
60476 MB/s
AIDA64 / CPU ZLib
Average of class Multimedia
  (440 - 2022, n=70, last 2 years)
964 MB/s +20%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
845 MB/s +5%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
829 MB/s +3%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
820 MB/s +2%
Average AMD Ryzen 7 PRO 6850H
  (806 - 809, n=2)
808 MB/s 0%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
806 MB/s
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
790 MB/s -2%
AIDA64 / FP64 Ray-Trace
Average of class Multimedia
  (2759 - 26875, n=70, last 2 years)
8465 KRay/s +4%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
8306 KRay/s +2%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
8104 KRay/s
Average AMD Ryzen 7 PRO 6850H
  (7876 - 8104, n=2)
7990 KRay/s -1%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
7823 KRay/s -3%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
4378 KRay/s -46%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
3865 KRay/s -52%
AIDA64 / CPU PhotoWorxx
Average of class Multimedia
  (12860 - 58844, n=70, last 2 years)
41916 MPixel/s +60%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
40893 MPixel/s +56%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
33204 MPixel/s +27%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
26176 MPixel/s
Average AMD Ryzen 7 PRO 6850H
  (18157 - 26176, n=2)
22167 MPixel/s -15%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
15689 MPixel/s -40%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
12933 MPixel/s -51%

系统性能

在PCMark 10中，联想ThinkPad Z16 G1位于该领域的中间位置，但在Crossmark中，它更多地处于比较领域的底端。在日常操作中，联想ThinkPad Z16 G1的运行绝对流畅和快速。

PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score
Dell XPS 15 9520 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, WDC PC SN810 512GB
7075 Points +8%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
GeForce RTX 3080 Laptop GPU, i9-11950H, Kioxia XG7 KXG7AZNV1T02
6919 Points +6%
Dell XPS 17 9720
GeForce RTX 3050 4GB Laptop GPU, i7-12700H, Micron 3400 MTFDKBA512TFH 512GB
6879 Points +5%
Average of class Multimedia
  (4325 - 8670, n=66, last 2 years)
6821 Points +4%
Lenovo ThinkPad Z16 G1 21D5S00T00
Radeon RX 6500M, R7 PRO 6850H, Samsung PM9A1 MZVL21T0HCLR
6530 Points
Average AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
  (n=1)
6530 Points 0%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
GeForce RTX 3050 Ti Laptop GPU, i7-11800H, Samsung PM9A1 MZVL21T0HCLR
6524 Points 0%
PCMark 10 / Essentials
Dell XPS 15 9520 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, WDC PC SN810 512GB
10970 Points +7%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
GeForce RTX 3050 Ti Laptop GPU, i7-11800H, Samsung PM9A1 MZVL21T0HCLR
10846 Points +6%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
GeForce RTX 3080 Laptop GPU, i9-11950H, Kioxia XG7 KXG7AZNV1T02
10508 Points +3%
Average of class Multimedia
  (8025 - 12420, n=66, last 2 years)
10492 Points +3%
Dell XPS 17 9720
GeForce RTX 3050 4GB Laptop GPU, i7-12700H, Micron 3400 MTFDKBA512TFH 512GB
10369 Points +1%
Lenovo ThinkPad Z16 G1 21D5S00T00
Radeon RX 6500M, R7 PRO 6850H, Samsung PM9A1 MZVL21T0HCLR
10225 Points
Average AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
  (n=1)
10225 Points 0%
PCMark 10 / Productivity
Dell XPS 15 9520 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, WDC PC SN810 512GB
9555 Points +14%
Dell XPS 17 9720
GeForce RTX 3050 4GB Laptop GPU, i7-12700H, Micron 3400 MTFDKBA512TFH 512GB
9257 Points +11%
Average of class Multimedia
  (6089 - 10615, n=66, last 2 years)
8954 Points +7%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
GeForce RTX 3080 Laptop GPU, i9-11950H, Kioxia XG7 KXG7AZNV1T02
8790 Points +5%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
GeForce RTX 3050 Ti Laptop GPU, i7-11800H, Samsung PM9A1 MZVL21T0HCLR
8450 Points +1%
Lenovo ThinkPad Z16 G1 21D5S00T00
Radeon RX 6500M, R7 PRO 6850H, Samsung PM9A1 MZVL21T0HCLR
8359 Points
Average AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
  (n=1)
8359 Points 0%
PCMark 10 / Digital Content Creation
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
GeForce RTX 3080 Laptop GPU, i9-11950H, Kioxia XG7 KXG7AZNV1T02
9735 Points +10%
Average of class Multimedia
  (3651 - 13548, n=66, last 2 years)
9322 Points +5%
Dell XPS 17 9720
GeForce RTX 3050 4GB Laptop GPU, i7-12700H, Micron 3400 MTFDKBA512TFH 512GB
9203 Points +4%
Dell XPS 15 9520 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, WDC PC SN810 512GB
9169 Points +4%
Lenovo ThinkPad Z16 G1 21D5S00T00
Radeon RX 6500M, R7 PRO 6850H, Samsung PM9A1 MZVL21T0HCLR
8842 Points
Average AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
  (n=1)
8842 Points 0%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
GeForce RTX 3050 Ti Laptop GPU, i7-11800H, Samsung PM9A1 MZVL21T0HCLR
8223 Points -7%
CrossMark / Overall
Dell XPS 15 9520 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, WDC PC SN810 512GB
1872 Points +27%
Dell XPS 17 9720
GeForce RTX 3050 4GB Laptop GPU, i7-12700H, Micron 3400 MTFDKBA512TFH 512GB
1857 Points +26%
Average of class Multimedia
  (866 - 2255, n=77, last 2 years)
1739 Points +18%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
GeForce RTX 3080 Laptop GPU, i9-11950H, Kioxia XG7 KXG7AZNV1T02
1649 Points +12%
Apple MacBook Pro 16 2021 M1 Max
M1 Max 32-Core GPU, M1 Max, Apple SSD AP2048R
1586 Points +7%
Apple MacBook Pro 16 2021 M1 Pro
M1 Pro 16-Core GPU, M1 Pro, Apple SSD AP1024R
1556 Points +5%
Lenovo ThinkPad Z16 G1 21D5S00T00
Radeon RX 6500M, R7 PRO 6850H, Samsung PM9A1 MZVL21T0HCLR
1478 Points
Average AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
  (n=1)
1478 Points 0%
CrossMark / Productivity
Dell XPS 15 9520 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, WDC PC SN810 512GB
1792 Points +23%
Dell XPS 17 9720
GeForce RTX 3050 4GB Laptop GPU, i7-12700H, Micron 3400 MTFDKBA512TFH 512GB
1735 Points +19%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
GeForce RTX 3080 Laptop GPU, i9-11950H, Kioxia XG7 KXG7AZNV1T02
1655 Points +14%
Average of class Multimedia
  (913 - 2050, n=77, last 2 years)
1649 Points +13%
Lenovo ThinkPad Z16 G1 21D5S00T00
Radeon RX 6500M, R7 PRO 6850H, Samsung PM9A1 MZVL21T0HCLR
1457 Points
Average AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
  (n=1)
1457 Points 0%
Apple MacBook Pro 16 2021 M1 Max
M1 Max 32-Core GPU, M1 Max, Apple SSD AP2048R
1361 Points -7%
Apple MacBook Pro 16 2021 M1 Pro
M1 Pro 16-Core GPU, M1 Pro, Apple SSD AP1024R
1342 Points -8%
CrossMark / Creativity
Apple MacBook Pro 16 2021 M1 Max
M1 Max 32-Core GPU, M1 Max, Apple SSD AP2048R
2102 Points +33%
Dell XPS 17 9720
GeForce RTX 3050 4GB Laptop GPU, i7-12700H, Micron 3400 MTFDKBA512TFH 512GB
2067 Points +31%
Apple MacBook Pro 16 2021 M1 Pro
M1 Pro 16-Core GPU, M1 Pro, Apple SSD AP1024R
2054 Points +30%
Dell XPS 15 9520 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, WDC PC SN810 512GB
1993 Points +26%
Average of class Multimedia
  (907 - 2795, n=77, last 2 years)
1957 Points +24%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
GeForce RTX 3080 Laptop GPU, i9-11950H, Kioxia XG7 KXG7AZNV1T02
1678 Points +6%
Lenovo ThinkPad Z16 G1 21D5S00T00
Radeon RX 6500M, R7 PRO 6850H, Samsung PM9A1 MZVL21T0HCLR
1581 Points
Average AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
  (n=1)
1581 Points 0%
CrossMark / Responsiveness
Dell XPS 15 9520 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, WDC PC SN810 512GB
1768 Points +40%
Dell XPS 17 9720
GeForce RTX 3050 4GB Laptop GPU, i7-12700H, Micron 3400 MTFDKBA512TFH 512GB
1651 Points +31%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
GeForce RTX 3080 Laptop GPU, i9-11950H, Kioxia XG7 KXG7AZNV1T02
1547 Points +23%
Average of class Multimedia
  (605 - 2094, n=77, last 2 years)
1449 Points +15%
Lenovo ThinkPad Z16 G1 21D5S00T00
Radeon RX 6500M, R7 PRO 6850H, Samsung PM9A1 MZVL21T0HCLR
1259 Points
Average AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
  (n=1)
1259 Points 0%
Apple MacBook Pro 16 2021 M1 Max
M1 Max 32-Core GPU, M1 Max, Apple SSD AP2048R
1080 Points -14%
Apple MacBook Pro 16 2021 M1 Pro
M1 Pro 16-Core GPU, M1 Pro, Apple SSD AP1024R
1055 Points -16%
PCMark 10 Score
6530 points
Help
AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency
AIDA64 / Memory Copy
Average of class Multimedia
  (21158 - 104459, n=70, last 2 years)
72149 MB/s +49%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
63610 MB/s +31%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
57944 MB/s +19%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
48504 MB/s
Average AMD Ryzen 7 PRO 6850H
  (30324 - 48504, n=2)
39414 MB/s -19%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
39053 MB/s -19%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
27947 MB/s -42%
AIDA64 / Memory Read
Average of class Multimedia
  (24312 - 125604, n=70, last 2 years)
73027 MB/s +71%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
67068 MB/s +57%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
60019 MB/s +40%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
42736 MB/s
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
41974 MB/s -2%
Average AMD Ryzen 7 PRO 6850H
  (33791 - 42736, n=2)
38264 MB/s -10%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
26064 MB/s -39%
AIDA64 / Memory Write
Average of class Multimedia
  (24382 - 117933, n=70, last 2 years)
71920 MB/s +41%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
66475 MB/s +30%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
58107 MB/s +14%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
51157 MB/s
Average AMD Ryzen 7 PRO 6850H
  (32728 - 51157, n=2)
41943 MB/s -18%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
41728 MB/s -18%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
22302 MB/s -56%
AIDA64 / Memory Latency
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, Radeon RX 6500M
132.1 ns *
Average AMD Ryzen 7 PRO 6850H
  (93.5 - 132.1, n=2)
112.8 ns * +15%
Average of class Multimedia
  (7 - 346, n=70, last 2 years)
110.7 ns * +16%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, GeForce RTX 3050 Ti Laptop GPU
99.1 ns * +25%
Dell XPS 17 9720
Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU
92.1 ns * +30%
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, GeForce RTX 3080 Laptop GPU
87.8 ns * +34%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, GeForce RTX 3050 Ti Laptop GPU
85.6 ns * +35%

* ... smaller is better

DPC延迟

我们的测试设备联想ThinkPad Z16 G1有DPC延迟的问题，这可能导致音频和视频处理过程中出现一些下降。这些问题可以通过驱动或固件更新来解决，并且可能因设备而异。

在YouTube测试中几乎没有任何下降，其中CPU和GPU负载也保持极低。

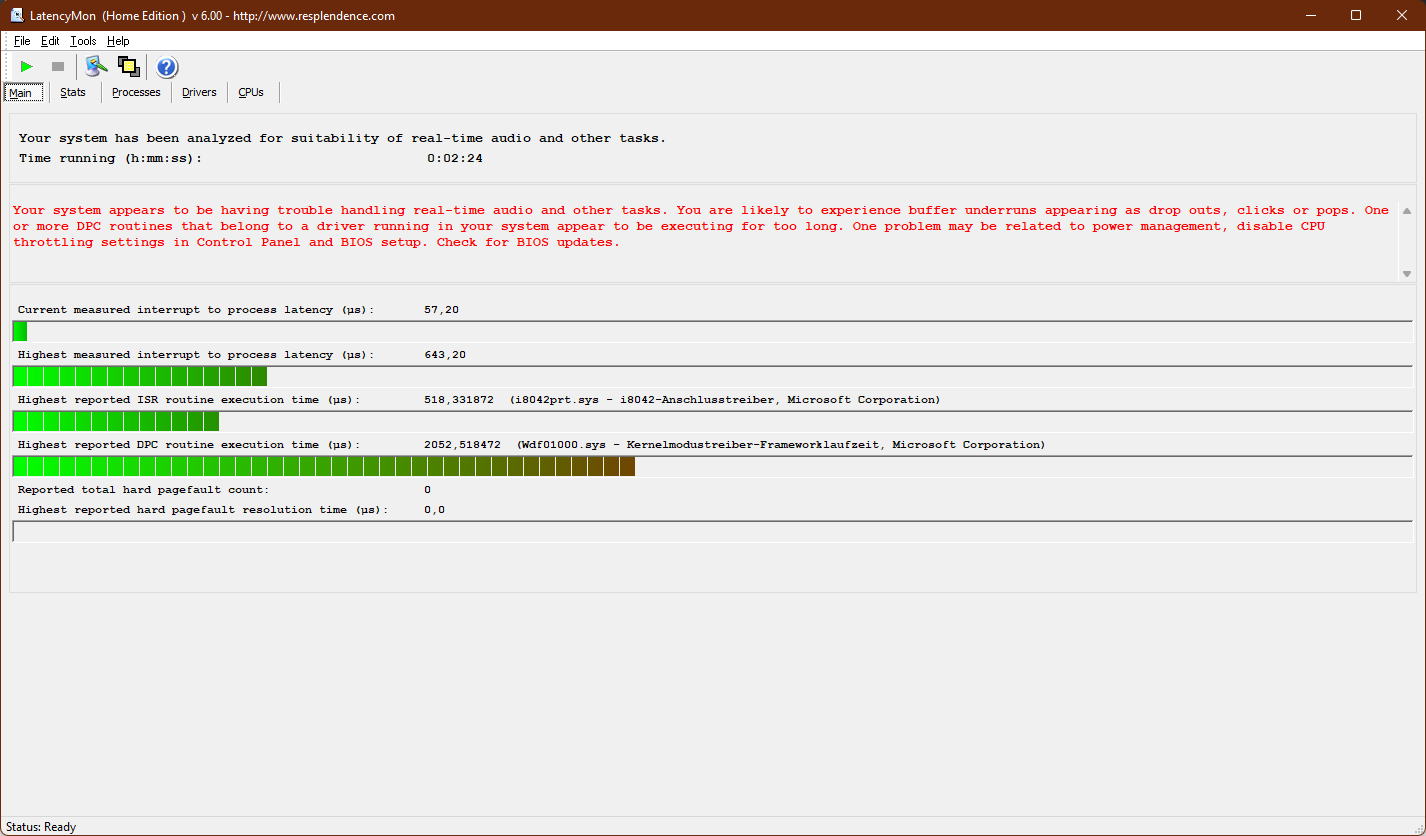

延迟监测
延迟监测

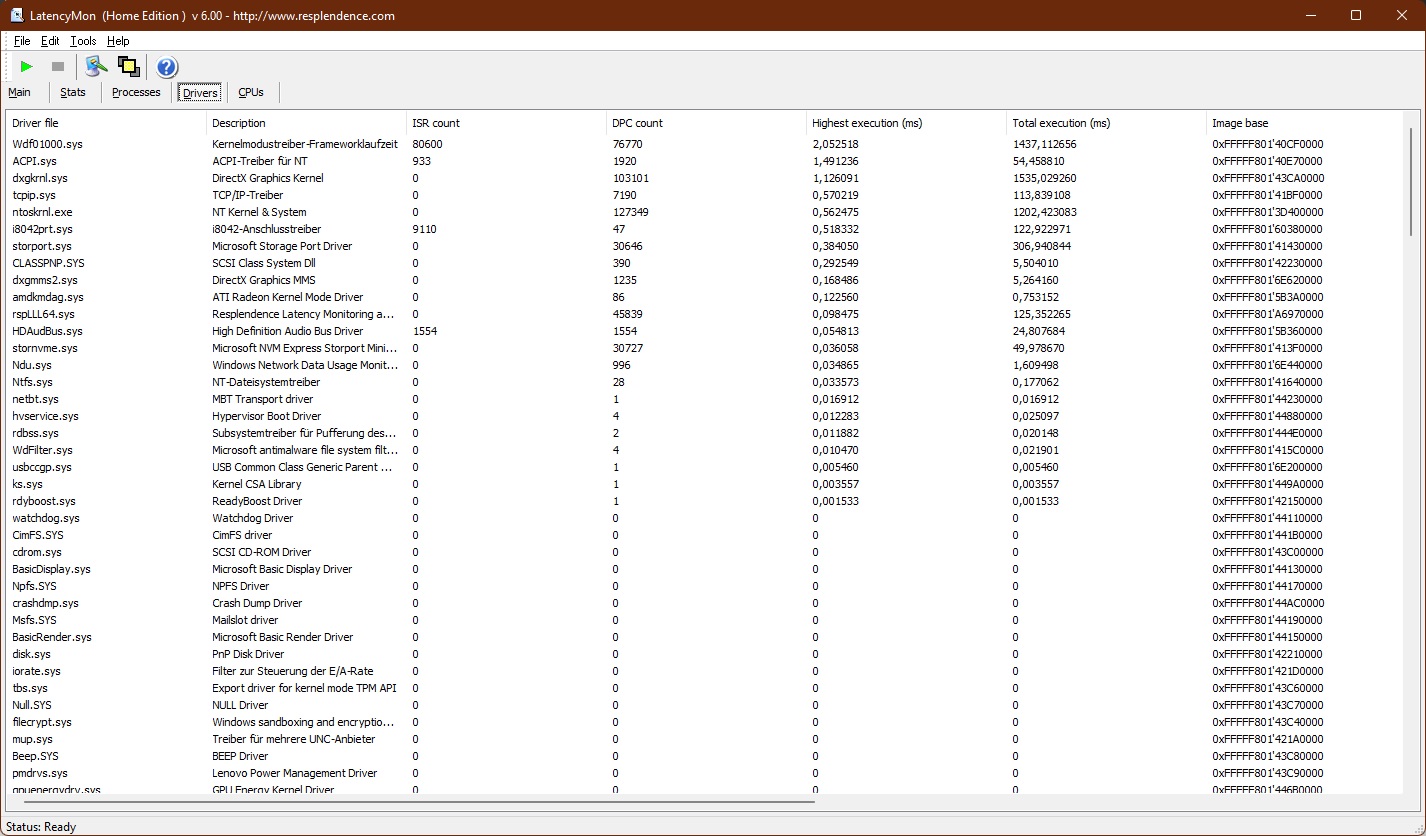

LatencyMon 驱动程序
LatencyMon 驱动程序

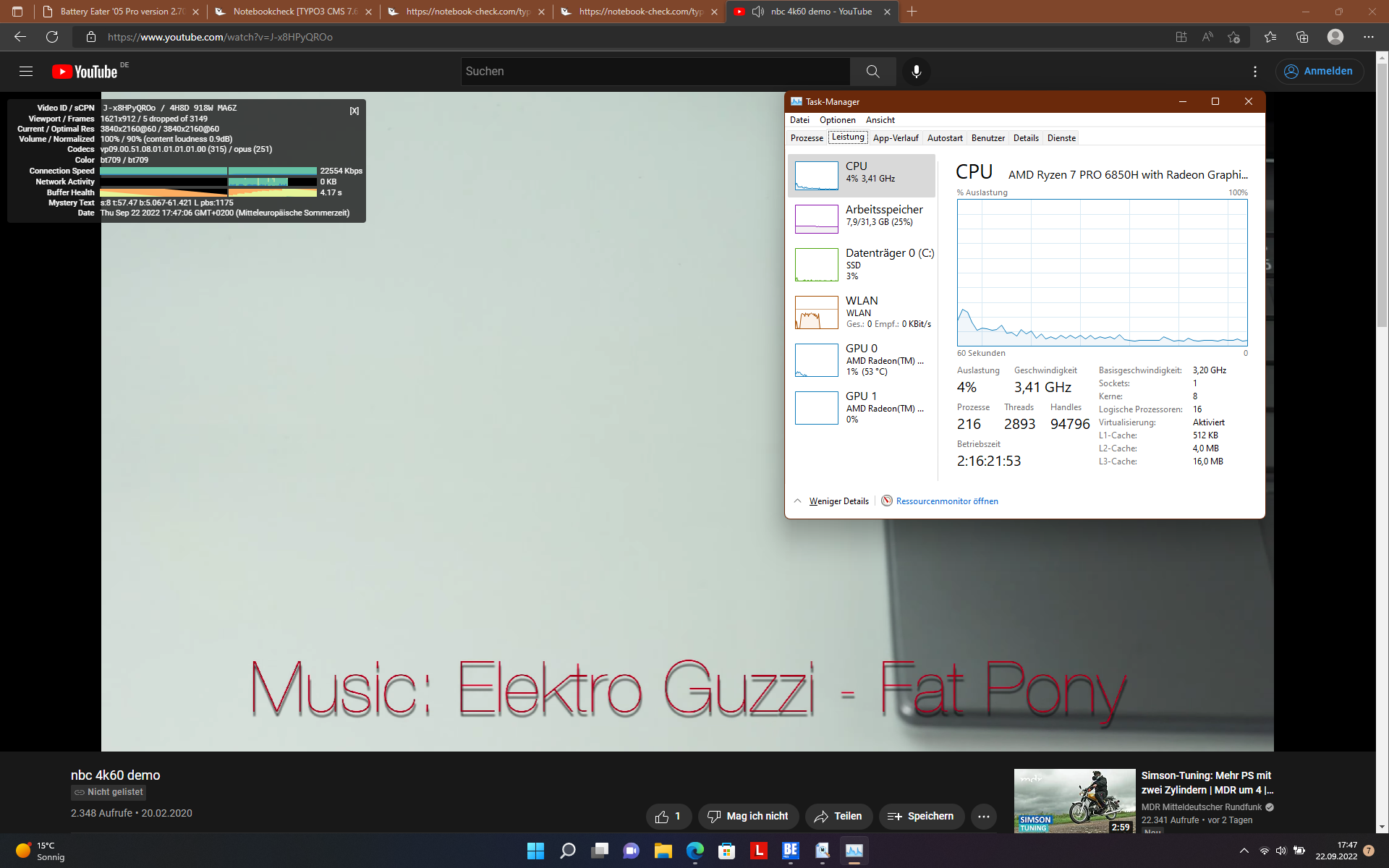

YouTube测试
YouTube测试
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
GeForce RTX 3080 Laptop GPU, i9-11950H, Kioxia XG7 KXG7AZNV1T02
1604 μs * -149%
Dell XPS 17 9720
GeForce RTX 3050 4GB Laptop GPU, i7-12700H, Micron 3400 MTFDKBA512TFH 512GB
1011.2 μs * -57%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
GeForce RTX 3050 Ti Laptop GPU, i7-11800H, Samsung PM9A1 MZVL21T0HCLR
950 μs * -48%
Dell XPS 15 9520 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, WDC PC SN810 512GB
912.2 μs * -42%
Lenovo ThinkPad Z16 G1 21D5S00T00
Radeon RX 6500M, R7 PRO 6850H, Samsung PM9A1 MZVL21T0HCLR
643.2 μs *

* ... smaller is better

存储解决方案

联想ThinkPad Z16 Gen 1中的三星PM9A1固态硬盘提供了1 Terrabyte的存储容量。它是一种M.2-2280固态硬盘，与最新的NVMe PCI-4.0标准相连。在我们的基准测试中的结果描绘了一幅混合的画面。从绝对速度来看，这是一款非常快的固态硬盘，但在我们的比较中，所有其他笔记本电脑都更快，即使差异不是很大。此外，恒定负载下的性能也有差异。

AS SSD
DiskSpd
hddimg
Samsung PM9A1 MZVL21T0HCLR
Sequential Read: 4572.06MB/s
Sequential Write: 2339.86MB/s
4K Read: 63.1MB/s
4K Write: 138.07MB/s
4K-64 Read: 863.66MB/s
4K-64 Write: 2682.07MB/s
Access Time Read: 0.045ms
Access Time Write: 0.028ms
Copy ISO: 2156.8MB/s
Copy Program: 426.1MB/s
Copy Game: 1157.07MB/s
Score Read: 1384Points
Score Write: 3054Points
Score Total: 5050Points
Drive Performance Rating | DiskSpd | AS SSD
Drive Performance Rating - Percent
Average Samsung PM9A1 MZVL21T0HCLR

90.6 pt
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
77 pt
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
75.6 pt
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
74.1 pt
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
70.4 pt
Average of class Multimedia

67.4 pt
DiskSpd
seq read
Average Samsung PM9A1 MZVL21T0HCLR
  (1761 - 4677, n=86)
3762 MB/s +2%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
3695 (3676.71min - 3695.39max) MB/s
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
3575 (3540.25min - 3575.41max) MB/s -3%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
3473 (3290.14min - 3472.67max) MB/s -6%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
3285 (3229.03min - 3284.63max) MB/s -11%
Average of class Multimedia
  (453 - 4861, n=70, last 2 years)
2933 MB/s -21%
seq write
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
3663 (3530.42min - 3663.11max) MB/s +11%
Average Samsung PM9A1 MZVL21T0HCLR
  (2220 - 4564, n=86)
3575 MB/s +9%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
3427 (3117.05min - 3427.38max) MB/s +4%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
3294 (3260.63min - 3294.03max) MB/s
Average of class Multimedia
  (384 - 5711, n=70, last 2 years)
3096 MB/s -6%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
2886 (2821.51min - 2885.78max) MB/s -12%
seq q8 t1 read
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
6722 (6163.74min - 6721.56max) MB/s +1%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
6641 (6202.75min - 6640.63max) MB/s 0%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
6628 (5982.95min - 6627.8max) MB/s
Average Samsung PM9A1 MZVL21T0HCLR
  (3421 - 7100, n=86)
6478 MB/s -2%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
6460 (6172.78min - 6459.52max) MB/s -3%
Average of class Multimedia
  (467 - 7126, n=70, last 2 years)
5261 MB/s -21%
seq q8 t1 write
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
4957 (4947.77min - 4956.62max) MB/s
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
4922 (4873.36min - 4922.03max) MB/s -1%
Average Samsung PM9A1 MZVL21T0HCLR
  (2216 - 5281, n=86)
4816 MB/s -3%
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
4342 (4271.69min - 4341.94max) MB/s -12%
Average of class Multimedia
  (415 - 6898, n=70, last 2 years)
4100 MB/s -17%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
3996 (3865.5min - 3996.33max) MB/s -19%
4k q1 t1 read
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
80.3 (77.48min - 80.31max) MB/s +23%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
78.4 (78.15min - 78.4max) MB/s +20%
Average Samsung PM9A1 MZVL21T0HCLR
  (48.4 - 97.4, n=86)
76.7 MB/s +17%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
65.4 MB/s
Average of class Multimedia
  (14.6 - 97.7, n=70, last 2 years)
62.2 MB/s -5%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
49 (47.21min - 49.03max) MB/s -25%
4k q1 t1 write
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
220 (215.28min - 220.05max) MB/s +63%
Average Samsung PM9A1 MZVL21T0HCLR
  (49.9 - 280, n=86)
188.2 MB/s +40%
Average of class Multimedia
  (44.4 - 378, n=70, last 2 years)
168.7 MB/s +25%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
161 (160.33min - 161.4max) MB/s +19%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
151.7 (150.9min - 151.67max) MB/s +13%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
134.8 (132.75min - 134.76max) MB/s
4k q32 t16 read
Average Samsung PM9A1 MZVL21T0HCLR
  (376 - 4185, n=86)
2561 MB/s +185%
Average of class Multimedia
  (190.3 - 4881, n=70, last 2 years)
1372 MB/s +53%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
1270 (1253.28min - 1269.52max) MB/s +41%
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
958 (945.51min - 958.45max) MB/s +7%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
915 (885.65min - 915.04max) MB/s +2%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
898 (852.85min - 897.55max) MB/s
4k q32 t16 write
Average Samsung PM9A1 MZVL21T0HCLR
  (291 - 3559, n=86)
1940 MB/s +386%
Average of class Multimedia
  (164.6 - 4074, n=70, last 2 years)
1030 MB/s +158%
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
609 (517.93min - 608.62max) MB/s +53%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
585 (580.04min - 584.52max) MB/s +47%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
399 (377.22min - 398.52max) MB/s
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
373 (360.07min - 372.6max) MB/s -7%
AS SSD
Score Total
Average Samsung PM9A1 MZVL21T0HCLR
  (2577 - 9147, n=85)
6855 Points +36%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
6069 Points +20%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
5537 Points +10%
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
5359 Points +6%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
5050 Points
Average of class Multimedia
  (482 - 9972, n=67, last 2 years)
4979 Points -1%
Score Read
Average Samsung PM9A1 MZVL21T0HCLR
  (983 - 3469, n=85)
2417 Points +75%
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
2036 Points +47%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
1859 Points +34%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
1852 Points +34%
Average of class Multimedia
  (192 - 3501, n=67, last 2 years)
1601 Points +16%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
1384 Points
Score Write
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
3402 Points +11%
Average Samsung PM9A1 MZVL21T0HCLR
  (921 - 4043, n=85)
3272 Points +7%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
3054 Points
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
2858 Points -6%
Average of class Multimedia
  (191 - 4813, n=67, last 2 years)
2616 Points -14%
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
2415 Points -21%
Seq Read
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
5351.32 MB/s +17%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
4909 MB/s +7%
Average Samsung PM9A1 MZVL21T0HCLR
  (2638 - 5621, n=85)
4891 MB/s +7%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
4588 MB/s 0%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
4572.06 MB/s
Average of class Multimedia
  (484 - 5730, n=67, last 2 years)
4188 MB/s -8%
Seq Write
Average Samsung PM9A1 MZVL21T0HCLR
  (1617 - 4526, n=85)
3320 MB/s +42%
Average of class Multimedia
  (391 - 5651, n=67, last 2 years)
2795 MB/s +19%
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
2395.03 MB/s +2%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
2339.86 MB/s
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
2083 MB/s -11%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
1625 MB/s -31%
4K Read
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
76.28 MB/s +21%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
75.2 MB/s +19%
Average Samsung PM9A1 MZVL21T0HCLR
  (45.9 - 89.2, n=85)
72.4 MB/s +15%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
63.4 MB/s 0%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
63.1 MB/s
Average of class Multimedia
  (17.5 - 97.4, n=67, last 2 years)
61.1 MB/s -3%
4K Write
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
271.4 MB/s +97%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
202.93 MB/s +47%
Average of class Multimedia
  (43.1 - 328, n=67, last 2 years)
192 MB/s +39%
Average Samsung PM9A1 MZVL21T0HCLR
  (118.6 - 246, n=85)
186 MB/s +35%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
182.9 MB/s +32%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
138.07 MB/s
4K-64 Read
Average Samsung PM9A1 MZVL21T0HCLR
  (421 - 2854, n=85)
1855 MB/s +115%
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
1424.67 MB/s +65%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
1318 MB/s +53%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
1304.72 MB/s +51%
Average of class Multimedia
  (125.7 - 2989, n=67, last 2 years)
1121 MB/s +30%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
863.66 MB/s
4K-64 Write
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
3056 MB/s +14%
Average Samsung PM9A1 MZVL21T0HCLR
  (367 - 3451, n=85)
2754 MB/s +3%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
2682.07 MB/s
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
2446.99 MB/s -9%
Average of class Multimedia
  (108.7 - 4265, n=67, last 2 years)
2145 MB/s -20%
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
1904 MB/s -29%
Access Time Read
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
0.086 ms * -91%
Average of class Multimedia
  (0.018 - 0.168, n=67, last 2 years)
0.05478 ms * -22%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
0.045 ms *
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
0.041 ms * +9%
Average Samsung PM9A1 MZVL21T0HCLR
  (0.018 - 0.083, n=84)
0.03777 ms * +16%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
0.025 ms * +44%
Access Time Write
Average of class Multimedia
  (0.013 - 0.754, n=67, last 2 years)
0.07125 ms * -154%
Dell XPS 15 9520 RTX 3050 Ti
WDC PC SN810 512GB
0.043 ms * -54%
Average Samsung PM9A1 MZVL21T0HCLR
  (0.017 - 0.101, n=85)
0.03406 ms * -22%
Lenovo ThinkPad Z16 G1 21D5S00T00
Samsung PM9A1 MZVL21T0HCLR
0.028 ms *
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Samsung PM9A1 MZVL21T0HCLR
0.022 ms * +21%
Dell XPS 17 9720
Micron 3400 MTFDKBA512TFH 512GB
0.019 ms * +32%

* ... smaller is better

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

034068010201360170020402380272030603400374040804420476051005440578061206460Tooltip
Lenovo ThinkPad Z16 G1 21D5S00T00: Ø6370 (3287.21-6723.03)

图形卡

GPU-Z AMD Radeon RX 6500M
GPU-Z AMD Radeon RX 6500M

联想上次在ThinkPad中使用AMD的专用图形芯片（当时是在 ThinkPad T500仍然使用ATi的品牌），当时iPhone只有一年的历史。当然，联想并没有选择一个非常强大的图形处理器与 AMD Radeon RX 6500M.这款入门级芯片的典型功耗为50瓦，尽管它在ThinkPad Z16中能够消耗55瓦的功率。

凭借这一点，ThinkPad Z16 G1的性能与入门级机型的性能相同。 ThinkPad X1 Extreme搭配NvidiaGeForce RTX 3050 Ti和 戴尔XPS 15配备相同的GPU。这也适用于图形性能本身，在3DMarkTime Spy 和Fire Strike 图形基准测试中，RX 6500M的范围与RTX 3050 Ti处于同一水平。

在电池运行情况下，图形性能原来略低，在3DMarkTime Spy （3429分）中降低了约23%。

3DMark Performance Rating | 3DMark 11 | 3DMark
3DMark Performance Rating - Percent
Lenovo ThinkPad X1 Extreme G4-20Y50040GE -1!
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-11950H
100 pt
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Radeon RX 6500M, AMD Ryzen 7 PRO 6850H
63.5 pt
Average AMD Radeon RX 6500M

63.5 pt
Average of class Multimedia

59.2 pt
Dell XPS 17 9720
NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H
57.5 pt
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti) -1!
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-11800H
53.6 pt
Dell XPS 15 9520 RTX 3050 Ti
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-12700H
52.8 pt
Lenovo ThinkPad Z13 21D2CTO1WW
AMD Radeon 660M, AMD Ryzen 5 PRO 6650U
21.7 pt
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-11950H
33732 Points +107%
Average of class Multimedia
  (3765 - 60250, n=70, last 2 years)
20299 Points +25%
Average AMD Radeon RX 6500M
  (16290 - 19488, n=2)
17889 Points +10%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-11800H
17845 Points +10%
Dell XPS 17 9720
NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H
17674 Points +8%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Radeon RX 6500M, AMD Ryzen 7 PRO 6850H
16290 Points
Dell XPS 15 9520 RTX 3050 Ti
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-12700H
13213 Points -19%
Lenovo ThinkPad Z13 21D2CTO1WW
AMD Radeon 660M, AMD Ryzen 5 PRO 6650U
6560 Points -60%
3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Radeon RX 6500M, AMD Ryzen 7 PRO 6850H
92553 Points
Average AMD Radeon RX 6500M
  (84648 - 92553, n=2)
88601 Points -4%
Dell XPS 15 9520 RTX 3050 Ti
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-12700H
65801 Points -29%
Dell XPS 17 9720
NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H
64593 Points -30%
Average of class Multimedia
  (16765 - 130614, n=29, last 2 years)
51261 Points -45%
Lenovo ThinkPad Z13 21D2CTO1WW
AMD Radeon 660M, AMD Ryzen 5 PRO 6650U
29079 Points -69%
1920x1080 Fire Strike Graphics
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-11950H
25285 Points +81%
Average of class Multimedia
  (2328 - 46022, n=73, last 2 years)
14559 Points +4%
Average AMD Radeon RX 6500M
  (13980 - 14055, n=2)
14018 Points 0%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Radeon RX 6500M, AMD Ryzen 7 PRO 6850H
13980 Points
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-11800H
12962 Points -7%
Dell XPS 17 9720
NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H
12939 Points -7%
Dell XPS 15 9520 RTX 3050 Ti
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-12700H
12154 Points -13%
Lenovo ThinkPad Z13 21D2CTO1WW
AMD Radeon 660M, AMD Ryzen 5 PRO 6650U
4487 Points -68%
2560x1440 Time Spy Graphics
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-11950H
8774 Points +98%
Average of class Multimedia
  (696 - 17620, n=74, last 2 years)
5571 Points +26%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-11800H
4973 Points +12%
Dell XPS 17 9720
NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H
4960 Points +12%
Dell XPS 15 9520 RTX 3050 Ti
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-12700H
4641 Points +5%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Radeon RX 6500M, AMD Ryzen 7 PRO 6850H
4434 Points
Average AMD Radeon RX 6500M
  (4310 - 4434, n=2)
4372 Points -1%
Lenovo ThinkPad Z13 21D2CTO1WW
AMD Radeon 660M, AMD Ryzen 5 PRO 6650U
1588 Points -64%
3DMark 06 Standard Score
35958 points
3DMark Vantage P Result
51599 points
3DMark 11 Performance
17548 points
3DMark Ice Storm Standard Score
116884 points
3DMark Cloud Gate Standard Score
92553 points
3DMark Fire Strike Score
12287 points
3DMark Time Spy Score
4795 points
Help

在我们的测试报告中，Blender 3.3的测试是比较新的。在HIP模式下的教室基准测试中，配备了ThinkPad Z16的 Radeon RX 6500M实现了与 戴尔 Inspiron 14 Plus 7420搭配RTX 3050在CUDA模式下的性能相似。而 RTX 3050 Ti在戴尔 Inspiron 16 Plus 7620在这个测试中的表现要好30%左右。在任何情况下，与CPU模式相比，渲染时间都明显减少。

Blender
v3.3 Classroom HIP/AMD
Average of class Multimedia
  (308 - 683, n=3, last 2 years)
531 Seconds * -383%
Lenovo ThinkPad Z13 21D2CTO1WW
AMD Radeon 660M, AMD Ryzen 5 PRO 6650U
527 Seconds * -379%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Radeon RX 6500M, AMD Ryzen 7 PRO 6850H
110 Seconds *
v3.3 Classroom OPTIX/RTX
Dell Inspiron 14 Plus 7420
NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H
58 Seconds *
Dell Inspiron 16 Plus 7620
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-12700H
49 Seconds *
Average of class Multimedia
  (19 - 105, n=35, last 2 years)
40.5 Seconds *
v3.3 Classroom CUDA
Dell Inspiron 14 Plus 7420
NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H
107 Seconds *
Dell Inspiron 16 Plus 7620
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-12700H
84 Seconds *
Average of class Multimedia
  (32 - 164, n=35, last 2 years)
67.3 Seconds *
v3.3 Classroom CPU
Lenovo ThinkPad Z13 21D2CTO1WW
AMD Radeon 660M, AMD Ryzen 5 PRO 6650U
799 Seconds * -52%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Radeon RX 6500M, AMD Ryzen 7 PRO 6850H
525 Seconds *
Dell Inspiron 14 Plus 7420
NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H
456 Seconds * +13%
Dell Inspiron 16 Plus 7620
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-12700H
436 Seconds * +17%
Average of class Multimedia
  (160 - 1042, n=76, last 2 years)
425 Seconds * +19%

* ... smaller is better

游戏性能

在合成基准测试中，游戏性能大约是在 戴尔XPS 15 9520配备RTX 3050 Ti的戴尔XPS 15 9520的水平，拥有相同Nvidia芯片的X1 Extreme在游戏中的表现稍好。即使是较新的游戏也可以在高或最高细节设置下再现，但只能在全高清分辨率下进行。AMD Radeon的性能很可能无法满足4K游戏的需要。

你应该注意到，GPU的性能受到了节流的影响。在我们的TheWitcher 3 循环中，FPS率从最初的45下降到只有35 FPS。

The Witcher 3 | F1 2021 | GTA V | Strange Brigade
The Witcher 3 - 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, NVIDIA GeForce RTX 3080 Laptop GPU
177 fps +208%
Average of class Multimedia
  (20.9 - 290, n=54, last 2 years)
106.9 fps +86%
Dell XPS 17 9720
Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU
99 fps +72%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
95.2 (79min) fps +66%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
62.4 (59min) fps +9%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
57.4 (49min) fps
Average AMD Radeon RX 6500M
  (n=1)
57.4 fps 0%
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Average of class Multimedia
  (31.5 - 149.8, n=11, last 2 years)
93.8 fps +119%
Dell XPS 17 9720
Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU
62 (52min, 50P1) fps +45%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
42.9 (23min, 23P1) fps
Average AMD Radeon RX 6500M
  (n=1)
42.9 fps 0%
GTA V - 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Dell XPS 17 9720
Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU
146.6 (5.54min, 100P1) fps +52%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
130 (15.7min, 83.3P1) fps +35%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
96.6 (8.42min, 71.4P1) fps
Average of class Multimedia
  (19.1 - 186.1, n=74, last 2 years)
93.7 fps -3%
Average AMD Radeon RX 6500M
  (90 - 96.6, n=2)
93.3 fps -3%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
90.3 (15min, 71.4P1) fps -7%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Dell XPS 17 9720
Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU
90.6 (63.5min, 68.2P1) fps +5%
Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
89.5 (63.4min, 69.7P1) fps +4%
Average of class Multimedia
  (13.3 - 233, n=75, last 2 years)
88.9 fps +3%
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M
86.3 (66.3min, 68.8P1) fps
Average AMD Radeon RX 6500M
  (80.5 - 86.3, n=2)
83.4 fps -3%
Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, NVIDIA GeForce RTX 3050 Ti Laptop GPU
79.4 (39.1min, 60.6P1) fps -8%

The Witcher 3 FPS Chart

0510152025303540Tooltip
Lenovo ThinkPad Z16 G1 21D5S00T00 R7 PRO 6850H, Radeon RX 6500M: Ø37 (34-45)
lowmed.highultra
GTA V (2015) 154.7 144.8 96.6 41.8
The Witcher 3 (2015) 195 136.2 57.4 39.1
Dota 2 Reborn (2015) 121.5 106.1 102.2 94.8
Final Fantasy XV Benchmark (2018) 126.6 65.8 46.9
X-Plane 11.11 (2018) 47.7 40.7 36.8
Far Cry 5 (2018) 90 75 71 66
Strange Brigade (2018) 266 119.1 98.8 86.3
Metro Exodus (2019) 137.4 66.7 46.7 37
The Division 2 (2019) 129 82 67 47
Borderlands 3 (2019) 78.2 66.6 47.1 34.5
Hunt Showdown (2020) 124.8 68.9 57.3
Doom Eternal (2020) 232 101.2 57.5
Gears Tactics (2020) 257.8 125.2 82.4 56.6
Death Stranding (2020) 130.4 89.3 82.2 78.9
Horizon Zero Dawn (2020) 103 71 59 54
Crysis Remastered (2020) 185.6 88.7 26.3 19.6
Mafia Definitive Edition (2020) 91.4 53 48.7
Star Wars Squadrons (2020) 267 150.5 131.7 119.6
Watch Dogs Legion (2020) 81.1 70 59.1 24.6
Dirt 5 (2020) 159.4 72.9 56.3 37.4
Assassin´s Creed Valhalla (2020) 113 62 45 39
Yakuza Like a Dragon (2020) 80.3 60.6 58.4 54.5
Immortals Fenyx Rising (2020) 89 68 47 41
Hitman 3 (2021) 157.2 102.1 88.7 80.5
Mass Effect Legendary Edition (2021) 82.2 75.6
Days Gone (2021) 116.3 70.6 62.7 44.2
F1 2021 (2021) 245 139 105.1 42.9
New World (2021) 70.3 53 46.2 40.4
Far Cry 6 (2021) 91.7 69.8 62.5 54.5
Back 4 Blood (2021) 116 95.3 92.7
Guardians of the Galaxy (2021) 83 48 47 44
Riders Republic (2021) 71 68 58 43
Forza Horizon 5 (2021) 152 101 81 27
Battlefield 2042 (2021) 129.7 71.2 53.3 23.3
Farming Simulator 22 (2021) 96.6 86
Halo Infinite (2021) 62.4 43.6 42.4
God of War (2022) 64.5 54.1 39.6 11.9
Rainbow Six Extraction (2022) 96 69 61 34
Dying Light 2 (2022) 58.4 46.6 37
GRID Legends (2022) 146.9 105 75.9 59.9
Cyberpunk 2077 1.6 (2022) 66.2 66.5 32.3 29.2
Elex 2 (2022) 53.4 51 44 37.6
Ghostwire Tokyo (2022) 72.7 71 65.5 66.3
Tiny Tina's Wonderlands (2022) 118.1 88.5 45.8 29.8
Vampire Bloodhunt (2022) 142.7 115 106.7 98.1
F1 22 (2022) 116.3 97.2 75.6 13.9
The Quarry (2022) 64.1 48.3 38.9 25.4

排放物。风扇保持安静，但ThinkPad Z16运行时很热

噪声排放

在低负载情况下，联想ThinkPad Z16 G1的风扇运行非常安静，所以你几乎注意不到它。即使是 MacBook Pro 16 mit M1 Pro在这一点上的声音也很小。这种情况在最大负荷下会发生变化，因为此时MacBook会更安静，即使是带有M1 Max的更强大的版本。然而，ThinkPad Z16仍然不是一台吵闹的笔记本电脑，风扇的最大噪音水平仍然大大低于M1 Max。 联想ThinkPad X1 Extreme G4.

我们在Z16中没有注意到任何线圈的啸叫。

Noise Level

Idle
23.7 / 23.7 / 23.7 dB(A)
Load
25.9 / 46.9 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 23.7 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2026.524.524.426.5252325.820233120.620.920.220.64027.624.225.327.65022.623.622.222.66324.922.519.624.98025.720.418.525.710023.72219.823.712523.221.220.623.21602517.9152520024.718.717.824.725027.516.117.427.531530.917.41230.940031.416.412.131.450032.715.810.332.76303414.6103480034.315.51034.3100035.417.11035.412503514.59.835160035.513.910.635.5200034.412.411.134.4250034.71211.834.7315034.511.711.634.5400034.212.41234.2500035.813.312.335.8630036.112.412.236.180003312.212.1331000030.112.612.130.11250024.612.212.224.61600018.2121218.2SPL46.52623.746.5N5.70.80.55.7median 33median 14.5median 12median 33Delta52.625hearing rangehide median Fan NoiseLenovo ThinkPad Z16 G1 21D5S00T00
Lenovo ThinkPad Z16 G1 21D5S00T00
Radeon RX 6500M, R7 PRO 6850H, Samsung PM9A1 MZVL21T0HCLR		Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
GeForce RTX 3050 Ti Laptop GPU, i7-11800H, Samsung PM9A1 MZVL21T0HCLR		Lenovo ThinkPad X1 Extreme G4-20Y50040GE
GeForce RTX 3080 Laptop GPU, i9-11950H, Kioxia XG7 KXG7AZNV1T02		Dell XPS 15 9520 RTX 3050 Ti
GeForce RTX 3050 Ti Laptop GPU, i7-12700H, WDC PC SN810 512GB		Dell XPS 17 9720
GeForce RTX 3050 4GB Laptop GPU, i7-12700H, Micron 3400 MTFDKBA512TFH 512GB		Apple MacBook Pro 16 2021 M1 Pro
M1 Pro 16-Core GPU, M1 Pro, Apple SSD AP1024R		Apple MacBook Pro 16 2021 M1 Max
M1 Max 32-Core GPU, M1 Max, Apple SSD AP2048R
Noise
-12%
-15%
3%
-11%
1%
-7%
off / environment *
23.7
23.52
1%
24.7
-4%
22.8
4%
24
-1%
24.7
-4%
24.2
-2%
Idle Minimum *
23.7
23.52
1%
24.7
-4%
22.9
3%
24
-1%
24.7
-4%
24.2
-2%
Idle Average *
23.7
23.52
1%
24.7
-4%
22.9
3%
24
-1%
24.7
-4%
24.2
-2%
Idle Maximum *
23.7
23.52
1%
28.1
-19%
22.9
3%
24
-1%
24.7
-4%
24.2
-2%
Load Average *
25.9
42.9
-66%
42.5
-64%
30.9
-19%
43.9
-69%
26.1
-1%
42.9
-66%
Witcher 3 ultra *
46.9
52.5
-12%
46.4
1%
37.8
19%
48.4
-3%
39.5
16%
Load Maximum *
46.9
52.45
-12%
52.1
-11%
44.7
5%
48.4
-3%
37.4
20%
42.9
9%

* ... smaller is better

温度

联想ThinkPad Z16 Gen 1在空闲运行时保持完全冷却。另一方面，无论是在压力测试还是在Witcher 3 ，ThinkPad Z16在负载下运行时都相当热。我们测量到键盘上方的最高温度为56.8 ºC (~134 ºF)。 尽管你可以很容易地避免触摸这个区域，机箱的其他部分也会明显发热。掌托的最高温度达到36.5 ºC (~98 ºF)，感觉明显发热，可能会导致手汗。

在压力测试中，我们的替换测试装置也未能保持稳定。Prime95和FurMark的运行都会导致频繁的突然重启。因此，我们无法包括长达一小时的压力测试。

Max. Load
 46.6 °C56.8 °C50.3 °C
 39.2 °C53 °C43 °C
 35.3 °C36.6 °C36.5 °C
Maximum: 56.8 °C
Average: 44.1 °C
46.7 °C53.3 °C44.6 °C
38.1 °C47.8 °C37.7 °C
33.3 °C34.5 °C32.5 °C
Maximum: 53.3 °C
Average: 40.9 °C
Power Supply (max.)  39.3 °C | Room Temperature 25.8 °C | Fluke 62 Max+
(-) The average temperature for the upper side under maximal load is 44.1 °C / 111 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(-) The maximum temperature on the upper side is 56.8 °C / 134 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 53.3 °C / 128 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 31.3 °C / 88 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 43.8 °C / 111 F, compared to the device average of 31.3 °C / 88 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36.6 °C / 97.9 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-7.8 °C / -14.1 F).
Lenovo ThinkPad Z16 G1 21D5S00T00
AMD Ryzen 7 PRO 6850H, AMD Radeon RX 6500M		Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
Intel Core i7-11800H, NVIDIA GeForce RTX 3050 Ti Laptop GPU		Lenovo ThinkPad X1 Extreme G4-20Y50040GE
Intel Core i9-11950H, NVIDIA GeForce RTX 3080 Laptop GPU		Dell XPS 15 9520 RTX 3050 Ti
Intel Core i7-12700H, NVIDIA GeForce RTX 3050 Ti Laptop GPU		Dell XPS 17 9720
Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU		Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro, Apple M1 Pro 16-Core GPU		Apple MacBook Pro 16 2021 M1 Max
Apple M1 Max, Apple M1 Max 32-Core GPU
Heat
4%
3%
-1%
12%
22%
21%
Maximum Upper Side *
56.8
49
14%
51.4
10%
51.4
10%
49.5
13%
41
28%
42.3
26%
Maximum Bottom *
53.3
44.4
17%
55.9
-5%
51
4%
38.4
28%
39
27%
41.7
22%
Idle Upper Side *
28.2
32.1
-14%
27.2
4%
30
-6%
28
1%
24
15%
23.9
15%
Idle Bottom *
29.4
29.8
-1%
28.8
2%
33
-12%
27.8
5%
24
18%
23.9
19%

* ... smaller is better

演讲者

键盘两边是联想ThinkPad Z16的立体声扬声器。它们相当响亮，甚至有一点低音，但与Apple MacBook Pro 16的扬声器相比，仍有差距。MacBook只是提供了更多的低音和音量。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2024.232.22523.226.93122.927.84024.725.75019.7236322.418.38015.722.910016.737.712517.843.916015.244.820011.751.52509.759.33159.561.54009.160.2500962.56309.262800960.810009.264.312509.365.716009.864.6200010.765.925001166.1315011.360.2400011.961.8500011.965.9630011.961.3800012.3581000012.257.71250012.157.51600011.954.5SPL2375.6N0.437.4median 11.3median 60.8Delta1.34.526.831.53133.32829.730.231.223.332.121.132.61936.119.654.821.661.420.757.120.762.616.764.114.662.613.568.811.671.911.165.410.366.910.263.710.168.910.672.110.577.1117411.769.511.96512.169.312.473.212.469.912.473.912.267.712.3662483.60.659.7median 12.2median 67.724.126.325.821.422.12624.925.127.622.532.523.448.72655.818.860.922.167.2267019.372.317.674.217.774.319.575.31571.711.871.311.27410.574.21072.710.17210.67210.97511.374.811.671.71269.71269.612.371.112.669.61270.111.269.824.784.70.666.6median 12median 71.73.42.2hearing rangehide median Pink NoiseLenovo ThinkPad Z16 G1 21D5S00T00Dell XPS 17 9720Apple MacBook Pro 16 2021 M1 Pro
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad Z16 G1 21D5S00T00 audio analysis

(±) | speaker loudness is average but good (75.56 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (13% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.6% away from median
(+) | mids are linear (3.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.5% difference to median)
Compared to same class
» 19% of all tested devices in this class were better, 3% similar, 77% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 10% of all tested devices were better, 2% similar, 88% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Dell XPS 17 9720 audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.3% lower than median
(±) | linearity of bass is average (11.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(±) | linearity of mids is average (7.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(±) | linearity of highs is average (7.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (8.8% difference to median)
Compared to same class
» 8% of all tested devices in this class were better, 2% similar, 91% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Apple MacBook Pro 16 2021 M1 Pro audio analysis

(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 24%, worst was 134%

电源管理。尽管电池很小，但ThinkPad有很好的电池寿命

消耗功率

在这个类别中，联想ThinkPad Z16 G1确实是同类产品中的佼佼者，它的直接竞争对手中没有一个运行效率更高。只有配备M1 Pro的Apple MacBook Pro 16在最低空闲消耗方面略微高效一些。然而，我们也应该在此提到，ThinkPad Z16 Gen 1的显示屏的分辨率明显低于那些对比设备。

135瓦的电源刚刚够大，最大消耗约为133瓦。

Power Consumption
Off / Standbydarklight 0.6 / 0.8 Watt
Idledarkmidlight 5.3 / 8.6 / 9.5 Watt
Load midlight 65.2 / 133.81 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad Z16 G1 21D5S00T00
R7 PRO 6850H, Radeon RX 6500M, Samsung PM9A1 MZVL21T0HCLR, IPS LED, 1920x1200, 16"		Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
i7-11800H, GeForce RTX 3050 Ti Laptop GPU, Samsung PM9A1 MZVL21T0HCLR, IPS LED, 3840x2400, 16"		Lenovo ThinkPad X1 Extreme G4-20Y50040GE
i9-11950H, GeForce RTX 3080 Laptop GPU, Kioxia XG7 KXG7AZNV1T02, IPS, 3840x2400, 16"		Dell XPS 15 9520 RTX 3050 Ti
i7-12700H, GeForce RTX 3050 Ti Laptop GPU, WDC PC SN810 512GB, OLED, 3456x2160, 15.6"		Dell XPS 17 9720
i7-12700H, GeForce RTX 3050 4GB Laptop GPU, Micron 3400 MTFDKBA512TFH 512GB, IPS, 3840x2400, 17"		Apple MacBook Pro 16 2021 M1 Pro
M1 Pro, M1 Pro 16-Core GPU, Apple SSD AP1024R, Mini-LED, 3456x2234, 16.2"		Apple MacBook Pro 16 2021 M1 Max
M1 Max, M1 Max 32-Core GPU, Apple SSD AP2048R, Mini-LED, 3456x2234, 16.2"		Average AMD Radeon RX 6500M
 		Average of class Multimedia

Power Consumption
-79%
-80%
-13%
-50%
-17%
-38%
0%
-18%
Idle Minimum *
5.3
10.3
-94%
12.3
-132%
5.5
-4%
7.8
-47%
5
6%
5.4
-2%
5.3 ?(n=1)
-0%
6.64 ?(2.1 - 31.3, n=78, last 2 years)
-25%
Idle Average *
8.6
22.06
-157%
22.8
-165%
7.2
16%
15.1
-76%
15.1
-76%
16.4
-91%
8.6 ?(n=1)
-0%
11.4 ?(4.6 - 38.3, n=78, last 2 years)
-33%
Idle Maximum *
9.5
23
-142%
13.9
-46%
16
-68%
17
-79%
15.5
-63%
16.7
-76%
9.5 ?(n=1)
-0%
13.2 ?(6 - 41.6, n=78, last 2 years)
-39%
Load Average *
65.2
102.57
-57%
95.4
-46%
91.8
-41%
114
-75%
54
17%
94
-44%
65.2 ?(n=1)
-0%
70.1 ?(15.1 - 147, n=75, last 2 years)
-8%
Witcher 3 ultra *
93.6
106
-13%
154
-65%
74.6
20%
115.2
-23%
104
-11%
Load Maximum *
133.81
147.8
-10%
170.7
-28%
134.7
-1%
135.6
-1%
90
33%
135
-1%
133.8 ?(n=1)
-0%
115.2 ?(40 - 270, n=78, last 2 years)
14%

* ... smaller is better

Power Consumption The Witcher 3 / Stress Test

0102030405060708090100110120130Tooltip
Lenovo ThinkPad Z16 G1 21D5S00T00; Witcher 3 ultra: Ø93.6 (84.7-109.2)
Lenovo ThinkPad Z16 G1 21D5S00T00; 1280x720 Prime95 28.10 and Furmark 1.25: Ø120.3 (115-133.9)

Power Consumption With External Monitor

0102030405060708090100110Tooltip
Lenovo ThinkPad Z16 G1 21D5S00T00; Prime95 V2810 Stress (external Monitor): Ø101.9 (98.7-107)
Lenovo ThinkPad Z16 G1 21D5S00T00; Cinebench R15 Multi (external Monitor): Ø103 (96.8-110.7)
Lenovo ThinkPad Z16 G1 21D5S00T00; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø102.4 (99-105.7)
Lenovo ThinkPad Z16 G1 21D5S00T00; 1920x1080 The Witcher 3 ultra (external Monitor): Ø104.7 (101.6-108.9)
Lenovo ThinkPad Z16 G1 21D5S00T00; Idle 1min (external Monitor): Ø10.1 (9.61-12.2)

电池寿命

充电时间：116分钟
充电时间：116分钟

在电池容量方面，联想ThinkPad Z16 G1表现得相对吝啬，只有72瓦特小时。然而，ThinkPad笔记本电脑的电池寿命仍然较好，至少与Windows竞争对手相比是如此。另一方面，它甚至没有接近达到Apple"的数值。 MacBook Pro 16的数值，但它也是我们比较领域中最大的电池。

在Wi-Fi测试中，大约10小时（在150cd/m²的亮度下），Z16不需要隐藏。在最大亮度下，它在我们的自动Wi-Fi测试中仍能持续8小时。然而，这只适用于Z16的WUXGA版本，而可选的4K UHD显示屏应该会大大缩短电池寿命。

Battery Runtime
WiFi Websurfing (Edge 105)
9h 54min
WiFi Websurfing max. Brightness (Edge 105)
7h 57min
Big Buck Bunny H.264 1080p
11h 55min
Load (maximum brightness)
2h 03min
Lenovo ThinkPad Z16 G1 21D5S00T00
R7 PRO 6850H, Radeon RX 6500M, 72 Wh		Lenovo ThinkPad X1 Extreme G4-20Y5CTO1WW (3050 Ti)
i7-11800H, GeForce RTX 3050 Ti Laptop GPU, 90 Wh		Lenovo ThinkPad X1 Extreme G4-20Y50040GE
i9-11950H, GeForce RTX 3080 Laptop GPU, 90 Wh		Dell XPS 15 9520 RTX 3050 Ti
i7-12700H, GeForce RTX 3050 Ti Laptop GPU, 86 Wh		Apple MacBook Pro 16 2021 M1 Pro
M1 Pro, M1 Pro 16-Core GPU, 99.6 Wh		Apple MacBook Pro 16 2021 M1 Max
M1 Max, M1 Max 32-Core GPU, 99.6 Wh		Average of class Multimedia

Battery Runtime
-39%
-40%
23%
59%
15%
4%
H.264
715
402
-44%
414
-42%
1048
47%
1021
43%
867 ?(319 - 1481, n=48, last 2 years)
21%
WiFi v1.3
594
396
-33%
406
-32%
528
-11%
1016
71%
894
51%
652 ?(262 - 1204, n=78, last 2 years)
10%
Load
123
73
-41%
68
-45%
192
56%
63
-49%
98 ?(39 - 209, n=53, last 2 years)
-20%

Pros

+ 非常高质量的外壳
+ 优秀的触控板
+ 舒适的键盘
+ 集成了LTE
+ 性能高
+ 良好的电池寿命
+ 哑光、明亮的低功率显示屏
+ 优质的网络摄像头和扬声器

Cons

- 系统稳定性
- 负载下温度高
- 没有HDMI连接
- 焊接的工作存储器
- 只有一个SSD插槽
- 没有2.5K选项，只有60-Hz显示器

结论：联想ThinkPad Z16 G1是一台伟大的笔记本电脑，但...

测试联想ThinkPad Z16，测试装置由campuspoint.de提供。
测试联想ThinkPad Z16，测试装置由campuspoint.de提供。

联想ThinkPad Z16第一代确实让我们有些头疼。从纸面上看，它可能是一台非常好的笔记本电脑，在我们的测试中，这也变成了事实。但是，我们仍然无法给它一个 "非常好 "的推荐。

首先，我们应该列出ThinkPad笔记本电脑的所有积极方面。ThinkPad Z16 G1在一个相对紧凑的外壳中提供了非常好的性能。外壳的质量非常好，加上大量的铝和玻璃掌托的组合，联想在这方面做了很多正确的事情。制造商在触摸板方面也做得很好，明显比其他所有ThinkPads的触摸板要好。键盘也很好，即使它没有其他ThinkPad的键盘那么好。ThinkPad Z16包括一个哑光、明亮的显示屏，并提供良好的电池寿命，尽管电池相对较小。

Z16的第一个大问题是它的连接。ThinkPad Z16是一款16英寸的笔记本电脑，是一款商务设备。这样的设备没有提供USB-A接口，特别是也没有HDMI，这是难以接受的。温度管理也造成了一些困难，因为ThinkPad Z16变得相当热。你最好不要在负载下触摸键盘上方的区域。在一个相对较大的ThinkPad中，我们发现焊接的RAM是一个不必要的限制。一个明显不太重要但仍然相关的抱怨点。Z16缺少一个2.5K显示屏的选项，也没有更高刷新率的显示屏。

如果没有重启的问题，它可能是一台非常好的笔记本电脑，因为除此之外，我们在联想ThinkPad Z16第一代身上看到了许多积极的方面。

但所有这些抱怨并不是让我们头疼的原因--那就是已经提到的重启问题，导致我们要求更换新的测试设备。幸运的是，这个问题在我们更换的测试设备中明显不那么明显，但不幸的是，这个问题仍然发生。

这导致了对ThinkPad Z16的评价明显比它本来应该有的要差。这是不幸的，因为否则我们真的不会不喜欢这款ThinkPad，即使它缺乏的连接设备对于其目标市场来说不如紧凑的ThinkPad Z13那样有说服力。在端口方面，联想ThinkPad X1 Extreme G4 ，明显更灵活。即使是MacBook Pro 16 ，仍然至少提供HDMI，但另一方面，它缺乏ThinkPad Z16的WWAN选项。

注：由于系统稳定性的问题，对ThinkPad Z16的评价结果是降低了3个百分点。

价格和可用性

联想ThinkPad Z16 Gen 1在，起价1,975美元。在联想的网上商店。亚马逊也列出了ThinkPad Z16的各种配置，起价1850美元。(关联链接)。

Lenovo ThinkPad Z16 G1 21D5S00T00 - 09/29/2022 v7 (old)
Benjamin Herzig

Chassis
90 / 98 → 91%
Keyboard
90%
Pointing Device
93%
Connectivity
75 / 80 → 94%
Weight
64 / 20-72 → 85%
Battery
88 / 95 → 93%
Display
91%
Games Performance
83 / 90 → 92%
Application Performance
95 / 90 → 100%
Temperature
82%
Noise
92 / 95 → 97%
Audio
78%
Camera
32 / 85 → 38%
Add Points
-3%
Average
75%
87%
Multimedia - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版（NBC中国） > 评测 > 联想ThinkPad Z16 G1笔记本电脑评论。强大的AMD旗舰机，有一个小插曲
Benjamin Herzig, 2022-10- 1 (Update: 2022-10- 1)
