GMK NucBox K2 Ryzen 7 7735HS mini PC 评测：针对每美元高性能进行了优化

Name: GMK NucBox K2
Brand: GMK

物美价廉 NucBox K2 跳过了华而不实的 "创新"，以更低廉的起始价格同时保持尽可能高的性能。平易近人的 NucBox K2 应该是大多数预算有限的家庭和 HTPC 用户的首选。

Allen Ngo, 👁 Allen Ngo (translated by DeepL / Ninh Duy), Published 09/13/2023 🇺🇸 🇸🇪 ...

Zen 3 (Vermeer) Zen Mini PC

NucBox K2 是 GMKtec 最新推出的迷你 PC，适用于家庭和办公环境。虽然从名称上看，它可能直接取代了 NucBox K1但由于 NucBox K1 的目标用户群与 NucBox K1 不同，因此 NucBox K2 自成一类。

我们的评测机配置了 Zen 3+ AMD Ryzen 7 7735HS CPU、集成 Radeon 680M GPU、1 TB PCIe3 SSD 和 32 GB 内存，售价约为 580 美元，促销时仅为 480 美元。此外，还有内存和存储空间减半的机型，甚至还有配备更快的 Zen 4 Ryzen 9 7940HS 的机型，售价不到 800 美元。目前还没有裸机可供选择。

NucBox 2 的替代产品包括其他采用集成显卡的迷你电脑，如联想 IdeaCentre Mini, Geekom Mini iT13, Trigkey Speed S或英特尔 NUC 13 Pro.

更多 GMK 评论：

Test device courtesy of GMKtec

Download your licensed rating image as PNG / SVG

GMK NucBox K2

Processor

AMD Ryzen 7 7735HS 8 x 3.2 - 4.8 GHz, 45 W PL2 / Short Burst, 38 W PL1 / Sustained, Rembrandt-HS Refresh

Graphics adapter

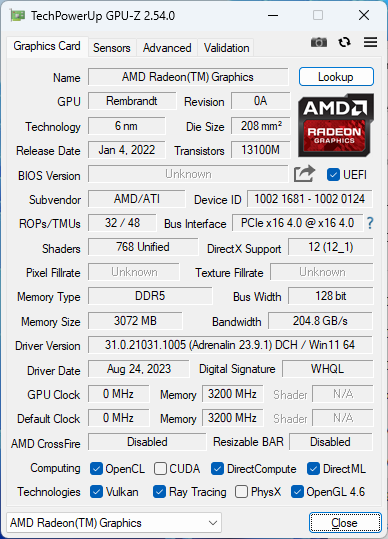

AMD Radeon 680M - 3 GB VRAM, Core: 2400 MHz, DDR5, 23.9.1

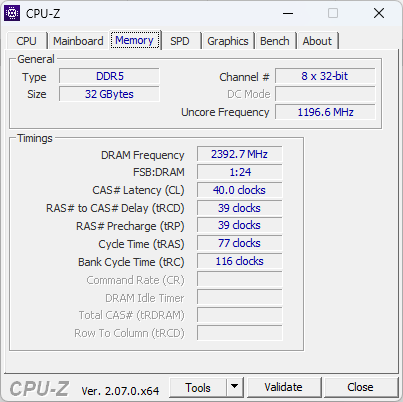

Memory

32 GB

, Crucial DDR5, 2400 MHz, Dual-Channel, 40-39-39-77

Mainboard

AMD Promontory/Bixby FCH

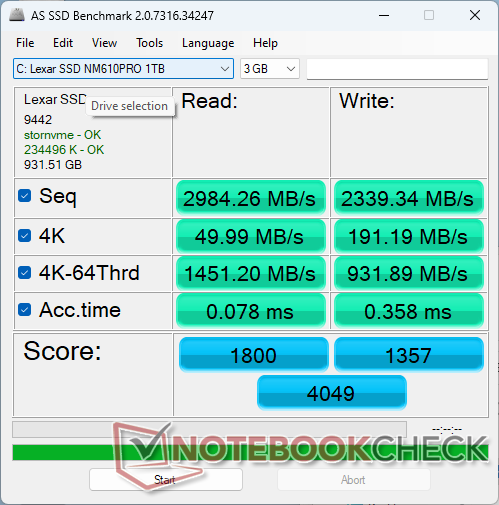

Storage

Lexar NM610 Pro NM610P001T-HNNNG, 1024 GB

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 3 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm headset

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 43.2 x 123 x 112

Operating System

Microsoft Windows 11 Pro

Additional features

12 Months Warranty

Weight

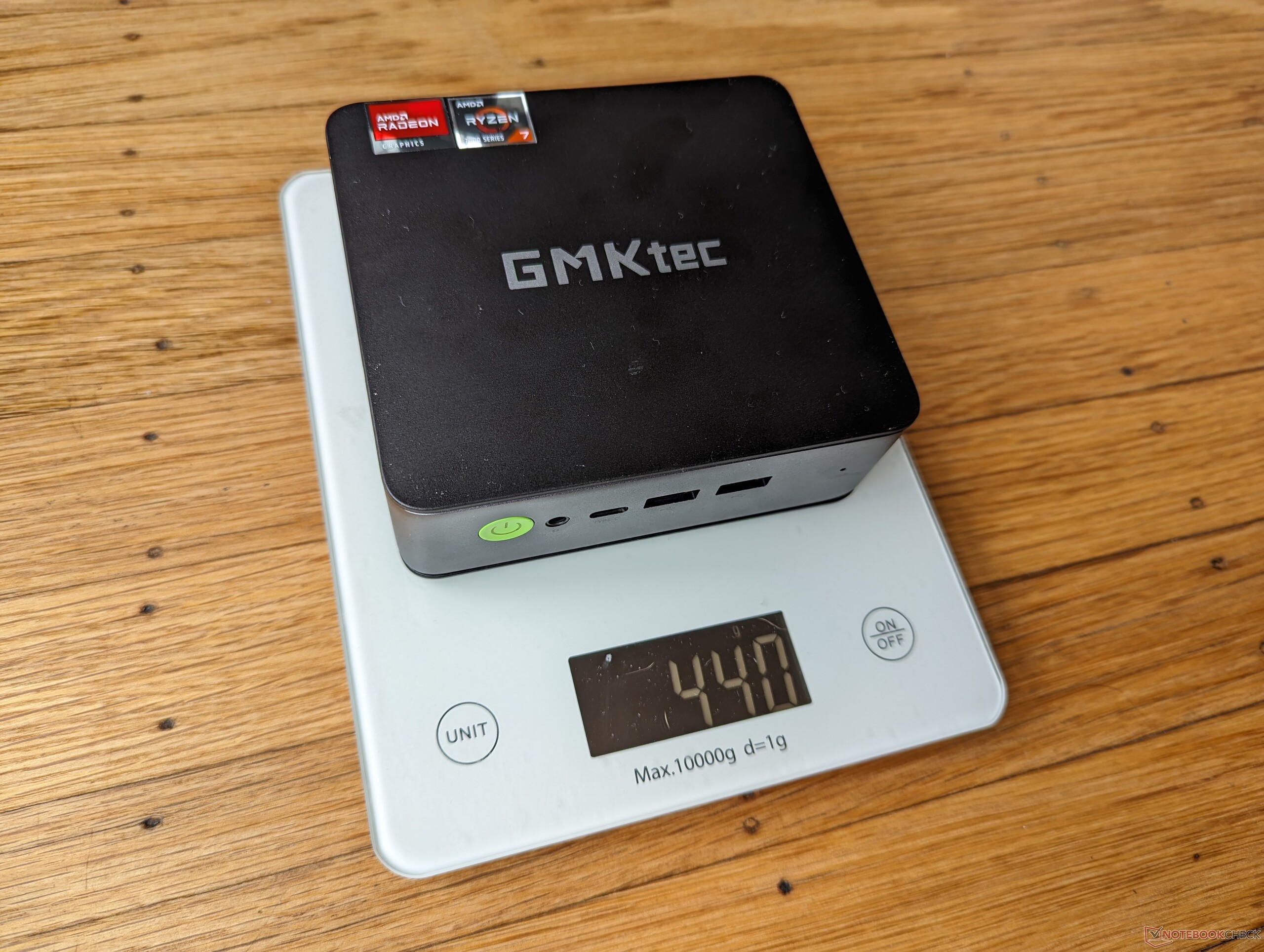

440 g, Power Supply: 507 g

Price

720 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Resolution
83 %	09/2023	GMK NucBox K2 R7 7735HS, Radeon 680M	440 g	43.2 mm	x
86.6 %	09/2023	Beelink SER7 R7 7840HS, Radeon 780M	640 g	49 mm	x
73.5 %	09/2023	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	214 g	37 mm	x
83.1 %	08/2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
80.6 %	07/2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm	x
	03/2023	Trigkey Speed S i5-11320H, Iris Xe G7 96EUs	415 g	40.7 mm	x

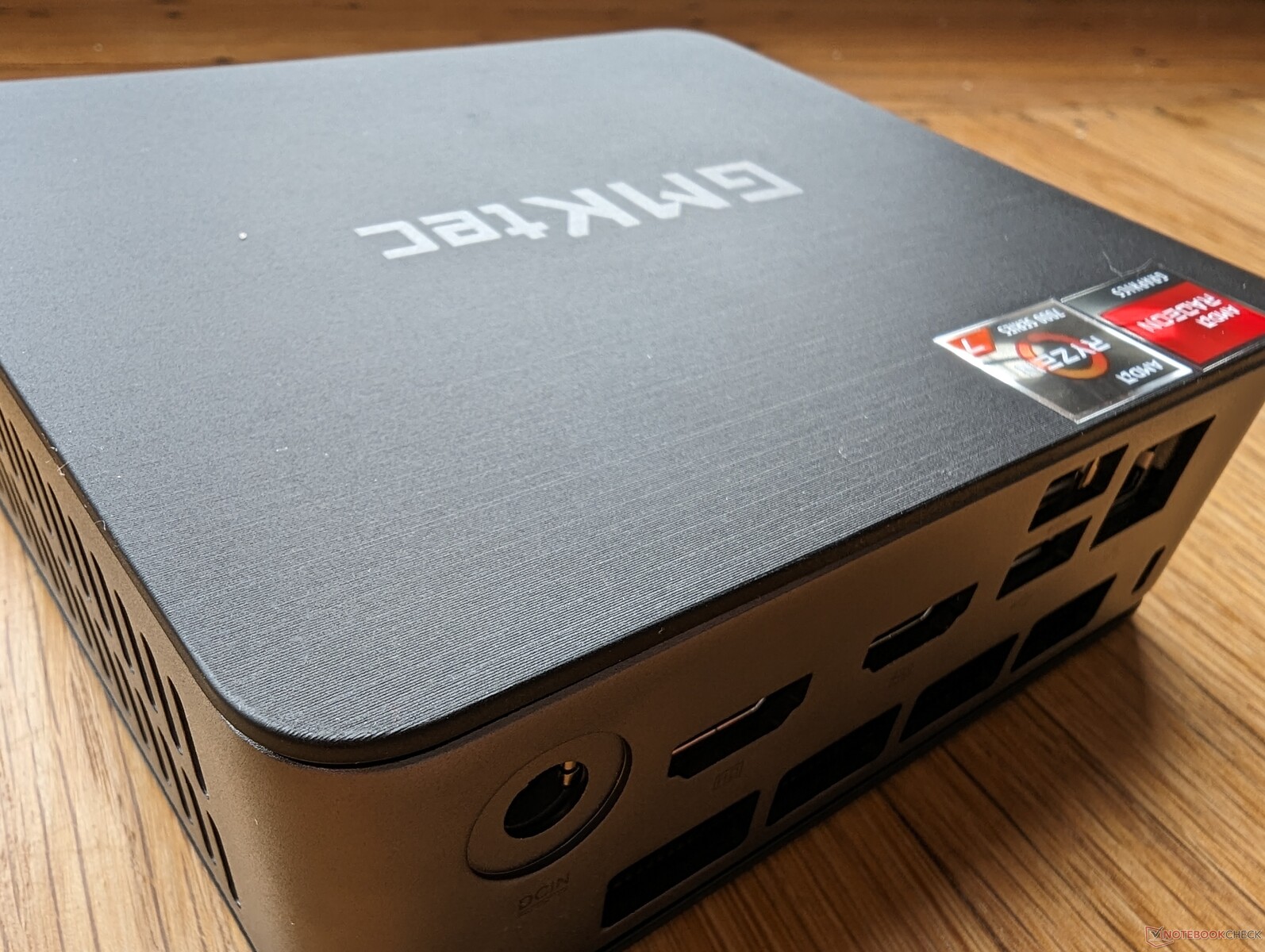

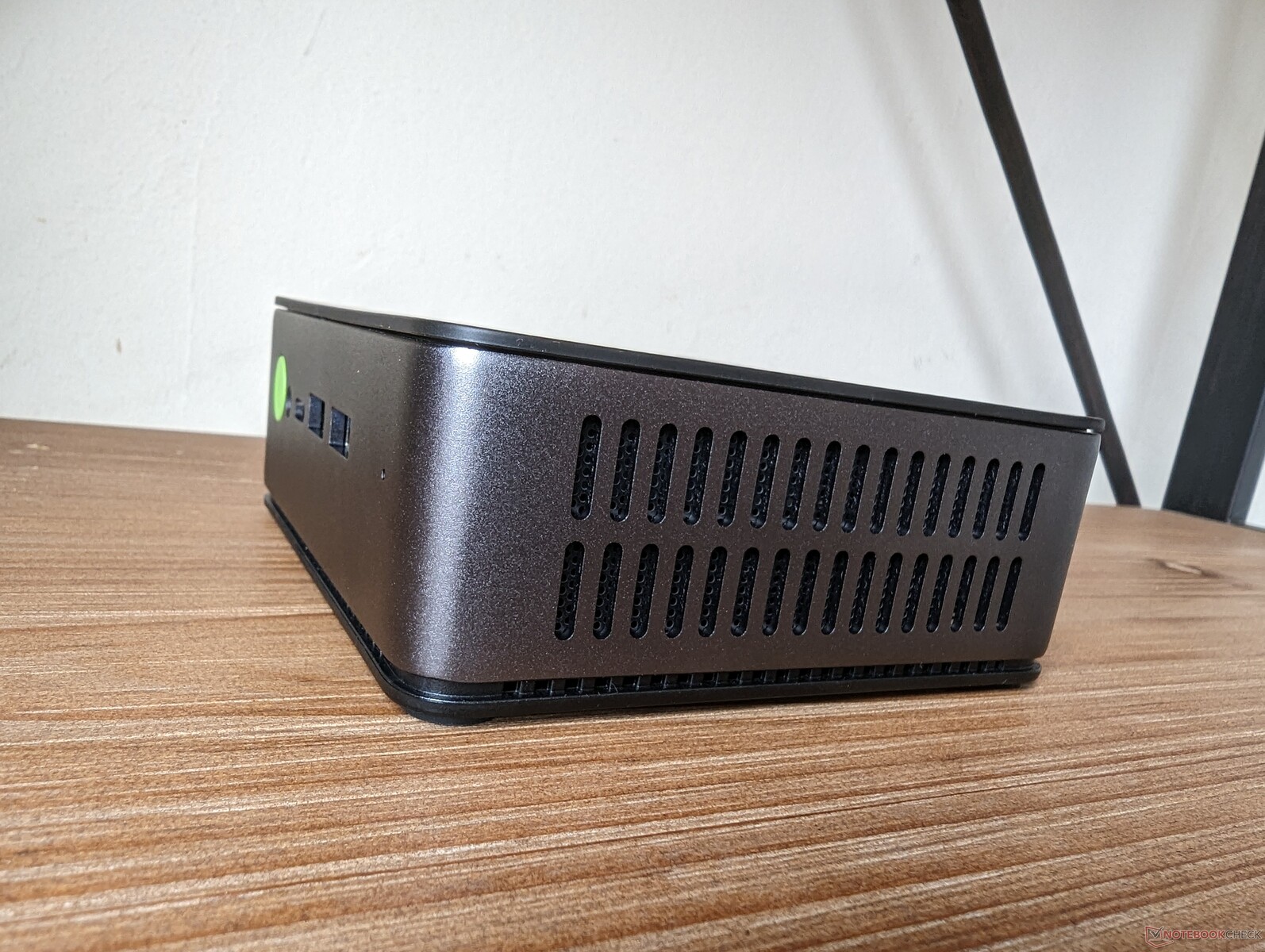

案例 - 保持简单

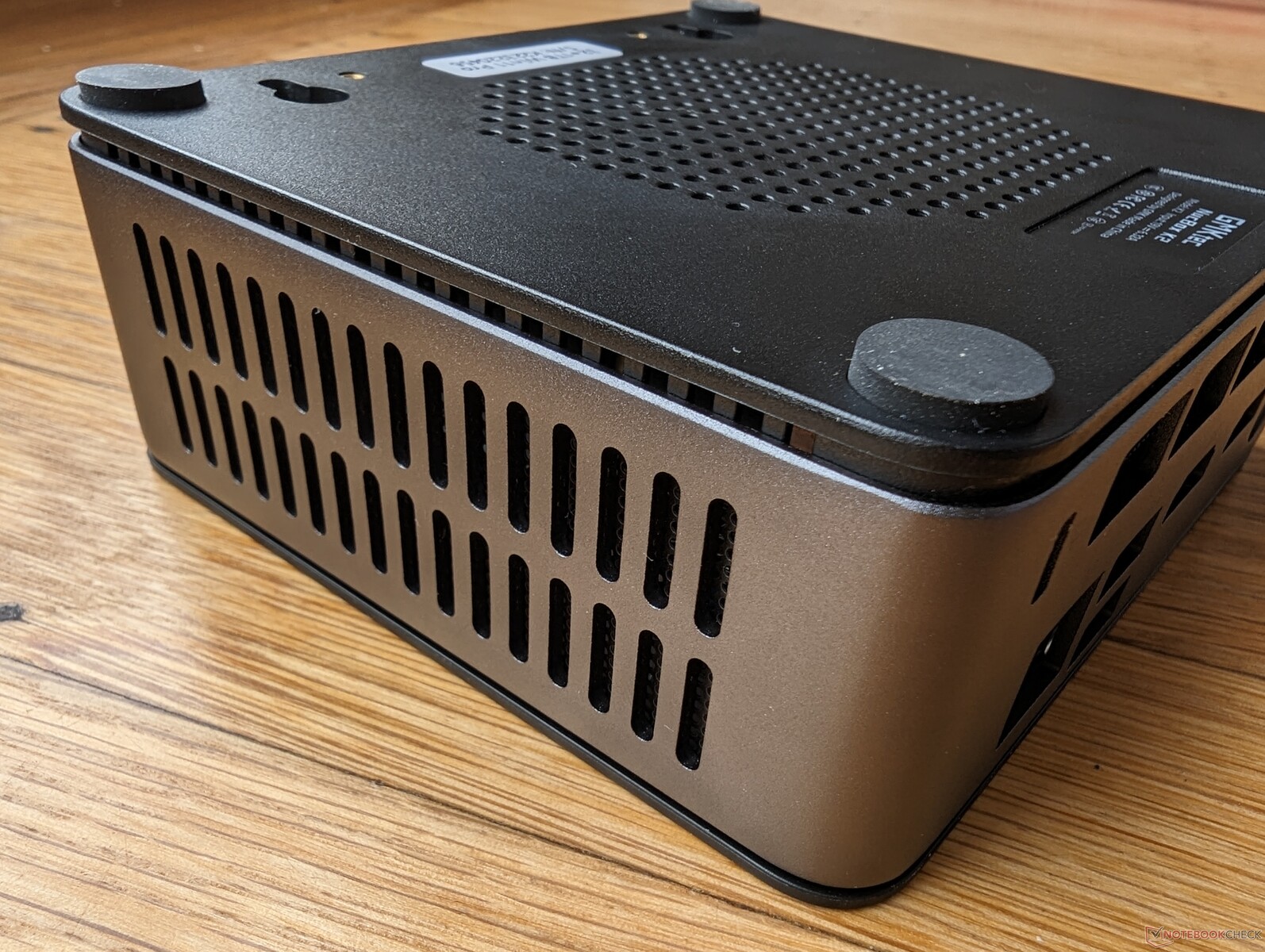

NucBox K2 明显比许多其他类似尺寸的迷你电脑（包括英特尔 NUC 13 Pro 和 Geekom Mini IT11）更轻。但缺点是，K2 的顶部和底部使用了更多塑料，只有侧面和边缘是金属。与 Beelink SER7 等迷你电脑相比，K2 的全亚光设计无疑更加精致。 Beelink SER7等迷你电脑相比，KK 的全哑光设计无疑要低调得多。尽管如此，机箱的刚性仍然很好，在我们的特定设备上没有出现任何制造质量问题。

尺寸比较

GMK NucBox 2 Beelink SER7 Trigkey Speed S GMK NucBox K2 Geekom Mini IT11, i7-11390H Intel NUC 13 Pro Desk Edition Kit DIN A5 ❌

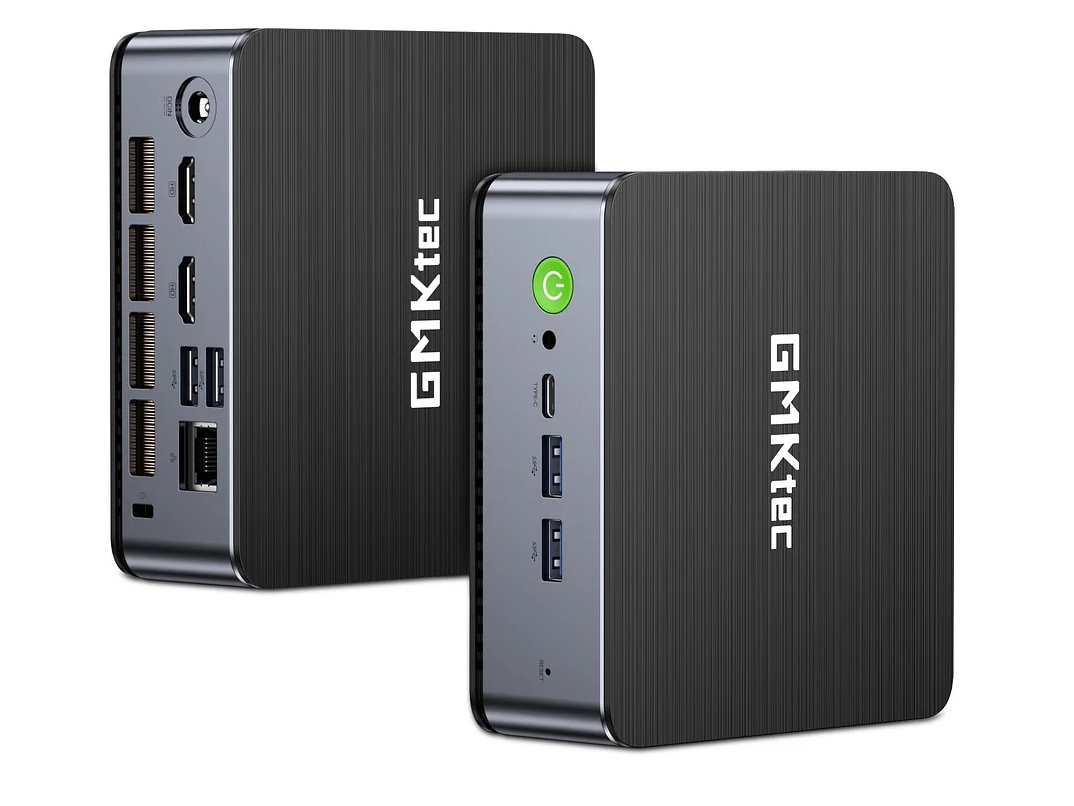

连接性

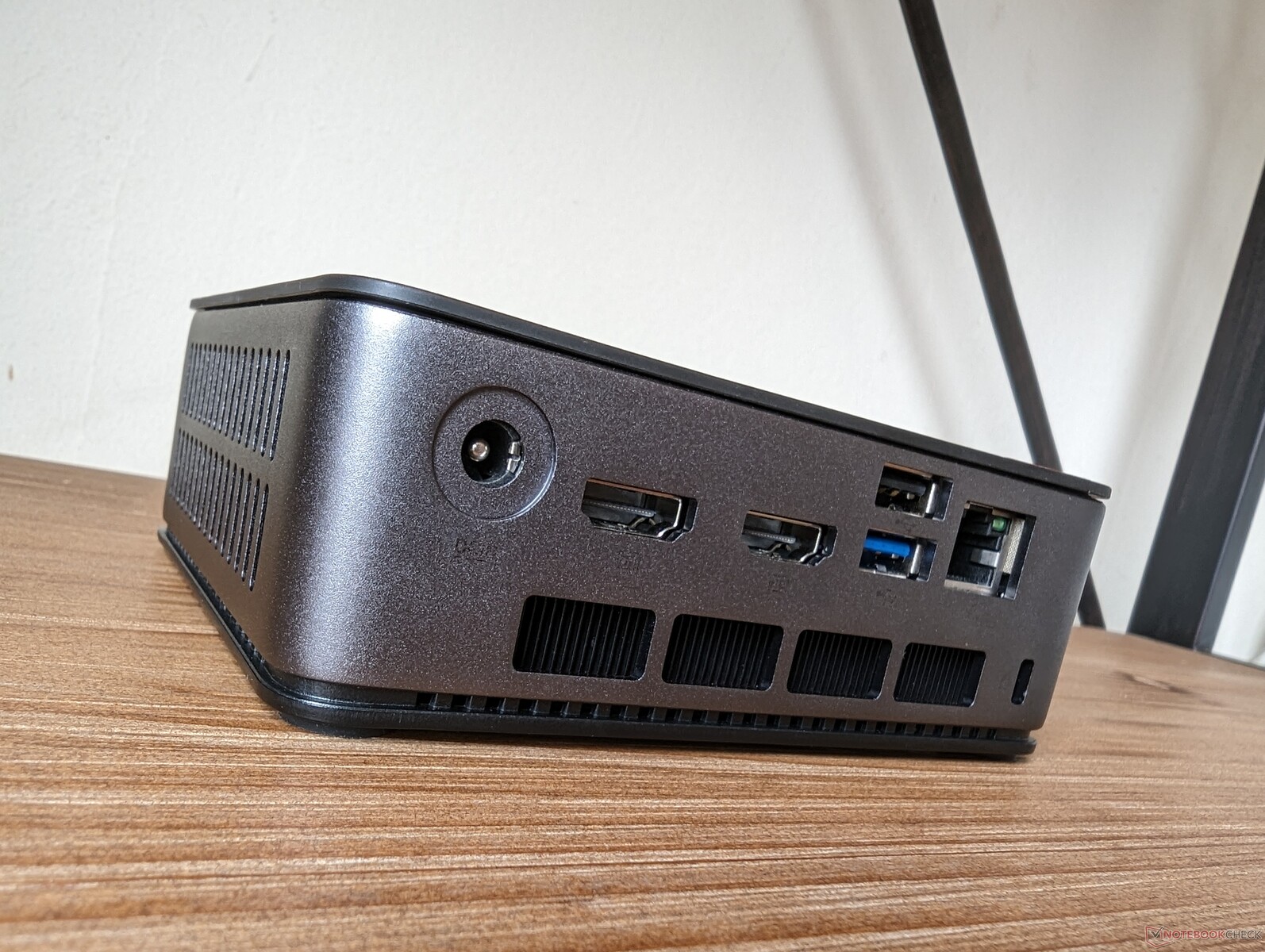

NucBox 2 上最引人注目的端口无疑是 USB 4 端口。这个多功能端口可用于外接 GPU、外接显示屏、扩展坞，甚至第三方交流适配器，以防丢失随机附带的专有电源砖。遗憾的是，与 Beelink SER7 不同的是，它只有一个 USB-C 端口，而 Beelink SER7 则集成了三个 USB-C 端口。

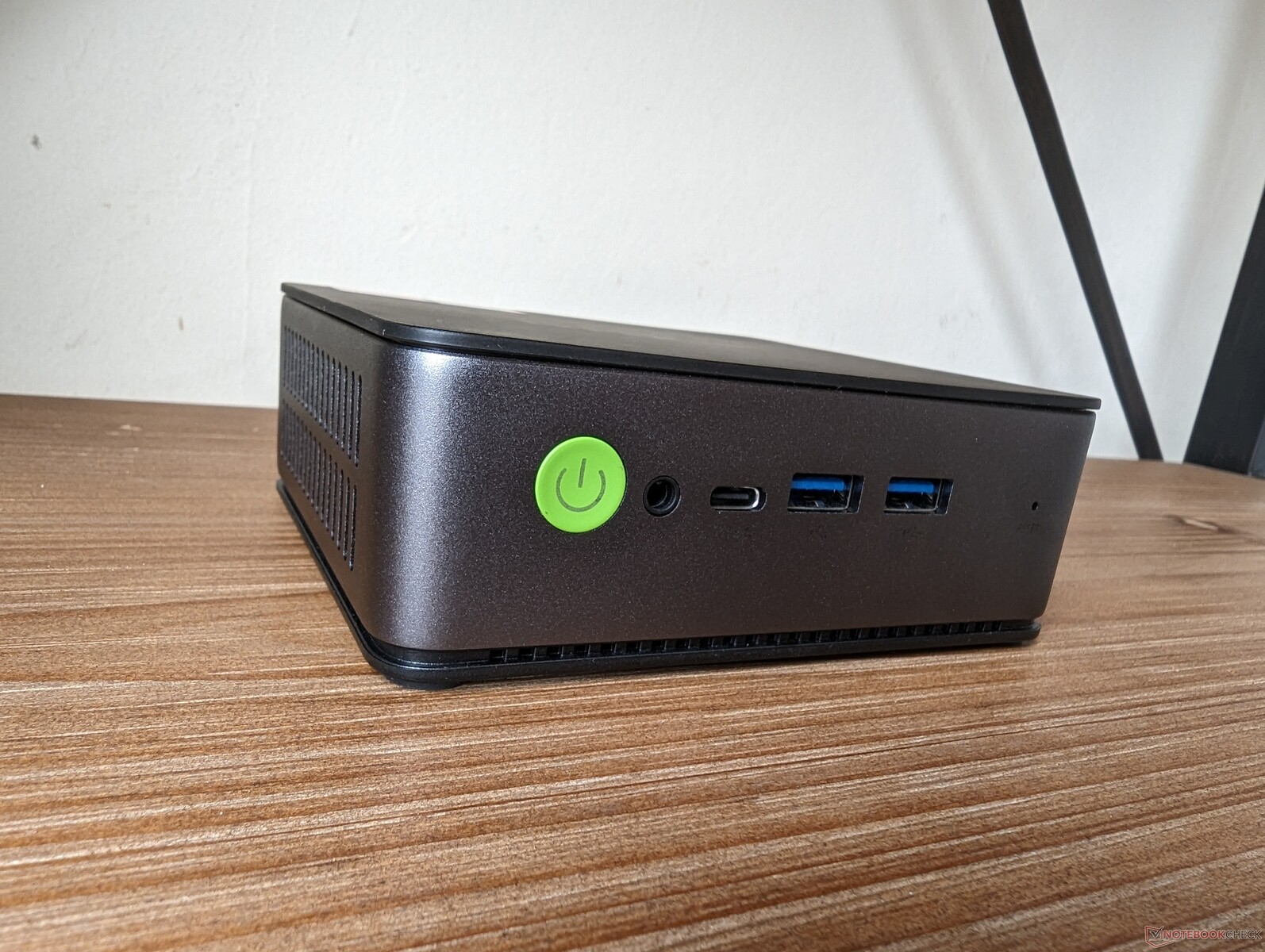

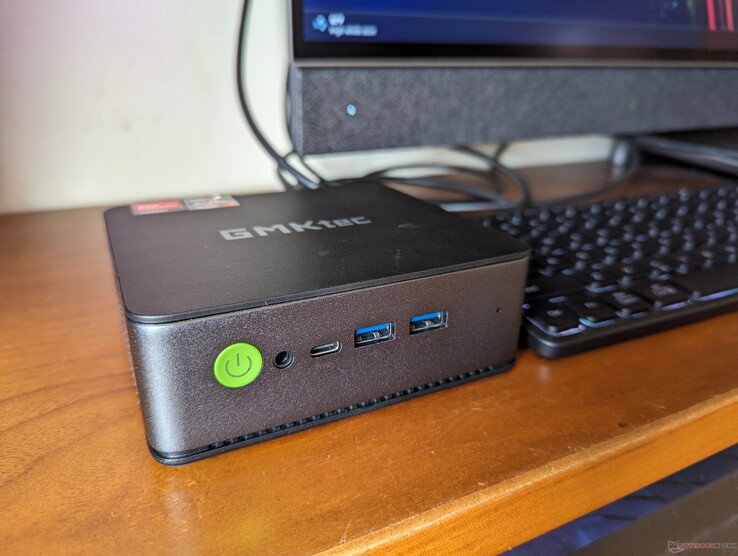

前部电源、3.5 毫米耳机、USB-C 4.0（带电源传输功能）+ DisplayPort、2 个 USB-A 3.2 Gen.

交流

标配的联发科 RZ608 支持 Wi-Fi 6 和 Wi-Fi 6E。虽然连接是可靠的，但如下图所示，当与我们的 6 GHz 网络配对时，性能比预期的要慢。这表明无线天线可能偏弱。

蓝牙也有问题。我们的蓝牙鼠标每次都无法重新连接，尽管它在其他设备上可以完美地工作。

Networking
iperf3 transmit AX12
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	385 (299^min - 426^max) MBit/s
iperf3 receive AX12
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	625 (346^min - 678^max) MBit/s
iperf3 transmit AXE11000
Beelink SER7 Intel Wi-Fi 6 AX200	1324 (665^min - 1408^max) MBit/s +53%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +51%
Trigkey Speed S Intel Wi-Fi 6 AX201	1068 (610^min - 1322^max) MBit/s +24%
GMK NucBox K2 MediaTek RZ608	864 (682^min - 951^max) MBit/s
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s -2%
iperf3 receive AXE11000
Beelink SER7 Intel Wi-Fi 6 AX200	1193 (588^min - 1333^max) MBit/s +38%
Trigkey Speed S Intel Wi-Fi 6 AX201	1163 (815^min - 1422^max) MBit/s +34%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s +29%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +11%
GMK NucBox K2 MediaTek RZ608	865 (443^min - 893^max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s +98%
GMK NucBox K2 MediaTek RZ608	764 (524^min - 875^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s +96%
GMK NucBox K2 MediaTek RZ608	739 (709^min - 762^max) MBit/s

GMK NucBox K2; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø764 (524-875)

GMK NucBox K2; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø738 (709-762)

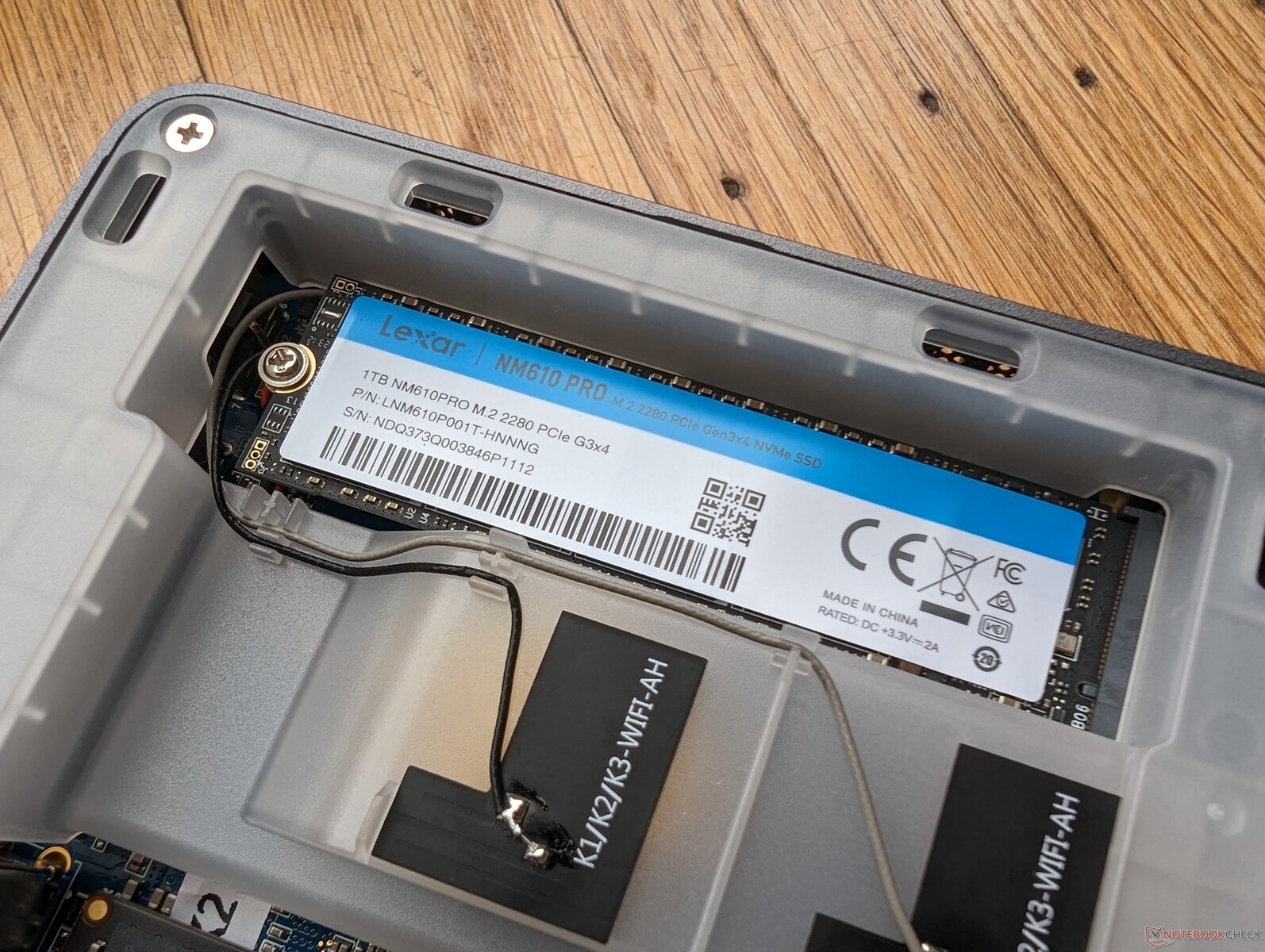

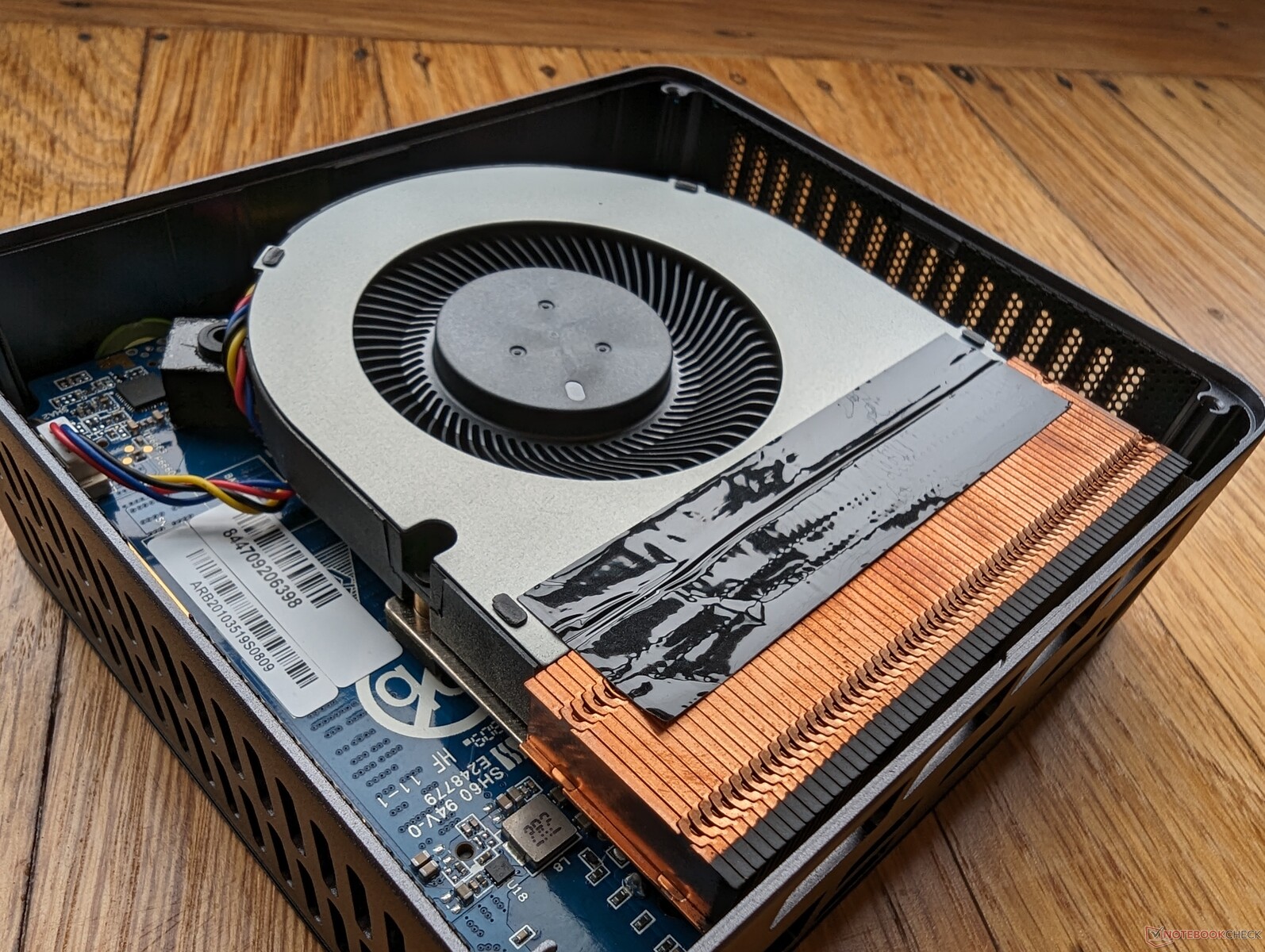

维护

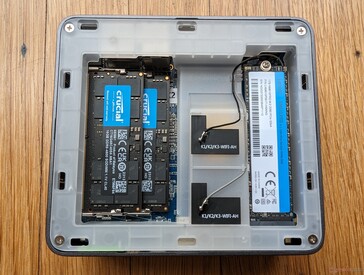

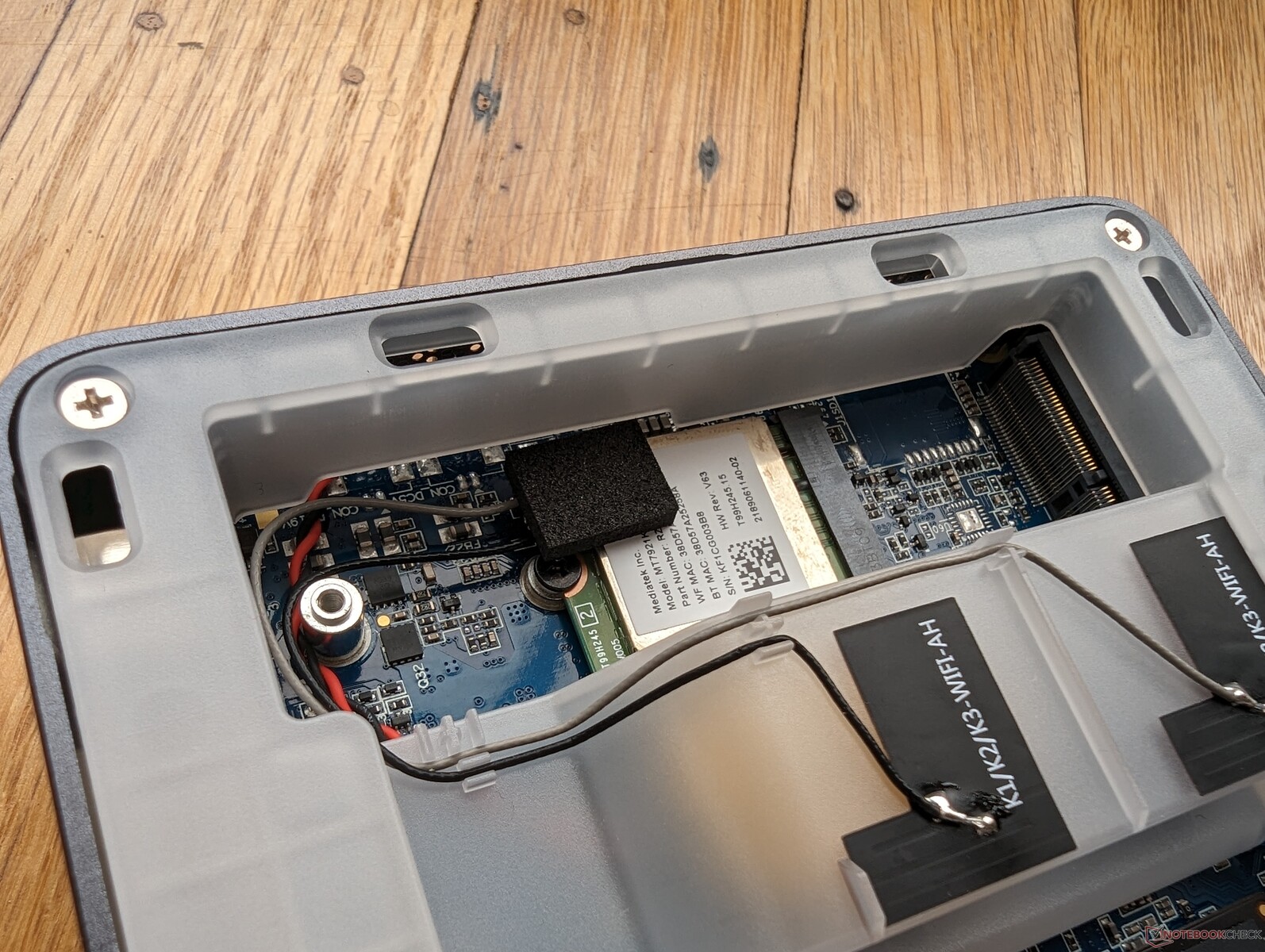

NucBox K2 是最容易维修的迷你电脑之一，尤其是在刚刚评测过 Beelink SER7 之后。只需几秒钟，塑料顶板就会弹开，无需任何工具就能直接进入 2 个 SODIMM 插槽、1 个 M.2 固态硬盘和 WLAN 模块。只需将设备翻转过来，取下四个橡胶脚垫，拧下四颗螺丝，就能轻松接触到系统风扇。

配件和保修

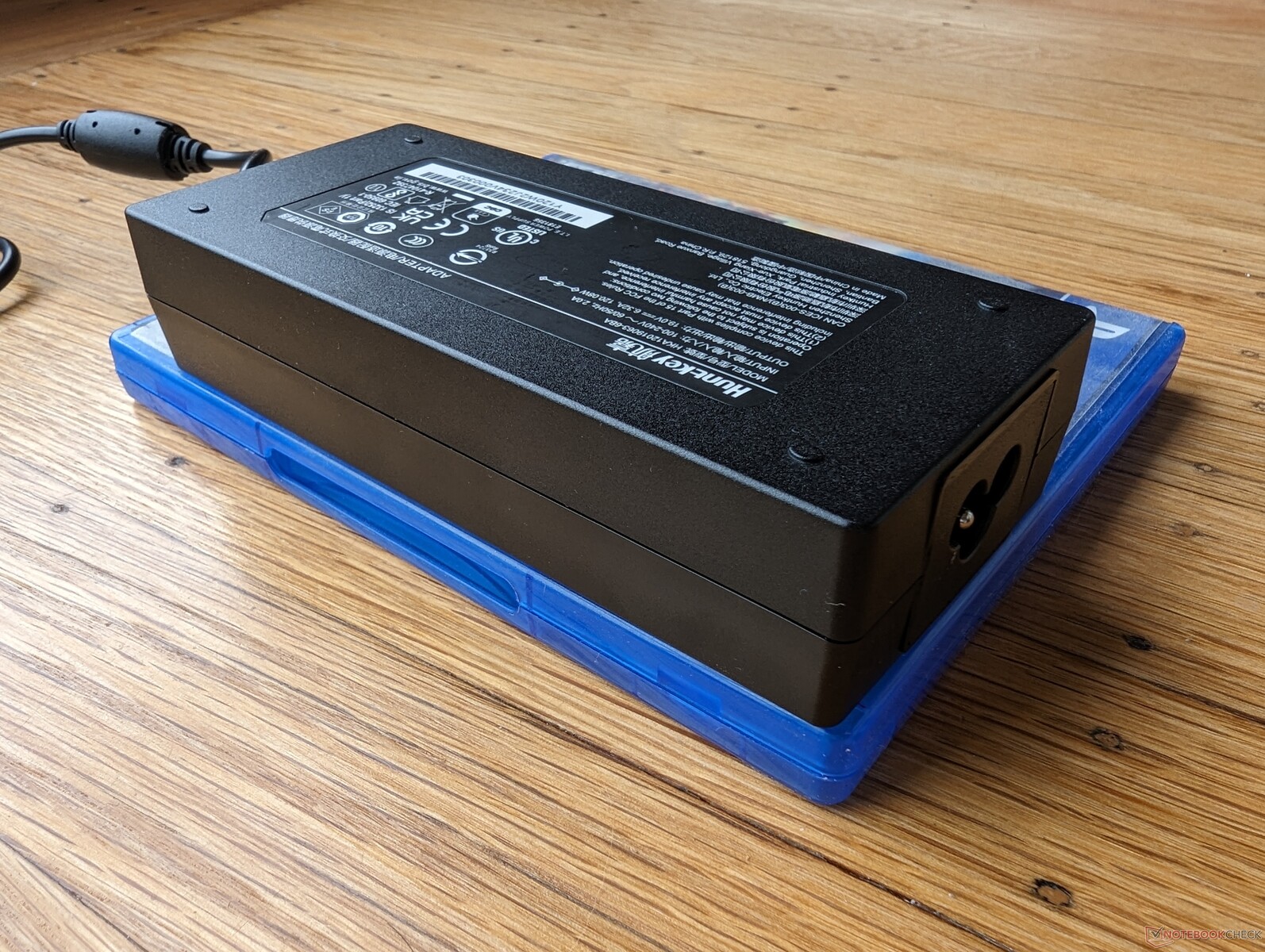

零售包装盒包括说明书、交流适配器、HDMI 缆线和可拆卸的 VESA 安装支架。如果在美国购买，制造商提供标准的一年有限保修服务。

性能 - Zen 3+ 依然强大

测试条件

在运行以下基准测试之前，我们将 Windows 设置为性能模式。GMK 不包含预装的控制中心应用程序或臃肿软件。

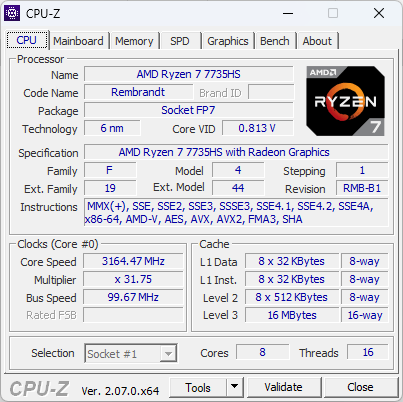

处理器

......（英文Ryzen 7 7735HS基本上是上一代 Ryzen 7 6800H尤其是它们都基于 Zen 3+ 架构。这并不是说这款处理器速度慢，但用户如果想拥有最新的 Zen 4 技术，就必须考虑更高端的配置，即 Ryzen 9 7940HSRyzen 9 7940HS，它的多线程性能比 Ryzen 7 提高了 45% 至 50%。

整体性能比第 12 代酷睿 i7-12700H和高性能游戏笔记本电脑和迷你 PC（如英特尔 NUC 12 蛇峡谷.

Cinebench R15 Multi Loop

GMK NucBox K2 AMD Ryzen 7 7735HS: Ø1907 (1875.64-1972)

GMK NucBox 2 Intel Core i5-8259U: Ø612 (608.07-614.94)

Beelink SER7 AMD Ryzen 7 7840HS: Ø2544 (2511.62-2564.76)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H: Ø946 (931.81-953.22)

Trigkey Speed S Intel Core i5-11320H: Ø854 (839.91-860.88)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	88.8 pt
Beelink SER7 AMD Ryzen 7 7840HS	87.8 pt
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	82.9 pt
Minisforum Venus Series NPB5 Intel Core i5-13500H	76.9 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	75.2 pt
Beelink GTR6 AMD Ryzen 9 6900HX	73 pt
Average AMD Ryzen 7 7735HS	72.1 pt
GMK NucBox K2 AMD Ryzen 7 7735HS	70.8 pt
Beelink SER6 Pro AMD Ryzen 7 6800H	69.6 pt
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	65.3 pt
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	55.7 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	52.6 pt
Trigkey Speed S Intel Core i5-11320H	48.6 pt
GMK NucBox 2 Intel Core i5-8259U	29.6 pt

Cinebench R23 / Multi Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	16985 Points +47%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	16674 Points +44%
Beelink SER7 AMD Ryzen 7 7840HS	16105 (15785.6^min - 16105.2^max) Points +39%
Minisforum Venus Series NPB5 Intel Core i5-13500H	13542 Points +17%
Average AMD Ryzen 7 7735HS (11072 - 14131, n=11)	13062 Points +13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points +5%
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	11584 (11082.5^min - 11584.2^max) Points
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points -1%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	11171 Points -4%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	7945 (7877.51^min - 7944.53^max) Points -31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5917 Points -49%
Trigkey Speed S Intel Core i5-11320H	5724 (5641.98^min - 5723.64^max) Points -51%
GMK NucBox 2 Intel Core i5-8259U	3728 (3687.99^min - 3727.55^max) Points -68%

Cinebench R23 / Single Core
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +25%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1813 Points +21%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	1801 Points +20%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1775 Points +18%
Beelink SER7 AMD Ryzen 7 7840HS	1774 Points +18%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1602 Points +7%
Average AMD Ryzen 7 7735HS (1288 - 1570, n=11)	1525 Points +2%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points 0%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1506 Points 0%
GMK NucBox K2 AMD Ryzen 7 7735HS	1499 Points
Trigkey Speed S Intel Core i5-11320H	1465 Points -2%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1367 Points -9%
GMK NucBox 2 Intel Core i5-8259U	973 Points -35%

Cinebench R20 / CPU (Multi Core)
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6640 Points +46%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	6459 Points +42%
Beelink SER7 AMD Ryzen 7 7840HS	6344 Points +40%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5108 Points +13%
Average AMD Ryzen 7 7735HS (4339 - 5502, n=11)	5067 Points +12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points +3%
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	4533 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	4386 Points -3%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	3074 Points -32%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2284 Points -50%
Trigkey Speed S Intel Core i5-11320H	2216 Points -51%
GMK NucBox 2 Intel Core i5-8259U	1432 Points -68%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	711 Points +20%
Beelink SER7 AMD Ryzen 7 7840HS	698 Points +18%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	692 Points +17%
Minisforum Venus Series NPB5 Intel Core i5-13500H	687 Points +16%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	620 Points +5%
Average AMD Ryzen 7 7735HS (502 - 613, n=11)	595 Points +1%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	592 Points 0%
GMK NucBox K2 AMD Ryzen 7 7735HS	591 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points -1%
Trigkey Speed S Intel Core i5-11320H	567 Points -4%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	531 Points -10%
GMK NucBox 2 Intel Core i5-8259U	382 Points -35%

Cinebench R15 / CPU Multi 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	2663 Points +35%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	2632 Points +33%
Beelink SER7 AMD Ryzen 7 7840HS	2565 (2511.62^min - 2564.76^max) Points +30%
Minisforum Venus Series NPB5 Intel Core i5-13500H	2304 Points +17%
Average AMD Ryzen 7 7735HS (1795 - 2355, n=13)	2164 Points +10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points +1%
GMK NucBox K2 AMD Ryzen 7 7735HS	1972 (1875.64^min - 1972^max) Points
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1837 Points -7%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1319 (1286.46^min - 1319.48^max) Points -33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	953 Points -52%
Trigkey Speed S Intel Core i5-11320H	861 (839.91^min - 860.88^max) Points -56%
GMK NucBox 2 Intel Core i5-8259U	615 (608.07^min - 614.94^max) Points -69%

Cinebench R15 / CPU Single 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	284 Points +16%
Beelink SER7 AMD Ryzen 7 7840HS	283 Points +16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +9%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points +7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	259 Points +6%
Minisforum Venus Series NPB5 Intel Core i5-13500H	255 Points +5%
Average AMD Ryzen 7 7735HS (206 - 255, n=12)	245 Points 0%
GMK NucBox K2 AMD Ryzen 7 7735HS	244 Points
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	243 Points 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	232 Points -5%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	221 Points -9%
Trigkey Speed S Intel Core i5-11320H	215 Points -12%
GMK NucBox 2 Intel Core i5-8259U	151 Points -38%

Blender / v2.79 BMW27 CPU
GMK NucBox 2 Intel Core i5-8259U	755 Seconds * -192%
Trigkey Speed S Intel Core i5-11320H	543 Seconds * -110%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	513 Seconds * -98%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	384 Seconds * -48%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	282 Seconds * -9%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H	260 Seconds * -0%
GMK NucBox K2 AMD Ryzen 7 7735HS	259 Seconds *
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * +1%
Average AMD Ryzen 7 7735HS (219 - 279, n=11)	240 Seconds * +7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	198 Seconds * +24%
Beelink SER7 AMD Ryzen 7 7840HS	196 Seconds * +24%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	188 Seconds * +27%

7-Zip 18.03 / 7z b 4
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	70019 MIPS +21%
Beelink SER7 AMD Ryzen 7 7840HS	69882 MIPS +21%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	64403 MIPS +11%
Average AMD Ryzen 7 7735HS (48327 - 63214, n=11)	58608 MIPS +1%
GMK NucBox K2 AMD Ryzen 7 7735HS	57785 MIPS
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H	52630 MIPS -9%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	52046 MIPS -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -11%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	39897 MIPS -31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	25876 MIPS -55%
Trigkey Speed S Intel Core i5-11320H	24718 MIPS -57%
GMK NucBox 2 Intel Core i5-8259U	18802 MIPS -67%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink SER7 AMD Ryzen 7 7840HS	6734 MIPS +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6683 MIPS +15%
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS +4%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	5972 MIPS +3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5895 MIPS +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS +1%
GMK NucBox K2 AMD Ryzen 7 7735HS	5790 MIPS
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5695 MIPS -2%
Average AMD Ryzen 7 7735HS (4779 - 5849, n=11)	5665 MIPS -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	5433 MIPS -6%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	5400 MIPS -7%
Trigkey Speed S Intel Core i5-11320H	5119 MIPS -12%
GMK NucBox 2 Intel Core i5-8259U	3951 MIPS -32%

Geekbench 5.5 / Multi-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	11564 Points +23%
Minisforum Venus Series NPB5 Intel Core i5-13500H	11465 Points +22%
Beelink SER7 AMD Ryzen 7 7840HS	11423 Points +21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points +9%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	10126 Points +7%
GMK NucBox K2 AMD Ryzen 7 7735HS	9436 Points
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points -1%
Average AMD Ryzen 7 7735HS (7368 - 10126, n=11)	9316 Points -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	7986 Points -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	6103 Points -35%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5091 Points -46%
Trigkey Speed S Intel Core i5-11320H	4927 Points -48%
GMK NucBox 2 Intel Core i5-8259U	3359 Points -64%

Geekbench 5.5 / Single-Core
Beelink SER7 AMD Ryzen 7 7840HS	1983 Points +27%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1975 Points +26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points +17%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1762 Points +13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1669 Points +7%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points +6%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	1590 Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	1564 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points -1%
Average AMD Ryzen 7 7735HS (1327 - 1615, n=11)	1538 Points -2%
Trigkey Speed S Intel Core i5-11320H	1523 Points -3%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1499 Points -4%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1436 Points -8%
GMK NucBox 2 Intel Core i5-8259U	984 Points -37%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	20.7 fps +37%
Beelink SER7 AMD Ryzen 7 7840HS	20.4 fps +35%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	18.7 fps +24%
Average AMD Ryzen 7 7735HS (12.7 - 17.7, n=11)	16.2 fps +7%
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	15.1 fps
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps -1%
Minisforum Venus Series NPB5 Intel Core i5-13500H	14.6 fps -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -8%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	13.3 fps -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	10.5 fps -30%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7.61 fps -50%
Trigkey Speed S Intel Core i5-11320H	7.25 fps -52%
GMK NucBox 2 Intel Core i5-8259U	5.37 fps -64%

LibreOffice / 20 Documents To PDF
GMK NucBox 2 Intel Core i5-8259U	63.6 s * -38%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	60.2 s * -31%
Average AMD Ryzen 7 7735HS (44.3 - 63.8, n=11)	53 s * -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	52.2 s * -13%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	47.2 s * -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	46.3 s * -1%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * -0%
GMK NucBox K2 AMD Ryzen 7 7735HS	46 s *
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	44.9 s * +2%
Trigkey Speed S Intel Core i5-11320H	44 s * +4%
Minisforum Venus Series NPB5 Intel Core i5-13500H	44 s * +4%
Beelink SER7 AMD Ryzen 7 7840HS	39.7 s * +14%

R Benchmark 2.5 / Overall mean
GMK NucBox 2 Intel Core i5-8259U	0.786 sec * -60%
Trigkey Speed S Intel Core i5-11320H	0.591 sec * -20%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.543 sec * -10%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	0.53 sec * -8%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	0.525 sec * -7%
Average AMD Ryzen 7 7735HS (0.4822 - 0.585, n=11)	0.506 sec * -3%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * -1%
GMK NucBox K2 AMD Ryzen 7 7735HS	0.4924 sec *
Minisforum Venus Series NPB5 Intel Core i5-13500H	0.473 sec * +4%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	0.4643 sec * +6%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * +6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * +9%
Beelink SER7 AMD Ryzen 7 7840HS	0.4446 sec * +10%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	0.4192 sec * +15%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1972 Points

Cinebench R15 OpenGL 64Bit

163 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Single 64Bit

244 Points

Help

... in comparison

Performance Rating
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	100 pt
Average AMD Ryzen 7 7735HS	73.5 pt
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	71.8 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	55.5 pt
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	37.4 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	35.6 pt
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5.9 pt

AIDA64 / FP32 Ray-Trace
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	25685 KRay/s +93%
Average AMD Ryzen 7 7735HS (12718 - 17161, n=12)	15178 KRay/s +14%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	13337 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -16%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	6976 KRay/s -48%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -50%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	769 KRay/s -94%

AIDA64 / FPU Julia
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	109853 Points +29%
Average AMD Ryzen 7 7735HS (81722 - 105483, n=12)	94941 Points +12%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	84934 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -33%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	30000 Points -65%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -67%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4140 Points -95%

AIDA64 / CPU SHA3
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	4783 MB/s +61%
Average AMD Ryzen 7 7735HS (2818 - 3494, n=12)	3223 MB/s +9%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	2969 MB/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -10%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	1979 MB/s -33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -38%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -90%

AIDA64 / CPU Queen
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	111969 Points +18%
Average AMD Ryzen 7 7735HS (90101 - 108729, n=12)	100503 Points +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	95223 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -48%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	48734 Points -49%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8186 Points -91%

AIDA64 / FPU SinJulia
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	14705 Points +20%
Average AMD Ryzen 7 7735HS (11441 - 13097, n=12)	12470 Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	12254 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -41%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	4826 Points -61%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -63%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -97%

AIDA64 / FPU Mandel
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	58699 Points +26%
Average AMD Ryzen 7 7735HS (44756 - 58232, n=12)	52136 Points +12%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	46670 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -40%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	17951 Points -62%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -64%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2088 Points -96%

AIDA64 / CPU AES
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	161216 MB/s +34%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	120363 MB/s
Average AMD Ryzen 7 7735HS (49927 - 137629, n=12)	85928 MB/s -29%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	68595 MB/s -43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -52%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -56%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7961 MB/s -93%

AIDA64 / CPU ZLib
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	949 MB/s +26%
Average AMD Ryzen 7 7735HS (651 - 906, n=12)	800 MB/s +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	751 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -50%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	362 MB/s -52%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.4 MB/s -90%

AIDA64 / FP64 Ray-Trace
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	13904 KRay/s +95%
Average AMD Ryzen 7 7735HS (1459 - 9094, n=12)	7474 KRay/s +5%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	7123 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -16%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	3761 KRay/s -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -49%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -94%

AIDA64 / CPU PhotoWorxx
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	41088 MPixel/s +36%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	30200 MPixel/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s -3%
Average AMD Ryzen 7 7735HS (19153 - 30542, n=12)	27676 MPixel/s -8%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	25970 MPixel/s -14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s -16%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6599 MPixel/s -78%

系统性能

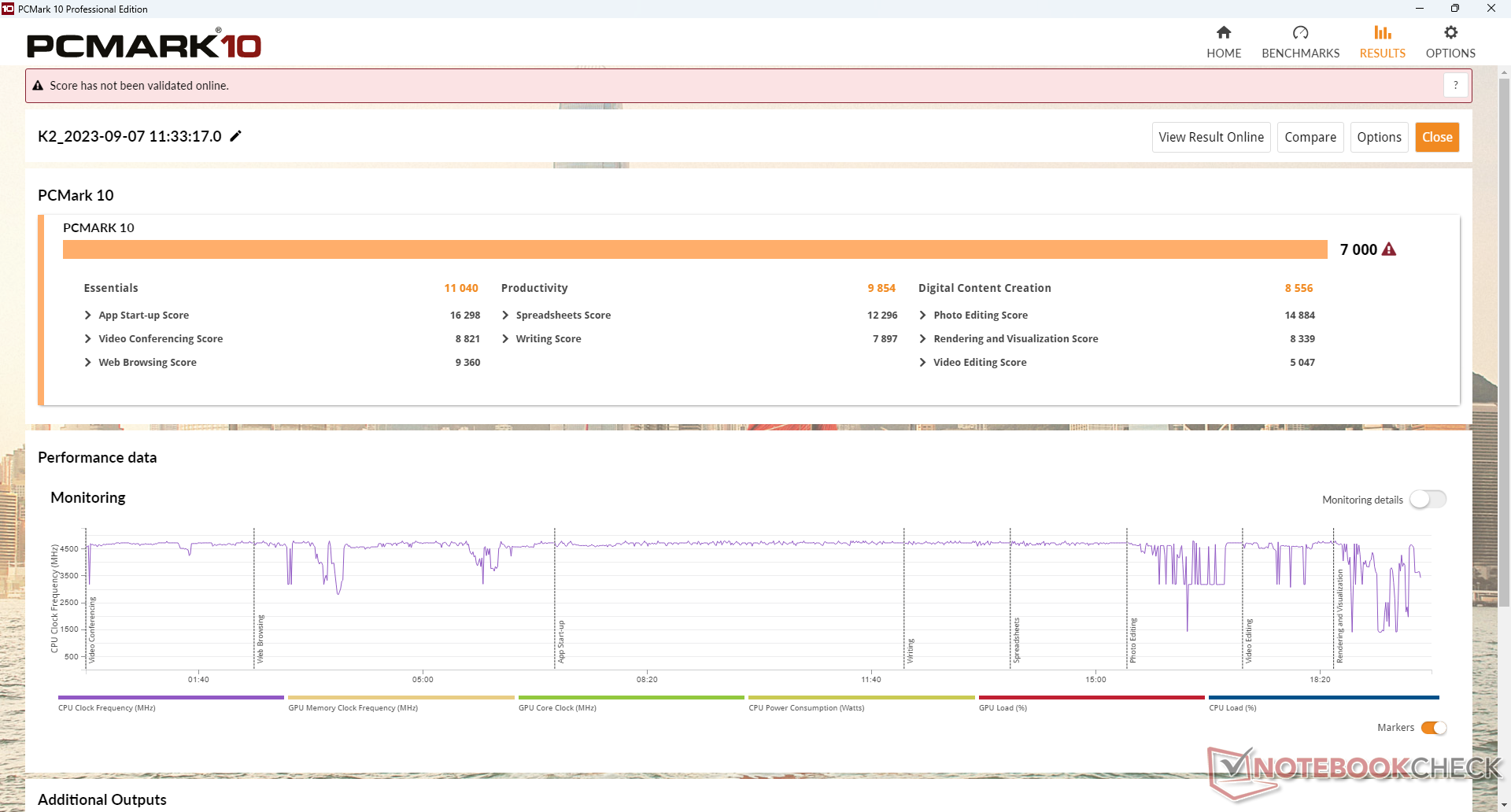

PCMark 分数非常出色，比其他大多数采用第 12 代或更早英特尔 CPU 的迷你 PC 都要快。由于 Radeon 680M 可与 Iris Xe 系列相媲美，因此其数字内容创建得分尤为突出。

PCMark 10 / Score
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	7225 Points +3%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	7000 Points
Average AMD Ryzen 7 7735HS (5722 - 7916, n=12)	6986 Points 0%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -16%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	5302 Points -24%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -30%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	4132 Points -41%

PCMark 10 / Essentials
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	11040 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points 0%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10819 Points -2%
Average AMD Ryzen 7 7735HS (9933 - 11124, n=12)	10652 Points -4%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	10558 Points -4%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points -13%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	8351 Points -24%

PCMark 10 / Productivity
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10452 Points +6%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	9854 Points
Average AMD Ryzen 7 7735HS (8077 - 9862, n=12)	9275 Points -6%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	6963 Points -29%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points -31%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -33%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	6348 Points -36%

PCMark 10 / Digital Content Creation
Average AMD Ryzen 7 7735HS (5798 - 12699, n=12)	9464 Points +11%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	9052 Points +6%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	8556 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points -11%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	5502 Points -36%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4916 Points -43%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	3613 Points -58%

CrossMark / Overall
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1700 Points +3%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1655 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points -4%
Average AMD Ryzen 7 7735HS (1361 - 1736, n=9)	1577 Points -5%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points -13%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1371 Points -17%

CrossMark / Productivity
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1641 Points
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1621 Points -1%
Average AMD Ryzen 7 7735HS (1308 - 1730, n=9)	1566 Points -5%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points -6%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points -7%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1456 Points -11%

CrossMark / Creativity
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1953 Points +14%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points +3%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1720 Points
Average AMD Ryzen 7 7735HS (1376 - 1785, n=9)	1652 Points -4%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -21%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1255 Points -27%

CrossMark / Responsiveness
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1515 Points
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1494 Points -1%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points -5%
Average AMD Ryzen 7 7735HS (1108 - 1704, n=9)	1411 Points -7%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points -13%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1293 Points -15%

PCMark 10 Score		7000 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	69325 MB/s +35%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	51223 MB/s
Average AMD Ryzen 7 7735HS (30324 - 52012, n=12)	48183 MB/s -6%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	48099 MB/s -6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s -14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s -18%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	41310 MB/s -19%

AIDA64 / Memory Read
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	61911 MB/s +20%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	51734 MB/s
Average AMD Ryzen 7 7735HS (33938 - 51856, n=12)	48330 MB/s -7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s -9%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	46709 MB/s -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -13%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	38017 MB/s -27%

AIDA64 / Memory Write
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	87358 MB/s +58%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	55242 MB/s
Average AMD Ryzen 7 7735HS (33175 - 55284, n=12)	52586 MB/s -5%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	51980 MB/s -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s -15%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	46778 MB/s -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -17%

AIDA64 / Memory Latency
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * -17%
Average AMD Ryzen 7 7735HS (78.2 - 109.7, n=12)	88.5 ns * -8%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	85.1 ns * -4%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	82.1 ns *
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	77.6 ns * +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +19%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	55.6 ns * +32%

* ... smaller is better

DPC 延迟

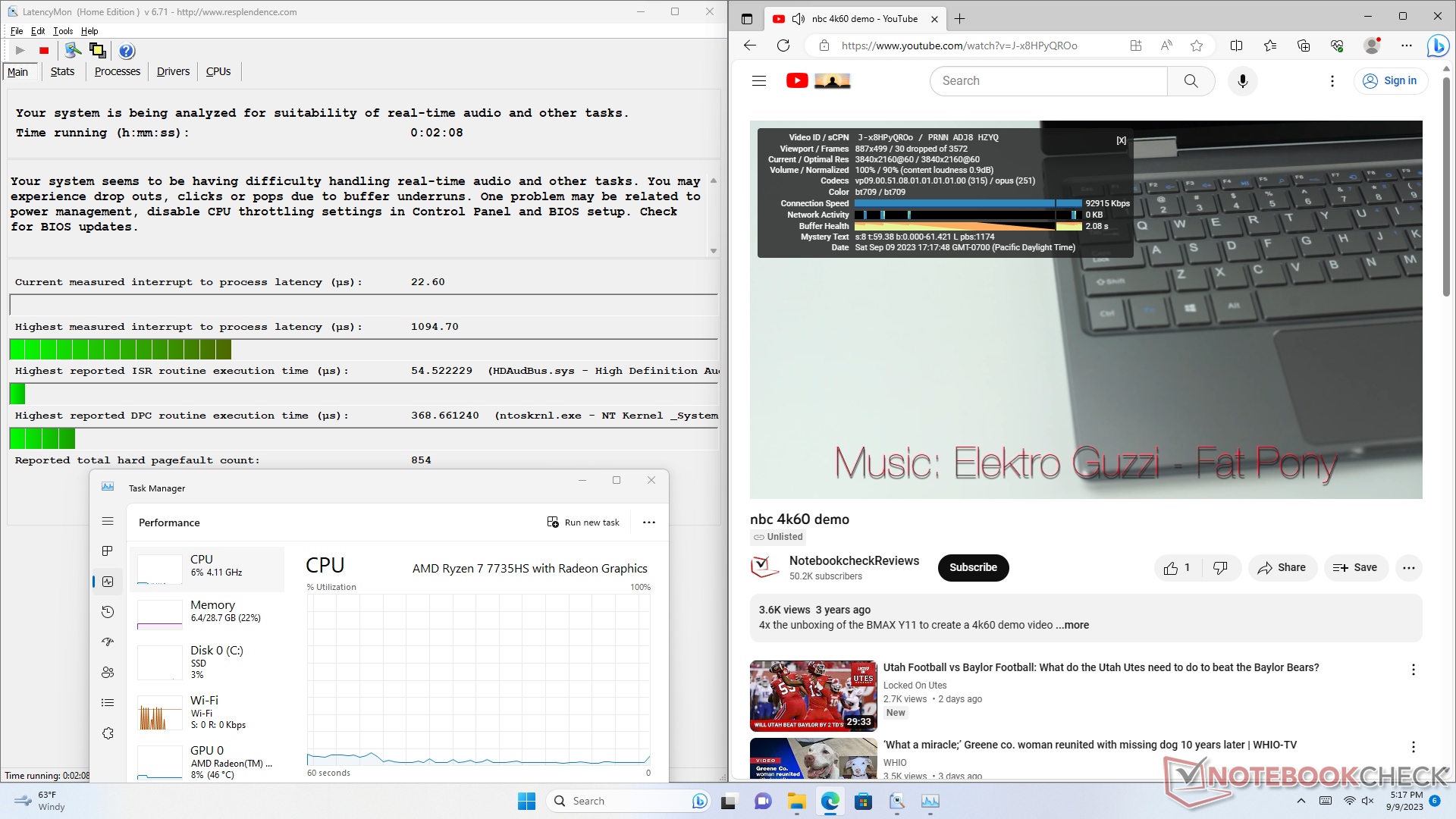

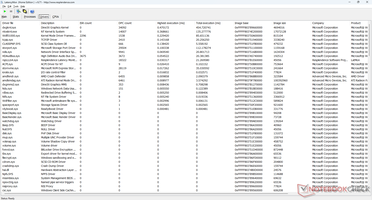

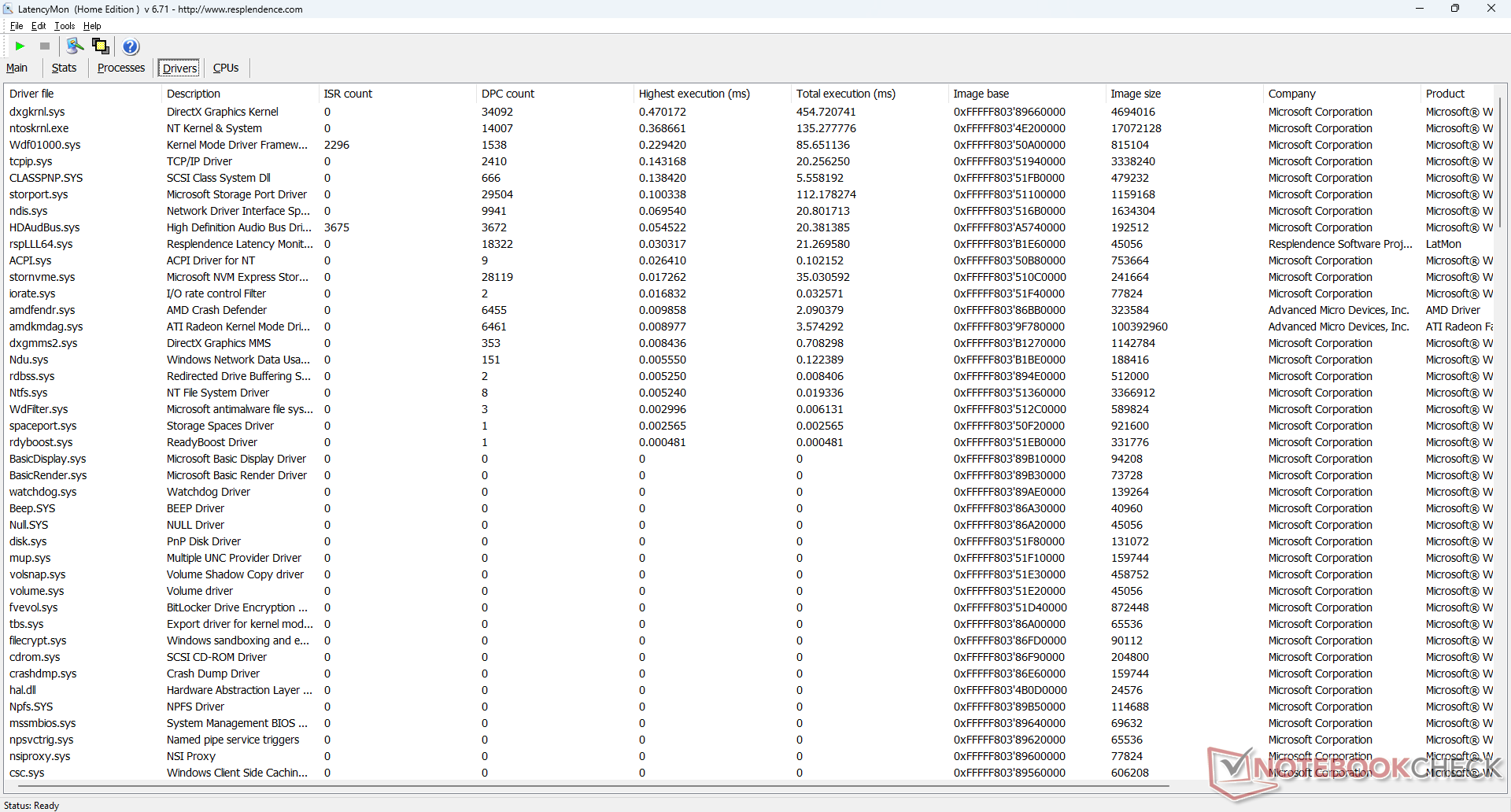

在打开主页的多个浏览器标签页时，LatencyMon 会显示轻微的 DPC 问题。在以 60 FPS 播放 4K 视频时也会出现问题，因为我们可以在一分钟的时间内记录到 30 个丢帧。这种卡顿现象表明可能存在 AMD 驱动程序问题，应予以解决。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1455.4 μs * -33%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1094.7 μs *
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +2%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	786 μs * +28%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	647.9 μs * +41%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +57%

* ... smaller is better

存储设备

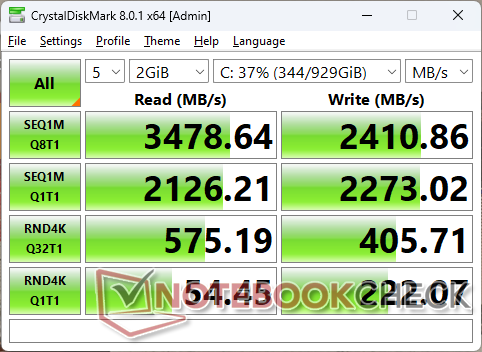

该机型配备中端 PCIe3 x4 Lexar NM610 Pro它的最大传输速率比普通 NM610 非 Pro 版本更快（3300 MB/s 对 2100 MB/s）。支持三星 PM9A1 等更昂贵的 PCIe4 型号，性能最高可达 2 倍，但由于硬盘没有额外的冷却装置，可能会出现节流问题。

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Lexar NM610 Pro NM610P001T-HNNNG

CDM 5/6 Read Seq Q32T1: 3483 MB/s

CDM 5/6 Write Seq Q32T1: 2362 MB/s

CDM 5/6 Read 4K Q32T1: 569.9 MB/s

CDM 5/6 Write 4K Q32T1: 410.1 MB/s

CDM 5 Read Seq: 2029 MB/s

CDM 5 Write Seq: 2288 MB/s

CDM 5/6 Read 4K: 53.97 MB/s

CDM 5/6 Write 4K: 218.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	80.6 pt
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	62.7 pt
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	61.1 pt
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	58.6 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	53.9 pt
GMK NucBox 2 Netac S930E8/256GPN	35.1 pt

DiskSpd
seq read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +57%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2718 (2645.56^min - 2717.91^max) MB/s +28%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2433 (2411.3^min - 2433.16^max) MB/s +14%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2129 (2045.25^min - 2129.3^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -21%
GMK NucBox 2 Netac S930E8/256GPN	1566 (1557.38^min - 1565.96^max) MB/s -26%
seq write
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3404 (38.3^min - 3403.58^max) MB/s +56%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +54%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s +5%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2180 (2126.36^min - 2180.16^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1625 (1475.57^min - 1625.19^max) MB/s -25%
GMK NucBox 2 Netac S930E8/256GPN	1213 (454.38^min - 1213.29^max) MB/s -44%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +59%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	4893 (3920.33^min - 4893.08^max) MB/s +43%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	3411 (3096.44^min - 3410.5^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2909 (2628.77^min - 2908.96^max) MB/s -15%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -35%
GMK NucBox 2 Netac S930E8/256GPN	2121 (1959.37^min - 2121.01^max) MB/s -38%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +108%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s +5%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2378 (2283.33^min - 2377.68^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1621 (1610.27^min - 1621.2^max) MB/s -32%
GMK NucBox 2 Netac S930E8/256GPN	1248 (414.41^min - 1248.45^max) MB/s -48%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	739 (52.85^min - 739.46^max) MB/s -69%
4k q1 t1 read
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	86.1 (85.71^min - 86.12^max) MB/s +66%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +63%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	51.8 (50.1^min - 51.75^max) MB/s
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	44.2 (41.58^min - 44.2^max) MB/s -15%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -26%
GMK NucBox 2 Netac S930E8/256GPN	29.4 (21.8^min - 29.38^max) MB/s -43%
4k q1 t1 write
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	260 (257.62^min - 260.21^max) MB/s +23%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	212 (203.51^min - 212.25^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	156 (133.05^min - 156.14^max) MB/s -26%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -32%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	139.4 (137.92^min - 139.38^max) MB/s -34%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s -43%
4k q32 t16 read
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2810 (2697.36^min - 2809.61^max) MB/s +84%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1530 (1528.13^min - 1529.56^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -47%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -58%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	474 (472.39^min - 473.68^max) MB/s -69%
GMK NucBox 2 Netac S930E8/256GPN	331 (329.92^min - 330.85^max) MB/s -78%
4k q32 t16 write
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1258 (1245.8^min - 1257.91^max) MB/s +50%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1066 (54.15^min - 1066.13^max) MB/s +28%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	836 (794.23^min - 835.97^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	739 (122.91^min - 738.54^max) MB/s -12%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -46%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -79%

AS SSD
Score Total
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +30%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	4049 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points -4%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2617 Points -35%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2595 Points -36%
GMK NucBox 2 Netac S930E8/256GPN	1497 Points -63%
Score Read
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1800 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points -16%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points -27%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1215 Points -32%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	792 Points -56%
GMK NucBox 2 Netac S930E8/256GPN	615 Points -66%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +145%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points +20%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1442 Points +6%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1357 Points
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	800 Points -41%
GMK NucBox 2 Netac S930E8/256GPN	598 Points -56%
Seq Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +52%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3900.61 MB/s +31%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2984.26 MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2714.84 MB/s -9%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s -24%
GMK NucBox 2 Netac S930E8/256GPN	2069 MB/s -31%
Seq Write
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3390.67 MB/s +45%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s +15%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2339.34 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s -44%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1287.68 MB/s -45%
GMK NucBox 2 Netac S930E8/256GPN	1203 MB/s -49%
4K Read
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	73.17 MB/s +46%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +44%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s +27%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	49.99 MB/s
GMK NucBox 2 Netac S930E8/256GPN	41.66 MB/s -17%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	37.69 MB/s -25%
4K Write
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s +18%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	219.46 MB/s +15%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	191.19 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s -13%
GMK NucBox 2 Netac S930E8/256GPN	136.9 MB/s -28%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	129.29 MB/s -32%
4K-64 Read
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1451.2 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s -16%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -45%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	787.73 MB/s -46%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	447.15 MB/s -69%
GMK NucBox 2 Netac S930E8/256GPN	366.3 MB/s -75%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +210%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s +37%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1094.27 MB/s +17%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	931.89 MB/s
GMK NucBox 2 Netac S930E8/256GPN	340.5 MB/s -63%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	331.93 MB/s -64%
Access Time Read
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms * -28%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	0.083 ms * -6%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	0.078 ms *
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.066 ms * +15%
GMK NucBox 2 Netac S930E8/256GPN	0.064 ms * +18%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +23%
Access Time Write
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	0.358 ms *
GMK NucBox 2 Netac S930E8/256GPN	0.347 ms * +3%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	0.102 ms * +72%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms * +76%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.076 ms * +79%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +93%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox K2: Ø3162 (1744.33-3330.86)

图形处理器性能

迚ケ谿オ譎る俣 Radeon 680MRadeon 680M 是市场上速度最快的集成 GPU 之一，尽管它已推出近两年。只要将设置调低，该 GPU 的性能足以在原生 1080p 下播放现代 3D 游戏。如果您经常在 NucBox K2 上玩游戏，我们建议您连接一个兼容 FreeSync 的显示器，因为 Radeon 680M 的 FPS 通常在 45 到 60 之间徘徊。

升级到配备 Radeon 780M 的 Ryzen 9 7940HS 配置后，图形性能有望提升 10% 到 20%。 Beelink SER7.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	92.2 pt
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	85.8 pt
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	85.1 pt
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	84.2 pt
Average AMD Radeon 680M	78.3 pt
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	64.2 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	60.7 pt
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	55.4 pt
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	52.6 pt
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	45.9 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	45.5 pt
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	22 pt

3DMark 11 - 1280x720 Performance GPU
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	12845 Points +23%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	12384 Points +19%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points +4%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points +1%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	10439 Points
Average AMD Radeon 680M (6858 - 11605, n=32)	9979 Points -4%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	7718 Points -26%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points -30%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	6477 Points -38%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6423 Points -38%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points -42%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points -48%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	2947 Points -72%

3DMark
1920x1080 Fire Strike Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	8001 Points +6%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	7570 Points
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	7284 Points -4%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points -7%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points -8%
Average AMD Radeon 680M (3791 - 7593, n=33)	6660 Points -12%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	5660 Points -25%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points -26%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	5305 Points -30%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4568 Points -40%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points -47%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	4037 Points -47%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	1914 Points -75%
2560x1440 Time Spy Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	2908 Points +19%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2632 Points +8%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points +1%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points 0%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2436 Points
Average AMD Radeon 680M (1359 - 2607, n=33)	2221 Points -9%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	1838 Points -25%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points -31%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1508 Points -38%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1508 Points -38%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points -47%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points -49%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	594 Points -76%
2560x1440 Time Spy Score
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	3270 Points +19%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2966 Points +8%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2751 Points 0%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2738 Points
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2735 Points 0%
Average AMD Radeon 680M (1546 - 2914, n=33)	2487 Points -9%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	2057 Points -25%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points -30%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1731 Points -37%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1680 Points -39%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1456 Points -47%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1405 Points -49%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	676 Points -75%

3DMark Performance Rating | 3DMark 11 | 3DMark

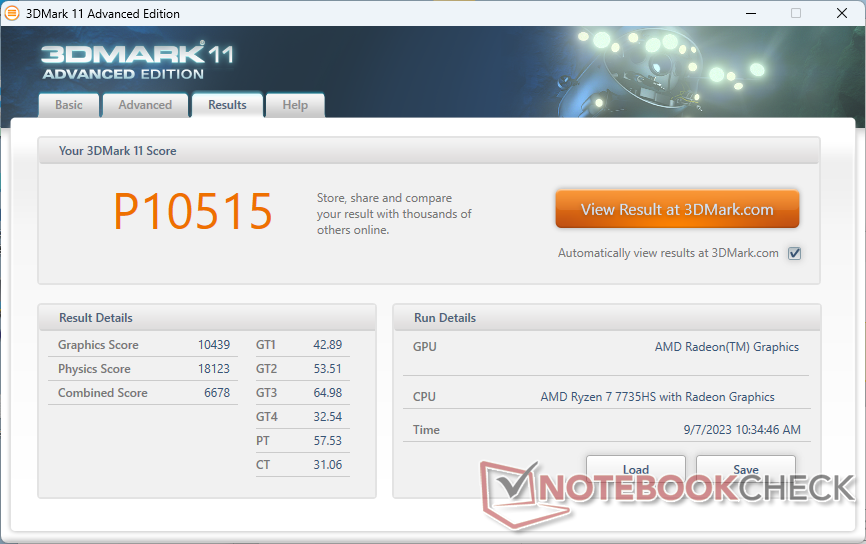

3DMark 11 Performance		10515 points

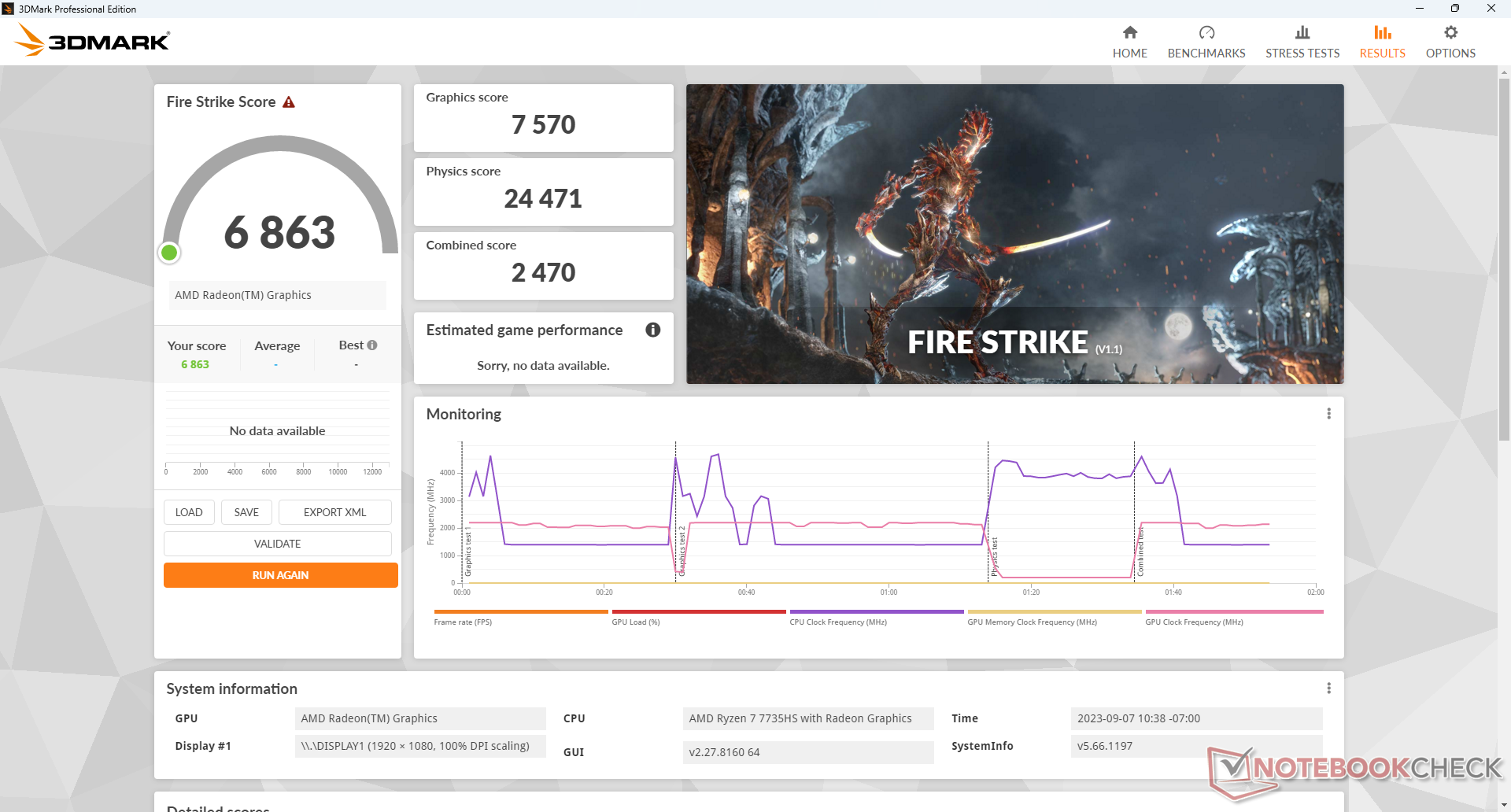

3DMark Fire Strike Score		6863 points

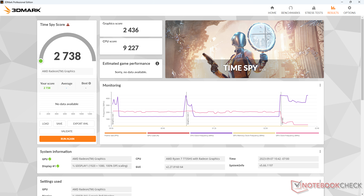

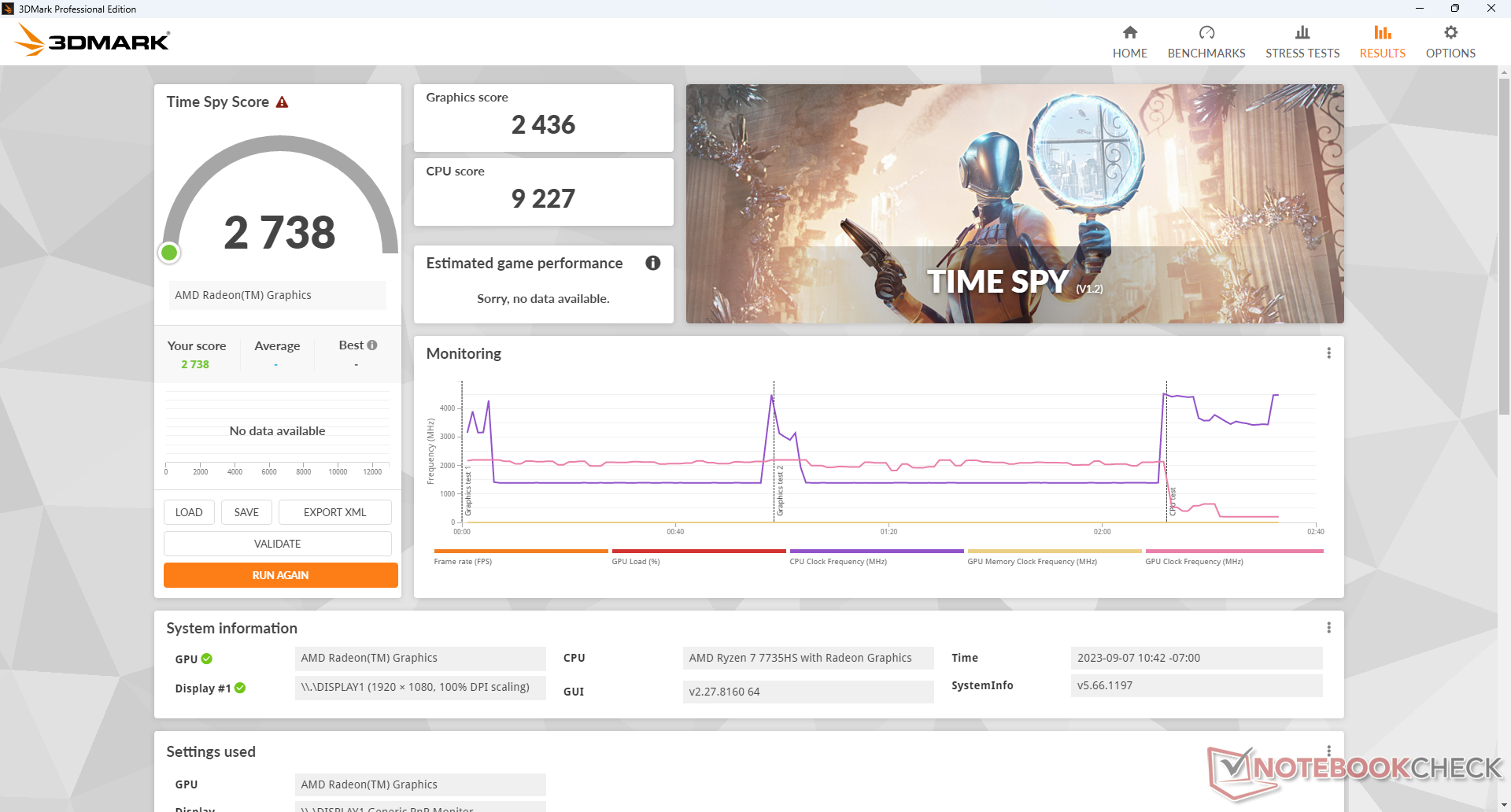

3DMark Time Spy Score		2738 points
Help

... in comparison

Blender
v3.3 Classroom HIP/AMD
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	504 Seconds * -87%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	356 Seconds * -32%
Average AMD Radeon 680M (270 - 555, n=29)	349 Seconds * -29%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds * -18%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	270 Seconds *
v3.3 Classroom CPU
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1010 Seconds * -131%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	943 Seconds * -115%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	666 Seconds * -52%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	479 Seconds * -9%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * -9%
Average AMD Radeon 680M (389 - 572, n=29)	474 Seconds * -8%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	463 Seconds * -6%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * -3%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	438 Seconds *
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	436 Seconds * -0%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	318 Seconds * +27%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	305 Seconds * +30%

* ... smaller is better

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	140.6 fps +23%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	131.4 fps +15%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	114.6 fps
Average AMD Radeon 680M (59.3 - 126.2, n=15)	97 fps -15%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	59.3 fps -48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps -50%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	55 fps -52%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	35.9 fps -69%
1920x1080 Low Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.6 fps +17%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	62.6 fps +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	61 fps
Average AMD Radeon 680M (37.7 - 65.8, n=16)	51 fps -16%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	39.3 fps -36%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps -47%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps -50%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.3 fps -63%
1920x1080 Medium Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	52 fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	46.8 fps +4%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.1 fps
Average AMD Radeon 680M (28.2 - 47.1, n=16)	38 fps -16%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	30.6 fps -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps -44%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	23.9 fps -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	17 fps -62%
1920x1080 High Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	37.1 fps +19%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	33.3 fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	31.2 fps
Average AMD Radeon 680M (19.8 - 31.2, n=16)	25.8 fps -17%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	21.8 fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps -49%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	14.7 fps -53%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	10.7 fps -66%
1920x1080 Badass Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	30 fps +23%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	27.1 fps +11%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.4 fps
Average AMD Radeon 680M (16 - 24.4, n=16)	20.5 fps -16%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	18.5 fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps -45%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	11.4 fps -53%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	8.4 fps -66%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	148.1 (121^min) fps +22%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	139.2 (119^min) fps +14%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	138.1 (116^min) fps +14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	135.1 fps +11%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	121.6 (89^min) fps
Average AMD Radeon 680M (67.4 - 150, n=29)	114.6 fps -6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps -16%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.4 fps -20%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.8 (79^min) fps -28%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	79.2 (75^min) fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	67.4 fps -45%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	63.3 fps -48%
1366x768 Medium Graphics & Postprocessing
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	97.1 (91^min) fps +28%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	85.2 fps +12%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	85.1 (80^min) fps +12%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	84 (77^min) fps +11%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	75.9 (71^min) fps
Average AMD Radeon 680M (44.5 - 85.1, n=22)	69.3 fps -9%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.5 (49^min) fps -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	48.7 (45^min) fps -36%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	47.7 fps -37%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (45^min) fps +29%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (41^min) fps +21%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (36^min) fps +14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43.3 fps +14%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	37.9 (35^min) fps
Average AMD Radeon 680M (22.3 - 48, n=31)	37.3 fps -2%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	33.5 fps -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps -12%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	32.1 fps -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.1 (22^min) fps -34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.5 (22^min) fps -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.2 fps -41%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.5 (28^min) fps +34%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	28.1 fps +24%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps +19%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	27 (25^min) fps +19%
Average AMD Radeon 680M (14.3 - 27.1, n=31)	22.8 fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (20^min) fps
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	20.1 fps -11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -26%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	15.8 (14^min) fps -30%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	15.7 fps -31%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.1 (11^min) fps -42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	11.4 fps -50%

X-Plane 11.11
1280x720 low (fps_test=1)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.7 fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	66.4 fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	64.8 fps -3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	60.3 fps -10%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.8 fps -13%
Average AMD Radeon 680M (26.8 - 66.7, n=33)	55.2 fps -17%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps -18%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	53.4 fps -20%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	51.1 fps -23%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	48.7 fps -27%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	26.8 fps -60%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	25.3 fps -62%
1920x1080 med (fps_test=2)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	52.9 fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.8 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	52.6 fps 0%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	43.7 fps -17%
Average AMD Radeon 680M (21.1 - 53.1, n=33)	43.7 fps -17%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.5 fps -18%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43 fps -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps -22%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	40.3 fps -24%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	34.4 fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	21.1 fps -60%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	18 fps -66%
1920x1080 high (fps_test=3)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps -1%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.7 fps -9%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	36.5 fps -14%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.5 fps -14%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	35.7 fps -16%
Average AMD Radeon 680M (16.6 - 43.1, n=33)	35.7 fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -17%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	16.6 fps -61%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	15.9 fps -62%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	76.5 fps +21%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	69.7 fps +10%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps +8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	63.4 fps
Average AMD Radeon 680M (34.4 - 74.7, n=31)	59.1 fps -7%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	45.7 fps -28%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	45.6 fps -28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps -28%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	41.1 fps -35%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	39.8 fps -37%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	17.3 fps -73%
1920x1080 Standard Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.2 fps +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	35.2 fps +7%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	34.9 fps +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	34.7 fps +5%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps
Average AMD Radeon 680M (18.3 - 36.9, n=32)	30.6 fps -7%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	28.9 fps -12%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	25.1 fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps -26%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	21.3 fps -35%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.3 fps -38%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	9.07 fps -73%
1920x1080 High Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.5 fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	26 fps +5%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.8 fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps -1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps -1%
Average AMD Radeon 680M (12.9 - 25.9, n=32)	21.9 fps -12%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	20.9 fps -16%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	17.4 fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -30%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.4 fps -38%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.3 fps -42%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	6.04 fps -76%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	156.9 (136.5^min) fps +11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	150.2 (132.8^min) fps +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	143.3 (123.8^min) fps +1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	141.9 (121.4^min) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	141.2 (122.4^min) fps
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	140.3 (102.2^min) fps -1%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	137.5 (109.5^min) fps -3%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	121 (109.7^min) fps -14%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps -19%
Average AMD Radeon 680M (34.4 - 143.3, n=33)	113.8 fps -19%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	98 (79.8^min) fps -31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	95.8 (84.4^min) fps -32%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	62.4 (51.9^min) fps -56%
1366x768 med (1/3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	121.1 (100.6^min) fps +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	116.1 (95.8^min) fps +2%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	113.4 (94^min) fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112.7 (95^min) fps -1%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	103.1 (78.3^min) fps -9%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	101.3 (78.4^min) fps -11%
Average AMD Radeon 680M (33.3 - 121.4, n=33)	94.9 fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps -24%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.4 (61.1^min) fps -30%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	66.6 (50^min) fps -41%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	66 (54.7^min) fps -42%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	57.3 (48.6^min) fps -50%
1920x1080 high (2/3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	95.5 (85.2^min) fps +13%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	89.9 (78.3^min) fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.2 (74.4^min) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	83.9 (73.4^min) fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	80.9 (71.6^min) fps -4%
Average AMD Radeon 680M (33.2 - 89.1, n=33)	71 fps -16%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	70.7 (65.7^min) fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps -20%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	59.3 (52.5^min) fps -30%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.6 (42.5^min) fps -40%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	45.2 (38.5^min) fps -46%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	44.8 (38.3^min) fps -47%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	31.9 (29.3^min) fps -62%
1920x1080 ultra (3/3) best looking
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.6 (74.9^min) fps +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	80.3 (71.5^min) fps +9%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	73.7 (65.4^min) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps -1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	64.5 (58.2^min) fps -12%
Average AMD Radeon 680M (33.2 - 84.9, n=33)	62.5 fps -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -18%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	56.3 (49.3^min) fps -24%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	52.3 (43.7^min) fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	42 (36.8^min) fps -43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	42 (37.8^min) fps -43%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	27.7 (25.5^min) fps -62%

Far Cry 5
1280x720 Low Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	84 (73^min) fps +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	80 (69^min) fps +16%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	69 (62^min) fps
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	63 (57^min) fps -9%
Average AMD Radeon 680M (37 - 82, n=24)	61.7 fps -11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	41 (35^min) fps -41%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	40 (35^min) fps -42%
1920x1080 Medium Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	50 (45^min) fps +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	45 (40^min) fps +10%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	41 (36^min) fps
Average AMD Radeon 680M (21 - 45, n=24)	36.2 fps -12%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	31 (27^min) fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	26 (23^min) fps -37%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps -51%
1920x1080 High Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	46 (41^min) fps +21%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	41 (36^min) fps +8%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	38 (33^min) fps
Average AMD Radeon 680M (18 - 41, n=24)	33.1 fps -13%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	29 (25^min) fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	24 (21^min) fps -37%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	19 (17^min) fps -50%
1920x1080 Ultra Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	44 (39^min) fps +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	39 (35^min) fps +8%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	36 (31^min) fps
Average AMD Radeon 680M (20 - 40, n=23)	32 fps -11%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	27 (24^min) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps -28%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	23 (20^min) fps -36%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	17 (15^min) fps -53%

GTA V
1024x768 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	166 (4.54^min, 125^P1) fps +9%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	157.8 (4.54^min, 111.1^P1) fps +4%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	152.6 (4.69^min, 100^P1) fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	152.3 (4.42^min, 100^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	152.3 (5.63^min, 100^P1) fps
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	144.6 (8.46^min, 100^P1) fps -5%
Average AMD Radeon 680M (67.7 - 155.4, n=28)	133.7 fps -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	132.9 (18.4^min, 90.9^P1) fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps -18%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	97.7 (25.6^min, 55.6^P1) fps -36%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	92.2 (30.2^min, 58.8^P1) fps -39%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	67.7 (4.02^min, 38.5^P1) fps -56%
1920x1080 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	129.1 (9.37^min, 90.9^P1) fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	113.4 (16.8^min, 76.9^P1) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	112.4 (25^min, 76.9^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112 (30.2^min, 71.4^P1) fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	111.4 (35^min, 71.4^P1) fps -1%
Average AMD Radeon 680M (56.9 - 115.8, n=20)	102.7 fps -9%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	98.1 (39.1^min, 71.4^P1) fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps -22%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81 (12.3^min, 58.8^P1) fps -28%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	68.9 (21.3^min, 45.5^P1) fps -39%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	66.4 (17.6^min, 43.5^P1) fps -41%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	56.9 (8.92^min, 35.7^P1) fps -49%
1366x768 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	158.4 (14.6^min, 111.1^P1) fps +14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	146 (6.65^min, 100^P1) fps +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	139.7 (5.95^min, 90.9^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	139.1 (7.31^min, 90.9^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	138 (28^min, 90.9^P1) fps -1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	133.8 (46.7^min, 83.3^P1) fps -4%
Average AMD Radeon 680M (60.7 - 143.9, n=25)	119.1 fps -14%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	117.6 (20.9^min, 71.4^P1) fps -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps -27%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	84.7 (19.5^min, 47.6^P1) fps -39%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	80.3 (25.9^min, 50^P1) fps -42%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	61.7 (8.03^min, 38.5^P1) fps -56%
1920x1080 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	132.3 (14.1^min, 83.3^P1) fps +17%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	117.6 (14.5^min, 83.3^P1) fps +4%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.3 (11.4^min, 71.4^P1) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	110.4 (6.6^min, 71.4^P1) fps -3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	109.6 (8.03^min, 71.4^P1) fps -3%
Average AMD Radeon 680M (54.9 - 117.3, n=20)	101.8 fps -10%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.2 (7.32^min, 66.7^P1) fps -14%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81.8 (14.1^min, 55.6^P1) fps -28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps -34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	60.6 (22.7^min, 41.7^P1) fps -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	59 (18^min, 35.7^P1) fps -48%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	54.9 (8.78^min, 33.3^P1) fps -52%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	68.3 (4.5^min, 45.5^P1) fps +32%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	59.7 (4.52^min, 40^P1) fps +15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	51.9 (14.3^min, 37^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	51.9 (5.75^min, 35.7^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	51.8 (9.91^min, 35.7^P1) fps 0%
Average AMD Radeon 680M (25.9 - 99.1, n=28)	49.1 fps -5%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34 (1.184^min, 19.2^P1) fps -34%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	32.2 (8.1^min, 23.3^P1) fps -38%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	24.3 (14.7^min, 18.9^P1) fps -53%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.4 (9.03^min, 16.7^P1) fps -55%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps -60%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	20.5 (8.17^min, 14.5^P1) fps -61%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.5 (3.06^min, 18.9^P1) fps +15%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24 (5.07^min, 15.9^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	23.7 (7.88^min, 16.4^P1) fps -1%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	23.7 (9.52^min, 16.4^P1) fps -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	23.6 (2.03^min, 16.1^P1) fps -2%
Average AMD Radeon 680M (11.3 - 24.8, n=28)	21.4 fps -11%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	19.6 (0.569^min, 10.2^P1) fps -18%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.5 (4.85^min, 10.3^P1) fps -40%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	10.3 (4.68^min, 5.59^P1) fps -57%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	9.04 (4.64^min, 5.71^P1) fps -62%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -63%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	7.71 (3.66^min, 5.78^P1) fps -68%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	7.7 (3.58^min, 5.88^P1) fps -68%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	164.2 (129^min, 114^P1) fps +11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	151.3 (123^min, 105^P1) fps +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (118^min, 96^P1) fps
Average AMD Radeon 680M (75.5 - 147.3, n=17)	124.4 fps -16%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	81 (63^min, 64^P1) fps -45%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps -46%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	77.5 (64^min, 42^P1) fps -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	58.2 (44^min, 44^P1) fps -60%
1920x1080 Low Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	94.6 (81^min, 71^P1) fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	82.6 (71^min, 56^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	82.6 (71^min, 57^P1) fps
Average AMD Radeon 680M (44.1 - 85.4, n=23)	72.5 fps -12%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	49.7 (37^min, 25^P1) fps -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps -42%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	46.6 (39^min, 39^P1) fps -44%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	33.3 (28^min, 27^P1) fps -60%
1920x1080 Medium Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.7 (72^min, 66^P1) fps +16%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	74.1 (61^min, 47^P1) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	72.9 (57^min, 45^P1) fps -2%
Average AMD Radeon 680M (38 - 74.6, n=23)	63.7 fps -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	46.1 (29^min, 22^P1) fps -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps -41%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	42.5 (37^min, 34^P1) fps -43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	30.6 (26^min, 25^P1) fps -59%
1920x1080 High Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	63 (48^min, 51^P1) fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	55.2 (39^min, 36^P1) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.7 (47^min, 37^P1) fps
Average AMD Radeon 680M (30 - 55, n=23)	47.2 fps -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34.8 (19^min, 17^P1) fps -36%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps -42%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	29.8 (25^min, 23^P1) fps -46%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	21.7 (18^min, 18^P1) fps -60%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +73%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	22.8 (19^min, 17^P1) fps +64%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	17.7 (13^min, 13^P1) fps +27%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	16.5 (14^min, 13^P1) fps +19%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	13.9 (9^min, 9^P1) fps
Average AMD Radeon 680M (7.85 - 14.1, n=20)	11.3 fps -19%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	8.92 (2^min, 3^P1) fps -36%

Cyberpunk 2077 1.6
1280x720 Low Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	75 (48.8^min) fps +26%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	72.8 (23.7^min) fps +22%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	72.2 (23.3^min) fps +21%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.5 (19.7^min) fps +20%
Average AMD Radeon 680M (46.1 - 77.6, n=14)	63.7 fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	59.5 (21.9^min) fps
1920x1080 Low Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	44.6 (33.4^min) fps +25%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.9 (20.7^min) fps +23%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (18.6^min) fps +21%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	43 (18^min) fps +20%
Average AMD Radeon 680M (26 - 50.6, n=15)	38 fps +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	35.8 (14.4^min) fps
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.9 (14^min) fps -42%
1920x1080 Medium Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	36.3 (27.9^min) fps +32%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	34.6 (17.5^min) fps +26%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	33.1 (19.1^min) fps +21%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	33 (19.6^min) fps +20%
Average AMD Radeon 680M (20.1 - 41.8, n=15)	29 fps +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	27.4 (12.8^min) fps
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	16.2 (12^min) fps -41%
1920x1080 High Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	28.6 (21.3^min) fps +36%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	26.9 (6.5^min) fps +28%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	22.3 (5.3^min) fps +6%
Average AMD Radeon 680M (16.3 - 33.6, n=15)	21.4 fps +2%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	21.3 (3^min) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	21 (9.9^min) fps
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	11.4 (8.7^min) fps -46%
1920x1080 Ultra Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	26 (18.8^min) fps +35%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.8 (6.1^min) fps +29%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	19.2 (5^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	17.5 (4^min) fps -9%
Average AMD Radeon 680M (14 - 23.8, n=15)	17.5 fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	17.2 (3.2^min) fps -10%

Strange Brigade
1280x720 lowest AF:1
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.2 (109.1^min, 139.7^P1) fps +11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	148.8 (53.7^min, 130^P1) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (85.9^min, 124^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	142.4 (86.5^min, 118^P1) fps -3%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	141.9 (78.6^min, 116.6^P1) fps -4%
Average AMD Radeon 680M (72.9 - 167.5, n=31)	131.1 fps -11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps -33%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	98.7 (21.2^min, 36.7^P1) fps -33%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	95.3 (72.8^min, 84.4^P1) fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	84.5 (32.3^min, 62.9^P1) fps -43%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	80.1 (18.9^min, 25.5^P1) fps -46%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	68.6 (15.6^min, 21.8^P1) fps -53%
1920x1080 medium AA:medium AF:4
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.6 (52.2^min, 57^P1) fps +17%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	59.8 (35.1^min, 52^P1) fps +7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	57.8 (43.1^min, 50.8^P1) fps +3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	57.4 (43.4^min, 51^P1) fps +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	56 (46.4^min, 49.2^P1) fps
Average AMD Radeon 680M (30 - 63, n=31)	53.6 fps -4%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	46.2 (28.6^min, 35^P1) fps -17%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	40.9 (10.8^min, 22.7^P1) fps -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	36 (29.9^min, 31^P1) fps -36%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	34.5 (12.4^min, 19.8^P1) fps -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	29 (13.9^min, 17.8^P1) fps -48%
1920x1080 high AA:high AF:8
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	55.6 (39.2^min, 42.9^P1) fps +21%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	50.7 (14.7^min, 38.5^P1) fps +10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	48.6 (34.2^min, 38.3^P1) fps +6%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	48.5 (35.1^min, 38.2^P1) fps +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.9 (25.6^min, 35.7^P1) fps
Average AMD Radeon 680M (25.3 - 53.1, n=31)	44.3 fps -3%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	39.4 (9.7^min, 22.8^P1) fps -14%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	32.3 (8.2^min, 17^P1) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	30.1 (23.7^min, 24.1^P1) fps -34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	28.5 (7.8^min, 15.4^P1) fps -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	23.3 (6.2^min, 12.7^P1) fps -49%
1920x1080 ultra AA:ultra AF:16
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.2 (23.8^min, 32^P1) fps +13%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43.3 (11.1^min, 16.3^P1) fps +2%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.5 (15.8^min, 22.3^P1) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps -1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps -2%
Average AMD Radeon 680M (22 - 44.2, n=31)	38 fps -11%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34.2 (6.7^min, 10.3^P1) fps -20%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	26.2 (5.2^min, 9.1^P1) fps -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -39%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.5 (19.5^min, 20.8^P1) fps -40%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.9 (6.4^min, 8.1^P1) fps -46%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	19.1 (5^min, 5.1^P1) fps -55%

空闲时的帧速率 Witcher 3如下图所示，帧率基本保持一致，但也有高低起伏。值得庆幸的是，这种波动并不剧烈，不会在游戏时造成任何影响。

Witcher 3 FPS Chart

GMK NucBox K2: Ø38 (33-45)

	low	med.	high	ultra
GTA V (2015)	152.3	139.1	51.9	24
The Witcher 3 (2015)	121.6	75.9	37.9	22.7
Dota 2 Reborn (2015)	141.2	113.5	84.2	73.7
Final Fantasy XV Benchmark (2018)	63.4	33	24.8
X-Plane 11.11 (2018)	66.7	52.8	42.4
Far Cry 5 (2018)	69	41	38	36
Strange Brigade (2018)	147.3	56	45.9	42.5
Cyberpunk 2077 1.6 (2022)	35.8	27.4	21	19.2
Tiny Tina's Wonderlands (2022)	61	45.1	31.2	24.4
F1 22 (2022)	82.6	74.1	54.7	13.9

排放量

系统噪音

风扇噪音是 NucBox K2 的一个弱点。即使在浏览或视频流等低负载情况下，内部风扇也会从静音到 36 分贝（A）频繁跳动。在 3DMark 06 第一个基准测试场景进行到一半时，我们很快就能听到近 42 dB(A) 的最大噪音。

系统噪音（白色：背景，红色：系统空闲，蓝色：3DMark 06，橙色：Witcher 3绿色Prime95 压力）

Noise Level

Idle		24.4 / 24.4 / 36.8 dB(A)
Load		41.6 / 41.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24.1 dB(A)

	GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
Noise		8%	6%	-3%	2%	13%
off / environment *	24.1	25.6 -6%	24.5 -2%	25.2 -5%	29.7 -23%	23.5 2%
Idle Minimum *	24.4	25.7 -5%	25.1 -3%	28.1 -15%	30.2 -24%	24.1 1%
Idle Average *	24.4	25.7 -5%	25.1 -3%	28.2 -16%	30.2 -24%	24.1 1%
Idle Maximum *	36.8	25.7 30%	25.1 32%	28.3 23%	30.2 18%	26.6 28%
Load Average *	41.6	35.3 15%	35.9 14%	42 -1%	30.6 26%	30.4 27%
Witcher 3 ultra *	41.7		35.6 15%		30.5 27%	30.4 27%
Load Maximum *	41.6	35.1 16%	45.4 -9%	42.1 -1%	36.4 12%	38.1 8%

* ... smaller is better

温度

在运行游戏等高负载时，设备顶部的表面温度可达 36 摄氏度以上。如下面的温度图所示，废热从机身后部散发。

由于 NucBox 2 的设计在底板上增加了通风栅，因此将设备垂直放置比水平放置更安全。

压力测试

当运行 Prime95 对 CPU 施加压力时，时钟频率和主板功耗将分别飙升至 3.5 GHz 和 45 W。但几秒钟后，频率和功耗将分别降至 3.1 GHz 和 38 W，这表明高涡轮增压的潜力有限。

运行时的核心温度 Witcher 3将稳定在 67 摄氏度，而价格更高的 Beelink SER7 为 64 摄氏度。只有在长时间运行高负载时，核心温度才会达到 70 摄氏度或更高。

	CPU 时钟 (GHz)	GPU 时钟 (MHz)	CPU 平均温度 (°C)
系统闲置	--	--	41
Prime95 压力	3.0	--	79
Prime95 + FurMark Stress	3.1	~1323	71
Witcher 3 应力	0.4	2000 - 2200	67

能源管理 - 再渴一点

耗电量

与其他采用较老 CPU 的微型 PC（如 NucBox 2 或Trigkey Speed S.不过，性能优势足以抵消较高的功耗。例如，我们的 NucBox K2 在运行游戏时比 Trigkey Speed S 多消耗近 30% 的电量，但性能却提高了 60% 至 70%，因此消耗的电量增加是值得的。

启动 Prime95 时，耗电量会飙升至 73 W，持续约 5 秒钟，然后下降并稳定在 63 W。

Power Consumption

Off / Standby	0.62 / 0.83 Watt
Idle	7.3 / 9.8 / 10.5 Watt
Load	61.3 / 72.8 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	GMK NucBox K2 R7 7735HS, Radeon 680M, Lexar NM610 Pro NM610P001T-HNNNG, , x,	GMK NucBox 2 i5-8259U, Iris Plus Graphics 655, Netac S930E8/256GPN, , x,	Beelink SER7 R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG, , x,	Trigkey Speed S i5-11320H, Iris Xe G7 96EUs, Intel SSD 670p SSDPEKNU512GZ, , x,
Power Consumption		26%	-6%	-2%	22%	20%
Idle Minimum *	7.3	6.1 16%	6.7 8%	7 4%	7.3 -0%	6.7 8%
Idle Average *	9.8	6.8 31%	7.3 26%	9.2 6%	7.8 20%	8 18%
Idle Maximum *	10.5	7.3 30%	11.6 -10%	11.8 -12%	8.4 20%	8.1 23%
Load Average *	61.3	46.3 24%	64.1 -5%	45 27%	28.7 53%	47.6 22%
Witcher 3 ultra *	62.2		75.8 -22%			47.5 24%
Load Maximum *	72.8	50.7 30%	94.8 -30%	97.2 -34%	61.1 16%	56.3 23%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

GMK NucBox K2 R7 7735HS, Radeon 680M; Witcher 3 ultra: Ø62.2 (60.2-65.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Witcher 3 ultra: Ø50.7 (49.7-63.2)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.2 (62.8-72.8)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø78.5 (72.1-119.1)

Power Consumption external Monitor

GMK NucBox K2 R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63 (62.1-72.5)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø63.2 (57.9-102.6)

GMK NucBox K2 R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø60.7 (57.3-67.4)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Cinebench R15 Multi (external Monitor): Ø69.5 (56-93.5)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.2 (61.9-71)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.8 (39.3-47.7)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.2 (60.2-65.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø50.7 (49.7-63.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Idle 1min (external Monitor): Ø16.6 (15.8-19.1)

Pros

+ 无需工具即可访问内存和固态硬盘插槽

+ 支持 USB4、eGPU 和 PD

+ 功能强大而价格低廉

+ 轻便

Cons

- 无线局域网天线可以更强

- 仅支持一个 M.2 固态硬盘

- 只有一个 USB4 端口

- 蓝牙问题

- 风扇噪音大

结论 - 花小钱办大事

GMKtec NucBox K2 具备家庭或办公室用户所需的所有核心功能，却没有许多华而不实的附加功能。超级方便的可访问性和可维护性、高速的 Zen 3+ CPU 和集成 GPU 以及 USB4 端口都是该机型的亮点。事实上，我们的配置价格低至 480 美元，这让它极具吸引力，因为您只需在性能和功能方面做出极少妥协。

不过，也有一些偷工减料和值得一提的问题。首先，该系统只支持一个内部固态硬盘，而其他大多数迷你电脑则可以支持两个。其次，如果你想连接多个 USB-C 设备，单个 USB-C 端口会让你感觉受到限制。最后，我们建议仔细检查蓝牙功能和跳帧问题，因为我们在评测设备上遇到了这两个问题。

NucBox K2 超越了其重量和价格范畴。不过，您可能不得不面对一些明显的缺点。

我们还希望 WLAN 信号的强度和系统风扇的性能能有所改进。我们的 Wi-Fi 6E 连接速度比预期的慢，而风扇的脉动非常明显。不过，如果你能找到售价低于 500 美元的机型，那么这些缺点也许是值得接受的。

价格和供应情况

亚马逊目前正在销售GMKtec NucBox K2，评论价格为 580 美元，使用当前优惠券代码后为 480 美元。

GMK NucBox K2 - 2023-09-12 09/12/2023 v7
Allen Ngo

Chassis

79 / 98 → 80%

Connectivity

60 / 81 → 74%

Weight

84%

Games Performance

76%

Application Performance

95%

Noise

83%

Average

80%

83%

Mini PC - Weighted Average

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5193 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 389876 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > GMK NucBox K2 Ryzen 7 7735HS mini PC 评测：针对每美元高性能进行了优化

Allen Ngo, 2023-09-13 (Update: 2023-09-13)

GMK NucBox K2 Ryzen 7 7735HS mini PC 评测：针对每美元高性能进行了优化

潜在的竞争对手比较

案例 - 保持简单

尺寸比较

连接性

交流

维护

配件和保修

性能 - Zen 3+ 依然强大

测试条件

处理器

Cinebench R15 Multi Loop

系统性能

DPC 延迟

存储设备

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

图形处理器性能

Witcher 3 FPS Chart

排放量

系统噪音

温度

压力测试

能源管理 - 再渴一点

耗电量

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pros

Cons

结论 - 花小钱办大事

价格和供应情况

More articles related to this device

Transparency

Pricecompare
