Beelink SER7 迷你 PC 评测：配备蒸汽室冷却系统的 Ryzen 7 7840HS

Name: Beelink SER7
Brand: Beelink

就体积而言，速度快得惊人。 AMD 的 Zen 4 CPU 和 Radeon 780M GPU 再次给我们留下了深刻印象，其性能远远领先于其他大多数迷你 PC。除了一些相对较小的问题外，SER7 几乎没有什么令人不满意的地方。

Allen Ngo, 👁 Allen Ngo (translated by DeepL / Ninh Duy), Published 09/10/2023 🇺🇸 🇸🇪 ...

AMD Mini PC Zen 4

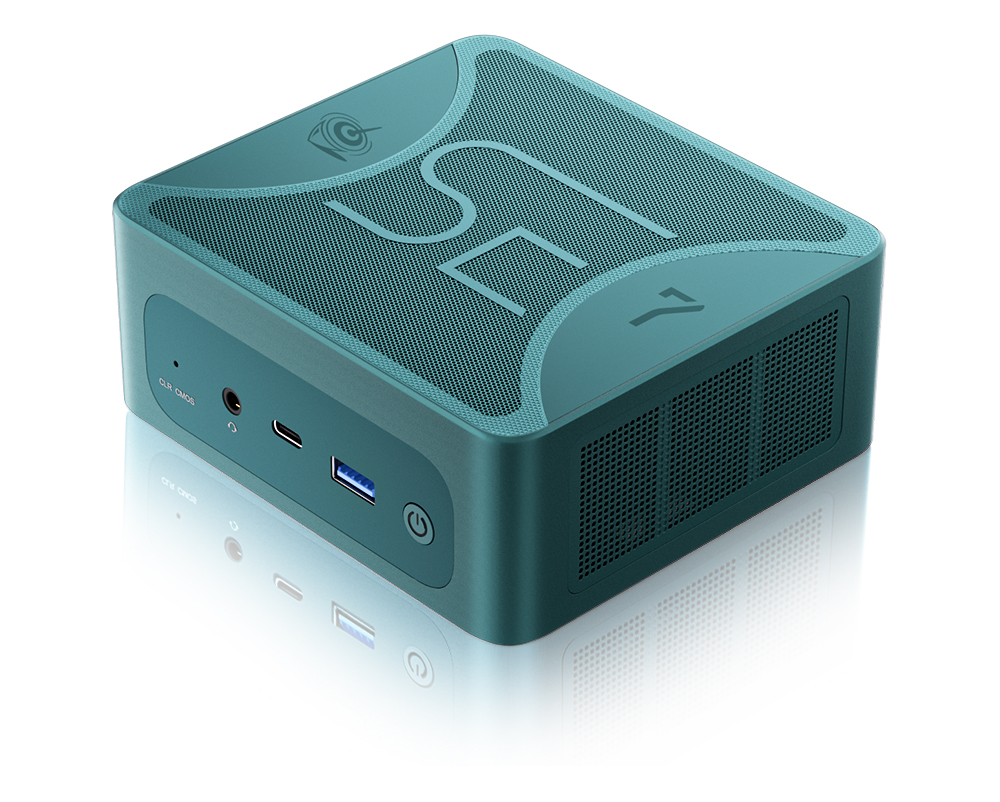

SER7 是 Beelink 最新推出的迷你 PC，旨在接替较早的 SER6 系列。与老款产品相比，该机型采用了更新的机箱设计以及更新的 AMD Zen 4 CPU。

我们的评测机配备了 Ryzen 7 7840HS、32 GB 内存和 1 TB SSD，售价约为 730 美元。目前还没有其他配置，甚至没有裸机可供选择。

SER7 的替代产品包括其他小型迷你 PC，如Lenovo IdeaCentre Mini,Intel NUC 13 Pro, 或Minisforum Venus NPB5 。Beelink SER 系列有别于 GTR 系列，后者由配备更高端 Ryzen 9 的大型迷你 PC 组成。

更多 Beelink 评论：

Test device courtesy of Beelink

Download your licensed rating image as PNG / SVG

Beelink SER7

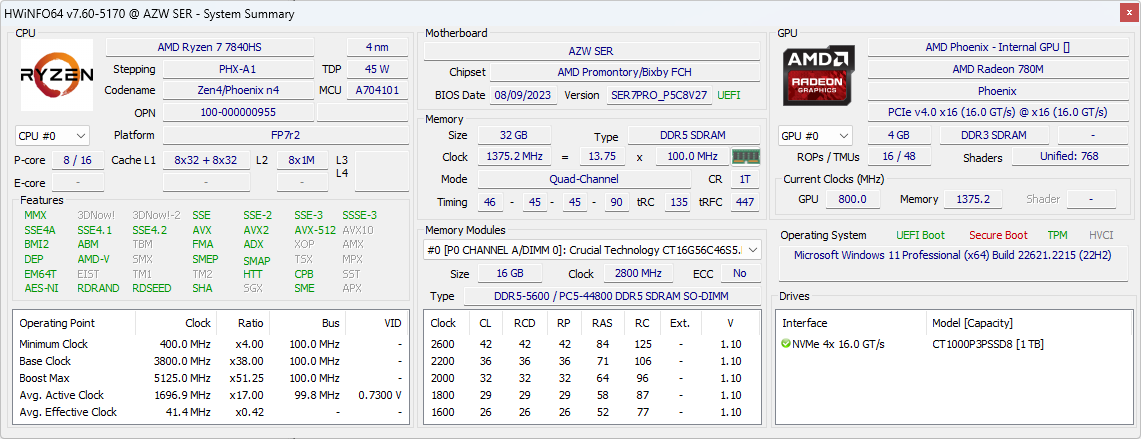

Processor

AMD Ryzen 7 7840HS 8 x 3.8 - 5.1 GHz, 54 W PL2 / Short Burst, 54 W PL1 / Sustained, Phoenix-HS (Zen 4)

Graphics adapter

AMD Radeon 780M, Memory: 2800 MHz, DDR5, 22.40.03.38

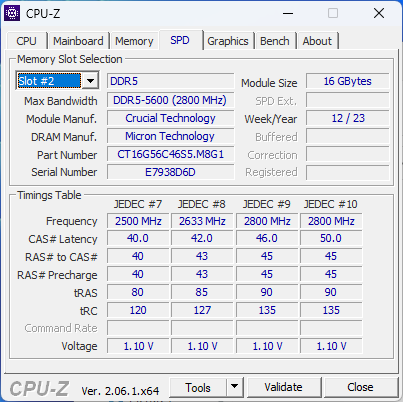

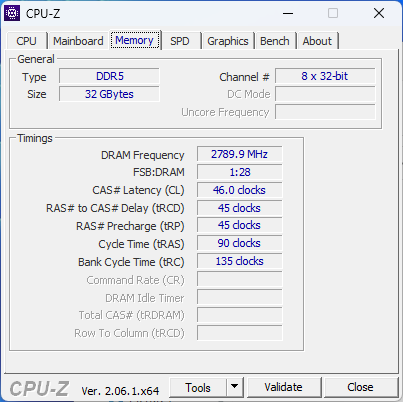

Memory

16 GB

, Crucial DDR5-5600, Dual-Channel, 46-45-45-90

Mainboard

AMD Promontory/Bixby FCH

Storage

Crucial P3 Plus CT1000P3PSSD8, 1024 GB

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 1 HDMI, 3 DisplayPort, Audio Connections: 3.5 mm headset

Networking

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 49 x 126 x 113

Operating System

Microsoft Windows 11 Pro

Additional features

2x HDMI cables, VESA mounting bracket, 12 Months Warranty

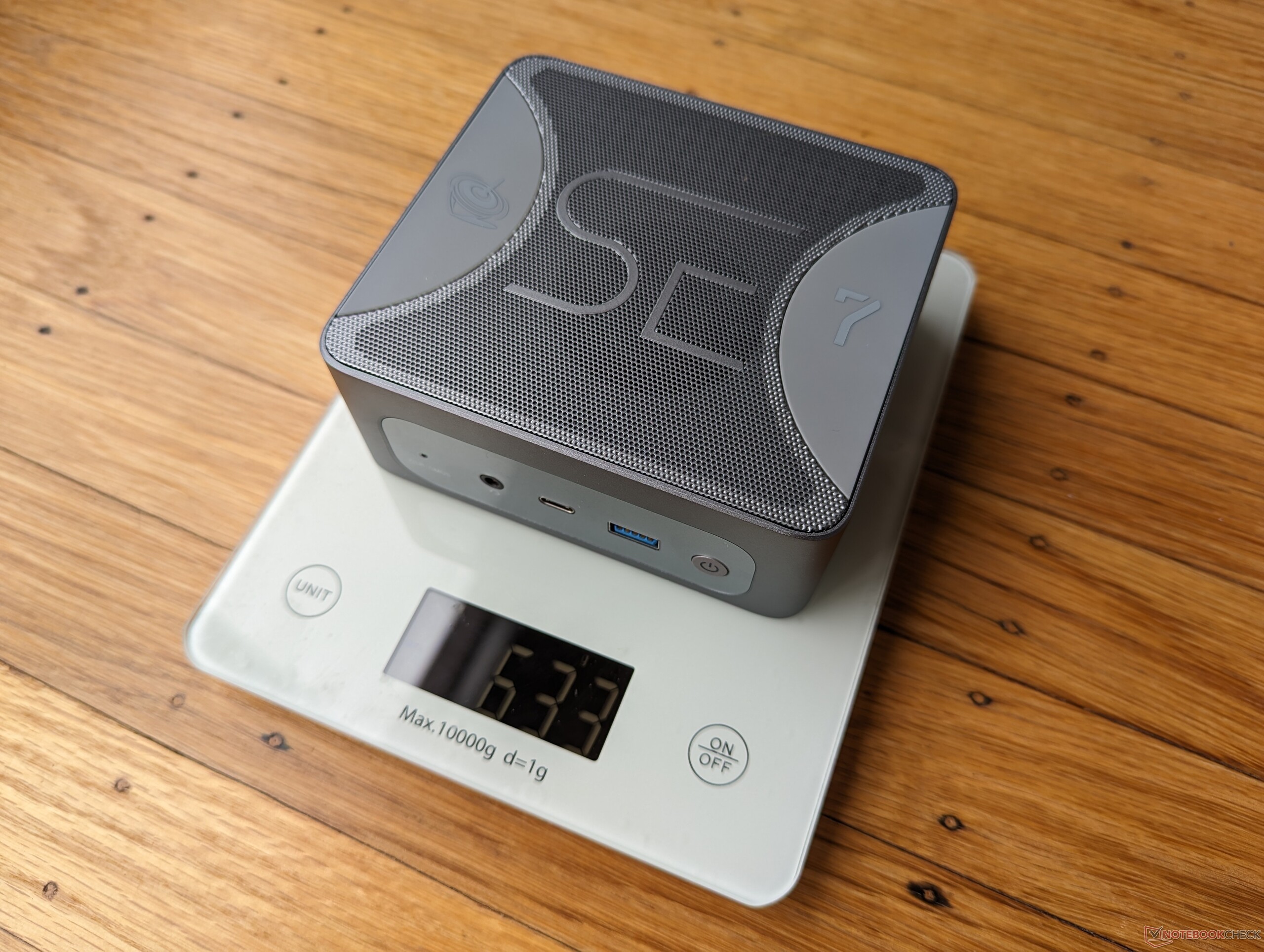

Weight

640 g, Power Supply: 273 g

Price

730 USD

Links

Beelink homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Resolution
86.6 %	09/2023	Beelink SER7 R7 7840HS, Radeon 780M	640 g	49 mm	x
81 %	09/2023	Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs	1.8 kg	39 mm	x
83.1 %	08/2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
81.7 %	08/2023	Minisforum Venus Series NPB5 i5-13500H, Iris Xe G7 80EUs	604 g	55 mm	x
84.8 %	04/2023	Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M	506 g	42 mm	x
86.3 %	07/2023	Beelink GTR7 7840HS R7 7840HS, Radeon 780M	890 g	48.8 mm	x

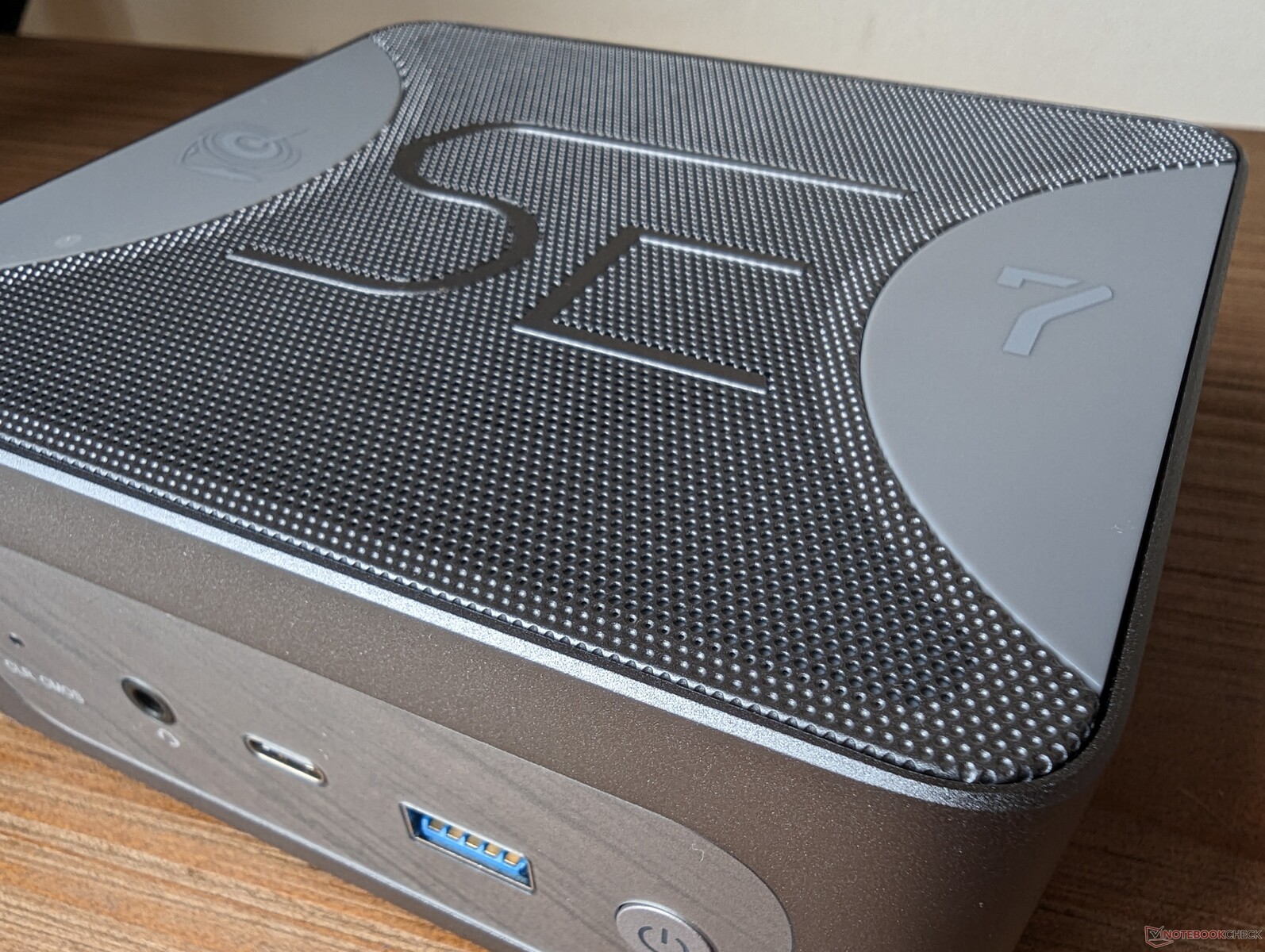

表壳 - 炮铜色外观

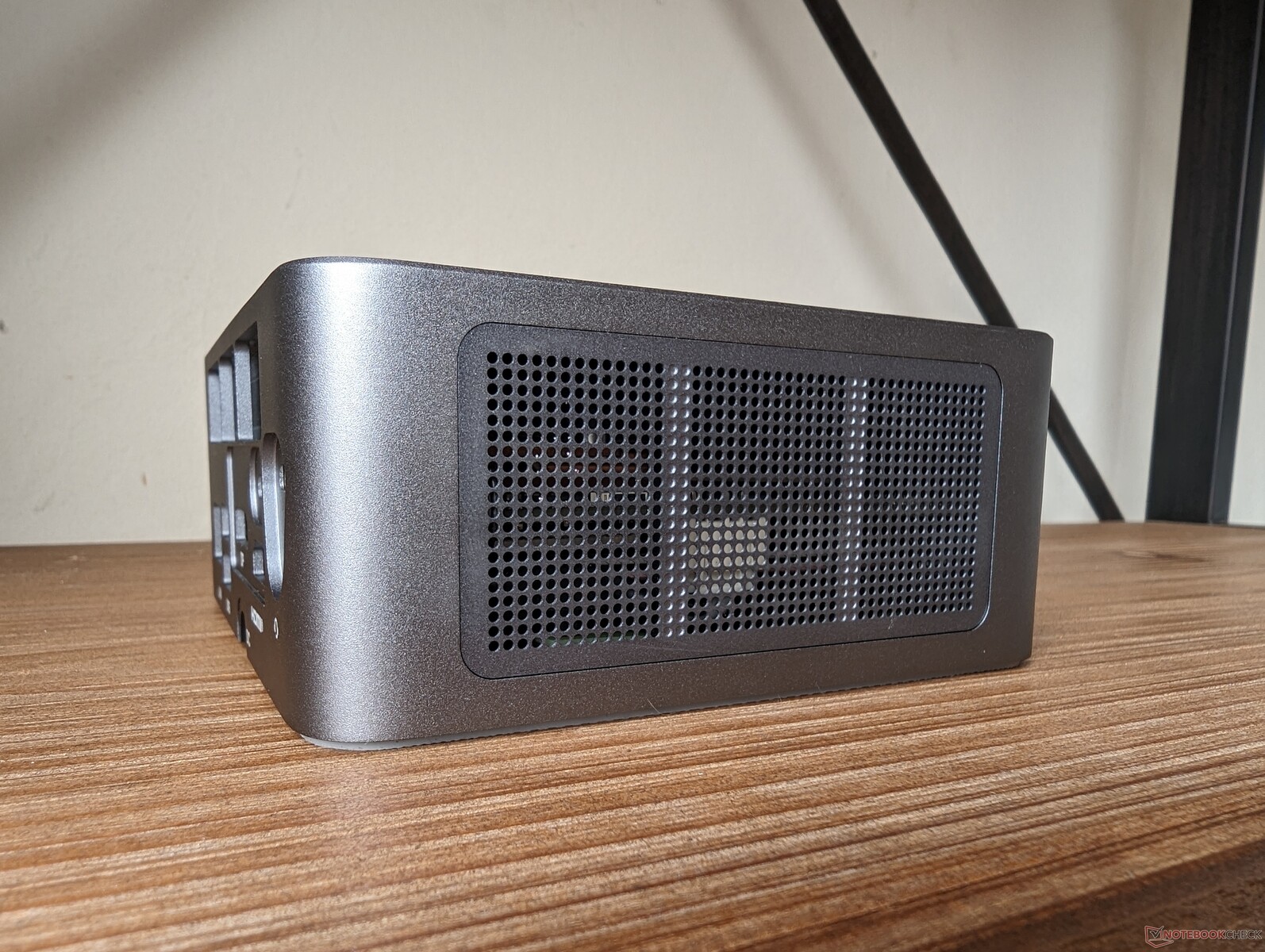

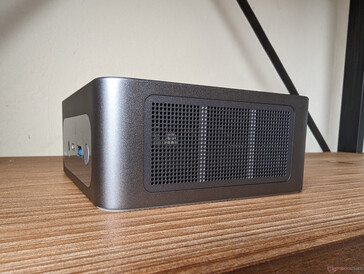

Beelink 取消了旧型号上的可拆卸顶盖，采用了更为固定的外观和结构。亚光金属和 ABS 塑料表面的每一面都很坚固，包括机身周围的许多通风栅。无论从哪个角度看，SER7 都不是一台廉价的塑料迷你 PC。

与 Beelink SER 或 SEI 的旧型号相比，该设备更重、更厚，因为采用了新的集成蒸汽室。它没有 GTR 或 GTI 系列那么大，但与传统的英特尔 NUC 相比，体积还是明显增大了。

尺寸比较

Lenovo IdeaCentre Mini 01IRH8 Beelink GTR7 7840HS Minisforum Venus Series NPB5 Beelink SER7 Beelink SER6 Pro Ryzen 7 7735HS Intel NUC 13 Pro Desk Edition Kit DIN A4 ❌

连接性 - 大量 USB-C

SER7 整合了多个 USB-C 端口，而不是只有一个，从而解决了我们对 Beelink 旧款产品的一个主要抱怨。事实上，该系统包含三个 USB-C 端口，比大多数其他迷你 PC 提供的都要多。其中两个 USB-C 端口还是 USB4 端口，这意味着完全支持 eGPU。

此外，双 3.5 毫米耳机插孔也为更广泛的音频支持增色不少。

需要注意的是，USB-C Power Delivery 最高支持 100 W，这意味着如果丢失了包装盒中的专有交流适配器，可以使用第三方 USB-C 交流适配器为设备供电。不过，该机型似乎对支持哪些 USB-C AC 适配器比较挑剔。例如，戴尔的 130 W USB-C 交流适配器根本无法为 SER7 供电，而联想的 140 W USB-C 交流适配器却能正常工作。

与英特尔 NUC 系列不同，SER7 没有 Kensington 锁。

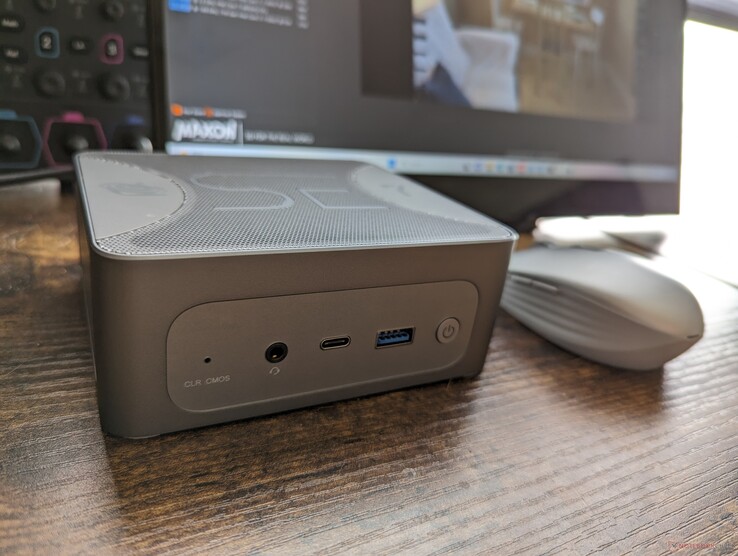

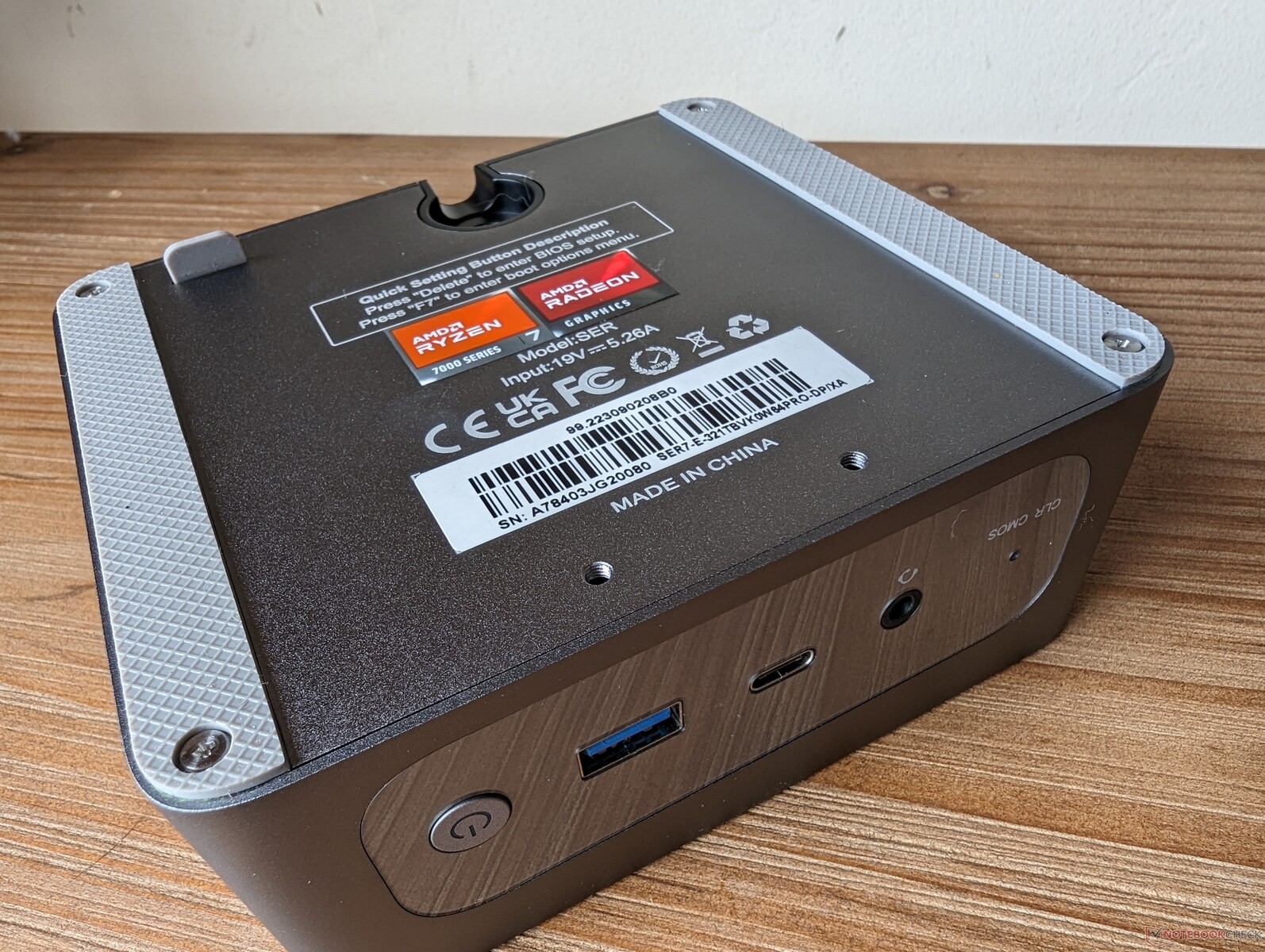

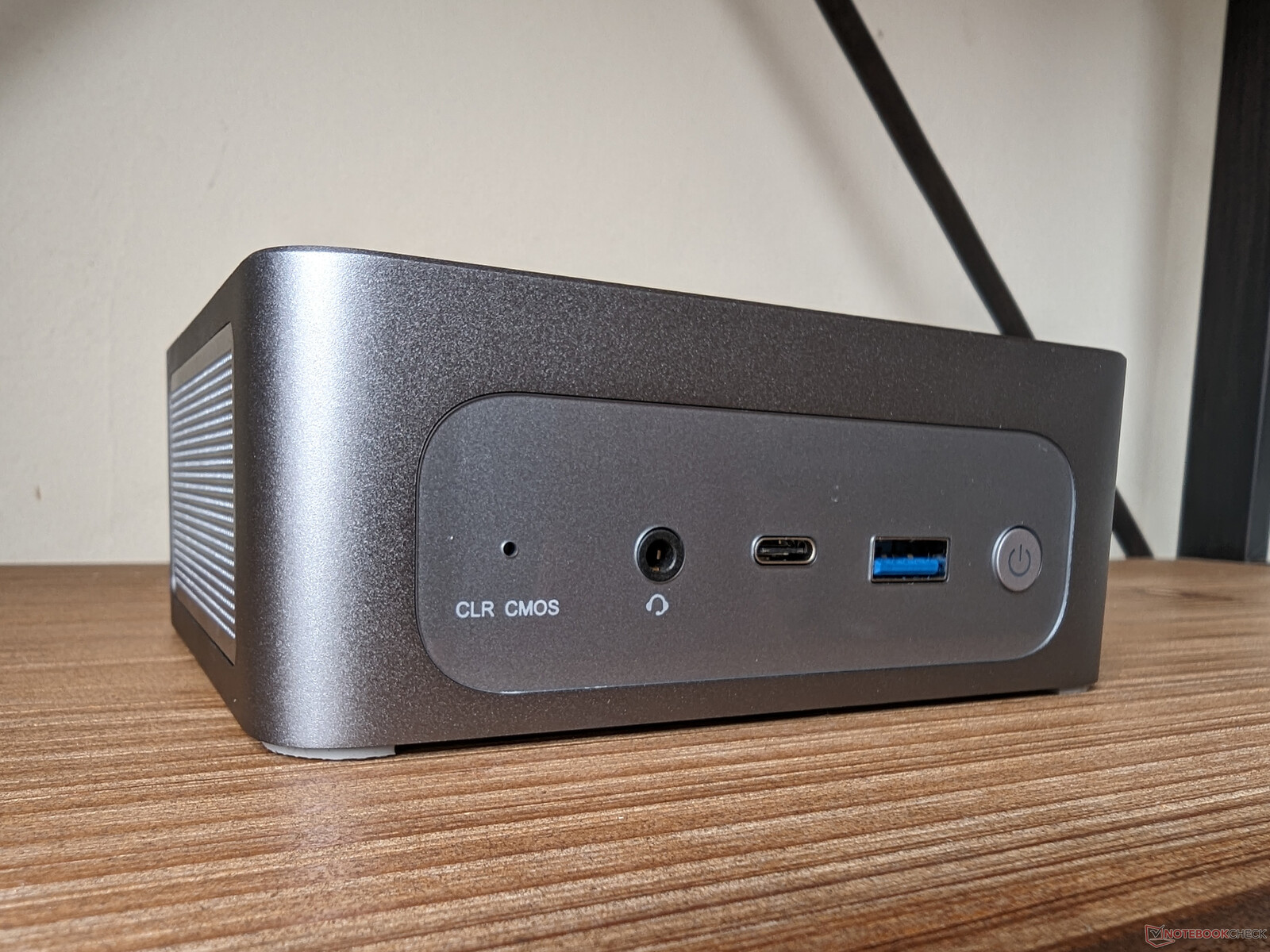

前部透明 CMS、3.5 毫米耳机、USB-C（仅限数据）、USB-A 3.2、电源按钮

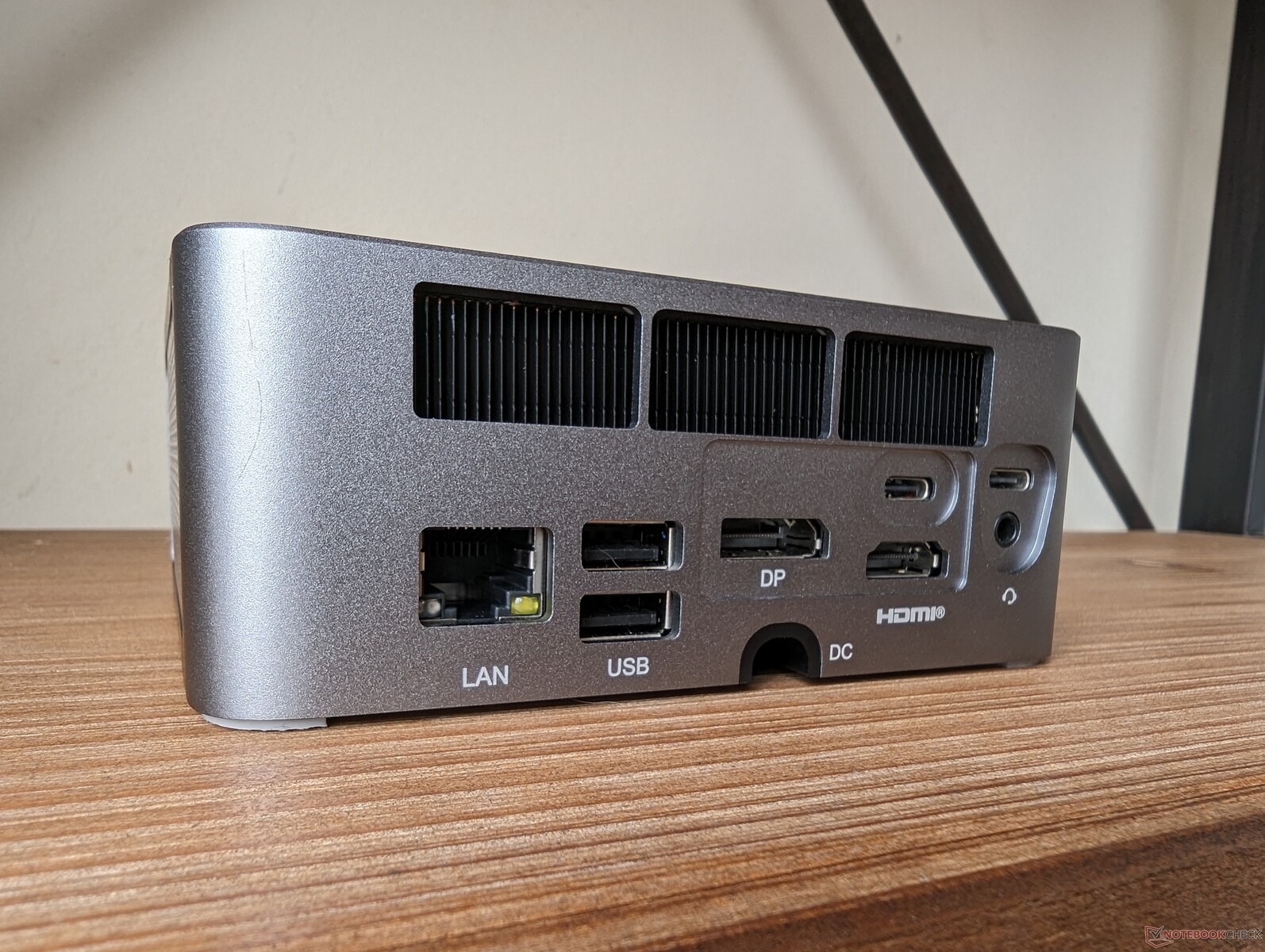

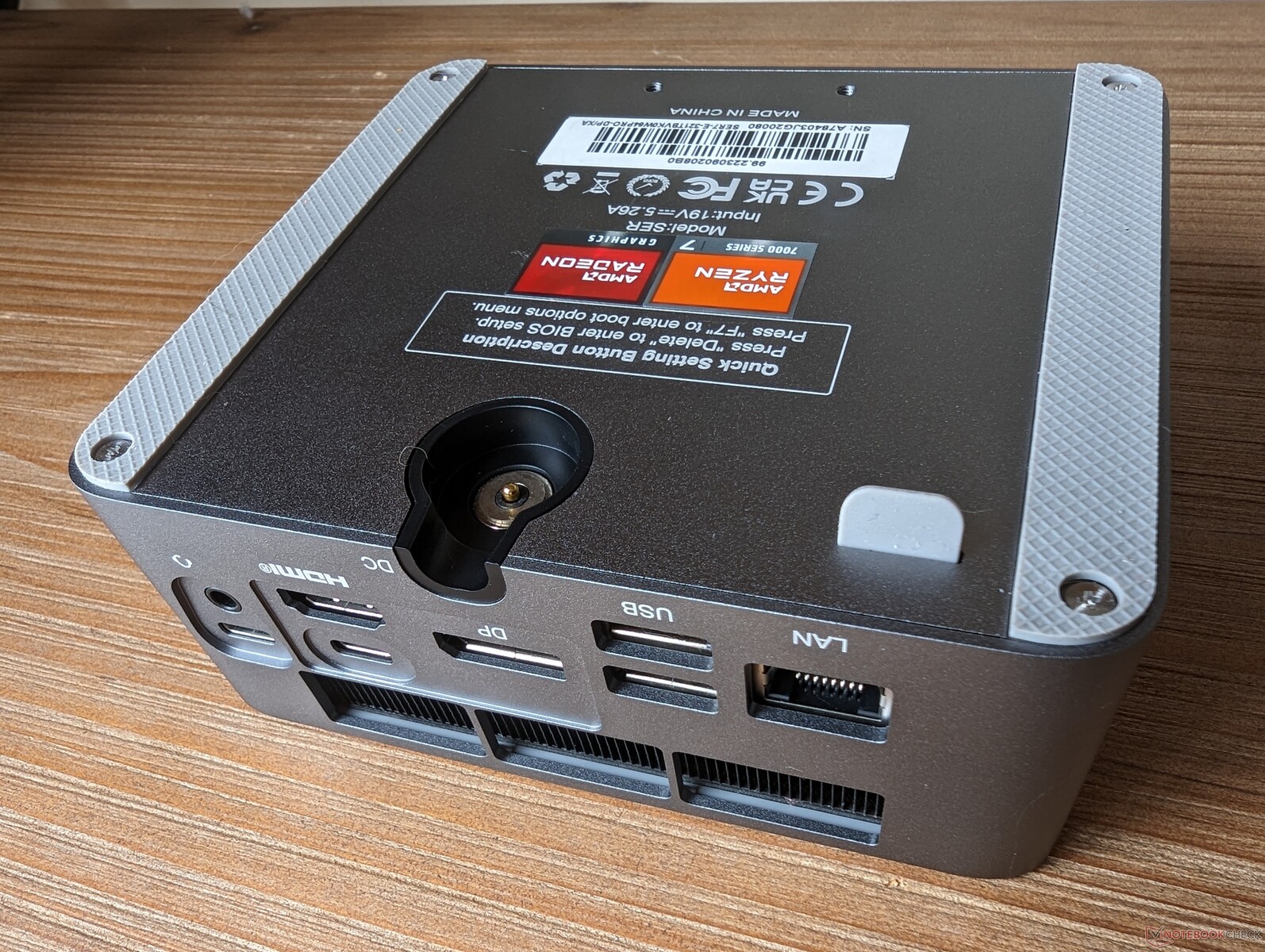

后部：2.5 Gbps RJ-45、2 个 USB-A 2.0、DisplayPort 1.4、2 个 USB-C 4.0（带 Power Delivery + DisplayPort）、HDMI 2.1

交流

出于某种原因，Beelink 仍在使用上一代 Wi-Fi 模块出货其最快的迷你 PC。我们设备中的英特尔 AX200 不支持 Wi-Fi 6E，而英特尔 NUC 13 Pro 则配备了较新的英特尔 AX211。虽然 Wi-Fi 6E 并不总是比 Wi-Fi 6 更快，但它仍能提供更低的延迟，从而改善常见的 HTPC 应用，如通过云端串流游戏。

Networking
iperf3 transmit AXE11000
Beelink SER7 Intel Wi-Fi 6 AX200	1324 (665^min - 1408^max) MBit/s
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s -2%
Beelink SER6 Pro Ryzen 7 7735HS Intel Wi-Fi 6 AX200	1069 (800^min - 1158^max) MBit/s -19%
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1031 (961^min - 1109^max) MBit/s -22%
Minisforum Venus Series NPB5 MediaTek RZ608	951 (864^min - 1006^max) MBit/s -28%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	803 (713^min - 847^max) MBit/s -39%
iperf3 receive AXE11000
Beelink SER6 Pro Ryzen 7 7735HS Intel Wi-Fi 6 AX200	1356 (1119^min - 1463^max) MBit/s +14%
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1211 (1112^min - 1284^max) MBit/s +2%
Beelink SER7 Intel Wi-Fi 6 AX200	1193 (588^min - 1333^max) MBit/s
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s -6%
Minisforum Venus Series NPB5 MediaTek RZ608	902 (865^min - 926^max) MBit/s -24%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	801 (656^min - 887^max) MBit/s -33%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s

Beelink SER7; iperf3 transmit AXE11000; iperf 3.1.3: Ø1302 (665-1408)

Beelink SER7; iperf3 receive AXE11000; iperf 3.1.3: Ø1173 (588-1333)

维护

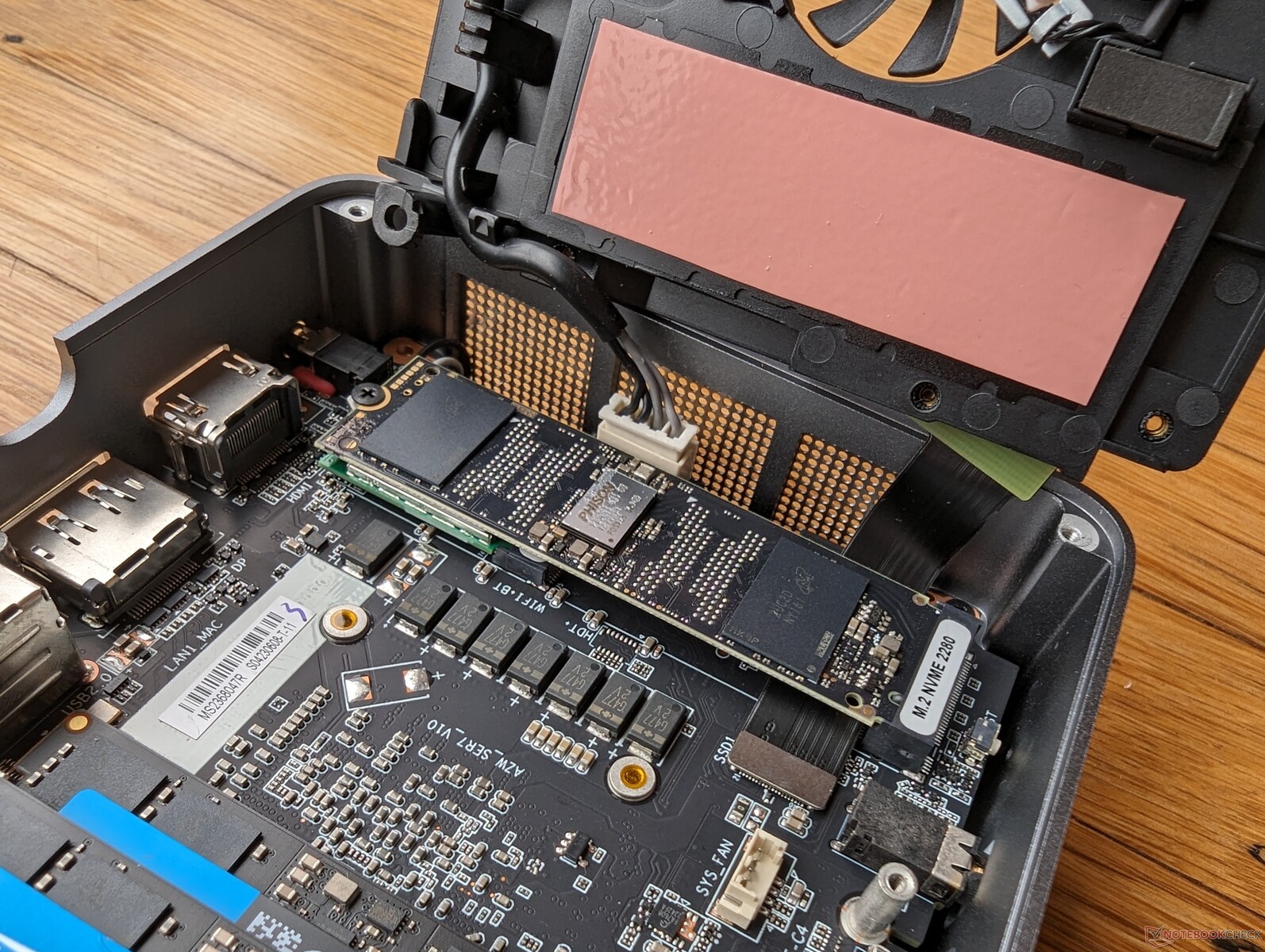

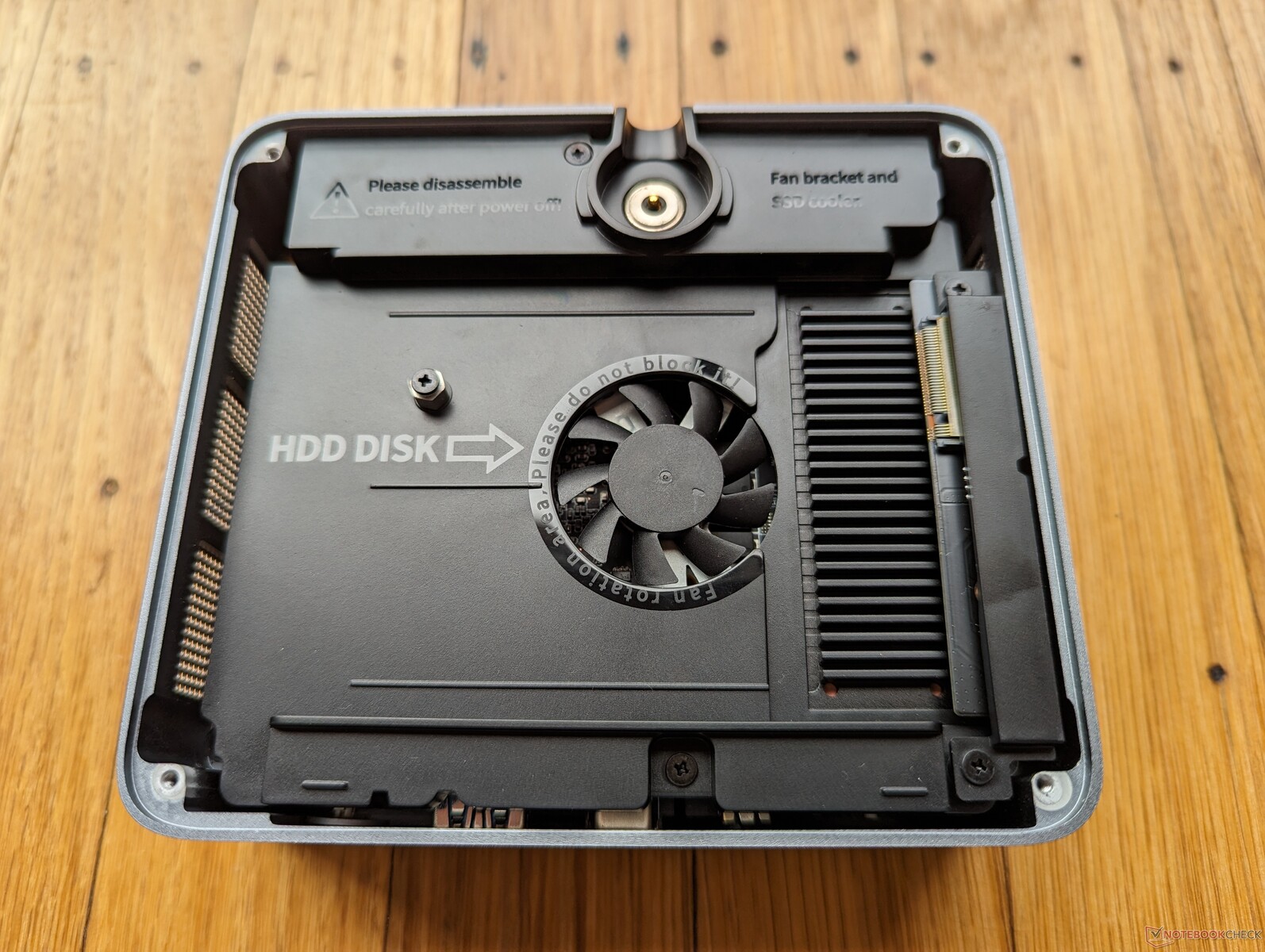

与英特尔 NUC 相比，维修需要更多步骤。首先，底部由四颗十字螺丝固定，取下后可以看到风扇支架和二级固态硬盘插槽，如下图所示。然后，必须从风扇支架上拧下另外一组螺丝，露出下面的主板。这些螺丝长短不一，在重新组装时切勿混淆。

蒸发腔位于主板的另一侧，朝上。Beelink 不鼓励接触主板的这一面。

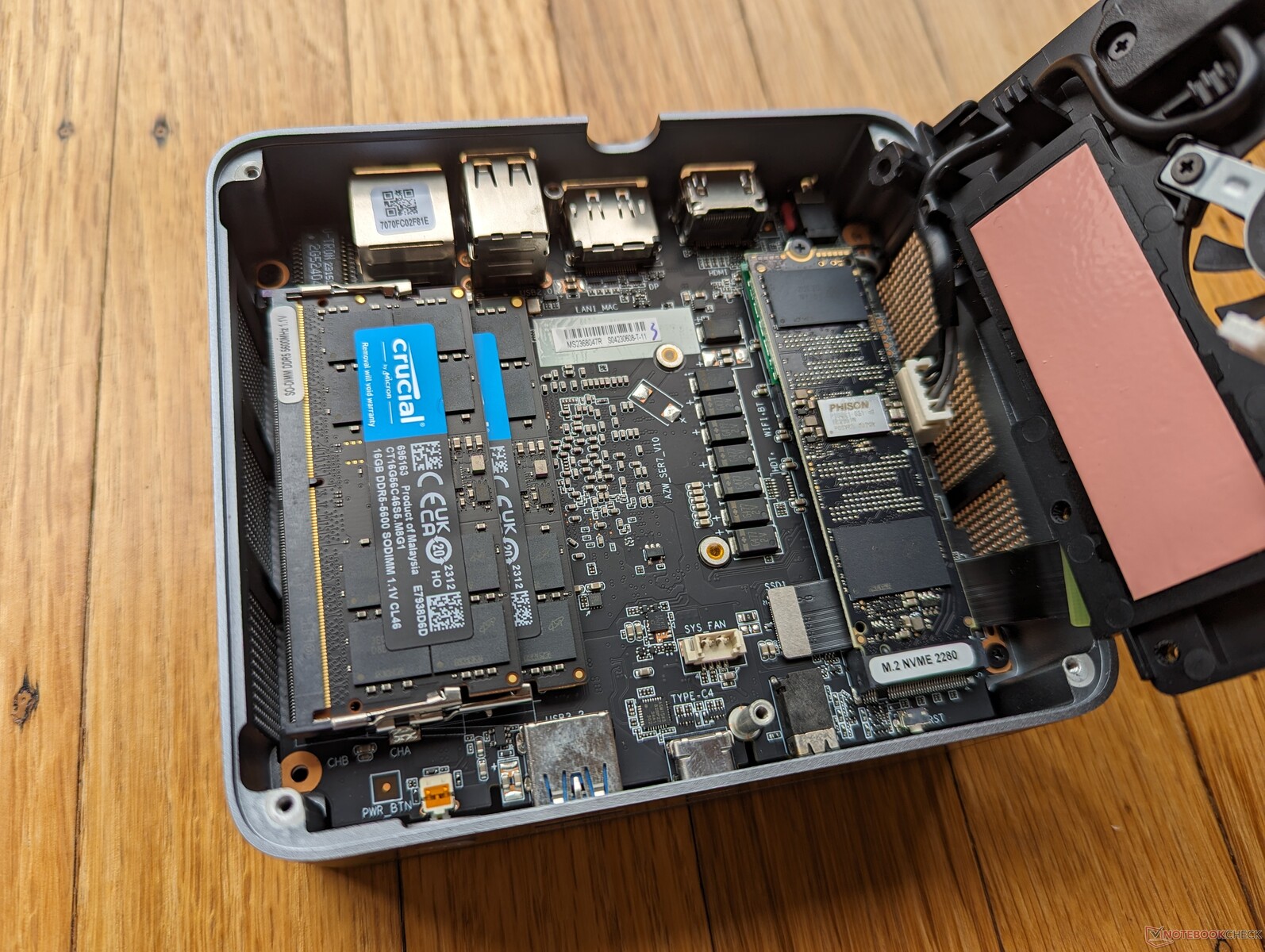

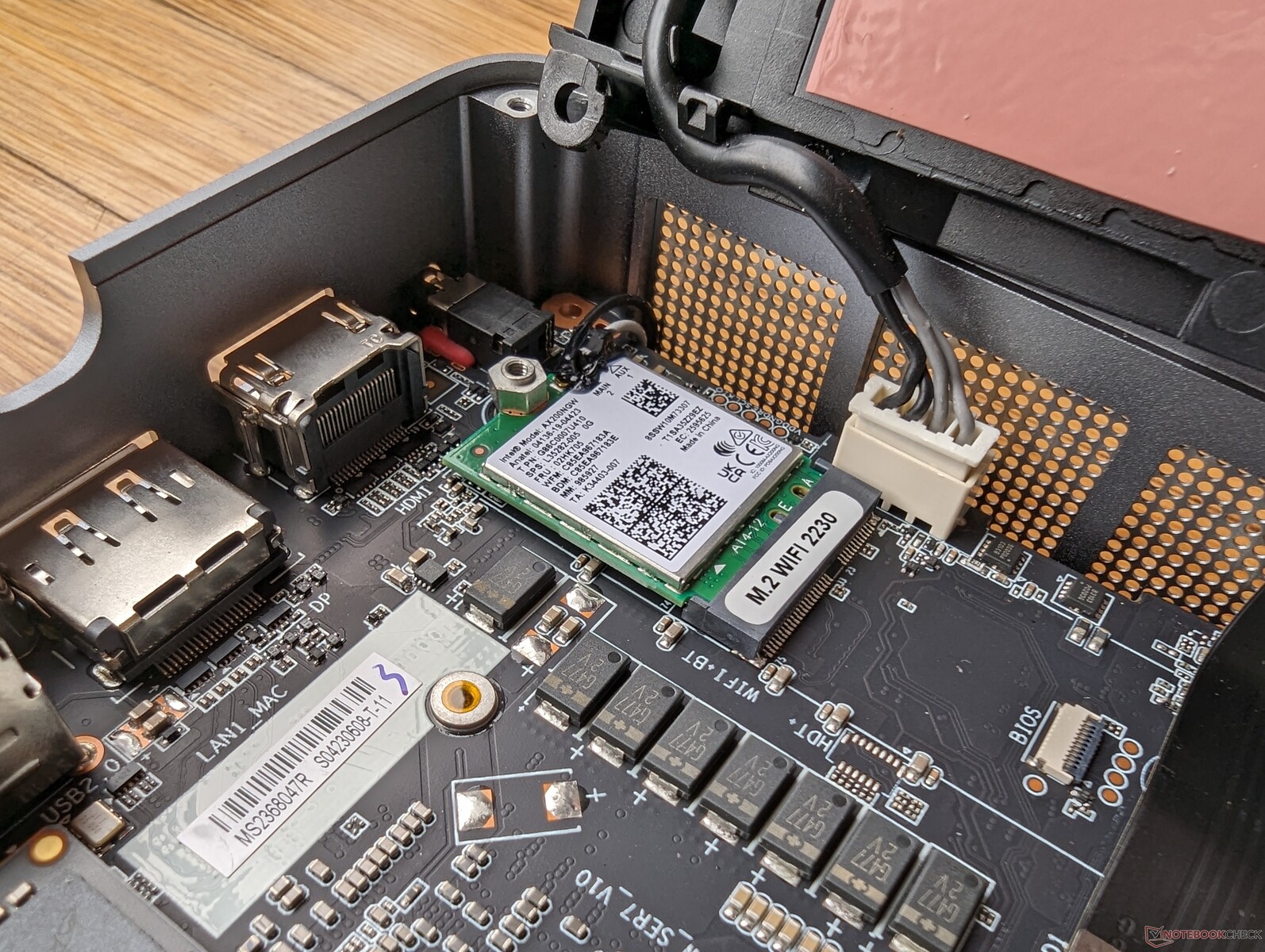

要访问 2x SODIMM 插槽、主 M.2 2280 固态硬盘和 WLAN 模块，还需要进一步拆卸。

配件和保修

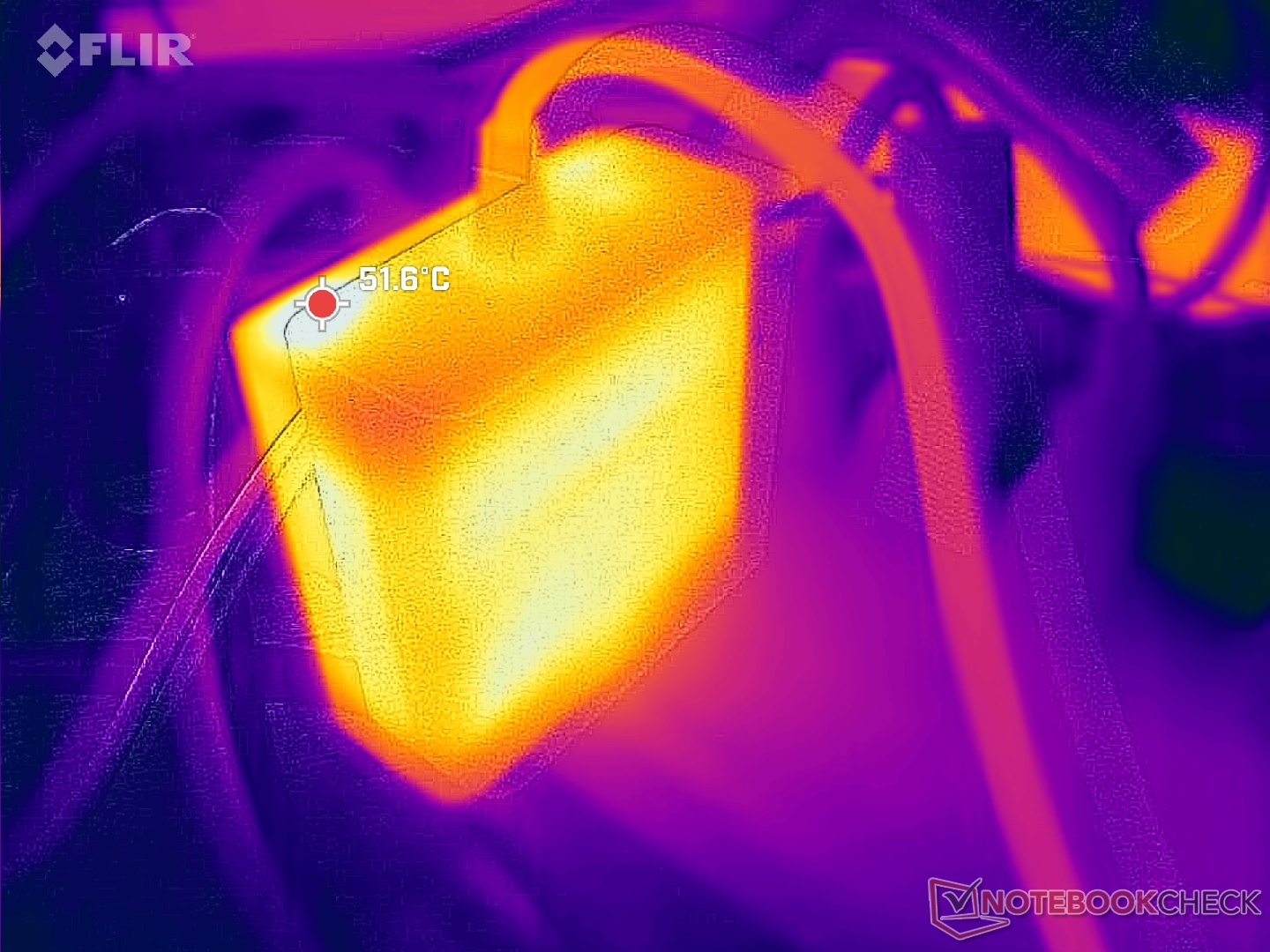

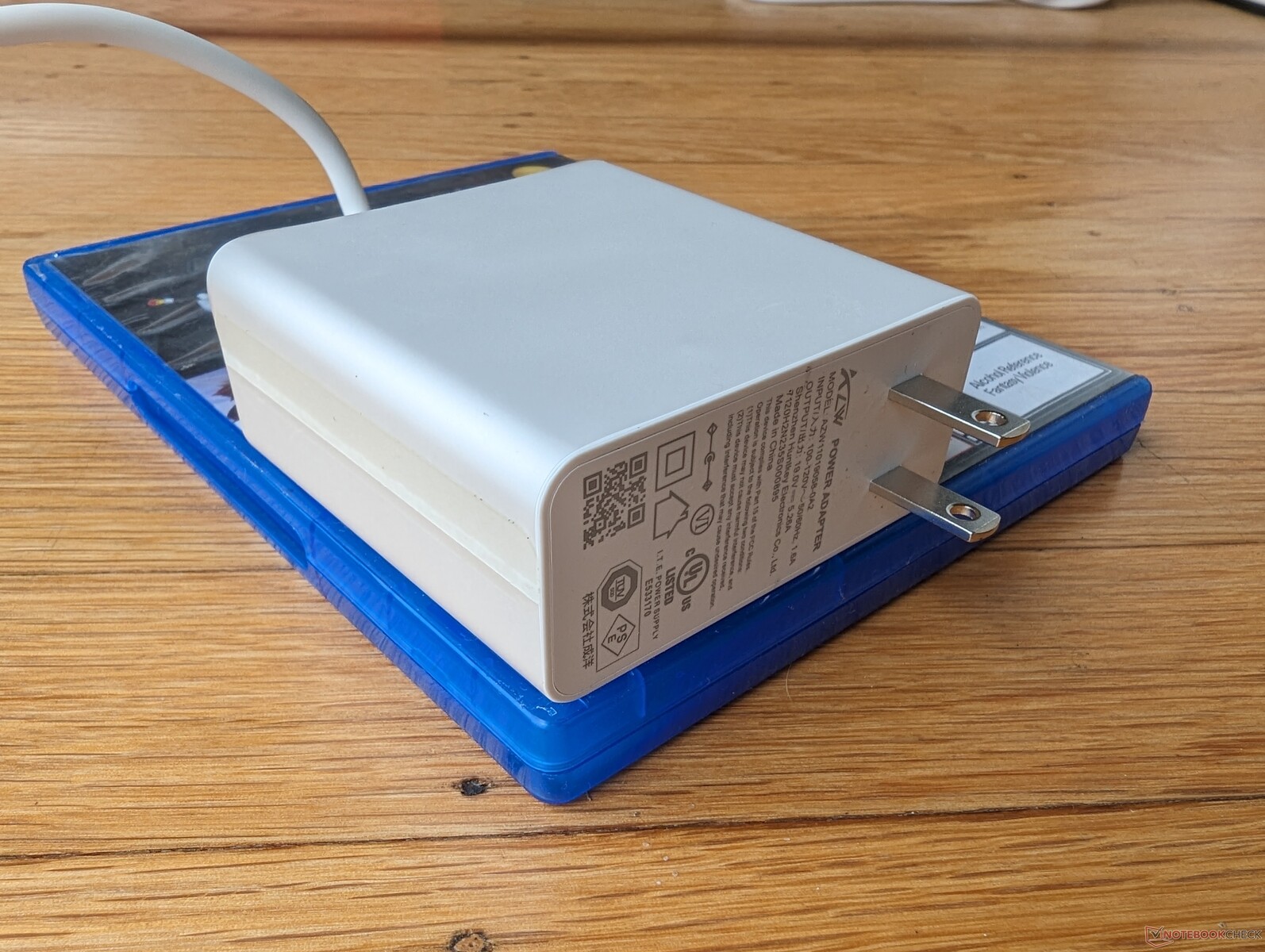

零售包装盒包括一个带螺丝的壁挂式 VESA 支架、交流电源适配器和两条 HDMI 电缆。与其他制造商的产品相比，SER7 的交流适配器非常独特，它通过磁力吸附在 SER7 的底部，以防止意外断开。

性能 - AMD Zen 4 看起来不错

测试条件

在运行下面的基准测试之前，我们通过 Windows 将设备设置为性能模式。Beelink 没有提供用于切换任何特殊功能的类似控制中心的软件。

处理器

Ryzen 7 7840HS性能非常出色，其多线程性能比同类产品酷睿 i7-13700H以相对较大的优势轻松超越目前市面上的任何英特尔酷睿 U 或酷睿 P 处理器。要求更高性能的用户将不得不考虑酷睿 i9-13900K或 Ryzen 9 7945HX解决方案，但此类处理器远远超出了我们 HS 系列 CPU 的功率范围。

性能稳定性也非常出色，优于大多数采用酷睿 U 或酷睿 P CPU 的迷你 PC。英特尔 NUC 12 Pro例如，在循环运行 CineBench R15 xT 时，处理器性能会随时间下降约 20%，而我们的 Beelink 则始终保持平稳。这部分归因于 SER7 设计的蒸汽腔冷却器。

Cinebench R15 Multi Loop

Beelink SER7 AMD Ryzen 7 7840HS: Ø2544 (2511.62-2564.76)

Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H: Ø1926 (1862.02-2240.14)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Minisforum Venus Series NPB5 Intel Core i5-13500H: Ø1783 (1762.11-2310.94)

Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS: Ø1891 (1862.98-1952.55)

Beelink GTR7 7840HS AMD Ryzen 7 7840HS: Ø2669 (2587.99-2689.08)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Intel NUC13 Raptor Canyon Intel Core i9-13900K	88.9 pt
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	62.5 pt
Beelink SER7 AMD Ryzen 7 7840HS	62.1 pt
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	60.8 pt
Average AMD Ryzen 7 7840HS	60.7 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	58 pt
Minisforum Venus Series NPB5 Intel Core i5-13500H	54.2 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	53.7 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	50.6 pt
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	49.9 pt
Geekom Mini IT12 Intel Core i7-1260P	47 pt
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	45.3 pt
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	39.2 pt
Blackview MP200 Intel Core i5-11400H	39 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	37.9 pt
Beelink SEi11 Pro Intel Core i5-11320H	33.8 pt

Cinebench R23 / Multi Core
Intel NUC13 Raptor Canyon Intel Core i9-13900K	32592 Points +102%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	17214 (17017.5^min - 17213.9^max) Points +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	16985 Points +5%
Average AMD Ryzen 7 7840HS (15515 - 17214, n=15)	16411 Points +2%
Beelink SER7 AMD Ryzen 7 7840HS	16105 (15785.6^min - 16105.2^max) Points
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points -10%
Minisforum Venus Series NPB5 Intel Core i5-13500H	13542 Points -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	12486 Points -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points -25%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	11626 (11015.5^min - 11625.6^max) Points -28%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	11171 Points -31%
Geekom Mini IT12 Intel Core i7-1260P	8846 Points -45%
Blackview MP200 Intel Core i5-11400H	8451 Points -48%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	7945 (7877.51^min - 7944.53^max) Points -51%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5917 Points -63%
Beelink SEi11 Pro Intel Core i5-11320H	5720 (5681.08^min - 5720.38^max) Points -64%

Cinebench R23 / Single Core
Intel NUC13 Raptor Canyon Intel Core i9-13900K	2203 Points +24%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +6%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1813 Points +2%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	1812 Points +2%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1775 Points 0%
Beelink SER7 AMD Ryzen 7 7840HS	1774 Points
Average AMD Ryzen 7 7840HS (1737 - 1812, n=15)	1773 Points 0%
Geekom Mini IT12 Intel Core i7-1260P	1693 Points -5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1602 Points -10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1550 Points -13%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1537 Points -13%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1506 Points -15%
Beelink SEi11 Pro Intel Core i5-11320H	1467 Points -17%
Blackview MP200 Intel Core i5-11400H	1462 Points -18%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1367 Points -23%

Cinebench R20 / CPU (Multi Core)
Intel NUC13 Raptor Canyon Intel Core i9-13900K	13415 Points +111%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	6744 Points +6%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6640 Points +5%
Average AMD Ryzen 7 7840HS (6061 - 6744, n=15)	6398 Points +1%
Beelink SER7 AMD Ryzen 7 7840HS	6344 Points
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points -9%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5108 Points -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	4776 Points -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points -26%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	4524 Points -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	4386 Points -31%
Geekom Mini IT12 Intel Core i7-1260P	3427 Points -46%
Blackview MP200 Intel Core i5-11400H	3283 Points -48%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	3074 Points -52%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2284 Points -64%
Beelink SEi11 Pro Intel Core i5-11320H	2208 Points -65%

Cinebench R20 / CPU (Single Core)
Intel NUC13 Raptor Canyon Intel Core i9-13900K	853 Points +22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	711 Points +2%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	705 Points +1%
Beelink SER7 AMD Ryzen 7 7840HS	698 Points
Average AMD Ryzen 7 7840HS (668 - 705, n=15)	688 Points -1%
Minisforum Venus Series NPB5 Intel Core i5-13500H	687 Points -2%
Geekom Mini IT12 Intel Core i7-1260P	652 Points -7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	620 Points -11%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	607 Points -13%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	598 Points -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	592 Points -15%
Beelink SEi11 Pro Intel Core i5-11320H	561 Points -20%
Blackview MP200 Intel Core i5-11400H	560 Points -20%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	531 Points -24%

Cinebench R15 / CPU Multi 64Bit
Intel NUC13 Raptor Canyon Intel Core i9-13900K	5321 Points +107%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	2689 (2587.99^min - 2689.08^max) Points +5%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	2663 Points +4%
Average AMD Ryzen 7 7840HS (2473 - 2729, n=15)	2592 Points +1%
Beelink SER7 AMD Ryzen 7 7840HS	2565 (2511.62^min - 2564.76^max) Points
Minisforum Venus Series NPB5 Intel Core i5-13500H	2304 Points -10%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points -13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	2028 Points -21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points -22%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1953 (1862.98^min - 1952.55^max) Points -24%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1837 Points -28%
Geekom Mini IT12 Intel Core i7-1260P	1565 Points -39%
Blackview MP200 Intel Core i5-11400H	1378 Points -46%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1319 (1286.46^min - 1319.48^max) Points -49%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	953 Points -63%
Beelink SEi11 Pro Intel Core i5-11320H	857 (845.25^min - 856.84^max) Points -67%

Cinebench R15 / CPU Single 64Bit
Intel NUC13 Raptor Canyon Intel Core i9-13900K	319 Points +13%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	286 Points +1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	284 Points 0%
Beelink SER7 AMD Ryzen 7 7840HS	283 Points
Average AMD Ryzen 7 7840HS (270 - 286, n=15)	278 Points -2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points -6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points -8%
Minisforum Venus Series NPB5 Intel Core i5-13500H	255 Points -10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	249 Points -12%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	247 Points -13%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	243 Points -14%
Geekom Mini IT12 Intel Core i7-1260P	241 Points -15%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	232 Points -18%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	221 Points -22%
Blackview MP200 Intel Core i5-11400H	218 Points -23%
Beelink SEi11 Pro Intel Core i5-11320H	214 Points -24%

Blender / v2.79 BMW27 CPU
Beelink SEi11 Pro Intel Core i5-11320H	541 Seconds * -176%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	513 Seconds * -162%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	384 Seconds * -96%
Blackview MP200 Intel Core i5-11400H	373 Seconds * -90%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	282 Seconds * -44%
Geekom Mini IT12 Intel Core i7-1260P	279 Seconds * -42%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -37%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	263 Seconds * -34%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	260 Seconds * -33%
Minisforum Venus Series NPB5 Intel Core i5-13500H	260 Seconds * -33%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	229 Seconds * -17%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * -10%
Average AMD Ryzen 7 7840HS (185 - 229, n=17)	198.7 Seconds * -1%
Beelink SER7 AMD Ryzen 7 7840HS	196 Seconds *
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	188 Seconds * +4%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	101 Seconds * +48%

7-Zip 18.03 / 7z b 4
Intel NUC13 Raptor Canyon Intel Core i9-13900K	127201 MIPS +82%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	70019 MIPS 0%
Beelink SER7 AMD Ryzen 7 7840HS	69882 MIPS
Average AMD Ryzen 7 7840HS (59538 - 73035, n=17)	69052 MIPS -1%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	65706 MIPS -6%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	57693 MIPS -17%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	56930 MIPS -19%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS -22%
Minisforum Venus Series NPB5 Intel Core i5-13500H	52630 MIPS -25%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	52046 MIPS -26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -27%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	39897 MIPS -43%
Geekom Mini IT12 Intel Core i7-1260P	37570 MIPS -46%
Blackview MP200 Intel Core i5-11400H	34660 MIPS -50%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	25876 MIPS -63%
Beelink SEi11 Pro Intel Core i5-11320H	24798 MIPS -65%

7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC13 Raptor Canyon Intel Core i9-13900K	7255 MIPS +8%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	6749 MIPS 0%
Beelink SER7 AMD Ryzen 7 7840HS	6734 MIPS
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6683 MIPS -1%
Average AMD Ryzen 7 7840HS (6049 - 6754, n=17)	6559 MIPS -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5895 MIPS -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS -13%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	5809 MIPS -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	5721 MIPS -15%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5695 MIPS -15%
Geekom Mini IT12 Intel Core i7-1260P	5577 MIPS -17%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	5433 MIPS -19%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	5400 MIPS -20%
Blackview MP200 Intel Core i5-11400H	5343 MIPS -21%
Beelink SEi11 Pro Intel Core i5-11320H	5105 MIPS -24%

Geekbench 5.5 / Multi-Core
Intel NUC13 Raptor Canyon Intel Core i9-13900K	22448 Points +97%
Average AMD Ryzen 7 7840HS (8446 - 12339, n=19)	11651 Points +2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	11564 Points +1%
Minisforum Venus Series NPB5 Intel Core i5-13500H	11465 Points 0%
Beelink SER7 AMD Ryzen 7 7840HS	11423 Points
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	10752 Points -6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points -9%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points -10%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	9357 Points -18%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	9278 Points -19%
Geekom Mini IT12 Intel Core i7-1260P	8918 Points -22%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	7986 Points -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	6103 Points -47%
Blackview MP200 Intel Core i5-11400H	6006 Points -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5091 Points -55%
Beelink SEi11 Pro Intel Core i5-11320H	4959 Points -57%

Geekbench 5.5 / Single-Core
Intel NUC13 Raptor Canyon Intel Core i9-13900K	2106 Points +6%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	2010 Points +1%
Beelink SER7 AMD Ryzen 7 7840HS	1983 Points
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1975 Points 0%
Average AMD Ryzen 7 7840HS (1837 - 2017, n=19)	1968 Points -1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points -7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points -8%
Geekom Mini IT12 Intel Core i7-1260P	1782 Points -10%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1762 Points -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1669 Points -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1586 Points -20%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1580 Points -20%
Beelink SEi11 Pro Intel Core i5-11320H	1518 Points -23%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1499 Points -24%
Blackview MP200 Intel Core i5-11400H	1465 Points -26%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1436 Points -28%

HWBOT x265 Benchmark v2.2 / 4k Preset
Intel NUC13 Raptor Canyon Intel Core i9-13900K	34.5 fps +69%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	20.7 fps +1%
Beelink SER7 AMD Ryzen 7 7840HS	20.4 fps
Average AMD Ryzen 7 7840HS (11.7 - 21.8, n=17)	19.8 fps -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	15.8 fps -23%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	15.1 fps -26%
Minisforum Venus Series NPB5 Intel Core i5-13500H	14.6 fps -28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -32%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	13.3 fps -35%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	11.7 fps -43%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	10.5 fps -49%
Blackview MP200 Intel Core i5-11400H	10.2 fps -50%
Geekom Mini IT12 Intel Core i7-1260P	10.1 fps -50%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7.61 fps -63%
Beelink SEi11 Pro Intel Core i5-11320H	7.28 fps -64%

LibreOffice / 20 Documents To PDF
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	60.2 s * -52%
Blackview MP200 Intel Core i5-11400H	53 s * -34%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	52.2 s * -31%
Beelink SEi11 Pro Intel Core i5-11320H	49.1 s * -24%
Average AMD Ryzen 7 7840HS (38.3 - 68.3, n=17)	48.6 s * -22%
Geekom Mini IT12 Intel Core i7-1260P	48.1 s * -21%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	47.2 s * -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	47.1 s * -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -18%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	46.3 s * -17%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	44.3 s * -12%
Minisforum Venus Series NPB5 Intel Core i5-13500H	44 s * -11%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	41.6 s * -5%
Beelink SER7 AMD Ryzen 7 7840HS	39.7 s *
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	39 s * +2%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +5%

R Benchmark 2.5 / Overall mean
Beelink SEi11 Pro Intel Core i5-11320H	0.581 sec * -31%
Blackview MP200 Intel Core i5-11400H	0.581 sec * -31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.543 sec * -22%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	0.53 sec * -19%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	0.525 sec * -18%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	0.512 sec * -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	0.4849 sec * -9%
Minisforum Venus Series NPB5 Intel Core i5-13500H	0.473 sec * -6%
Geekom Mini IT12 Intel Core i7-1260P	0.4718 sec * -6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * -1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * -1%
Beelink SER7 AMD Ryzen 7 7840HS	0.4446 sec *
Average AMD Ryzen 7 7840HS (0.4184 - 0.4739, n=17)	0.4393 sec * +1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	0.4192 sec * +6%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	0.4184 sec * +6%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	0.3911 sec * +12%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

2565 Points

Cinebench R15 OpenGL 64Bit

231 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Single 64Bit

283 Points

Help

... in comparison

Performance Rating
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	99.9 pt
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	93.6 pt
Average AMD Ryzen 7 7840HS	93.5 pt
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	66.2 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	58.6 pt
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	56.9 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	51.9 pt

AIDA64 / FP32 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	27538 KRay/s +7%
Average AMD Ryzen 7 7840HS (24712 - 28921, n=17)	26530 KRay/s +3%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	25685 KRay/s
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	13281 KRay/s -48%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	13148 KRay/s -49%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -56%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	11161 KRay/s -57%

AIDA64 / FPU Julia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	116903 Points +6%
Average AMD Ryzen 7 7840HS (103755 - 123167, n=17)	113554 Points +3%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	109853 Points
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	83889 Points -24%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	69808 Points -36%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	57280 Points -48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -48%

AIDA64 / CPU SHA3
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	5096 MB/s +7%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	4783 MB/s
Average AMD Ryzen 7 7840HS (4293 - 5096, n=17)	4773 MB/s 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	3190 MB/s -33%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	2885 MB/s -40%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	2784 MB/s -42%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -44%

AIDA64 / CPU Queen
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	117764 Points +5%
Average AMD Ryzen 7 7840HS (105028 - 122681, n=17)	115459 Points +3%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	111969 Points
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	101624 Points -9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	95566 Points -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -22%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	85501 Points -24%

AIDA64 / FPU SinJulia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	15525 Points +6%
Average AMD Ryzen 7 7840HS (14385 - 15525, n=17)	15006 Points +2%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	14705 Points
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	12094 Points -18%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	8851 Points -40%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	7297 Points -50%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -51%

AIDA64 / FPU Mandel
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	62378 Points +6%
Average AMD Ryzen 7 7840HS (55540 - 65812, n=17)	60530 Points +3%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	58699 Points
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	45982 Points -22%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	32781 Points -44%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	28106 Points -52%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -52%

AIDA64 / CPU AES
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	177158 MB/s +10%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	161216 MB/s
Average AMD Ryzen 7 7840HS (67389 - 177158, n=17)	127587 MB/s -21%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	117400 MB/s -27%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	100301 MB/s -38%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	65953 MB/s -59%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -67%

AIDA64 / CPU ZLib
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	1103 MB/s +16%
Average AMD Ryzen 7 7840HS (949 - 1123, n=17)	1062 MB/s +12%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	956 MB/s +1%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	949 MB/s
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	790 MB/s -17%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s -18%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	712 MB/s -25%

AIDA64 / FP64 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	14722 KRay/s +6%
Average AMD Ryzen 7 7840HS (13100 - 15599, n=17)	14237 KRay/s +2%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	13904 KRay/s
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	7090 KRay/s -49%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	7032 KRay/s -49%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	5998 KRay/s -57%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -57%

AIDA64 / CPU PhotoWorxx
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	41088 MPixel/s
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	40726 MPixel/s -1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	37433 MPixel/s -9%
Average AMD Ryzen 7 7840HS (17615 - 41157, n=17)	37292 MPixel/s -9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	30542 MPixel/s -26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s -29%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	19552 MPixel/s -52%

系统性能

在没有独立 GPU 的迷你 PC 中，PCMark 分数是最高的。即使是更大更重的联想 IdeaCentre Mini Gen 8也落后于我们的 AMD Zen 4 解决方案。

PCMark 10 / Score
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	7453 Points +3%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (7039 - 7651, n=7)	7407 Points +3%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	7225 Points
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	6950 Points -4%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	6280 Points -13%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	6247 Points -14%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -19%

PCMark 10 / Essentials
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	11401 Points +5%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	11155 Points +3%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	11124 Points +3%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	11035 Points +2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points +2%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (10519 - 11214, n=7)	10998 Points +2%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10819 Points

PCMark 10 / Productivity
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10702 Points +2%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (9717 - 10970, n=7)	10506 Points +1%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10452 Points
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	9862 Points -6%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	8212 Points -21%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7691 Points -26%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -37%

PCMark 10 / Digital Content Creation
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (9052 - 9987, n=7)	9550 Points +6%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	9409 Points +4%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	9052 Points
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	8306 Points -8%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points -16%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7547 Points -17%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	7419 Points -18%

CrossMark / Overall
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	1982 Points +17%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1736 Points +2%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1566 - 1873, n=7)	1736 Points +2%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1723 Points +1%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1700 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points -6%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1566 Points -8%

CrossMark / Productivity
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	1938 Points +20%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1721 Points +6%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1677 Points +3%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1535 - 1816, n=7)	1671 Points +3%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1621 Points
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1559 Points -4%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points -5%

CrossMark / Creativity
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	1985 Points +2%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1953 Points
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1556 - 2040, n=7)	1901 Points -3%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1872 Points -4%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1785 Points -9%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points -9%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1556 Points -20%

CrossMark / Responsiveness
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	2110 Points +63%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1640 Points +27%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1620 Points +25%
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1293 - 1706, n=7)	1496 Points +16%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1456 Points +13%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points +1%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1293 Points

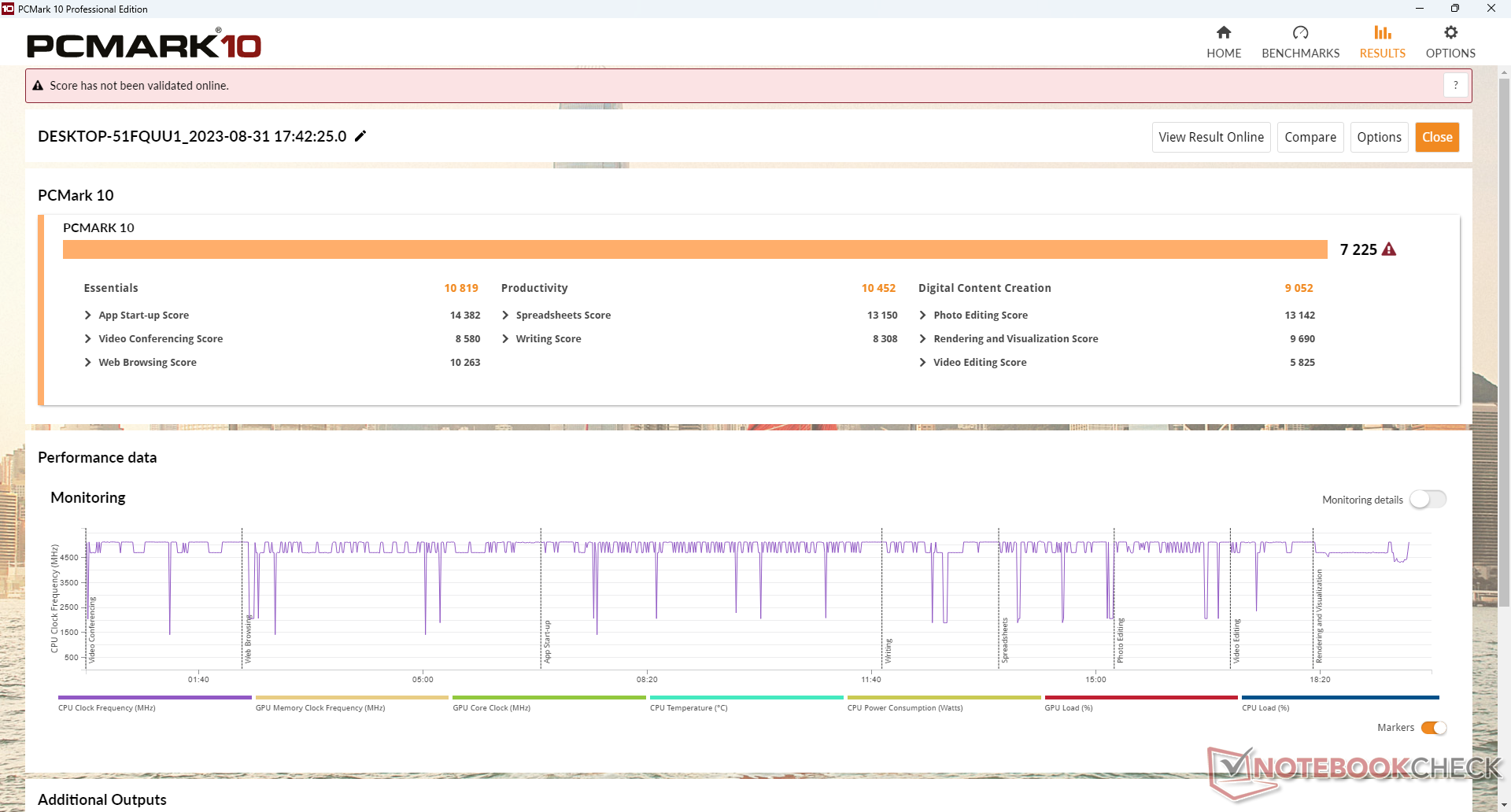

PCMark 10 Score		7225 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	69325 MB/s
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	69199 MB/s 0%
Average AMD Ryzen 7 7840HS (30937 - 72158, n=17)	65945 MB/s -5%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	57457 MB/s -17%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	51235 MB/s -26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s -36%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	40018 MB/s -42%

AIDA64 / Memory Read
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	65470 MB/s +6%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	61911 MB/s
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	61838 MB/s 0%
Average AMD Ryzen 7 7840HS (30497 - 61911, n=17)	57613 MB/s -7%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	51856 MB/s -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -28%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	44583 MB/s -28%

AIDA64 / Memory Write
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	87358 MB/s
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	87226 MB/s 0%
Average AMD Ryzen 7 7840HS (34590 - 93323, n=17)	83733 MB/s -4%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	59816 MB/s -32%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	55284 MB/s -37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	42710 MB/s -51%

AIDA64 / Memory Latency
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * -13%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Iris Xe G7 80EUs	93.8 ns * -10%
Average AMD Ryzen 7 7840HS (85.1 - 112, n=17)	92.4 ns * -9%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	85.1 ns * -0%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	85.1 ns *
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	82.5 ns * +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	82.4 ns * +3%

* ... smaller is better

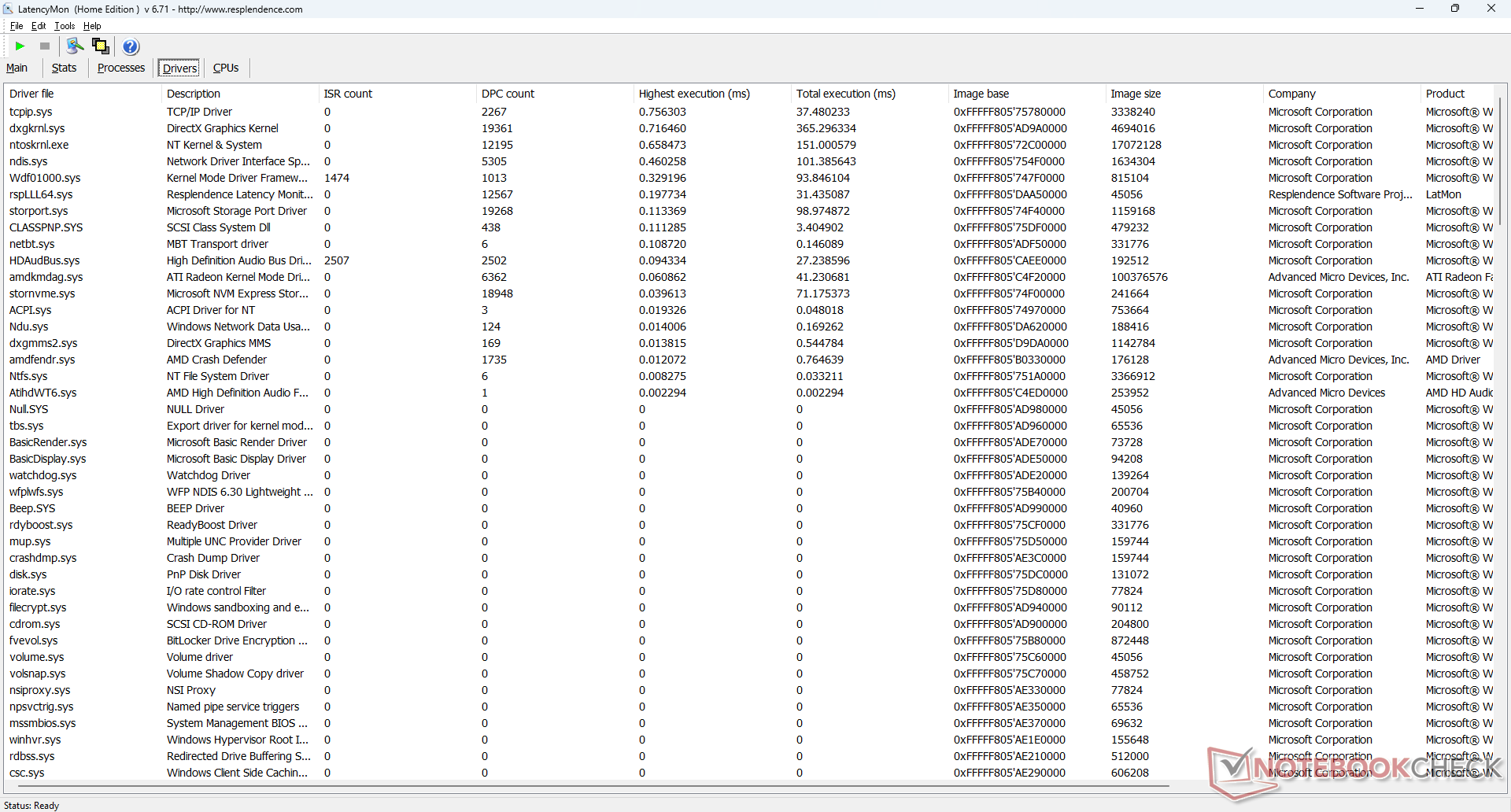

DPC 延迟

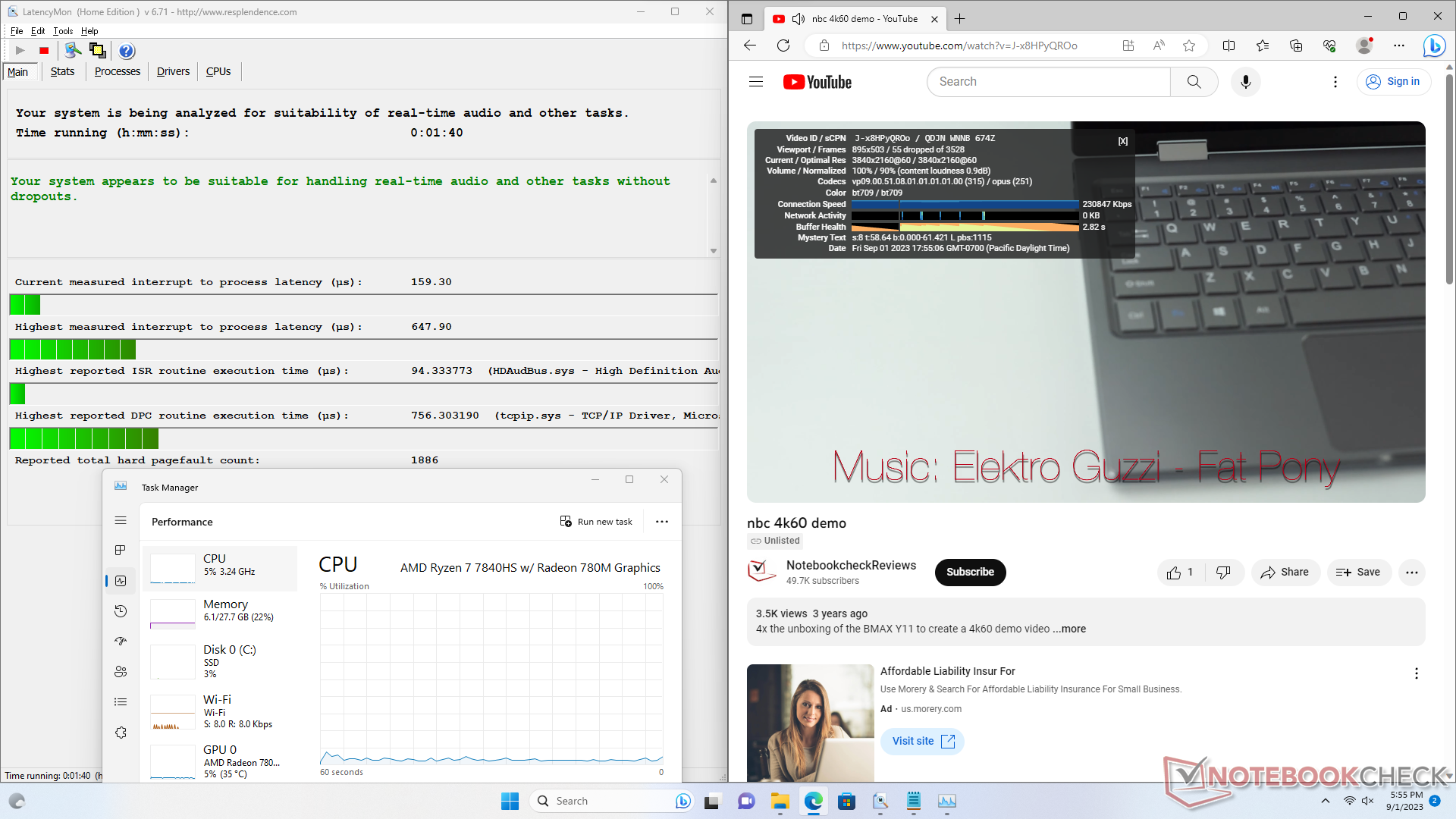

在打开主页的多个浏览器标签页时，LatencyMon 没有发现重大的 DPC 问题。遗憾的是，以 60 FPS 播放 4K 视频时出现了问题，在 60 秒的时间跨度内记录到 55 个丢帧。CPU 和 GPU 完全能够胜任 4K60 视频播放，因此这表明 SER7 存在潜在的驱动程序问题。掉帧表现为 4K60 视频流播放时偶尔出现卡顿。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	2372.9 μs * -266%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1137.6 μs * -76%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * -65%
Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	813.7 μs * -26%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	718.7 μs * -11%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	647.9 μs *

* ... smaller is better

存储设备

也许并不令人意外，SER7 与 Crucial P3 Plus CT1000P3PSSD8 相同。Crucial P3 Plus CT1000P3PSSD8NVMe 固态硬盘。 GTR7.不过，在写入性能方面，即使经过多次重新测试，传输速率也比预期的要慢。DiskSpeed 显示，q8 t1 和 4k q1 t1 块的性能较差。

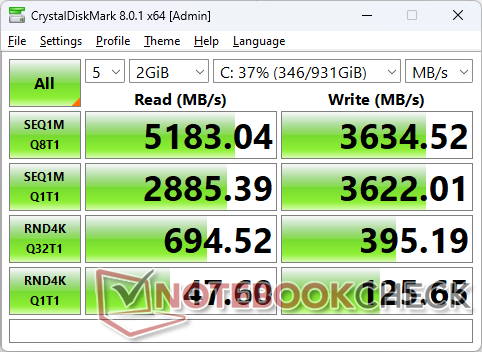

CrystalDiskMark 5.2 / 6

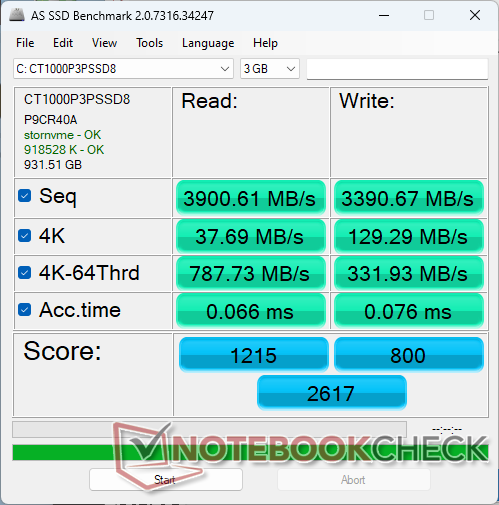

AS SSD

DiskSpd

Crucial P3 Plus CT1000P3PSSD8

CDM 5/6 Read Seq Q32T1: 5185 MB/s

CDM 5/6 Write Seq Q32T1: 3642 MB/s

CDM 5/6 Read 4K Q32T1: 686.4 MB/s

CDM 5/6 Write 4K Q32T1: 394 MB/s

CDM 5 Read Seq: 2829 MB/s

CDM 5 Write Seq: 3630 MB/s

CDM 5/6 Read 4K: 46.9 MB/s

CDM 5/6 Write 4K: 120.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	86.7 pt
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	78.8 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	73 pt
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	55.2 pt
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	52.6 pt
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	51.2 pt

DiskSpd
seq read
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	3372 (3365.32^min - 3372.43^max) MB/s +24%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +23%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3033 (3026.64^min - 3032.69^max) MB/s +12%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2718 (2645.56^min - 2717.91^max) MB/s
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2625 (2562.3^min - 2625.21^max) MB/s -3%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2312 (2299.53^min - 2312.11^max) MB/s -15%
seq write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3591 (3535.23^min - 3591.16^max) MB/s +5%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	3518 (3504.76^min - 3518.39^max) MB/s +3%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3404 (38.3^min - 3403.58^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s -1%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2243 (2200.96^min - 2243.2^max) MB/s -34%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1773 (1718.7^min - 1773.12^max) MB/s -48%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +11%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5174 (4541.87^min - 5174.3^max) MB/s +6%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	4893 (3920.33^min - 4893.08^max) MB/s
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	4791 (4243.38^min - 4790.88^max) MB/s -2%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3582 (3101.69^min - 3581.9^max) MB/s -27%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2849 (2731.13^min - 2849.44^max) MB/s -42%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +571%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3570 (3522.17^min - 3569.77^max) MB/s +383%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	3533 (3516.71^min - 3532.86^max) MB/s +378%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2291 (2242.9^min - 2291.17^max) MB/s +210%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2195 (2178.89^min - 2194.65^max) MB/s +197%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	739 (52.85^min - 739.46^max) MB/s
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +91%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	82.3 (82.16^min - 82.3^max) MB/s +86%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	80.5 (74.84^min - 80.54^max) MB/s +82%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	62.6 (62.13^min - 62.62^max) MB/s +42%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	44.2 (41.58^min - 44.2^max) MB/s
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	40 (39.84^min - 39.95^max) MB/s -10%
4k q1 t1 write
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	406 (403.52^min - 406^max) MB/s +191%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	269 (266.85^min - 269.05^max) MB/s +93%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	250 (246.86^min - 249.77^max) MB/s +79%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s +4%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	140.4 (133.49^min - 140.42^max) MB/s +1%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	139.4 (137.92^min - 139.38^max) MB/s
4k q32 t16 read
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2810 (2697.36^min - 2809.61^max) MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2765 (2513.4^min - 2765.45^max) MB/s -2%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	1943 (1940.06^min - 1942.8^max) MB/s -31%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1227 (1221.9^min - 1227.11^max) MB/s -56%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	945 (935.84^min - 944.53^max) MB/s -66%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -71%
4k q32 t16 write
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	3412 (3388.97^min - 3411.66^max) MB/s +220%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3254 (3139.57^min - 3253.57^max) MB/s +205%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1362 (1327.37^min - 1362.29^max) MB/s +28%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1066 (54.15^min - 1066.13^max) MB/s
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	505 (469.38^min - 505.2^max) MB/s -53%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -57%

AS SSD
Score Total
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	6154 Points +135%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +101%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5182 Points +98%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	4129 Points +58%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3692 Points +41%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2617 Points
Score Read
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	2381 Points +96%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1796 Points +48%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1530 Points +26%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points +9%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1257 Points +3%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1215 Points
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +316%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	2573 Points +222%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2508 Points +214%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1862 Points +133%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1852 Points +132%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	800 Points
Seq Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +16%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	4129 MB/s +6%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3900.61 MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3786.44 MB/s -3%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	3138.31 MB/s -20%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3048.92 MB/s -22%
Seq Write
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3390.67 MB/s
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	3283 MB/s -3%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2799.85 MB/s -17%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s -20%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2204.04 MB/s -35%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1430.07 MB/s -58%
4K Read
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	104.2 MB/s +176%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +91%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	70.4 MB/s +87%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	59.79 MB/s +59%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	37.78 MB/s 0%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	37.69 MB/s
4K Write
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	353 MB/s +173%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	213.73 MB/s +65%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	210.95 MB/s +63%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	179.91 MB/s +39%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s +29%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	129.29 MB/s
4K-64 Read
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	1864 MB/s +137%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1357.17 MB/s +72%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1178.08 MB/s +50%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	882.05 MB/s +12%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s +1%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	787.73 MB/s
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +770%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2017.38 MB/s +508%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	1892 MB/s +470%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1529.03 MB/s +361%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1427.97 MB/s +330%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	331.93 MB/s
Access Time Read
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	0.106 ms * -61%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.099 ms * -50%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	0.084 ms * -27%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.066 ms *
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +9%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.047 ms * +29%
Access Time Write
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	0.465 ms * -512%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.097 ms * -28%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.076 ms *
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.049 ms * +36%
Minisforum Venus Series NPB5 Kingston OM8PGP4512Q-A0	0.031 ms * +59%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +68%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SER7: Ø5151 (4560.99-5169.27)

图形处理器性能

图形性能比 Radeon 680M快 10% 到 20%。与 DX11 相比，在运行 DX12 游戏时优势更大，因此建议尽可能启用 DX12。Radeon 780M Radeon 780M图形处理器使竞争对手 Iris Xe 96 EUs性能比英特尔解决方案快 40% 至 75%。

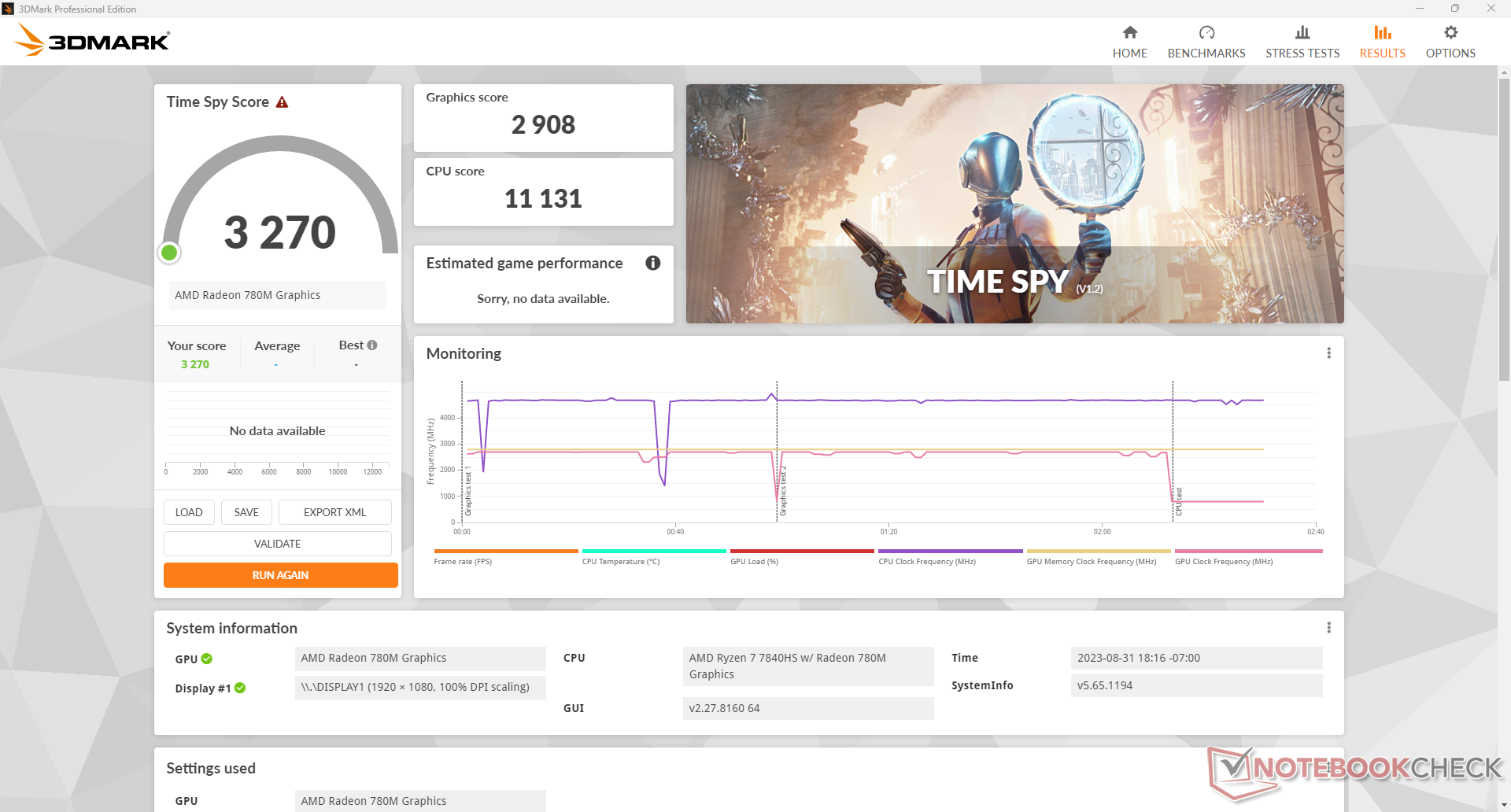

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	99.9 pt
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	99.7 pt
Average AMD Radeon 780M	92.9 pt
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	91.9 pt
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	84.3 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	78.4 pt
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	64.1 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	60.5 pt
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	55.2 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	54.5 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	54.2 pt
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	51.5 pt
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	45.8 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	45.3 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	13 pt

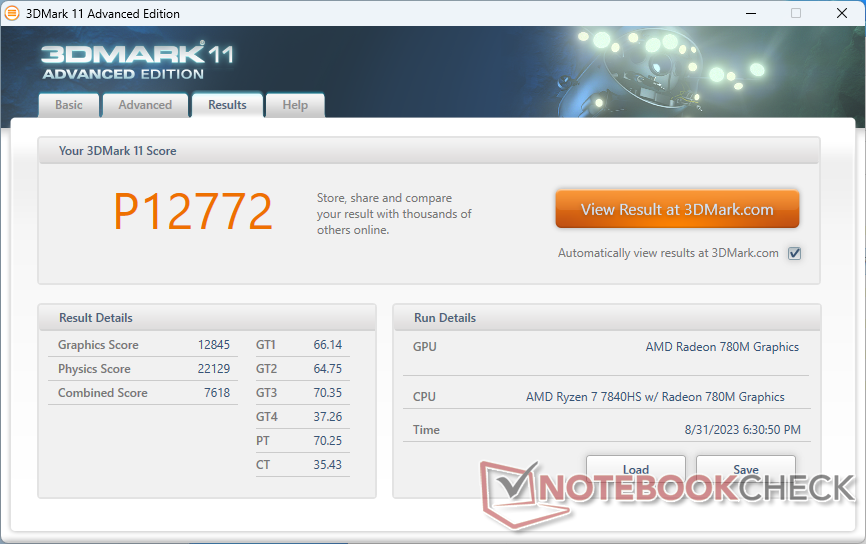

3DMark 11 - 1280x720 Performance GPU
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	12978 Points +1%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	12845 Points
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	12384 Points -4%
Average AMD Radeon 780M (7868 - 13932, n=35)	12196 Points -5%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	10734 Points -16%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points -19%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	7718 Points -40%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points -43%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points -46%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points -49%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6571 Points -49%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	6477 Points -50%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points -53%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points -58%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1654 Points -87%

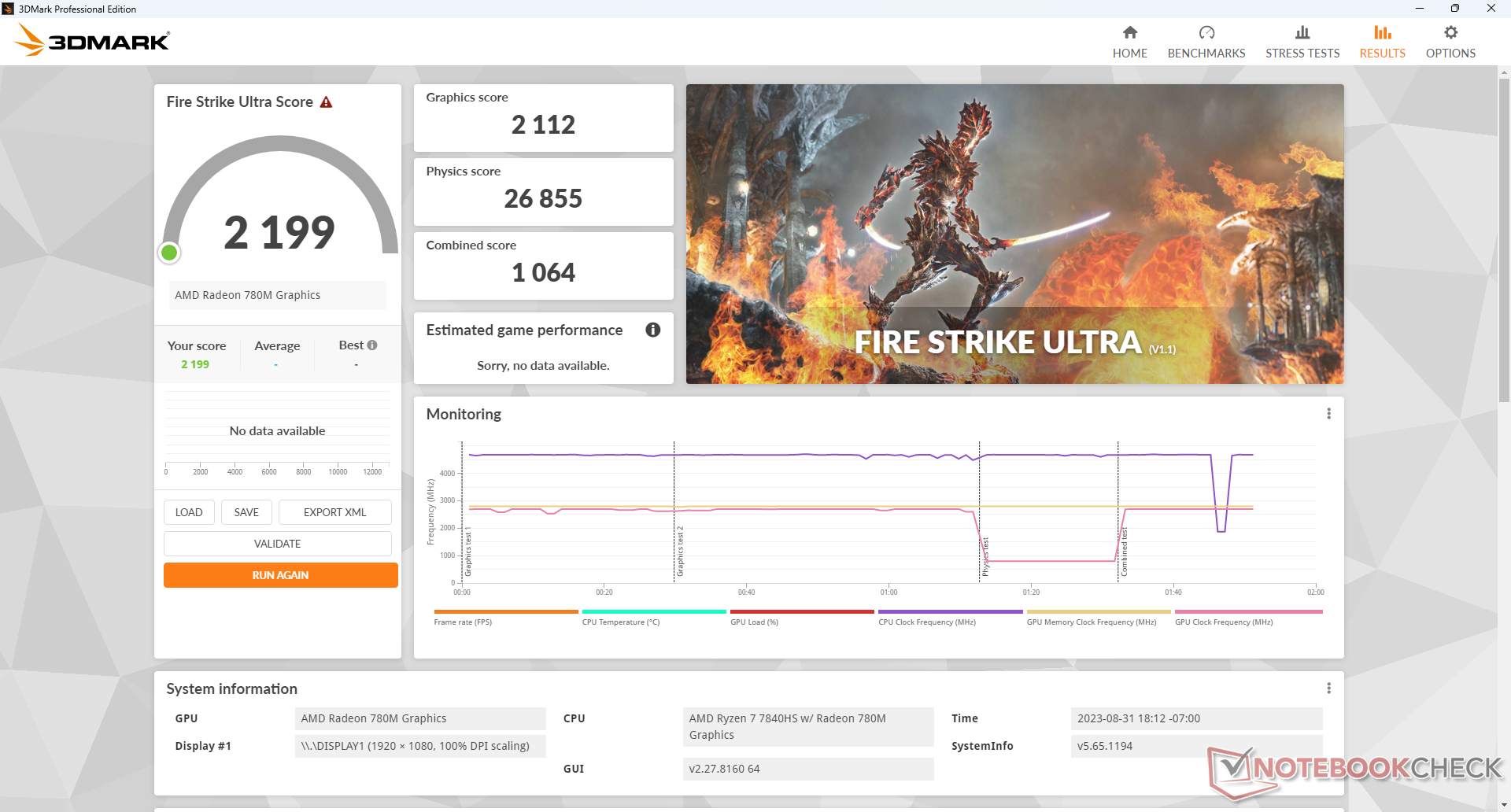

3DMark

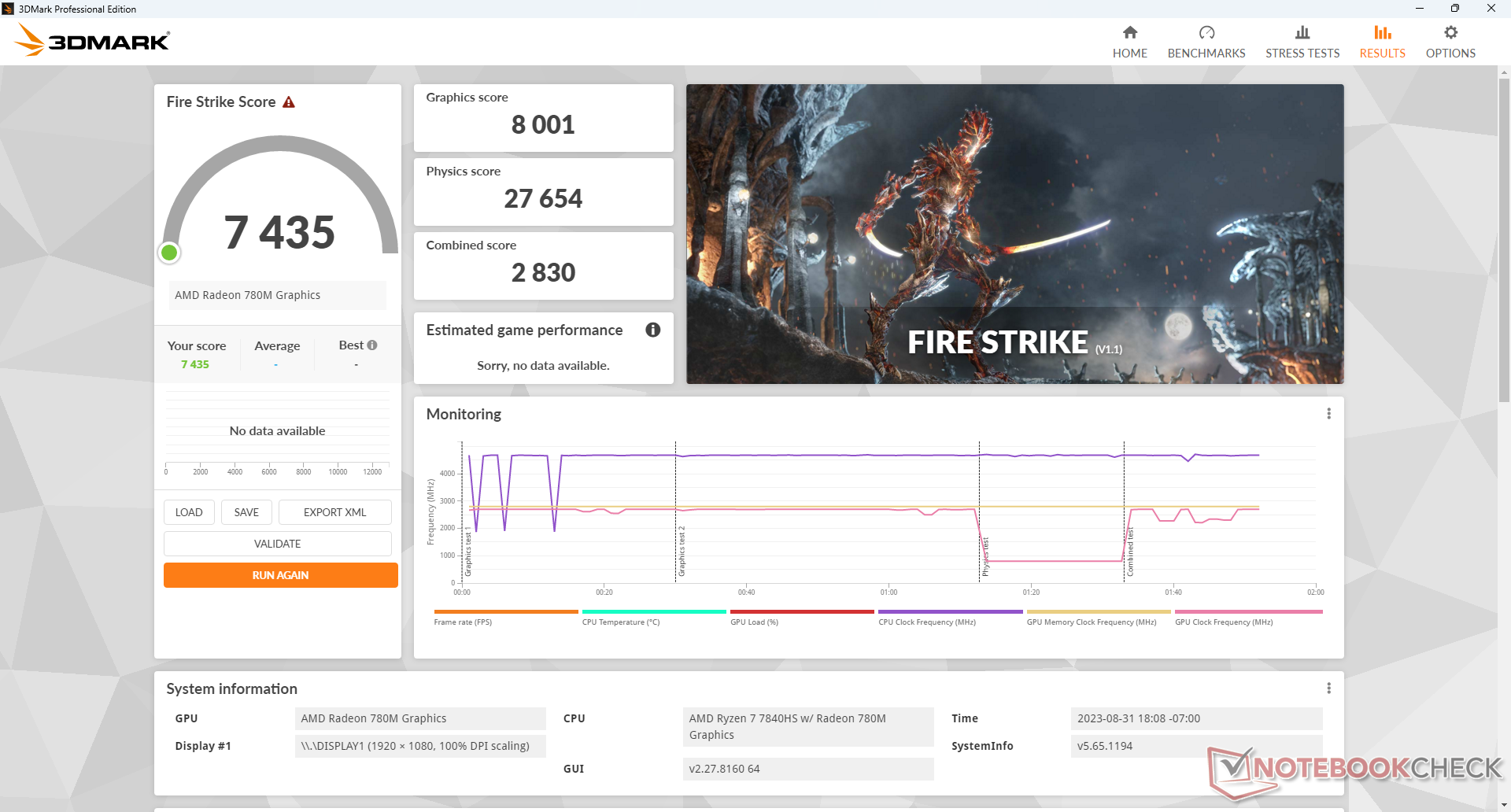

1920x1080 Fire Strike Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	8001 Points
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	7980 Points 0%
Average AMD Radeon 780M (4550 - 8538, n=34)	7595 Points -5%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	7284 Points -9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	7180 Points -10%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points -19%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	5660 Points -29%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points -30%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	5305 Points -34%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points -39%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points -40%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4523 Points -43%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points -49%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	4037 Points -50%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1203 Points -85%
2560x1440 Time Spy Graphics
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2910 Points 0%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	2908 Points
Average AMD Radeon 780M (1496 - 3027, n=34)	2667 Points -8%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2632 Points -9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	2395 Points -18%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points -24%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	1838 Points -37%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points -43%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points -47%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1508 Points -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points -48%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1443 Points -50%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points -55%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points -57%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	348 Points -88%
2560x1440 Time Spy Score
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	3274 Points 0%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	3270 Points
Average AMD Radeon 780M (1707 - 3380, n=33)	2977 Points -9%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2966 Points -9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	2693 Points -18%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2492 Points -24%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	2057 Points -37%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points -42%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1731 Points -47%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1725 Points -47%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1724 Points -47%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1612 Points -51%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1456 Points -55%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1405 Points -57%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	404 Points -88%

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark 11 Performance		12772 points
3DMark Fire Strike Score		7435 points
3DMark Time Spy Score		3270 points
Help

... in comparison

Blender
v3.3 Classroom HIP/AMD
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	504 Seconds *
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	347 Seconds *
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	314 Seconds *
v3.3 Classroom CPU
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	995 Seconds * -213%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	943 Seconds * -197%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	666 Seconds * -109%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	662 Seconds * -108%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	660 Seconds * -108%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	479 Seconds * -51%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * -50%
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	463 Seconds * -46%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	463 Seconds * -46%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	451 Seconds * -42%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	445 Seconds * -40%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * -39%
Average AMD Radeon 780M (305 - 503, n=33)	376 Seconds * -18%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	318 Seconds *
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	305 Seconds * +4%

* ... smaller is better

游戏性能

去年推出的 Radeon 680M 是最快的游戏集成 GPU 解决方案，而新的 Radeon 780M 则更快。SER7 能够以 1080p 和中低设置运行《F1 22》等现代游戏，同时保持接近 60 FPS 的性能水平。像《赛博朋克 2077》这样要求更高的游戏需要更低的设置才能将帧率维持在 30 FPS 以上，但原生 1080p 也是可能的。

请记住，Radeon 780M 支持 FreeSync，而且强烈推荐使用 FreeSync，因为 Radeon 780M 通常可以在 45 到 60 FPS 的范围内运行游戏。

Far Cry 5
1280x720 Low Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	84 (73^min) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	80 (69^min) fps -5%
Average AMD Radeon 780M (42 - 87, n=27)	70.6 fps -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	68 (58^min) fps -19%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	63 (57^min) fps -25%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	50 (41^min) fps -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps -46%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	45 (41^min) fps -46%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	41 (35^min) fps -51%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	40 (35^min) fps -52%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	16 (14^min) fps -81%
1920x1080 Medium Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	50 (45^min) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	45 (40^min) fps -10%
Average AMD Radeon 780M (22 - 51, n=29)	41.9 fps -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	41 (35^min) fps -18%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	31 (27^min) fps -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps -42%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	27 (23^min) fps -46%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	26 (23^min) fps -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22 (20^min) fps -56%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps -60%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	7 (6^min) fps -86%
1920x1080 High Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	46 (41^min) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	41 (36^min) fps -11%
Average AMD Radeon 780M (21 - 47, n=29)	38.9 fps -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	38 (32^min) fps -17%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	29 (25^min) fps -37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps -41%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	25 (22^min) fps -46%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	24 (21^min) fps -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	21 (19^min) fps -54%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	19 (17^min) fps -59%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	7 (6^min) fps -85%
1920x1080 Ultra Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	44 (39^min) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	39 (35^min) fps -11%
Average AMD Radeon 780M (21 - 45, n=29)	36.9 fps -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	36 (29^min) fps -18%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	27 (24^min) fps -39%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps -41%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23 (20^min) fps -48%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	23 (20^min) fps -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps -55%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	17 (15^min) fps -61%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	166.2 (135^min, 103^P1) fps +1%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	164.2 (129^min, 114^P1) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	151.3 (123^min, 105^P1) fps -8%
Average AMD Radeon 780M (85.4 - 172.5, n=18)	143.6 fps -13%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	141.3 (116^min, 93^P1) fps -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	134.3 (108^min, 87^P1) fps -18%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	81 (63^min, 64^P1) fps -51%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps -51%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	77.5 (64^min, 42^P1) fps -53%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	71.6 (59^min, 58^P1) fps -56%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	68.1 (53^min, 55^P1) fps -59%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	58.2 (44^min, 44^P1) fps -65%
1920x1080 Low Preset AA:T AF:16x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	99.8 (86^min, 74^P1) fps +5%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	94.6 (81^min, 71^P1) fps
Average AMD Radeon 780M (47 - 99.8, n=23)	84.1 fps -11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	82.6 (71^min, 56^P1) fps -13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	80.2 (70^min, 61^P1) fps -15%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	80.1 (69^min, 55^P1) fps -15%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	49.7 (37^min, 25^P1) fps -47%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps -50%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	46.6 (39^min, 39^P1) fps -51%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	41.1 (35^min, 34^P1) fps -57%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	39.2 (32^min, 31^P1) fps -59%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	33.3 (28^min, 27^P1) fps -65%
1920x1080 Medium Preset AA:T AF:16x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	88.4 (77^min, 69^P1) fps +3%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.7 (72^min, 66^P1) fps
Average AMD Radeon 780M (41.5 - 89.8, n=23)	74.5 fps -13%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	72.9 (57^min, 45^P1) fps -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	70.4 (62^min, 51^P1) fps -18%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	69.5 (57^min, 49^P1) fps -19%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	46.1 (29^min, 22^P1) fps -46%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps -49%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	42.5 (37^min, 34^P1) fps -50%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	37.5 (32^min, 32^P1) fps -56%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	36.7 (30^min, 30^P1) fps -57%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	30.6 (26^min, 25^P1) fps -64%
1920x1080 High Preset AA:T AF:16x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	66.3 (57^min, 54^P1) fps +5%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	63 (48^min, 51^P1) fps
Average AMD Radeon 780M (31.7 - 66.7, n=23)	55.6 fps -12%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	55.2 (39^min, 36^P1) fps -12%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	52.9 (43^min, 38^P1) fps -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	51.7 (43^min, 39^P1) fps -18%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34.8 (19^min, 17^P1) fps -45%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps -50%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	29.8 (25^min, 23^P1) fps -53%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	27.6 (24^min, 23^P1) fps -56%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27 (22^min, 22^P1) fps -57%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	21.7 (18^min, 18^P1) fps -66%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +36%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	22.8 (19^min, 17^P1) fps +29%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	21.9 (18^min, 18^P1) fps +24%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.7 (17^min, 17^P1) fps +17%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	18.2 (14^min, 14^P1) fps +3%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	17.7 (13^min, 13^P1) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	16.5 (14^min, 13^P1) fps -7%
Average AMD Radeon 780M (9.92 - 18.5, n=16)	15.6 fps -12%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	13.9 (10^min, 9^P1) fps -21%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	11.9 fps -33%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	8.92 (2^min, 3^P1) fps -50%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	148.9 (122^min) fps +1%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	148.1 (121^min) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	135.1 fps -9%
Average AMD Radeon 780M (74 - 160, n=27)	134 fps -10%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	115.6 (84^min) fps -22%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	107.7 fps -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps -31%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.4 fps -34%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.7 (45^min) fps -39%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	86.9 fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	85.8 (61^min) fps -42%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	79.2 (75^min) fps -47%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	67.4 fps -54%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	63.3 fps -57%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	24.5 fps -83%
1366x768 Medium Graphics & Postprocessing
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	101.5 (93^min) fps +5%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	97.1 (91^min) fps
Average AMD Radeon 780M (47.7 - 101.5, n=16)	88.6 fps -9%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	85.2 fps -12%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	79.8 (72^min) fps -18%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	65.8 fps -32%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 (52^min) fps -44%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.7 (44^min) fps -45%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	48.7 (45^min) fps -50%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	47.7 fps -51%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	50.2 (45^min) fps +2%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (45^min) fps
Average AMD Radeon 780M (21.3 - 50.9, n=31)	43.9 fps -10%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43.3 fps -12%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 (38^min) fps -13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	39.3 fps -20%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	33.5 fps -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps -32%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	32.1 fps -34%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	28.9 fps -41%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.8 (25^min) fps -43%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26.8 (26^min) fps -45%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.1 (22^min) fps -49%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.2 fps -55%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	8.3 fps -83%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	31.5 (29^min) fps +3%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.5 (28^min) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	28.1 fps -8%
Average AMD Radeon 780M (14.3 - 33.9, n=33)	27.7 fps -9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	25.2 (23^min) fps -17%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	23.5 fps -23%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	20.1 fps -34%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -45%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	15.8 (14^min) fps -48%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	15.7 fps -49%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps -55%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	13.4 fps -56%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	12.4 (11^min) fps -59%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	11.4 fps -63%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	77.6 fps +1%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	76.5 fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	69.7 fps -9%
Average AMD Radeon 780M (41.1 - 81.9, n=31)	69.7 fps -9%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	63.1 fps -18%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	62.2 fps -19%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	45.7 fps -40%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	45.6 fps -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps -40%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	41.1 fps -46%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	40.5 fps -47%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.6 fps -50%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	37.4 fps -51%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	14 fps -82%
1920x1080 Standard Quality
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	38.7 fps +1%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.2 fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	35.2 fps -8%
Average AMD Radeon 780M (21 - 39.3, n=32)	34.9 fps -9%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	33.1 fps -13%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	28.9 fps -24%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	25.1 fps -34%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps -36%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	21.8 fps -43%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	20.3 fps -47%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.3 fps -47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 fps -48%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	6.55 fps -83%
1920x1080 High Quality
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	28.9 fps +1%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.5 fps
Average AMD Radeon 780M (15.9 - 29.4, n=33)	26.1 fps -8%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	26 fps -9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	24.7 fps -13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	23.6 fps -17%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	20.9 fps -27%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	17.4 fps -39%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -39%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	15.7 fps -45%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	14.9 fps -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.6 fps -49%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.3 fps -50%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	4.66 fps -84%

Cyberpunk 2077 1.6
1280x720 Low Preset
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	88.6 (45.6^min) fps +24%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	75 (48.8^min) fps +5%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.5 (19.7^min) fps
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	69.2 (26.3^min) fps -3%
Average AMD Radeon 780M (43 - 88.6, n=7)	63.3 fps -11%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	55.9 (21^min) fps -22%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.9 (19.9^min) fps -61%
1920x1080 Low Preset
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	53.3 (35^min) fps +21%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	44.6 (33.4^min) fps +2%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.9 (20.7^min) fps
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	40.8 (19.7^min) fps -7%
Average AMD Radeon 780M (22 - 53.3, n=12)	37 fps -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	31.4 (16.4^min) fps -28%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.9 (14^min) fps -52%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	18.6 (8.1^min) fps -58%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	16.4 (7.3^min) fps -63%
1920x1080 Medium Preset
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	42 (30.4^min) fps +21%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	36.3 (27.9^min) fps +5%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	34.6 (17.5^min) fps
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	31.8 (20.6^min) fps -8%
Average AMD Radeon 780M (16 - 42, n=12)	29.3 fps -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	24.4 (12.3^min) fps -29%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	16.2 (12^min) fps -53%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.6 (7.8^min) fps -55%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	13.3 (10.5^min) fps -62%
1920x1080 High Preset
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	30.5 (34^min) fps +13%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	28.6 (21.3^min) fps +6%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	26.9 (6.5^min) fps
Average AMD Radeon 780M (12 - 30.5, n=12)	22.7 fps -16%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	21.8 (6.2^min) fps -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	19 (11.3^min) fps -29%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	11.7 (6.1^min) fps -57%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	11.4 (8.7^min) fps -58%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.9 (8.7^min) fps -59%
1920x1080 Ultra Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	26 (18.8^min) fps +5%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	25.2 (18.1^min) fps +2%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.8 (6.1^min) fps
Average AMD Radeon 780M (14.2 - 26, n=8)	21.8 fps -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	17.6 (9.8^min) fps -29%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	17.5 (3.4^min) fps -29%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.3 fps -58%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	9.8 (4.9^min) fps -60%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	140.6 fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	131.4 fps -7%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	128.4 fps -9%
Average AMD Radeon 780M (62.6 - 151.2, n=14)	118.5 fps -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	106.6 fps -24%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	59.3 fps -58%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps -59%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	55 fps -61%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 fps -61%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	52.3 fps -63%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	35.9 fps -74%
1920x1080 Low Preset (DX12)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	72 fps +1%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.6 fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	62.6 fps -13%
Average AMD Radeon 780M (34.3 - 74.9, n=14)	61.7 fps -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	60.3 fps -16%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	58.6 fps -18%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	39.3 fps -45%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps -55%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps -58%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	28.6 fps -60%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.5 fps -62%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.3 fps -69%
1920x1080 Medium Preset (DX12)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	53.3 fps +3%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	52 fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	46.8 fps -10%
Average AMD Radeon 780M (28.4 - 54.7, n=14)	45 fps -13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	44.9 fps -14%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	44.4 fps -15%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	30.6 fps -41%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps -51%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	23.9 fps -54%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	22.9 fps -56%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.9 fps -60%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	17 fps -67%
1920x1080 High Preset (DX12)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	37.1 fps 0%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	37.1 fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	33.3 fps -10%
Average AMD Radeon 780M (18.6 - 38.8, n=14)	31.5 fps -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	30.2 fps -19%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	29.9 fps -19%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	21.8 fps -41%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps -57%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	14.7 fps -60%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	14.6 fps -61%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	13.5 fps -64%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	10.7 fps -71%
1920x1080 Badass Preset (DX12)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	30.6 fps +2%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	30 fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	27.1 fps -10%
Average AMD Radeon 780M (16.5 - 31.3, n=14)	25.8 fps -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	23.5 fps -22%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	23.1 fps -23%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	18.5 fps -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps -55%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	11.5 fps -62%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	11.4 fps -62%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.6 fps -65%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	8.4 fps -72%

GTA V
1024x768 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	166 (4.54^min, 125^P1) fps
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	164.7 (4.69^min, 111.1^P1) fps -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	157.8 (4.54^min, 111.1^P1) fps -5%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	144.6 (8.46^min, 100^P1) fps -13%
Average AMD Radeon 780M (91.6 - 167.5, n=32)	141.6 fps -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	132.9 (18.4^min, 90.9^P1) fps -20%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	125.5 (11.9^min, 83.3^P1) fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps -25%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	119.3 (25.1^min, 76.9^P1) fps -28%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	103.8 (6.31^min, 71.4^P1) fps -37%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	97.7 (25.6^min, 55.6^P1) fps -41%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	94.2 (16.5^min, 58.8^P1) fps -43%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	67.7 (4.02^min, 38.5^P1) fps -59%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	59.3 (9.5^min, 33.3^P1) fps -64%
1920x1080 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	129.1 (9.37^min, 90.9^P1) fps
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	125.4 (20.8^min, 90.9^P1) fps -3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	113.4 (16.8^min, 76.9^P1) fps -12%
Average AMD Radeon 780M (60.9 - 129.1, n=22)	111.8 fps -13%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	98.1 (39.1^min, 71.4^P1) fps -24%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	97.4 (8.56^min, 66.7^P1) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps -32%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81 (12.3^min, 58.8^P1) fps -37%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	79.4 (22.7^min, 47.6^P1) fps -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	66.4 (17.6^min, 43.5^P1) fps -49%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	65.9 (13.2^min, 45.5^P1) fps -49%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	64.6 (20.6^min, 45.5^P1) fps -50%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	56.9 (8.92^min, 35.7^P1) fps -56%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	32.2 (11.4^min, 20.8^P1) fps -75%
1366x768 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	158.4 (14.6^min, 111.1^P1) fps
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	156.1 (5.05^min, 111.1^P1) fps -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	146 (6.65^min, 100^P1) fps -8%
Average AMD Radeon 780M (91.2 - 158.4, n=25)	136.3 fps -14%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	133.8 (46.7^min, 83.3^P1) fps -16%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	117.6 (20.9^min, 71.4^P1) fps -26%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	115.4 (23.7^min, 71.4^P1) fps -27%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	103.1 (6.05^min, 62.5^P1) fps -35%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps -36%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	84.7 (19.5^min, 47.6^P1) fps -47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	84 (16.1^min, 55.6^P1) fps -47%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	77.6 (21.9^min, 50^P1) fps -51%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	61.7 (8.03^min, 38.5^P1) fps -61%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	46.9 (11.4^min, 27^P1) fps -70%
1920x1080 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	132.3 (14.1^min, 83.3^P1) fps
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	128 (8.94^min, 90.9^P1) fps -3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	117.6 (14.5^min, 83.3^P1) fps -11%
Average AMD Radeon 780M (64.9 - 132.3, n=20)	111.9 fps -15%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.2 (7.32^min, 66.7^P1) fps -27%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	96.3 (8.48^min, 62.5^P1) fps -27%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81.8 (14.1^min, 55.6^P1) fps -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps -43%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	69.9 (6.78^min, 45.5^P1) fps -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	59 (18^min, 35.7^P1) fps -55%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	57.5 (17.4^min, 38.5^P1) fps -57%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	57.3 (22.2^min, 38.5^P1) fps -57%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	54.9 (8.78^min, 33.3^P1) fps -59%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	26.8 (10.6^min, 17.5^P1) fps -80%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	68.6 (4.91^min, 45.5^P1) fps 0%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	68.3 (4.5^min, 45.5^P1) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	59.7 (4.52^min, 40^P1) fps -13%
Average AMD Radeon 780M (32.5 - 68.6, n=32)	59.5 fps -13%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	49.2 (13.3^min, 33.3^P1) fps -28%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34 (1.184^min, 19.2^P1) fps -50%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	32.2 (8.1^min, 23.3^P1) fps -53%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	24.3 (14.7^min, 18.9^P1) fps -64%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.2 (11.5^min, 15.9^P1) fps -66%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps -69%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	20.5 (8.17^min, 14.5^P1) fps -70%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	18.6 (8^min, 14.3^P1) fps -73%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	15.9 (6.66^min, 12.5^P1) fps -77%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	8.59 (3.34^min, 6.21^P1) fps -87%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	27.6 (3.56^min, 18.9^P1) fps 0%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.5 (3.06^min, 18.9^P1) fps
Average AMD Radeon 780M (12.2 - 27.6, n=32)	24.4 fps -11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	23.6 (2.03^min, 16.1^P1) fps -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	21.7 (12.7^min, 15.4^P1) fps -21%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	19.6 (0.569^min, 10.2^P1) fps -29%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.5 (4.85^min, 10.3^P1) fps -47%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	10.3 (4.68^min, 5.59^P1) fps -63%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -68%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	7.83 (3.5^min, 4.37^P1) fps -72%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	7.71 (3.66^min, 5.78^P1) fps -72%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	7.7 (3.58^min, 5.88^P1) fps -72%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	6.8 (3.29^min, 3.76^P1) fps -75%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	3.55 (1.706^min, 2.11^P1) fps -87%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	3.5 (1.639^min, 2.12^P1) fps -87%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	65.2 fps +13%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	60.8 fps +5%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	60.3 fps +4%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	58.3 fps +1%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	58.2 fps +1%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.8 fps
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	55.3 fps -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps -6%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	53.4 fps -8%
Average AMD Radeon 780M (39 - 69.6, n=36)	51.6 fps -11%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	48.7 fps -16%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	43.4 fps -25%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	29.1 fps -50%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	26.8 fps -54%
1920x1080 med (fps_test=2)
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	52.3 fps +20%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	44.1 fps +1%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	43.7 fps 0%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.5 fps
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	43.1 fps -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43 fps -1%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	41.2 fps -5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps -6%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	40.3 fps -7%
Average AMD Radeon 780M (26.2 - 48.2, n=36)	37.7 fps -13%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	34.4 fps -21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	32.9 fps -24%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	21.1 fps -51%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	17.2 fps -60%
1920x1080 high (fps_test=3)
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	42.2 fps +16%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	38.5 fps +5%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	37.5 fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 fps +2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	36.5 fps 0%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.5 fps
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	35.7 fps -2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	35.5 fps -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -3%
Average AMD Radeon 780M (24.5 - 40.7, n=35)	31.7 fps -13%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps -17%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28.5 fps -22%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	16.6 fps -55%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	15.8 fps -57%

Strange Brigade
1280x720 lowest AF:1
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.2 (109.1^min, 139.7^P1) fps
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	162.3 (84.5^min, 138^P1) fps -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	148.8 (53.7^min, 130^P1) fps -9%
Average AMD Radeon 780M (77.8 - 170.5, n=31)	148.8 fps -9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	137.8 (107.9^min, 119.9^P1) fps -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	132.2 (72.4^min, 110.3^P1) fps -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps -39%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	98.7 (21.2^min, 36.7^P1) fps -40%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	95.3 (72.8^min, 84.4^P1) fps -42%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	89.2 (21.3^min, 32.1^P1) fps -45%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	84.5 (32.3^min, 62.9^P1) fps -48%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	83.6 (19.9^min, 27.5^P1) fps -49%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.3 (18.8^min, 25.6^P1) fps -51%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	68.6 (15.6^min, 21.8^P1) fps -58%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	31.5 (7.3^min, 9.39^P1) fps -81%
1920x1080 medium AA:medium AF:4
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.6 (52.2^min, 57^P1) fps
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	65.4 (53.3^min, 56.4^P1) fps 0%
Average AMD Radeon 780M (31.7 - 68.2, n=31)	61.3 fps -7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	59.8 (35.1^min, 52^P1) fps -9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	56.4 (47.8^min, 49^P1) fps -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	55.2 (43.9^min, 48.5^P1) fps -16%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	46.2 (28.6^min, 35^P1) fps -30%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	40.9 (10.8^min, 22.7^P1) fps -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps -40%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	36.1 (13.1^min, 20.7^P1) fps -45%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	36 (29.9^min, 31^P1) fps -45%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	34.7 (12.5^min, 20^P1) fps -47%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	33.9 (10.3^min, 19.8^P1) fps -48%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	29 (13.9^min, 17.8^P1) fps -56%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	11.7 (5^min, 5^P1) fps -82%
1920x1080 high AA:high AF:8
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	55.8 (41.7^min, 43.2^P1) fps 0%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	55.6 (39.2^min, 42.9^P1) fps
Average AMD Radeon 780M (27.3 - 58.1, n=31)	51.9 fps -7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	50.7 (14.7^min, 38.5^P1) fps -9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	47.1 (35.1^min, 37.2^P1) fps -15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (33.6^min, 36.3^P1) fps -17%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	39.4 (9.7^min, 22.8^P1) fps -29%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	32.3 (8.2^min, 17^P1) fps -42%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps -42%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	30.1 (23.7^min, 24.1^P1) fps -46%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	29.2 (9.7^min, 15.6^P1) fps -47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	29.2 (9^min, 13.5^P1) fps -47%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.7 (10^min, 15.1^P1) fps -50%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	23.3 (6.2^min, 12.7^P1) fps -58%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	11.9 (5^min, 5^P1) fps -79%
1920x1080 ultra AA:ultra AF:16
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	48.2 (36.6^min, 37.7^P1) fps 0%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.2 (23.8^min, 32^P1) fps
Average AMD Radeon 780M (23.5 - 49.6, n=32)	44.3 fps -8%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43.3 (11.1^min, 16.3^P1) fps -10%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	40.7 (31.5^min, 32.4^P1) fps -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	39.9 (27.9^min, 32^P1) fps -17%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34.2 (6.7^min, 10.3^P1) fps -29%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	26.2 (5.2^min, 9.1^P1) fps -46%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -46%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.5 (19.5^min, 20.8^P1) fps -47%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23.6 (5^min, 8.33^P1) fps -51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22.9 (5^min, 5.96^P1) fps -52%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.2 (5.6^min, 7.76^P1) fps -54%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	19.1 (5^min, 5.1^P1) fps -60%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	15 (5^min, 5^P1) fps -69%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	160.6 (139.7^min) fps +2%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	156.9 (136.5^min) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	150.2 (132.8^min) fps -4%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	142.2 (123.6^min) fps -9%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	140.3 (102.2^min) fps -11%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	137.5 (109.5^min) fps -12%
Average AMD Radeon 780M (103.7 - 163.1, n=34)	132.4 fps -16%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	119.6 (108.4^min) fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps -27%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	110.5 (93.1^min) fps -30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	110.5 (89^min) fps -30%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	108.1 (86.6^min) fps -31%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	98.7 (85.5^min) fps -37%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	95.8 (84.4^min) fps -39%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	62.4 (51.9^min) fps -60%
1366x768 med (1/3)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	123.9 (104.8^min) fps +2%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	121.1 (100.6^min) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	116.1 (95.8^min) fps -4%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps -6%
Average AMD Radeon 780M (87.5 - 130.1, n=34)	106.6 fps -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	103.1 (78.3^min) fps -15%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	101.3 (78.4^min) fps -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	91.4 (78.4^min) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps -29%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	83.8 (66.5^min) fps -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	82.8 (69^min) fps -32%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	78.6 (66.2^min) fps -35%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	66.6 (50^min) fps -45%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	57.3 (48.6^min) fps -53%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	53.7 (47.9^min) fps -56%
1920x1080 high (2/3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	95.5 (85.2^min) fps
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	95.1 (84.3^min) fps 0%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	89.9 (78.3^min) fps -6%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	89.1 (74.5^min) fps -7%
Average AMD Radeon 780M (54.9 - 97.5, n=34)	78.8 fps -17%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	70.7 (65.7^min) fps -26%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	69.6 (59.3^min) fps -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps -29%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	60.9 (55.7^min) fps -36%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	59.3 (52.5^min) fps -38%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.9 (52.4^min) fps -40%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.4 (41.9^min) fps -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	45.2 (38.5^min) fps -53%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	44.8 (38.3^min) fps -53%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	22.6 (20.6^min) fps -76%
1920x1080 ultra (3/3) best looking
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.6 (74.9^min) fps
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, AMD Radeon 780M	85.5 (75.7^min) fps 0%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	80.3 (71.5^min) fps -6%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	72.8 (65.3^min) fps -15%
Average AMD Radeon 780M (51.3 - 91.2, n=34)	71.1 fps -17%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	64.5 (58.2^min) fps -25%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	62.2 (53.4^min) fps -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -29%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	56.3 (49.3^min) fps -34%
Geekom Mini IT12 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	55.2 (49.3^min) fps -36%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	52 (47.1^min) fps -39%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.4 (40.8^min) fps -45%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	42 (36.8^min) fps -51%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	42 (37.8^min) fps -51%
Blackview MP200 Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	20.9 (19^min) fps -76%

Witcher 3 FPS Chart

Beelink SER7: Ø48.1 (45-51)

	low	med.	high	ultra
GTA V (2015)	166	158.4	68.3	27.5
The Witcher 3 (2015)	148.1	97.1	49	30.5
Dota 2 Reborn (2015)	156.9	121.1	95.5	85.6
Final Fantasy XV Benchmark (2018)	76.5	38.2	28.5
X-Plane 11.11 (2018)	57.8	43.5	36.5
Far Cry 5 (2018)	84	50	46	44
Strange Brigade (2018)	163.2	65.6	55.6	48.2
Cyberpunk 2077 1.6 (2022)	43.9	34.6	26.9	24.8
Tiny Tina's Wonderlands (2022)	71.6	52	37.1	30
F1 22 (2022)	94.6	85.7	63	17.7

排放量

系统噪音 - 缓慢而渐进

冷却解决方案由两个风扇组成：一个较大的风扇位于蒸发室顶部，另一个较小的风扇用于固态硬盘和主板。风扇噪音一般徘徊在 29 分贝（A）的范围内，而在运行要求不高的负载时，背景噪音为 25 分贝（A），几乎感觉不到噪音。最重要的是，内部风扇不像旧款 Beelink 机型那样容易脉冲，因此任何转速变化都是渐进的，而不是突然的。由于风扇的加速和减速速度过快，声音会更大，因此这种特性更受欢迎。

运行要求较高的负载，如 Witcher 3的风扇噪音为 35.6 dB(A)，比较大的 IdeaCentre Mini 还要大。如果长时间玩游戏，噪音可能会上升到 40 分贝（A）左右，与许多游戏笔记本电脑相差无几。值得庆幸的是，如果主要用于流媒体播放，系统绝不会达到如此高的音量。

在我们的设备上，我们能注意到轻微的线圈啸叫，但声音不大，不会造成困扰。

风扇噪音曲线（白色：背景，红色：系统空闲，蓝色：3DMark 06，橙色：系统空闲，绿色：系统空闲，蓝色：3DMark 06，橙色：系统空闲：Witcher 3绿色Prime95 压力）

Noise Level

Idle		25.1 / 25.1 / 25.1 dB(A)
Load		35.9 / 45.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24.5 dB(A)

	Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0	Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
Noise		-4%	-8%	-7%	1%	-5%
off / environment *	24.5	23.4 4%	25.2 -3%	25.1 -2%	23.3 5%	25.6 -4%
Idle Minimum *	25.1	30.4 -21%	28.1 -12%	27.8 -11%	23.3 7%	28.1 -12%
Idle Average *	25.1	30.4 -21%	28.2 -12%	27.8 -11%	23.3 7%	28.1 -12%
Idle Maximum *	25.1	30.4 -21%	28.3 -13%	27.9 -11%	26.2 -4%	28.1 -12%
Load Average *	35.9	30.7 14%	42 -17%	38.9 -8%	40.2 -12%	34.9 3%
Witcher 3 ultra *	35.6	33.9 5%			37 -4%	36.4 -2%
Load Maximum *	45.4	41 10%	42.1 7%	45.8 -1%	40.2 11%	42.4 7%

* ... smaller is better

温度

当运行游戏等高负载时，表面温度可高达 60 摄氏度，但如下面的热图所示，热点仅在后部通风栅附近。由于新鲜空气从顶部进入，微型电脑的其他部分仍然相对凉爽。由于散热解决方案的工作原理，不建议在设备顶部放置任何物品。其他微型电脑，如 NUC 11或 IdeaCentre Mini 则从两侧抽取新鲜空气，与 Beelink 形成鲜明对比。

压力测试

在启动 Prime95 压力时，CPU 会提升至 4.1 GHz 和 54 W。它能保持这一频率，核心温度稳定在 77 C，没有出现重大节流问题。值得注意的是，其他迷你电脑（如联想 IdeaCentre Mini）在进行相同的压力测试时，时钟频率可能会随着时间的推移而降低。

集成 GPU 将稳定在 2526 MHz 和 64 C 左右，相比之下，较旧但较小的 SER6 Pro.因此，SER7 比其前代产品运行速度更快，温度更低。

	CPU 时钟 (GHz)	GPU 时钟 (MHz)	CPU 平均温度 (°C)
系统闲置	--	--	36
Prime95 压力	4.0	--	77
Prime95 + FurMark Stress	4.3	2263	72
Witcher 3 压力	~0.3	2526	64

能源管理 - 要求更高一些

耗电量

SER7 的总体功耗较高，这反映了它的快速性能。当运行 Witcher 3例如，当运行典型的游戏负载时，Beelink 的功耗将是 Dell 9330 的 2 倍以上。戴尔Latitude 9330运行速度较慢的第 12 代酷睿 i7-1265U CPU 的耗电量的 2 倍以上。不过，由于 Radeon 780M 的速度明显快于要求较低的 Iris Xe 96 EU，因此每瓦图形性能仍然非常出色。

处理器的每瓦性能非常出色，这也是 Zen 4 的主要亮点之一。例如，在运行 CineBench R15 xT 时，我们的 Ryzen 7 7840HS 与联想 IdeaCentre Mini 中的 Core i7-13700H 完成基准测试的时间差不多，但功耗却降低了约 35 瓦。

当 CPU 的利用率达到 100% 时，我们可以测量到小型（约 7 x 7 x 3 厘米）100 W 壁挂式交流适配器的最大功耗为 95 W。如果试图同时为多个外部 USB-C 设备供电，这可能会造成问题，因此，如果使用更大的 120 W 或 130 W 交流适配器，可能会更适合为迷你 PC 和任何连接的附件提供更好的支持。

由于 CPU 的 Turbo Boost 可持续性极佳，在启动 Prime95 压力时，功耗会飙升至 93 W，此后不会再下降。

Power Consumption

Off / Standby	0.95 / 1.1 Watt
Idle	6.7 / 7.3 / 11.6 Watt
Load	64.1 / 94.8 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Beelink SER7 R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs, Samsung PM9B1 512GB MZVL4512HBLU, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Minisforum Venus Series NPB5 i5-13500H, Iris Xe G7 80EUs, Kingston OM8PGP4512Q-A0, , x,	Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M, Kingston NV2 500GB SNV2S/500G, , x,	Beelink GTR7 7840HS R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,
Power Consumption		9%	-1%	-34%	-0%	7%
Idle Minimum *	6.7	6.7 -0%	7 -4%	8.4 -25%	8.9 -33%	5.5 18%
Idle Average *	7.3	6.7 8%	9.2 -26%	11.3 -55%	9 -23%	5.8 21%
Idle Maximum *	11.6	7.1 39%	11.8 -2%	14.5 -25%	9.3 20%	7.7 34%
Load Average *	64.1	68.5 -7%	45 30%	70 -9%	62.5 2%	70.6 -10%
Witcher 3 ultra *	75.8	58.3 23%			62.6 17%	79.8 -5%
Load Maximum *	94.8	104.3 -10%	97.2 -3%	149 -57%	80.1 16%	111.8 -18%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Beelink SER7 R7 7840HS, Radeon 780M; Witcher 3 ultra: Ø75.8 (73.8-83.5)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; Witcher 3 ultra: Ø58.3 (54.8-71.2)

Beelink SER7 R7 7840HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø93.3 (88.4-94.8)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø85.5 (63.1-104.3)

Power Consumption external Monitor

Beelink SER7 R7 7840HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø91.3 (87.1-93)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø84.4 (63.2-100.7)

Beelink SER7 R7 7840HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø82.7 (77.4-84)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø125.4 (111.7-137.8)

Beelink SER7 R7 7840HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø73 (68.1-76.8)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø61.1 (57.6-65.1)

Beelink SER7 R7 7840HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø75.8 (73.8-83.5)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø58.3 (54.8-71.2)

Beelink SER7 R7 7840HS, Radeon 780M; Idle 1min (external Monitor): Ø11.7 (10.4-15)

Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø6.97 (5.24-21.1)

Pros

+ 大量集成端口，包括多个 USB-C 和 USB4 端口

+ 出色的涡轮增压性能和可持续性

+ 核心温度低于旧机型

+ 2x M.2 固态硬盘 + 2x SODIMM 插槽

+ 气室冷却

Cons

- 固态硬盘写入性能不尽如人意

- 播放 4K60 视频时丢帧

- 比旧款更大更重

- 在高负载情况下可能会耗电

- 不支持 Wi-Fi 6E

- 维修需要多个步骤

评语：性能惊人，但价格上涨

在令人失望的 SER6 Pro 之后，我们希望看到 SER7 的升级。它为速度已经很快的 Zen 3+ 系列带来了显著的性能提升，并在尺寸和每瓦性能方面给其他迷你电脑带来了很大压力，尤其是那些采用英特尔酷睿 U、P 或 H CPU 的迷你电脑。它支持 USB4 和外置 GPU，这也解决了 AMD CPU 相对于英特尔 CPU 的一个主要缺点。

与旧机型相比，性能的提升伴随着厚度和重量的增加。幸运的是，由于长度和宽度与以前相同，它并没有增大很多。举例来说，如果要把它放在办公桌上，SER7 较高的高度应该不成问题。

SER7 是 Beelink 迄今为止最好的迷你 PC 之一，但也是该公司最昂贵的产品之一。

对于未来的型号，我们希望能看到 Wi-Fi 6E、免工具维修或更方便地访问 SODIMM 插槽和主 M.2 驱动器。同样，这只是一个小小的抱怨，因为内存和固态硬盘的升级通常并不频繁。不过，固态硬盘写入性能的缺陷和不完美的 4K60 视频播放绝对应该得到解决。

作为 Beelink 最快的迷你 PC 之一，SER7 也是售价最高的产品之一，高达 700 至 800 美元。其他迷你电脑，如Ace Magicician或SER6 等其他迷你电脑的价格只有它们的一半或更低。它们可能配备较慢的 H 或 U 系列 CPU，内存和存储空间也较小，但仍足以胜任 HTPC 任务，而且比任何 Atom 或赛扬解决方案都要快。因此，用户必须看重 SER7 的 Zen 4 CPU、Radeon 780M GPU 和 USB4 等优势，才能使其较高的价格物有所值。

价格和供应情况

亚马逊现已开始销售Beelink SER7，评论价格为 800 美元。用户也可以直接从 Beelink 购买以更低的价格购买。

Beelink SER7 - 2023-09-09 09/09/2023 v7
Allen Ngo

Chassis

85 / 98 → 86%

Connectivity

61 / 81 → 75%

Weight

81%

Games Performance

81%

Application Performance

96%

Noise

89%

Average

82%

87%

Mini PC - Weighted Average

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5193 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 389876 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Beelink SER7 迷你 PC 评测：配备蒸汽室冷却系统的 Ryzen 7 7840HS

Allen Ngo, 2023-09-10 (Update: 2023-09-10)

Beelink SER7 迷你 PC 评测：配备蒸汽室冷却系统的 Ryzen 7 7840HS

潜在的竞争对手比较

表壳 - 炮铜色外观

尺寸比较

连接性 - 大量 USB-C

交流

维护

配件和保修

性能 - AMD Zen 4 看起来不错

测试条件

处理器

Cinebench R15 Multi Loop

系统性能

DPC 延迟

存储设备

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

图形处理器性能

游戏性能

Witcher 3 FPS Chart

排放量

系统噪音 - 缓慢而渐进

温度

压力测试

能源管理 - 要求更高一些

耗电量

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pros

Cons

评语：性能惊人，但价格上涨

价格和供应情况

More articles related to this device

Transparency

Pricecompare
