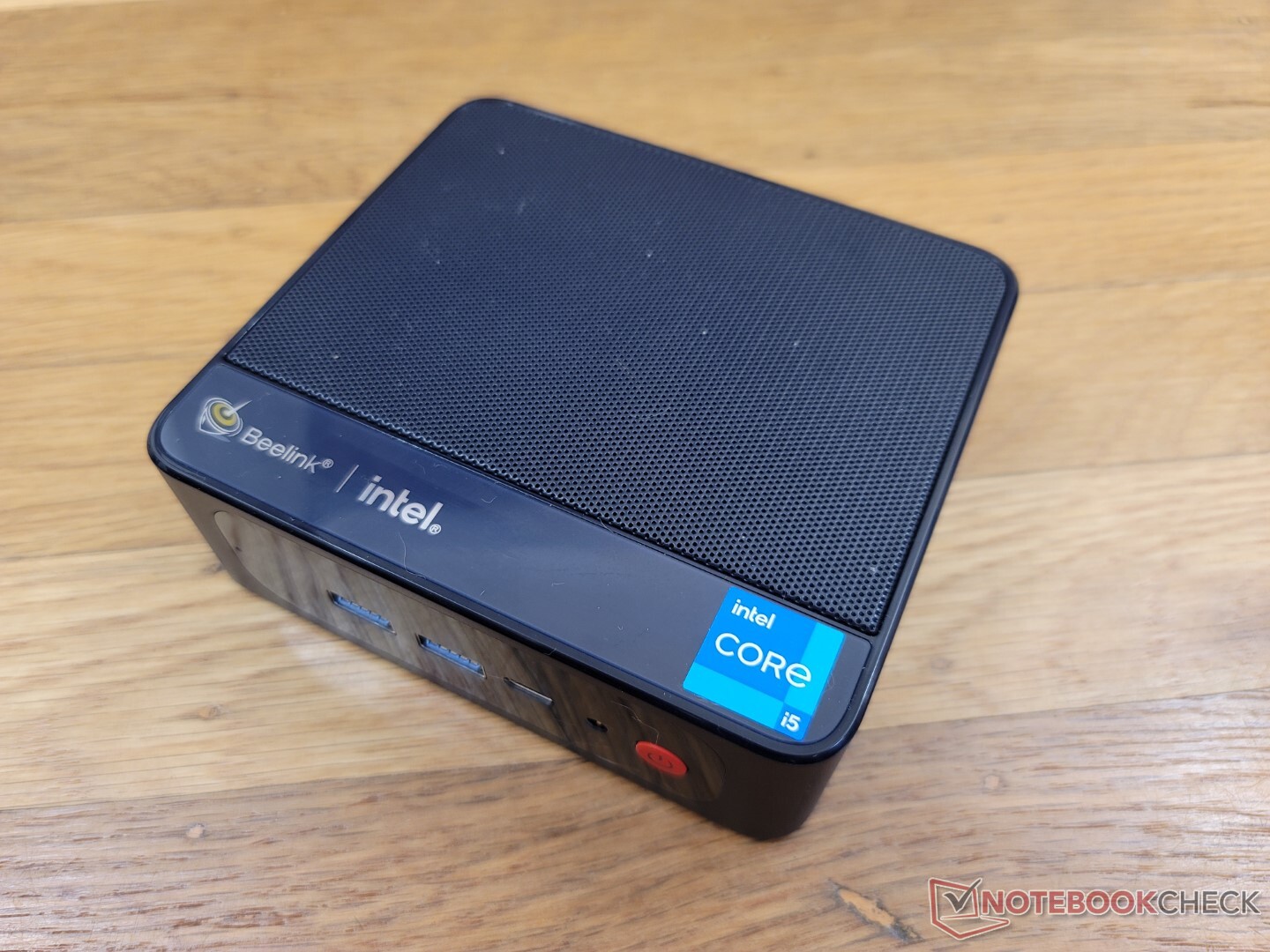

Beelink SEi11迷你电脑评论。比英特尔NUC 11更便宜，但速度一样快

Core i5-11320H与Core i7-1165G7。 NUC的替代品在大多数情况下可能是一个混合的袋子，但是Beelink SEi11非常接近于一个成熟的NUC，同时由于不常见的Core i5-11320H，其成本要低数百美元。

Allen Ngo, 👁 Allen Ngo (translated by DeepL / Ninh Duy), Published 09/13/2022 🇺🇸 🇸🇪 ...

Tiger Lake Mini PC

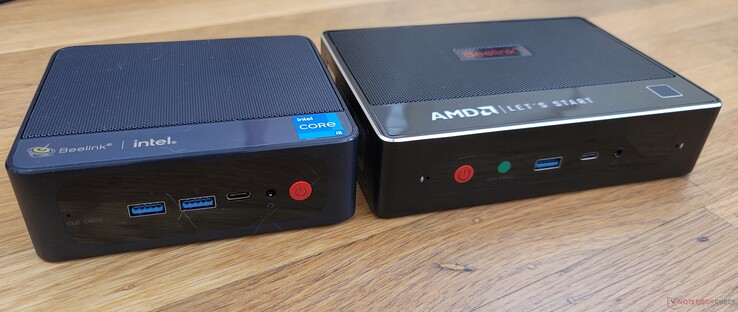

左：Beelink SEi11，右：Beelink GTR5。Beelink GTR5

与Beelink GTI 11不同，SEi11采用的是英特尔酷睿H系列CPU，而不是酷睿U系列。目前只有一种配置，即11代Tiger Lake-H酷睿i5-11320H，16GB内存和500GB NVMe固态硬盘，价格约为450美元。

SEi11直接与英特尔NUC系列竞争，如 NUC11PAQ 或 NUC11TNK.

更多Beelink评论。

Beelink SEi11 Pro

Processor

Intel Core i5-11320H 4 x 3.2 - 4.5 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Tiger Lake-H35

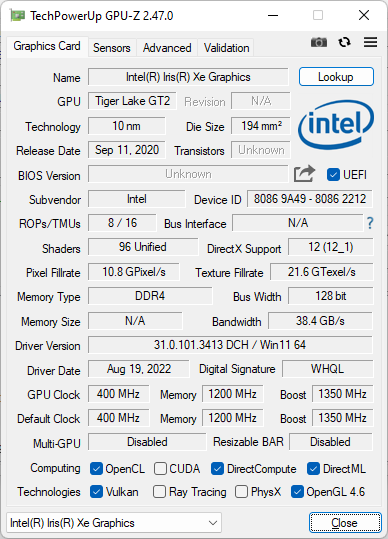

Graphics adapter

Intel Iris Xe Graphics G7 96EUs, Core: 1350 MHz, Memory: 1200 MHz, DDR4, 31.0.101.3413

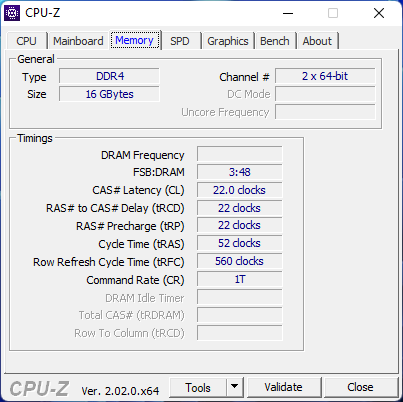

Memory

16 GB

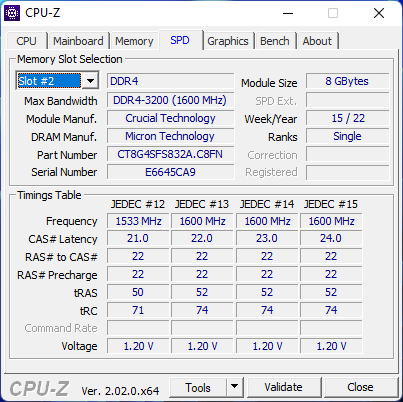

, Crucial DDR4-3200, 22-22-22-52, Dual-Channel, 2x SODIMM

Mainboard

Intel Tiger Lake-UP3 PCH-LP

Storage

Kingston NV1 SNVS/500GCN, 500 GB

Soundcard

Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)

Connections

4 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 2 HDMI, Audio Connections: 3.5 mm headset

Networking

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 40 x 126 x 113

Operating System

Microsoft Windows 11 Pro

Additional features

2x HDMI cables, VESA wall-mounting bracket, extra screws, 12 Months Warranty

Weight

440 g, Power Supply: 222 g

Price

430 USD

Links

Beelink homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Date	Model	Weight	Height	Resolution
09/2022	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs	440 g	40 mm	x
01/2022	Beelink GTR5 R9 5900HX, Vega 8	686 g	39 mm	x
12/2021	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs	638 g	39 mm	x
04/2022	Beelink SER4 R7 4800U, Vega 8	494 g	40 mm	x
	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 g	37 mm	x

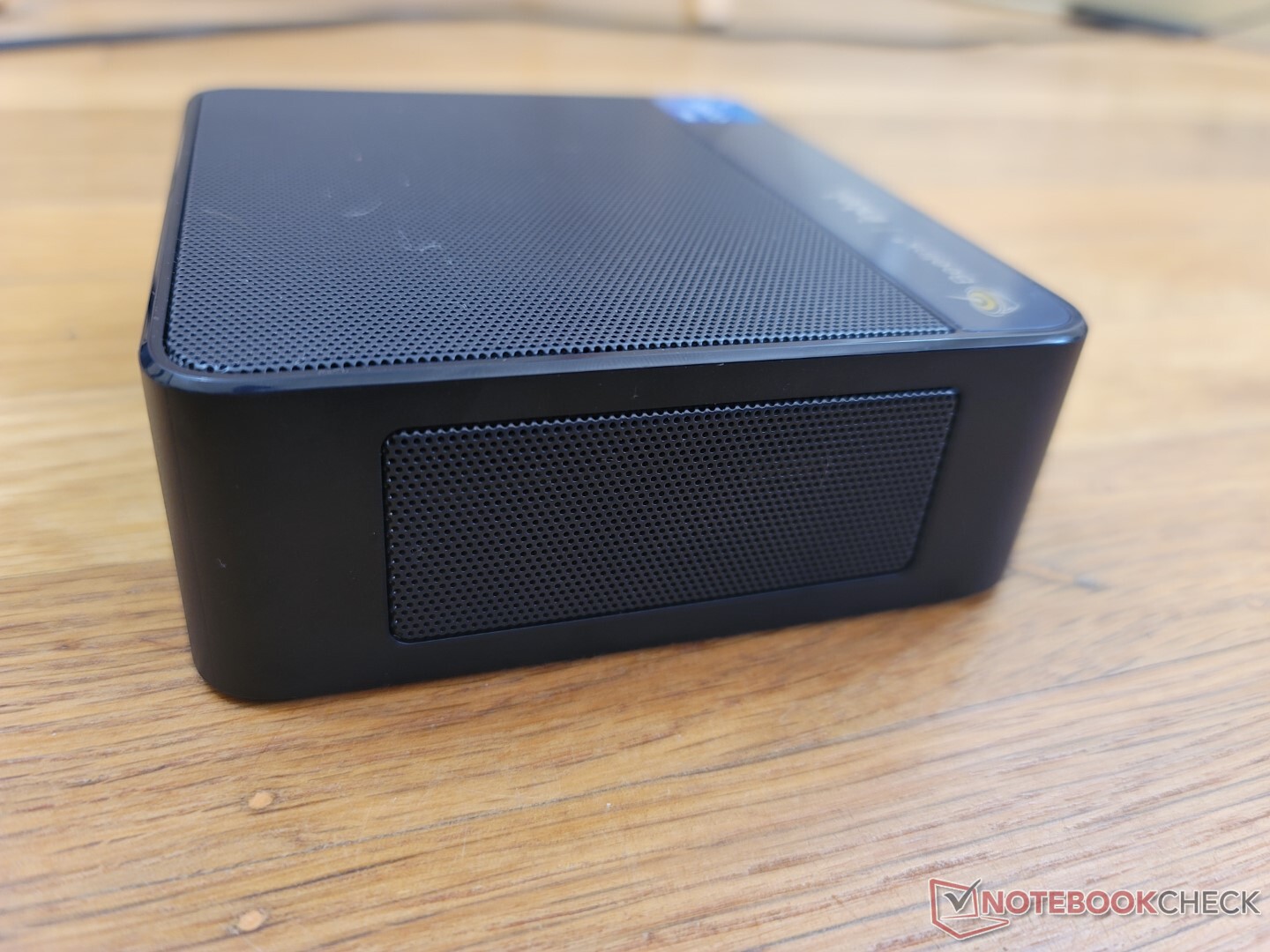

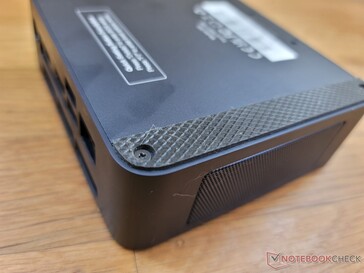

案例

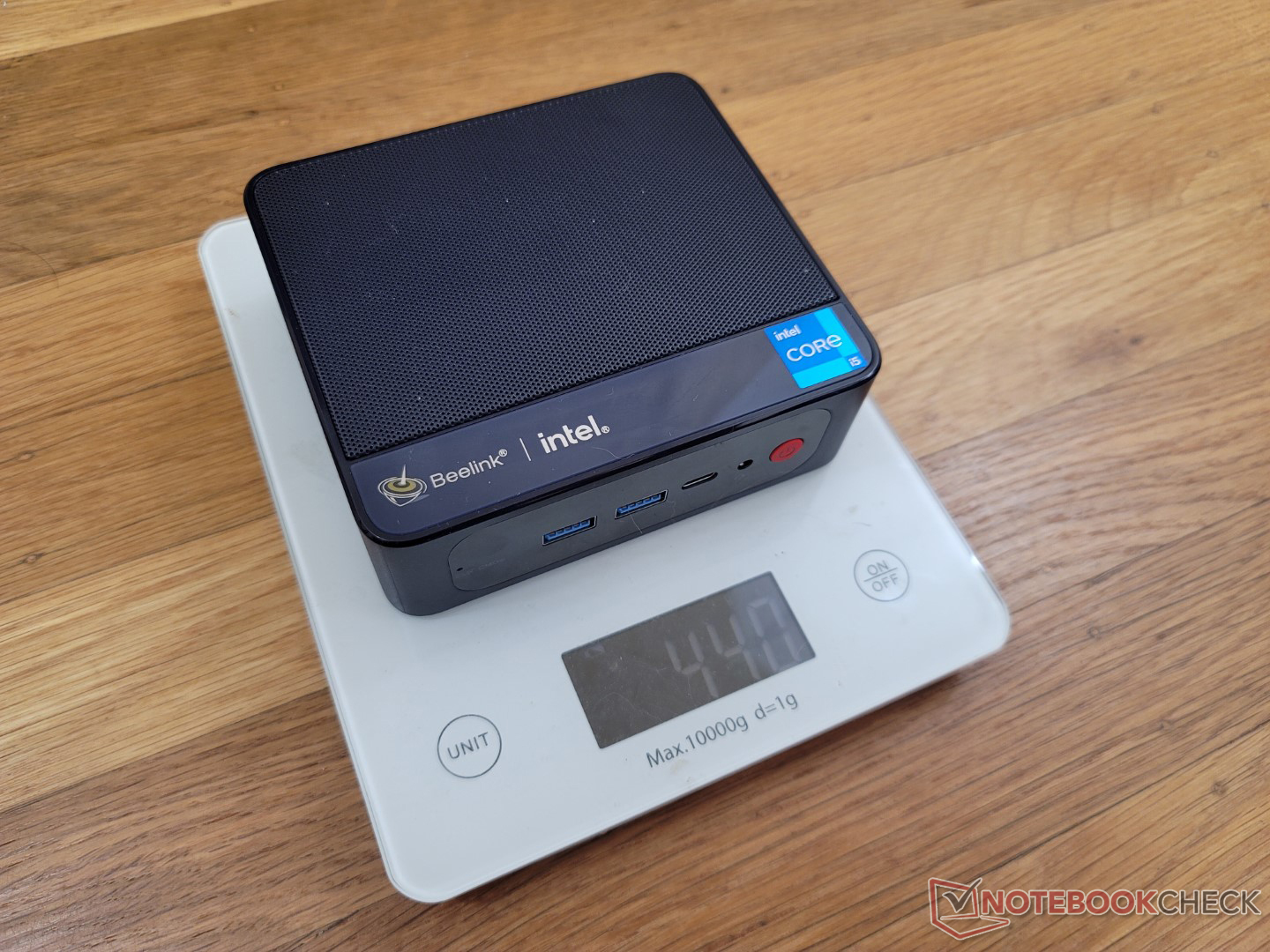

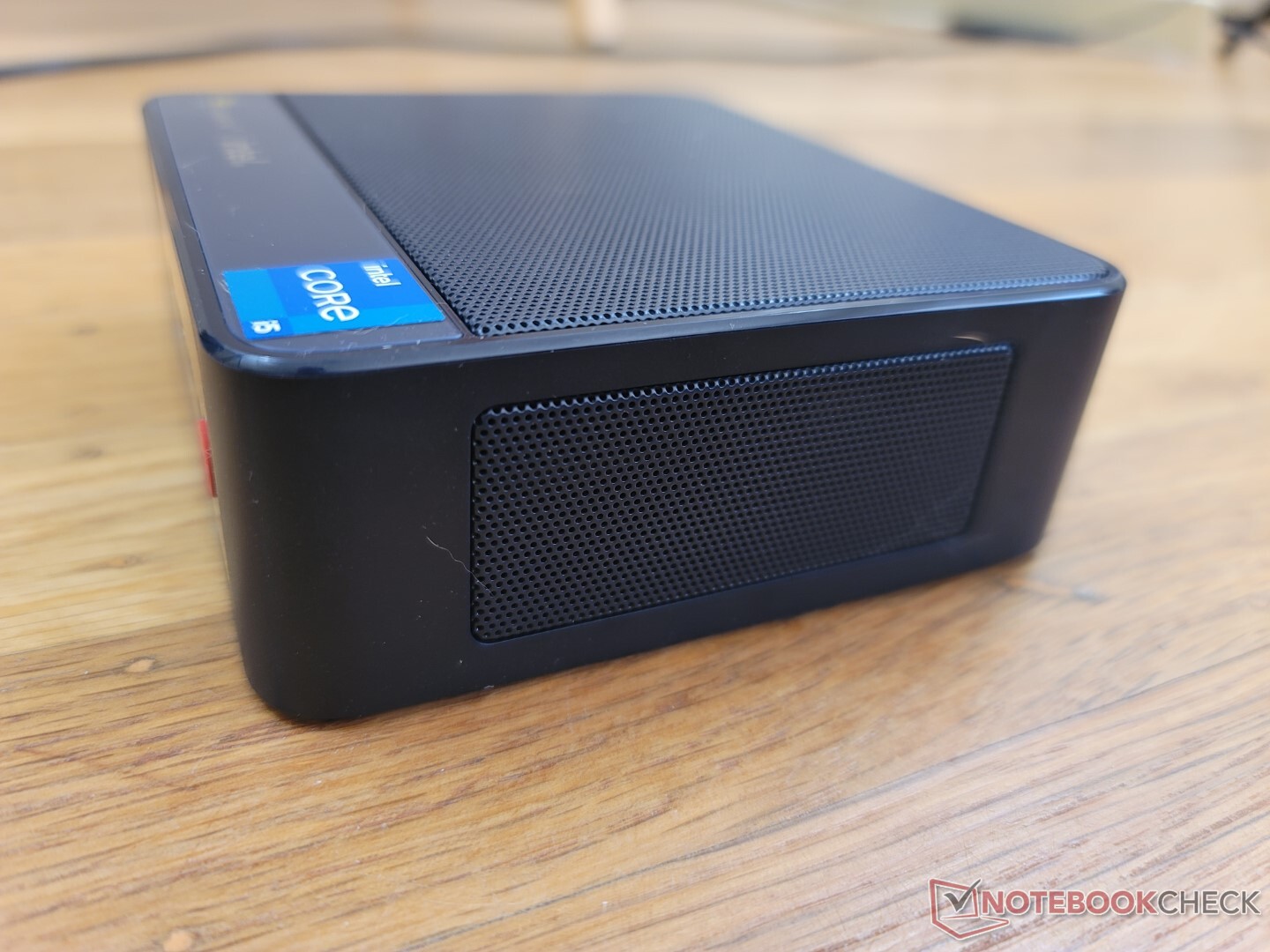

该机箱基本上是由AMD驱动的Beelink的英特尔版本。 SER4.尺寸和结构几乎完全相同，但SEi11可能由于一些微小的内部变化而轻了约50克。从外观上看，该装置缺乏侧面的红色网状结构和SER4上的铬合金切割边缘和角落。

尺寸比较

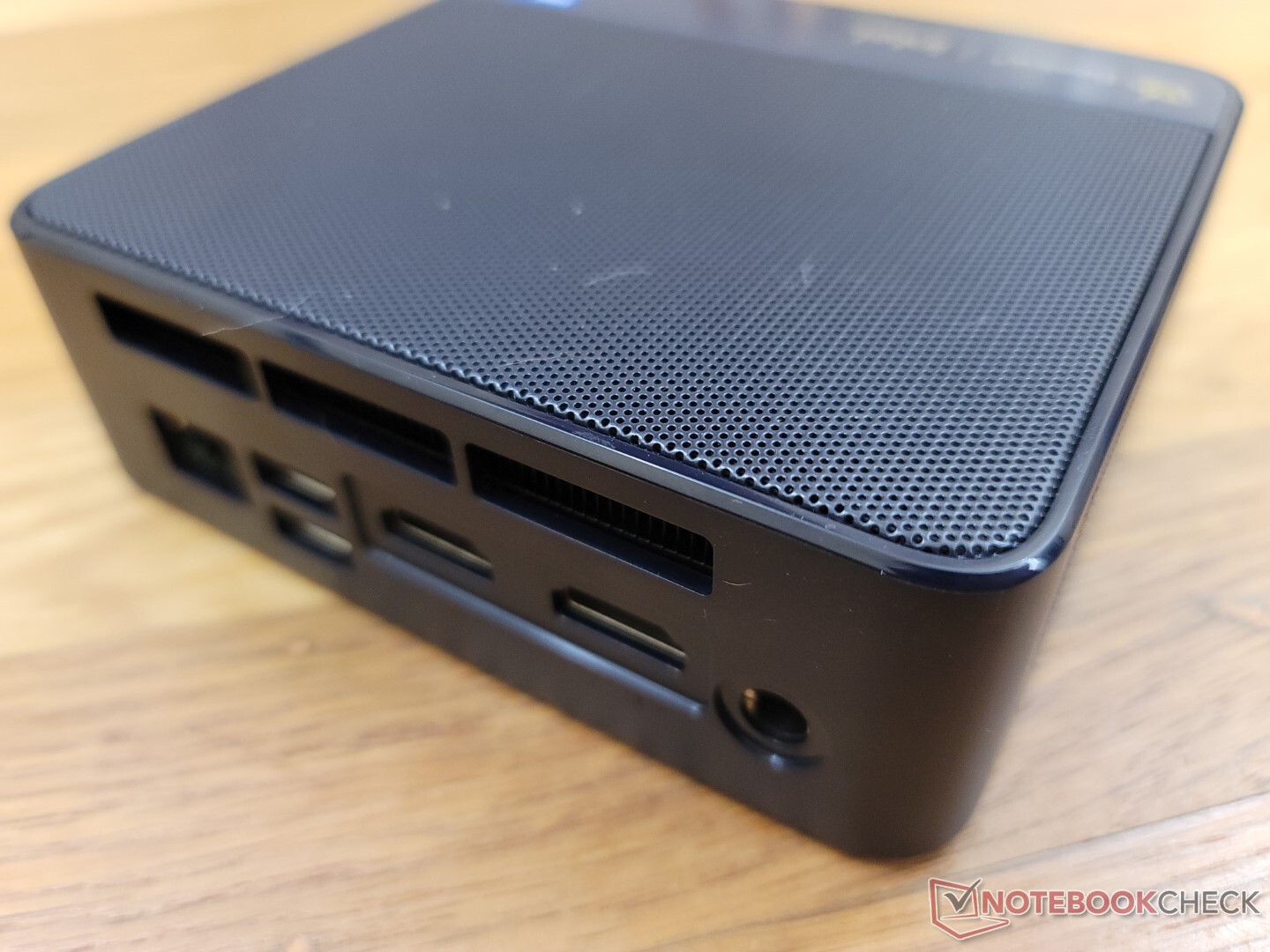

连接性

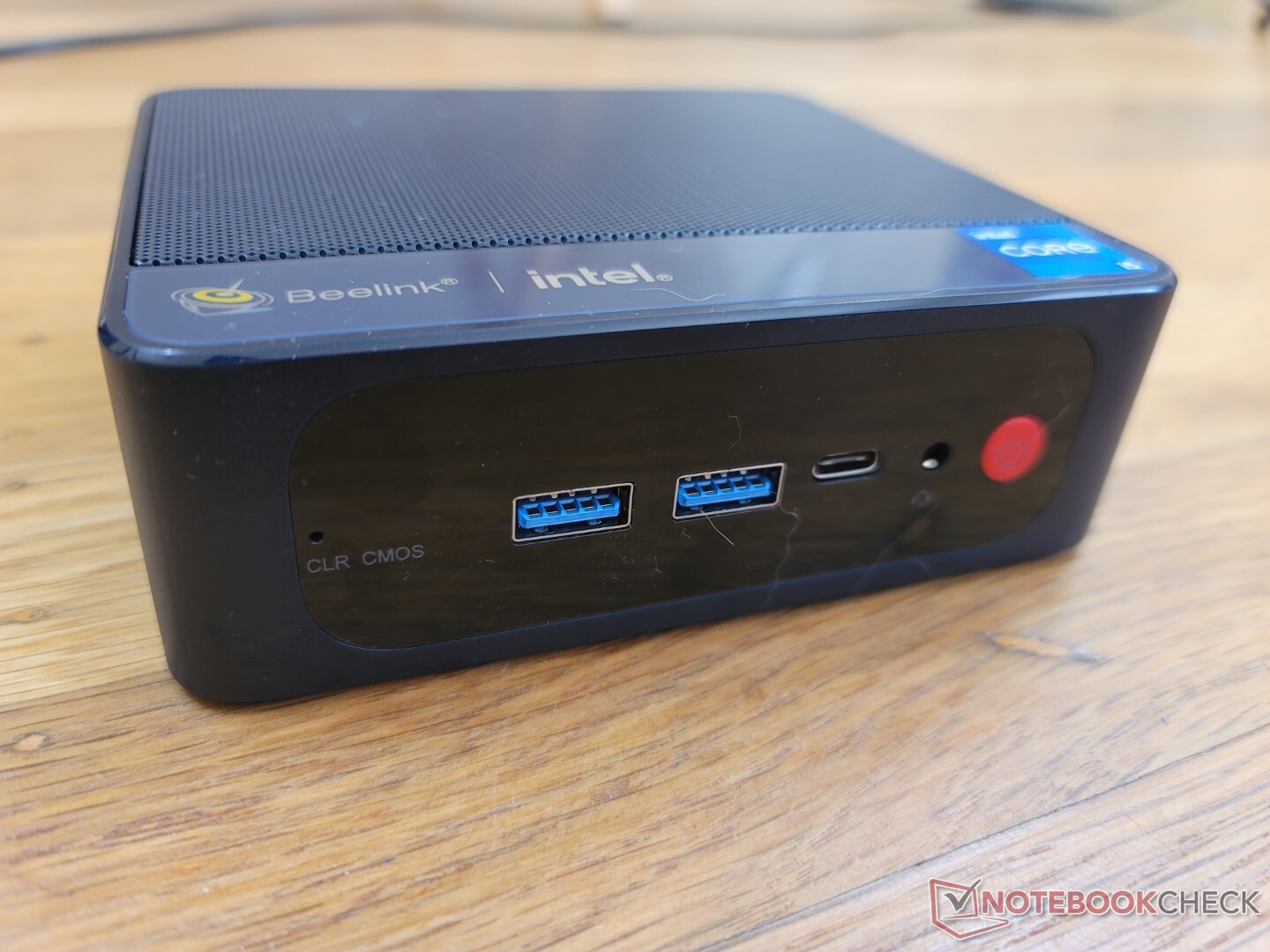

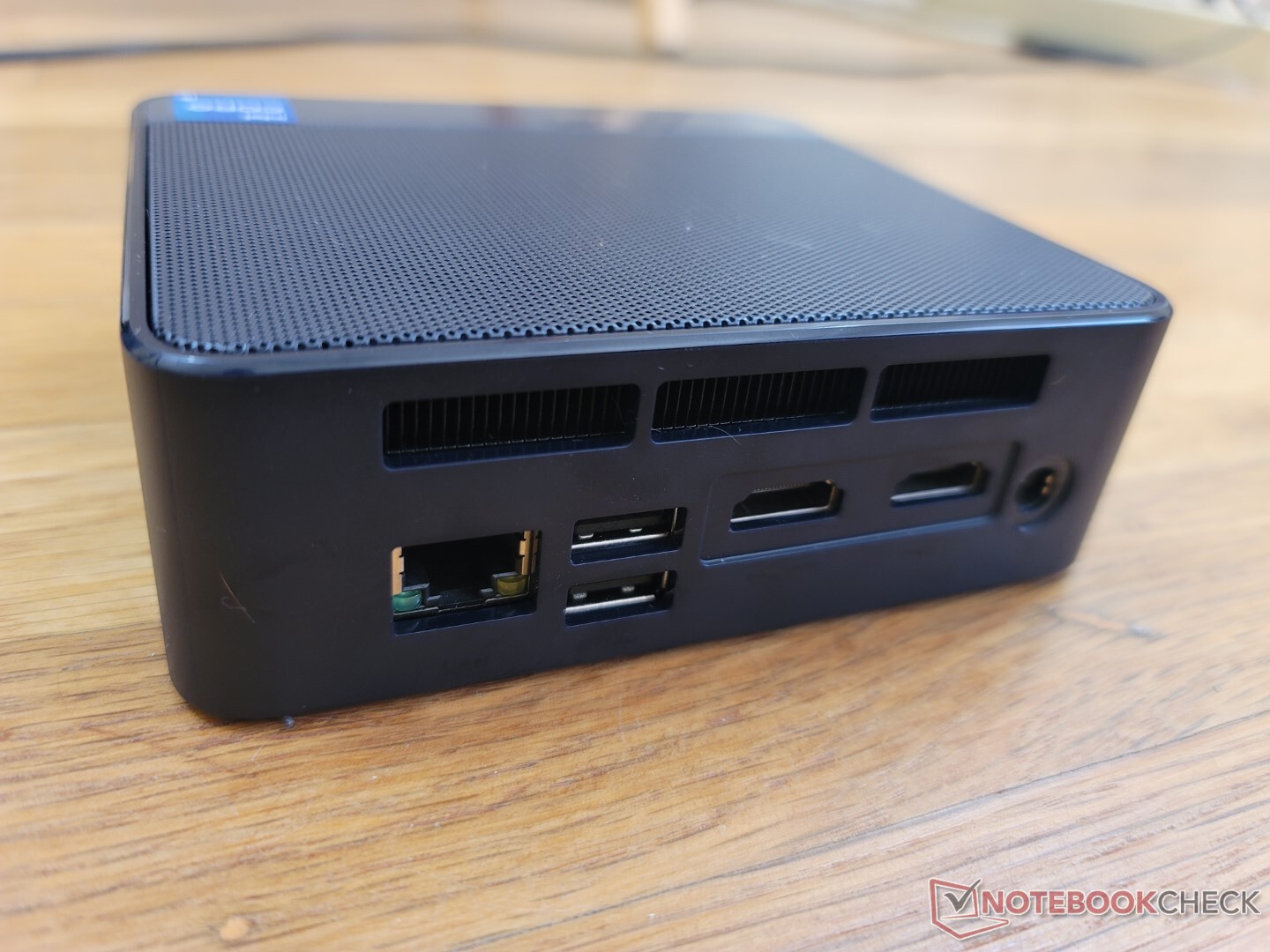

端口选项和定位与SER4相同。请记住，USB-C端口不支持DisplayPort或Power Delivery，因此它只对数据或外部设备的充电有用。我们试图连接USB-C外部显示器和USB-C电源适配器，但没有一个能与SEi11一起使用。

沟通

该设备配备了相对较新的联发科RZ608，用于Wi-Fi 6E和蓝牙5.2连接。不幸的是，该模块并不像通常的英特尔AX解决方案那样可靠或快速。当与我们的6GHz网络配对时，传输率最高只有约750Mbps，而英特尔AX201或AX210的传输率几乎是其两倍。此外，系统在检测我们的6GHz网络时，首先会出现问题。

Networking
iperf3 transmit AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1626 (1386^min - 1677^max) MBit/s
Beelink GTI 11 Intel Wi-Fi 6 AX201	1228 (1149^min - 1287^max) MBit/s
Beelink SER4 MediaTek RZ608	821 (758^min - 891^max) MBit/s
Beelink GTR5 MediaTek RZ608	657 (321^min - 735^max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1524 (1442^min - 1571^max) MBit/s
Beelink GTI 11 Intel Wi-Fi 6 AX201	1086 (810^min - 1317^max) MBit/s
Beelink SER4 MediaTek RZ608	880 (842^min - 900^max) MBit/s
Beelink GTR5 MediaTek RZ608	837 (806^min - 876^max) MBit/s
iperf3 receive AXE11000 6GHz
Beelink SEi11 Pro MediaTek RZ608	743 (453^min - 793^max) MBit/s
iperf3 transmit AXE11000 6GHz
Beelink SEi11 Pro MediaTek RZ608	722 (447^min - 789^max) MBit/s

Beelink SEi11 Pro; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø707 (447-789)

Beelink SEi11 Pro; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø742 (453-793)

维护

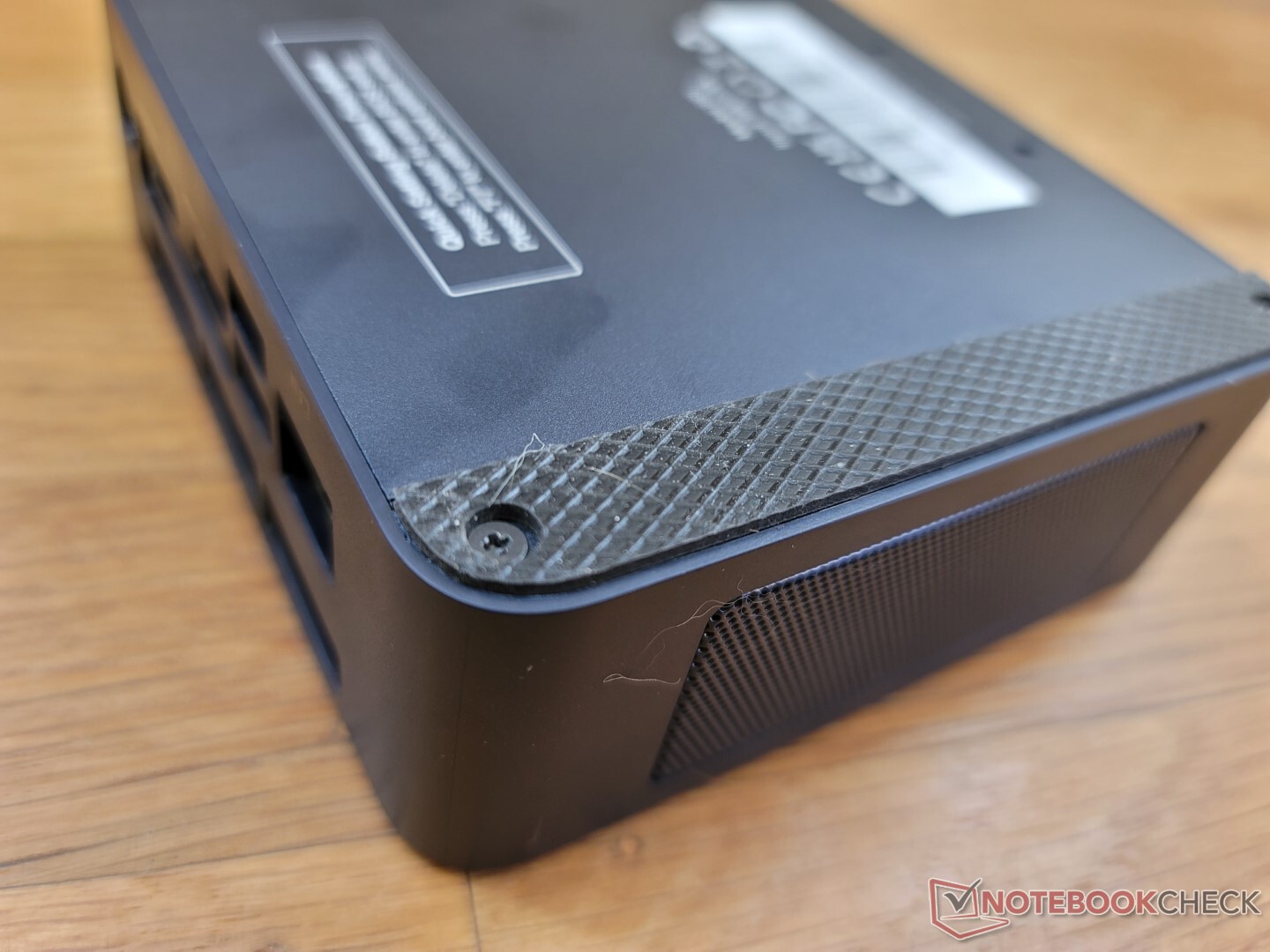

底部面板由4颗飞利浦螺钉固定。然而，要实际拆除它，我们建议安装VESA安装支架，这样它就可以作为一个手柄来拉出平板。

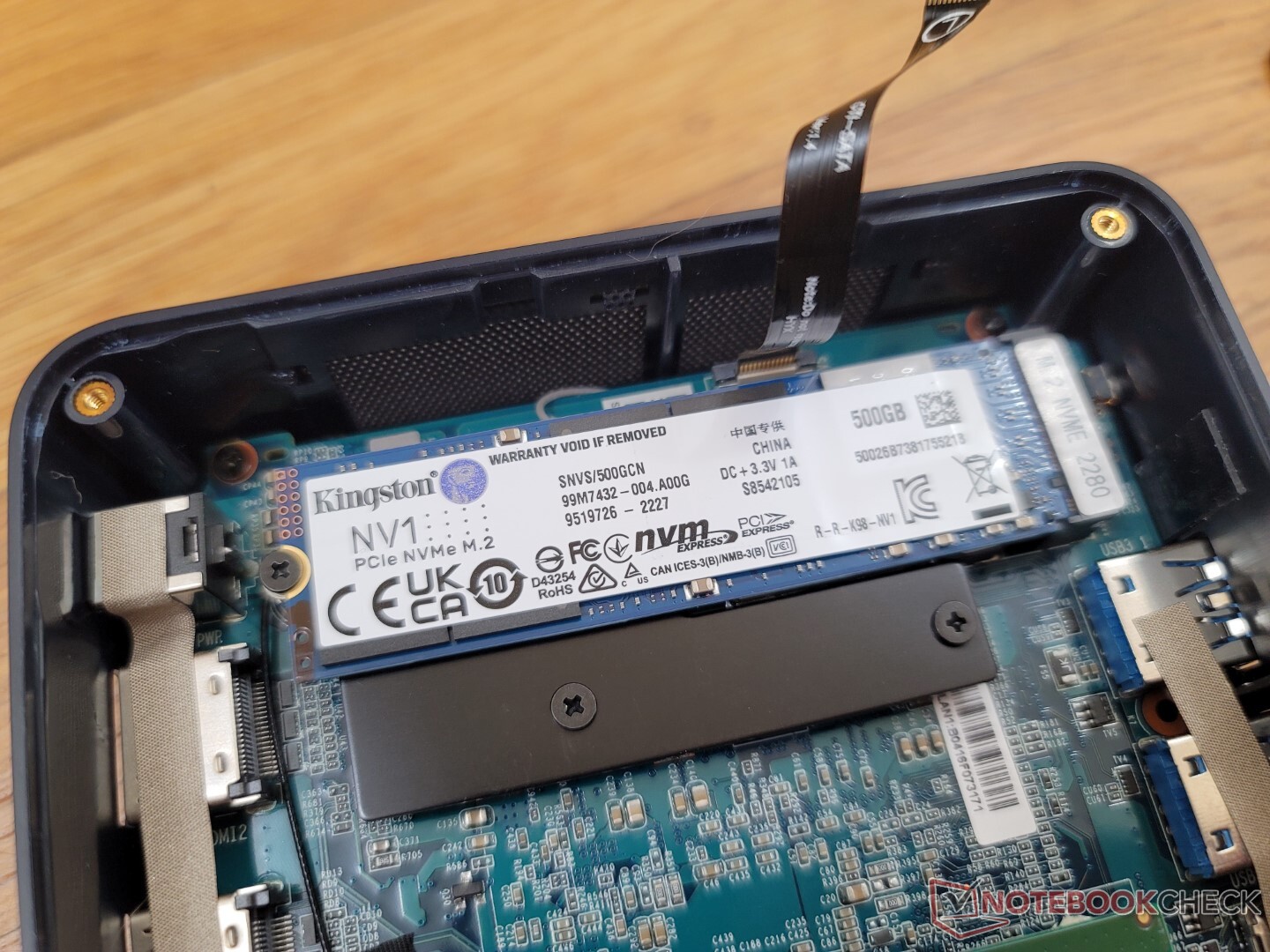

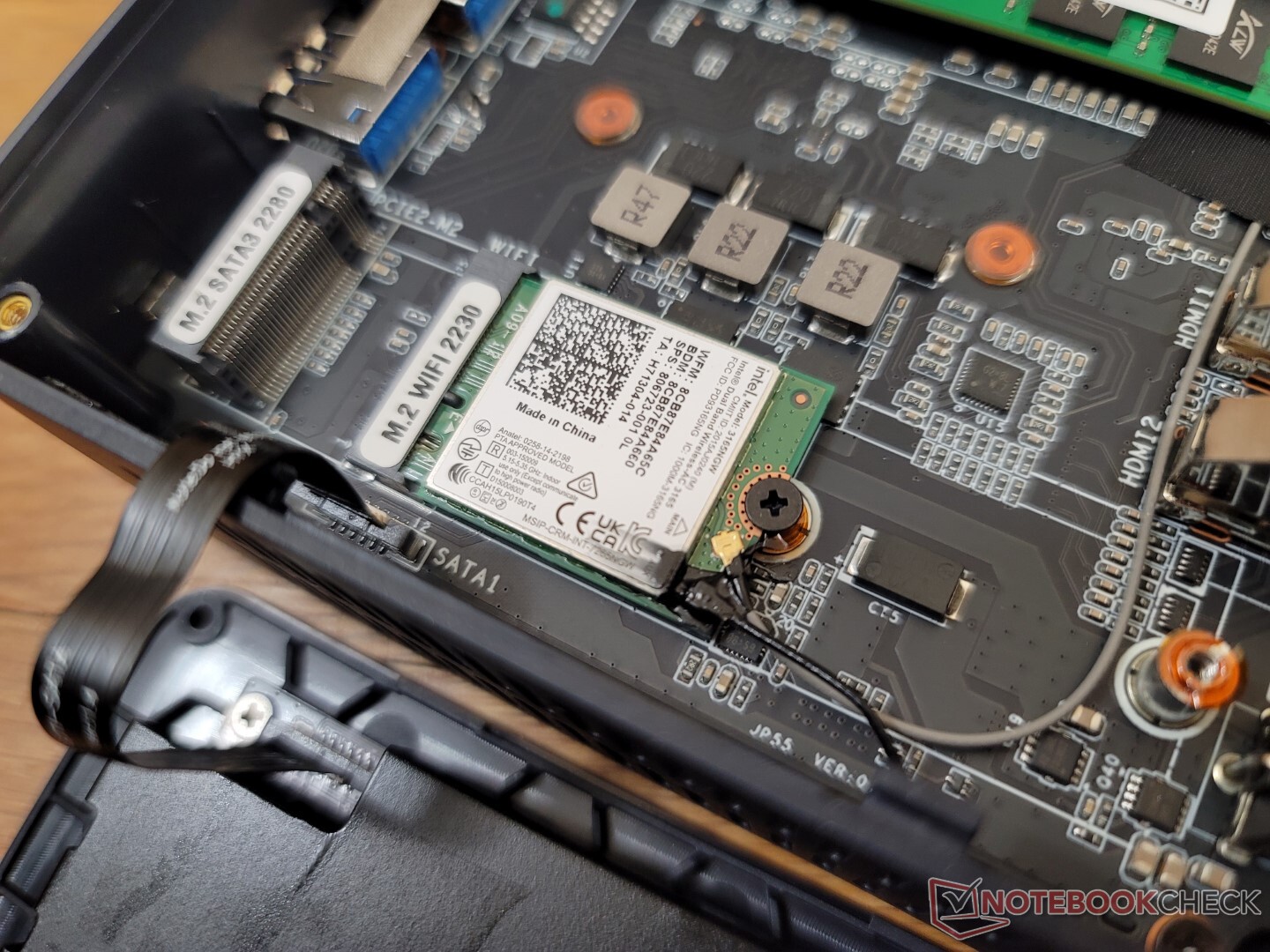

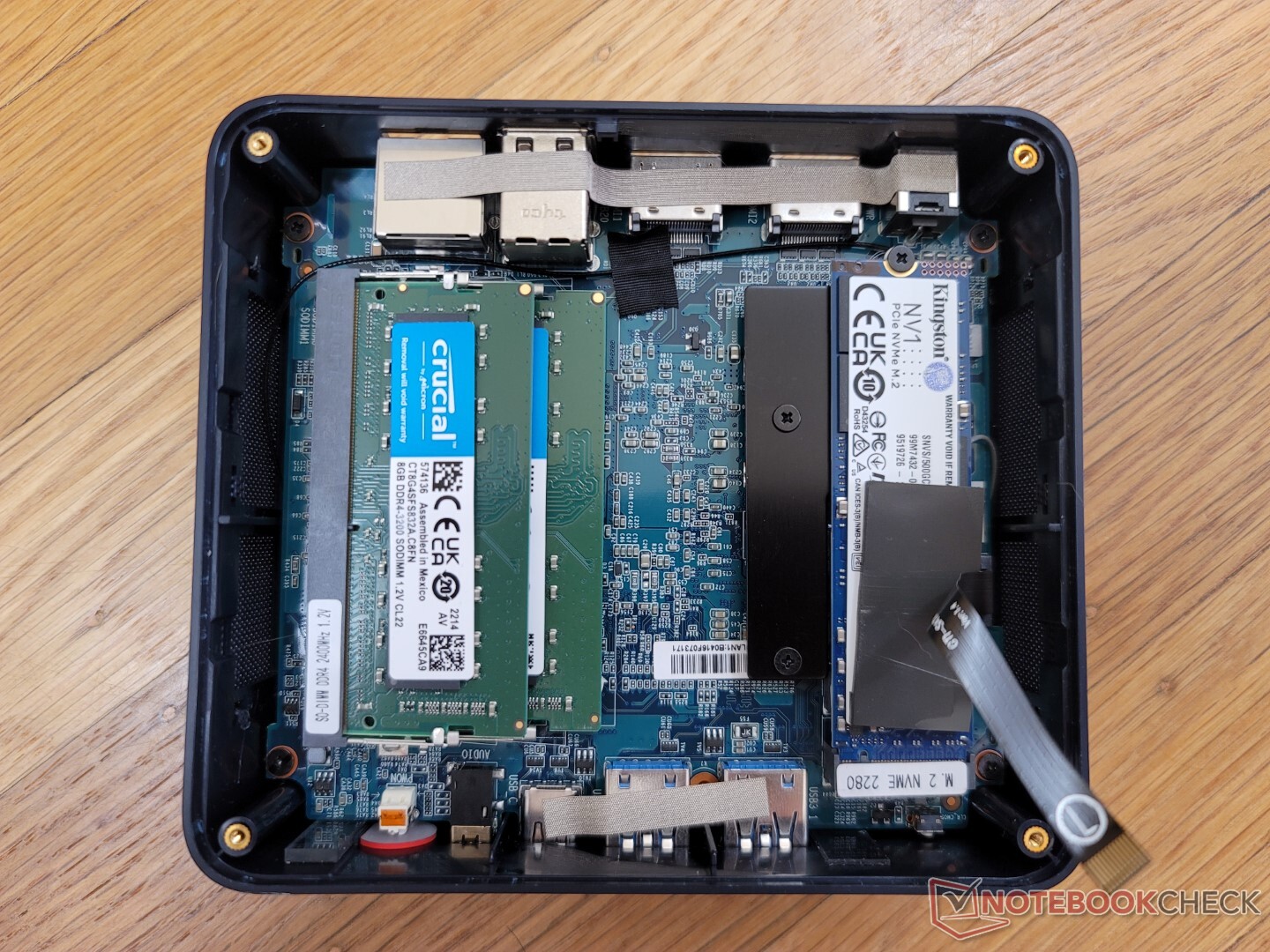

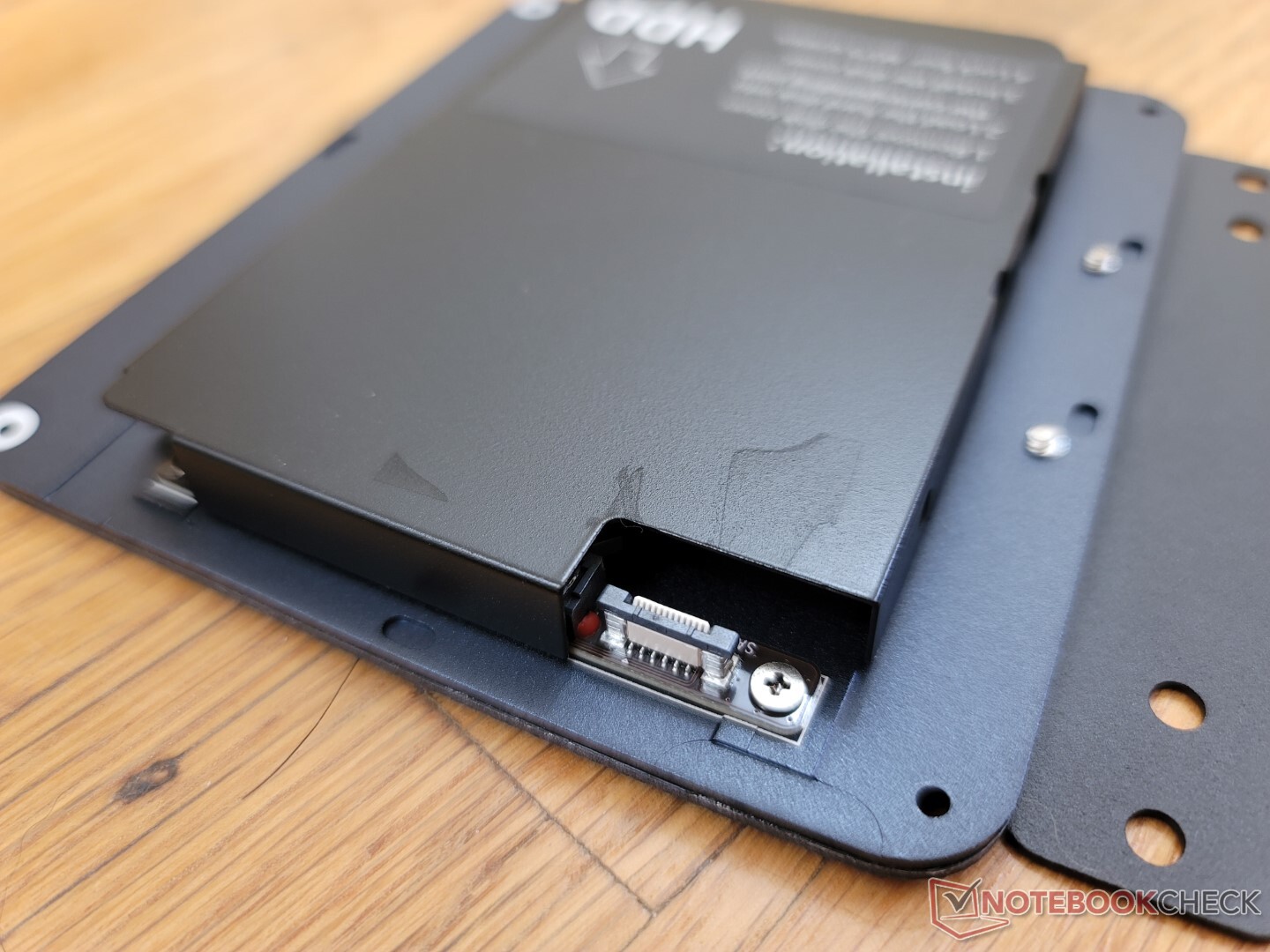

用户可以直接访问M.2 2280 SSD插槽、2.5英寸SATA III插槽、WLAN模块和2个DDR4 SODIMM插槽。

配件和保修

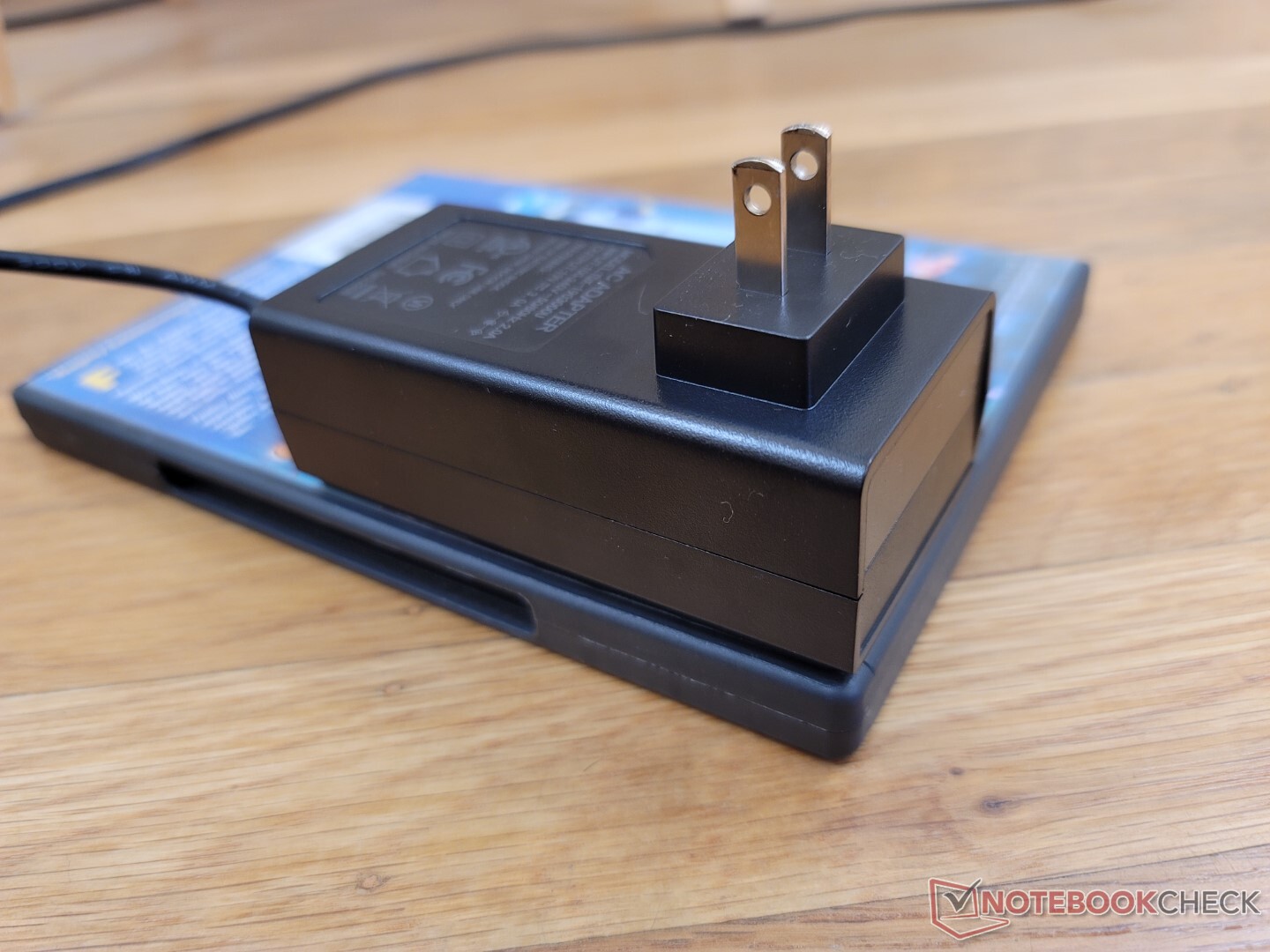

零售包装盒包括2条HDMI线、AC适配器、文件、VESA安装支架和额外的螺丝。如果在美国购买，则适用一年的制造商有限保修。相比之下，英特尔NUC模型通常有三年的标准保修期。

业绩

测试条件

在运行以下任何基准测试之前，我们通过Windows将我们的设备设置为性能模式。没有预装的控制中心式的应用程序来调整处理器的性能。

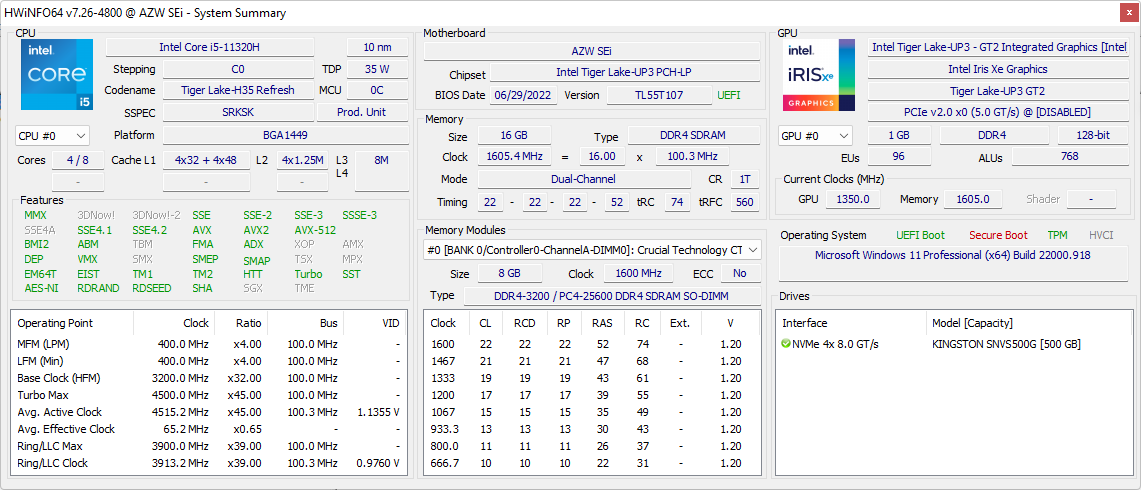

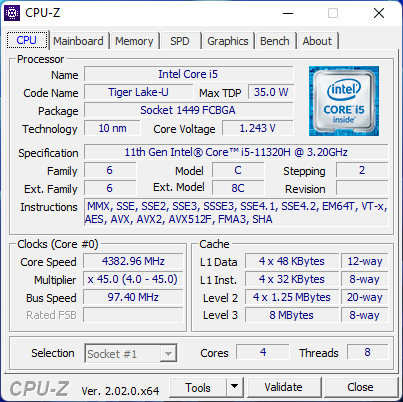

处理器

芯片酷睿i5-11320H是一种不常见的CPU，因为大多数由Tiger Lake-H CPU驱动的其他PC通常利用酷睿i5-11300H代替。就所有意图和目的而言，i5-11320H的性能基本上是相同的。根据我们对Beelink的观察，它在纸面上有轻微的时钟速率差异，但在大多数应用中没有影响。

Cinebench R15 Multi Loop

Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)

Beelink GTR5 AMD Ryzen 9 5900HX: Ø1938 (1889.11-1963.48)

Beelink SER4 AMD Ryzen 7 4800U: Ø1404 (1390.29-1411.03)

Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)

Dell Inspiron 15 Plus Intel Core i5-11400H: Ø1125 (1069.8-1220.78)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
Honor MagicBook 14 2022 Intel Core i5-12500H	4723 Points +114%
Beelink GTR5 AMD Ryzen 9 5900HX	4596 Points +108%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	3965 Points +80%
Beelink SER4 AMD Ryzen 7 4800U	3248 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	2975 Points +35%
Dell Inspiron 15 Plus Intel Core i5-11400H	2936 Points +33%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	2632 Points +19%
Average Intel Core i5-11320H (2208 - 2349, n=4)	2273 Points +3%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	2258 Points +2%
Beelink SEi11 Pro Intel Core i5-11320H	2208 Points
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	2051 Points -7%
Intel NUC11TNKi5 Intel Core i5-1135G7	1974 Points -11%

Cinebench R20 / CPU (Single Core)
Honor MagicBook 14 2022 Intel Core i5-12500H	652 Points +16%
Beelink GTR5 AMD Ryzen 9 5900HX	579 Points +3%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	568 Points +1%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	564 Points +1%
Dell Inspiron 15 Plus Intel Core i5-11400H	562 Points 0%
Beelink SEi11 Pro Intel Core i5-11320H	561 Points
Average Intel Core i5-11320H (557 - 567, n=4)	561 Points 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	534 Points -5%
Intel NUC11TNKi5 Intel Core i5-1135G7	503 Points -10%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	494 Points -12%
Beelink SER4 AMD Ryzen 7 4800U	488 Points -13%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	476 Points -15%

Cinebench R23 / Multi Core
Honor MagicBook 14 2022 Intel Core i5-12500H	12225 Points +114%
Beelink GTR5 AMD Ryzen 9 5900HX	11599 (11445.9^min - 11598.6^max) Points +103%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	10226 (10089.9^min - 10226.3^max) Points +79%
Beelink SER4 AMD Ryzen 7 4800U	8376 (8310.1^min - 8376.05^max) Points +46%
Dell Inspiron 15 Plus Intel Core i5-11400H	7772 Points +36%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	7615 Points +33%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	6852 Points +20%
Average Intel Core i5-11320H (5720 - 6051, n=4)	5869 Points +3%
Beelink SEi11 Pro Intel Core i5-11320H	5720 (5681.08^min - 5720.38^max) Points
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	5604 Points -2%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	5240 Points -8%
Intel NUC11TNKi5 Intel Core i5-1135G7	5098 (4930.91^min - 5098.17^max) Points -11%

Cinebench R23 / Single Core
Honor MagicBook 14 2022 Intel Core i5-12500H	1697 Points +16%
Beelink GTR5 AMD Ryzen 9 5900HX	1497 Points +2%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	1487 Points +1%
Beelink SEi11 Pro Intel Core i5-11320H	1467 Points
Dell Inspiron 15 Plus Intel Core i5-11400H	1459 Points -1%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	1458 Points -1%
Average Intel Core i5-11320H (1341 - 1467, n=4)	1432 Points -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1376 Points -6%
Intel NUC11TNKi5 Intel Core i5-1135G7	1369 Points -7%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	1337 Points -9%
Beelink SER4 AMD Ryzen 7 4800U	1240 Points -15%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	1216 Points -17%

Cinebench R15 / CPU Multi 64Bit
Honor MagicBook 14 2022 Intel Core i5-12500H	2094 (1576.35^min - 2094.02^max) Points +144%
Honor MagicBook 14 2022 Intel Core i5-12500H	2091 (1748.1^min - 2091.07^max) Points +144%
Beelink GTR5 AMD Ryzen 9 5900HX	1963 (1889.11^min - 1963.48^max) Points +129%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	1626 (1594.77^min - 1626.41^max) Points +90%
Beelink SER4 AMD Ryzen 7 4800U	1411 (1390.29^min - 1411.03^max) Points +65%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1265 Points +48%
Dell Inspiron 15 Plus Intel Core i5-11400H	1221 (1069.8^min - 1220.78^max) Points +42%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	1208 Points +41%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	960 (926.91^min - 959.58^max) Points +12%
Average Intel Core i5-11320H (857 - 1019, n=4)	922 Points +8%
Beelink SEi11 Pro Intel Core i5-11320H	857 (845.25^min - 856.84^max) Points
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	832 Points -3%
Intel NUC11TNKi5 Intel Core i5-1135G7	794 (772.57^min - 794.38^max) Points -7%

Cinebench R15 / CPU Single 64Bit
Beelink GTR5 AMD Ryzen 9 5900HX	240 Points +12%
Honor MagicBook 14 2022 Intel Core i5-12500H	240 Points +12%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	231 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	223 Points +4%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	221 Points +3%
Dell Inspiron 15 Plus Intel Core i5-11400H	219 Points +2%
Beelink SEi11 Pro Intel Core i5-11320H	214 Points
Average Intel Core i5-11320H (212 - 215, n=4)	214 Points 0%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	209 Points -2%
Intel NUC11TNKi5 Intel Core i5-1135G7	201 Points -6%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	199 Points -7%
Beelink SER4 AMD Ryzen 7 4800U	187 Points -13%

Blender / v2.79 BMW27 CPU
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	759 Seconds * -40%
Intel NUC11TNKi5 Intel Core i5-1135G7	600 Seconds * -11%
Beelink SEi11 Pro Intel Core i5-11320H	541 Seconds *
Average Intel Core i5-11320H (507 - 543, n=4)	527 Seconds * +3%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	481 Seconds * +11%
Dell Inspiron 15 Plus Intel Core i5-11400H	419 Seconds * +23%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	411 Seconds * +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	399 Seconds * +26%
Beelink SER4 AMD Ryzen 7 4800U	340 Seconds * +37%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	306 Seconds * +43%
Honor MagicBook 14 2022 Intel Core i5-12500H	264 Seconds * +51%
Beelink GTR5 AMD Ryzen 9 5900HX	262 Seconds * +52%

7-Zip 18.03 / 7z b 4
Beelink GTR5 AMD Ryzen 9 5900HX	56761 MIPS +129%
Honor MagicBook 14 2022 Intel Core i5-12500H	51818 MIPS +109%
Beelink SER4 AMD Ryzen 7 4800U	40117 MIPS +62%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	39886 MIPS +61%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	39207 MIPS +58%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	36430 MIPS +47%
Dell Inspiron 15 Plus Intel Core i5-11400H	27615 MIPS +11%
Average Intel Core i5-11320H (24718 - 26858, n=4)	25274 MIPS +2%
Beelink SEi11 Pro Intel Core i5-11320H	24798 MIPS
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	24721 MIPS 0%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	24006 MIPS -3%
Intel NUC11TNKi5 Intel Core i5-1135G7	23280 MIPS -6%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR5 AMD Ryzen 9 5900HX	5791 MIPS +13%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	5466 MIPS +7%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	5310 MIPS +4%
Honor MagicBook 14 2022 Intel Core i5-12500H	5260 MIPS +3%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	5255 MIPS +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	5249 MIPS +3%
Beelink SEi11 Pro Intel Core i5-11320H	5105 MIPS
Dell Inspiron 15 Plus Intel Core i5-11400H	5094 MIPS 0%
Average Intel Core i5-11320H (4813 - 5119, n=4)	4996 MIPS -2%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	4825 MIPS -5%
Intel NUC11TNKi5 Intel Core i5-1135G7	4738 MIPS -7%
Beelink SER4 AMD Ryzen 7 4800U	4603 MIPS -10%

Geekbench 5.5 / Multi-Core
Honor MagicBook 14 2022 Intel Core i5-12500H	10828 Points +118%
Beelink GTR5 AMD Ryzen 9 5900HX	8147 Points +64%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	6586 Points +33%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	6403 Points +29%
Beelink SER4 AMD Ryzen 7 4800U	6375 Points +29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	6175 Points +25%
Average Intel Core i5-11320H (4927 - 5955, n=4)	5375 Points +8%
Beelink SEi11 Pro Intel Core i5-11320H	4959 Points
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	4851 Points -2%
Dell Inspiron 15 Plus Intel Core i5-11400H	4679 Points -6%
Intel NUC11TNKi5 Intel Core i5-1135G7	4593 Points -7%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	4509 Points -9%

Geekbench 5.5 / Single-Core
Honor MagicBook 14 2022 Intel Core i5-12500H	1685 Points +11%
Beelink GTR5 AMD Ryzen 9 5900HX	1560 Points +3%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	1543 Points +2%
Beelink SEi11 Pro Intel Core i5-11320H	1518 Points
Average Intel Core i5-11320H (1453 - 1523, n=4)	1497 Points -1%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	1446 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1430 Points -6%
Intel NUC11TNKi5 Intel Core i5-1135G7	1396 Points -8%
Dell Inspiron 15 Plus Intel Core i5-11400H	1396 Points -8%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	1394 Points -8%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	1296 Points -15%
Beelink SER4 AMD Ryzen 7 4800U	1192 Points -21%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink GTR5 AMD Ryzen 9 5900HX	14.8 fps +103%
Honor MagicBook 14 2022 Intel Core i5-12500H	14.3 fps +96%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	11.5 fps +58%
Beelink SER4 AMD Ryzen 7 4800U	10.4 fps +43%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	10.1 fps +39%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	9.82 fps +35%
Dell Inspiron 15 Plus Intel Core i5-11400H	8.48 fps +16%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	8.05 fps +11%
Average Intel Core i5-11320H (7.25 - 7.91, n=4)	7.58 fps +4%
Beelink SEi11 Pro Intel Core i5-11320H	7.28 fps
Intel NUC11TNKi5 Intel Core i5-1135G7	6.63 fps -9%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	4.74 fps -35%

LibreOffice / 20 Documents To PDF
Beelink SER4 AMD Ryzen 7 4800U	62.6 s * -27%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	58.4 s * -19%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	55.8 s * -14%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	53.4 s * -9%
Dell Inspiron 15 Plus Intel Core i5-11400H	52.3 s * -7%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	51.8 s * -5%
Intel NUC11TNKi5 Intel Core i5-1135G7	51.3 s * -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	51.1 s * -4%
Beelink GTR5 AMD Ryzen 9 5900HX	49.7 s * -1%
Beelink SEi11 Pro Intel Core i5-11320H	49.1 s *
Average Intel Core i5-11320H (44 - 50, n=4)	48 s * +2%
Honor MagicBook 14 2022 Intel Core i5-12500H	41.6 s * +15%

R Benchmark 2.5 / Overall mean
Intel NUC11TNKi5 Intel Core i5-1135G7	0.622 sec * -7%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	0.612 sec * -5%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	0.609 sec * -5%
Dell Inspiron 15 Plus Intel Core i5-11400H	0.605 sec * -4%
Average Intel Core i5-11320H (0.581 - 0.622, n=4)	0.596 sec * -3%
Beelink SEi11 Pro Intel Core i5-11320H	0.581 sec *
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	0.58 sec * -0%
Beelink SER4 AMD Ryzen 7 4800U	0.576 sec * +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	0.537 sec * +8%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	0.532 sec * +8%
Honor MagicBook 14 2022 Intel Core i5-12500H	0.4969 sec * +14%
Beelink GTR5 AMD Ryzen 9 5900HX	0.48 sec * +17%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

857 Points

Cinebench R15 OpenGL 64Bit

99 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

214 Points

Help

... in comparison

Performance Rating
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	96.4 pt
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	70.5 pt
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	54.1 pt
Average Intel Core i5-11320H	52.3 pt
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	51.4 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46.6 pt

AIDA64 / FP32 Ray-Trace
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	13987 KRay/s +98%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +43%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	7627 KRay/s +8%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	7047 KRay/s
Average Intel Core i5-11320H (6369 - 7489, n=4)	6970 KRay/s -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s -5%

AIDA64 / FPU Julia
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	88153 Points +194%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points +88%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31613 Points +5%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	29972 Points
Average Intel Core i5-11320H (27391 - 31637, n=4)	29750 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points -7%

AIDA64 / CPU SHA3
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	3026 MB/s +52%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	2171 MB/s +9%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	1992 MB/s
Average Intel Core i5-11320H (1847 - 2099, n=4)	1979 MB/s -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s -7%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s -8%

AIDA64 / CPU Queen
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	97835 Points +103%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +63%
Average Intel Core i5-11320H (43565 - 52477, n=4)	48247 Points 0%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	48212 Points
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46657 Points -3%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points -3%

AIDA64 / FPU SinJulia
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	12402 Points +160%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +147%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	4771 Points
Average Intel Core i5-11320H (4381 - 5011, n=4)	4747 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points -7%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	4442 Points -7%

AIDA64 / FPU Mandel
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	48563 Points +170%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points +59%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	18635 Points +4%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	17987 Points
Average Intel Core i5-11320H (16659 - 18770, n=4)	17842 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points -6%

AIDA64 / CPU AES
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	119784 MB/s +74%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	68683 MB/s
Average Intel Core i5-11320H (59851 - 76500, n=4)	68407 MB/s 0%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	67937 MB/s -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s -3%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s -20%

AIDA64 / CPU ZLib
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	769 MB/s +109%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s +61%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s +1%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	370 MB/s +1%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	368 MB/s
Average Intel Core i5-11320H (330 - 410, n=4)	368 MB/s 0%

AIDA64 / FP64 Ray-Trace
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	7395 KRay/s +94%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +46%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	3864 KRay/s +1%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	3811 KRay/s
Average Intel Core i5-11320H (3536 - 4021, n=4)	3782 KRay/s -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s -5%

AIDA64 / CPU PhotoWorxx
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31708 MPixel/s +22%
Average Intel Core i5-11320H (25964 - 36644, n=4)	29806 MPixel/s +15%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	25964 MPixel/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s -7%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	20277 MPixel/s -22%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s -35%

系统性能

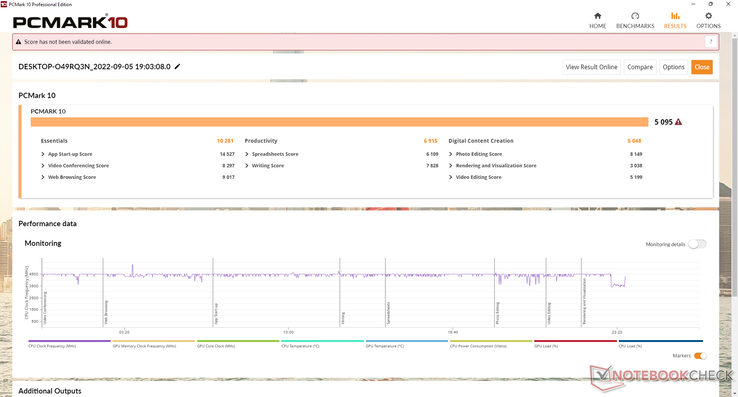

PCMark 10 / Score
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	6504 Points +28%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5257 Points +3%
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (5095 - 5302, n=3)	5176 Points +2%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5095 Points
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	4952 Points -3%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points -11%

PCMark 10 / Essentials
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	10772 Points +5%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	10281 Points
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (9556 - 10558, n=3)	10132 Points -1%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	9893 Points -4%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	9188 Points -11%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points -12%

PCMark 10 / Productivity
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	9875 Points +43%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	7916 Points +14%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	6915 Points
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (6832 - 6963, n=3)	6903 Points 0%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	6400 Points -7%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points -10%

PCMark 10 / Digital Content Creation
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	7020 Points +39%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5422 Points +7%
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (5048 - 5615, n=3)	5388 Points +7%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	5206 Points +3%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5048 Points
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4474 Points -11%

CrossMark / Overall
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1501 Points +12%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1335 Points
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (1300 - 1371, n=3)	1335 Points 0%

CrossMark / Productivity
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1495 Points +5%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1419 Points
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (1376 - 1456, n=3)	1417 Points 0%

CrossMark / Creativity
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1589 Points +27%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1256 Points
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (1241 - 1256, n=3)	1251 Points 0%

CrossMark / Responsiveness
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (1260 - 1494, n=3)	1363 Points +2%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1336 Points
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1281 Points -4%

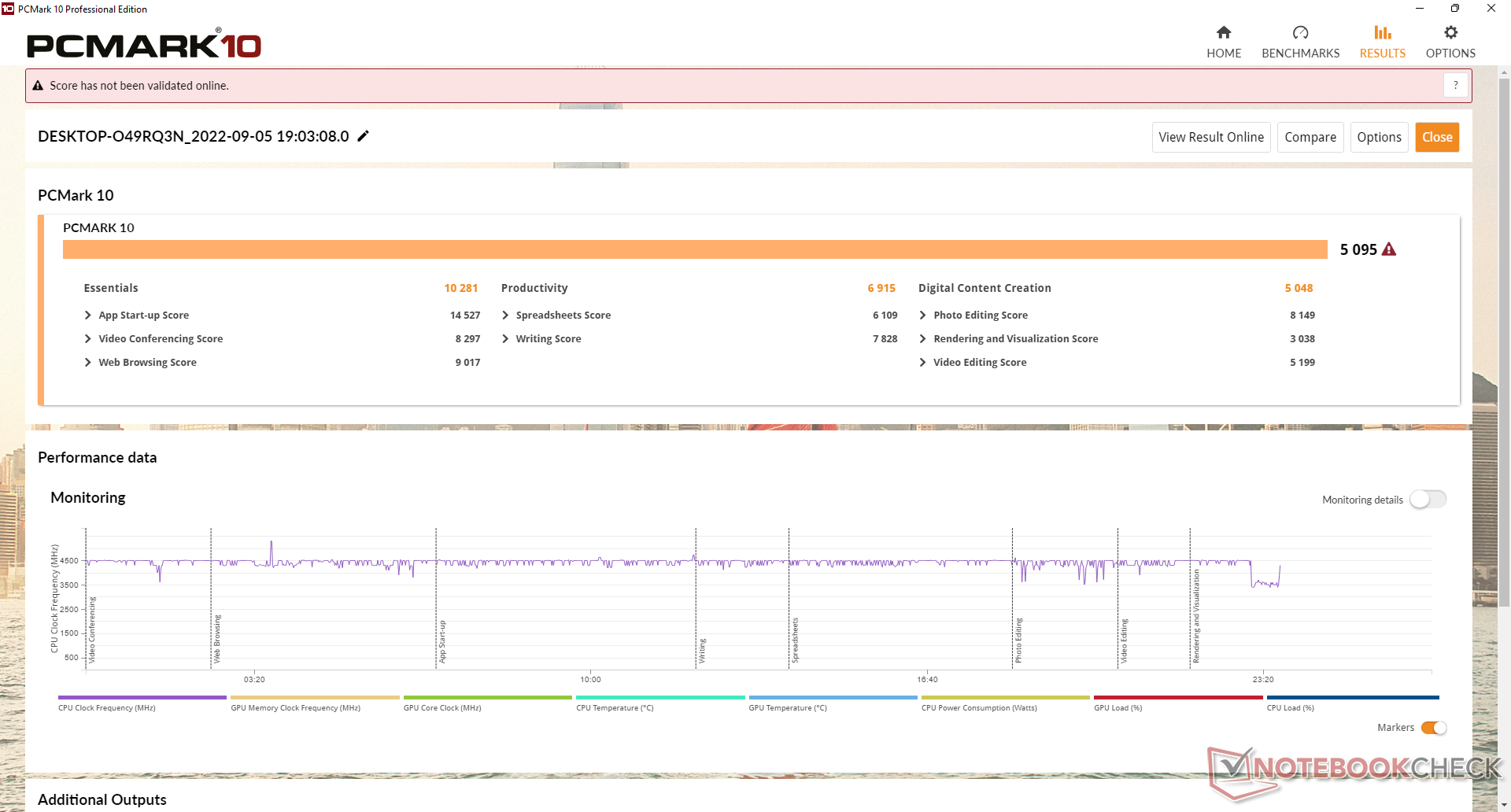

PCMark 10 Score		5095 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average Intel Core i5-11320H (41106 - 55961, n=4)	46757 MB/s +14%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	42079 MB/s +2%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	41106 MB/s
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	40994 MB/s 0%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s -10%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -44%

AIDA64 / Memory Read
Average Intel Core i5-11320H (46516 - 52799, n=4)	48181 MB/s +4%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	47281 MB/s +2%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46916 MB/s +1%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46516 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s -46%

AIDA64 / Memory Write
Average Intel Core i5-11320H (46760 - 63323, n=4)	51804 MB/s +11%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46760 MB/s
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46366 MB/s -1%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s -6%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	42270 MB/s -10%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -50%

AIDA64 / Memory Latency
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * -17%
Average Intel Core i5-11320H (77.6 - 114.1, n=4)	92.1 ns * -14%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * -8%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	81 ns *
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	80 ns * +1%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	68.3 ns * +16%

* ... smaller is better

DPC延时

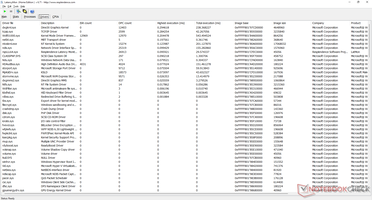

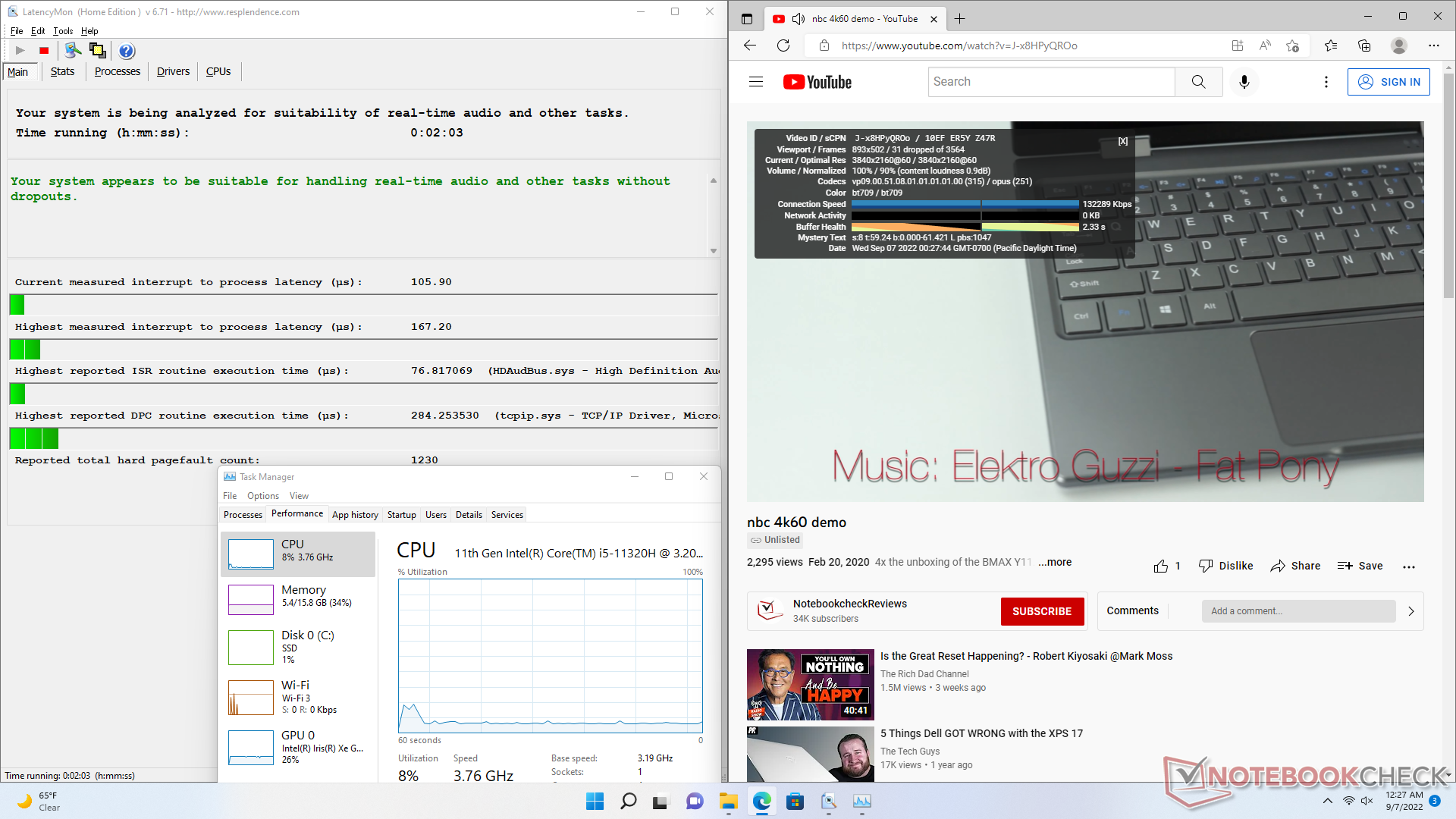

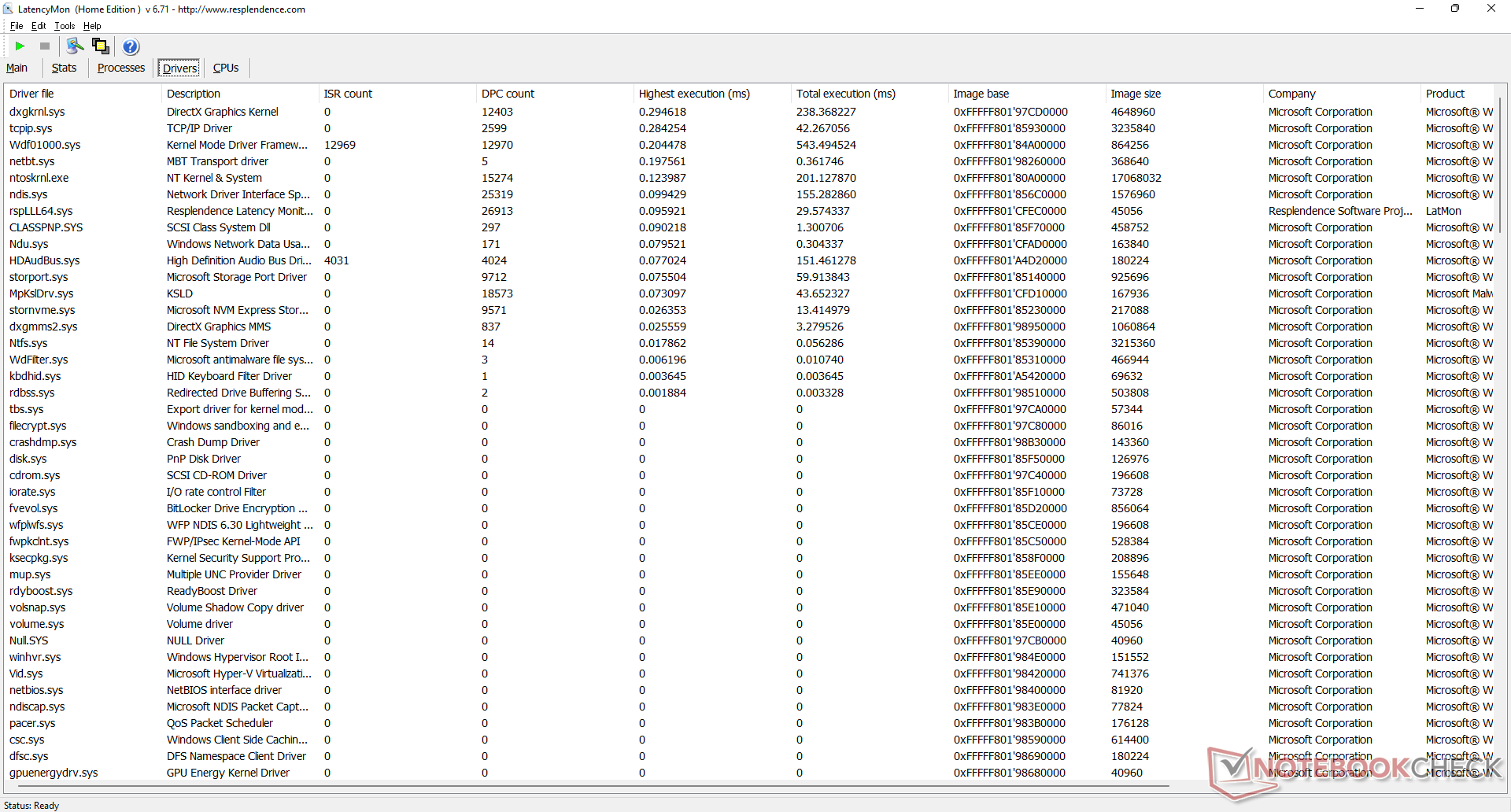

LatencyMon显示在我们的主页上打开多个浏览器标签或运行Prime95压力时没有DPC问题。不幸的是，在我们长达1分钟的视频测试中，4K播放在60FPS下是不完美的，有31个丢帧。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * -214%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	336 μs * -101%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	278.2 μs * -66%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	167.2 μs *
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	116 μs * +31%

* ... smaller is better

存储设备

SEi11 Pro配备了相同的金士顿NV1 SBVS500GCNM.2固态硬盘，与GTR5上的装备了与GTR5相同的金士顿NV1 SBVS500GCN M.2固态硬盘。.这是一款中端PCIe3 x4硬盘，连续读取率约为2300 MB/s，而三星PM981a的读取率超过3000 MB/s。

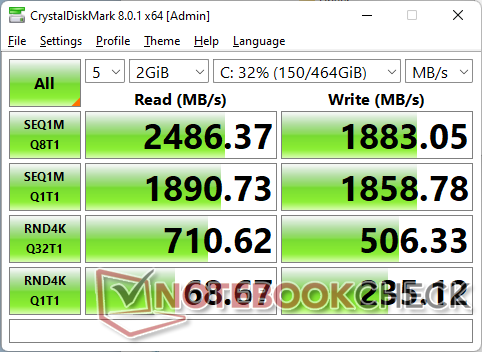

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV1 SNVS/500GCN

CDM 5/6 Read Seq Q32T1: 2466 MB/s

CDM 5/6 Write Seq Q32T1: 1301 MB/s

CDM 5/6 Read 4K Q32T1: 708.1 MB/s

CDM 5/6 Write 4K Q32T1: 509.5 MB/s

CDM 5 Read Seq: 1883 MB/s

CDM 5 Write Seq: 1441 MB/s

CDM 5/6 Read 4K: 68.01 MB/s

CDM 5/6 Write 4K: 233.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink GTI 11 Kingston SA2000M8500G	92.8 pt
Beelink GTR5 Kingston NV1 SNVS/500GCN	80.9 pt
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	80.4 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	64.2 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	25.5 pt

DiskSpd
seq read
Beelink GTR5 Kingston NV1 SNVS/500GCN	1986 (1983.26^min - 1986.21^max) MB/s +21%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1638 (1628.34^min - 1637.59^max) MB/s
Beelink GTI 11 Kingston SA2000M8500G	1392 (1389.99^min - 1391.88^max) MB/s -15%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s -16%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s -69%
seq write
Beelink GTI 11 Kingston SA2000M8500G	1810 (1639.55^min - 1810.32^max) MB/s +9%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1766 (564^min - 1766.22^max) MB/s +6%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1661 (336.85^min - 1661.33^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s -42%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s -72%
seq q8 t1 read
Beelink GTR5 Kingston NV1 SNVS/500GCN	2511 (2320.5^min - 2511.12^max) MB/s +6%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2374 (2218.75^min - 2374.19^max) MB/s
Beelink GTI 11 Kingston SA2000M8500G	1699 (1607.68^min - 1699.07^max) MB/s -28%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s -34%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s -76%
seq q8 t1 write
Beelink GTI 11 Kingston SA2000M8500G	1873 (1713.16^min - 1872.55^max) MB/s +31%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1797 (679.16^min - 1796.66^max) MB/s +25%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1433 (67.32^min - 1432.98^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s -32%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s -65%
4k q1 t1 read
Beelink GTI 11 Kingston SA2000M8500G	66 (65.66^min - 66.02^max) MB/s +31%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s +24%
Beelink GTR5 Kingston NV1 SNVS/500GCN	51.1 (45.32^min - 51.14^max) MB/s +1%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	50.5 (48.13^min - 50.48^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -57%
4k q1 t1 write
Beelink GTI 11 Kingston SA2000M8500G	223 (200.71^min - 223.16^max) MB/s +28%
Beelink GTR5 Kingston NV1 SNVS/500GCN	203 (155.48^min - 203.38^max) MB/s +17%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s +15%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	173.6 (113.3^min - 173.62^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -73%
4k q32 t16 read
Beelink GTI 11 Kingston SA2000M8500G	813 (810.85^min - 813.32^max) MB/s +9%
Beelink GTR5 Kingston NV1 SNVS/500GCN	747 (741.87^min - 747.14^max) MB/s 0%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	745 (742.2^min - 744.53^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s -54%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s -62%
4k q32 t16 write
Beelink GTI 11 Kingston SA2000M8500G	1089 (1047.09^min - 1088.53^max) MB/s +49%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s +13%
Beelink GTR5 Kingston NV1 SNVS/500GCN	801 (384.08^min - 801.12^max) MB/s +9%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	733 (332^min - 733.18^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s -55%

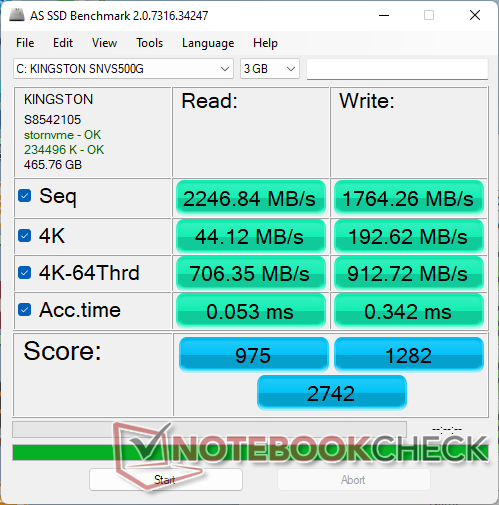

AS SSD
Score Total
Beelink GTI 11 Kingston SA2000M8500G	3013 Points +10%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2742 Points
Beelink GTR5 Kingston NV1 SNVS/500GCN	2544 Points -7%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points -33%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points -69%
Score Read
Beelink GTI 11 Kingston SA2000M8500G	1001 Points +3%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	975 Points
Beelink GTR5 Kingston NV1 SNVS/500GCN	966 Points -1%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points -44%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points -69%
Score Write
Beelink GTI 11 Kingston SA2000M8500G	1486 Points +16%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1282 Points
Beelink GTR5 Kingston NV1 SNVS/500GCN	1103 Points -14%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points -20%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points -71%
Seq Read
Beelink GTR5 Kingston NV1 SNVS/500GCN	2289 MB/s +2%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2246.84 MB/s
Beelink GTI 11 Kingston SA2000M8500G	2006 MB/s -11%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s -26%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s -77%
Seq Write
Beelink GTI 11 Kingston SA2000M8500G	1904 MB/s +8%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1764.26 MB/s
Beelink GTR5 Kingston NV1 SNVS/500GCN	1703 MB/s -3%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s -51%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s -73%
4K Read
Beelink GTI 11 Kingston SA2000M8500G	60.9 MB/s +38%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s +28%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	44.12 MB/s
Beelink GTR5 Kingston NV1 SNVS/500GCN	43.84 MB/s -1%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s -54%
4K Write
Beelink GTI 11 Kingston SA2000M8500G	203.7 MB/s +6%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	192.62 MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s -15%
Beelink GTR5 Kingston NV1 SNVS/500GCN	137.3 MB/s -29%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -78%
4K-64 Read
Beelink GTI 11 Kingston SA2000M8500G	740 MB/s +5%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	706.35 MB/s
Beelink GTR5 Kingston NV1 SNVS/500GCN	693 MB/s -2%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s -54%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s -67%
4K-64 Write
Beelink GTI 11 Kingston SA2000M8500G	1092 MB/s +20%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	912.72 MB/s
Beelink GTR5 Kingston NV1 SNVS/500GCN	795 MB/s -13%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s -15%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s -69%
Access Time Read
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -134%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -60%
Beelink GTR5 Kingston NV1 SNVS/500GCN	0.054 ms * -2%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.053 ms *
Beelink GTI 11 Kingston SA2000M8500G	0.047 ms * +11%
Access Time Write
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.342 ms *
Beelink GTR5 Kingston NV1 SNVS/500GCN	0.332 ms * +3%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * +21%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * +60%
Beelink GTI 11 Kingston SA2000M8500G	0.083 ms * +76%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SEi11 Pro: Ø2297 (2130.85-2361.6)

GPU性能

集成显卡的性能是我们所期望的，相对于其他具有相同性能的PC而言 Iris Xe 96 EUsGPU。请确保为SEi11配置双通道内存，否则图形性能会下降30%至40%。

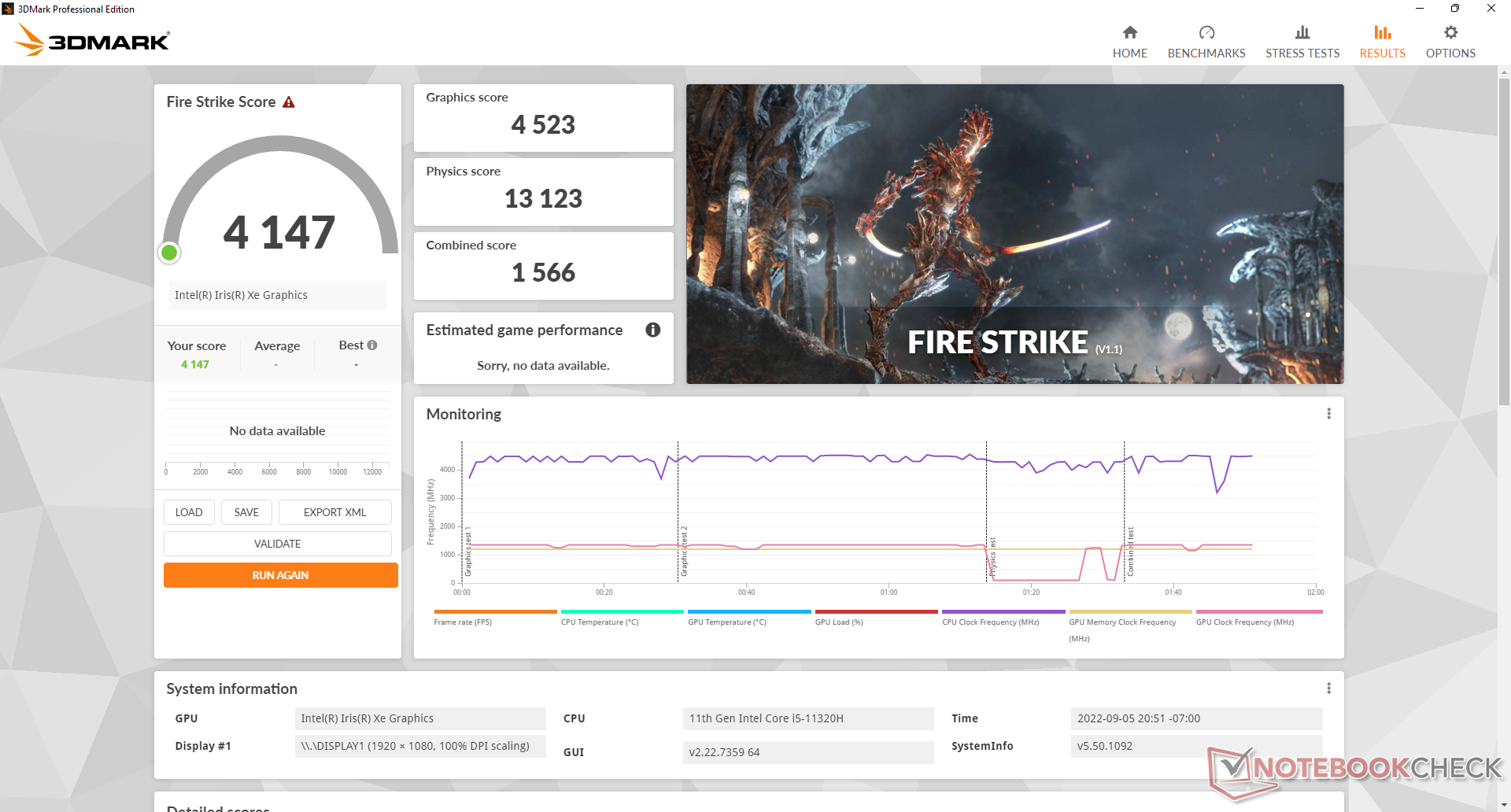

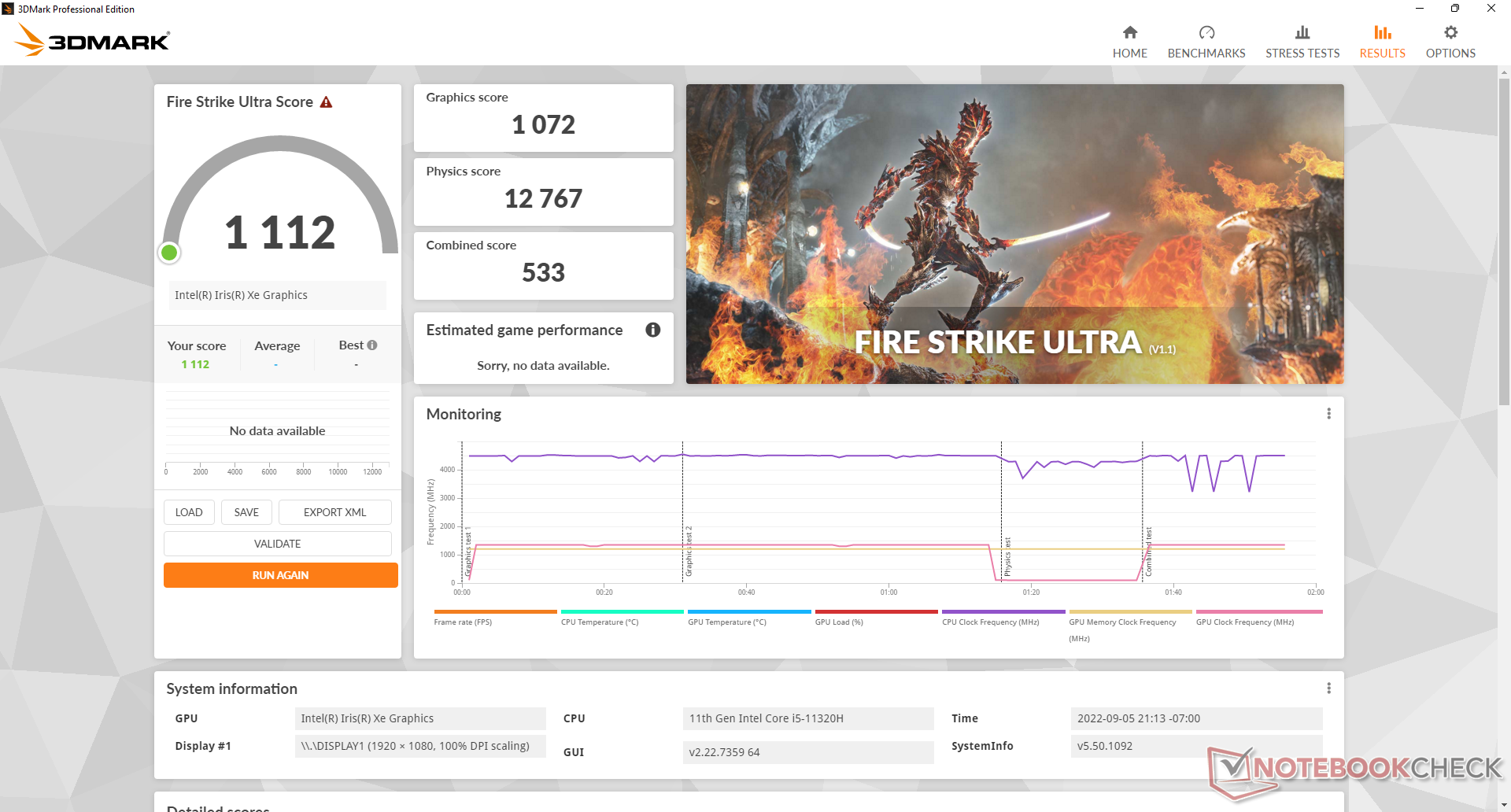

3DMark | 3DMark 11

3DMark
1920x1080 Fire Strike Graphics
Honor MagicBook 14 2022 NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H	10621 Points +135%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6143, n=207)	4905 Points +8%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4523 Points
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4493 Points -1%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4360 Points -4%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points -13%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -21%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3152 Points -30%

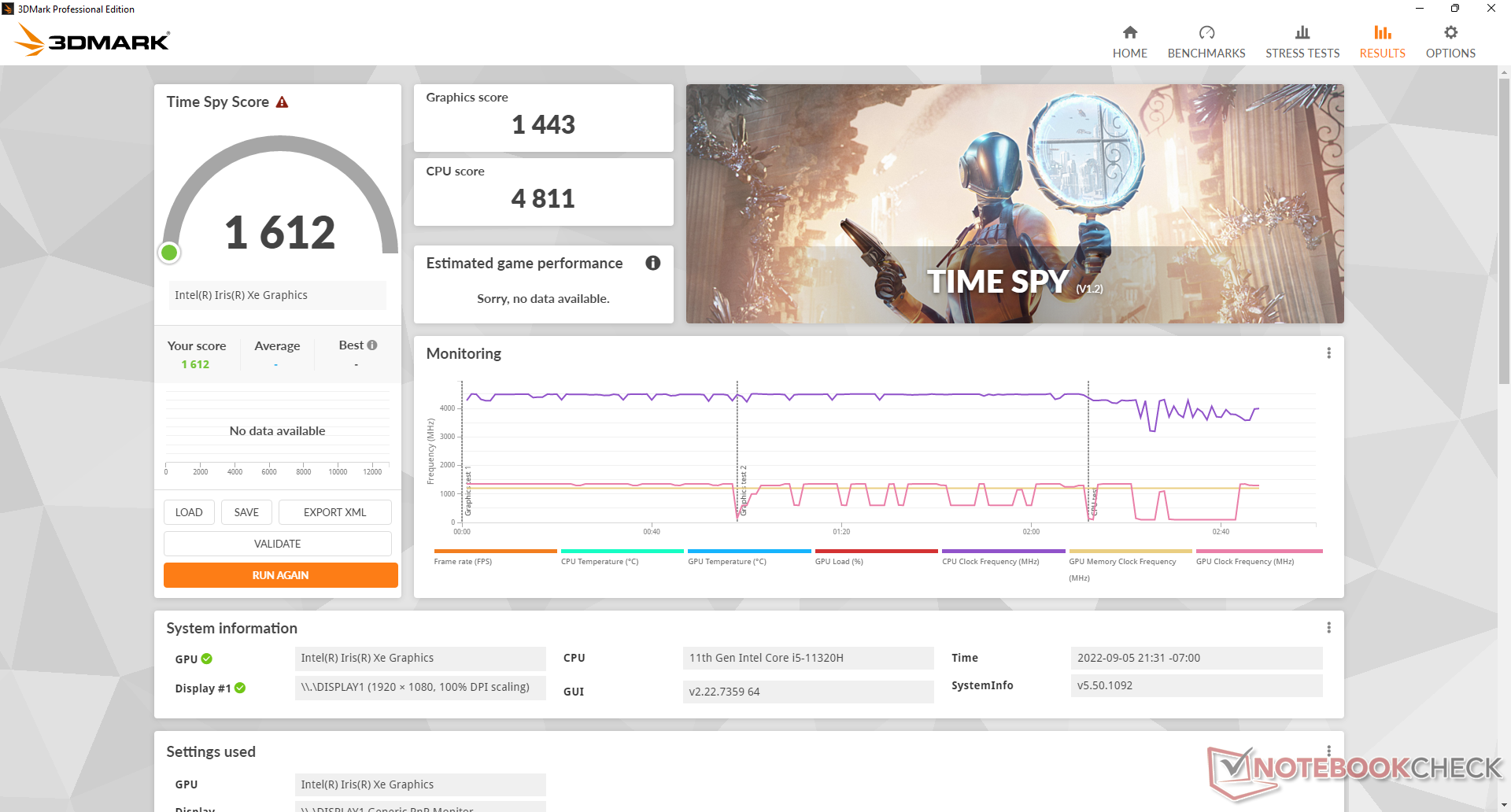

2560x1440 Time Spy Graphics
Honor MagicBook 14 2022 NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H	3938 Points +173%
Average Intel Iris Xe Graphics G7 96EUs (707 - 1871, n=204)	1494 Points +4%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1443 Points
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1441 Points 0%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1287 Points -11%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points -14%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -24%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1031 Points -29%
2560x1440 Time Spy Score
Honor MagicBook 14 2022 NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H	4326 Points +168%
Average Intel Iris Xe Graphics G7 96EUs (789 - 2133, n=201)	1673 Points +4%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1647 Points +2%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1612 Points
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1412 Points -12%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1409 Points -13%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1251 Points -22%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1161 Points -28%

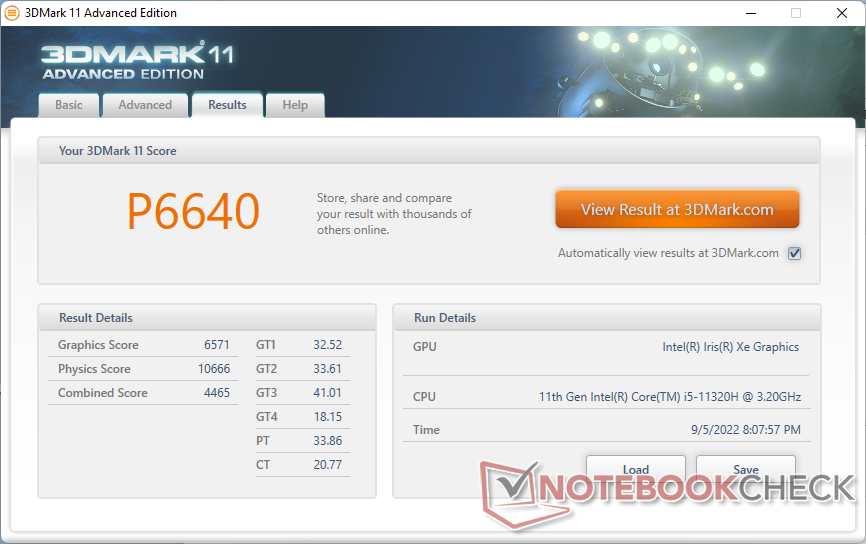

3DMark 11 - 1280x720 Performance GPU
Honor MagicBook 14 2022 NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H	15411 Points +135%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7102 Points +8%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6571 Points
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7471, n=194)	6345 Points -3%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6091 Points -7%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points -8%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -15%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5221 Points -21%

3DMark 11 Performance		6640 points

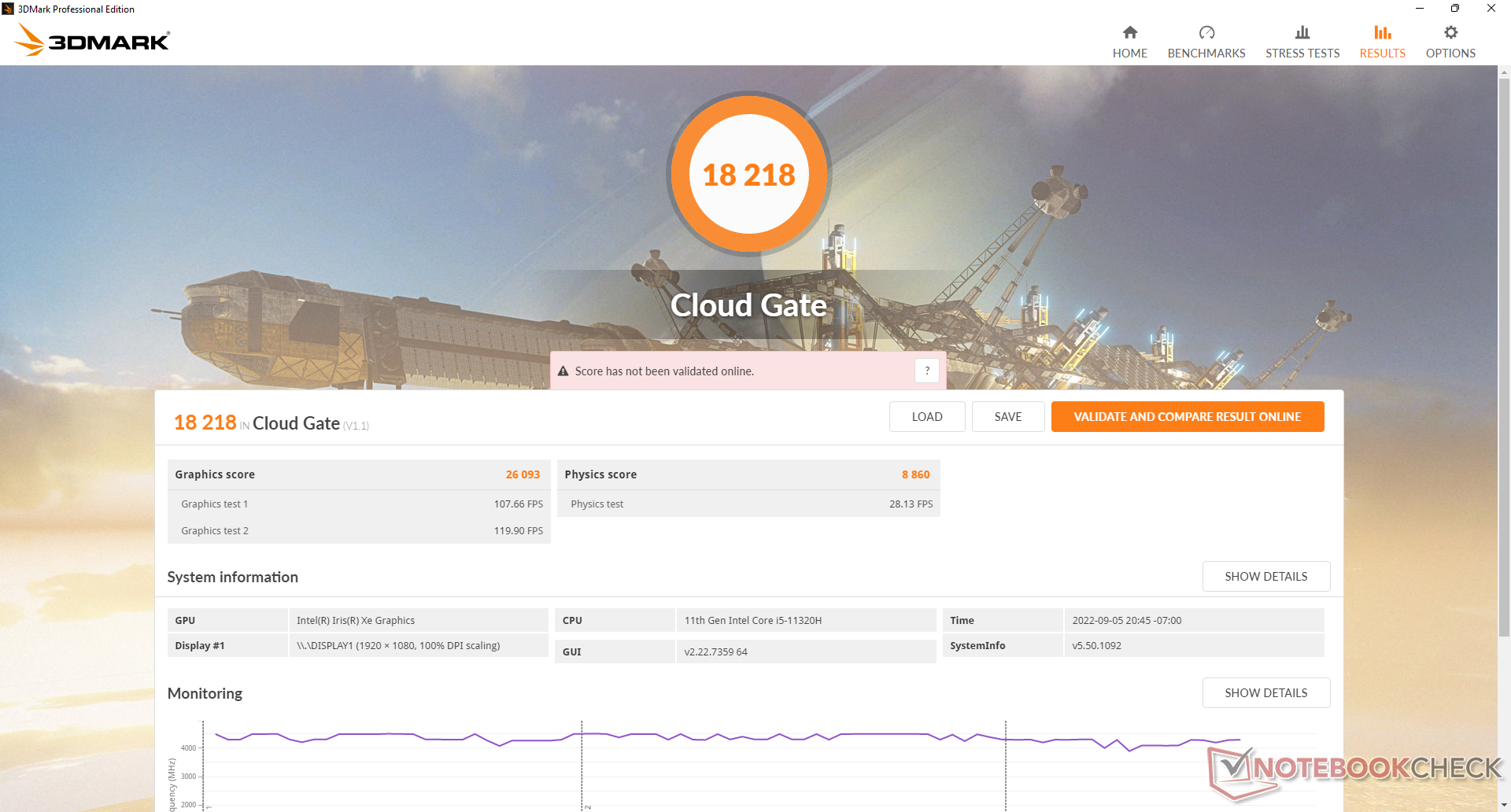

3DMark Cloud Gate Standard Score		18218 points
3DMark Fire Strike Score		4147 points
3DMark Time Spy Score		1612 points
Help

... in comparison

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.7 (45^min) fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	86.9 (77^min) fps -3%
Average Intel Iris Xe Graphics G7 96EUs (28.9 - 110, n=182)	83.9 fps -6%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	77.1 (44^min) fps -14%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.2 (51^min) fps -28%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	59.8 (53^min) fps -33%
1366x768 Medium Graphics & Postprocessing
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	55.2 (52^min) fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.7 (44^min) fps
Average Intel Iris Xe Graphics G7 96EUs (21.4 - 74.1, n=180)	53.4 fps -1%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	46.6 (41^min) fps -13%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.2 (41^min) fps -16%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Average Intel Iris Xe Graphics G7 96EUs (10.6 - 45.9, n=185)	28.6 fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.8 (25^min) fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.8 (25^min) fps -4%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	23.1 (19^min) fps -17%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.6 (21^min) fps -19%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.1 (15^min) fps +24%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.3 (13^min) fps +4%
Average Intel Iris Xe Graphics G7 96EUs (8.79 - 20.1, n=175)	14 fps +1%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	11.5 (10^min) fps -17%

Cyberpunk 2077 1.6
1920x1080 Low Preset
Average Intel Iris Xe Graphics G7 96EUs (13 - 25.9, n=42)	19 fps +2%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	18.6 (8.1^min) fps
1920x1080 Medium Preset
Average Intel Iris Xe Graphics G7 96EUs (10.8 - 21.7, n=37)	16.1 fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.6 (7.8^min) fps
1920x1080 High Preset
Average Intel Iris Xe Graphics G7 96EUs (9.8 - 16.9, n=34)	12.7 fps +9%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	11.7 (6.1^min) fps
1920x1080 Ultra Preset
Average Intel Iris Xe Graphics G7 96EUs (7.4 - 16.8, n=32)	10.6 fps +8%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	9.8 (4.9^min) fps

GTA V
1024x768 Lowest Settings possible
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	140 (14^min, 90.9^P1) fps +49%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	110 (19.4^min, 71.4^P1) fps +17%
Average Intel Iris Xe Graphics G7 96EUs (52 - 157, n=155)	97.5 fps +4%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	95.1 (21.9^min, 55.6^P1) fps +1%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	94.2 (16.5^min, 58.8^P1) fps
1920x1080 Lowest Settings possible
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	81.8 (10.6^min, 58.8^P1) fps +24%
Average Intel Iris Xe Graphics G7 96EUs (34.7 - 115.4, n=129)	72.7 fps +10%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	71.5 (8.83^min, 52.6^P1) fps +8%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	65.9 (13.2^min, 45.5^P1) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	65.4 (20.4^min, 45.5^P1) fps -1%
1366x768 Normal/Off AF:4x
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124 (14.4^min, 83.3^P1) fps +60%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (13.8^min, 62.5^P1) fps +27%
Average Intel Iris Xe Graphics G7 96EUs (24.1 - 137, n=158)	82.2 fps +6%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	79.5 (21.5^min, 50^P1) fps +2%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	77.6 (21.9^min, 50^P1) fps
1920x1080 Normal/Off AF:4x
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.6 (9.51^min, 58.8^P1) fps +48%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (6.79^min, 50^P1) fps +26%
Average Intel Iris Xe Graphics G7 96EUs (20 - 109, n=130)	64.2 fps +12%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	57.3 (22.2^min, 38.5^P1) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	56.6 (16.5^min, 38.5^P1) fps -1%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.4 (6.39^min, 24.4^P1) fps +44%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.6 (5.48^min, 21.7^P1) fps +28%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.2 (11.5^min, 15.9^P1) fps
Average Intel Iris Xe Graphics G7 96EUs (9.39 - 51.6, n=150)	22.7 fps -2%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.1 (8.42^min, 14.9^P1) fps -9%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.1 (3.94^min, 10.6^P1) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.4 (3.61^min, 9.62^P1) fps
Average Intel Iris Xe Graphics G7 96EUs (4.13 - 22.9, n=144)	9.47 fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	8.17 (3.68^min, 5.03^P1) fps

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.8 fps +16%
Average Intel Iris Xe Graphics G7 96EUs (14.9 - 56.5, n=175)	39.2 fps +2%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.6 fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.3 fps -3%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	36.7 fps -5%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	26.8 fps -31%
1920x1080 Standard Quality
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.3 fps +10%
Average Intel Iris Xe Graphics G7 96EUs (10.5 - 28, n=171)	21.7 fps +7%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	20.3 fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19.2 fps -5%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	18.7 fps -8%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	13.7 fps -33%
1920x1080 High Quality
Average Intel Iris Xe Graphics G7 96EUs (8.15 - 27.8, n=164)	16.8 fps +13%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.7 fps +5%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	14.9 fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps -7%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	13.5 fps -9%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	10.5 fps -30%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	58.2 fps 0%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	58.2 fps
Average Intel Iris Xe Graphics G7 96EUs (13.4 - 88.4, n=207)	41.3 fps -29%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 fps -29%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	37.1 fps -36%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	24 fps -59%
1920x1080 med (fps_test=2)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.7 fps +11%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	41.2 fps
Average Intel Iris Xe Graphics G7 96EUs (11.6 - 69.5, n=208)	35.2 fps -15%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.2 fps -19%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	27.3 fps -34%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.4 fps -48%
1920x1080 high (fps_test=3)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.5 fps +9%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 fps
Average Intel Iris Xe Graphics G7 96EUs (11.1 - 59.8, n=207)	31.6 fps -15%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.5 fps -21%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	29.1 fps -22%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.9 fps -41%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	135 (115.7^min) fps +13%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	123 (107.9^min) fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	119.6 (108.4^min) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	103 (88.1^min) fps -14%
Average Intel Iris Xe Graphics G7 96EUs (36 - 148, n=207)	100 fps -16%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	73.8 (47.9^min) fps -38%
1366x768 med (1/3)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	107 (88.2^min) fps +36%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	83.3 (67.5^min) fps +6%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	81 (68.5^min) fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	78.6 (66.2^min) fps
Average Intel Iris Xe Graphics G7 96EUs (31.6 - 108.5, n=207)	75.5 fps -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	56 (40.8^min) fps -29%
1920x1080 high (2/3)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	63.8 (56.8^min) fps +27%
Average Intel Iris Xe Graphics G7 96EUs (23.2 - 88.1, n=207)	53.8 fps +7%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	53.1 (44.7^min) fps +5%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.4 (41.9^min) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	49.7 (44.3^min) fps -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	34.2 (20^min) fps -32%
1920x1080 ultra (3/3) best looking
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	59.9 (53.3^min) fps +26%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	51.1 (44.6^min) fps +8%
Average Intel Iris Xe Graphics G7 96EUs (20.6 - 78.5, n=207)	49 fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.4 (40.8^min) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	47.2 (41.2^min) fps 0%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	31.4 (18.2^min) fps -34%

Strange Brigade
1280x720 lowest AF:1
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99.1 (72.8^min, 85.4^P1) fps +25%
Average Intel Iris Xe Graphics G7 96EUs (48.5 - 107.3, n=161)	84.6 fps +7%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.3 (43.8^min, 72.3^P1) fps +4%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.3 (18.8^min, 25.6^P1) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	76.5 (17.1^min, 23^P1) fps -4%
1920x1080 medium AA:medium AF:4
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.8 (31.8^min, 33.6^P1) fps +12%
Average Intel Iris Xe Graphics G7 96EUs (18.2 - 48.3, n=159)	36.4 fps +7%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	33.9 (10.3^min, 19.8^P1) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.3 (24^min, 29.6^P1) fps -2%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	30.8 (9.7^min, 16.6^P1) fps -9%
1920x1080 high AA:high AF:8
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.9 (23.5^min, 25.5^P1) fps +15%
Average Intel Iris Xe Graphics G7 96EUs (15.4 - 38.1, n=158)	29.2 fps +5%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.1 (20.4^min, 22.5^P1) fps +1%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.7 (10^min, 15.1^P1) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	25.2 (5.1^min, 8.82^P1) fps -9%
1920x1080 ultra AA:ultra AF:16
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.5 (21.3^min, 22.3^P1) fps +24%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24 (17.8^min, 19.5^P1) fps +8%
Average Intel Iris Xe Graphics G7 96EUs (13.2 - 30.8, n=156)	23.6 fps +6%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.2 (5.6^min, 7.76^P1) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	20.2 (5^min, 5^P1) fps -9%

Witcher 3 FPS Chart

Beelink SEi11 Pro: Ø84.9 (76-90)

	low	med.	high	ultra
GTA V (2015)	94.2	77.6	23.2
The Witcher 3 (2015)	89.7	53.7	27.8	13.8
Dota 2 Reborn (2015)	119.6	78.6	50.4	47.4
Final Fantasy XV Benchmark (2018)	38.6	20.3	14.9
X-Plane 11.11 (2018)	58.2	41.2	37.3
Strange Brigade (2018)	79.3	33.9	27.7	22.2
Cyberpunk 2077 1.6 (2022)	18.6	15.6	11.7	9.8

排放

系统噪音

无论屏幕上的负载或活动如何，该设备的风扇始终处于活动状态。值得庆幸的是，它比较安静，只有24.7分贝（A），而背景是22.8分贝（A），但期待完全安静的迷你电脑的用户在这里不会发现。

在运行要求较高的负载时，整体的风扇噪音仍然比许多其他迷你PC要小。例如，当网络浏览或视频流时，风扇噪音往往徘徊在25至28 dB(A)之间，而GTR5的噪音则超过30 dB(A)。噪声或英特尔NUC11超过30分贝。当CPU长时间处于100%的利用率时，风扇的最高噪音略低于38 dB(A)，这又明显比许多替代方案要安静。

风扇噪音曲线（白色。背景，红色。系统空闲，蓝色：3DMark 06，橙色。Witcher 3，绿色。Prime95压力)

Noise Level

Idle		24.7 / 24.7 / 25.3 dB(A)
Load		33.2 / 37.8 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 22.8 dB(A)

	Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Noise		-26%	-31%	-20%	-26%
off / environment *	22.8	23.1 -1%	25.7 -13%	23.4 -3%	24.8 -9%
Idle Minimum *	24.7	34.2 -38%	28.4 -15%	33.2 -34%	35.6 -44%
Idle Average *	24.7	34.2 -38%	32 -30%	33.2 -34%	35.6 -44%
Idle Maximum *	25.3	34.2 -35%	37.7 -49%	33.2 -31%	35.6 -41%
Load Average *	33.2	44.6 -34%	44.2 -33%	38.6 -16%	36.2 -9%
Witcher 3 ultra *	34.5	41.4 -20%	44.5 -29%	39.2 -14%	38 -10%
Load Maximum *	37.8	45.1 -19%	56 -48%	40.8 -8%	47.6 -26%

* ... smaller is better

温度

如我们下面的温度图所示，冷空气通过设备的顶部表面被拉出，而废气则从后面排出。因此，书籍和纸张等物品不应放置在上面。

请注意，与其他大多数随同笔记本电脑运输的交流适配器相比，交流适配器的温度会明显升高。

压力测试

在启动Prime95压力时，时钟速率和电路板功耗将分别飙升至2.9 GHz和35 W。系统能够无限期地保持这些数值，尽管核心温度相对较高，为90℃。35W是Core i5-11320H的TDP上限范围，因此SEi11正在利用处理器接近其最大潜力。

运行时的GPU时钟速率和温度 Witcher 3相对稳定，分别为1350 MHz和83 C。在英特尔NUC11上运行这个相同的测试英特尔NUC11进行同样的测试，与Core i5-1135G7相比，核心温度会低得多，为58℃。

	CPU时钟（GHz）	GPU时钟（MHz）	CPU平均温度（°C）
系统空闲	--	--	41
Prime95压力	2.9	--	89
Prime95 + FurMark 压力	~2.9	600	91
Witcher 3 应力	~1.8	1350	83

能源管理

消耗功率

该系统比运行在GTI 11或英特尔NUC11等第11代酷睿U系列CPU上的迷你PC要求更高。然而，如果你重视原始的CPU多线程性能，那么SER4可能是更好的选择，因为它提供了更快的多线程性能，同时比我们的SEi11消耗的电力少30%以上。

在运行Prime95时，我们能够从相对较小（约10 x 4.3 x 4.8厘米）的57 W（19 V，3 A）交流适配器中记录到59 W的最大消耗。

Power Consumption

Off / Standby	1.14 / 1.23 Watt
Idle	9.8 / 10.3 / 10.5 Watt
Load	54.2 / 59 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink GTR5 R9 5900HX, Vega 8, Kingston NV1 SNVS/500GCN, , x,	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs, Kingston SA2000M8500G, , x,	Beelink SER4 R7 4800U, Vega 8, Intel SSD 660p SSDPEKNW512G8, , x,	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,
Power Consumption		-2%	-38%	46%	-7%
Idle Minimum *	9.8	6.2 37%	15.2 -55%	4.1 58%	11.5 -17%
Idle Average *	10.3	8.9 14%	16 -55%	4.1 60%	12.4 -20%
Idle Maximum *	10.5	9 14%	16 -52%	4.6 56%	12.9 -23%
Load Average *	54.2	66.8 -23%	48.6 10%	35.6 34%	40.7 25%
Witcher 3 ultra *	53.1	62.6 -18%	53.8 -1%	35.6 33%	43.9 17%
Load Maximum *	59	81.6 -38%	104.3 -77%	39.9 32%	73.5 -25%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Witcher 3 ultra: Ø53.1 (41.1-54.5)

Beelink SER4 R7 4800U, Vega 8; Witcher 3 ultra: Ø35.6 (33.4-37)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø59 (57.8-59.6)

Beelink SER4 R7 4800U, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø38.5 (37.8-39.5)

Power Consumption external Monitor

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø58.6 (57.2-59.1)

Beelink SER4 R7 4800U, Vega 8; Prime95 V2810 Stress (external Monitor): Ø38.6 (37.9-39.9)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø52.4 (49.2-53.2)

Beelink SER4 R7 4800U, Vega 8; Cinebench R15 Multi (external Monitor): Ø34.8 (34-35.5)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø50.2 (31.6-53.6)

Beelink SER4 R7 4800U, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.7 (34.2-37)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø53.1 (41.1-54.5)

Beelink SER4 R7 4800U, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø35.6 (33.4-37)

Pros

+ 易于维修；2个SODIMM + 2个存储空间

+ 可敬的酷睿H系列性能

+ 价格相对低廉

+ VESA安装

Cons

- 没有USB-C DisplayPort、Power Delivery或Thunderbolt接口

- 无线性能可能更好

- 没有SD卡读卡器或Kensington锁

- CPU温度很高

结论 - HTPC Core i5的甜蜜点

Beelink的迷你电脑组合是少数 "英特尔NUC杀手 "的家，它们可以提供大多数相同的功能，但价格要低数百美元。SEi11是该公司的另一个成功故事，这在很大程度上归功于它的酷睿i5-11320H我们已经表明，它可以与NUC模型上的酷睿i7-1165G7相媲美，而后者的价格几乎是后者的两倍。两倍的价格.简而言之，用户不需要满足于较慢的Core i3、Ryzen 3、Celeron或Atom级别的性能，只是因为NUC的替代品要实惠得多。可获得的内存、双存储解决方案和广泛的端口选择应满足大多数HTPC目的或小型家庭办公室设置。

Beelink SEi11的性能几乎与配备Core i7-1165G7的英特尔NUC11完全相同，而零售价却低得多。

有几个需要警惕的角落。特别是不支持Thunderbolt和DisplayPort，而WLAN比预期的要弱。标准保修期也比英特尔NUC的36个月保修期短。风扇的噪音通常比其他大多数迷你电脑更安静，尽管其代价是核心温度升高。否则，这是在不支付NUC价格的情况下，你能得到的最接近英特尔NUC的体验。

价格和可用性

亚马逊有Beelink SEi11的库存，配有Windows 11 Pro、500 GB SSD和16 GB内存，截至本文写作时，价格为479美元，应用优惠券代码后为419美元。另外，用户可以直接从制造商那里购买https://www.bee-link.com/catalog/product/buy?id=352价格为429美元。

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5192 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 389263 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Beelink SEi11迷你电脑评论。比英特尔NUC 11更便宜，但速度一样快

Allen Ngo, 2022-09-13 (Update: 2022-09-13)

Beelink SEi11迷你电脑评论。比英特尔NUC 11更便宜，但速度一样快

潜在的竞争对手比较

案例

尺寸比较

连接性

沟通

维护

配件和保修

业绩

测试条件

处理器

Cinebench R15 Multi Loop

系统性能

DPC延时

存储设备

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU性能

Witcher 3 FPS Chart

排放

系统噪音

温度

压力测试

能源管理

消耗功率

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pros

Cons

结论 - HTPC Core i5的甜蜜点

价格和可用性

More articles related to this device

Pricecompare
