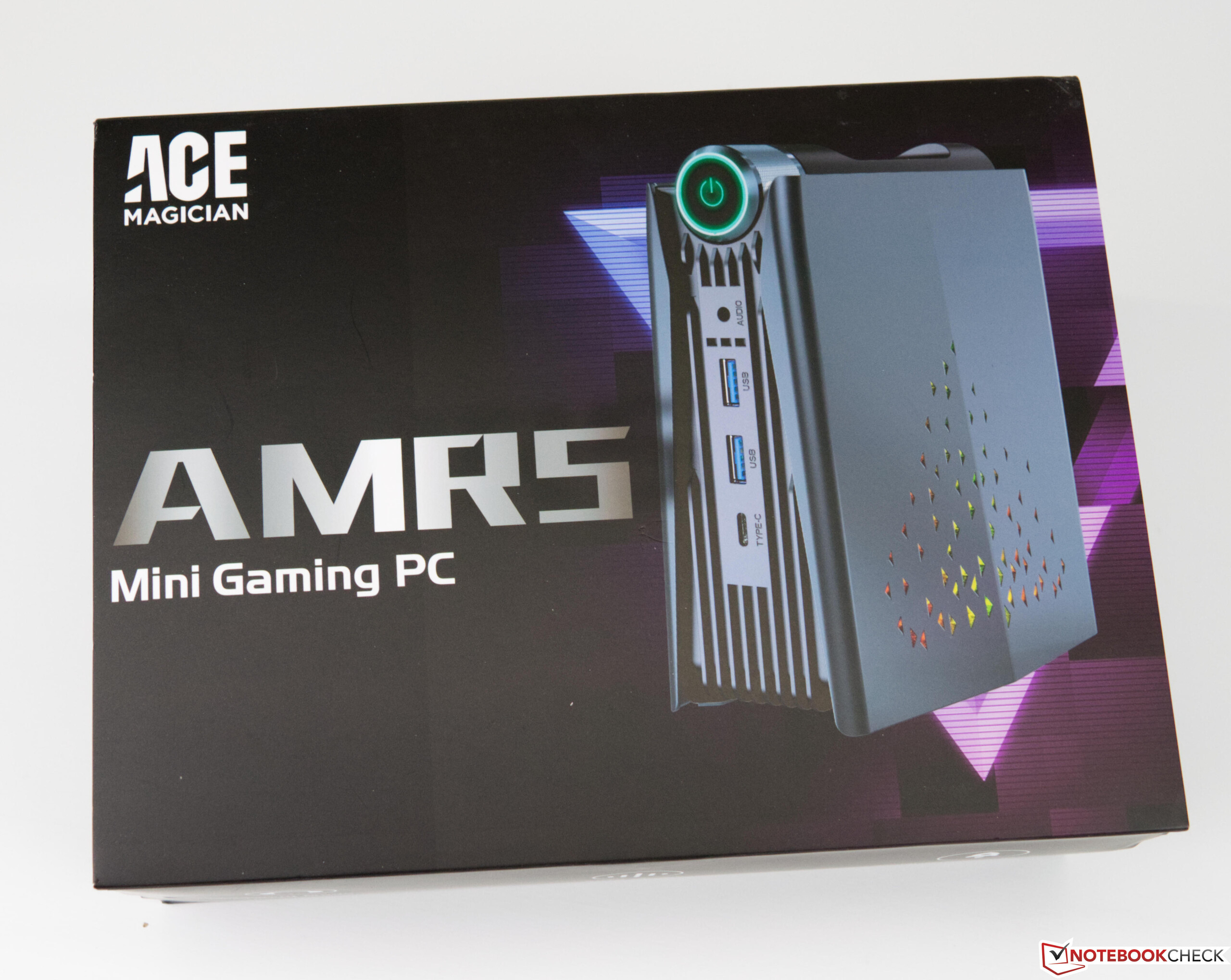

Ace Magician AMR5回顾。带有Ryzen 5600U和谨慎的RGB照明的时尚迷你电脑

吸引人眼球的好东西! Minipc Union提供了一款基于AMD Ryzen 5 5600U的Ace Magician AMR5的非常紧凑的PC。AMR5的外观更让人联想到台式电脑，这使它与大多数迷你电脑的传统设计不同。继续阅读，在我们的详细评测中了解这台紧凑型电脑能做什么。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 09/13/2022 🇺🇸 🇩🇪 ...

AMD Cezanne (Zen 3) Desktop Mini PC Ryzen (Zen) Radeon

Minipc Union是一家中国公司，专门从事迷你电脑以及一体机系统的生产。目前，Minipc Union提供各种产品，其中包括。这些产品包括Kamrui、Ouvislite、Nipogi、Snunmu和Ace Magician，其中还包括我们将在本评论中检查的AMR5。

Ace Magician AMR5是一款非常紧凑的迷你电脑，基于 AMD Ryzen 5600U.同样的型号也有一个AMD Ryzen 5 4500U在过去。我们在各种笔记本电脑中经常遇到的AMD Radeon RX Vega 7，只负责3D计算。Ryzen 5 5600U的情况也是如此。由于它的低排放，它找到了进入这台紧凑型PC的途径。有16GB的内存和一个512GB的固态硬盘作为大容量存储设备。此外，Windows 11 Pro已经预装并激活。

Ace Magician AMR5可以以590欧元（约合599美元）的价格购买我们评测的版本。另一方面，基于AMD Ryzen 5 4500U的型号可以以560欧元（约569美元）的价格购买。

Ace Magician AMR5

Processor

AMD Ryzen 5 5600U 6 x 2.3 - 4.2 GHz, 28 W PL2 / Short Burst, 25 W PL1 / Sustained, Cezanne-U (Zen 3)

Graphics adapter

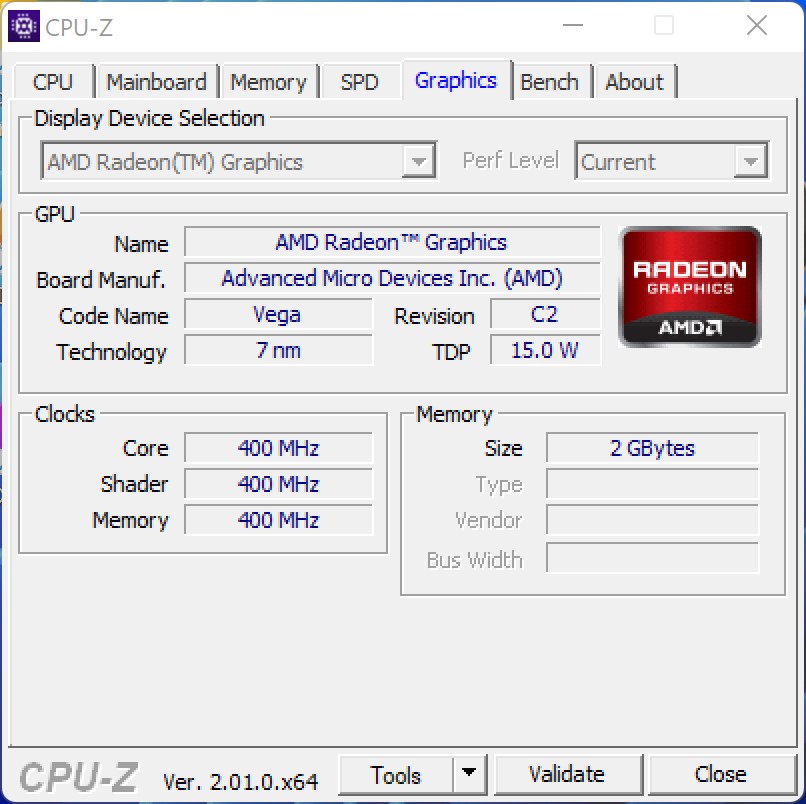

AMD Radeon RX Vega 7 - 2048 (shared Memory) MB VRAM, Memory: 1333 MHz, Adrenalin 22.8.2

Memory

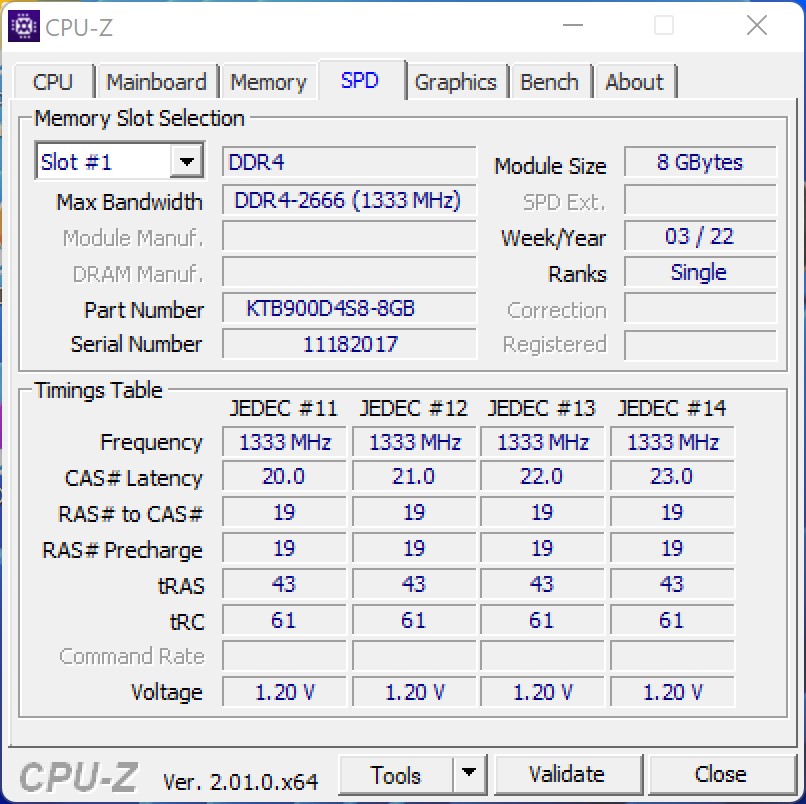

16 GB

, DDR4 2666, 2 out of 2 occupied, max 64 GB

Mainboard

AMD Promontory/Bixby FCH

Storage

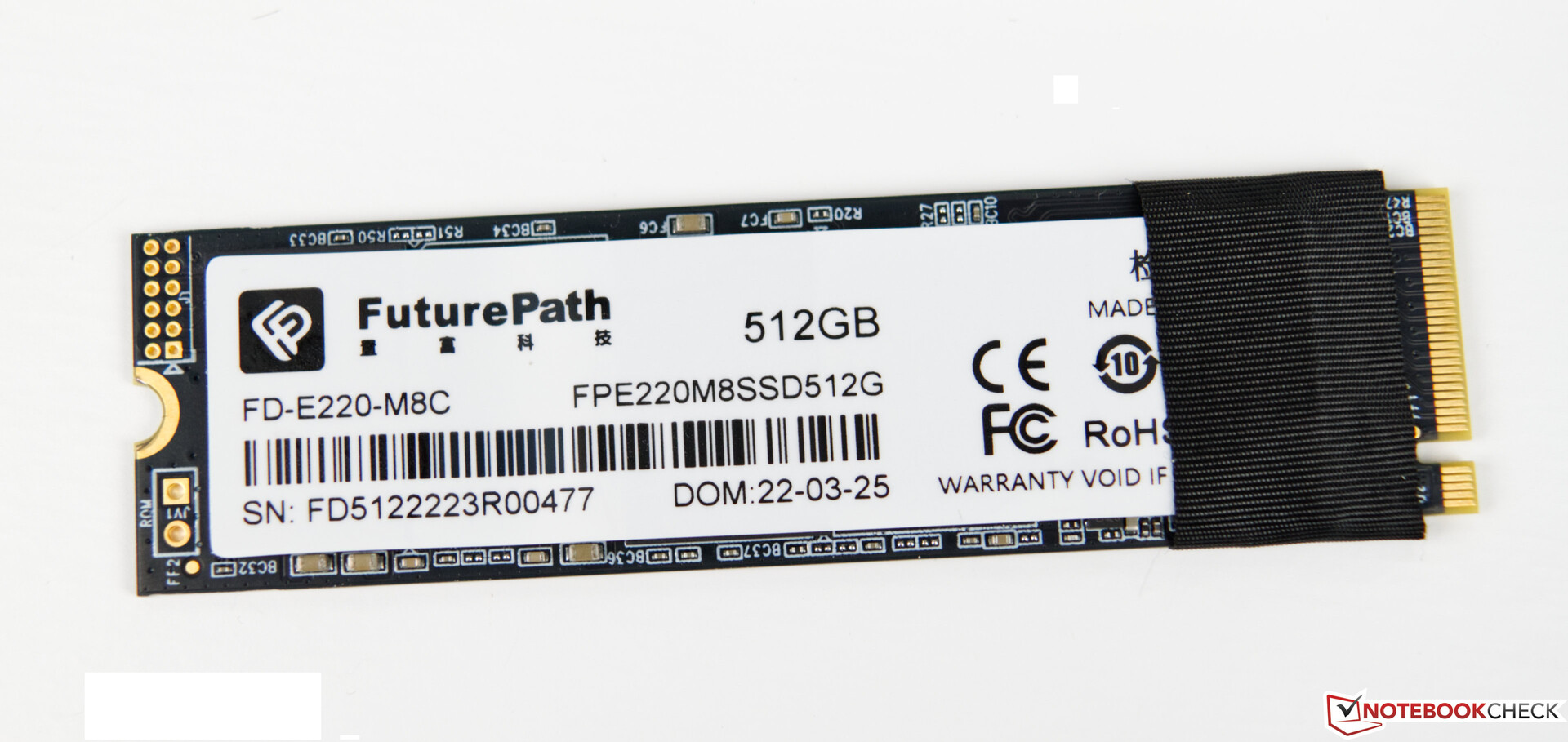

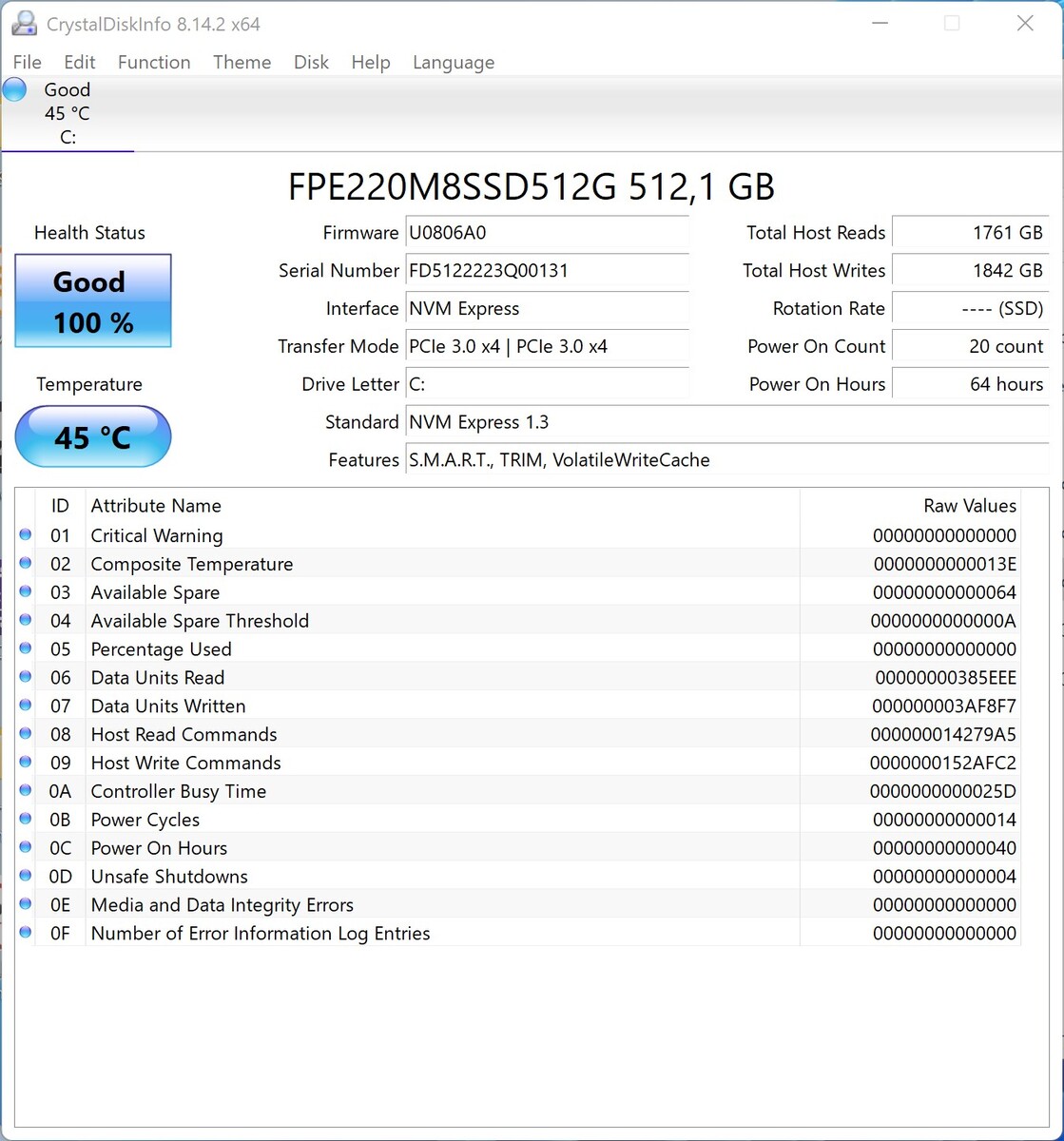

Future Path FPE220M8SSD512G, 512 GB

, M.2 2280, NVMe, 450 GB free

Soundcard

Realtek High Definition Audio

Connections

5 USB 3.0 / 3.1 Gen1, 1 HDMI, 2 DisplayPort

Networking

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 72 x 155 x 130

Operating System

Microsoft Windows 11 Pro

Additional features

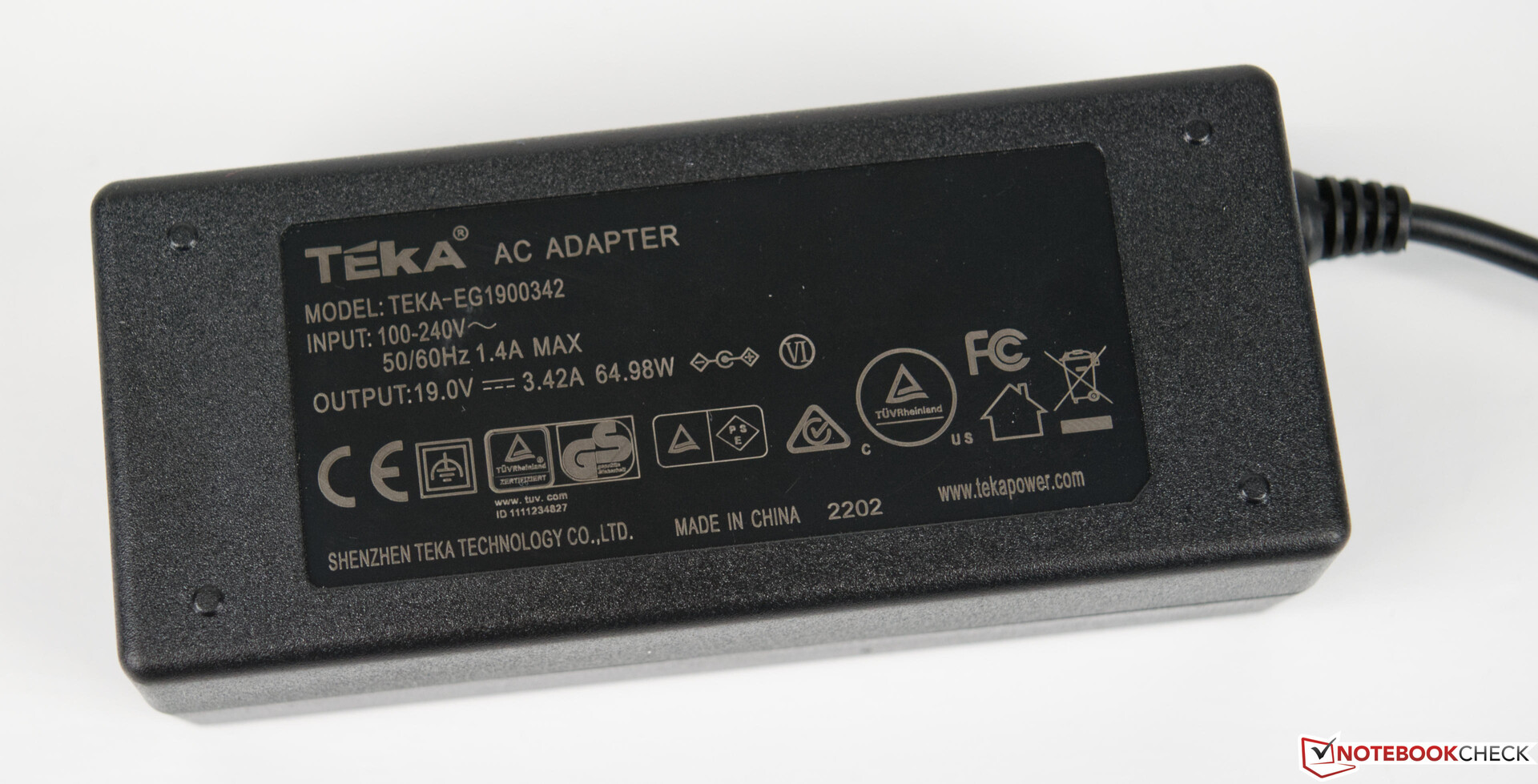

65-watt power adapter, 12 Months Warranty

Weight

628 g, Power Supply: 241 g

Price

590 EUR

Links

Minipc Union homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Date	Model	Weight	Height	Resolution
09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm	x
01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm	x
01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm	x
06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm	x
04/2022	Beelink SER4 R7 4800U, Vega 8	494 g	40 mm	x
02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm	x

Minipc联盟王牌魔术师AMR5的详细介绍

案例

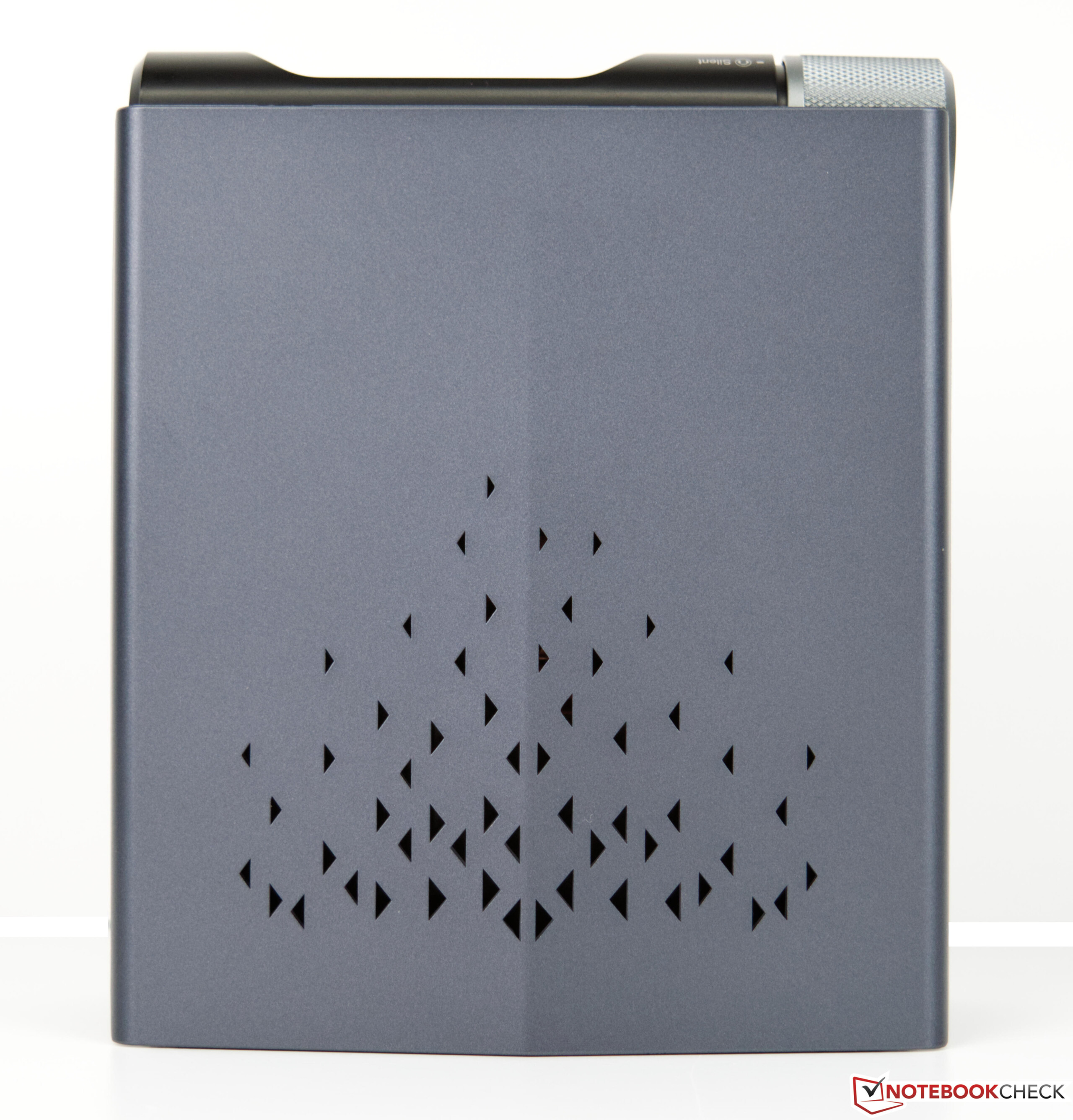

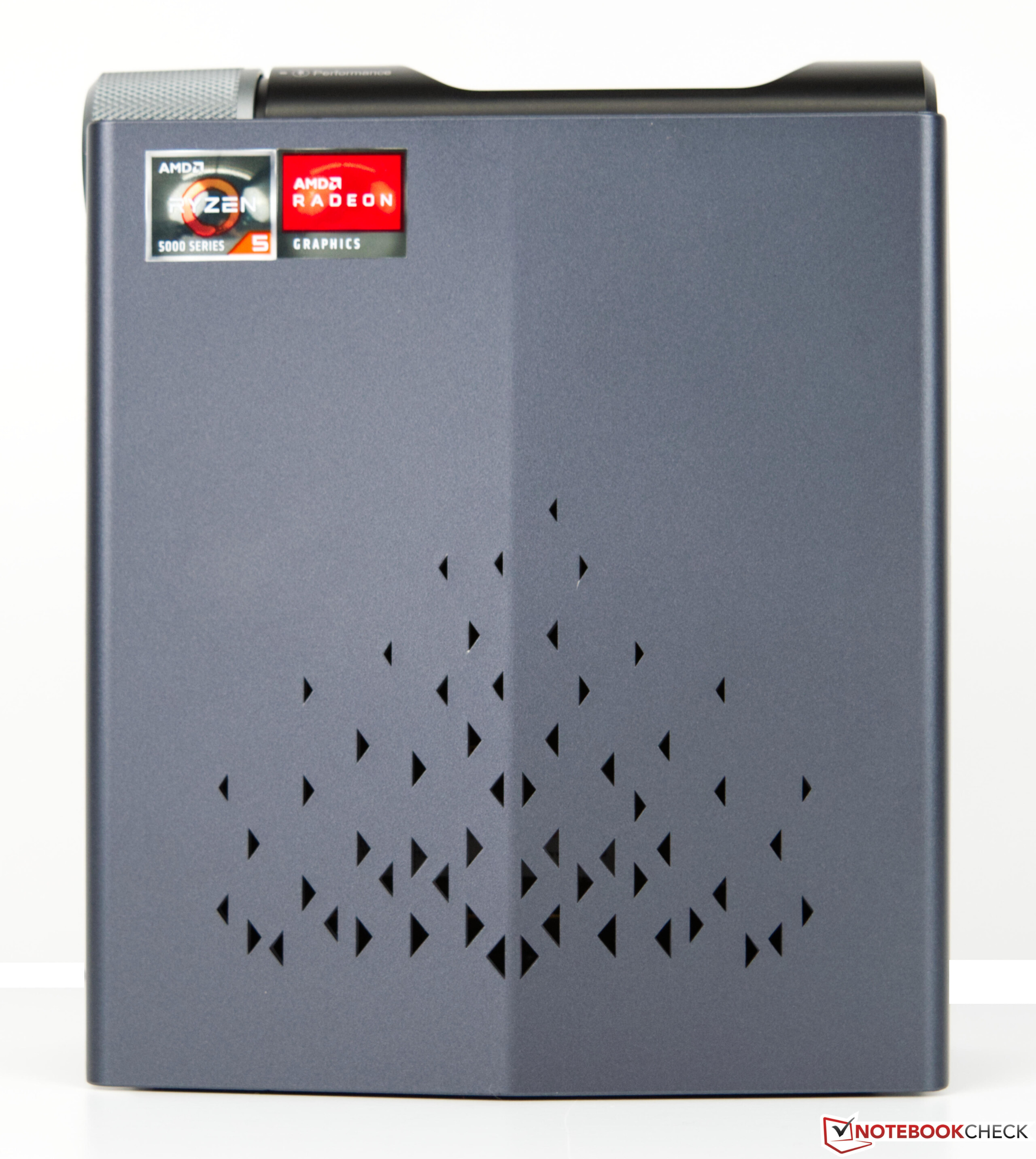

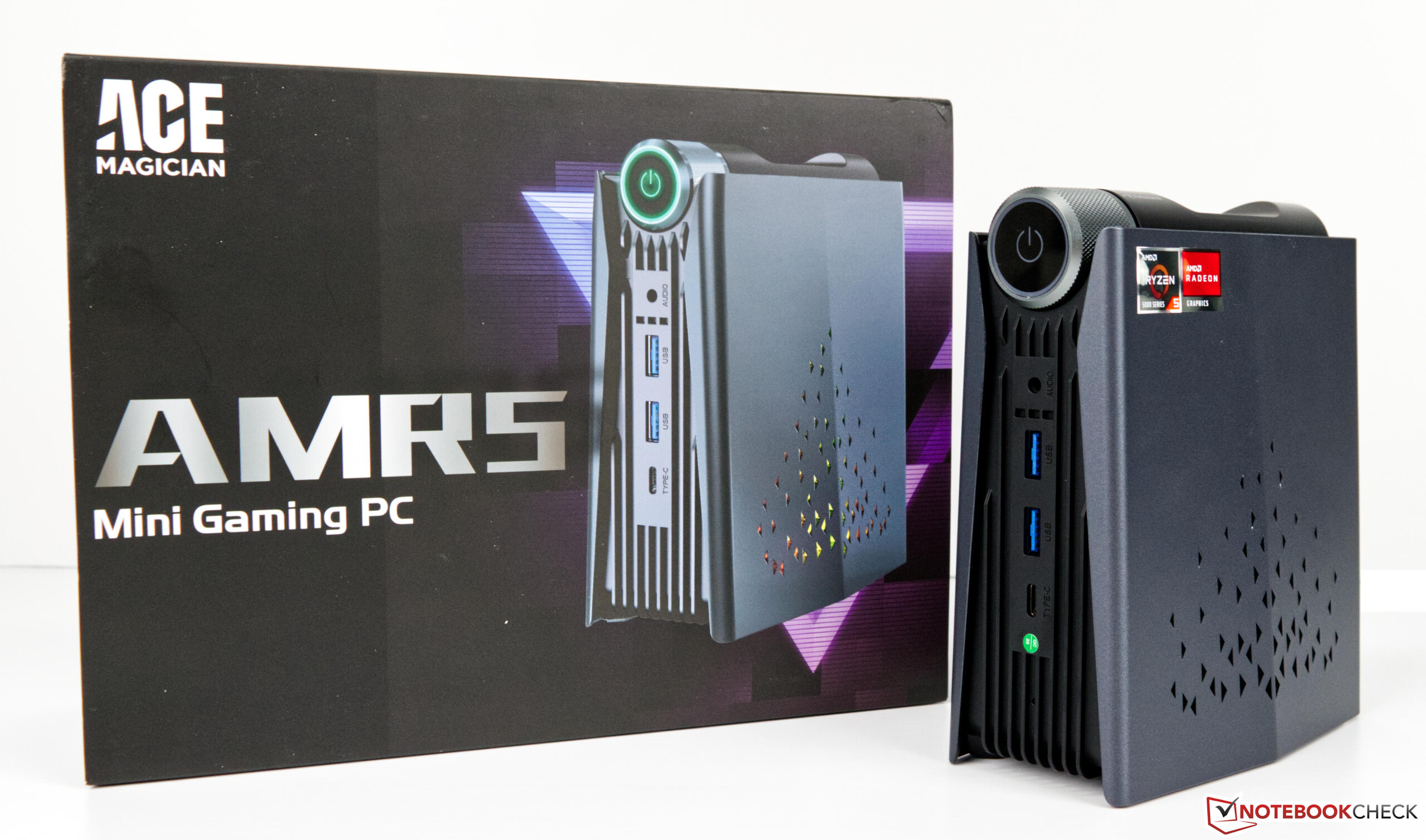

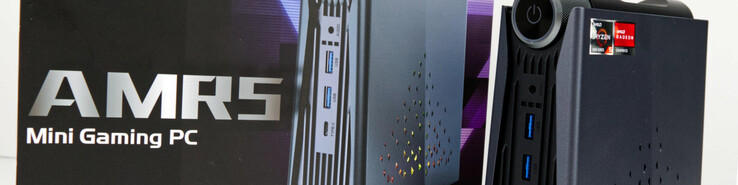

如果你想象一台迷你电脑，你可能总是会想到一个紧凑的方形盒子。在这里，Ace Magician AMR5采取了一种完全不同的方法，在外观上面向塔式电脑。作为一个缩小版，这款紧凑型PC只有16厘米高。至于材料，只有塑料，但设计通过使用两种颜色的点缀而得到加强。从正面看，机箱的右侧是用磁铁固定的，可以很容易地取出。内存和固态硬盘隐藏在后面，如果有必要，它们可以被扩展。在坚固性方面没有什么可抱怨的，尽管没有使用铝。这台小电脑的重量为581克，非常轻，这使它适合放在任何桌子上。此外，该系统还可以通过一些RGB效果在视觉上得到加强。

连接性

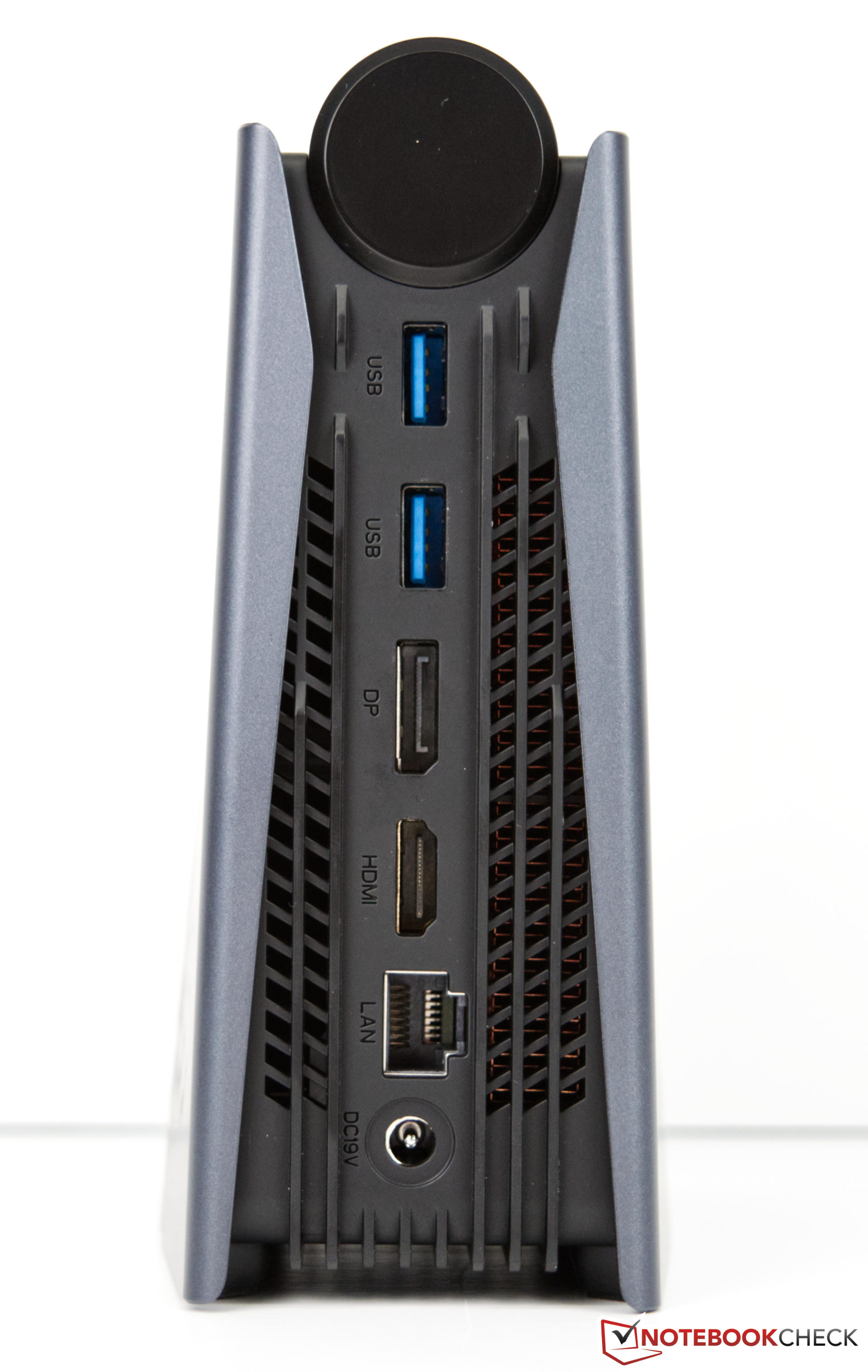

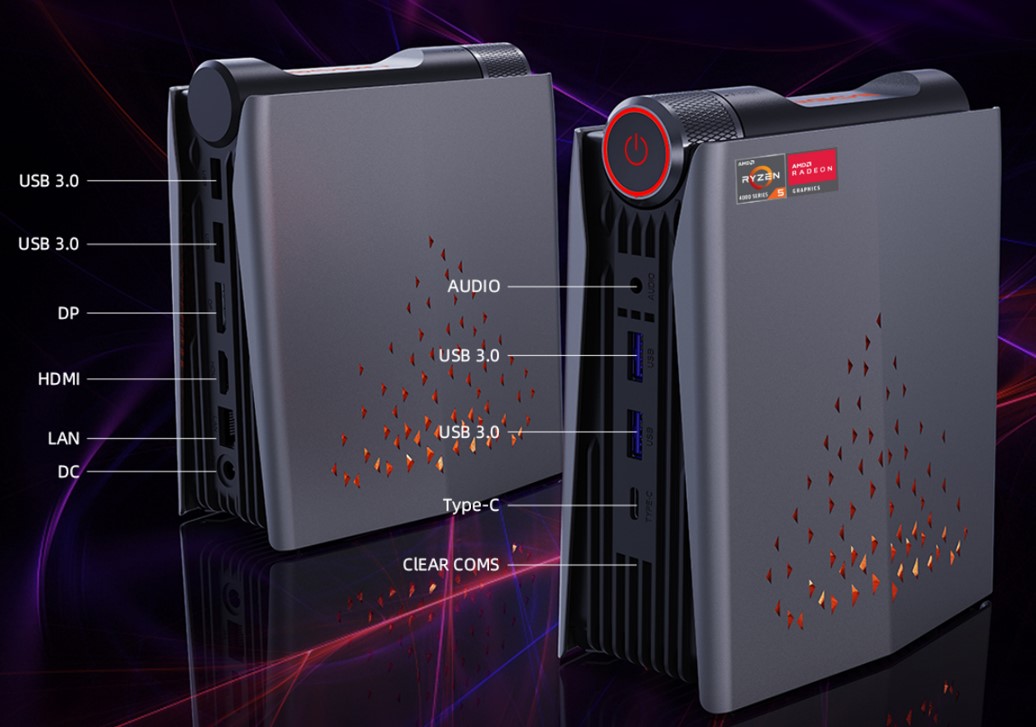

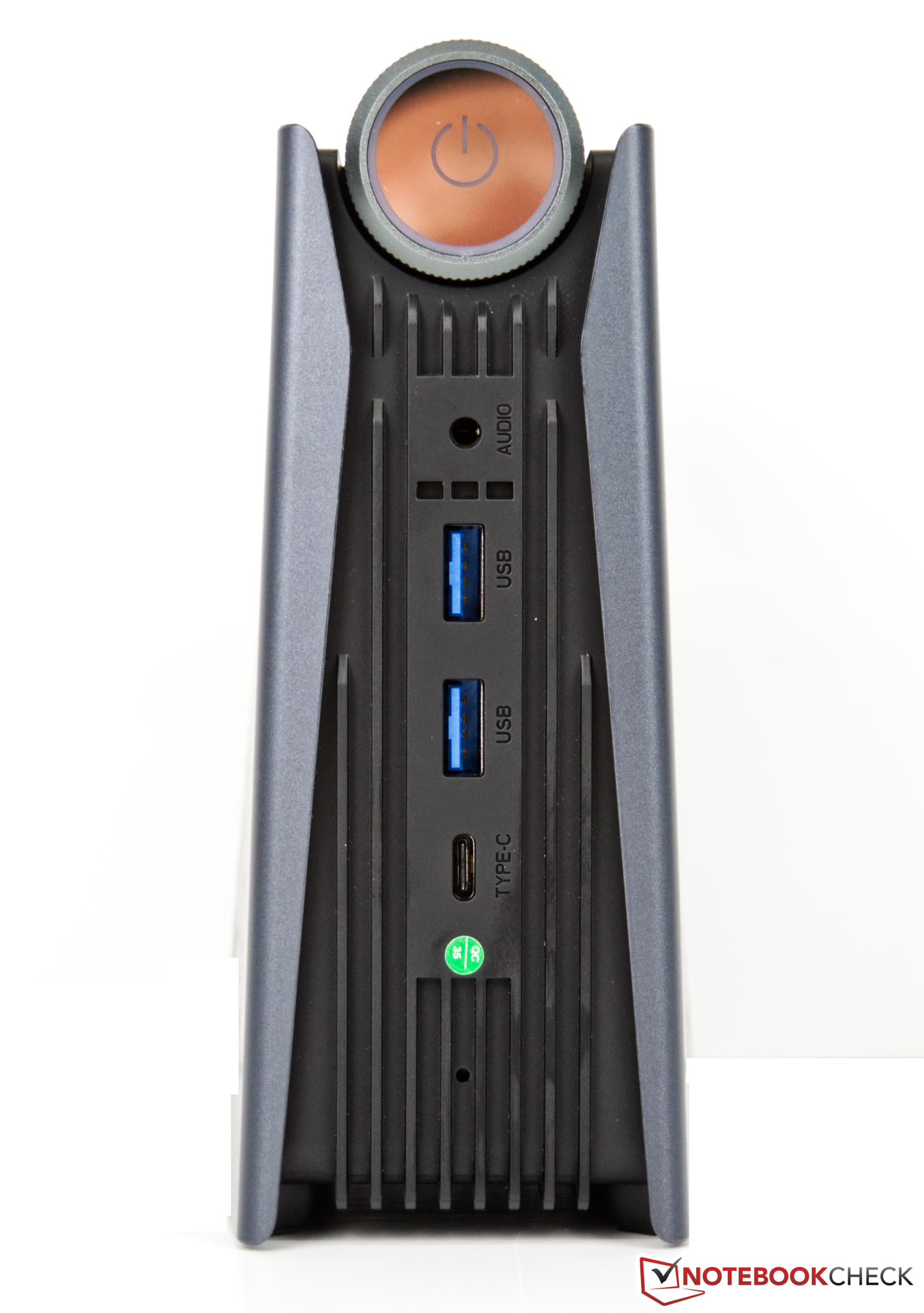

Ace Magician AMR5提供大量的外部接口。这些接口分布在前面和后面。用户将享有总共五个USB接口，其中一个是Type-C接口，也支持视频输出。这意味着这台小型PC可以同时使用三个显示器。然而，并不包括SD读卡器。

沟通

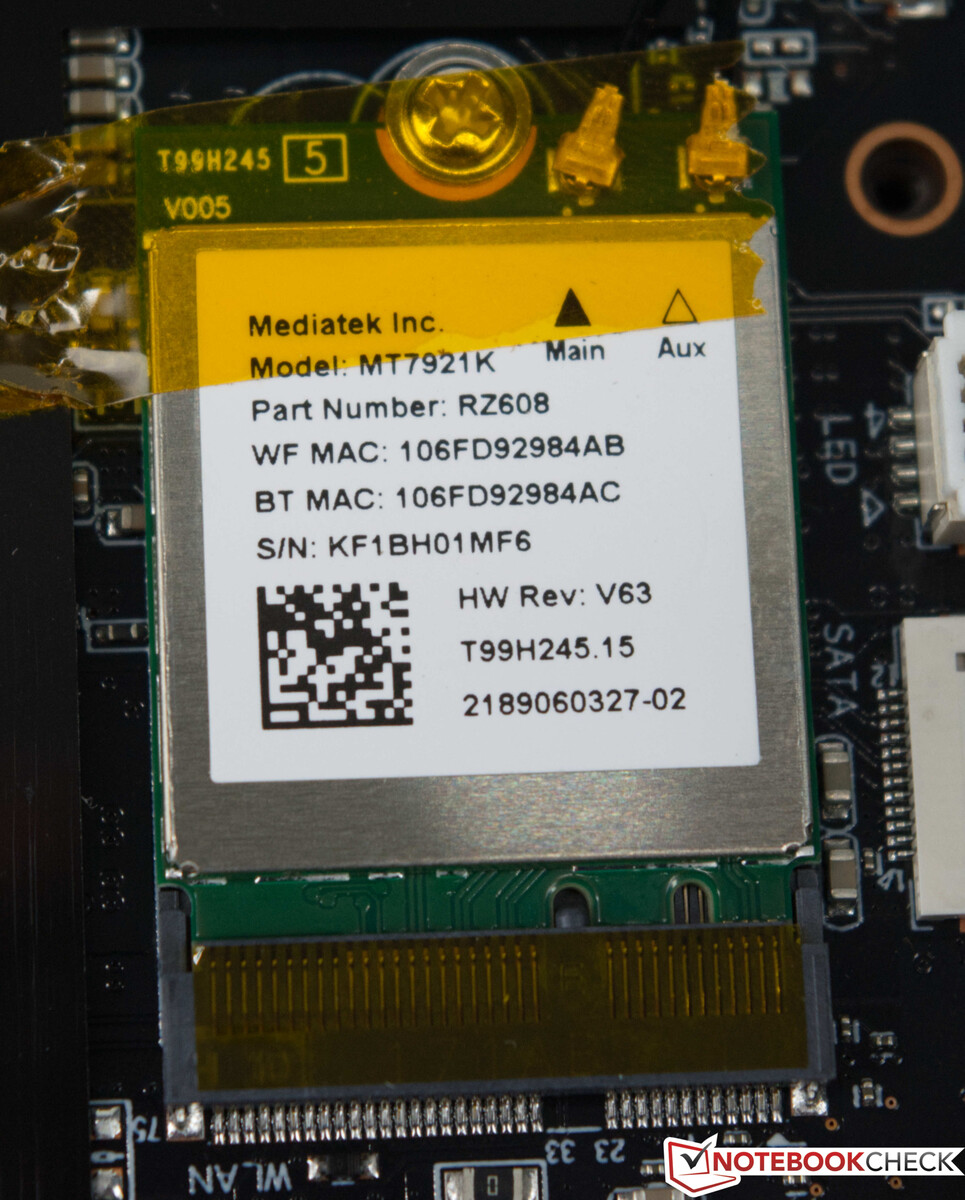

Minipc Union在其Ace Magician AMR5中使用了联发科的RZ608 WLAN模块。我们对它已经很熟悉了，因为同样的型号也被用于MINISFORUM EliteMini B550。然而，Ace Magician AMR5的传输速率看起来更有希望。我们的审查样本在我们的测试环境中提供了快速和稳定的传输率。我们使用华硕ROG Rapture GT-AXE11000进行了这项测试。RJ45端口为无线网络通信提供了另一种选择。不过，在这里不可能获得超过1Gb/s的速度。

Networking
iperf3 receive AXE11000 6GHz
Average of class Mini PC (390 - 1771, n=39, last 2 years)	1196 MBit/s +32%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s -9%
Minisforum EliteMini TH50 MediaTek MT7921	776 (482^min - 881^max) MBit/s -14%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s -52%
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (432 - 1764, n=40, last 2 years)	1162 MBit/s +20%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s
Minisforum EliteMini TH50 MediaTek MT7921	866 (502^min - 950^max) MBit/s -10%
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s -15%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -41%

Minipc Union Ace Magician AMR5; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø951 (486-993)

Minipc Union Ace Magician AMR5; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø888 (450-913)

维护

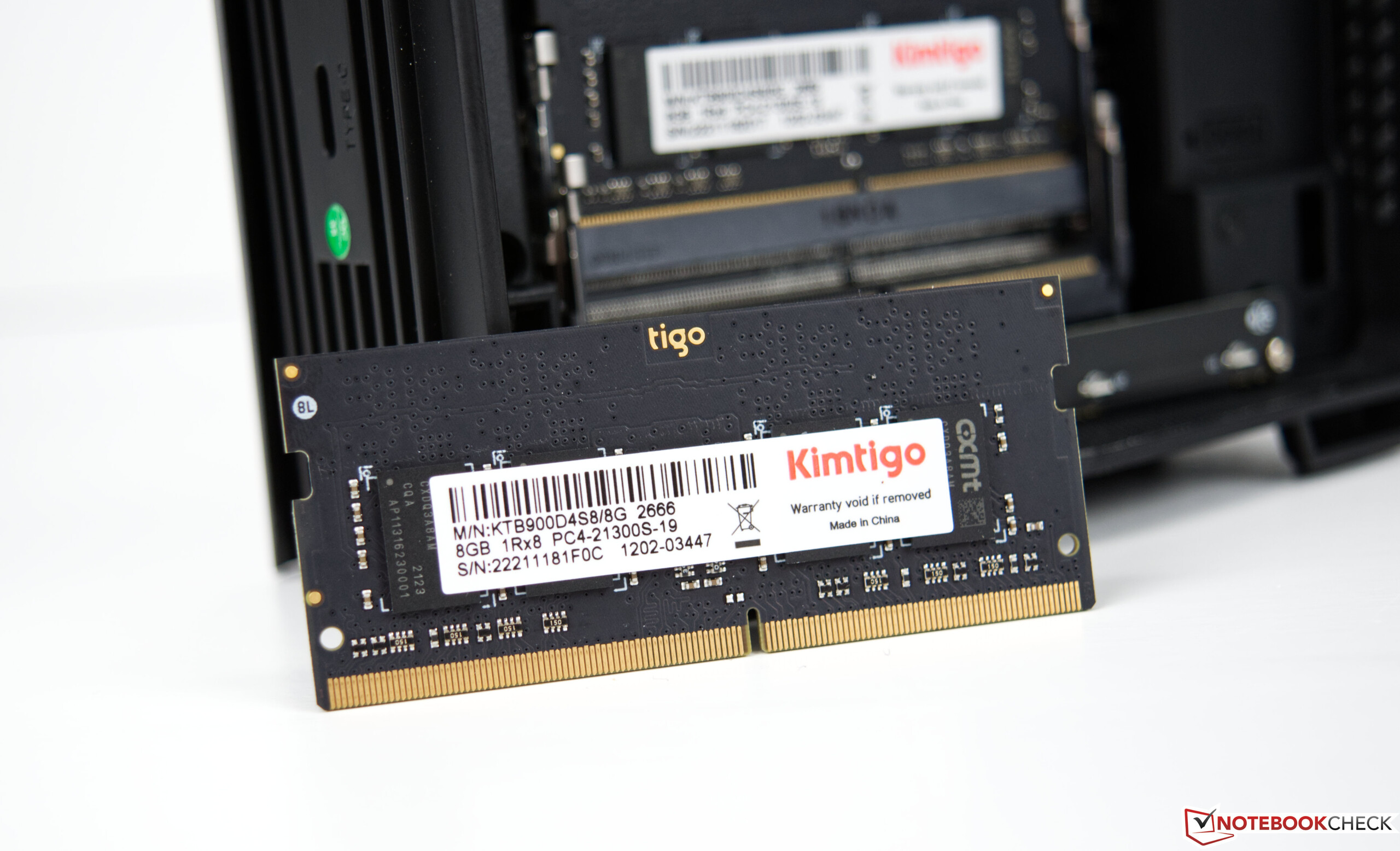

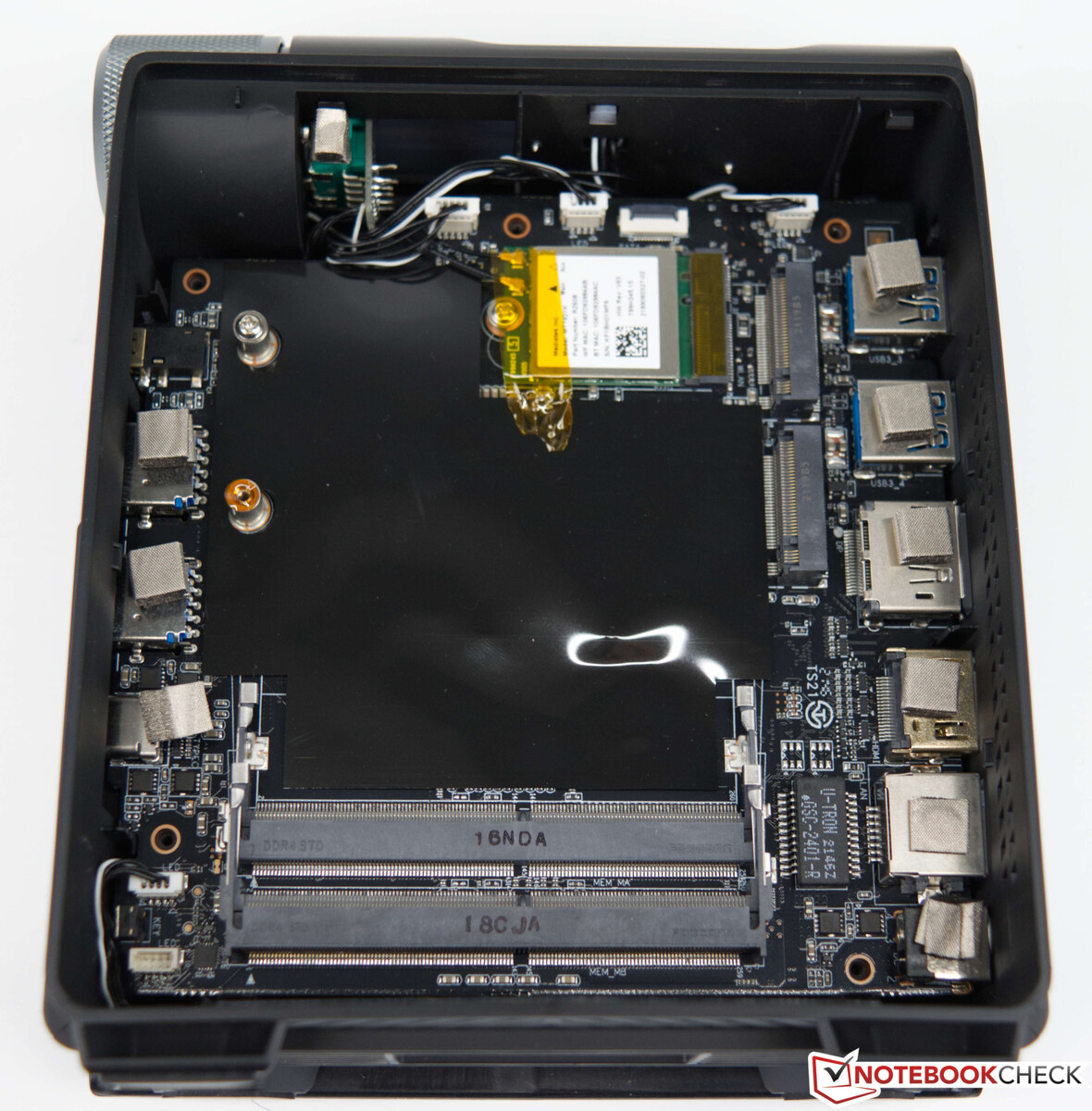

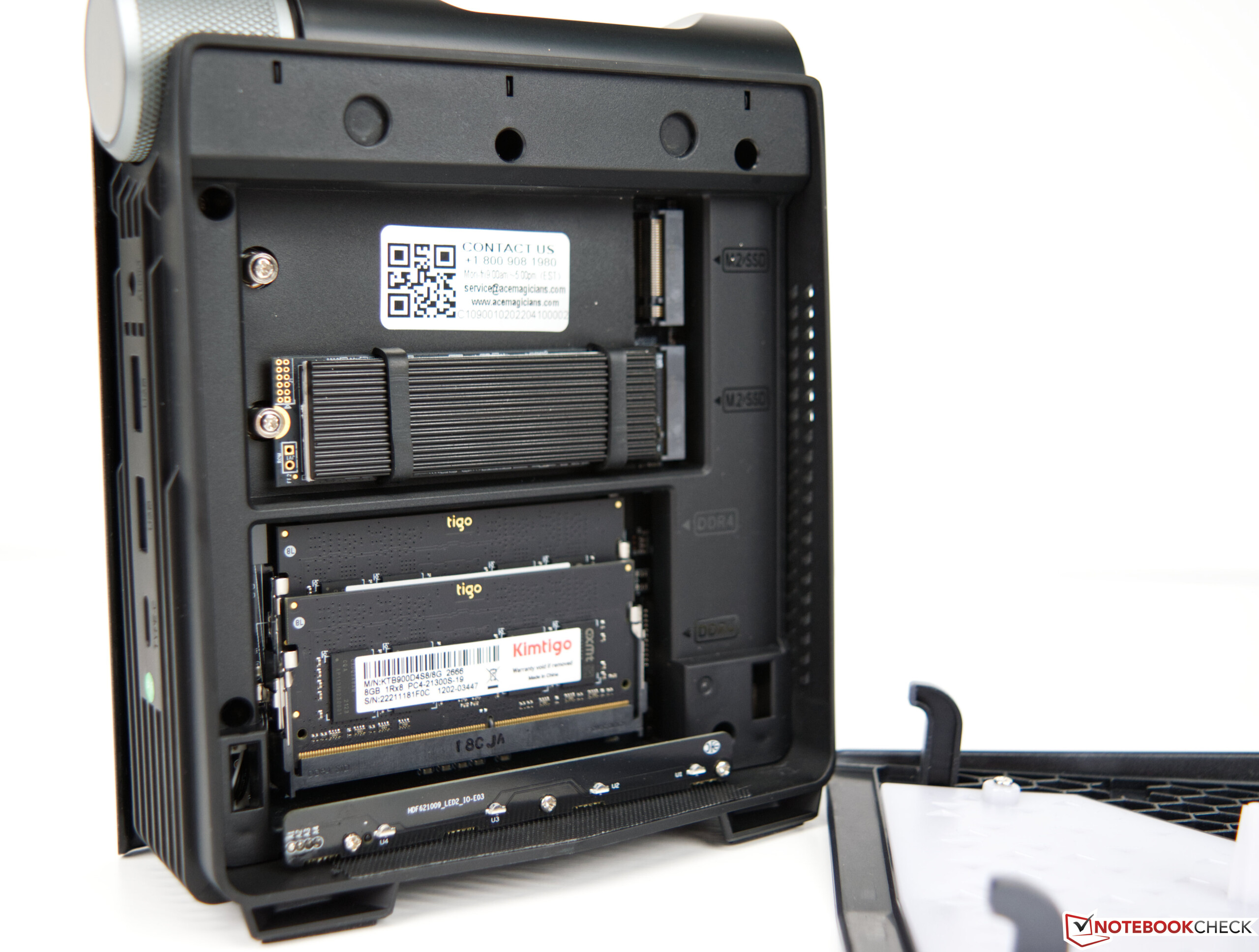

当涉及到访问CPU风扇时，要进行任何维护工作是相当困难的。然而，想要扩展或更换内存或SSD的用户可以很容易地接触到这些部件。侧面的盖子可以在不松动任何螺丝的情况下取下，而且它还配备了一个磁性闭合。我们希望在另一侧也能看到这个选项，以便更快地接触到SoC的主动冷却装置。这可能是因为这一侧没有升级选项而被省略了。因此，如果你想接触更多的部件，你将不得不继续从已经打开的那一面拆卸设备。

业绩

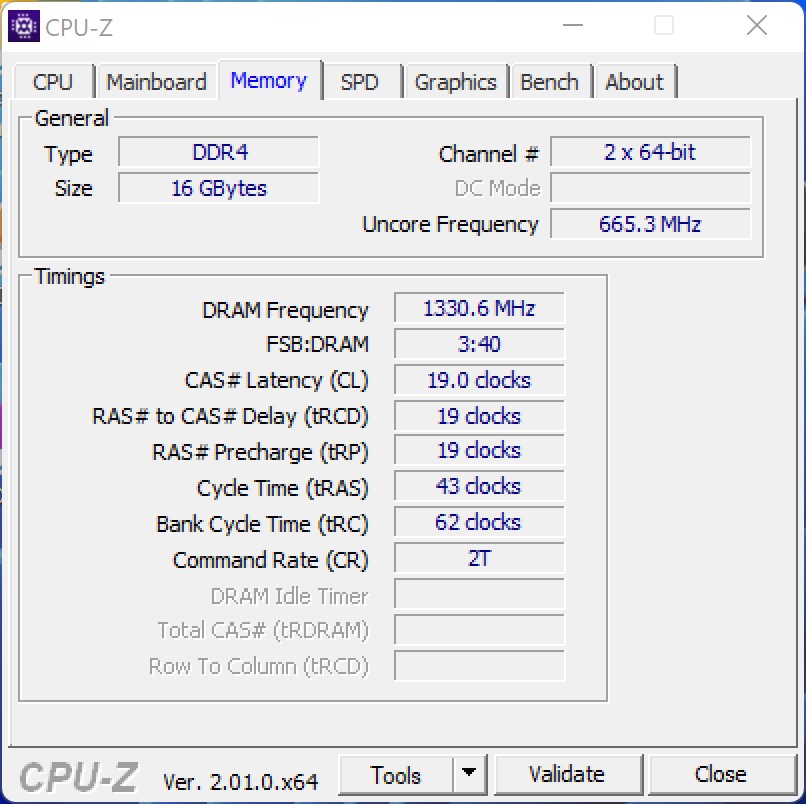

淘宝网芯片为多线程应用提供了坚实的基础。SoC为多线程应用提供了一个坚实的基础。有了16GB的内置DDR4内存，你可以很好地满足大多数应用的需要，而不需要不断地在极限状态下工作。另一方面，512GB固态硬盘可以受到更多的批评，因为Minipc Union认为Ace Magician AMR5是一款紧凑型游戏PC。但由于游戏占用的存储空间越来越大，在我们看来，1TB的固态硬盘会是更好的选择。

测试条件

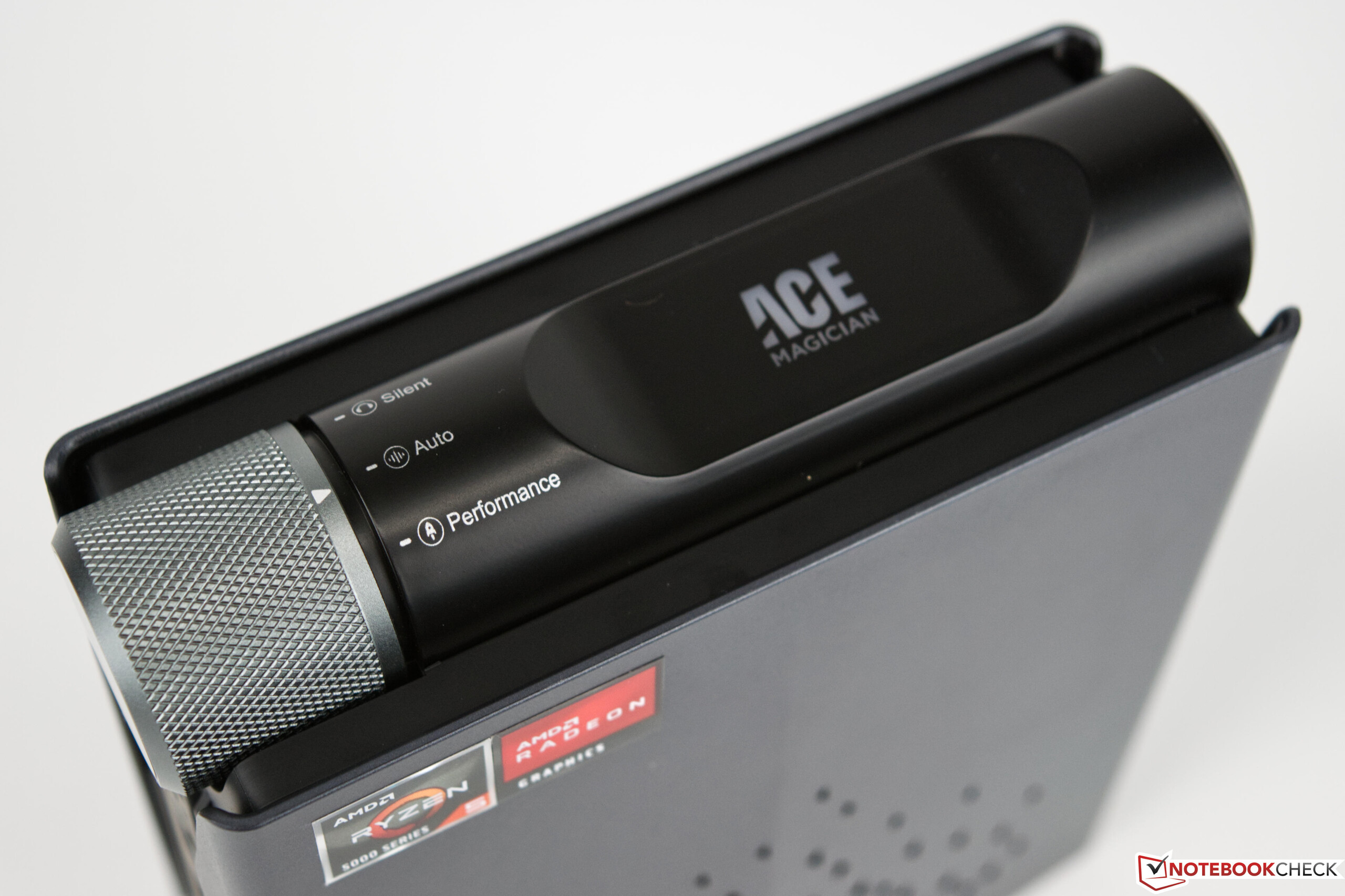

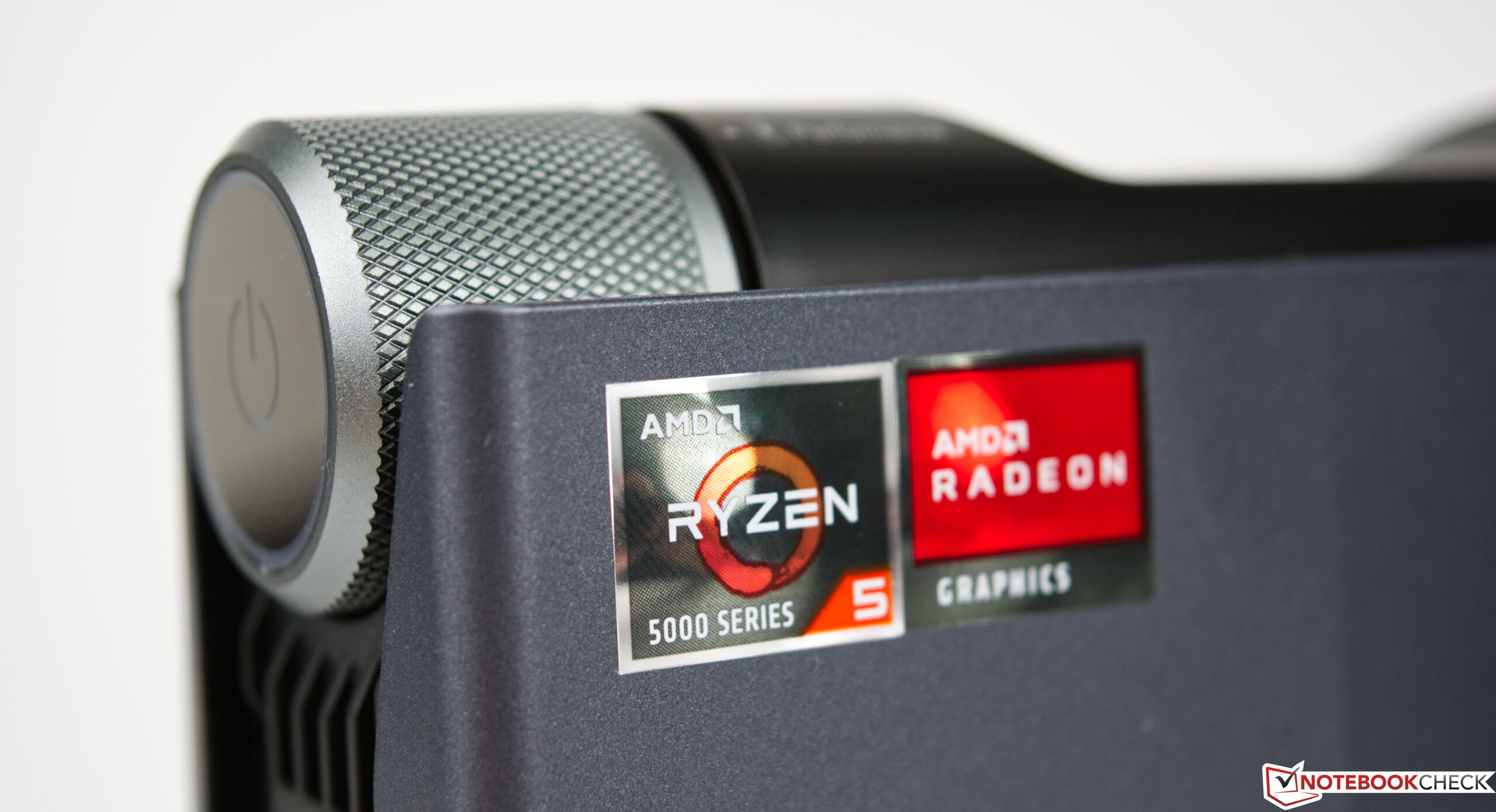

Ace Magician AMR5为用户提供了在三种不同设置下操作设备的选择。这些设置可以通过一个旋转开关来改变，这个开关也是电源按钮。因此，SoC可以在12、18或25瓦特（静音、自动、性能）下永久运行。在这次审查中，我们专门选择了性能配置文件，以获得尽可能好的结果。

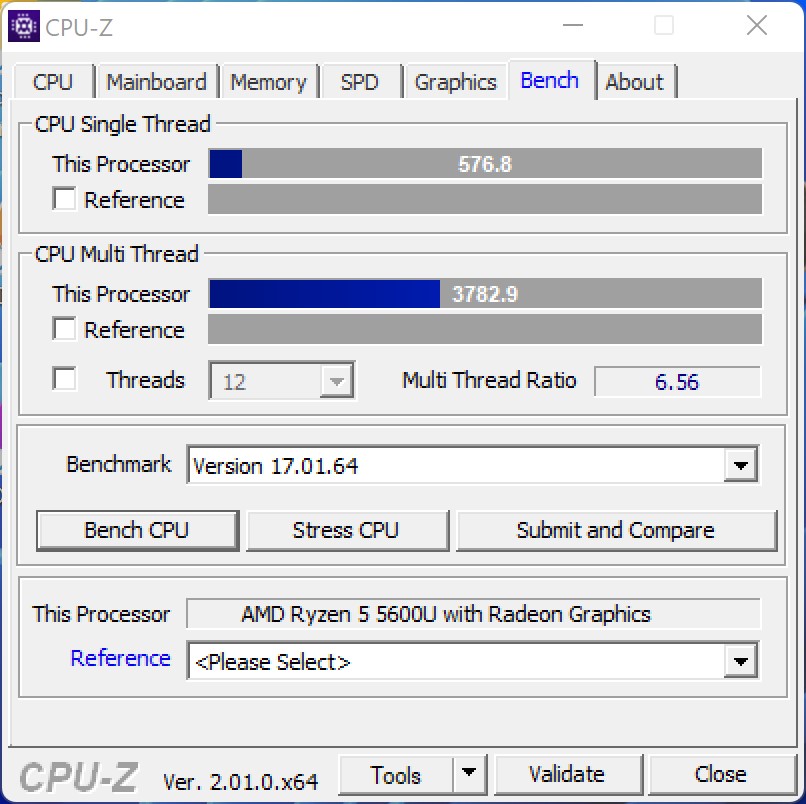

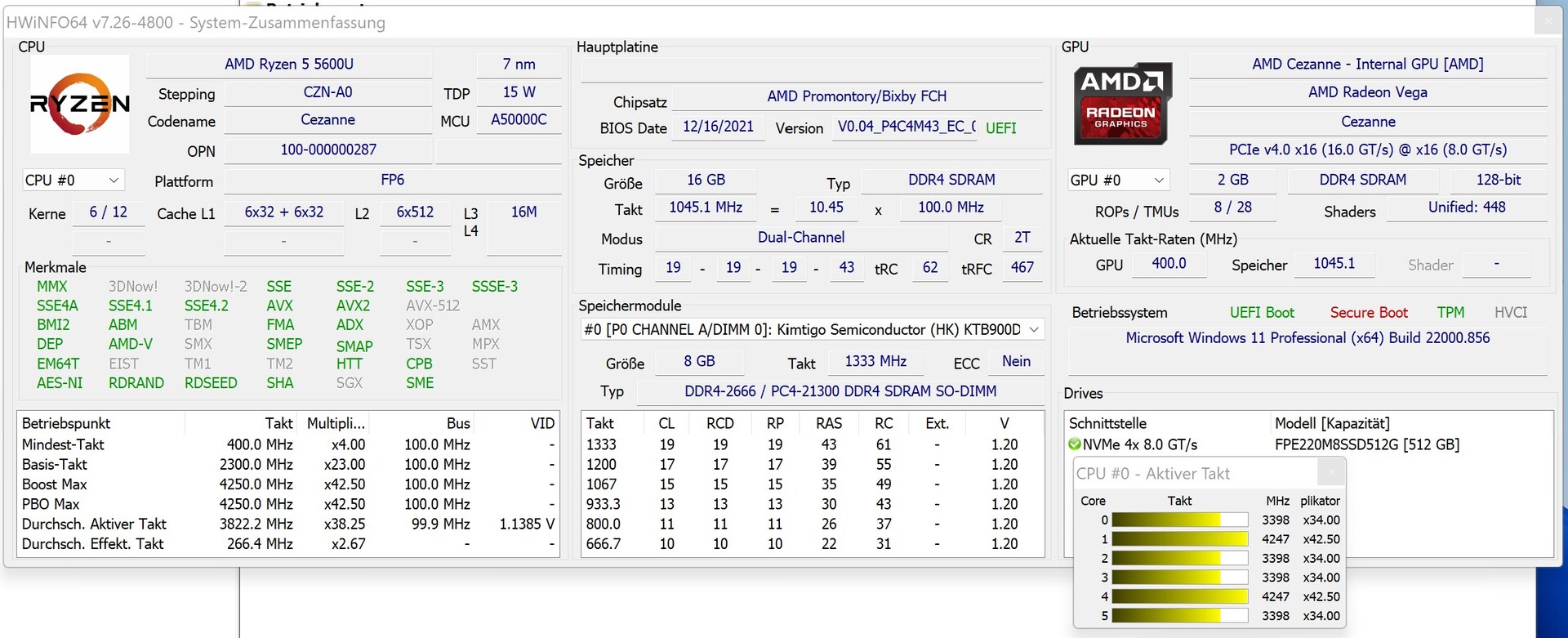

处理器

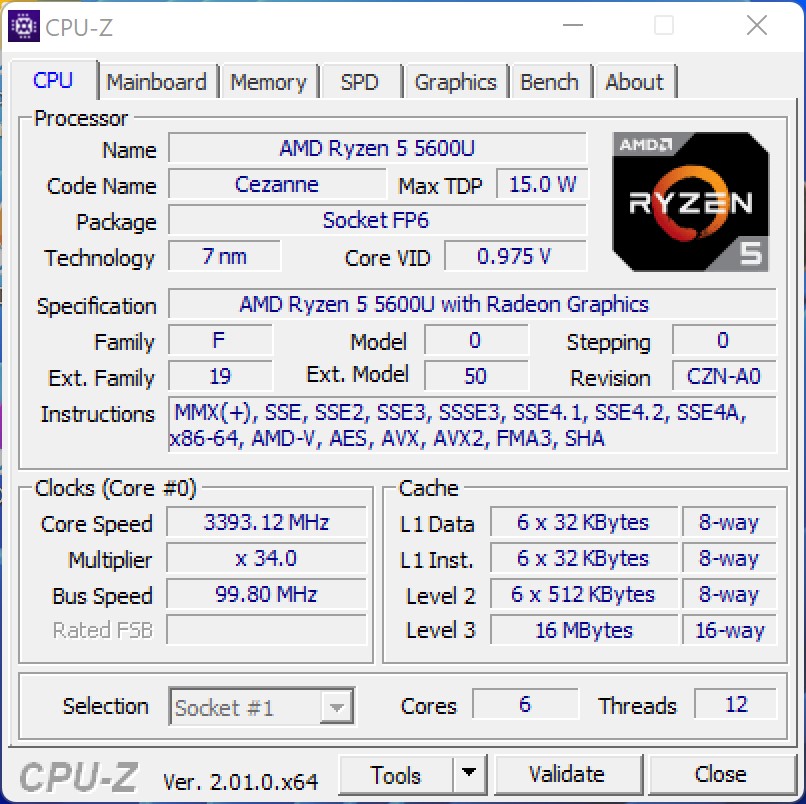

内置的 AMD Ryzen 5 5600UAPU提供6个带SMT的Zen 3核心，它源于移动领域。这款APU在笔记本电脑中被发现，它很节俭，这对紧凑型设计有利，因为它不需要复杂的冷却。该SoC可以在三种不同的模式下运行。在性能模式下，最大功率为28瓦，尽管25瓦是可以长期保持的。SoC可以被节流到18或12瓦，分别是其他模式。自然，这也会影响系统性能。为了说明这一点，我们在三种模式下分别运行了一次Cinebench R15，如下面的屏幕截图所示。

在与竞争对手的直接比较中，Ace Magician AMR5的表现相当好，尽管原生八核CPU提供了更好的多线程性能。然而，AMD Ryzen 5600U的整体性能比我们迄今为止使用该SoC所能达到的平均性能略好。尽管如此，你仍然可以通过使用稍快的内存来获得更多的性能，因为内置内存的时钟频率只有2,666 MHz。

关于处理器的更多基准测试可以在以下地方找到这里.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	46.8 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	46.7 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	46.5 pt
Beelink SER4 ^-16! AMD Ryzen 7 4800U, 1800 MHz	45.8 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.5 pt
Average AMD Ryzen 5 5600U	41.1 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	39.9 pt

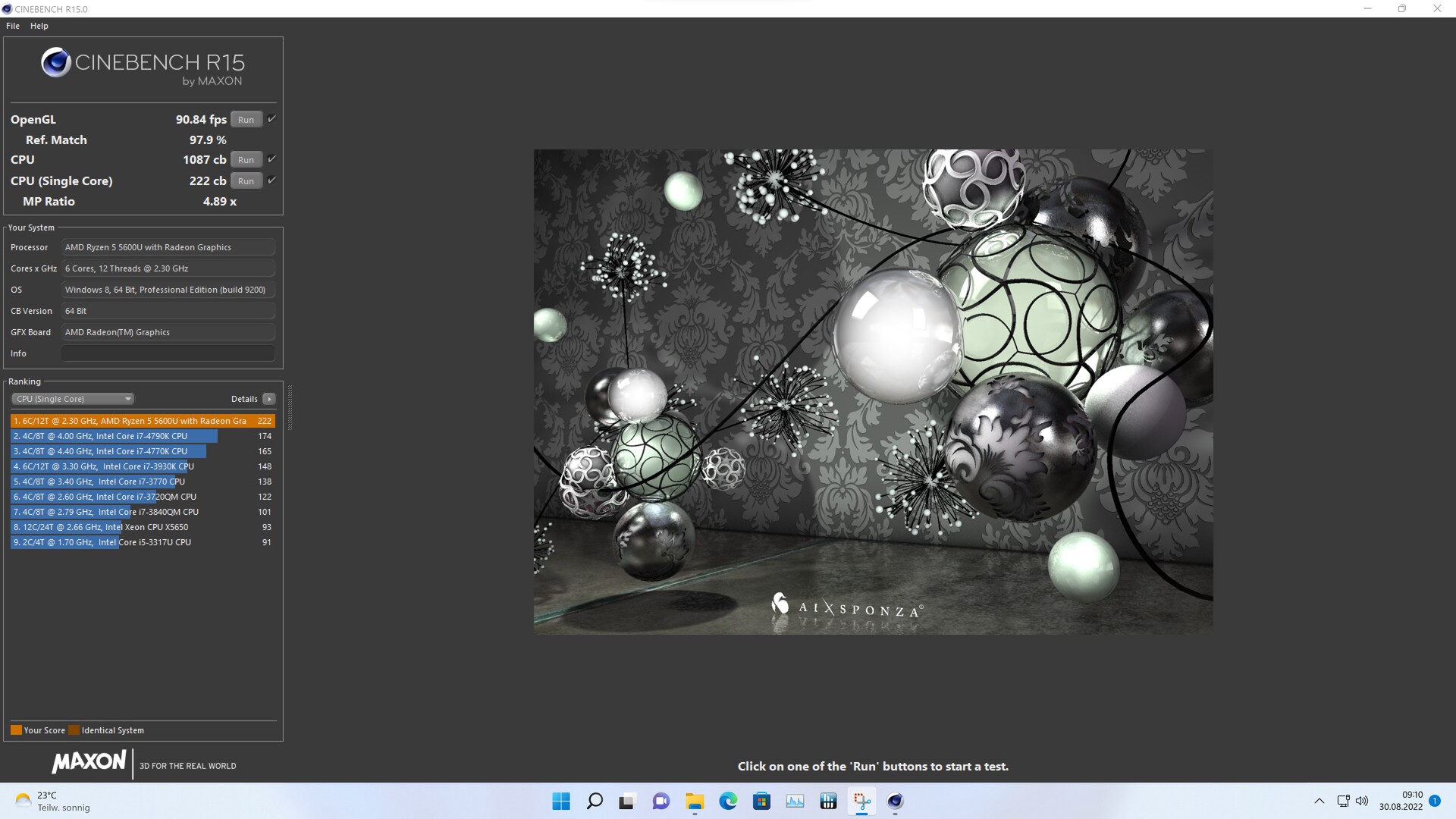

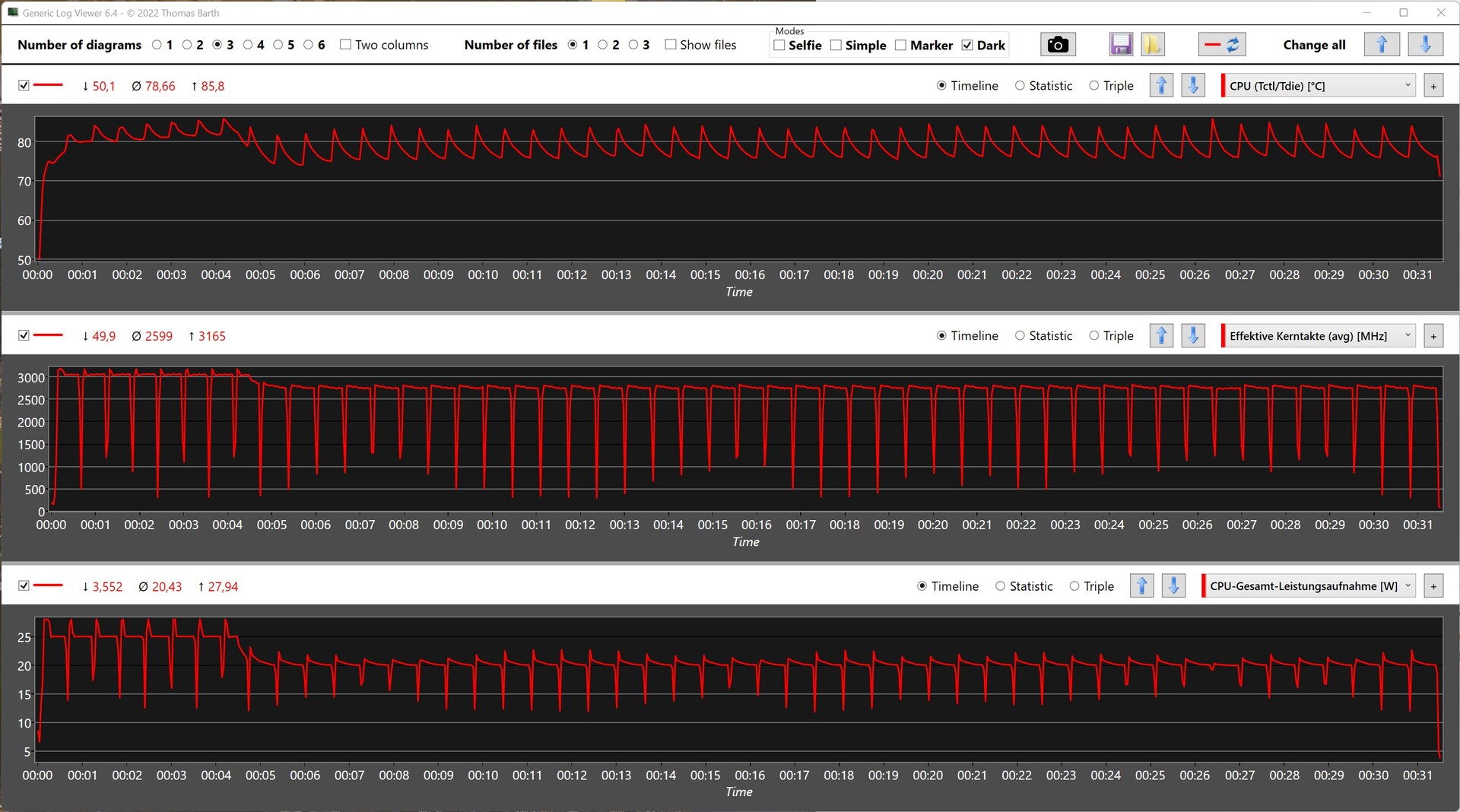

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points
Average AMD Ryzen 5 5600U (220 - 223, n=6)	222 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points -5%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	187 Points -16%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +76%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +57%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +52%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1411 (1390.29^min - 1411.03^max) Points +12%
Average AMD Ryzen 5 5600U (1265 - 1546, n=6)	1347 Points +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points -25%

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points
Average AMD Ryzen 5 5600U (532 - 536, n=7)	534 Points 0%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	488 Points -9%
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +74%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +57%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +51%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	3248 Points +9%
Average AMD Ryzen 5 5600U (2345 - 3632, n=7)	3036 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points -22%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points
Average AMD Ryzen 5 5600U (2.61 - 2.64, n=3)	2.63 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points -5%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +54%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +49%
Average AMD Ryzen 5 5600U (14.5 - 16, n=3)	15.1 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points -27%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +3%
Average AMD Ryzen 5 5600U (11098 - 11143, n=3)	11124 Points 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +61%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +46%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +42%
Average AMD Ryzen 5 5600U (45363 - 50831, n=3)	47704 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points -7%

Blender - v2.79 BMW27 CPU
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * -29%
Average AMD Ryzen 5 5600U (328 - 481, n=6)	413 Seconds * -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds *
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	340 Seconds * +15%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +34%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +43%

wPrime 2.10
32m
Average AMD Ryzen 5 5600U (4.85 - 8.78, n=3)	6.34 s * -18%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +18%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +38%
1024m
Average AMD Ryzen 5 5600U (147.8 - 277, n=3)	193.8 s * -24%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +41%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +13%
Average AMD Ryzen 5 5600U (234 - 236, n=2)	235 fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +54%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +47%
Average AMD Ryzen 5 5600U (76 - 81, n=2)	78.5 fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s
Average AMD Ryzen 5 5600U (6346 - 6877, n=3)	6694 KB/s -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s -20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -38%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +40%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s -4%
Average AMD Ryzen 5 5600U (5.1 - 8.3, n=3)	7.03 GB/s -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s -21%
Twofish Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +82%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +36%
Average AMD Ryzen 5 5600U (1.1 - 1.2, n=3)	1.133 GB/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s -16%
Serpent Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +71%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +57%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +57%
Average AMD Ryzen 5 5600U (0.7 - 0.796, n=3)	0.759 GB/s +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s -25%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +27%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6375 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points -8%
Average AMD Ryzen 5 5600U (4506 - 6523, n=5)	5611 Points -9%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points
Average AMD Ryzen 5 5600U (1334 - 1430, n=5)	1388 Points -3%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1192 Points -17%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points
Average AMD Ryzen 5 5600U (5031 - 6479, n=3)	5876 Points -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points -8%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points
Average AMD Ryzen 5 5600U (1340 - 1383, n=3)	1365 Points -1%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points
Average AMD Ryzen 5 5600U (5553 - 5918, n=3)	5775 Points -1%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +30%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points
Average AMD Ryzen 5 5600U (21830 - 25738, n=3)	24021 Points -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points -10%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	12541 Points -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points -8%
Average AMD Ryzen 5 5600U (7823 - 13130, n=6)	11018 Points -13%

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +46%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +40%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	40117 MIPS +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS
Average AMD Ryzen 5 5600U (32052 - 43071, n=6)	37855 MIPS -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS -31%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS
Average AMD Ryzen 5 5600U (5118 - 5260, n=6)	5198 MIPS -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS -6%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	4603 MIPS -12%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +57%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +44%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	10.4 fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps
Average AMD Ryzen 5 5600U (7.31 - 11.8, n=6)	9.72 fps -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps -22%

R Benchmark 2.5 - Overall mean
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * -16%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	0.576 sec * -7%
Average AMD Ryzen 5 5600U (0.537 - 0.59, n=6)	0.555 sec * -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +8%

LibreOffice - 20 Documents To PDF
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	62.6 s * -23%
Average AMD Ryzen 5 5600U (49.3 - 57.5, n=6)	54 s * -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +5%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points
Average AMD Ryzen 5 5600U (243 - 265, n=6)	255 Points 0%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	219 Points -14%

Mozilla Kraken 1.1 - Total
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	793 ms * -23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * -4%
Average AMD Ryzen 5 5600U (646 - 667, n=6)	656 ms * -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +7%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +36%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +32%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +31%
Average AMD Ryzen 5 5600U (16412 - 20528, n=3)	18169 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17516 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points -22%
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +33%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17885 Points -1%
Average AMD Ryzen 5 5600U (14756 - 20872, n=6)	17757 Points -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points -24%
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +30%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +28%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6514 Points +20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points -4%
Average AMD Ryzen 5 5600U (3820 - 5685, n=6)	4931 Points -9%

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	94.9 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	84.5 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	84.4 pt
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	64.6 pt
Average of class Mini PC	62.2 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	59.2 pt
Average AMD Ryzen 5 5600U	57.9 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51.4 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +50%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +48%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +11%
Average of class Mini PC (561 - 27538, n=98, last 2 years)	9983 KRay/s +10%
Average AMD Ryzen 5 5600U (7902 - 10892, n=6)	9154 KRay/s +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s -18%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +51%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +49%
Average AMD Ryzen 5 5600U (55397 - 69193, n=6)	59694 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points -2%
Average of class Mini PC (3604 - 116903, n=98, last 2 years)	52529 Points -8%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points -45%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +50%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +48%
Average of class Mini PC (225 - 5096, n=98, last 2 years)	2296 MB/s +16%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +6%
Average AMD Ryzen 5 5600U (1906 - 2359, n=6)	2032 MB/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s -7%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +56%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +45%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +41%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +17%
Average AMD Ryzen 5 5600U (67224 - 77176, n=6)	70668 Points +5%
Average of class Mini PC (8172 - 119569, n=98, last 2 years)	69271 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points -22%

AIDA64 / FPU SinJulia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +54%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +47%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +44%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +42%
Average AMD Ryzen 5 5600U (7897 - 9215, n=6)	8412 Points +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points
Average of class Mini PC (408 - 15525, n=98, last 2 years)	7328 Points -12%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points -40%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +77%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +52%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +50%
Average AMD Ryzen 5 5600U (30542 - 38158, n=6)	32514 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points -9%
Average of class Mini PC (1958 - 62378, n=98, last 2 years)	27834 Points -11%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points -40%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +53%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +48%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s -2%
Average of class Mini PC (3691 - 177158, n=98, last 2 years)	75245 MB/s -4%
Average AMD Ryzen 5 5600U (34865 - 92244, n=6)	67096 MB/s -14%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s -30%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +72%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +53%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +48%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s +17%
Average of class Mini PC (74.8 - 1183, n=98, last 2 years)	582 MB/s +15%
Average AMD Ryzen 5 5600U (493 - 597, n=6)	527 MB/s +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s -19%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +82%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +55%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +55%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +20%
Average of class Mini PC (308 - 14722, n=98, last 2 years)	5332 KRay/s +15%
Average AMD Ryzen 5 5600U (4104 - 5644, n=6)	4749 KRay/s +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s -13%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +58%
Average of class Mini PC (4408 - 44347, n=98, last 2 years)	24661 MPixel/s +27%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s +25%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -24%
Average AMD Ryzen 5 5600U (7147 - 19395, n=6)	13587 MPixel/s -30%

王牌魔术师AMR5在Cinebench R15多重循环中的表现

通过Cinebench R15的连续循环，可以看到内置冷却系统的效率。在第7次运行后，性能下降了约10%。尽管如此，Ace Magician AMR5的平均分数为1158分，可以以相当好的成绩完成这项测试。

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Beelink SER4 AMD Ryzen 7 4800U, AMD Ryzen 7 4800U: Ø1404 (1390.29-1411.03)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

系统性能

再一次，Ace Magician AMR5在系统性能方面可以很好地跟上基准测试。与更快的八核处理器的差距仍然在限制范围内，在日常任务中并不明显。

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	99.8 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	96.9 pt
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	96.8 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	94 pt
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	82.3 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	79.3 pt

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +13%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	5257 Points -9%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points -11%
Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points -1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points -2%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points -3%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points -8%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	9188 Points -12%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +4%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	7916 Points -17%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points -28%

Performance Rating - Percent
Morefine S500+, AMD Ryzen 9 5900HX ^-4! AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	93.4 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	81.1 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	78.5 pt
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX ^-4! AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	76.4 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	75.3 pt

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	64.5 fps +24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	61.8 fps +19%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	59.4 fps +14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	52 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	37.3 fps -28%
1900x1060 Siemens NX (snx-02)
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	32.7 fps
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.1 fps -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	20.1 fps -39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.6 fps -43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3.44 fps -89%
1900x1060 Showcase (showcase-01)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	18.4 fps +8%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.4 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	17 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.4 fps -15%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.7 fps -19%
1900x1060 Medical (medical-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	14.8 fps +35%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	12.4 fps +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	12.2 fps +11%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	11.1 fps +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	11 fps
1900x1060 Maya (maya-04)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	39.2 fps +25%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	36.8 fps +17%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	31.4 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	31 fps -1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	30 fps -4%
1900x1060 Energy (energy-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	2.19 fps +68%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1.3 fps
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.53 fps -59%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.52 fps -60%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	0.43 fps -67%
1900x1060 Creo (creo-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	37.2 fps +61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	35.9 fps +55%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.6 fps +50%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	23.1 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	8.37 fps -64%
1900x1060 Catia (catia-04)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	41.2 fps +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	37.7 fps +15%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	37.1 fps +13%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.4 fps +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	32.9 fps
1900x1060 3ds Max (3dsmax-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	43.7 fps +10%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.8 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	39.9 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	38.8 fps -3%

SPECviewperf 13
Solidworks (sw-04)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	71.7 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	69.6 fps +16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	67.7 fps +12%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	60.2 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	49.7 fps -17%
Siemens NX (snx-03)
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	59.1 fps
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	38.2 fps -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	36.3 fps -39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	33.6 fps -43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6.19 fps -90%
Showcase (showcase-02)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	18.4 fps +10%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.3 fps +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	16.8 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.1 fps -16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.8 fps -18%
Medical (medical-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.2 fps +45%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	19.2 fps +32%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.7 fps +28%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	14.6 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	13.1 fps -10%
Maya (maya-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	48.6 fps +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	44.6 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	39.3 fps -12%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	39.1 fps -12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	38.9 fps -13%
Energy (energy-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6.93 fps +17%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5.92 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3.64 fps -39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.88 fps -85%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.87 fps -85%
Creo (creo-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	50.4 fps +20%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	44.9 fps +7%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	42 fps
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	41.8 fps 0%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	34.2 fps -19%
Catia (catia-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	59.3 fps +26%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	52.9 fps +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	52.2 fps +11%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	49.3 fps +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	47 fps
3ds Max (3dsmax-06)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	42.9 fps +8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.5 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	39.8 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	38.5 fps -3%

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	4148 Points +29%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	3843 Points +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	3499 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3414 Points +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	3225 Points
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	306 Points +37%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	276 Points +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	235 Points +5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	235 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	224 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	292 Points +38%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	272 Points +28%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	231 Points +9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	220 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	212 Points
1024x600 Normal, Mandel Vector
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1280 Points +30%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1217 Points +24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1066 Points +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	982 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	763 Points -22%
1024x600 Normal, Mandel Scalar
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1115 Points +23%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1047 Points +16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	964 Points +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	906 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	853 Points -6%
1024x600 Normal, QJuliaRayTrace
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1205 Points +34%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1200 Points +33%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1123 Points +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1002 Points +11%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	900 Points

LuxMark v2.0 64Bit
Sala GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	2320 Samples/s +134%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1287 Samples/s +30%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	993 Samples/s
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	948 Samples/s -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	939 Samples/s -5%
Room GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	693 Samples/s +54%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	547 Samples/s +22%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	451 Samples/s 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	450 Samples/s
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	392 Samples/s -13%

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points 0%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points -10%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points -2%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points -5%

Performance Rating | CrossMark

Performance Rating - Percent
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points 0%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points -10%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points -2%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points -5%

PCMark 10 Score		5761 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +39%
Average of class Mini PC (6481 - 70620, n=98, last 2 years)	42914 MB/s +22%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +20%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s +8%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s +7%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s
Average AMD Ryzen 5 5600U (19785 - 38102, n=6)	28327 MB/s -19%

AIDA64 / Memory Read
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +22%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +22%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +14%
Average of class Mini PC (6914 - 71285, n=98, last 2 years)	43571 MB/s +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s
Average AMD Ryzen 5 5600U (22505 - 40126, n=6)	31392 MB/s -18%

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +34%
Average of class Mini PC (6862 - 89318, n=98, last 2 years)	46636 MB/s +24%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s +17%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -6%
Average AMD Ryzen 5 5600U (19884 - 40633, n=6)	30023 MB/s -20%

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -5%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * -4%
Average AMD Ryzen 5 5600U (88.2 - 96.2, n=6)	92.1 ns * -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns *
Average of class Mini PC (44.9 - 154.6, n=98, last 2 years)	87.8 ns * +4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * +19%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * +19%

* ... smaller is better

DPC延迟

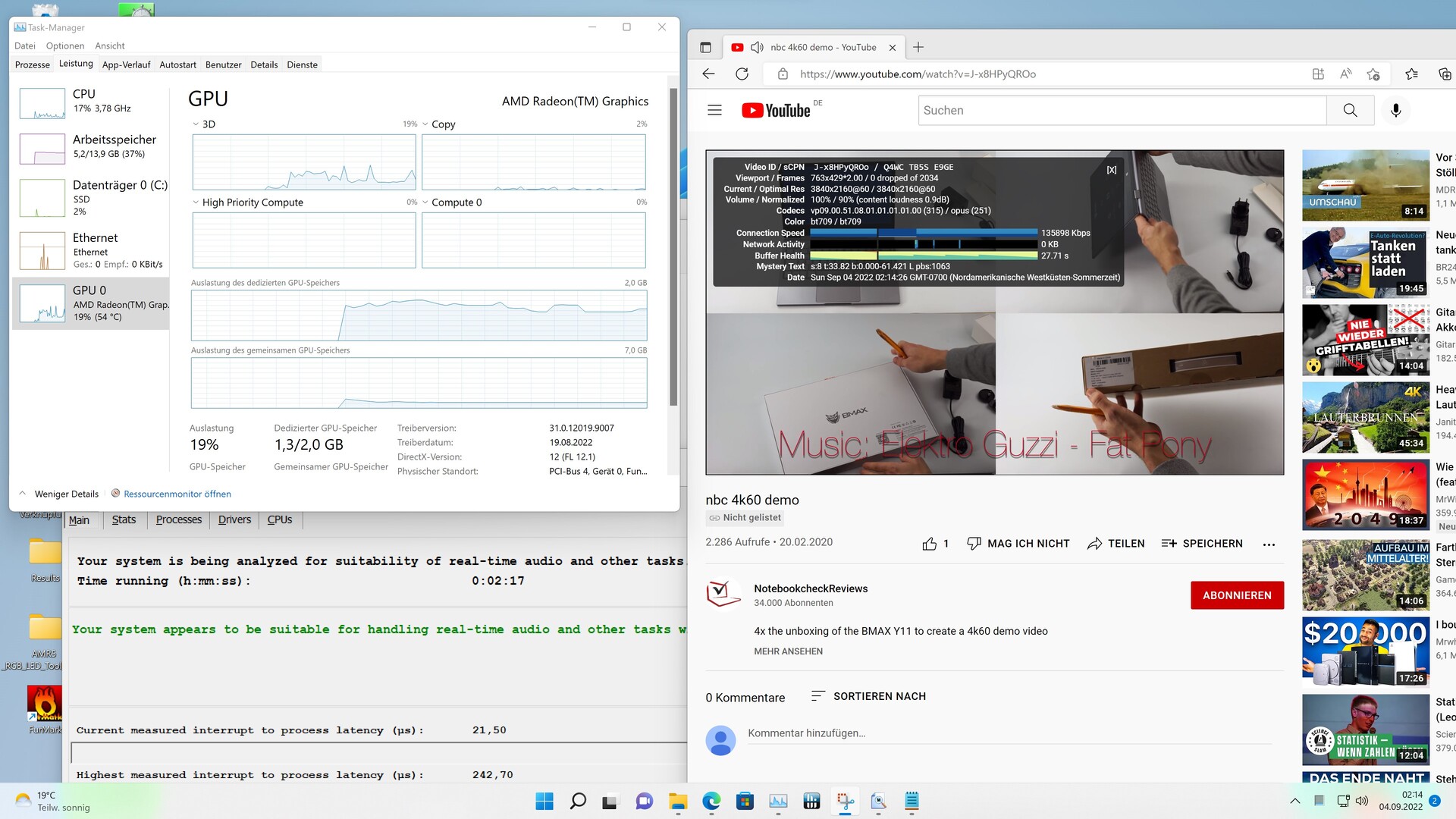

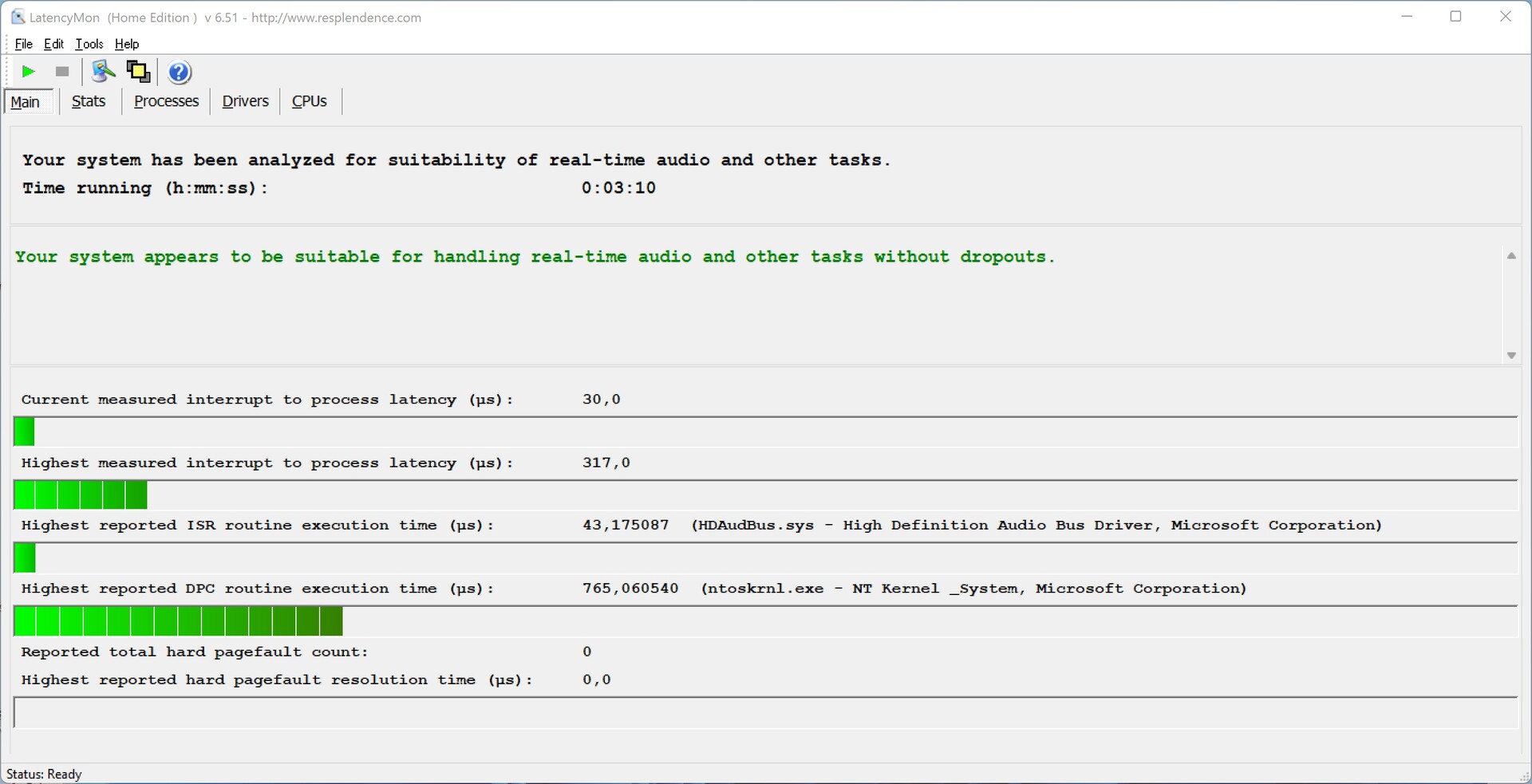

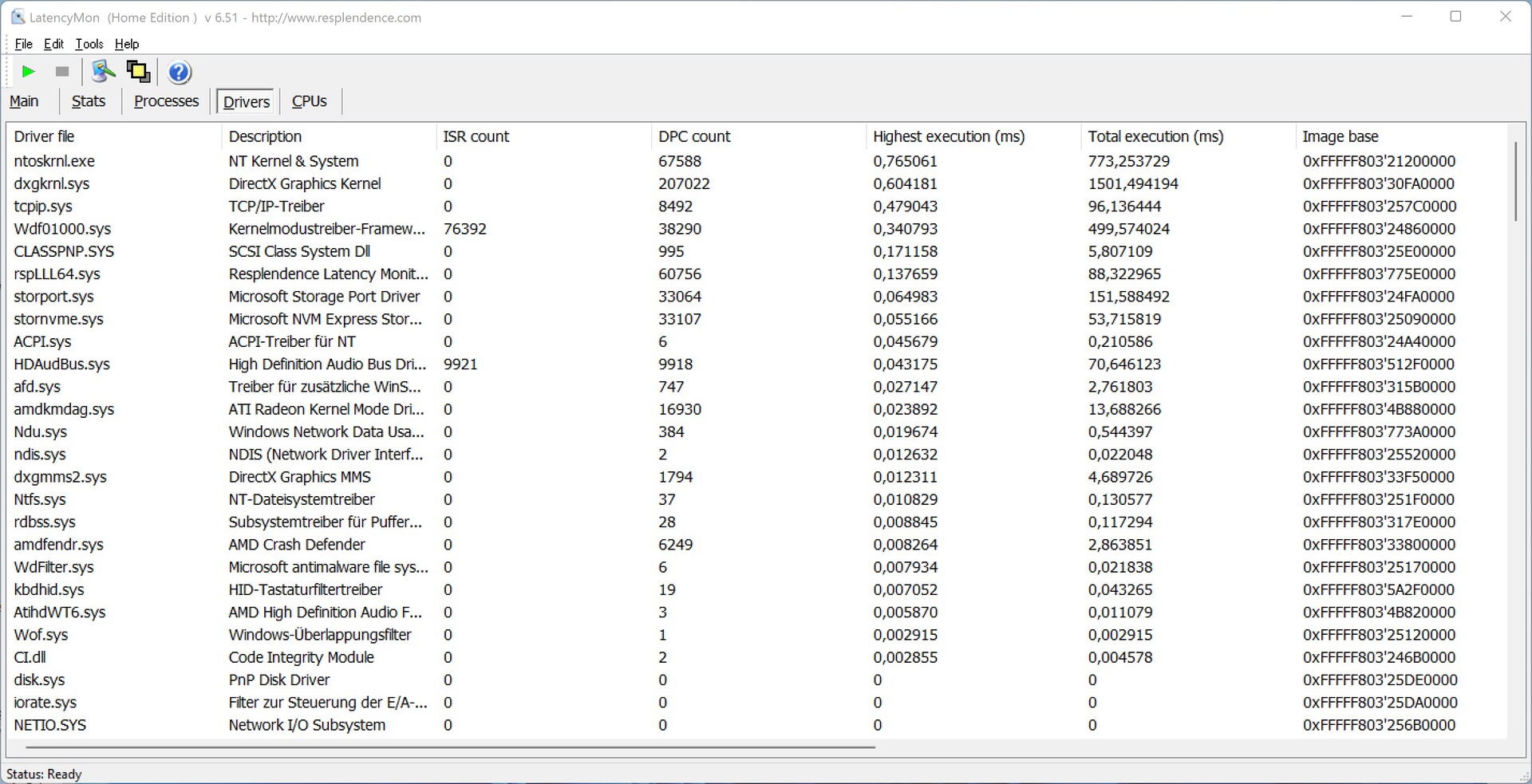

LatencyMon没有显示出Ace Magician AMR5的任何延迟问题。在播放4K YouTube视频、浏览互联网或在Prime95的负载下，都没有问题。在播放我们的4K测试视频时，AMD Ryzen 5600U的iGPU上的负载约为20%。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -144%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -112%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * -45%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs *
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +54%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	336 μs * +56%

* ... smaller is better

储存

Minipc Union为Ace Magician AMR5配备了一块512GB的SSD。来自Future Path的模型利用了PCIe接口，能够以良好的性能在测试中占据领先地位。良好的4K读取率使其能够快速加载许多小文件，这在系统启动时是一个优势。然而，压力测试表明，这种性能不能完全保持在很长一段时间内。尽管有被动式散热器，但负载下的温度似乎导致性能不得不时不时地被扼杀。不幸的是，大容量存储设备没有主动冷却。不幸的是，考虑到它被宣传为游戏系统，512GB的型号只能在有限范围内被推荐。然而，可以很容易地安装第二个固态硬盘。

关于更多的比较和基准，请参考我们的硬盘/SSD基准测试文章.

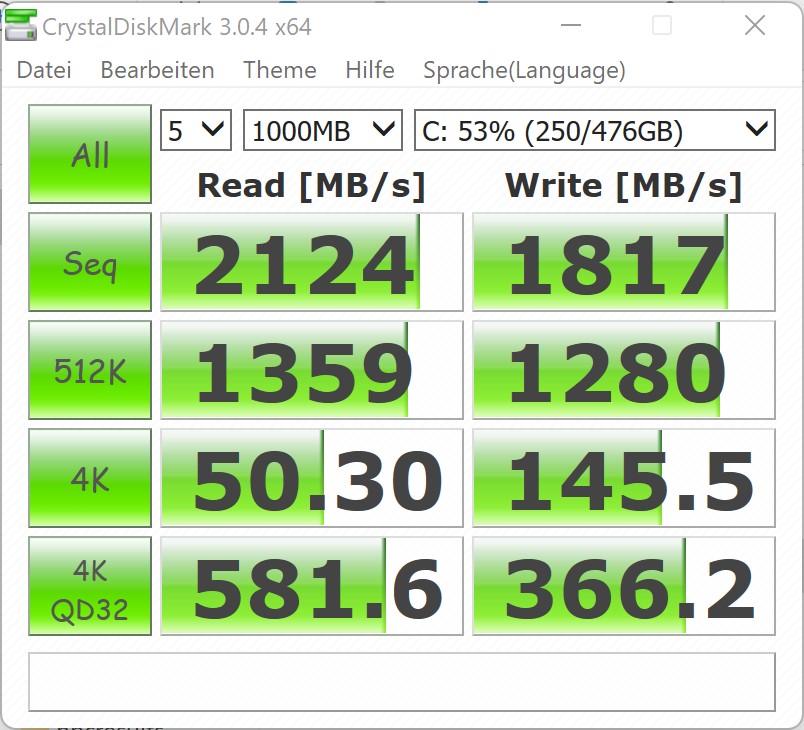

CrystalDiskMark 3.0

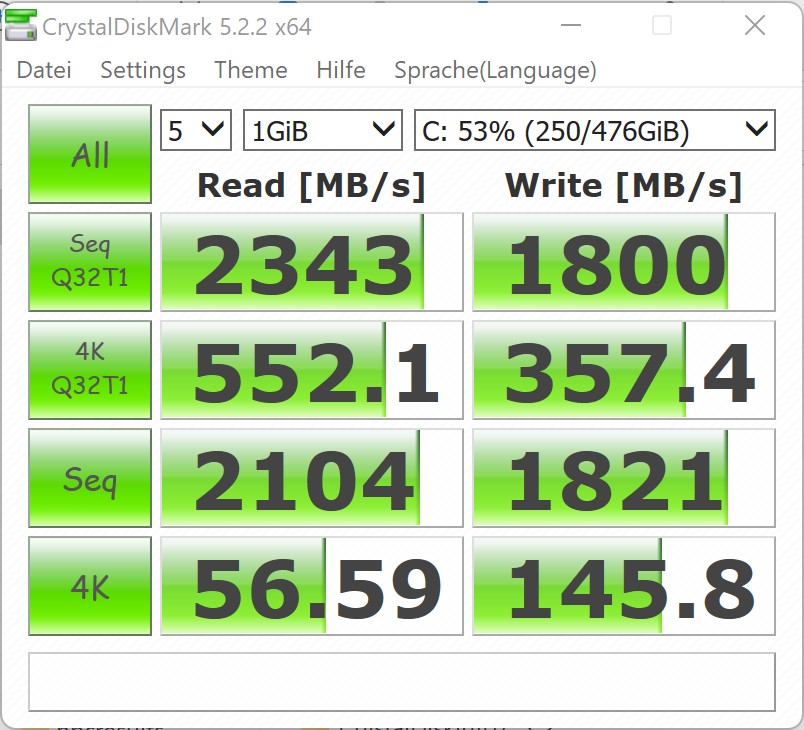

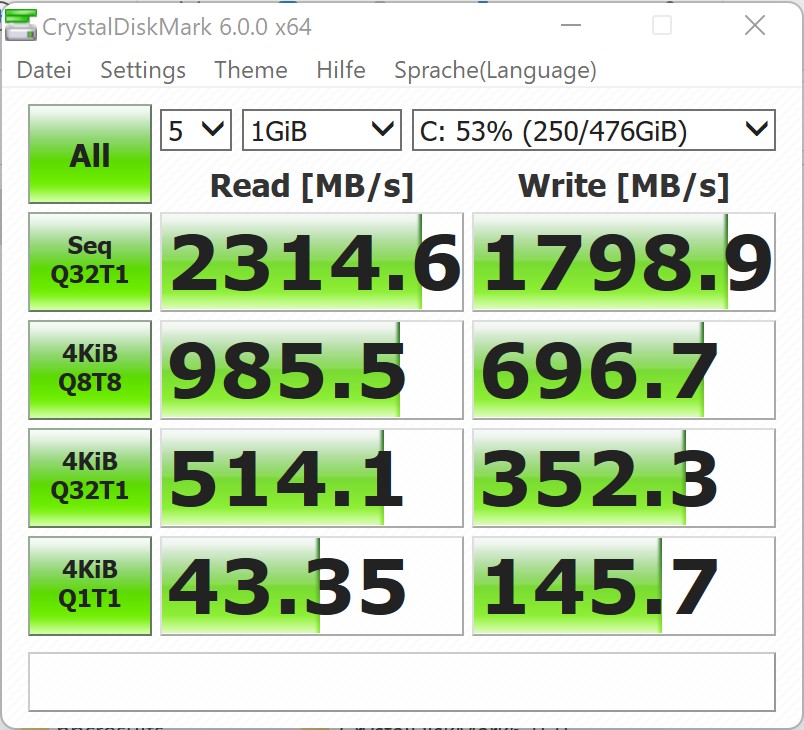

CrystalDiskMark 5.2 / 6

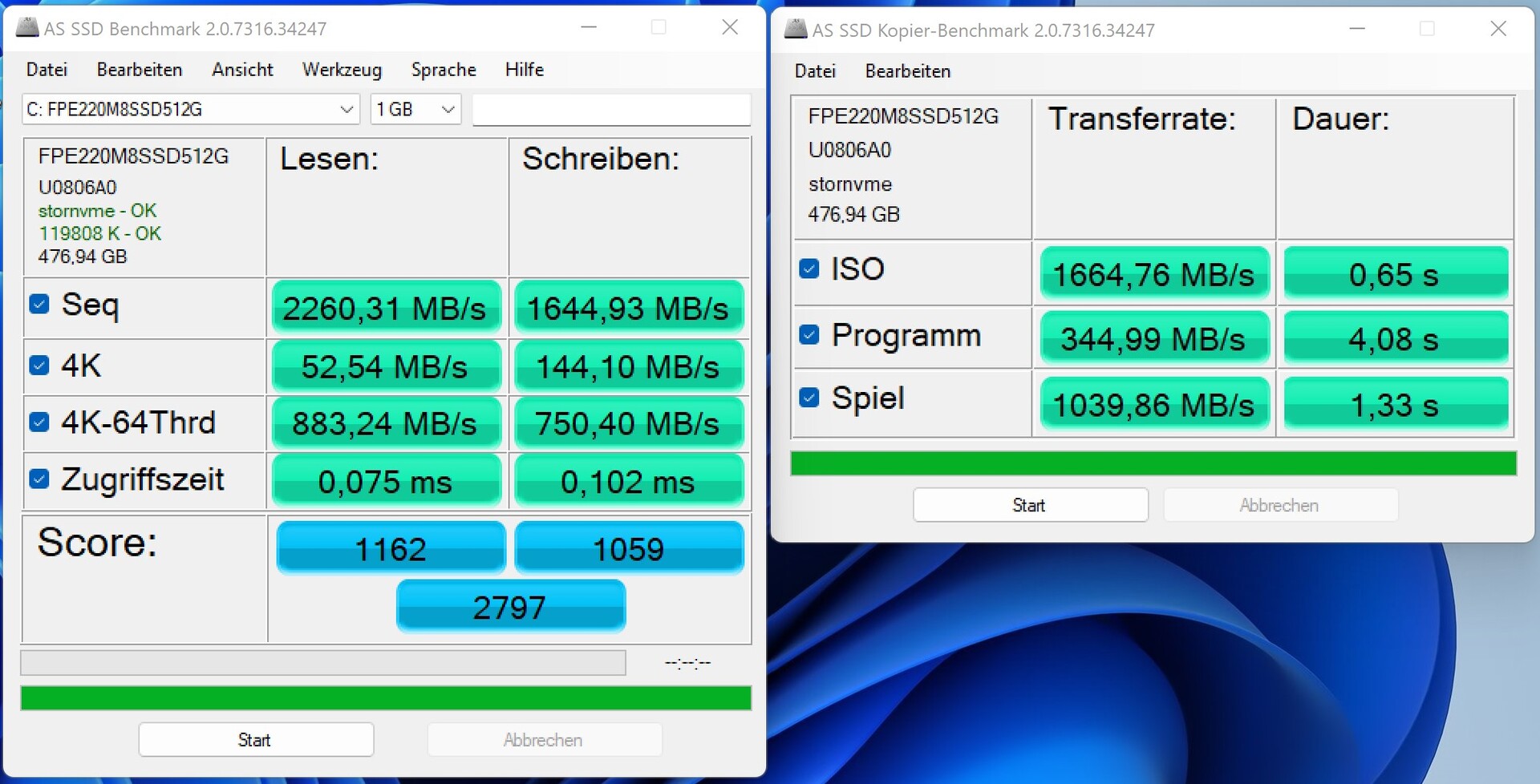

AS SSD

DiskSpd

Future Path FPE220M8SSD512G

Sequential Read: 2124 MB/s

Sequential Write: 1817 MB/s

512K Read: 1359 MB/s

512K Write: 1280 MB/s

4K Read: 50.3 MB/s

4K Write: 145.5 MB/s

4K QD32 Read: 581.6 MB/s

4K QD32 Write: 366.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	89.4 pt
Average Future Path FPE220M8SSD512G	77.6 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	77.4 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	74.2 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	64.2 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	61.8 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	58.8 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	58.1 pt

DiskSpd
seq read
Average Future Path FPE220M8SSD512G (2014 - 2184, n=3)	2093 MB/s +1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s -2%
Average of class Mini PC (233 - 4168, n=97, last 2 years)	2030 MB/s -2%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s -18%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s -27%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s -34%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -37%
seq write
Average of class Mini PC (222 - 5595, n=97, last 2 years)	2052 MB/s +15%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s
Average Future Path FPE220M8SSD512G (1598 - 1792, n=3)	1727 MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -29%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s -34%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -45%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s -46%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s -69%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=97, last 2 years)	3172 MB/s +30%
Average Future Path FPE220M8SSD512G (2399 - 2525, n=3)	2456 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -3%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -11%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -19%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s -36%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=97, last 2 years)	2233 MB/s +26%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s
Average Future Path FPE220M8SSD512G (1602 - 1790, n=3)	1720 MB/s -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -26%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -32%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -45%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s -45%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s -69%
4k q1 t1 read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s +29%
Average of class Mini PC (5.67 - 86.6, n=97, last 2 years)	51.5 MB/s +7%
Average Future Path FPE220M8SSD512G (45.1 - 55, n=3)	49.4 MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s -2%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s -8%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s -21%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -39%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s -5%
Average Future Path FPE220M8SSD512G (194.7 - 210, n=3)	200 MB/s -5%
Average of class Mini PC (22 - 425, n=97, last 2 years)	185.7 MB/s -12%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -20%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -24%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -34%
4k q32 t16 read
Average of class Mini PC (26.1 - 2810, n=97, last 2 years)	1092 MB/s +10%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +7%
Average Future Path FPE220M8SSD512G (985 - 1005, n=3)	994 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s -19%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s -32%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s -65%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -68%
4k q32 t16 write
Average of class Mini PC (30.2 - 3983, n=97, last 2 years)	1088 MB/s +65%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +57%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +48%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +35%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s +25%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s
Average Future Path FPE220M8SSD512G (499 - 774, n=3)	644 MB/s -2%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s -20%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=94, last 2 years)	3534 Points +26%
Average Future Path FPE220M8SSD512G (2797 - 2887, n=2)	2842 Points +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -20%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points -22%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points -34%
Score Read
Average of class Mini PC (61 - 3635, n=94, last 2 years)	1346 Points +16%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points
Average Future Path FPE220M8SSD512G (1152 - 1162, n=2)	1157 Points 0%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points -14%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -26%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points -40%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points -53%
Score Write
Average of class Mini PC (88 - 4185, n=94, last 2 years)	1551 Points +46%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +18%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +9%
Average Future Path FPE220M8SSD512G (1059 - 1169, n=2)	1114 Points +5%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -6%
Seq Read
Average of class Mini PC (291 - 6620, n=94, last 2 years)	2804 MB/s +24%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s
Average Future Path FPE220M8SSD512G (2204 - 2260, n=2)	2232 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -9%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -21%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s -27%
Seq Write
Average of class Mini PC (240 - 5783, n=94, last 2 years)	1949 MB/s +19%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s
Average Future Path FPE220M8SSD512G (1603 - 1644, n=2)	1624 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -24%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s -30%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -43%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s -47%
4K Read
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +10%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s +7%
Average of class Mini PC (6.08 - 104.2, n=94, last 2 years)	55.3 MB/s +5%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s
Average Future Path FPE220M8SSD512G (39.7 - 52.5, n=2)	46.1 MB/s -12%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -47%
4K Write
Average of class Mini PC (30.9 - 366, n=94, last 2 years)	166.7 MB/s +16%
Average Future Path FPE220M8SSD512G (144.1 - 185.3, n=2)	164.7 MB/s +14%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s +14%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s +6%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -16%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=94, last 2 years)	1010 MB/s +14%
Average Future Path FPE220M8SSD512G (883 - 892, n=2)	887 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s -19%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s -30%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s -47%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s -64%
4K-64 Write
Average of class Mini PC (32.8 - 3598, n=94, last 2 years)	1190 MB/s +59%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +31%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +22%
Average Future Path FPE220M8SSD512G (750 - 824, n=2)	787 MB/s +5%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s -1%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -105%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -40%
Average of class Mini PC (0.022 - 0.489, n=94, last 2 years)	0.1031 ms * -37%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -13%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * -8%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms *
Average Future Path FPE220M8SSD512G (0.06 - 0.075, n=2)	0.0675 ms * +10%
Access Time Write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * -34%
Average of class Mini PC (0.016 - 0.765, n=94, last 2 years)	0.1304 ms * -28%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -1%
Average Future Path FPE220M8SSD512G (0.102 - 0.103, n=2)	0.1025 ms * -0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms *
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +72%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +76%

* ... smaller is better

Continuous load read: DiskSpd Read Loop, Queue Depth 8

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB: Ø1499 (1411.27-1985.99)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Beelink SER4 Intel SSD 660p SSDPEKNW512G8: Ø1407 (1225.09-1439.28)

Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1: Ø1905 (1097.76-2359.4)

图形卡

淘宝网芯片配备了一个AMD Radeon RX Vega 7iGPU，它完全负责3D性能。考虑到Minipc Union将Ace Magician AMR5宣传为紧凑型游戏设备，这是一个很大的负担。根据我们审查许多笔记本电脑的经验，我们很清楚在这里大致上可以预期什么。

尽管如此，AMD Radeon RX Vega 7还是能够提供良好的性能，高于我们的平均速率。然而，在比较中，我们的模型越来越多地与Minisforum EliteMini TH50这里。由于iGPU的性能取决于RAM的数量，所以通过使用更快的模块，应该可以将性能提高一到两个百分点。

关于进一步的比较和基准，请参考我们的 GPU基准测试文章.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	96.8 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	84.3 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	83.3 pt
Beelink SER4 ^-2! AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	82.2 pt
Minisforum EliteMini B550 ^-1! AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	76.8 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	72.9 pt
Average AMD Radeon RX Vega 7	71 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +27%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +16%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +12%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points +8%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +3%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points
Average AMD Radeon RX Vega 7 (3353 - 6249, n=58)	5054 Points -10%

3DMark
1280x720 Sky Diver Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	14274 Points +70%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	13595 Points +62%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	12457 Points +49%
Average AMD Radeon RX Vega 7 (8008 - 12857, n=8)	10587 Points +26%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	8374 Points
1920x1080 Ice Storm Extreme Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	121736 Points +33%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	102227 Points +12%
Average AMD Radeon RX Vega 7 (76256 - 130476, n=13)	97550 Points +7%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	96874 Points +6%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	91576 Points
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	50500 Points -45%
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +25%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +10%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	27339 Points +4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points 0%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points -10%
Average AMD Radeon RX Vega 7 (13713 - 31437, n=43)	23324 Points -11%
1920x1080 Fire Strike Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +32%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +22%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points +10%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points +5%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -6%
Average AMD Radeon RX Vega 7 (1772 - 4037, n=62)	3189 Points -11%
2560x1440 Time Spy Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1592 Points +44%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1412 Points +28%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1247 Points +13%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points +13%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1150 Points +4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points
Average AMD Radeon RX Vega 7 (496 - 1249, n=57)	991 Points -10%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition

Performance Rating - Percent
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	96.2 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	91.4 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	76.7 pt
Average AMD Radeon RX Vega 7	76.2 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	73.3 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	70.7 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +31%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +11%
Average AMD Radeon RX Vega 7 (14.2 - 20.9, n=4)	17.9 fps +1%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -8%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -16%
Extreme Preset DX11
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +36%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +25%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps +5%
Average AMD Radeon RX Vega 7 (15.9 - 19.8, n=4)	17.8 fps +4%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -2%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +32%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +26%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps +3%
Average AMD Radeon RX Vega 7 (9.6 - 13.2, n=4)	11.6 fps +3%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -6%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps +38%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps +11%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps
Average AMD Radeon RX Vega 7 (8.5 - 13.5, n=4)	11.4 fps -1%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -7%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -20%

Unigine Superposition
1280x720 720p Low
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	7768 Points +45%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	6430 Points +20%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	6189 Points +15%
Average AMD Radeon RX Vega 7 (5347 - 7180, n=4)	6142 Points +15%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	5998 Points +12%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	5361 Points
1920x1080 1080p High
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1995 Points +37%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points +32%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1702 Points +17%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points +8%
Average AMD Radeon RX Vega 7 (1274 - 1664, n=4)	1495 Points +2%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	1459 Points

3DMark 05 Standard		36912 points
3DMark 06 Standard Score		22493 points
3DMark Vantage P Result		17714 points
3DMark 11 Performance		5920 points
3DMark Ice Storm Standard Score		113920 points
3DMark Cloud Gate Standard Score		20395 points
3DMark Fire Strike Score		3229 points
3DMark Fire Strike Extreme Score		1456 points
3DMark Time Spy Score		1251 points
Help

... in comparison

游戏性能

很明显，在游戏性能方面，用户将不得不忍受限制，因为AMD Radeon RX Vega 7在现代游戏中很快达到了它的极限。然而，那些喜欢旧的和要求不高的游戏的人绝对可以期待可玩的帧率。在720p和低细节的情况下，Ace Magician AMR5也能处理现代游戏，如F1 22。尽管如此，你应该知道，AMD Radeon RX Vega 7的性能无法跟上现代专用显卡的速度。

更多的比较和基准测试，请参考我们的 GPU游戏文章.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.5 pt
Minisforum EliteMini HX90 ^-1! AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	78.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	76.2 pt
Average AMD Radeon RX Vega 7	68.4 pt

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps -13%
Average AMD Radeon RX Vega 7 (43.1 - 140.7, n=35)	89.5 fps -22%
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +30%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps -10%
Average AMD Radeon RX Vega 7 (38 - 123, n=33)	78.7 fps -17%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.8 (38.5^min, 43^P0.1, 53.7^P1) fps +45%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps +17%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps
Average AMD Radeon RX Vega 7 (25.5 - 105.8, n=50)	58.1 fps -6%
1366x768 Medium Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	56.5 (23.4^min, 24.6^P0.1, 31.8^P1) fps +43%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.4 (32.2^min, 36.1^P0.1, 43.2^P1) fps +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.5 (31^min, 32.6^P0.1, 36.6^P1) fps +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.8 (1.9^min, 2.75^P0.1, 29.8^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.4 (20.2^min, 22.2^P0.1, 30.4^P1) fps
Average AMD Radeon RX Vega 7 (9.74 - 81.3, n=37)	34.1 fps -13%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +41%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps
Average AMD Radeon RX Vega 7 (27 - 57, n=24)	40.5 fps -8%
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +38%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps +5%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps
Average AMD Radeon RX Vega 7 (13 - 27, n=23)	19.1 fps -9%

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +40%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps
Average AMD Radeon RX Vega 7 (24 - 52, n=4)	39.8 fps 0%
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +45%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +40%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps
Average AMD Radeon RX Vega 7 (13 - 26, n=4)	20 fps 0%

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +5%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps -1%
Average AMD Radeon RX Vega 7 (56.1 - 102.7, n=8)	82.3 fps -9%
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps 0%
Average AMD Radeon RX Vega 7 (27 - 45.3, n=7)	38.9 fps -6%

F1 2021
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	122 (97^min, 96^P1) fps +29%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	105 (81^min, 78^P1) fps +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (74^min, 75^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.7 (75^min, 75^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	91.1 (72^min, 71^P1) fps -4%
Average AMD Radeon RX Vega 7 (71 - 107.9, n=13)	83.6 fps -12%
1920x1080 Medium Preset AA:T AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52 (42^min, 42^P1) fps +30%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.3 (40^min, 40^P1) fps +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.5 (34^min, 34^P1) fps +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.3 (32^min, 32^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.9 (32^min, 32^P1) fps
Average AMD Radeon RX Vega 7 (29 - 45.8, n=12)	35.8 fps -10%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps
Average AMD Radeon RX Vega 7 (32.9 - 137.7, n=58)	99 fps -11%
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps 0%
Average AMD Radeon RX Vega 7 (32.7 - 107.8, n=58)	76.7 fps -15%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps
Average AMD Radeon RX Vega 7 (34.8 - 95.3, n=41)	70.4 fps -12%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps
Average AMD Radeon RX Vega 7 (13.4 - 36.1, n=41)	27.1 fps -10%

	low	med.	high	ultra
GTA V (2015)	114.3	94.3	27.2	12
The Witcher 3 (2015)	61.8	39.4	19.6	13
Dota 2 Reborn (2015)	111	90.3	50.5	47.3
Rise of the Tomb Raider (2016)	43.3	30.4	18.1	14.6
Final Fantasy XV Benchmark (2018)	34.6	17.3	12.6
Far Cry 5 (2018)	44	21	20	18
Strange Brigade (2018)	80.1	30.2	25.5	21.7
Shadow of the Tomb Raider (2018)	50.3	18.8	17.1	14.7
Forza Horizon 4 (2018)	79	37	35	27
Far Cry New Dawn (2019)	40	20	19	18
Metro Exodus (2019)	37.9	15.9	11.9	10.2
Borderlands 3 (2019)	53.4	21.2	13.3	10.3
F1 2020 (2020)	90.4	41.2	30.8	22
F1 2021 (2021)	94.7	39.9	31.1	21
Far Cry 6 (2021)	40.3	18.9	15.8
Forza Horizon 5 (2021)	66	41
Farming Simulator 22 (2021)	98.9	41.8	30	23.9
Tiny Tina's Wonderlands (2022)	27	20.7	13.2	9.58
F1 22 (2022)	36.6	32.7	23.8	20.6

排放 - 节约，但可以听到

噪声排放

王牌魔术师AMR5在低负荷下是令人愉快的安静，有时甚至完全无声。然而，它在负载下变得非常可闻，峰值可达50.9分贝（A）。不过，这次比较中的设备在这方面做得更好。在静音模式下，最大噪音水平下降到35.9 dB(A)，这是一个好结果。然而，这是以降低性能为代价的。

Noise Level

Idle		31.5 / 32.6 / 33.8 dB(A)
HDD		0 dB(A)
Load		49.3 / 50.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Arta (15 cm distance) environment noise: 30.5 dB(A)

	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Beelink SER4 R7 4800U, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs
Noise		12%	6%	15%	10%	10%
off / environment *	30.5	30.8 -1%	30.1 1%	30.2 1%	23.4 23%	30.2 1%
Idle Minimum *	31.5			30.5 3%	33.2 -5%	30.8 2%
Idle Average *	32.6	31.6 3%	33.15 -2%	30.5 6%	33.2 -2%	32.1 2%
Idle Maximum *	33.8			30.5 10%	33.2 2%	32.9 3%
Load Average *	49.3			31.2 37%	38.6 22%	33.9 31%
Load Maximum *	50.9	33.4 34%	41.63 18%	35.1 31%	40.8 20%	41.4 19%
Witcher 3 ultra *					39.2

* ... smaller is better

温度

王牌魔术师AMR5的机箱不会过度发热，这得益于材料的选择。此外，风扇确保废热直接从机箱背面散出，因此不会产生过多的热量积聚。当SoC的最大功率为28瓦时，它在峰值负载下短时间内达到约84℃（约183°F）。随着时间的推移，温度稳定在75-78℃（约167-172°F）左右。

能源消耗

王牌魔术师AMR5在能源消耗方面相对节俭，但Beelink表明，这一点可以用SER4做得更好。尽管如此，46.4瓦的平均水平是一个传统台式电脑无法企及的好比率。外部电源适配器提供的最大功率为65瓦，容量足够。这为第二块固态硬盘留下了足够的空间。

Power Consumption

Off / Standby	0.85 / 2.5 Watt
Idle	8.4 / 8.7 / 9.3 Watt
Load	46.4 / 52 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum EliteMini B550 R7 5700G, Vega 8	Beelink SER4 R7 4800U, Vega 8	Average AMD Radeon RX Vega 7	Average AMD Ryzen 5 5600U	Average of class Mini PC
Power Consumption		-50%	40%	16%	17%	-37%
Idle Minimum *	8.4	8.9 -6%	4.1 51%	4.66 ?(2.6 - 8.4, n=52) 45%	5.03 ?(3.6 - 8.4, n=6) 40%	9.8 ?(1.9 - 46.5, n=91, last 2 years) -17%
Idle Average *	8.7	9.6 -10%	4.1 53%	7.56 ?(4.8 - 10.7, n=52) 13%	7.4 ?(6.3 - 8.7, n=6) 15%	11.7 ?(1.9 - 63, n=90, last 2 years) -34%
Idle Maximum *	9.3	11.8 -27%	4.6 51%	8.95 ?(5.6 - 13.8, n=52) 4%	8.57 ?(7.5 - 9.3, n=6) 8%	14.7 ?(2.6 - 68.9, n=91, last 2 years) -58%
Load Average *	46.4	98.9 -113%	35.6 23%	38.7 ?(21.6 - 54.9, n=53) 17%	36 ?(27 - 46.4, n=6) 22%	51.9 ?(11.3 - 158.7, n=91, last 2 years) -12%
Load Maximum *	52	101.8 -96%	39.9 23%	51.9 ?(31 - 73.4, n=52) -0%	51.1 ?(44 - 68.4, n=6) 2%	86 ?(18.1 - 271, n=91, last 2 years) -65%
Witcher 3 ultra *			35.6

* ... smaller is better

Energy consumption with an external monitor

Minipc Union Ace Magician AMR5; Prime95 V2810 Stress (external Monitor): Ø42.1 (36.8-52.4)

Minipc Union Ace Magician AMR5; Cinebench R15 Multi (external Monitor): Ø44.8 (36.1-47.8)

Minipc Union Ace Magician AMR5; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø42.7 (40.4-51.9)

Minipc Union Ace Magician AMR5; Idle 1min (external Monitor): Ø9.27 (8.82-10.3)

Pros

+ 流线型设计

+ 坚固的外壳

+ 紧凑的系统

+ 良好的系统性能

+ 大量的端口

+ 快速的固态硬盘

+ 支持三屏显示

+ 3种可定制的性能模式

+ RBG照明

Cons

- 没有SD卡读卡器

- 没有Thunderbolt 4

- 没有很多可调节的RGB效果

- 缓慢的内存

- 只有512GB的存储空间

结论--现代的连接性被装进了一个光滑的盒子里

Minipc Union没有用Ace Magician AMR5提供传统的现成的迷你PC，因为这个模型因其略微不同的设计而在人群中脱颖而出。这款小巧的PC通过类似于传统的台式电脑和提供微妙的照明来吸引人们的眼球。同时，该模型非常紧凑，重量轻，它提供了一个现代SoC的形式，即 AMD Ryzen 5 5600U.六核处理器很节俭，其坚实的性能确保了快速的工作速度。同时，内置RAM的速度是可以批评的。宝贵的潜力在这里被浪费了；使用更快的内存可以将与竞争对手的差距缩小一些。

由于其尺寸，紧凑的Ace Magician AMR5适合放在任何桌子上。凭借其出色的RGB灯光，这台紧凑的电脑吸引了人们的眼球，而不会显得很花哨。

说到紧凑的游戏电脑，我们只把王牌魔术师AMR5看作是玩简单或旧游戏的入门级电脑。不幸的是，AMD Radeon RX Vega 7缺乏必要的性能，无法在1080p下流畅地渲染现代游戏。就端口选择而言，制造商有很多地方做得很好。从端口的位置到数量，我们在这里没有什么可以批评的。最终，最多可以同时使用三个显示器。

小而好的功能，如可以让系统在各种性能模式下即时运行，效果很好，很少见。如果你不需要六核的全部性能，你可以放心地在这里使用静音模式。这可以节省能源并确保低噪音水平。然而，我们希望在RGB照明的设置中看到更多的选项。Ace Magician AMR5目前售价590欧元（约合598美元）。一个公平的价格，因为竞争对手目前不一定有更低的价格。

价格和可用性

在撰写本文时，你可以在亚马逊上找到Ace Magician AMR5售价499美元。

Ace Magician AMR5回顾。带有Ryzen 5600U和谨慎的RGB照明的时尚迷你电脑

潜在的竞争对手比较

Minipc联盟王牌魔术师AMR5的详细介绍

案例

连接性

沟通

维护

业绩

测试条件

处理器

王牌魔术师AMR5在Cinebench R15多重循环中的表现

系统性能

DPC延迟

储存

Continuous load read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

排放 - 节约，但可以听到

噪声排放

温度

能源消耗

Energy consumption with an external monitor

Pros

Cons

结论--现代的连接性被装进了一个光滑的盒子里

价格和可用性

More articles related to this device
