PrimeBook Circular回顾。模块化的14英寸基于NUC的笔记本电脑

可持续的和模块化的。 Prime Computer以PrimeBook Circular的形式提供了一款有趣的商务笔记本,它采用了模块化设计,目标是高度的可持续性。在这篇详细的评论中,了解一下基于英特尔NUC计算元素的内部模型在测试中的表现如何。
Business Intel Touchscreen Tiger Lake Thunderbolt

Prime Computer是一家总部设在瑞士的系统制造商,它将产品的可持续性作为其首要目标。根据它自己的声明,设备生产和头五年的运作是100%气候中立的。此外,PrimeBook Circular采用模块化设计,使系统非常容易适应用户的需求,这也是为了延长产品的生命周期。想了解更多信息的人可以访问该公司的主页了解更多信息。

PrimeBook Circular是一款14英寸规格的商务笔记本。我们的审查配置是基于英特尔的NUC计算元素CM11EBI716W,并提供一个英特尔酷睿i7-1165G7与16GB的内存和Wi-Fi 6。进一步的设备包括一个高分辨率的13.9英寸触摸显示屏和一个快速的500GB SSD。读者应记住,固态硬盘和计算元素是可配置的组件,可以有所不同。Prime Computer对我们的配置收取1,668欧元(税前)。最便宜的配置是使用 Intel Celeron 6305和4GB内存的最便宜配置目前的价格是1055欧元,而最快的英特尔型号(酷睿i7-1185G7)售价为1753欧元。同样,这两个价格不包括增值税。你还应该知道,计算元素是一种插件卡,可以很容易地换掉,包含所有的基本组件(CPU、内存等)。关于安装的计算元素的所有细节可以在这里找到https://ark.intel.com/content/www/us/en/ark/products/212012/intel-nuc-11-compute-element-cm11ebi716w.html.

基于Alder Lake芯片的计算元素预计将在晚些时候推出,制造商称2022年第四季度是预期的时间框架。到那时,i7型号也应该有高达32GB内存的变种。然后,i5型号应该提供高达16GB的内存。

PrimeBook Circular的竞争设备包括目前具有类似设备的14英寸格式的办公笔记本。

Prime Computer PrimeBook Circular-i7-1165G7
Processor
Intel Core i7-1165G7 4 x 2.8 - 4.7 GHz, 45 W PL2 / Short Burst, 33 W PL1 / Sustained, Tiger Lake-UP3
Graphics adapter
Intel Iris Xe Graphics G7 96EUs, Core: 1300 MHz, Memory: 2000 MHz, 30.0.101.1660 DCH
Memory
16 GB
, LPDDR4x-4266 MHz, fest verbaut
Display
13.90 inch 3:2, 3000 x 2000 pixel 259 PPI, Multi-Touch, Tinama XM, IPS, glossy: yes, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage
Samsung SSD 980 500GB (MZ-V8V500BW), 500 GB
, M.2-2280, NVMe, 400 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
2 USB 3.2 Gen 2x2 20Gbps, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm
Networking
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Size
height x width x depth (in mm): 16 x 304 x 230
Battery
77 Wh Lithium-Ion
Operating System
Microsoft Windows 11 Pro
Camera
Webcam: HD
Primary Camera: 0.9 MPix Infrarot
Secondary Camera: Windows Hello Support
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 65-Watt-Netzteil, 36 Months Warranty
Weight
1.593 kg, Power Supply: 328 g
Price
1.98 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



与可能的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
87.3 %
07/2022
Prime Computer PrimeBook Circular-i7-1165G7
i7-1165G7, Iris Xe G7 96EUs
1.6 kg16 mm13.90"3000x2000
87.7 %
04/2022
Asus ZenBook 14X OLED UX5400EA-L7154W
i7-1165G7, GeForce MX450
1.4 kg16.9 mm14.00"2880x1800
84.8 %
12/2021
Dell Inspiron 14 5410-D3D7T
i7-1165G7, Iris Xe G7 96EUs
1.5 kg21 mm14.00"1920x1080
89.4 %
08/2021
Lenovo ThinkPad T14s G2 20WM003TGE
i7-1165G7, Iris Xe G7 96EUs
1.3 kg16.14 mm14.00"1920x1080
90.1 %
03/2022
Lenovo ThinkPad T14s G2 20XGS01100
R7 PRO 5850U, Vega 8
1.3 kg16.14 mm14.00"1920x1080
09/2021
Acer TravelMate P614P-52
i7-1165G7, Iris Xe G7 96EUs
1 kg16.8 mm14.00"1920x1200

案例

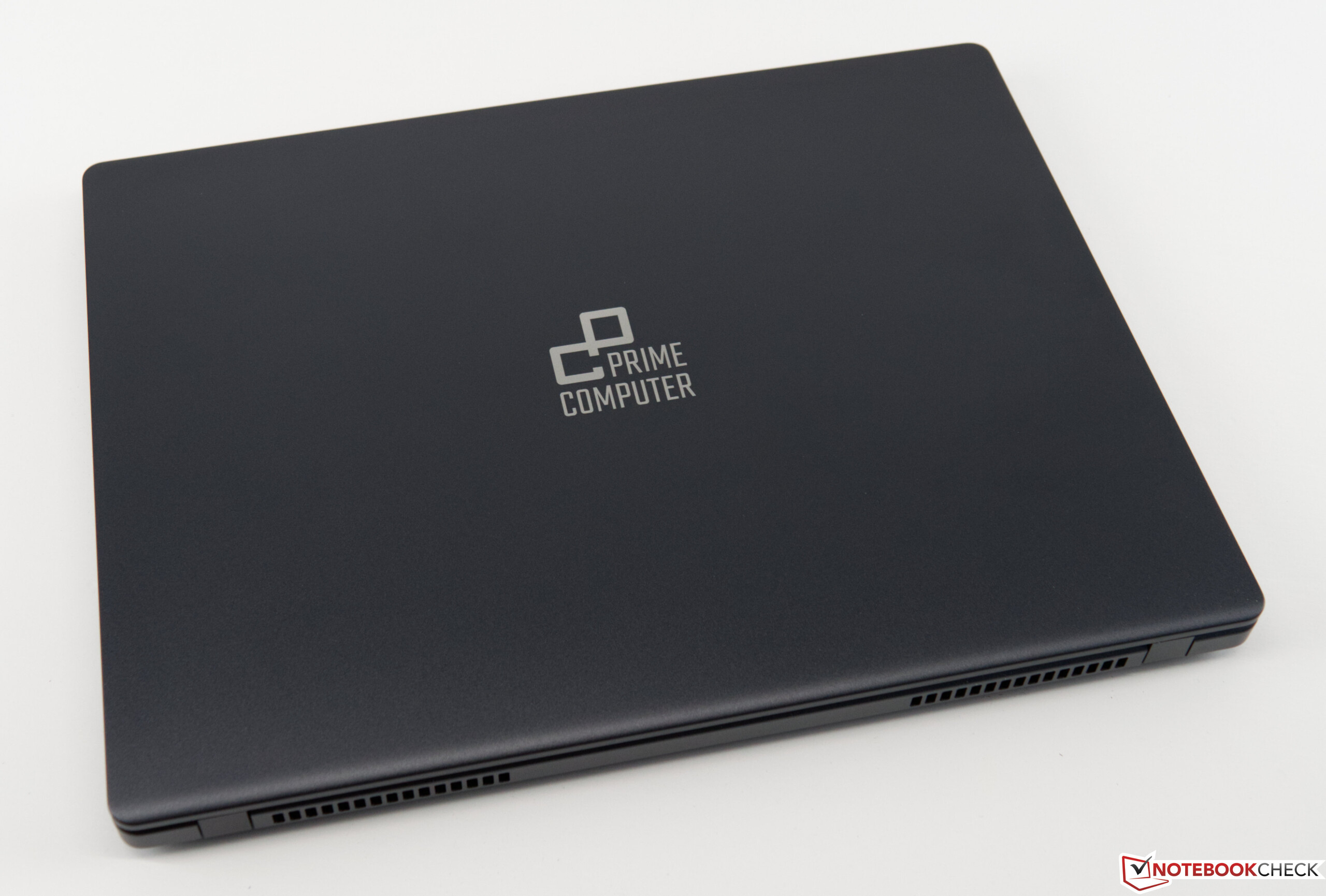

PrimeBook Circular的外壳完全由阳极氧化铝制成,因此非常坚固。这也适用于显示屏盖子,它只能非常轻微地扭曲。关于颜色,制造商指定PrimeBook Circular为深灰色,这也是准确的。没有光学亮点,这是一件好事,因为该设备主要是面向商业和生产性工作的使用。打开显示屏可以达到180度,屏幕被铰链很好地固定住了。单手打开也是可能的。

首要书籍通告
首要书籍通告
首要书籍通告
首要书籍通告
首要书籍通告
首要书籍通告
首要书籍通告
首要书籍通告

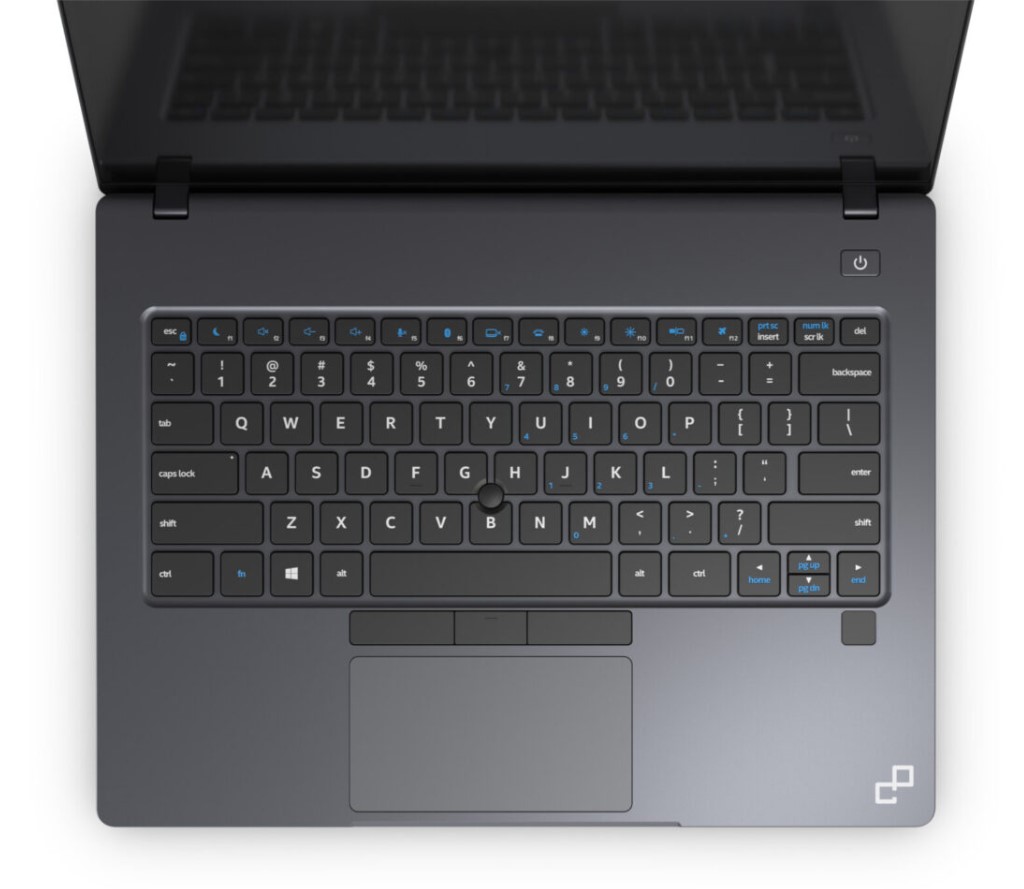

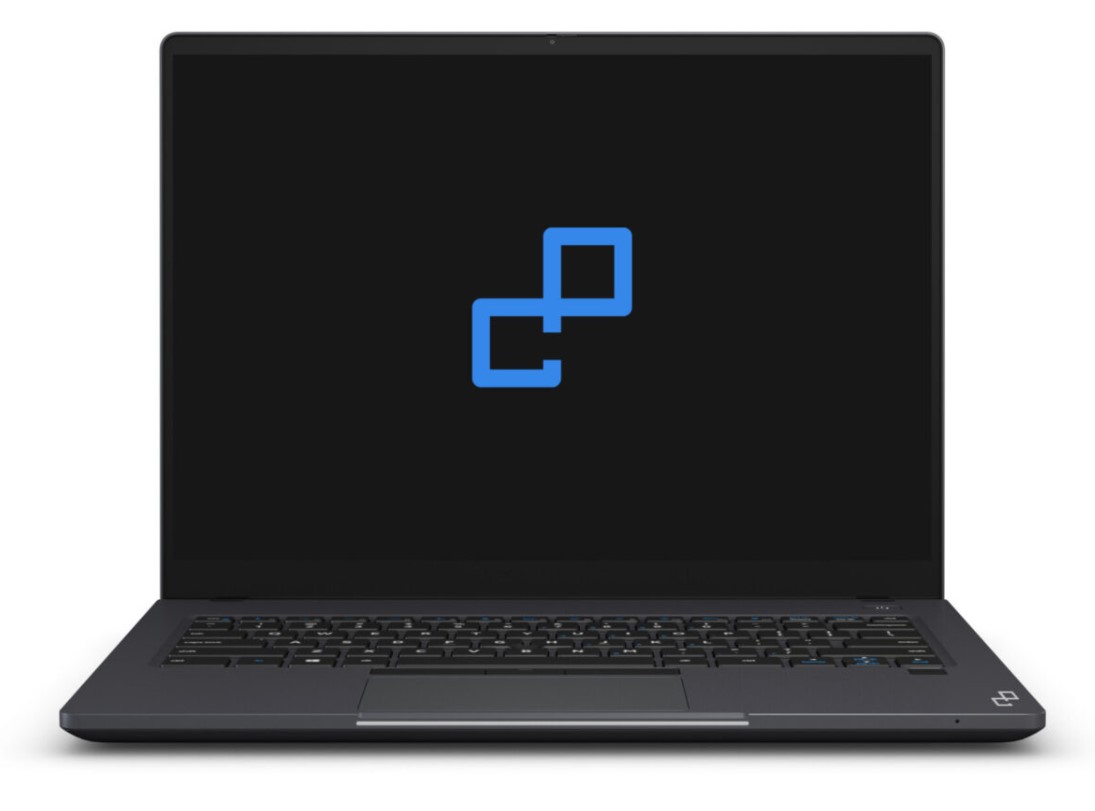

PrimeBook通告(来源:Prime Computer)。
PrimeBook通告(来源:Prime Computer)。
PrimeBook通告(来源:Prime Computer)。

尺寸比较

PrimeBook Circular的总尺寸为30.4 x 23.0厘米,使其与我们的对比设备大致相同。我们的审查样本相对较薄,只有16毫米。只有 戴尔Inspiron 14相比之下要厚得多。PrimeBook Circular结实耐用的外壳是造成其相对较高的1.6公斤重量的原因,而电源适配器的重量为330克。

327.5 mm 224 mm 16.14 mm 1.3 kg327.5 mm 224 mm 16.14 mm 1.3 kg321 mm 211 mm 21 mm 1.5 kg312 mm 226 mm 16.8 mm 1000 g311.2 mm 221.1 mm 16.9 mm 1.4 kg304 mm 230 mm 16 mm 1.6 kg297 mm 210 mm 1 mm 5.7 g

装备

连接方式的选择包括最重要的接口。有两个USB Type-A端口,并适当地分布在设备的两侧。Type-C端口主要作为电源连接,但它也支持Thunderbolt 4,这有力地加强了PrimeBook Circular的用途。因此,这样一个多功能的接口也可以用来连接外部显卡。监视器可以通过HDMI或Mini DisplayPort连接。唯一值得批评的一点是缺乏读卡器。

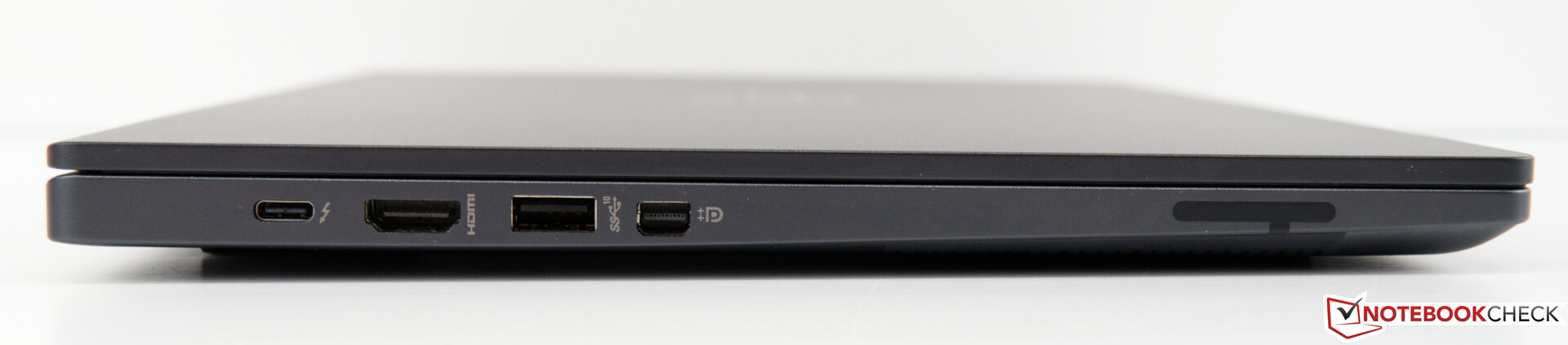

左边:Thunderbolt 4/USB 4 via Type-C, HDMI 2.0b, USB 3.2 Gen2 Type-A, Mini DisplayPort 1.4a
左边:Thunderbolt 4/USB 4 via Type-C, HDMI 2.0b, USB 3.2 Gen2 Type-A, Mini DisplayPort 1.4a

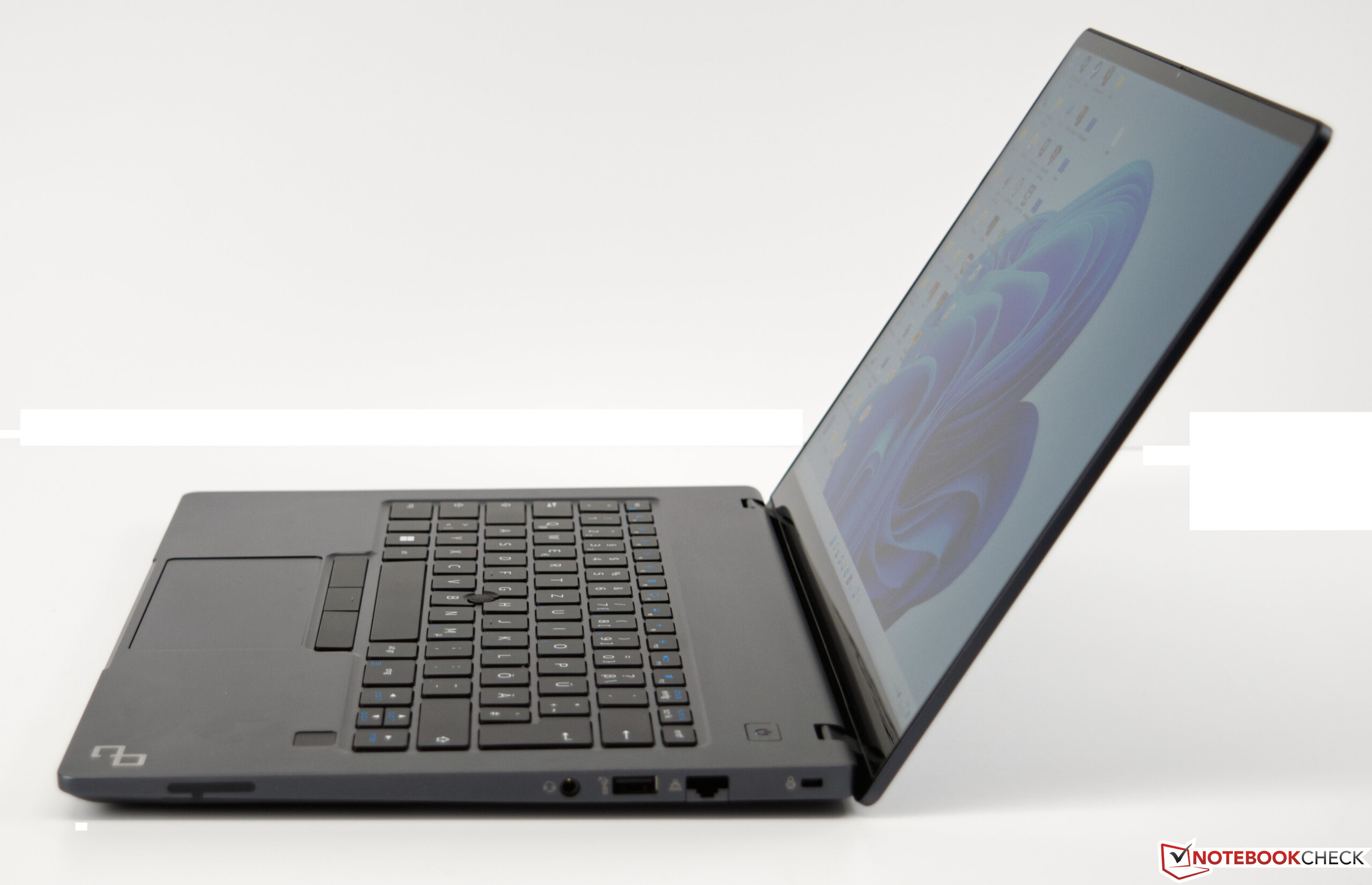

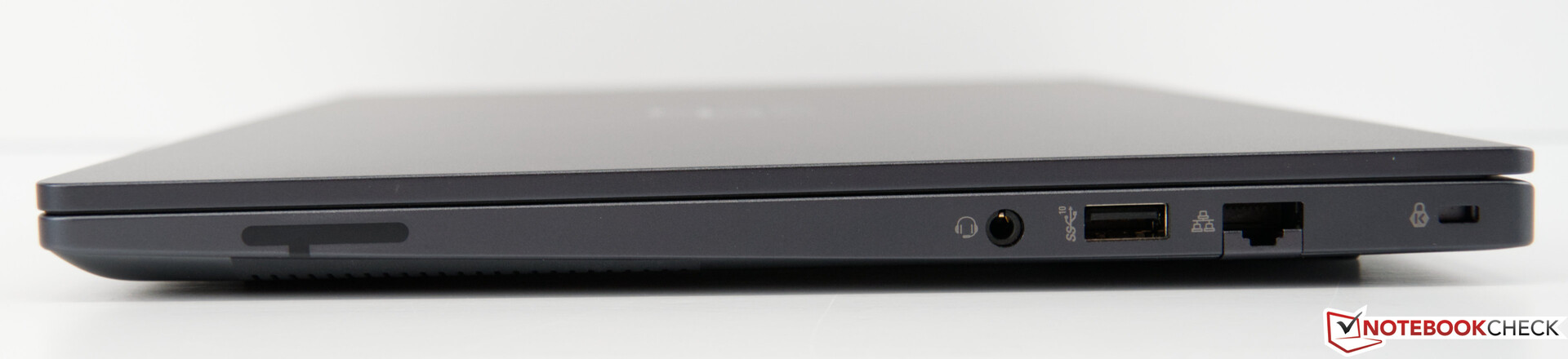

右边:3.5毫米插孔插头,USB 3.2 Gen2 Type-A,RJ45(10/100/1000 Mbit/s)。
右边:3.5毫米插孔插头,USB 3.2 Gen2 Type-A,RJ45(10/100/1000 Mbit/s)。

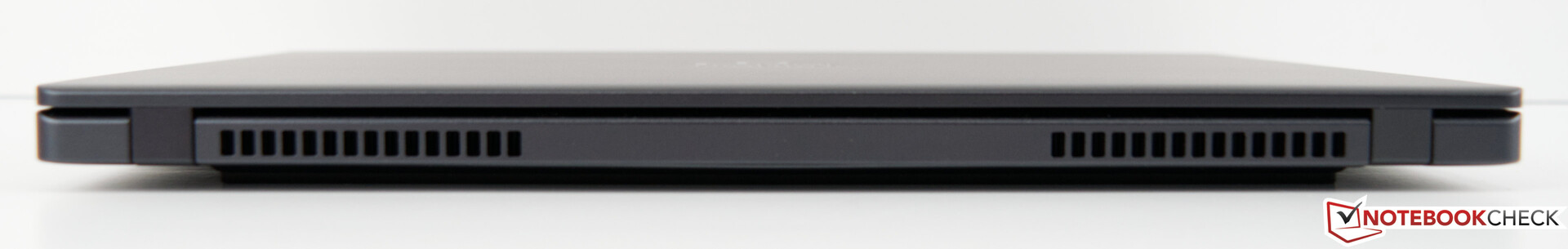

后部:通风槽
后部:通风槽

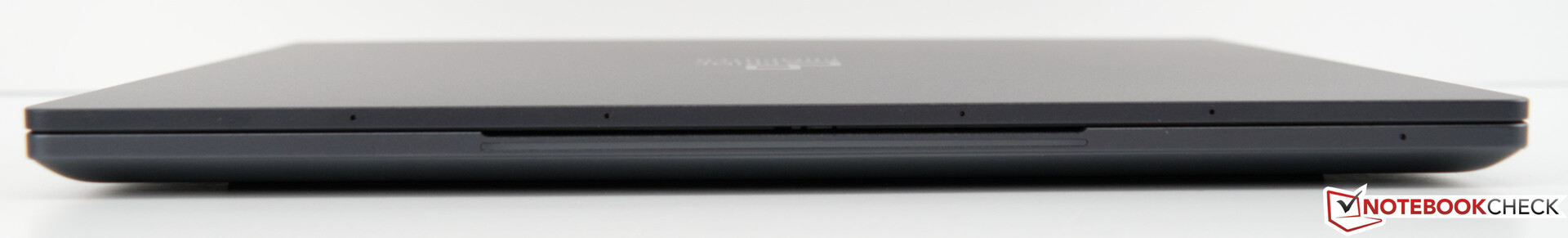

前面:没有连接器
前面:没有连接器

沟通

安装在计算元素中的英特尔Wi-Fi 6 AX201模块与我们的参考路由器(华硕ROG Rapture GT-AXE11000)一起提供了非常好的性能。与有线网络连接相比,Wi-Fi模块甚至有明显的速度优势。不幸的是,RJ45接口最高只能达到1GBit/s。

Networking
iperf3 transmit AX12
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Wi-Fi 6E AX210
1598 (1496min - 1654max) MBit/s
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Wi-Fi 6 AX201
1339 (1161min - 1534max) MBit/s
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=324)
1161 MBit/s
Average of class Office
  (819 - 1332, n=4, last 2 years)
990 MBit/s
Dell Inspiron 14 5410-D3D7T
Intel Wi-Fi 6 AX201
909 (853min - 941max) MBit/s
Lenovo ThinkPad T14s G2 20XGS01100
RealTek Semiconductor RTL8852AE
831 (711min - 899max) MBit/s
Acer TravelMate P614P-52
Intel Wi-Fi 6 AX201
506 (427min - 674max) MBit/s
iperf3 receive AX12
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Wi-Fi 6E AX210
1716 (1632min - 1754max) MBit/s
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Wi-Fi 6 AX201
1690 (1668min - 1708max) MBit/s
Dell Inspiron 14 5410-D3D7T
Intel Wi-Fi 6 AX201
1569 (1347min - 1657max) MBit/s
Acer TravelMate P614P-52
Intel Wi-Fi 6 AX201
1366 (755min - 1524max) MBit/s
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=324)
1261 MBit/s
Average of class Office
  (721 - 1690, n=4, last 2 years)
1067 MBit/s
Lenovo ThinkPad T14s G2 20XGS01100
RealTek Semiconductor RTL8852AE
877 (846min - 899max) MBit/s
iperf3 transmit AXE11000
Prime Computer PrimeBook Circular-i7-1165G7
Intel Wi-Fi 6 AX201
1715 (1662min - 1768max) MBit/s
Average Intel Wi-Fi 6 AX201
  (438 - 1715, n=66)
1307 MBit/s -24%
Average of class Office
  (47.8 - 1793, n=84, last 2 years)
1108 MBit/s -35%
iperf3 receive AXE11000
Prime Computer PrimeBook Circular-i7-1165G7
Intel Wi-Fi 6 AX201
1490 (1446min - 1515max) MBit/s
Average Intel Wi-Fi 6 AX201
  (390 - 1734, n=71)
1437 MBit/s -4%
Average of class Office
  (104.2 - 1752, n=86, last 2 years)
1241 MBit/s -17%
0501001502002503003504004505005506006507007508008509009501000105011001150120012501300135014001450150015501600165017001750Tooltip
Prime Computer PrimeBook Circular-i7-1165G7; iperf3 receive AXE11000; iperf 3.1.3: Ø1490 (1446-1515)
Prime Computer PrimeBook Circular-i7-1165G7; iperf3 transmit AXE11000; iperf 3.1.3: Ø1716 (1662-1768)

网络摄像头

720p的网络摄像头只是有条件地适用于日常使用,因为其分辨率不是特别高,只有0.9MPix。这里唯一的补救措施是使用外部解决方案。作为一个重要的安全方面,该网络摄像头还提供了一个机械快门。

安全问题

安全功能包括一个指纹扫描仪和一个红外摄像头,它还支持 "Windows Hello"。这两种登录方式都可以快速设置,使认证过程更容易。还提供了一个肯辛顿锁,以防止适时的盗窃。

辅料

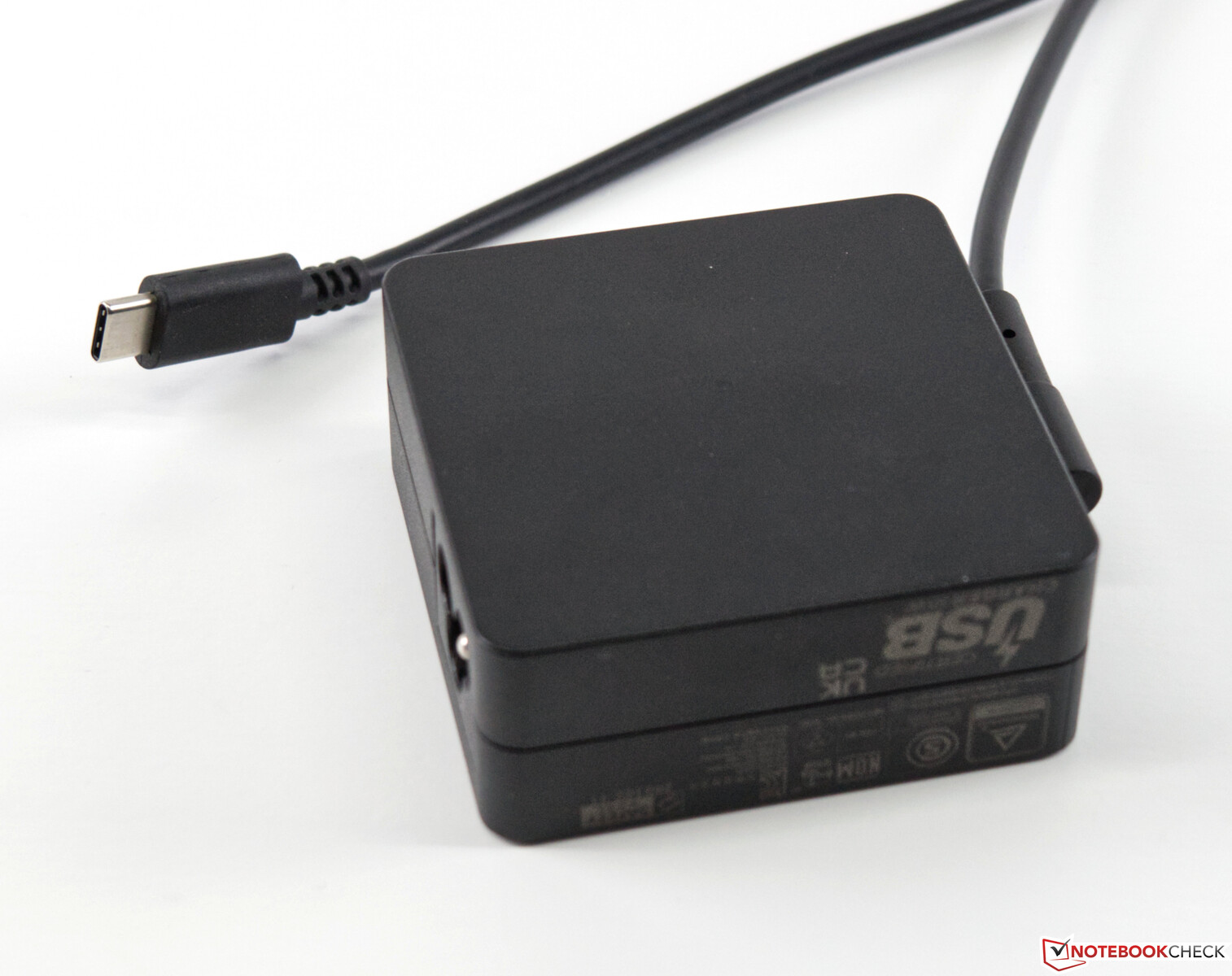

除笔记本外,交货范围内只包括配套的65瓦电源适配器。笔记本电脑以不含塑料的环保包装交付,再次强化了制造商对可持续发展的承诺。

维护

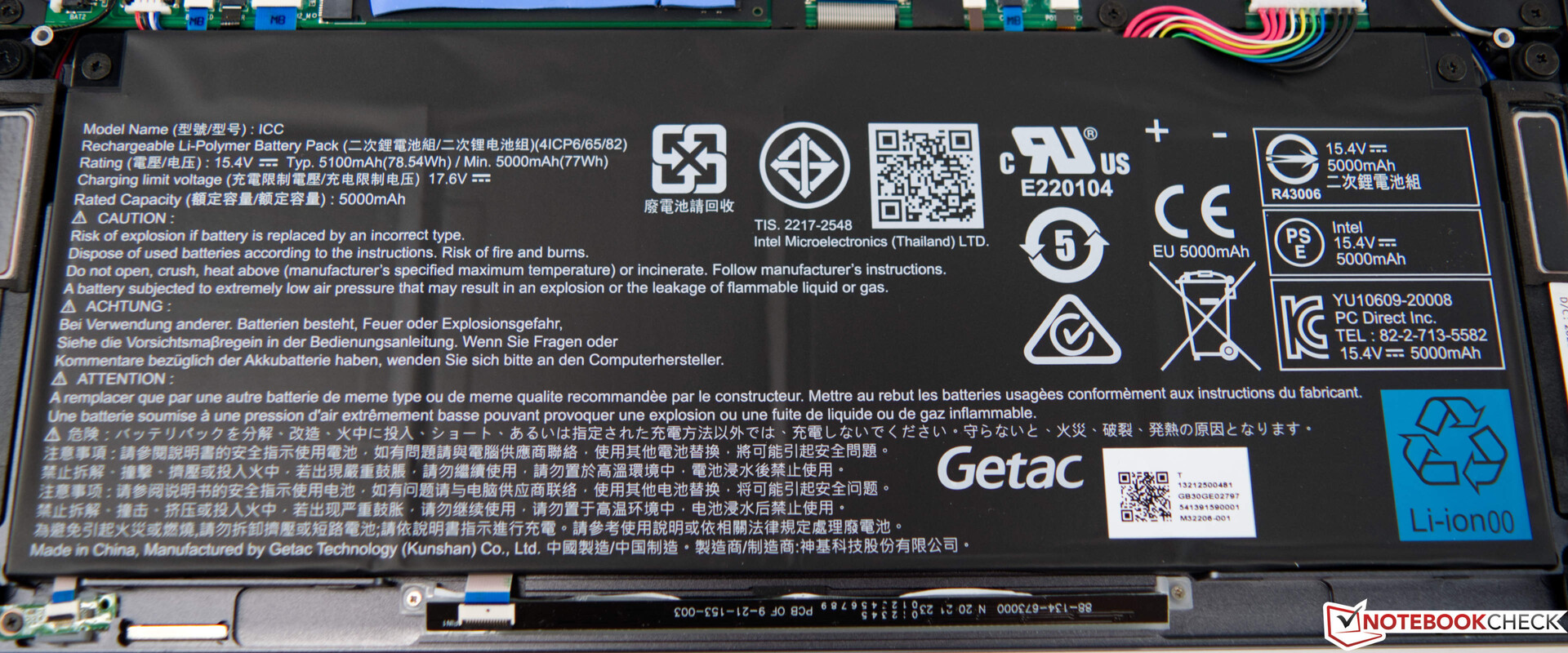

对PrimeBook Circular的维护工作仅限于精华部分。没有维护舱口,所以那些想进入内部的人必须拆除底板。但是,只要有一点技巧和合适的工具,就可以很快完成。SoC、RAM和Wi-Fi模块位于英特尔NUC计算元件中,可以被替换。这意味着未来的升级是可能的。大容量存储也很容易获得和更换。

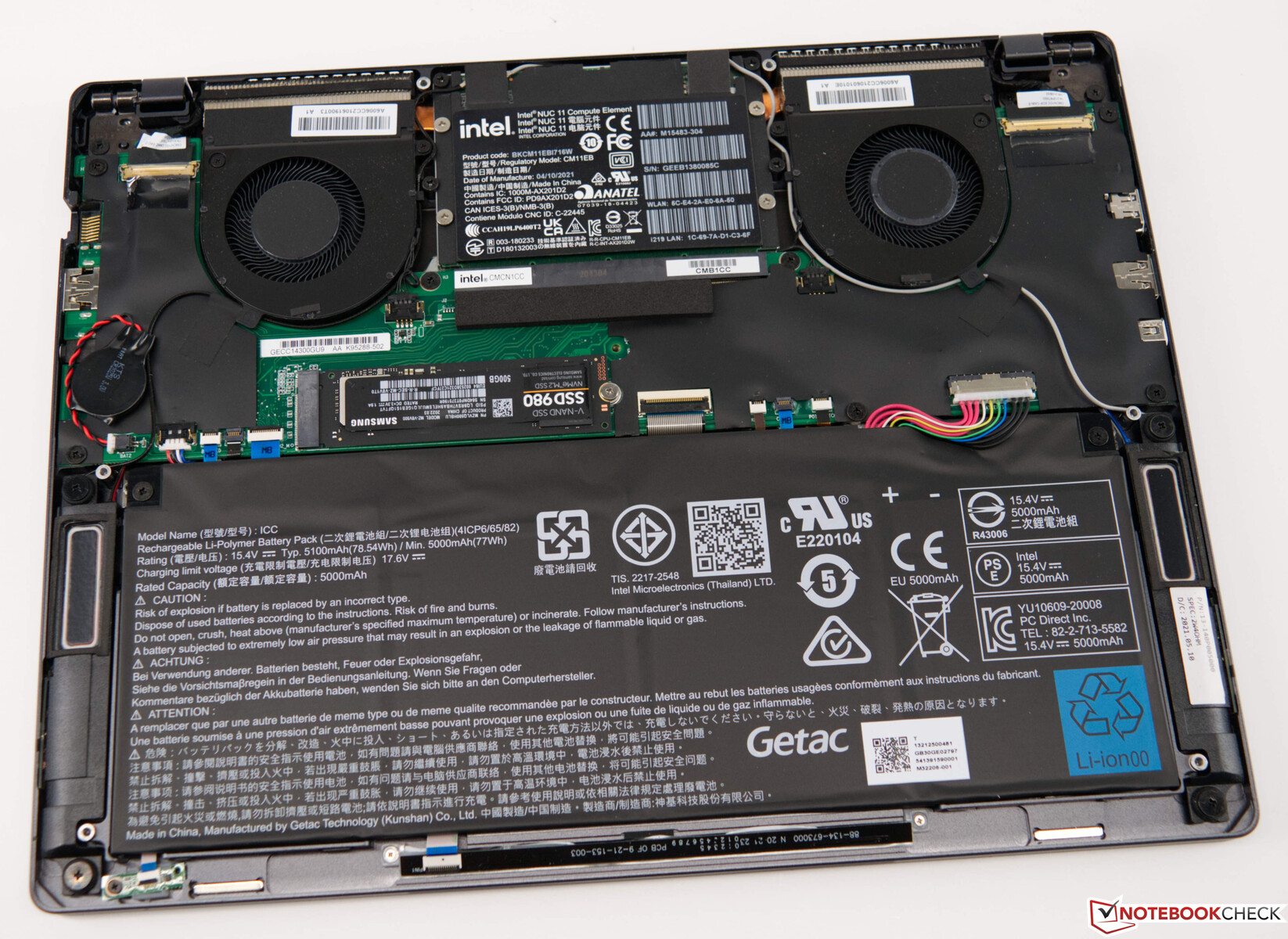

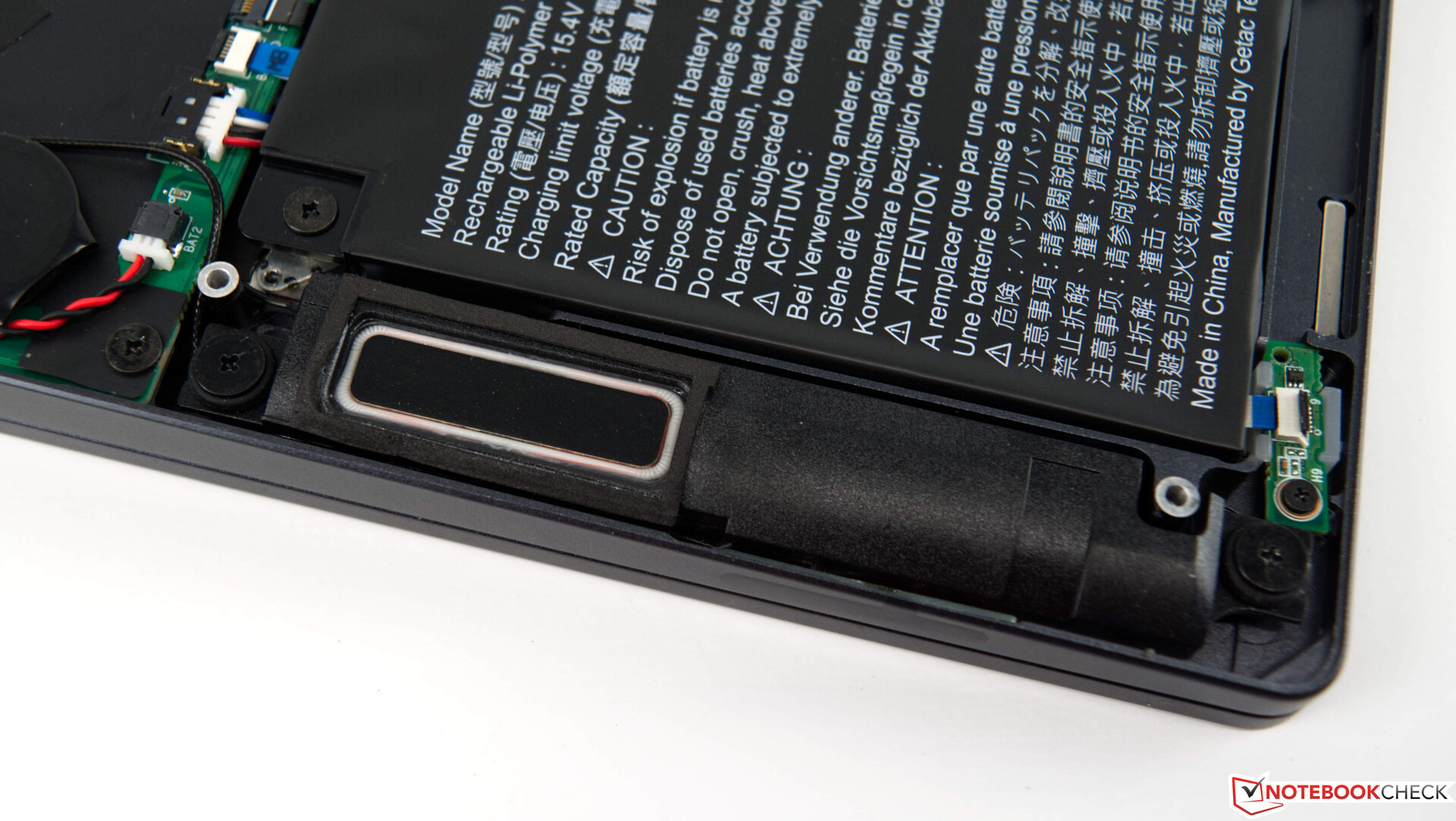

不含底板的PrimeBook圆形本
不含底板的PrimeBook圆形本

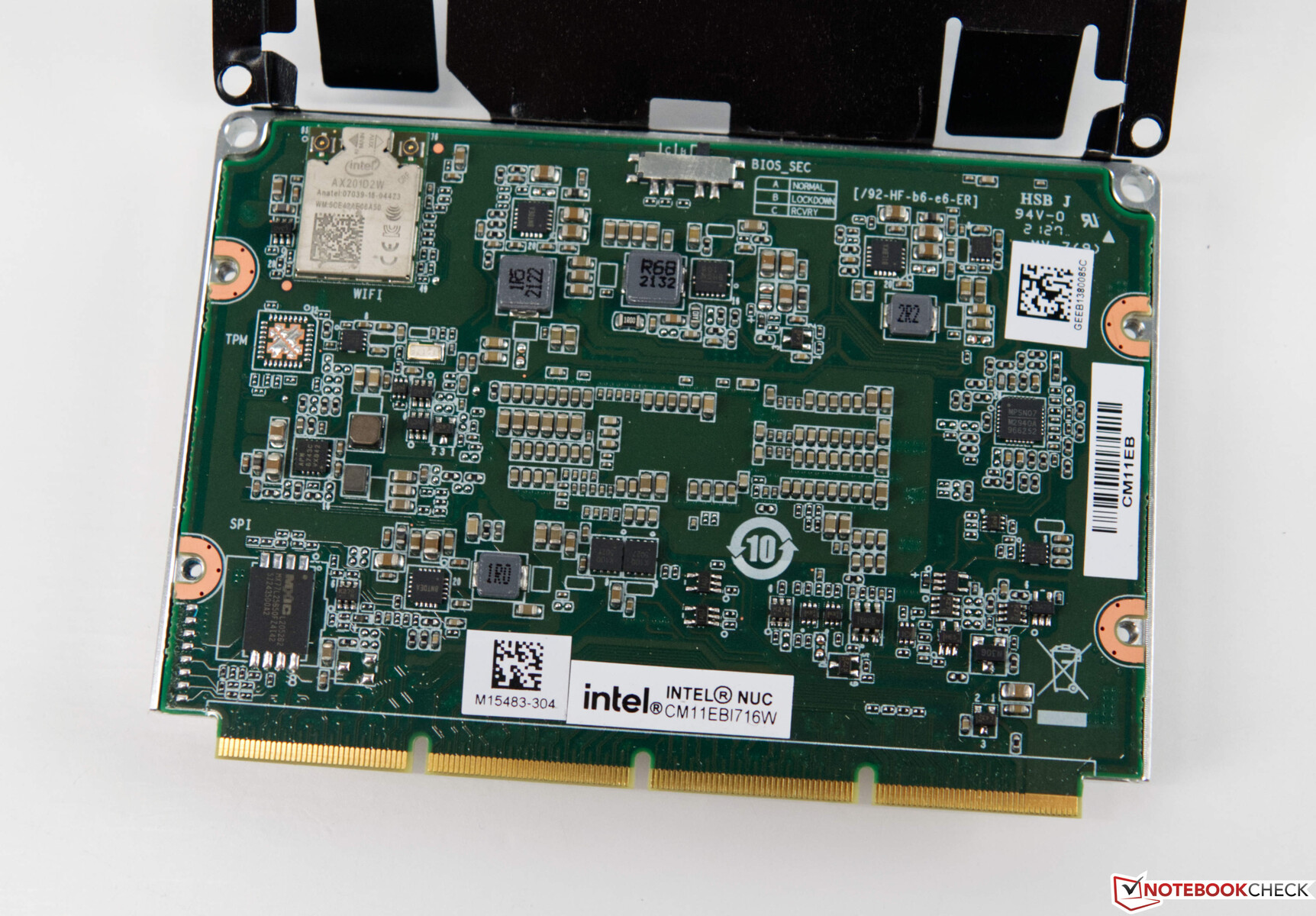

英特尔NUC计算元件CM11EBI716W一览
英特尔NUC计算元件CM11EBI716W一览
不含英特尔NUC计算元件的PrimeBook圆形机CM11EBI716W
不含英特尔NUC计算元件的PrimeBook圆形机CM11EBI716W

担保

Prime Computer在购买PrimeBook Circular时给予客户36个月的保修期,该保修期在全球范围内有效,可以选择延长到5年。这方面的附加费是139欧元(140美元),外加增值税。

输入设备

键盘

PrimeBook Circular的6行Chiclet键盘提供了一个坚实的打字感觉。压力点很明显,行程也不闷热。虽然由于光学原因,"上 "和 "下 "的方向键只有一半的高度,但按键的尺寸足够大,为15 x 15毫米。在光线不好的情况下,你可以依靠两级背光灯。这也可以被关闭。

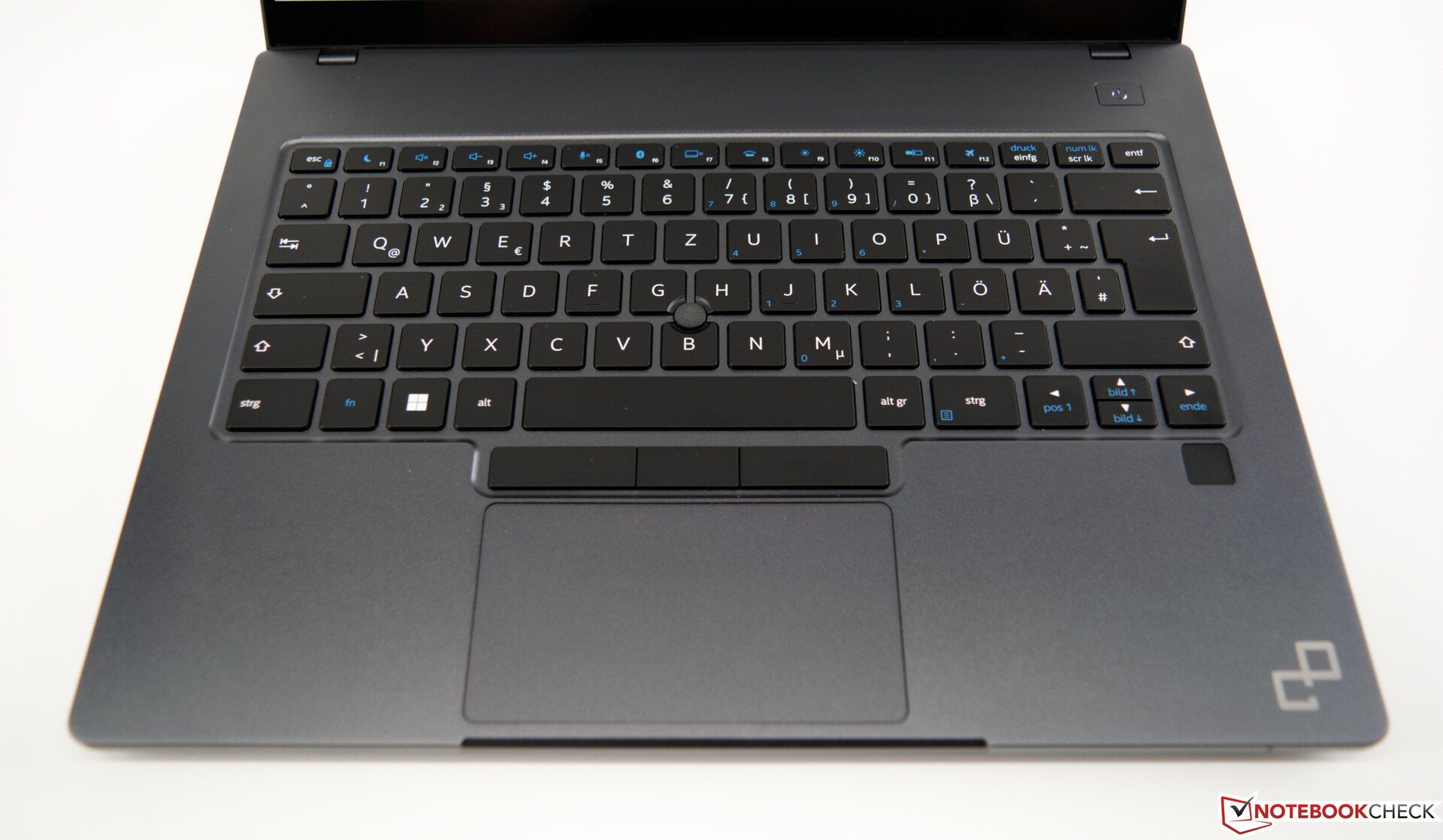

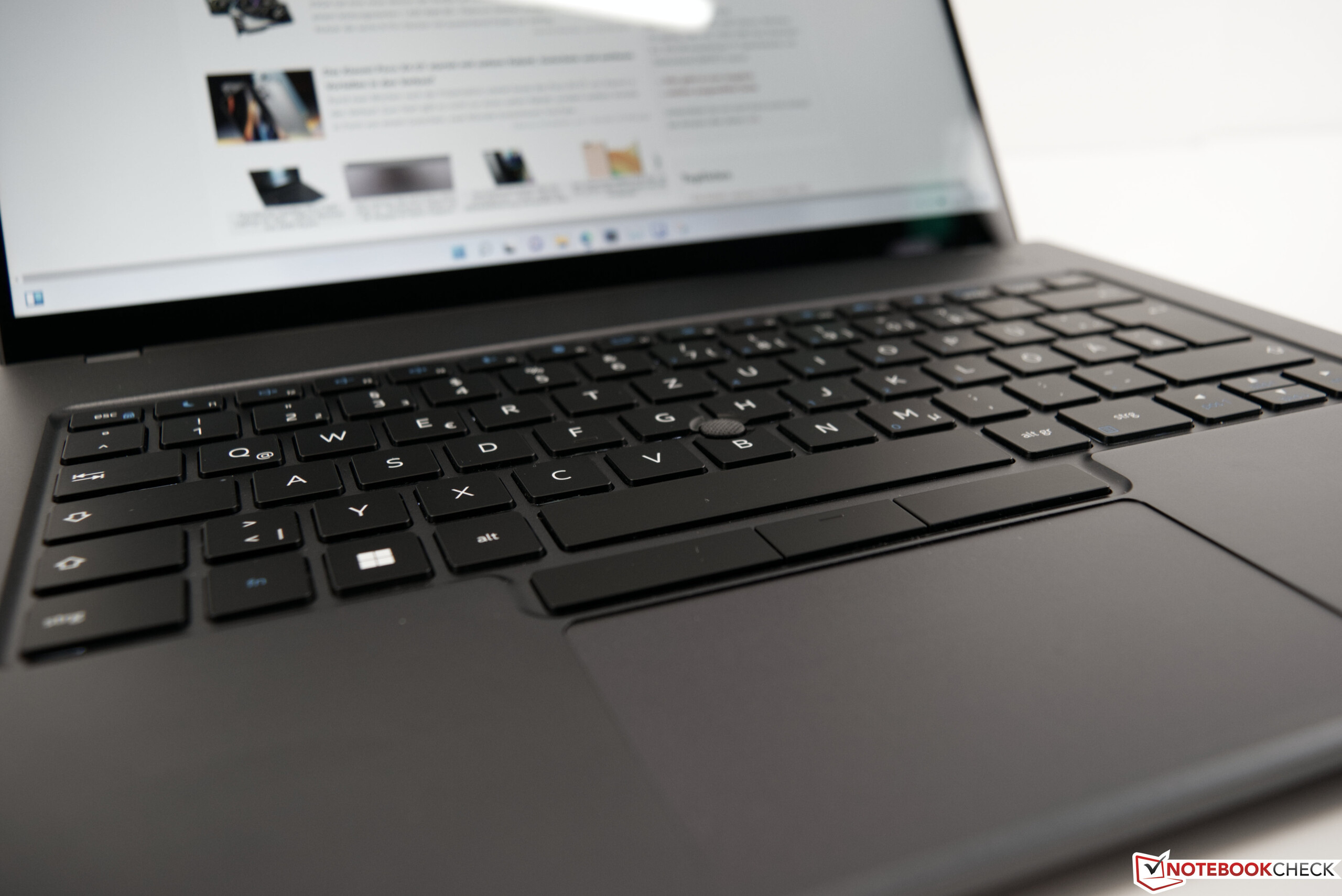

PrimeBook Circular的输入设备
PrimeBook Circular的输入设备

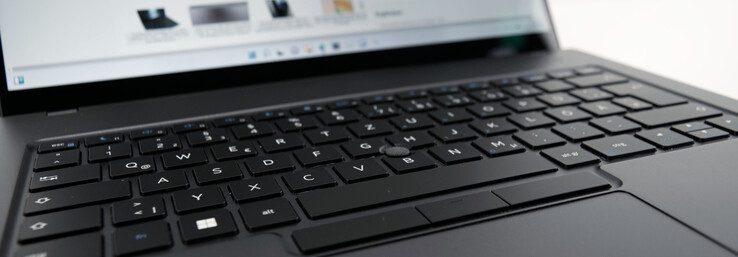

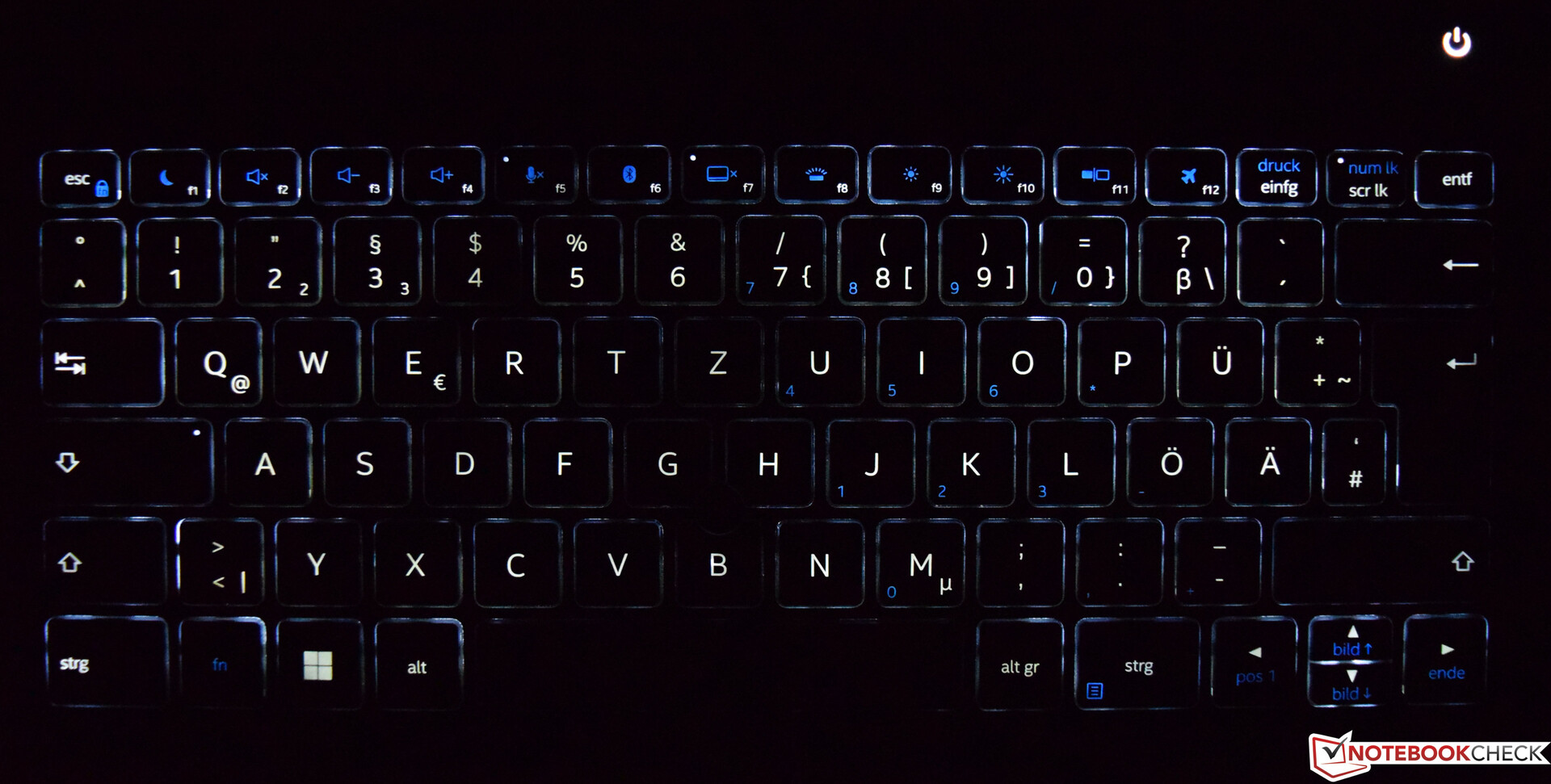

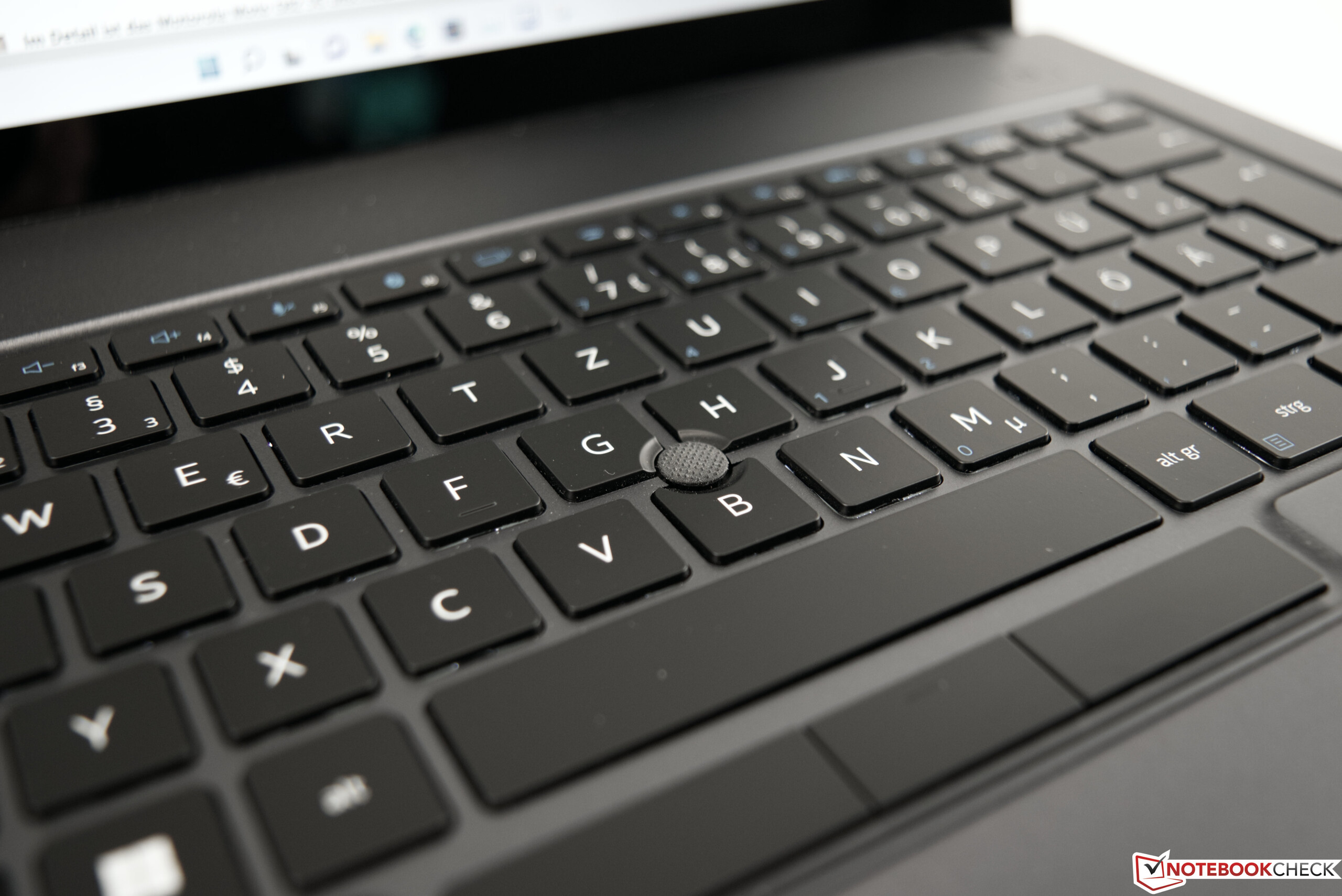

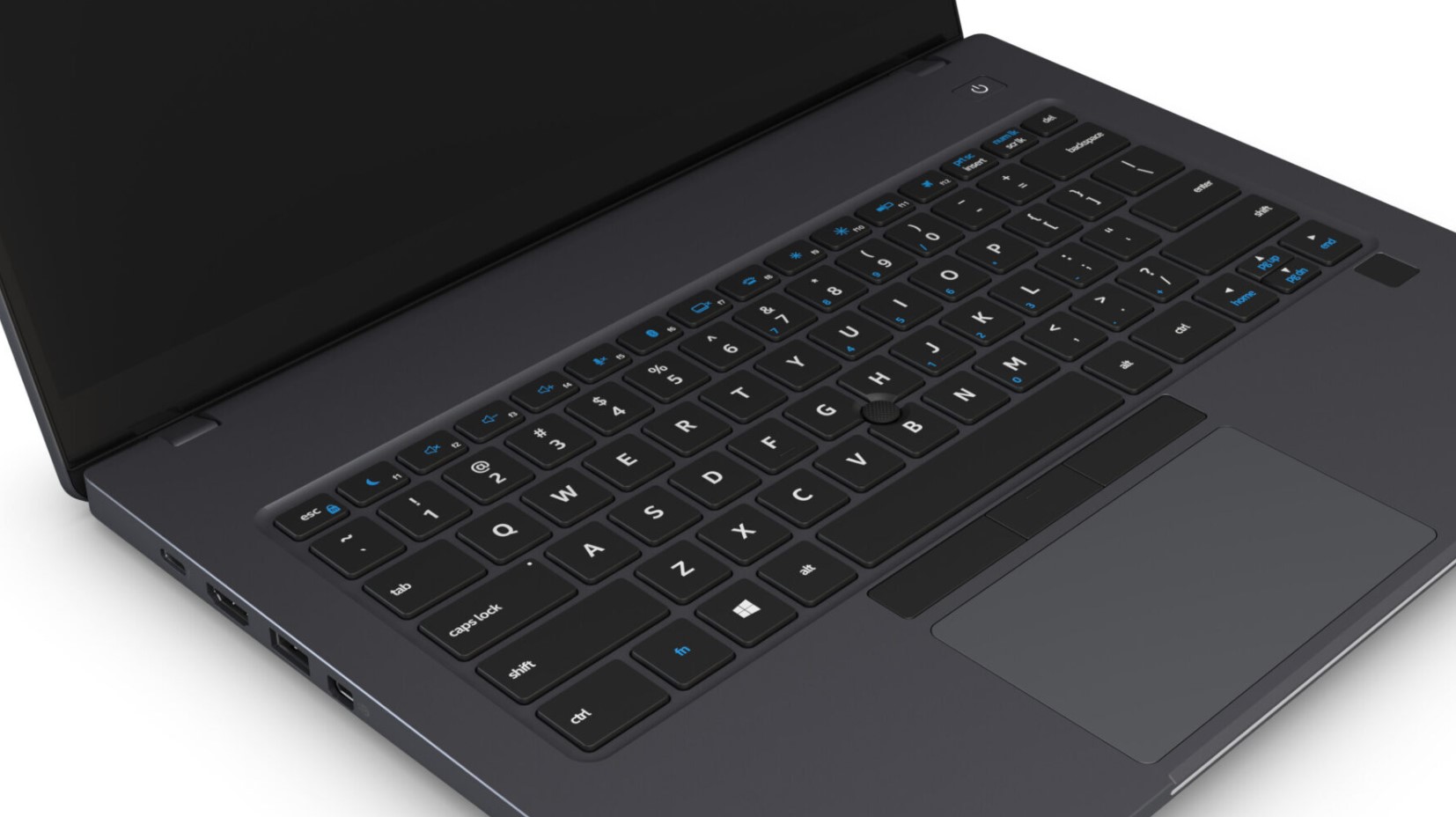

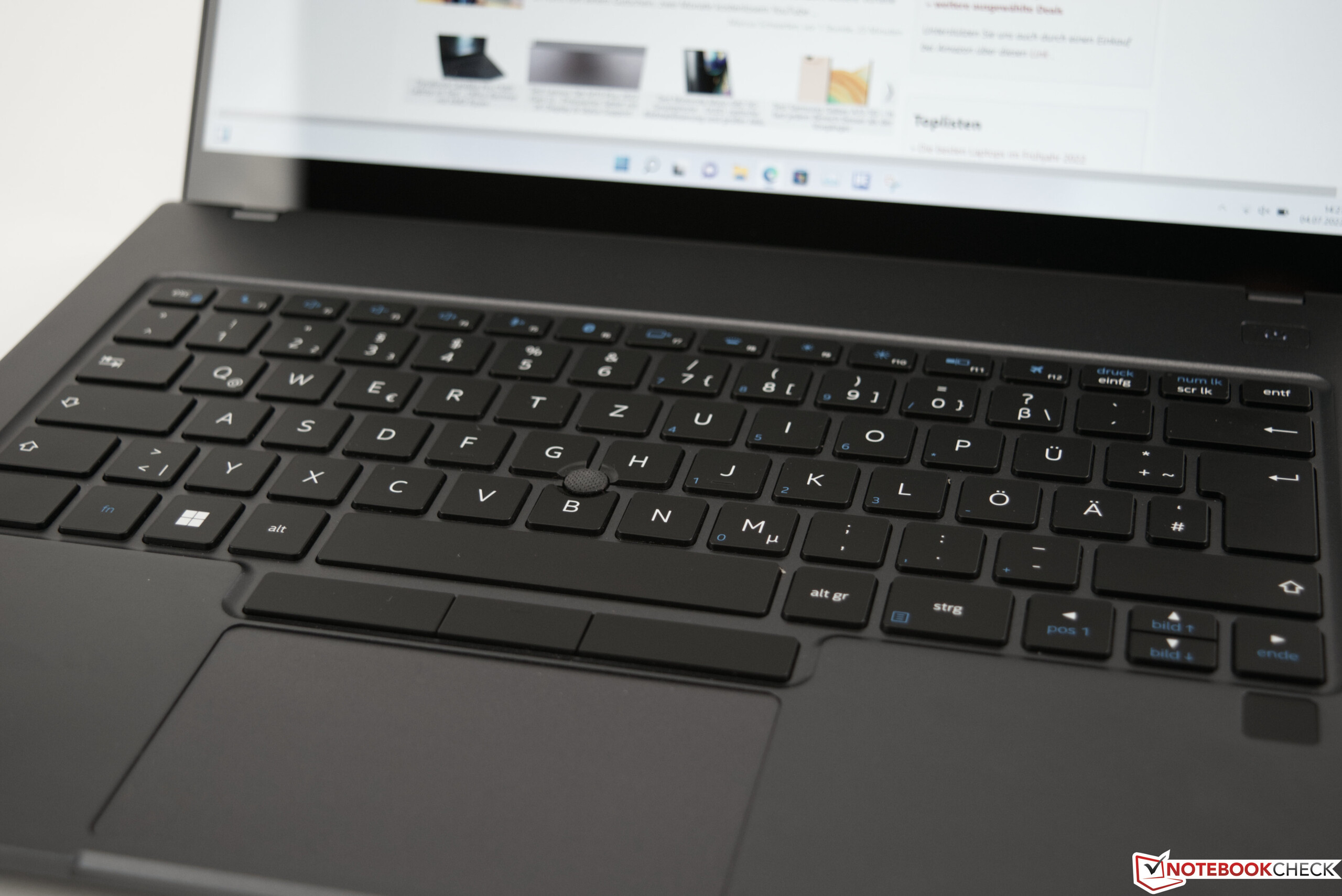

PrimeBook Circular的背光键盘
PrimeBook Circular的背光键盘

触摸板

点击板尺寸为10.2 x 5.1厘米,很好地利用了分配的空间。输入面与掌托不在同一高度,但这不是一个问题,因为它实际上使定位非常容易。像联想、戴尔或惠普的许多商务设备一样,也有一个跟踪点。这一点做得非常好,那些习惯于此的人可以很快地进行导航,而不必将手从键盘上拿开。这也包括触摸板上方的三个附加键。

显示

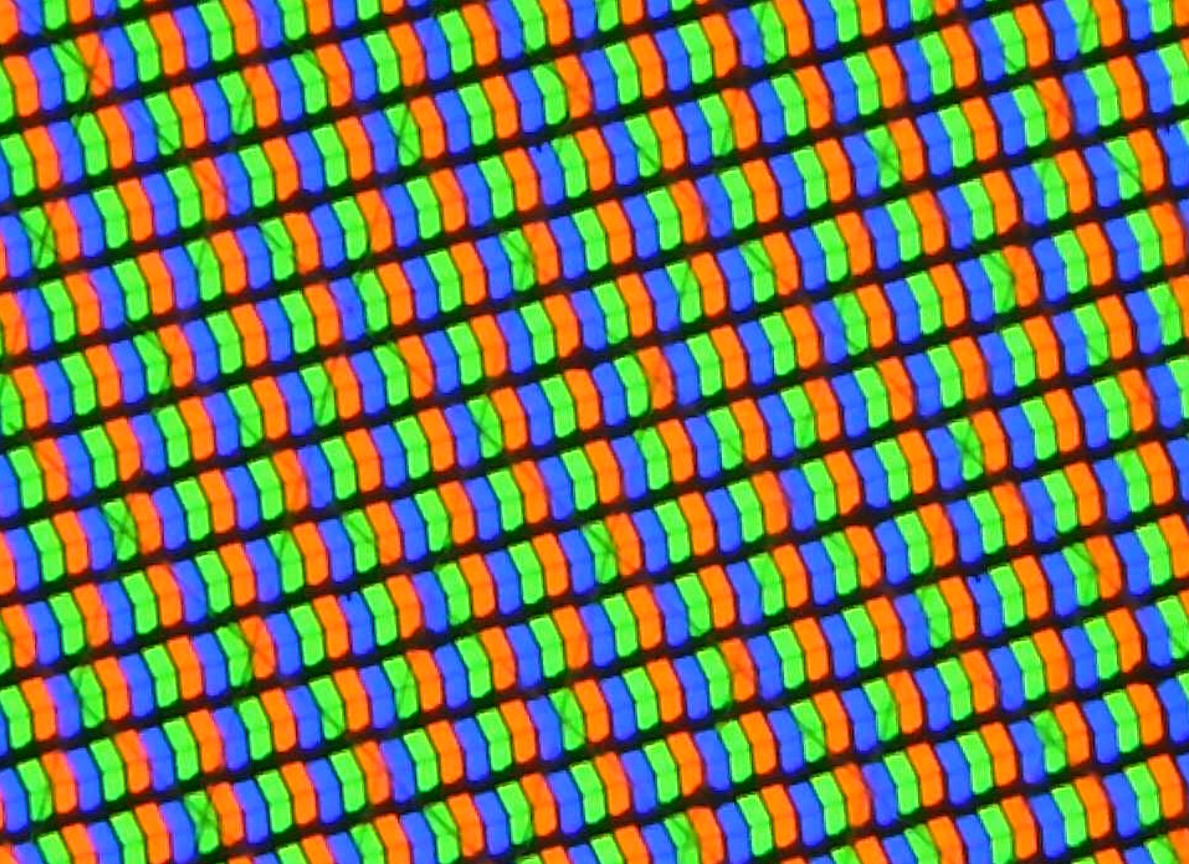

子像素网格
子像素网格
非常好--只有极少的混浊
非常好--只有极少的混浊

内置的显示屏是一个3:2格式的IPS触摸显示屏,分辨率为3,000 x 2,000。承诺的400cd/m²在测试中已经实现,在某些情况下还超过了。尽管如此,我们的评测样本只实现了85%的照度,这并不是很均匀的。另一方面,在实践中,没有发现任何缺点。0.27的黑值更多是在中场。但与良好的亮度相结合,这仍然足以实现良好的对比度。没有发现PWM的闪烁。

Prime Computer目前没有提供替代的显示选项。在寿命和长期使用的问题上,120或144赫兹的选项是可取的。

398
cd/m²
441
cd/m²
396
cd/m²
427
cd/m²
402
cd/m²
410
cd/m²
399
cd/m²
382
cd/m²
374
cd/m²
Distribution of brightness
Tinama XM tested with X-Rite i1Pro 2
Maximum: 441 cd/m² (Nits) Average: 403.2 cd/m² Minimum: 13.2 cd/m²
Brightness Distribution: 85 %
Center on Battery: 388 cd/m²
Contrast: 1489:1 (Black: 0.27 cd/m²)
ΔE Color 2.25 | 0.5-29.43 Ø5, calibrated: 0.93
ΔE Greyscale 2.52 | 0.57-98 Ø5.3
65.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.6% sRGB (Argyll 2.2.0 3D)
64% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.31
Prime Computer PrimeBook Circular-i7-1165G7
Tinama XM, IPS, 3000x2000, 13.90
Asus ZenBook 14X OLED UX5400EA-L7154W
Samsung SDC415B ATNA40YN04-0, OLED, 2880x1800, 14.00
Dell Inspiron 14 5410-D3D7T
LGD068D, IPS-Grade, 1920x1080, 14.00
Lenovo ThinkPad T14s G2 20WM003TGE
NE140FHM-N61, IPS LED, 1920x1080, 14.00
Lenovo ThinkPad T14s G2 20XGS01100
NE140FHM-N61, IPS LED, 1920x1080, 14.00
Acer TravelMate P614P-52
AU Optronics B140UAV01.0, IPS, 1920x1200, 14.00
Display
37%
-44%
1%
2%
13%
Display P3 Coverage
64
100
56%
36
-44%
68.1
6%
69.7
9%
76
19%
sRGB Coverage
95.6
100
5%
53.9
-44%
91.7
-4%
91.8
-4%
99.4
4%
AdobeRGB 1998 Coverage
65.8
98
49%
37.04
-44%
67.1
2%
67.2
2%
75.5
15%
Response Times
92%
-3%
-82%
-160%
-16%
Response Time Grey 50% / Grey 80% *
35 ?(18, 17)
2 ?(1, 1)
94%
32 ?(15, 17)
9%
68 ?(33, 35)
-94%
84 ?(42, 42)
-140%
40.79 ?(17.72, 23.07)
-17%
Response Time Black / White *
20 ?(10, 10)
2 ?(1, 1)
90%
23 ?(10, 13)
-15%
34 ?(17, 17)
-70%
56 ?(26, 30)
-180%
22.9 ?(10.96, 11.94)
-15%
PWM Frequency
240 ?(40)
22730 ?(50)
2451 ?(50)
1000 ?(99)
Screen
3%
-52%
-61%
-89%
2%
Brightness middle
402
345
-14%
219
-46%
422.9
5%
397
-1%
504.15
25%
Brightness
403
348
-14%
210
-48%
397
-1%
386
-4%
482
20%
Brightness Distribution
85
98
15%
91
7%
91
7%
88
4%
77
-9%
Black Level *
0.27
0.18
33%
0.32
-19%
0.28
-4%
0.19
30%
Contrast
1489
1217
-18%
1322
-11%
1418
-5%
2653
78%
Colorchecker dE 2000 *
2.25
1.92
15%
5.47
-143%
4.8
-113%
5.8
-158%
2.75
-22%
Colorchecker dE 2000 max. *
3.17
4.72
-49%
7.67
-142%
8.7
-174%
12.6
-297%
4.66
-47%
Colorchecker dE 2000 calibrated *
0.93
1.9
-104%
1.9
-104%
1.72
-85%
Greyscale dE 2000 *
2.52
0.85
66%
3.9
-55%
6.1
-142%
8.3
-229%
1.9
25%
Gamma
2.31 95%
2.37 93%
2.28 96%
2.23 99%
2.07 106%
2.13 103%
CCT
6928 94%
6475 100%
6002 108%
7635 85%
6867 95%
6426 101%
Total Average (Program / Settings)
44% / 28%
-33% / -42%
-47% / -51%
-82% / -79%
-0% / 2%

* ... smaller is better

即使在交付状态下,与sRGB色彩空间相比,测量的Delta E-2000色彩偏差也非常低,在某些情况下低于目标值3。华硕ZenBook 14x宏碁Travelmate P614P在这里也取得了类似的好成绩。经过手动校准,我们在某些情况下能够显著改善测量结果,正如你在图片中看到的那样。对应的ICC配置文件可以在对比表上面找到。然而,在色彩空间覆盖方面,我们的评测样本并没有完全达到预期。根据技术数据,sRGB色彩空间应该有100%的覆盖率。我们测得的结果是95.6%,因此,幸运的是,偏差在限度之内。对于AdobeRGB和P3色彩空间,这大约是65%。这使得该面板相当不适合用于专业照片或视频编辑。

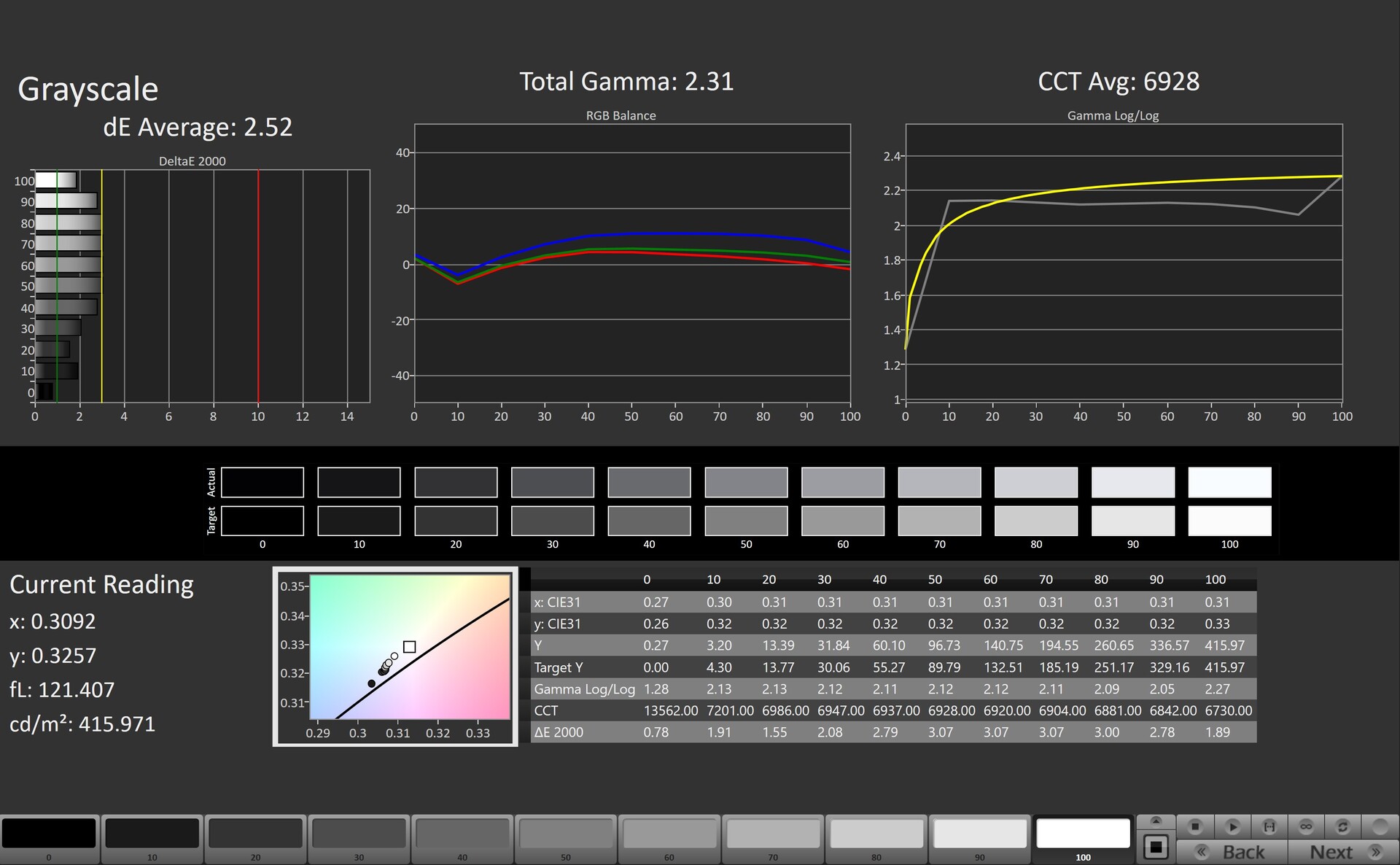

卡尔曼:灰度
卡尔曼:灰度
CalMAN: ColorChecker
CalMAN: ColorChecker

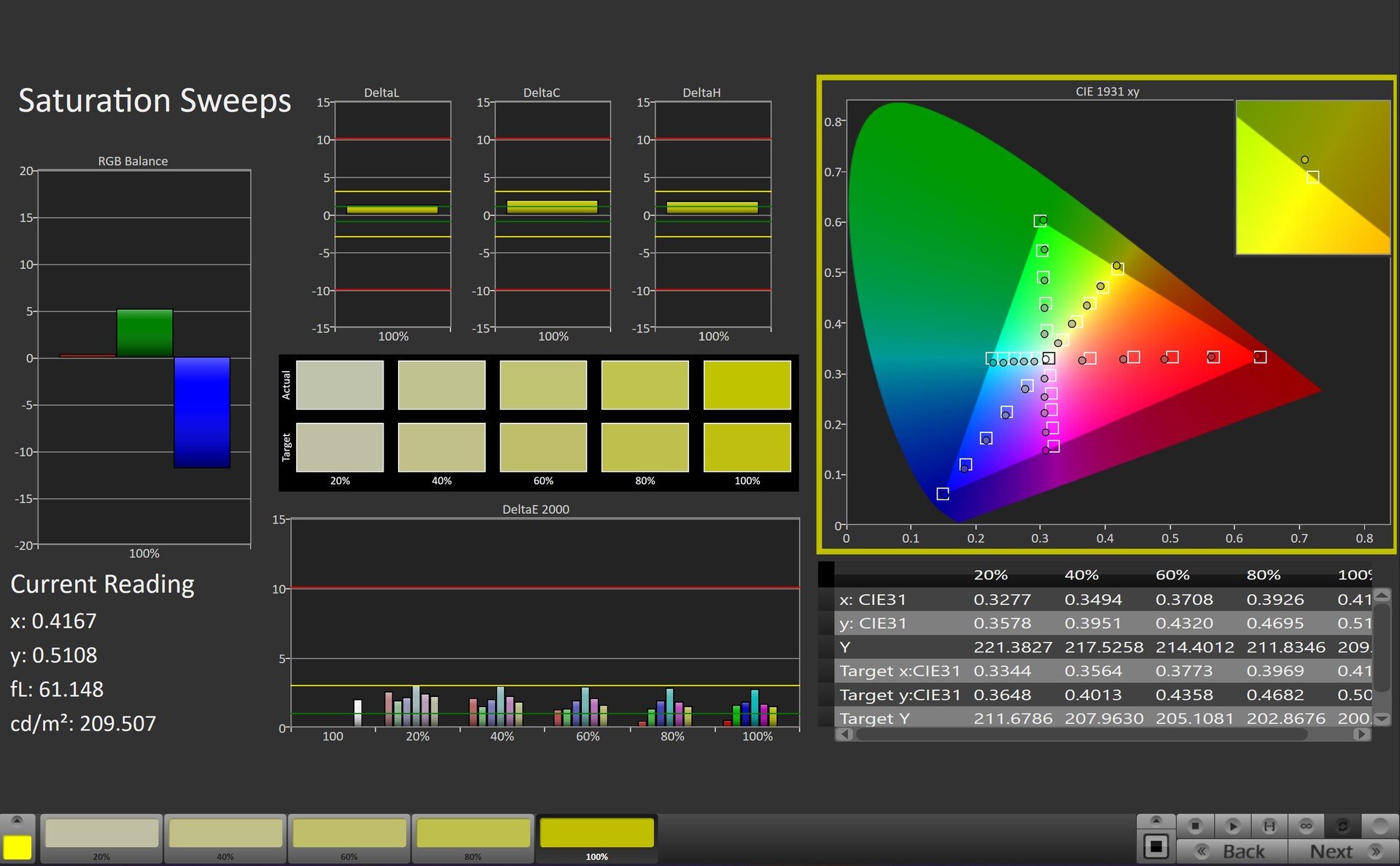

卡尔曼:色彩饱和度
卡尔曼:色彩饱和度

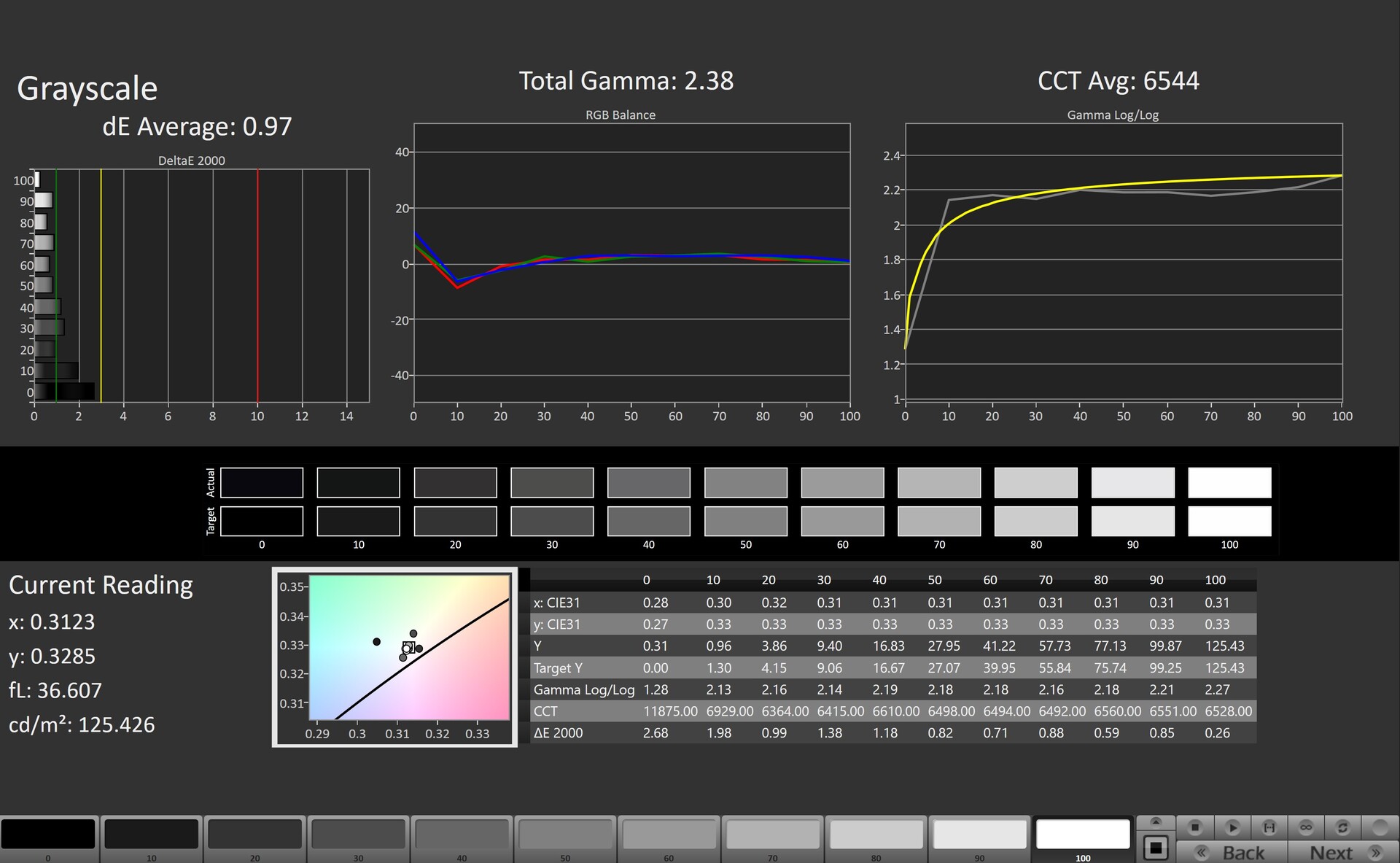

CalMAN:灰度(校准的)。
CalMAN:灰度(校准的)。
CalMAN: ColorChecker (已校准)
CalMAN: ColorChecker (已校准)

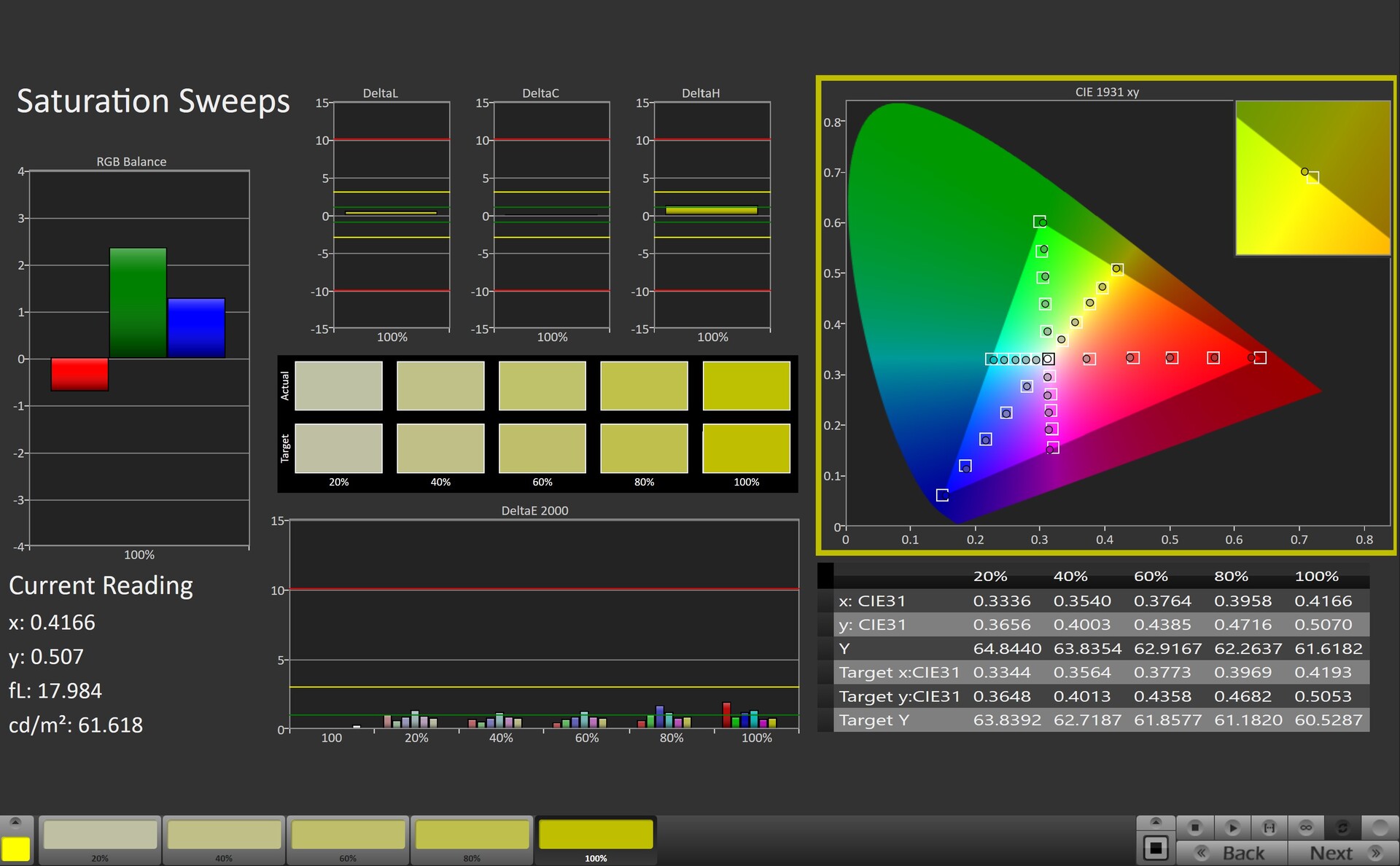

CalMAN:色彩饱和度(已校准)。
CalMAN:色彩饱和度(已校准)。

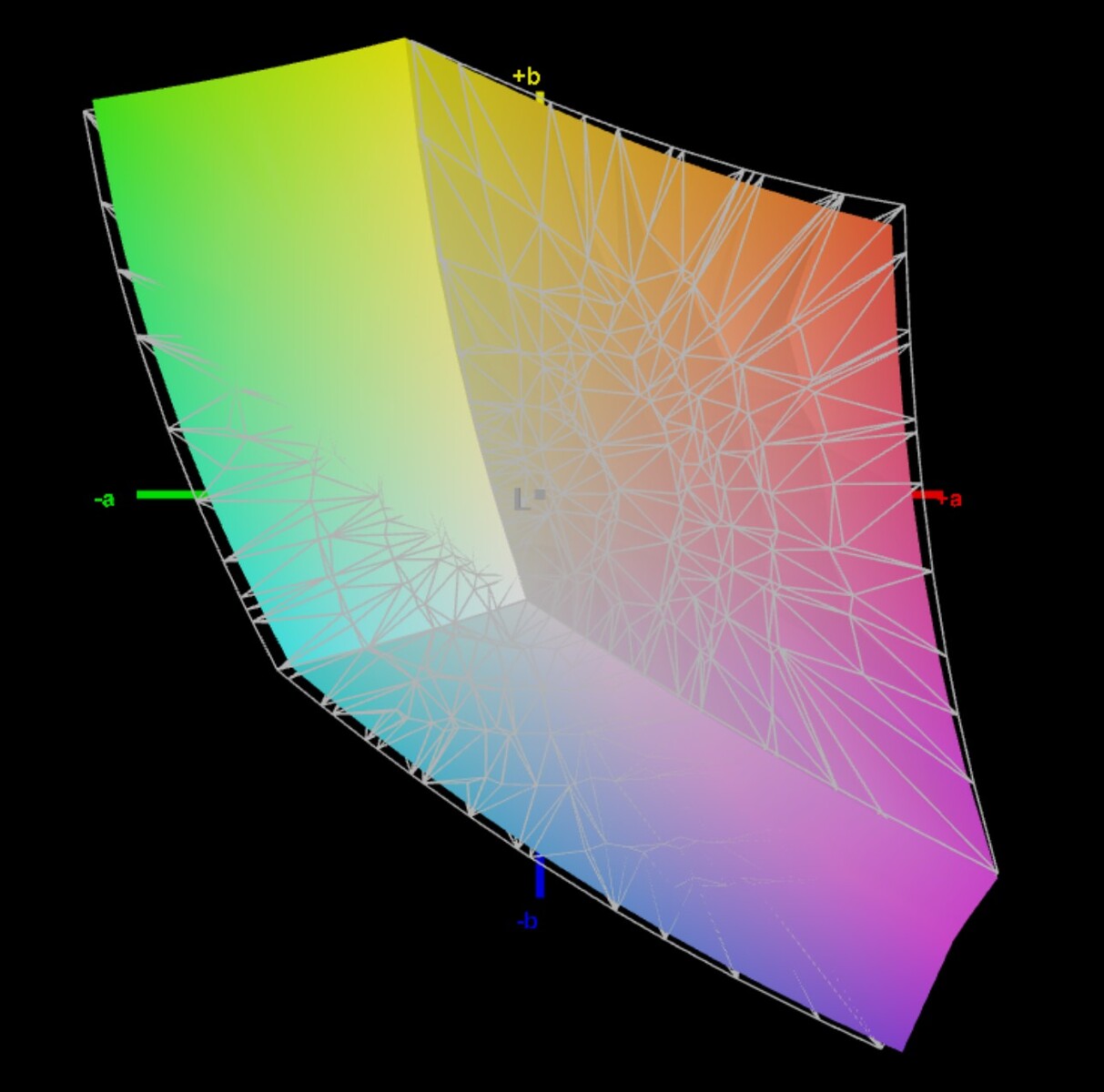

sRGB与PrimeBook环形图
sRGB与PrimeBook环形图

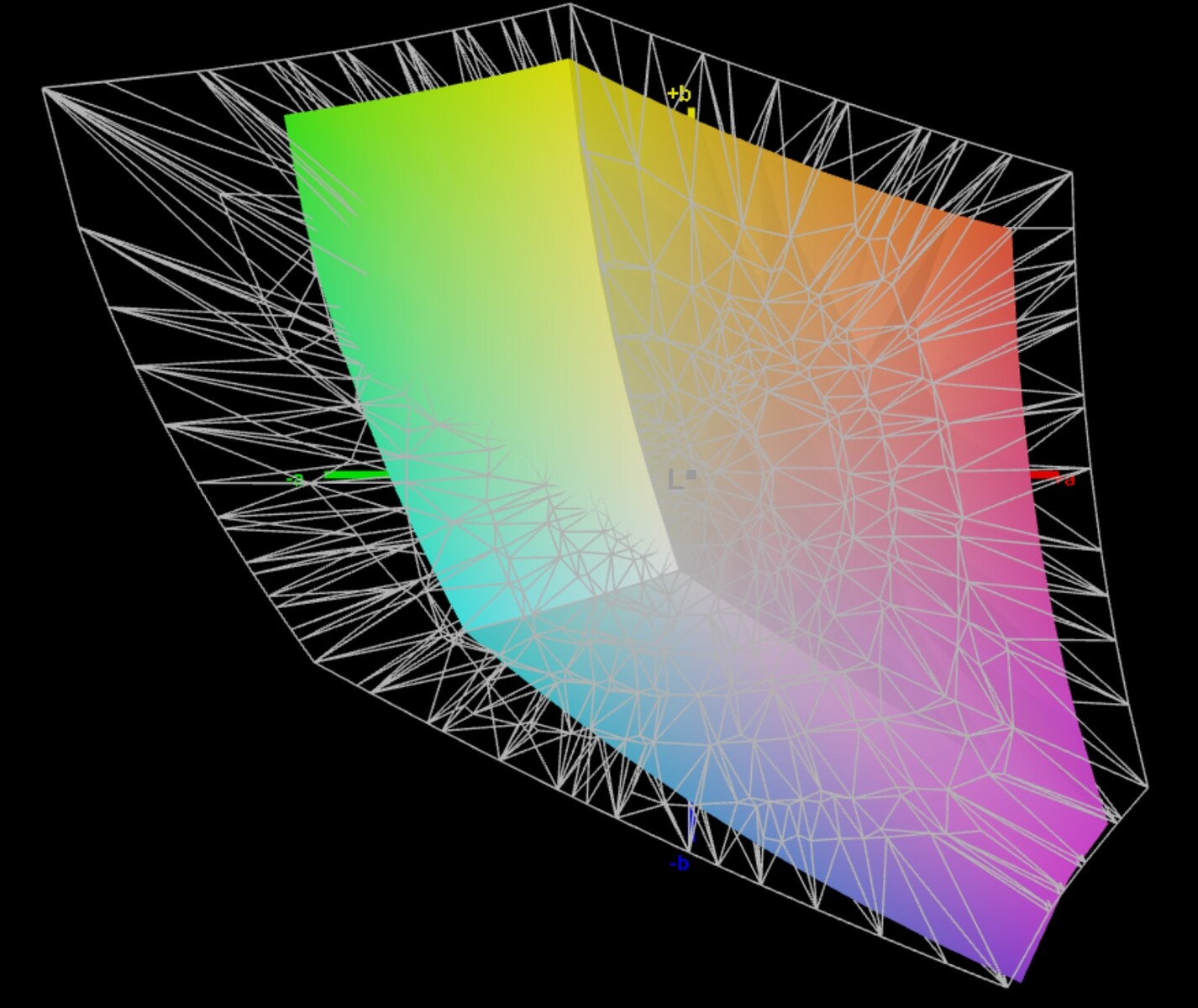

AdobeRGB与PrimeBook Circular的对比
AdobeRGB与PrimeBook Circular的对比

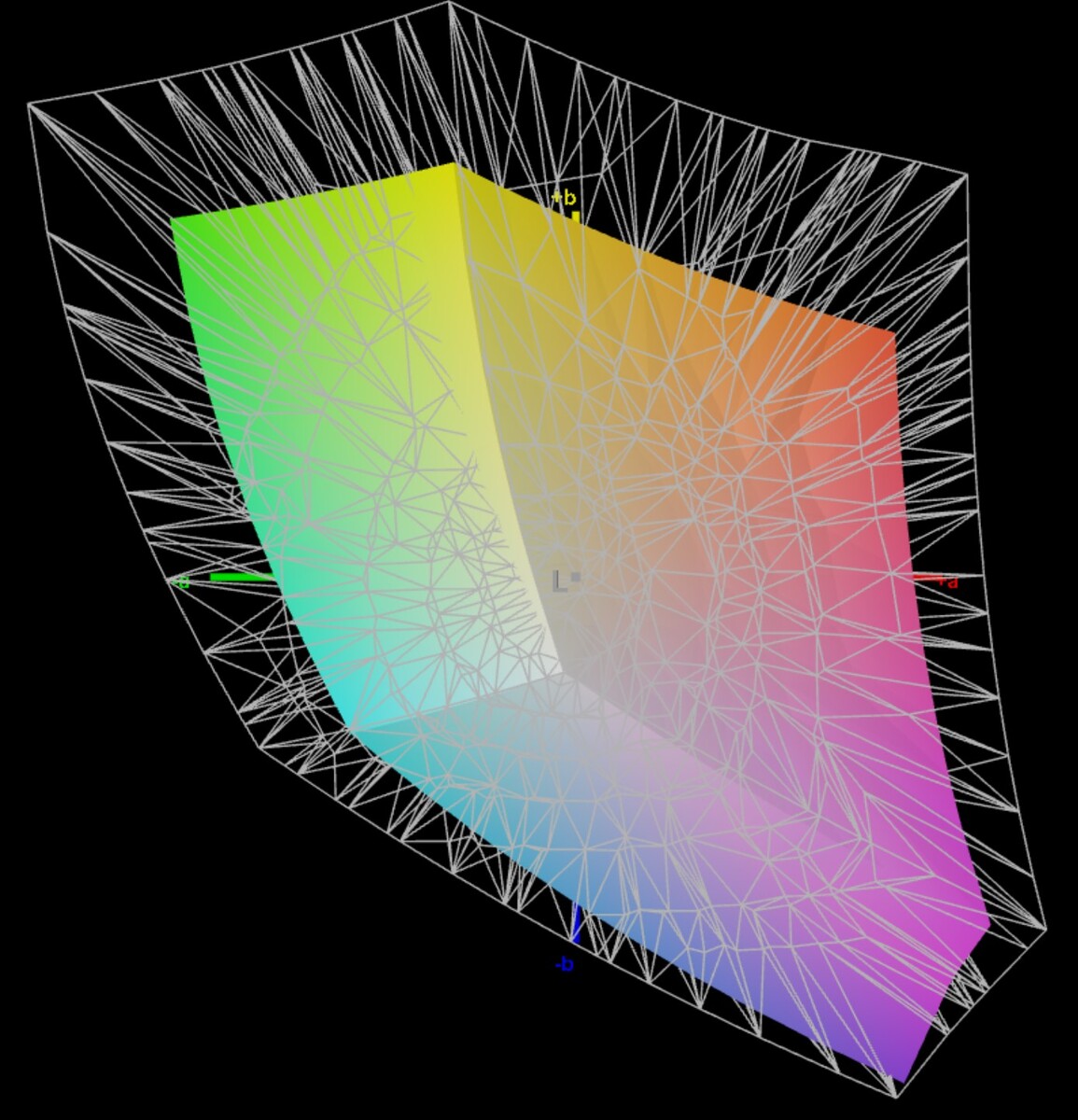

P3与PrimeBook圆环相比
P3与PrimeBook圆环相比

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

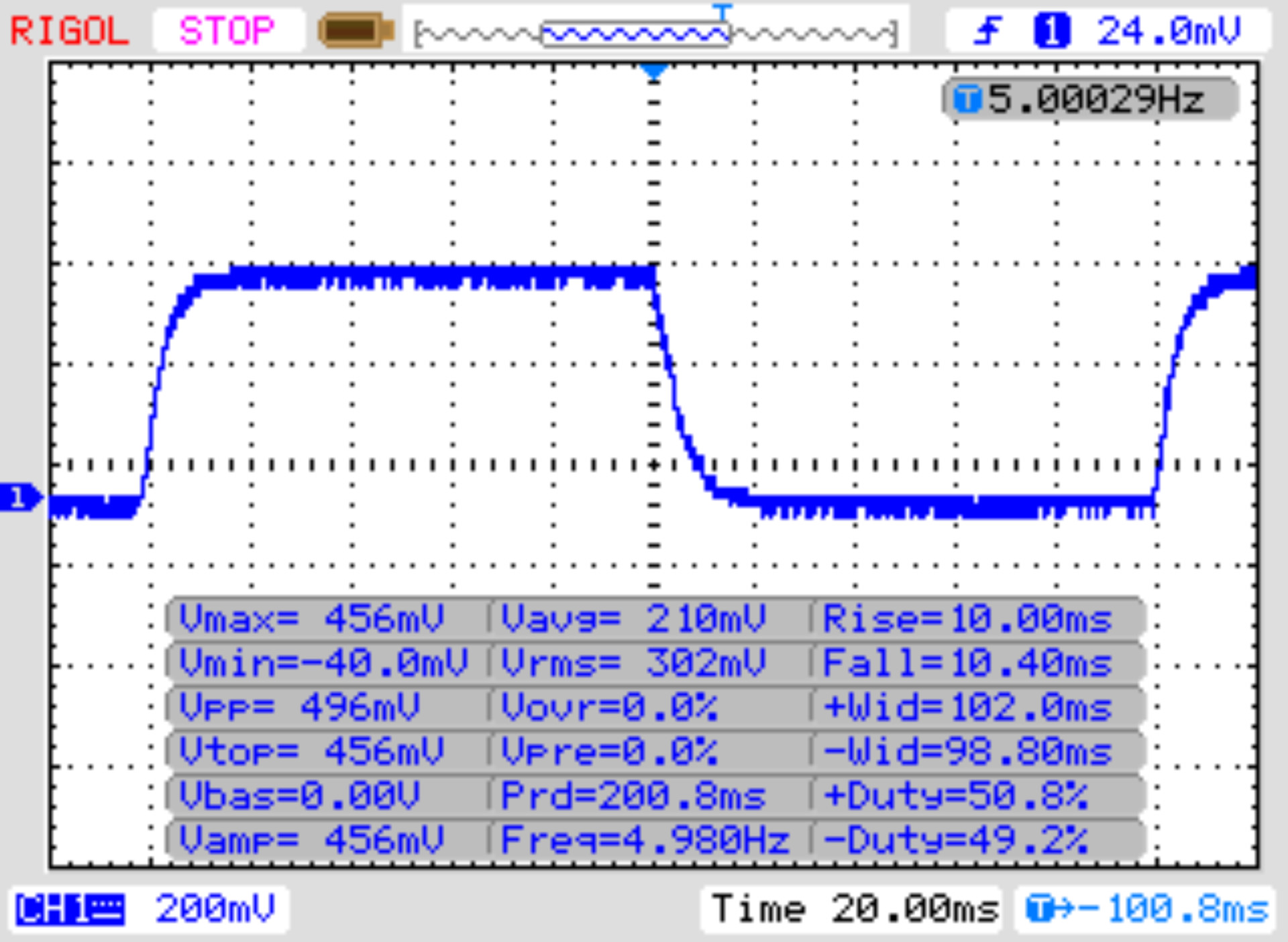

       Response Time Black to White
20 ms ... rise ↗ and fall ↘ combined↗ 10 ms rise
↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 37 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21.6 ms).

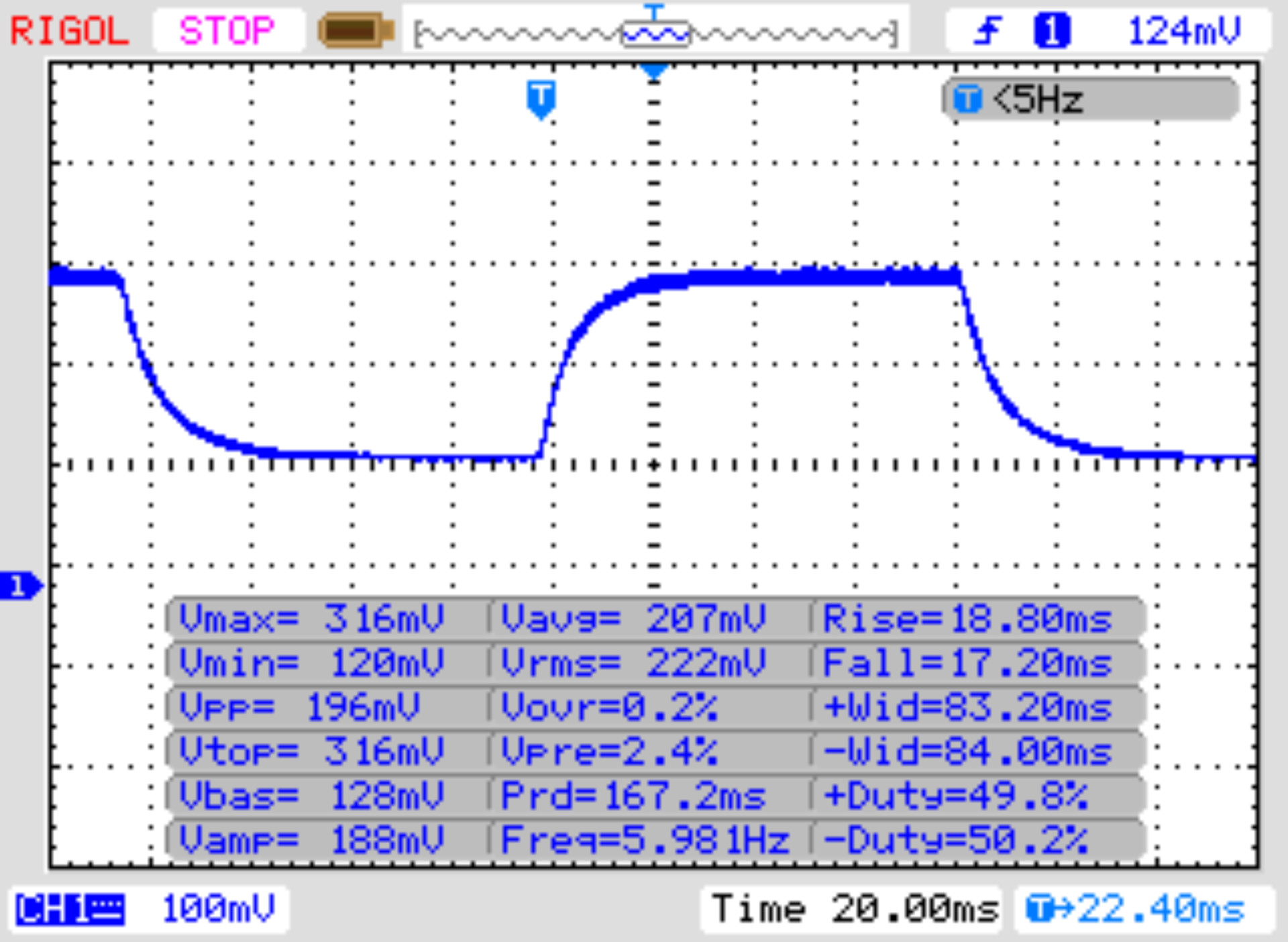

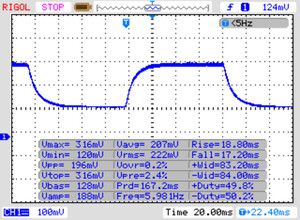

       Response Time 50% Grey to 80% Grey
35 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 17 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 42 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (33.9 ms).

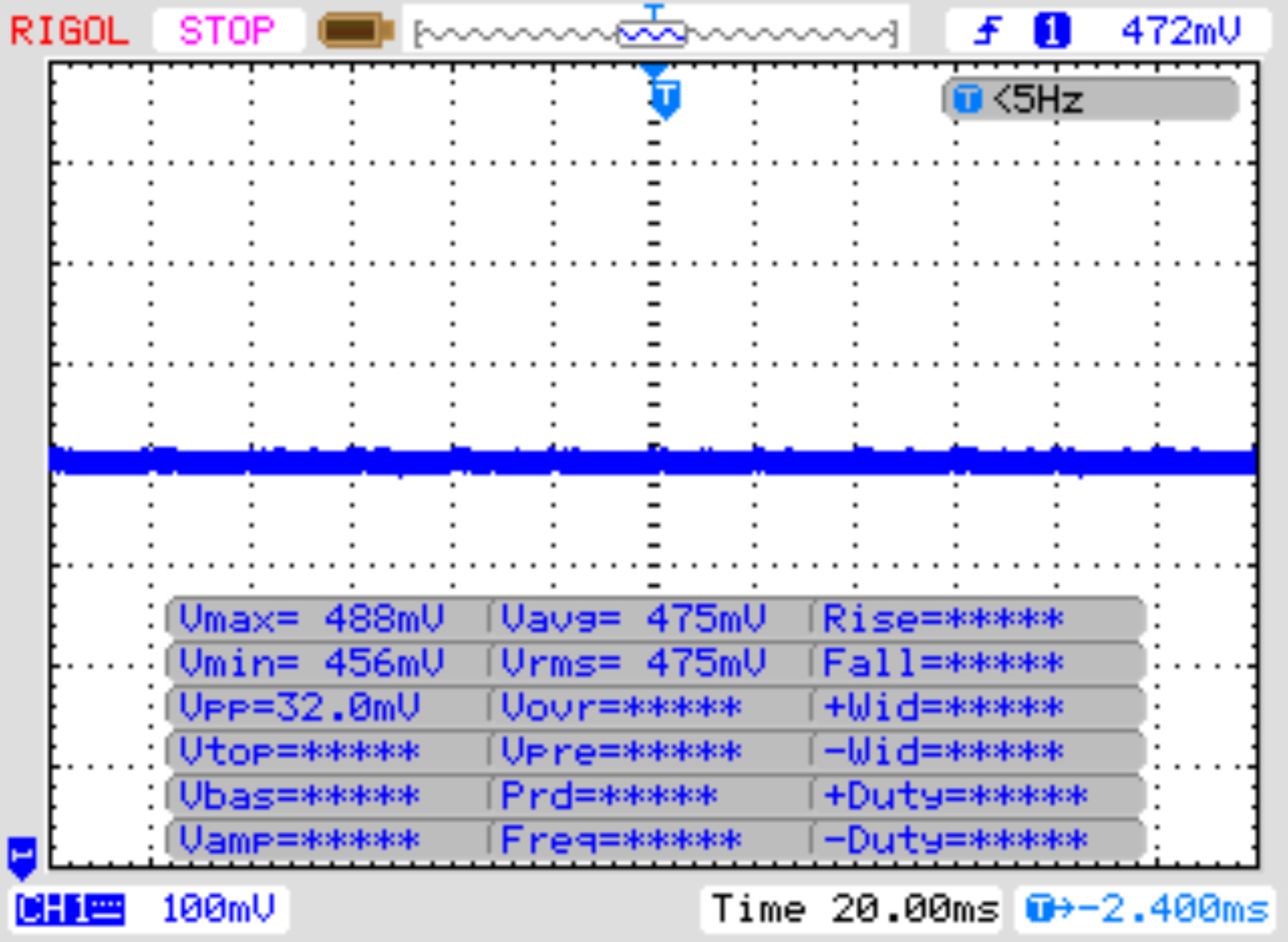

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18071 (minimum: 5 - maximum: 3846000) Hz was measured.

在视角测试中,我们观察到了IPS面板的典型结果:显示屏在所有视角下都非常稳定,只在很小的程度上可以看到颜色变化。良好的显示亮度在户外也很方便。然而,由于强烈的反射,你最好找一个阴凉的地方,这使得在笔记本电脑上工作的时间越长越累。

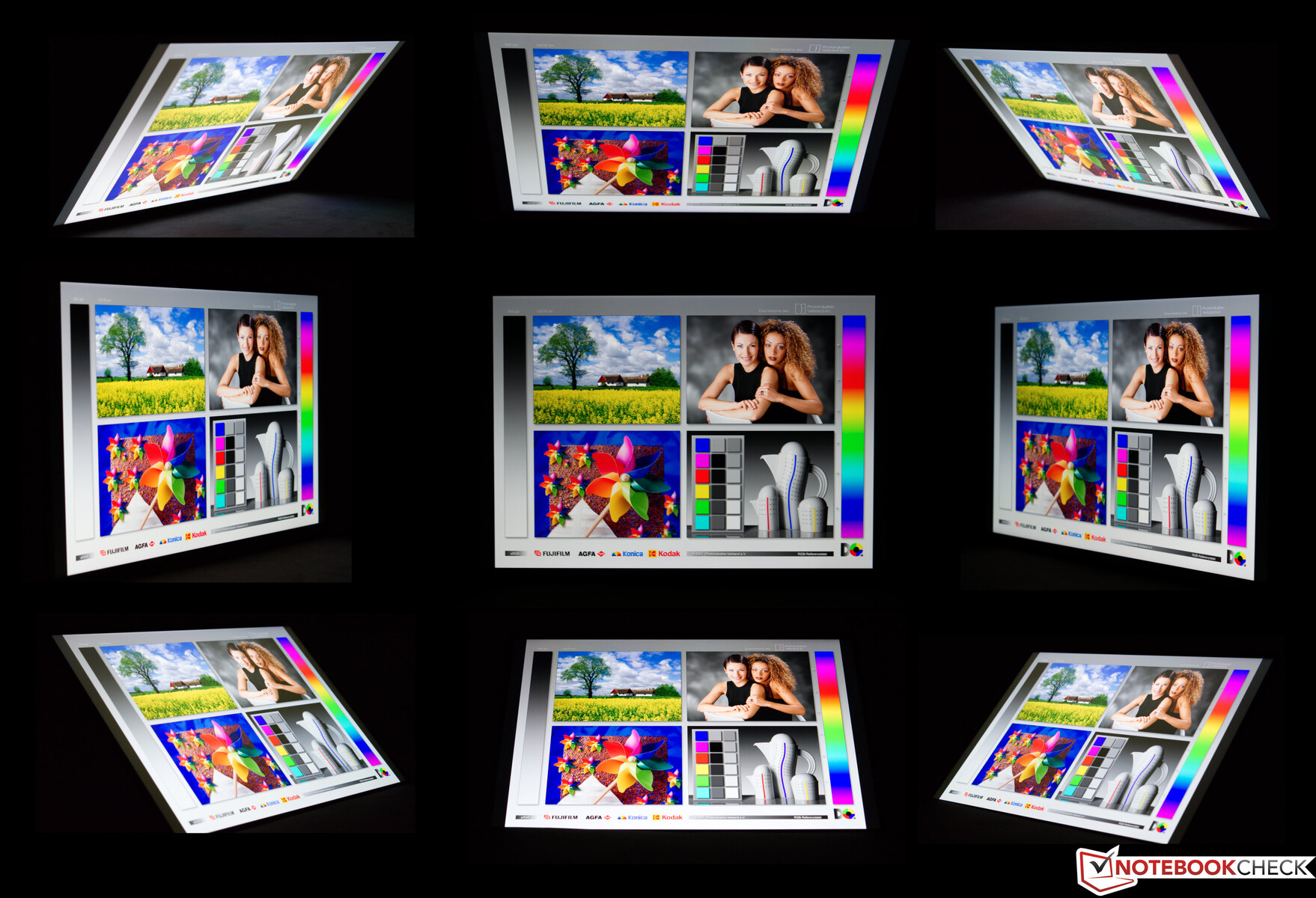

视角测试中的PrimeBook Circular
视角测试中的PrimeBook Circular

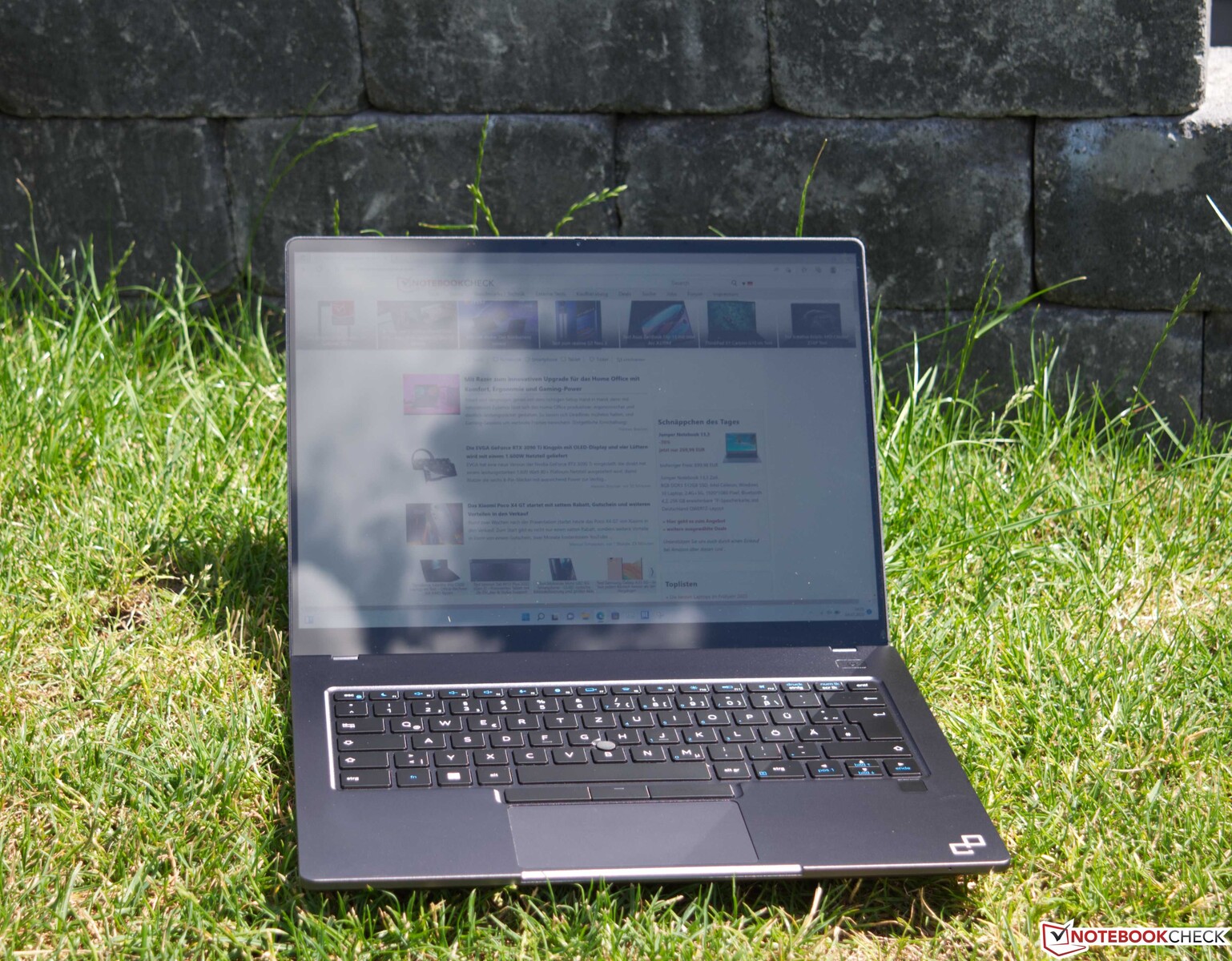

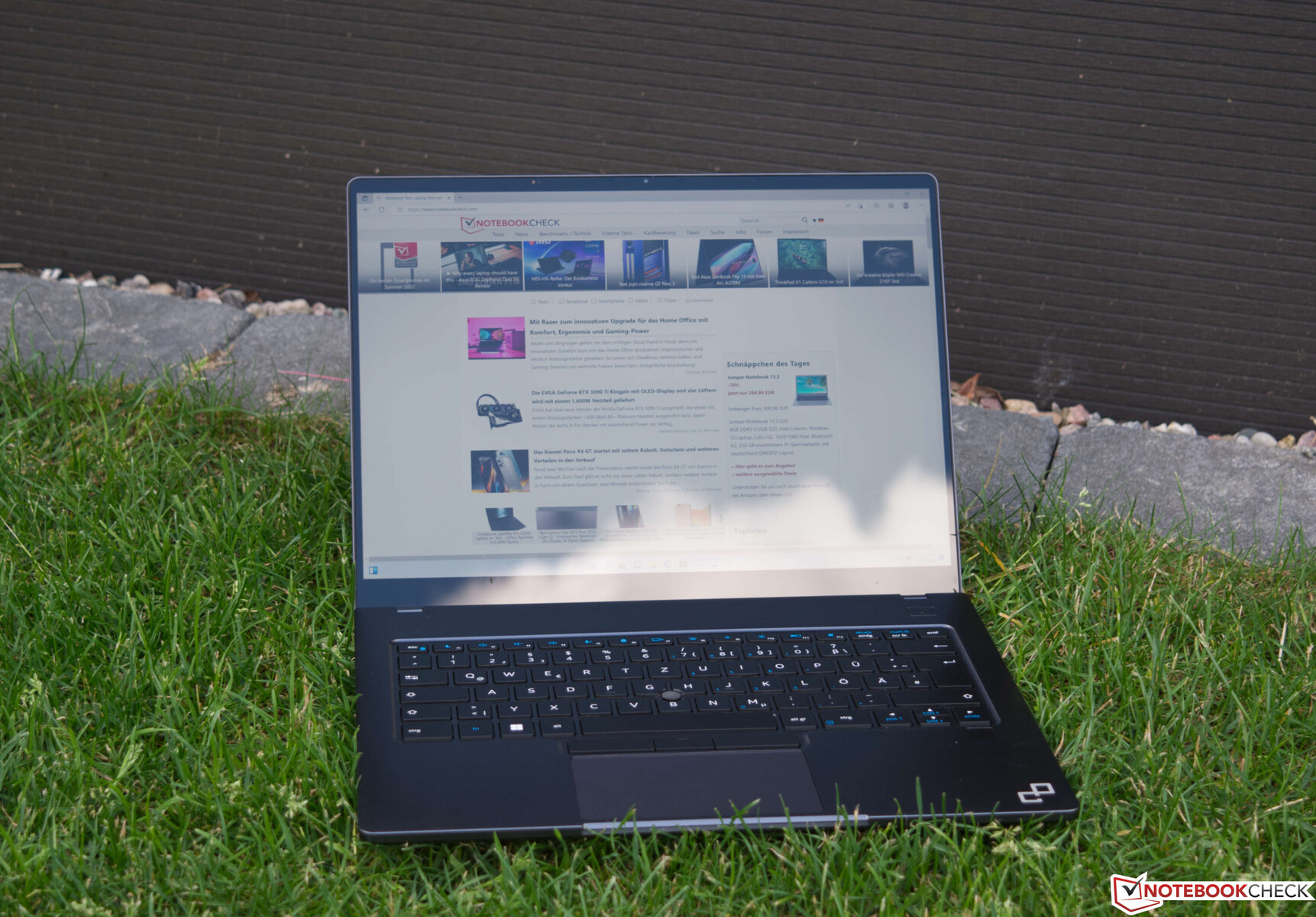

阳光直射下的总理书通告
阳光直射下的总理书通告
阴凉处的总理书通告
阴凉处的总理书通告

业绩

英特尔NUC计算元件CM11EBI716W,其中包含一个英特尔酷睿i7-1165G7与16 GB的内存,使PrimeBook圆形非常好地配备了作为一个办公室的笔记本电脑,并适用于苛刻的任务,超越了正常的日常业务使用。

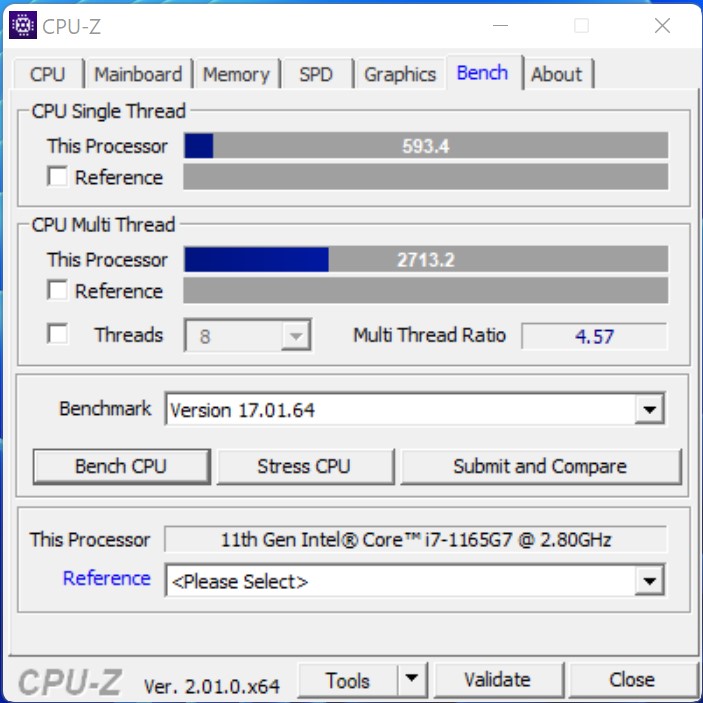

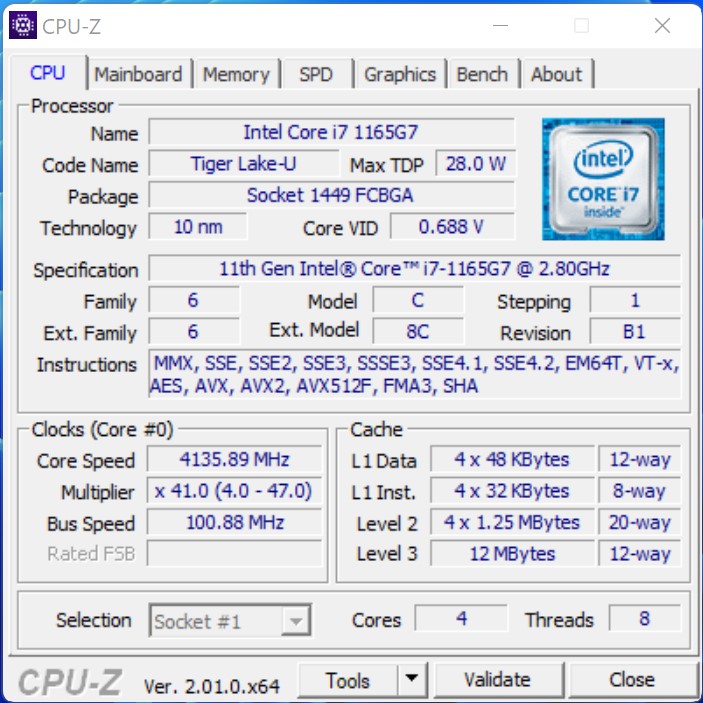

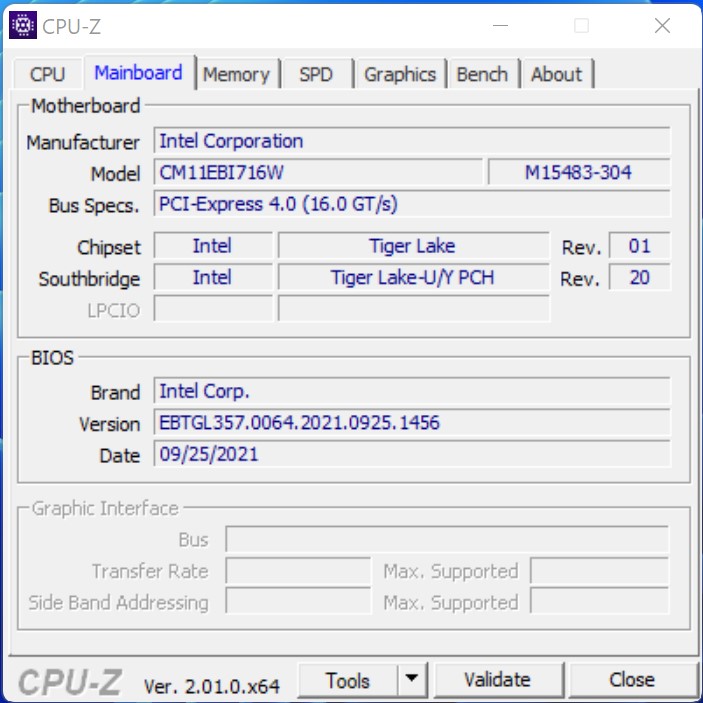

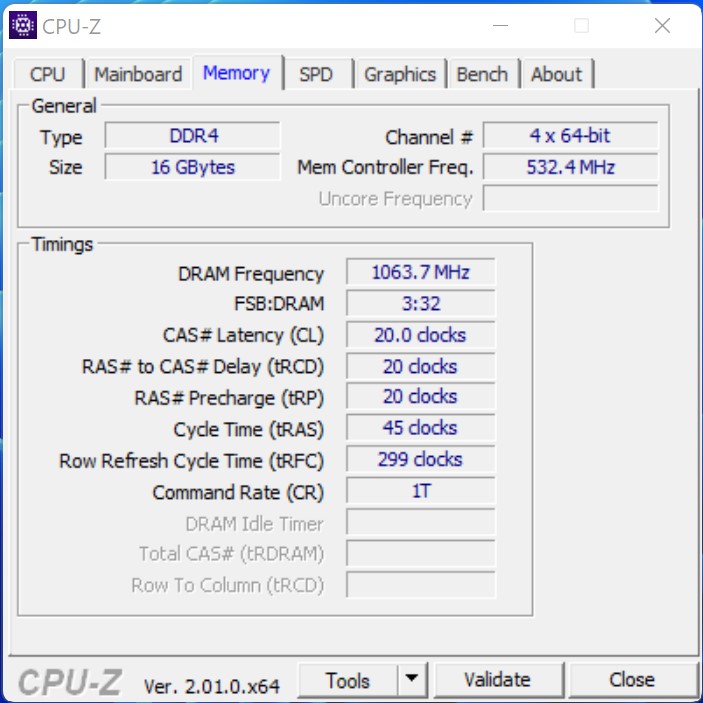

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

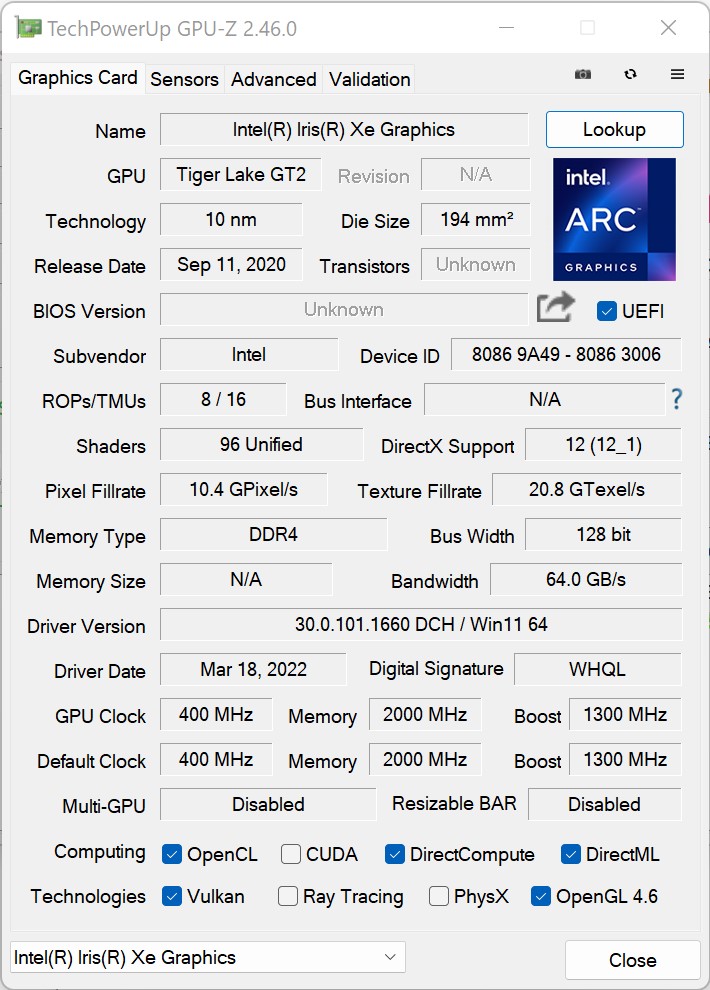

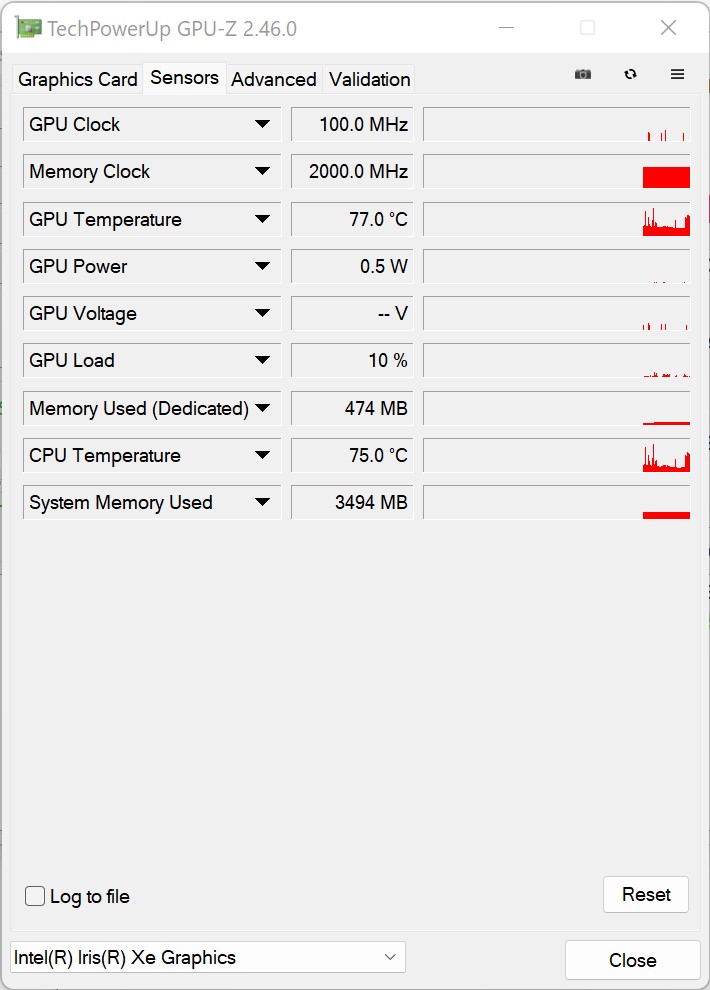

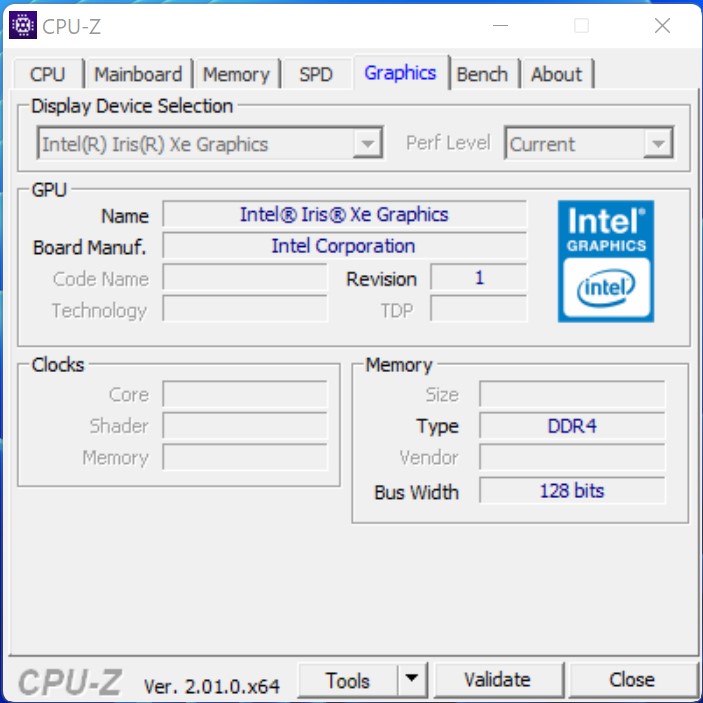

GPU-Z
GPU-Z

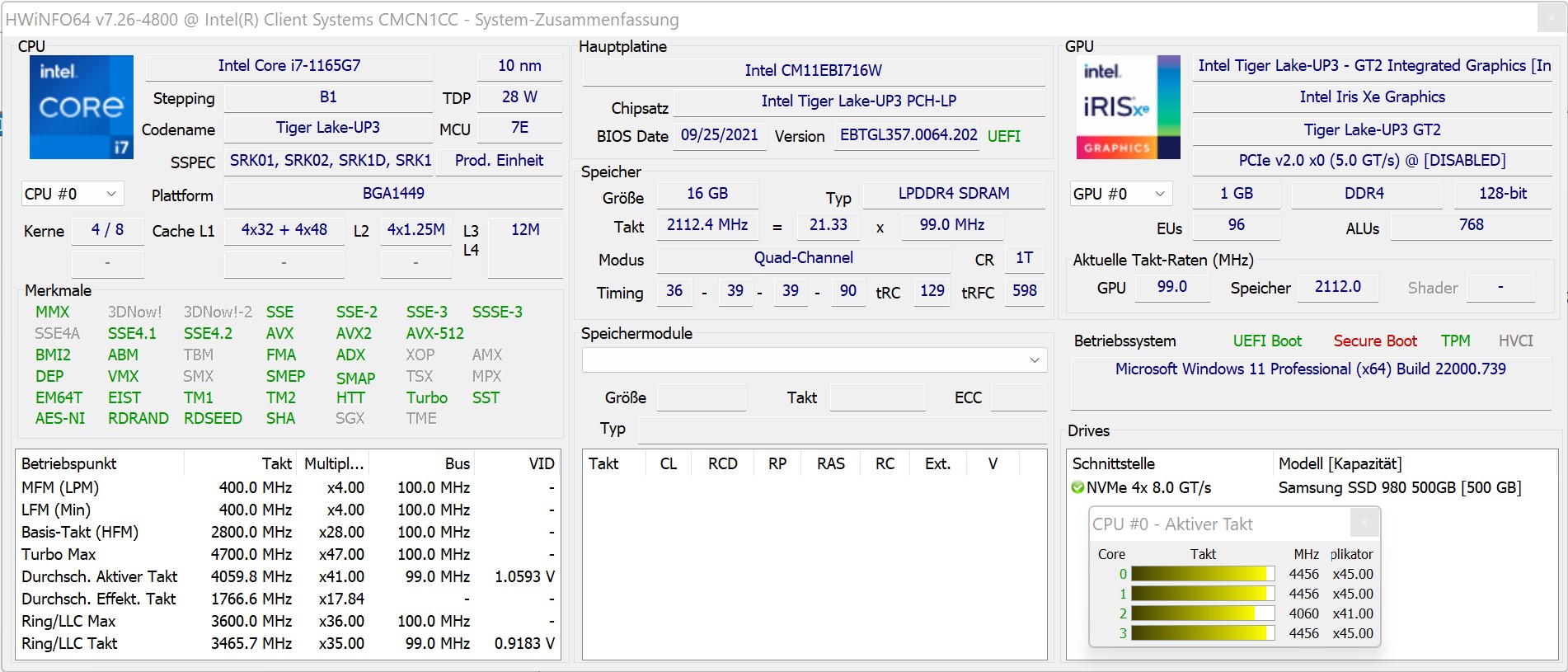

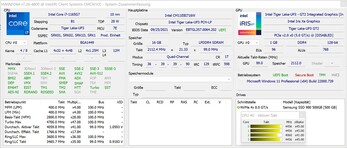

HWiNFO

测试条件

所有的性能测试都是在Windows的高性能模式下运行的,以达到最佳性能。我们建议在日常使用中使用 "平衡 "能源选项。我们在实际的WLAN电池测试中也使用了这个选项。

处理器

英特尔NUC计算元件CM11EBI716W
英特尔NUC计算元件CM11EBI716W

芯片 英特尔酷睿i7-1165G7为PrimeBook Circular提供动力,与传统的笔记本电脑不同,它不是永久性地安装在设备中。SoC仍然是焊接的,但在英特尔NUC计算元素CM11EBI716W上,你可以在图片的右边看到。该模块可以很容易地被拆下并替换成另一个模块。这使得笔记本电脑甚至可以在CPU方面进行升级,这在紧凑型笔记本中通常是不可能的。

SoC提供4个核心,8个线程,基本时钟速度为2.8GHz。在涡轮增压状态下,最高可达到4.7GHz。然而,英特尔酷睿i7-1165G7的性能并没有完全达到测试中基于相同SoC的对比设备的水平。这方面的原因在于PL值。我们评测设备中的SoC必须在最大45瓦的情况下进行,而在宏碁TravelMate P614中则可能达到64瓦的功率。 Acer TravelMate P614P。考虑到这一点,只有8%的差距仍然是可以接受的,在日常使用中并不十分明显。

在Cinebench R15多循环中,英特尔酷睿i7-1165G7开始时略低于930分,随着测试的进行,平均达到808分,即在永久负载下损失约10%的性能。

关于进一步的比较和基准测试,我们可以参考我们的 CPU比较表.

Cinebench R15 Multi Sustained Load

075150225300375450525600675750825900975105011251200127513501425Tooltip
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7: Ø808 (766.49-926.7)
Asus ZenBook 14X OLED UX5400EA-L7154W Intel Core i7-1165G7: Ø897 (888.08-962.9)
Dell Inspiron 14 5410-D3D7T Intel Core i7-1165G7; Optimized Mode: Ø693 (639.17-738.68)
Dell Inspiron 14 5410-D3D7T Intel Core i7-1165G7; Ultra Mode: Ø719 (700.53-728.65)
Dell Inspiron 14 5410-D3D7T Intel Core i7-1165G7; Cool Mode: Ø494 (450.48-718.78)
Lenovo ThinkPad T14s G2 20WM003TGE Intel Core i7-1165G7: Ø811 (721.84-1004.57)
Lenovo ThinkPad T14s G2 20XGS01100 AMD Ryzen 7 PRO 5850U: Ø1458 (1453.17-1466.65)
Acer TravelMate P614P-52 Intel Core i7-1165G7: Ø841 (834.71-880.07)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
85.2 pt
Average of class Office

76.9 pt
Acer TravelMate P614P-52
Intel Core i7-1165G7
67.8 pt
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
65.9 pt
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
65.7 pt
Average Intel Core i7-1165G7

64.4 pt
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
62.7 pt
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
58.3 pt
Cinebench R23 / Multi Core
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
8716 (8655.84min - 8715.53max) Points +66%
Average of class Office
  (1056 - 15743, n=121, last 2 years)
8030 Points +53%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
6110 Points +17%
Acer TravelMate P614P-52
Intel Core i7-1165G7
5396 Points +3%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
5240 Points
Average Intel Core i7-1165G7
  (2525 - 6862, n=64)
5110 Points -2%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
4823 Points -8%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
4742 Points -10%
Cinebench R23 / Single Core
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
1487 Points
Acer TravelMate P614P-52
Intel Core i7-1165G7
1473 Points -1%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
1455 Points -2%
Average of class Office
  (529 - 1995, n=120, last 2 years)
1451 Points -2%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1431 Points -4%
Average Intel Core i7-1165G7
  (1110 - 1539, n=59)
1425 Points -4%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1306 Points -12%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
1305 Points -12%
Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
3417 Points +67%
Average of class Office
  (356 - 5904, n=119, last 2 years)
3085 Points +50%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
2361 Points +15%
Acer TravelMate P614P-52
Intel Core i7-1165G7
2085 Points +2%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
2051 Points
Average Intel Core i7-1165G7
  (1060 - 2657, n=81)
1967 Points -4%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1846 Points -10%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
1821 Points -11%
Cinebench R20 / CPU (Single Core)
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
568 Points
Acer TravelMate P614P-52
Intel Core i7-1165G7
565 Points -1%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
562 Points -1%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
558 Points -2%
Average of class Office
  (181.3 - 764, n=119, last 2 years)
558 Points -2%
Average Intel Core i7-1165G7
  (442 - 589, n=81)
552 Points -3%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
525 Points -8%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
501 Points -12%
Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1467 (1453.17min - 1466.65max) Points +76%
Average of class Office
  (160.8 - 2642, n=119, last 2 years)
1392 Points +67%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1005 (721.84min - 1004.57max) Points +21%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
963 (888.08min - 962.9max) Points +16%
Acer TravelMate P614P-52
Intel Core i7-1165G7
880 (834.71min - 880.07max) Points +6%
Average Intel Core i7-1165G7
  (553 - 1027, n=86)
846 Points +2%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
832 Points
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
739 (639.17min - 738.68max) Points -11%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
729 (700.53min - 728.65max) Points -12%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
719 (450.48min - 718.78max) Points -14%
Cinebench R15 / CPU Single 64Bit
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
227 Points +3%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
224 Points +1%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
221 Points
Acer TravelMate P614P-52
Intel Core i7-1165G7
220 Points 0%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
216 Points -2%
Average of class Office
  (82.6 - 284, n=117, last 2 years)
216 Points -2%
Average Intel Core i7-1165G7
  (115 - 230, n=78)
212 Points -4%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
192 Points -13%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
189 Points -14%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
187 Points -15%
Blender / v2.79 BMW27 CPU
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
759 Seconds *
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
640 Seconds * +16%
Average Intel Core i7-1165G7
  (468 - 1138, n=80)
618 Seconds * +19%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
577 Seconds * +24%
Acer TravelMate P614P-52
Intel Core i7-1165G7
569 Seconds * +25%
Average of class Office
  (214 - 2844, n=119, last 2 years)
535 Seconds * +30%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
525 Seconds * +31%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
345 Seconds * +55%
7-Zip 18.03 / 7z b 4
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
44266 MIPS +84%
Average of class Office
  (4226 - 62349, n=120, last 2 years)
34626 MIPS +44%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
26210 MIPS +9%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
25087 MIPS +5%
Acer TravelMate P614P-52
Intel Core i7-1165G7
24418 MIPS +2%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
24006 MIPS
Average Intel Core i7-1165G7
  (15347 - 27405, n=80)
22935 MIPS -4%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
21139 MIPS -12%
7-Zip 18.03 / 7z b 4 -mmt1
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
5255 MIPS
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
5231 MIPS 0%
Average Intel Core i7-1165G7
  (4478 - 5507, n=80)
5182 MIPS -1%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
5173 MIPS -2%
Acer TravelMate P614P-52
Intel Core i7-1165G7
5157 MIPS -2%
Average of class Office
  (2233 - 6687, n=120, last 2 years)
5007 MIPS -5%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
4943 MIPS -6%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
4803 MIPS -9%
Geekbench 5.5 / Multi-Core
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
6889 Points +42%
Average of class Office
  (1018 - 11980, n=121, last 2 years)
6590 Points +36%
Acer TravelMate P614P-52
Intel Core i7-1165G7
5845 Points +20%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
5626 Points +16%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
4213 Points -13%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
5460 Points +13%
Average Intel Core i7-1165G7
  (3078 - 5926, n=77)
5155 Points +6%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
4851 Points
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
4126 Points -15%
Geekbench 5.5 / Single-Core
Acer TravelMate P614P-52
Intel Core i7-1165G7
1551 Points +1%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
1543 Points
Average Intel Core i7-1165G7
  (1302 - 1595, n=77)
1524 Points -1%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
1498 Points -3%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
1478 Points -4%
Average of class Office
  (510 - 1974, n=121, last 2 years)
1468 Points -5%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1441 Points -7%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
1436 Points -7%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1436 Points -7%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
11.3 fps +138%
Average of class Office
  (1.55 - 17.4, n=119, last 2 years)
9.18 fps +94%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
7.57 fps +60%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
7.13 fps +50%
Acer TravelMate P614P-52
Intel Core i7-1165G7
6.85 fps +45%
Average Intel Core i7-1165G7
  (1.39 - 8.47, n=80)
6.3 fps +33%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
5.99 fps +26%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
4.74 fps
LibreOffice / 20 Documents To PDF
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
74.1 s * -43%
Average of class Office
  (31.3 - 117.5, n=119, last 2 years)
56.7 s * -9%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
51.8 s *
Average Intel Core i7-1165G7
  (21.5 - 88.1, n=78)
49.2 s * +5%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
49.1 s * +5%
Acer TravelMate P614P-52
Intel Core i7-1165G7
45.6 s * +12%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
45.6 s * +12%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
43.4 s * +16%
R Benchmark 2.5 / Overall mean
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7
0.655 sec * -8%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7
0.624 sec * -2%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
0.609 sec *
Acer TravelMate P614P-52
Intel Core i7-1165G7
0.6 sec * +1%
Average Intel Core i7-1165G7
  (0.552 - 1.002, n=80)
0.594 sec * +2%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
0.59 sec * +3%
Average of class Office
  (0.4244 - 1.397, n=118, last 2 years)
0.588 sec * +3%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
0.536 sec * +12%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit
9053
Cinebench R10 Shading 64Bit
15816 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
36902 Points
Cinebench R10 Rendering Single CPUs 64Bit
11620 Points
Cinebench R10 Shading 32Bit
15264
Cinebench R10 Rendering Multiple CPUs 32Bit
27357
Cinebench R11.5 CPU Multi 32Bit
8.75 Points
Cinebench R11.5 OpenGL 32Bit
63.62 fps
Cinebench R11.5 CPU Single 64Bit
2.58 Points
Cinebench R11.5 CPU Multi 64Bit
9.78 Points
Cinebench R11.5 OpenGL 64Bit
67.37 fps
Cinebench R11.5 CPU Single 32Bit
2.24 Points
Cinebench R15 CPU Single 64Bit
221 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
105.85 fps
Cinebench R15 CPU Multi 64Bit
832 Points
Help
Performance Rating
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
94.7 pt
Average of class Office

73.7 pt
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
70.7 pt
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
67.1 pt
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
67.1 pt
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
62.2 pt
Average Intel Core i7-1165G7

60.1 pt
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
51.4 pt
AIDA64 / FP32 Ray-Trace
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
9963 KRay/s +59%
Average of class Office
  (763 - 24250, n=119, last 2 years)
8353 KRay/s +33%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
7770 KRay/s +24%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
7285 KRay/s +16%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
7012 KRay/s +12%
Average Intel Core i7-1165G7
  (3933 - 8184, n=58)
6555 KRay/s +5%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
6261 KRay/s
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
5713 KRay/s -9%
AIDA64 / FPU Julia
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
64861 Points +141%
Average of class Office
  (4027 - 102228, n=119, last 2 years)
44699 Points +66%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
31615 Points +18%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
30136 Points +12%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
29875 Points +11%
Average Intel Core i7-1165G7
  (17720 - 34369, n=58)
27783 Points +3%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
26898 Points
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
24393 Points -9%
AIDA64 / CPU SHA3
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
2259 MB/s +25%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
2159 MB/s +20%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
2041 MB/s +13%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
1999 MB/s +11%
Average of class Office
  (279 - 4442, n=118, last 2 years)
1940 MB/s +8%
Average Intel Core i7-1165G7
  (958 - 2338, n=58)
1867 MB/s +4%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
1801 MB/s
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
1611 MB/s -11%
AIDA64 / CPU Queen
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
83425 Points +67%
Average of class Office
  (8031 - 113016, n=119, last 2 years)
67458 Points +35%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
50505 Points +1%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
50107 Points 0%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
50063 Points
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
50053 Points 0%
Average Intel Core i7-1165G7
  (44161 - 50624, n=58)
49716 Points -1%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
47678 Points -5%
AIDA64 / FPU SinJulia
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
9974 Points +126%
Average of class Office
  (404 - 14288, n=119, last 2 years)
6752 Points +53%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
4792 Points +8%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
4790 Points +8%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
4788 Points +8%
Average Intel Core i7-1165G7
  (3183 - 4796, n=58)
4431 Points 0%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
4422 Points
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
4208 Points -5%
AIDA64 / FPU Mandel
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
35619 Points +117%
Average of class Office
  (2054 - 54365, n=119, last 2 years)
23572 Points +44%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
19071 Points +16%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
18197 Points +11%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
18020 Points +10%
Average Intel Core i7-1165G7
  (11876 - 20468, n=58)
16813 Points +2%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
16416 Points
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
14652 Points -11%
AIDA64 / CPU AES
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
91726 MB/s +43%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
73360 MB/s +14%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
70463 MB/s +10%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
67883 MB/s +6%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
64226 MB/s
Average Intel Core i7-1165G7
  (29506 - 73387, n=58)
62121 MB/s -3%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
59472 MB/s -7%
Average of class Office
  (5226 - 147611, n=119, last 2 years)
47448 MB/s -26%
AIDA64 / CPU ZLib
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
580 MB/s +80%
Average of class Office
  (67.6 - 1018, n=119, last 2 years)
533 MB/s +65%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
395 MB/s +22%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
382 MB/s +18%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
370 MB/s +15%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
323 MB/s
Average Intel Core i7-1165G7
  (169 - 402, n=65)
304 MB/s -6%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
301 MB/s -7%
AIDA64 / FP64 Ray-Trace
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
5479 KRay/s +61%
Average of class Office
  (432 - 12755, n=119, last 2 years)
4455 KRay/s +31%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
4189 KRay/s +23%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
3929 KRay/s +15%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
3779 KRay/s +11%
Average Intel Core i7-1165G7
  (2033 - 4461, n=58)
3525 KRay/s +3%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
3411 KRay/s
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
3078 KRay/s -10%
AIDA64 / CPU PhotoWorxx
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
40949 MPixel/s +1%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
40654 MPixel/s
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
40335 MPixel/s -1%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
35804 MPixel/s -12%
Average Intel Core i7-1165G7
  (12392 - 45694, n=58)
30266 MPixel/s -26%
Average of class Office
  (4814 - 48177, n=119, last 2 years)
24080 MPixel/s -41%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
19340 MPixel/s -52%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
14002 MPixel/s -66%

系统性能

在PCMark 10结果中,PrimeBook Circular取得了与纯CPU测试类似的结果。然而,在Crossmark结果中,事情看起来完全不同。在这里,我们的评测设备在所有单独的测试中战胜了竞争对手。

PCMark 10 / Score
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
5933 Points +21%
Asus ZenBook 14X OLED UX5400EA-L7154W
GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
5554 Points +14%
Average of class Office
  (2325 - 7157, n=104, last 2 years)
5340 Points +9%
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
5317 Points +9%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5214 Points +7%
Dell Inspiron 14 5410-D3D7T
Iris Xe G7 96EUs, i7-1165G7, Toshiba KBG40ZNS512G NVMe
5023 Points +3%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4531 - 5454, n=50)
4959 Points +1%
Prime Computer PrimeBook Circular-i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)
4892 Points
PCMark 10 / Essentials
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
10608 Points +6%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
10331 Points +3%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
10244 Points +2%
Dell Inspiron 14 5410-D3D7T
Iris Xe G7 96EUs, i7-1165G7, Toshiba KBG40ZNS512G NVMe
10075 Points 0%
Prime Computer PrimeBook Circular-i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)
10034 Points
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (8997 - 11505, n=50)
10014 Points 0%
Average of class Office
  (5095 - 20841, n=104, last 2 years)
9828 Points -2%
Asus ZenBook 14X OLED UX5400EA-L7154W
GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
9226 Points -8%
PCMark 10 / Productivity
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
9237 Points +38%
Asus ZenBook 14X OLED UX5400EA-L7154W
GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
9211 Points +37%
Average of class Office
  (3041 - 10198, n=104, last 2 years)
7453 Points +11%
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
6931 Points +3%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
6900 Points +3%
Dell Inspiron 14 5410-D3D7T
Iris Xe G7 96EUs, i7-1165G7, Toshiba KBG40ZNS512G NVMe
6768 Points +1%
Prime Computer PrimeBook Circular-i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)
6713 Points
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (5570 - 7136, n=50)
6711 Points 0%
PCMark 10 / Digital Content Creation
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
5938 Points +26%
Average of class Office
  (1912 - 9056, n=104, last 2 years)
5782 Points +23%
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
5550 Points +18%
Asus ZenBook 14X OLED UX5400EA-L7154W
GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
5472 Points +16%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5445 Points +15%
Dell Inspiron 14 5410-D3D7T
Iris Xe G7 96EUs, i7-1165G7, Toshiba KBG40ZNS512G NVMe
5044 Points +7%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4083 - 5550, n=50)
4937 Points +5%
Prime Computer PrimeBook Circular-i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)
4719 Points
CrossMark / Overall
Prime Computer PrimeBook Circular-i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)
1477 Points
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (1341 - 1477, n=4)
1384 Points -6%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1345 Points -9%
Average of class Office
  (348 - 1891, n=104, last 2 years)
1313 Points -11%
Asus ZenBook 14X OLED UX5400EA-L7154W
GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1225 Points -17%
CrossMark / Productivity
Prime Computer PrimeBook Circular-i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)
1492 Points
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (1430 - 1492, n=4)
1466 Points -2%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1357 Points -9%
Average of class Office
  (393 - 1870, n=104, last 2 years)
1330 Points -11%
Asus ZenBook 14X OLED UX5400EA-L7154W
GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1279 Points -14%
CrossMark / Creativity
Prime Computer PrimeBook Circular-i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)
1483 Points
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1423 Points -4%
Average of class Office
  (340 - 1982, n=104, last 2 years)
1348 Points -9%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (1237 - 1483, n=4)
1312 Points -12%
Asus ZenBook 14X OLED UX5400EA-L7154W
GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1235 Points -17%
CrossMark / Responsiveness
Prime Computer PrimeBook Circular-i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)
1414 Points
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (1273 - 1414, n=4)
1374 Points -3%
Average of class Office
  (258 - 2017, n=104, last 2 years)
1184 Points -16%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1102 Points -22%
Asus ZenBook 14X OLED UX5400EA-L7154W
GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1049 Points -26%
PCMark 10 Score
4892 points
Help
AIDA64 / Memory Copy
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
65274 MB/s 0%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
65021 MB/s
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
64185 MB/s -1%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
54956 MB/s -15%
Average Intel Core i7-1165G7
  (20032 - 65446, n=58)
46476 MB/s -29%
Average of class Office
  (7158 - 84290, n=120, last 2 years)
42295 MB/s -35%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
41057 MB/s -37%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
27184 MB/s -58%
AIDA64 / Memory Read
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
63676 MB/s 0%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
63583 MB/s
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
60706 MB/s -5%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
55170 MB/s -13%
Average Intel Core i7-1165G7
  (23033 - 64524, n=58)
48851 MB/s -23%
Average of class Office
  (7325 - 75550, n=120, last 2 years)
42852 MB/s -33%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
37791 MB/s -41%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
31532 MB/s -50%
AIDA64 / Memory Write
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
66791 MB/s 0%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
66791 MB/s
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
66169 MB/s -1%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
61682 MB/s -8%
Average Intel Core i7-1165G7
  (21736 - 66791, n=58)
49822 MB/s -25%
Average of class Office
  (7579 - 94965, n=120, last 2 years)
46139 MB/s -31%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
41204 MB/s -38%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
30931 MB/s -54%
AIDA64 / Memory Latency
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
110 ns * -19%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, GeForce MX450
105.2 ns * -14%
Average of class Office
  (44.3 - 188.3, n=121, last 2 years)
96.5 ns * -5%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
94.6 ns * -2%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
92.3 ns *
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
89.8 ns * +3%
Average Intel Core i7-1165G7
  (71.4 - 110, n=65)
76 ns * +18%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Iris Xe G7 96EUs
75 ns * +19%

* ... smaller is better

DPC延时

这里有改进的余地,因为DPC延迟实在太高,因此在实时的音频或视频工作中会导致掉线。

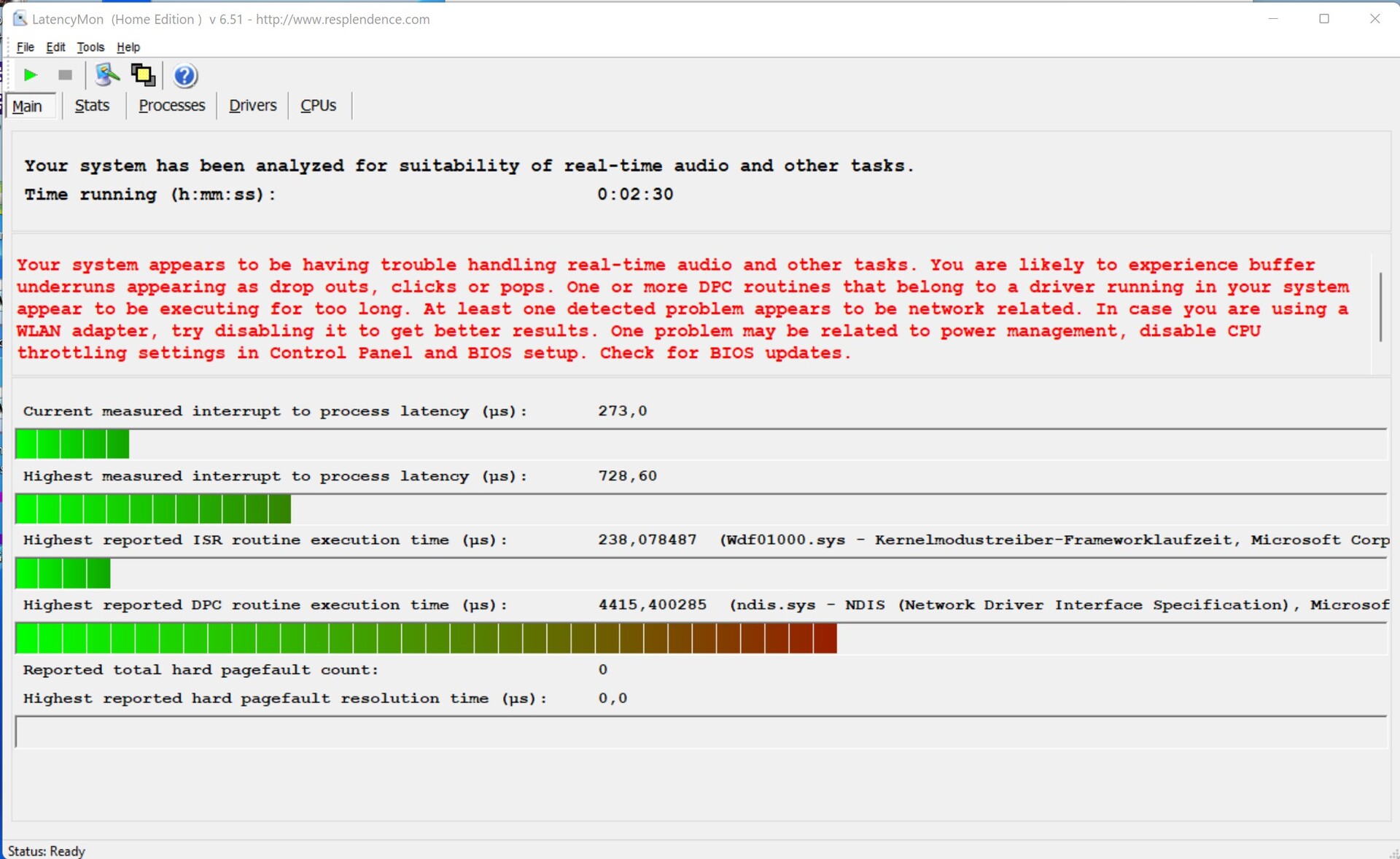

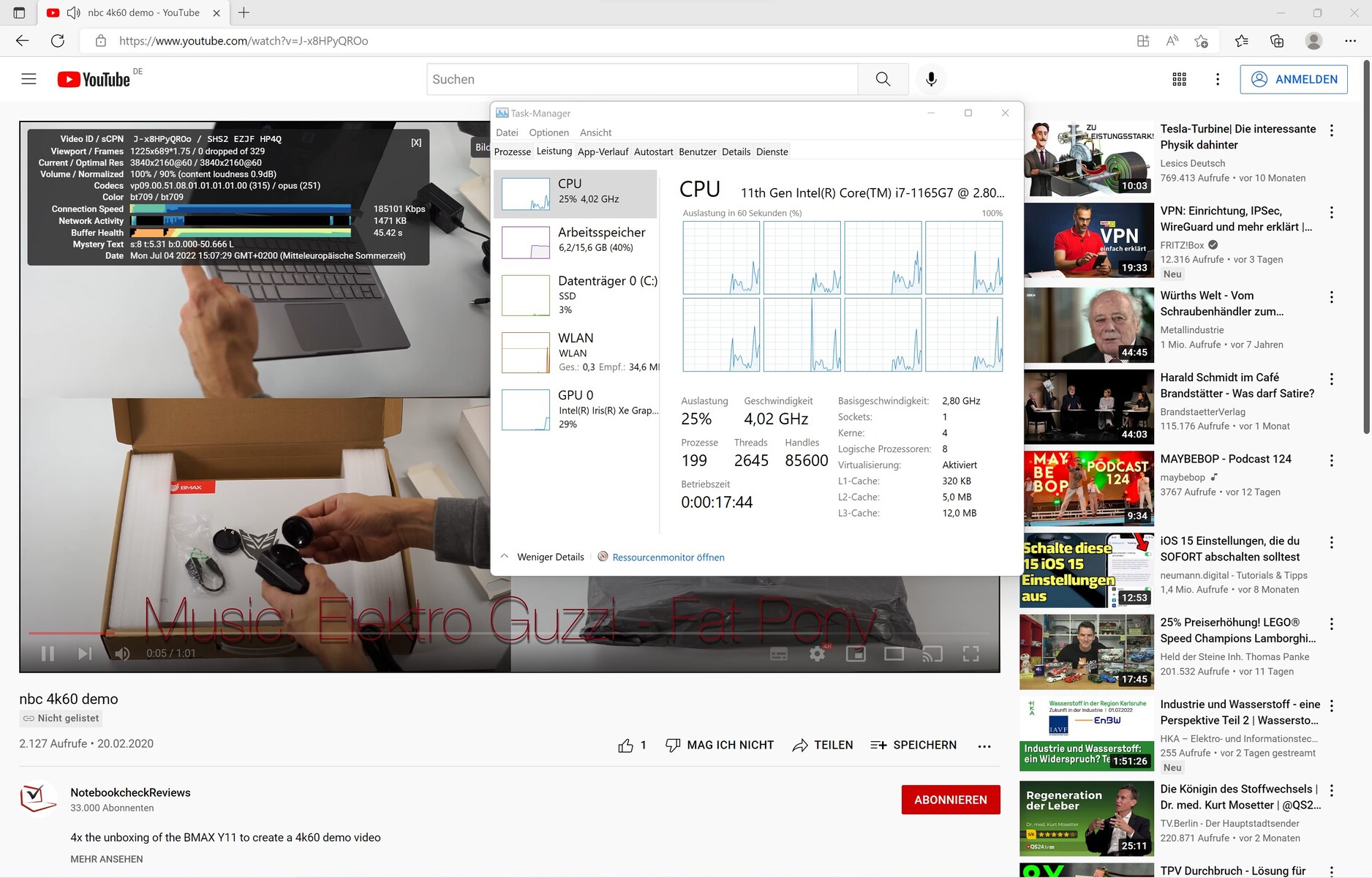

打开多个浏览器标签和播放4K视频时的最大延迟。
打开多个浏览器标签和播放4K视频时的最大延迟。
10秒后的最大延时 Prime95
10秒后的最大延时 Prime95

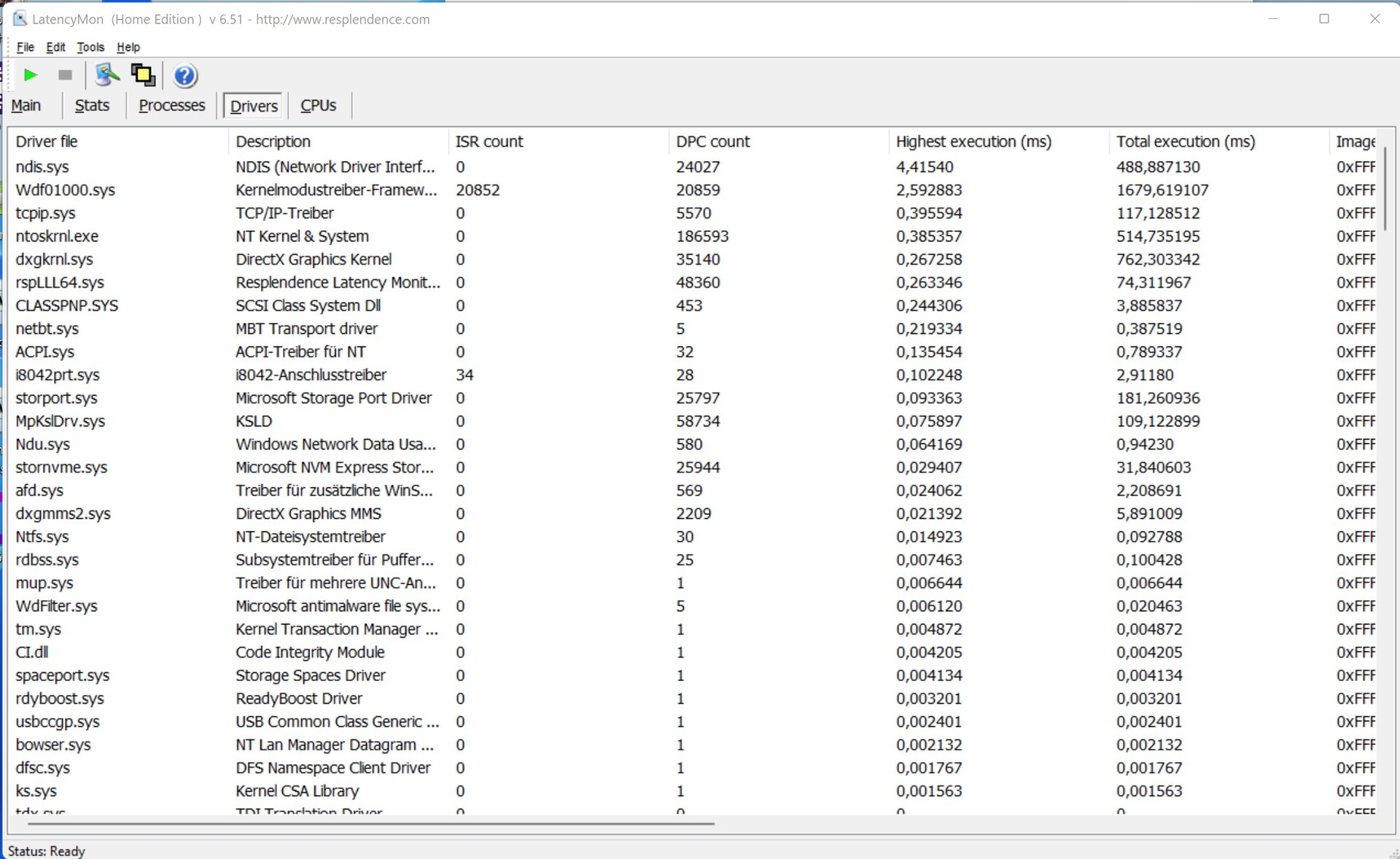

按最长的执行时间排列的驱动程序
按最长的执行时间排列的驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Prime Computer PrimeBook Circular-i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)
4415 μs *
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
3558 μs * +19%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
3164 μs * +28%
Asus ZenBook 14X OLED UX5400EA-L7154W
GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
2196 μs * +50%
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
1914 μs * +57%
Dell Inspiron 14 5410-D3D7T
Iris Xe G7 96EUs, i7-1165G7, Toshiba KBG40ZNS512G NVMe
1135 μs * +74%

* ... smaller is better

存储设备

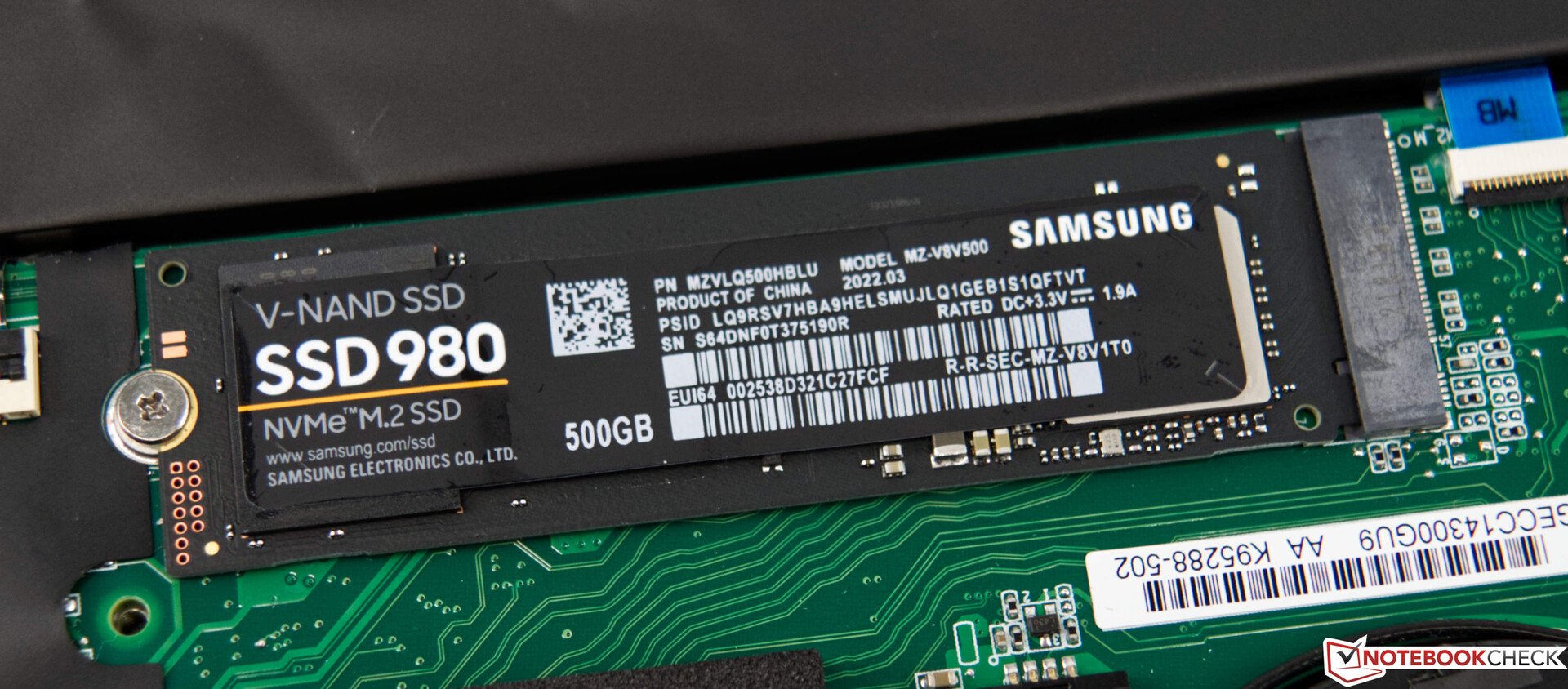

512-GB-M.2-SSD (三星980)
512-GB-M.2-SSD (三星980)

Prime Computer使用了三星的SDD,在我们看来,这是一个非常好的选择,因为传输速度快且稳定。特别值得注意的是体面的4K读取值,这加快了许多小文件的加载速度。不幸的是,PrimeBook Circular中只能容纳一个大容量存储设备。根据制造商的说法,支持高达1TB的大小。

对于更多的比较和基准,看看我们的 比较表.

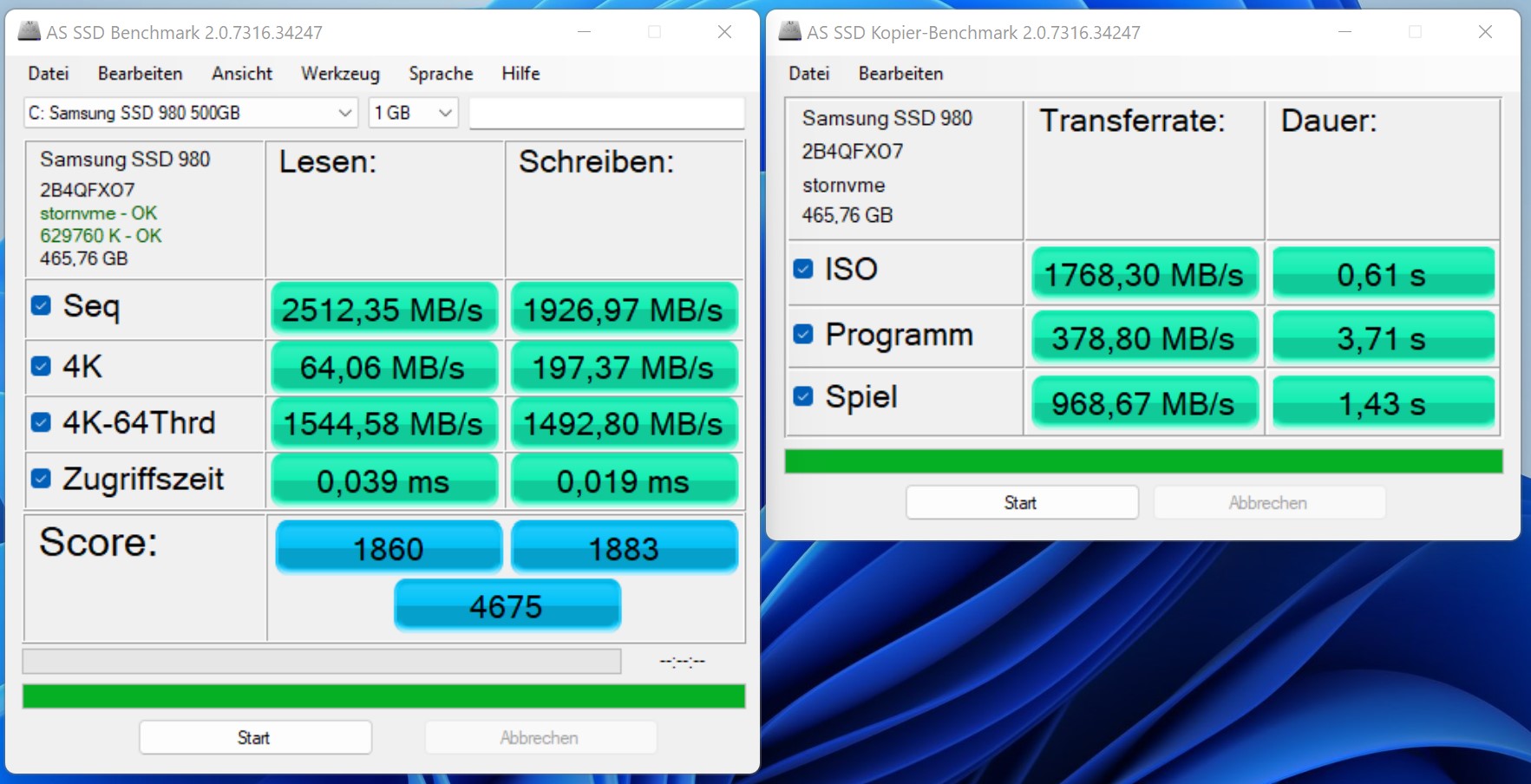

AS SSD
AS SSD

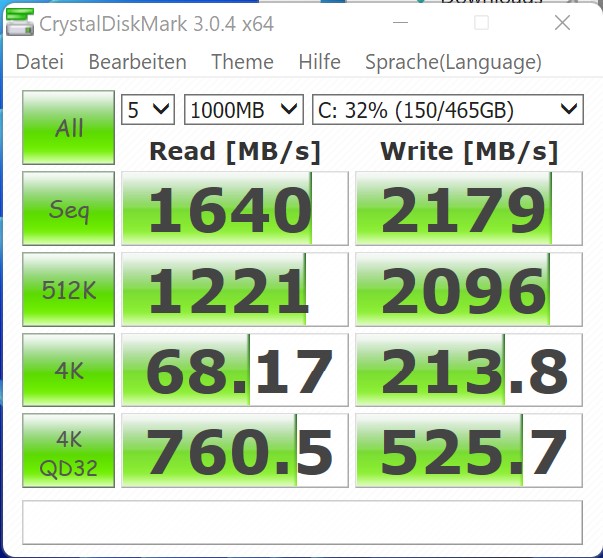

CDM 3
CDM 3

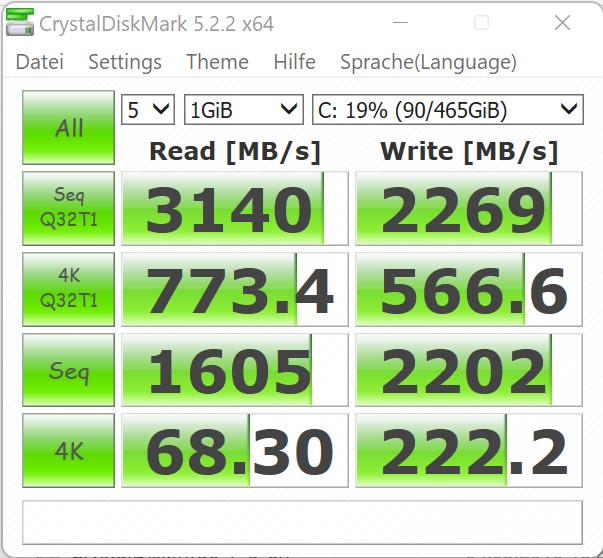

CDM 5
CDM 5

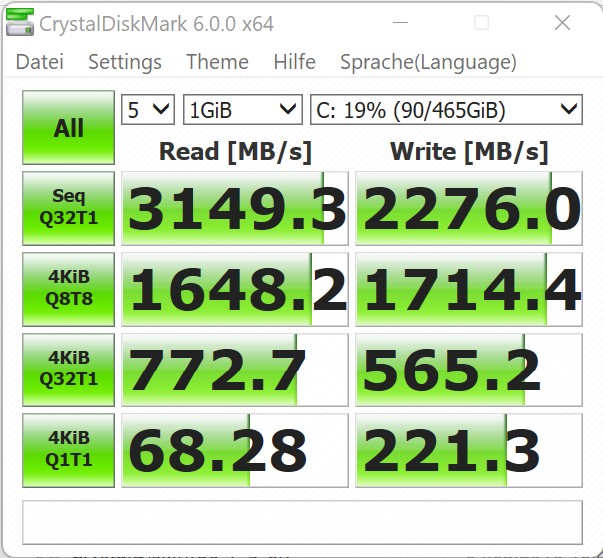

CDM 6
CDM 6

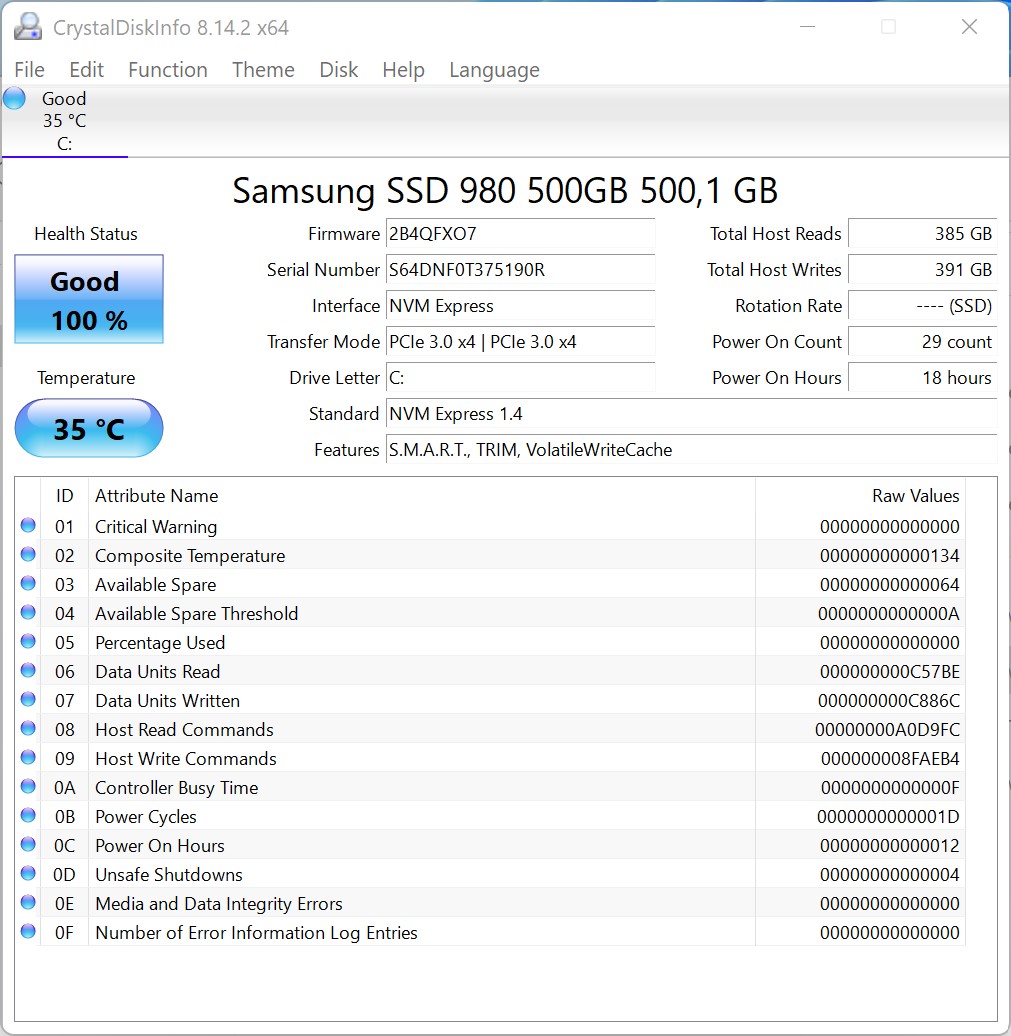

CDI
CDI
Samsung SSD 980 500GB (MZ-V8V500BW)
Sequential Read: 1640 MB/s
Sequential Write: 2179 MB/s
512K Read: 1221 MB/s
512K Write: 2096 MB/s
4K Read: 68.17 MB/s
4K Write: 213.8 MB/s
4K QD32 Read: 760.5 MB/s
4K QD32 Write: 525.7 MB/s
Drive Performance Rating - Percent
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
83.6 pt
Average of class Office

77.6 pt
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
77.5 pt
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
77 pt
Average Samsung SSD 980 500GB (MZ-V8V500BW)

74.6 pt
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
68 pt
Asus ZenBook 14X OLED UX5400EA-L7154W -1!
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
53.1 pt
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
40.9 pt
DiskSpd
seq read
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
2479 (2396.63min - 2479.12max) MB/s +52%
Average of class Office
  (482 - 4315, n=104, last 2 years)
2440 MB/s +50%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
2376 (2353.33min - 2376.14max) MB/s +46%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1771 (1732.46min - 1771.25max) MB/s +9%
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (1631 - 1843, n=2)
1737 MB/s +6%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
1671 (881.64min - 1671.23max) MB/s +2%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
1631 (1596.19min - 1630.65max) MB/s
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1370 (894.76min - 1370.29max) MB/s -16%
seq write
Average of class Office
  (333 - 5842, n=104, last 2 years)
2344 MB/s +10%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
2139 (2104.3min - 2139.39max) MB/s
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (1948 - 2139, n=2)
2044 MB/s -4%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1896 (1865.84min - 1896.04max) MB/s -11%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1892 (1745.95min - 1892.46max) MB/s -12%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1346 (1336.46min - 1345.53max) MB/s -37%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
1248 (726.24min - 1248.24max) MB/s -42%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1032 (1013.97min - 1032.19max) MB/s -52%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1001 (967.63min - 1001.07max) MB/s -53%
seq q8 t1 read
Average of class Office
  (535 - 7120, n=104, last 2 years)
3971 MB/s +30%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
3555 (3196.9min - 3555.3max) MB/s +17%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
3159 (2470.03min - 3158.91max) MB/s +4%
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (3046 - 3055, n=2)
3051 MB/s 0%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
3046 (2690.3min - 3045.89max) MB/s
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
2308 (2076.81min - 2308.12max) MB/s -24%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1928 (1786.98min - 1927.7max) MB/s -37%
seq q8 t1 write
Average of class Office
  (276 - 6791, n=104, last 2 years)
2976 MB/s +37%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
2965 (2948.99min - 2964.74max) MB/s +36%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
2374 (2063.66min - 2374.32max) MB/s +9%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
2176 (2134.35min - 2176.27max) MB/s
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (1605 - 2176, n=2)
1891 MB/s -13%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1777 (1729min - 1776.93max) MB/s -18%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
1488 (1461.31min - 1487.89max) MB/s -32%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1348 (1315.85min - 1348.29max) MB/s -38%
4k q1 t1 read
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
141.9 (51.37min - 141.93max) MB/s +105%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
69.2 (68min - 69.19max) MB/s
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
65.1 (64.9min - 65.13max) MB/s -6%
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (58.1 - 69.2, n=2)
63.7 MB/s -8%
Average of class Office
  (17.7 - 89.9, n=104, last 2 years)
57.6 MB/s -17%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
54.3 (48.13min - 54.33max) MB/s -22%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
48.4 (47.37min - 48.36max) MB/s -30%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
47.9 (47.31min - 47.93max) MB/s -31%
4k q1 t1 write
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
262 (260.09min - 262.11max) MB/s +14%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
229 (217.87min - 228.73max) MB/s
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (152 - 229, n=2)
190.5 MB/s -17%
Average of class Office
  (32 - 429, n=104, last 2 years)
161 MB/s -30%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
151 (149.49min - 151.07max) MB/s -34%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
142 (134.67min - 141.97max) MB/s -38%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
124.2 (123.5min - 124.16max) MB/s -46%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
124 (120.61min - 123.62max) MB/s -46%
4k q32 t16 read
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
1677 (1671.91min - 1677.47max) MB/s
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (1376 - 1677, n=2)
1527 MB/s -9%
Average of class Office
  (184.2 - 4425, n=104, last 2 years)
1243 MB/s -26%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1140 (1124.23min - 1139.51max) MB/s -32%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1132 (1018.62min - 1131.5max) MB/s -32%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
994 (973.86min - 994.47max) MB/s -41%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
666 (636.69min - 665.57max) MB/s -60%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
661 (578.64min - 661.11max) MB/s -61%
4k q32 t16 write
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
1574 (1249.79min - 1574.42max) MB/s
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (446 - 1574, n=2)
1010 MB/s -36%
Average of class Office
  (192.2 - 3254, n=104, last 2 years)
920 MB/s -42%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
880 (650.52min - 880.09max) MB/s -44%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
528 (521.07min - 527.77max) MB/s -66%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
487 (480.67min - 486.95max) MB/s -69%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
434 (410.62min - 434.32max) MB/s -72%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
418 (407.41min - 417.91max) MB/s -73%
AS SSD
Score Total
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
4885 Points +4%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
4675 Points
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
4336 Points -7%
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (3394 - 4675, n=2)
4035 Points -14%
Average of class Office
  (704 - 9204, n=101, last 2 years)
3939 Points -16%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
3662 Points -22%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
2228 Points -52%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
2087 Points -55%
Score Read
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
2054 Points +10%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
1860 Points
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (1612 - 1860, n=2)
1736 Points -7%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1491 Points -20%
Average of class Office
  (252 - 3364, n=101, last 2 years)
1419 Points -24%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1326 Points -29%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
1084 Points -42%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
857 Points -54%
Score Write
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
2146 Points +14%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
1883 Points
Average of class Office
  (320 - 4111, n=101, last 2 years)
1837 Points -2%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1797 Points -5%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1719 Points -9%
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (1007 - 1883, n=2)
1445 Points -23%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
939 Points -50%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
497 Points -74%
Seq Read
Average of class Office
  (508 - 5796, n=101, last 2 years)
3148 MB/s +25%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
3034 MB/s +21%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
2825 MB/s +12%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
2806 MB/s +12%
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (2512 - 2589, n=2)
2551 MB/s +2%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
2512 MB/s
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
1927 MB/s -23%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
1221 MB/s -51%
Seq Write
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
2650 MB/s +38%
Average of class Office
  (304 - 5880, n=101, last 2 years)
2054 MB/s +7%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
1926 MB/s
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (1435 - 1926, n=2)
1681 MB/s -13%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1391 MB/s -28%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1288 MB/s -33%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
724 MB/s -62%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
598 MB/s -69%
4K Read
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
69.7 MB/s +9%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
64.06 MB/s
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
61.2 MB/s -4%
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (53.6 - 64.1, n=2)
58.8 MB/s -8%
Average of class Office
  (18.7 - 91.1, n=101, last 2 years)
56.3 MB/s -12%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
54.6 MB/s -15%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
49.08 MB/s -23%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
49 MB/s -24%
4K Write
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
239.8 MB/s +21%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
197.37 MB/s
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
190.6 MB/s -3%
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (154.2 - 197.4, n=2)
175.8 MB/s -11%
Average of class Office
  (35.4 - 350, n=101, last 2 years)
158.3 MB/s -20%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
128 MB/s -35%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
125 MB/s -37%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
107.2 MB/s -46%
4K-64 Read
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1696 MB/s +10%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
1544.58 MB/s
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (1299 - 1545, n=2)
1422 MB/s -8%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1147 MB/s -26%
Average of class Office
  (182.3 - 2713, n=101, last 2 years)
1047 MB/s -32%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
996 MB/s -36%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
842 MB/s -45%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
664 MB/s -57%
4K-64 Write
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1827 MB/s +22%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
1492.8 MB/s
Average of class Office
  (132.3 - 3394, n=101, last 2 years)
1474 MB/s -1%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1455 MB/s -3%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1292 MB/s -13%
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (710 - 1493, n=2)
1101 MB/s -26%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
751 MB/s -50%
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
317.2 MB/s -79%
Access Time Read
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
0.161 ms * -313%
Average of class Office
  (0.022 - 0.295, n=101, last 2 years)
0.08048 ms * -106%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
0.066 ms * -69%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
0.06 ms * -54%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
0.055 ms * -41%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
0.055 ms * -41%
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (0.039 - 0.056, n=2)
0.0475 ms * -22%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
0.039 ms *
Access Time Write
Dell Inspiron 14 5410-D3D7T
Toshiba KBG40ZNS512G NVMe
0.609 ms * -3105%
Average of class Office
  (0.017 - 0.619, n=101, last 2 years)
0.0646 ms * -240%
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
0.039 ms * -105%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
0.031 ms * -63%
Average Samsung SSD 980 500GB (MZ-V8V500BW)
  (0.019 - 0.027, n=2)
0.023 ms * -21%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
0.019 ms * -0%
Prime Computer PrimeBook Circular-i7-1165G7
Samsung SSD 980 500GB (MZ-V8V500BW)
0.019 ms *
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
0.018 ms * +5%

* ... smaller is better

Sustained Performance Read: DiskSpd Read Loop, Queue Depth 8

01553104656207759301085124013951550170518602015217023252480263527902945Tooltip

图形卡

由于英特尔的集成GPU 酷睿i7-1165G7的,是 英特尔Iris Xe Graphics G7现在是一个广泛使用的图形芯片,在性能方面可与AMD Radeon RX Vega 8相媲美。由于快速的RAM(4,266 MHz),也可以在双通道模式下工作,理论上的最佳性能被挤出了PrimeBook Circular中的iGPU。在 Acer TravelMate P614P显示了在更高的功率允许范围内可能出现的情况。关于更多的比较和基准,请看我们的GPU比较表。

3DMark Performance Rating - Percent
Asus ZenBook 14X OLED UX5400EA-L7154W
NVIDIA GeForce MX450, Intel Core i7-1165G7
100 pt
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
83.8 pt
Lenovo ThinkPad T14s G2 20WM003TGE -1!
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
79.9 pt
Average Intel Iris Xe Graphics G7 96EUs

76.9 pt
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
70.4 pt
Average of class Office

69 pt
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
68.8 pt
Dell Inspiron 14 5410-D3D7T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
59.9 pt
3DMark 11 - 1280x720 Performance GPU
Asus ZenBook 14X OLED UX5400EA-L7154W
NVIDIA GeForce MX450, Intel Core i7-1165G7
8079 Points +33%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6663 Points +9%
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6616 Points +9%
Average Intel Iris Xe Graphics G7 96EUs
  (2867 - 7471, n=193)
6342 Points +4%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6091 Points
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
6084 Points 0%
Average of class Office
  (1474 - 12230, n=113, last 2 years)
5932 Points -3%
Dell Inspiron 14 5410-D3D7T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5766 Points -5%
3DMark
1280x720 Cloud Gate Standard Graphics
Asus ZenBook 14X OLED UX5400EA-L7154W
NVIDIA GeForce MX450, Intel Core i7-1165G7
33598 Points +48%
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
29559 Points +30%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
28661 Points +26%
Average Intel Iris Xe Graphics G7 96EUs
  (13162 - 38040, n=171)
26309 Points +16%
Average of class Office
  (5681 - 58068, n=96, last 2 years)
24181 Points +6%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
22735 Points
Dell Inspiron 14 5410-D3D7T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
19880 Points -13%
1920x1080 Fire Strike Graphics
Asus ZenBook 14X OLED UX5400EA-L7154W
NVIDIA GeForce MX450, Intel Core i7-1165G7
5753 Points +32%
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5403 Points +24%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5116 Points +17%
Average Intel Iris Xe Graphics G7 96EUs
  (2286 - 6143, n=206)
4903 Points +12%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
4360 Points
Average of class Office
  (712 - 8815, n=115, last 2 years)
4125 Points -5%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
3967 Points -9%
Dell Inspiron 14 5410-D3D7T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
3073 Points -30%
2560x1440 Time Spy Graphics
Asus ZenBook 14X OLED UX5400EA-L7154W
NVIDIA GeForce MX450, Intel Core i7-1165G7
2276 Points +77%
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1626 Points +26%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1557 Points +21%
Average Intel Iris Xe Graphics G7 96EUs
  (707 - 1871, n=203)
1494 Points +16%
Average of class Office
  (242 - 3186, n=111, last 2 years)
1341 Points +4%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1287 Points
Dell Inspiron 14 5410-D3D7T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1262 Points -2%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
1182 Points -8%
3DMark 05 Standard
23832 points
3DMark 06 Standard Score
19983 points
3DMark Vantage P Result
17234 points
3DMark 11 Performance
6121 points
3DMark Ice Storm Standard Score
61091 points
3DMark Cloud Gate Standard Score
13746 points
3DMark Fire Strike Score
3877 points
3DMark Fire Strike Extreme Score
2067 points
3DMark Time Spy Score
1409 points
Help

游戏性能

PrimeBook Circular不是一款游戏笔记本电脑,这也反映在性能上。英特尔Iris Xe图形G7.iGPU只适用于运行简单或较老的游戏。此外,为了达到可玩的帧率,往往不得不接受对细节或分辨率的限制。

The Witcher 3 - 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, NVIDIA GeForce MX450
43.5 fps +26%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
34.4 (14.4min, 16.9P0.1, 18.7P1) fps
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
32.9 (27min, 27P1) fps -4%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
30.9 (25min) fps -10%
Average Intel Iris Xe Graphics G7 96EUs
  (10.6 - 45.9, n=184)
28.6 fps -17%
Average of class Office
  (3.49 - 59.1, n=102, last 2 years)
24.6 fps -28%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21 (17min) fps -39%
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
12.9 fps -62%
low med. high ultra
GTA V (2015) 80.7 74.4 28.5 11.7
The Witcher 3 (2015) 97 63.8 34.4 17
Dota 2 Reborn (2015) 107.3 88.4 52.2 47.9
Final Fantasy XV Benchmark (2018) 30.4 18.9 13.8
X-Plane 11.11 (2018) 46.1 32.9 28.1
Strange Brigade (2018) 96.5 42.1 33.2 26.6
F1 2020 (2020) 93.5 36 27.6 18.5
F1 2021 (2021) 70.5 32.3 27.6 19.6

排放

系统噪音

我们对噪音水平的测量产生了良好的结果。即使在压力测试中,我们记录的最大噪音水平也只有32.7 dB(A)。此外,这两个风扇没有产生任何令人不快的噪音,这对人的主观感受有积极的影响。

Noise Level

Idle
29.9 / 30.1 / 30.2 dB(A)
Load
30.2 / 32.7 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 29.9 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.934.733.838.232.633.92538.133.734.538.136.438.13134.132.431.533.130.334.14028.530.231.431.629.728.55029.830.833.135.331.529.86328.929.528.93327.928.98028.926.928.127.728.228.910030.230.129.628.329.430.212527.125.625.726.823.727.116026.223.824.825.723.426.220024.722.523.323.622.824.725023.32222.222.621.823.331522.721.120.821.822.322.740023.620.321.220.920.923.650022.120.420.420.219.922.163021.419.419.719.319.221.480021.718.919.118.718.521.7100020.518.618.418.317.420.5125021.918.118.118.217.621.9160022.3181817.617.222.3200020.717.517.217.217.320.7250021.217.317.316.916.821.2315020.51716.916.716.520.5400019.216.916.916.716.619.2500018.316.916.816.816.618.3630017.81716.916.916.817.8800017.317.117.217.21717.31000017.317.417.317.317.217.31250017.517.717.717.617.417.51600018.118.118.218.117.918.1SPL32.830.230.230.229.932.8N1.81.41.41.41.31.8median 21.4median 18.1median 18.2median 18.2median 17.6median 21.4Delta2.61.91.92.12.22.6hearing rangehide median Fan NoisePrime Computer PrimeBook Circular-i7-1165G7
Prime Computer PrimeBook Circular-i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)
Asus ZenBook 14X OLED UX5400EA-L7154W
GeForce MX450, i7-1165G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
Dell Inspiron 14 5410-D3D7T
Iris Xe G7 96EUs, i7-1165G7, Toshiba KBG40ZNS512G NVMe
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
Noise
-2%
14%
8%
6%
-5%
off / environment *
29.9
26.6
11%
25
16%
24.81
17%
26.81
10%
26.61
11%
Idle Minimum *
29.9
26.6
11%
25
16%
24.81
17%
26.81
10%
26.61
11%
Idle Average *
30.1
26.6
12%
25
17%
24.81
18%
26.81
11%
26.61
12%
Idle Maximum *
30.2
27.2
10%
25
17%
24.81
18%
26.81
11%
26.61
12%
Load Average *
30.2
40.1
-33%
27.5
9%
35.14
-16%
30.16
-0%
42.1
-39%
Load Maximum *
32.7
40.4
-24%
29.6
9%
35.14
-7%
33.98
-4%
43.71
-34%
Witcher 3 ultra *
40.7

* ... smaller is better

温度

压力测试期间的总理书通告
压力测试期间的总理书通告
没有英特尔NUC计算元件CM11EBI716W的PrimeBook圆形机
没有英特尔NUC计算元件CM11EBI716W的PrimeBook圆形机

Prime Computer将PrimeBook Circular的外壳温度控制得很好。表面温度只在英特尔NUC计算元素的区域稍高。我们的评测样品在上侧的热量方面胜过竞争对手,产生的最高温度为41.1℃。只有Acer Travelmate P614P产生了几乎相同的结果。

在94℃时,SoC在负载下发热相当大,我们不得不进行干预以避免过热(也见CPU测试中的性能下降)。这可能是由于非常保守的风扇曲线造成的,但内置的热管也可能是这里的原因。与其他没有安装英特尔NUC计算元件的笔记本不同,在这种情况下,热管并不直接位于CPU上,而是从计算元件的表面散发出热量。

Max. Load
 37.7 °C41.1 °C36.8 °C
 33.7 °C34.4 °C32.6 °C
 31.8 °C31 °C31 °C
Maximum: 41.1 °C
Average: 34.5 °C
33.8 °C38.1 °C34.3 °C
32.5 °C33.8 °C33.2 °C
31.8 °C32.1 °C32 °C
Maximum: 38.1 °C
Average: 33.5 °C
Power Supply (max.)  38.8 °C | Room Temperature 23.4 °C | Fluke t3000FC (calibrated)
(±) The average temperature for the upper side under maximal load is 34.5 °C / 94 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 41.1 °C / 106 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 38.1 °C / 101 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 31.3 °C / 88 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.8 °C / 89.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-4.1 °C / -7.3 F).
怠速时的热量发展(顶部)
怠速时的热量发展(顶部)
怠速时的热量发展(底部)
怠速时的热量发展(底部)
压力测试期间的热量发展(顶部)
压力测试期间的热量发展(顶部)
压力测试期间的热量发展(底)。
压力测试期间的热量发展(底)。
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Asus ZenBook 14X OLED UX5400EA-L7154W
Intel Core i7-1165G7, NVIDIA GeForce MX450
Dell Inspiron 14 5410-D3D7T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Heat
-14%
1%
-1%
5%
2%
Maximum Upper Side *
41.1
49.1
-19%
41.8
-2%
47.5
-16%
44.2
-8%
41
-0%
Maximum Bottom *
38.1
50.4
-32%
45.3
-19%
43.4
-14%
38.9
-2%
43
-13%
Idle Upper Side *
32.8
33.6
-2%
27.9
15%
28.4
13%
27.7
16%
29.4
10%
Idle Bottom *
32.5
33.6
-3%
29.4
10%
28.3
13%
28.3
13%
29.6
9%

* ... smaller is better

发言人

底部的扬声器
底部的扬声器

两个扬声器位于掌托下,当笔记本放在坚实光滑的表面上时,会产生最好的声音。然而,声音是由高音和中音主导的。不过,低音在某种程度上被再现,并没有完全被省略。PrimeBook Circular非常适用于办公室使用,包括视频电话。然而,对于真正的音频享受,没有办法绕过一个外部解决方案。配件可以通过USB或3.5毫米插孔连接到设备上。另外,蓝牙选项也可以与兼容的终端设备一起使用。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.227.236.22536.431.236.43134.535.934.54034.829.234.85036.626.836.66333.426.533.48030.220.430.210030.81830.812531.518.131.516036.614.636.620043.71343.725048.112.548.131554.713.954.740058.112.258.150058.811.358.863061.411.361.480067.411.367.410006711.967125065.411.365.4160067.911.767.920006712.167250071.212.271.2315069.912.869.9400062.213.262.2500066.513.366.5630063.714.163.7800057.117.457.11000053.616.453.61250048.416.548.41600051.513.651.5SPL78.6N40.9median 58.8median 13median 58.8Delta9.51.9923.218.223.220.821.320.821.919.621.925.82225.822.419.522.424.323.124.32321.62328.32728.328.72428.728.418.528.435.326.235.337.821.237.842.418.442.447.516.647.555.219.555.261.717.261.766.514.666.569.813.269.864.513.664.561.31361.357.312.957.355.413.255.454.912.654.954.312.954.354.81354.852.412.852.456.812.656.857.412.457.456.512.156.547.611.347.673.526.673.528.50.928.5median 54.9median 13.2median 54.98.63.28.6hearing rangehide median Pink NoisePrime Computer PrimeBook Circular-i7-1165G7Acer TravelMate P614P-52
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Prime Computer PrimeBook Circular-i7-1165G7 audio analysis

(±) | speaker loudness is average but good (78.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.9% lower than median
(±) | linearity of bass is average (8.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.5% higher than median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.6% higher than median
(±) | linearity of highs is average (9.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.1% difference to median)
Compared to same class
» 53% of all tested devices in this class were better, 10% similar, 38% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 59% of all tested devices were better, 7% similar, 35% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Acer TravelMate P614P-52 audio analysis

(±) | speaker loudness is average but good (73.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.4% lower than median
(±) | linearity of bass is average (8.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.4% higher than median
(±) | linearity of mids is average (12% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.1% away from median
(+) | highs are linear (3.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 10% similar, 24% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 68% of all tested devices were better, 7% similar, 25% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理

消耗功率

65瓦的电源适配器
65瓦的电源适配器
65瓦的电源适配器(数据)。
65瓦的电源适配器(数据)。

仅使用3.3至8.4瓦,该设备在闲置时非常经济。在平均负荷下,65瓦的电源装置要持续提供高达43.6瓦的功率,也有高达62瓦的峰值。与竞争对手相比,PrimeBook Circular的表现相当出色。戴尔的类似设备(Inspiron 14 5410)和宏碁(TravelMate P614P-52)需要的能量最多增加25%。这些只是短暂的,通常在短时间内需要SoC的全部负载时发生。这意味着电源没有过载,电池在插入电源时不会放电。

Power Consumption
Off / Standbydarklight 0.5 / 3 Watt
Idledarkmidlight 3.3 / 7.5 / 8.4 Watt
Load midlight 43.6 / 48.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Prime Computer PrimeBook Circular-i7-1165G7
i7-1165G7, Iris Xe G7 96EUs, Samsung SSD 980 500GB (MZ-V8V500BW), IPS, 3000x2000, 13.90
Asus ZenBook 14X OLED UX5400EA-L7154W
i7-1165G7, GeForce MX450, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H), OLED, 2880x1800, 14.00
Dell Inspiron 14 5410-D3D7T
i7-1165G7, Iris Xe G7 96EUs, Toshiba KBG40ZNS512G NVMe, IPS-Grade, 1920x1080, 14.00
Lenovo ThinkPad T14s G2 20WM003TGE
i7-1165G7, Iris Xe G7 96EUs, Samsung PM981a MZVLB1T0HBLR, IPS LED, 1920x1080, 14.00
Lenovo ThinkPad T14s G2 20XGS01100
R7 PRO 5850U, Vega 8, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ, IPS LED, 1920x1080, 14.00
Acer TravelMate P614P-52
i7-1165G7, Iris Xe G7 96EUs, WDC PC SN730 SDBQNTY-1T00, IPS, 1920x1200, 14.00
Average Intel Iris Xe Graphics G7 96EUs

Average of class Office

Power Consumption
-73%
-18%
10%
12%
-25%
-28%
-10%
Idle Minimum *
3.3
8.1
-145%
4.7
-42%
2.2
33%
3.16
4%
6.99
-112%
5.26 ?(2.2 - 46.5, n=184)
-59%
4.28 ?(2.2 - 9.6, n=106, last 2 years)
-30%
Idle Average *
7.5
10
-33%
6.8
9%
5.5
27%
5.6
25%
8.32
-11%
8.46 ?(3.8 - 63, n=184)
-13%
7.34 ?(3.8 - 20.6, n=106, last 2 years)
2%
Idle Maximum *
8.4
11
-31%
13
-55%
6.1
27%
7.13
15%
12.18
-45%
10.6 ?(5.8 - 68.9, n=184)
-26%
9.11 ?(4.8 - 23.9, n=106, last 2 years)
-8%
Load Average *
43.6
67.8
-56%
40.3
8%
41.3
5%
30.86
29%
38.08
13%
44.8 ?(12.5 - 77.5, n=184)
-3%
40.8 ?(8.7 - 75.2, n=105, last 2 years)
6%
Witcher 3 ultra *
35.6
57
-60%
40.4
-13%
34.5
3%
37
-4%
35.7
-0%
Load Maximum *
48.6
104
-114%
54.4
-12%
67.3
-38%
46.55
4%
44.99
7%
66.6 ?(30.1 - 118, n=184)
-37%
57.8 ?(11.1 - 101.4, n=106, last 2 years)
-19%

* ... smaller is better

Power consumption Witcher 3 / Stress test

051015202530354045505560Tooltip
Prime Computer PrimeBook Circular-i7-1165G7; Witcher 3 ultra: Ø35.6 (31.9-43.8)
Prime Computer PrimeBook Circular-i7-1165G7; 1280x720 Prime95 28.10 and Furmark 1.25: Ø37.3 (11.5-60.4)

Power consumption with an external monitor

051015202530354045505560Tooltip
Prime Computer PrimeBook Circular-i7-1165G7; Prime95 V2810 Stress (external Monitor): Ø22.9 (20.4-55.5)
Prime Computer PrimeBook Circular-i7-1165G7; Cinebench R15 Multi (external Monitor): Ø22.7 (11.2-61.8)
Prime Computer PrimeBook Circular-i7-1165G7; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø21.4 (18.6-36.1)
Prime Computer PrimeBook Circular-i7-1165G7; 1920x1080 The Witcher 3 ultra (external Monitor): Ø23.3 (21.2-26.3)

电池寿命

用电池供电的3DMark 11
用电池供电的3DMark 11
77瓦特电池
77瓦特电池

与其他竞争性14英寸笔记本电脑相比,内置电池提供了最高的容量。在我们的实际WLAN测试中,77Wh的电量足以为该设备提供近14小时的能量。显示屏的亮度被降低到38%,以达到150cd/m²的统一测量值。凭借10小时的运行时间,我们的评测样本在播放H264测试视频时也达到了一个非常好的数值。在电池寿命方面,一些竞争对手明显被超越了。只有联想ThinkPad T14s G2可以在这里竞争。

Battery Runtime
Idle (without WLAN, min brightness)
39h 19min
WiFi Websurfing (103.0.1264.44)
13h 48min
WiFi Websurfing max. Brightness (Edge:103.0.1264.44)
9h 44min
Big Buck Bunny H.264 1080p
10h 05min
Load (maximum brightness)
1h 58min
Prime Computer PrimeBook Circular-i7-1165G7
i7-1165G7, Iris Xe G7 96EUs, 77 Wh
Asus ZenBook 14X OLED UX5400EA-L7154W
i7-1165G7, GeForce MX450, 63 Wh
Dell Inspiron 14 5410-D3D7T
i7-1165G7, Iris Xe G7 96EUs, 41 Wh
Lenovo ThinkPad T14s G2 20WM003TGE
i7-1165G7, Iris Xe G7 96EUs, 57 Wh
Lenovo ThinkPad T14s G2 20XGS01100
R7 PRO 5850U, Vega 8, 57 Wh
Acer TravelMate P614P-52
i7-1165G7, Iris Xe G7 96EUs, 56 Wh
Average of class Office

Battery Runtime
-52%
-41%
-5%
13%
-24%
-13%
Reader / Idle
2359
675
-71%
895
-62%
1260
-47%
1435 ?(527 - 2359, n=22, last 2 years)
-39%
H.264
605
874
44%
891
47%
716
18%
699 ?(348 - 1112, n=39, last 2 years)
16%
WiFi v1.3
828
334
-60%
380
-54%
580
-30%
877
6%
534
-36%
594 ?(300 - 1137, n=106, last 2 years)
-28%
Load
118
89
-25%
110
-7%
85
-28%
101
-14%
80
-32%
119.4 ?(56 - 218, n=65, last 2 years)
1%
Witcher 3 ultra
98
120
152 ?(142 - 162, n=2, last 2 years)
最大的电池寿命
最大的电池寿命
最小的电池寿命
最小的电池寿命
WLAN电池寿命(150cd/m²)。
WLAN电池寿命(150cd/m²)。
WiFi电池寿命(100%亮度)
WiFi电池寿命(100%亮度)
H.264电池寿命(150cd/m²)。
H.264电池寿命(150cd/m²)。
充电时间
充电时间

Pros

+ 坚固的箱子
+ 高质量的材料
+ 良好/精确的输入设备
+ 触摸显示屏具有较低的E-2000值
+ 雷电4
+ 16GB内存
+ 背光键盘
+ Wi-Fi 6
+ 很长的电池运行时间
+ 低能源消耗
+ 模块化设计
+ 36个月保修

Cons

- 内存不可扩展
- CPU性能略低于平均水平
- 高反射率的显示屏
- 高DPC延迟

评语。有升级选项的现代商务笔记本

在审查中。PrimeBook通告,由Prime Computer提供
在审查中。PrimeBook通告,由Prime Computer提供

PrimeBook Circular首先是一个传统的商务笔记本。可持续性方面只有在仔细检查后才会显现出来。制造商Prime Computer承诺,在制造、销售和使用的前五年内,将实现100%的气候中立。

就性能而言,我们可以说PrimeBook Circular(假设配置与我们的审查样本相同)有可能成为一个持久的伴侣。英特尔NUC计算元素目前提供了一个强大的 英特尔酷睿i7-1165G7但是,它无法利用其最大潜力。尽管如此,快速运行始终是有保证的。以后有可能用更新的英特尔NUC计算单元来升级系统,从而提高性能,这的确是一个非常有吸引力的前景。其余的硬件也是最新的,甚至还包括Thunderbolt 4。高分辨率的触摸显示屏在测试中给出了很好的结果,但由于其光泽的显示表面,并不适合在户外移动使用。

由于其模块化设计,PrimeBook Circular有可能成为一个长期伴侣。

我们非常喜欢PrimeBook Circular的排放率。简而言之,空转和低负荷时的低能量需求使得电池运行时间非常长。一个完整的工作日没有中断应该是可能的。

缺点包括缺乏读卡器,以及计算元件的固定内存。如果你意识到这些缺点并能接受它们,你会得到一个现代的、适合未来的Primebook Circular的笔记本。

价格和可用性

PrimeBook Circular目前的价格是1980欧元(约2000美元)。这家瑞士制造商似乎只在欧洲某些国家(即瑞士、德国、奥地利、英国、爱尔兰和科索沃)通过某些分销商提供该机型。这方面的概述可以在这里访问https://primecomputer.co/buy-online/private-customers/(向下滚动并点击所有经销商,所有国家)。在阿拉伯半岛(科威特、巴林、阿联酋、阿曼和沙特阿拉伯)也有分销商。

Prime Computer PrimeBook Circular-i7-1165G7 - 07/14/2022 v7
Sebastian Bade

Chassis
87 / 98 → 89%
Keyboard
85%
Pointing Device
85%
Connectivity
66 / 80 → 82%
Weight
68 / 20-75 → 87%
Battery
87%
Display
88%
Games Performance
71 / 78 → 91%
Application Performance
93 / 95 → 98%
Temperature
91%
Noise
92%
Audio
66%
Camera
46 / 85 → 54%
Average
79%
87%
Office - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > PrimeBook Circular回顾。模块化的14英寸基于NUC的笔记本电脑
Sebastian Bade, 2022-07-16 (Update: 2022-07-16)
