Beelink SER8 PC 评论：Mac Mini-inspired 设计与 AMD Ryzen 7 8845HS

Beelink SER 系列今年又回来了，不仅处理器从 AMD Zen 3+ 升级到 Zen 4，整个机箱也连续第三年重新设计。不过，这一次，2024 SER8 在外观上的变化更为显著，真正将其与以往的任何产品区分开来。

我们的测试机配备了 Ryzen 7 8845HS CPU、集成 Radeon 780M GPU、32 GB 内存和 1 TB SSD，售价约为 650 美元。在撰写本文时，除了一种其他颜色的选择外，没有其他配置可供选择。

SER8 的替代产品包括其他 NUC 大小的迷你 PC，如 GMKtec NucBox K6,Geekom GT13 Pro或 Bosgame M1.

更多 Beelink 评论：

Rating	Version	Date	Model	Weight	Height	Resolution
74.9 %	v8	07 / 2024	Beelink SER8 R7 8845HS, Radeon 780M	776 g	44.7 mm	x
86.6 % v7 ^(old)	v7 ^(old)	09 / 2023	Beelink SER7 R7 7840HS, Radeon 780M	640 g	49 mm	x
86.3 % v7 ^(old)	v7 ^(old)	07 / 2023	Beelink GTR7 7840HS R7 7840HS, Radeon 780M	890 g	48.8 mm	x
83.6 % v7 ^(old)	v7 ^(old)	04 / 2024	GMK NucBox K6 R7 7840HS, Radeon 780M	514 g	47 mm	x
72.1 %	v8	06 / 2024	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	440 g	37 mm	x
73.7 %	v8		Aoostar GEM10 R7 6800H, Radeon 680M	525 g	60 mm	x

提示：我们已对评级系统进行了更新，第 8 版的结果与第 7 版的结果没有可比性。更多信息请参见这里查看。

注：我们最近更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。更多信息此处.

外壳 - 减少塑料，增加金属

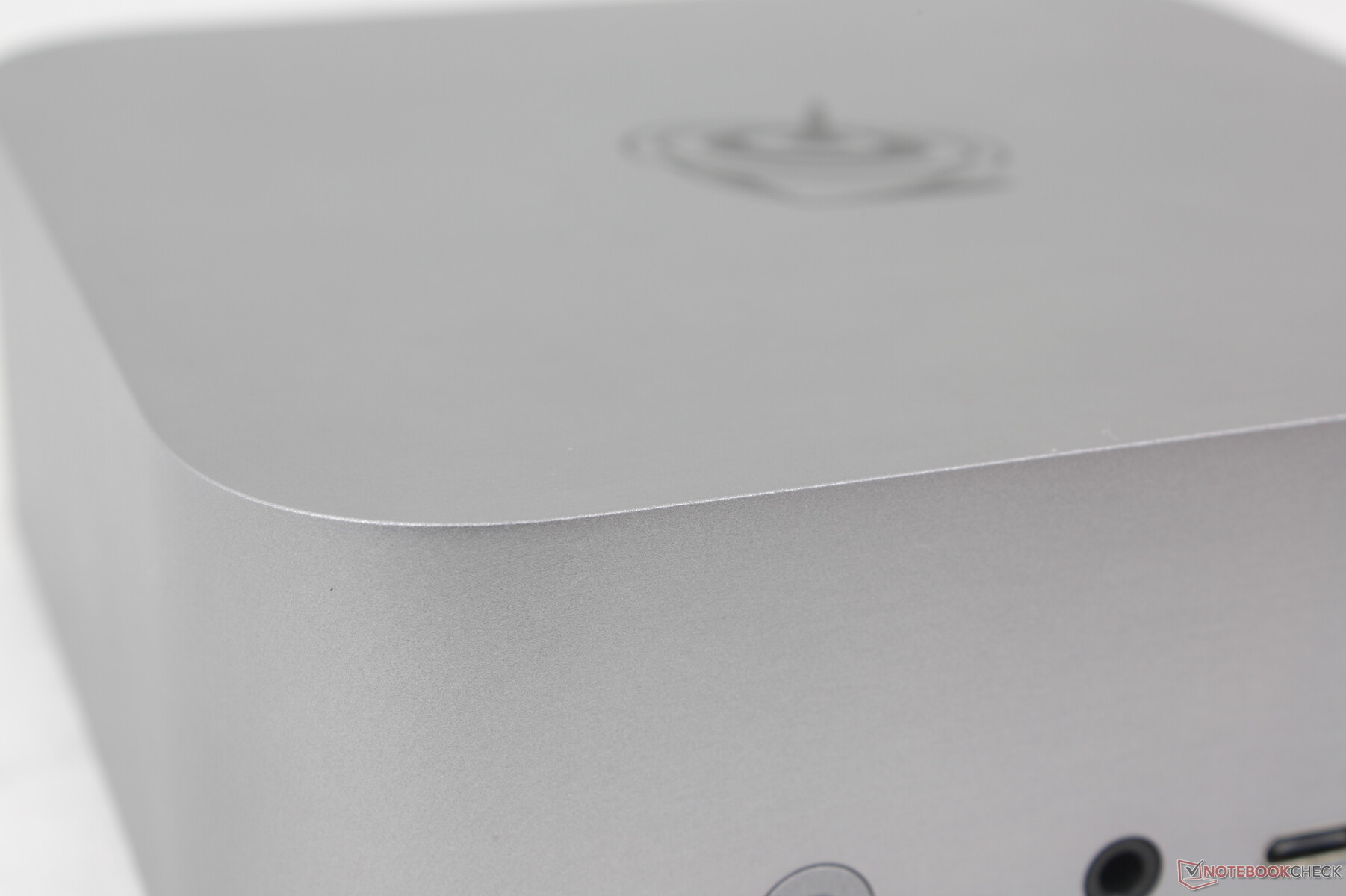

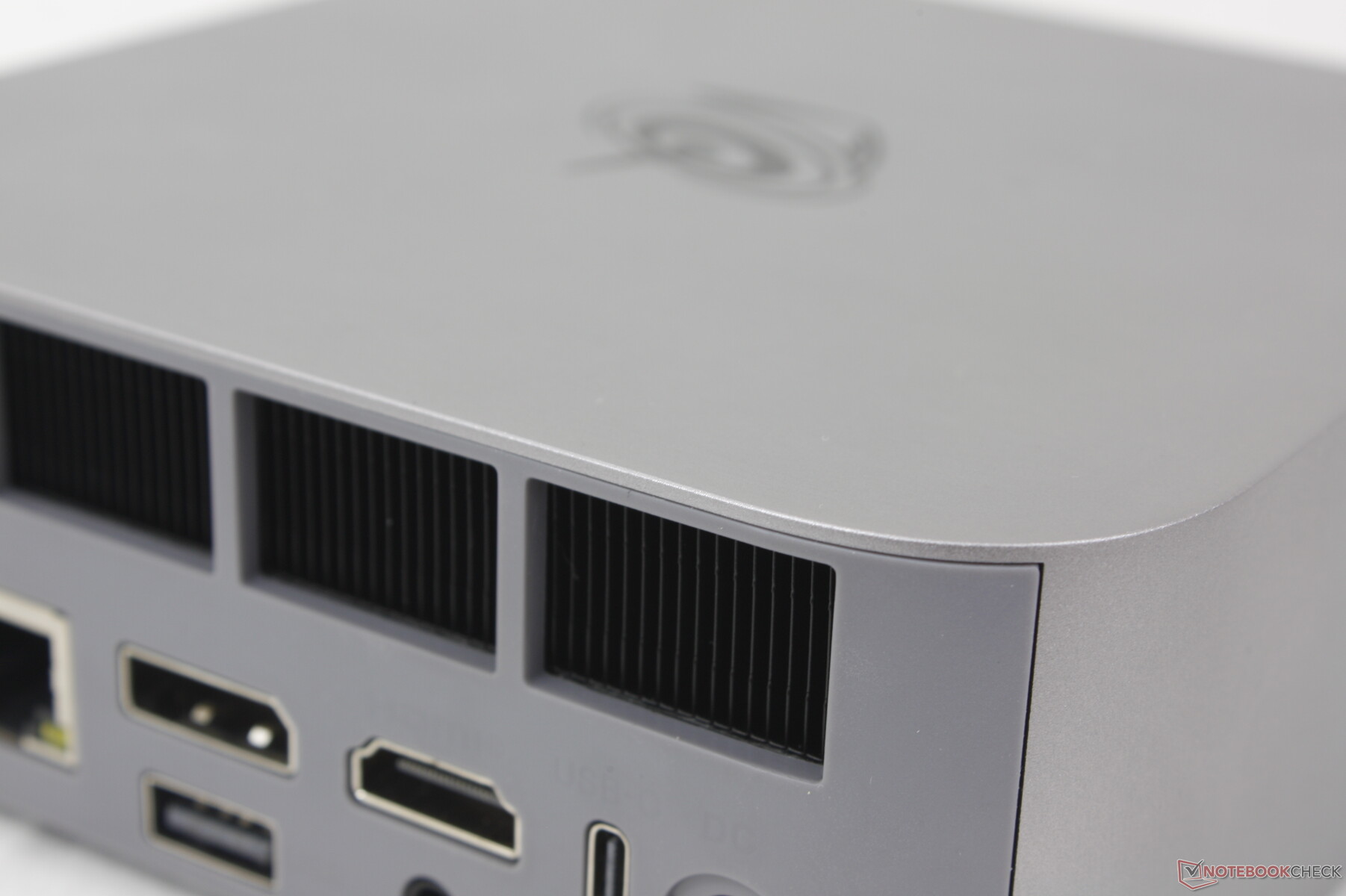

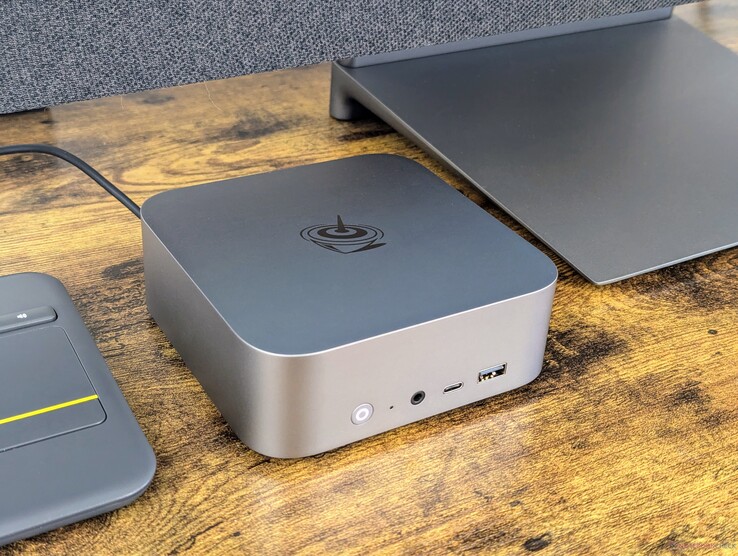

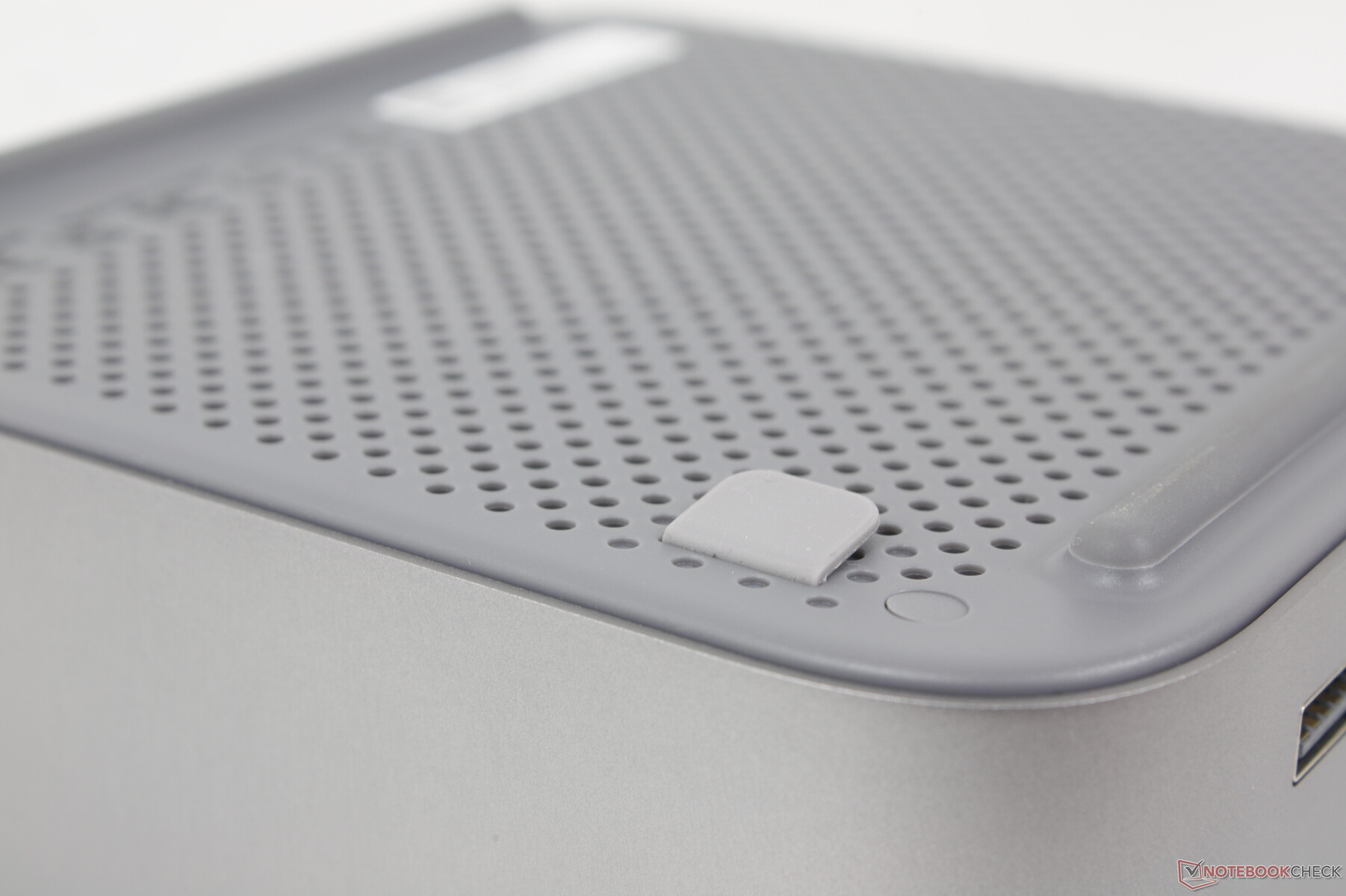

新的外壳设计可能是 SER8 的突出特点。以前的 Beelink 机型主要采用金属、塑料和织物的组合，而 SER8 则主要采用一体式金属外壳，外观更简洁、更专业。平整的侧面和哑光灰色表面模仿了 Mac Mini的感觉，而不会给人廉价或 "山寨 "的感觉。在 SER8 的侧面或顶部施加压力，不会出现明显的弯曲，给人留下高品质的第一印象。

机身后部和底部仍然采用塑料材质，以节省成本，但却没有机身金属部分的诱人光泽。当然，在桌子或架子上摆放时，不那么美观的塑料边会更加隐蔽。

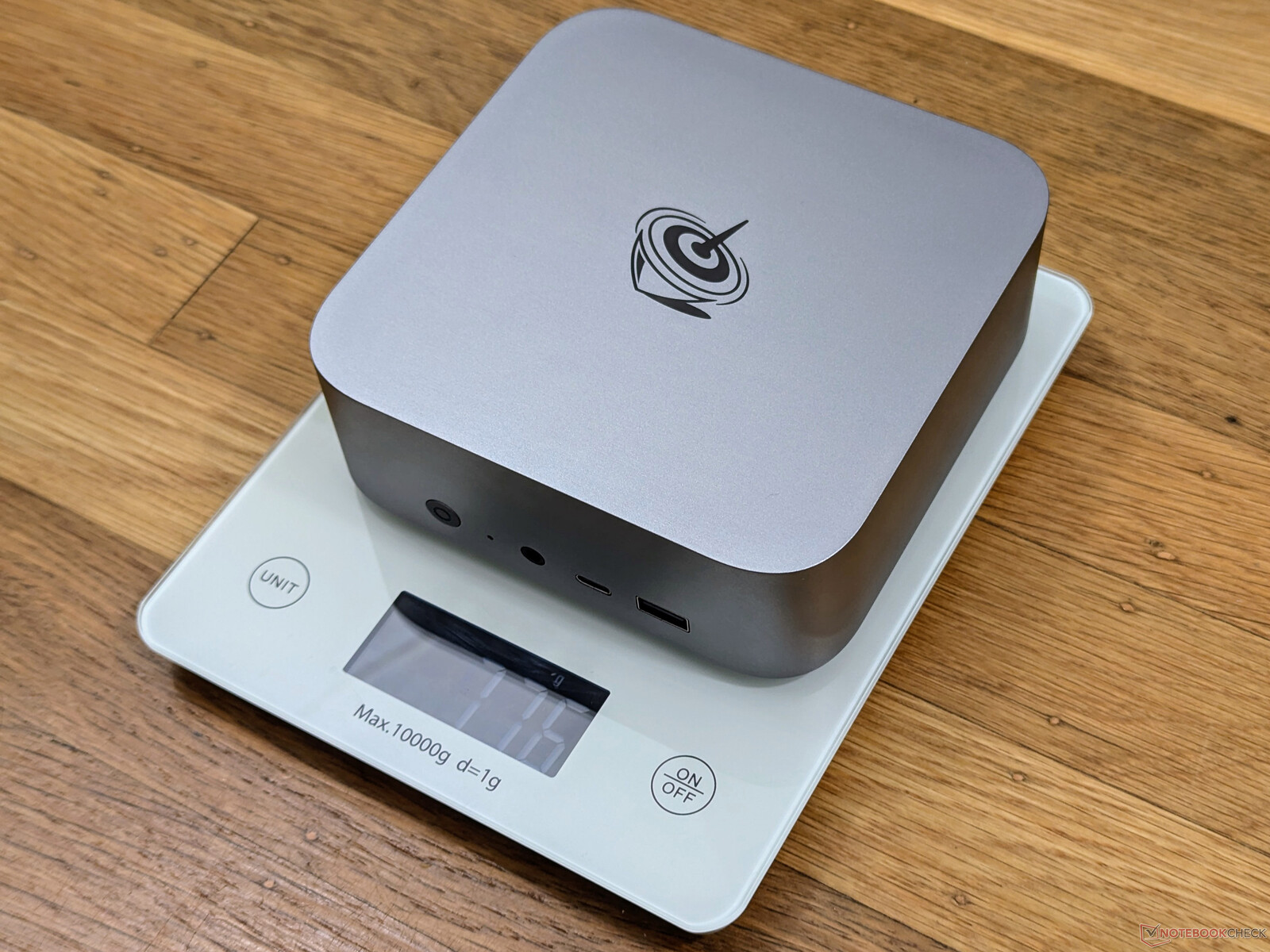

尽管新设计可能很性感，但它的体积和重量比以前明显增加了 31% 和 21%。这在很大程度上归因于更多金属而非塑料的突出使用，以及蒸汽腔冷却器的改进。

尺寸比较

连接性

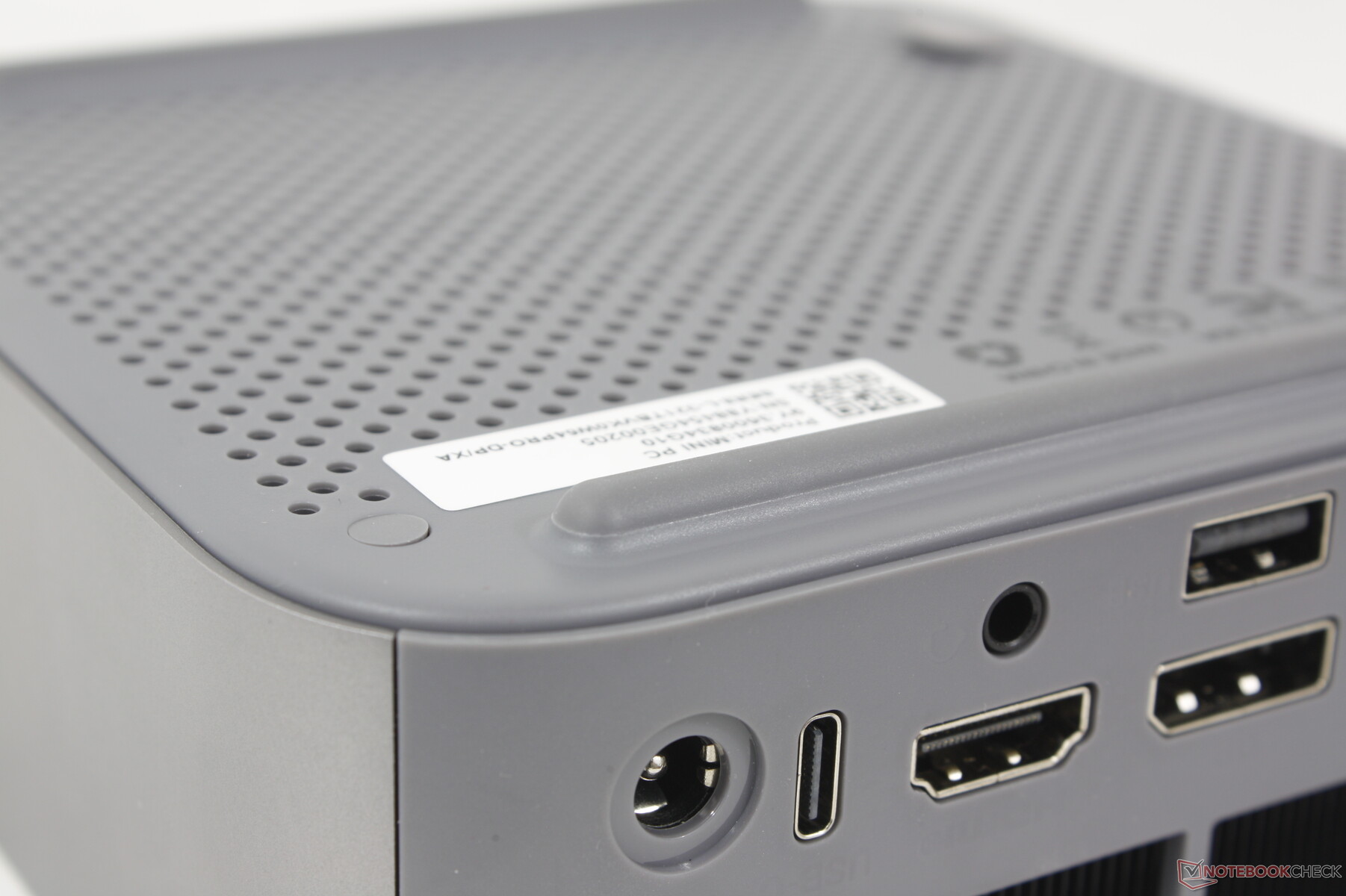

新设计的端口与旧设计的端口略有不同 SER7 设计略有不同。最明显的是，现在只有两个 USB-C 端口（而不是三个）和两个 3.5 毫米音频插孔（而不是一个）。如果系统检测到两个不同的音频输出，则前置音频插孔优先。请记住，只有后置 USB-C 端口支持 USB4、DisplayPort 和 Power Delivery，而前置 USB-C 端口仅用于数据传输。

令人讨厌的是，四个 USB-A 端口中有两个仅为 USB 2.0 端口，无法直观地将它们与 USB 3.2 端口区分开来。在以前的设计中，这些端口会用颜色标示，但 Beelink 决定将 SER8 的这些端口全部改为灰色。

SER8 没有 Kensington 锁插槽，这一点令人担忧，因为旁观者可能会误以为 SER8 是 Mac Mini。

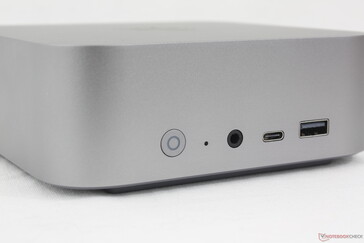

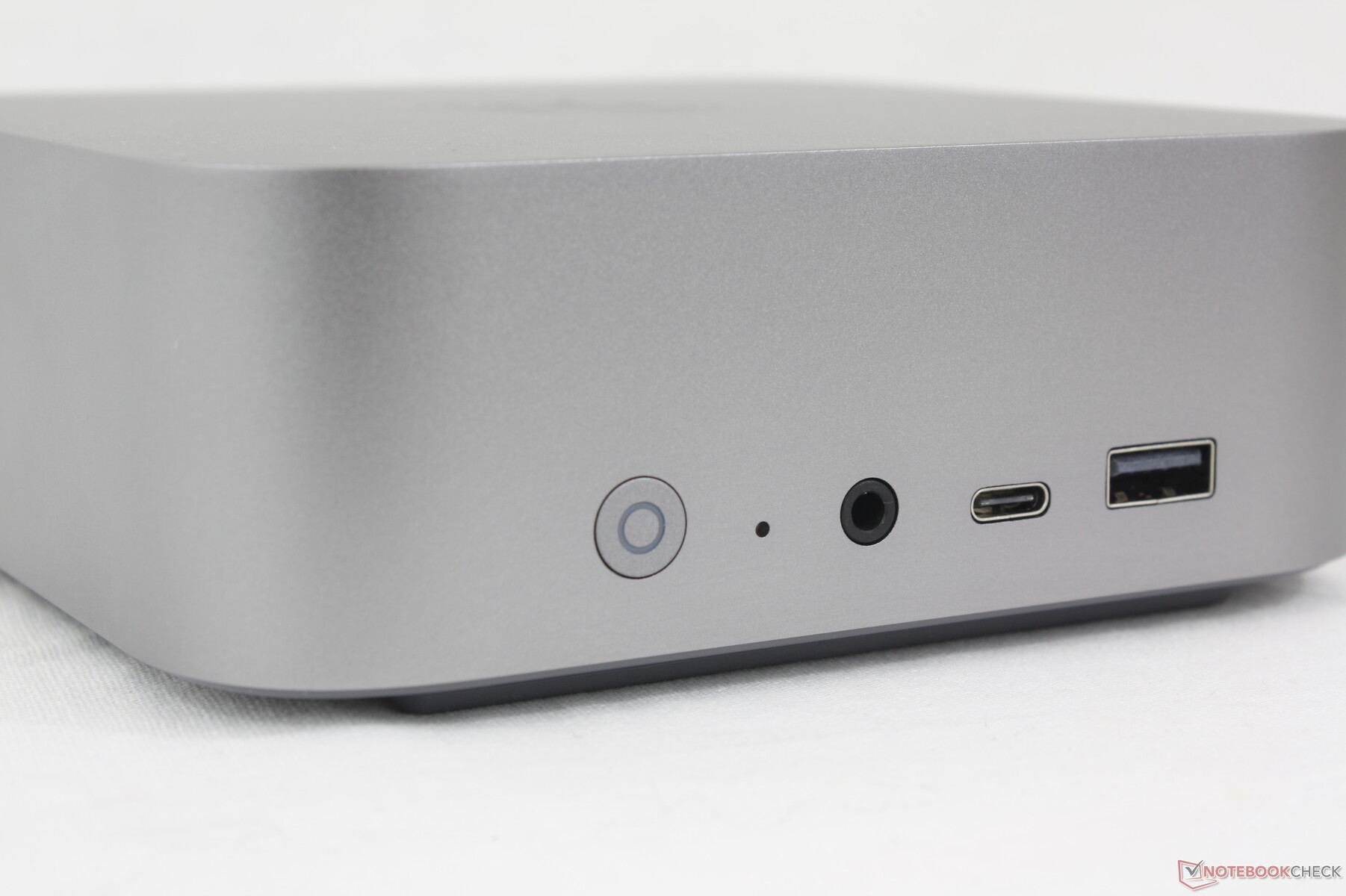

前置：电源按钮、重置按钮、3.5 毫米耳机、USB-C（10 Gbps）、USB-A 3.2（10 Gbps）

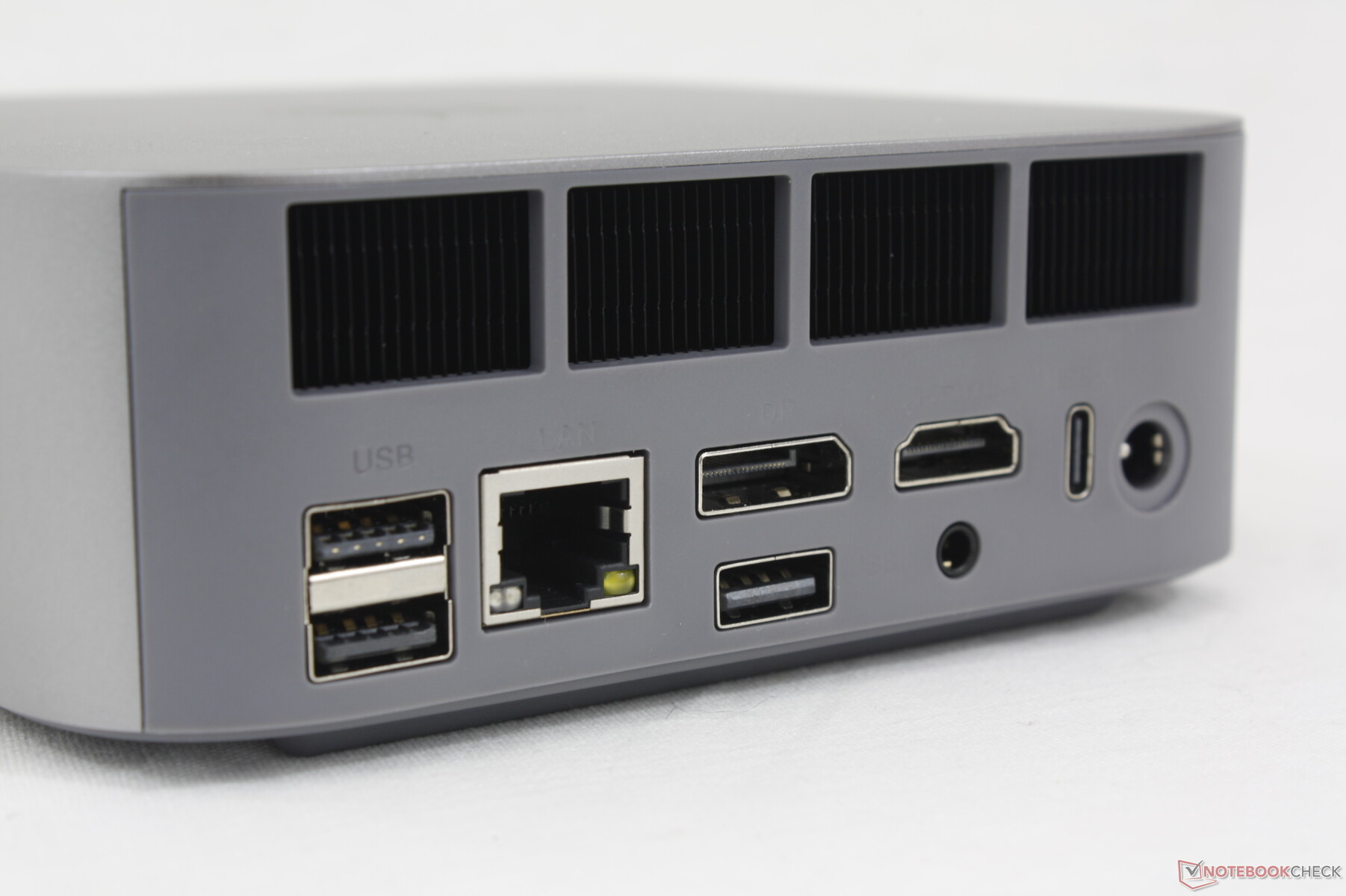

后部USB-A 3.2（10 Gbps）、USB-A 2.0（480 Mbps）、RJ-45（2.5 Gbps）、DisplayPort 1.4（4K@144）、USB-A 2.0（480 Mbps）、HDMI 2.1（4K@120）、3.5 毫米耳机、USB-C 4.0 w/ DisplayPort + Power Delivery（40 Gbps）、交流适配器

交流

该机型配备了英特尔 AX200，而不是 AX210 或 AX211，这可能是为了节省成本。因此，开箱即不支持 Wi-Fi 6E 和 Wi-Fi 7。该产品性能可靠，但与我们的 Wi-Fi 6 网络配对时，速度比预期的要慢，只有 ~800 Mbps。

Networking
iperf3 transmit AXE11000
Beelink SER7 Intel Wi-Fi 6 AX200	1324 (665^min - 1408^max) MBit/s +63%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1146 (846^min - 1308^max) MBit/s +41%
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1031 (961^min - 1109^max) MBit/s +27%
Beelink SER8 Intel Wi-Fi 6 AX200	812 (641^min - 888^max) MBit/s
GMK NucBox K6 MediaTek RZ616	634 (574^min - 685^max) MBit/s -22%
Aoostar GEM10 Intel Wi-Fi 6 AX200	429 (325^min - 510^max) MBit/s -47%
iperf3 receive AXE11000
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1398 (1261^min - 1453^max) MBit/s +78%
GMK NucBox K6 MediaTek RZ616	1222 (1074^min - 1368^max) MBit/s +56%
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1211 (1112^min - 1284^max) MBit/s +54%
Beelink SER7 Intel Wi-Fi 6 AX200	1193 (588^min - 1333^max) MBit/s +52%
Beelink SER8 Intel Wi-Fi 6 AX200	784 (679^min - 845^max) MBit/s
Aoostar GEM10 Intel Wi-Fi 6 AX200	451 (228^min - 466^max) MBit/s -42%
iperf3 transmit AXE11000 6GHz
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1429 (1392^min - 1511^max) MBit/s
GMK NucBox K6 MediaTek RZ616	432 (212^min - 471^max) MBit/s
iperf3 receive AXE11000 6GHz
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1583 (1557^min - 1611^max) MBit/s
GMK NucBox K6 MediaTek RZ616	984 (937^min - 1048^max) MBit/s

Beelink SER8; iperf3 transmit AXE11000; iperf 3.1.3: Ø812 (641-888)

Beelink SER8; iperf3 receive AXE11000; iperf 3.1.3: Ø784 (679-845)

维护

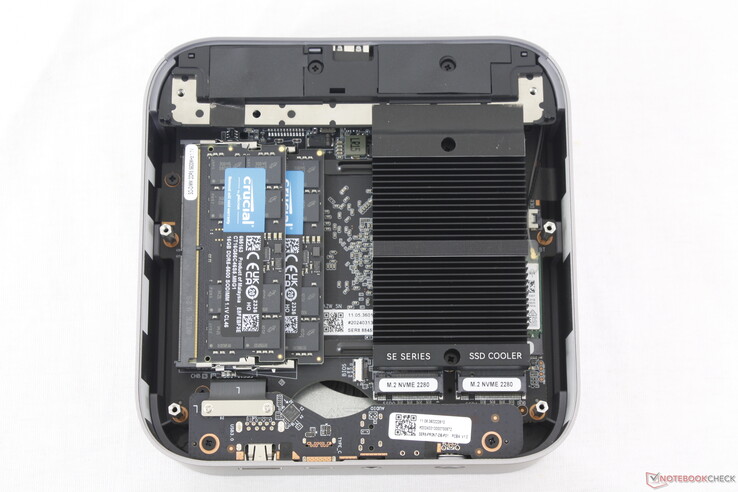

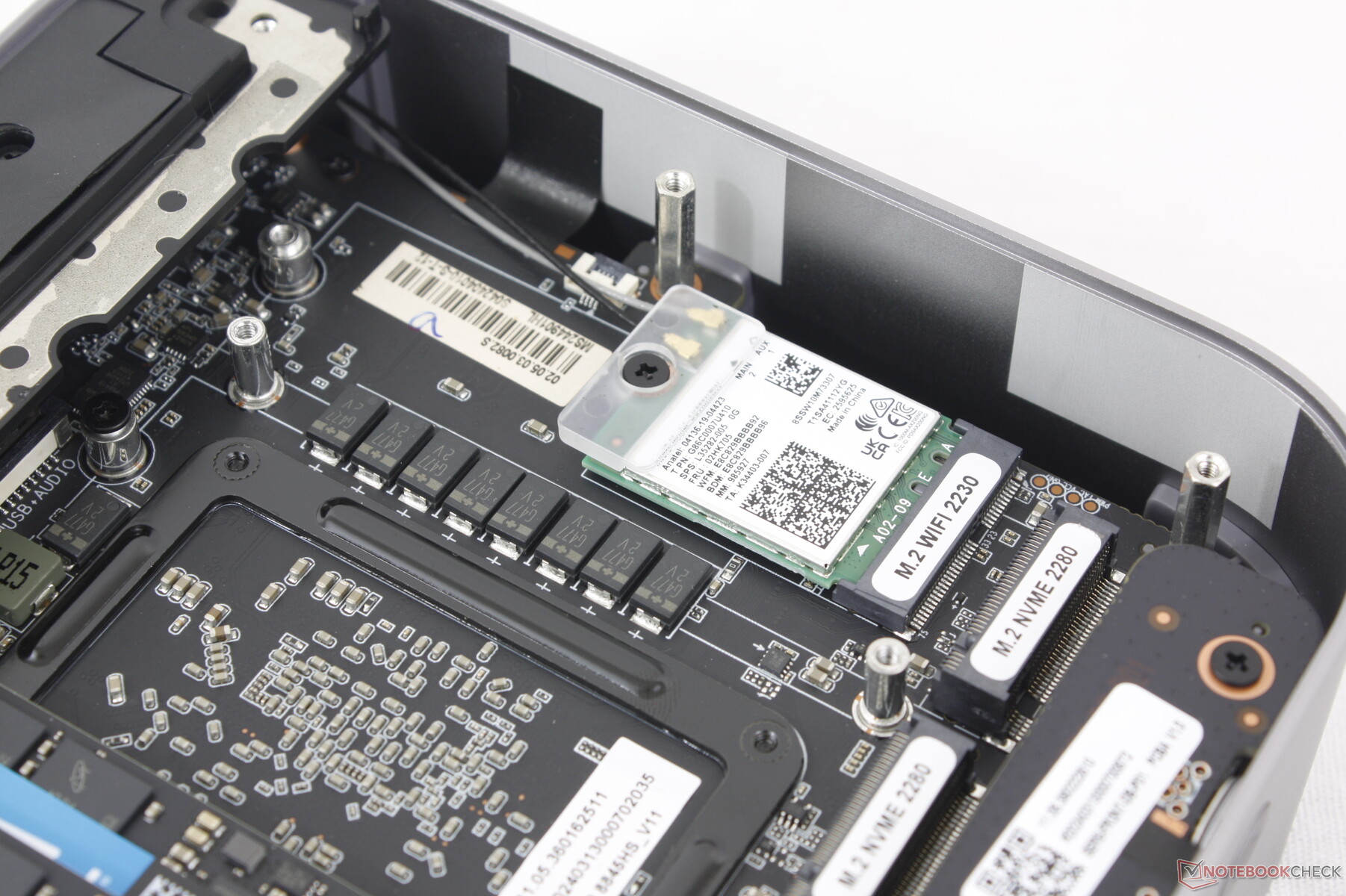

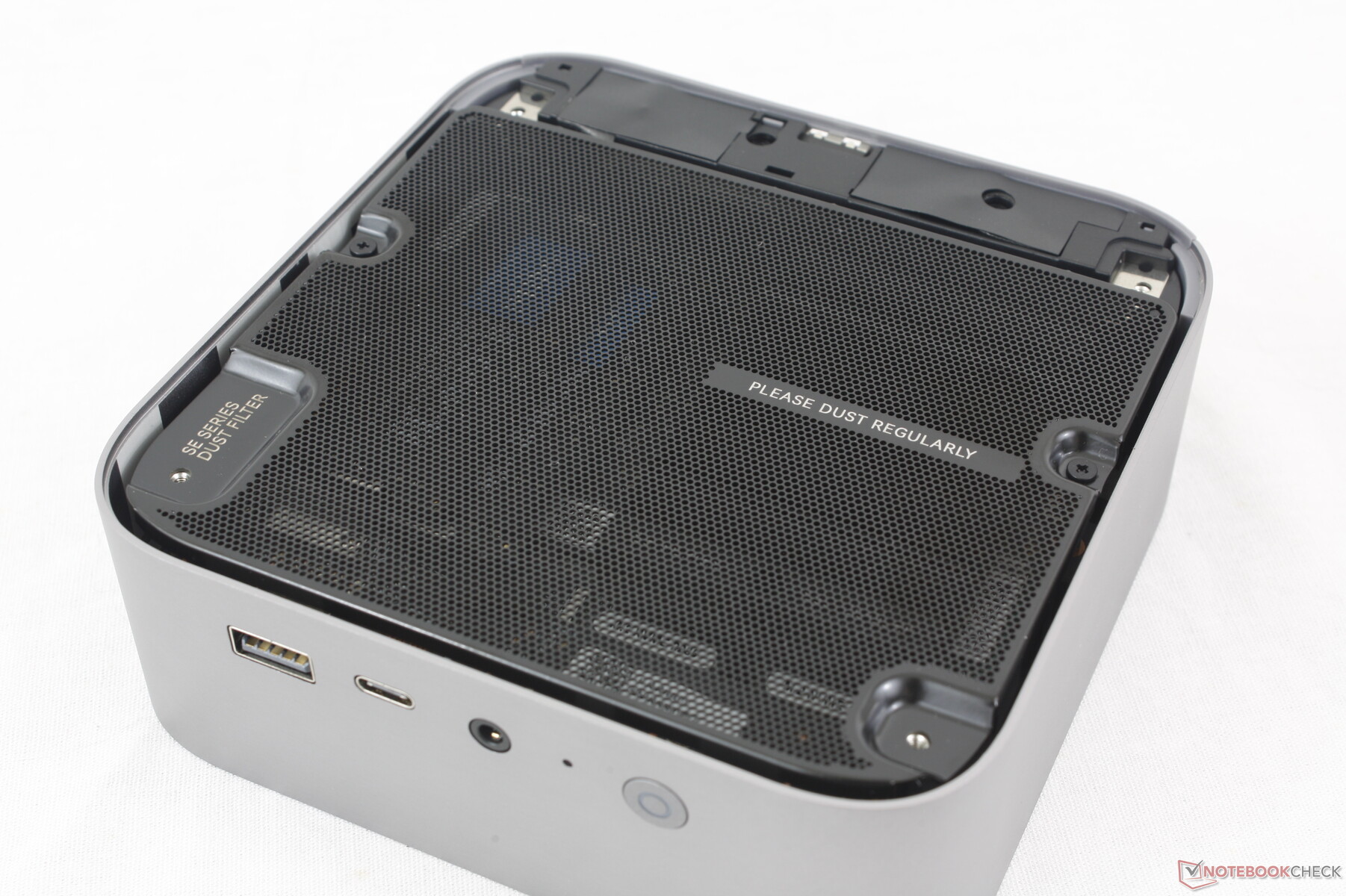

维修分两个步骤。首先，必须松开四角的四颗十字螺丝，取下外板。然后，再拧松边缘的两颗十字螺丝，取下金属防尘网。进入内部后，用户可以直接访问两个 DDR5 SODIMM 插槽、两个 M.2 2280 SSD 插槽和 WLAN 模块。蒸汽室冷却器和 CPU 位于主板的另一侧。

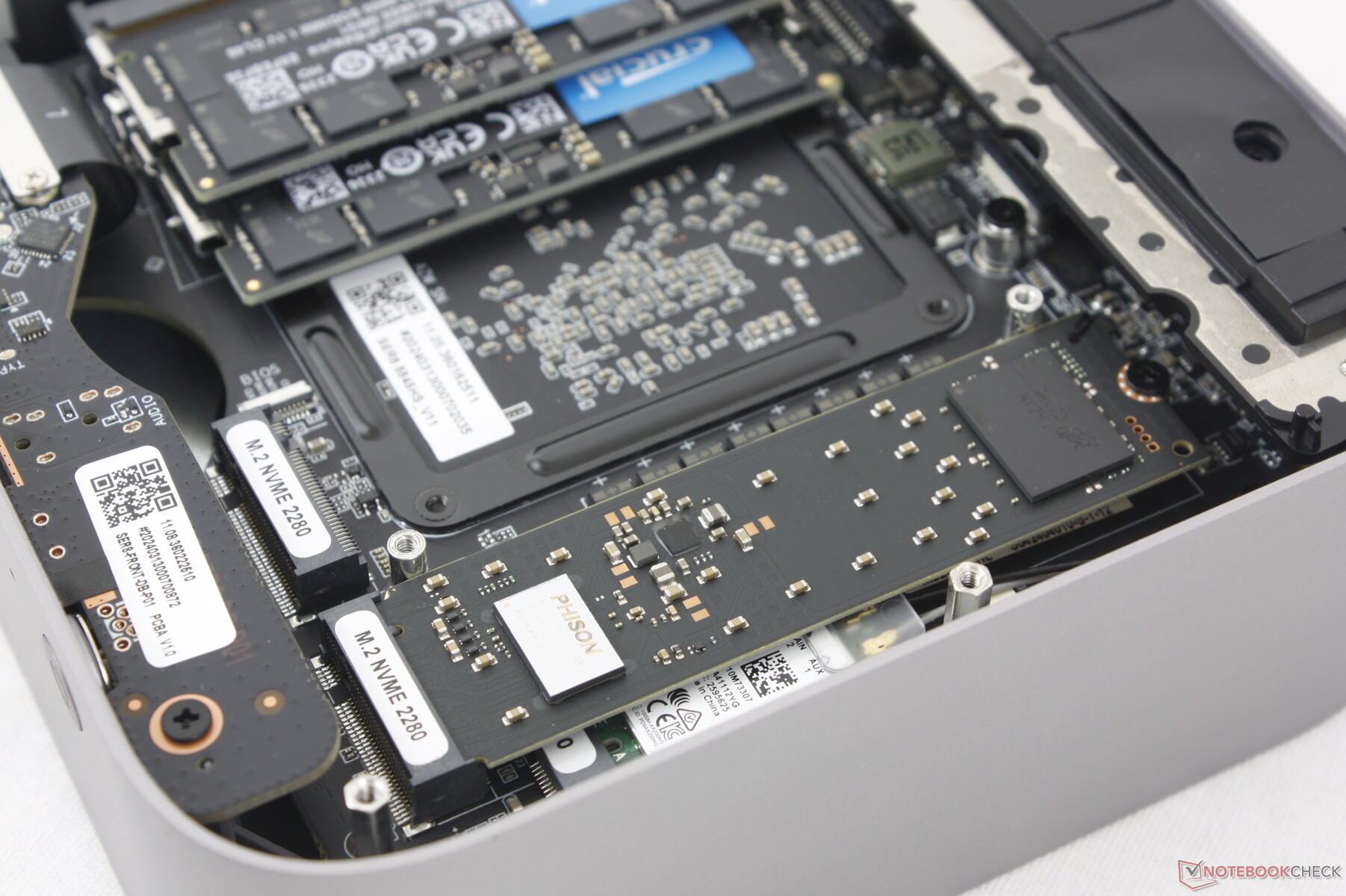

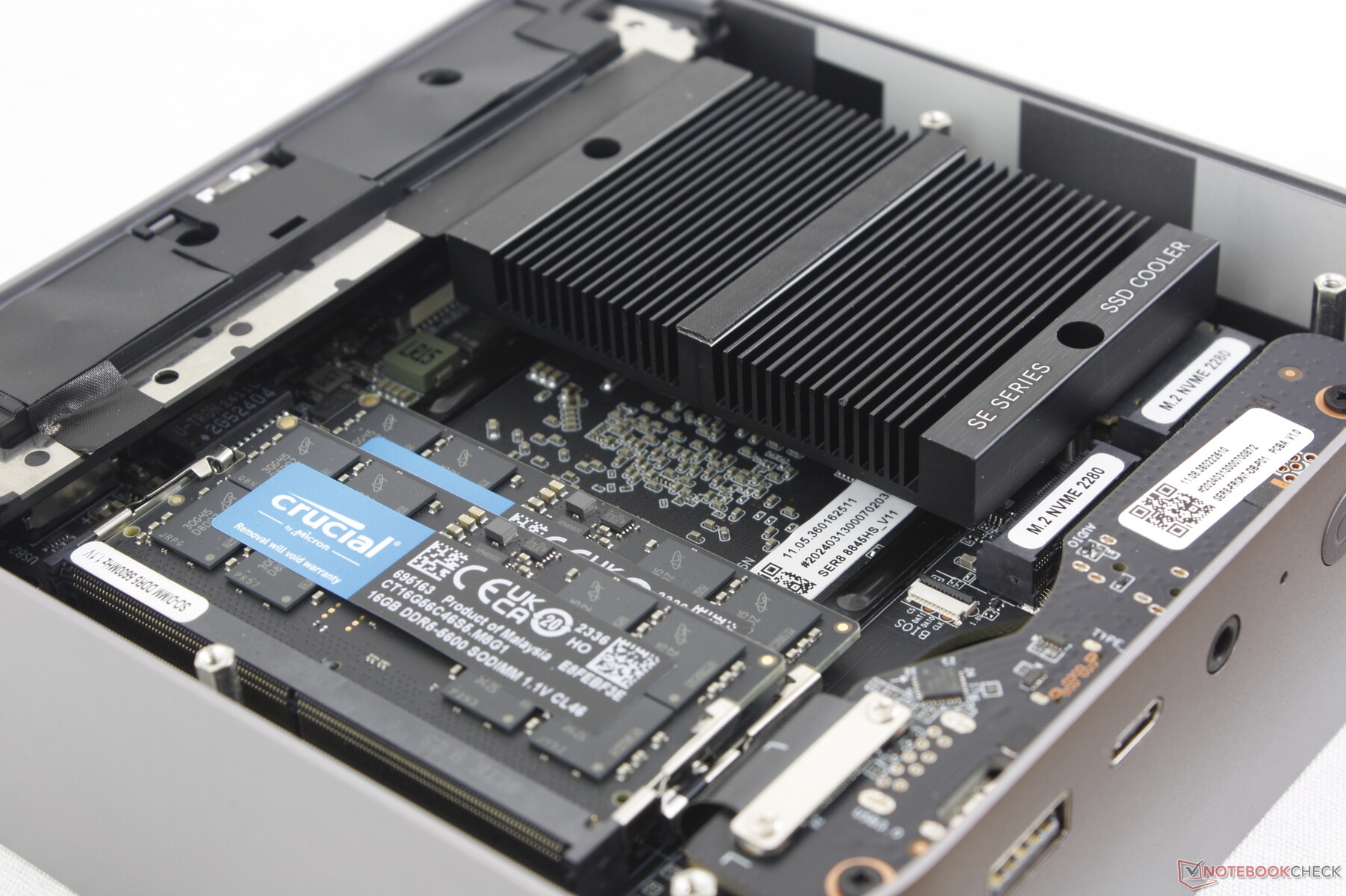

底部塑料面板只需一把十字螺丝刀即可轻松维修，就像老式的 SER7 设计一样。用户可以直接访问两个 M.2 2280 SSD 插槽、两个 SODIMM 插槽和可拆卸的 WLAN 模块。

配件和保修

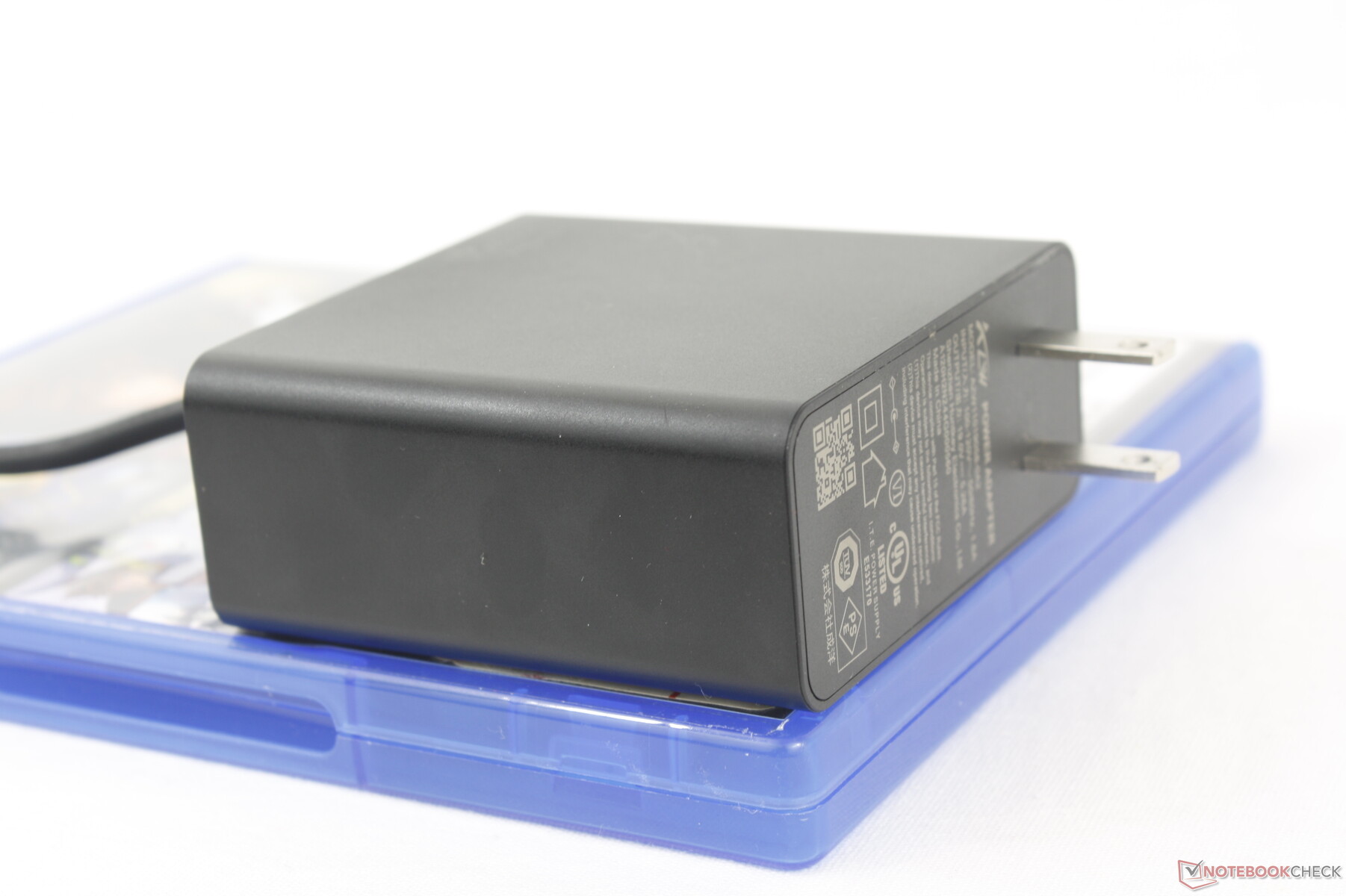

零售包装盒中包括一条 HDMI 连接线，以及纸质文件和桶装交流适配器。如果第三方 USB-C 交流适配器能提供足够的电力，则可为系统供电。例如，联想的 135 W USB-C 交流适配器就与 SER8 兼容。

值得注意的是，包装中缺少可拆卸的 VESA 支架。这是因为 SER8 不兼容 VESA 安装，这是新设计的一个缺点。

如果在美国购买，制造商提供一年有限保修。

性能 - Zen 4 已为人工智能做好准备

测试条件

在运行以下基准测试之前，我们将 Windows 设置为性能模式。

有一种特殊的 "65 W "模式（称为 PowerLimit 设置），只能在开机时通过 BIOS 访问。否则，无论你在 Windows 上如何设置电源，系统默认设置都是 "54 W"。可笑的是，制造商希望你 "联系客户服务部门寻求指导"，以了解如何在 54 W 和 65 W 模式之间进行调整，而这是其他任何制造商都不会建议的。在本次评测中，我们使用的是默认的 54 W 设置。

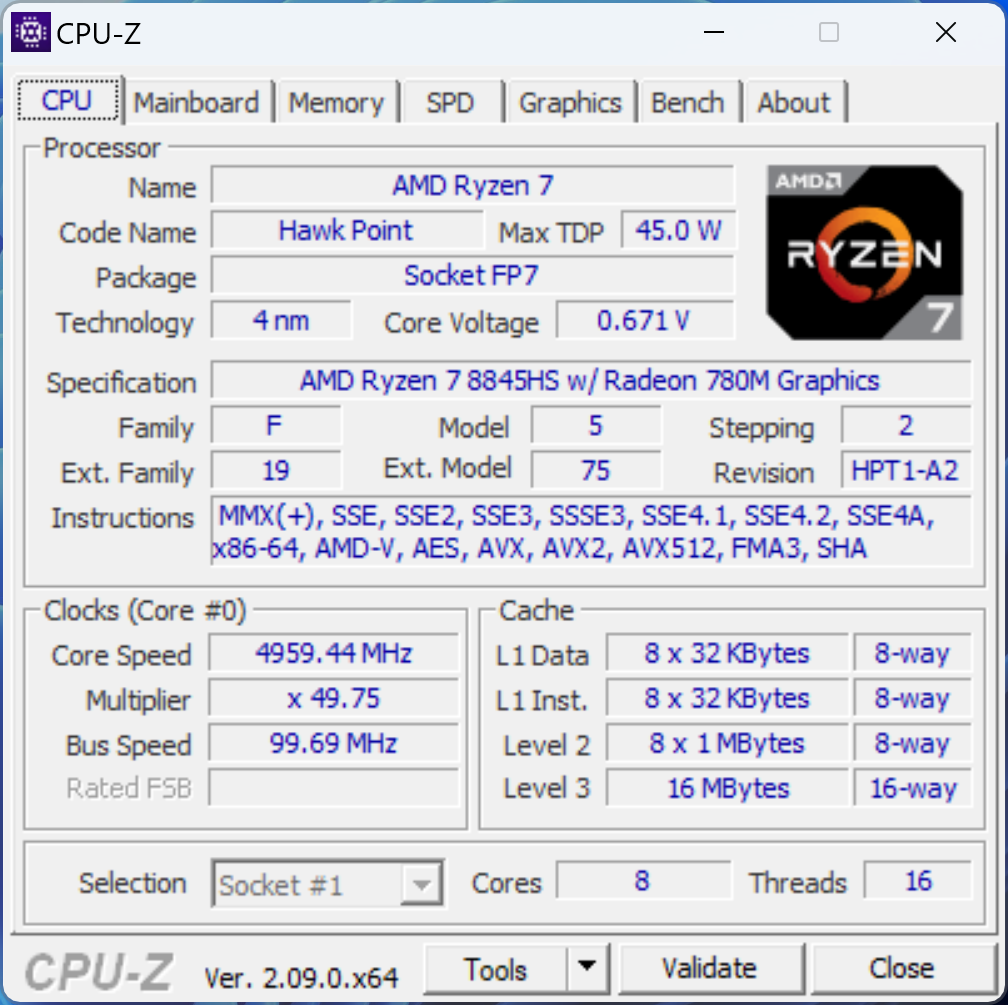

处理器

我们的 Ryzen 7 8845HS性能非常出色，与我们在 Geekom A8的性能基本相同。 Ryzen 9 8945HS.AMD CPU 的性能介于酷睿至尊 7 155H和 Core Ultra 9 185H但我们认为，如果将其设置为 65 W 模式，它能更好地与 Core Ultra 9 185H 相匹敌。

性能的可持续性也非常出色，在我们的循环测试中，CineBench R15 xT 的结果非常稳定，这与英特尔处理器的 Geekom GT13 Pro.

另一方面，Ryzen 7 8845HS 与速度已经很快的 Zen 3+ 相比，在原始性能上没有优势。 Ryzen 7 7840HS.它的主要差异化因素在于其集成的 NPU，可以加速人工智能任务，如 Microsoft Co-Pilot。如果这些功能对您的使用情况并不重要，那么 SER7 的运行速度与 SER8 不相上下。

Cinebench R15 Multi Loop

Beelink SER8 AMD Ryzen 7 8845HS: Ø2607 (2586.82-2626.57)

Beelink SER7 AMD Ryzen 7 7840HS: Ø2544 (2511.62-2564.76)

Beelink GTR7 7840HS AMD Ryzen 7 7840HS: Ø2669 (2587.99-2689.08)

GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)

Geekom GT13 Pro Intel Core i9-13900H: Ø1776 (1688.48-2326.12)

Aoostar GEM10 AMD Ryzen 7 6800H: Ø1983 (1919.75-2106.82)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum G7 PT AMD Ryzen 9 7945HX	88.9 pt
Geekom A8 AMD Ryzen 9 8945HS	66.8 pt
Beelink SER8 AMD Ryzen 7 8845HS	66.7 pt
Beelink SER7 AMD Ryzen 7 7840HS	66.2 pt
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	65.8 pt
Average AMD Ryzen 7 8845HS	63.8 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK	61.9 pt
Acemagic M2A Intel Core i9-12900H	61.2 pt
AcePC Wizbox AI Intel Core Ultra 7 155H	60.5 pt
Geekom GT13 Pro Intel Core i9-13900H	58.9 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	58.6 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	57.7 pt
GMK NucBox M4 Intel Core i9-11900H	52.6 pt
Aoostar GEM10 AMD Ryzen 7 6800H	51.8 pt
GMK NucBox M6 AMD Ryzen 5 6600H	48.8 pt
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	48.5 pt
Geekom A5 AMD Ryzen 7 5800H	47.7 pt
GMK NucBox M5 AMD Ryzen 7 5700U	34.1 pt

Cinebench R23 / Multi Core
Minisforum G7 PT AMD Ryzen 9 7945HX	30799 Points +85%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	18016 Points +8%
Geekom A8 AMD Ryzen 9 8945HS	16795 Points +1%
Beelink SER8 AMD Ryzen 7 8845HS	16661 (16363.9^min - 16661^max) Points
AcePC Wizbox AI Intel Core Ultra 7 155H	16352 Points -2%
Average AMD Ryzen 7 8845HS (14895 - 18037, n=11)	16146 Points -3%
Beelink SER7 AMD Ryzen 7 7840HS	16105 (15785.6^min - 16105.2^max) Points -3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	14659 Points -12%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	14573 Points -13%
Acemagic M2A Intel Core i9-12900H	13899 Points -17%
Aoostar GEM10 AMD Ryzen 7 6800H	13117 Points -21%
Geekom GT13 Pro Intel Core i9-13900H	13015 Points -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points -27%
GMK NucBox M4 Intel Core i9-11900H	11135 (10740.5^min - 11134.5^max) Points -33%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	11072 Points -34%
Geekom A5 AMD Ryzen 7 5800H	10819 Points -35%
GMK NucBox M6 AMD Ryzen 5 6600H	10418 (10142.8^min - 10418^max) Points -37%
GMK NucBox M5 AMD Ryzen 7 5700U	6649 (6519.7^min - 6648.75^max) Points -60%

Cinebench R23 / Single Core
Minisforum G7 PT AMD Ryzen 9 7945HX	1957 Points +10%
Acemagic M2A Intel Core i9-12900H	1907 Points +7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1901 Points +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1851 Points +4%
Geekom A8 AMD Ryzen 9 8945HS	1825 Points +2%
AcePC Wizbox AI Intel Core Ultra 7 155H	1801 Points +1%
Beelink SER8 AMD Ryzen 7 8845HS	1783 Points
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1780 Points 0%
Beelink SER7 AMD Ryzen 7 7840HS	1774 Points -1%
Average AMD Ryzen 7 8845HS (1623 - 1783, n=11)	1747 Points -2%
Geekom GT13 Pro Intel Core i9-13900H	1715 Points -4%
GMK NucBox M4 Intel Core i9-11900H	1605 Points -10%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	1543 Points -13%
Aoostar GEM10 AMD Ryzen 7 6800H	1542 Points -14%
GMK NucBox M6 AMD Ryzen 5 6600H	1486 Points -17%
Geekom A5 AMD Ryzen 7 5800H	1405 Points -21%
GMK NucBox M5 AMD Ryzen 7 5700U	1267 Points -29%

Cinebench R20 / CPU (Multi Core)
Minisforum G7 PT AMD Ryzen 9 7945HX	12210 Points +90%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7196 Points +12%
Geekom A8 AMD Ryzen 9 8945HS	6591 Points +2%
Beelink SER8 AMD Ryzen 7 8845HS	6431 Points
Beelink SER7 AMD Ryzen 7 7840HS	6344 Points -1%
Average AMD Ryzen 7 8845HS (5808 - 7026, n=11)	6309 Points -2%
AcePC Wizbox AI Intel Core Ultra 7 155H	6033 Points -6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	5691 Points -12%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5633 Points -12%
Acemagic M2A Intel Core i9-12900H	5472 Points -15%
Aoostar GEM10 AMD Ryzen 7 6800H	5216 Points -19%
Geekom GT13 Pro Intel Core i9-13900H	5013 Points -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points -27%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	4339 Points -33%
GMK NucBox M4 Intel Core i9-11900H	4324 Points -33%
Geekom A5 AMD Ryzen 7 5800H	4229 Points -34%
GMK NucBox M6 AMD Ryzen 5 6600H	4106 Points -36%
GMK NucBox M5 AMD Ryzen 7 5700U	2580 Points -60%

Cinebench R20 / CPU (Single Core)
Minisforum G7 PT AMD Ryzen 9 7945HX	754 Points +8%
Acemagic M2A Intel Core i9-12900H	735 Points +5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	734 Points +5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +4%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	715 Points +2%
Geekom A8 AMD Ryzen 9 8945HS	711 Points +2%
Beelink SER7 AMD Ryzen 7 7840HS	698 Points 0%
Beelink SER8 AMD Ryzen 7 8845HS	698 Points
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	685 Points -2%
Average AMD Ryzen 7 8845HS (673 - 698, n=11)	685 Points -2%
AcePC Wizbox AI Intel Core Ultra 7 155H	681 Points -2%
Geekom GT13 Pro Intel Core i9-13900H	659 Points -6%
GMK NucBox M4 Intel Core i9-11900H	615 Points -12%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	604 Points -13%
Aoostar GEM10 AMD Ryzen 7 6800H	598 Points -14%
GMK NucBox M6 AMD Ryzen 5 6600H	584 Points -16%
Geekom A5 AMD Ryzen 7 5800H	551 Points -21%
GMK NucBox M5 AMD Ryzen 7 5700U	495 Points -29%

Cinebench R15 / CPU Multi 64Bit
Minisforum G7 PT AMD Ryzen 9 7945HX	4998 Points +90%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2746 Points +5%
Geekom A8 AMD Ryzen 9 8945HS	2640 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H	2638 (2192.5^min - 2638.35^max) Points 0%
Beelink SER8 AMD Ryzen 7 8845HS	2627 (2586.82^min - 2626.57^max) Points
Beelink SER7 AMD Ryzen 7 7840HS	2565 (2511.62^min - 2564.76^max) Points -2%
Average AMD Ryzen 7 8845HS (2342 - 2908, n=11)	2556 Points -3%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2405 Points -8%
Geekom GT13 Pro Intel Core i9-13900H	2260 Points -14%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2249 Points -14%
Acemagic M2A Intel Core i9-12900H	2136 Points -19%
Aoostar GEM10 AMD Ryzen 7 6800H	2117 Points -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points -24%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	1795 Points -32%
Geekom A5 AMD Ryzen 7 5800H	1773 Points -33%
GMK NucBox M4 Intel Core i9-11900H	1770 (1710.13^min - 1769.75^max) Points -33%
GMK NucBox M6 AMD Ryzen 5 6600H	1737 (1708.16^min - 1737.02^max) Points -34%
GMK NucBox M5 AMD Ryzen 7 5700U	1130 (1041.59^min - 1129.53^max) Points -57%

Cinebench R15 / CPU Single 64Bit
Minisforum G7 PT AMD Ryzen 9 7945HX	309 Points +9%
Geekom A8 AMD Ryzen 9 8945HS	287 Points +1%
Beelink SER7 AMD Ryzen 7 7840HS	283 Points 0%
Beelink SER8 AMD Ryzen 7 8845HS	283 Points
Average AMD Ryzen 7 8845HS (269 - 283, n=11)	276 Points -2%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	270 Points -5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	268 Points -5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points -6%
Acemagic M2A Intel Core i9-12900H	266 Points -6%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	256 Points -10%
AcePC Wizbox AI Intel Core Ultra 7 155H	251 Points -11%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	245 Points -13%
Geekom GT13 Pro Intel Core i9-13900H	245 Points -13%
GMK NucBox M4 Intel Core i9-11900H	243 Points -14%
GMK NucBox M6 AMD Ryzen 5 6600H	243 Points -14%
Aoostar GEM10 AMD Ryzen 7 6800H	240 Points -15%
Geekom A5 AMD Ryzen 7 5800H	227 Points -20%
GMK NucBox M5 AMD Ryzen 7 5700U	188.1 Points -34%

Blender / v2.79 BMW27 CPU
GMK NucBox M5 AMD Ryzen 7 5700U	427 Seconds * -124%
Geekom A5 AMD Ryzen 7 5800H	293 Seconds * -53%
GMK NucBox M6 AMD Ryzen 5 6600H	293 Seconds * -53%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	279 Seconds * -46%
GMK NucBox M4 Intel Core i9-11900H	270 Seconds * -41%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -40%
Geekom GT13 Pro Intel Core i9-13900H	262 Seconds * -37%
Aoostar GEM10 AMD Ryzen 7 6800H	259 Seconds * -36%
Acemagic M2A Intel Core i9-12900H	254 Seconds * -33%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	234 Seconds * -23%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	223 Seconds * -17%
AcePC Wizbox AI Intel Core Ultra 7 155H	205 Seconds * -7%
Average AMD Ryzen 7 8845HS (179 - 216, n=11)	202 Seconds * -6%
Beelink SER7 AMD Ryzen 7 7840HS	196 Seconds * -3%
Geekom A8 AMD Ryzen 9 8945HS	196 Seconds * -3%
Beelink SER8 AMD Ryzen 7 8845HS	191 Seconds *
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	171 Seconds * +10%
Minisforum G7 PT AMD Ryzen 9 7945HX	99 Seconds * +48%

7-Zip 18.03 / 7z b 4
Minisforum G7 PT AMD Ryzen 9 7945HX	131378 MIPS +85%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	71934 MIPS +1%
Geekom A8 AMD Ryzen 9 8945HS	71874 MIPS +1%
Beelink SER8 AMD Ryzen 7 8845HS	70937 MIPS
Beelink SER7 AMD Ryzen 7 7840HS	69882 MIPS -1%
Average AMD Ryzen 7 8845HS (62669 - 74664, n=11)	67906 MIPS -4%
AcePC Wizbox AI Intel Core Ultra 7 155H	62334 MIPS -12%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	55620 MIPS -22%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	55528 MIPS -22%
Aoostar GEM10 AMD Ryzen 7 6800H	55067 MIPS -22%
Geekom A5 AMD Ryzen 7 5800H	53954 MIPS -24%
Acemagic M2A Intel Core i9-12900H	52663 MIPS -26%
Geekom GT13 Pro Intel Core i9-13900H	52479 MIPS -26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -28%
GMK NucBox M4 Intel Core i9-11900H	49486 MIPS -30%
GMK NucBox M6 AMD Ryzen 5 6600H	49353 MIPS -30%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	48327 MIPS -32%
GMK NucBox M5 AMD Ryzen 7 5700U	34172 MIPS -52%

7-Zip 18.03 / 7z b 4 -mmt1
Minisforum G7 PT AMD Ryzen 9 7945HX	7609 MIPS +13%
Beelink SER7 AMD Ryzen 7 7840HS	6734 MIPS 0%
Beelink SER8 AMD Ryzen 7 8845HS	6714 MIPS
Geekom A8 AMD Ryzen 9 8945HS	6668 MIPS -1%
Geekom GT13 Pro Intel Core i9-13900H	6321 MIPS -6%
Average AMD Ryzen 7 8845HS (5197 - 6714, n=11)	6288 MIPS -6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	6136 MIPS -9%
Acemagic M2A Intel Core i9-12900H	6076 MIPS -10%
GMK NucBox M4 Intel Core i9-11900H	6018 MIPS -10%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5887 MIPS -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS -13%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	5796 MIPS -14%
GMK NucBox M6 AMD Ryzen 5 6600H	5720 MIPS -15%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	5560 MIPS -17%
Aoostar GEM10 AMD Ryzen 7 6800H	5521 MIPS -18%
Geekom A5 AMD Ryzen 7 5800H	5486 MIPS -18%
AcePC Wizbox AI Intel Core Ultra 7 155H	5344 MIPS -20%
GMK NucBox M5 AMD Ryzen 7 5700U	4599 MIPS -32%

Geekbench 6.3 / Multi-Core
Minisforum G7 PT AMD Ryzen 9 7945HX	16765 Points +25%
Geekom A8 AMD Ryzen 9 8945HS	13619 Points +2%
Beelink SER8 AMD Ryzen 7 8845HS	13362 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13356 Points 0%
Average AMD Ryzen 7 8845HS (11073 - 14014, n=15)	12791 Points -4%
Beelink SER7 AMD Ryzen 7 7840HS	12694 Points -5%
AcePC Wizbox AI Intel Core Ultra 7 155H	12539 Points -6%
Acemagic M2A Intel Core i9-12900H	12044 Points -10%
Geekom GT13 Pro Intel Core i9-13900H	11358 Points -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10997 Points -18%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10721 Points -20%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10348 Points -23%
Aoostar GEM10 AMD Ryzen 7 6800H	9527 Points -29%
Geekom A5 AMD Ryzen 7 5800H	9411 Points -30%
GMK NucBox M4 Intel Core i9-11900H	9401 Points -30%
GMK NucBox M6 AMD Ryzen 5 6600H	9240 Points -31%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	7854 Points -41%
GMK NucBox M5 AMD Ryzen 7 5700U	6260 Points -53%

Geekbench 6.3 / Single-Core
Minisforum G7 PT AMD Ryzen 9 7945HX	2880 Points +7%
Geekom A8 AMD Ryzen 9 8945HS	2698 Points 0%
Beelink SER8 AMD Ryzen 7 8845HS	2694 Points
Beelink SER7 AMD Ryzen 7 7840HS	2657 Points -1%
Average AMD Ryzen 7 8845HS (2510 - 2698, n=13)	2617 Points -3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2611 Points -3%
Acemagic M2A Intel Core i9-12900H	2582 Points -4%
Geekom GT13 Pro Intel Core i9-13900H	2580 Points -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	2575 Points -4%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2492 Points -7%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2483 Points -8%
AcePC Wizbox AI Intel Core Ultra 7 155H	2415 Points -10%
GMK NucBox M4 Intel Core i9-11900H	2355 Points -13%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	2072 Points -23%
Aoostar GEM10 AMD Ryzen 7 6800H	2049 Points -24%
GMK NucBox M6 AMD Ryzen 5 6600H	2042 Points -24%
Geekom A5 AMD Ryzen 7 5800H	1991 Points -26%
GMK NucBox M5 AMD Ryzen 7 5700U	1625 Points -40%

Geekbench 5.5 / Multi-Core
Minisforum G7 PT AMD Ryzen 9 7945HX	19836 Points +63%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13392 Points +10%
Geekom A8 AMD Ryzen 9 8945HS	12481 Points +2%
AcePC Wizbox AI Intel Core Ultra 7 155H	12248 Points 0%
Beelink SER8 AMD Ryzen 7 8845HS	12196 Points
Average AMD Ryzen 7 8845HS (11256 - 12726, n=12)	11855 Points -3%
Beelink SER7 AMD Ryzen 7 7840HS	11423 Points -6%
Acemagic M2A Intel Core i9-12900H	11406 Points -6%
Geekom GT13 Pro Intel Core i9-13900H	11283 Points -7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10378 Points -15%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10322 Points -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points -16%
Aoostar GEM10 AMD Ryzen 7 6800H	8898 Points -27%
GMK NucBox M4 Intel Core i9-11900H	8829 Points -28%
Geekom A5 AMD Ryzen 7 5800H	8823 Points -28%
GMK NucBox M6 AMD Ryzen 5 6600H	8195 Points -33%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	7368 Points -40%
GMK NucBox M5 AMD Ryzen 7 5700U	5593 Points -54%

Geekbench 5.5 / Single-Core
Minisforum G7 PT AMD Ryzen 9 7945HX	2147 Points +7%
Beelink SER8 AMD Ryzen 7 8845HS	2004 Points
Geekom A8 AMD Ryzen 9 8945HS	1996 Points 0%
Beelink SER7 AMD Ryzen 7 7840HS	1983 Points -1%
Average AMD Ryzen 7 8845HS (1765 - 2004, n=12)	1924 Points -4%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1866 Points -7%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1856 Points -7%
Acemagic M2A Intel Core i9-12900H	1842 Points -8%
Geekom GT13 Pro Intel Core i9-13900H	1841 Points -8%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points -9%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1805 Points -10%
AcePC Wizbox AI Intel Core Ultra 7 155H	1720 Points -14%
GMK NucBox M4 Intel Core i9-11900H	1692 Points -16%
Aoostar GEM10 AMD Ryzen 7 6800H	1552 Points -23%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	1534 Points -23%
GMK NucBox M6 AMD Ryzen 5 6600H	1513 Points -25%
Geekom A5 AMD Ryzen 7 5800H	1494 Points -25%
GMK NucBox M5 AMD Ryzen 7 5700U	1203 Points -40%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum G7 PT AMD Ryzen 9 7945HX	34.6 fps +64%
Beelink SER8 AMD Ryzen 7 8845HS	21.1 fps
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	20.9 fps -1%
Geekom A8 AMD Ryzen 9 8945HS	20.9 fps -1%
Beelink SER7 AMD Ryzen 7 7840HS	20.4 fps -3%
Average AMD Ryzen 7 8845HS (18.6 - 22.7, n=11)	20 fps -5%
AcePC Wizbox AI Intel Core Ultra 7 155H	18.3 fps -13%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	16.3 fps -23%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	16.2 fps -23%
Acemagic M2A Intel Core i9-12900H	15 fps -29%
Aoostar GEM10 AMD Ryzen 7 6800H	14.9 fps -29%
Geekom GT13 Pro Intel Core i9-13900H	14.1 fps -33%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -34%
GMK NucBox M6 AMD Ryzen 5 6600H	13.9 fps -34%
GMK NucBox M4 Intel Core i9-11900H	13.6 fps -36%
Geekom A5 AMD Ryzen 7 5800H	13.3 fps -37%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	12.7 fps -40%
GMK NucBox M5 AMD Ryzen 7 5700U	8.44 fps -60%

LibreOffice / 20 Documents To PDF
GMK NucBox M5 AMD Ryzen 7 5700U	58 s * -26%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	54.8 s * -19%
Geekom A5 AMD Ryzen 7 5800H	54.3 s * -18%
AcePC Wizbox AI Intel Core Ultra 7 155H	53 s * -15%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	52.5 s * -14%
GMK NucBox M6 AMD Ryzen 5 6600H	52.4 s * -14%
Aoostar GEM10 AMD Ryzen 7 6800H	51.2 s * -11%
Average AMD Ryzen 7 8845HS (44.4 - 77, n=11)	51 s * -11%
Geekom A8 AMD Ryzen 9 8945HS	49.9 s * -8%
Minisforum G7 PT AMD Ryzen 9 7945HX	49.7 s * -8%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	49.5 s * -7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -2%
Beelink SER8 AMD Ryzen 7 8845HS	46.1 s *
GMK NucBox M4 Intel Core i9-11900H	42.3 s * +8%
Acemagic M2A Intel Core i9-12900H	40 s * +13%
Beelink SER7 AMD Ryzen 7 7840HS	39.7 s * +14%
Geekom GT13 Pro Intel Core i9-13900H	39.4 s * +15%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	37.2 s * +19%

R Benchmark 2.5 / Overall mean
GMK NucBox M5 AMD Ryzen 7 5700U	0.584 sec * -35%
Geekom A5 AMD Ryzen 7 5800H	0.523 sec * -21%
GMK NucBox M4 Intel Core i9-11900H	0.52 sec * -20%
Aoostar GEM10 AMD Ryzen 7 6800H	0.515 sec * -19%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	0.507 sec * -17%
GMK NucBox M6 AMD Ryzen 5 6600H	0.4995 sec * -15%
AcePC Wizbox AI Intel Core Ultra 7 155H	0.4801 sec * -11%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	0.4627 sec * -7%
Average AMD Ryzen 7 8845HS (0.4304 - 0.4935, n=11)	0.4528 sec * -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * -4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	0.4469 sec * -3%
Beelink SER7 AMD Ryzen 7 7840HS	0.4446 sec * -3%
Geekom GT13 Pro Intel Core i9-13900H	0.4395 sec * -1%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	0.4391 sec * -1%
Acemagic M2A Intel Core i9-12900H	0.4347 sec * -0%
Geekom A8 AMD Ryzen 9 8945HS	0.4346 sec * -0%
Beelink SER8 AMD Ryzen 7 8845HS	0.4336 sec *
Minisforum G7 PT AMD Ryzen 9 7945HX	0.406 sec * +6%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Performance Rating
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	99.9 pt
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	96.9 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	93.8 pt
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	93.6 pt
Average AMD Ryzen 7 8845HS	89.8 pt
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	67 pt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	56.5 pt

AIDA64 / FP32 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	27538 KRay/s +5%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	26305 KRay/s
Average AMD Ryzen 7 8845HS (23708 - 29544, n=11)	25839 KRay/s -2%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	25685 KRay/s -2%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	25360 KRay/s -4%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	13726 KRay/s -48%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	11735 KRay/s -55%

AIDA64 / FPU Julia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	116903 Points +5%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	111508 Points
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	109853 Points -1%
Average AMD Ryzen 7 8845HS (99659 - 125873, n=11)	109203 Points -2%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	107805 Points -3%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	86223 Points -23%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	59094 Points -47%

AIDA64 / CPU SHA3
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	5096 MB/s +3%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	4933 MB/s
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	4783 MB/s -3%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	4763 MB/s -3%
Average AMD Ryzen 7 8845HS (4332 - 5180, n=11)	4708 MB/s -5%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	2953 MB/s -40%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	2718 MB/s -45%

AIDA64 / CPU Queen
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	117764 Points +2%
Average AMD Ryzen 7 8845HS (109458 - 124695, n=11)	116188 Points +1%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	115546 Points
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	111969 Points -3%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	111803 Points -3%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	98582 Points -15%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	93952 Points -19%

AIDA64 / FPU SinJulia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	15525 Points +1%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	15420 Points
Average AMD Ryzen 7 8845HS (14062 - 15519, n=11)	14859 Points -4%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	14721 Points -5%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	14705 Points -5%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	12159 Points -21%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	8026 Points -48%

AIDA64 / FPU Mandel
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	62378 Points +5%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	59522 Points
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	58699 Points -1%
Average AMD Ryzen 7 8845HS (53436 - 67367, n=11)	58328 Points -2%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	57534 Points -3%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	47463 Points -20%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	29138 Points -51%

AIDA64 / CPU AES
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	177158 MB/s +3%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	172642 MB/s
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	164041 MB/s -5%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	161216 MB/s -7%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	119681 MB/s -31%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	102677 MB/s -41%
Average AMD Ryzen 7 8845HS (64515 - 172642, n=11)	95038 MB/s -45%

AIDA64 / CPU ZLib
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	1103 MB/s +3%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	1073 MB/s
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	1031 MB/s -4%
Average AMD Ryzen 7 8845HS (627 - 1080, n=11)	979 MB/s -9%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	949 MB/s -12%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	789 MB/s -26%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	757 MB/s -29%

AIDA64 / FP64 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	14722 KRay/s +5%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	14041 KRay/s
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	13904 KRay/s -1%
Average AMD Ryzen 7 8845HS (12361 - 15911, n=11)	13740 KRay/s -2%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	13642 KRay/s -3%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	7279 KRay/s -48%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	6205 KRay/s -56%

AIDA64 / CPU PhotoWorxx
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	41088 MPixel/s +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	40760 MPixel/s +1%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	40726 MPixel/s +1%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	40489 MPixel/s
Average AMD Ryzen 7 8845HS (33192 - 41668, n=11)	38987 MPixel/s -4%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	28269 MPixel/s -30%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	26496 MPixel/s -35%

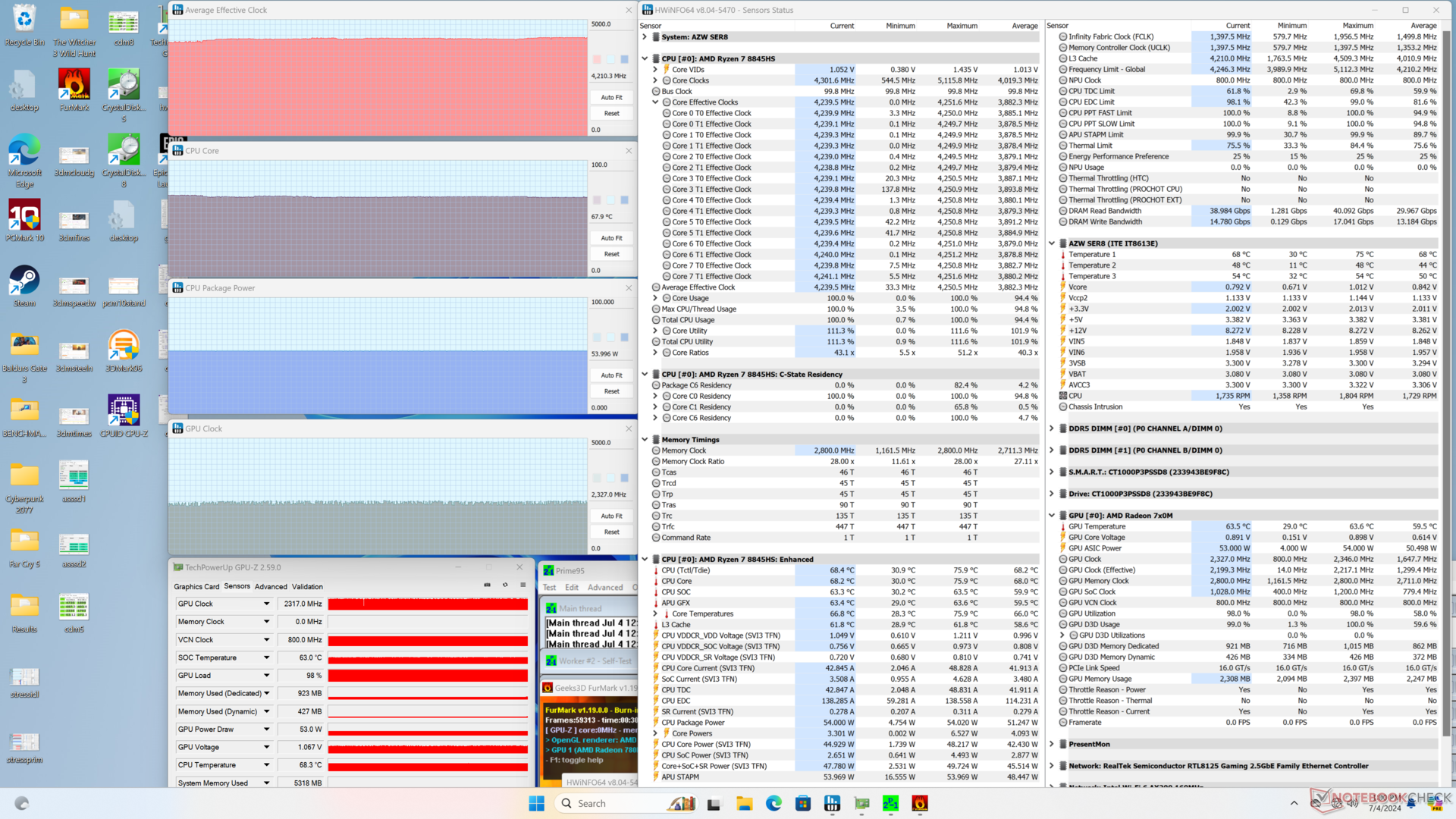

压力测试

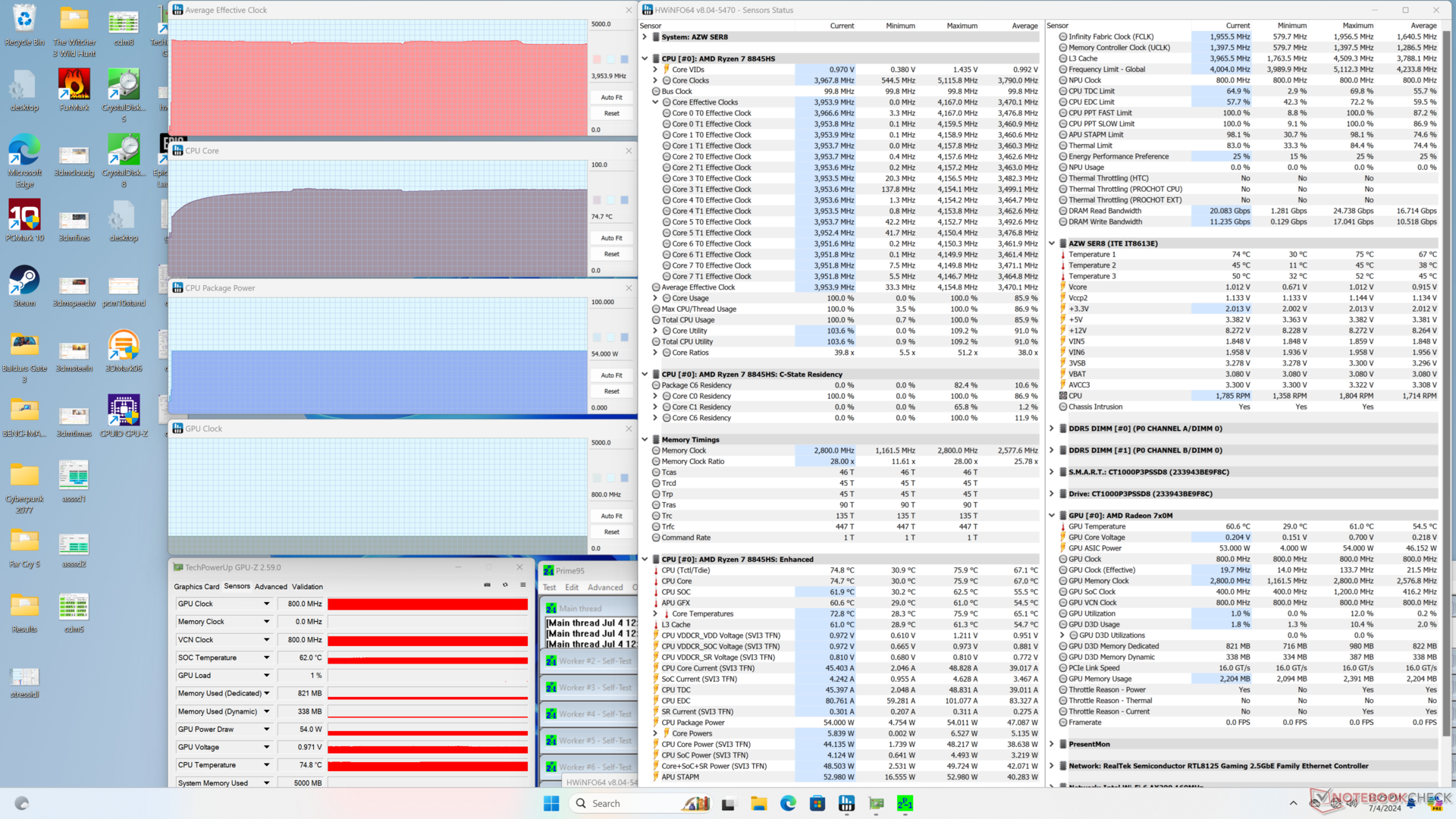

在运行 Prime95 压力测试时，CPU 的主频将提升至 4.0 GHz，并保持 54 W 的功耗，没有出现制造商所宣传的功耗骤降现象。核心温度也稳定在合理的 75 摄氏度，为 65 W 设置留出了一点余地。

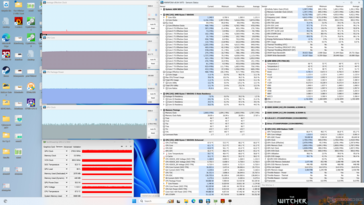

GPU 运行时的时钟频率和温度 Witcher 3分别为 2700 MHz 和 62 C，而 SER7 为 2526 MHz 和 64 C。 SER7 尽管 SER8 在游戏时的风扇噪音要小得多。

系统性能

在集成显卡的迷你 PC 中，PCMark 的一些结果是最高的，但与我们去年在 SER7 上记录的结果相比，并没有高出太多，在日常应用和工作负载方面仅有微不足道的改进。尽管从 Zen 3+ 升级到了 Zen 4，内存性能也没有提高。

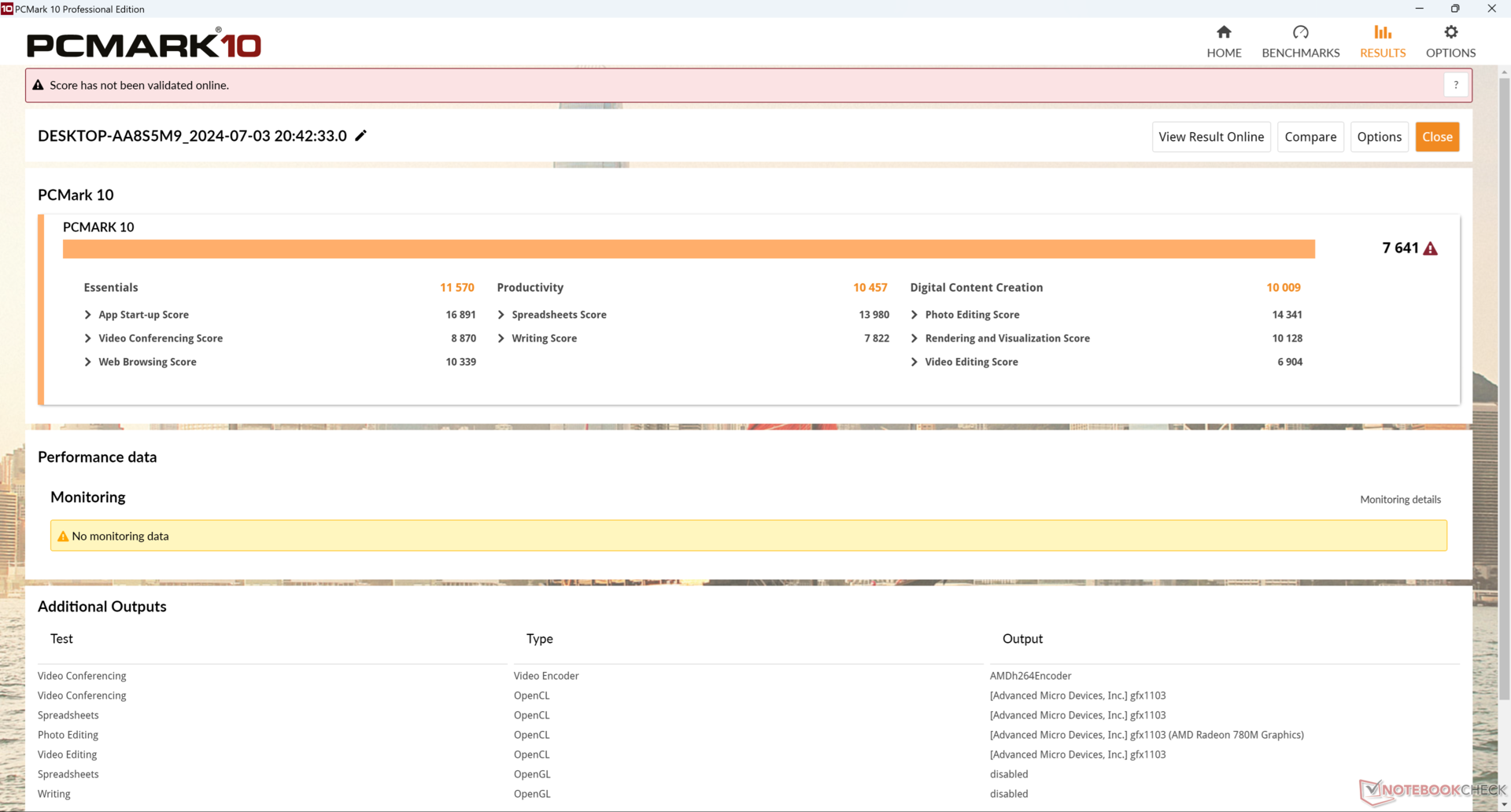

PCMark 10 / Score
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	7641 Points
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	7529 Points -1%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	7453 Points -2%
Average AMD Ryzen 7 8845HS, AMD Radeon 780M (7120 - 7641, n=7)	7320 Points -4%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	7225 Points -5%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	6749 Points -12%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	5944 Points -22%

PCMark 10 / Essentials
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	11570 Points
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	11214 Points -3%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	11155 Points -4%
Average AMD Ryzen 7 8845HS, AMD Radeon 780M (10685 - 11570, n=7)	11015 Points -5%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10819 Points -6%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	10522 Points -9%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	10347 Points -11%

PCMark 10 / Productivity
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10702 Points +2%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10591 Points +1%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	10457 Points
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10452 Points 0%
Average AMD Ryzen 7 8845HS, AMD Radeon 780M (9787 - 10482, n=7)	10170 Points -3%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	9367 Points -10%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	7319 Points -30%

PCMark 10 / Digital Content Creation
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	10009 Points
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	9752 Points -3%
Average AMD Ryzen 7 8845HS, AMD Radeon 780M (9009 - 10009, n=7)	9506 Points -5%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	9409 Points -6%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	9052 Points -10%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	8466 Points -15%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	7527 Points -25%

CrossMark / Overall
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1875 Points
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1873 Points 0%
Average AMD Ryzen 7 8845HS, AMD Radeon 780M (1633 - 1939, n=7)	1776 Points -5%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	1766 Points -6%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1700 Points -9%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	1648 Points -12%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1566 Points -16%

CrossMark / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1816 Points +1%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1802 Points
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	1736 Points -4%
Average AMD Ryzen 7 8845HS, AMD Radeon 780M (1562 - 1872, n=7)	1711 Points -5%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	1629 Points -10%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1621 Points -10%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1559 Points -13%

CrossMark / Creativity
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	2009 Points
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1994 Points -1%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1953 Points -3%
Average AMD Ryzen 7 8845HS, AMD Radeon 780M (1734 - 2040, n=7)	1912 Points -5%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	1789 Points -11%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	1696 Points -16%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1556 Points -23%

CrossMark / Responsiveness
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	1790 Points +4%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1718 Points
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1706 Points -1%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1620 Points -6%
Average AMD Ryzen 7 8845HS, AMD Radeon 780M (1437 - 1849, n=7)	1595 Points -7%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	1566 Points -9%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1293 Points -25%

WebXPRT 3 / Overall
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	339 Points +1%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	334 Points
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	332 Points -1%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	328 Points -2%
Average AMD Ryzen 7 8845HS, AMD Radeon 780M (295 - 334, n=7)	307 Points -8%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	304 Points -9%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	275 Points -18%

WebXPRT 4 / Overall
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	280 Points +5%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	266 Points 0%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	266 Points
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	265 Points 0%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	263 Points -1%
Average AMD Ryzen 7 8845HS, AMD Radeon 780M (245 - 314, n=7)	263 Points -1%
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	223 Points -16%

Mozilla Kraken 1.1 / Total
Aoostar GEM10 Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB	591 ms * -18%
Average AMD Ryzen 7 8845HS, AMD Radeon 780M (501 - 664, n=7)	541 ms * -8%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	534 ms * -7%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	518 ms * -3%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	517 ms * -3%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	501 ms *
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	485 ms * +3%

* ... smaller is better

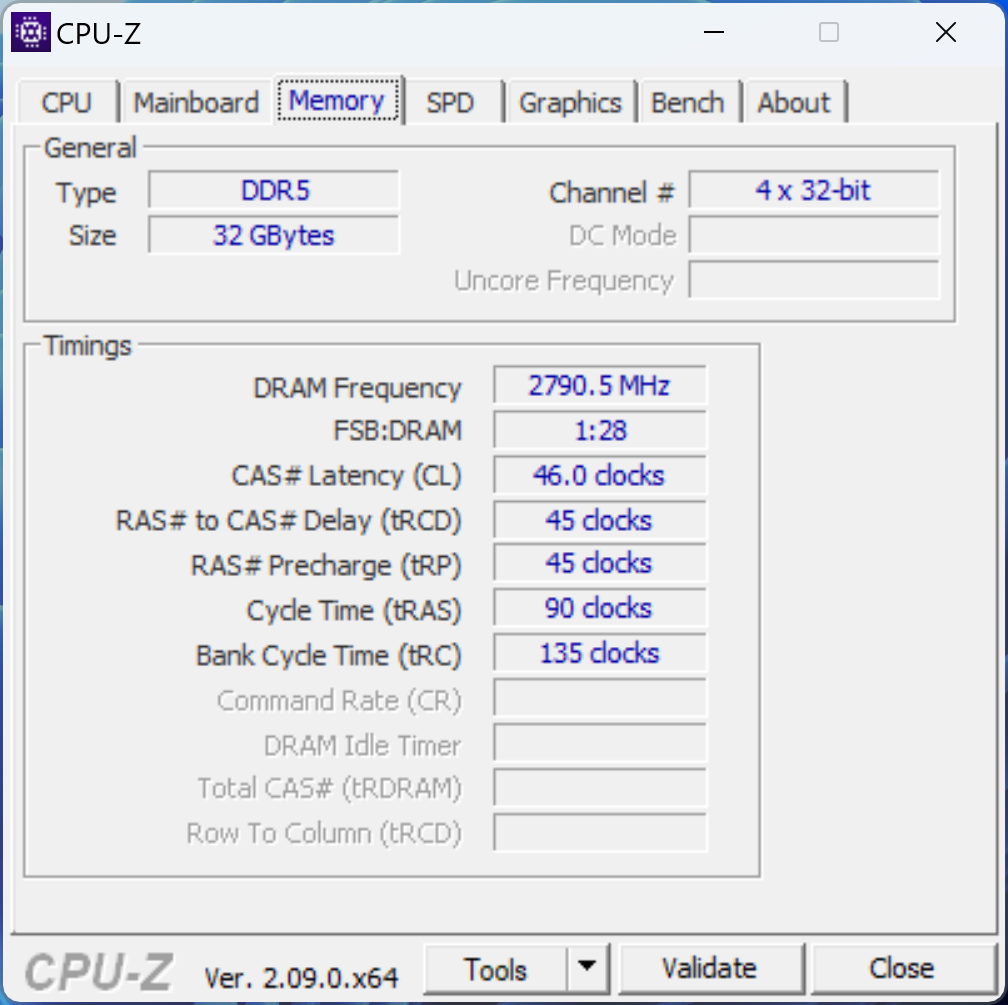

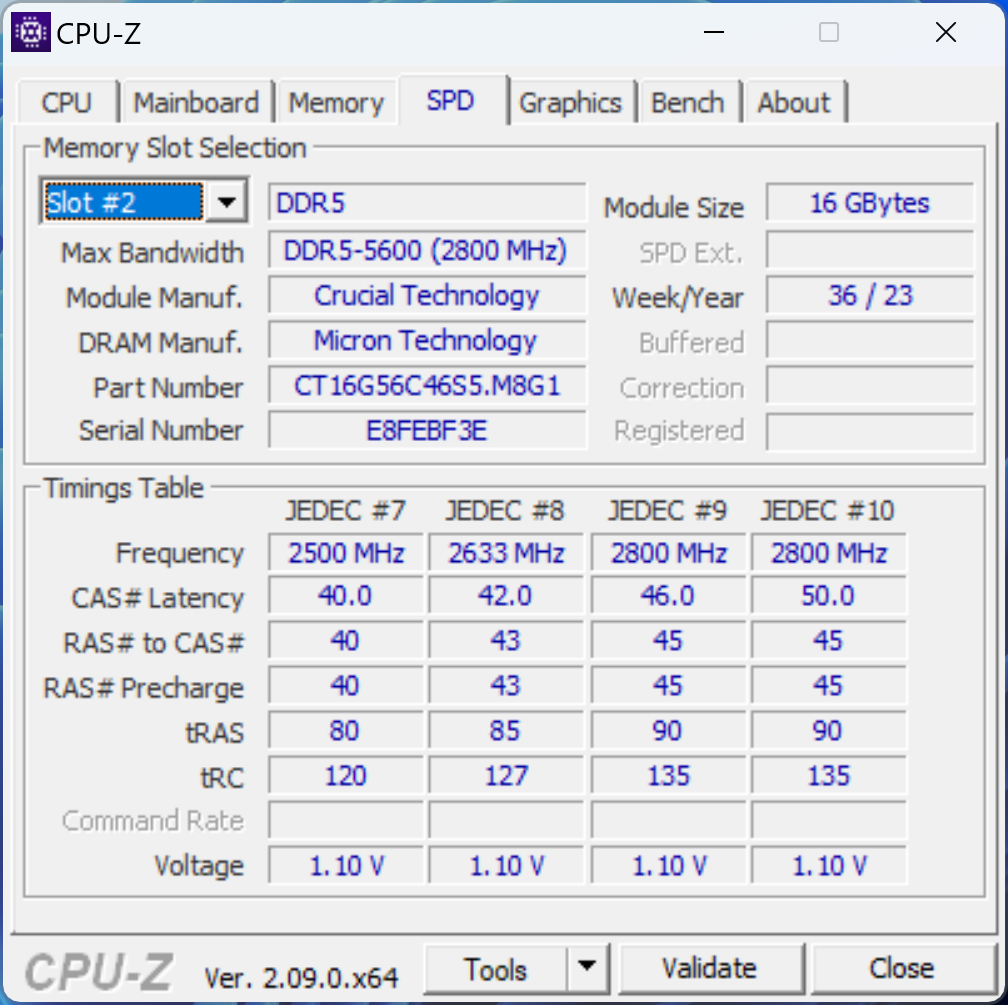

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	69325 MB/s +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	69281 MB/s +1%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	69199 MB/s +1%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	68283 MB/s
Average AMD Ryzen 7 8845HS (61459 - 71873, n=11)	67394 MB/s -1%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	50829 MB/s -26%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45721 MB/s -33%

AIDA64 / Memory Read
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	61976 MB/s
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	61911 MB/s 0%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	61838 MB/s 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	61708 MB/s 0%
Average AMD Ryzen 7 8845HS (49866 - 61976, n=11)	58208 MB/s -6%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45995 MB/s -26%
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	43828 MB/s -29%

AIDA64 / Memory Write
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	87358 MB/s +2%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	87226 MB/s +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	86528 MB/s +1%
Average AMD Ryzen 7 8845HS (68425 - 93239, n=11)	85626 MB/s 0%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	85464 MB/s
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	51116 MB/s -40%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45733 MB/s -46%

AIDA64 / Memory Latency
Aoostar GEM10 AMD Ryzen 7 6800H, Radeon 680M	104.1 ns * -17%
Average AMD Ryzen 7 8845HS (82.5 - 117, n=11)	96.9 ns * -9%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	88.9 ns *
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	88.1 ns * +1%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	85.1 ns * +4%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	85.1 ns * +4%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	75.8 ns * +15%

* ... smaller is better

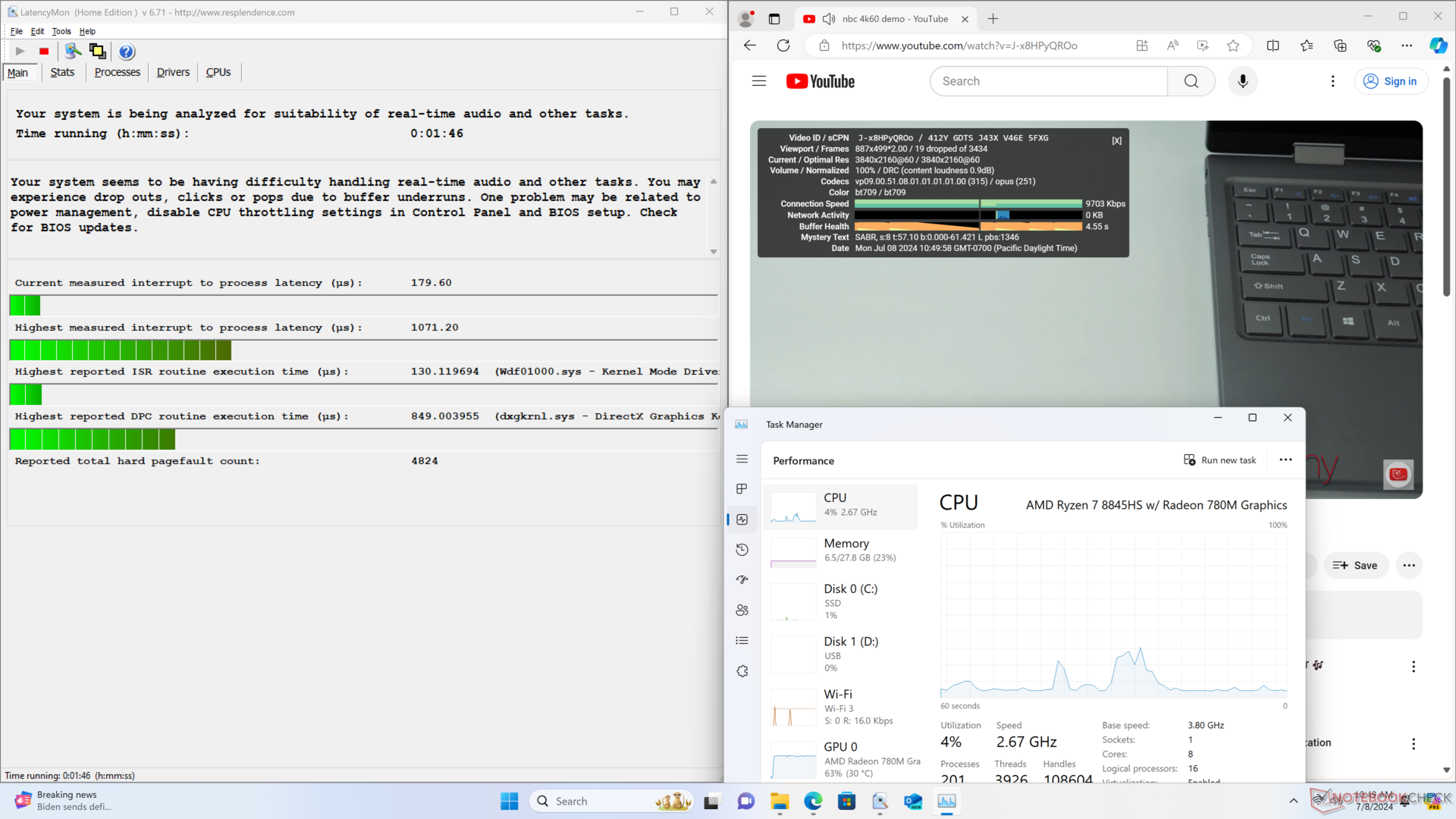

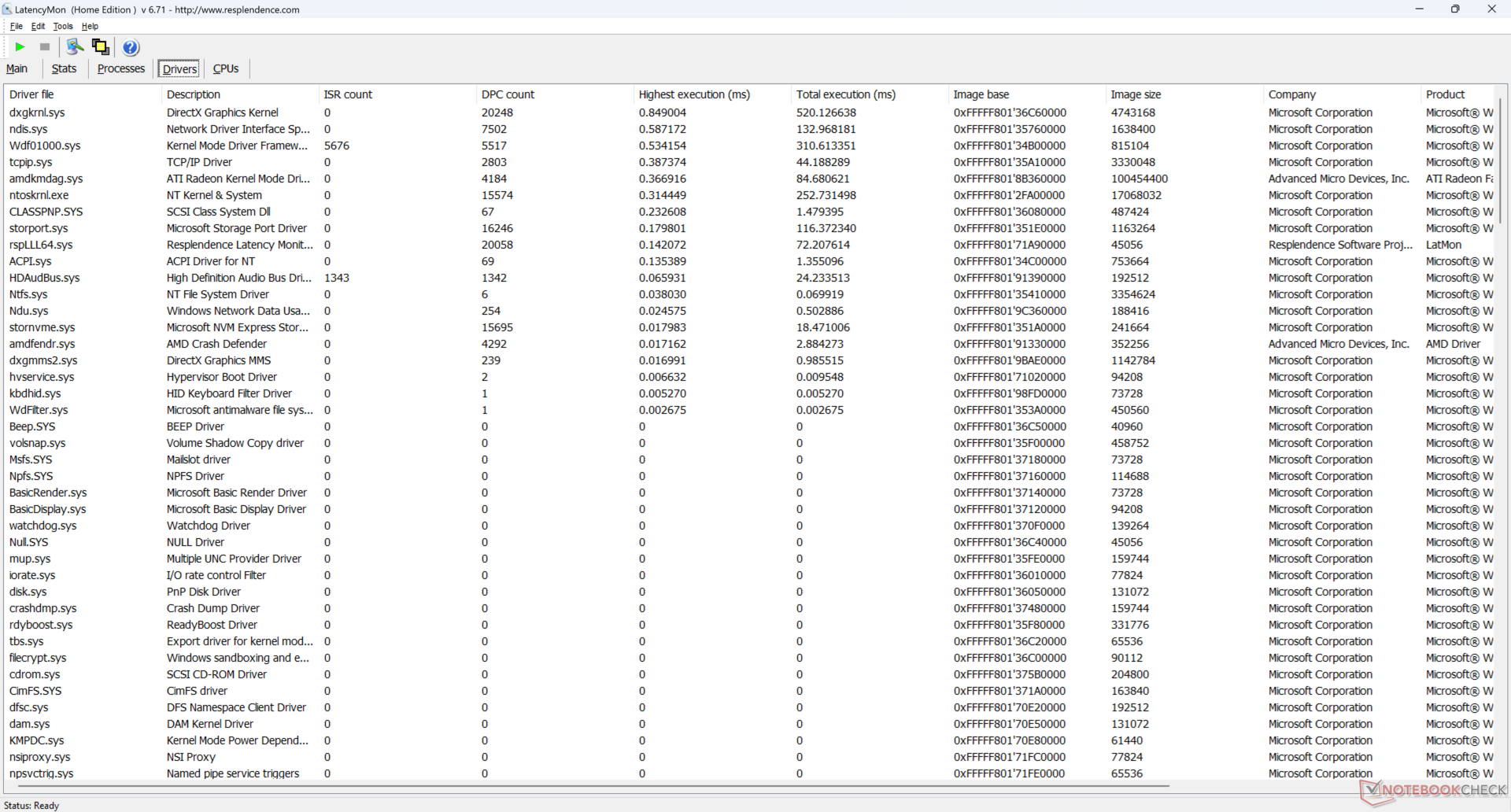

DPC 延迟

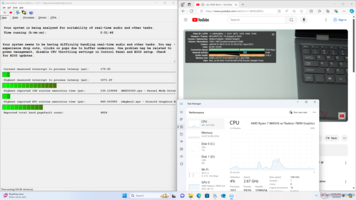

在打开主页的多个浏览器标签页时，LatencyMon 没有发现重大的 DPC 问题。遗憾的是，4K60 视频回放并不完美，在一个 60 秒的窗口中记录了 20 次丢帧。这个问题在 AMD 处理器上比在英特尔处理器上更为常见，令人失望的是，这一趋势在 SER8 上仍在继续。大多数用户不会注意到偶尔出现的跳帧现象，但理想的情况是首先不出现跳帧，尤其是 Ryzen 7 HS 级处理器。

存储设备

该型号配备相同的 Crucial P3 Plus CT1000P3PSSD8PCIe4 x4 NVMe 固态硬盘，与 GTR7 和 SER7 上相同的 Crucial P3 Plus CT1000P3PSSD8 PCIe4 x4 NVMe 固态硬盘，使 Beelink mini PC 之间的一致性令人欣慰。我们很欣赏该制造商采用知名品牌的固态硬盘，而其他迷你 PC 制造商，如 GMktec 等其他迷你 PC 制造商则倾向于使用知名度较低的 SSD 品牌。从下面的 DiskSpd 循环测试结果来看，性能的可持续性非常好，没有出现节流问题。

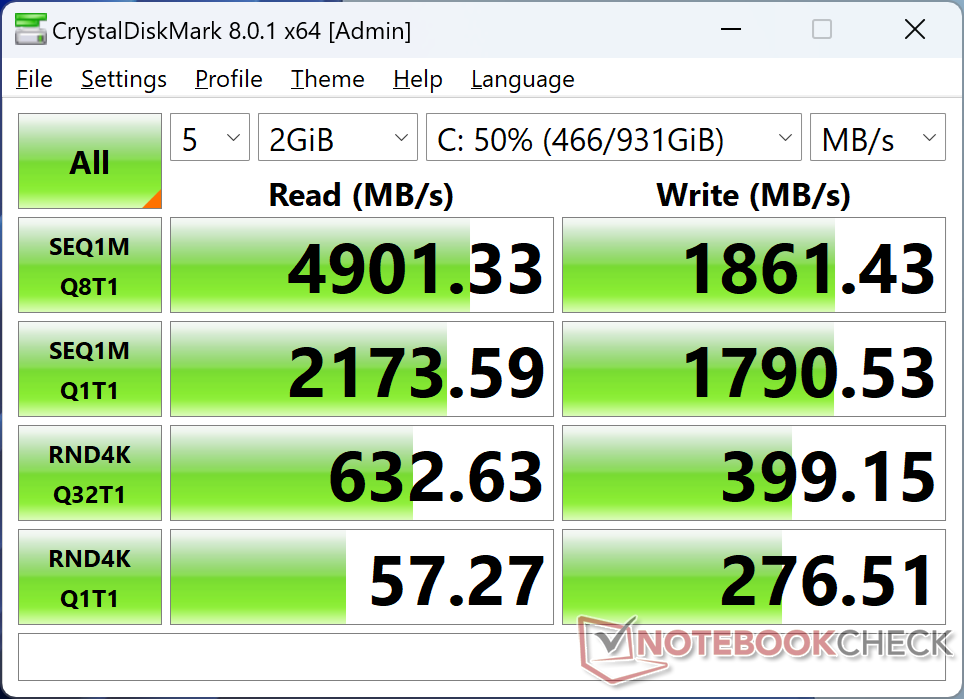

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Crucial P3 Plus CT1000P3PSSD8

CDM 5/6 Read Seq Q32T1: 4735 MB/s

CDM 5/6 Write Seq Q32T1: 1899 MB/s

CDM 5/6 Read 4K Q32T1: 697.3 MB/s

CDM 5/6 Write 4K Q32T1: 403 MB/s

CDM 5 Read Seq: 2335 MB/s

CDM 5 Write Seq: 1793 MB/s

CDM 5/6 Read 4K: 63.12 MB/s

CDM 5/6 Write 4K: 273.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K6 MasonSemi 1TB MC7000	83 pt
Geekom GT13 Pro Acer N7000	79.5 pt
Aoostar GEM10 BIWIN CE980Y28900-1TB	71.4 pt
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	68.7 pt
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	61.1 pt
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	45.6 pt

DiskSpd
seq read
Geekom GT13 Pro Acer N7000	4357 (4314.26^min - 4356.72^max) MB/s +40%
Aoostar GEM10 BIWIN CE980Y28900-1TB	4000 (3961.36^min - 3999.66^max) MB/s +29%
GMK NucBox K6 MasonSemi 1TB MC7000	3703 (3243.89^min - 3702.94^max) MB/s +19%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3106 (3062.47^min - 3106.43^max) MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3033 (3026.64^min - 3032.69^max) MB/s -2%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2718 (2645.56^min - 2717.91^max) MB/s -12%
seq write
GMK NucBox K6 MasonSemi 1TB MC7000	5595 (1443.73^min - 5595.13^max) MB/s +22%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4604 (4532.99^min - 4603.88^max) MB/s
Aoostar GEM10 BIWIN CE980Y28900-1TB	4553 (4417.86^min - 4552.92^max) MB/s -1%
Geekom GT13 Pro Acer N7000	4544 (4380.79^min - 4543.83^max) MB/s -1%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3591 (3535.23^min - 3591.16^max) MB/s -22%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3404 (38.3^min - 3403.58^max) MB/s -26%
seq q8 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	7069 (6459.52^min - 7068.99^max) MB/s +36%
Geekom GT13 Pro Acer N7000	7007 (6166.72^min - 7006.62^max) MB/s +35%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	5195 (4594.02^min - 5195.39^max) MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5174 (4541.87^min - 5174.3^max) MB/s 0%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	4893 (3920.33^min - 4893.08^max) MB/s -6%
Aoostar GEM10 BIWIN CE980Y28900-1TB	4878 (4476.29^min - 4877.98^max) MB/s -6%
seq q8 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	6669 (1251.16^min - 6668.61^max) MB/s +41%
Geekom GT13 Pro Acer N7000	5261 (5018.9^min - 5261.3^max) MB/s +11%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4725 (4657.36^min - 4724.88^max) MB/s
Aoostar GEM10 BIWIN CE980Y28900-1TB	4505 (4403.81^min - 4505.09^max) MB/s -5%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3570 (3522.17^min - 3569.77^max) MB/s -24%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	739 (52.85^min - 739.46^max) MB/s -84%
4k q1 t1 read
Geekom GT13 Pro Acer N7000	85.3 (82.57^min - 85.32^max) MB/s +7%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	79.7 (77.93^min - 79.74^max) MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	71 (70.41^min - 71.02^max) MB/s -11%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	62.6 (62.13^min - 62.62^max) MB/s -21%
Aoostar GEM10 BIWIN CE980Y28900-1TB	61.7 (61.26^min - 61.71^max) MB/s -23%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	44.2 (41.58^min - 44.2^max) MB/s -45%
4k q1 t1 write
Geekom GT13 Pro Acer N7000	327 (306.06^min - 326.78^max) MB/s +13%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	289 (283.17^min - 289.07^max) MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	269 (266.85^min - 269.05^max) MB/s -7%
GMK NucBox K6 MasonSemi 1TB MC7000	239 (237.67^min - 239.17^max) MB/s -17%
Aoostar GEM10 BIWIN CE980Y28900-1TB	235 (230.8^min - 235.02^max) MB/s -19%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	139.4 (137.92^min - 139.38^max) MB/s -52%
4k q32 t16 read
Geekom GT13 Pro Acer N7000	3593 (3380.17^min - 3593.41^max) MB/s +14%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3139 (3067^min - 3138.94^max) MB/s
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2810 (2697.36^min - 2809.61^max) MB/s -10%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2765 (2513.4^min - 2765.45^max) MB/s -12%
GMK NucBox K6 MasonSemi 1TB MC7000	2463 (2040.37^min - 2463.15^max) MB/s -22%
Aoostar GEM10 BIWIN CE980Y28900-1TB	2004 (2002.37^min - 2004.23^max) MB/s -36%
4k q32 t16 write
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4288 (4275.2^min - 4287.55^max) MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	3983 (3232.63^min - 3982.67^max) MB/s -7%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3254 (3139.57^min - 3253.57^max) MB/s -24%
Aoostar GEM10 BIWIN CE980Y28900-1TB	2681 (2560.18^min - 2680.76^max) MB/s -37%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1066 (54.15^min - 1066.13^max) MB/s -75%
Geekom GT13 Pro Acer N7000	762 (700.88^min - 761.76^max) MB/s -82%

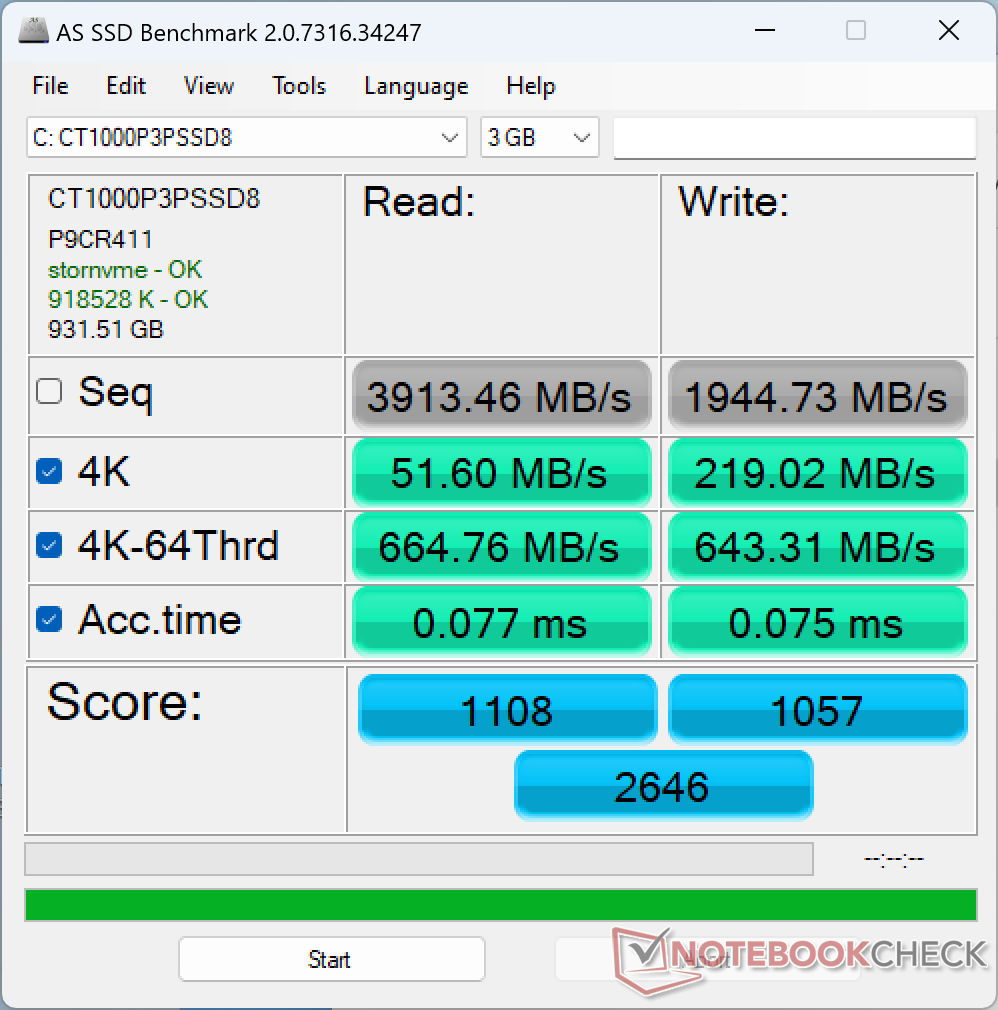

AS SSD
Score Total
GMK NucBox K6 MasonSemi 1TB MC7000	7918 Points +199%
Geekom GT13 Pro Acer N7000	6798 Points +157%
Aoostar GEM10 BIWIN CE980Y28900-1TB	6147 Points +132%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5182 Points +96%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	2646 Points
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2617 Points -1%
Score Read
GMK NucBox K6 MasonSemi 1TB MC7000	3258 Points +194%
Geekom GT13 Pro Acer N7000	2866 Points +159%
Aoostar GEM10 BIWIN CE980Y28900-1TB	2109 Points +90%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1796 Points +62%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1215 Points +10%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1108 Points
Score Write
GMK NucBox K6 MasonSemi 1TB MC7000	3000 Points +184%
Aoostar GEM10 BIWIN CE980Y28900-1TB	2964 Points +180%
Geekom GT13 Pro Acer N7000	2516 Points +138%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2508 Points +137%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1057 Points
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	800 Points -24%
Seq Read
GMK NucBox K6 MasonSemi 1TB MC7000	5825.09 MB/s +49%
Geekom GT13 Pro Acer N7000	4546 MB/s +16%
Aoostar GEM10 BIWIN CE980Y28900-1TB	4264 MB/s +9%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3913.46 MB/s
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3900.61 MB/s 0%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3786.44 MB/s -3%
Seq Write
GMK NucBox K6 MasonSemi 1TB MC7000	5783.3 MB/s +197%
Aoostar GEM10 BIWIN CE980Y28900-1TB	3970 MB/s +104%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3390.67 MB/s +74%
Geekom GT13 Pro Acer N7000	3374 MB/s +73%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2799.85 MB/s +44%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1944.73 MB/s
4K Read
Geekom GT13 Pro Acer N7000	83.4 MB/s +62%
Aoostar GEM10 BIWIN CE980Y28900-1TB	68.4 MB/s +33%
GMK NucBox K6 MasonSemi 1TB MC7000	65.5 MB/s +27%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	59.79 MB/s +16%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	51.6 MB/s
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	37.69 MB/s -27%
4K Write
Geekom GT13 Pro Acer N7000	296 MB/s +35%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	219.02 MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	210.95 MB/s -4%
Aoostar GEM10 BIWIN CE980Y28900-1TB	196.5 MB/s -10%
GMK NucBox K6 MasonSemi 1TB MC7000	190.06 MB/s -13%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	129.29 MB/s -41%
4K-64 Read
GMK NucBox K6 MasonSemi 1TB MC7000	2610.4 MB/s +293%
Geekom GT13 Pro Acer N7000	2328 MB/s +250%
Aoostar GEM10 BIWIN CE980Y28900-1TB	1614 MB/s +143%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1357.17 MB/s +104%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	787.73 MB/s +18%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	664.76 MB/s
4K-64 Write
Aoostar GEM10 BIWIN CE980Y28900-1TB	2370 MB/s +268%
GMK NucBox K6 MasonSemi 1TB MC7000	2231.47 MB/s +247%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2017.38 MB/s +214%
Geekom GT13 Pro Acer N7000	1883 MB/s +193%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	643.31 MB/s
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	331.93 MB/s -48%
Access Time Read
Geekom GT13 Pro Acer N7000	0.127 ms * -65%
Aoostar GEM10 BIWIN CE980Y28900-1TB	0.098 ms * -27%
GMK NucBox K6 MasonSemi 1TB MC7000	0.079 ms * -3%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	0.077 ms *
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.066 ms * +14%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.047 ms * +39%
Access Time Write
GMK NucBox K6 MasonSemi 1TB MC7000	0.196 ms * -161%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.076 ms * -1%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	0.075 ms *
Aoostar GEM10 BIWIN CE980Y28900-1TB	0.061 ms * +19%
Geekom GT13 Pro Acer N7000	0.059 ms * +21%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.049 ms * +35%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SER8 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø5188 (4957.94-5197.46)

Beelink SER7 Crucial P3 Plus CT1000P3PSSD8: Ø5151 (4560.99-5169.27)

图形处理器性能

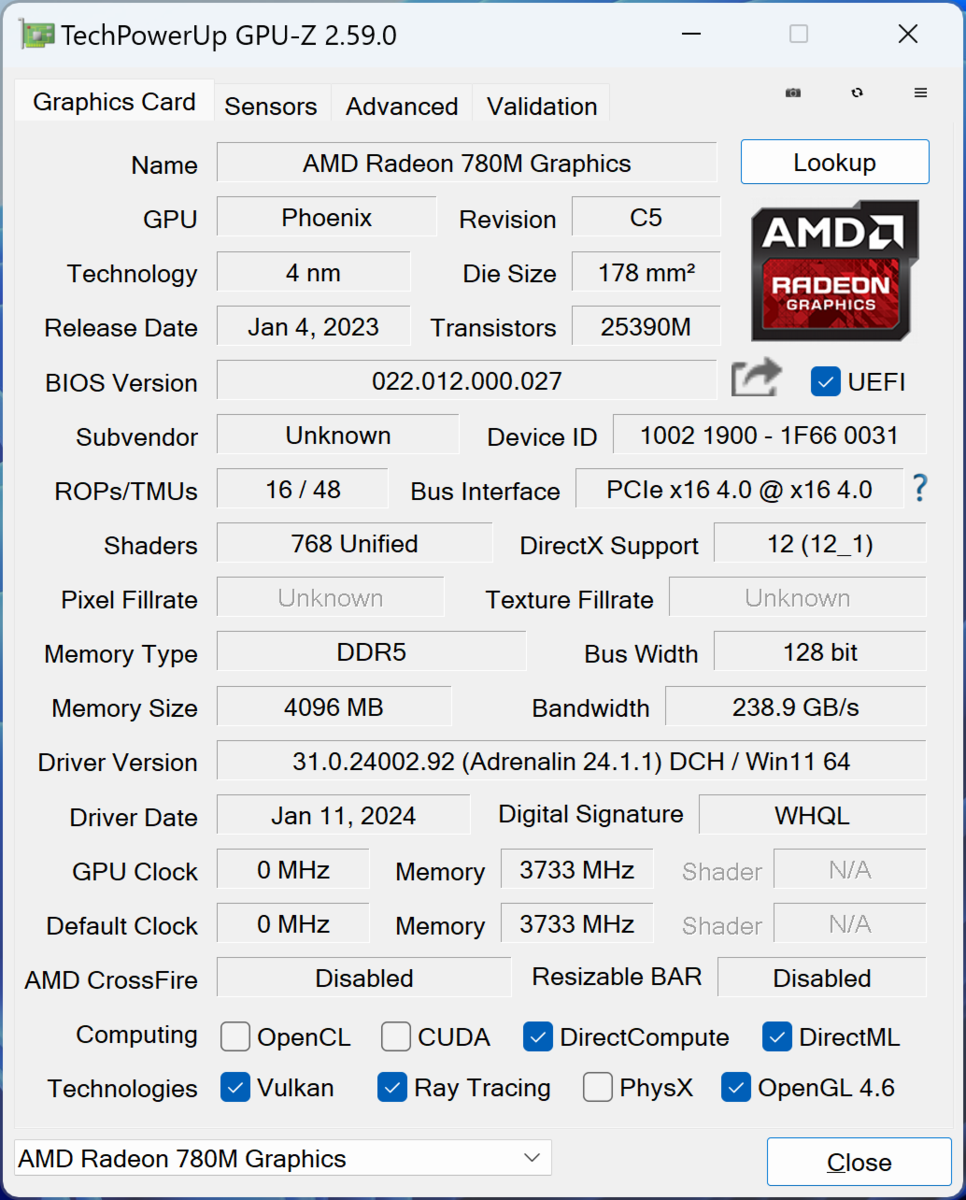

Radeon 780M Radeon 780MRyzen 7 8845HS 中的 Radeon 780M 与去年 SER7 中的相同 GPU 相比，最多只能提供微弱的性能提升。不过，这并不一定是坏事，因为即使与英特尔最新的弧 8 iGPU 相比，AMD 仍与英特尔不相上下。Minisforum AtomMan X 中的 Arc 8 iGPU Minisforum AtomMan X7 Ti例如，在基于 DX12 的Time Spy 基准测试中，Arc 8 iGPU 的速度提高了约 10%，而在基于 DX11 的Fire Strike 基准测试中，情况正好相反。

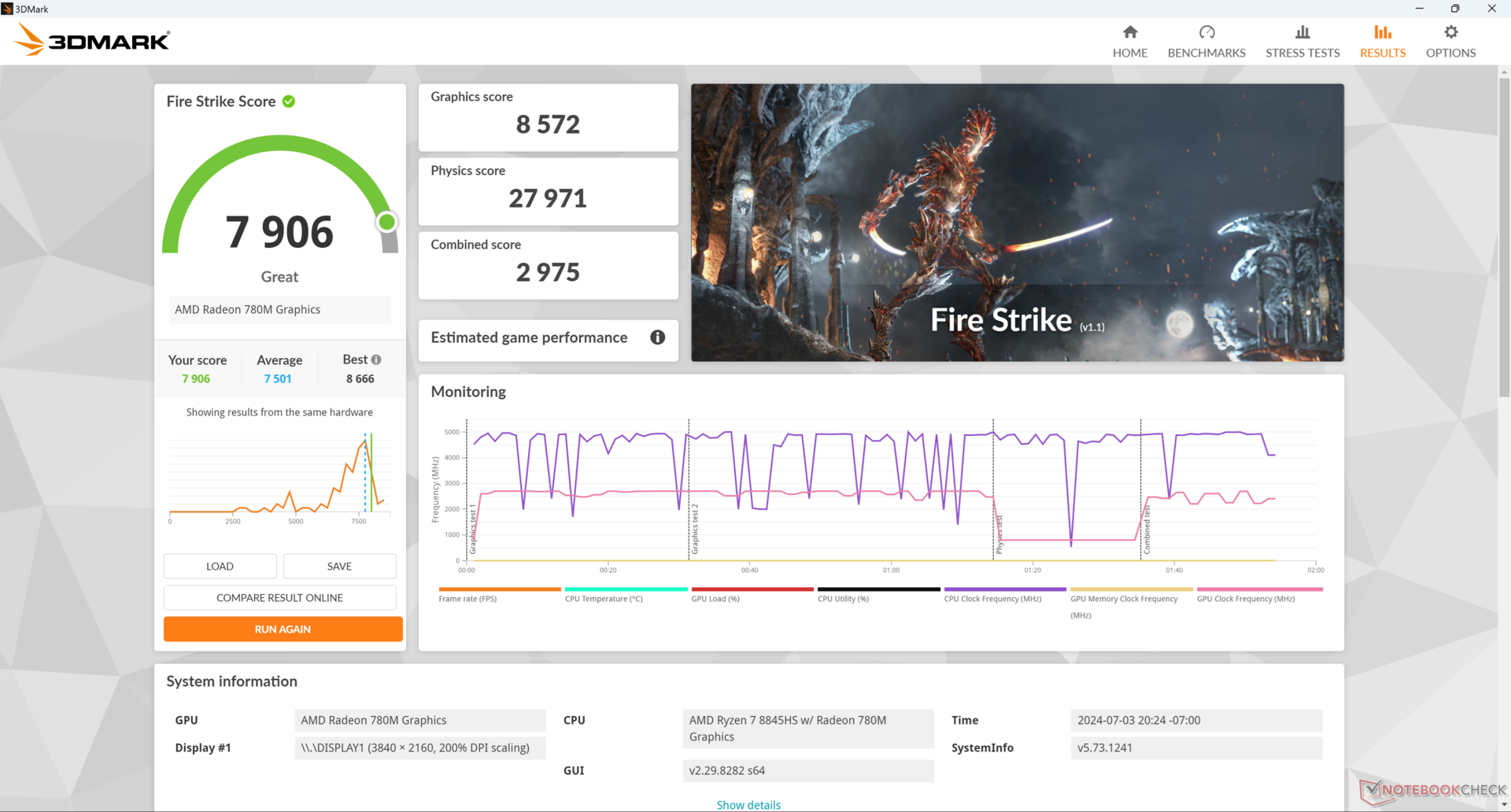

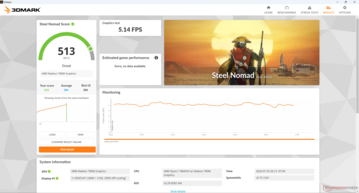

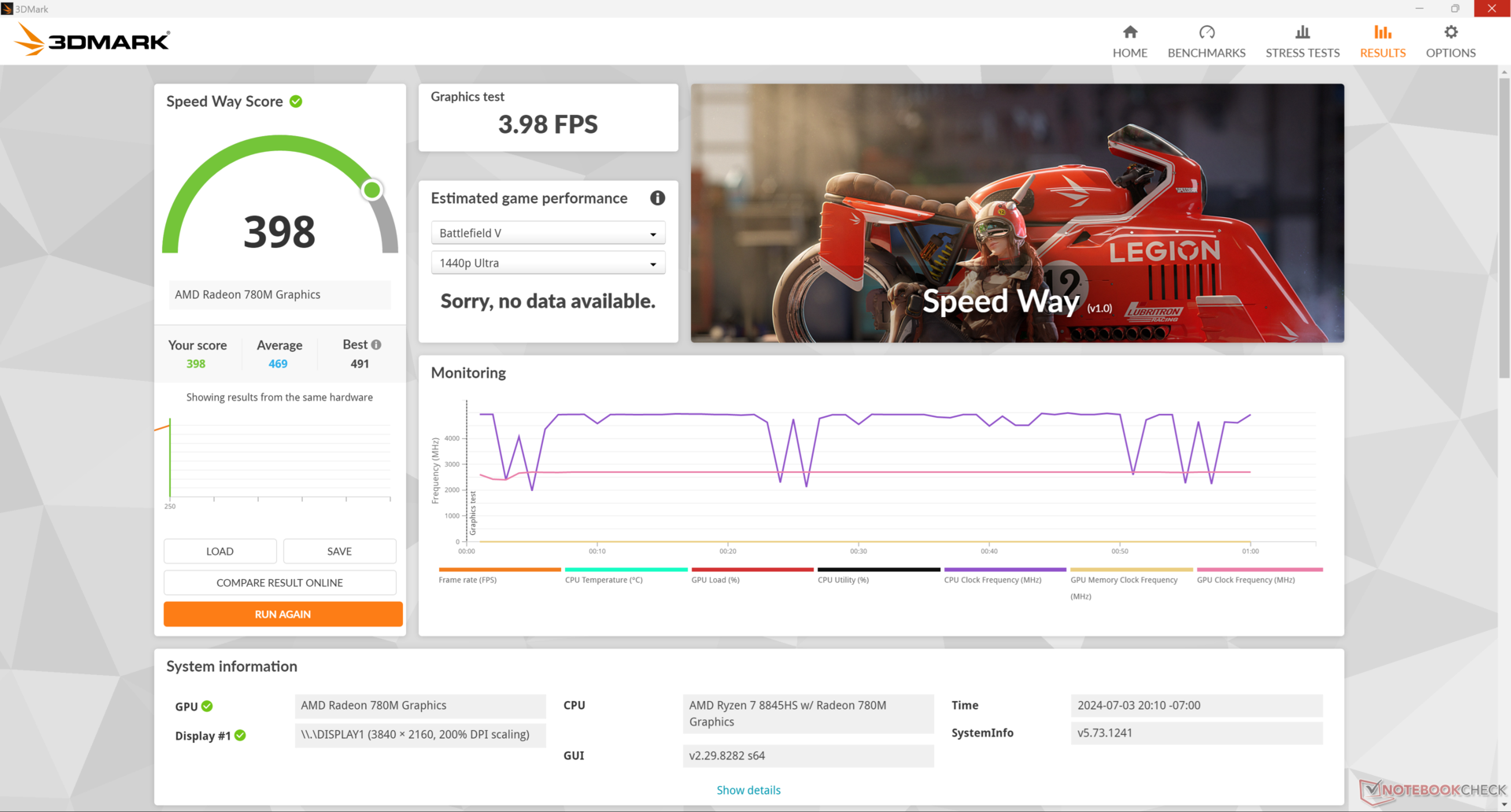

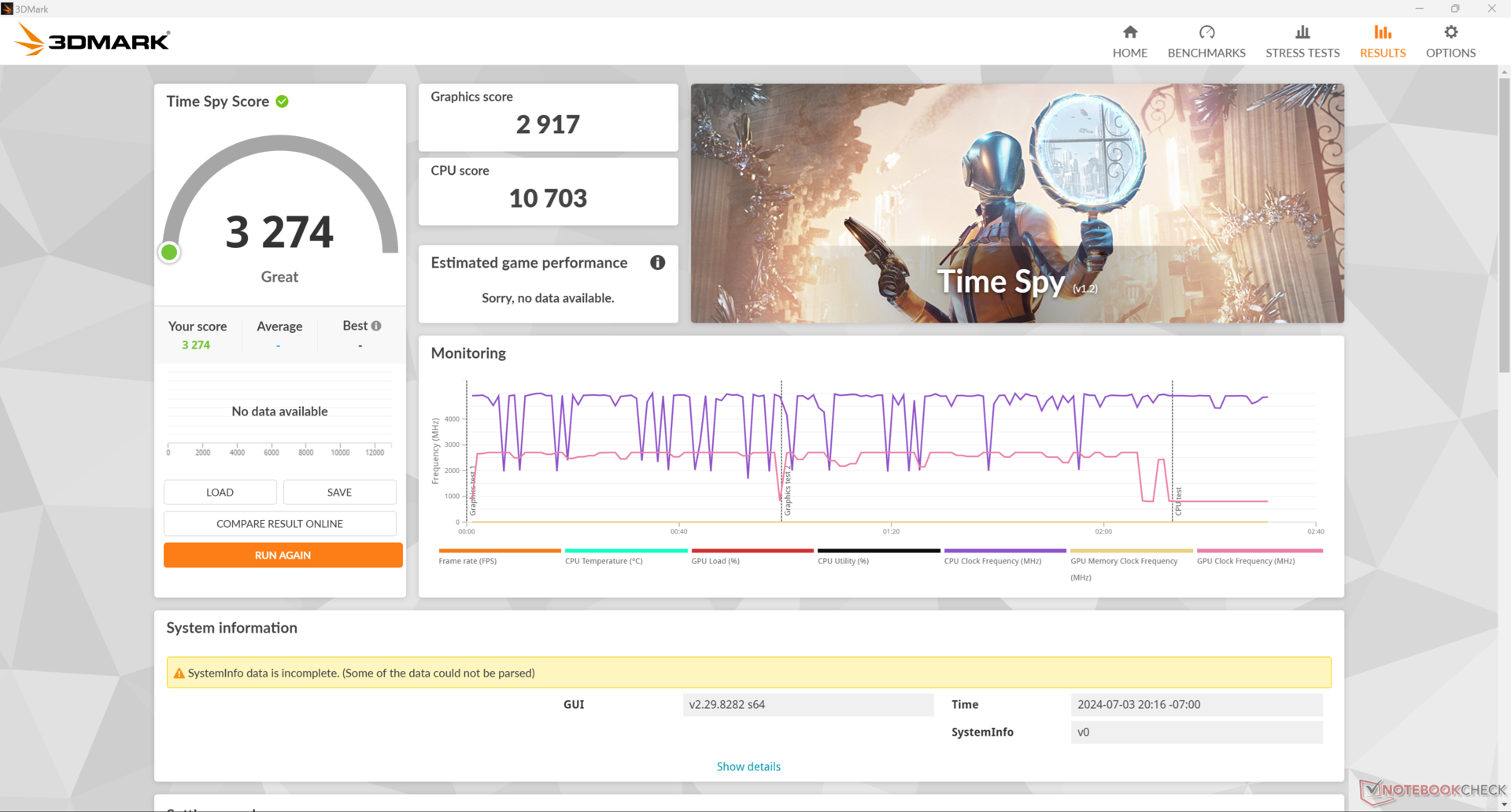

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	98.8 pt
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	94.3 pt
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	91.8 pt
AcePC Wizbox AI ^-1! Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	90 pt
Beelink SER7 ^-1! AMD Radeon 780M, AMD Ryzen 7 7840HS	89.9 pt
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	87.3 pt
Average AMD Radeon 780M	85.5 pt
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	81.3 pt
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	57 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	55.7 pt
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	53.3 pt
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	52.7 pt
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	50.1 pt
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	46.1 pt
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	39.5 pt
GMK NucBox M4 ^-2! Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	27.2 pt
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	26.1 pt

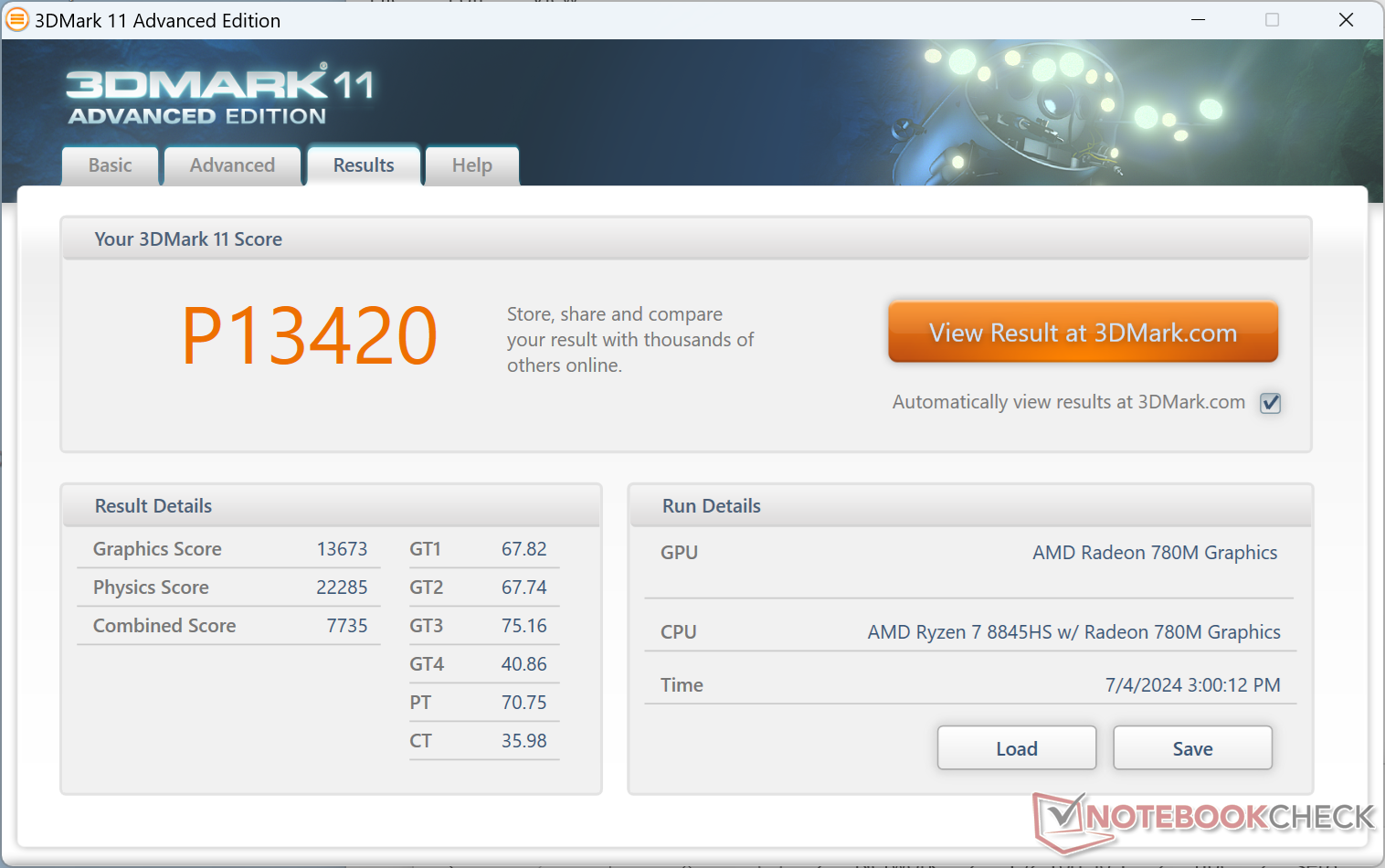

3DMark 11 - 1280x720 Performance GPU
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	14249 Points +4%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	13673 Points
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	13533 Points -1%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	12845 Points -6%
Average AMD Radeon 780M (7868 - 14249, n=57)	12463 Points -9%
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12105 Points -11%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	11691 Points -14%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	11668 Points -15%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7424 Points -46%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points -46%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	7184 Points -47%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7101 Points -48%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6999 Points -49%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	6858 Points -50%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5388 Points -61%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	3428 Points -75%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	3122 Points -77%

3DMark
1280x720 Cloud Gate Standard Graphics
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	53972 Points +1%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	53347 Points
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	49053 Points -8%
Average AMD Radeon 780M (27771 - 53972, n=29)	46628 Points -13%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	45116 Points -15%
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	40417 Points -24%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	38976 Points -27%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	33541 Points -37%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	32875 Points -38%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	32427 Points -39%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	31849 Points -40%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	31054 Points -42%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	25003 Points -53%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	24634 Points -54%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	16753 Points -69%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	16288 Points -69%
1920x1080 Fire Strike Graphics
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	8816 Points +3%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	8572 Points
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	8354 Points -3%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	8001 Points -7%
Average AMD Radeon 780M (4550 - 8816, n=59)	7740 Points -10%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	7653 Points -11%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7599 Points -11%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5812 Points -32%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points -34%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5407 Points -37%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	4984 Points -42%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4567 Points -47%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	4424 Points -48%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3653 Points -57%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	2643 Points -69%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	2517 Points -71%
2560x1440 Time Spy Graphics
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3271 Points +12%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3193 Points +9%
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	3178 Points +9%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	2917 Points
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	2908 Points 0%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	2901 Points -1%
Average AMD Radeon 780M (1496 - 3196, n=59)	2711 Points -7%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2518 Points -14%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1690 Points -42%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points -43%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1583 Points -46%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	1582 Points -46%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1418 Points -51%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	1399 Points -52%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1162 Points -60%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	739 Points -75%
2560x1440 Time Spy Score
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3634 Points +11%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3580 Points +9%
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	3517 Points +7%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	3274 Points
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	3270 Points 0%
Geekom A8 AMD Radeon 780M, AMD Ryzen 9 8945HS	3264 Points 0%
Average AMD Radeon 780M (1707 - 3517, n=59)	3022 Points -8%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2808 Points -14%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1926 Points -41%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points -42%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1813 Points -45%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	1793 Points -45%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1620 Points -51%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	1591 Points -51%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1318 Points -60%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	857 Points -74%

3DMark Performance Rating | 3DMark 11 | 3DMark

	CPU 时钟 (GHz)	GPU 时钟 (MHz)	CPU 平均温度 (°C)
系统闲置	--	--	30
Prime95 压力	4.0	--	75
Prime95 + FurMark Stress	4.2	2317	68
Witcher 3 压力	0.5	2700	62

Beelink SER8 PC 评论：Mac Mini-inspired 设计与 AMD Ryzen 7 8845HS

迄今为止 Beelink 推出的最佳迷你 PC。

潜在的竞争对手比较

外壳 - 减少塑料，增加金属

尺寸比较

连接性

交流

维护

配件和保修

性能 - Zen 4 已为人工智能做好准备

测试条件

处理器

Cinebench R15 Multi Loop

压力测试

系统性能

DPC 延迟

存储设备

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

图形处理器性能

3DMark 11 Performance		13420 points
3DMark Cloud Gate Standard Score
