Blackview MP200 迷你电脑评测--采用英特尔酷睿 i5-11400H 处理器的小型台式电脑，外壳极具吸引力

Name: Blackview MP200
Brand: Blackview

桌面美人 我们已经从智能手机和平板电脑领域了解了 Blackview，但现在，这家制造商还在其产品组合中加入了几款迷你 PC。通过 MP200，我们看到了一款适合日常办公的外观精美的小型 PC。不过，处理器已不再是最年轻的处理器之一。在这篇评测中，我们将了解Tiger Lake SoC 在 Blackview MP200 中的表现。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 08/03/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop Tiger Lake Intel

许多买家对 Blackview 的了解更多的是其智能手机和平板电脑制造商的身份，但目前 Blackview 的产品组合中也包括几款迷你 PC。现在还有 MP200，尽管它已经跟不上时代的步伐，配备了略显老旧的英特尔酷睿 i5-11400H处理器。但在大多数情况下，其性能仍足以处理日常任务。更先进的 SoC 通常能以更低的功耗提供更好的性能。然而，拥有 12 个线程的原生 6 核处理器仍然是日常工作中的多面手。英特尔酷睿 i5-11400H配备了 16GB 工作内存和 512GB 容量的存储解决方案。价格中包含预装的 Windows 11 专业版。这款迷你电脑目前的售价为 360 欧元（约合 395 美元），价格还算公道。至于正常价格，Blackview 的要价为 540 欧元（约合 593 美元），我们认为这似乎有点过高。

在这篇评测中，我们将把 Blackview MP200 与我们之前详细评测过的一些已知竞争对手进行比较。您可以在下表中找到本次评测的对比设备列表。

Test device courtesy of Blackview

Download your licensed rating image as PNG / SVG

Blackview MP200

Processor

Intel Core i5-11400H 6 x 2.7 - 4.5 GHz, 65 W PL2 / Short Burst, 45 W PL1 / Sustained, Tiger Lake-H

Graphics adapter

Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Core: 1450 MHz, 31.0.101.1999

Memory

16 GB

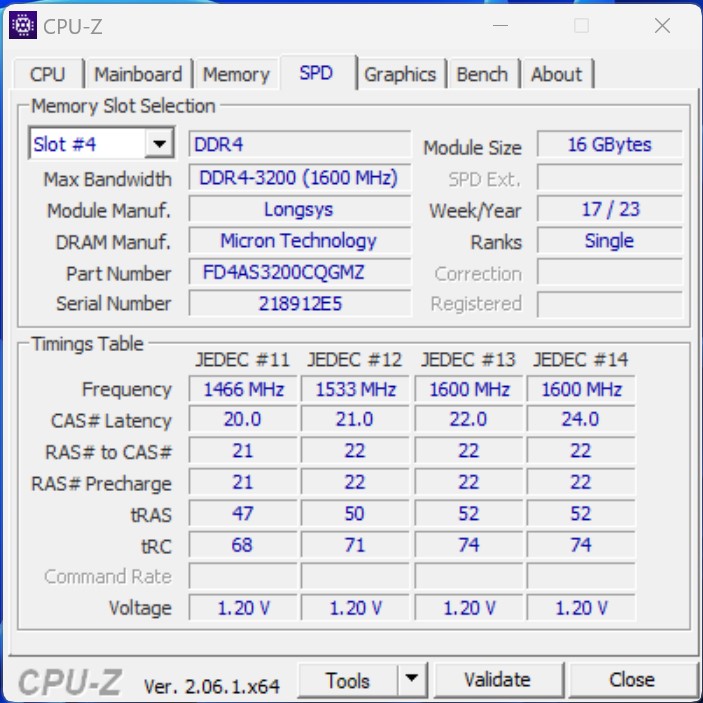

, DDR4-3200, 1 of 2 slots used

Mainboard

Intel HM570

Storage

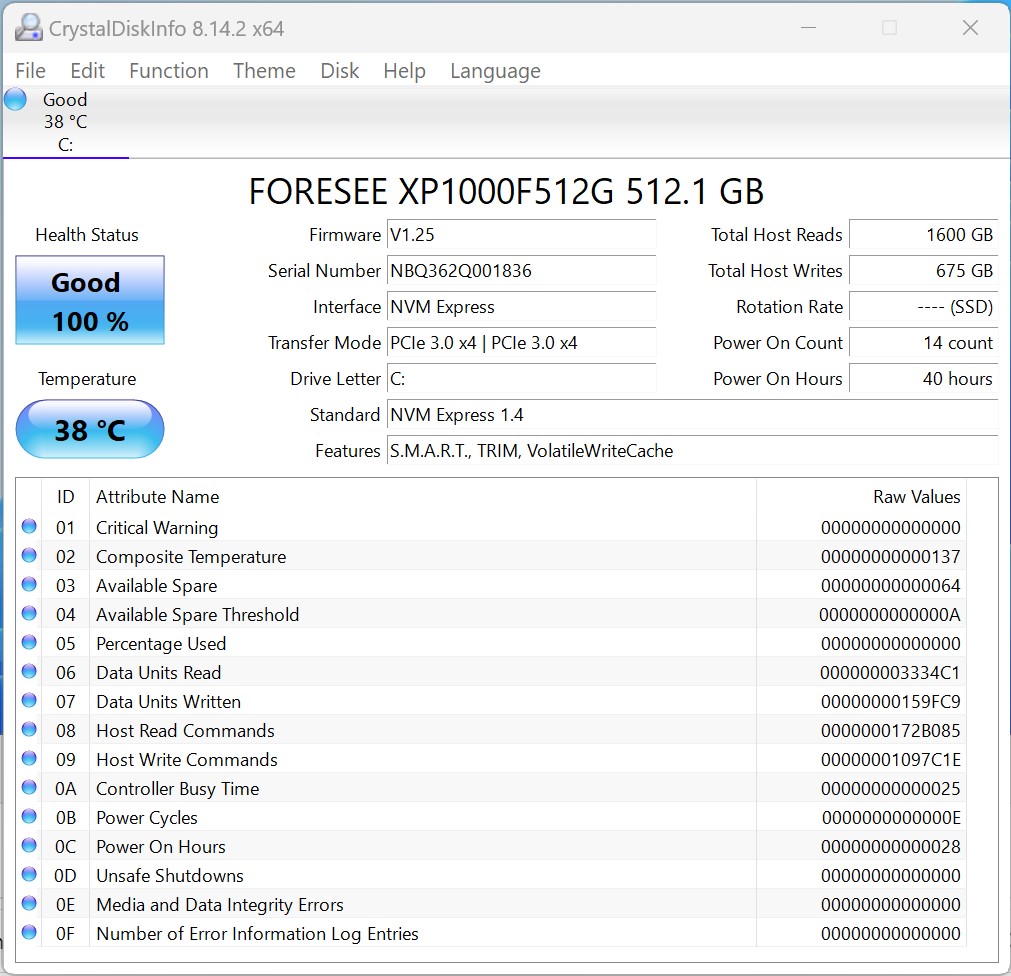

Foresee XP1000F512G, 512 GB

, M.2 2280, NVMe, 450 GB free

Soundcard

Intel Tiger Lake PCH-H - cAVS (Audio, Voice, Speech)

Connections

5 USB 3.1 Gen2, 1 HDMI, 2 DisplayPort, Audio Connections: 3.5 mm audio port

Networking

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 75.5 x 183.2 x 150

Operating System

Microsoft Windows 11 Pro

Additional features

120-Watt charger, 12 Months Warranty

Weight

678 g, Power Supply: 461 g

Price

546 EUR

Links

Blackview homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
73.8 %	08/2023	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	678 g	75.5 mm
83.7 %	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
81.7 %	05/2023	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	652 g	48 mm
80.6 %	07/2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm
73.4 %	04/2023	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	449 g	50 mm
70.9 %	12/2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm
	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm

Blackview MP200 详细介绍

外壳 - 美观的塑料外壳

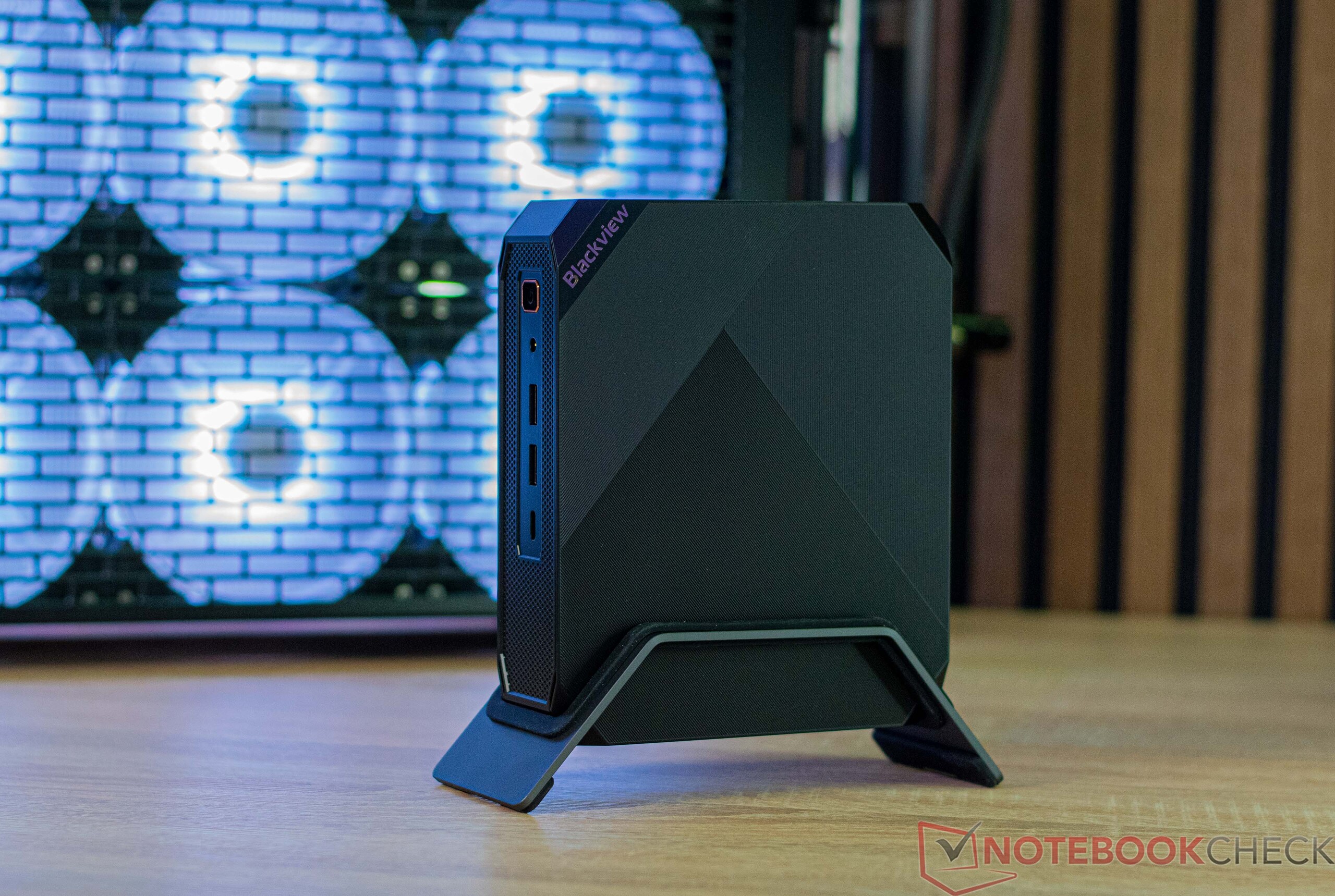

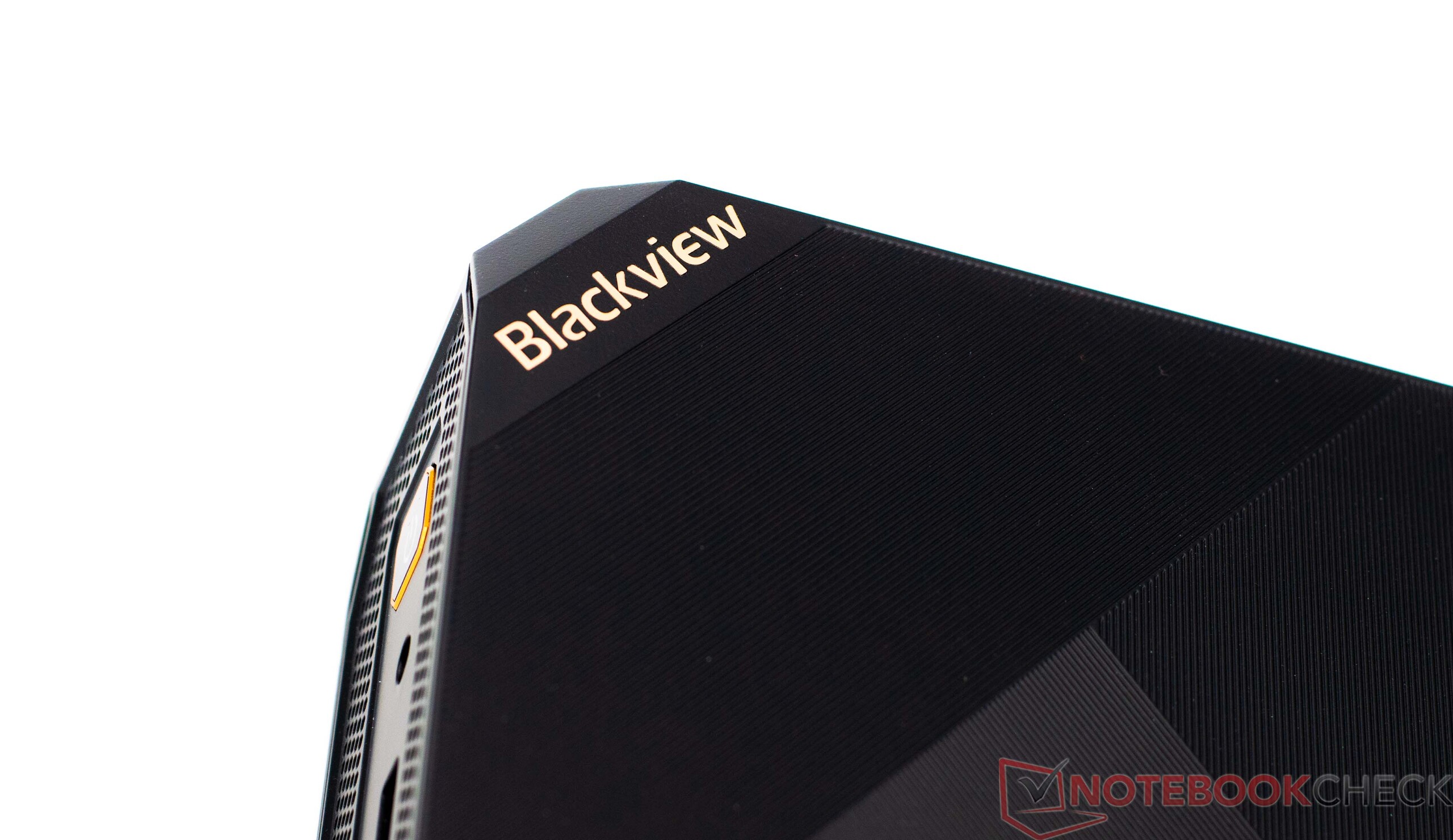

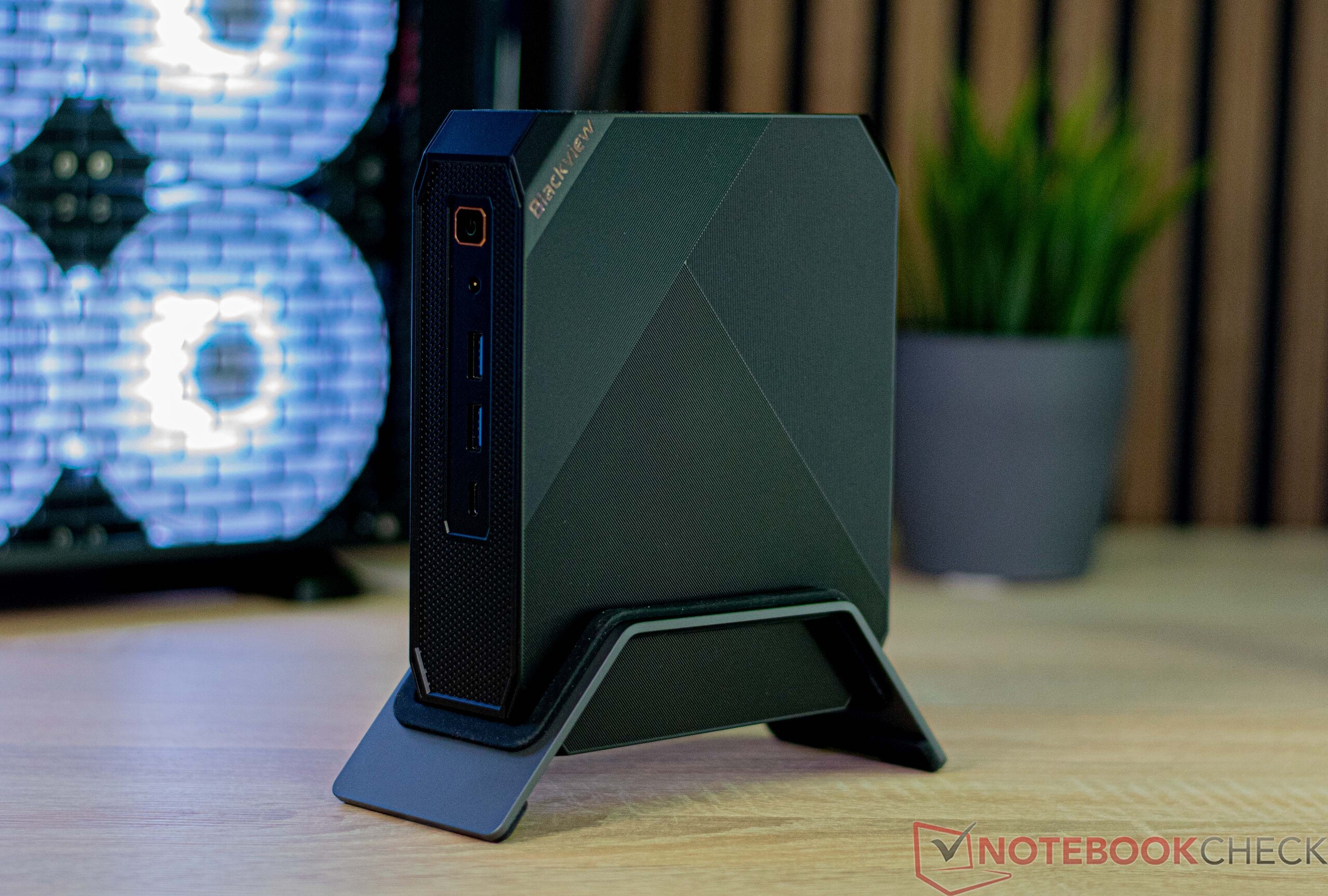

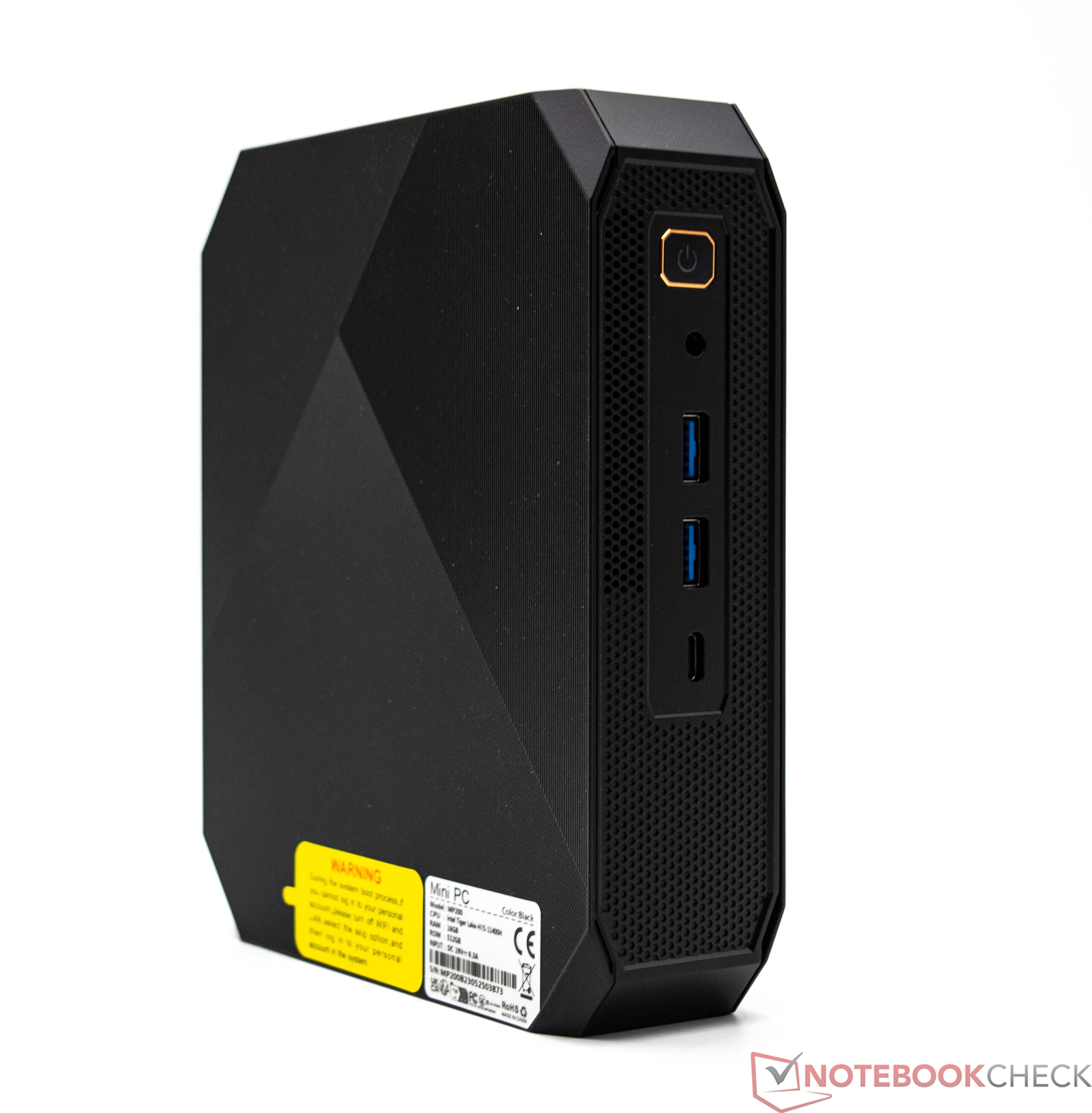

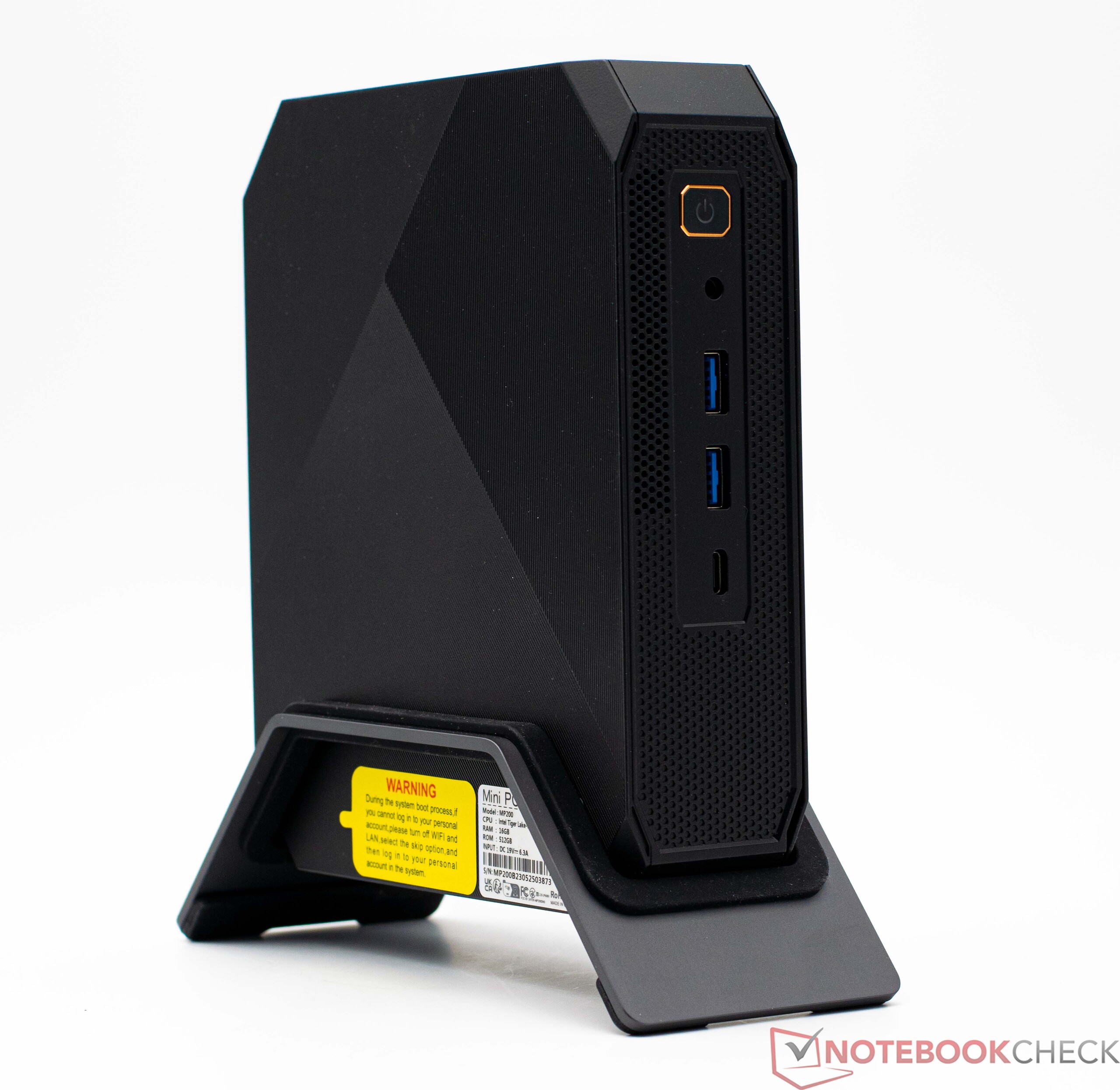

从外观上看，Blackview MP200 非常吸引人。一些金色的点缀让全黑的机身显得更加柔和，给人一种高品质的感觉。触感舒适的软质表面也证实了这一印象。不过，材料的选择仅限于塑料，只有支架使用了金属。

Blackview MP200 的重量为 678 克（约 1.5 磅），是本次对比中第二重的设备。此外，与其他迷你电脑相比，它的尺寸也要大得多。

尺寸比较

Blackview MP200 Minipc Union Ace Magician TK11-A0 Morefine M600, 6600U ACEMagician ACE-CK10-8259U Minipc Union NiPoGi CK10 - 10810U Minisforum Venus Series UM560 XT Geekom Mini IT11, i7-11390H DIN A4 ❌

设备 - 简单的标准

在连接设备方面，Blackview MP200 并没有什么特别之处。虽然不包括 USB4 或 Thunderbolt，但总共五个 USB 接口已经足够。显示器可以通过 DisplayPort 或 HDMI 连接，因此加上 USB-C 端口，您最多可以同时连接三台显示器。

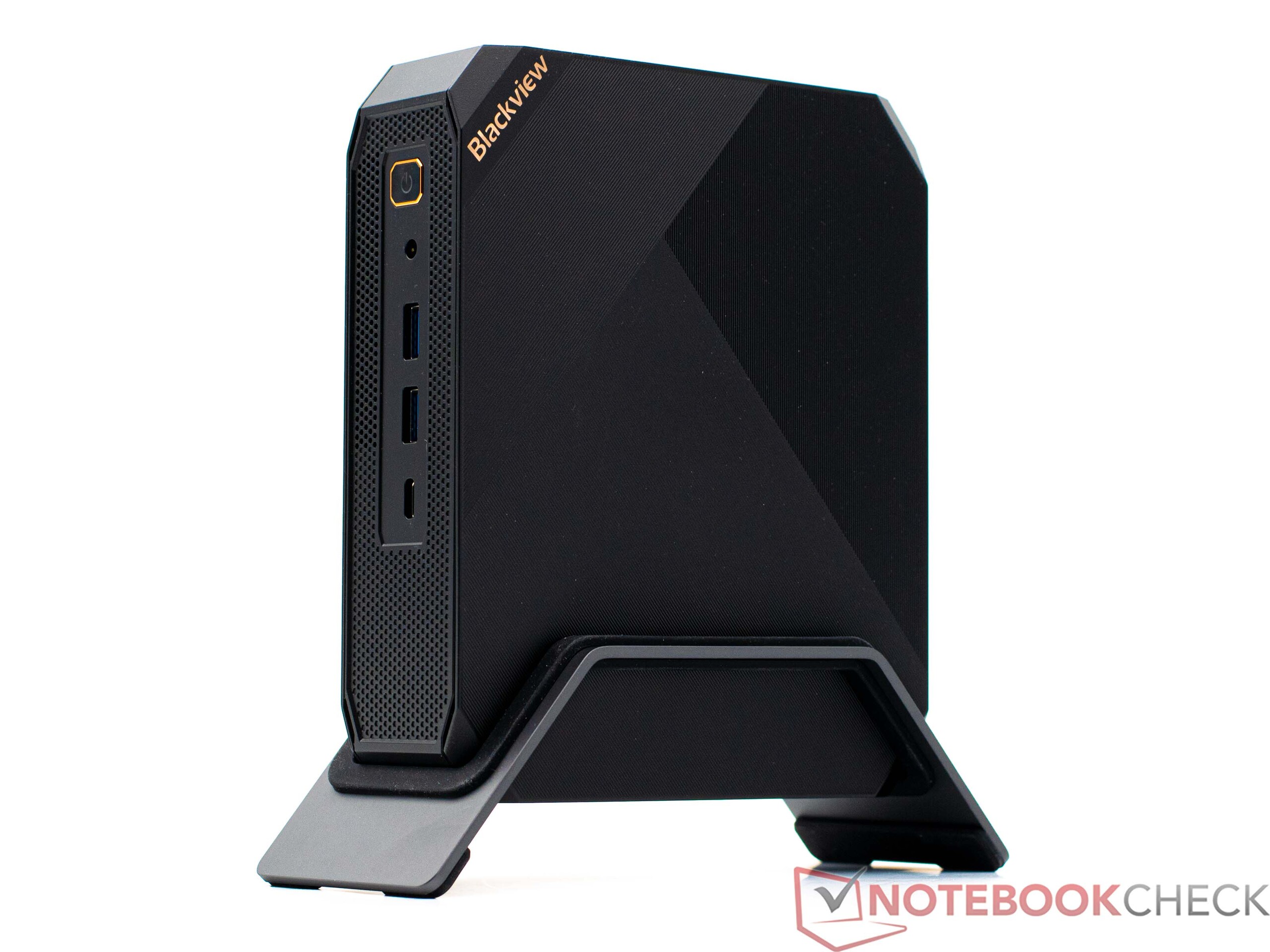

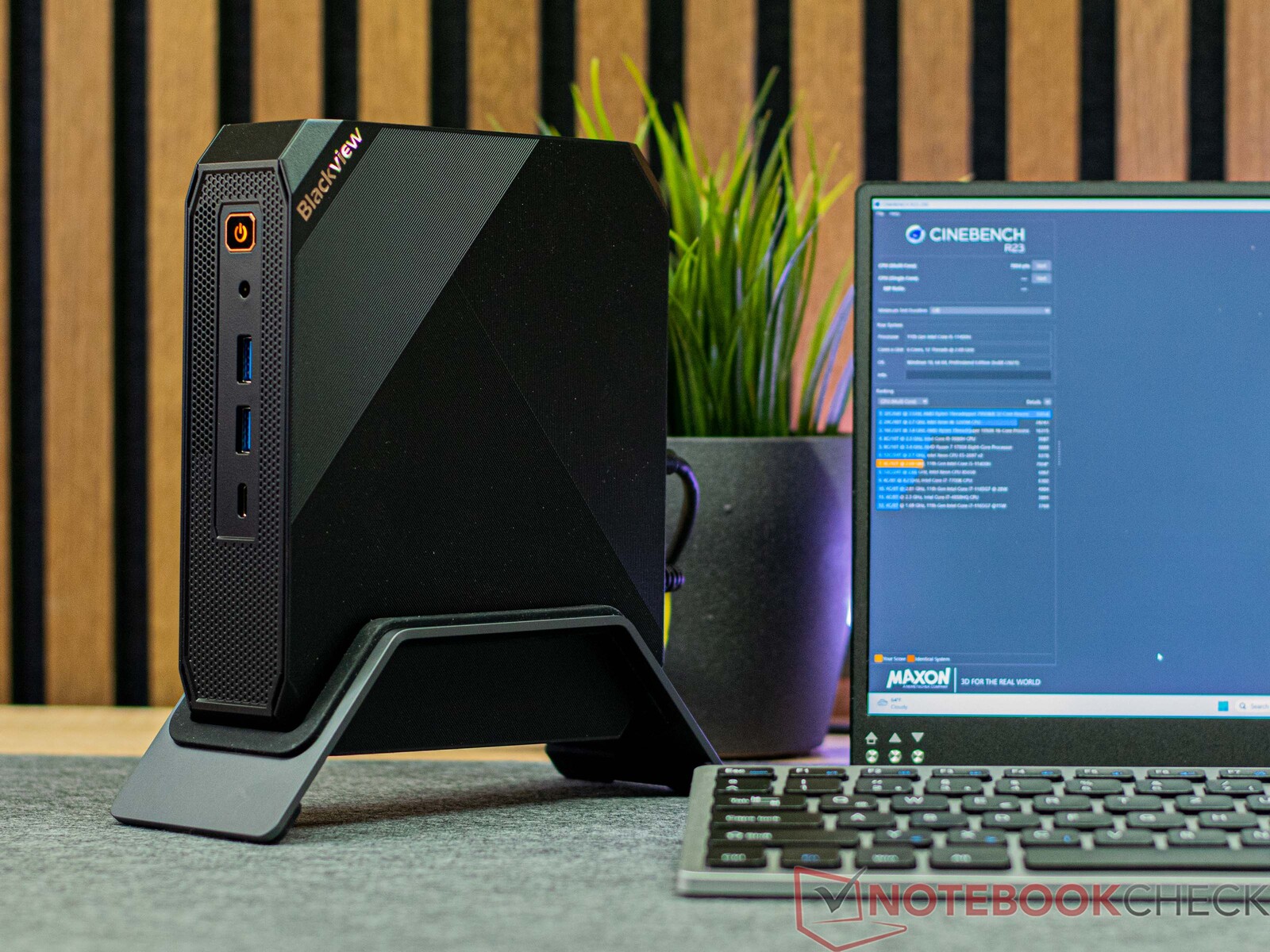

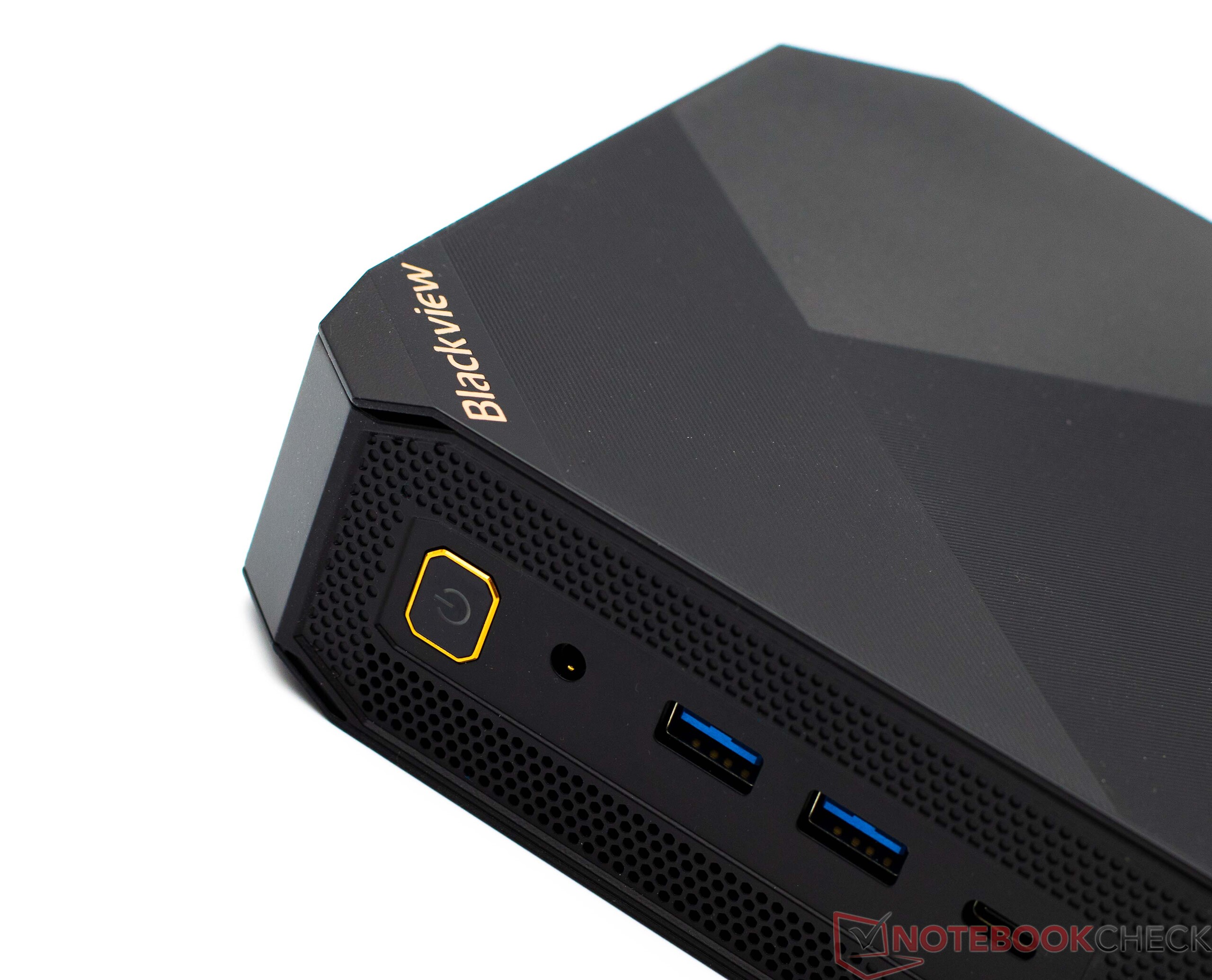

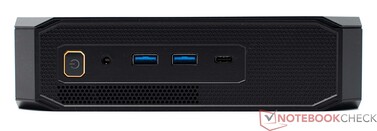

正面：电源按钮、3.5 毫米音频接口、2 个 USB 3.2 Gen2 接口、USB Type-C 接口

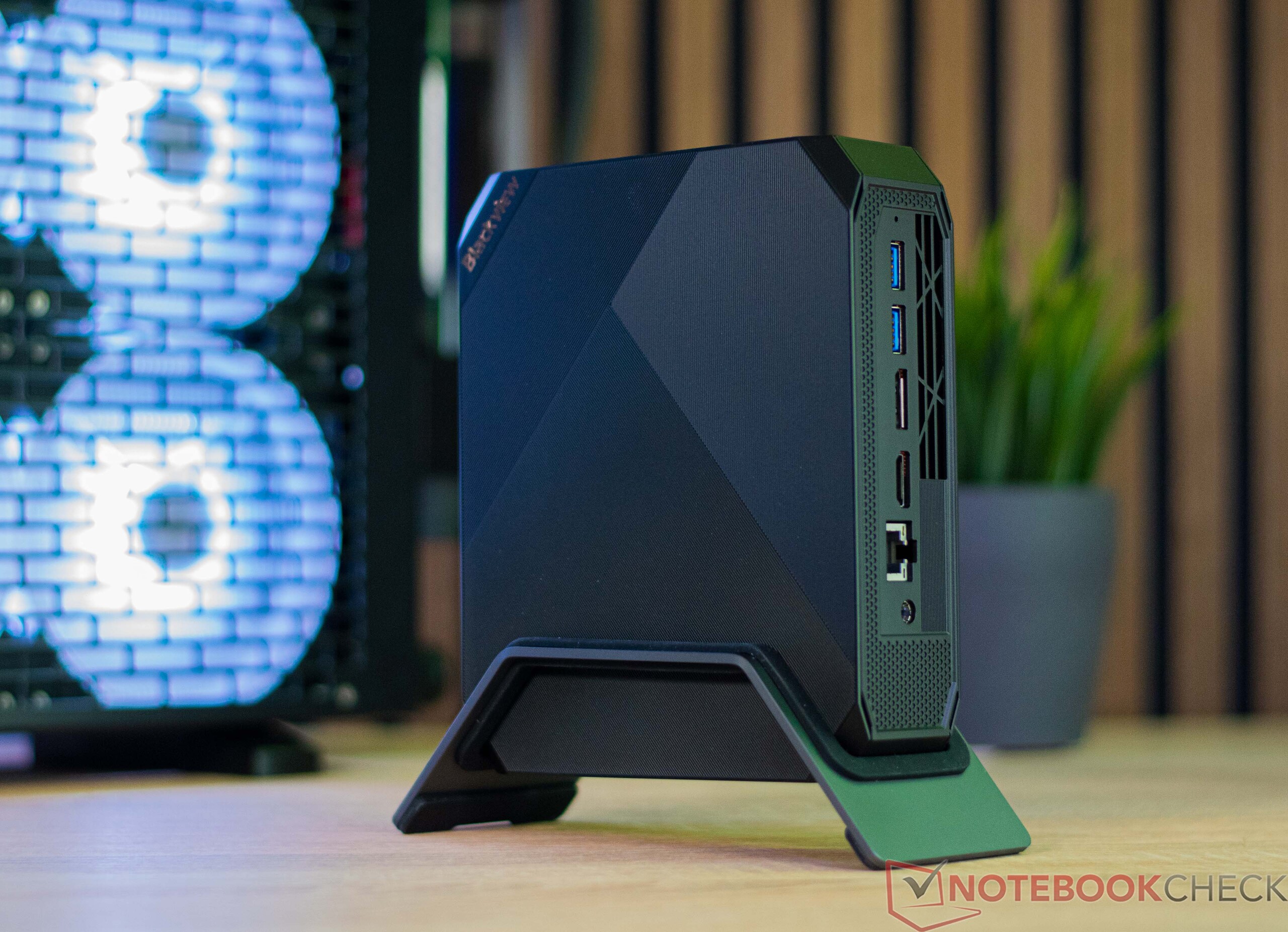

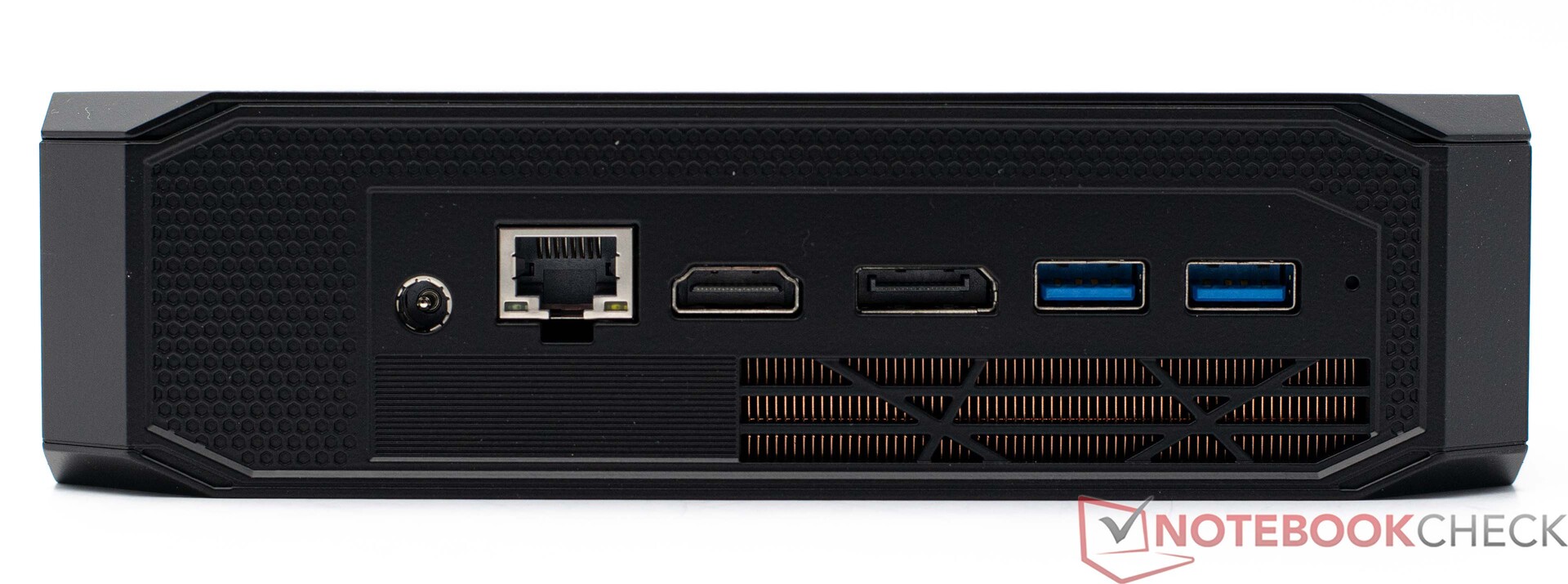

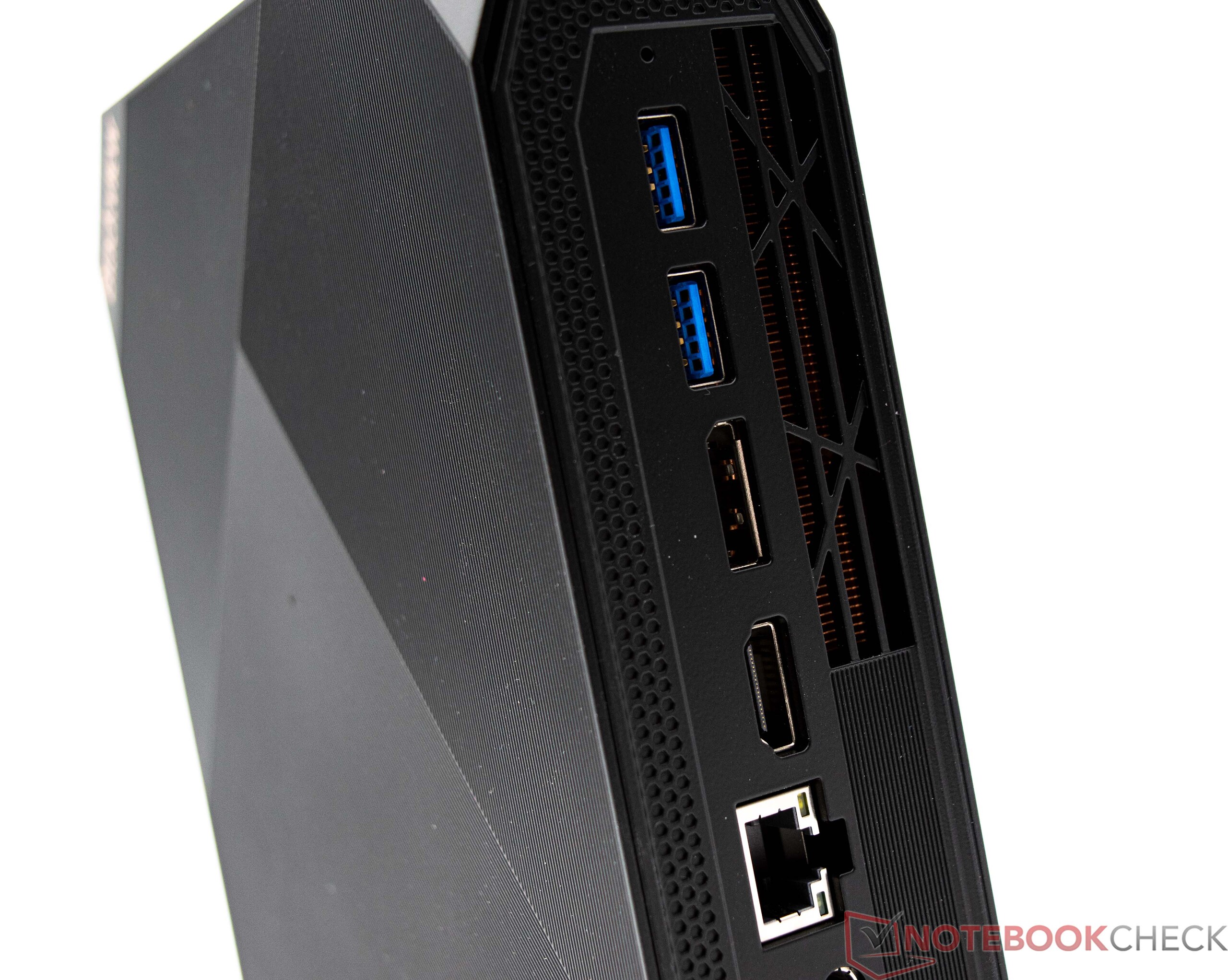

背面：电源、RJ45、HDMI 2.0、DisplayPort、2x USB 3.2 Gen2

交流

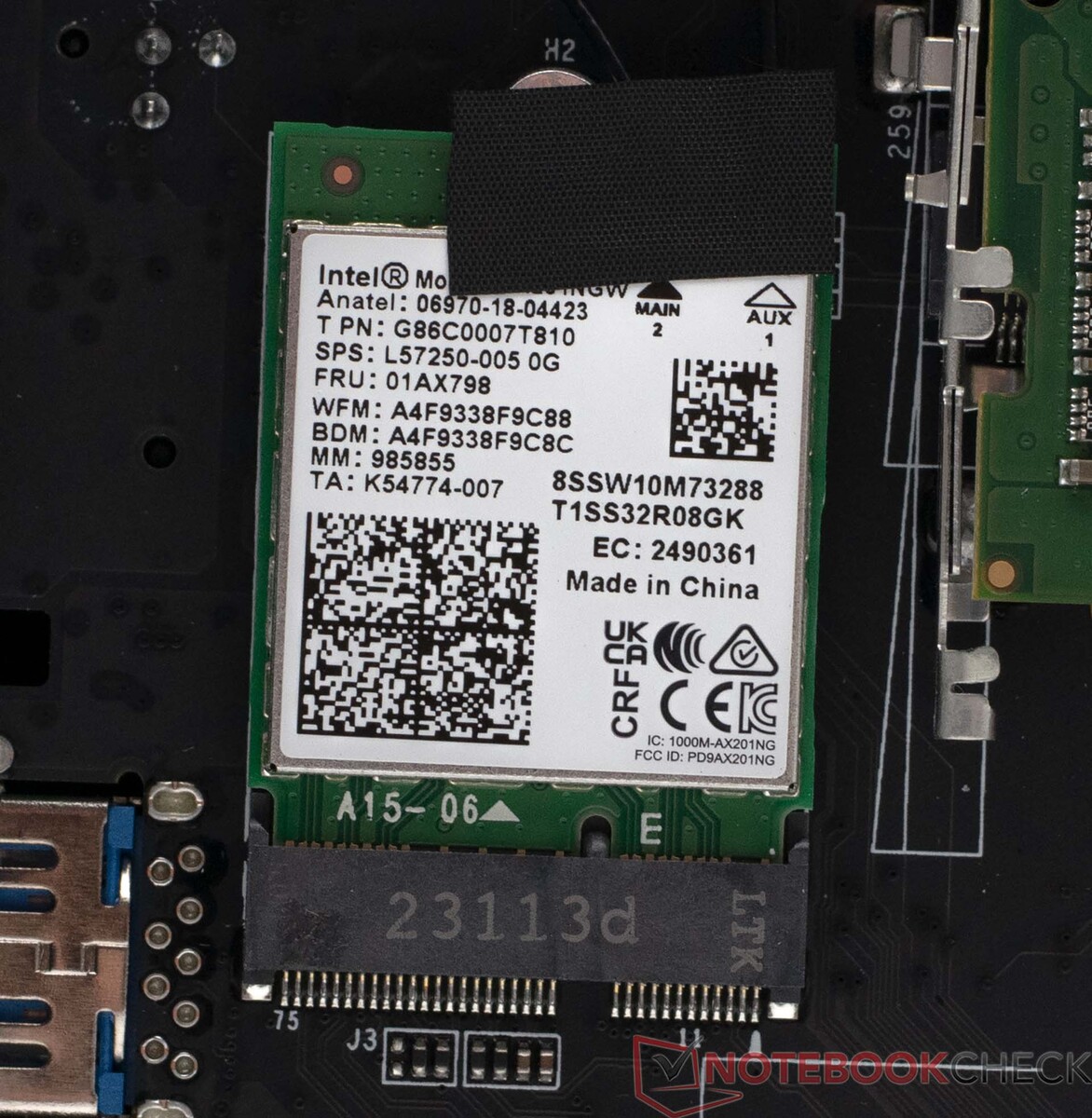

作为 MP200 的通信模块，Blackview 使用了英特尔的 Wi-Fi 6 AX201 模块，仅支持 2.4 和 5 GHz 频段的网络连接。通讯模块还支持蓝牙 5.2 连接。在测试中，我们的测试机表现相当出色，在对比中遥遥领先。使用 RJ45 端口也可以进行有线连接，但速度也只能达到 Gbit。

我们使用华硕 ROG Rapture GT-AXE11000 测试路由器进行测试。

Networking
iperf3 receive AXE11000
Average Intel Wi-Fi 6 AX201 (390 - 1734, n=72)	1440 MBit/s +51%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +1%
Blackview MP200 Intel Wi-Fi 6 AX201	953 (859^min - 970^max) MBit/s
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s -1%
Average of class Mini PC (192.9 - 1796, n=88, last 2 years)	902 MBit/s -5%
Minisforum Venus Series UM560 XT MediaTek RZ608	890 (851^min - 908^max) MBit/s -7%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -59%
ACEMagician ACE-CK10-8259U RealTek Semiconductor, Device ID: C821	349 (175^min - 353^max) MBit/s -63%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s -80%
iperf3 transmit AXE11000
Average Intel Wi-Fi 6 AX201 (438 - 1715, n=67)	1300 MBit/s +58%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s +2%
Average of class Mini PC (184.1 - 1776, n=88, last 2 years)	832 MBit/s +1%
Minisforum Venus Series UM560 XT MediaTek RZ608	829 (775^min - 889^max) MBit/s 0%
Blackview MP200 Intel Wi-Fi 6 AX201	825 (426^min - 867^max) MBit/s
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -5%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s -10%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s -58%
ACEMagician ACE-CK10-8259U RealTek Semiconductor, Device ID: C821	272 (263^min - 279^max) MBit/s -67%

Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø733 (381-876)

Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø389 (322-478)

Blackview MP200 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø953 (859-970)

Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)

Blackview MP200 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø811 (426-867)

Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

配件

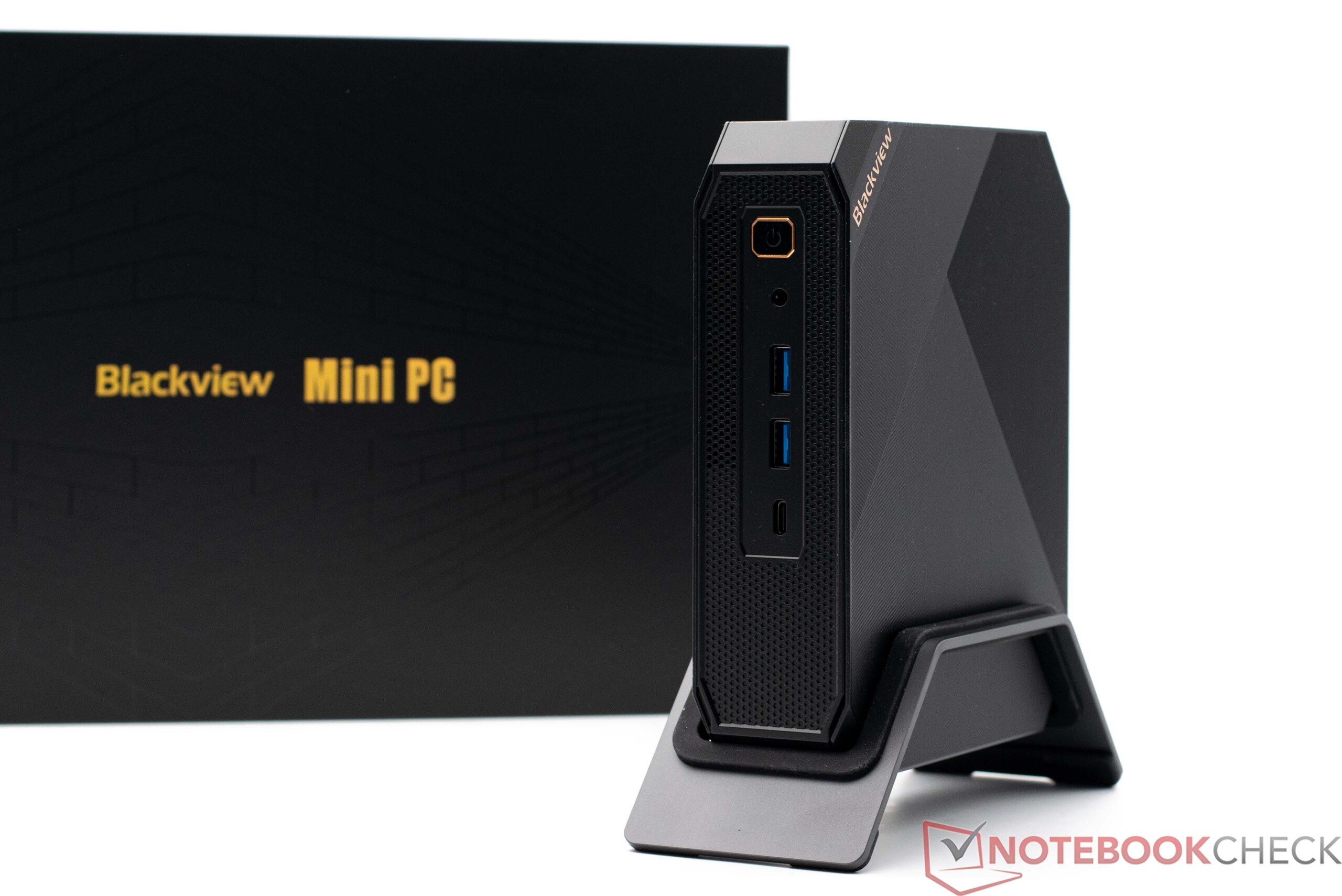

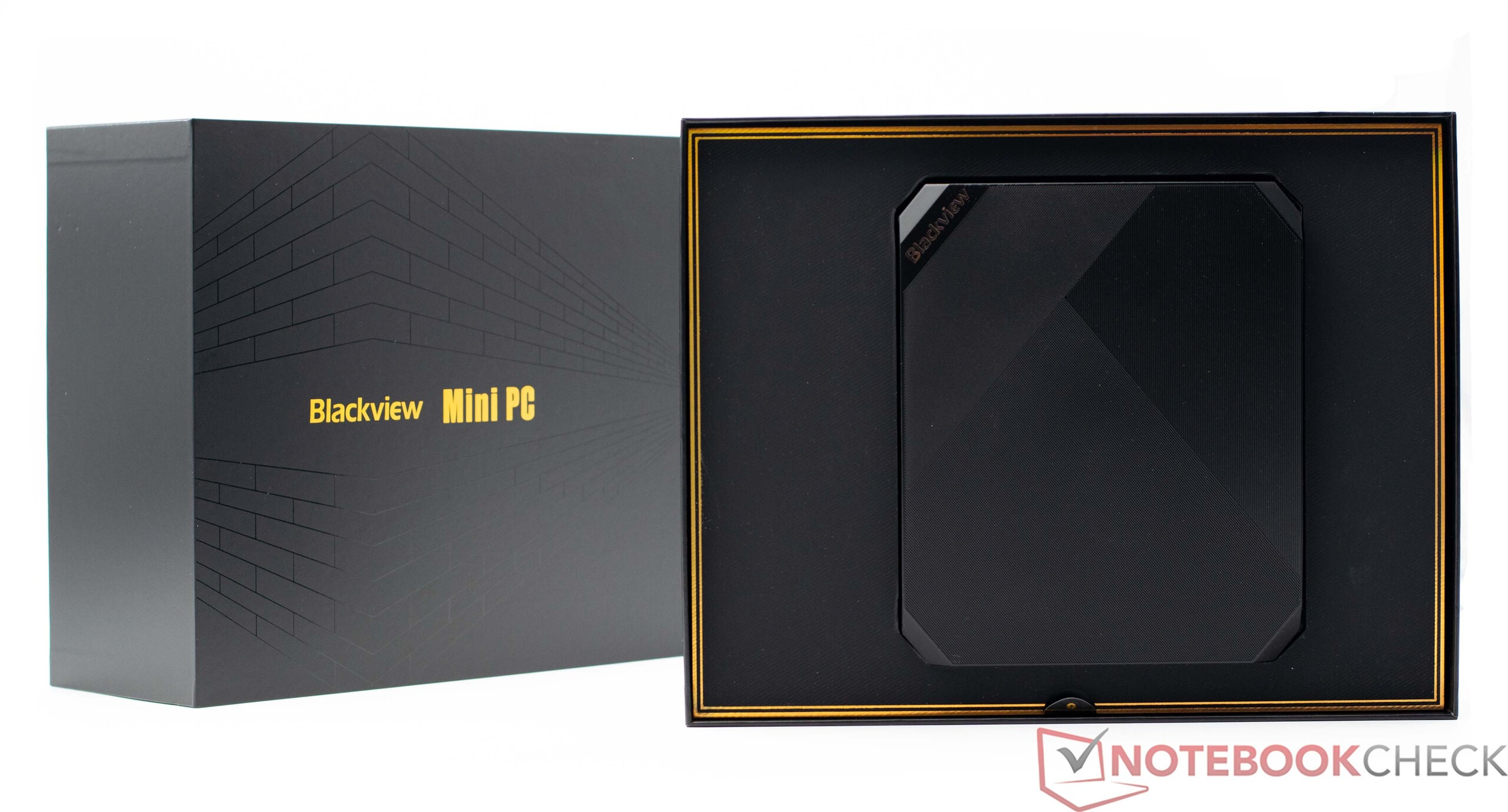

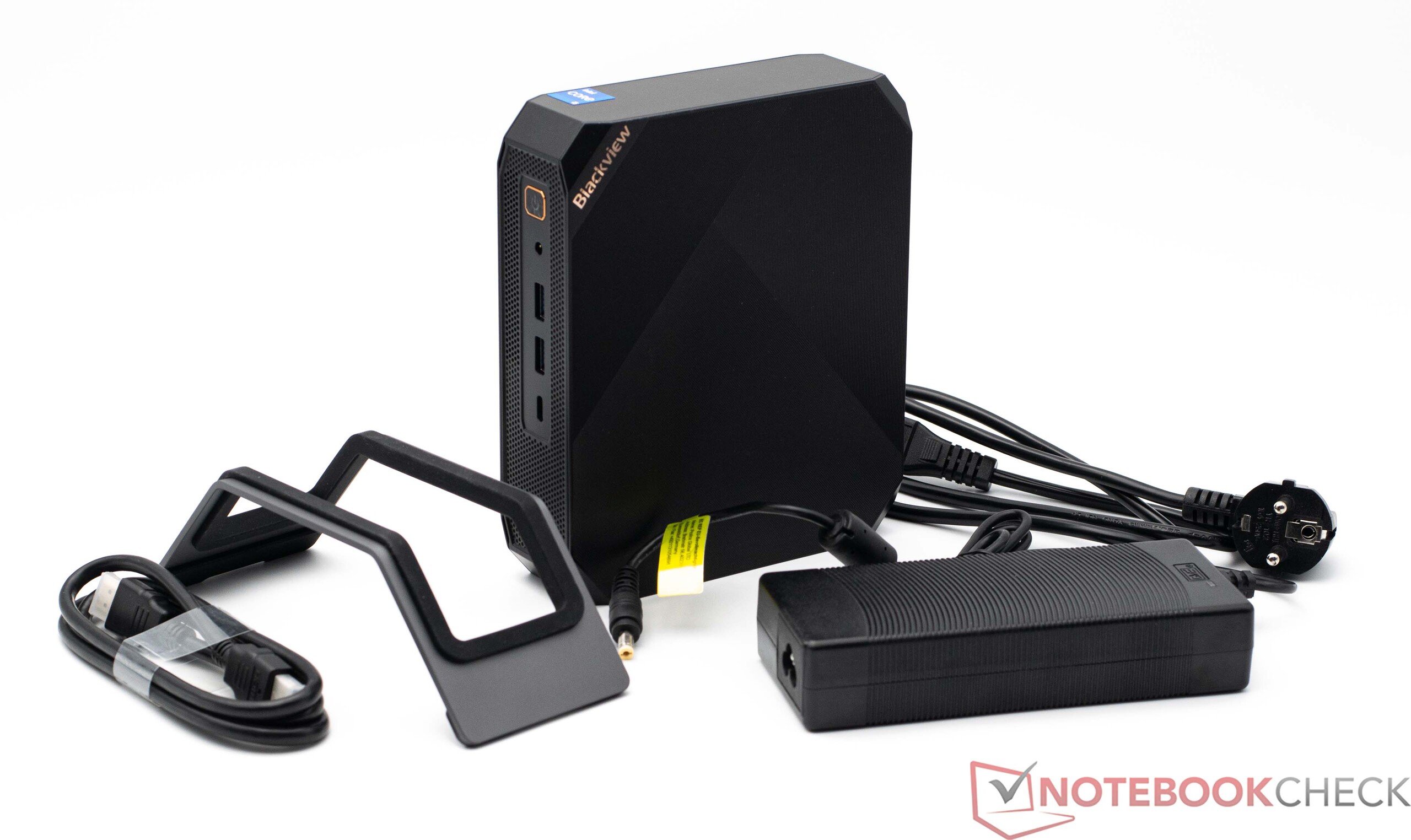

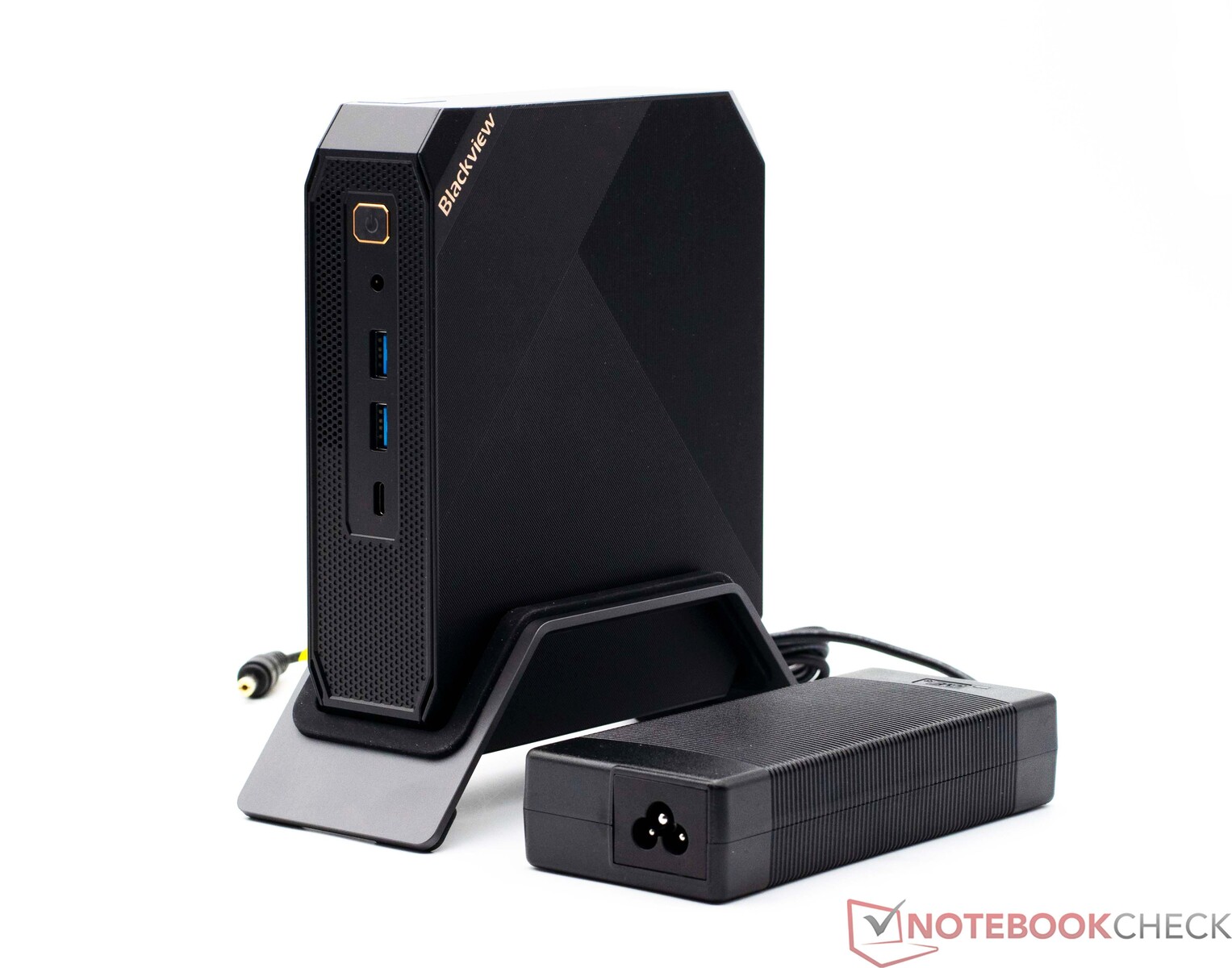

包装盒内包括所有重要的必需品，如 120 瓦充电器和高品质金属支架。此外，Blackview 还随附一条 HDMI 连接线。

维护

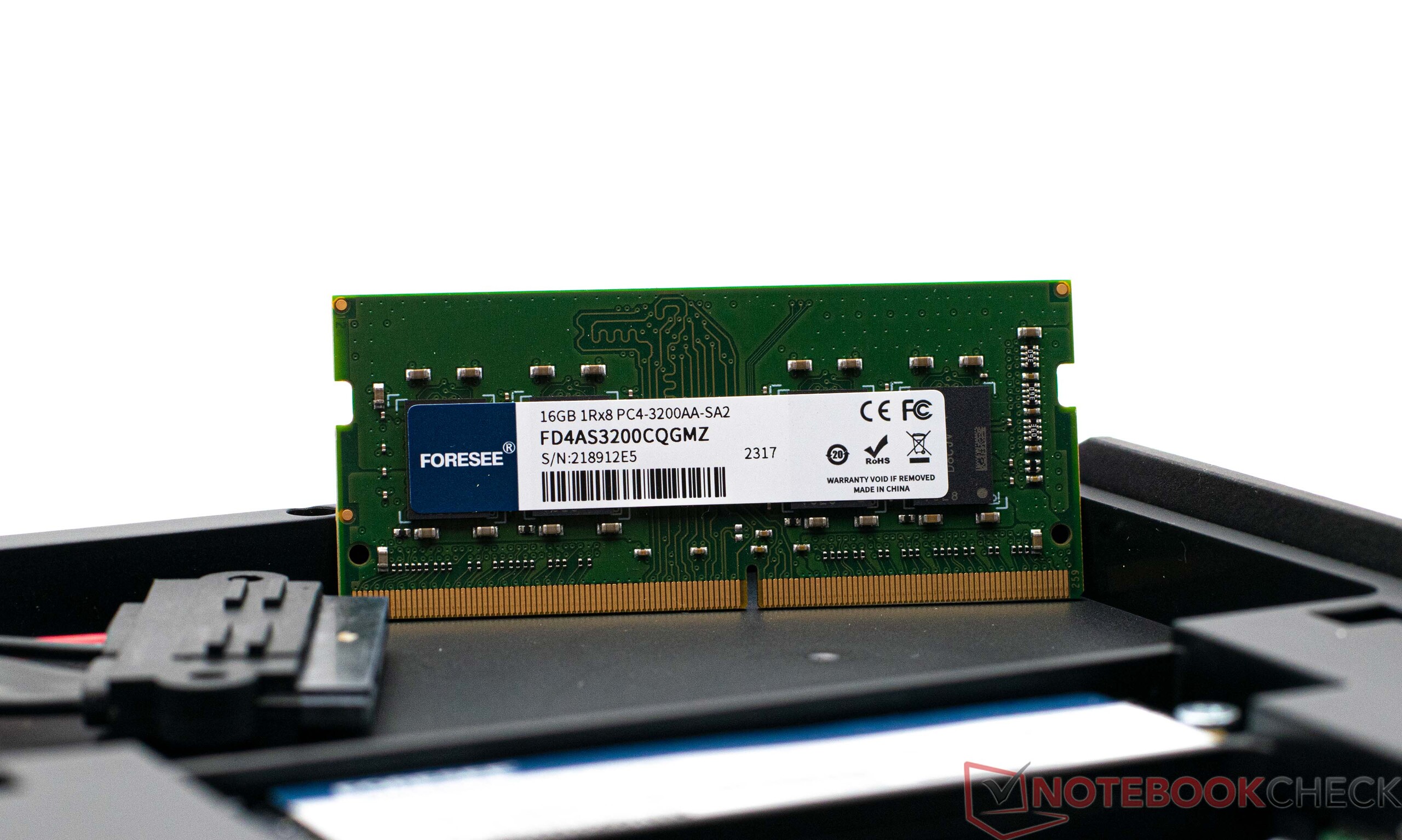

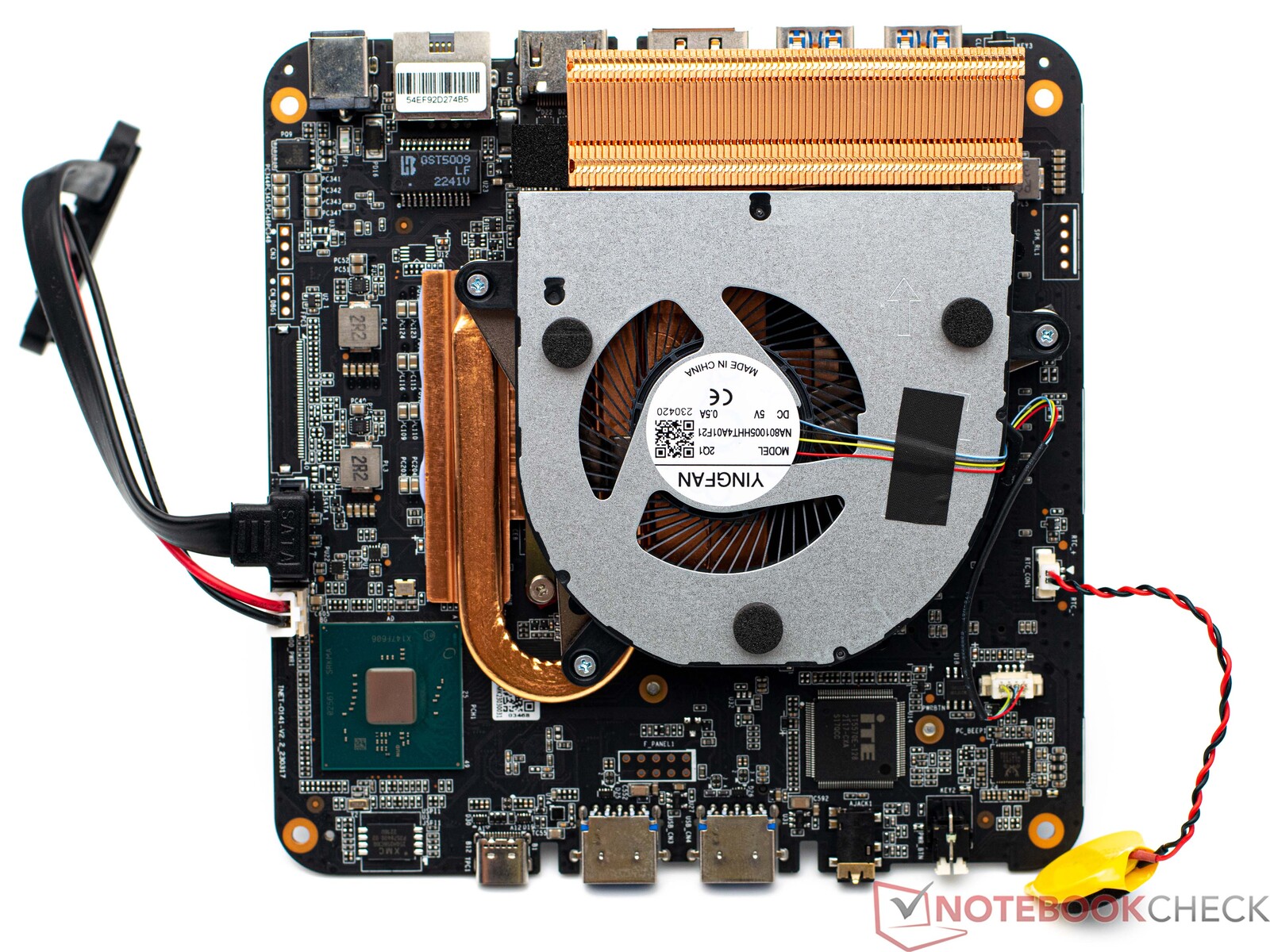

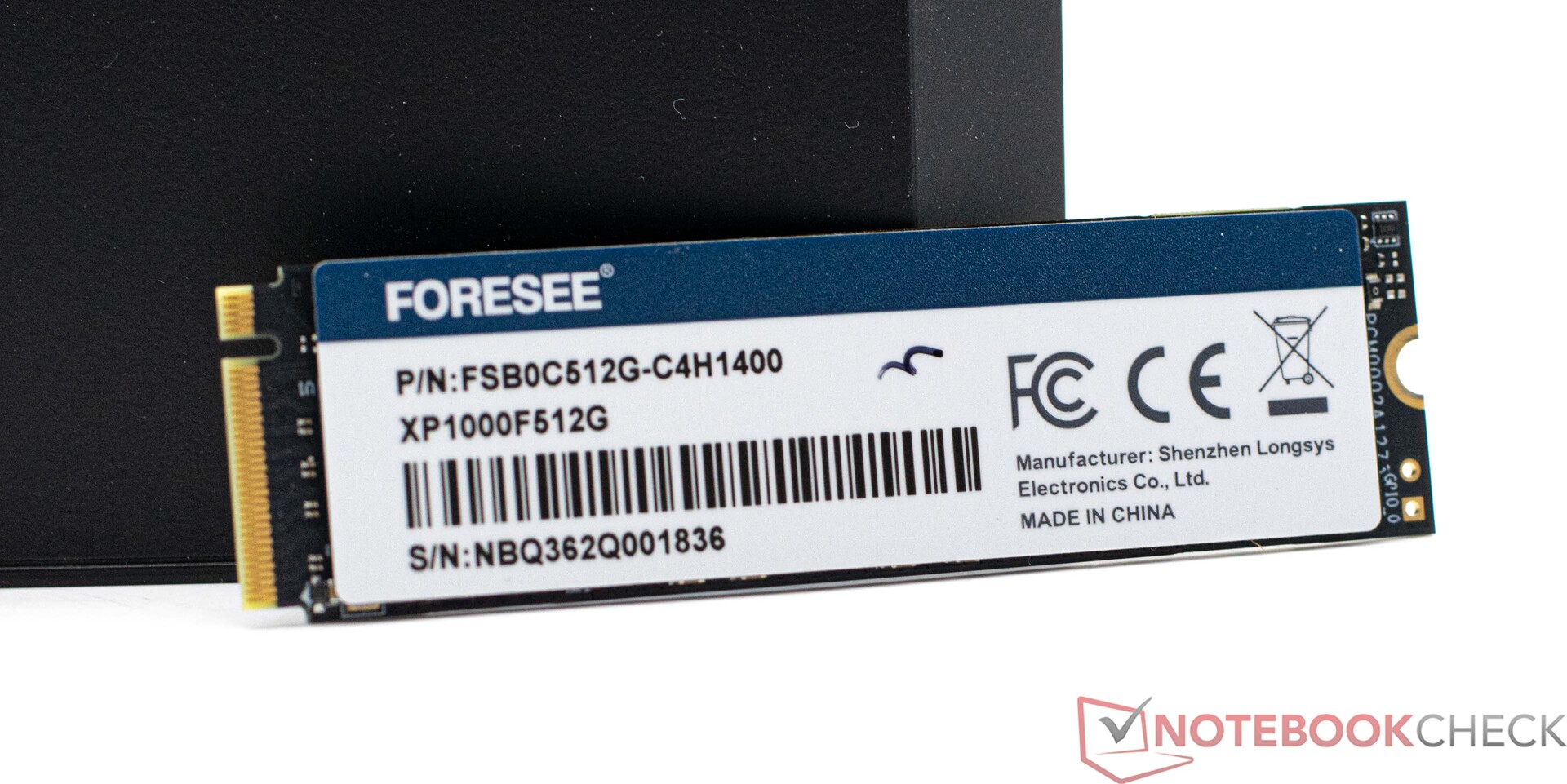

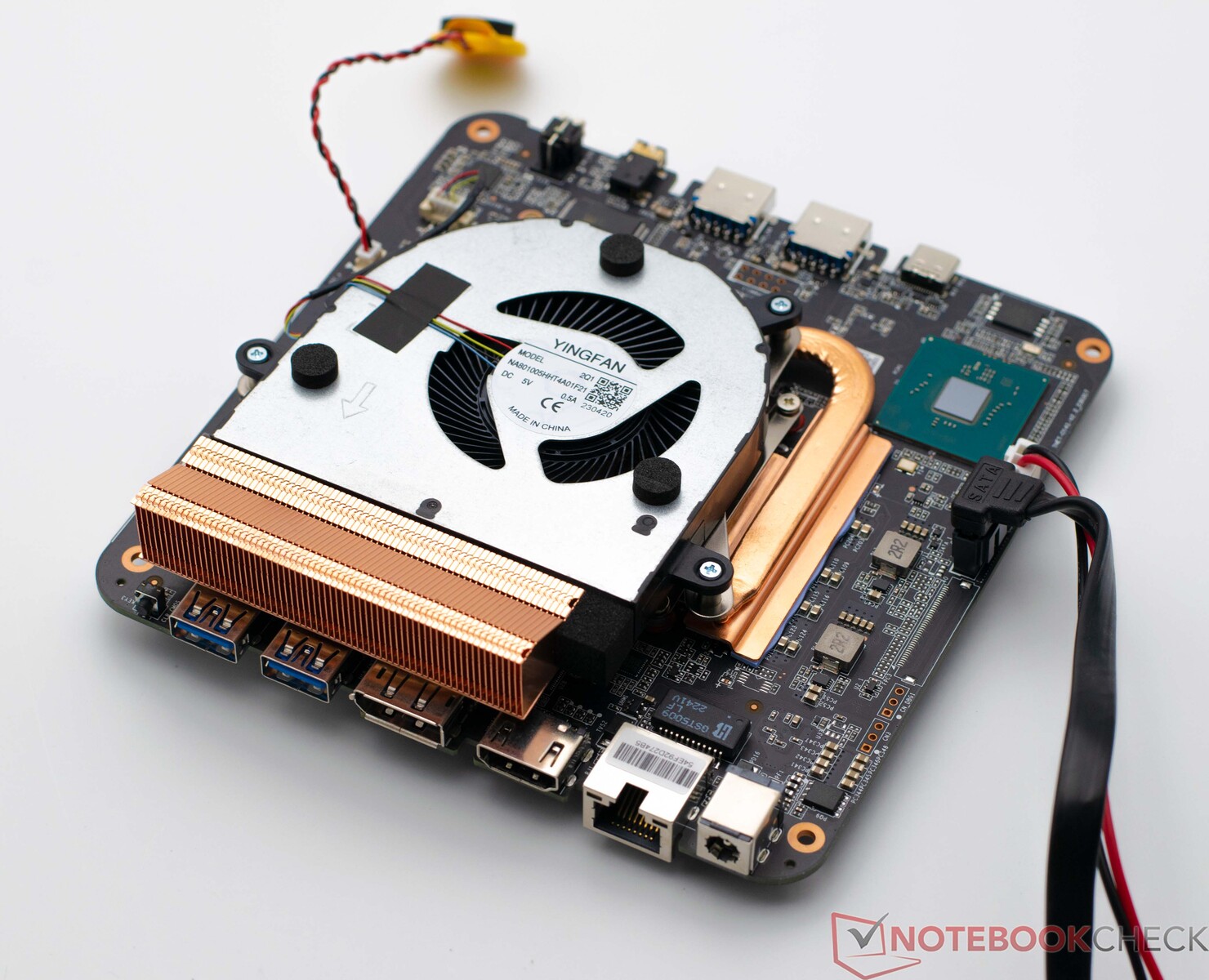

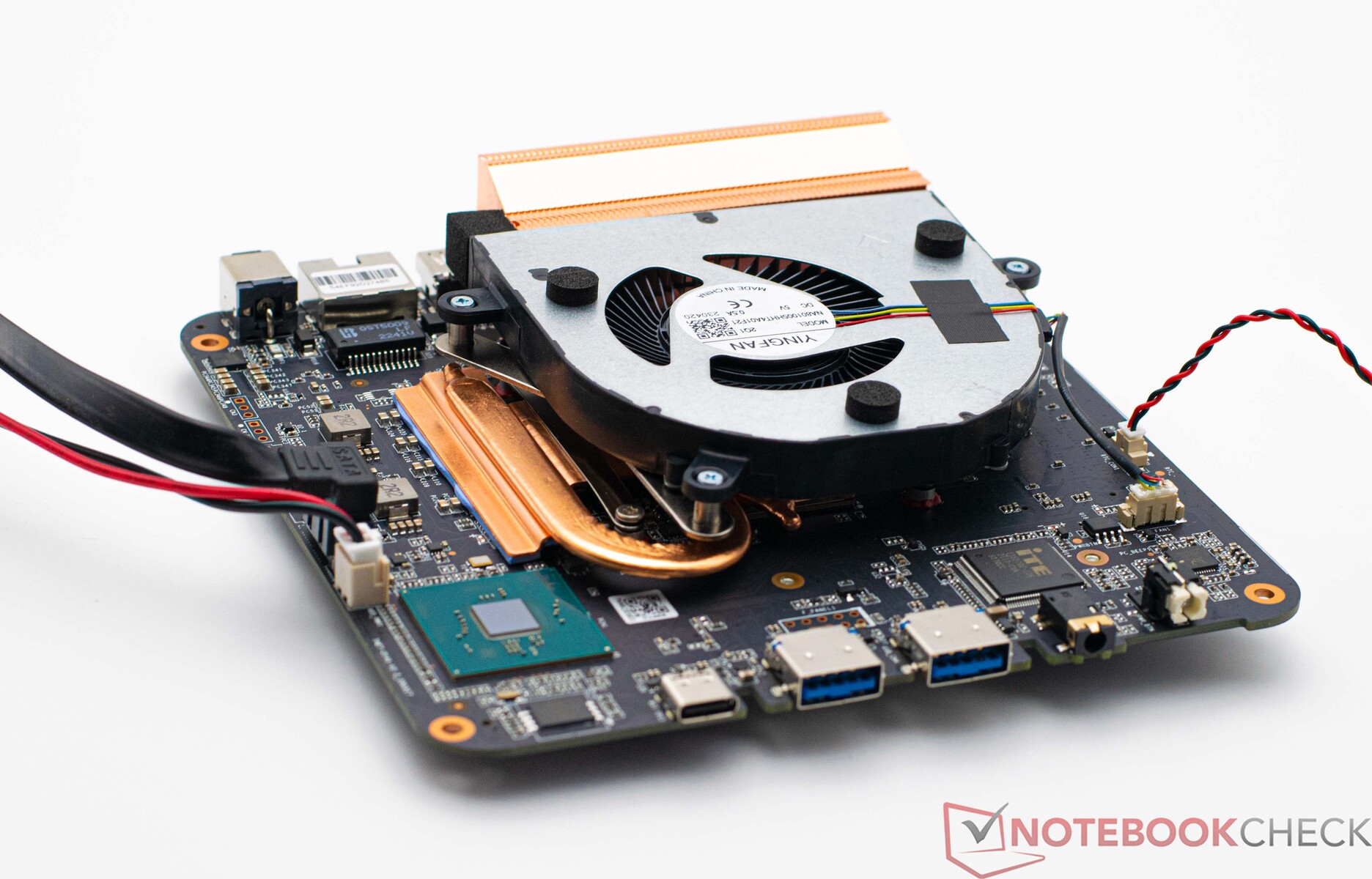

Blackview MP200 的外壳比较容易打开。侧盖通过底部的两颗螺丝与机壳相连。取下螺丝后，只需向下滑动侧盖即可取下。在内部，你可以找到工作内存和 M.2 固态硬盘形式的存储解决方案。虽然只配备了一个内存模块，但稍后还可以添加第二个模块。在存储方面，除 M.2 固态硬盘外，电脑还可安装第二个 2.5 英寸模块。如果要更换 WLAN 模块，必须进一步拆卸电脑，但只要小心操作，基本上是可以做到的。

性能 - 英特尔酷睿 i5-11400H 提供 6 个内核和 12 个线程

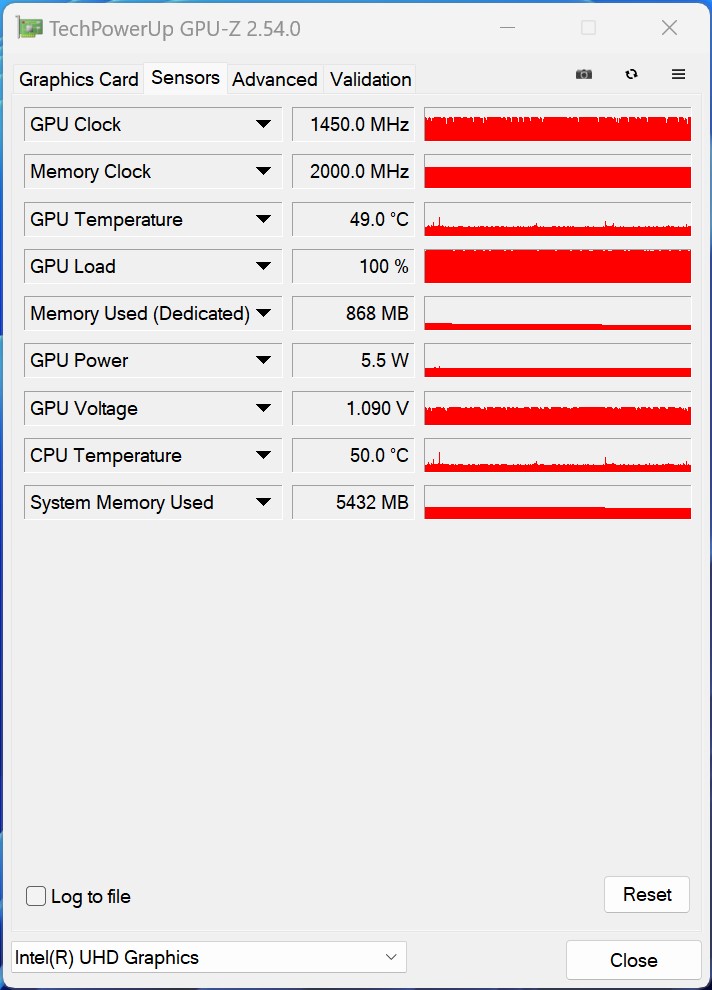

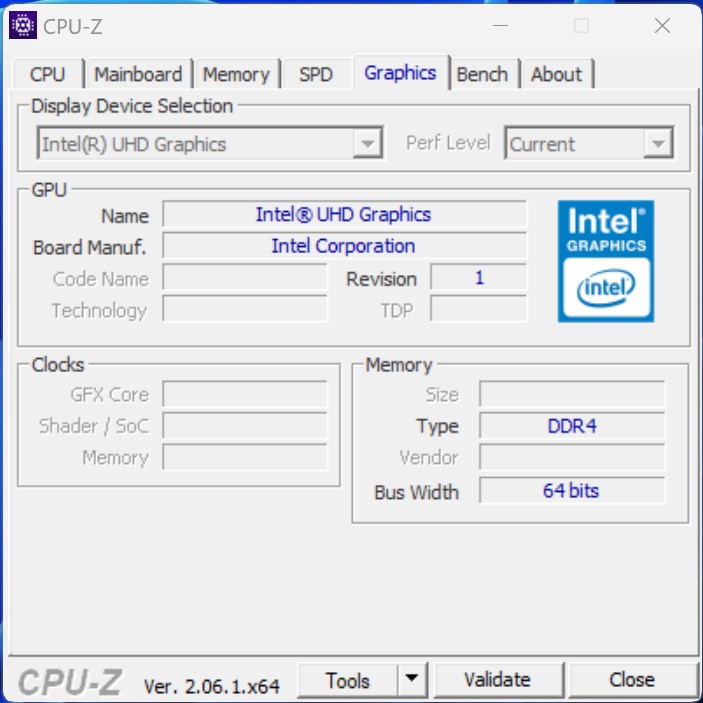

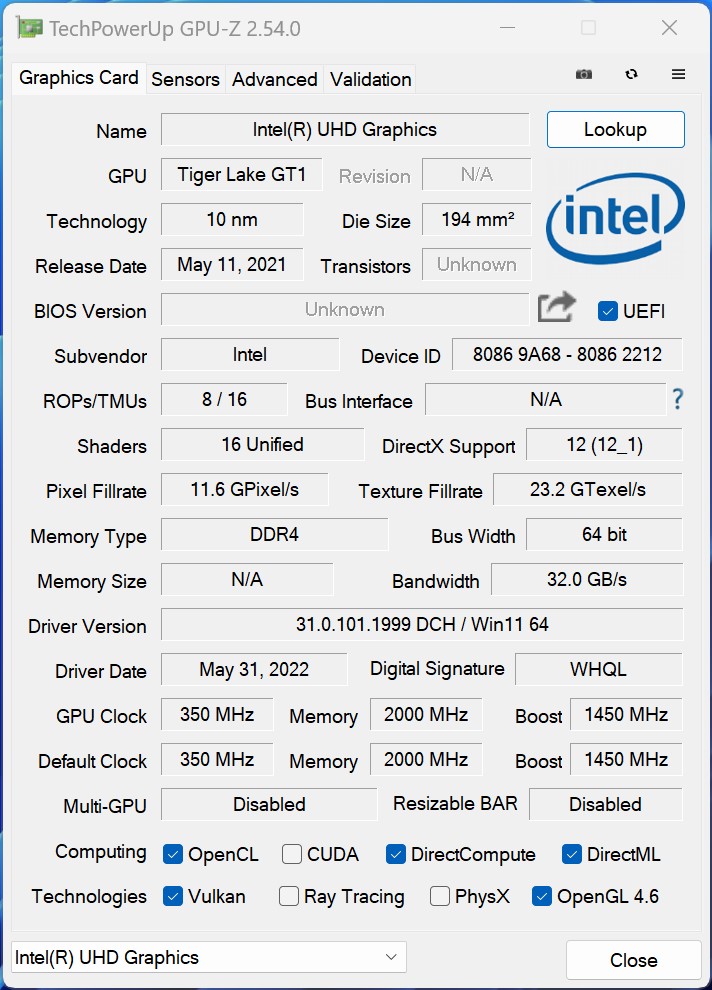

Blackview MP200 基于英特尔酷睿 i5-11400H处理器，可在日常操作中提供稳定的性能。作为集成显卡单元，只有一个英特尔 Iris Xe Graphics G716 个 EU。

测试条件

我们使用 "最高性能 "电源配置文件进行了所有性能测试。我们没有修改 SoC 的功耗，而是保留了 BIOS 的默认设置。根据我们的测试标准，其他电源配置文件仅用于测量功耗和噪音水平。测试标准.

处理器

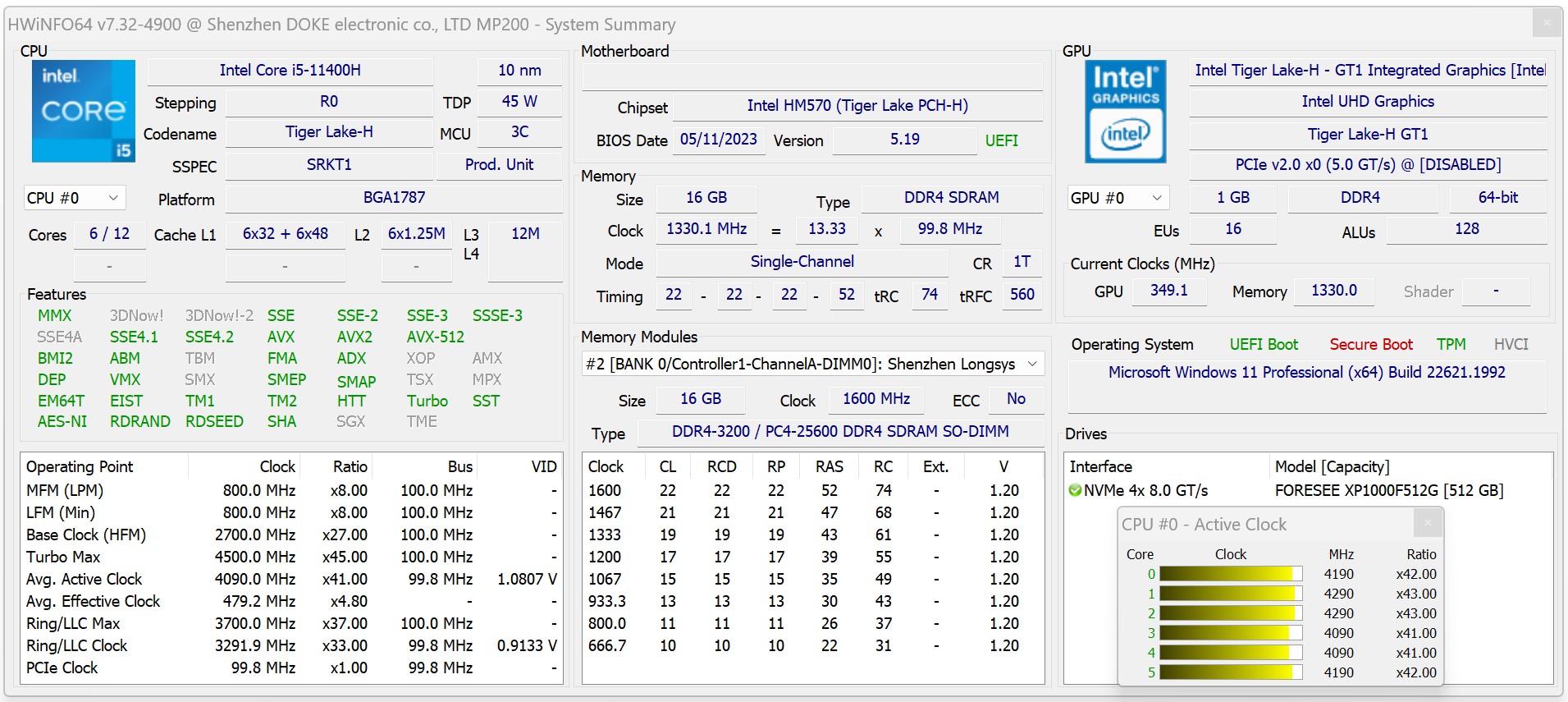

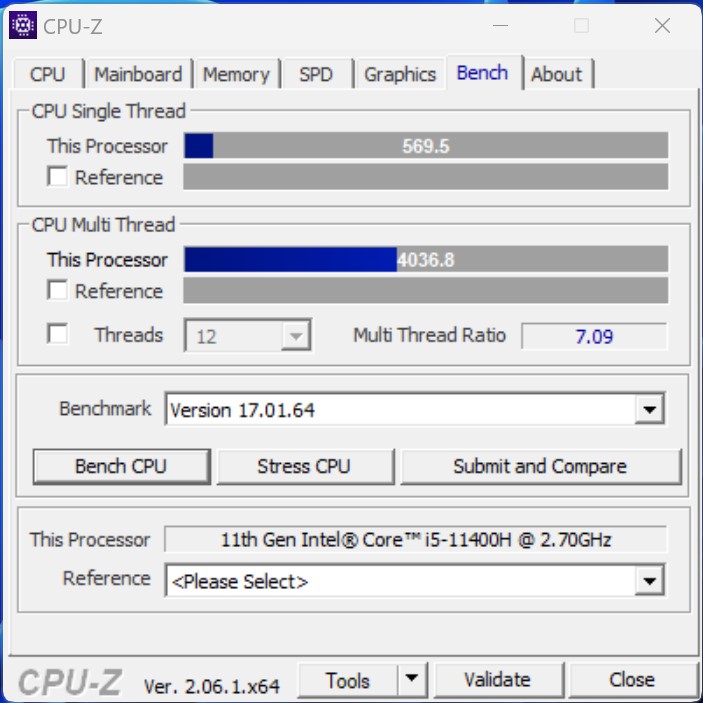

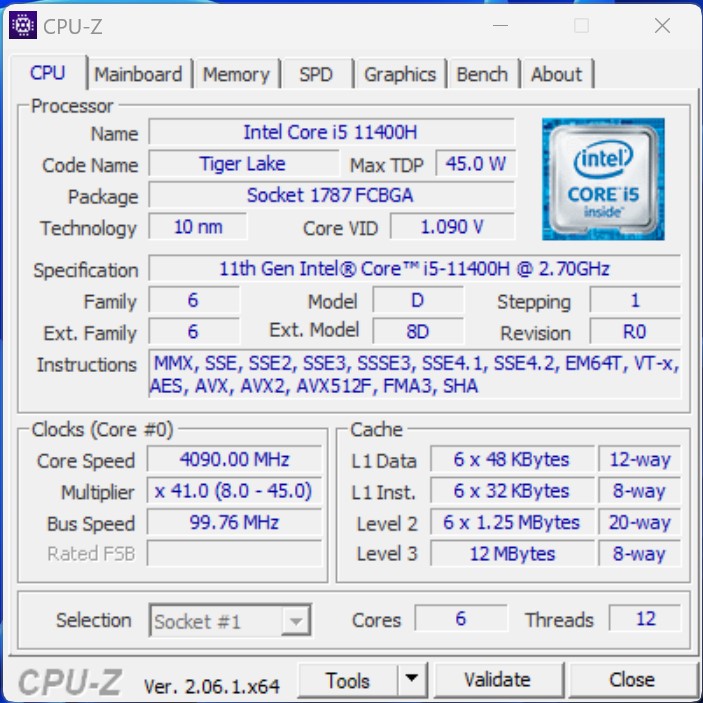

Blackview MP200 基于英特尔酷睿 i5-11400H.该 SoC 有六个原生计算内核，能够并行处理总共十二个线程。由于拥有六个内核，Blackview MP200 的性能可以与 M600.AMD 的新 Ryzen 5 6600U在单核性能方面甚至可以超越。由此可见，英特尔酷睿 i5-11400H 在很长一段时间内都不会被淘汰出局，它仍能提供稳定的性能。

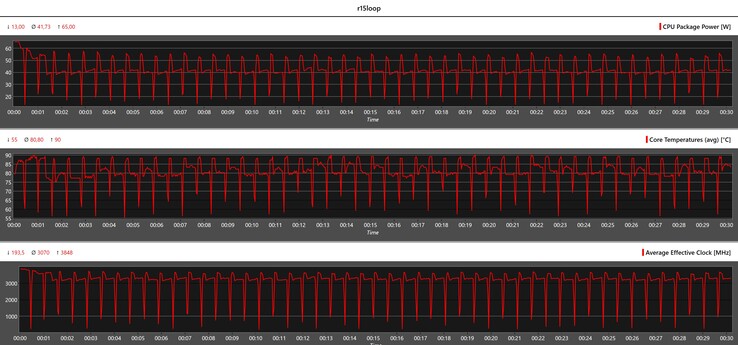

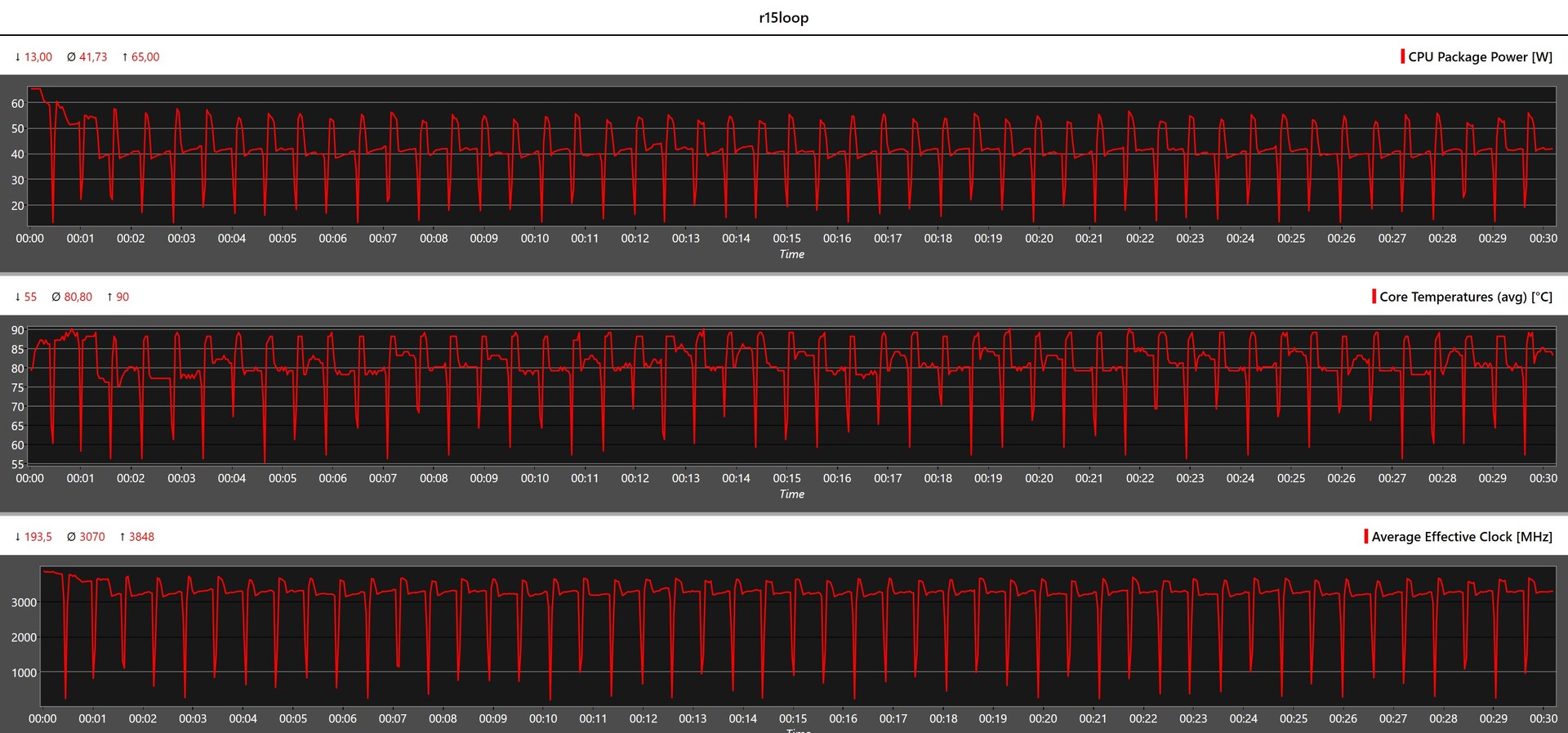

短期功耗（PL2）规定为 65 瓦，恒定负载（PL1）可消耗 45 瓦，虽然 Blackview MP600 能够达到 PL2 值，但只能使用很短的时间。我们认为，Blackview MP200 以 PL1 值运行处理器不会有任何问题。

您可以在我们的 CPU 对比图.

Performance Rating - Percent
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	43.4 pt
Morefine M600, 6600U AMD Ryzen 5 6600U	43 pt
Blackview MP200 Intel Core i5-11400H	41.1 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	40.3 pt
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	35.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	33 pt
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	31.8 pt

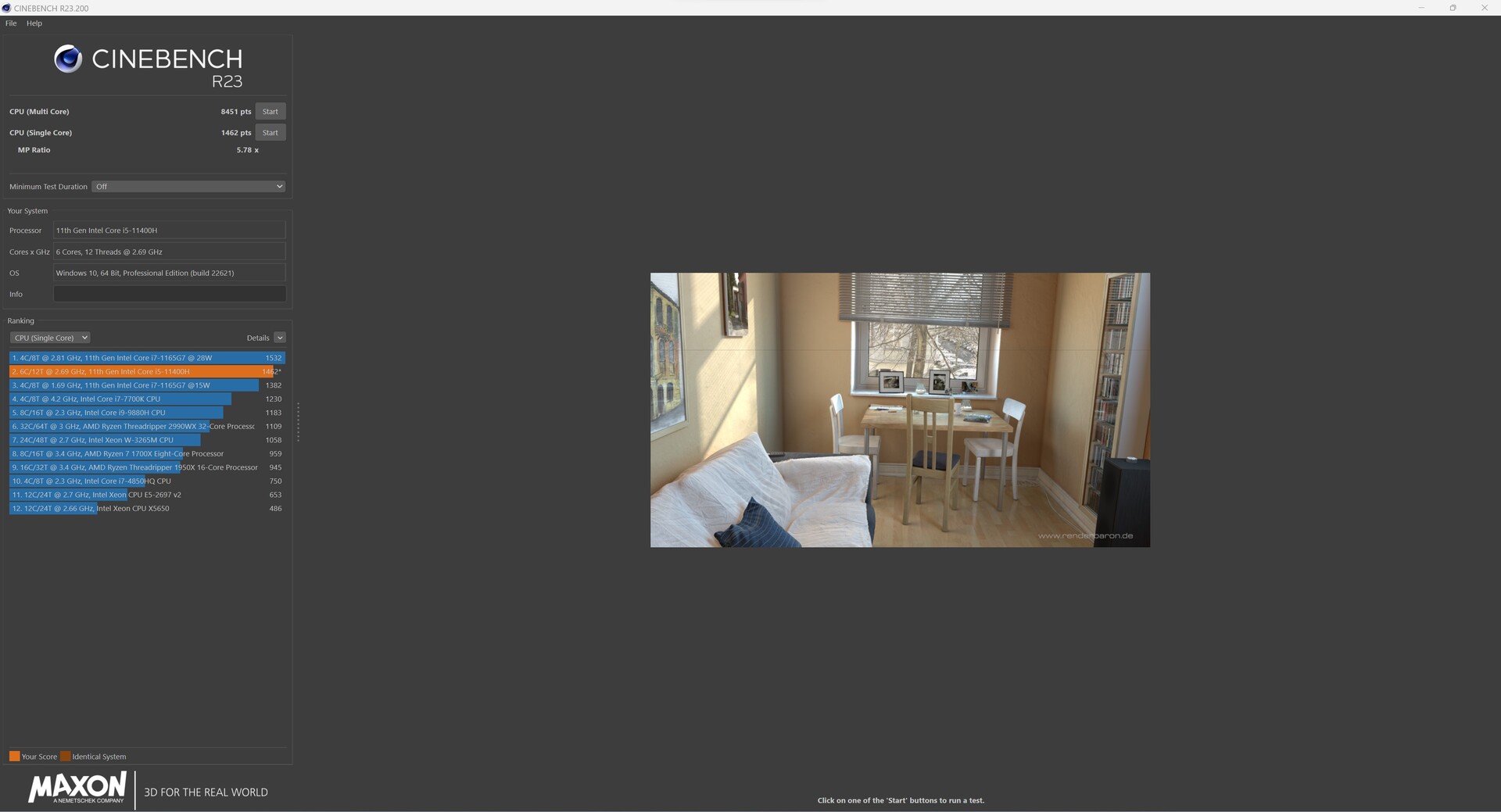

Cinebench R23
Multi Core
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	9564 Points +13%
Morefine M600, 6600U AMD Ryzen 5 6600U	8491 Points 0%
Blackview MP200 Intel Core i5-11400H	8451 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5917 Points -30%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	4025 Points -52%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3867 Points -54%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	3721 Points -56%
Single Core
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1602 Points +10%
Blackview MP200 Intel Core i5-11400H	1462 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	1420 Points -3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1375 Points -6%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	1346 Points -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1082 Points -26%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	959 Points -34%

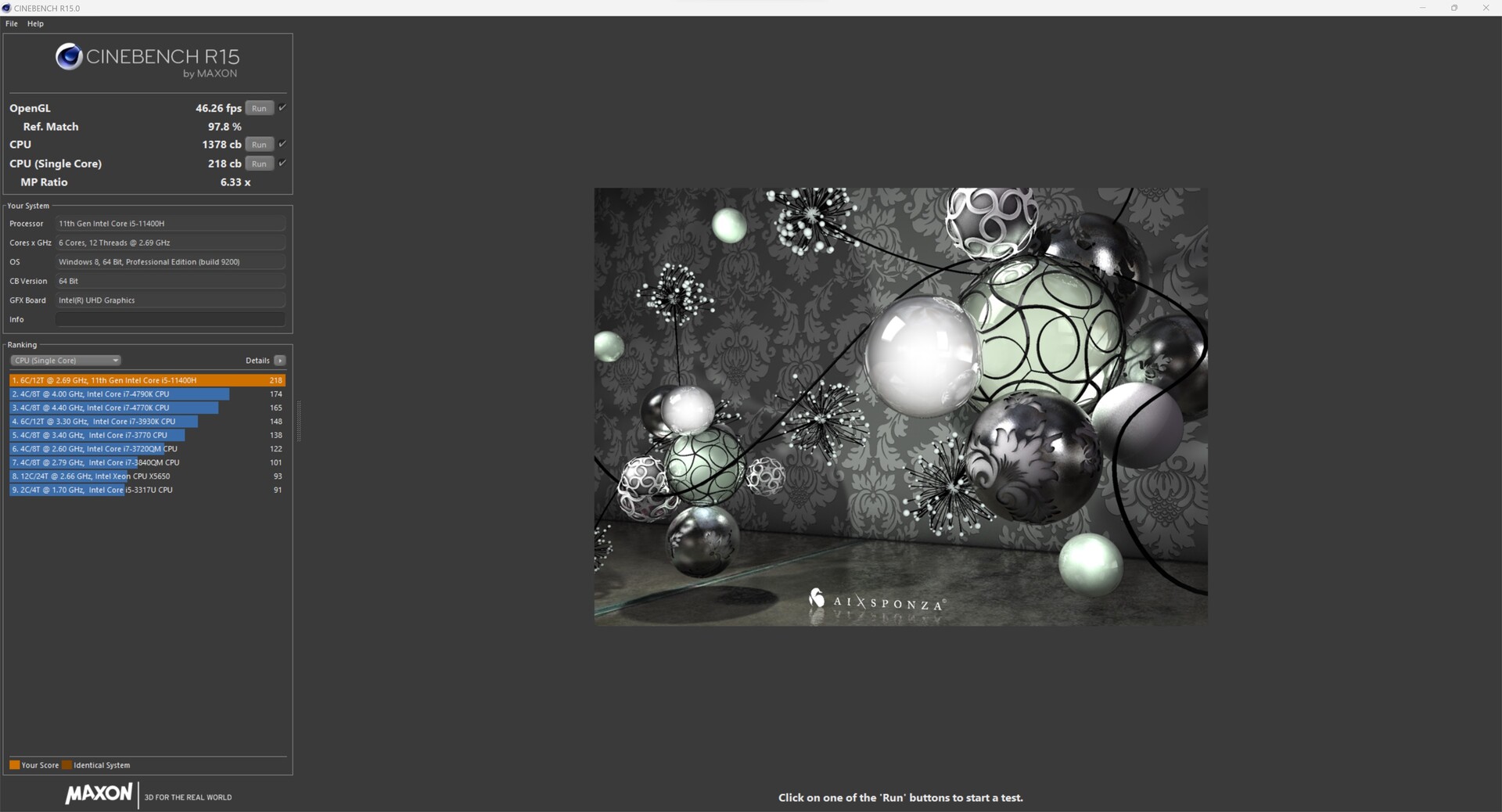

Cinebench R15
CPU Single 64Bit
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	232 Points +6%
Morefine M600, 6600U AMD Ryzen 5 6600U	227 Points +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	225 Points +3%
Blackview MP200 Intel Core i5-11400H	218 Points
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	197 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	170 Points -22%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	146 Points -33%
CPU Multi 64Bit
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1596 Points +16%
Blackview MP200 Intel Core i5-11400H	1378 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	1361 Points -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	953 Points -31%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	634 Points -54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	623 Points -55%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	560 Points -59%

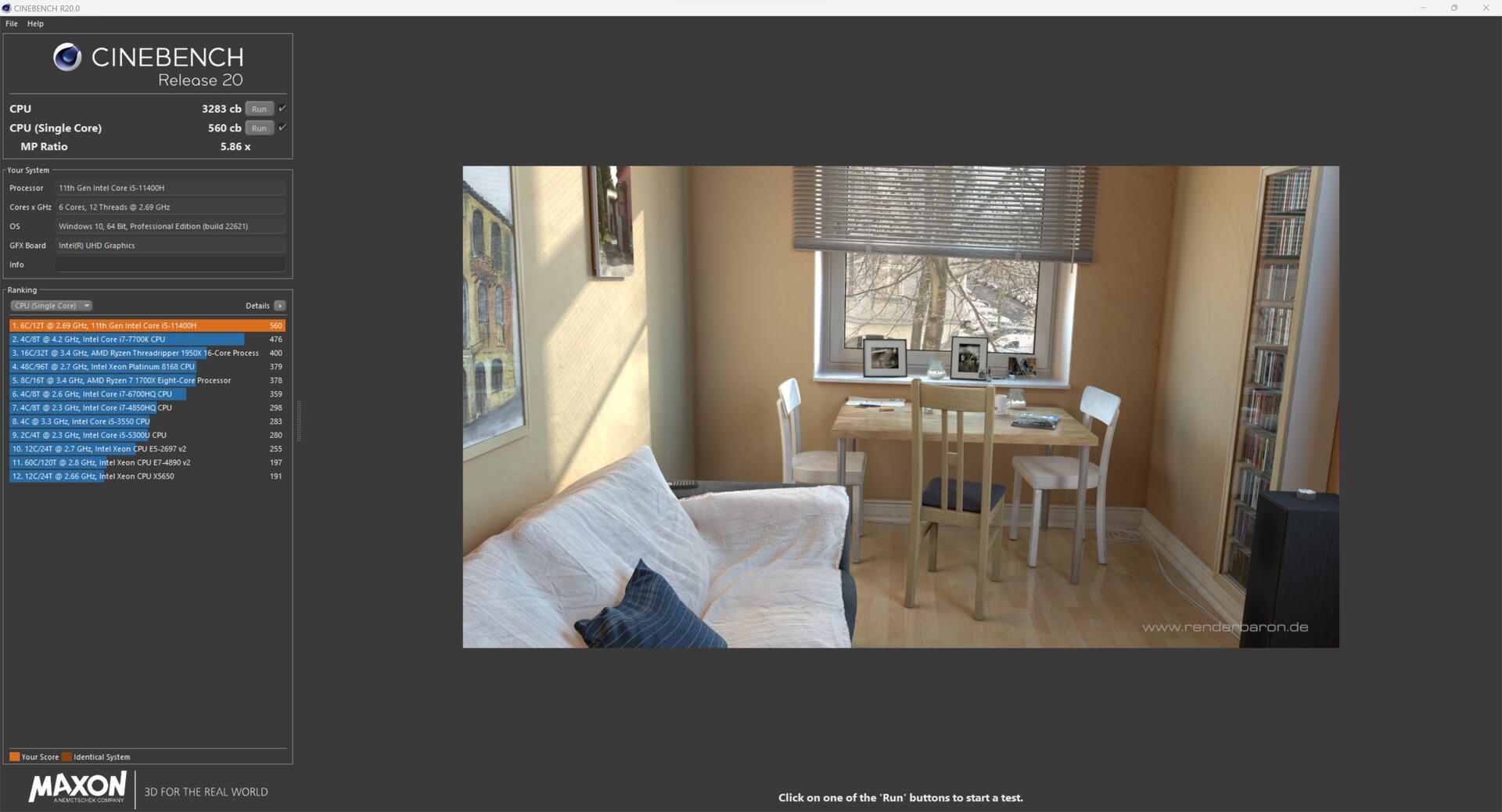

Cinebench R20
CPU (Single Core)
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	620 Points +11%
Blackview MP200 Intel Core i5-11400H	560 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	558 Points 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	533 Points -5%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	517 Points -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	415 Points -26%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	372 Points -34%
CPU (Multi Core)
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	3768 Points +15%
Morefine M600, 6600U AMD Ryzen 5 6600U	3419 Points +4%
Blackview MP200 Intel Core i5-11400H	3283 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2284 Points -30%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	1567 Points -52%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1498 Points -54%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	1440 Points -56%

Cinebench R11.5
CPU Single 64Bit
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2.78 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U	2.73 Points +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	2.63 Points +3%
Blackview MP200 Intel Core i5-11400H	2.55 Points
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	2.31 Points -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1.95 Points -24%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	1.67 Points -35%
CPU Multi 64Bit
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	18.68 Points +17%
Morefine M600, 6600U AMD Ryzen 5 6600U	17.15 Points +7%
Blackview MP200 Intel Core i5-11400H	15.97 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	10.68 Points -33%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	7.07 Points -56%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	6.98 Points -56%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	6.37 Points -60%

Cinebench R10
Rendering Single CPUs 64Bit
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	12516 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U	11685 Points +1%
Blackview MP200 Intel Core i5-11400H	11530 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	11201 Points -3%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	10395 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	8591 Points -25%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	7397 Points -36%
Rendering Multiple CPUs 64Bit
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	59479 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U	54792 Points 0%
Blackview MP200 Intel Core i5-11400H	54687 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	39426 Points -28%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	27377 Points -50%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	24499 Points -55%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	23491 Points -57%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	750 Seconds * -101%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	694 Seconds * -86%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	688 Seconds * -84%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	513 Seconds * -38%
Morefine M600, 6600U AMD Ryzen 5 6600U	415 Seconds * -11%
Blackview MP200 Intel Core i5-11400H	373 Seconds *
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	319 Seconds * +14%

wPrime 2.10
32m
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	7.479 s * -66%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	6.952 s * -55%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	6.799 s * -51%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	6.518 s * -45%
Morefine M600, 6600U AMD Ryzen 5 6600U	4.688 s * -4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	4.552 s * -1%
Blackview MP200 Intel Core i5-11400H	4.498 s *
1024m
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	286.835 s * -104%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	267.369 s * -90%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	248.619 s * -77%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	196.909 s * -40%
Morefine M600, 6600U AMD Ryzen 5 6600U	146.553 s * -4%
Blackview MP200 Intel Core i5-11400H	140.674 s *
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	129.204 s * +8%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	251.21 fps +11%
Blackview MP200 Intel Core i5-11400H	226.5 (210^min - 228^max) fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	214.5 (213^min - 216^max) fps -5%
Morefine M600, 6600U AMD Ryzen 5 6600U	212 (206^min - 224^max) fps -6%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	167.95 (167.5^min - 172.9^max) fps -26%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	165.55 (163.6^min - 204^max) fps -27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	141.6 (140.9^min - 163.1^max) fps -37%
Pass 2
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	95.18 fps +22%
Blackview MP200 Intel Core i5-11400H	77.85 (69.8^min - 82.6^max) fps
Morefine M600, 6600U AMD Ryzen 5 6600U	71.45 (70.2^min - 76.6^max) fps -8%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	55.2 (54.6^min - 55.9^max) fps -29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	40.5 (39.6^min - 43.1^max) fps -48%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	39.15 (39.1^min - 42.7^max) fps -50%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	36.7 (36.7^min - 37.6^max) fps -53%

WinRAR - Result
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7497 KB/s +37%
Morefine M600, 6600U AMD Ryzen 5 6600U	6937 KB/s +27%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	6144 KB/s +12%
Blackview MP200 Intel Core i5-11400H	5477 KB/s
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	5348 KB/s -2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	4747 KB/s -13%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	4185 KB/s -24%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	9.4 GB/s +12%
Morefine M600, 6600U AMD Ryzen 5 6600U	9.3 GB/s +11%
Blackview MP200 Intel Core i5-11400H	8.4 GB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	5.9 GB/s -30%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5.4 GB/s -36%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	5.3 GB/s -37%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	4.1 GB/s -51%
Twofish Mean 100MB
Morefine M600, 6600U AMD Ryzen 5 6600U	1.3 GB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1.3 GB/s 0%
Blackview MP200 Intel Core i5-11400H	1.3 GB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1 GB/s -23%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.838 GB/s -36%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	0.755 GB/s -42%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	0.753 GB/s -42%
Serpent Mean 100MB
Morefine M600, 6600U AMD Ryzen 5 6600U	0.857 GB/s +5%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	0.857 GB/s +5%
Blackview MP200 Intel Core i5-11400H	0.815 GB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	0.566 GB/s -31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.509 GB/s -38%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	0.454 GB/s -44%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	0.448 GB/s -45%

Geekbench 5.5
Multi-Core
Morefine M600, 6600U AMD Ryzen 5 6600U	7658 Points +28%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7253 Points +21%
Blackview MP200 Intel Core i5-11400H	6006 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5091 Points -15%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	4898 Points -18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3934 Points -34%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	3839 Points -36%
Single-Core
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1669 Points +14%
Morefine M600, 6600U AMD Ryzen 5 6600U	1504 Points +3%
Blackview MP200 Intel Core i5-11400H	1465 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1443 Points -2%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	1391 Points -5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1219 Points -17%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	948 Points -35%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6600U AMD Ryzen 5 6600U	10249 Points +72%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7128 Points +20%
Blackview MP200 Intel Core i5-11400H	5961 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5025 Points -16%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	4841 Points -19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3924 Points -34%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	3811 Points -36%
5.0 Single-Core
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1655 Points +13%
Morefine M600, 6600U AMD Ryzen 5 6600U	1557 Points +7%
Blackview MP200 Intel Core i5-11400H	1461 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1393 Points -5%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	1385 Points -5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1220 Points -16%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	944 Points -35%

Geekbench 4.4
64 Bit Single-Core Score
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7146 Points +17%
Morefine M600, 6600U AMD Ryzen 5 6600U	6698 Points +10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	6117 Points 0%
Blackview MP200 Intel Core i5-11400H	6110 Points
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	5911 Points -3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	4762 Points -22%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	4211 Points -31%
64 Bit Multi-Core Score
Morefine M600, 6600U AMD Ryzen 5 6600U	39852 Points +60%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	28997 Points +16%
Blackview MP200 Intel Core i5-11400H	24947 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	20385 Points -18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	19324 Points -23%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	19288 Points -23%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	14984 Points -40%

3DMark 11 - 1280x720 Performance Physics
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	14496 Points +32%
Morefine M600, 6600U AMD Ryzen 5 6600U	11630 Points +6%
Blackview MP200 Intel Core i5-11400H	10999 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	10536 Points -4%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	8666 Points -21%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	7792 Points -29%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	6537 Points -41%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	46562 MIPS +34%
Morefine M600, 6600U AMD Ryzen 5 6600U	44320 MIPS +28%
Blackview MP200 Intel Core i5-11400H	34660 MIPS
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	25876 MIPS -25%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	20163 MIPS -42%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	18729 MIPS -46%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	17636 MIPS -49%
7z b 4 -mmt1
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5895 MIPS +10%
Morefine M600, 6600U AMD Ryzen 5 6600U	5486 MIPS +3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	5369 MIPS 0%
Blackview MP200 Intel Core i5-11400H	5343 MIPS
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	4788 MIPS -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	4638 MIPS -13%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	3753 MIPS -30%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	12.4 fps +22%
Morefine M600, 6600U AMD Ryzen 5 6600U	11.7 fps +15%
Blackview MP200 Intel Core i5-11400H	10.2 fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7.61 fps -25%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	5.49 fps -46%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	5.26 fps -48%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	5.2 fps -49%

R Benchmark 2.5 - Overall mean
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	0.818 sec * -41%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	0.7 sec * -20%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	0.639 sec * -10%
Blackview MP200 Intel Core i5-11400H	0.581 sec *
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.543 sec * +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	0.526 sec * +9%
Morefine M600, 6600U AMD Ryzen 5 6600U	0.511 sec * +12%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	68.2 s * -29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	62.7 s * -18%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	56.7 s * -7%
Morefine M600, 6600U AMD Ryzen 5 6600U	53 s * -0%
Blackview MP200 Intel Core i5-11400H	53 s *
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	52 s * +2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	47.2 s * +11%

WebXPRT 3 - Overall
Morefine M600, 6600U AMD Ryzen 5 6600U	274 Points +11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	270 Points +9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	261 Points +6%
Blackview MP200 Intel Core i5-11400H	247 Points
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	236 Points -4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	205 Points -17%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	182.4 Points -26%

Mozilla Kraken 1.1 - Total
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	1088 ms * -65%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	968 ms * -47%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	724 ms * -10%
Blackview MP200 Intel Core i5-11400H	660 ms *
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	651 ms * +1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	644 ms * +2%
Morefine M600, 6600U AMD Ryzen 5 6600U	619 ms * +6%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	21110 Points +30%
Morefine M600, 6600U AMD Ryzen 5 6600U	18599 Points +14%
Blackview MP200 Intel Core i5-11400H	16258 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	11557 Points -29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	10500 Points -35%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	9561 Points -41%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	8470 Points -48%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	21025 Points +24%
Blackview MP200 Intel Core i5-11400H	16949 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	15934 Points -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	11883 Points -30%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	10860 Points -36%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	9354 Points -45%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	9003 Points -47%
2560x1440 Time Spy CPU
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	6767 Points +31%
Blackview MP200 Intel Core i5-11400H	5160 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	5114 Points -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	4598 Points -11%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	3346 Points -35%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	2867 Points -44%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	2728 Points -47%

* ... smaller is better

Performance Rating
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	94.6 pt
Average of class Mini PC	84 pt
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	83.8 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	82.7 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	59 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	53.3 pt
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	43.6 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	41.7 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	11347 KRay/s +8%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	10552 KRay/s
Average of class Mini PC (561 - 27538, n=100, last 2 years)	10040 KRay/s -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -37%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -47%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	5247 KRay/s -50%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s -56%

AIDA64 / FPU Julia
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	70782 Points +58%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points +33%
Average of class Mini PC (3604 - 116903, n=100, last 2 years)	52860 Points +18%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	44789 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points -41%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	26145 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -46%

AIDA64 / CPU SHA3
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	3103 MB/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	2360 MB/s -24%
Average of class Mini PC (225 - 5096, n=100, last 2 years)	2314 MB/s -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -36%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -41%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -47%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	1367 MB/s -56%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s -66%

AIDA64 / CPU Queen
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75724 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points +8%
Average of class Mini PC (8172 - 119569, n=100, last 2 years)	69760 Points 0%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	69756 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points -19%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -33%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	43072 Points -38%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	8952 Points +25%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points +22%
Average of class Mini PC (408 - 15525, n=100, last 2 years)	7358 Points +2%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	7186 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points -35%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -37%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	4310 Points -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -45%

AIDA64 / FPU Mandel
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	38989 Points +45%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points +21%
Average of class Mini PC (1958 - 62378, n=100, last 2 years)	27950 Points +4%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	26798 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -44%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	12914 Points -52%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points -53%

AIDA64 / CPU AES
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	99449 MB/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	95057 MB/s -4%
Average of class Mini PC (3691 - 177158, n=100, last 2 years)	76101 MB/s -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s -41%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -42%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -60%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s -82%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	16354 MB/s -84%

AIDA64 / CPU ZLib
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	614 MB/s +4%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	591 MB/s
Average of class Mini PC (74.8 - 1183, n=100, last 2 years)	589 MB/s 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -37%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	316 MB/s -47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s -51%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -55%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	5777 KRay/s +1%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	5743 KRay/s
Average of class Mini PC (308 - 14722, n=100, last 2 years)	5364 KRay/s -7%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -48%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	2771 KRay/s -52%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s -56%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +124%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +120%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s +108%
Average of class Mini PC (4408 - 44996, n=100, last 2 years)	24866 MPixel/s +103%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	20410 MPixel/s +67%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	14986 MPixel/s +22%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	12248 MPixel/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s -17%

Blackview MP200 与 Cinebench R15 多环路对比

我们使用 Cinebench R15 恒定循环测试来初步了解散热系统与 SoC 功耗目标相结合的效率。我们看到，Blackview MP200 无法始终保持性能稳定。第三次运行后，性能稳定在 1586 点左右。

Blackview MP200 Intel Core i5-11400H, Intel Core i5-11400H: Ø1208 (1178.24-1384.8)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)

ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Core i5-8259U: Ø621 (611.68-659.87)

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)

系统性能

在合成基准测试中，Blackview MP200 似乎越来越难以与竞争对手抗衡。在 PCMark10 和 Crossmark 测试中，我们的测试机滑落到了中间位置。在内存测试中，情况变得更加困难，因为只有一个 16GB SO-DIMM 模块，也就相当于只有一半的存储带宽，这限制了系统的运行。不过，我们仍然可以主观地证明，在日常运行中，它的工作速度还是不错的。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	6189 Points +37%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points +30%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points +9%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	4525 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points 0%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	4132 Points -9%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points -14%

PCMark 10 / Essentials
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	10503 Points +10%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points +3%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points +1%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	9513 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -6%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	8215 Points -14%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points -21%

PCMark 10 / Productivity
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	9642 Points +48%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points +39%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points +5%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points +2%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	6495 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -2%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	5976 Points -8%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +18%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points +12%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1346 Points +5%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1285 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -3%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points -21%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	954 Points -26%

CrossMark / Responsiveness
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points +33%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points +15%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points +13%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1197 Points +11%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1079 Points
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	796 Points -26%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points -28%

CrossMark / Creativity
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +26%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1377 Points +5%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points +4%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1309 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -9%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points -21%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	1027 Points -22%

CrossMark / Productivity
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points +14%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points +12%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1368 Points +2%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1336 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -2%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points -18%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	943 Points -29%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +115%
Average of class Mini PC (6481 - 70620, n=100, last 2 years)	43193 MB/s +95%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s +89%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	41732 MB/s +88%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	37992 MB/s +71%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s +60%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22181 MB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s -14%

AIDA64 / Memory Read
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s +89%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	46963 MB/s +88%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s +84%
Average of class Mini PC (6914 - 73633, n=100, last 2 years)	43916 MB/s +76%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s +61%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	35415 MB/s +42%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	25003 MB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s -22%

AIDA64 / Memory Write
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +116%
Average of class Mini PC (6862 - 89318, n=100, last 2 years)	46870 MB/s +105%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s +105%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	44872 MB/s +96%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	43598 MB/s +90%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s +71%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22892 MB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s -20%

AIDA64 / Memory Latency
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -28%
Average of class Mini PC (44.9 - 154.6, n=100, last 2 years)	87.8 ns * -20%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75.5 ns * -3%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	73.3 ns *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +10%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	60.3 ns * +18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns * +18%

* ... smaller is better

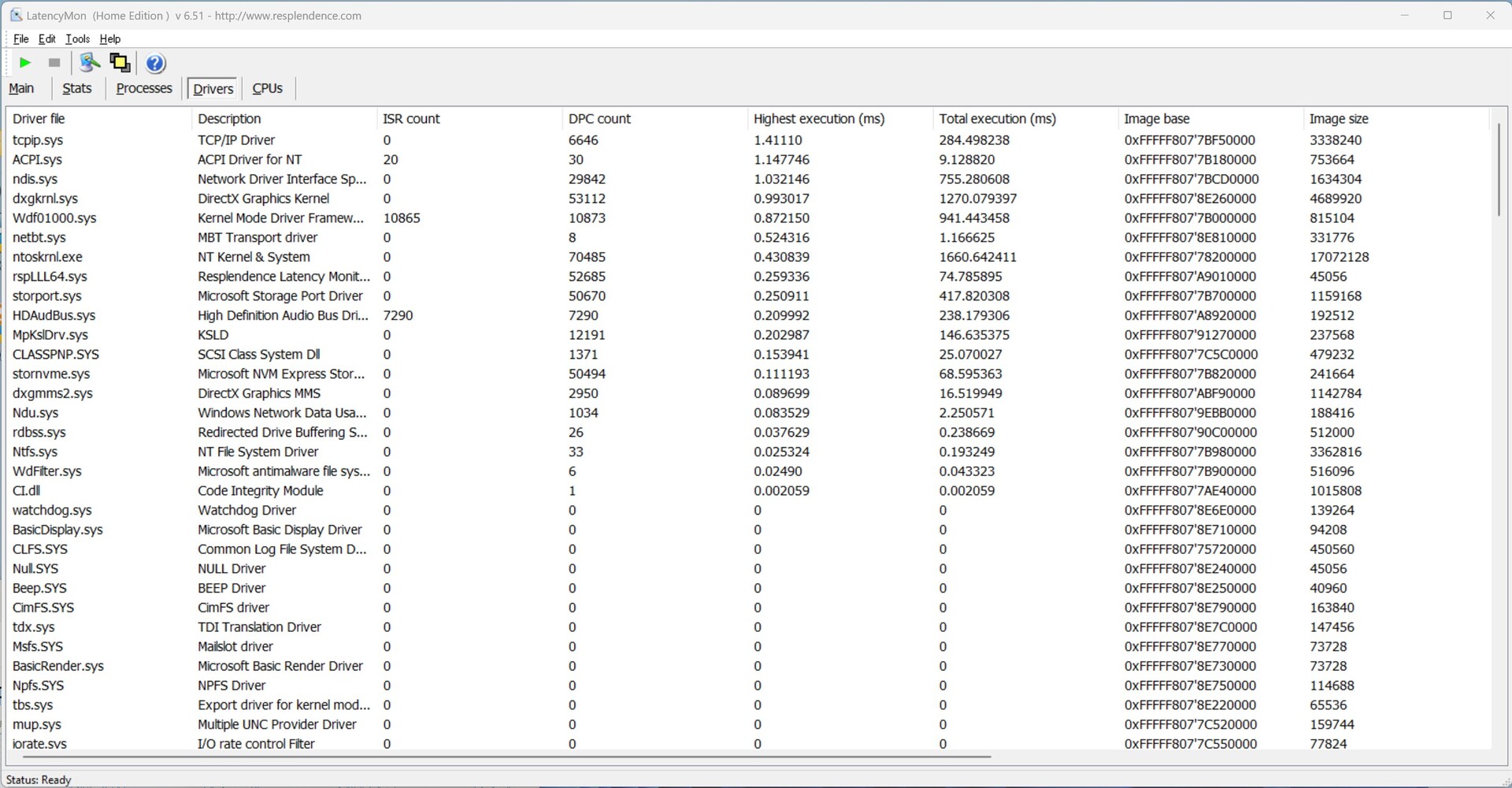

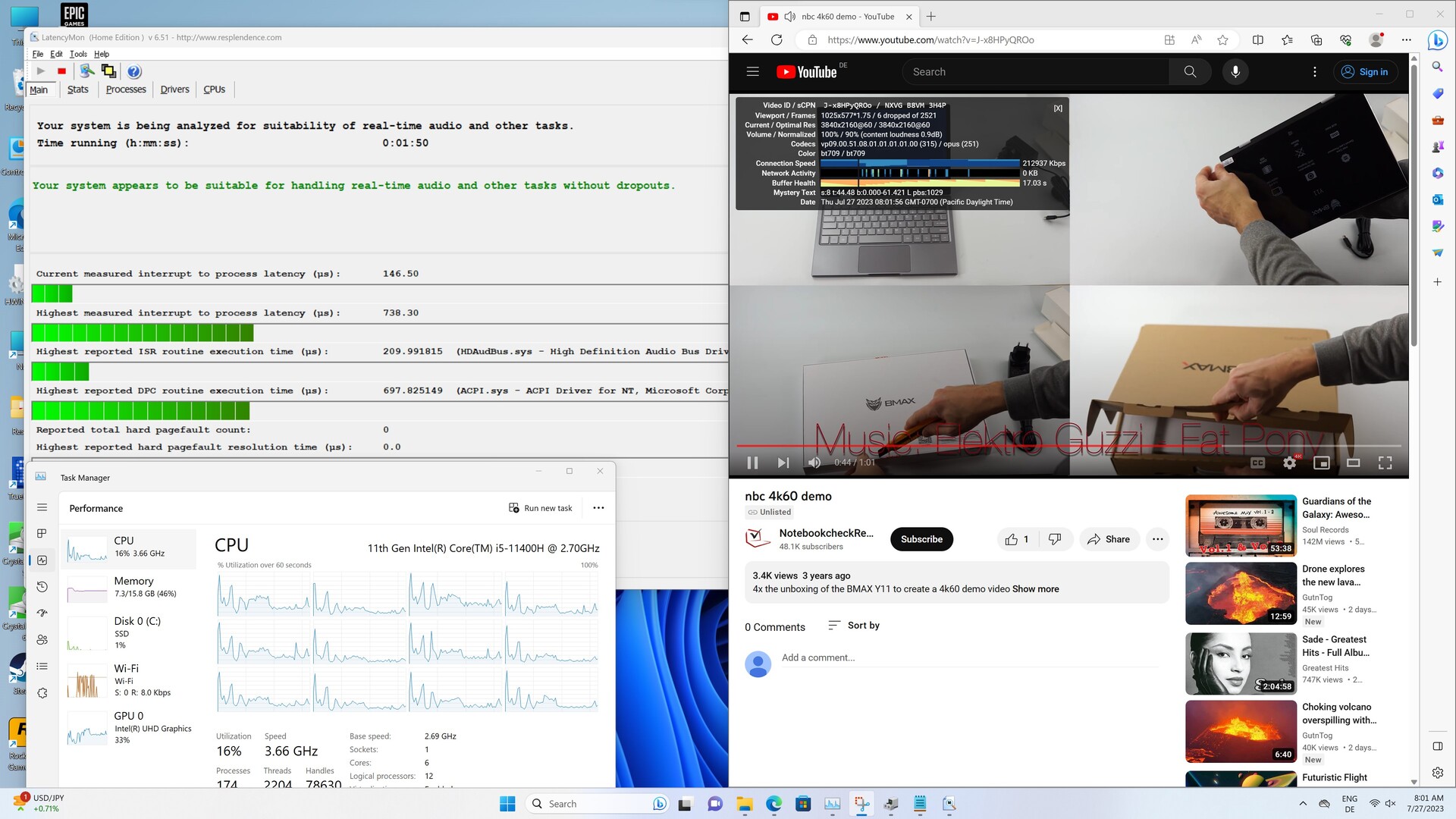

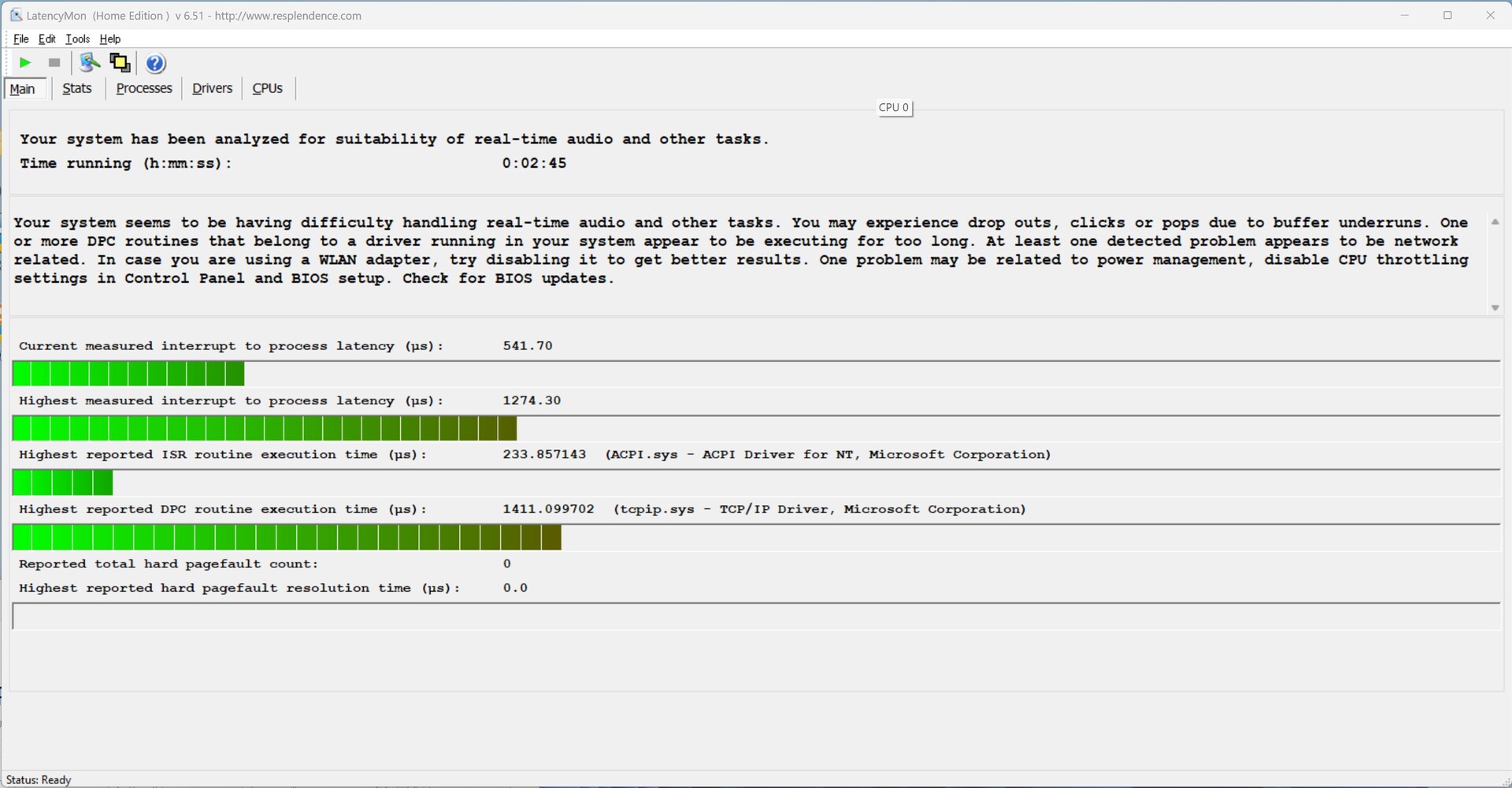

DPC 延迟

在这项测试中，Blackview MP200 最初显示出了不错的效果。在 Edge 浏览器中打开多个标签页并播放 4K 测试视频时，我们还没有看到任何严重的延迟。只有当我们开始播放 Prime95 时，才会发现延迟略有增加，但随后就不再增加了。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	7414 μs * -425%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	3247 μs * -130%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	1411 μs *
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * +28%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	940.27 μs * +33%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * +53%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +67%

* ... smaller is better

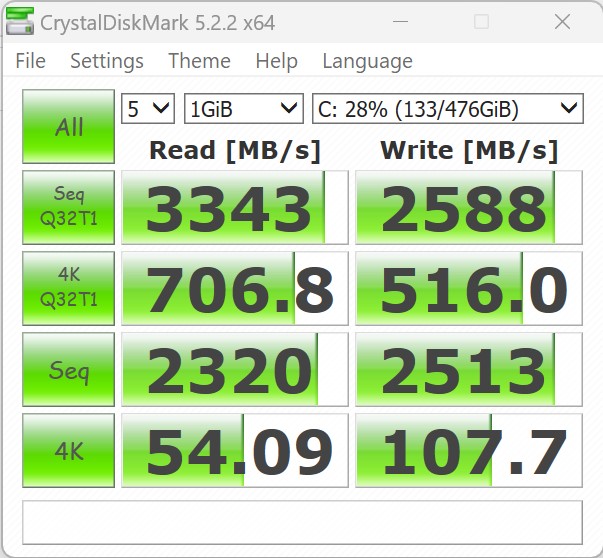

存储解决方案

Blackview 为 MP200 配备了 512GB NVMe 固态硬盘。安装的型号使用 NVMe 连接，传输速率相当稳定。它通过 M.2 连接（PCIe 3.0 x4）连接。不过，这在同类竞争产品中只能排在中间位置，尽管与第一名的距离并不遥远，只有 10%。电脑允许插入第二个 2.5 英寸格式的存储模块。

您可以在我们的比较表中找到更多的比较和基准。我们的比较表.

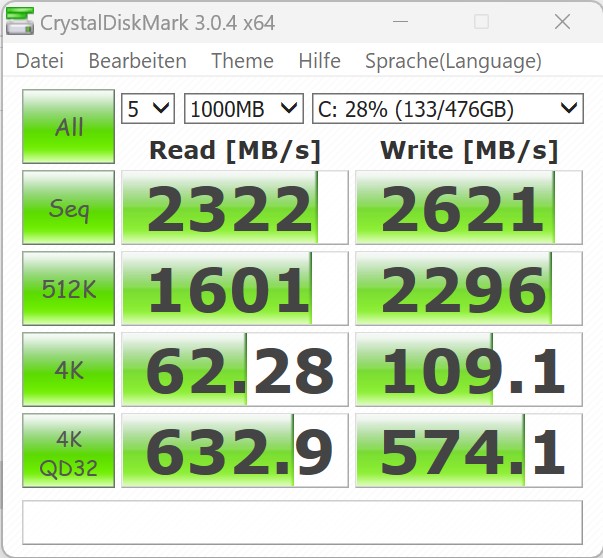

CrystalDiskMark 3.0

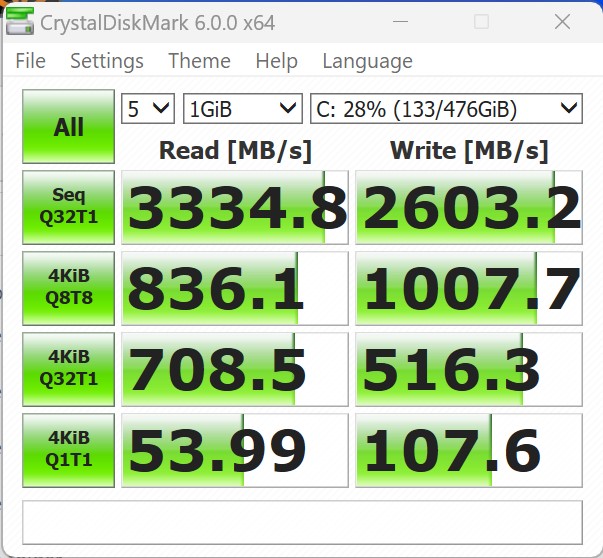

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Foresee XP1000F512G

Sequential Read: 2322 MB/s

Sequential Write: 2621 MB/s

512K Read: 1601 MB/s

512K Write: 2296 MB/s

4K Read: 62.28 MB/s

4K Write: 109.1 MB/s

4K QD32 Read: 632.9 MB/s

4K QD32 Write: 574.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	82.6 pt
Minisforum Venus Series UM560 XT ESO512GYLCT	78.6 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	75.5 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	71.9 pt
Blackview MP200 Foresee XP1000F512G	71.1 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	59 pt
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	29.9 pt
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	24.5 pt

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +5%
Blackview MP200 Foresee XP1000F512G	2089 (1961.74^min - 2088.97^max) MB/s
Average of class Mini PC (233 - 4168, n=99, last 2 years)	2046 MB/s -2%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s -18%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -19%
Minisforum Venus Series UM560 XT ESO512GYLCT	1645 (1636.91^min - 1645.01^max) MB/s -21%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	464 (407.92^min - 464.01^max) MB/s -78%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s -85%
seq write
Blackview MP200 Foresee XP1000F512G	2395 (2371.88^min - 2394.91^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s -4%
Average of class Mini PC (222 - 5595, n=99, last 2 years)	2087 MB/s -13%
Minisforum Venus Series UM560 XT ESO512GYLCT	1877 (1870.87^min - 1877.35^max) MB/s -22%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s -25%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -55%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	502 (311.64^min - 502.31^max) MB/s -79%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s -82%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=99, last 2 years)	3204 MB/s +6%
Blackview MP200 Foresee XP1000F512G	3034 (2493.77^min - 3034.37^max) MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s -17%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s -17%
Minisforum Venus Series UM560 XT ESO512GYLCT	2360 (2078.7^min - 2359.72^max) MB/s -22%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -27%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s -85%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	236 (35.65^min - 236.35^max) MB/s -92%
seq q8 t1 write
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s +3%
Blackview MP200 Foresee XP1000F512G	2412 (2365.59^min - 2411.72^max) MB/s
Average of class Mini PC (228 - 6669, n=99, last 2 years)	2266 MB/s -6%
Minisforum Venus Series UM560 XT ESO512GYLCT	1946 (1938.09^min - 1945.74^max) MB/s -19%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s -26%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s -34%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	512 (493.73^min - 511.73^max) MB/s -79%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s -81%
4k q1 t1 read
Blackview MP200 Foresee XP1000F512G	53.7 (53.3^min - 53.65^max) MB/s
Average of class Mini PC (5.67 - 86.6, n=99, last 2 years)	52.1 MB/s -3%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s -16%
Minisforum Venus Series UM560 XT ESO512GYLCT	44.8 (44.42^min - 44.77^max) MB/s -17%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -25%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s -28%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	38.1 (37.92^min - 38.07^max) MB/s -29%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -29%
4k q1 t1 write
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +117%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +86%
Average of class Mini PC (22 - 435, n=99, last 2 years)	190.6 MB/s +81%
Minisforum Venus Series UM560 XT ESO512GYLCT	168.4 (166.77^min - 168.37^max) MB/s +60%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s +14%
Blackview MP200 Foresee XP1000F512G	105.3 (104.05^min - 105.3^max) MB/s
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	90.9 (89.44^min - 90.91^max) MB/s -14%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s -22%
4k q32 t16 read
Average of class Mini PC (26.1 - 2967, n=99, last 2 years)	1129 MB/s +54%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +37%
Minisforum Venus Series UM560 XT ESO512GYLCT	831 (807.33^min - 831.01^max) MB/s +14%
Blackview MP200 Foresee XP1000F512G	731 (727.82^min - 730.52^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -13%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -23%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	338 (299.48^min - 338.25^max) MB/s -54%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s -60%
4k q32 t16 write
Minisforum Venus Series UM560 XT ESO512GYLCT	1611 (1590.22^min - 1610.86^max) MB/s +114%
Average of class Mini PC (30.2 - 3983, n=99, last 2 years)	1128 MB/s +50%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +3%
Blackview MP200 Foresee XP1000F512G	754 (743.45^min - 754.38^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s -28%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	350 (206.15^min - 349.79^max) MB/s -54%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s -56%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -77%

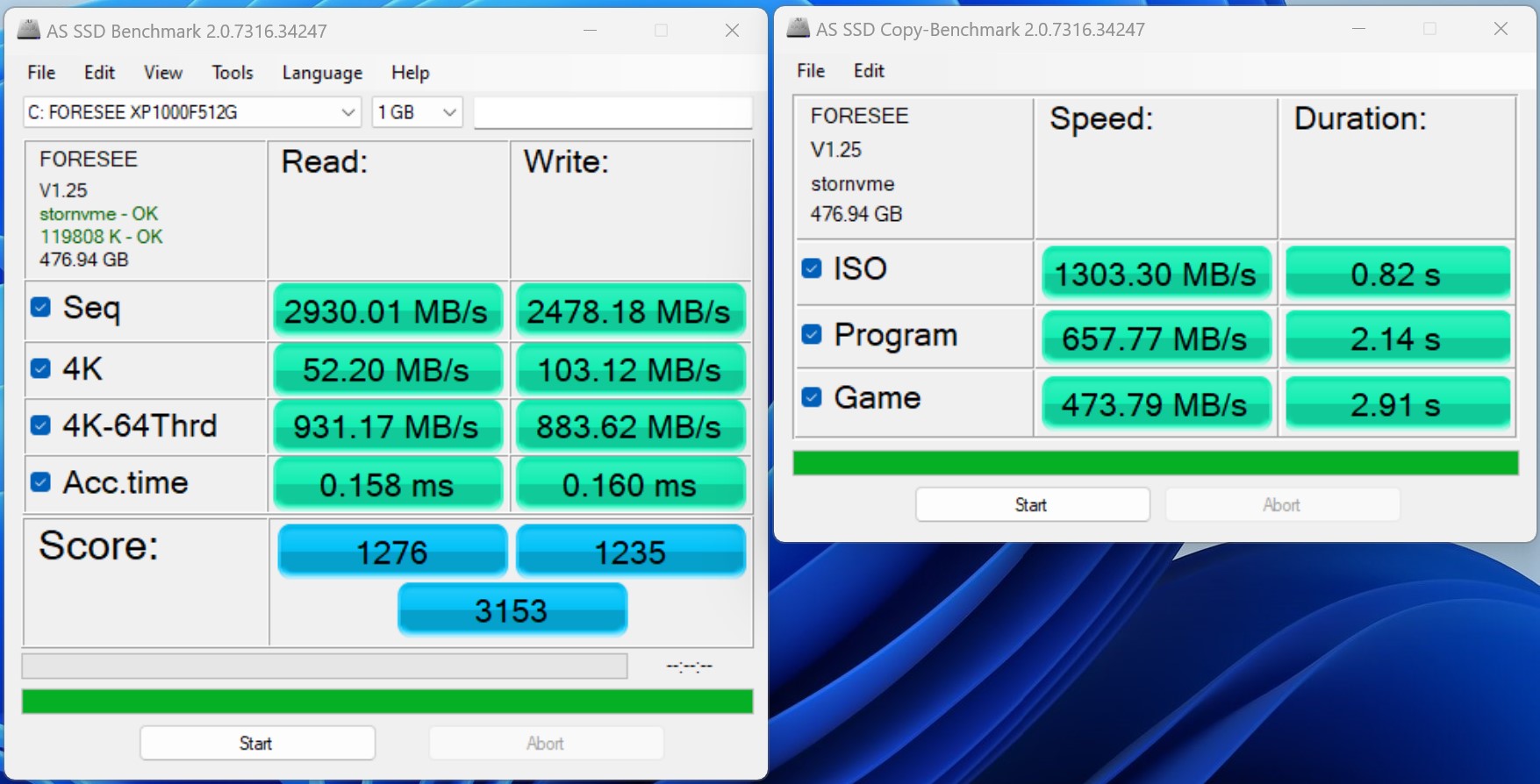

AS SSD
Score Total
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points +23%
Average of class Mini PC (151.3 - 9030, n=97, last 2 years)	3616 Points +15%
Blackview MP200 Foresee XP1000F512G	3153 Points
Minisforum Venus Series UM560 XT ESO512GYLCT	3139 Points 0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points -8%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	1048 Points -67%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -76%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points -94%
Score Read
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points +19%
Average of class Mini PC (61 - 3635, n=97, last 2 years)	1375 Points +8%
Blackview MP200 Foresee XP1000F512G	1276 Points
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points -10%
Minisforum Venus Series UM560 XT ESO512GYLCT	954 Points -25%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -48%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	420 Points -67%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points -70%
Score Write
Minisforum Venus Series UM560 XT ESO512GYLCT	1702 Points +38%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points +32%
Average of class Mini PC (88 - 4185, n=97, last 2 years)	1588 Points +29%
Blackview MP200 Foresee XP1000F512G	1235 Points
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points -5%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points -43%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	403 Points -67%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points -86%
Seq Read
Blackview MP200 Foresee XP1000F512G	2930 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s -3%
Average of class Mini PC (291 - 6620, n=97, last 2 years)	2822 MB/s -4%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s -23%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -25%
Minisforum Venus Series UM560 XT ESO512GYLCT	2193 MB/s -25%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s -83%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	486 MB/s -83%
Seq Write
Blackview MP200 Foresee XP1000F512G	2478 MB/s
Average of class Mini PC (240 - 5783, n=97, last 2 years)	1981 MB/s -20%
Minisforum Venus Series UM560 XT ESO512GYLCT	1762 MB/s -29%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s -35%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s -47%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s -79%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s -84%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	330 MB/s -87%
4K Read
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s +21%
Average of class Mini PC (6.08 - 104.3, n=97, last 2 years)	56.4 MB/s +8%
Minisforum Venus Series UM560 XT ESO512GYLCT	55.3 MB/s +6%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s +2%
Blackview MP200 Foresee XP1000F512G	52.2 MB/s
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	46.8 MB/s -10%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s -19%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -24%
4K Write
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s +118%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s +80%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +80%
Average of class Mini PC (30.9 - 366, n=97, last 2 years)	171.3 MB/s +66%
Minisforum Venus Series UM560 XT ESO512GYLCT	151.8 MB/s +47%
Blackview MP200 Foresee XP1000F512G	103.1 MB/s
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	87.1 MB/s -16%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s -62%
4K-64 Read
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s +31%
Average of class Mini PC (23.4 - 3035, n=97, last 2 years)	1036 MB/s +11%
Blackview MP200 Foresee XP1000F512G	931 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s -4%
Minisforum Venus Series UM560 XT ESO512GYLCT	679 MB/s -27%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	324 MB/s -65%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -65%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s -69%
4K-64 Write
Minisforum Venus Series UM560 XT ESO512GYLCT	1374 MB/s +55%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s +44%
Average of class Mini PC (32.8 - 3598, n=97, last 2 years)	1219 MB/s +38%
Blackview MP200 Foresee XP1000F512G	884 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s -7%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s -48%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	283 MB/s -68%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s -89%
Access Time Read
Blackview MP200 Foresee XP1000F512G	0.158 ms *
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.112 ms * +29%
Average of class Mini PC (0.022 - 0.489, n=97, last 2 years)	0.1014 ms * +36%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms * +37%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	0.083 ms * +47%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +62%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +62%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.044 ms * +72%
Access Time Write
Blackview MP200 Foresee XP1000F512G	0.16 ms *
Average of class Mini PC (0.016 - 0.765, n=97, last 2 years)	0.1277 ms * +20%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	0.127 ms * +21%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.113 ms * +29%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * +36%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms * +46%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.024 ms * +85%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +86%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Blackview MP200 Foresee XP1000F512G: Ø3033 (2552.65-3092.67)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Minisforum Venus Series UM560 XT ESO512GYLCT: Ø2347 (2148.11-2354.15)

ACEMagician ACE-CK10-8259U FPT330M8SSD512G: Ø330 (164.21-394.73)

Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G: Ø453 (292.09-461.16)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG: Ø1246 (674.65-1585.03)

图形卡

Blackview MP200 的英特尔酷睿 i5-11400H ，集成显卡单元采用了英特尔 Iris Xe Graphics G7 ，拥有 16 个 EU。其性能主要受工作内存的影响，因此无法充分发挥其性能。但是，即使我们增加第二个工作内存模块，我们仍然不得不承认，集成图形单元只适合简单的 2D 重现。在直接对比中，它只足以超越NiPoGi CK10 ，后者也只配备了一个 SO-DIMM 模块。

您可以在我们的G PU 对比图.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	97.4 pt
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	90 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	83.4 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	79.7 pt
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	44.7 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	25.8 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	25.3 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points +268%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points +241%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points +236%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points +227%
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	2888 Points +75%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points 0%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1654 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	29927 Points +285%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points +262%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points +163%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19240 Points +147%
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	13739 Points +77%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points +5%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7779 Points
1920x1080 Fire Strike Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +284%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points +236%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	3971 Points +230%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points +210%
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	1987 Points +65%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1203 Points
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points -10%
2560x1440 Time Spy Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points +311%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points +274%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points +258%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points +219%
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	633 Points +82%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	365 Points +5%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	348 Points
Fire Strike Extreme Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +295%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1833 Points +237%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points +219%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1654 Points +204%
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	916 Points +68%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	544 Points
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	491 Points -10%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Unigine Superposition

Performance Rating - Percent
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	96.9 pt
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	93.5 pt
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	80.1 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	79.5 pt
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	49.6 pt
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	29.2 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! UHD Graphics 620, i7-10810U, FPT310M8SSD512G	26.9 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	20.9 fps +179%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps +172%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.7 fps +136%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps +131%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	10.5 fps +40%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.5 fps
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.4 fps -28%
Extreme Preset DX11
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps +171%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	19.8 fps +157%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.9 fps +132%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps +130%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	11.2 fps +45%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.7 fps
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.7 fps -26%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.2 fps +159%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +125%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.3 fps +122%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps +114%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	8.2 fps +61%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.1 fps
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.9 fps -24%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps +154%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.5 fps +150%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.7 fps +117%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps +115%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	7.6 fps +41%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.4 fps

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points +362%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	3244 Points +335%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	2766 Points +271%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points +261%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	1584 Points +113%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	899 Points +21%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	745 Points
1024x600 Normal, Fluid 3DTex
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +169%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	272 Points +131%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	223 Points +89%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points +58%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	146 Points +24%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	118 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	86 Points -27%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +212%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	260 Points +139%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	230 Points +111%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points +87%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	118 Points +8%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	109 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	84 Points -23%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	948 Points +558%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points +548%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	598 Points +315%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points +288%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	291 Points +102%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	177 Points +23%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	144 Points
1024x600 Normal, Mandel Scalar
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points +528%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	884 Points +527%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	779 Points +452%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points +433%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	453 Points +221%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	200 Points +42%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	141 Points
1024x600 Normal, QJuliaRayTrace
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +327%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points +313%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	936 Points +302%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	880 Points +278%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	577 Points +148%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	352 Points +51%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	233 Points

Unigine Superposition
1280x720 720p Low
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7862 Points +288%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	7180 Points +254%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	4433 Points +119%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4362 Points +115%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	3783 Points +87%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	2151 Points +6%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	2027 Points
1920x1080 1080p High
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1800 Points +252%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	1664 Points +226%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1530 Points +199%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1522 Points +198%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	1008 Points +97%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	511 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	507 Points -1%
1920x1080 1080p Extreme
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	801 Points +247%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	776 Points +236%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	768 Points +232%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	752 Points +226%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	424 Points +84%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	243 Points +5%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	231 Points

3DMark 05 Standard		23648 points
3DMark 06 Standard Score		12452 points
3DMark Vantage P Result		7190 points
3DMark 11 Performance		1933 points
3DMark Ice Storm Standard Score		24119 points
3DMark Cloud Gate Standard Score		8223 points
3DMark Fire Strike Score		1151 points
3DMark Fire Strike Extreme Score		544 points
3DMark Time Spy Score		404 points
Help

... in comparison

游戏性能

如上所述，您只需从英特尔 Iris Xe 图形处理器 G7.iGPU 的性能根本无法满足游戏需求。其他迷你电脑则配备了例如AMD Ryzen 9 6900HX例如 Geekom AS 6、M600或王牌 Magican AM08 Pro在这方面的性能明显更高。

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	76.8 fps +213%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	75.4 fps +208%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps +169%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	63.3 fps +158%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	27.9 fps +14%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	24.5 fps
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps +186%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	23 fps +177%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	22.6 fps +172%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	22.2 fps +167%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	10.1 fps +22%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	8.3 fps

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	66.4 fps +396%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	49 fps +266%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36.6 fps +173%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	33.9 fps +153%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	22.5 fps +68%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	14.9 fps +11%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	13.4 fps
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	15.6 fps +373%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps +312%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	10.5 fps +218%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	10.5 fps +218%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	6.65 fps +102%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.69 fps +12%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	3.3 fps

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (1.358^min, 71.4^P1) fps +141%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	140.7 (5.04^min, 90.9^P1) fps +137%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	97.7 (25.6^min, 55.6^P1) fps +65%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	68.3 (18.7^min, 45.5^P1) fps +15%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	59.3 (9.5^min, 33.3^P1) fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	57 (12.6^min, 32.3^P1) fps -4%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	33.9 (12.8^min, 19.2^P1) fps -43%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	33.9 (1.094^min, 20.4^P1) fps +295%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	31.7 (15.9^min, 23.3^P1) fps +269%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	20.5 (8.17^min, 14.5^P1) fps +139%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16.4 (5.82^min, 11.9^P1) fps +91%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	14.3 (9.08^min, 10.6^P1) fps +66%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	8.59 (3.34^min, 6.21^P1) fps
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	6.56 (3.2^min, 4.55^P1) fps -24%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62 (49^min) fps +288%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	57 (51^min) fps +256%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	40 (35^min) fps +150%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	25 (19^min) fps +56%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	22 (19^min) fps +38%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	16 (14^min) fps
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	11 (10^min) fps -31%
1920x1080 High Preset AA:T
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (25^min) fps +314%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	25 (22^min) fps +257%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	19 (17^min) fps +171%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16 (13^min) fps +129%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	10 (8^min) fps +43%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7 (6^min) fps
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5 (4^min) fps -29%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	58 (42^min) fps +287%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	52 (39^min) fps +247%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36 (24^min) fps +140%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	29 (19^min) fps +93%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	21 (16^min) fps +40%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	15 (11^min) fps
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	11 (8^min) fps -27%
1920x1080 High Preset
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps +314%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	24 (20^min) fps +243%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	18 (14^min) fps +157%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	15 (12^min) fps +114%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	10 (9^min) fps +43%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7 (5^min) fps
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5 (4^min) fps -29%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	137.7 (114.5^min) fps +40%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	135.9 (121.4^min) fps +38%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	98.7 (85.5^min) fps
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	95.8 (84.4^min) fps -3%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	86.8 (75.1^min) fps -12%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	79.1 (53.9^min) fps -20%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	72.8 (60.3^min) fps -26%
1920x1080 high (2/3)
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64.9 (56.8^min) fps +187%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	62.1 (57.1^min) fps +175%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	45.2 (38.5^min) fps +100%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	43.4 (31.3^min) fps +92%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	34.5 (31.9^min) fps +53%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	22.6 (20.6^min) fps
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	18.4 (17^min) fps -19%

	low	med.	high	ultra
GTA V (2015)	59.3	46.9	8.59	3.55
The Witcher 3 (2015)	24.5		8.3
Dota 2 Reborn (2015)	98.7	53.7	22.6	20.9
Final Fantasy XV Benchmark (2018)	14	6.55	4.66
X-Plane 11.11 (2018)	29.1	17.2	15.8
Far Cry 5 (2018)	16	7	7
Strange Brigade (2018)	31.5	11.7	11.9	15
Shadow of the Tomb Raider (2018)	15.8	6.7
Far Cry New Dawn (2019)	15	7	7	6
Borderlands 3 (2019)	13.4	5.77	3.3

排放物 - CPU 风扇声音

噪音水平

在噪音测量中，Blackview MP200 的表现非常突出。在没有任何负载的情况下，我们起初还没有发现任何问题，电脑也能安静地运行。但是，在平均负载情况下，我们的测量设备显示出明显的 46 dB(A)。在满载情况下，Blackview MP200 的噪音甚至明显增大到 51.8 dB(A)。此外，高频率的风扇噪音使其主观听起来更加响亮。结合我们下面讨论的温度问题，我们不禁要问自己，为什么制造商不投入更多的时间来创建更平衡的风扇曲线呢？

Noise Level

Idle		25.3 / 25.3 / 25.3 dB(A)
Load		46 / 51.8 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25.1 dB(A)

	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs
Noise		2%	-3%	-2%	-2%	-9%	-2%
off / environment *	25.1	29.4 -17%	30 -20%	29.6 -18%	30.4 -21%	30.28 -21%	29.7 -18%
Idle Minimum *	25.3	29.4 -16%	30.3 -20%	29.7 -17%	30.8 -22%	31.82 -26%	30.2 -19%
Idle Average *	25.3	29.4 -16%	30.5 -21%	29.8 -18%	30.9 -22%	32.27 -28%	30.2 -19%
Idle Maximum *	25.3	29.5 -17%	30.6 -21%	29.8 -18%	30.9 -22%	33.17 -31%	30.2 -19%
Load Average *	46	29.6 36%	32.5 29%	33.5 27%	31 33%	35.82 22%	30.6 33%
Load Maximum *	51.8	29.6 43%	33.2 36%	33.6 35%	31 40%	37.1 28%	36.4 30%
Witcher 3 ultra *							30.5

* ... smaller is better

温度

Blackview MP200 的塑料外壳在负载情况下几乎不会升温。机箱前部和底部（使用底座时）有一些小开口，用于吸入冷空气。冷却系统能够在负载情况下为处理器提供稳定的冷却，尽管噪音水平是一个缺点。我们测得的最高温度为 87 °C（189 °F），无需担心。

耗电量

与普通台式电脑相比，迷你电脑的一大优势是耗电量低。基本上，Blackview MP200 也是高效的，但竞争对手在这方面做得更好。在空闲运行时，我们的测量设备显示的功耗在 9 到 19.9 瓦之间，相对较高。在平均负载情况下，我们注意到功耗接近 31 瓦，这使我们的测试设备在这方面略胜一筹。但在短时间负载情况下，功耗跃升至 97.8 瓦，我们在对比图中没有看到其他迷你 PC 有此表现。

充电器的额定最大功率为 120 瓦，幸运的是它足够大，为电脑稳定提供足够的电力没有任何问题。它还能应对短暂的负载峰值。

Power Consumption

Off / Standby	0.8 / 0.05 Watt
Idle	9 / 10.6 / 19.9 Watt
Load	30.9 / 97.8 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Average Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	Average of class Mini PC
Power Consumption		5%	21%	13%	49%	37%	30%	21%	-10%
Idle Minimum *	9	8 11%	6.6 27%	8.1 10%	4.8 47%	3.4 62%	7.3 19%	7.43 ?(5.3 - 9, n=3) 17%	9.83 ?(1.9 - 46.5, n=94, last 2 years) -9%
Idle Average *	10.6	8.7 18%	6.8 36%	8.4 21%	4.9 54%	5.7 46%	7.8 26%	9.37 ?(8.5 - 10.6, n=3) 12%	11.7 ?(1.9 - 63, n=93, last 2 years) -10%
Idle Maximum *	19.9	8.8 56%	7.2 64%	13.8 31%	5.5 72%	7 65%	8.4 58%	12.8 ?(8.7 - 19.9, n=3) 36%	14.8 ?(2.6 - 68.9, n=94, last 2 years) 26%
Load Average *	30.9	54.6 -77%	45.1 -46%	43.1 -39%	23 26%	36.5 -18%	28.7 7%	27.1 ?(20.2 - 30.9, n=3) 12%	52.6 ?(11.3 - 158.7, n=94, last 2 years) -70%
Witcher 3 ultra *	44.8
Load Maximum *	97.8	83.2 15%	73.4 25%	55.9 43%	54 45%	68 30%	61.1 38%	69.8 ?(35.3 - 97.8, n=3) 29%	86.6 ?(18.1 - 271, n=94, last 2 years) 11%

* ... smaller is better

Power Consumption With External Monitor

Blackview MP200; Prime95 V2810 Stress (external Monitor): Ø73.7 (68.5-76.6)

Blackview MP200; Cinebench R15 Multi (external Monitor): Ø91.4 (81.2-97.8)

Blackview MP200; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø31.8 (27.9-41.1)

Blackview MP200; Idle 1min (external Monitor): Ø20 (19.1-21)

Blackview MP200; Cinebench R23 Single (external Monitor): Ø39.1 (37.7-88.2)

Blackview MP200; Cinebench R23 Multi (external Monitor): Ø90.1 (84.7-96.5)

Pros

+ 吸引人的设计

+ 良好的日常性能

+ 可接受的无线局域网传输速率

+ 易于打开

+ 多个 USB 端口

+ 支架稳固

+ 512 GB 快速 NVMe 固态硬盘

Cons

- 3D 性能较低

- 仅包含一个内存模块

- 负载时声音明显

评价 - 外观迷人，性能稳定

目前，Blackview MP200 是一款不错的迷你 PC，适合处理有时甚至需要更多 CPU 资源的办公任务。英特尔酷睿 i5-11400H 六核处理器的速度足以赶上 AMD Ryzen 5 6600U。另一方面，由于工作内存设备不够理想，导致性能略有下降，这也反映在 3D 性能上。添加第二个 SO-DIMM 模块不会有任何问题，也不会花费很多精力，而且会使 Mini PC 的性能略有提高。

Blackview MP200 是一款配备快速处理器的可靠办公电脑，但散热仍需改进。

考虑到其设计用途，Blackview MP200 配备了 16GB 工作内存和 512GB SSD。但散热系统绝对值得批评，因为在我们看来，它的声音显然太大了。那些在工作时并不总是使用省电模式的人，他们的办公桌上就会有一个明显的噪音源。

尽管采用了塑料外壳，但 Mini PC 的外观设计仍然给人以高品质的印象。无论是视觉效果还是触觉效果，都没有让人抱怨的理由。虽然金属外壳会进一步提升品质感，但也会导致购买价格大幅提高。对于 546 欧元（约合 599 美元）的高昂制造商价格，你仍然不得不接受一些妥协：在连接选择方面，Blackview MP200 只提供标准连接，遗憾的是还缺少 Thunderbolt 连接。而来自 Morefine 的竞争对手（MP600 6600U ）则在这方面表现出色，从而极大地扩展了日常工作中的使用场景。

自豪与可用性

目前，Blackview MP200 正以 399 美元的价格从制造商处直接出售。从香港直接发货。亚马逊的 Blackview MP200 售价为 599 美元。目前还有额外的 30 美元优惠券，购买价格降至 569 美元。

Blackview MP200 - 2023-07-29 07/29/2023 v7
Sebastian Bade

Chassis

79 / 98 → 81%

Connectivity

56 / 81 → 69%

Weight

80%

Games Performance

51%

Application Performance

90%

Noise

79%

Average

69%

74%

Mini PC - Weighted Average

Blackview MP200 迷你电脑评测--采用英特尔酷睿 i5-11400H 处理器的小型台式电脑，外壳极具吸引力

潜在的竞争对手比较

Blackview MP200 详细介绍

外壳 - 美观的塑料外壳

尺寸比较

设备 - 简单的标准

交流

配件

维护

性能 - 英特尔酷睿 i5-11400H 提供 6 个内核和 12 个线程

测试条件

处理器

Blackview MP200 与 Cinebench R15 多环路对比

系统性能

DPC 延迟

存储解决方案

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

排放物 - CPU 风扇声音

噪音水平

温度

耗电量

Power Consumption With External Monitor

Pros

Cons

评价 - 外观迷人，性能稳定

自豪与可用性

More articles related to this device
