结论 - 屏幕惊艳，但性能有些令人失望

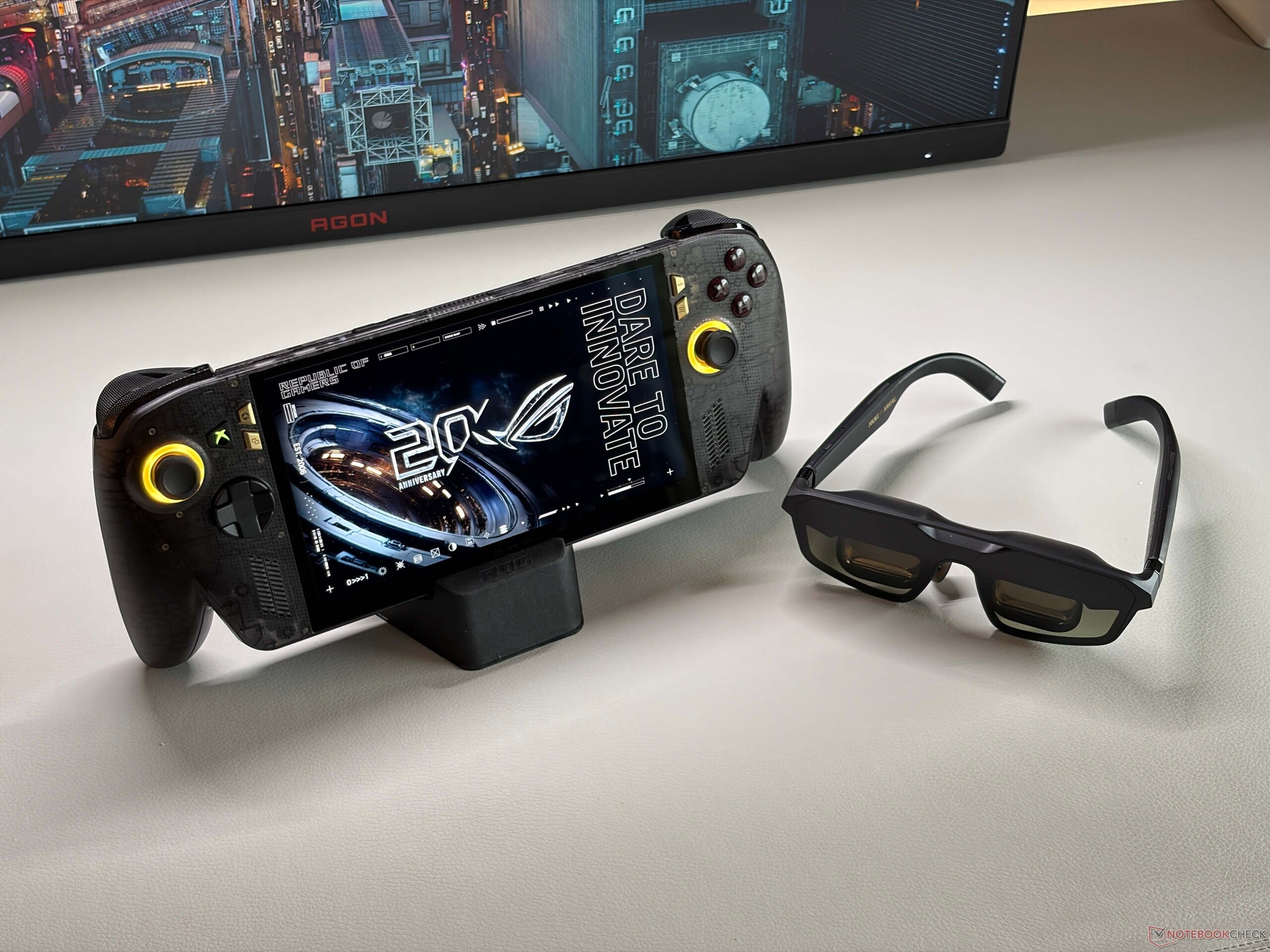

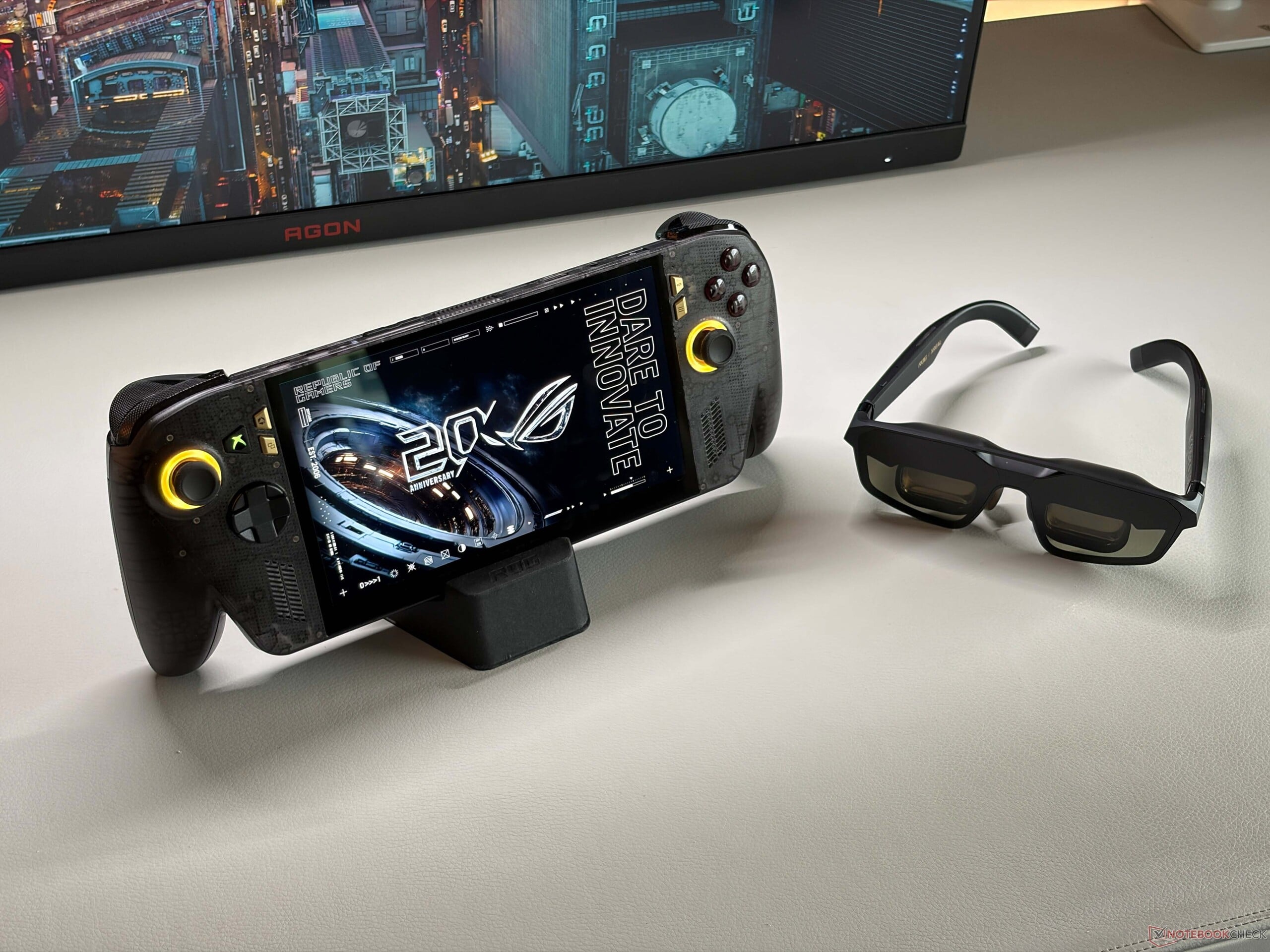

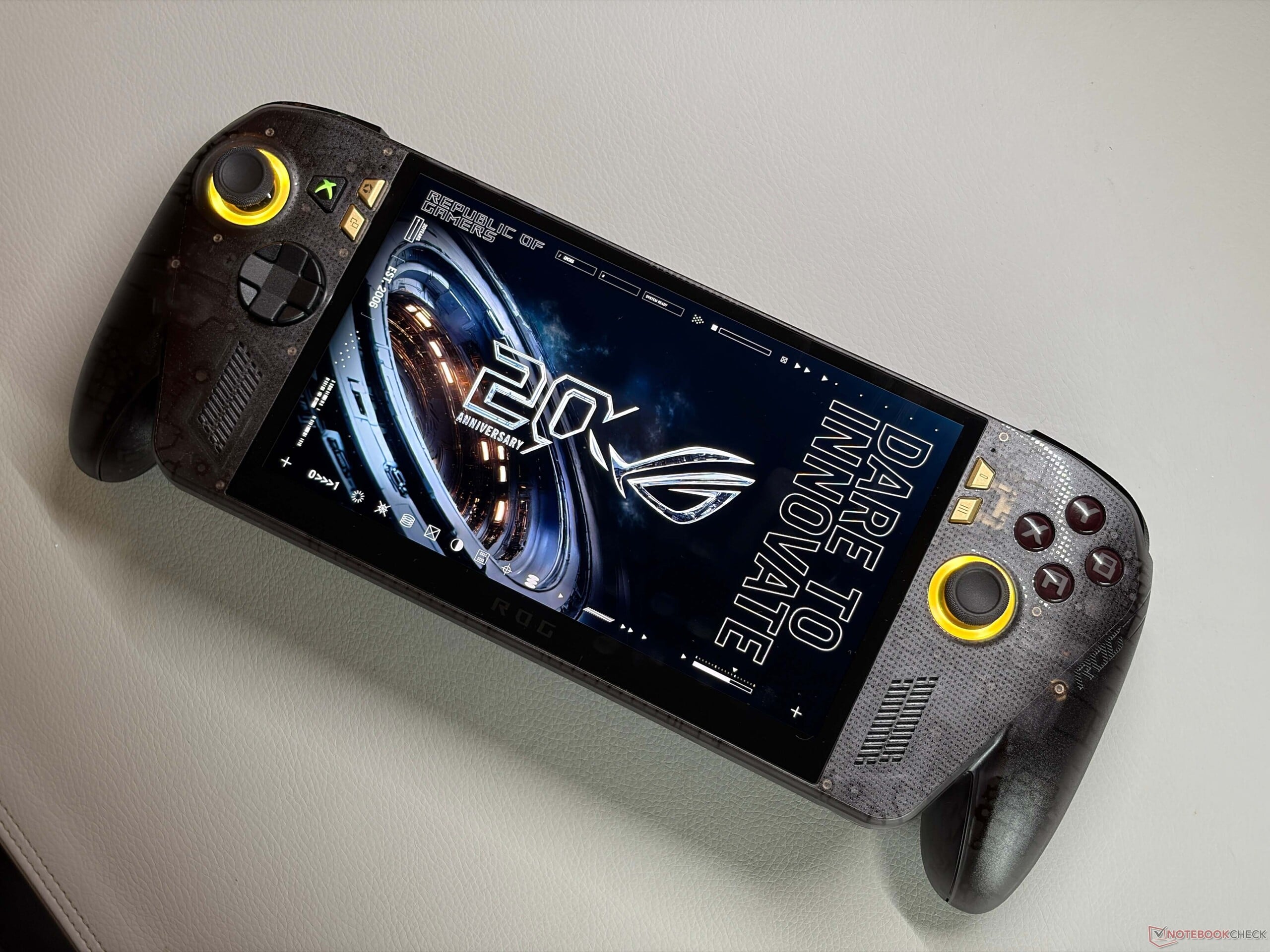

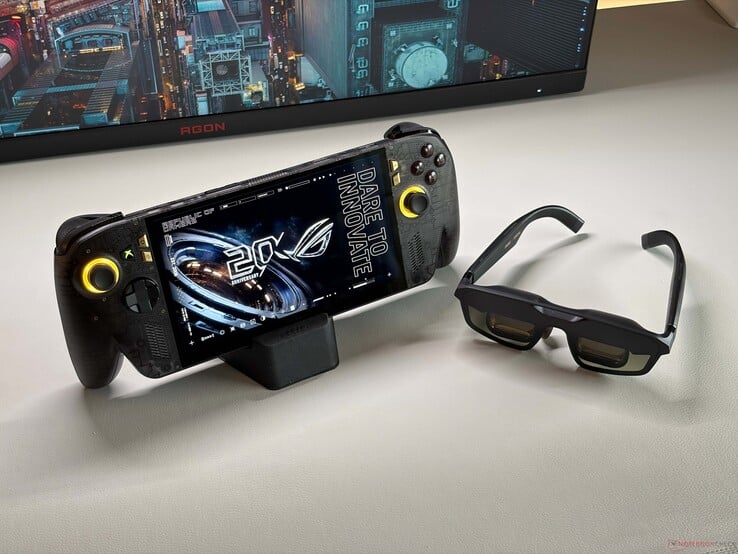

全新的 Asus ROG Xbox Ally X20 相比去年的机型有了显著升级，但同时也有些令人失望。机身采用橡胶包覆握把，摇杆和按键也有所改进，这些变化都很棒，半透明机身搭配黄色/金色点缀，外观也十分惊艳。整台设备尽显高端质感。不过，最大的变化是换用了全新且尺寸更大的 7.4 英寸 OLED 屏幕。画质令人惊叹，显著提升了整体游戏体验。我们也很高兴地告诉大家，电池续航并未因此受到影响，根据所选功耗模式的不同，游戏续航可达 2-4 小时。
整体而言，连接性也很出色，而且现在还配备了速度显著提升的 microSD-Express 读卡器。主要问题在于处理器，因为它仍然搭载去年机型上那款熟悉的 Ryzen Z2 Extreme (Zen 5)。因此，游戏性能几乎没有变化，无法跟上 Intel Arc G3 Extreme 的步伐，后者的性能高出近 30 %。价格已上涨至 $1299，但仍比搭载 Intel SoC 的 MSI Claw 8 EX AI+ 便宜得多。
Pros
Cons
- $1,099.99HIDevolution [2025] ASUS ROG X B O X Ally X RC73XA 7" FHD 120Hz, 2.0 GHz Ryzen AI Z2 Extreme, AMD Radeon, 24 GB LPDDR5 RAM, 1 TB PCIe SSD, Windows 11 Home
- $734.99ASUS ROG Xbox Ally Gaming Handheld 7" 120Hz, AMD Ryzen Z2 A, 16GB / 512GB | IPS Touch Display, AMD RDNA 2 Graphics, Fingerprint, WiFi 6E, Bluetooth 5.4, Win 11 Home with DKZ USB Hub Accessory
- $1,449.99ASUS ROG Xbox Ally Gaming Handheld 7" 120Hz Touch, Ryzen Z2 A, 16GB / 4TB | IPS Touch Display, AMD RDNA 2 Graphics, Fingerprint, WiFi 6E, Bluetooth 5.4, Win 11 Home with DKZ USB Hub Accessory
规格
机身、连接性和输入设备

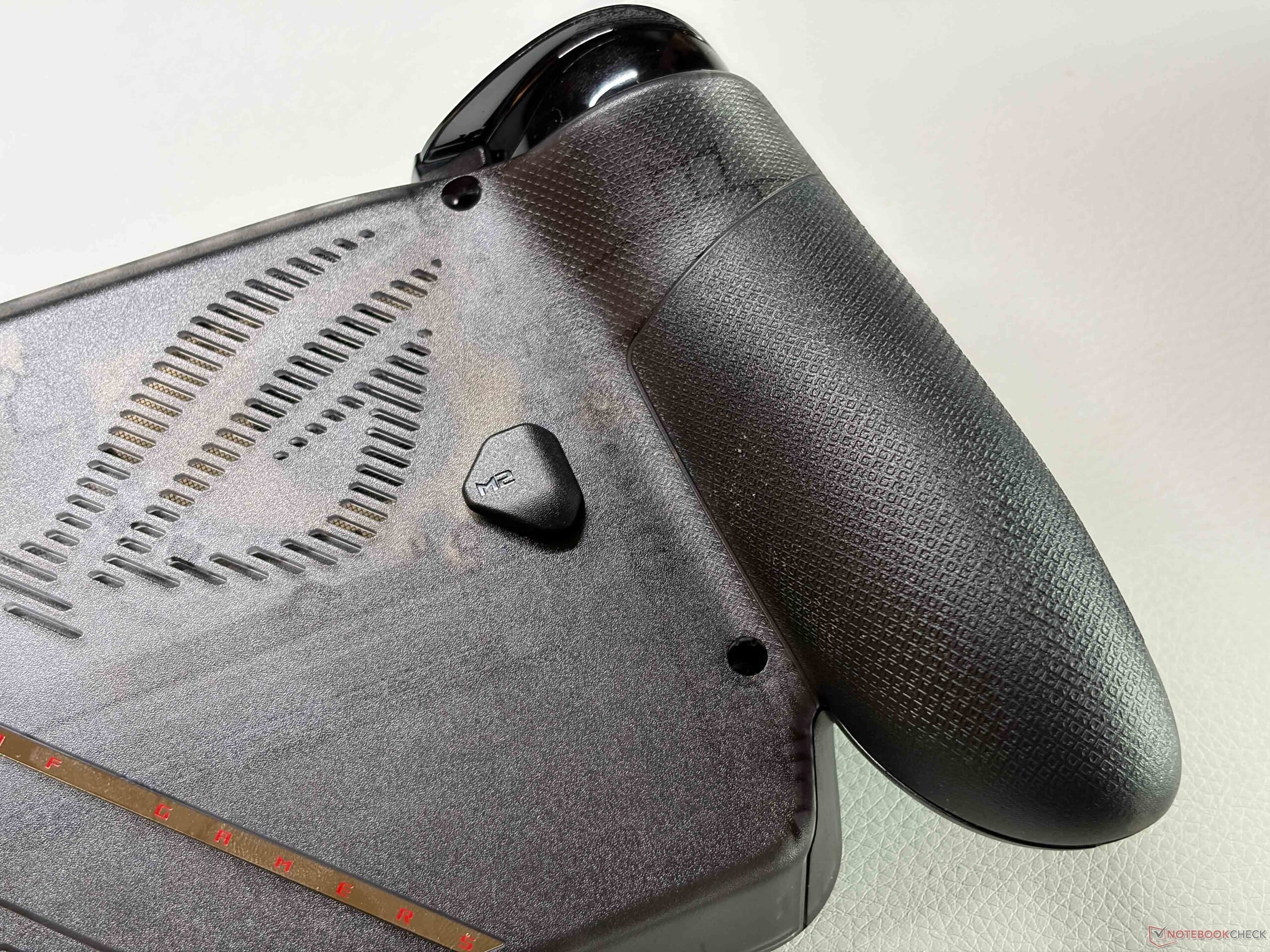

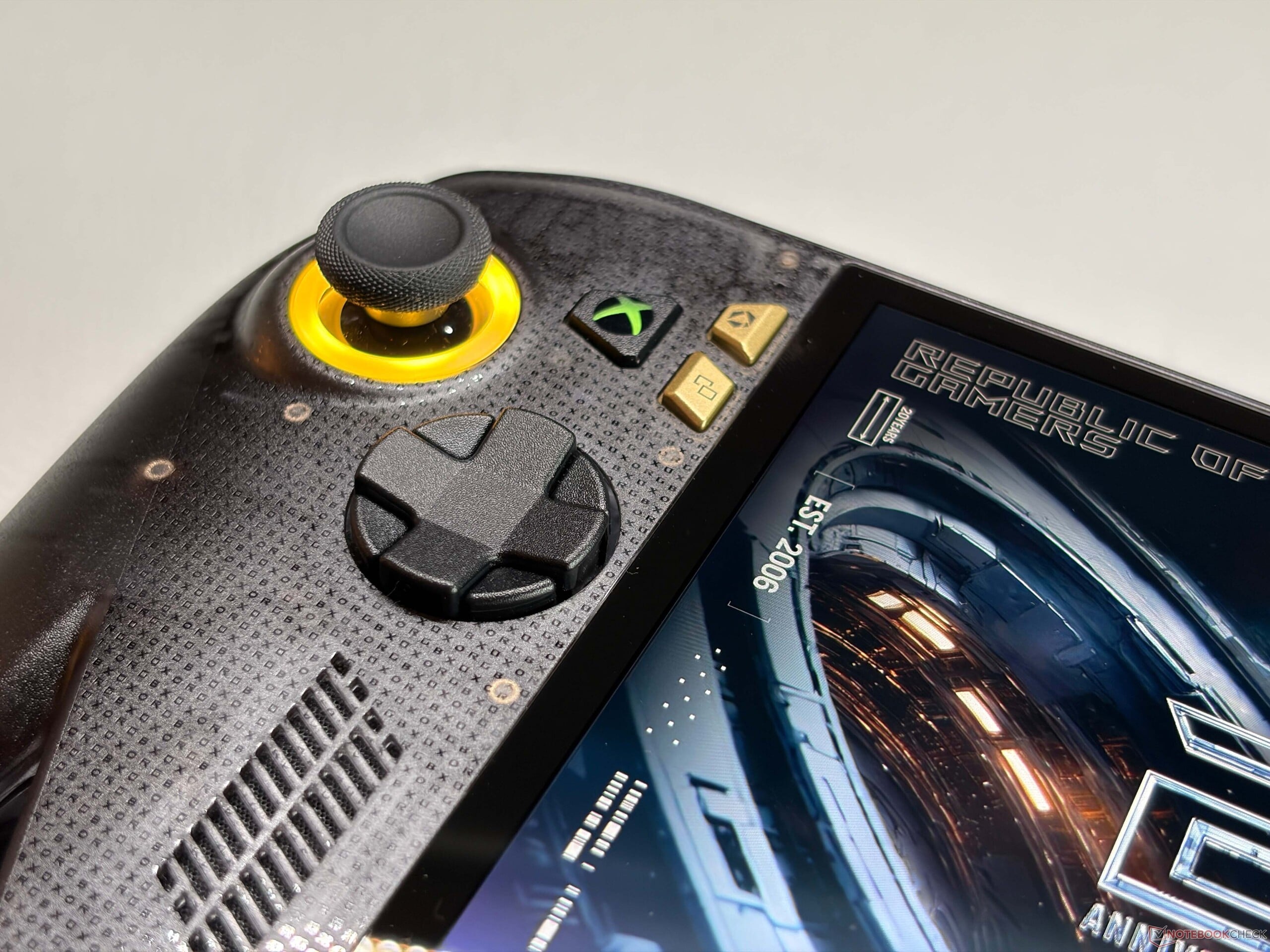

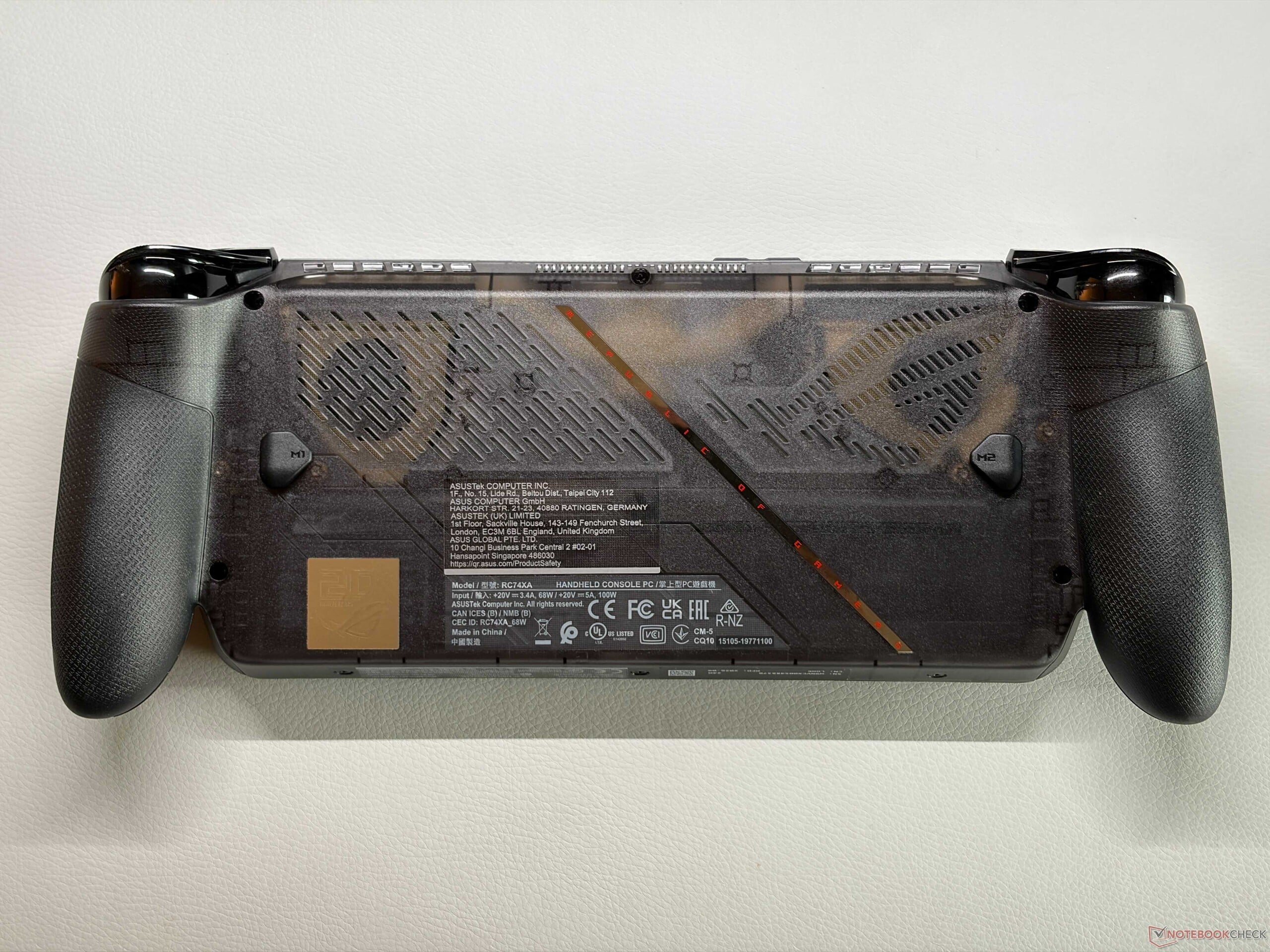

基本机身结构与去年的型号相似，这意味着得益于宽大的握柄，ROG Xbox Ally X20 依然是一款握持极为舒适的游戏掌机。握柄背面现在增加了轻微的橡胶质感，握持手感更佳，不过我们还不确定这些表面在经历数百小时的游戏后会有怎样的表现。Asus 还改进了摇杆（现采用磁性 TMR 技术）和按键，手感非常出色。摇杆操控极为精准，阻尼恰到好处，扳机键也是如此。按键的触感清晰、反馈良好，唯一的例外是我们测试机上的方向键。虽然它同样有清晰的按压反馈，但我们这台机器的方向键左侧略有松动，因此在实际触发按键之前会有一点虚位。 机身现在略带半透明效果，搭配金色按键和摇杆的黄色 LED 灯光，看起来非常漂亮。新增的 Xbox 按键带有背光，但说实话有些多余，因为它和旁边的按键一样，都是用来打开控制中心的。

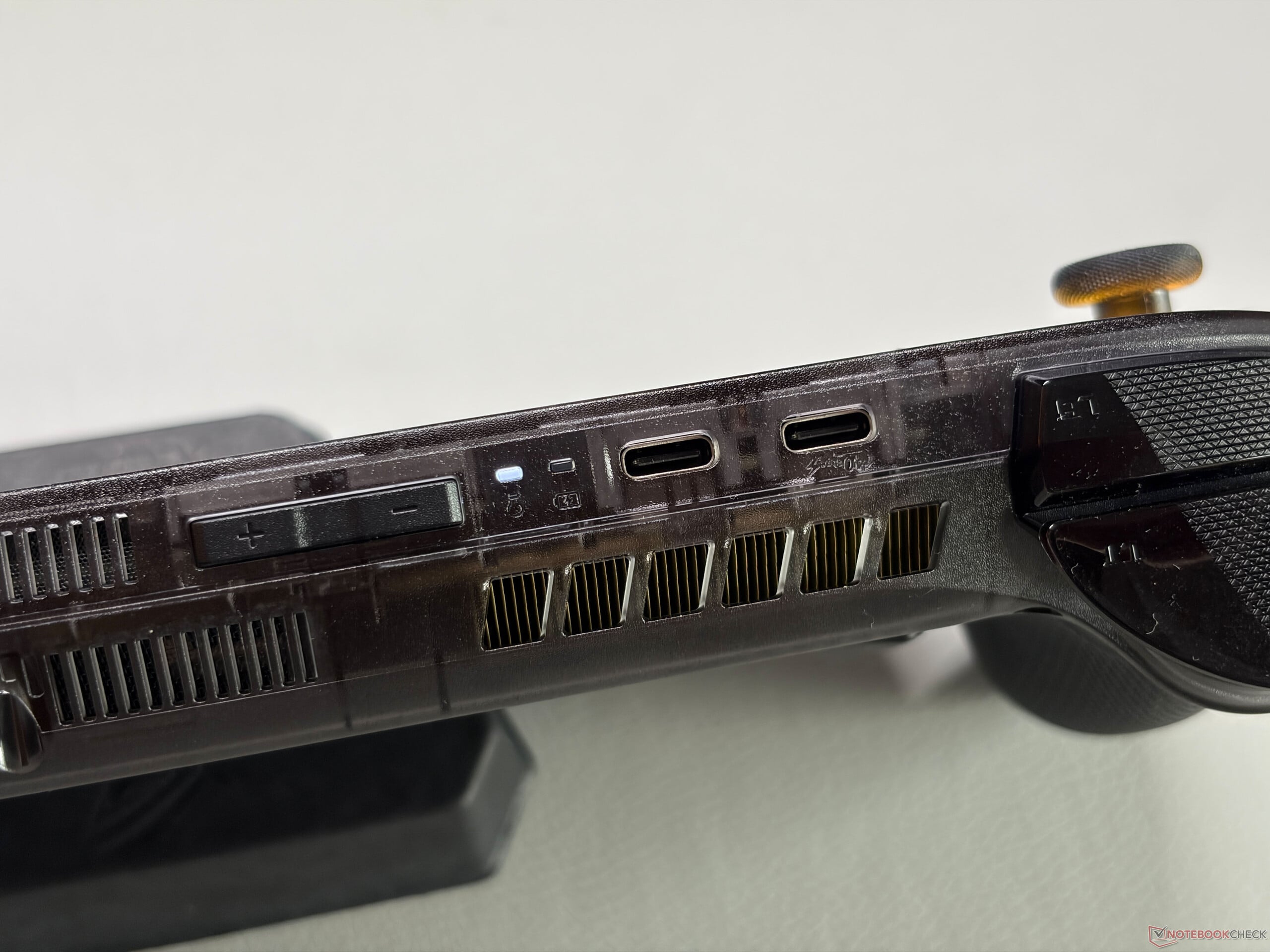

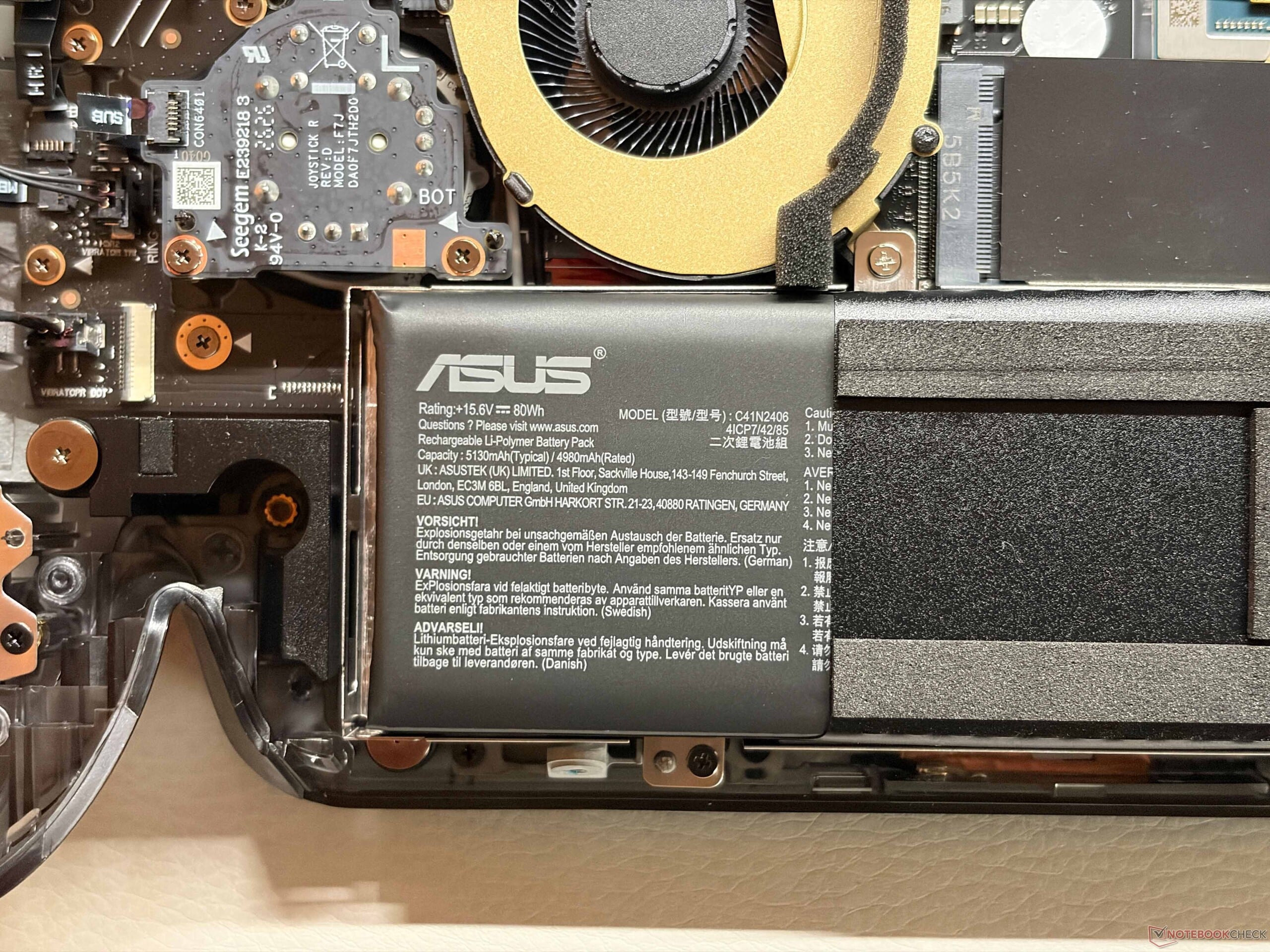

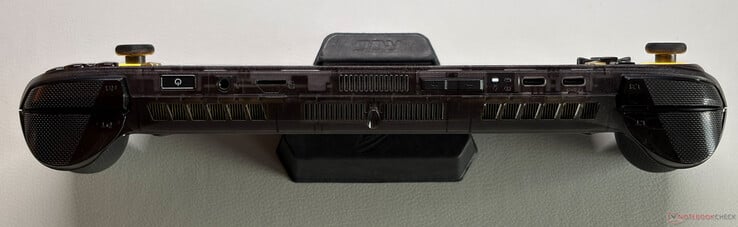

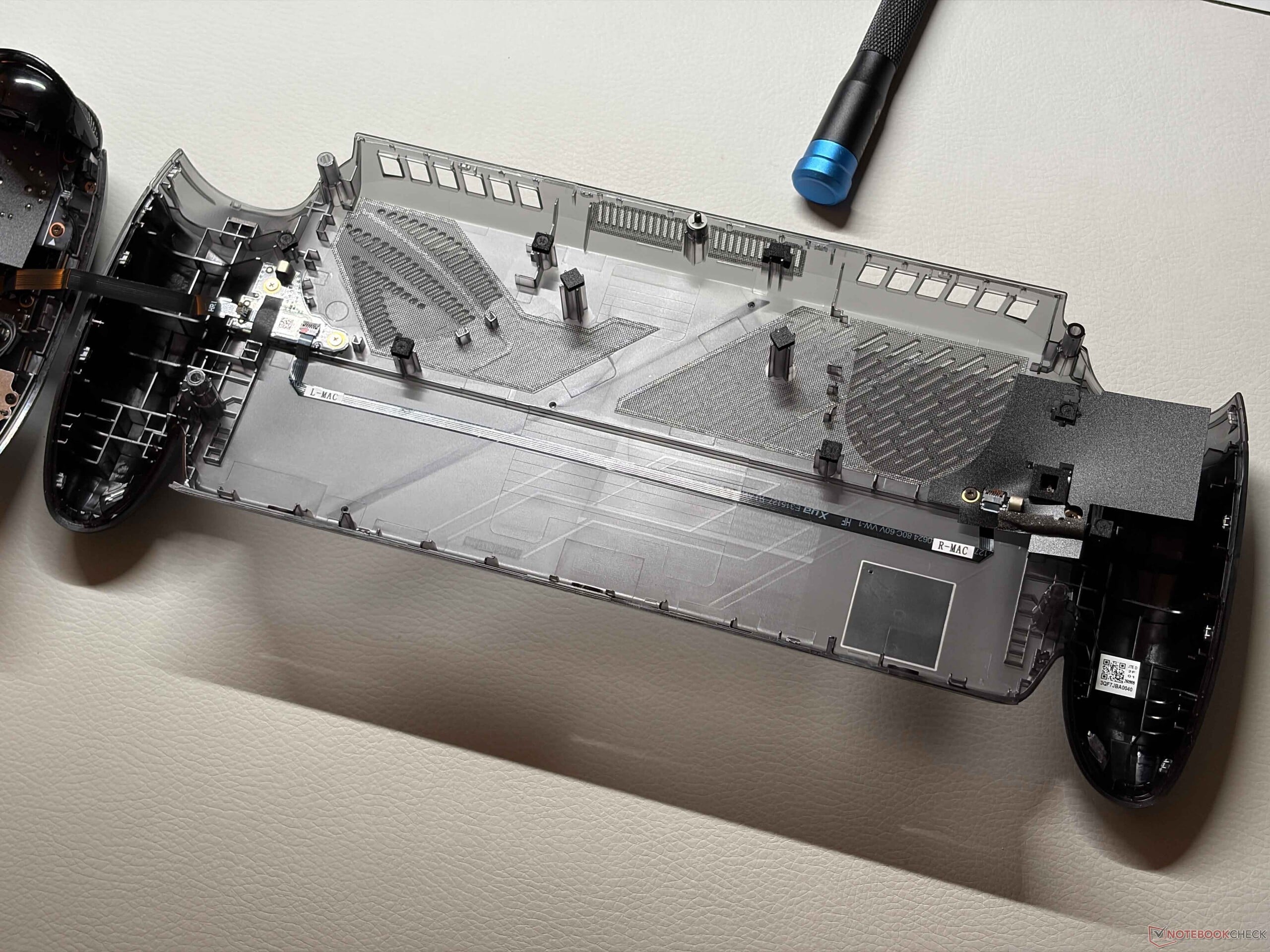

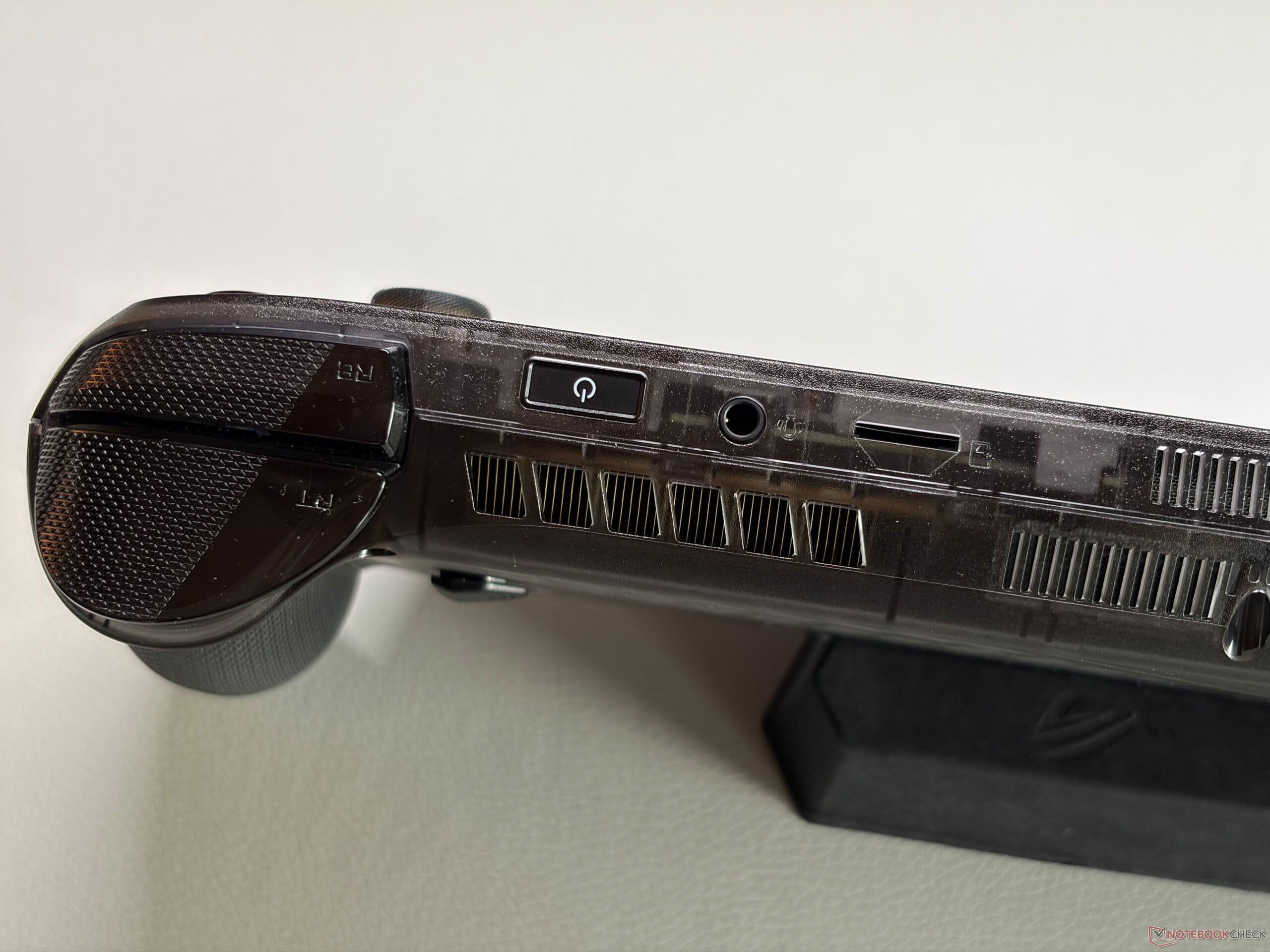

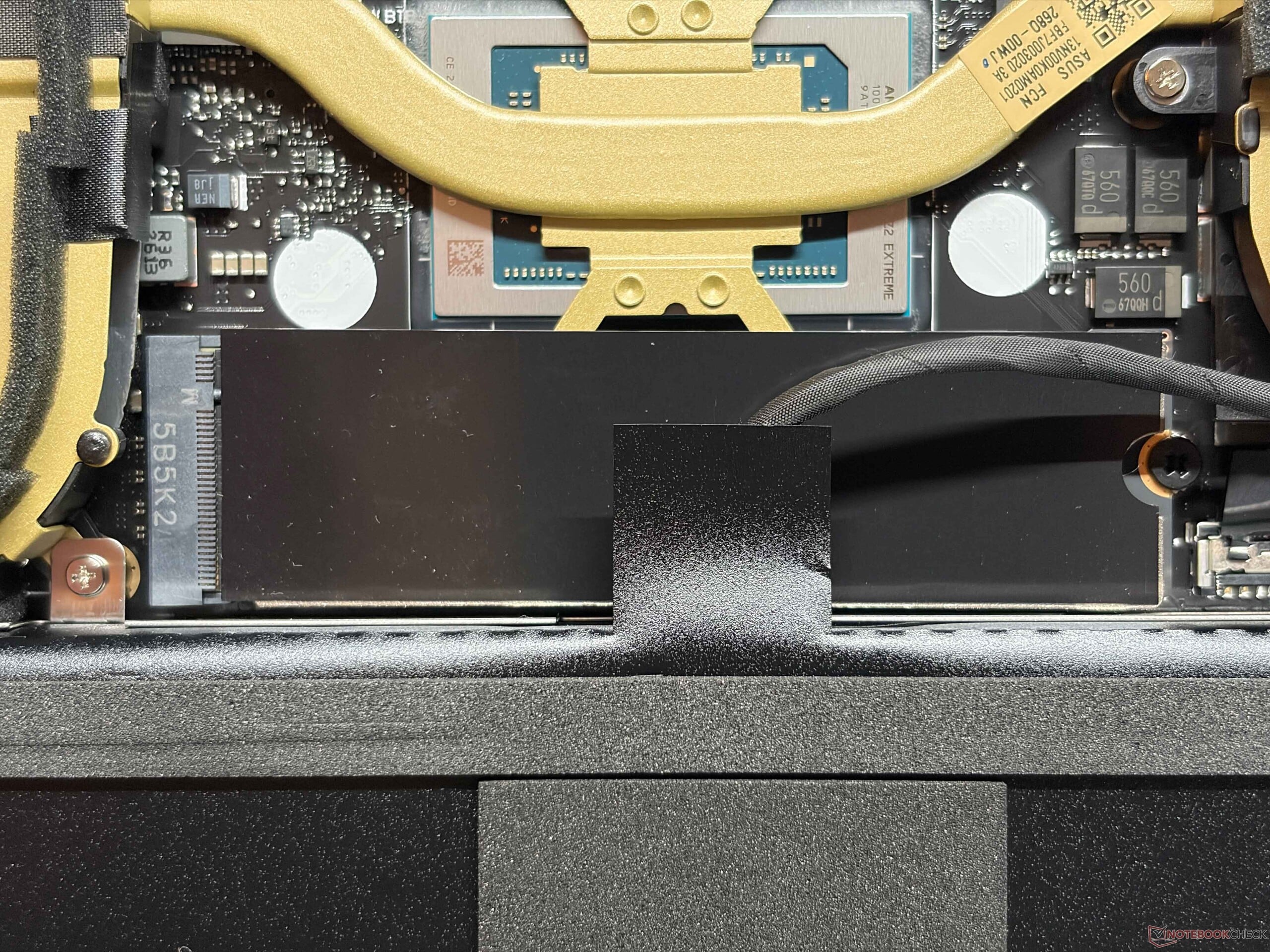

你仍然可以更换 SSD（请留意连接后盖的排线），现在还配备了高速 microSD-Express 读卡器，传输速度可达 800 MB/s。虽然不支持 Wi-Fi 7，但 Wi-Fi 6E 模块的表现依然非常出色。我们的测试机还附带了 XREAL R1 眼镜，不过我们会在另一篇文章中对其进行详细介绍。
| Networking | |
| Asus ROG Xbox Ally X20 | |
| iperf3 receive AXE11000 6GHz | |
| iperf3 transmit AXE11000 6GHz | |
| MSI Claw 8 EX AI+ CG3EM | |
| iperf3 transmit Wi-Fi6/7 RT-BE96U | |
| iperf3 receive Wi-Fi6/7 RT-BE96U | |
| Lenovo Legion Go 2 | |
| iperf3 receive AXE11000 | |
| iperf3 transmit AXE11000 | |
| Asus ROG Xbox Ally X | |
| iperf3 receive AXE11000 | |
| iperf3 transmit AXE11000 | |
| MSI Claw 8 AI+ | |
| iperf3 receive AXE11000 | |
| iperf3 transmit AXE11000 | |

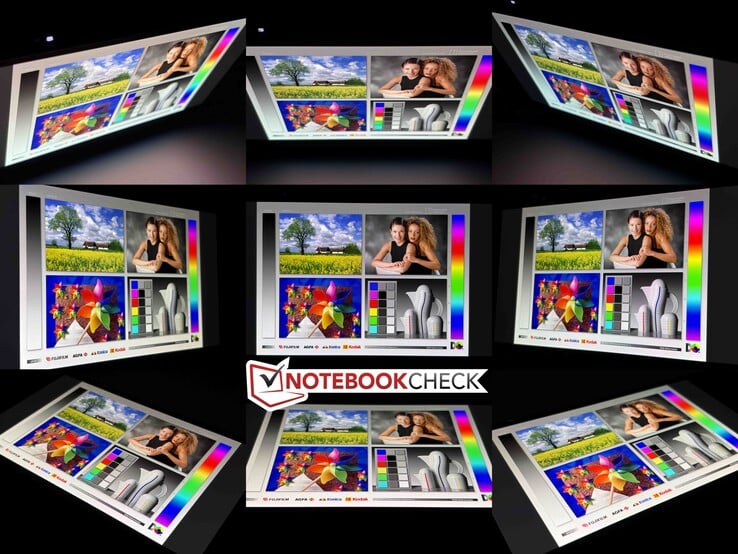

显示屏 - 惊艳的 OLED

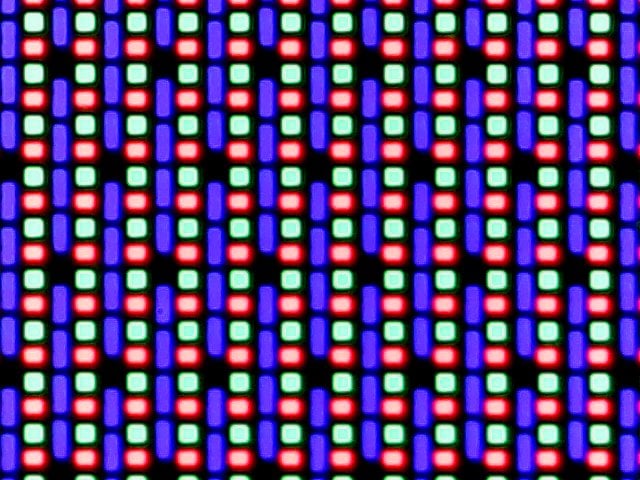

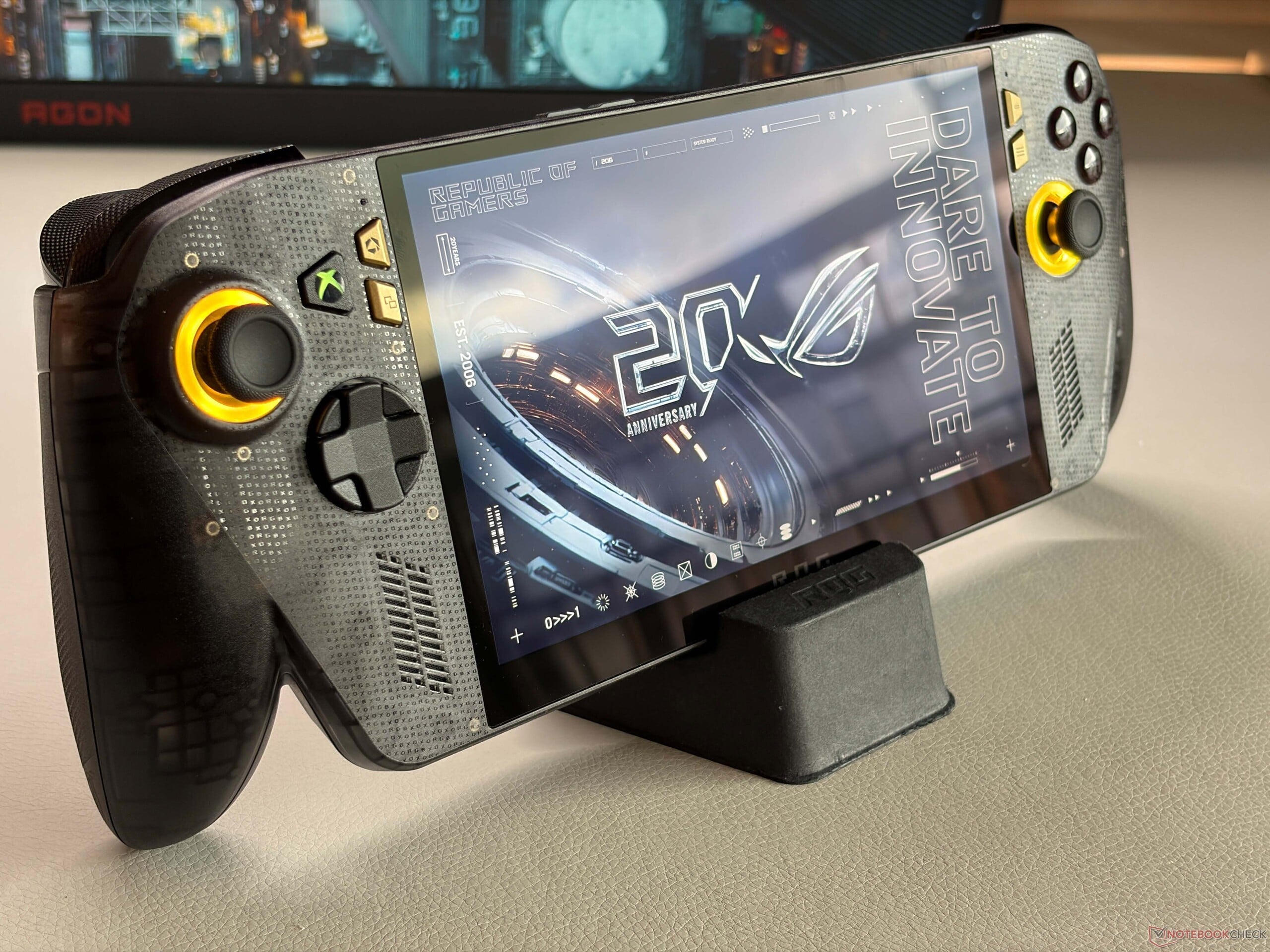

这才是颠覆性的升级，因为全新的 7.4 英寸 OLED 触摸屏支持 VRR 和 120 Hz 刷新率（1920 x 1080 像素），视觉效果惊艳，彻底改变了整个游戏体验。虽然上一代 IPS 面板的游戏表现已经不错，但一旦体验过 OLED 机型，你就不会想再用回去了。画质出色，亮度表现也令人惊叹，SDR 亮度超过 600 尼特，HDR 亮度更是超过 1500 尼特。响应速度极快，虽然存在 PWM 频闪，但其表现有些特殊，波动幅度非常低，因此在实际使用中应该不会造成问题。此外，它还提供了非常准确的 sRGB 和 P3 色彩配置文件。
| |||||||||||||||||||||||||
Brightness Distribution: 98 %
Center on Battery: 617 cd/m²
Contrast: 20567:1 (Black: 0.03 cd/m²)
ΔE ColorChecker Calman: 1.4 | ∀{0.5-29.43 Ø4.69}
ΔE Greyscale Calman: 2.7 | ∀{0.09-98 Ø4.94}

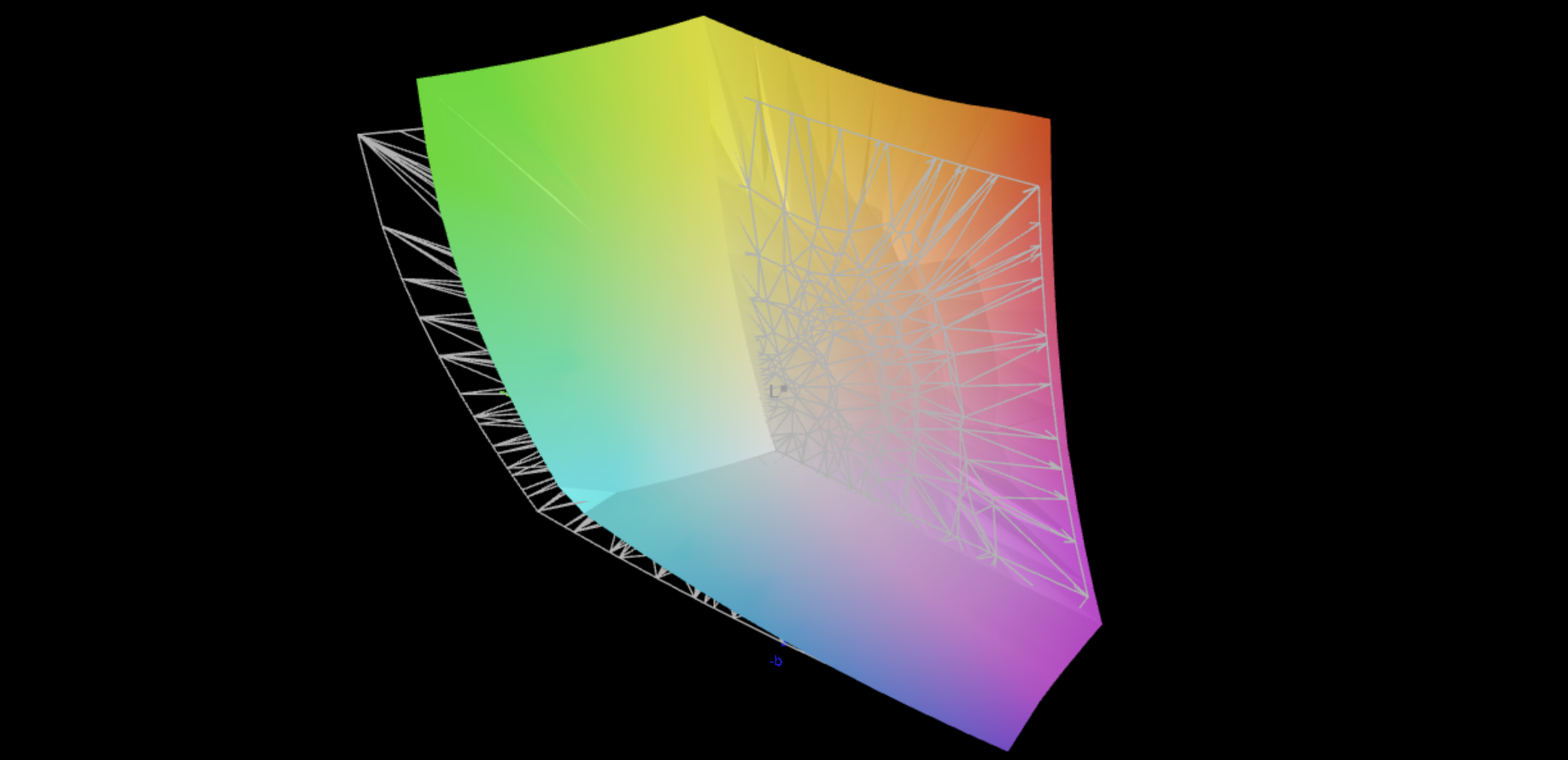

89.5% AdobeRGB 1998 (Argyll 3D)

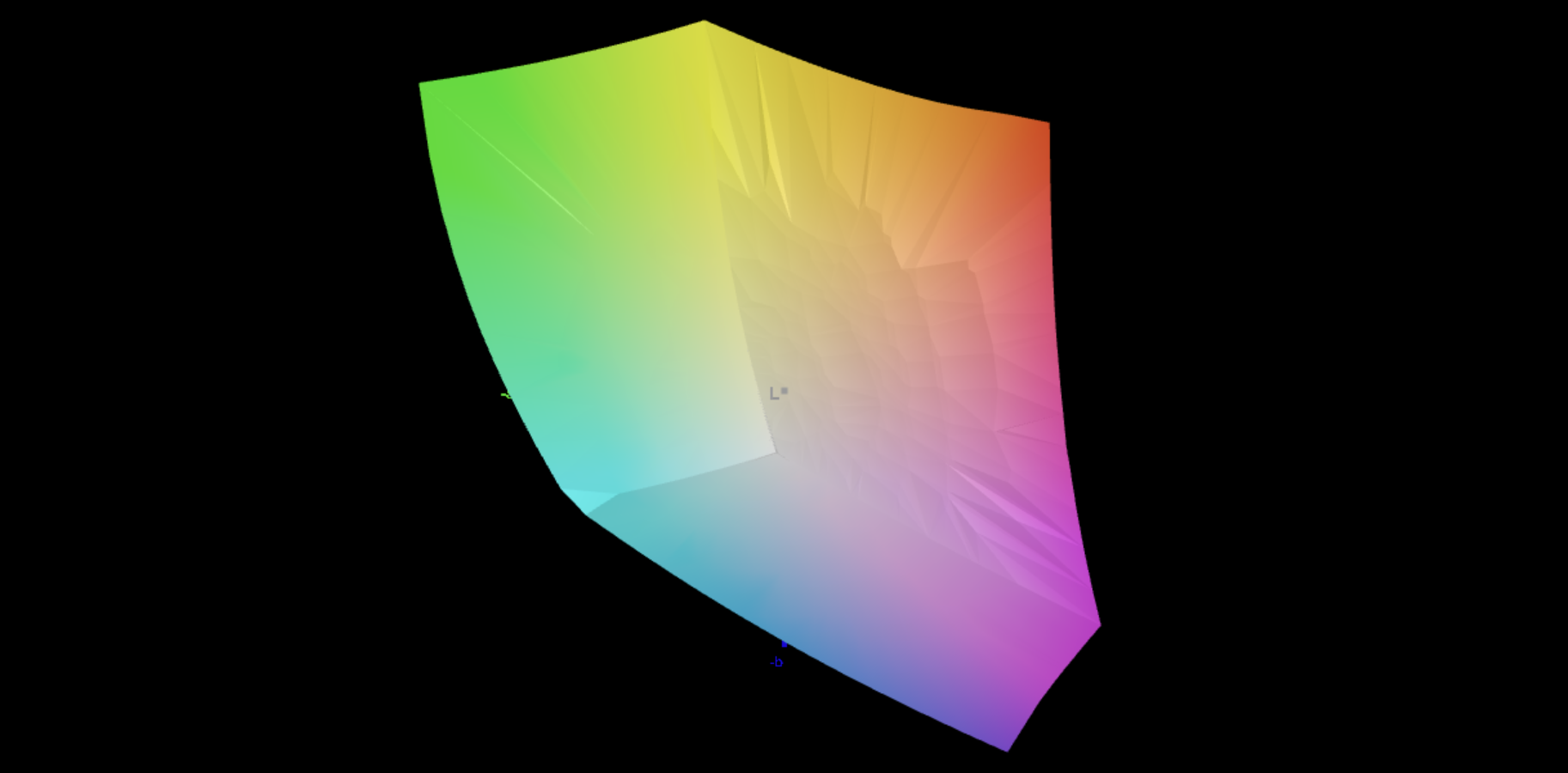

100% sRGB (Argyll 3D)

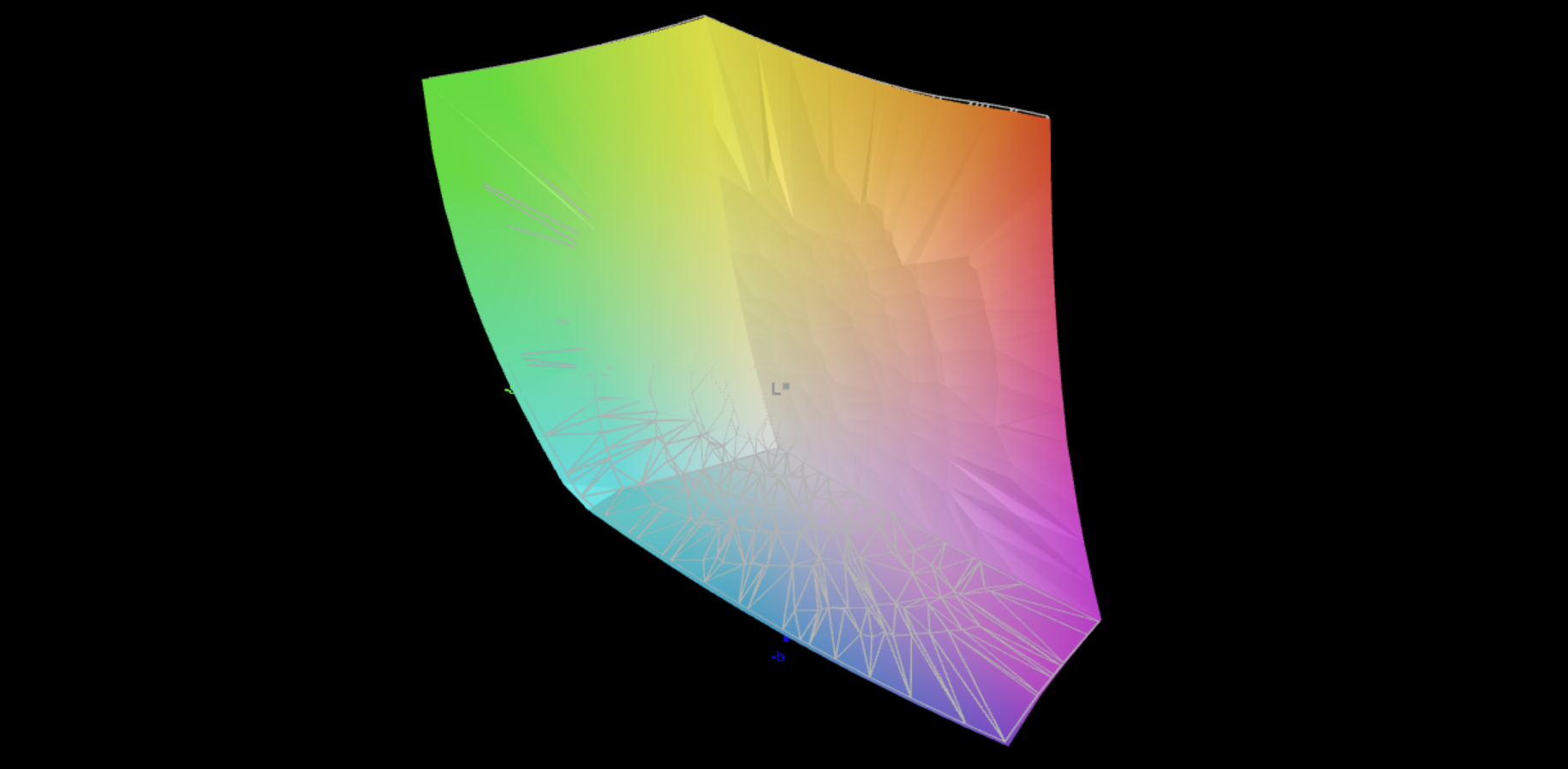

99.4% Display P3 (Argyll 3D)
Gamma: 2.2
CCT: 6529 K
| Asus ROG Xbox Ally X20 AMS740LS02-0, OLED, 1920x1080, 7.4", 120 Hz | MSI Claw 8 EX AI+ CG3EM PN8007QB1-2, , 1920x1200, 8", 120 Hz | Lenovo Legion Go 2 AMS881KB01-0, OLED, 1920x1200, 8.8", 144 Hz | Asus ROG Xbox Ally X TL070FVXS01_0, IPS, 1920x1080, 7", 120 Hz | MSI Claw 8 AI+ PN8007QB1-2, IPS, 1920x1200, 8", 120 Hz | |
|---|---|---|---|---|---|
| Display | -17% | 2% | -22% | -16% | |
| HDR Peak Brightness (cd/m²) | 1515 | ||||
| Display P3 Coverage (%) | 99.4 | 69.4 -30% | 99.7 0% | 66 -34% | 71.1 -28% |
| sRGB Coverage (%) | 100 | 99 -1% | 100 0% | 93.1 -7% | 98.5 -1% |
| AdobeRGB 1998 Coverage (%) | 89.5 | 71.5 -20% | 94.6 6% | 68.3 -24% | 72.9 -19% |
| Response Times | -1406% | -33% | -849% | -1780% | |
| Response Time Grey 50% / Grey 80% * (ms) | 1.09 ? | 21 ? -1827% | 0.57 ? 48% | 11.4 ? -946% | 23.7 ? -2074% |
| Response Time Black / White * (ms) | 0.94 ? | 10.2 ? -985% | 0.7 ? 26% | 8 ? -751% | 14.9 ? -1485% |
| PWM Frequency (Hz) | 120 ? | 720 ? | |||
| PWM Amplitude * (%) | 11 | 30 -173% | |||
| Screen | -191% | -28% | -171% | -185% | |
| Brightness middle (cd/m²) | 617 | 539 -13% | 488 -21% | 490 -21% | 524 -15% |
| Brightness (cd/m²) | 621 | 527 -15% | 493 -21% | 459 -26% | 514 -17% |
| Brightness Distribution (%) | 98 | 91 -7% | 98 0% | 86 -12% | 93 -5% |
| Black Level * (cd/m²) | 0.03 | 0.36 -1100% | 0.33 -1000% | 0.33 -1000% | |
| Contrast (:1) | 20567 | 1497 -93% | 1485 -93% | 1588 -92% | |
| Colorchecker dE 2000 * | 1.4 | 3.3 -136% | 2.5 -79% | 2.8 -100% | 3.5 -150% |
| Colorchecker dE 2000 max. * | 4 | 6.8 -70% | 4.9 -23% | 6.5 -63% | 7.3 -83% |
| Greyscale dE 2000 * | 2.7 | 5.3 -96% | 3.3 -22% | 4.2 -56% | 5.9 -119% |
| Gamma | 2.2 100% | 2.18 101% | 2.18 101% | 2.22 99% | 2.22 99% |
| CCT | 6529 100% | 7724 84% | 6459 101% | 7381 88% | 7852 83% |
| Colorchecker dE 2000 calibrated * | 1.2 | 1.4 | 1.5 | 1.3 | |
| Total Average (Program / Settings) | -538% /
-338% | -20% /
-22% | -347% /
-241% | -660% /
-391% |
* ... smaller is better
Display Response Times

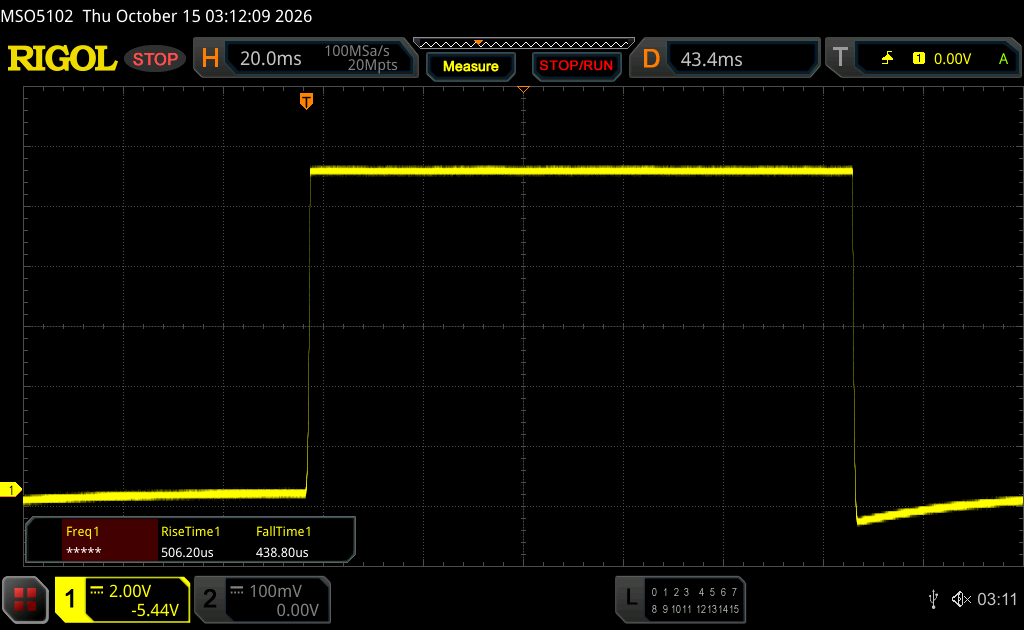

| ↔ Response Time Black to White | ||
|---|---|---|
| 0.94 ms ... rise ↗ and fall ↘ combined | ↗ 0.5 ms rise |  |
| ↘ 0.44 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 4 % of all devices are better. This means that the measured response time is better than the average of all tested devices (19.6 ms). | ||

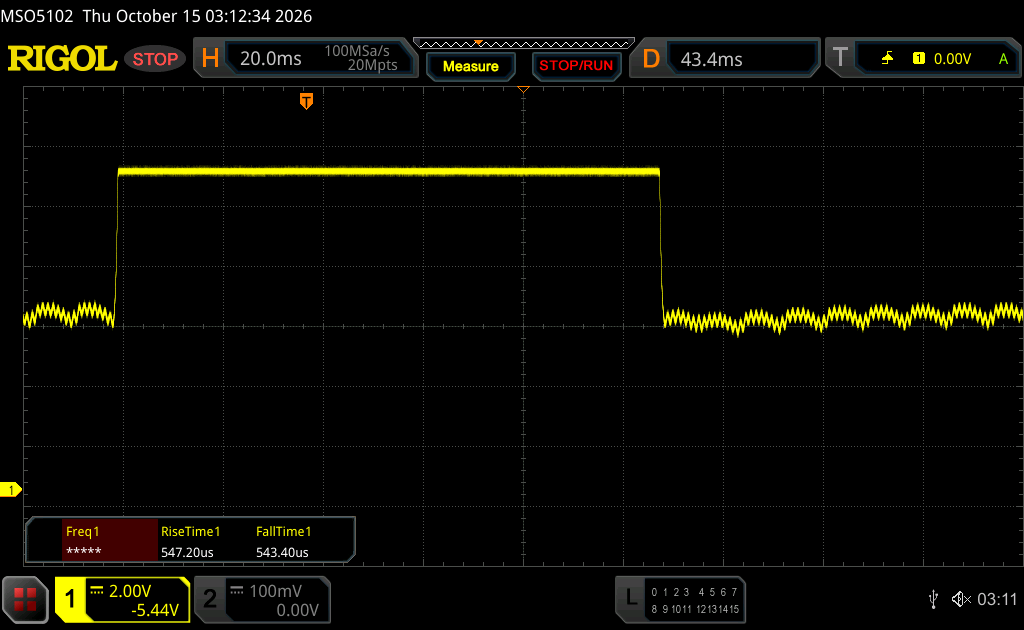

| ↔ Response Time 50% Grey to 80% Grey | ||
| 1.09 ms ... rise ↗ and fall ↘ combined | ↗ 0.55 ms rise |  |
| ↘ 0.54 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.13 (minimum) to 636 (maximum) ms. » 5 % of all devices are better. This means that the measured response time is better than the average of all tested devices (30.7 ms). | ||

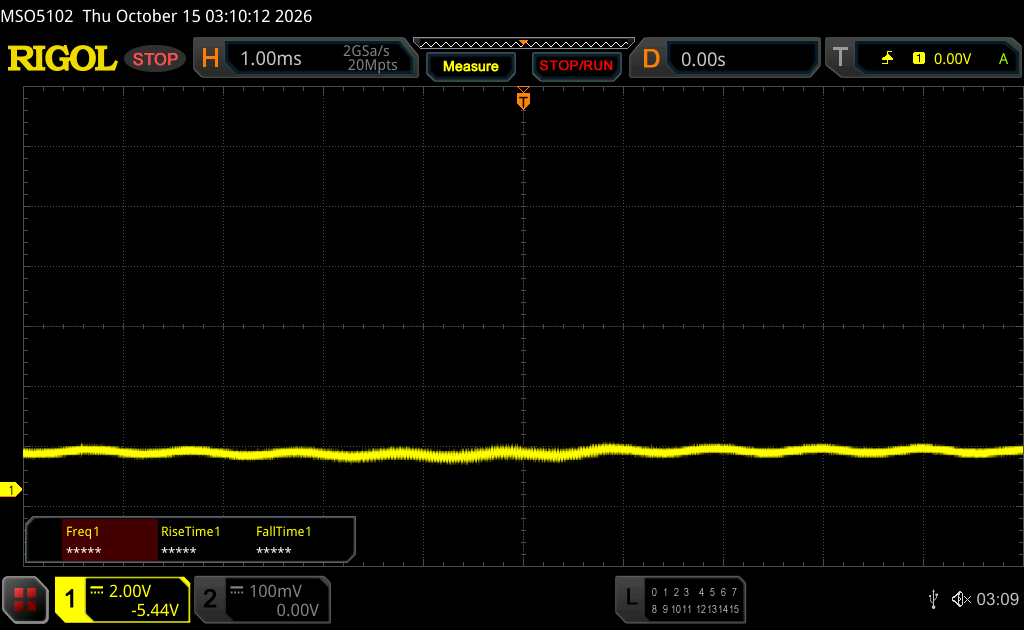

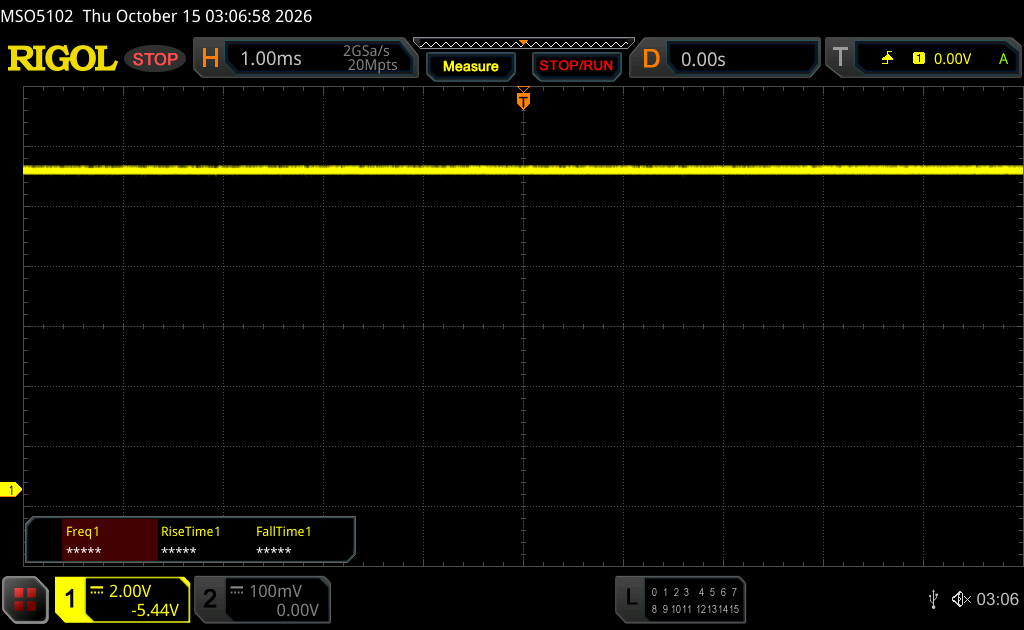

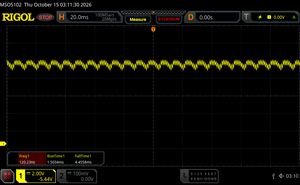

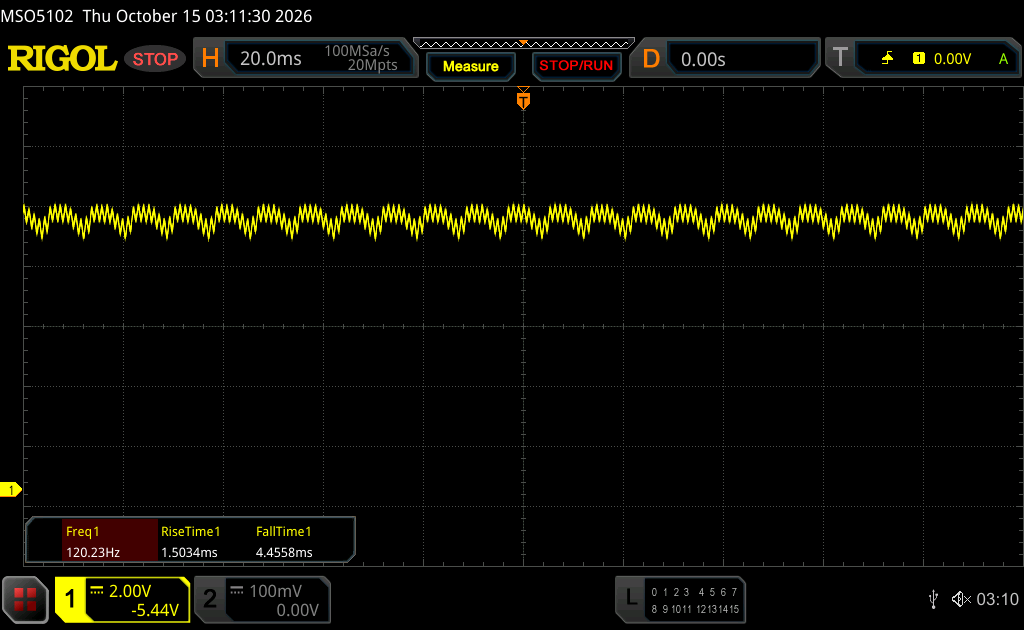

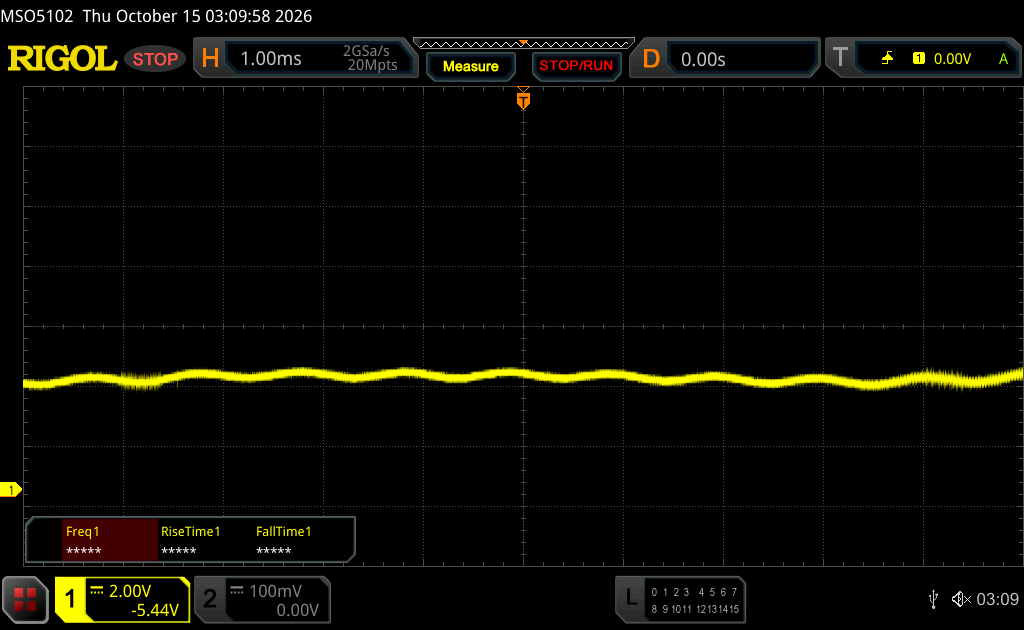

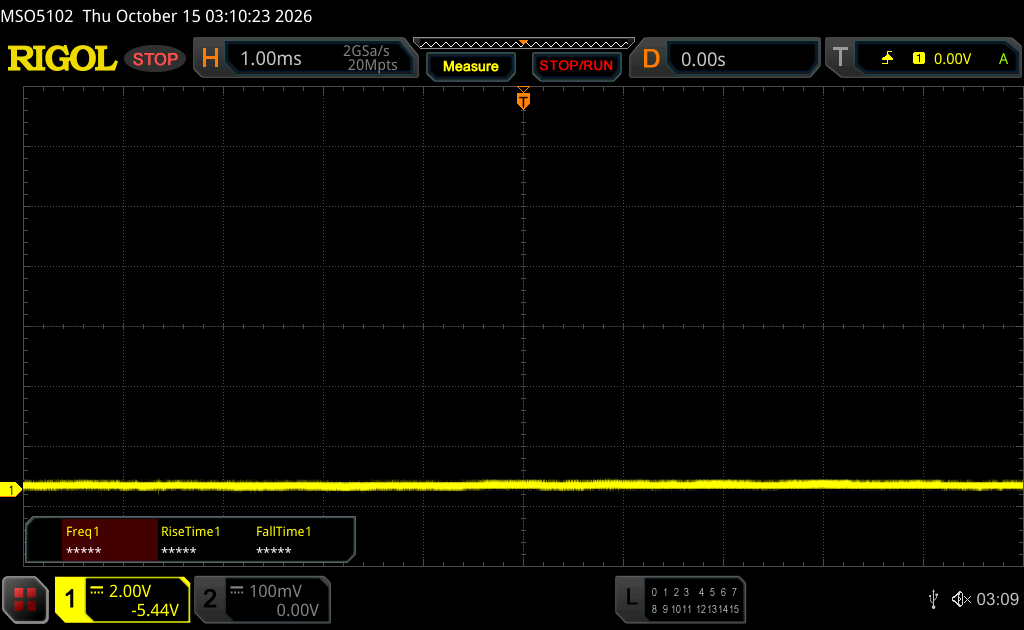

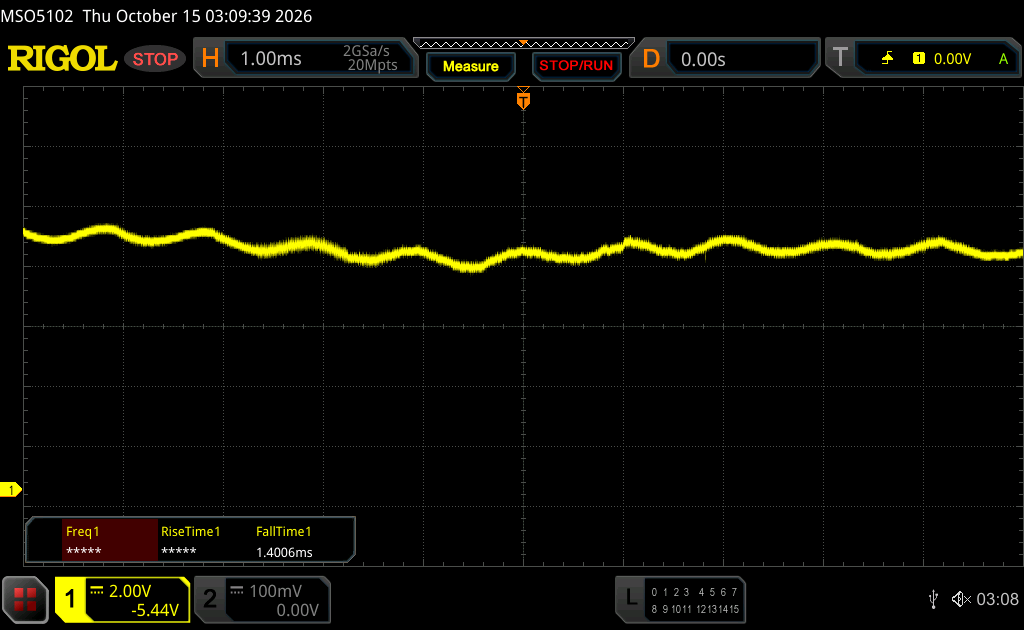

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 120 Hz Amplitude: 11 % | ≤ 120 % brightness setting |  |
The display backlight flickers at 120 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 120 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 120 Hz is very low, so the flickering may cause eyestrain and headaches after extended use. In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 7585 (minimum: 5 - maximum: 343500) Hz was measured. | |||
性能 - Ryzen Z2 Extreme
测试条件

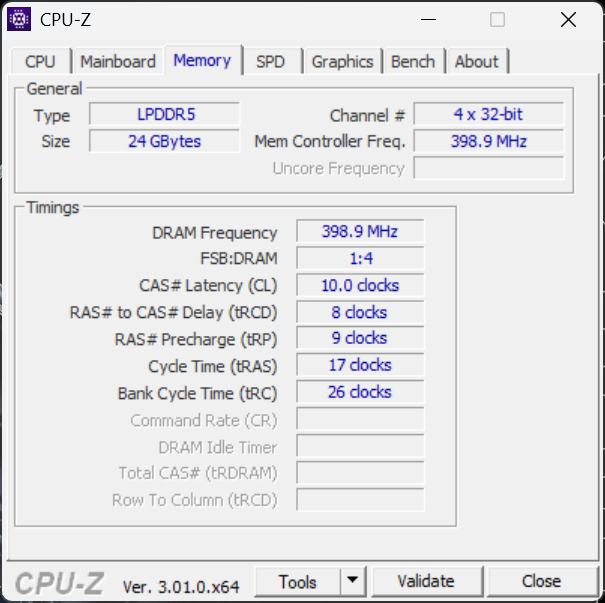

Asus 提供了常见的性能模式（见下表）。我们在接通电源的情况下，以 Turbo 模式进行了基准测试。Asus 默认将 8 GB 内存分配给 iGPU。
| 电源模式 | TDP | Cyberpunk 2077 1080p 中等画质 | 游戏时的电池续航时间 @150 尼特 | 风扇噪音 |
|---|---|---|---|---|
| 低语 | 23/13 W | 22.9 帧/秒 | 3:48 小时 | 29 dB(A) |
| 性能 | 30/17 W | 34.3 帧/秒 | 3:04 小时 | 31.2 dB(A) |
| Turbo（电池） | 35/25 W | 40.3 帧/秒 | 2:13 小时 | 34.2 dB(A) |
| Turbo（已接通电源） | 55/35 W | 43.1 帧/秒 | 40.2 dB(A) |

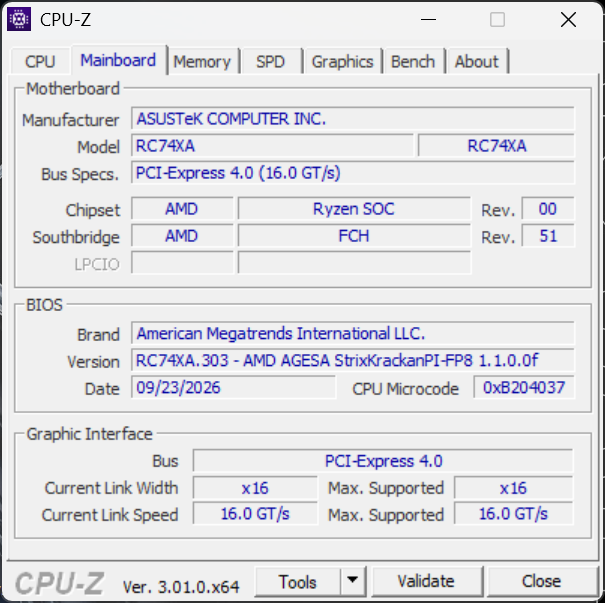

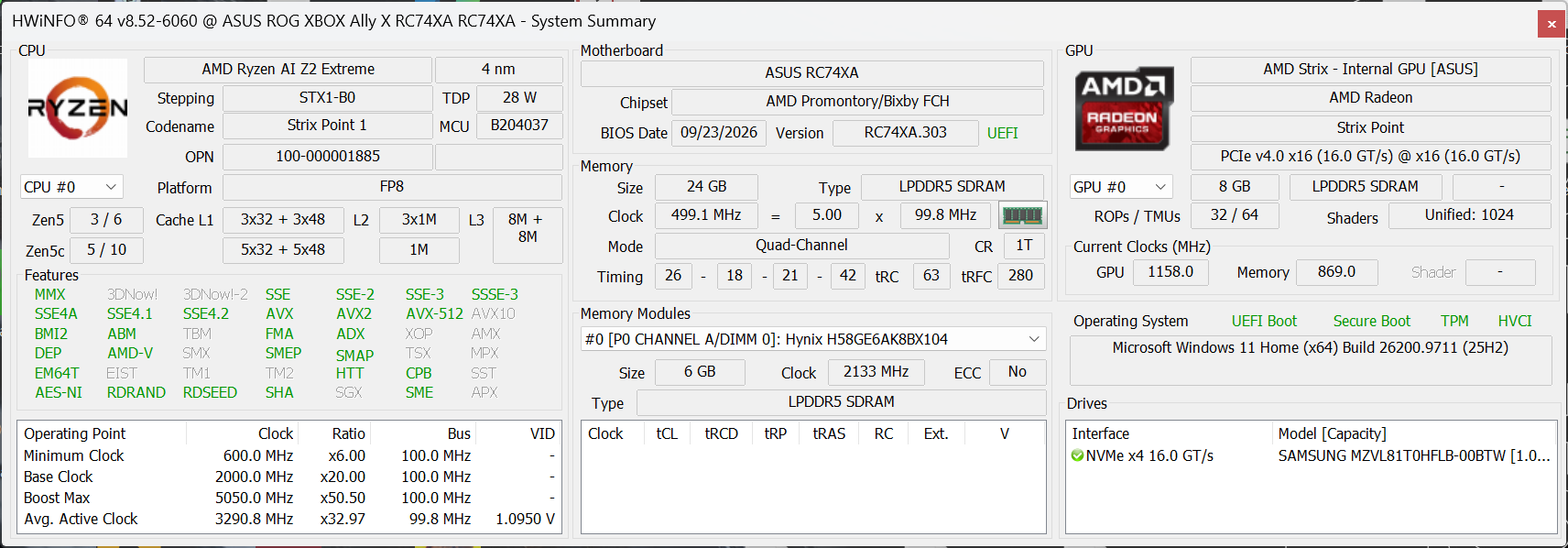

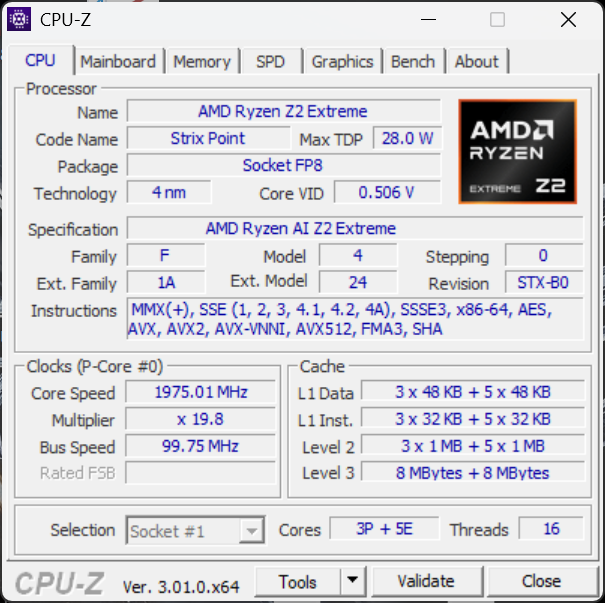

处理器、系统和 SSD 性能
Ryzen Z2 Extreme 的 CPU 性能依然非常出色，甚至优于 Intel Arc G3 Extreme。得益于高速 PCIe 4.0 SSD，Ally X20 的整体系统响应非常迅速。我们也没有发现任何稳定性问题，内置控制中心的运行表现也非常好。
Cinebench R15 多核循环
Cinebench 2024: CPU Multi Core | CPU Single Core
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.7: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance rating | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average AMD Ryzen Z2 Extreme | |
| Lenovo Legion Go 2 | |
| MSI Claw 8 AI+ | |
| Average of class Handheld / UMPC | |
| Cinebench 2024 / CPU Multi Core | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| Average of class Handheld / UMPC (575 - 956, n=8, last 2 years) | |
| Lenovo Legion Go 2 | |
| Average AMD Ryzen Z2 Extreme (620 - 809, n=4) | |
| MSI Claw 8 AI+ | |
| Cinebench 2024 / CPU Single Core | |
| MSI Claw 8 AI+ | |
| MSI Claw 8 EX AI+ CG3EM | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X20 | |
| Average AMD Ryzen Z2 Extreme (112.1 - 113.8, n=4) | |
| Asus ROG Xbox Ally X | |
| Average of class Handheld / UMPC (99.2 - 120, n=8, last 2 years) | |
| Cinebench R23 / Multi Core | |
| Asus ROG Xbox Ally X20 | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X | |
| Average AMD Ryzen Z2 Extreme (12151 - 15257, n=4) | |
| Lenovo Legion Go 2 | |
| Average of class Handheld / UMPC (4953 - 16841, n=11, last 2 years) | |
| MSI Claw 8 AI+ | |
| Cinebench R23 / Single Core | |
| Asus ROG Xbox Ally X20 | |
| Average AMD Ryzen Z2 Extreme (1954 - 1970, n=4) | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 EX AI+ CG3EM | |
| MSI Claw 8 AI+ | |
| Average of class Handheld / UMPC (1071 - 2006, n=11, last 2 years) | |
| Cinebench R20 / CPU (Multi Core) | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average AMD Ryzen Z2 Extreme (4726 - 5931, n=4) | |
| Lenovo Legion Go 2 | |
| Average of class Handheld / UMPC (1904 - 6577, n=11, last 2 years) | |
| MSI Claw 8 AI+ | |
| Cinebench R20 / CPU (Single Core) | |
| Lenovo Legion Go 2 | |
| Average AMD Ryzen Z2 Extreme (762 - 772, n=4) | |
| Asus ROG Xbox Ally X | |
| Asus ROG Xbox Ally X20 | |
| MSI Claw 8 EX AI+ CG3EM | |
| MSI Claw 8 AI+ | |
| Average of class Handheld / UMPC (390 - 787, n=11, last 2 years) | |
| Cinebench R15 / CPU Multi 64Bit | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average AMD Ryzen Z2 Extreme (1912 - 2280, n=4) | |
| Lenovo Legion Go 2 | |
| Average of class Handheld / UMPC (855 - 2533, n=11, last 2 years) | |
| MSI Claw 8 AI+ | |
| Cinebench R15 / CPU Single 64Bit | |
| Asus ROG Xbox Ally X20 | |
| MSI Claw 8 AI+ | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average AMD Ryzen Z2 Extreme (190.7 - 289, n=4) | |
| Average of class Handheld / UMPC (155.1 - 304, n=11, last 2 years) | |
| Lenovo Legion Go 2 | |
| Blender / v2.79 BMW27 CPU | |
| MSI Claw 8 AI+ | |
| Average of class Handheld / UMPC (189 - 588, n=11, last 2 years) | |
| Lenovo Legion Go 2 | |
| Average AMD Ryzen Z2 Extreme (226 - 296, n=4) | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X | |
| Asus ROG Xbox Ally X20 | |
| 7-Zip 18.03 / 7z b 4 | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average AMD Ryzen Z2 Extreme (45321 - 56042, n=4) | |
| Lenovo Legion Go 2 | |
| Average of class Handheld / UMPC (23417 - 66618, n=10, last 2 years) | |
| MSI Claw 8 AI+ | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| MSI Claw 8 EX AI+ CG3EM | |
| MSI Claw 8 AI+ | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| Average AMD Ryzen Z2 Extreme (5434 - 5623, n=4) | |
| Average of class Handheld / UMPC (3675 - 6143, n=11, last 2 years) | |
| Geekbench 6.7 / Multi-Core | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| Average AMD Ryzen Z2 Extreme (10979 - 12940, n=5) | |
| Lenovo Legion Go 2 | |
| MSI Claw 8 AI+ | |
| Average of class Handheld / UMPC (3950 - 13426, n=12, last 2 years) | |
| Geekbench 6.7 / Single-Core | |
| Asus ROG Xbox Ally X | |
| Asus ROG Xbox Ally X20 | |
| Lenovo Legion Go 2 | |
| MSI Claw 8 AI+ | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average AMD Ryzen Z2 Extreme (1888 - 2790, n=5) | |
| Average of class Handheld / UMPC (1333 - 2904, n=12, last 2 years) | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| Average AMD Ryzen Z2 Extreme (14.7 - 19.3, n=4) | |
| Lenovo Legion Go 2 | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average of class Handheld / UMPC (6.21 - 20.8, n=11, last 2 years) | |
| MSI Claw 8 AI+ | |
| LibreOffice / 20 Documents To PDF | |
| Asus ROG Xbox Ally X | |
| Average of class Handheld / UMPC (41.1 - 92.8, n=11, last 2 years) | |
| Average AMD Ryzen Z2 Extreme (54.5 - 68.7, n=4) | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Lenovo Legion Go 2 | |
| MSI Claw 8 AI+ | |
| R Benchmark 2.5 / Overall mean | |
| Average of class Handheld / UMPC (0.4167 - 0.756, n=11, last 2 years) | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 AI+ | |
| Average AMD Ryzen Z2 Extreme (0.4304 - 0.452, n=4) | |
| Asus ROG Xbox Ally X20 | |
| Lenovo Legion Go 2 | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx | CPU CheckMate
| Performance rating | |
| Asus ROG Xbox Ally X20 -1! | |
| Asus ROG Xbox Ally X -1! | |
| Average AMD Ryzen Z2 Extreme | |
| Lenovo Legion Go 2 -1! | |
| Average of class Handheld / UMPC | |
| MSI Claw 8 AI+ -1! | |
| MSI Claw 8 EX AI+ CG3EM -1! | |
| AIDA64 / FP32 Ray-Trace | |
| Asus ROG Xbox Ally X20 (v8.20.8100) | |
| Asus ROG Xbox Ally X (v6.92.6600) | |
| Average AMD Ryzen Z2 Extreme (17272 - 23116, n=4) | |
| Lenovo Legion Go 2 (v6.92.6600) | |
| Average of class Handheld / UMPC (6544 - 26450, n=11, last 2 years) | |
| MSI Claw 8 AI+ (v6.92.6600) | |
| MSI Claw 8 EX AI+ CG3EM (v8.20.8100) | |
| AIDA64 / FPU Julia | |
| Asus ROG Xbox Ally X20 (v8.20.8100) | |
| Asus ROG Xbox Ally X (v6.92.6600) | |
| Average AMD Ryzen Z2 Extreme (64269 - 95683, n=4) | |
| Lenovo Legion Go 2 (v6.92.6600) | |
| Average of class Handheld / UMPC (36464 - 99389, n=11, last 2 years) | |
| MSI Claw 8 AI+ (v6.92.6600) | |
| MSI Claw 8 EX AI+ CG3EM (v8.20.8100) | |
| AIDA64 / CPU SHA3 | |
| Asus ROG Xbox Ally X20 (v8.20.8100) | |
| Asus ROG Xbox Ally X (v6.92.6600) | |
| Lenovo Legion Go 2 (v6.92.6600) | |
| Average AMD Ryzen Z2 Extreme (2946 - 3851, n=4) | |
| MSI Claw 8 EX AI+ CG3EM (v8.20.8100) | |
| Average of class Handheld / UMPC (1157 - 4484, n=11, last 2 years) | |
| MSI Claw 8 AI+ (v6.92.6600) | |
| AIDA64 / CPU Queen | |
| Asus ROG Xbox Ally X (v6.92.6600) | |
| Average AMD Ryzen Z2 Extreme (73893 - 77437, n=3) | |
| Lenovo Legion Go 2 (v6.92.6600) | |
| Average of class Handheld / UMPC (41744 - 80927, n=9, last 2 years) | |
| MSI Claw 8 AI+ (v6.92.6600) | |
| AIDA64 / FPU SinJulia | |
| Asus ROG Xbox Ally X20 (v8.20.8100) | |
| Asus ROG Xbox Ally X (v6.92.6600) | |
| Lenovo Legion Go 2 (v6.92.6600) | |
| Average AMD Ryzen Z2 Extreme (11040 - 12850, n=4) | |
| Average of class Handheld / UMPC (4023 - 16980, n=11, last 2 years) | |
| MSI Claw 8 AI+ (v6.92.6600) | |
| MSI Claw 8 EX AI+ CG3EM (v8.20.8100) | |
| AIDA64 / FPU Mandel | |
| Asus ROG Xbox Ally X20 (v8.20.8100) | |
| Asus ROG Xbox Ally X (v6.92.6600) | |
| Average AMD Ryzen Z2 Extreme (33241 - 48676, n=4) | |
| Lenovo Legion Go 2 (v6.92.6600) | |
| Average of class Handheld / UMPC (19153 - 52245, n=11, last 2 years) | |
| MSI Claw 8 AI+ (v6.92.6600) | |
| MSI Claw 8 EX AI+ CG3EM (v8.20.8100) | |
| AIDA64 / CPU AES | |
| Asus ROG Xbox Ally X20 (v8.20.8100) | |
| Asus ROG Xbox Ally X (v6.92.6600) | |
| Average AMD Ryzen Z2 Extreme (72291 - 79019, n=3) | |
| Lenovo Legion Go 2 (v6.92.6600) | |
| Average of class Handheld / UMPC (18552 - 79019, n=10, last 2 years) | |
| MSI Claw 8 EX AI+ CG3EM (v8.20.8100) | |
| MSI Claw 8 AI+ (v6.92.6600) | |
| AIDA64 / CPU ZLib | |
| Asus ROG Xbox Ally X20 (v8.20.8100) | |
| Asus ROG Xbox Ally X (v6.92.6600) | |
| Average AMD Ryzen Z2 Extreme (721 - 1020, n=4) | |
| Lenovo Legion Go 2 (v6.92.6600) | |
| Average of class Handheld / UMPC (356 - 1112, n=11, last 2 years) | |
| MSI Claw 8 EX AI+ CG3EM (v8.20.8100) | |
| MSI Claw 8 AI+ (v6.92.6600) | |
| AIDA64 / FP64 Ray-Trace | |
| Asus ROG Xbox Ally X (v6.92.6600) | |
| Asus ROG Xbox Ally X20 (v8.20.8100) | |
| Lenovo Legion Go 2 (v6.92.6600) | |
| Average AMD Ryzen Z2 Extreme (9159 - 12084, n=4) | |
| Average of class Handheld / UMPC (3585 - 14181, n=11, last 2 years) | |
| MSI Claw 8 AI+ (v6.92.6600) | |
| MSI Claw 8 EX AI+ CG3EM (v8.20.8100) | |
| AIDA64 / CPU PhotoWorxx | |
| MSI Claw 8 EX AI+ CG3EM (v8.20.8100) | |
| MSI Claw 8 AI+ (v6.92.6600) | |
| Asus ROG Xbox Ally X20 (v8.20.8100) | |
| Average AMD Ryzen Z2 Extreme (52205 - 54561, n=4) | |
| Asus ROG Xbox Ally X (v6.92.6600) | |
| Lenovo Legion Go 2 (v6.92.6600) | |
| Average of class Handheld / UMPC (19472 - 59897, n=11, last 2 years) | |
| AIDA64 / CPU CheckMate | |
| Asus ROG Xbox Ally X20 (v8.20.8100) | |
| Average AMD Ryzen Z2 Extreme (n=1) | |
| Average of class Handheld / UMPC (2602 - 5395, n=2, last 2 years) | |
| MSI Claw 8 EX AI+ CG3EM (v8.20.8100) | |
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| Performance rating | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Lenovo Legion Go 2 | |
| MSI Claw 8 AI+ | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M | |
| Asus ROG Xbox Ally X | |
| Average of class Handheld / UMPC | |
| PCMark 10 / Score | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Lenovo Legion Go 2 | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M (7068 - 8381, n=4) | |
| MSI Claw 8 AI+ | |
| Average of class Handheld / UMPC (3592 - 9701, n=11, last 2 years) | |
| Asus ROG Xbox Ally X | |
| PCMark 10 / Essentials | |
| MSI Claw 8 AI+ | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M (10197 - 10390, n=4) | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Average of class Handheld / UMPC (7542 - 11262, n=11, last 2 years) | |
| PCMark 10 / Productivity | |
| MSI Claw 8 EX AI+ CG3EM | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X20 | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M (9567 - 14802, n=4) | |
| Average of class Handheld / UMPC (5015 - 19236, n=11, last 2 years) | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 AI+ | |
| PCMark 10 / Digital Content Creation | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| MSI Claw 8 AI+ | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M (9317 - 10629, n=4) | |
| Asus ROG Xbox Ally X | |
| Lenovo Legion Go 2 | |
| Average of class Handheld / UMPC (3326 - 12612, n=11, last 2 years) | |
| CrossMark / Overall | |
| MSI Claw 8 EX AI+ CG3EM | |
| MSI Claw 8 AI+ | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X20 | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M (1532 - 1687, n=4) | |
| Average of class Handheld / UMPC (865 - 1881, n=11, last 2 years) | |
| Asus ROG Xbox Ally X | |
| CrossMark / Productivity | |
| MSI Claw 8 EX AI+ CG3EM | |
| MSI Claw 8 AI+ | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X20 | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M (1453 - 1610, n=4) | |
| Average of class Handheld / UMPC (878 - 1719, n=11, last 2 years) | |
| Asus ROG Xbox Ally X | |
| CrossMark / Creativity | |
| MSI Claw 8 EX AI+ CG3EM | |
| MSI Claw 8 AI+ | |
| Asus ROG Xbox Ally X20 | |
| Lenovo Legion Go 2 | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M (1712 - 1855, n=4) | |
| Asus ROG Xbox Ally X | |
| Average of class Handheld / UMPC (891 - 2150, n=11, last 2 years) | |
| CrossMark / Responsiveness | |
| MSI Claw 8 EX AI+ CG3EM | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X20 | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M (1291 - 1608, n=4) | |
| MSI Claw 8 AI+ | |
| Average of class Handheld / UMPC (759 - 1677, n=11, last 2 years) | |
| Asus ROG Xbox Ally X | |
| WebXPRT 3 / Overall | |
| MSI Claw 8 AI+ | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average of class Handheld / UMPC (170.3 - 325, n=12, last 2 years) | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M (205 - 308, n=4) | |
| WebXPRT 4 / Overall | |
| MSI Claw 8 AI+ | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X20 | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M (229 - 263, n=4) | |
| Average of class Handheld / UMPC (134.4 - 291, n=12, last 2 years) | |
| Asus ROG Xbox Ally X | |
| Mozilla Kraken 1.1 / Total | |
| Average of class Handheld / UMPC (428 - 931, n=11, last 2 years) | |
| Average AMD Ryzen Z2 Extreme, AMD Radeon 890M (452 - 756, n=4) | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 EX AI+ CG3EM | |
| MSI Claw 8 AI+ | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X20 | |
* ... smaller is better
| PCMark 10 Score | 8381 points | |
Help | ||
| AIDA64 / Memory Copy | |
| MSI Claw 8 AI+ | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X | |
| Average AMD Ryzen Z2 Extreme (83667 - 93485, n=4) | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Average of class Handheld / UMPC (33517 - 107929, n=11, last 2 years) | |
| AIDA64 / Memory Read | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X | |
| Average AMD Ryzen Z2 Extreme (94928 - 103022, n=4) | |
| Asus ROG Xbox Ally X20 | |
| MSI Claw 8 AI+ | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average of class Handheld / UMPC (25476 - 103022, n=11, last 2 years) | |
| AIDA64 / Memory Write | |
| MSI Claw 8 AI+ | |
| Asus ROG Xbox Ally X20 | |
| Average AMD Ryzen Z2 Extreme (104064 - 111783, n=4) | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average of class Handheld / UMPC (25595 - 117883, n=11, last 2 years) | |
| AIDA64 / Memory Latency | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average of class Handheld / UMPC (99.8 - 147.6, n=11, last 2 years) | |
| Asus ROG Xbox Ally X | |
| Lenovo Legion Go 2 | |
| Average AMD Ryzen Z2 Extreme (106.4 - 114, n=4) | |
| Asus ROG Xbox Ally X20 | |
| MSI Claw 8 AI+ | |
* ... smaller is better
* ... smaller is better
磁盘限速：DiskSpd 读取循环，队列深度 8

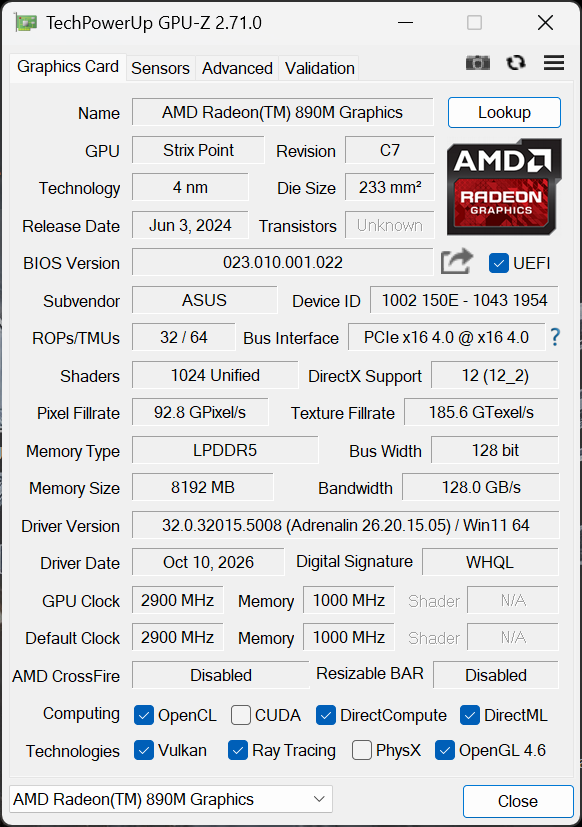

GPU 和游戏性能
新款 Ally X20 的主要问题在于其依然采用了未作升级的 Radeon 890M 核显。它的性能根本无法与 MSI Claw EX AI+ 中的 Intel Arc B390 核显相匹敌，后者的游戏性能高出约 20-30 %，还支持帧生成等功能。
| 3DMark Performance rating - Percent | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average of class Handheld / UMPC | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| Lenovo Legion Go 2 | |
| MSI Claw 8 AI+ | |
| Average AMD Radeon 890M | |
| 3DMark 11 Performance | 15588 points | |
| 3DMark Fire Strike Score | 9057 points | |
| 3DMark Time Spy Score | 4068 points | |
| 3DMark Steel Nomad Score | 609 points | |
| 3DMark Steel Nomad Light Score | 3493 points | |
Help | ||
| Blender / v3.3 Classroom CPU | |
| MSI Claw 8 AI+ | |
| Average of class Handheld / UMPC (290 - 1026, n=11, last 2 years) | |
| MSI Claw 8 EX AI+ CG3EM | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X | |
| Asus ROG Xbox Ally X20 | |
| Average AMD Radeon 890M (211 - 475, n=32) | |
* ... smaller is better
| Performance rating - Percent | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| Average of class Handheld / UMPC | |
| Lenovo Legion Go 2 -1! | |
| MSI Claw 8 AI+ -1! | |
| Cyberpunk 2077 - 1920x1080 Ultra Preset (FSR off) | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Average of class Handheld / UMPC (12.4 - 91.4, n=17, last 2 years) | |
| MSI Claw 8 AI+ | |
| Asus ROG Xbox Ally X | |
| Lenovo Legion Go 2 | |
| Baldur's Gate 3 - 1920x1080 Ultra Preset AA:T | |
| MSI Claw 8 EX AI+ CG3EM | |
| Average of class Handheld / UMPC (16.8 - 118.8, n=15, last 2 years) | |
| Asus ROG Xbox Ally X | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X20 | |
| MSI Claw 8 AI+ | |
| GTA V - 1920x1080 Highest AA:4xMSAA + FX AF:16x | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| Average of class Handheld / UMPC (14 - 39.2, n=10, last 2 years) | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| MSI Claw 8 AI+ | |
| Lenovo Legion Go 2 | |
| Average of class Handheld / UMPC (17.9 - 50.3, n=15, last 2 years) | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| MSI Claw 8 EX AI+ CG3EM | |
| Asus ROG Xbox Ally X20 | |
| Asus ROG Xbox Ally X | |
| Lenovo Legion Go 2 | |
| MSI Claw 8 AI+ | |
| Average of class Handheld / UMPC (33.6 - 96.8, n=16, last 2 years) | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| MSI Claw 8 EX AI+ CG3EM | |
| MSI Claw 8 AI+ | |
| Asus ROG Xbox Ally X | |
| Asus ROG Xbox Ally X20 | |
| Lenovo Legion Go 2 | |
| Average of class Handheld / UMPC (48.7 - 103.8, n=15, last 2 years) | |
| X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
| Asus ROG Xbox Ally X20 | |
| Lenovo Legion Go 2 | |
| Asus ROG Xbox Ally X | |
| Average of class Handheld / UMPC (22.7 - 50.5, n=15, last 2 years) | |
| MSI Claw 8 EX AI+ CG3EM | |
| MSI Claw 8 AI+ | |
Cyberpunk 2077 超高画质 FPS 图表
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 108.4 | 71.3 | 34.7 | |
| Dota 2 Reborn (2015) | 104.9 | 95.3 | 84.2 | 77.8 |
| Final Fantasy XV Benchmark (2018) | 34.9 | |||
| X-Plane 11.11 (2018) | 70 | 56.7 | 44.7 | |
| Strange Brigade (2018) | 159.9 | 82.7 | 70.9 | 60 |
| Baldur's Gate 3 (2023) | 47.2 | 36.3 | 29.9 | 29.8 |
| Cyberpunk 2077 (2023) | 52.7 | 43.1 | 33.4 | 29.3 |
| F1 24 (2024) | 100.9 | 95.2 | 71.6 | 17.8 |
排放与功耗
系统噪声
Ally X20 依然是一款非常安静的设备，只有在接通电源并以 Turbo 模式玩游戏时，才能明显听到风扇声，此时噪声为 40 dB(A)。使用电池供电时，风扇噪声根据性能配置的不同介于 29-34 dB(A) 之间。没有其他电子噪声。
Noise level
| Idle |
| 24 / 24 / 28.6 dB(A) |
| Load |
| 33.5 / 40.2 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24 dB(A) | ||
| Asus ROG Xbox Ally X20 Ryzen Z2 Extreme, Radeon 890M | MSI Claw 8 EX AI+ CG3EM Arc G3 Extreme, Arc B390 Panther Lake iGPU | Lenovo Legion Go 2 Ryzen Z2 Extreme, Radeon 890M | Asus ROG Xbox Ally X Ryzen Z2 Extreme, Radeon 890M | MSI Claw 8 AI+ Core Ultra 7 258V, Arc 140V | |
|---|---|---|---|---|---|
| Noise | -20% | -2% | -6% | -4% | |
| off / environment * (dB) | 24 | 24.5 -2% | 24.7 -3% | 24.2 -1% | 24.7 -3% |
| Idle Minimum * (dB) | 24 | 33.9 -41% | 24.7 -3% | 24.2 -1% | 24.7 -3% |
| Idle Average * (dB) | 24 | 33.9 -41% | 24.7 -3% | 24.2 -1% | 24.7 -3% |
| Idle Maximum * (dB) | 28.6 | 33.9 -19% | 24.7 14% | 29 -1% | 28.9 -1% |
| Load Average * (dB) | 33.5 | 42.3 -26% | 39.7 -19% | 41.4 -24% | 37.3 -11% |
| Cyberpunk 2077 ultra * (dB) | 40.2 | 42.3 -5% | 39.7 1% | 43.4 -8% | 41.4 -3% |
| Load Maximum * (dB) | 40.2 | 43.5 -8% | 39.7 1% | 43.4 -8% | 41.4 -3% |
* ... smaller is better

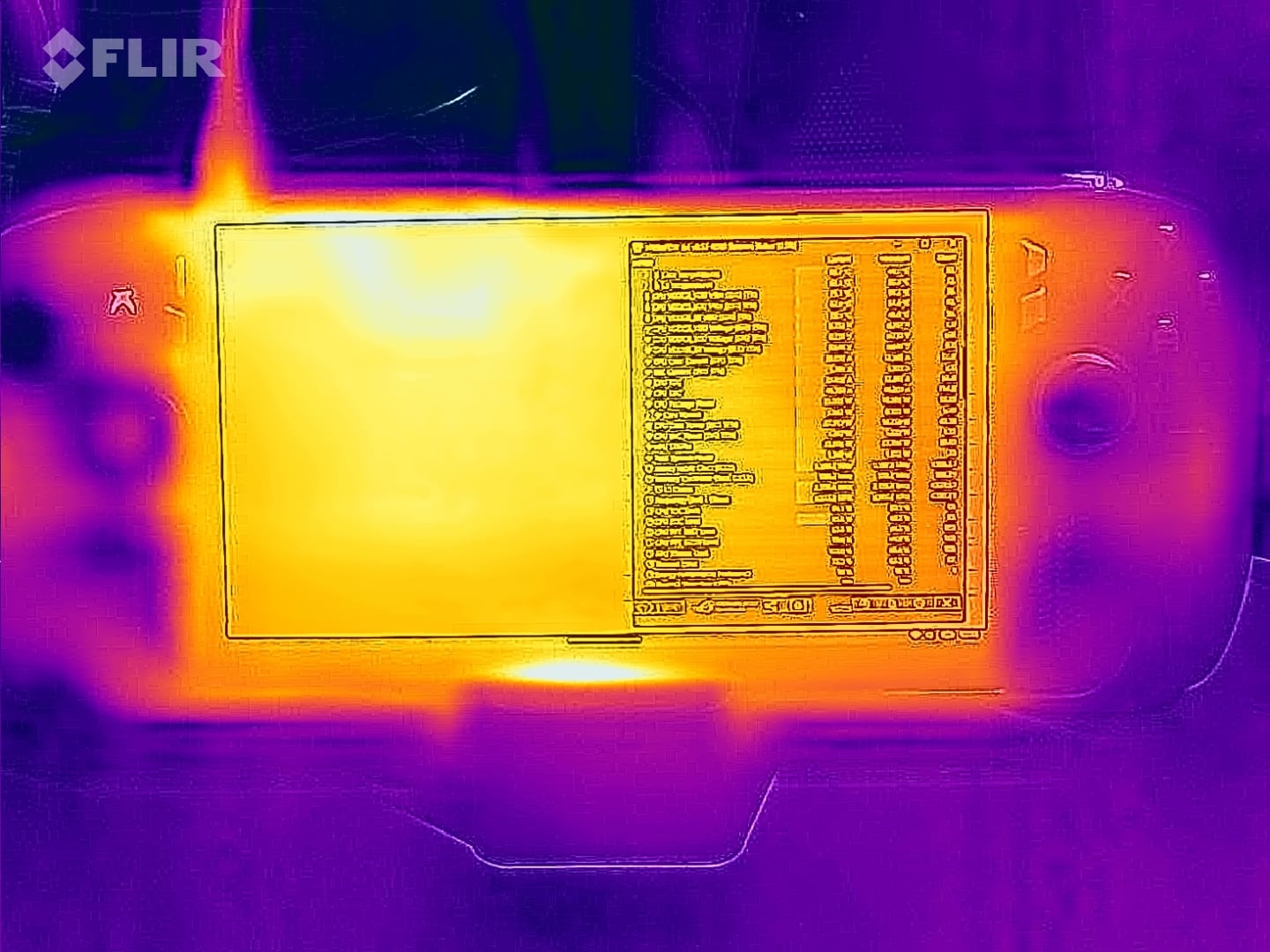

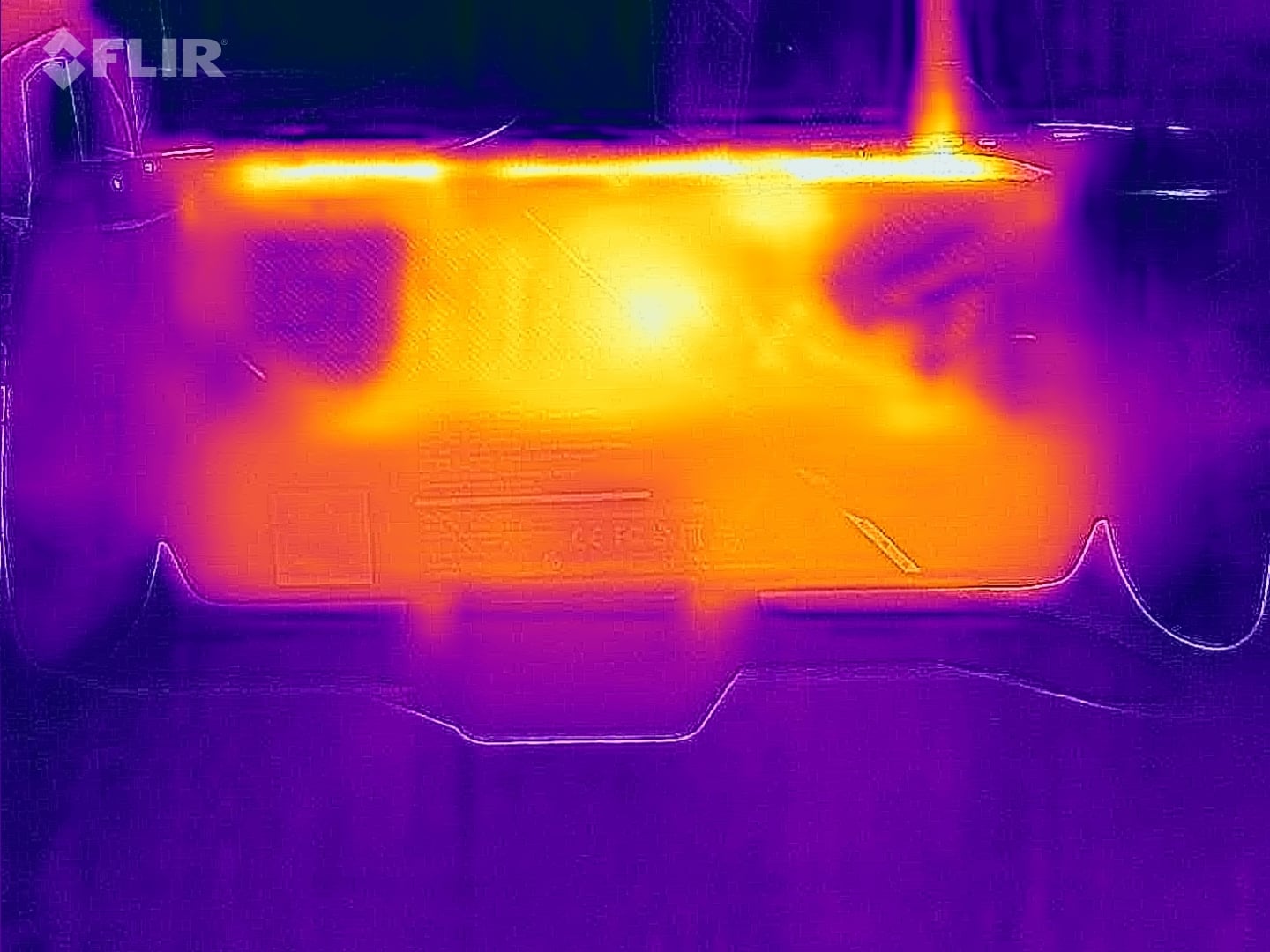

温度
表面温度完全不是问题，因为握把几乎不会升温，而且热空气会从机身顶部排出，通常不会与皮肤接触。
(+) The maximum temperature on the upper side is 39.7 °C / 103 F, compared to the average of 37.8 °C / 100 F, ranging from 26.6 to 55 °C for the class Handheld / UMPC.
(+) The bottom heats up to a maximum of 38.9 °C / 102 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.9 °C / 82 F, compared to the device average of 32.8 °C / 91 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37.9 °C / 100.2 F.
(-) The average temperature of the palmrest area of similar devices was 32.4 °C / 90.3 F (-5.5 °C / -9.9 F).
| Asus ROG Xbox Ally X20 Ryzen Z2 Extreme, Radeon 890M | MSI Claw 8 EX AI+ CG3EM Arc G3 Extreme, Arc B390 Panther Lake iGPU | Lenovo Legion Go 2 Ryzen Z2 Extreme, Radeon 890M | Asus ROG Xbox Ally X Ryzen Z2 Extreme, Radeon 890M | MSI Claw 8 AI+ Core Ultra 7 258V, Arc 140V | |
|---|---|---|---|---|---|
| Heat | 8% | -13% | -6% | 7% | |
| Maximum Upper Side * (°C) | 39.7 | 39.4 1% | 42.9 -8% | 40.8 -3% | 36.6 8% |
| Maximum Bottom * (°C) | 38.9 | 32.9 15% | 35.8 8% | 40.8 -5% | 34.8 11% |
| Idle Upper Side * (°C) | 29.4 | 27.3 7% | 38.2 -30% | 29.9 -2% | 27.5 6% |
| Idle Bottom * (°C) | 27.4 | 25.1 8% | 33.1 -21% | 30.6 -12% | 27.2 1% |
* ... smaller is better
扬声器
立体声扬声器再次展现出不错的音质。
Asus ROG Xbox Ally X20 audio analysis
(+) | speakers can play relatively loud (87.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.9% lower than median
(±) | linearity of bass is average (7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.5% higher than median
(+) | mids are linear (3.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.6% away from median
(+) | highs are linear (5.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.7% difference to median)
Compared to same class
» 24% of all tested devices in this class were better, 4% similar, 72% worse
» The best had a delta of 12%, average was 17%, worst was 23%
Compared to all devices tested
» 15% of all tested devices were better, 4% similar, 81% worse
» The best had a delta of 4%, average was 23%, worst was 136%
MSI Claw 8 EX AI+ CG3EM audio analysis
(+) | speakers can play relatively loud (85.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.3% lower than median
(±) | linearity of bass is average (9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.5% higher than median
(+) | mids are linear (3.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.7% away from median
(+) | highs are linear (4.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.1% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 12% similar, 88% worse
» The best had a delta of 12%, average was 17%, worst was 23%
Compared to all devices tested
» 10% of all tested devices were better, 2% similar, 88% worse
» The best had a delta of 4%, average was 23%, worst was 136%
Lenovo Legion Go 2 audio analysis
(+) | speakers can play relatively loud (85.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.4% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.9% higher than median
(+) | mids are linear (6.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.9% away from median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.6% difference to median)
Compared to same class
» 40% of all tested devices in this class were better, 8% similar, 52% worse
» The best had a delta of 12%, average was 17%, worst was 23%
Compared to all devices tested
» 24% of all tested devices were better, 5% similar, 71% worse
» The best had a delta of 4%, average was 23%, worst was 136%
Asus ROG Xbox Ally X audio analysis
(+) | speakers can play relatively loud (86.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.8% lower than median
(±) | linearity of bass is average (7.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.4% higher than median
(+) | mids are linear (3.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4% away from median
(+) | highs are linear (4.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.8% difference to median)
Compared to same class
» 12% of all tested devices in this class were better, 12% similar, 76% worse
» The best had a delta of 12%, average was 17%, worst was 23%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 85% worse
» The best had a delta of 4%, average was 23%, worst was 136%
MSI Claw 8 AI+ audio analysis
(+) | speakers can play relatively loud (85 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.5% lower than median
(±) | linearity of bass is average (8.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.1% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.4% away from median
(+) | highs are linear (4.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.9% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 12% similar, 88% worse
» The best had a delta of 12%, average was 17%, worst was 23%
Compared to all devices tested
» 9% of all tested devices were better, 3% similar, 88% worse
» The best had a delta of 4%, average was 23%, worst was 136%
功耗和电池续航时间
我们的欧盟版测试样机未随附电源适配器，为保险起见，我们建议使用 100 瓦充电器。如果在插电状态下以 Turbo 模式玩游戏，功耗最高可达 85 瓦并持续 10 秒，随后最终稳定在约 58 瓦。令人欣喜的是，换用更大的 OLED 屏幕并未影响电池续航时间，因为我们的 Wi-Fi 测试和游戏测试结果与去年的 ROG Xbox Ally X 几乎完全相同。
| Off / Standby | 0.36 / 0.7 Watt |
| Idle | 4.4 / 6.2 / 6.5 Watt |
| Load |
39.2 / 85 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Asus ROG Xbox Ally X20 Ryzen Z2 Extreme, Radeon 890M, Samsung PM9C1b MZVL81T0HFLB-00BTW, OLED, 1920x1080, 7.4" | MSI Claw 8 EX AI+ CG3EM Arc G3 Extreme, Arc B390 Panther Lake iGPU, Micron 2500 1TB MTFDKBA1T0QGN, , 1920x1200, 8" | Lenovo Legion Go 2 Ryzen Z2 Extreme, Radeon 890M, SK hynix PVC10 HFS001TEM4X182N, OLED, 1920x1200, 8.8" | Asus ROG Xbox Ally X Ryzen Z2 Extreme, Radeon 890M, Samsung MZVMA1T0HCLD, IPS, 1920x1080, 7" | MSI Claw 8 AI+ Core Ultra 7 258V, Arc 140V, Kioxia BG6 KBG60ZNS1T02, IPS, 1920x1200, 8" | Average AMD Radeon 890M | Average of class Handheld / UMPC | |
|---|---|---|---|---|---|---|---|
| Power Consumption | -13% | -33% | 1% | 11% | -30% | -16% | |
| Idle Minimum * (Watt) | 4.4 | 6.4 -45% | 7.1 -61% | 3.7 16% | 3.2 27% | 5.45 ? -24% | 5.45 ? -24% |
| Idle Average * (Watt) | 6.2 | 9.1 -47% | 10.7 -73% | 6.1 2% | 6.3 -2% | 7.85 ? -27% | 8.05 ? -30% |
| Idle Maximum * (Watt) | 6.5 | 9.6 -48% | 11.3 -74% | 6.2 5% | 6.6 -2% | 9.25 ? -42% | 9.36 ? -44% |
| Load Average * (Watt) | 39.2 | 40.2 -3% | 50.2 -28% | 56.1 -43% | 40.6 -4% | 63.7 ? -63% | 43 ? -10% |
| Cyberpunk 2077 ultra * (Watt) | 55.9 | 40.1 28% | 51.4 8% | 54.5 3% | 47 16% | ||
| Load Maximum * (Watt) | 85 | 55.3 35% | 58.6 31% | 66.4 22% | 59.3 30% | 80.2 ? 6% | 60.4 ? 29% |
| Cyberpunk 2077 ultra external monitor * (Watt) | 40.6 | 51.1 | 55 | 46.7 |
* ... smaller is better
Notebookcheck 评分
Asus ROG Xbox Ally X20
- 10/16/2026 v8
Andreas Osthoff
Total Sustainability Score: 对比中的潜在竞争对手
Image | Model / Review | Price | Weight | Height | Display |
|---|---|---|---|---|---|
1. 87.6%  | Asus ROG Xbox Ally X20 AMD Ryzen Z2 Extreme ⎘ AMD Radeon 890M ⎘ 24 GB Memory, 1000 GB SSD | Amazon: 1. $1,099.99 HIDevolution [2025] ASUS ROG... 2. $734.99 ASUS ROG Xbox Ally Gaming Ha... 3. $1,449.99 ASUS ROG Xbox Ally Gaming Ha... List Price: 1399€ | 756 g | 51.3 mm | 7.40" 1920x1080 298 PPI OLED |
2. 85.3%  | MSI Claw 8 EX AI+ CG3EM Intel Arc G3 Extreme ⎘ Intel Arc B390 12 Xe3 Panther Lake iGPU ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $2,099.00 MSI Claw PC Gaming Handheld:... 2. $1,074.99 msi Claw A8 PC Gaming Handhe... 3. $913.49 msi Claw PC Gaming Handheld:... List Price: 1649€ | 786 g | 48 mm | 8.00" 1920x1200 283 PPI |
3. 82.8%  | Lenovo Legion Go 2 AMD Ryzen Z2 Extreme ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $1,329.99 Lenovo Legion Go 2 Gaming Ha... 2. $1,299.00 Lenovo Legion Go 2 – Mobil... 3. Lenovo Legion Go Gen 2 Flags... List Price: 1500€ | 922 g | 42.25 mm | 8.80" 1920x1200 257 PPI OLED |
4. 85.9%  | Asus ROG Xbox Ally X AMD Ryzen Z2 Extreme ⎘ AMD Radeon 890M ⎘ 24 GB Memory, 1024 GB SSD | List Price: 899€ | 718 g | 50.9 mm | 7.00" 1920x1080 315 PPI IPS |
5. 84.7%  | MSI Claw 8 AI+ Intel Core Ultra 7 258V ⎘ Intel Arc Graphics 140V ⎘ 32 GB Memory, 512 GB SSD | List Price: 999€ | 793 g | 30 mm | 8.00" 1920x1200 283 PPI IPS |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Add as a preferred source on Google
