Minisforum EliteMini TH50评论。适合日常办公的紧凑型台式电脑

不仅仅是一台办公电脑! 制造商Minicforum通过紧凑的EliteMini TH50提供了一个基于英特尔的坚硬工作PC。由于有了Thunderbolt，其应用范围得到了极大的扩展。在这篇评论中，我们将了解这个小型计算中心所能提供的东西。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 02/22/2022 🇺🇸 🇩🇪 ...

Desktop Mini PC Thunderbolt Tiger Lake

作为一个系统制造商，MINISFORUM现在对许多人来说是一个家喻户晓的名字，尽管这个中国制造商在世界的这一部分还不是很广泛。产品组合包括从物联网迷你电脑到办公设备和紧凑型游戏电脑。我们已经可以了解EliteMini系列的一些系统了。然而，到目前为止，AMD的APU已经成为这些PC的基础。现在，EliteMini TH50依靠的是英特尔Tiger Lake SoC，因此提供了更多的使用选择。

这款电脑英特尔酷睿i5-11320H是一个坚实的SoC，提供了一个坚实的基础。使用这种处理器不会打破记录，但其性能应该足以满足预期的使用。配备16GB DDR4内存和512GB SSD，Minisforum为我们提供了顶级型号。制造商对这种配置收取669美元。EliteMini TH50也有不带SSD的裸机版本。然而，没有固态硬盘的629美元的价格并没有节省多少。还应该考虑到，在没有大规模存储设备的情况下，购买时不包括Windows许可证。此外，16GB内存总是安装在EliteMini TH50中，因为它被焊接在电路板上。

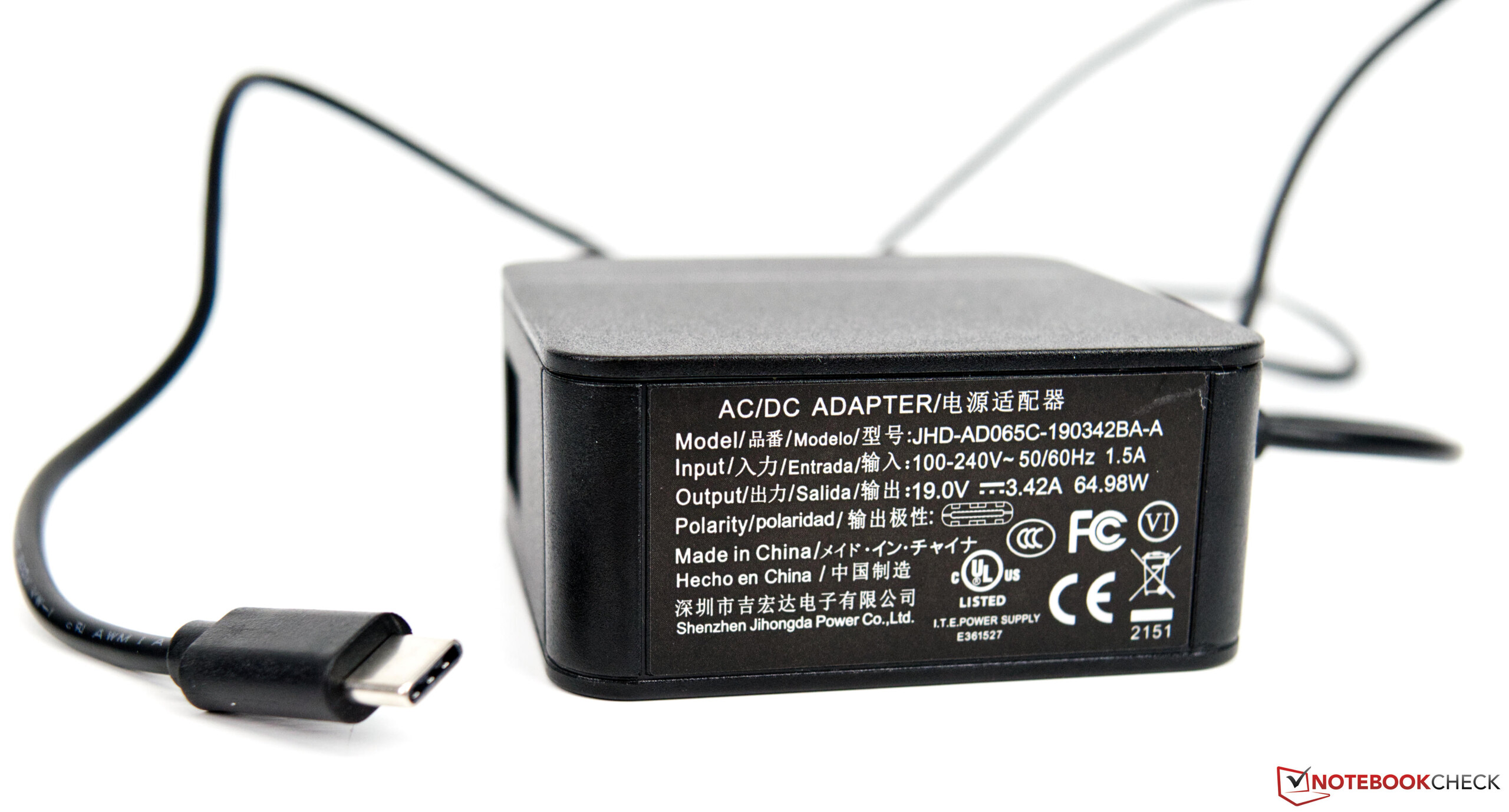

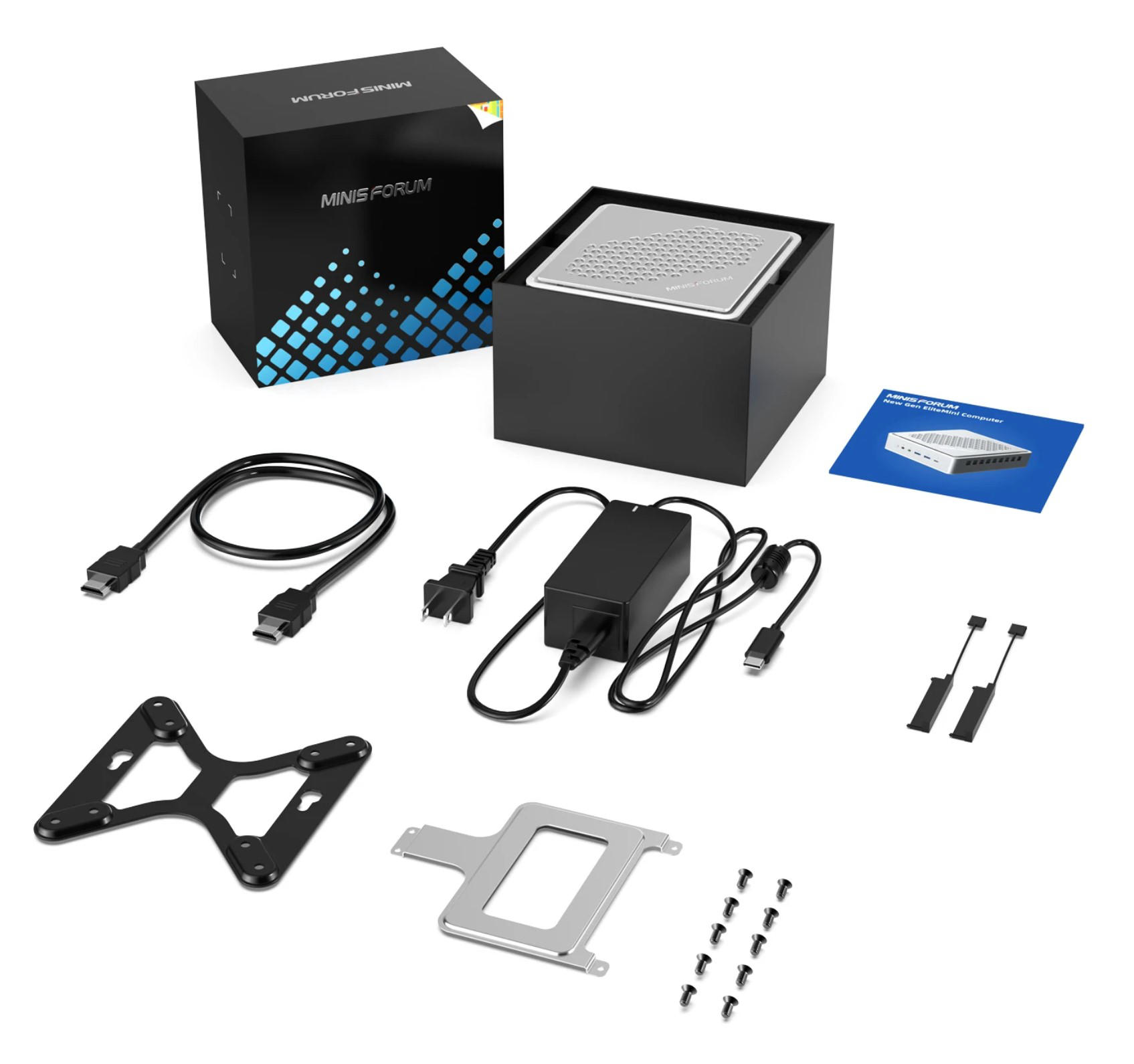

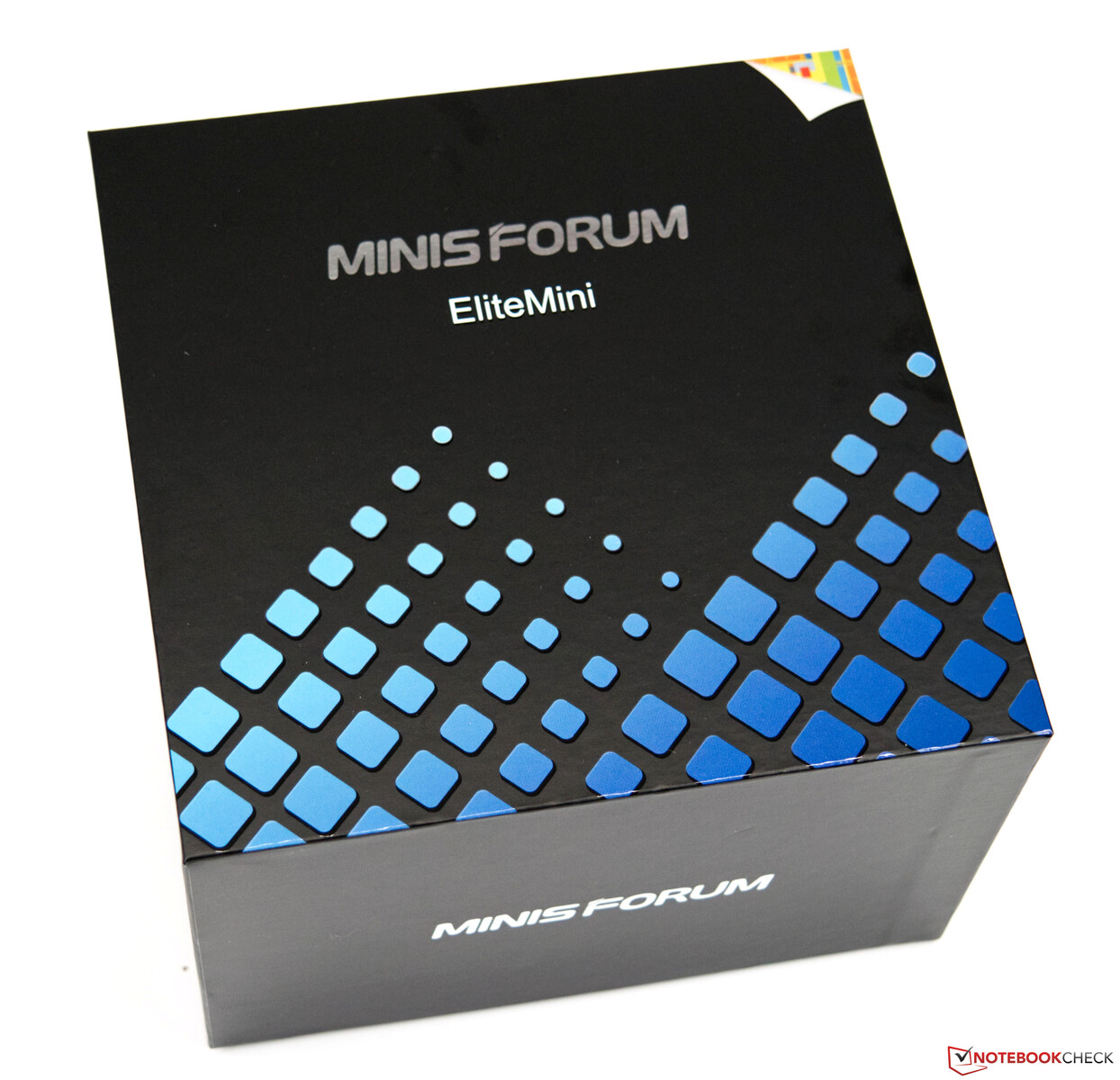

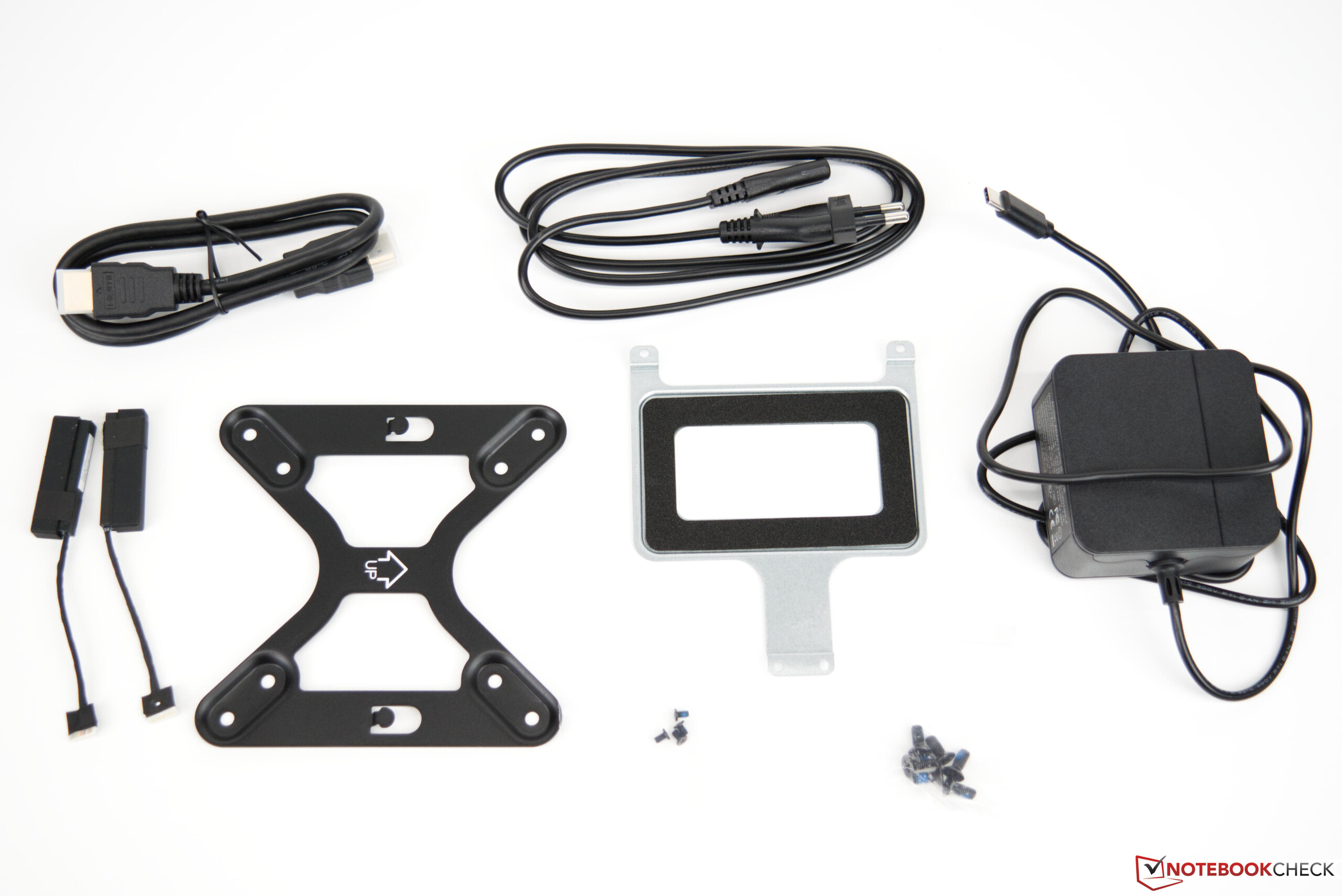

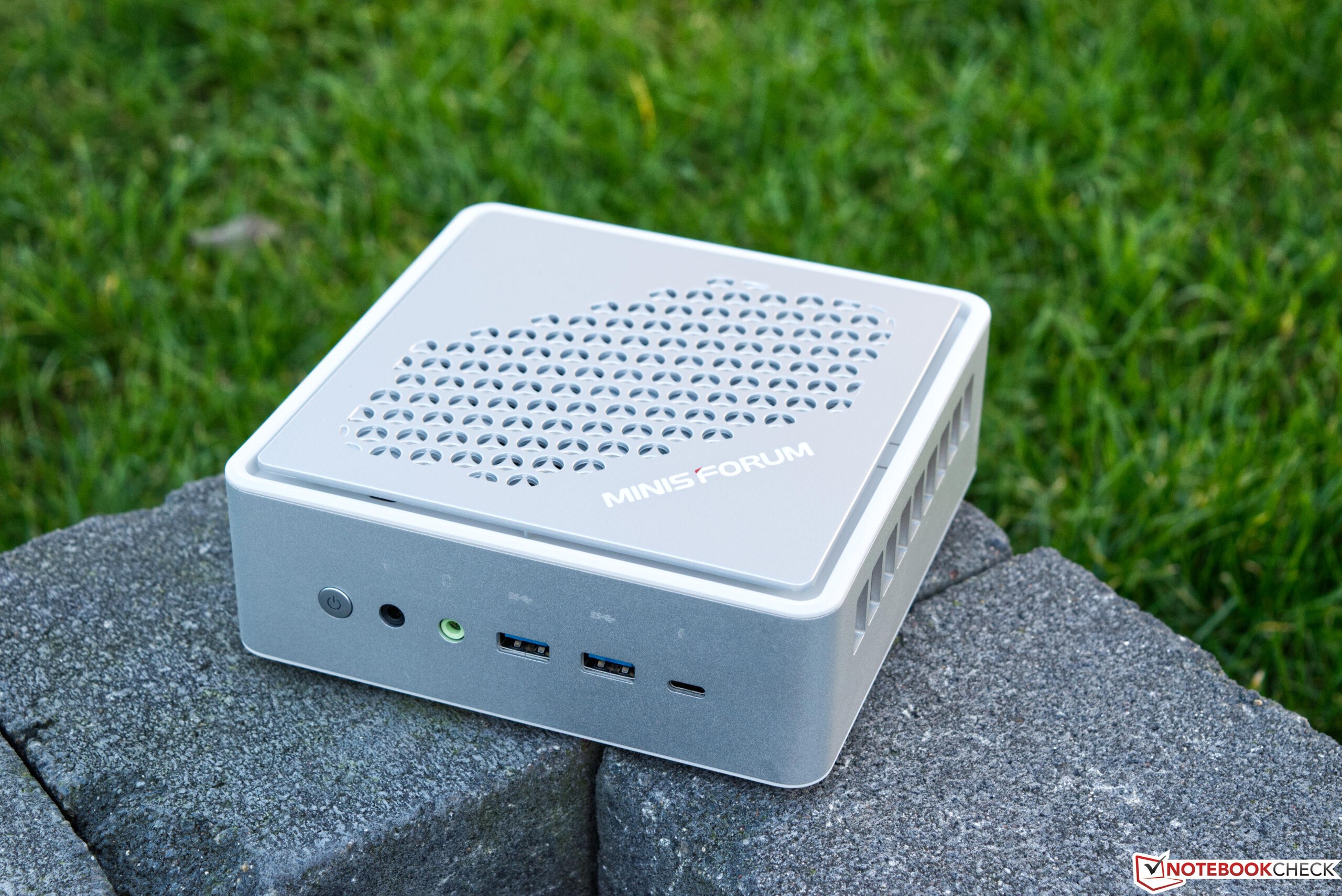

Minisforum EliteMini TH50被装在一个坚固的盒子里，里面有合适的配件，可以让系统启动和运行。电源很紧凑，通过USB-C提供65W。此外，交货范围内还有一个安装板，用于安装在显示器上（VESA安装）。在内部，该设备可以配备两个额外的2.5英寸大容量存储设备。

Minisforum EliteMini TH50

Processor

Intel Core i5-11320H 4 x 3.2 - 4.5 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Tiger Lake-H35

Graphics adapter

Intel Iris Xe Graphics G7 96EUs, 30.0.101.1191 DCH

Memory

16 GB

, DDR4-3200, fest verlötet

Mainboard

Intel Tiger Lake-UP3 PCH-LP

Storage

Kingston OM8PDP3512B-AI1, 512 GB

, M.2-2280 NVMe, 450 GB free

Connections

2 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm Audio Jack

Networking

MediaTek MT7921 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5

Size

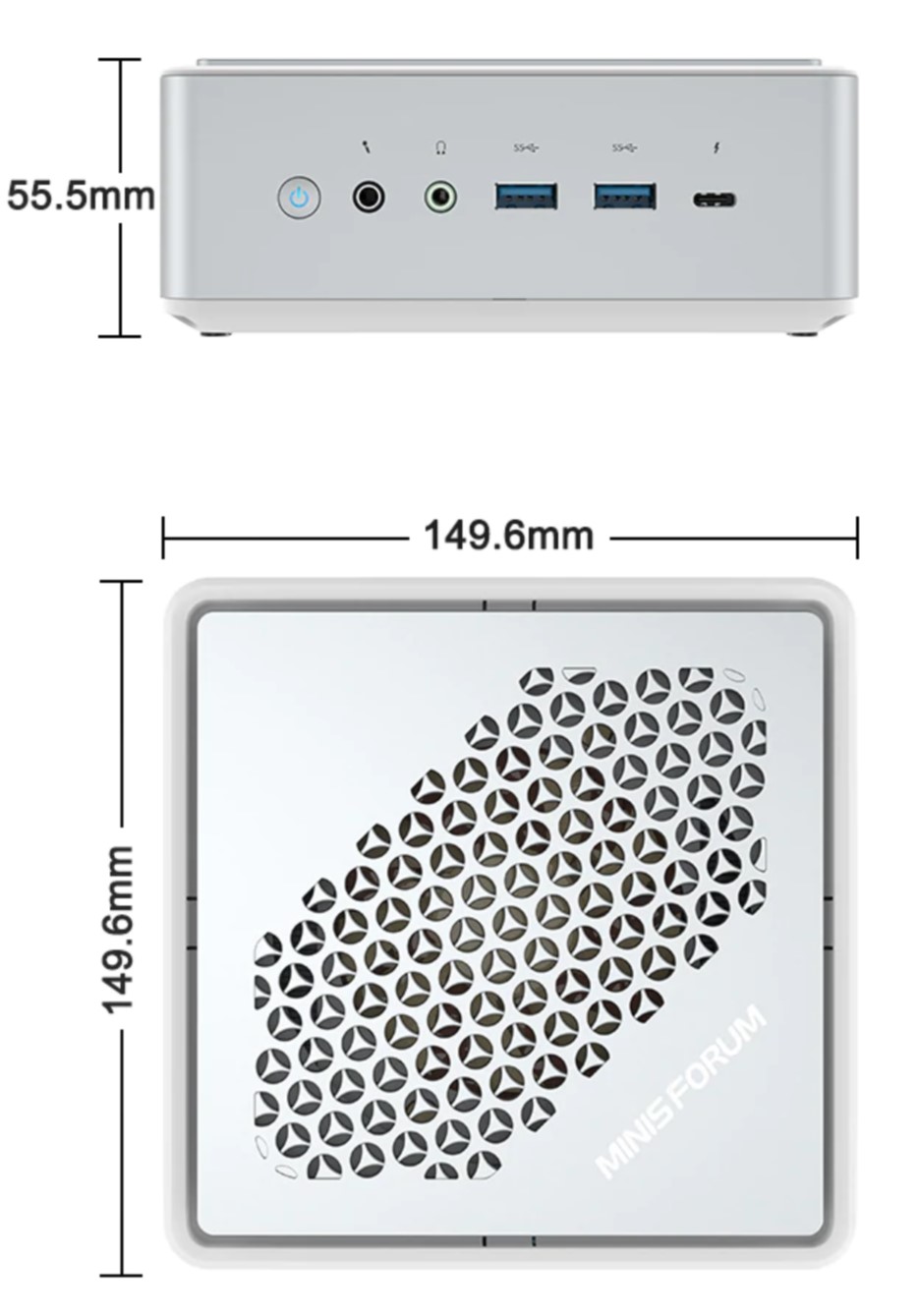

height x width x depth (in mm): 55.5 x 149.6 x 149.6

Operating System

Microsoft Windows 10 Pro 64 Bit

Additional features

65-Watt-Netzteil

Weight

763 g, Power Supply: 277 g

Price

0 599

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

案例与设备

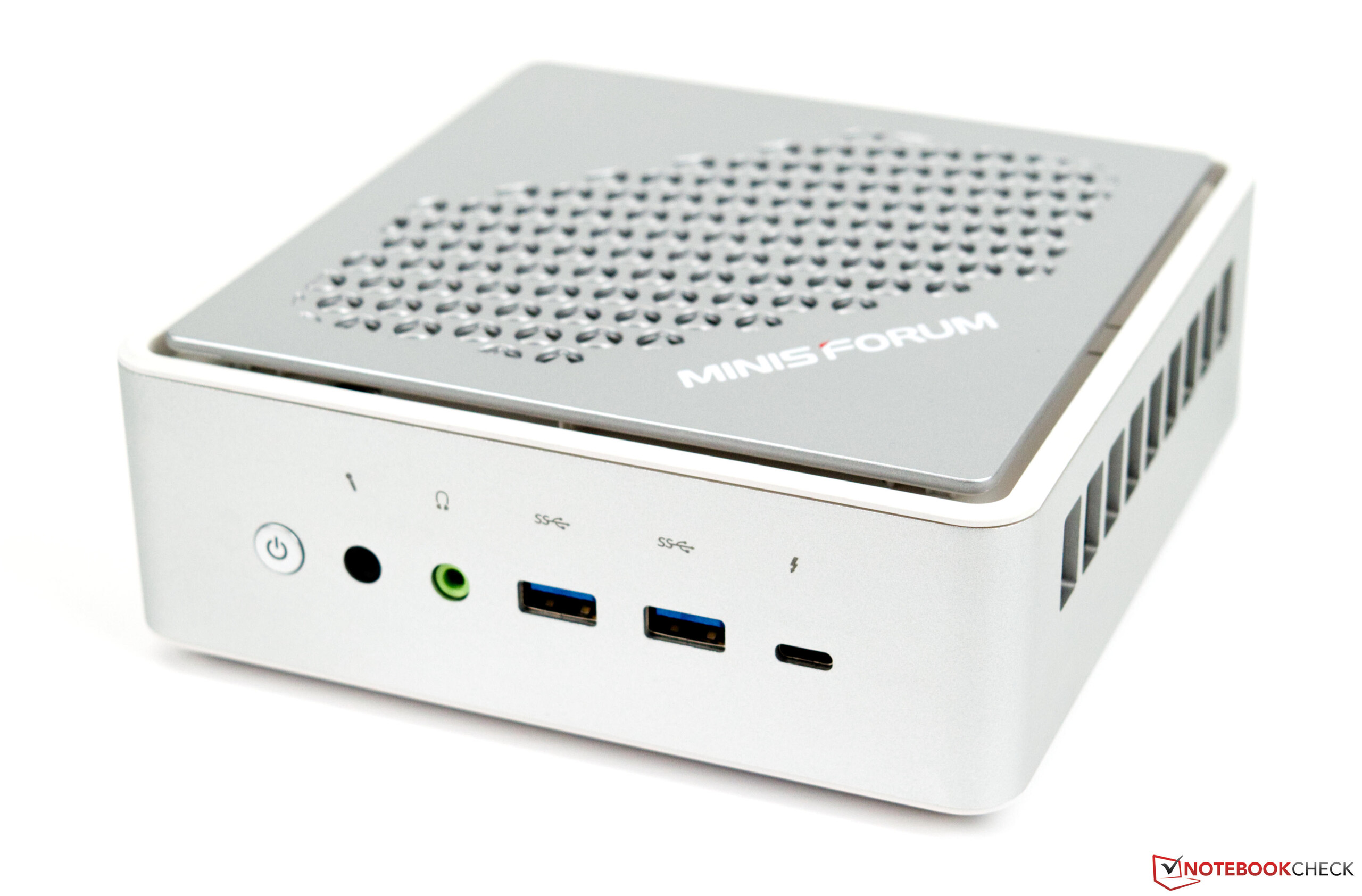

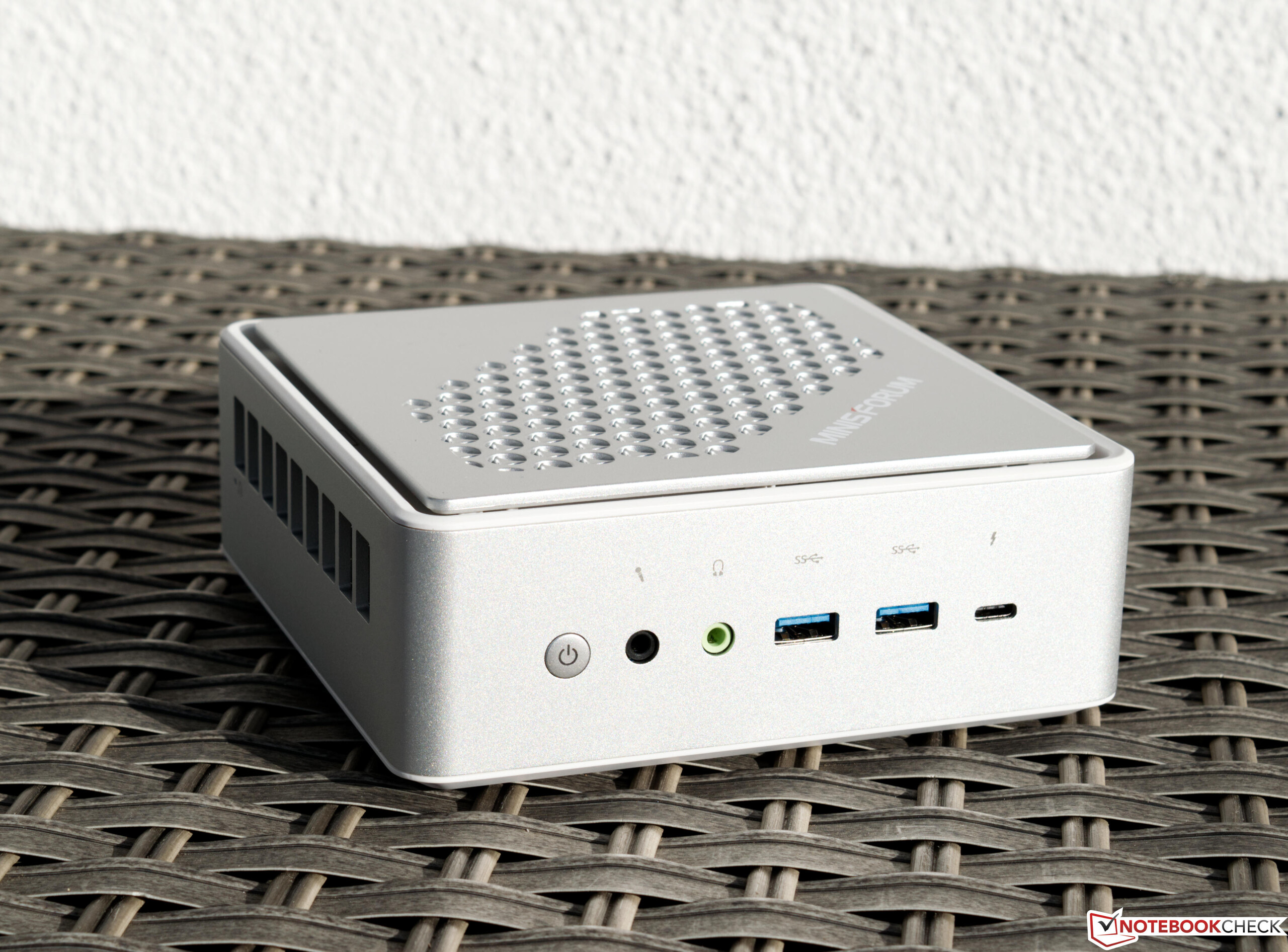

Minisforum EliteMini TH50的结构非常类似于 Minisforum Elitemini HM90.箱子是由铝体制成的，这使系统具有良好的稳定性。顶部和底部由塑料制成，在颜色方面与铝制底座很匹配。在颜色方面，你必须喜欢银色和白色的组合，因为没有替代品。该系统没有提供任何引人注目的光学亮点，但它没有必要，因为功能更重要。

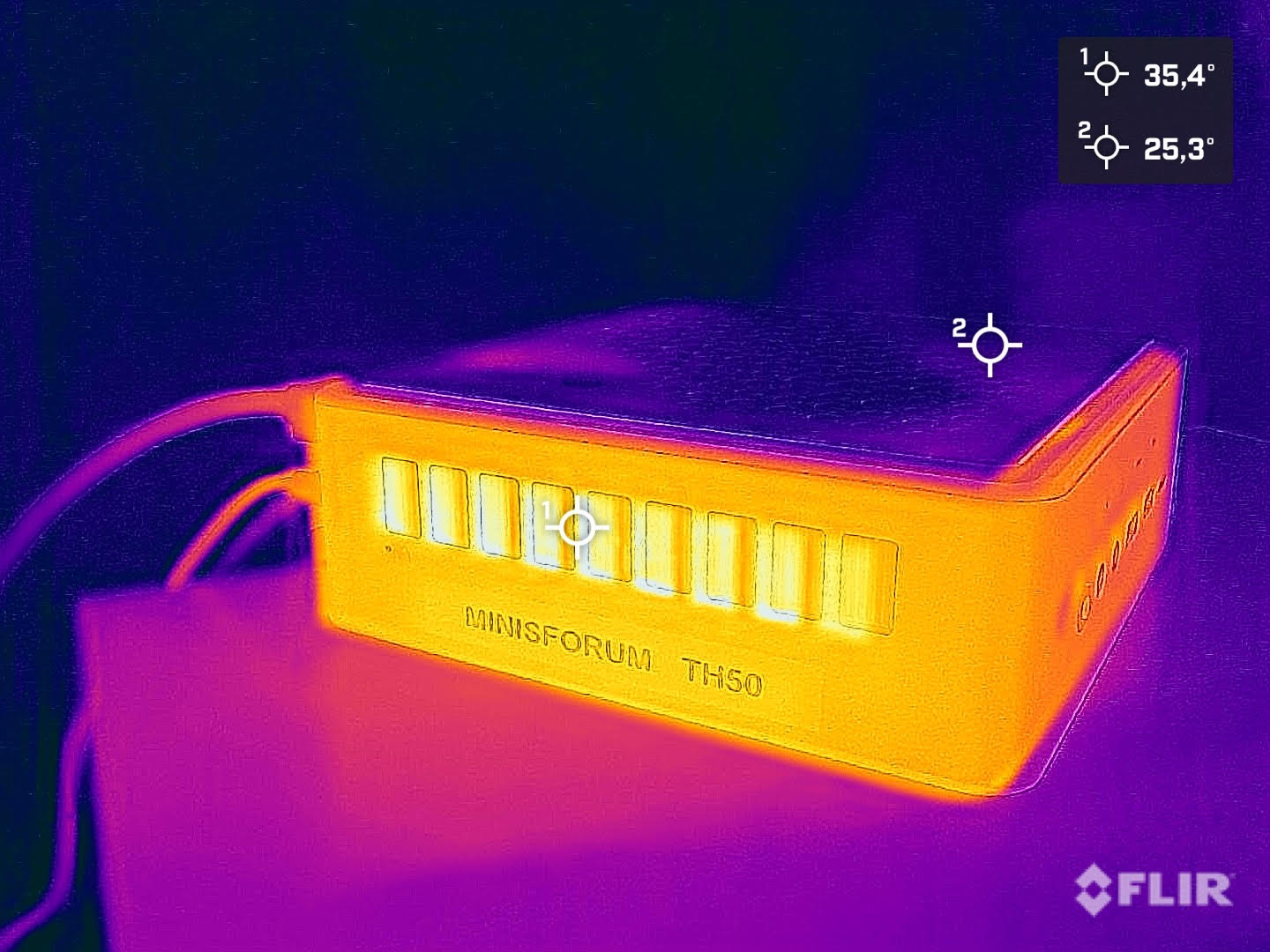

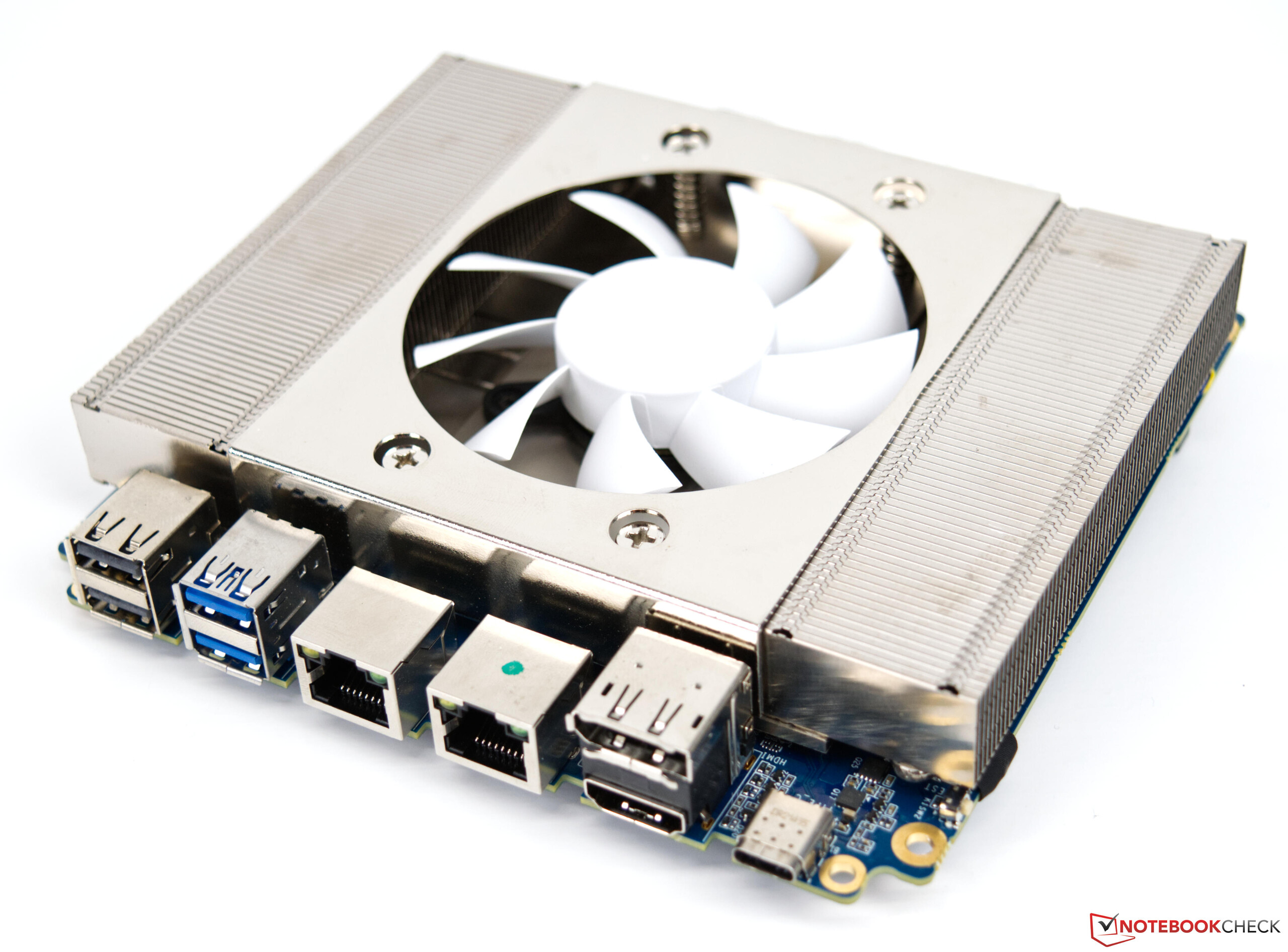

首先谈到冷却：这在EliteMini HM90中已经很有说服力了。这次的原理也是如此。新鲜空气从上侧吸入，并通过侧面的冷却器引出机箱。

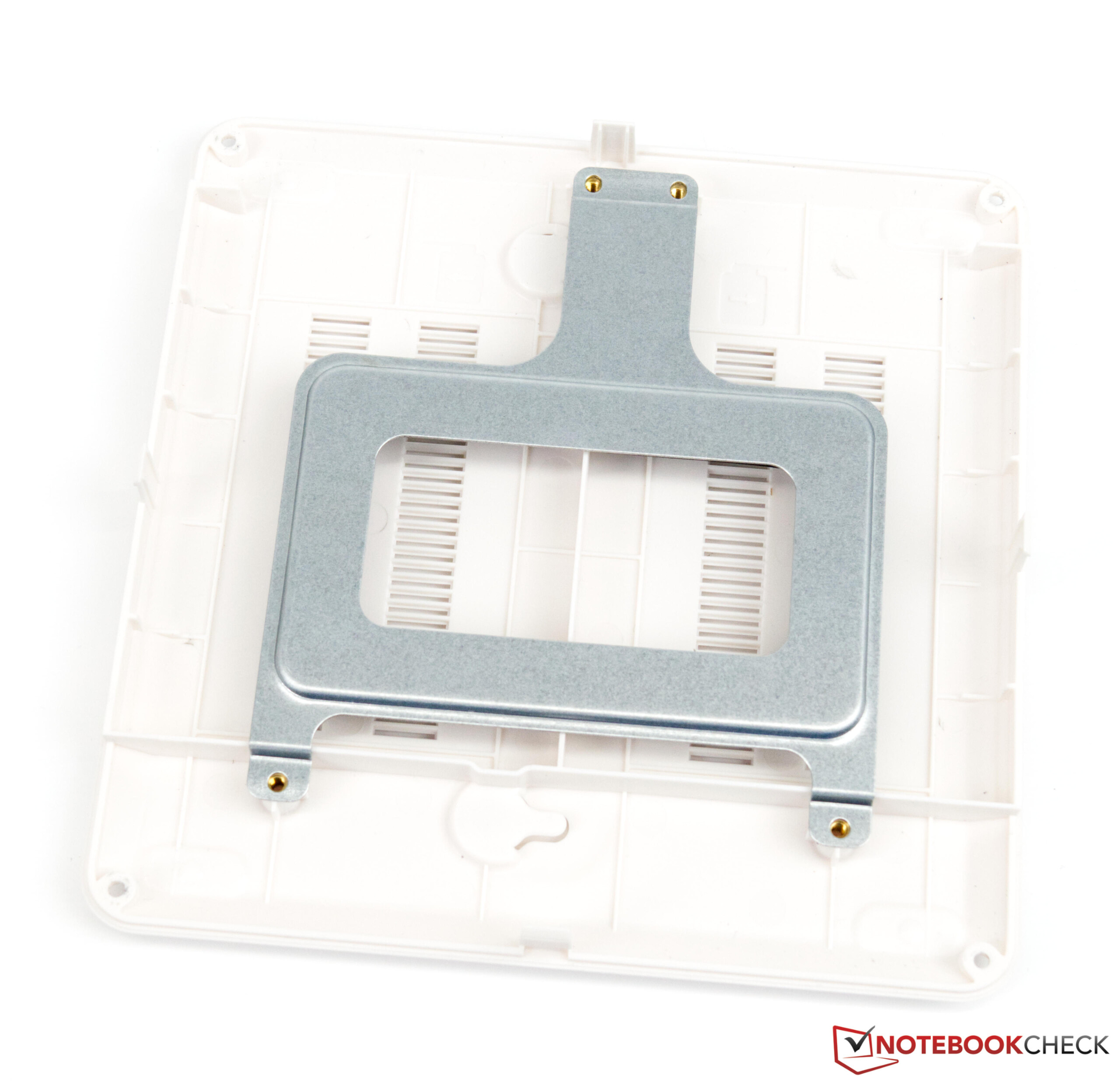

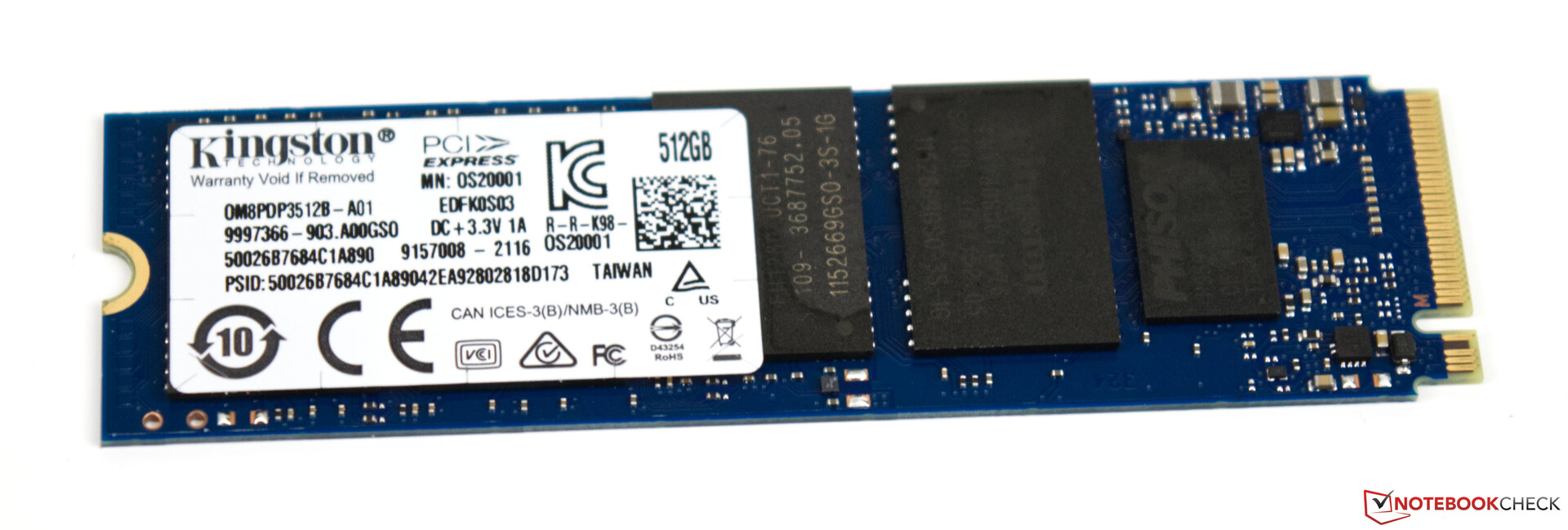

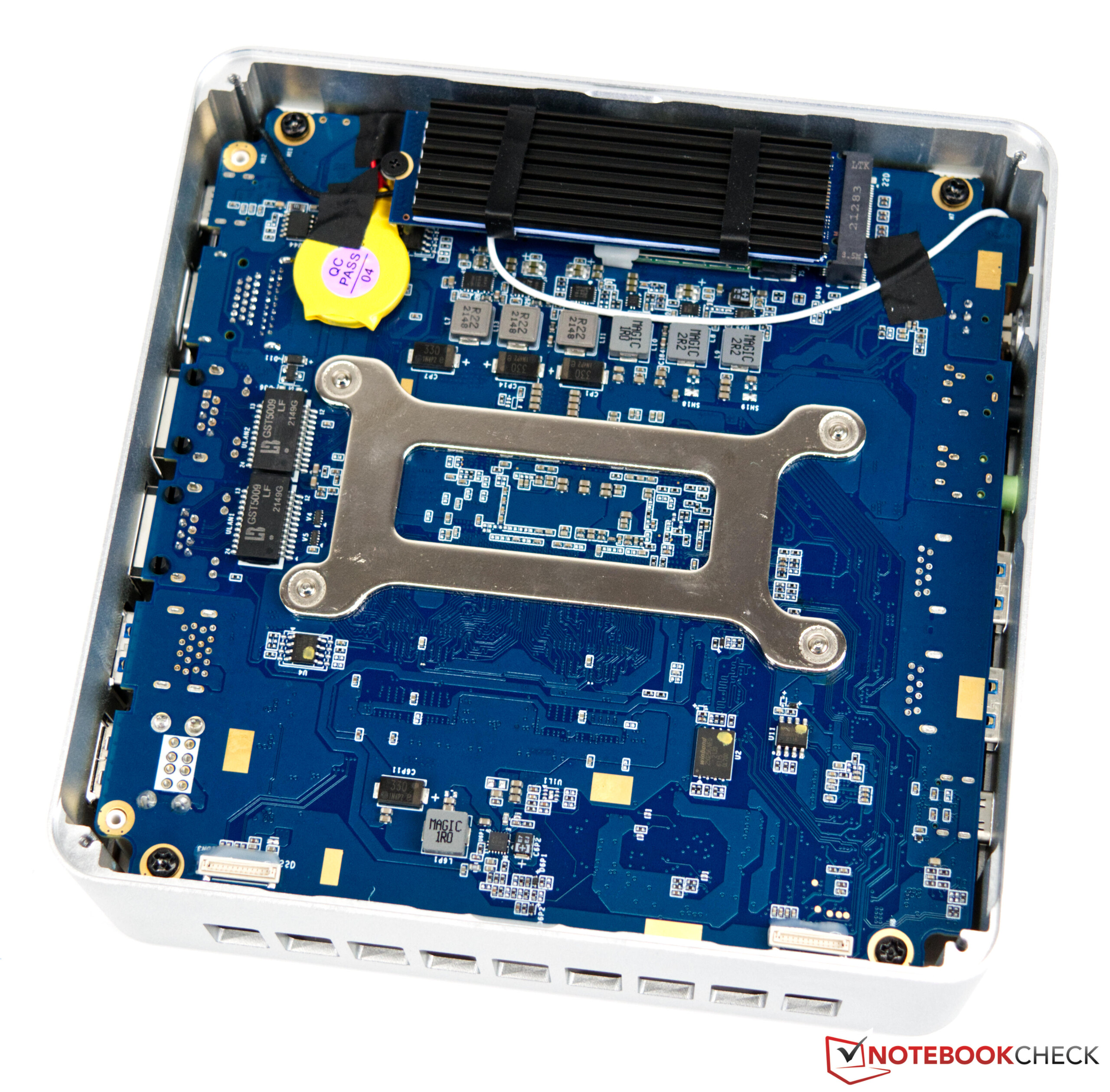

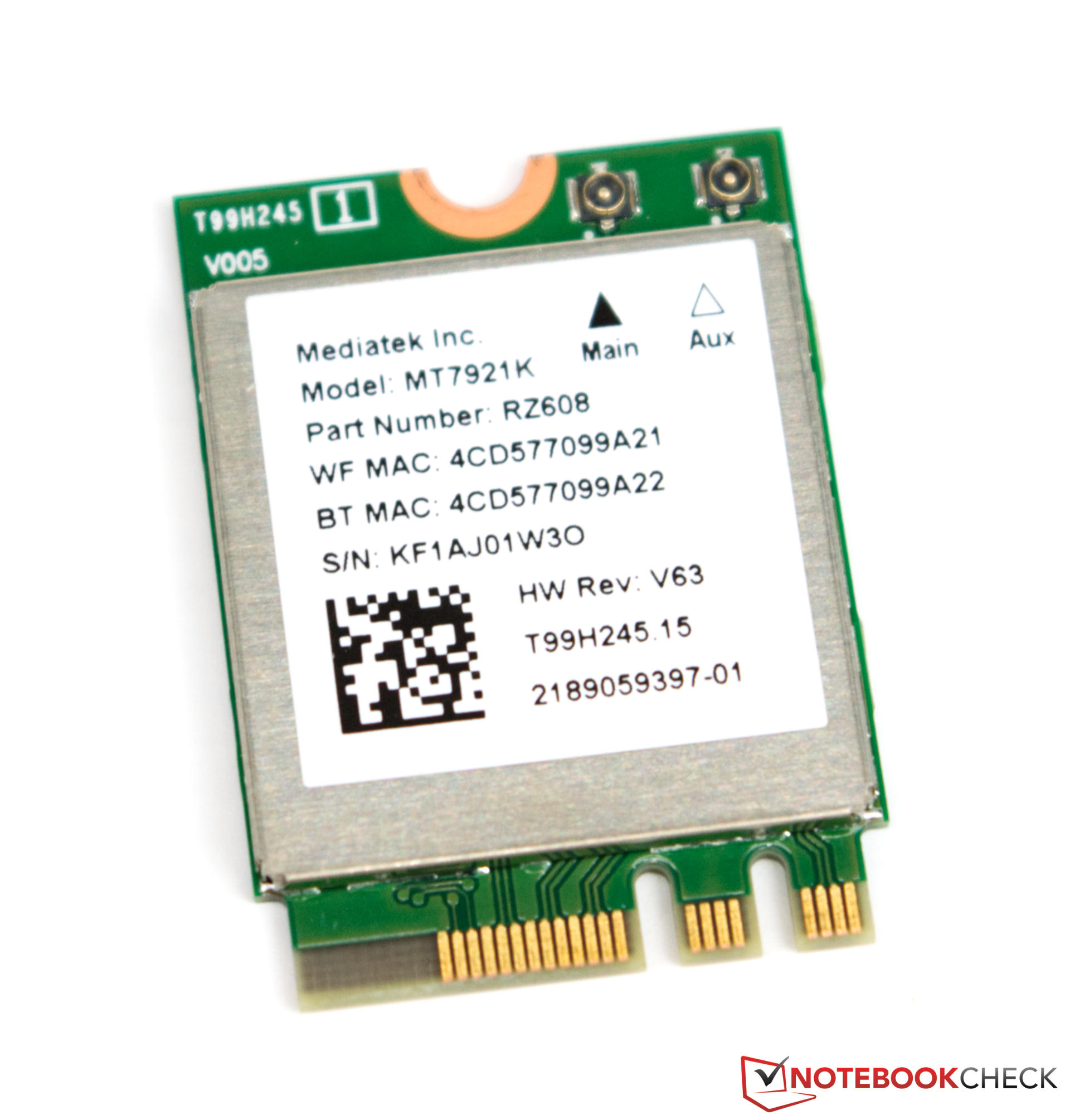

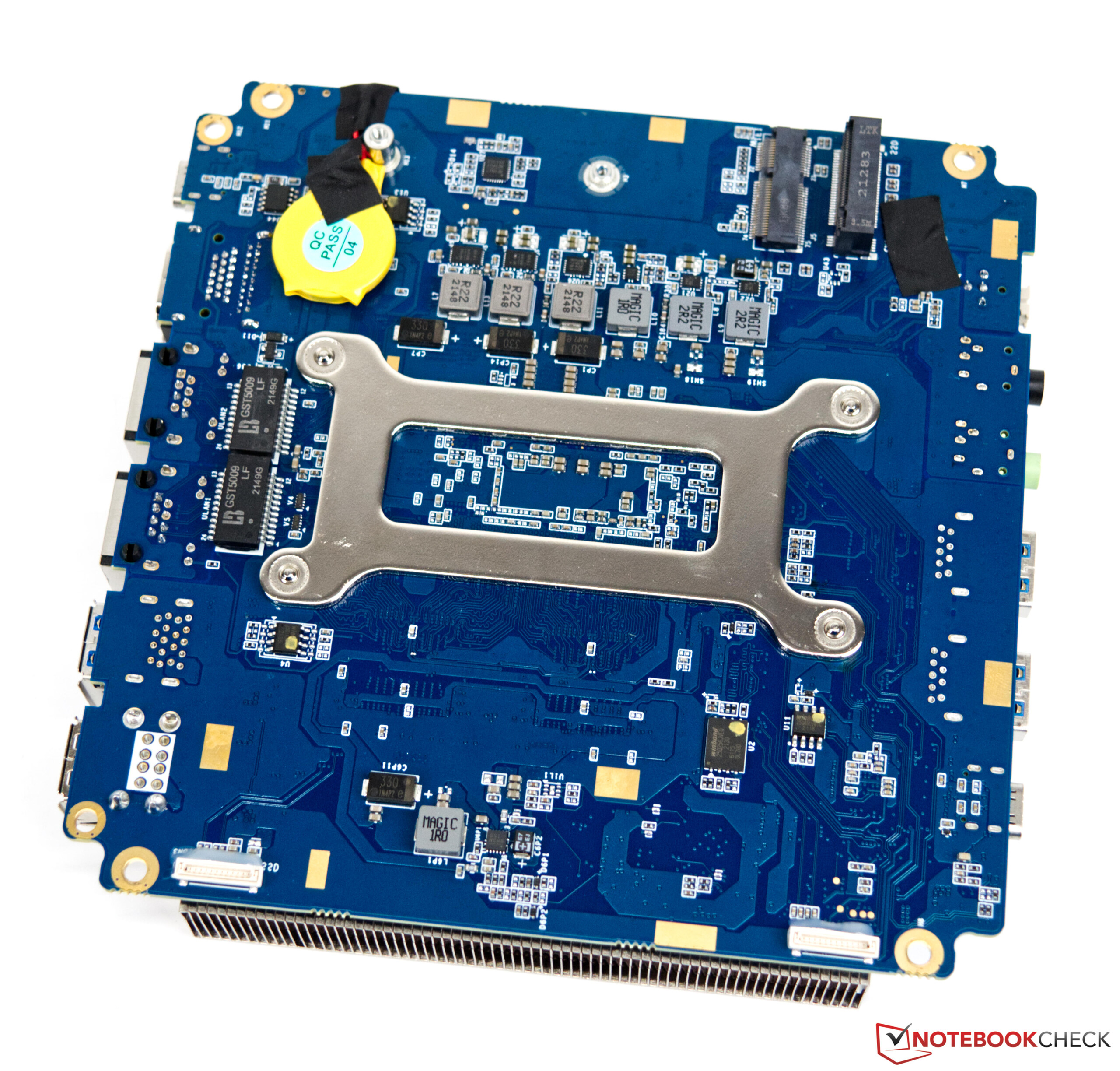

该设备可以通过底板轻松打开。四颗螺丝将底板固定在机箱上。然而，下面没有什么可看的。WLAN模块以及SSD可以被交换。此外，还有两个2.5英寸的数据驱动器可以存储在设备中。这些都是直接固定在底板上，用短线连接到电路板上。

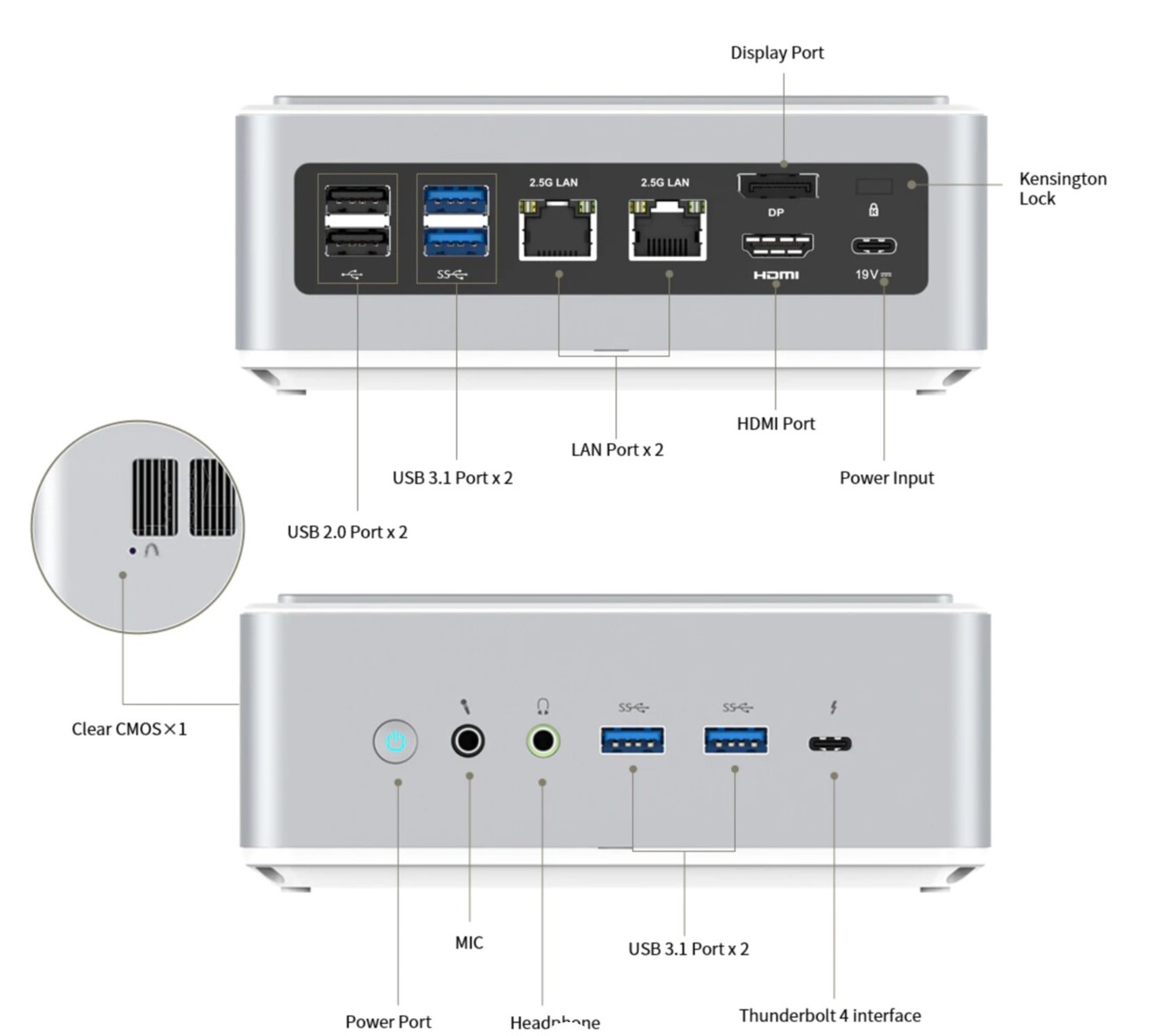

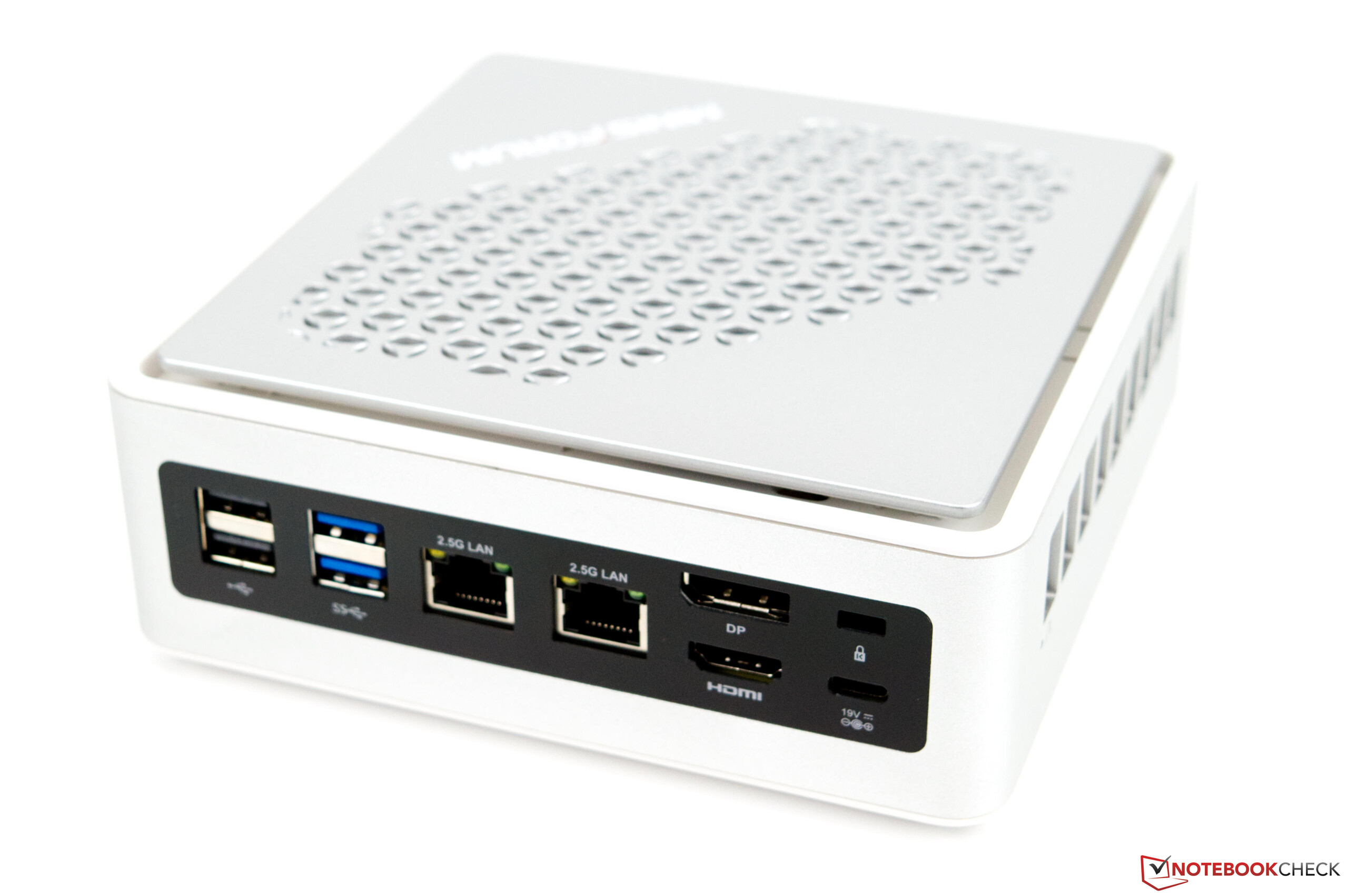

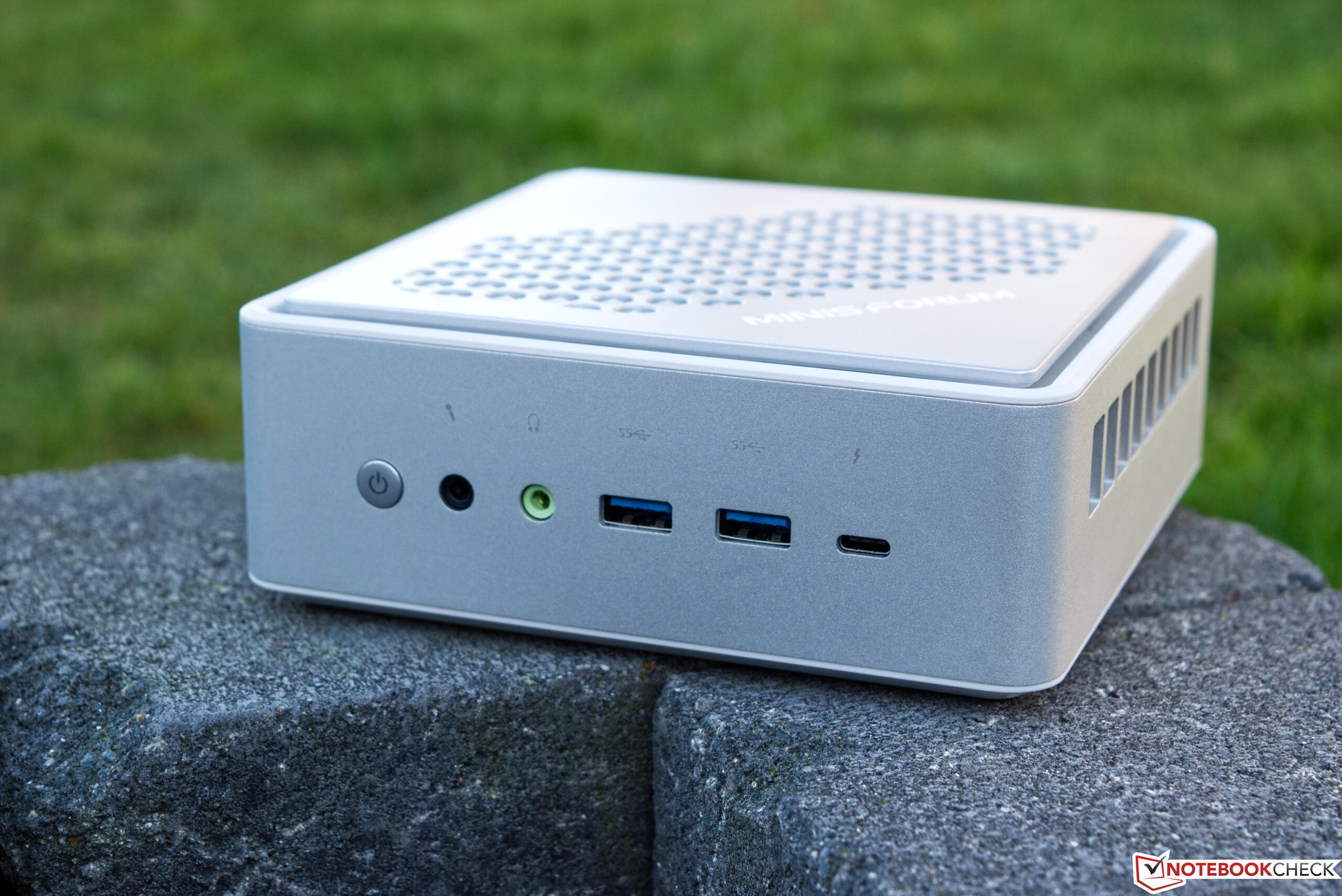

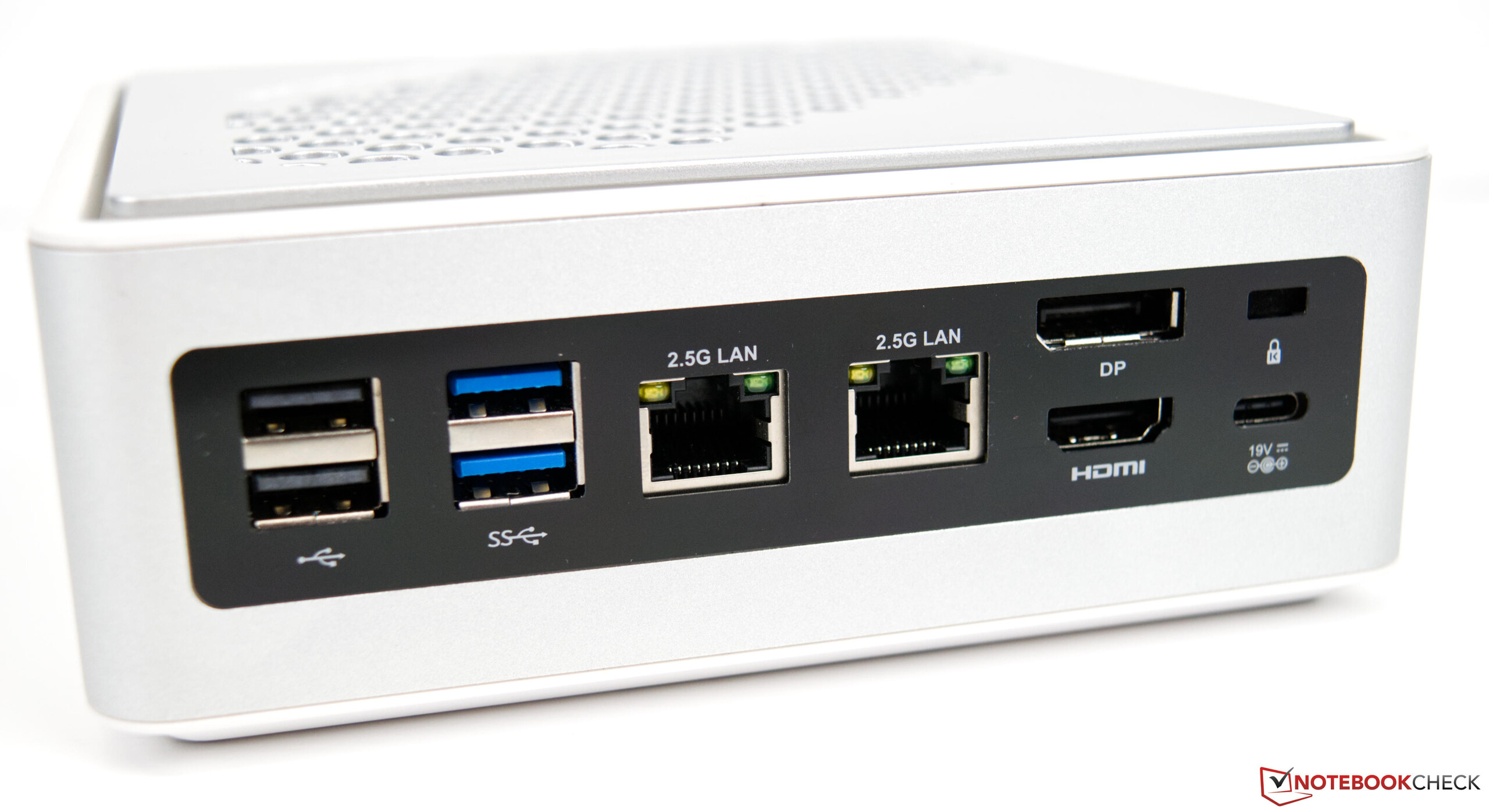

在外部连接方面，EliteMini HM50为连接其他设备提供了多种选择。总共有六个USB-A接口，这应该是绰绰有余的。还有雷电4支持，可以连接外部扩展坞解决方案，从而实现了广泛的选择，以扩大EliteMini TH50的连接。我们还测试了一个外部GPU解决方案，看看这个小系统的游戏性能如何。还有两个2.5G以太网端口，以及一个HDMI和一个DisplayPort。那些同时使用Thunderbolt端口进行图像输出的人，可以用EliteMini TH50同时驱动多达三个显示器。

重要提示

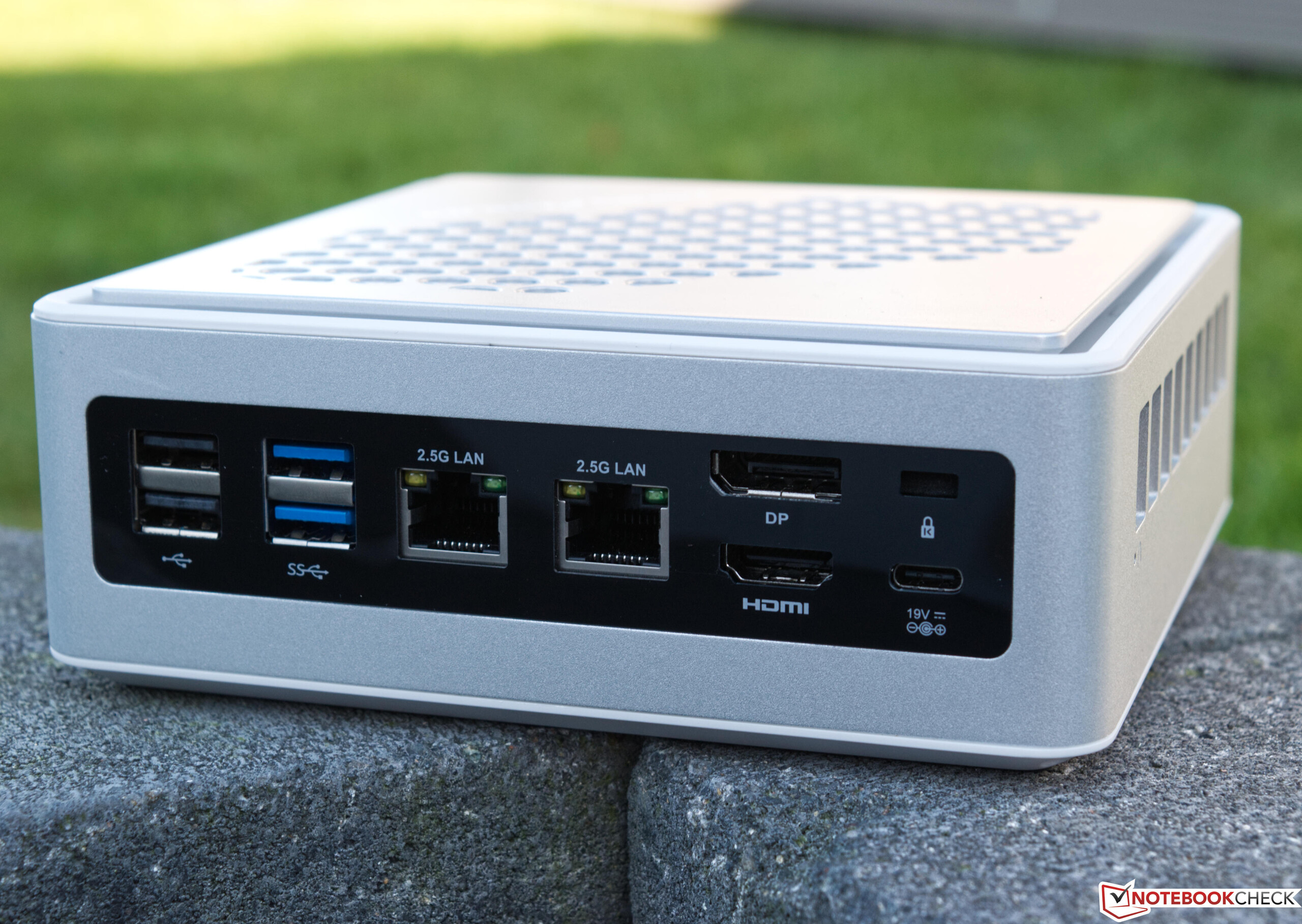

背面有一个USB-C端口，是为电源适配器准备的。Minisforum明确指出，不要将电源适配器连接到Thunderbolt 4端口。在与制造商联系后，确认错误地连接电源将导致系统无法启动，主板也会受到不可修复的损坏。

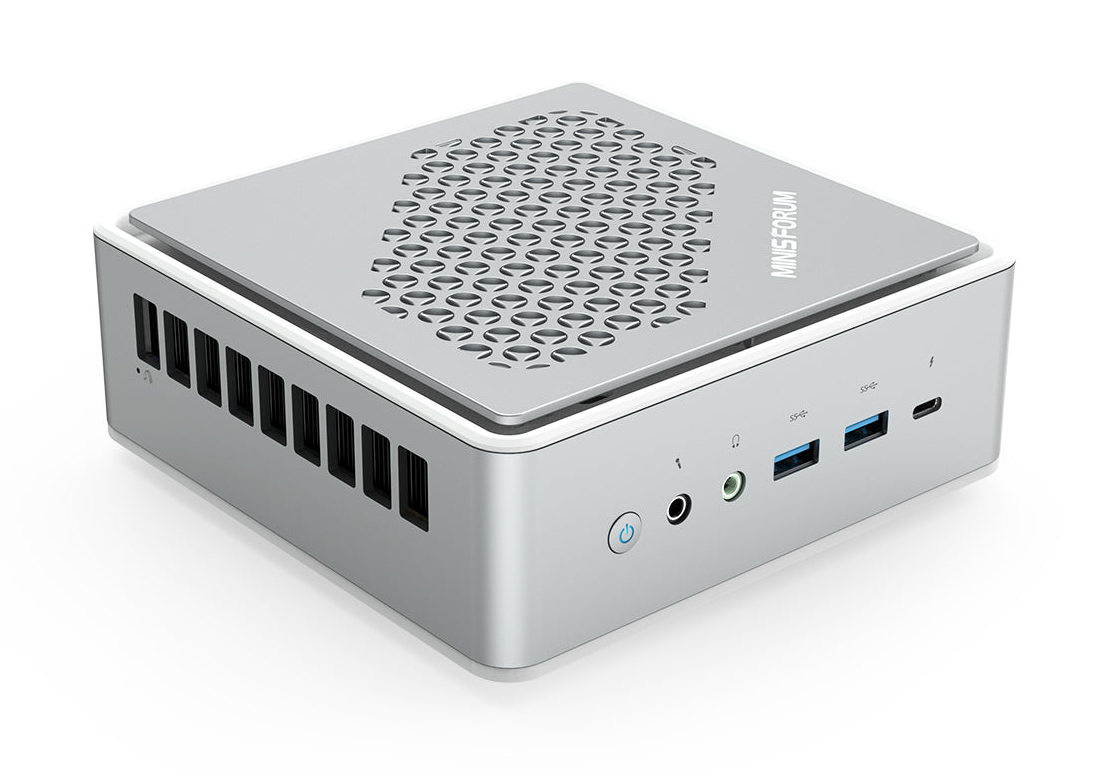

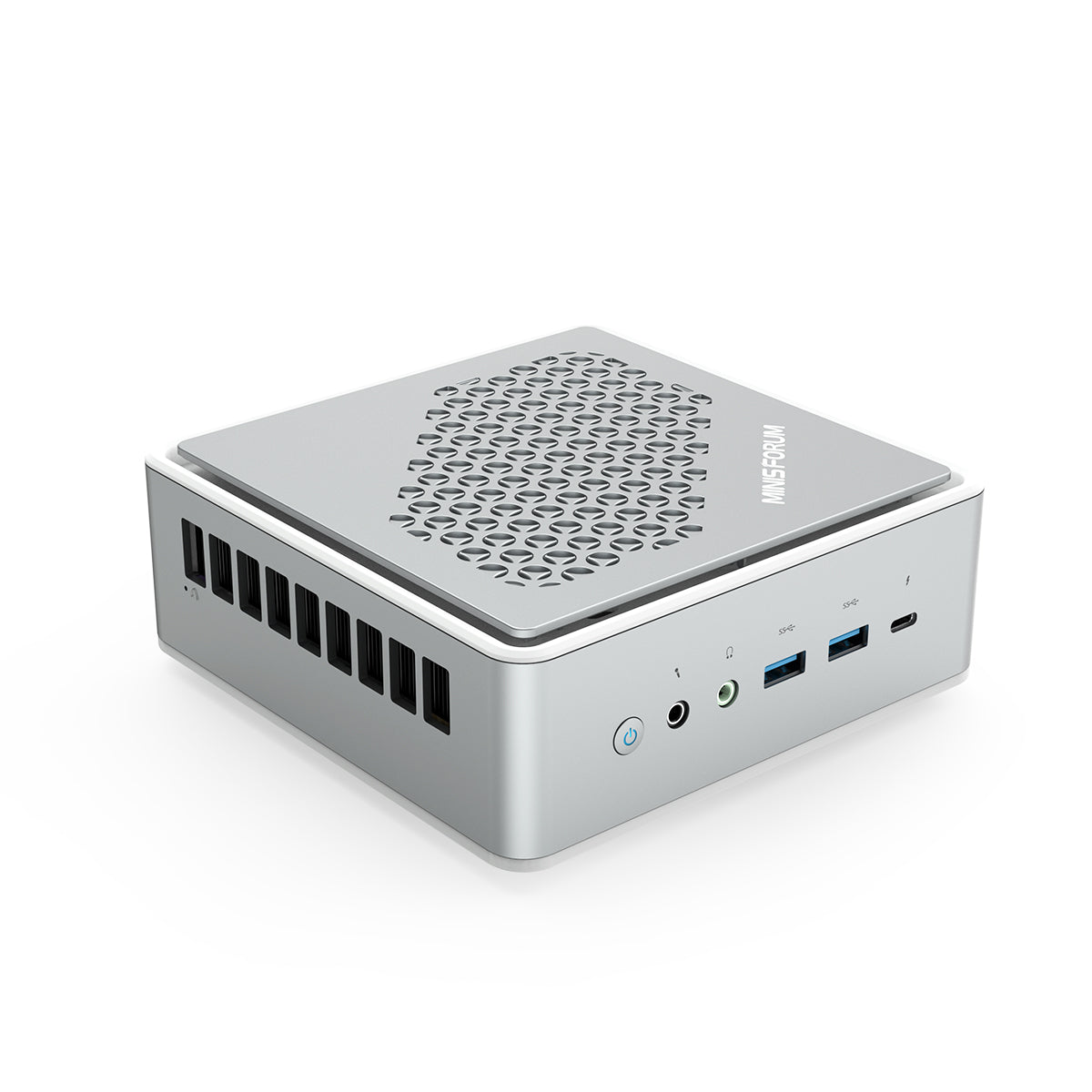

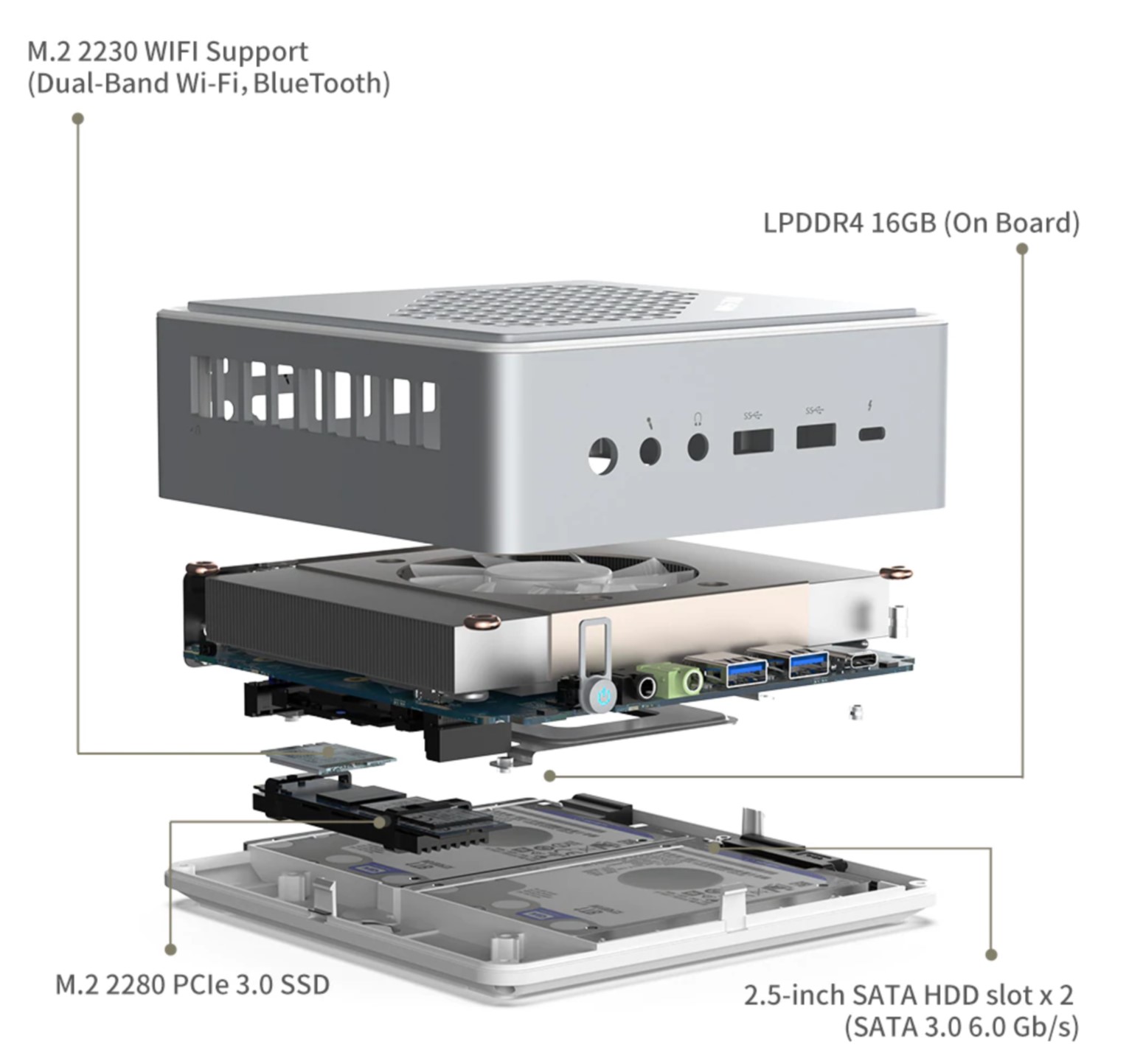

Minisforum EliteMini TH50 (来源: Minisforum)

业绩。充足的储备

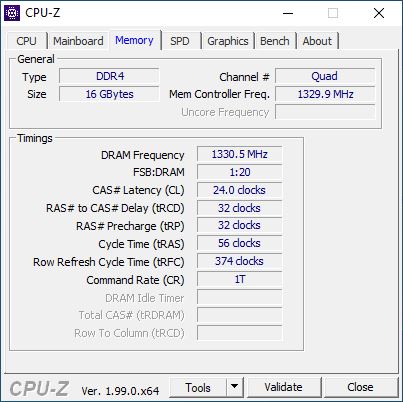

Minisforum EliteMini TH50采用的是英特尔酷睿i5-11320H.这个SoC由16GB DDR4内存支持，因此为大多数应用提供了良好的基础。在我们的配置中，快速的NVMe固态硬盘提供了512GB的存储空间，对大多数用户来说应该是足够的。另外，EliteMini TH50也可以使用256GB的固态硬盘。然而，我们仍然建议选择512GB的变体，因为它的节省潜力很低。

处理器

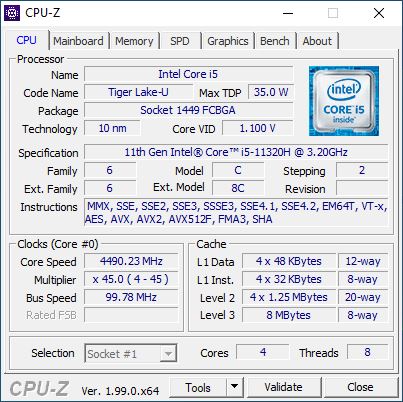

ǞǞǞ 英特尔酷睿i5-11320H属于Tiger Lake 系列，来自于笔记本电脑领域。这款节俭的SoC提供四个原生核心和八个线程，TDP为35W。单核性能相当积极，通常只比拥有更快的SoC的竞争对手差几个百分点。然而，EliteMini TH50不得不让拥有六个和八个核心的竞争者在多线程基准测试中领先。然而，我们的测试样本做得很好，大部分与英特尔NUC10i7FNH.

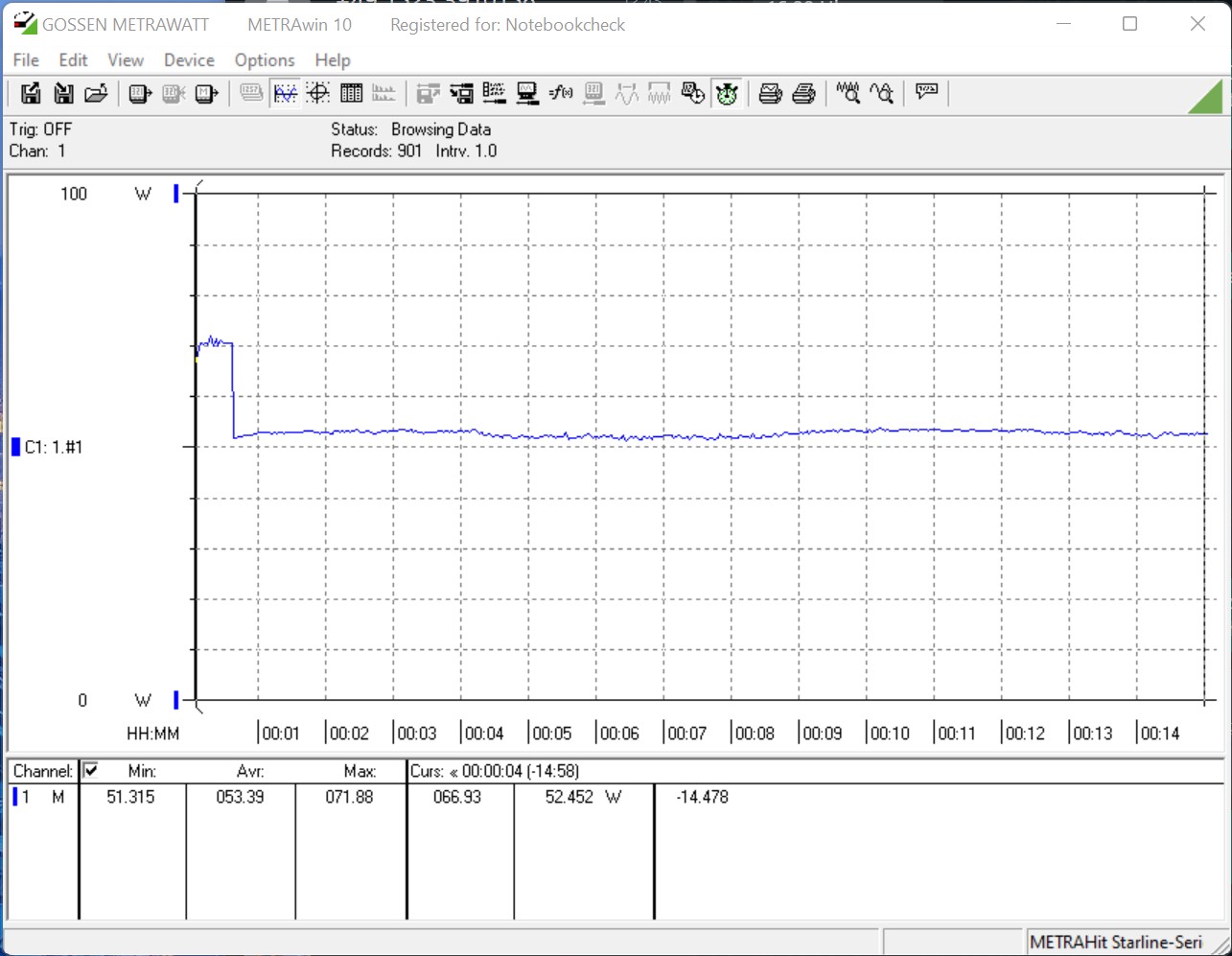

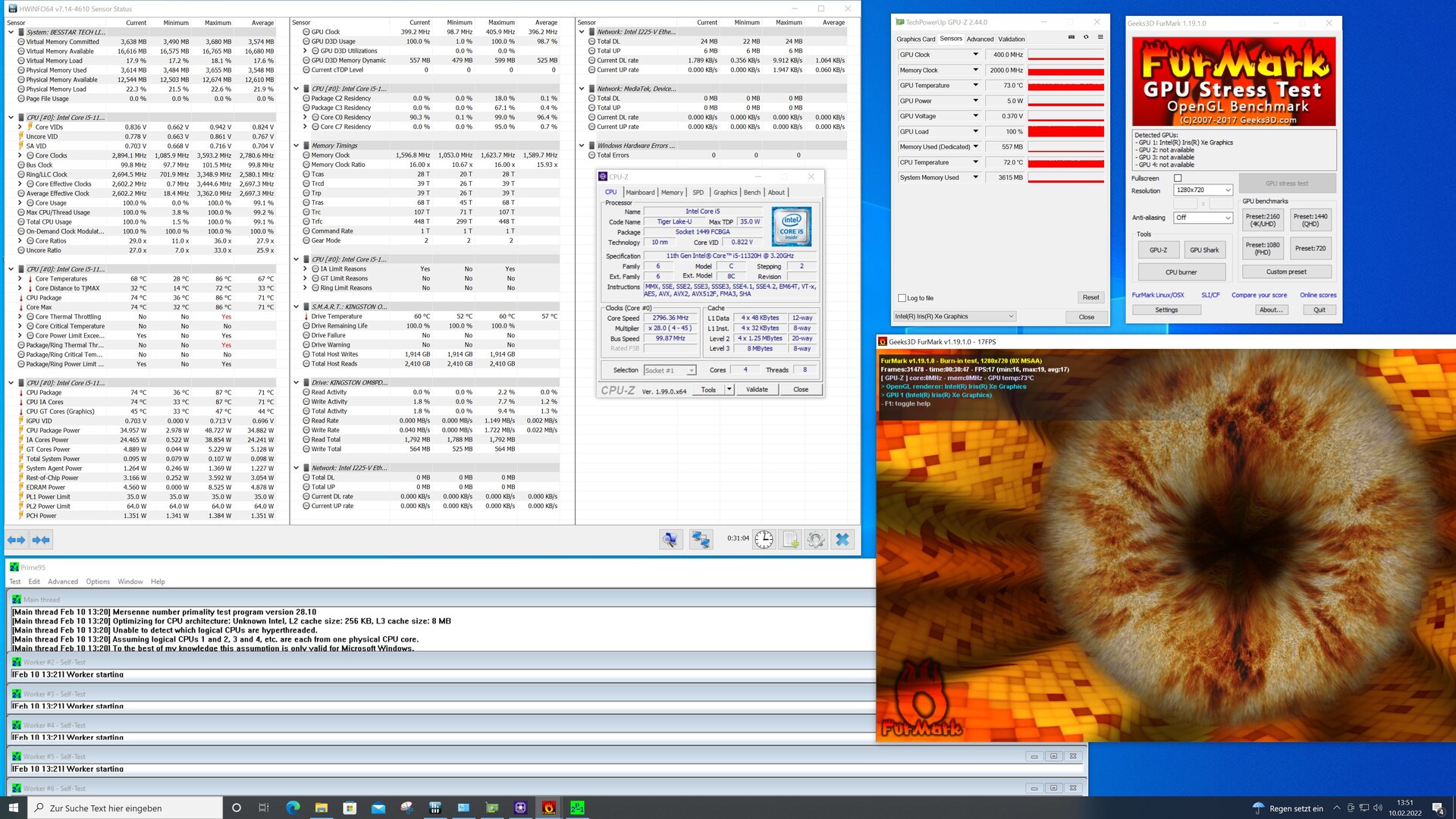

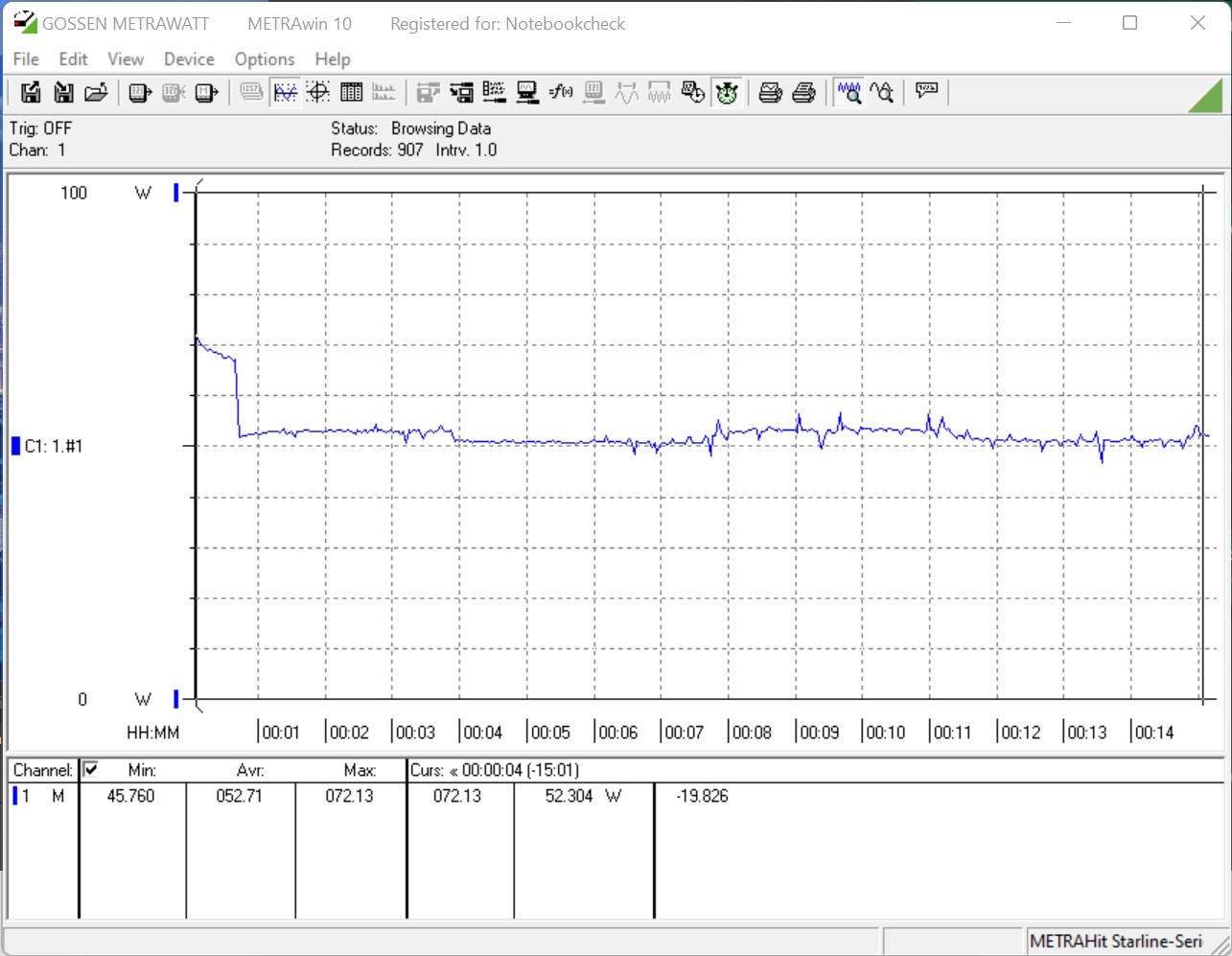

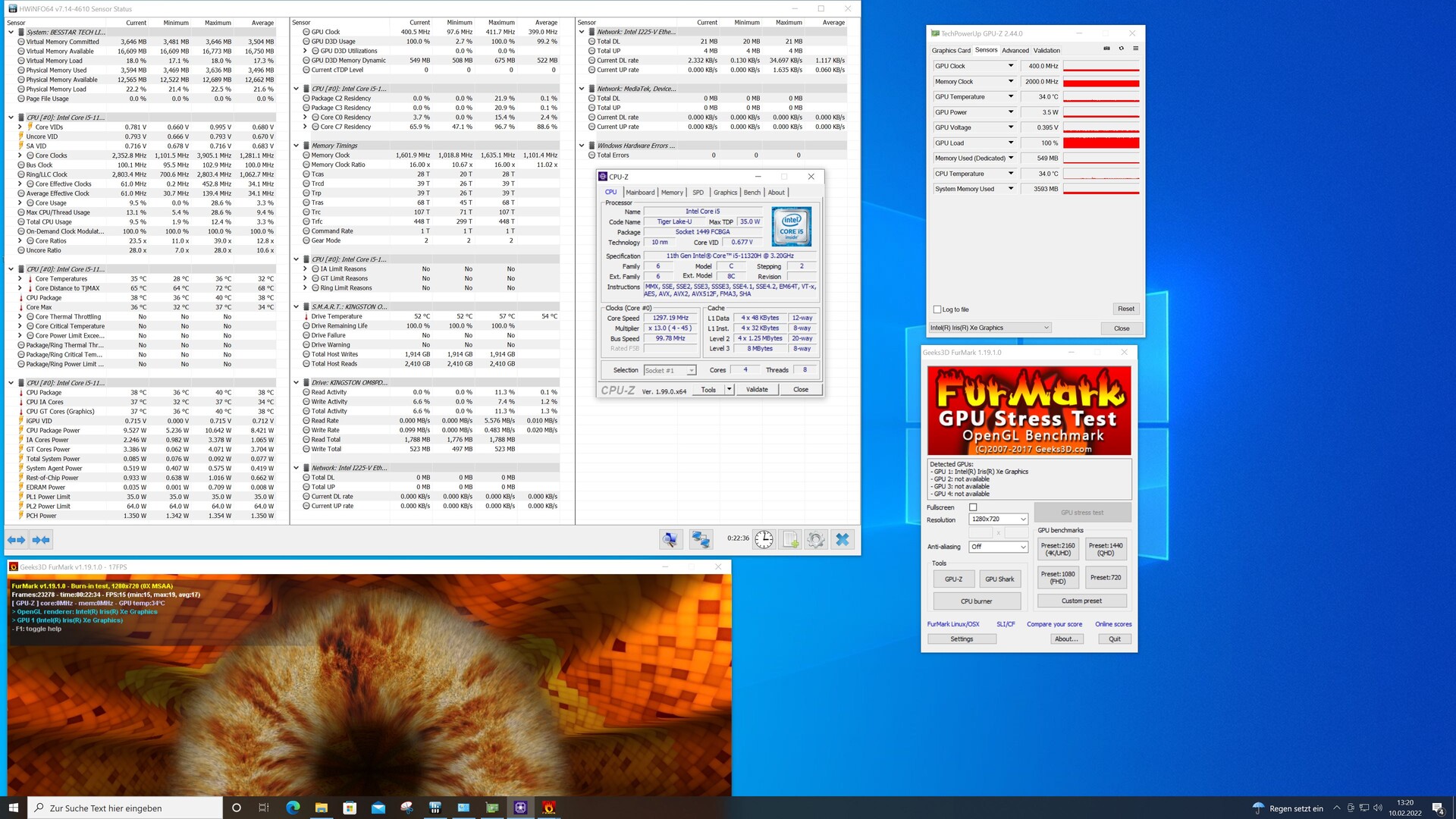

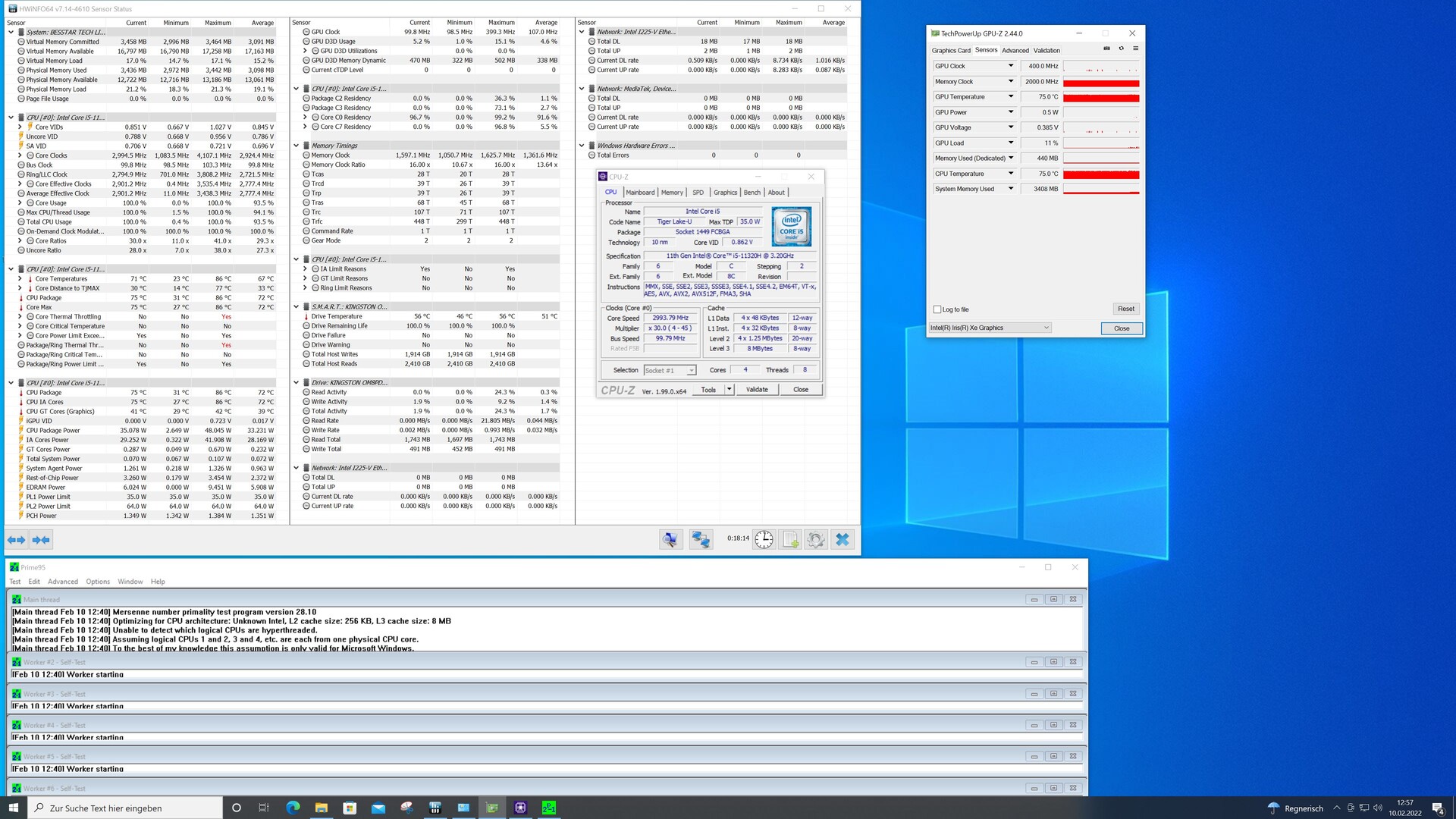

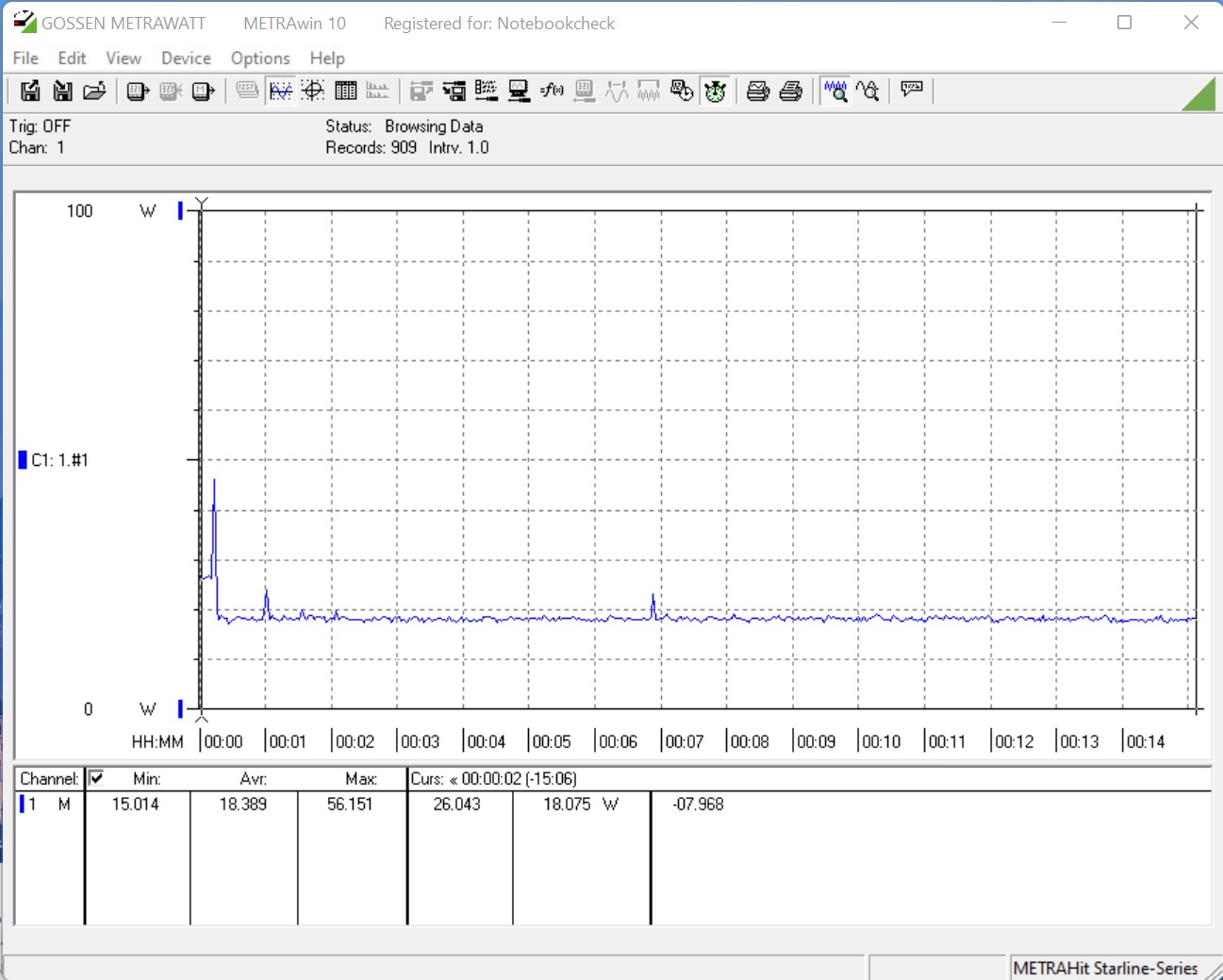

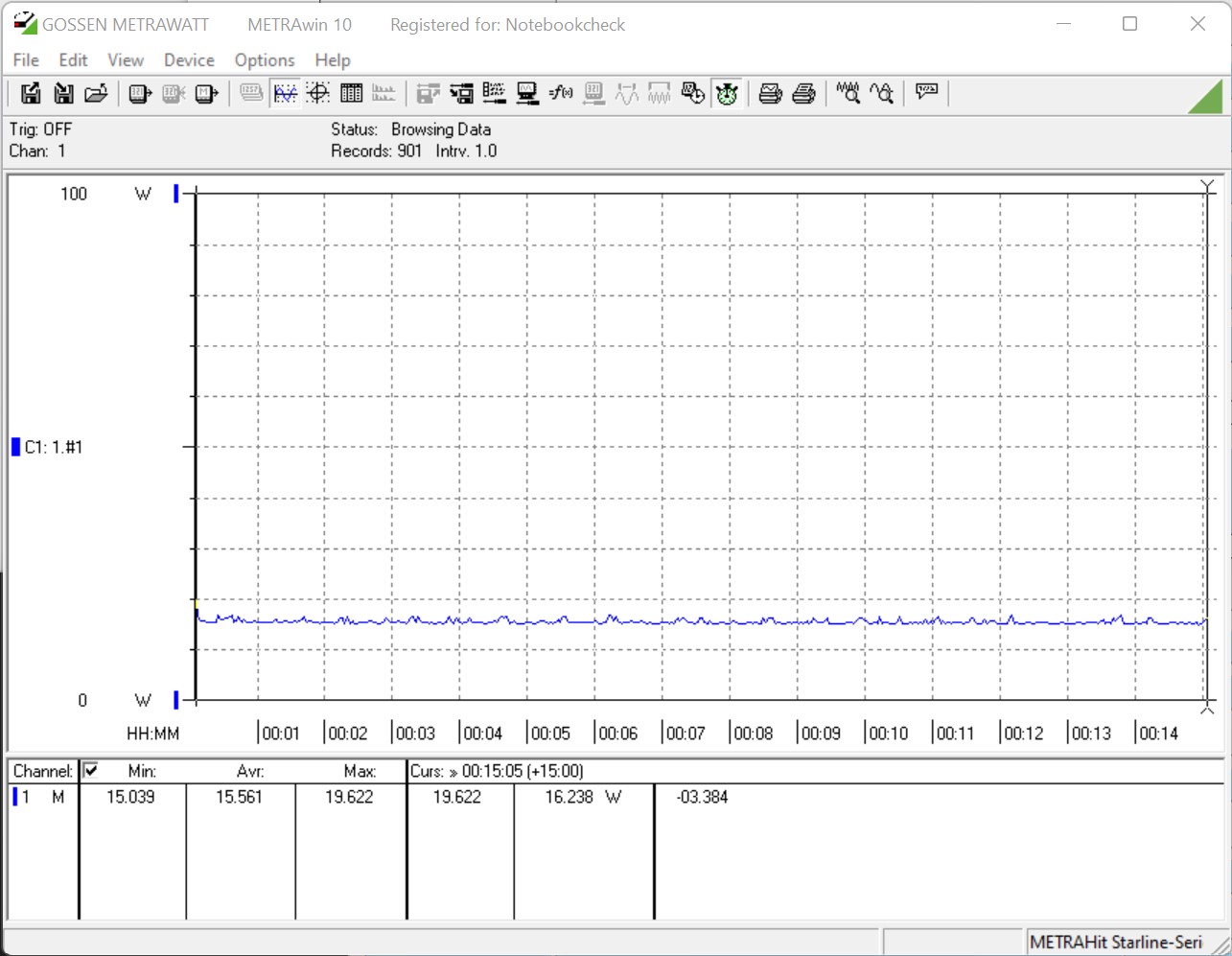

英特尔酷睿i5-11320H指定的功耗为35W。然而，我们可以记录到该SoC在短时间内的负载下的功耗高达48W。然而，由于SoC的涡轮增压，这只是短暂的。不幸的是，在MINISFORUM EliteMini TH50的BIOS中不能进一步调整功率限制。这也是基于AMD的系统的情况，所以预计EliteMini TH50也会有类似的选项。

关于进一步的比较和基准，请参考我们的CPU比较表.

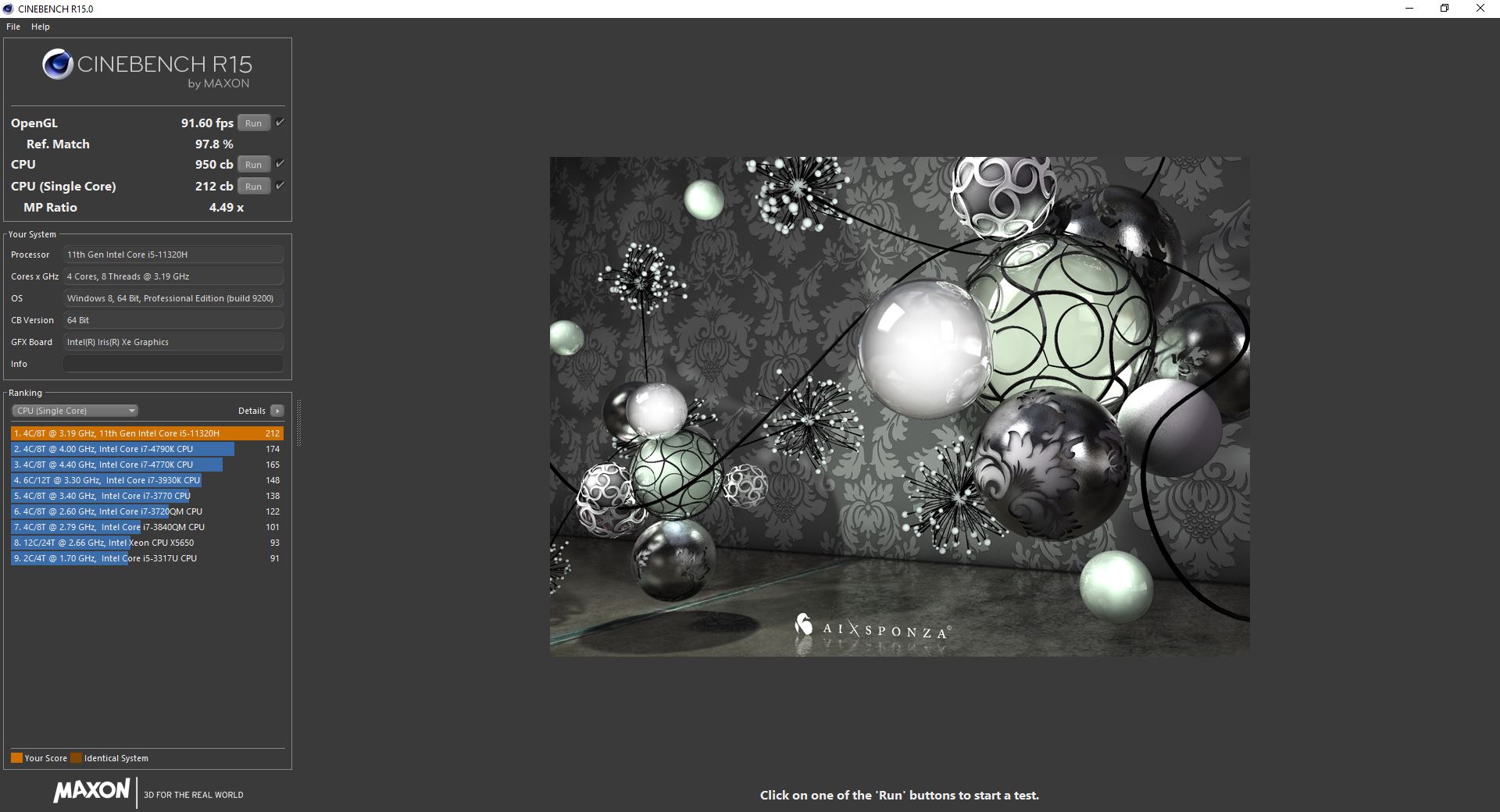

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	242 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	240 Points +13%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	215 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	212 Points
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	196 Points -8%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	194 Points -8%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	194 Points -8%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	168 Points -21%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	162 Points -24%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	123 Points -42%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	117 Points -45%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	108 Points -49%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	84 Points -60%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	77 Points -64%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2224 Points +134%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1967 Points +107%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1919 (1862.02^min - 1893.4^max) Points +102%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	1607 Points +69%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1455 Points +53%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1067 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	950 Points
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	790 Points -17%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	319 Points -66%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	316 Points -67%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	298 Points -69%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	261 Points -73%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	248 Points -74%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	220 Points -77%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	211 (209.9^min - 211.39^max) Points -78%

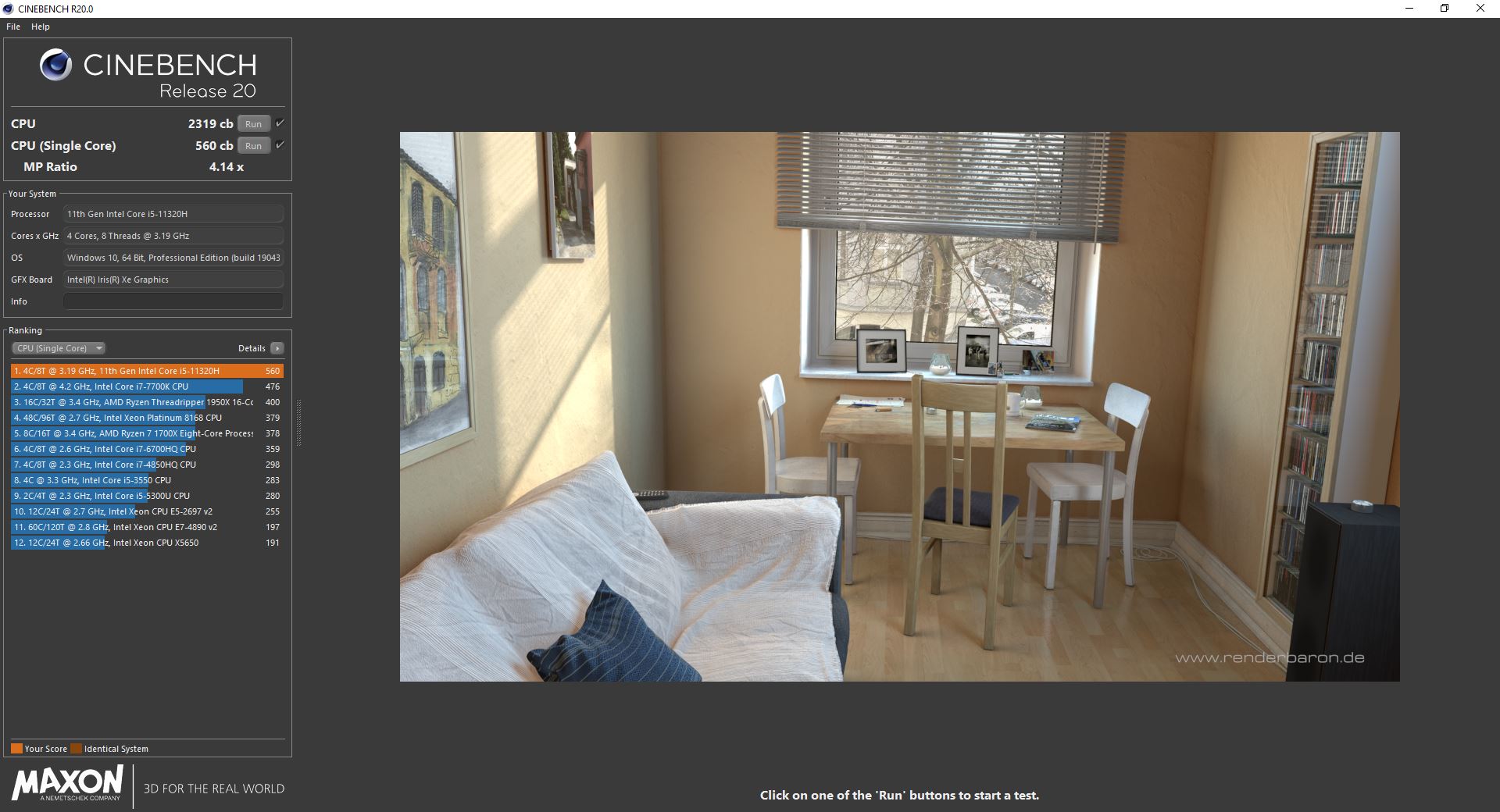

Cinebench R20
CPU (Single Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	582 Points +4%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	567 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	560 Points
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	505 Points -10%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	504 Points -10%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	480 Points -14%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	428 Points -24%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	401 Points -28%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	266 Points -52%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	200 Points -64%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	171 Points -69%
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5185 Points +124%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4585 Points +98%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4495 Points +94%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	3357 Points +45%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	2319 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2303 Points -1%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1820 Points -22%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	743 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	720 Points -69%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	556 Points -76%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	491 Points -79%

Cinebench R23
Single Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1499 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1479 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	1456 Points
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1298 Points -11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1234 Points -15%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1031 Points -29%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	696 Points -52%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	660 Points -55%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	411 Points -72%
Multi Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13430 Points +125%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11792 Points +97%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11440 Points +91%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	8532 Points +43%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	5980 Points
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1910 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1833 Points -69%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1529 (1521.41^min - 1529.3^max) Points -74%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	834 (768.67^min - 833.537^max) Points -86%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2.86 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2.8 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	2.51 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	2.4 Points -4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	2.26 Points -10%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2.24 Points -11%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.19 Points -13%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1.91 Points -24%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1.87 Points -25%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1.47 Points -41%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.33 Points -47%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.28 Points -49%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.92 Points -63%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.6 Points +137%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.03 Points +114%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 Points +104%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	18.04 Points +67%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	16.7 Points +55%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	10.89 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	10.78 Points
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	8.66 Points -20%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	4.14 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	3.59 Points -67%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3.26 Points -70%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3.09 Points -71%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.86 Points -73%

Blender - v2.79 BMW27 CPU
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2379 Seconds * -361%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1805 Seconds * -250%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	585 Seconds * -13%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	516 Seconds *
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	468.3 Seconds * +9%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	317.4 Seconds * +38%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	315.4 Seconds * +39%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	265 Seconds * +49%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	247.3 Seconds * +52%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	229.3 Seconds * +56%

wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	732 s * -282%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	620 s * -224%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	615 s * -221%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	566 s * -196%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	558 s * -192%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	543 s * -184%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	217.8 s * -14%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	191.4 s *
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	177.4 s * +7%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	120.2 s * +37%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	119.5 s * +38%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.7 s * +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	91.6 s * +52%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.9 s * +57%
32m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	23.1 s * -292%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	19.5 s * -231%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	18 s * -205%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	17.62 s * -199%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	17.37 s * -195%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	17.09 s * -190%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.78 s * -15%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	5.895 s *
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	5.103 s * +13%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4.4 s * +25%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	3.788 s * +36%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3.308 s * +44%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	3.257 s * +45%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3.194 s * +46%

X264 HD Benchmark 4.0
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	128 (122^min - 128^max) fps
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	112 (112^min - 112^max) fps
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	111 (111^min - 112^max) fps
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	92.8 (89.1^min - 100^max) fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	84.8 (84.6^min - 105^max) fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	60.5 (60.4^min - 73.5^max) fps
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	49.35 (49.1^min - 51.6^max) fps
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	21.6 (21.5^min - 22.1^max) fps
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	20.55 (20.4^min - 20.7^max) fps
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	19.3 fps
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	16.75 (16.7^min - 16.9^max) fps
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.46 fps
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	13.75 fps
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	276.5 (274^min - 278^max) fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	271.5 (259^min - 276^max) fps
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	237.5 (236^min - 239^max) fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	236 (235^min - 257^max) fps
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	215 (213^min - 217^max) fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	206 (204^min - 208^max) fps
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	184.5 (184^min - 186^max) fps
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	106.5 (106^min - 109^max) fps
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	105 fps
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	102 (100^min - 118^max) fps
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	88.5 fps
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	78.9 (77.1^min - 81.7^max) fps
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	74 fps

TrueCrypt
Serpent Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.2 GB/s +129%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.2 GB/s +129%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1.1 GB/s +110%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.1 GB/s +110%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	1 GB/s +90%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	0.57 GB/s +9%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	0.525 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.48 GB/s -9%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	0.23 GB/s -56%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	0.21 GB/s -60%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.182 GB/s -65%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.166 GB/s -68%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.142 GB/s -73%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.133 GB/s -75%
Twofish Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2 GB/s +118%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2 GB/s +118%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1.8 GB/s +96%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	1.7 GB/s +85%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.6 GB/s +74%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1 GB/s +9%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	0.919 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.79 GB/s -14%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	0.403 GB/s -56%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	0.346 GB/s -62%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.283 GB/s -69%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.266 GB/s -71%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.245 GB/s -73%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.199 GB/s -78%
AES Mean 100MB
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.8 GB/s +77%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	10.3 GB/s +69%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	10.1 GB/s +66%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7.4 GB/s +21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7.4 GB/s +21%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6.1 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4.7 GB/s -23%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	4.6 GB/s -25%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2.6 GB/s -57%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.9 GB/s -69%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1.9 GB/s -69%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.7 GB/s -72%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.5 GB/s -75%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1.3 GB/s -79%

Geekbench 4.4
64 Bit Multi-Core Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32434 Points +47%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	32174 Points +46%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31724 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	29385 Points +33%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28402 Points +29%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	22969 Points +4%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	22045 Points
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	13949 Points -37%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	5468 Points -75%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	5399 Points -76%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5066 Points -77%
64 Bit Single-Core Score
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6434 Points +3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6365 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6238 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	5969 Points -4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	5726 Points -8%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5287 Points -15%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	5271 Points -16%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	3680 Points -41%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2613 Points -58%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2555 Points -59%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1922 Points -69%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.9 fps +102%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.5 fps +84%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12.9 fps +64%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	11.6 fps +48%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	11.4 fps +45%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	7.95 fps +1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	7.86 fps
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.28 fps -20%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1.65 fps -79%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.48 fps -81%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0 fps -100%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16783 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	16422 Points +41%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	15497 Points +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13940 Points +20%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12199 Points +5%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	11662 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	11443 Points -2%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	7679 Points -34%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	4420 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	3863 Points -67%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	3765 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	3659 Points -69%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	3072 Points -74%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2794 Points -76%

LibreOffice - 20 Documents To PDF
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	143 s * -194%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	92.9 s * -91%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	66 s * -36%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	59.5 s * -22%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.4 s * -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	49.3 s * -1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	48.7 s *
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	45.23 s * +7%

* ... smaller is better

Cinebench R15多循环

在使用Cinebench R15多循环的负载测试中，MINISFORUM EliteMini TH50可以很好地控制英特尔酷睿i5-11320H。在第一次运行后，性能略有下降，然后基本保持稳定。以896分的平均分，我们的测试样本仅次于英特尔NUC10i7FNH有6个核心和12个线程。

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Intel NUC10i5FNK Intel Core i5-10210U, Intel Core i5-10210U: Ø755 (749.68-790.62)

Intel NUC10i7FNH Intel Core i7-10710U, Intel Core i7-10710U: Ø946 (834.01-1067.02)

Intel Ghost Canyon NUC (RTX 2070) Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1463 (1410.79-1593.44)

系统性能和渲染测试

在合成基准测试中，我们的MINISFORUM EliteMini TH50设备再次对阵英特尔NUC10i7FNH.由于其他对比设备的SoC更快，在这里不可能取得更好的排名。然而，EliteMini TH50做得很好，与EliteMini HM90的差距不是很高。在负载下和播放4K视频时，测得的延迟非常好，而且没有掉线。Intel Iris Xe Graphics G7iGPU在播放过程中的利用率约为26%。即使在启动Prime 95后，DPC延迟也不会增加很多。

外部GPU底座和使用的会发生什么？ NvidiaGeForce RTX 3060在这里，当你看LuxMark和ComputeMark的结果时，可以令人印象深刻地看到。在SPECviewprf基准测试中，外部显卡的全部潜力无法实现。

PCMark 10
Score
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	6939 Points +35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6507 Points +27%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	6499 Points +27%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6290 Points +23%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	5697 Points +11%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5565 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	5130 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	4418 Points -14%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4019 Points -22%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	2958 Points -42%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2548 Points -50%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2391 Points -53%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1806 Points -65%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10196 Points +49%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9856 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	8581 Points +26%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	8277 Points +21%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	8136 Points +19%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	7447 Points +9%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	6876 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6832 Points
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6494 Points -5%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	5397 Points -21%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	4084 Points -40%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	3854 Points -44%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2928 Points -57%
Essentials
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	10797 Points +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10321 Points +8%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10087 Points +6%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	9846 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	9556 Points
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	9059 Points -5%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9026 Points -6%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	9013 Points -6%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	8235 Points -14%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	6210 Points -35%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	5446 Points -43%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5419 Points -43%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	4693 Points -51%
Digital Content Creation
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	10161 Points +81%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	9785 Points +74%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7105 Points +27%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	6808 Points +21%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6794 Points +21%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6262 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	5615 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	3777 Points -33%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	3296 Points -41%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2139 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	2097 Points -63%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1677 Points -70%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1165 Points -79%

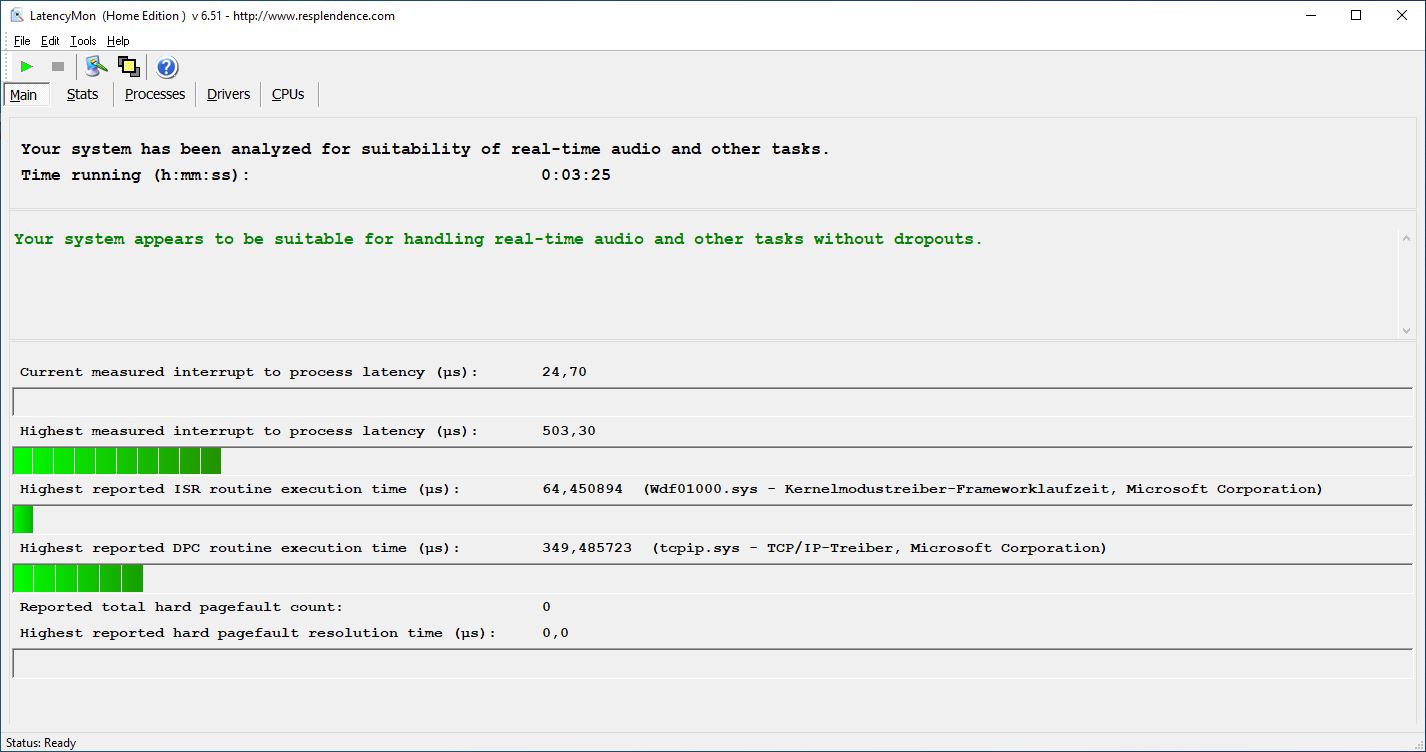

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3767 μs * -978%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2635 μs * -654%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1625 μs * -365%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1581 μs * -352%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1106 μs * -216%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1106 μs * -216%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	349.5 μs *

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	82.3 fps +121%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.5 fps +73%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	61.8 fps +66%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	59.2 fps +59%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	49.3 fps +32%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	47.8 fps +28%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	37.3 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	28.71 fps -23%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	26.2 fps -30%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	23.86 fps -36%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.55 fps -56%
1900x1060 Siemens NX (snx-02)
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.1 fps +513%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20.1 fps +484%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.4 fps +377%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	12 fps +249%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	9.08 fps +164%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	7.39 fps +115%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	3.44 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.98 fps -13%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	2.67 fps -22%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2.6 fps -24%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.48 fps -28%
1900x1060 Showcase (showcase-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	165 fps +797%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	118.5 fps +544%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	72.6 fps +295%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	18.4 fps
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.4 fps -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.4 fps -22%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.3 fps -28%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	8.8 fps -52%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	8.35 fps -55%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.81 fps -63%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	5.56 fps -70%
1900x1060 Medical (medical-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	49 fps +341%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	40.14 fps +262%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	24.9 fps +124%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.8 fps +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12.2 fps +10%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11.7 fps +5%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	11.1 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.91 fps -74%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2.7 fps -76%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	2.62 fps -76%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.61 fps -85%
1900x1060 Maya (maya-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	200 fps +410%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	171 fps +336%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	66 fps +68%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	39.2 fps
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	36.8 fps -6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31 fps -21%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.6 fps -32%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	17 fps -57%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	15.71 fps -60%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	13.02 fps -67%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	3.33 fps -92%
1900x1060 Energy (energy-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	13.1 fps +2947%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	11.49 fps +2572%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	8.21 fps +1809%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2.19 fps +409%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	0.52 fps +21%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	0.5 fps +16%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	0.43 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	0.28 fps -35%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.23 fps -47%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.09 fps -79%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.08 fps -81%
1900x1060 Creo (creo-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	61.5 fps +635%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	52.2 fps +524%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	45.4 fps +442%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.2 fps +344%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.9 fps +329%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.9 fps +257%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	14.42 fps +72%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	12.93 fps +54%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	10.8 fps +29%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	9.89 fps +18%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	8.37 fps
1900x1060 Catia (catia-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	117 fps +215%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	78.3 fps +111%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	63.1 fps +70%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.2 fps +11%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.7 fps +2%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	37.1 fps
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.7 fps -12%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	16.55 fps -55%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	15.5 fps -58%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	14.12 fps -62%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	11.3 fps -70%
1900x1060 3ds Max (3dsmax-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	213 fps +449%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	180.8 fps +366%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	98 fps +153%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.5 fps +22%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	43.7 fps +13%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	38.8 fps
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.4 fps -4%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	15.22 fps -61%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	12.92 fps -67%

SPECviewperf 13
Solidworks (sw-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	114 fps +129%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	85.4 fps +72%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	73.2 fps +47%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	71.7 fps +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	69.6 fps +40%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	57.4 fps +15%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	49.7 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	37.6 fps -24%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	31.48 fps -37%
Siemens NX (snx-03)
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 fps +517%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	36.3 fps +486%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.6 fps +378%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	21.9 fps +254%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	16.33 fps +164%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	13.4 fps +116%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6.19 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	5.37 fps -13%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4.8 fps -22%
Showcase (showcase-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	165 fps +797%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	118.5 fps +544%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	72.9 fps +296%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	18.4 fps
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.3 fps -6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.1 fps -23%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.5 fps -27%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	8.34 fps -55%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.81 fps -63%
Medical (medical-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	78.3 fps +498%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	56.4 fps +331%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	44.9 fps +243%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.2 fps +62%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19.2 fps +47%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.4 fps +25%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	13.1 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.23 fps -83%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	2.12 fps -84%
Maya (maya-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	367 fps +834%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	281 fps +615%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	141 fps +259%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48.6 fps +24%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	39.3 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.9 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.1 fps -11%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	22.97 fps -42%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	18.97 fps -52%
Energy (energy-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	28.2 fps +675%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	21.83 fps +500%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	13.1 fps +260%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6.93 fps +90%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	3.64 fps
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1.42 fps -61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	0.88 fps -76%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	0.82 fps -77%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	0.73 fps -80%
Creo (creo-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	241 fps +605%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	183.8 fps +437%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	111 fps +225%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.4 fps +47%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.9 fps +31%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.7 fps +10%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	34.2 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	18.88 fps -45%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	16.77 fps -51%
Catia (catia-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	171 fps +223%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	113.7 fps +115%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	92.9 fps +76%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	59.3 fps +12%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	52.9 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.2 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46.4 fps -12%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	23.37 fps -56%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	19.97 fps -62%
3ds Max (3dsmax-06)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	213 fps +453%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	178.6 fps +364%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	97.7 fps +154%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.5 fps +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.9 fps +11%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	38.5 fps
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.8 fps -2%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	15.01 fps -61%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	12.71 fps -67%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	20018 Points +486%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4148 Points +21%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3499 Points +2%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3499 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	3414 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1476 Points -57%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1134 Points -67%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	964 Points -72%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	964 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	959 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	696 Points -80%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	631 Points -82%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	337 Points -90%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	2016 Points +559%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	306 Points
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	276 Points -10%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	235 Points -23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	235 Points -23%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	128 Points -58%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	128 Points -58%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	86 Points -72%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	86 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	86 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	67 Points -78%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	54 Points -82%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	44 Points -86%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	1958 Points +571%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	292 Points
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	272 Points -7%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	231 Points -21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	231 Points -21%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	126 Points -57%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	105 Points -64%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	105 Points -64%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	103 Points -65%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	83 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	82 Points -72%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	63 Points -78%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	42 Points -86%
1024x600 Normal, Mandel Vector
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	4163 Points +446%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1280 Points +68%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1066 Points +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1066 Points +40%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	763 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	250 Points -67%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	211 Points -72%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	189 Points -75%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	189 Points -75%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	186 Points -76%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	147 Points -81%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	140 Points -82%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	79 Points -90%
1024x600 Normal, Mandel Scalar
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	4367 Points +412%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1115 Points +31%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	964 Points +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	964 Points +13%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	853 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	428 Points -50%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	262 Points -69%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	226 Points -74%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	223 Points -74%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	223 Points -74%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	137 Points -84%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	135 Points -84%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	54 Points -94%
1024x600 Normal, QJuliaRayTrace
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	7514 Points +526%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1205 Points 0%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	1200 Points
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1002 Points -16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1002 Points -16%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	543 Points -55%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	430 Points -64%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	379 Points -68%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	362 Points -70%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	362 Points -70%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	272 Points -77%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	230 Points -81%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	118 Points -90%

LuxMark v2.0 64Bit
Room GPUs-only
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	1647 Samples/s +138%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	693 Samples/s
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	547 Samples/s -21%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	451 Samples/s -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	451 Samples/s -35%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	306 Samples/s -56%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	291 Samples/s -58%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	291 Samples/s -58%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	188 Samples/s -73%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	163 Samples/s -76%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	146 Samples/s -79%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	109 Samples/s -84%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	76 Samples/s -89%
Sala GPUs-only
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	6513 Samples/s +181%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	2320 Samples/s
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1287 Samples/s -45%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	939 Samples/s -60%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	939 Samples/s -60%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	736 Samples/s -68%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	736 Samples/s -68%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	702 Samples/s -70%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	404 Samples/s -83%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	397 Samples/s -83%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	379 Samples/s -84%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	266 Samples/s -89%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	129 Samples/s -94%

* ... smaller is better

大容量存储

我们的测试系统配备了一块512GB的NVMe固态硬盘，这也是EliteMini TH50的顶级产品。没有更大的固态硬盘出厂，但这并不意味着你不能自己替换它。尽管如此，考虑到用户仍有450GB的可用空间减去Windows的安装，512GB的存储应该足以满足大多数目的。

这里安装的固态硬盘使用M.2-2280插槽，由于采用了NVMe协议，提供了非常高的传输速率。我们非常喜欢超过60MB/s的4K读取率。另外，你可以在底板上安装两个2.5英寸的大容量存储设备。所有必要的支架、螺丝和连接线都包括在内。

Continuous DiskSpd Read Loop, Queue Depth 8

Minisforum EliteMini TH50: Ø1905 (1097.76-2359.4)

图形卡

集成图形单元的英特尔酷睿i5-11320H是Intel Iris Xe Graphics G7有96个EUs。总的来说，这里显示的性能完全反映了你对这个iGPU的期望。与AMD的 Radeon RX Vega 8相比，英特尔iGPU可以很好地跟上，甚至经常把自己放在前面。

我们还在此测试了GPU的性能，借助Razer Core X和一个 NvidiaGeForce RTX 3060并能够取得良好的结果。令人惊讶的是，这些数值比那些 Zotac Magnus One安装了 NvidiaGeForce RTX 3070.

更多关于英特尔Iris Xe Graphics G7的基准测试可以在以下网站找到这里.

3DMark 11 | 3DMark | Unigine Heaven 4.0 | Unigine Valley 1.0

3DMark 11 - 1280x720 Performance GPU
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	40950 Points +528%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	28828 Points +342%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	24369 Points +274%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7122 Points +9%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6518 Points
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7471, n=194)	6345 Points -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6306 Points -3%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3459 - 7591, n=54)	5910 Points -9%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5567 Points -15%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2322 Points -64%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1983 Points -70%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1853 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1589 Points -76%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1458 Points -78%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1316 Points -80%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1175 Points -82%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	602 Points -91%

3DMark
1280x720 Ice Storm Standard Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	441161 Points +635%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	326331 Points +444%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	286573 Points +378%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	171104 Points +185%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (96941 - 231980, n=18)	154016 Points +157%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	130976 Points +118%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100414 Points +67%
Average Intel Iris Xe Graphics G7 96EUs (35195 - 214326, n=40)	93280 Points +55%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	79747 Points +33%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	61979 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	60011 Points
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	58199 Points -3%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	41037 Points -32%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	25631 Points -57%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	21465 Points -64%
1920x1080 Ice Storm Extreme Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	376770 Points +646%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	289413 Points +473%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	284001 Points +462%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	121736 Points +141%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (84227 - 147236, n=14)	111810 Points +121%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	102227 Points +102%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84227 Points +67%
Average Intel Iris Xe Graphics G7 96EUs (35612 - 144112, n=26)	71881 Points +42%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	50500 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	48446 Points -4%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	40670 Points -19%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	40532 Points -20%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	26409 Points -48%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	20602 Points -59%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	14360 Points -72%
1920x1080 Fire Strike Graphics
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	30090 Points +536%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	20775 Points +339%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	18711 Points +296%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6143, n=207)	4905 Points +4%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	4730 Points
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4369 Points -8%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3775 Points -20%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1694 - 5041, n=54)	3676 Points -22%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3414 Points -28%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1479 Points -69%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1418 Points -70%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1202 Points -75%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1033 Points -78%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	881 Points -81%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	772 Points -84%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	770 Points -84%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	446 Points -91%

Unigine Heaven 4.0
Extreme Preset DX11
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	196.4 fps +743%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	141.3 fps +506%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	23.3 fps
Average Intel Iris Xe Graphics G7 96EUs (17.7 - 27.5, n=17)	23.3 fps 0%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.4 fps -8%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (15.4 - 24.4, n=9)	19.9 fps -15%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18 fps -23%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.4 fps -34%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2.4 fps -90%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2.4 fps -90%
Extreme Preset OpenGL
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	187.5 fps +708%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	132.9 fps +473%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	23.2 fps
Average Intel Iris Xe Graphics G7 96EUs (17.3 - 26.3, n=17)	22.7 fps -2%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19.6 fps -16%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13.5 - 22.8, n=8)	18.8 fps -19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.2 fps -30%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.5 fps -42%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2.2 fps -91%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2.2 fps -91%

Unigine Valley 1.0
1920x1080 Extreme HD Preset OpenGL AA:x8
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	140.2 fps +782%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	99.6 fps +526%
Average Intel Iris Xe Graphics G7 96EUs (11.7 - 21.1, n=15)	16.5 fps +4%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	15.9 fps
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12.8 fps -19%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8.8 - 14.7, n=8)	12.1 fps -24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.7 fps -33%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	8.8 fps -45%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	6.3 fps -60%
1920x1080 Extreme HD DirectX AA:x8
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	157.5 fps +957%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	112.8 fps +657%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	14.9 fps
Average Intel Iris Xe Graphics G7 96EUs (11.3 - 17.2, n=15)	14.7 fps -1%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.2 fps -5%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (10 - 16.4, n=8)	13.1 fps -12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11.6 fps -22%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10 fps -33%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	6.5 fps -56%

3DMark 11 | 3DMark | Unigine Heaven 4.0 | Unigine Valley 1.0

3DMark 05 Standard		36918 points
3DMark 06 Standard Score		27809 points
3DMark Vantage P Result		22253 points
3DMark 11 Performance		6905 points
3DMark Ice Storm Standard Score		61362 points
3DMark Cloud Gate Standard Score		17814 points
3DMark Fire Strike Score		4340 points
3DMark Fire Strike Extreme Score		2149 points
3DMark Time Spy Score		1777 points
Help

... in comparison

游戏性能

Minisforum并没有明确宣传EliteMini TH50是一款游戏电脑。尽管如此，在主页上可以找到一些数值，这应该有助于澄清游戏性能。购买EliteMini TH50的人应该记住，安装的Intel Iris Xe Graphics G7只是一个简单的iGPU。其性能可与AMD Ryzen 9 5900HX的iGPU相媲美。 AMD Ryzen 9 5900HX，如果我们在这一点上只考虑游戏性能。

然而，有了Thunderbolt 4端口，用户现在有了进一步的选择，在外部GPU底座的帮助下提高3D性能。我们已经用Razer Core X测试了EliteMini TH50，它配备了一个 NvidiaGeForce RTX 3060并查看了在游戏性能方面可以预期的情况。

很明显，其性能不能与传统的桌面系统相提并论。在测试的游戏中，其性能比我们的测试系统低约40%（基础。 AMD Ryzen 9 5900X)，我们用它来进行显卡测试。然而，与iGPU相比，其优势仍然非常明显。所有测试的游戏都能顺利进行，即使在英特尔酷睿i5-11320H与我们的Razer Core X和 NvidiaGeForce RTX 3060.与基于AMD的迷你PC相比，这是一个明显的优势，它们仍然没有Thunderbolt。然而，这可能在不久的将来成为历史，因为新的AMD APU也将能够使用现代接口，如USB4。

Performance Rating - Percent
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	97.5 pt
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060 ^-1!	96 pt
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	69 pt
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.8 pt
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	20.3 pt
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	111 (4.48^min, 76.9^P1 - 235^max) fps +988%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	104 (4.33^min, 71.4^P1 - 206^max) fps +920%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	77.1 (6.65^min, 50^P1 - 157^max) fps +656%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.2 (7.37^min, 10.8^P1 - 37.9^max) fps +49%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12 (3.91^min, 8.93^P1 - 33.5^max) fps +18%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	10.2 (4.22^min, 6.37^P1 - 90.8^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	63.3 (22.3^min, 40.7^P0.1, 51.3^P1 - 358^max) fps +308%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	52.4 (36.2^min, 37.9^P0.1, 42.8^P1 - 115^max) fps +238%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.4 (14^min, 14.2^P0.1, 14.7^P1 - 22.5^max) fps +12%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	15.5 (6.52^min, 7.57^P0.1, 9.58^P1 - 59^max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.4 (8.07^min, 10.9^P0.1, 12^P1 - 59.1^max) fps -7%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	159.7 (126.4^min) fps +191%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	147.1 (126^min) fps +168%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	110.5 (94.3^min) fps +102%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62.8 (57.5^min) fps +15%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	54.8 (47.9^min) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	49.9 (43.8^min) fps -9%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	88.6 fps +282%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	88.6 fps +282%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	70.8 fps +205%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	23.2 fps
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16 fps -31%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.6 fps -41%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	112 fps +416%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	105 fps +384%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	73.4 fps +238%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.1 fps +85%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37 fps +71%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	21.7 fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	132 (109^min - 150^max) fps +428%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	122 (93^min - 151^max) fps +388%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	88 (67^min - 116^max) fps +252%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25 (23^min - 32^max) fps 0%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	25 (22^min - 29^max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 (17^min - 23^max) fps -24%

Far Cry New Dawn - 1920x1080 Ultra Preset
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	112 (83^min - 146^max) fps +348%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	102 (72^min - 145^max) fps +308%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	73 (52^min - 111^max) fps +192%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	25 (18^min - 31^max) fps
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24 (19^min - 30^max) fps -4%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 (14^min - 24^max) fps -24%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	154 (58.1^min, 116^P1 - 215^max) fps +521%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	153 (43.4^min, 116^P1 - 214^max) fps +517%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	114 (56^min, 73.9^P1 - 191^max) fps +360%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.6 (21.9^min, 22.5^P1 - 39^max) fps +11%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	24.8 (8^min, 8.72^P1 - 317^max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.9 (18.2^min, 19.2^P1 - 34.3^max) fps -4%

Metro Exodus - 1920x1080 Ultra Quality AF:16x
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	59.8 (30.99^min - 119.9^max) fps +416%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	55.1 (32.45^min - 87.42^max) fps +375%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	37.8 (17.54^min - 83.29^max) fps +226%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13 (7.31^min - 18.99^max) fps +12%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	11.6 (6.55^min - 19.58^max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.8 (5.78^min - 15.68^max) fps -7%

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	100 fps +777%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	78.5 fps +589%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	58.5 fps +413%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps +21%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	11.4 fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11.3 fps -1%

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	142 (114^min - 171^max) fps +509%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	142 (114^min - 171^max) fps +509%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	87.8 (55^min - 111^max) fps +277%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.4 (21^min - 36^max) fps +22%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.3 (18^min - 30^max) fps +4%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	23.3 (16^min - 29^max) fps

F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	104 (88^min, 88^P1 - 117^max) fps +288%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	96.9 (83^min, 83^P1 - 107^max) fps +262%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	75.1 (52^min, 54^P1 - 85^max) fps +180%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27 (22^min, 22^P1 - 31^max) fps +1%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	26.8 (22^min, 22^P1 - 30^max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (17^min, 17^P1 - 25^max) fps -18%

Legend

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1

Intel Beast Canyon NUC Intel Core i9-11900KB, NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB

Inno3D GeForce RTX 3060 Twin X2 AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3060, Corsair MP600

Minisforum EliteMini TH50 (RTX 3060 via TB) Intel Core i5-11320H, NVIDIA GeForce RTX 3060,

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB

Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB

	low	med.	high	ultra
GTA V (2015)	99.2	85.3	26	10.2
The Witcher 3 (2015)	89.8	56.5	29.5	15.5
Dota 2 Reborn (2015)	125.3	90	60.5	54.8
Final Fantasy XV Benchmark (2018)	43.2	23.2	23.2
X-Plane 11.11 (2018)	27.3	25.5	21.7
Far Cry 5 (2018)	55	29	27	25
Strange Brigade (2018)	87.5	37.3	30.5	24.8
Far Cry New Dawn (2019)	48	29	27	25
Metro Exodus (2019)	40.4	20.6	14.8	11.6
Borderlands 3 (2019)	51.7	24.3	15.1	11.4
F1 2020 (2020)	93.1	47.7	36.4	23.3
F1 2021 (2021)	105	50.3	40.1	26.8
God of War (2022)	21	18.8	15.2	10.1
Dying Light 2 (2022)	16.8	13.8	11.7
GRID Legends (2022)	66.4	45.4	36.6	26.9
Elden Ring (2022)	45.5	41.5	33.6	27.9
Cyberpunk 2077 1.6 (2022)	17.8	15.4	12.2	10.1
Elex 2 (2022)	20.4	18.3	16.3	14.6

	low	med.	high	ultra
GTA V (2015)	166	160	135	77.1
The Witcher 3 (2015)	219	133	80	52.4
Dota 2 Reborn (2015)	135.5	117.1	113.2	110.5
Final Fantasy XV Benchmark (2018)	137	102	70.8
X-Plane 11.11 (2018)	95.8	88	73.4
Far Cry 5 (2018)	118	98	95	88
Strange Brigade (2018)	170	130	121	114
Far Cry New Dawn (2019)	100	86	80	73
Metro Exodus (2019)	110	66.9	50	37.8
Borderlands 3 (2019)	112	94.2	73.4	58.5
F1 2020 (2020)	180	111	111	87.8
F1 2021 (2021)	184	163	128	75.1

排放与能源

温度

Minisforum为EliteMini TH50使用了相同的冷却技术，就像 EliteMini HM90- 轴流风扇从上面吸入冷空气并向下压到散热器上，这样暖空气就可以从机箱的侧面排出。这个原理是经过深思熟虑的，而且效果非常好。这款英特尔酷睿i5-11320H达到了最高的86℃。因此，该SoC明显处于绿色区域。由于压力测试是一种极端情况，在正常使用中可以预期温度会低很多。然而，永久负载并没有产生负面影响。3DMark11基准测试结果与冷启动时处于同一水平，在测量公差范围内只相差几个点。

噪声排放

由于复杂的冷却设计，在负载下测量的噪音水平也是适中的。该设备在空闲状态下几乎是无声的，而在负载状态下，风扇的噪音略低于32.5dB（A）。然而，在开始时可以感觉到明显的转速上升。我们在这里测到了近41分贝（A），但这只是非常短暂的。

Noise Level

Idle		30.8 / 32.1 / 32.9 dB(A)
Load		33.9 / 41.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30.2 dB(A)

	Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
Noise		-1%	6%
off / environment *	30.2	30.1 -0%	30.8 -2%
Idle Minimum *	30.8
Idle Average *	32.1	33.15 -3%	31.6 2%
Idle Maximum *	32.9
Load Average *	33.9
Load Maximum *	41.4	41.63 -1%	33.4 19%

* ... smaller is better

能量吸收

在能源消耗方面，MINISFORUM EliteMini TH50削减了一个非常好的数字。由于采用了节俭的SoC，即使在负载情况下，功耗也相当标致，平均为52.7瓦。然而，电源必须在短时间内补偿到72瓦。此外，当安装了两个额外的存储设备时，电源会有负担。因此，我们更希望电源的功率能达到90W。

Power Consumption
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)	326.2 (316^min - 333^max) Watt * -1991%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)	251.9 (242^min - 270^max) Watt * -1515%
Morefine S500+	58.3 (53.2^min, 55.8^P1 - 69.7^max) Watt * -274%
Minisforum EliteMini HX90 (Idle: 6.3 W)	56.2 (52.1^min, 53.3^P1 - 79.8^max) Watt * -260%
Minisforum HM90 (Idle: 9.8 W)	47.47 (44^min - 78^max) Watt * -204%
Intel NUC10i7FNH (Idle: 8.4 W)	46.6 (45^min - 68^max) Watt * -199%
Intel NUC10i5FNK (Idle: 15.7 W)	37.8 (35^min - 63^max) Watt * -142%
MSI Cubi 5 10M (Idle: 8 W)	25.17 (25^min - 26^max) Watt * -61%
Minisforum EliteMini TH50	15.6 (15^min, 15.1^P1 - 19.6^max) Watt *
Prime95 V2810 Stress (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)	116.3 (110^min - 238^max) Watt * -121%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)	109.4 (107^min - 151^max) Watt * -108%
Minisforum EliteMini HX90 (Idle: 6.3 W)	86.9 (77.4^min, 79.5^P1 - 109^max) Watt * -65%
Minisforum HM90 (Idle: 9.8 W)	73.2 (71^min - 76^max) Watt * -39%
Morefine S500+	72.4 (69.4^min, 71^P1 - 75.6^max) Watt * -37%
Intel NUC10i7FNH (Idle: 8.4 W)	60 (52^min - 86^max) Watt * -14%
Intel NUC10i5FNK (Idle: 15.7 W)	58.5 (56^min - 69^max) Watt * -11%
Minisforum EliteMini TH50	52.7 (45.8^min, 49.6^P1 - 72.1^max) Watt *
MSI Cubi 5 10M (Idle: 8 W)	46.72 (40^min - 66^max) Watt * +11%
AC6-M Mini-PC	17.4 (15.8^min, 16.8^P1 - 18^max) Watt * +67%

* ... smaller is better

Pros

+ 良好的系统性能

+ 稳定的外壳

+ 尺寸紧凑

+ 许多USB接口

+ 支持Thunderbolt 4

+ 最多可以有三个大容量存储设备

Cons

- 没有SD卡读卡器

结论。性能出色，连接性好

测试中的Minisforum EliteMini TH50，由Minisforum提供。

Minisforum EliteMini TH50是一款非常紧凑的迷你PC，具有很好的性能，可用于广泛的应用。由于采用了英特尔酷睿i5-11320H，EliteMini TH50给人留下了良好的单核性能。凭借其四个核心，该SoC在多线程应用中也能保持良好的性能，并能对英特尔NUC10i7FNH，它配备了一个六核SoC。再加上16GB的工作内存和512GB的固态硬盘，你可以得到一个顶级配置的伟大设备。此外，EliteMini TH50以其现代化的连接方式获得了加分。最重要的是，Thunderbolt选项应该为用户提供最大的附加值。

Minisforum EliteMini TH50是一款非常好的全能型电脑，它可以做更多简单的办公任务。

总的来说，EliteMini TH50以其稳定的性能令人信服。英特尔Iris Xe图形G7在3D性能方面也取得了很大的进步。在这里，AMD Radeon RX Vega 8的性能被超越了。因此，EliteMini TH50在一定程度上也适用于游戏。通过雷电接口的外部GPU底座可以扩展3D性能，将EliteMini TH50变成一台成熟的游戏PC。

银色和白色的颜色组合见仁见智，但你别无选择，只能喜欢它。Minisforum没有为EliteMini TH50提供其他颜色的机箱。它的做工很好，而且可以快速地用额外的存储槽进行扩展。

价格，起价629美元。，EliteMini TH50可以直接从Minisforum购买。然而，你必须考虑到，我们的测试系统是669美元。.我们将我们的测试配置称为购买建议，因为Windows许可证只包括在有存储驱动器的配置中。

Minisforum EliteMini TH50评论。适合日常办公的紧凑型台式电脑

案例与设备

业绩。充足的储备

处理器

Cinebench R15多循环

系统性能和渲染测试

大容量存储

Continuous DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

排放与能源

温度

噪声排放

能量吸收

Pros

Cons

结论。性能出色，连接性好

More articles related to this device
