Intel NUC5i3RYK Mini PC (Broadwell Core i3-5010U) 简短评测

独具魅力。 Intel的NUC5iRYK 是一台搭载了一颗Broadwell酷睿i3处理器的笔记本电脑配置迷你台式机。它在测试中表现十分全面几乎没有弱点,不过游戏并不是它的长项。
Desktop Broadwell Windows
Intel NUC5i3RYK
Processor
Intel Core i3-5010U 2 x 2.1 GHz, Broadwell
Graphics adapter
Memory
8 GB
, DDR3-1600
Display
16:9, 1920 x 1080 pixel
Storage
Intel SSDSCKHW360A4 SSD 530 360 GB, 360 GB
Connections
4 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort
Operating System
Microsoft Windows 8.1 64 Bit
Weight
463 g, Power Supply: 160 g
Price
388 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

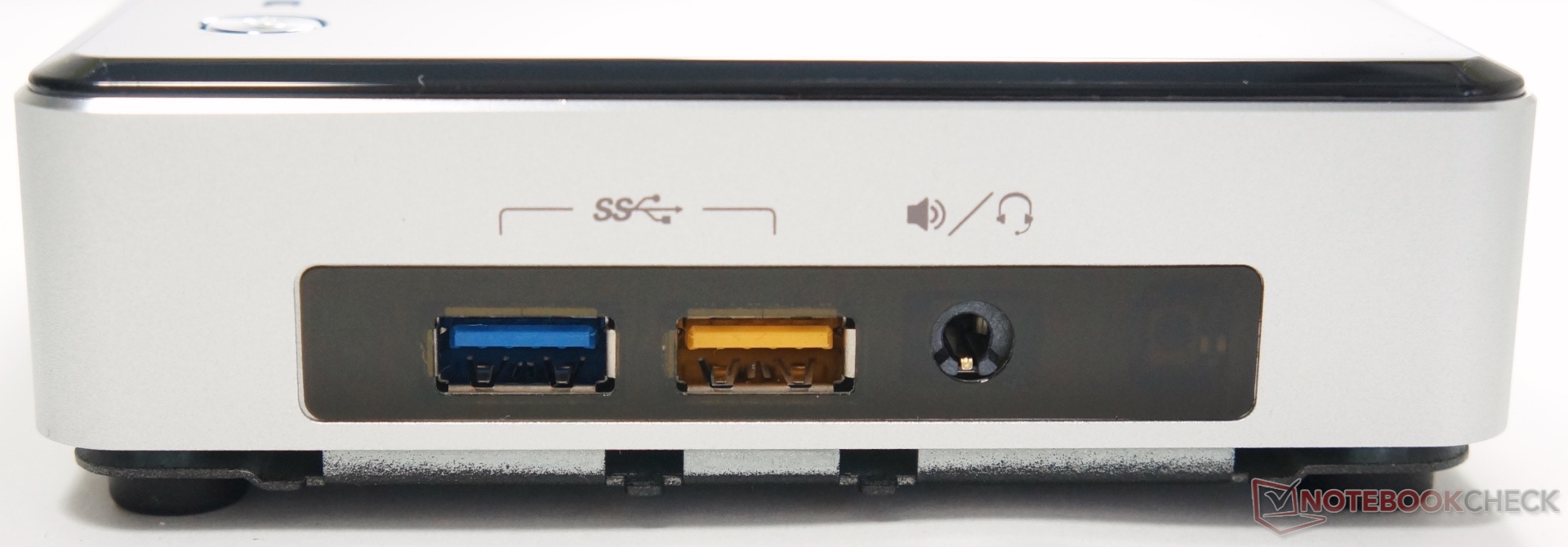

Front: 2 USB 3.0 ports (one is "powered"), headset jack, infrared receiver
Front: 2 USB 3.0 ports (one is "powered"), headset jack, infrared receiver

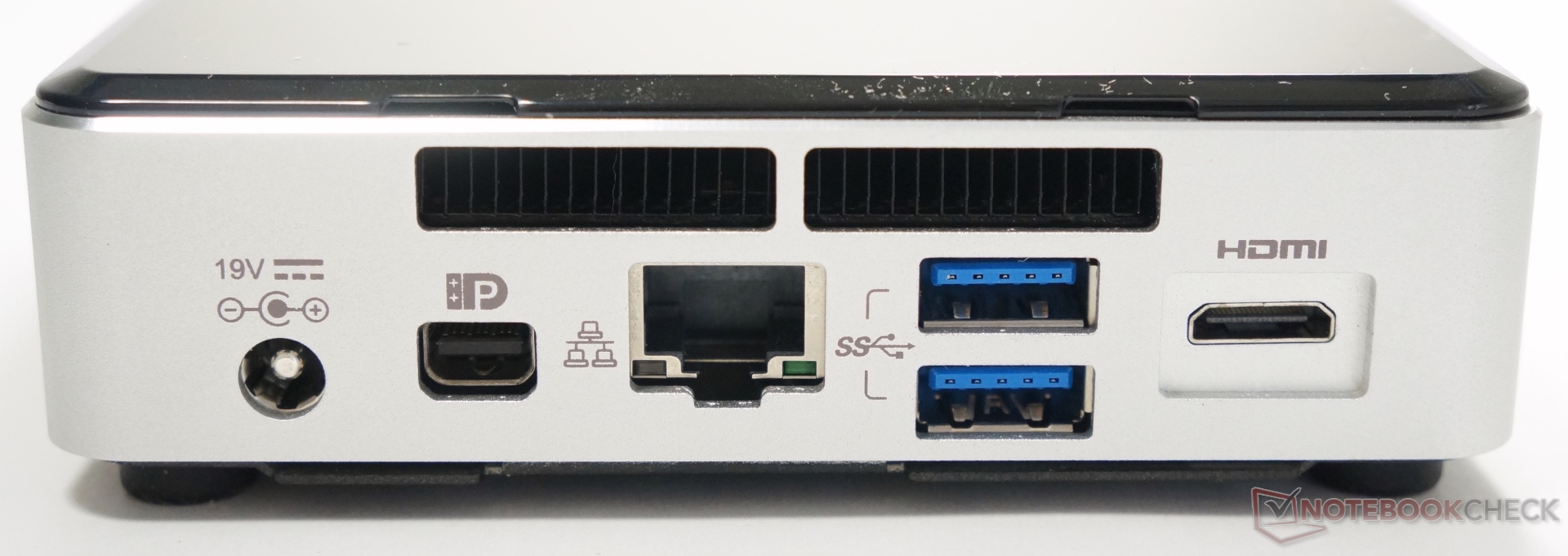

Rear: power, DisplayPort, LAN, 2x USB 3.0, mini-HDMI
Rear: power, DisplayPort, LAN, 2x USB 3.0, mini-HDMI

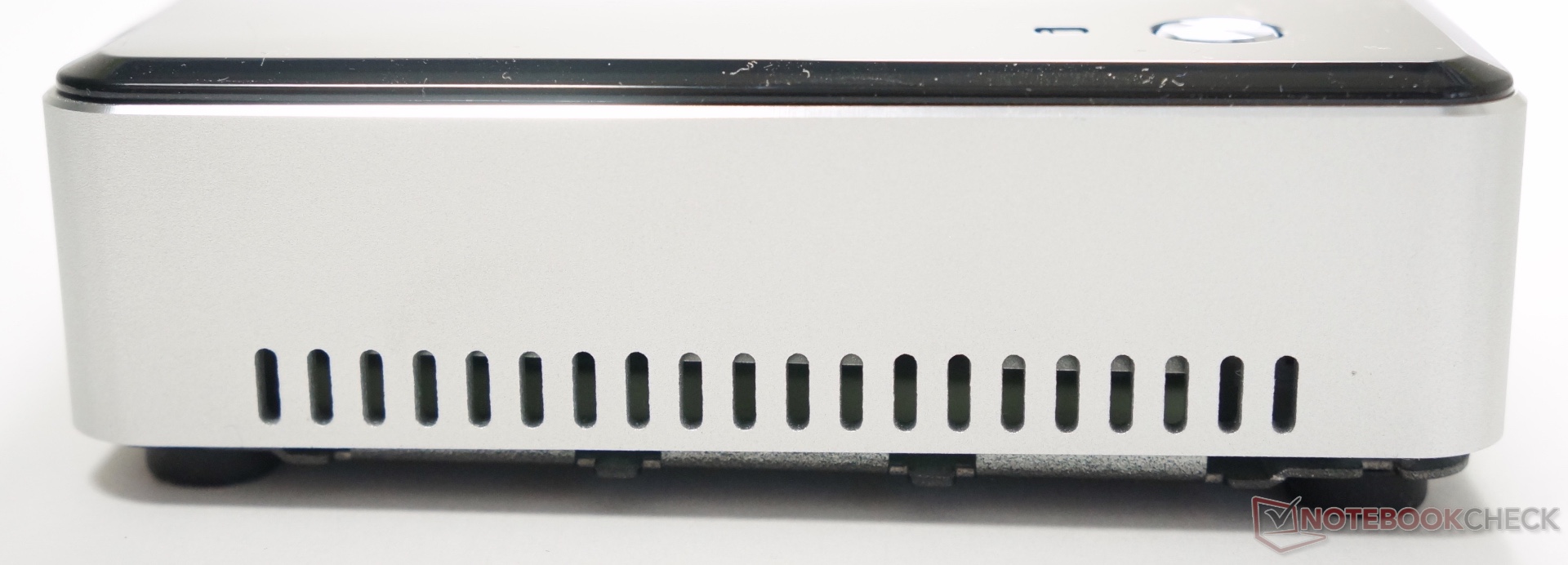

Left: vents
Left: vents

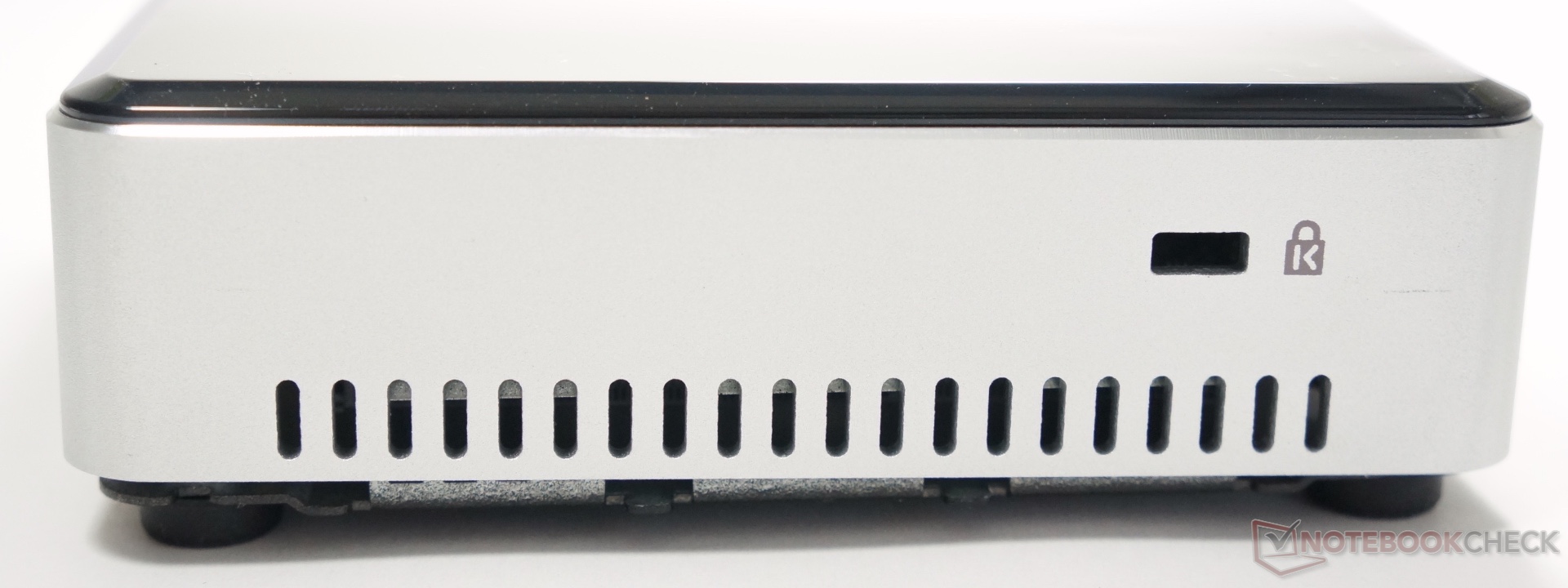

Right: Kensington lock
Right: Kensington lock
Cinebench R15
CPU Single 64Bit (sort by value)
Intel NUC5i3RYK
Intel Core i3-5010U
84 Points
Intel NUC5i5RYH
Intel Core i5-5250U
108 Points +29%
Intel NUC Kit DN2820FYKH
Intel Celeron N2820
39 Points -54%
Intel NUC Kit DN2820FYKH
Intel Celeron N2820
37.9 Points -55%
CPU Multi 64Bit (sort by value)
Intel NUC5i3RYK
Intel Core i3-5010U
220 Points
Intel NUC5i3RYK
Intel Core i3-5010U
211 (209.9min - 211.39max) Points -4%
Intel NUC5i5RYH
Intel Core i5-5250U
261 Points +19%
Intel NUC Kit DN2820FYKH
Intel Celeron N2820
70 (68.45min - 69.54max) Points -68%
Cinebench R15 CPU Multi 64Bit
211 Points
Cinebench R15 CPU Single 64Bit
84 Points
Cinebench R15 OpenGL 64Bit
29.5 fps
Cinebench R15 Ref. Match 64Bit
98 %
Help
PCMark 8 Home Score Accelerated v2
2901 points
PCMark 8 Work Score Accelerated v2
3732 points
PCMark 10 Score
2391 points
Help
PCMark 8 - Home Score Accelerated v2 (sort by value)
Intel NUC5i3RYK
HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB
2901 Points
Intel NUC5i5RYH
HD Graphics 6000, 5250U, OCZ Vector 150 240 GB
3062 Points +6%
Core i5-5250U (Intel NUC)
HD Graphics 6000, 5250U, Intel SSDSCKHW360A4 SSD 530 360 GB
3152 Points +9%
Intel NUC Kit DN2820FYKH
HD Graphics (Bay Trail), N2820, Samsung SSD 830 Series MZ-7PC256D/EU
1169 Points -60%
Intel SSDSCKHW360A4 SSD 530 360 GB
Sequential Read: 452MB/s
Sequential Write: 213MB/s
4K Read: 19.4MB/s
4K Write: 14.1MB/s
4K-64 Read: 198MB/s
4K-64 Write: 78MB/s
Access Time Read: 0.26ms
Access Time Write: 0.31ms
Score Read: 263Points
Score Write: 113Points
Score Total: 505Points
3DMark 06 Standard Score
7468 points
3DMark Vantage P Result
4913 points
3DMark 11 Performance
1298 points
3DMark Cloud Gate Standard Score
4830 points
3DMark Fire Strike Score
720 points
3DMark Time Spy Score
289 points
Help
3DMark - 1280x720 Cloud Gate Standard Graphics (sort by value)
Intel NUC5i3RYK
Intel HD Graphics 5500
6706 Points
Intel NUC5i5RYH
Intel HD Graphics 6000
8102 Points +21%
Intel NUC Kit DN2820FYKH
Intel HD Graphics (Bay Trail)
1277 Points -81%
3DMark 11 - 1280x720 Performance GPU (sort by value)
Intel NUC5i3RYK
Intel HD Graphics 5500
1175 Points
Intel NUC5i5RYH
Intel HD Graphics 6000
1458 Points +24%
Intel NUC Kit DN2820FYKH
Intel HD Graphics (Bay Trail)
190 Points -84%
low med. high ultra
Metro: Last Light (2013) 20.4 16.3 11.6 5.7
Fifa 15 (2014) 36.3 28.8 17.6
Civilization: Beyond Earth (2014) 38.3 18.1
Call of Duty: Advanced Warfare (2014) 33.2 16.9
Dota 2 Reborn (2015) 74 37.6 15.7 13.4
World of Warships (2015) 49.6 35.6 13.2
Rainbow Six Siege (2015) 27 16.9 9.9 7.8
Just Cause 3 (2015) 16.3 14.4
Doom (2016) 0 game wont start
Overwatch (2016) 31.6
Mirror's Edge Catalyst (2016) 21.5 12.6
Farming Simulator 17 (2016) 60.7
Rocket League (2017) 63.7
Dirt 4 (2017) 34.2
Team Fortress 2 (2017) 68 63 36 () 14 ()
X-Plane 11.11 (2018) 17.1 11.8 10.5
Total War: Three Kingdoms (2019) 18.3
F1 2019 (2019) 21.4
Hearthstone (2020) 29.3

Noise Level

Idle
34.9 / 34.9 / 34.9 dB(A)
Load
35 / 36 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)
Max. Load
 42 °C47 °C46 °C
 41 °C42 °C41 °C
 33 °C37 °C36 °C
Maximum: 47 °C
Average: 40.6 °C
33 °C33 °C33 °C
34 °C33 °C33 °C
32 °C33 °C33 °C
Maximum: 34 °C
Average: 33 °C
Room Temperature 22.6 °C | Fluke 62 Mini
(-) The average temperature for the upper side under maximal load is 40.6 °C / 105 F, compared to the average of 29.7 °C / 85 F for the devices in the class Desktop.
(-) The maximum temperature on the upper side is 47 °C / 117 F, compared to the average of 34.4 °C / 94 F, ranging from 25 to 47 °C for the class Desktop.
(+) The bottom heats up to a maximum of 34 °C / 93 F, compared to the average of 34 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 29.7 °C / 85 F.
Power Consumption
Off / Standbydarklight / 0.5 Watt
Idledarkmidlight 6.4 / 6.4 / 6.4 Watt
Load midlight 28 / 36 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Pros

+ 紧凑的机身
+ 小巧的电源适配器
+ 接口配置

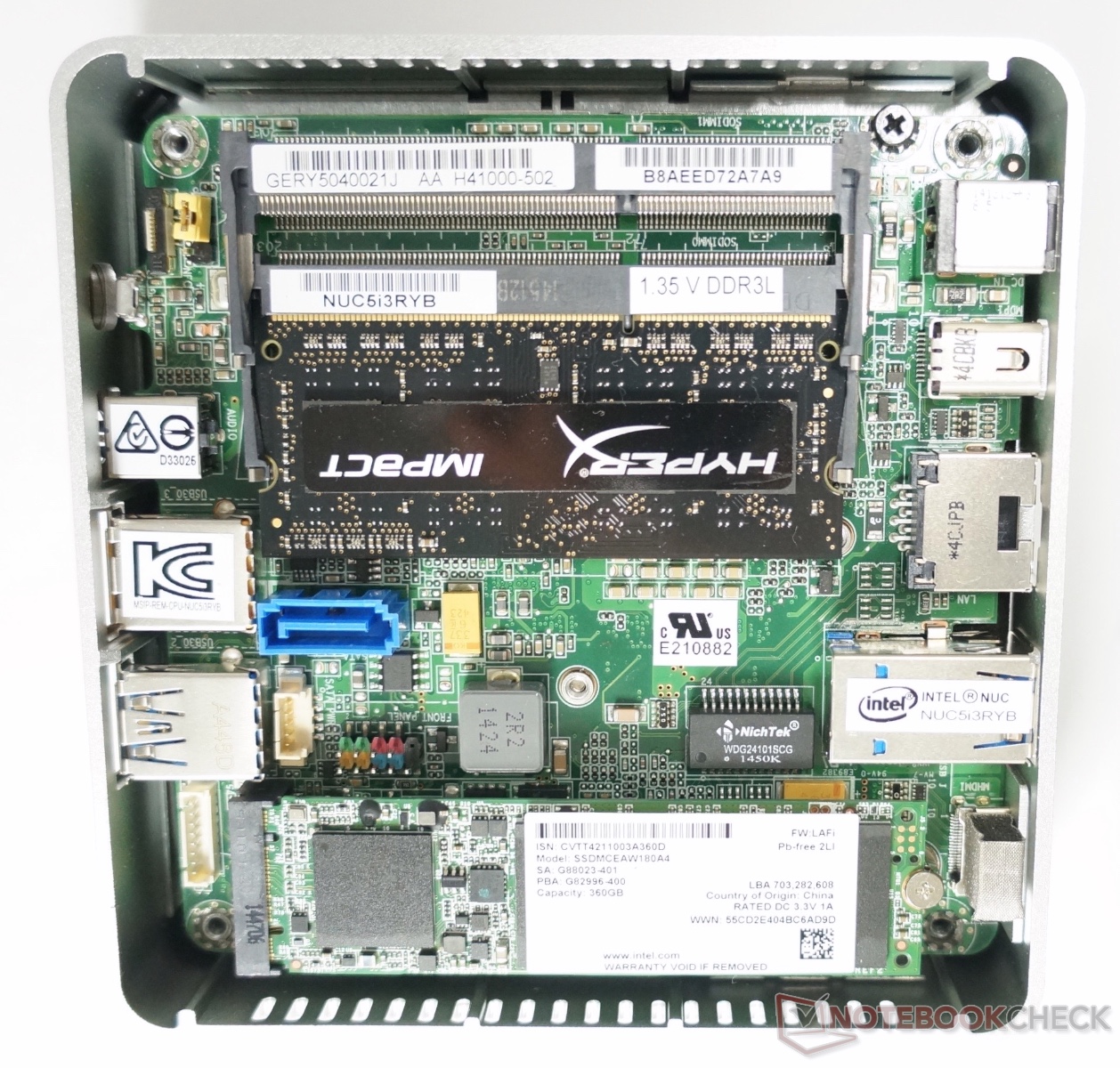

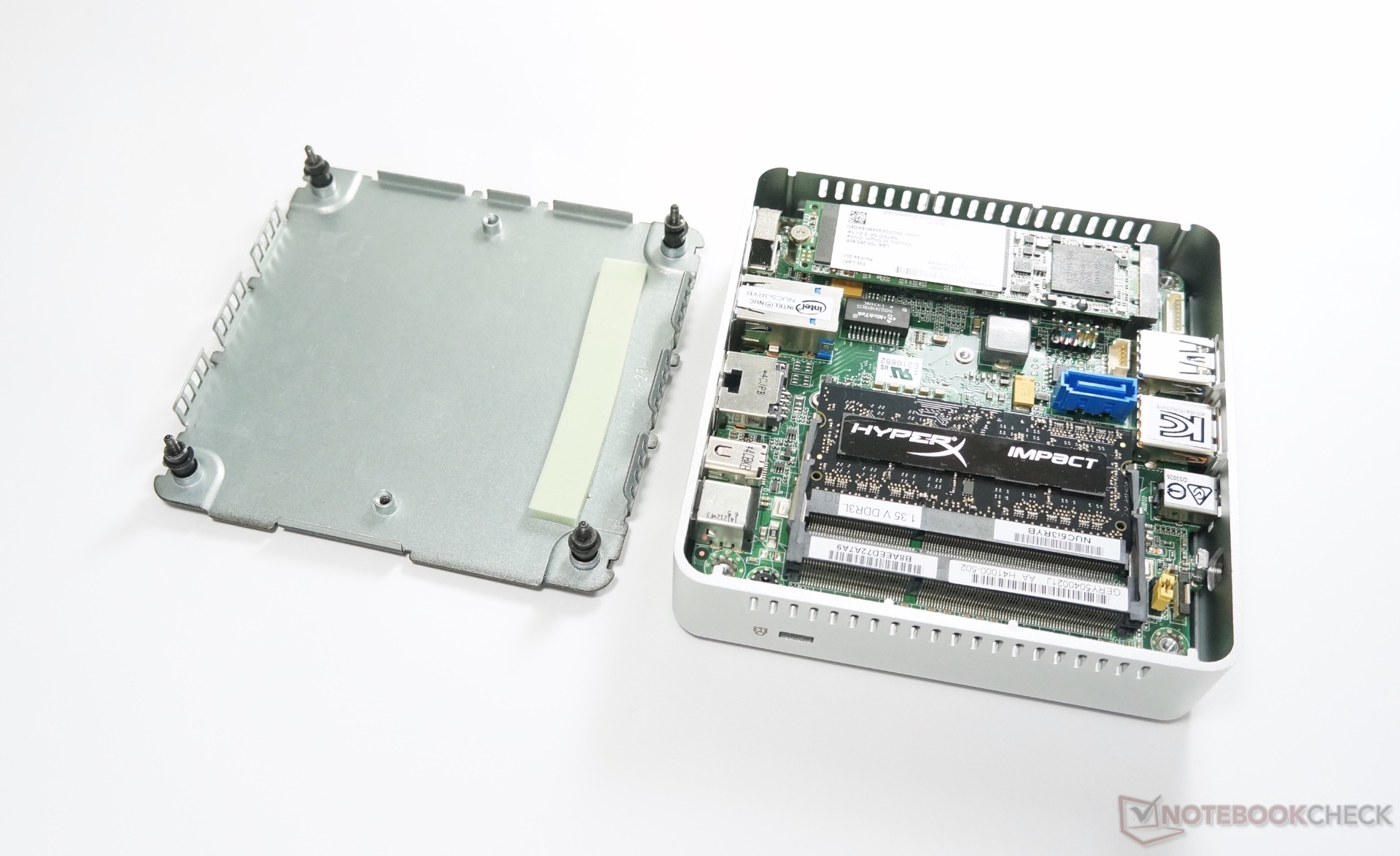

+ 可维护升级空间

Cons

- 性能在处理器显卡高负载时有所下降
- 高光的顶盖比较脆弱

和之前对酷睿i5版本的NUC测试相似,我们也对采用酷睿i3处理器且机身较小(RYK)的这款机型得出了十分正面的结论。它的小巧机身、现代设计和优秀工艺都十分吸引人。而内部组件则十分易于维护升级。这款小巧台式机非常适合办公和视频播放(1080p)。它的硬件性能可以达到我们预期的水平。风扇只有在游戏中会比较吵,而处理器也会有降频的问题。在客厅使用的话可能一个更安静的风扇会让人自在不少,尽管它所使用的这个风扇在大部分时间内都让人很难察觉到。

Intel基本兑现了他们所承诺的“优秀”家庭娱乐和办公性能。不过遗憾的是,在游戏性能上它受到酷睿i3处理器性能,以及散热不足造成的负载下降频问题的限制。

Linux系统和i3 NUC

根据我们俄罗斯分站notebookcheck-ru.com的Andrey所提供的信息,这款酷睿i3机型可以完美运行结合最新Kernel(3.13或更新)的Linux系统(测试系统Ubuntu 12.03)。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里
