AMD Ryzen 7 5700G的回顾。基于Zen3的8核桌面APU,带Vega图形单元

桌面的 "塞尚"! 通过2000和3000系列又名 "乌鸦岭 "和 "毕加索 "的APU,AMD在过去几年中多次开发了具有快速图形单元的廉价处理器。基于Zen 3,"塞尚 "系列现在紧随其后,通过Ryzen 5 5600G和Ryzen 7 5700G再次提高了一些标准。
Sebastian Bade (translated by DeepL / Ninh Duy), 🇺🇸 🇩🇪 ...
Cezanne (Zen 3) AMD Desktop Radeon
, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

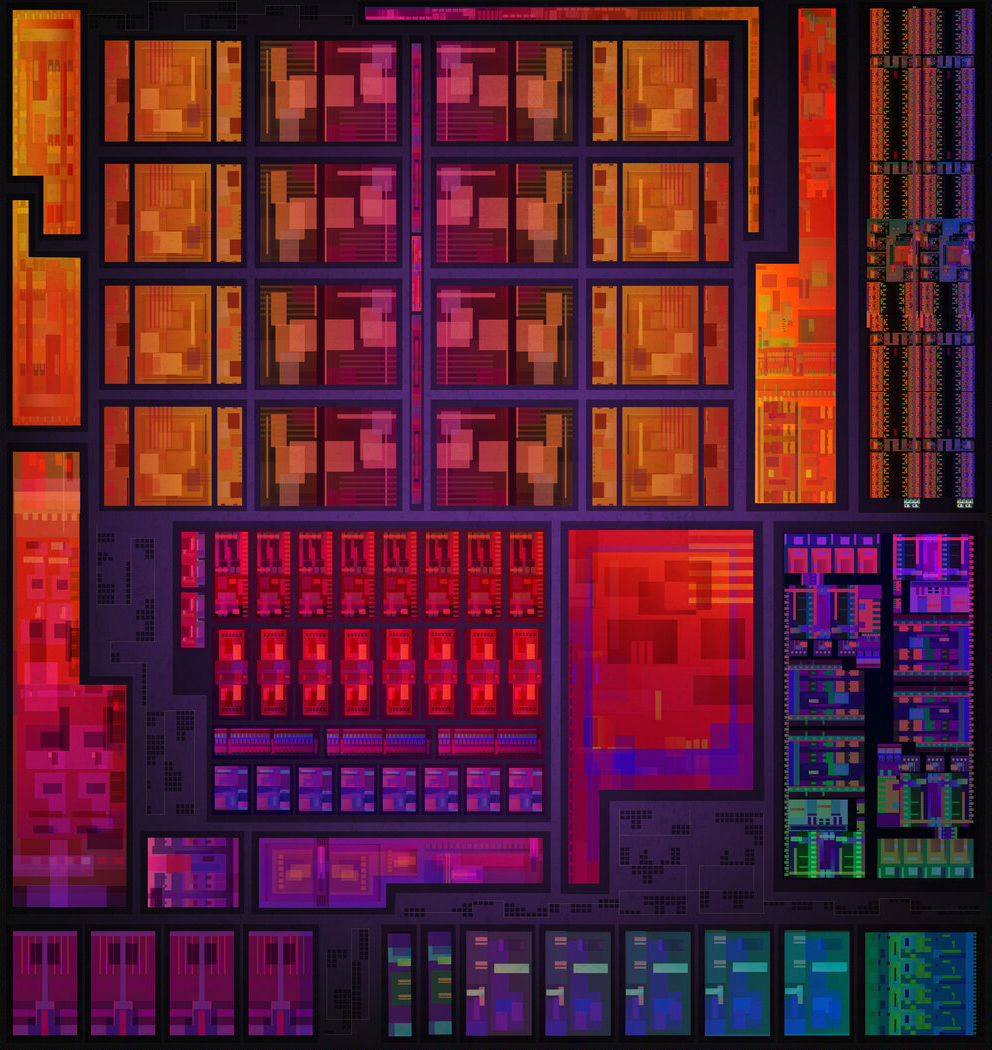

Ryzen 5000G的裸照(来源:AMD)
Ryzen 5000G的裸照(来源:AMD)

通过AMD阵容中的APU,该制造商将笔记本技术带到了桌面空间。AMD Ryzen 5 5600G和 AMD Ryzen 7 5700G都是基于目前的Zen3架构,与它们的笔记本Cezanne对应产品非常相似。然而,这些产品并不完全是新产品,因为AMD Ryzen 3 2200G和AMD Ryzen 5 2400G是第一个基于Zen的APU,拥有快速的iGPU,属于Vega架构。随着去年的小规模重启(AMD Ryzen 3 200G和AMD Ryzen 5 3400G),CPU架构的创新流入了。这同样适用于5000系列的新APU。然而,在iGPU方面有少量的变化。已经存在了几年的Vega架构正在慢慢达到其极限,这在我们的测试中很快就能注意到。不幸的是,即使是高的GPU时钟也不能弥补这么多。

在这次审查中,我们将仔细看看AMD Ryzen 7 5700G,这是AMD德国公司提供给我们的。这个现代APU还首次提供了8个原生处理核心。因此,它是AMD阵容中最快的APU。AMD Ryzen 5 5600G是一款6核APU。Ryzen 7 5700G的功率为65瓦,如果我们局限于CPU性能,它相对来说比较节俭,同时速度也非常快。稍后会有更多关于最快APU的确切位置。

如果你想充分利用这个APU,你必须拥有一块带有400或500系列芯片组的板子。然而,你必须确保板子上有各种显示连接,以便能够完全使用iGPU。这些连接在更昂贵的X570板上相当罕见,所以买家应该把注意力放在装备良好的B550或B450板上。在这次审查中,我们找到了少数能够完全利用APU的X570板子之一--华硕ROG Strix X570-I Gaming。

AMD Ryzen处理器一目了然

型号 内核/线程 基础时钟 涡轮增压时钟 L3缓存 TDP 图形 上市价格
Ryzen 9 5950X 16/32 3.4 GHz 4.9 GHz 64 MB 105 Watt - 799 USD
Ryzen 9 5900X 12/24 3.7 GHz 4.8 GHz 64 MB 105 Watt - 549 USD
Ryzen 7 5800X 8/16 3.8 GHz 4.7 GHz 32 MB 105 Watt - 449 USD
Ryzen 7 5700G 8/16 3.8 GHz 4.6 GHz 16 MB 65 Watt Vega 8 (2.0 GHz) 359 USD
Ryzen 5 5600X 6/12 3.7 GHz 4.6 GHz 32 MB 65 Watt - 299 USD
Ryzen 5 5600G 6/12 3.9 GHz 4.4 GHz 16 MB 65 Watt Vega 7 (1.9 GHz) 259 USD

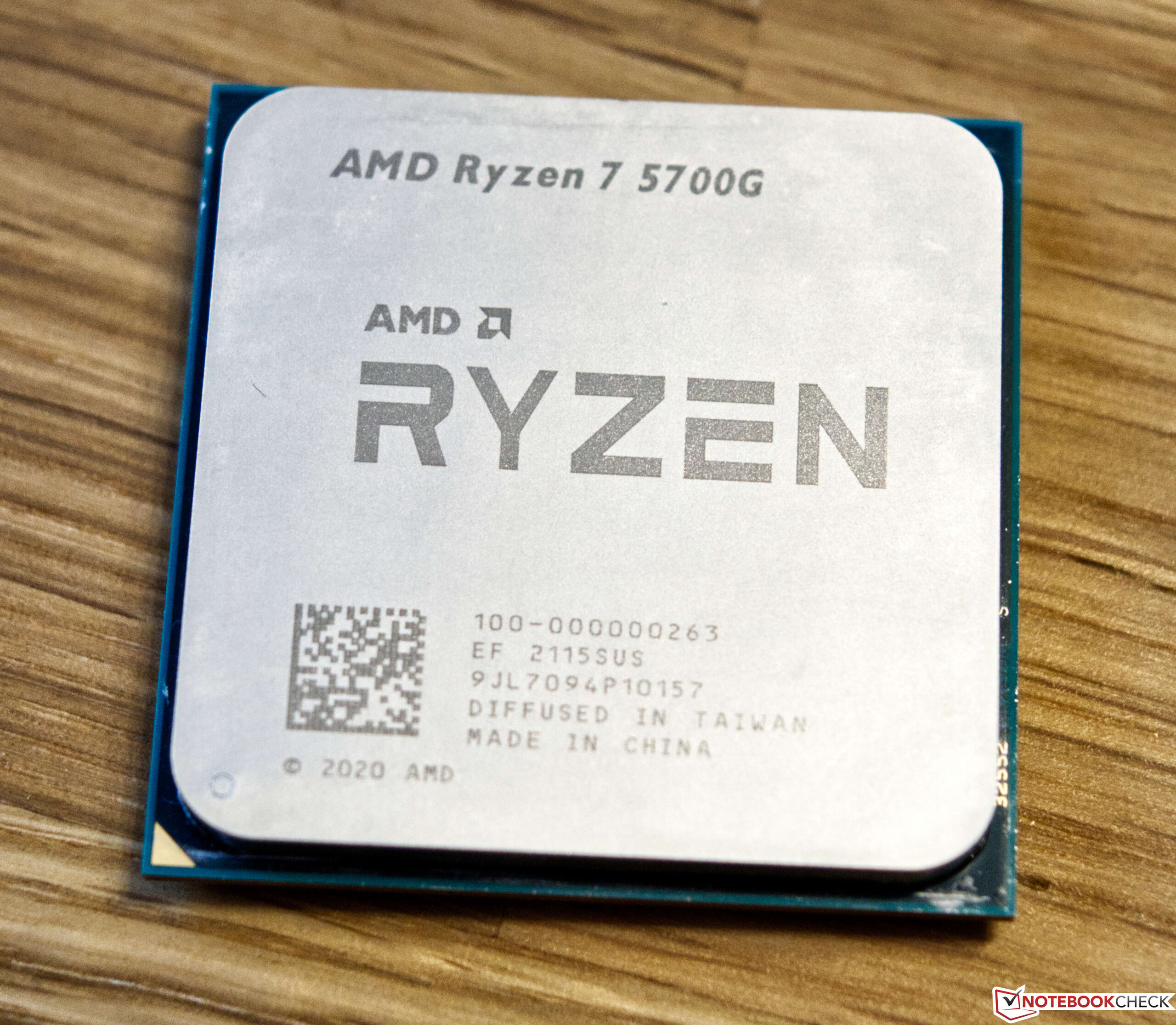

AMD Ryzen 7 5700G
AMD Ryzen 7 5700G

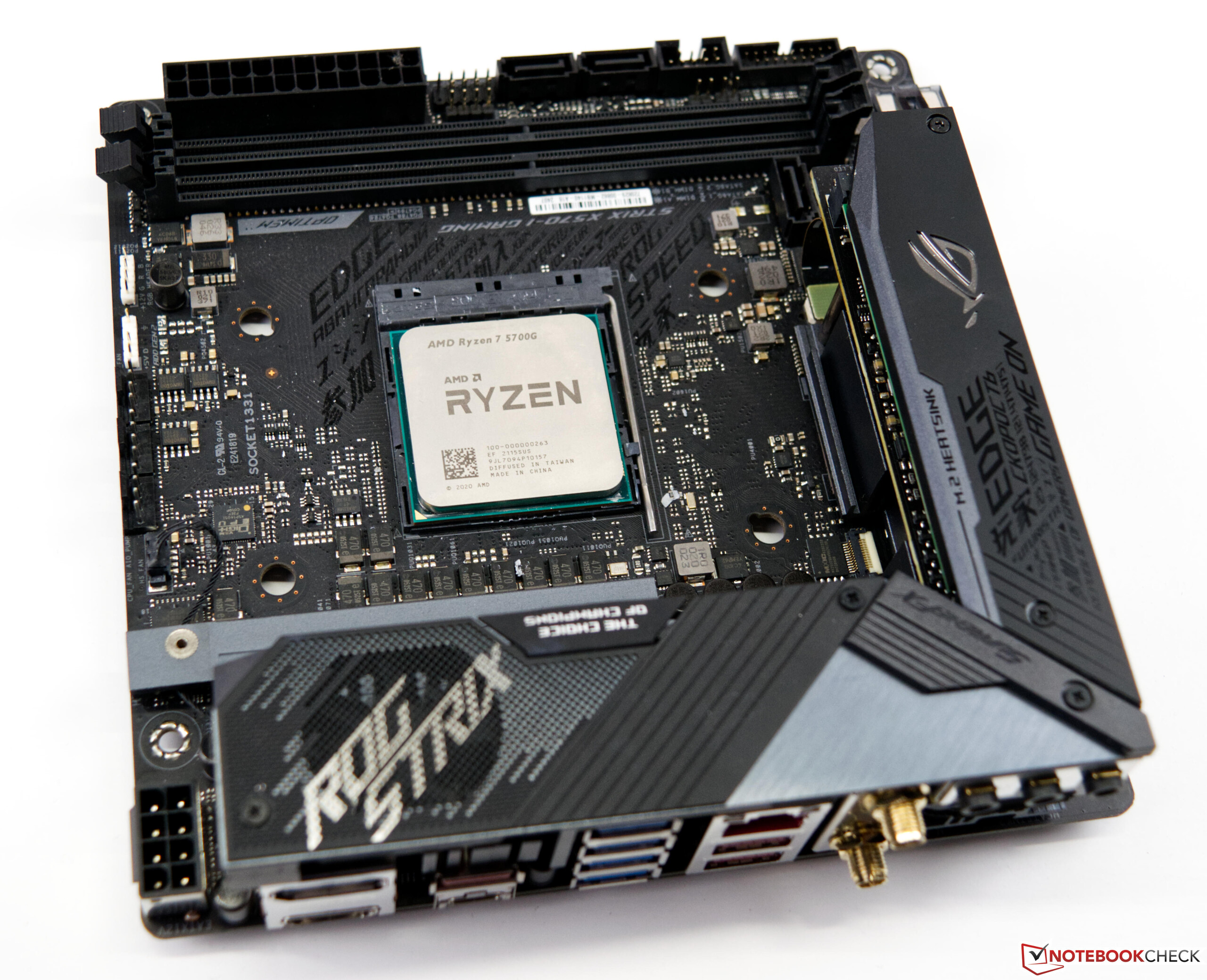

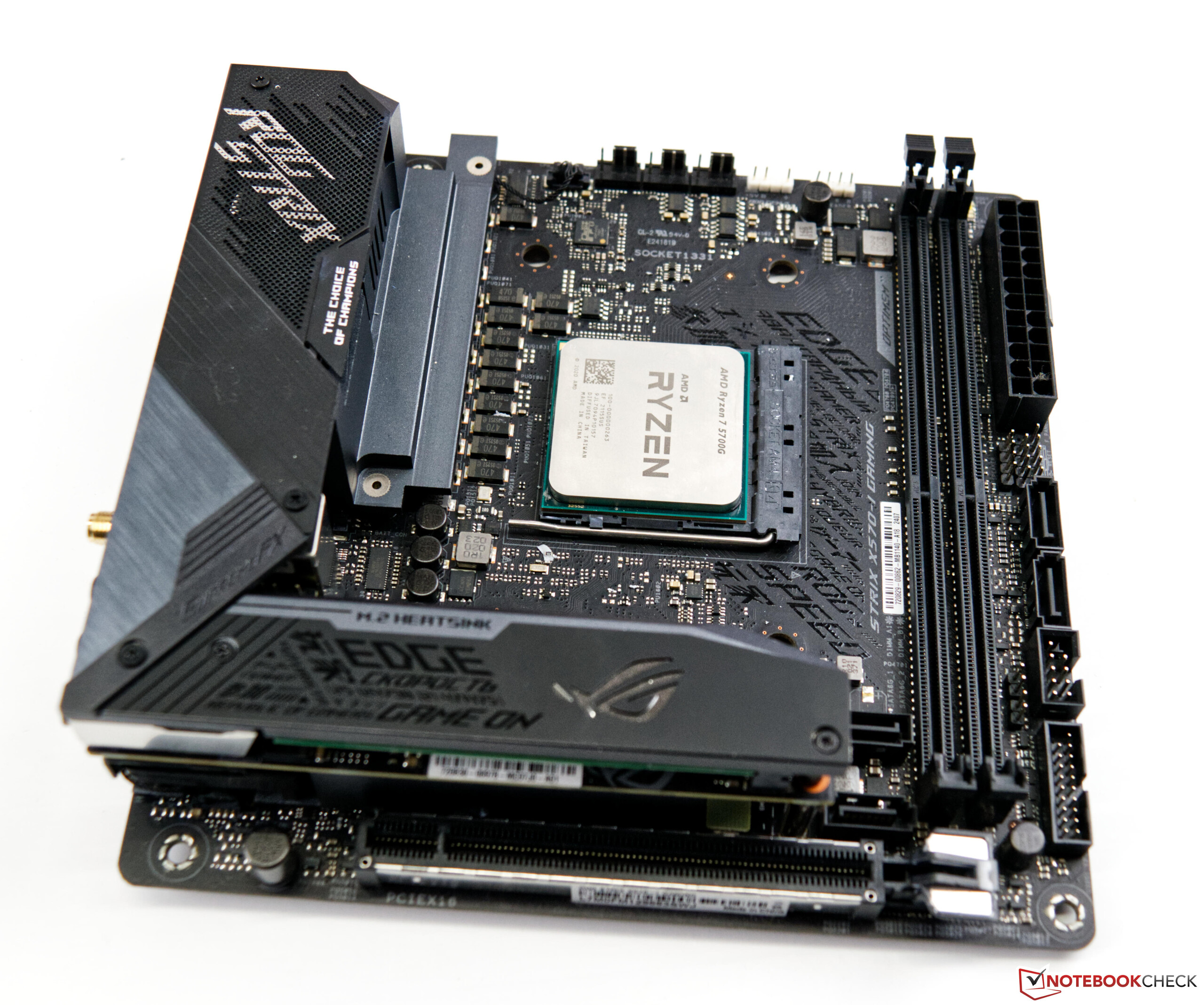

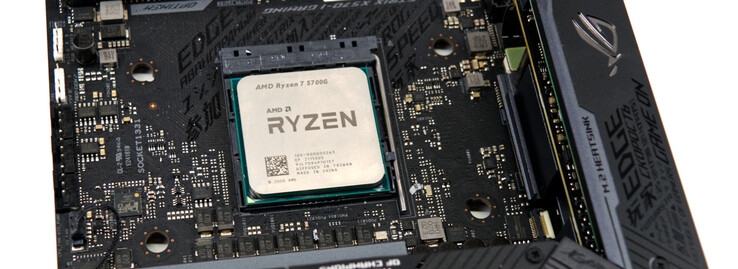

华硕ROG Strix X570-I游戏机配备AMD Ryzen 7 5700G
华硕ROG Strix X570-I游戏机配备AMD Ryzen 7 5700G

关于我们测试系统的细节

我们使用以下系统进行以下基准测试和试验

  • 瑞金泰克培安表
  • AMD Ryzen 7 5700G
  • 华硕ROG Strix X570-I游戏机
  • Alphacool Eisbear 280 AiO
  • 海瑟尔HX 1200i电源
  • Corsair Vengeance RGB Pro DDR4-4000内存套件 2 x 16 GB
  • 2x创见MTE220S SSD 512GB (操作系统+基准测试+游戏)
  • 微软Windows 10专业版64位(21H1版)

在此,我们要感谢凯斯金公司,因为它借出了Raijintek Pean,另外还用激光雕刻进行了个性化处理。AMD提供了Ryzen 7 5700G,在冷却方面,我们使用Alphacool Eisbear 280 AIO,这是由Alphacool提供给我们的。对于内存,我们要感谢Corsair的支持。

处理器基准测试

在我们的CPU基准测试中,Zen 3架构的已知创新也反映在AMD最快的APU上。与AMD Ryzen 7 3800XT相比,单核性能提高了约10%。与同样配备8个核心的AMD Ryzen 7 5800X相比,我们的AMD Ryzen 7 5700G显然被打败了。在性能评级中,该APU在某种程度上与AMD Ryzen 5600X相当,尽管后者由于6个核心,在多线程负载方面有明显的劣势。

更多的处理器基准测试可以在下面找到这里.

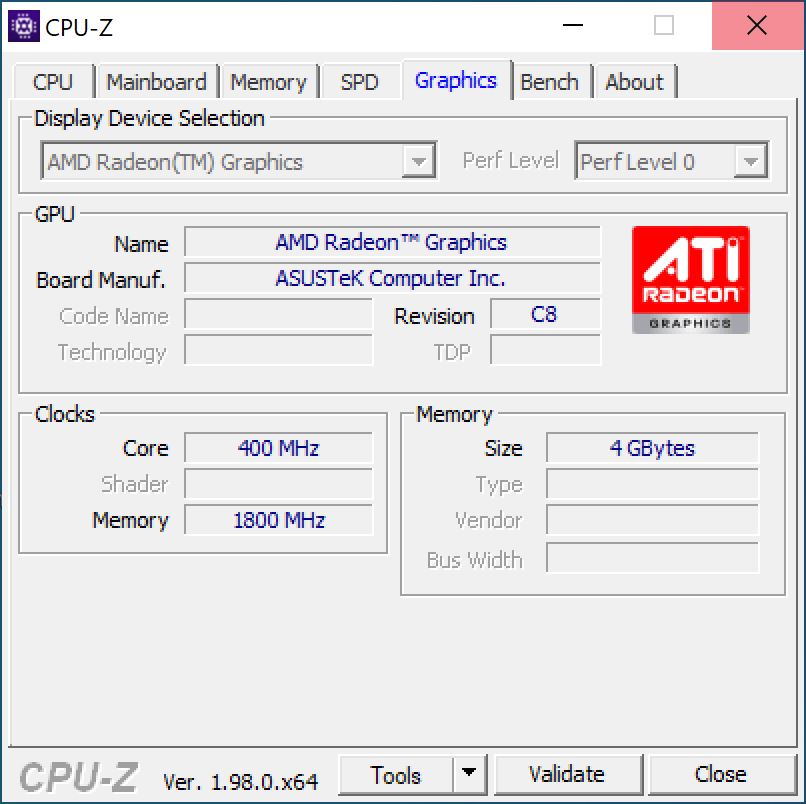

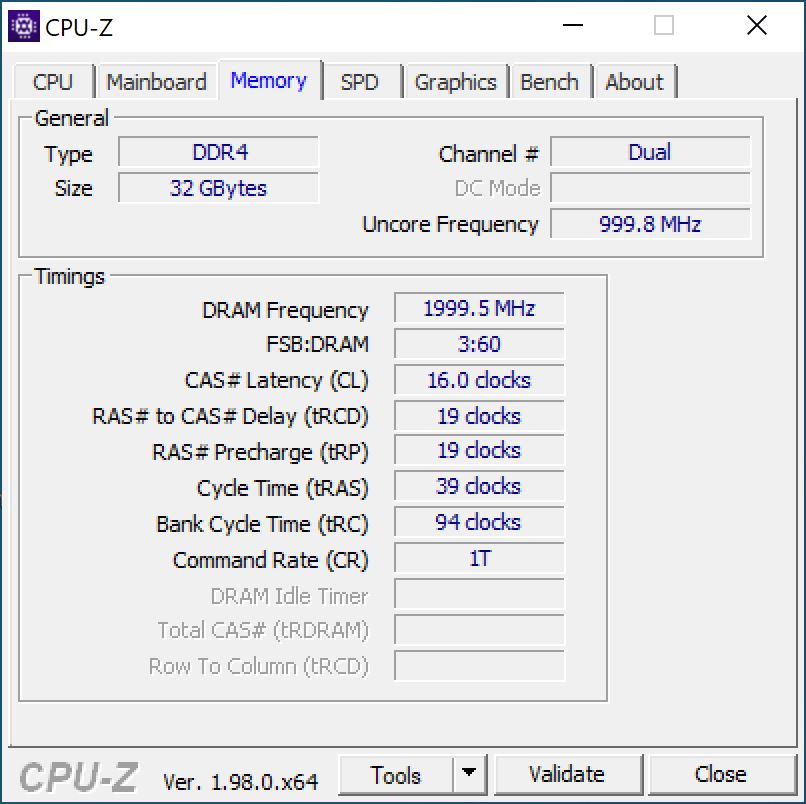

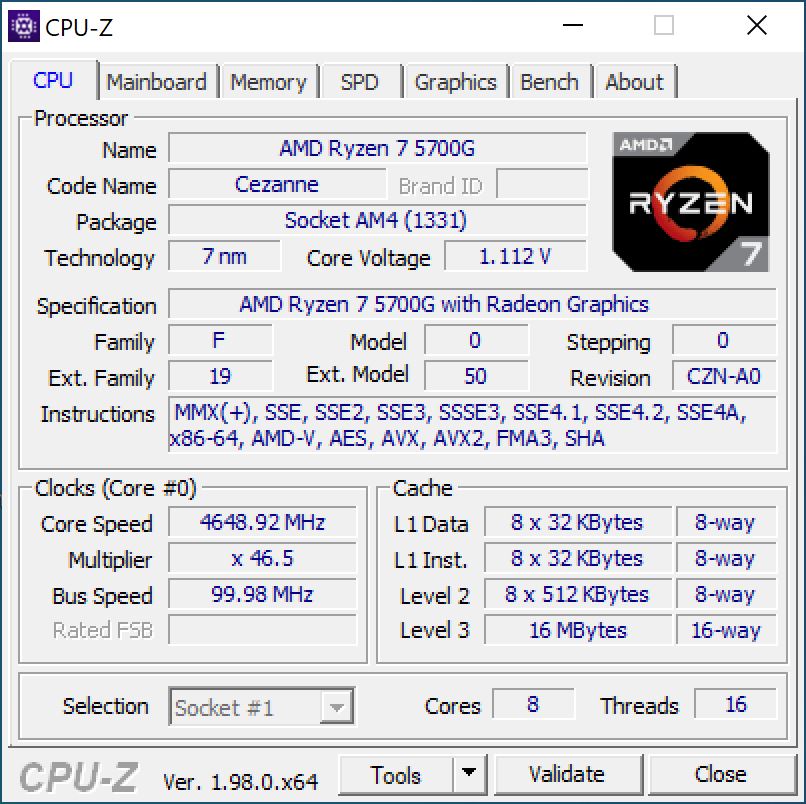

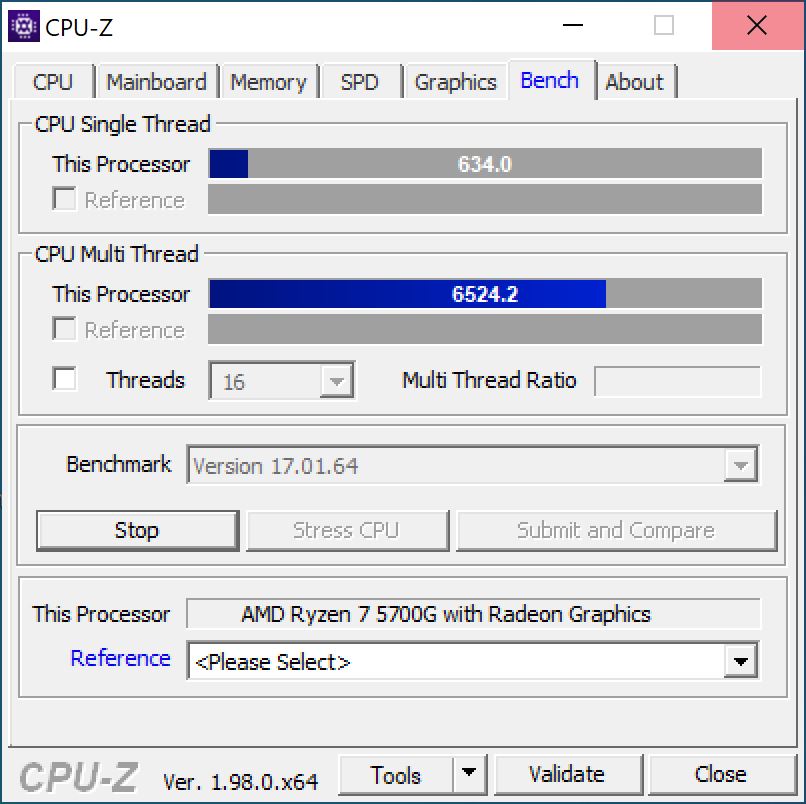

CPU-Z

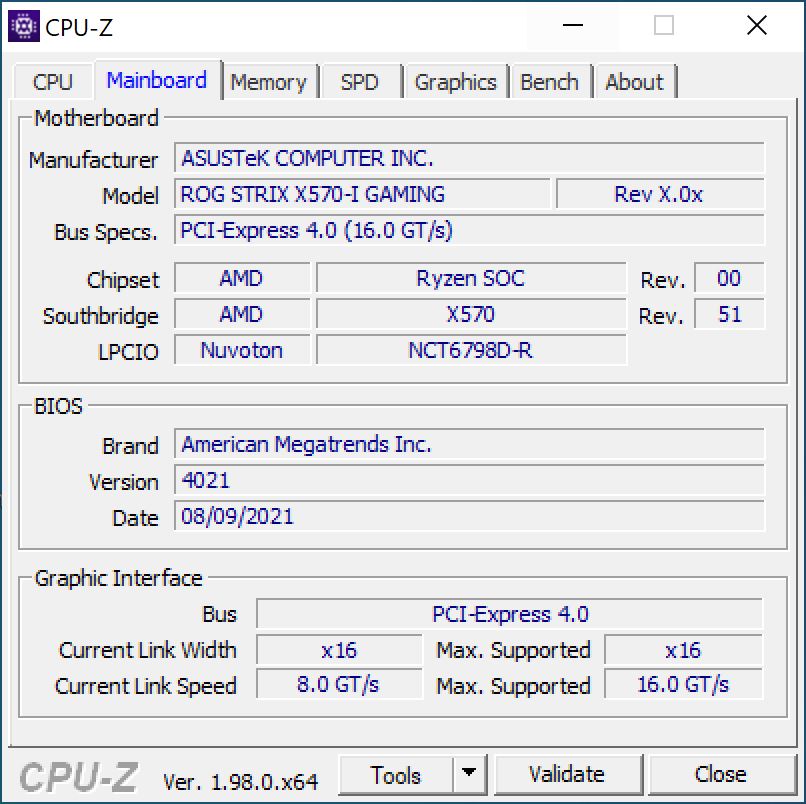

CPU-Z

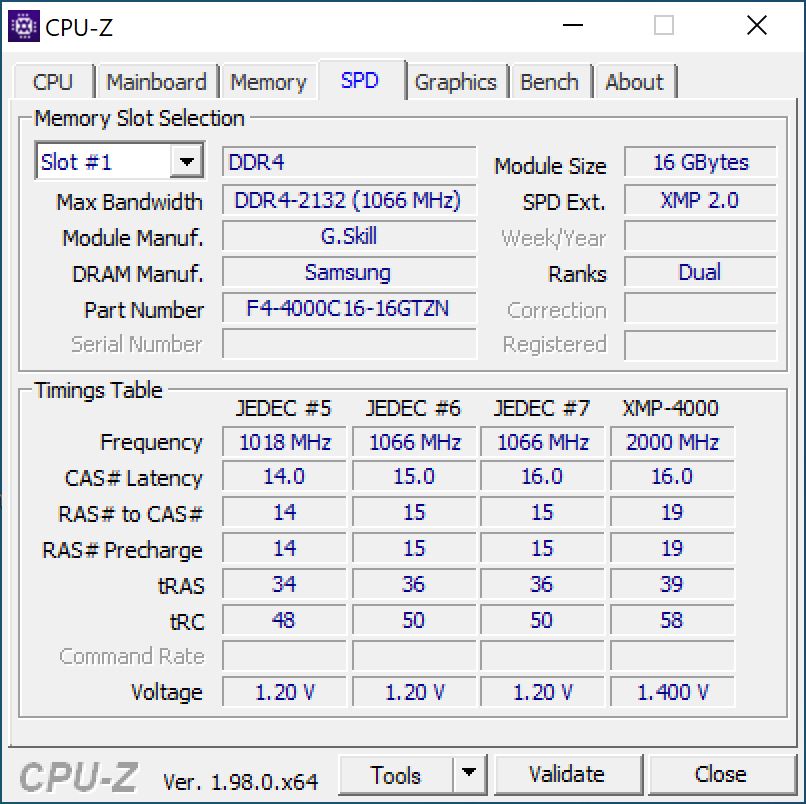

CPU-Z
CPU-Z
CPU-Z
CPU-Z

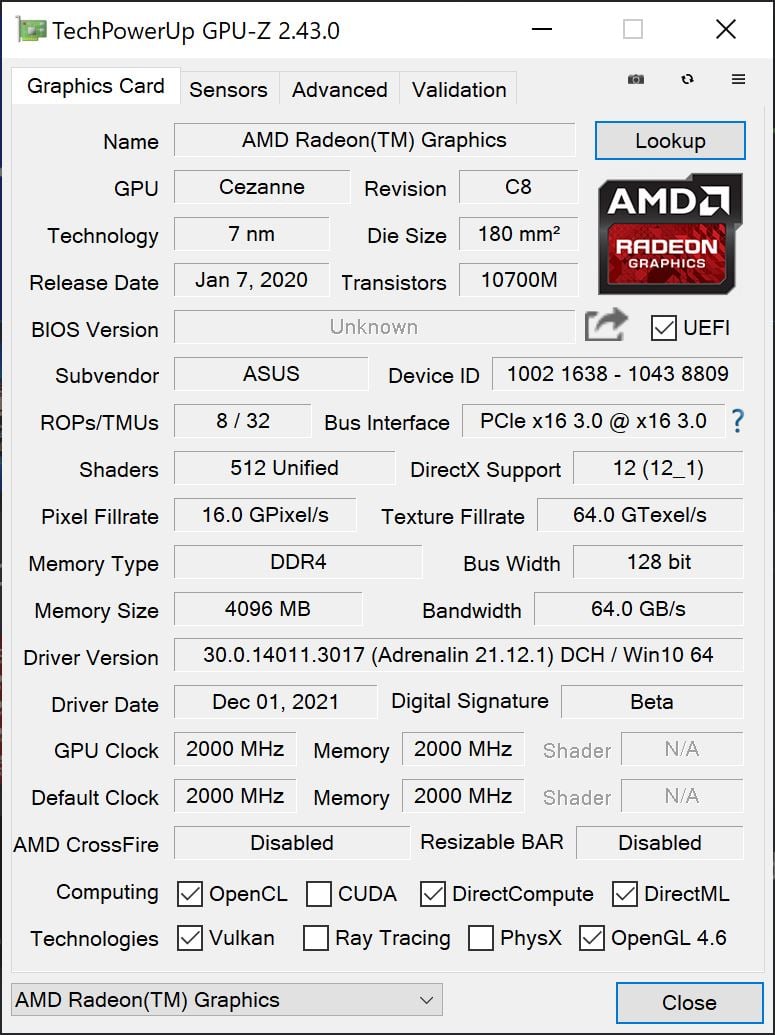

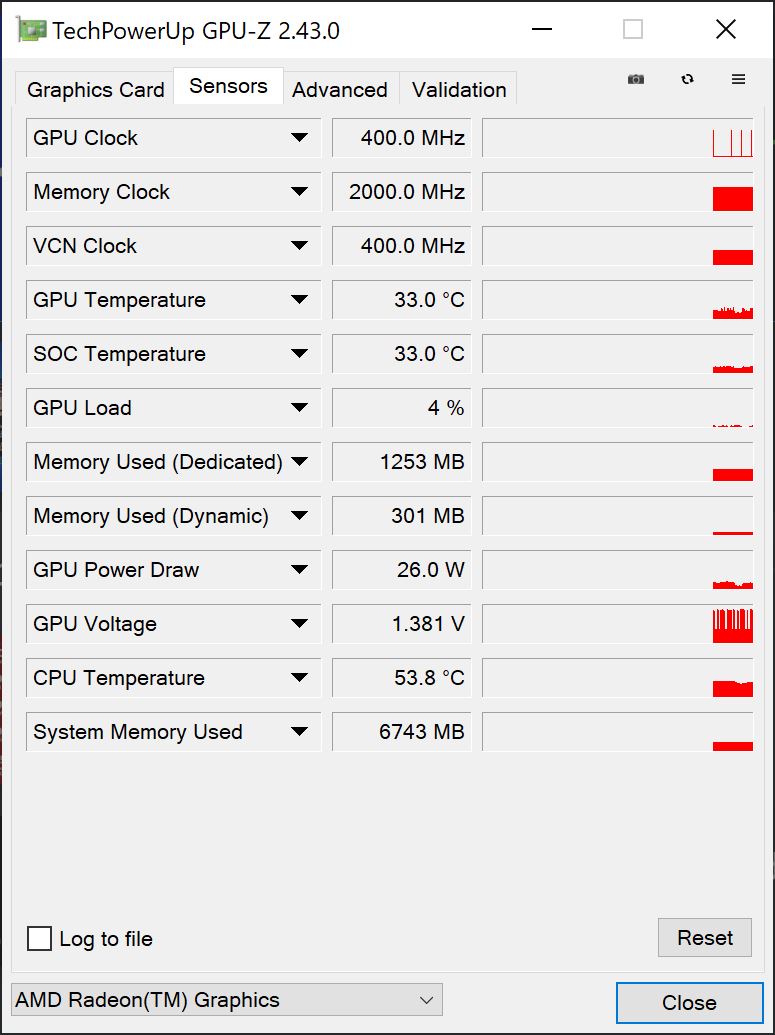

GPU-Z
GPU-Z

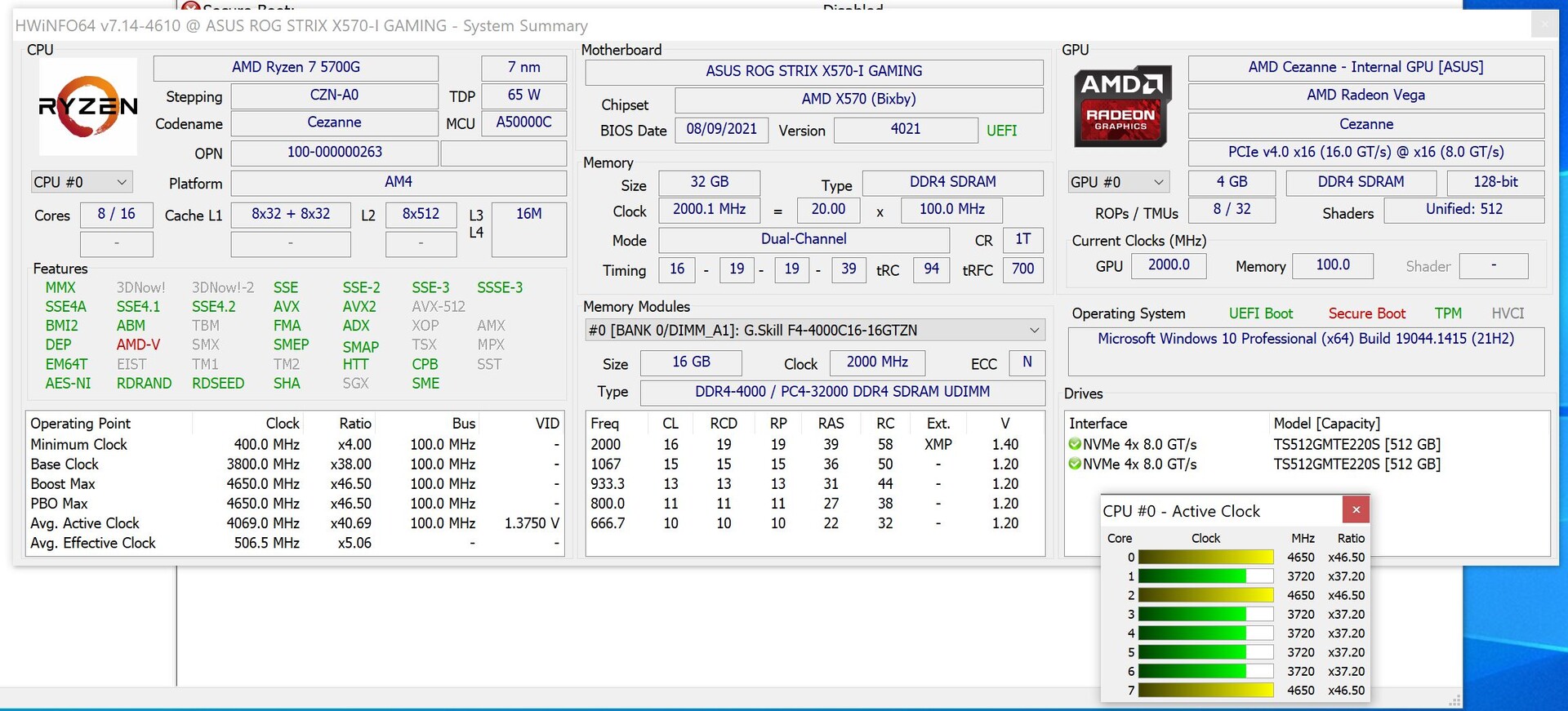

HWiNFO



Performance Rating - Percent
Intel Core i7-12700K
85.5 pt ∼86%
AMD Ryzen 7 5800X
74.7 pt ∼75%
AMD Ryzen 7 5700G
62.6 pt ∼63%
AMD Ryzen 5 5600X
62.3 pt ∼62%
AMD Ryzen 7 3800XT
59.6 pt ∼60%
Cinebench R20
CPU (Single Core)
Intel Core i7-12700K
731 Points ∼100% +25%
AMD Ryzen 7 5800X
625 Points ∼85% +7%
AMD Ryzen 5 5600X
601 Points ∼82% +3%
AMD Ryzen 7 5700G
583 Points ∼80%
AMD Ryzen 7 3800XT
544 Points ∼74% -7%
CPU (Multi Core)
Intel Core i7-12700K
8648 Points ∼100% +61%
AMD Ryzen 7 5800X
6068 Points ∼70% +13%
AMD Ryzen 7 5700G
5371 Points ∼62%
AMD Ryzen 7 3800XT
5120 Points ∼59% -5%
AMD Ryzen 5 5600X
4567 Points ∼53% -15%
Cinebench R15
CPU Single 64Bit
Intel Core i7-12700K
272 Points ∼100% +12%
AMD Ryzen 7 5800X
266 Points ∼98% +10%
AMD Ryzen 5 5600X
254 Points ∼93% +5%
AMD Ryzen 7 5700G
242 Points ∼89%
AMD Ryzen 7 3800XT
219 Points ∼81% -10%
CPU Multi 64Bit
Intel Core i7-12700K
3325 Points ∼100% +49%
AMD Ryzen 7 5800X
2616 Points ∼79% +17%
AMD Ryzen 7 5700G
2234 Points ∼67%
AMD Ryzen 7 3800XT
2230 Points ∼67% 0%
AMD Ryzen 5 5600X
1968 Points ∼59% -12%
Cinebench R11.5
CPU Single 64Bit
Intel Core i7-12700K
3.29 Points ∼100% +16%
AMD Ryzen 7 5800X
3.09 Points ∼94% +9%
AMD Ryzen 5 5600X
2.95 Points ∼90% +4%
AMD Ryzen 7 5700G
2.84 Points ∼86%
AMD Ryzen 7 3800XT
2.36 Points ∼72% -17%
CPU Multi 64Bit
Intel Core i7-12700K
38.38 Points ∼100% +57%
AMD Ryzen 7 5800X
29.31 Points ∼76% +20%
AMD Ryzen 7 5700G
24.37 Points ∼63%
AMD Ryzen 7 3800XT
24.18 Points ∼63% -1%
AMD Ryzen 5 5600X
21.75 Points ∼57% -11%
Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i7-12700K
15179 Points ∼100% +34%
AMD Ryzen 7 5800X
13039 Points ∼86% +15%
AMD Ryzen 5 5600X
12563 Points ∼83% +11%
AMD Ryzen 7 5700G
11351 Points ∼75%
AMD Ryzen 7 3800XT
10497 Points ∼69% -8%
Rendering Multiple CPUs 64Bit
Intel Core i7-12700K
102539 Points ∼100% +44%
AMD Ryzen 7 5800X
83426 Points ∼81% +17%
AMD Ryzen 7 5700G
71162 Points ∼69%
AMD Ryzen 5 5600X
69545 Points ∼68% -2%
AMD Ryzen 7 3800XT
68388 Points ∼67% -4%
Blender 2.79 - BMW27 CPU
AMD Ryzen 5 5600X
260.2 Seconds * ∼100% -22%
AMD Ryzen 7 3800XT
222.7 Seconds * ∼86% -4%
AMD Ryzen 7 5700G
213.6 Seconds * ∼82%
AMD Ryzen 7 5800X
196.8 Seconds * ∼76% +8%
Intel Core i7-12700K
152.3 Seconds * ∼59% +29%
wPrime 2.10
32m
AMD Ryzen 7 5700G
5.067 s * ∼100%
AMD Ryzen 5 5600X
3.891 s * ∼77% +23%
AMD Ryzen 7 3800XT
3.74 s * ∼74% +26%
AMD Ryzen 7 5800X
3.037 s * ∼60% +40%
Intel Core i7-12700K
2.659 s * ∼52% +48%
1024m
Intel Core i7-12700K
171.234 s * ∼100% -89%
AMD Ryzen 5 5600X
113.877 s * ∼67% -26%
AMD Ryzen 7 5700G
90.459 s * ∼53%
AMD Ryzen 7 5800X
86.06 s * ∼50% +5%
AMD Ryzen 7 3800XT
81.36 s * ∼48% +10%
X264 HD Benchmark 4.0
Pass 1
Intel Core i7-12700K
349.5 (349min - 352max) fps ∼100% +23%
AMD Ryzen 7 5800X
339 (338min - 341max) fps ∼97% +19%
AMD Ryzen 5 5600X
320 (319min - 321max) fps ∼92% +13%
AMD Ryzen 7 5700G
284 (283min - 285max) fps ∼81%
AMD Ryzen 7 3800XT
271 (270min - 273max) fps ∼78% -5%
Pass 2
Intel Core i7-12700K
179 (179min - 179max) fps ∼100% +38%
AMD Ryzen 7 5800X
152 (151min - 152max) fps ∼85% +17%
AMD Ryzen 7 5700G
130 (130min - 130max) fps ∼73%
AMD Ryzen 7 3800XT
119 (118min - 119max) fps ∼66% -8%
AMD Ryzen 5 5600X
117 (117min - 117max) fps ∼65% -10%
WinRAR - Result
AMD Ryzen 7 5800X
15604 KB/s ∼100% +86%
AMD Ryzen 5 5600X
13282 KB/s ∼85% +58%
Intel Core i7-12700K
10389 KB/s ∼67% +24%
AMD Ryzen 7 5700G
8401 KB/s ∼54%
AMD Ryzen 7 3800XT
7467 KB/s ∼48% -11%
TrueCrypt
AES Mean 100MB
Intel Core i7-12700K
15.7 GB/s ∼100% +17%
AMD Ryzen 7 5800X
15 GB/s ∼96% +12%
AMD Ryzen 7 5700G
13.4 GB/s ∼85%
AMD Ryzen 7 3800XT
11.4 GB/s ∼73% -15%
AMD Ryzen 5 5600X
10.7 GB/s ∼68% -20%
Twofish Mean 100MB
Intel Core i7-12700K
2.8 GB/s ∼100% +65%
AMD Ryzen 7 3800XT
2 GB/s ∼71% +18%
AMD Ryzen 7 5800X
2 GB/s ∼71% +18%
AMD Ryzen 7 5700G
1.7 GB/s ∼61%
AMD Ryzen 5 5600X
1.5 GB/s ∼54% -12%
Serpent Mean 100MB
Intel Core i7-12700K
1.6 GB/s ∼100% +60%
AMD Ryzen 7 5800X
1.3 GB/s ∼81% +30%
AMD Ryzen 7 3800XT
1.2 GB/s ∼75% +20%
AMD Ryzen 7 5700G
1 GB/s ∼63%
AMD Ryzen 5 5600X
0.938 GB/s ∼59% -6%
Geekbench 5.3
64 Bit Multi-Core Score
Intel Core i7-12700K
15557 Points ∼100% +63%
AMD Ryzen 7 5800X
11354 Points ∼73% +19%
AMD Ryzen 7 5700G
9544 Points ∼61%
AMD Ryzen 5 5600X
8980 Points ∼58% -6%
AMD Ryzen 7 3800XT
8948 Points ∼58% -6%
64 Bit Single-Core Score
Intel Core i7-12700K
1890 Points ∼100% +18%
AMD Ryzen 7 5800X
1665 Points ∼88% +4%
AMD Ryzen 5 5600X
1657 Points ∼88% +4%
AMD Ryzen 7 5700G
1598 Points ∼85%
AMD Ryzen 7 3800XT
1353 Points ∼72% -15%
Geekbench 5.0
64 Bit Multi-Core Score
Intel Core i7-12700K
15440 Points ∼100% +61%
AMD Ryzen 7 5800X
11246 Points ∼73% +18%
AMD Ryzen 7 5700G
9563 Points ∼62%
AMD Ryzen 7 3800XT
9163 Points ∼59% -4%
AMD Ryzen 5 5600X
8926 Points ∼58% -7%
64 Bit Single-Core Score
Intel Core i7-12700K
1835 Points ∼100% +20%
AMD Ryzen 7 5800X
1673 Points ∼91% +10%
AMD Ryzen 5 5600X
1587 Points ∼86% +4%
AMD Ryzen 7 5700G
1525 Points ∼83%
AMD Ryzen 7 3800XT
1360 Points ∼74% -11%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Intel Core i7-12700K
8133 Points ∼100% +21%
AMD Ryzen 7 5800X
7333 Points ∼90% +9%
AMD Ryzen 5 5600X
6953 Points ∼85% +3%
AMD Ryzen 7 5700G
6743 Points ∼83%
AMD Ryzen 7 3800XT
5830 Points ∼72% -14%
64 Bit Multi-Core Score
Intel Core i7-12700K
55786 Points ∼100% +51%
AMD Ryzen 7 5800X
44131 Points ∼79% +19%
AMD Ryzen 7 5700G
36970 Points ∼66%
AMD Ryzen 5 5600X
35617 Points ∼64% -4%
AMD Ryzen 7 3800XT
35526 Points ∼64% -4%
3DMark 11 - 1280x720 Performance Physics
Intel Core i7-12700K
26765 Points ∼100% +46%
AMD Ryzen 7 5800X
23381 Points ∼87% +27%
AMD Ryzen 5 5600X
19649 Points ∼73% +7%
AMD Ryzen 7 3800XT
18905 Points ∼71% +3%
AMD Ryzen 7 5700G
18372 Points ∼69%
7-Zip 18.03
7z b 4
Intel Core i7-12700K
81369 MIPS ∼100% +26%
AMD Ryzen 7 5800X
74306 MIPS ∼91% +15%
AMD Ryzen 7 5700G
64358 MIPS ∼79%
AMD Ryzen 7 3800XT
59247 MIPS ∼73% -8%
AMD Ryzen 5 5600X
56607 MIPS ∼70% -12%
7z b 4 -mmt1
AMD Ryzen 7 5800X
6970 MIPS ∼100% +20%
AMD Ryzen 5 5600X
6594 MIPS ∼95% +13%
Intel Core i7-12700K
6117 MIPS ∼88% +5%
AMD Ryzen 7 5700G
5818 MIPS ∼83%
AMD Ryzen 7 3800XT
5516 MIPS ∼79% -5%
HWBOT x265 Benchmark v2.2 - 4k Preset
Intel Core i7-12700K
26.1 fps ∼100% +55%
AMD Ryzen 7 5800X
20.8 fps ∼80% +24%
AMD Ryzen 7 5700G
16.8 fps ∼64%
AMD Ryzen 7 3800XT
16.1 fps ∼62% -4%
AMD Ryzen 5 5600X
15.7 fps ∼60% -7%
R Benchmark 2.5 - Overall mean
AMD Ryzen 7 3800XT
0.512 sec * ∼100% -5%
AMD Ryzen 7 5700G
0.4896 sec * ∼96%
AMD Ryzen 5 5600X
0.4778 sec * ∼93% +2%
AMD Ryzen 7 5800X
0.4509 sec * ∼88% +8%
Intel Core i7-12700K
0.423 sec * ∼83% +14%
LibreOffice - 20 Documents To PDF
AMD Ryzen 7 5700G
49.8 s * ∼100%
AMD Ryzen 5 5600X
45.14 s * ∼91% +9%
AMD Ryzen 7 3800XT
44.78 s * ∼90% +10%
AMD Ryzen 7 5800X
43.31 s * ∼87% +13%
Intel Core i7-12700K
39.8 s * ∼80% +20%
WebXPRT 3 - ---
Intel Core i7-12700K
306 Points ∼100% +4%
AMD Ryzen 7 5800X
296 Points ∼97% 0%
AMD Ryzen 7 5700G
295 Points ∼96%
AMD Ryzen 5 5600X
286 Points ∼93% -3%
AMD Ryzen 7 3800XT
249 Points ∼81% -16%
Mozilla Kraken 1.1 - Total Score
AMD Ryzen 7 3800XT
683 ms * ∼100% -16%
AMD Ryzen 7 5700G
587 ms * ∼86%
AMD Ryzen 5 5600X
578 ms * ∼85% +2%
AMD Ryzen 7 5800X
558 ms * ∼82% +5%
Intel Core i7-12700K
496 ms * ∼73% +16%
3DMark
3840x2160 Fire Strike Ultra Physics
Intel Core i7-12700K
37324 Points ∼100% +38%
AMD Ryzen 7 5800X
31095 Points ∼83% +15%
AMD Ryzen 7 5700G
27096 Points ∼73%
AMD Ryzen 5 5600X
26038 Points ∼70% -4%
AMD Ryzen 7 3800XT
25286 Points ∼68% -7%
1920x1080 Fire Strike Physics
Intel Core i7-12700K
37079 Points ∼100% +36%
AMD Ryzen 7 5800X
30938 Points ∼83% +13%
AMD Ryzen 7 5700G
27300 Points ∼74%
AMD Ryzen 5 5600X
25990 Points ∼70% -5%
AMD Ryzen 7 3800XT
25132 Points ∼68% -8%
2560x1440 Time Spy CPU
Intel Core i7-12700K
17185 Points ∼100% +76%
AMD Ryzen 7 5800X
11599 Points ∼67% +19%
AMD Ryzen 7 3800XT
10302 Points ∼60% +6%
AMD Ryzen 7 5700G
9743 Points ∼57%
AMD Ryzen 5 5600X
8911 Points ∼52% -9%

* ... smaller is better

乌鸦岭对塞尚

不幸的是,我们没有得到AMD Ryzen 5 3400G,所以我们决定将我们的测试装置与 AMD Ryzen 5 2400G.这是AMD的第一款基于Zen架构的APU。它也非常令人印象深刻地显示了AMD在改进Zen架构方面做了多少修补工作。当然,你不能直接比较多线程测试,因为AMD Ryzen 5 2400G只提供4个原生处理核心,而目前的顶级型号有8个核心。

Performance Rating - Percent
AMD Ryzen 7 5700G
88.4 pt ∼88%
AMD Ryzen 5 2400G
41.6 pt ∼42%
Cinebench R20
CPU (Single Core)
AMD Ryzen 7 5700G
583 Points ∼100%
AMD Ryzen 5 2400G
381 Points ∼65% -35%
CPU (Multi Core)
AMD Ryzen 7 5700G
5371 Points ∼100%
AMD Ryzen 5 2400G
1804 Points ∼34% -66%
Cinebench R15
CPU Single 64Bit
AMD Ryzen 7 5700G
242 Points ∼100%
AMD Ryzen 5 2400G
158 Points ∼65% -35%
CPU Multi 64Bit
AMD Ryzen 7 5700G
2234 Points ∼100%
AMD Ryzen 5 2400G
856 (824.96min - 856.42max) Points ∼38% -62%
Cinebench R11.5
CPU Single 64Bit
AMD Ryzen 7 5700G
2.84 Points ∼100%
AMD Ryzen 5 2400G
1.77 Points ∼62% -38%
CPU Multi 64Bit
AMD Ryzen 7 5700G
24.37 Points ∼100%
AMD Ryzen 5 2400G
9.46 Points ∼39% -61%
Cinebench R10
Rendering Single CPUs 64Bit
AMD Ryzen 7 5700G
11351 Points ∼100%
AMD Ryzen 5 2400G
7495 Points ∼66% -34%
Rendering Multiple CPUs 64Bit
AMD Ryzen 7 5700G
71162 Points ∼100%
AMD Ryzen 5 2400G
30473 Points ∼43% -57%
Blender 2.79 - BMW27 CPU
AMD Ryzen 5 2400G
550 Seconds * ∼100% -157%
AMD Ryzen 7 5700G
213.6 Seconds * ∼39%
wPrime 2.10
32m
AMD Ryzen 5 2400G
6.9 s * ∼100% -36%
AMD Ryzen 7 5700G
5.067 s * ∼73%
1024m
AMD Ryzen 5 2400G
198 s * ∼100% -119%
AMD Ryzen 7 5700G
90.459 s * ∼46%
X264 HD Benchmark 4.0
Pass 1
AMD Ryzen 7 5700G
284 (283min - 285max) fps ∼100%
AMD Ryzen 5 2400G
171.59 (162.5min - 180.43max) fps ∼60% -40%
Pass 2
AMD Ryzen 7 5700G
130 (130min - 130max) fps ∼100%
AMD Ryzen 5 2400G
47.95 (47.59min - 49.17max) fps ∼37% -63%
WinRAR - Result
AMD Ryzen 7 5700G
8401 KB/s ∼100%
AMD Ryzen 5 2400G
3846 KB/s ∼46% -54%
TrueCrypt
AES Mean 100MB
AMD Ryzen 7 5700G
13.4 GB/s ∼100%
AMD Ryzen 5 2400G
5.2 GB/s ∼39% -61%
Twofish Mean 100MB
AMD Ryzen 7 5700G
1.7 GB/s ∼100%
AMD Ryzen 5 2400G
0.808 GB/s ∼48% -52%
Serpent Mean 100MB
AMD Ryzen 7 5700G
1 GB/s ∼100%
AMD Ryzen 5 2400G
0.5 GB/s ∼50% -50%
Geekbench 5.3
64 Bit Multi-Core Score
AMD Ryzen 7 5700G
9544 Points ∼100%
AMD Ryzen 5 2400G
3807 Points ∼40% -60%
64 Bit Single-Core Score
AMD Ryzen 7 5700G
1598 Points ∼100%
AMD Ryzen 5 2400G
970 Points ∼61% -39%
Geekbench 5.0
64 Bit Multi-Core Score
AMD Ryzen 7 5700G
9563 Points ∼100%
AMD Ryzen 5 2400G
3826 Points ∼40% -60%
64 Bit Single-Core Score
AMD Ryzen 7 5700G
1525 Points ∼100%
AMD Ryzen 5 2400G
967 Points ∼63% -37%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
AMD Ryzen 7 5700G
6743 Points ∼100%
AMD Ryzen 5 2400G
4268 Points ∼63% -37%
64 Bit Multi-Core Score
AMD Ryzen 7 5700G
36970 Points ∼100%
AMD Ryzen 5 2400G
13653 Points ∼37% -63%
3DMark 11 - 1280x720 Performance Physics
AMD Ryzen 7 5700G
18372 Points ∼100%
AMD Ryzen 5 2400G
8241 Points ∼45% -55%
7-Zip 18.03
7z b 4
AMD Ryzen 7 5700G
64358 MIPS ∼100%
AMD Ryzen 5 2400G
19885 MIPS ∼31% -69%
7z b 4 -mmt1
AMD Ryzen 7 5700G
5818 MIPS ∼100%
AMD Ryzen 5 2400G
3909 MIPS ∼67% -33%
HWBOT x265 Benchmark v2.2 - 4k Preset
AMD Ryzen 5 2400G
26.5 fps ∼100% +58%
AMD Ryzen 7 5700G
16.8 fps ∼63%
R Benchmark 2.5 - Overall mean
AMD Ryzen 5 2400G
0.683 sec * ∼100% -40%
AMD Ryzen 7 5700G
0.4896 sec * ∼72%
LibreOffice - 20 Documents To PDF
AMD Ryzen 5 2400G
83.9 s * ∼100% -68%
AMD Ryzen 7 5700G
49.8 s * ∼59%
WebXPRT 3 - ---
AMD Ryzen 7 5700G
295 Points ∼100%
AMD Ryzen 5 2400G
170 Points ∼58% -42%
Mozilla Kraken 1.1 - Total Score
AMD Ryzen 5 2400G
1000 ms * ∼100% -70%
AMD Ryzen 7 5700G
587 ms * ∼59%
3DMark
1920x1080 Fire Strike Physics
AMD Ryzen 7 5700G
27300 Points ∼100%
AMD Ryzen 5 2400G
10863 Points ∼40% -60%
2560x1440 Time Spy CPU
AMD Ryzen 7 5700G
9743 Points ∼100%
AMD Ryzen 5 2400G
3630 Points ∼37% -63%

* ... smaller is better

用Cinebench R15多环路进行负载测试

AMD Ryzen 7 5700G在Cinebench R15多环路的压力测试中没有问题。65瓦的废热不需要大型的冷却结构,因此安装AiO和280毫米的散热器已经有点多余了。

01002003004005006007008009001000110012001300140015001600170018001900200021002200230024002500Tooltip
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø2227 (2208.24-2244.79)
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, AMD Ryzen 7 5800X: Ø2579 (2569.37-2596.05)
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, AMD Ryzen 5 5600X: Ø1948 (1942.12-1954.65)

新型塞尚APU的游戏性能

AMD Ryzen 7 5700G提供了一个坚实的iGPUAMD Radeon RX Vega 8 ,这一点我们已经知道几年了。然而,与此同时,这个集成图形单元发现越来越难在英特尔的竞争中坚持自己的立场。凭借AMD Radeon RX Vega 8 ,通常出现在笔记本中的桌面分支,AMD几乎可以控制住英特尔的iGPU。与NvidiaGeForce MX450 相比,AMD Ryzen 7 5700G的iGPU也同样快。但与NvidiaGeForce GTX 1650 Mobile 相比,iGPU很快达到极限,明显不如专用显卡。未来AMD的RembrandtAPU aka Ryzen 6000 with RDNA2可能会缩小这里的差距。

关于更多的比较和基准,请参考我们的GPU比较表.

Performance Rating - Percent
Average NVIDIA GeForce GTX 1650 Mobile

100 pt ∼100%
AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 5700G
55.9 pt ∼56%
Average NVIDIA GeForce MX450

53.7 pt ∼54%
Average Intel Iris Xe Graphics G7 96EUs

48.5 pt ∼49%
Average Intel Iris Xe Graphics G7 80EUs

37.5 pt ∼38%
MSI B350I Pro AC - DDR4-2933 - 2GB GPU
AMD Radeon RX Vega 11, AMD Ryzen 5 2400G
37.3 pt ∼37%
Average NVIDIA GeForce MX330

36.6 pt ∼37%
Average Intel UHD Graphics 630

13.9 pt ∼14%
Average Intel UHD Graphics 620

13.4 pt ∼13%
3DMark 11 - 1280x720 Performance GPU
Average NVIDIA GeForce GTX 1650 Mobile
  (10885 - 13575, n=28)
12860 Points ∼100% +69%
Average NVIDIA GeForce MX450
  (6341 - 9580, n=13)
8076 Points ∼63% +6%
AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 5700G
7591 Points ∼59%
Average Intel Iris Xe Graphics G7 96EUs
  (2942 - 7115, n=76)
6378 Points ∼50% -16%
MSI B350I Pro AC - DDR4-2933 - 2GB GPU
AMD Radeon RX Vega 11, AMD Ryzen 5 2400G
5475 Points ∼43% -28%
Average Intel Iris Xe Graphics G7 80EUs
  (3860 - 6120, n=38)
5281 Points ∼41% -30%
Average NVIDIA GeForce MX330
  (4616 - 4863, n=4)
4787 Points ∼37% -37%
Average Intel UHD Graphics 620
  (1144 - 2006, n=241)
1742 Points ∼14% -77%
Average Intel UHD Graphics 630
  (642 - 2025, n=12)
1742 Points ∼14% -77%
3DMark
1280x720 Cloud Gate Standard Graphics
Average NVIDIA GeForce GTX 1650 Mobile
  (38016 - 66073, n=20)
55777 Points ∼100% +54%
AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 5700G
36134 Points ∼65%
Average NVIDIA GeForce MX450
  (25467 - 33806, n=10)
28203 Points ∼51% -22%
Average Intel Iris Xe Graphics G7 96EUs
  (19487 - 38040, n=67)
27186 Points ∼49% -25%
Average Intel Iris Xe Graphics G7 80EUs
  (13599 - 30894, n=33)
20926 Points ∼38% -42%
MSI B350I Pro AC - DDR4-2933 - 2GB GPU
AMD Radeon RX Vega 11, AMD Ryzen 5 2400G
20848 Points ∼37% -42%
Average NVIDIA GeForce MX330
  (15595 - 23580, n=3)
19968 Points ∼36% -45%
Average Intel UHD Graphics 630
  (3863 - 11199, n=9)
9333 Points ∼17% -74%
Average Intel UHD Graphics 620
  (6205 - 11437, n=222)
9232 Points ∼17% -74%
1920x1080 Fire Strike Graphics
Average NVIDIA GeForce GTX 1650 Mobile
  (7741 - 9810, n=30)
9220 Points ∼100% +83%
AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 5700G
5041 Points ∼55%
Average Intel Iris Xe Graphics G7 96EUs
  (3073 - 5909, n=82)
4914 Points ∼53% -3%
Average NVIDIA GeForce MX450
  (4336 - 5573, n=14)
4761 Points ∼52% -6%
Average NVIDIA GeForce MX330
  (3581 - 3838, n=3)
3727 Points ∼40% -26%
Average Intel Iris Xe Graphics G7 80EUs
  (2026 - 4846, n=39)
3553 Points ∼39% -30%
MSI B350I Pro AC - DDR4-2933 - 2GB GPU
AMD Radeon RX Vega 11, AMD Ryzen 5 2400G
3476 Points ∼38% -31%
Average Intel UHD Graphics 630
  (722 - 1472, n=11)
1228 Points ∼13% -76%
Average Intel UHD Graphics 620
  (557 - 1444, n=210)
1154 Points ∼13% -77%
2560x1440 Time Spy Graphics
Average NVIDIA GeForce GTX 1650 Mobile
  (2909 - 3700, n=29)
3445 Points ∼100% +121%
Average NVIDIA GeForce MX450
  (1086 - 2300, n=13)
1713 Points ∼50% +10%
AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 5700G
1557 Points ∼45%
Average Intel Iris Xe Graphics G7 96EUs
  (783 - 1819, n=81)
1464 Points ∼42% -6%
Average NVIDIA GeForce MX330
  (1059 - 1190, n=3)
1136 Points ∼33% -27%
Average Intel Iris Xe Graphics G7 80EUs
  (743 - 1408, n=38)
1126 Points ∼33% -28%
MSI B350I Pro AC - DDR4-2933 - 2GB GPU
AMD Radeon RX Vega 11, AMD Ryzen 5 2400G
1085 Points ∼31% -30%
Average Intel UHD Graphics 630
  (367 - 459, n=10)
410 Points ∼12% -74%
Average Intel UHD Graphics 620
  (299 - 760, n=85)
384 Points ∼11% -75%
3DMark 06 Standard Score
33790 points
3DMark 11 Performance
8050 points
3DMark Ice Storm Standard Score
153170 points
3DMark Cloud Gate Standard Score
30291 points
3DMark Fire Strike Score
4590 points
3DMark Fire Strike Extreme Score
2071 points
3DMark Time Spy Score
1781 points
Help

游戏性能

那些不愿意购买高价显卡的人可能会对AMD APU感到满意。然而,应该提到的是,其性能仅能满足当前游戏的部分需求。总之,由于台式电脑有良好的冷却效果,iGPU可以很容易地释放其全部性能,而在紧凑型笔记本电脑中这可能是一个问题。总的来说, AMD Radeon RX Vega 8中的 AMD Ryzen 7 5700G提供了一个适度的游戏性能。较早的作品可以毫无问题地播放,尽管你必须仔细观察,例如在《最终幻想15》中。另一方面,《GTA V》甚至可以在1080p下流畅地呈现高细节。

low med. high ultraQHD4K
GTA V (2015) 160 148 40.6 18.2 13.1 12.5 fps
Dota 2 Reborn (2015) 152 122.3 76.7 72 28.3 fps
Rise of the Tomb Raider (2016) 58.8 41.3 24 9.28 19 fps
Final Fantasy XV Benchmark (2018) 50.1 25 17.7 12.9 7.11 fps
X-Plane 11.11 (2018) 64.9 49.6 43.1 23.9 fps
Far Cry 5 (2018) 71 34 31 29 19 9 fps
Strange Brigade (2018) 117 45.3 37.7 32.1 21.6 11.5 fps
Shadow of the Tomb Raider (2018) 75.3 27.7 25.2 21.8 13.8 6.8 fps
Far Cry New Dawn (2019) 66 32 30 28 19 9 fps
Metro Exodus (2019) 54.7 24.1 17.8 14.8 11.2 6.6 fps
Borderlands 3 (2019) 82.2 31.7 19.6 14.9 9.9 5.05 fps
F1 2020 (2020) 127 58.9 44.6 30.9 21.2 11.1 fps
F1 2021 (2021) 134 58.2 45.9 30.2 21.8 12 fps
Far Cry 6 (2021) 62.1 29.7 20.5 12.7 fps
Forza Horizon 5 (2021) 99 41 35 19 14 8 fps

消耗功率

压力测试中的AMD Ryzen 7 5700G
压力测试中的AMD Ryzen 7 5700G

AMD指定的TDP为65瓦。Ryzen 7 5700G.然而,在负载情况下,这可以增加1.35倍。我们在压力测试中能够验证这一点,因为APU的最大功耗略低于87瓦。由于安装了AiO,温度方面没有问题。在Prime95负载测试中,我们记录的最高温度为57℃。

在能源消耗方面,基于AMD Ryzen 7 5700G的系统可以显示出良好的速率。空闲时的功耗为45瓦。然而,我们测量了全负荷时的最大功率为156瓦(压力测试Prime95 + FurMark)。当游戏时,该系统平均只需93瓦就能满足--与带有专用显卡的台式机系统相比,这是一个明显的优势,后者的TDP通常为200瓦或更多。

注:所有的测量都没有考虑到显示器的功耗,所有的ARGB照明都被停用了。

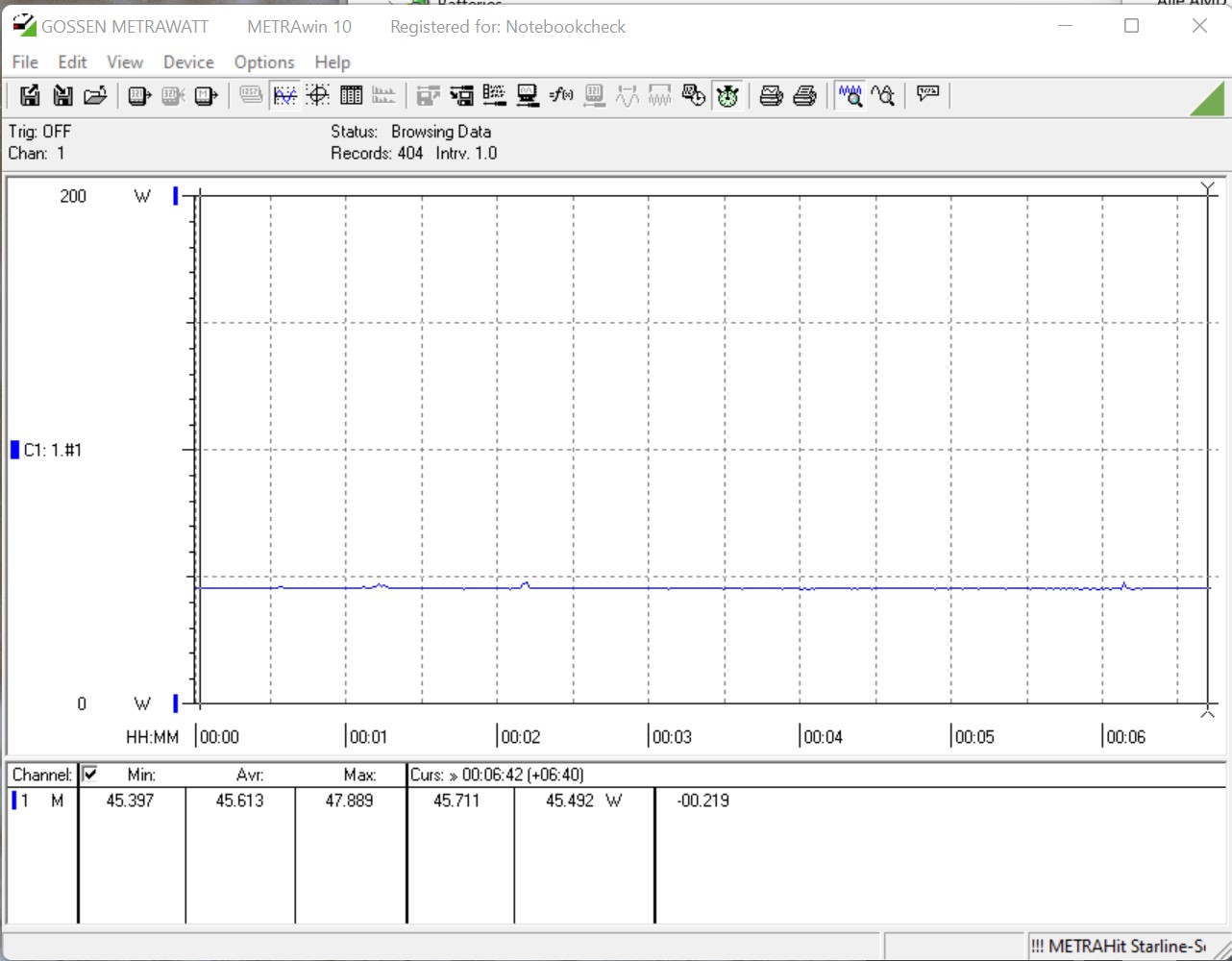

消耗功率测试系统(空闲时)
消耗功率测试系统(空闲时)

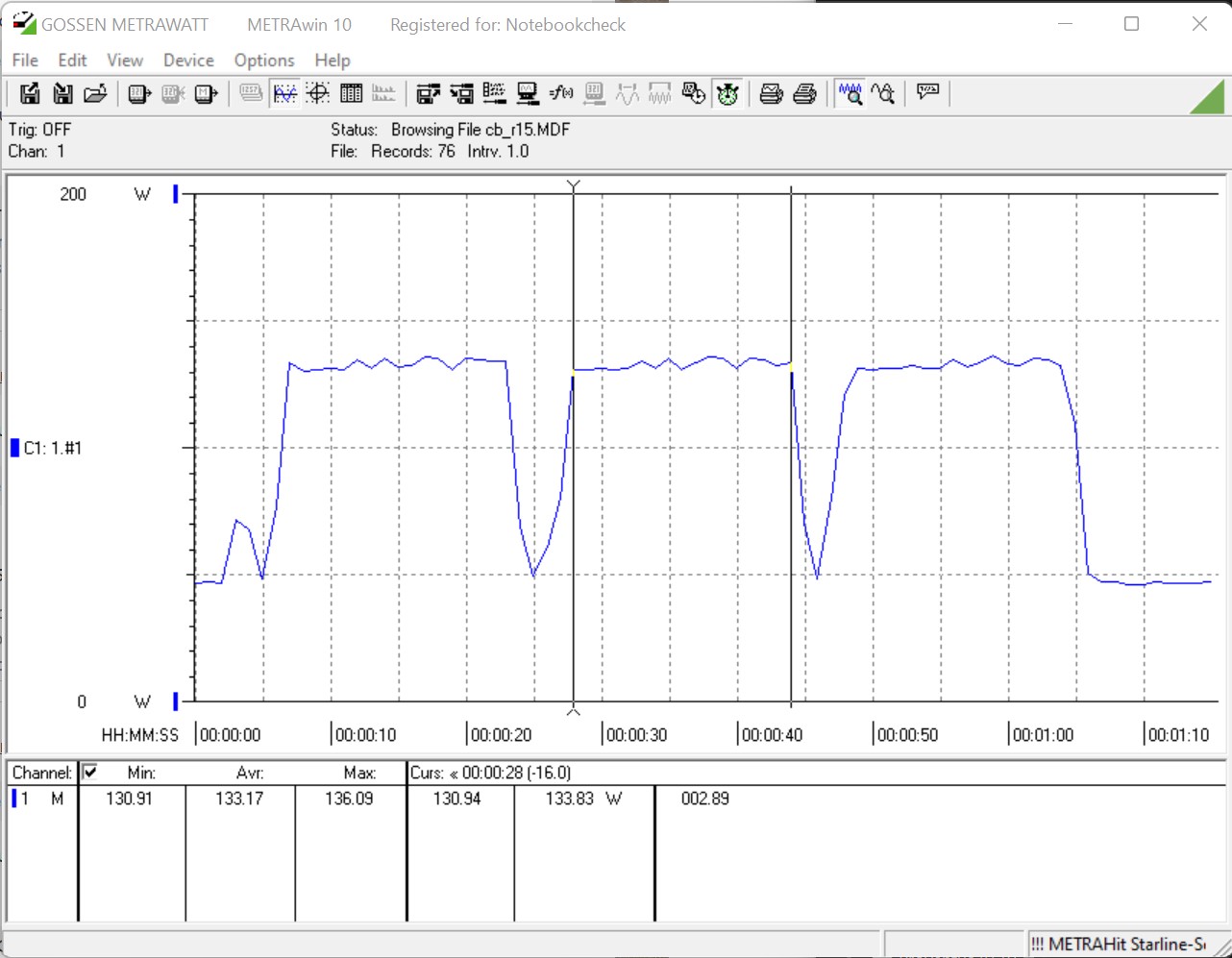

功率消耗测试系统(Cinebench R15 Multi)。
功率消耗测试系统(Cinebench R15 Multi)。

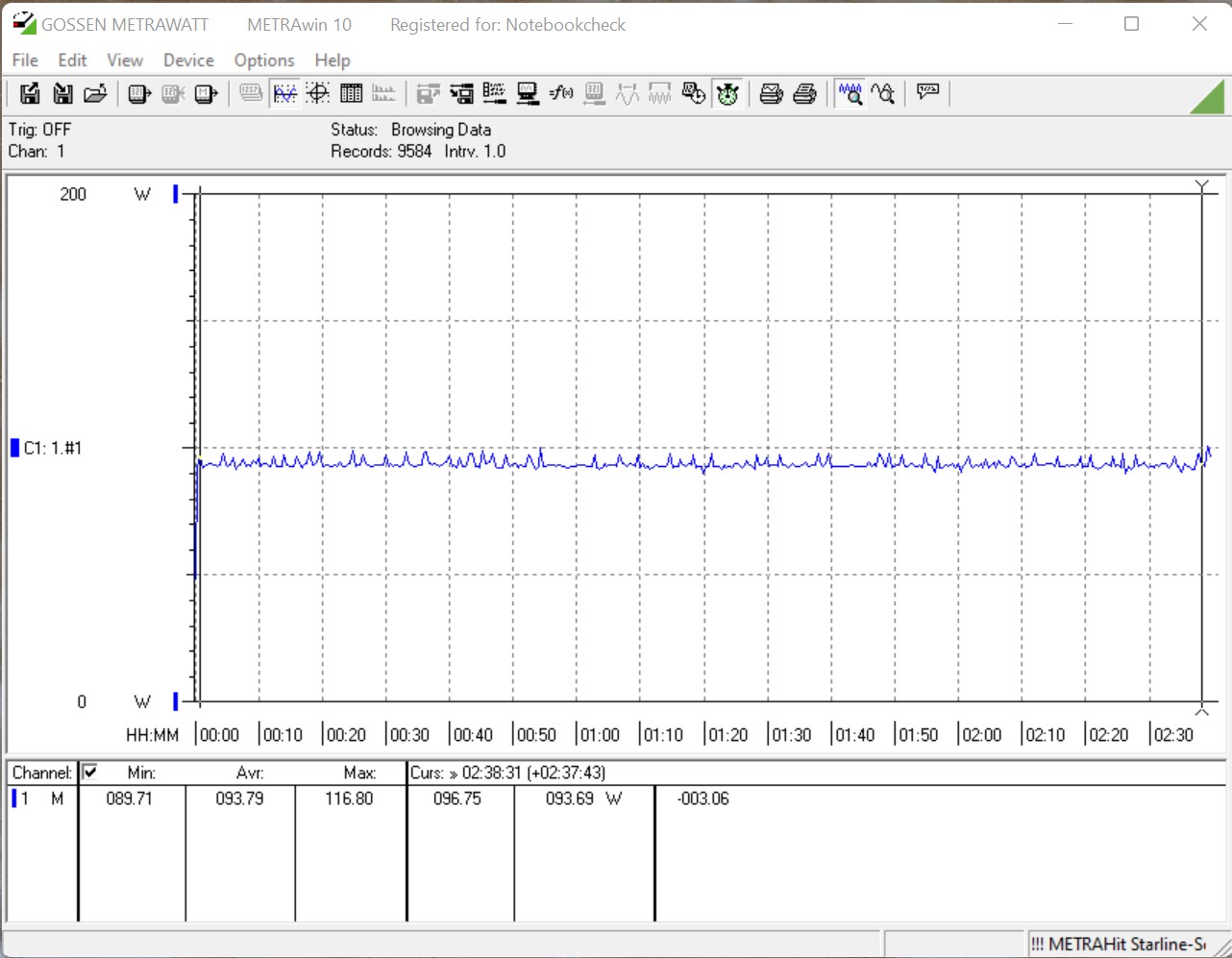

耗电量测试系统(FurMark)
耗电量测试系统(FurMark)

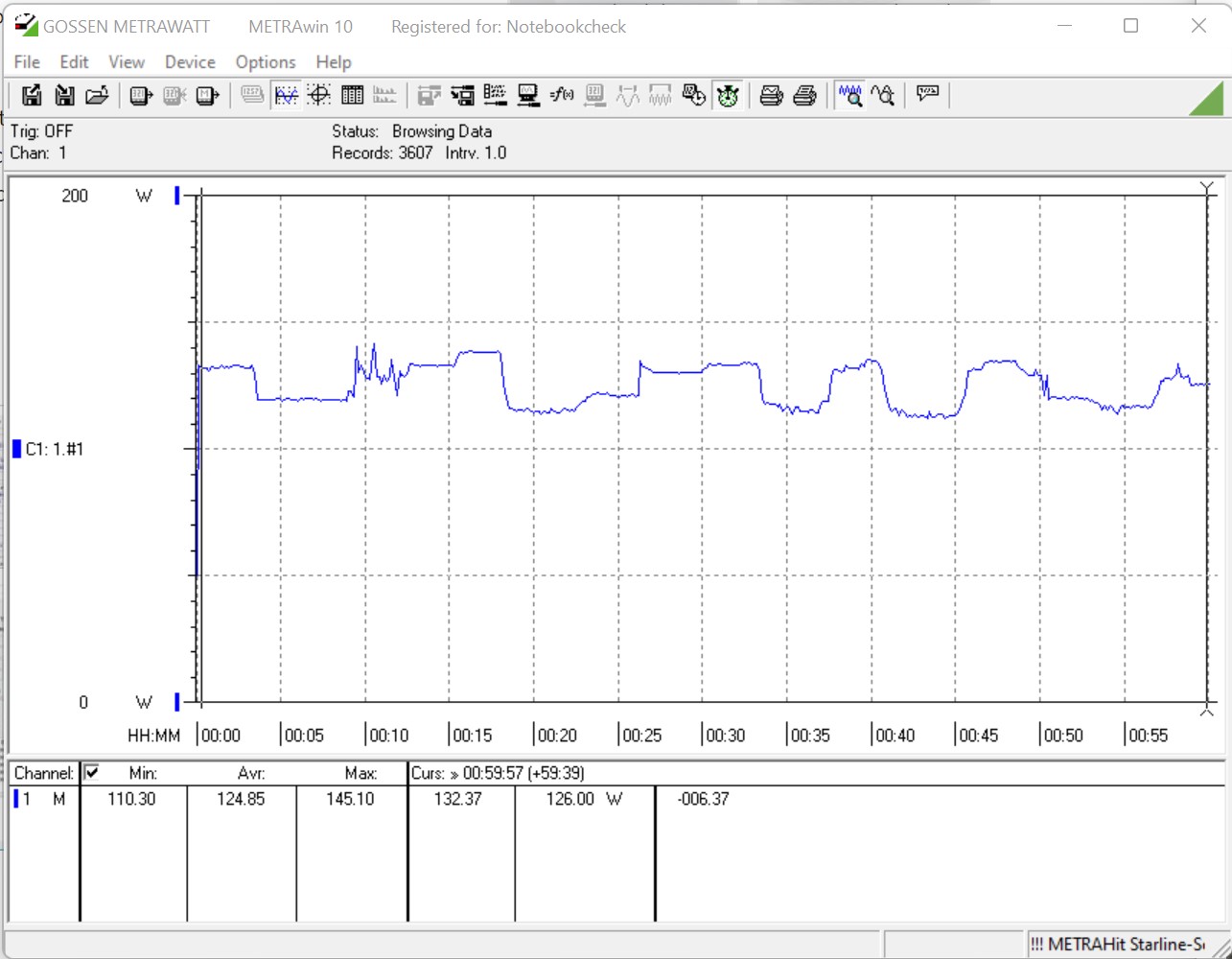

功率消耗测试系统(Prime95)
功率消耗测试系统(Prime95)

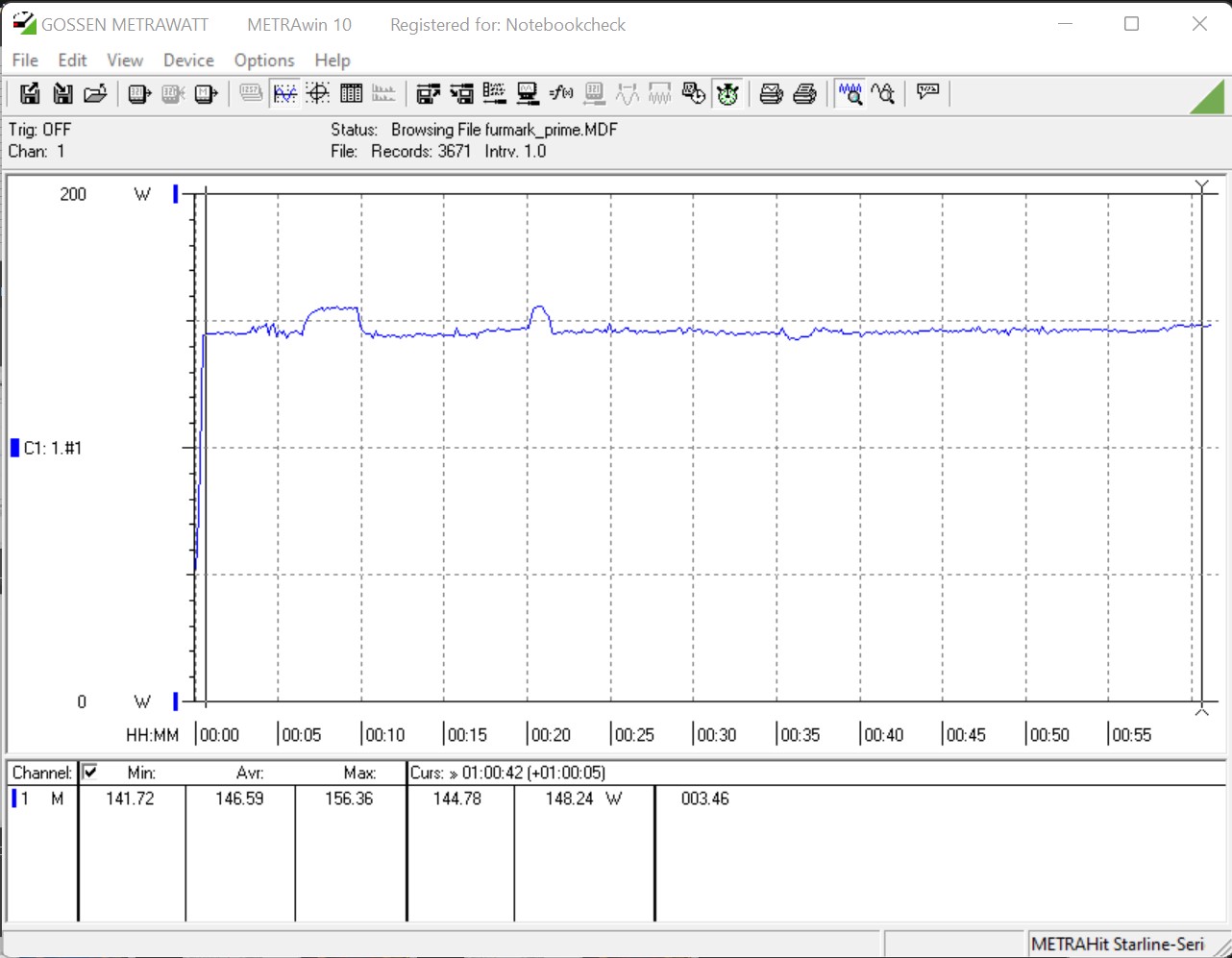

功耗测试系统(Prime95 + FurMark)
功耗测试系统(Prime95 + FurMark)
功耗测试系统(游戏时--TheWitcher 3 Ultra-Preset)
功耗测试系统(游戏时--TheWitcher 3 Ultra-Preset)

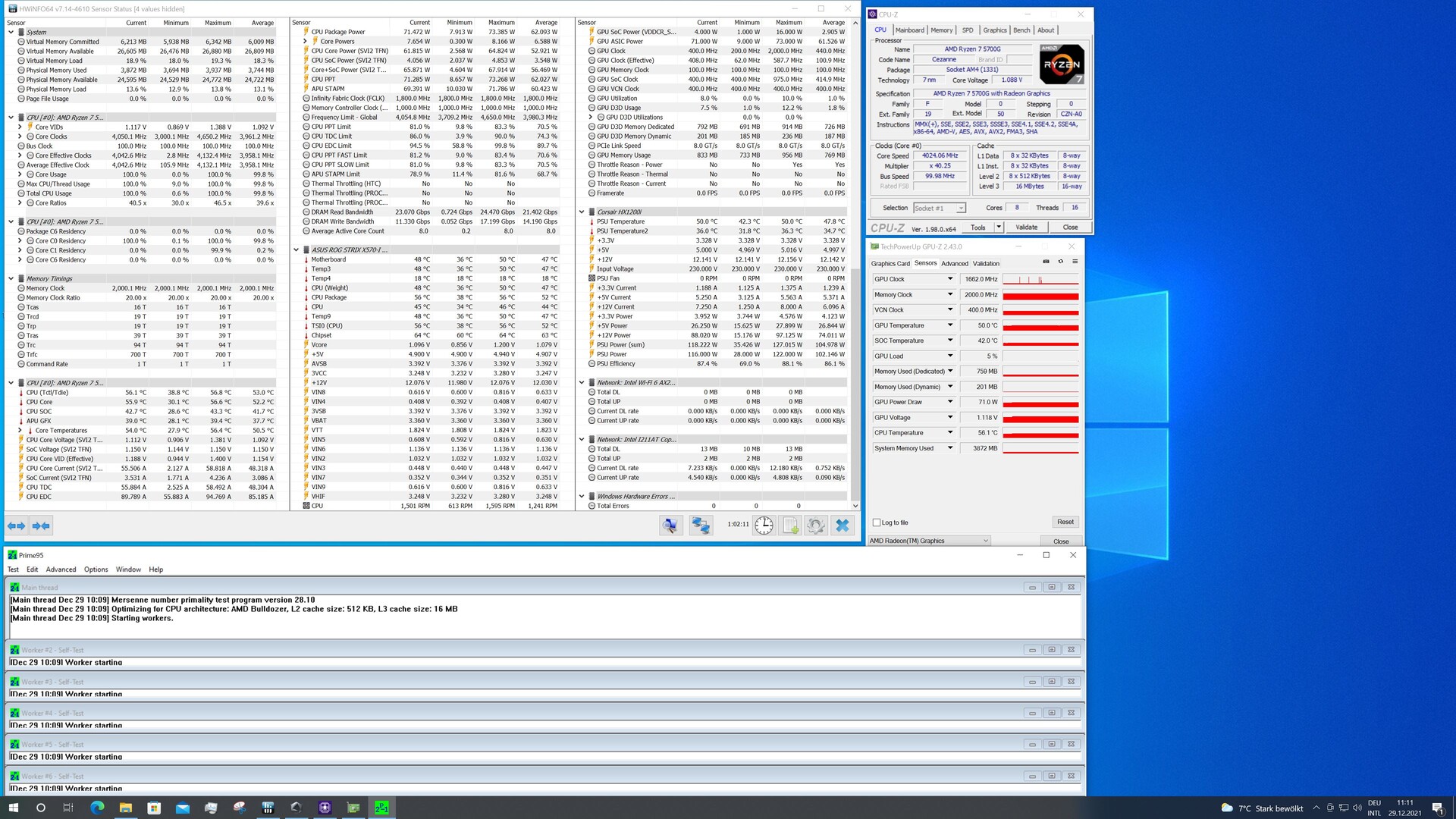

压力测试 Prime95独奏
压力测试 Prime95独奏

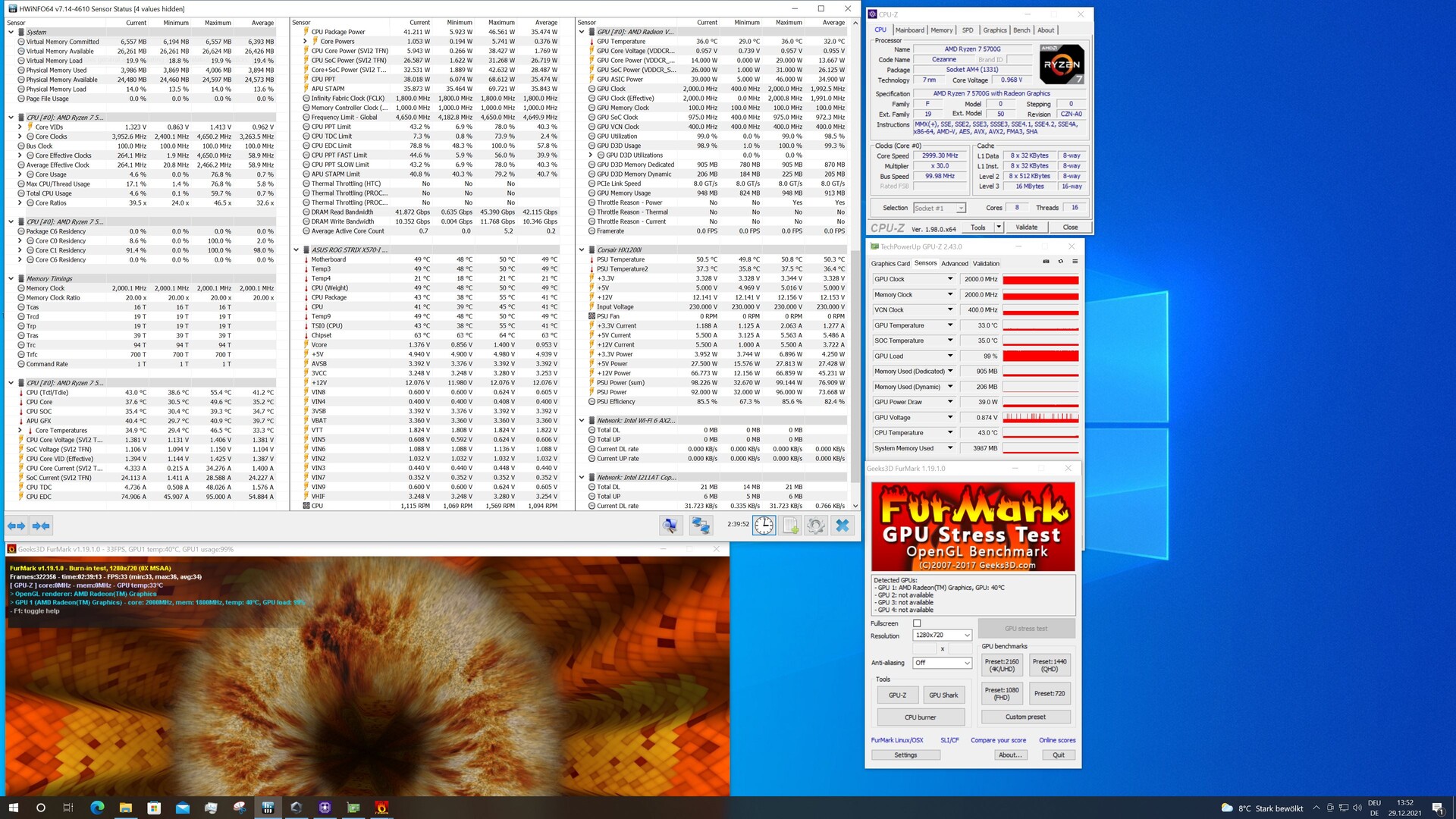

压力测试FurMark solo
压力测试FurMark solo

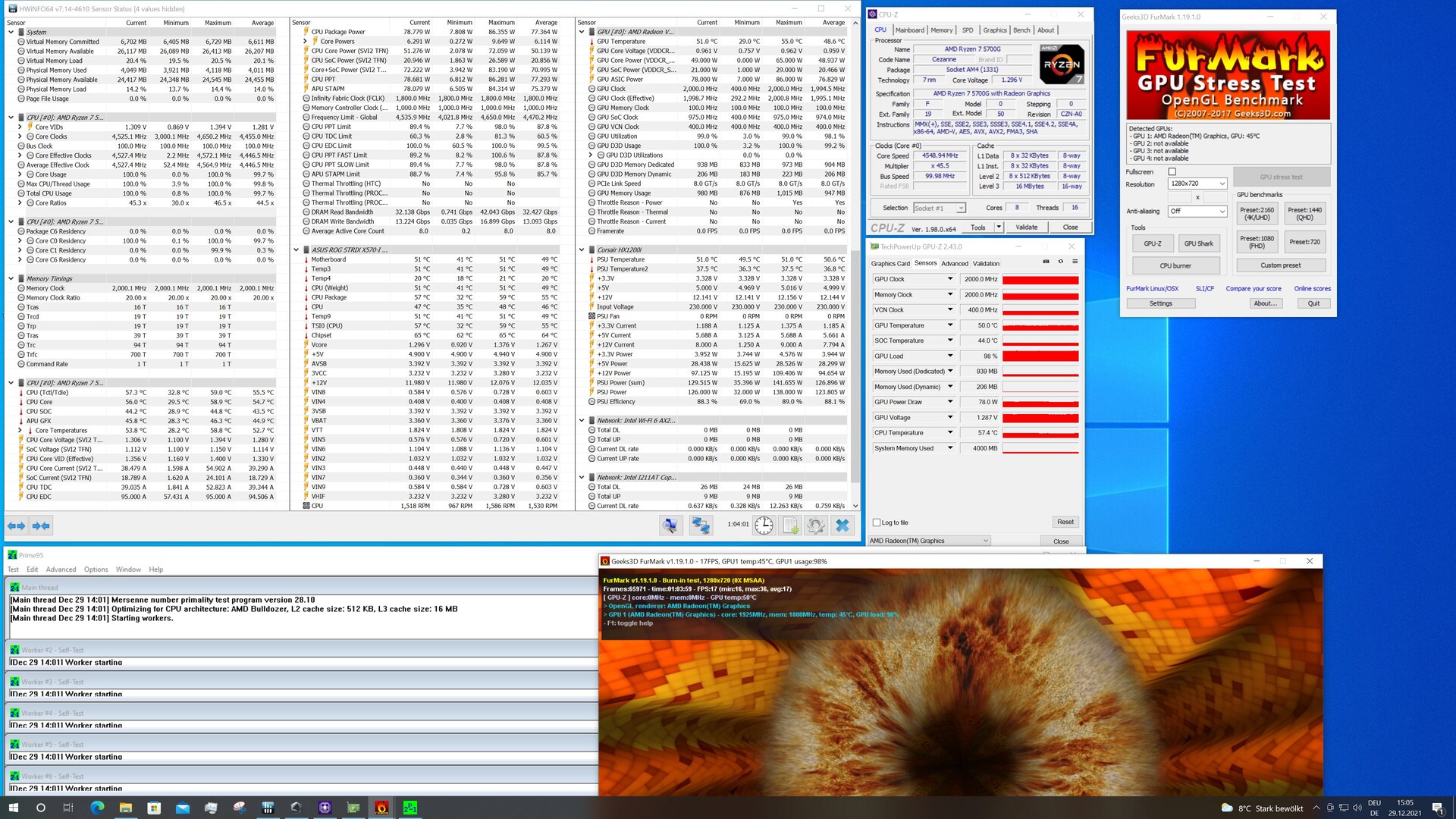

压力测试 Prime95 + FurMark
压力测试 Prime95 + FurMark



Power Consumption
1920x1080 The Witcher 3 ultra (external Monitor)
Intel Core i7-12700K, NVIDIA Titan RTX
NVIDIA Titan RTX, i7-12700K, Intel Optane 905P 480GB 2.5 (Idle: 81 W)
419.7 (402min - 454max) Watt * ∼100% -353%
AMD Ryzen 7 5800X, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 5800X, Intel Optane 905P 480GB 2.5 (Idle: 77.5 W)
418.67 (403min - 452max) Watt * ∼100% -352%
AMD Ryzen 7 3800XT, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 3800XT, Intel Optane 905P 480GB 2.5 (Idle: 96.1 W)
415 (409min - 438max) Watt * ∼99% -348%
AMD Ryzen 5 5600X, NVIDIA Titan RTX
NVIDIA Titan RTX, R5 5600X, Intel Optane 905P 480GB 2.5 (Idle: 79.23 W)
409.2 (381min - 434max) Watt * ∼97% -342%
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 5000)
Vega 8 R5000, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
92.6 (75.4min, 76.5P1 - 110max) Watt * ∼22%
AMD Ryzen 5 2400G, AMD Radeon RX Vega 11
Vega 11, R5 2400G, Intel SSD 600p SSDPEKKW512G7 (13 fps, Idle: 23.5 W)
74.7 Watt * ∼18% +19%
Prime95 V28,10 Stress (external Monitor)
Intel Core i7-12700K, NVIDIA Titan RTX
NVIDIA Titan RTX, i7-12700K, Intel Optane 905P 480GB 2.5 (Idle: 81 W)
281 (250min - 366max) Watt * ∼100% -125%
AMD Ryzen 7 5800X, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 5800X, Intel Optane 905P 480GB 2.5 (Idle: 77.5 W)
242.26 (222min - 254max) Watt * ∼86% -94%
AMD Ryzen 7 3800XT, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 3800XT, Intel Optane 905P 480GB 2.5 (Idle: 96.1 W)
191.77 (183min - 247max) Watt * ∼68% -53%
AMD Ryzen 5 5600X, NVIDIA Titan RTX
NVIDIA Titan RTX, R5 5600X, Intel Optane 905P 480GB 2.5 (Idle: 79.23 W)
175.81 (170min - 179max) Watt * ∼63% -41%
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 5000)
Vega 8 R5000, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
125 (50.4min, 112P1 - 145max) Watt * ∼44%
AMD Ryzen 5 2400G, AMD Radeon RX Vega 11
Vega 11, R5 2400G, Intel SSD 600p SSDPEKKW512G7 (Idle: 23.5 W)
106.5 Watt * ∼38% +15%
Cinebench R15 Multi (external Monitor)
Intel Core i7-12700K, NVIDIA Titan RTX
NVIDIA Titan RTX, i7-12700K, Intel Optane 905P 480GB 2.5 (Idle: 81 W)
278.2 (151min - 298max) Watt * ∼100% -109%
AMD Ryzen 7 5800X, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 5800X, Intel Optane 905P 480GB 2.5 (Idle: 77.5 W)
220.7 (219min - 222max) Watt * ∼79% -66%
AMD Ryzen 7 3800XT, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 3800XT, Intel Optane 905P 480GB 2.5 (Idle: 96.1 W)
193.7 (193min - 199max) Watt * ∼70% -46%
AMD Ryzen 5 5600X, NVIDIA Titan RTX
NVIDIA Titan RTX, R5 5600X, Intel Optane 905P 480GB 2.5 (Idle: 79.23 W)
170.12 (165min - 210max) Watt * ∼61% -28%
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 5000)
Vega 8 R5000, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
133 (131min, 131P1 - 136max) Watt * ∼48%
AMD Ryzen 5 2400G, AMD Radeon RX Vega 11
Vega 11, R5 2400G, Intel SSD 600p SSDPEKKW512G7 (Idle: 23.5 W)
95.3 (94min - 98max) Watt * ∼34% +28%

* ... smaller is better

0102030405060708090100110120130140Tooltip
; Prime95 V28,10 Stress (external Monitor): Ø125 (110-145)
; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø93.9 (89.7-112)
; 1920x1080 The Witcher 3 ultra (external Monitor): Ø92.9 (91.3-110)

Cinebench R15 Multi (3 passes)

0102030405060708090100110120130Tooltip
: Ø133 (131-136)

Pros

+ 持续的高系统性能
+ 高效节能
+ 仍然是AM4插座
+ 易于冷却

Cons

- 织女星架构不再是最新的了

结论 - 紧凑型系统的快速APU

评测中的AMD Ryzen 7 5700G:由AMD德国提供
评测中的AMD Ryzen 7 5700G:由AMD德国提供

AMD Ryzen 7 5700G是一款基于当前Zen3架构的最先进的处理器。随着Ryzen 5000系列到来的创新也可以由AMD最快的APU来实现。这款8核处理器速度很快,排名仅次于AMD Ryzen 7 5800X。

AMD Ryzen 7 5700G最抢手的功能是集成图形单元。然而,APU仍然使用有些过时的Vega iGPU架构。在每一代更新的APU中,AMD总是能够从AMD Radeon RX Vega 8中挤出更多的性能,但Vega架构的年龄是明显的,你不应该对Ryzen 7 5700G的iGPU有太多的期望。时常玩老游戏或休闲游戏的用户可以安全地使用目前的APU。因此,你可以省去购买专用显卡的费用,它的回报是低能耗。当然,如果iGPU的性能对你来说已经不够用了,将来当专用显卡的价格下降时,还可以选择升级。8核CPU的性能是绝对存在的。

AMD Ryzen 7 5700G是第一个拥有8个核心的APU。然而,AMD在这里放弃了宝贵的3D性能,因为过时的Vega架构需要付出代价,因为RDNA2(又称Navi)只有在6000处理器中才会出现。

一如既往,客户被宠坏了,但如果购买AMD的APU目前在议程上,几乎没有办法绕过5000Ryzen APU。目前,AMD Ryzen 7 5700G的售价低至300欧元。6核型号(AMD Ryzen 5 5600G)目前的售价为230欧元。与前代产品相比,这是一个便宜的价格,因为各种在线商店对AMD Ryzen 5 3400G的收费高达400欧元。

Ninh Duy
Editor of the original article: Ninh Duy - Editorial Assistant - 215142 articles published on Notebookcheck since 2008
contact me via: Facebook
Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > AMD Ryzen 7 5700G的回顾。基于Zen3的8核桌面APU,带Vega图形单元
Sebastian Bade, 2022-01-12 (Update: 2022-01-12)
