Newsmay科技公司的AC6-M迷你电脑回顾。一台成熟的办公用迷你电脑!

办公室很小! 如果你认为英特尔在其产品组合中拥有小型办公电脑的NUC系列,那么你应该仔细看看纽迈科技的迷你电脑。AC6-M模型以微型格式提供了一个成熟的办公电脑,其占地面积仅为63 x 63毫米,高度为58毫米。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL/Stefan Hinum), 🇺🇸 🇩🇪 ...
Desktop Mini PC
, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

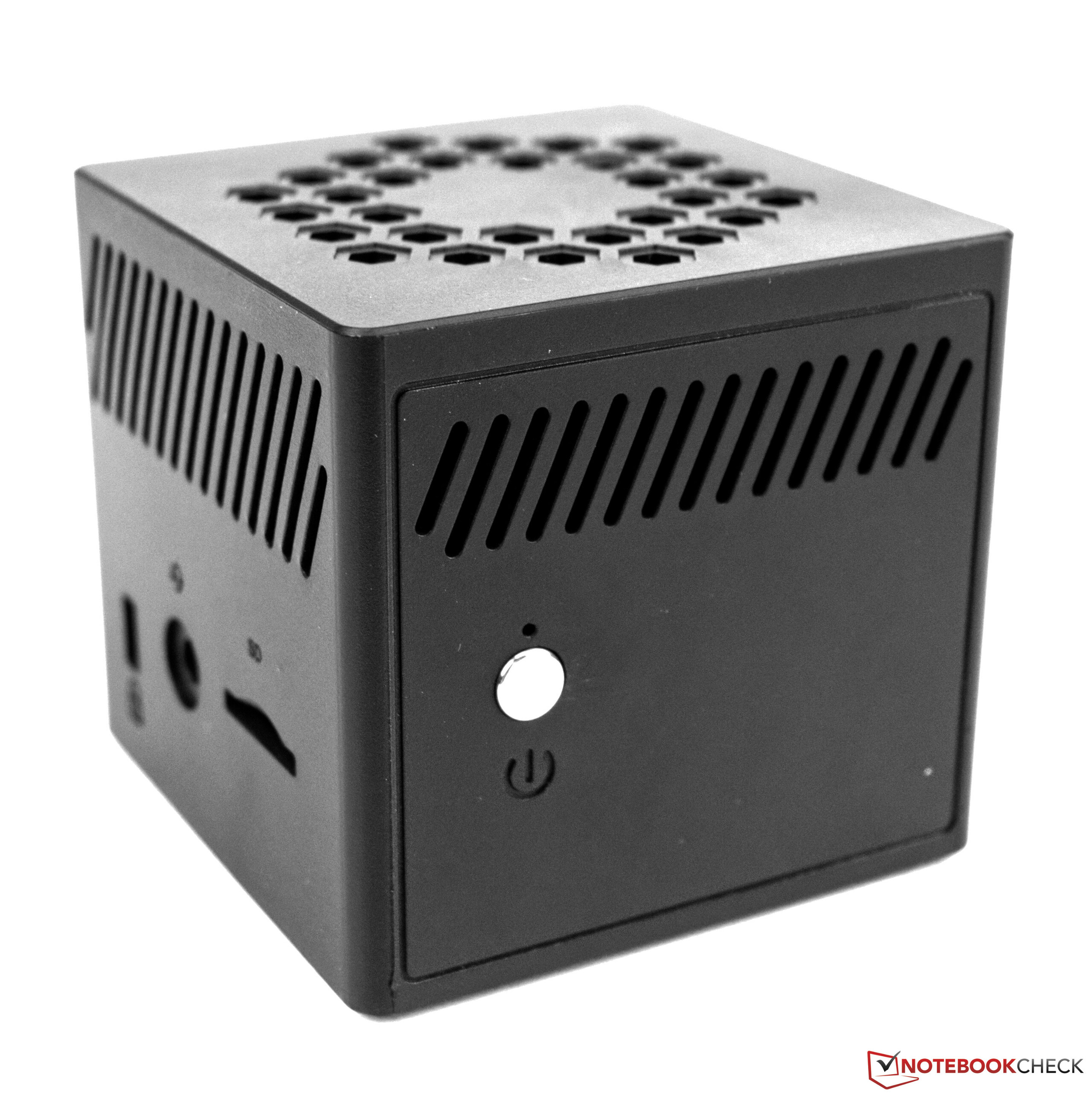

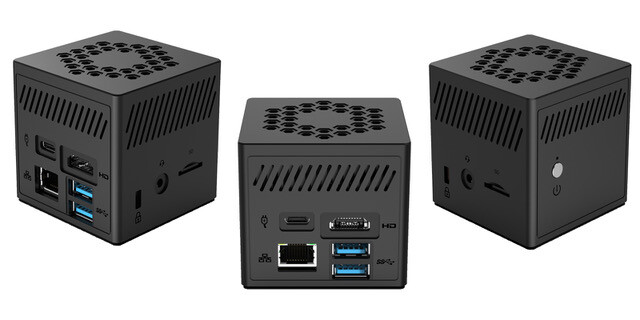

AC6-M(来源:Newsmay Technology)。
AC6-M(来源:Newsmay Technology)。

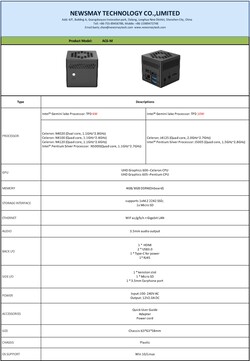

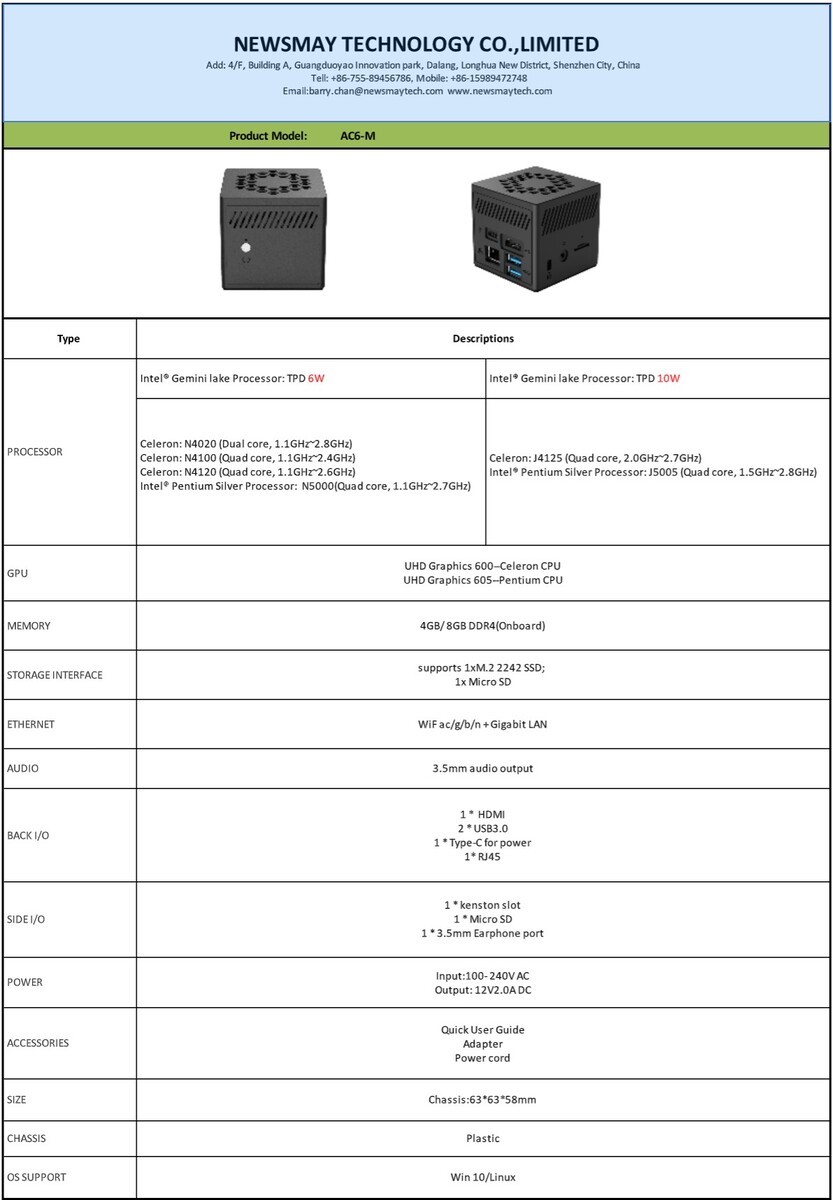

AC6-M - 数据表和配置
AC6-M - 数据表和配置

小型办公电脑非常受欢迎,因为它们体积小,节省空间,而且在能源消耗方面也非常经济。对于AC6-M,我们直接从制造商(Newsmay Technology)那里收到了一个样品,它确实对得起迷你PC这个名字。因为这台小型PC的占地面积只有63×63毫米(约2.5×2.5英寸),确实非常节省空间。凭借58毫米(约2.3英寸)的高度,该设备也非常平坦,在这个紧凑的箱子里有一切重要的东西,可以承受日常办公使用。

更确切地说,制造商已经安装了一个英特尔赛扬J4125这属于双子湖系列。因此,很明显,这是一个14纳米的SoC,其TDP最高为10瓦。根据技术数据表,实际情况是后者。另外,AC6-M也有一个6瓦的SoC。有4和8GB的工作内存可供选择。然而,你应该记住,它不能在以后的时间里扩展。我们的样品配备了8GB DDR4内存。在测试中,我们为该设备配备了512GB的M.2 SATA固态硬盘,尽管样品配备的是256GB固态硬盘。这台小型迷你PC的价格为128美元(+税),对预算没有太大负担。然而,应该考虑购买大容量存储设备和Windows 10许可证。如果你不想使用Windows,你也可以用Linux运行AC6-M。驱动程序由制造商提供。

AC6-M的CPU性能详解

AC6-M是一款简单的办公电脑,在给定的性能下,绝对可以推荐给没有要求的家庭使用。它的特点是 英特尔赛扬J4125已不再是最先进的处理器之一,但原生4核还是为简单的办公应用或上网提供了可靠的计算性能。8GB内存很适合这个小设备,在我们看来这也是值得推荐的。

英特尔赛扬J4125的基本频率为2.0GHz,一个计算核心可达到2.7GHz。测试表明,我们的AC6-M在性能方面与竞争对手处于同一水平。该 Beelink GK Mini以及 GMK NucBox K1都配备了相同的SoC。然而,在许多测试中,GMK NucBox K1的速度明显比我们的AC6-M慢。原因是,GMK NucBox K1的SoC的时钟速度稍慢。

关于进一步的比较和基准测试,我们可以参考我们的CPU比较表.

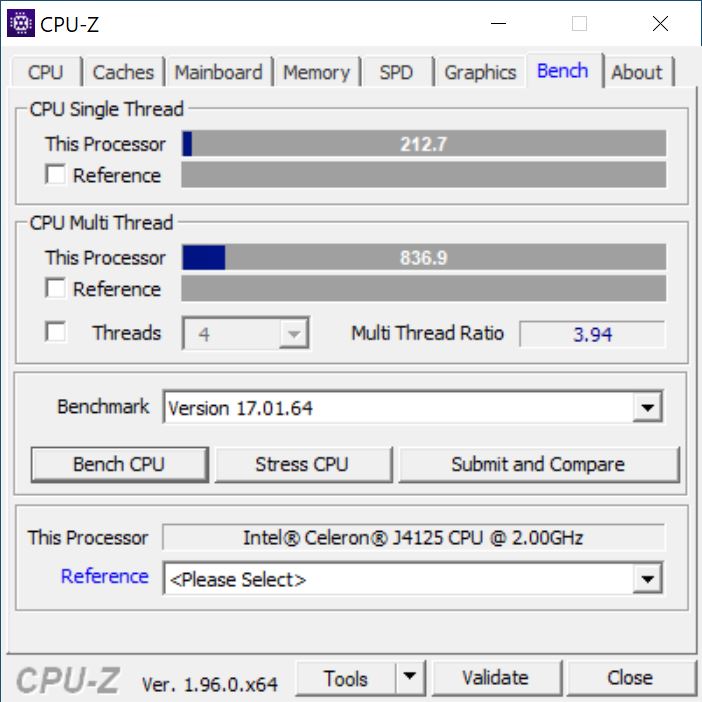

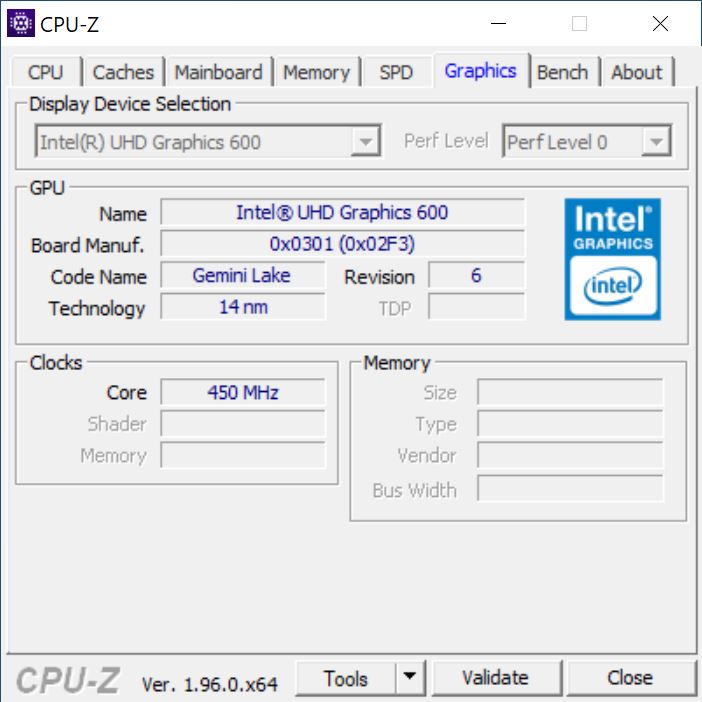

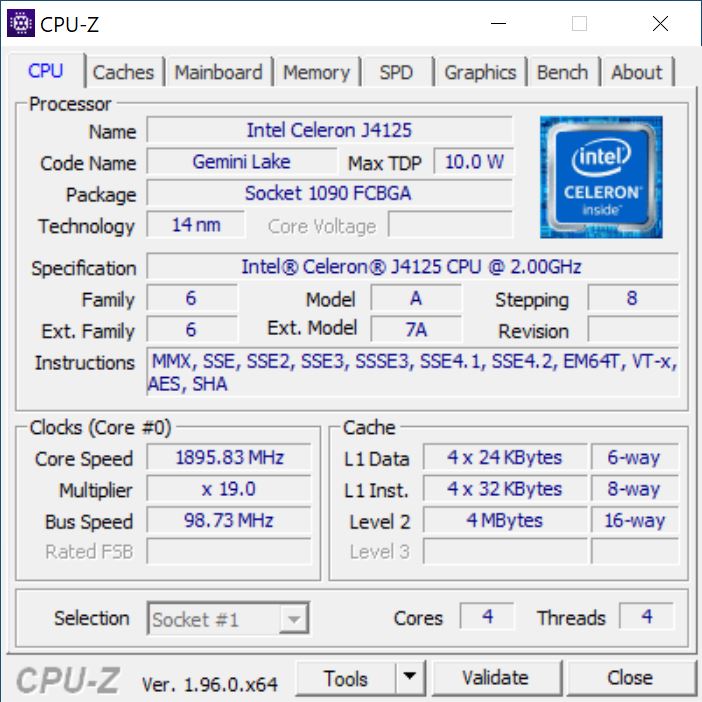

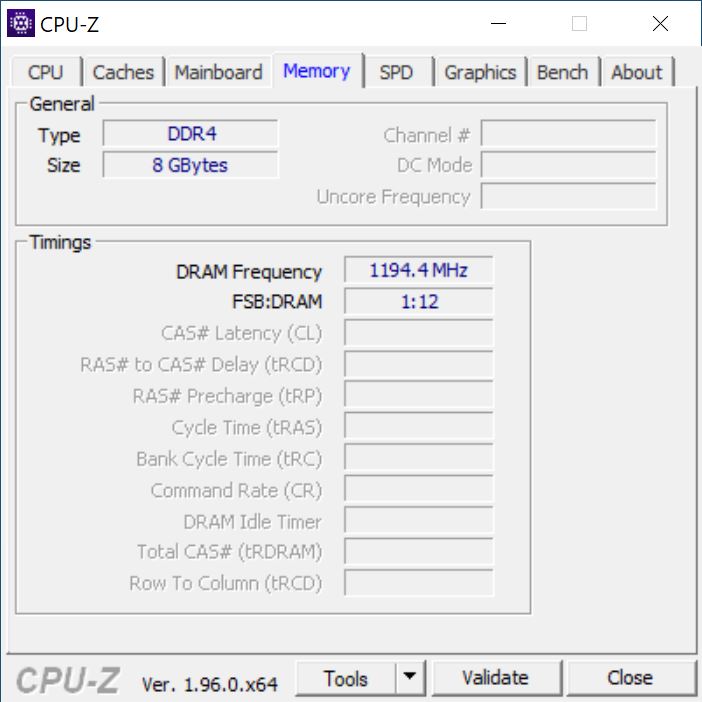

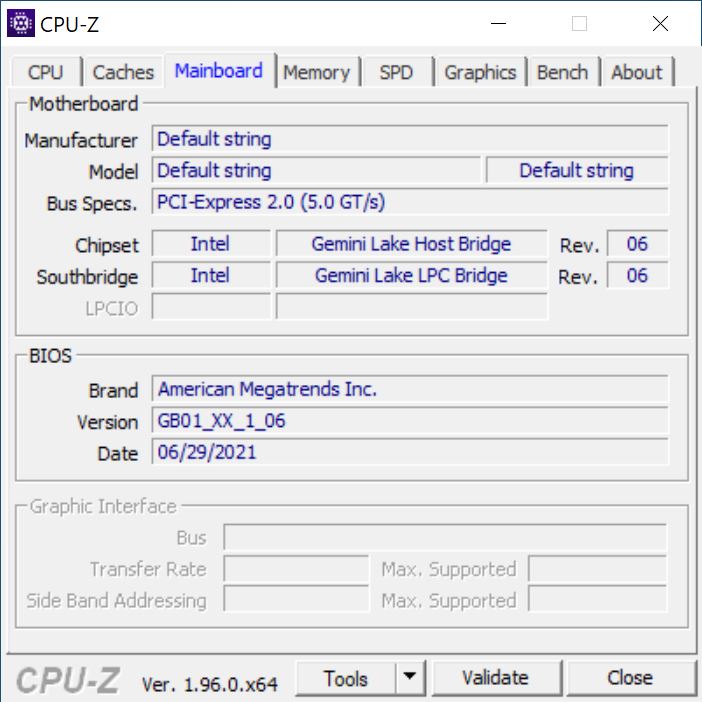

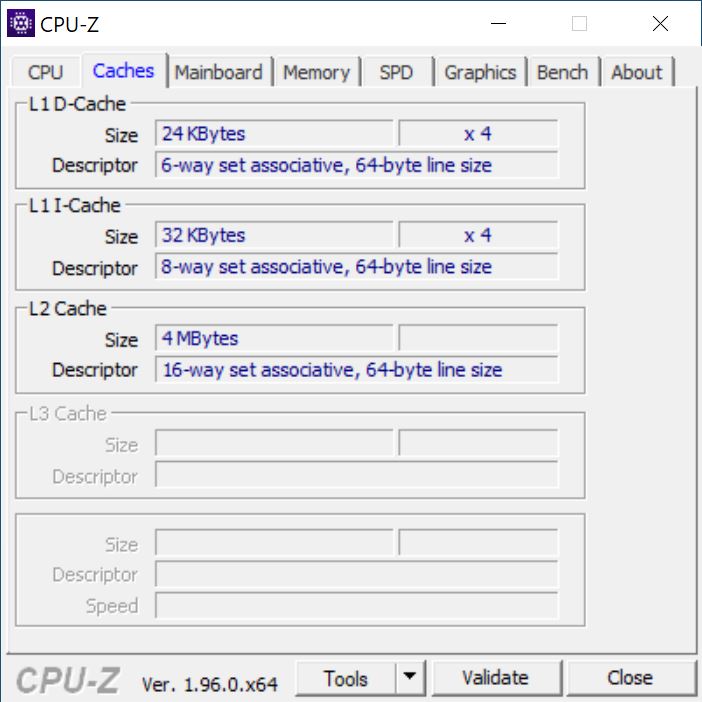

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

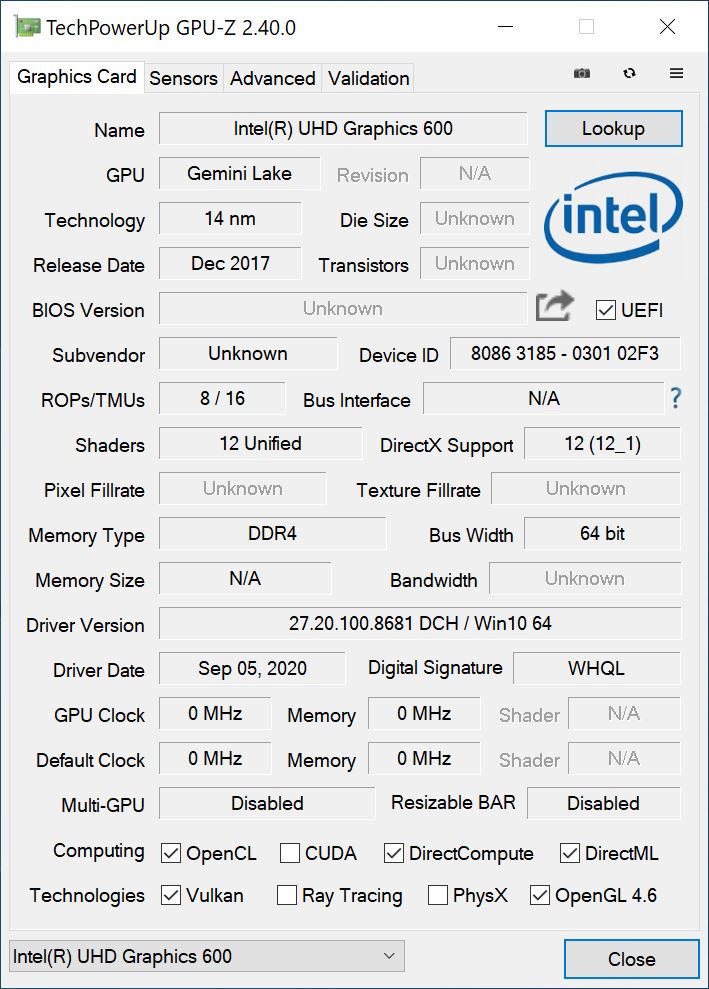

GPU-Z

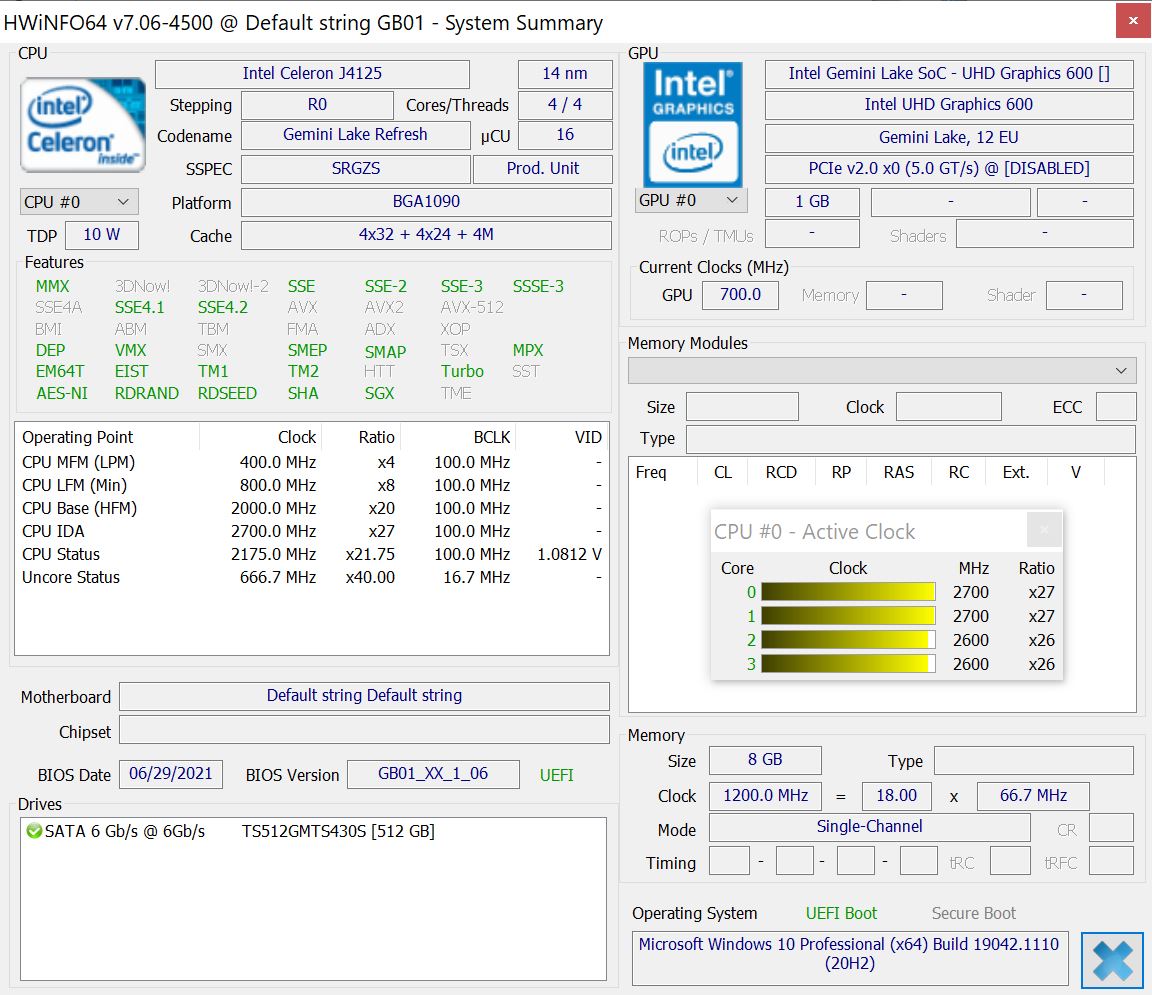

HWiNFO
Cinebench R20
CPU (Single Core)
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
428 Points ∼100% +150%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
200 Points ∼47% +17%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
174 Points ∼41% +2%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
171 Points ∼40%
Average Intel Celeron J4125
  (161 - 174, n=3)
169 Points ∼39% -1%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
161 Points ∼38% -6%
CPU (Multi Core)
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1820 Points ∼100% +227%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
610 Points ∼34% +10%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
556 Points ∼31%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
491 Points ∼27% -12%
Average Intel Celeron J4125
  (304 - 610, n=3)
490 Points ∼27% -12%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
304 Points ∼17% -45%
Cinebench R15
CPU Single 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
168 Points ∼100% +118%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
117 Points ∼70% +52%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
108 Points ∼64% +40%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
84 Points ∼50% +9%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
79.1 Points ∼47% +3%
Average Intel Celeron J4125
  (75.3 - 79.1, n=3)
77.1 Points ∼46% 0%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
77 Points ∼46%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
75.3 Points ∼45% -2%
CPU Multi 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
790 Points ∼100% +219%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
298 Points ∼38% +20%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
271 (263.32min - 271.42max) Points ∼34% +9%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
261 Points ∼33% +5%
Average Intel Celeron J4125
  (243 - 271, n=3)
254 Points ∼32% +2%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
248 Points ∼31%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
243 (199.13min - 242.53max) Points ∼31% -2%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
220 Points ∼28% -11%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
211 (209.9min - 211.39max) Points ∼27% -15%
Cinebench R11.5
CPU Single 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1.91 Points ∼100% +108%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1.33 Points ∼70% +45%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1.28 Points ∼67% +39%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
0.92 Points ∼48%
Average Intel Celeron J4125
  (0.84 - 0.92, n=2)
0.88 Points ∼46% -4%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
0.84 Points ∼44% -9%
CPU Multi 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
8.66 Points ∼100% +180%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
3.26 Points ∼38% +6%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
3.09 Points ∼36%
Average Intel Celeron J4125
  (3.06 - 3.09, n=2)
3.08 Points ∼36% 0%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
3.06 Points ∼35% -1%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
2.86 Points ∼33% -7%
Blender 2.79 - BMW27 CPU
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
2391 Seconds * ∼100% -1%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
2378.7 Seconds * ∼99%
Average Intel Celeron J4125
  (2198 - 2391, n=3)
2323 Seconds * ∼97% +2%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
2198 Seconds * ∼92% +8%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
584.9 Seconds * ∼24% +75%
wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
731.5 s * ∼100% -29%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
620 s * ∼85% -10%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
603.211 s * ∼82% -7%
Average Intel Celeron J4125
  (566 - 603, n=2)
585 s * ∼80% -3%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
566.005 s * ∼77%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
558 s * ∼76% +1%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
217.837 s * ∼30% +62%
32m
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
23.1 s * ∼100% -33%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
19.5 s * ∼84% -12%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
19.415 s * ∼84% -12%
Average Intel Celeron J4125
  (17.4 - 19.4, n=2)
18.4 s * ∼80% -6%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
18 s * ∼78% -4%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
17.366 s * ∼75%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6.78 s * ∼29% +61%
X264 HD Benchmark 4.0
Pass 2
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
49.35 (49.1min - 51.6max) fps ∼100% +195%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
19.3 fps ∼39% +15%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
16.75 (16.7min - 16.9max) fps ∼34%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
16.46 fps ∼33% -2%
Average Intel Celeron J4125
  (11.3 - 16.8, n=2)
14 fps ∼28% -16%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
13.75 fps ∼28% -18%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
11.31 fps ∼23% -32%
Pass 1
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
184.5 (184min - 186max) fps ∼100% +134%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
105 fps ∼57% +33%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
88.46 fps ∼48% +12%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
78.9 (77.1min - 81.7max) fps ∼43%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
74 fps ∼40% -6%
Average Intel Celeron J4125
  (52.6 - 78.9, n=2)
65.8 fps ∼36% -17%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
52.6 fps ∼29% -33%
TrueCrypt
Serpent Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
0.48 GB/s ∼100% +164%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
0.182 GB/s ∼38%
Average Intel Celeron J4125
  (0.178 - 0.182, n=2)
0.18 GB/s ∼38% -1%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
0.178 GB/s ∼37% -2%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
0.166 GB/s ∼35% -9%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
0.142 GB/s ∼30% -22%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0.133 GB/s ∼28% -27%
Twofish Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
0.79 GB/s ∼100% +197%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
0.283 GB/s ∼36% +6%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
0.266 GB/s ∼34%
Average Intel Celeron J4125
  (0.262 - 0.266, n=2)
0.264 GB/s ∼33% -1%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
0.262 GB/s ∼33% -2%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
0.245 GB/s ∼31% -8%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0.199 GB/s ∼25% -25%
AES Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4.7 GB/s ∼100% +147%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
1.9 GB/s ∼40%
Average Intel Celeron J4125
  (1.8 - 1.9, n=2)
1.85 GB/s ∼39% -3%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
1.8 GB/s ∼38% -5%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1.7 GB/s ∼36% -11%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1.5 GB/s ∼32% -21%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
1.3 GB/s ∼28% -32%
Geekbench 4.1 - 4.4
64 Bit Multi-Core Score
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
13949 Points ∼100% +155%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
5761 Points ∼41% +5%
Average Intel Celeron J4125
  (5468 - 5761, n=2)
5615 Points ∼40% +3%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
5468 Points ∼39%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
5066 Points ∼36% -7%
64 Bit Single-Core Score
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
3680 Points ∼100% +91%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
2613 Points ∼71% +36%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
1997 Points ∼54% +4%
Average Intel Celeron J4125
  (1922 - 1997, n=2)
1960 Points ∼53% +2%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
1922 Points ∼52%
HWBOT x265 Benchmark v2.2 - 4k Preset
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6.28 fps ∼100% +324%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
1.61 fps ∼26% +9%
Average Intel Celeron J4125
  (1.46 - 1.61, n=3)
1.517 fps ∼24% +3%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
1.48 fps ∼24%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
1.46 fps ∼23% -1%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0 fps ∼0% -100%

* ... smaller is better

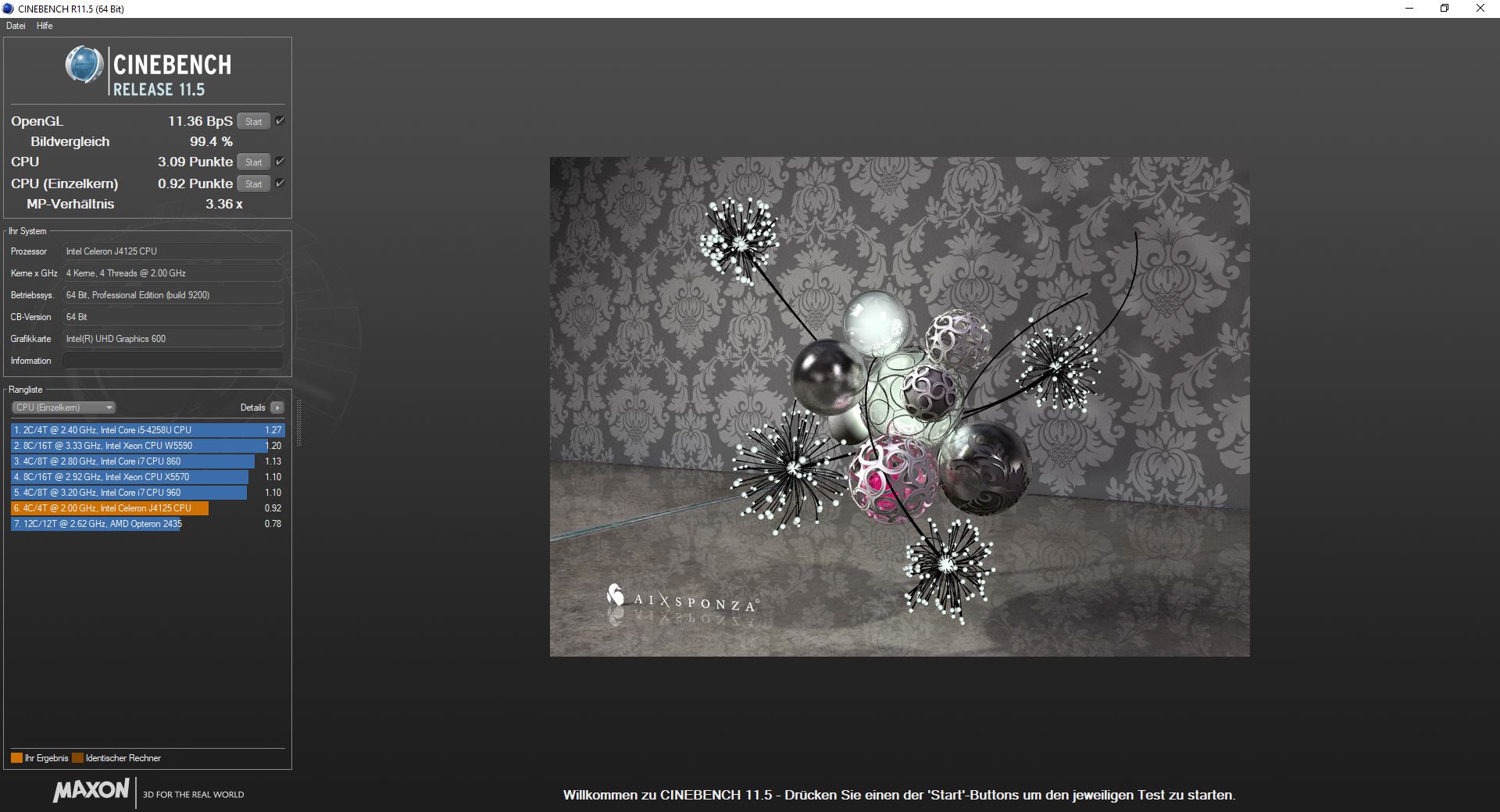

Cinebench R11.5
Cinebench R11.5

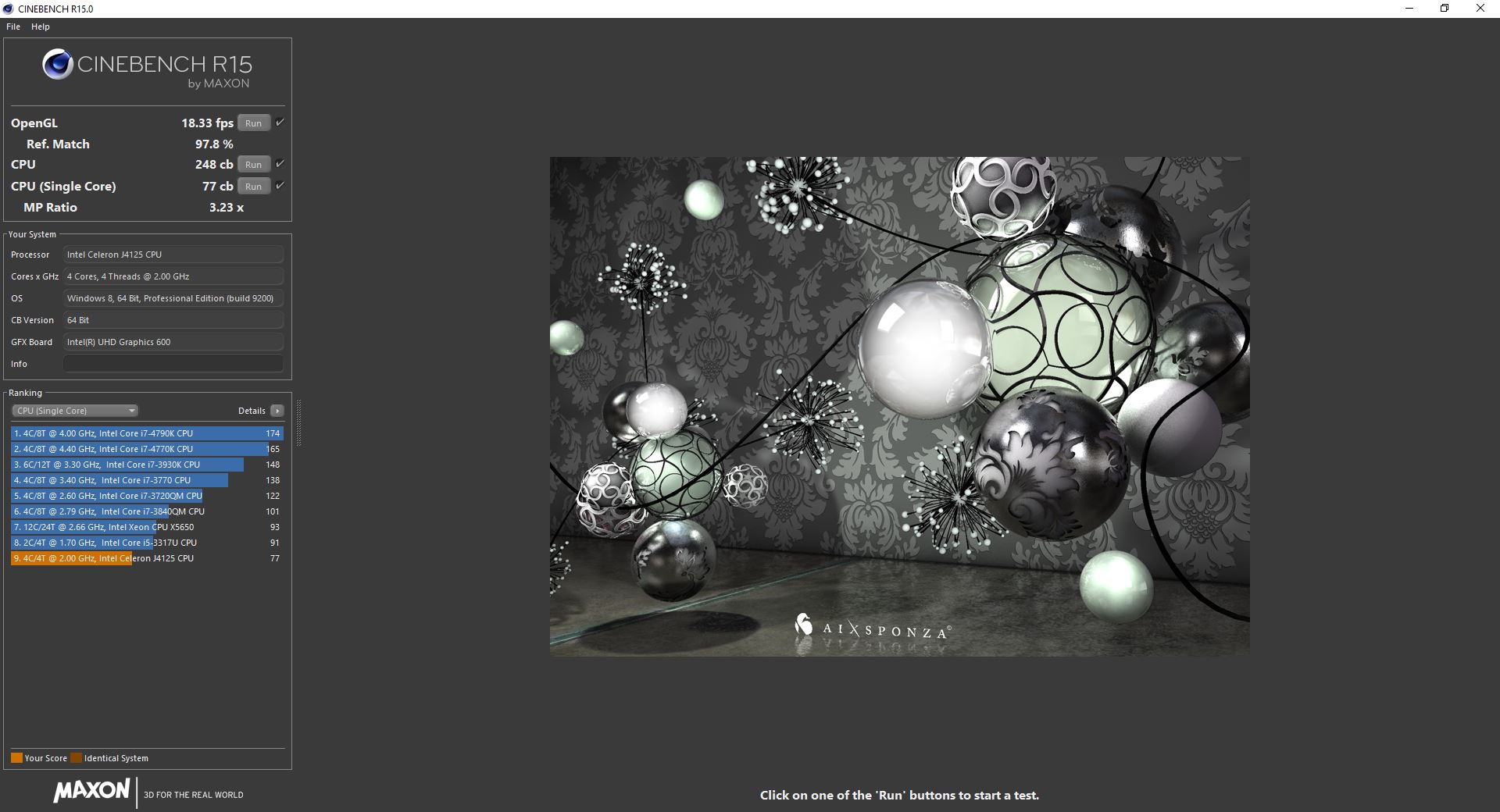

Cinebench R15
Cinebench R15

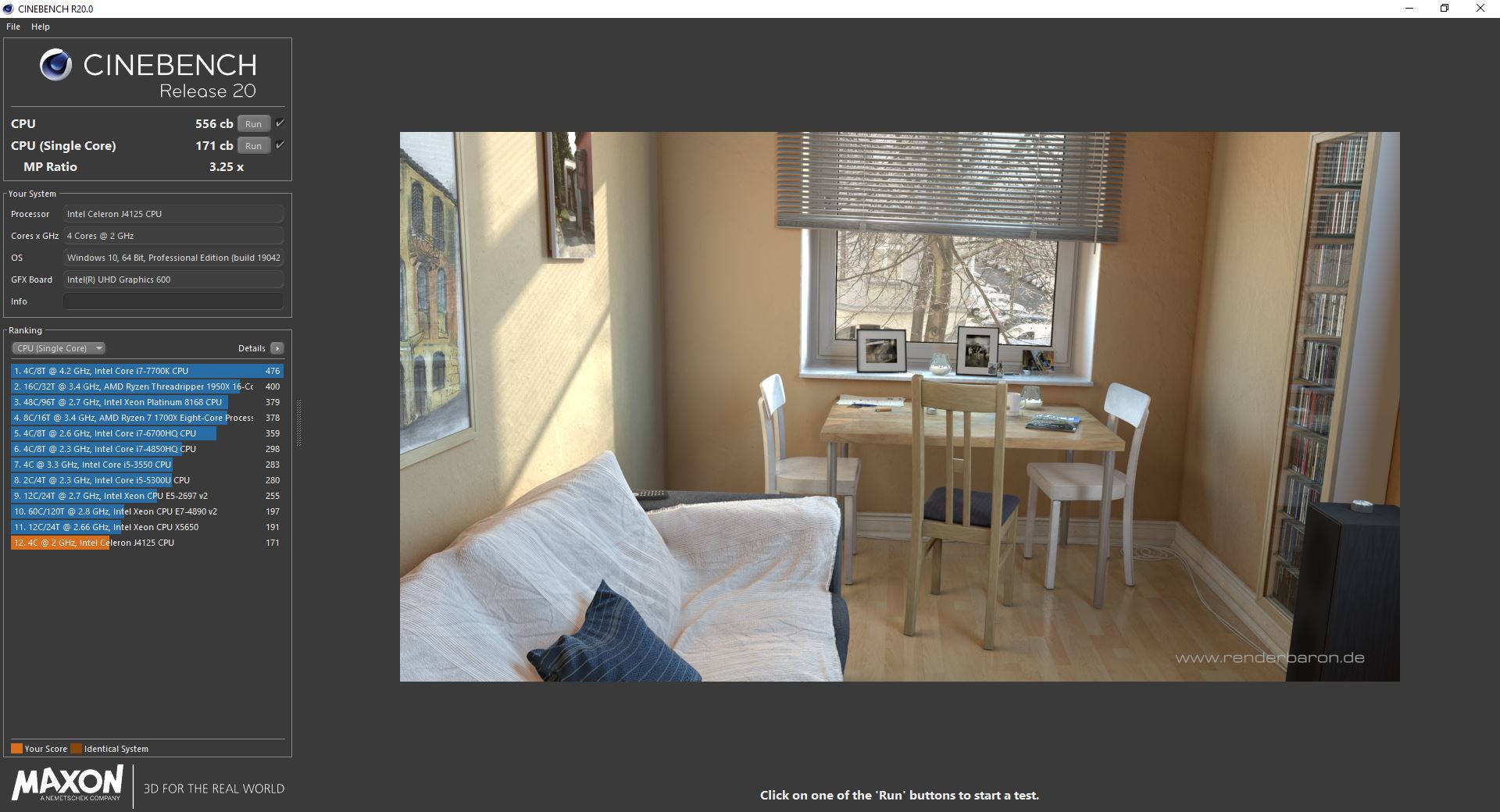

Cinebench R20
Cinebench R20

Cinebench R15多循环

我们在这里用Cinebench R15多循环模拟的负载测试表明,AC6-M的冷却系统能够很好地应对产生的废热。以247分的平均分,我们的样品在直接比较中处于中游位置。

0153045607590105120135150165180195210225240255270250.05248.67248.89248.75246.33246.71246.88246.59246.66247.33247.02247.52245.85245.31247.52247.09247.04245.69246.8245.88245.97245.29247.21246.73247.14247.25247.28246.61245.81246.28245.93246.69246.94245.01246.78245.13247.04246.83247.11246.92246.23246.19245.71246245.05246.47246.4246.97246.4246.02242.53239.8239.67239.29239.17240.05239.62237.07239.62240.05239.62238.9238.02239.44239.67239.67238.33239.82239.71239.42238.91240.63238.55239.58239.37240.32239.37214.48236.3199.13238.4238.13237.07236.72239.28240.11239.91239.4239.93238.26239.53239.55239.28237.38238.82239.4239.35239.2239.04239.15268.12270.01270.7268.71270.33271.36270.93270.3271.42271.22269.45267.31265.48266.2266.06267.2268.4266.92265.43265.78265.56267.64267.09266.11265.29266.03265.32266.36267.53266.5267.06268.77268.65267.03268.32268.32267.45267.26263.32264266.33267.87264.08265.4265.92270.41270.18269.56270.47271.16Tooltip
AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)
GMK NucBox K1 Intel Celeron J4125, Intel Celeron J4125: Ø238 (199.13-242.53)
Beelink GK Mini Intel Celeron J4125, Intel Celeron J4125: Ø268 (263.32-271.42)

系统性能

在合成基准PCMark 10中,我们的AC6-M无法发挥其对GMK NucBox K1的优势,并排在比较表的最后。然而,只有4%到5%的差距是边缘性的,在现实中并不明显。然而,其性能明显低于Core i3机型。这在测量的延迟中也很明显,在渲染4K内容时,延迟明显增加。在播放4K测试视频时,iGPU的平均负载约为50%。207个丢帧发生在视频被缓冲的开始阶段。因此,如果你决定将AC6-M作为一个工作设备,你不应该期望从以下方面创造奇迹 Intel Celeron J4125.然而,固态硬盘可以确保在Windows中的工作半途而废。NVMe支持可能不会带来更多的性能。如果你想用micro-SD存储卡来扩展大容量存储,你应该知道大约20MB/s的传输率并不是真的快。我们用UHS-II Angelbird AV Pro V60 micro-SD卡进行了测试。

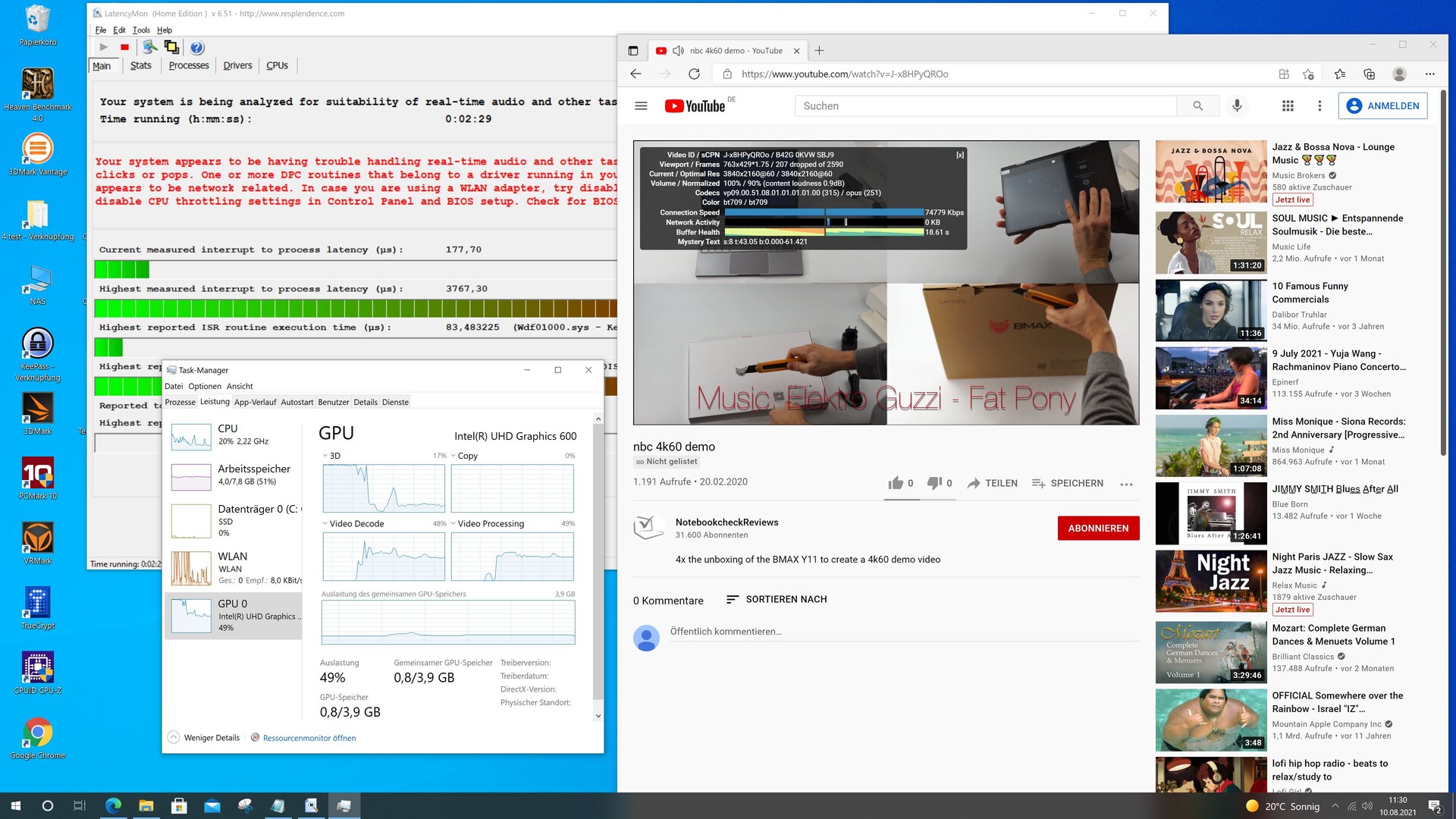

打开多个浏览器标签和播放4K视频时的最大延迟。
打开多个浏览器标签和播放4K视频时的最大延迟。

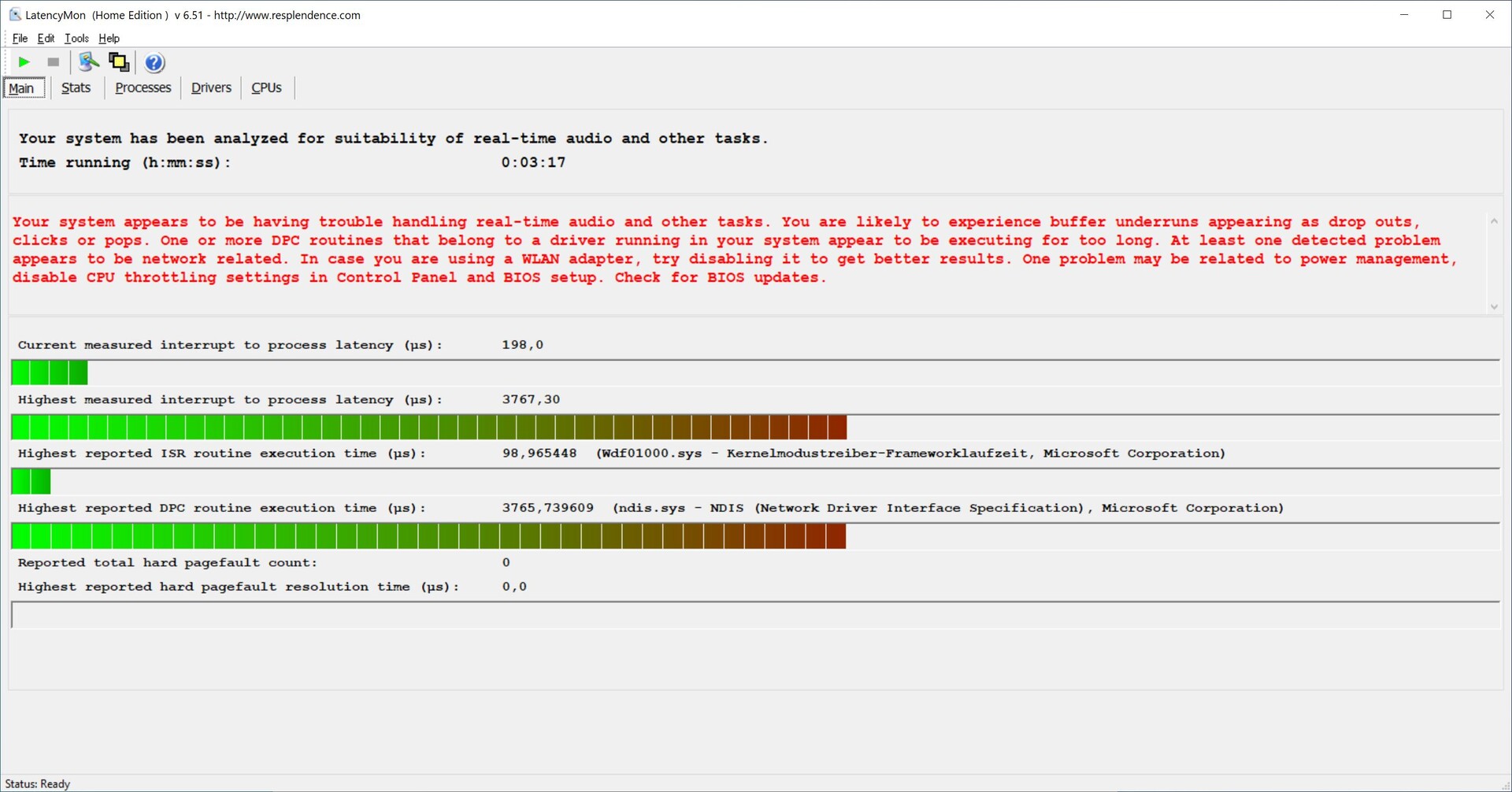

10秒后的最大延时 Prime95
10秒后的最大延时 Prime95

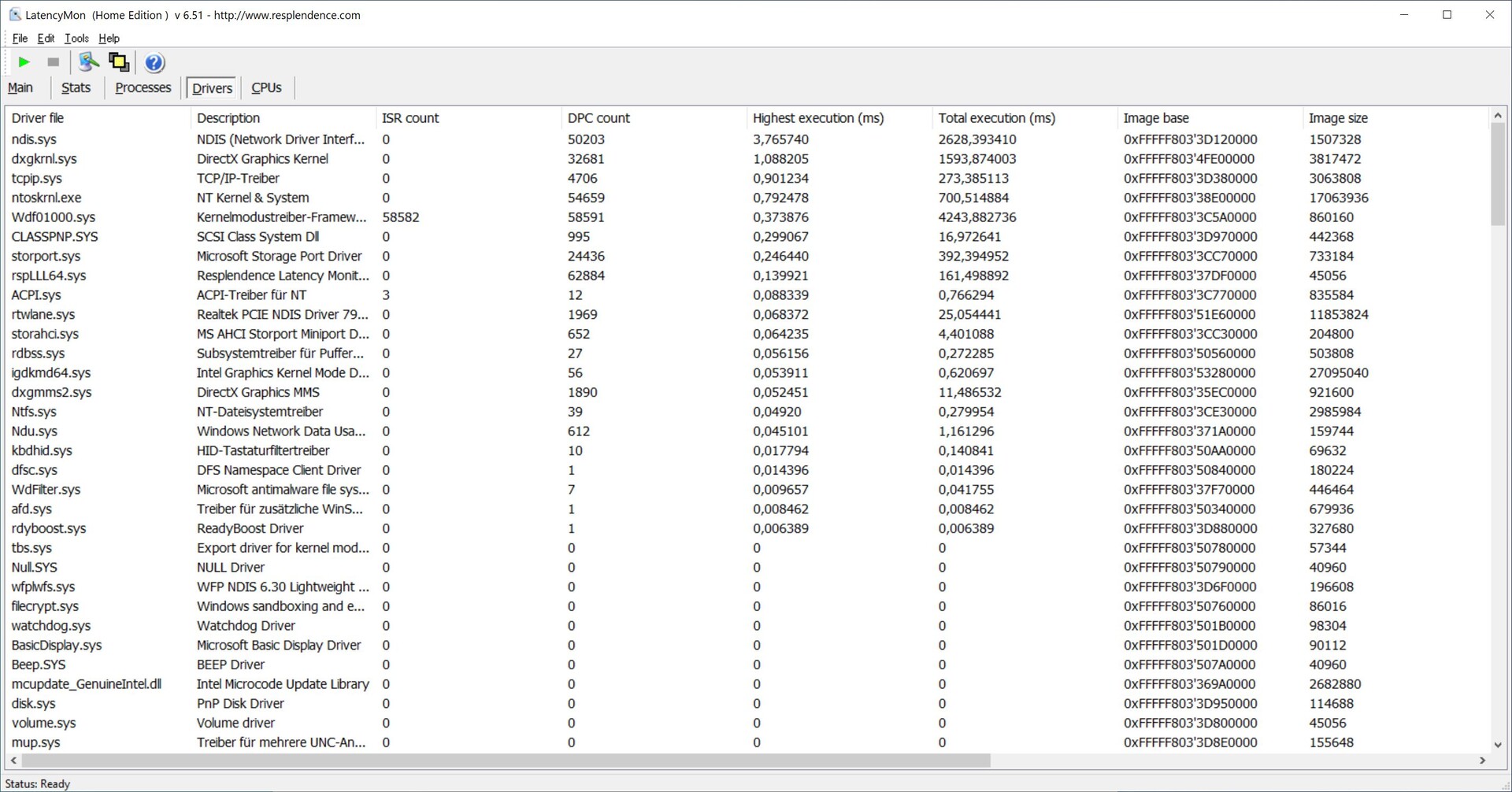

按最长的执行时间排列的驱动程序
按最长的执行时间排列的驱动程序
PCMark 10
Score
Average Intel Core i5-10210U
  (3448 - 4742, n=33)
4046 Points ∼100% +124%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4019 Points ∼99% +123%
Average Intel Core i5-8265U
  (2247 - 4192, n=36)
3744 Points ∼93% +107%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
2391 Points ∼59% +32%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
1898 Points ∼47% +5%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
1831 Points ∼45% +1%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
1806 Points ∼45%
Productivity
Average Intel Core i5-10210U
  (5980 - 7332, n=33)
6717 Points ∼100% +129%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6494 Points ∼97% +122%
Average Intel Core i5-8265U
  (2941 - 6755, n=36)
6114 Points ∼91% +109%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
4084 Points ∼61% +39%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
3050 Points ∼45% +4%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
2948 Points ∼44% +1%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
2928 Points ∼44%
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Average Intel Core i5-8265U
  (16.1 - 184, n=27)
69.6 MB/s ∼100% +277%
Average Intel Core i5-10210U
  (26.7 - 82.4, n=25)
63.7 MB/s ∼92% +245%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
47.1 MB/s ∼68% +155%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
18.46 MB/s ∼27%
maximum AS SSD Seq Read Test (1GB)
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
84.3 MB/s ∼100% +301%
Average Intel Core i5-8265U
  (23.5 - 193, n=27)
79 MB/s ∼94% +276%
Average Intel Core i5-10210U
  (27.1 - 88.6, n=23)
73.3 MB/s ∼87% +249%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
21.03 MB/s ∼25%
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
3767.3 μs * ∼100%
Average Intel Core i5-10210U
  (466 - 5702, n=17)
1904 μs * ∼51% +49%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
1716.8 μs * ∼46% +54%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
1317.7 μs * ∼35% +65%
Average Intel Core i5-8265U
  (561 - 915, n=3)
747 μs * ∼20% +80%

* ... smaller is better

大容量存储

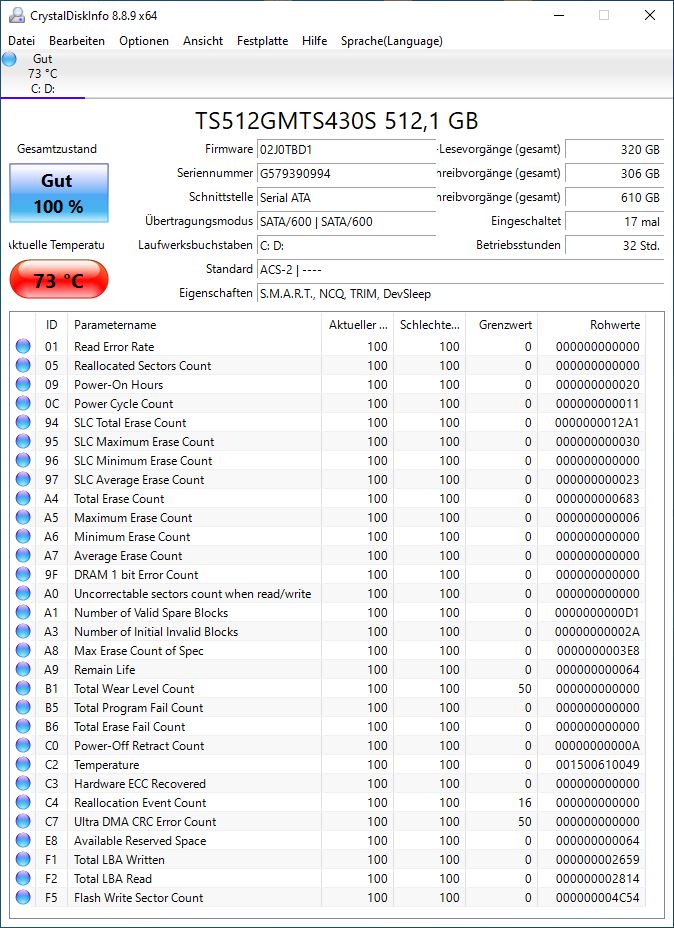

CrystalDiskInfo
CrystalDiskInfo

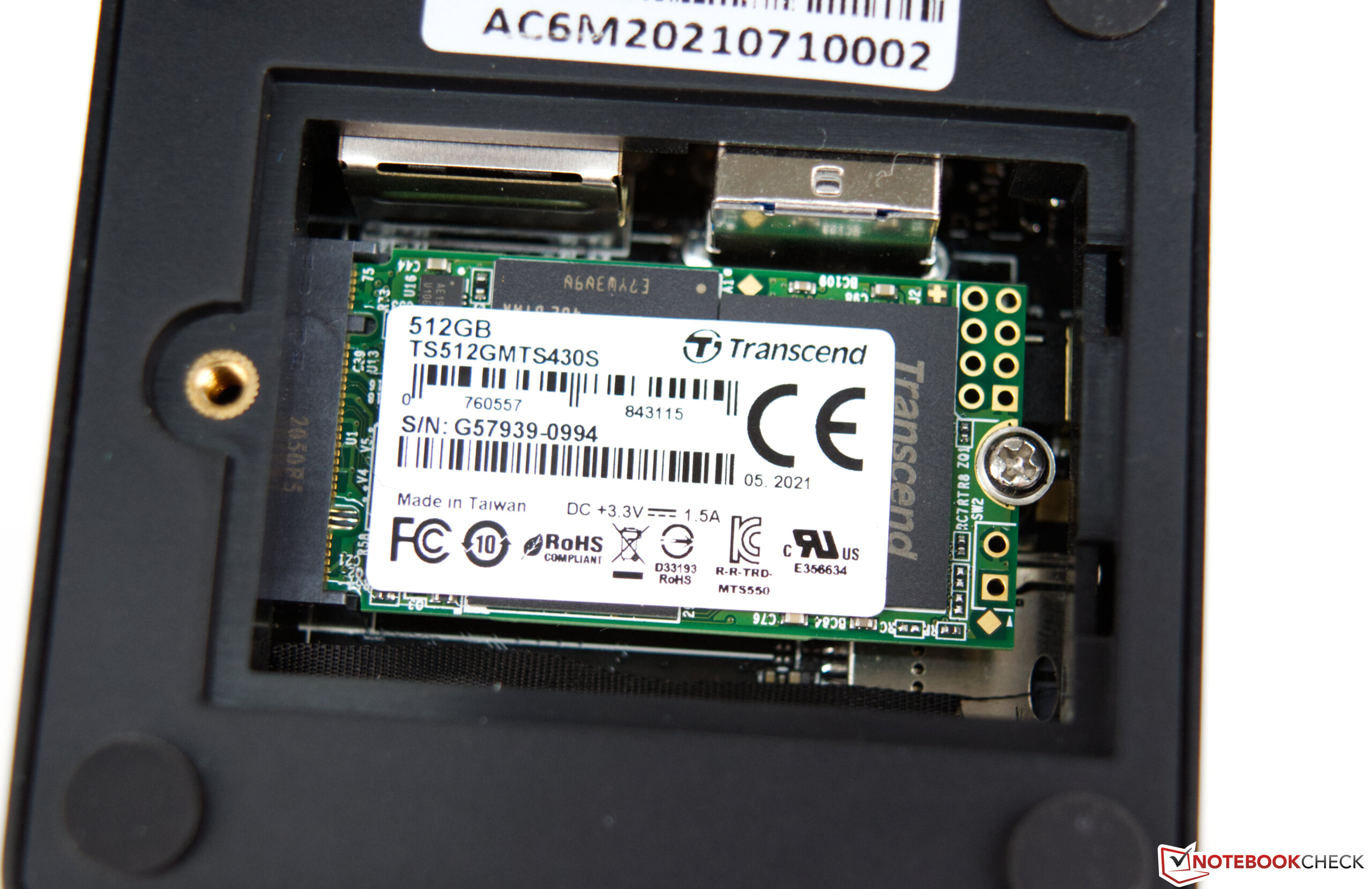

买家必须照顾到大容量存储,并为AC6-M配备一个合适的M.2内存。底部有一个小的维护舱口,隐藏着M.2插槽。重要的是:它必须是一个M.2 SATA模块,外形尺寸为2242。因此,快速的PCI-SSD将无法运行。然而,安装的固态硬盘的温度很高,令人震惊。我们使用了另一块固态硬盘,以排除使用的固态硬盘的问题,但它达到了相当高的温度。缺乏冷却装置是这里的症结所在,也许应该重新考虑一下。

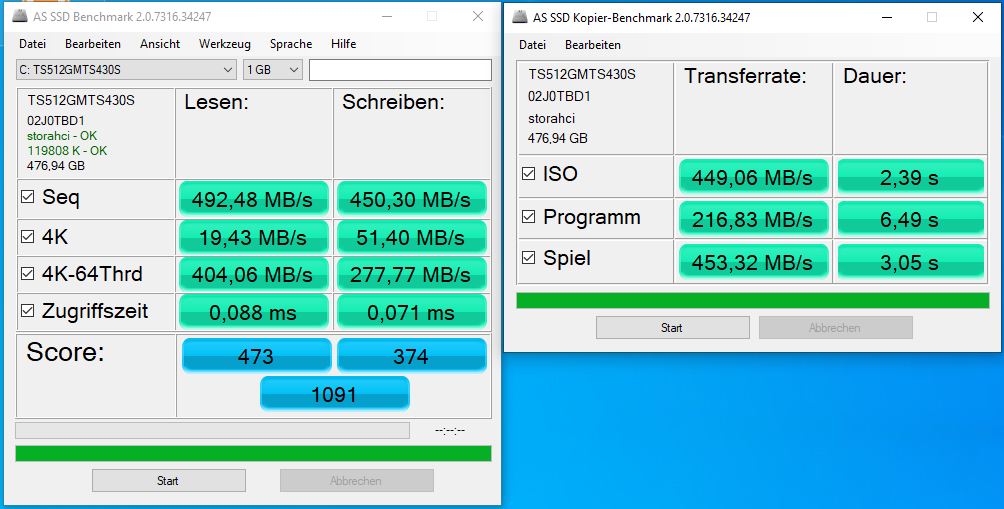

AS SSD
AS SSD

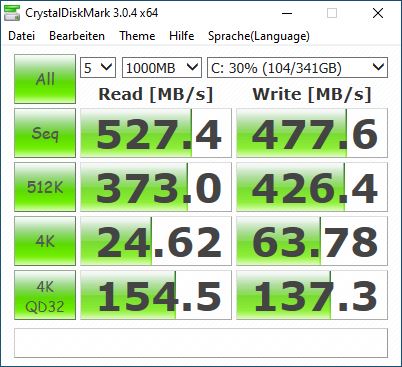

CrystalDiskMark 3
CrystalDiskMark 3

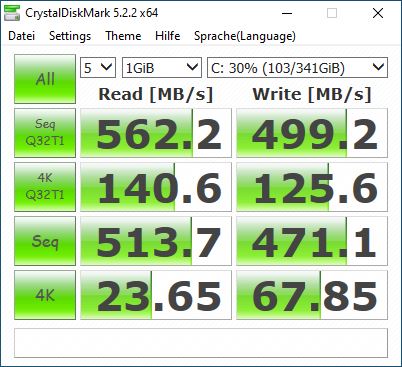

CrystalDiskMark 5
CrystalDiskMark 5

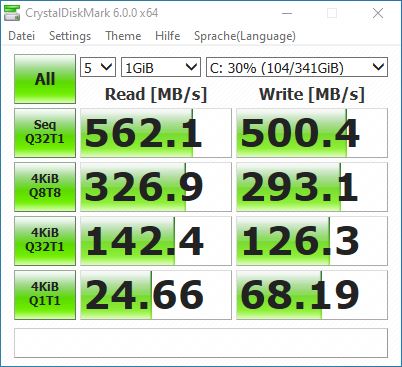

CrystalDiskMark 6
CrystalDiskMark 6

图形卡

AC6-M的集成图形单元是已经知道的英特尔UHD Graphics 600.作为英特尔SoC的一部分,这个iGPU提供的性能与本次比较中类似配置的迷你PC差不多。因此,这个iGPU只适用于纯办公应用。

更多关于英特尔UHD Graphics 600的基准测试可以在下面找到这里.

3DMark 11 - 1280x720 Performance GPU
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
2322 Points ∼100% +286%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1458 Points ∼63% +142%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
1175 Points ∼51% +95%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
613 Points ∼26% +2%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
602 Points ∼26%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
589 Points ∼25% -2%
Average Intel UHD Graphics 600
  (410 - 638, n=23)
550 Points ∼24% -9%
3DMark
1280x720 Ice Storm Standard Graphics
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
61979 Points ∼100% +142%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
25631 Points ∼41%
Average Intel UHD Graphics 600
  (14412 - 28818, n=8)
23141 Points ∼37% -10%
1920x1080 Ice Storm Extreme Graphics
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
40670 Points ∼100% +183%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
14600 Points ∼36% +2%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
14360 Points ∼35%
Average Intel UHD Graphics 600
  (8644 - 16594, n=10)
13650 Points ∼34% -5%
1920x1080 Fire Strike Graphics
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1479 Points ∼100% +232%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1033 Points ∼70% +132%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
770 Points ∼52% +73%
Beelink GK Mini, Intel Celeron J4125
2000, Intel UHD Graphics 600
455 Points ∼31% +2%
AC6-M Mini-PC, Intel Celeron J4125
2000, Intel UHD Graphics 600
446 Points ∼30%
GMK NucBox K1, Intel Celeron J4125
2000, Intel UHD Graphics 600
433 Points ∼29% -3%
Average Intel UHD Graphics 600
  (315 - 486, n=17)
421 Points ∼28% -6%
3DMark 05 Standard
6619 points
3DMark 06 Standard
4025 points
3DMark Vantage P Result
2522 points
3DMark 11 Performance
680 points
3DMark Ice Storm Standard Score
26393 points
3DMark Cloud Gate Standard Score
3262 points
3DMark Fire Strike Score
416 points
Help
low med. high ultra
Dota 2 Reborn (2015) 41.5 17.2 8.1 7.4 fps
Final Fantasy XV Benchmark (2018) 5.17 2.14 1.5 fps
X-Plane 11.11 (2018) 6.36 4.84 4.39 fps

排放

温度

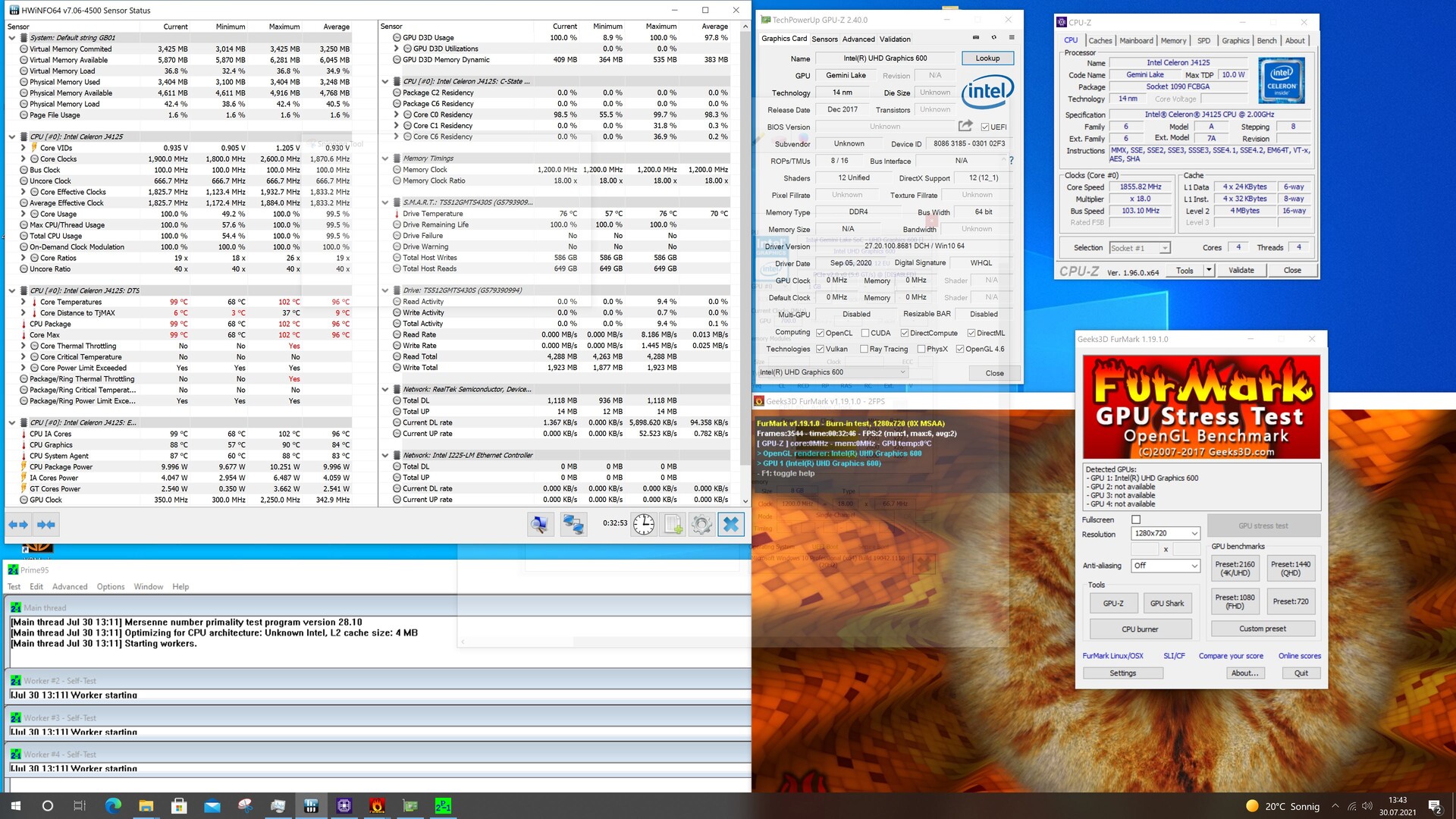

压力测试。FurMark+Prime95
压力测试。FurMark+Prime95

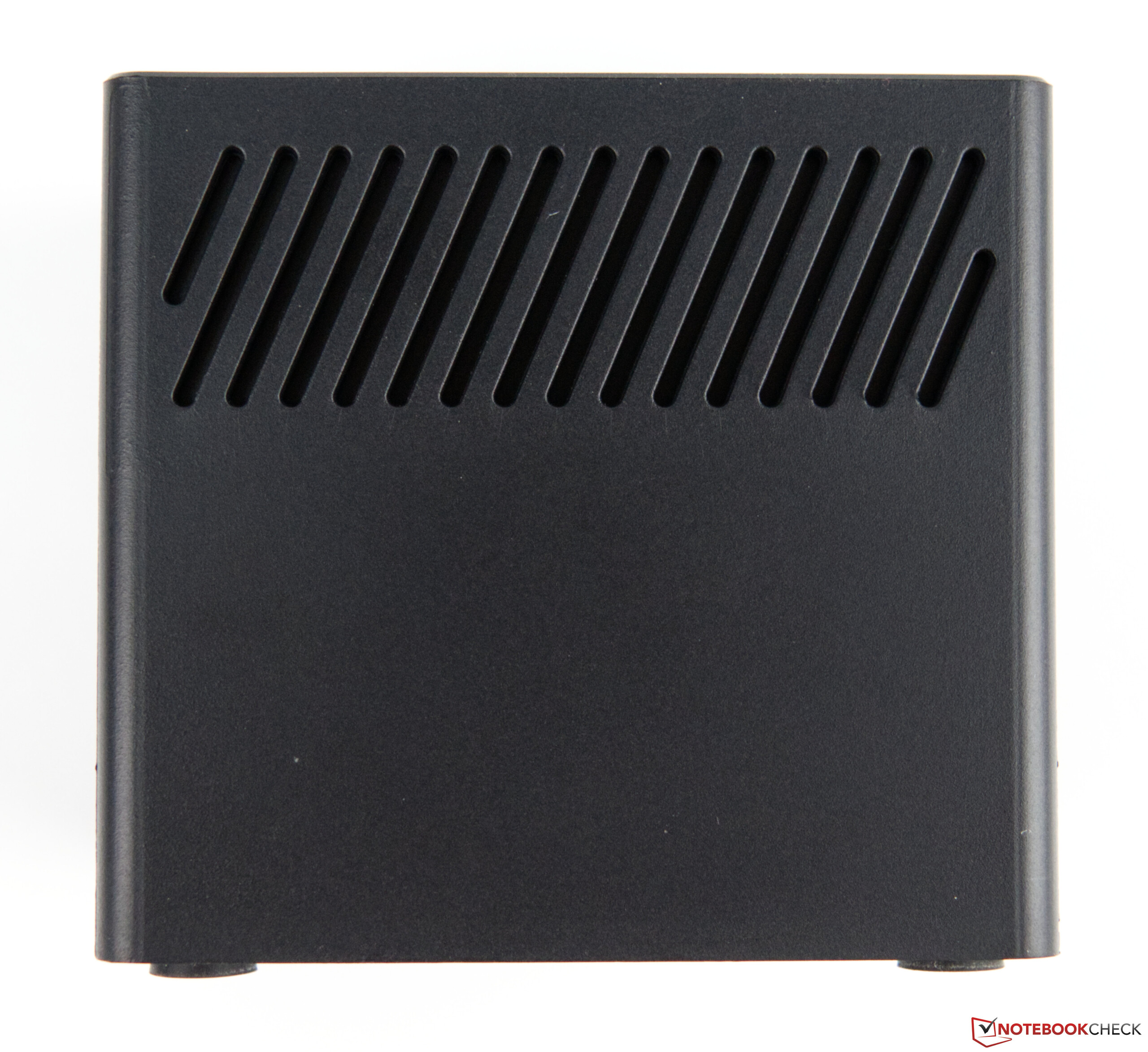

当我们仔细观察负载下的SoC时,AC6-M的温度有时非常高。在102℃(215.6°F)时,SoC离最高的105℃(221°F)不远了。这也导致平均时钟为1.9 GHz,略低于基础时钟(2.0 GHz)。外壳上没有显眼的特征。上部区域的小风扇确保热量被吹出机箱。我们已经讨论了安装的SSD和读取温度。当机箱被打开时,我们上侧测量到48°C(118.4°F),尽管下面的电路板温度要高得多,几乎达到58°C(136.4°F)。

压力测试中的AC6-M
压力测试中的AC6-M

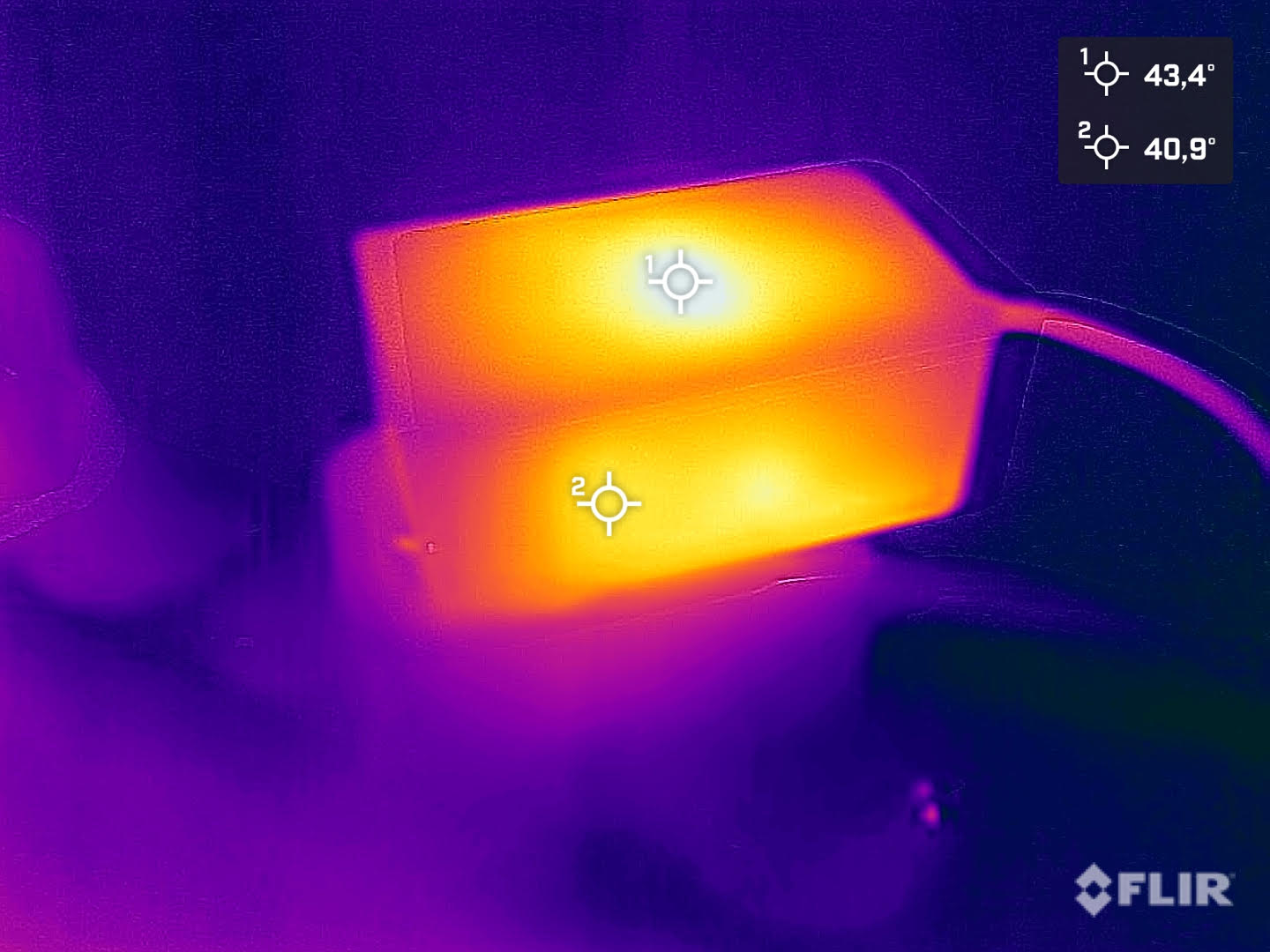

压力测试期间AC6-M的电源
压力测试期间AC6-M的电源
AC6-M的固态硬盘
AC6-M的固态硬盘

噪声排放

我们的AC6-M在怠速和低负荷时非常安静,尽管小风扇一直在工作。然而,这台迷你电脑的噪音已经超过了一些笔记本电脑的33 dB(A)。我们在压力测试中测得的最高比率为34.5 dB(A)。然而,由于风扇频率较高,这在主观上是有点大的。对于一台小型办公电脑来说,比笔记本的运行距离更远,测得的音量很好,不会让人讨厌。

量 - 环境
量 - 环境
音量 - 闲置
音量 - 闲置

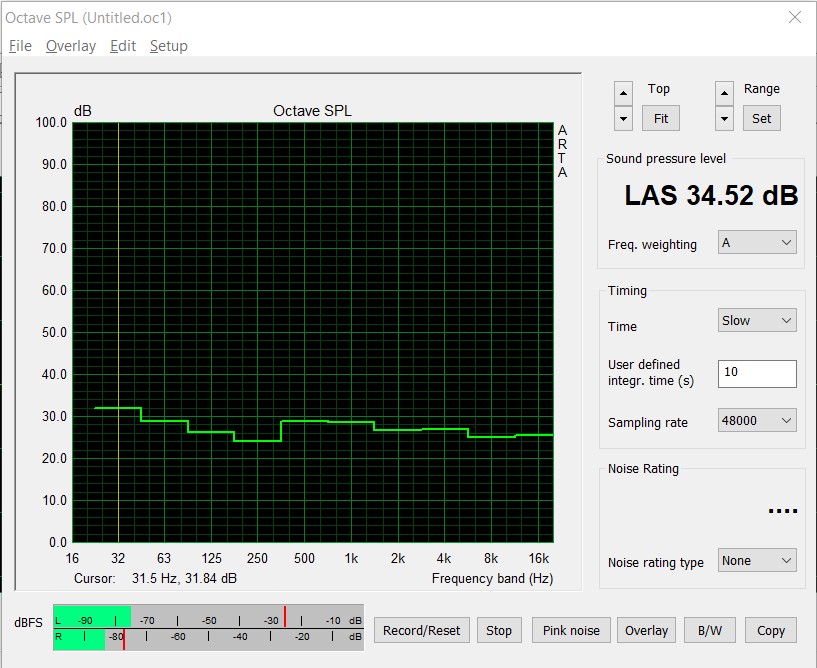

体积 - 压力测试
体积 - 压力测试
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs3131.86328.812526.125024.150028.8100028.6200026.7400027800025.11600025.4SPL34.5NR32NC29PNC34RC28NCB28median 26.4Delta0.9hearing rangehide median Fan NoiseAC6-M Mini-PC

能源消耗

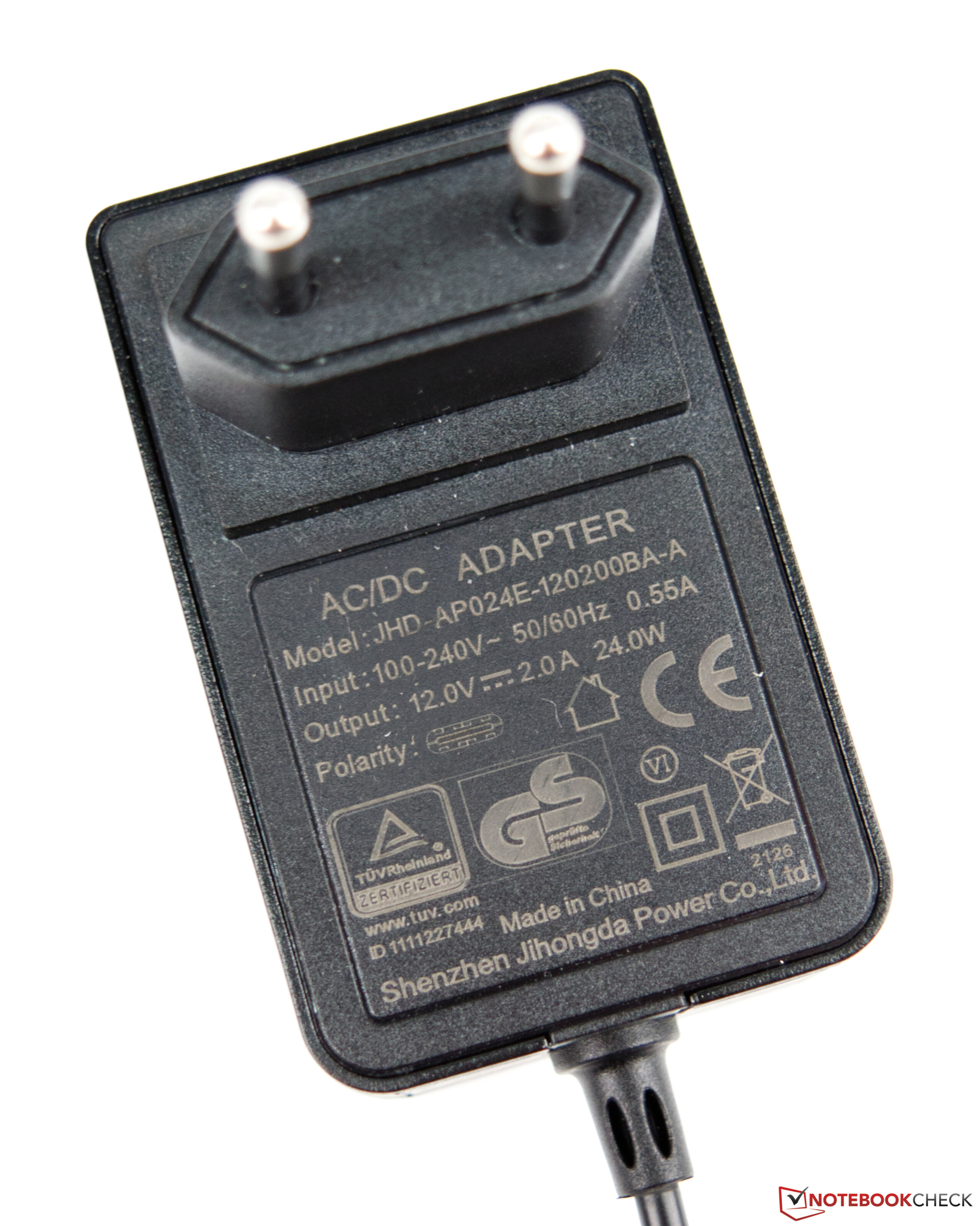

这台小巧而节俭的迷你PC在能源消耗方面令人信服。我们的样品在空闲时只需要8瓦多一点。AC6-M在负载下也非常节俭,最大功率为19.4瓦。这个紧凑的电源甚至没有达到其容量极限。它最多可提供24瓦,并通过Type-C端口连接到设备上。这是一个加分项,因为AC6-M也可以与其他Type-C电源一起使用。也应该可以通过电力输送为AC6-M提供能量。然而,到目前为止,我们无法测试这一点。

Power Consumption
1280x720 Prime95 28.10 and Furmark 1.25
AC6-M Mini-PC
19.4 (19min, 19.1P1 - 20max) Watt * ∼100%
Prime95 V28,10 Stress (external Monitor)
AC6-M Mini-PC
17.4 (15.8min, 16.8P1 - 18max) Watt * ∼100%

* ... smaller is better

Pros

+ 非常紧凑
+ 设计简单
+ 提供所有必要的连接
+ 价格低廉
+ 高效节能

Cons

- 冷却装置在负载下工作在极限状态
- 没有主动冷却SSD的功能
- 过时的SoC

结论--迷你型办公电脑

AC6-M,由Newsmay Technology提供
AC6-M,由Newsmay Technology提供
AC6-M,由Newsmay Technology提供

AC6-M是一款迷你PC,丝毫不逊于它的名字。63 x 63毫米(约2.5 x 2.5英寸)的尺寸,占地面积非常小。使用英特尔赛扬J4125,你可以得到一个合理的最新的SoC,尽管从中期来看,Tiger-Lake U SoC会是一个更好的选择。尽管如此,我们配备英特尔赛扬J4125的样品做得很好,而且大多处于类似配置的对比设备的性能水平。底线是,这块节俭的SoC的性能足以应付日常办公任务。毕竟,该SoC提供了四个原生处理核心和一个iGPU,在播放高分辨率视频时可以卸载SoC。

AC6-M是一个非常紧凑的迷你PC,价格低廉。然而,冷却系统的弱点是无法解释的。

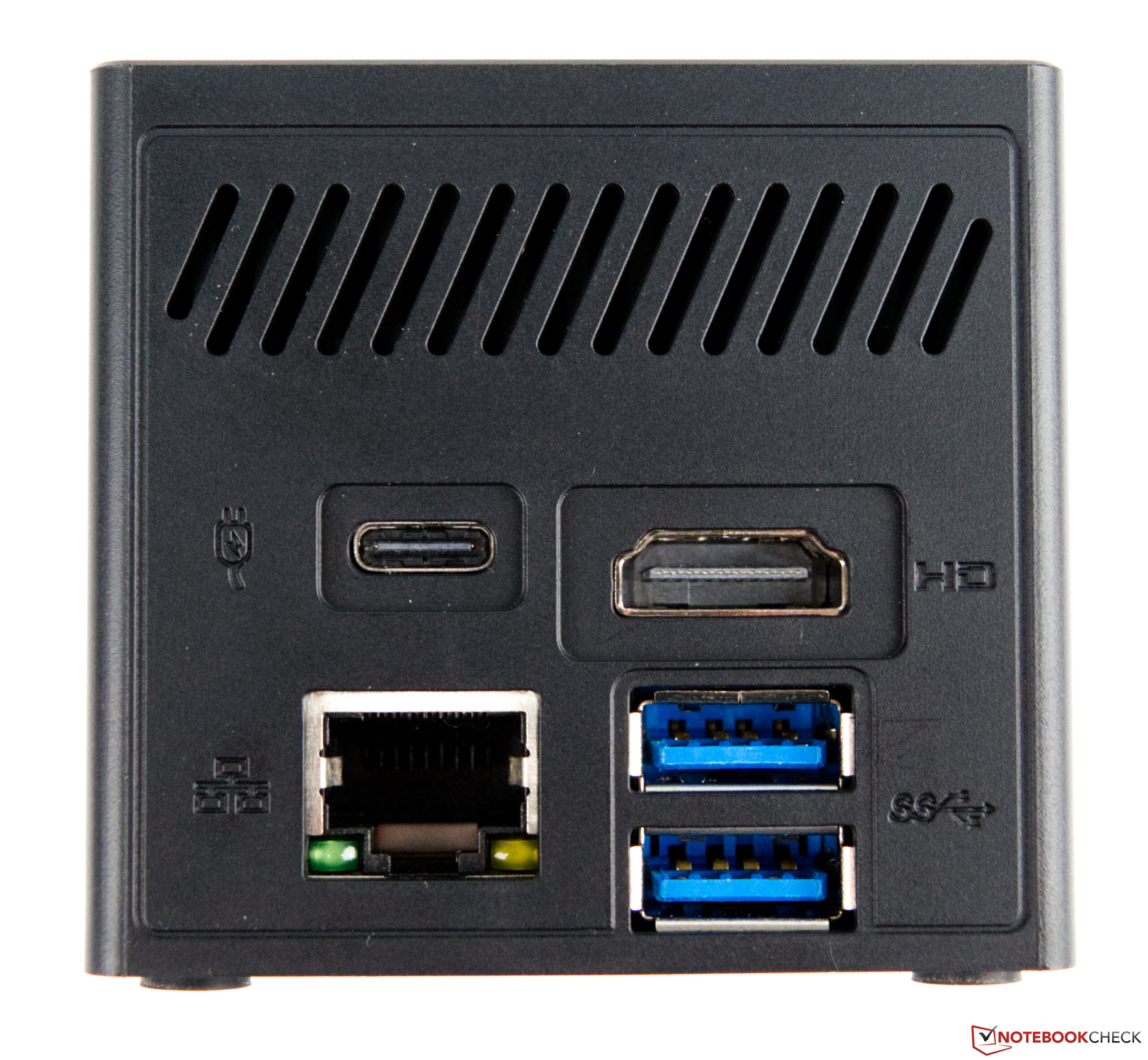

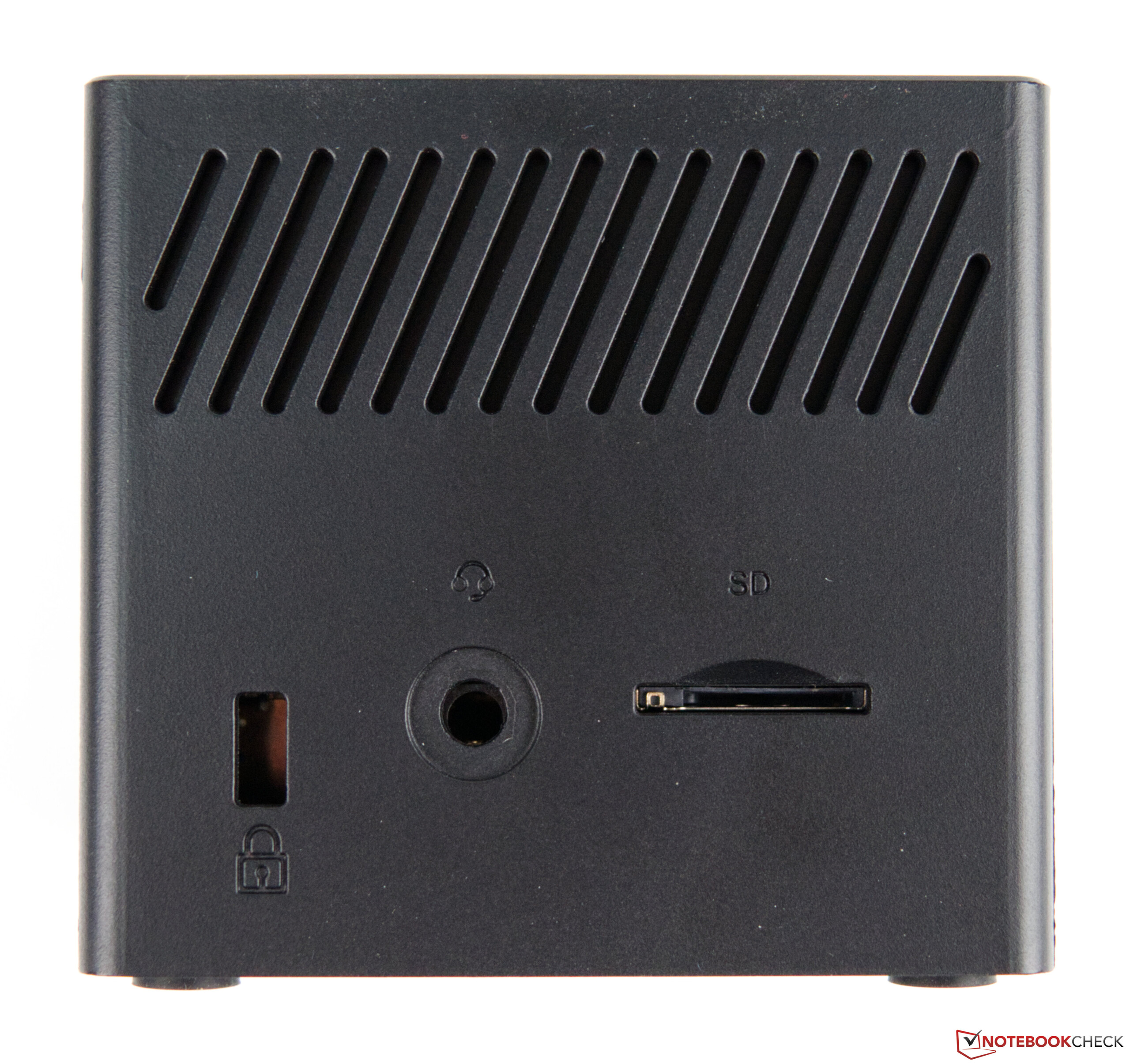

设备很好,AC6-M提供所有必要的端口。此外,读卡器也没有省略,但它只有micro-SD格式。

这台办公电脑的价格非常便宜,约为128美元(税前)。然而,必须考虑到需要进一步投资购买固态硬盘和操作系统。然而,在某些情况下,一个非常便宜的设备是可以组装的。

AC6-M最大的缺点是冷却装置,它在负载下很难冷却SoC。SSD的冷却被完全省略了。一个小的气流在这里会有奇效。

如果我们停留在尺寸的话题上,GMK NucBox K1可能是主要的竞争对手之一。这款产品的售价约为220欧元(约合260美元),配备128GB固态硬盘,因此与配备该设备的AC6-M价格差不多。在欧洲,AC6-M是不可用的。

Ninh Duy
Editor of the original article: Ninh Duy - Editorial Assistant - 195784 articles published on Notebookcheck since 2017
contact me via: Facebook
Stefan Hinum
Translator: Stefan Hinum - Founder, CEO, CFO - 18072 articles published on Notebookcheck since 2006
Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Newsmay科技公司的AC6-M迷你电脑回顾。一台成熟的办公用迷你电脑!
Sebastian Bade, 2021-08-16 (Update: 2021-08-16)
