Minisforum EliteMini B550评论。带外置显卡的紧凑型迷你电脑

迷你游戏电脑! Minisforum作为迷你电脑的制造商已经为许多人所熟知。但到目前为止,它的产品组合还没有包括真正强大的游戏PC。Minisforum EliteMini B550即将改变这种状况。您对专用显卡的选择使您能够决定图形性能。
AMD Cezanne (Zen 3) Desktop Gaming Mini PC

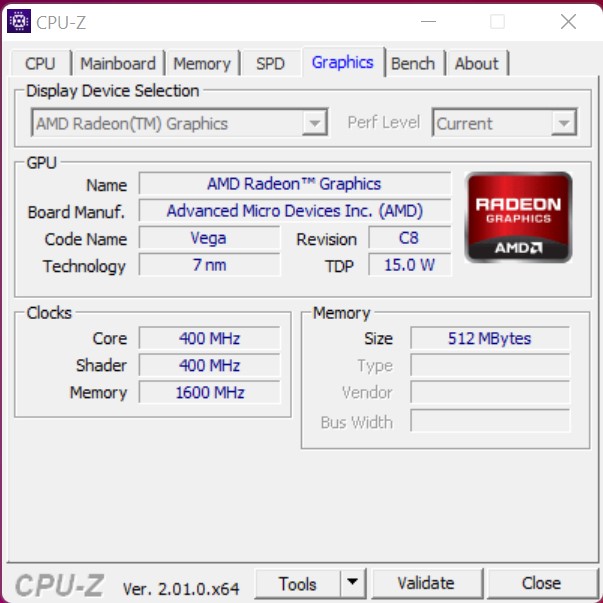

CPU-Z
CPU-Z

Minisforum在这个国家正在吸引越来越多的关注。他们的产品组合已经包括了一系列用于日常办公的迷你电脑。 之前有一款紧凑的游戏电脑,名为Minisforum EliteMini HX90.然而,该模型没有一个专用的图形处理器。

Minisforum EliteMini B550正在追求一条有点不同的道路。首先,这个模型是一个建立在AM4平台上的非常紧凑的迷你PC。这意味着裸机版本可以订购AMD Ryzen 7 5700G

或AMD Ryzen 7 4700G。作为AMD加速处理单元(APU)的一部分,集成图形处理单元(iGPU)提供有限的图形性能。为了弥补这一点,可以订购一个安装套件,通过PCIe扩展总线为迷你电脑提供一个外部显卡的接口。当然,这意味着你必须同时拥有外部显卡和电源。所有其他必要的电缆都已提供。

原则上,这个解决方案运行良好。同时,它确实有一种提高图形性能的权宜之计的感觉。

如前所述,MinisForum EliteMini B550有一个裸机版本。你应该预期花费310欧元(319美元),不包括CPU、内存或SSD。对于一个完全配置的设备(Ryzen 7 5700G,32GB内存和512GB固态硬盘),你要花749欧元(809美元)。我们的测试配置目前在网上以669欧元的价格出售。这包括Ryzen 7 5700G、16GB内存和512GB M.2固态硬盘,总共有三个大容量存储设备的空间。电源也包括在内。

裸机版本可以订购AMD Ryzen 7 5700G或AMD Ryzen 7 4700G。作为AMD加速处理单元(APU)的一部分,集成图形处理单元(iGPU)的图形性能有限。为了弥补这一点,可以订购一个安装套件,通过PCIe扩展总线为迷你电脑提供一个外部显卡的接口。当然,这意味着你必须同时拥有外部显卡和电源。所有其他必要的电缆都已提供。

Minisforum EliteMini B550
Processor
AMD Ryzen 7 5700G 8 x 3.8 - 4.6 GHz, 77 W PL2 / Short Burst, 72 W PL1 / Sustained, Cezanne (Zen 3)
Graphics adapter
AMD Radeon RX Vega 8 (Ryzen 4000/5000) - 512 MB VRAM, Memory: 1600 MHz, Adrenalin 22.3.2
Memory
16 GB
, DDR4-3200
Mainboard
AMD B550 (Promontory PROM19 C)
Storage
Kingston OM8PDP3512B-AI1, 512 GB
, M.2 2280 NVMe, 450 GB free
Connections
5 USB 3.1 Gen2, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm
Networking
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Size
height x width x depth (in mm): 67 x 158 x 166
Operating System
Microsoft Windows 11 Pro
Weight
1.113 kg, Power Supply: 595 g
Price
669 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

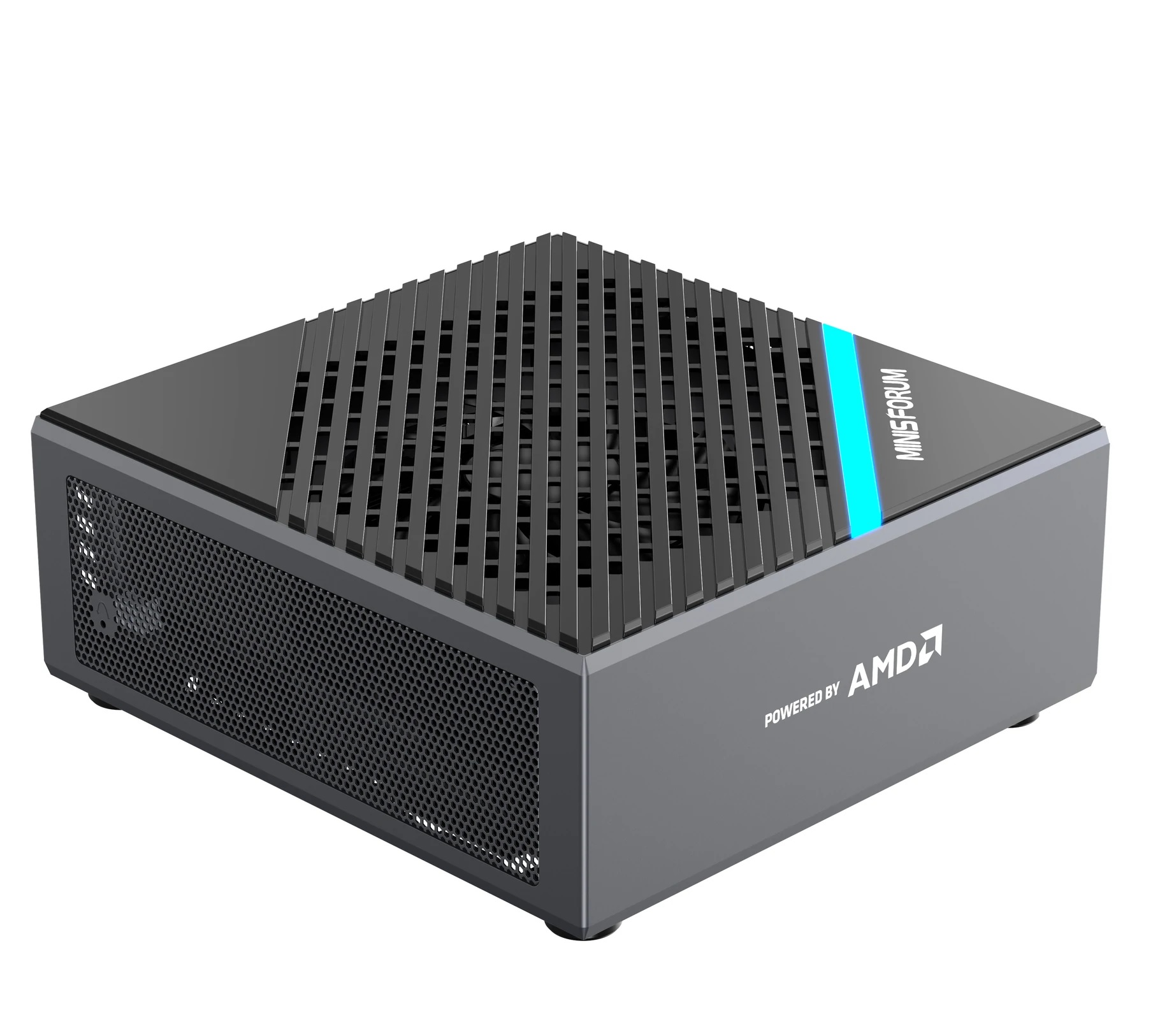

Minisforum EliteMini B550 (来源: Minisforum)
Minisforum EliteMini B550 (来源: Minisforum)
迷你论坛EliteMini B550
迷你论坛EliteMini B550
迷你论坛EliteMini B550

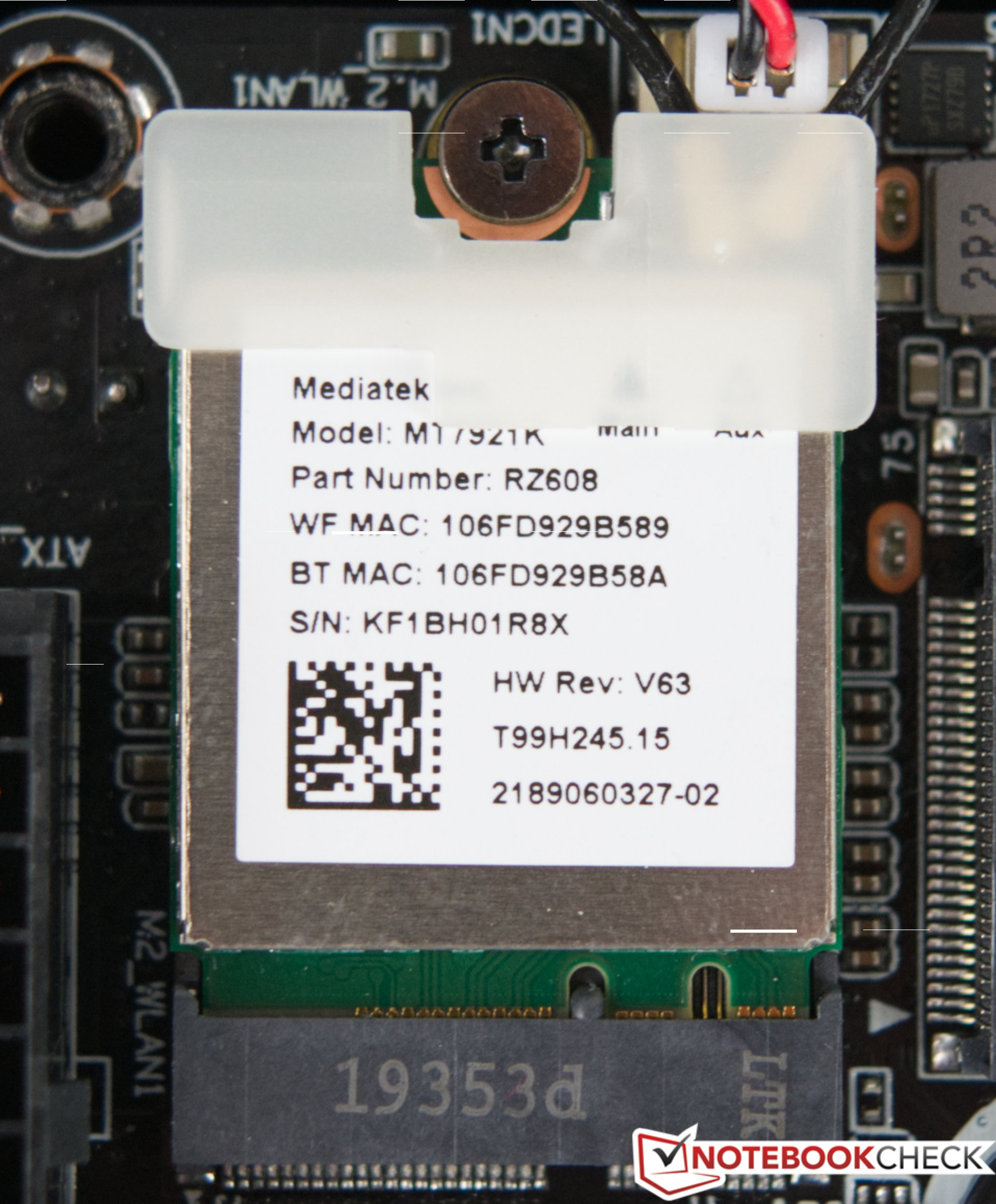

Minisforum EliteMini B550 - WLAN-Module
迷你论坛EliteMini B550
迷你论坛EliteMini B550
迷你论坛EliteMini B550

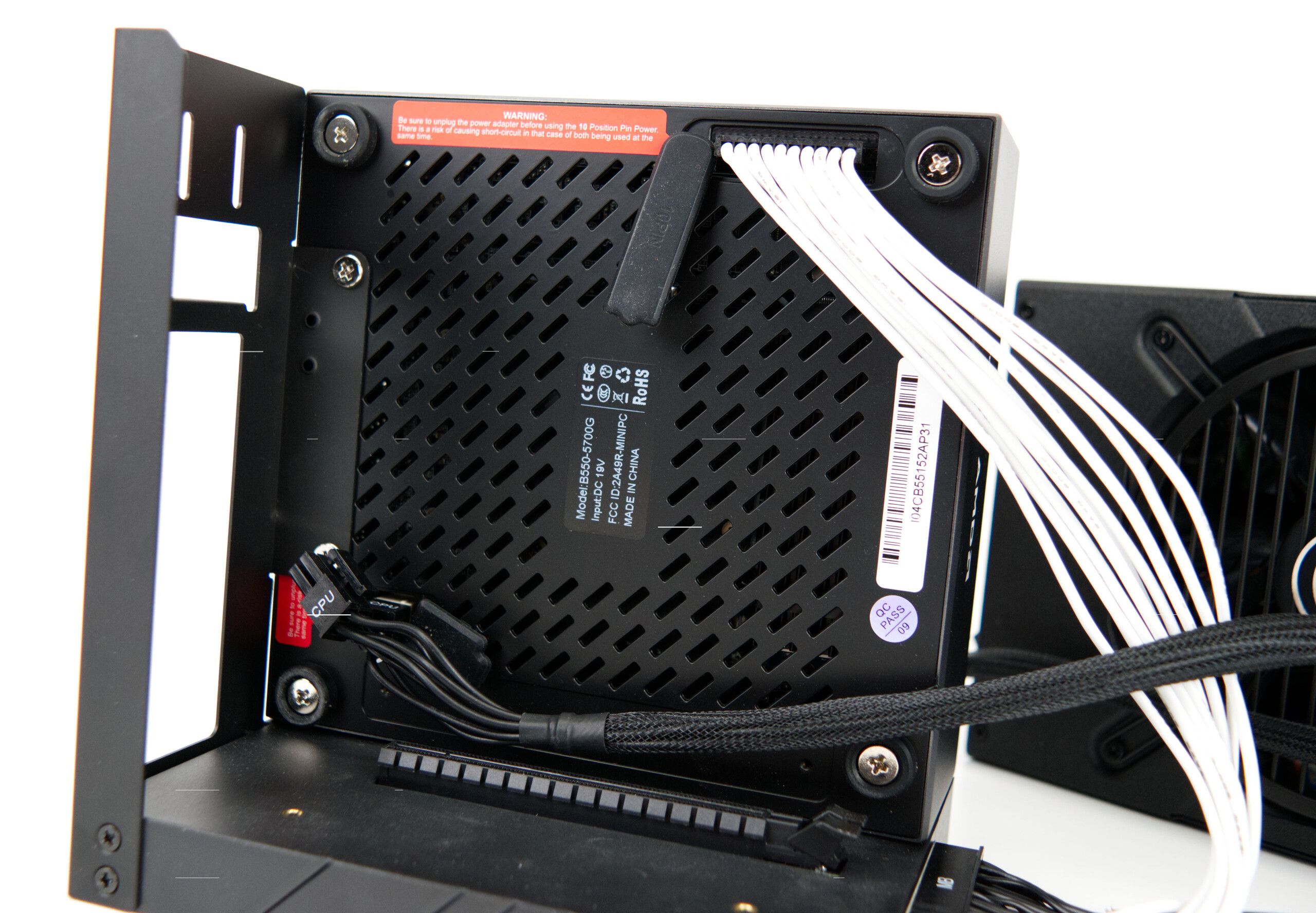

Minisforum EliteMini B550 - GPU安装
迷你论坛EliteMini B550
迷你论坛EliteMini B550

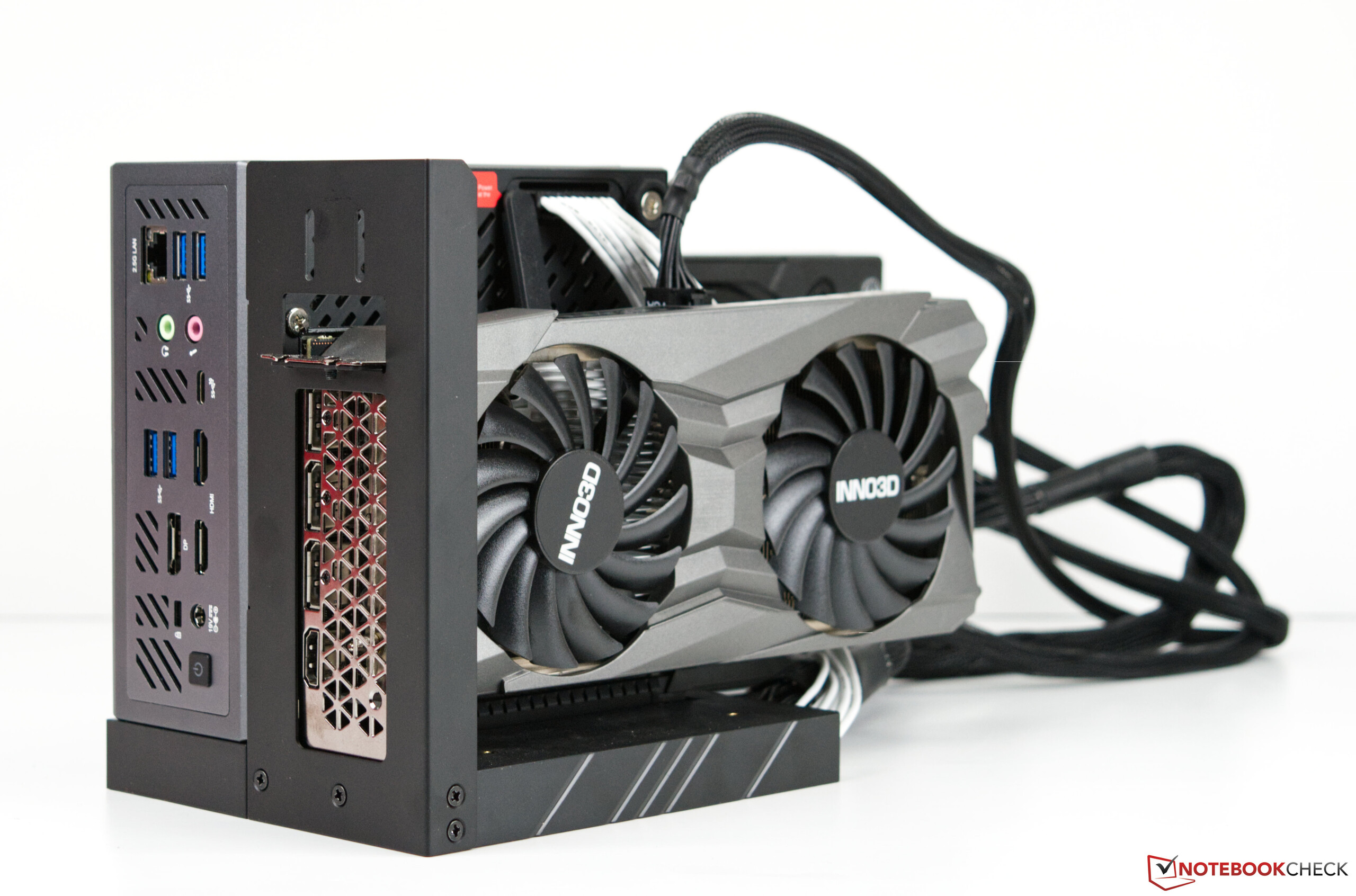

Minisforum EliteMini B550 - 带有GeForce RTX 3060
Minisforum EliteMini B550 - 带有GeForce RTX 3060

Minisforum EliteMini B550的详细介绍

案例

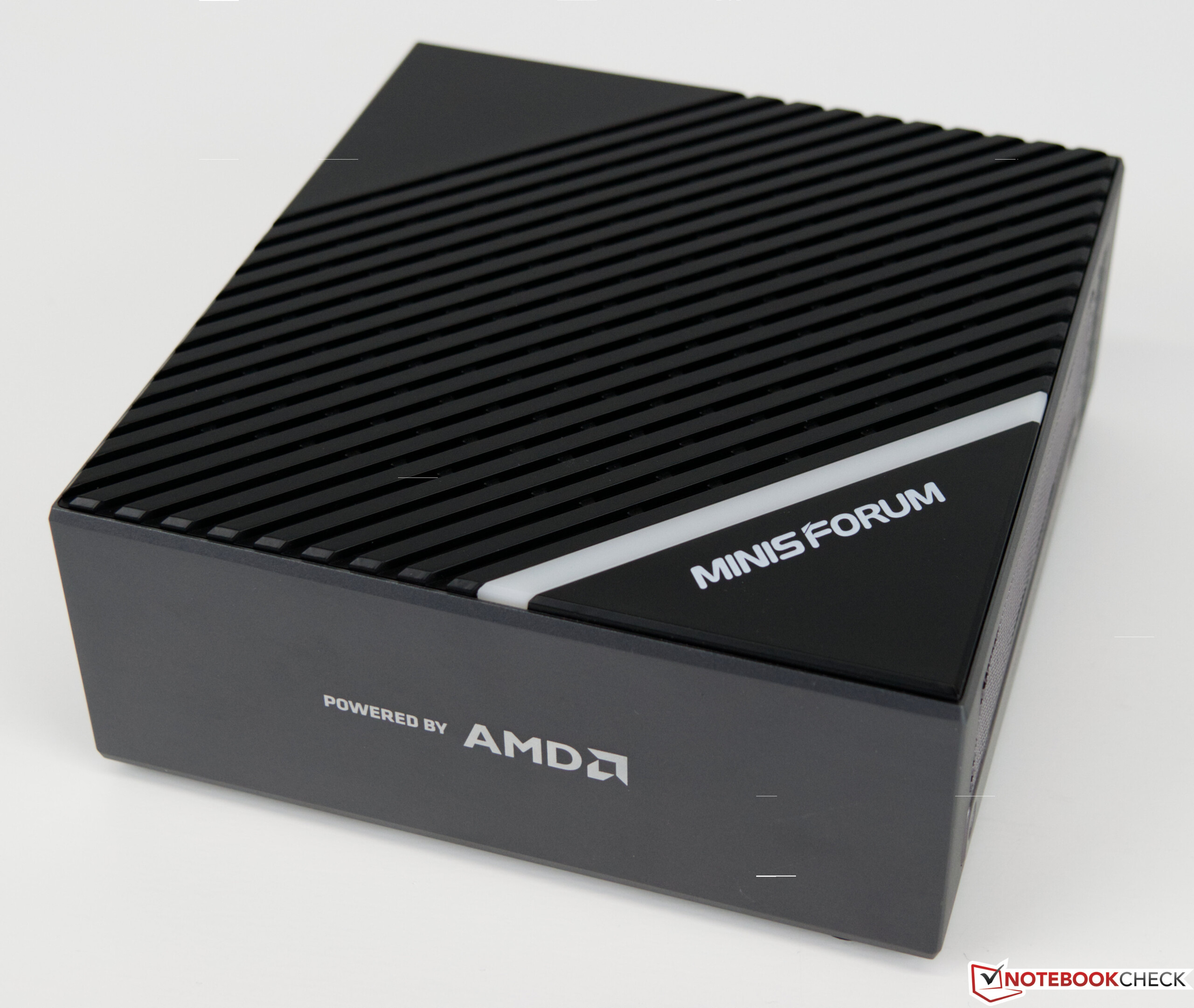

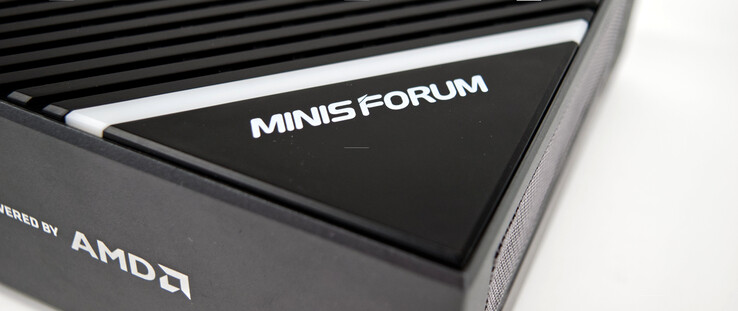

从纯粹的视觉角度来看,Minicforum EliteMini B550很适合EliteMini PC家族,尽管它与通常的颜色方案有一点不同。Minisforum EliteMini B550主要是灰色和黑色,提供了一个整体成功的视觉冲击。一个明显的蓝色LED条在启动时亮起,模仿开机灯。冷却方案让人想起了MINISFORUM稳定的其他Mini PC。而且,为什么要重新发明轮子呢。空气从机箱的顶部被吸入,并从侧壁排出。

塑料在材料中占主导地位,还有一点铝的亮点。该装置的外观和感觉明显是高质量的。GPU安装支架采用优质工艺,即使它们也是由塑料和铝组成。外部显卡需要垂直插入MINISFORUM EliteMini B550的PCIe插槽中,然后用螺丝固定。装配本身是非常稳定的,而且这个过程很快就能完成。Minisforum EliteMini B550的重量刚刚超过一公斤,明显感觉很轻,而且它的底座只有15.8厘米×16.6厘米,占用的桌面空间非常小。120W的电源只增加了600克的重量。

连接设备

Minisforum EliteMini B550提供了大量的外部连接。然而,有一点很明显的是,所有重要的端口都位于机箱的后面。总共有四个USB 3.2 A型和一个C型端口。监视器可以通过HDMI或DisplayPort连接到迷你电脑。最多可以同时连接三台显示器。然而,人们需要放弃SD卡读卡器的便利。

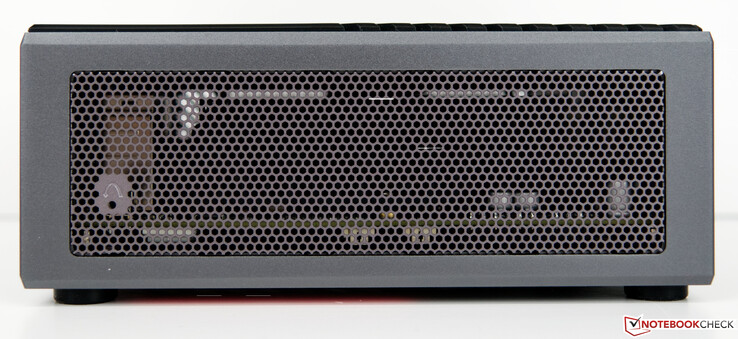

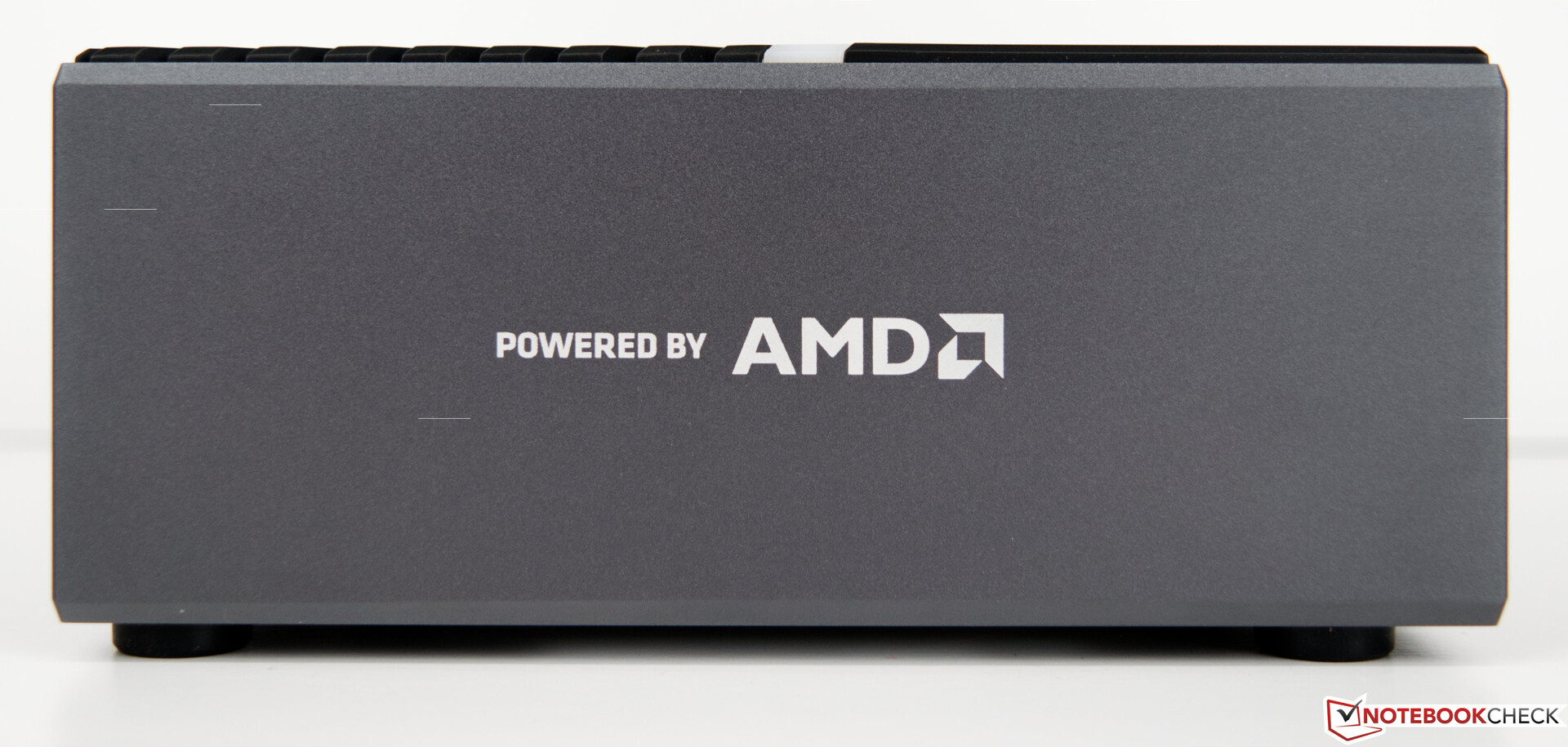

正面:无端口
正面:无端口

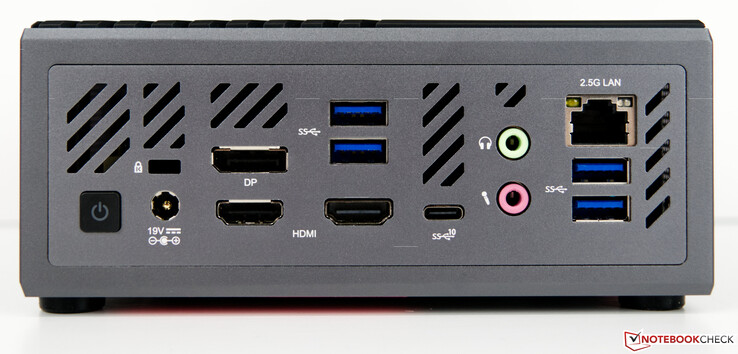

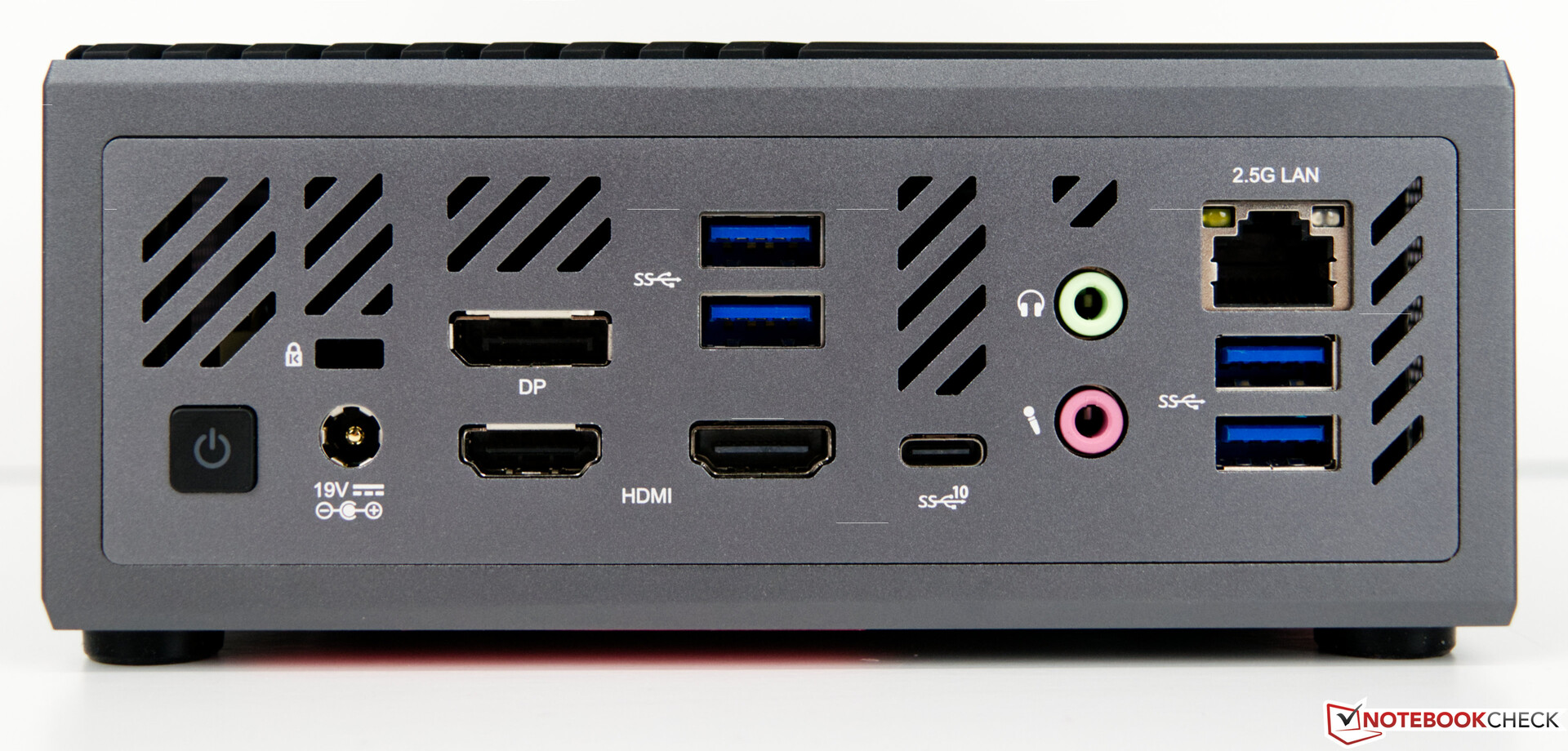

背面。Kensington锁,电源,HDMI,2个DisplayPort,4x USB 3.2 A型,1x USB 3.2 C型,3.5mm Klinke(耳机和麦克风),RJ45 2.5G
背面。Kensington锁,电源,HDMI,2个DisplayPort,4x USB 3.2 A型,1x USB 3.2 C型,3.5mm Klinke(耳机和麦克风),RJ45 2.5G

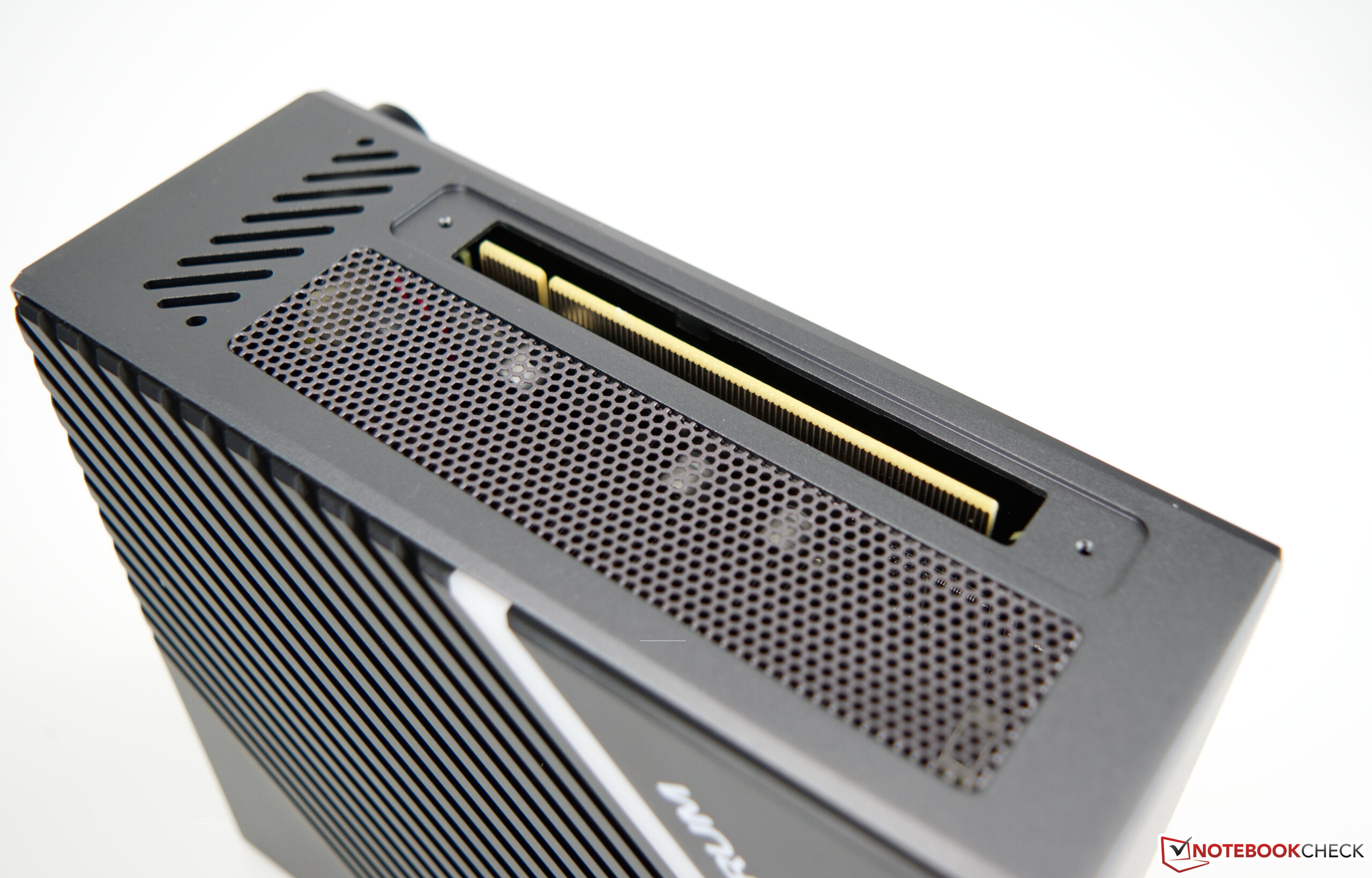

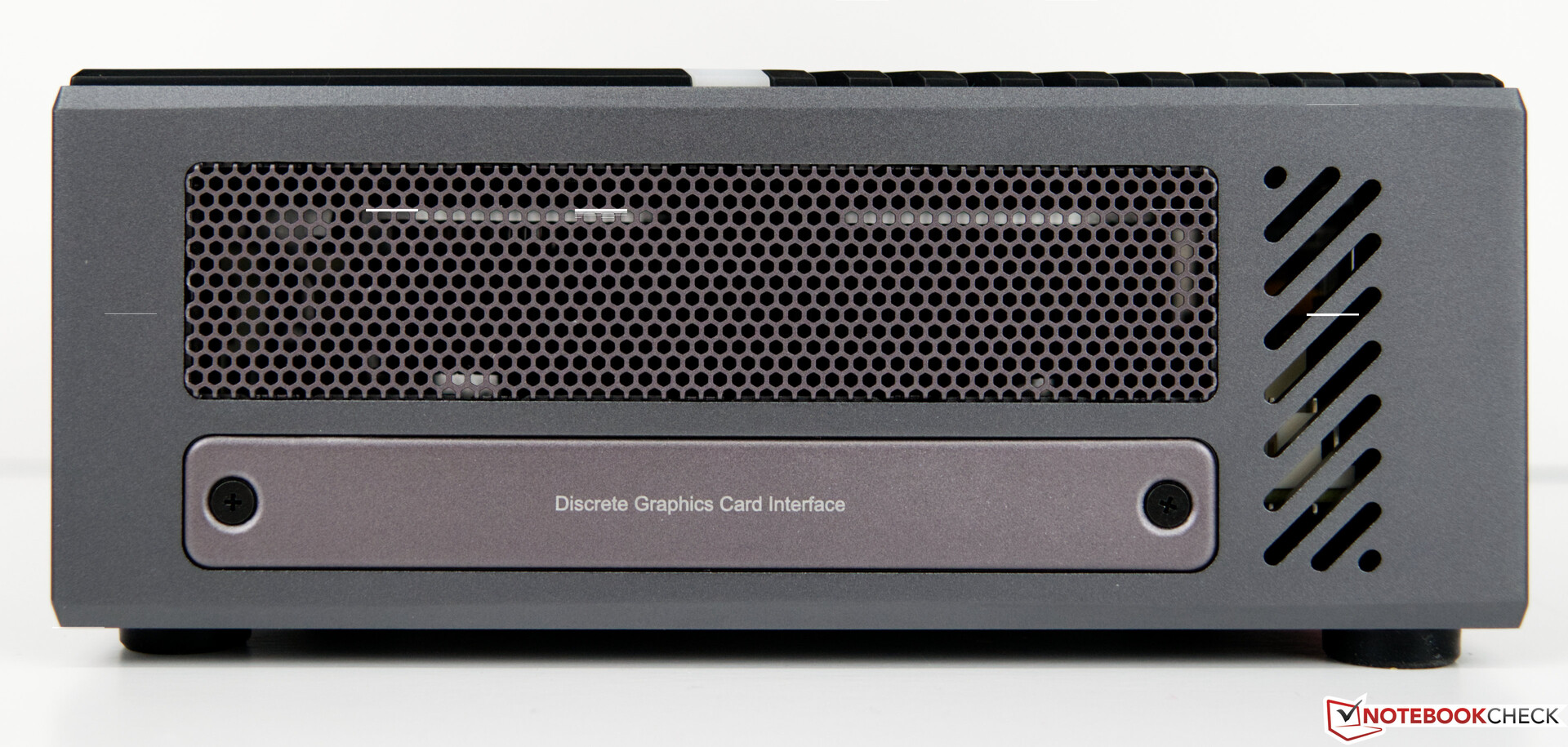

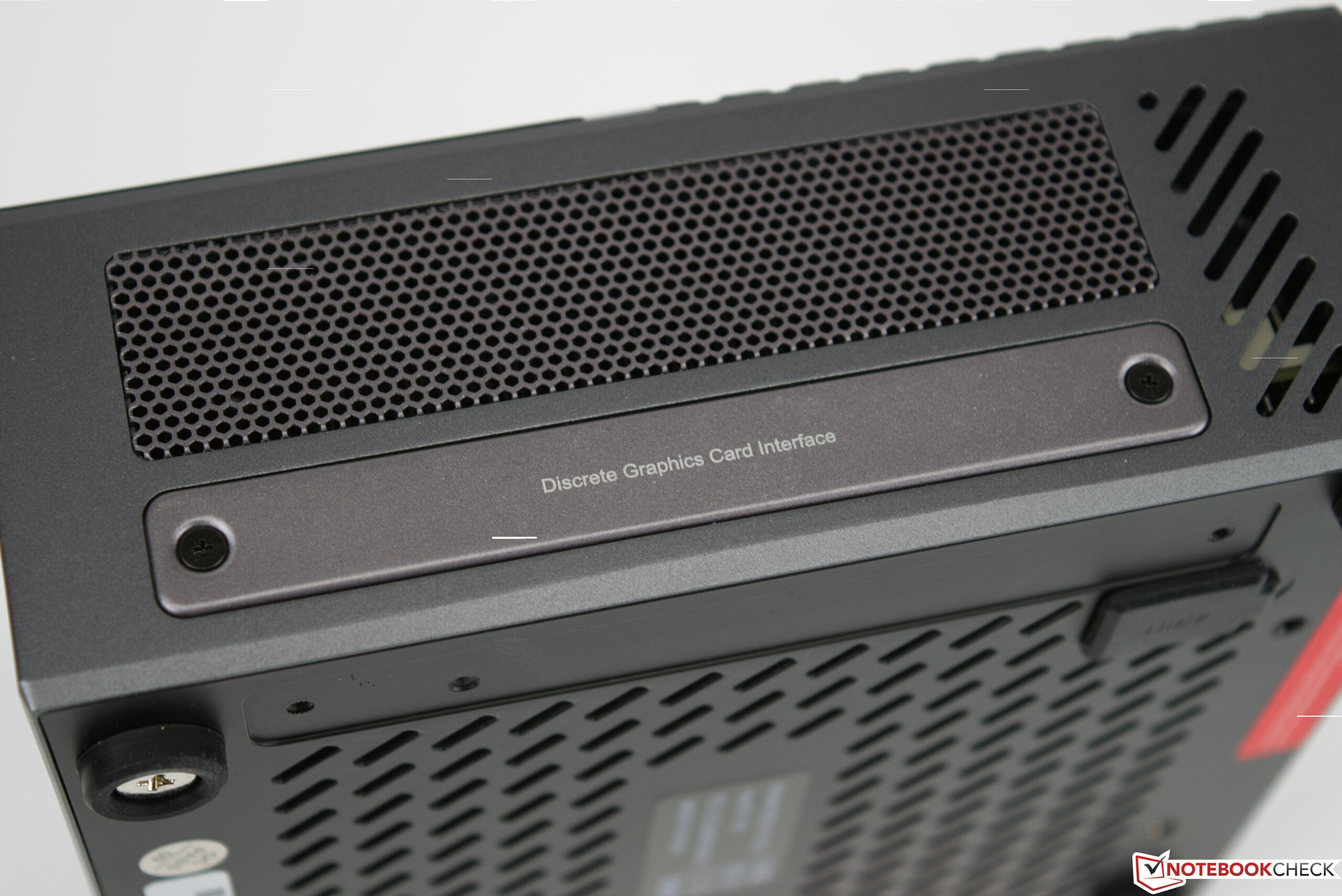

对。用于GPU底座的PCIe
对。用于GPU底座的PCIe

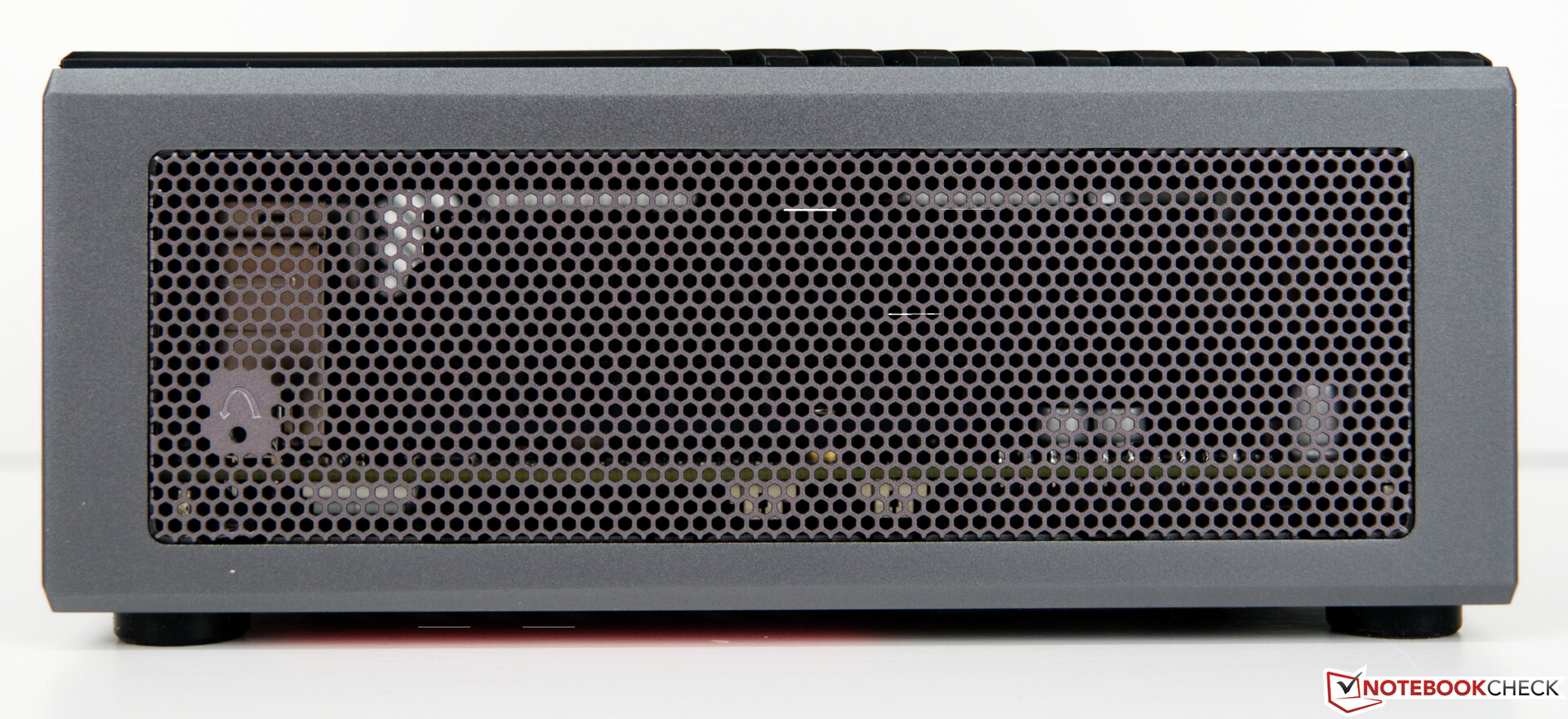

左边:没有端口
左边:没有端口

连接设备

EliteMini B550内部埋藏了一个联发科RZ608无线局域网模块。我们的测试结果并不太令人信服。Minisforum EliteMini B550最终在我们的同类设备中排名垫底。然而,积极的一面是,该设备通过WLAN提供稳定的数据传输率。此外,我们的测试设备还包括一个RJ45接口,可以提供高达2.5Gbps的传输率。

Networking
iperf3 receive AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1848 (1731min - 1888max) MBit/s +330%
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1480 (1212min - 1519max) MBit/s +244%
Average of class Desktop
  (430 - 1827, n=9, last 2 years)
1265 MBit/s +194%
Average MediaTek RZ608
  (430 - 961, n=16)
826 MBit/s +92%
Minisforum EliteMini TH50
MediaTek MT7921
776 (482min - 881max) MBit/s +80%
Minisforum EliteMini B550
MediaTek RZ608
430 (379min - 451max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1851 (1799min - 1897max) MBit/s +224%
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1669 (1609min - 1719max) MBit/s +192%
Average of class Desktop
  (572 - 1745, n=10, last 2 years)
1409 MBit/s +146%
Minisforum EliteMini TH50
MediaTek MT7921
866 (502min - 950max) MBit/s +51%
Average MediaTek RZ608
  (572 - 980, n=16)
825 MBit/s +44%
Minisforum EliteMini B550
MediaTek RZ608
572 (532min - 680max) MBit/s
050100150200250300350400450500550600650Tooltip
Minisforum EliteMini B550; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø572 (532-680)
Minisforum EliteMini B550; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø429 (379-451)

业绩

CPU

现在熟悉的APU,即AMD Ryzen 7 5700G将8个Z3核心和AMD Radeon RX Vega 8 iGPU联合在一个散热片下。让我们花点时间来关注MINISFORUM EliteMini B550的CPU性能;其性能不仅仅是能跟上 "大型 "台式机的步伐。总而言之,AMD Ryzen 7 5700G的性能很好,即使它在某些类别中没有像我们早先对这一特定处理器的CPU审查中那样堆积得很好。这款APU在多核测试中的性能下降了10%左右。尽管如此,性能与AMD Ryzen 5 5600X相当。

AMD Ryzen 7 5700G与AMD Ryzen 9 5900HX的性能水平相比,全面表现良好。英特尔的移动8核处理器的表现确实超过了Ryzen。我们在对Zotac Magnus EN173070C的审查中使用了前者。

进一步的处理器基准数据可在 这里Mobile Processors - Benchmark List.

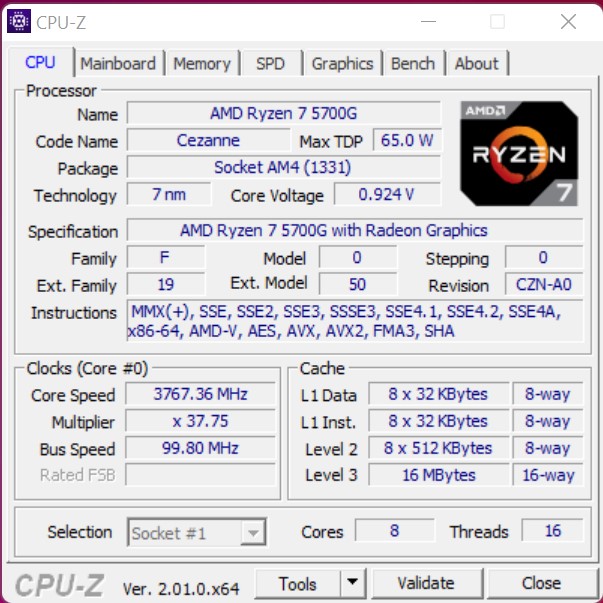

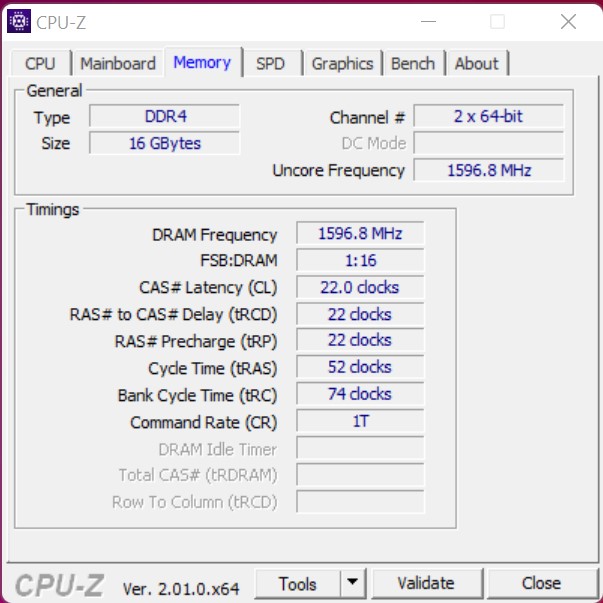

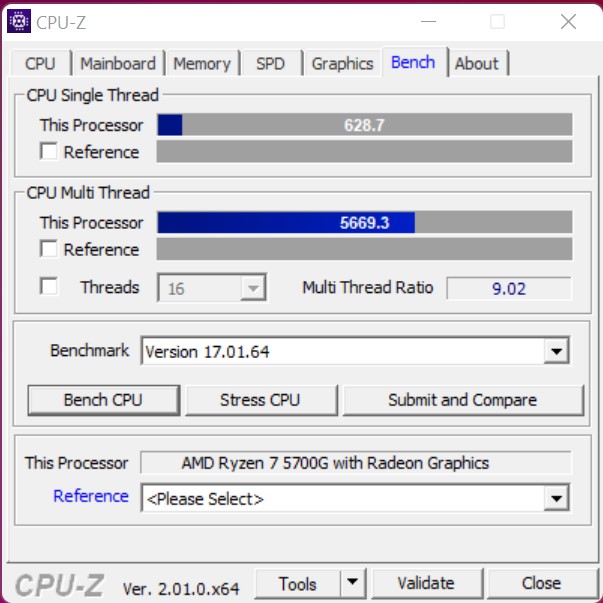

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

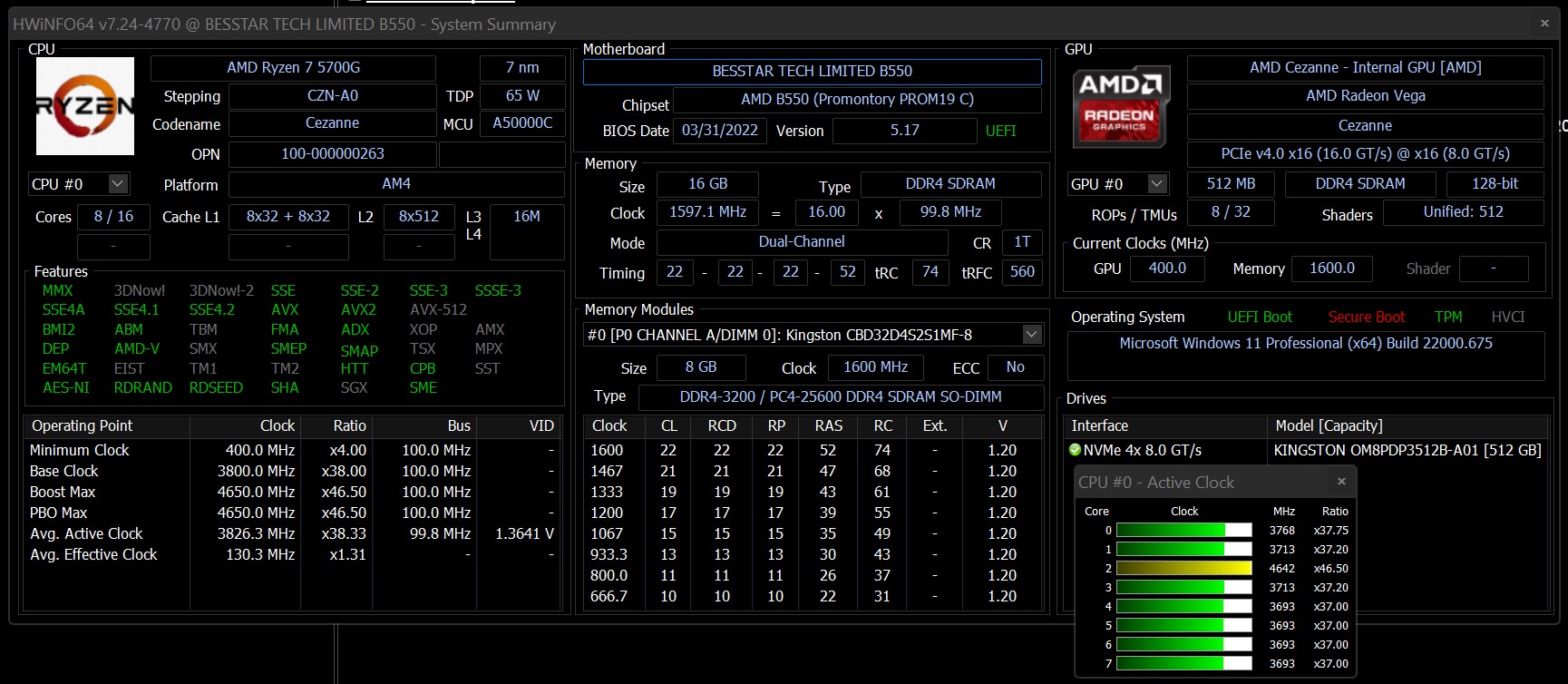

HW信息
HW信息
Performance Rating - Percent
Intel Core i5-12600K,
i5-12600K, 2800 MHz
55.2 pt
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
54.2 pt
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
49.5 pt
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
49.3 pt
Average AMD Ryzen 7 5700G

48 pt
Intel Core i5-11600K,
i5-11600K, 3900 MHz
47.7 pt
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
46.8 pt
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
46.7 pt
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
46.5 pt
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
45.5 pt
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
43.7 pt
Intel Core i5-10600K,
i5-10600K, 4100 MHz
42.2 pt
Cinebench R15
CPU Single 64Bit
Intel Core i5-12600K,
i5-12600K, 2800 MHz
275 Points +13%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
266 Points +9%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
254 Points +5%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
243 Points
Average AMD Ryzen 7 5700G
  (242 - 243, n=2)
243 Points 0%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
242 Points 0%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
242 Points 0%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
242 Points 0%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
240 Points -1%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
224 Points -8%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
215 Points -12%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
205 Points -16%
CPU Multi 64Bit
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
2616 Points +32%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
2555 Points +29%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
2234 Points +13%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
2224 Points +12%
Average AMD Ryzen 7 5700G
  (1980 - 2234, n=2)
2107 Points +6%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
1980 Points
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
1968 Points -1%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
1919 (1862.02min - 1893.4max) Points -3%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
1738 Points -12%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
1666 Points -16%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
1607 Points -19%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
1452 Points -27%
Cinebench R20
CPU (Single Core)
Intel Core i5-12600K,
i5-12600K, 2800 MHz
734 Points +25%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
625 Points +7%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
601 Points +3%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
595 Points +2%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
585 Points
Average AMD Ryzen 7 5700G
  (583 - 585, n=2)
584 Points 0%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
583 Points 0%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
582 Points -1%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
567 Points -3%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
564 Points -4%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
504 Points -14%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
464 Points -21%
CPU (Multi Core)
Intel Core i5-12600K,
i5-12600K, 2800 MHz
6692 Points +44%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
6068 Points +30%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
5371 Points +15%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
5185 Points +11%
Average AMD Ryzen 7 5700G
  (4660 - 5371, n=2)
5016 Points +8%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
4660 Points
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
4567 Points -2%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
4495 Points -4%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
4349 Points -7%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
3954 Points -15%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
3443 Points -26%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
3357 Points -28%
Cinebench R11.5
CPU Single 64Bit
Intel Core i5-12600K,
i5-12600K, 2800 MHz
3.31 Points +15%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
3.09 Points +8%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
2.95 Points +3%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
2.87 Points 0%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
2.87 Points
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
2.86 Points 0%
Average AMD Ryzen 7 5700G
  (2.84 - 2.87, n=2)
2.86 Points 0%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
2.84 Points -1%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
2.8 Points -2%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
2.59 Points -10%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
2.4 Points -16%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
2.19 Points -24%
CPU Multi 64Bit
Intel Core i5-12600K,
i5-12600K, 2800 MHz
30.01 Points +32%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
29.31 Points +29%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
25.6 Points +12%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
24.37 Points +7%
Average AMD Ryzen 7 5700G
  (22.8 - 24.4, n=2)
23.6 Points +4%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
22.79 Points
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
22 Points -3%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
21.75 Points -5%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
19.32 Points -15%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
19.18 Points -16%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
18.04 Points -21%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
15.76 Points -31%
Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i5-12600K,
i5-12600K, 2800 MHz
15180 Points +25%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
13039 Points +8%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
12957 Points +7%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
12563 Points +4%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
12152 Points 0%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
12113 Points
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
11811 Points -2%
Average AMD Ryzen 7 5700G
  (11351 - 12113, n=2)
11732 Points -3%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
11608 Points -4%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
11351 Points -6%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
10359 Points -14%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
9594 Points -21%
Rendering Multiple CPUs 64Bit
Intel Core i5-12600K,
i5-12600K, 2800 MHz
89478 Points +35%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
83426 Points +26%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
73115 Points +10%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
71162 Points +7%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
69545 Points +5%
Average AMD Ryzen 7 5700G
  (66237 - 71162, n=2)
68700 Points +4%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
66237 Points
Intel Core i5-11600K,
i5-11600K, 3900 MHz
64663 Points -2%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
64320 Points -3%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
58426 Points -12%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
55742 Points -16%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
51816 Points -22%
Blender - v2.79 BMW27 CPU
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
317.4 Seconds * -26%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
302.4 Seconds * -20%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
286.1 Seconds * -13%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
265 Seconds * -5%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
264.5 Seconds * -5%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
260.2 Seconds * -3%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
252.1 Seconds *
Average AMD Ryzen 7 5700G
  (214 - 252, n=2)
233 Seconds * +8%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
229.3 Seconds * +9%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
213.6 Seconds * +15%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
196.8 Seconds * +22%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
189.5 Seconds * +25%
wPrime 2.10
32m
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
5.067 s * -41%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
4.919 s * -37%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
4.725 s * -31%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
4.648 s * -29%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
4.4 s * -22%
Average AMD Ryzen 7 5700G
  (3.6 - 5.07, n=2)
4.33 s * -20%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
4.186 s * -16%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
3.891 s * -8%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
3.788 s * -5%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
3.595 s *
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
3.308 s * +8%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
3.037 s * +16%
1024m
Intel Core i5-12600K,
i5-12600K, 2800 MHz
202.7 s * -106%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
120.839 s * -23%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
120.2 s * -22%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
113.9 s * -15%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
113.2 s * -15%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
107.6 s * -9%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
106.7 s * -8%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
98.635 s *
Average AMD Ryzen 7 5700G
  (90.5 - 98.6, n=2)
94.6 s * +4%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
91.6 s * +7%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
90.5 s * +8%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
86.1 s * +13%
X264 HD Benchmark 4.0
Pass 1
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
339 (338min - 341max) fps +29%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
333.5 (332min - 336max) fps +27%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
320 (319min - 321max) fps +21%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
299 (294min - 299max) fps +13%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
284 (283min - 285max) fps +8%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
276.5 (274min - 278max) fps +5%
Average AMD Ryzen 7 5700G
  (264 - 284, n=2)
274 fps +4%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
271.5 (259min - 276max) fps +3%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
263.5 (262min - 266max) fps
Intel Core i5-10600K,
i5-10600K, 4100 MHz
251.5 (250min - 253max) fps -5%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
247.5 (245min - 250max) fps -6%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
237.5 (236min - 239max) fps -10%
Pass 2
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
152 (151min - 152max) fps +30%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
148 (147min - 148max) fps +27%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
130 (130min - 130max) fps +11%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
128 (122min - 128max) fps +10%
Average AMD Ryzen 7 5700G
  (116.8 - 130, n=2)
123.4 fps +6%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
117 (117min - 117max) fps 0%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
116.8 (116.8min - 117.3max) fps
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
112 (112min - 112max) fps -4%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
101 (101min - 101max) fps -14%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
93.75 (91.3min - 98.8max) fps -20%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
92.8 (89.1min - 100max) fps -21%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
88.2 (88min - 88.2max) fps -24%
WinRAR - Result
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
15604 KB/s +124%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
13282 KB/s +91%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
8401 KB/s +21%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
7925 KB/s +14%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
7850 KB/s +13%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
7722 KB/s +11%
Average AMD Ryzen 7 5700G
  (6960 - 8401, n=2)
7681 KB/s +10%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
7266 KB/s +4%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
6960 KB/s
Intel Core i5-10600K,
i5-10600K, 4100 MHz
6536 KB/s -6%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
6239 KB/s -10%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
4297 KB/s -38%
TrueCrypt
AES Mean 100MB
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
15 GB/s +97%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
13.4 GB/s +76%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
12.8 GB/s +68%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
10.8 GB/s +42%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
10.7 GB/s +41%
Average AMD Ryzen 7 5700G
  (7.6 - 13.4, n=2)
10.5 GB/s +38%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
10.1 GB/s +33%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
9.9 GB/s +30%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
9.7 GB/s +28%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
8 GB/s +5%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
7.6 GB/s
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
7.4 GB/s -3%
Twofish Mean 100MB
Intel Core i5-12600K,
i5-12600K, 2800 MHz
2.2 GB/s +47%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
2 GB/s +33%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
2 GB/s +33%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
1.7 GB/s +13%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
1.7 GB/s +13%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
1.6 GB/s +7%
Average AMD Ryzen 7 5700G
  (1.5 - 1.7, n=2)
1.6 GB/s +7%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
1.5 GB/s 0%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
1.5 GB/s 0%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
1.5 GB/s 0%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
1.5 GB/s
Intel Core i5-10600K,
i5-10600K, 4100 MHz
1.4 GB/s -7%
Serpent Mean 100MB
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
1.3 GB/s +18%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
1.3 GB/s +18%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
1.2 GB/s +9%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
1.1 GB/s 0%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
1.1 GB/s
Average AMD Ryzen 7 5700G
  (1 - 1.1, n=2)
1.05 GB/s -5%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
1 GB/s -9%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
1 GB/s -9%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
0.938 GB/s -15%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
0.9 GB/s -18%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
0.9 GB/s -18%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
0.82 GB/s -25%
Geekbench 5.5
Multi-Core
Intel Core i5-12600K,
i5-12600K, 2800 MHz
12797 Points +64%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
11354 Points +45%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
9544 Points +22%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
8980 Points +15%
Average AMD Ryzen 7 5700G
  (7818 - 9544, n=2)
8681 Points +11%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
8523 Points +9%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
8207 Points +5%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
7875 Points +1%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
7855 Points 0%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
7818 Points
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
7568 Points -3%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
7248 Points -7%
Single-Core
Intel Core i5-12600K,
i5-12600K, 2800 MHz
1904 Points +22%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
1752 Points +12%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
1665 Points +7%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
1657 Points +6%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
1598 Points +2%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
1579 Points +1%
Average AMD Ryzen 7 5700G
  (1560 - 1598, n=2)
1579 Points +1%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
1560 Points
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
1552 Points -1%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
1542 Points -1%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
1378 Points -12%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
1286 Points -18%
Geekbench 5.0
5.0 Multi-Core
Intel Core i5-12600K,
i5-12600K, 2800 MHz
12746 Points +63%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
11246 Points +44%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
9563 Points +23%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
8926 Points +14%
Average AMD Ryzen 7 5700G
  (7806 - 9563, n=2)
8685 Points +11%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
8542 Points +9%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
8109 Points +4%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
7859 Points +1%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
7847 Points +1%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
7806 Points
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
7540 Points -3%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
7237 Points -7%
5.0 Single-Core
Intel Core i5-12600K,
i5-12600K, 2800 MHz
1821 Points +20%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
1731 Points +14%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
1673 Points +10%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
1587 Points +5%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
1571 Points +3%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
1525 Points 0%
Average AMD Ryzen 7 5700G
  (1518 - 1525, n=2)
1522 Points 0%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
1518 Points
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
1504 Points -1%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
1498 Points -1%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
1355 Points -11%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
1281 Points -16%
Geekbench 4.4
64 Bit Single-Core Score
Intel Core i5-12600K,
i5-12600K, 2800 MHz
8223 Points +26%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
7438 Points +14%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
7333 Points +13%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
6953 Points +7%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
6743 Points +3%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
6698 Points +3%
Average AMD Ryzen 7 5700G
  (6517 - 6743, n=2)
6630 Points +2%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
6517 Points
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
6434 Points -1%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
6365 Points -2%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
5969 Points -8%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
5821 Points -11%
64 Bit Multi-Core Score
Intel Core i5-12600K,
i5-12600K, 2800 MHz
46557 Points +46%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
44131 Points +39%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
36970 Points +16%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
35617 Points +12%
Average AMD Ryzen 7 5700G
  (31835 - 36970, n=2)
34403 Points +8%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
33266 Points +4%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
33034 Points +4%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
32434 Points +2%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
31835 Points
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
31724 Points 0%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
29385 Points -8%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
28391 Points -11%
3DMark 11 - 1280x720 Performance Physics
Intel Core i5-12600K,
i5-12600K, 2800 MHz
25017 Points +75%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
23381 Points +64%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
19649 Points +38%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
18372 Points +29%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
17381 Points +22%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
16783 Points +18%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
16422 Points +15%
Average AMD Ryzen 7 5700G
  (14277 - 18372, n=3)
16199 Points +13%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
15961 Points +12%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
15739 Points +10%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
14277 Points
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
13940 Points -2%
7-Zip 18.03
7z b 4
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
74306 MIPS +35%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
64358 MIPS +17%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
64260 MIPS +17%
Average AMD Ryzen 7 5700G
  (55046 - 64358, n=2)
59702 MIPS +8%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
57435 MIPS +4%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
56607 MIPS +3%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
55046 MIPS
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
54998 MIPS 0%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
45999 MIPS -16%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
45322 MIPS -18%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
44081 MIPS -20%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
40379 MIPS -27%
7z b 4 -mmt1
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
6970 MIPS +20%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
6594 MIPS +14%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
6136 MIPS +6%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
5944 MIPS +2%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
5905 MIPS +2%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
5818 MIPS 0%
Average AMD Ryzen 7 5700G
  (5809 - 5818, n=2)
5814 MIPS 0%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
5809 MIPS
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
5739 MIPS -1%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
5642 MIPS -3%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
5619 MIPS -3%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
5289 MIPS -9%
HWBOT x265 Benchmark v2.2 - 4k Preset
Intel Core i5-12600K,
i5-12600K, 2800 MHz
30.1 fps +103%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
20.8 fps +41%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
16.8 fps +14%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
15.9 fps +7%
Average AMD Ryzen 7 5700G
  (14.8 - 16.8, n=2)
15.8 fps +7%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
15.7 fps +6%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
14.8 fps
Intel Core i5-11600K,
i5-11600K, 3900 MHz
14.7 fps -1%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
14.5 fps -2%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
13.2 fps -11%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
12.2 fps -18%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
11.4 fps -23%
R Benchmark 2.5 - Overall mean
Intel Core i5-10600K,
i5-10600K, 4100 MHz
0.593 sec * -19%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
0.56 sec * -13%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
0.541 sec * -9%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
0.506 sec * -2%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
0.4975 sec *
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
0.4965 sec * -0%
Average AMD Ryzen 7 5700G
  (0.4896 - 0.4975, n=2)
0.4936 sec * +1%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
0.493 sec * +1%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
0.4896 sec * +2%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
0.4778 sec * +4%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
0.4509 sec * +9%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
0.4456 sec * +10%
LibreOffice - 20 Documents To PDF
Intel Core i5-12600K,
i5-12600K, 2800 MHz
71.8 s * -42%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
50.7 s *
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
50.4 s * +1%
Average AMD Ryzen 7 5700G
  (49.8 - 50.7, n=2)
50.3 s * +1%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
49.8 s * +2%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
49.3 s * +3%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
48 s * +5%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
46.06 s * +9%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
45.23 s * +11%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
45.14 s * +11%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
43.31 s * +15%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
39.7 s * +22%
WebXPRT 3 - Overall
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
296 Points +4%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
295 Points +4%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
293 Points +3%
Average AMD Ryzen 7 5700G
  (284 - 295, n=2)
290 Points +2%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
286 Points +1%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
284 Points
Intel Core i5-11600K,
i5-11600K, 3900 MHz
280 Points -1%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
278 Points -2%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
274 Points -4%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
267 Points -6%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
239 Points -16%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
233 Points -18%
Mozilla Kraken 1.1 - Total
Intel Core i5-10600K,
i5-10600K, 4100 MHz
760 ms * -26%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
754 ms * -25%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
641 ms * -6%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
604 ms *
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
602 ms * -0%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
601 ms * -0%
Average AMD Ryzen 7 5700G
  (587 - 604, n=2)
596 ms * +1%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
587 ms * +3%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
587 ms * +3%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
578 ms * +4%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
558 ms * +8%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
511 ms * +15%
3DMark
3840x2160 Fire Strike Ultra Physics
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
31095 Points +30%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
29443 Points +23%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
27096 Points +13%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
26038 Points +9%
Average AMD Ryzen 7 5700G
  (23939 - 27096, n=3)
25690 Points +7%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
23939 Points
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
23269 Points -3%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
23190 Points -3%
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
22976 Points -4%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
22873 Points -4%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
21864 Points -9%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
19942 Points -17%
1920x1080 Fire Strike Physics
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
30938 Points +23%
Intel Core i5-12600K,
i5-12600K, 2800 MHz
29671 Points +18%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
27300 Points +9%
Average AMD Ryzen 7 5700G
  (25160 - 27300, n=3)
26172 Points +4%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
25990 Points +3%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
25160 Points
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
24096 Points -4%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
23903 Points -5%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
23641 Points -6%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
22631 Points -10%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
21706 Points -14%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
20040 Points -20%
2560x1440 Time Spy CPU
Intel Core i5-12600K,
i5-12600K, 2800 MHz
13869 Points +96%
AMD Ryzen 7 5800X,
R7 5800X, 3800 MHz
11599 Points +64%
AMD Ryzen 7 5700G,
R7 5700G, 3800 MHz
9743 Points +37%
Intel Core i5-11600K,
i5-11600K, 3900 MHz
9482 Points +34%
Intel Core i9-9980HK,
i9-9980HK, 2400 MHz
9417 Points +33%
Intel Core i7-11800H, Zotac
i7-11800H, 2300 MHz
9282 Points +31%
AMD Ryzen 5 5600X,
R5 5600X, 3700 MHz
8911 Points +26%
Average AMD Ryzen 7 5700G
  (7087 - 9743, n=3)
8705 Points +23%
Intel Core i5-10600K,
i5-10600K, 4100 MHz
8290 Points +17%
AMD Ryzen 9 5900HX, Morefine
R9 5900HX, 3300 MHz
8191 Points +16%
AMD Ryzen 7 5700G, Minisforum
R7 5700G, 3800 MHz
7087 Points
AMD Ryzen 9 5900HX, Minisforum
R9 5900HX, 3300 MHz
6955 Points -2%

* ... smaller is better

Performance Rating
AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, Vega 8
90.5 pt
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
86.5 pt
Average AMD Ryzen 7 5700G

83.7 pt
AMD Ryzen 7 5800X
AMD Ryzen 7 5800X, NVIDIA Titan RTX
83.2 pt
Average of class Desktop

80.7 pt
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
76.8 pt
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
76.4 pt
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
72.1 pt
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
65.5 pt
AMD Ryzen 5 5600X
AMD Ryzen 5 5600X, NVIDIA Titan RTX
63.1 pt
AIDA64 / FP32 Ray-Trace
AMD Ryzen 7 5800X
AMD Ryzen 7 5800X, NVIDIA Titan RTX
17545 KRay/s +29%
Average of class Desktop
  (490 - 62786, n=27, last 2 years)
16637 KRay/s +22%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
15755 KRay/s +16%
AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, Vega 8
15260 KRay/s +12%
Average AMD Ryzen 7 5700G
  (13631 - 15260, n=2)
14446 KRay/s +6%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
13631 KRay/s
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
13460 KRay/s -1%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
13002 KRay/s -5%
AMD Ryzen 5 5600X
AMD Ryzen 5 5600X, NVIDIA Titan RTX
12482 KRay/s -8%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
8243 KRay/s -40%
AIDA64 / FPU Julia
AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, Vega 8
101689 Points +17%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
100504 Points +16%
Average AMD Ryzen 7 5700G
  (86825 - 101689, n=2)
94257 Points +9%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
86825 Points
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
85294 Points -2%
AMD Ryzen 7 5800X
AMD Ryzen 7 5800X, NVIDIA Titan RTX
82429 Points -5%
Average of class Desktop
  (2932 - 264044, n=27, last 2 years)
78037 Points -10%
AMD Ryzen 5 5600X
AMD Ryzen 5 5600X, NVIDIA Titan RTX
61688 Points -29%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
56368 Points -35%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
37321 Points -57%
AIDA64 / CPU SHA3
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
3829 MB/s +30%
AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, Vega 8
3605 MB/s +22%
Average of class Desktop
  (202 - 10362, n=27, last 2 years)
3549 MB/s +20%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
3444 MB/s +17%
Average AMD Ryzen 7 5700G
  (2953 - 3605, n=2)
3279 MB/s +11%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
3250 MB/s +10%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
2953 MB/s
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
2924 MB/s -1%
AMD Ryzen 7 5800X
AMD Ryzen 7 5800X, NVIDIA Titan RTX
2542 MB/s -14%
AMD Ryzen 5 5600X
AMD Ryzen 5 5600X, NVIDIA Titan RTX
1920 MB/s -35%
AIDA64 / CPU Queen
AMD Ryzen 7 5800X
AMD Ryzen 7 5800X, NVIDIA Titan RTX
113297 Points +16%
AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, Vega 8
106467 Points +9%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
105123 Points +8%
Average AMD Ryzen 7 5700G
  (97720 - 106467, n=2)
102094 Points +4%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
97720 Points
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
94655 Points -3%
Average of class Desktop
  (8820 - 205588, n=27, last 2 years)
90836 Points -7%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
88481 Points -9%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
88337 Points -10%
AMD Ryzen 5 5600X
AMD Ryzen 5 5600X, NVIDIA Titan RTX
85863 Points -12%
AIDA64 / FPU SinJulia
AMD Ryzen 7 5800X
AMD Ryzen 7 5800X, NVIDIA Titan RTX
13527 Points +11%
AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, Vega 8
13297 Points +9%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
12792 Points +5%
Average AMD Ryzen 7 5700G
  (12202 - 13297, n=2)
12750 Points +4%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
12202 Points
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
11929 Points -2%
Average of class Desktop
  (396 - 32855, n=27, last 2 years)
10690 Points -12%
AMD Ryzen 5 5600X
AMD Ryzen 5 5600X, NVIDIA Titan RTX
10088 Points -17%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
9510 Points -22%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
9457 Points -22%
AIDA64 / FPU Mandel
AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, Vega 8
57827 Points +21%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
55452 Points +17%
Average AMD Ryzen 7 5700G
  (47597 - 57827, n=2)
52712 Points +11%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
47597 Points
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
47010 Points -1%
AMD Ryzen 7 5800X
AMD Ryzen 7 5800X, NVIDIA Titan RTX
45369 Points -5%
Average of class Desktop
  (1558 - 138291, n=27, last 2 years)
41415 Points -13%
AMD Ryzen 5 5600X
AMD Ryzen 5 5600X, NVIDIA Titan RTX
33927 Points -29%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
33223 Points -30%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
24230 Points -49%
AIDA64 / CPU AES
AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, Vega 8
141615 MB/s +18%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
135212 MB/s +13%
Average AMD Ryzen 7 5700G
  (119844 - 141615, n=2)
130730 MB/s +9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
124539 MB/s +4%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
119844 MB/s
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
115382 MB/s -4%
Average of class Desktop
  (3778 - 379659, n=27, last 2 years)
102684 MB/s -14%
AMD Ryzen 7 5800X
AMD Ryzen 7 5800X, NVIDIA Titan RTX
82897 MB/s -31%
AMD Ryzen 5 5600X
AMD Ryzen 5 5600X, NVIDIA Titan RTX
62563 MB/s -48%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
58635 MB/s -51%
AIDA64 / CPU ZLib
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
988 MB/s +28%
AMD Ryzen 7 5800X
AMD Ryzen 7 5800X, NVIDIA Titan RTX
942 MB/s +22%
Average of class Desktop
  (75.2 - 2441, n=27, last 2 years)
894 MB/s +16%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
871 MB/s +13%
AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, Vega 8
869 MB/s +12%
Average AMD Ryzen 7 5700G
  (774 - 869, n=2)
822 MB/s +6%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
774 MB/s
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
747 MB/s -3%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
735 MB/s -5%
AMD Ryzen 5 5600X
AMD Ryzen 5 5600X, NVIDIA Titan RTX
719 MB/s -7%
AIDA64 / FP64 Ray-Trace
AMD Ryzen 7 5800X
AMD Ryzen 7 5800X, NVIDIA Titan RTX
9469 KRay/s +32%
Average of class Desktop
  (273 - 33821, n=27, last 2 years)
9035 KRay/s +26%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
8425 KRay/s +17%
AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, Vega 8
8093 KRay/s +13%
Average AMD Ryzen 7 5700G
  (7184 - 8093, n=2)
7639 KRay/s +6%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
7193 KRay/s 0%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
7184 KRay/s
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
7119 KRay/s -1%
AMD Ryzen 5 5600X
AMD Ryzen 5 5600X, NVIDIA Titan RTX
6894 KRay/s -4%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
5149 KRay/s -28%
AIDA64 / CPU PhotoWorxx
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
48577 MPixel/s +228%
AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, Vega 8
28231 MPixel/s +91%
Average of class Desktop
  (5125 - 54037, n=27, last 2 years)
26041 MPixel/s +76%
AMD Ryzen 7 5800X
AMD Ryzen 7 5800X, NVIDIA Titan RTX
25309 MPixel/s +71%
AMD Ryzen 5 5600X
AMD Ryzen 5 5600X, NVIDIA Titan RTX
24352 MPixel/s +64%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
23774 MPixel/s +61%
Average AMD Ryzen 7 5700G
  (14810 - 28231, n=2)
21521 MPixel/s +45%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
19885 MPixel/s +34%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
14978 MPixel/s +1%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
14810 MPixel/s

Minisforum EliteMini B550 - Cinebench R15多核心基准测试

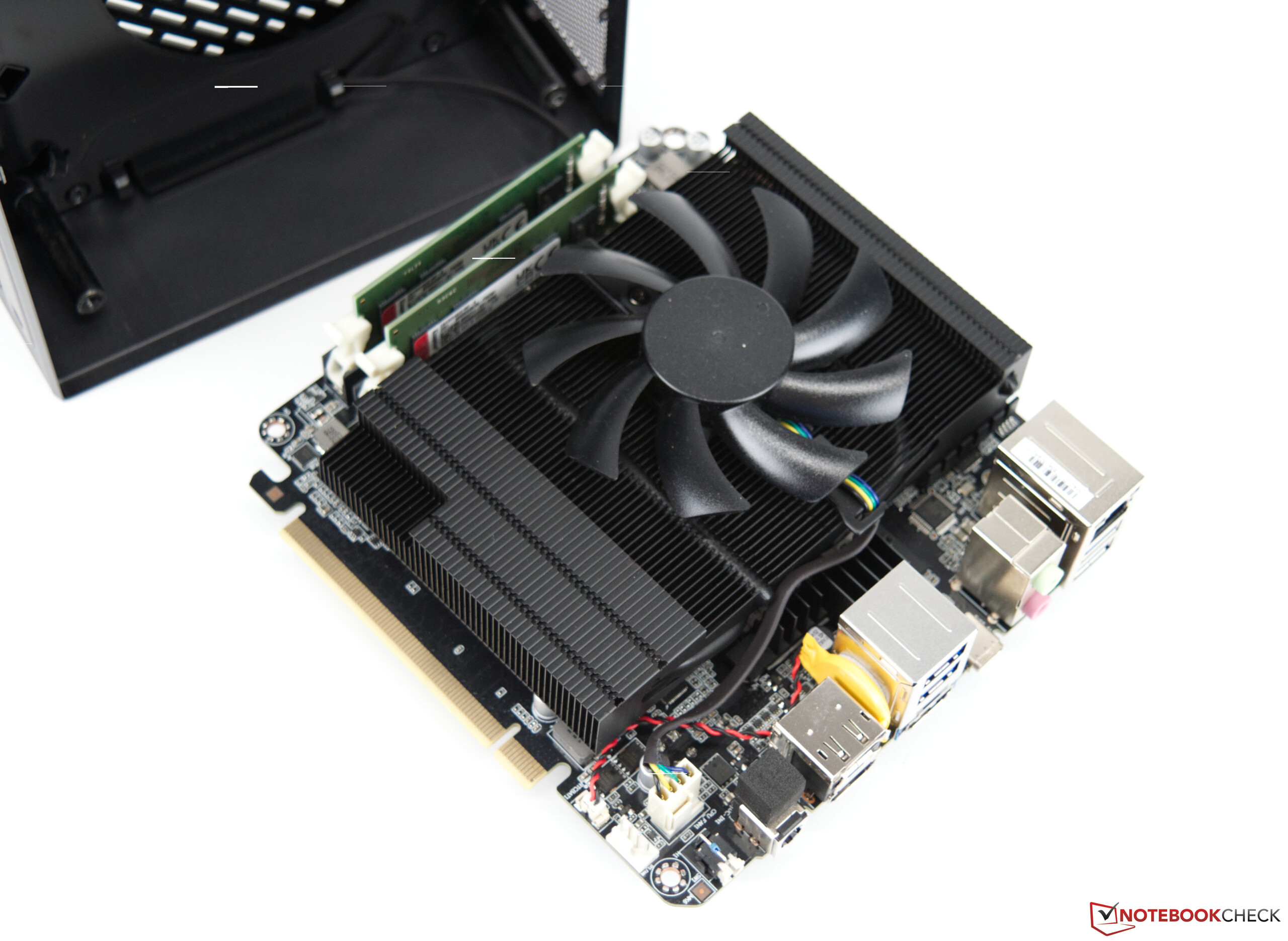

我们已经确定,MINISFORUM的结构技术为其他测试设备的冷却元件提供了有效的解决方案。Minisforum EliteMini B550在连续负载下提供了真实的稳定性能。使用我们的Cinebench R15多核基准,没有明显的性能下降,即使经过多次迭代。

01102203304405506607708809901100121013201430154016501760187019802090Tooltip
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)
Intel Ghost Canyon NUC (RTX 2070) Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1463 (1410.79-1593.44)
Intel Beast Canyon NUC Intel Core i9-11900KB, Intel Core i9-11900KB: Ø1800 (1776.75-1859.25)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, Intel Core i7-11800H: Ø1562 (1536.63-1683.86)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

应用性能和存储解决方案

Minisforum EliteMini B550的基本配置在没有外部显卡的情况下,其性能超过了EliteMini TH50和EliteMini HM90。但是一旦我们将其与MINISFORUM EliteMini HX进行比较,事情就变得有点困难了。虽然两者之间只有几个百分点的差距,但这种差距并不明显。然而,一旦有了专用显卡,情况就不再是这样了。我们选择的NvidiaGeForce RTX 3060是此类中端产品的高端代表。因此,当涉及到图形性能时,它为Minicforum EliteMini B550提供了一些严重的腿。与iGPU相比,专用显卡的性能提升简直是巨大的。尽管如此,这对组合在性能上仍然排在Zotac ZBOXMagnus EN173070C之后。

安装在我们测试单元中的大容量存储单元是金士顿的产品,提供了坚实的性能。该机箱内总共可以安装三个大容量存储单元。为此,有两个M.2接口,以及一个2.5英寸存储设备的插槽。

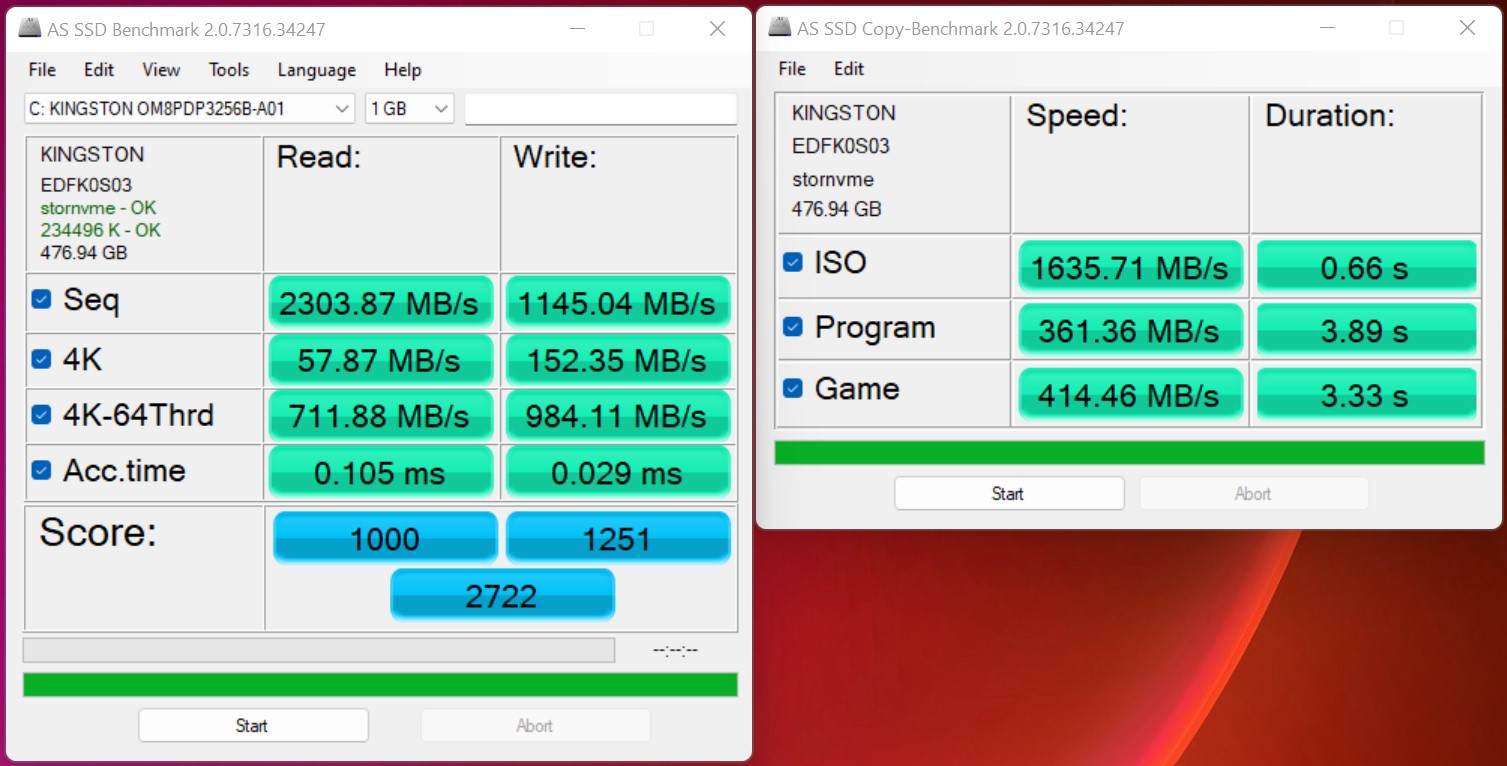

AS SSD
AS SSD

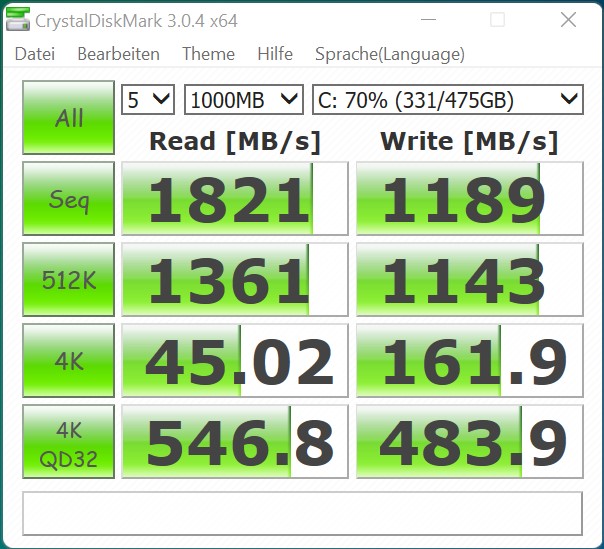

CDM 3
CDM 3

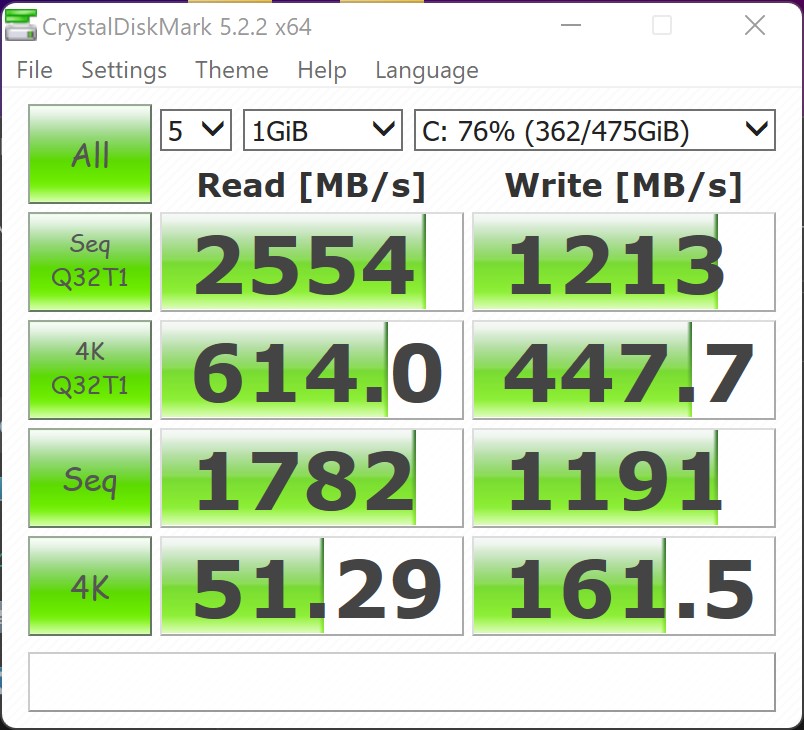

CDM 5
CDM 5

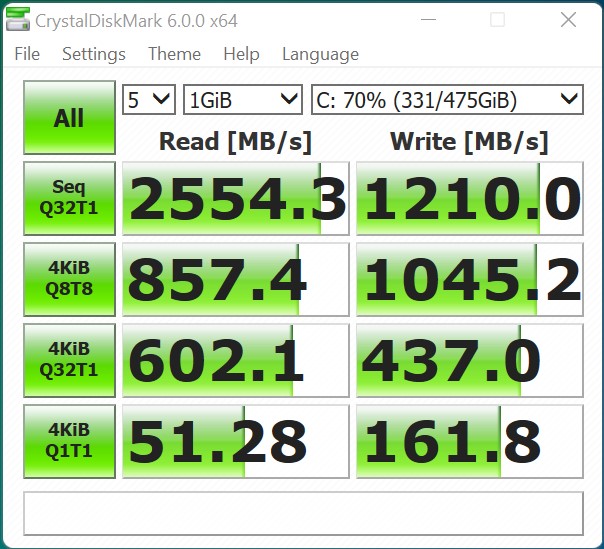

CDM 6
CDM 6

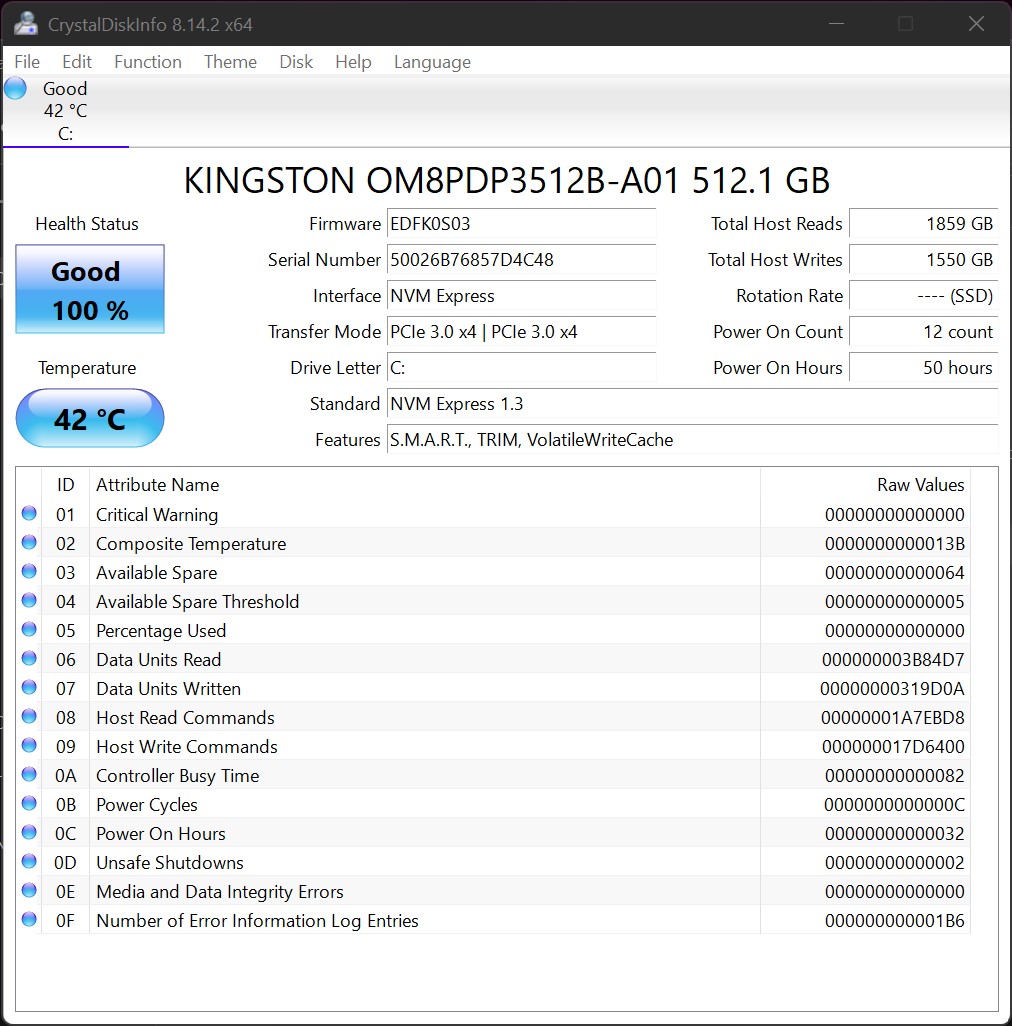

CDI
CDI
PCMark 10 - Score
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
7740 Points +25%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
6952 Points +12%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
6863 Points +10%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
6507 Points +5%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
6444 Points +4%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
6290 Points +1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
6214 Points
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
5565 Points -10%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
5130 Points -17%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
171 fps +188%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
79.4 fps +34%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
71.1 fps +20%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
66.9 fps +13%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
64.5 fps +9%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
61.8 fps +4%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
59.4 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
49.3 fps -17%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
37.3 fps -37%
1900x1060 Siemens NX (snx-02)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
251 fps +1249%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
22.2 fps +19%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
21.1 fps +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
20.1 fps +8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
18.6 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
16.4 fps -12%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
11.7 fps -37%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
8.66 fps -53%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
3.44 fps -82%
1900x1060 Showcase (showcase-01)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
202 fps +1374%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
136 fps +893%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
115 fps +739%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
22 fps +61%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
18.4 fps +34%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
17.4 fps +27%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
14.4 fps +5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
13.7 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
13.3 fps -3%
1900x1060 Medical (medical-01)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
88.7 fps +615%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
57.2 fps +361%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
45 fps +263%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
15.3 fps +23%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
14.8 fps +19%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
12.4 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
12.2 fps -2%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
11.7 fps -6%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
11.1 fps -10%
1900x1060 Maya (maya-04)
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
212 fps +607%
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
186 fps +520%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
175 fps +483%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
43.5 fps +45%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
39.2 fps +31%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
36.8 fps +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
31 fps +3%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
30 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
26.6 fps -11%
1900x1060 Energy (energy-01)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
28.3 fps +5240%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
12.8 fps +2315%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
10.2 fps +1825%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
2.68 fps +406%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
2.19 fps +313%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
0.53 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
0.52 fps -2%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
0.5 fps -6%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
0.43 fps -19%
1900x1060 Creo (creo-01)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
164 fps +374%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
59 fps +71%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
50.1 fps +45%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
42.4 fps +23%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
37.2 fps +8%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
35.9 fps +4%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
34.6 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
29.9 fps -14%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
8.37 fps -76%
1900x1060 Catia (catia-04)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
251 fps +630%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
115 fps +234%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
74.5 fps +117%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
48 fps +40%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
41.2 fps +20%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
37.7 fps +10%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
37.1 fps +8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
34.4 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
32.7 fps -5%
1900x1060 3ds Max (3dsmax-05)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
288 fps +606%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
233 fps +471%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
197 fps +383%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
53 fps +30%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
47.5 fps +16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
43.7 fps +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
40.8 fps
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
38.8 fps -5%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
37.4 fps -8%
SPECviewperf 13
Solidworks (sw-04)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
185 fps +173%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
111 fps +64%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
100 fps +48%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
79.4 fps +17%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
71.7 fps +6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
69.6 fps +3%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
67.7 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
57.4 fps -15%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
49.7 fps -27%
Siemens NX (snx-03)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
453 fps +1248%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
39.9 fps +19%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
38.2 fps +14%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
36.3 fps +8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
33.6 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
29.6 fps -12%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
20.9 fps -38%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
15.6 fps -54%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
6.19 fps -82%
Showcase (showcase-02)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
193 fps +1299%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
135 fps +878%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
114 fps +726%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
22 fps +59%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
18.4 fps +33%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
17.3 fps +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
14.1 fps +2%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
13.8 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
13.5 fps -2%
Medical (medical-02)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
90 fps +381%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
69.5 fps +272%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
55.4 fps +196%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
21.7 fps +16%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
21.2 fps +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
19.2 fps +3%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
18.7 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
16.4 fps -12%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
13.1 fps -30%
Maya (maya-05)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
449 fps +1048%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
337 fps +762%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
266 fps +580%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
58.5 fps +50%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
48.6 fps +24%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
39.3 fps +1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
39.1 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
38.9 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
35.1 fps -10%
Energy (energy-02)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
53.9 fps +6095%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
25.5 fps +2831%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
13.7 fps +1475%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
7.57 fps +770%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
6.93 fps +697%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
3.64 fps +318%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
0.88 fps +1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
0.87 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
0.82 fps -6%
Creo (creo-02)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
354 fps +747%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
225 fps +438%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
182 fps +335%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
59.3 fps +42%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
50.4 fps +21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
44.9 fps +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
41.8 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
37.7 fps -10%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
34.2 fps -18%
Catia (catia-05)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
397 fps +705%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
163 fps +231%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
106 fps +115%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
69.1 fps +40%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
59.3 fps +20%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
52.9 fps +7%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
52.2 fps +6%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
49.3 fps
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
46.4 fps -6%
3ds Max (3dsmax-06)
Intel Core i5-11600K, Intel Core i5-11600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
288 fps +611%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
235 fps +480%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
196 fps +384%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
52.9 fps +31%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
47.5 fps +17%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
42.9 fps +6%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
40.5 fps
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
38.5 fps -5%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
37.8 fps -7%
ComputeMark v2.1
1024x600 Normal, Score
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
24877 Points +547%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
19540 Points +408%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
4166 Points +8%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
4148 Points +8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
3843 Points
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
3499 Points -9%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
3499 Points -9%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
3414 Points -11%
1024x600 Normal, Fluid 3DTex
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
2557 Points +988%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
2011 Points +756%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
340 Points +45%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
306 Points +30%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
276 Points +17%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
235 Points 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
235 Points 0%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
235 Points
1024x600 Normal, Fluid 2DTexArr
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
2358 Points +972%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
1960 Points +791%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
337 Points +53%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
292 Points +33%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
272 Points +24%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
231 Points +5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
231 Points +5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
220 Points
1024x600 Normal, Mandel Vector
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
4963 Points +308%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
3998 Points +229%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
1280 Points +5%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
1255 Points +3%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1217 Points
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
1066 Points -12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
1066 Points -12%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
763 Points -37%
1024x600 Normal, Mandel Scalar
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
5466 Points +422%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
4303 Points +311%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
1115 Points +6%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
1084 Points +4%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1047 Points
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
964 Points -8%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
964 Points -8%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
853 Points -19%
1024x600 Normal, QJuliaRayTrace
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
9534 Points +749%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
7268 Points +547%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
1205 Points +7%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
1200 Points +7%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
1149 Points +2%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1123 Points
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
1002 Points -11%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
1002 Points -11%
LuxMark v2.0 64Bit
Sala GPUs-only
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
9606 Samples/s +913%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
7664 Samples/s +708%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
2320 Samples/s +145%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
1575 Samples/s +66%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
1287 Samples/s +36%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
948 Samples/s
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
939 Samples/s -1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
939 Samples/s -1%
Room GPUs-only
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
4566 Samples/s +1065%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
2010 Samples/s +413%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
772 Samples/s +97%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
693 Samples/s +77%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
547 Samples/s +40%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
451 Samples/s +15%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
451 Samples/s +15%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
392 Samples/s
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
2018 μs * -8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1867 μs *
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
1625 μs * +13%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1214.8 μs * +35%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
1106 μs * +41%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
1106 μs * +41%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S
829 μs * +56%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
349.5 μs * +81%
CrossMark
Responsiveness
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1435 Points +13%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
1313 Points +3%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1271 Points
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
1260 Points -1%
Creativity
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1613 Points +11%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
1495 Points +3%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1448 Points
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
1241 Points -14%
Productivity
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1573 Points +8%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
1513 Points +4%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1453 Points
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
1376 Points -5%
Overall
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1569 Points +10%
Minisforum EliteMini B550 + RTX 3060, AMD Ryzen 7 5700G
NVIDIA GeForce RTX 3060,
1475 Points +4%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1424 Points
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
1300 Points -9%

* ... smaller is better

3D和游戏性能

AMD Ryzen 7 5700G,其iGPU和AMD Radeon RX Veg 8的图形性能,只提供了稍微可行的游戏。正如《Dota 2重生》所证明的那样,只是旧的标题可以不受限制地玩。直到我们介绍了专用的NvidiaGeForce RTX 3060,这个紧凑的数字粉碎机才蜕变为严肃游戏的迷你PC的真实色彩。在这个配置中,有足够的动力来确保在1080p下的游戏不受阻碍。根据不同的游戏,更高的分辨率也是可能的。这时,快速看一下我们的GPU对比图是有意义的

NvidiaGeForce RTX 3060与Miniforum EliteMini B550的性能与我们在AMD Ryzen 9 5900X 上建立的一个测试系统处于相同水平。由于显卡的任何限制造成的差异在更高的分辨率水平上几乎看不出来。AMD Ryzen 9 5900X与AMD Ryzen 7 5700G相比,更高的IPC只在较低的分辨率水平上明显。我们在通过Thunderbolt连接的eGPU机箱中测试了相同的显卡,发现性能比Minsiforum EliteMini TH50 高25%。

重要信息

在MINISFORUM EliteMini B550上使用GPU底座需要一个单独的电源,为EliteMini B550以及GPU供电。随附的电源可能无法再使用。产品上会显示这方面的产品警告。

Performance Rating - Percent
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
93.9 pt
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
92.7 pt
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
91.3 pt
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
77.7 pt
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
62.1 pt
AMD Ryzen 7 5700G -2!
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
30.9 pt
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
26.5 pt
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
23 pt
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
22.4 pt
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
21.6 pt
Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
185 fps +203%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
172 fps +182%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
135.5 fps +122%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
125.6 fps +106%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
112 fps +84%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
82.2 fps +35%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
72.7 fps +19%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
61 fps
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
60.1 fps -1%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
51.7 fps -15%
1920x1080 Badass Overall Quality (DX11)
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
84.7 fps +624%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
84.6 fps +623%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
78.5 fps +571%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
75.2 fps +543%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
58.5 fps +400%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
14.9 fps +27%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
13.8 fps +18%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
11.7 fps
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
11.4 fps -3%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
11.3 fps -3%
Metro Exodus
1280x720 Low Quality AF:4x
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
207 (93.55min - 336.7max) fps +427%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
202 (94.16min - 331.35max) fps +414%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
177.1 (91.24min - 271.37max) fps +351%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
165.8 (82.05min - 253.42max) fps +322%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
110 (46.05min - 196.85max) fps +180%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
54.7 (34.36min - 82.18max) fps +39%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
48.3 (30.74min - 71.3max) fps +23%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
40.4 (21.6min - 65.78max) fps +3%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
39.3 (25.31min - 57.32max) fps
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
39.2 (25.3min - 57.01max) fps 0%
1920x1080 Ultra Quality AF:16x
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
74.6 (38.33min - 131.96max) fps +653%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
65.3 (34.71min - 117.86max) fps +559%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
62.5 (31.14min - 108.41max) fps +531%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
55.1 (32.45min - 87.42max) fps +456%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
37.8 (17.54min - 83.29max) fps +281%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
14.8 (8.42min - 21.64max) fps +49%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
13 (7.31min - 18.99max) fps +31%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
11.6 (6.55min - 19.58max) fps +17%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
10.8 (5.78min - 15.68max) fps +9%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
9.91 (5.19min - 14.43max) fps
Far Cry New Dawn
1280x720 Low Preset
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
163 (117min - 259max) fps +288%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
161 (119min - 232max) fps +283%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
134 (89min - 198max) fps +219%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
113 (80min - 168max) fps +169%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
100 (74min - 145max) fps +138%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
66 (50min - 79max) fps +57%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
56 (43min - 67max) fps +33%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
48 (30min - 63max) fps +14%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
44 (34min - 53max) fps +5%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
42 (33min - 50max) fps
1920x1080 Ultra Preset
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
113 (86min - 148max) fps +528%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
112 (83min - 146max) fps +522%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
100 (67min - 162max) fps +456%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
86 (61min - 134max) fps +378%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
73 (52min - 111max) fps +306%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
28 (21min - 35max) fps +56%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
25 (18min - 31max) fps +39%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
24 (19min - 30max) fps +33%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
19 (14min - 24max) fps +6%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
18 (3min - 22max) fps
Far Cry 5
1280x720 Low Preset AA:T
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
196 (146min - 267max) fps +345%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
193 (135min - 251max) fps +339%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
159 (115min - 214max) fps +261%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
134 (99min - 178max) fps +205%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
118 (94min - 151max) fps +168%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
71 (64min - 85max) fps +61%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
62 (57min - 74max) fps +41%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
55 (48min - 66max) fps +25%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
48 (44min - 57max) fps +9%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
44 (19min - 57max) fps
1920x1080 Ultra Preset AA:T
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
132 (109min - 150max) fps +595%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
132 (114min - 150max) fps +595%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
120 (91min - 161max) fps +532%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
108 (85min - 139max) fps +468%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
88 (67min - 116max) fps +363%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
29 (25min - 36max) fps +53%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
25 (23min - 32max) fps +32%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
25 (22min - 29max) fps +32%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
19 (17min - 23max) fps 0%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
19 (8min - 24max) fps
X-Plane 11.11
1280x720 low (fps_test=1)
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
160 fps +197%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
151 fps +180%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
136.6 fps +153%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
108.5 fps +101%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
95.8 fps +78%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
64.9 fps +20%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
56.9 fps +6%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
53.9 fps
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
53.1 fps -1%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
27.3 fps -49%
1920x1080 high (fps_test=3)
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
112 fps +203%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
105 fps +184%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
95.7 fps +159%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
79.6 fps +115%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
73.4 fps +98%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
43.1 fps +16%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
40.1 fps +8%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
37 fps 0%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
37 fps
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
21.7 fps -41%
Final Fantasy XV Benchmark
1280x720 Lite Quality
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
210 fps +468%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
196 fps +430%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
190.1 fps +414%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
162 fps +338%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
137 fps +270%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
50.1 fps +35%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
45 fps +22%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
43.2 fps +17%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
37 fps 0%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
37 fps
1920x1080 High Quality
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
101 fps +677%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
88.6 fps +582%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
88.6 fps +582%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
84.7 fps +552%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
70.8 fps +445%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
23.2 fps +78%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
17.7 fps +36%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
16 fps +23%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
13.6 fps +5%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
13 fps
Dota 2 Reborn
1280x720 min (0/3) fastest
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
202.1 (165min) fps +63%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
178.3 (153.2min) fps +44%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
164.4 (144.1min) fps +32%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
152 (126.2min) fps +22%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
143.4 (127.4min) fps +15%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
137.4 (117.3min) fps +11%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
135.5 (120min) fps +9%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
127 (111.3min) fps +2%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
125.3 (113.2min) fps +1%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
124.2 (110.5min) fps
1920x1080 ultra (3/3) best looking
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
159.7 (126.4min) fps +230%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
147.1 (126min) fps +204%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
133.9 (116.8min) fps +177%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
114.2 (101min) fps +136%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
110.5 (94.3min) fps +128%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
72 (66.4min) fps +49%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
62.8 (57.5min) fps +30%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
54.8 (47.9min) fps +13%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
49.9 (43.8min) fps +3%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
48.4 (44.3min) fps
3DMark
Fire Strike Extreme Graphics
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
12636 Points +737%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
10330 Points +585%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
10244 Points +579%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
10025 Points +564%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
9559 Points +533%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
2167 Points +44%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
2085 Points +38%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
1823 Points +21%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
1578 Points +5%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
1509 Points
1920x1080 Fire Strike Graphics
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
26284 Points +678%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
21984 Points +551%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
21847 Points +547%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
20910 Points +519%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
18711 Points +454%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
5041 Points +49%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
4730 Points +40%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
4369 Points +29%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
3775 Points +12%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
3379 Points
2560x1440 Time Spy Graphics
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
9929 Points +763%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
8600 Points +648%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
8578 Points +646%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
8559 Points +644%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
7866 Points +584%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
1592 Points +38%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
1557 Points +35%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
1412 Points +23%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
1247 Points +8%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
1150 Points
3DMark 11
1280x720 Performance GPU
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
34957 Points +505%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
29172 Points +405%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
28375 Points +391%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
28072 Points +386%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
24369 Points +322%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
7591 Points +31%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
7122 Points +23%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
6518 Points +13%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
6306 Points +9%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
5777 Points
1280x720 Performance
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
27726 Points +362%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
26986 Points +350%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
26749 Points +346%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
23380 Points +290%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
18861 Points +215%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
8050 Points +34%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
7449 Points +24%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
6905 Points +15%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
6462 Points +8%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
5997 Points
GTA V
1024x768 Lowest Settings possible
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
187 (1.593min, 200P1 - 414max) fps +65%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
186 (3.78min, 167P1 - 425max) fps +64%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
182.7 (2.41min, 142.9P1 - 282max) fps +61%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
175.6 (3.19min, 111.1P1 - 290max) fps +55%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
166 (4.26min, 111P1 - 306max) fps +46%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
160 (4.62min, 125P1 - 374max) fps +41%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
136 (6.37min, 90.9P1 - 322max) fps +20%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
116 (17min, 76.9P1 - 213max) fps +2%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
113.4 (25.6min, 76.9P1 - 181.1max) fps
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
99.2 (25.1min, 58.8P1 - 158max) fps -13%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
111 (4.48min, 76.9P1 - 235max) fps +891%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
104.9 (4.3min, 71.4P1 - 204max) fps +837%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
104 (4.33min, 71.4P1 - 206max) fps +829%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
90.3 (5.1min, 62.5P1 - 168.8max) fps +706%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
77.1 (6.65min, 50P1 - 157max) fps +588%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
18.2 (10.4min, 13.2P1 - 135max) fps +63%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
15.2 (7.37min, 10.8P1 - 37.9max) fps +36%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
12 (3.91min, 8.93P1 - 33.5max) fps +7%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
11.2 (5.88min, 8.26P1 - 32.9max) fps
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
10.2 (4.22min, 6.37P1 - 90.8max) fps -9%
The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
462 (46.2min, 143P0.1, 254P1 - 798max) fps +570%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
435 (17.2min, 159.4P0.1, 291P1 - 681max) fps +530%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
433 (59.9min, 150P0.1, 297P1 - 888max) fps +528%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
323 (52.2min, 116.1P0.1, 208P1 - 534max) fps +368%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
219 (45.8min, 76.4P0.1, 149P1 - 405max) fps +217%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
89.8 (38.5min, 43P0.1, 53.7P1 - 193max) fps +30%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
84.5 (18.4min, 24P0.1, 61.8P1 - 302max) fps +22%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
72.2 (21.1min, 40.1P0.1, 51.4P1 - 229max) fps +5%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
69 (13.2min, 36.3P0.1, 41.6P1 - 257max) fps
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
190.1 (27.7min, 84.1P0.1, 144.8P1 - 421max) fps +885%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
179 (36.1min, 119P0.1, 148P1 - 590max) fps +827%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
178 (48.9min, 122P0.1, 146P1 - 555max) fps +822%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
164.4 (15.1min, 79.6P0.1, 122.1P1 - 350max) fps +752%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
80 (18.7min, 54.5P0.1, 63.5P1 - 179max) fps +315%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
29.5 (11.7min, 15.1P0.1, 17.6P1 - 109max) fps +53%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
25.6 (19.1min, 20P0.1, 22.1P1 - 34.9max) fps +33%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
21.9 (8.18min, 17.5P0.1, 19P1 - 131max) fps +13%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
19.3 (2.25min, 2.26P0.1, 2.92P1 - 33.1max) fps
F1 2020
1280x720 Ultra Low Preset
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
415 (325min - 462max) fps +362%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
355 (271min - 403max) fps +295%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
315 (253min - 344max) fps +250%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
271 (214min - 301max) fps +201%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
180 (143min - 204max) fps +100%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
127 (111min - 154max) fps +41%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
114 (101min - 137max) fps +27%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
94.7 (78min - 114max) fps +5%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
93.1 (80min - 108max) fps +4%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
89.9 (78min - 108max) fps
1920x1080 High Preset AA:T AF:16x
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
238 (207min - 272max) fps +651%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
208 (181min - 235max) fps +556%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
208 (184min - 235max) fps +556%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
197.9 (171min - 223max) fps +524%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
111 (42min - 147max) fps +250%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
44.6 (37min - 53max) fps +41%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
40.4 (34min - 48max) fps +27%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
36.4 (30min - 42max) fps +15%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
33.4 (28min - 39max) fps +5%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
31.7 (26min - 37max) fps
F1 2021
1280x720 Ultra Low Preset
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
464 (369min, 290P1 - 517max) fps +409%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
419 (306min, 275P1 - 462max) fps +360%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
367 (260min, 240P1 - 399max) fps +303%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
293 (206min, 215P1 - 326max) fps +222%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
184 (136min, 120P1 - 218max) fps +102%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
134 (109min, 109P1 - 157max) fps +47%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
122 (97min, 96P1 - 142max) fps +34%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
105 (81min, 78P1 - 125max) fps +15%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
98.3 (74min, 75P1 - 114max) fps +8%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
91.1 (72min, 71P1 - 106max) fps
1920x1080 High Preset AA:T AF:16x
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
246 (198min, 143P1 - 278max) fps +712%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600
212 (183min, 170P1 - 231max) fps +600%
Minisforum EliteMini B550 + RTX 3060
NVIDIA GeForce RTX 3060, R7 5700G
207 (171min, 127P1 - 235max) fps +583%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
206 (180min, 158P1 - 229max) fps +580%
Minisforum EliteMini TH50 (RTX 3060 via TB)
NVIDIA GeForce RTX 3060, i5-11320H
128 (97min, 79P1 - 154max) fps +322%
AMD Ryzen 7 5700G
Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
45.9 (39min, 38P1 - 52max) fps +51%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
40.1 (33min, 33P1 - 45max) fps +32%
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
40.1 (33min, 33P1 - 45max) fps +32%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
31.9 (27min, 26P1 - 36max) fps +5%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
30.3 (25min, 25P1 - 34max) fps

Minisforum EliteMini B550 + iGPU

low med. high ultra
GTA V (2015) 113.4 98.1 26.5 11.2
The Witcher 3 (2015) 69 40.8 19.3 13.8
Dota 2 Reborn (2015) 124.2 94.2 51.7 48.4
Rise of the Tomb Raider (2016) 59.2 39.6 21.4 16.9
Final Fantasy XV Benchmark (2018) 37 18.6 13
X-Plane 11.11 (2018) 53.9 41.6 37
Far Cry 5 (2018) 44 22 20 19
Strange Brigade (2018) 80.7 31.4 26.7 22.8
Shadow of the Tomb Raider (2018) 54.1 20.1 18.7 16.2
Far Cry New Dawn (2019) 42 20 19 18
Metro Exodus (2019) 39.3 14.6 11.2 9.91
Borderlands 3 (2019) 61 23.4 14.8 11.7
F1 2020 (2020) 89.9 41.1 31.7 23.2
F1 2021 (2021) 91.1 40.3 30.3 21.4
Far Cry 6 (2021) 41.2 18.3 15.3
Forza Horizon 5 (2021) 70 29 25

Minisforum EliteMini B550 + Nvidia GeForce RTX 3060

low med. high ultraQHD4K
GTA V (2015) 175.6 170.2 155.2 90.3 77.5 82
The Witcher 3 (2015) 323 260 164.4 82.1 62.1
Dota 2 Reborn (2015) 143.4 126.6 122.3 114.2 109.3
Final Fantasy XV Benchmark (2018) 162 114.1 84.7 63.6 37
X-Plane 11.11 (2018) 108.5 96 79.6 68.2
Far Cry 5 (2018) 134 117 113 108 87 47
Strange Brigade (2018) 422 226 180.1 154.2 113.7 67.1
Shadow of the Tomb Raider (2018) 140.3 123.9 121.4 114.4 81 43
Far Cry New Dawn (2019) 113 101 97 86 79 48
Metro Exodus (2019) 165.8 104.4 79.9 62.5 50.1 31.7
Borderlands 3 (2019) 125.6 110.6 91.7 75.2 54 29.5
F1 2020 (2020) 271 227 197.9 137.6 104.8 60
F1 2021 (2021) 293 248 207 105.9 78.8 44.4
Far Cry 6 (2021) 110.7 100.8 91.6 85 65.9 37.9
Forza Horizon 5 (2021) 170 122 110 67 57 41

排放

噪声排放

任何购买MINISFORUM EliteMini B550作为小型办公电脑或作为游戏设备的人都可以放心,噪音水平不是一个问题。冷却系统非常好,即使在重负荷下也能很好地工作。不超过37分贝的安静嗡嗡声只是可以听到。但由于是低频嗡嗡声,所以并不怎么令人担心。一旦外部显卡和电源被安装在测试系统上,几乎没有噪音从迷你PC上的这两个部件发出。其他组件的声音明显大了。由于这两个组件是可选的附加组件,我们在测试中没有包括这些组件的噪音量测量。

Noise Level

Idle
30.5 / 30.5 / 30.5 dB(A)
Load
31.2 / 35.1 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 30.2 dB(A)
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
Noise
-0%
-7%
-9%
-15%
off / environment *
30.2
30.8
-2%
30.2
-0%
30.1
-0%
30.7
-2%
Idle Minimum *
30.5
30.8
-1%
32.7
-7%
Idle Average *
30.5
31.6
-4%
32.1
-5%
33.15
-9%
32.8
-8%
Idle Maximum *
30.5
32.9
-8%
32.8
-8%
Load Average *
31.2
33.9
-9%
41.7
-34%
Load Maximum *
35.1
33.4
5%
41.4
-18%
41.63
-19%
45.4
-29%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.632.232.63335.236.62533.733.733.232.731.533.73133.131.730.528.831.933.14033.830.629.63131.233.85034.131.231.231.730.634.16332.330.929.428.826.832.38030.728.427.827.627.430.710031.528.329.629.329.131.512529.62625.426.325.829.616027.425.82424.424.627.420026.324.42423.423.326.325028.723.122.422.722.728.731524.922.421.8212224.940023.921.620.72120.523.950025.621.220.520.32025.663024.520.219.719.619.524.580028.9201919.418.828.9100023.919.418.718.418.523.9125024.518.718.117.918.424.5160022.718.717.317.817.622.7200021.718.217.517.317.521.7250020.718.117.617.117.420.7315019.91817.417.217.319.9400020.11817.517.317.320.1500020.118.317.617.617.620.1630020.418.517.81817.720.4800020.618.618181820.61000020.818.818.218.218.120.81250021.219.218.518.518.621.21600021.719.819.119.119.121.7SPL35.131.230.530.530.535.1N2.41.61.51.41.42.4median 23.9median 19.4median 18.7median 18.5median 18.6median 23.9Delta2.61.72.42.32.42.6hearing rangehide median Fan NoiseMinisforum EliteMini B550

温度

压力测试。FurMark+Prime95
压力测试。FurMark+Prime95

我们使用Prime95和FurMark进行压力测试,Miniforum EliteMini B550被这些测试拉伸到了极限。我们的测量仅局限于没有专用显卡的紧凑型PC。AMD Ryzen 7 5700G在负载下以稳定的4.1 GHz运行。温度测量结果不值得关注。在刚刚超过80°C时,APU的表现远远低于其极限,而iGPU记录的温度甚至更低,为68°C。我们之前已经确定,当我们从Cinebench R15多核基准测试中记录测量结果时,连续负载对性能的影响很小。因此,随后进行的3DMark基准测试显示的结果并不比冷启动时差,这并不令人惊讶。

压力测试中的Wärmeentwicklung(Miniforum EliteMini B550)。
压力测试中的Wärmeentwicklung(Miniforum EliteMini B550)。
压力测试中的Wärmeentwicklung(Miniforum EliteMini B550)。
压力测试中的Wärmeentwicklung(Miniforum EliteMini B550)。
稳定性的发展(Netzteil)
稳定性的发展(Netzteil)

消耗功率

Minisforum EliteMini B550空闲时的功耗仅在8.9至11.8瓦之间。因此,Elite Mini B550显示出它是一个高度节能的紧凑型办公助手。大型台式机系统通常会耗费更多的能量。在负载情况下,功耗峰值为102瓦,120瓦的电源可以轻松应对。这也为额外的存储设备留下了少量储备。

120W电源
120W电源
120W电源
120W电源
Power Consumption
Off / Standbydarklight 0.2 / 0.4 Watt
Idledarkmidlight 8.9 / 9.6 / 11.8 Watt
Load midlight 98.9 / 101.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power Consumption With External Monitor

0510152025303540455055606570758085Tooltip
Minisforum EliteMini B550; Prime95 V2810 Stress (external Monitor): Ø88.3 (86.5-88.8)
Minisforum EliteMini B550; Cinebench R15 Multi (external Monitor): Ø76.1 (74-87)
Minisforum EliteMini B550; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø61.6 (59.8-73.8)
Minisforum EliteMini B550; 1920x1080 The Witcher 3 ultra (external Monitor): Ø66.8 (64.6-78.9)
Minisforum EliteMini B550; Idle 1min (external Monitor): Ø9.64 (8.97-11.9)

Pros

+ AM4-Basis Ryzen 7 5700G
+ 高质量的做工
+ 非常紧凑
+ 负载下相对安静
+ 大量的端口
+ 良好的性能
+ 高效的冷却系统
+ 闲置时能效高
+ 3个大容量存储插槽(2个M.2-2280,1个2.5")。
+ 外部GPU底座

Cons

- 所有的端口都位于背面
- 没有SD卡读卡器
- 缓慢的WLAN
- 在没有专用GPU的情况下,可作为游戏电脑使用的可能性很小
- 使用台式机的GPU时,外观只能凑合着用

结论 - 一台快速的迷你电脑,带有游戏选项

Minisforum EliteMini B550的测试,由Minisforum提供。
Minisforum EliteMini B550的测试,由Minisforum提供。
Minisforum EliteMini B550的测试,由Minisforum提供。

Minisforum以其EliteMini B550走上了一条新路。如果你正在寻找的是一个紧凑的迷你电脑,这个装置是一个安全的赌注。其使用的AMD Ryzen 7 5700G在日常使用中提供了坚实的性能。8个核心提供了可靠的多核性能,即使在负载下也是如此。然而,Minisforum EliteMini B550在配备专用的GPU之前,并没有演变成一台游戏PC。GPU底座的最大优势是它为用户提供了一个自由选择显卡的机会。其他紧凑型迷你电脑,例如ZBOX Magnus EN173070C,只提供一个选项,即NvidiaGeForce RTX 3070 Mobile。然而,你需要喜欢这个系统的螺栓连接方式,因为它相当非传统的设计有非常多的 "在建工程 "的感觉。必要的独立电源与这个不寻常的建筑一起放在桌子上。

总的来说,如果你的空间不够大,又想保持图形性能的升级选项,Minicforum EliteMini B550是一个不错的选择。不含组件的裸机将使你花费309欧元(319美元)。如果加上这里评论的CPU、内存和固态硬盘,你将花费669欧元(699美元)。如果我们再加上GPU和必要的电源,我们很快就能轻松超过1000欧元的价格水平。当我们将我们的审查配置与ZBOX Magnus EN173070C进行比较时,其价格为1650欧元(1800美元),我们将领先。围绕图形性能的任何小缺点都不难接受。这两款产品在1080p或1440p下的游戏表现同样出色。

Minisforum EliteMini B550是一个光滑和高度紧凑的数字计算机。如果你选择填充GPU底座,你可以把这台小电脑变成一台非常快速的游戏机,能够与大型台式电脑抗衡。

Minisforum EliteMini B550在噪音水平方面做得不错。当然,这里没有什么可批评的。很明显,像这样的紧凑型PC是不会安静地运行的。然而,MINISFORUM以某种方式设法有效地冷却这个插座式AMD Ryzen 7 5700G,而且噪音很小。如果你正在考虑替代方案,并且想到了Dragon Canyon NUC,它是一个理想的替代方案,其裸机配置也将容纳一个外部GPU。然而,负载下的噪音水平明显较高,如果你对噪音敏感,你最好坚持使用Minisforum EliteMini B550。

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Minisforum EliteMini B550评论。带外置显卡的紧凑型迷你电脑
Sebastian Bade, 2022-06- 1 (Update: 2022-06- 1)
