GMK NucBox M4 迷你电脑评测:第 11 代酷睿 i9,售价低于 500 美元
NucBox M4 是 GMK 最新推出的迷你 PC,采用第 11 代酷睿 i9Tiger Lake-H CPU。它是采用这种处理器的迷你电脑中价格最低的一款。
我们的评测配置可以在网上找到,价格在 450 美元到 500 美元之间,配备酷睿 i9-11900H、16 GB DDR4 内存、512 TB M.2 固态硬盘和预装 Windows 11 Pro。NucBox M4 的竞争对手包括其他廉价迷你电脑,如 Beelink SER6 Pro, 联想 IdeaCentre Mini或 Minisforum 海王星系列 HX77G.
更多 GMKtec 评论:
潜在竞争对手比较
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
案例

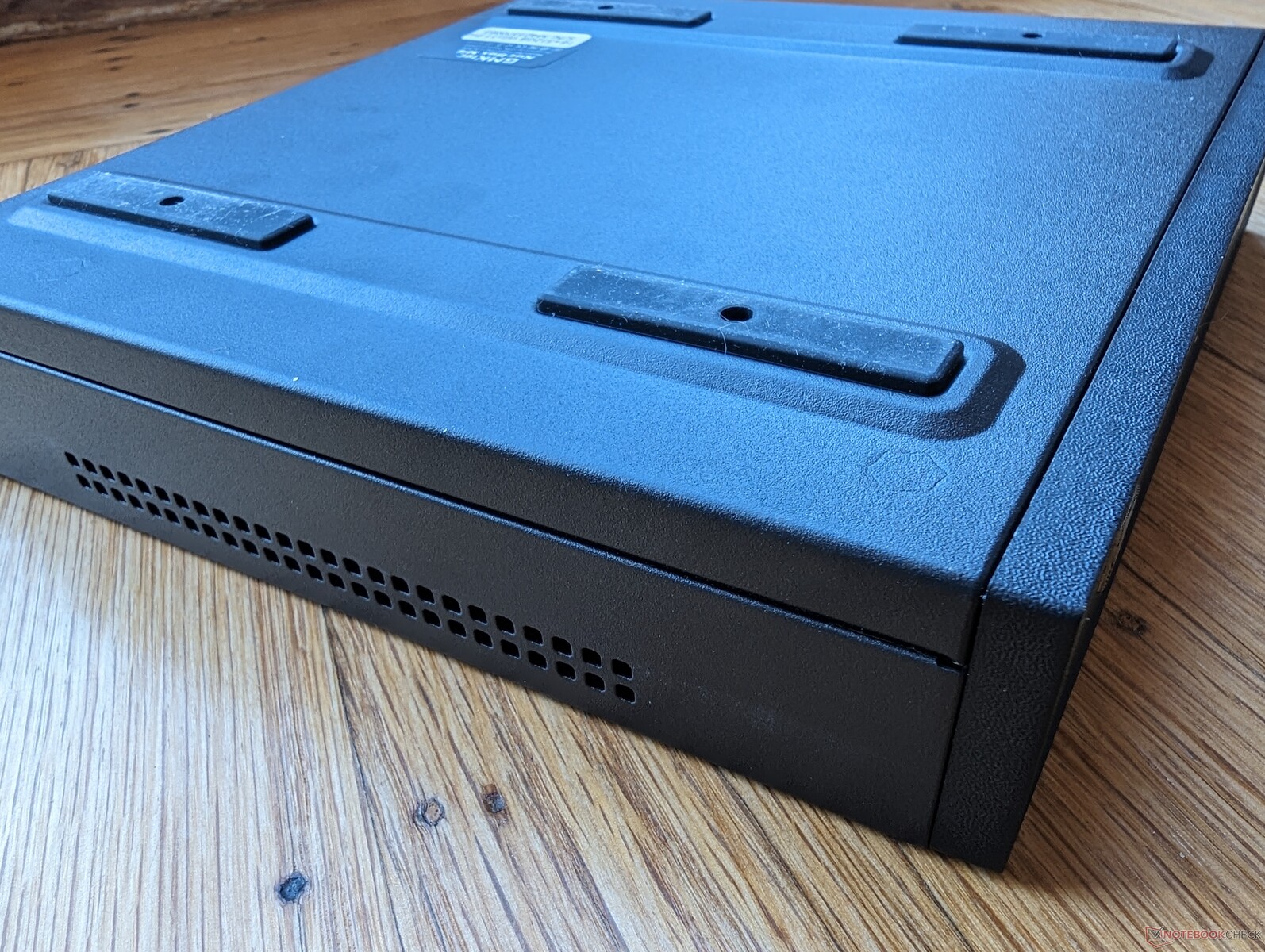

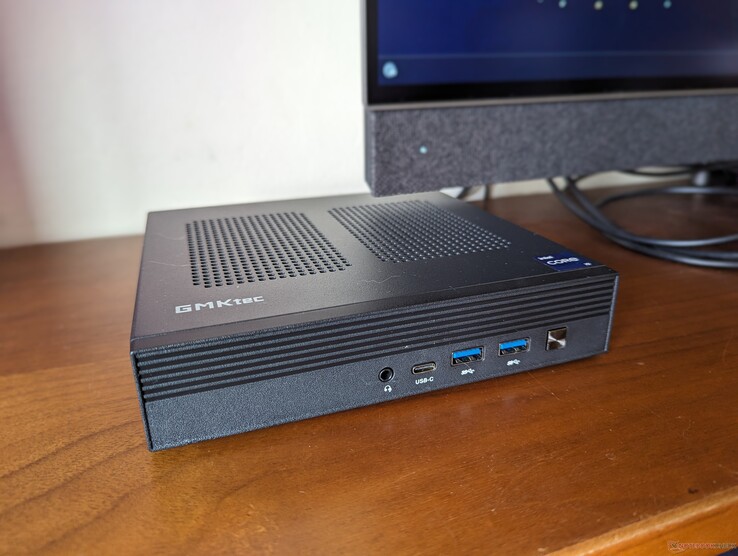

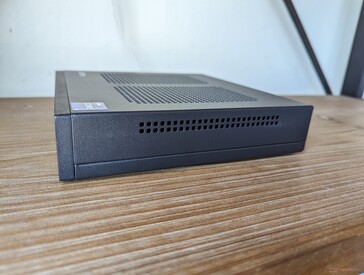

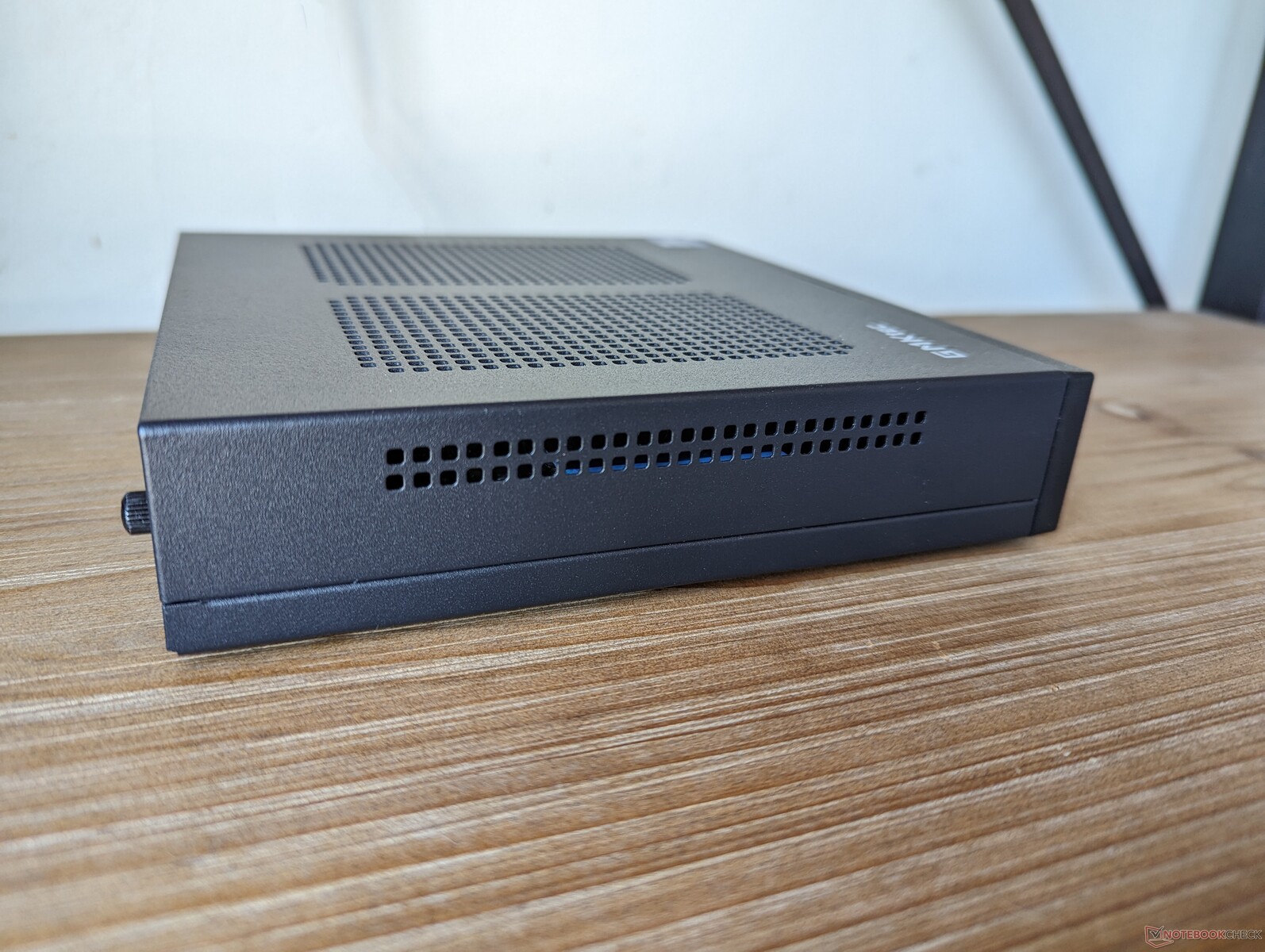

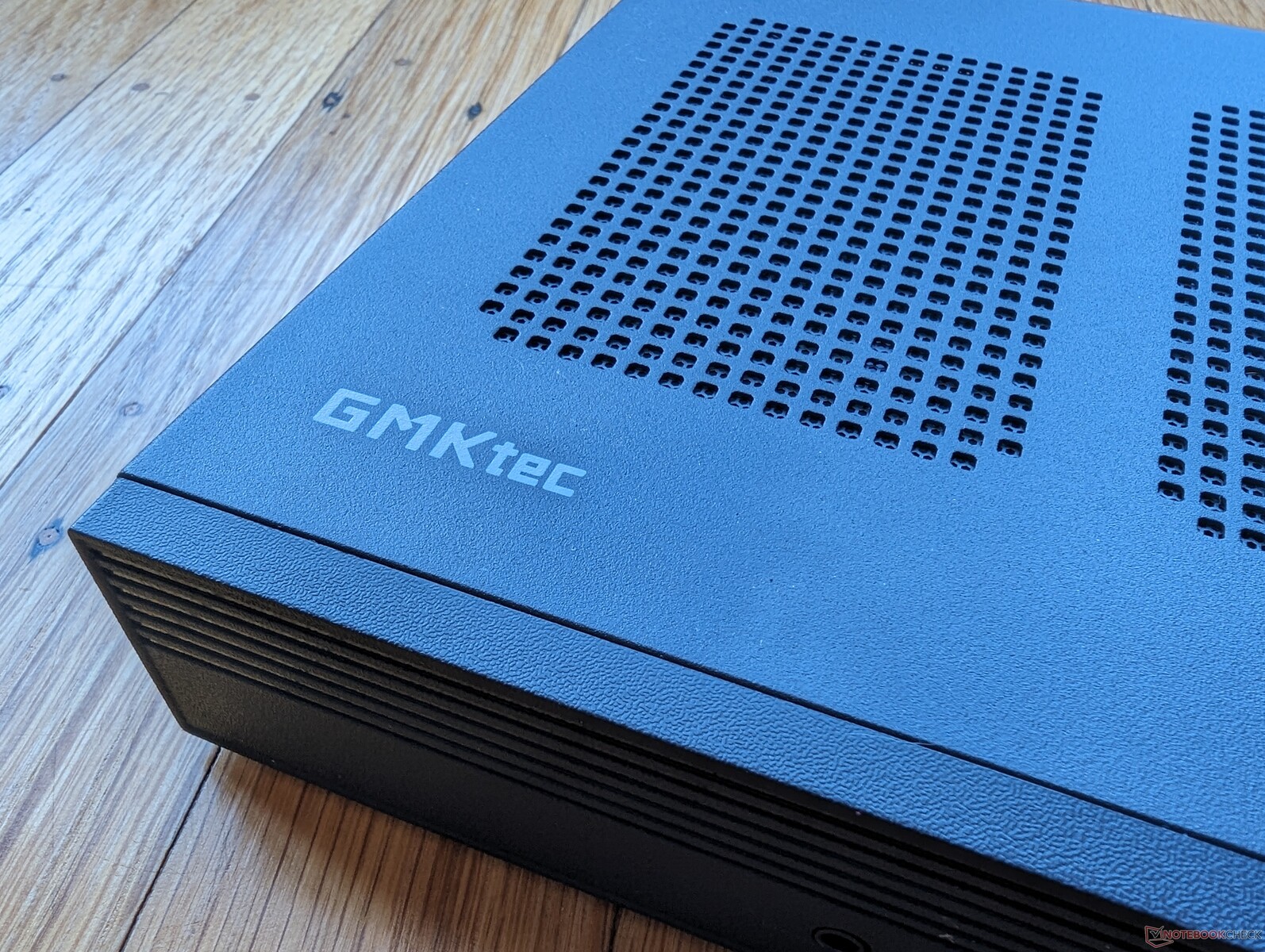

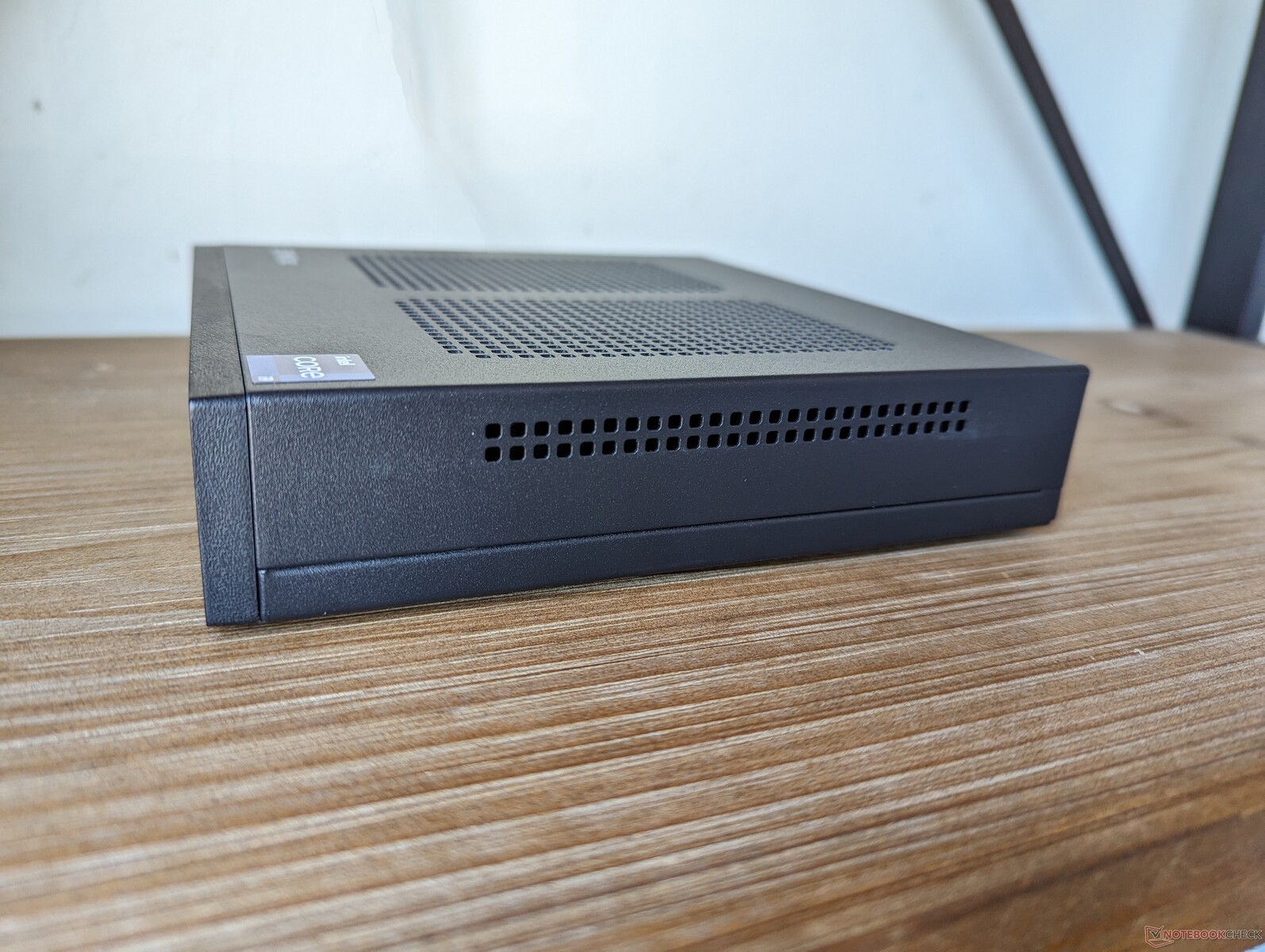

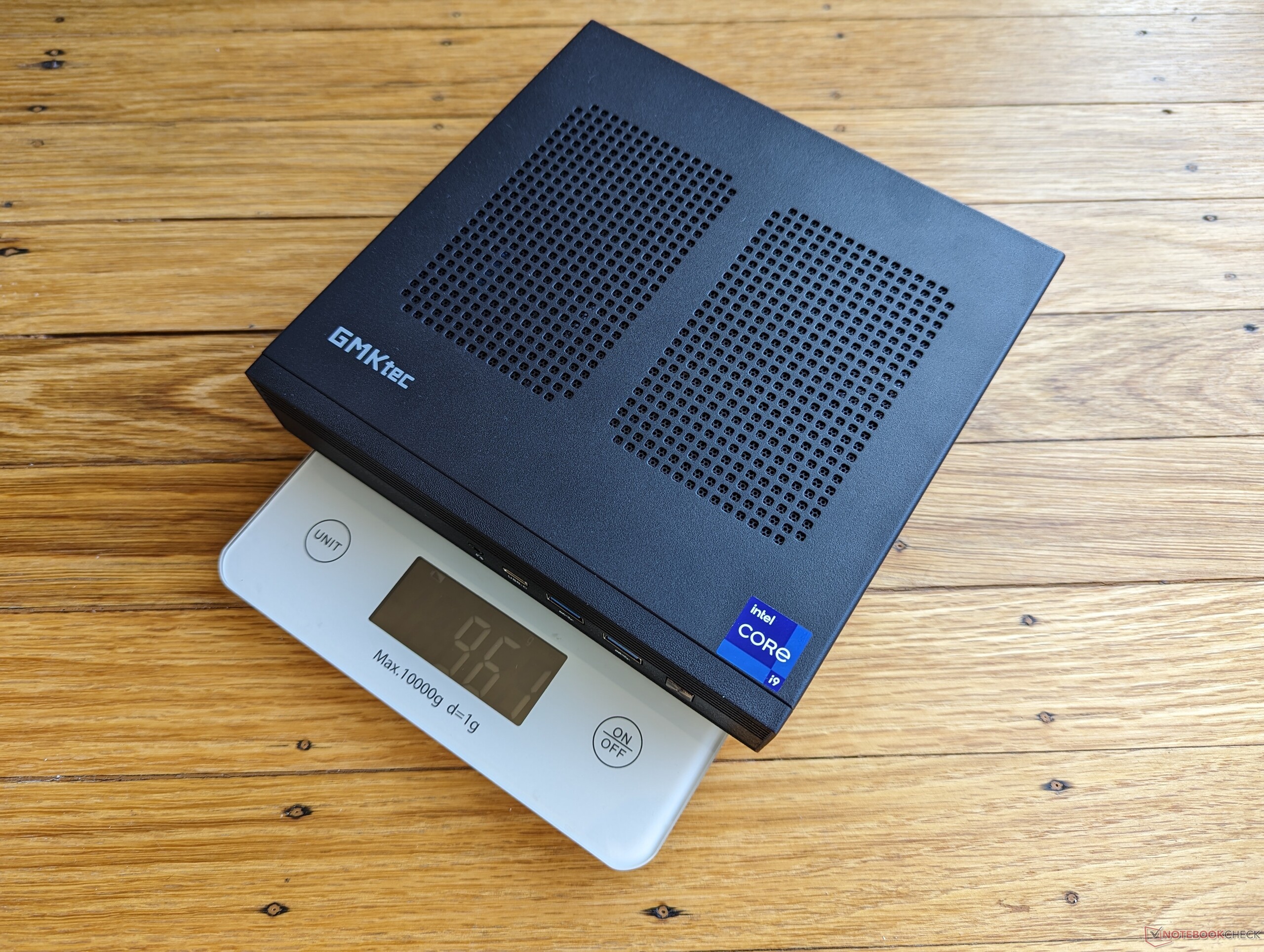

与同价位的大多数其他迷你电脑不同,NucBox M4 的四面几乎都是金属材质,具有工业或专业的外观。不过,它的体积和重量也明显更大,尤其是与典型的英特尔 NUC 相比。

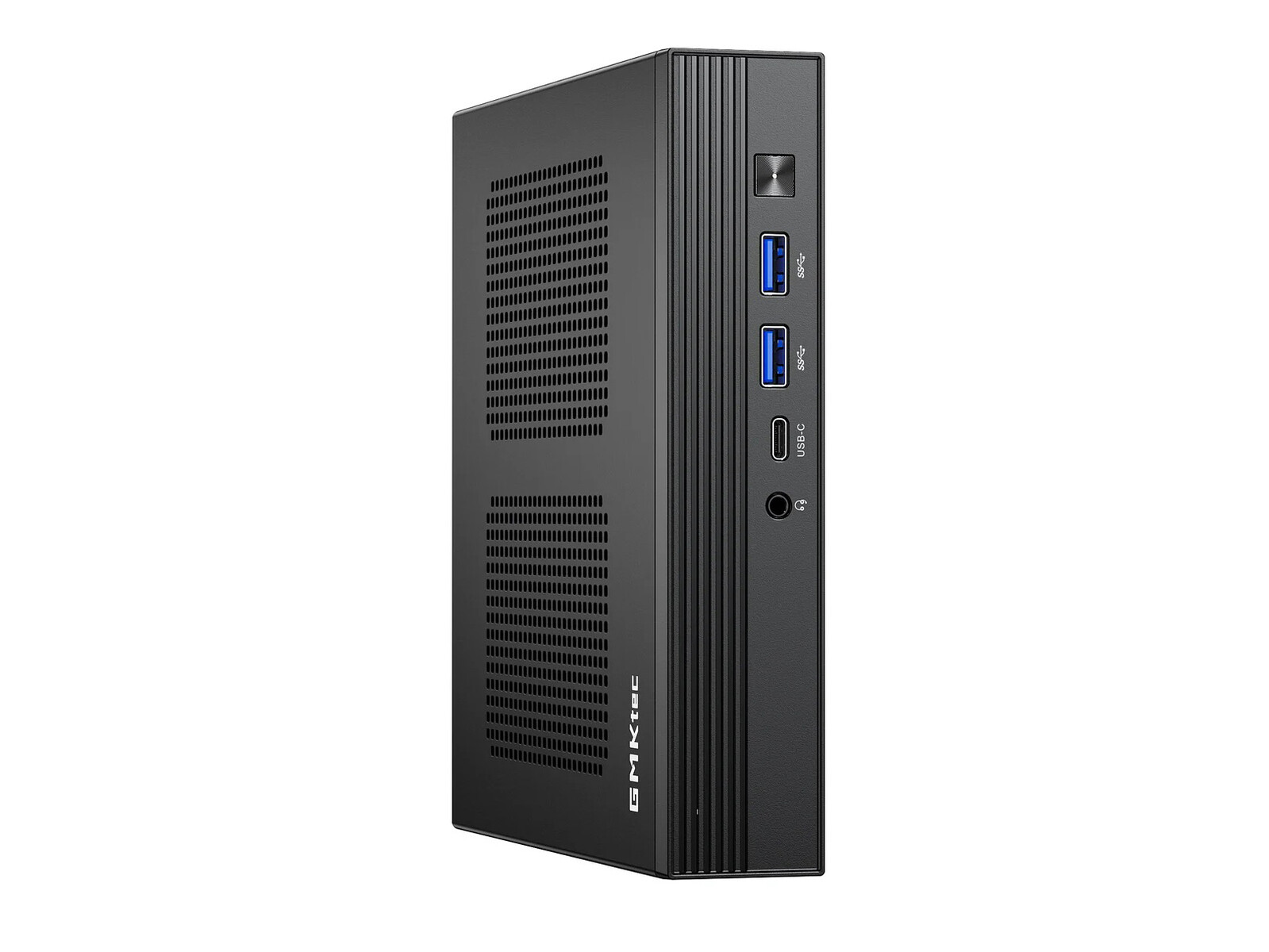

需要注意的是,虽然 GMK 宣传 NucBox m4 有水平和垂直两种方向,但如果垂直放置,该机型很容易倾倒。没有专门的支架将设备固定在垂直位置。
尺寸比较
连接性

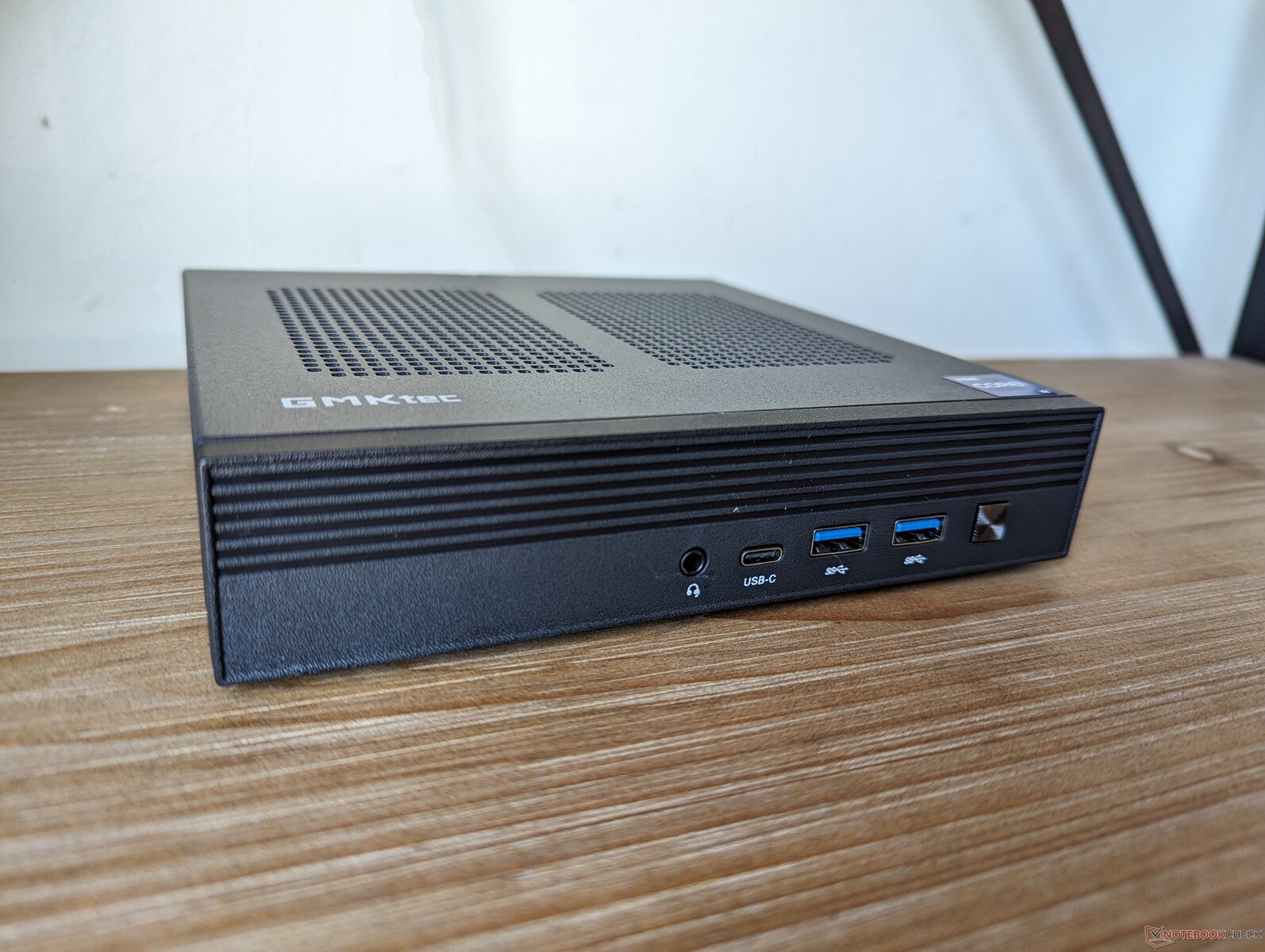

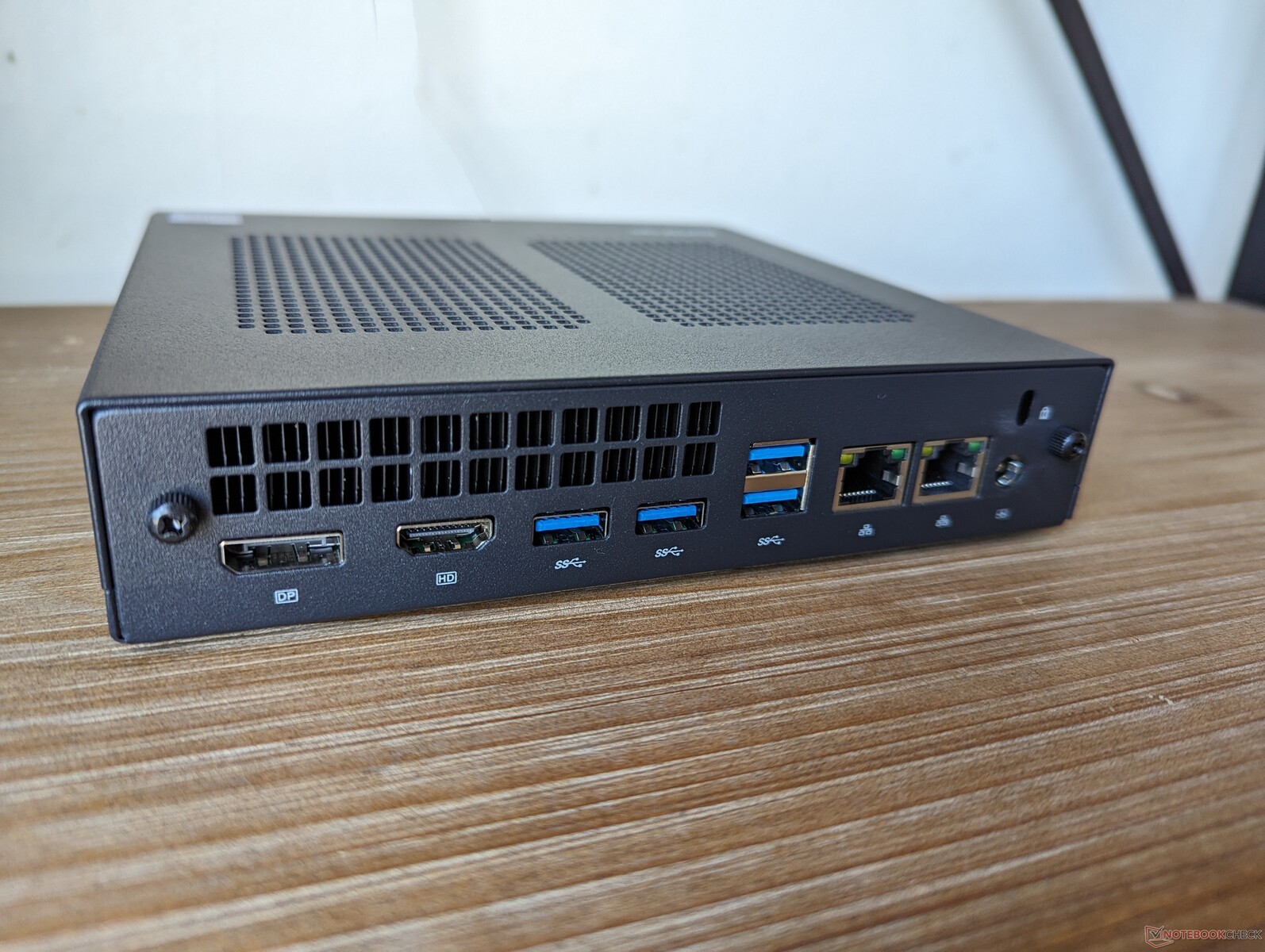

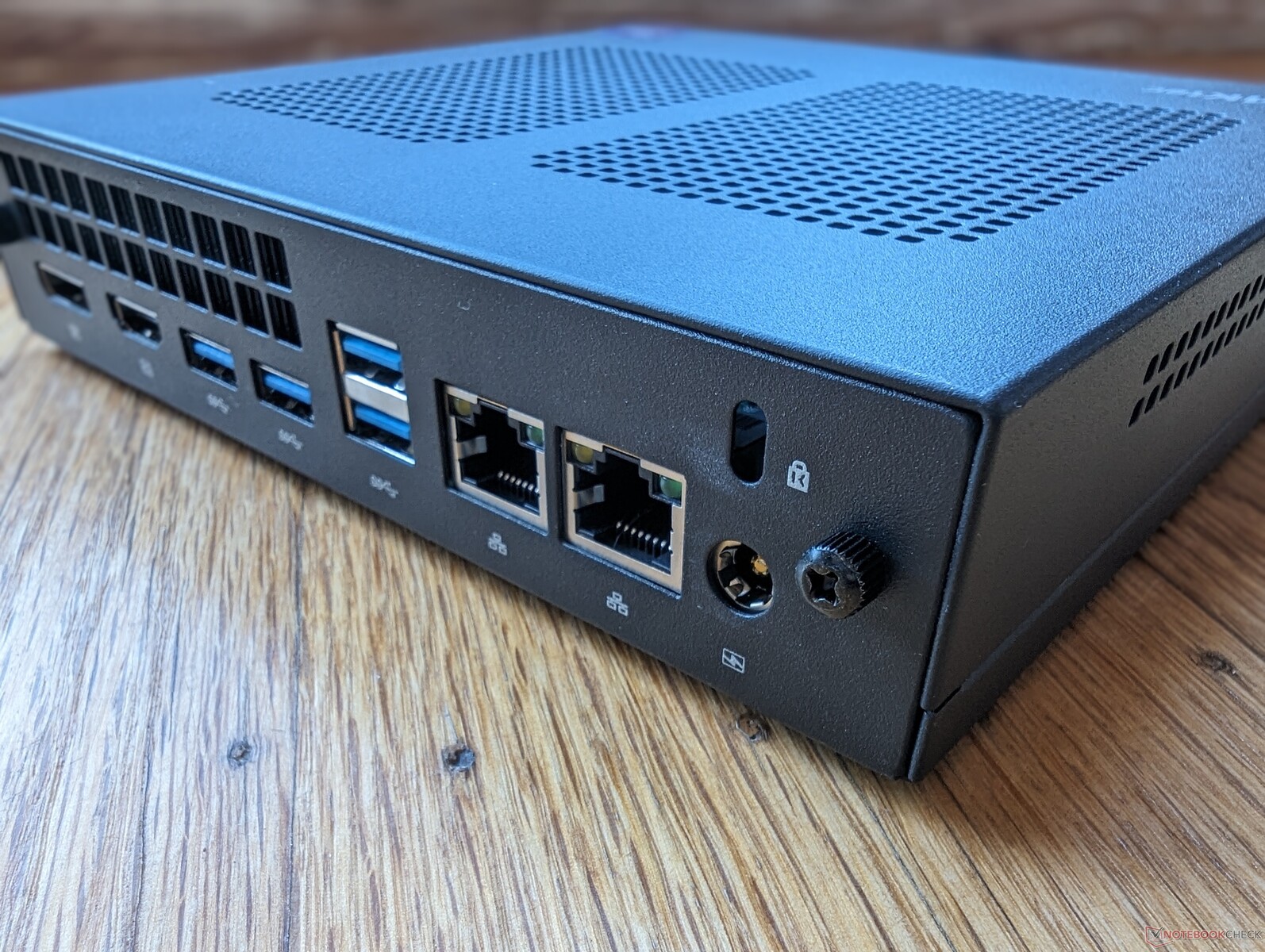

该机型不乏端口,用户总共可获得 7 个 USB 端口、3 个视频输出端口和双 2.5 Gbit 以太网。不过,该机型不支持 Thunderbolt 或 eGPU,而这本可提高其多功能性。
交流
为了降低成本,Wi-Fi 6E 并非标配。不过,与我们的 Wi-Fi 6 网络配对后,传输速率稳定可靠。
Networking | |
iperf3 transmit AXE11000 | |
Beelink SER6 Pro | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox M4 | |
iperf3 receive AXE11000 | |
GMK NucBox K3 Pro | |
Beelink SER6 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M3 | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox M4 | |
iperf3 transmit AXE11000 6GHz | |
Intel NUC 13 Pro Kit NUC13ANK | |
iperf3 receive AXE11000 6GHz | |
Intel NUC 13 Pro Kit NUC13ANK |
维护

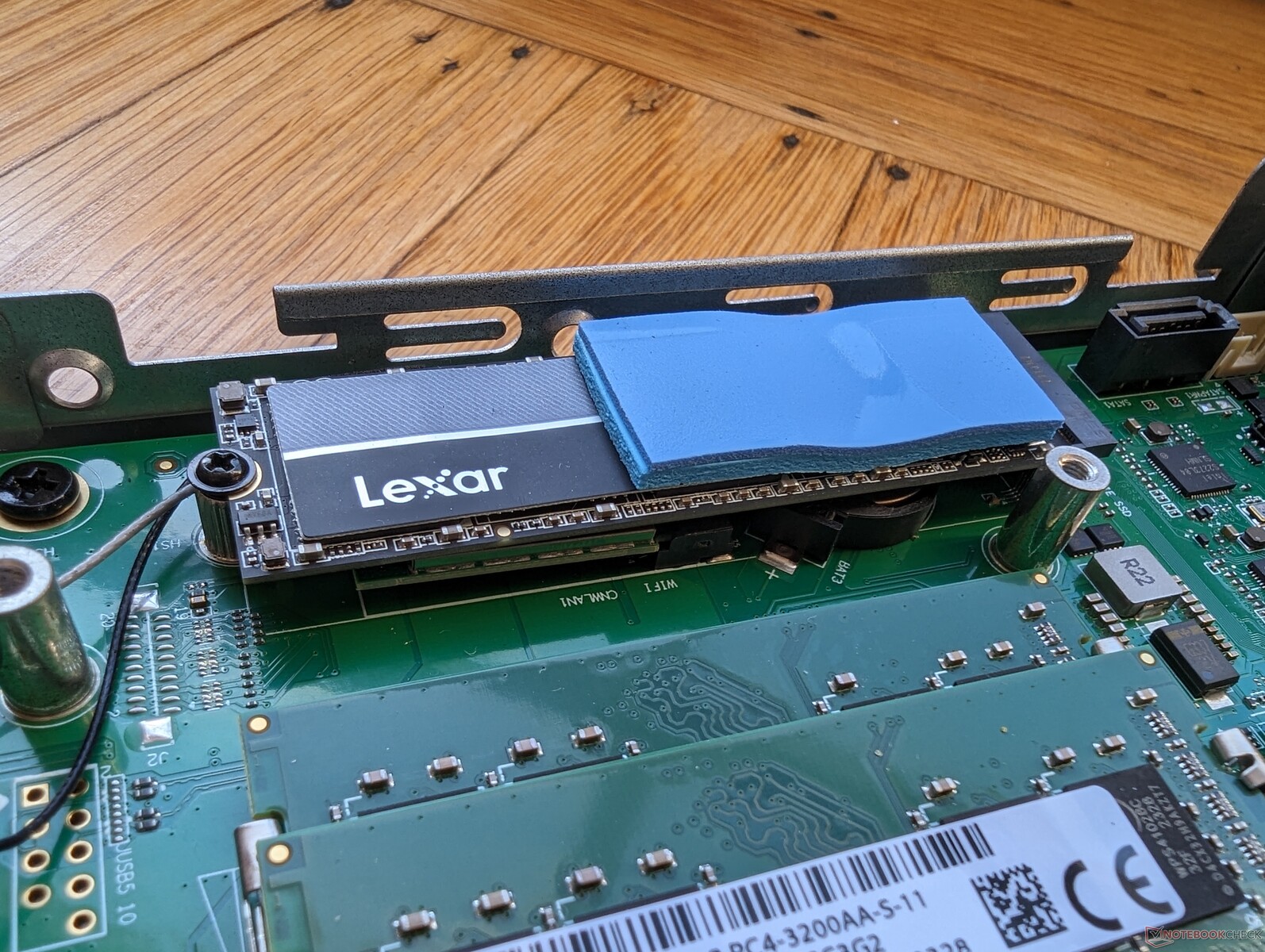

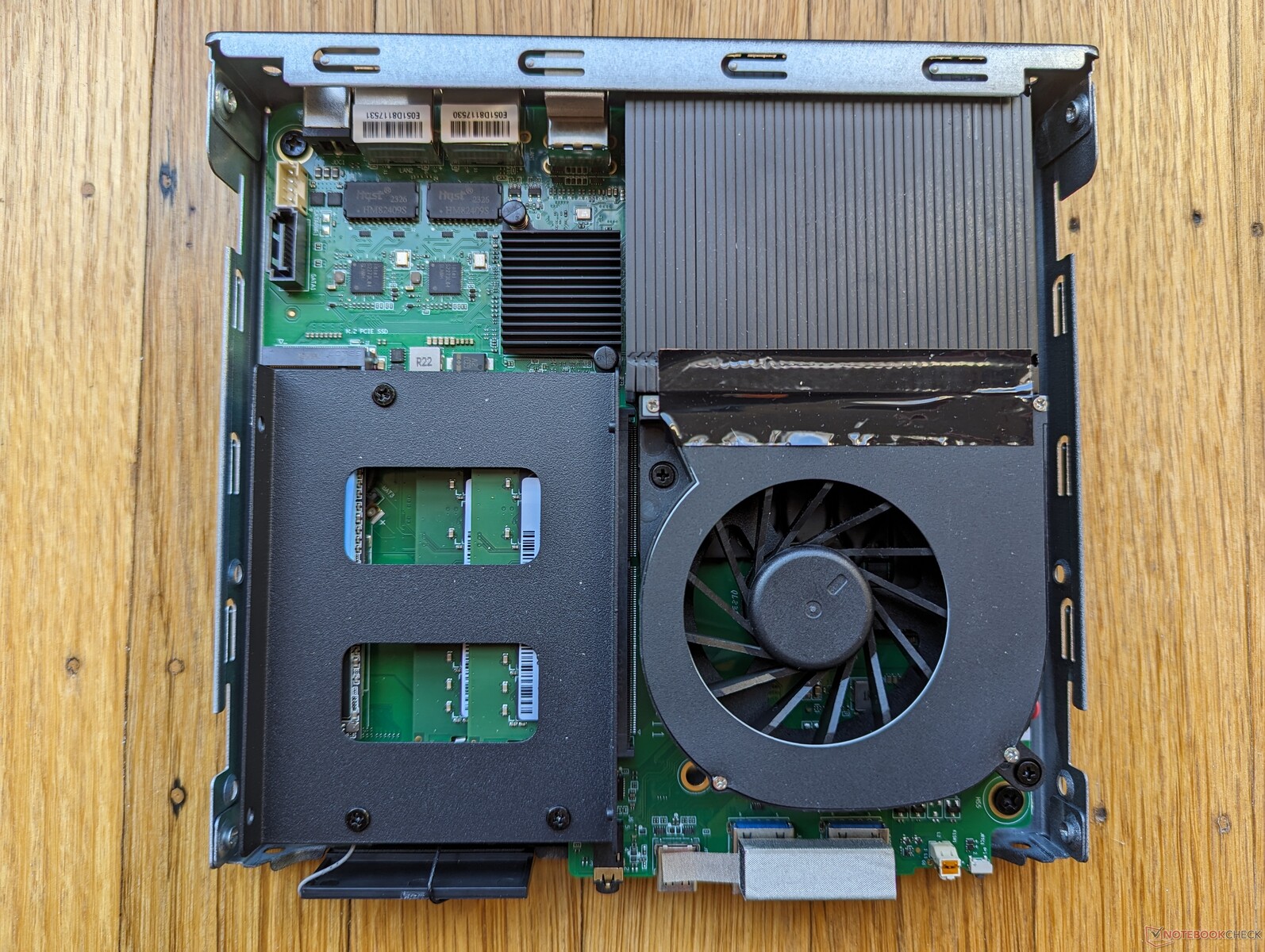

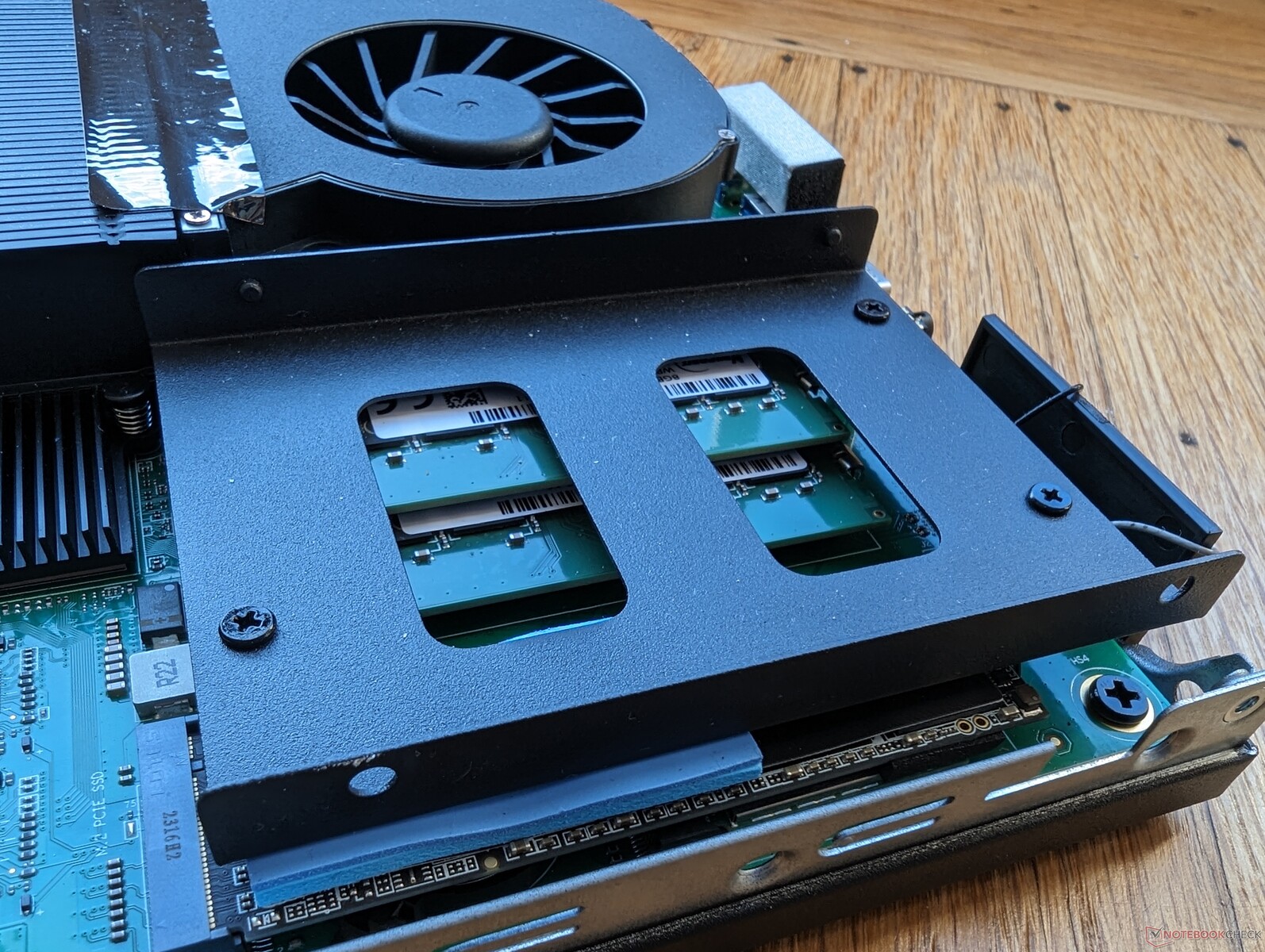

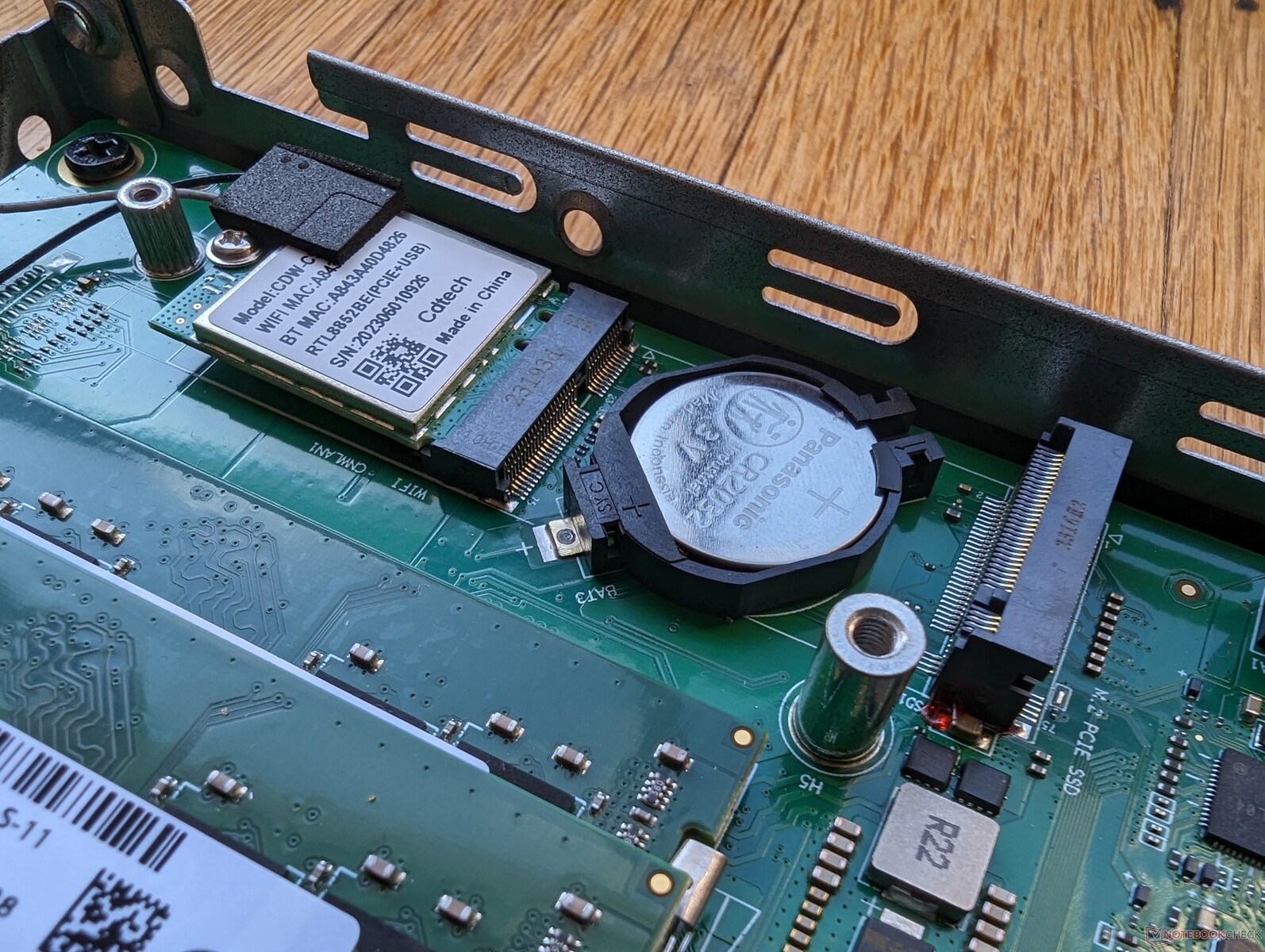

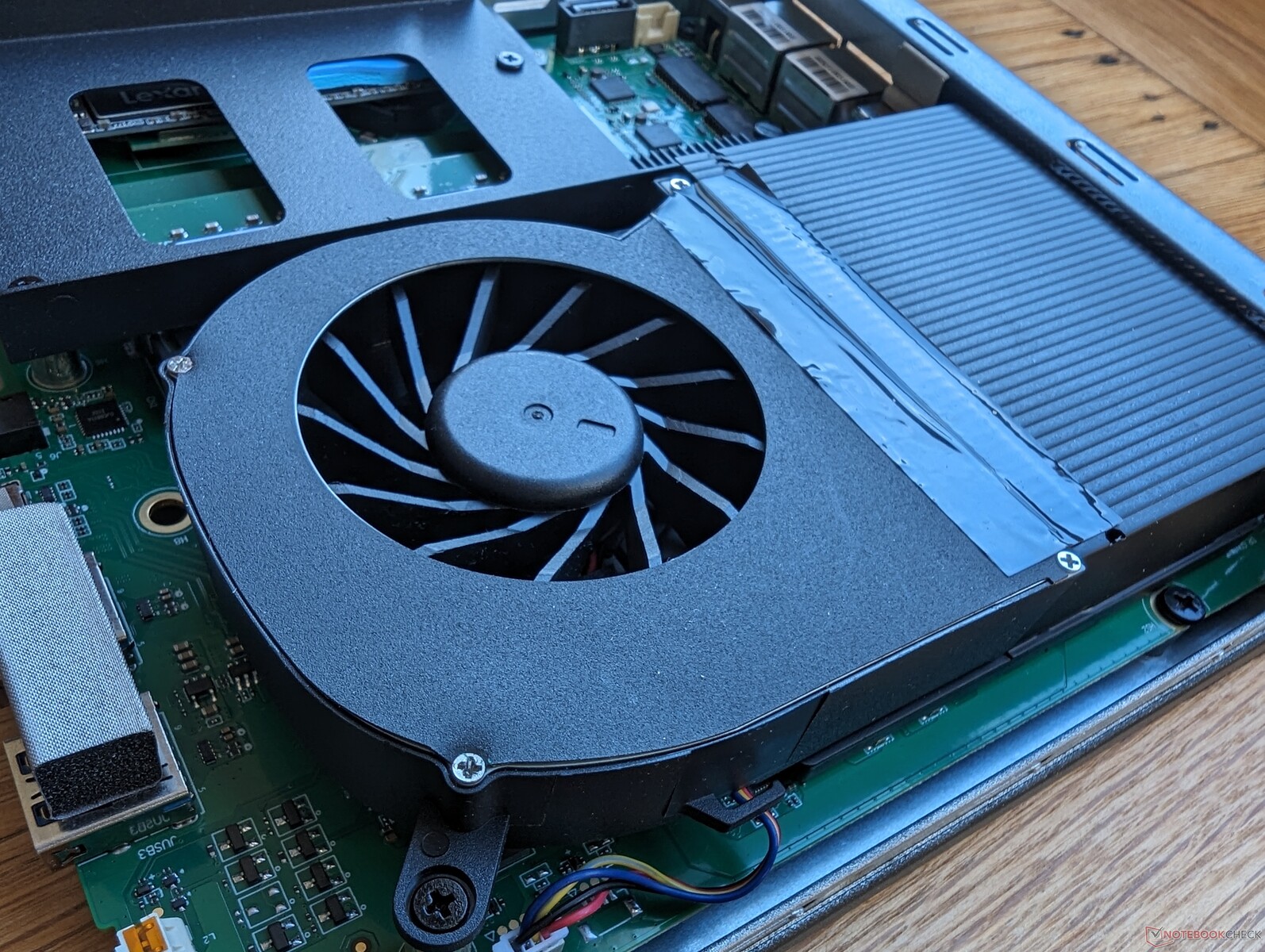

从后部拧下两颗螺丝后,顶盖滑落,露出两个存储托架(2.5 英寸 SATA III + M.2 2280)和两个 SODIMM 插槽。升级相对简单,只需一把螺丝刀。
配件和保修

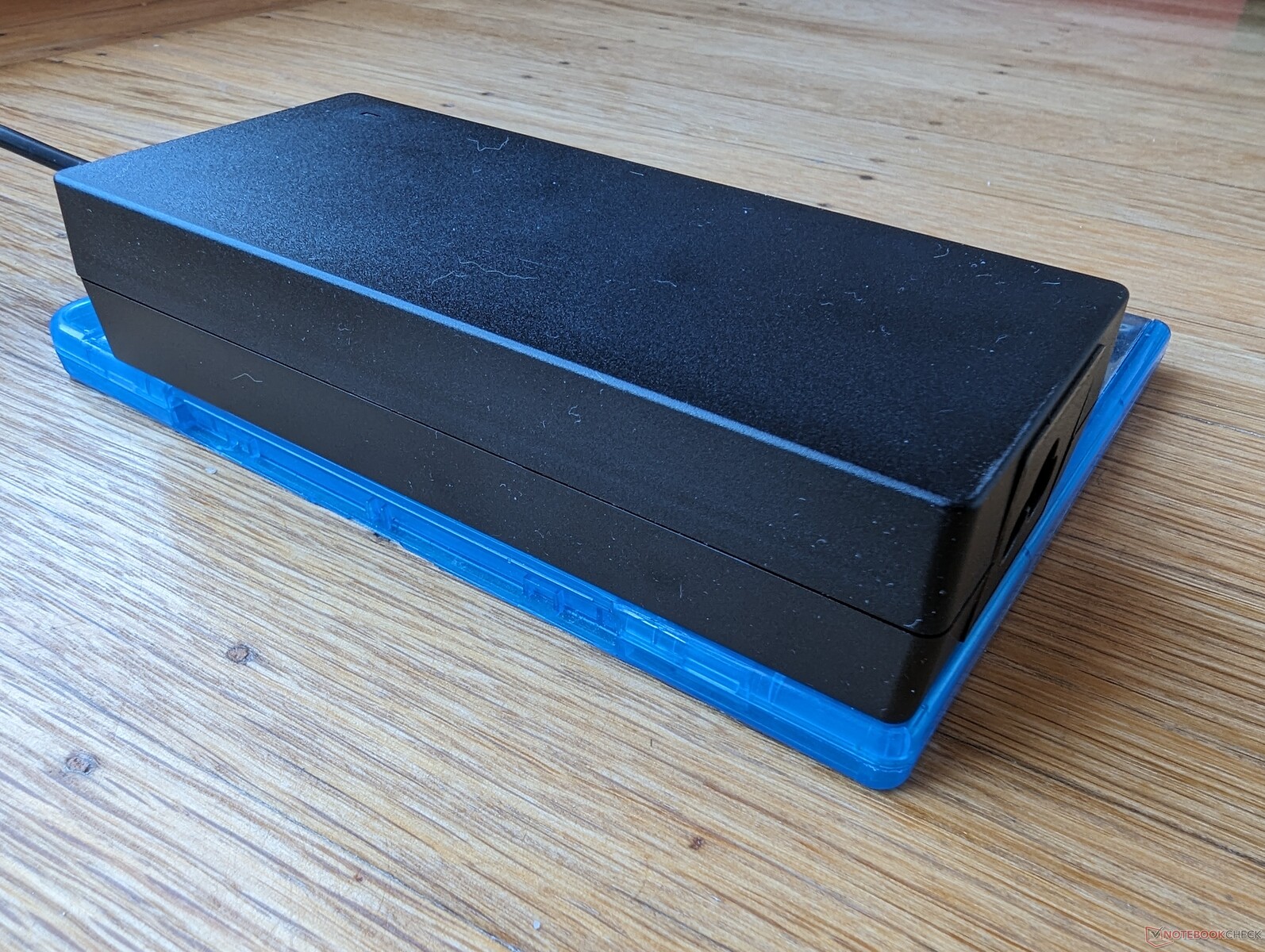

零售包装盒内除了电源适配器和说明书外,还包括一根 HDMI 电缆和 VESA 安装螺丝。如果在美国购买,制造商提供一年有限保修。
性能
测试条件
在运行以下基准测试之前,我们将 Windows 设置为性能模式。

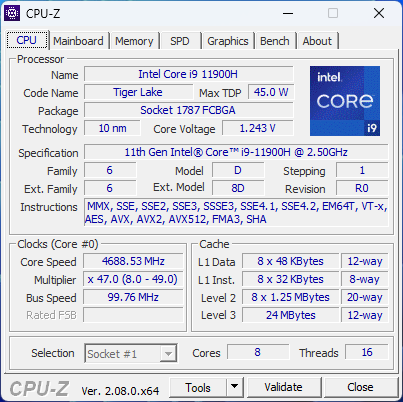

处理器
作为三年前的酷睿 i9 CPU,i9-11900H i9-11900H很难赶上较新的酷睿 i7 和 Ryzen 7 产品,如 酷睿 i7-13700H, 酷睿 i7-1360P或 Ryzen 7 7735HS.不过,它比 酷睿 i5-12450H更快。 NucBox M3和大多数酷睿 U CPU(包括第 13 代 酷睿 i7-1365U.
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23 / Single Core | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
Minisforum EliteMini UM780 XTX | |
GMK NucBox M3 | |
GMK NucBox M4 | |
Average Intel Core i9-11900H (1574 - 1605, n=4) | |
Minisforum Neptune Series HX77G | |
Beelink SER6 Pro | |
GMK NucBox K2 | |
Geekom A5 | |
Beelink SER5 |
Cinebench R20 / CPU (Multi Core) | |
Minisforum EliteMini UM780 XTX | |
Lenovo IdeaCentre Mini 01IRH8 | |
Minisforum Neptune Series HX77G | |
Intel NUC 13 Pro Kit NUC13ANK | |
Average Intel Core i9-11900H (4324 - 5160, n=5) | |
GMK NucBox K2 | |
Beelink SER6 Pro | |
GMK NucBox M4 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
GMK NucBox M3 |
Cinebench R20 / CPU (Single Core) | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
Minisforum EliteMini UM780 XTX | |
GMK NucBox M3 | |
GMK NucBox M4 | |
Minisforum Neptune Series HX77G | |
Average Intel Core i9-11900H (600 - 615, n=5) | |
GMK NucBox K2 | |
Beelink SER6 Pro | |
Geekom A5 | |
Beelink SER5 |
Cinebench R15 / CPU Multi 64Bit | |
Minisforum EliteMini UM780 XTX | |
Minisforum Neptune Series HX77G | |
Lenovo IdeaCentre Mini 01IRH8 | |
Average Intel Core i9-11900H (1770 - 2211, n=5) | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K2 | |
Beelink SER6 Pro | |
Geekom A5 | |
GMK NucBox M4 | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
GMK NucBox M3 |
Cinebench R15 / CPU Single 64Bit | |
Minisforum EliteMini UM780 XTX | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
Minisforum Neptune Series HX77G | |
GMK NucBox K2 | |
GMK NucBox M4 | |
Beelink SER6 Pro | |
Average Intel Core i9-11900H (236 - 243, n=5) | |
GMK NucBox M3 | |
Geekom A5 | |
Beelink SER5 |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Minisforum EliteMini UM780 XTX | |
GMK NucBox M4 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Minisforum Neptune Series HX77G | |
GMK NucBox K2 | |
Average Intel Core i9-11900H (5582 - 6018, n=5) | |
GMK NucBox K3 Pro | |
Beelink SER6 Pro | |
Geekom A5 | |
GMK NucBox M3 | |
Beelink SER5 |
Geekbench 5.5 / Multi-Core | |
Minisforum EliteMini UM780 XTX | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
Minisforum Neptune Series HX77G | |
GMK NucBox K3 Pro | |
GMK NucBox K2 | |
Beelink SER6 Pro | |
Average Intel Core i9-11900H (7725 - 9856, n=5) | |
GMK NucBox M4 | |
Geekom A5 | |
GMK NucBox M3 | |
Beelink SER5 |
Geekbench 5.5 / Single-Core | |
Minisforum EliteMini UM780 XTX | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
GMK NucBox M4 | |
GMK NucBox M3 | |
Average Intel Core i9-11900H (1576 - 1692, n=5) | |
Minisforum Neptune Series HX77G | |
GMK NucBox K2 | |
Beelink SER6 Pro | |
Geekom A5 | |
Beelink SER5 |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Minisforum EliteMini UM780 XTX | |
Minisforum Neptune Series HX77G | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K2 | |
Beelink SER6 Pro | |
Average Intel Core i9-11900H (13.6 - 16.7, n=5) | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M4 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
GMK NucBox M3 |
LibreOffice / 20 Documents To PDF | |
Beelink SER5 | |
Geekom A5 | |
Minisforum EliteMini UM780 XTX | |
Minisforum Neptune Series HX77G | |
Beelink SER6 Pro | |
GMK NucBox K2 | |
Average Intel Core i9-11900H (40.5 - 49.3, n=5) | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M4 | |
GMK NucBox M3 | |
GMK NucBox K3 Pro | |
Lenovo IdeaCentre Mini 01IRH8 |
R Benchmark 2.5 / Overall mean | |
Beelink SER5 | |
Average Intel Core i9-11900H (0.52 - 0.544, n=5) | |
Geekom A5 | |
GMK NucBox M4 | |
Beelink SER6 Pro | |
GMK NucBox M3 | |
GMK NucBox K2 | |
Minisforum Neptune Series HX77G | |
GMK NucBox K3 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Minisforum EliteMini UM780 XTX |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Beelink SER6 Pro | |
GMK NucBox M4 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Average Intel Core i9-11900H | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M3 |
AIDA64 / FP32 Ray-Trace | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M3 |
AIDA64 / FPU Julia | |
Beelink SER6 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M3 |
AIDA64 / CPU SHA3 | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M3 |
AIDA64 / CPU Queen | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M3 |
AIDA64 / FPU SinJulia | |
Beelink SER6 Pro | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M3 |
AIDA64 / FPU Mandel | |
Beelink SER6 Pro | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M3 |
AIDA64 / CPU AES | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
Beelink SER6 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox M3 |
AIDA64 / CPU ZLib | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M4 | |
Beelink SER6 Pro | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
Average Intel Core i9-11900H (738 - 738, n=4) |
AIDA64 / FP64 Ray-Trace | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M3 |
AIDA64 / CPU PhotoWorxx | |
GMK NucBox K3 Pro | |
Beelink SER6 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M3 | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
Lenovo IdeaCentre Mini 01IRH8 |
系统性能

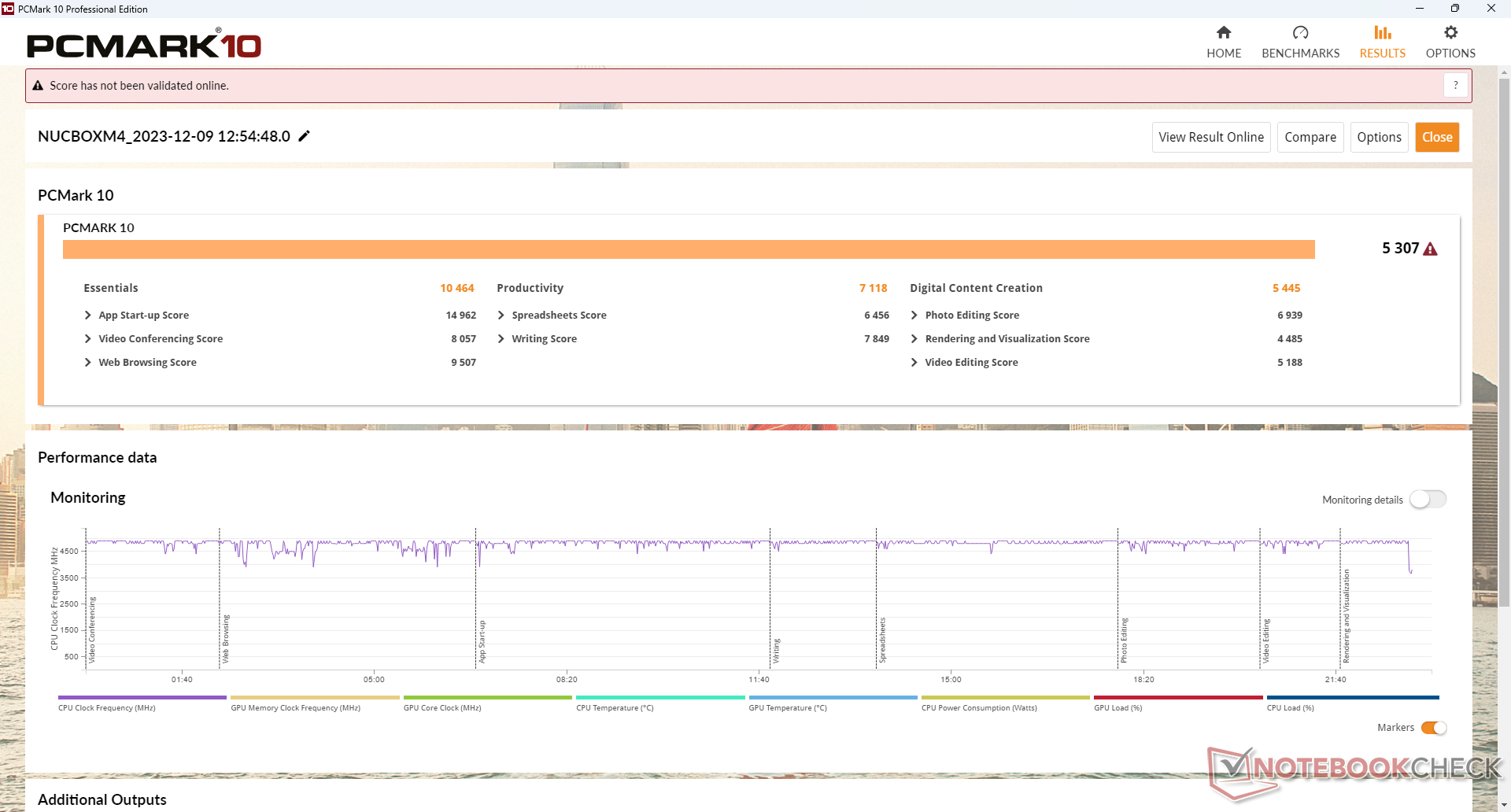

由于 NucBox M4 的集成 GPU 运行速度较慢,PCMark 结果低于许多使用较新的第 12 代、第 13 代或 Zen 3+ CPU 的迷你 PC。
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
PCMark 10 / Score | |
Beelink SER6 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
GMK NucBox M4 | |
Average Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) () |
PCMark 10 / Essentials | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
GMK NucBox M4 | |
Average Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) () |
PCMark 10 / Productivity | |
Beelink SER6 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox M3 | |
GMK NucBox M4 | |
Average Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) () |
PCMark 10 / Digital Content Creation | |
Beelink SER6 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M4 | |
Average Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) () | |
GMK NucBox M3 |
CrossMark / Overall | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro | |
GMK NucBox M4 | |
Average Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) () | |
GMK NucBox K3 Pro | |
GMK NucBox M3 |
CrossMark / Productivity | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro | |
GMK NucBox M4 | |
Average Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) () | |
GMK NucBox M3 | |
GMK NucBox K3 Pro |
CrossMark / Creativity | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro | |
GMK NucBox K3 Pro | |
GMK NucBox M4 | |
Average Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) () | |
GMK NucBox M3 |
CrossMark / Responsiveness | |
Beelink SER6 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M3 | |
GMK NucBox M4 | |
Average Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) () | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro |
WebXPRT 3 / Overall | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Beelink SER6 Pro | |
GMK NucBox M3 | |
GMK NucBox M4 | |
Average Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) () |
WebXPRT 4 / Overall | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M3 | |
GMK NucBox M4 | |
Average Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) () | |
Beelink SER6 Pro |
Mozilla Kraken 1.1 / Total | |
GMK NucBox M4 | |
Average Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) () | |
Beelink SER6 Pro | |
GMK NucBox M3 | |
GMK NucBox K3 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Kit NUC13ANK |
* ... smaller is better
PCMark 10 Score | 5307 points | |
Help |

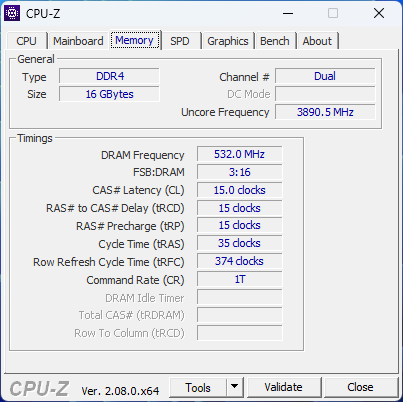

AIDA64 / Memory Copy | |
GMK NucBox K3 Pro | |
Beelink SER6 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
GMK NucBox M3 | |
Lenovo IdeaCentre Mini 01IRH8 |
AIDA64 / Memory Read | |
GMK NucBox K3 Pro | |
Beelink SER6 Pro | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox M3 |
AIDA64 / Memory Write | |
GMK NucBox K3 Pro | |
Beelink SER6 Pro | |
GMK NucBox M4 | |
Average Intel Core i9-11900H () | |
GMK NucBox M3 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 |
AIDA64 / Memory Latency | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
Beelink SER6 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox M3 | |
GMK NucBox M4 | |
Average Intel Core i9-11900H (71.2 - 71.2, n=4) |
* ... smaller is better

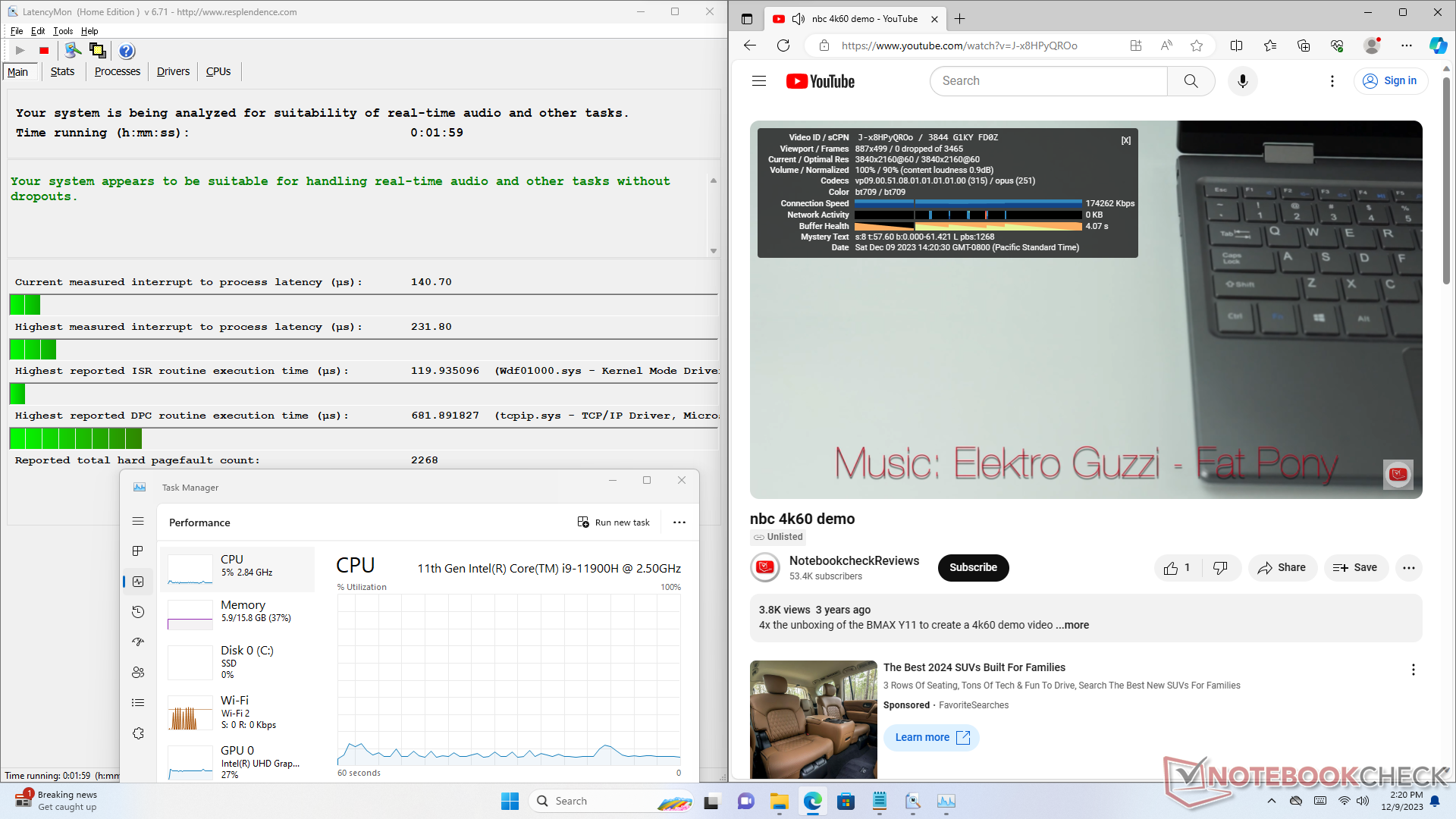

DPC 延迟

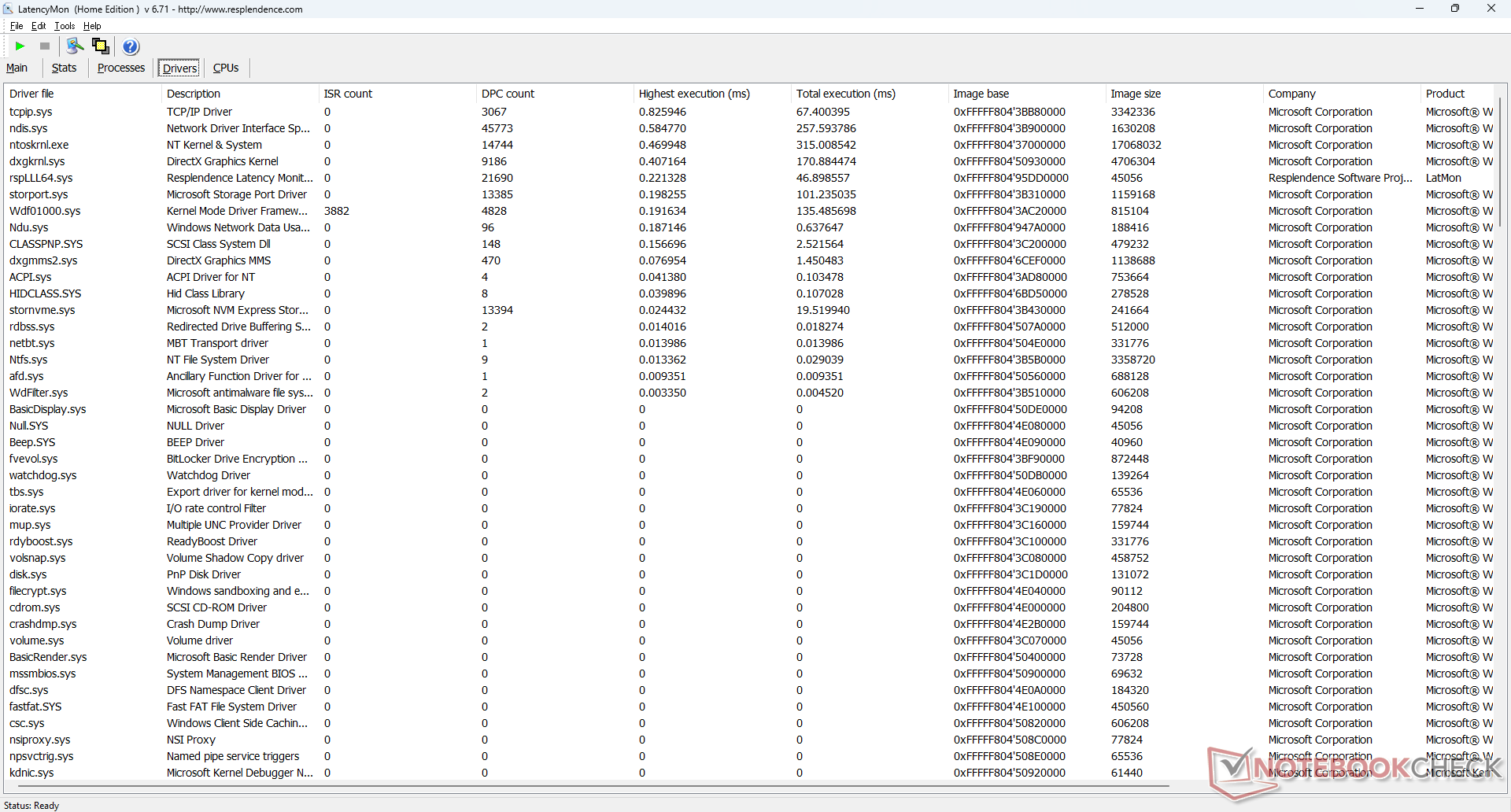

在打开我们主页的多个浏览器标签时,LatencyMon 没有显示任何 DPC 问题。60 FPS 的 4K 视频回放也非常完美,没有掉帧记录,是一款用于流媒体的出色迷你 PC。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
GMK NucBox M3 | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
Beelink SER6 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M4 |
* ... smaller is better
存储设备

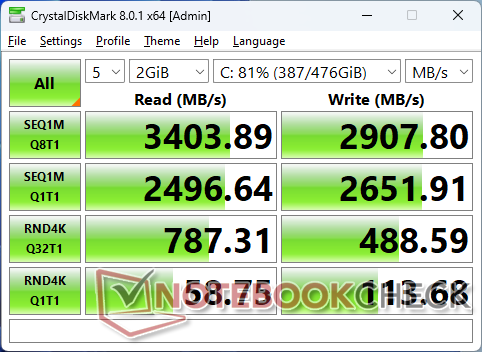

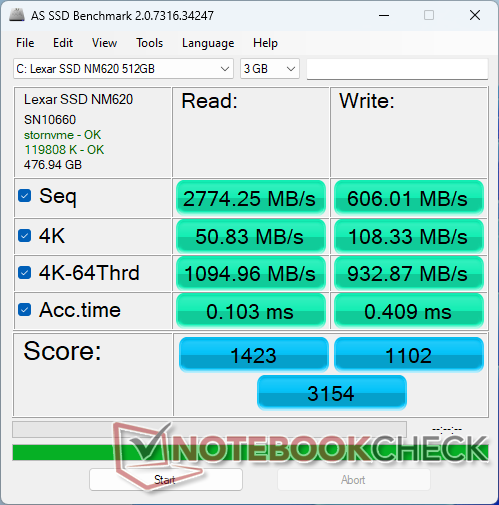

我们的设备配有 512 GB Lexar NM620PCIe3 x4 NVMe 固态硬盘,连续读写速度分别高达 3500 MB/s 和 2400 MB/s。硬盘在长时间保持最高性能速率时不会出现节流问题。
Drive Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M3 | |
Beelink SER6 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
GMK NucBox M4 |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
图形处理器性能

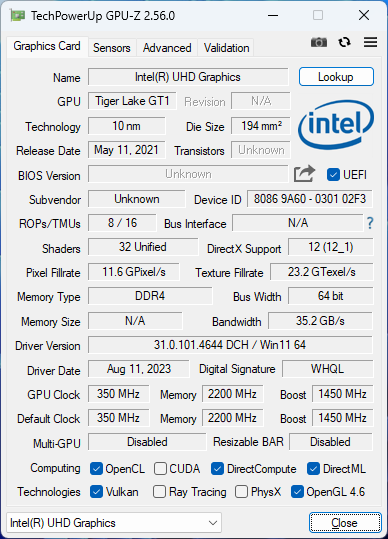

集成的 UHD Graphics Xe 32 EUs是英特尔 Xe 系列中速度最慢的 GPU 之一。因此,NucBox M4 并不适合任何原生游戏。不过,游戏流媒体在这台机器上运行得非常出色。

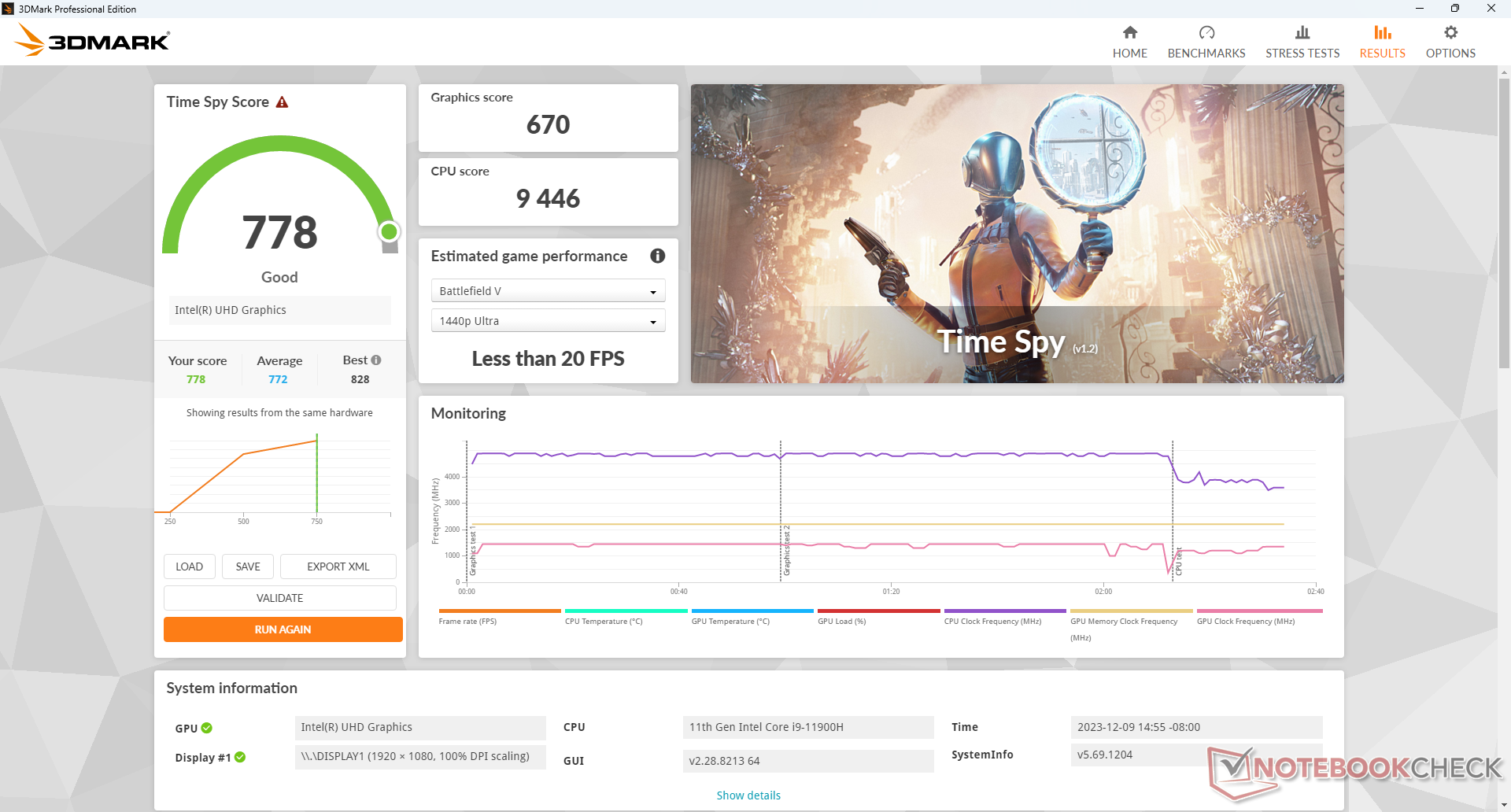

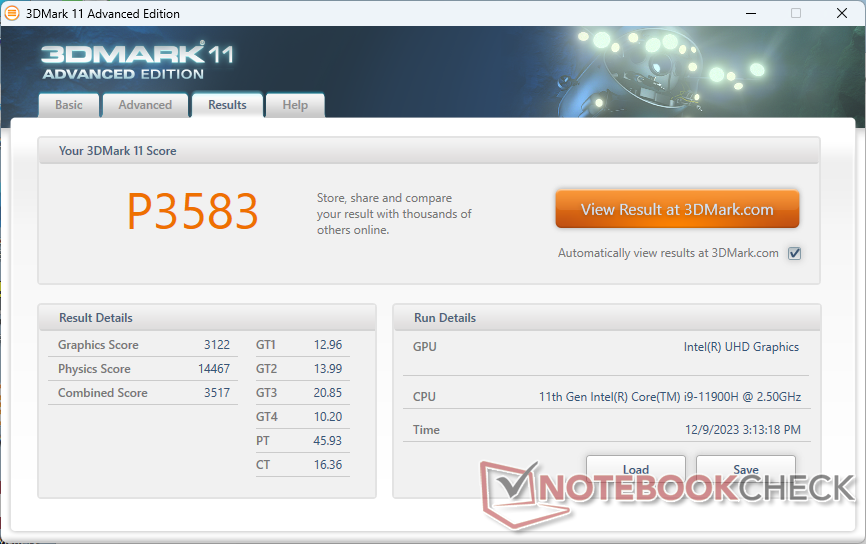

3DMark 11 Performance | 3583 points | |

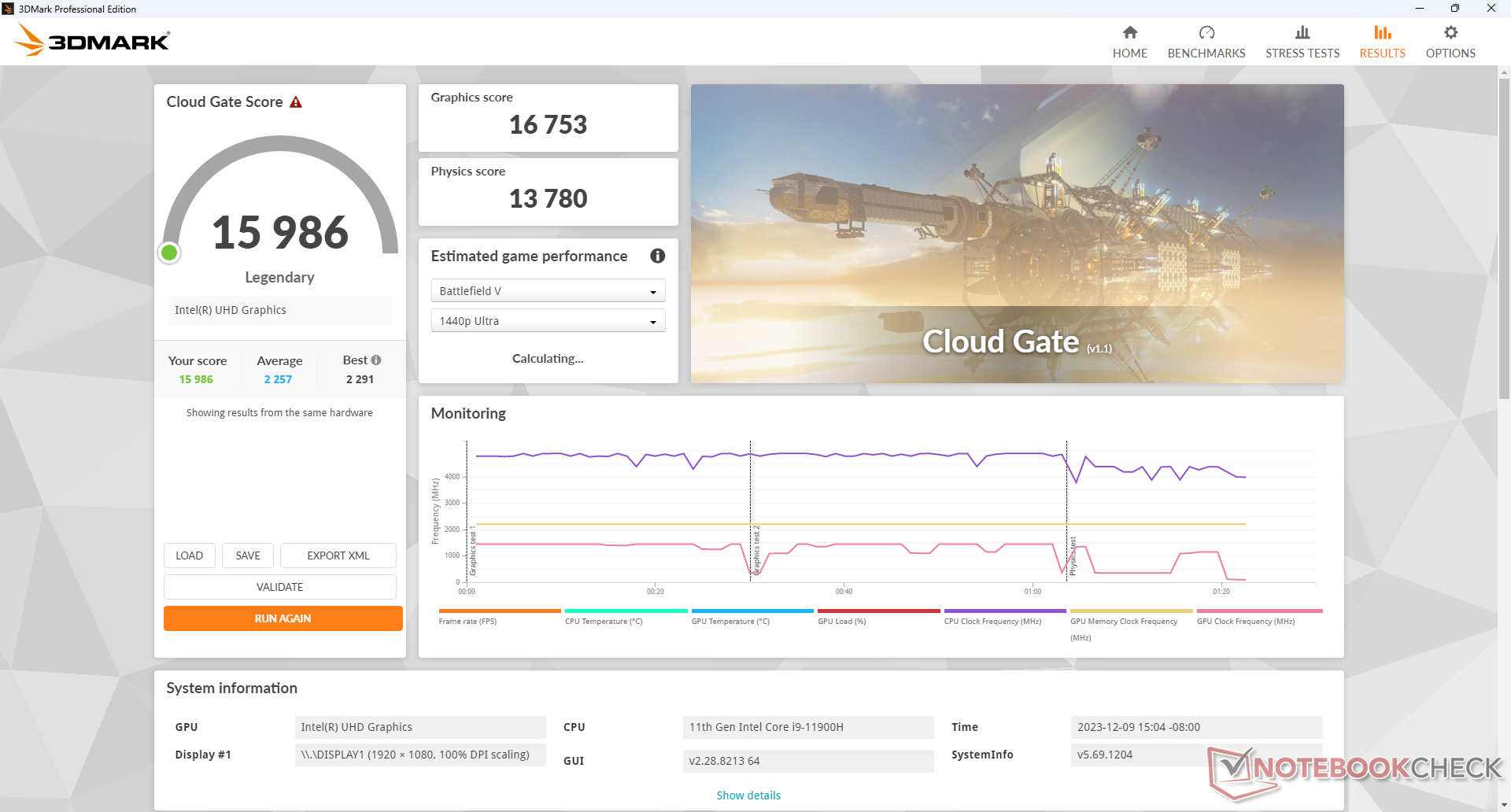

3DMark Cloud Gate Standard Score | 15986 points | |

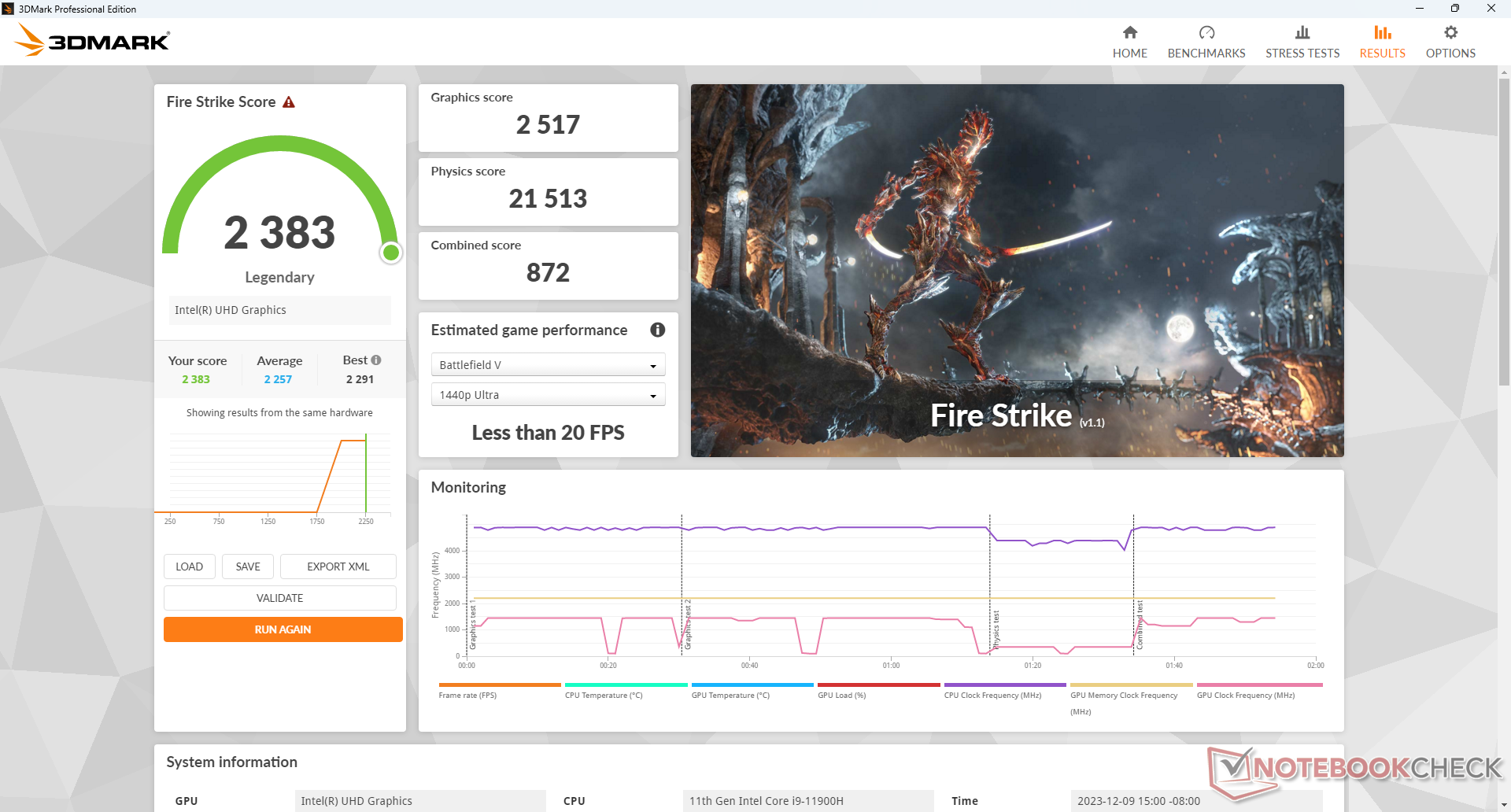

3DMark Fire Strike Score | 2383 points | |
Help |
* ... smaller is better
Witcher 3 FPS Chart
low | med. | high | ultra | |
The Witcher 3 (2015) | 49.7 | 29.8 | 16.7 | 8.2 |
Dota 2 Reborn (2015) | 112.3 | 70.1 | 36.1 | 32.8 |
Final Fantasy XV Benchmark (2018) | 23 | |||
X-Plane 11.11 (2018) | 38.8 | 26.3 | 23.3 | |
Strange Brigade (2018) | 56.5 | 22.4 | 17.2 | 16.4 |
排放量
系统噪音

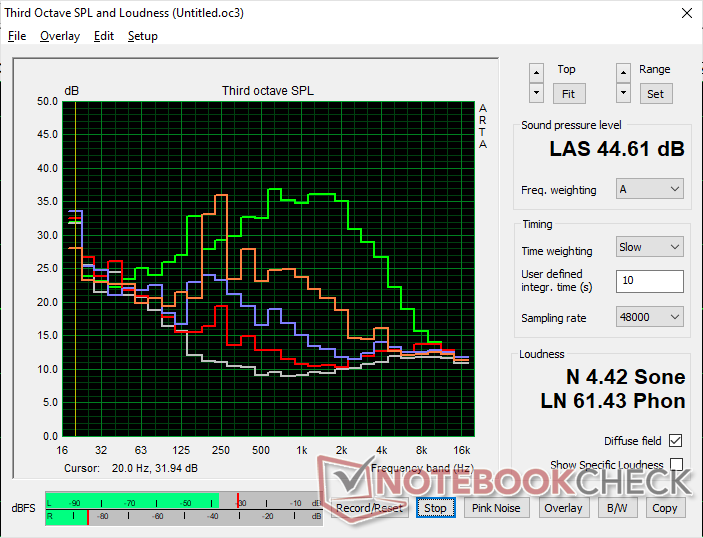

在运行浏览器或视频流等低负载时,风扇噪音比其他大多数小型迷你 PC 更小。例如,在运行 3DMark 06 表示中等负载时,风扇噪音稳定在 28 dB(A),而 NucBox M3 为 37 dB(A)。脉动也降到了最低。
运行要求极高的负载(如 Prime95)时,内部风扇的噪音可高达 45 dB(A),比其他大多数微型电脑都要大。因此,NucBox M4 只有在工作负荷需要时才会发出很大的声音,否则就会相当安静。
Noise Level
Idle |
| 24.4 / 24.4 / 28 dB(A) |
Load |
| 28 / 44.6 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 22.7 dB(A) |
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB | GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG | GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG | Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU | Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G | Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ | |
---|---|---|---|---|---|---|
Noise | -16% | -7% | -9% | -10% | -22% | |
off / environment * | 22.7 | 23.9 -5% | 23.1 -2% | 23.4 -3% | 22.8 -0% | 29.8 -31% |
Idle Minimum * | 24.4 | 25.7 -5% | 25 -2% | 30.4 -25% | 24.1 1% | 30.2 -24% |
Idle Average * | 24.4 | 25.7 -5% | 25.5 -5% | 30.4 -25% | 24.1 1% | 31.1 -27% |
Idle Maximum * | 28 | 39.1 -40% | 25.5 9% | 30.4 -9% | 33.8 -21% | 31.9 -14% |
Load Average * | 28 | 37 -32% | 39.9 -43% | 30.7 -10% | 40.1 -43% | 40 -43% |
Witcher 3 ultra * | 33.7 | 43.5 -29% | 39.9 -18% | 33.9 -1% | 38.7 -15% | |
Load Maximum * | 44.6 | 43.5 2% | 39.9 11% | 41 8% | 40.1 10% | 40.5 9% |
* ... smaller is better

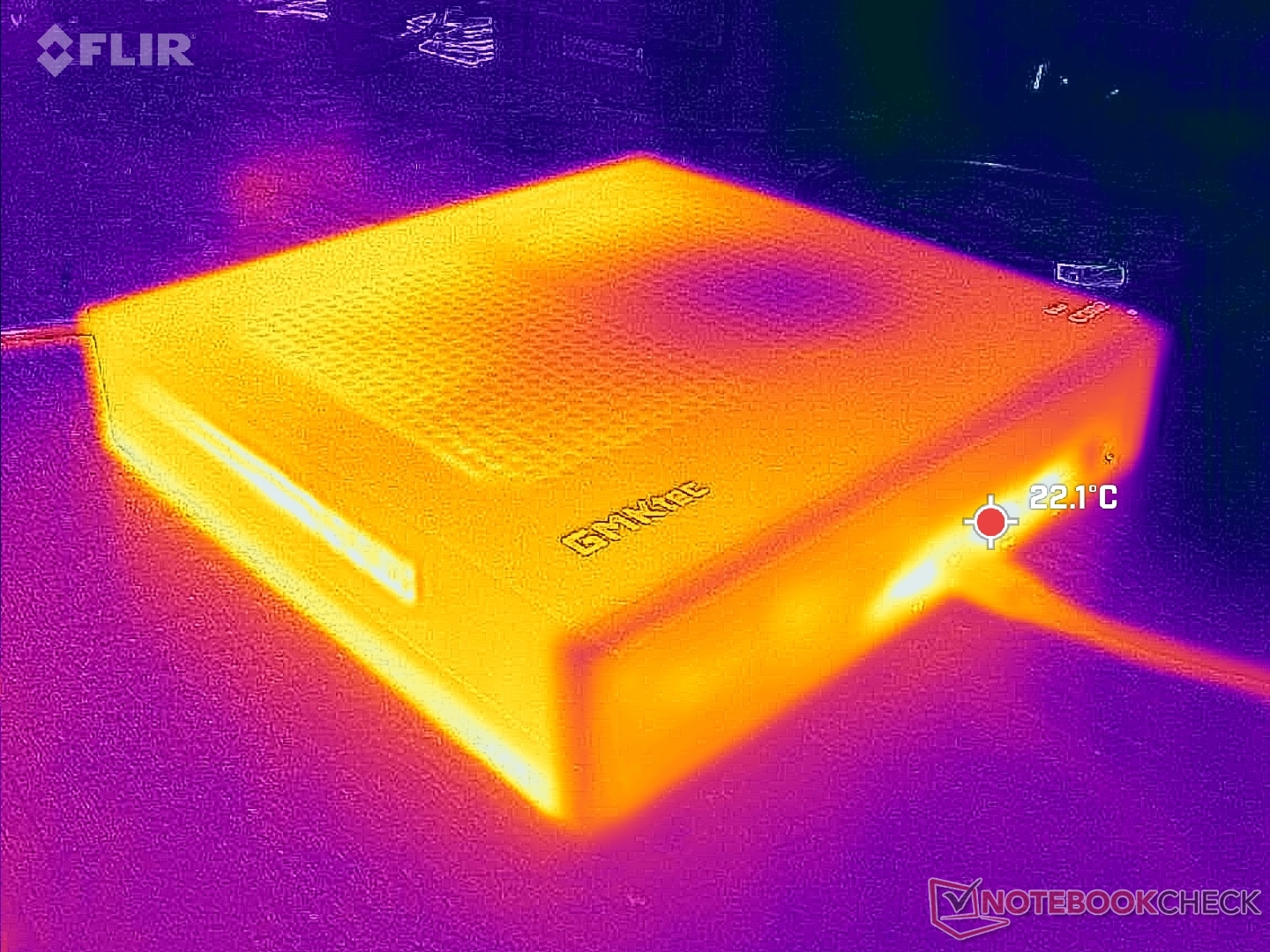

温度

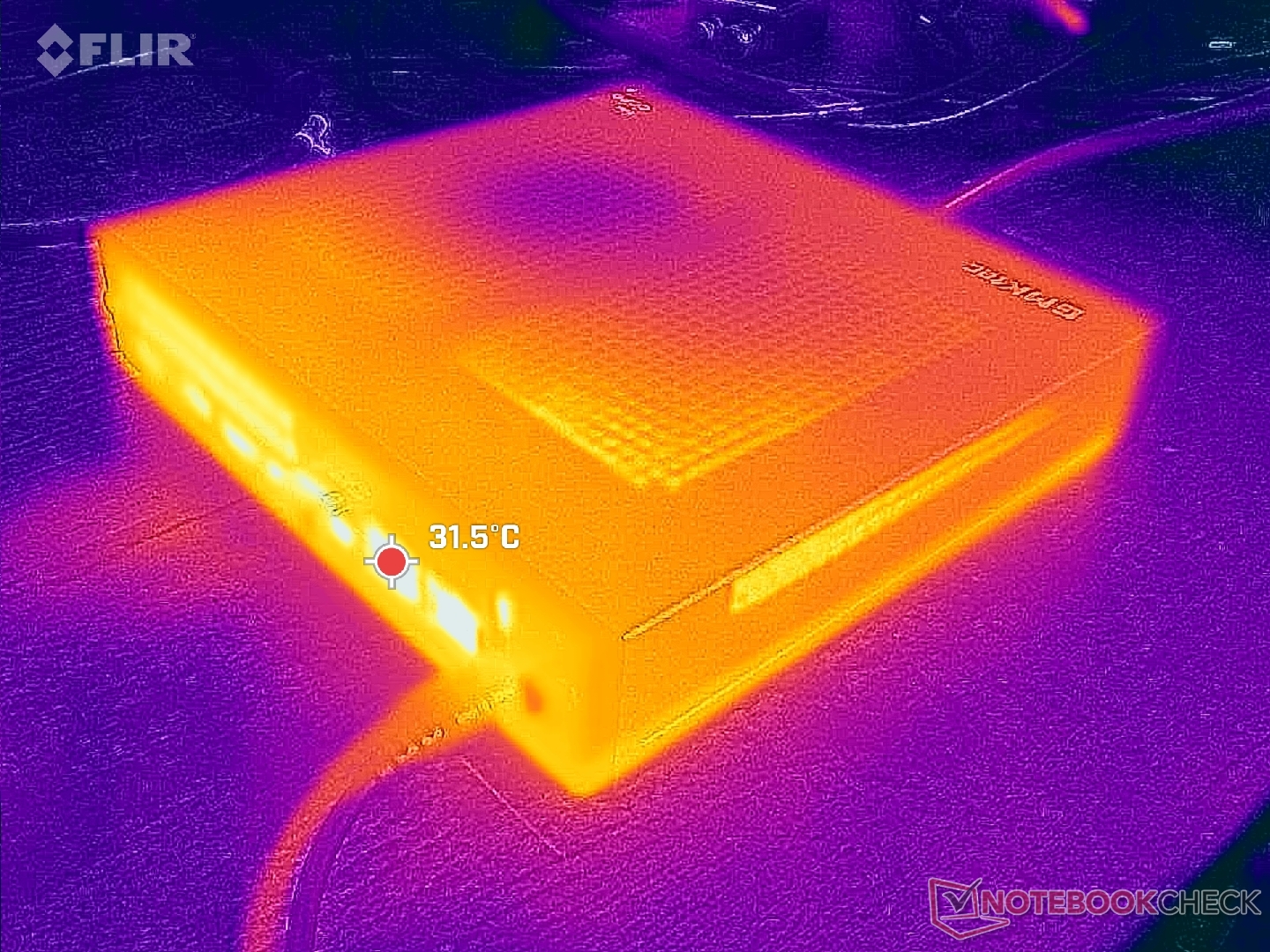

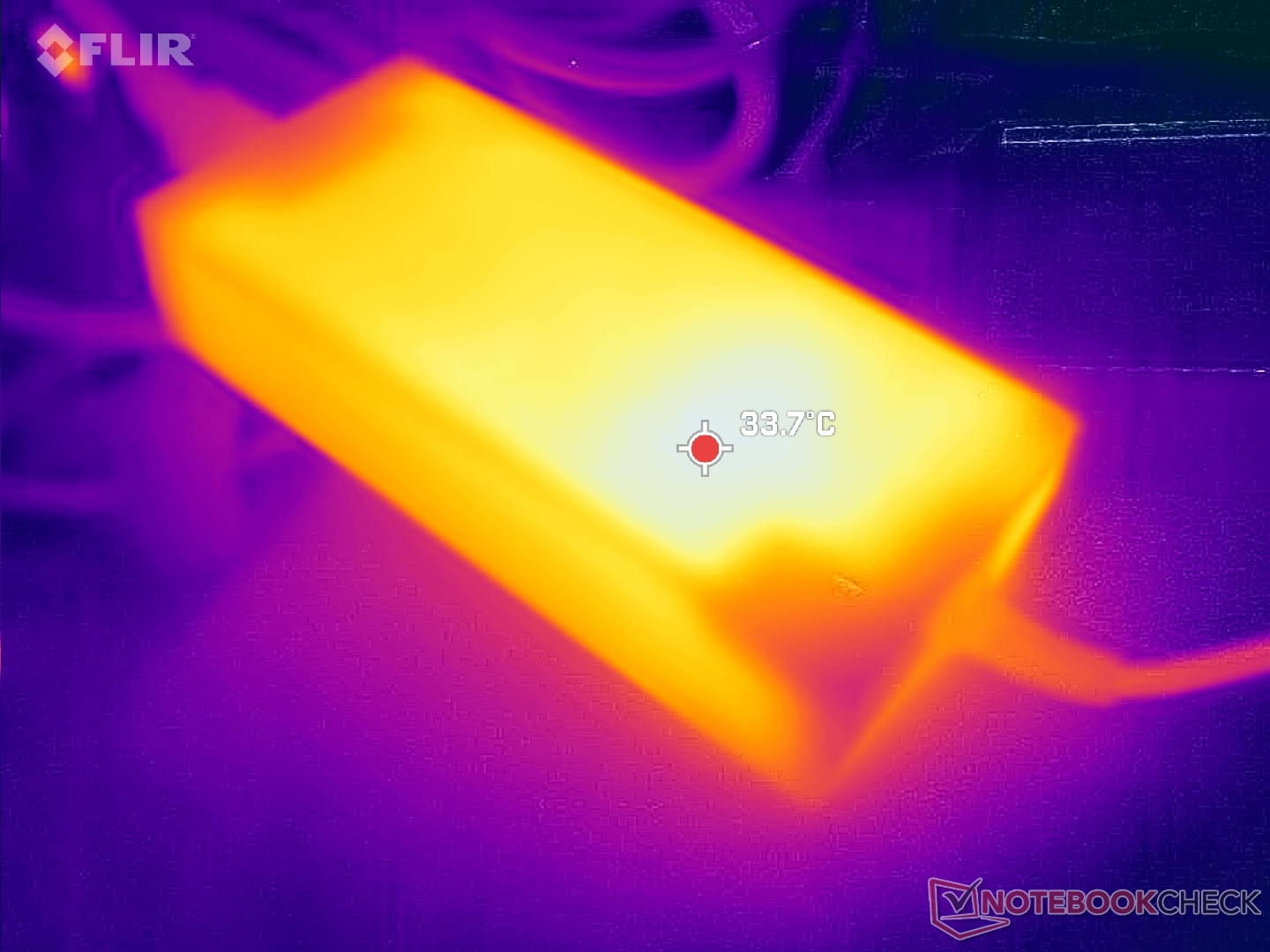

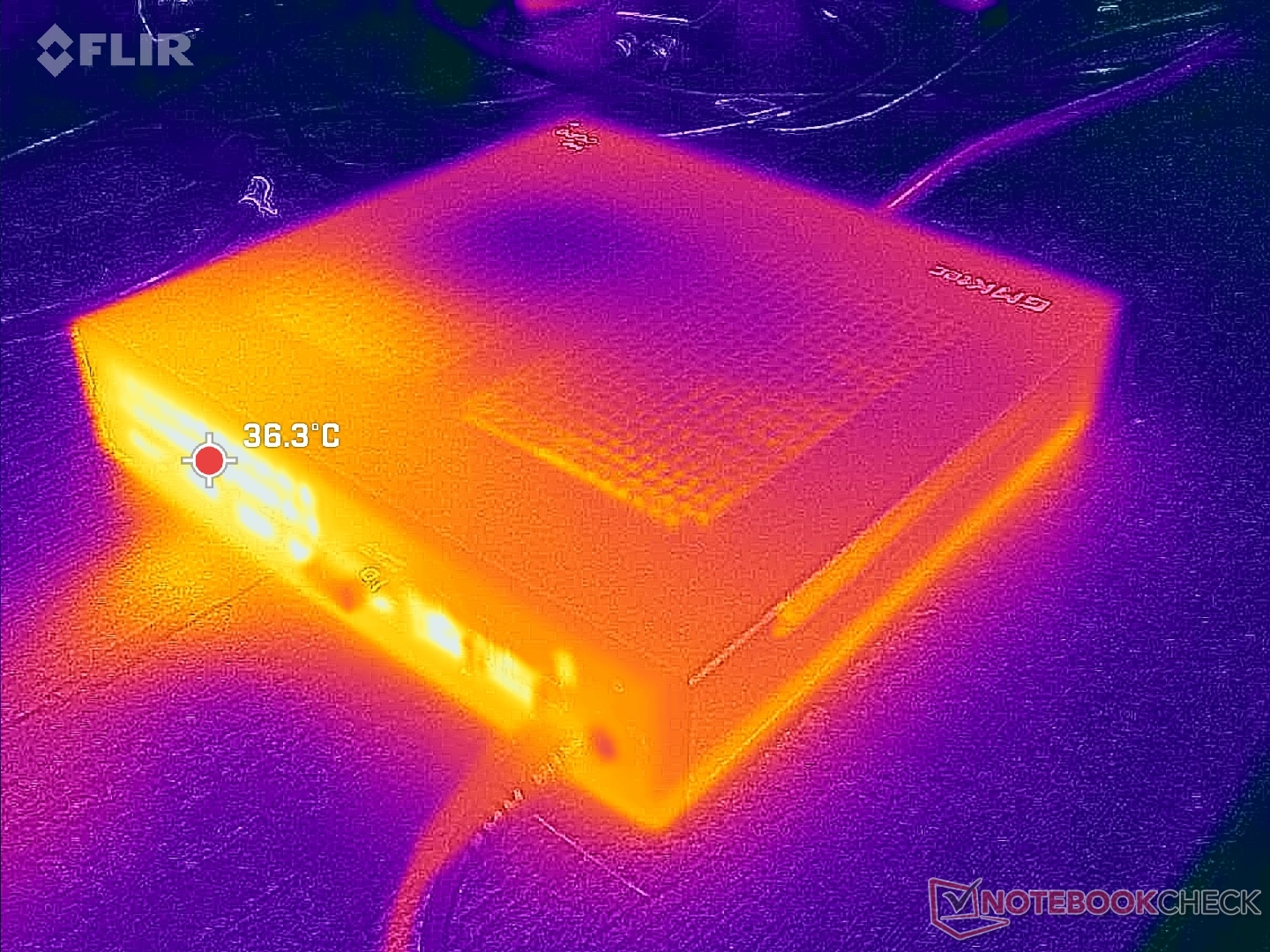

由于占地面积相对较大且采用金属底盘,因此表面温度不会过高。新鲜空气从顶部进入,废热则从后部排出。因此,不建议在设备顶部放置书籍或纸张等物品。

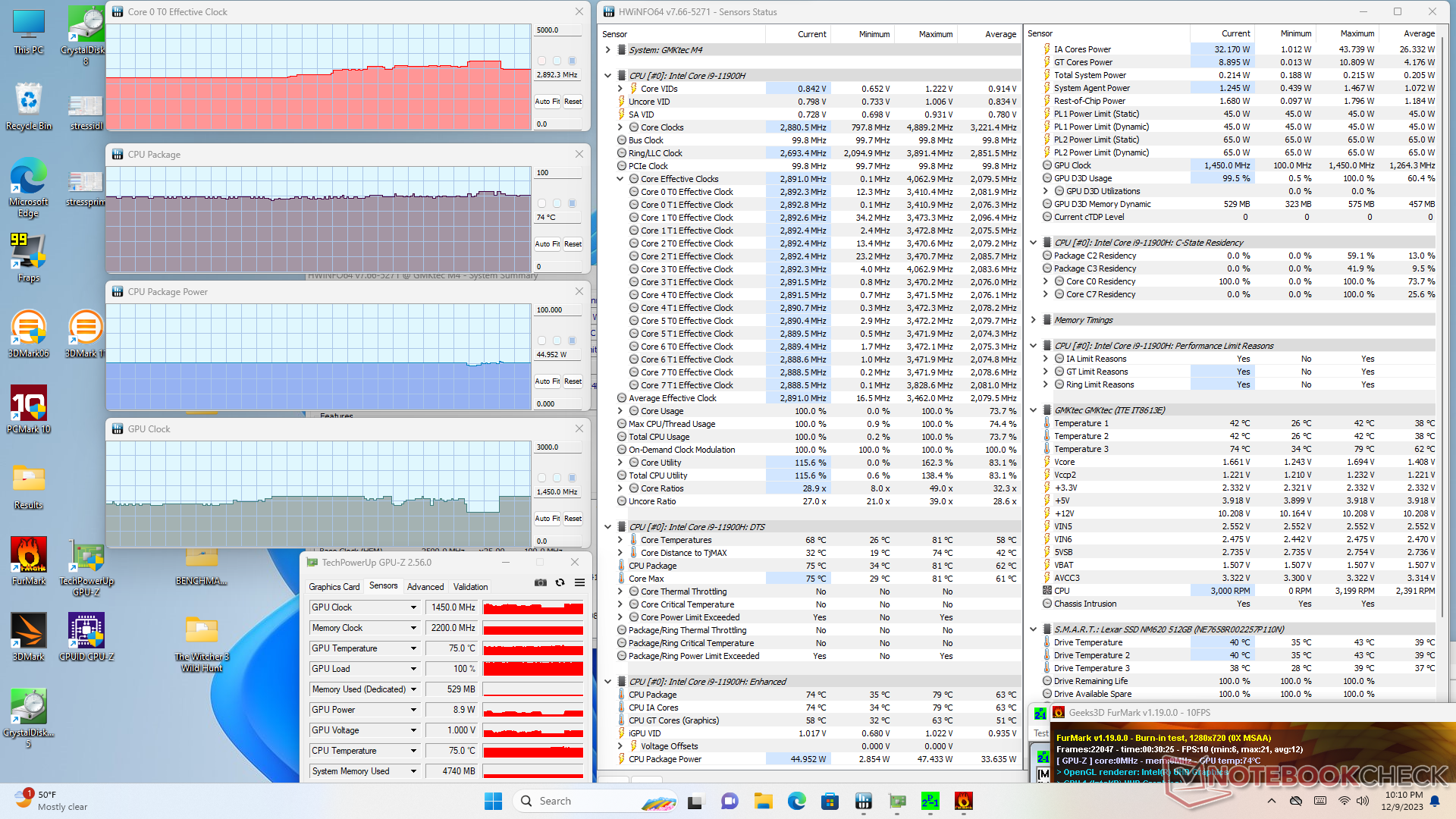

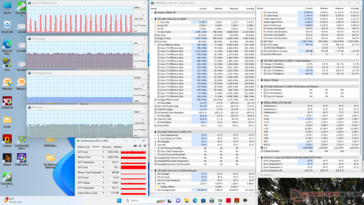

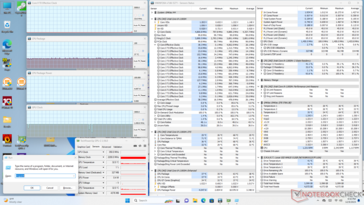

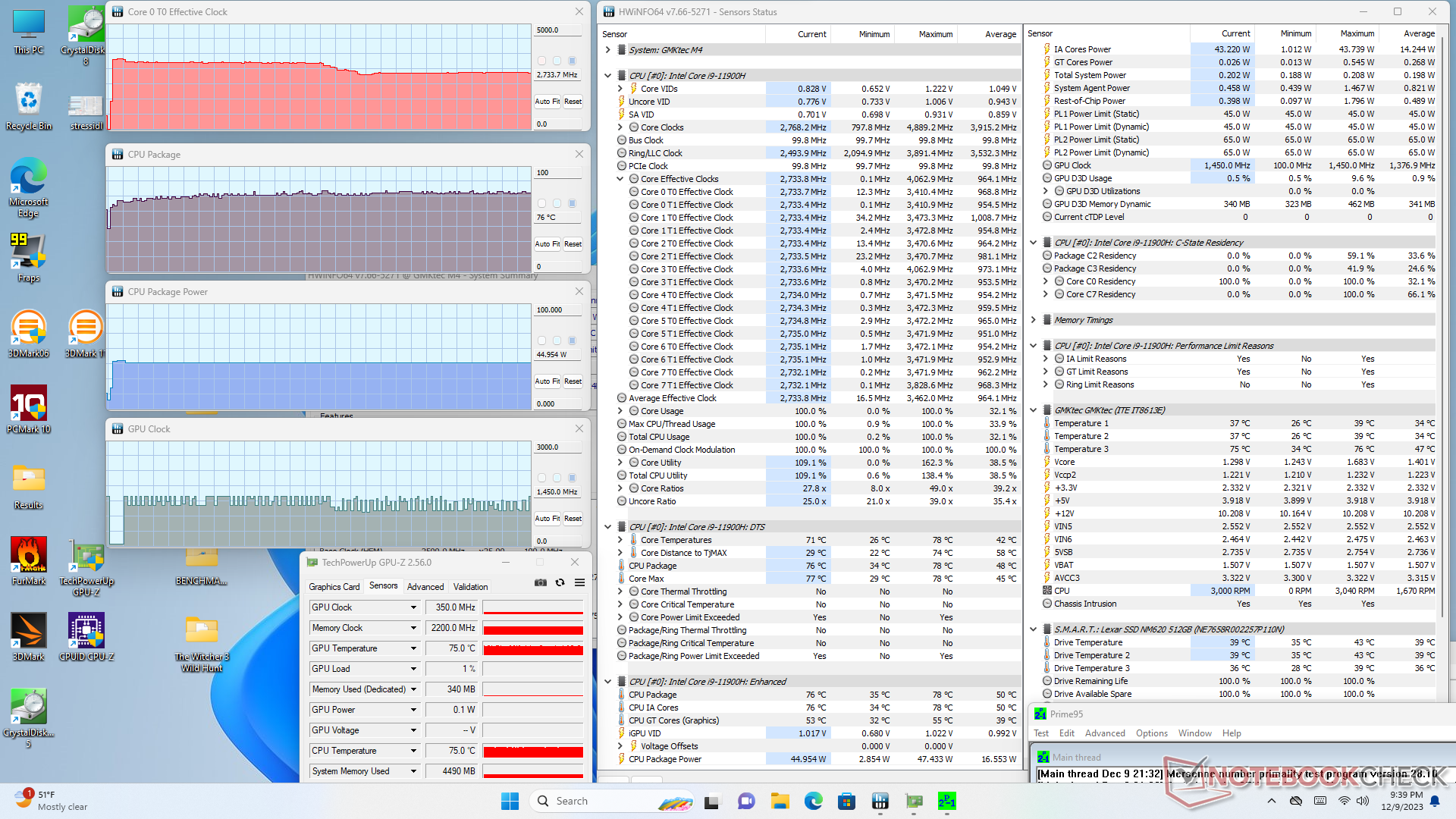

压力测试

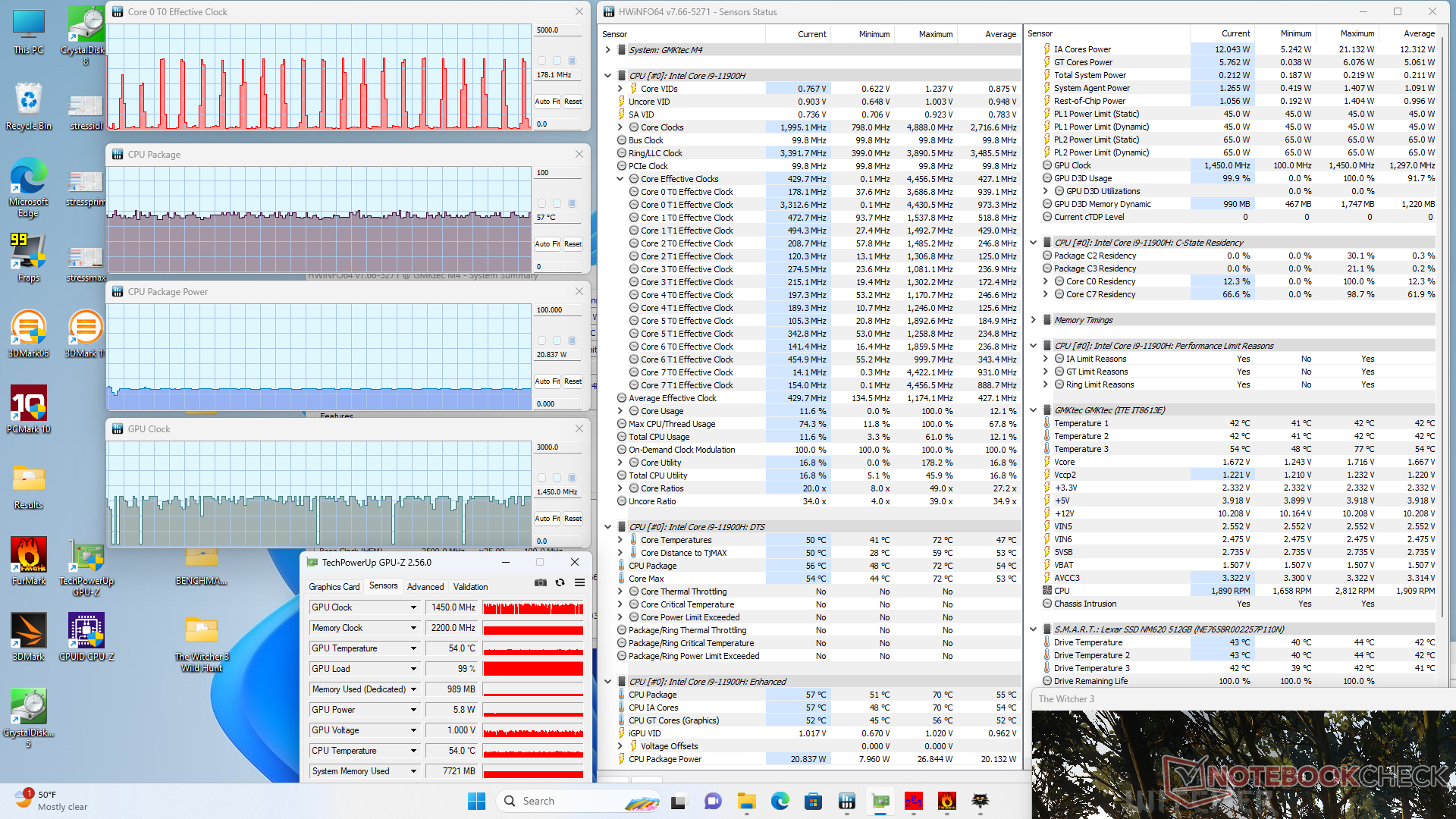

由于机箱尺寸较大,在运行游戏等更实际的负载时,核心温度仍相对较低,仅为 57 摄氏度。在较小的 NucBox K3 Pro上重复同样的测试,核心温度会更高,达到 80 摄氏度。
CPU 时钟 (GHz) | GPU 时钟 (MHz) | CPU 平均温度 (°C) | |

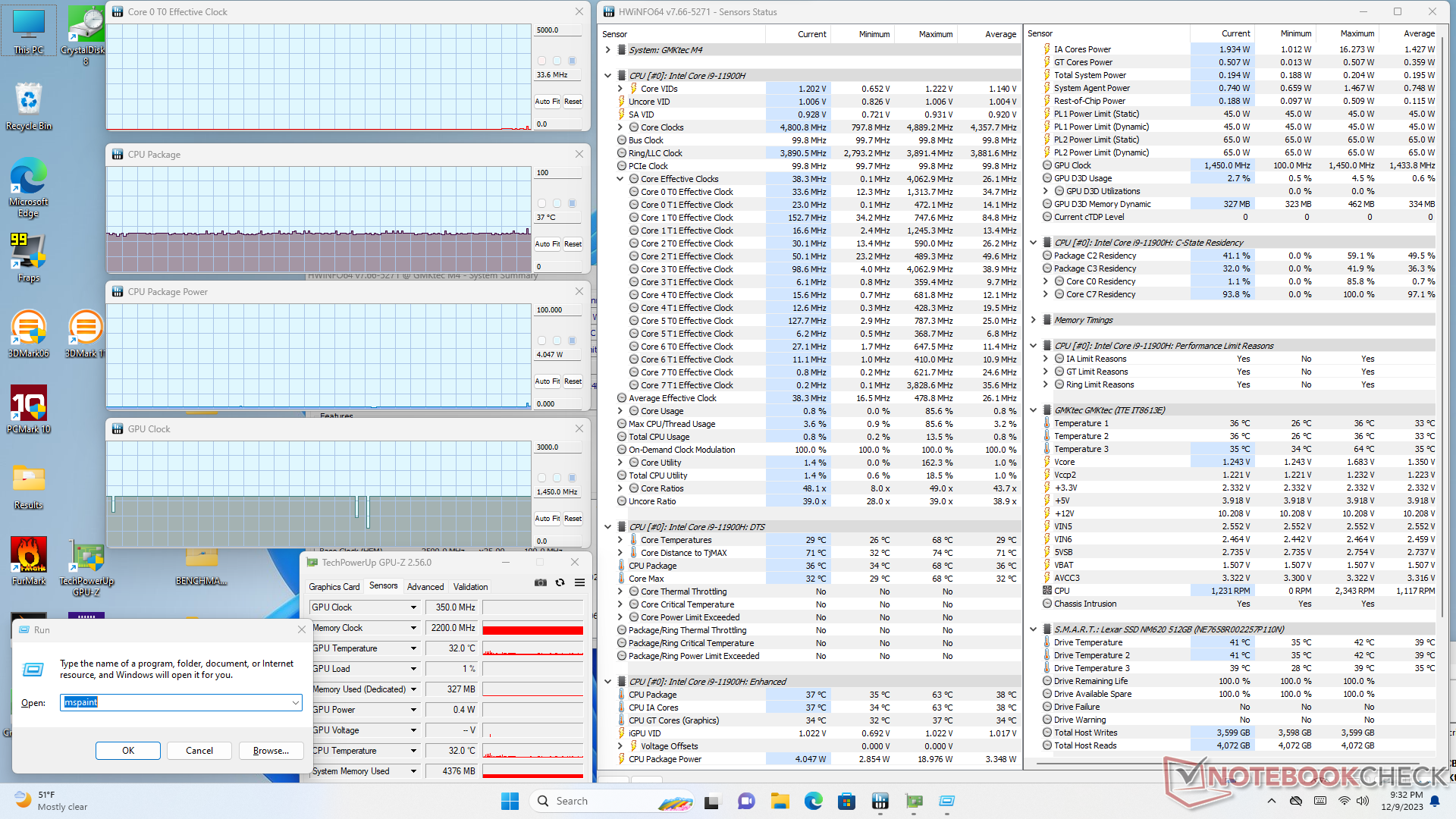

系统闲置 | -- | -- | 37 |
Prime95 压力 | 2.7 | -- | 76 |
Prime95 + FurMark Stress | 2.5 - 3.0 | 1000 - 1450 | 74 |
Witcher 3 压力 | ~3.3 | 1450 | 57 |
能源管理
耗电量
在台式机上空闲运行时,总耗电量相对较高,而在运行高负载时,耗电量则相对较低。这也在意料之中,因为老式的第 11 代英特尔 CPU 的效率普遍较低。请注意,采用 AMD 处理器的 Beelink SER6 Pro可提供更快的性能和更低的功耗,从而实现更出色的每瓦性能。
USB-C 端口不支持电源输入,因此必须使用专有的交流电源砖。
Off / Standby | 4.9 / 4.9 Watt |
Idle | 15.2 / 17.2 / 17.4 Watt |
Load |
40 / 112.8 Watt |
GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H), Lexar NM620 512GB, , x, | GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x, | GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x, | Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs, Samsung PM9B1 512GB MZVL4512HBLU, , x, | Beelink SER6 Pro R7 6800H, Radeon 680M, Kingston NV2 500GB SNV2S/500G, , x, | Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x, | |
---|---|---|---|---|---|---|
Power Consumption | 16% | 20% | 16% | 18% | 21% | |
Idle Minimum * | 15.2 | 10.6 30% | 7.1 53% | 6.7 56% | 8.3 45% | 5.1 66% |
Idle Average * | 17.2 | 11.9 31% | 10.1 41% | 6.7 61% | 8.4 51% | 5.8 66% |
Idle Maximum * | 17.4 | 12.5 28% | 18.6 -7% | 7.1 59% | 8.7 50% | 10.2 41% |
Load Average * | 40 | 54.9 -37% | 45.3 -13% | 68.5 -71% | 60.8 -52% | 68.1 -70% |
Witcher 3 ultra * | 50.6 | 46.4 8% | 55.2 -9% | 58.3 -15% | 61.4 -21% | |
Load Maximum * | 112.8 | 75.6 33% | 52.9 53% | 104.3 8% | 72 36% | 108.3 4% |
* ... smaller is better

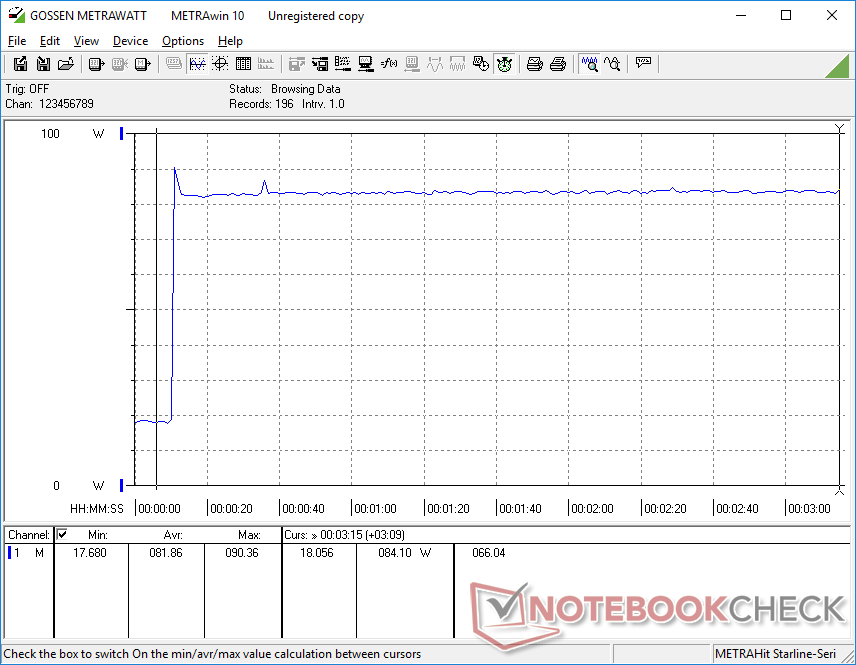

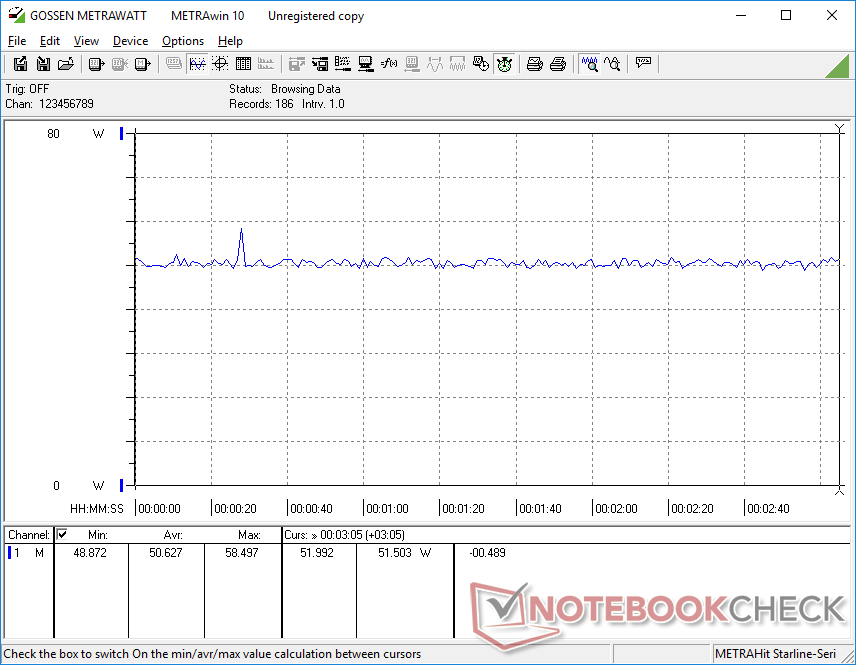

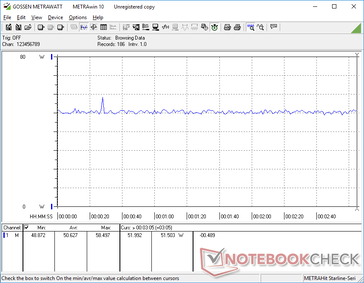

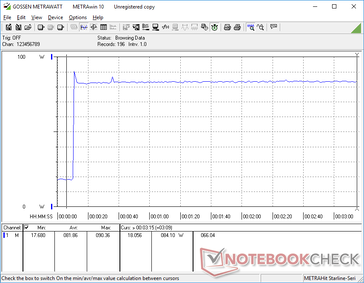

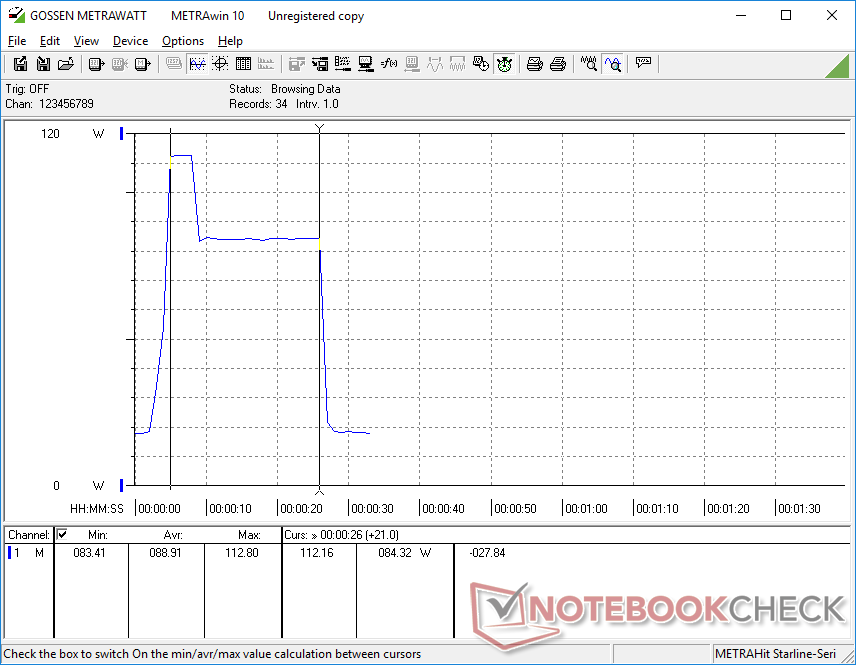

Power Consumption Witcher 3 / Stresstest

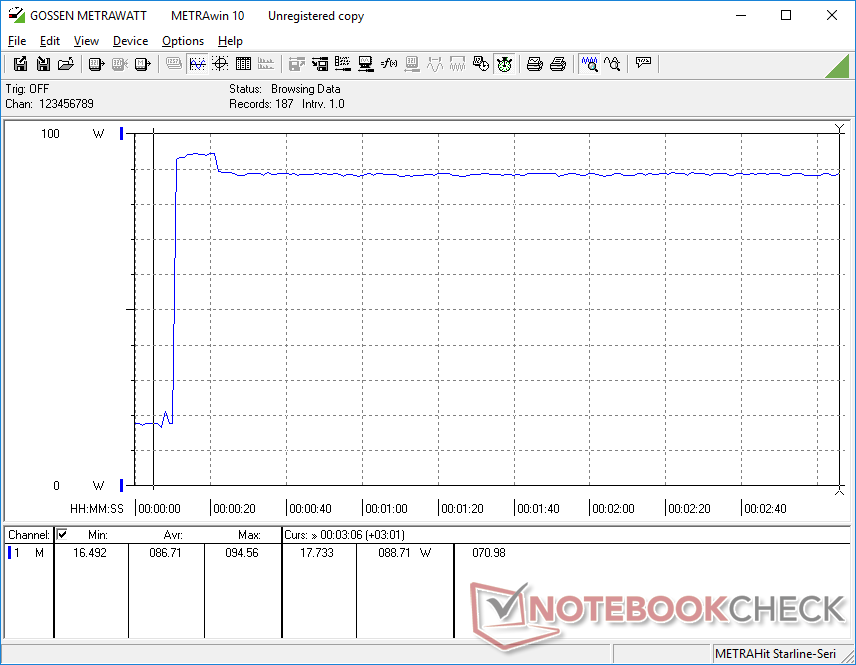

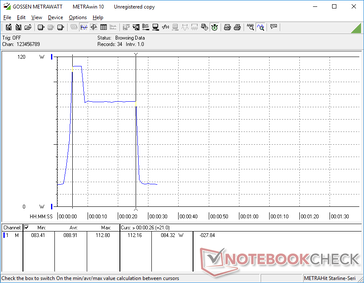

Power Consumption external Monitor
Pros
Cons
结论--老款酷睿 i9 性能和价格均优于 Ryzen 7 6800H
NucBox M4 可能刚刚推出,但其 2021 年推出的酷睿 i9 CPU 并未老化。最具体地说,配备 Ryzen 7 6800H或 Ryzen 7 7735HS如Beelink SER6 Pro或 NucBox K2在价格差不多的情况下,它们提供了类似的处理器性能和更快的图形处理性能。因此,选择 NucBox M4 的最大原因是它的风扇噪音普遍较小,而且带有酷睿 i9 徽标。
NucBox M4 速度快、噪音低、价格便宜。不过,其老化的 CPU 性能被 Ryzen 7 6800H 等价格相近的现代替代产品所超越。
该机型的其他方面也非常出色,包括坚固的金属机箱、易于维修和各种集成端口。相对较大的尺寸有利于降低运行温度和风扇噪音。尽管如此,较弱的 GPU 和缺乏 Thunderbolt 支持并没有给 NucBox M4 带来长足的发展。
价格和供应情况
NucBox M4目前在亚马逊有货,售价 470 美元,内存和存储空间是我们评测配置的两倍。
GMK NucBox M4
-
12/12/2023 v7
Allen Ngo
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
