英特尔NUC 13 Pro套件又名Arena Canyon评论：配备英特尔酷睿i7-1360P的现代迷你PC，满足苛刻的应用需求

Name: Intel NUC 13 Pro Kit NUC13ANK
Brand: Intel

英特尔的产品更新。 英特尔的Raptor Lake已经取代了该公司台式机CPU阵容中的Alder Lake，提供了更全面的性能。猛禽湖移动CPU现在也在跟进，英特尔也在更新其迷你PC系列。我们深入研究了最新的Arena Canyon NUC，它配备了Core i7-1360P。在这篇评论中，我们将讨论这台迷你PC能做什么，有哪些有用的功能。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 04/08/2023 🇺🇸 🇩🇪 ...

Raptor Lake Desktop Mini PC Intel Thunderbolt

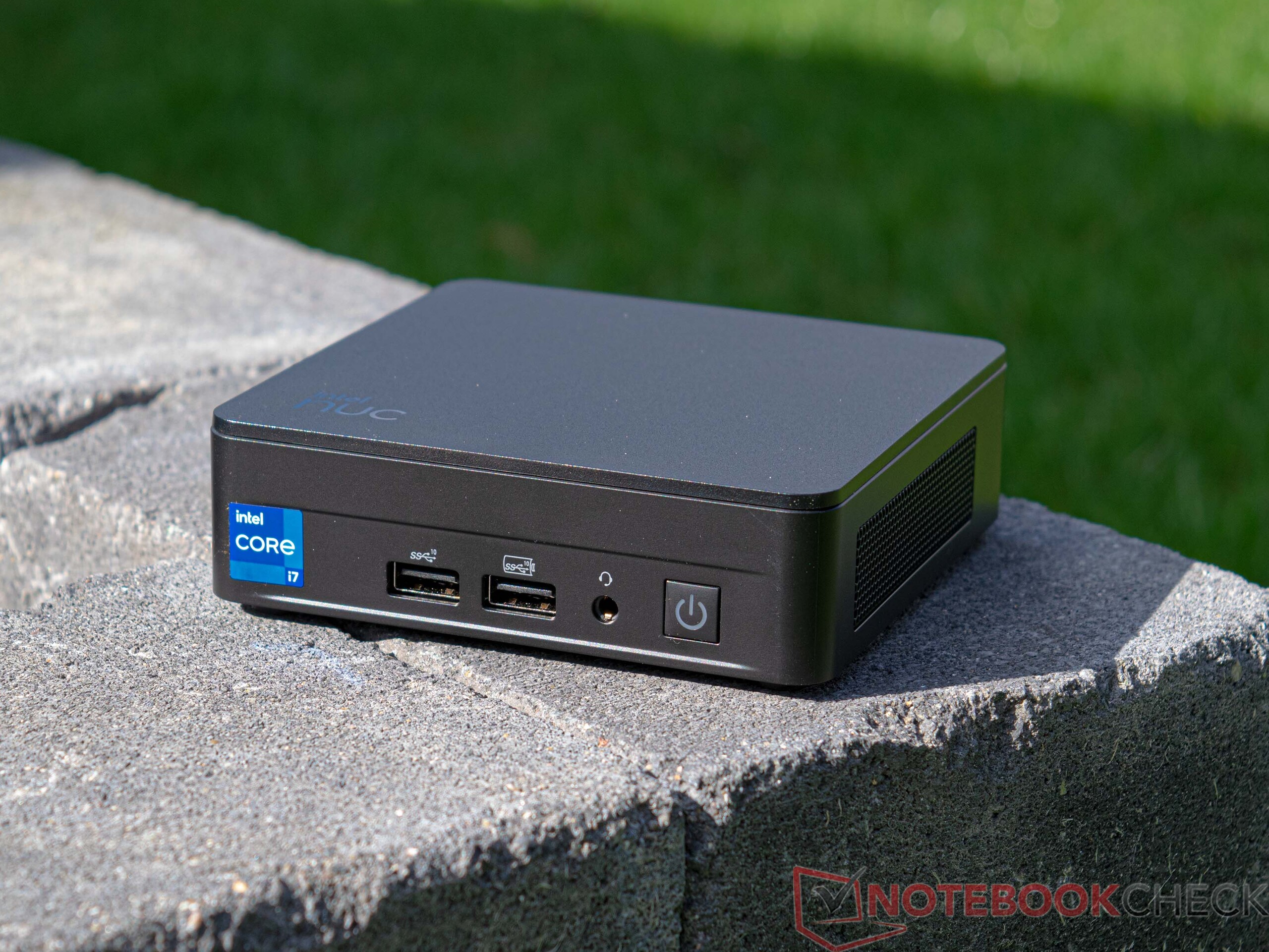

英特尔NUC 13 Pro套件是一款非常紧凑的迷你PC，提供出色的连接性。该公司在 "Arena Canyon "的代号下提供两种型号：一种是薄型，一种是高型。物理上更高的型号（名称中带有 "高 "字）可以在其机箱中容纳一个额外的2.5英寸驱动器。我们的评测单位是超薄型变体，它最多只能容纳两个存储设备，价格大约便宜100欧元（109美元）。

随着新的Arena Canyon系列的推出，英特尔在很大程度上只是做了一次产品更新，用最新的Raptor Lake-P CPU更新其NUC系列。本评论中的NUC迷你PC配备了英特尔酷睿i7-1360P，这是一个非常强大的CPU，有12个核心和16个线程。我们的评测单元已经配备了高达32GB的DDR4内存，但你可以将其升级到64GB。这款机型还配备了512GB的固态硬盘以及Windows 11专业版，这是本评论时的最新版本的操作系统。

Intel NUC 13 Pro Kit NUC13ANK

Processor

Intel Core i7-1360P 12 x 1.6 - 5 GHz, 64 W PL2 / Short Burst, 40 W PL1 / Sustained, Raptor Lake-P

Graphics adapter

Intel Iris Xe Graphics G7 96EUs

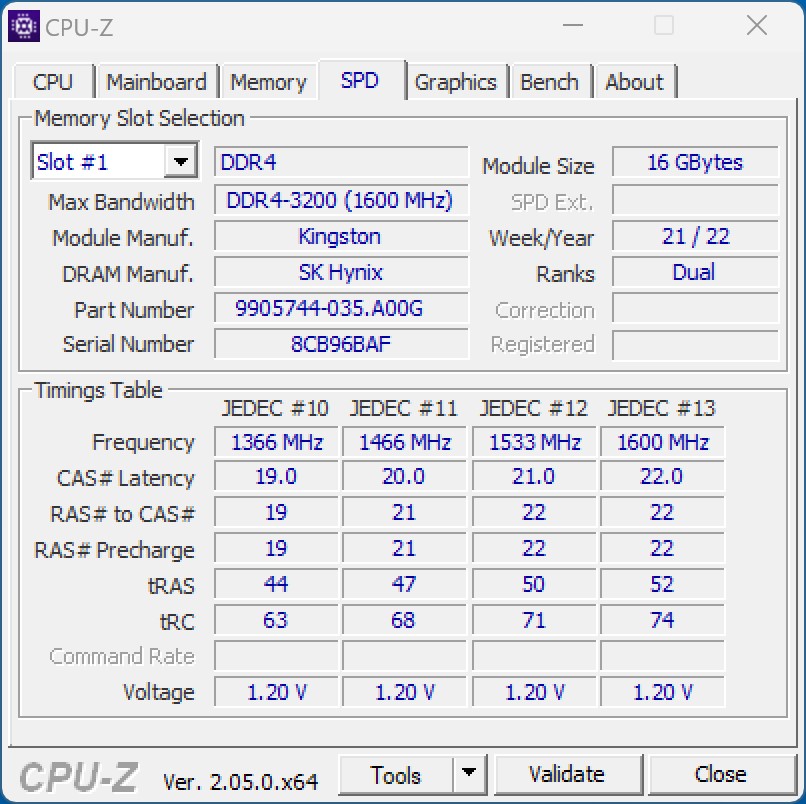

Memory

32 GB

, DDR4-3200, 2 of 2 in use, max 64 GB

Mainboard

Intel Raptor Lake-P PCH

Storage

Samsung PM9A1 MZVL2512HCJQ, 512 GB

, M.2 2280, NVMe, 450 GB free

Soundcard

Intel Raptor Lake-P/U/H PCH - cAVS

Connections

1 USB 2.0, 3 USB 3.1 Gen2, 0 USB 3.2 Gen 2x2 20Gbps, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 2 HDMI, 1 Kensington Lock, Audio Connections: 3.5 mm audio jack

Networking

Intel Ethernet Controller I226-V (10/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 37 x 117 x 112

Operating System

Microsoft Windows 11 Pro

Additional features

36 Months Warranty

Weight

538 g, Power Supply: 357 g

Links

Intel homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
80.8 %	04/2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm
78.9 %	11/2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm
85.5 %	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
85.1 %	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
79.5 %	02/2023	Minisforum Mars Series MC560 R5 5600U, Vega 7	562 g	66 mm
	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm

详细了解英特尔NUC 13 Pro套件

案例

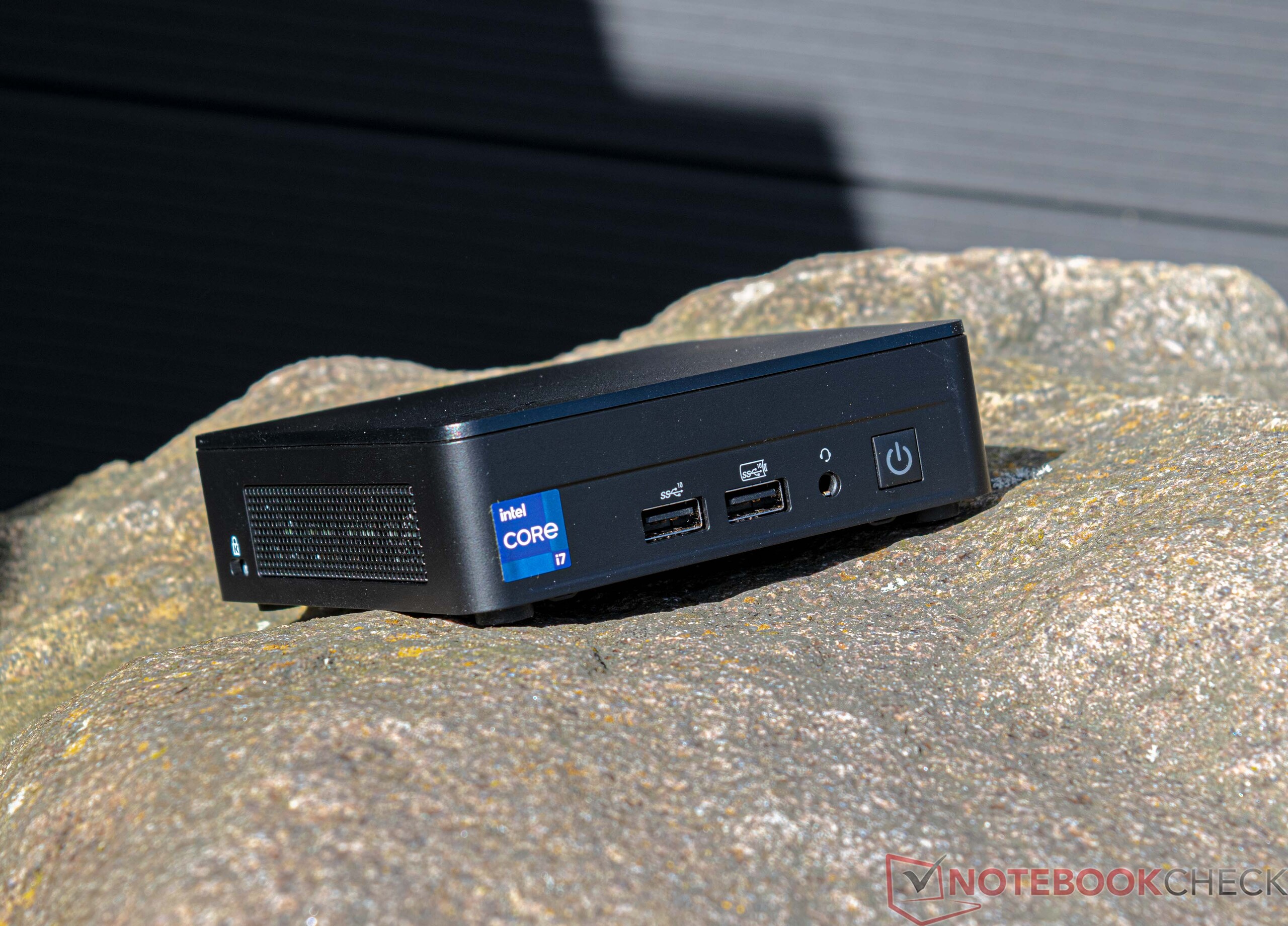

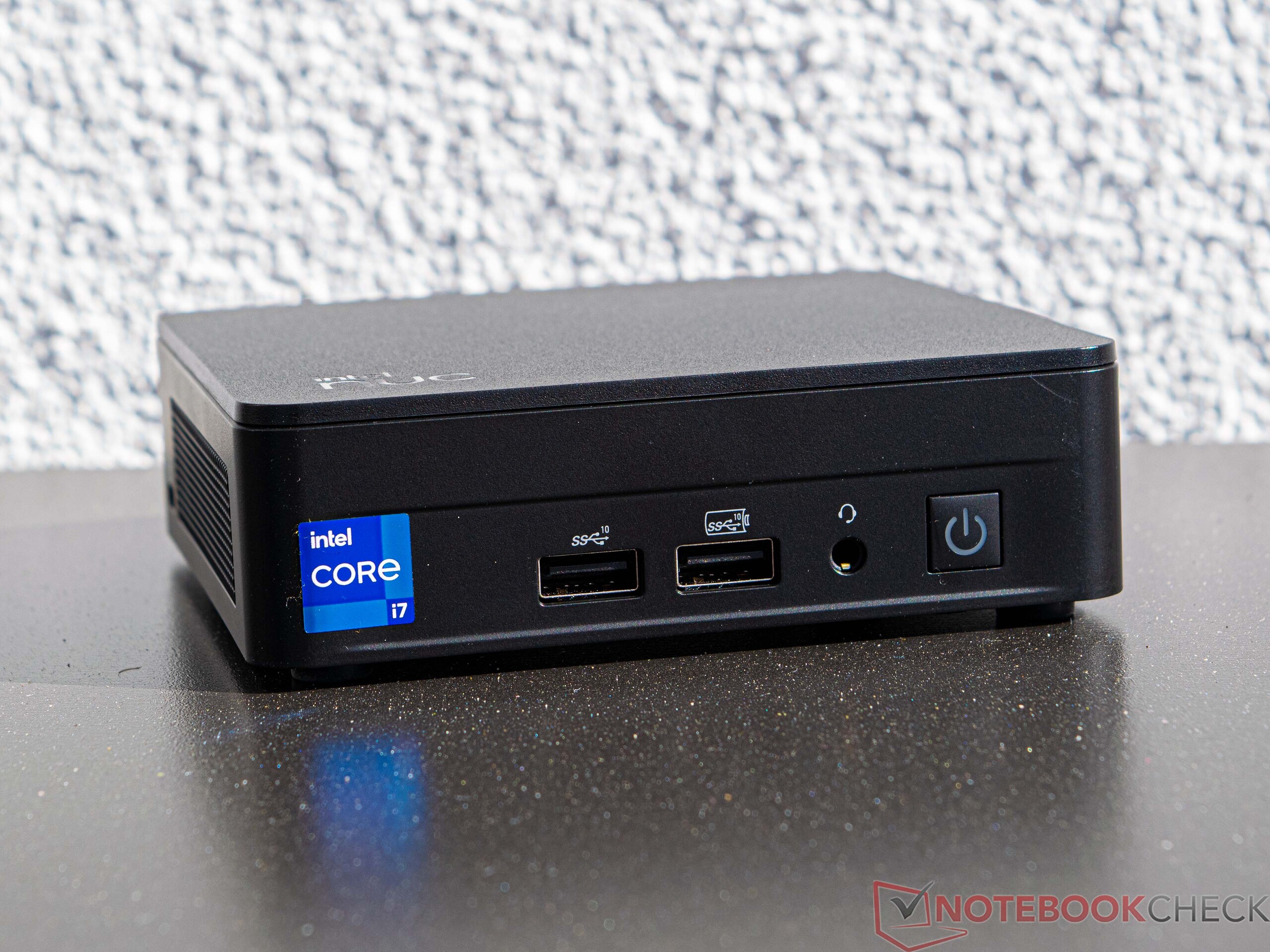

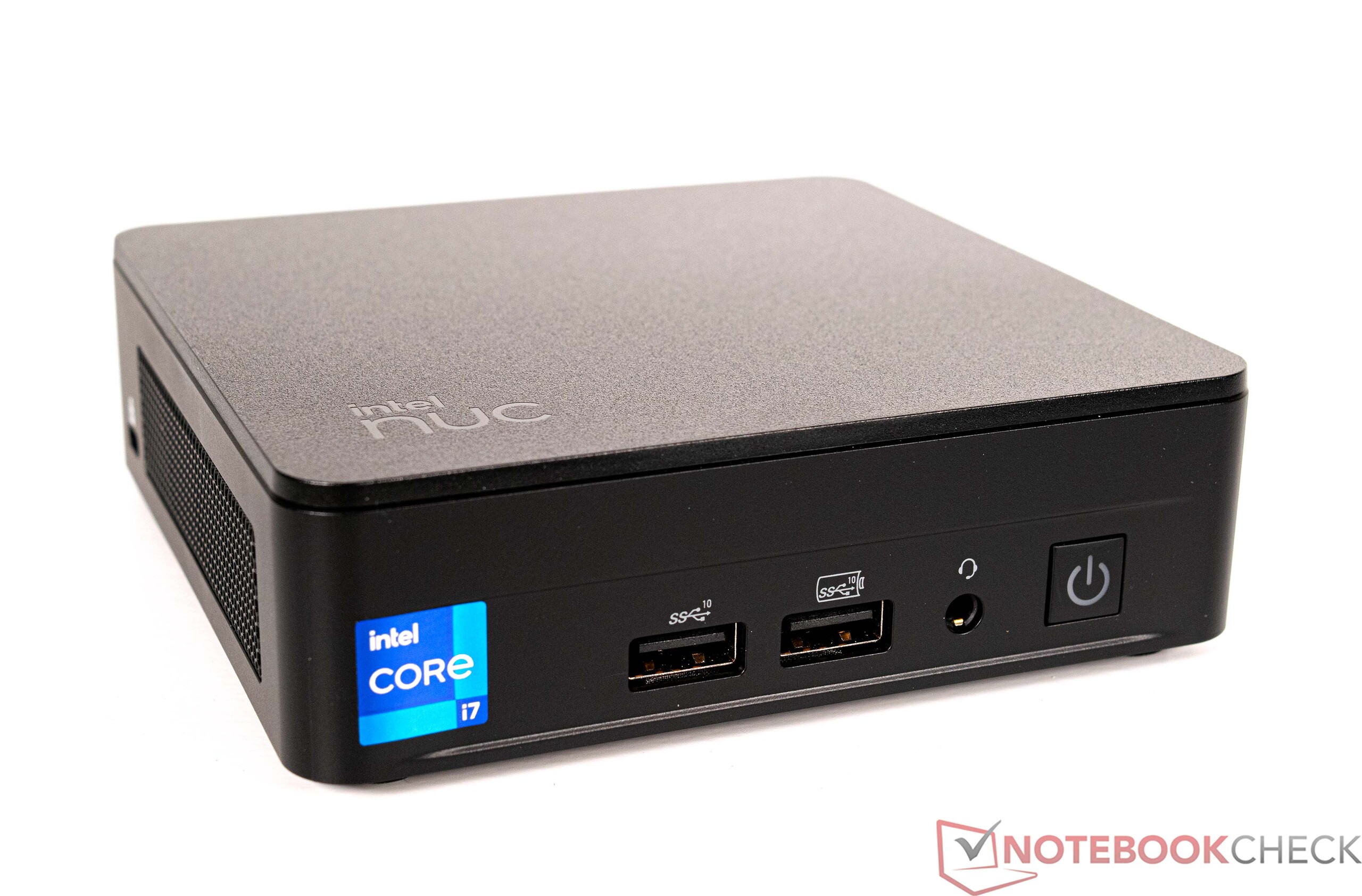

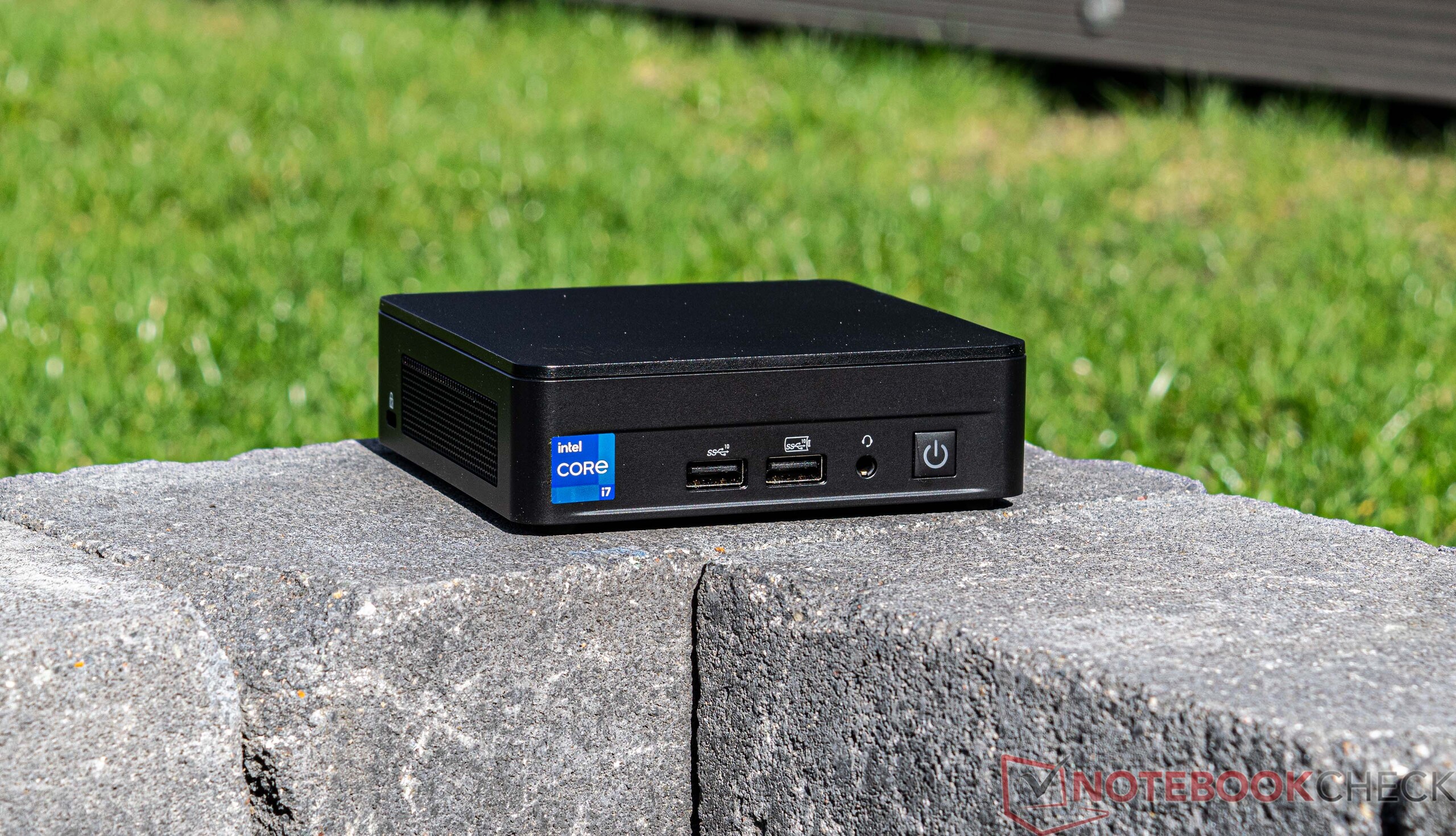

Arena Canyon NUC看起来与华尔街Canyon的同类产品非常相似。我们评测的超薄型变体相当薄，为37毫米（1.46英寸），占据11.7 x 11.2厘米（4.6 x 4.4英寸）的桌面空间。如果这听起来很熟悉，那是因为英特尔NUC 12 Pro套件具有完全相同的物理尺寸。英特尔NUC迷你PC比我们比较中的其他一些设备要紧凑得多。

该设备有一个相当不起眼的外观，而且你还得忍受它的塑料结构。不过，英特尔NUC 13 Pro套件内有一个坚固的金属框架，大大增强了该设备的整体坚固性。也就是说，我们确实希望英特尔在未来能改用全金属底盘。还有一点要提到的是，你可以使用附带的VESA支架将英特尔NUC 13 Pro套件安装到显示器的背面。

尺寸比较

Minisforum Neptune Series NAD9 Minipc Union Ace Magician AMR5 Minipc Union Ace Magician TK11-A0 Morefine M600, 6900HX Minisforum Mars Series MC560 Intel NUC 13 Pro Kit NUC13ANK Intel NUC 12 Pro Kit NUC12WSKi7 DIN A4 ❌

规格

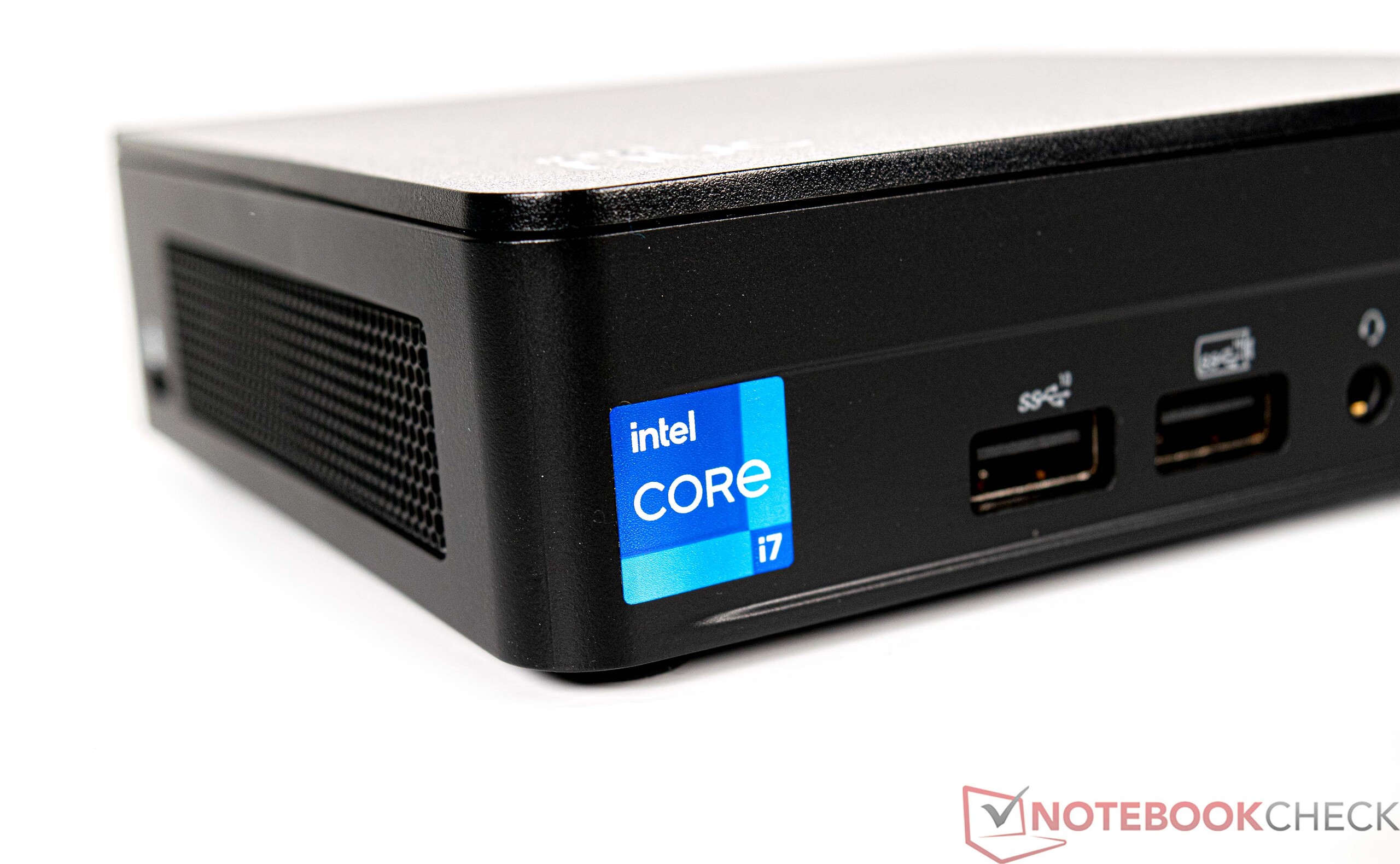

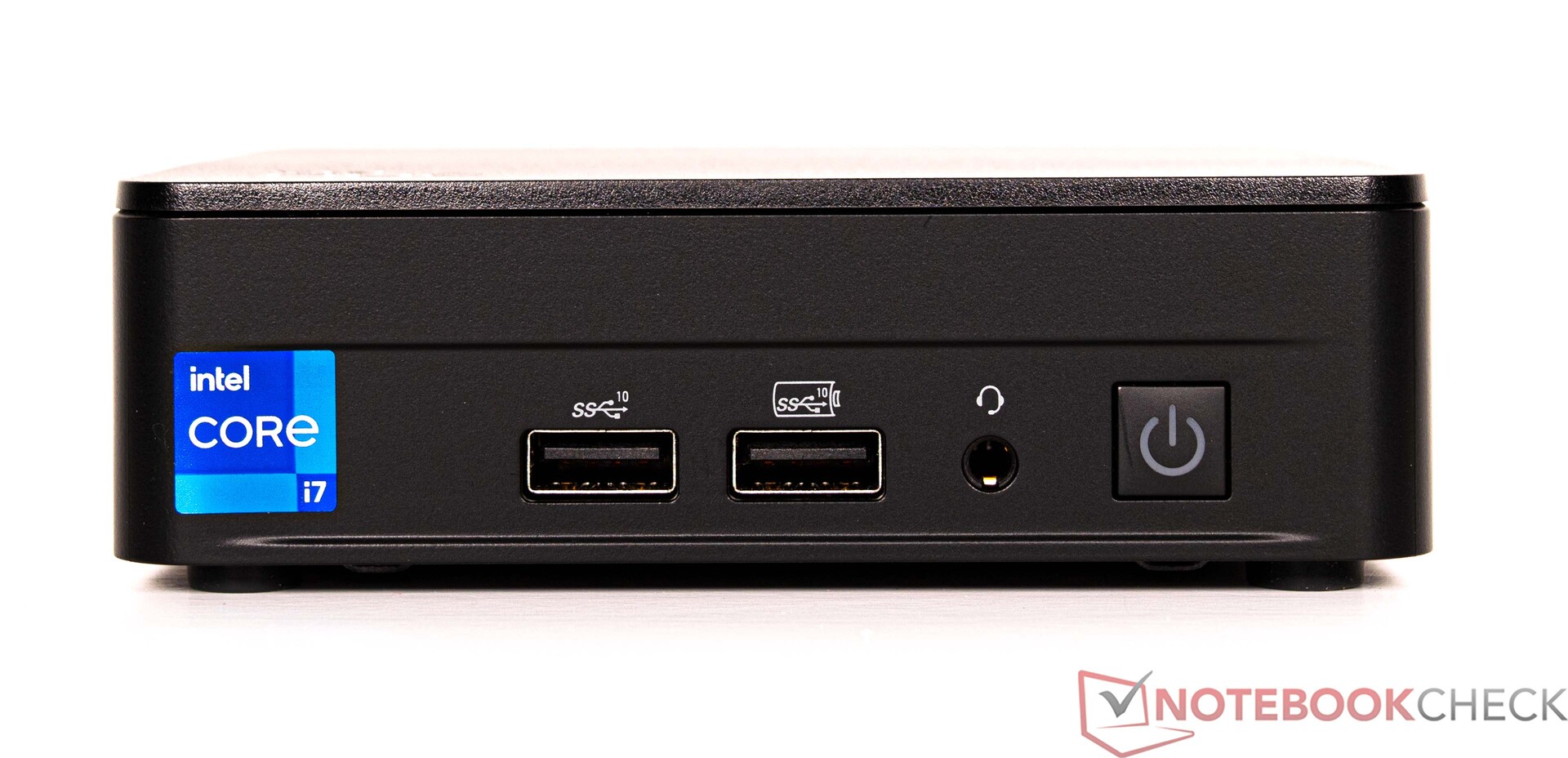

如前所述，英特尔NUC 13 Pro套件与其前代产品有着相同的设计和尺寸。同样的情况也适用于端口的选择。再次出现了大量的USB端口，包括两个Thunderbolt端口。该设备可以通过HDMI或Thunderbolt连接到显示器，还配备了一个2.5G网络端口。

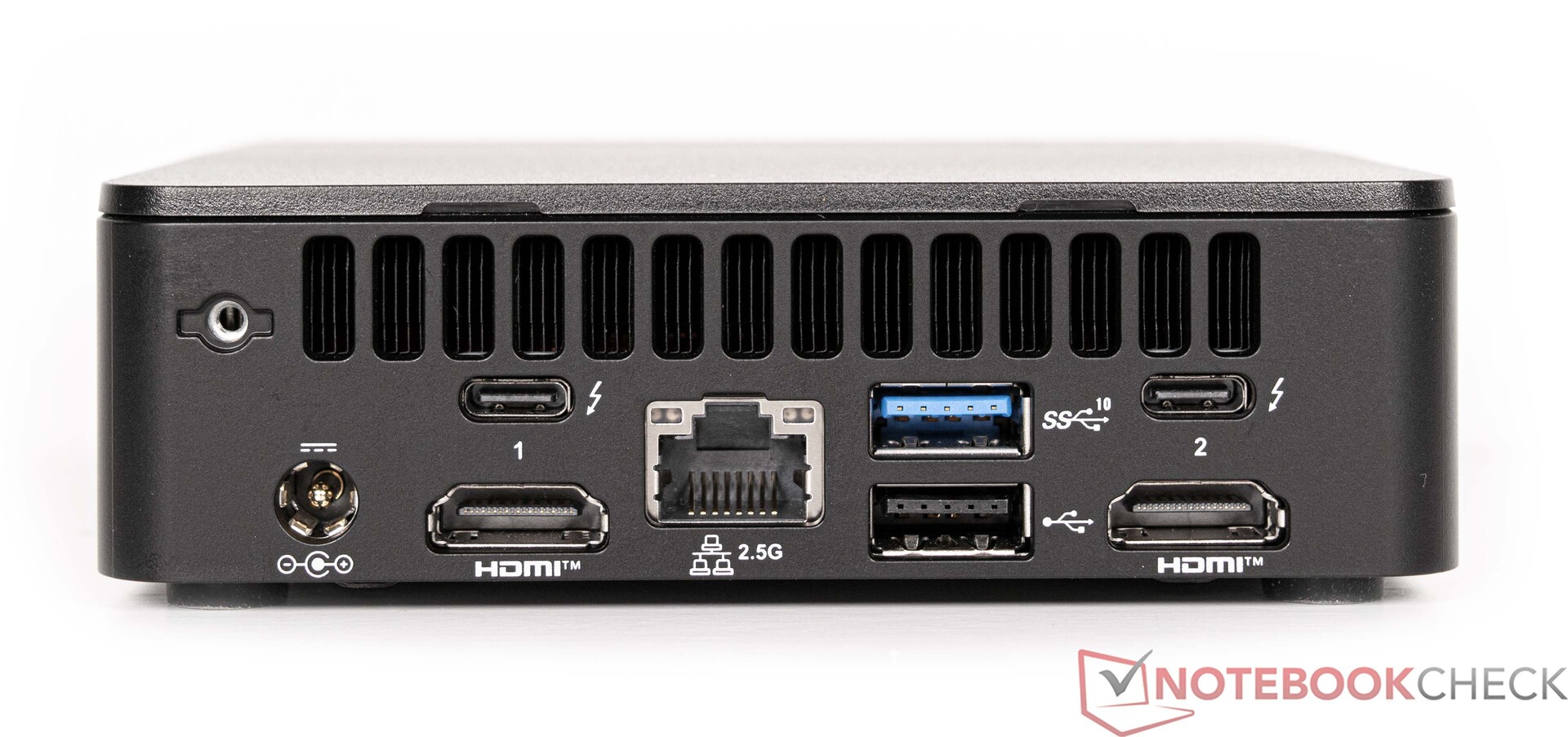

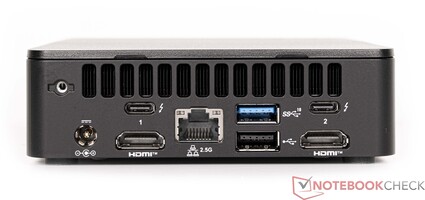

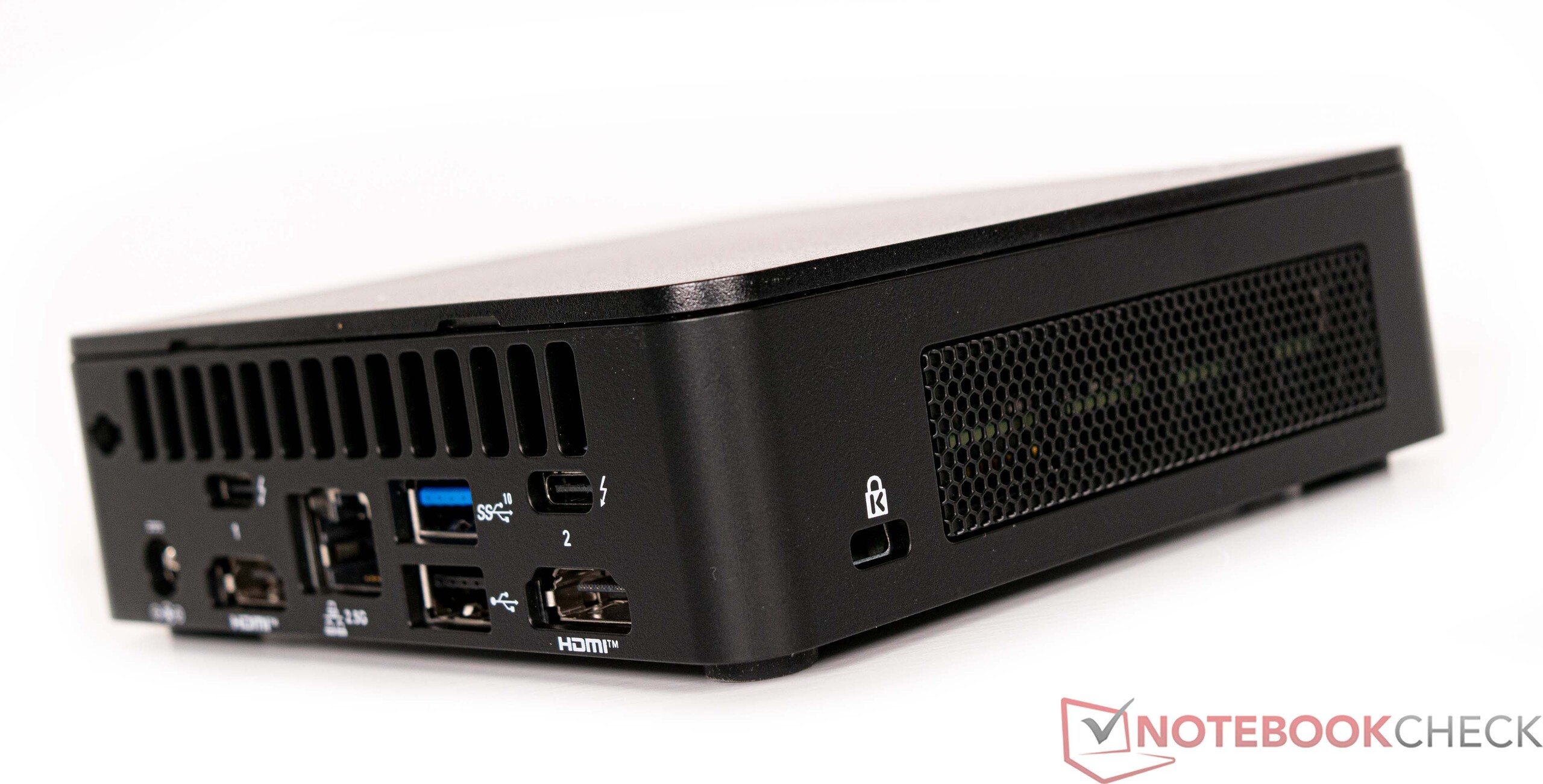

背面：电源端口，2个USB 4（C型），1个USB 3.2，1个USB 2.0，2.5G网络，2个HDMI 2.1。

连接性

英特尔为NUC 13 Pro套件配备了NUC 12 Pro套件上的相同的Wi-Fi 6E AX211模块。在我们的测试中，当该设备连接到6GHz网络时，我们看到了出色和稳定的数据传输率。我们的测量结果显示，如果你由于技术原因只能使用5GHz的连接，那么该设备的传输速度很低。也就是说，我们测量的速度仍然非常稳定，足以满足日常使用。这个Wi-Fi测试是用我们的参考路由器，即华硕ROG Rapture GT-AXE11000进行的。

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s -8%
Average Intel Wi-Fi 6E AX211 (883 - 1857, n=171)	1492 MBit/s -11%
Average of class Mini PC (390 - 1771, n=38, last 2 years)	1197 MBit/s -28%
Minisforum Mars Series MC560 MediaTek RZ608	961 (949^min - 968^max) MBit/s -42%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s -46%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s -77%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=172)	1375 MBit/s -5%
Average of class Mini PC (432 - 1764, n=39, last 2 years)	1158 MBit/s -20%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s -33%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s -36%
Minisforum Mars Series MC560 MediaTek RZ608	849 (799^min - 898^max) MBit/s -41%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s -48%
iperf3 receive AXE11000
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=182)	1394 MBit/s +48%
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +40%
Minisforum Mars Series MC560 MediaTek RZ608	949 (924^min - 954^max) MBit/s +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s -1%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s -4%
Average of class Mini PC (192.9 - 1796, n=85, last 2 years)	897 MBit/s -4%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -58%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +58%
Average Intel Wi-Fi 6E AX211 (464 - 1861, n=182)	1245 MBit/s +49%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +16%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +16%
Minisforum Mars Series MC560 MediaTek RZ608	936 (873^min - 988^max) MBit/s +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s
Average of class Mini PC (184.1 - 1776, n=85, last 2 years)	828 MBit/s -1%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s -11%

Intel NUC 13 Pro Kit NUC13ANK; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1420 (736-1476)

Intel NUC 13 Pro Kit NUC13ANK; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1668 (1467-1725)

Intel NUC 13 Pro Kit NUC13ANK; iperf3 receive AXE11000; iperf 3.1.3: Ø939 (921-952)

Intel NUC 13 Pro Kit NUC13ANK; iperf3 transmit AXE11000; iperf 3.1.3: Ø833 (805-866)

辅料

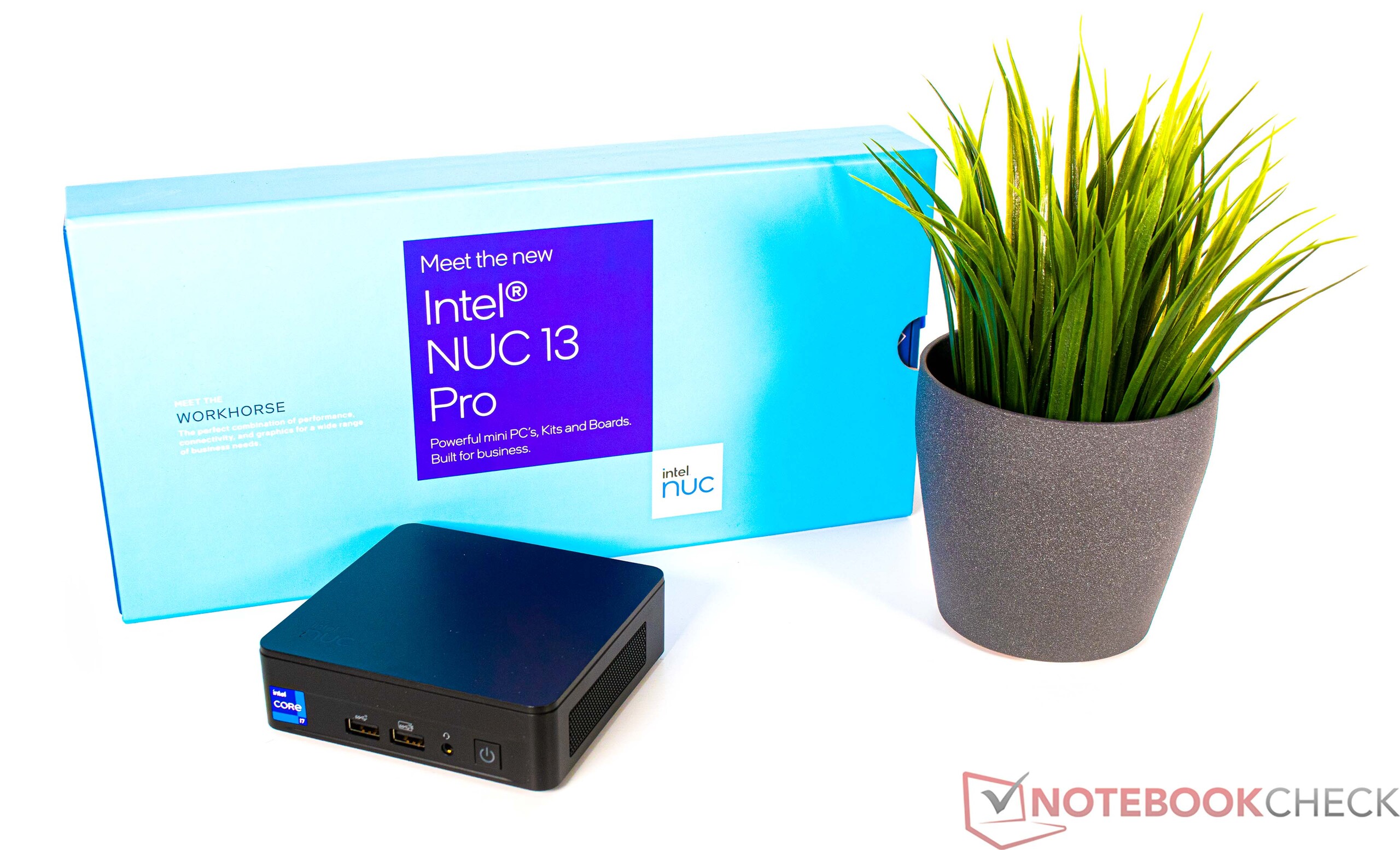

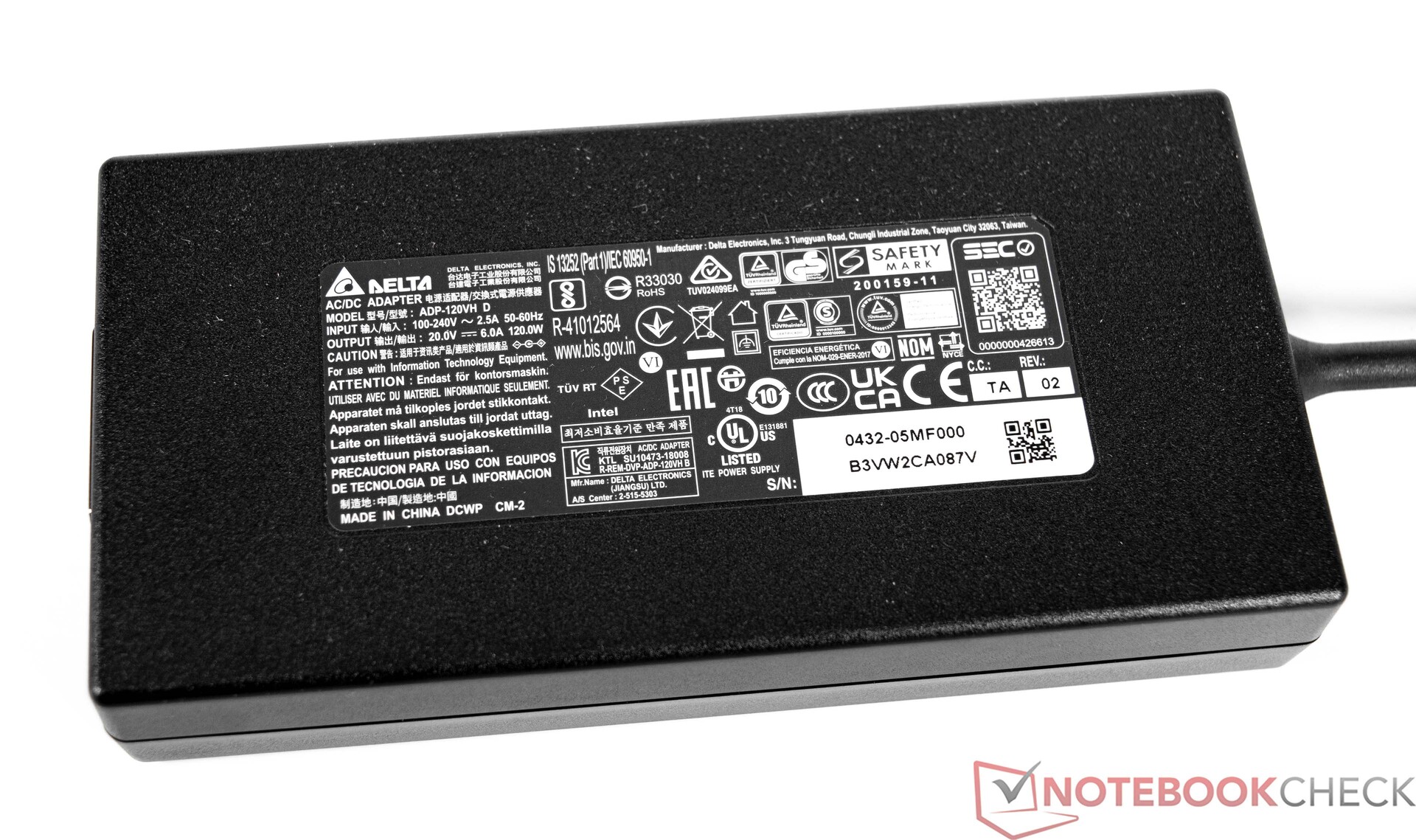

在盒子里，你会发现一个120瓦的电源和一个VESA安装板，以及迷你PC本身。

维护

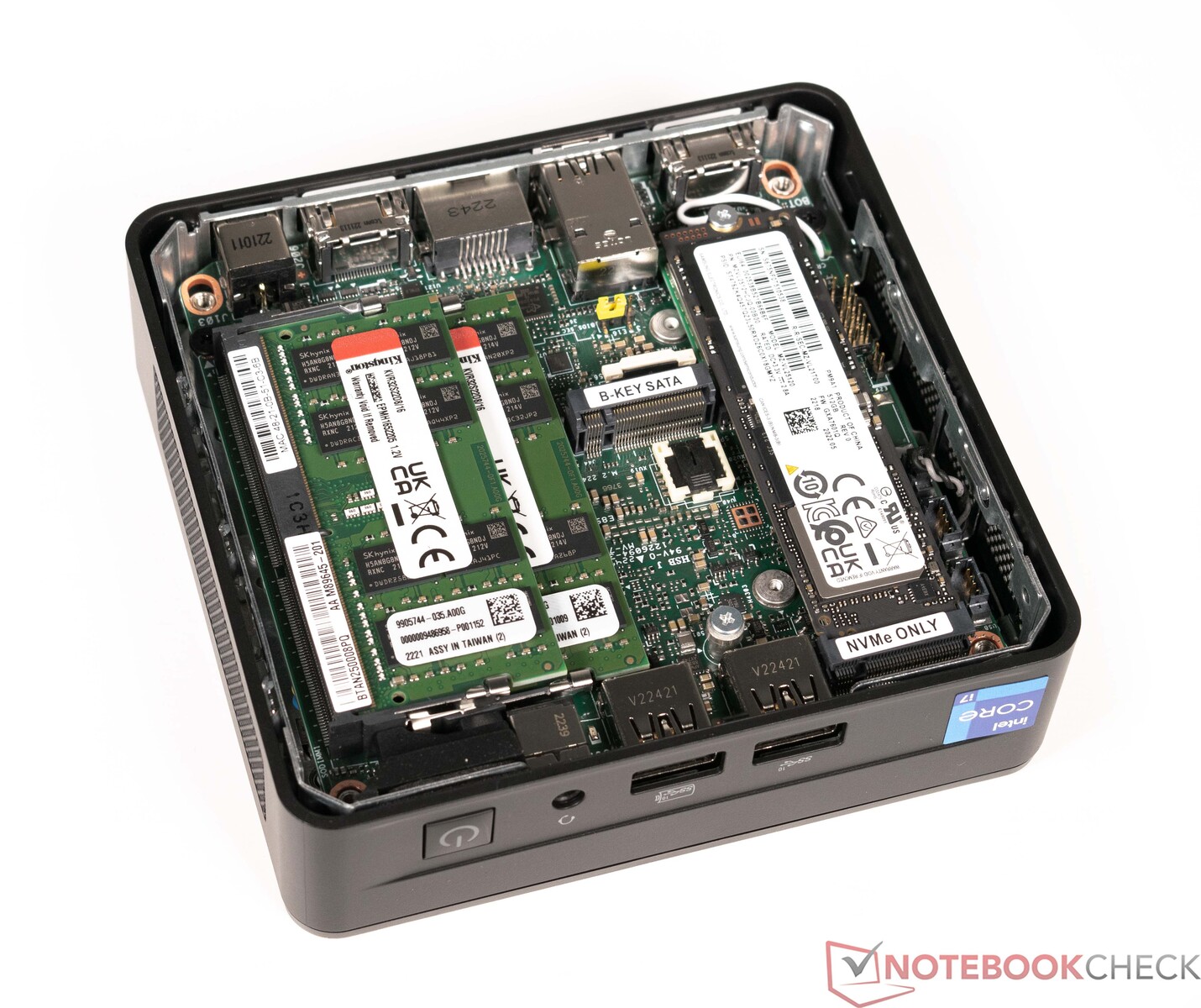

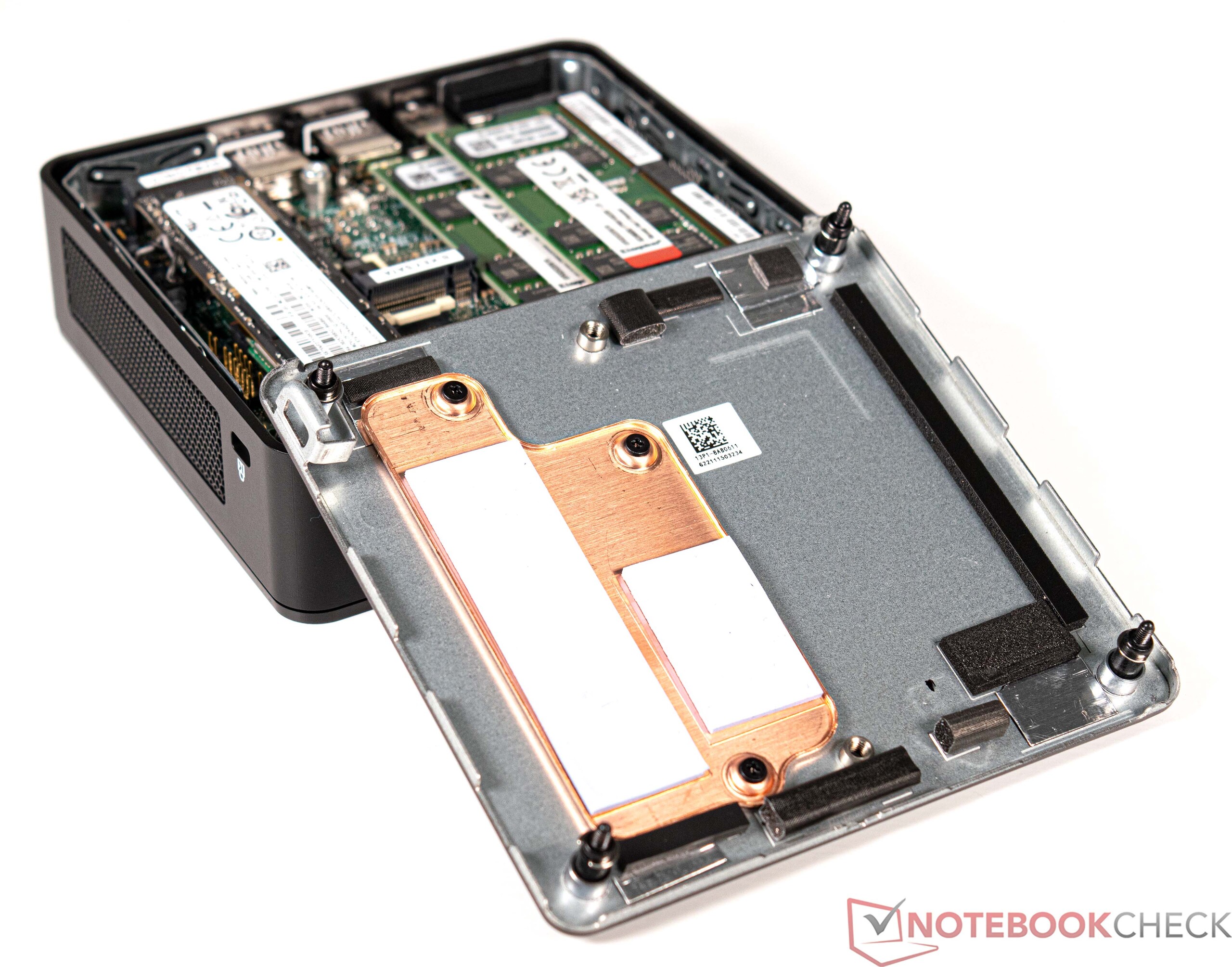

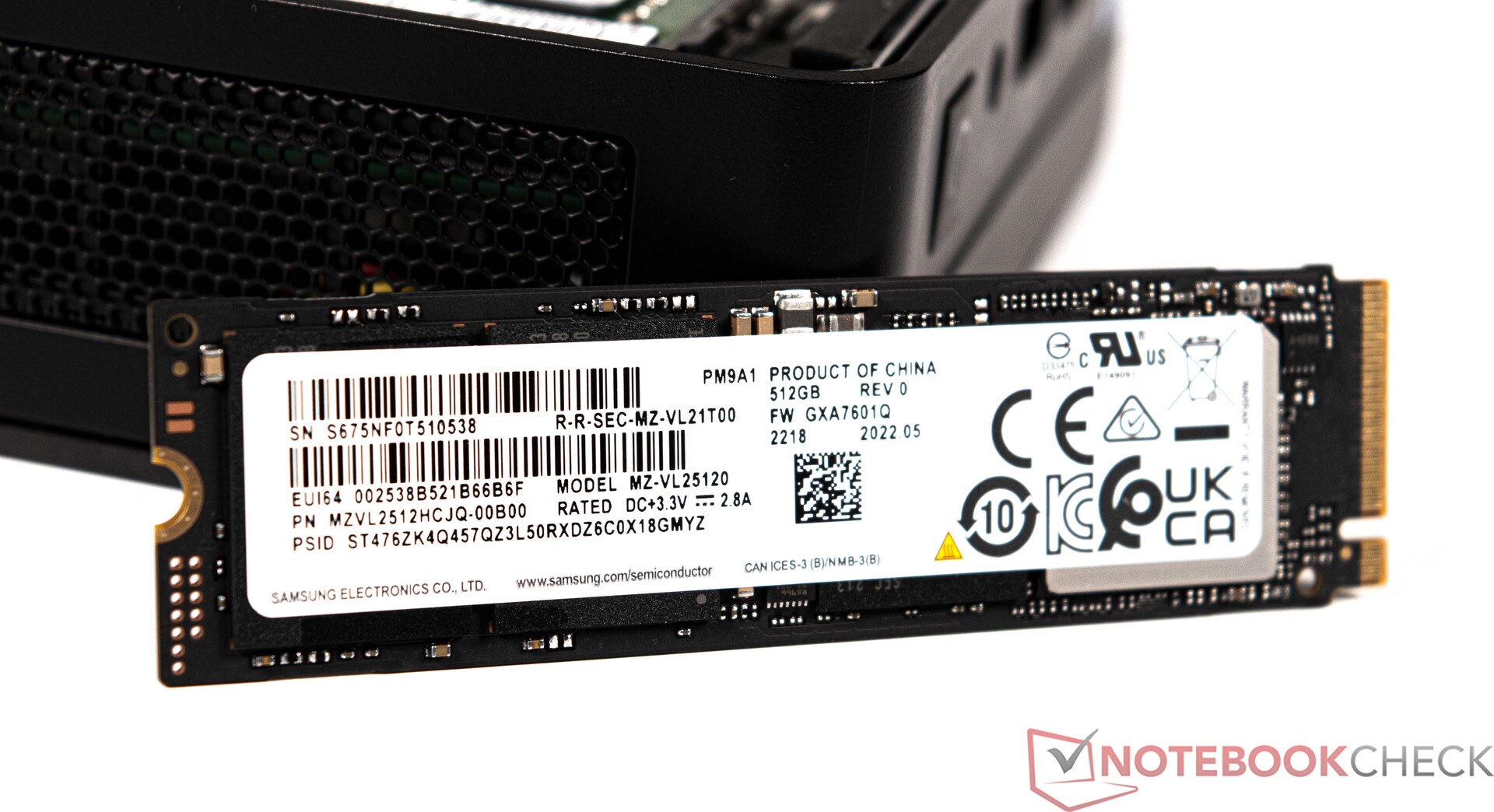

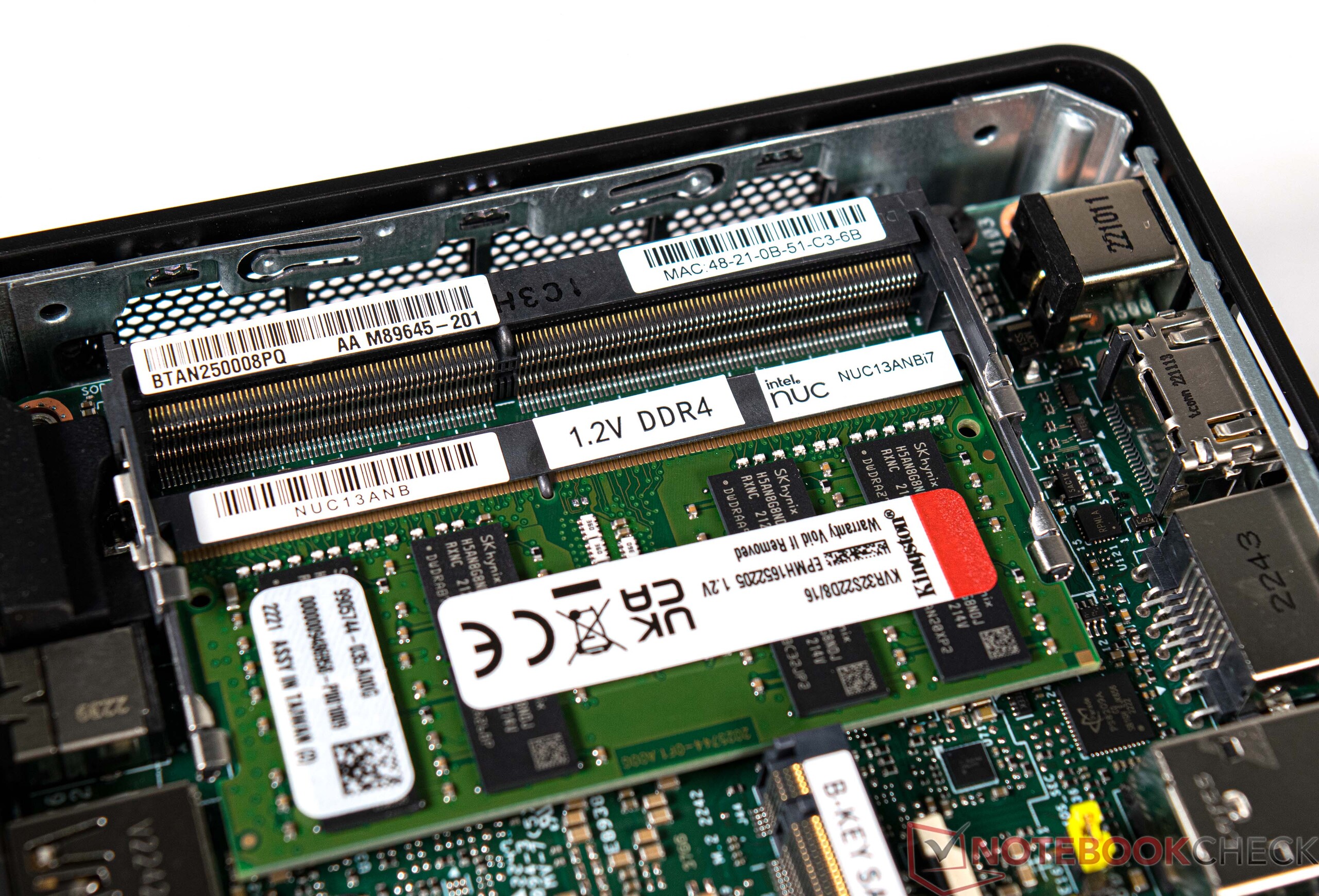

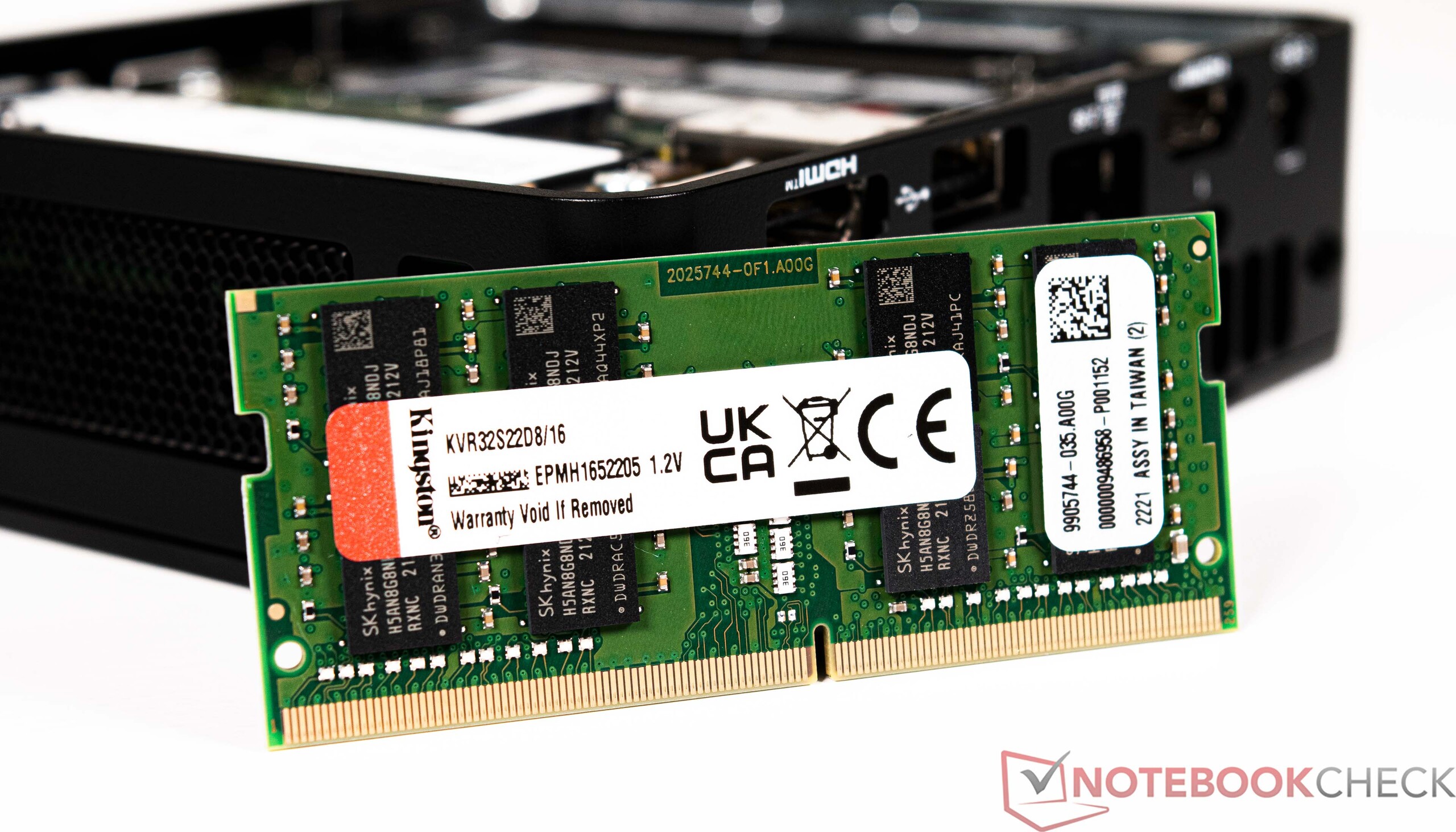

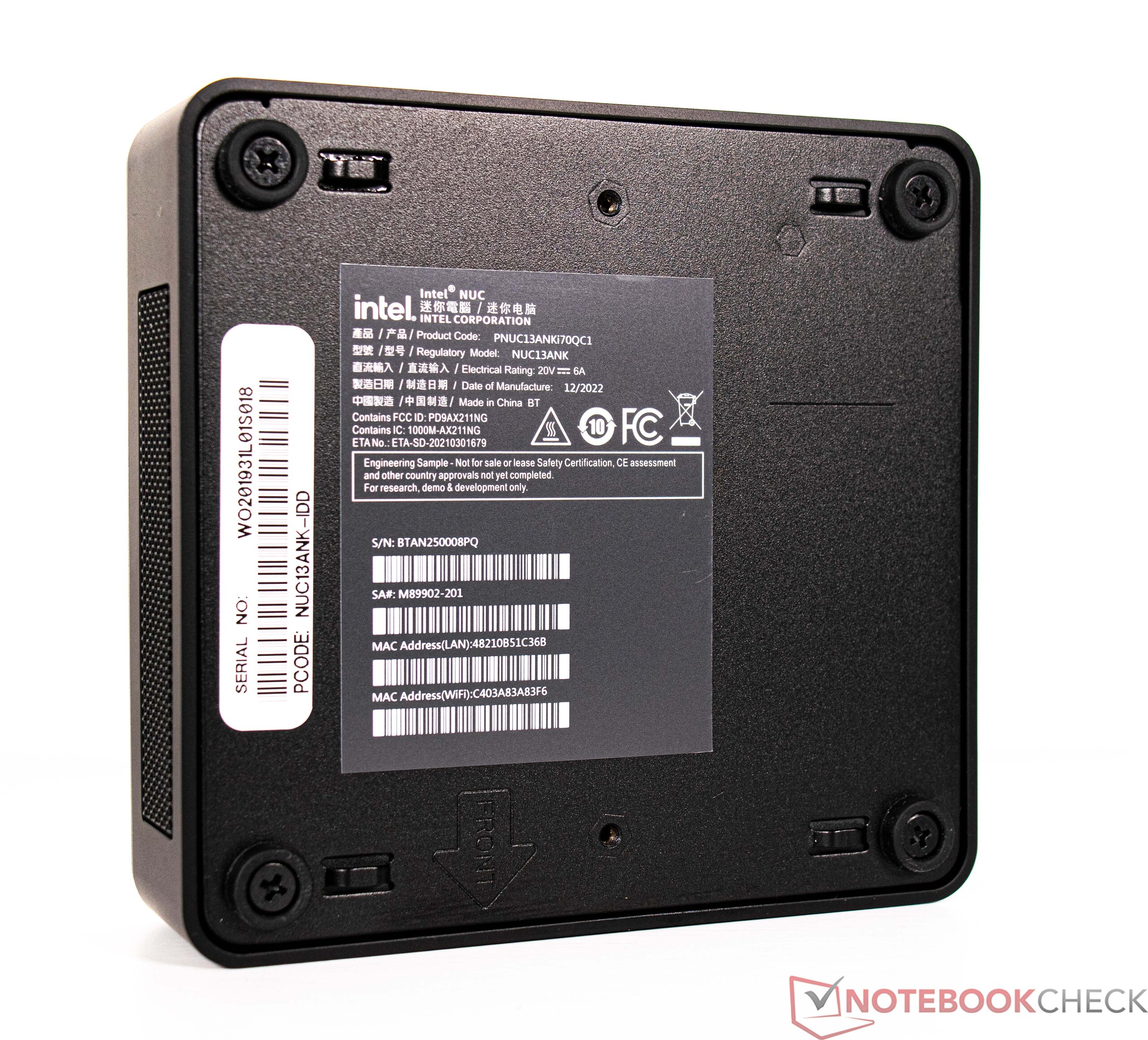

英特尔NUC 13 Pro套件相对容易打开。底部的盖子也有助于SSD的散热，由四个螺丝固定。卸下底盖将使你非常方便地接触到下面的内存和固态硬盘插槽。

性能 - 酷睿i7，12个核心，16个线程

从以下情况来看判断，酷睿i7-1360P判断，我们预计NUC 13 Pro套件将具有类似于NUC 12 Pro套件的出色性能，该套件采用酷睿i7-1260P.由于有12个核心和16个线程可供支配，NUC 13 Pro提供了足够的性能来处理各种苛刻的任务。

测试条件

所有与性能有关的测试都是在 "平衡 "电源模式下进行的。我们没有对SoC的性能进行任何修改，将其留在BIOS设置中的默认自动模式。

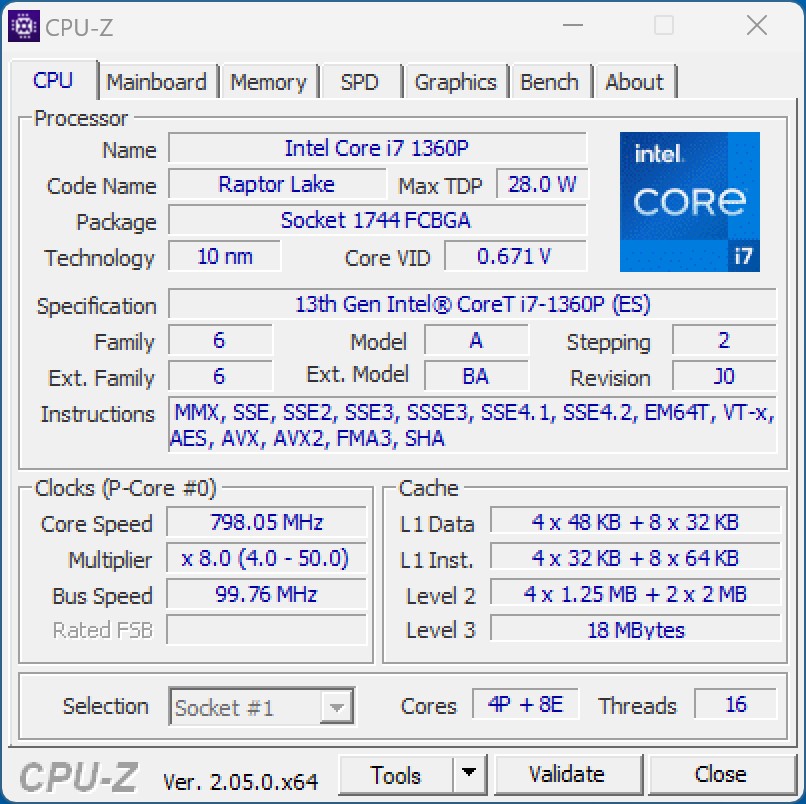

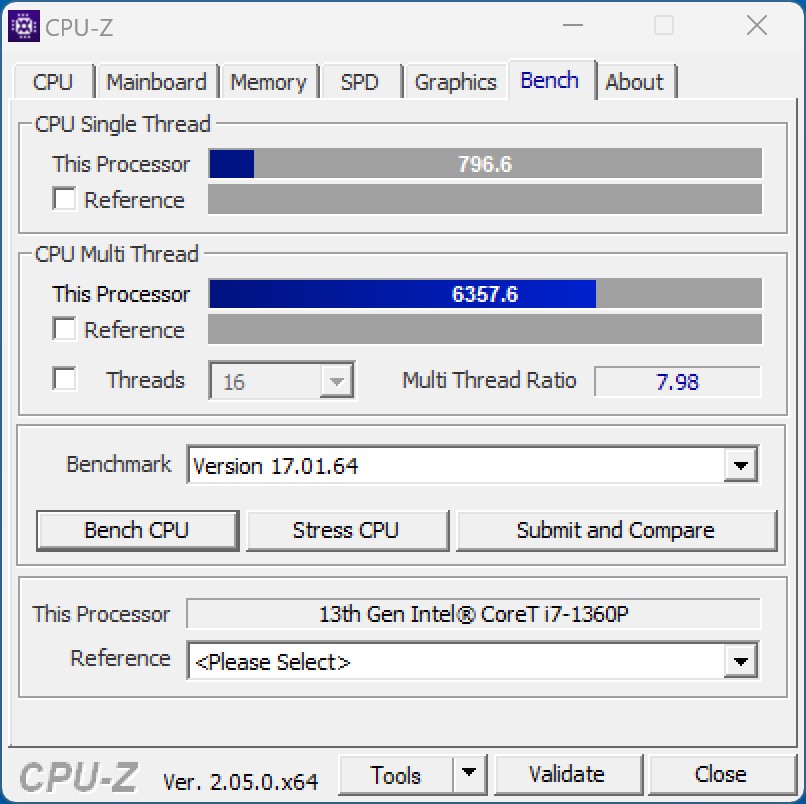

处理器

虽然酷睿i7-1360P虽然NUC 13 Pro套件中的酷睿i7-1360P是一个尖端的SoC，但它比起酷睿i7-1260P的改进是相当温和的。基本上，新CPU的基本时钟增加了100MHz，达到1.6GHz。不过，该处理器能够提升到5.0GHz，相当于300MHz的增益。在高速缓存方面，架构没有重大变化。因此，尽管我们确实看到了类似于酷睿i7-1260P的出色基准测试结果，但我们还是要强调一下酷睿i7-1260P但在整体性能评级方面的差距很小，只有3%。电源管理同样也没有任何变化；酷睿i7-1360P的酷睿i7-1360P的最大短期功耗为64瓦（PL2），长期功耗为40瓦（PL1）--就像它的前辈。

英特尔NUC 13 Pro套件的表现比它的前辈以及我们比较中的其他设备要好一些。但这也说明了这些竞争设备之间的关系是多么密切。说明这一点的一个例子是与 Minisforum Neptune Series NAD9的比较，它的特点是酷睿i9-12900H(14个原生核心和20个线程)，在我们的性能排名中位列第二。

请参考我们的CPU比较表了解更多信息和基准。

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	50.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	49.4 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	48.5 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.7 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.5 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.7 pt

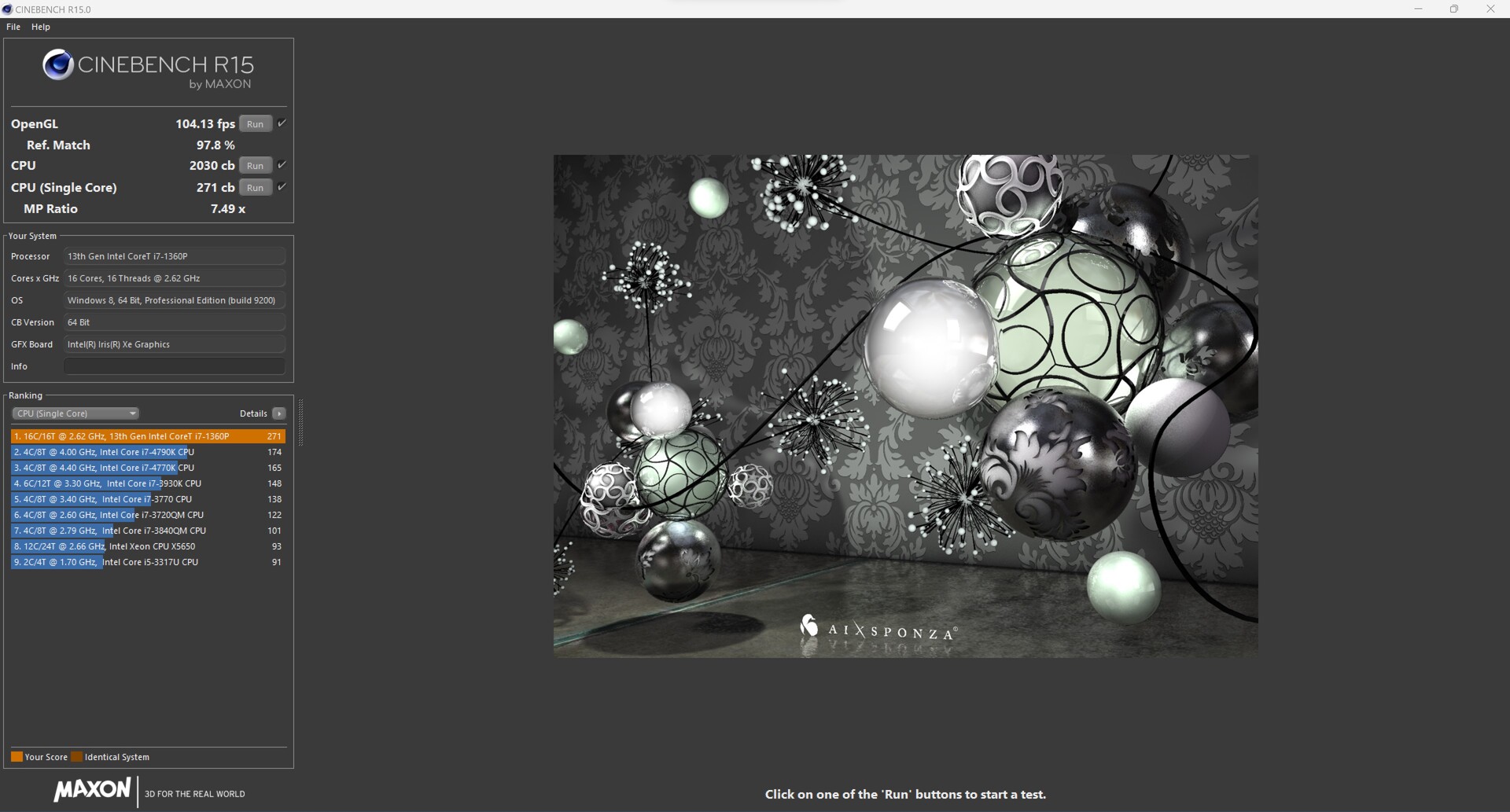

Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points -9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points -18%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	223 Points -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -27%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points -7%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1356 Points -33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -72%

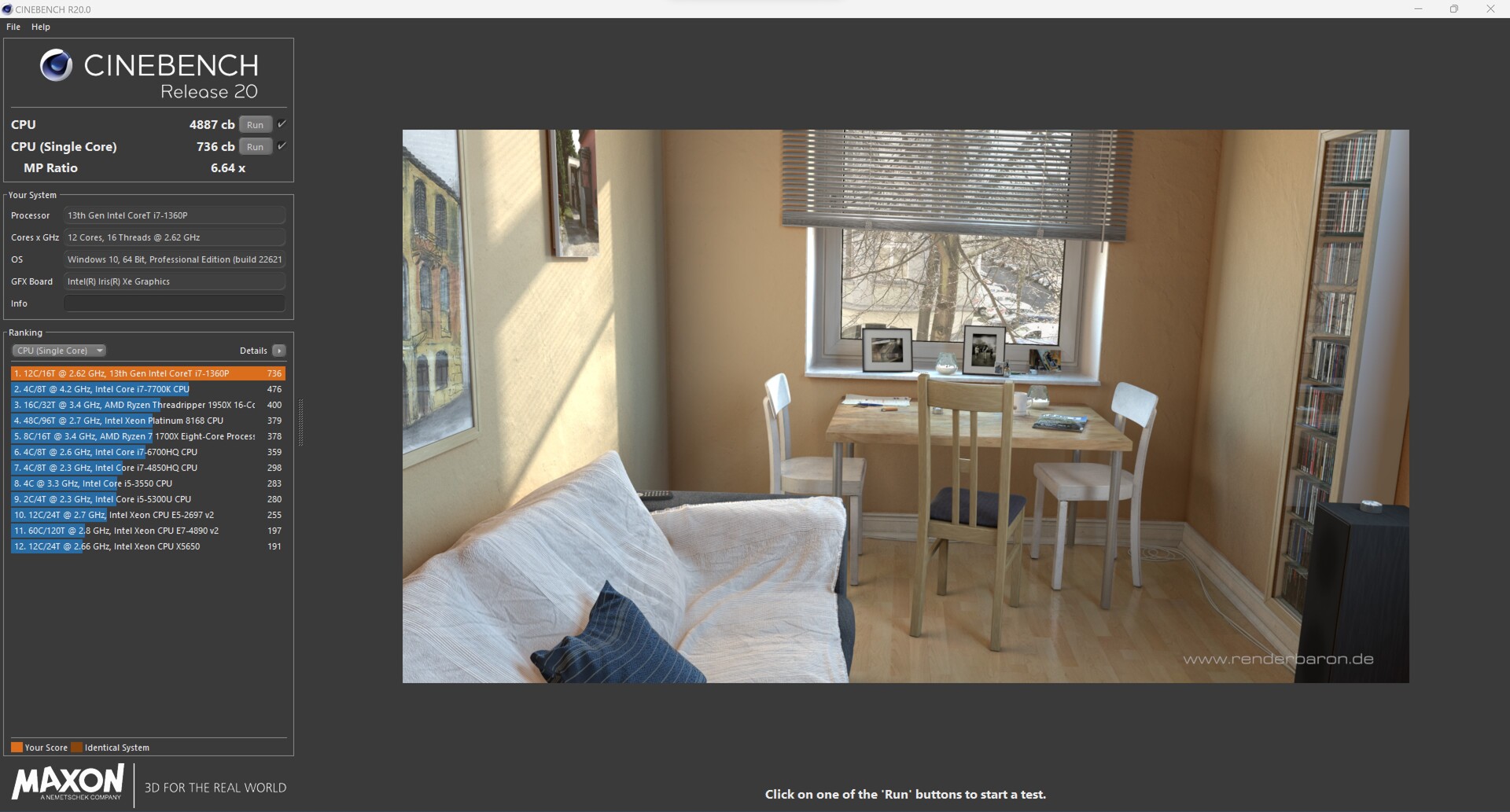

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points -7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points -18%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	535 Points -27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points -27%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -30%
CPU (Multi Core)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	3189 Points -35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -39%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -71%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points -5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points -13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points -20%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	2.61 Points -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -30%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	15.96 Points -36%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -41%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -75%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points -17%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points -21%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	11132 Points -28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points -28%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -33%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points -4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	50831 Points -34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -41%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -68%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -173%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	426 Seconds * -55%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * -45%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds * -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +16%

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -82%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -44%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	4.848 s * -30%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s * +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +8%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s * +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * +32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +44%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	147.807 s * +47%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +63%

X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps -15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps -17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -21%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	236 (235^min - 246^max) fps -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -47%
Pass 2
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	80.95 (76.3^min - 82.4^max) fps -30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -68%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s +19%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6858 KB/s +19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s +18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5759 KB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -27%

TrueCrypt
AES Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -31%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	8.3 GB/s -34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -58%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s -14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s -27%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1.2 GB/s -45%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -66%
Serpent Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -19%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.796 GB/s -34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -63%

Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points -13%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6523 Points -38%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -54%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points -7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points -23%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1427 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -25%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6479 Points -37%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -53%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points -11%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1371 Points -12%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5918 Points -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -13%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	25738 Points -35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -39%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -52%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points -12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	13130 Points -27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -30%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -57%

7-Zip 18.03
7z b 4
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS -11%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	40318 MIPS -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -67%
7z b 4 -mmt1
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS -4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS -12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5161 MIPS -13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -20%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps -7%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	10.2 fps -28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -63%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -44%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.548 sec * -23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * -21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec * -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * -4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec *

LibreOffice - 20 Documents To PDF
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	57.5 s * -32%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * -17%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s * -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +13%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points -7%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	263 Points -14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -23%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -47%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	659 ms * -33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * -31%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * -22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * -17%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms * -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms *

3DMark
3840x2160 Fire Strike Ultra Physics
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points -13%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	16412 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -53%
1920x1080 Fire Strike Physics
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points -16%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	17499 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -57%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points -42%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5077 Points -46%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -69%

* ... smaller is better

Performance Rating
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	94.9 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	82.3 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	79.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	77.2 pt
Average of class Mini PC	70.4 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	69.8 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67.3 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46 pt

AIDA64 / FP32 Ray-Trace
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s +25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s -6%
Average of class Mini PC (561 - 27538, n=97, last 2 years)	9978 KRay/s -10%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	9406 KRay/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -49%

AIDA64 / FPU Julia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +58%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	60111 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -1%
Average of class Mini PC (3604 - 116903, n=97, last 2 years)	52513 Points -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -57%

AIDA64 / CPU SHA3
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -6%
Average of class Mini PC (225 - 5096, n=97, last 2 years)	2294 MB/s -16%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	2065 MB/s -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -28%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -40%

AIDA64 / CPU Queen
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	70563 Points -19%
Average of class Mini PC (8172 - 119569, n=97, last 2 years)	69137 Points -20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -46%

AIDA64 / FPU SinJulia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +71%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	8507 Points +17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points +4%
Average of class Mini PC (408 - 15525, n=97, last 2 years)	7328 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -45%

AIDA64 / FPU Mandel
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points +61%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	33084 Points +19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points +1%
Average of class Mini PC (1958 - 62378, n=97, last 2 years)	27844 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -46%

AIDA64 / CPU AES
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s -7%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	82315 MB/s -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -21%
Average of class Mini PC (3691 - 177158, n=97, last 2 years)	75036 MB/s -24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s -41%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -43%

AIDA64 / CPU ZLib
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s -11%
Average of class Mini PC (74.8 - 1183, n=97, last 2 years)	581 MB/s -28%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	531 MB/s -34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -37%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -67%

AIDA64 / FP64 Ray-Trace
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s +23%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s -5%
Average of class Mini PC (308 - 14722, n=97, last 2 years)	5327 KRay/s -10%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	5024 KRay/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -49%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s -7%
Average of class Mini PC (4408 - 44347, n=97, last 2 years)	24659 MPixel/s -15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -33%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	17803 MPixel/s -39%

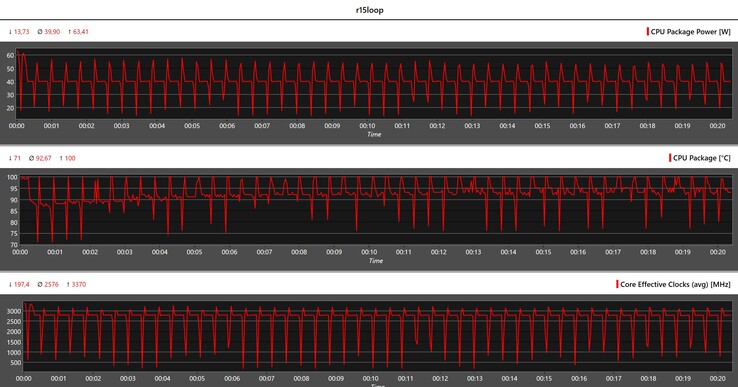

英特尔NUC 13 Pro套件--Arena Canyon与Cinebench R15多循环对比

循环运行Cinebench R15使我们对内置冷却解决方案的有效性有了初步了解。在第三次运行后，我们的评测设备稳定在一个相对稳定的性能水平，在50次运行过程中获得了1825分的平均分。与之相比，英特尔NUC 12 Pro套件完成了同样的测试，最终得分是1702分。由于其冷却装置和与PL2有关的电源管理，这两台设备的性能在第一次运行后大幅下降。

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

系统性能

在与系统性能相关的合成基准测试中，英特尔NUC 13 Pro套件能够保持在CPU基准测试中看到的良好性能。也就是说，它在一些测试中没有设法获得第一名。这 Minisforum Neptune NAD9和莫里芬M600在某些情况下取得了更好的结果。由于后者拥有更快的DDR5内存，因此在AIDA64基准测试中具有明显优势。尽管如此，英特尔NUC 13 Pro套件仍然是一个非常值得尊敬的硬件，在我们的测试中表现出很好的性能，能够处理日常的任务。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +6%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6281 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points -6%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	5862 Points -7%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -8%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -28%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11596 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points -8%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	10484 Points -10%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -10%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -10%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -23%

PCMark 10 / Productivity
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +24%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	9545 Points +21%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +21%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	7893 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points -3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -19%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +5%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1810 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points -7%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points -16%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points -24%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1300 Points -28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -31%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +34%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1578 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points -6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points -20%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points -22%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -22%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1133 Points -28%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1970 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points -9%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points -9%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points -16%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points -30%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1325 Points -33%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -39%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +10%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1740 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points -5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points -14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points -19%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1335 Points -23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -25%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s -1%
Average of class Mini PC (6481 - 70620, n=97, last 2 years)	42885 MB/s -4%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	38102 MB/s -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -22%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s
Average of class Mini PC (6914 - 71285, n=97, last 2 years)	43515 MB/s -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -11%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40126 MB/s -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -15%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s +1%
Average of class Mini PC (6862 - 89318, n=97, last 2 years)	46630 MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40633 MB/s -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -19%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -4%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	96.2 ns * -0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns * +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * +5%
Average of class Mini PC (44.9 - 154.6, n=97, last 2 years)	88 ns * +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +28%

* ... smaller is better

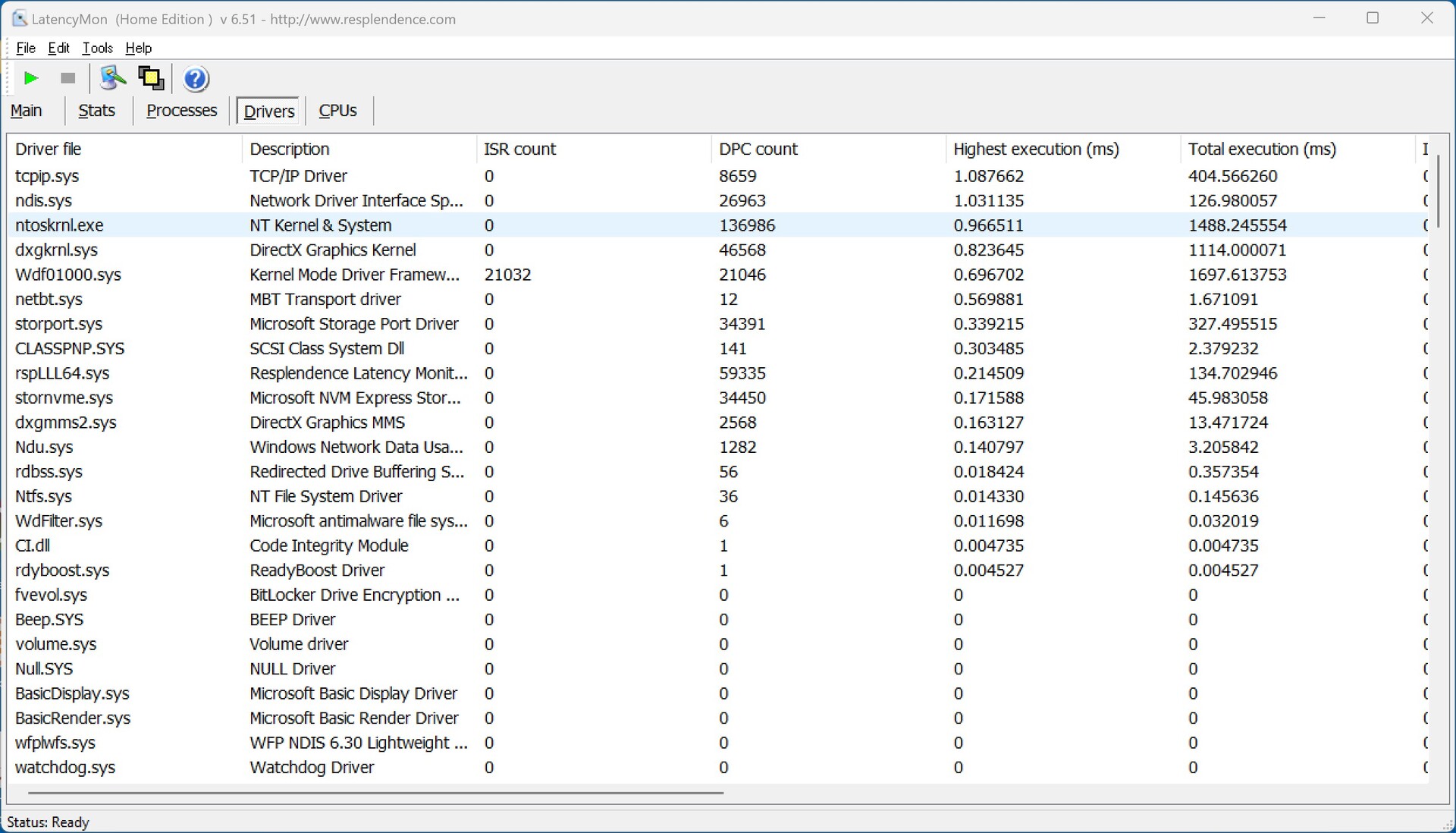

DPC延时

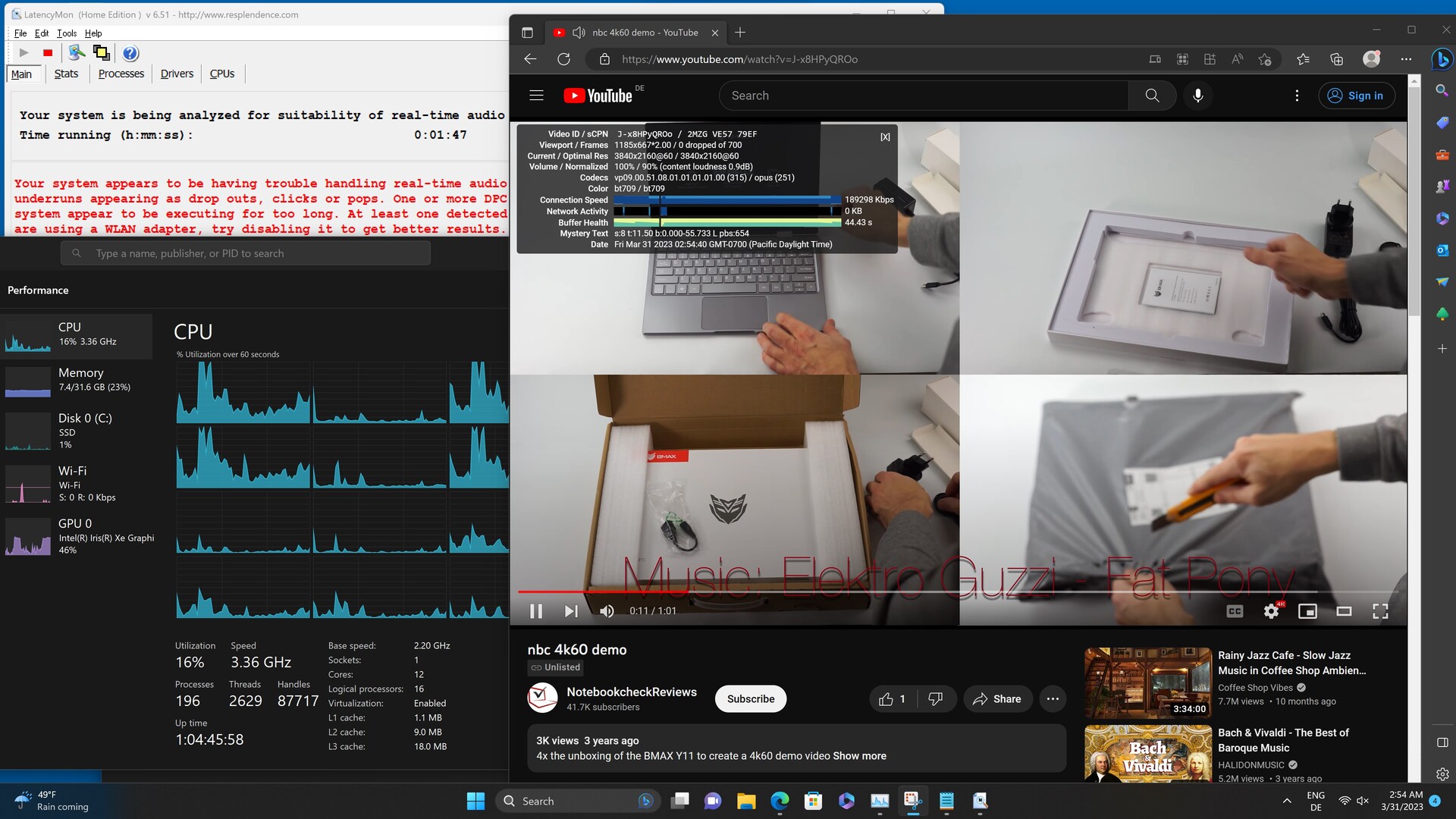

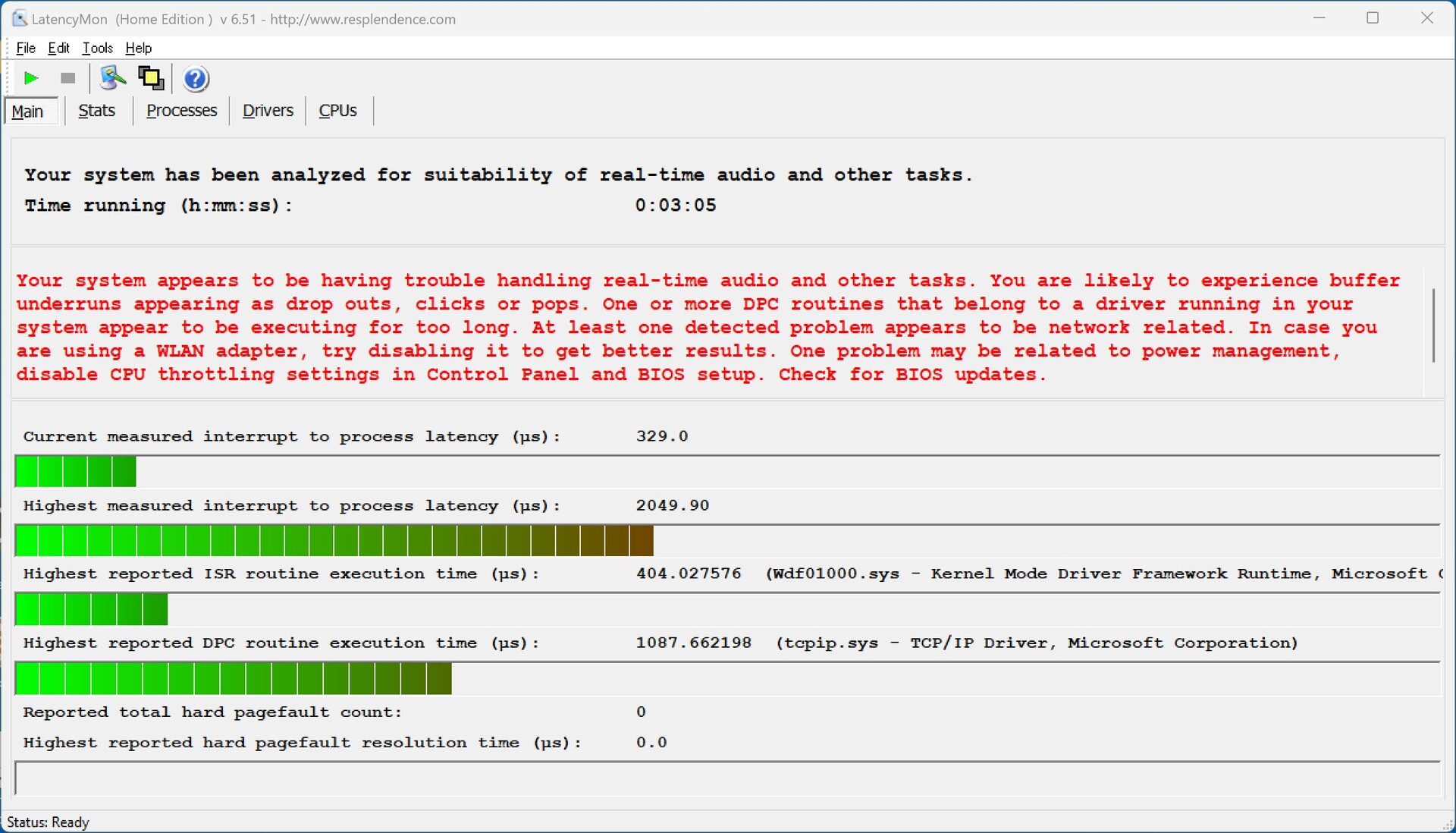

LatencyMon报告说，当在Microsoft Edge中保持几个标签打开时，延迟增加。当设备播放我们的4K演示视频时，延迟并没有变得更糟，iGPU的利用率略高于40%。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	1359.1 μs * -25%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs *
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs * +28%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * +30%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * +39%

* ... smaller is better

大容量存储

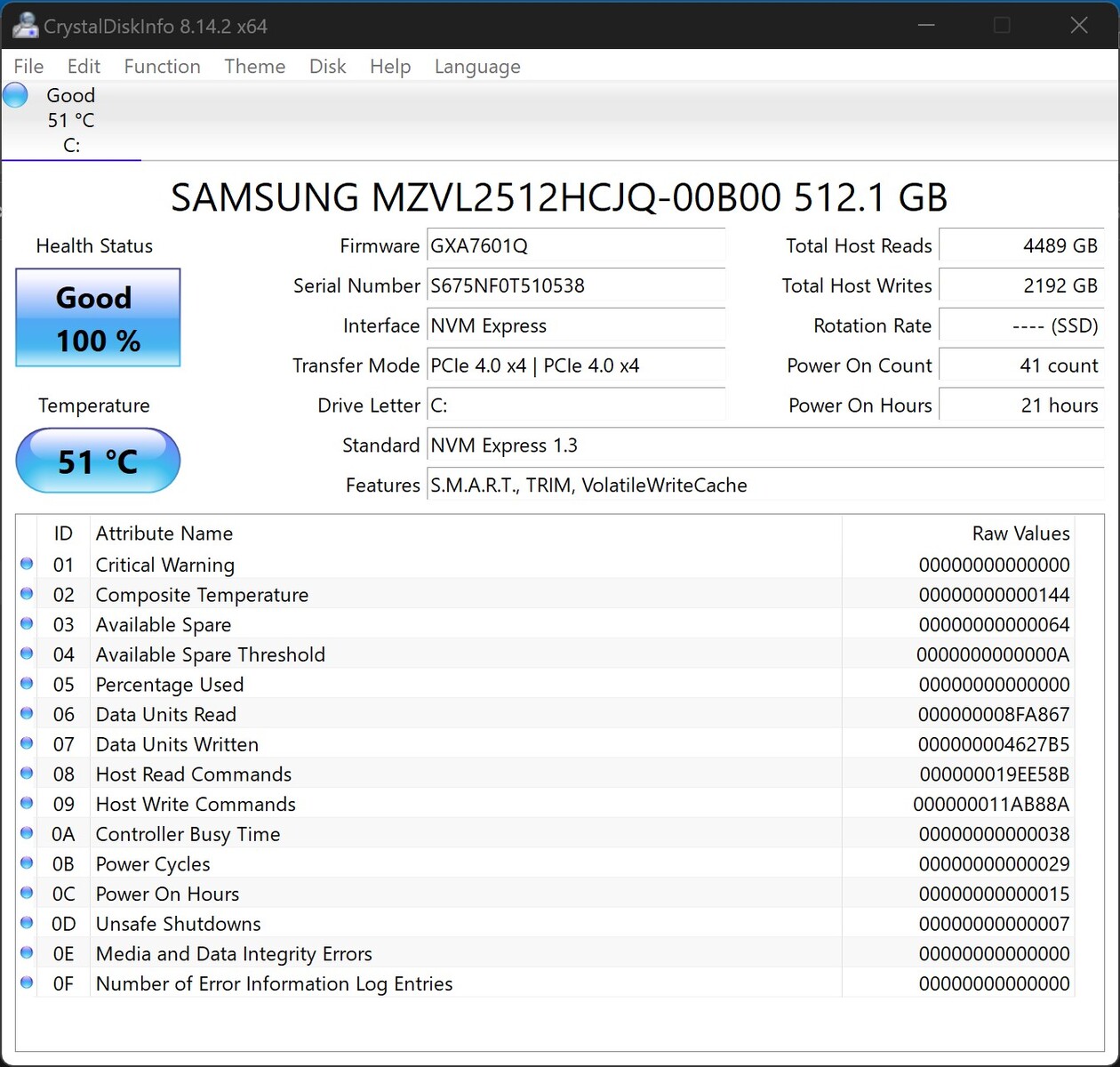

我们的评测单元配备了三星公司生产的512GB NVMe固态硬盘。除了这个驱动器，超薄版的NUC 13 Pro套件可以容纳另一个存储设备。然而，第二个插槽只能容纳一个长度为42毫米的M.2固态硬盘，并且只限于SATA速度。

我们评测模型中包含的三星固态硬盘在读取和写入操作中都提供了足够的性能。正如你在下面的图表中所看到的，英特尔NUC 13 Pro套件在处理其SSD的持续负载方面也没有问题。与此特别相关的是，该设备的底部作为一个散热器。

你可以参考我们的存储比较表了解更多信息和基准。

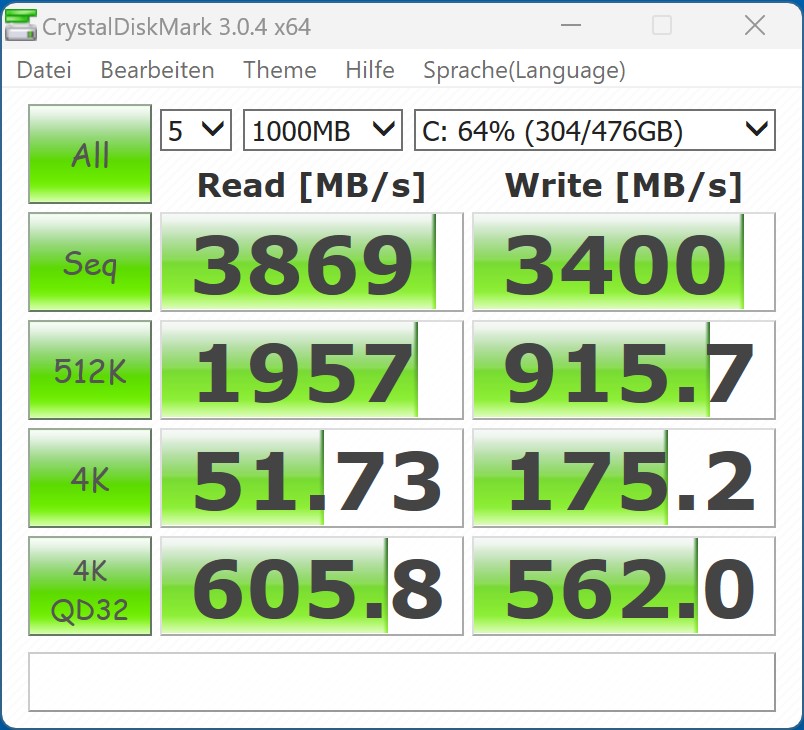

CrystalDiskMark 3.0

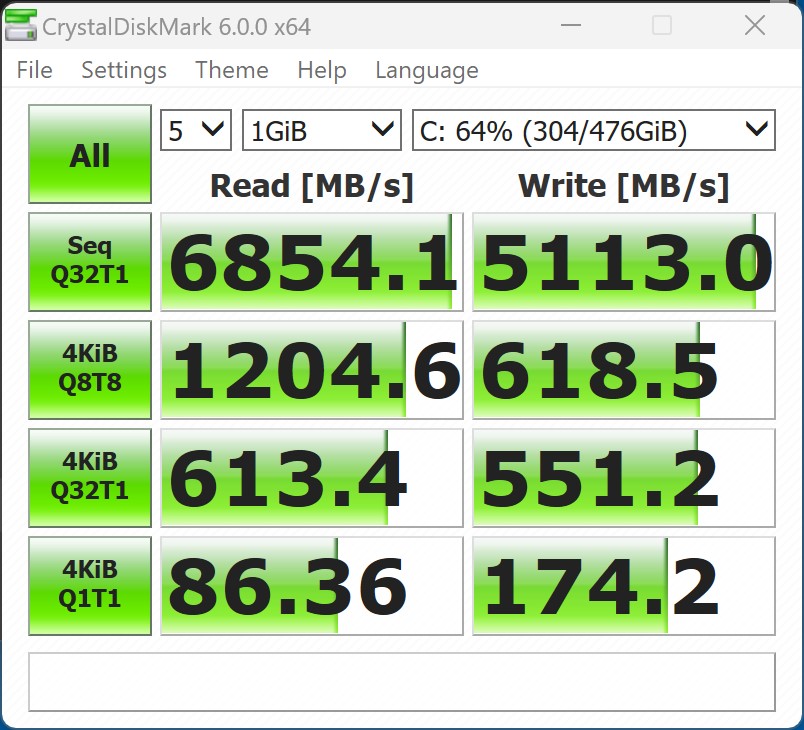

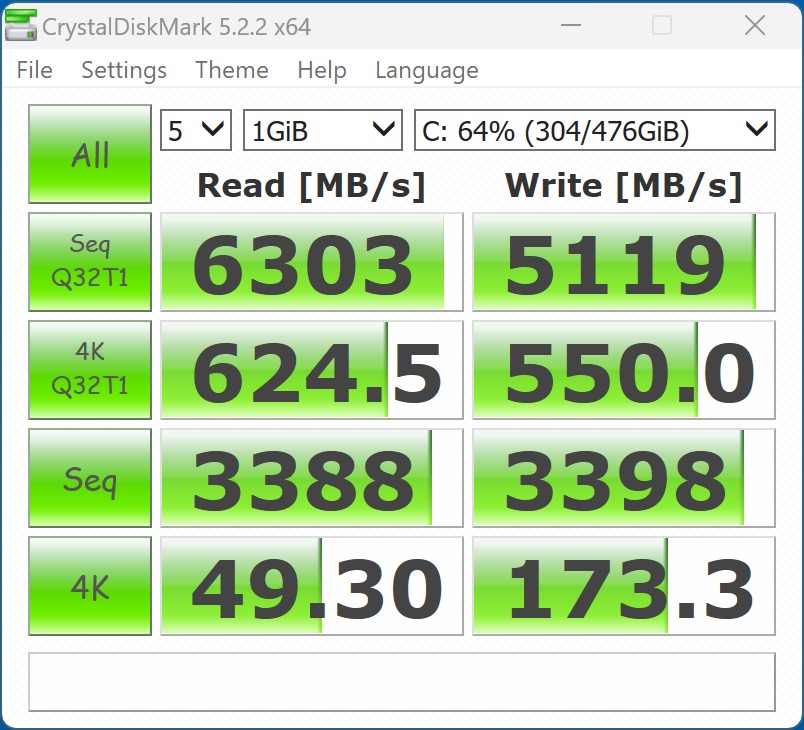

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Samsung PM9A1 MZVL2512HCJQ

Sequential Read: 3869 MB/s

Sequential Write: 3400 MB/s

512K Read: 1957 MB/s

512K Write: 915.7 MB/s

4K Read: 51.73 MB/s

4K Write: 175.2 MB/s

4K QD32 Read: 605.8 MB/s

4K QD32 Write: 562 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	85.1 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	71 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	65.7 pt
Average of class Mini PC	43.8 pt
Minisforum Mars Series MC560 ESO512GYLCT	41.2 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	41 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	39.9 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	33.3 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s -17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s -35%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s -38%
Average of class Mini PC (233 - 4168, n=96, last 2 years)	2028 MB/s -40%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s -47%
Minisforum Mars Series MC560 ESO512GYLCT	1310 (1296.67^min - 1309.67^max) MB/s -61%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -65%
seq write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +1%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s
Average of class Mini PC (222 - 5595, n=96, last 2 years)	2049 MB/s -39%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s -47%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s -47%
Minisforum Mars Series MC560 ESO512GYLCT	1735 (1689.26^min - 1735.49^max) MB/s -48%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s -54%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s -71%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s -29%
Average of class Mini PC (236 - 8430, n=96, last 2 years)	3155 MB/s -53%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s -62%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s -64%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s -66%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -70%
Minisforum Mars Series MC560 ESO512GYLCT	1749 (1565.12^min - 1749.09^max) MB/s -74%
seq q8 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +20%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s
Average of class Mini PC (228 - 6669, n=96, last 2 years)	2223 MB/s -21%
Minisforum Mars Series MC560 ESO512GYLCT	1815 (1770.86^min - 1814.81^max) MB/s -36%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s -37%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s -37%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s -38%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -62%
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +58%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s +22%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s
Average of class Mini PC (5.67 - 86.6, n=96, last 2 years)	51.3 MB/s -1%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s -6%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s -7%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s -13%
Minisforum Mars Series MC560 ESO512GYLCT	35.4 (35.09^min - 35.36^max) MB/s -32%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +139%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +24%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s +12%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +10%
Average of class Mini PC (22 - 425, n=96, last 2 years)	184.7 MB/s +4%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s
Minisforum Mars Series MC560 ESO512GYLCT	164.5 (163.24^min - 164.49^max) MB/s -7%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +59%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s
Average of class Mini PC (26.1 - 2810, n=96, last 2 years)	1088 MB/s -11%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s -18%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s -19%
Minisforum Mars Series MC560 ESO512GYLCT	424 (413.36^min - 423.78^max) MB/s -65%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -71%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s -71%
4k q32 t16 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +283%
Average of class Mini PC (30.2 - 3983, n=96, last 2 years)	1084 MB/s +73%
Minisforum Mars Series MC560 ESO512GYLCT	934 (912.82^min - 933.64^max) MB/s +49%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s +43%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +24%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +5%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s -10%

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +50%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +19%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points
Average of class Mini PC (151.3 - 9030, n=94, last 2 years)	3534 Points -41%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points -52%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points -53%
Minisforum Mars Series MC560 ESO512GYLCT	2491 Points -59%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points -78%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +117%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +43%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points
Average of class Mini PC (61 - 3635, n=94, last 2 years)	1346 Points -20%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points -31%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points -31%
Minisforum Mars Series MC560 ESO512GYLCT	965 Points -42%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points -61%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points -1%
Average of class Mini PC (88 - 4185, n=94, last 2 years)	1551 Points -57%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points -67%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points -70%
Minisforum Mars Series MC560 ESO512GYLCT	1037 Points -71%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points -89%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +12%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s -13%
Average of class Mini PC (291 - 6620, n=94, last 2 years)	2804 MB/s -41%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s -43%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s -53%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -54%
Minisforum Mars Series MC560 ESO512GYLCT	2181 MB/s -54%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +61%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +35%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s
Average of class Mini PC (240 - 5783, n=94, last 2 years)	1949 MB/s -20%
Minisforum Mars Series MC560 ESO512GYLCT	1769 MB/s -28%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s -33%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s -34%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s -42%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +32%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s -15%
Average of class Mini PC (6.08 - 104.2, n=94, last 2 years)	55.3 MB/s -29%
Minisforum Mars Series MC560 ESO512GYLCT	55.1 MB/s -30%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s -33%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -49%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s -56%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +75%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s -11%
Average of class Mini PC (30.9 - 366, n=94, last 2 years)	166.7 MB/s -20%
Minisforum Mars Series MC560 ESO512GYLCT	160.1 MB/s -23%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s -52%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +171%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +68%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s
Average of class Mini PC (23.4 - 3035, n=94, last 2 years)	1010 MB/s -10%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s -20%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s -21%
Minisforum Mars Series MC560 ESO512GYLCT	692 MB/s -38%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s -69%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s -3%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s -9%
Average of class Mini PC (32.8 - 3598, n=94, last 2 years)	1190 MB/s -62%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s -74%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s -76%
Minisforum Mars Series MC560 ESO512GYLCT	699 MB/s -78%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s -95%
Access Time Read
Average of class Mini PC (0.022 - 0.489, n=94, last 2 years)	0.1031 ms * -129%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms * -87%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * -67%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * -64%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * -47%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * -33%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms *
Minisforum Mars Series MC560 ESO512GYLCT	0.022 ms * +51%
Access Time Write
Average of class Mini PC (0.016 - 0.765, n=94, last 2 years)	0.1304 ms * -552%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -415%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * -410%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms * -75%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -55%
Minisforum Mars Series MC560 ESO512GYLCT	0.024 ms * -20%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms *
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +10%

* ... smaller is better

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Intel NUC 13 Pro Kit NUC13ANK: Ø6536 (5743.42-6561.78)

图形卡

对于图形处理，NUC 13 Pro套件使用熟悉的Intel Iris Xe Graphics G7，有96EUs 。在酷睿i7-1360P上，集成GPU被允许以高达1.5GHz的速度运行--比酷睿i7-1260P上的同类产品略快。这导致在我们进行的合成基准测试中，3D性能略微提高。然而，在集成图形性能方面，审查单位不能完全匹配Minisforum Neptune系列NAD9 ，它采用了酷睿i9-12900H。我们的比较也清楚地表明，AMD的Radeon 680M 是一个异常强大的iGPU。根据我们的测试，它比Iris Xe Graphics G7 ，提供约40%的性能。

你可以通过Thunderbolt将外部显卡连接到NUC 13 Pro套件。这是我们用一个Razer Core X和一个 NvidiaGeForce RTX 3060 Ti.与专用显卡相结合，该装置提供了良好的性能，比NUC 12专业套装所能提供的性能略好。

请访问我们的GPU比较表，了解更多信息和基准。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	100 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	74 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	71.2 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	65 pt
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	55.5 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	52.5 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	51.7 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +55%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points -4%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5923 Points -17%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -21%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -22%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +49%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	27497 Points 0%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -26%
1920x1080 Fire Strike Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +27%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points -7%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3819 Points -27%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -29%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -31%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +44%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points -3%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1153 Points -31%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -34%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -34%
Fire Strike Extreme Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +31%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2340 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2161 Points -8%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -26%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1583 Points -32%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1472 Points -37%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | LuxMark v2.0 64Bit

Performance Rating - Percent
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	96.4 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	69 pt
Intel NUC 13 Pro Kit NUC13ANK ^-2! Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	68.9 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	66.9 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	54.8 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	53.1 pt
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	49.7 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +42%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.2 fps -6%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.6 fps -21%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps -25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -27%
Extreme Preset DX11
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +31%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.5 fps -8%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.2 fps -26%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -28%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -30%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +39%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps -10%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.3 fps -19%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps -24%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -25%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +29%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.2 fps -8%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps -14%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps -23%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.2 fps -31%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -35%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +61%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	3535 Points -2%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -6%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points -10%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	2999 Points -17%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -25%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +31%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	243 Points -14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -18%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points -21%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	224 Points -21%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -35%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +32%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	242 Points -13%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	231 Points -17%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points -23%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -26%
1024x600 Normal, Mandel Vector
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +84%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	891 Points -2%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -7%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	790 Points -13%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -39%
1024x600 Normal, Mandel Scalar
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +71%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +5%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	877 Points +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	874 Points +1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points -13%
1024x600 Normal, QJuliaRayTrace
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +52%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1303 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -6%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points -22%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points -29%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	857 Points -32%

LuxMark v2.0 64Bit
Room GPUs-only
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	676 Samples/s
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	603 Samples/s
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	508 Samples/s
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	450 Samples/s
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	415 Samples/s
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	201 Samples/s
Sala GPUs-only
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2470 Samples/s
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	2188 Samples/s
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1640 Samples/s
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1406 Samples/s
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	993 Samples/s
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	276 Samples/s

3DMark 05 Standard		40633 points
3DMark 06 Standard Score		34555 points
3DMark Vantage P Result		27877 points
3DMark 11 Performance		7752 points
3DMark Ice Storm Standard Score		64338 points
3DMark Cloud Gate Standard Score		23389 points
3DMark Fire Strike Score		4873 points
3DMark Fire Strike Extreme Score		2339 points
3DMark Time Spy Score		1907 points
Help

... in comparison

Performance Rating | 3DMark 11 | 3DMark

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	98.8 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97.4 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	94.7 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33577 Points +370%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	33425 Points +368%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +361%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +358%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +357%
	7143 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	123559 Points +349%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	121918 Points +343%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	118686 Points +331%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	116516 Points +324%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +309%
	27511 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25669 Points +391%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	25071 Points +379%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +376%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +366%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +363%
	5229 Points
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	11032 Points +559%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11031 Points +559%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +544%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +541%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	10530 Points +529%
	1673 Points
Fire Strike Extreme Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	13552 Points +479%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13299 Points +468%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	13264 Points +467%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13007 Points +456%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	12943 Points +453%
	2340 Points

Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	169.6 fps +619%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	169.6 fps +619%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	167.3 fps +609%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	167.3 fps +609%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +502%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps
Extreme Preset DX11
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	164.8 fps +573%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	164.4 fps +571%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	154.5 fps +531%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	154.3 fps +530%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +452%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	143.1 fps +848%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	141.6 fps +838%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	134.2 fps +789%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	131.7 fps +772%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +520%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	127.2 fps +619%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	125.8 fps +611%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	122.7 fps +593%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	122.2 fps +590%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +418%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps

Unigine Superposition
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15114 Points +633%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	14751 Points +615%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	14698 Points +613%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	8142 Points +295%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2062 Points
1920x1080 1080p Extreme
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7129 Points +567%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	7036 Points +558%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	7035 Points +558%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	4171 Points +290%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1069 Points

ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	27847 Points +673%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	27847 Points +673%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	27811 Points +672%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	27740 Points +670%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2698 Points +850%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2691 Points +848%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2689 Points +847%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2679 Points +843%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2629 Points +849%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2622 Points +847%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2619 Points +845%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2619 Points +845%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	5711 Points +527%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5694 Points +525%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5689 Points +524%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	5655 Points +521%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points
1024x600 Normal, QJuliaRayTrace
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	10555 Points +732%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	10539 Points +731%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	10536 Points +731%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	10532 Points +731%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points

游戏性能

板载的iGPU对于游戏来说不够好，尽管它提供了比NUC 12 Pro套件上的集成图形更好的性能。我们只能在低分辨率和设置下获得可玩的帧率。如果你正在寻找一台迷你PC来进行游戏，你应该寻找一个带有专用显卡的模型，例如Minisforum HX99G 。

与合成基准测试一样，我们也检查了该设备通过Thunderbolt连接到Razer Core X上时的游戏性能，该设备配有 NvidiaGeForce RTX 3060 Ti内的RTX 3060 Ti。从根本上说，这种配置会给你带来更好的3D性能，让游戏在高分辨率和最大设置下正常运行。然而，专用GPU的性能受到eGPU底座的四个PCIe 3.0通道的限制。

Intel Iris Xe Graphics G7

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps -13%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -35%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	63.6 fps -37%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -39%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +27%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps -24%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20.7 fps -33%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps -37%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -51%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +63%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +6%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	54.3 fps -2%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	53.4 fps -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52.4 fps -6%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	33.9 fps -39%
1920x1080 High Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +49%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15 fps -7%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	13.3 fps -18%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	13.2 fps -19%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	10.5 fps -35%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps +7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	121.3 (9.08^min, 83.3^P1) fps -4%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	114.3 (8.54^min, 76.9^P1) fps -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	108.6 (21.4^min, 71.4^P1) fps -14%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	68.3 (18.7^min, 45.5^P1) fps -46%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +158%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	28.5 (10.1^min, 21.3^P1) fps +38%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	27.2 (6.42^min, 20^P1) fps +31%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps +1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	19.4 (8.25^min, 15.2^P1) fps -6%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16.4 (5.82^min, 11.9^P1) fps -21%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +63%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps +24%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52 (45^min) fps +13%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	49 (42^min) fps +7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	44 (38^min) fps -4%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	25 (19^min) fps -46%
1920x1080 High Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +36%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	25 (23^min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	20 (17^min) fps -20%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20 (17^min) fps -20%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16 (13^min) fps -36%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +27%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	47 (30^min) fps -10%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	43 (33^min) fps -17%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	40 (31^min) fps -23%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	29 (19^min) fps -44%
1920x1080 High Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +32%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26 (19^min) fps -7%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20 (12^min) fps -29%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19 (16^min) fps -32%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	15 (12^min) fps -46%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +11%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	117.4 (100.8^min) fps -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	116.4 (93.7^min) fps -6%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	111 (97.1^min) fps -10%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	79.1 (53.9^min) fps -36%
1920x1080 high (2/3)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +22%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	63.1 (57.2^min) fps -7%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	57.2 (52.1^min) fps -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	50.5 (43.6^min) fps -25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	43.4 (31.3^min) fps -36%

	low	med.	high	ultra
GTA V (2015)	126.2	107.3	20.7
The Witcher 3 (2015)	101.7		31.1	16.3
Dota 2 Reborn (2015)	123.8	93.9	67.6	61.6
Far Cry 5 (2018)	46	26	25	23
Strange Brigade (2018)	95.4	37.3	31	25.2
Shadow of the Tomb Raider (2018)	36.1	24	22.7	19.4
Far Cry New Dawn (2019)	52	29	28	26
Metro Exodus (2019)	41.3	20.6	14.9	11.8
Borderlands 3 (2019)	55.5	25.4	16.2	12.3
F1 2020 (2020)	94.4	49.2	37.9	24.2
F1 2021 (2021)	109.7	53.3	42	29.2
Far Cry 6 (2021)		27.1	22.7	19
God of War (2022)	21.5	18.8	14.5	10.8
Tiny Tina's Wonderlands (2022)	32.5	25.2	16.1	12.7
F1 22 (2022)	48	44.3	31.2	24

NvidiaGeForce RTX 3060 Ti，通过Thunderbolt 3。

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	97.2 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	95.9 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	84.1 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	83.3 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	72.8 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100.6 (9.76^min, 66.7^P1 - 197.6^max) fps
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	85.1 (17.4^min, 52.6^P1 - 186.7^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	56.1 (15.7^min, 38.5^P1 - 119.1^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps +362%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	74.8 fps +359%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps +273%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +255%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +245%
	16.3 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	134.5 (115.1^min) fps +118%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	127.5 (110.1^min) fps +107%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +84%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +81%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	92.8 (79.9^min) fps +51%
	61.6 (54.6^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.5 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	97.6 fps
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	79 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	150 (76.6^min, 93.3^P1 - 295^max) fps +495%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	148.8 (78.4^min, 90.6^P1 - 285^max) fps +490%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +420%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +406%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	114.7 (58.8^min, 72.4^P1 - 210^max) fps +355%
	25.2 (5.1^min, 6.91^P1 - 314^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	120 (92^min - 158^max) fps +422%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	117 (88^min - 156^max) fps +409%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +365%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +352%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60 (46^min - 78^max) fps +161%
	23 (21^min - 27^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	101 (74^min - 147^max) fps +288%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99 fps +281%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +238%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +235%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	54 (39^min - 85^max) fps +108%
	26 (18^min - 32^max) fps

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	106.1 (59^min - 146^max) fps +338%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	102.7 (53^min - 145^max) fps +324%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.7 (48^min - 122^max) fps +258%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	82.4 (39^min - 117^max) fps +240%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	81.5 (43^min - 107^max) fps +237%
	24.2 (18^min - 30^max) fps

F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	65.4 (47^min, 47^P1 - 73^max) fps +124%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	54.2 (36^min, 31^P1 - 61^max) fps +86%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	51.7 (34^min, 24^P1 - 59^max) fps +77%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	44 (9^min, 20^P1 - 52^max) fps +51%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	43.5 (10^min, 19^P1 - 51^max) fps +49%
	29.2 (23^min, 23^P1 - 32^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	83.6 fps +580%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	82.8 fps +573%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +521%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	71.3 fps +480%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +467%
	12.3 fps

	low	med.	high	ultra	QHD	4K
GTA V (2015)	180.5	175.5	164.4	100.6	90.9	103.6
The Witcher 3 (2015)	310.6	209.2	151.4	74.8		61
Dota 2 Reborn (2015)	165.7	147.3	139.3	127.5		106.8
Final Fantasy XV Benchmark (2018)	176.9	141.1	98.5		77	48
X-Plane 11.11 (2018)	139.6	122.5	93.2			84.4
Far Cry 5 (2018)	155	131	125	117	100	58
Strange Brigade (2018)	204	157	153.3	150	128.3	84.4
Shadow of the Tomb Raider (2018)	148	102.3	98.6	92.1	75.2	49.4
Far Cry New Dawn (2019)	118	113	109	99	91	55
Metro Exodus (2019)	144.3	92.3	70.4	53.3	46.3	34
Borderlands 3 (2019)	138	122.2	98.7	82.8	63.9	38.1
F1 2020 (2020)	203	119.2	124.8	106.1	89.5	60.2
F1 2021 (2021)	141	109.1	68.9	54.2	49.4	36.3
Far Cry 6 (2021)	75.3	63.4	52.3	45.6	44.8
God of War (2022)	109.2	95.4	80	60.5	53.5	39.6
Tiny Tina's Wonderlands (2022)	168.1	136.7	98.5	80.4	61.2	35.9
F1 22 (2022)	60.3	53.7	43	28.5	26.8	19.7

排放--耗电适中，但在负载下可以听到。

噪声排放

英特尔NUC 13 Pro套件相当不显眼，在怠速时几乎听不到，根据我们的测量，产生的噪音不超过31.1分贝（A）。在负载情况下，风扇的转速相当高：在我们的测试中，噪音水平平均为40 dB(A)。在我们的分析中，该设备只有在满载的情况下才会变得稍微响一点，峰值为40.5 dB(A)。总的来说，英特尔NUC 13 Pro套件的噪音比它的前辈略低，但MINISFORUM设备是我们比较组中最安静的。

Noise Level

Idle		30.2 / 31.1 / 31.9 dB(A)
Load		40 / 40.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 29.8 dB(A)

	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minisforum Mars Series MC560 R5 5600U, Vega 7	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs
Noise		-4%	3%	9%	7%	-11%	1%
off / environment *	29.8	30.4 -2%	30.4 -2%	30.2 -1%	30.2 -1%	30.5 -2%	30.28 -2%
Idle Minimum *	30.2	33.1 -10%	30.9 -2%	30.5 -1%	30.4 -1%	31.5 -4%	31.82 -5%
Idle Average *	31.1	33.1 -6%	31.5 -1%	30.5 2%	30.4 2%	32.6 -5%	32.27 -4%
Idle Maximum *	31.9	33.1 -4%	31.5 1%	30.5 4%	30.4 5%	33.8 -6%	33.17 -4%
Load Average *	40	38.1 5%	37.5 6%	30.5 24%	31.8 20%	49.3 -23%	35.82 10%
Load Maximum *	40.5	43.6 -8%	34.1 16%	30.5 25%	33.4 18%	50.9 -26%	37.1 8%

* ... smaller is better

温度

NUC 13 Pro Kit的机箱在怠速时几乎没有变热。温暖的空气直接从背面的机箱中排出。

在用Prime95进行的负载测试中，酷睿i7-1360P达到了100°C（212°F）的非常高的最高温度，但这只发生在测试开始时，处理器以其提升时钟运行。在使用Prime95的压力测试中，CPU能够将功耗始终保持在40瓦的PL1。它的P核以2.8GHz的平均速度运行，而E核能够达到大约2.2GHz。从根本上说，热量不是你必须担心的问题，因为这些高温是一种极端情况的结果，在日常使用中不太可能发生。

消耗功率

我们不会真的说英特尔NUC 12 Pro套件在当时是非常高效的。英特尔似乎在这一领域做出了一些体面的改进。NUC 13专业套装的空闲功耗现在大大降低。但是，该设备在负载下从120瓦的电源中吸取了高达108瓦的电量--大约比其前身多出10瓦。然而，在中等负荷下，两代产品的功耗只增加了4瓦，达到68瓦，考虑到酷睿i7-1360P的性能，这真是太棒了。酷睿i7-1360P.

Power Consumption

Off / Standby	0.5 / 1.2 Watt
Idle	5.1 / 5.8 / 10.2 Watt
Load	68.1 / 108.3 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minisforum Mars Series MC560 R5 5600U, Vega 7	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		-51%	-40%	-69%	18%	-4%	30%	4%	-39%
Idle Minimum *	5.1	12.1 -137%	9.9 -94%	12.1 -137%	6.2 -22%	8.4 -65%	3.4 33%	5.26 ?(2.2 - 46.5, n=184) -3%	9.8 ?(1.9 - 46.5, n=91, last 2 years) -92%
Idle Average *	5.8	12.2 -110%	11 -90%	13 -124%	6.3 -9%	8.7 -50%	5.7 2%	8.46 ?(3.8 - 63, n=184) -46%	11.7 ?(1.9 - 63, n=90, last 2 years) -102%
Idle Maximum *	10.2	12.3 -21%	11.2 -10%	18.2 -78%	7.5 26%	9.3 9%	7 31%	10.6 ?(5.8 - 68.9, n=184) -4%	14.7 ?(2.6 - 68.9, n=91, last 2 years) -44%
Load Average *	68.1	64 6%	74.2 -9%	70.6 -4%	41.3 39%	46.4 32%	36.5 46%	44.8 ?(12.5 - 77.5, n=184) 34%	51.9 ?(11.3 - 158.7, n=91, last 2 years) 24%
Load Maximum *	108.3	98.8 9%	103.2 5%	113 -4%	49 55%	52 52%	68 37%	66.6 ?(30.1 - 118, n=184) 39%	86 ?(18.1 - 271, n=91, last 2 years) 21%

* ... smaller is better

Power consumption with external monitor

Intel NUC 13 Pro Kit NUC13ANK; Prime95 V2810 Stress (external Monitor): Ø67.1 (59.5-97.8)

Intel NUC 13 Pro Kit NUC13ANK; Cinebench R15 Multi (external Monitor): Ø92.1 (90.4-93.2)

Intel NUC 13 Pro Kit NUC13ANK; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø61.4 (56.6-66.2)

Intel NUC 13 Pro Kit NUC13ANK; 1920x1080 The Witcher 3 ultra (external Monitor): Ø60.6 (55.5-69.7)

Intel NUC 13 Pro Kit NUC13ANK; Idle 1min (external Monitor): Ø5.76 (2.5-11.6)

Pros

+ 坚固而紧凑的机箱

+ 带有P-和E-核的快速现代SoC

+ 强大的系统性能

+ 易于打开

+ 2个Thunderbolt

+ 快速的Wi-Fi 6E

Cons

- 负载下可闻

- 只比前代产品稍快一些

评语 - 在熟悉的设计中更新硬件

英特尔NUC 13 Pro套件（Arena Canyon）是由英特尔德国公司为本次审查提供的。

英特尔多年来一直通过其NUC产品线活跃在迷你PC领域，并了解这种形式因素的真正重要性。代号为Arena Canyon的英特尔NUC 13 Pro套件，对于任何寻找微小而强大的PC的人来说，无疑是一个不错的选择。正如本评论前文所述，英特尔正在刷新NUC的阵容，给它配备了Core i7-1360P，并且现在指望Raptor Lake-P系列（取代了Alder Lake-P）。性能有了提高，但相当温和。因此，你不应该期望看到比带有Core i7-1260P的英特尔NUC 12 Pro套件在性能上有一个巨大的跳跃。关于端口的选择，也没有什么新的说法。但一个积极的方面是现代端口的多样性，这是你在小型PC上不常看到的。NUC 13 Pro套件提供了两个完全成熟的Thunderbolt连接。由于其外形因素，该设备的USB-A端口不超过四个，但这些应该足以满足大多数用户。

英特尔NUC 13专业套装是一款非常紧凑、高性能的办公电脑。由于其出色的外部连接性，这台小小的工作母机还能以有意义的方式进行扩展。

在我们的测试中，英特尔NUC 13 Pro套件提供了出色的性能。SoC和SSD都有令人印象深刻的表现。再加上慷慨的32GB DDR4内存（可升级到64GB），这台迷你电脑让我们在任何时候都能迅速工作。我们的审查单位没有任何重大缺陷。但在我们的Wi-Fi测试中，我们确实注意到它的5GHz连接有一些小缺陷。此外，我们希望看到在未来的NUC上使用更高质量的材料。摒弃塑料机身绝对是一个开始，也是对该设备的一个很好的配合。这也将使设备的感觉与整体包装更加一致。中国制造商Minicforum和Morefine已经用他们的产品证明了（Minisforum Neptune Series NAD9 和Morefine M600 ），这是可以实现的。

仅从外观上看，NUC 13 Pro套件明确无误地属于英特尔NUC系列。它有出色的装配和加工。这就是说，该设备在迷你PC领域的竞争对手相当多。领先的是英特尔NUC 12 Pro套件，这是其继任者的热点。MinisForum NAD9和Morefine M600同样是强大的竞争对手，提供类似的性能。

价格和可用性

英特尔NUC 13专业套件（Arena Canyon）现在还没有上市。根据英特尔的说法，它的价格应该与英特尔NUC 12 Pro套件差不多。NUC 13 Pro套件将以裸机系统和配备内存和固态硬盘的完整PC的形式提供。当我们回顾NUC 12专业套装时，它的价格约为660欧元（720美元）。在德国，你目前可以从Notebooksbillger.de购买带有Core i7-1260P的裸机模型，价格为540欧元（590美元）。购买，价格为540欧元（590美元）。

Transparency

The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Intel NUC 13 Pro Kit NUC13ANK - 2023-08-12 08/12/2023 v7
Sebastian Bade

Chassis

81 / 98 → 83%

Connectivity

57 / 81 → 71%

Weight

83%

Games Performance

68%

Application Performance

95%

Noise

82%

Average

75%

81%

Mini PC - Weighted Average

英特尔NUC 13 Pro套件又名Arena Canyon评论：配备英特尔酷睿i7-1360P的现代迷你PC，满足苛刻的应用需求

潜在的竞争对手比较

详细了解英特尔NUC 13 Pro套件

案例

尺寸比较

规格

连接性

辅料

维护

性能 - 酷睿i7，12个核心，16个线程

测试条件

处理器

英特尔NUC 13 Pro套件--Arena Canyon与Cinebench R15多循环对比

系统性能

DPC延时

大容量存储

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

Intel Iris Xe Graphics G7

NvidiaGeForce RTX 3060 Ti，通过Thunderbolt 3。

排放--耗电适中，但在负载下可以听到。

噪声排放

温度

消耗功率

Power consumption with external monitor

Pros

Cons

评语 - 在熟悉的设计中更新硬件

价格和可用性

Transparency

More articles related to this device
