Apple M2 SoC分析 - 与M1相比,CPU效率更差

Apple ,是否已经达到了5纳米工艺的极限? Apple M2来了,在我们对MacBook Pro 13和MacBook Air M2的评论之后,我们想仔细看看新的M2芯片。有什么变化,你可以期待哪些改进,以及增加的功耗如何影响效率,特别是与之前的M1芯片相比?
Apple ARM MacBook Thunderbolt

当Apple 推出自己的 M1 SoC大约两年前,这是一款令人印象深刻的芯片,在许多方面击败了来自英特尔和AMD的竞争对手,特别是在效率方面。现在我们有机会对M2 SoC的两个新版本进行评测。 M2 SoC的两个新版本,它基于相同的架构,仍然采用5纳米工艺制造。这个问题--从现有的芯片架构中获得越来越多的性能--在竞争中已经很熟悉了,因为客户期望每一代新产品都有性能的提升。

Apple 承诺在发布期间与旧的M1处理器相比有更多的性能,无论是处理器还是显卡。然而,当来自库比蒂诺的制造商对效率进行比较时,主要是针对PC笔记本电脑芯片,而不一定是旧的M1。我们可以确认一般的性能改进,但也有更高的消耗数字,所以我们想仔细看看效率。

Apple M2 SoC

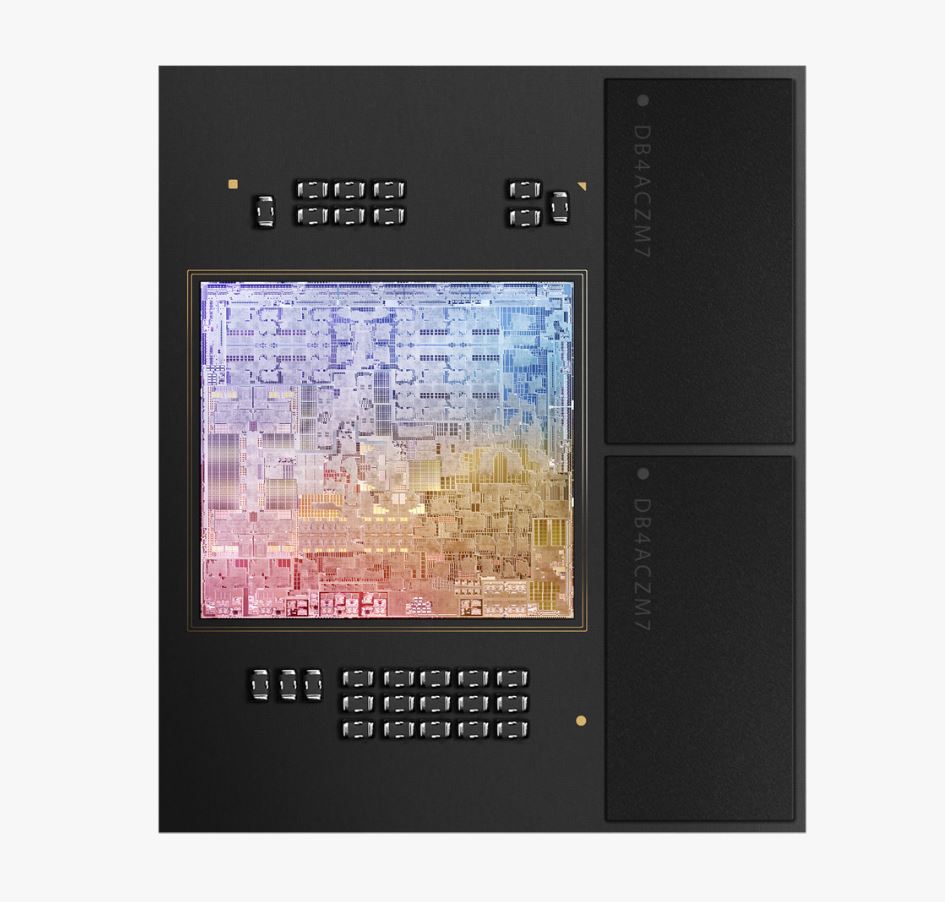

M2的示意图 (图片:Apple)
M2的示意图 (图片:Apple)

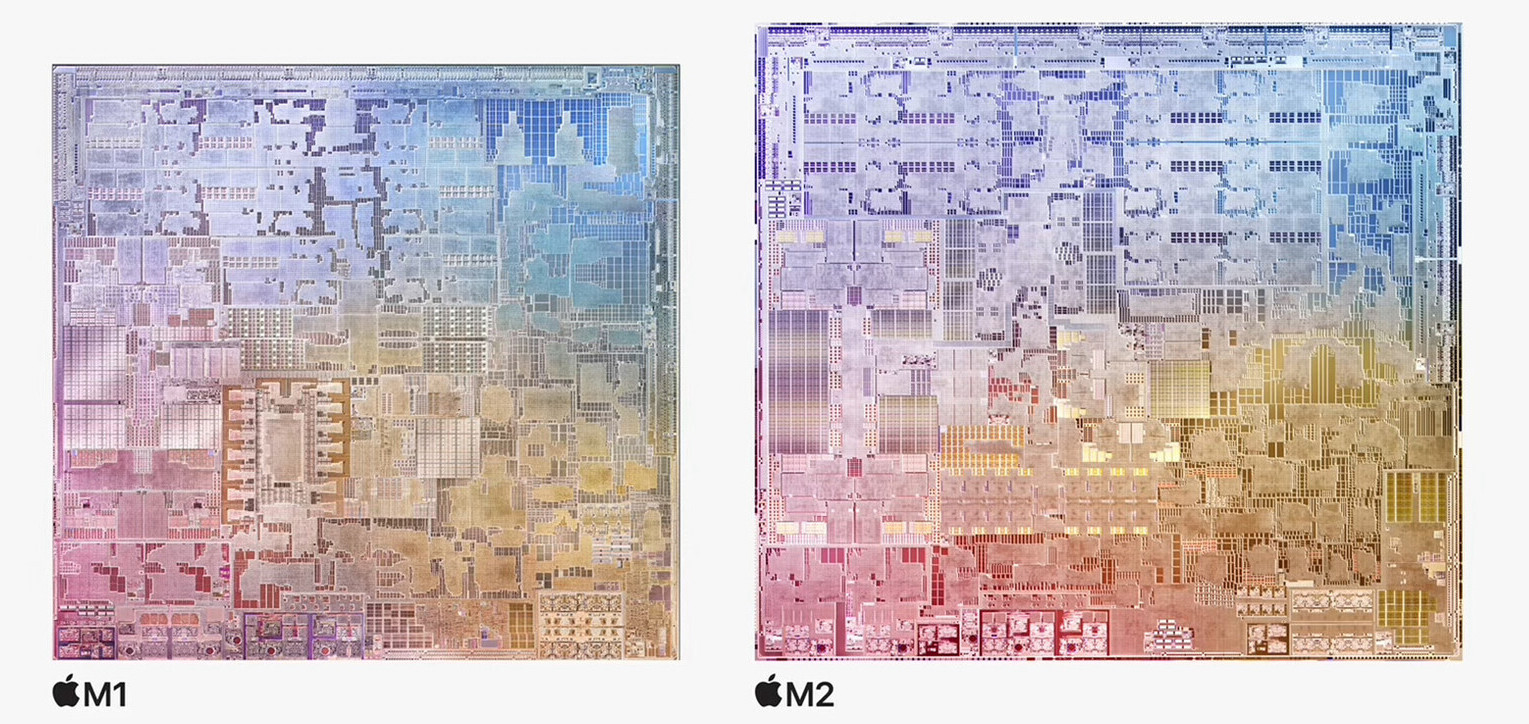

新的 M2 SoC是基于旧的M1芯片,采用改进的5纳米工艺(可能是台积电的N5P)制造。除了增加的晶体管数量(现在是200亿对160亿),支持8K和ProRes文件的新媒体引擎(也用于M1 Pro、M1 Max和M1 Ultra)以及更快的神经引擎,你现在得到了更强大的8或10核的GPU。从LPDDR4x到LPDDR5x内存的转换也使Apple ,将最大内存带宽从68.25GB/s提高到100GB/s,你现在可以得到高达24GB的统一内存。内存接口本身仍然是128位宽,而较大的M1 Pro芯片使用256位,M1 Max甚至使用512位接口。

基本的CPU配置也没有改变,你仍然得到总共8个核心,分为一个性能集群(4个核心)和一个效率集群(4个核心)。不过,最大时钟被提高了,效率核心现在达到了2.4GHz(以前是2.1GHz),而且还受益于更高的内存带宽。性能核心的最高时钟也达到了3.48GHz(以前是3.2GHz),但Apple ,也将其二级缓存从12MB增加到16MB。

我们不确定Apple ,集成显卡有什么变化。我们可以肯定的是,与旧的M1 GPU的1278 MHz相比,GPU核心(包括8核和10核版本)的时钟更高,达到1398 MHz。GPU也将从增加的内存带宽中受益,但我们注意到8核GPU的功耗并没有真正增加,所以必须有额外的改进。

单核的性能和效率

单核基准测试受益于更高的性能核心时钟,因为新的M2 SoC不仅比旧的M1快,而且比其他每一个M1变体,包括Pro,Max,甚至Ultra都快。它们都使用相同的性能核心,其时钟与我们从M1中了解到的相同,因此新的M2 MacBooks提供了目前Apple's组合中最好的单核性能。总而言之,优势在6%-8%之间,这取决于基准测试。

Single-Core Performance Rating - Percent
Apple M2
Apple MacBook Pro 13 2022 M2
99.9 pt ∼100%
Apple M2
Apple MacBook Air M2 Entry
99.4 pt ∼99%
Apple M1 Pro
Apple MacBook Pro 16 2021 M1 Pro
94 pt ∼94%
Apple M1 Pro 8-Core
Apple MacBook Pro 14 2021 M1 Pro Entry
94 pt ∼94%
Apple M1
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
92.6 pt ∼93%
Apple M1
Apple MacBook Air 2020 M1 Entry
91.8 pt ∼92%
Cinebench R23 - Single Core
Apple M2
Apple MacBook Air M2 Entry
1585 Points ∼100%
Apple M2
Apple MacBook Pro 13 2022 M2
1581 Points ∼100% 0%
Apple M1 Pro
Apple MacBook Pro 16 2021 M1 Pro
1534 Points ∼97% -3%
Apple M1 Pro 8-Core
Apple MacBook Pro 14 2021 M1 Pro Entry
1531 Points ∼97% -3%
Apple M1
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
1513 Points ∼95% -5%
Apple M1
Apple MacBook Air 2020 M1 Entry
1496 Points ∼94% -6%
Geekbench 5.4 - Single-Core
Apple M2
Apple MacBook Pro 13 2022 M2
1937 Points ∼100% +1%
Apple M2
Apple MacBook Air M2 Entry
1914 Points ∼99%
Apple M1 Pro 8-Core
Apple MacBook Pro 14 2021 M1 Pro Entry
1769 Points ∼91% -8%
Apple M1 Pro
Apple MacBook Pro 16 2021 M1 Pro
1768 Points ∼91% -8%
Apple M1
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
1740 Points ∼90% -9%
Apple M1
Apple MacBook Air 2020 M1 Entry
1727 Points ∼89% -10%

更高的时钟需要更多的功率,因为旧的M1消耗约3.7瓦特,新的M2需要约5.3瓦特。M1 Pro型号的功耗甚至更高,为7瓦,但它们是更大的芯片,有更多的内核。这意味着新M2的单核效率与旧M1处理器相比,大约差26%。

Power Consumption
Cinebench R23 Single Package Power
Apple M1 Pro 8-Core
Apple MacBook Pro 14 2021 M1 Pro Entry
7 Watt * ∼100% -31%
Apple M1 Pro
Apple MacBook Pro 16 2021 M1 Pro
7 Watt * ∼100% -31%
Apple M2
Apple MacBook Air M2 Entry
5.34 (5.015min, 5.07638P1 - 5.962max) Watt * ∼76%
Apple M2
Apple MacBook Pro 13 2022 M2
5.31 (4.821min, 4.85076P1 - 5.943max) Watt * ∼76% +1%
Apple M1
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
3.75 (3.575min, 3.58115P1 - 4.763max) Watt * ∼54% +30%
Apple M1
Apple MacBook Air 2020 M1 Entry
3.68 (3.133min, 3.17243P0.1, 3.50554P1 - 5.517max) Watt * ∼53% +31%
Cinebench R23 Single Package Power Efficiency
Apple M1
Apple MacBook Air 2020 M1 Entry
407 Points per Watt ∼100% +37%
Apple M1
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
403 Points per Watt ∼99% +36%
Apple M2
Apple MacBook Pro 13 2022 M2
298 Points per Watt ∼73% 0%
Apple M2
Apple MacBook Air M2 Entry
297 Points per Watt ∼73%
Apple M1 Pro 8-Core
Apple MacBook Pro 14 2021 M1 Pro Entry
219 Points per Watt ∼54% -26%
Apple M1 Pro
Apple MacBook Pro 16 2021 M1 Pro
219 Points per Watt ∼54% -26%

* ... smaller is better

多核性能和效率

与老款M1相比,在多核情况下,性能改进更大,因为所有8个核心都从更高的时钟中受益。我们可以看到,在Geekbench 5中,最大的改进是18%,这也是Apple 。在Cinebench R23中的优势稍小,我们得到的平均性能提升约为15%。

M1 Pro CPU在多核基准测试中仍然有很大的优势,至少10核版本 (+40 %)有8个性能核心。 入门级MacBook Pro 14 中的M1 Pro

8核型号仅使用6个性能核心,因此与新的M2相比,其优势要小得多,约为10%。<br />

Multi-Core Performance Rating - Percent
Apple M1 Pro
Apple MacBook Pro 16 2021 M1 Pro
100 pt ∼100%
Apple M1 Pro 8-Core
Apple MacBook Pro 14 2021 M1 Pro Entry
78.5 pt ∼79%
Apple M2
Apple MacBook Pro 13 2022 M2
71.2 pt ∼71%
Apple M2
Apple MacBook Air M2 Entry
70.8 pt ∼71%
Apple M1
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
61.9 pt ∼62%
Apple M1
Apple MacBook Air 2020 M1 Entry
60.3 pt ∼60%
Cinebench R23 - Multi Core
Apple M1 Pro
Apple MacBook Pro 16 2021 M1 Pro
12370 Points ∼100% +43%
Apple M1 Pro 8-Core
Apple MacBook Pro 14 2021 M1 Pro Entry
9581 Points ∼77% +11%
Apple M2
Apple MacBook Pro 13 2022 M2
8745 Points ∼71% +1%
Apple M2
Apple MacBook Air M2 Entry
8667 Points ∼70%
Apple M1
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
7811 Points ∼63% -10%
Apple M1
Apple MacBook Air 2020 M1 Entry
7409 (6401.39min - 7409.31max) Points ∼60% -15%
Geekbench 5.4 - Multi-Core
Apple M1 Pro
Apple MacBook Pro 16 2021 M1 Pro
12499 Points ∼100% +40%
Apple M1 Pro 8-Core
Apple MacBook Pro 14 2021 M1 Pro Entry
9942 Points ∼80% +11%
Apple M2
Apple MacBook Pro 13 2022 M2
8962 Points ∼72% 0%
Apple M2
Apple MacBook Air M2 Entry
8951 Points ∼72%
Apple M1
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
7590 Points ∼61% -15%
Apple M1
Apple MacBook Air 2020 M1 Entry
7578 Points ∼61% -15%

这种平均15%的性能优势被35-40%的额外功耗所抵消,因此总体效率降低了20-25%。因此,新的M2几乎与拥有10个CPU内核的M1 Pro芯片相提并论。

Power Consumption
Cinebench R23 Multi Package Power
Apple M1 Pro
Apple MacBook Pro 16 2021 M1 Pro
31 Watt * ∼100% -46%
Apple M1 Pro 8-Core
Apple MacBook Pro 14 2021 M1 Pro Entry
25 Watt * ∼81% -18%
Apple M2
Apple MacBook Air M2 Entry
21.2 (20.586min, 20.6038P1 - 21.892max) Watt * ∼68%
Apple M2
Apple MacBook Pro 13 2022 M2
20.2 (19.771min, 19.7734P1 - 20.587max) Watt * ∼65% +5%
Apple M1
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
15 (14.567min, 14.5839P1 - 15.459max) Watt * ∼48% +29%
Apple M1
Apple MacBook Air 2020 M1 Entry
13.2 (10.435min, 10.497P1 - 15.548max) Watt * ∼43% +38%
Cinebench R23 Multi Package Power Efficiency
Apple M1
Apple MacBook Air 2020 M1 Entry
561 Points per Watt ∼100% +37%
Apple M1
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
521 Points per Watt ∼93% +27%
Apple M2
Apple MacBook Pro 13 2022 M2
433 Points per Watt ∼77% +6%
Apple M2
Apple MacBook Air M2 Entry
409 Points per Watt ∼73%
Apple M1 Pro
Apple MacBook Pro 16 2021 M1 Pro
399 Points per Watt ∼71% -2%
Apple M1 Pro 8-Core
Apple MacBook Pro 14 2021 M1 Pro Entry
383 Points per Watt ∼68% -6%

* ... smaller is better

与AMD和英特尔的比较

英特尔新的Alder Lake-P芯片相比,提供了更多的单核以及多核性能。 Apple M2(Geekbench 5单核测试是唯一的例外)。然而,这只是具有高TDP数字的芯片的情况;Alder Lake-P的CPU在 三星Galaxy Book2例如,20瓦的Alder Lake-P,完全没有竞争力。

新的 AMD Ryzen 7 6800U在单核测试中比M2慢,但在Cinebench R23 Multi中却有20%的优势。然而,Apple M2在Geekbench 5中表现非常好,再次领先于6800U。如果你综合所有的结果,新的M2实际上在性能评级上领先于Ryzen 7 6800U。

Performance Rating - Percent
Intel Core i7-12700H
Asus Zenbook Pro 14 Duo OLED UX8402ZA
97.9 pt ∼98%
Intel Core i7-1260P
Lenovo Yoga 9i 14 2022 i7-1260P
86.2 pt ∼86%
Intel Core i5-1240P
Lenovo Yoga Slim 7i Pro 14IAP G7
81.6 pt ∼82%
Apple M2
Apple MacBook Pro 13 2022 M2
79.5 pt ∼80%
Apple M2
Apple MacBook Air M2 Entry
79.1 pt ∼79%
AMD Ryzen 7 6800U
Asus Zenbook S 13 OLED
72.9 pt ∼73%
AMD Ryzen 5 5600U
Dynabook Satellite Pro C50D-B-115
56.6 pt ∼57%
Intel Core i5-1240P
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
36.7 pt ∼37%
Cinebench R23
Single Core
Intel Core i7-12700H
Asus Zenbook Pro 14 Duo OLED UX8402ZA
1807 Points ∼100% +14%
Intel Core i7-1260P
Lenovo Yoga 9i 14 2022 i7-1260P
1793 Points ∼99% +13%
Intel Core i5-1240P
Lenovo Yoga Slim 7i Pro 14IAP G7
1663 Points ∼92% +5%
Apple M2
Apple MacBook Air M2 Entry
1585 Points ∼88%
Apple M2
Apple MacBook Pro 13 2022 M2
1581 Points ∼87% 0%
AMD Ryzen 7 6800U
Asus Zenbook S 13 OLED
1488 Points ∼82% -6%
AMD Ryzen 5 5600U
Dynabook Satellite Pro C50D-B-115
1362 Points ∼75% -14%
Intel Core i5-1240P
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
640 Points ∼35% -60%
Multi Core
Intel Core i7-12700H
Asus Zenbook Pro 14 Duo OLED UX8402ZA
15101 Points ∼100% +74%
Intel Core i5-1240P
Lenovo Yoga Slim 7i Pro 14IAP G7
11266 Points ∼75% +30%
Intel Core i7-1260P
Lenovo Yoga 9i 14 2022 i7-1260P
10735 Points ∼71% +24%
AMD Ryzen 7 6800U
Asus Zenbook S 13 OLED
10468 Points ∼69% +21%
Apple M2
Apple MacBook Pro 13 2022 M2
8745 Points ∼58% +1%
Apple M2
Apple MacBook Air M2 Entry
8667 Points ∼57%
AMD Ryzen 5 5600U
Dynabook Satellite Pro C50D-B-115
6871 Points ∼46% -21%
Intel Core i5-1240P
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
5680 Points ∼38% -34%
Geekbench 5.4
Single-Core
Apple M2
Apple MacBook Pro 13 2022 M2
1937 Points ∼100% +1%
Apple M2
Apple MacBook Air M2 Entry
1914 Points ∼99%
Intel Core i7-12700H
Asus Zenbook Pro 14 Duo OLED UX8402ZA
1771 Points ∼91% -7%
Intel Core i7-1260P
Lenovo Yoga 9i 14 2022 i7-1260P
1764 Points ∼91% -8%
Intel Core i5-1240P
Lenovo Yoga Slim 7i Pro 14IAP G7
1581 Points ∼82% -17%
AMD Ryzen 7 6800U
Asus Zenbook S 13 OLED
1514 Points ∼78% -21%
AMD Ryzen 5 5600U
Dynabook Satellite Pro C50D-B-115
1334 Points ∼69% -30%
Intel Core i5-1240P
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
672 Points ∼35% -65%
Multi-Core
Intel Core i7-12700H
Asus Zenbook Pro 14 Duo OLED UX8402ZA
12345 Points ∼100% +38%
Intel Core i7-1260P
Lenovo Yoga 9i 14 2022 i7-1260P
10321 Points ∼84% +15%
Intel Core i5-1240P
Lenovo Yoga Slim 7i Pro 14IAP G7
9639 Points ∼78% +8%
Apple M2
Apple MacBook Pro 13 2022 M2
8962 Points ∼73% 0%
Apple M2
Apple MacBook Air M2 Entry
8951 Points ∼73%
AMD Ryzen 7 6800U
Asus Zenbook S 13 OLED
7613 Points ∼62% -15%
Intel Core i5-1240P
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
4819 Points ∼39% -46%
AMD Ryzen 5 5600U
Dynabook Satellite Pro C50D-B-115
4506 Points ∼37% -50%

即使新的M2的效率与旧的M1芯片相比要差很多,但M2仍然明显优于AMD和英特尔的对手。在单核情况下,效率要高得多,Alder Lake芯片由于性能核心的高消耗(25-30瓦)而落后。AMD的Ryzen 7 6800U的情况要好一些。 Ryzen 7 6800U,但它在单核情况下的消耗也超过了15瓦,尽管性能较低。

英特尔目前的移动CPU在多核效率方面也差很多,尽管差异没有单核测试中那么大。另一方面,Ryzen 7 6800U几乎可以完全缩小差距,至少在我们看Cinebench R23时是如此。

Power Consumption / Cinebench R23 Single Package Power Efficiency
Apple M2
Apple MacBook Pro 13 2022 M2
298 Points per Watt ∼100% 0%
Apple M2
Apple MacBook Air M2 Entry
297 Points per Watt ∼100%
AMD Ryzen 5 5600U
Dynabook Satellite Pro C50D-B-115
82.2 Points per Watt ∼28% -72%
AMD Ryzen 7 6800U
Asus Zenbook S 13 OLED
78.3 Points per Watt ∼26% -74%
Intel Core i5-1240P
Lenovo Yoga Slim 7i Pro 14IAP G7
64 Points per Watt ∼21% -78%
Intel Core i7-1260P
Lenovo Yoga 9i 14 2022 i7-1260P
61.8 Points per Watt ∼21% -79%
Intel Core i7-12700H
Asus Zenbook Pro 14 Duo OLED UX8402ZA
58.3 Points per Watt ∼20% -80%
Power Consumption / Cinebench R23 Multi Package Power Efficiency
Apple M2
Apple MacBook Pro 13 2022 M2
433 Points per Watt ∼100% +6%
Apple M2
Apple MacBook Air M2 Entry
409 Points per Watt ∼94%
AMD Ryzen 7 6800U
Asus Zenbook S 13 OLED
374 Points per Watt ∼86% -9%
AMD Ryzen 5 5600U
Dynabook Satellite Pro C50D-B-115
327 Points per Watt ∼76% -20%
Intel Core i5-1240P
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
258 Points per Watt ∼60% -37%
Intel Core i7-1260P
Lenovo Yoga 9i 14 2022 i7-1260P
244 Points per Watt ∼56% -40%
Intel Core i7-12700H
Asus Zenbook Pro 14 Duo OLED UX8402ZA
222 Points per Watt ∼51% -46%
Intel Core i5-1240P
Lenovo Yoga Slim 7i Pro 14IAP G7
197.6 Points per Watt ∼46% -52%
Power Consumption / Cinebench R23 Single Package Power
Intel Core i7-12700H
Asus Zenbook Pro 14 Duo OLED UX8402ZA
31 Watt * ∼100% -481%
Intel Core i7-1260P
Lenovo Yoga 9i 14 2022 i7-1260P
29 Watt * ∼94% -443%
Intel Core i5-1240P
Lenovo Yoga Slim 7i Pro 14IAP G7
26 Watt * ∼84% -387%
AMD Ryzen 7 6800U
Asus Zenbook S 13 OLED
19 Watt * ∼61% -256%
AMD Ryzen 5 5600U
Dynabook Satellite Pro C50D-B-115
15 Watt * ∼48% -181%
Apple M2
Apple MacBook Air M2 Entry
5.34 (5.015min, 5.07638P1 - 5.962max) Watt * ∼17%
Apple M2
Apple MacBook Pro 13 2022 M2
5.31 (4.821min, 4.85076P1 - 5.943max) Watt * ∼17% +1%
Power Consumption / Cinebench R23 Multi Package Power
Intel Core i7-12700H
Asus Zenbook Pro 14 Duo OLED UX8402ZA
68 Watt * ∼100% -221%
Intel Core i5-1240P
Lenovo Yoga Slim 7i Pro 14IAP G7
57 Watt * ∼84% -169%
Intel Core i7-1260P
Lenovo Yoga 9i 14 2022 i7-1260P
44 Watt * ∼65% -108%
AMD Ryzen 7 6800U
Asus Zenbook S 13 OLED
28 Watt * ∼41% -32%
Intel Core i5-1240P
Samsung Galaxy Book2 Pro 13 NP930XED-KA1DE
22 Watt * ∼32% -4%
Apple M2
Apple MacBook Air M2 Entry
21.2 (20.586min, 20.6038P1 - 21.892max) Watt * ∼31%
AMD Ryzen 5 5600U
Dynabook Satellite Pro C50D-B-115
21 Watt * ∼31% +1%
Apple M2
Apple MacBook Pro 13 2022 M2
20.2 (19.771min, 19.7734P1 - 20.587max) Watt * ∼30% +5%

* ... smaller is better

GPU性能和效率

我们用原生基准3DMark Wild Life Extreme Unlimited以及使用Metal API的Geekbench和GFXBench评估新M2 GPU的性能。新的M2变种很适合现有的MacBook阵容,因为新的 8核M2 GPU比M1的8核版本快16%左右。 8核版本的M1.M2的10核版 10核版本的M2又快了19%。

GPU Performance Rating - Percent
Apple M1 Pro 16-Core GPU
Apple MacBook Pro 16 2021 M1 Pro
100 pt ∼100%
Apple M1 Pro 14-Core GPU
Apple MacBook Pro 14 2021 M1 Pro Entry
88.9 pt ∼89%
Apple M2 10-Core GPU
Apple MacBook Air M2 10C GPU
68 pt ∼68%
Apple M2 8-Core GPU
Apple MacBook Air M2 Entry
57.2 pt ∼57%
Apple M1 8-Core GPU
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
49.2 pt ∼49%
Apple M1 7-Core GPU
Apple MacBook Air 2020 M1 Entry
44.2 pt ∼44%
3DMark - Wild Life Extreme Unlimited
Apple M1 Pro 16-Core GPU
Apple MacBook Pro 16 2021 M1 Pro
10352 Points ∼100% +82%
Apple M1 Pro 14-Core GPU
Apple MacBook Pro 14 2021 M1 Pro Entry
9267 Points ∼90% +63%
Apple M2 10-Core GPU
Apple MacBook Air M2 10C GPU
6824 Points ∼66% +20%
Apple M2 8-Core GPU
Apple MacBook Air M2 Entry
5689 Points ∼55%
Apple M1 8-Core GPU
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
4997 Points ∼48% -12%
Apple M1 7-Core GPU
Apple MacBook Air 2020 M1 Entry
4515 Points ∼44% -21%
Geekbench 5.4 - Metal Score
Apple M1 Pro 16-Core GPU
Apple MacBook Pro 16 2021 M1 Pro
42115 Points ∼100% +61%
Apple M1 Pro 14-Core GPU
Apple MacBook Pro 14 2021 M1 Pro Entry
37319 Points ∼89% +43%
Apple M2 10-Core GPU
Apple MacBook Air M2 10C GPU
30269 Points ∼72% +16%
Apple M2 8-Core GPU
Apple MacBook Air M2 Entry
26079 Points ∼62%
Apple M1 8-Core GPU
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
21951 Points ∼52% -16%
Apple M1 7-Core GPU
Apple MacBook Air 2020 M1 Entry
19064 Points ∼45% -27%
GFXBench - 2560x1440 Aztec Ruins High Tier Offscreen
Apple M1 Pro 16-Core GPU
Apple MacBook Pro 16 2021 M1 Pro
166 fps ∼100% +82%
Apple M1 Pro 14-Core GPU
Apple MacBook Pro 14 2021 M1 Pro Entry
147 fps ∼89% +62%
Apple M2 10-Core GPU
Apple MacBook Air M2 10C GPU
110 fps ∼66% +21%
Apple M2 8-Core GPU
Apple MacBook Air M2 Entry
91 fps ∼55%
Apple M1 8-Core GPU
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
78.2 fps ∼47% -14%
Apple M1 7-Core GPU
Apple MacBook Air 2020 M1 Entry
72.4 fps ∼44% -20%

尽管性能更高,但与M1 8核GPU相比,8核M2 GPU的功耗实际上只高一点点。M2在扩展方面非常线性,10核版本显然消耗更多的电力,但两个型号都比旧的M1 GPU效率高11%。

Power Consumption
3DMark Wild Life Extreme Unlimited GPU Power
Apple M1 Pro 16-Core GPU
Apple MacBook Pro 16 2021 M1 Pro
21.4 (20.994min, 20.9987P1 - 21.789max) Watt * ∼100% -122%
Apple M2 10-Core GPU
Apple MacBook Air M2 10C GPU
11.5 (5.562min, 6.06464P1 - 12.726max) Watt * ∼54% -19%
Apple M2 8-Core GPU
Apple MacBook Air M2 Entry
9.64 (5.938min, 6.3102P1 - 10.496max) Watt * ∼45%
Apple M1 8-Core GPU
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
9.4 (6.488min, 6.79985P1 - 10.071max) Watt * ∼44% +2%
3DMark Wild Life Extreme Unlimited GPU Efficiency (internal tool)
Apple M2 10-Core GPU
Apple MacBook Air M2 10C GPU
593 Points per Watt ∼100% +1%
Apple M2 8-Core GPU
Apple MacBook Air M2 Entry
590 Points per Watt ∼99%
Apple M1 8-Core GPU
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
532 Points per Watt ∼90% -10%
Apple M1 Pro 16-Core GPU
Apple MacBook Pro 16 2021 M1 Pro
484 Points per Watt ∼82% -18%

* ... smaller is better

结论 - M2只是一个小小的升级

Apple M2 (图片: )Apple
Apple M2 (图片: )Apple

总而言之,新的M2 SoC再次是一个非常好的也是高效的芯片,它结合了许多功能。它在闲置时非常高效,这也解释了为什么MacBook Pro 13的电池运行时间非常好。 MacBook Pro 13MacBook Air.当你比较效率时,在单核情况下,对AMD和英特尔的优势仍然是巨大的。然而,AMD的Ryzen 6000代,在多核效率方面并不遥远。

Apple 是仍然使用我们从M1知道的5纳米制造工艺(即使有优化),所以我们看到英特尔多年来面临的同样问题。与M1相比,M2 CPU的性能优势主要是更高的时钟,此外还有更高的内存带宽和更大的性能核心的二级缓存。然而,更高的时钟需要更多的功率,在多核情况下18%的最大性能优势是由大约40%的高功率消耗造成的,因此新M2的CPU不再像M1那样高效。另一方面,集成GPU的效率实际上比以前提高了10%左右,因为尽管性能有所提高,但8核M2 GPU的功耗与8核M1 GPU相当。

Apple

使用大量的电力来提高M2的CPU性能,与旧的M1相比,效率明显下降。与AMD和英特尔相比,仍有效率优势,特别是在单核情况下。

所有这些数值对即将推出的M2的专业机型没有任何指示,我们预计在今年晚些时候更新的MacBook Pro 14和16机型中,因为这些芯片应该是用新的3纳米工艺制造。

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Apple M2 SoC分析 - 与M1相比,CPU效率更差
Andreas Osthoff, 2022-07-30 (Update: 2022-07-30)
