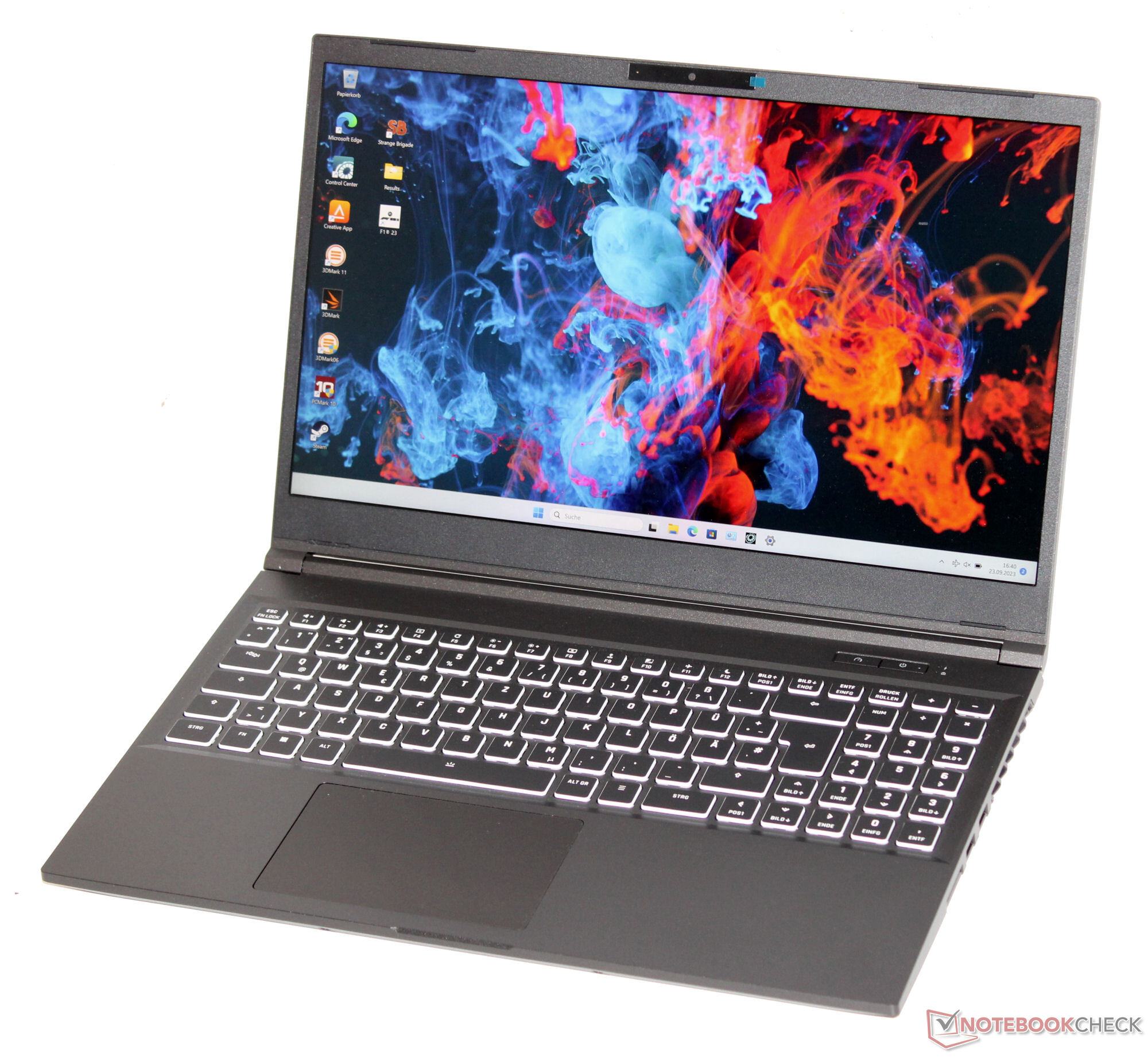

MagyarXMG Apex 15（23 晚）评测：配备 RTX 4050、运行时间出色的游戏笔记本电脑

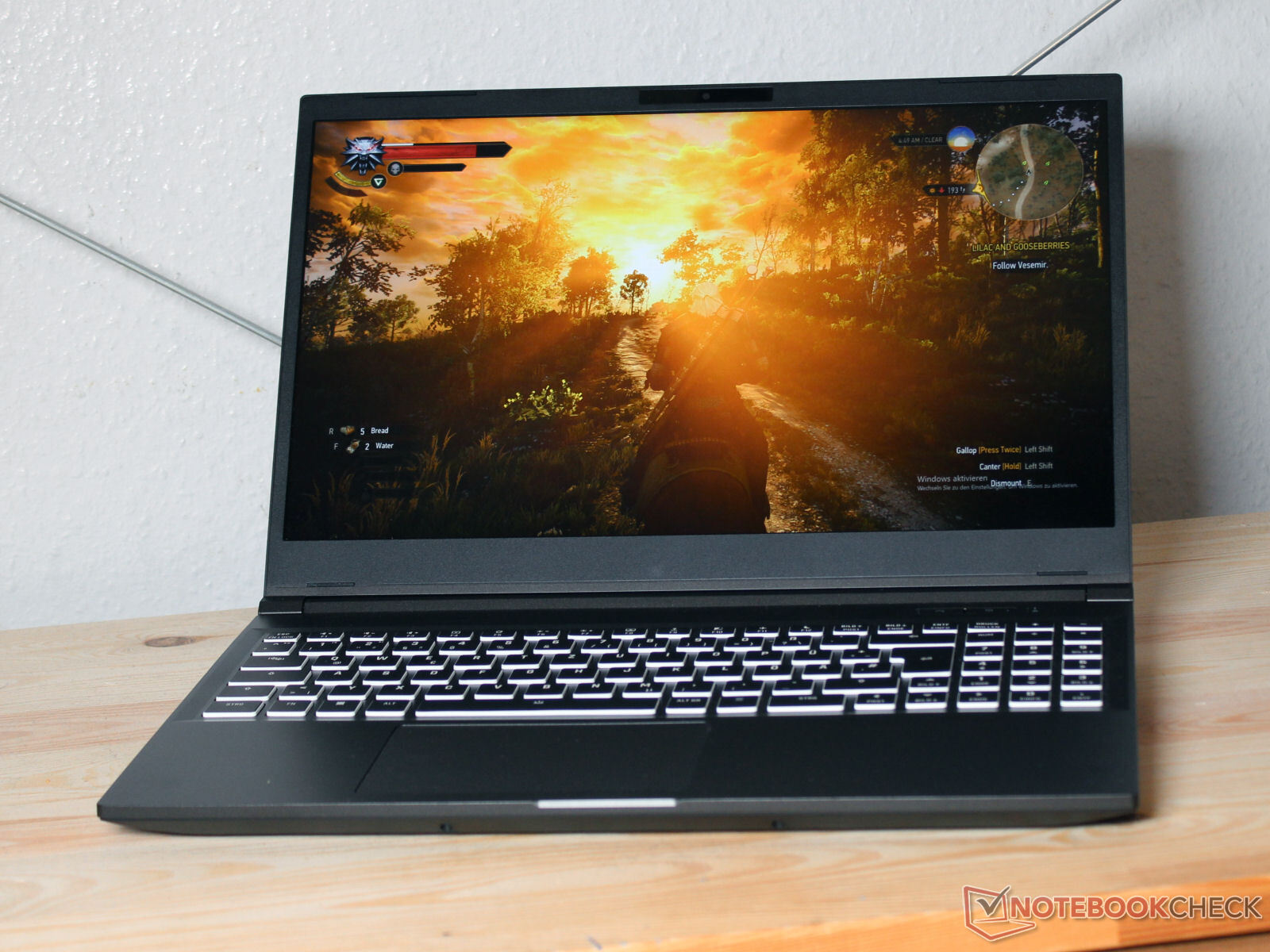

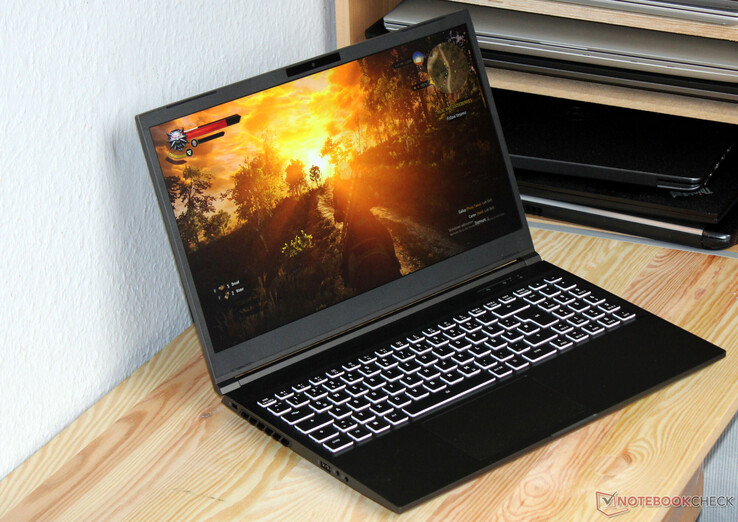

XMG Apex 15（晚 23 日）是一款中端游戏笔记本电脑，采用 AMD 和 Nvidia 技术：Pheonix 和 Ada Lovelace 为其提供动力。我们在最近评测的 17.3 英寸姊妹机型 Apex 17（Late 23）上已经看到了这种组合。 Apex 17（23 屏）.Apex 15 基于同方生产的裸机（GM5XG5E），目前的售价约为 1,540 美元。竞争对手包括联想Legion Pro 5 16ARX8, 宏碁 Nitro 16 AN16-41, 微星 Katana 15 B12VEK和华硕 TUF A15 FA507.
SCHENKER XMG Apex 15 (Late 23) (XMG Apex Series)
Processor
AMD Ryzen 7 7840HS 8 x 3.8 - 5.1 GHz, 65 W PL2 / Short Burst, 54 W PL1 / Sustained, Phoenix-HS (Zen 4)
Graphics adapter

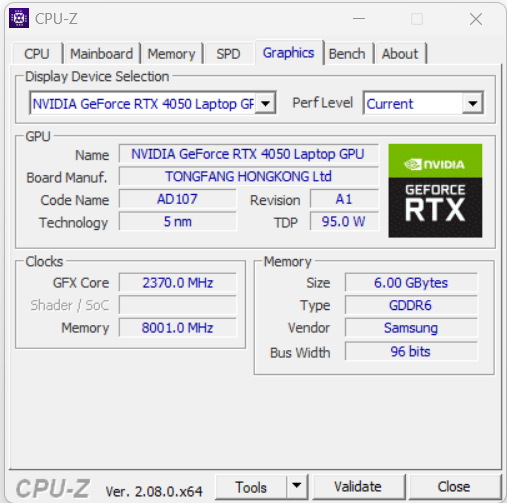

NVIDIA GeForce RTX 4050 Laptop GPU - 6 GB VRAM, Core: 2370 MHz, Memory: 2000 MHz, 140 W TDP ( including 25 W Dynamic Boost), GDDR6, 31.0.15.3734, Optimus

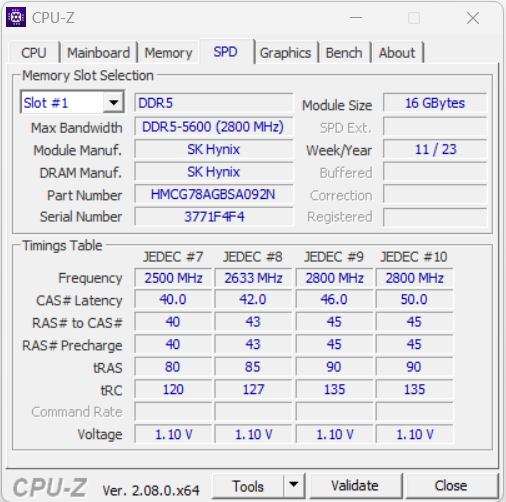

Memory
32 GB
, DDR5-5600, Dual-Channel-Mode
Display
15.60 inch 16:9, 2560 x 1440 pixel 188 PPI, BOE CQ NE156QHM-NY2, IPS, glossy: no, 165 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
Samsung 990 Pro 1 TB, 1024 GB
, PCIe 4, M.2-2280, 864 GB free
Weight
2.214 kg, Power Supply: 500 g
Price
1469 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
|---|---|---|---|---|---|---|---|
| 86.2 % | 10/2023 | SCHENKER XMG Apex 15 (Late 23) R7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU | 2.2 kg | 26.7 mm | 15.60" | 2560x1440 | |
| 86.7 % | 08/2023 | Acer Nitro 16 AN16-41-R7YE R5 7535HS, NVIDIA GeForce RTX 4050 Laptop GPU | 2.6 kg | 27.9 mm | 16.00" | 1920x1200 | |
| 89 % | 08/2023 | Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) R5 7645HX, NVIDIA GeForce RTX 4050 Laptop GPU | 2.5 kg | 27.3 mm | 16.00" | 2560x1600 | |
| 86.3 % | 06/2023 | Asus TUF A15 FA507 R7 7735HS, NVIDIA GeForce RTX 4050 Laptop GPU | 2.2 kg | 24.9 mm | 15.60" | 1920x1080 | |
| 82.9 % | 03/2023 | MSI Katana 15 B12VEK i7-12650H, NVIDIA GeForce RTX 4050 Laptop GPU | 2.3 kg | 24.9 mm | 15.60" | 1920x1080 |
外壳 - 带塑料外壳的 XMG 笔记本电脑

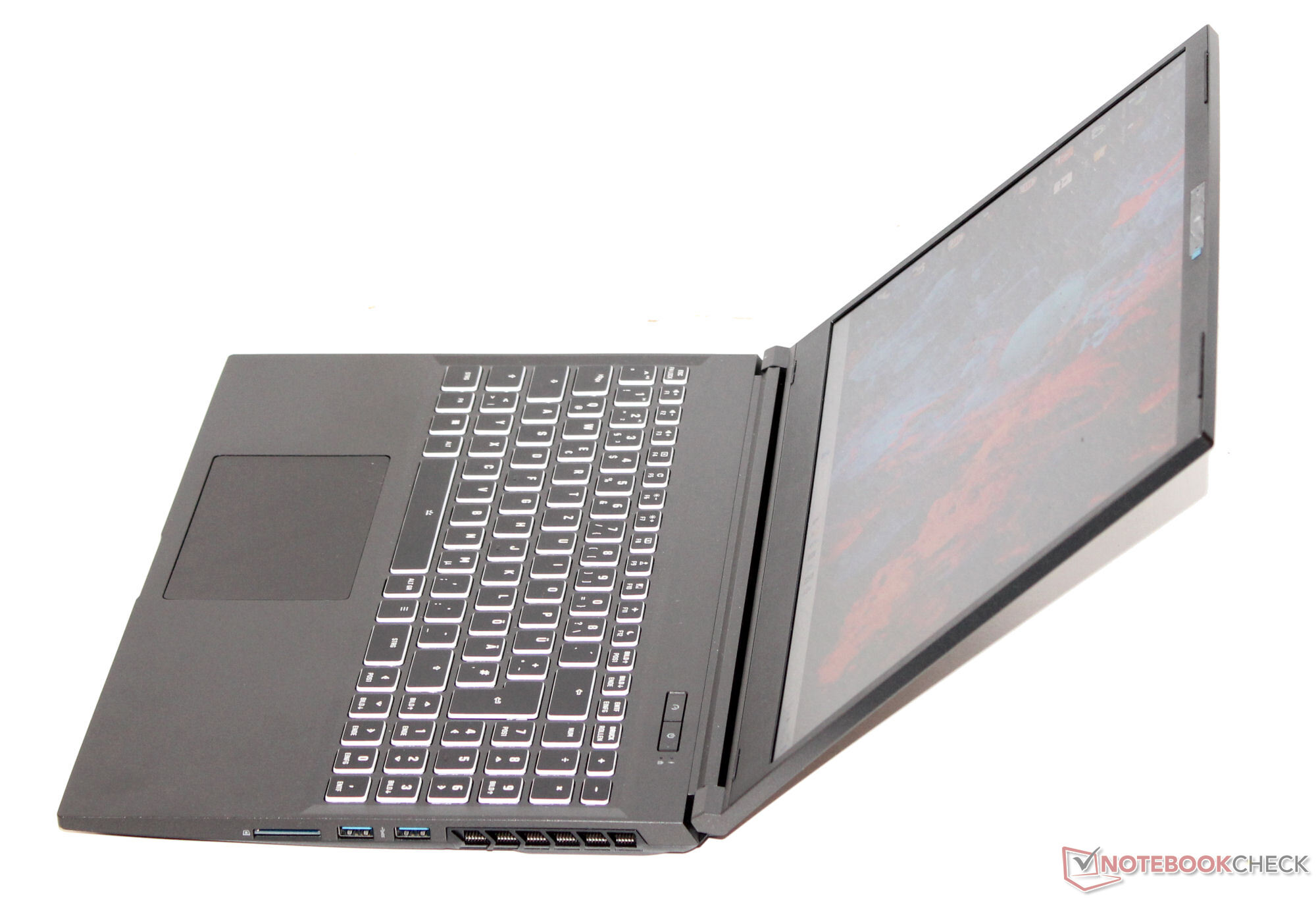

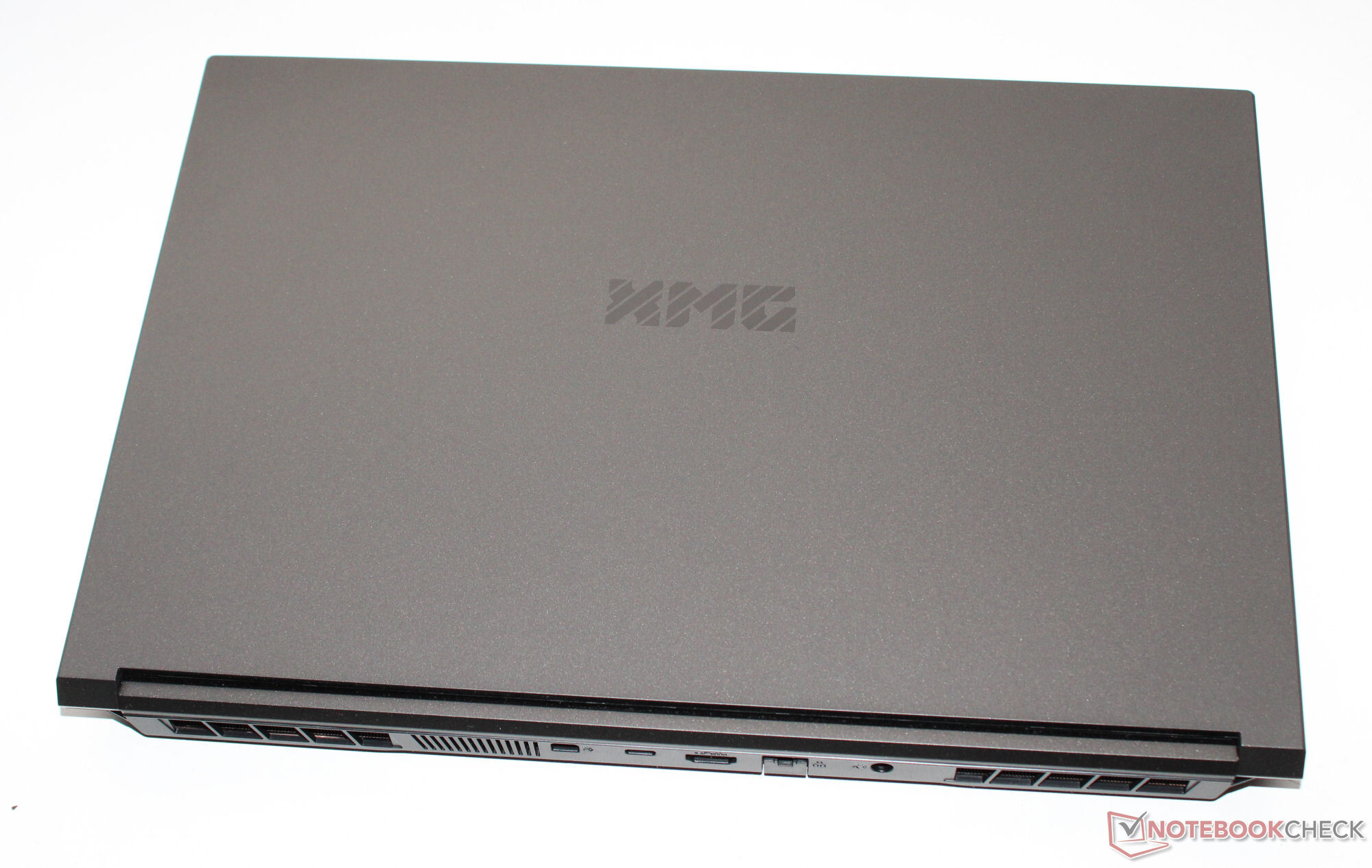

其光滑的外壳和哑光光滑的表面不会在专业环境中引起任何注意。它没有采用任何外向型设计元素，如 LED 灯带。没有使用高品质的外壳材料：这款笔记本电脑完全依赖塑料部件。拆下机壳底部后，就能看到电池（用螺丝固定，而非胶粘）和常用硬件。
我们没有发现任何制造缺陷或缝隙。底座可以轻微扭曲，但不会太严重。盖子似乎更灵活：扭动盖子会产生轻微的图像变化。我们希望它能更稳定一些。略有弹性的铰链将盖子牢牢固定。其最大开启角度为 130 度。单手即可打开设备。
在同类产品中，XMG 笔记本电脑是最轻、最紧凑的设备。它的重量约为 2.2 千克，是同类产品中最轻的笔记本电脑之一。
连接性 - 无 Thunderbolt 4/USB 4

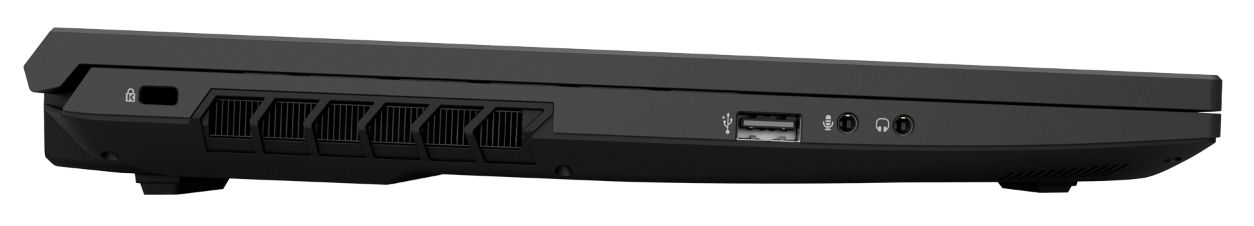

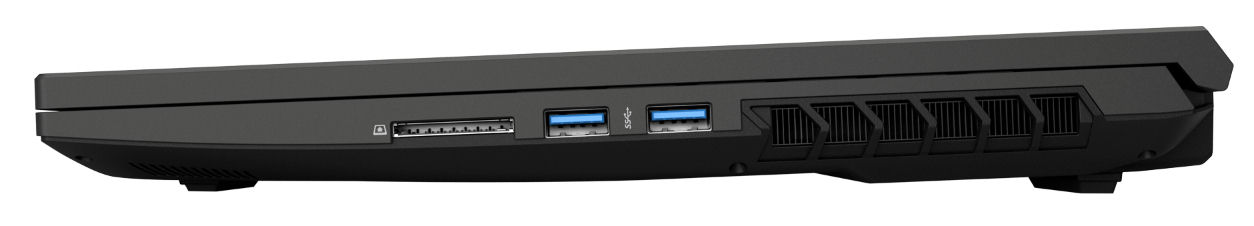

Apex 配备三个 USB-A 端口（1 个 USB 2.0、2 个 USB 3.2 Gen 1）和一个 USB-C 端口（USB 3.2 Gen 2）。USB-C 端口既不支持 DisplayPort，也不支持 Power Delivery。它还有两个视频输出接口（HDMI 2.1、DP 1.4a）、两个音频接口和一个千兆以太网接口。

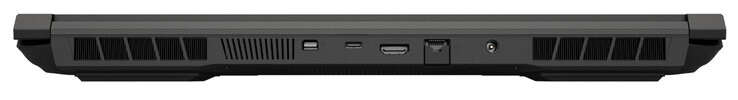

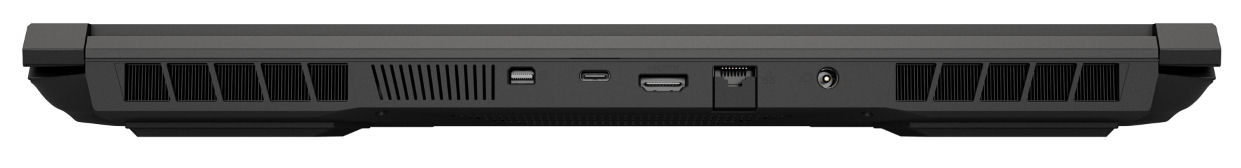

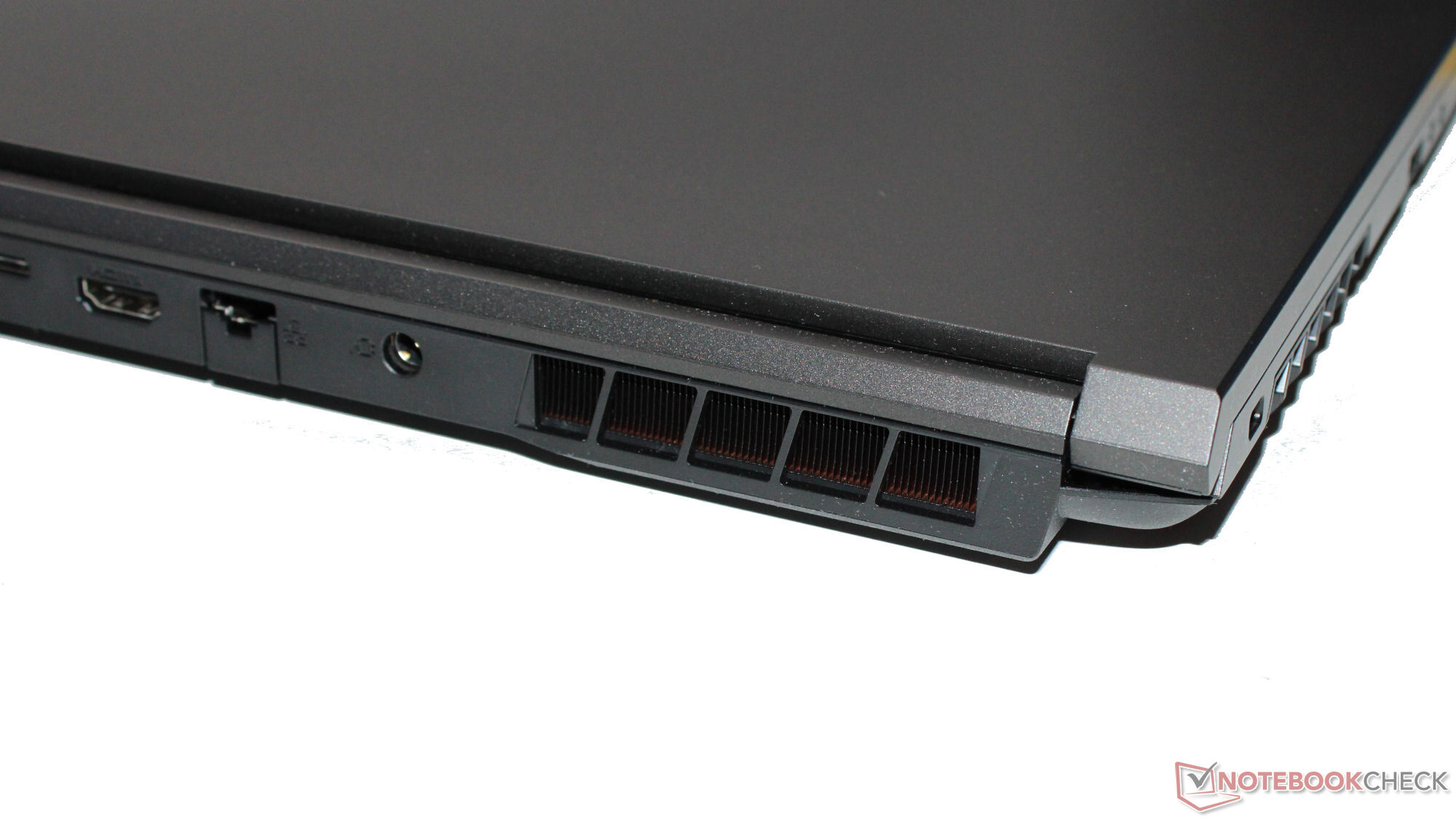

视频输出、电源连接和 LAN 端口都在设备的背面。这意味着所有线缆都从背面穿过，不会碍手碍脚。
SD 读卡器
其 SD 读卡器（参考卡：AV PRO microSD 128 GB V60）的传输速率为 35 MB/s（传输 250 张 jpg 图像，每张 5 MB）和 36 MB/s（复制大数据块），是速度较慢的机型之一。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Average of class Gaming (19 - 202, n=100, last 2 years) | |
| Acer Nitro 16 AN16-41-R7YE (AV PRO microSD 128 GB V60) | |
| SCHENKER XMG Apex 15 (Late 23) (AV PRO microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Average of class Gaming (25.8 - 269, n=94, last 2 years) | |
| Acer Nitro 16 AN16-41-R7YE (AV PRO microSD 128 GB V60) | |
| SCHENKER XMG Apex 15 (Late 23) (AV PRO microSD 128 GB V60) | |
交流
在最佳条件下（附近没有无线局域网设备，笔记本电脑和服务器电脑之间的距离很短），笔记本电脑的 WiFi 数据传输率达到了良好甚至非常好的水平。它使用的是 WiFi 6E 芯片（英特尔 AX200）。有线连接由 Realtek 的控制器（RTL8168/8111；1 GBit/s）负责。
SCHENKER XMG Apex 15 (Late 23) Intel Wi-Fi 6 AX200; iperf3 transmit AXE11000; iperf 3.1.3: Ø1355 (1248-1436)
Acer Nitro 16 AN16-41-R7YE MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1491 (1391-1562)
Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1583 (854-1699)
Asus TUF A15 FA507 MediaTek MT7921; iperf3 transmit AXE11000; iperf 3.1.3: Ø985 (902-1065)
MSI Katana 15 B12VEK Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø1509 (623-1608)
SCHENKER XMG Apex 15 (Late 23) Intel Wi-Fi 6 AX200; iperf3 receive AXE11000; iperf 3.1.3: Ø1684 (1649-1700)
Acer Nitro 16 AN16-41-R7YE MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1684 (1180-1751)
Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1562 (1285-1684)
Asus TUF A15 FA507 MediaTek MT7921; iperf3 receive AXE11000; iperf 3.1.3: Ø916 (797-933)
MSI Katana 15 B12VEK Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1637 (840-1685)
网络摄像头

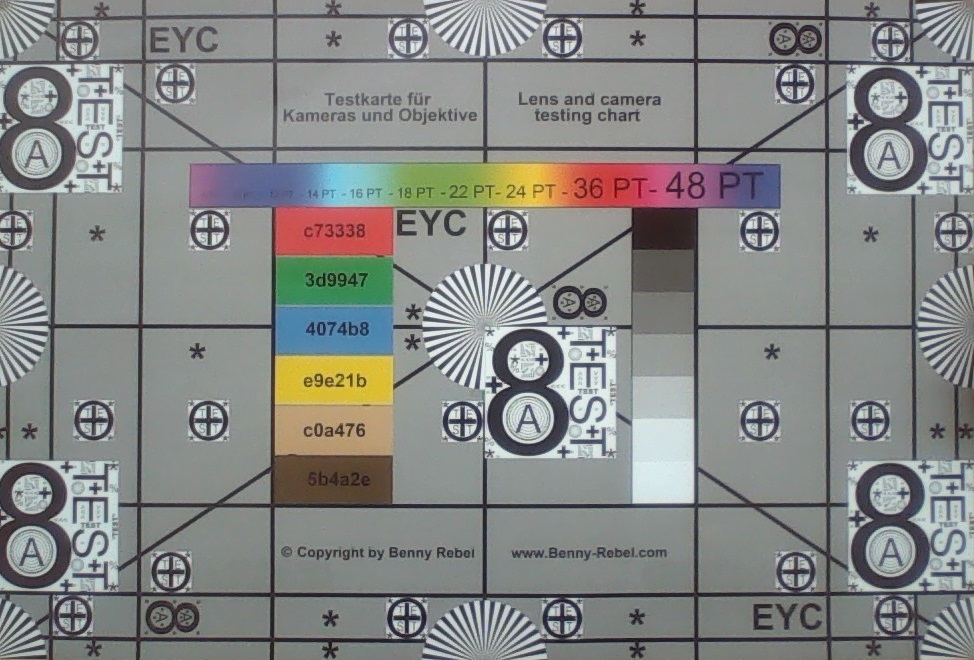

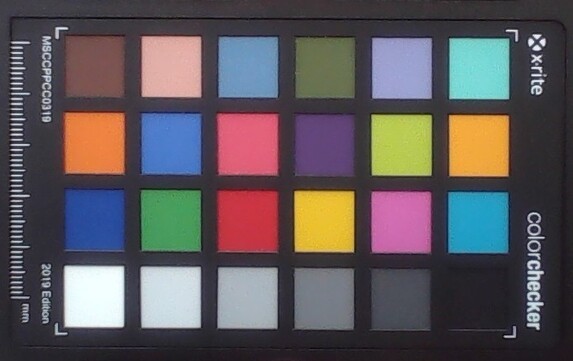

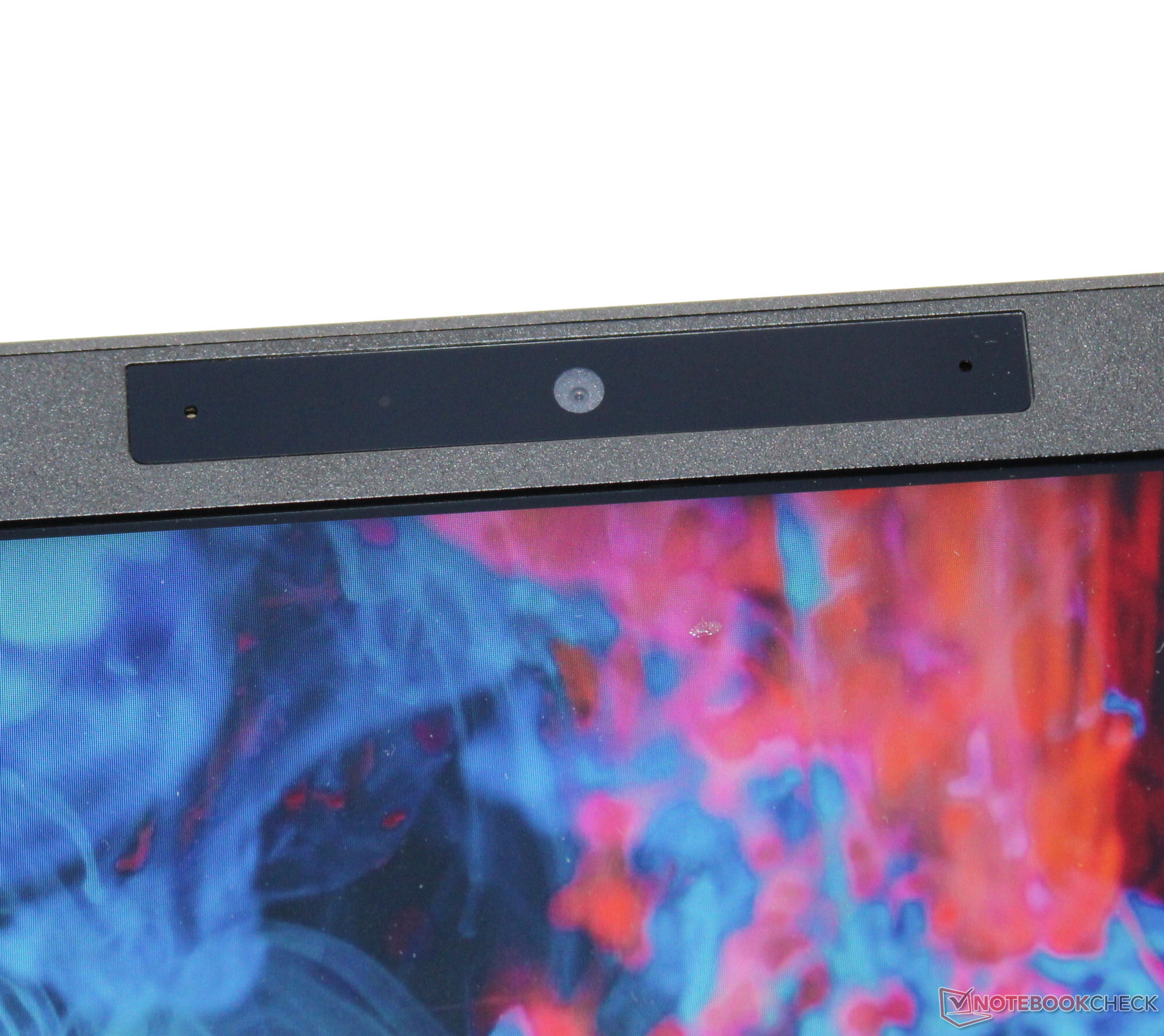

网络摄像头（90 万像素，最大 1,280 x 720 像素）没有机械盖。就其质量而言，它无法在竞争中脱颖而出。不过：它的色彩偏差值约为 7（目标：DeltaE < 3）。
6.5 ∆E
9.2 ∆E
10 ∆E
5.7 ∆E
10.1 ∆E
9.6 ∆E
6.9 ∆E
13.1 ∆E
8.1 ∆E
3.8 ∆E
5 ∆E
4.5 ∆E
6.2 ∆E
3.8 ∆E
5.4 ∆E
4 ∆E
7.7 ∆E
9.8 ∆E
5.7 ∆E
7.1 ∆E
8 ∆E
6.4 ∆E
6.3 ∆E
8.1 ∆E
交付范围
除了常见的文件外，笔记本电脑还附带一个 U 盘（驱动程序和软件）、一个钥匙扣（包括开瓶器）和一个大鼠标垫。
维护

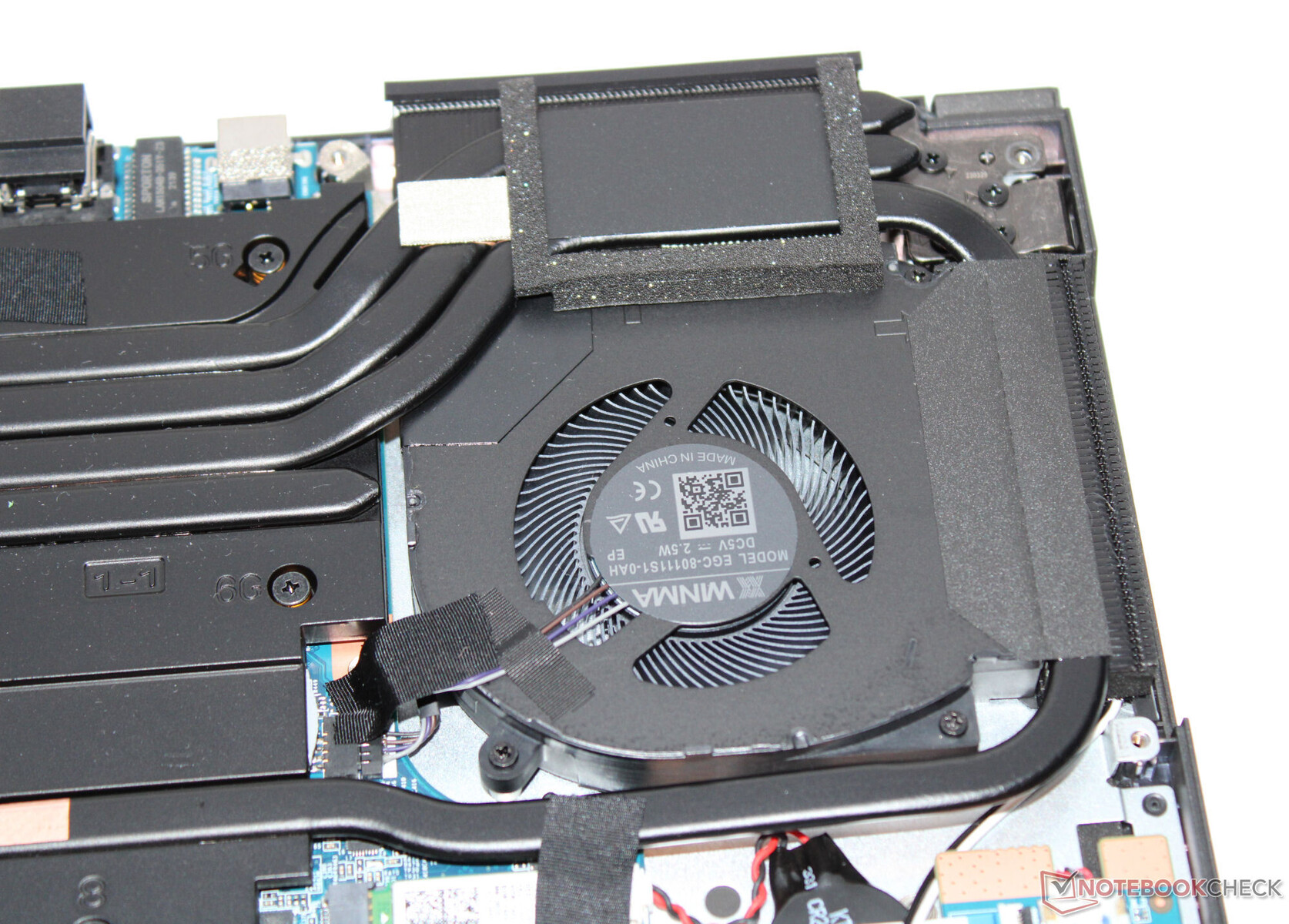

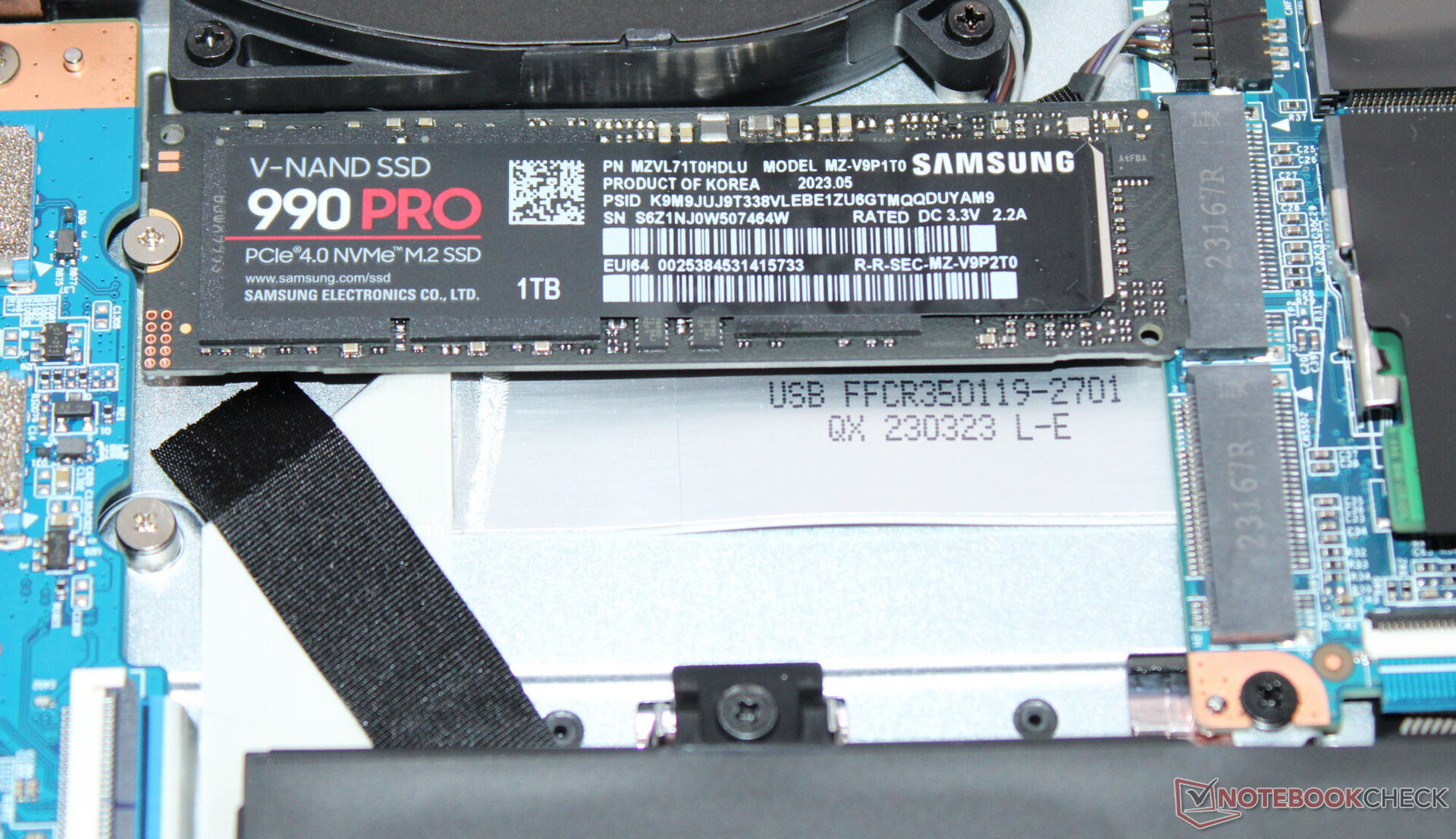

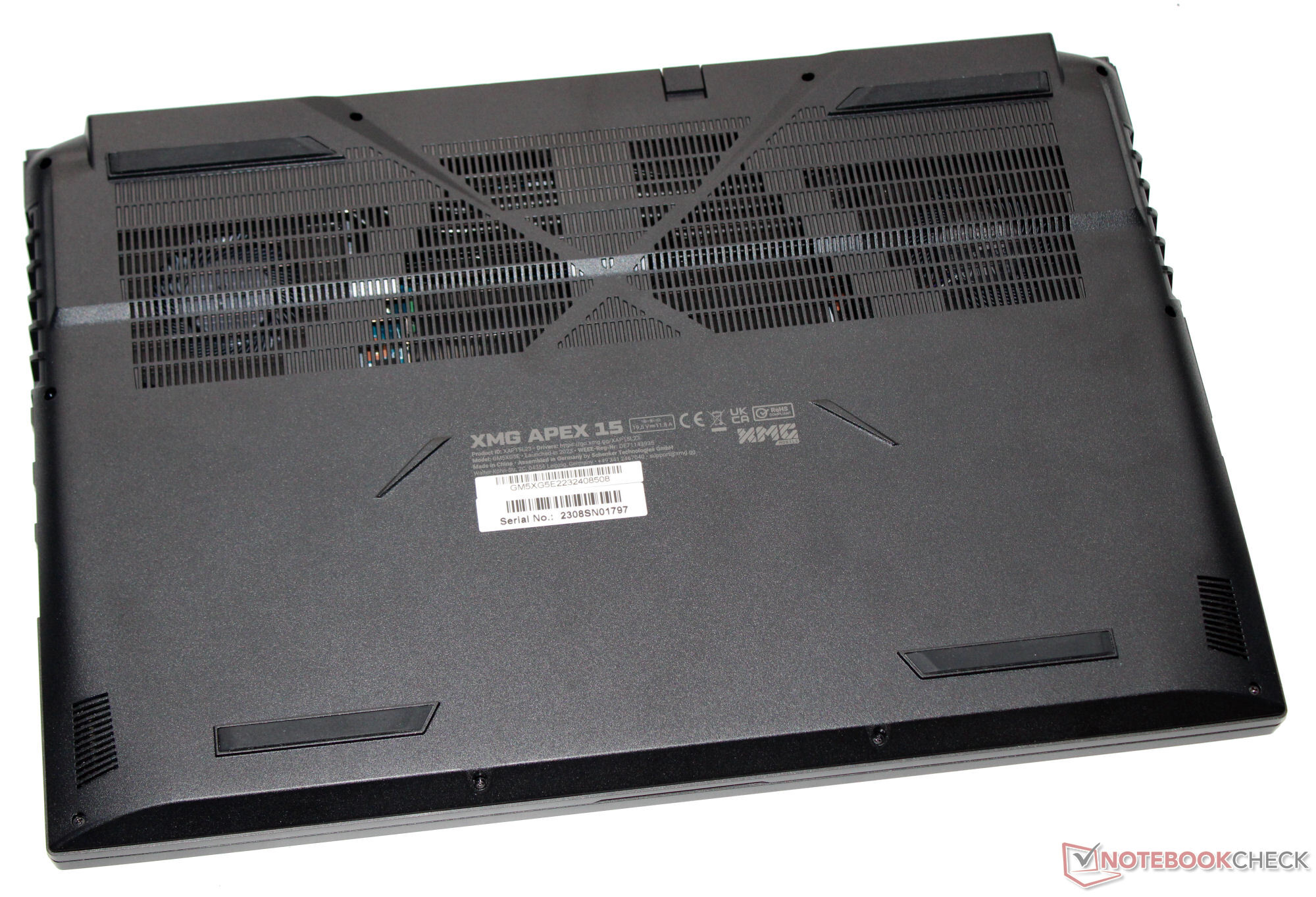

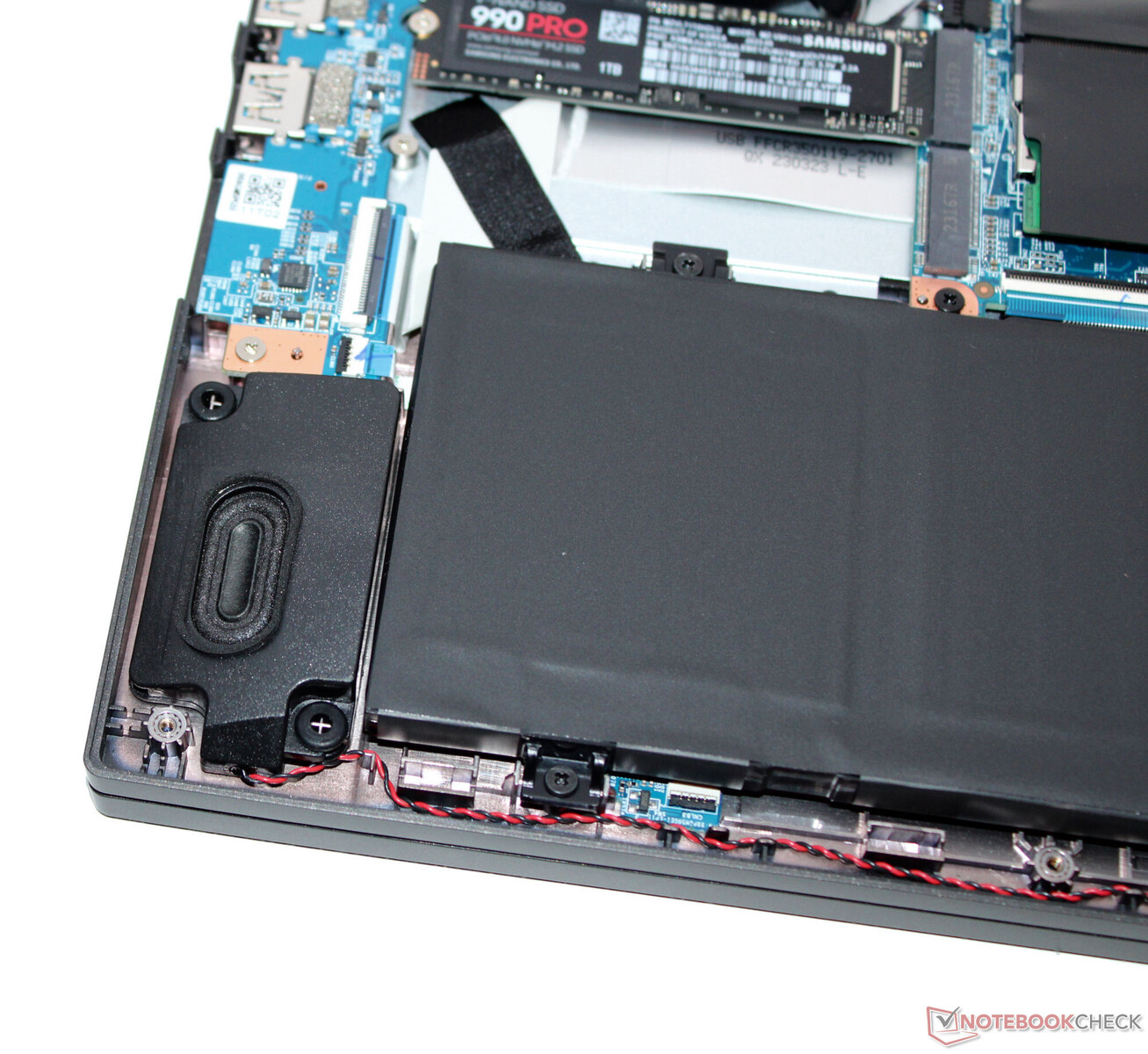

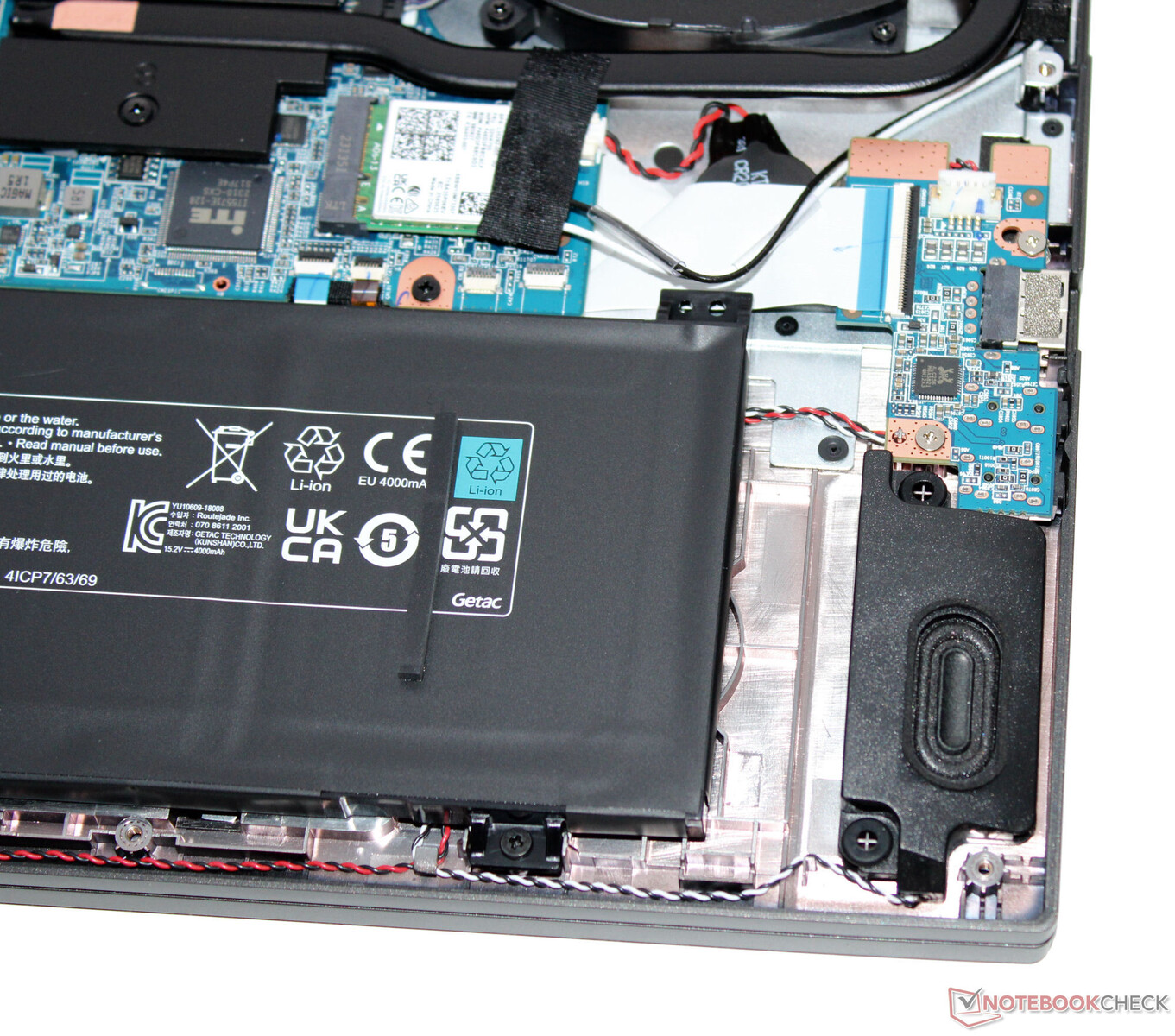

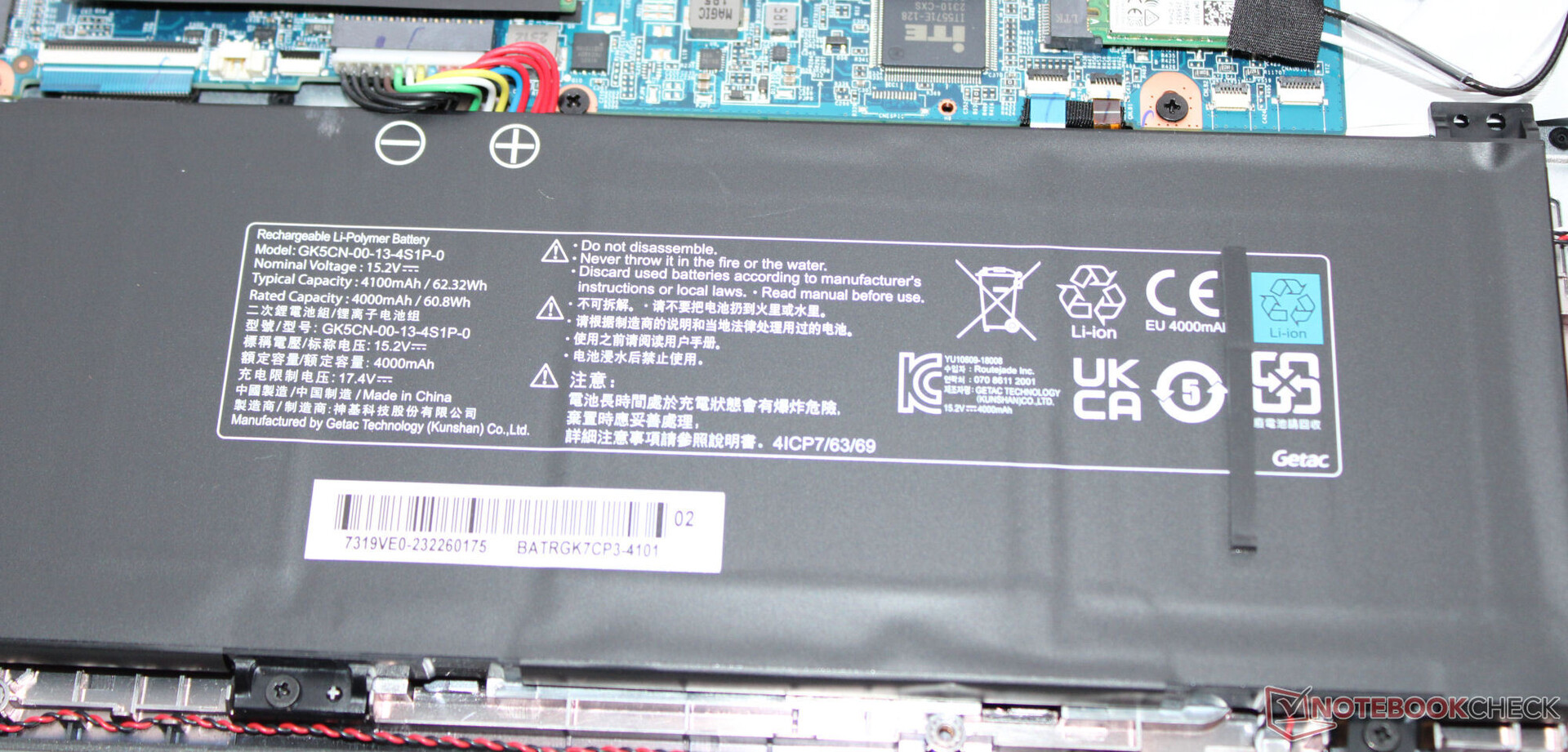

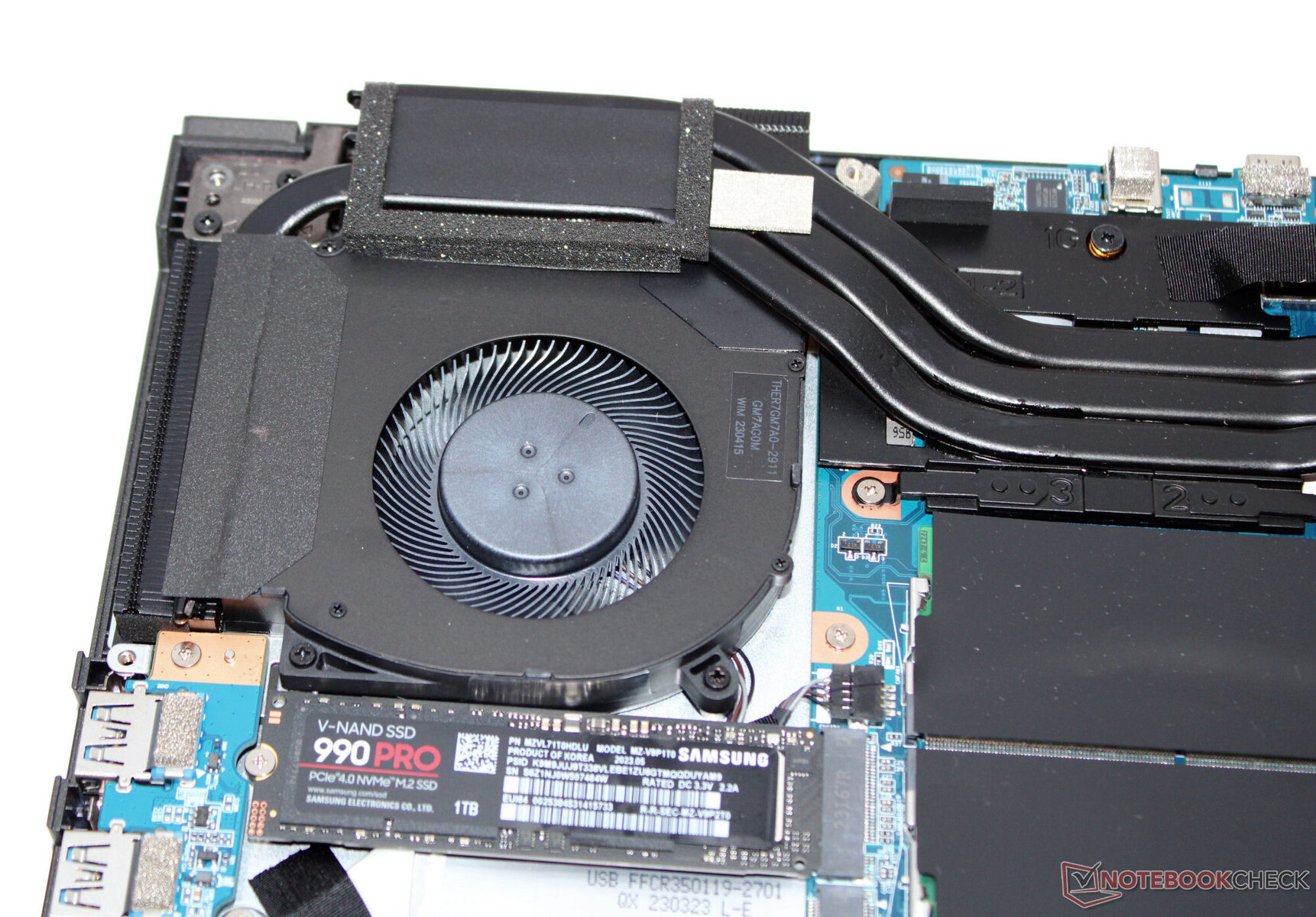

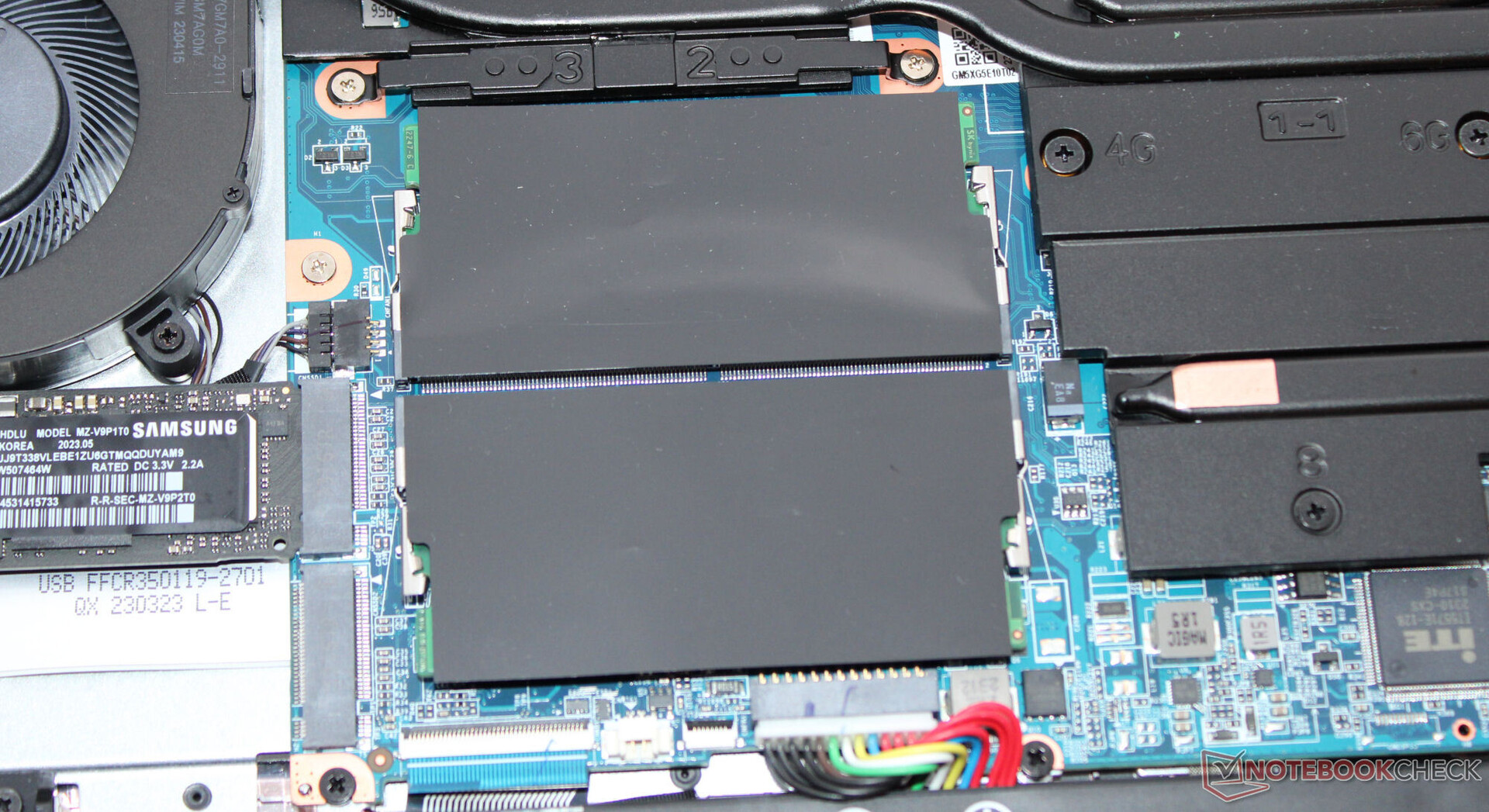

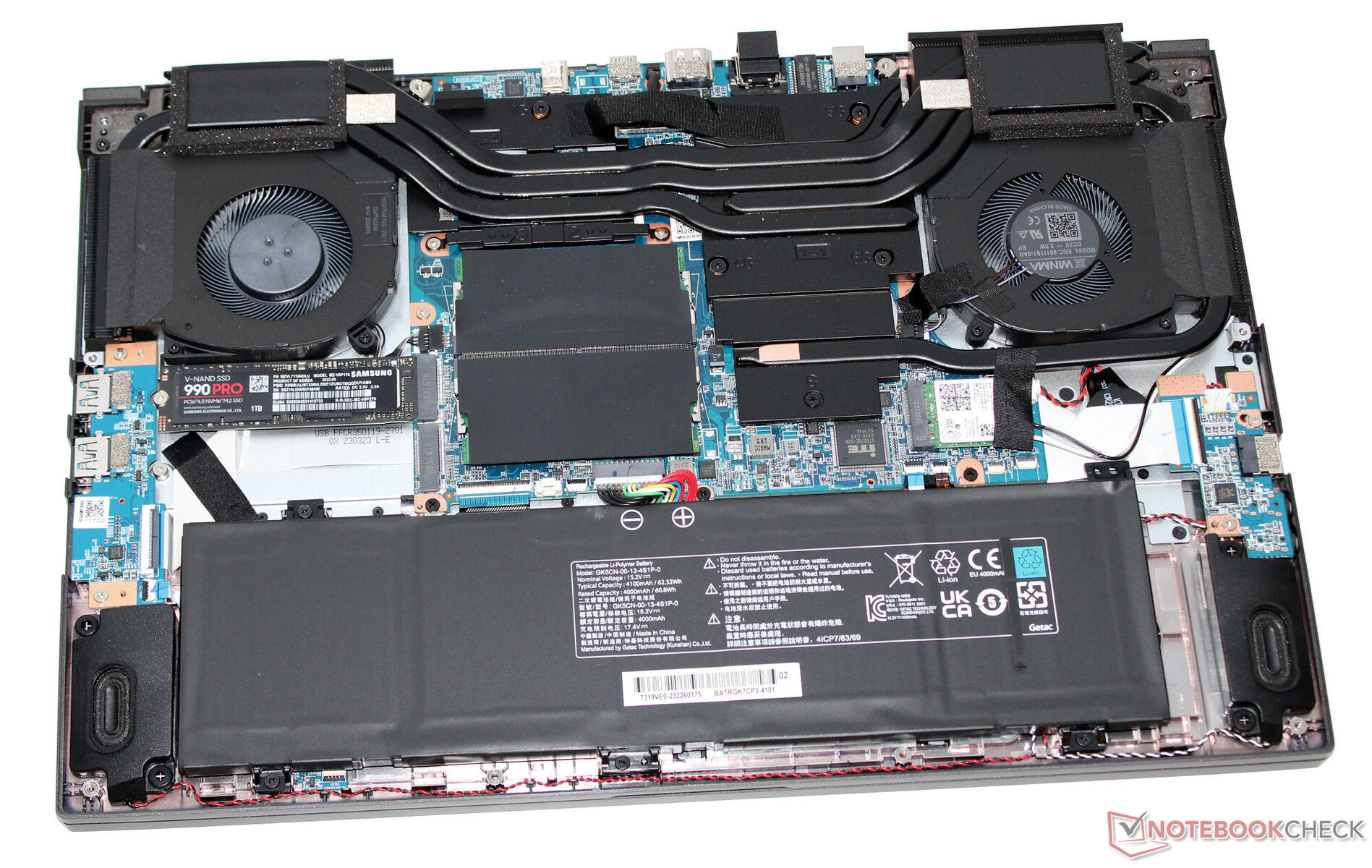

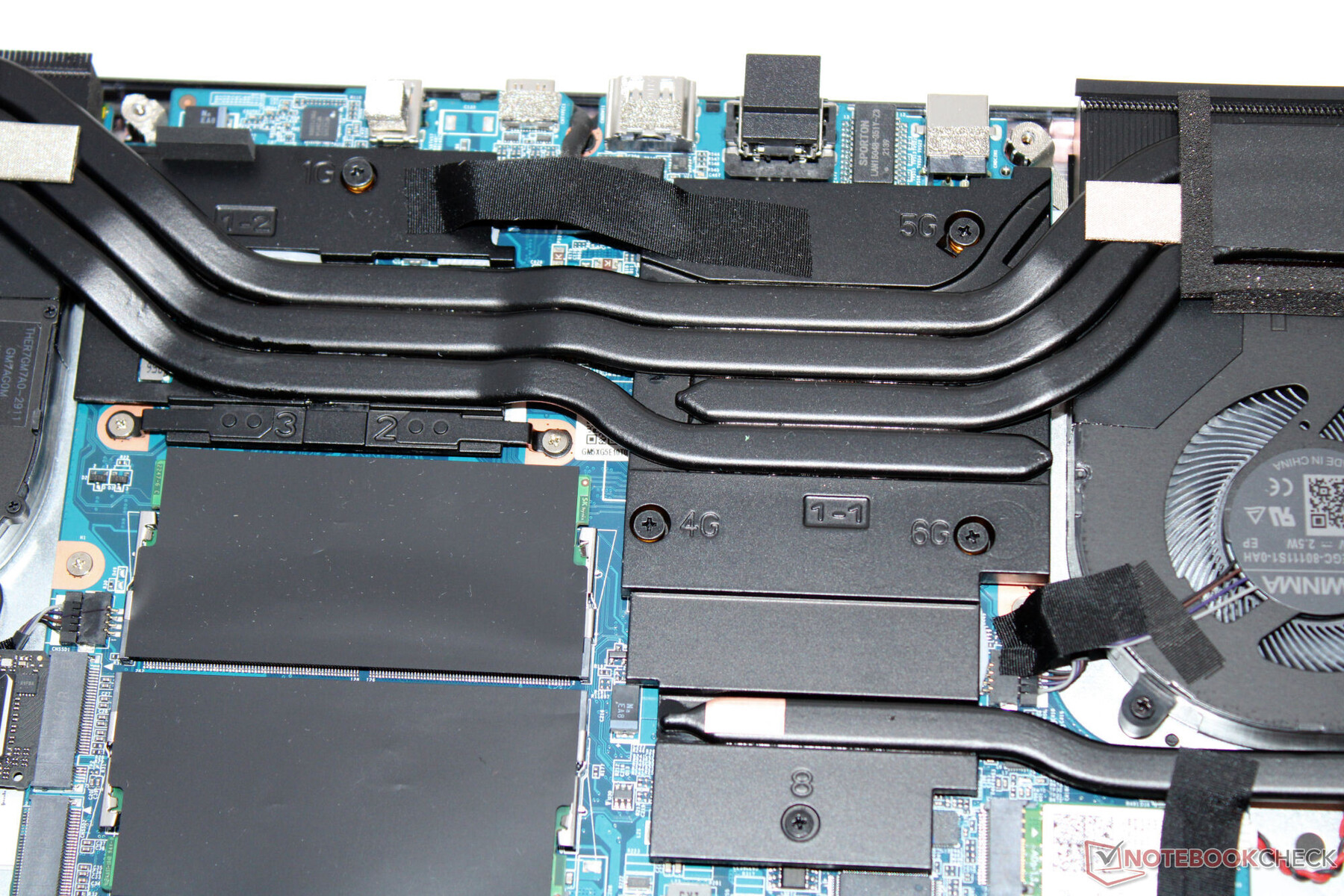

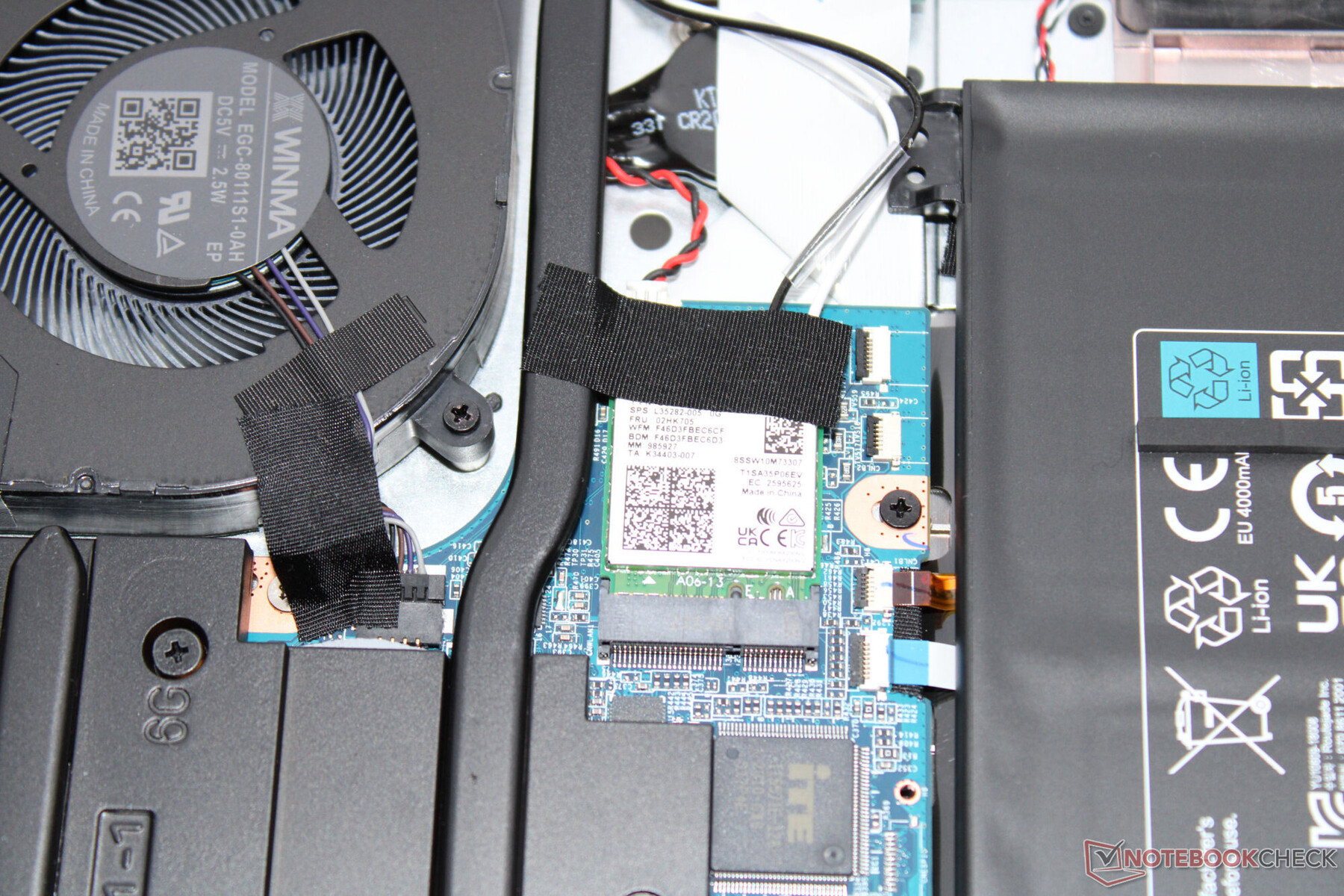

拆卸底板后，可以访问两个内存库（均已占用）、固态硬盘（PCIe 4，M.2-2280）、第二个固态硬盘插槽（PCIe 4，M.2-2280）、WLAN 模块、BIOS 电池、风扇和电池。为此，需要拧下设备底部的所有螺丝。然后，可以借助刮刀或拨子弹取下底板。
保修
基本保修期为两年，包括取件服务和 6 个月的快速维修（48 小时内维修）。根据所选的快速维修时间，可购买 36 个月的保修服务，价格从 85 美元到 130 美元不等。
输入设备 - 配备 RGB 按键照明的游戏笔记本电脑
键盘

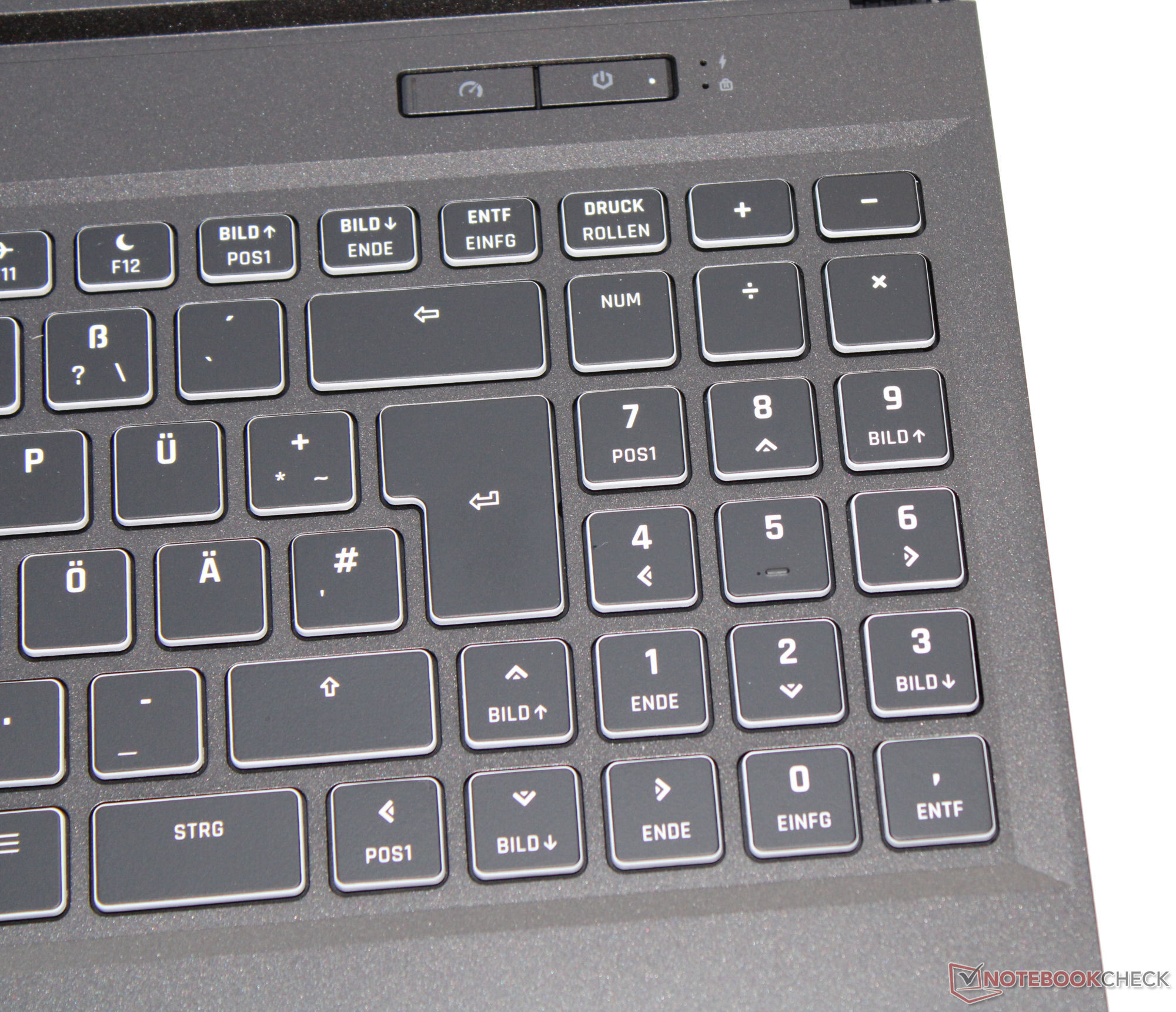

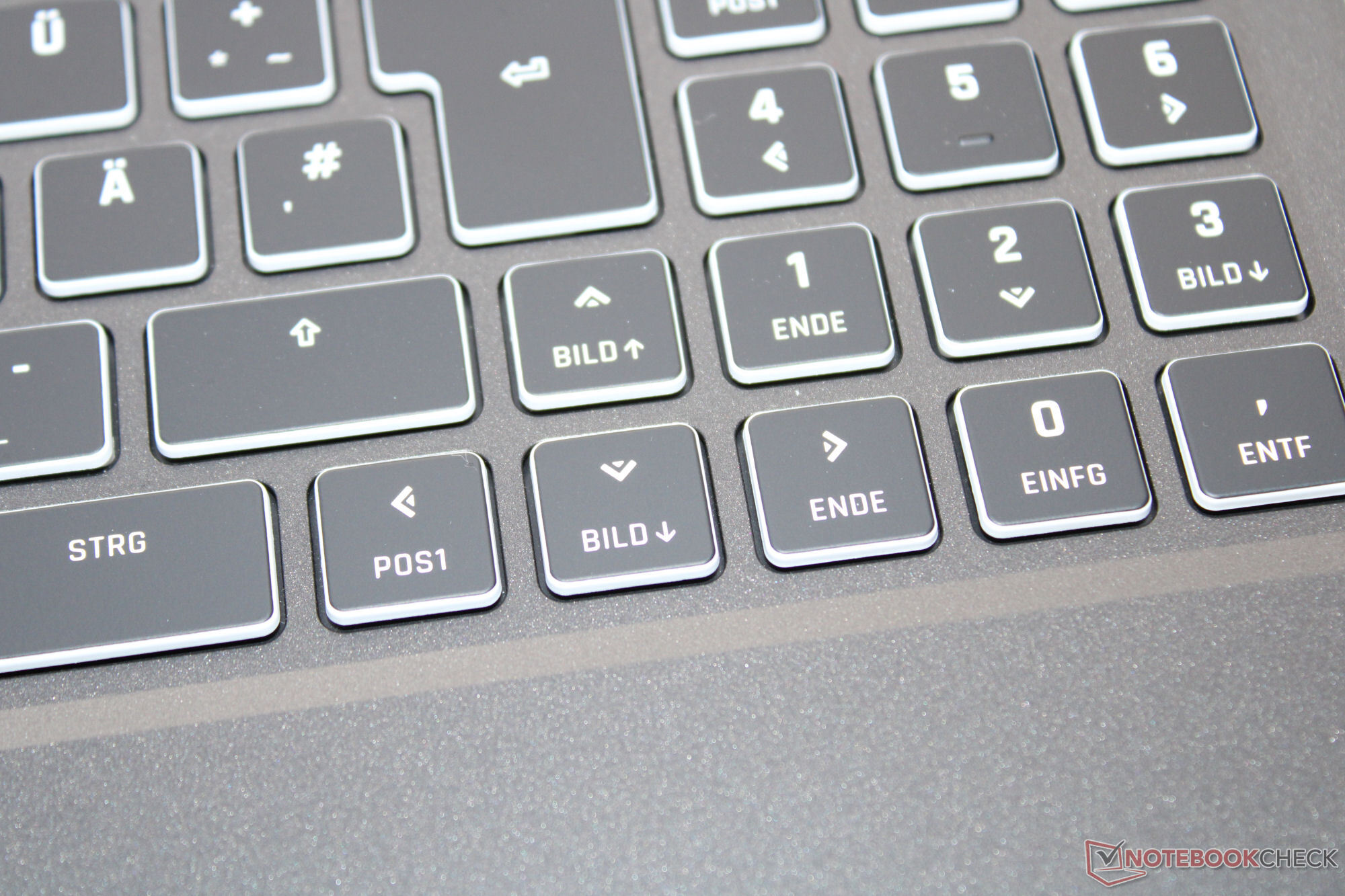

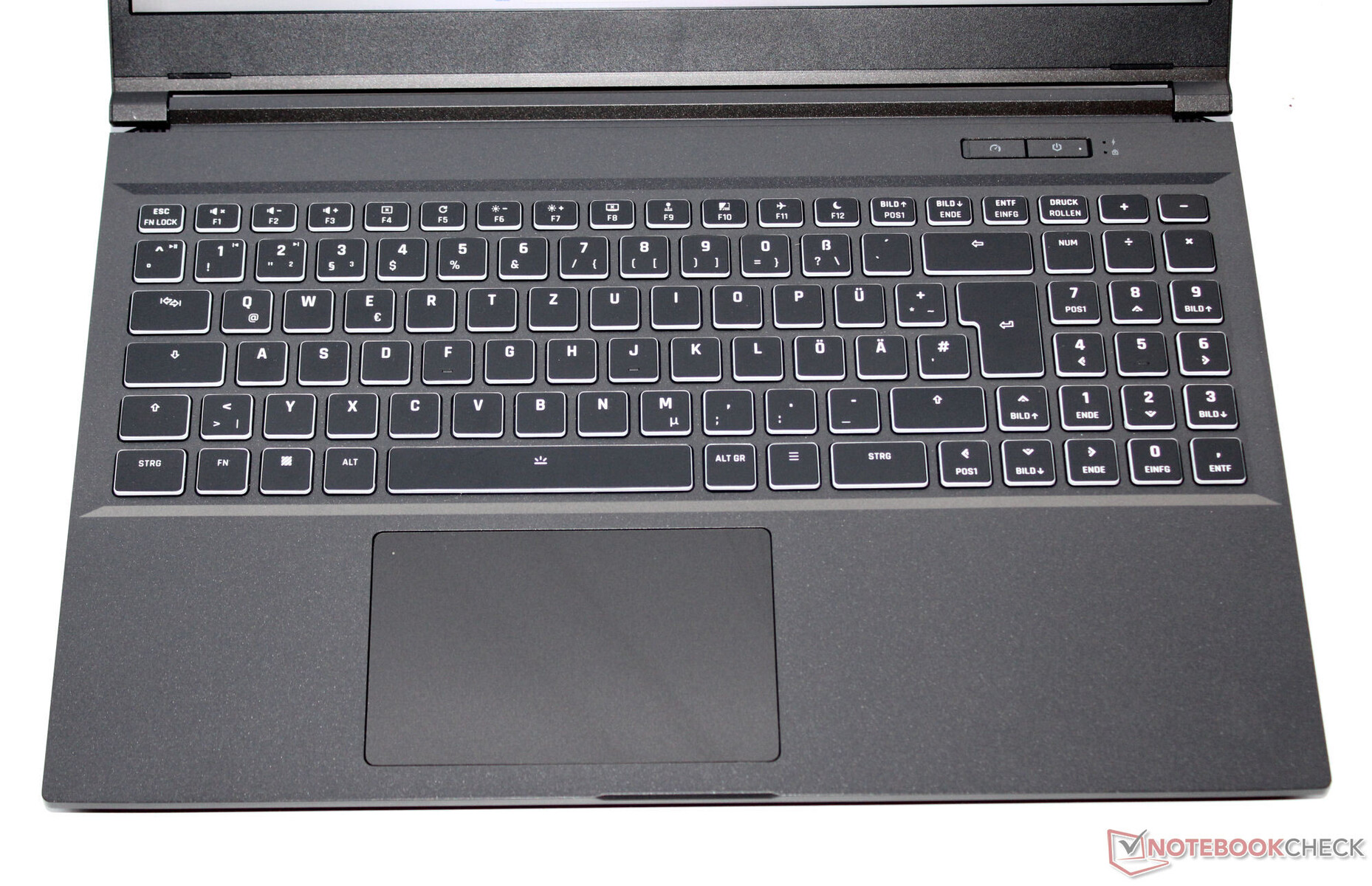

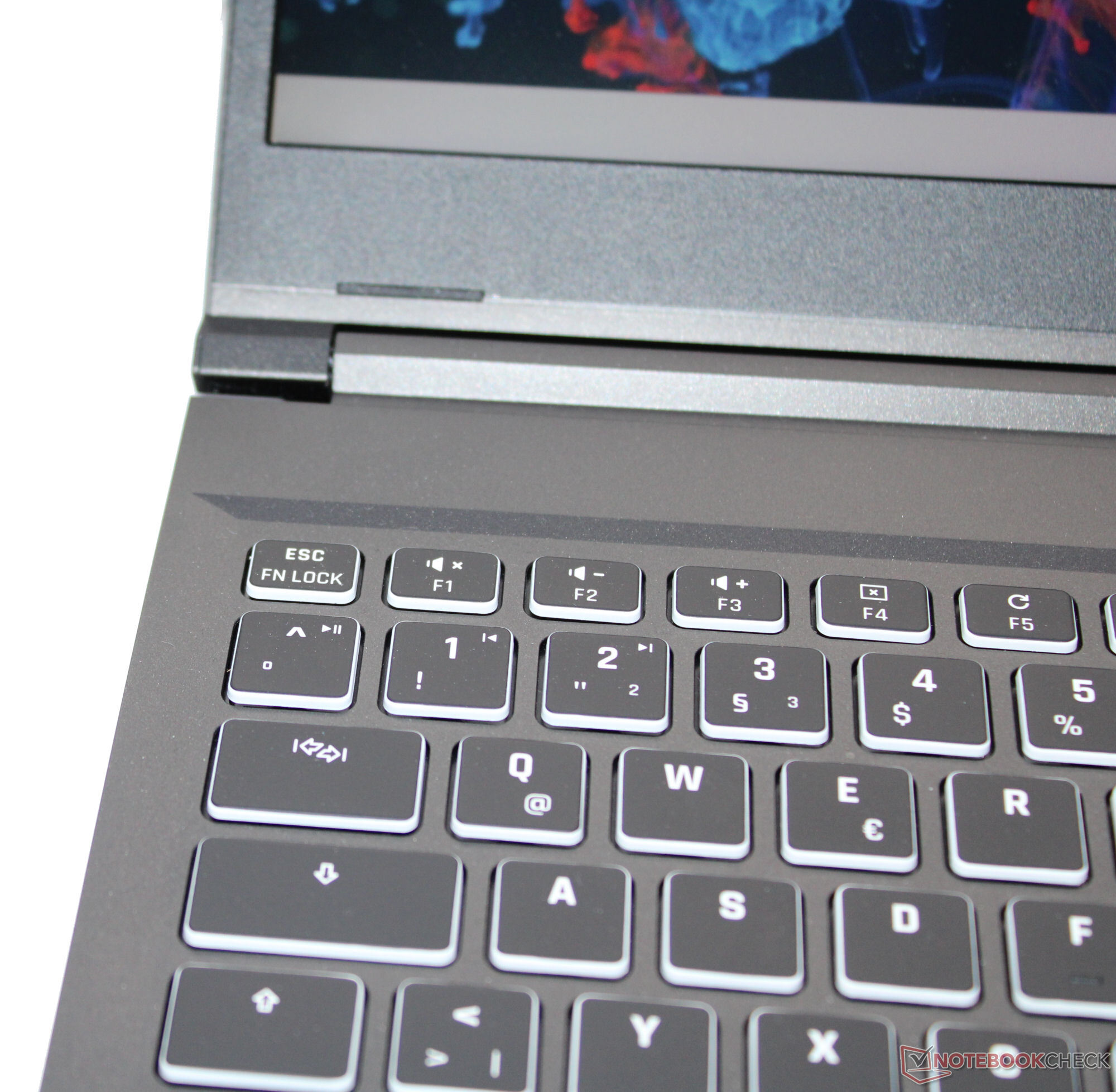

Apex 采用背光 Chiclet 键盘（RGB），包括数字小键盘。键盘按键平滑，键程适中，按压点清晰。按键阻力适中。键入时，键盘右侧会有一点晃动，但这并不令人讨厌。总之，这是一款适合日常使用的键盘。
触摸板

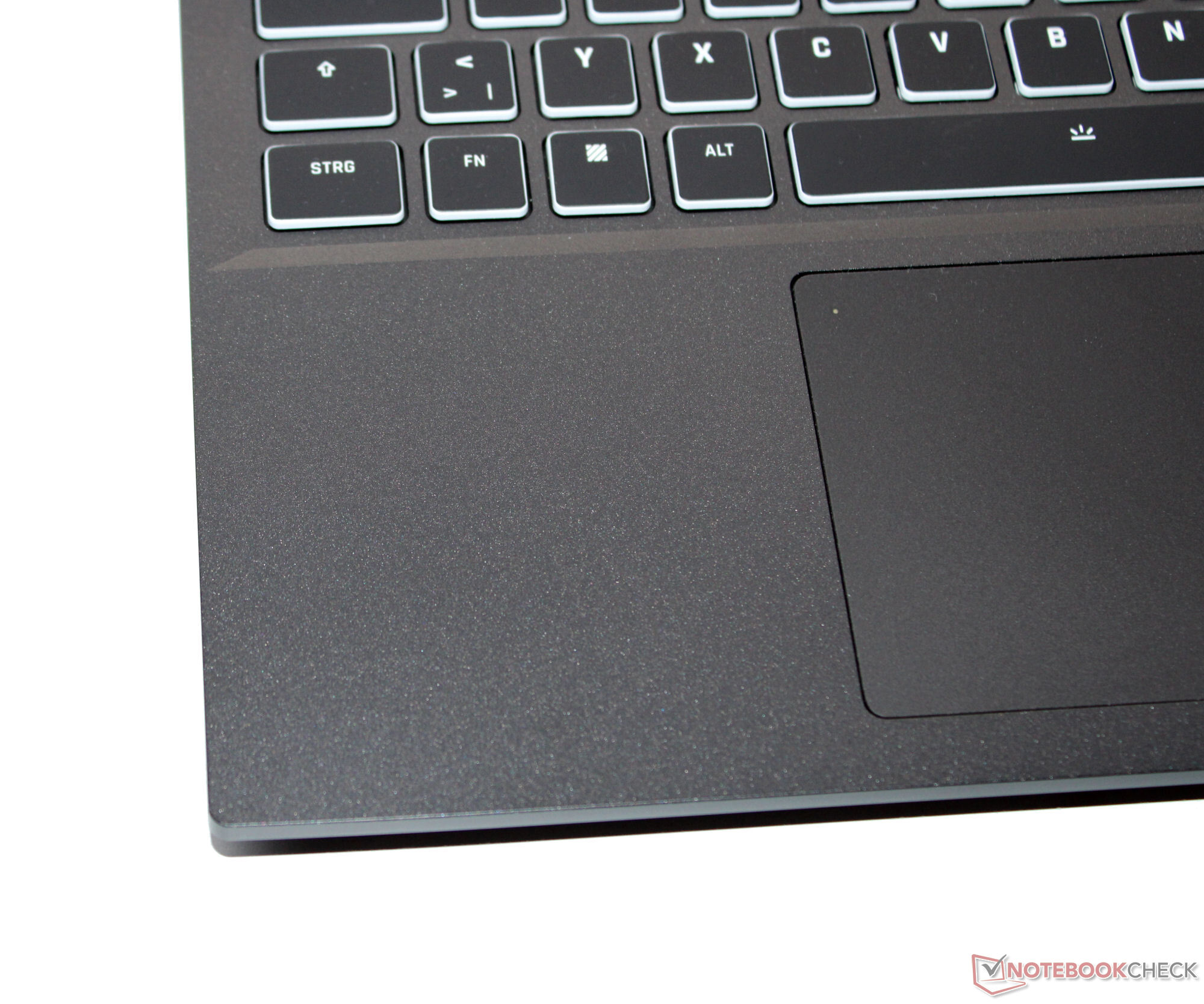

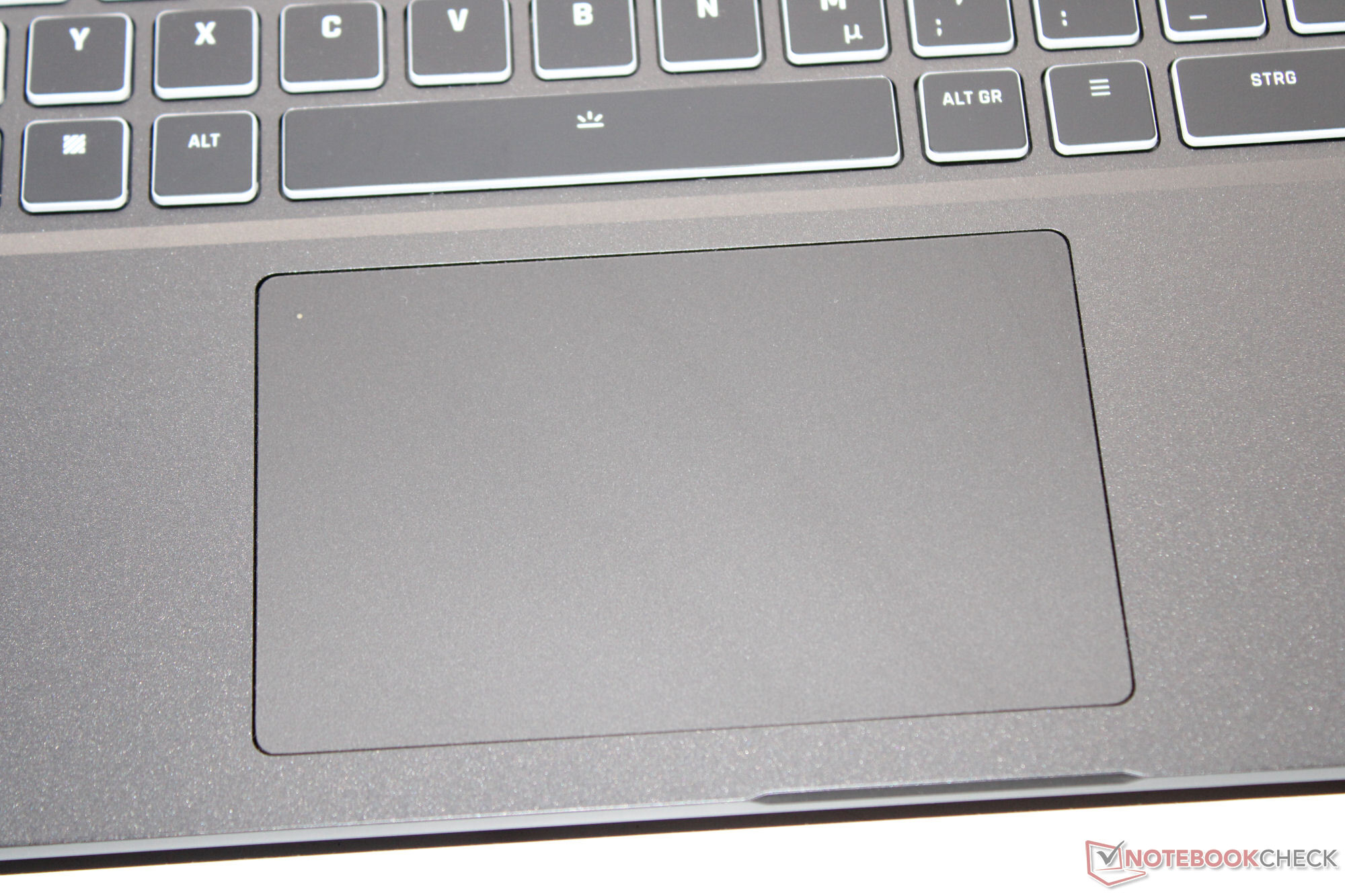

点击板（约 11.5 x 7.4 厘米）可替代鼠标，它的抬起高度较短，压力点清晰。双击左上角即可轻松开关。LED 指示灯显示其当前状态。

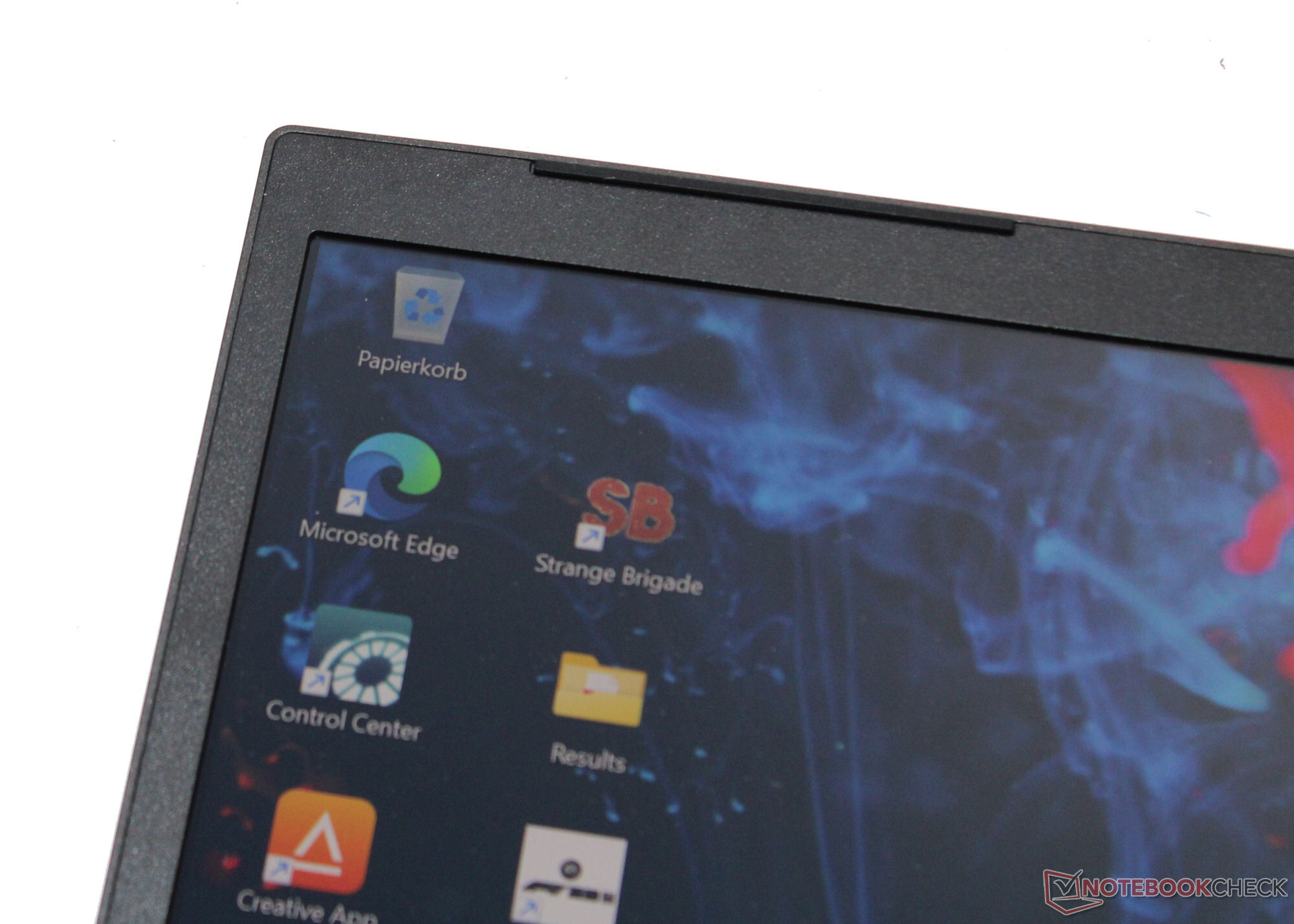

显示屏 - QHD 面板，sRGB 覆盖范围
Apex 配备了宽高比为 16:9 的 165 Hz 快速反应面板。在任何亮度水平下，它都没有出现 PWM 闪烁的迹象。没有替代显示屏。虽然 QHD 面板的亮度达到了目标值（> 300 cd/m²），但对比度却略显不足（> 1.000:1）。对比度联想Legion Pro 5的面板亮度（> 500 cd/m²）远高于其他同类产品。
| |||||||||||||||||||||||||

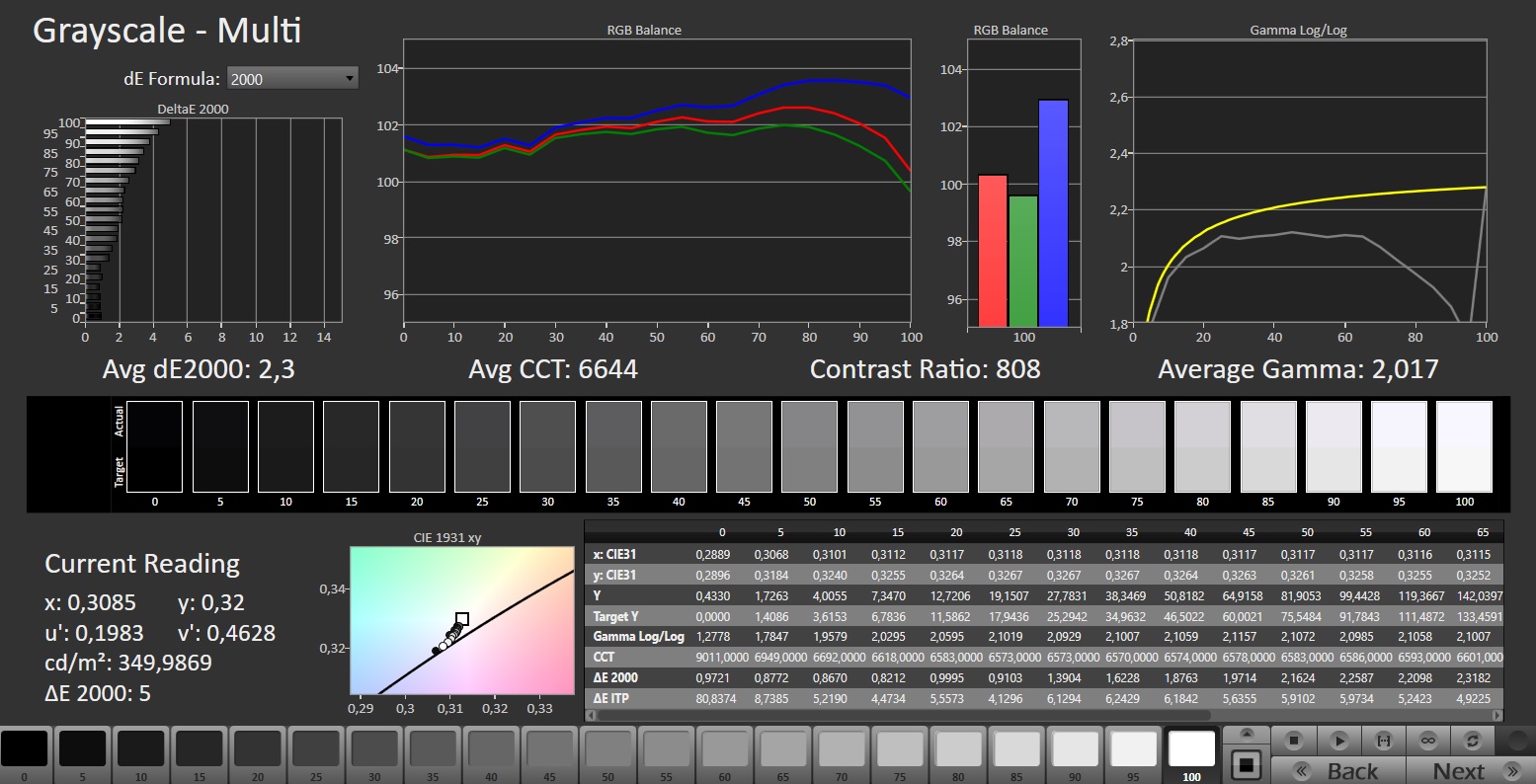

BOE CQ NE156QHM-NY2 tested with X-Rite i1Pro 2
Maximum: 351 cd/m² (Nits) Average: 307.4 cd/m² Minimum: 16 cd/m²Brightness Distribution: 77 %
Center on Battery: 336 cd/m²
Contrast: 884:1 (Black: 0.38 cd/m²)
ΔE Color 1.96 | 0.5-29.43 Ø5, calibrated: 1.27
ΔE Greyscale 2.3 | 0.57-98 Ø5.3

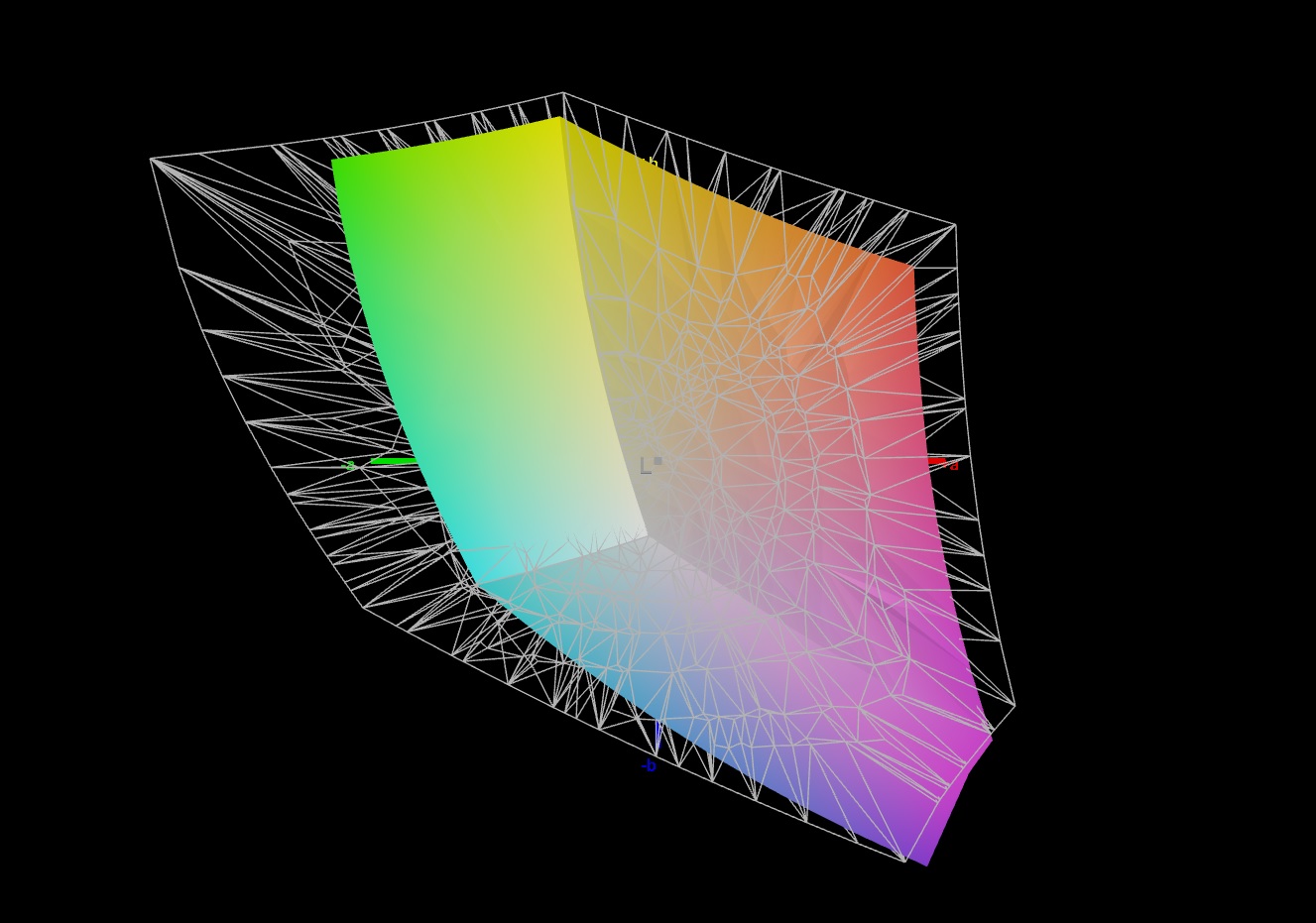

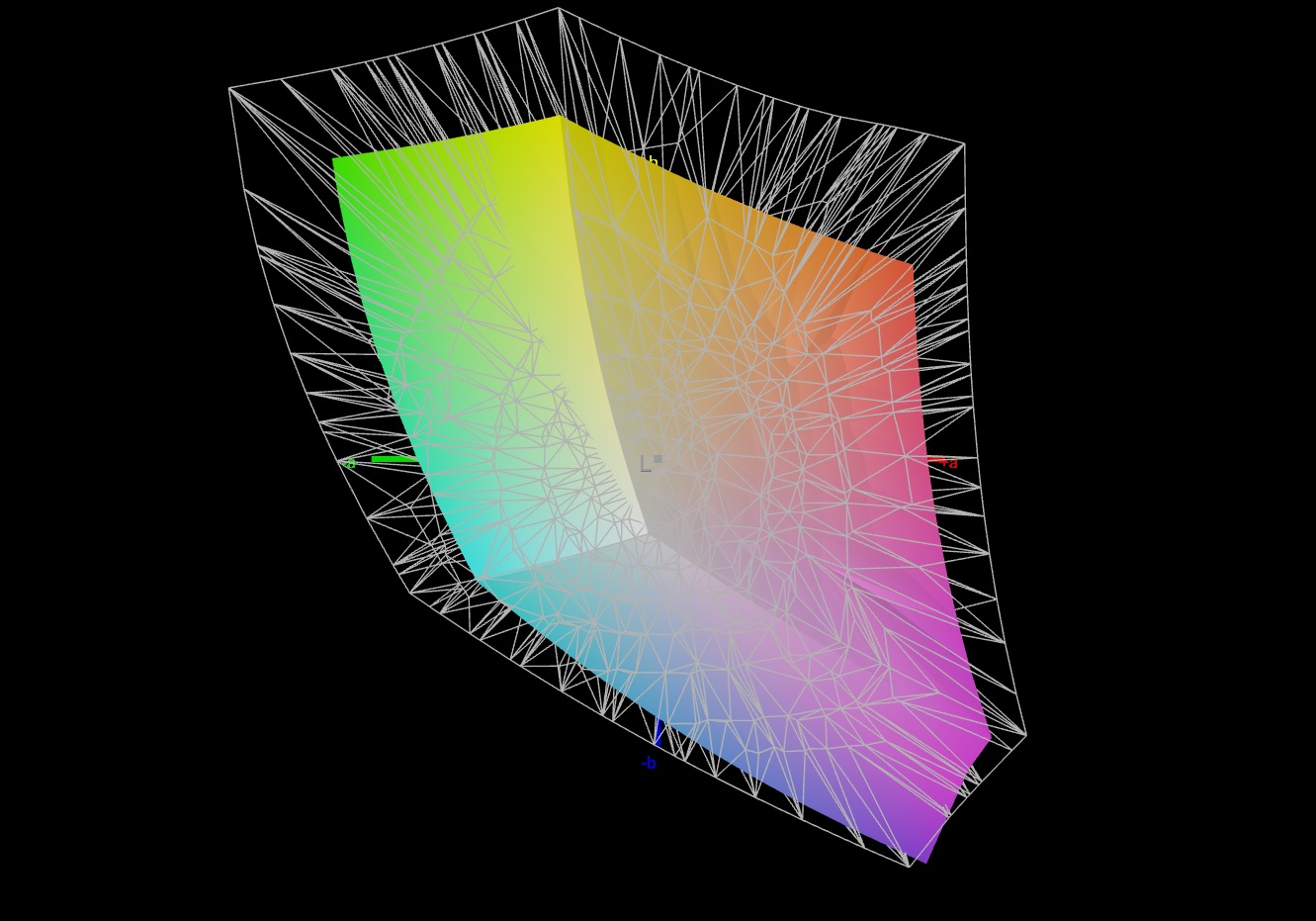

68.9% AdobeRGB 1998 (Argyll 2.2.0 3D)

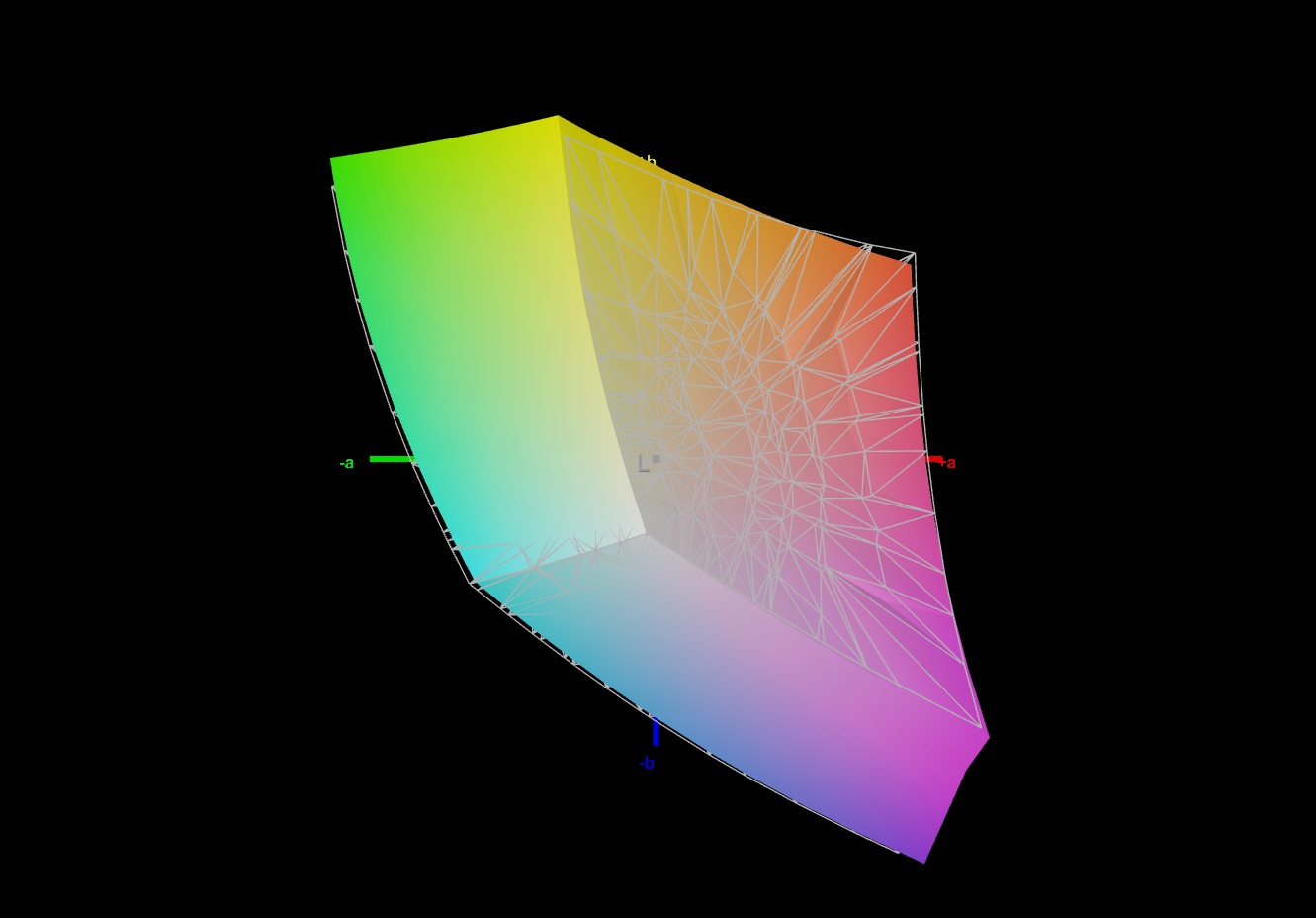

97.6% sRGB (Argyll 2.2.0 3D)
67.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.017
| SCHENKER XMG Apex 15 (Late 23) BOE CQ NE156QHM-NY2, IPS, 2560x1440, 15.60 | Acer Nitro 16 AN16-41-R7YE AU Optronics B160UAN01.Q, IPS, 1920x1200, 16.00 | Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) CSOT T3 MNG007DA2-2, IPS, 2560x1600, 16.00 | Asus TUF A15 FA507 N156HMA-GA1, IPS, 1920x1080, 15.60 | MSI Katana 15 B12VEK AUOAF90 (B156HAN08.4), IPS, 1920x1080, 15.60 | |
|---|---|---|---|---|---|
| Display | 11% | 5% | -3% | -43% | |
| Display P3 Coverage | 67.5 | 80 19% | 71.6 6% | 64.9 -4% | 38.1 -44% |
| sRGB Coverage | 97.6 | 99.4 2% | 99.8 2% | 96.5 -1% | 56.8 -42% |
| AdobeRGB 1998 Coverage | 68.9 | 77.4 12% | 72.9 6% | 66.6 -3% | 39.3 -43% |
| Response Times | 28% | 25% | -133% | -200% | |
| Response Time Grey 50% / Grey 80% * | 13.2 ? | 11.2 ? 15% | 12 ? 9% | 30.4 ? -130% | 38.8 ? -194% |
| Response Time Black / White * | 8.8 ? | 5.2 ? 41% | 5.2 ? 41% | 20.8 ? -136% | 26.8 ? -205% |
| PWM Frequency | |||||
| Screen | -28% | 24% | 21% | -79% | |
| Brightness middle | 336 | 415 24% | 543 62% | 288 -14% | 261 -22% |
| Brightness | 307 | 380 24% | 516 68% | 271 -12% | 258 -16% |
| Brightness Distribution | 77 | 84 9% | 87 13% | 91 18% | 92 19% |
| Black Level * | 0.38 | 0.36 5% | 0.58 -53% | 0.17 55% | 0.19 50% |
| Contrast | 884 | 1153 30% | 936 6% | 1694 92% | 1374 55% |
| Colorchecker dE 2000 * | 1.96 | 4.71 -140% | 1.35 31% | 1.9 3% | 5.57 -184% |
| Colorchecker dE 2000 max. * | 5.07 | 6.98 -38% | 3.22 36% | 3.3 35% | 20.6 -306% |
| Colorchecker dE 2000 calibrated * | 1.27 | 2.68 -111% | 1.31 -3% | 0.9 29% | 4.63 -265% |
| Greyscale dE 2000 * | 2.3 | 3.6 -57% | 1.03 55% | 2.7 -17% | 3.19 -39% |
| Gamma | 2.017 109% | 2.182 101% | 2.38 92% | 2.32 95% | 2.45 90% |
| CCT | 6644 98% | 7153 91% | 6452 101% | 6535 99% | 6146 106% |
| Total Average (Program / Settings) | 4% /
-12% | 18% /
20% | -38% /
-6% | -107% /
-88% |
* ... smaller is better

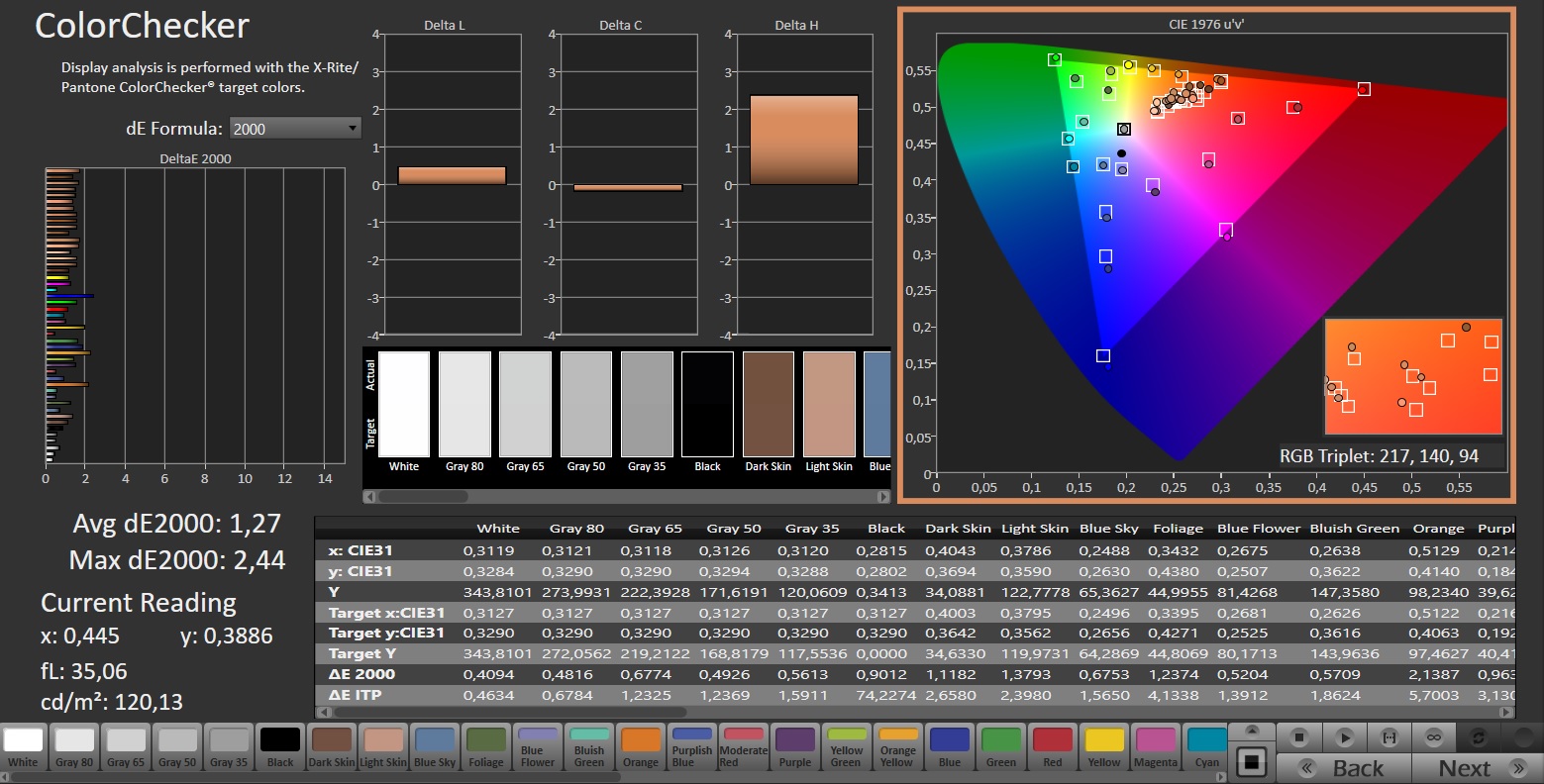

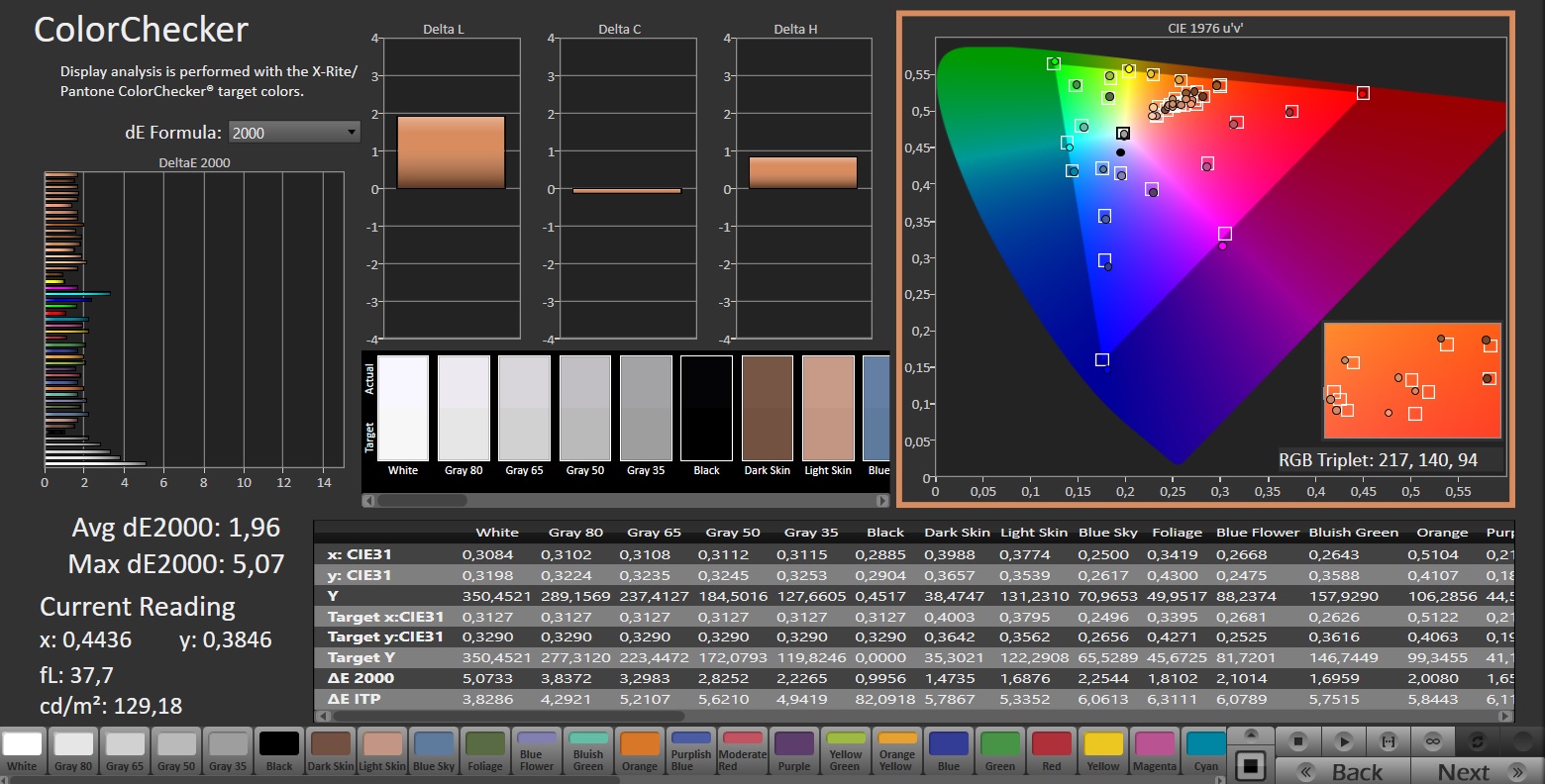

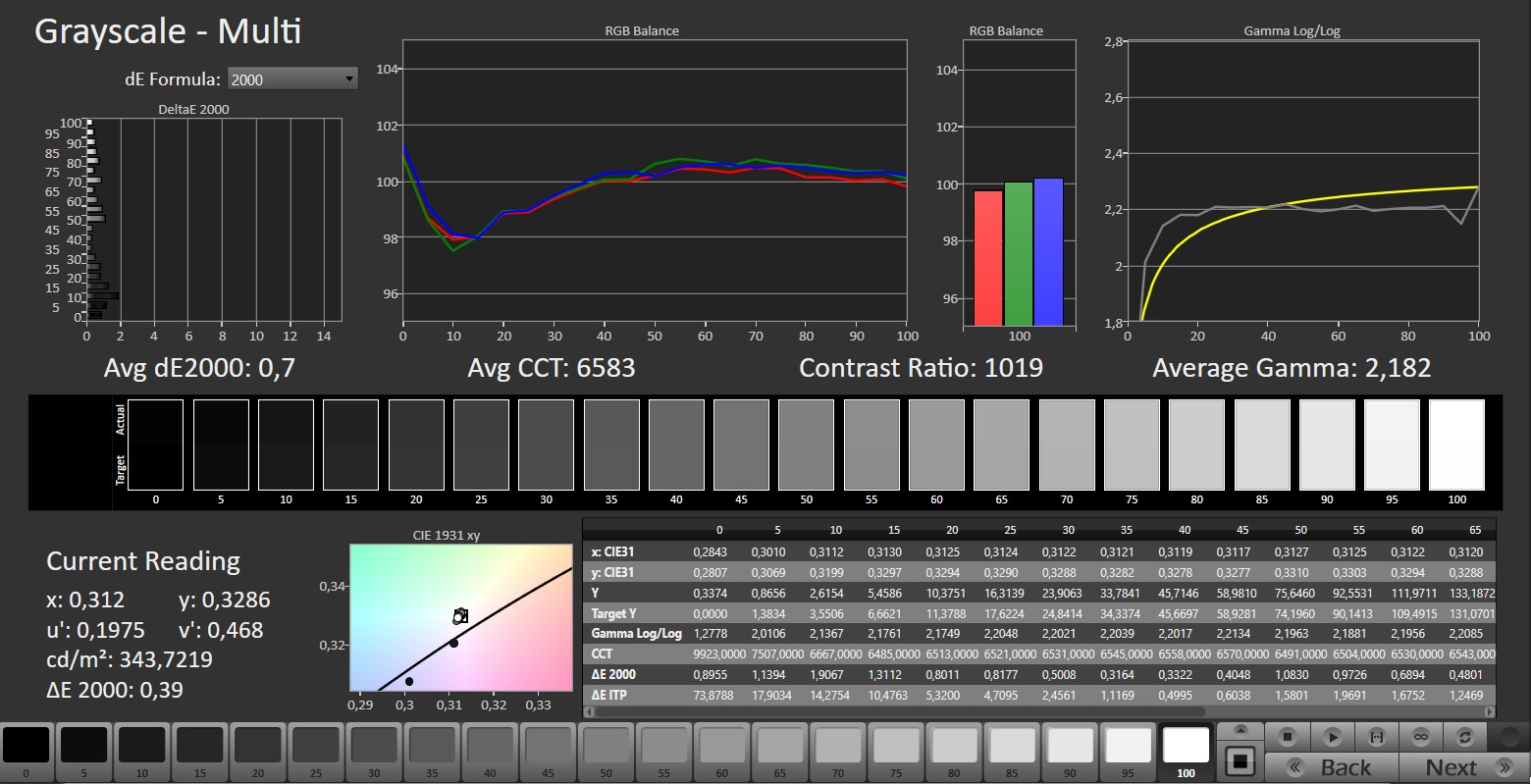

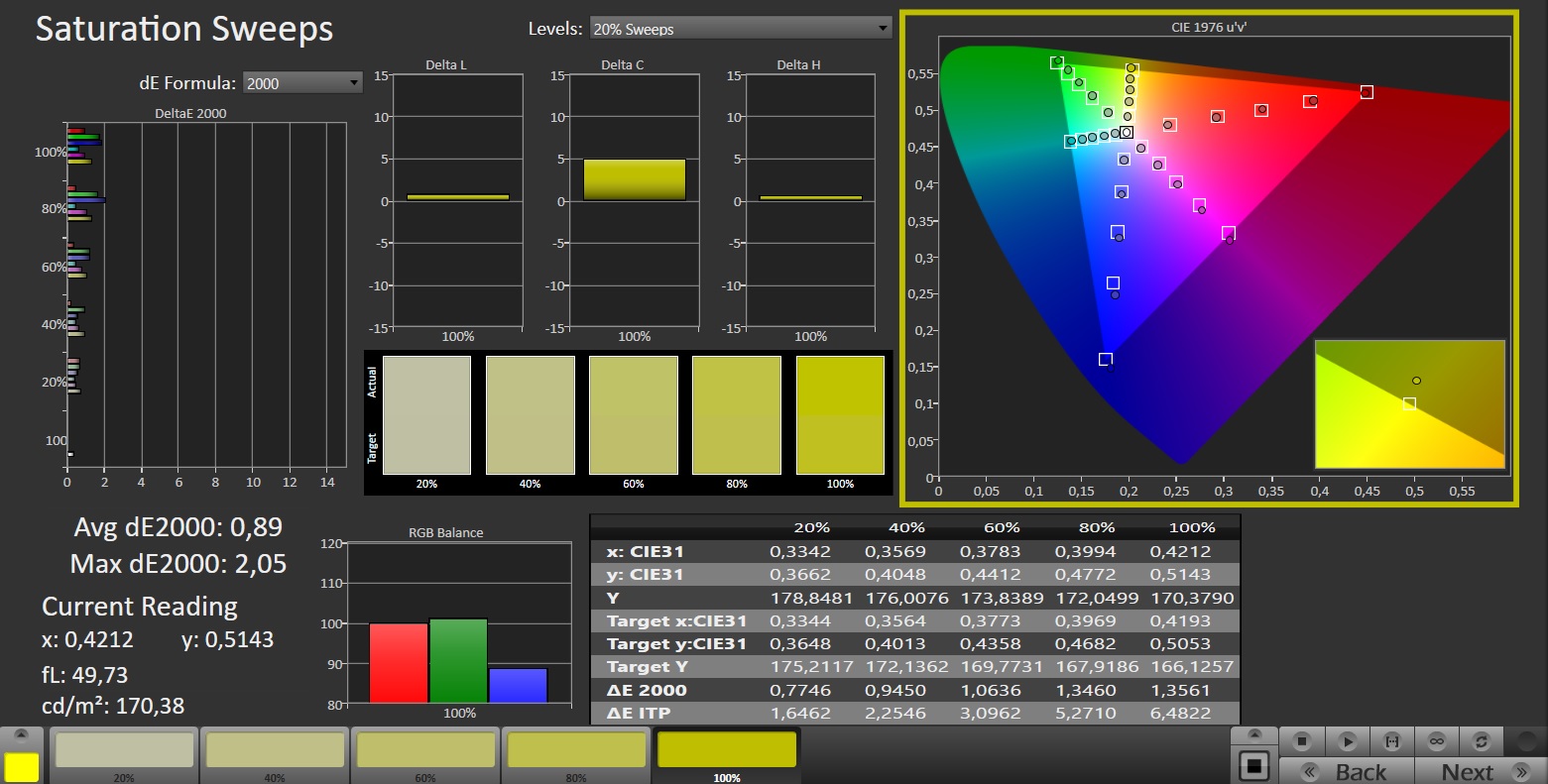

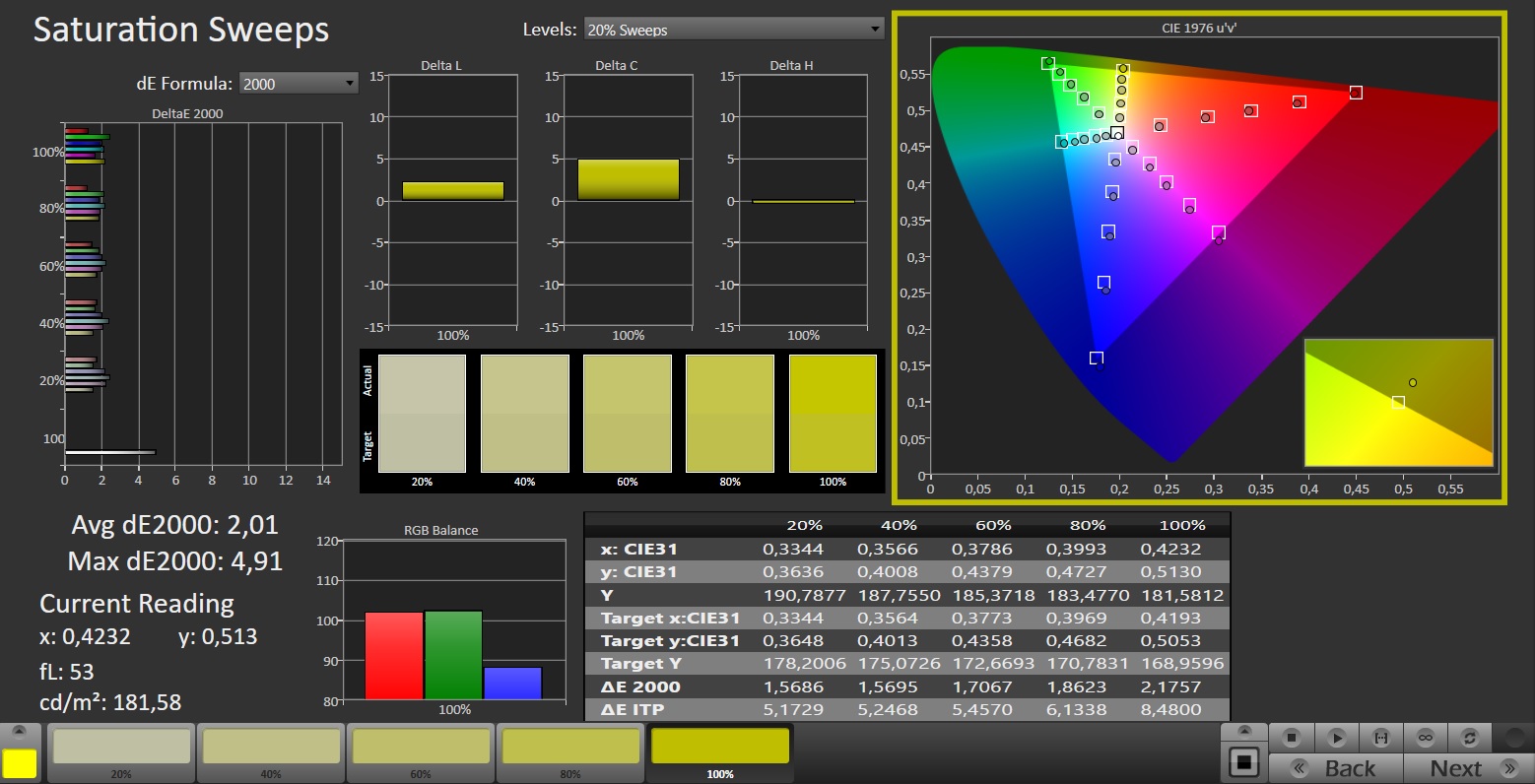

Ex 工作时，屏幕显示的色彩描绘相当不错：偏差约为 2，达到目标（DeltaE < 3）。校准显示屏后，偏差降至 1.3，灰阶色调更加均衡。该面板几乎可以完全覆盖 sRGB 色彩空间，但无法覆盖 AdobeRGB 或 DCI P3。其竞争对手的显示器也有类似的表现。

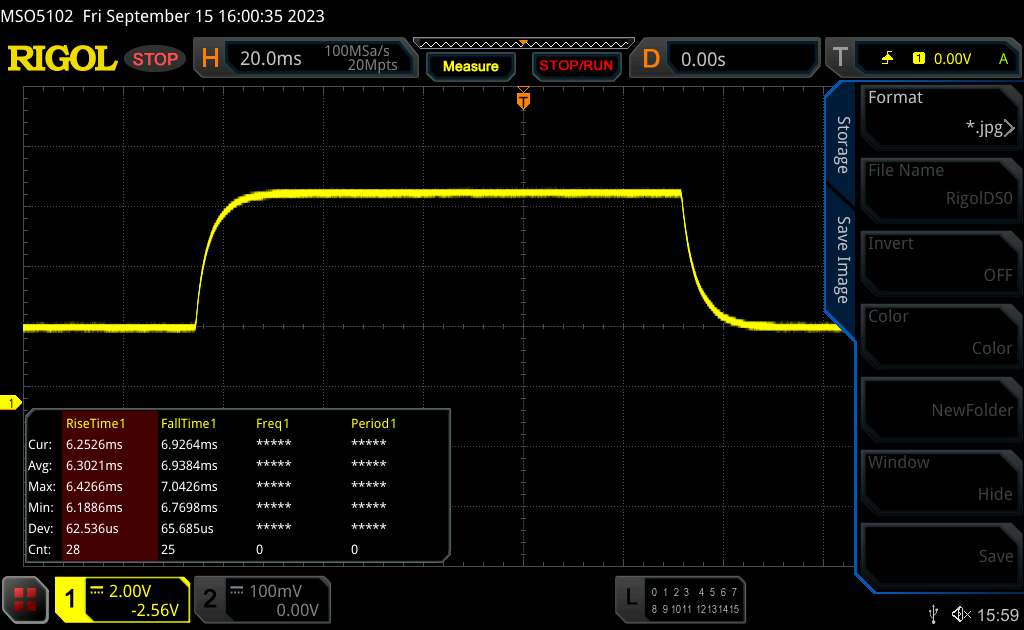

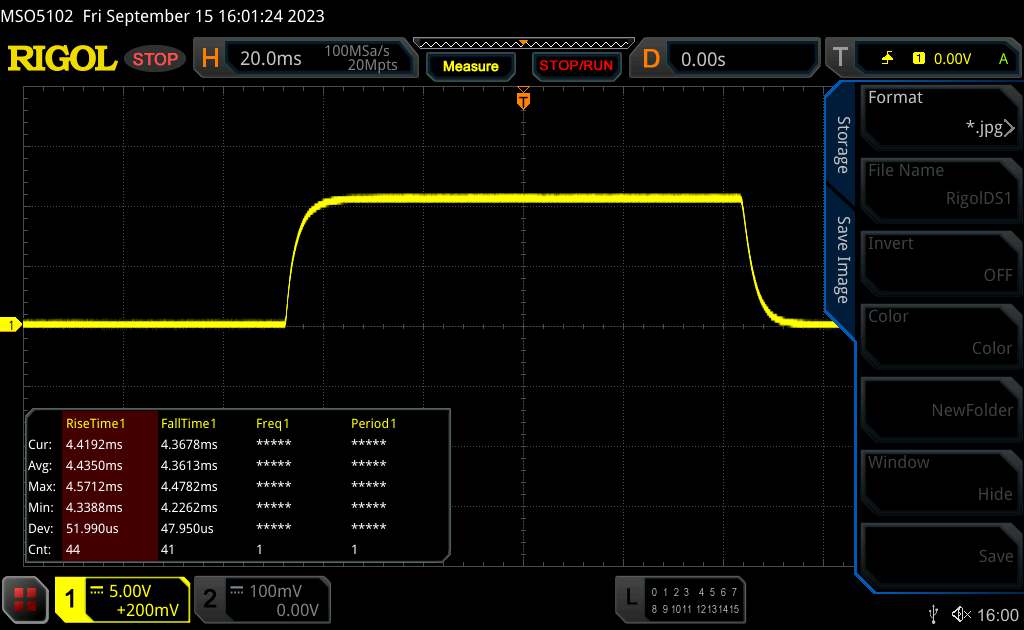

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 8.8 ms ... rise ↗ and fall ↘ combined | ↗ 4.4 ms rise |  |
| ↘ 4.4 ms fall | ||
| The screen shows fast response rates in our tests and should be suited for gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 19 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21.5 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 13.2 ms ... rise ↗ and fall ↘ combined | ↗ 6.3 ms rise |  |
| ↘ 6.9 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 21 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms). | ||

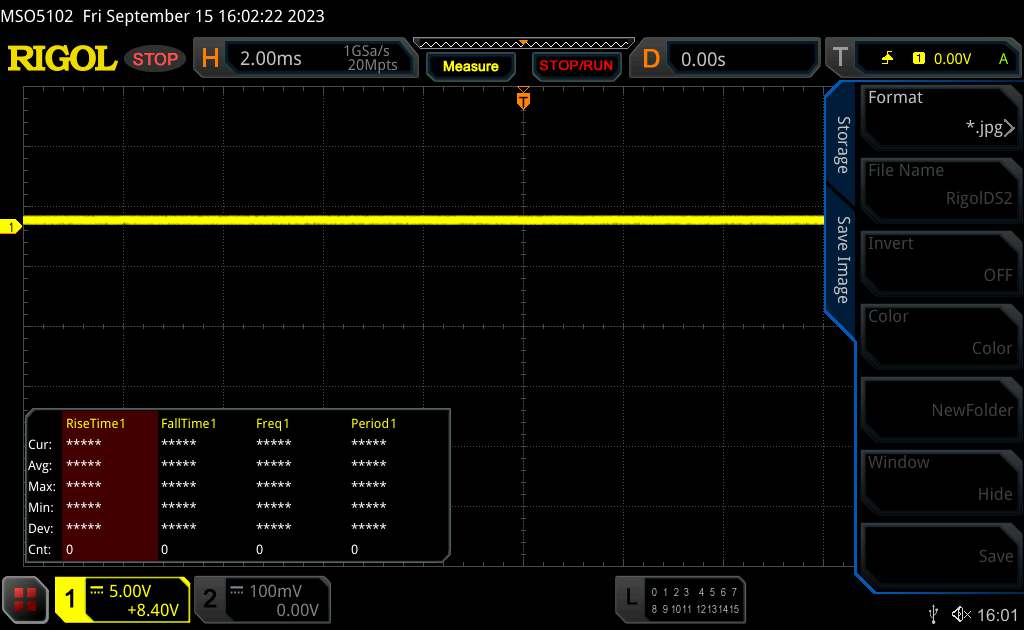

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17903 (minimum: 5 - maximum: 3846000) Hz was measured. | |||

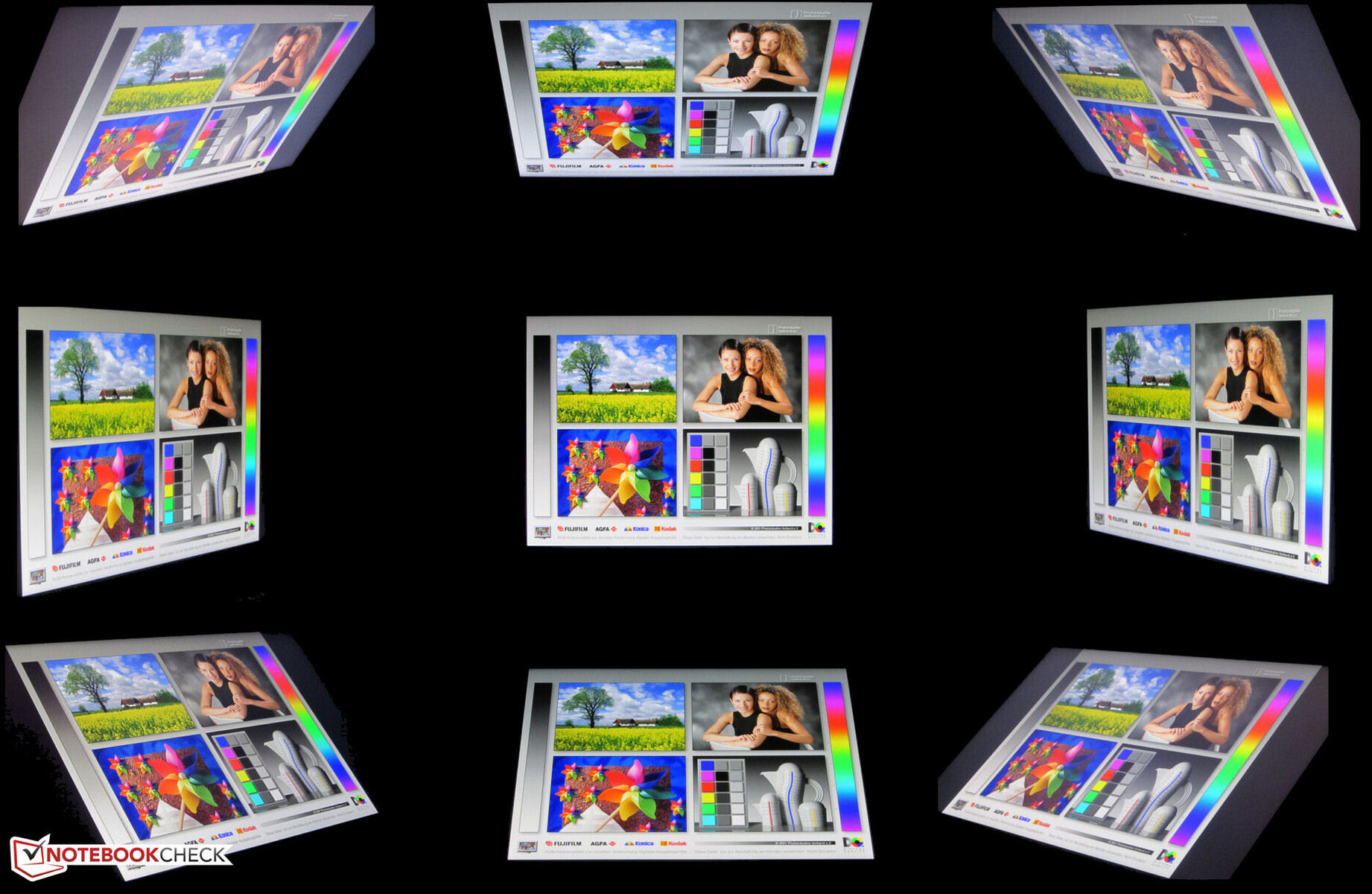

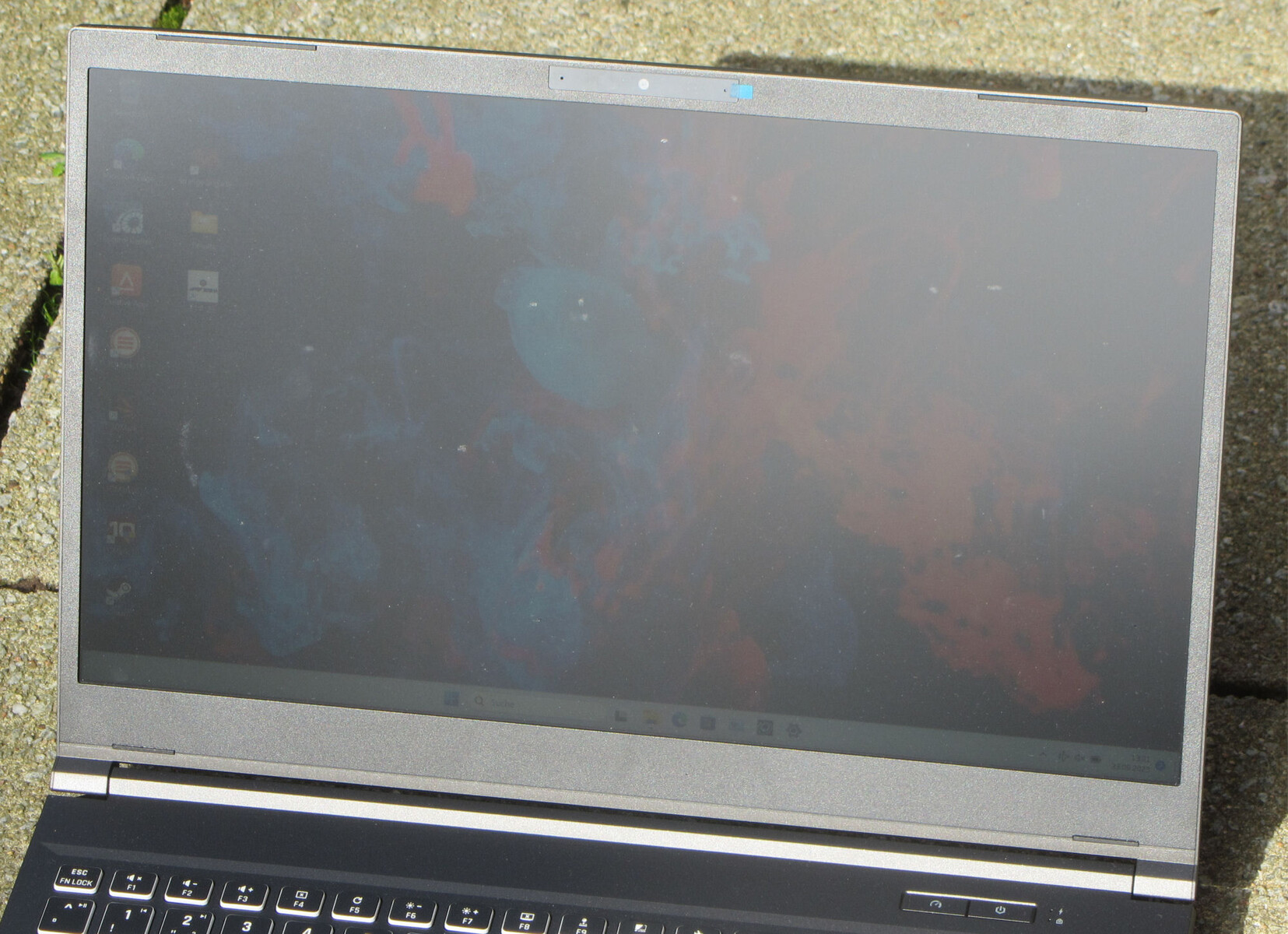

视角稳定的 IPS 面板在任何角度都清晰易读。在室外，只要阳光不是太强烈，您就可以阅读显示屏上的内容。
性能 - 菲尼克斯和艾达-拉芙蕾丝配合默契
申克的 Apex 15（23 号晚报）是一款中端游戏笔记本电脑。GeForce RTX 4050 或 RTX 4060 可与安装的 Phoenix APU 一起使用，我们的测试设备搭载的是 RTX 4050。目前的配置价格约为 1,540 美元。起价约为 1,170 美元。笔记本电脑可以单独组装，在Bestware.com 网站上购买。
测试条件

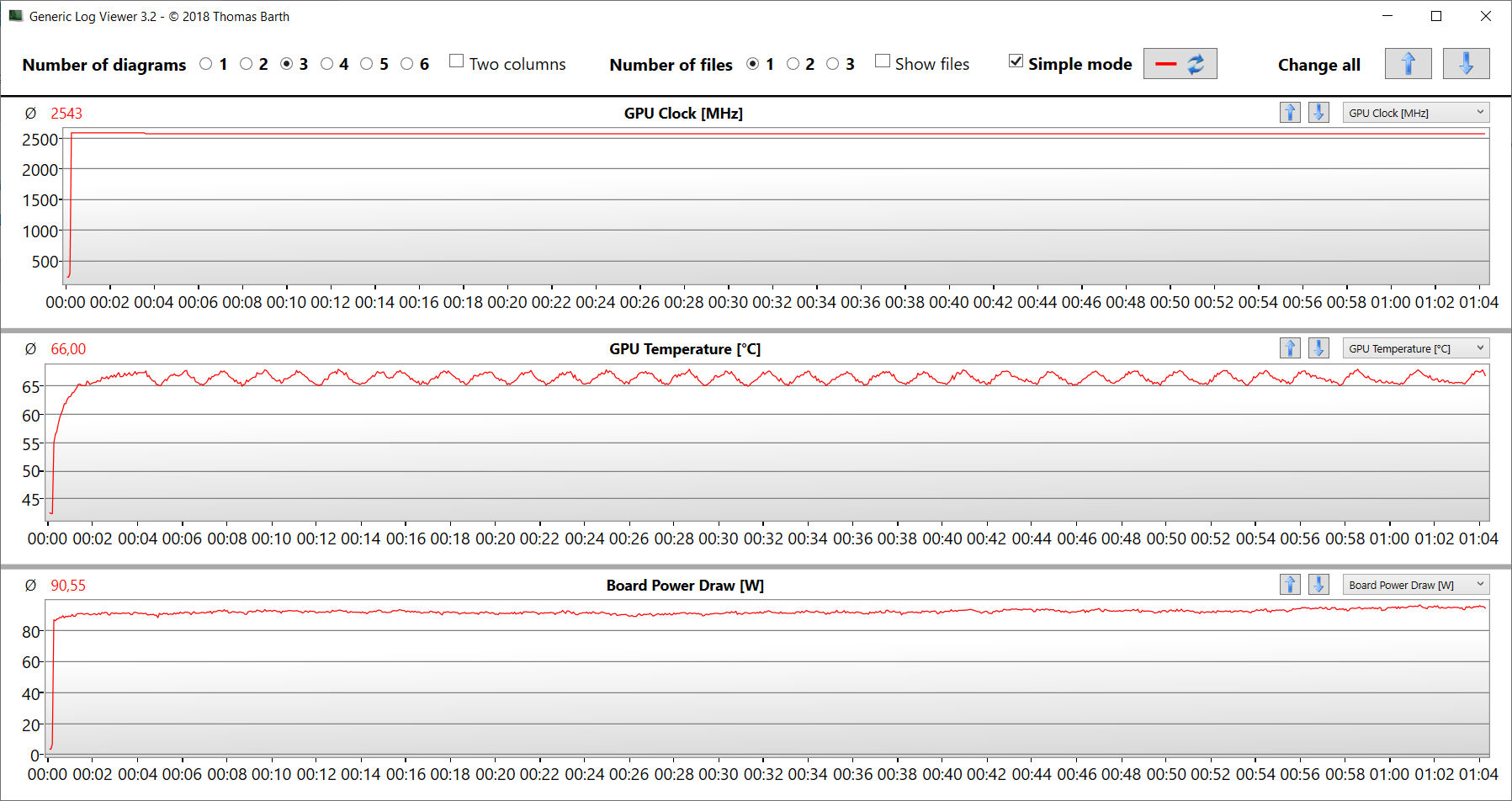

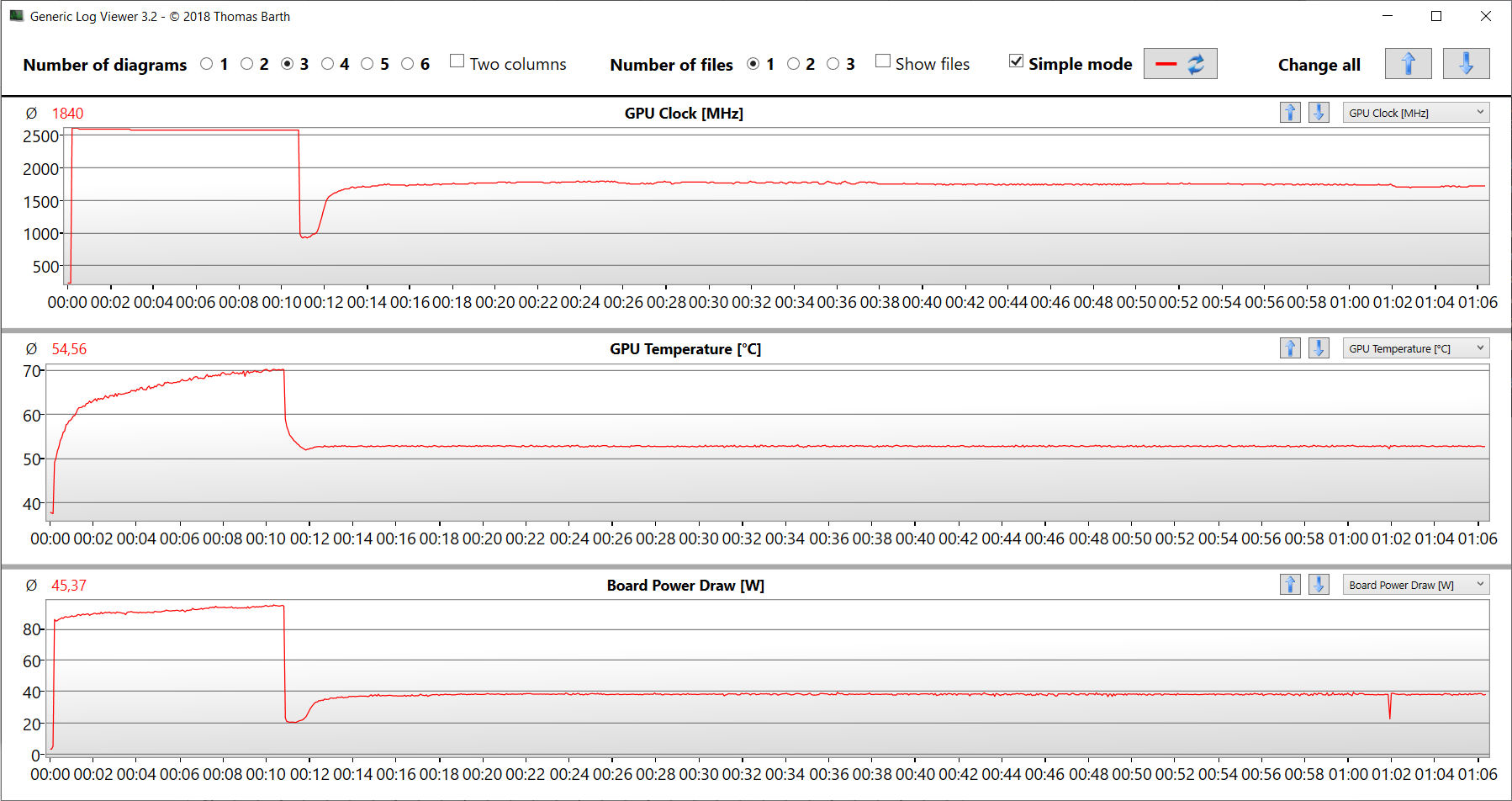

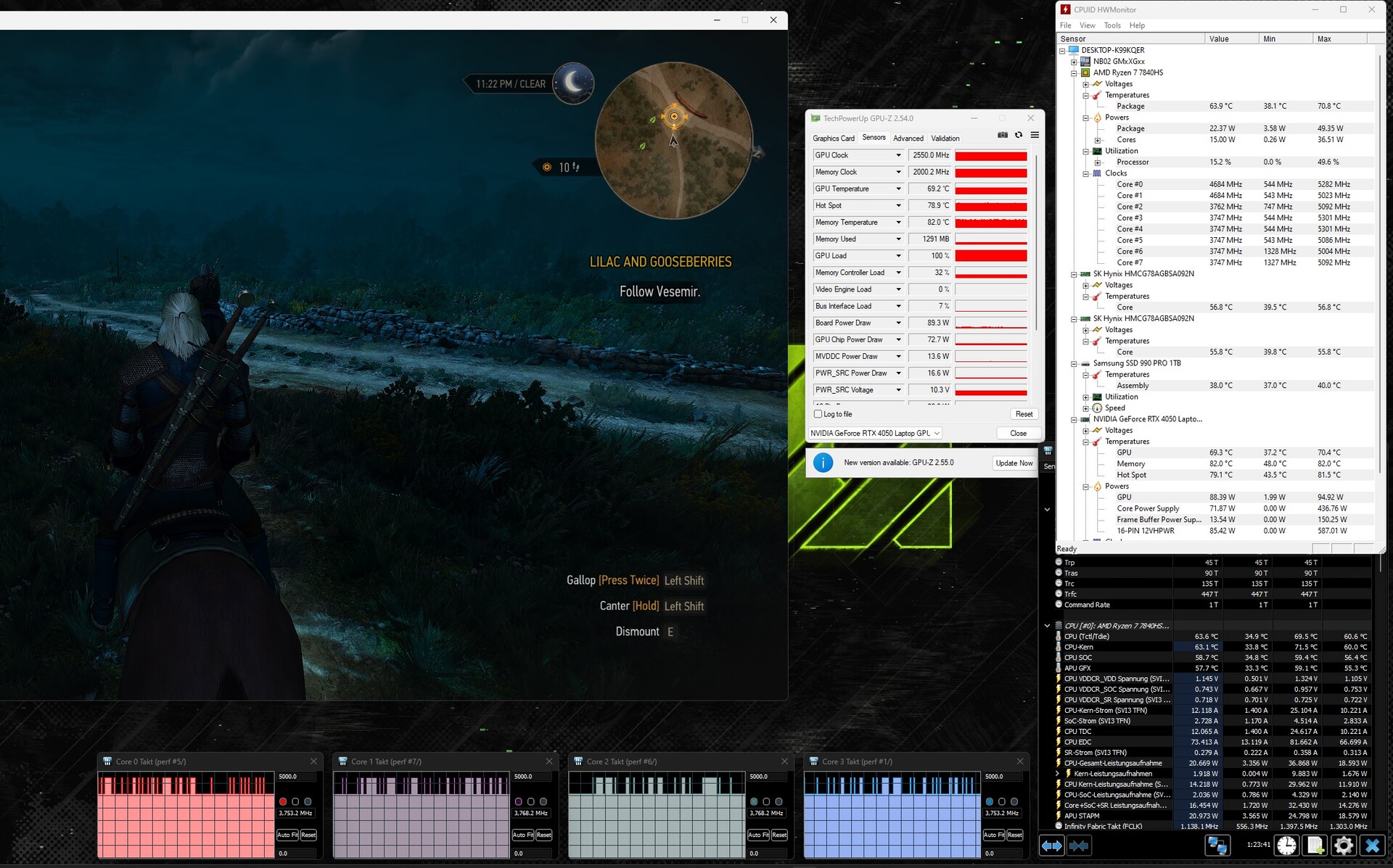

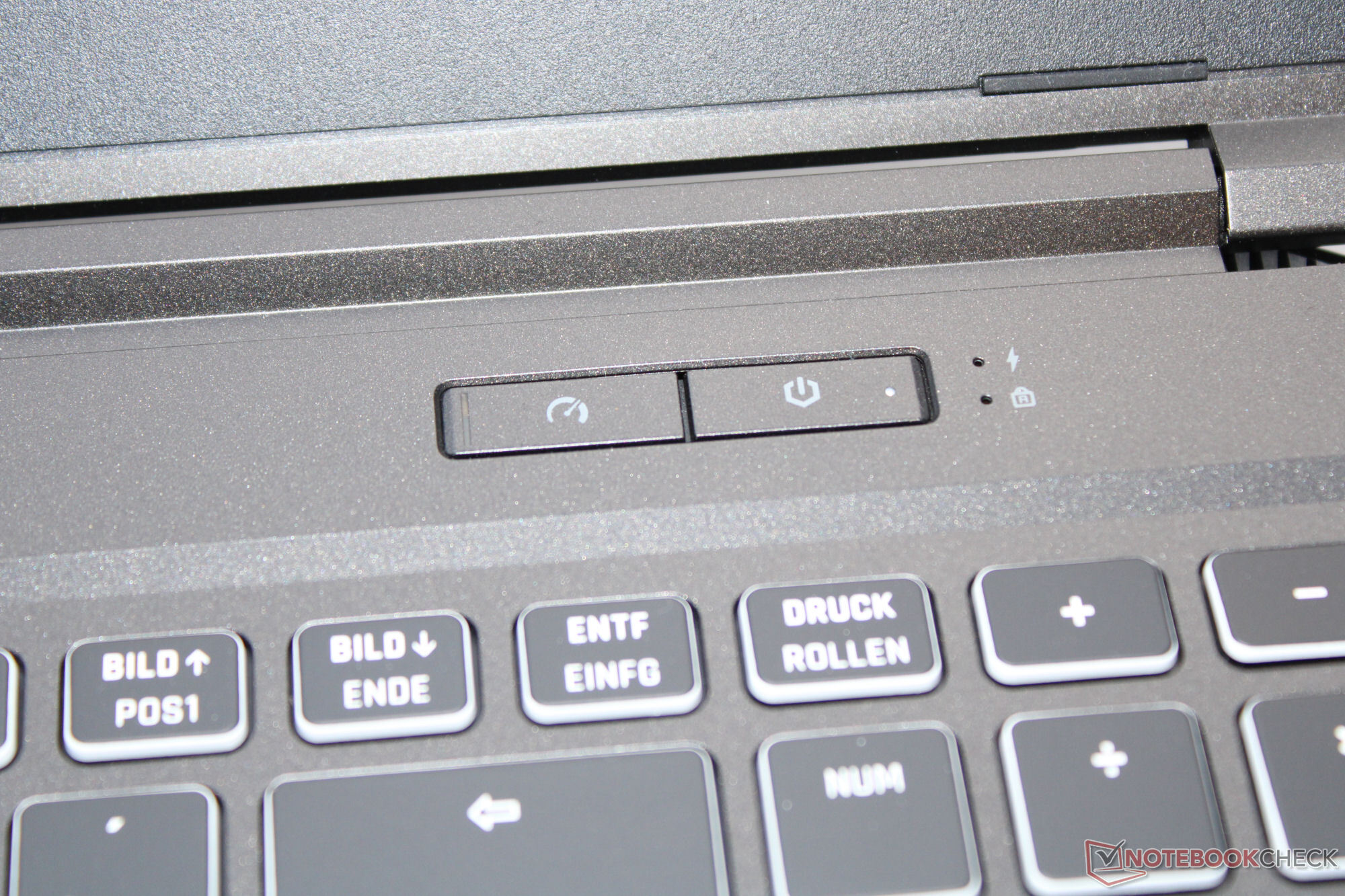

Apex 具有三种制造商特定的电源模式（见表），可通过一个单独的按钮（电源按钮旁边）进行切换。LED 状态指示灯显示激活的模式。我们使用了 "Enthusiast"（基准测试）和 "Balanced"（电池测试）模式。Optimus "模式处于激活状态。

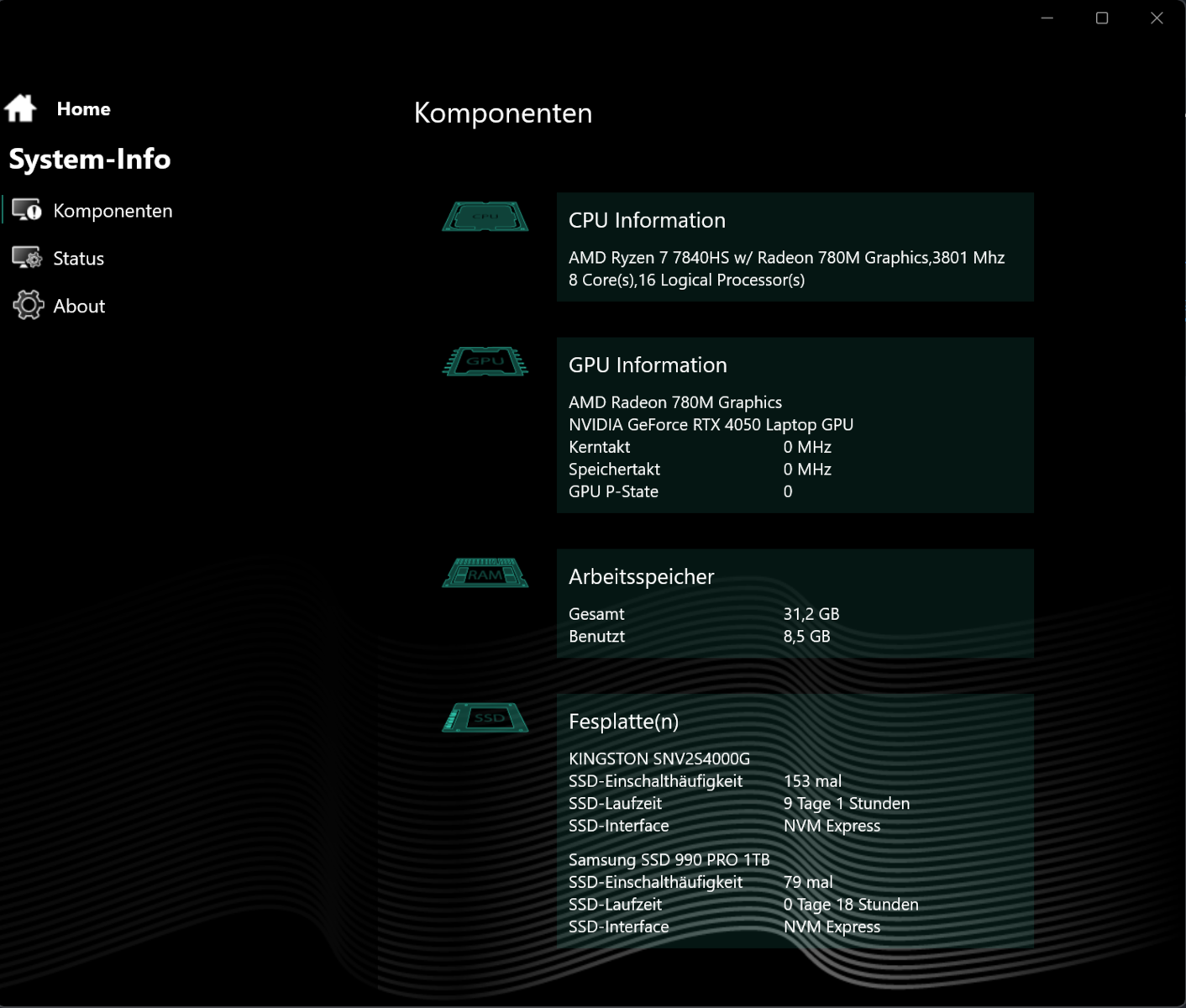

预装的 "控制中心 "允许您创建个人配置文件：可以调整 CPU 的功率限制、GPU 的 TGP 和/或风扇控制等。
| Enthusiast | Overboost | Balanced | |
|---|---|---|---|

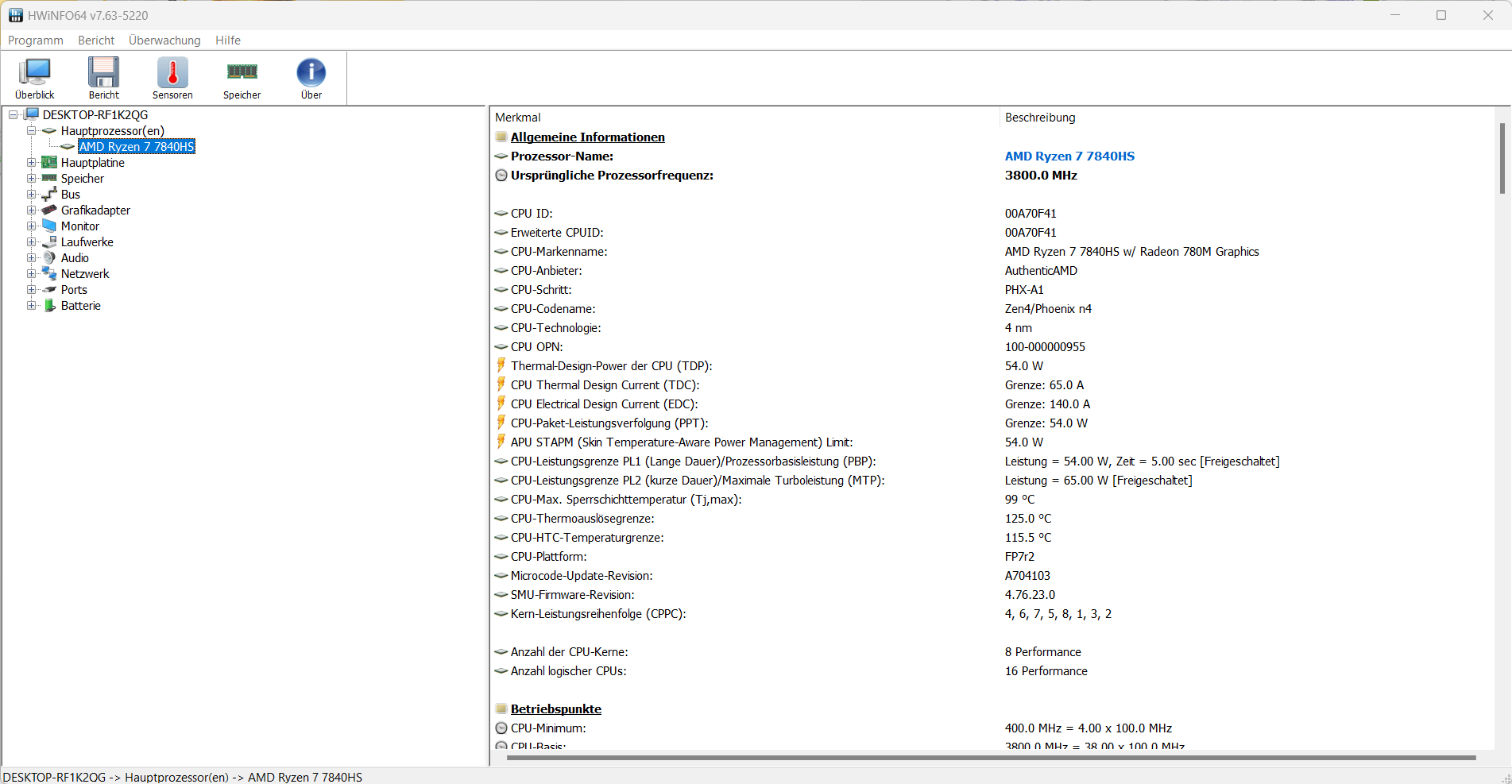

| 功率限制 1 (HWInfo) | 54 瓦 | 80 瓦 | 35 瓦 |
| 功率限制 2 (HWInfo) | 65 瓦 | 80 瓦 | 65 瓦 |
| 噪音 (Witcher 3) | ~48 dB(A) | ~52 dB(A) | ~32 dB(A) |
| 性能 (Witcher 3) | ~83 fps | ~86 fps | ~50 fps |
处理器

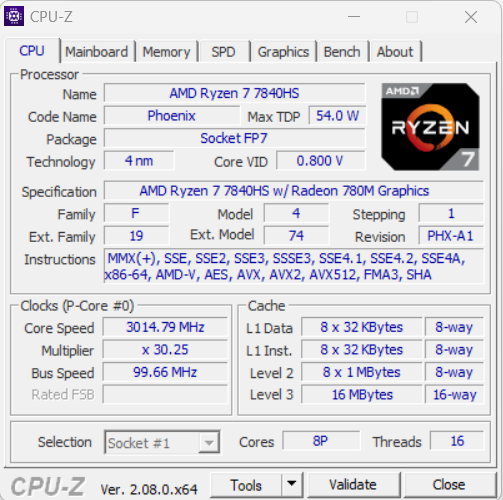

......（英文Ryzen 7 7840HSAPU（Phoenix、Zen 4）的 8 个 CPU 内核共提供 16 个线程，最高时钟频率为 5.1 GHz（单核）。无论选择何种性能模式，处理器都能以稳定的高时钟频率处理连续多线程负载（CB15 循环）。

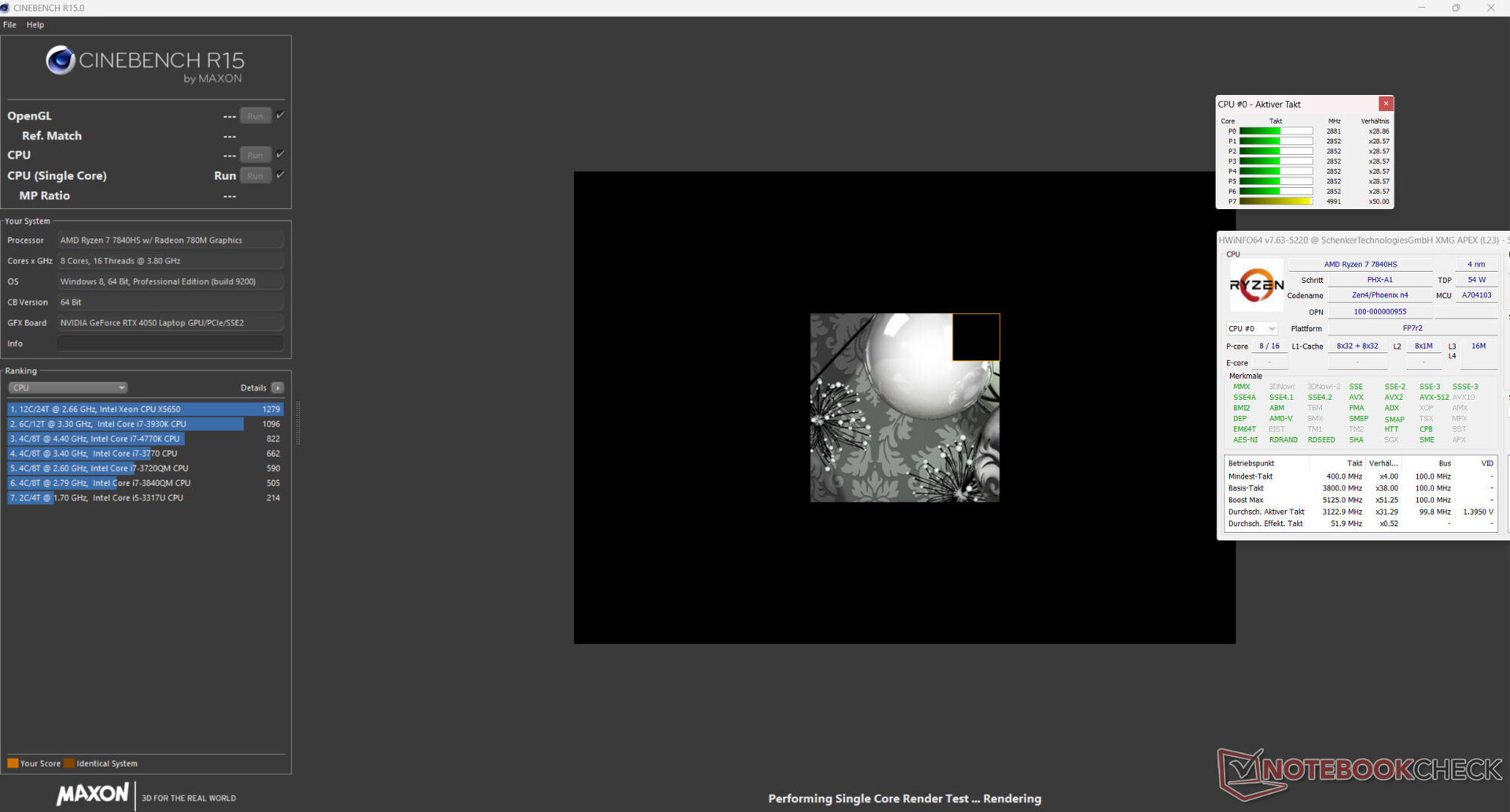

连接电源时，笔记本电脑的基准测试结果与这款处理器的平均水平相当。在电池模式下，其相关的单线程性能（217 分）低于多线程性能（1603 分）。
请注意：有关 Zen 4 架构的更多详细信息，请参阅我们的 分析文章.

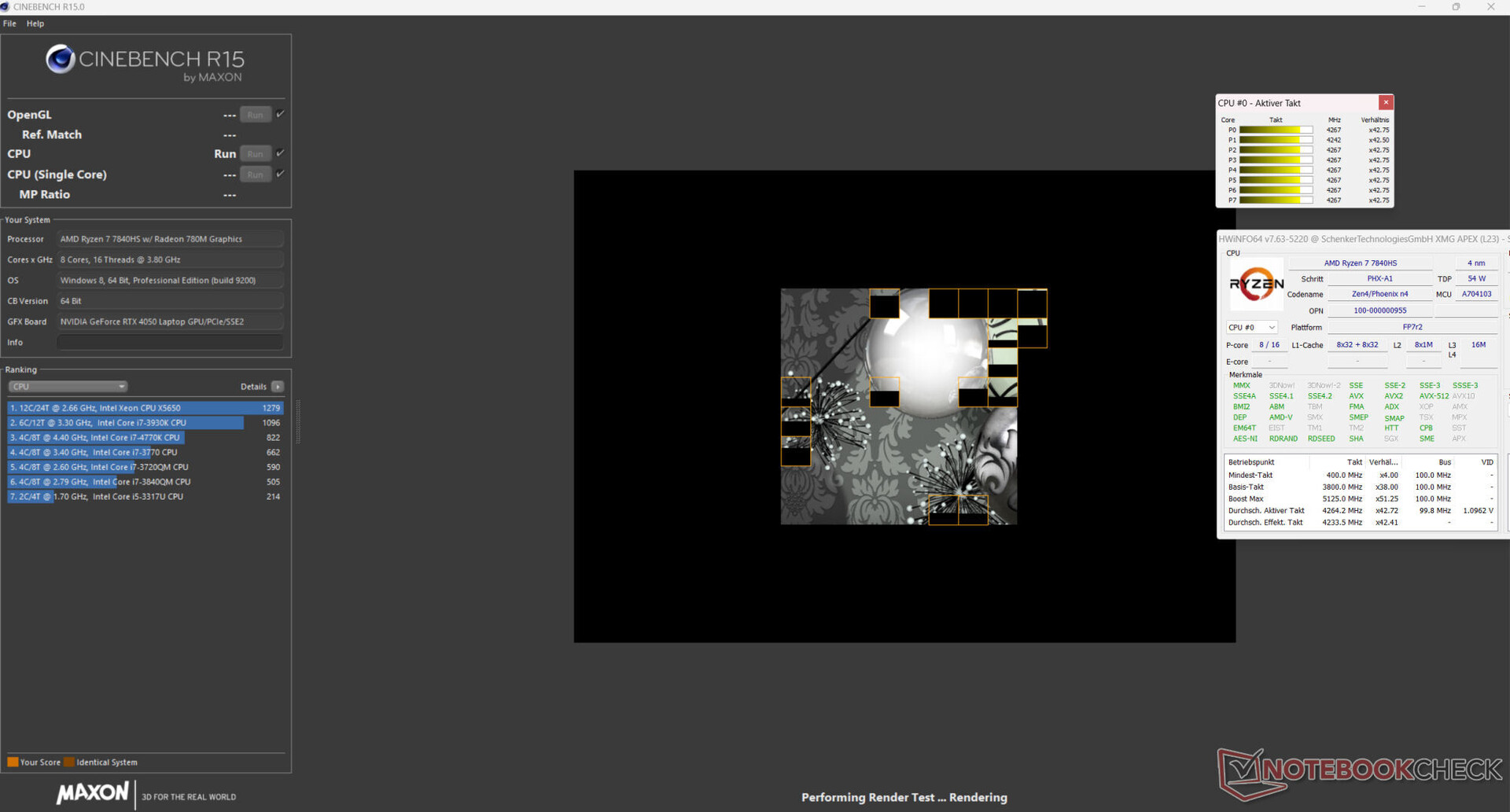

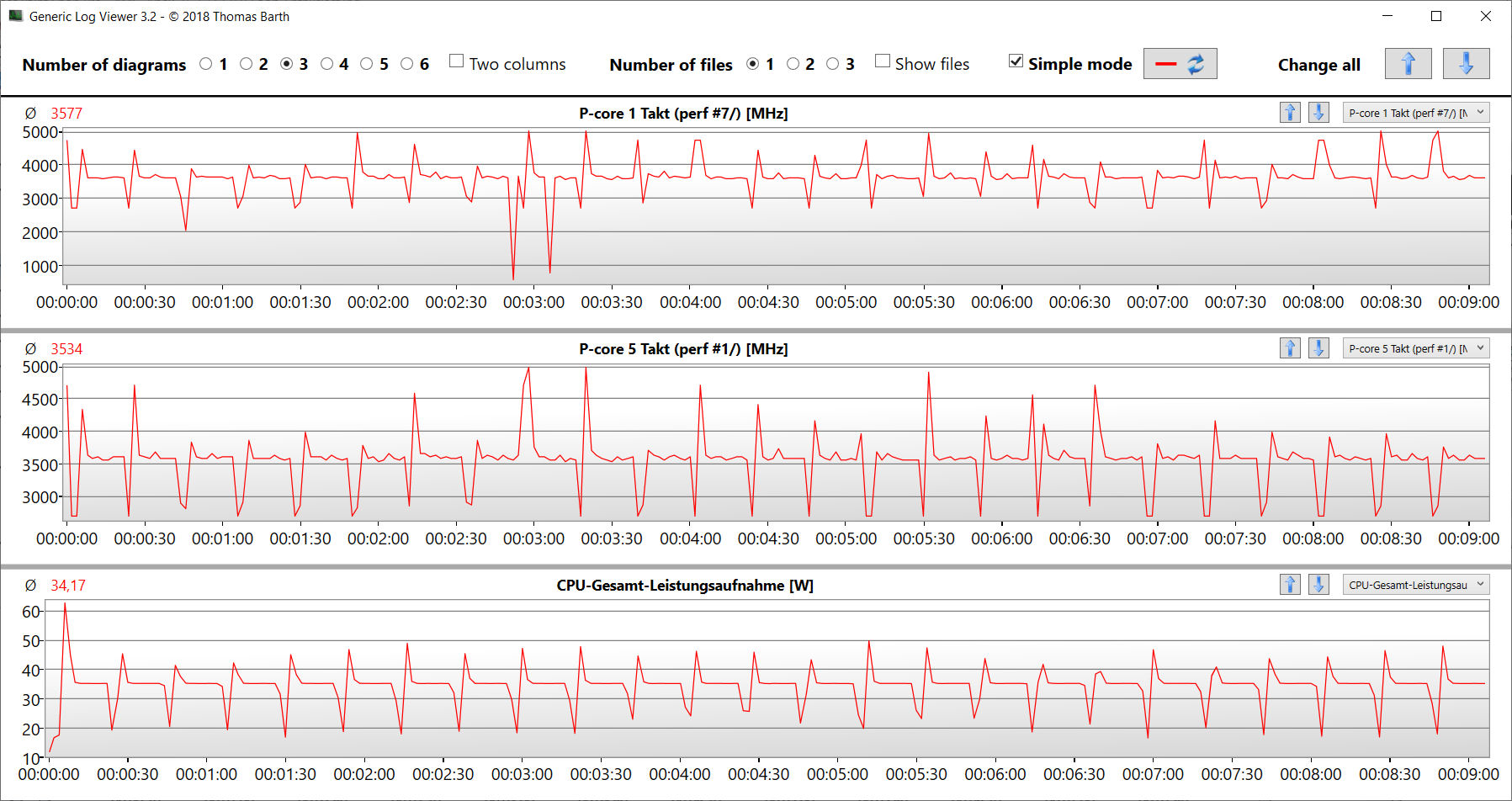

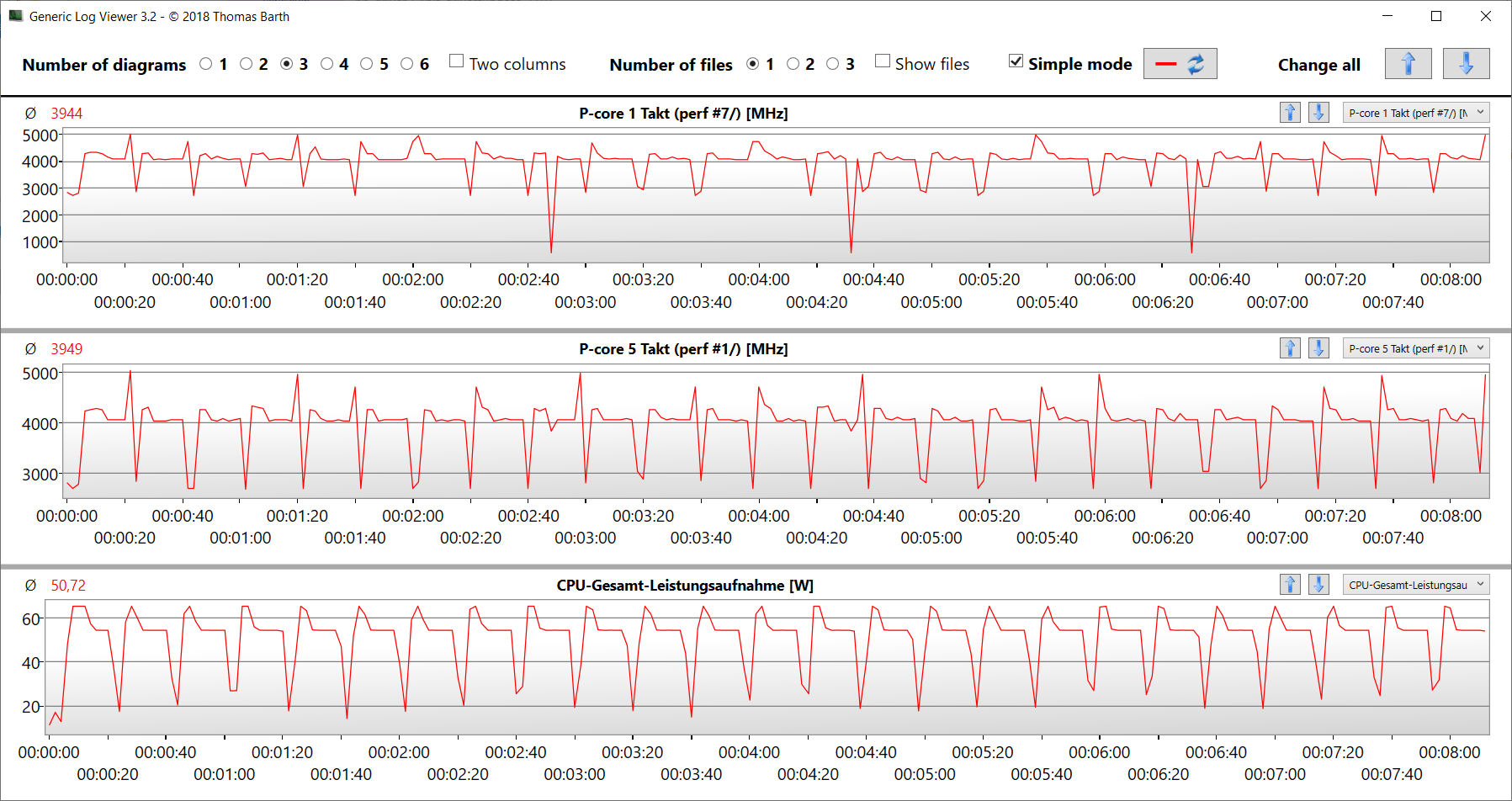

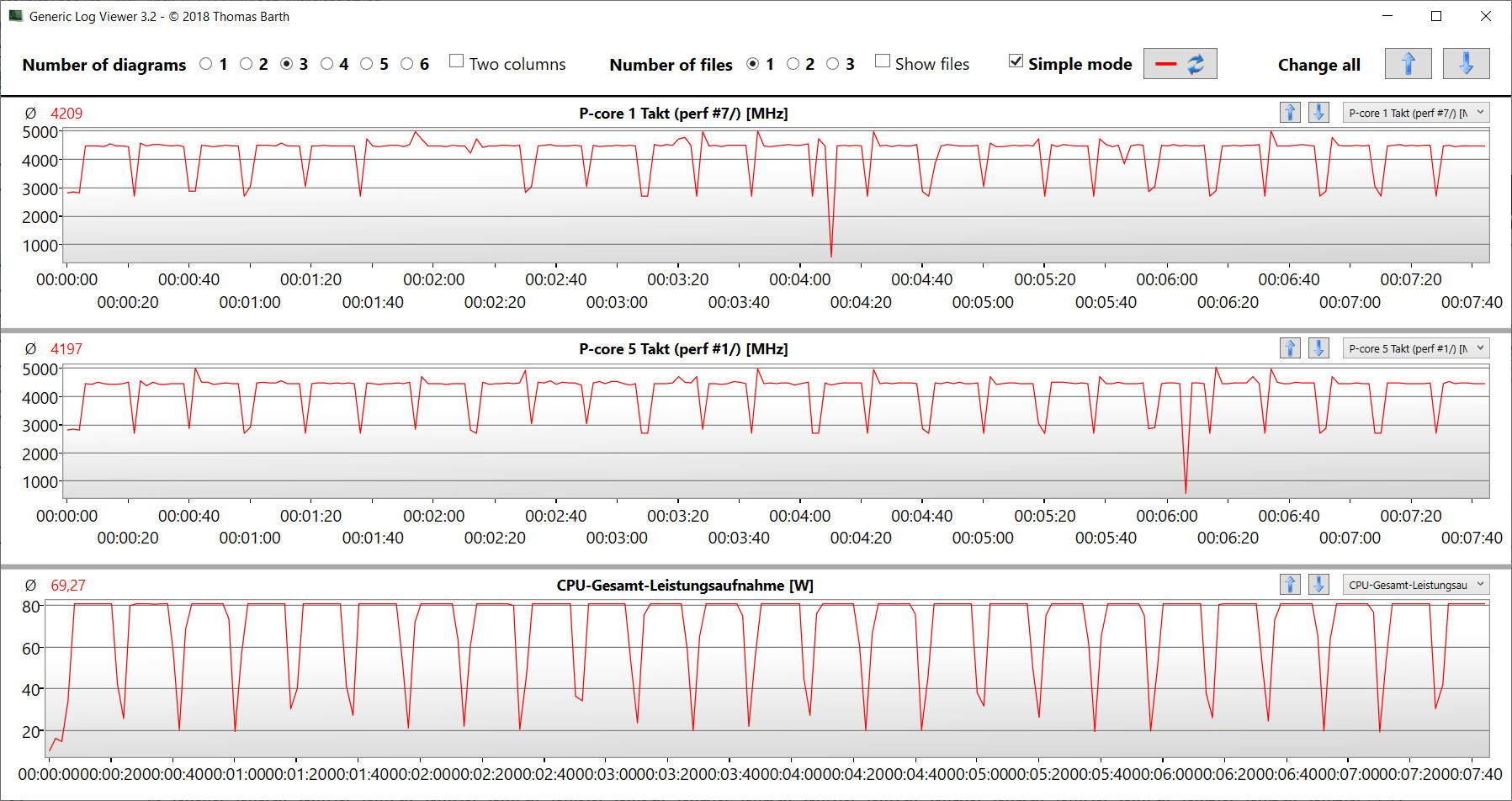

Cinebench R15 Multi continuous test
SCHENKER XMG Apex 15 (Late 23) AMD Ryzen 7 7840HS: Ø2428 (2409.06-2473.11)
Acer Nitro 16 AN16-41-R7YE AMD Ryzen 5 7535HS: Ø1686 (1633.32-1757.16)
Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) AMD Ryzen 5 7645HX: Ø2240 (2217.05-2275.83)
Asus TUF A15 FA507 AMD Ryzen 7 7735HS: Ø2219 (2188.66-2273.89)
MSI Katana 15 B12VEK Intel Core i7-12650H: Ø1968 (1876.44-2253.14)
CPU Performance Rating | Cinebench R23 | Cinebench R20 | Cinebench R15 | Blender | 7-Zip 18.03 | Geekbench 5.5 | HWBOT x265 Benchmark v2.2 | LibreOffice | R Benchmark 2.5
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average AMD Ryzen 7 7840HS | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average of class Gaming | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Asus TUF A15 FA507 | |
| MSI Katana 15 B12VEK | |
| Acer Nitro 16 AN16-41-R7YE | |
| AIDA64 / FP32 Ray-Trace | |
| Average AMD Ryzen 7 7840HS (24712 - 28921, n=17) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Average of class Gaming (3069 - 60169, n=226, last 2 years) | |
| Asus TUF A15 FA507 | |
| MSI Katana 15 B12VEK | |
| Acer Nitro 16 AN16-41-R7YE | |
| AIDA64 / FPU Julia | |
| Average AMD Ryzen 7 7840HS (103755 - 123167, n=17) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Asus TUF A15 FA507 | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Average of class Gaming (18567 - 252486, n=226, last 2 years) | |
| Acer Nitro 16 AN16-41-R7YE | |
| MSI Katana 15 B12VEK | |
| AIDA64 / CPU SHA3 | |
| Average AMD Ryzen 7 7840HS (4293 - 5096, n=17) | |
| Average of class Gaming (629 - 10389, n=226, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Asus TUF A15 FA507 | |
| MSI Katana 15 B12VEK | |
| Acer Nitro 16 AN16-41-R7YE | |
| AIDA64 / CPU Queen | |
| Average AMD Ryzen 7 7840HS (105028 - 122681, n=17) | |
| Average of class Gaming (15371 - 200651, n=226, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Asus TUF A15 FA507 | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| MSI Katana 15 B12VEK | |
| Acer Nitro 16 AN16-41-R7YE | |
| AIDA64 / FPU SinJulia | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average AMD Ryzen 7 7840HS (14385 - 15525, n=17) | |
| Asus TUF A15 FA507 | |
| Average of class Gaming (2137 - 32988, n=226, last 2 years) | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Acer Nitro 16 AN16-41-R7YE | |
| MSI Katana 15 B12VEK | |
| AIDA64 / FPU Mandel | |
| Average AMD Ryzen 7 7840HS (55540 - 65812, n=17) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Asus TUF A15 FA507 | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Average of class Gaming (10291 - 134044, n=226, last 2 years) | |
| Acer Nitro 16 AN16-41-R7YE | |
| MSI Katana 15 B12VEK | |
| AIDA64 / CPU AES | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average AMD Ryzen 7 7840HS (67389 - 177158, n=17) | |
| Average of class Gaming (19065 - 328679, n=226, last 2 years) | |
| Acer Nitro 16 AN16-41-R7YE | |
| MSI Katana 15 B12VEK | |
| Asus TUF A15 FA507 | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| AIDA64 / CPU ZLib | |
| Average of class Gaming (150.9 - 2409, n=226, last 2 years) | |
| Average AMD Ryzen 7 7840HS (949 - 1123, n=17) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| MSI Katana 15 B12VEK | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Acer Nitro 16 AN16-41-R7YE | |
| Asus TUF A15 FA507 | |
| AIDA64 / FP64 Ray-Trace | |
| Average AMD Ryzen 7 7840HS (13100 - 15599, n=17) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Average of class Gaming (1518 - 31796, n=226, last 2 years) | |
| Asus TUF A15 FA507 | |
| MSI Katana 15 B12VEK | |
| Acer Nitro 16 AN16-41-R7YE | |
| AIDA64 / CPU PhotoWorxx | |
| Average AMD Ryzen 7 7840HS (17615 - 41157, n=17) | |
| MSI Katana 15 B12VEK | |
| Average of class Gaming (10805 - 60161, n=227, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Acer Nitro 16 AN16-41-R7YE | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Asus TUF A15 FA507 | |
系统性能

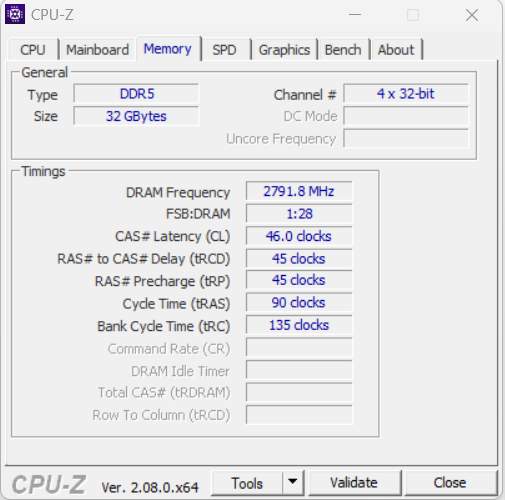

平滑流畅的系统为渲染和游戏等要求苛刻的应用提供了足够的动力。对于 DDR5-5600 内存来说，内存数据传输率处于正常水平。
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Average AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU (7683 - 7709, n=2) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average of class Gaming (5235 - 9852, n=199, last 2 years) | |
| Asus TUF A15 FA507 | |
| MSI Katana 15 B12VEK | |
| Acer Nitro 16 AN16-41-R7YE | |
| PCMark 10 / Essentials | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average of class Gaming (8300 - 12334, n=198, last 2 years) | |
| Average AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU (10621 - 10755, n=2) | |
| Asus TUF A15 FA507 | |
| MSI Katana 15 B12VEK | |
| Acer Nitro 16 AN16-41-R7YE | |
| PCMark 10 / Productivity | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU (9932 - 9980, n=2) | |
| MSI Katana 15 B12VEK | |
| Average of class Gaming (6662 - 11833, n=198, last 2 years) | |
| Asus TUF A15 FA507 | |
| Acer Nitro 16 AN16-41-R7YE | |
| PCMark 10 / Digital Content Creation | |
| Average AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU (11467 - 11785, n=2) | |
| Average of class Gaming (6462 - 18475, n=198, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Asus TUF A15 FA507 | |
| Acer Nitro 16 AN16-41-R7YE | |
| MSI Katana 15 B12VEK | |
| CrossMark / Overall | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Average of class Gaming (1247 - 2334, n=170, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| MSI Katana 15 B12VEK | |
| Average AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU (1586 - 1749, n=2) | |
| Asus TUF A15 FA507 | |
| Acer Nitro 16 AN16-41-R7YE | |
| CrossMark / Productivity | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Average of class Gaming (1299 - 2204, n=170, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| MSI Katana 15 B12VEK | |
| Average AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU (1625 - 1677, n=2) | |
| Asus TUF A15 FA507 | |
| Acer Nitro 16 AN16-41-R7YE | |
| CrossMark / Creativity | |
| Average of class Gaming (1275 - 2514, n=170, last 2 years) | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| MSI Katana 15 B12VEK | |
| Average AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU (1628 - 1930, n=2) | |
| Asus TUF A15 FA507 | |
| Acer Nitro 16 AN16-41-R7YE | |
| CrossMark / Responsiveness | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Average of class Gaming (1030 - 2330, n=170, last 2 years) | |
| MSI Katana 15 B12VEK | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU (1364 - 1480, n=2) | |
| Acer Nitro 16 AN16-41-R7YE | |
| Asus TUF A15 FA507 | |
| PCMark 10 Score | 7683 points | |
Help | ||
| AIDA64 / Memory Copy | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average AMD Ryzen 7 7840HS (30937 - 72158, n=17) | |
| Average of class Gaming (21842 - 92565, n=226, last 2 years) | |
| MSI Katana 15 B12VEK | |
| Acer Nitro 16 AN16-41-R7YE | |
| Asus TUF A15 FA507 | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| AIDA64 / Memory Read | |
| MSI Katana 15 B12VEK | |
| Average of class Gaming (24879 - 90647, n=226, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average AMD Ryzen 7 7840HS (30497 - 61911, n=17) | |
| Acer Nitro 16 AN16-41-R7YE | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Asus TUF A15 FA507 | |
| AIDA64 / Memory Write | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average AMD Ryzen 7 7840HS (34590 - 93323, n=17) | |
| Average of class Gaming (21619 - 103259, n=226, last 2 years) | |
| MSI Katana 15 B12VEK | |
| Asus TUF A15 FA507 | |
| Acer Nitro 16 AN16-41-R7YE | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| AIDA64 / Memory Latency | |
| MSI Katana 15 B12VEK | |
| Average AMD Ryzen 7 7840HS (85.1 - 112, n=17) | |
| Acer Nitro 16 AN16-41-R7YE | |
| Average of class Gaming (59.5 - 152.5, n=223, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| Asus TUF A15 FA507 | |
* ... smaller is better

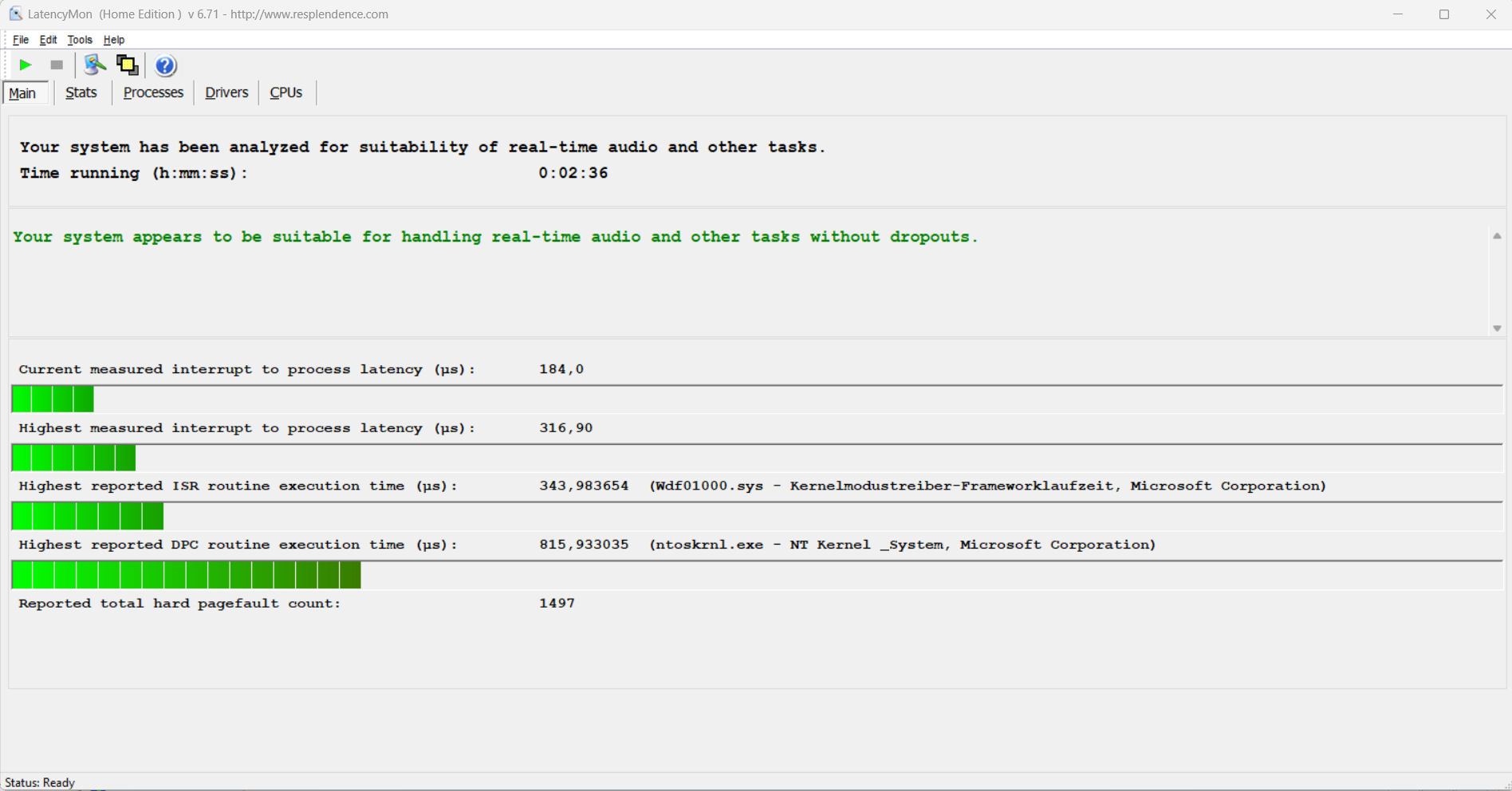

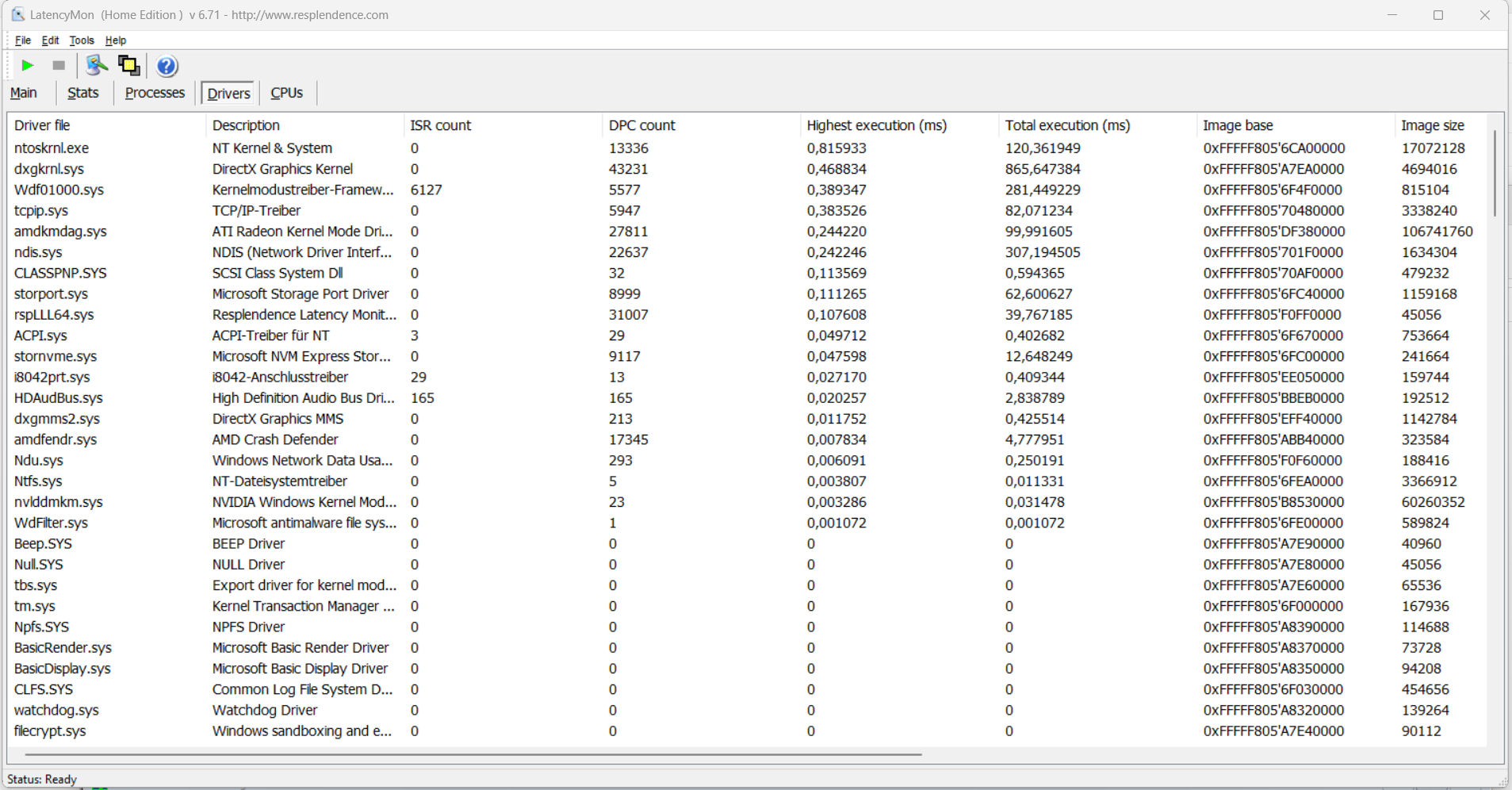

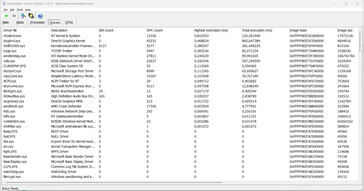

DPC 延迟
标准延迟监控测试（网上冲浪、4K 视频播放、Prime95 高负载）未发现异常。该系统似乎适合实时视频和音频编辑。未来的软件更新可能会带来改进，甚至降低性能。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| MSI Katana 15 B12VEK | |
| Acer Nitro 16 AN16-41-R7YE | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| SCHENKER XMG Apex 15 (Late 23) | |
* ... smaller is better
存储设备
Apex 可容纳两块 PCIe 4 固态硬盘，格式为 M.2-2280，支持 RAID-0/1。我们测试样本中的三星固态硬盘（1 TB、PCIe 4、M.2-2280）传输速率很高。正面：我们没有注意到任何热节流现象。
Samsung 990 Pro 1 TB
CDM 5/6 Read Seq Q32T1:
7132 MB/s
CDM 5/6 Write Seq Q32T1:
6879 MB/s
CDM 5/6 Read 4K Q32T1:
587.2 MB/s
CDM 5/6 Write 4K Q32T1:
609.7 MB/s
CDM 5 Read Seq:
3703 MB/s
CDM 5 Write Seq:
5714 MB/s
CDM 5/6 Read 4K:
71.81 MB/s
CDM 5/6 Write 4K:
232.1 MB/s
* ... smaller is better
Reading continuous performance: DiskSpd Read Loop, Queue Depth 8
SCHENKER XMG Apex 15 (Late 23) Samsung 990 Pro 1 TB: Ø7128 (6727.21-7140.8)
Acer Nitro 16 AN16-41-R7YE SK hynix HFS512GEJ9X125N: Ø4012 (3381.19-5725.73)
Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) SK hynix PC801 HFS512GEJ9X115N: Ø7134 (3488.4-7275.44)
Asus TUF A15 FA507 Micron 2400 MTFDKBA512QFM: Ø4012 (3504.22-4030.94)
Asus TUF A15 FA507 Micron 2400 MTFDKBA512QFM: Ø4012 (3504.22-4030.94)
MSI Katana 15 B12VEK Micron 2400 MTFDKBA1T0QFM: Ø4460 (3778.02-4582.76)
图形卡

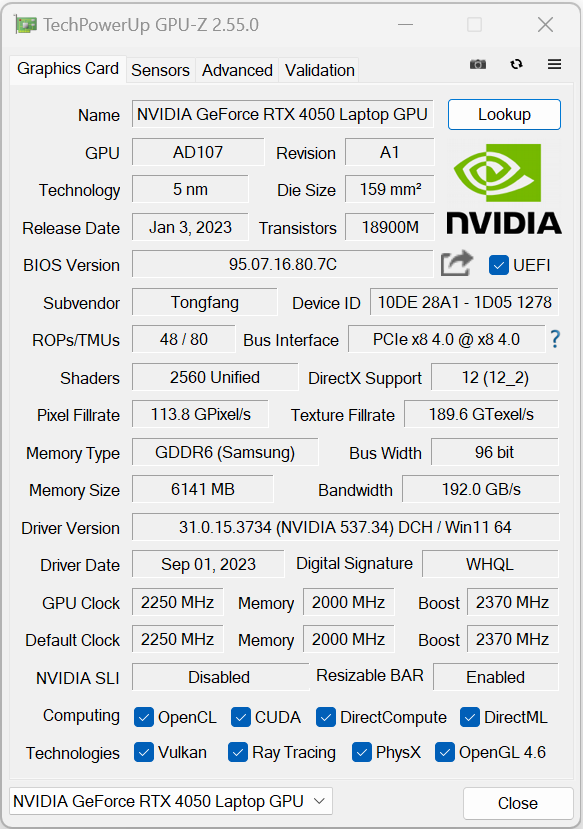

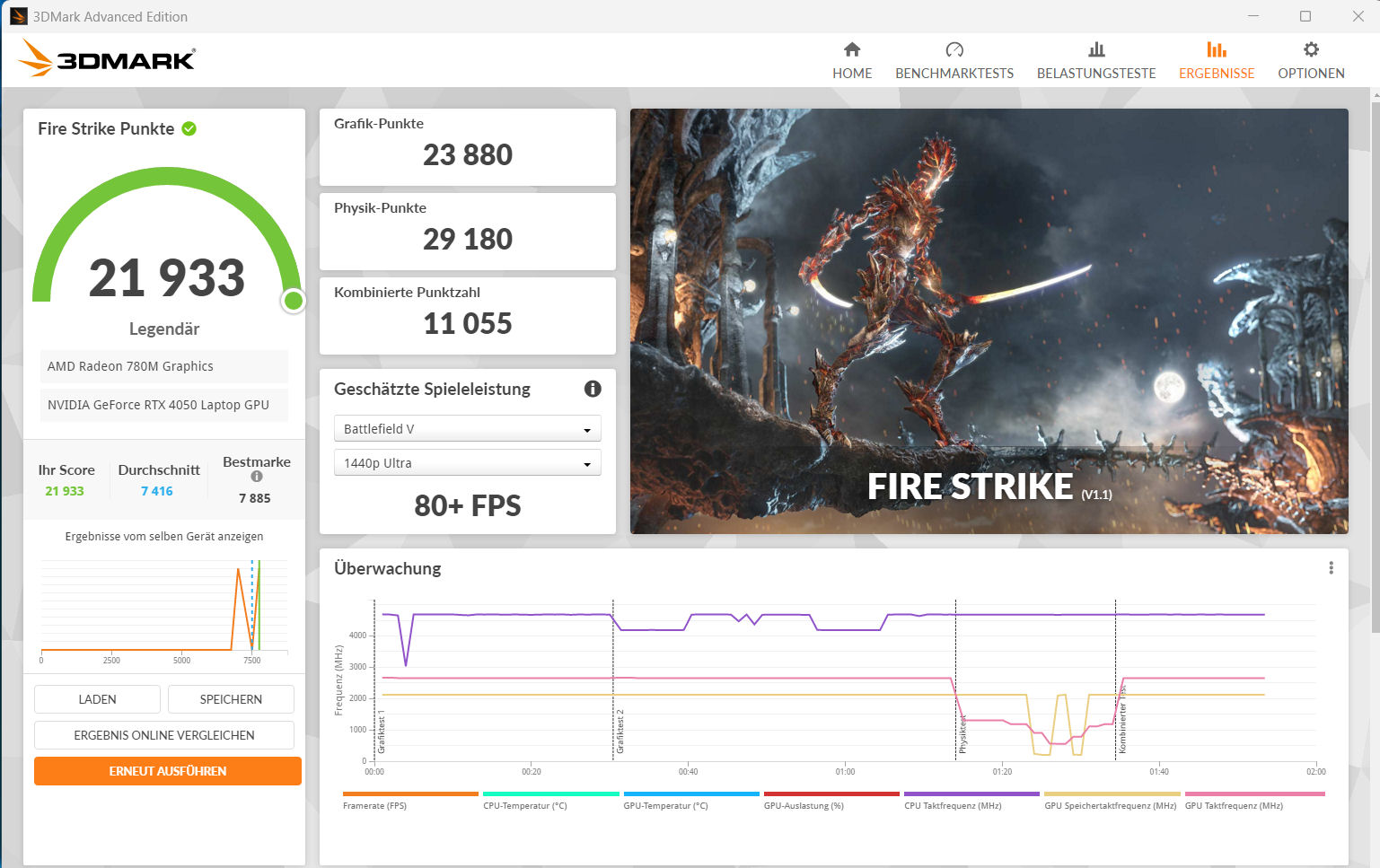

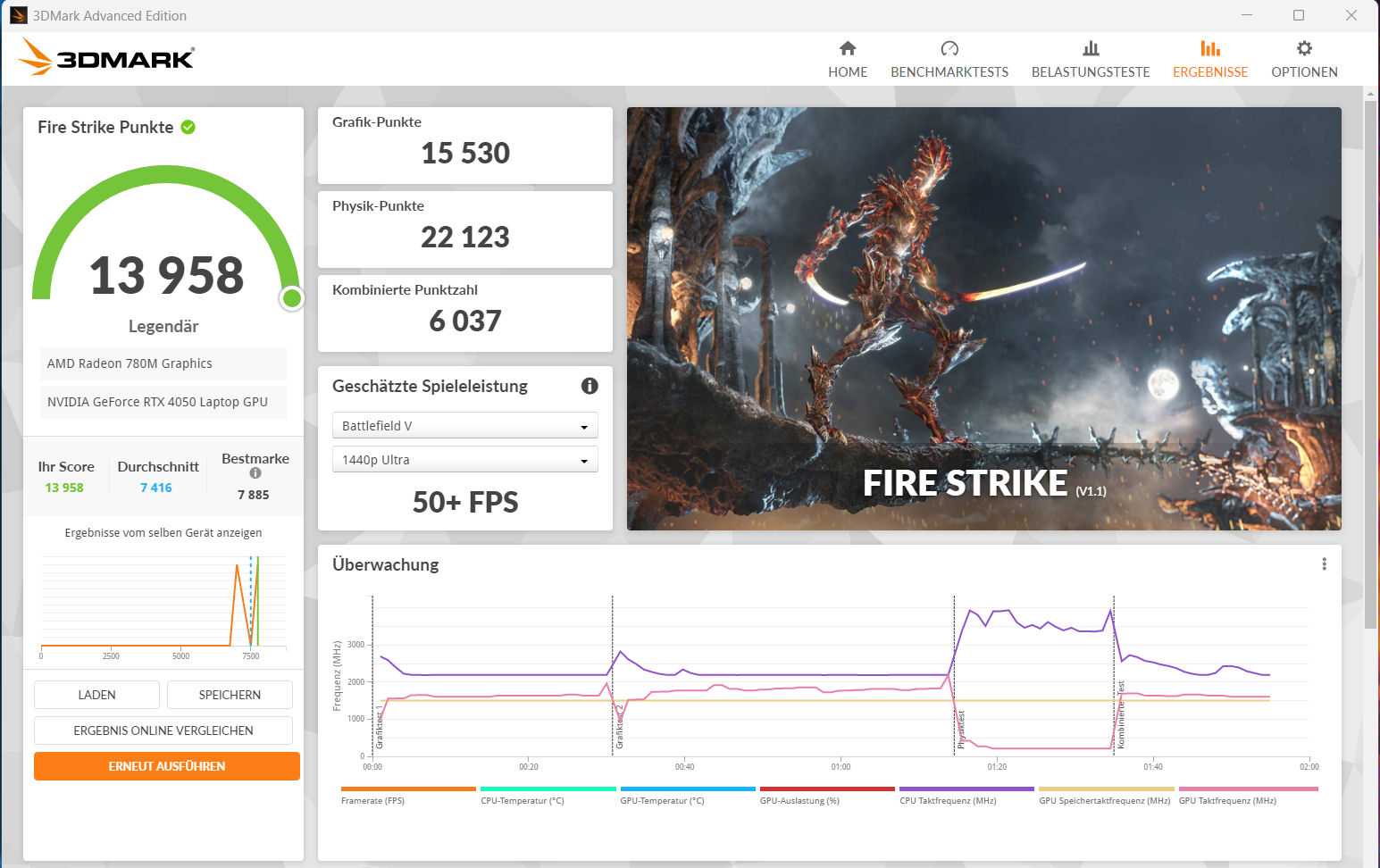

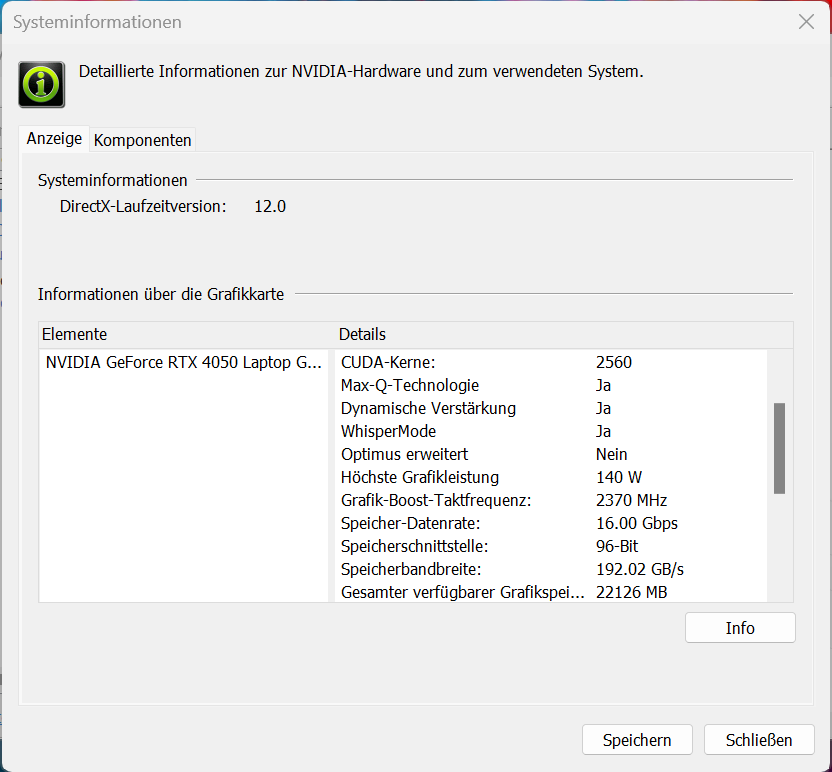

这款笔记本电脑采用了 Nvidia 当前的入门级游戏 GPU，即GeForce RTX 4050.该图形核心拥有 2,560 个着色器、96 位宽总线和快速 GDDR6 存储（6,144 MB）。根据 Witcher 3测试显示，它没有使用 140 瓦（115 瓦 + 25 瓦动态提升）的最大 TGP。
其基准测试结果高于之前 RTX 4050 的平均水平。dGPU 模式没有带来任何性能提升。在 dGPU 和 Optimus 之间切换需要重启 - 不支持高级 Optimus。
| 3DMark 06 Standard Score | 50886 points | |
| 3DMark 11 Performance | 29118 points | |
| 3DMark Cloud Gate Standard Score | 63064 points | |

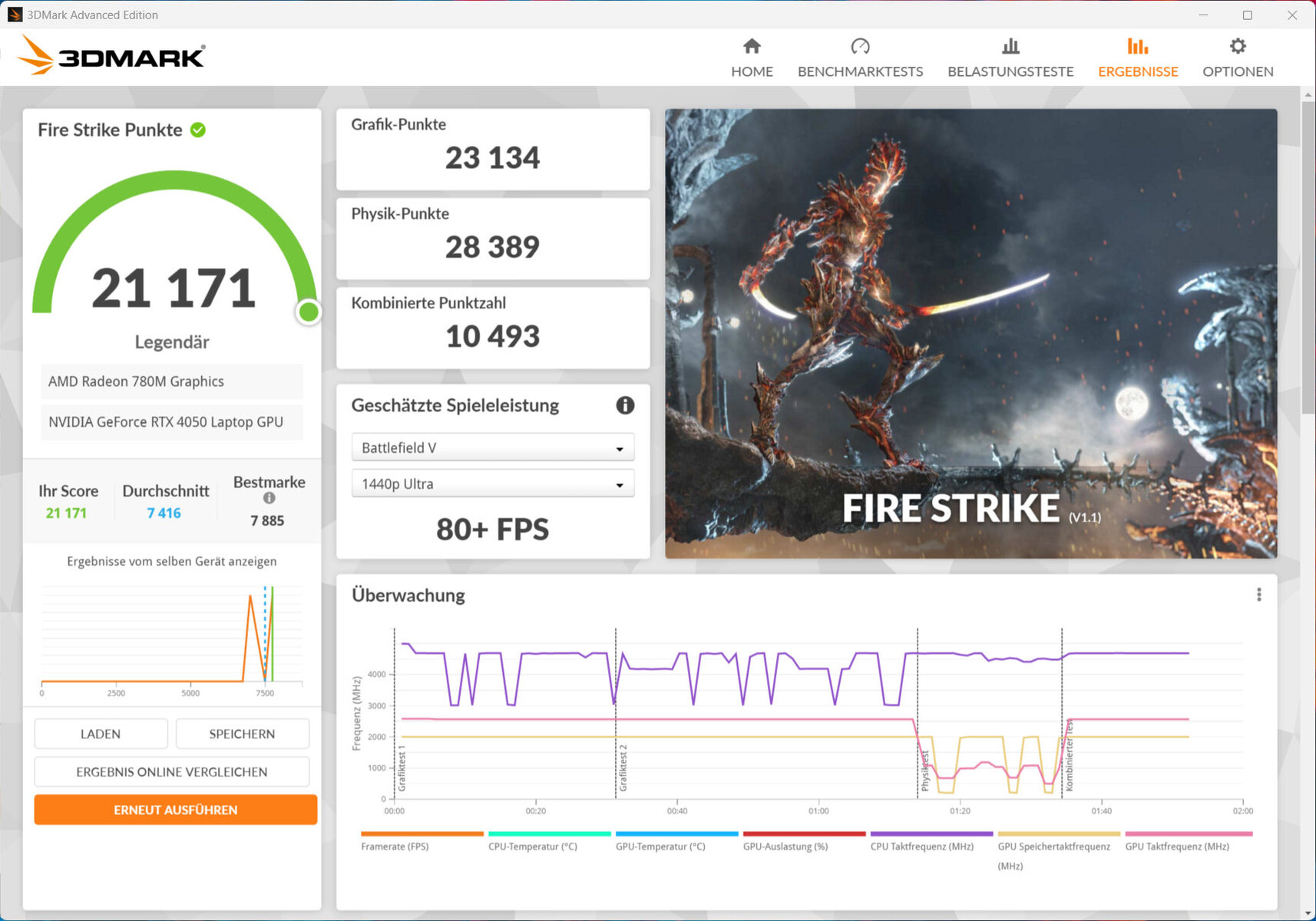

| 3DMark Fire Strike Score | 21171 points | |
| 3DMark Time Spy Score | 8943 points | |
Help | ||
Blender | Geekbench 5.5 | Geekbench 6.2 | V-Ray 5 Benchmark | V-Ray Benchmark Next 4.10 | SPECviewperf 2020
* ... smaller is better
游戏性能
Apex 的硬件适用于高至最高设置下的全高清游戏。不过，QHD 屏幕的全分辨率（2,560 x 1,440 像素）有时也能在降低设置的情况下发挥优势。它的帧率略高于 RTX 4050 的平均帧率。dGPU 模式通常不会带来任何性能提升。
Performance Rating | The Witcher 3 | Cyberpunk 2077 1.6 | Final Fantasy XV Benchmark | Strange Brigade | Dota 2 Reborn | X-Plane 11.11
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Average of class Gaming (8.61 - 216, n=228, last 2 years) | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Acer Nitro 16 AN16-41-R7YE | |
| MSI Katana 15 B12VEK | |
| Asus TUF A15 FA507 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (18.5 - 94.7, n=38) | |
| Cyberpunk 2077 1.6 - 1920x1080 Ultra Preset | |
| Average of class Gaming (16.7 - 159.7, n=102, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Asus TUF A15 FA507 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (44.4 - 79.4, n=14) | |
Ratchet & Clank Rift Apart | Atlas Fallen | Immortals of Aveum | Armored Core 6 | Starfield | Lies of P | Doom Eternal | Death Stranding | Flight Simulator 2020 | Crysis Remastered | Alan Wake Remastered | Forza Horizon 5 | God of War | GRID Legends | Uncharted Legacy of Thieves Collection | Atomic Heart | The Last of Us | F1 23 | Baldur's Gate 3 | The Crew Motorfest
| Ratchet & Clank Rift Apart | |
| 1920x1080 Very High Preset AA:T | |
| Average of class Gaming (28.5 - 111.1, n=12, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| XMG Focus 15 E23 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (32.9 - 45.8, n=3) | |
| 2560x1440 Very High Preset AA:T | |
| Average of class Gaming (33.6 - 98.7, n=7, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (31.4 - 33.6, n=2) | |
| XMG Focus 15 E23 | |
| 1920x1080 Very High Preset + Very High Raytracing AA:T | |
| Average of class Gaming (24.1 - 58.5, n=6, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (25.6 - 29.3, n=2) | |
| XMG Focus 15 E23 | |
| Atlas Fallen | |
| 1920x1080 Very High Preset | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (81.1 - 94.2, n=3) | |
| Average of class Gaming (9.8 - 161, n=12, last 2 years) | |
| XMG Focus 15 E23 | |
| 2560x1440 Very High Preset | |
| Average of class Gaming (62.8 - 128.3, n=5, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (62.7 - 62.8, n=2) | |
| XMG Focus 15 E23 | |
| Immortals of Aveum | |
| 1920x1080 Ultra AF:16x | |
| Average of class Gaming (14.9 - 106.3, n=10, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (36.4 - 42.4, n=2) | |
| XMG Focus 15 E23 | |
| 2560x1440 Ultra AF:16x | |
| Average of class Gaming (28 - 76.5, n=5, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (24.5 - 28, n=2) | |
| XMG Focus 15 E23 | |
| Armored Core 6 | |
| 1920x1080 Maximum Preset | |
| XMG Focus 15 E23 | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (79 - 87.8, n=3) | |
| Average of class Gaming (10.7 - 107, n=12, last 2 years) | |
| 2560x1440 Maximum Preset | |
| Average of class Gaming (61.4 - 92, n=5, last 2 years) | |
| XMG Focus 15 E23 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (61.4 - 61.8, n=2) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Starfield | |
| 1920x1080 Ultra Preset | |
| Average of class Gaming (21.8 - 78.4, n=10, last 2 years) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (35.7 - 37.3, n=3) | |
| XMG Focus 15 E23 | |
| SCHENKER XMG Apex 15 (Late 23) | |
| 2560x1440 Ultra Preset | |
| Average of class Gaming (27.8 - 66, n=4, last 2 years) | |
| XMG Focus 15 E23 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (27.8 - 28.9, n=2) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Lies of P | |
| 1920x1080 Best Preset | |
| XMG Focus 15 E23 | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (101.4 - 105.7, n=3) | |
| Average of class Gaming (11 - 187, n=10, last 2 years) | |
| 2560x1440 Best Preset | |
| Average of class Gaming (69 - 136.4, n=4, last 2 years) | |
| XMG Focus 15 E23 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (69 - 69.2, n=2) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Death Stranding | |
| 1920x1080 Very High Preset | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (128.8 - 129.5, n=2) | |
| Average of class Gaming (14.3 - 163, n=9, last 2 years) | |
| 2560x1440 Very High Preset | |
| Average of class Gaming (60 - 162.1, n=4, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU () | |
| Flight Simulator 2020 | |
| 1920x1080 Ultra AA:TAA AF:16x | |
| Average of class Gaming (24.7 - 74, n=8, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (30.6 - 47.2, n=2) | |
| 2560x1440 Ultra AA:TAA AF:16x | |
| Average of class Gaming (35 - 74, n=4, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (22.9 - 35, n=2) | |
| Crysis Remastered | |
| 1920x1080 Very High Preset AA:SM | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average of class Gaming (38.6 - 72.5, n=5, last 2 years) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (41.6 - 62, n=2) | |
| 2560x1440 Very High Preset AA:SM | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (28.6 - 42.2, n=2) | |
| Average of class Gaming (28.4 - 42.2, n=3, last 2 years) | |
| Alan Wake Remastered | |
| 1920x1080 High Preset | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average of class Gaming (95.3 - 144.9, n=6, last 2 years) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (86.7 - 131.6, n=2) | |
| 2560x1440 High Preset | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average of class Gaming (67.5 - 114.4, n=4, last 2 years) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (63.2 - 97.2, n=2) | |
| Forza Horizon 5 | |
| 1920x1080 Extreme Preset | |
| Average of class Gaming (19 - 124, n=11, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (42 - 55, n=2) | |
| 2560x1440 Extreme Preset | |
| Average of class Gaming (41 - 113, n=6, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (36 - 47, n=2) | |
| GRID Legends | |
| 1920x1080 Ultra Preset | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (109.8 - 113.2, n=2) | |
| Average of class Gaming (14.3 - 199, n=17, last 2 years) | |
| 2560x1440 Ultra Preset | |
| Average of class Gaming (20.2 - 190, n=11, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU () | |
| Uncharted Legacy of Thieves Collection | |
| 1920x1080 Ultra Preset | |
| Average of class Gaming (47.4 - 108.2, n=15, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (62.6 - 64.2, n=2) | |
| 2560x1440 Ultra Preset | |
| Average of class Gaming (34.3 - 103.1, n=10, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU () | |
| Atomic Heart | |
| 1920x1080 Atomic Preset | |
| Average of class Gaming (10.2 - 166, n=17, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| XMG Focus 15 E23 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (37.8 - 58.4, n=3) | |
| 2560x1440 Atomic Preset | |
| Average of class Gaming (43.4 - 135, n=10, last 2 years) | |
| XMG Focus 15 E23 | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (28.2 - 43.5, n=3) | |
| The Last of Us | |
| 2560x1440 Ultra Preset | |
| Average of class Gaming (26.9 - 85.8, n=10, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (23.4 - 31.9, n=2) | |
| XMG Focus 15 E23 | |
| 1920x1080 Ultra Preset | |
| Average of class Gaming (31.6 - 105, n=13, last 2 years) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (35.7 - 50.2, n=3) | |
| XMG Focus 15 E23 | |
| F1 23 | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Average of class Gaming (12.9 - 132, n=34, last 2 years) | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (25.7 - 60.8, n=14) | |
| XMG Focus 15 E23 | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| Average of class Gaming (31 - 85.1, n=25, last 2 years) | |
| Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (16.7 - 40.8, n=11) | |
| XMG Focus 15 E23 | |
| Baldur's Gate 3 | |
| 2560x1440 Ultra Preset | |
| Average of class Gaming (44 - 155.2, n=19, last 2 years) | |
| XMG Focus 15 E23 | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (32.4 - 49.8, n=4) | |
| 1920x1080 Ultra Preset | |
| Average of class Gaming (34.5 - 208, n=26, last 2 years) | |
| XMG Focus 15 E23 | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (48.3 - 71, n=5) | |
| The Crew Motorfest | |
| 1920x1080 Ultra Preset | |
| XMG Focus 15 E23 | |
| SCHENKER XMG Apex 15 (Late 23) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (59 - 59, n=3) | |
| Average of class Gaming (35 - 60, n=8, last 2 years) | |
| 2560x1440 Ultra Preset | |
| Average of class Gaming (46 - 60, n=3, last 2 years) | |
| XMG Focus 15 E23 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (46 - 47, n=2) | |
| SCHENKER XMG Apex 15 (Late 23) | |

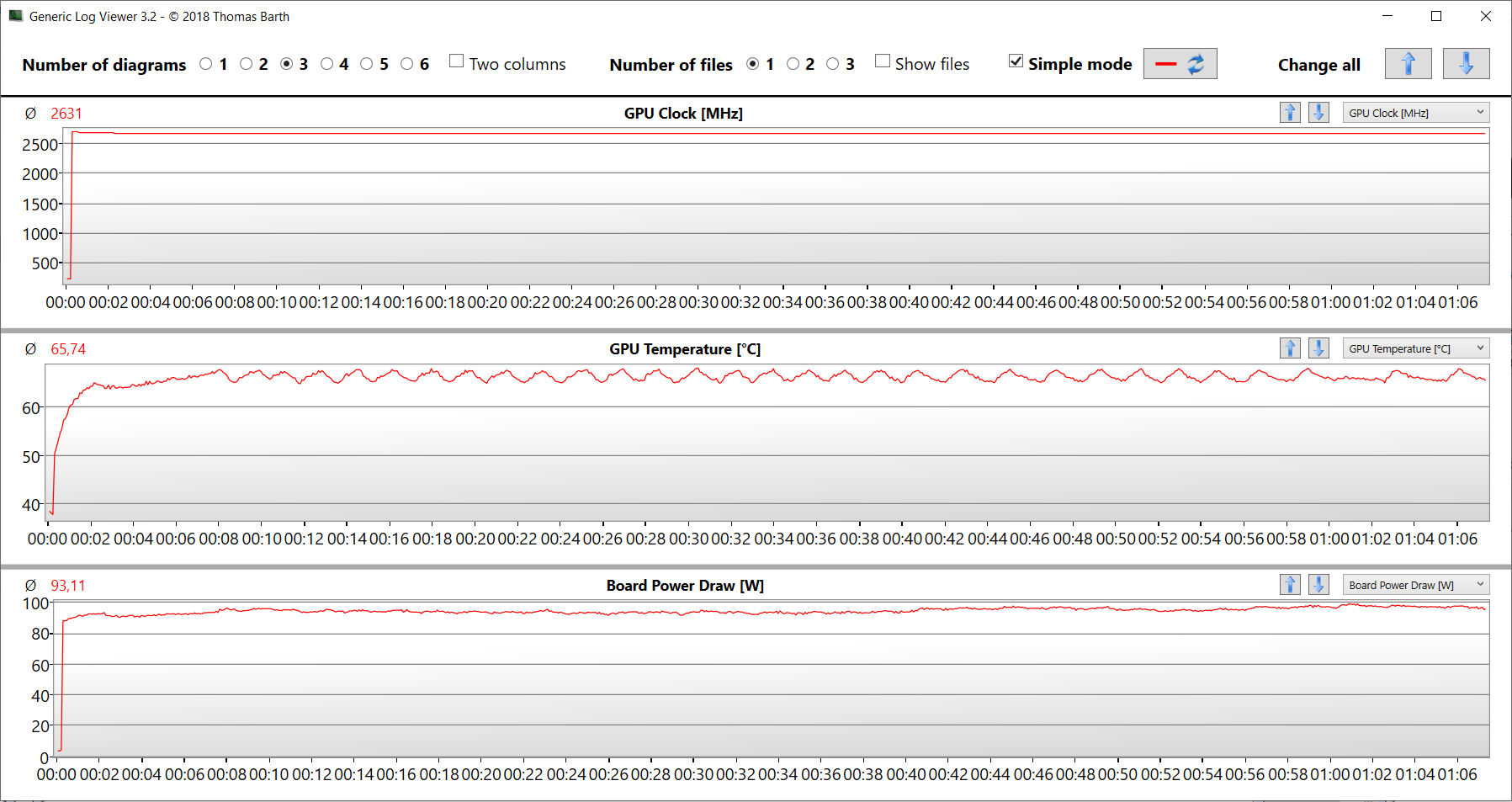

为了测试帧频是否能在较长时间内保持稳定，我们以全高清分辨率和最高设置运行游戏 Witcher 3 约 60 分钟。我们没有移动角色。在测试过程中，我们没有发现帧速率有任何下降。
Witcher 3 FPS diagram
SCHENKER XMG Apex 15 (Late 23) R7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU: Ø83.6 (81-86)
Acer Nitro 16 AN16-41-R7YE R5 7535HS, NVIDIA GeForce RTX 4050 Laptop GPU: Ø81.7 (71-84)
Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) R5 7645HX, NVIDIA GeForce RTX 4050 Laptop GPU: Ø89 (85-91)
Asus TUF A15 FA507 R7 7735HS, NVIDIA GeForce RTX 4050 Laptop GPU: Ø82.2 (79-84)
MSI Katana 15 B12VEK i7-12650H, NVIDIA GeForce RTX 4050 Laptop GPU: Ø77.6 (73-84)
| low | med. | high | ultra | QHD | |
| The Witcher 3 (2015) | 405.1 | 278.6 | 160.9 | 84.5 | 60.3 |
| Dota 2 Reborn (2015) | 166.8 | 151.7 | 146.5 | 139.1 | |
| Final Fantasy XV Benchmark (2018) | 212 | 122.4 | 85.2 | 62 | |
| X-Plane 11.11 (2018) | 121.5 | 106 | 81.3 | ||
| Strange Brigade (2018) | 403 | 207 | 168.3 | 147.2 | 97.2 |
| Doom Eternal (2020) | 391 | 234 | 208 | 160.9 | 102.4 |
| Death Stranding (2020) | 195.9 | 145.2 | 134.1 | 129.5 | 88.6 |
| Flight Simulator 2020 (2020) | 115.7 | 85.9 | 65.1 | 47.2 | 35 |
| Crysis Remastered (2020) | 291 | 182.7 | 75.1 | 62 | 42.2 |
| Watch Dogs Legion (2020) | 121.3 | 116.3 | 107 | 54.9 | 32.8 |
| Alan Wake Remastered (2021) | 137.7 | 131.6 | 97.2 | ||
| Forza Horizon 5 (2021) | 230 | 162 | 146 | 55 | 47 |
| God of War (2022) | 113.7 | 93.3 | 74.7 | 52.8 | 42.3 |
| GRID Legends (2022) | 155.8 | 141.1 | 130.1 | 113.2 | 91 |
| Cyberpunk 2077 1.6 (2022) | 112.6 | 86.1 | 72.9 | 66.1 | 40.4 |
| Uncharted Legacy of Thieves Collection (2022) | 76.6 | 73.2 | 67.5 | 64.2 | 39.1 |
| Atomic Heart (2023) | 169.9 | 131.9 | 76.8 | 58.4 | 43.4 |
| The Last of Us (2023) | 93 | 74.8 | 61.6 | 50.2 | 31.9 |
| F1 23 (2023) | 232 | 215 | 158.9 | 48.2 | 38.1 |
| Ratchet & Clank Rift Apart (2023) | 80.7 | 70.6 | 48.5 | 45.8 | 33.6 |
| Baldur's Gate 3 (2023) | 95.6 | 78.5 | 66.8 | 65.8 | 44 |
| Atlas Fallen (2023) | 127.9 | 121.7 | 113 | 94.2 | 62.8 |
| Immortals of Aveum (2023) | 54.9 | 49 | 42.4 | 28 | |
| Armored Core 6 (2023) | 102.8 | 100.4 | 98.9 | 87.1 | 61.4 |
| Starfield (2023) | 63.8 | 54.5 | 42.5 | 35.7 | 27.8 |
| The Crew Motorfest (2023) | 60 | 60 | 60 | 59 | 46 |
| Lies of P (2023) | 158.7 | 137.1 | 117.7 | 104.2 | 69 |
排放 - Apex 15 运行时不会伤害耳朵
噪音排放
风扇主要发出铿锵的噪音。恼人的背景噪音听不到。与 17.3 英寸的姊妹机型一样，Apex 15 整体上不会产生太大噪音，至少在日常使用和中等负载范围内是如此：风扇经常缓慢转动或完全静止。只有在高负载情况下，它们才会受到挑战：声压级达到 48 dB(A)（"Enthusiast"）至 52 dB(A)（"Overboost"）。而 "平衡 "型则对耳朵更温和一些：不过，32 分贝(A) 的噪音排放是以性能损失为代价的。
Noise Level
| Idle |
| 25 / 29 / 33 dB(A) |
| Load |
| 36 / 53 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24 dB(A) | ||
| SCHENKER XMG Apex 15 (Late 23) R7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU | Acer Nitro 16 AN16-41-R7YE R5 7535HS, NVIDIA GeForce RTX 4050 Laptop GPU | Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) R5 7645HX, NVIDIA GeForce RTX 4050 Laptop GPU | Asus TUF A15 FA507 R7 7735HS, NVIDIA GeForce RTX 4050 Laptop GPU | MSI Katana 15 B12VEK i7-12650H, NVIDIA GeForce RTX 4050 Laptop GPU | |
|---|---|---|---|---|---|
| Noise | 5% | 11% | 15% | 6% | |
| off / environment * | 24 | 24 -0% | 23 4% | 23.3 3% | 24 -0% |
| Idle Minimum * | 25 | 25 -0% | 23 8% | 23.3 7% | 24 4% |
| Idle Average * | 29 | 26 10% | 23 21% | 23.3 20% | 24 17% |
| Idle Maximum * | 33 | 27 18% | 24.42 26% | 23.3 29% | 24 27% |
| Load Average * | 36 | 42 -17% | 34.94 3% | 29.6 18% | 37.71 -5% |
| Witcher 3 ultra * | 48 | 43 10% | 43.79 9% | 43 10% | 45.75 5% |
| Load Maximum * | 53 | 45 15% | 50 6% | 43 19% | 54.55 -3% |
* ... smaller is better

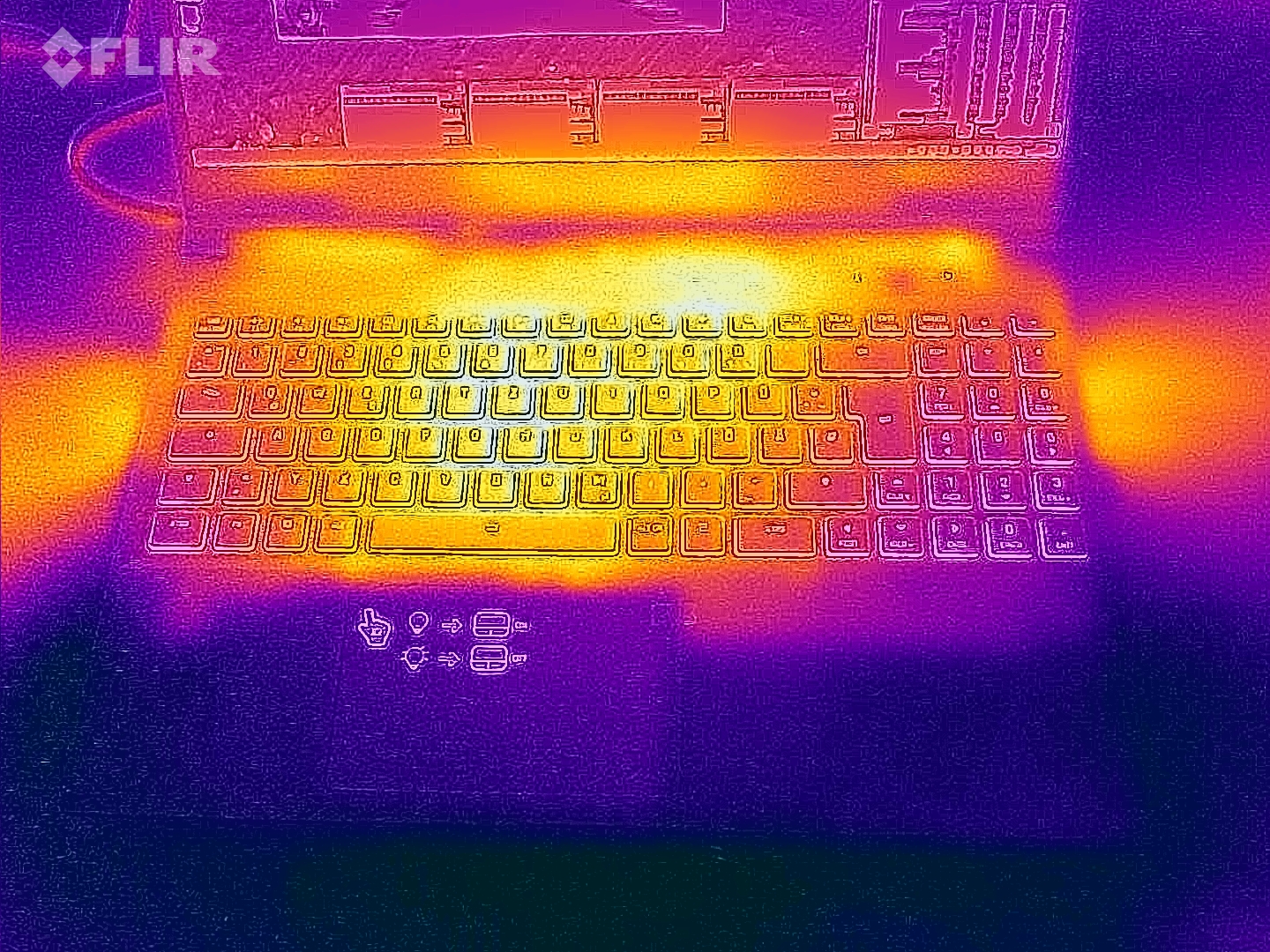

温度
高负载（压力测试、 Witcher 3测试）会导致笔记本电脑温度明显升高。不过，它们从未达到任何临界水平。在日常使用中（办公、上网），机箱温度始终保持在绿色区域。
(-) The average temperature for the upper side under maximal load is 43.8 °C / 111 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 52 °C / 126 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.

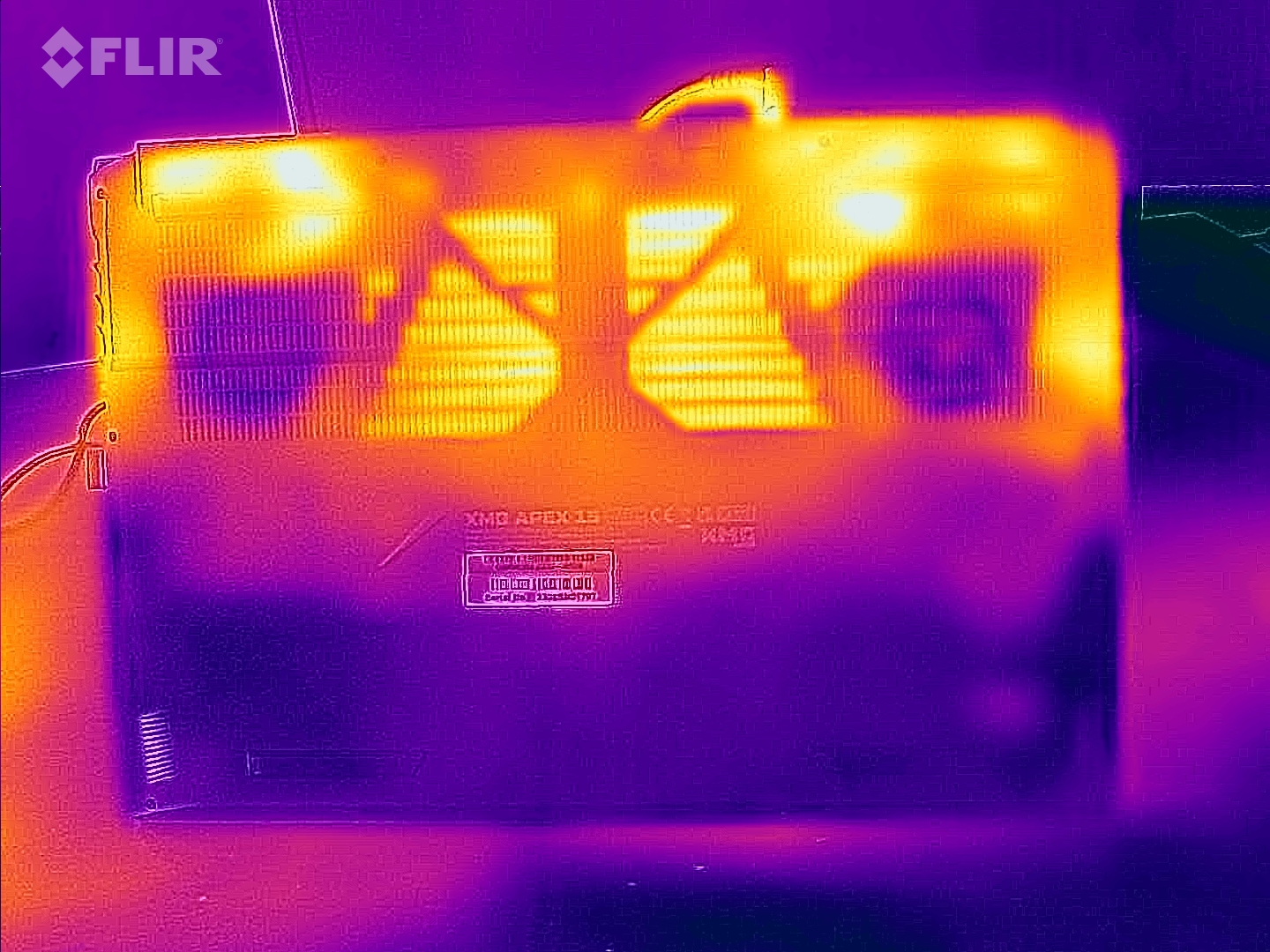

(-) The bottom heats up to a maximum of 47 °C / 117 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 30.8 °C / 87 F, compared to the device average of 33.8 °C / 93 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 41 °C / 106 F, compared to the device average of 33.8 °C / 93 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37 °C / 98.6 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-8.1 °C / -14.6 F).
(-) The maximum temperature on the upper side is 52 °C / 126 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 47 °C / 117 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 30.8 °C / 87 F, compared to the device average of 33.8 °C / 93 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 41 °C / 106 F, compared to the device average of 33.8 °C / 93 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37 °C / 98.6 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-8.1 °C / -14.6 F).
| SCHENKER XMG Apex 15 (Late 23) AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU | Acer Nitro 16 AN16-41-R7YE AMD Ryzen 5 7535HS, NVIDIA GeForce RTX 4050 Laptop GPU | Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) AMD Ryzen 5 7645HX, NVIDIA GeForce RTX 4050 Laptop GPU | Asus TUF A15 FA507 AMD Ryzen 7 7735HS, NVIDIA GeForce RTX 4050 Laptop GPU | MSI Katana 15 B12VEK Intel Core i7-12650H, NVIDIA GeForce RTX 4050 Laptop GPU | |
|---|---|---|---|---|---|
| Heat | -8% | -7% | 12% | -3% | |
| Maximum Upper Side * | 52 | 51 2% | 45 13% | 48.9 6% | 47 10% |
| Maximum Bottom * | 47 | 63 -34% | 54 -15% | 44.6 5% | 48 -2% |
| Idle Upper Side * | 33 | 34 -3% | 36 -9% | 27.1 18% | 35 -6% |
| Idle Bottom * | 33 | 32 3% | 38 -15% | 27.5 17% | 38 -15% |
* ... smaller is better

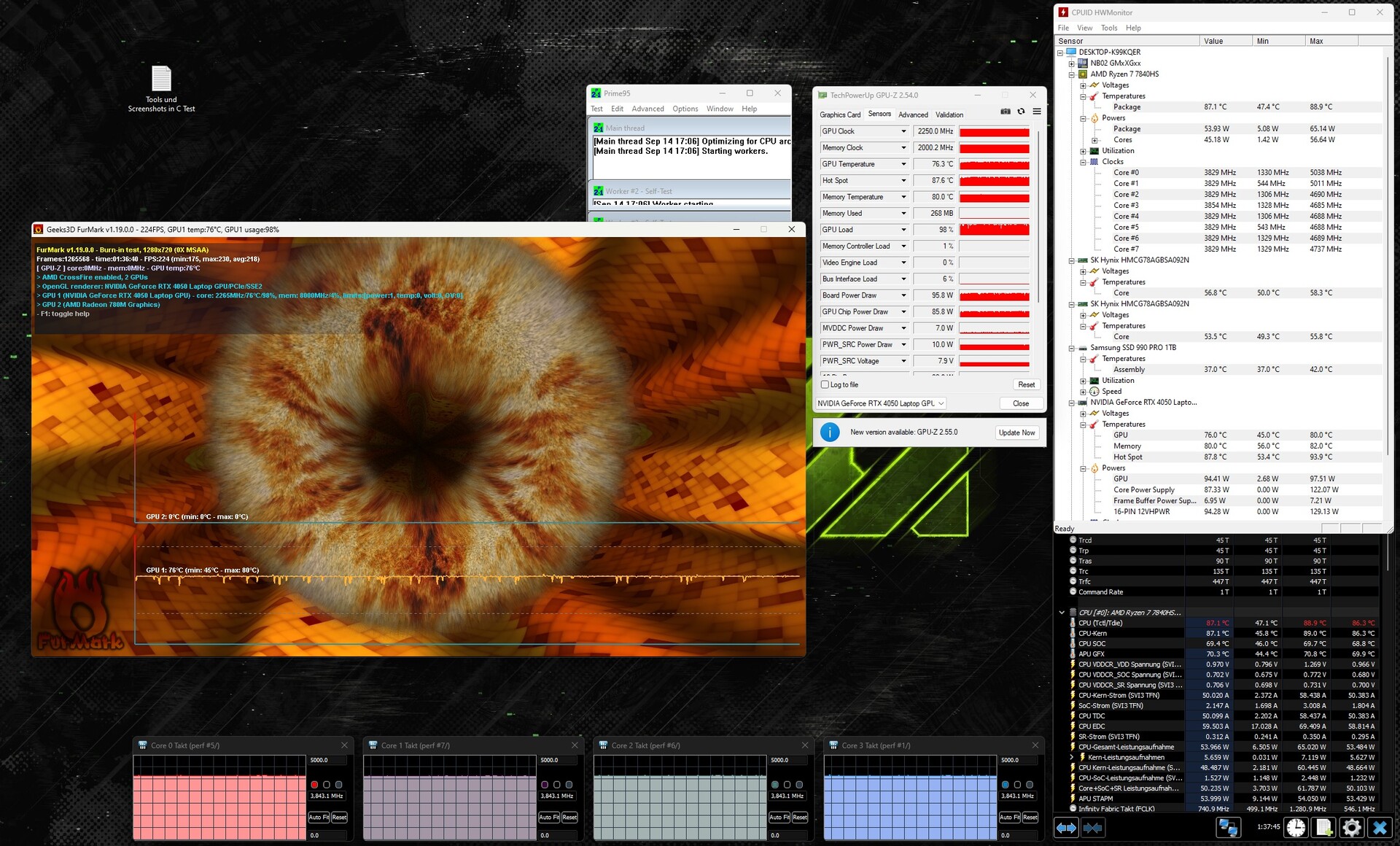

压力测试
压力测试（连续使用 Prime95 和 Furmark）模拟极端情况，以检查系统在满负荷情况下的稳定性。CPU 的频率为 3.8 至 3.9 GHz，图形核心的频率为 2.2 至 2.3 GHz。
发言人
立体声扬声器能产生不错的音效，但几乎没有低音。建议使用耳机或外置扬声器，以获得更好的音效体验。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
SCHENKER XMG Apex 15 (Late 23) audio analysis
(+) | speakers can play relatively loud (82 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.1% lower than median
(±) | linearity of bass is average (10% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.2% away from median
(+) | highs are linear (5.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.7% difference to median)
Compared to same class
» 33% of all tested devices in this class were better, 7% similar, 60% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 20% of all tested devices were better, 4% similar, 76% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Acer Nitro 16 AN16-41-R7YE audio analysis
(+) | speakers can play relatively loud (82 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.2% lower than median
(±) | linearity of bass is average (12.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.2% away from median
(+) | mids are linear (3.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(+) | highs are linear (4.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.3% difference to median)
Compared to same class
» 44% of all tested devices in this class were better, 12% similar, 44% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 27% of all tested devices were better, 8% similar, 65% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理 - 运行时间长，功耗适中
耗电量
XMG 笔记本电脑的功耗相对较低。其竞争对手在这一领域大多跟不上。压力测试和 Witcher 3测试均以一致的功耗值完成。电源（230 瓦）的功率足够大。
Power Consumption
| Off / Standby | 0.1 / Watt |
| Idle | 6 / 11 / 14 Watt |
| Load |
65 / 195 Watt |

| |
| SCHENKER XMG Apex 15 (Late 23) R7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU | Acer Nitro 16 AN16-41-R7YE R5 7535HS, NVIDIA GeForce RTX 4050 Laptop GPU | Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) R5 7645HX, NVIDIA GeForce RTX 4050 Laptop GPU | Asus TUF A15 FA507 R7 7735HS, NVIDIA GeForce RTX 4050 Laptop GPU | MSI Katana 15 B12VEK i7-12650H, NVIDIA GeForce RTX 4050 Laptop GPU | Average of class Gaming | |
|---|---|---|---|---|---|---|
| Power Consumption | -62% | -46% | -7% | -6% | -80% | |
| Idle Minimum * | 6 | 19 -217% | 13 -117% | 8 -33% | 8.5 -42% | 13.9 ? -132% |
| Idle Average * | 11 | 20 -82% | 17.4 -58% | 12.1 -10% | 10.2 7% | 19.2 ? -75% |
| Idle Maximum * | 14 | 23 -64% | 21.8 -56% | 12.5 11% | 11.3 19% | 27 ? -93% |
| Load Average * | 65 | 80 -23% | 96.4 -48% | 74.9 -15% | 84 -29% | 111.3 ? -71% |
| Witcher 3 ultra * | 136.5 | 125.8 8% | 125 8% | 136.6 -0% | 128 6% | |
| Load Maximum * | 195 | 184 6% | 204 -5% | 185 5% | 189 3% | 251 ? -29% |
* ... smaller is better
Power consumption Witcher 3 / stress test
SCHENKER XMG Apex 15 (Late 23); Witcher 3 ultra: Ø136.5 (132.7-143.2)
SCHENKER XMG Apex 15 (Late 23); 1280x720 Prime95 28.10 and Furmark 1.25: Ø181 (174.4-184.8)
SCHENKER XMG Apex 15 (Late 23); Idle 150cd/m2: Ø10.8 (6.21-13.5)
Power consumption with external monitor
SCHENKER XMG Apex 15 (Late 23); Prime95 V2810 Stress (external Monitor): Ø79.1 (78.4-92.7)
SCHENKER XMG Apex 15 (Late 23); Cinebench R23 Multi (external Monitor): Ø82.7 (81.5-95)
SCHENKER XMG Apex 15 (Late 23); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø121.3 (119.7-124.6)
SCHENKER XMG Apex 15 (Late 23); 1920x1080 The Witcher 3 ultra (external Monitor): Ø134.8 (130.4-142.4)
SCHENKER XMG Apex 15 (Late 23); Idle 1min (external Monitor): Ø14.4 (13.4-17.2)
运行时间
在无线局域网测试（使用脚本调用网站）和视频测试（循环播放短片《Big Buck Bunny》（H.264 编码））中，这款 15.6 英寸设备的运行时间分别为 7:05 小时和 8:16 小时。在测试过程中，我们关闭了笔记本电脑的省电功能，并将显示屏亮度设置为约 150 cd/m²。为了进行视频测试，还关闭了无线电模块。
尽管电池容量相对较低，但 Apex 15 的续航时间非常出色。不过，它无法与华硕 TUF A15和宏碁 Nitro 16.除了更省钱的 AMD APU 外，它们的电池容量也大得多。
| SCHENKER XMG Apex 15 (Late 23) R7 7840HS, NVIDIA GeForce RTX 4050 Laptop GPU, 62.32 Wh | Acer Nitro 16 AN16-41-R7YE R5 7535HS, NVIDIA GeForce RTX 4050 Laptop GPU, 90 Wh | Lenovo Legion Pro 5 16ARX8 (R5 7645HX, RTX 4050) R5 7645HX, NVIDIA GeForce RTX 4050 Laptop GPU, 80 Wh | Asus TUF A15 FA507 R7 7735HS, NVIDIA GeForce RTX 4050 Laptop GPU, 90 Wh | MSI Katana 15 B12VEK i7-12650H, NVIDIA GeForce RTX 4050 Laptop GPU, 53.5 Wh | Average of class Gaming | |
|---|---|---|---|---|---|---|
| Battery Runtime | 42% | -28% | 26% | -31% | -9% | |
| Reader / Idle | 506 | 721 42% | 545 ? 8% | |||
| H.264 | 496 | 650 31% | 325 -34% | 747 51% | 264 -47% | 400 ? -19% |
| WiFi v1.3 | 425 | 660 55% | 333 -22% | 701 65% | 260 -39% | 368 ? -13% |
| Load | 97 | 134 38% | 59 -39% | 89 -8% | 84.5 ? -13% | |
| Witcher 3 ultra | 47 | 80.6 ? |
Pros
+ QHD 165 Hz 屏幕
+ 系统性能高
+ 内存可扩展
+ 由液态金属制成的散热膏
+ 运行安静
+ 2 个 PCIe 4 插槽（RAID-0/1）
+ RGB 按键照明
+ 良好的运行时间
Cons
- 慢速 SD 读卡器
- 没有 Thunderbolt 4/USB 4
- 无电源传输
结论 - 经济实惠的游戏全能王
渲染、流媒体、视频编辑当然还有游戏是 Apex 15 的主要用途。其Ryzen 7 7840HS和GeForce RTX 4050提供了必要的性能。这两款芯片都能以稳定的高时钟频率运行。如果您需要更强的图形处理能力，也可以选择 RTX 4060 而不是 RTX 4050。APU 设置
安静（执行简单任务时）、功能强大、续航能力强--XMG Apex 15（23 晚）在许多方面都令人印象深刻。
在日常使用中，这款笔记本电脑的声音不会太大，而在玩游戏时，性能和噪音之间的折衷效果也很好。此外，与竞争对手相比，它的功耗也相对较低。惊喜尽管笔记本电脑的电池容量相对较小，但实际运行时间却达到了 7 至 8 小时--非常不错。遗憾无法通过 USB-C 端口（USB 3.2 Gen 2）为设备供电。
该笔记本电脑可容纳两个 PCIe 4 固态硬盘（M.2-2280）。支持 RAID-0/1。XMG 允许你通过自己的在线商店单独选择一个或多个固态硬盘。我们的测试设备配备的是速度极快的 PCIe 4 型号（1 TB）。它安装的 QHD 屏幕（15.6 英寸，2560 x 1440 像素，sRGB，IPS，165 Hz）给我们留下了良好的印象。它的对比度还可以更好一些。
一个可行的选择是华硕 TUF A15 FA507:虽然它的 CPU 性能与之相当，但却没有那么好。A15 的优势：运行时间更长，并配有 USB-4 端口。它也是一款经济型产品：目前，不带 Windows 操作系统的入门机型售价约为 900 美元。
我们最近评测了它的 17.3 英寸姊妹机型XMG Apex 17 (Late 23) ，配备 Ryzen 7 7840HS 和GeForce RTX 4060。
价格和供应情况
XMG Apex 15（晚 23 号）可单独配置，并可在申克的网上商店订购。我们的测试设备售价约为 1,540 美元。起价约为 1,170 美元。
SCHENKER XMG Apex 15 (Late 23)
-
10/09/2023 v7
Sascha Mölck
Gaming - Weighted Average
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
Pricecompare
