Acer Swift 3 SF314在审查中。AMD笔记本电脑没有花哨的飞行

Name: Acer Swift 3 SF314-43-R8BP
Brand: Acer

低噪音和经济。 今天，配备AMD的副笔记本往往比相应的英特尔变种更强大。我们来看一下宏碁Swift 3，这是目前配备Ryzen 5 500U和集成显卡的入门级机型。该处理器似乎是一个不错的选择，但在实践中是否也有说服力？

Sebastian Jentsch, 👁 Sebastian Jentsch (translated by DeepL / Ninh Duy), Published 03/17/2022 🇺🇸 🇩🇪 ...

AMD Lucienne (Zen 2) Laptop / Notebook

Swift 3是宏碁的面包和主食笔记本电脑 - 一个廉价的模型，其入门级变体的价格是530欧元（约530美元）。因此，我们在过去测试了许多Swift型号，特别是英特尔变种和高端解决方案，如雨燕X带GTX 1650手机和斯威夫特3X配有英特尔Iris Xe MAXdGPU。

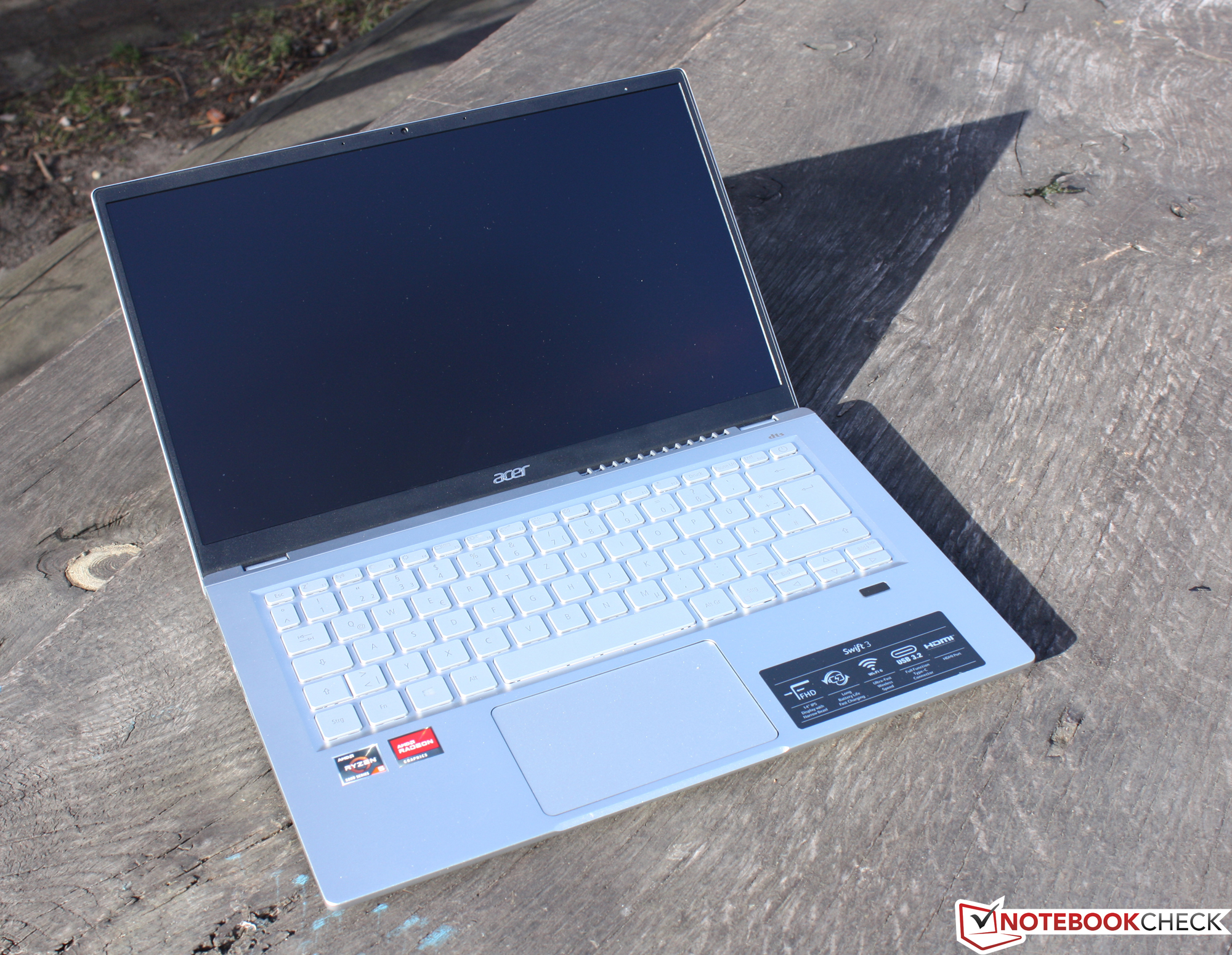

今天的更新是关于Swift系列中最小的笔记本之一，1.3公斤轻的SF314-43，配备了 Ryzen 5 5500U，16GB内存，和512GB固态硬盘。为了实现尽可能低的价格，零售商将该机型与Linux（eShell）一起发货。我们安装了Windows 11，其中的一个小分区也有必要的驱动程序。

由于平台策略，一个机箱用于技术上不同的变体，所以我们已经有了机箱、输入设备和端口，从 Swift X SFX14(GTX 1650)和英特尔的对应产品 Swift 3 SF314-511.因此，我们将跳过这些章节，请您参阅相应的评论。

其他宏碁Swift 14英寸设备的评论。

Acer Swift X SFX14-41G-R7F3(Ryzen 5 5500U, GTX 1650 移动版)
Acer Swift 3 SF314-511(i5-1135G7, Iris Xe Graphics G7 80EUs)
Acer Swift 3X SF314-510G(i7-1165G7, IntelIris Xe MAX)
Acer Swift 3 SF314-42(Ryzen 7 4700U, Radeon RX) - 6/2020

Test device courtesy of notebooksbilliger.de

Download your licensed rating image as PNG / SVG

Acer Swift 3 SF314-43-R8BP (Swift 3 SF314 Series)

Processor

AMD Ryzen 5 5500U 6 x 2.1 - 4 GHz, 48 W PL2 / Short Burst, 37 W PL1 / Sustained, Lucienne-U (Zen 2)

Graphics adapter

AMD Radeon RX Vega 7 - 512 MB VRAM, Core: 1800 MHz, Memory: 2133 MHz, LPDDR4, Adrenalin 20.40.44

Memory

16 GB

, DDR4 Dual Channel, onboard, no upgrade

Display

14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, Chi Mei N140HCA EAC CMN, IPS, glossy: no, 60 Hz

Mainboard

AMD Promontory/Bixby FCH

Storage

Kingston OM8PDP3512B-AI1, 512 GB

, M.2 80, 3.5 GB Windriver partition, 372 GB free

Soundcard

AMD Raven/Renoir/Van Gogh/Cezanne/Rembrandt/Raphael - HD Audio Controller

Connections

2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm Combo, 1 Fingerprint Reader

Networking

MediaTek MT7921 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 16.5 x 323.4 x 218.9

Battery

48 Wh, 3220 mAh Lithium-Ion, 4-cell

Operating System

Linux

Camera

Webcam: HD 720p

Additional features

Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 24 Months Warranty

Weight

1.319 kg, Power Supply: 313 g

Price

750 Euro

Links

Acer homepage
Acer notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Size	Resolution
86 %	03/2022	Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7	1.3 kg	16.5 mm	14.00"	1920x1080
88.2 %	02/2022	Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs	1.2 kg	16.55 mm	14.00"	1920x1080
86.7 %	08/2021	Lenovo ThinkPad E14 G3-20Y7003SGE R5 5500U, Vega 7	1.6 kg	17.9 mm	14.00"	1920x1080
84.8 %	01/2022	HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs	1.4 kg	19 mm	14.00"	1920x1080
84.8 %	01/2022	Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs	1.5 kg	20.9 mm	14.00"	1920x1080
83.6 %		Lenovo ThinkBook 14 G2 ITL 20VDS02G00 i3-1115G4, UHD Graphics Xe G4 48EUs	1.5 kg	17.9 mm	14.00"	1920x1080

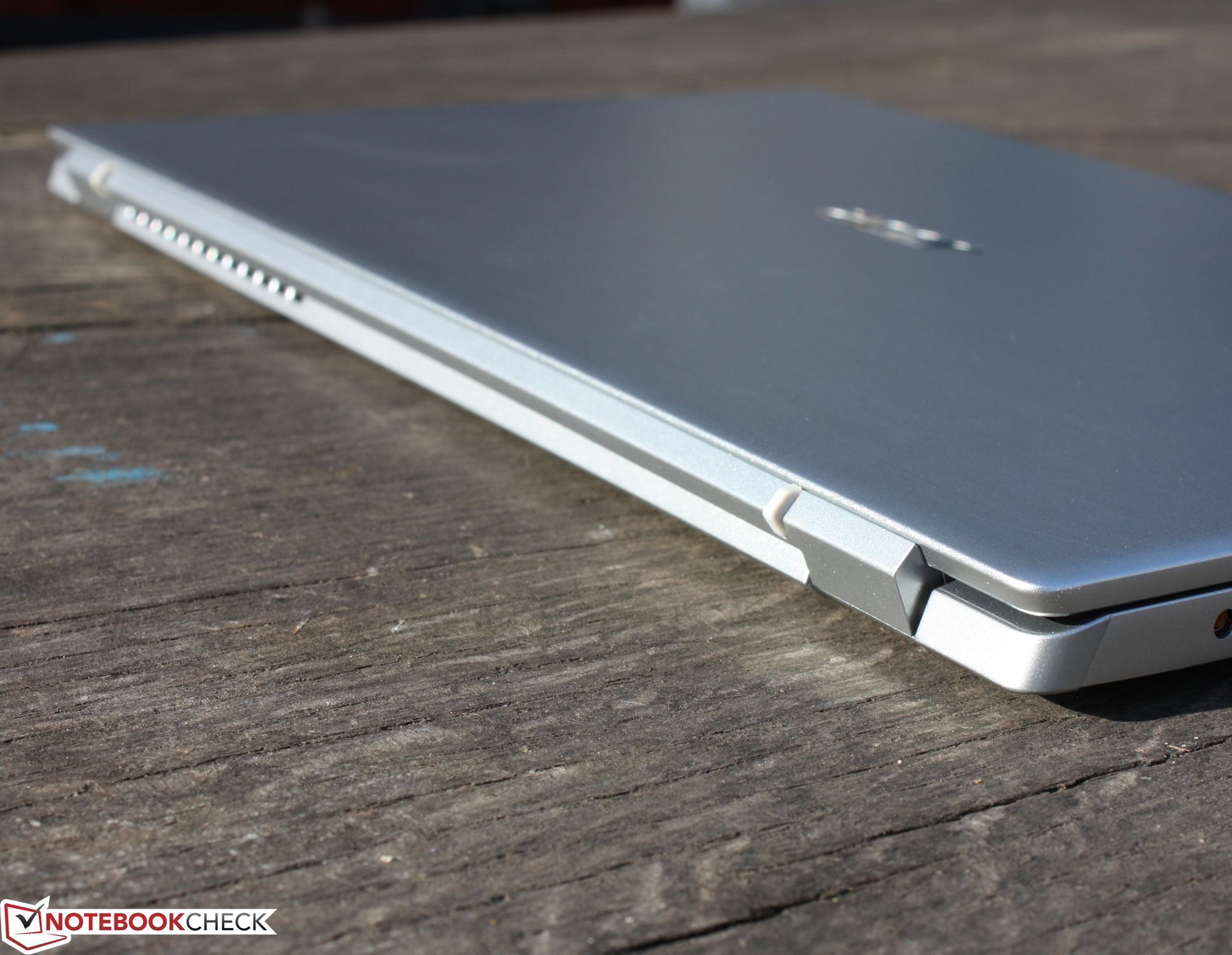

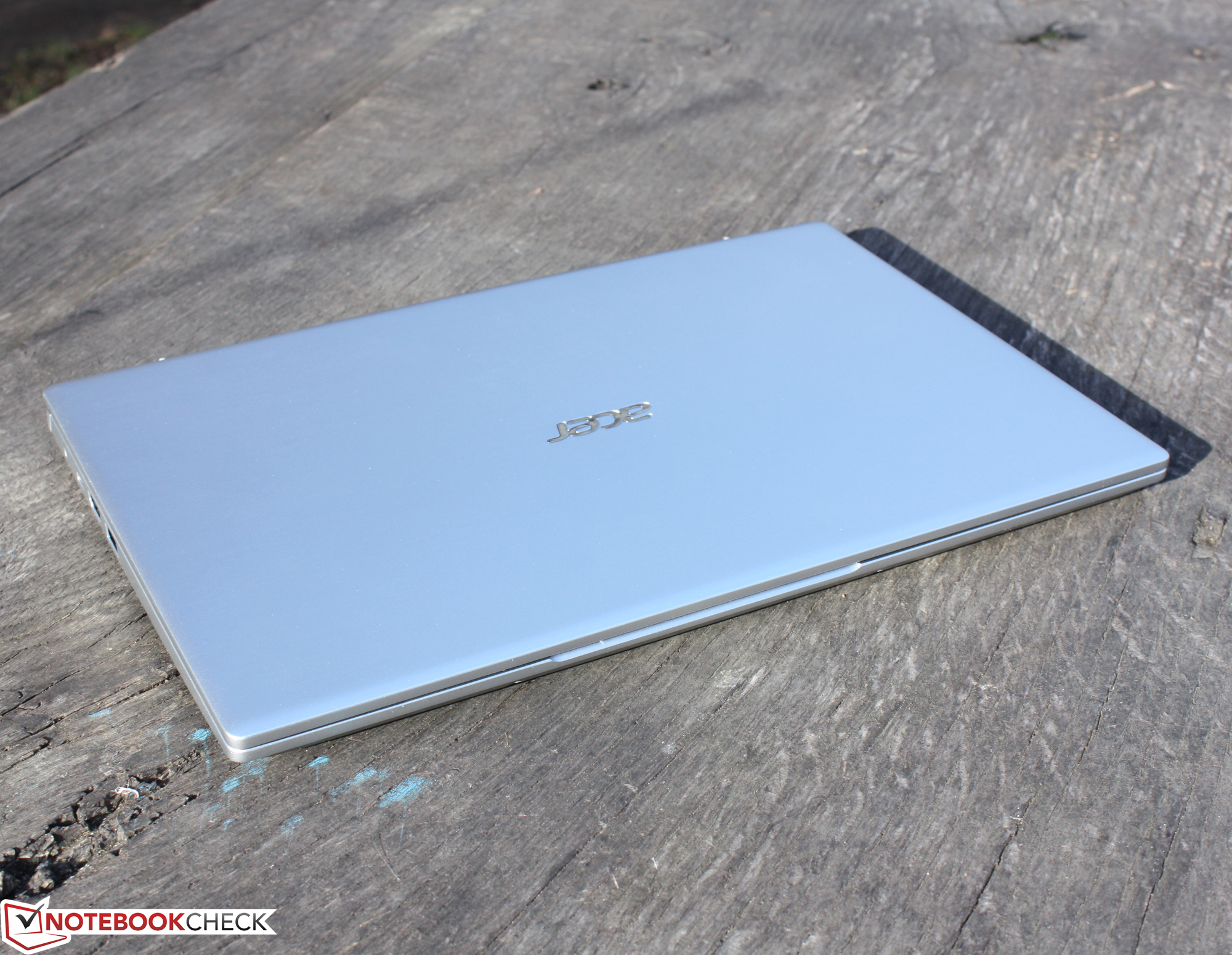

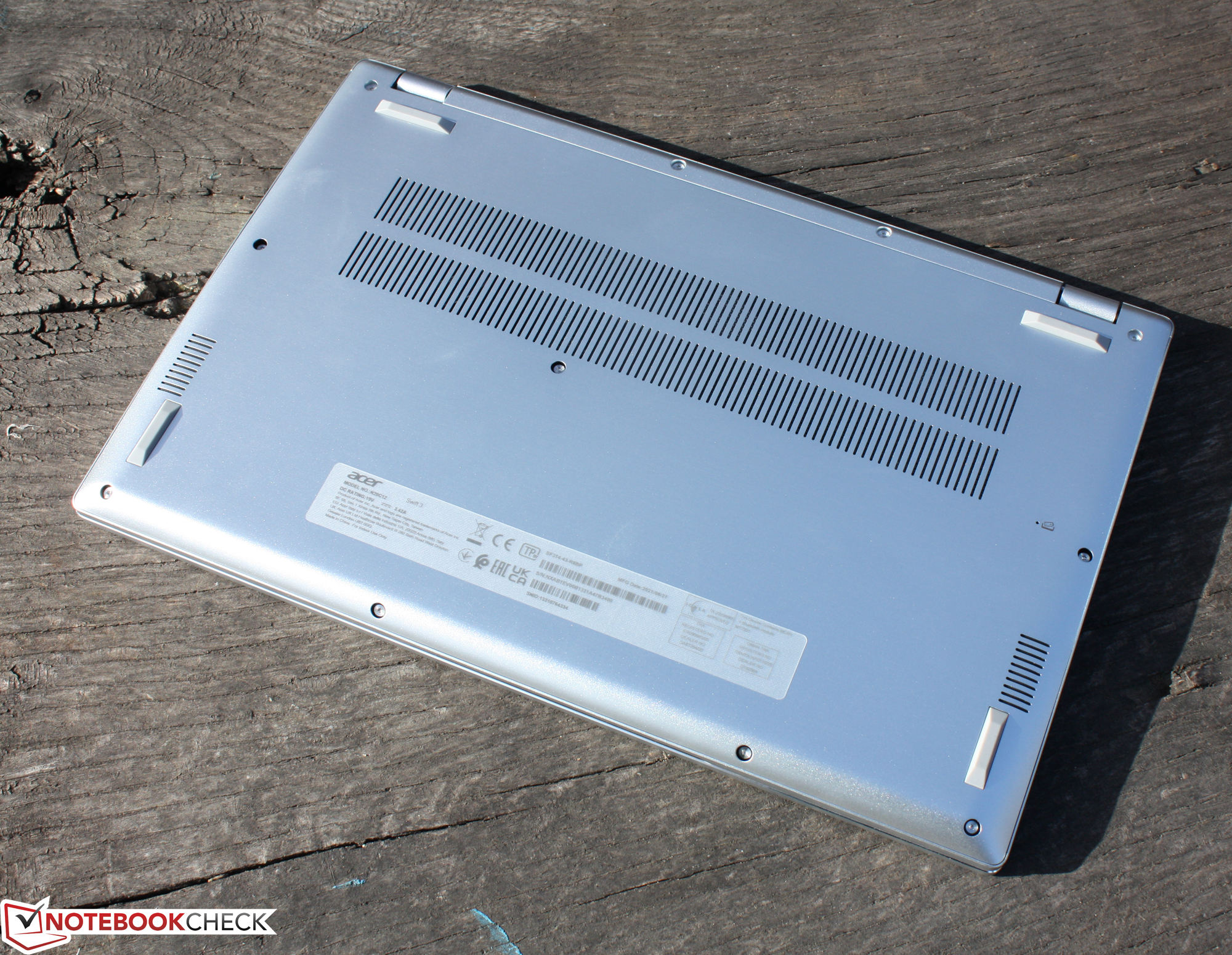

案例：稳定的Swift 3

尺寸比较

HP Pavilion 14-dv0357ng Lenovo ThinkPad E14 G3-20Y7003SGE Dell Latitude 14 5420-D2G5W Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Acer Swift 3 SF314-43-R8BP Acer Swift 3 SF314-511-54ZK DIN A4 ❌

设备。联发科的Wi-Fi太慢了

这些端口与 Swift X.不幸的是，糟糕的Wi-Fi性能也与Swift X相同。下载速度似乎是一场灾难，这也是Swift X的问题。雨燕X也有同样的问题。在最佳条件下确定的传输速度（附近没有其他WLAN设备，笔记本电脑和服务器PC之间有一米的距离），结果是非常糟糕的，只有182MBit/s左右（几个随机样本）。

然而，在传输时，联发科Wi-Fi芯片的速度要快得多，约为871MBit/s。这是一个很好的结果，尽管不是真的令人振奋。发送和接收速度之间的差异表明有一个驱动问题，我们认为这个问题可以通过未来的驱动更新来弥补。

然而，问题确实出现了，在全封闭的铝制盖子上，天线安装在哪里？话虽如此，这不可能是得分低的原因，因为否则上传的分数也会同样低。

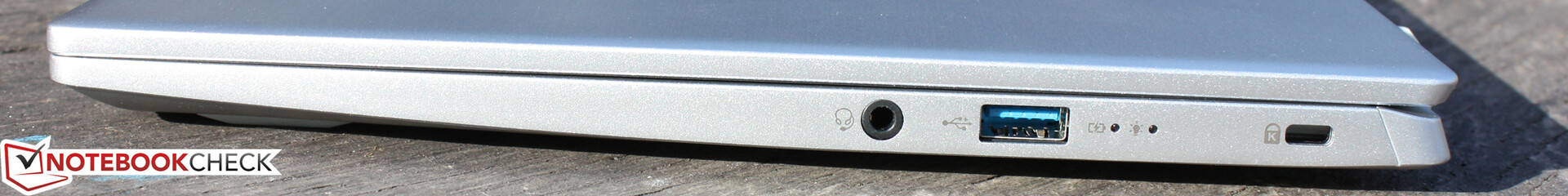

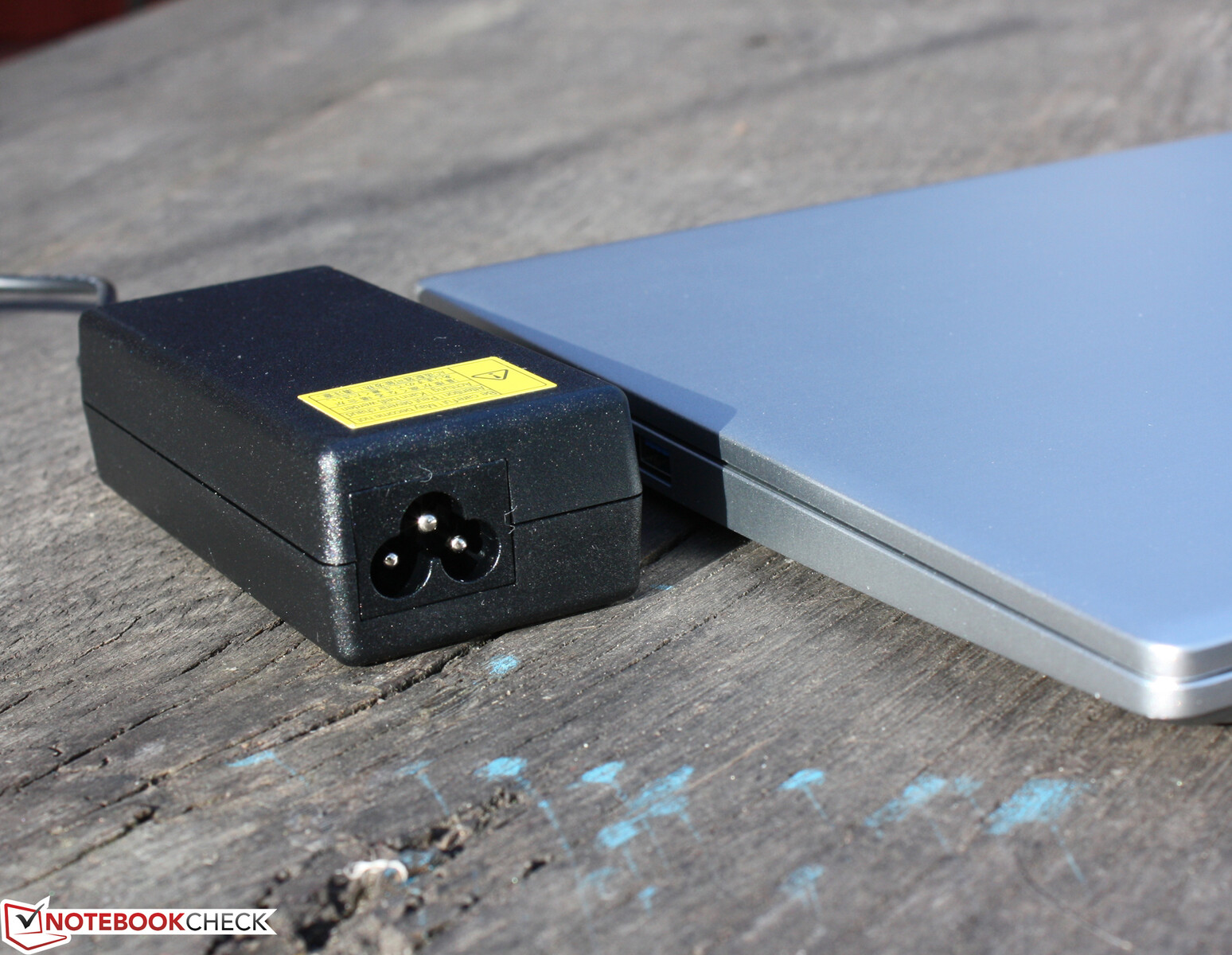

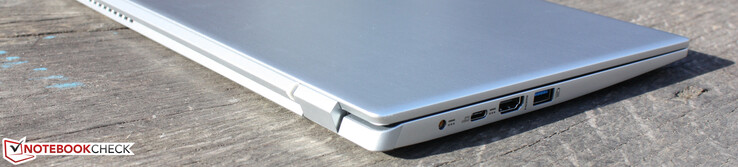

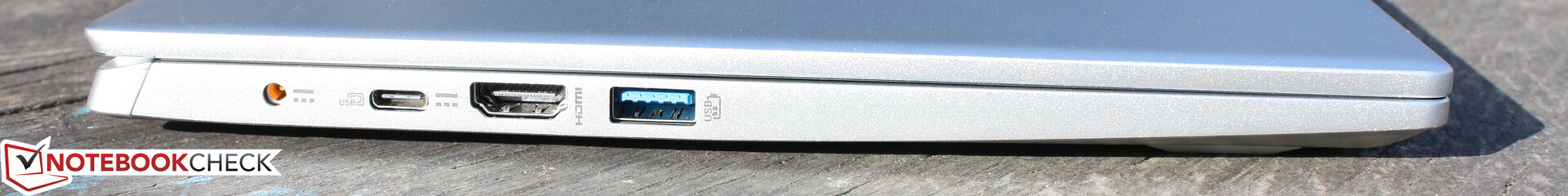

电源（空心插头），USB Type-C 3.1带PD和DisplayPort，HDMI，USB-A 3.1

Networking
iperf3 transmit AX12
Acer Swift 3 SF314-511-54ZK Intel Wi-Fi 6 AX201	1361 (1269^min - 1443^max) MBit/s +56%
Acer Swift 3 SF314-43-R8BP MediaTek MT7921	871 (601^min - 1018^max) MBit/s
Lenovo ThinkPad E14 G3-20Y7003SGE RealTek Semiconductor RTL8852AE	870 (441^min - 906^max) MBit/s 0%
Dell Latitude 14 5420-D2G5W Intel Wi-Fi 6 AX201	857 (573^min - 993^max) MBit/s -2%
Average MediaTek MT7921 (548 - 985, n=16)	797 MBit/s -8%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Wireless-AC 9560	688 (346^min - 696^max) MBit/s -21%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Wireless-AC 9560	642 (325^min - 653^max) MBit/s -26%
HP Pavilion 14-dv0357ng Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	87 (80^min - 95^max) MBit/s -90%
iperf3 receive AX12
Dell Latitude 14 5420-D2G5W Intel Wi-Fi 6 AX201	1328 (671^min - 1493^max) MBit/s +630%
Acer Swift 3 SF314-511-54ZK Intel Wi-Fi 6 AX201	1231 (785^min - 1353^max) MBit/s +576%
Lenovo ThinkPad E14 G3-20Y7003SGE RealTek Semiconductor RTL8852AE	790 (405^min - 842^max) MBit/s +334%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Wireless-AC 9560	679 (343^min - 689^max) MBit/s +273%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Wireless-AC 9560	288 (256^min - 312^max) MBit/s +58%
Average MediaTek MT7921 (90 - 972, n=16)	628 MBit/s +245%
HP Pavilion 14-dv0357ng Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	505 (473^min - 527^max) MBit/s +177%
Acer Swift 3 SF314-43-R8BP MediaTek MT7921	182 (47^min - 494^max) MBit/s

Acer Swift 3 SF314-43-R8BP MediaTek MT7921; iperf3 receive AX12; iperf 3.1.3: Ø181.8 (47-494)

Acer Swift 3 SF314-511-54ZK Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1230 (785-1353)

Lenovo ThinkPad E14 G3-20Y7003SGE RealTek Semiconductor RTL8852AE; iperf3 receive AX12; iperf 3.1.3: Ø776 (405-842)

Acer Swift 3 SF314-43-R8BP MediaTek MT7921; iperf3 transmit AX12; iperf 3.1.3: Ø871 (601-1018)

Acer Swift 3 SF314-511-54ZK Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1361 (1269-1443)

Lenovo ThinkPad E14 G3-20Y7003SGE RealTek Semiconductor RTL8852AE; iperf3 transmit AX12; iperf 3.1.3: Ø856 (441-906)

网络摄像头

ColorChecker Acer Swift 3 SF314-43-R8BP: 14.55 ∆E min: 2.9 - max: 21.71 ∆E

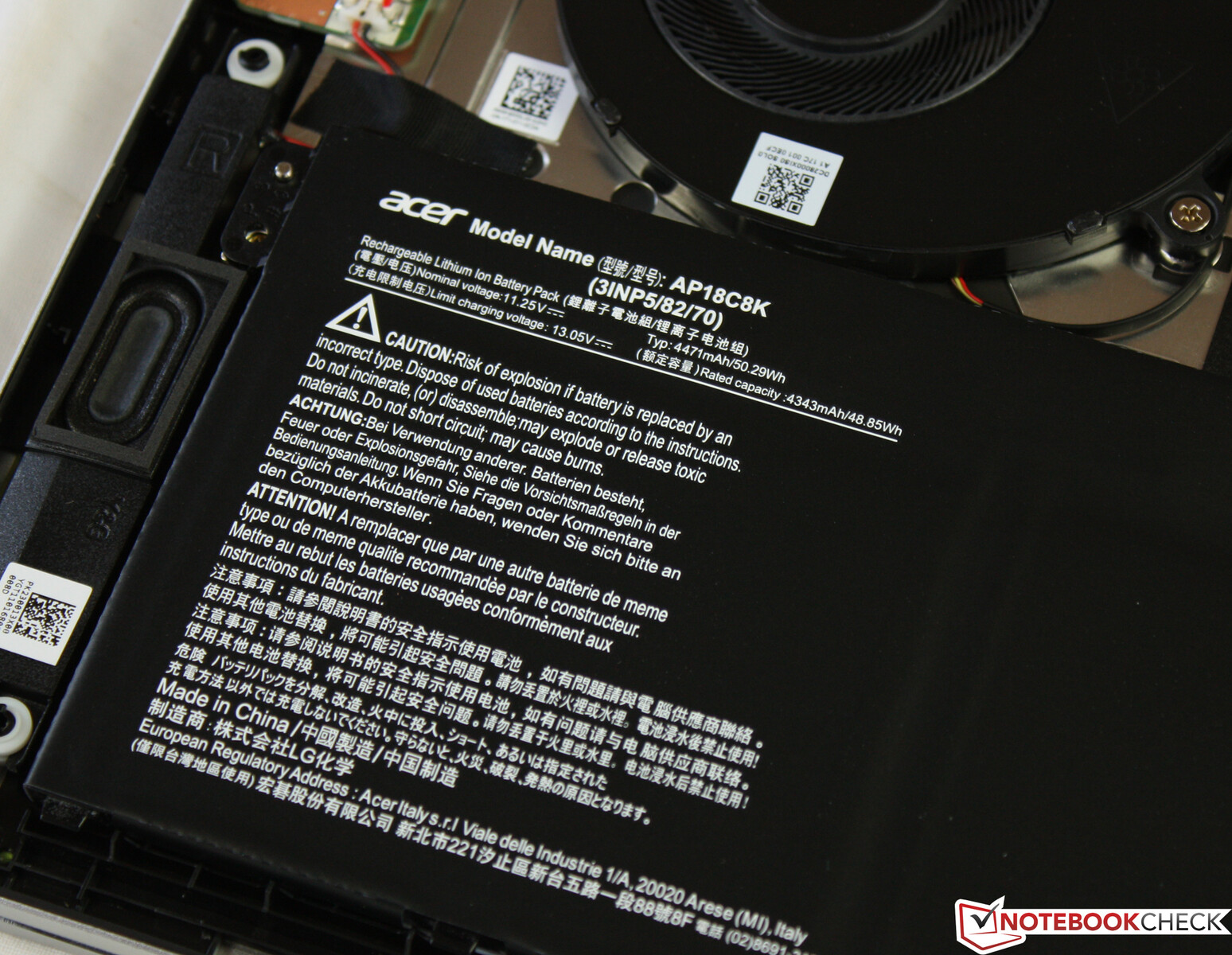

维护

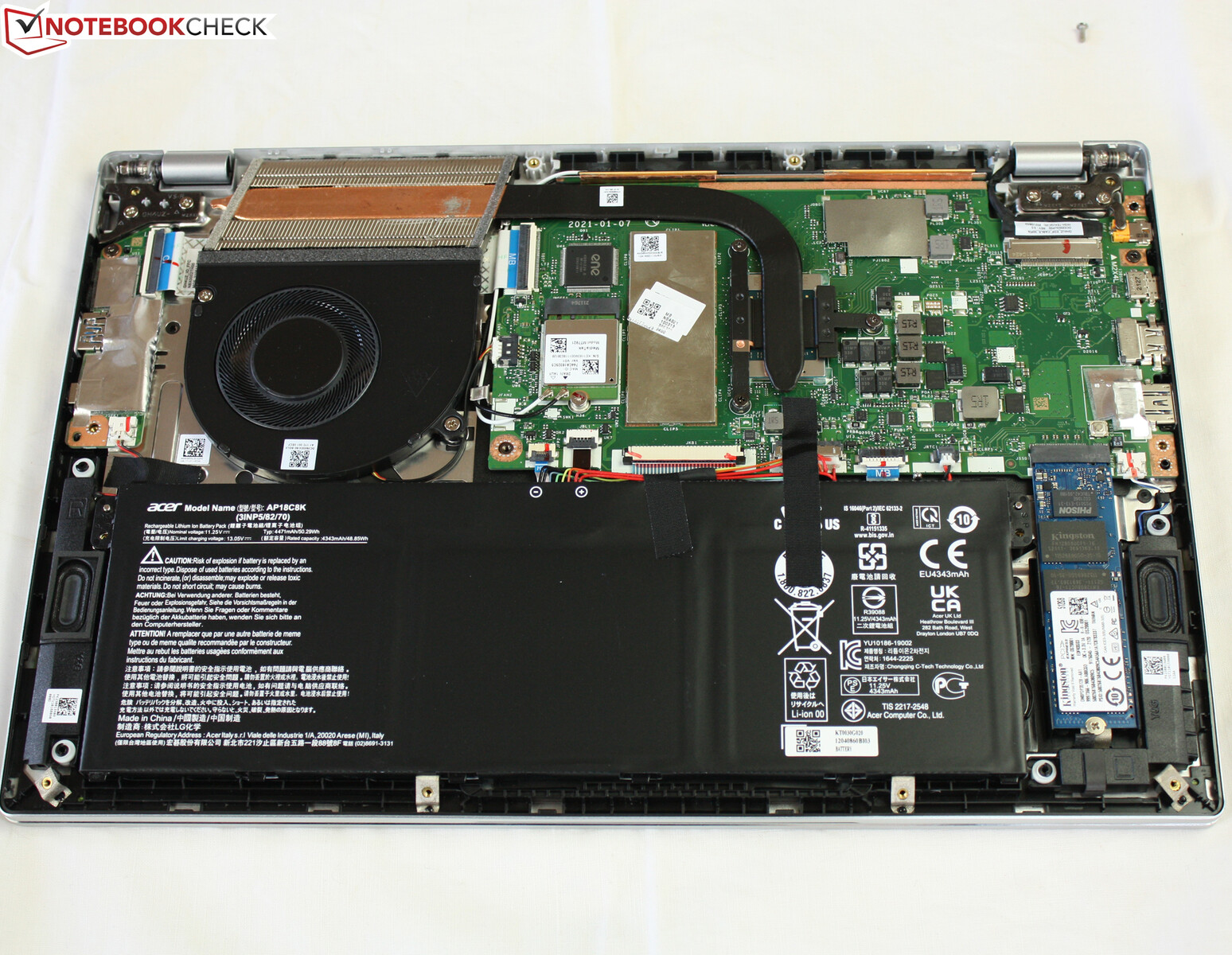

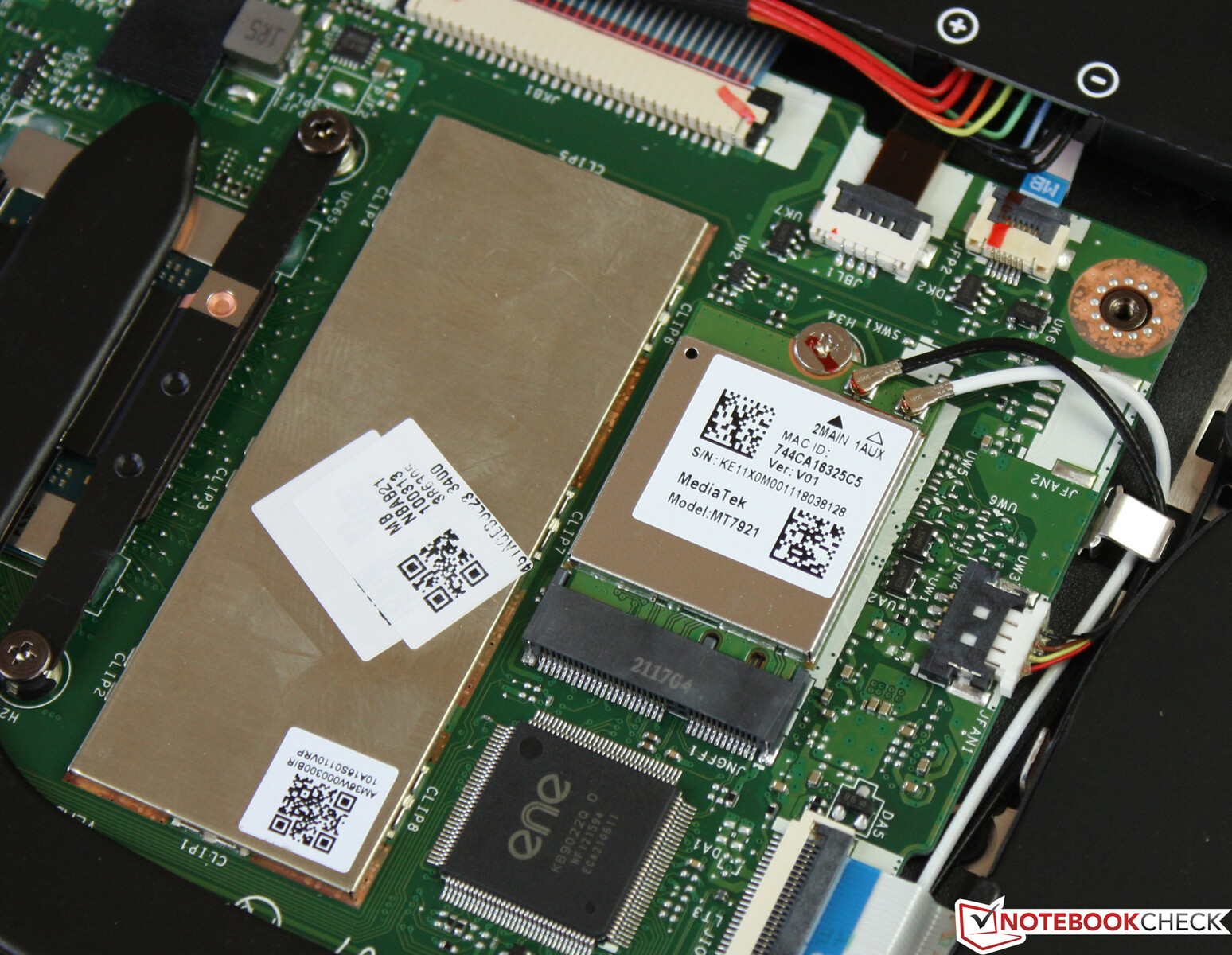

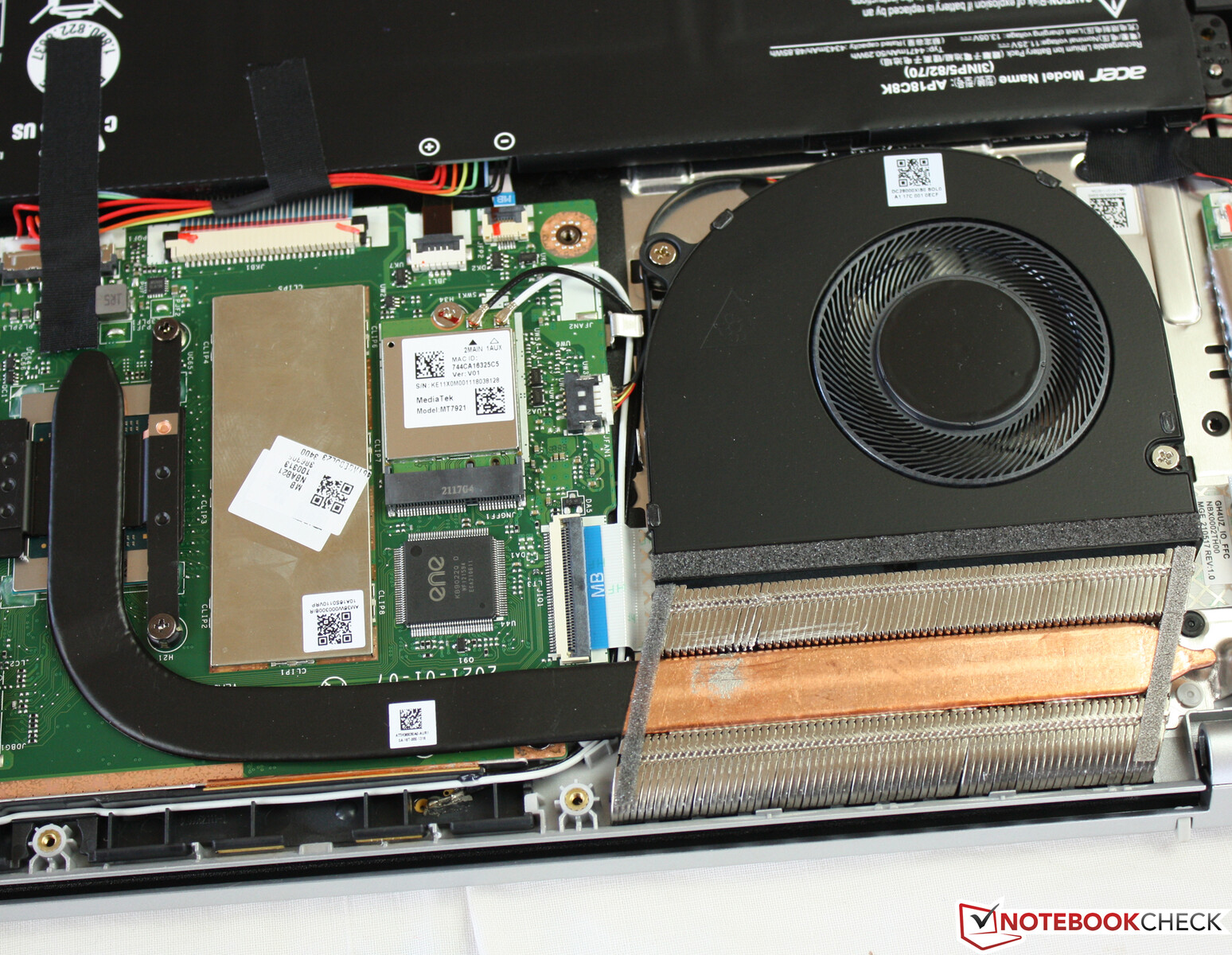

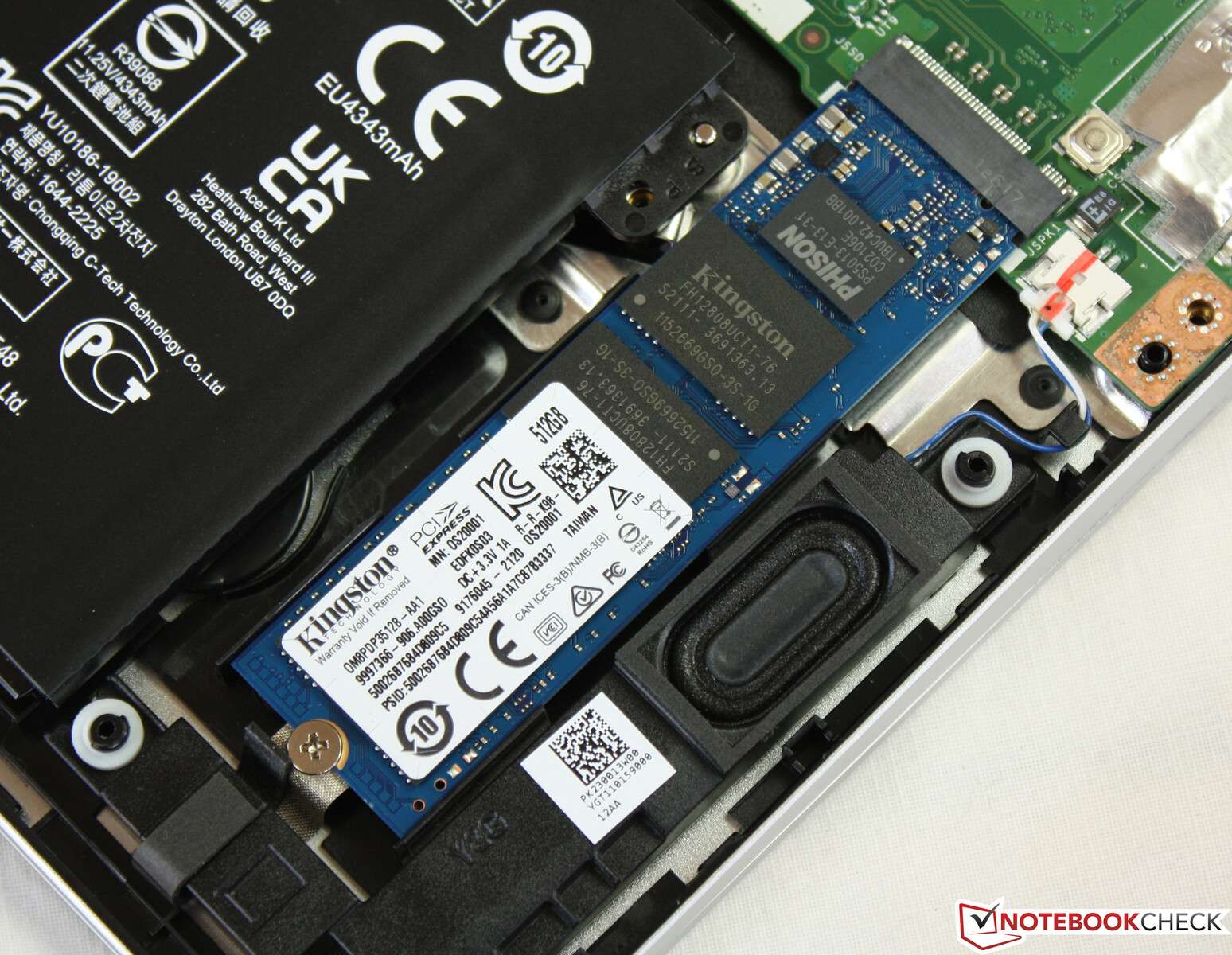

Swift 3的WLAN卡可以升级。固态硬盘以后也可以换成更大的型号。没有像Swift X那样的第二个M.2插槽。斯威夫特X.工作内存是焊接的。

显示器。宏碁的屏幕发光太弱了

虽然Swift X SFX14-41G和 Swift 3 SF314-511配备了友达面板（B140HAN06），在我们的测试中表现出色，而我们现在的机型则依靠智美屏幕（N140HCA EAC CMN）。这似乎是一个更糟糕的选择，因为sRGB空间不再被完全覆盖，亮度也更低。然而，对比度的差异是可以忽略不计的。

亮度明显向屏幕中心增加，但没有明显的背光渗漏。只要在Radeon设置中禁用AMD Vari Bright，电池模式下的亮度就会保持不变。

这里的一个消极方面是，当亮度为20%和低时，显示器使用PWM来降低亮度。也就是说，25,000赫兹的高频率应该不会对眼睛造成压力。此外，大多数用户会发现在如此低的亮度下很难在屏幕上工作，因为即使在室内，20%的亮度也简直太暗了。


227 cd/m²	243 cd/m²	236 cd/m²
227 cd/m²	259 cd/m²	223 cd/m²
204 cd/m²	236 cd/m²	203 cd/m²

Distribution of brightness

Chi Mei N140HCA EAC CMN tested with X-Rite i1Pro 2

Maximum: 259 cd/m² (Nits) Average: 228.7 cd/m² Minimum: 21 cd/m²
Brightness Distribution: 78 %
Center on Battery: 259 cd/m²
Contrast: 1079:1 (Black: 0.24 cd/m²)
ΔE Color 3.63 | 0.5-29.43 Ø5, calibrated: 3.83

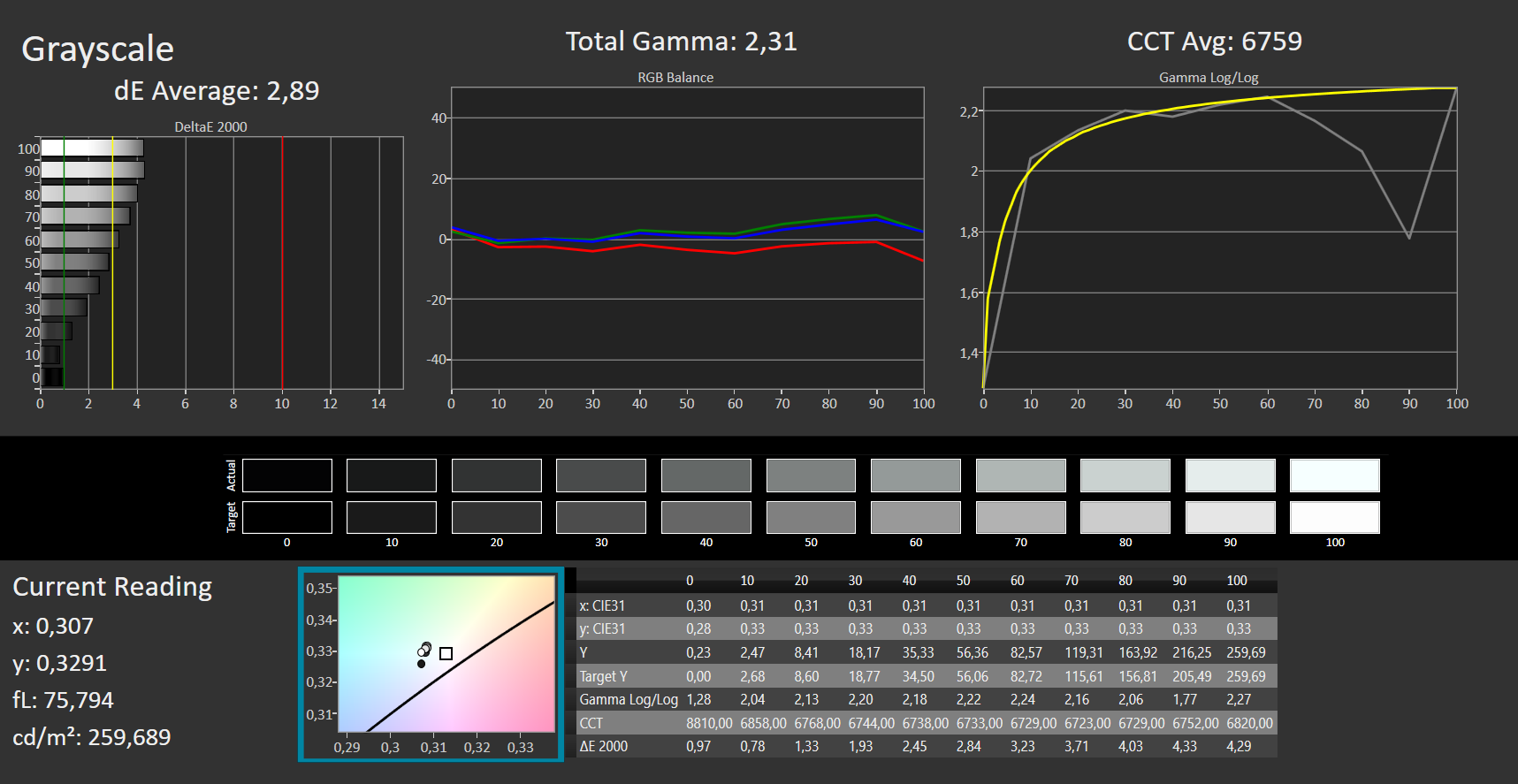

ΔE Greyscale 2.89 | 0.57-98 Ø5.3
45% AdobeRGB 1998 (Argyll 2.2.0 3D)
65% sRGB (Argyll 2.2.0 3D)
43% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.31

Download ICC File (X-Rite i1Pro 2)

	Acer Swift 3 SF314-43-R8BP Chi Mei N140HCA EAC CMN, IPS, 1920x1080, 14.00	Acer Swift 3 SF314-511-54ZK AUO B140HAN06, IPS, 1920x1080, 14.00	Lenovo ThinkPad E14 G3-20Y7003SGE NVM140FHM-N4V, IPS, 1920x1080, 14.00	HP Pavilion 14-dv0357ng LGD0619, IPS, 1920x1080, 14.00	Dell Latitude 14 5420-D2G5W AUO5491 / B140HAN, IPS, 1920x1080, 14.00	Lenovo ThinkBook 14 G2 ITL 20VDS02G00 AU Optronics B140HAN04.E, a-Si IPS LED, 1920x1080, 14.00
Display		53%	-7%	42%	-17%	-14%
Display P3 Coverage	43	67 56%	40.3 -6%	62 44%	36 -16%	37.2 -13%
sRGB Coverage	65	98 51%	59.5 -8%	92 42%	54 -17%	55.5 -15%
AdobeRGB 1998 Coverage	45	69 53%	41.7 -7%	63 40%	37 -18%	38.4 -15%
Response Times		-27%	11%	18%	-6%	-18%
Response Time Grey 50% / Grey 80% *	37 ?(18, 19)	52 ?(23, 29) -41%	35.2 ?(17.2, 18) 5%	37 ?(19, 18) -0%	41 ?(19, 22) -11%	45.9 ?(21.2, 24.7) -24%
Response Time Black / White *	26 ?(12, 14)	29 ?(13, 16) -12%	21.6 ?(12.4, 9.2) 17%	17 ?(7, 10) 35%	26 ?(13, 13) -0%	29 ?(15.7, 13.3) -12%
PWM Frequency	25000 ?(20)
Screen		28%	-10%	-10%	-3%	-27%
Brightness middle	259	320 24%	341 32%	387 49%	290 12%	386 49%
Brightness	229	309 35%	327 43%	359 57%	282 23%	348 52%
Brightness Distribution	78	84 8%	90 15%	84 8%	81 4%	83 6%
Black Level *	0.24	0.25 -4%	0.26 -8%	0.55 -129%	0.26 -8%	0.29 -21%
Contrast	1079	1280 19%	1312 22%	704 -35%	1115 3%	1331 23%
Colorchecker dE 2000 *	3.63	2.57 29%	5.1 -40%	4.04 -11%	4.65 -28%	6.3 -74%
Colorchecker dE 2000 max. *	6.53	3.5 46%	17.6 -170%	8.28 -27%	7.5 -15%	18.3 -180%
Colorchecker dE 2000 calibrated *	3.83	0.76 80%	4.4 -15%	1 74%	3.98 -4%	4.1 -7%
Greyscale dE 2000 *	2.89	2.46 15%	2.1 27%	5 -73%	3.22 -11%	5.4 -87%
Gamma	2.31 ^95%	2.23 ^99%	2.11 ^104%	2.62 ^84%	2.54 ^87%	2.55 ^86%
CCT	6759 ^96%	6311 ^103%	6755 ^96%	7123 ^91%	6169 ^105%	5894 ^110%
Total Average (Program / Settings)		18% / 26%	-2% / -7%	17% / 5%	-9% / -6%	-20% / -23%

* ... smaller is better

AdobeRGB（45%）和sRGB（65%）色彩空间不能完全再现。

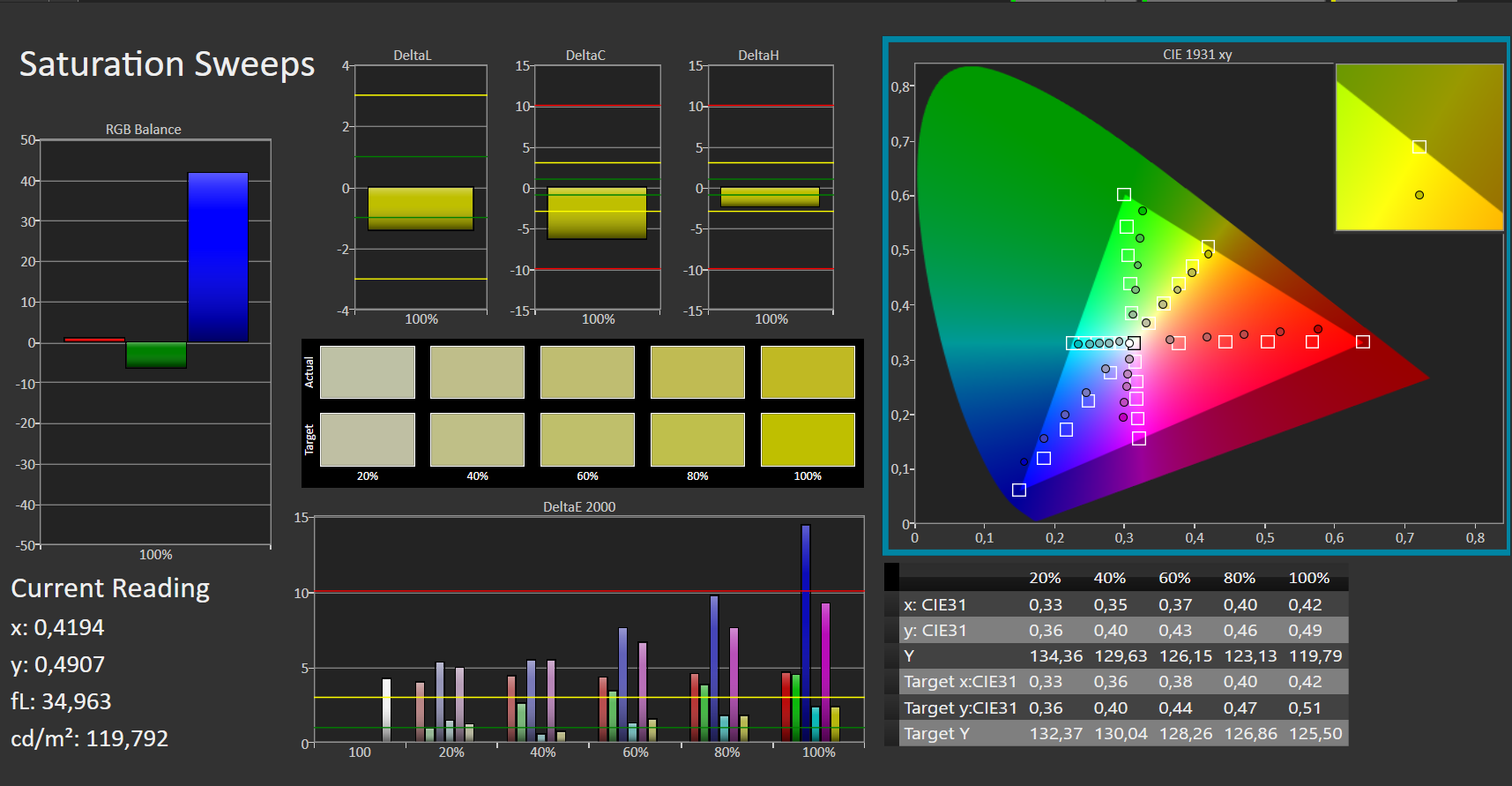

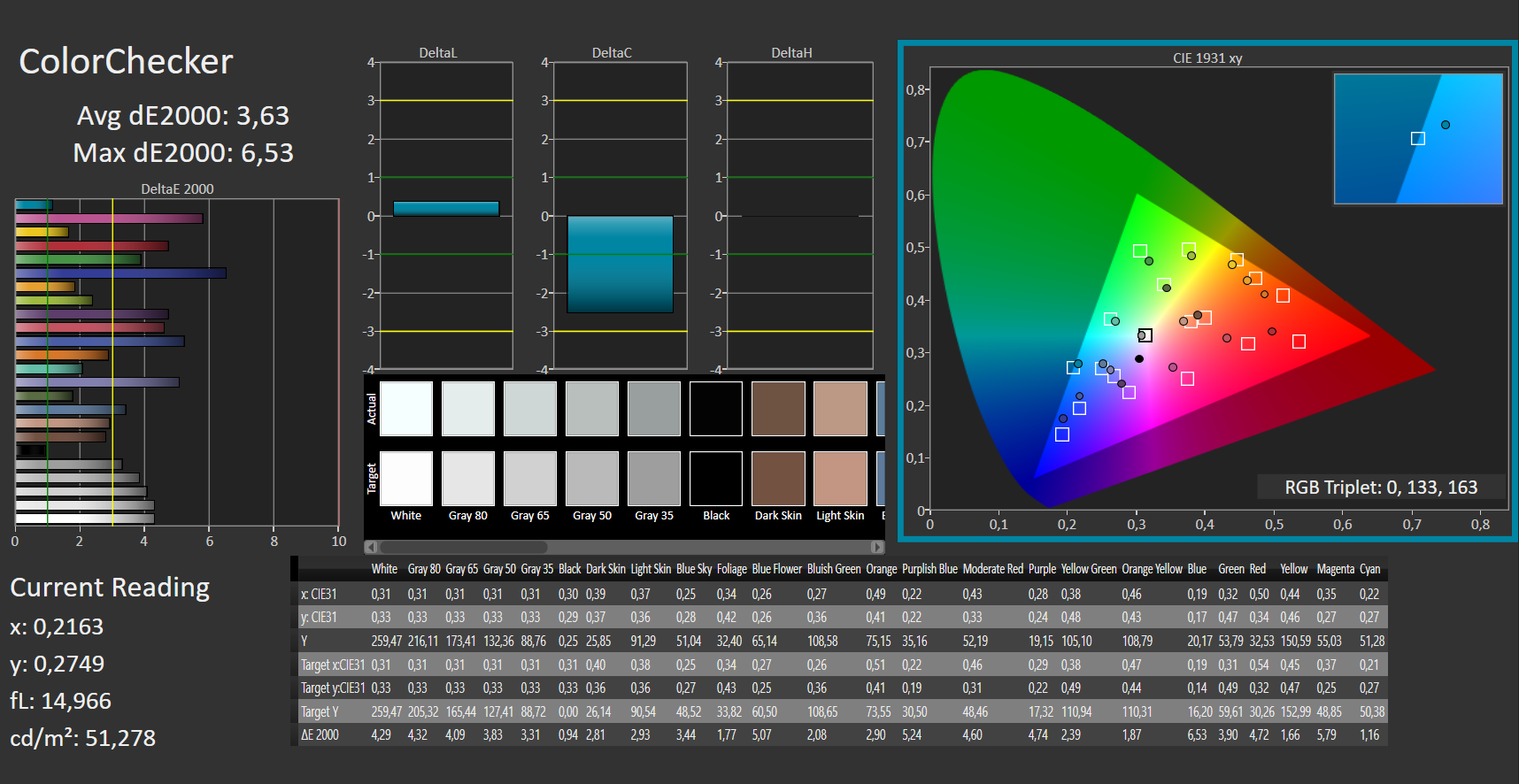

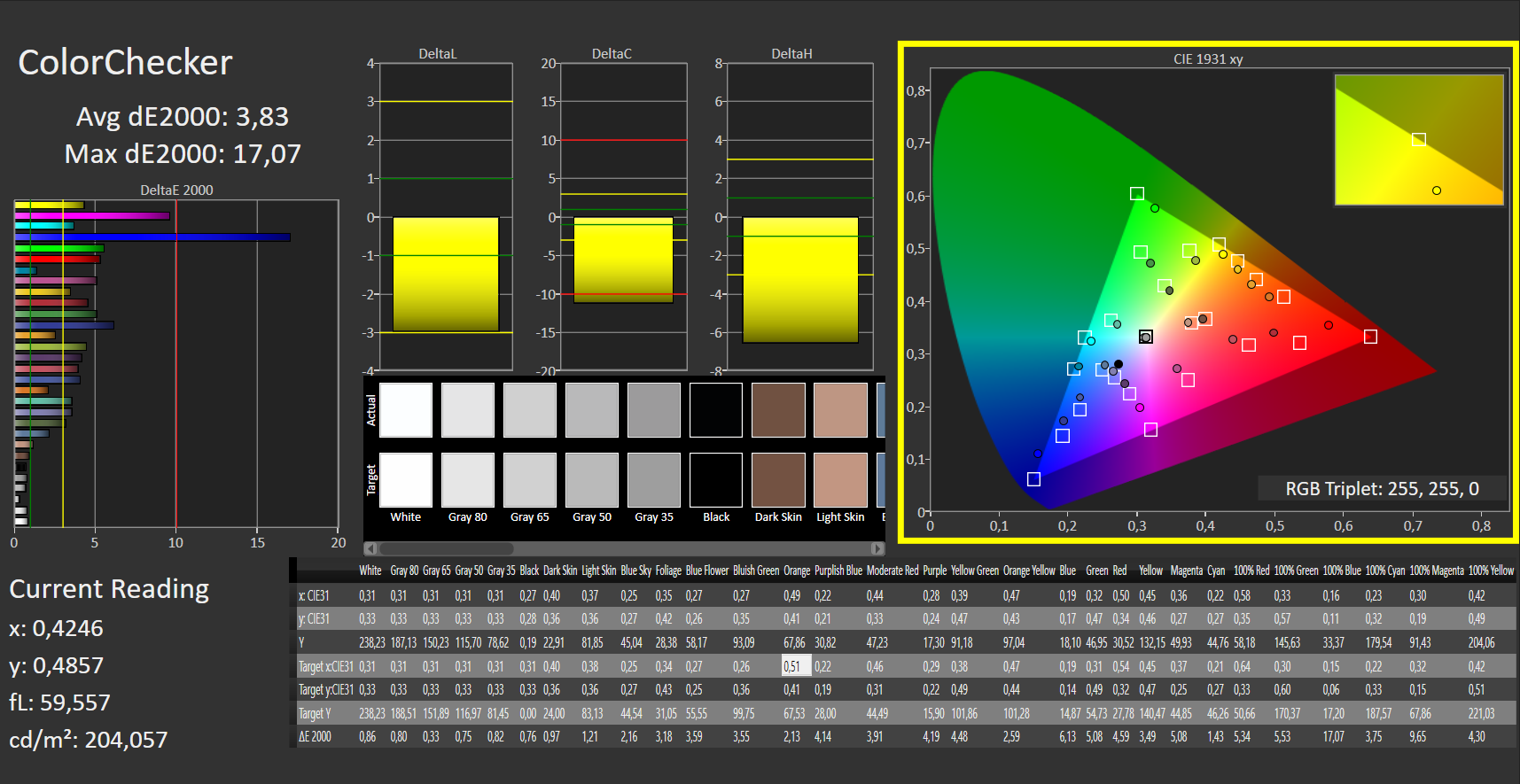

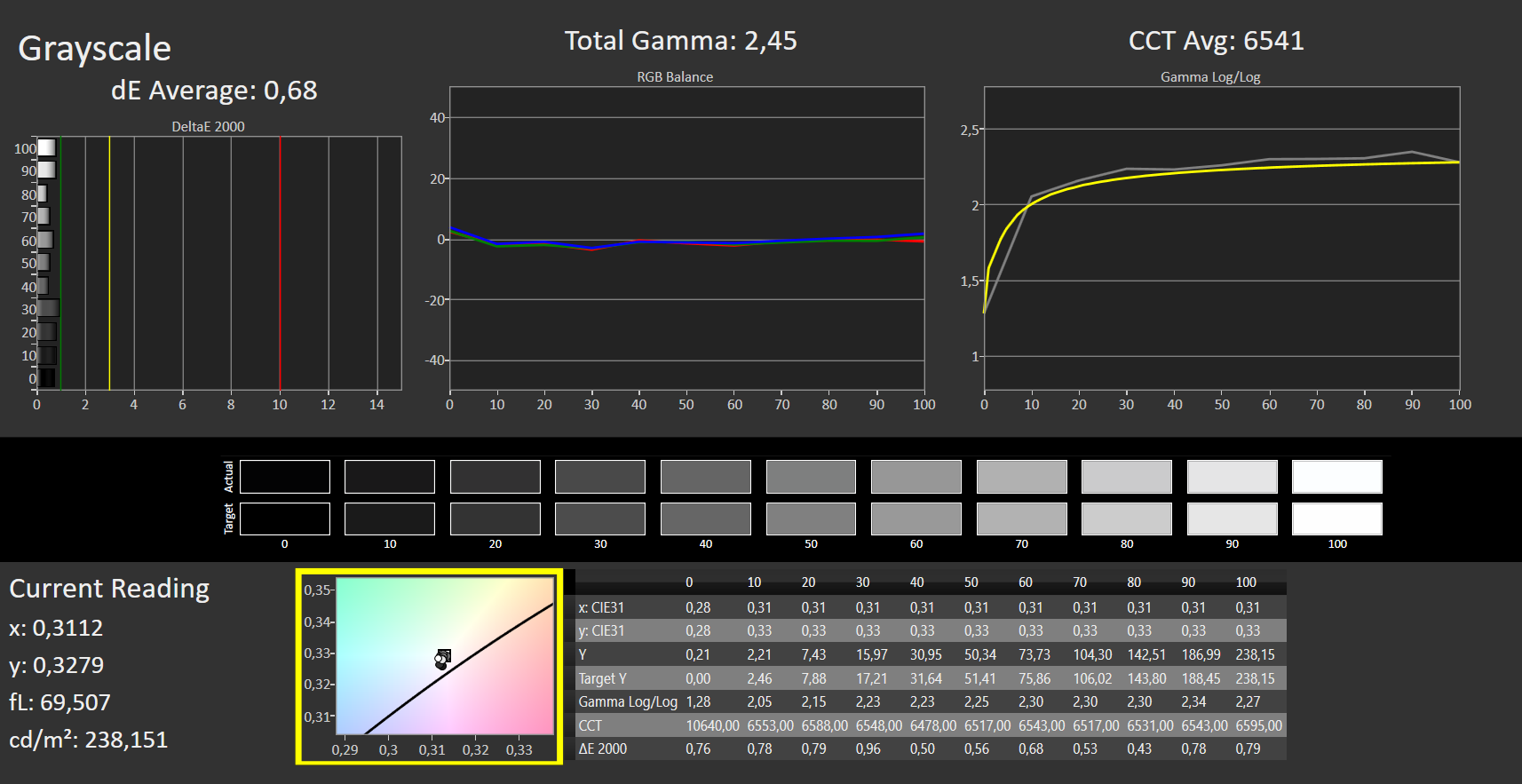

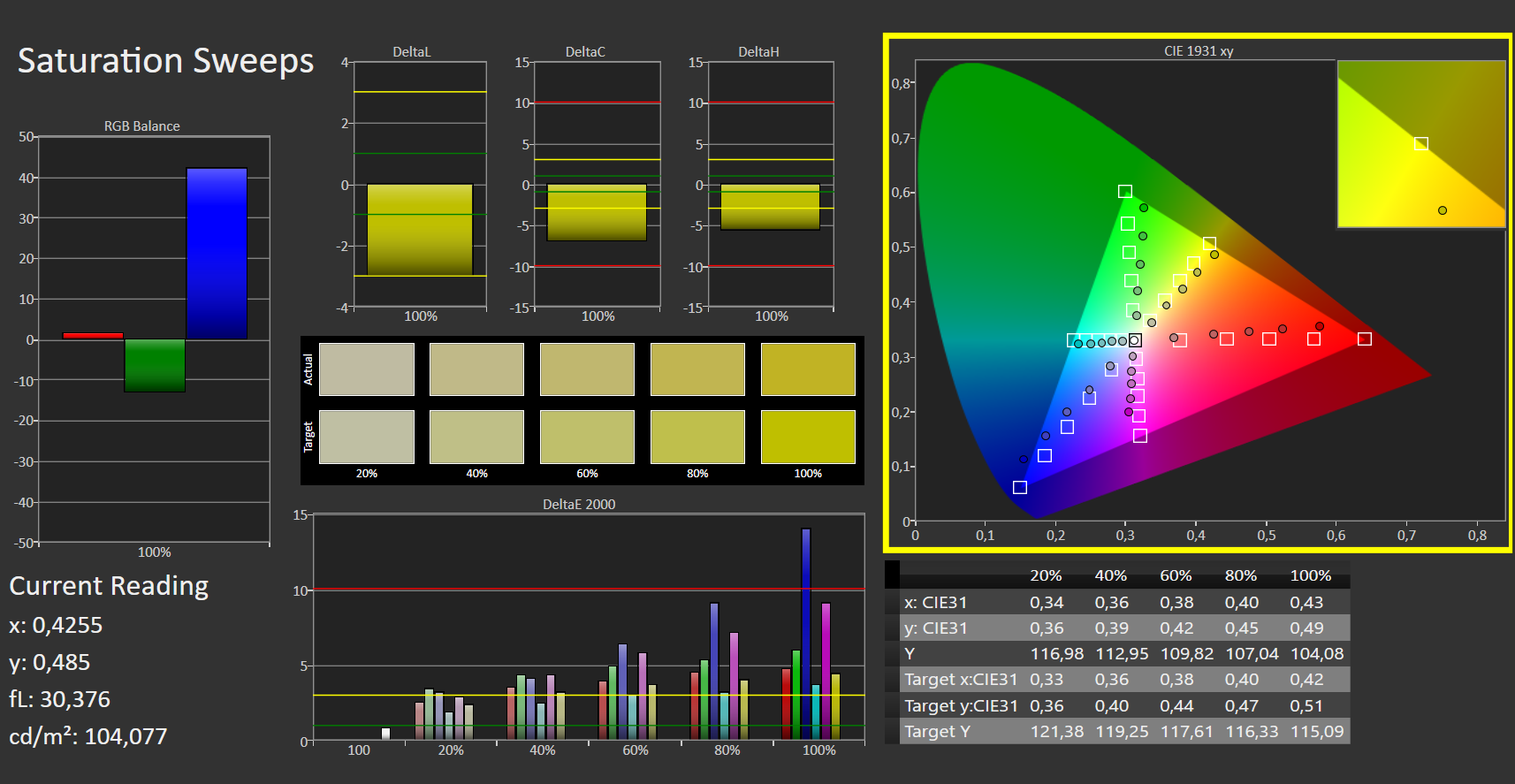

屏幕在交付状态下显示了相当体面的色彩再现。然而，Delta E 2000色彩偏差为3.6，刚刚错过目标（Delta E小于3）。该显示器没有出现偏蓝的情况。灰度的Delta E是2.9。校准并没有带来改善--智美面板显然难以校准。友达光电的面板 Swift X(AMD)或 Swift 3 SF314-511(英特尔)的友达面板可以通过校准改善其色彩再现。

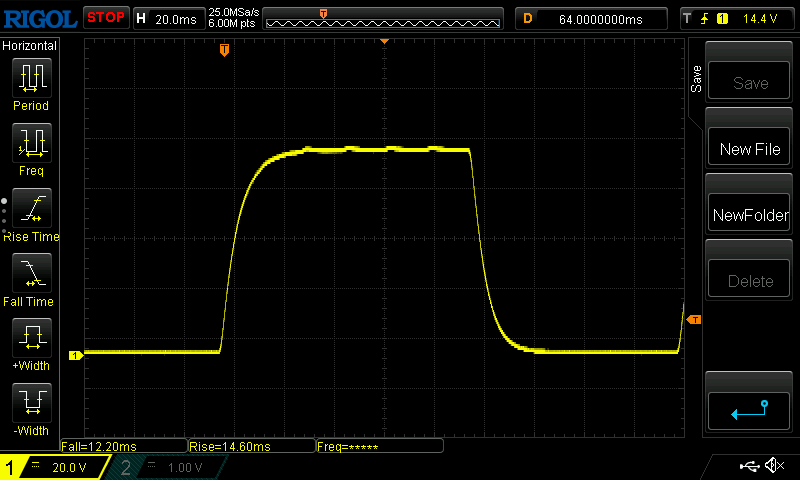

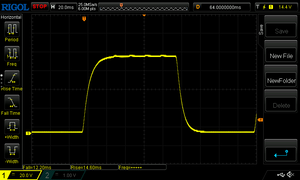

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
26 ms ... rise ↗ and fall ↘ combined	↗ 12 ms rise
26 ms ... rise ↗ and fall ↘ combined	↘ 14 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 57 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

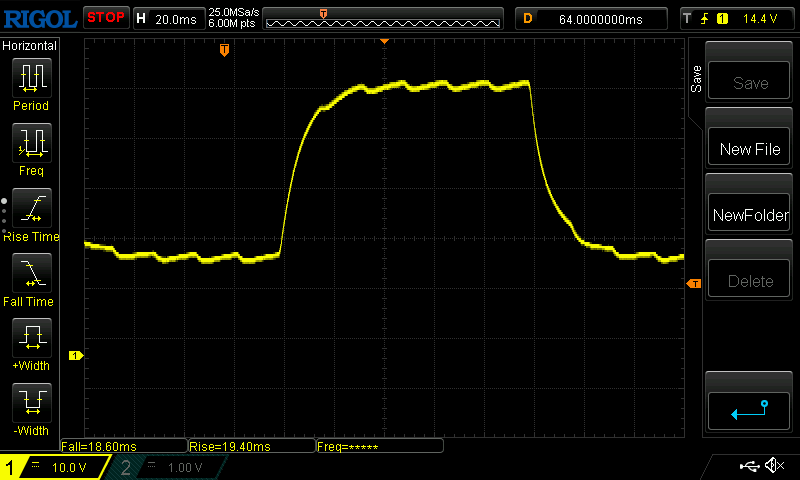

↔ Response Time 50% Grey to 80% Grey
37 ms ... rise ↗ and fall ↘ combined	↗ 18 ms rise
37 ms ... rise ↗ and fall ↘ combined	↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 47 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (33.7 ms).

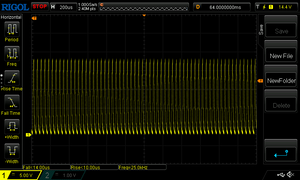

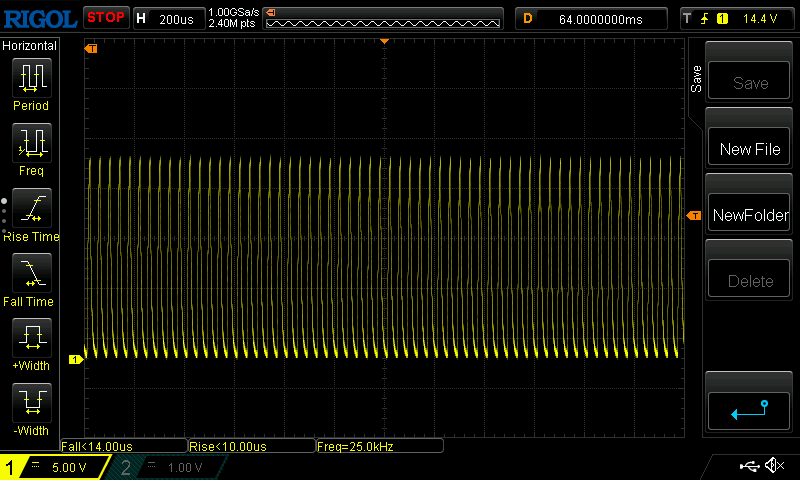

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

25000 Hz

≤ 20 % brightness setting

The display backlight flickers at 25000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 25000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17915 (minimum: 5 - maximum: 3846000) Hz was measured.

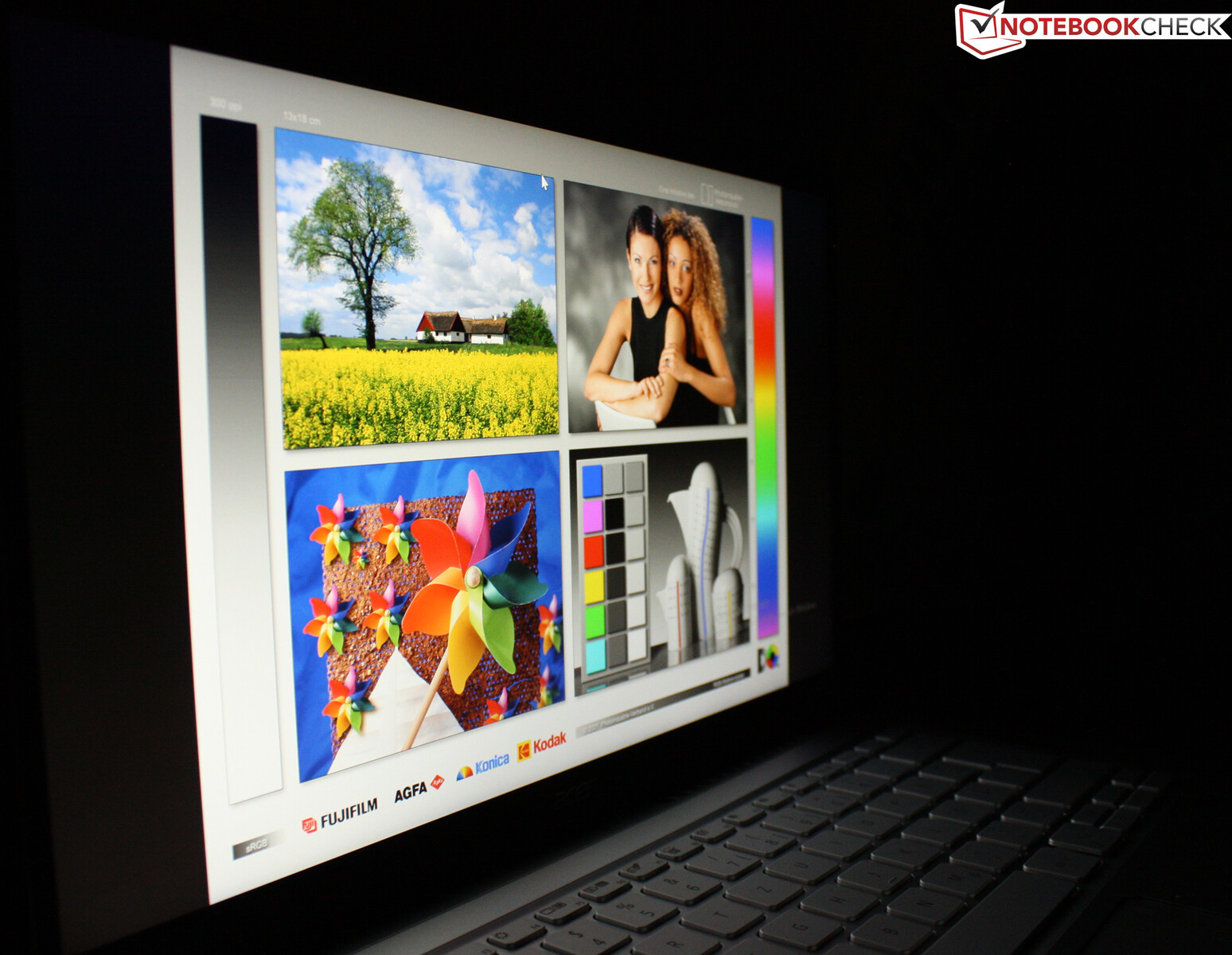

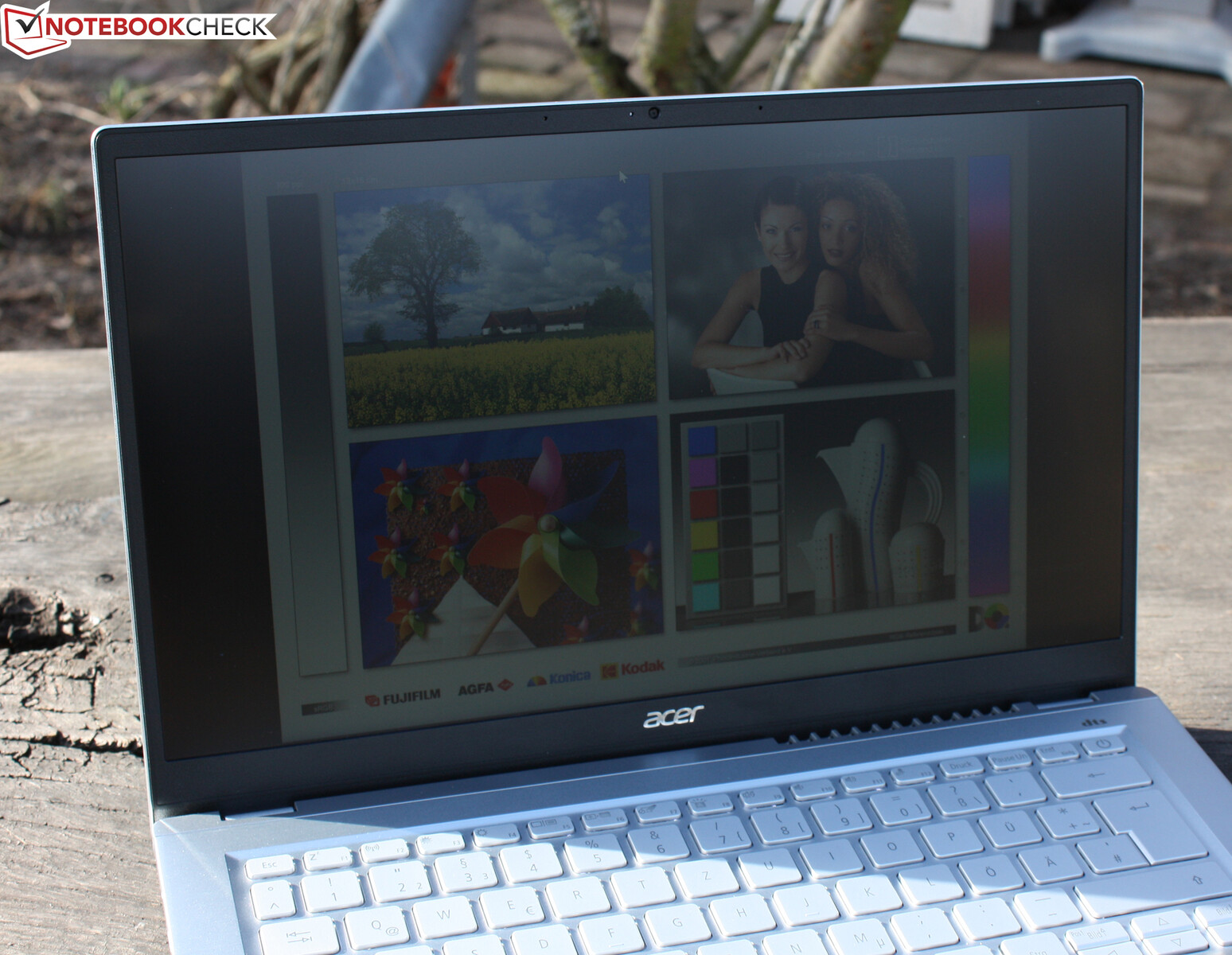

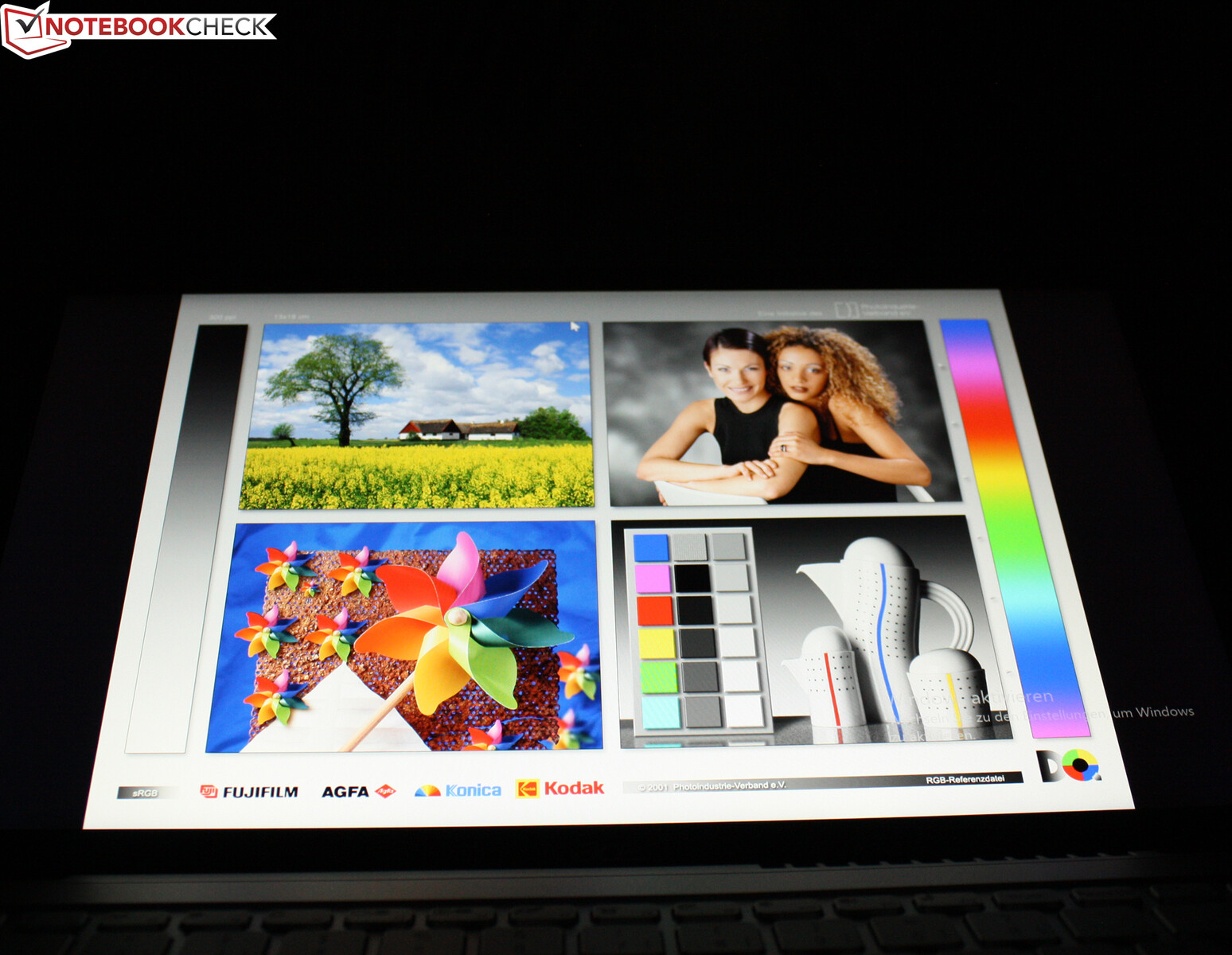

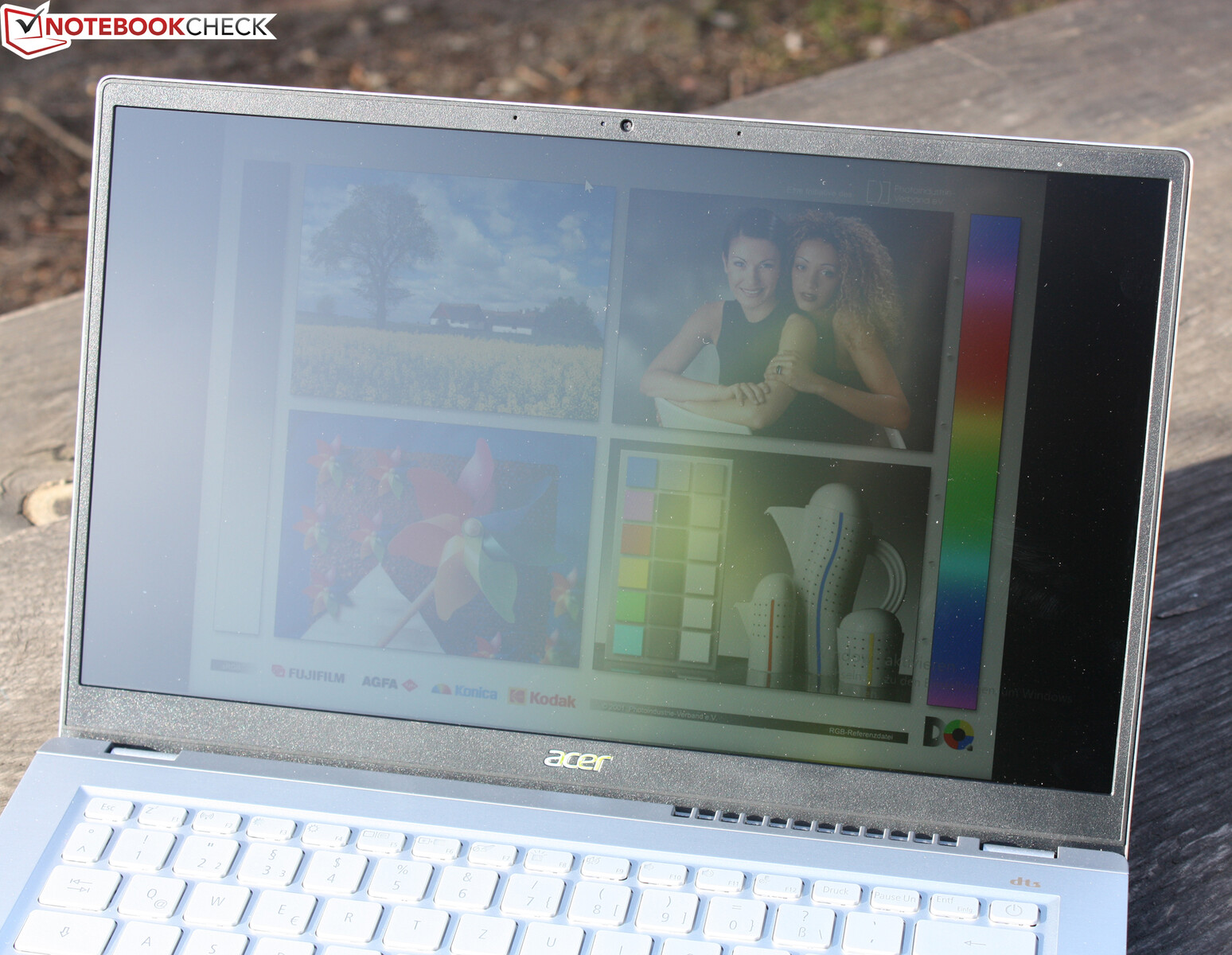

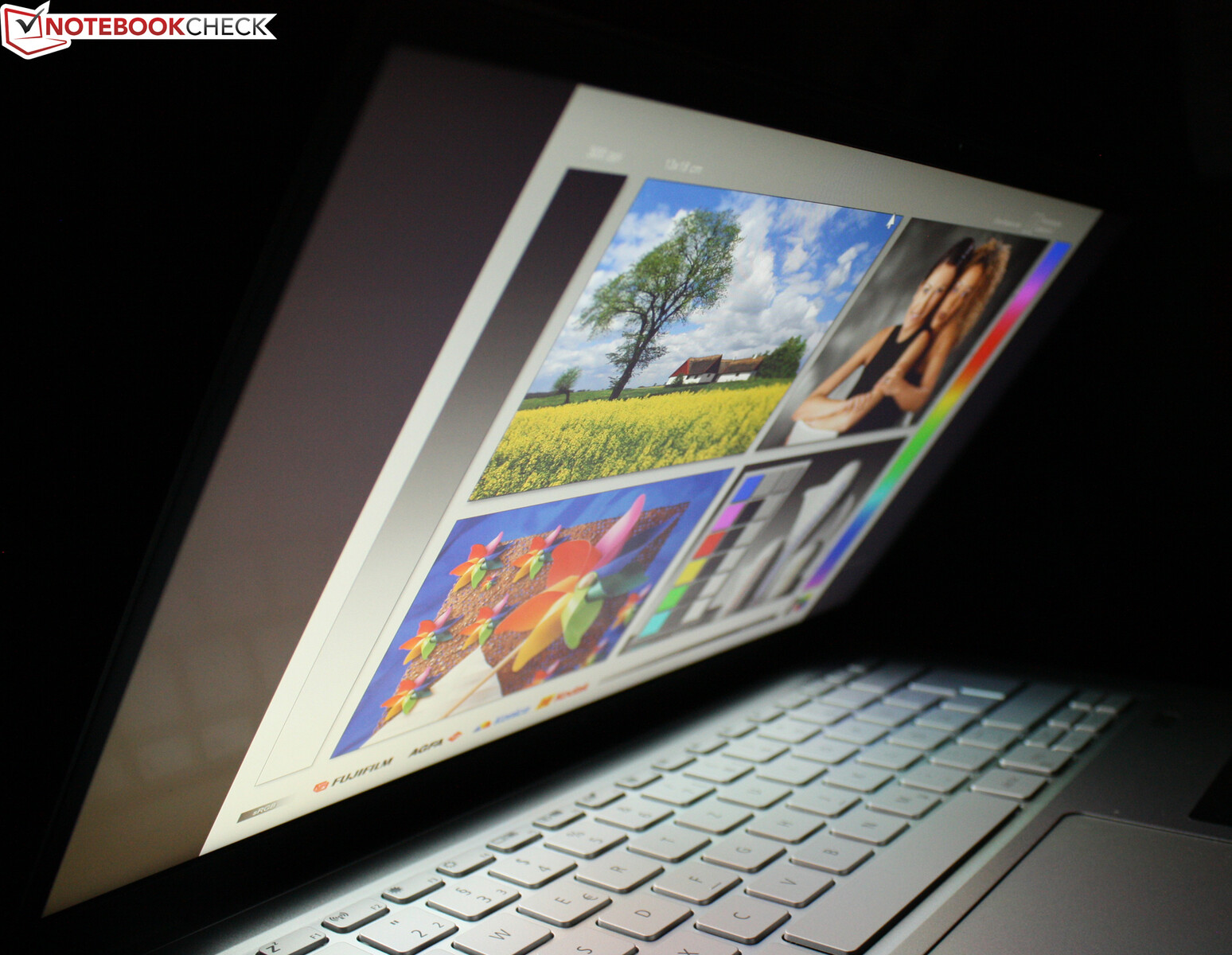

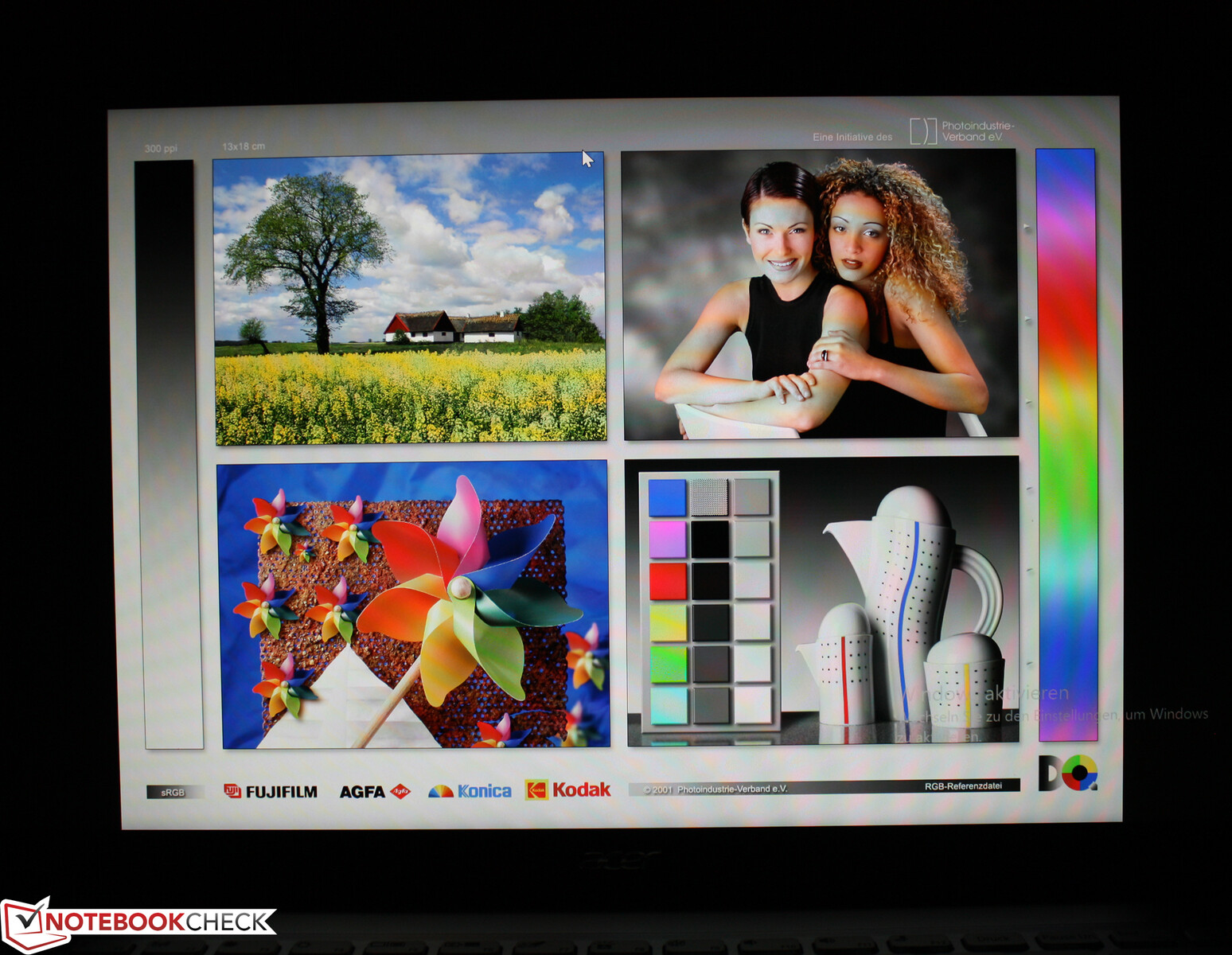

Swift 3配备了一个具有稳定视角的IPS面板。因此，屏幕可以从任何位置阅读。屏幕的最大亮度较低，在很大程度上妨碍了在阳光下阅读。如果你不关闭Vari Bright，你会失去大量的亮度。这款14英寸的手机主要是为室内使用而制造的。至少，哑光的表面确保了最小的反射。

性能。这一次没有AMD的高飞者

Swift 3的可用AMD配置包括基于以下的配置Ryzen 5 5500U, 5700U和 5300U.AMD的型号提供8或16GB的内存。应该仔细考虑选择，因为工作内存不能改变或升级，因为它是焊接的。固态硬盘也是如此，它提供的容量从256GB到1TB。硬盘是插入式的，但是第二个M.2插座--就像Swift X上的那样。 Swift X- 并不提供。

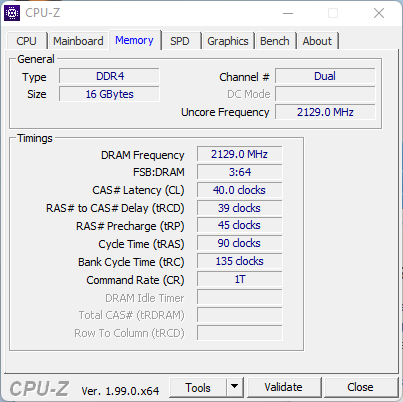

内存是双通道的，在游戏时可以获得更多的性能。我们觉得，我们的测试版本采用了 Ryzen 5 5500U512GB固态硬盘和16GB内存提供了最佳的性价比。

测试条件

我们在移除Linux eShell后安装了Windows。因此，只有Windows的电源管理是可用的。这在性能测试中被设置为 "最佳性能"，在耐久性测试中被设置为 "最佳节能"。

处理器

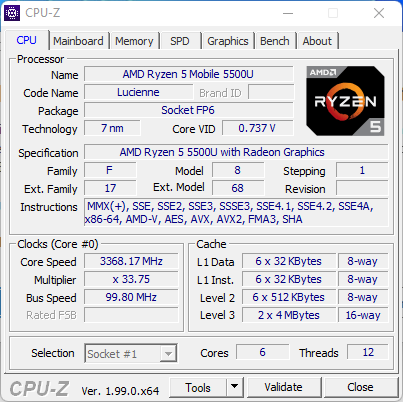

的 Ryzen 5 5500U在Swift 3中的时钟频率高达3.9 GHz。这款来自2021年初的六核具有良好的计算性能，但在单核方面不得不向英特尔的第11代处理器认输。Ryzen在多核方面总是击败英特尔的竞争对手，从Core i5到Core i7。然而， Ryzen 5 5500U的评测样本在许多基准测试中仅低于其自身的平均水平，尽管-1%的差异是微不足道的。

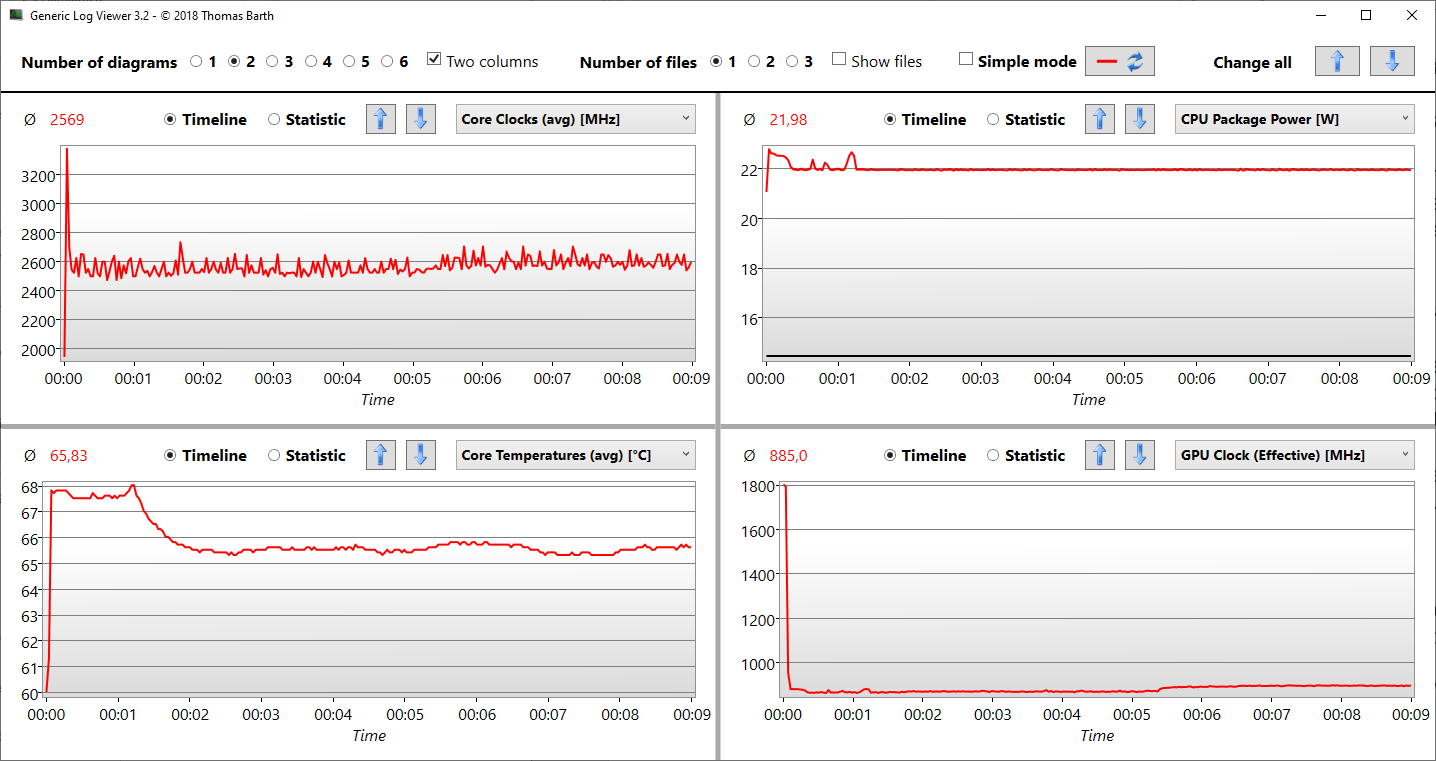

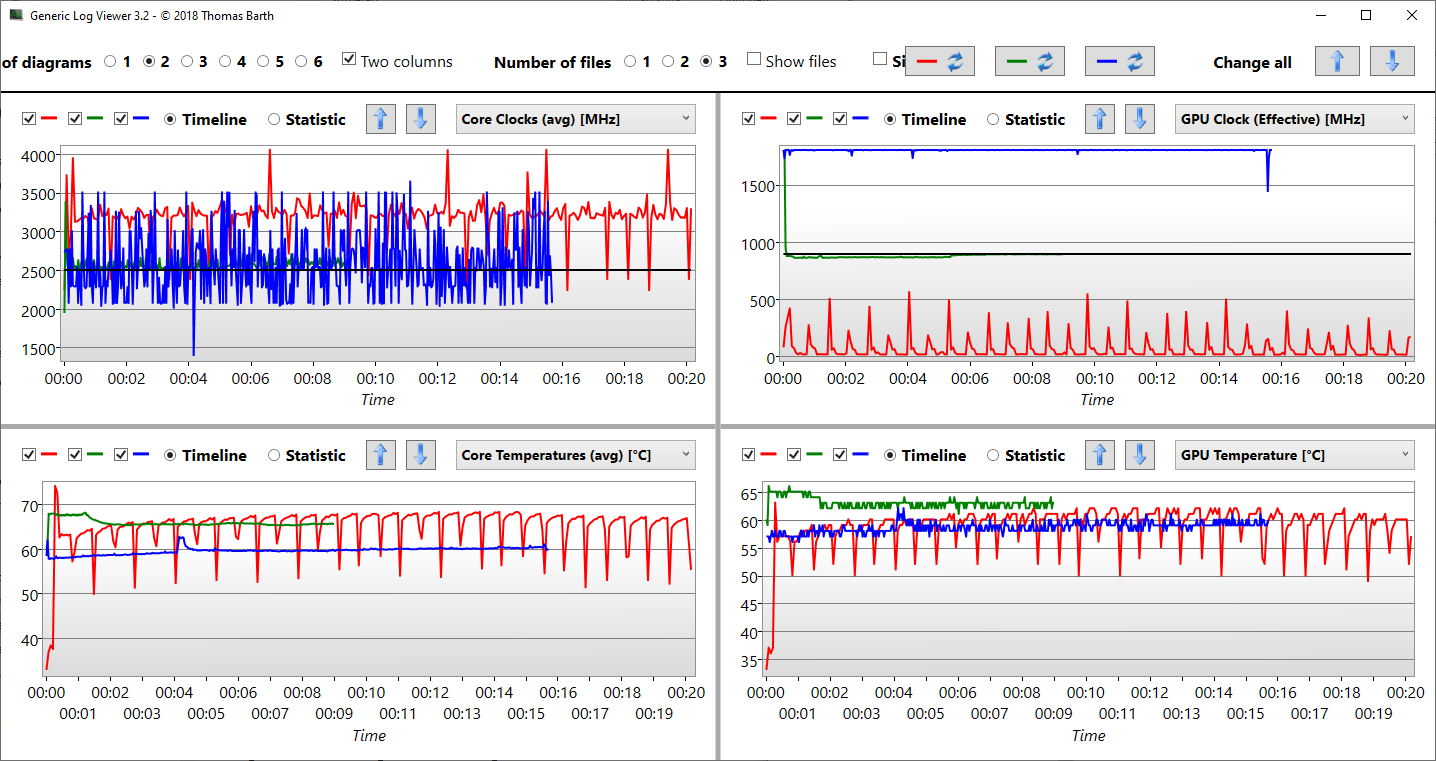

CPU的性能取决于设定的TDP和冷却。在Cinebench测量中，我们看到CPU封装功率最大为45W，这应该与PL2/Short Burst相对应。然而，这只能维持几秒钟，之后继续维持在22W（3.2而不是3.9GHz）。然后，除了在测试过程中出现几个时钟峰值外，这个水平从第一个循环到最后一个循环都保持不变。在电池模式下，性能并没有下降，这一点从R15在电池电源下循环运行的最后5分钟中可以看出。

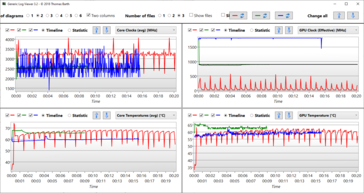

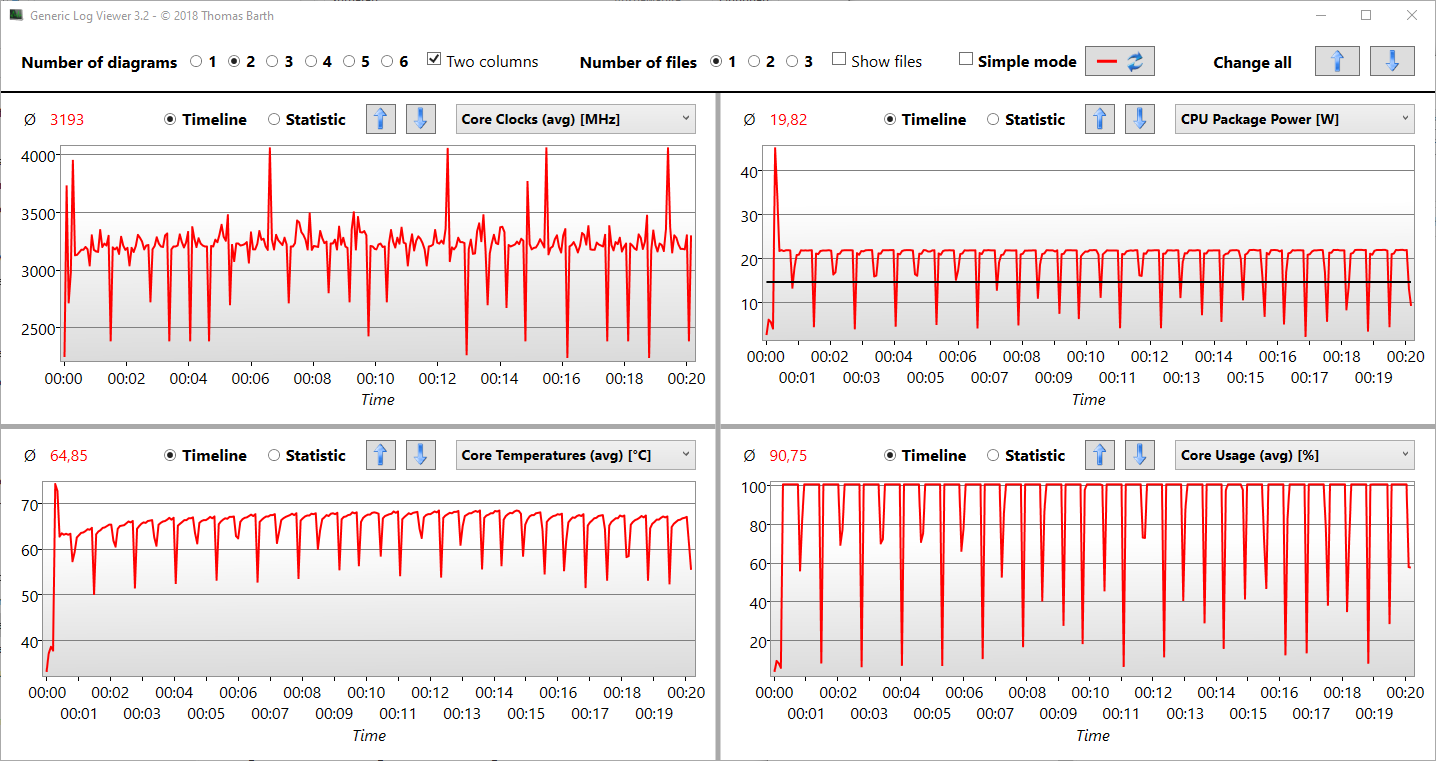

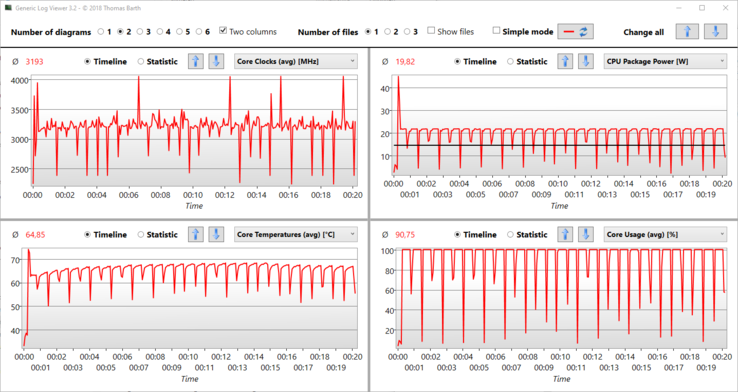

由于PL2的使用时间极短，而且大幅度限制在22W，R15循环的结果几乎看起来像一条没有偏差的直线。在这里，宏碁选择了一个非常保守的TDP方法，以利于废热和低噪音，这并没有从APU中提取最后一盎司的性能，这与我们所见的联想ThinkPad E14 G3.Swift 3在双热管设置下会有怎样的表现，从它的姐妹Swift X SFX14（R5 5500U）可以看出，它可以在4到5次运行中保持高性能（PL2），因此在第一次运行中快12%。

Cinebench R15 Multi Dauertest

Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U: Ø1157 (1150.91-1168.84)

Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7: Ø843 (803.42-904.02)

Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U: Ø1207 (1162.45-1245.1)

HP Pavilion 14-dv0357ng Intel Core i5-1135G7: Ø674 (639.66-774.95)

Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7: Ø836 (755.62-919.65)

Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4: Ø483 (461.33-499.9)

Acer Swift X SFX14-41G-R7F3 AMD Ryzen 5 5500U: Ø1221 (1168.05-1329.26)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Average of class Subnotebook	86.3 pt
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	62.4 pt
Average AMD Ryzen 5 5500U	60.8 pt
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	60.4 pt
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	58.2 pt
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	56.3 pt
HP Pavilion 14-dv0357ng ^-6! Intel Core i5-1135G7	52.3 pt
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	43.9 pt

Cinebench R23 / Multi Core
Average of class Subnotebook (2485 - 16201, n=68, last 2 years)	10289 Points +48%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	7469 Points +7%
Average AMD Ryzen 5 5500U (6030 - 8565, n=19)	7280 Points +5%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	6963 (6910.64^min - 6963.26^max) Points
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	5503 (5440.57^min - 5503.31^max) Points -21%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	5479 (5186.22^min - 5478.8^max) Points -21%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7	3928 Points -44%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	3244 Points -53%

Cinebench R23 / Single Core
Average of class Subnotebook (598 - 1934, n=68, last 2 years)	1627 Points +39%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	1348 Points +15%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	1312 Points +12%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7	1311 Points +12%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	1290 Points +10%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	1178 Points +1%
Average AMD Ryzen 5 5500U (1149 - 1183, n=18)	1173 Points 0%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	1169 Points

Cinebench R20 / CPU (Multi Core)
Average of class Subnotebook (810 - 6314, n=64, last 2 years)	3963 Points +47%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	2886 Points +7%
Average AMD Ryzen 5 5500U (2223 - 3316, n=20)	2784 Points +3%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	2691 Points
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	2237 Points -17%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	2176 Points -19%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7	1596 Points -41%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	1248 Points -54%

Cinebench R20 / CPU (Single Core)
Average of class Subnotebook (216 - 738, n=64, last 2 years)	610 Points +33%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	517 Points +13%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	516 Points +13%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	507 Points +11%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	459 Points 0%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	457 Points
Average AMD Ryzen 5 5500U (449 - 461, n=19)	457 Points 0%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7	375 Points -18%

Cinebench R15 / CPU Multi 64Bit
Average of class Subnotebook (514 - 2581, n=70, last 2 years)	1757 Points +50%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	1245 (1162.45^min - 1245.1^max) Points +7%
Average AMD Ryzen 5 5500U (995 - 1412, n=20)	1223 Points +5%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	1169 (1150.91^min - 1168.84^max) Points
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	904 (844.52^min - 857.78^max) Points -23%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	851 (743.99^min - 851.23^max) Points -27%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7	674 Points -42%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	500 (461.33^min - 499.9^max) Points -57%

Cinebench R15 / CPU Single 64Bit
Average of class Subnotebook (91.8 - 280, n=62, last 2 years)	237 Points +36%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	198 Points +14%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	196 Points +13%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	176 Points +1%
Average AMD Ryzen 5 5500U (170 - 179, n=18)	176 Points +1%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	174 Points
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	172 Points -1%

Blender / v2.79 BMW27 CPU
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	1058 Seconds * -155%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7	786 Seconds * -89%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	545 Seconds * -31%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	540 Seconds * -30%
Average AMD Ryzen 5 5500U (358 - 490, n=18)	419 Seconds * -1%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	415 Seconds *
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	393 Seconds * +5%
Average of class Subnotebook (201 - 1600, n=66, last 2 years)	386 Seconds * +7%

7-Zip 18.03 / 7z b 4
Average of class Subnotebook (16223 - 67444, n=57, last 2 years)	44459 MIPS +35%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	34899 MIPS +6%
Average AMD Ryzen 5 5500U (29585 - 36896, n=18)	33723 MIPS +2%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	32949 MIPS
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	23373 MIPS -29%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	23117 MIPS -30%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7	19123 MIPS -42%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	12577 MIPS -62%

7-Zip 18.03 / 7z b 4 -mmt1
Average of class Subnotebook (2197 - 6403, n=58, last 2 years)	5328 MIPS +28%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7	4821 MIPS +16%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	4805 MIPS +15%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	4600 MIPS +10%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	4425 MIPS +6%
Average AMD Ryzen 5 5500U (4174 - 4378, n=19)	4304 MIPS +3%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	4285 MIPS +3%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	4174 MIPS

Geekbench 5.5 / Multi-Core
Average of class Subnotebook (4274 - 12580, n=65, last 2 years)	9084 Points +56%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	5820 Points
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	5360 Points -8%
Average AMD Ryzen 5 5500U (4063 - 5917, n=20)	5231 Points -10%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	5224 Points -10%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	3973 Points -32%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	2500 Points -57%

Geekbench 5.5 / Single-Core
Average of class Subnotebook (672 - 2350, n=65, last 2 years)	1701 Points +54%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	1379 Points +25%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	1275 Points +15%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	1188 Points +8%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	1109 Points 0%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	1105 Points
Average AMD Ryzen 5 5500U (1070 - 1126, n=20)	1104 Points 0%

HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Subnotebook (1.5 - 19.4, n=56, last 2 years)	11.9 fps +35%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	8.81 fps
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	8.77 fps 0%
Average AMD Ryzen 5 5500U (6.7 - 9.74, n=20)	8.49 fps -4%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	7.12 fps -19%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	6.51 fps -26%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	3.47 fps -61%

LibreOffice / 20 Documents To PDF
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	67.9 s *
Average AMD Ryzen 5 5500U (60 - 80.7, n=17)	66.1 s * +3%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	62 s * +9%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	55.6 s * +18%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	54 s * +20%
Average of class Subnotebook (40.1 - 120.5, n=57, last 2 years)	52.6 s * +23%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	40.6 s * +40%

R Benchmark 2.5 / Overall mean
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4	0.671 sec * -7%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	0.664 sec * -6%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7	0.64 sec * -2%
Average AMD Ryzen 5 5500U (0.607 - 0.67, n=19)	0.631 sec * -1%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U	0.627 sec *
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U	0.625 sec * -0%
Average of class Subnotebook (0.4397 - 1.236, n=57, last 2 years)	0.52 sec * +17%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1169 Points

Cinebench R15 OpenGL 64Bit

68.1 fps

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 CPU Single 64Bit

174 Points

Help

... in comparison

Performance Rating
Average of class Subnotebook	95.4 pt
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, Vega 7	83.6 pt
Average AMD Ryzen 5 5500U	82.6 pt
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	81.1 pt
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	65.6 pt
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Iris Xe G7 80EUs	61 pt
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, UHD Graphics Xe G4 48EUs	37.2 pt

AIDA64 / FP32 Ray-Trace
Average of class Subnotebook (343 - 25961, n=57, last 2 years)	10054 KRay/s +23%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, Vega 7	8972 KRay/s +9%
Average AMD Ryzen 5 5500U (7222 - 10680, n=18)	8931 KRay/s +9%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	8205 KRay/s
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	7627 KRay/s -7%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Iris Xe G7 80EUs	6892 KRay/s -16%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, UHD Graphics Xe G4 48EUs	4159 KRay/s -49%

AIDA64 / FPU Julia
Average of class Subnotebook (11867 - 111109, n=57, last 2 years)	52488 Points +12%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, Vega 7	50517 Points +8%
Average AMD Ryzen 5 5500U (41815 - 58107, n=18)	49490 Points +6%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	46898 Points
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	30959 Points -34%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Iris Xe G7 80EUs	27379 Points -42%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, UHD Graphics Xe G4 48EUs	16971 Points -64%

AIDA64 / CPU SHA3
Average of class Subnotebook (453 - 4646, n=57, last 2 years)	2361 MB/s +55%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	2124 MB/s +39%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Iris Xe G7 80EUs	1876 MB/s +23%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, Vega 7	1653 MB/s +9%
Average AMD Ryzen 5 5500U (1354 - 1907, n=18)	1639 MB/s +8%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	1523 MB/s
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, UHD Graphics Xe G4 48EUs	1141 MB/s -25%

AIDA64 / CPU Queen
Average of class Subnotebook (15447 - 115300, n=57, last 2 years)	79878 Points +8%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	74033 Points
Average AMD Ryzen 5 5500U (68235 - 74033, n=18)	72280 Points -2%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, Vega 7	71784 Points -3%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	46741 Points -37%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Iris Xe G7 80EUs	40824 Points -45%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, UHD Graphics Xe G4 48EUs	28102 Points -62%

AIDA64 / FPU SinJulia
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, Vega 7	10065 Points +1%
Average AMD Ryzen 5 5500U (9007 - 10446, n=18)	10035 Points +1%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	9940 Points
Average of class Subnotebook (1223 - 14944, n=57, last 2 years)	7617 Points -23%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	4440 Points -55%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Iris Xe G7 80EUs	3904 Points -61%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, UHD Graphics Xe G4 48EUs	2392 Points -76%

AIDA64 / FPU Mandel
Average of class Subnotebook (6379 - 59053, n=57, last 2 years)	27533 Points +12%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, Vega 7	26520 Points +8%
Average AMD Ryzen 5 5500U (21894 - 30659, n=18)	26247 Points +7%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	24538 Points
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	18590 Points -24%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Iris Xe G7 80EUs	16500 Points -33%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, UHD Graphics Xe G4 48EUs	10308 Points -58%

AIDA64 / CPU AES
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	67875 MB/s +46%
Average of class Subnotebook (638 - 161430, n=57, last 2 years)	53217 MB/s +14%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, Vega 7	49533 MB/s +6%
Average AMD Ryzen 5 5500U (31792 - 54455, n=18)	48011 MB/s +3%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	46523 MB/s
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Iris Xe G7 80EUs	38897 MB/s -16%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, UHD Graphics Xe G4 48EUs	35750 MB/s -23%

AIDA64 / CPU ZLib
Average of class Subnotebook (270 - 1123, n=57, last 2 years)	666 MB/s +30%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, Vega 7	552 MB/s +8%
Average AMD Ryzen 5 5500U (234 - 614, n=18)	537 MB/s +5%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	513 MB/s
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	368 MB/s -28%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Iris Xe G7 80EUs	280 MB/s -45%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, UHD Graphics Xe G4 48EUs	199 MB/s -61%

AIDA64 / FP64 Ray-Trace
Average of class Subnotebook (204 - 14018, n=57, last 2 years)	5239 KRay/s +17%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, Vega 7	4844 KRay/s +8%
Average AMD Ryzen 5 5500U (3943 - 5717, n=18)	4844 KRay/s +8%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	4488 KRay/s
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	4065 KRay/s -9%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Iris Xe G7 80EUs	3547 KRay/s -21%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, UHD Graphics Xe G4 48EUs	2283 KRay/s -49%

AIDA64 / CPU PhotoWorxx
Average of class Subnotebook (7622 - 53954, n=57, last 2 years)	35760 MPixel/s +56%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Iris Xe G7 80EUs	33397 MPixel/s +46%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	22932 MPixel/s
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, Vega 7	16495 MPixel/s -28%
Average AMD Ryzen 5 5500U (7765 - 22932, n=18)	15767 MPixel/s -31%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	10026 MPixel/s -56%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, UHD Graphics Xe G4 48EUs	9819 MPixel/s -57%

系统性能

因此，其应用性能比起其他的产品要差一些。联想ThinkPad E14 G3的性能要差一些，例如，联想ThinkPad E14 G3能够从R5 5500U中获得更多的性能。 R5 5500U.PCMark 10中的生产力和要点测试尤其受到影响。相比之下，该测试设备在数字内容创作方面相当领先，这可能是由于快速的双通道工作内存（见AIDA64测试）和低延迟。金士顿的固态硬盘在这里没有产生积极的影响；它的速度只是中等偏下。

PCMark 10 / Score
Average of class Subnotebook (4384 - 7428, n=55, last 2 years)	5879 Points +23%
Lenovo ThinkPad E14 G3-20Y7003SGE Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N	5097 Points +6%
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4626 - 5301, n=13)	5059 Points +6%
Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ	4904 Points +2%
Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1	4787 Points
HP Pavilion 14-dv0357ng Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	4749 Points -1%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	4592 Points -4%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung PM991A MZALQ256HBJD	4220 Points -12%

PCMark 10 / Essentials
Average of class Subnotebook (8890 - 11168, n=55, last 2 years)	10247 Points +18%
HP Pavilion 14-dv0357ng Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	9917 Points +14%
Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ	9702 Points +11%
Lenovo ThinkPad E14 G3-20Y7003SGE Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N	9154 Points +5%
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (8390 - 9789, n=13)	9112 Points +5%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung PM991A MZALQ256HBJD	8952 Points +3%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	8843 Points +1%
Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1	8715 Points

PCMark 10 / Productivity
Average of class Subnotebook (6213 - 10279, n=55, last 2 years)	7857 Points +25%
Lenovo ThinkPad E14 G3-20Y7003SGE Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N	7819 Points +25%
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (6262 - 7958, n=13)	7478 Points +19%
HP Pavilion 14-dv0357ng Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	6611 Points +6%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung PM991A MZALQ256HBJD	6415 Points +2%
Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ	6277 Points 0%
Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1	6262 Points
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	6212 Points -1%

PCMark 10 / Digital Content Creation
Average of class Subnotebook (4093 - 9749, n=55, last 2 years)	6923 Points +27%
Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1	5455 Points
Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ	5255 Points -4%
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4513 - 5540, n=13)	5171 Points -5%
Lenovo ThinkPad E14 G3-20Y7003SGE Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N	5023 Points -8%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	4785 Points -12%
HP Pavilion 14-dv0357ng Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	4434 Points -19%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung PM991A MZALQ256HBJD	3554 Points -35%

CrossMark / Overall
Average of class Subnotebook (718 - 1876, n=61, last 2 years)	1553 Points +48%
Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ	1265 Points +21%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	1069 Points +2%
Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1	1049 Points
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (958 - 1103, n=6)	1044 Points 0%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung PM991A MZALQ256HBJD	1011 Points -4%

CrossMark / Productivity
Average of class Subnotebook (685 - 1829, n=61, last 2 years)	1507 Points +39%
Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ	1282 Points +18%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	1173 Points +8%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung PM991A MZALQ256HBJD	1155 Points +7%
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (1039 - 1153, n=6)	1097 Points +1%
Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1	1082 Points

CrossMark / Creativity
Average of class Subnotebook (776 - 2210, n=61, last 2 years)	1690 Points +60%
Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ	1263 Points +20%
Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1	1054 Points
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (895 - 1054, n=6)	1007 Points -4%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	1000 Points -5%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung PM991A MZALQ256HBJD	871 Points -17%

CrossMark / Responsiveness
Average of class Subnotebook (652 - 1899, n=61, last 2 years)	1329 Points +40%
Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ	1222 Points +29%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung PM991A MZALQ256HBJD	1066 Points +13%
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (918 - 1112, n=6)	1005 Points +6%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	987 Points +4%
Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1	946 Points

PCMark 10 Score		4787 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Subnotebook (22781 - 95353, n=57, last 2 years)	61239 MB/s +51%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	40547 MB/s
Average AMD Ryzen 5 5500U (19083 - 40547, n=18)	31948 MB/s -21%

AIDA64 / Memory Read
Average of class Subnotebook (23831 - 86433, n=57, last 2 years)	57245 MB/s +24%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	46334 MB/s
Average AMD Ryzen 5 5500U (23005 - 47024, n=18)	38947 MB/s -16%

AIDA64 / Memory Write
Average of class Subnotebook (23474 - 93382, n=57, last 2 years)	64603 MB/s +53%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	42337 MB/s
Average AMD Ryzen 5 5500U (20150 - 42337, n=18)	33552 MB/s -21%

AIDA64 / Memory Latency
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, Vega 7	115 ns *
Average of class Subnotebook (18.8 - 172, n=52, last 2 years)	104 ns * +10%
Average AMD Ryzen 5 5500U (87.3 - 119, n=18)	98.3 ns * +15%

* ... smaller is better

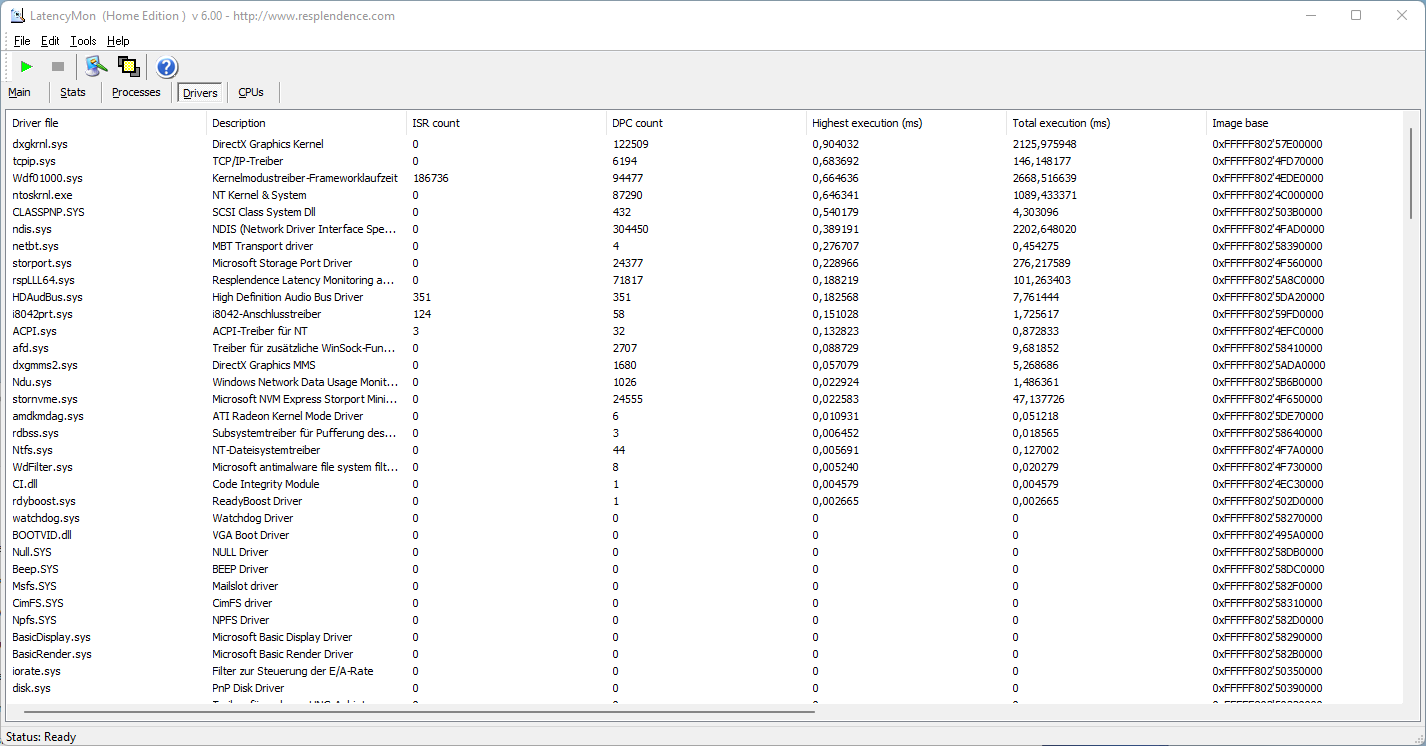

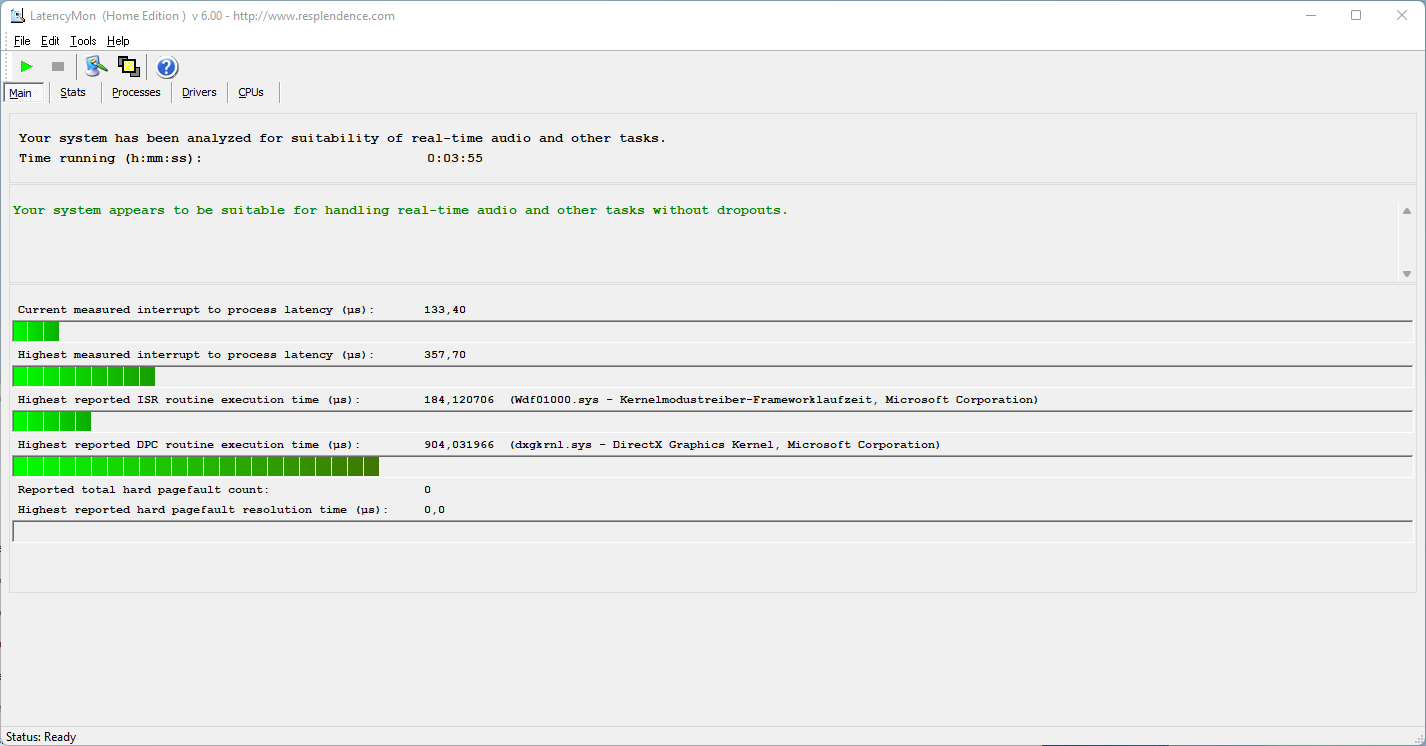

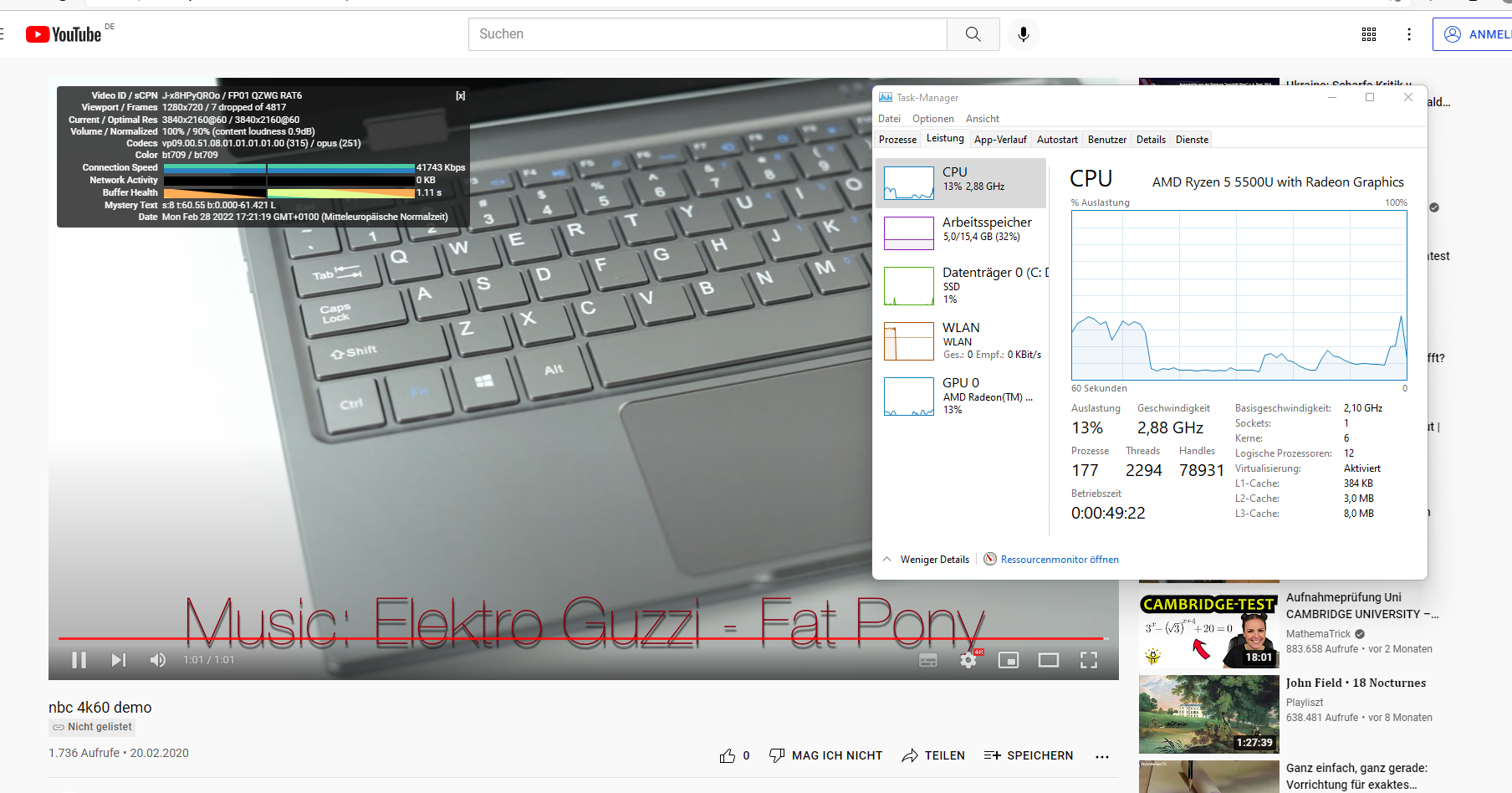

DPC延时

在LatencyMon的测试中，Swift 3几乎没有显示出任何延迟的增加。因此，14英寸处理器相当适用于实时应用等。该测量是基于目前的驱动配置。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	5906 μs * -553%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung PM991A MZALQ256HBJD	2224 μs * -146%
HP Pavilion 14-dv0357ng Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	2086 μs * -131%
Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ	1706 μs * -89%
Lenovo ThinkPad E14 G3-20Y7003SGE Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N	1229 μs * -36%
Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1	904 μs *

* ... smaller is better

大容量存储

金士顿OM8PDP3512B，512GB的M.2 80，3.5GB可作为Windriver分区。

总容量为512GB的金士顿固态存储是宏碁配置中最中间的一个。没有第二个M.2插槽用于扩展。金士顿的驱动器在中场很吃力。我们发现三星PM9A1固态硬盘在 Swift 3 SF314-511(英特尔，iGPU）的速度非常快。注意：制造商可以为同一类型的设备配备不同的固态硬盘；不能保证你会得到一个WDC、一个美光、一个金士顿或一个三星。

在我们的测试中，其他大容量存储设备的性能可以在我们的硬盘/SSD基准表.

AS SSD

DiskSpd

Kingston OM8PDP3512B-AI1

Sequential Read: 1451MB/s

Sequential Write: 542MB/s

4K Read: 30.23MB/s

4K Write: 70.4MB/s

4K-64 Read: 556MB/s

4K-64 Write: 707MB/s

Access Time Read: 0ms

Access Time Write: 0.039ms

Score Read: 731Points

Score Write: 832Points

Score Total: 1899Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Acer Swift 3 SF314-511-54ZK ^-1! Samsung PM9A1 MZVL2512HCJQ	91.7 pt
Average of class Subnotebook	74.3 pt
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	68.3 pt
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	49.1 pt
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	41.1 pt
Average Kingston OM8PDP3512B-AI1	36.9 pt
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	36.5 pt
HP Pavilion 14-dv0357ng ^-8! Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	35.3 pt

DiskSpd
seq read
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	3713 (3685.09^min - 3713.34^max) MB/s +140%
Average of class Subnotebook (452 - 4501, n=58, last 2 years)	2872 MB/s +86%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	1842 (1833.96^min - 1841.72^max) MB/s +19%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	1687 (1640.6^min - 1686.95^max) MB/s +9%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	1646 (1633.05^min - 1645.84^max) MB/s +7%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	1545 (1516.55^min - 1544.5^max) MB/s
Average Kingston OM8PDP3512B-AI1 (1116 - 1713, n=6)	1447 MB/s -6%
seq write
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	4196 (1124.55^min - 4195.98^max) MB/s +257%
Average of class Subnotebook (153.3 - 5344, n=58, last 2 years)	2808 MB/s +139%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	2188 (2166.15^min - 2188.38^max) MB/s +86%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	1197 (1182.37^min - 1196.63^max) MB/s +2%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	1175 (1117.29^min - 1175.29^max) MB/s
Average Kingston OM8PDP3512B-AI1 (551 - 1185, n=5)	1037 MB/s -12%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	968 (963.64^min - 968.05^max) MB/s -18%
seq q8 t1 read
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	5612 (3169.38^min - 5611.88^max) MB/s +122%
Average of class Subnotebook (558 - 7134, n=58, last 2 years)	4958 MB/s +96%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	3346 (3002.49^min - 3346.22^max) MB/s +32%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	2531 (2369.07^min - 2530.66^max) MB/s
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	2479 (2239.55^min - 2478.83^max) MB/s -2%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	2462 (2286.94^min - 2462.48^max) MB/s -3%
Average Kingston OM8PDP3512B-AI1 (1679 - 2531, n=6)	2160 MB/s -15%
seq q8 t1 write
Average of class Subnotebook (60 - 6751, n=58, last 2 years)	3775 MB/s +212%
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	3074 (1111.36^min - 3073.94^max) MB/s +154%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	2387 (2163.84^min - 2386.61^max) MB/s +97%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	1211 (1202.83^min - 1211.31^max) MB/s 0%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	1210 (1208.07^min - 1210.17^max) MB/s
Average Kingston OM8PDP3512B-AI1 (553 - 1210, n=6)	1083 MB/s -10%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	970 (965.49^min - 969.72^max) MB/s -20%
4k q1 t1 read
Average of class Subnotebook (12.6 - 88.6, n=58, last 2 years)	61.6 MB/s +51%
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	57.3 (56.05^min - 57.27^max) MB/s +41%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	56.2 (56.11^min - 56.23^max) MB/s +38%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	53.2 (52.68^min - 53.18^max) MB/s +31%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	40.7 (40.55^min - 40.68^max) MB/s
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	38.7 MB/s -5%
Average Kingston OM8PDP3512B-AI1 (29.9 - 44.4, n=6)	36 MB/s -12%
4k q1 t1 write
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	189 (186.02^min - 188.87^max) MB/s +54%
Average Kingston OM8PDP3512B-AI1 (114 - 218, n=5)	165.4 MB/s +34%
Average of class Subnotebook (22.5 - 360, n=58, last 2 years)	154.8 MB/s +26%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	154 (151.72^min - 154.4^max) MB/s +25%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	151 (142.35^min - 151.24^max) MB/s +23%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	126 (123.83^min - 125.56^max) MB/s +2%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	123 (118.05^min - 122.63^max) MB/s
4k q32 t16 read
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	1958 (1209^min - 1957.69^max) MB/s +151%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	1733 (1719.68^min - 1733.1^max) MB/s +122%
Average of class Subnotebook (283 - 4286, n=58, last 2 years)	1215 MB/s +56%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	779 (777.61^min - 779.41^max) MB/s
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	677 (664.57^min - 677.09^max) MB/s -13%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	674 (665.31^min - 673.95^max) MB/s -13%
Average Kingston OM8PDP3512B-AI1 (395 - 803, n=5)	628 MB/s -19%
4k q32 t16 write
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	1471 (1379.03^min - 1471.14^max) MB/s +402%
Average of class Subnotebook (157 - 4189, n=58, last 2 years)	869 MB/s +197%
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	721 (716.54^min - 721.08^max) MB/s +146%
Average Kingston OM8PDP3512B-AI1 (293 - 1032, n=5)	686 MB/s +134%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	445 (429.65^min - 445.46^max) MB/s +52%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	425 (228.61^min - 424.86^max) MB/s +45%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	293 (279.71^min - 293.4^max) MB/s

AS SSD
Score Total
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	6799 Points +258%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	4658 Points +145%
Average of class Subnotebook (707 - 8892, n=56, last 2 years)	4437 Points +134%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	2314 Points +22%
Average Kingston OM8PDP3512B-AI1 (1033 - 2722, n=4)	1922 Points +1%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	1899 Points
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	1735 Points -9%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	1406 Points -26%
Score Read
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	3224 Points +341%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	1727 Points +136%
Average of class Subnotebook (253 - 3307, n=56, last 2 years)	1464 Points +100%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	914 Points +25%
Average Kingston OM8PDP3512B-AI1 (478 - 1007, n=4)	804 Points +10%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	731 Points
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	685 Points -6%
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	655 Points -10%
Score Write
Average of class Subnotebook (327 - 3972, n=56, last 2 years)	2285 Points +175%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	2099 Points +152%
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	1926 Points +131%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	977 Points +17%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	832 Points
Average Kingston OM8PDP3512B-AI1 (387 - 1251, n=4)	754 Points -9%
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	749 Points -10%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	420 Points -50%
Seq Read
Average of class Subnotebook (508 - 5525, n=56, last 2 years)	3827 MB/s +164%
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	3626 MB/s +150%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	2596 MB/s +79%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	2011 MB/s +39%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	1934 MB/s +33%
Average Kingston OM8PDP3512B-AI1 (1451 - 2304, n=4)	1910 MB/s +32%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	1451 MB/s
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	1157 MB/s -20%
Seq Write
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	3577 MB/s +560%
Average of class Subnotebook (386 - 4961, n=56, last 2 years)	2355 MB/s +335%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	1460 MB/s +169%
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	929 MB/s +71%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	772 MB/s +42%
Average Kingston OM8PDP3512B-AI1 (308 - 1145, n=4)	759 MB/s +40%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	646 MB/s +19%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	542 MB/s
4K Read
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	78.2 MB/s +159%
Average of class Subnotebook (14.8 - 96.2, n=56, last 2 years)	59.4 MB/s +96%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	55.1 MB/s +82%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	48.62 MB/s +61%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	44.07 MB/s +46%
Average Kingston OM8PDP3512B-AI1 (24 - 57.9, n=4)	38.8 MB/s +28%
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	32 MB/s +6%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	30.23 MB/s
4K Write
Average of class Subnotebook (65.5 - 256, n=56, last 2 years)	173.2 MB/s +146%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	172 MB/s +144%
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	164.7 MB/s +134%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	138.9 MB/s +97%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	113.4 MB/s +61%
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	101 MB/s +43%
Average Kingston OM8PDP3512B-AI1 (57.2 - 152.4, n=4)	98.4 MB/s +40%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	70.4 MB/s
4K-64 Read
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	2783 MB/s +401%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	1419 MB/s +155%
Average of class Subnotebook (187.3 - 2682, n=56, last 2 years)	1022 MB/s +84%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	658 MB/s +18%
Average Kingston OM8PDP3512B-AI1 (257 - 773, n=4)	574 MB/s +3%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	556 MB/s
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	507 MB/s -9%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	447 MB/s -20%
4K-64 Write
Average of class Subnotebook (223 - 3410, n=56, last 2 years)	1873 MB/s +165%
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	1840 MB/s +160%
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	1403 MB/s +98%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	728 MB/s +3%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	707 MB/s
Average Kingston OM8PDP3512B-AI1 (243 - 984, n=4)	580 MB/s -18%
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	555 MB/s -21%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	216 MB/s -69%
Access Time Read
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	0.138 ms *
Average Kingston OM8PDP3512B-AI1 (0.105 - 0.15, n=4)	0.0965 ms *
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	0.074 ms *
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	0.071 ms *
Average of class Subnotebook (0.021 - 0.257, n=56, last 2 years)	0.06214 ms *
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	0.049 ms *
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	0 ms *
Access Time Write
Average Kingston OM8PDP3512B-AI1 (0.029 - 0.353, n=4)	0.1128 ms * -189%
Average of class Subnotebook (0.016 - 0.523, n=56, last 2 years)	0.07618 ms * -95%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	0.049 ms * -26%
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	0.045 ms * -15%
Acer Swift 3 SF314-43-R8BP Kingston OM8PDP3512B-AI1	0.039 ms *
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N	0.032 ms * +18%
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ	0.025 ms * +36%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Samsung PM991A MZALQ256HBJD	0.021 ms * +46%

* ... smaller is better

Continuous power read: DiskSpd Read Loop, Queue Depth 8

Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ: Ø3706 (3238.84-6230.55)

HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H): Ø1345 (223.32-2529.58)

Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G: Ø2118 (1853.25-2470.65)

图形卡

有了集成的的Radeon RX Vega 7SoC显卡，Swift 3并不是为游戏而设计的，这在我们的游戏表中立即显现出来。即使是老牌游戏也只能在最低设置下顺利运行。如果你认真考虑目前的游戏，你肯定应该寻找一个替代品。在iGPU笔记本电脑中，Radeon RX与以下产品处于相同水平英特尔Iris Xe Graphics G7 80EUs.

与其他GPU的性能比较可以在我们的 GPU基准列表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average of class Subnotebook	100 pt
Acer Swift 3 SF314-511-54ZK Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	69.3 pt
HP Pavilion 14-dv0357ng Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	63.6 pt
Acer Swift 3 SF314-43-R8BP AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	62.1 pt
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	55.7 pt
Average AMD Radeon RX Vega 7	54.4 pt
Dell Latitude 14 5420-D2G5W Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	41.8 pt
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	32.8 pt

3DMark 11 - 1280x720 Performance GPU
Average of class Subnotebook (2979 - 16904, n=55, last 2 years)	8227 Points +48%
Acer Swift 3 SF314-511-54ZK Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5738 Points +3%
Acer Swift 3 SF314-43-R8BP AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	5563 Points
HP Pavilion 14-dv0357ng Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5396 Points -3%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	5118 Points -8%
Average AMD Radeon RX Vega 7 (3353 - 6249, n=58)	5054 Points -9%
Dell Latitude 14 5420-D2G5W Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3997 Points -28%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	3133 Points -44%

3DMark
1920x1080 Fire Strike Graphics
Average of class Subnotebook (2837 - 12349, n=59, last 2 years)	6026 Points +62%
Acer Swift 3 SF314-511-54ZK Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	4580 Points +23%
HP Pavilion 14-dv0357ng Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3956 Points +6%
Acer Swift 3 SF314-43-R8BP AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	3730 Points
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	3325 Points -11%
Average AMD Radeon RX Vega 7 (1772 - 4037, n=62)	3189 Points -15%
Dell Latitude 14 5420-D2G5W Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	2119 Points -43%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	1746 Points -53%
2560x1440 Time Spy Graphics
Average of class Subnotebook (811 - 4773, n=58, last 2 years)	2027 Points +76%
Acer Swift 3 SF314-511-54ZK Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1258 Points +9%
HP Pavilion 14-dv0357ng Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1206 Points +5%
Acer Swift 3 SF314-43-R8BP AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	1152 Points
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	1009 Points -12%
Average AMD Radeon RX Vega 7 (496 - 1249, n=57)	991 Points -14%
Dell Latitude 14 5420-D2G5W Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	843 Points -27%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	634 Points -45%

3DMark 11 Performance		5686 points
3DMark Fire Strike Score		3437 points
3DMark Time Spy Score		1305 points
Help

... in comparison

游戏性能

The Witcher 3
1366x768 Medium Graphics & Postprocessing
Average of class Subnotebook (29 - 264, n=46, last 2 years)	63.7 fps +84%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	51 fps +47%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	37.5 fps +8%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	34.7 fps
Average AMD Radeon RX Vega 7 (9.74 - 81.3, n=37)	34.1 fps -2%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	24.4 fps -30%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Average of class Subnotebook (11.2 - 92, n=56, last 2 years)	34.9 fps +101%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	20.3 fps +17%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	19.7 fps +13%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	19.6 fps +13%
Average AMD Radeon RX Vega 7 (8.96 - 26.2, n=49)	18.1 fps +4%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	17.4 fps
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	9.3 fps -47%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Average of class Subnotebook (29.4 - 109.1, n=58, last 2 years)	59.6 fps +19%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	51.7 (45.3^min) fps +3%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	50.2 (46.1^min) fps
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	44.8 (41.6^min) fps -11%
Average AMD Radeon RX Vega 7 (23.3 - 58.2, n=58)	41.9 fps -17%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	35.1 (23.2^min) fps -30%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	18.9 (12.5^min) fps -62%

Final Fantasy XV Benchmark
1920x1080 Standard Quality
Average of class Subnotebook (10.8 - 71, n=54, last 2 years)	27.8 fps +54%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.9 fps +21%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	18.1 fps
HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	17.5 fps -3%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	16.1 fps -11%
Average AMD Radeon RX Vega 7 (8.9 - 20.3, n=40)	15.4 fps -15%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	8.8 fps -51%
1280x720 Lite Quality
Average of class Subnotebook (18.9 - 130.6, n=54, last 2 years)	51.3 fps +45%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	40 fps +13%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	35.4 fps
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	32.3 fps -9%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	30.4 fps -14%
Average AMD Radeon RX Vega 7 (17.1 - 41.1, n=40)	30.4 fps -14%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	18.2 fps -49%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	16.4 fps -54%

Far Cry 5
1920x1080 Medium Preset AA:T
Average of class Subnotebook (12 - 87, n=38, last 2 years)	36 fps +80%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	24 (21^min) fps +20%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	20 fps 0%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	20 (18^min) fps
Average AMD Radeon RX Vega 7 (13 - 27, n=23)	19.1 fps -4%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	19 fps -5%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	9 (8^min) fps -55%
1280x720 Low Preset AA:T
Average of class Subnotebook (22 - 132, n=38, last 2 years)	60.4 fps +37%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	49 (43^min) fps +11%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	44 (37^min) fps
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	42 fps -5%
Average AMD Radeon RX Vega 7 (27 - 57, n=24)	40.5 fps -8%
HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	39 fps -11%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	19 (14^min) fps -57%

Strange Brigade
1280x720 lowest AF:1
Average of class Subnotebook (65.6 - 259, n=54, last 2 years)	112.2 fps +38%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	82 (18.2^min, 26.4^P1) fps +1%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	81.4 (44.8^min, 71.4^P1) fps
HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	73.1 fps -10%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	71.6 (48.6^min, 62.2^P1) fps -12%
Average AMD Radeon RX Vega 7 (34.8 - 95.3, n=41)	70.4 fps -14%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	38 (8.3^min, 10.6^P1) fps -53%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	31.3 (7.4^min, 9.51^P1) fps -62%
1920x1080 medium AA:medium AF:4
Average of class Subnotebook (29.4 - 126.9, n=55, last 2 years)	48.3 fps +50%
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	35.6 (17.6^min, 21.3^P1) fps +11%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	32.1 (23.9^min, 28.5^P1) fps
HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	28.5 fps -11%
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	28.2 (21^min, 24.7^P1) fps -12%
Average AMD Radeon RX Vega 7 (13.4 - 36.1, n=41)	27.1 fps -16%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	15 (5^min, 5.49^P1) fps -53%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	11.7 (5^min, 5.16^P1) fps -64%

F1 2021
1280x720 Ultra Low Preset
Average of class Subnotebook (66.7 - 223, n=18, last 2 years)	137.1 fps +93%
Average AMD Radeon RX Vega 7 (71 - 107.9, n=13)	83.6 fps +18%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	71 (49^min) fps
1920x1080 Medium Preset AA:T AF:16x
Average of class Subnotebook (28.7 - 148, n=19, last 2 years)	72.2 fps +149%
Average AMD Radeon RX Vega 7 (29 - 45.8, n=12)	35.8 fps +23%
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	29 (19^min) fps
1920x1080 Ultra Low Preset
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	fps

Witcher 3 FPS-Diagramm

Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7: Ø12.6 (11-15)

Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs: Ø12.3 (11-14)

Lenovo ThinkPad E14 G3-20Y7003SGE R5 5500U, Vega 7: Ø13.9 (12-15)

HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs: Ø10.8 (8-12)

Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs: Ø7.15 (6-8)

	low	med.	high	ultra
The Witcher 3 (2015)		34.7	17.4	13
Dota 2 Reborn (2015)	100	82.8	54	50.2
Final Fantasy XV Benchmark (2018)	35.4	18.1	12.4
Far Cry 5 (2018)	44	20	19
Strange Brigade (2018)	81.4	32.1	27	22.9
F1 2021 (2021)	71	29

排放。来自宏碁的安静的14英寸手机

噪声排放

在整个负载范围内，Swift 3并没有产生太多的噪音。怠速时，风扇静止不动，无声无息。在负载情况下，风扇几乎没有转速。因此，我们在压力测试中测得的声压级为38分贝（A），在中等负荷下为34分贝（A）。这些排放是相当低的，这对于移动副笔记本来说应该是这样的。没有人愿意带着风扇加热器去图书馆。

Noise Level

Idle		26 / 26 / 27.5 dB(A)
Load		34 / 38.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A)

	Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1	Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ	Lenovo ThinkPad E14 G3-20Y7003SGE Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N	HP Pavilion 14-dv0357ng Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)	Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	Lenovo ThinkBook 14 G2 ITL 20VDS02G00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung PM991A MZALQ256HBJD
Noise		1%	8%	3%	-4%	-1%
off / environment *	26	25 4%	23.8 8%	25.4 2%	25 4%	24.6 5%
Idle Minimum *	26	25 4%	23.8 8%	25.4 2%	25 4%	24.6 5%
Idle Average *	26	25 4%	23.8 8%	25.4 2%	25 4%	24.6 5%
Idle Maximum *	27.5	27.5 -0%	25 9%	25.4 8%	25 9%	26.7 3%
Load Average *	34	32.9 3%	32 6%	35.4 -4%	36.5 -7%	38.9 -14%
Load Maximum *	38.2	42 -10%	34.5 10%	35.5 7%	52.4 -37%	42.8 -12%
Witcher 3 ultra *			32

* ... smaller is better

温度

性能被修整到低温，并确保最多只有36或38度的适度热量排放。散热图显示了我们压力测试后的结果，机箱在游戏过程中保持了相对凉爽。

这款机箱只有在持续负载时才会感到温暖，而且绝不会因为太热而放在大腿上，比如说。然而，你不应该把这个14英寸的机箱放在毯子或地毯上，因为那会挡住机箱底部的进气口。显示器在打开时，故意抬高底座，以便更好地进行空气供应。

平均怠速温度只有23度，金属外壳感觉很温润。

Max. Load

Idle


24.1 °C	23.9 °C	23.2 °C
23.8 °C	22.8 °C	22.4 °C
22.5 °C	22.4 °C	22.2 °C

Maximum: 24.1 °C
Average: 23 °C


23.6 °C	24.4 °C	25.7 °C
22.9 °C	24.8 °C	22.9 °C
22.6 °C	23.5 °C	22.9 °C

Maximum: 25.7 °C
Average: 23.7 °C

Power Supply (max.) 27.1 °C | Room Temperature 22.1 °C | FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 30 °C / 86 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 36 °C / 97 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 38 °C / 100 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23 °C / 73 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.9 °C / 84 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-0.6 °C / -1.1 F).

	Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
Heat		-8%	-14%	-17%	-13%	-8%
Maximum Upper Side *	36	39.6 -10%	45.1 -25%	40.5 -13%	41.7 -16%	35 3%
Maximum Bottom *	38	43.2 -14%	49.3 -30%	39.9 -5%	35.6 6%	38 -0%
Idle Upper Side *	24.1	25 -4%	24.7 -2%	31.3 -30%	29.9 -24%	28 -16%
Idle Bottom *	25.7	26.2 -2%	25.6 -0%	31.1 -21%	29.7 -16%	30 -17%

* ... smaller is better

压力测试

宏碁Swift 3在主电源和电池模式下都以类似的方式通过我们的压力测试（Prime95和Furmark一小时）。处理器以3.4GHz的速度运行了几秒钟，然后时钟下降到2.5GHz。图形核心的时钟从最初的1,800 MHz降至约800 MHz。我们在这里也可以看到先前Cinebench R15测试的行为--PL2只能保持很短的时间（仅仅几秒钟），之后就会出现明显的节流。节流是AMD和英特尔处理器的典型现象，但我们很少看到如此大规模的下降，尤其是它也发生在R15循环中--即在唯一的CPU负载下。

这里必须指出，压力测试是一种极端情况，在日常使用中不会发生。我们用这个测试来检查系统是否也在全负荷下稳定运行。

这款纤薄的笔记本并没有过度发热。在压力测试期间，我们在三个测量点上记录的温度约为35摄氏度。这些数值在日常使用中属于绿色区域。这个基本无声的设备甚至触摸起来都不热。

温度和时钟 - 红色。Cinebench R15循环，绿色。Stress Prime95+Furmark，蓝色。 Witcher 3 超级循环

扬声器

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Acer Swift 3 SF314-43-R8BP audio analysis

(-) | not very loud speakers (71.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.3% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.9% higher than median
(±) | linearity of mids is average (8.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.2% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (26% difference to median)
Compared to same class
» 84% of all tested devices in this class were better, 3% similar, 13% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 76% of all tested devices were better, 5% similar, 19% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo ThinkPad E14 G3-20Y7003SGE audio analysis

(±) | speaker loudness is average but good (77.5 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.7% lower than median
(±) | linearity of bass is average (13% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7% higher than median
(+) | mids are linear (3.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(+) | highs are linear (4.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.3% difference to median)
Compared to same class
» 32% of all tested devices in this class were better, 7% similar, 61% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 41% of all tested devices were better, 8% similar, 51% worse
» The best had a delta of 4%, average was 25%, worst was 134%

电源管理

能源消耗

在能源消耗方面，Swift 3没有显示出任何突出的问题。我们记录了空闲时的最大功耗为7.7瓦。在压力测试期间（Prime95和Furmark至少运行一小时），该值增加到63瓦，但只是在最初的几秒钟！之后，节流的Swift以略低于1瓦的速度前进。在那之后，节流的Swift以略低于40W的速度前进。

更多的能量--大约44瓦--是在我们运行"测试 "时消耗的。Witcher 3测试时，会消耗更多的能量--约44W，但这也只是在前30秒。此后，iGPU的时钟节流确保了持续降低到41W。

Power Consumption

Off / Standby	0.2 / 0.5 Watt
Idle	4.1 / 5.4 / 7.7 Watt
Load	44 / 63 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7, Kingston OM8PDP3512B-AI1, IPS, 1920x1080, 14.00	Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs, Samsung PM9A1 MZVL2512HCJQ, IPS, 1920x1080, 14.00	Lenovo ThinkPad E14 G3-20Y7003SGE R5 5500U, Vega 7, SK Hynix BC711 HFM512GD3HX015N, IPS, 1920x1080, 14.00	HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H), IPS, 1920x1080, 14.00	Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs, WDC PC SN530 SDBPTPZ-256G, IPS, 1920x1080, 14.00	Lenovo ThinkBook 14 G2 ITL 20VDS02G00 i3-1115G4, UHD Graphics Xe G4 48EUs, Samsung PM991A MZALQ256HBJD, a-Si IPS LED, 1920x1080, 14.00	Average AMD Radeon RX Vega 7	Average of class Subnotebook
Power Consumption		-1%	-4%	-13%	1%	-28%	-8%	-24%
Idle Minimum *	4.1	4.3 -5%	3.5 15%	4.8 -17%	3.4 17%	6.3 -54%	4.66 ?(2.6 - 8.4, n=52) -14%	4.9 ?(1.77 - 11.8, n=61, last 2 years) -20%
Idle Average *	5.4	6.8 -26%	7.5 -39%	8.5 -57%	7.1 -31%	9.5 -76%	7.56 ?(4.8 - 10.7, n=52) -40%	8.36 ?(4.6 - 17.4, n=61, last 2 years) -55%
Idle Maximum *	7.7	9 -17%	8.7 -13%	12.4 -61%	8.4 -9%	10.4 -35%	8.95 ?(5.6 - 13.8, n=52) -16%	10.4 ?(5.1 - 22.4, n=61, last 2 years) -35%
Load Average *	44	33.3 24%	43.6 1%	37.7 14%	35.3 20%	32.7 26%	38.7 ?(21.6 - 54.9, n=53) 12%	45.9 ?(19.1 - 83.3, n=60, last 2 years) -4%
Witcher 3 ultra *	41.8	33.3 20%	42.2 -1%	35.4 15%	35.4 15%
Load Maximum *	63	65 -3%	55 13%	45.3 28%	67 -6%	63.3 -0%	51.9 ?(31 - 73.4, n=52) 18%	66 ?(24.2 - 121.2, n=61, last 2 years) -5%

* ... smaller is better

Energieaufnahme Witcher 3 / Stresstest

Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7; Witcher 3 ultra: Ø41.8 (38.6-51.5)

Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs; Witcher 3 ultra: Ø33.3 (31.1-40.6)

Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7; 1280x720 Prime95 28.10 and Furmark 1.25: Ø41.8 (39-63.5)

Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø48.4 (43.3-65.3)

Energieaufnahme mit externem Monitor

Acer Swift 3 SF314-43-R8BP; Prime95 V2810 Stress (external Monitor): Ø38.3 (37.4-39)

Acer Swift 3 SF314-43-R8BP; Cinebench R15 Multi (external Monitor): Ø42.3 (39-63.9)

Acer Swift 3 SF314-43-R8BP; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø40.5 (39.7-43.7)

Acer Swift 3 SF314-43-R8BP; 1920x1080 The Witcher 3 ultra (external Monitor): Ø39.7 (34.2-42.9)

电池寿命

宏碁Swift 3笔记本在我们的实际WLAN测试中实现了8:25小时的运行时间。我们用一个脚本来模拟访问网站时的负载。显示屏的亮度被设置为大约150cd/m²。这比大多数竞争对手的运行时间要短，但我们的Swift 3设备只有48Wh的电池，不像56Wh的电池在 Swift 3 SF314-511(英特尔)。

Battery Runtime

Idle (without WLAN, min brightness)		19h 15min
WiFi Websurfing		8h 25min
Load (maximum brightness)		1h 44min

	Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7, 48 Wh	Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs, 56 Wh	Lenovo ThinkPad E14 G3-20Y7003SGE R5 5500U, Vega 7, 57 Wh	HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs, 43 Wh	Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs, 63 Wh	Lenovo ThinkBook 14 G2 ITL 20VDS02G00 i3-1115G4, UHD Graphics Xe G4 48EUs, 58 Wh	Average of class Subnotebook
Battery Runtime		42%	2%	-29%	37%	-8%	15%
Reader / Idle	1155	2015 74%			1371 19%	793 -31%	1252 ?(581 - 2550, n=9, last 2 years) 8%
WiFi v1.3	505	724 43%	680 35%	360 -29%	769 52%	454 -10%	629 ?(303 - 1144, n=63, last 2 years) 25%
Load	104	114 10%	71 -32%		146 40%	121 16%	115.4 ?(61 - 197, n=47, last 2 years) 11%
H.264			827	356		526	794 ?(426 - 1153, n=30, last 2 years)
Witcher 3 ultra				121

Pros

+ 别致、纤细的金属外壳

+ NVMe SSD

+ 良好的电池运行时间

+ 按键照明

+ 几乎不产生噪音

+ 几乎不发热

+ USB 3.2 Gen 2 & Displayport

Cons

- 黑屏

- 色彩空间覆盖率低

- Ryzen APU的节流比平时更猛烈，几乎没有涡轮增压功能

- 没有存储卡读卡器

- 工作内存被焊接

结论。宏碁的Swift 3不是最迅捷的

宏碁提供了一款14英寸的笔记本，Swift 3 SF314-43采用了超薄的金属底盘。紧凑的机身仅重1.3公斤，厚度为16.5毫米，在这个价格范围内提供了出色的稳定性和触觉效果。

宏碁通过Swift 3 SF314-43提供了一款移动的14英寸机，只在显示屏和Wi-Fi方面让人失望。

对屏幕的主要批评是亮度低--平均230cd/m²的亮度即使对哑光显示器来说也太低了。色彩空间覆盖面也不是很大，但这对于不从事图像编辑和CAD的用户来说几乎没有关系（这些用户肯定不会购买Swift 3）。

Ryzen 5 5500U APU，在其他方面以其良好的性能著称，即使在Cinebench R15循环中，其节流程度也超过预期。然而，Swift 3 SF314-43的性能仍然超过了英特尔笔记本电脑，或者至少与它们持平。

保守的温度表使一个几乎无声的14英寸笔记本在任何时候都能保持凉爽。因此，Swift 3 SF314-43是一款值得推荐的次笔记本，适合那些不关心最高性能，但想要稳定、符合人体工程学和移动性的预算买家。

如果你想保持在预算之内--但关注最大的性能--你应该看看联想的 ThinkPad E14 G3它能够从Ryzen 5500U中提取更多的性能。 5500U.

价格和可用性

我们的测试配置宏碁Swift 3 SF314-43-R8BP目前在notebooksbilliger，售价679欧元。.

Acer Swift 3 SF314-43-R8BP - 2022-03-09 03/09/2022 v7
Sebastian Jentsch

Chassis

85 / 98 → 86%

Keyboard

86%

Pointing Device

85%

Connectivity

52 / 75 → 69%

Weight

71 / 20-75 → 93%

Battery

82%

Display

85%

Games Performance

61 / 78 → 79%

Application Performance

89 / 85 → 100%

Temperature

95%

Noise

94%

Audio

57 / 91 → 62%

Camera

28 / 85 → 32%

Average

75%

86%

Subnotebook - Weighted Average

Pricecompare

Editor of the original article: Ninh Ngoc Duy - Editorial Assistant - 388017 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Acer Swift 3 SF314在审查中。AMD笔记本电脑没有花哨的飞行

Sebastian Jentsch, 2022-03-17 (Update: 2022-03-17)

Acer Swift 3 SF314在审查中。AMD笔记本电脑没有花哨的飞行

潜在的竞争对手比较

案例：稳定的Swift 3

尺寸比较

设备。联发科的Wi-Fi太慢了

网络摄像头

维护

显示器。宏碁的屏幕发光太弱了

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能。这一次没有AMD的高飞者

测试条件

处理器

Cinebench R15 Multi Dauertest

系统性能

DPC延时

大容量存储

Continuous power read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

Witcher 3 FPS-Diagramm

排放。来自宏碁的安静的14英寸手机

噪声排放

温度

压力测试

扬声器

Acer Swift 3 SF314-43-R8BP audio analysis

Lenovo ThinkPad E14 G3-20Y7003SGE audio analysis

电源管理

能源消耗

Energieaufnahme Witcher 3 / Stresstest

Energieaufnahme mit externem Monitor

电池寿命

Pros

Cons

结论。宏碁的Swift 3不是最迅捷的

价格和可用性

More articles related to this device

Pricecompare
