戴尔Latitude 14 5420评论。一台接近夺取商务冠的笔记本电脑

Name: Dell Latitude 14 5420-D2G5W
Brand: Dell

酷睿i5到最大。 我们正在测试戴尔的主流商务笔记本电脑。尽管这款14英寸的设备似乎包括了你所希望的一切，但点击板是巨大的降级。在这次审查中，我们将详细探讨许多方面，如令人印象深刻的处理器性能和不太令人印象深刻的iGPU性能。

Sebastian Jentsch, 👁 Sebastian Jentsch (translated by DeepL / Ninh Duy), Published 01/27/2022 🇺🇸 🇩🇪 ...

Windows Ultrabook Tiger Lake Thunderbolt

近1000美元的入门级商务笔记本电脑。戴尔Latitude 5420，配备酷睿i5-1135G7（D2G5W）。

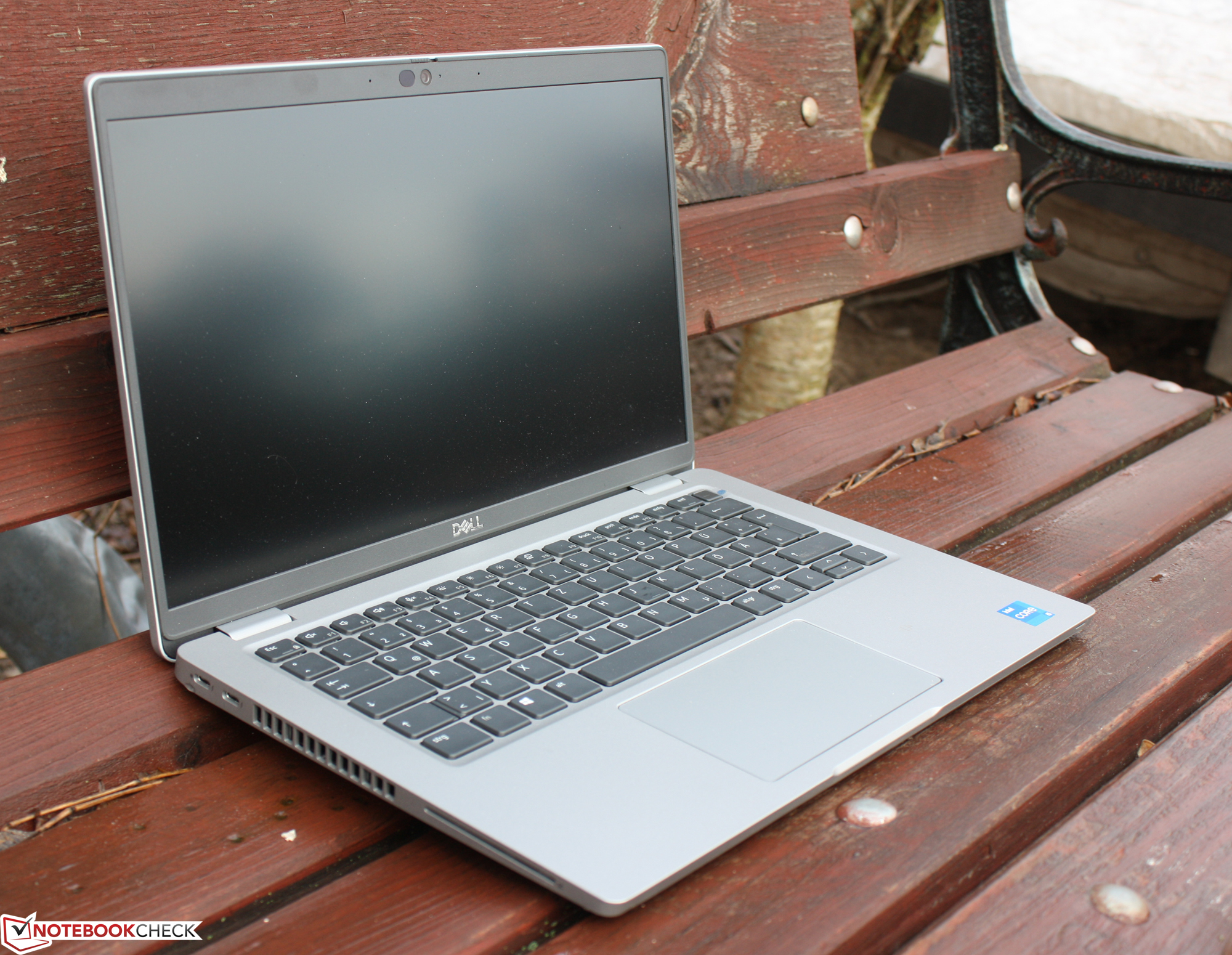

戴尔的Latitude ，作为一个整体稳固的全能办公设备出现。机箱既不薄也不轻，很可能也不会赢得任何设计奖项。一台灰色的、不显眼的、低调的14英寸笔记本电脑--重点显然是在内部。不幸的是，这里也有一些错误的做法，我们的审查将显示。

不要吸引任何注意力!这是笔记本电脑的一个愿望，如联想ThinkPad L14, 惠普ProBook 440 G8，以及华硕ExpertBook B1.

由于我们的Latitude 是这一类别中最昂贵的之一，这就引出了一个问题，即它为其高价标签提供了哪些优势。1000美元只有8GB的内存和256GB的固态硬盘不可能是它的全部。在这个价位上，连接性、性能、输入设备，当然还有运行时间，都必须要更好。Latitude 5420是否能胜任这项工作？

前身。

戴尔Latitude 14 5410(2020)

Test device courtesy of cyberport.de

Download your licensed rating image as PNG / SVG

Dell Latitude 14 5420-D2G5W (Latitude 14 5400 Series)

Processor

Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 57 W PL2 / Short Burst, 40 W PL1 / Sustained, Tiger Lake-UP3

Graphics adapter

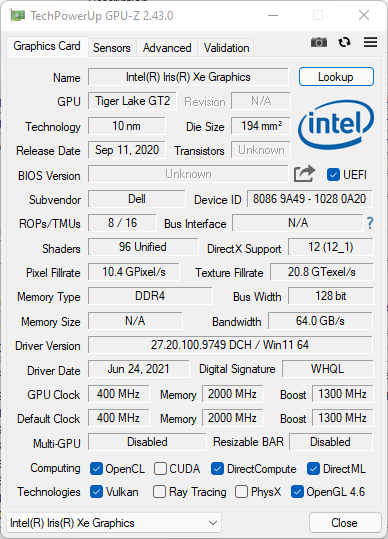

Intel Iris Xe Graphics G7 80EUs, Core: 1300 MHz, Memory: 2000 MHz

Memory

8 GB

, 1x 8GB, 2 slots, up to 64GB

Display

14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, AUO5491 / B140HAN, IPS, glossy: no, 60 Hz

Mainboard

Intel Tiger Lake-UP3 PCH-LP

Storage

WDC PC SN530 SDBPTPZ-256G, 256 GB

, 105 GB free

Soundcard

Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)

Connections

4 USB 3.2 Gen 2x2 20Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, 1 Fingerprint Reader, NFC, Dell Secure Lock

Networking

Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 20.9 x 321 x 212

Battery

63 Wh Lithium-Ion

Operating System

Microsoft Windows 10 Pro 64 Bit

Camera

Webcam: 1280x720

Additional features

Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 12 Months Warranty

Weight

1.543 kg, Power Supply: 303 g

Links

Dell homepage
Dell notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Potential Competitors in Comparison

Rating	Date	Model	Weight	Height	Size	Resolution
84.8 %	01/2022	Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs	1.5 kg	20.9 mm	14.00"	1920x1080
86.1 %	08/2021	Lenovo ThinkPad L14 G2 AMD R7 PRO 5850U, Vega 8	1.7 kg	20.4 mm	14.00"	1920x1080
83.3 %	06/2021	HP ProBook 440 G8-2W1G4EA i7-1165G7, Iris Xe G7 96EUs	1.4 kg	19 mm	14.00"	1920x1080
83.9 %	12/2021	Asus ExpertBook B1 B1400CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs	1.5 kg	19.2 mm	14.00"	1920x1080
85.3 %	01/2022	Acer TravelMate P4 TMP414-51-59MR i5-1135G7, Iris Xe G7 80EUs	1.4 kg	17.9 mm	14.00"	1920x1080
82.4 %	12/2021	Acer Enduro Urban N3 EUN314 i7-1165G7, Iris Xe G7 96EUs	1.8 kg	21.95 mm	14.00"	1920x1080
84.4 %	10/2021	Dynabook Tecra A40-J-12E i5-1135G7, Iris Xe G7 80EUs	1.4 kg	18.9 mm	14.00"	1920x1080

案例: 实体戴尔笔记本电脑

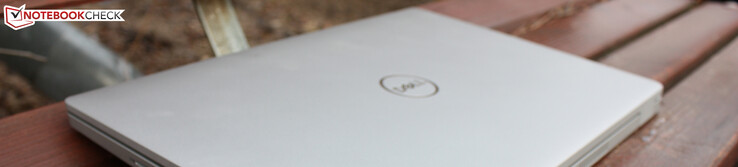

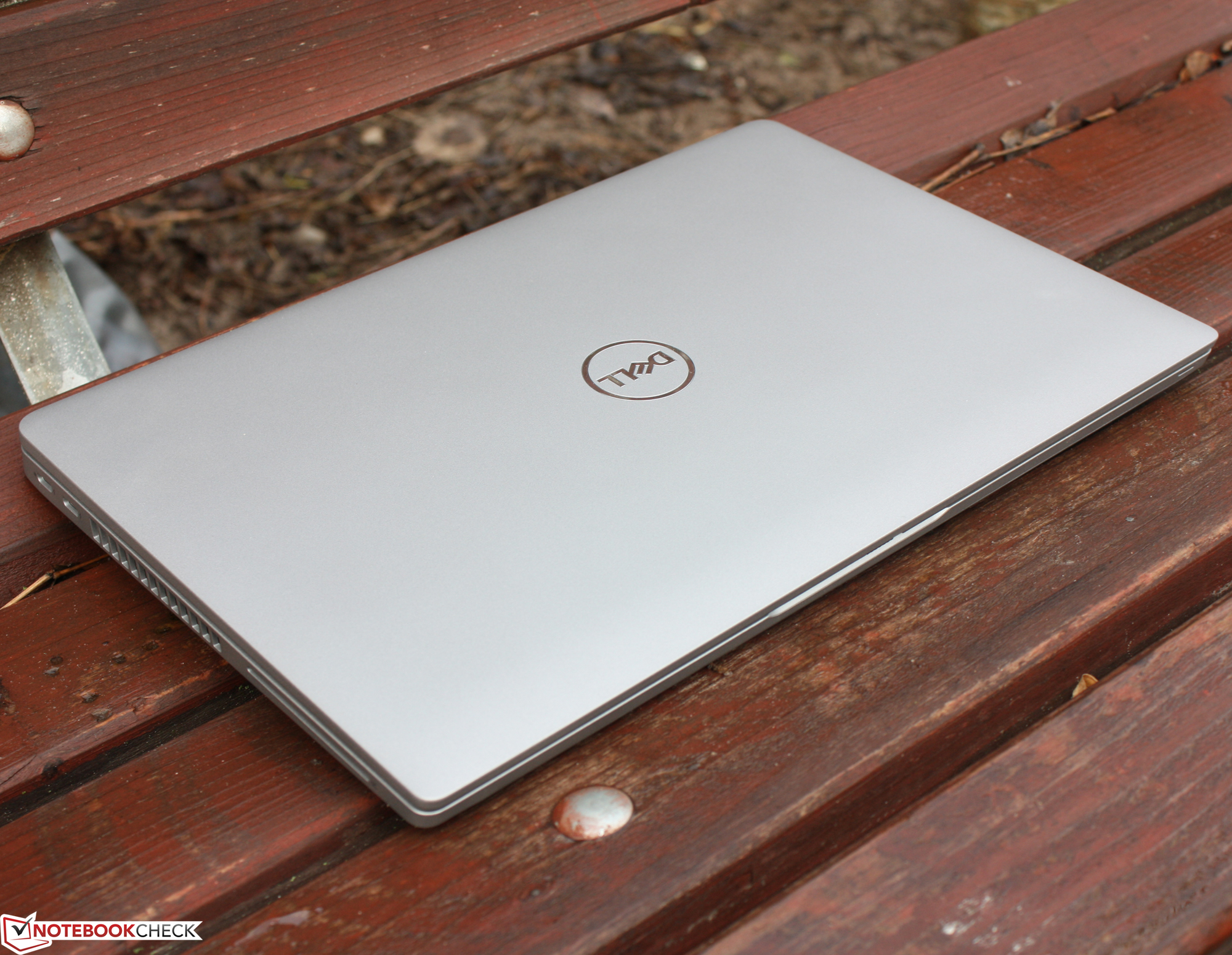

碳纤维和镁合金加固的底盘具有很强的抗扭曲性。从主观上讲，它给人的感觉是沉重而坚固。由于铰链很牢固，必须按住底座才能打开盖子。虽然点击板前面的凹陷可以用一个手指抬起盖子，但底座在短短几英寸后就必须被按住。

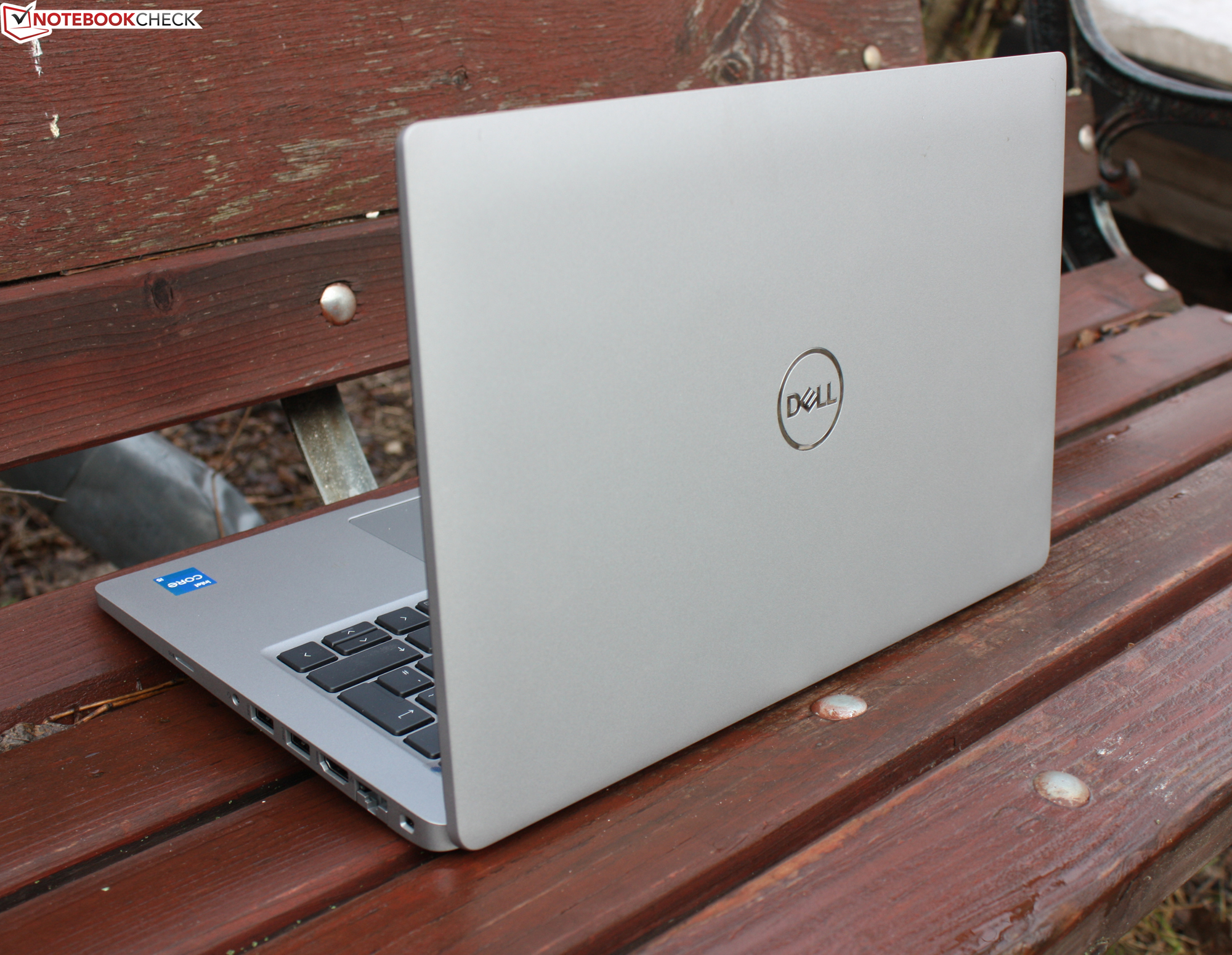

与2020年的Latitude 5410相比，机箱在视觉上保持一致：下拉式铰链，低调的银灰色外观和黑色键盘。最大的视觉变化与输入设备的改变有关，这反过来也带来了使用性的变化。我们将在输入设备部分更详细地探讨这个问题。

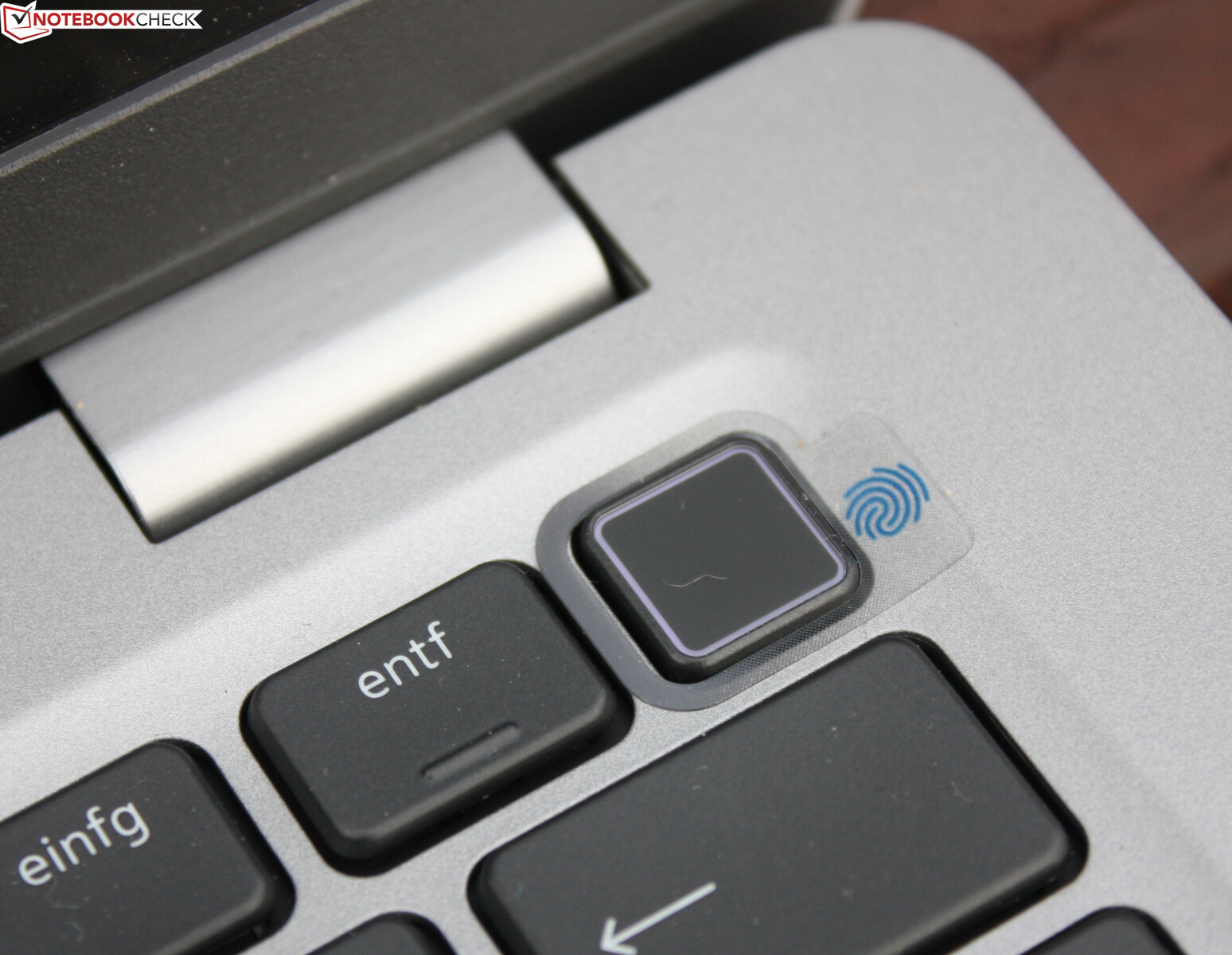

电源按钮被移到了键盘的角落，在那里它以一个黑色按钮的形式存在。它可以作为Windows Hello的指纹传感器。

戴尔Latitude 14 5420的厚实底座在压力下不会屈服，盖子也感觉很牢固。对盖子的背面施加压力不会在LCD上产生颜色失真。只有右侧的键盘区域略微弯曲。

Latitude 14 5420的重量为1.5公斤（约3.31磅），可以说是中等水平，而 ThinkPad L14 G2AMD或 Acer Enduro Urban N3则明显更重。然而，撇开这两个型号不谈，Latitude 是我们比较中最厚的笔记本电脑--20.9毫米（约0.82英寸），没有脚。华硕华硕ExpertBook B1, Dynabook Tecra A40，以及惠普ProBook 440 G8都更薄、更轻。

Size Comparison

Acer Enduro Urban N3 EUN314 Lenovo ThinkPad L14 G2 AMD Acer TravelMate P4 TMP414-51-59MR Asus ExpertBook B1 B1400CEAE, i5-1135G7 Dynabook Tecra A40-J-12E Dell Latitude 14 5420-D2G5W HP ProBook 440 G8-2W1G4EA DIN A4 ❌

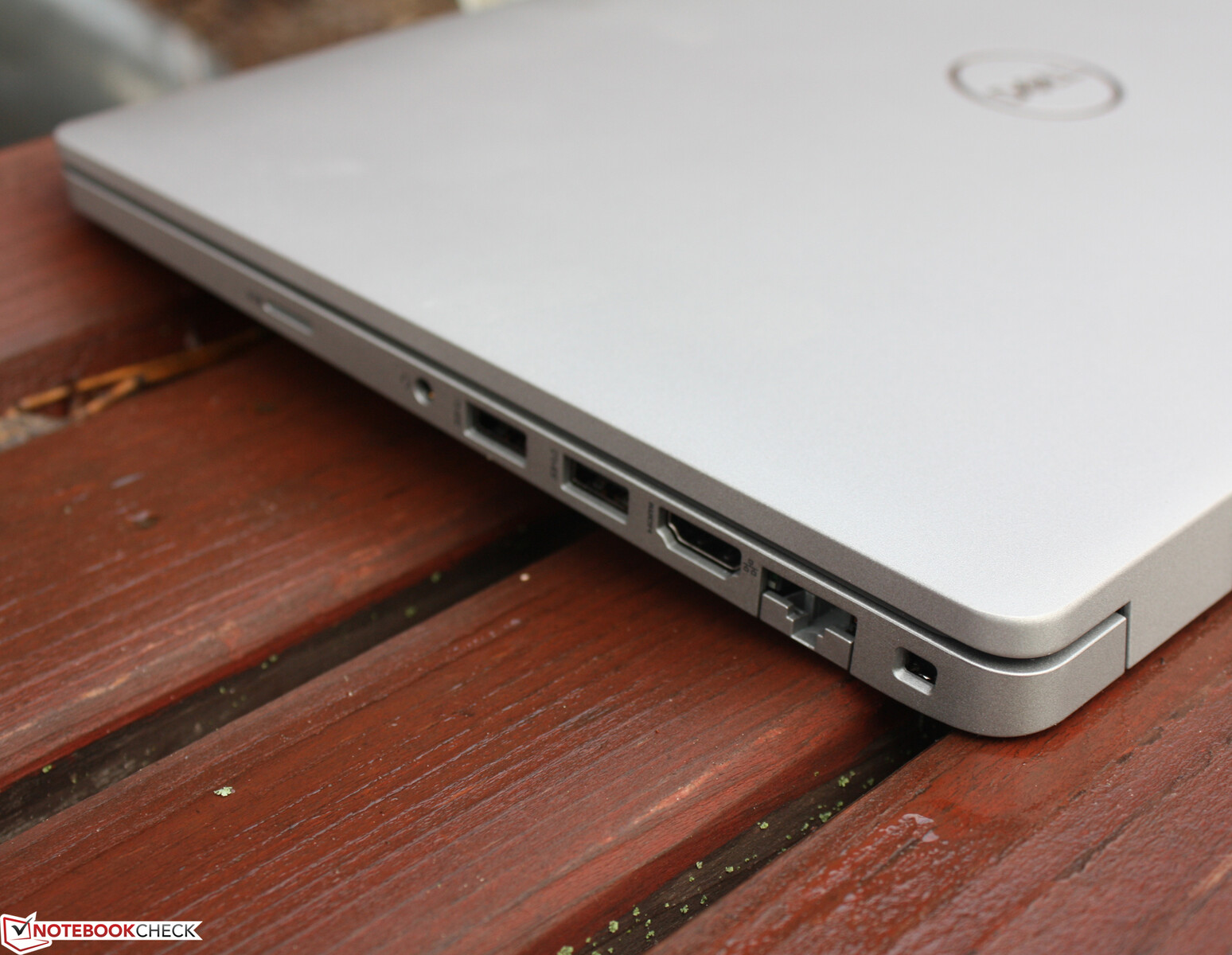

连接性。具有大量安全功能的笔记本

这就是Latitude ，它能够将自己与其他笔记本电脑区分开来。Thunderbolt 4、一个传统的以太网RJ-45端口、智能卡读卡器、NFC和一个用于在旅途中访问网络的SIM卡插槽，构成了一个非常引人注目的清单。

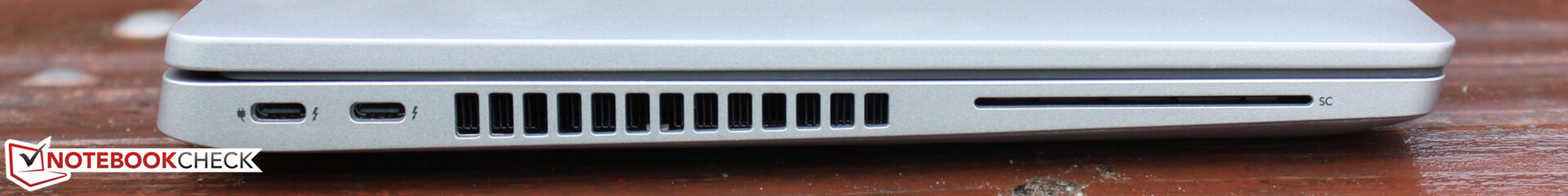

2个Thunderbolt 4（一个用于通过Power Delivery充电），智能卡阅读器

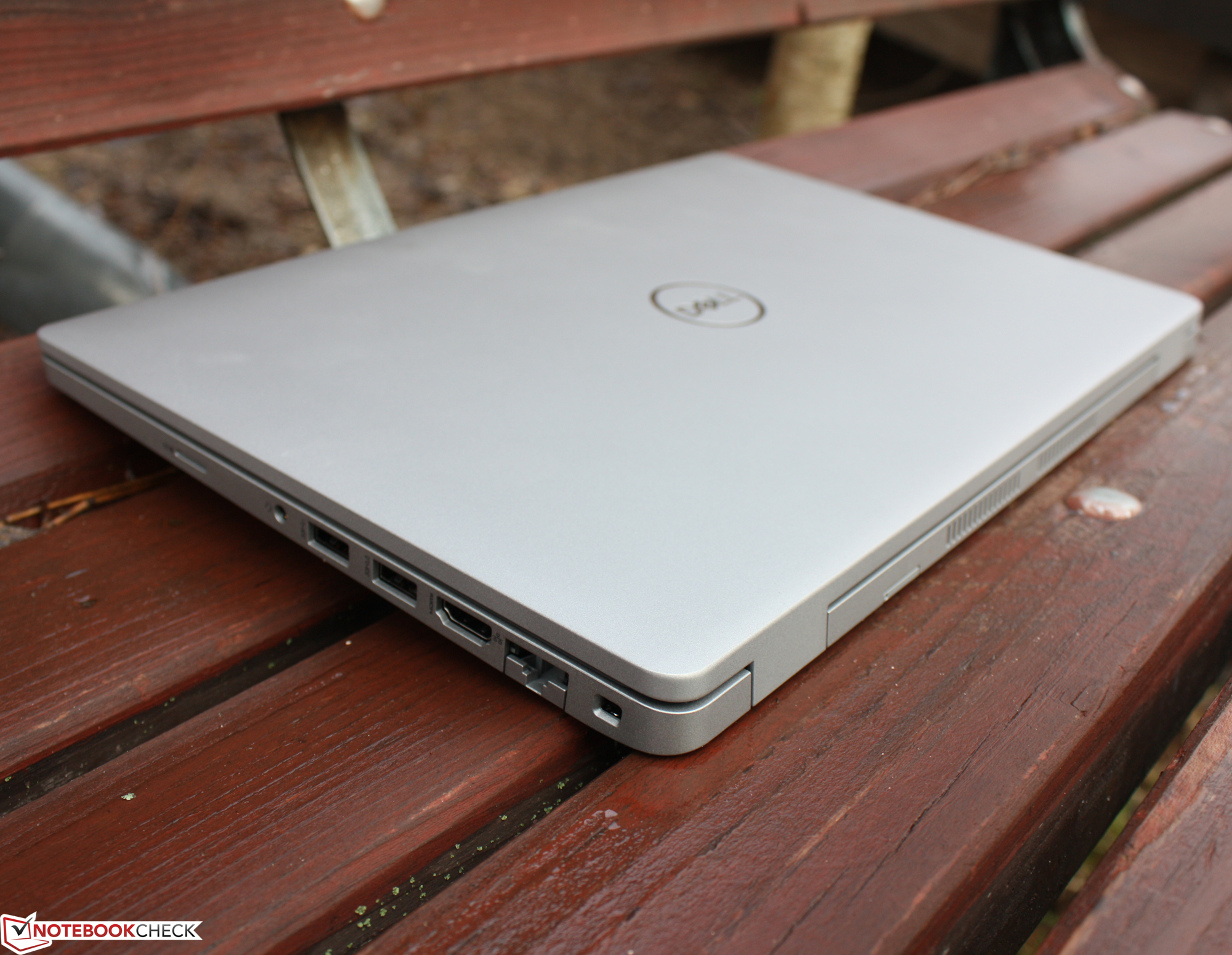

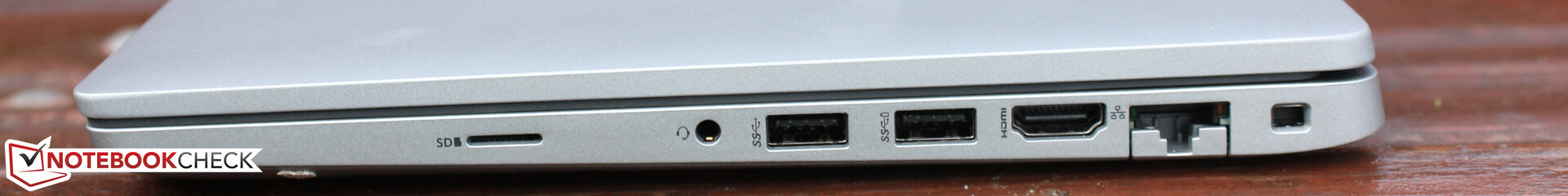

microSD，组合音频端口，2个USB-A 3.0，HDMI，RJ45，戴尔安全锁

SD卡阅读器

一个microSD读卡器被集成在右边缘。它与我们的参考存储卡Angelbird AV Pro V60达到了快速的传输速度：复制和写入数据的速度分别为188 MB/s和183 MB/s。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7 (AV Pro SD microSD 128 GB V60)	187.8 MB/s
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7 (AV PRO microSD 128 GB V60)	92 MB/s -51%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U (AV Pro V60)	77 MB/s -59%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7 (AV Pro v60)	74.1 MB/s -61%
Average of class Subnotebook (18.9 - 193.9, n=18, last 2 years)	65.4 MB/s -65%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7 (AV Pro V60)	25.3 MB/s -87%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7 (AV Pro SD microSD 128 GB V60)	24.9 MB/s -87%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7 (AV Pro V60)	22.9 MB/s -88%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7 (AV Pro SD microSD 128 GB V60)	182.6 MB/s
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7 (AV PRO microSD 128 GB V60)	87 MB/s -52%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U (AV Pro V60)	87 MB/s -52%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7 (AV Pro v60)	83.1 MB/s -54%
Average of class Subnotebook (23.6 - 239, n=18, last 2 years)	81.4 MB/s -55%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7 (AV Pro V60)	26.6 MB/s -85%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7 (AV Pro SD microSD 128 GB V60)	26.1 MB/s -86%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7 (AV Pro V60)	25.8 MB/s -86%

沟通

除了AX201 Wi-Fi适配器和RJ-45以太网端口外，戴尔笔记本电脑还在显示屏下方配备了一个SIM卡插槽，可以从设备的背面进入。因此，Latitude ，可以加装一个兼容的LTE模块。

英特尔AX201的传输速度不太符合我们的期望，即使考虑到峰值也是如此。相比之下，峰值接收速度几乎达到1700-Mbps大关。

Networking
iperf3 transmit AX12
Acer Enduro Urban N3 EUN314 Intel Wi-Fi 6 AX201	1396 (1280^min - 1515^max) MBit/s +63%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Wi-Fi 6 AX201	1333 (699^min - 1465^max) MBit/s +56%
Dynabook Tecra A40-J-12E Intel Wi-Fi 6 AX201	1298 (650^min - 1441^max) MBit/s +51%
Average Intel Wi-Fi 6 AX201 (49.8 - 1775, n=324)	1161 MBit/s +35%
Acer TravelMate P4 TMP414-51-59MR Intel Wi-Fi 6 AX201	887 (456^min - 961^max) MBit/s +4%
Dell Latitude 14 5420-D2G5W Intel Wi-Fi 6 AX201	857 (573^min - 993^max) MBit/s
Lenovo ThinkPad L14 G2 AMD RealTek Semiconductor RTL8852AE	770 (601^min - 880^max) MBit/s -10%
HP ProBook 440 G8-2W1G4EA Intel Wi-Fi 6 AX201	758 (682^min - 804^max) MBit/s -12%
iperf3 receive AX12
Acer Enduro Urban N3 EUN314 Intel Wi-Fi 6 AX201	1487 (1396^min - 1542^max) MBit/s +12%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Wi-Fi 6 AX201	1480 (1227^min - 1597^max) MBit/s +11%
Dynabook Tecra A40-J-12E Intel Wi-Fi 6 AX201	1384 (1095^min - 1524^max) MBit/s +4%
Dell Latitude 14 5420-D2G5W Intel Wi-Fi 6 AX201	1328 (671^min - 1493^max) MBit/s
Average Intel Wi-Fi 6 AX201 (136 - 1743, n=324)	1261 MBit/s -5%
Lenovo ThinkPad L14 G2 AMD RealTek Semiconductor RTL8852AE	855 (793^min - 890^max) MBit/s -36%
Acer TravelMate P4 TMP414-51-59MR Intel Wi-Fi 6 AX201	689 (672^min - 699^max) MBit/s -48%
HP ProBook 440 G8-2W1G4EA Intel Wi-Fi 6 AX201	643 (562^min - 667^max) MBit/s -52%

Dell Latitude 14 5420-D2G5W Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1328 (671-1493)

Lenovo ThinkPad L14 G2 AMD RealTek Semiconductor RTL8852AE; iperf3 receive AX12; iperf 3.1.3: Ø854 (793-890)

Dell Latitude 14 5420-D2G5W Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø856 (573-993)

Lenovo ThinkPad L14 G2 AMD RealTek Semiconductor RTL8852AE; iperf3 transmit AX12; iperf 3.1.3: Ø770 (601-880)

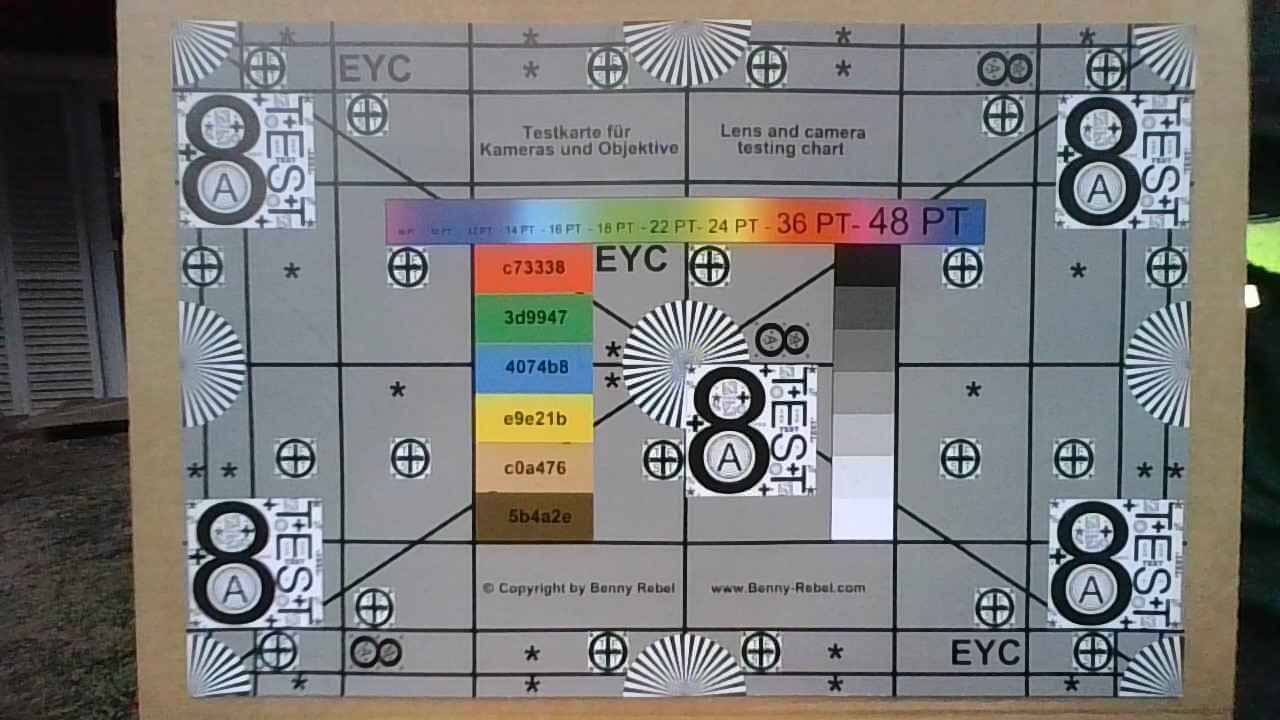

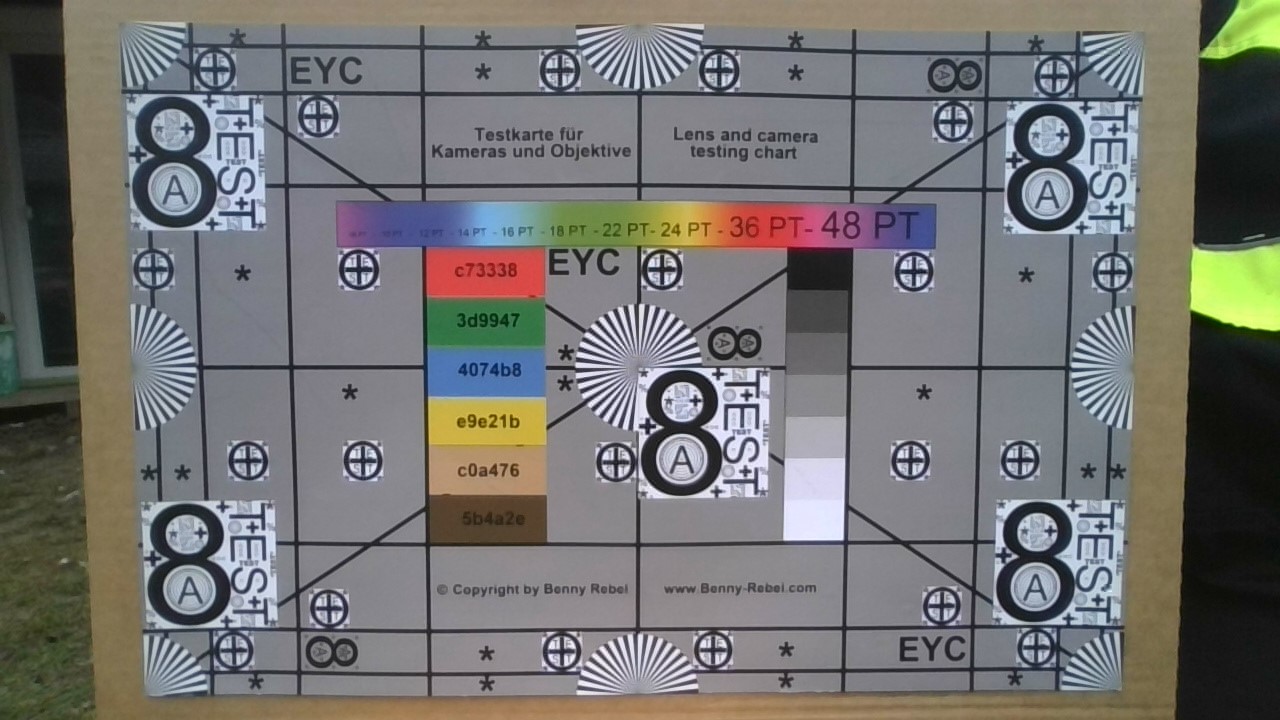

网络摄像头

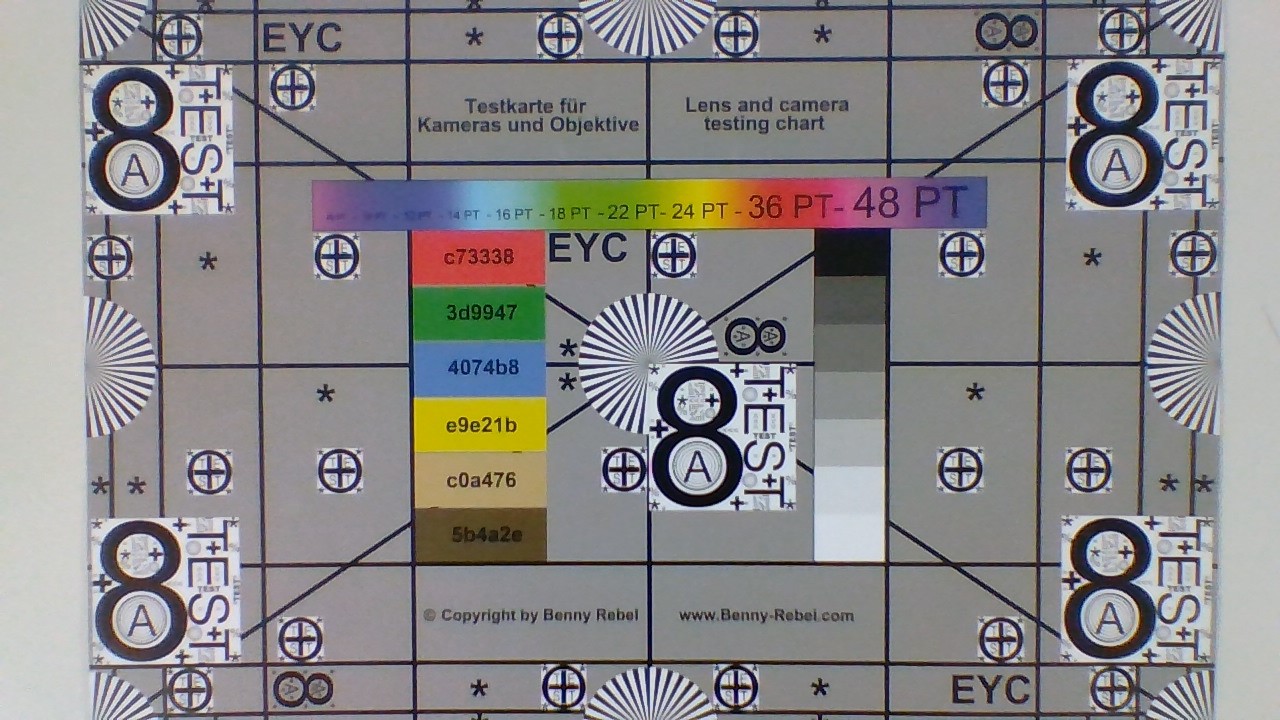

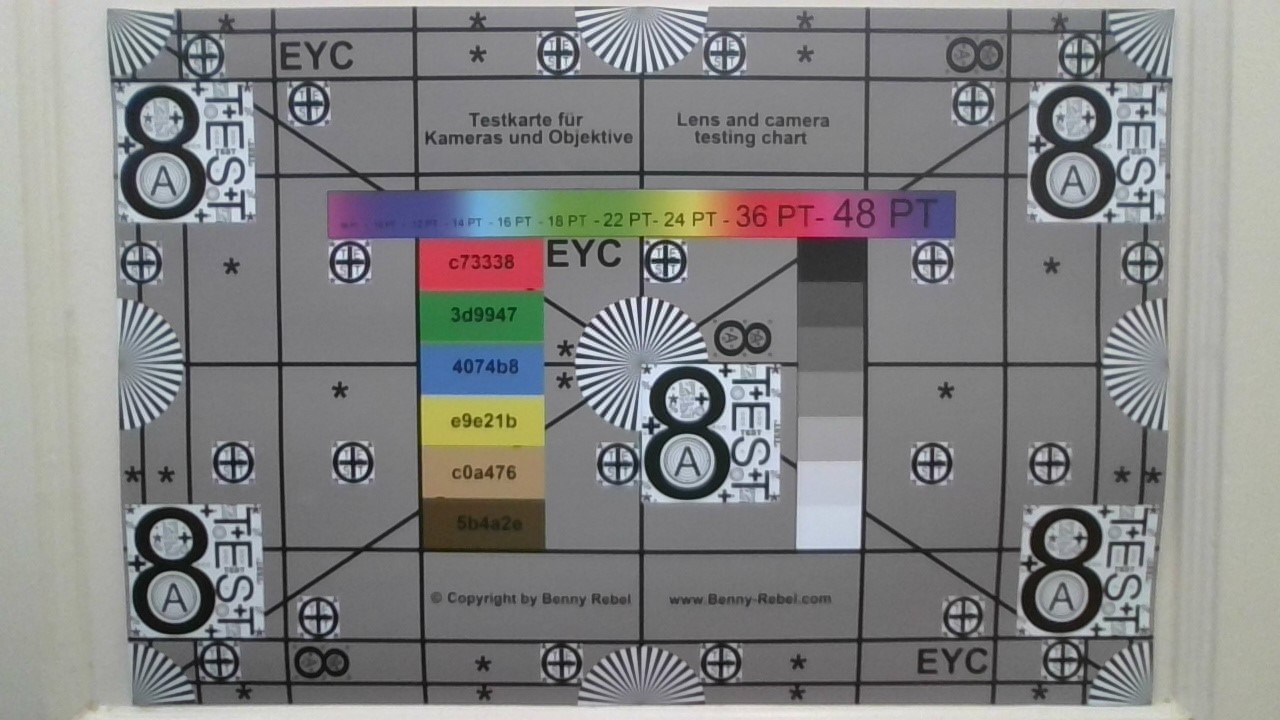

盖子上的720p摄像头几乎不值得一提。它捕捉到的照片被冲刷掉了，存在着明显的伪影。尽管这对于视频会议来说可能已经足够了，但即使在这种使用情况下，更高质量的解决方案也是可取的。特别是由于宽大的边框可以为一个更高级的相机提供足够的空间。这款相机并不完全面临激烈的竞争，它也提供了一个平庸的体验。色彩的准确性很差，我们的测试图显示了明显的图像噪音。

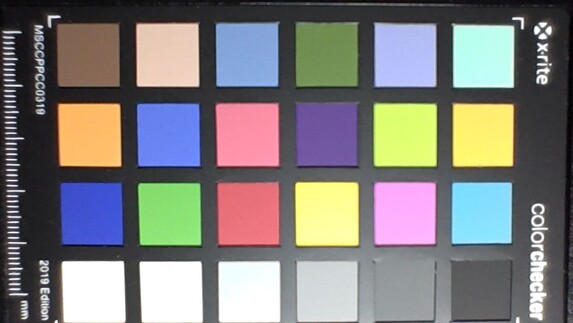

ColorChecker Lenovo ThinkPad L14 G2 AMD: 17.24 ∆E min: 2.33 - max: 27.85 ∆E

安全问题

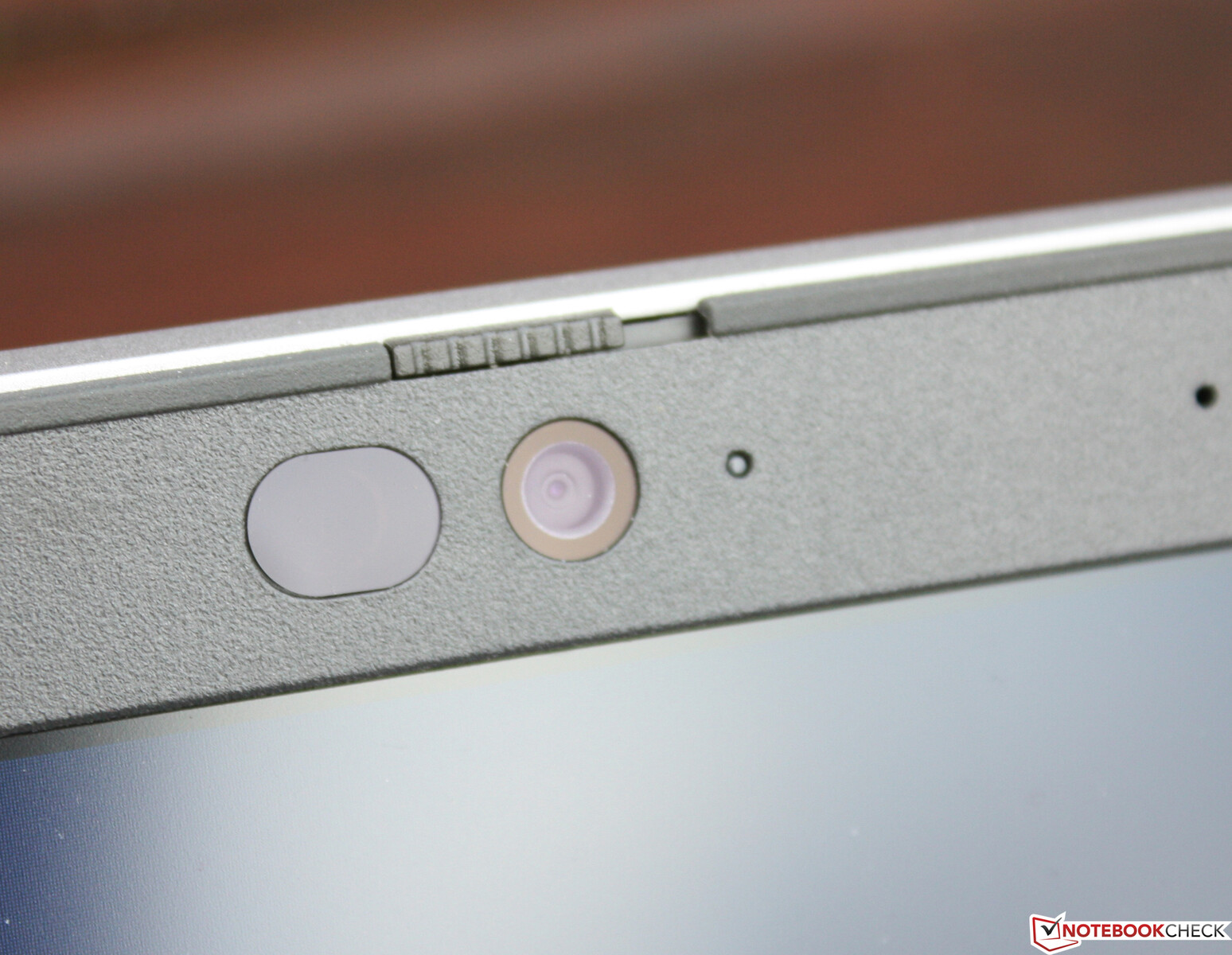

戴尔从谨慎的角度出发，用戴尔安全端口、集成智能卡读卡器和网络摄像头快门补充了指纹传感器。快门的工作原理是机械地密封网络摄像头。在它旁边，有一个红外传感器（红外摄像头），可以通过Windows Hello进行面部识别。如今，TPM 2.0是标准配置，因为Widows 11需要它。

辅料

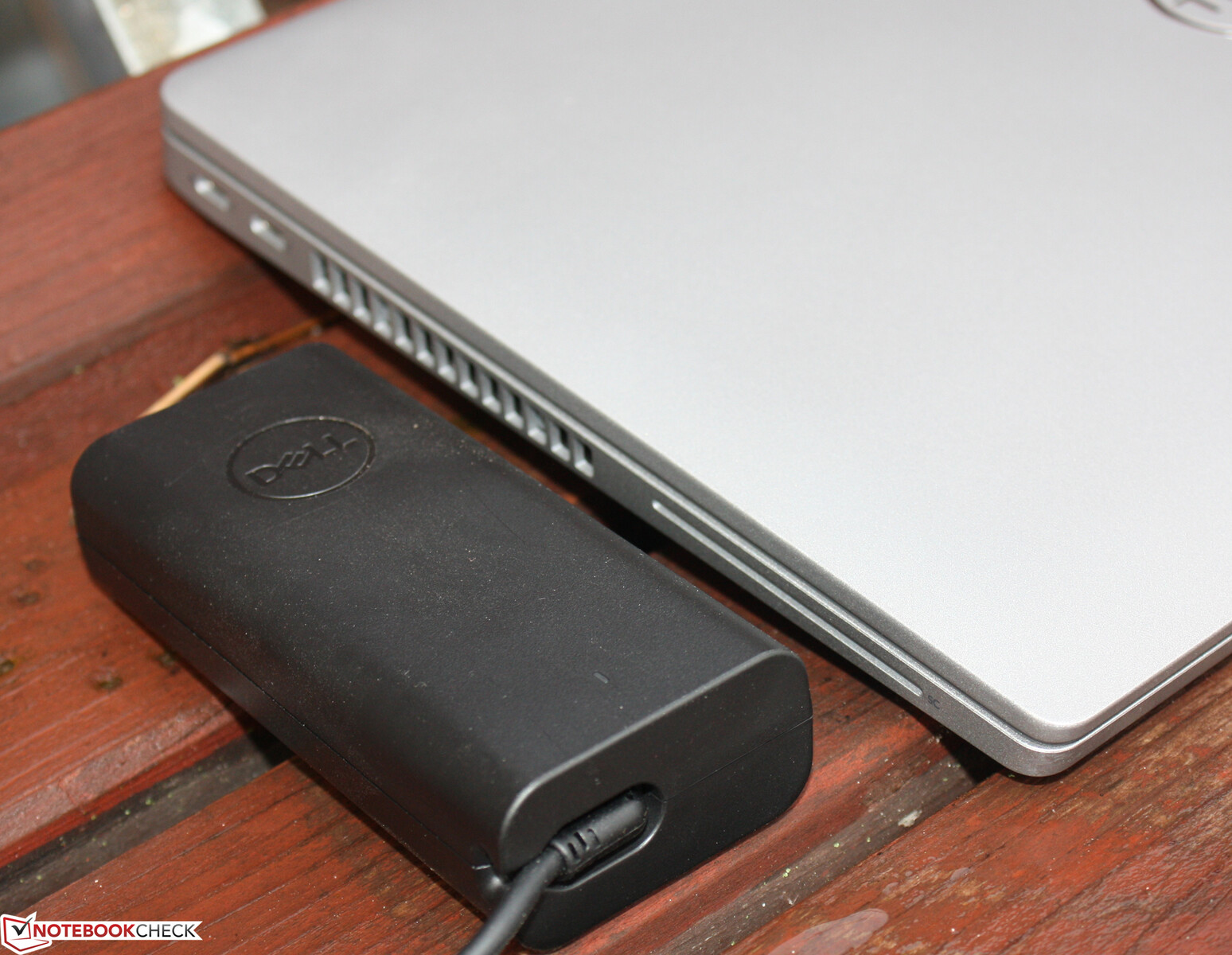

除了65瓦的交流适配器外，没有任何额外的东西。

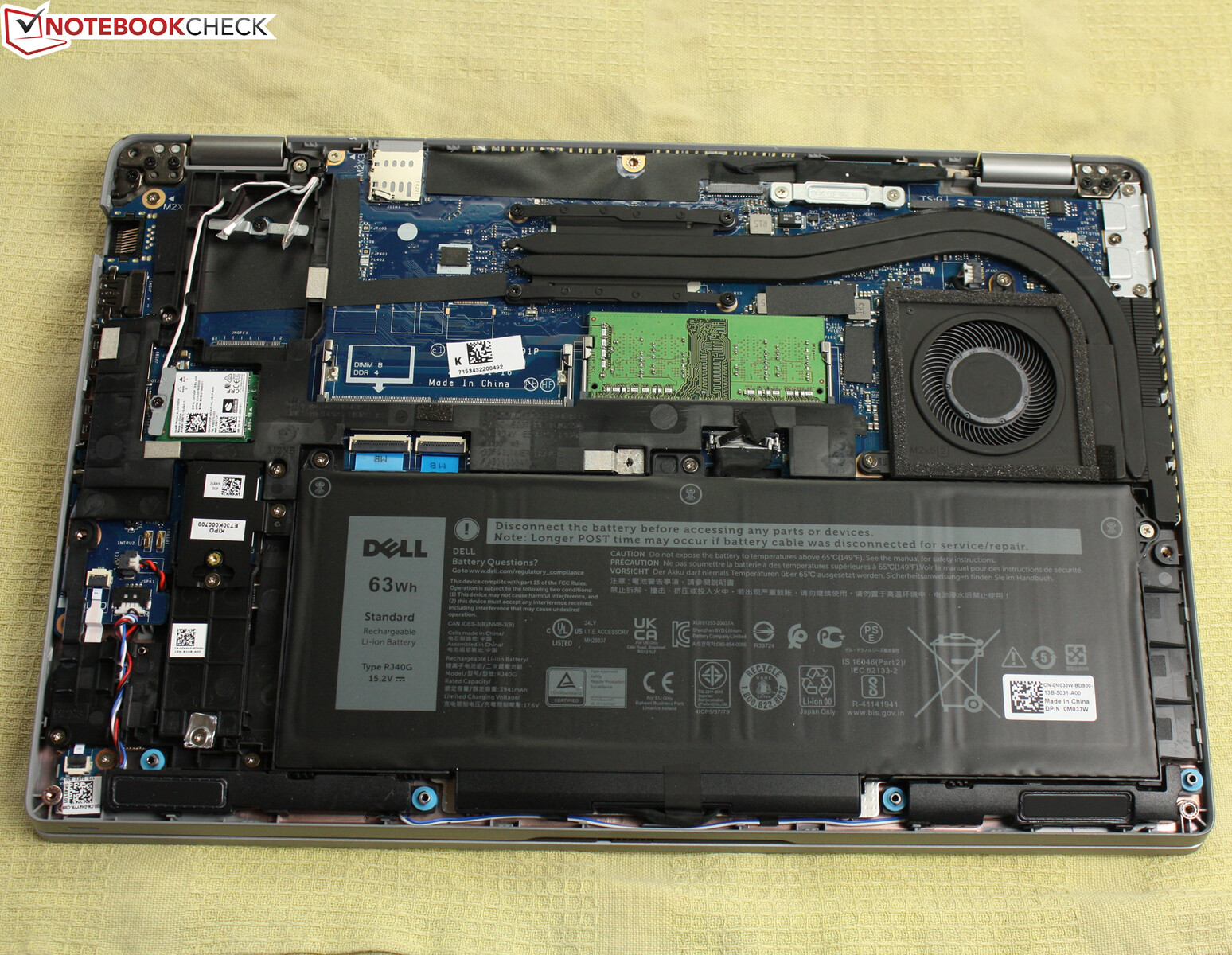

维护

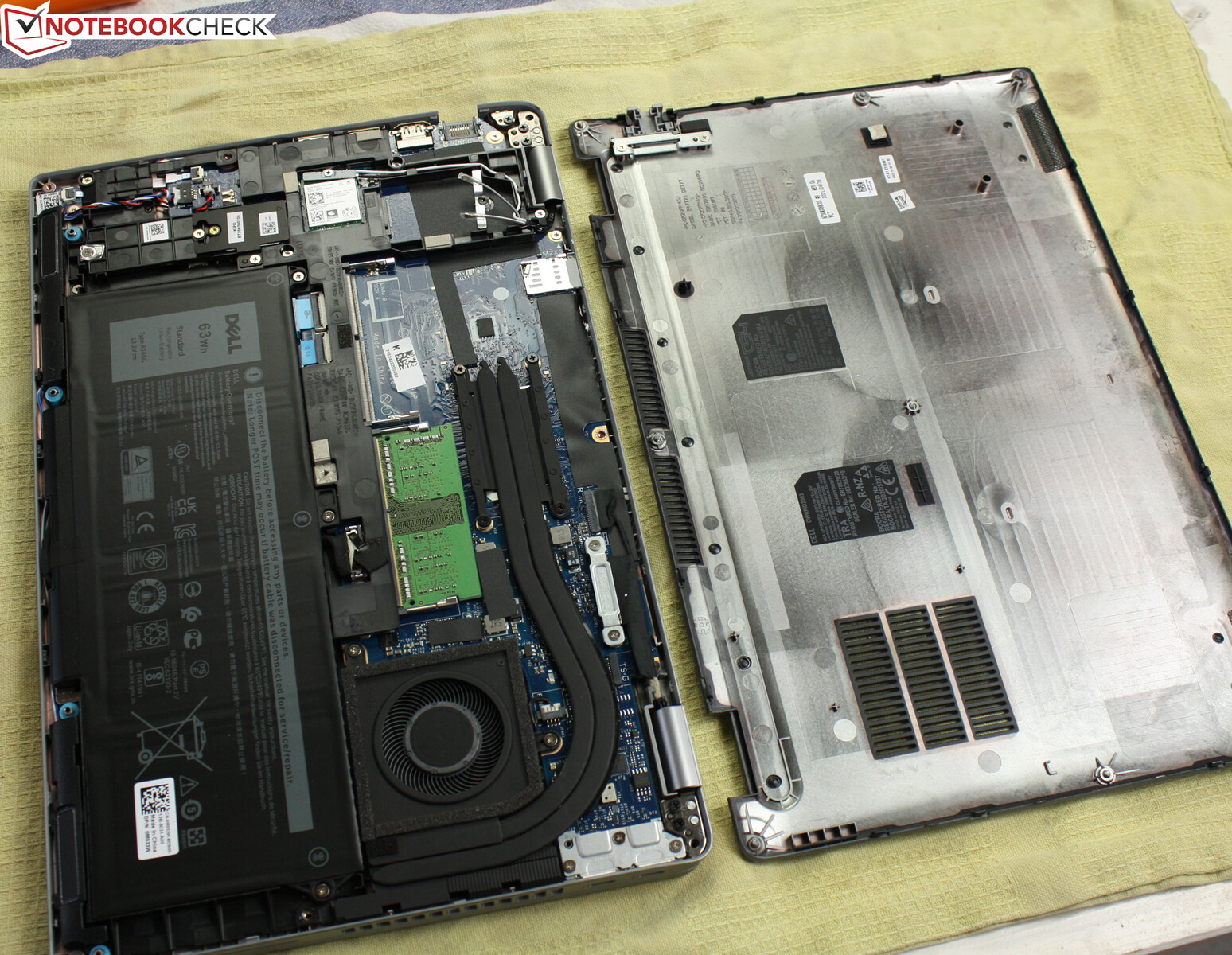

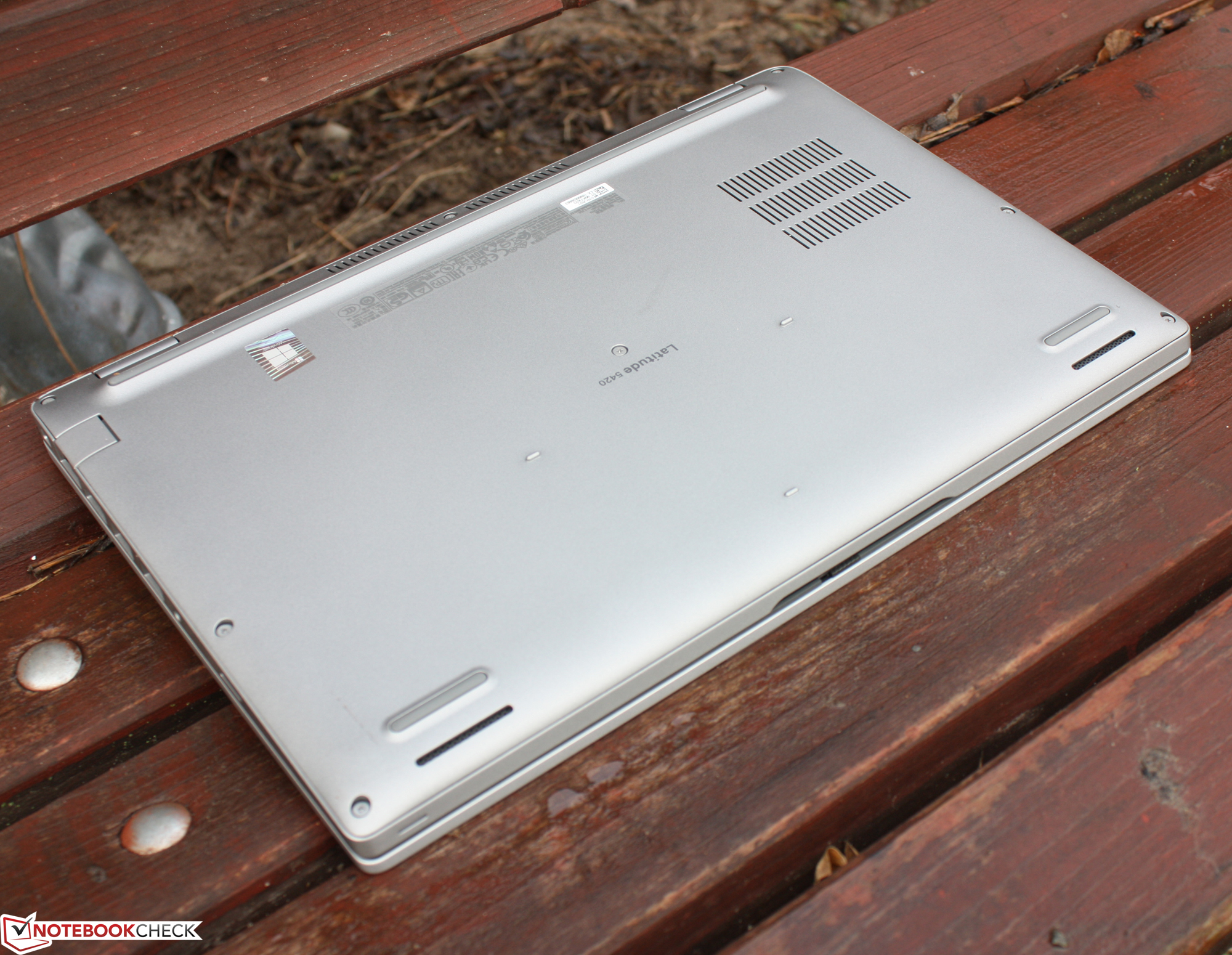

这再容易不过了。松开十字螺丝，用塑料铲子在铰链之间撬开，取出底板。方便的是，螺丝不能从底板上掉下来。

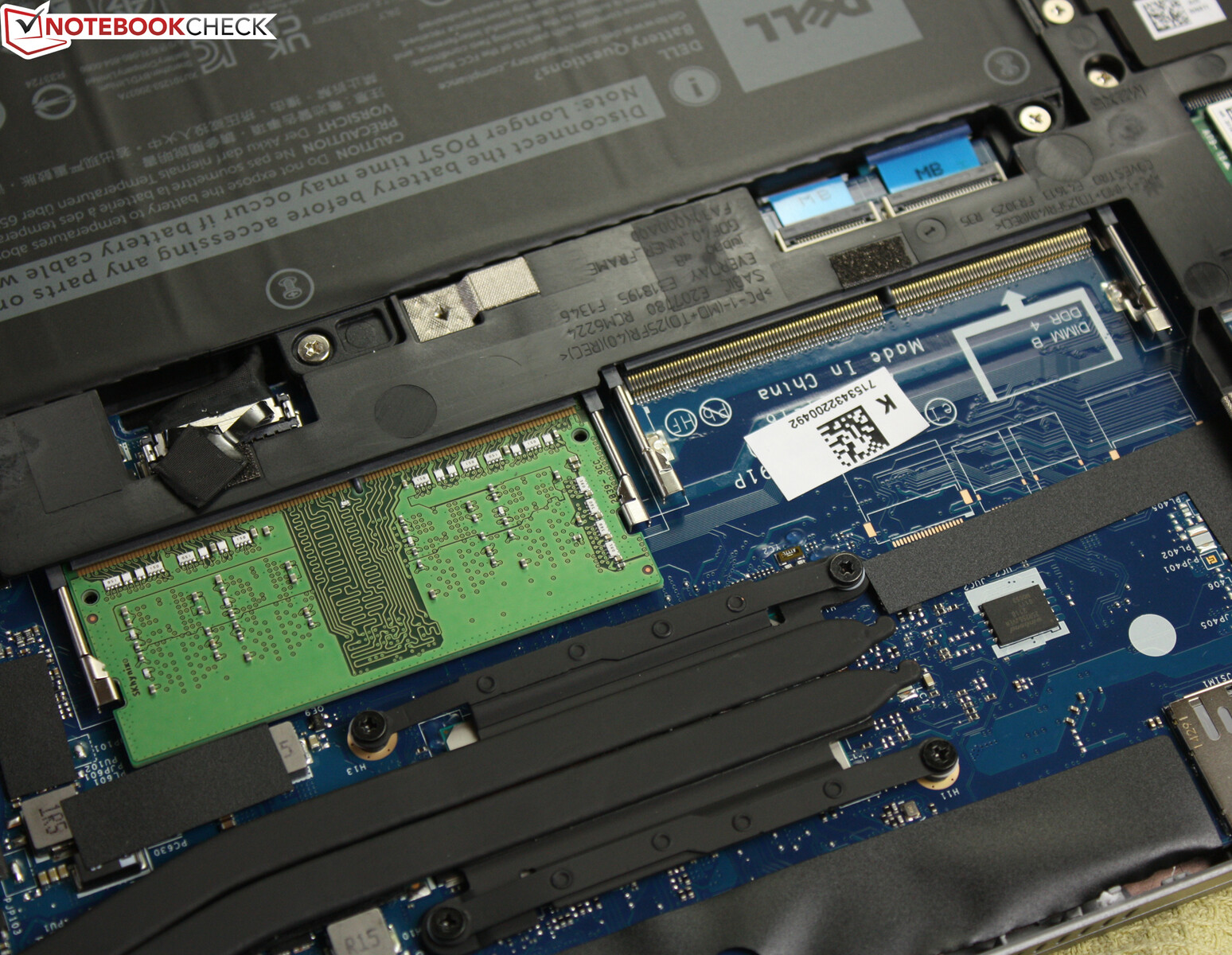

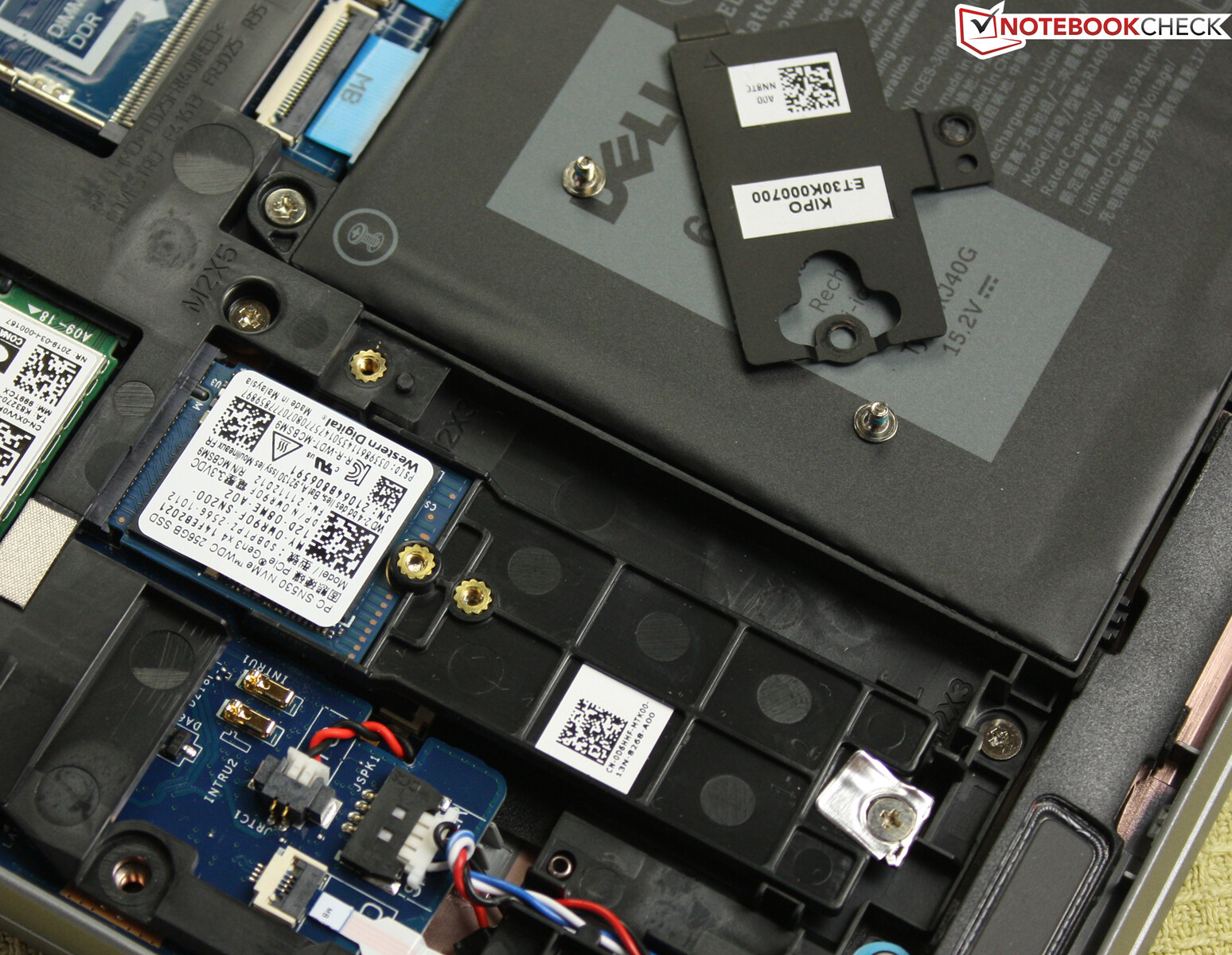

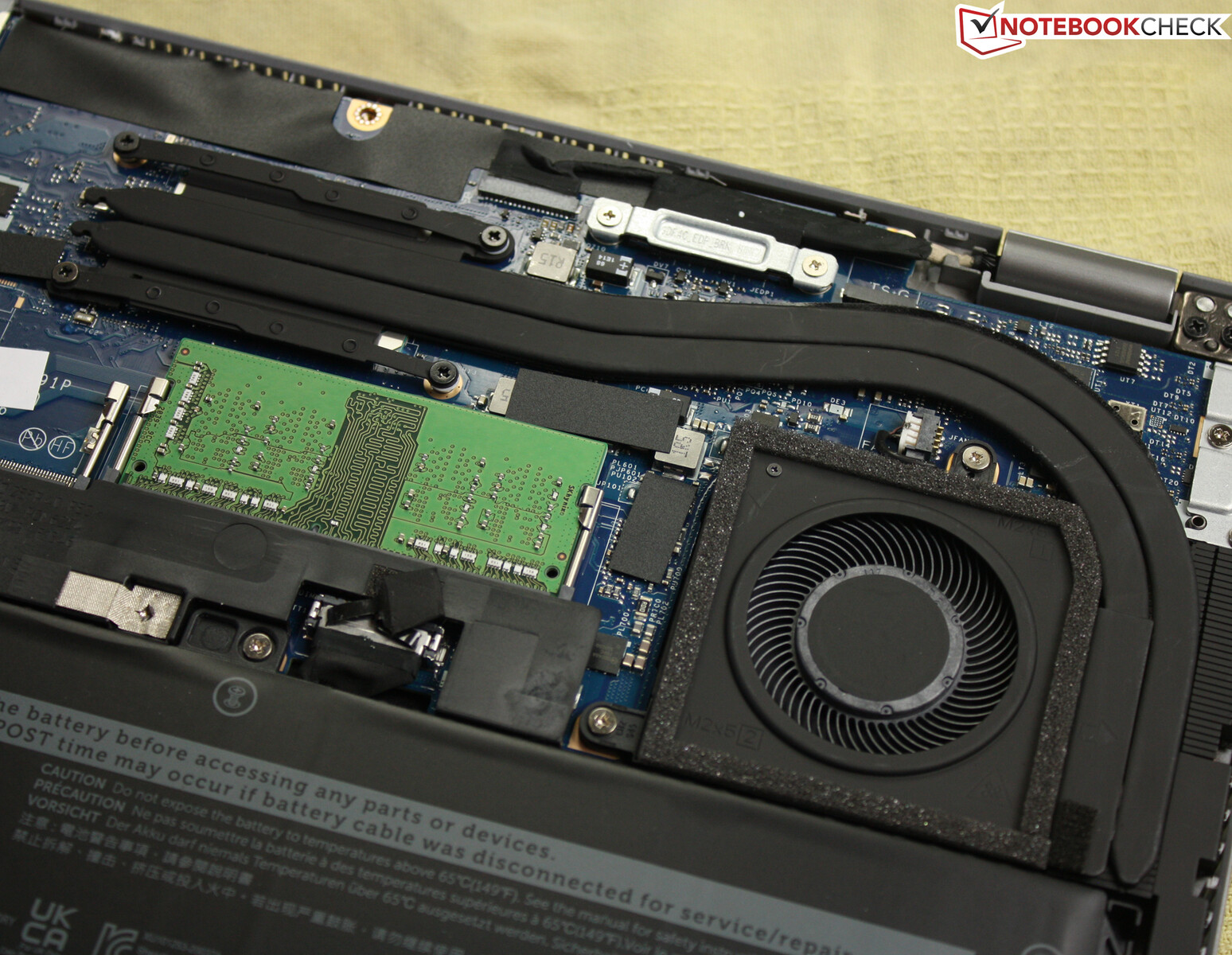

在它下面，有两个内存插槽，Wi-Fi模块，一个用于LTE调制解调器的空插槽，以及一个容纳SSD的M.2插槽。尽管它看起来像一个M.2插槽，但LTE模块插槽与M.2 SSD不兼容。

担保

戴尔提供标准的一年制造商保修，其他都是可选升级。第三方供应商提供标准的12个月保修期，并有可选的附加服务。

输入设备。戴尔与点击板的灾难

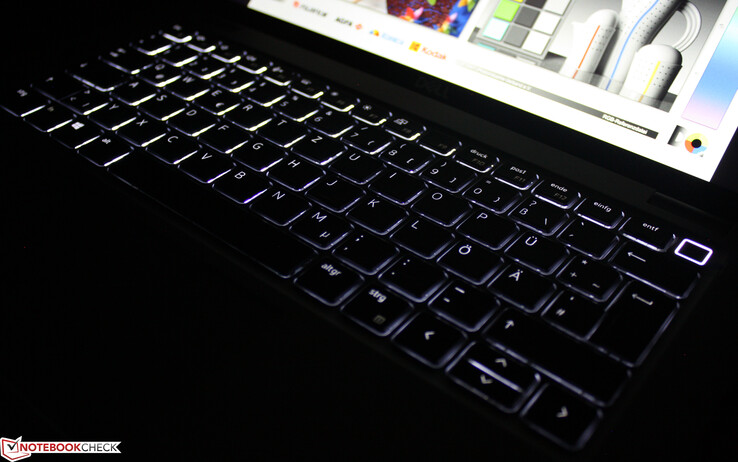

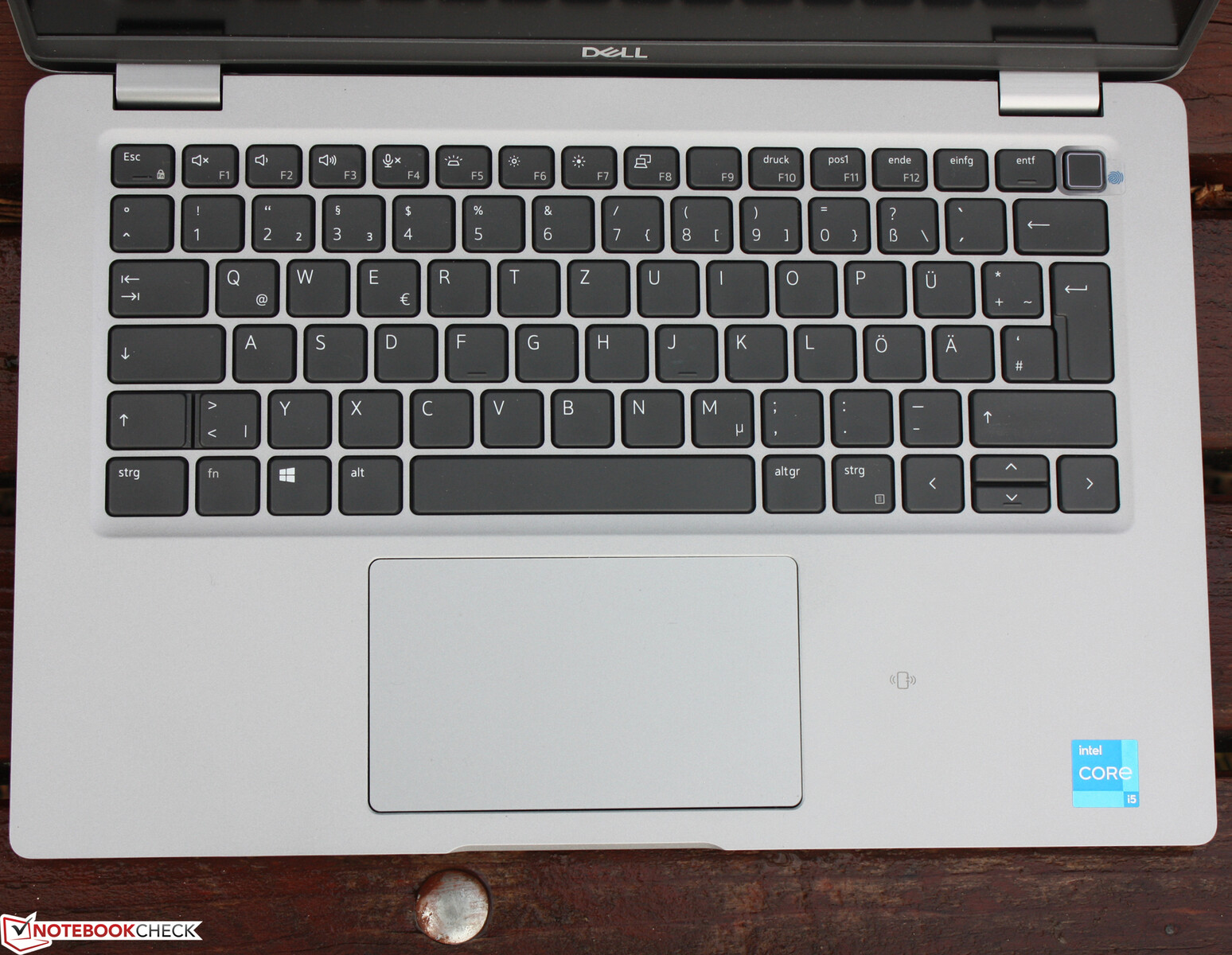

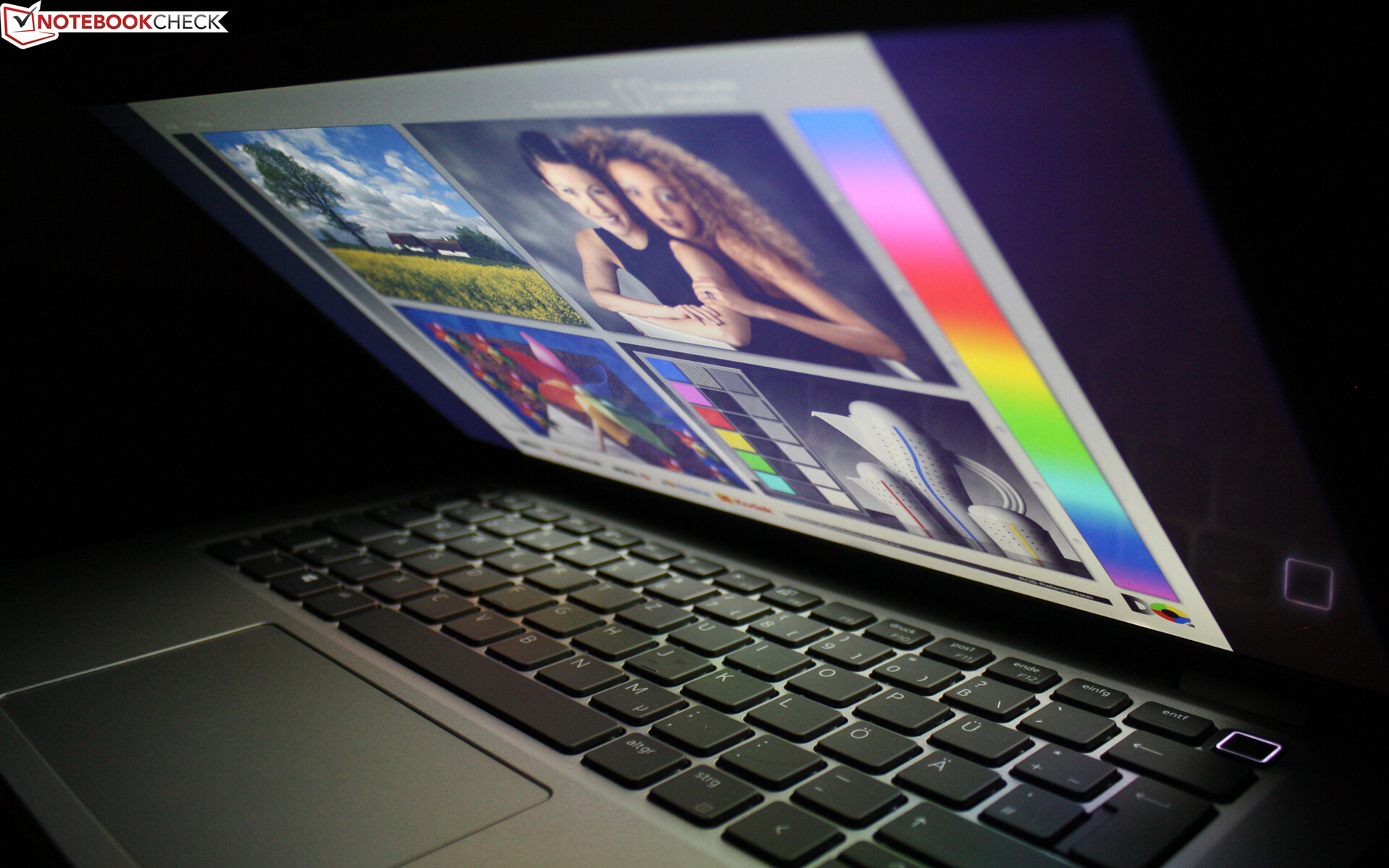

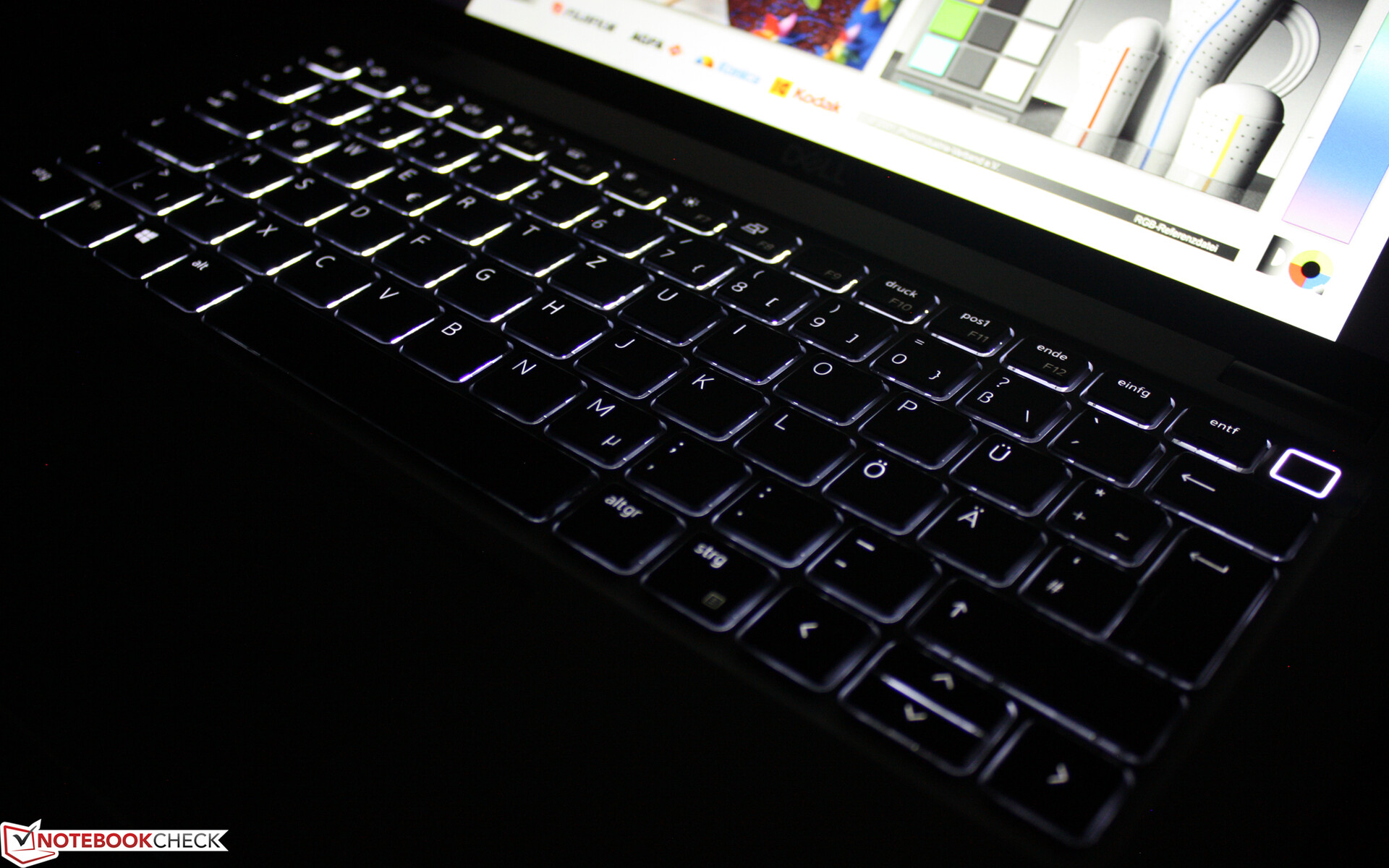

键盘按键的背光有两个亮度级别，可以照亮按键的图例。与前代产品相比，这些符号并不那么明显。不过，背光在一定程度上弥补了这一点。键盘宽度为15毫米（约0.59英寸），在尺寸和间距方面是平均水平。键盘可以实现快速、舒适的打字。

键盘

由于键盘区域的硬度不均匀，所以它在右侧略微有点屈服。键的反馈总体上是好的。按键的启动点很明显，行程适中，按起来有弹性。与其他型号不同的是，Latitude 的按键上涂有一层橡胶材料。这可以防止手指从按键上滑落，从而获得更可控的打字体验。很难说涂层是否会随着时间的推移而脱落，从而使按键变得斑驳。

触摸板

遗漏Trackpoint和专用的鼠标按钮使5420被阉割到在输入设备方面几乎无法与普通消费类笔记本电脑区分开来。虽然削减Trackpoint可能仍然可以接受，但许多Latitude 的粉丝会非常想念四个鼠标按钮。

许多用户已经习惯并喜欢的触觉反馈，在这里没有了。触摸板是一种完全不同的野兽，处理方式也不同，这总是需要一些时间来适应。我们怀疑许多买家会被戴尔的决定吓跑，转而投向联想。虽然 ThinkPad L14 G2也配备了点击板，但它还包括上面的三个专用鼠标按钮和一个Trackpoint。

点击板也不完全是顶级的，至少如果你期望有触觉反馈的话。它的行程很浅，启动点很短，而且几乎没有任何声音反馈。对于那些试图安静工作的人来说，所有这些都是理想的--包括安静的按键。然而，如果你习惯于触觉反馈，这个触摸板将是一个巨大的失望。

触摸板有11.5厘米（约4.53英寸），对于一个14英寸的设备来说是相当大的，而与我们测试过的许多其他设备相比，其表面明显更钝。在表面上滑行时，有一些可以听到的阻力。由于缺乏行程，即使在触摸板的最底部，按钮也提供了非常不令人满意的点击。

显示。哑光14-Zoll面板，颜色不多

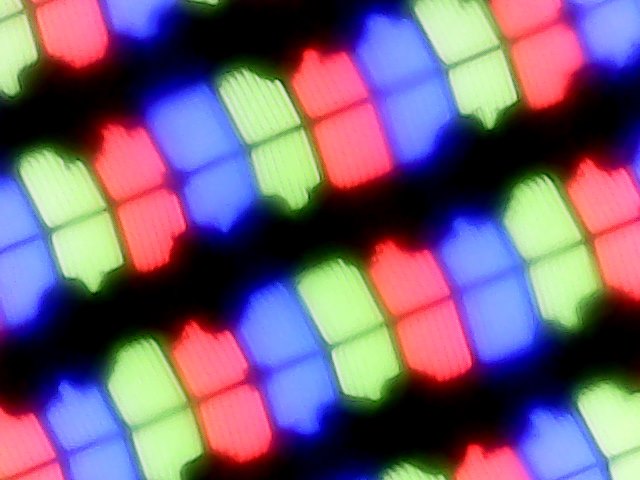

戴尔依靠的是传统的16:9-IPS 14英寸显示屏，1920 x 1080像素。157PPI的像素密度和60Hz的刷新率都不是特别令人印象深刻。亮度也是如此，最佳亮度为311尼特，平均为281尼特。值得庆幸的是，在电池模式下，亮度不会降低，这在一定程度上有助于磨砂面板的户外功能。我们没有检测到PWM。在1115:1的情况下，对比度是比较好的。IPS面板是这次迭代的标准配置，而具有较低分辨率的低成本TN变体已经被削减。


286 cd/m²	299 cd/m²	295 cd/m²
262 cd/m²	290 cd/m²	271 cd/m²
253 cd/m²	311 cd/m²	269 cd/m²

Distribution of brightness

AUO5491 / B140HAN tested with X-Rite i1Pro 2

Maximum: 311 cd/m² (Nits) Average: 281.8 cd/m² Minimum: 17 cd/m²
Brightness Distribution: 81 %
Center on Battery: 290 cd/m²
Contrast: 1115:1 (Black: 0.26 cd/m²)
ΔE Color 4.65 | 0.5-29.43 Ø5, calibrated: 3.98
ΔE Greyscale 3.22 | 0.57-98 Ø5.3
37% AdobeRGB 1998 (Argyll 2.2.0 3D)
54% sRGB (Argyll 2.2.0 3D)
36% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.54

Download ICC File (X-Rite i1Pro 2)

	Dell Latitude 14 5420-D2G5W AUO5491 / B140HAN, IPS, 1920x1080, 14.00	Lenovo ThinkPad L14 G2 AMD B140HAN04.0, IPS LED, 1920x1080, 14.00	HP ProBook 440 G8-2W1G4EA AU Optronics AUO818B, VA, 1920x1080, 14.00	Asus ExpertBook B1 B1400CEAE, i5-1135G7 Chi Mei CMN14D4, IPS, 1920x1080, 14.00	Acer TravelMate P4 TMP414-51-59MR AU Optronics B140HAN04.0, IPS, 1920x1080, 14.00	Acer Enduro Urban N3 EUN314 XR140EA6T, IPS, 1920x1080, 14.00	Dynabook Tecra A40-J-12E N140HCA-EAC, , 1920x1080, 14.00
Display		4%	3%	19%	10%	74%	18%
Display P3 Coverage	36	37.5 4%	37.02 3%	42.8 19%	39.6 10%	63.5 76%	42.3 18%
sRGB Coverage	54	56.3 4%	55.6 3%	63.9 18%	59.4 10%	91.9 70%	63 17%
AdobeRGB 1998 Coverage	37	38.7 5%	38.25 3%	44.3 20%	40.9 11%	65.5 77%	43.8 18%
Response Times		6%	-7%	13%	-5%	-36%	-10%
Response Time Grey 50% / Grey 80% *	41 ?(19, 22)	36 ?(19, 17) 12%	43 ?(20, 23) -5%	35.2 ?(18, 17.2) 14%	40 ?(18, 22) 2%	56 ?(25.2, 30.8) -37%	41.2 ?(21.2, 20) -0%
Response Time Black / White *	26 ?(13, 13)	26 ?(15, 11) -0%	28 ?(15, 13) -8%	23.2 ?(14, 9.2) 11%	29 ?(16, 13) -12%	35.2 ?(16.4, 18.8) -35%	31.2 ?(18, 13.2) -20%
PWM Frequency				25000 ?(20)		1000 ?(99)
Screen		-33%	-28%	-27%	6%	-14%	-32%
Brightness middle	290	278 -4%	253 -13%	256 -12%	273 -6%	487.8 68%	234 -19%
Brightness	282	255 -10%	230 -18%	239 -15%	264 -6%	464 65%	216 -23%
Brightness Distribution	81	86 6%	82 1%	83 2%	88 9%	89 10%	84 4%
Black Level *	0.26	0.33 -27%	0.29 -12%	0.23 12%	0.22 15%	0.48 -85%	0.21 19%
Contrast	1115	842 -24%	872 -22%	1113 0%	1241 11%	1016 -9%	1114 0%
Colorchecker dE 2000 *	4.65	5.9 -27%	5.35 -15%	6.2 -33%	4.27 8%	6.51 -40%	5.6 -20%
Colorchecker dE 2000 max. *	7.5	20.2 -169%	17.08 -128%	18.2 -143%	7.76 -3%	11.36 -51%	20.3 -171%
Colorchecker dE 2000 calibrated *	3.98	4.5 -13%		3.8 5%		1.77 56%	4.6 -16%
Greyscale dE 2000 *	3.22	4.1 -27%	3.75 -16%	5 -55%	2.5 22%	7.8 -142%	5.1 -58%
Gamma	2.54 ^87%	2.15 ^102%	2.48 ^89%	1.97 ^112%	2.43 ^91%	2.28 ^96%	2.24 ^98%
CCT	6169 ^105%	7224 ^90%	6446 ^101%	7364 ^88%	6463 ^101%	8102 ^80%	6542 ^99%
Color Space (Percent of AdobeRGB 1998)			35
Color Space (Percent of sRGB)			55
Total Average (Program / Settings)		-8% / -19%	-11% / -17%	2% / -11%	4% / 5%	8% / 2%	-8% / -18%

* ... smaller is better

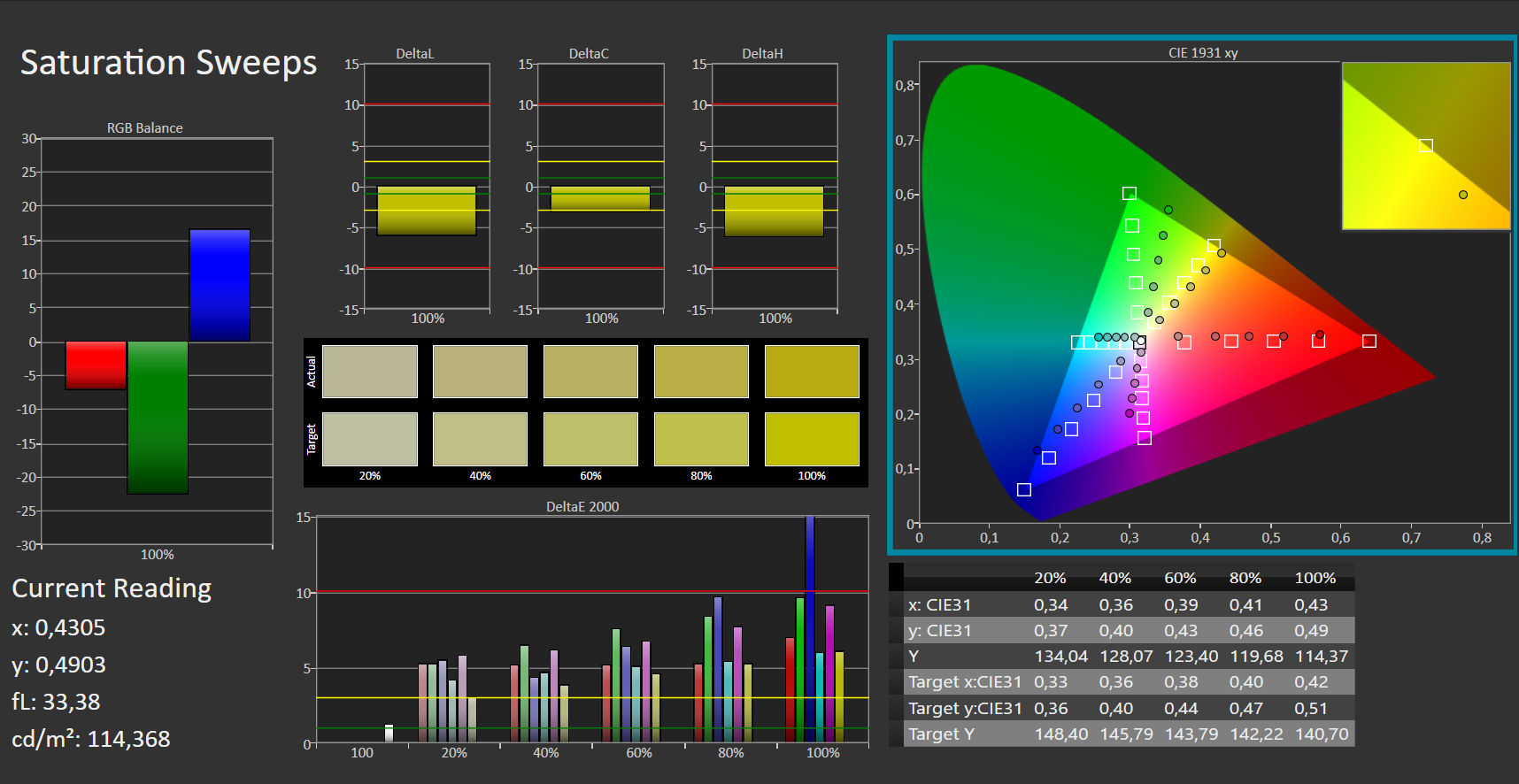

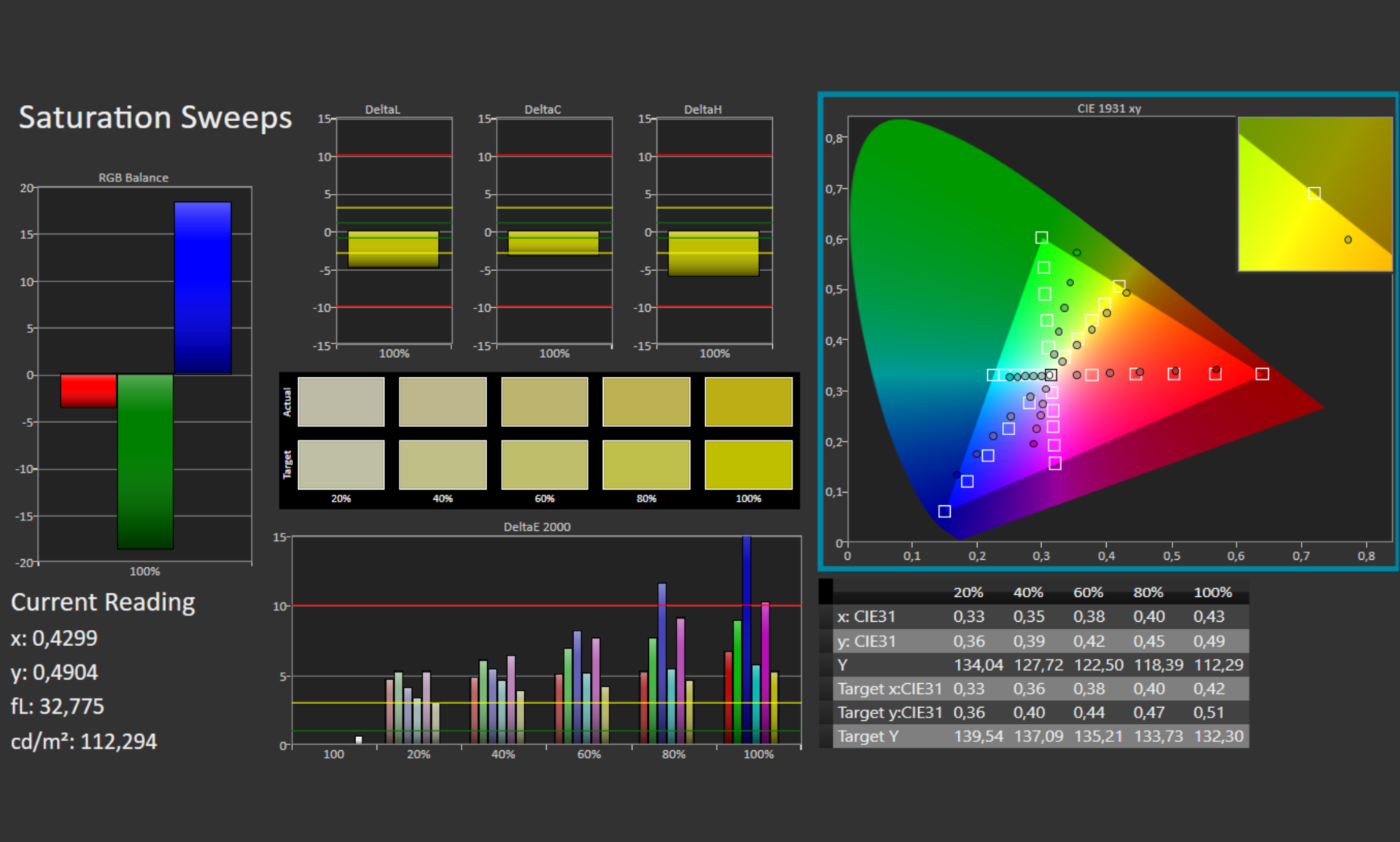

14英寸机型似乎并不关注色彩空间。在最好的情况下，戴尔涵盖了54%的sRGB色彩空间。由于印前需要接近100%的数值，竞争对手往往不会在这个类别中明显领先，即使华硕ExperBook的64%在名义上更接近。竞争对手 Acer Enduro Urban N3是一个例外，它不仅拥有一个更明亮的显示屏，而且还拥有一个更好的显示屏，覆盖了92%的sRGB。

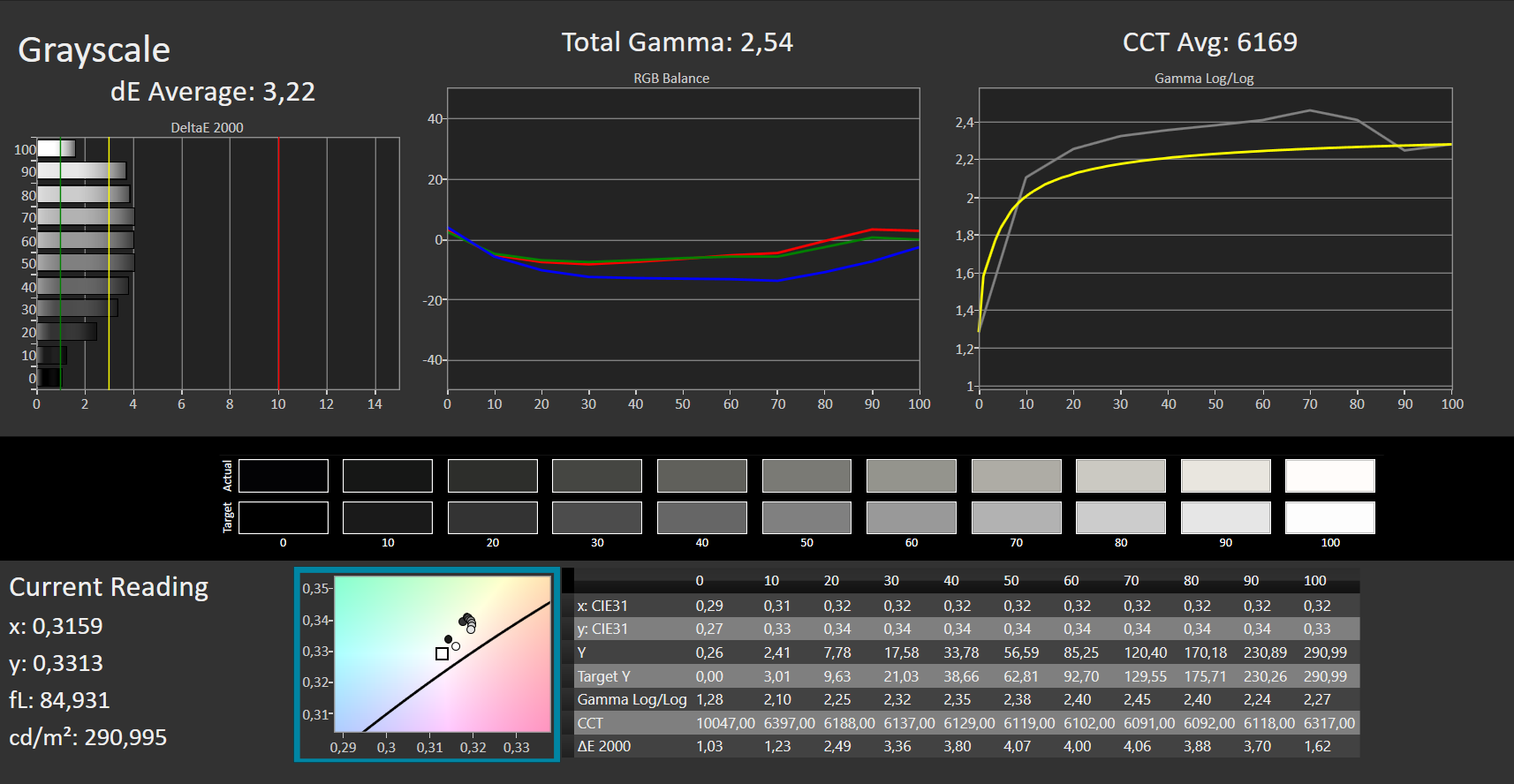

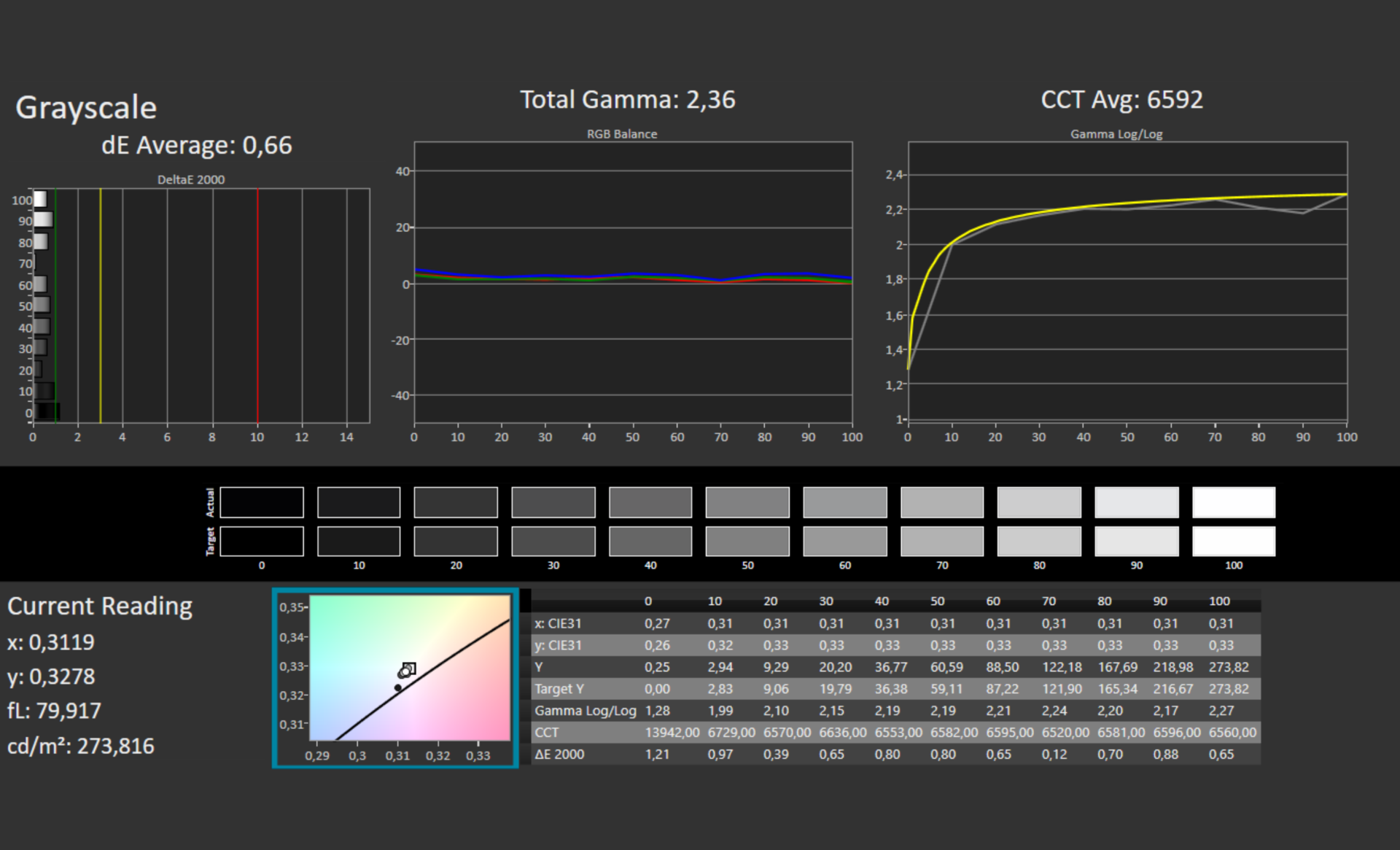

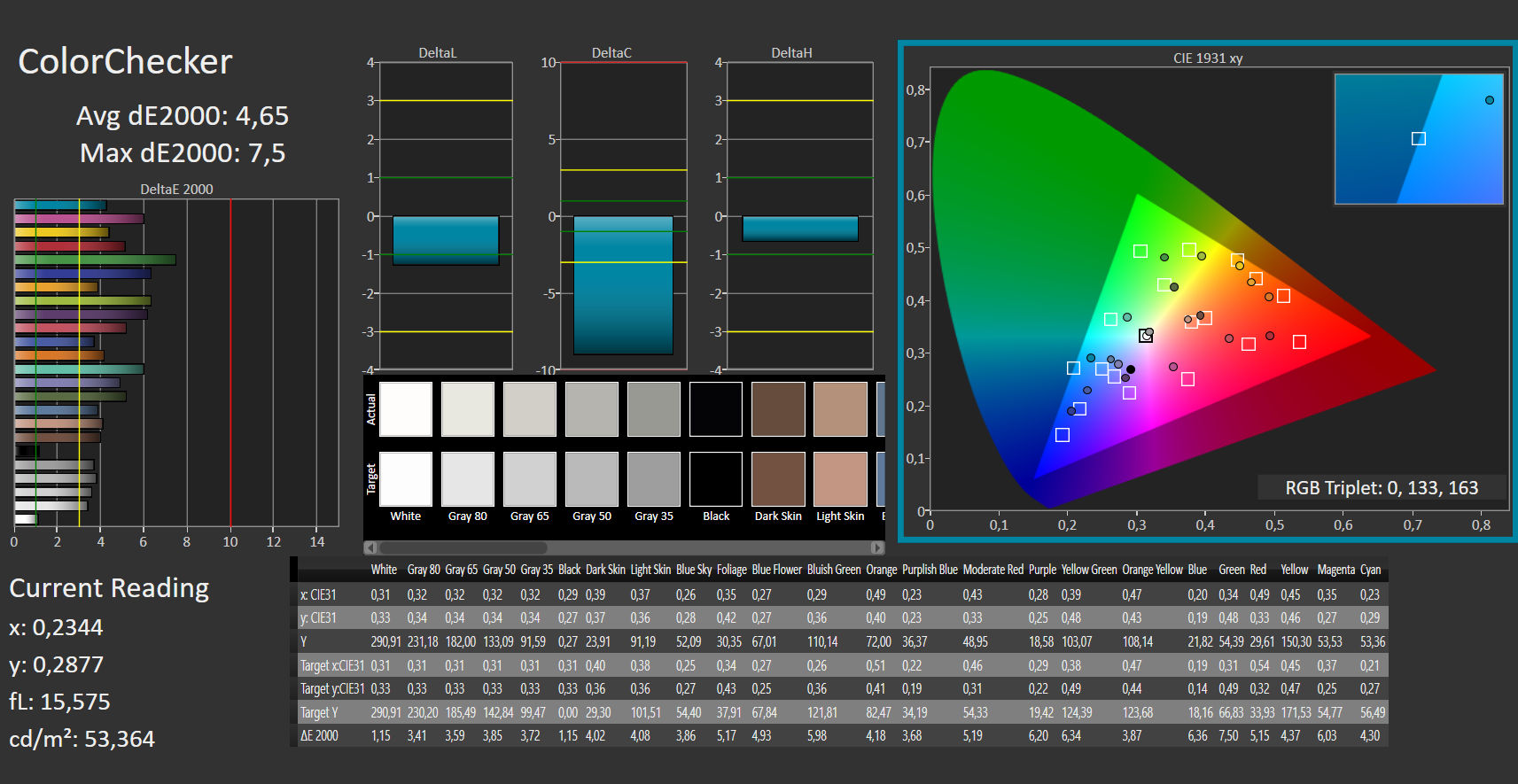

ColorChecker显示DeltaE为4.65，这个值很差，颜色偏差很大，肉眼就能看出来。不幸的是，我们的校准尝试的成功是有限的，对DeltaE 4的改善也是最小的。相比之下，经过我们的校准，灰度有很大的改善。从3.2到0.66的改善使我们分光光度计的使用几乎是值得的。我们的颜色配置文件可以从上面的方框中下载。

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

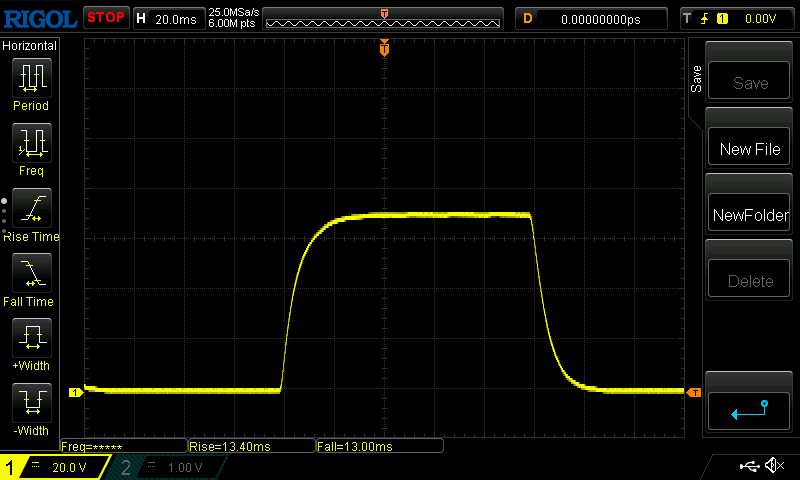

↔ Response Time Black to White
26 ms ... rise ↗ and fall ↘ combined	↗ 13 ms rise
26 ms ... rise ↗ and fall ↘ combined	↘ 13 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 57 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

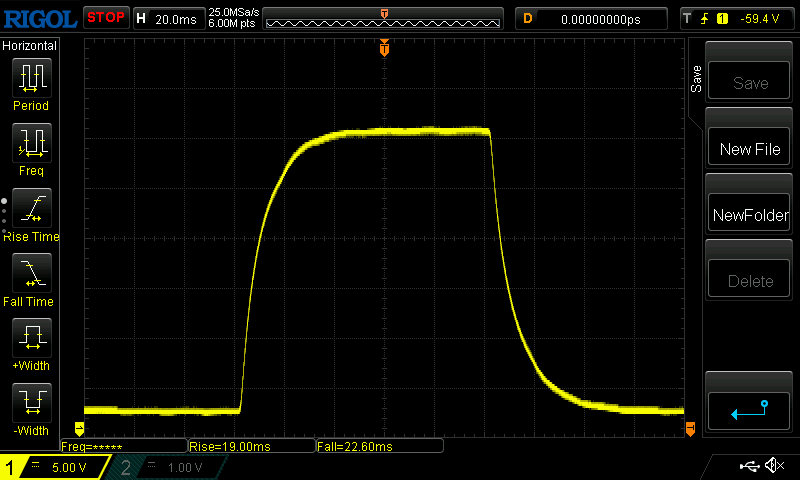

↔ Response Time 50% Grey to 80% Grey
41 ms ... rise ↗ and fall ↘ combined	↗ 19 ms rise
41 ms ... rise ↗ and fall ↘ combined	↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 60 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.8 ms).

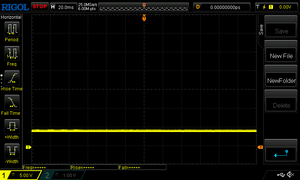

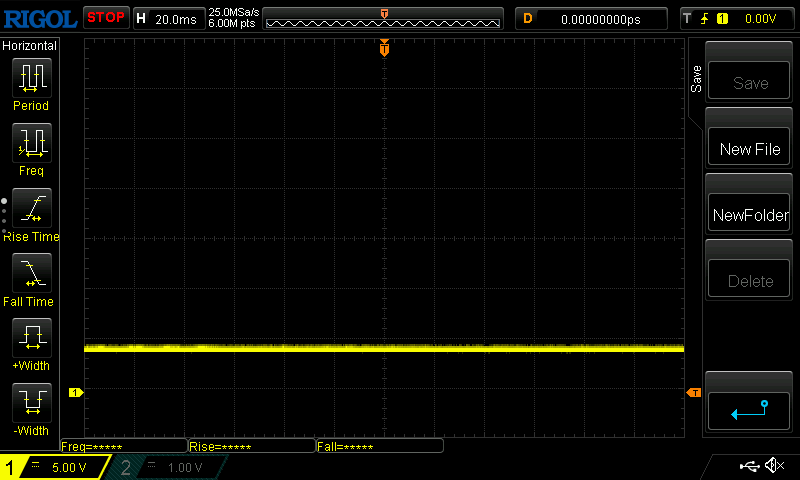

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17933 (minimum: 5 - maximum: 3846000) Hz was measured.

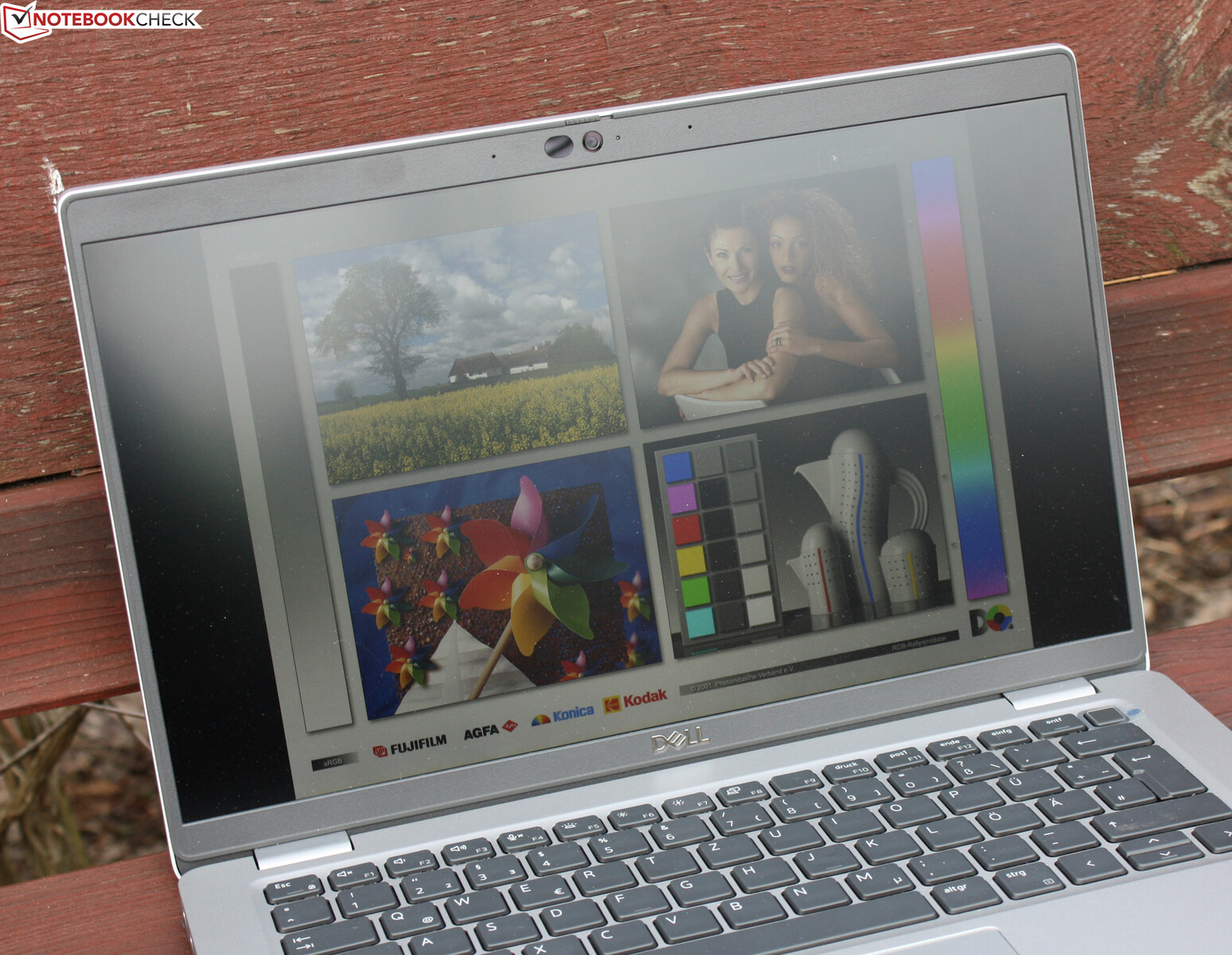

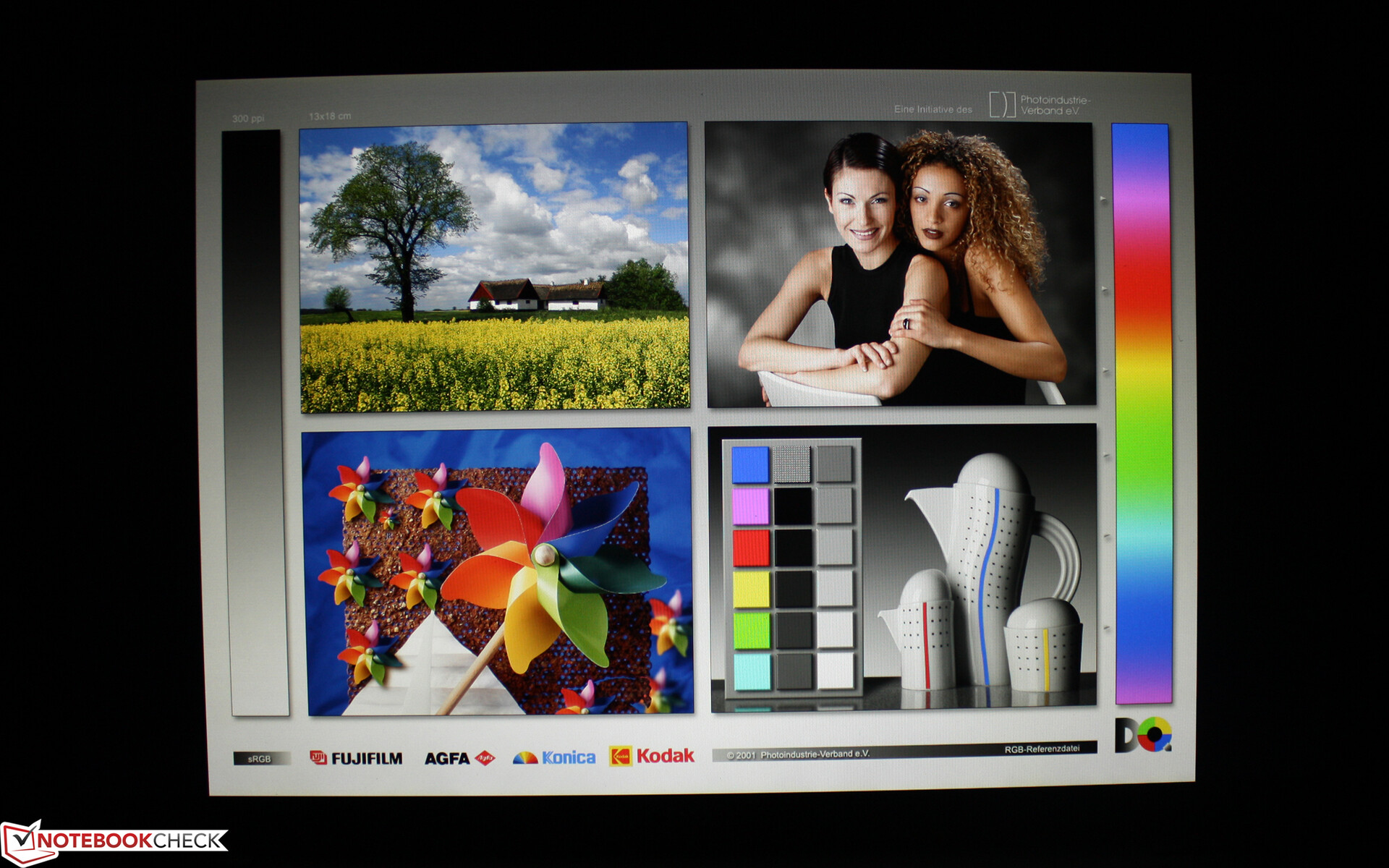

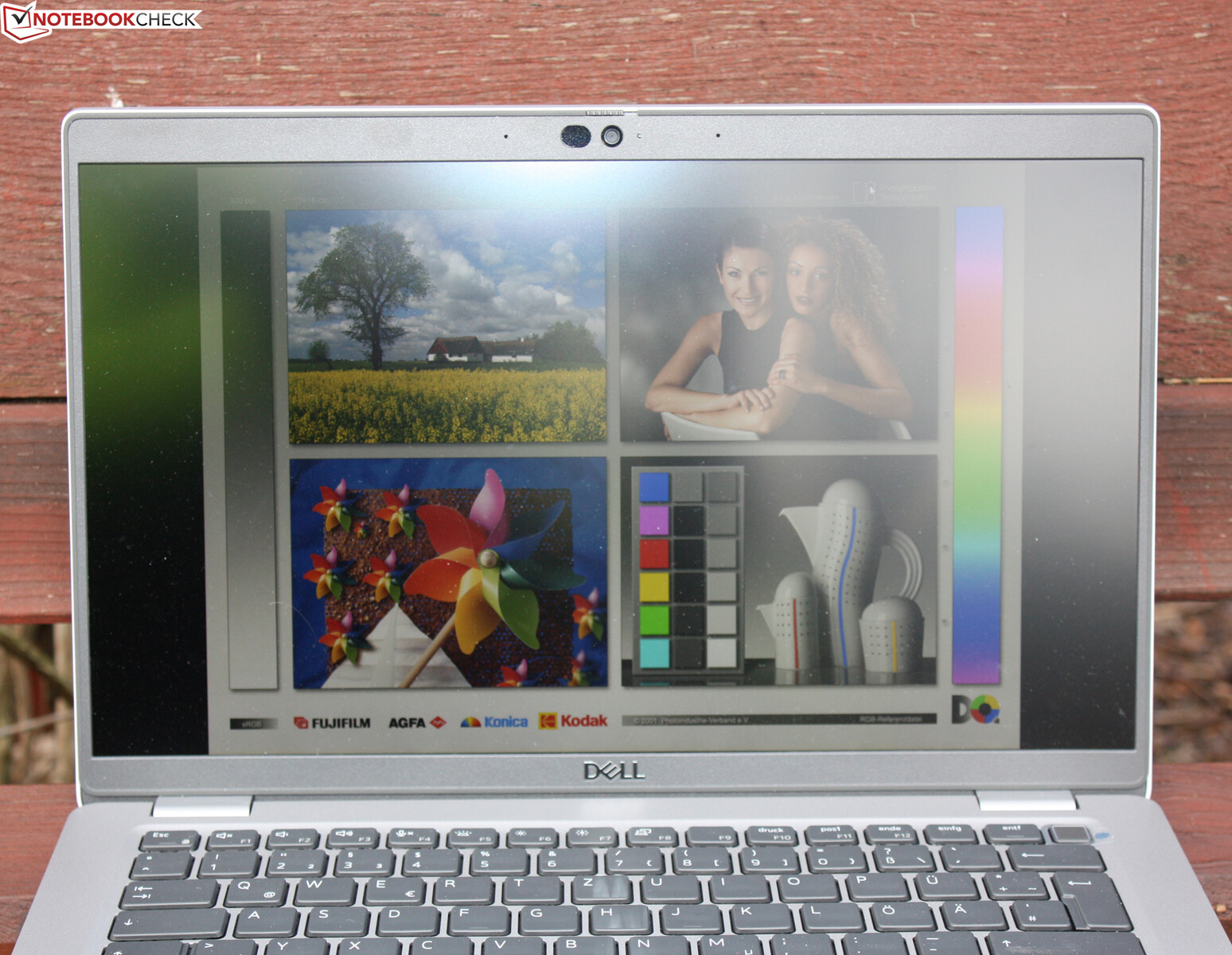

在户外使用时，Latitude 5420得益于其哑光面板。不幸的是，最大亮度对于非常明亮的环境来说是不够的。

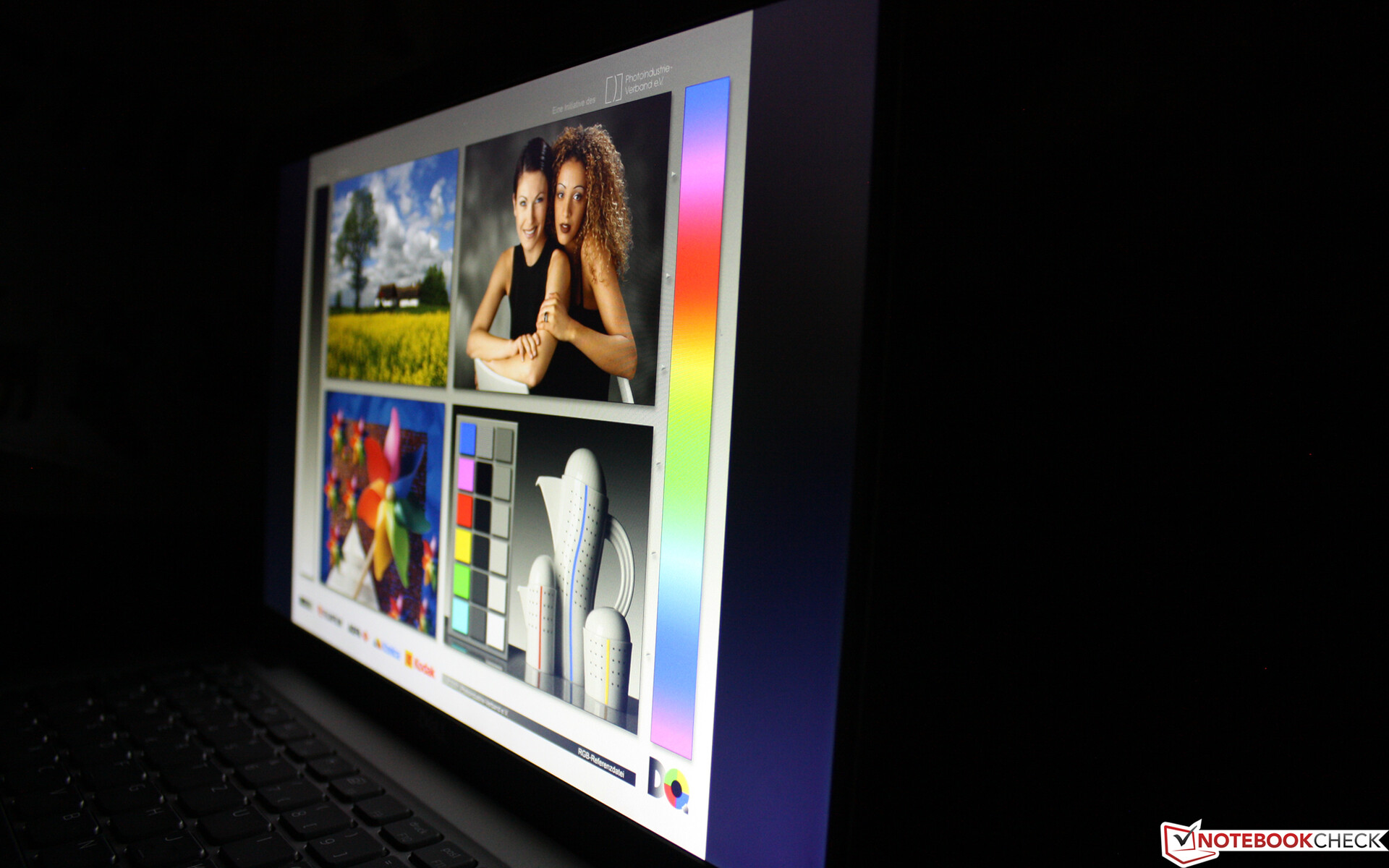

优秀的可视角度是IPS显示屏的最大优势之一。

性能。带2分钟酷睿i5加速的笔记本电脑

我们的变体戴尔Latitude 5420，配有酷睿i5-1135G7，8GB内存和256GB固态硬盘（D2G5W）是该机型的基本配置，其售价略低于1000美元。有各种升级选项，价格在1400美元左右，包括i7-1185G7，16GB内存和512GB SSD。在我们的测试中，256GB的小型固态硬盘已经变成了一个特别的烦恼，因为在升级到Windows 11之后，只有105GB的存储空间可用--对于我们的游戏和应用基准来说远远不够。

测试条件

在测试之前，我们通过制造商的软件和Windows Update更新了所有驱动程序和BIOS。对于性能测试，我们启用了Windows性能模式以及戴尔的 "超性能 "电源配置文件。我们使用节能模式和 "优化"（戴尔温度）配置文件进行Wi-Fi和空闲运行时间测试。此外，我们启用了Windows 11电池保护模式。这项Windows功能限制了通知和后台活动，例如阻止OneDrive和电子邮件同步。

处理器

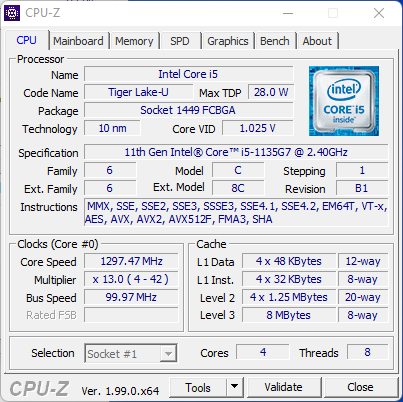

这款酷睿i5-1135G7是一个基于Tiger Lake 架构的多用途四核SoC，基本时钟为2.4GHz，加速时钟为4.2GHz，制造商可调整的TDP为12-28瓦，取决于可用的冷却能力。人们可能认为，厚实的机箱为良好的冷却解决方案提供了足够的空间，这反过来应该允许一个积极的TDP。然而，情况并非如此。尽管指定了57瓦的PL2（短期爆发），我们只看到了40瓦的PL1（长期）。40瓦将是一个相当保守的选择。

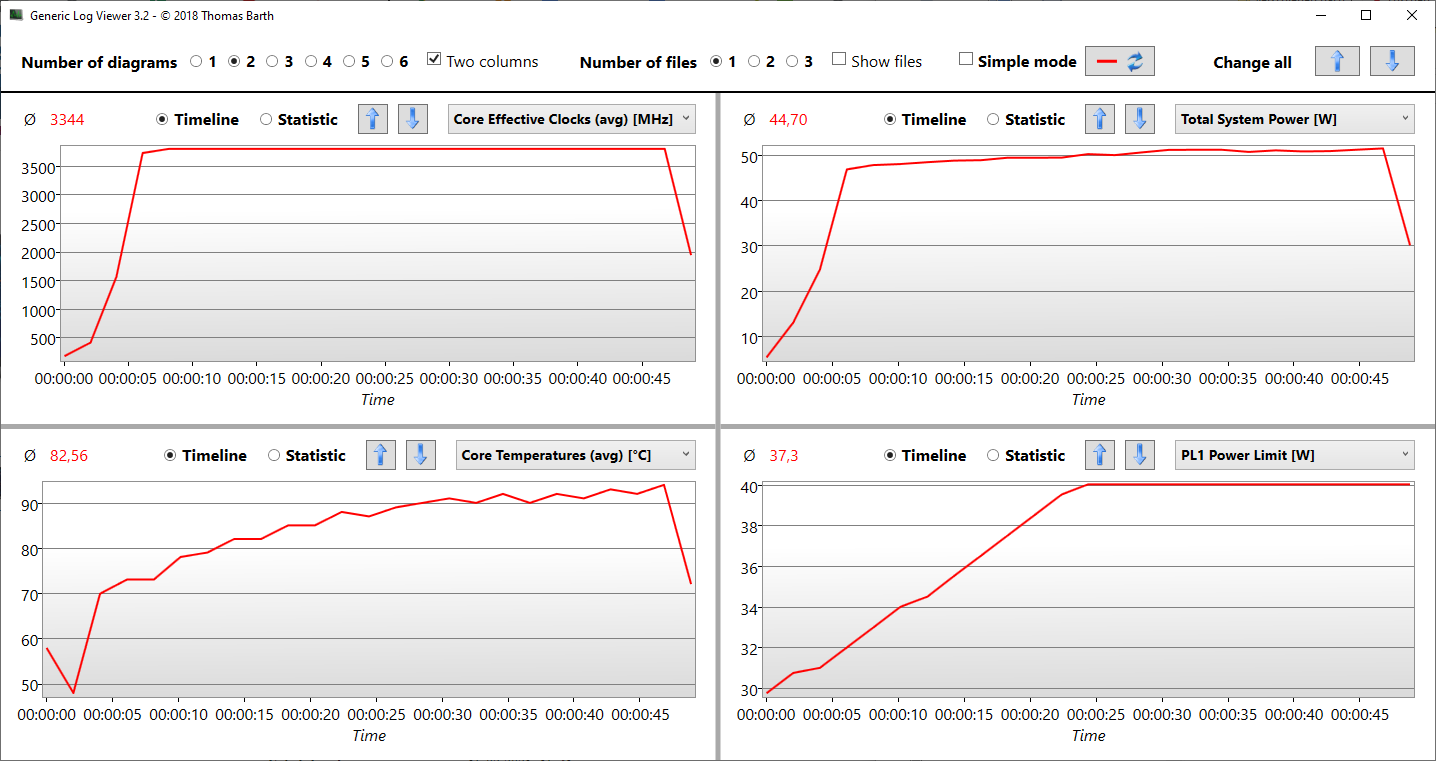

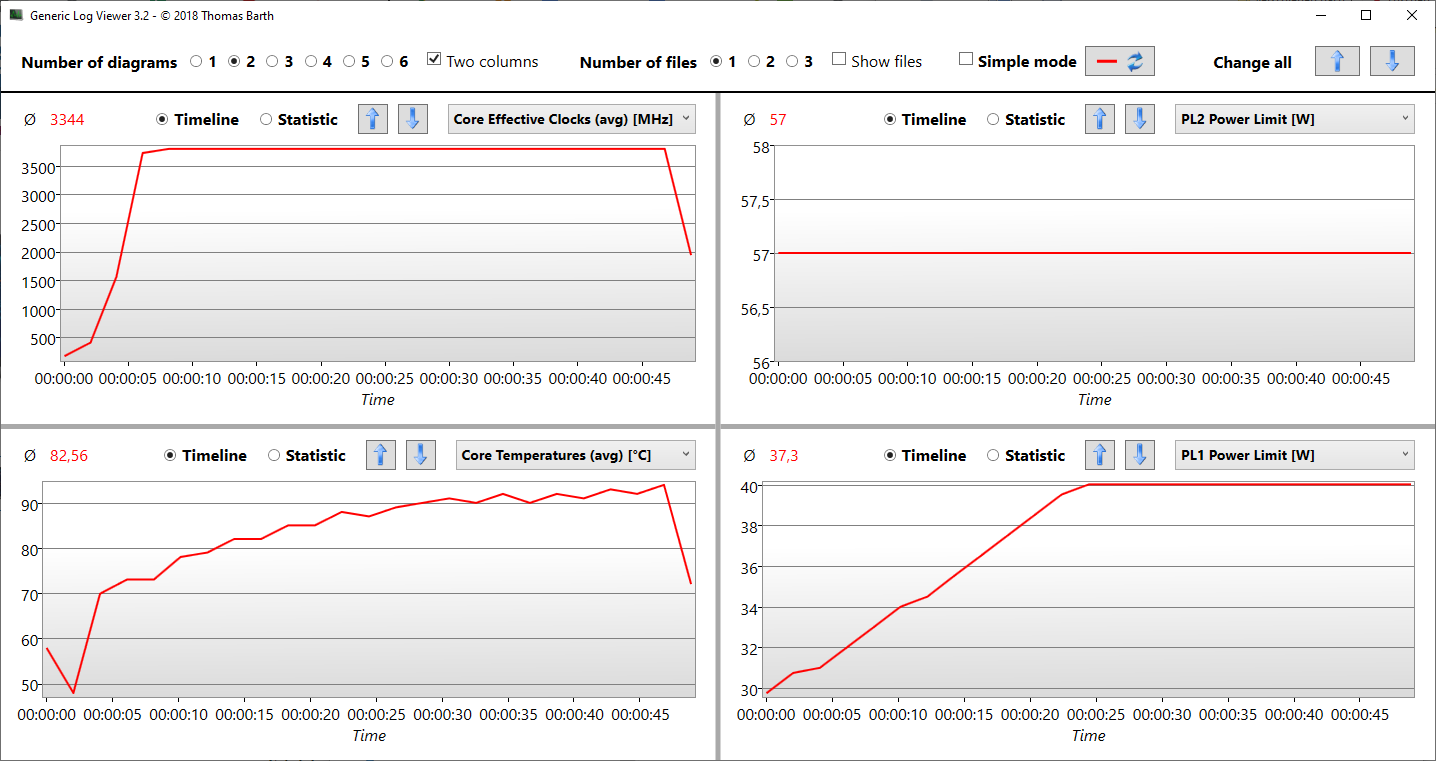

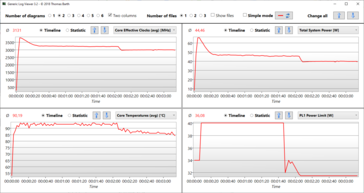

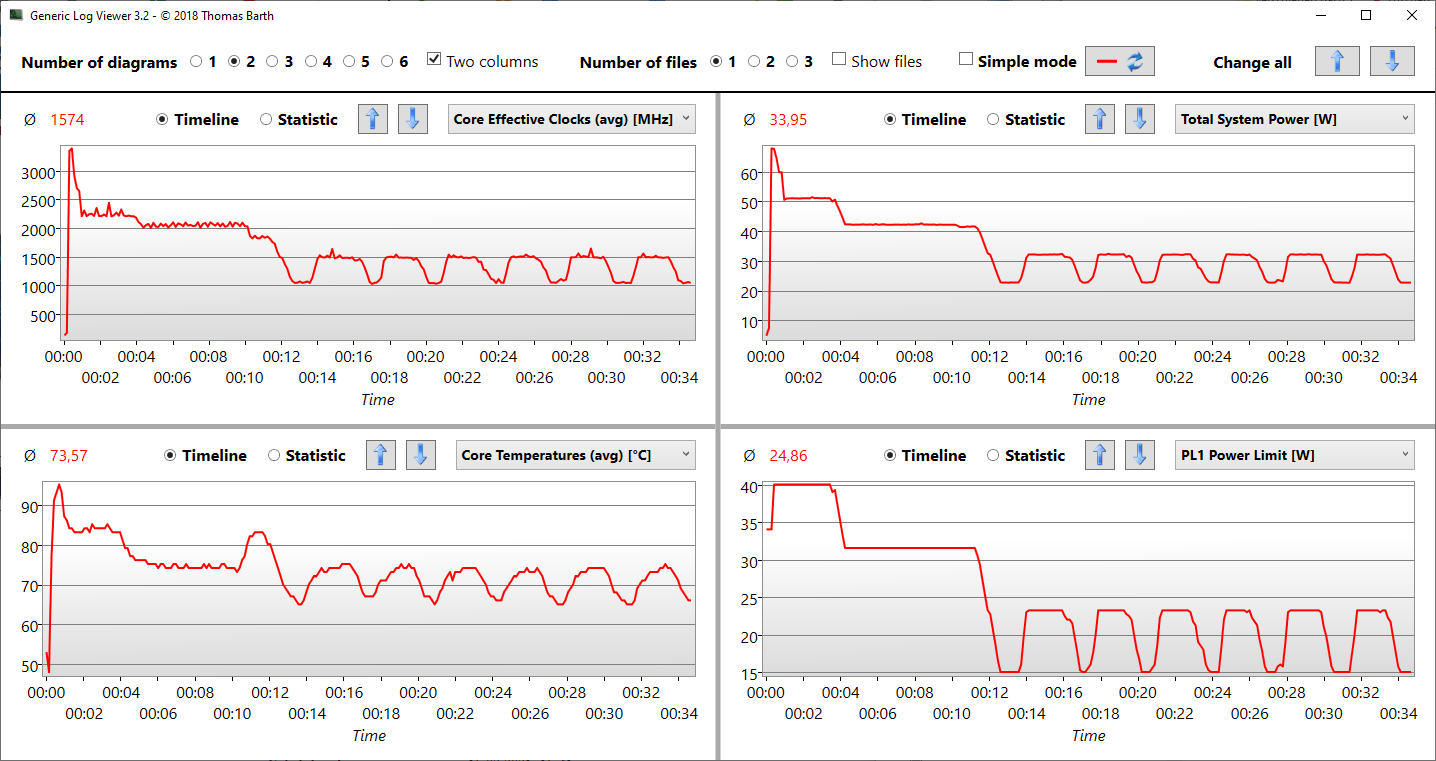

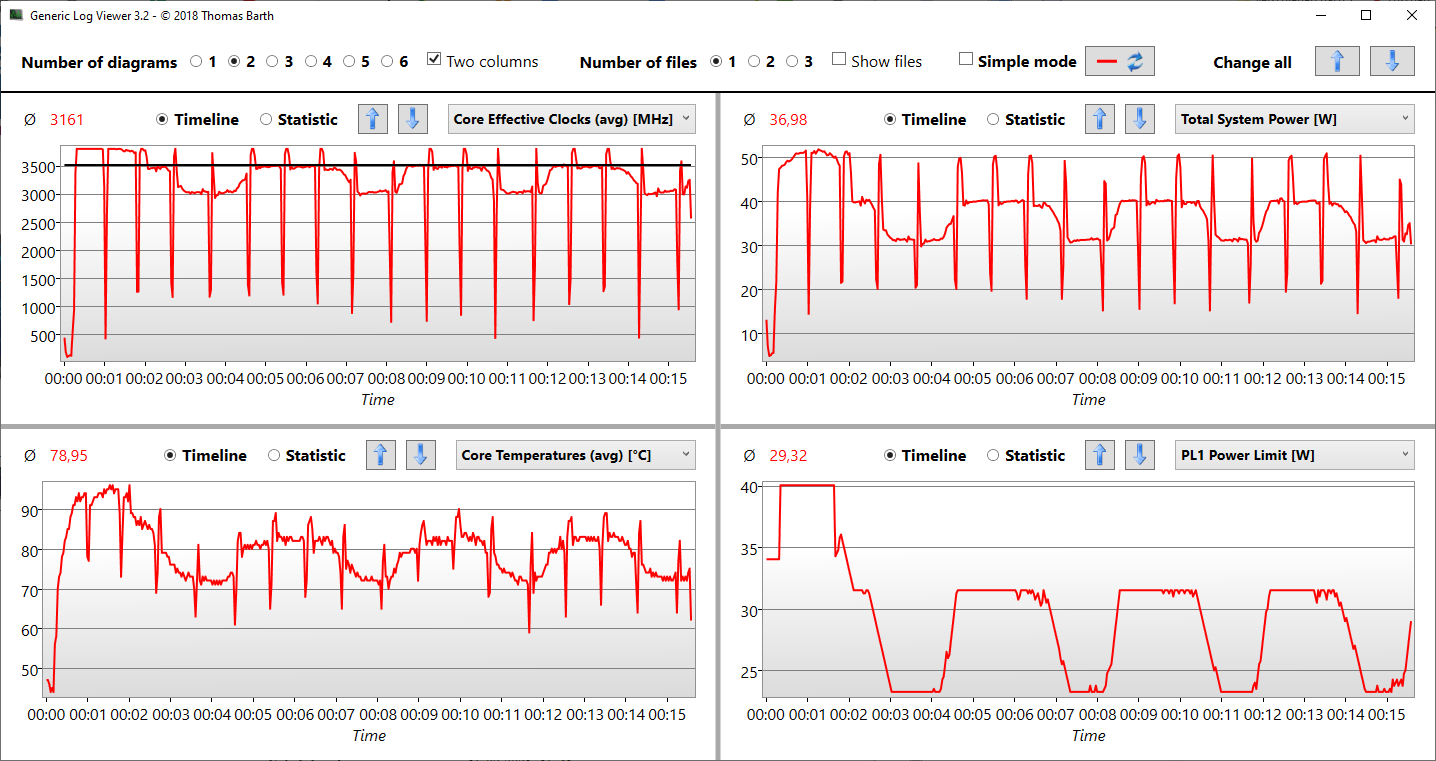

让我们来看看Cinebench R15的循环。前两个循环得益于40瓦的PL1，而系统总功率为50瓦。正如截图所示，短时爆发的57瓦的TDP从未实现。在第三个循环中，CPU处理其95℃（203°F）的SoC温度，通过将PL1降至35瓦和紧接着的31瓦。时钟频率也下降到3.5GHz（之前是3.8GHz；多核）。在这一点上，芯片温度已经下降到85℃（185°F）。由于这显然还是太高了，PL1被降低到23瓦，温度下降到72℃（161.6°F）。30秒后，SoC再次允许高达3.5 GHz的时钟速度，由于温度上升，2-3分钟后再次下降。

Cinebench R15 Multi Loop

Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7: Ø836 (755.62-919.65)

Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U: Ø1391 (1385.52-1397.87)

HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7: Ø670 (654.88-714.13)

Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7: Ø734 (723.71-860.22)

Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7: Ø680 (614.84-797.19)

Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7: Ø807 (480.95-841.33)

Dynabook Tecra A40-J-12E Intel Core i5-1135G7: Ø847 (840.09-894.41)

简而言之：所有迹象表明，一个精心设计的温度管理系统--尽管缺乏短时爆发--通过冷却关闭和提升阶段的交替，优化了长期峰值性能。

考虑到这一点，根据R15回路的连续性能是绰绰有余的，因为其他的 i5-1135G7其他i5-1135G7型号很难匹配或保持这一水平的性能。在连续压力下，Latitude 5420的性能只产生了9%的赤字。在前七个循环中，持续时间略长于两分钟，其持续的高性能令人印象深刻。看一眼CPU基准测试，就会发现这款Core i5的速度明显快于其同行的平均水平。事实上，它与记录分数只差几个百分点。该 Dynabook Tecra A40和华硕ExpertBook B1能够从SoC中挤出更多性能，很可能是通过使用PL2。

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Average of class Subnotebook	84.4 pt
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	70.9 pt
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	57.8 pt
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	54.8 pt
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	53.8 pt
HP ProBook 440 G8-2W1G4EA ^-2! Intel Core i7-1165G7	52.4 pt
Average Intel Core i5-1135G7	51.7 pt
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	51 pt
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	50.5 pt

Cinebench R23 / Multi Core
Average of class Subnotebook (2485 - 16201, n=69, last 2 years)	10305 Points +88%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	8201 Points +50%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	5534 Points +1%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	5479 (5186.22^min - 5478.8^max) Points
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	5265 (4984.42^min - 5264.54^max) Points -4%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	4998 Points -9%
Average Intel Core i5-1135G7 (2786 - 6136, n=55)	4724 Points -14%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	3619 Points -34%

Cinebench R23 / Single Core
Average of class Subnotebook (598 - 1934, n=69, last 2 years)	1627 Points +21%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	1413 Points +5%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	1405 Points +4%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	1373 Points +2%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	1348 Points
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	1342 Points 0%
Average Intel Core i5-1135G7 (1062 - 1373, n=53)	1322 Points -2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	1065 Points -21%

Cinebench R20 / CPU (Multi Core)
Average of class Subnotebook (810 - 6314, n=65, last 2 years)	3970 Points +77%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	3184 Points +42%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	2237 Points
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	2131 Points -5%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	2035 Points -9%
Average Intel Core i5-1135G7 (979 - 2382, n=62)	1827 Points -18%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	1825 Points -18%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	1726 Points -23%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	1548 Points -31%

Cinebench R20 / CPU (Single Core)
Average of class Subnotebook (216 - 738, n=65, last 2 years)	610 Points +18%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	569 Points +10%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	548 Points +6%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	546 Points +6%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	524 Points +2%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	516 Points
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	515 Points 0%
Average Intel Core i5-1135G7 (375 - 527, n=62)	507 Points -2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	476 Points -8%

Cinebench R15 / CPU Multi 64Bit
Average of class Subnotebook (514 - 2581, n=71, last 2 years)	1762 Points +107%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	1398 (1385.52^min - 1397.87^max) Points +64%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	894 (840.09^min - 894.41^max) Points +5%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	860 (723.71^min - 860.22^max) Points +1%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	851 (743.99^min - 851.23^max) Points
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	841 (480.95^min - 841.33^max) Points -1%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	822 Points -3%
Average Intel Core i5-1135G7 (431 - 941, n=65)	792 Points -7%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	714 (654.88^min - 714.13^max) Points -16%

Cinebench R15 / CPU Single 64Bit
Average of class Subnotebook (91.8 - 280, n=63, last 2 years)	237 Points +20%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	227 Points +15%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	224 Points +13%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	214 Points +8%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	201 Points +2%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	198 Points 0%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	198 Points
Average Intel Core i5-1135G7 (141.4 - 205, n=61)	194.4 Points -2%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	159 Points -20%

Blender / v2.79 BMW27 CPU
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	696 Seconds * -29%
Average Intel Core i5-1135G7 (499 - 1044, n=60)	662 Seconds * -23%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	656 Seconds * -21%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	639 Seconds * -18%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	567 Seconds * -5%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	550 Seconds * -2%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	540 Seconds *
Average of class Subnotebook (201 - 1600, n=67, last 2 years)	385 Seconds * +29%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	364 Seconds * +33%

7-Zip 18.03 / 7z b 4
Average of class Subnotebook (16223 - 67444, n=58, last 2 years)	44533 MIPS +93%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	38553 MIPS +67%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	24357 MIPS +5%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	23563 MIPS +2%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	23117 MIPS
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	21602 MIPS -7%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	21582 MIPS -7%
Average Intel Core i5-1135G7 (14745 - 24873, n=62)	21407 MIPS -7%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	20118 MIPS -13%

7-Zip 18.03 / 7z b 4 -mmt1
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	5377 MIPS +12%
Average of class Subnotebook (2197 - 6403, n=59, last 2 years)	5325 MIPS +11%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	5322 MIPS +11%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	5050 MIPS +5%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	4805 MIPS
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	4763 MIPS -1%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	4720 MIPS -2%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	4674 MIPS -3%
Average Intel Core i5-1135G7 (3924 - 4921, n=62)	4674 MIPS -3%

Geekbench 5.5 / Multi-Core
Average of class Subnotebook (4274 - 12580, n=66, last 2 years)	9112 Points +129%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	5352 Points +35%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	5137 Points +29%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	4760 Points +20%
Average Intel Core i5-1135G7 (3475 - 5472, n=58)	4663 Points +17%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	4416 Points +11%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	4321 Points +9%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	3973 Points
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	3958 Points 0%

Geekbench 5.5 / Single-Core
Average of class Subnotebook (672 - 2350, n=66, last 2 years)	1701 Points +43%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	1548 Points +30%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	1514 Points +27%
Average Intel Core i5-1135G7 (1147 - 1428, n=58)	1373 Points +16%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	1358 Points +14%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	1355 Points +14%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	1354 Points +14%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	1345 Points +13%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	1188 Points

HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Subnotebook (1.5 - 19.4, n=57, last 2 years)	11.9 fps +83%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	9.89 fps +52%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	6.83 fps +5%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	6.78 fps +4%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	6.51 fps
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	6.03 fps -7%
Average Intel Core i5-1135G7 (3.57 - 7.6, n=57)	5.93 fps -9%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	5.7 fps -12%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	5.49 fps -16%

LibreOffice / 20 Documents To PDF
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	63.1 s * -13%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	56.7 s * -2%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	56.4 s * -1%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	55.6 s *
Average Intel Core i5-1135G7 (44.2 - 62.9, n=60)	52.8 s * +5%
Average of class Subnotebook (40.1 - 120.5, n=58, last 2 years)	52.5 s * +6%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	52.2 s * +6%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	51.9 s * +7%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	44.2 s * +21%

R Benchmark 2.5 / Overall mean
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7	0.664 sec *
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7	0.647 sec * +3%
Average Intel Core i5-1135G7 (0.619 - 0.727, n=59)	0.642 sec * +3%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7	0.64 sec * +4%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7	0.636 sec * +4%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7	0.577 sec * +13%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7	0.572 sec * +14%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U	0.557 sec * +16%
Average of class Subnotebook (0.4397 - 1.236, n=58, last 2 years)	0.52 sec * +22%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

851 Points

Cinebench R15 OpenGL 64Bit

68.1 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

198 Points

Help

... in comparison

Performance Rating
Average of class Subnotebook	90.7 pt
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	88.4 pt
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	64.3 pt
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	61.6 pt
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	59.4 pt
Average Intel Core i5-1135G7	57.7 pt
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	55.3 pt
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	54 pt
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	51.4 pt

AIDA64 / FP32 Ray-Trace
Average of class Subnotebook (343 - 25961, n=58, last 2 years)	10028 KRay/s +31%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	9410 KRay/s +23%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	7627 KRay/s
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	7252 KRay/s -5%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	6928 KRay/s -9%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	6904 KRay/s -9%
Average Intel Core i5-1135G7 (4313 - 7952, n=45)	6445 KRay/s -15%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	6195 KRay/s -19%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	5585 KRay/s -27%

AIDA64 / FPU Julia
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	60918 Points +97%
Average of class Subnotebook (11867 - 111109, n=58, last 2 years)	52335 Points +69%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	30959 Points
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	29972 Points -3%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	29711 Points -4%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	29006 Points -6%
Average Intel Core i5-1135G7 (19402 - 32283, n=45)	26975 Points -13%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	25654 Points -17%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	23837 Points -23%

AIDA64 / CPU SHA3
Average of class Subnotebook (453 - 4646, n=58, last 2 years)	2353 MB/s +11%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	2124 MB/s
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	2087 MB/s -2%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	1993 MB/s -6%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	1983 MB/s -7%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	1973 MB/s -7%
Average Intel Core i5-1135G7 (1316 - 2172, n=45)	1832 MB/s -14%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	1737 MB/s -18%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	1569 MB/s -26%

AIDA64 / CPU Queen
Average of class Subnotebook (15447 - 115300, n=58, last 2 years)	79886 Points +71%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	76279 Points +63%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	50426 Points +8%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	50412 Points +8%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	46741 Points
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	46654 Points 0%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	46554 Points 0%
Average Intel Core i5-1135G7 (39000 - 46951, n=45)	45742 Points -2%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	43403 Points -7%

AIDA64 / FPU SinJulia
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	9713 Points +119%
Average of class Subnotebook (1223 - 14944, n=58, last 2 years)	7607 Points +71%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	4792 Points +8%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points 0%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	4440 Points
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	4356 Points -2%
Average Intel Core i5-1135G7 (3497 - 4445, n=45)	4218 Points -5%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	4129 Points -7%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	3978 Points -10%

AIDA64 / FPU Mandel
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	33509 Points +80%
Average of class Subnotebook (6379 - 59053, n=58, last 2 years)	27423 Points +48%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	18590 Points
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	17742 Points -5%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	17734 Points -5%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	17201 Points -7%
Average Intel Core i5-1135G7 (12569 - 19635, n=45)	16302 Points -12%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	15587 Points -16%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	14202 Points -24%

AIDA64 / CPU AES
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	87129 MB/s +28%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	67916 MB/s 0%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	67875 MB/s
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	66115 MB/s -3%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	62037 MB/s -9%
Average Intel Core i5-1135G7 (28988 - 67977, n=45)	58975 MB/s -13%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	55904 MB/s -18%
Average of class Subnotebook (638 - 161430, n=58, last 2 years)	53088 MB/s -22%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	41338 MB/s -39%

AIDA64 / CPU ZLib
Average of class Subnotebook (270 - 1123, n=58, last 2 years)	664 MB/s +80%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	552 MB/s +50%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	371 MB/s +1%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	368 MB/s
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	364 MB/s -1%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	329 MB/s -11%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	300 MB/s -18%
Average Intel Core i5-1135G7 (265 - 373, n=51)	289 MB/s -21%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	283 MB/s -23%

AIDA64 / FP64 Ray-Trace
Average of class Subnotebook (204 - 14018, n=58, last 2 years)	5226 KRay/s +29%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	5034 KRay/s +24%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	4065 KRay/s
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	3741 KRay/s -8%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	3700 KRay/s -9%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	3698 KRay/s -9%
Average Intel Core i5-1135G7 (2226 - 4291, n=45)	3424 KRay/s -16%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	3352 KRay/s -18%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	3034 KRay/s -25%

AIDA64 / CPU PhotoWorxx
Average of class Subnotebook (7622 - 53954, n=58, last 2 years)	35898 MPixel/s +258%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	25825 MPixel/s +158%
Average Intel Core i5-1135G7 (9004 - 45366, n=45)	23085 MPixel/s +130%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	14768 MPixel/s +47%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	12497 MPixel/s +25%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	12195 MPixel/s +22%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	10026 MPixel/s
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	10005 MPixel/s 0%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	9552 MPixel/s -5%

系统性能

CPU的良好连续性能导致了Latitude 的PCMark 10得分很高。在这里，该设备是该领域大的中间部分的一部分，因为笔记本电脑的分数几乎没有差别，只有一个例外。这个例外是搭载Ryzen的联想ThinkPad L14 G2，它在所有子类别中都处于领先地位。

PCMark 10 / Score
Average of class Subnotebook (4384 - 7428, n=56, last 2 years)	5887 Points +28%
Lenovo ThinkPad L14 G2 AMD Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB	5690 Points +24%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G	4738 Points +3%
Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0	4686 Points +2%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (4026 - 4952, n=53)	4613 Points 0%
HP ProBook 440 G8-2W1G4EA Iris Xe G7 96EUs, i7-1165G7, Lite-On CL1-8D512	4597 Points 0%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	4592 Points
Dynabook Tecra A40-J-12E Iris Xe G7 80EUs, i5-1135G7, Phison C-E80T512G4-P3D3B3E13	4580 Points 0%
Acer Enduro Urban N3 EUN314 Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB	4580 Points 0%

PCMark 10 / Essentials
Average of class Subnotebook (8890 - 11168, n=56, last 2 years)	10254 Points +16%
Lenovo ThinkPad L14 G2 AMD Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB	10221 Points +16%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G	9386 Points +6%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (8149 - 9917, n=53)	9310 Points +5%
Acer Enduro Urban N3 EUN314 Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB	9063 Points +2%
HP ProBook 440 G8-2W1G4EA Iris Xe G7 96EUs, i7-1165G7, Lite-On CL1-8D512	8997 Points +2%
Dynabook Tecra A40-J-12E Iris Xe G7 80EUs, i5-1135G7, Phison C-E80T512G4-P3D3B3E13	8980 Points +2%
Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0	8954 Points +1%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	8843 Points

PCMark 10 / Productivity
Lenovo ThinkPad L14 G2 AMD Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB	9512 Points +53%
Average of class Subnotebook (6213 - 10279, n=56, last 2 years)	7860 Points +27%
HP ProBook 440 G8-2W1G4EA Iris Xe G7 96EUs, i7-1165G7, Lite-On CL1-8D512	6480 Points +4%
Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0	6396 Points +3%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G	6332 Points +2%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (5040 - 6619, n=53)	6218 Points 0%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	6212 Points
Dynabook Tecra A40-J-12E Iris Xe G7 80EUs, i5-1135G7, Phison C-E80T512G4-P3D3B3E13	5892 Points -5%
Acer Enduro Urban N3 EUN314 Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB	5842 Points -6%

PCMark 10 / Digital Content Creation
Average of class Subnotebook (4093 - 9749, n=56, last 2 years)	6943 Points +45%
Lenovo ThinkPad L14 G2 AMD Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB	5141 Points +7%
Dynabook Tecra A40-J-12E Iris Xe G7 80EUs, i5-1135G7, Phison C-E80T512G4-P3D3B3E13	4928 Points +3%
Acer Enduro Urban N3 EUN314 Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB	4926 Points +3%
Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0	4877 Points +2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G	4858 Points +2%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	4785 Points
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (3548 - 5255, n=53)	4612 Points -4%
HP ProBook 440 G8-2W1G4EA Iris Xe G7 96EUs, i7-1165G7, Lite-On CL1-8D512	4522 Points -5%

CrossMark / Overall
Average of class Subnotebook (718 - 1876, n=62, last 2 years)	1554 Points +45%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1058 - 1293, n=11)	1170 Points +9%
Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0	1086 Points +2%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	1069 Points

CrossMark / Productivity
Average of class Subnotebook (685 - 1829, n=62, last 2 years)	1508 Points +29%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1148 - 1332, n=11)	1243 Points +6%
Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0	1191 Points +2%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	1173 Points

CrossMark / Creativity
Average of class Subnotebook (776 - 2210, n=62, last 2 years)	1692 Points +69%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (895 - 1263, n=11)	1111 Points +11%
Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0	1027 Points +3%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	1000 Points

CrossMark / Responsiveness
Average of class Subnotebook (652 - 1899, n=62, last 2 years)	1331 Points +35%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (923 - 1320, n=11)	1149 Points +16%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	987 Points
Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0	973 Points -1%

PCMark 10 Score		4592 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Subnotebook (22781 - 95353, n=58, last 2 years)	61703 MB/s +214%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	40118 MB/s +104%
Average Intel Core i5-1135G7 (17443 - 63889, n=45)	36640 MB/s +87%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	23184 MB/s +18%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	20616 MB/s +5%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	20521 MB/s +5%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	20295 MB/s +3%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	19658 MB/s 0%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	19632 MB/s

AIDA64 / Memory Read
Average of class Subnotebook (23831 - 87297, n=58, last 2 years)	57763 MB/s +146%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	47843 MB/s +104%
Average Intel Core i5-1135G7 (19716 - 63705, n=45)	40897 MB/s +74%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	24309 MB/s +4%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	23645 MB/s +1%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	23471 MB/s
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	23469 MB/s 0%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	23261 MB/s -1%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	22912 MB/s -2%

AIDA64 / Memory Write
Average of class Subnotebook (23474 - 93382, n=58, last 2 years)	64734 MB/s +188%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	46876 MB/s +108%
Average Intel Core i5-1135G7 (18722 - 66778, n=45)	41742 MB/s +86%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	23491 MB/s +4%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	23142 MB/s +3%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	22486 MB/s
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	22430 MB/s 0%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	22149 MB/s -1%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	21502 MB/s -4%

AIDA64 / Memory Latency
Average of class Subnotebook (18.8 - 172, n=53, last 2 years)	104.7 ns * -46%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, Vega 8	104 ns * -45%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Iris Xe G7 96EUs	84.5 ns * -18%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Iris Xe G7 80EUs	84.5 ns * -18%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Iris Xe G7 80EUs	83.5 ns * -17%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Iris Xe G7 80EUs	73.4 ns * -3%
Average Intel Core i5-1135G7 (68.3 - 107, n=51)	72.5 ns * -1%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Iris Xe G7 80EUs	71.5 ns *
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Iris Xe G7 96EUs	49.3 ns * +31%

* ... smaller is better

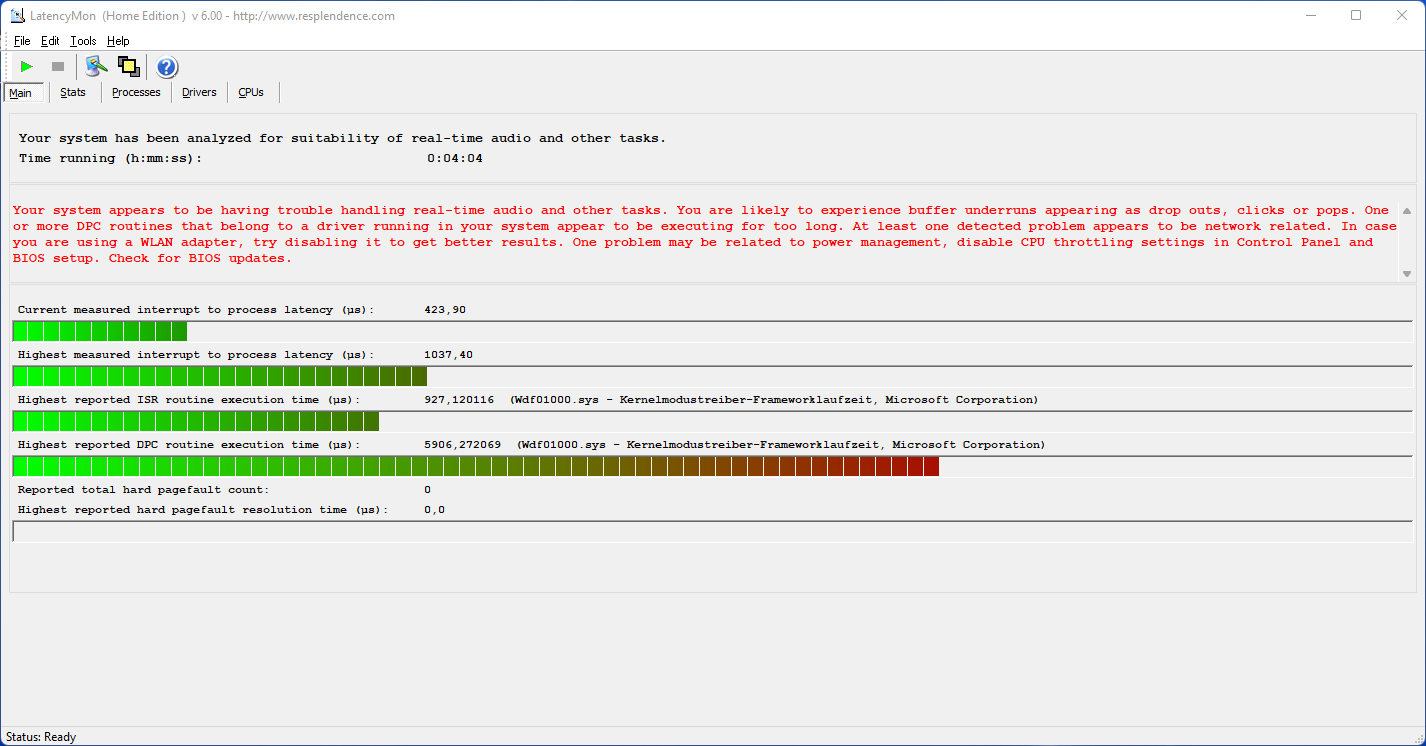

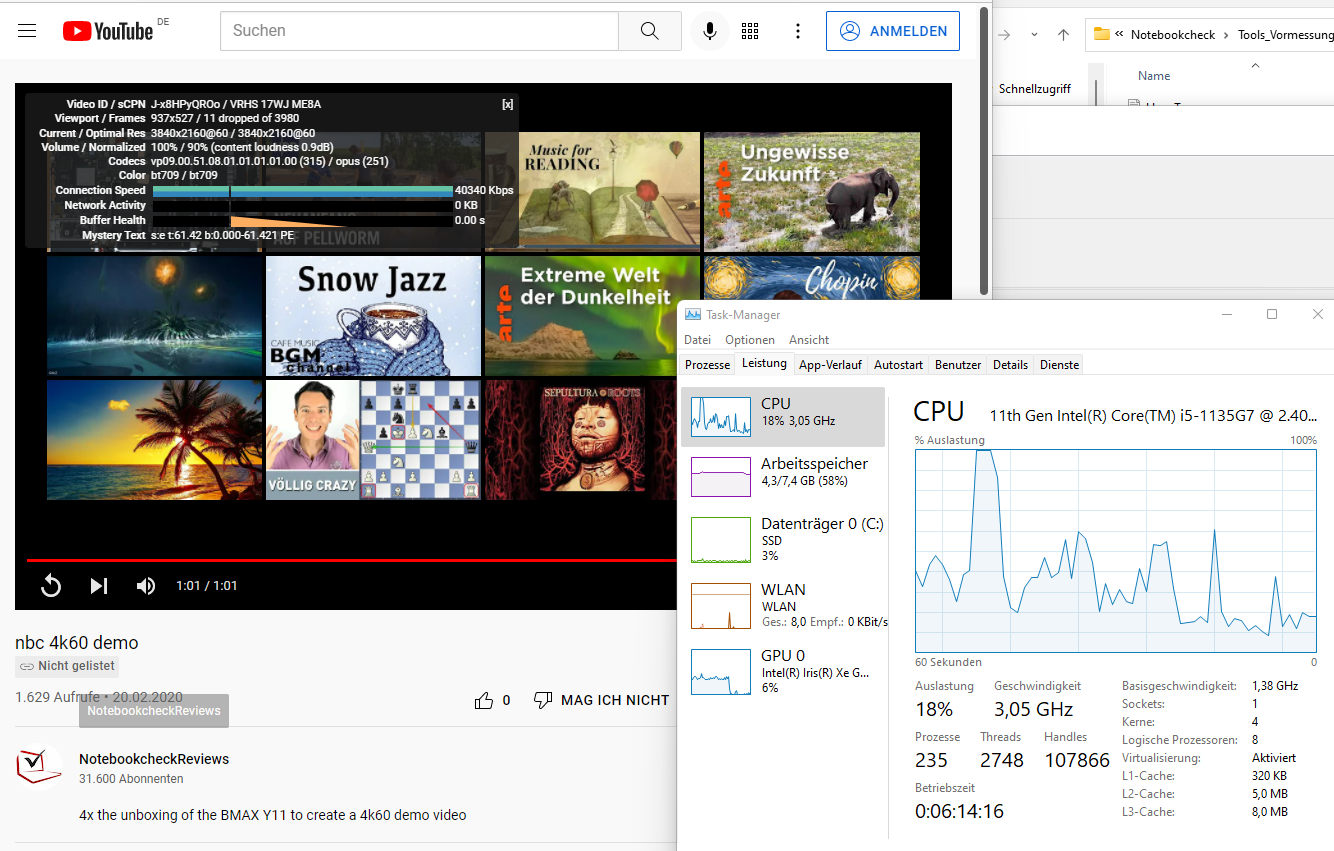

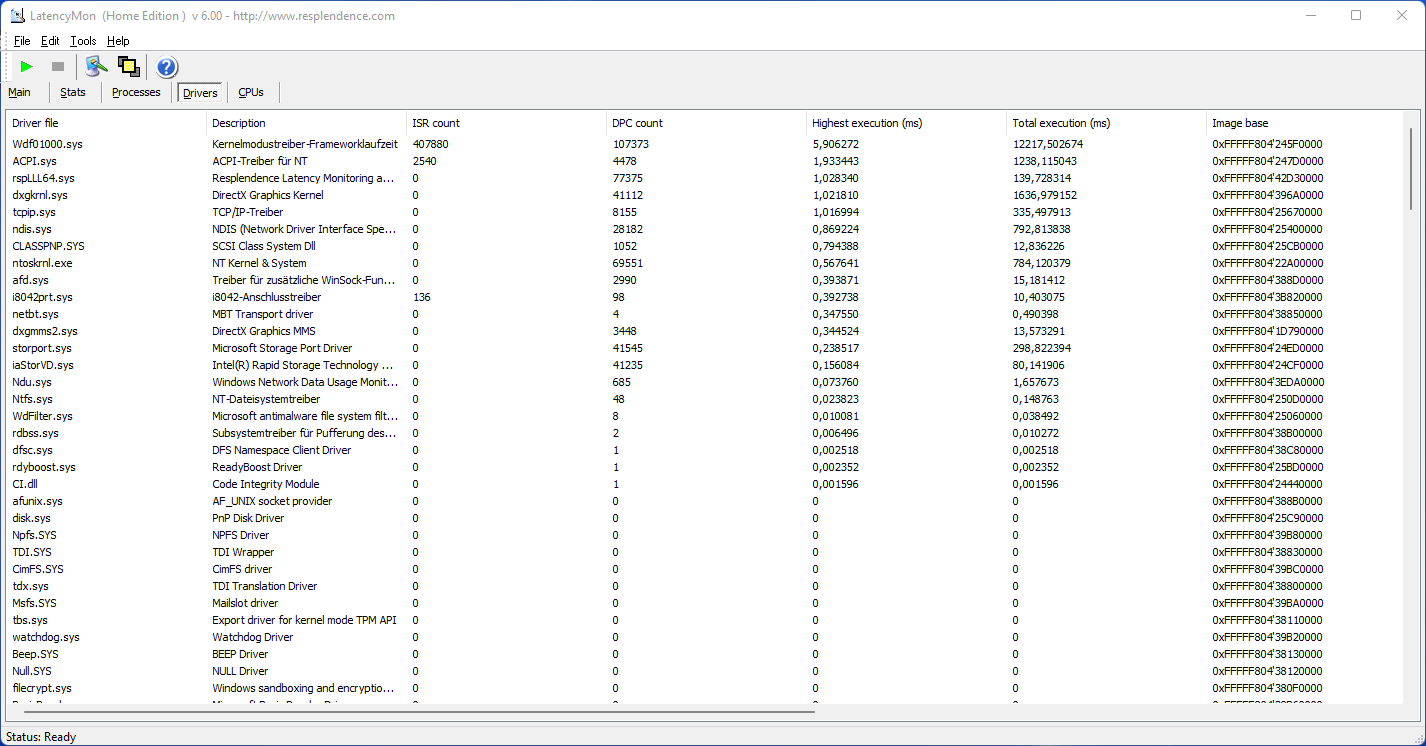

DPC延迟

至少在我们目前的驱动程序设置中（通过戴尔更新和Windows更新），Latitude 似乎是实时应用程序的次优选择。内核模式驱动程序产生了最显著的延迟，ACPI驱动程序是第二糟糕的罪犯。在我们的YouTube测试中，在播放1分钟的4K视频时，有11个帧丢失。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP ProBook 440 G8-2W1G4EA Iris Xe G7 96EUs, i7-1165G7, Lite-On CL1-8D512	7865 μs * -33%
Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	5906 μs *
Dynabook Tecra A40-J-12E Iris Xe G7 80EUs, i5-1135G7, Phison C-E80T512G4-P3D3B3E13	5336 μs * +10%
Acer Enduro Urban N3 EUN314 Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB	3966 μs * +33%
Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0	2374 μs * +60%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G	1603 μs * +73%
Lenovo ThinkPad L14 G2 AMD Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB	974 μs * +84%

* ... smaller is better

存储解决方案

西部数据的小型M.2-2230固态硬盘占据了一个长长的2280插座，它被一个框架固定在那里。它的速度很平庸，明显比次笔记本的平均速度慢。AS SSD的写入测试似乎特别慢。读取速度很快，尽管一段时间后速度下降，但它们稳定在一个中等水平上，仍然相当稳固。

AS SSD

DiskSpd

WDC PC SN530 SDBPTPZ-256G

Sequential Read: 1934MB/s

Sequential Write: 646MB/s

4K Read: 44.07MB/s

4K Write: 138.9MB/s

4K-64 Read: 447MB/s

4K-64 Write: 216MB/s

Access Time Read: 0.138ms

Access Time Write: 0.049ms

Score Read: 685Points

Score Write: 420Points

Score Total: 1406Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Subnotebook	91.8 pt
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	72.3 pt
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	69 pt
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	66.9 pt
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	50.2 pt
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	44 pt
Average WDC PC SN530 SDBPTPZ-256G	44 pt
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	41.3 pt
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	30.6 pt

DiskSpd
seq read
Average of class Subnotebook (452 - 4501, n=59, last 2 years)	2869 MB/s +74%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	2185 (2128.55^min - 2185.48^max) MB/s +33%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	1682 (1660.98^min - 1681.91^max) MB/s +2%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	1652 (1628.23^min - 1651.72^max) MB/s 0%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	1646 (1633.05^min - 1645.84^max) MB/s
Average WDC PC SN530 SDBPTPZ-256G ()	1646 MB/s 0%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	1550 (1540.63^min - 1549.63^max) MB/s -6%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	1490 (1457.31^min - 1489.86^max) MB/s -9%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	734 (730.01^min - 733.58^max) MB/s -55%
seq write
Average of class Subnotebook (153.3 - 5344, n=59, last 2 years)	2801 MB/s +189%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	2080 (2027.87^min - 2079.99^max) MB/s +115%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	1676 (1639.9^min - 1676.26^max) MB/s +73%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	1528 (1279.47^min - 1528.49^max) MB/s +58%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	1358 (515.88^min - 1358.33^max) MB/s +40%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	968 (963.64^min - 968.05^max) MB/s
Average WDC PC SN530 SDBPTPZ-256G ()	968 MB/s 0%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	648 (302.02^min - 647.6^max) MB/s -33%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	179 (178.47^min - 178.83^max) MB/s -82%
seq q8 t1 read
Average of class Subnotebook (558 - 7134, n=59, last 2 years)	4935 MB/s +99%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	3437 (2600.72^min - 3436.86^max) MB/s +39%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	2485 (2010.29^min - 2484.56^max) MB/s 0%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	2479 (2239.55^min - 2478.83^max) MB/s
Average WDC PC SN530 SDBPTPZ-256G ()	2479 MB/s 0%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	2445 (2020.61^min - 2444.51^max) MB/s -1%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	2288 (2042.21^min - 2287.53^max) MB/s -8%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	1978 (1314.59^min - 1978.03^max) MB/s -20%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	746 (527.22^min - 745.96^max) MB/s -70%
seq q8 t1 write
Average of class Subnotebook (60 - 6751, n=59, last 2 years)	3752 MB/s +287%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	2715 (2578.12^min - 2714.58^max) MB/s +180%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	1838 (1817.32^min - 1837.94^max) MB/s +89%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	1768 (1352.64^min - 1768.29^max) MB/s +82%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	1621 (1596.56^min - 1620.68^max) MB/s +67%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	1112 (353.71^min - 1111.91^max) MB/s +15%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	970 (965.49^min - 969.72^max) MB/s
Average WDC PC SN530 SDBPTPZ-256G ()	970 MB/s 0%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	179 (178.47^min - 178.68^max) MB/s -82%
4k q1 t1 read
Average of class Subnotebook (12.6 - 88.6, n=59, last 2 years)	61.9 MB/s +60%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	50.9 (45.39^min - 50.94^max) MB/s +32%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	41.9 (41.38^min - 41.9^max) MB/s +8%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	41.5 (38.08^min - 41.48^max) MB/s +7%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	39.9 (39.85^min - 39.9^max) MB/s +3%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	38.7 MB/s
Average WDC PC SN530 SDBPTPZ-256G ()	38.7 MB/s 0%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	35.7 (35.51^min - 35.67^max) MB/s -8%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	22.7 (22.45^min - 22.7^max) MB/s -41%
4k q1 t1 write
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	210 (189.87^min - 210.35^max) MB/s +39%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	185 (155.61^min - 185.24^max) MB/s +23%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	178 (177.15^min - 177.59^max) MB/s +18%
Average of class Subnotebook (22.5 - 360, n=59, last 2 years)	154.9 MB/s +3%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	151 (142.35^min - 151.24^max) MB/s
Average WDC PC SN530 SDBPTPZ-256G ()	151 MB/s 0%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	117 (114.71^min - 117.29^max) MB/s -23%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	114 (22.01^min - 114.43^max) MB/s -25%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	111 (53.4^min - 111^max) MB/s -26%
4k q32 t16 read
Average of class Subnotebook (283 - 4286, n=59, last 2 years)	1226 MB/s +82%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	1223 (975.21^min - 1223.29^max) MB/s +81%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	1024 (985.5^min - 1023.77^max) MB/s +52%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	686 (682.28^min - 685.76^max) MB/s +2%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	674 (665.31^min - 673.95^max) MB/s
Average WDC PC SN530 SDBPTPZ-256G ()	674 MB/s 0%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	649 (635.44^min - 649.03^max) MB/s -4%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	626 (625.39^min - 625.74^max) MB/s -7%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	353 (352.18^min - 352.59^max) MB/s -48%
4k q32 t16 write
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	949 (790.77^min - 949.21^max) MB/s +123%
Average of class Subnotebook (157 - 4189, n=59, last 2 years)	883 MB/s +108%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	488 (462.5^min - 488.07^max) MB/s +15%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	488 (469.24^min - 487.69^max) MB/s +15%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	425 (228.61^min - 424.86^max) MB/s
Average WDC PC SN530 SDBPTPZ-256G ()	425 MB/s 0%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	306 (188.89^min - 306.45^max) MB/s -28%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	279 (256.71^min - 279.36^max) MB/s -34%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	179 (178.55^min - 178.62^max) MB/s -58%

AS SSD
Score Total
Average of class Subnotebook (707 - 8892, n=57, last 2 years)	4445 Points +216%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	4052 Points +188%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	3357 Points +139%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	3325 Points +136%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	2464 Points +75%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	1497 Points +6%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	1406 Points
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	895 Points -36%
Average WDC PC SN530 SDBPTPZ-256G (365 - 1406, n=2)	885 Points -37%
Score Read
Average of class Subnotebook (253 - 3307, n=57, last 2 years)	1472 Points +115%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	1396 Points +104%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	1264 Points +85%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	1251 Points +83%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	1023 Points +49%
Average WDC PC SN530 SDBPTPZ-256G (685 - 741, n=2)	713 Points +4%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	685 Points
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	663 Points -3%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	484 Points -29%
Score Write
Average of class Subnotebook (327 - 3972, n=57, last 2 years)	2281 Points +443%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	2217 Points +428%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	1488 Points +254%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	1238 Points +195%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	946 Points +125%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	534 Points +27%
Average WDC PC SN530 SDBPTPZ-256G (420 - 424, n=2)	422 Points 0%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	420 Points
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	230 Points -45%
Seq Read
Average of class Subnotebook (508 - 5525, n=57, last 2 years)	3816 MB/s +97%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	2693 MB/s +39%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	2104 MB/s +9%
Average WDC PC SN530 SDBPTPZ-256G (1934 - 2177, n=2)	2056 MB/s +6%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	2011 MB/s +4%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	1937 MB/s 0%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	1934 MB/s
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	1930 MB/s 0%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	1681 MB/s -13%
Seq Write
Average of class Subnotebook (386 - 4961, n=57, last 2 years)	2353 MB/s +264%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	1571 MB/s +143%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	1456 MB/s +125%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	981 MB/s +52%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	961 MB/s +49%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	947 MB/s +47%
Average WDC PC SN530 SDBPTPZ-256G (646 - 892, n=2)	769 MB/s +19%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	646 MB/s
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	210.1 MB/s -67%
4K Read
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	59.5 MB/s +35%
Average of class Subnotebook (14.8 - 96.2, n=57, last 2 years)	59.4 MB/s +35%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	48.77 MB/s +11%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	44.07 MB/s
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	41.67 MB/s -5%
Average WDC PC SN530 SDBPTPZ-256G (36.9 - 44.1, n=2)	40.5 MB/s -8%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	40.22 MB/s -9%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	36.65 MB/s -17%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	24.86 MB/s -44%
4K Write
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	221.5 MB/s +59%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	175.6 MB/s +26%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	172.9 MB/s +24%
Average of class Subnotebook (65.5 - 256, n=57, last 2 years)	172.7 MB/s +24%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	138.9 MB/s
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	138.4 MB/s 0%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	126.1 MB/s -9%
Average WDC PC SN530 SDBPTPZ-256G (104.1 - 138.9, n=2)	121.5 MB/s -13%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	73.6 MB/s -47%
4K-64 Read
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	1145 MB/s +156%
Average of class Subnotebook (187.3 - 2682, n=57, last 2 years)	1031 MB/s +131%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	1015 MB/s +127%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	940 MB/s +110%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	771 MB/s +72%
Average WDC PC SN530 SDBPTPZ-256G (447 - 486, n=2)	467 MB/s +4%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	447 MB/s
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	432.5 MB/s -3%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	291.5 MB/s -35%
4K-64 Write
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	1933 MB/s +795%
Average of class Subnotebook (223 - 3410, n=57, last 2 years)	1869 MB/s +765%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	1170 MB/s +442%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	905 MB/s +319%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	675 MB/s +213%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	313 MB/s +45%
Average WDC PC SN530 SDBPTPZ-256G (216 - 230, n=2)	223 MB/s +3%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	216 MB/s
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	135.2 MB/s -37%
Access Time Read
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	0.138 ms *
Average WDC PC SN530 SDBPTPZ-256G (0.098 - 0.138, n=2)	0.118 ms * +14%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	0.114 ms * +17%
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	0.1 ms * +28%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	0.078 ms * +43%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	0.077 ms * +44%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	0.062 ms * +55%
Average of class Subnotebook (0.021 - 0.257, n=57, last 2 years)	0.06174 ms * +55%
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	0.052 ms * +62%
Access Time Write
Dynabook Tecra A40-J-12E Phison C-E80T512G4-P3D3B3E13	0.175 ms * -257%
HP ProBook 440 G8-2W1G4EA Lite-On CL1-8D512	0.152 ms * -210%
Average of class Subnotebook (0.016 - 0.523, n=57, last 2 years)	0.0754 ms * -54%
Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB	0.066 ms * -35%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G	0.053 ms * -8%
Average WDC PC SN530 SDBPTPZ-256G (0.049 - 0.051, n=2)	0.05 ms * -2%
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G	0.049 ms *
Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0	0.033 ms * +33%
Lenovo ThinkPad L14 G2 AMD WDC PC SN730 SDBQNTY-512GB	0.027 ms * +45%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G: Ø2118 (1853.25-2470.65)

Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G: Ø2479 (2185.48-2489.37)

Acer TravelMate P4 TMP414-51-59MR SK hynix BC511 HFM256GDJTNI-82A0: Ø740 (511.89-745.1)

Acer Enduro Urban N3 EUN314 Samsung PM991 MZVLQ1T0HALB: Ø1458 (974.07-2292.82)

GPU性能

集成的英特尔Iris Xe G7的GPU i5-1135G796个潜在EU中的80个，其时钟速度为400-1300MHz。因此，它不是iGPU类中最快的图形解决方案之一，它是Latitude 5420的i7变体所独有的。在我们的合成基准测试中--以及后来的游戏中--iGPU的性能很弱，不合格。总的来说，它没有达到我们的预期。在3DMarkFire Strike Graphics中，它比该芯片的平均水平低约39%。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average of class Subnotebook	100 pt
Acer Enduro Urban N3 EUN314 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	78.6 pt
Average Intel Iris Xe Graphics G7 80EUs	60.9 pt
HP ProBook 440 G8-2W1G4EA Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	57.5 pt
Dynabook Tecra A40-J-12E Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	50.4 pt
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	49.9 pt
Lenovo ThinkPad L14 G2 AMD AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U	44.7 pt
Dell Latitude 14 5420-D2G5W Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	41.6 pt
Acer TravelMate P4 TMP414-51-59MR Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	41.2 pt

3DMark 11 - 1280x720 Performance GPU
Average of class Subnotebook (2979 - 16904, n=56, last 2 years)	8243 Points +106%
Acer Enduro Urban N3 EUN314 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6728 Points +68%
HP ProBook 440 G8-2W1G4EA Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	5617 Points +41%
Average Intel Iris Xe Graphics G7 80EUs (2246 - 6477, n=105)	5167 Points +29%
Dynabook Tecra A40-J-12E Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	4748 Points +19%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	4684 Points +17%
Lenovo ThinkPad L14 G2 AMD AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U	4370 Points +9%
Dell Latitude 14 5420-D2G5W Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3997 Points
Acer TravelMate P4 TMP414-51-59MR Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3898 Points -2%

3DMark
1920x1080 Fire Strike Graphics
Average of class Subnotebook (2837 - 12349, n=60, last 2 years)	6047 Points +185%
Acer Enduro Urban N3 EUN314 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4847 Points +129%
Average Intel Iris Xe Graphics G7 80EUs (1560 - 5305, n=107)	3782 Points +78%
HP ProBook 440 G8-2W1G4EA Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3229 Points +52%
Dynabook Tecra A40-J-12E Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	2762 Points +30%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	2723 Points +29%
Lenovo ThinkPad L14 G2 AMD AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U	2534 Points +20%
Acer TravelMate P4 TMP414-51-59MR Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	2209 Points +4%
Dell Latitude 14 5420-D2G5W Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	2119 Points
2560x1440 Time Spy Graphics
Average of class Subnotebook (811 - 4773, n=59, last 2 years)	2041 Points +142%
Acer Enduro Urban N3 EUN314 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1512 Points +79%
Average Intel Iris Xe Graphics G7 80EUs (561 - 1511, n=104)	1170 Points +39%
HP ProBook 440 G8-2W1G4EA Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1042 Points +24%
Dynabook Tecra A40-J-12E Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	978 Points +16%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	976 Points +16%
Dell Latitude 14 5420-D2G5W Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	843 Points
Acer TravelMate P4 TMP414-51-59MR Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	811 Points -4%
Lenovo ThinkPad L14 G2 AMD AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U	800 Points -5%

3DMark 11 Performance		3915 points
3DMark Fire Strike Score		1766 points
3DMark Time Spy Score		949 points
Help

... in comparison

游戏性能

游戏性能也遵循类似的趋势。 Iris Xe G7留下了40%到50%的潜力未被开发。这往往是可玩和不可玩之间的区别，如《Far Cry 5》在低速时分别为36和19 FPS。奇怪的旅》在低速时也有类似的情况：62对38FPS。

怎么会这样？ Iris Xe G7为什么戴尔笔记本电脑内的Iris Xe G7比预期的慢得多？时钟频率不可能是原因，因为它在FurMark中处于1200-1300MHz的理论最大值（约1240MHz），即使在65℃（149°F）的长时间压力下也是如此。对于我们用作基准的《最终幻想X》也是如此。iGPU为1200 MHz，CPU为1.6至3.8 GHz。由于GPU处于最大负荷状态，CPU以70%的功率运行，在我们22分钟的测试中，PL1在5分钟左右降至23瓦，在12分钟左右降至32瓦。游戏中的性能缺陷很可能是由于iGPU和CPU不得不分享TDP。具体发生了什么还不确定，但重复几次游戏测试并没有得到更好的结果。

The Witcher 3 - 1366x768 Medium Graphics & Postprocessing
Average of class Subnotebook (29 - 264, n=47, last 2 years)	63.8 fps +161%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	57.3 (53^min) fps +135%
Average Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=100)	41.8 fps +71%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32.9 fps +35%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	32.1 fps +32%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	31.2 fps +28%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.1 fps +3%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	24.4 fps
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	22.7 (1.787^min, 4.05^P0.1, 17.2^P1) fps -7%

Final Fantasy XV Benchmark - 1280x720 Lite Quality
Average of class Subnotebook (18.9 - 130.6, n=55, last 2 years)	51.3 fps +182%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	39.9 fps +119%
Average Intel Iris Xe Graphics G7 80EUs (8.32 - 45.6, n=101)	31.5 fps +73%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	25.5 fps +40%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	25.1 fps +38%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	24.3 fps +34%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.7 fps +25%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	18.2 fps
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	18 fps -1%

X-Plane 11.11 - 1280x720 low (fps_test=1)
Average of class Subnotebook (19.5 - 144.7, n=56, last 2 years)	49.6 fps +53%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.7 fps +19%
Average Intel Iris Xe Graphics G7 80EUs (9.12 - 74.4, n=106)	36.3 fps +12%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	35.4 fps +9%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	32.5 fps
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	22.1 fps -32%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.4 fps -34%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.4 fps -34%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	15.8 fps -51%

Far Cry 5 - 1280x720 Low Preset AA:T
Average of class Subnotebook (22 - 132, n=39, last 2 years)	60.4 fps +218%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	49 (43^min) fps +158%
Average Intel Iris Xe Graphics G7 80EUs (14 - 63, n=48)	38.8 fps +104%
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	29 fps +53%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	29 (22^min) fps +53%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	19 (14^min) fps

Strange Brigade - 1280x720 lowest AF:1
Average of class Subnotebook (65.6 - 259, n=55, last 2 years)	112.8 fps +197%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	82.9 (19.2^min, 30.7^P1) fps +118%
Average Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=78)	67 fps +76%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	51 (11.7^min, 16.2^P1) fps +34%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	48.8 (11.3^min, 14.4^P1) fps +28%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.3 (25.7^min, 38.3^P1) fps +19%
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	38.6 (8.7^min, 11.3^P1) fps +2%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	38 (8.3^min, 10.6^P1) fps

Farming Simulator 22 - 1280x720 Low Preset
Average of class Subnotebook (96 - 123, n=4, last 2 years)	105.3 fps +106%
Average Intel Iris Xe Graphics G7 80EUs (16 - 89, n=5)	57.9 fps +14%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	51 fps

GTA V
1366x768 Normal/Off AF:4x
Average of class Subnotebook (31 - 172.6, n=53, last 2 years)	103.3 fps +152%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	78.1 (16.6^min, 50^P1) fps +90%
Average Intel Iris Xe Graphics G7 80EUs (28.9 - 133.8, n=80)	70.4 fps +72%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.1 (18.7^min, 31.3^P1) fps +15%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	44.9 (10.6^min, 29.4^P1) fps +10%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	43.8 (2.69^min, 23.8^P1) fps +7%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	41 fps
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	34.6 (14.3^min, 21.7^P1) fps -16%
1024x768 Lowest Settings possible
Average of class Subnotebook (62.3 - 178.2, n=49, last 2 years)	121.3 fps +153%
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	91.1 (13.9^min, 58.8^P1) fps +90%
Average Intel Iris Xe Graphics G7 80EUs (36.5 - 144.6, n=77)	83 fps +73%
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	57.2 (8.57^min, 38.5^P1) fps +19%
Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	55.5 (1.947^min, 28.6^P1) fps +16%
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	53.6 (17.7^min, 35.7^P1) fps +12%
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	48 fps
Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	45.2 (13^min, 26.3^P1) fps -6%

	low	med.	high	ultra
GTA V (2015)	48	41	10
The Witcher 3 (2015)	38.8	24.4	9.3	7
Final Fantasy XV Benchmark (2018)	18.2	8.8	8.72
X-Plane 11.11 (2018)	32.5	28.3	25.5
Far Cry 5 (2018)	19	9
Strange Brigade (2018)	38	15	13.3
Farming Simulator 22 (2021)	51	18

排放。Latitude 可以非常安静

系统噪音

Latitude 5420有两个方面。非常嘈杂和完全无声。后者的状态可以在空闲时观察到，风扇完全关闭。在浏览网页时，安静运行的机会很好，因为在低度到中度负载下，风扇大多会保持关闭状态。在最安静的状态下运行，在游戏或长时间压缩ZIP时，风扇产生36分贝（A）。虽然在这一点上已经明显可以听到，但由于其单调的性质，它仍然是可控的。在我们用Prime95和FurMark或R15循环和FurMark进行的压力测试中，风扇的音量大大增加。在这里，我们测量到了震耳欲聋的52 dB(A) - 这是游戏笔记本电脑的噪音水平。

竞争对手明显要安静得多，特别是联想ThinkPad L14 G2AMD。华硕ExpertBook B1，以及 Acer Enduro Urban N3.上述机型的平均噪音和最坏情况下的噪音都明显较小。似乎只知道最低的风扇设置，Dynabook Tecra A40也是如此。 Dynabook Tecra A40更加不显眼。幸运的是，我们的戴尔笔记本电脑包括一个风扇控制工具。

对于我们的测量和基准测试，我们默认为 "超性能 "模式。通过选择 "安静 "或 "平衡 "预设，噪音水平可以大大降低，即使在满负荷情况下，系统产生的噪音也不超过36分贝（A）。

Noise Level

Idle		25 / 25 / 25 dB(A)
Load		36.5 / 52.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A)

	Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G	Lenovo ThinkPad L14 G2 AMD Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB	HP ProBook 440 G8-2W1G4EA Iris Xe G7 96EUs, i7-1165G7, Lite-On CL1-8D512	Asus ExpertBook B1 B1400CEAE, i5-1135G7 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G	Acer TravelMate P4 TMP414-51-59MR Iris Xe G7 80EUs, i5-1135G7, SK hynix BC511 HFM256GDJTNI-82A0	Acer Enduro Urban N3 EUN314 Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB	Dynabook Tecra A40-J-12E Iris Xe G7 80EUs, i5-1135G7, Phison C-E80T512G4-P3D3B3E13
Noise		9%	3%	10%	4%	11%	10%
off / environment *	25	25.08 -0%	26 -4%	23.8 5%	25.4 -2%	23.8 5%	25 -0%
Idle Minimum *	25	25.08 -0%	26 -4%	23.8 5%	25.4 -2%	24.1 4%	25 -0%
Idle Average *	25	25.08 -0%	26 -4%	23.8 5%	25.4 -2%	24.1 4%	25 -0%
Idle Maximum *	25	25.08 -0%	26 -4%	26.5 -6%	25.4 -2%	24.1 4%	25 -0%
Load Average *	36.5	26.81 27%	36.2 1%	28.6 22%	34.6 5%	27.9 24%	30 18%
Load Maximum *	52.4	37.99 27%	34.6 34%	37.4 29%	37.4 29%	38.6 26%	30 43%
Witcher 3 ultra *				30.6		35.7	30

* ... smaller is better

温度

温度适中，这证明了风扇处理热量排放的能力。排气口位于左侧边缘，而背部和风扇正下方的底板上的通风口则作为进气口发挥作用。在空闲时，顶部保持非常凉爽，热点在空闲风扇的情况下最差也只能达到30℃（86°F）。在负载情况下，温度会上升12度，达到42 °C (107.6 °F)。顶面的平均表面温度受影响较小，从28°C（82.4°F）上升到32°C（89.6°F）。我们测量了 "优化 "戴尔风扇控制模式下的空闲值和 "超性能 "模式下的负载值。

当使用 "安静 "模式时，温度可能会更高。

简而言之，没有什么可抱怨的。根据你的喜好，这款14英寸机型可以保持低温和安静，或者变得温暖，同时充分发挥其性能潜力。

Max. Load

Idle


28.3 °C	29.9 °C	29.2 °C
28.8 °C	28.5 °C	28.5 °C
24.7 °C	25.4 °C	26.1 °C

Maximum: 29.9 °C
Average: 27.7 °C


27.4 °C	29.5 °C	29.7 °C
29.2 °C	28.6 °C	2.6 °C
28.1 °C	28.2 °C	27.5 °C

Maximum: 29.7 °C
Average: 25.6 °C

Power Supply (max.) 26.7 °C | Room Temperature 22.5 °C | FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 33.5 °C / 92 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 41.7 °C / 107 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 35.6 °C / 96 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 27.7 °C / 82 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.8 °C / 83.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-0.5 °C / -0.9 F).

	Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	Acer TravelMate P4 TMP414-51-59MR Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	Dynabook Tecra A40-J-12E Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Heat		-8%	3%	-8%	4%	-3%	-2%
Maximum Upper Side *	41.7	42.1 -1%	36.8 12%	41.7 -0%	38.7 7%	37.8 9%	41.1 1%
Maximum Bottom *	35.6	45.2 -27%	42.5 -19%	54.3 -53%	38.7 -9%	45.8 -29%	45.3 -27%
Idle Upper Side *	29.9	28.6 4%	25.4 15%	26 13%	26.9 10%	26.4 12%	26 13%
Idle Bottom *	29.7	31.5 -6%	28.5 4%	27.1 9%	27.8 6%	30.2 -2%	27.7 7%

* ... smaller is better

压力测试

在我们的压力测试中，我们观察SoC的温度和时钟速度。是否有明显的节流现象？风扇配置文件有多大的区别？在最初的十分钟里，"超性能 "配置文件是激活的，然后我们切换到 "平衡"。第一个模式允许PL1 40瓦的四分钟，然后下降并稳定在32瓦，直到10分钟后。

随后，我们切换配置文件，导致PL1立即下降到15瓦，偶尔在1分钟内提升到23瓦。这些峰值也显示在时钟速率和温度图中。我们的压力测试中最重要的结果。我们的Latitude ，能够无限期地保持2.0GHz。因此，它能够处理计算密集型任务。

为了证实我们的结果，我们专门运行了Prime95，同时记录了时钟速度和PL1值。在40瓦（3.3GHz）的情况下运行两分钟后，降至32瓦（3.0GHz）。

	CPU时钟（GHz）	GPU时钟（MHz）	CPU平均温度（°C）	GPU平均温度（°C）
系统空闲	2.0	102	49	48
Prime95压力	3.0	102	86	82
Prime95 + FurMark压力	2.1	1200	73	73
Witcher 3 压力	2.1	1117	64	60

发言人

戴尔将两个立体声扬声器放在靠近底边的前角。虽然它们的最大音量还算可以，但声音不是很平衡。低音完全没有，高音也有些欠缺。虽然ThinkPad T14的扬声器更安静，但它们在整体上更加平衡。

麦克风录音没有任何缺陷，即使在0.5或2米远的地方说话也没有静电。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Dell Latitude 14 5420-D2G5W audio analysis

(+) | speakers can play relatively loud (84.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.2% lower than median
(±) | linearity of bass is average (8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.2% away from median
(+) | mids are linear (4.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.2% higher than median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16% difference to median)
Compared to same class
» 33% of all tested devices in this class were better, 5% similar, 62% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 21% of all tested devices were better, 5% similar, 75% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo ThinkPad L14 G2 AMD audio analysis

(-) | not very loud speakers (70.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.5% lower than median
(±) | linearity of bass is average (11.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6.1% lower than median
(±) | linearity of mids is average (7.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27% difference to median)
Compared to same class
» 81% of all tested devices in this class were better, 6% similar, 12% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 80% of all tested devices were better, 4% similar, 16% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理。13小时的商业戴尔

能源消耗

Dell Power Manager - Peak Shift。电池和交流电源调度器，例如，用于太阳能优化充电。

戴尔在优化电力消耗方面做得很好。它在空闲时的功率很低（3-8瓦），而在负载时允许有高要求。我们测量的67瓦和35瓦的负载下代表了英特尔处理器的良好表现能力。具有相同SoC的竞争者，但负载下的功耗较低，如 ExpertBook B1和宏碁的TravelMate P4从芯片中获得的能量更少。下面的图表 "能源消耗外部监测 "也显示了这一点。在用Prime95进行CPU压力测试时，戴尔达到了迄今为止最高的功耗，甚至维持了整整两分钟。一旦iGPU开始工作，情况就不一样了，这也解释了游戏性能不理想的原因。

虽然67瓦的峰值功率对65瓦的交流适配器来说是个挑战，但我们在压力测试开始时只临时测量了67瓦。

戴尔的电源管理器允许与充电和电源管理有关的有趣选项。例如，太阳能电池阵的操作者可以选择只在白天给笔记本电脑充电，而在晚上严格依赖电池--即使是在连接交流适配器的时候。

Power Consumption

Off / Standby	0.4 / 1.1 Watt
Idle	3.4 / 7.1 / 8.4 Watt
Load	35.3 / 67 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs, WDC PC SN530 SDBPTPZ-256G, IPS, 1920x1080, 14.00	Lenovo ThinkPad L14 G2 AMD R7 PRO 5850U, Vega 8, WDC PC SN730 SDBQNTY-512GB, IPS LED, 1920x1080, 14.00	HP ProBook 440 G8-2W1G4EA i7-1165G7, Iris Xe G7 96EUs, Lite-On CL1-8D512, VA, 1920x1080, 14.00	Asus ExpertBook B1 B1400CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs, WDC PC SN530 SDBPNPZ-512G, IPS, 1920x1080, 14.00	Acer TravelMate P4 TMP414-51-59MR i5-1135G7, Iris Xe G7 80EUs, SK hynix BC511 HFM256GDJTNI-82A0, IPS, 1920x1080, 14.00	Acer Enduro Urban N3 EUN314 i7-1165G7, Iris Xe G7 96EUs, Samsung PM991 MZVLQ1T0HALB, IPS, 1920x1080, 14.00	Dynabook Tecra A40-J-12E i5-1135G7, Iris Xe G7 80EUs, Phison C-E80T512G4-P3D3B3E13, , 1920x1080, 14.00	Average Intel Iris Xe Graphics G7 80EUs	Average of class Subnotebook
Power Consumption		-4%	11%	19%	12%	1%	18%	-7%	-23%
Idle Minimum *	3.4	5.44 -60%	4 -18%	3.2 6%	3.6 -6%	3.8 -12%	3.3 3%	4.46 ?(2.3 - 15.8, n=101) -31%	4.91 ?(1.77 - 11.8, n=62, last 2 years) -44%
Idle Average *	7.1	8.06 -14%	6.2 13%	5.2 27%	5.6 21%	8 -13%	5.1 28%	7.33 ?(3.5 - 16.8, n=101) -3%	8.37 ?(4.6 - 17.4, n=62, last 2 years) -18%
Idle Maximum *	8.4	9.4 -12%	7.5 11%	6.1 27%	7.2 14%	8.7 -4%	6 29%	9.25 ?(4.5 - 17, n=101) -10%	10.4 ?(5.1 - 22.4, n=62, last 2 years) -24%
Load Average *	35.3	36.06 -2%	34.7 2%	25.2 29%	29.6 16%	34.6 2%	26.4 25%	36.1 ?(14.3 - 70, n=99) -2%	45.9 ?(19.1 - 83.3, n=61, last 2 years) -30%
Witcher 3 ultra *	35.4	26.1 26%		27.7 22%	29.3 17%	35.4 -0%	28 21%
Load Maximum *	67	42.26 37%	34 49%	64.3 4%	62 7%	45.4 32%	65.3 3%	61.2 ?(24.2 - 149, n=101) 9%	66 ?(24.2 - 121.2, n=62, last 2 years) 1%

* ... smaller is better

Energy Consumption external Monitor Prime95 / FurMark / Witcher 3 Ultra

Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø51 (43.7-66.9)

Lenovo ThinkPad L14 G2 AMD R7 PRO 5850U, Vega 8; Prime95 V2810 Stress (external Monitor): Ø23.3 (23-32.5)

Asus ExpertBook B1 B1400CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø37.4 (27.6-51)

Acer TravelMate P4 TMP414-51-59MR i5-1135G7, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø32.7 (26.6-50)

Acer Enduro Urban N3 EUN314 i7-1165G7, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø44.8 (44-45.4)

Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø37.1 (34.9-40.4)

Lenovo ThinkPad L14 G2 AMD R7 PRO 5850U, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø23.7 (23.3-27.3)

Asus ExpertBook B1 B1400CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.3 (32.4-36.8)

Acer TravelMate P4 TMP414-51-59MR i5-1135G7, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø30.8 (25.3-41.3)

Acer Enduro Urban N3 EUN314 i7-1165G7, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø41 (36.8-42.7)

Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø33.2 (25.9-44.9)

Lenovo ThinkPad L14 G2 AMD R7 PRO 5850U, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø23.2 (22.6-24.5)

Asus ExpertBook B1 B1400CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø27.6 (24.6-32.6)

Acer Enduro Urban N3 EUN314 i7-1165G7, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø32.5 (30.6-42.2)

电池寿命

我们测量了实际的Wi-Fi运行时间，在显示亮度设置为150尼特和电池完全充电的情况下，几乎为13小时。Latitude ，只能用USB Type-C电源适配器充电，如附带的65瓦充电器。电池的容量为63瓦特/小时。我们没有测试电池扩展器（戴尔电源管理器），只依靠Windows 11的节能功能，该功能可禁用后台进程以及Windows电池保护模式。

令人难以置信的超长空闲运行时间（22小时）没有任何实际意义，而且是在显示屏设置为17坎德拉、禁用无线电模块的情况下测得的。

Battery Runtime

Idle (without WLAN, min brightness)		22h 51min
WiFi Websurfing		12h 49min
Load (maximum brightness)		2h 26min

	Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs, 63 Wh	Lenovo ThinkPad L14 G2 AMD R7 PRO 5850U, Vega 8, 45 Wh	HP ProBook 440 G8-2W1G4EA i7-1165G7, Iris Xe G7 96EUs, 45 Wh	Asus ExpertBook B1 B1400CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs, 42 Wh	Acer TravelMate P4 TMP414-51-59MR i5-1135G7, Iris Xe G7 80EUs, 55.9 Wh	Acer Enduro Urban N3 EUN314 i7-1165G7, Iris Xe G7 96EUs, 50.3 Wh	Dynabook Tecra A40-J-12E i5-1135G7, Iris Xe G7 80EUs, 53 Wh	Average of class Subnotebook
Battery Runtime		-43%	2%	-46%	-23%	-50%	-15%	-16%
Reader / Idle	1371						1218 -11%	1252 ?(581 - 2550, n=9, last 2 years) -9%
WiFi v1.3	769	469 -39%	450 -41%	416 -46%	593 -23%	382 -50%	631 -18%	627 ?(303 - 1144, n=64, last 2 years) -18%
Load	146	77 -47%	211 45%					115.1 ?(61 - 197, n=48, last 2 years) -21%
H.264		574						798 ?(426 - 1153, n=31, last 2 years)

Pros

+ 伟大的整体CPU性能

+ 坚固的塑料底盘

+ 电池运行时间长

+ 快速的microSD读卡器

+ 大量的端口和商业功能选择

+ 强大的可扩展性/可升级性

+ 表面温度低

+ 可安静运行

+ 戴尔能源/排放工具

Cons

- 没有AMD Ryzen选项

- iGPU性能非常弱

- 鼠标替代性差

评语。点击率破坏了Latitude

戴尔的Latitude 5420将自己表现为一台装备丰富的全能型商务笔记本电脑，在连接性和安全性方面没有任何不足。甚至可以加装一个LTE调制解调器。可升级性非常好，没有一个主要部件是焊接的。

我们很少看到如此善于在性能和低排放之间游刃有余的副笔记本。戴尔将缰绳交到用户手中，用户可以根据自己的愿望使用软件来调整参数。

当涉及到连续性能指标时，Latitude ，与大多数竞争对手相比，它的得分高于平均水平。虽然5420的PL2似乎没有到位，但它能够在两分钟内保持40瓦的高PL1。因此，尽管没有几秒钟的峰值提升性能（PL2），但它能够管理苛刻的日常工作负载。在这里，用户有一个选择。优化最高性能将诱发最高的噪音水平。或者，当设置为适当的配置文件时，笔记本电脑可以非常安静地运行，这将带来性能上的不足。

输入设备的变化并没有得到解决。Latitude ，而不是鼠标按键和Trackpoint，它提供了一个触觉效果很差的点击板，甚至连死忠的评论家都会求助于连接一个USB鼠标。

这是不幸的，因为Latitude 5420是一个伟大的通用型笔记本电脑，价格适中。潜在的买家可能想看一下联想的ThinkPad L142代，它的起价约为1000美元，提供了很好的升级选择，更快的处理器和更好的输入设备。然而，L14没有LTE天线和SIM卡插槽。对这一特殊功能感到兴奋的用户可能想亲自看看5420，自己判断一下点击板，因为这当然涉及到一定程度的个人偏好。

华硕华硕ExpertBook B1具有出色的显示屏和较少的升级选项，但明显缺乏LTE调制解调器。虽然也没有专用的鼠标按键，但点击板可以作为小键盘使用。

专门的鼠标按钮也没有出现在惠普ProBook 440 G8虽然维护和升级选项是相当的（除去LTE插槽）。由于它不仅缺乏Thunderbolt，而且还配备了更暗的显示屏，我们不推荐ProBook 440。

笔记本Acer Enduro Urban N3另一方面，它以非常明亮的显示屏、出色的性能、非常坚固的机箱以及最后但并非最不重要的可升级性而闪耀。甚至还有专用的鼠标按钮--不过，键盘只是消费者级别的。

总的来说，ExpertBook B1、ProBook 440和Enduro N3都是不太可能的选择，这就只剩下了 ThinkPad L14第二代。

价格和可用性

类似配置的戴尔Latitude 5420目前可从亚马逊售价约为1000美元。

Dell Latitude 14 5420-D2G5W - 2022-01-26 01/26/2022 v7
Sebastian Jentsch

Chassis

81 / 98 → 82%

Keyboard

90%

Pointing Device

56%

Connectivity

68 / 75 → 91%

Weight

69 / 20-75 → 88%

Battery

90%

Display

85%

Games Performance

54 / 78 → 69%

Application Performance

88 / 85 → 100%

Temperature

93%

Noise

86%

Audio

79 / 91 → 86%

Camera

28 / 85 → 32%

Average

74%

85%

Subnotebook - Weighted Average

Pricecompare

Editor of the original article: Marius Schell - Tech Writer and translator - 398 articles published on Notebookcheck since 2020

contact me via: LinkedIn

Translator: Ninh Ngoc Duy - Editorial Assistant - 386552 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 戴尔Latitude 14 5420评论。一台接近夺取商务冠的笔记本电脑

Sebastian Jentsch, 2022-01-27 (Update: 2022-01-27)

戴尔Latitude 14 5420评论。一台接近夺取商务冠的笔记本电脑

Potential Competitors in Comparison

案例: 实体戴尔笔记本电脑

Size Comparison

连接性。具有大量安全功能的笔记本

SD卡阅读器

沟通

网络摄像头

安全问题

辅料

维护

担保

输入设备。戴尔与点击板的灾难

键盘

触摸板

显示。哑光14-Zoll面板，颜色不多

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能。带2分钟酷睿i5加速的笔记本电脑

测试条件

处理器

Cinebench R15 Multi Loop

系统性能

DPC延迟

存储解决方案

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU性能

游戏性能

排放。Latitude 可以非常安静

系统噪音

温度

压力测试

发言人

Dell Latitude 14 5420-D2G5W audio analysis

Lenovo ThinkPad L14 G2 AMD audio analysis

能源管理。13小时的商业戴尔

能源消耗

Energy Consumption external Monitor Prime95 / FurMark / Witcher 3 Ultra

电池寿命

Pros

Cons

评语。点击率破坏了Latitude

价格和可用性

More articles related to this device

Pricecompare
