惠普Pavilion 14笔记本电脑评论。一个经过深思熟虑的设备,一个有吸引力的外观

控制良好,无声无息。 Pavilion 14的IPS显示屏、Bang & Olufsen扬声器系统和基本无声的操作使该设备成为一个伟大的娱乐工具。这款笔记本配备了英特尔i5处理器和16GB内存,确保有足够的处理能力。
Mario Petzold, 👁 Sebastian Jentsch (translated by DeepL / Ninh Duy), 🇺🇸 🇩🇪 ...

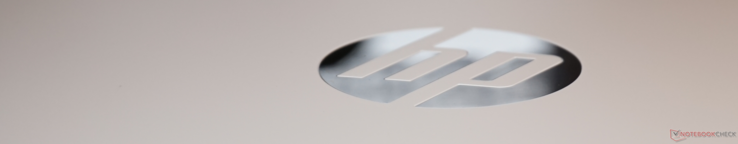

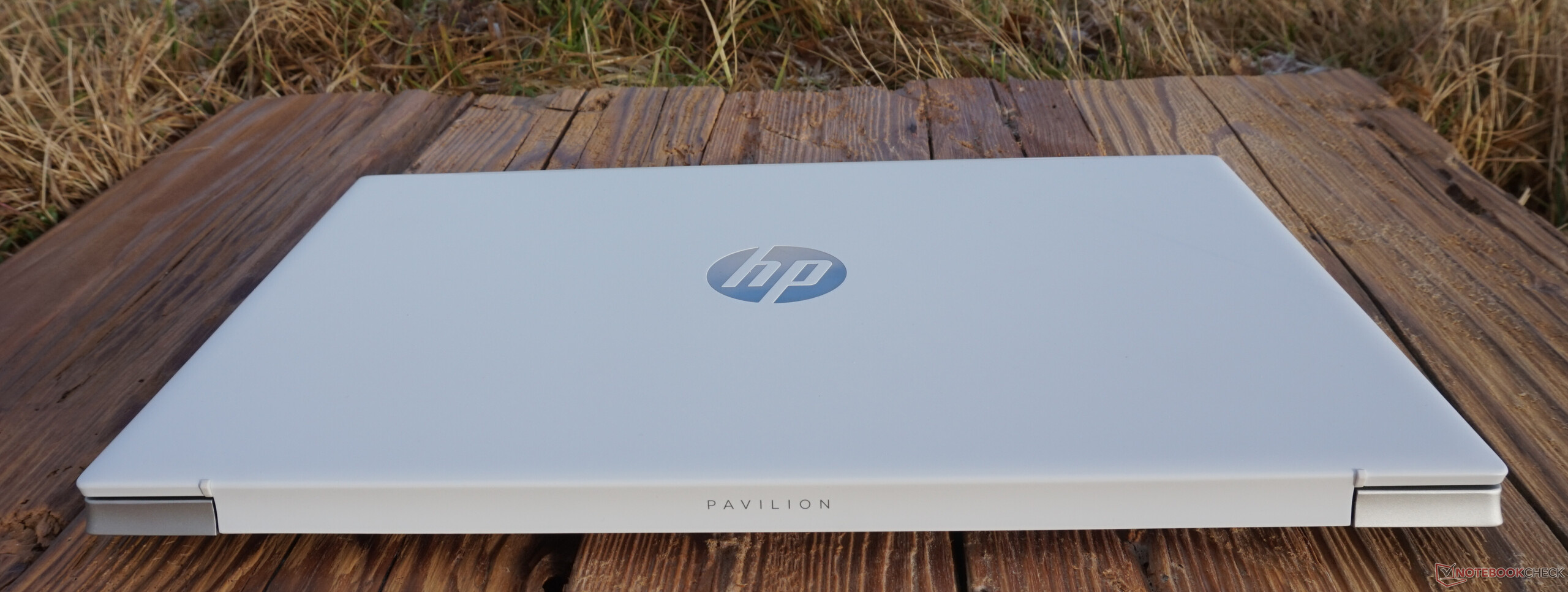

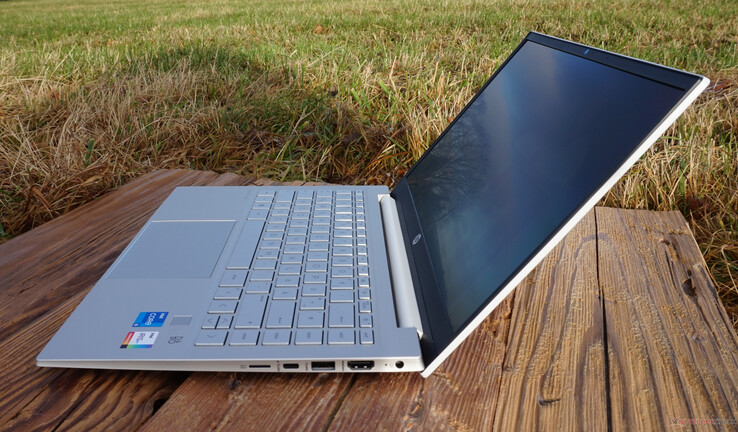

即使关闭时也很有吸引力:阳极氧化铝,白色表面,有反光的惠普标志
即使关闭时也很有吸引力:阳极氧化铝,白色表面,有反光的惠普标志

与最近评测的惠普Pavilion x360 14(2021) ,这个没有触摸屏的版本具有一个大的内存模块和一个令人愉快的明亮显示屏。由于电池容量和从Kensington锁到网络摄像头快门的各种安全功能都部署得相当少,dv系列的惠普Pavilion 14显然是为私人使用准备的。

潜在的用户应该对良好的扬声器和脱离银色或黑色的机箱以及设备的性能感到满意。不过,缺乏专用的GPU意味着只有简单的游戏才能顺利显示。我们的测试设备配备了16GB的内存和1TB的固态硬盘,这对这种设备来说是非常慷慨的。该模型也可使用尺寸为其一半的组件。买家可以选择该设备中使用的i5-1135G7 和更快的i7-1165G7

14英寸机型领域提供了广泛的竞争对手。例如,华硕ExpertBook B1 B1400联想Yoga Slim 7 14ITL05 ,有许多相似之处--包括混合判决。在这篇详细的评论中,看看我们对这一设备的弱点是怎么看的。

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

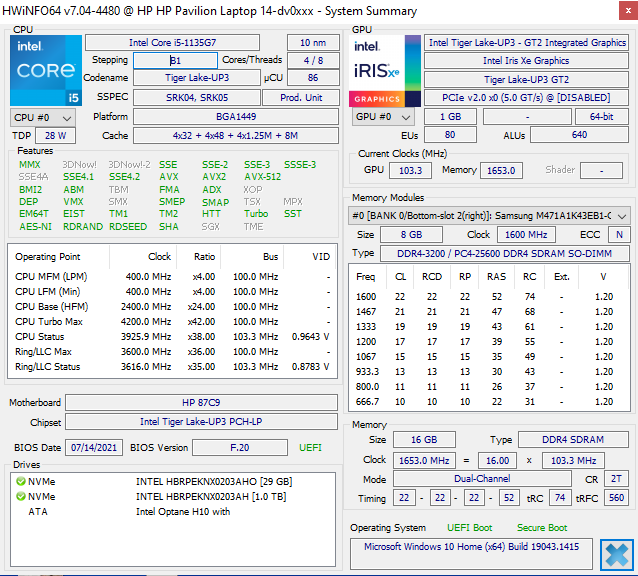

HP Pavilion 14-dv0357ng (Pavilion 14-dv Series)

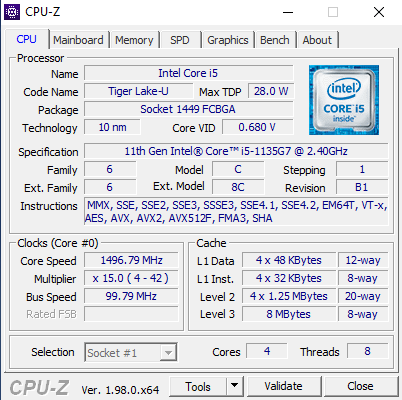

Processor
Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 51 W PL2 / Short Burst, 22 W PL1 / Sustained, Tiger Lake UP3

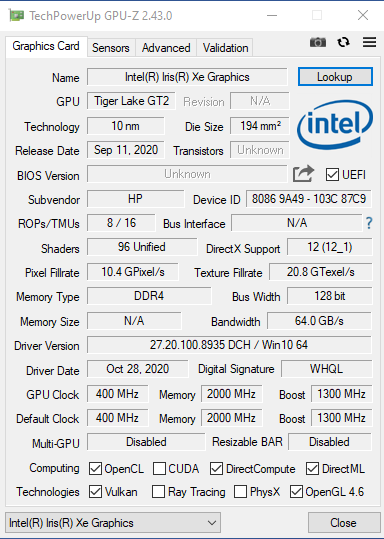

Graphics adapter
Intel Iris Xe Graphics G7 80EUs - 1024 MB, Core: 1300 MHz, Memory: 2000 MHz, DDR4, 27.20.100.8935

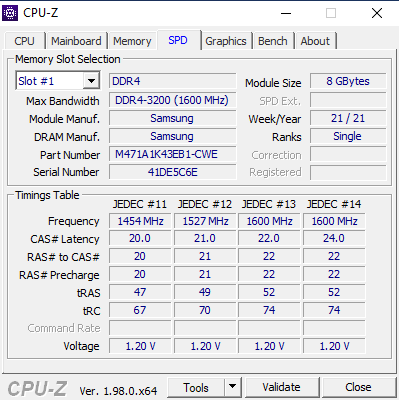

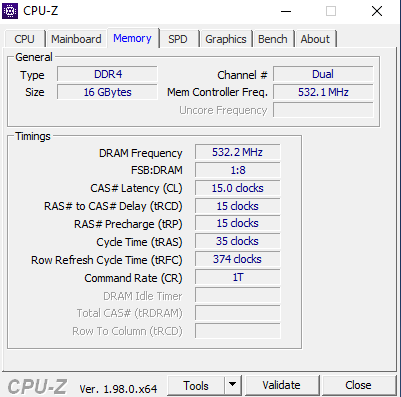

Memory
16149 MB
, LPDDR4, 3200 MHz, dual-channel
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, LGD0619, IPS, glossy: no, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage

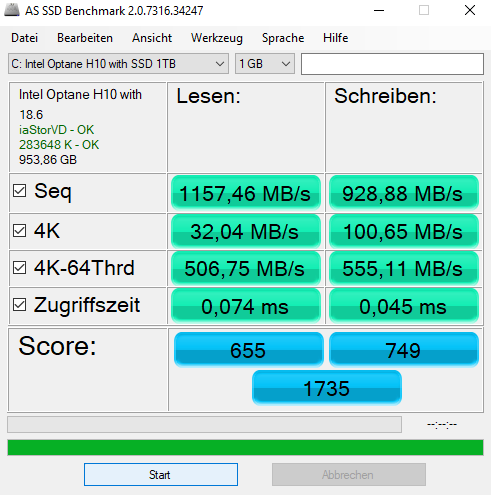

Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H), 1024 GB
, 919 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, Audio Connections: headset, Card Reader: microSD, 1 Fingerprint Reader
Networking
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5
Size
height x width x depth (in mm): 19 x 325 x 216
Battery
43 Wh Lithium-Polymer
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 720p
Primary Camera: 0.9 MPix
Additional features
Speakers: stereo, Keyboard: chiclet, Keyboard Light: yes, 12 Months Warranty
Weight
1.44 kg, Power Supply: 280 g
Price
1,000 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Potential competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
84.8 %
01/2022
HP Pavilion 14-dv0357ng
i5-1135G7, Iris Xe G7 80EUs
1.4 kg19 mm14.00"1920x1080
79.1 %
HP 14s-dq1431ng
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU)
1.5 kg18 mm14.00"1920x1080
86.4 %
10/2021
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
i5-1135G7, Iris Xe G7 80EUs
1.4 kg14.9 mm14.00"1920x1080
83.9 %
12/2021
Asus ExpertBook B1 B1400CEAE, i5-1135G7
i5-1135G7, Iris Xe G7 80EUs
1.5 kg19.2 mm14.00"1920x1080
85.2 %
04/2021
Acer Swift 5 SF514-55T-58DN
i5-1135G7, Iris Xe G7 80EUs
1 kg14.95 mm14.00"1920x1080
86.3 %
Lenovo IdeaPad 5 14ALC05 82LM005YGE
R5 5500U, Vega 7
1.4 kg19.1 mm14.00"1920x1080

外壳--惠普管理着一个吸引人但简单的外观

机箱给人一种整体稳定的印象。显示器的背面和键盘周围的框架是由铝制成的。盖子有一个白色的表面,结合哑光的表面结构,使它与其他笔记本不同。表面经过阳极氧化处理,几乎看不出任何老化的痕迹。虽然底盖是由塑料制成的,但它看起来与箱子的其他部分非常相似,只有在仔细检查时才能认出它是塑料。

略微粗糙的表面不显示指纹。另一方面,惠普的标志则很快显示出涂抹的痕迹。做工很好。各个部件看起来很整齐,并且被完美地组合在一起。

笔记本始终保持平坦,没有任何摩擦声。铰链看起来很坚固。它们被固定在外壳上的方式允许精确的调整。我们没有注意到打字时显示器的任何晃动。由于铰链很紧,很难用一只手打开设备。我们对键盘的稳定性感到有些失望,在增加压力的情况下,键盘的稳定性会略微下降。

显示器的开启角度为130°。显示屏盖将笔记本的背面从桌子上抬起来,但由于机箱的结构很好,这一点几乎看不出来。

略低于1.5公斤的重量在平均范围内,在旅途中不应该是一个问题。Pavilion 14对于一个14英寸的设备来说,厚度为17毫米,令人惊讶。关于这一点,请看维修部分。

Size comparison

325 mm 216 mm 19 mm 1.4 kg323.4 mm 215.6 mm 19.2 mm 1.5 kg324 mm 225 mm 18 mm 1.5 kg321.57 mm 211.59 mm 19.1 mm 1.4 kg320.6 mm 208.18 mm 14.9 mm 1.4 kg318.9 mm 207 mm 14.95 mm 1 kg

连接性--对于惠普来说,只有最低限度的Pavilion

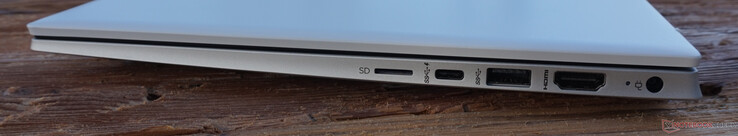

至少在设备的左侧和右侧都有一个USB A端口。除此之外,还有一个支持4K分辨率30帧的HDMI 2.0端口,一个比平均速度略快的microSD读卡器,一个组合音频端口和一个USB-C端口。

这种选择允许连接显示器、更快的存储介质和智能手机或充电宝。然而,这个USB-C端口不符合Thunderbolt的规格,被限制在10 Gbit/s。其他两个USB端口只支持旧的USB 3.0标准。

这个端口的选择虽然很小,但在大多数情况下应该足够了,而且USB-C端口可以与一个适配器一起使用,使其有可能同时连接几个设备。但我们希望至少有一个Thunderbolt端口。毕竟,这款笔记本的空间显然并不局促。幸运的是,这也意味着端口的间距很好。

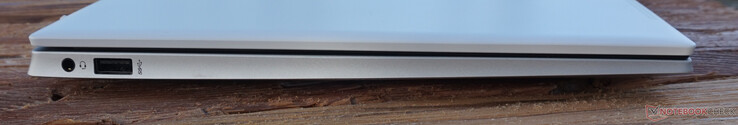

耳机,USB 3.2 Gen1
耳机,USB 3.2 Gen1
microSD,USB-C(Power Delivery,DP 1.4,10 Gbit/s),USB 3.2 Gen1,HDMI 2.0,电源
microSD,USB-C(Power Delivery,DP 1.4,10 Gbit/s),USB 3.2 Gen1,HDMI 2.0,电源
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo IdeaPad 5 14ALC05 82LM005YGE

77.5 MB/s ∼100% +4%
HP Pavilion 14-dv0357ng

74.4 MB/s ∼96%
Average of class Office
  (17.7 - 194, n=82, last 2 years)
70.3 MB/s ∼91% -6%
HP 14s-dq1431ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
36.4 MB/s ∼47% -51%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
  (AV Pro V60)
25.3 MB/s ∼33% -66%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
  (AV Pro SD microSD 128 GB V60)
23 MB/s ∼30% -69%
maximum AS SSD Seq Read Test (1GB)
Lenovo IdeaPad 5 14ALC05 82LM005YGE

85.9 MB/s ∼100% +1%
HP Pavilion 14-dv0357ng

85.3 MB/s ∼99%
Average of class Office
  (17.2 - 201, n=81, last 2 years)
80.7 MB/s ∼94% -5%
HP 14s-dq1431ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
38.7 MB/s ∼45% -55%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
  (AV Pro SD microSD 128 GB V60)
28 MB/s ∼33% -67%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
  (AV Pro V60)
26.6 MB/s ∼31% -69%

沟通 - 相当有问题

Wi-Fi模块Realtek 8822CE无线局域网802.11ac PCI-E网卡在我们的其他测试中发送和接收数据时,平均速度只达到600 Mbit/s。这对任何互联网应用来说都是绰绰有余的。即使是大的数据块也能以这个速度相当快地传输。

然而,我们的测试模块在接收时仅达到预期速度的三分之二左右,在发送时仅超过平均值的10%。路由器显示,Wi-Fi 5标准几乎根本没有被使用。相反,Wi-Fi模块是使用频率为2.4GHz的Wi-Fi 4进行通信的。尽管如此,这些微弱的结果甚至可能不被一些私人用户所注意,因为它仍然会使50兆比特的互联网连接达到最大值。

基于这些结果,我们只能得出结论,我们测试设备中的Wi-Fi模块存在某种问题。毕竟,我们本以为结果会在600Mbit/s的范围内,与其他配备相同Wi-Fi模块的笔记本相似。我们的惠普Pavilion ,显然是一个需要保修的案例。

Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Wi-Fi 6 AX201
1333 (699min - 1465max) MBit/s ∼100% +1432%
Acer Swift 5 SF514-55T-58DN
Intel Wi-Fi 6 AX201
1329 (1141min - 1418max) MBit/s ∼100% +1428%
Average of class Office
  (65.2 - 1775, n=113, last 2 years)
982 MBit/s ∼74% +1029%
HP Pavilion Gaming 15-ec1177ng
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
662 (635min - 674max) MBit/s ∼50% +661%
HP Omen 15-en0375ng
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
642 MBit/s ∼48% +638%
Average Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
  (87 - 690, n=27)
617 MBit/s ∼46% +609%
Lenovo IdeaPad 3 15ALC6
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
598 (526min - 661max) MBit/s ∼45% +587%
HP Pavilion 14-dv0357ng
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
87 (80min - 95max) MBit/s ∼7%
iperf3 Client (receive) TCP 1 m 4M x10
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Wi-Fi 6 AX201
1480 (1227min - 1597max) MBit/s ∼100% +193%
Average of class Office
  (60.8 - 1722, n=114, last 2 years)
1057 MBit/s ∼71% +109%
Acer Swift 5 SF514-55T-58DN
Intel Wi-Fi 6 AX201
744 (578min - 950max) MBit/s ∼50% +47%
HP Pavilion Gaming 15-ec1177ng
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
637 (626min - 648max) MBit/s ∼43% +26%
Average Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
  (486 - 685, n=27)
622 MBit/s ∼42% +23%
Lenovo IdeaPad 3 15ALC6
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
604 (567min - 620max) MBit/s ∼41% +20%
HP Omen 15-en0375ng
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
542 MBit/s ∼37% +7%
HP Pavilion 14-dv0357ng
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
505 (473min - 527max) MBit/s ∼34%
050100150200250300350400450500550600650700473492491486500497499502497492495486501504502488507505520505521526520519515527516520522506577620658663642664650671654667666657653680670655655653659675660673666650654636651665643658473492491486500497499502497492495486501504502488507505520505521526520519515527516520522506577620658663642664650671654667666657653680670655655653659675660673666650654636651665643658848393888782908888858589829585858980928790809284888291888988347678612648613646696629374610665668669604676645671628742656701646740699684666665703703702Tooltip
HP Pavilion 14-dv0357ng Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø504 (473-527)
Honor MagicBook 15 4500U Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø655 (577-680)
HP Pavilion 14-dv0357ng Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø87 (80-95)
Honor MagicBook 15 4500U Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø646 (347-742)

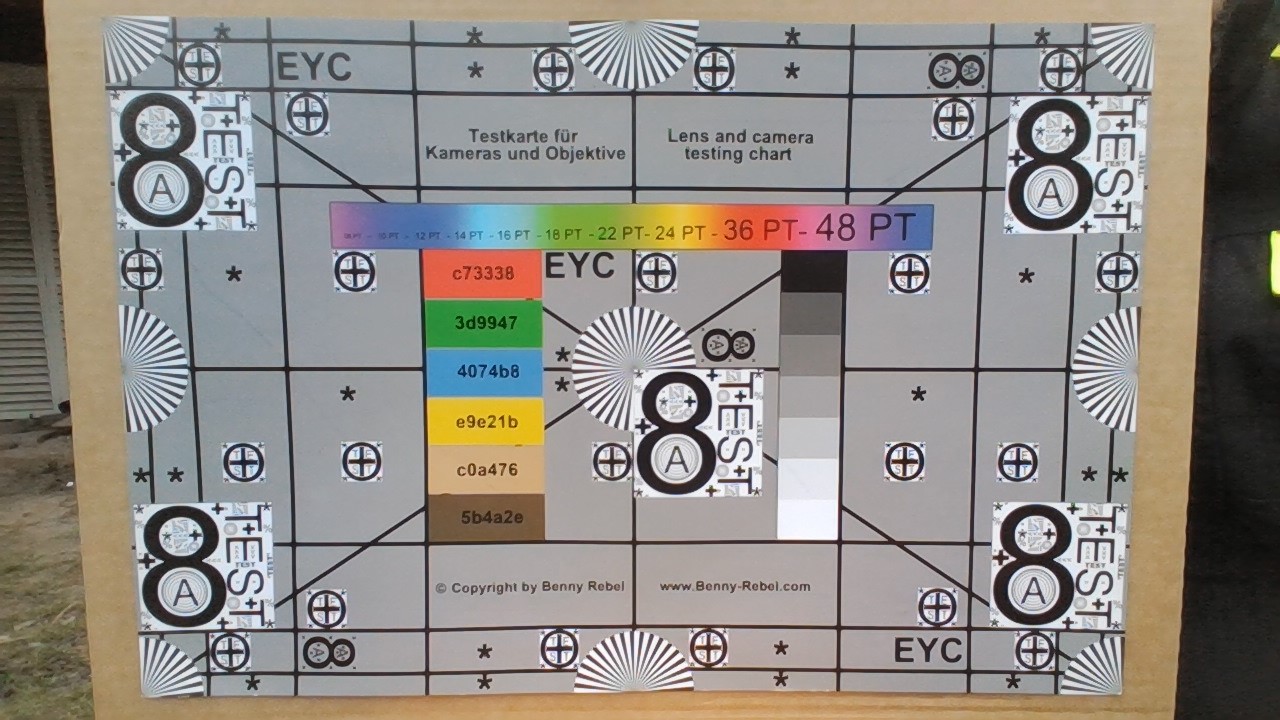

网络摄像头

网络摄像头的分辨率为720p,这是典型的低分辨率。颜色的偏差是明显的。不幸的是,许多集成笔记本网络摄像头也是如此。

然而,幸运的是,在光线不足的情况下,相当好的图像和可靠的双阵列麦克风仍然使视频通话效果良好。声音听起来很自然,背景噪音如音乐被调低,使通话者容易理解。

缺少机械式网络摄像头快门对一些用户来说可能是个问题。

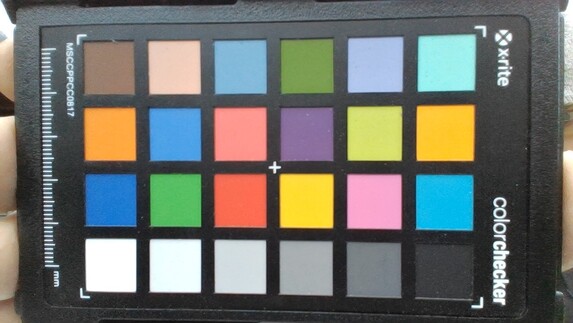

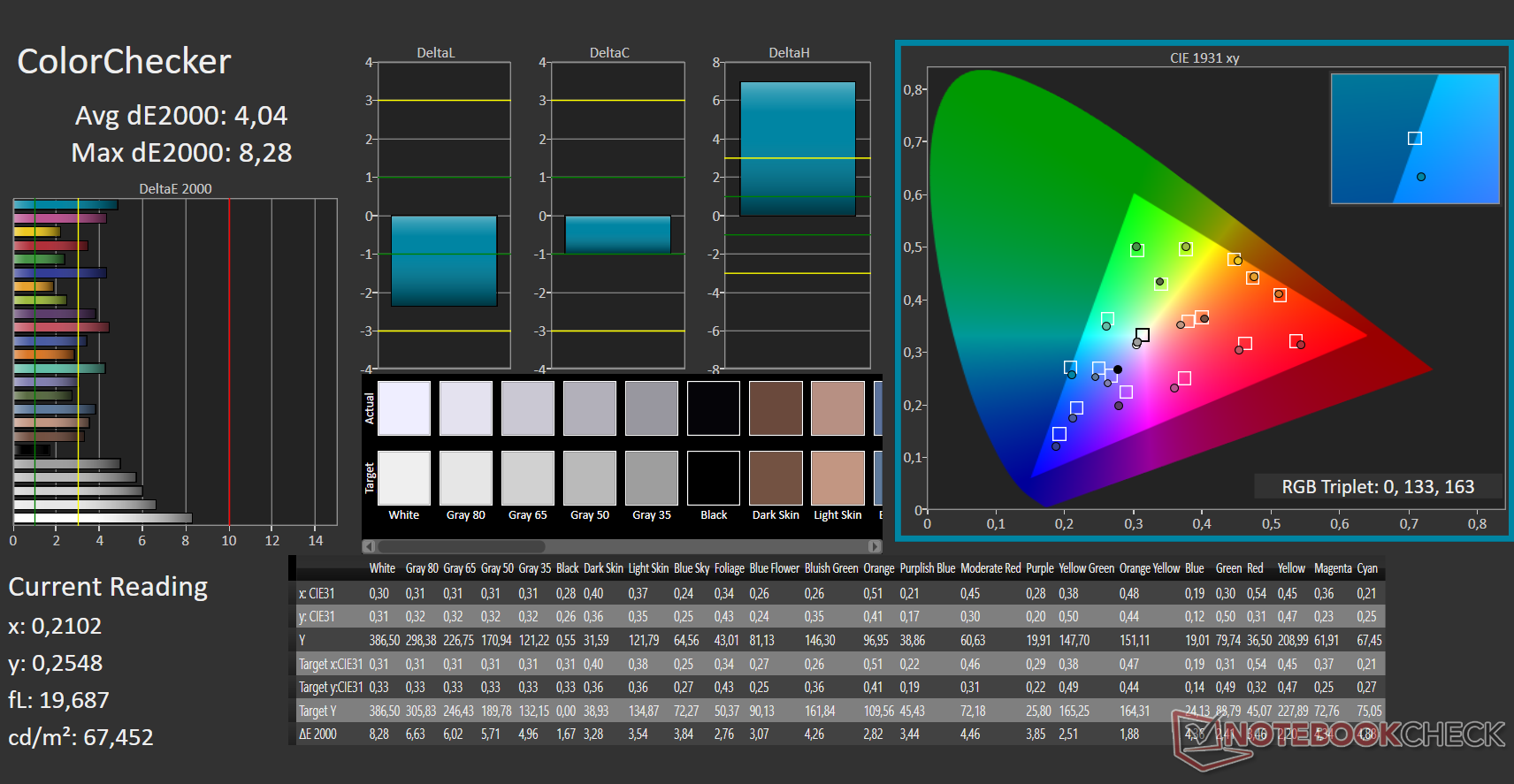

ColorChecker
18 ∆E
14.2 ∆E
20.8 ∆E
18.2 ∆E
19.8 ∆E
14.8 ∆E
12.8 ∆E
27.7 ∆E
18.7 ∆E
18 ∆E
10.7 ∆E
10.8 ∆E
23.6 ∆E
13.2 ∆E
22 ∆E
5.3 ∆E
23 ∆E
18 ∆E
2.3 ∆E
13.1 ∆E
12.8 ∆E
17.8 ∆E
17.6 ∆E
3.5 ∆E
ColorChecker HP Pavilion 14-dv0357ng: 15.69 ∆E min: 2.33 - max: 27.73 ∆E

维护 - 是升级

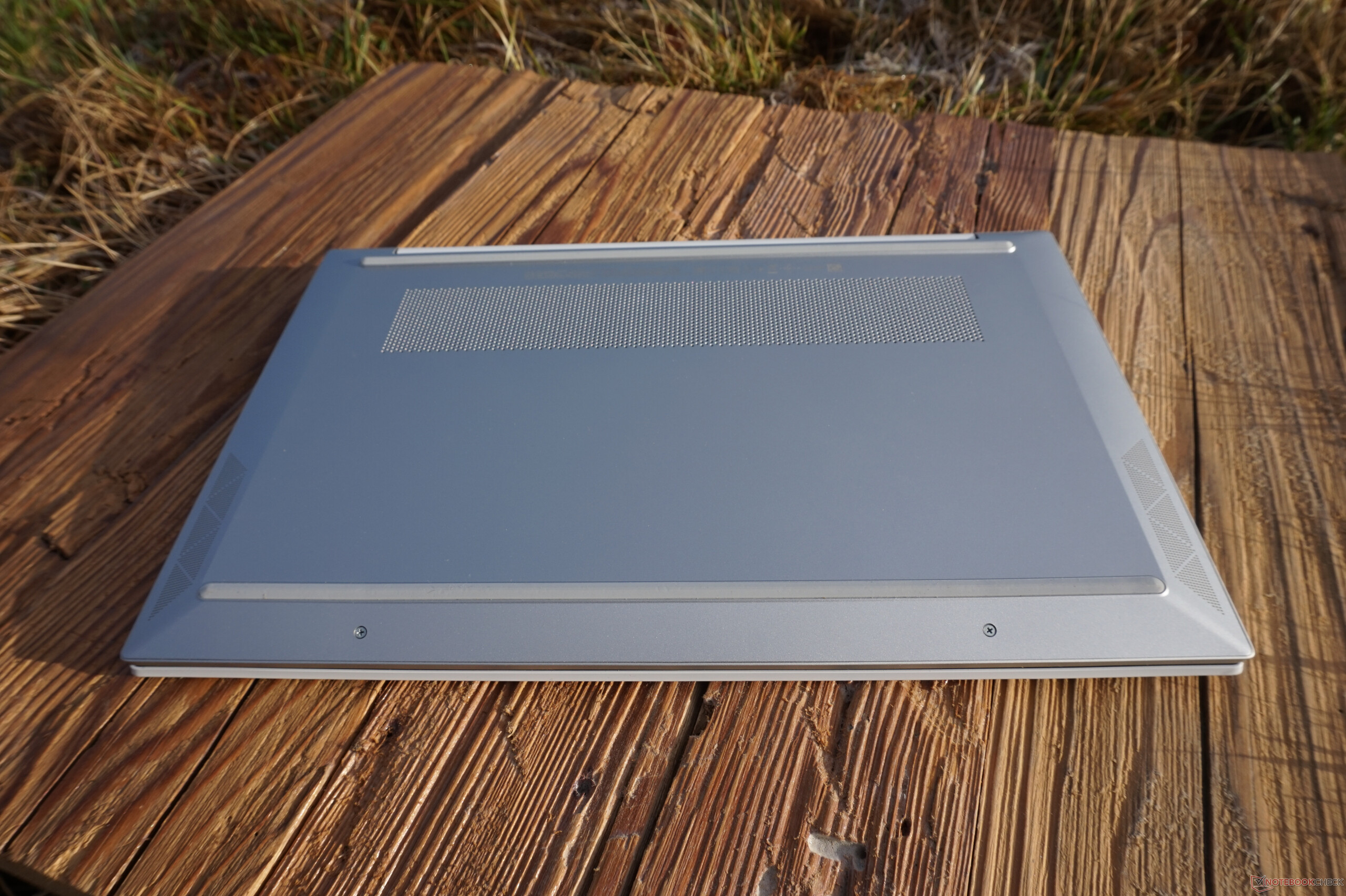

从理论上讲,惠普已经使维护和升级惠普Pavilion 14中的各个部件变得非常容易。不幸的是,底盖非常难以拆卸,抵消了该设备的高可维修性。六颗螺丝中的四颗隐藏在胶粘的橡胶条下面。随着时间的推移,随着胶水的硬化,要想在不损坏或撕裂它们的情况下取下这些东西,可能会变得几乎不可能。由塑料制成的底盖由大量的夹子固定,在试图拆除底盖时也可能被损坏。我们建议使用一个塑料工具来撬开它。一个好的开始是在显示屏的铰链之间。

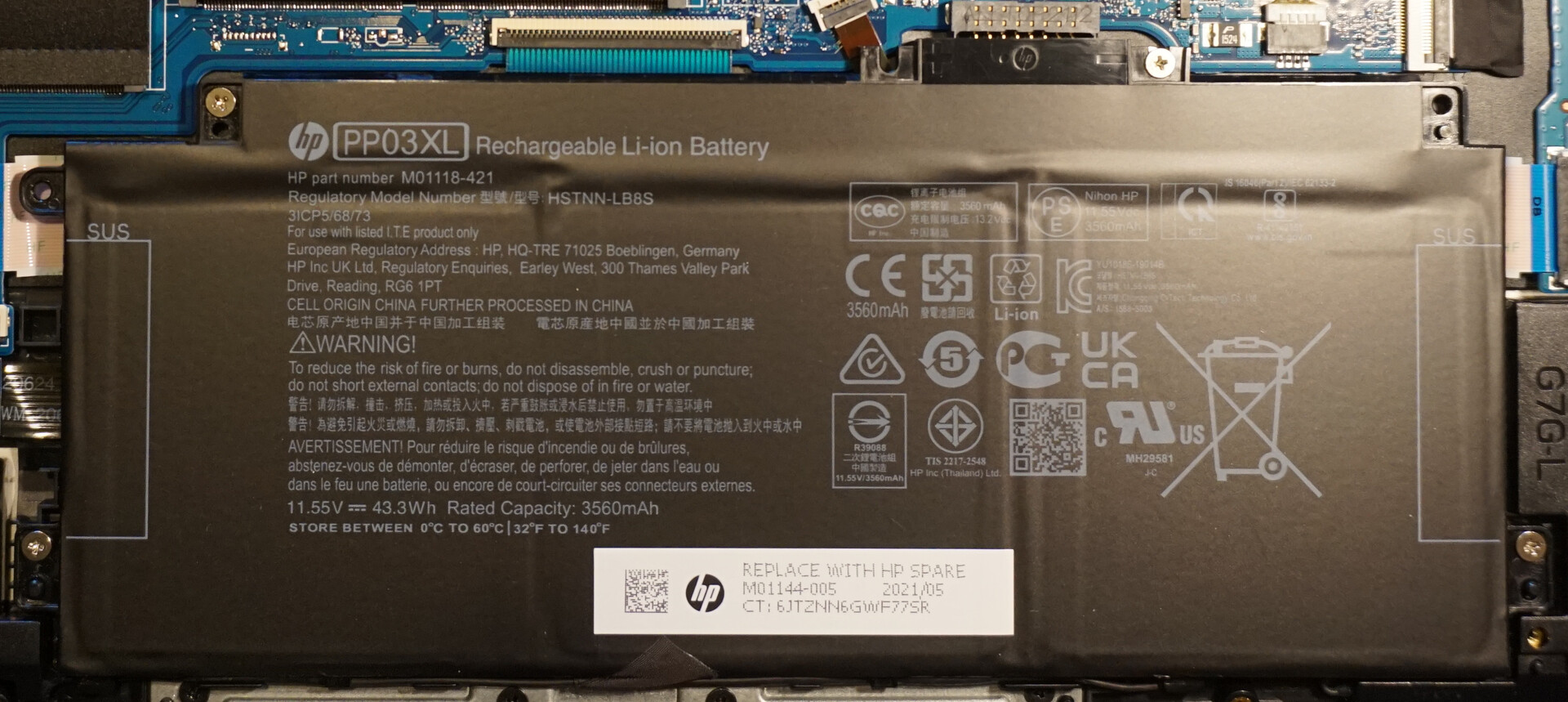

然而,一旦你设法取下底盖,你就可以看到两个内存插槽,都支持32GB。Wi-Fi模块也可以被替换,标准的2280固态硬盘也是如此。即使是电池也可以很容易地更换。风扇是可以清洁的。

所有这些都解释了为什么Pavilion ,比其竞争对手略厚。维护的可能性很大--只要你能设法在不损坏底盖的情况下取下它。

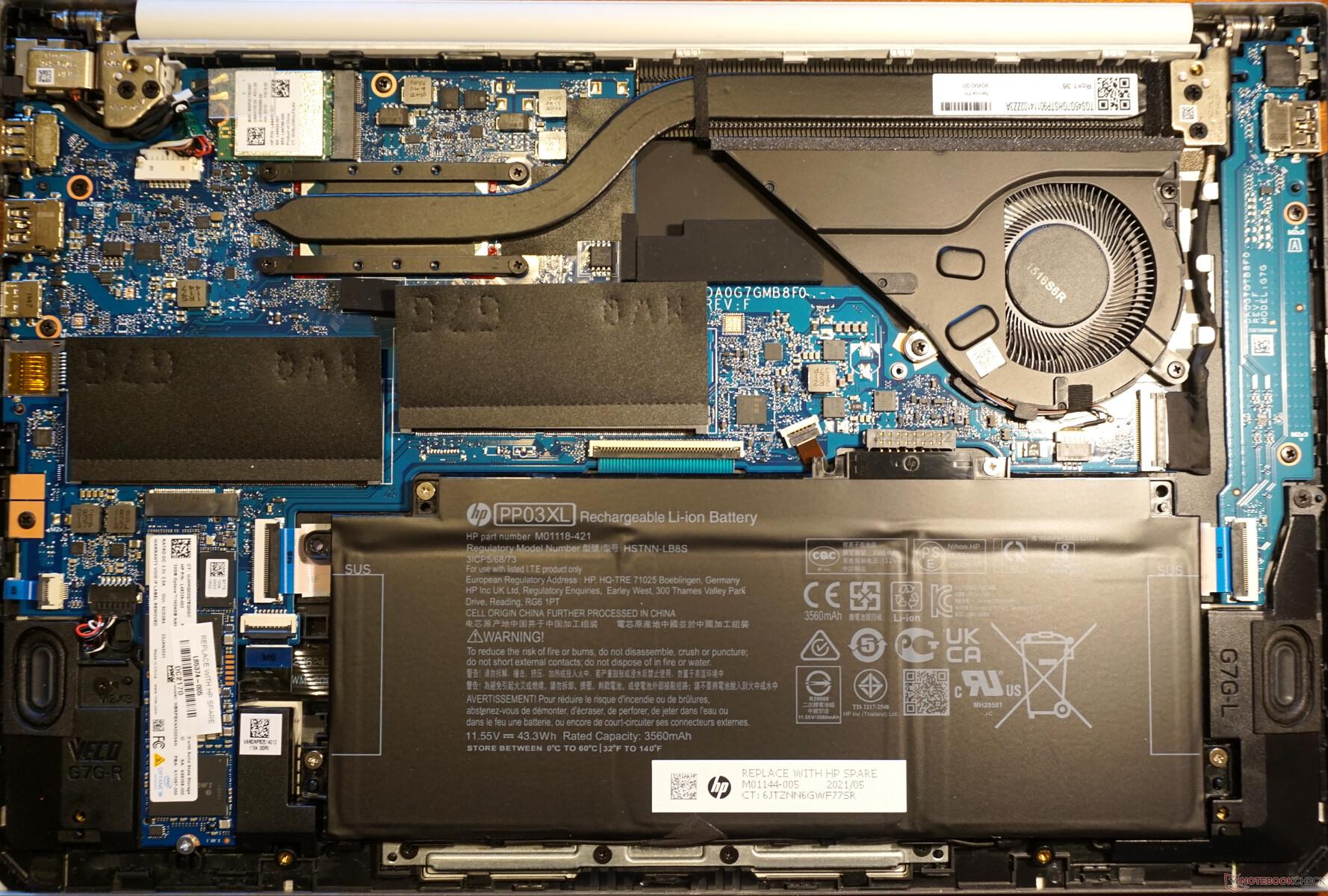

最重要的部件可以被替换
最重要的部件可以被替换
两个成熟的插槽意味着可以轻松扩展RAM
两个成熟的插槽意味着可以轻松扩展RAM

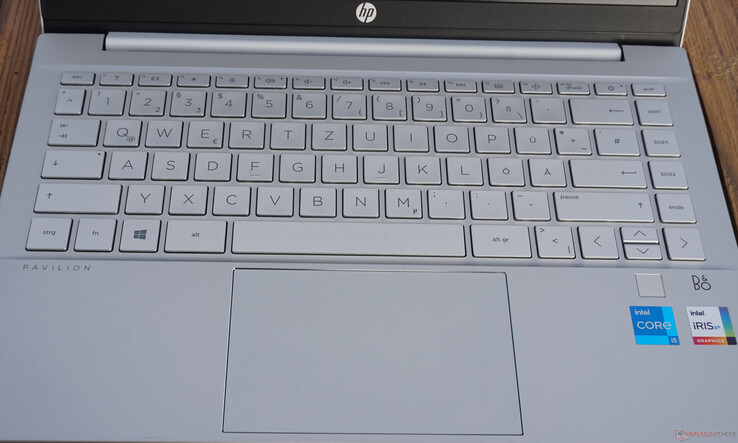

输入设备 - 舒适而精确的键盘

键盘

标准尺寸的小鸡键盘快速而精确。经常打字的用户应该会对这个键盘非常满意。按键时的反压力和略带声音的点击声都给人留下了高质量的印象。正如预期的那样,行程偏短,但还是令人满意。因为即使在强大的压力下,基础也非常稳定,键盘给人以良好的整体印象。

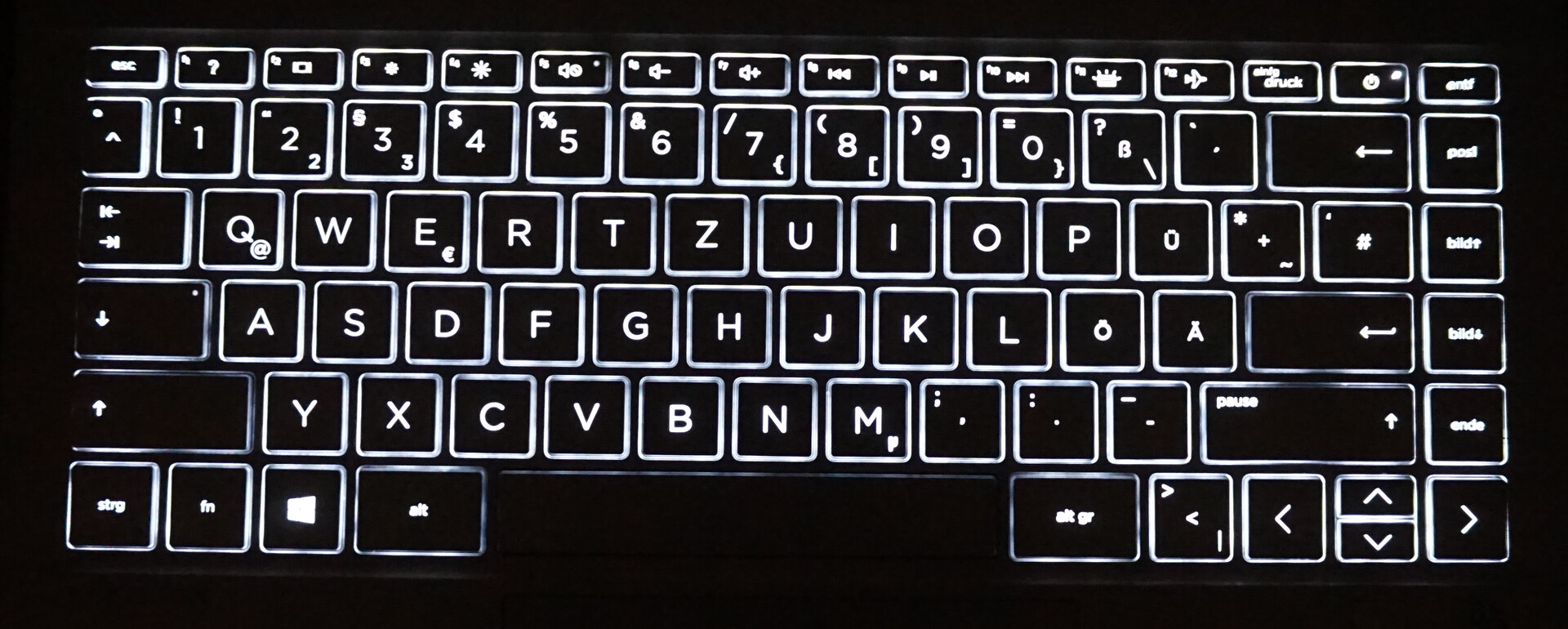

银色按键和深灰色字体之间的对比并不理想。幸运的是,键盘的背光使其在光线不足的情况下也能轻松识别按键。在白天,银色背景上的白色背光可能很难看到,这取决于光线的落下方式。在这种情况下,背光实际上可能会起到反作用。

典型的布局没有数字块和较小的方向键,这对私人用户来说应该只是一个问题,如果他们想用这个设备来玩游戏的话。如果惠普决定将电源按钮放在键盘外面,他们就会有空间来放置全尺寸的方向键。

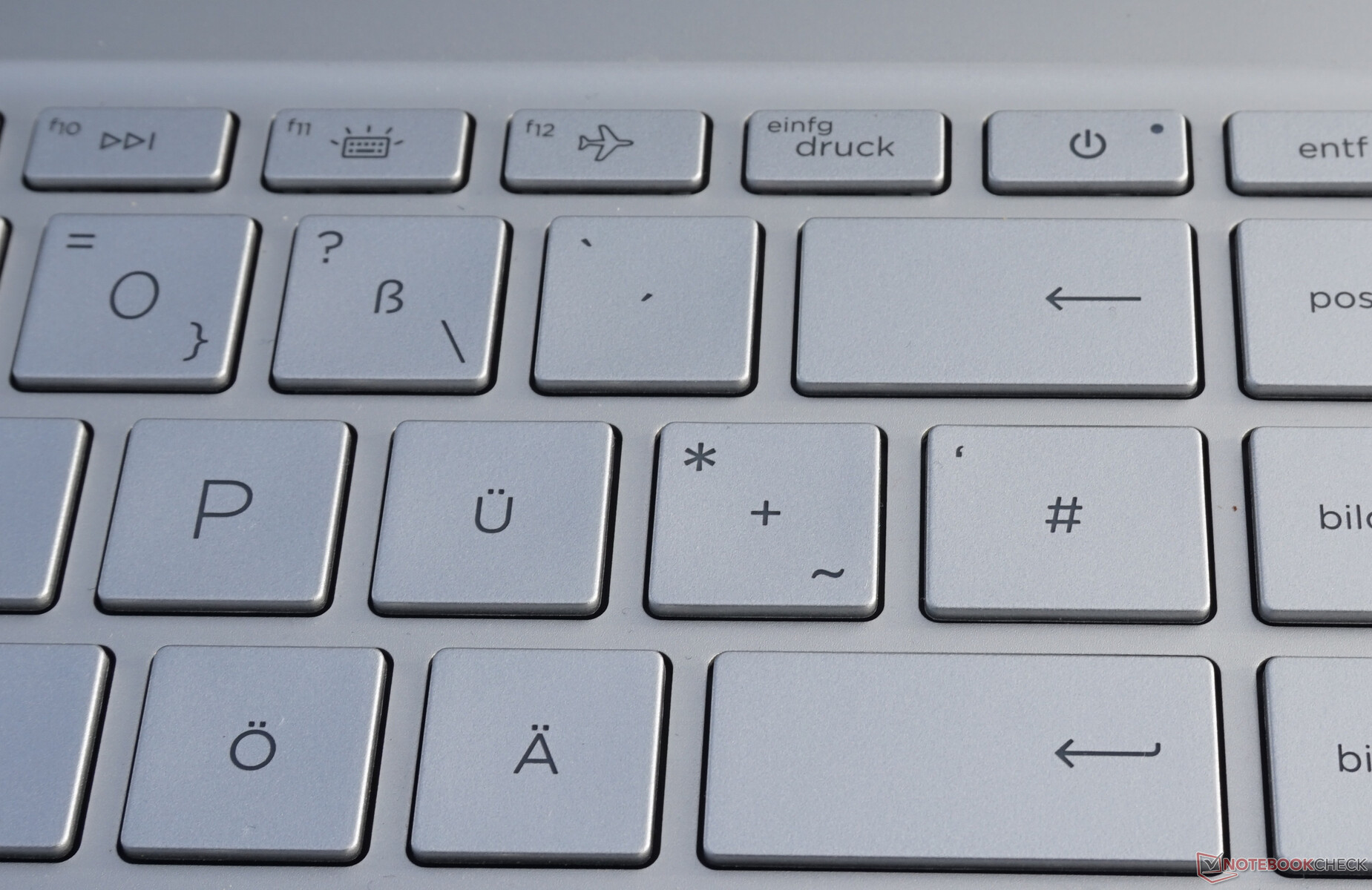

电源按钮集成在键盘上--不是很理想
电源按钮集成在键盘上--不是很理想

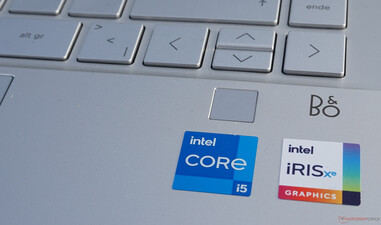

指纹传感器集成在腕托上。
指纹传感器集成在腕托上。


触摸板

触摸板几乎没有什么可批评的:它反应精确,用一根或四根手指就能准确使用,这也是由于其表面大。只有在按下鼠标键时才会感觉有点松动。这并不适用于通过正常的触摸感应表面进行的左键点击。

坚实的键盘框架在打字时创造了一个愉快的反压。
坚实的键盘框架在打字时创造了一个愉快的反压。

显示器 - 笔记本面板缺乏对比度

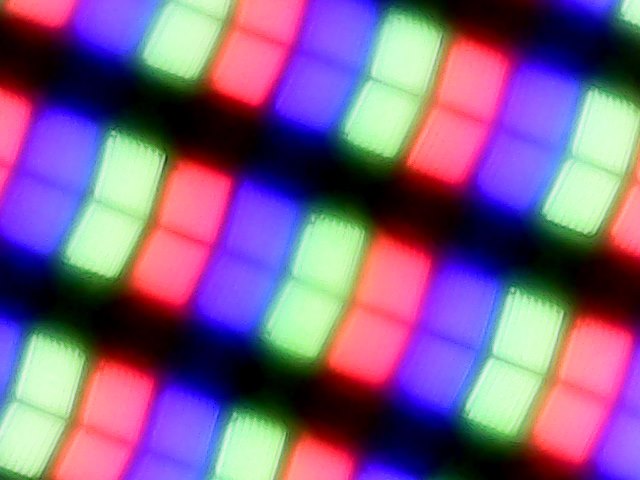

面板特写
面板特写

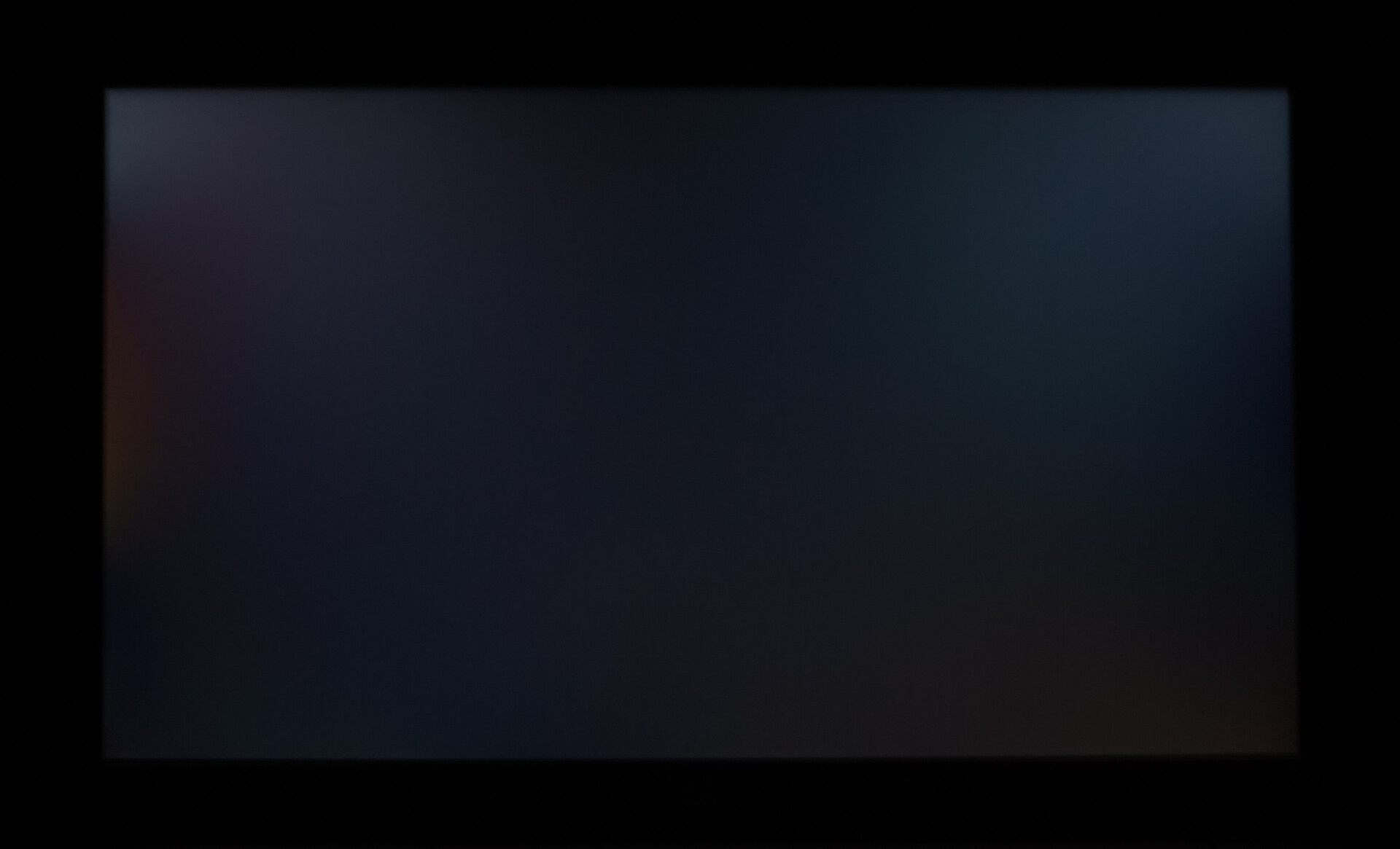

背光沿左侧渗出
背光沿左侧渗出

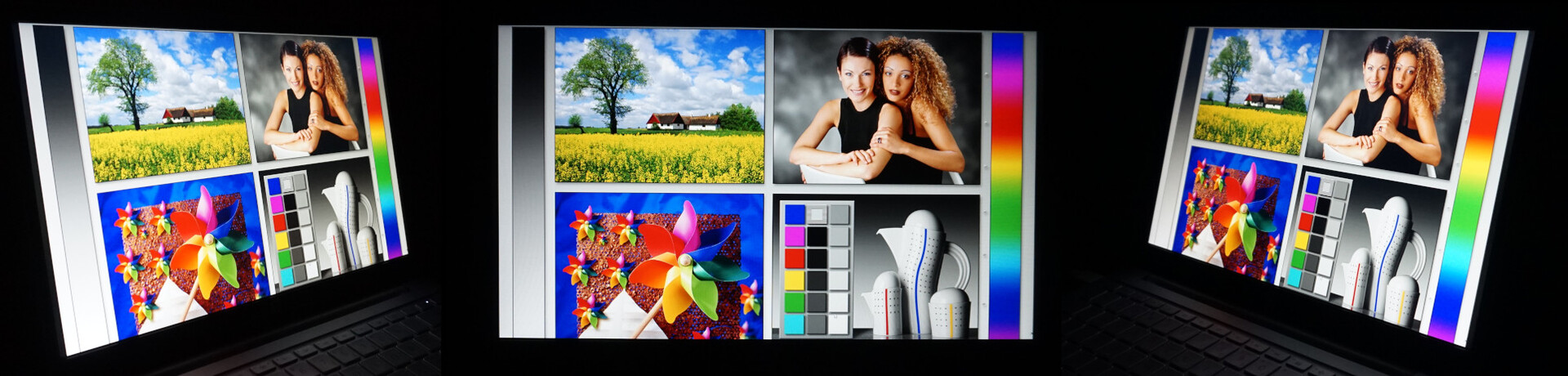

14英寸的IPS面板很好。它具有我们所期望的IPS显示屏的稳定视角,由于其良好的亮度,即使在户外也很容易阅读。尽管在电池运行时,亮度水平稍有限制,但330尼特仍能确保文字能被轻松阅读。

然而,对比度和黑值并没有满足我们的高期望。例如,这些数值是之前HPPavilion 14 的两倍。有许多面板具有类似的特性,例如在微星Summit B15 A11M ,。由于对比度低,照片缺乏光彩,但除此之外,我们不指望用户在日常使用中会注意到这个缺陷。

我们很高兴地发现,屏幕几乎没有出现任何屏幕出血现象。沿着左侧边缘有一个较浅的区域,在非常黑暗的场景中可能会看到,但它并不那么明显。响应时间为17/37毫秒,高于平均水平。我们没有遇到任何PWM闪烁的情况。

385
cd/m²
389
cd/m²
334
cd/m²
362
cd/m²
387
cd/m²
327
cd/m²
353
cd/m²
366
cd/m²
326
cd/m²
Distribution of brightness
LGD0619
X-Rite i1Pro 2
Maximum: 389 cd/m² (Nits) Average: 358.8 cd/m² Minimum: 23 cd/m²
Brightness Distribution: 84 %
Center on Battery: 330 cd/m²
Contrast: 704:1 (Black: 0.55 cd/m²)

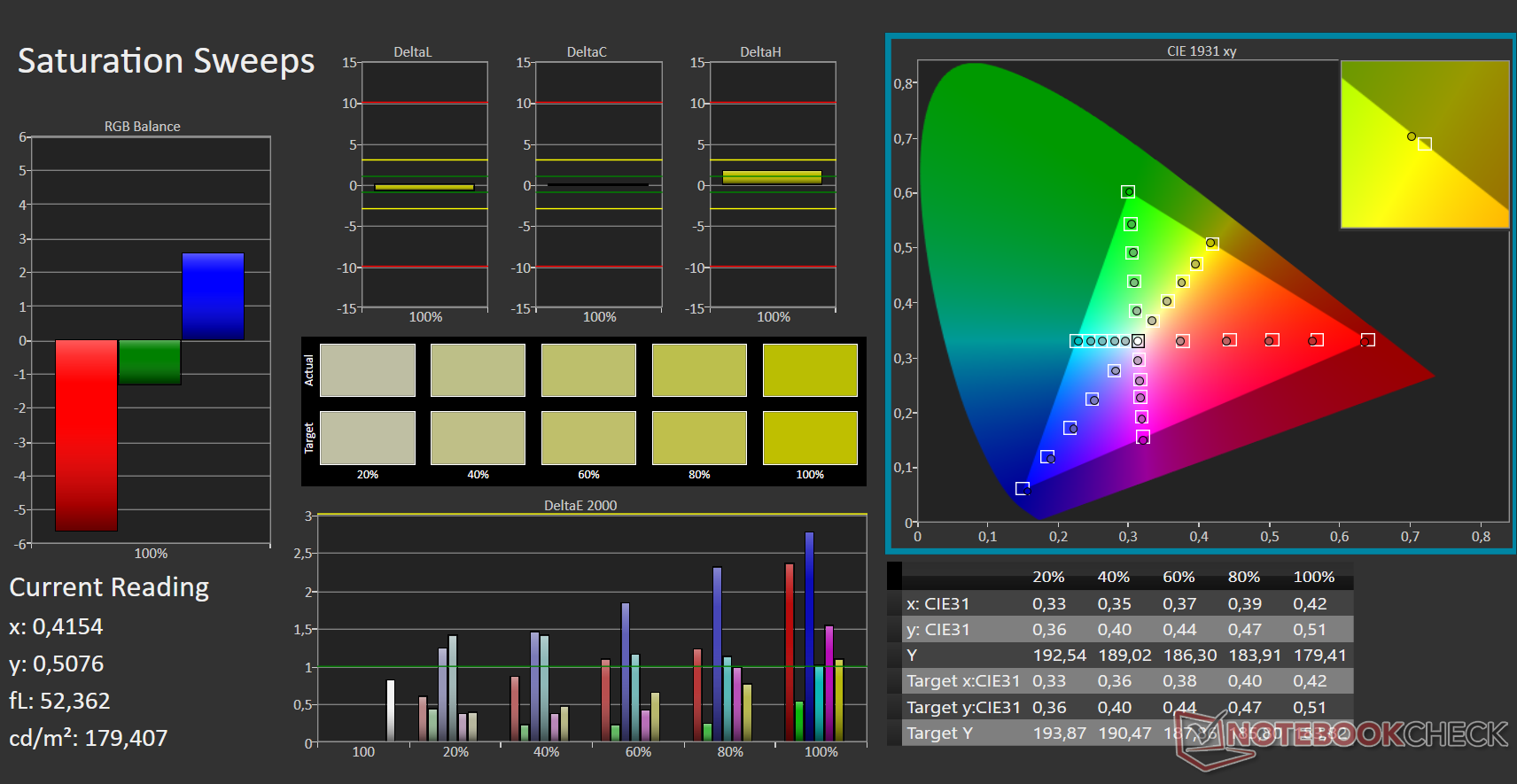

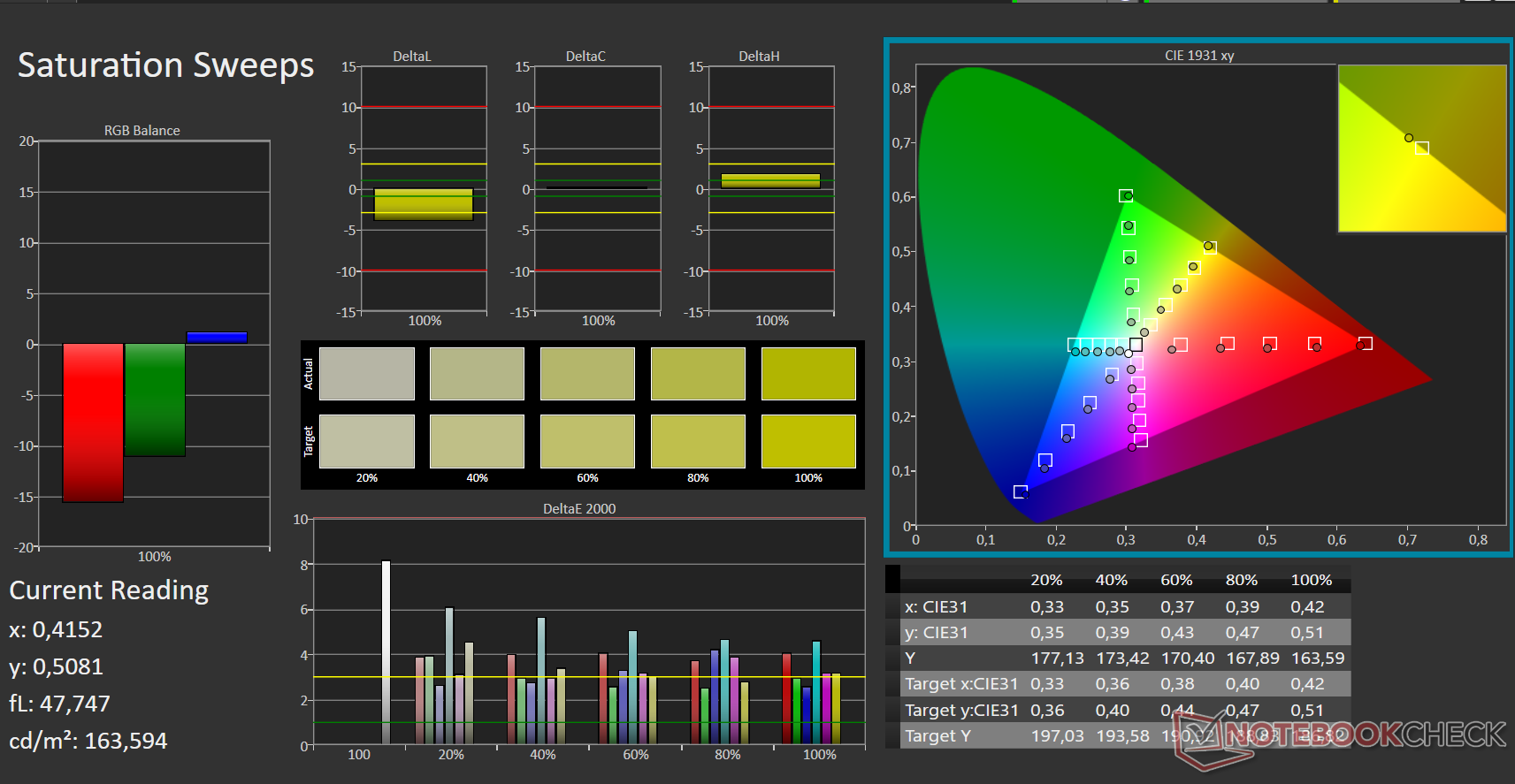

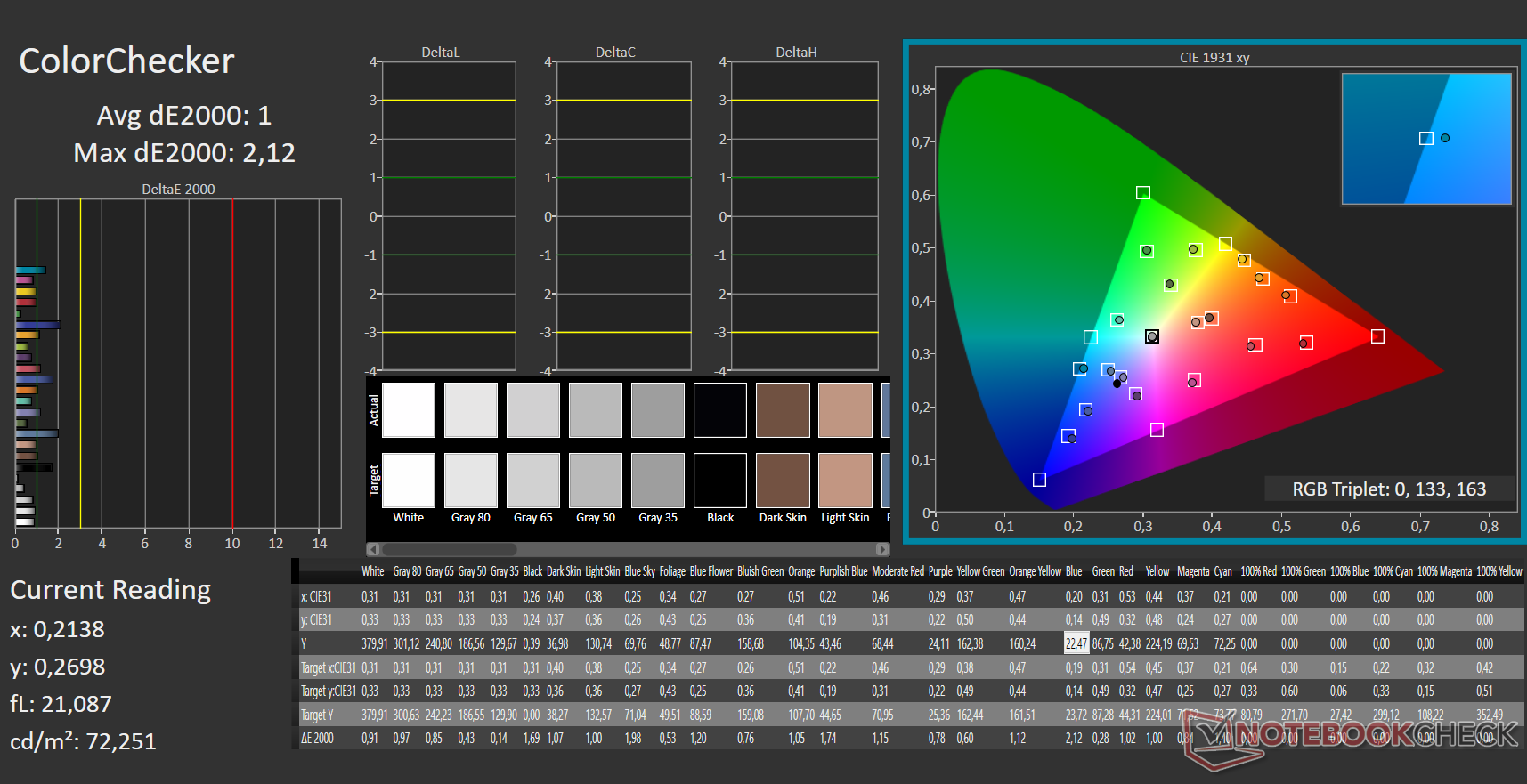

ΔE Color 4.04 | 0.59-29.43 Ø5.5, calibrated: 1

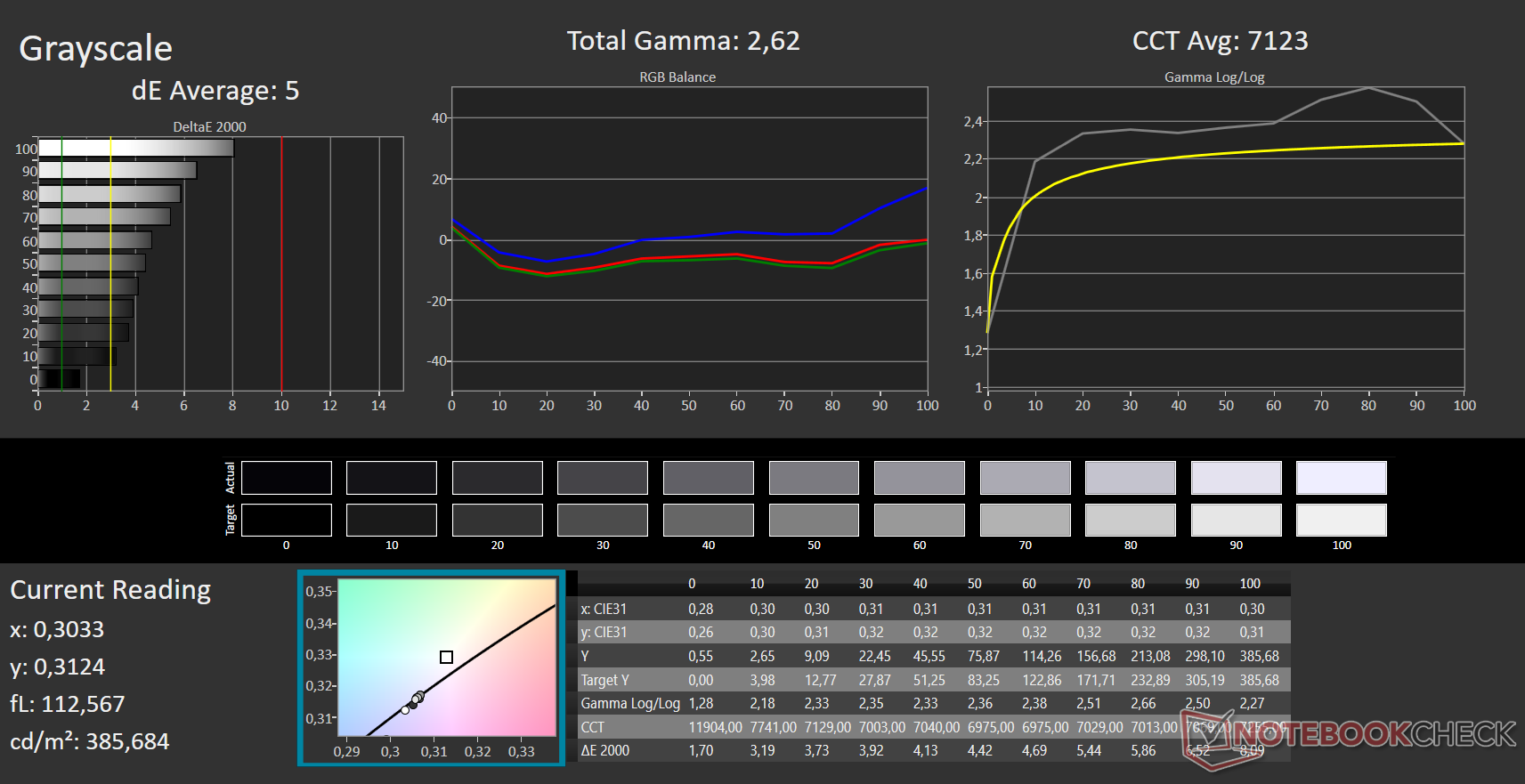

ΔE Greyscale 5 | 0.64-98 Ø5.7

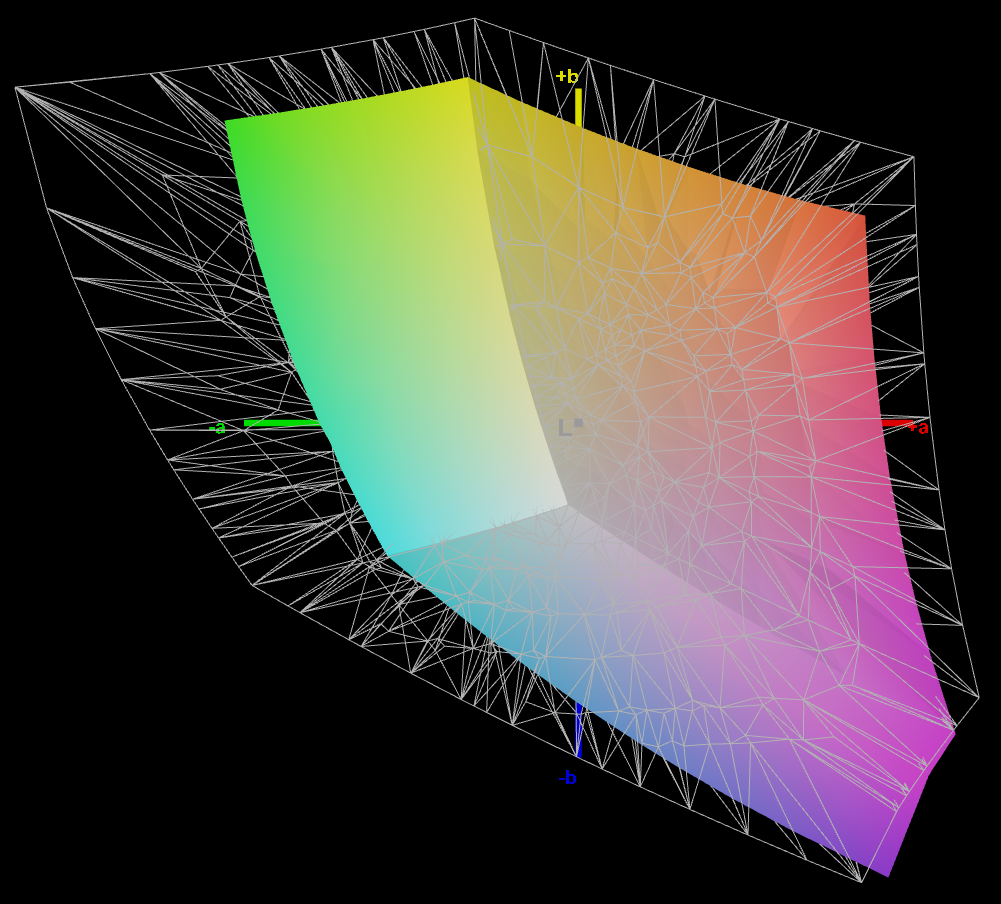

63% AdobeRGB 1998 (Argyll 2.2.0 3D)

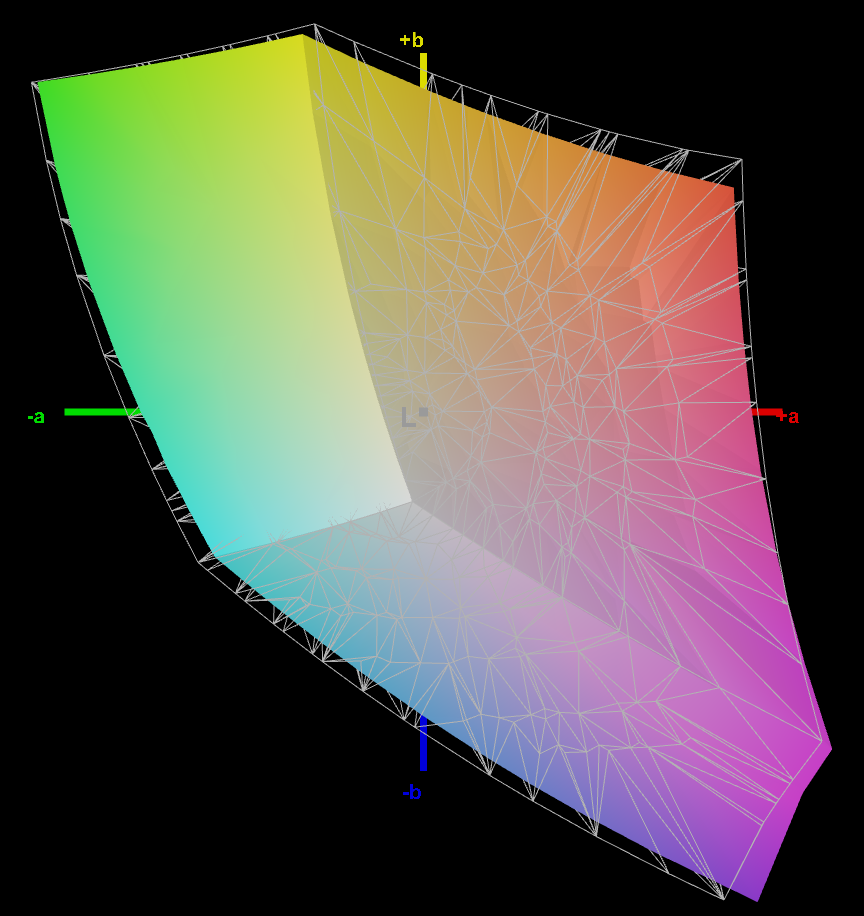

92% sRGB (Argyll 2.2.0 3D)
62% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.62
HP Pavilion 14-dv0357ng
LGD0619, IPS, 1920x1080, 14.00
HP 14s-dq1431ng
AUO403D, IPS, 1920x1080, 14.00
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
AU Optronics B140HAN06.8, IPS, 1920x1080, 14.00
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Chi Mei CMN14D4, IPS, 1920x1080, 14.00
Acer Swift 5 SF514-55T-58DN
AU Optronics AUO7490, IPS, 1920x1080, 14.00
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AU Optronics B140HAN04.E, IPS, 1920x1080, 14.00
Display
-37%
7%
-31%
8%
-39%
Display P3 Coverage
62
38.42
-38%
66.3
7%
42.8
-31%
67.01
8%
37.47
-40%
sRGB Coverage
92
57.71
-37%
97.4
6%
63.9
-31%
98.28
7%
56.04
-39%
AdobeRGB 1998 Coverage
63
39.71
-37%
68.1
8%
44.3
-30%
68.33
8%
38.71
-39%

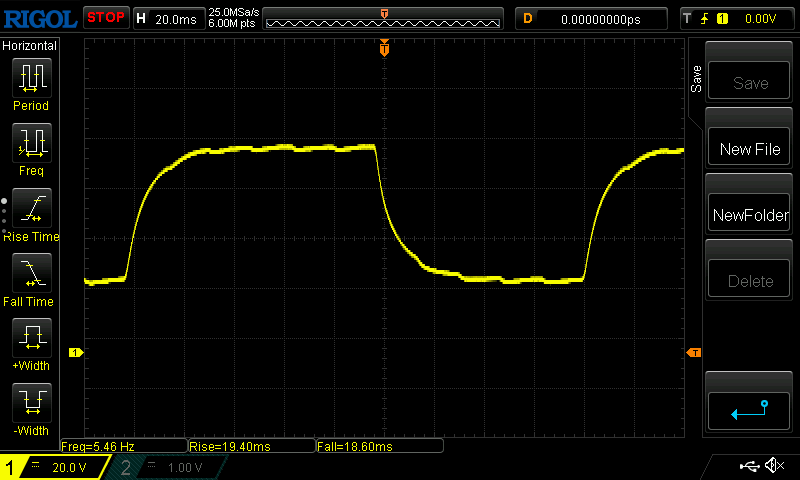

Response Times
-29%
-68%
-16%
19%
-38%
Response Time Grey 50% / Grey 80% *
37 ?(19, 18)
41 ?(20, 21)
-11%
52 ?(23, 29)
-41%
35.2 ?(18, 17.2)
5%
30 ?(2, 28)
19%
41 ?(18, 23)
-11%

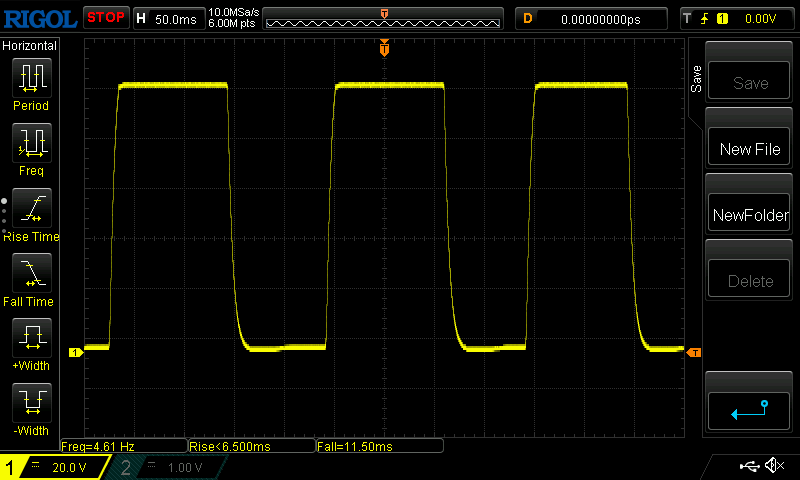

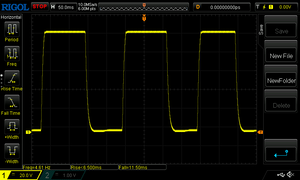

Response Time Black / White *
17 ?(7, 10)
25 ?(14, 11)
-47%
33 ?(17, 13)
-94%
23.2 ?(14, 9.2)
-36%
14 ?(3, 11)
18%
28 ?(15, 13)
-65%

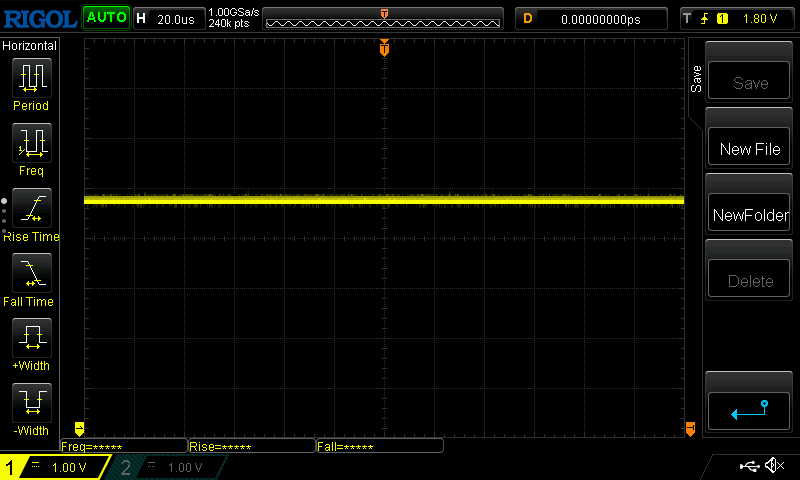

PWM Frequency
143 ?(10)
25000 ?(20)
29800
Screen
-36%
36%
-45%
45%
7%
Brightness middle
387
305
-21%
344
-11%
256
-34%
404
4%
357
-8%
Brightness
359
264
-26%
340
-5%
239
-33%
377
5%
315
-12%
Brightness Distribution
84
81
-4%
88
5%
83
-1%
79
-6%
82
-2%
Black Level *
0.55
0.16
71%
0.13
76%
0.23
58%
0.25
55%
0.455
17%
Contrast
704
1906
171%
2646
276%
1113
58%
1616
130%
785
12%
Colorchecker dE 2000 *
4.04
5.44
-35%
3.29
19%
6.2
-53%
1.47
64%
3.98
1%
Colorchecker dE 2000 max. *
8.28
20.42
-147%
7.48
10%
18.2
-120%
2.6
69%
6.92
16%
Colorchecker dE 2000 calibrated *
1
4.72
-372%
1.79
-79%
3.8
-280%
0.84
16%

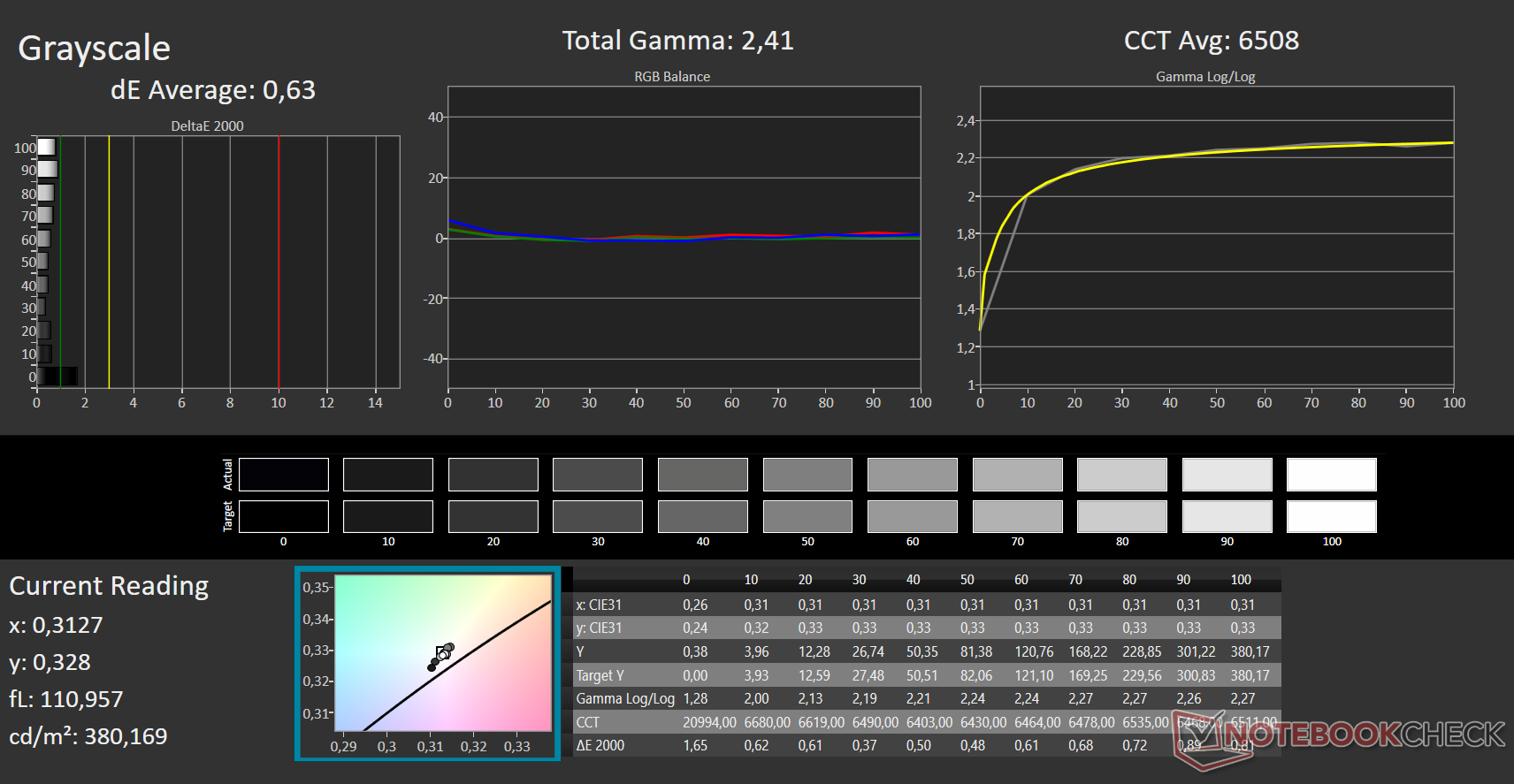

Greyscale dE 2000 *
5
3.23
35%
3.25
35%
5
-0%
1.7
66%
3.33
33%
Gamma
2.62 84%
2.45 90%
2.29 96%
1.97 112%
2.35 94%
2.47 89%
CCT
7123 91%
7035 92%
6358 102%
7364 88%
6662 98%
6138 106%
Color Space (Percent of AdobeRGB 1998)
37
63
36
Color Space (Percent of sRGB)
58
98
56
Total Average (Program / Settings)
-34% / -36%
-8% / 15%
-31% / -38%
24% / 33%
-23% / -11%

* ... smaller is better

虽然该显示器没有覆盖整个sRGB色彩空间,但它的覆盖率仍达到92%,高于平均水平。该面板覆盖了63%的Adobe色彩空间,这是覆盖整个sRGB色彩空间的显示器的典型特征。

92% sRGB
92% sRGB
63% AdobeRGB
63% AdobeRGB

色彩准确度很好,无需校准显示器,尽管平均色彩空间偏差为5,对受过训练的眼睛来说会很明显。该面板没有偏蓝现象。在用光谱仪校准显示器后,颜色显示或多或少是完美的,这导致DeltaE值为1,远远低于3的典型限制。

你可以从上面显示我们测量结果的方框中下载我们的ICC配置文件。

卡尔曼色
卡尔曼色
卡尔曼灰鳞
卡尔曼灰鳞
卡尔曼饱和度
卡尔曼饱和度
卡尔曼颜色(校准后)
卡尔曼颜色(校准后)
卡尔曼灰阶(校准后)
卡尔曼灰阶(校准后)
卡尔曼饱和度(校准后)
卡尔曼饱和度(校准后)

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
17 ms ... rise ↗ and fall ↘ combined↗ 7 ms rise
↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 24 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (23.8 ms).
       Response Time 50% Grey to 80% Grey
37 ms ... rise ↗ and fall ↘ combined↗ 19 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 38 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (37.5 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 20931 (minimum: 5 - maximum: 3846000) Hz was measured.

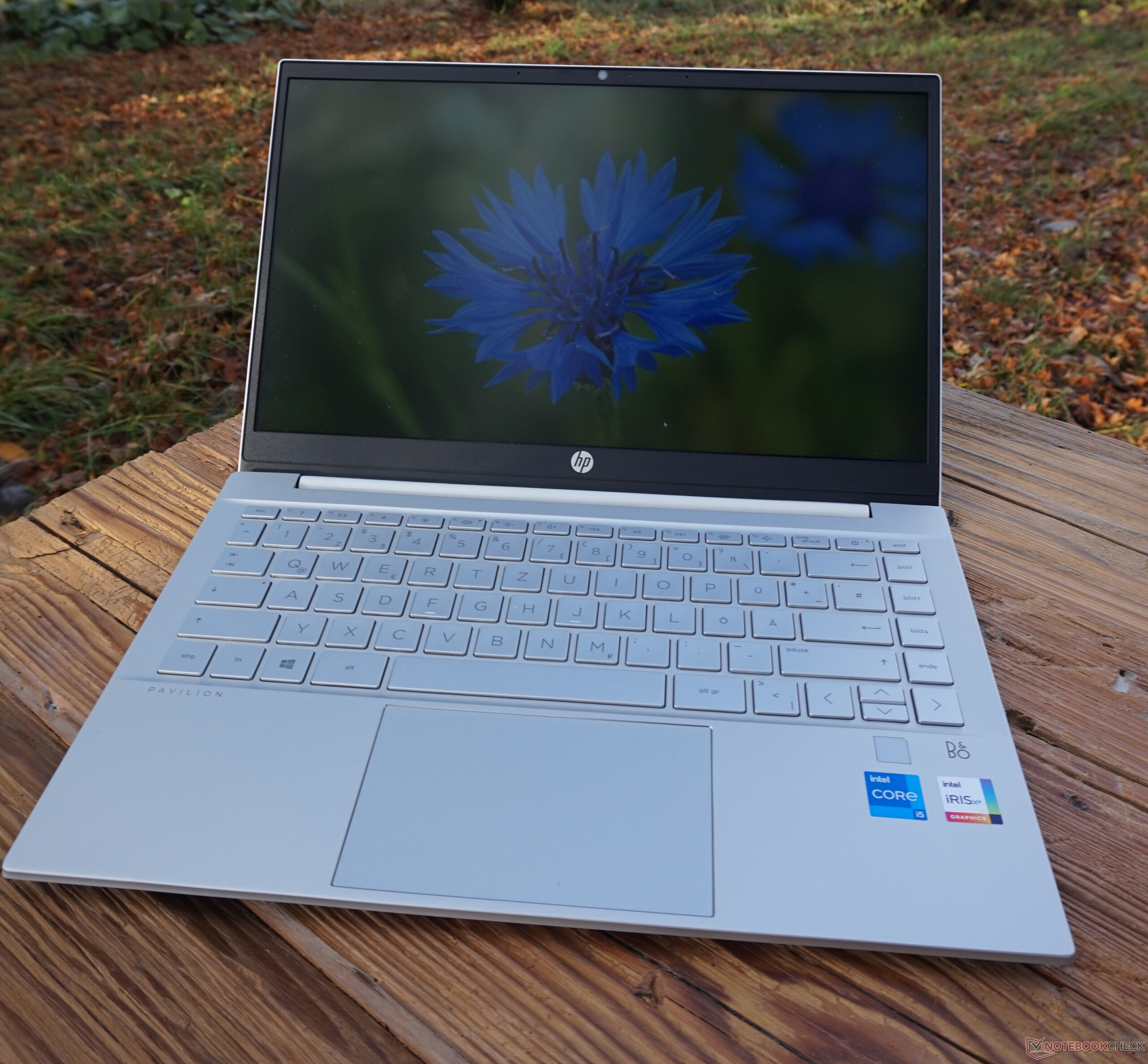

由于其330尼特的亮度,该笔记本可以在户外或旅途中使用。即使在阳光直射下,内容仍然容易阅读(根据我们在冬季的试验)。然而,如果笔记本偶尔在户外使用,更高的对比度将是可取的。

即使从最尖锐的角度看,屏幕内容的颜色和对比度也保持稳定。只有亮度被最小限度地降低。这是你对IPS面板的期望。

性能 - 一个安静的风扇

英特尔酷睿i5-1135G7 和16GB内存(甚至可以进一步扩展)的组合对于所有多媒体应用来说是绰绰有余的。也就是说,当涉及到3D应用时,惠普Pavilion 14-dv0357ng很快就达到了它的极限,这是由于缺少专用的GPU。

处理器

i5-1135G7 显然,它侧重于低功耗和发热的发展。尽管如此,由于10纳米架构的效率,与前代i5-1035G7 相比,其性能的提高还是不容小觑的。

这款CPU可以用来完成更多简单的办公任务。它特别适合于多任务处理,如同时进行流媒体、冲浪和文件管理。另一种CPU,英特尔酷睿i7-1165G7 ,对于需要执行更多要求的任务的人来说是一个不错的选择。

i5有四个核心,时钟频率为4.2GHz。总共八个芯片是并行运行几个程序的理想选择。

该图表明,无论温度如何变化,28秒后性能都会下降。
该图表明,无论温度如何变化,28秒后性能都会下降。

Cinebench R15 Multi Loop

0651301952603253904555205856507157808459109751040110511701235774.95678.64699.94683.8668.32687.65658.26698.8651.29686.9656.84692.65656.36671.45663.18647.62681.66639.66678.76653.7658672.85647.47688.22651.75334.83348.76330.27337.67350.05360.86336.48336.24328.96356.72337.46356.07328368.99346.92594.47322.23600.93351.4600.21325.82353.6337.07351.27339.76920.3920.41854.15839.19851.32828.79826.4826.45822.84825.25829.81826.55832827.22819.08828.09823.28828.93818.78824.83825.42824.84829.22825.32825.27825.71833.26833.45824.11832.43820.95826.55830.12829.45826.12829.88828.07826.1826.69829.22860.22726.53725.51726.52731.3729.22731.93728.6728.19729.42729.67729.01732.14730.89730.26728.8730.66730.05730.89732.76723.71729.42725.7731.5729.01891.96872.03875.33873.52801.59821.93835.32777.26765.64819.82775.37778.73818.5779.39746.44788.99809.77764.31737.71798.08773.02738.69786.4763.34773.5767749.93795.36762.44731.72803.34763.36730.94789.95759.95728.58786.09763.58731.72791.67761.99717.57776.53759.56732.55796.35771.05716.77760.86799.581251.721248.711230.811213.71180.391150.351145.971146.161144.391139.671142.631145.281144.591146.21144.361140.021143.181142.331143.151142.631141.061145.381142.731145.3111671145.541166.491143.381146.461146.31134.461138.271138.731171.471142.961145.541144.661148.011144.391139.05Tooltip
HP Pavilion 14-dv0357ng Intel Core i5-1135G7: Ø674 (639.66-774.95)
HP 14s-dq1431ng Intel Core i5-1035G1: Ø373 (322.23-600.93)
Lenovo Yoga Slim 7 14ITL05 82A300CNGE Intel Core i5-1135G7: Ø833 (818.78-920.41)
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7: Ø734 (723.71-860.22)
Acer Swift 5 SF514-55T-58DN Intel Core i5-1135G7: Ø780 (716.77-891.96)
Lenovo IdeaPad 5 14ALC05 82LM005YGE AMD Ryzen 5 5500U: Ø1156 (1134.46-1251.72)

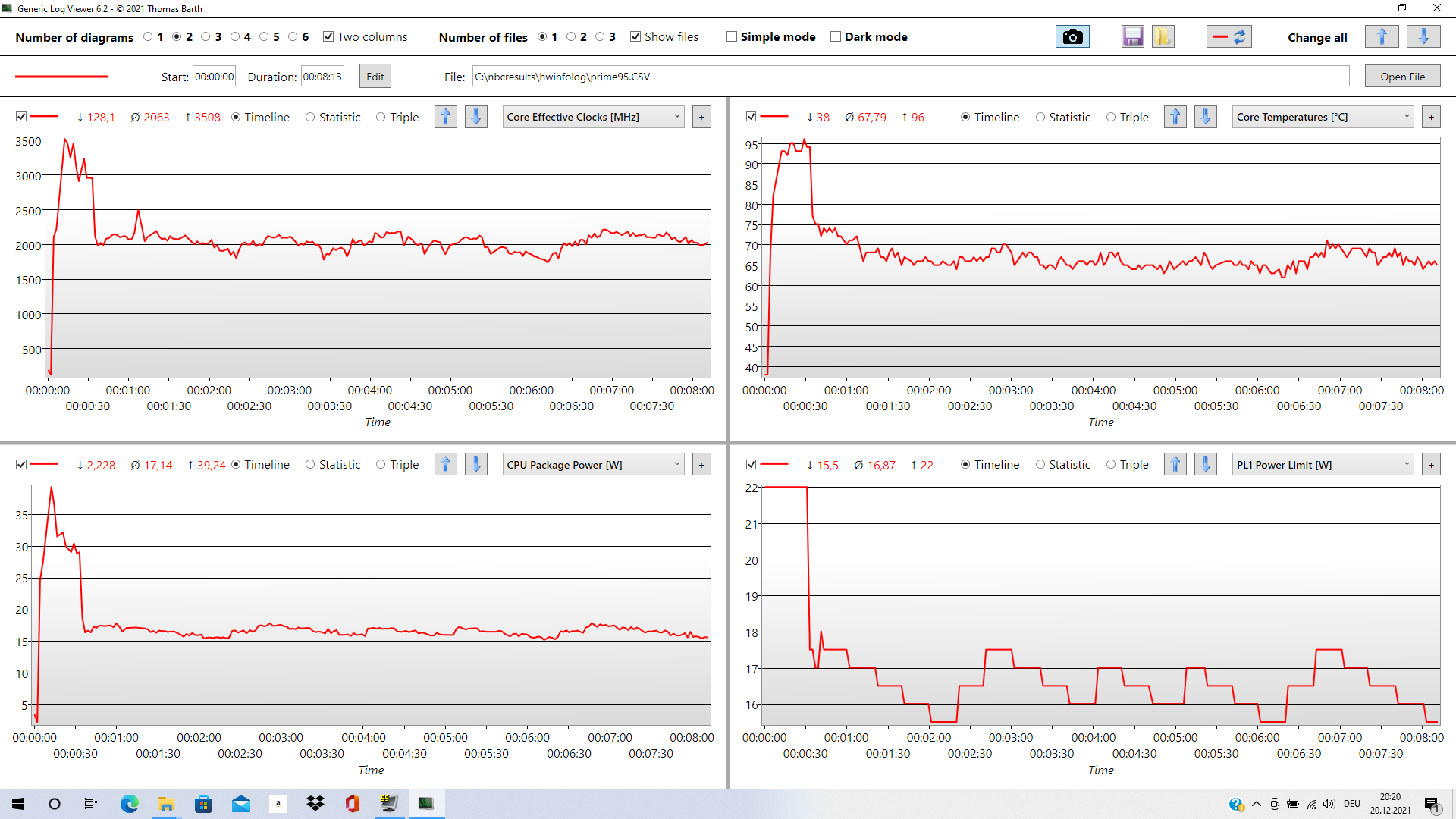

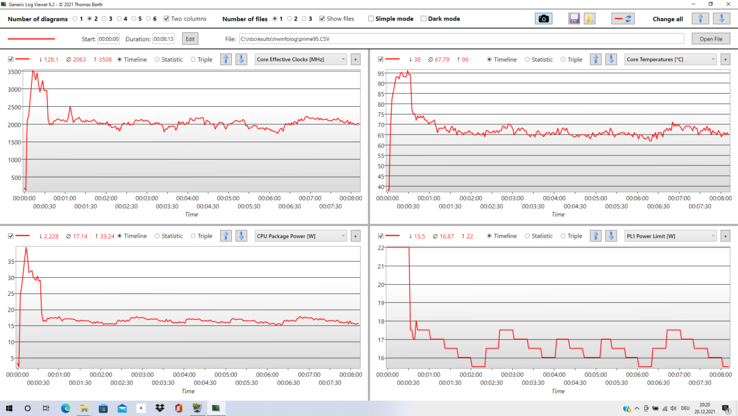

值得仔细看看惠普是如何设计这个设备的功率限制的。 该设计要求散热15W,处理器在短时间内(2.4毫秒)可以消耗51W。之后,CPU在28秒内保持在22W,如果继续重载,则被限制在15至12W。

其他制造商,如华硕,允许i5至少25W,而其他制造商又在一定时间内给它通常的最大28W。这就是为什么Pavilion's Cinebench循环结果低于平均水平。一些类似的笔记本电脑达到了高达20%的性能,这也反映在其功耗上。

CPU Performance Rating: Percent
Cinebench R23: CPU (Multi Core) | CPU (Single Core)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.3: 64 Bit Multi-Core Score | 64 Bit Single-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
79.7 pt ∼80%
Acer Swift 5 SF514-55T-58DN -2!
Intel Core i5-1135G7
73.7 pt ∼74%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
73.5 pt ∼74%
Average Intel Core i5-1135G7

70.4 pt ∼70%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
68.2 pt ∼68%
HP Pavilion 14-dv0357ng -6!
Intel Core i5-1135G7
65.3 pt ∼65%
Average of class Office

62.2 pt ∼62%
HP 14s-dq1431ng -2!
Intel Core i5-1035G1
49.2 pt ∼49%
Cinebench R23 / CPU (Multi Core)
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
6964 Points ∼100% +77%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
5857 Points ∼84% +49%
Average of class Office
  (830 - 9653, n=54, last 2 years)
4710 Points ∼68% +20%
Average Intel Core i5-1135G7
  (2786 - 6136, n=37)
4610 Points ∼66% +17%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7
3928 Points ∼56%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
3619 Points ∼52% -8%
Cinebench R23 / CPU (Single Core)
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
1356 Points ∼100% +3%
Average Intel Core i5-1135G7
  (1062 - 1372, n=36)
1315 Points ∼97% 0%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7
1311 Points ∼97%
Average of class Office
  (208 - 1578, n=53, last 2 years)
1198 Points ∼88% -9%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
1183 Points ∼87% -10%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
1065 Points ∼79% -19%
Cinebench R20 / CPU (Multi Core)
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
2570 Points ∼100% +61%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
2207 Points ∼86% +38%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
2105 Points ∼82% +32%
Average Intel Core i5-1135G7
  (979 - 2382, n=43)
1799 Points ∼70% +13%
Average of class Office
  (159 - 3672, n=124, last 2 years)
1720 Points ∼67% +8%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7
1596 Points ∼62%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
1548 Points ∼60% -3%
HP 14s-dq1431ng
Intel Core i5-1035G1
1210 Points ∼47% -24%
HP 14s-dq1431ng
Intel Core i5-1035G1
1210 Points ∼47% -24%
Cinebench R20 / CPU (Single Core)
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
523 Points ∼100% +39%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
518 Points ∼99% +38%
Average Intel Core i5-1135G7
  (375 - 527, n=43)
504 Points ∼96% +34%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
476 Points ∼91% +27%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
461 Points ∼88% +23%
Average of class Office
  (114 - 606, n=123, last 2 years)
450 Points ∼86% +20%
HP 14s-dq1431ng
Intel Core i5-1035G1
428 Points ∼82% +14%
HP 14s-dq1431ng
Intel Core i5-1035G1
428 Points ∼82% +14%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7
375 Points ∼72%
Cinebench R15 / CPU Multi 64Bit
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
1252 Points ∼100% +86%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
920 Points ∼73% +36%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
916 Points ∼73% +36%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
860 (723.71min - 860.22max) Points ∼69% +28%
Average Intel Core i5-1135G7
  (431 - 925, n=47)
792 Points ∼63% +18%
Average of class Office
  (134 - 1614, n=124, last 2 years)
750 Points ∼60% +11%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7
674 Points ∼54%
HP 14s-dq1431ng
Intel Core i5-1035G1
606 Points ∼48% -10%
Cinebench R15 / CPU Single 64Bit
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
201 Points ∼100%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
198 Points ∼99%
Average Intel Core i5-1135G7
  (172 - 205, n=43)
196 Points ∼98%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
181 Points ∼90%
Average of class Office
  (75.8 - 230, n=119, last 2 years)
178 Points ∼89%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
172 Points ∼86%
HP 14s-dq1431ng
Intel Core i5-1035G1
170 Points ∼85%
Blender 2.79 / BMW27 CPU
HP 14s-dq1431ng
Intel Core i5-1035G1
1002 Seconds * ∼100% -28%
HP 14s-dq1431ng
Intel Core i5-1035G1
1001.7 Seconds * ∼100% -28%
Average of class Office
  (302 - 3895, n=118, last 2 years)
846 Seconds * ∼84% -8%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7
785.5 Seconds * ∼78%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
699 Seconds * ∼70% +11%
Average Intel Core i5-1135G7
  (499 - 1044, n=41)
671 Seconds * ∼67% +15%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
639 Seconds * ∼64% +19%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
598 Seconds * ∼60% +24%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
447 Seconds * ∼45% +43%
7-Zip 18.03 / 7z b 4
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
31686 MIPS ∼100% +66%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
24386 MIPS ∼77% +28%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
21582 MIPS ∼68% +13%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
21559 MIPS ∼68% +13%
Average Intel Core i5-1135G7
  (14745 - 24873, n=43)
21300 MIPS ∼67% +11%
Average of class Office
  (4963 - 43914, n=119, last 2 years)
20498 MIPS ∼65% +7%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7
19123 MIPS ∼60%
HP 14s-dq1431ng
Intel Core i5-1035G1
13236 MIPS ∼42% -31%
HP 14s-dq1431ng
Intel Core i5-1035G1
13236 MIPS ∼42% -31%
7-Zip 18.03 / 7z b 4 -mmt1
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7
4821 MIPS ∼100%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
4818 MIPS ∼100% 0%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
4727 MIPS ∼98% -2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
4720 MIPS ∼98% -2%
Average Intel Core i5-1135G7
  (3924 - 4867, n=43)
4667 MIPS ∼97% -3%
Average of class Office
  (2059 - 5565, n=119, last 2 years)
4439 MIPS ∼92% -8%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
4341 MIPS ∼90% -10%
HP 14s-dq1431ng
Intel Core i5-1035G1
4231 MIPS ∼88% -12%
HP 14s-dq1431ng
Intel Core i5-1035G1
4231 MIPS ∼88% -12%
Geekbench 5.3 / 64 Bit Multi-Core Score
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
5468 Points ∼100%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
5197 Points ∼95%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
4737 Points ∼87%
Average Intel Core i5-1135G7
  (3475 - 5472, n=39)
4729 Points ∼86%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
4416 Points ∼81%
Average of class Office
  (873 - 6502, n=115, last 2 years)
3946 Points ∼72%
HP 14s-dq1431ng
Intel Core i5-1035G1
3858 Points ∼71%
HP 14s-dq1431ng
Intel Core i5-1035G1
3858 Points ∼71%
Geekbench 5.3 / 64 Bit Single-Core Score
Average Intel Core i5-1135G7
  (1304 - 1428, n=39)
1387 Points ∼100%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
1384 Points ∼100%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
1373 Points ∼99%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
1345 Points ∼97%
HP 14s-dq1431ng
Intel Core i5-1035G1
1219 Points ∼88%
HP 14s-dq1431ng
Intel Core i5-1035G1
1219 Points ∼88%
Average of class Office
  (431 - 1648, n=115, last 2 years)
1174 Points ∼85%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
1118 Points ∼81%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
8.08 fps ∼100%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
6.39 fps ∼79%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
6.03 fps ∼75%
Average Intel Core i5-1135G7
  (3.57 - 7.6, n=39)
5.89 fps ∼73%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
5.52 fps ∼68%
Average of class Office
  (0.63 - 11.1, n=115, last 2 years)
5.51 fps ∼68%
HP 14s-dq1431ng
Intel Core i5-1035G1
3.32 fps ∼41%
HP 14s-dq1431ng
Intel Core i5-1035G1
3.32 fps ∼41%
LibreOffice / 20 Documents To PDF
HP 14s-dq1431ng
Intel Core i5-1035G1
70.9 s * ∼100%
HP 14s-dq1431ng
Intel Core i5-1035G1
70.88 s * ∼100%
Average of class Office
  (21.5 - 210, n=111, last 2 years)
62.1 s * ∼88%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
61.9 s * ∼87%
Average Intel Core i5-1135G7
  (44.2 - 58.8, n=41)
52.1 s * ∼73%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
51.3 s * ∼72%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
50.5 s * ∼71%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
44.2 s * ∼62%
R Benchmark 2.5 / Overall mean
HP 14s-dq1431ng
Intel Core i5-1035G1
0.736 sec * ∼100%
HP 14s-dq1431ng
Intel Core i5-1035G1
0.736 sec * ∼100%
Average of class Office
  (0.542 - 2.07, n=115, last 2 years)
0.706 sec * ∼96%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
0.647 sec * ∼88%
Average Intel Core i5-1135G7
  (0.619 - 0.727, n=40)
0.642 sec * ∼87%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7
0.638 sec * ∼87%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7
0.623 sec * ∼85%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
0.614 sec * ∼83%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
674 Points
Help

系统性能

相当真实的PCMark 10说明了CPU的优势。它为启动程序提供了足够的计算能力(前面提到的2.4毫秒)。这款笔记本不是为长期负载的复杂任务而制造的,而是为不定期的任务而制造的,这些任务只需要处理器的性能一瞬间左右。

因此,毫不奇怪,联想Yoga Slim 7 14ITL05 ,在CineBench中取得了明显较好的成绩,但在PCMark 10中的表现实际上差得很少。这表明,尽管在原始性能方面得到的结果较低,但该处理器在其预期使用领域(在家里,用于私人目的)可以跟上其竞争对手。同时,它需要更少的冷却,风扇在很多时候都保持沉默。

这在日常使用惠普Pavilion 14时是很明显的。启动程序时几乎没有任何延迟。该设备可以很容易地支持几个浏览器标签在同一时间流媒体视频。尽管有几个任务在使用处理能力,但风扇在大部分时间都是安静的。

PCMark 10 / Score
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
5193 Points ∼100% +9%
Acer Swift 5 SF514-55T-58DN
Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC511 HFM512GDJTNI
4794 Points ∼92% +1%
HP Pavilion 14-dv0357ng
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
4749 Points ∼91%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
4738 Points ∼91% 0%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
4624 Points ∼89% -3%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (4026 - 4952, n=38)
4599 Points ∼89% -3%
Average of class Office
  (1900 - 5690, n=116, last 2 years)
4388 Points ∼84% -8%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
3676 Points ∼71% -23%
PCMark 10 / Essentials
HP Pavilion 14-dv0357ng
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
9917 Points ∼100%
Acer Swift 5 SF514-55T-58DN
Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC511 HFM512GDJTNI
9772 Points ∼99% -1%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
9438 Points ∼95% -5%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
9386 Points ∼95% -5%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (8149 - 9917, n=38)
9374 Points ∼95% -5%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
9303 Points ∼94% -6%
Average of class Office
  (4469 - 10608, n=116, last 2 years)
8765 Points ∼88% -12%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
8322 Points ∼84% -16%
PCMark 10 / Productivity
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
7717 Points ∼100% +17%
Average of class Office
  (2994 - 9512, n=116, last 2 years)
6704 Points ∼87% +1%
HP Pavilion 14-dv0357ng
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
6611 Points ∼86%
Acer Swift 5 SF514-55T-58DN
Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC511 HFM512GDJTNI
6487 Points ∼84% -2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
6332 Points ∼82% -4%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
6269 Points ∼81% -5%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (5544 - 6611, n=38)
6242 Points ∼81% -6%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
5483 Points ∼71% -17%
PCMark 10 / Digital Content Creation
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
5297 Points ∼100% +19%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
4858 Points ∼92% +10%
Acer Swift 5 SF514-55T-58DN
Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC511 HFM512GDJTNI
4719 Points ∼89% +6%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
4537 Points ∼86% +2%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3548 - 5206, n=38)
4520 Points ∼85% +2%
HP Pavilion 14-dv0357ng
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
4434 Points ∼84%
Average of class Office
  (1270 - 5878, n=116, last 2 years)
3977 Points ∼75% -10%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
2954 Points ∼56% -33%

DPC延迟

我们用LatencyMon测试了系统延迟。这导致了相对较高的数值超过2毫秒。驱动程序概览显示,内核模式的驱动程序框架Wdf01000.sys是造成这种延迟的原因。 然而,这种长的执行时间大概是ACPI驱动程序太慢的一个症状。

因此,这种配置不适合于实时的音频和视频应用。在YouTube上播放4K视频时,我们在一分钟内测得了10个丢帧。这对于一个办公区设备来说是完全可以接受的。

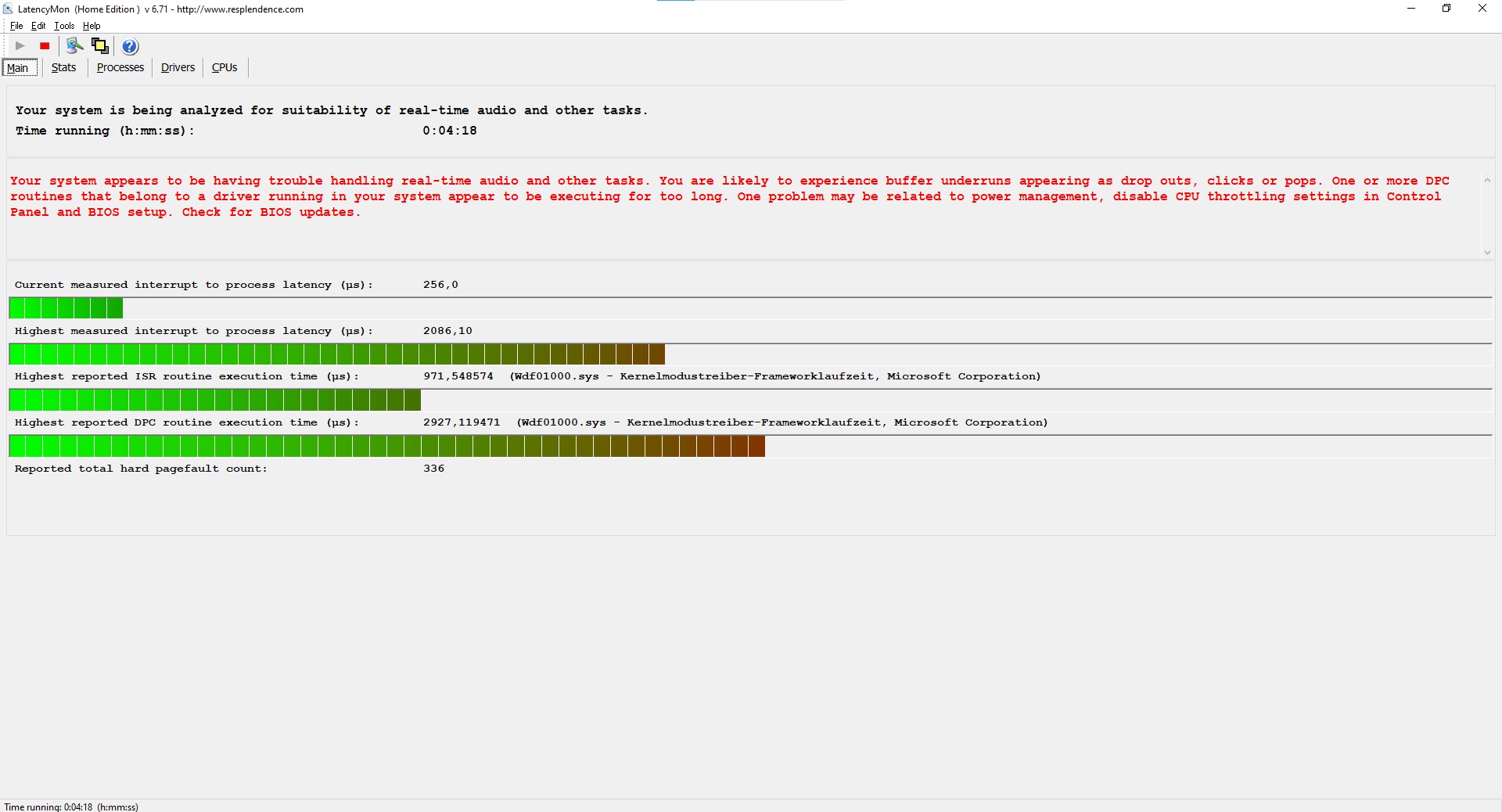

延迟监测
延迟监测

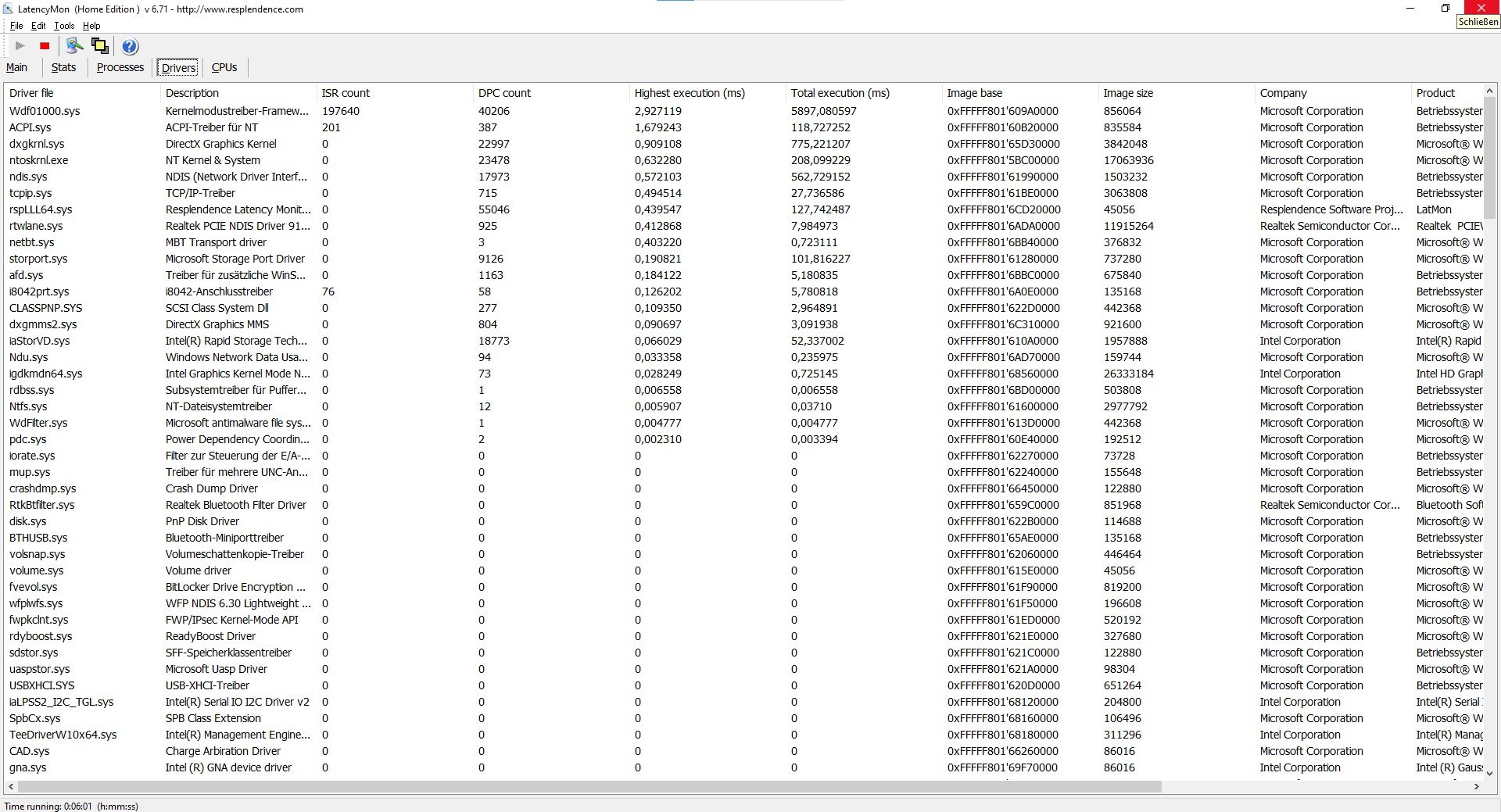

LatencyMon驱动程序列表

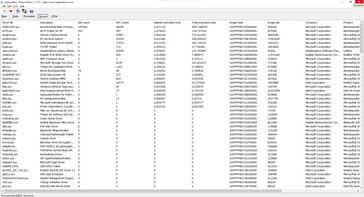

LatencyMon驱动程序列表
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Samsung Galaxy Book Pro 360 13
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ256HAJD
5567.8 μs * ∼100% -167%
HP Envy 17-cg
GeForce MX450, i5-1135G7, Samsung PM991 MZVLQ1T0HALB
2154.6 μs * ∼39% -3%
HP Pavilion 14-dv0357ng
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
2086 μs * ∼37%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
1603.2 μs * ∼29% +23%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
1089.3 μs * ∼20% +48%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
474.4 μs * ∼9% +77%

* ... smaller is better

存储设备

在我们的测试单元中, 英特尔的M.2固态硬盘满足了我们的期望。与记录的平均值的偏差是在可容忍的范围内。然而,如果与其他型号的产品相比,该存储设备所做的工作是微不足道的。例如,Acer Swift 5 SF514 ,来自SK Hynix的固态硬盘具有明显更好的访问时间。

然而,总的来说,没有任何程序可以达到存储设备的最大速度。因此,更快的固态硬盘不会提供任何优势。另一方面,它的尺寸为1TB,是一个真正的优势。如果你想存储大量的照片或视频,或者自己录制视频并直接存储在笔记本电脑上,那么就可以选择这个尺寸。

Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
Sequential Read: 1157MB/s
Sequential Write: 929MB/s
4K Read: 32MB/s
4K Write: 101MB/s
4K-64 Read: 507MB/s
4K-64 Write: 555MB/s
Access Time Read: 0.074ms
Access Time Write: 0.045ms
Score Read: 655Points
Score Write: 749Points
Score Total: 1735Points
HP Pavilion 14-dv0357ng
Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
HP 14s-dq1431ng
Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
Acer Swift 5 SF514-55T-58DN
SK Hynix BC511 HFM512GDJTNI
HP Omen 16-b0085ng
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
Average Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H)

Average of class Office

Drive Performance Rating
Percent
57
65.2
14%
47.3
-17%
91.3
60%
74.9
31%
23.2
-59%
59.5
4%
80.2
41%
AS SSD
17%
-20%
67%
39%
-99%
3%
36%
Score Total
1735
2067
19%
1305
-25%
3357
93%
2536
46%
910
-48%
1705 ?(1675 - 1735, n=2)
-2%
2921 ?(125 - 7098, n=117, last 2 years)
68%
Score Read
655
761
16%
345
-47%
1264
93%
997
52%
389
-41%
635 ?(615 - 655, n=2)
-3%
1124 ?(49 - 2864, n=117, last 2 years)
72%
Score Write
749
929
24%
782
4%
1488
99%
1034
38%
338
-55%
738 ?(726 - 749, n=2)
-1%
1247 ?(39 - 2797, n=117, last 2 years)
66%
Seq Read
1157
1337.36
16%
676.97
-41%
2010.92
74%
1405.16
21%
925
-20%
1250 ?(1157 - 1343, n=2)
8%
2009 ?(266 - 5613, n=117, last 2 years)
74%
Seq Write
929
651.9
-30%
194.68
-79%
960.99
3%
1010.67
9%
496
-47%
1075 ?(929 - 1222, n=2)
16%
1296 ?(52.2 - 4909, n=117, last 2 years)
40%
4K Read
32
61.85
93%
58.12
82%
48.77
52%
53.65
68%
19.99
-38%
47.8 ?(32 - 63.6, n=2)
49%
45.6 ?(8.89 - 80.6, n=117, last 2 years)
43%
4K Write
101
106.65
6%
124.05
23%
221.53
119%
122.68
21%
17.96
-82%
104 ?(101 - 108, n=2)
3%
129 ?(13.9 - 257, n=117, last 2 years)
28%
4K-64 Read
507
565.27
11%
219.59
-57%
1014.58
100%
802.84
58%
276.24
-46%
462 ?(418 - 507, n=2)
-9%
878 ?(13.1 - 2222, n=117, last 2 years)
73%
4K-64 Write
555
756.76
36%
638.44
15%
1170.45
111%
809.99
46%
270.23
-51%
526 ?(496 - 555, n=2)
-5%
991 ?(17.7 - 2470, n=117, last 2 years)
79%
Access Time Read *
0.074
0.079
-7%
0.109
-47%
0.062
16%
0.23
-211%
0.0885 ?(0.074 - 0.103, n=2)
-20%
0.0917 ?(0.032 - 0.417, n=111, last 2 years)
-24%
Access Time Write *
0.045
0.046
-2%
0.065
-44%
0.053
-18%
0.032
29%
0.249
-453%
0.044 ?(0.043 - 0.045, n=2)
2%
0.1015 ?(0.018 - 0.818, n=117, last 2 years)
-126%
Total Average (Program / Settings)
16% / 16%
-19% / -19%
64% / 67%
35% / 38%
-79% / -96%
4% / 4%
39% / 36%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

01302603905206507809101040117013001430156016901820195020802210234024701256.832451.72511.972502.952518.892522.452470.962475.92529.582514.072489.742526.842515.322088.761841.811847.881818.021460.671450.221433.611439.91460.461465.081465.71082.831452.7867.381155.951283.21092.831461.1473.011454.351056.981203.66687.871458.34717.021443.42273.761451.65903.37651.121463.4901.36864.291230.19370.471354.53509.221423.34693.19655.21436.7323.81416.94655.361428.29431.78796.921080.521304.73446.27901.99760.01930.9930.69949.81223.321451.65Tooltip
: Ø1345 (223.32-2529.58)

GPU性能

Intel Iris Xe Graphics G7 80EUs 负责在屏幕上获得运动。该芯片作为一个SoC与处理器集成。它支持DirectX 12,时钟频率达到1.3 GHz。然而,如果GPU处于重载状态,CPU的时钟速率必须降低,以限制热量的发展。采用英特尔Coe i7的配置配备了一个稍微强大的Intel Iris Xe Graphics G7 96EUs

虽然GPU的性能与前代产品相比有了明显的提高,但它仍然只能支持视频渲染和私人用途的图像处理。该设备不能处理要求较高的游戏,但应该能够显示较旧或较简单的游戏,并有一些削减。

由于处理器被调整的方式,GPU的性能实际上高于平均水平。与允许CPU获得更多电力的笔记本相比,它被允许对热量发展做出更多贡献。

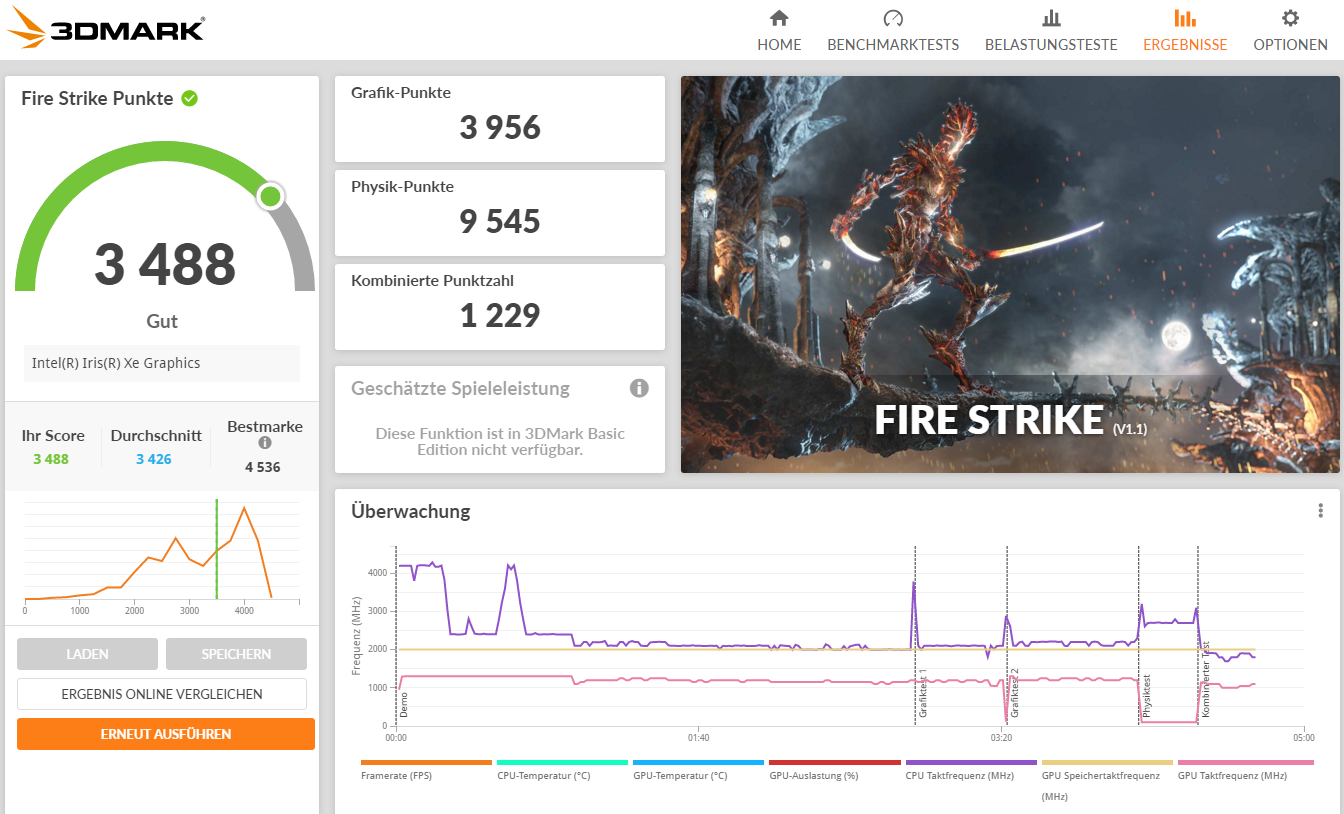

3DMarkFire Strike (在主电源上)
3DMarkFire Strike (在主电源上)

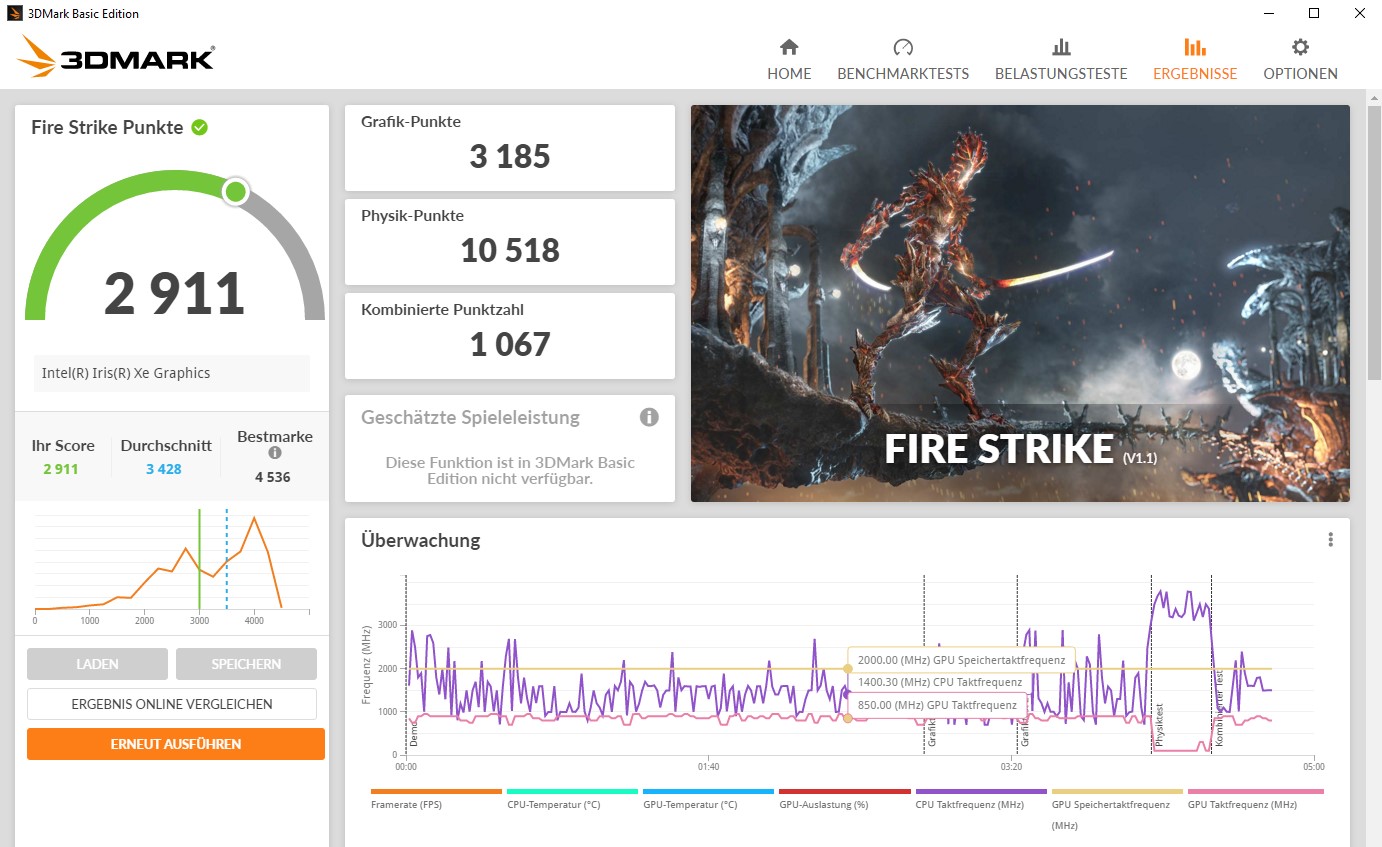

3DMarkFire Strike (使用电池)
3DMarkFire Strike (使用电池)

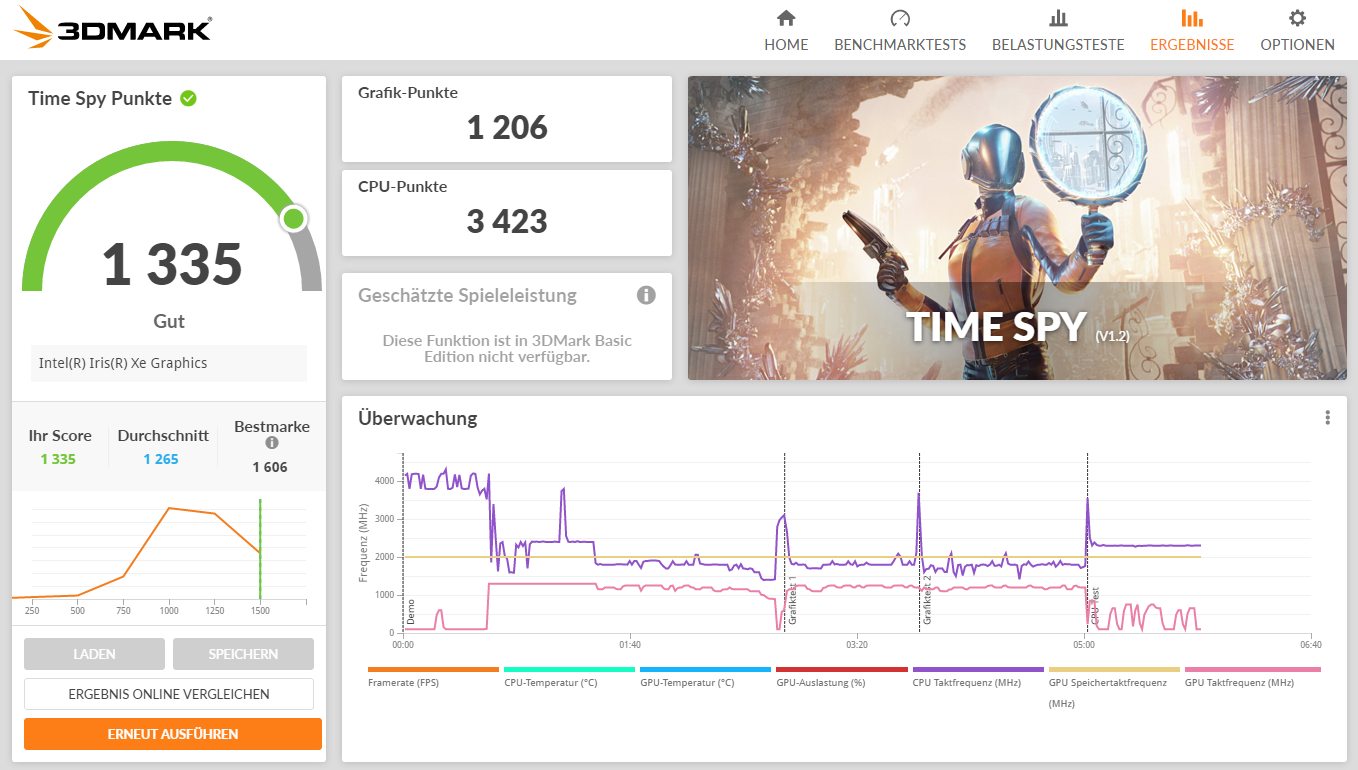

3DMarkTime Spy (在主电源上)
3DMarkTime Spy (在主电源上)
3DMark Performance Rating - Percent
HP Pavilion 14-dv0357ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
100 pt ∼100%
Average Intel Iris Xe Graphics G7 80EUs

94.5 pt ∼95%
Average of class Office

72.6 pt ∼73%
3DMark 11 - 1280x720 Performance GPU
HP Pavilion 14-dv0357ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5396 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (3860 - 6120, n=37)
5318 Points ∼99% -1%
Average of class Office
  (599 - 11538, n=121, last 2 years)
3900 Points ∼72% -28%
3DMark
1920x1080 Fire Strike Graphics
HP Pavilion 14-dv0357ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3956 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (2039 - 4846, n=38)
3593 Points ∼91% -9%
Average of class Office
  (449 - 8114, n=115, last 2 years)
2729 Points ∼69% -31%
2560x1440 Time Spy Graphics
HP Pavilion 14-dv0357ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1206 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (743 - 1408, n=37)
1135 Points ∼94% -6%
Average of class Office
  (194 - 2886, n=100, last 2 years)
922 Points ∼76% -24%
3DMark 11 Performance
5441 points
3DMark Fire Strike Score
3488 points
3DMark Time Spy Score
1335 points
Help

游戏性能

简单的、无要求的游戏可以在Pavilion 。越是新的和复杂的标题,帧率就越不可能满足要求。尽管如此,还是有很多游戏,从《皇室战争》游戏到体育模拟游戏,都可以在降低图像质量的情况下顺利进行。

我们建议选择低于FullHD的分辨率和低细节。通过这些设置,用户甚至应该能够玩一些6、7年前的经典作品。我们还建议玩游戏时一定要将设备连接到电源上,因为CPU和GPU在电池上运行时无法发挥其全部潜力。

The Witcher 3
1024x768 Low Graphics & Postprocessing
Average Intel Iris Xe Graphics G7 80EUs
  (35.5 - 92.2, n=32)
62.6 fps ∼100% +24%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
60.6 (14.3min, 21.4P0.1, 35.6P1) fps ∼97% +20%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
60.3 (28.2min, 28.3P0.1, 37.1P1) fps ∼96% +19%
Average of class Office
  (9.2 - 144, n=77, last 2 years)
55.4 fps ∼88% +9%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
51.49 fps ∼82% +2%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
50.6 fps ∼81%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Average Intel Iris Xe Graphics G7 80EUs
  (10.6 - 31.7, n=35)
20.7 fps ∼100% +2%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
20.3 fps ∼98%
Average of class Office
  (4.78 - 47.9, n=69, last 2 years)
20 fps ∼97% -1%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
19.8 (15.4min, 15.6P0.1, 16.3P1) fps ∼96% -2%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
19.1 (3.68min, 3.82P0.1, 6.51P1) fps ∼92% -6%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
15.89 fps ∼77% -22%
Back 4 Blood
1280x720 Low Preset (DX12)
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
43.8 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

43.8 fps ∼100% 0%
Average of class Office
  (12.8 - 49.1, n=3, last 2 years)
35.2 fps ∼80% -20%
1920x1080 Medium Preset (DX12) AA:FX
Average of class Office
  (27.4 - 39.1, n=2, last 2 years)
33.3 fps ∼100% +22%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
27.4 fps ∼82%
Average Intel Iris Xe Graphics G7 80EUs

27.4 fps ∼82% 0%
GTA V
1024x768 Lowest Settings possible
Average of class Office
  (15.2 - 167, n=35, last 2 years)
78.4 fps ∼100% +21%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
74.8 (15min, 43.5P1) fps ∼95% +16%
Average Intel Iris Xe Graphics G7 80EUs
  (36.5 - 98.4, n=19)
71.2 fps ∼91% +10%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
64.7 fps ∼83%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
57.2 (8.57min, 38.5P1) fps ∼73% -12%
1366x768 Normal/Off AF:4x
Average of class Office
  (13.3 - 157, n=33, last 2 years)
69.5 fps ∼100% +17%
Average Intel Iris Xe Graphics G7 80EUs
  (43.8 - 84.3, n=19)
61.8 fps ∼89% +4%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
60.5 (14.1min, 34.5P1) fps ∼87% +2%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
59.5 fps ∼86%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
44.9 (10.6min, 29.4P1) fps ∼65% -25%
Strange Brigade
1280x720 lowest AF:1
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
73.5 (57.9min, 63.4P1) fps ∼100% +1%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
73.1 fps ∼99%
Average of class Office
  (15.6 - 167, n=34, last 2 years)
67.1 fps ∼91% -8%
Average Intel Iris Xe Graphics G7 80EUs
  (37.3 - 87.7, n=20)
64.7 fps ∼88% -11%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
61.7 (14.4min, 21.1P1) fps ∼84% -16%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
48.8 (11.3min, 14.4P1) fps ∼66% -33%
1920x1080 medium AA:medium AF:4
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
28.8 (24.1min, 25.3P1) fps ∼100% +1%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
28.5 fps ∼99%
Average of class Office
  (8.2 - 68.6, n=33, last 2 years)
27.7 fps ∼96% -3%
Average Intel Iris Xe Graphics G7 80EUs
  (13.5 - 36.2, n=20)
26 fps ∼90% -9%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
23.8 (6.5min, 9.28P1) fps ∼83% -16%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
18.4 (5.9min, 7.09P1) fps ∼64% -35%
Far Cry 5
1280x720 Low Preset AA:T
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
50 fps ∼100% +28%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
43 (38min) fps ∼86% +10%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
39 fps ∼78%
Average Intel Iris Xe Graphics G7 80EUs
  (27 - 54, n=18)
37.4 fps ∼75% -4%
Average of class Office
  (3 - 90, n=43, last 2 years)
34.2 fps ∼68% -12%
1920x1080 Medium Preset AA:T
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
23 fps ∼100% +21%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
21 (19min) fps ∼91% +11%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
19 fps ∼83%
Average Intel Iris Xe Graphics G7 80EUs
  (13 - 25, n=17)
18.7 fps ∼81% -2%
Average of class Office
  (1 - 46, n=34, last 2 years)
18.4 fps ∼80% -3%
Dota 2 Reborn
1280x720 min (0/3) fastest
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
96.9 (85.7min) fps ∼100% +25%
Average of class Office
  (36.5 - 145, n=117, last 2 years)
84.5 fps ∼87% +9%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
81.9 (46.3min) fps ∼85% +6%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
81.5 (53.6min) fps ∼84% +5%
Average Intel Iris Xe Graphics G7 80EUs
  (66.2 - 123, n=39)
80.1 fps ∼83% +3%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
77.6 (51.3min) fps ∼80%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
75.4 (54.3min) fps ∼78% -3%
HP 14s-dq1431ng
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
65.6 (55.9min) fps ∼68% -15%
1366x768 med (1/3)
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
77.2 (62min) fps ∼100% +55%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
72.3 (55.2min) fps ∼94% +45%
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
70.1 (46.5min) fps ∼91% +40%
Average of class Office
  (14.6 - 130, n=117, last 2 years)
61.6 fps ∼80% +23%
Average Intel Iris Xe Graphics G7 80EUs
  (34 - 81, n=39)
57.1 fps ∼74% +14%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
54.1 (42.7min) fps ∼70% +8%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
49.9 (34.5min) fps ∼65%
HP 14s-dq1431ng
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
38.7 (29.6min) fps ∼50% -22%
Final Fantasy XV Benchmark
1280x720 Lite Quality
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
39.5 fps ∼100% +30%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
31.3 fps ∼79% +3%
Average of class Office
  (5.32 - 72, n=56, last 2 years)
30.5 fps ∼77% 0%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
30.4 fps ∼77%
Average Intel Iris Xe Graphics G7 80EUs
  (16.5 - 39.9, n=33)
30.1 fps ∼76% -1%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
24.3 fps ∼62% -20%
HP 14s-dq1431ng
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
13.2 fps ∼33% -57%
1920x1080 Standard Quality
Acer Swift 5 SF514-55T-58DN
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
20 fps ∼100% +14%
HP Pavilion 14-dv0357ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
17.5 fps ∼88%
Average of class Office
  (1.94 - 38.3, n=44, last 2 years)
17.3 fps ∼87% -1%
Lenovo Yoga Slim 7 14ITL05 82A300CNGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
17.1 fps ∼86% -2%
Average Intel Iris Xe Graphics G7 80EUs
  (8.64 - 22, n=30)
16.4 fps ∼82% -6%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
12.2 fps ∼61% -30%

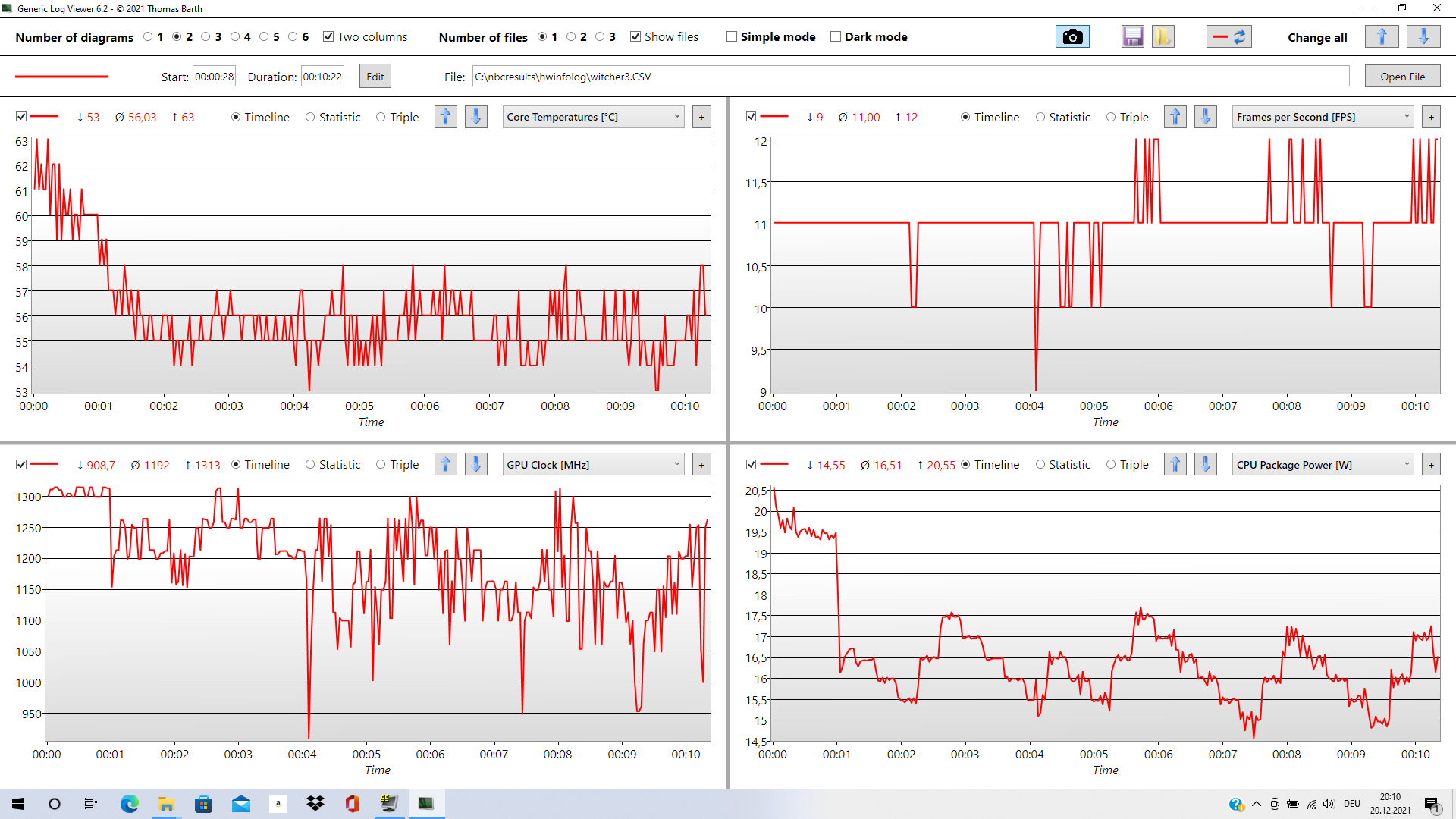

Pavilion 在我们的Witcher 3 压力测试中,在最高设置下做得出奇的好,尽管游戏在这种低水平的细节下远不能玩。

相反,测量的速率显示,SoC的温度在短暂的峰值后下降到远低于60℃。然后,GPU和CPU被限制在最大17W的范围内。这一性能与Pavilion 14-ce3040ng 的性能相当,尽管后者配备了第十代i7和专用GPU,性能更好。

核心温度下降了,但帧率仍然大致相同
核心温度下降了,但帧率仍然大致相同

Witcher 3 FPS diagram

012345678910111213141512111211111112111111121111111211111211111111121111111111121111121111111211111112111111111111111211111211111111121111111112111112111111121111111112111112111111111211111211111111111111111211111112111111121111111211111111121111111112111111121111111112111111121111111112111111111211111112111111121111111112111111111112111111111112111111121111111211111112111111111112111111111112101111121111111112111111111112111111111211111112111111111112111111111112111110111112111111111111111111111110888898898989898998988989999109899999899999999999999999999999989998999999999999101010111110111112111111111112111111111110111111111112111111111111111111111112111111111112111111111111121111111111111112111011111112111111111111111112111111111111121111111111111211111111111112111111111111121012111111111111111211111111111111111111101111111111111111111111121012111011111111111111111111111111111111111012101111111111111111111111111111111111111011111111111111111111101111111111111111111111111111111111111111111111111111111011111111111111111111111111111111111011111111101110111111111111111111111111111111101111111111111111111011111111111111111110111111111111121111111111111291211121111111111111111111111111112111111111111111111111111111111111111118141111111111111111111111111111111111111112111111111111111111111111111111814111111121111111111111110111112111111111111111111111111111111111111111111111112111111111111111110121111111112111111111111111111111112111111111111111111111111111111111111101211111111121111111112111111111111111211111111111112111111111211111111121111111112111111111211111112111111111211111211111112111111121111111112111111111211111111121111111111121111111211111111121111111211111112111112111111121111121111111211111112111112111211111112111112111211111211111211111112111112111112111112913121111121111121112118151112111211111211121112111112111211121112111211121112111211121112119141112111211111211121111121112111112111211111211111211111211121111121111121111121111121112111111121111121112111112111012111211111211111112111012111111121111111112111111111112111111111111121111111112111111111211111111111211111111111111121111111111111111121111111181411111211111111111112111111111111111111111111111111121012111111111111118141111111111111111111111111111111211111111111111111111111111111111121111111111111111111111111111111111111111121111111111111111111111111111111111119131111111111121011111111111111111111111112111111101111111211111110111111111111111111111112111111111111111111111011111111111012111111111111111111111111111110111111111111111181411101111111111111111111011111111111111111111119121111111111111111101111111111111111111111111111814111111111111111111111111111111111111111111111111111111111111111111111191311111111111111111111111111111111111111111111117151111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111110111111111111111111111111111111111111121111101112111111111111111111111111111111111111111111111111111211111111111112111111111111121111111111111112111111111211111111129131111121111111112111111111211111112111111121111111211111111121111121111111211111211111112111111111211111211111211111211118151111121111121111121111121111121111121111121111111211111211111211111211121111121111121112111112101211121112111112111112111111121111121112111112111112111111121111121211121013111211121111121111111211111211111211121111121111121112111211111211111210131111121112111112111211111211111211121112111211111211121111121111121112814121111121112111211121111121112111211111211121111121112111211111112111110131211121112111112111211111211121111121111121111121111121111121111121111121111121111121111121111121111111211111211111112111112111111121111111111121111111112111111121111121111111211111211111112111111111211111211111211111211913121112111111121111121111121111111211121111121111121111121111111211121181511111211111211111211111211111211111112111211121111111211111211121112111112111112111211121112118151112111112111112111111121112111211111211121111121112111112111211121111121112111211121112111211111211121112111112111111914111211111211121112111112111112111211111211121112111112111211121112111211111211111211111211121181511121112111112111211111211121112111112111112121111121112111211111211121112111211121111121211111211121112111211111211121012121112111211111211129141112
