王牌魔术师T8Pro评测。用于办公的经济型迷你电脑

安静和高效! Ace Magician T8Pro是Minipc Union发布的一款极其紧凑的办公电脑。里面的Jasper Lake SoC只能够运行基本任务。在这篇评论中,我们通过大量的测量和基准测试结果总结了我们的发现,让你对这款产品有一个更好的了解。
Jasper Lake Desktop Intel Mini PC

系统制造商Minipc Union提供了广泛的紧凑型PC,应用范围从基本办公任务到预算游戏。Ace Magician T8Pro是一款高度紧凑的迷你PC,由英特尔赛扬N5095A驱动。该设备还配备了8GB内存和256GB固态硬盘。你可以期待为该设备支付大约290欧元(309美元),与其他紧凑型迷你电脑相比,这是一个公平的价格。没有其他变体可用--反正我们认为没有必要。更重要的是,价格中包含了Windows 11 Pro。

这款迷你电脑被包装在一个小盒子里,里面还有一个65瓦的充电器和一个用于将设备安装在显示器上的VESA支架。

Minipc Union Ace Magician T8Pro
Processor
Intel Celeron N5095 4 x 2 - 2.9 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake
Memory
8 GB
Storage
FPT310M4SSD256G, 256 GB
, M.2 2242 SATA SSD, 210 GB free
Connections
3 USB 3.0 / 3.1 Gen1, 3 HDMI, Audio Connections: 3.5mm Klinke
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 43.5 x 87 x 87
Operating System
Microsoft Windows 11 Pro
Additional features
12 Months Warranty
Weight
209 g, Power Supply: 124 g
Price
280 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



案例

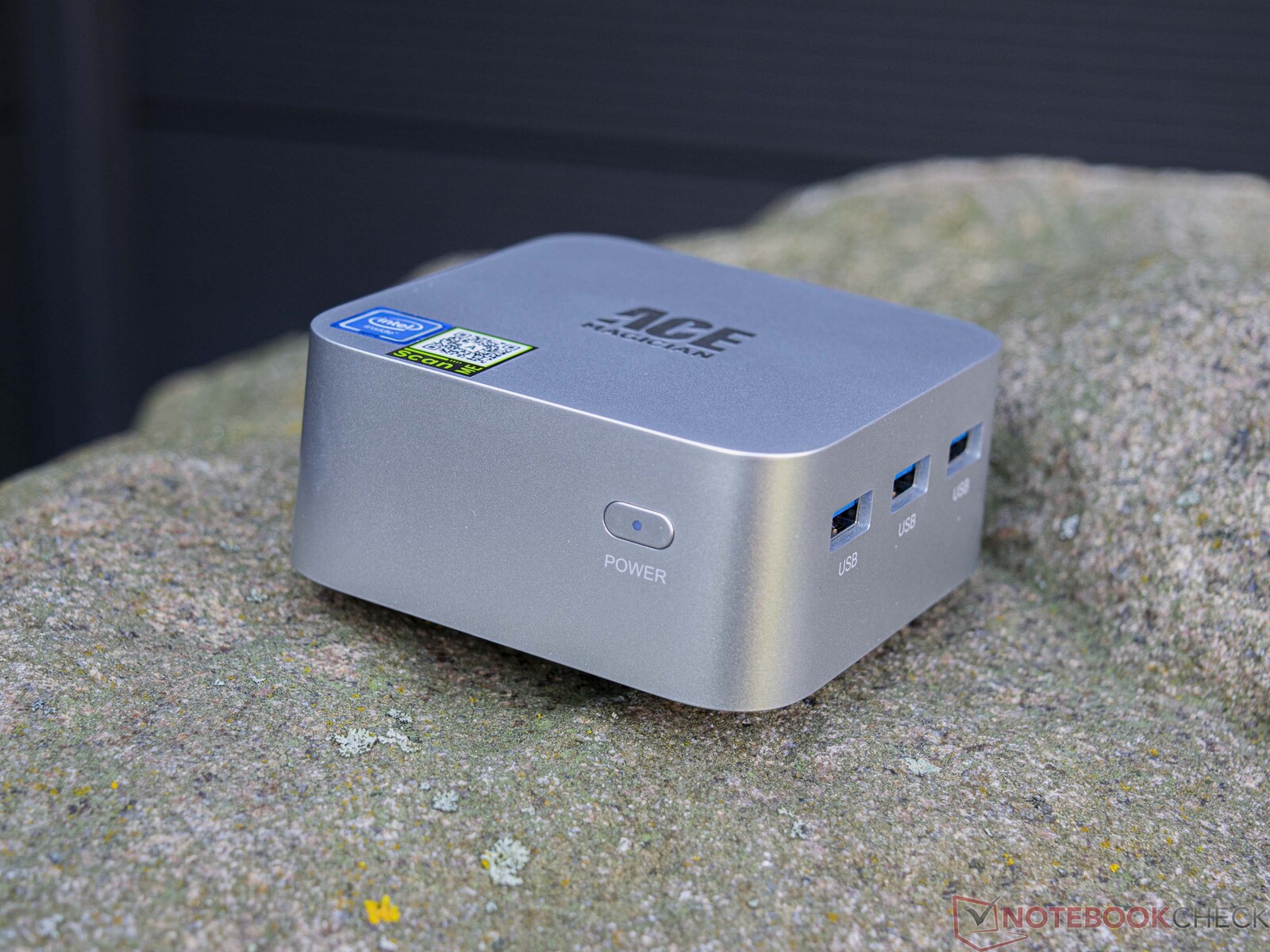

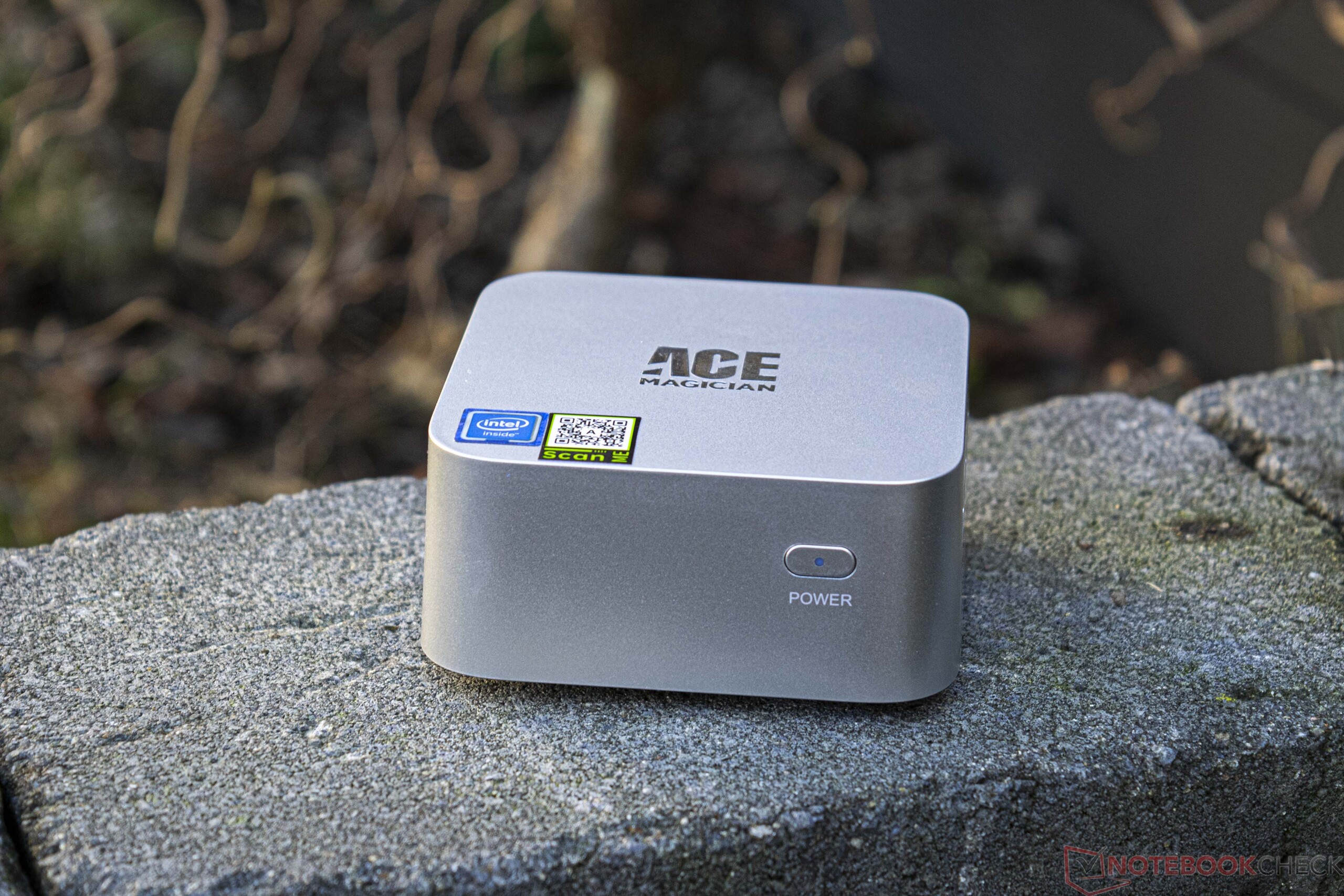

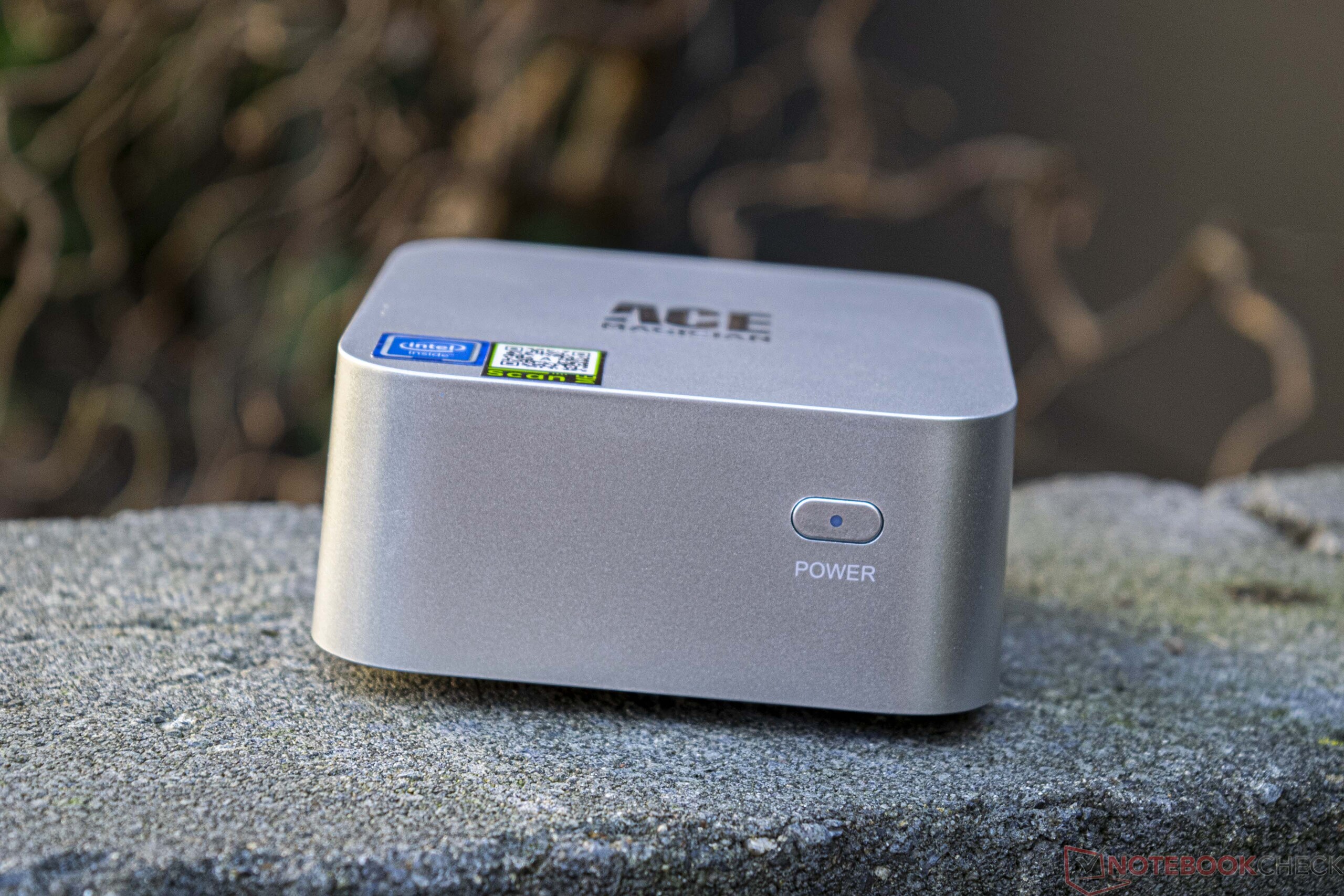

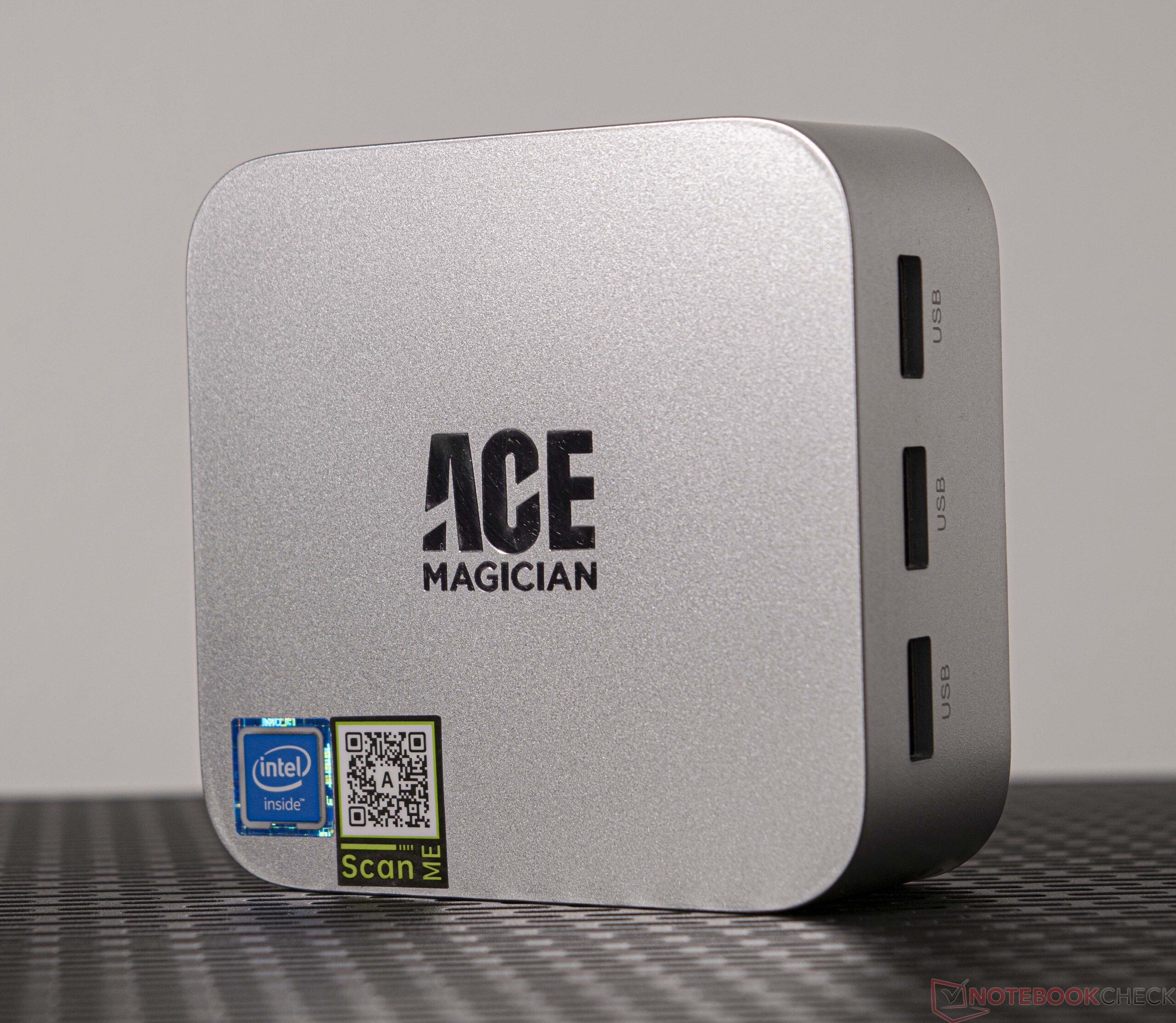

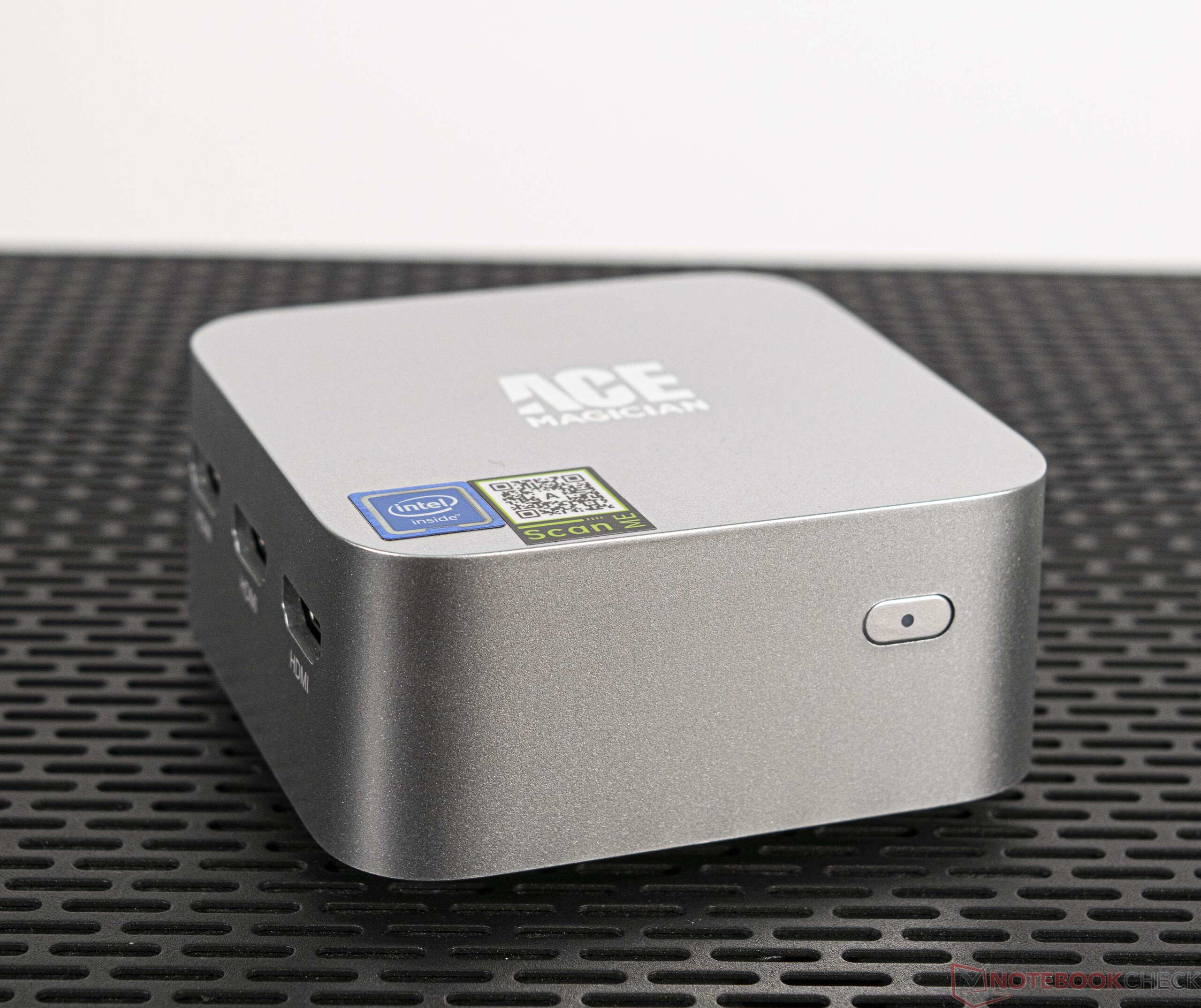

Ace Magician T8Pro是一款非常小巧的迷你电脑,只占用了大约8.7×8.7厘米(3.5×3.5英寸)的空间。该产品也比较薄,只有4.35厘米(1.69英寸)。制造商主要采用了塑料结构。该设备的表面相当光滑,触感良好。颜色方面,Ace Magician T8Pro保持了相对中性的银色和灰色,使其能够无缝地融入现代办公桌上。由于其紧凑的设计,没有任何稳定性问题。而且这台小电脑非常轻,只有209克(0.46磅)。

尺寸比较

158 mm 166 mm 67 mm 1.1 kg185 mm 179 mm 40 mm 1.3 kg168 mm 120 mm 39 mm 638 g149.6 mm 149.6 mm 55.5 mm 763 g145 mm 149 mm 40 mm 697 g117 mm 112 mm 34.2 mm 496 g87 mm 87 mm 43.5 mm 209 g297 mm 210 mm 1 mm 5.7 g

规格

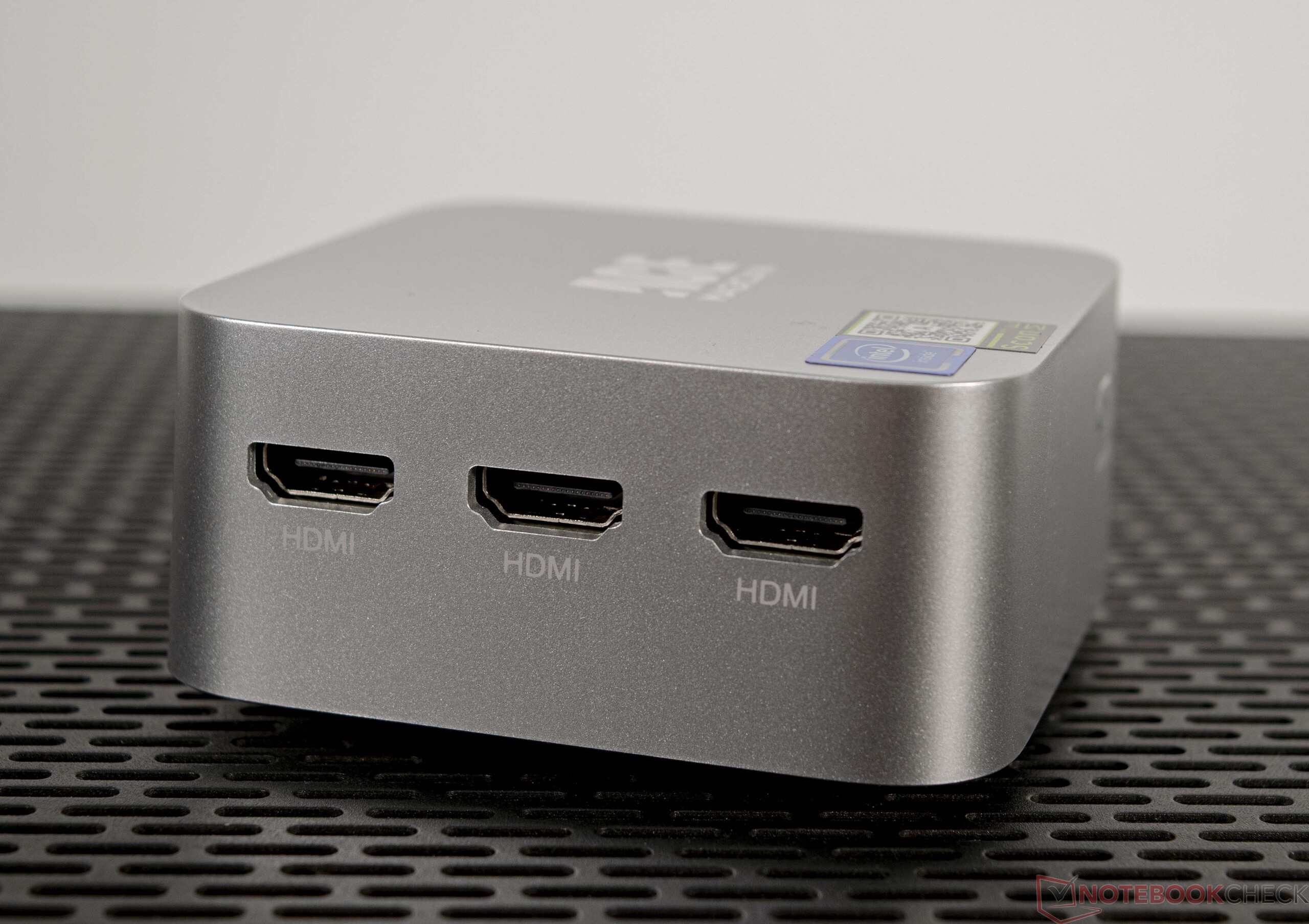

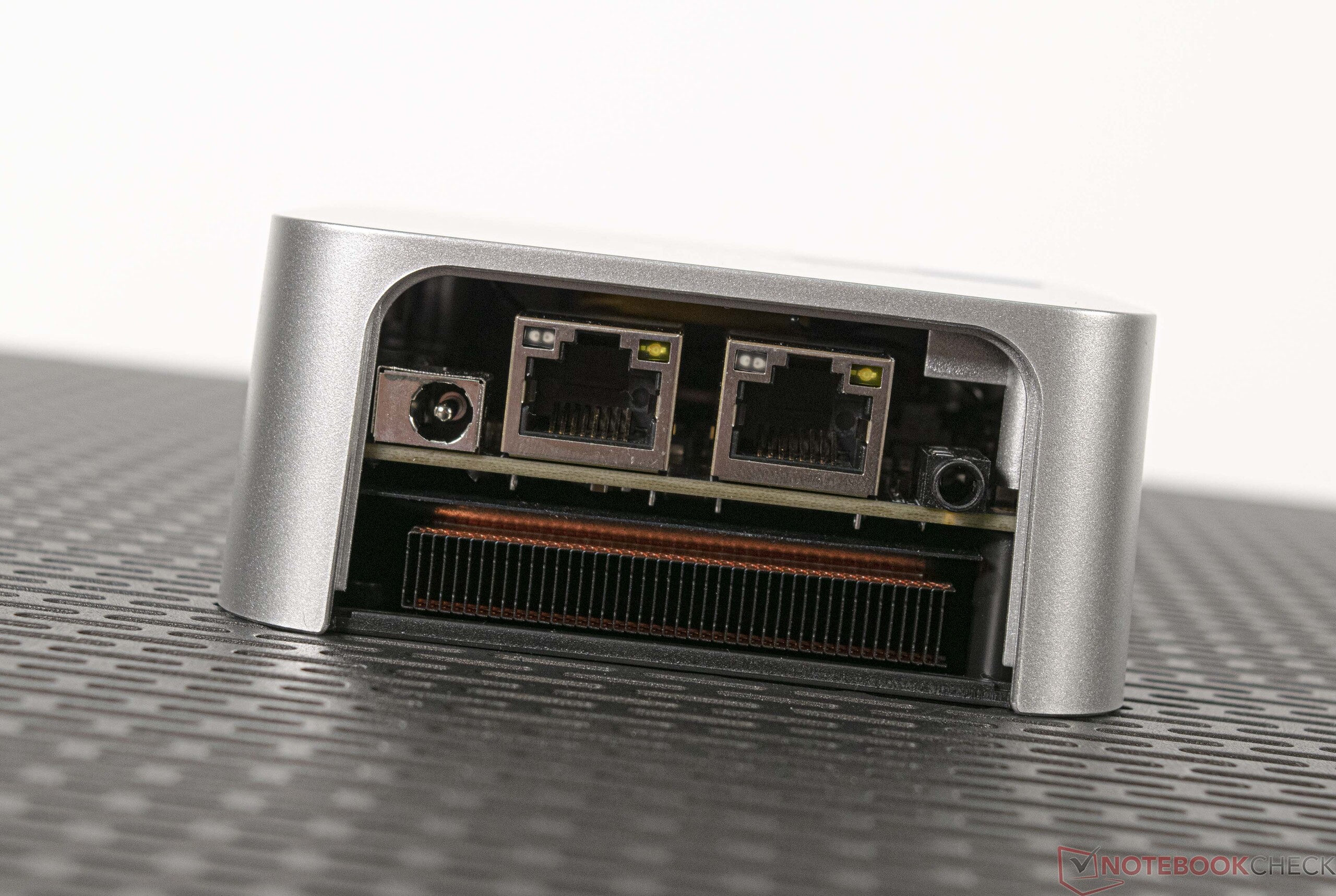

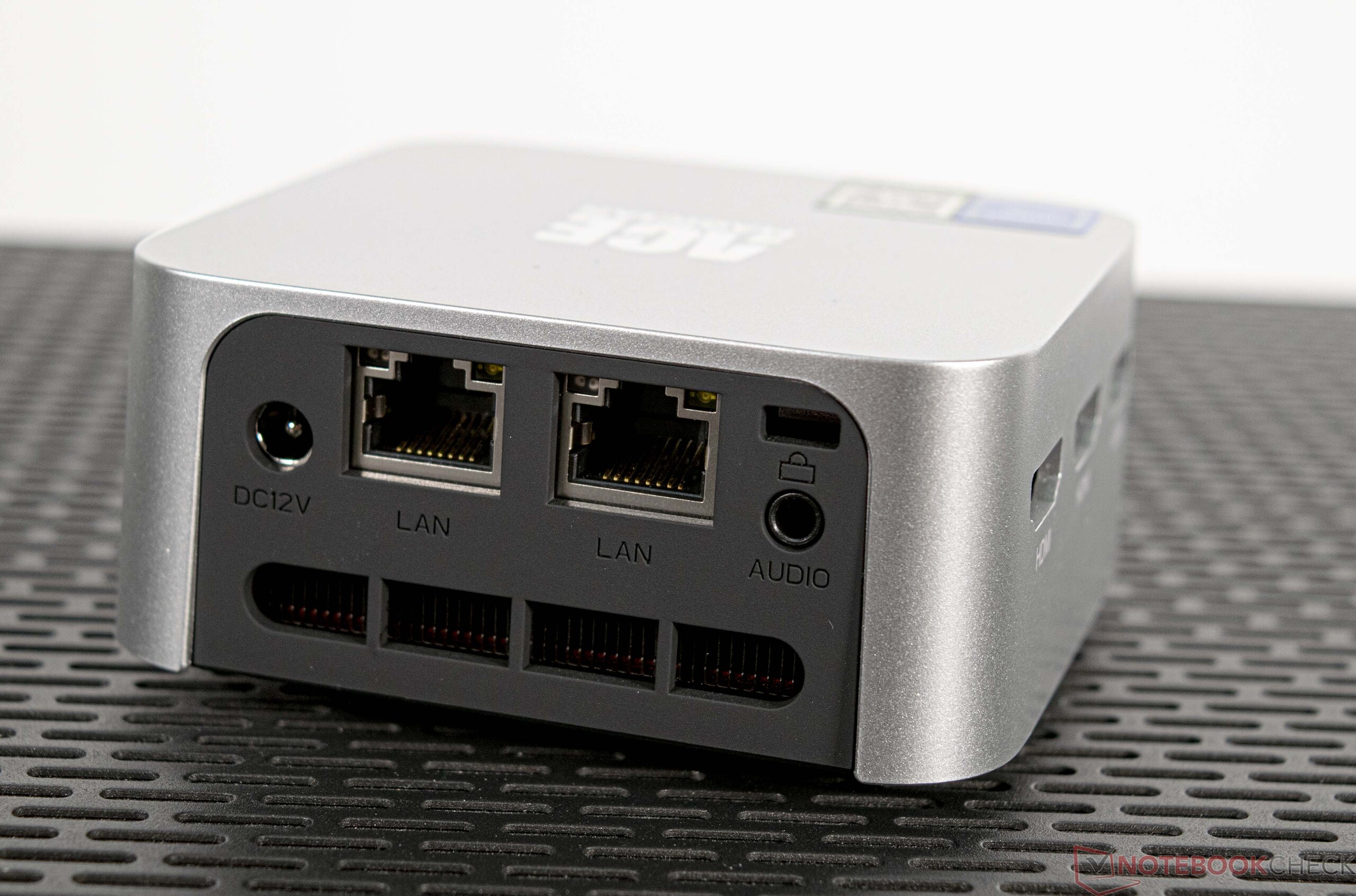

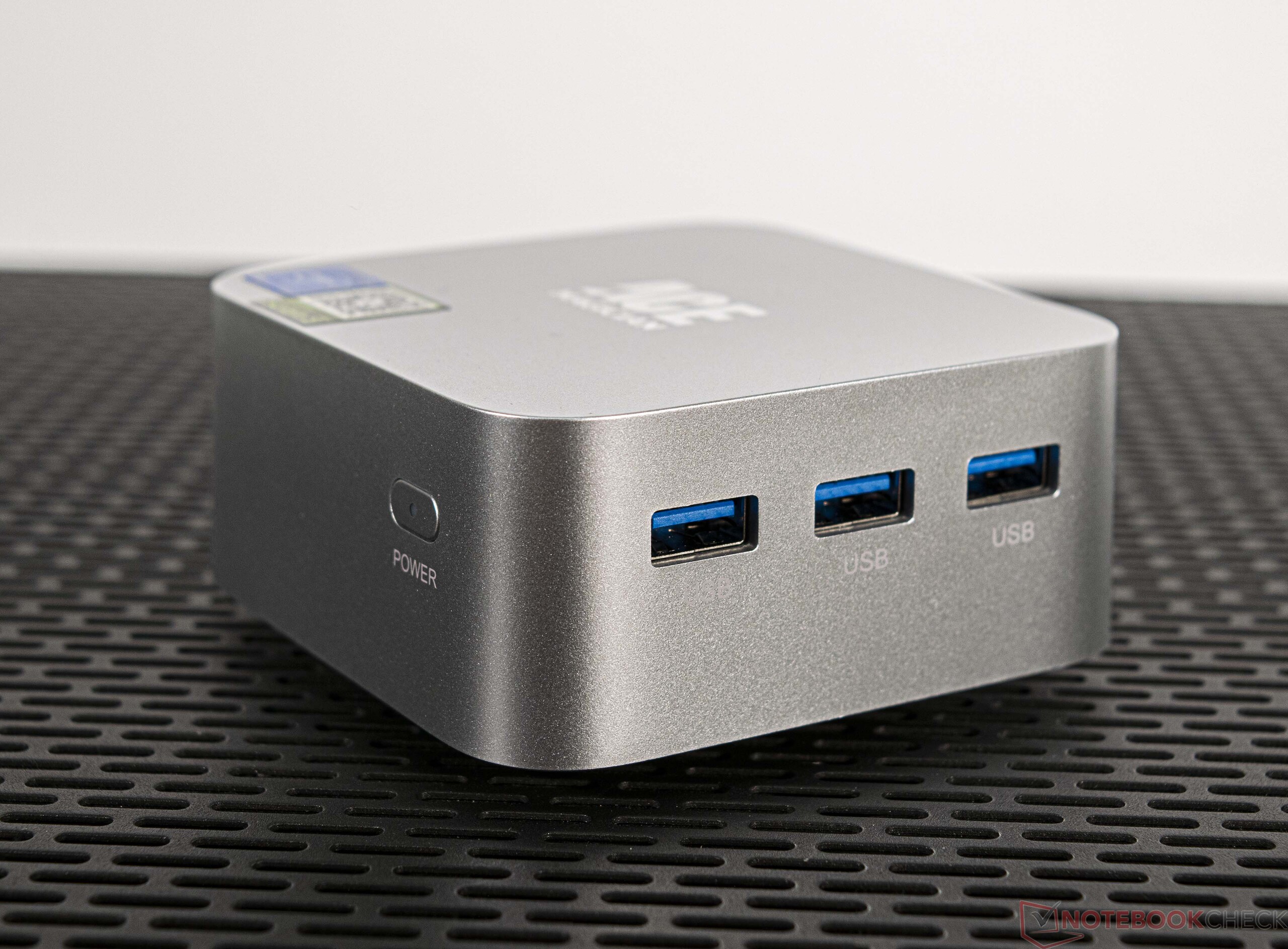

尽管设计紧凑,Minipc Union仍设法将三个USB-A端口和三个HDMI输出装入Ace Magician T8Pro。这两种类型的端口分别位于设备的一侧,后面有两个LAN端口。这意味着Ace Magician T8Pro的装备非常好,在我们的比较中可以与 "更大 "的设备抗衡。T8Pro使用Realtek 8821CE芯片进行无线通信,它的性能比其他设备的无线解决方案要差。

Networking
iperf3 receive AXE11000
Newsmay Neosmay S2-B560TPM
Realtek RTL8852BE
964 (933min - 986max) MBit/s +166%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 MBit/s +149%
Average of class Mini PC
  (192.9 - 1796, n=81, last 2 years)
894 MBit/s +146%
Minisforum EliteMini TH50
MediaTek MT7921
776 MBit/s +114%
Minisforum EliteMini B550
MediaTek RZ608
430 MBit/s +18%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
363 (359min - 365max) MBit/s
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
  (354 - 365, n=5)
360 MBit/s -1%
Geekom MiniAir 11 Special Edition
Intel Dual Band Wireless-AC 7265
290 (279min - 299max) MBit/s -20%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 MBit/s +425%
Minisforum EliteMini TH50
MediaTek MT7921
866 MBit/s +370%
Newsmay Neosmay S2-B560TPM
Realtek RTL8852BE
858 (810min - 882max) MBit/s +366%
Average of class Mini PC
  (184.1 - 1776, n=81, last 2 years)
828 MBit/s +350%
Minisforum EliteMini B550
MediaTek RZ608
572 MBit/s +211%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
  (184.1 - 274, n=5)
242 MBit/s +31%
Geekom MiniAir 11 Special Edition
Intel Dual Band Wireless-AC 7265
225 (210min - 237max) MBit/s +22%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
184.1 (94min - 191max) MBit/s
050100150200250300350Tooltip
Minipc Union Ace Magician T8Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø363 (359-365)
Minipc Union Ace Magician T8Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø181 (94-191)

维护

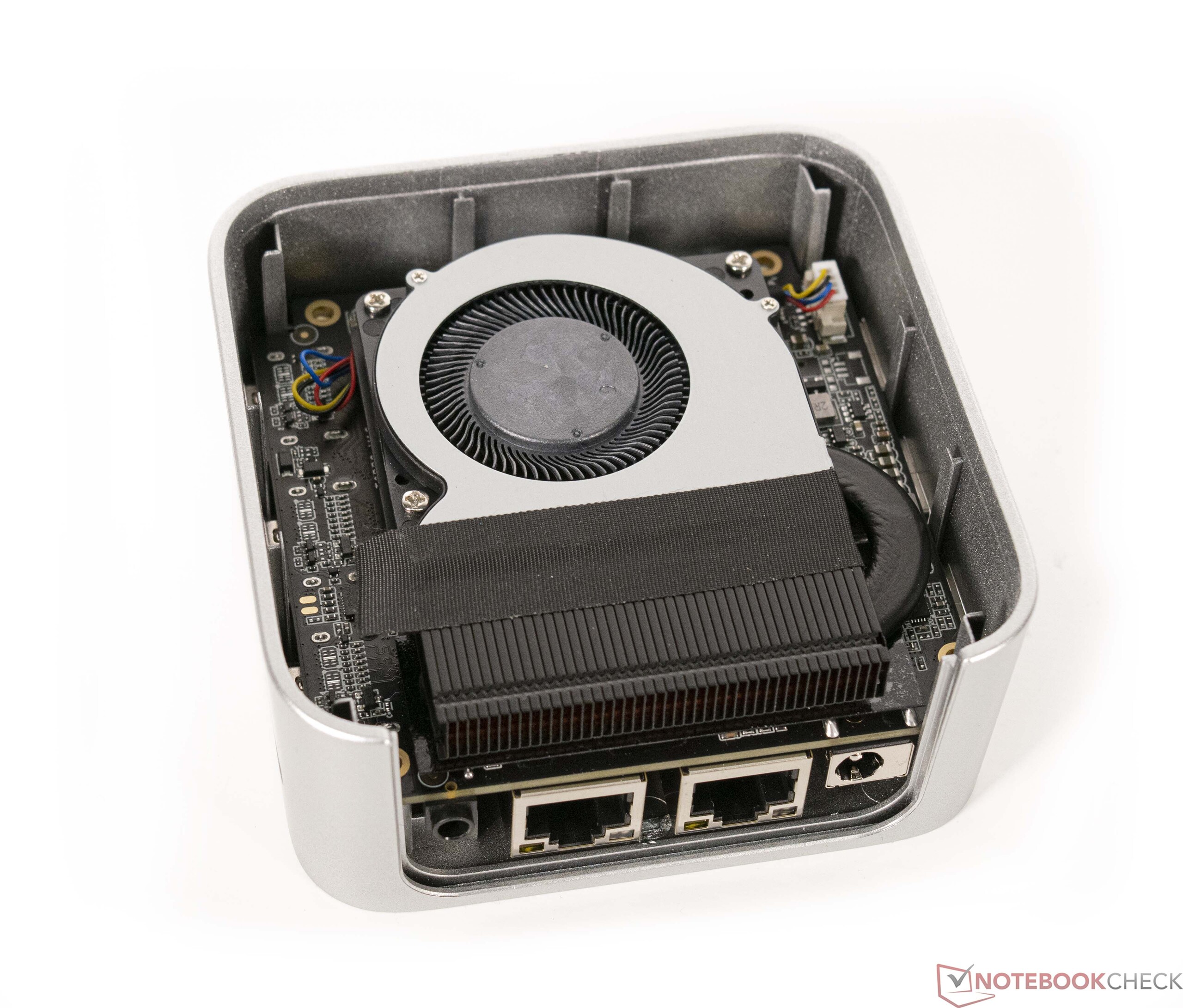

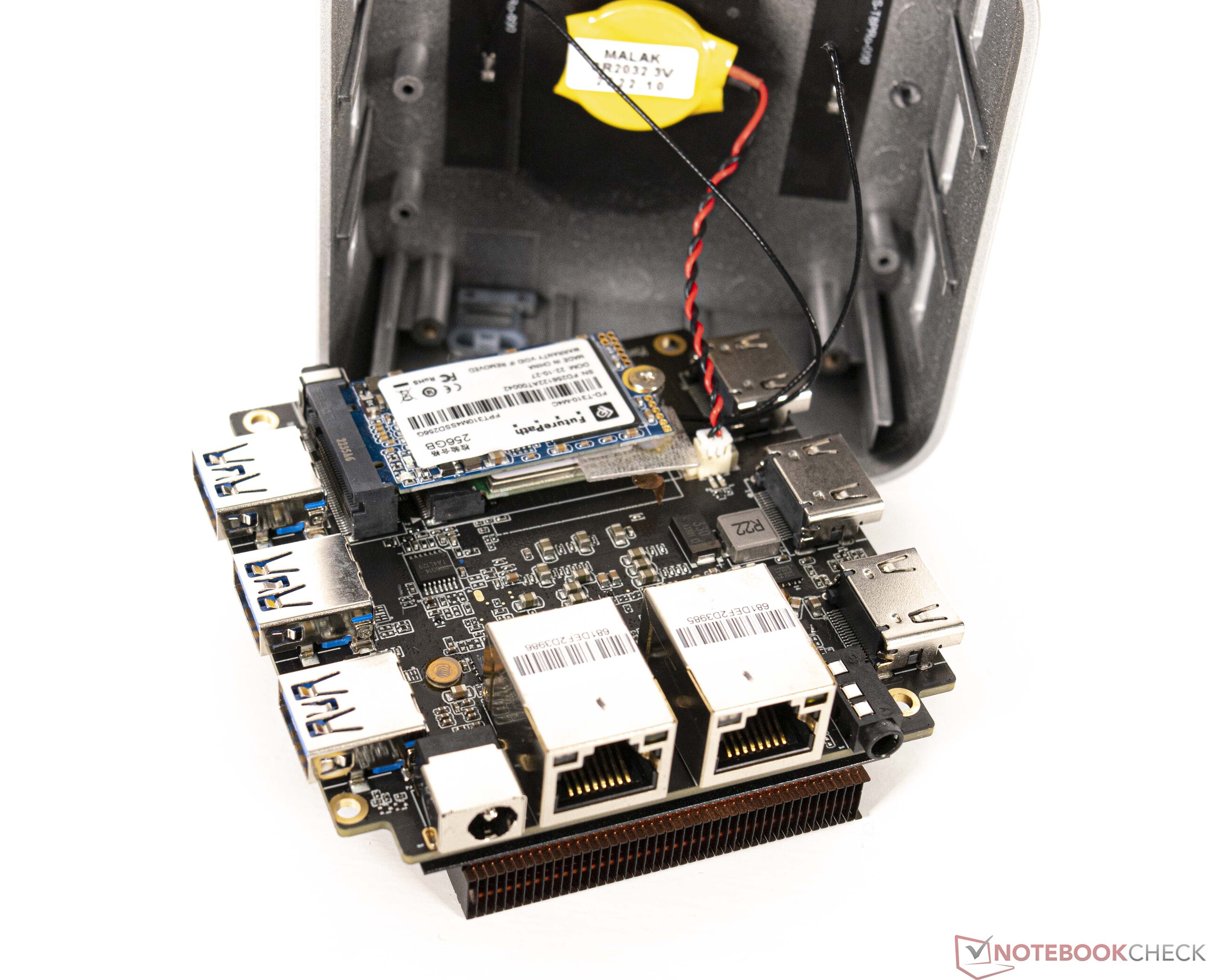

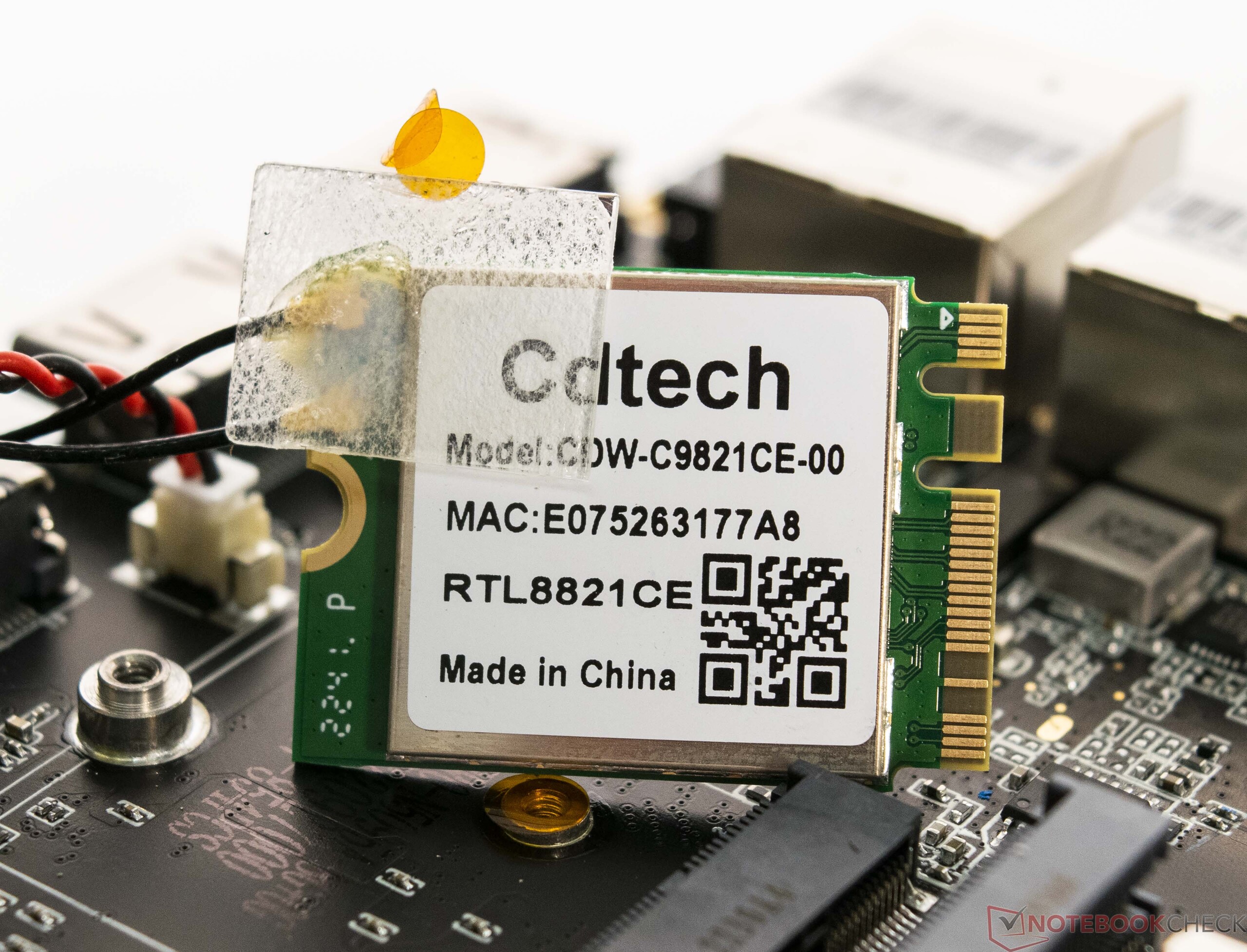

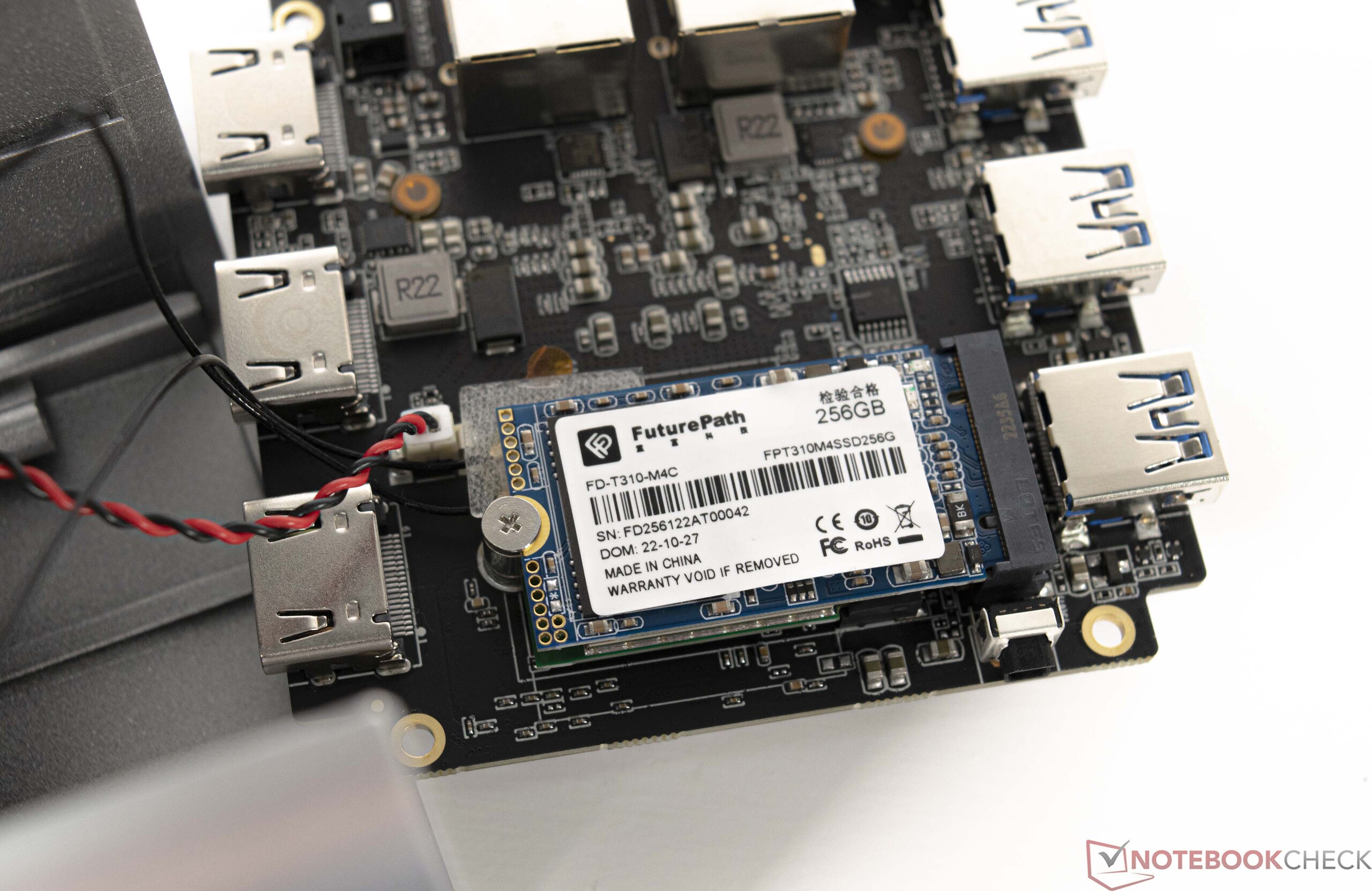

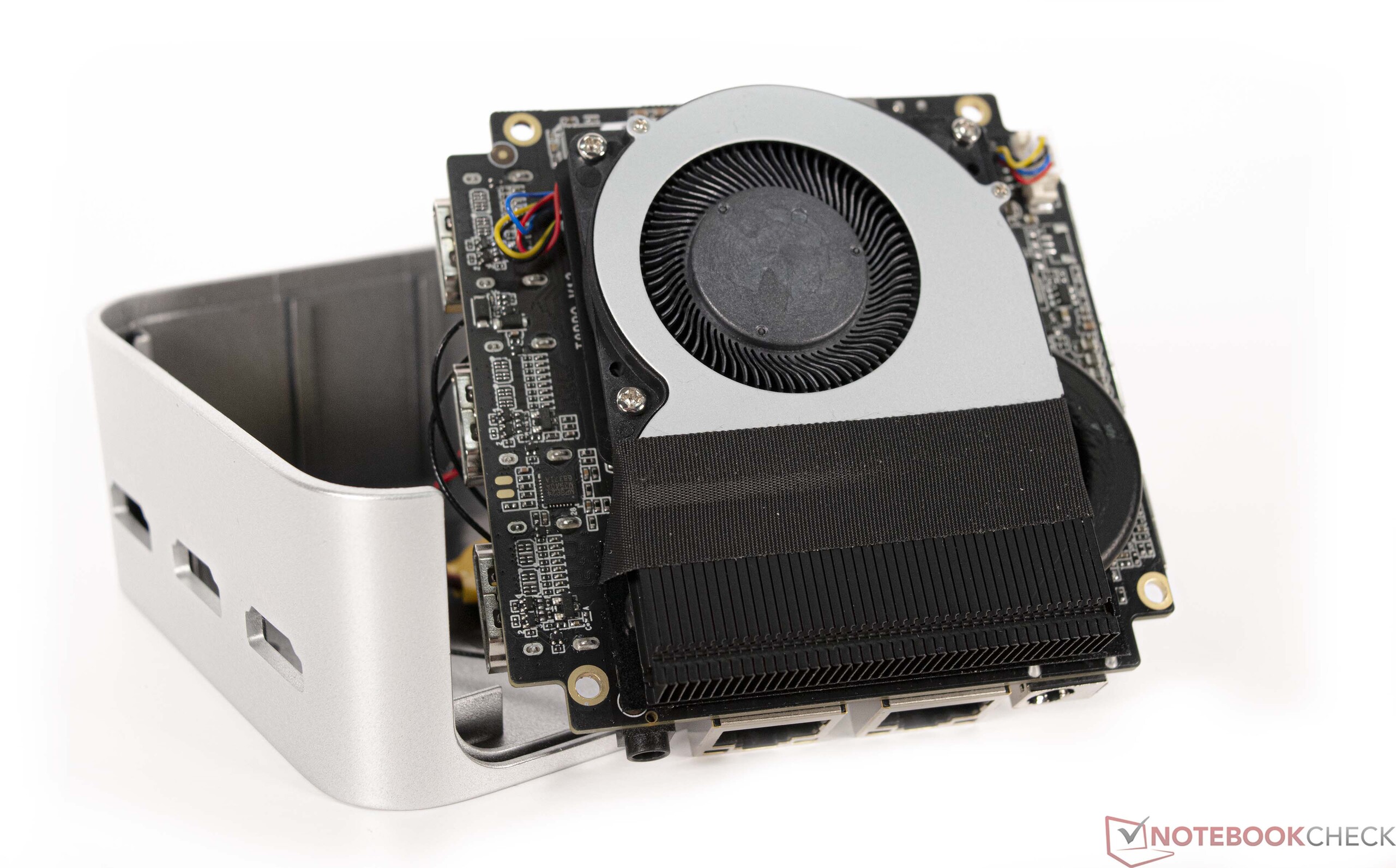

对于那些想升级王牌魔术师T8Pro的人来说,SSD和Wi-Fi模块很容易获得。要打开设备,你所要做的就是卸下底部的四个螺丝。然而,你应该注意固态硬盘的外形尺寸,因为该设备只能容纳一个长度为42毫米的M.2固态硬盘。不过,与固态硬盘和Wi-Fi模块不同,内存是不能升级的。

业绩

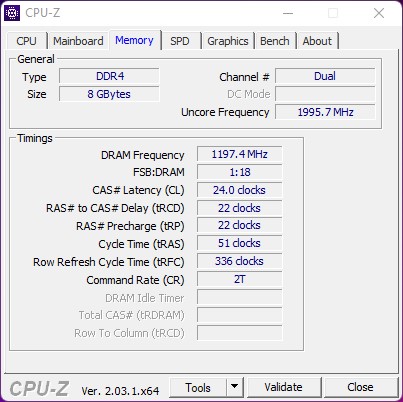

ǞǞǞ 英特尔赛扬N5095是Ace Magician T8Pro唯一可供选择的处理器。四个原生核心有8GB的DDR4内存供其使用,为基本的办公任务提供了坚实的性能。

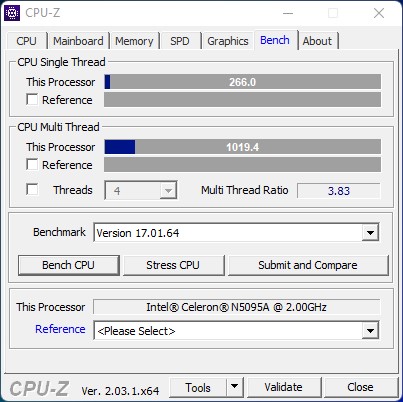

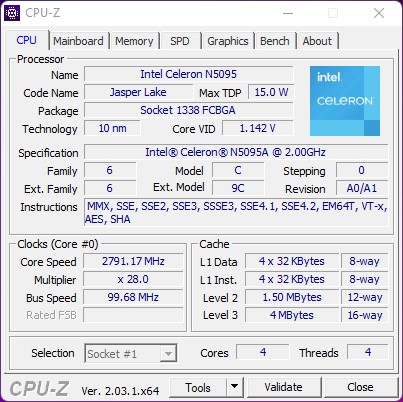

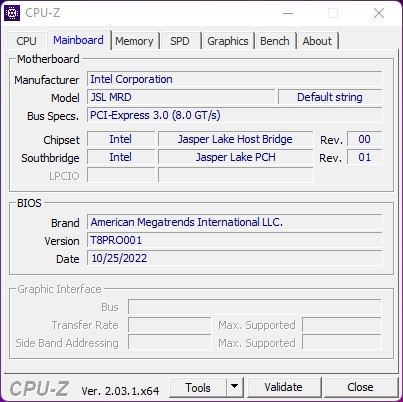

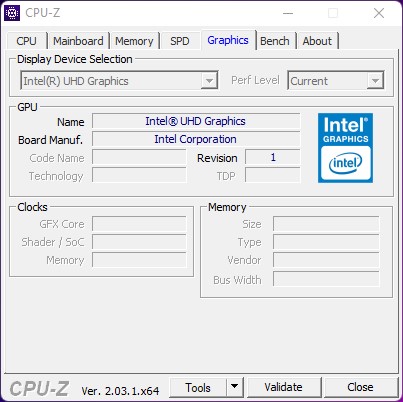

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

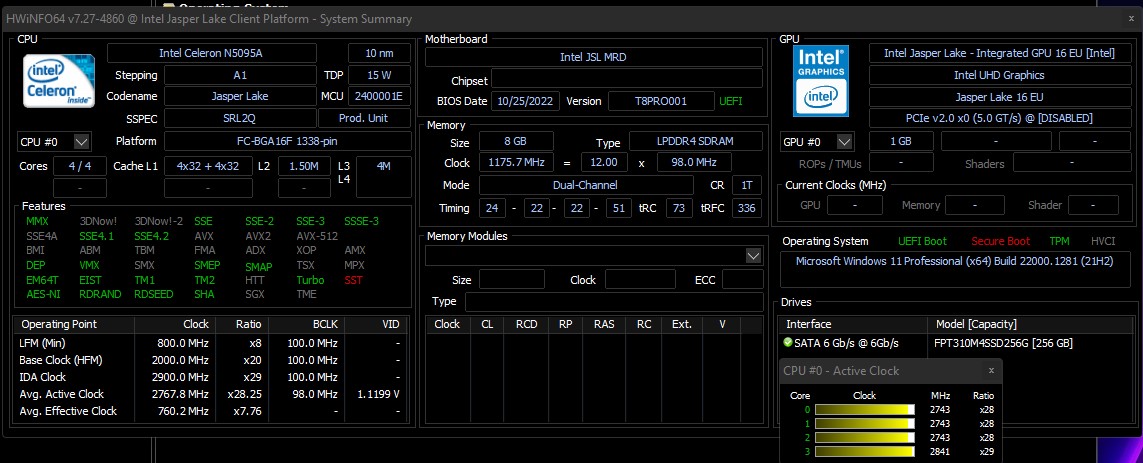

HWiNFO

测试条件

我们用 "高性能 "电源计划进行了所有与性能有关的测试,以获得尽可能好的结果。我们唯一一次使用不同的电源计划是在测量耗电量和噪音水平时。点击这里https://www.notebookcheck.net/Our-Test-Criteria.15394.0.html以了解更多关于我们的测试标准。

处理器

王牌魔术师T8Pro可以利用以下的力量 Intel Celeron N5095相当不错。也就是说,有一些竞争产品在使用相同的SoC时表现更好,例如 Geekom MiniAir 11特别版.不过,性能差异在低个位数百分比范围内,因此可以忽略不计。该SoC的短期功率限制(PL2)约为20瓦,而长期功率限制(PL1)的上限为15瓦。

你可以点击这里https://www.notebookcheck.net/Mobile-Processors-Benchmark-List.2436.0.html查看更多的处理器基准测试。

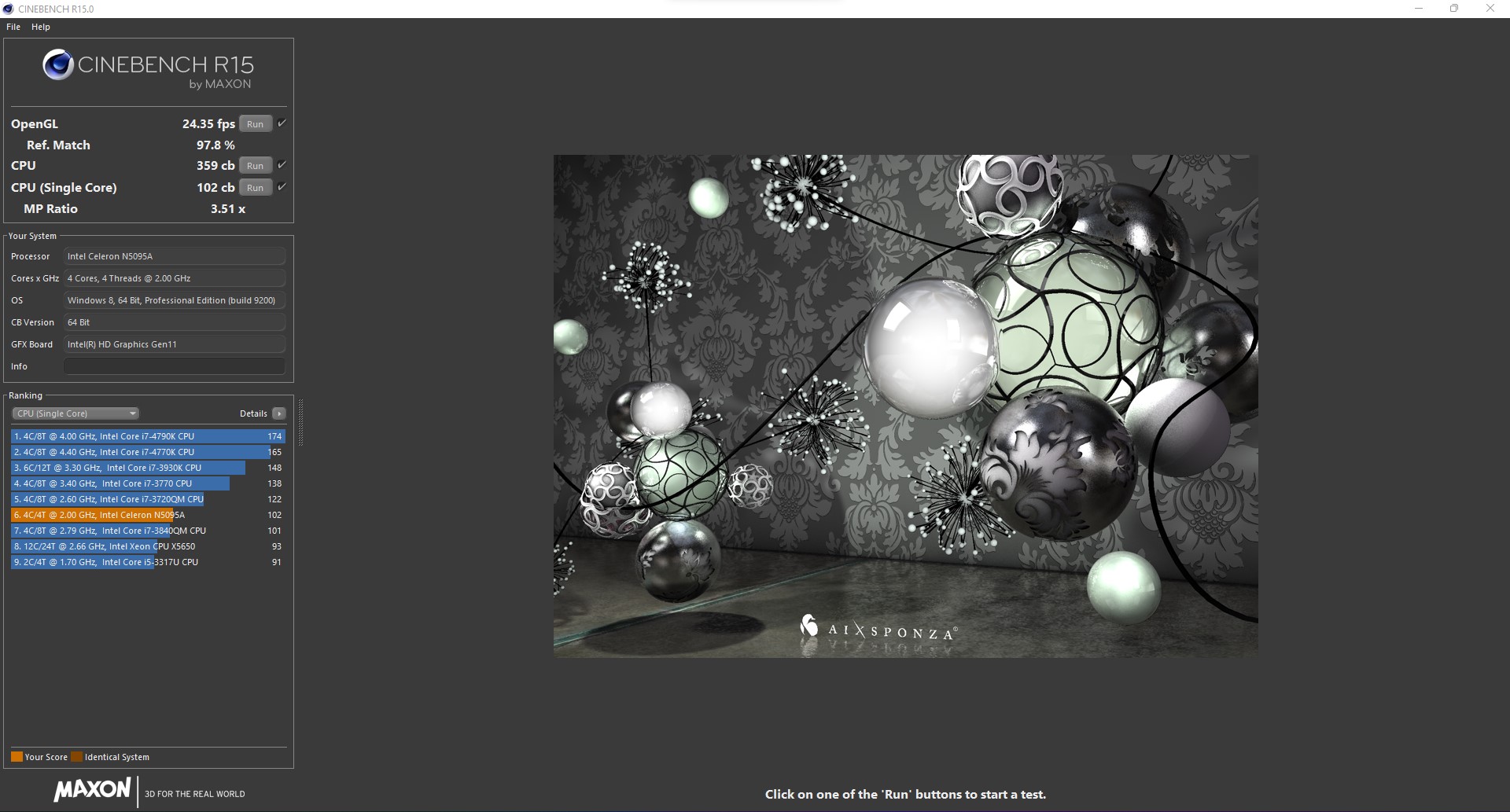

Cinebench R15
Cinebench R15

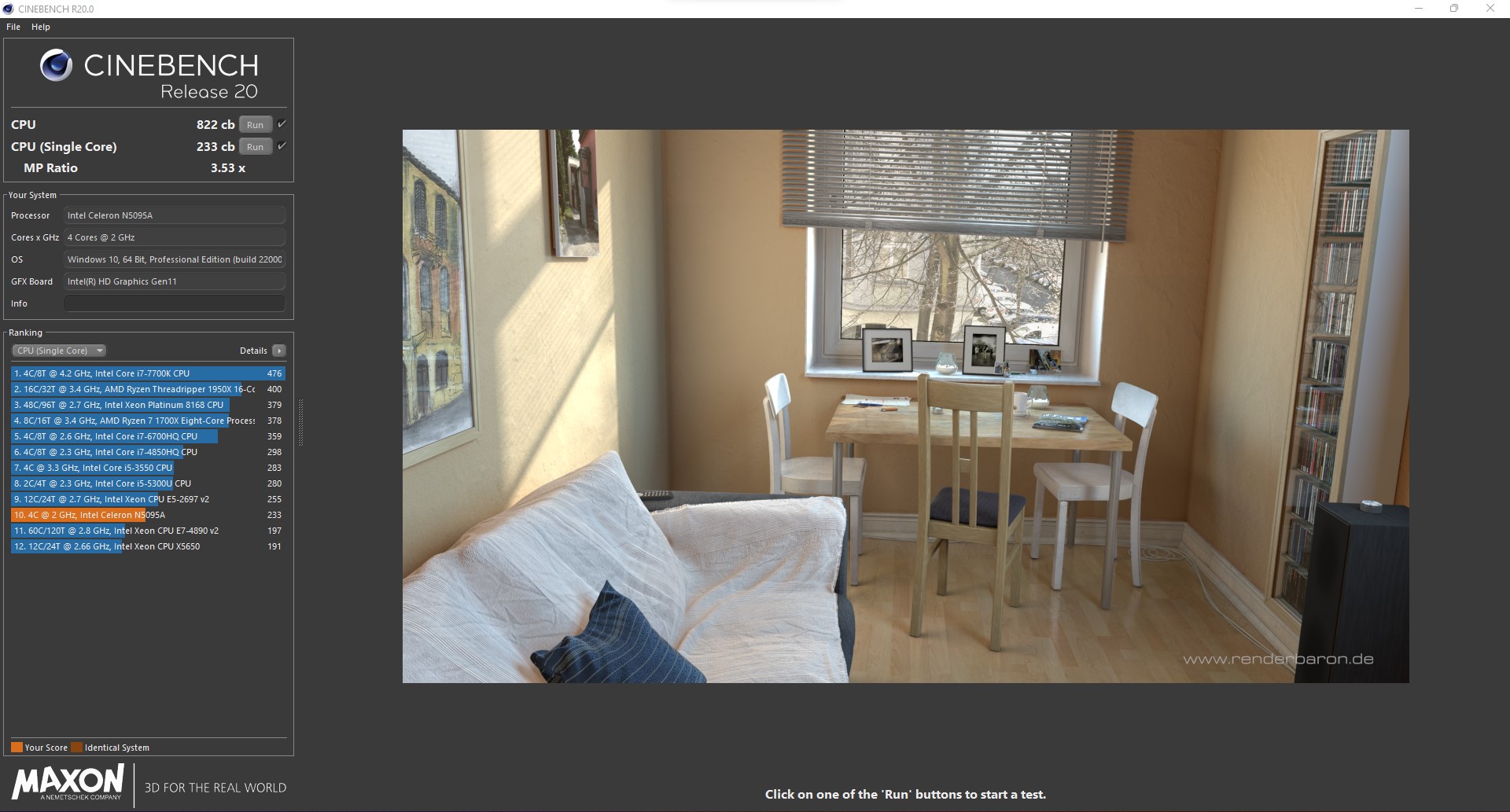

Cinebench R20
Cinebench R20

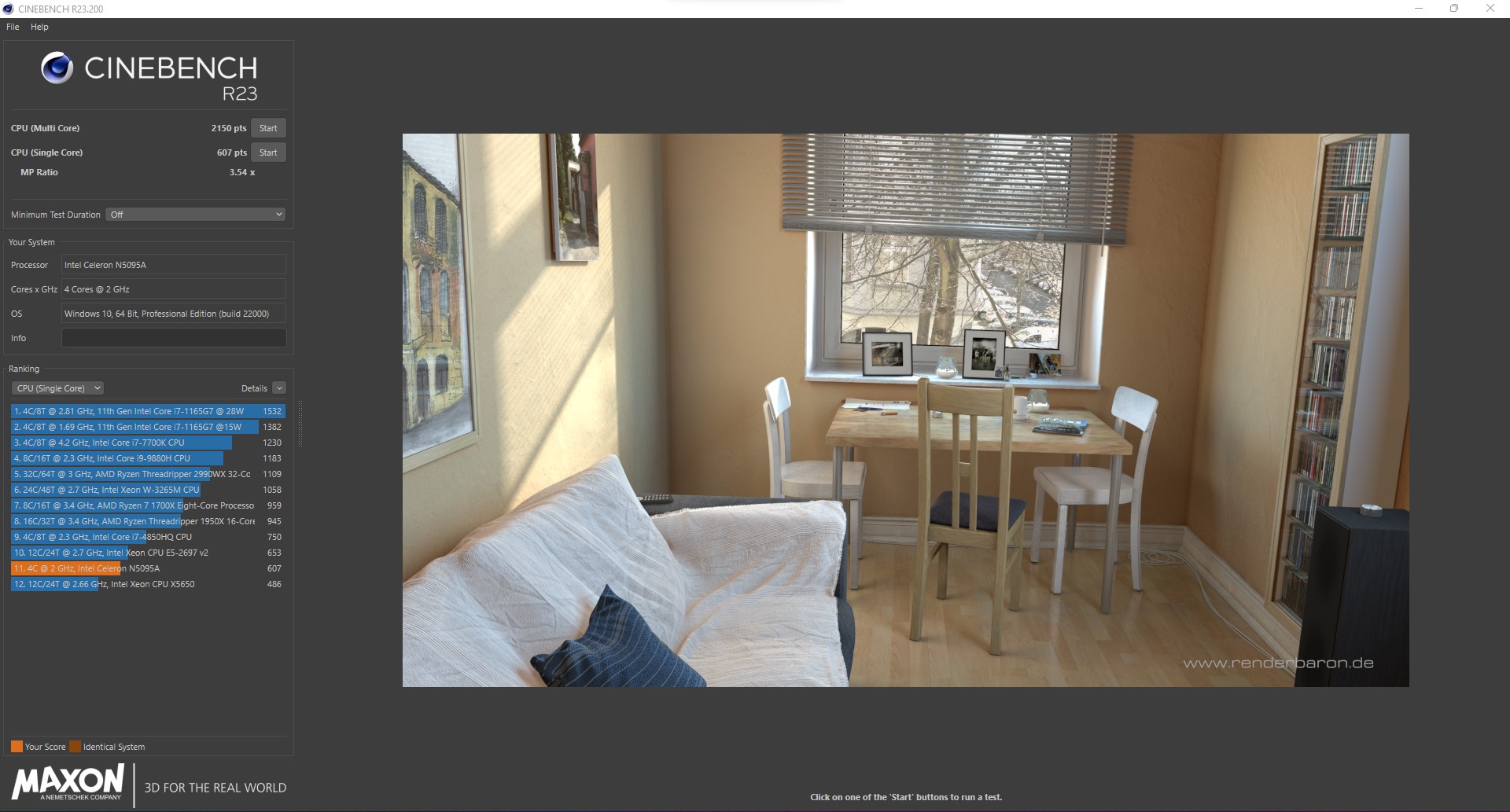

电影院R23
电影院R23
Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
123 Points +21%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
107.3 Points +5%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
106 Points +4%
Average Intel Celeron N5095
  (95.4 - 109, n=5)
103.9 Points +2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
102 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
95.4 Points -6%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
77 Points -25%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
76 Points -25%
CPU Multi 64Bit
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
372 Points +4%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
369 Points +3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
359 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
358 (350.25min - 357.53max) Points 0%
Average Intel Celeron N5095
  (221 - 379, n=6)
343 Points -4%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
319 Points -11%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
248 Points -31%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
128 Points -64%
Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
266 Points +14%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
236 Points +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
234 Points 0%
Average Intel Celeron N5095
  (228 - 239, n=5)
234 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
233 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
228 Points -2%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
174 Points -25%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
171 Points -27%
CPU (Multi Core)
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
828 Points +1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
827 Points +1%
Average Intel Celeron N5095
  (804 - 844, n=5)
825 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
822 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
804 Points -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
720 Points -12%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
556 Points -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
285 Points -65%
Cinebench R23
Single Core
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
696 Points +15%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
615 Points +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
611 Points +1%
Average Intel Celeron N5095
  (587 - 621, n=5)
608 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
607 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
587 Points -3%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
439 Points -28%
Multi Core
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2176 (2164.67min - 2176.1max) Points +1%
Average Intel Celeron N5095
  (2150 - 2219, n=5)
2174 Points +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2164 Points +1%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
2159 (2113.79min - 2158.74max) Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2150 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1833 Points -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
735 Points -66%
Cinebench R11.5
CPU Single 64Bit
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.47 Points +18%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1.29 Points +3%
Average Intel Celeron N5095
  (1.25 - 1.29, n=2)
1.27 Points +2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.25 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.97 Points -22%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
0.92 Points -26%
CPU Multi 64Bit
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
4.76 Points +2%
Average Intel Celeron N5095
  (4.65 - 4.76, n=2)
4.71 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4.65 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
4.14 Points -11%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
3.09 Points -34%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1.65 Points -65%
Cinebench R10
Rendering Single CPUs 64Bit
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
6163 Points +18%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
5451 Points +4%
Average Intel Celeron N5095
  (5224 - 5451, n=2)
5338 Points +2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5224 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
4120 Points -21%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
3711 Points -29%
Rendering Multiple CPUs 64Bit
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
17278 Points
Average Intel Celeron N5095
  (16442 - 17278, n=2)
16860 Points -2%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
16442 Points -5%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
15504 Points -10%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
10705 Points -38%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
6653 Points -61%
Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
3767 Seconds * -144%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2379 Seconds * -54%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1805 Seconds * -17%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1624 Seconds * -5%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1550 Seconds * -0%
Average Intel Celeron N5095
  (1502 - 1624, n=5)
1548 Seconds * -0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1547 Seconds *
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1502 Seconds * +3%
wPrime 2.10
32m
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
49.66 s * -159%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
19.779 s * -3%
Average Intel Celeron N5095
  (19.2 - 19.8, n=2)
19.5 s * -2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
19.202 s *
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
17.37 s * +10%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
17.09 s * +11%
1024m
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1561.178 s * -158%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
617.326 s * -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
615 s * -2%
Average Intel Celeron N5095
  (605 - 617, n=2)
611 s * -1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
605.375 s *
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
566 s * +7%
X264 HD Benchmark 4.0
Pass 1
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
120.25 (119.9min - 120.3max) fps +7%
Average Intel Celeron N5095
  (112.8 - 120.3, n=2)
116.5 fps +3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
112.75 (112min - 114.5max) fps
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
102 (100min - 118max) fps -10%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
78.9 (77.1min - 81.7max) fps -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
45.25 (44.7min - 45.7max) fps -60%
Pass 2
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
25.25 (25.2min - 25.4max) fps +2%
Average Intel Celeron N5095
  (24.8 - 25.3, n=2)
25 fps +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
24.75 (24.5min - 25max) fps
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
21.6 (21.5min - 22.1max) fps -13%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
16.75 (16.7min - 16.9max) fps -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
9.995 (9.97min - 10.2max) fps -60%
WinRAR - Result
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1781 KB/s +9%
Average Intel Celeron N5095
  (1630 - 1781, n=2)
1706 KB/s +5%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1630 KB/s
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1525 KB/s -6%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1140 KB/s -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
731 KB/s -55%
TrueCrypt
AES Mean 100MB
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
2.6 GB/s +4%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2.5 GB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.5 GB/s
Average Intel Celeron N5095
  (2.5 - 2.5, n=2)
2.5 GB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1.9 GB/s -24%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.979 GB/s -61%
Twofish Mean 100MB
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
0.403 GB/s +9%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
0.37 GB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.37 GB/s
Average Intel Celeron N5095
  (0.37 - 0.37, n=2)
0.37 GB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
0.266 GB/s -28%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.14 GB/s -62%
Serpent Mean 100MB
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
0.23 GB/s +16%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
0.198 GB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.198 GB/s
Average Intel Celeron N5095
  (0.198 - 0.198, n=2)
0.198 GB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
0.182 GB/s -8%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.074 GB/s -63%
Geekbench 5.5
Multi-Core
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2052 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2036 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2020 Points -2%
Average Intel Celeron N5095
  (1933 - 2052, n=4)
2010 Points -2%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1933 Points -6%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1673 Points -18%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1501 Points -27%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
844 Points -59%
Single-Core
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
659 Points +3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
657 Points +3%
Average Intel Celeron N5095
  (637 - 659, n=4)
649 Points +2%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
644 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
637 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
606 Points -5%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
556 Points -13%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
455 Points -29%
Geekbench 5.0
5.0 Multi-Core
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2041 Points
Average Intel Celeron N5095
  (1985 - 2070, n=4)
2029 Points -1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2020 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1985 Points -3%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1482 Points -27%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1313 Points -36%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
857 Points -58%
5.0 Single-Core
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
655 Points +3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
655 Points +3%
Average Intel Celeron N5095
  (628 - 655, n=4)
644 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
638 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
603 Points -5%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
559 Points -12%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
453 Points -29%
Geekbench 4.4
64 Bit Single-Core Score
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2929 Points +2%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2900 Points +1%
Average Intel Celeron N5095
  (2858 - 2929, n=3)
2896 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2858 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2585 Points -10%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
2555 Points -11%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1922 Points -33%
64 Bit Multi-Core Score
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
7968 Points
Average Intel Celeron N5095
  (7759 - 7968, n=3)
7856 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
7842 Points -2%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
7759 Points -3%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
5468 Points -31%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
5399 Points -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
3606 Points -55%
3DMark 11 - 1280x720 Performance Physics
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
4322 Points +1%
Average Intel Celeron N5095
  (4224 - 4439, n=5)
4309 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4287 Points
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
4272 Points 0%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
4224 Points -1%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
3659 Points -15%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2794 Points -35%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1591 Points -63%
7-Zip 18.03
7z b 4
Average Intel Celeron N5095
  (10924 - 11168, n=5)
11024 MIPS +1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
11023 MIPS +1%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
11013 MIPS +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
10994 MIPS +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
10924 MIPS
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
9964 MIPS -9%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
7790 MIPS -29%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
3974 MIPS -64%
7z b 4 -mmt1
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
3515 MIPS +20%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
3124 MIPS +6%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
3100 MIPS +6%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
3098 MIPS +6%
Average Intel Celeron N5095
  (2935 - 3124, n=5)
3074 MIPS +5%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2935 MIPS
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2593 MIPS -12%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2379 MIPS -19%
HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2.02 fps 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.01 fps
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
2 fps 0%
Average Intel Celeron N5095
  (1.9 - 2.05, n=5)
1.996 fps -1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1.9 fps -5%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.65 fps -18%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1.48 fps -26%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.88 fps -56%
R Benchmark 2.5 - Overall mean
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1.579 sec * -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1.371 sec * -14%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.2 sec *
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1.178 sec * +2%
Average Intel Celeron N5095
  (1.16 - 1.2, n=5)
1.174 sec * +2%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1.166 sec * +3%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1.16 sec * +3%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.137 sec * +5%
LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
144.7 s * -40%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
143 s * -38%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
107.9 s * -4%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
106.5 s * -3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
103.6 s *
Average Intel Celeron N5095
  (97 - 107.9, n=5)
103.6 s * -0%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
103.2 s * -0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
92.9 s * +10%
WebXPRT 3 - Overall
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
146 Points +15%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
127.2 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
125.3 Points -1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
125.3 Points -1%
Average Intel Celeron N5095
  (114.3 - 127.2, n=6)
123.4 Points -3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
122.2 Points -4%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
114.3 Points -10%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
89.2 Points -30%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
86.2 Points -32%
Mozilla Kraken 1.1 - Total
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2288 ms * -41%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1619 ms *
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1591 ms * +2%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1581 ms * +2%
Average Intel Celeron N5095
  (1557 - 1619, n=6)
1578 ms * +3%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1557 ms * +4%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1557 ms * +4%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1396 ms * +14%
3DMark - 1920x1080 Fire Strike Physics
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5535 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
5499 Points -1%
Average Intel Celeron N5095
  (5400 - 5572, n=5)
5496 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
5474 Points -1%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
5400 Points -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
4295 Points -22%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
3885 Points -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2195 Points -60%

* ... smaller is better

Performance Rating
Average of class Mini PC

100 pt
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22.4 pt
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21.4 pt
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21.1 pt
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
17.3 pt
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
9.4 pt
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
7.2 pt
AIDA64 / FP32 Ray-Trace
Average of class Mini PC
  (561 - 27538, n=94, last 2 years)
9758 KRay/s +686%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1245 KRay/s 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1244 KRay/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1242 KRay/s
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
999 KRay/s -20%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
490 KRay/s -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
416 KRay/s -67%
AIDA64 / FPU Julia
Average of class Mini PC
  (3604 - 116903, n=94, last 2 years)
51601 Points +592%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7459 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7457 Points
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7264 Points -3%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6217 Points -17%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
2932 Points -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2401 Points -68%
AIDA64 / CPU SHA3
Average of class Mini PC
  (225 - 5096, n=94, last 2 years)
2255 MB/s +339%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
514 MB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
514 MB/s
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
508 MB/s -1%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
396 MB/s -23%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
202 MB/s -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
167 MB/s -68%
AIDA64 / CPU Queen
Average of class Mini PC
  (8172 - 119569, n=94, last 2 years)
68432 Points +207%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22326 Points
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21801 Points -2%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21458 Points -4%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
20014 Points -10%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
8820 Points -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
7876 Points -65%
AIDA64 / FPU SinJulia
Average of class Mini PC
  (408 - 15525, n=94, last 2 years)
7192 Points +618%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
1204 Points +20%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1003 Points 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
397 Points -60%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
396 Points -60%
AIDA64 / FPU Mandel
Average of class Mini PC
  (1958 - 62378, n=94, last 2 years)
27375 Points +591%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3962 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3961 Points
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3802 Points -4%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
3375 Points -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
1558 Points -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
1264 Points -68%
AIDA64 / CPU AES
Average of class Mini PC
  (3691 - 177158, n=94, last 2 years)
73659 MB/s +281%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19350 MB/s
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19086 MB/s -1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19076 MB/s -1%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10084 MB/s -48%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
7653 MB/s -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6370 MB/s -67%
AIDA64 / CPU ZLib
Average of class Mini PC
  (74.8 - 1117, n=94, last 2 years)
570 MB/s +203%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
189.9 MB/s +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
188.1 MB/s
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
187.7 MB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
131 MB/s -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
75.2 MB/s -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
60.6 MB/s -68%
AIDA64 / FP64 Ray-Trace
Average of class Mini PC
  (308 - 14722, n=94, last 2 years)
5212 KRay/s +671%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
673 KRay/s 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
553 KRay/s -18%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
273 KRay/s -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
213 KRay/s -68%
AIDA64 / CPU PhotoWorxx
Average of class Mini PC
  (4408 - 44347, n=94, last 2 years)
24394 MPixel/s +146%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9899 MPixel/s
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7707 MPixel/s -22%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7386 MPixel/s -25%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6778 MPixel/s -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
5125 MPixel/s -48%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2501 MPixel/s -75%

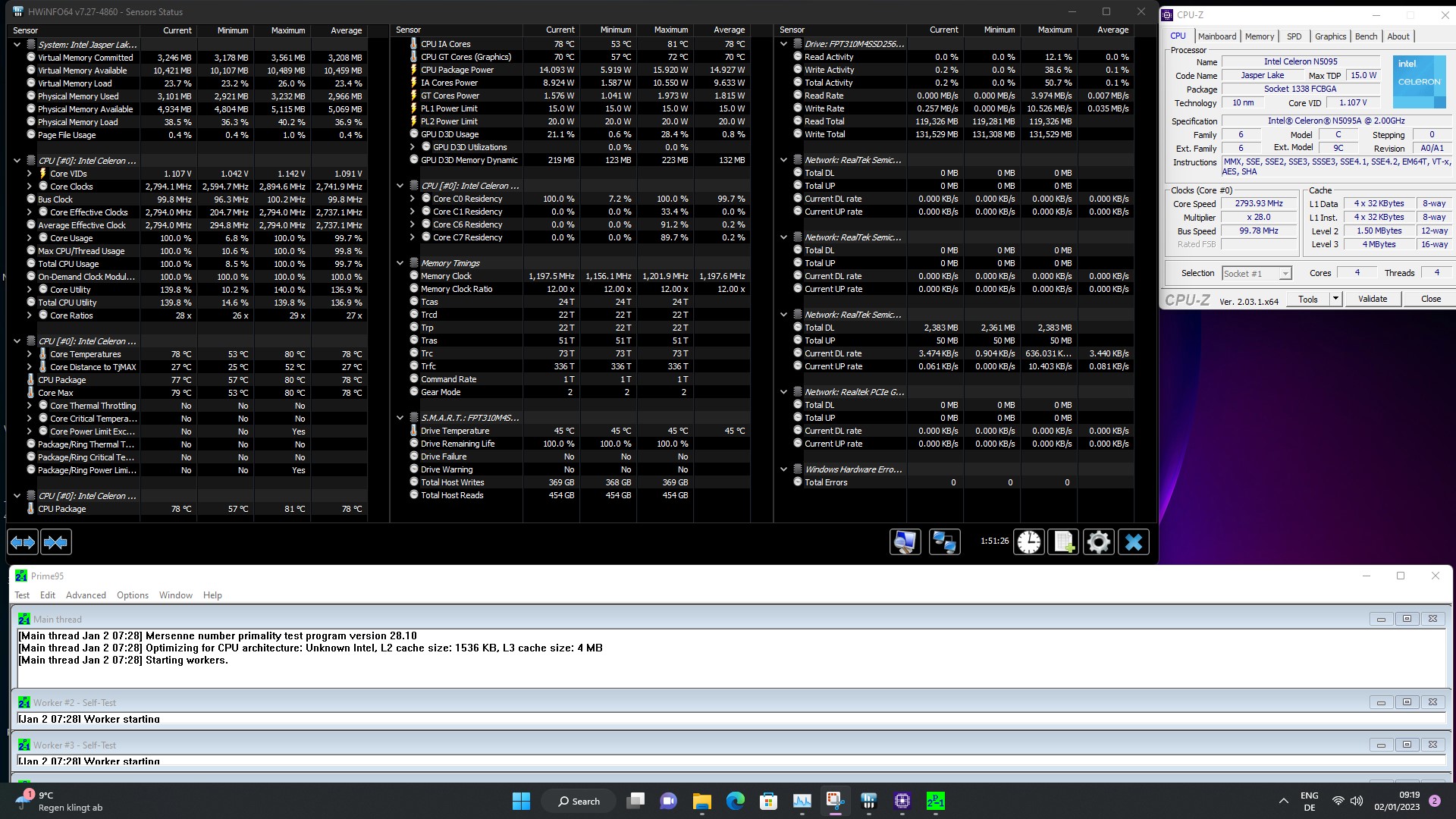

的性能。 英特尔赛扬N5059正如Cinebench R15循环测试所证明的那样,英特尔赛扬N5059在负载下管理得非常好。在测试的所有50次运行中,结果保持一致。被动冷却的 新闻美AC8尽管拥有更快的SoC,却无法跟上。总的来说,我们的评测单元成功地在对比组中获得了第二名的位置。

020406080100120140160180200220240260280300320340360Tooltip
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)
Geekom MiniAir 11 Intel Celeron N5095, Intel Celeron N5095: Ø373 (370.41-374.55)
Beelink U59 Mini-S Intel Celeron N5095, Intel Celeron N5095: Ø353 (350.25-357.53)
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)
AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

系统性能

ǞǞǞ Intel Celeron N5059限制了Ace Magician T8Pro的能力。尽管如此,该设备在日常使用中表现良好,只要你不把它的SoC压垮。王牌魔术师甚至能够略微超过 Geekom MiniAir 11特别版,而T8Pro和Newsmay AC8之间的性能差距也很大。 新闻美AC8(配备英特尔奔腾银N6005)之间的性能差距微乎其微。

Performance Rating - Percent
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
97.6 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
96.7 pt
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
95.1 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
93.7 pt
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
91.5 pt
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
75.6 pt
PCMark 10
Score
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
2548 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
2417 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
2386 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
2351 Points -3%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
2317 Points -4%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
1806 Points -25%
Essentials
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
5866 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
5778 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
5679 Points -3%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
5516 Points -6%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
5446 Points -7%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
4693 Points -20%
Productivity
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
3854 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
3666 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
3591 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
3547 Points -3%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
3454 Points -6%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
2928 Points -20%
Performance Rating - Percent
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
99.8 pt
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
98 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
93 pt
CrossMark
Responsiveness
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
497 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
469 Points -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
403 Points -19%
Creativity
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
440 Points 0%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
438 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
434 Points -1%
Productivity
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
561 Points +1%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
558 Points
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
535 Points -4%
Overall
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
495 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
490 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
473 Points -4%
PCMark 10 Score
2417 points
Help

DPC延时

Ace Magician T8Pro在Edge浏览器中一打开几个标签就遇到了延迟问题。回放我们的4K测试视频进一步增加了延迟。在视频播放过程中,iGPU的使用率略高于30%。

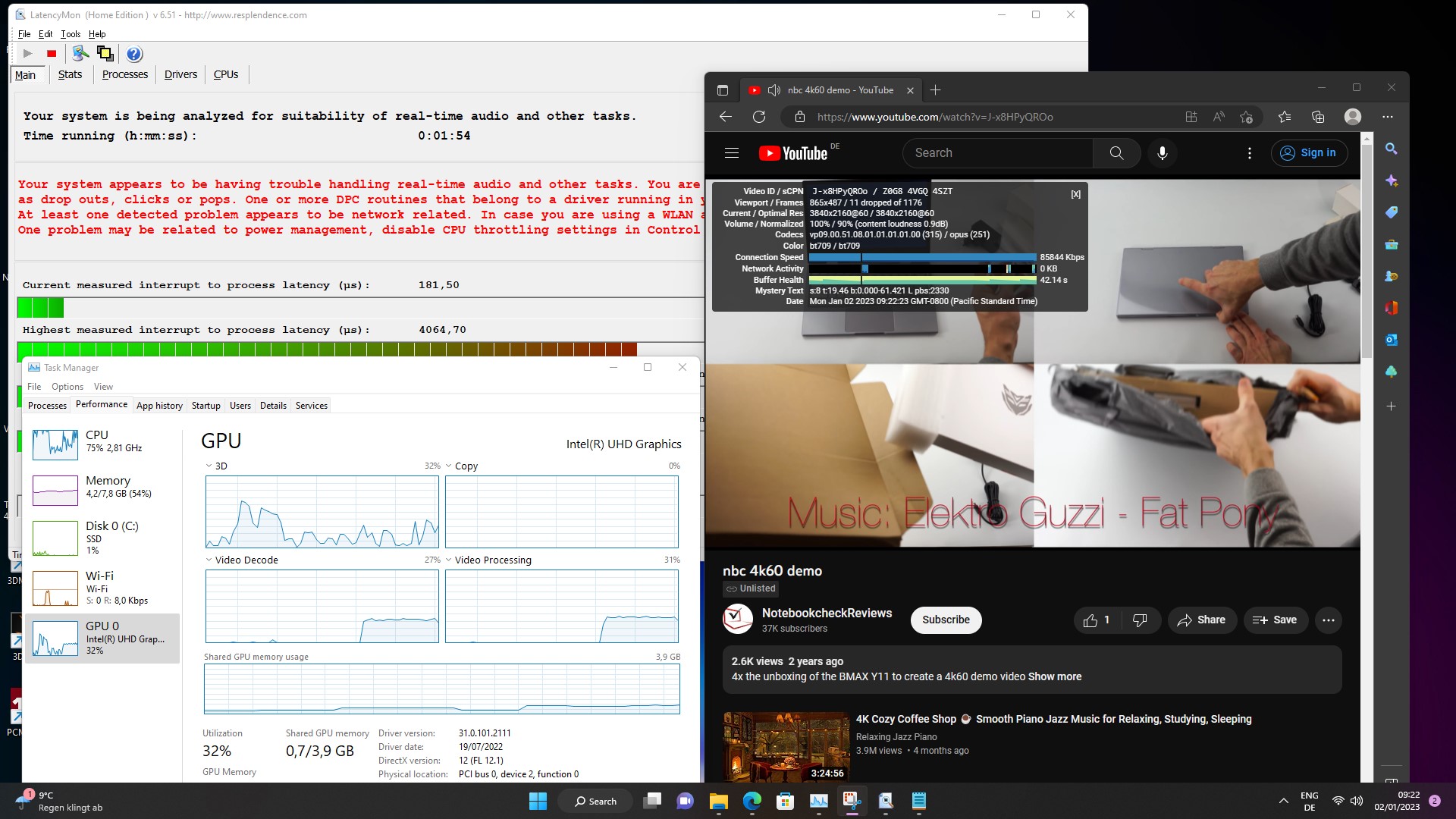

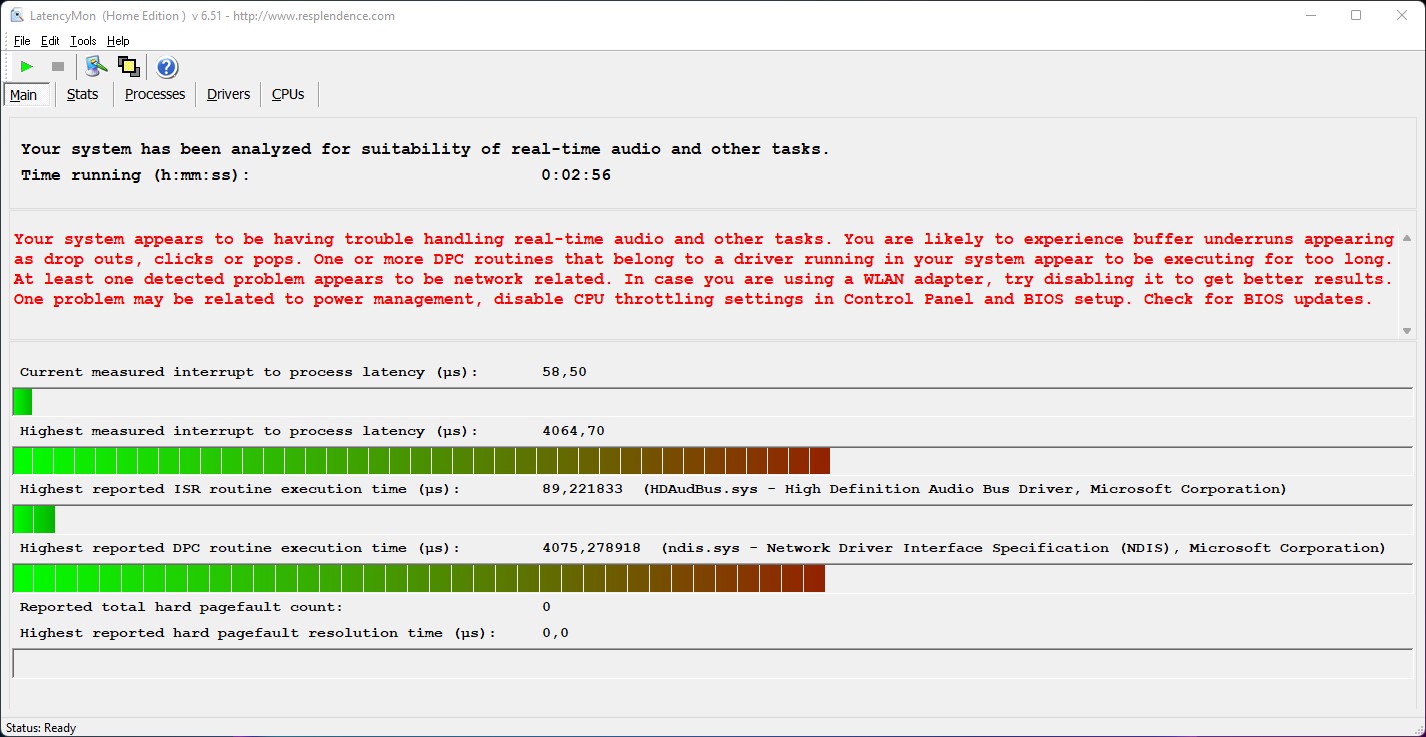

在打开多个浏览器标签和播放4K视频时的最大延迟
在打开多个浏览器标签和播放4K视频时的最大延迟
运行Prime95 10秒后的最大延时
运行Prime95 10秒后的最大延时

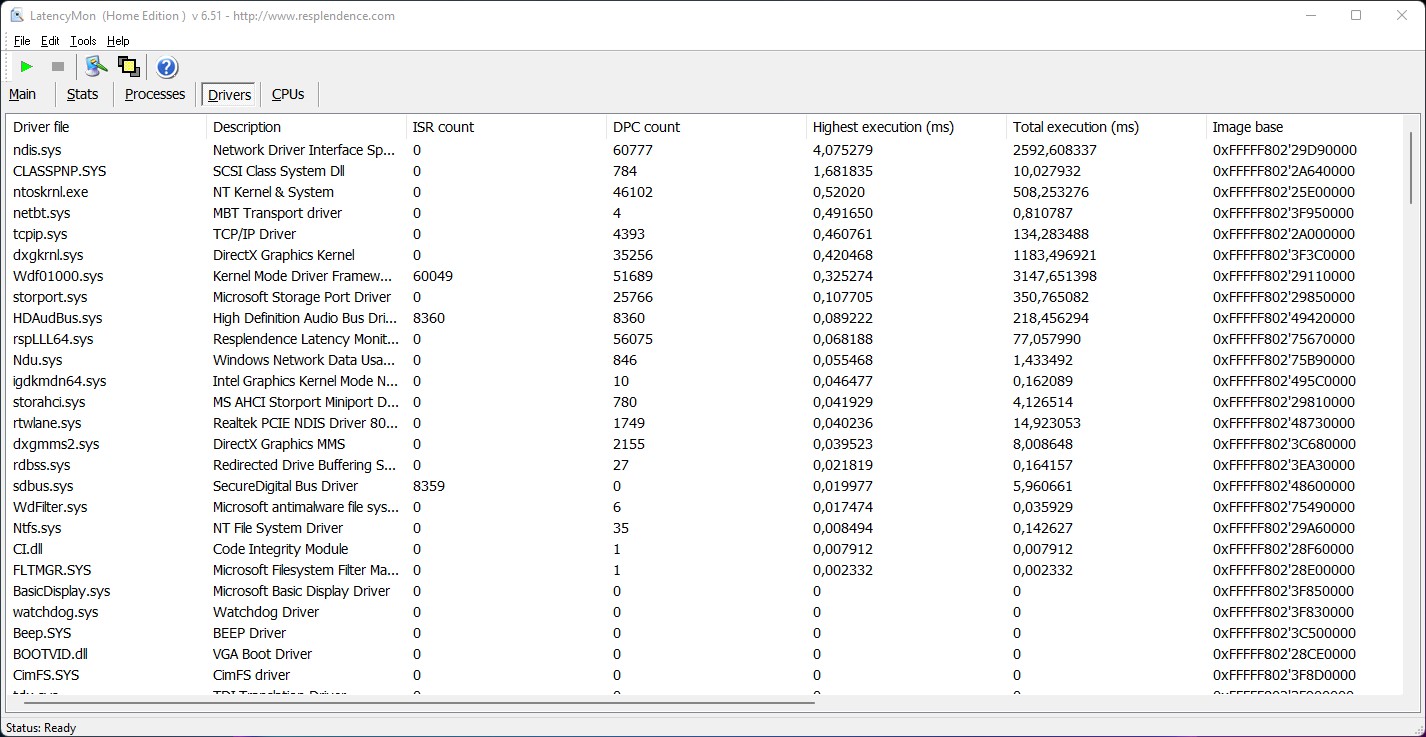

根据执行时间排序的驱动程序(从高到低)。
根据执行时间排序的驱动程序(从高到低)。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
4075 μs *
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
3767 μs * +8%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
2635 μs * +35%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
2582.6 μs * +37%
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
1732.2 μs * +57%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128
1476.3 μs * +64%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
687.3 μs * +83%

* ... smaller is better

大容量存储

王牌魔术师T8Pro配备了一块256GB的固态硬盘。该驱动器只支持SATA速度,因此比NVMe SSD慢。尽管如此,它仍然足以满足T8Pro的预期目的。我们也没有注意到持续负载下的任何性能下降。如果默认配置中的256GB存储空间不足以满足你的需求,你可以用一个更大的固态硬盘来替换附带的固态硬盘。尽管你应该确保新的固态硬盘不长于42毫米(M.2 2242)。

你可以参考我们的存储驱动器表以获得更多的比较和基准结果。

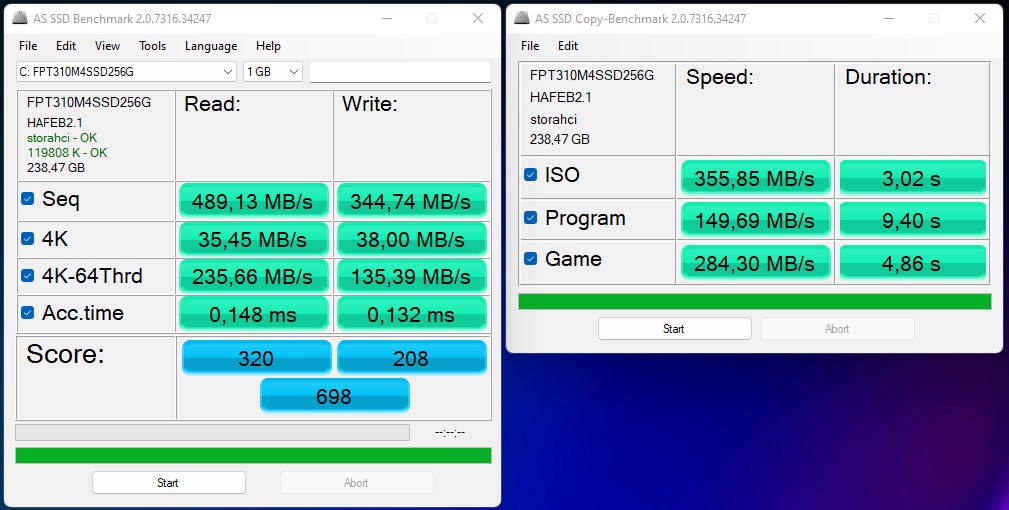

AS SSD
AS SSD

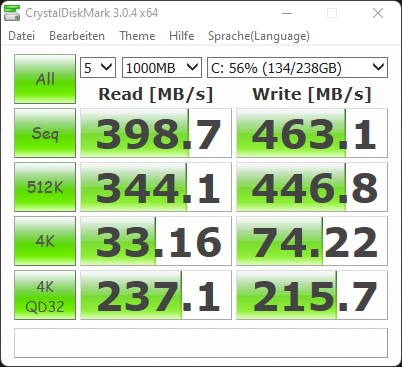

CDM 3
CDM 3

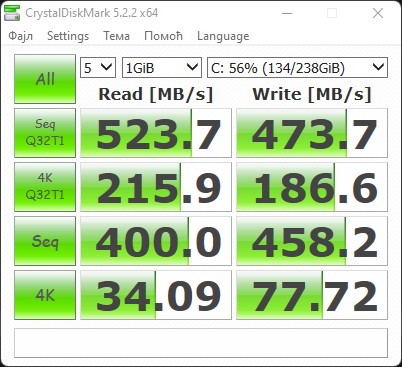

CDM 5
CDM 5

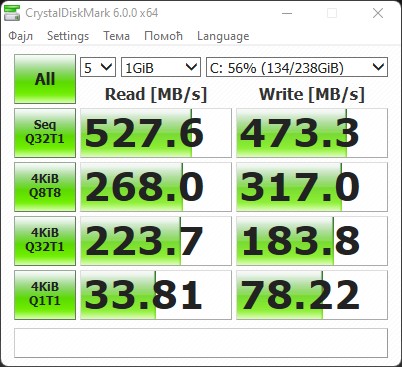

CDM 6
CDM 6
FPT310M4SSD256G
Sequential Read: 398.7 MB/s
Sequential Write: 463.1 MB/s
512K Read: 344.1 MB/s
512K Write: 446.8 MB/s
4K Read: 33.16 MB/s
4K Write: 74.22 MB/s
4K QD32 Read: 237.1 MB/s
4K QD32 Write: 215.7 MB/s
Drive Performance Rating - Percent
Average of class Mini PC

97.5 pt
AC6-M Mini-PC

33.2 pt
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
31.5 pt
Average FPT310M4SSD256G

31.5 pt
Newsmay AC8 N6005
Lexar 128GB SSD
31.2 pt
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
24.5 pt
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
21.9 pt
Geekom MiniAir 11
NF830 256GB M.2 2280
18.5 pt
Zotac ZBOX PI336 pico
SanDisk DF4128
6.9 pt
DiskSpd
seq read
Average of class Mini PC
  (233 - 4168, n=93, last 2 years)
2024 MB/s +329%
Newsmay AC8 N6005
Lexar 128GB SSD
511 (502.22min - 510.84max) MB/s +8%
AC6-M Mini-PC

477 (454.59min - 477.1max) MB/s +1%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
472 (470.6min - 472.28max) MB/s
Average FPT310M4SSD256G

472 MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
468 (410.62min - 468.2max) MB/s -1%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
434 (226.49min - 434.29max) MB/s -8%
Zotac ZBOX PI336 pico
SanDisk DF4128
250 (248.23min - 249.69max) MB/s -47%
Geekom MiniAir 11
NF830 256GB M.2 2280
229 (187.74min - 229.26max) MB/s -51%
seq write
Average of class Mini PC
  (222 - 5595, n=93, last 2 years)
2042 MB/s +341%
Newsmay AC8 N6005
Lexar 128GB SSD
491 (445.91min - 491.36max) MB/s +6%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
463 (451.31min - 462.72max) MB/s
Average FPT310M4SSD256G

463 MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
435 (387.34min - 434.74max) MB/s -6%
AC6-M Mini-PC

428 (412.52min - 427.8max) MB/s -8%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
409 (44.25min - 408.73max) MB/s -12%
Geekom MiniAir 11
NF830 256GB M.2 2280
256 (237.45min - 255.73max) MB/s -45%
Zotac ZBOX PI336 pico
SanDisk DF4128
105.7 (97.74min - 105.7max) MB/s -77%
seq q8 t1 read
Average of class Mini PC
  (236 - 8430, n=93, last 2 years)
3134 MB/s +470%
AC6-M Mini-PC

563 (509.43min - 563.43max) MB/s +2%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
550 (465.68min - 549.87max) MB/s
Average FPT310M4SSD256G

550 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
548 (494.87min - 547.82max) MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
490 (435.79min - 489.54max) MB/s -11%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
447 (396.95min - 446.64max) MB/s -19%
Geekom MiniAir 11
NF830 256GB M.2 2280
260 (234.3min - 260.36max) MB/s -53%
Zotac ZBOX PI336 pico
SanDisk DF4128
254 (201.55min - 254.3max) MB/s -54%
seq q8 t1 write
Average of class Mini PC
  (228 - 6669, n=93, last 2 years)
2209 MB/s +374%
Newsmay AC8 N6005
Lexar 128GB SSD
515 (500.64min - 515.04max) MB/s +11%
AC6-M Mini-PC

497 (494.3min - 497.29max) MB/s +7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
488 (470.29min - 487.93max) MB/s +5%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
466 (442.13min - 465.87max) MB/s
Average FPT310M4SSD256G

466 MB/s 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
346 (118.46min - 345.82max) MB/s -26%
Geekom MiniAir 11
NF830 256GB M.2 2280
268 (261.2min - 268.44max) MB/s -42%
Zotac ZBOX PI336 pico
SanDisk DF4128
100.9 (42.78min - 100.87max) MB/s -78%
4k q1 t1 read
Average of class Mini PC
  (5.67 - 86.6, n=93, last 2 years)
51.2 MB/s +51%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
33.9 (33.27min - 33.91max) MB/s
Average FPT310M4SSD256G

33.9 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
26.4 (25.68min - 26.38max) MB/s -22%
Geekom MiniAir 11
NF830 256GB M.2 2280
16.1 (12.09min - 16.13max) MB/s -53%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
16 (13.05min - 15.97max) MB/s -53%
AC6-M Mini-PC

13.9 (11.27min - 13.88max) MB/s -59%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.7 (13.61min - 13.69max) MB/s -60%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
12.9 (5.79min - 12.85max) MB/s -62%
4k q1 t1 write
Average of class Mini PC
  (22 - 425, n=93, last 2 years)
185.1 MB/s +150%
Newsmay AC8 N6005
Lexar 128GB SSD
99.8 (98.72min - 99.78max) MB/s +35%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
74.1 (72.55min - 74.09max) MB/s
Average FPT310M4SSD256G

74.1 MB/s 0%
AC6-M Mini-PC

62 (61.58min - 62.02max) MB/s -16%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
46.9 (43.93min - 46.94max) MB/s -37%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
22 (19.72min - 21.99max) MB/s -70%
Geekom MiniAir 11
NF830 256GB M.2 2280
20.9 (15.11min - 20.94max) MB/s -72%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.8 (12.91min - 13.8max) MB/s -81%
4k q32 t16 read
Average of class Mini PC
  (26.1 - 2810, n=93, last 2 years)
1069 MB/s +302%
AC6-M Mini-PC

302 (300.2min - 301.59max) MB/s +14%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
266 (264.89min - 265.82max) MB/s
Average FPT310M4SSD256G

266 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
185 (183.89min - 185.03max) MB/s -30%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
170.2 (157.55min - 170.17max) MB/s -36%
Geekom MiniAir 11
NF830 256GB M.2 2280
165.1 (75.31min - 165.14max) MB/s -38%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
163.2 (153.74min - 163.17max) MB/s -39%
Zotac ZBOX PI336 pico
SanDisk DF4128
26 (24.84min - 25.96max) MB/s -90%
4k q32 t16 write
Average of class Mini PC
  (30.2 - 3983, n=93, last 2 years)
1071 MB/s +236%
AC6-M Mini-PC

351 (323.82min - 350.53max) MB/s +10%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
319 (315.72min - 318.72max) MB/s
Average FPT310M4SSD256G

319 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
288 (244.64min - 287.66max) MB/s -10%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
209 (190.39min - 209.23max) MB/s -34%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
168.3 (88.04min - 168.3max) MB/s -47%
Geekom MiniAir 11
NF830 256GB M.2 2280
113 (45.88min - 112.97max) MB/s -65%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.1 (12.24min - 13.12max) MB/s -96%
AS SSD
Score Total
Average of class Mini PC
  (151.3 - 9030, n=91, last 2 years)
3523 Points +405%
AC6-M Mini-PC

1091 Points +56%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
698 Points
Average FPT310M4SSD256G

698 Points 0%
Newsmay AC8 N6005
Lexar 128GB SSD
604 Points -13%
Geekom MiniAir 11
NF830 256GB M.2 2280
582 Points -17%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
580 Points -17%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
151.3 (331.02min) Points -78%
Zotac ZBOX PI336 pico
SanDisk DF4128
136 Points -81%
Score Read
Average of class Mini PC
  (61 - 3635, n=91, last 2 years)
1343 Points +320%
AC6-M Mini-PC

473 Points +48%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
320 Points
Average FPT310M4SSD256G

320 Points 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
217 Points -32%
Geekom MiniAir 11
NF830 256GB M.2 2280
201 Points -37%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
166 Points -48%
Newsmay AC8 N6005
Lexar 128GB SSD
134 Points -58%
Zotac ZBOX PI336 pico
SanDisk DF4128
65 Points -80%
Score Write
Average of class Mini PC
  (88 - 4185, n=91, last 2 years)
1544 Points +642%
Newsmay AC8 N6005
Lexar 128GB SSD
396 Points +90%
AC6-M Mini-PC

374 Points +80%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
324 Points +56%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
312 Points +50%
Geekom MiniAir 11
NF830 256GB M.2 2280
278 Points +34%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
208 Points
Average FPT310M4SSD256G

208 Points 0%
Zotac ZBOX PI336 pico
SanDisk DF4128
39 Points -81%
Seq Read
Average of class Mini PC
  (291 - 6620, n=91, last 2 years)
2788 MB/s +470%
Newsmay AC8 N6005
Lexar 128GB SSD
512 MB/s +5%
AC6-M Mini-PC

492 MB/s +1%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
489 MB/s
Average FPT310M4SSD256G

489 MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
455.57 MB/s -7%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
433 MB/s -11%
Geekom MiniAir 11
NF830 256GB M.2 2280
421.78 MB/s -14%
Zotac ZBOX PI336 pico
SanDisk DF4128
264.86 MB/s -46%
Seq Write
Average of class Mini PC
  (240 - 5783, n=91, last 2 years)
1929 MB/s +461%
AC6-M Mini-PC

450 MB/s +31%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
438.23 MB/s +27%
Newsmay AC8 N6005
Lexar 128GB SSD
411.6 MB/s +20%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
385 MB/s +12%
Geekom MiniAir 11
NF830 256GB M.2 2280
365.24 MB/s +6%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
344 MB/s
Average FPT310M4SSD256G

344 MB/s 0%
Zotac ZBOX PI336 pico
SanDisk DF4128
117 MB/s -66%
4K Read
Average of class Mini PC
  (6.08 - 104.2, n=91, last 2 years)
55.5 MB/s +57%
Average FPT310M4SSD256G

35.5 MB/s 0%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
35.45 MB/s
Newsmay AC8 N6005
Lexar 128GB SSD
23.29 MB/s -34%
AC6-M Mini-PC

19.43 MB/s -45%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
16.2 MB/s -54%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
13.9 MB/s -61%
Geekom MiniAir 11
NF830 256GB M.2 2280
13.57 MB/s -62%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.21 MB/s -63%
4K Write
Average of class Mini PC
  (30.9 - 366, n=91, last 2 years)
167.1 MB/s +340%
Newsmay AC8 N6005
Lexar 128GB SSD
83 MB/s +118%
AC6-M Mini-PC

51.4 MB/s +35%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
49.68 MB/s +31%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
38 MB/s
Average FPT310M4SSD256G

38 MB/s 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
36.63 MB/s -4%
Geekom MiniAir 11
NF830 256GB M.2 2280
21.25 MB/s -44%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.46 MB/s -65%
4K-64 Read
Average of class Mini PC
  (23.4 - 3035, n=91, last 2 years)
1009 MB/s +328%
AC6-M Mini-PC

404.1 MB/s +71%
Average FPT310M4SSD256G

236 MB/s 0%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
235.66 MB/s
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
157.18 MB/s -33%
Geekom MiniAir 11
NF830 256GB M.2 2280
144.84 MB/s -39%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
106.99 MB/s -55%
Newsmay AC8 N6005
Lexar 128GB SSD
59.4 MB/s -75%
Zotac ZBOX PI336 pico
SanDisk DF4128
25.74 MB/s -89%
4K-64 Write
Average of class Mini PC
  (32.8 - 3598, n=91, last 2 years)
1184 MB/s +775%
AC6-M Mini-PC

277.8 MB/s +105%
Newsmay AC8 N6005
Lexar 128GB SSD
272.3 MB/s +101%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
237.24 MB/s +75%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
230.65 MB/s +70%
Geekom MiniAir 11
NF830 256GB M.2 2280
219.83 MB/s +62%
Average FPT310M4SSD256G

135.4 MB/s 0%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
135.39 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
13.71 MB/s -90%
Access Time Read
Zotac ZBOX PI336 pico
SanDisk DF4128
0.311 ms * -110%
Geekom MiniAir 11
NF830 256GB M.2 2280
0.284 ms * -92%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
0.205 ms * -39%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.193 ms * -30%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.148 ms *
Average FPT310M4SSD256G

0.148 ms * -0%
Newsmay AC8 N6005
Lexar 128GB SSD
0.139 ms * +6%
Average of class Mini PC
  (0.022 - 0.489, n=91, last 2 years)
0.1032 ms * +30%
AC6-M Mini-PC

0.088 ms * +41%
Access Time Write
Zotac ZBOX PI336 pico
SanDisk DF4128
0.942 ms * -614%
Geekom MiniAir 11
NF830 256GB M.2 2280
0.218 ms * -65%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
0.203 ms * -54%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.18 ms * -36%
Newsmay AC8 N6005
Lexar 128GB SSD
0.145 ms * -10%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.132 ms *
Average FPT310M4SSD256G

0.132 ms * -0%
Average of class Mini PC
  (0.016 - 0.765, n=91, last 2 years)
0.128 ms * +3%
AC6-M Mini-PC

0.071 ms * +46%

* ... smaller is better

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

0306090120150180210240270300330360390420450480510540Tooltip
Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)
Geekom MiniAir 11 NF830 256GB M.2 2280: Ø222 (150.9-230.52)
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3: Ø485 (394.52-487.59)
Zotac ZBOX PI336 pico SanDisk DF4128: Ø256 (203.85-260.99)
Newsmay AC8 N6005 Lexar 128GB SSD: Ø545 (496.4-547.82)

显卡和游戏性能

图形处理是由英特尔的UHD Graphics 16 EUs(Jasper Lake)。有了这个iGPU,要求Ace Magician T8Pro进行复杂的3D计算是不合理的。尽管如此,根据我们的测量,T8Pro比Geekom MiniAir 11特别版略胜一筹。 Geekom MiniAir 11特别版在图形性能方面略胜一筹。这就是说,我们的评测装置不如 新闻美AC8因为它的iGPU在 英特尔奔腾银N6005共有32个EUs。虽然你不应该期望在王牌魔术师T8Pro上玩高要求的3D游戏,但这台小型办公电脑运行简单的基于浏览器的游戏和其他休闲游戏应该没有问题。

点击 这里了解更多英特尔UHD Graphics 的基准测试结果。

3DMark Performance Rating - Percent
Newsmay AC8 N6005
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005
100 pt
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
72.6 pt
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
69.7 pt
Geekom MiniAir 11
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
69.1 pt
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
68.3 pt
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
54.7 pt
AC6-M Mini-PC
Intel UHD Graphics 600, Intel Celeron J4125
49.3 pt
3DMark 11 - 1280x720 Performance GPU
Newsmay AC8 N6005
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005
1589 Points +85%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
859 Points
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
854 Points -1%
Geekom MiniAir 11
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
837 Points -3%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
837 Points -3%
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
650 Points -24%
AC6-M Mini-PC
Intel UHD Graphics 600, Intel Celeron J4125
602 Points -30%
3DMark
1280x720 Cloud Gate Standard Graphics
Newsmay AC8 N6005
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005
5895 Points +13%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
5217 Points
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4958 Points -5%
Geekom MiniAir 11
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4952 Points -5%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4863 Points -7%
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
3762 Points -28%
AC6-M Mini-PC
Intel UHD Graphics 600, Intel Celeron J4125
3503 Points -33%
1920x1080 Fire Strike Graphics
Newsmay AC8 N6005
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005
881 Points +33%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
662 Points
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
637 Points -4%
Geekom MiniAir 11
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
623 Points -6%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
605 Points -9%
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
523 Points -21%
AC6-M Mini-PC
Intel UHD Graphics 600, Intel Celeron J4125
446 Points -33%
low med. high ultra
Dota 2 Reborn (2015) 61.2 22.8 12 11.2
Final Fantasy XV Benchmark (2018) 7.13 3.27
X-Plane 11.11 (2018) 15.1

排放 - 大部分是安静和高效的

噪声排放

由于英特尔赛扬N5095的低TDP Intel Celeron N5095的低TDP,冷却系统并不特别费力。这台电脑在怠速时几乎没有声音,在负载时只产生少量噪音(根据我们的测量,不超过30.9 dB(A))。

Minipc Union Ace Magician T8Pro
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Minisforum EliteMini B550
R7 5700G, Vega 8
Minisforum EliteMini TH50
i5-11320H, Iris Xe G7 96EUs
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
Geekom MiniAir 11 Special Edition
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Noise
15%
-3%
-10%
-25%
1%
off / environment *
30.2
23.3
23%
30.2
-0%
30.2
-0%
30.5
-1%
29.6
2%
Idle Minimum *
30.2
24.2
20%
30.5
-1%
30.8
-2%
31.5
-4%
29.6
2%
Idle Average *
30.2
24.2
20%
30.5
-1%
32.1
-6%
32.6
-8%
29.6
2%
Idle Maximum *
30.2
24.2
20%
30.5
-1%
32.9
-9%
33.8
-12%
29.6
2%
Load Average *
30.5
25.1
18%
31.2
-2%
33.9
-11%
49.3
-62%
30
2%
Load Maximum *
30.9
33.9
-10%
35.1
-14%
41.4
-34%
50.9
-65%
32.9
-6%

* ... smaller is better

Noise Level

Idle
30.2 / 30.2 / 30.2 dB(A)
Load
30.5 / 30.9 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 30.2 dB(A)

温度

王牌魔术师T8Pro的机箱在负载情况下只会变得适度温暖。就SoC本身而言,我们记录的最高温度是80°C(176°F),这离CPU的最大热极限105°C(221°F)还很远。

压力测试 Prime95
压力测试 Prime95
压力测试中的王牌魔术师T8Pro
压力测试中的王牌魔术师T8Pro
压力测试中的王牌魔术师T8Pro
压力测试中的王牌魔术师T8Pro
压力测试中的王牌魔术师T8Pro的电源适配器
压力测试中的王牌魔术师T8Pro的电源适配器

消耗功率

大多数迷你电脑都有令人印象深刻的低能耗,Ace Magician T8Pro也不例外。虽然它的用电量大大低于这类设备的平均水平,但我们比较的其他迷你电脑甚至更加节能。我们的电源监视器显示,T8Pro的最大耗电量为26.3瓦。额定功率为30瓦,电源适配器能够处理这一水平的电力使用。

Power Consumption
Off / Standbydarklight 0.8 / 1.7 Watt
Idledarkmidlight 8.4 / 8.4 / 11.1 Watt
Load midlight 16.5 / 26.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Minipc Union Ace Magician T8Pro
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Zotac ZBOX PI336 pico
Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
Geekom MiniAir 11 Special Edition
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Average Intel UHD Graphics (Jasper Lake 16 EU)

Average of class Mini PC

Power Consumption
10%
40%
24%
20%
-105%
Idle Minimum *
8.4
7
17%
5.4
36%
4.8
43%
5.65 ?(2.5 - 8.4, n=8)
33%
9.83 ?(1.9 - 46.5, n=88, last 2 years)
-17%
Idle Average *
8.4
7
17%
5.5
35%
4.8
43%
6.61 ?(4.6 - 8.4, n=7)
21%
11.7 ?(1.9 - 63, n=88, last 2 years)
-39%
Idle Maximum *
11.1
7.6
32%
6.2
44%
6.7
40%
7.54 ?(5.3 - 11.1, n=7)
32%
14.3 ?(2.6 - 68.9, n=88, last 2 years)
-29%
Load Average *
16.5
18.3
-11%
11.3
32%
15.9
4%
16.2 ?(12.3 - 18.3, n=6)
2%
51.6 ?(11.3 - 158.7, n=89, last 2 years)
-213%
Load Maximum *
26.3
27.1
-3%
11.8
55%
28.4
-8%
23.1 ?(13.4 - 28.4, n=7)
12%
85.5 ?(18.1 - 271, n=89, last 2 years)
-225%

* ... smaller is better

Power consumption with external monitor

0510152025Tooltip
Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.8 (23.8-26.3)
Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.6 (23.2-25.8)
Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø22.7 (15-23.3)
Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø21.4 (17.3-21.8)
Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø16 (13.6-23.3)
Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Idle 1min (external Monitor): Ø4.85 (4.73-5.02)
Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Idle 1min (external Monitor): Ø4.85 (4.73-5.02)

Pros

+ 非常紧凑的迷你电脑
+ 坚固的外壳
+ 负载时非常安静
+ 低耗电
+ 3x HDMI
+ 双层网络

Cons

- 迟缓的SoC
- 有限的图形性能
- 没有SD卡读卡器
- 缓慢的Wi-Fi
- 焊接的RAM

结论--用于基本任务的迷你电脑

王牌魔术师T8Pro
王牌魔术师T8Pro

Ace Magician T8Pro在一个非常小的外形中提供了良好的性能,能够处理基本的办公工作。它的 英特尔赛扬N5095具有四个原生核心,在执行具有挑战性的任务时,可以迅速将其推向极限。如果你注意到Ace Magician T8Pro的设计目的,你会发现这是一台紧凑的迷你PC,既高效又非常安静。机上有8GB的内存,在我们看来,这是一个合理的功能系统所需的最低数量。256GB的存储空间是足够的,T8Pro甚至配备了Windows 11 Pro,价格不到300欧元(320美元)。

尽管该设备的底盘完全由塑料制成,但它具有很好的制造质量。尽管设计紧凑,Ace Magician T8Pro提供了令人印象深刻的端口选择。这款迷你电脑可以同时驱动三个外部显示器,并具有三个USB-A端口和两个LAN端口。所有这些对于这种尺寸的产品来说并不总是必然的。

Ace Magician T8Pro是一台紧凑型工作电脑,适合基本的办公应用。

我们不喜欢该系统的一点是其内置的Wi-Fi模块。不幸的是,它不支持最新的标准,而且性能低下。一个现代的Wi-Fi 6E模块将是一个更适合未来的解决方案。王牌魔术师T8Pro在我们的审查中肯定有一个很好的表现,但 Beelink U59 Mini-SGeekom MiniAir 11(都配备了相同的SoC)在某些方面提供了更好的性能,以及低得多的DPC延迟。

Ace Magician T8Pro被借给Notebookcheck用于审查目的。

价格和可用性

在德国,你可以在亚马逊上购买Ace Magician T8Pro(配备8GB内存和256GB SSD),价格为329欧元现在就可以。在美国,该产品在亚马逊上的价格低至199美元.

请注意,价格在撰写时是准确的,可能会有变化。

Minipc Union Ace Magician T8Pro - 01/05/2023 v7
Sebastian Bade

Chassis
80 / 98 → 82%
Connectivity
49 / 81 → 61%
Weight
88%
Games Performance
31%
Application Performance
72%
Noise
95%
Average
69%
66%
Mini PC - Weighted Average
Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 王牌魔术师T8Pro评测。用于办公的经济型迷你电脑
Sebastian Bade, 2023-01-10 (Update: 2023-01-10)
