Newsmay Neosmay S2-B560TPM迷你电脑评测:配备高效英特尔Core i5-11400T的小型办公电脑

浪费性能。 Newsmay目前正在销售一款名为S2-B560TPM的迷你PC。高效的Rocket Lake处理器为一台适合家庭和办公室使用的工作电脑提供了坚实的基础。虽然这台小巧的电脑能够毫不费力地处理日常任务,但它还可以做得更多。继续阅读以了解更多。
Desktop Intel Mini PC Rocket Lake

Newsmay科技公司专门建造紧凑型迷你电脑。我们已经有机会看了它的两款微型电脑:AC8和AC9。 AC8AC6.通过最近发布的Neosmay S2-B560TPM,该公司正在走一条稍微不同的路线,并将目光更多地投向工业应用。虽然其他型号同样更多出现在B2B销售中,但这并不意味着消费市场被排除在外。从外观上看,Neosmay S2-B560TPM颇让人想起典型的工业PC。知名制造商也提供非常类似的产品,如联想ThinkCentre和戴尔OptiPlex。凭借其出色的规格,Neosmay S2-B560TPM当然有能力在这个领域分一杯羹。

我们的评测单元配备了,英特尔酷睿i5-11400T。一条16GB的内存和一个容量为500GB的M.2驱动器。该系统的占地面积几乎为正方形,每个侧面的尺寸约为18厘米(7.1英寸),也相当紧凑,并提供你在日常使用中需要的所有外部端口。

Neosmay S2-B560TPM的裸机版售价约为135美元,而我们的评测单元售价为569美元。我们在审查期间使用预装的Windows 11专业版作为操作系统。

Neosmay S2-B560TPM
Processor
Intel Core i5-11400T 6 x 1.3 - 3.7 GHz, 84 W PL2 / Short Burst, 35 W PL1 / Sustained, Rocket Lake-S
Graphics adapter
Intel UHD Graphics 730 (Rocket Lake), Core: 1200 MHz, Memory: 2666 MHz, 30.0.101.1404 DCH
Memory
16384 MB
, DDR4-2666, 1 of 2 slots used, max 64 GB
Mainboard
B560
Storage
Lexar NM610 500GB, 500 GB
, 450 GB free
Soundcard
Realtek High Definition Audio
Connections
2 USB 2.0, 2 USB 3.1 Gen2, 3 USB 3.2 Gen 2x2 20Gbps, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm audio jack
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5.2
Size
height x width x depth (in mm): 40 x 185 x 179
Operating System
Microsoft Windows 11 Pro
Additional features
Power adapter
Weight
1.327 kg, Power Supply: 362 g
Price
569 US-Dollar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



详细了解Newsmay Neosmay S2-B560TPM

纽斯麦S2-B560TPM
纽斯麦S2-B560TPM
纽斯麦S2-B560TPM
纽斯麦S2-B560TPM
纽斯麦S2-B560TPM
纽斯麦S2-B560TPM
纽斯麦S2-B560TPM
纽斯麦S2-B560TPM

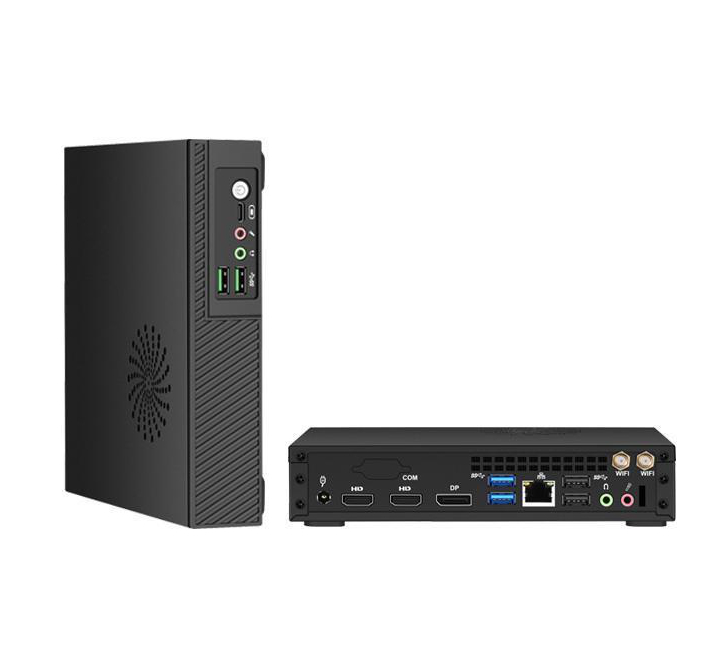

Newsmay Neosmay S2-B560TPM(来源:Newsmay)。
Newsmay Neosmay S2-B560TPM(来源:Newsmay)。
Newsmay Neosmay S2-B560TPM(来源:Newsmay)。

案例

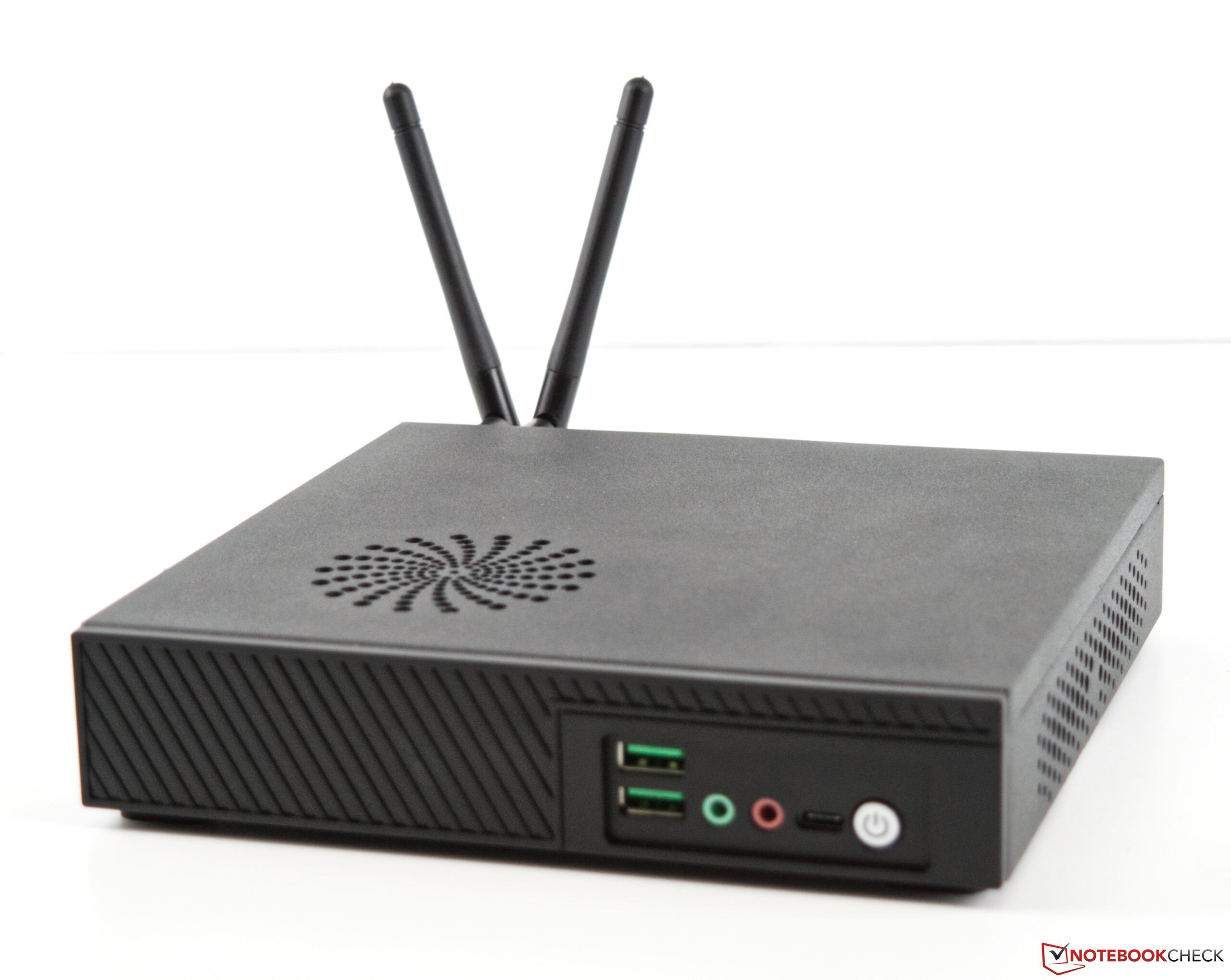

Newsmay Neosmay S2-B560TPM的外观并没有什么特别之处,考虑到它的预期应用,这是可以预期的。这款机箱坚固耐用,我们的评测装置也很好。盖子可以毫无困难地打开,从而使升级或扩展系统变得容易。固态硬盘被放置在CPU冷却器下面的一个稍微不方便的位置。在盒子里,你会发现一个垂直支架以及一个VESA支架,用于将系统固定在显示器上。

Newsmay Neosmay S2-B560TPM重约1,300克(2.9磅),外部电源适配器重约360克(0.8磅)。然而,我们不得不提的是,我们的评测设备配备了错误的电源适配器。正确的可能稍微重一些,因为我们收到的适配器只能在19V电压下提供4.74A的电流,而该系统需要一个在19V电压下能输出6.15A的适配器才能正常运行。

特点

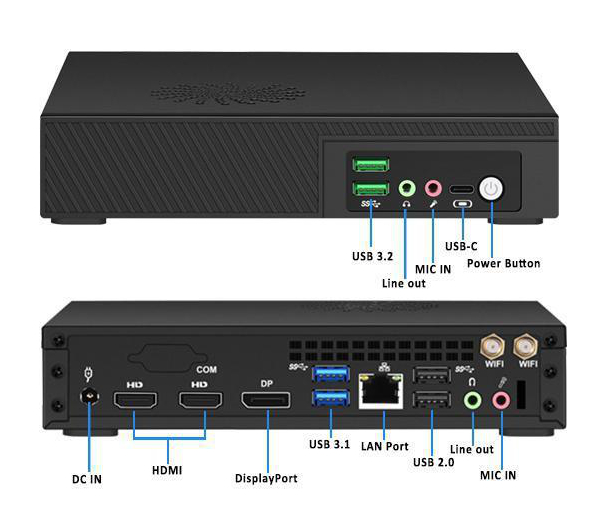

Newsmay Neosmay S2-B560TPM - 端口 (来源: Newsmay)
Newsmay Neosmay S2-B560TPM - 端口 (来源: Newsmay)

Newsmay Neosmay S2-B560TPM在背面提供了一大堆的端口。总共七个USB端口应该足以满足大多数人的需求。然而,该系统不支持Thunderbolt,这肯定会给它带来更大的潜力。除了一个Wi-Fi模块和一个以太网端口,该设备还有两个HDMI输出和一个DisplayPort,可用于同时驱动三个显示器。遗憾的是,没有内置读卡器。

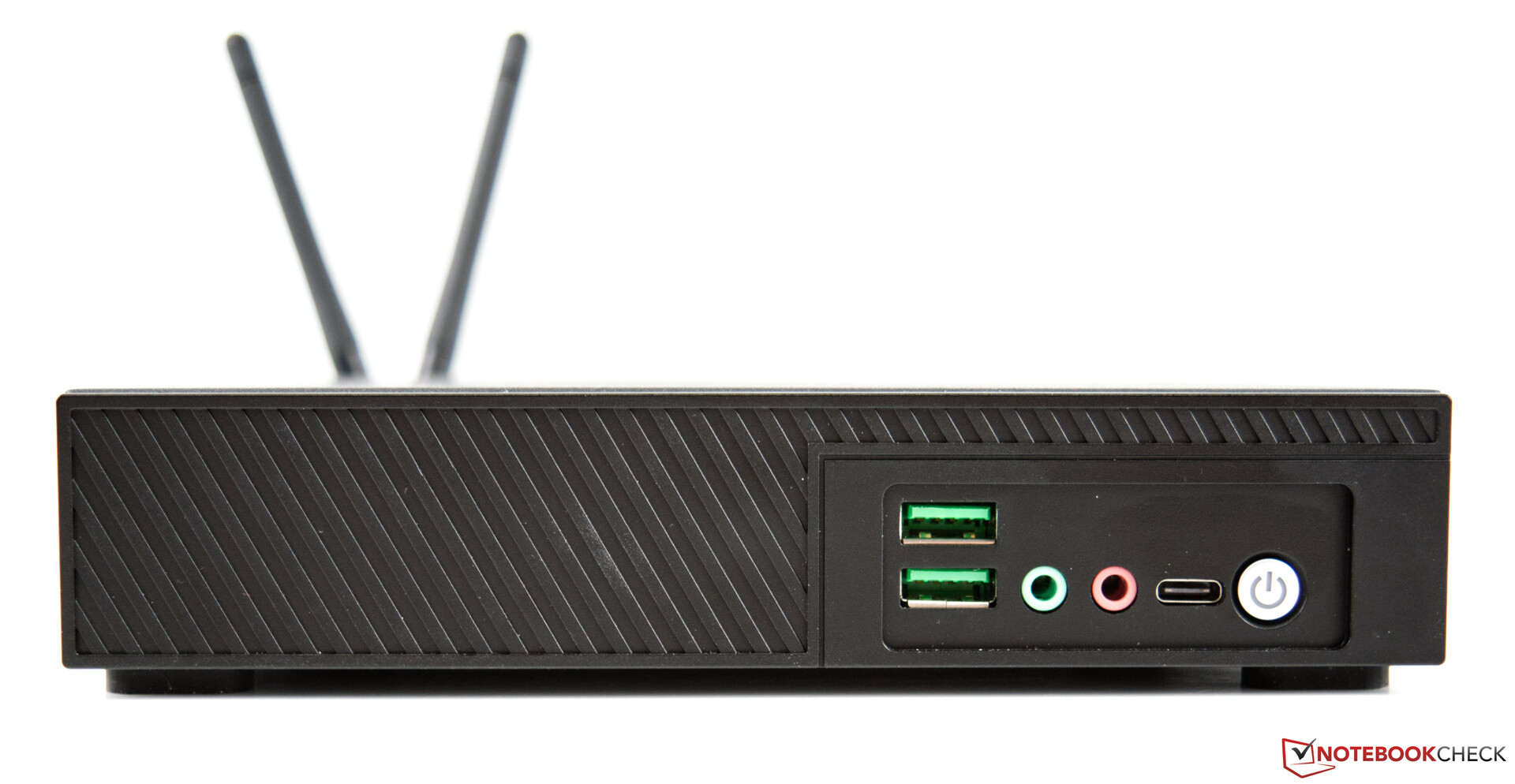

Newsmay Neosmay S2-B560TPM (正面)
Newsmay Neosmay S2-B560TPM (正面)

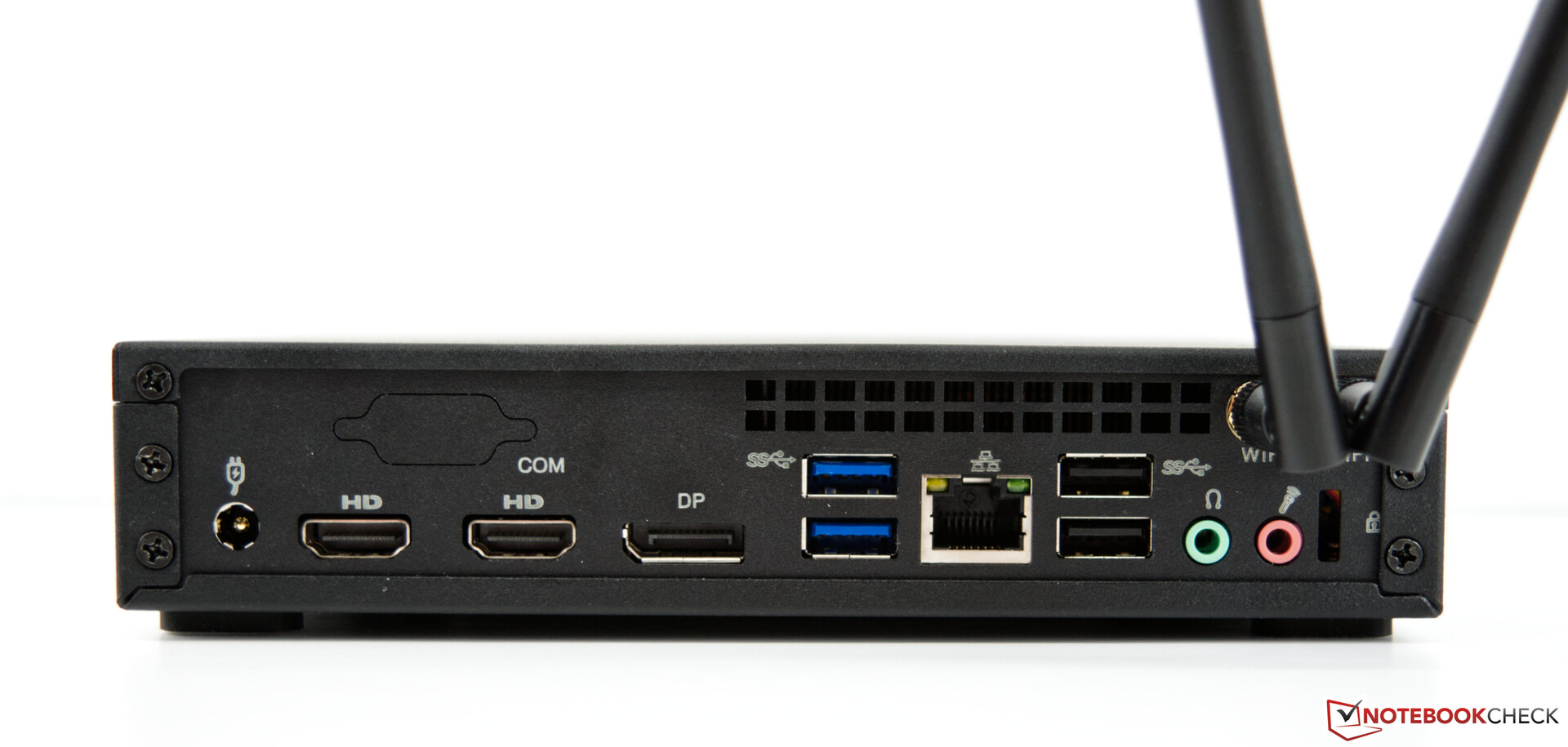

Newsmay Neosmay S2-B560TPM(背面)。
Newsmay Neosmay S2-B560TPM(背面)。

连接性

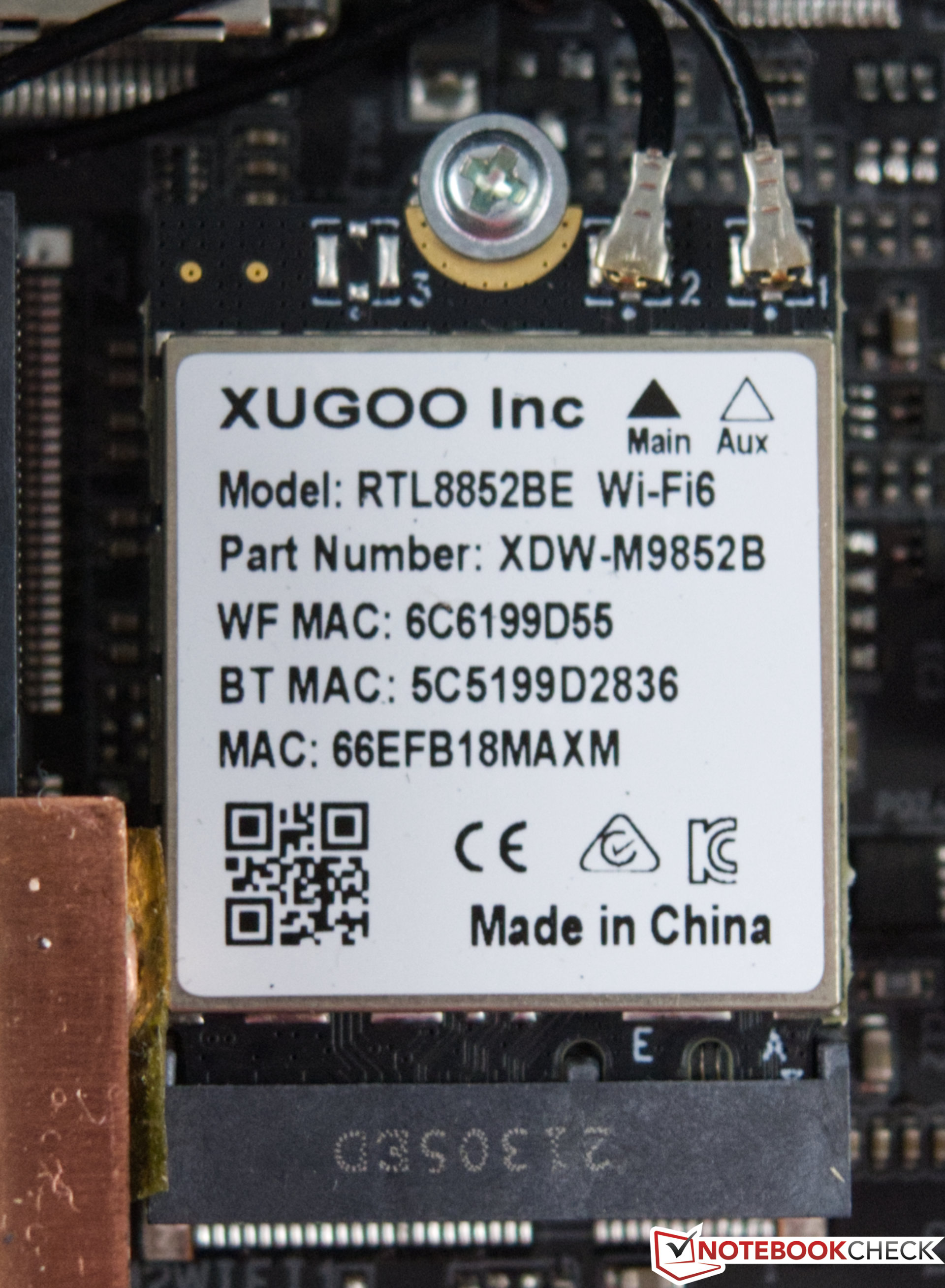

Newsmay Neosmay S2-B560TPM的Wi-Fi模块由Realtek制造,支持5GHz频段。传输和接收速率略低于1 Gbit/s,在我们的测试中始终保持稳定。那些喜欢有线连接的人也可以使用设备上的RJ45端口,该端口的数据传输速度最高可达1 Gbit/s。

Networking
iperf3 receive AXE11000 6GHz
Zotac ZBOX PI336 pico
Intel Wi-Fi 6E AX210
1827 (1760min - 1865max) MBit/s ∼100%
Prime Computer Primestation Pulsar
Intel Wi-Fi 6 AX200
1455 (748min - 1523max) MBit/s ∼80%
Average of class Desktop
  (430 - 1851, n=8, last 2 years)
1196 MBit/s ∼65%
Minisforum EliteMini TH50
MediaTek MT7921
776 (482min - 881max) MBit/s ∼42%
iperf3 transmit AXE11000 6GHz
Prime Computer Primestation Pulsar
Intel Wi-Fi 6 AX200
1696 (1619min - 1764max) MBit/s ∼100%
Zotac ZBOX PI336 pico
Intel Wi-Fi 6E AX210
1385 (1351min - 1401max) MBit/s ∼82%
Average of class Desktop
  (572 - 1696, n=8, last 2 years)
1190 MBit/s ∼70%
Minisforum EliteMini TH50
MediaTek MT7921
866 (502min - 950max) MBit/s ∼51%
iperf3 receive AXE11000
Newsmay Neosmay S2-B560TPM
RTL8852BE
964 (933min - 986max) MBit/s ∼100%
Average RTL8852BE

964 MBit/s ∼100% 0%
Average of class Desktop
  (322 - 1318, n=4, last 2 years)
890 MBit/s ∼92% -8%
iperf3 transmit AXE11000
Average of class Desktop
  (188.4 - 1861, n=4, last 2 years)
943 MBit/s ∼100% +10%
Newsmay Neosmay S2-B560TPM
RTL8852BE
858 (810min - 882max) MBit/s ∼91%
Average RTL8852BE

858 MBit/s ∼91% 0%
050100150200250300350400450500550600650700750800850900950Tooltip
; iperf3 receive AXE11000; iperf 3.1.3: Ø964 (933-986)
; iperf3 transmit AXE11000; iperf 3.1.3: Ø857 (810-882)

业绩

我们的评测单元配备了英特尔酷睿i5-11400T- 一个具有六个核心和十二个线程的坚实处理器。这意味着该设备有足够的能力来处理日常办公。如果你是一个同时打开许多浏览器标签的人,那么你应该选择有16GB内存的型号,以确保电脑有足够的资源。

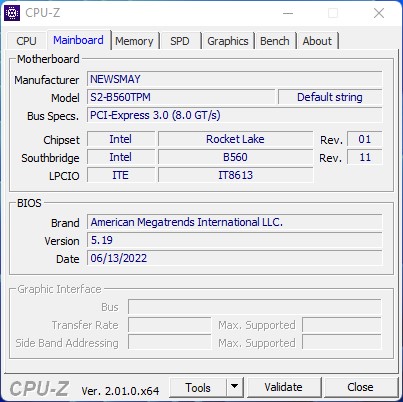

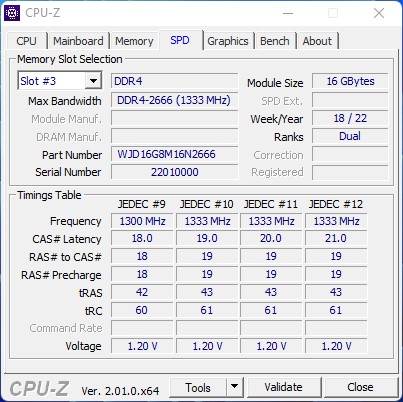

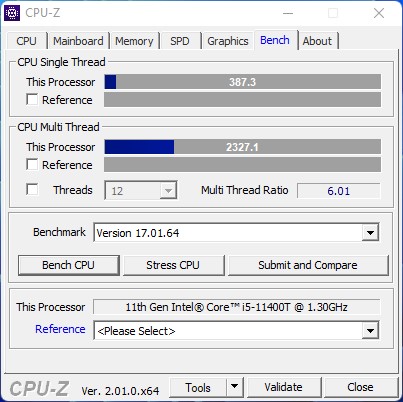

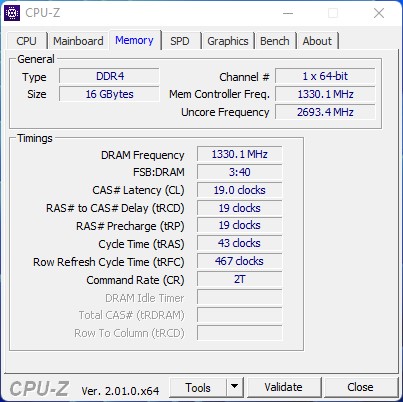

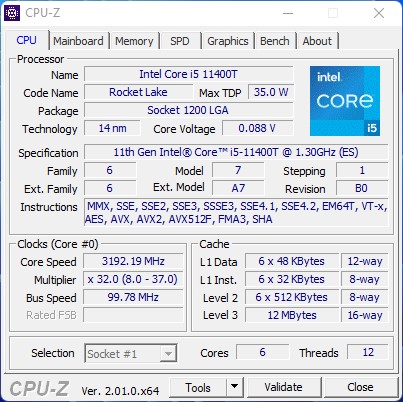

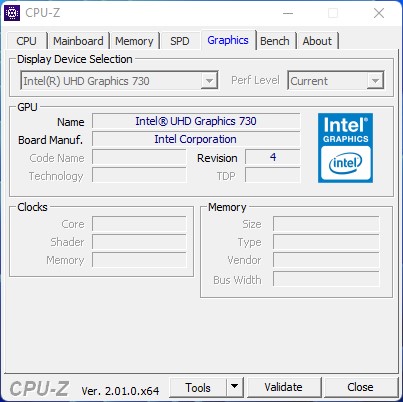

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

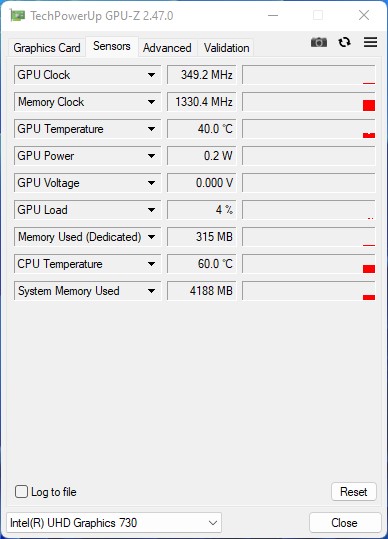

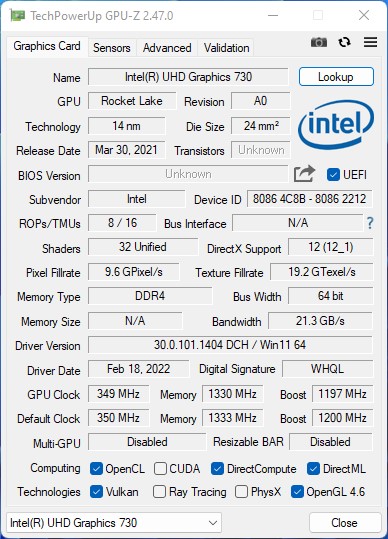

GPU-Z
GPU-Z

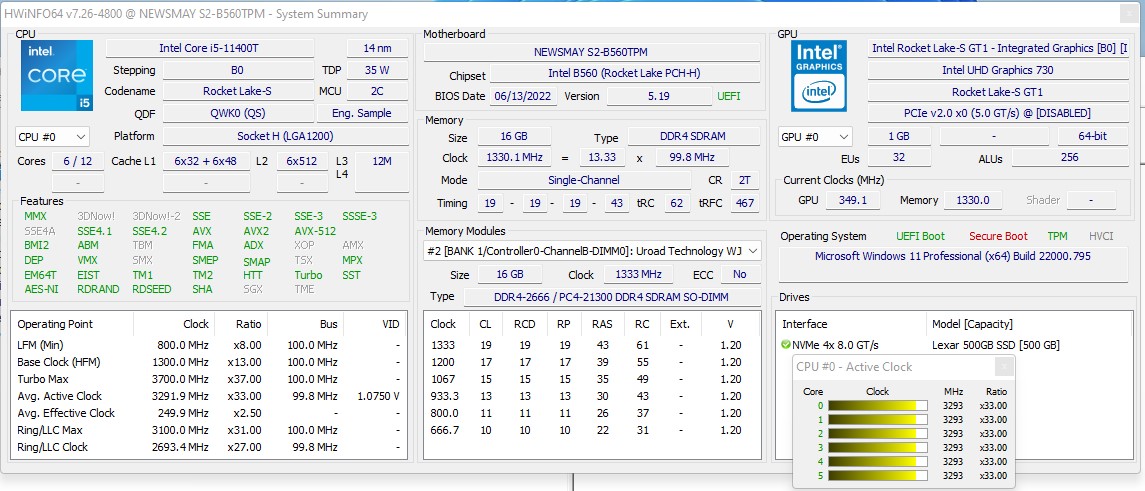

HWiNFO

处理器

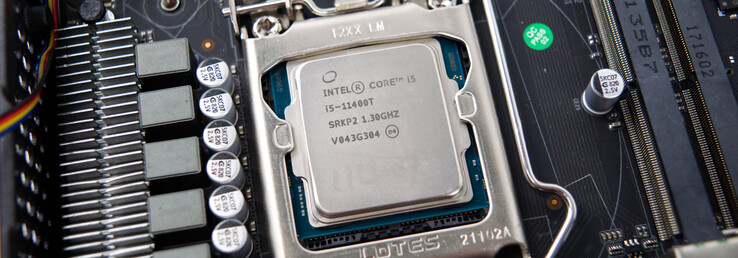

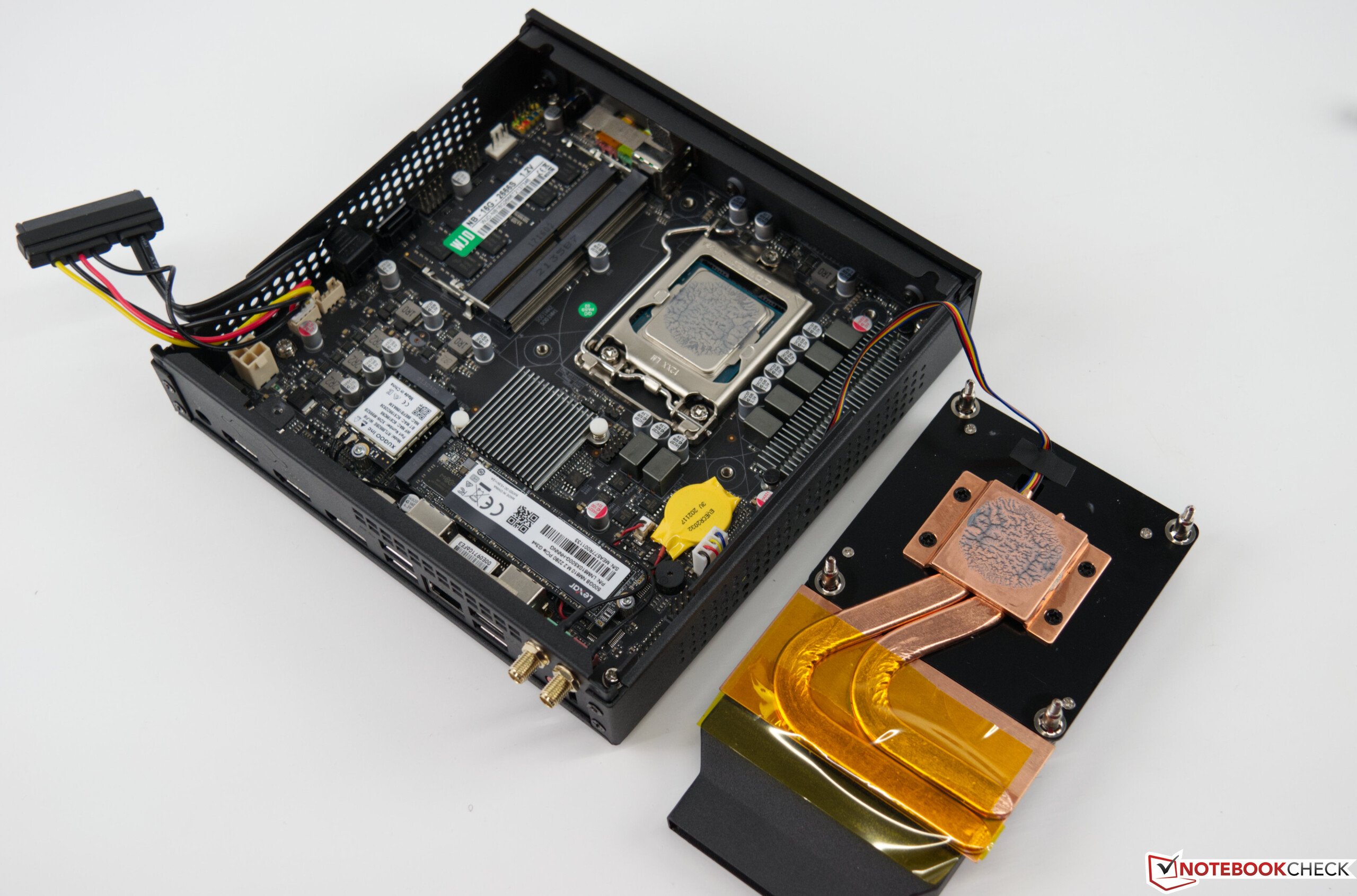

Core i5-11400T是英特尔的火箭湖-S系列的一部分。在Newsmay Neosmay S2-B560TP中,它位于一个传统的LGA 1200插座中。这个系列的 "T "处理器的TDP为35瓦(相当于其PL1)。如果CPU没有被节流,它的功率可以达到84瓦,相当于它的PL2。在台式电脑中,我们已经看到,PL2通常与PL1相等。然而,Newsmay通过BIOS强制CPU遵守TDP限制,大概是为了避免过热。尽管如此,我们相信系统可以承受稍微提高PL1,甚至在负载下。这些值可以用XTU来改变,以产生明显更好的结果。
这里显示的数值是用标准设置确定的。因此,我们对英特尔酷睿i5-11400T只排在中间位置并在某些方面明显被英特尔酷睿i5-11320击败并不感到惊讶。Cinebench R15 nT基准测试说明了英特尔酷睿i5-11400T还有多少未开发的潜力,正如你在我们提供的截图中看到的那样。英特尔酷睿i5-11400T的基本频率为1.3 GHz,在Turbo Boost下可以达到3.7 GHz。

关于更多的比较和基准,你可以参考我们的CPU比较表.

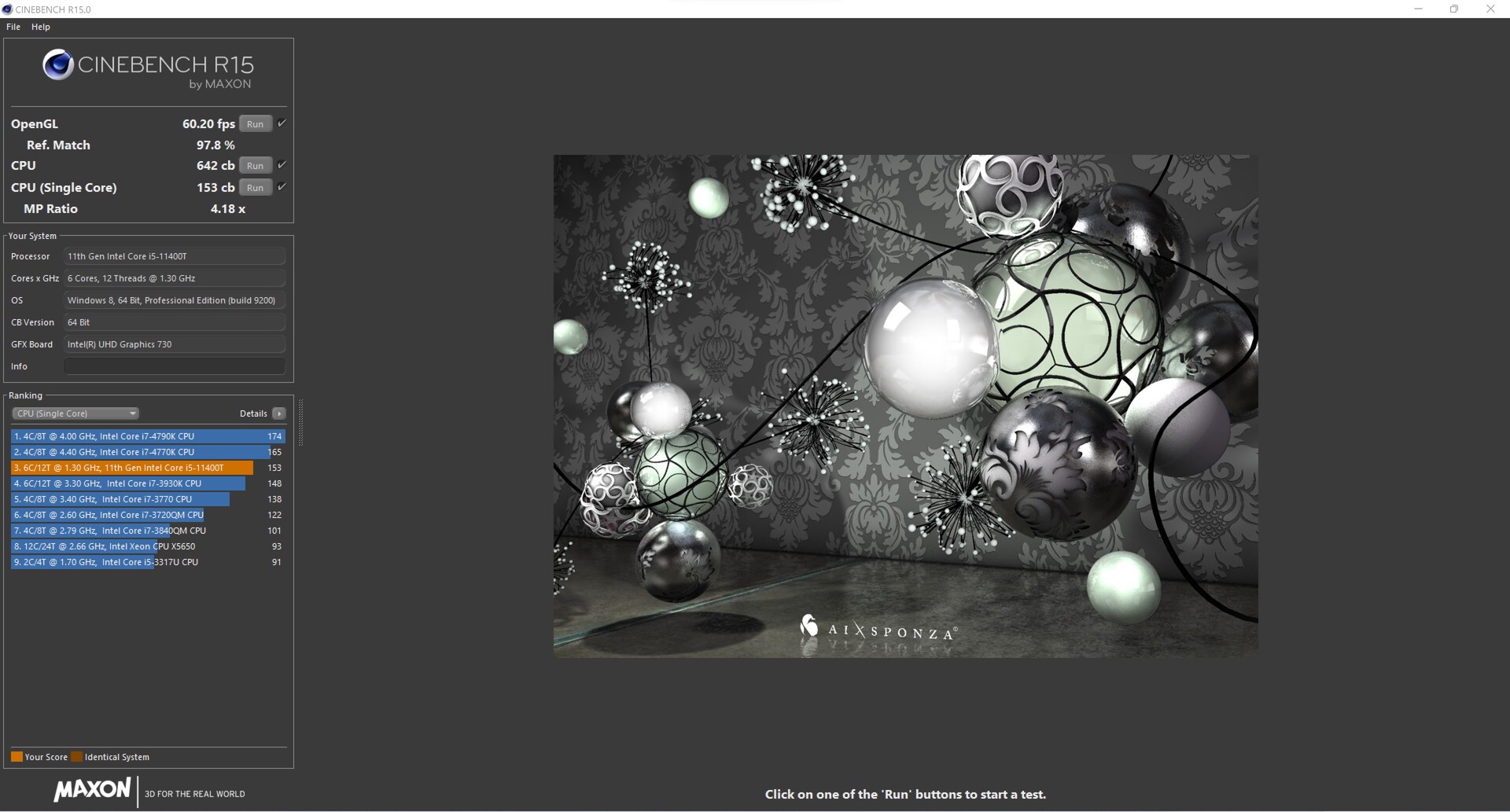

Newsmay Neosmay S2-B560TPM与Cinebench R15 nT对比(PL1:35W,PL2:84W)。
Newsmay Neosmay S2-B560TPM与Cinebench R15 nT对比(PL1:35W,PL2:84W)。

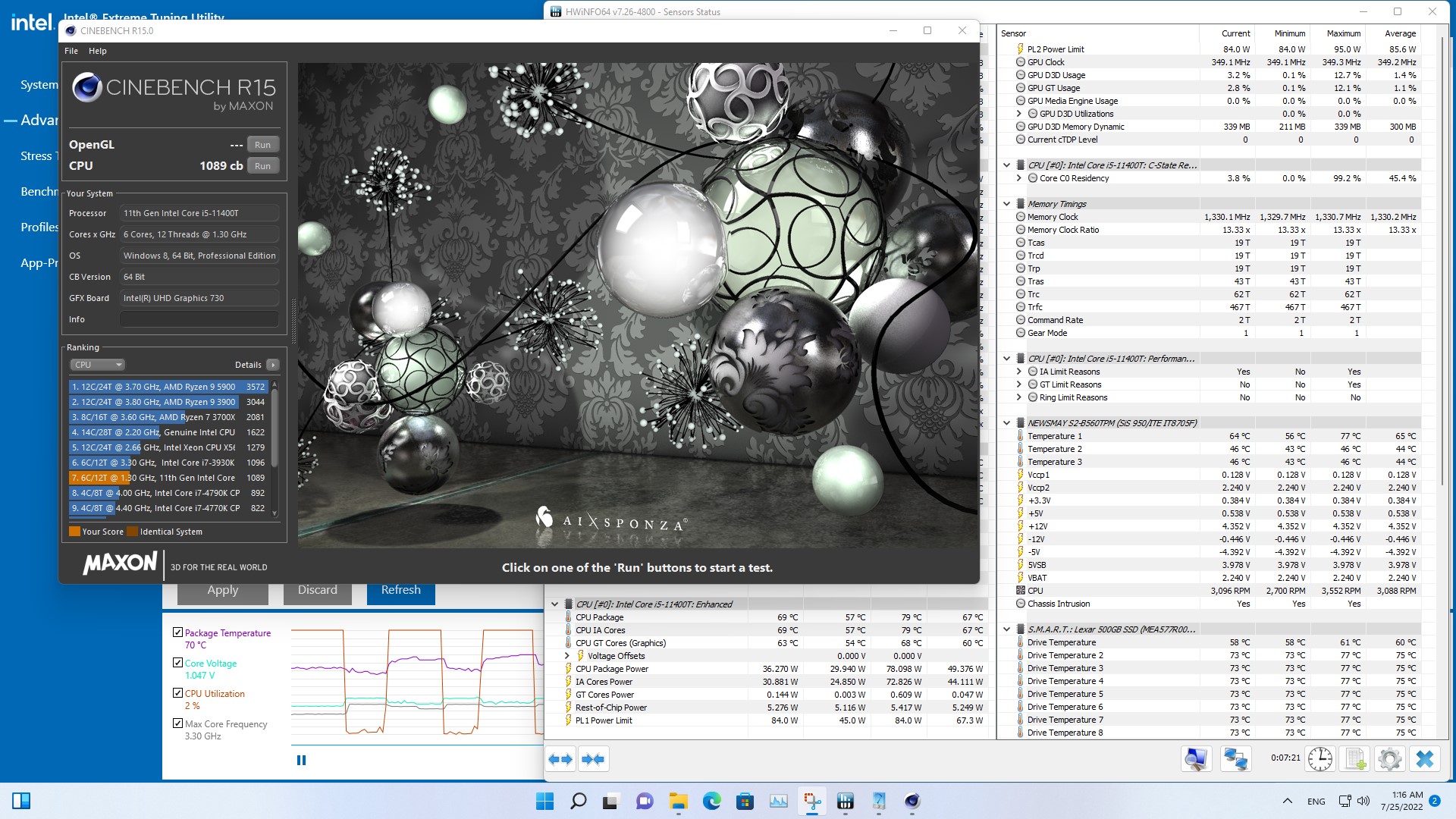

Newsmay Neosmay S2-B560TPM与Cinebench R15 nT对比(PL1:84W,PL2:84W)。
Newsmay Neosmay S2-B560TPM与Cinebench R15 nT对比(PL1:84W,PL2:84W)。
Performance Rating - Percent
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
48.4 pt ∼48%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
48.1 pt ∼48%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
47.1 pt ∼47%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
38.9 pt ∼39%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
30.7 pt ∼31%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
26.2 pt ∼26%
Cinebench R15
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
242 Points ∼83% +58%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
240 Points ∼82% +57%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
233 Points ∼80% +52%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
212 Points ∼73% +39%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
162 Points ∼55% +6%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
153 Points ∼52%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2224 Points ∼23% +246%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1919 (1862.02min - 1893.4max) Points ∼20% +199%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
1767 Points ∼18% +175%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
950 Points ∼10% +48%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
642 Points ∼7%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
316 Points ∼3% -51%
Cinebench R20
CPU (Single Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
582 Points ∼72% +54%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
579 Points ∼71% +53%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
567 Points ∼70% +50%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
560 Points ∼69% +48%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
401 Points ∼50% +6%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
378 Points ∼47%
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5185 Points ∼22% +246%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4495 Points ∼19% +200%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
3986 Points ∼17% +166%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
2319 Points ∼10% +55%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
1500 Points ∼6%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
743 Points ∼3% -50%
Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2.86 Points ∼9% +60%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2.8 Points ∼9% +56%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
2.77 Points ∼9% +55%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
2.51 Points ∼8% +40%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1.87 Points ∼6% +4%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
1.79 Points ∼6%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
25.6 Points ∼47% +251%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
22 Points ∼41% +201%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
19.84 Points ∼37% +172%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
10.78 Points ∼20% +48%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
7.3 Points ∼13%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
3.59 Points ∼7% -51%
Cinebench R10
Rendering Single CPUs 64Bit
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
12748 Points ∼78% +54%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
12152 Points ∼74% +47%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
11811 Points ∼72% +42%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
11457 Points ∼70% +38%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
8290 Points ∼51%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
8184 Points ∼50% -1%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
73115 Points ∼65% +183%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
68932 Points ∼61% +167%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
64320 Points ∼57% +149%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
42350 Points ∼38% +64%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
25835 Points ∼23%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
14261 Points ∼13% -45%
wPrime 2.10
32m
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
17.62 s * ∼4% -126%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
7.804 s * ∼2%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5.895 s * ∼1% +24%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4.4 s * ∼1% +44%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
4.193 s * ∼1% +46%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
3.308 s * ∼1% +58%
1024m
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
543 s * ∼6% -108%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
261.299 s * ∼3%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
191.4 s * ∼2% +27%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
115.519 s * ∼1% +56%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
106.7 s * ∼1% +59%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
91.6 s * ∼1% +65%
WinRAR - Result
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7722 KB/s ∼45% +75%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
5962 KB/s ∼35% +35%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5481 KB/s ∼32% +24%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
4409 KB/s ∼26%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4297 KB/s ∼25% -3%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1695 KB/s ∼10% -62%
TrueCrypt
AES Mean 100MB
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
12 GB/s ∼44% +186%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
10.8 GB/s ∼40% +157%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7.4 GB/s ∼27% +76%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
6.1 GB/s ∼23% +45%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
4.2 GB/s ∼16%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1.9 GB/s ∼7% -55%
Twofish Mean 100MB
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2 GB/s ∼0% +209%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
1.8 GB/s ∼0% +178%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.6 GB/s ∼0% +147%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.919 GB/s ∼0% +42%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
0.648 GB/s ∼0%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
0.346 GB/s ∼0% -47%
Serpent Mean 100MB
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.2 GB/s ∼0% +190%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.1 GB/s ∼0% +166%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
1.1 GB/s ∼0% +166%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.525 GB/s ∼0% +27%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
0.414 GB/s ∼0%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
0.21 GB/s ∼0% -49%
3DMark 11 - 1280x720 Performance Physics
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
18083 Points ∼63% +147%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
16783 Points ∼58% +129%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
13940 Points ∼48% +90%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
11662 Points ∼41% +59%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
7319 Points ∼25%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
3863 Points ∼13% -47%
3DMark - 1920x1080 Fire Strike Physics
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
25831 Points ∼63% +157%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
24096 Points ∼59% +139%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
23903 Points ∼59% +138%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
13763 Points ∼34% +37%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
10064 Points ∼25%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
5122 Points ∼13% -49%

* ... smaller is better

Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3767 Seconds * ∼27% -435%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2391 Seconds * ∼17% -240%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2379 Seconds * ∼17% -238%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1805 Seconds * ∼13% -156%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
704 Seconds * ∼5%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
516 Seconds * ∼4% +27%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
295 Seconds * ∼2% +58%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
265 Seconds * ∼2% +62%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
229.3 Seconds * ∼2% +67%
X264 HD Benchmark 4.0
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
276.5 (274min - 278max) fps ∼75% +79%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
271.5 (259min - 276max) fps ∼74% +76%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
267.2 fps ∼73% +73%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
154.5 (154.4min - 155.1max) fps ∼42%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
106.5 (106min - 109max) fps ∼29% -31%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
102 (100min - 118max) fps ∼28% -34%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
78.9 (77.1min - 81.7max) fps ∼21% -49%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
52.6 fps ∼14% -66%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
45.25 (44.7min - 45.7max) fps ∼12% -71%
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
128 (122min - 128max) fps ∼58% +220%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
112 (112min - 112max) fps ∼51% +180%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
93.1 fps ∼42% +133%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
40 (40min - 40.1max) fps ∼18%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
21.6 (21.5min - 22.1max) fps ∼10% -46%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
20.55 (20.4min - 20.7max) fps ∼9% -49%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
16.75 (16.7min - 16.9max) fps ∼8% -58%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
11.31 fps ∼5% -72%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
9.995 (9.97min - 10.2max) fps ∼5% -75%
Geekbench 5.4
Multi-Core
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
9760 Points ∼34% +178%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7875 Points ∼27% +124%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7855 Points ∼27% +124%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5657 Points ∼20% +61%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
3510 Points ∼12%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1673 Points ∼6% -52%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1501 Points ∼5% -57%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1394 Points ∼5% -60%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
844 Points ∼3% -76%
Single-Core
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
1681 Points ∼82% +47%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1552 Points ∼76% +35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1542 Points ∼76% +35%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
1453 Points ∼71% +27%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
1146 Points ∼56%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
606 Points ∼30% -47%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
556 Points ∼27% -51%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
455 Points ∼22% -60%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
435 Points ∼21% -62%
Geekbench 5.0
5.0 Multi-Core
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
9706 Points ∼31% +178%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7859 Points ∼25% +125%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7847 Points ∼25% +125%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5606 Points ∼18% +60%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
3495 Points ∼11%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1482 Points ∼5% -58%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1313 Points ∼4% -62%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
857 Points ∼3% -75%
5.0 Single-Core
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
1677 Points ∼40% +48%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1504 Points ∼36% +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1498 Points ∼36% +33%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
1453 Points ∼35% +29%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
1130 Points ∼27%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
603 Points ∼15% -47%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
559 Points ∼13% -51%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
453 Points ∼11% -60%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
7173 Points ∼83% +48%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
6434 Points ∼74% +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
6365 Points ∼73% +31%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
6238 Points ∼72% +28%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
4855 Points ∼56%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2585 Points ∼30% -47%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
2555 Points ∼29% -47%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1922 Points ∼22% -60%
64 Bit Multi-Core Score
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
37795 Points ∼47% +121%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
32434 Points ∼40% +90%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
31724 Points ∼39% +86%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
22045 Points ∼27% +29%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
17082 Points ∼21%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
5468 Points ∼7% -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
5399 Points ∼7% -68%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3606 Points ∼4% -79%
7-Zip 18.03
7z b 4
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
57435 MIPS ∼41% +192%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
54998 MIPS ∼39% +179%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
44752 MIPS ∼32% +127%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
26858 MIPS ∼19% +36%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
19699 MIPS ∼14%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
9964 MIPS ∼7% -49%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
7790 MIPS ∼6% -60%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
7494 MIPS ∼5% -62%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3974 MIPS ∼3% -80%
7z b 4 -mmt1
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5905 MIPS ∼85% +42%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
5810 MIPS ∼83% +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5739 MIPS ∼82% +38%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
4945 MIPS ∼71% +19%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
4157 MIPS ∼60%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
3515 MIPS ∼50% -15%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2593 MIPS ∼37% -38%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2379 MIPS ∼34% -43%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2361 MIPS ∼34% -43%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
15.9 fps ∼34% +203%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
14.5 fps ∼31% +177%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
12.6 fps ∼27% +140%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
7.86 fps ∼17% +50%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
5.24 fps ∼11%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.65 fps ∼4% -69%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.48 fps ∼3% -72%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.46 fps ∼3% -72%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.88 fps ∼2% -83%
R Benchmark 2.5 - Overall mean
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.579 sec * ∼34% -99%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.577 sec * ∼34% -99%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1.371 sec * ∼30% -73%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.137 sec * ∼25% -44%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
0.792 sec * ∼17%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.622 sec * ∼13% +21%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
0.524 sec * ∼11% +34%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
0.4965 sec * ∼11% +37%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
0.493 sec * ∼11% +38%
LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
144.7 s * ∼37% -132%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
143 s * ∼36% -129%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
124 s * ∼31% -99%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
92.9 s * ∼23% -49%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
62.4 s * ∼16%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
50.4 s * ∼13% +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
49.3 s * ∼12% +21%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
48.7 s * ∼12% +22%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
42.6 s * ∼11% +32%
WebXPRT 3 - ---
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
278 Points ∼73% +34%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
274 Points ∼72% +32%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
257 Points ∼68% +24%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
256 Points ∼68% +23%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
208 Points ∼55%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
146 Points ∼39% -30%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
89.2 Points ∼24% -57%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
87.2 Points ∼23% -58%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
86.2 Points ∼23% -59%
Mozilla Kraken 1.1 - Total Score
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2288 ms * ∼3% -158%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2276 ms * ∼3% -157%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1396 ms * ∼2% -57%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
887 ms * ∼1%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
670 ms * ∼1% +24%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
602 ms * ∼1% +32%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
601 ms * ∼1% +32%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
601 ms * ∼1% +32%

* ... smaller is better

Newsmay Neosmay S2-B560TPM在Cinebench R15多循环测试中的表现

我们的耐力测试是通过循环Cinebench R15进行的,表明Newsmay能够控制Intel Core i5-11400T在标准时钟速度下的良好表现。由于冷却方案小,处理器的低功率限制通常是系统的瓶颈。平均分数为664分,但在所有50次运行中,结果还是非常稳定。

0851702553404255105956807658509351020110511901275136014451530Tooltip
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel Core i5-11400T: Ø664 (657.83-681.7)
AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)
MSI Cubi 5 10M Intel Core i3-10110U, Intel Core i3-10110U: Ø315 (308.88-317.27)
GMK NucBox K1 Intel Celeron J4125, Intel Celeron J4125: Ø238 (199.13-242.53)
Asus ExpertCenter D9 SFF Intel Core i7-11700, Intel Core i7-11700: Ø1537 (1521.95-1608.36)

应用程序性能和存储驱动器

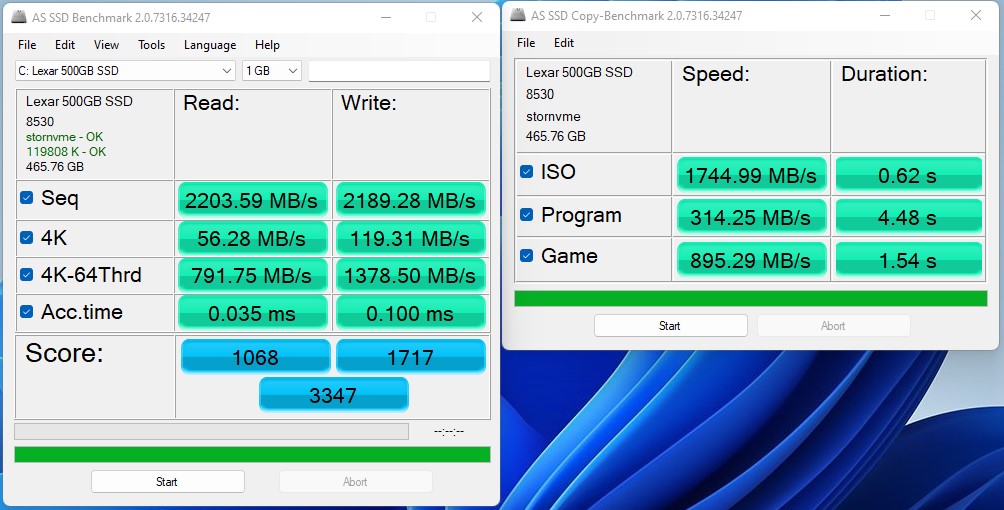

AS SSD
AS SSD

该系统的性能对于日常使用来说足够好。然而,由于已经提到的原因,Core i5-11400T的性能比预期的要差。尽管如此,我们的主观印象仍然是积极的,因为包括的Lexar SSD在读取和写入速度方面都足够快。4K的高读取速度尤其令人印象深刻,使系统能够快速加载许多小文件。Newsmay Neosmay S2-B560TPM在PCMark 10中仍然表现一般,落后于更快的系统约30至60个百分点。

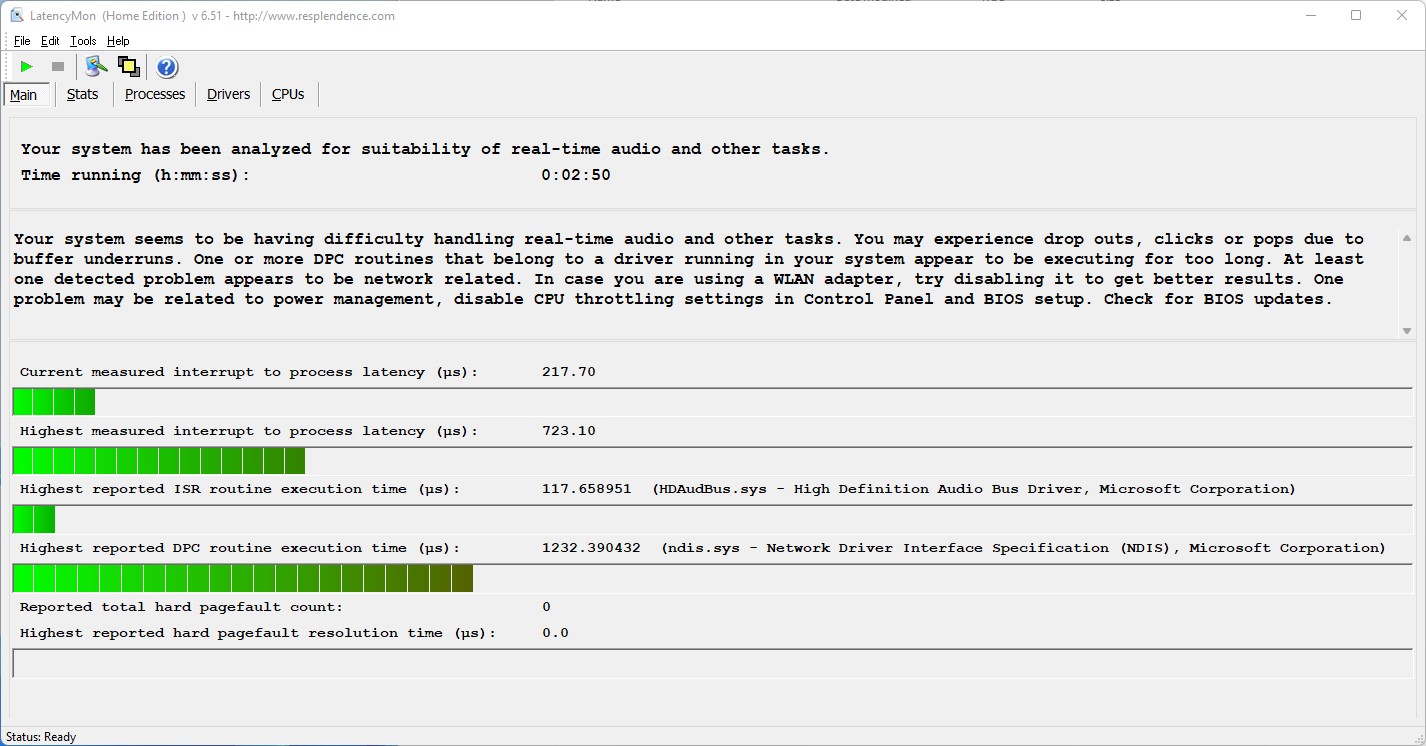

10秒后的最大延时 Prime95
10秒后的最大延时 Prime95
10秒后的最大延时 Prime95
10秒后的最大延时 Prime95

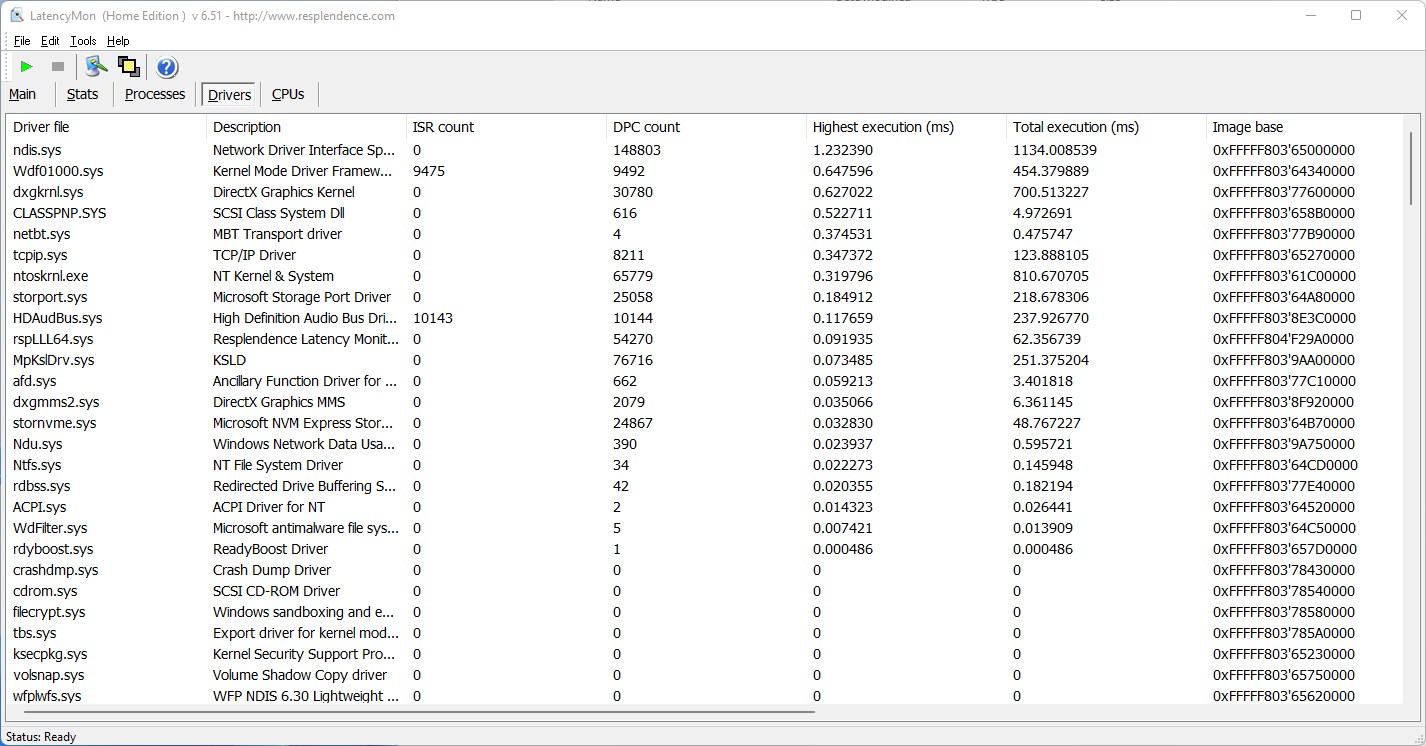

按最高执行时间排序的驱动程序
按最高执行时间排序的驱动程序

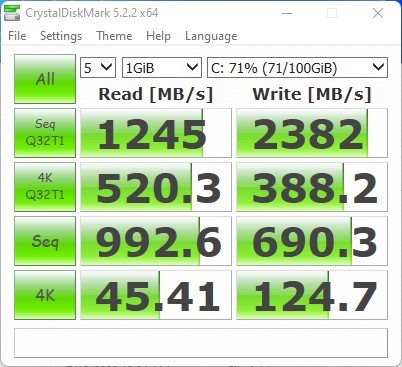

CDM 5
CDM 5

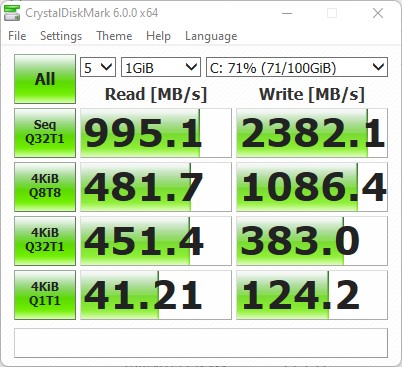

CDM 6
CDM 6

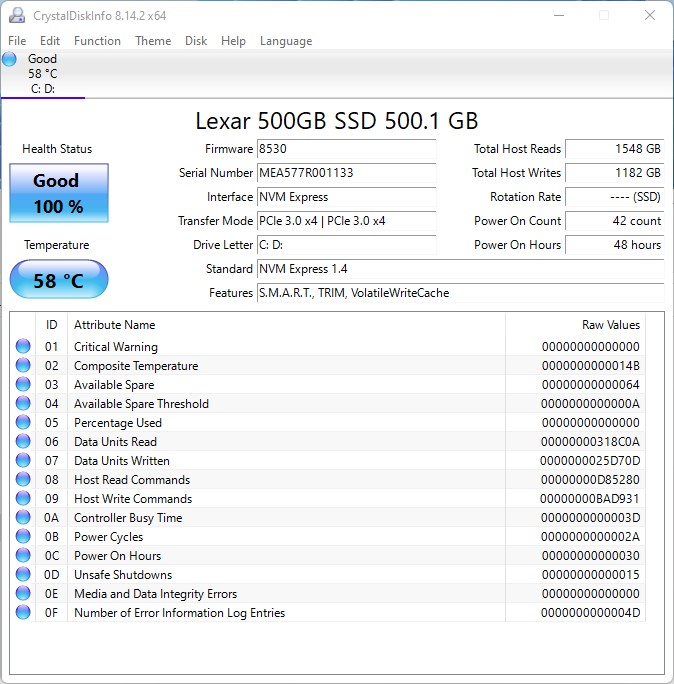

CDI
CDI
PCMark 10 - Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6507 Points ∼100% +64%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6480 Points ∼100% +63%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6290 Points ∼97% +58%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
5130 Points ∼79% +29%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
3975 Points ∼61%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
2958 Points ∼45% -26%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
2548 Points ∼39% -36%
GMK NucBox K1, Intel Celeron J4125
Intel UHD Graphics 600
1831 Points ∼28% -54%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
1806 Points ∼28% -55%

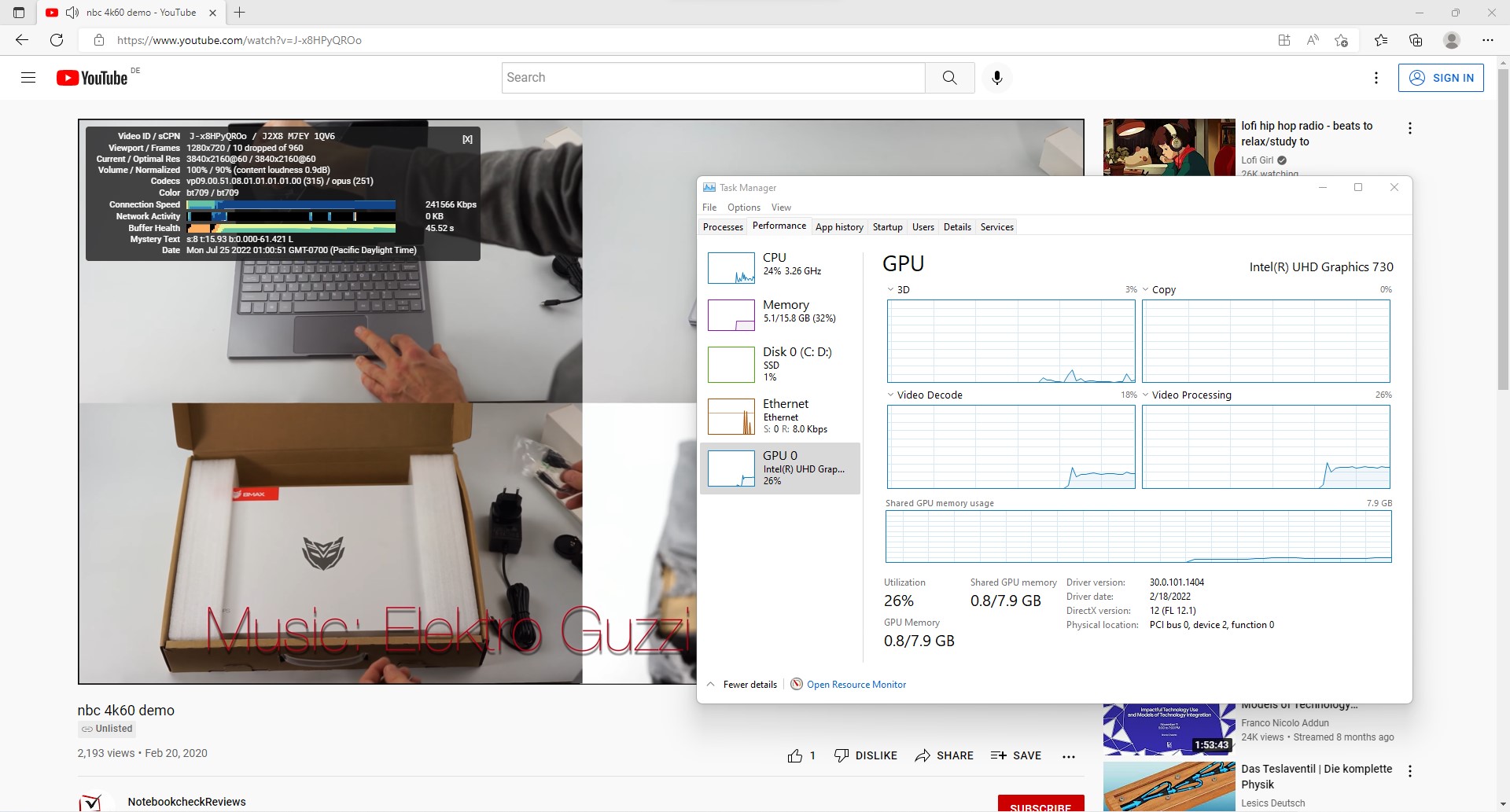

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
3767 μs * ∼100% -206%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
2635 μs * ∼70% -114%
GMK NucBox K1, Intel Celeron J4125
Intel UHD Graphics 600
1717 μs * ∼46% -39%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1625 μs * ∼43% -32%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
1581 μs * ∼42% -28%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
1476.3 μs * ∼39% -20%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
1232.3 μs * ∼33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * ∼29% +10%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
767 μs * ∼20% +38%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
349.5 μs * ∼9% +72%
ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4148 Points ∼100% +354%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4019 Points ∼97% +340%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points ∼84% +283%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
3414 Points ∼82% +274%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
959 Points ∼23% +5%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
914 Points ∼22%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
631 Points ∼15% -31%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
476 Points ∼11% -48%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
337 Points ∼8% -63%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
306 Points ∼100% +137%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
292 Points ∼95% +126%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276 Points ∼90% +114%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points ∼77% +82%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
129 Points ∼42%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
86 Points ∼28% -33%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
86 Points ∼28% -33%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
54 Points ∼18% -58%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
44 Points ∼14% -66%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
292 Points ∼100% +156%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
280 Points ∼96% +146%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
272 Points ∼93% +139%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points ∼79% +103%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
114 Points ∼39%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
82 Points ∼28% -28%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
63 Points ∼22% -45%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
60 Points ∼21% -47%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
42 Points ∼14% -63%
1024x600 Normal, Mandel Vector
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1280 Points ∼100% +666%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1234 Points ∼96% +639%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points ∼83% +538%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
763 Points ∼60% +357%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
186 Points ∼15% +11%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
167 Points ∼13%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
147 Points ∼11% -12%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
97 Points ∼8% -42%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
79 Points ∼6% -53%
1024x600 Normal, Mandel Scalar
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1115 Points ∼100% +481%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1065 Points ∼96% +455%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points ∼86% +402%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
853 Points ∼77% +344%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
226 Points ∼20% +18%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
192 Points ∼17%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
137 Points ∼12% -29%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
75 Points ∼7% -61%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
54 Points ∼5% -72%
1024x600 Normal, QJuliaRayTrace
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1205 Points ∼100% +287%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
1200 Points ∼100% +286%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1148 Points ∼95% +269%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points ∼83% +222%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
379 Points ∼31% +22%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
311 Points ∼26%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
230 Points ∼19% -26%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
159 Points ∼13% -49%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
118 Points ∼10% -62%
LuxMark v2.0 64Bit
Sala GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
2320 Samples/s ∼100% +201%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1298 Samples/s ∼56% +68%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1287 Samples/s ∼55% +67%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s ∼40% +22%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
771 Samples/s ∼33%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
397 Samples/s ∼17% -49%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
266 Samples/s ∼11% -65%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
147 Samples/s ∼6% -81%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
129 Samples/s ∼6% -83%
Room GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
693 Samples/s ∼100% +135%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
689 Samples/s ∼99% +134%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
547 Samples/s ∼79% +85%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s ∼65% +53%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
295 Samples/s ∼43%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
163 Samples/s ∼24% -45%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
109 Samples/s ∼16% -63%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
81 Samples/s ∼12% -73%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
76 Samples/s ∼11% -74%

* ... smaller is better

AIDA64 / Memory Copy
Average of class Desktop
  (6308 - 73501, n=36, last 2 years)
32570 MB/s ∼100% +70%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
19544 MB/s ∼60% +2%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
19209 MB/s ∼59%
Average Intel Core i5-11400T

19209 MB/s ∼59% 0%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
15737 MB/s ∼48% -18%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
13833 MB/s ∼42% -28%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
12604 MB/s ∼39% -34%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6308 MB/s ∼19% -67%
AIDA64 / Memory Read
Average of class Desktop
  (6292 - 74809, n=36, last 2 years)
33944 MB/s ∼100% +66%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
20405 MB/s ∼60%
Average Intel Core i5-11400T

20405 MB/s ∼60% 0%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
19769 MB/s ∼58% -3%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
10311 MB/s ∼30% -49%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10204 MB/s ∼30% -50%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
10095 MB/s ∼30% -51%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6576 MB/s ∼19% -68%
AIDA64 / Memory Write
Average of class Desktop
  (6866 - 72243, n=36, last 2 years)
33070 MB/s ∼100% +77%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
22485 MB/s ∼68% +21%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
18659 MB/s ∼56%
Average Intel Core i5-11400T

18659 MB/s ∼56% 0%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
17031 MB/s ∼51% -9%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10449 MB/s ∼32% -44%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
10347 MB/s ∼31% -45%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6866 MB/s ∼21% -63%
AIDA64 / Memory Latency
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
144 ns * ∼100% -107%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
89.5 ns * ∼62% -28%
Average of class Desktop
  (56 - 153, n=36, last 2 years)
80.5 ns * ∼56% -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
76.3 ns * ∼53% -9%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
74 ns * ∼51% -6%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
73.2 ns * ∼51% -5%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
69.7 ns * ∼48%
Average Intel Core i5-11400T

69.7 ns * ∼48% -0%

* ... smaller is better

显卡和3D性能

Newsmay Neosmay S2-B560TPM配备了一个英特尔UHD Graphics 730。该集成GPU拥有24个执行单元,最高频率为1200MHz,远远跟不上目前AMD Ryzen APU上的AMD Radeon RX Vega 8的步伐。在英特尔UHD Graphics 730上运行超过办公程序的东西可能不是一个好主意,你可以从它在测试的游戏中的性能概述中看到。

Performance Rating - Percent
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
98.5 pt ∼99%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
71.1 pt ∼71%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
64.8 pt ∼65%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
64 pt ∼64%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
27 pt ∼27%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
14.5 pt ∼15%
3DMark
1280x720 Ice Storm Standard Graphics
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
182459 Points ∼100% +234%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
171104 Points ∼94% +214%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
130976 Points ∼72% +140%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
60011 Points ∼33% +10%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
54564 Points ∼30%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
41037 Points ∼22% -25%
1920x1080 Ice Storm Extreme Graphics
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
152912 Points ∼100% +306%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
121736 Points ∼80% +223%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
102227 Points ∼67% +172%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
50500 Points ∼33% +34%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
37635 Points ∼25%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
26409 Points ∼17% -30%
1920x1080 Fire Strike Graphics
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
6552 Points ∼100% +271%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
4730 Points ∼72% +168%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4369 Points ∼67% +147%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3775 Points ∼58% +114%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
1768 Points ∼27%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
772 Points ∼12% -56%
3DMark 11
1280x720 Performance GPU
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
8694 Points ∼100% +241%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7122 Points ∼82% +179%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6518 Points ∼75% +156%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6306 Points ∼73% +147%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
2551 Points ∼29%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1316 Points ∼15% -48%
1280x720 Performance
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
9497 Points ∼100% +272%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7449 Points ∼78% +192%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6905 Points ∼73% +171%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6462 Points ∼68% +153%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
2550 Points ∼27%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1395 Points ∼15% -45%
ComputeMark v2.1 - 1024x600 Normal, Score
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
4825 Points ∼100% +428%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4148 Points ∼86% +354%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points ∼73% +283%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
3414 Points ∼71% +274%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
914 Points ∼19%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
631 Points ∼13% -31%
LuxMark v2.0 64Bit
Room GPUs-only
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
1121 Samples/s ∼100% +280%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
693 Samples/s ∼62% +135%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
547 Samples/s ∼49% +85%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s ∼40% +53%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
295 Samples/s ∼26%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
109 Samples/s ∼10% -63%
Sala GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2320 Samples/s ∼100% +201%
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
2049 Samples/s ∼88% +166%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1287 Samples/s ∼55% +67%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s ∼40% +22%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
771 Samples/s ∼33%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
266 Samples/s ∼11% -65%
low med. high ultra
GTA V (2015) 51.9 7.67 3.38
Dota 2 Reborn (2015) 90.8 59 26.8 24.5
Final Fantasy XV Benchmark (2018) 16.6 8.13 8.13
X-Plane 11.11 (2018) 30.7 19.5 18
Far Cry 5 (2018) 19 9 8 8
Strange Brigade (2018) 33.1 13.5 11.7
Far Cry New Dawn (2019) 19 10 9 8
Metro Exodus (2019) 17.7 8.11 6.3 5.22
Borderlands 3 (2019) 19.7 8.36 4.99
F1 2020 (2020) 35.2 16.3 12.3
F1 2021 (2021) 37.4 17.7 14.5
3DMark 05 Standard
20918 points
3DMark 06 Standard Score
13964 points
3DMark Vantage P Result
9013 points
3DMark 11 Performance
2550 points
3DMark Ice Storm Standard Score
53536 points
3DMark Cloud Gate Standard Score
9889 points
3DMark Fire Strike Score
1613 points
Help

排放

噪声水平

Newsmay Neosmay S2-B560TPM在使用时总是产生明显的噪音,尽管我们的测量表明噪音水平相当适中。在平均负荷下,35.8dB(A)的噪音水平还是可以接受的。该系统在运行中从来没有完全安静过。即使在空闲状态下,根据我们的测量,它发出的噪音也不低于31.8分贝(A)。风扇曲线配置良好,对负载的变化反应迅速,无需不断地重新调整风扇速度。

Noise Level

Idle
31.8 / 32.7 / 33.1 dB(A)
Load
35.8 / 37.1 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 30.2 dB(A)

温度

Stresstest:FurMark+Prime95
Stresstest:FurMark+Prime95

对于我们的压力测试,我们同时运行Prime95和FurMark,给系统带来了巨大的负荷。英特尔酷睿i5-11400T的最高温度达到65℃(149℉),这是一个非常好的结果。然而,你应该记住,35瓦的低功耗意味着该处理器只在1.3GHz的基本频率下运行。一旦手动增加功率目标,处理器的温度就会上升到80℃左右。我们不认为这是批评该产品的一个理由,因为它的使用方式不符合制造商的规格。然而,我们确实注意到,主板上的VRM变得相当热,导致处理器偶尔会出现节流现象。我们测试的模型在以65瓦的固定功率目标运行时并没有这些问题。这一点至关重要,因为如果你选择最高端的配置,Newsmay Neosmay S2-B560TPM可能会与更强大的英特尔酷睿i7-11700配对。

在我们的压力测试中,机箱背面的排气口周围变得相当热。在与制造商交谈后,我们发现冷却解决方案的微小变化仍在进行中。例如,该公司打算将顶部的风扇进气口做得更大一些,并对主板上的VRM冷却器稍作修改。

压力测试期间产生的热量
压力测试期间产生的热量
压力测试期间产生的热量
压力测试期间产生的热量
压力测试期间产生的热量
压力测试期间产生的热量

消耗功率

由于英特尔酷睿i5-11400T的低TDP,Newsmay Neosmay S2-B560TPM在平均负载时使用的功率相对较小。的低TDP,Newsmay Neosmay S2-B560TPM在平均负荷下耗电相对较少,从电源适配器中获取约56瓦的电力。当处理器在PL2状态下运行时,功耗有时会短暂上升到107瓦。

Power Consumption
Off / Standbydarklight 1.6 / 2.4 Watt
Idledarkmidlight 23.7 / 23.7 / 40.8 Watt
Load midlight 55.8 / 74.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Energy consumption with external monitor

0102030405060708090100Tooltip
; Prime95 V28,10 Stress (external Monitor): Ø59.3 (45-106.8)
; Cinebench R15 Multi (external Monitor): Ø57.8 (53.2-103.7)
; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø57 (55.3-68.8)
; Idle 1min (external Monitor): Ø40.9 (40.4-41.8)

Pros

+ 紧凑的系统
+ 坚固的箱子
+ 机箱高度低
+ 许多I/O端口
+ 可更换的CPU/模块化设计
+ 低排放
+ 快速SSD
+ 支持三屏显示
+ 物美价廉

Cons

- 高度节流的英特尔酷睿i5-11400T
- 3D性能差
- 没有SD卡读卡器
- 不支持Thunderbolt 4

结论--有小缺点的多功能办公电脑

对Newsmay Neosmay S2-B560TPM的评论,由Newsmay科技提供
对Newsmay Neosmay S2-B560TPM的评论,由Newsmay科技提供

Newsmay Neosmay S2-B560TPM是一款适合日常办公使用的小型计算机,拥有所有必要的端口。它的Wi-Fi模块支持最新的标准,它的许多组件可以被替换或扩展。然而,该设备没有配备最新的Thunderbolt 4。总的来说,英特尔酷睿i5-11400T完成了它的工作,但为了不使紧凑的冷却装置不堪重负,该处理器在某种程度上被抑制了它的全部潜力。在我们审查期间,Newsmay Neosmay S2-B560TPM没有出现任何严重问题。说到纯粹的性能,S2-B560TPM无法完全跟上MinisForum或Morefine的类似设备。从另一个角度看,它的模块化程度更高,并具有可替换的CPU。然而,LGA 1200插座对升级能力造成了限制,因为它不再与较新的桌面处理器兼容。

通过Newsmay Neosmay S2-B560TPM,这家中国制造商正在与戴尔和联想等行业巨头竞争。在我们的审查中,这款迷你电脑给人留下了不同的印象。

该系统拥有16GB的内存和500GB的固态硬盘存储,有足够的储备来处理资源要求高的应用程序。它最多可以容纳64GB的内存和两个存储驱动器。在CPU方面,用户有很多选择。虽然英特尔酷睿i5-11400T绝对是性能和效率之间的一个很好的中间点,但如果你想在迷你电脑中放入一个真正的八核处理器,你也可以选择酷睿i7-11700。

Newsmay的实际核心业务是在B2B领域。以大约600欧元(615美元)的价格,Newsmay Neosmay S2-B560TPM是一款适合商业用户的PC。此外,对于消费者来说,它可能是一个值得投资的产品,因为在许多市场上,类似的设备并不便宜。竞争产品的例子包括戴尔OptiPlex和联想ThinkCentre。

你甚至可以购买一个裸机版本,,仅约135美元然后根据自己的需要进行配置。

Please share our article, every link counts!
.170
> Notebookcheck中文版(NBC中国) > 评测 > Newsmay Neosmay S2-B560TPM迷你电脑评测:配备高效英特尔Core i5-11400T的小型办公电脑
Zhiwei (Peter) Zhuang, 2022-08- 3 (Update: 2022-08- 3)
