Beelink U59 Mini-S迷你电脑评论。超便宜的英特尔NUC HTPC替代品

向负担得起的方向迈进。 Beelink U59 Mini-S非常便宜,足以成为谷歌、亚马逊、Apple 、或Roku等典型智能电视加密狗或媒体播放器的一个值得尊敬的替代品,特别是对于那些希望在Windows环境中实现多功能的用户。
Desktop Mini PC

Beelink提供了一个广泛的迷你电脑系列,从非常便宜的赛扬驱动的U59到速度惊人的Ryzen 9 5900HX驱动的GTR5。我们今天的U59 Mini-S评测模型位于低端,采用赛扬N5095 CPU,只有8GB单通道内存和256GB SSD,零售价约为220美元。

U59 Mini-S的替代品包括采用Atom或赛扬处理器的迷你电脑,如 楚威HeroBox, GMK NucBox K1, NucBox 3或英特尔NUC 11 Essential。审查中的U59 Mini-S不应与略微昂贵的 原来的U59.

更多Beelink的评论。

Beelink U59 Mini-S
Processor
Intel Celeron N5095 4 x 2 - 2.9 GHz, 17 W PL2 / Short Burst, 14 W PL1 / Sustained, Jasper Lake
Graphics adapter
Memory
8192 MB

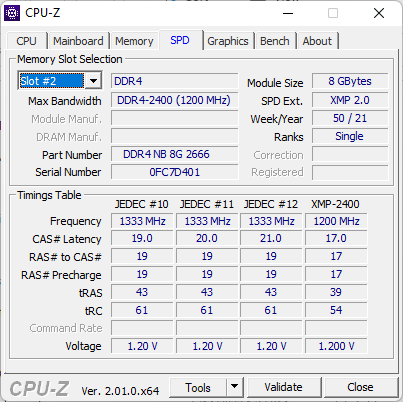

, Single-Channel, DDR4-2666, 15-15-15-35, 2x SODIMM slots
Storage
Silicon Motion AZW 256G M.228 220426 C SATA 3, 256 GB
Soundcard
Intel Jasper Lake PCH - cAVS Controller
Connections
4 USB 3.0 / 3.1 Gen1, 2 HDMI, 1 Kensington Lock, Audio Connections: 3.5 mm
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Size
height x width x depth (in mm): 41 x 124 x 113
Operating System
Microsoft Windows 11 Pro
Additional features
Manual, 2x HDMI cables, removable VESA mount, additional screws, 12 Months Warranty
Weight
279 g, Power Supply: 150 g
Price
220 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
06/2022
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
279 g41 mmx
04/2022
Beelink SEi8
i3-8109U, Iris Plus Graphics 655
346 g41 mmx
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 g37 mmx
11/2021
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
329 g42 mmx
02/2022
GMK NucBox 3
Celeron J4125, UHD Graphics 600
410 g32.5 mmx
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620
472 g51 mmx

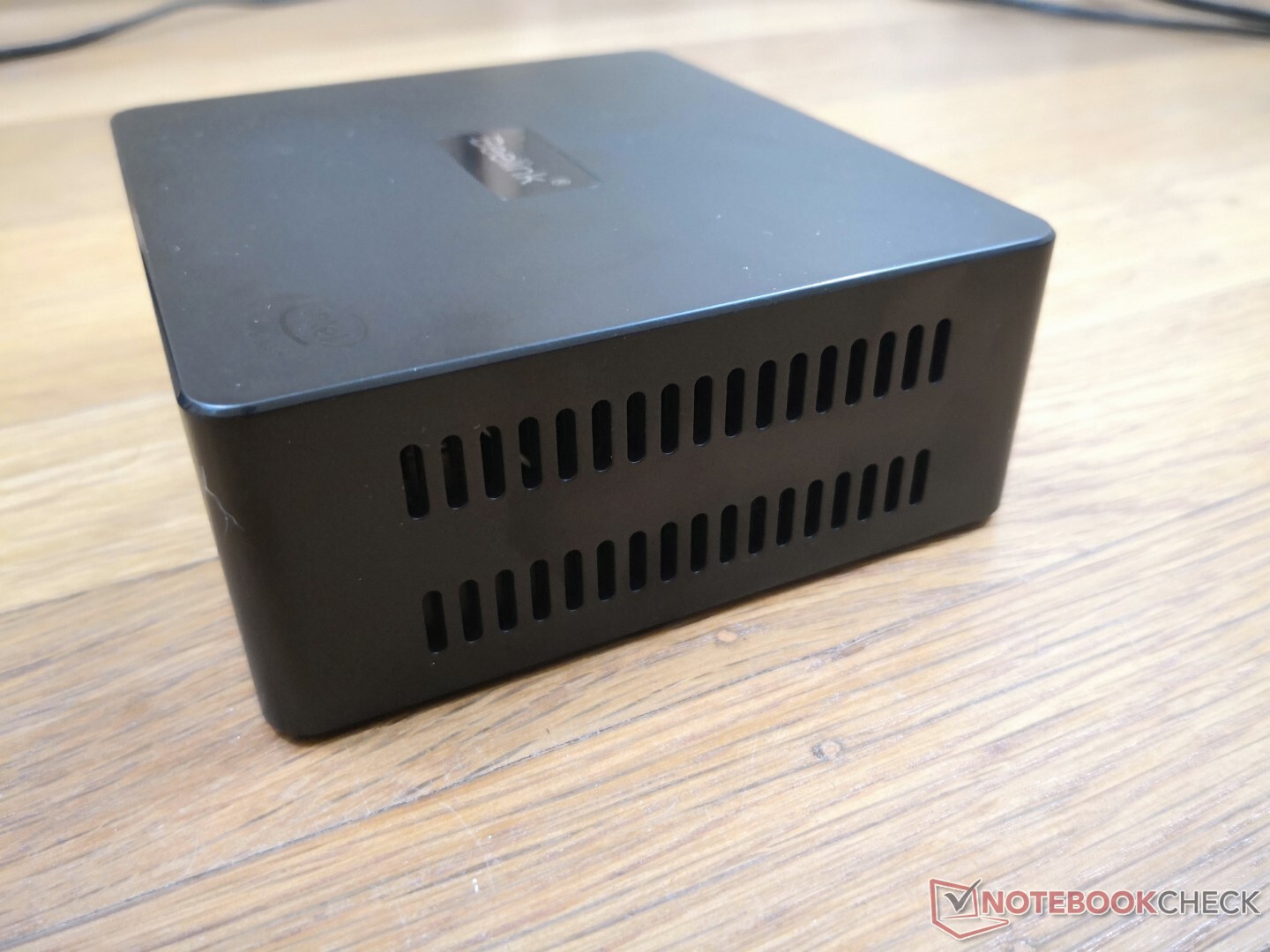

案例 - 比看起来更轻

机箱几乎与原来的U59相同,尽管有一些表面上的差异。例如,顶部面板现在是光滑的哑光,而不是亮光,我们认为这是一个聪明的变化,因为哑光表面更耐指纹和擦伤。机箱的侧面和底部是金属,给人以强烈的第一印象。

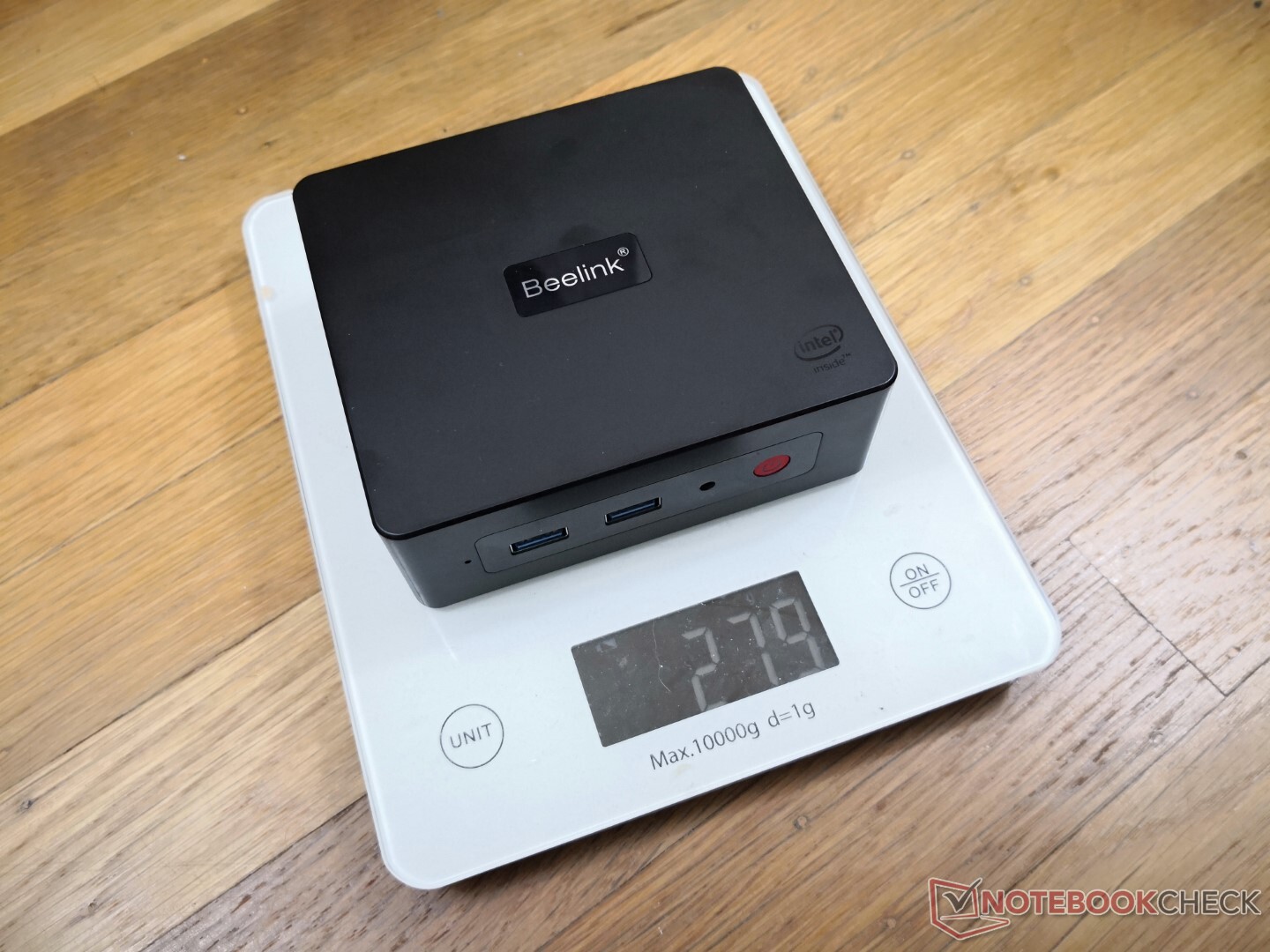

Beelink的一个值得注意的方面是它的重量非常轻,只有279克,而类似尺寸的NUC的重量超过500克。 英特尔NUC 11.Beelink的机箱材料更薄,而且没有用于额外加固的内部金属笼子,这导致了两种型号之间的显著重量差异。

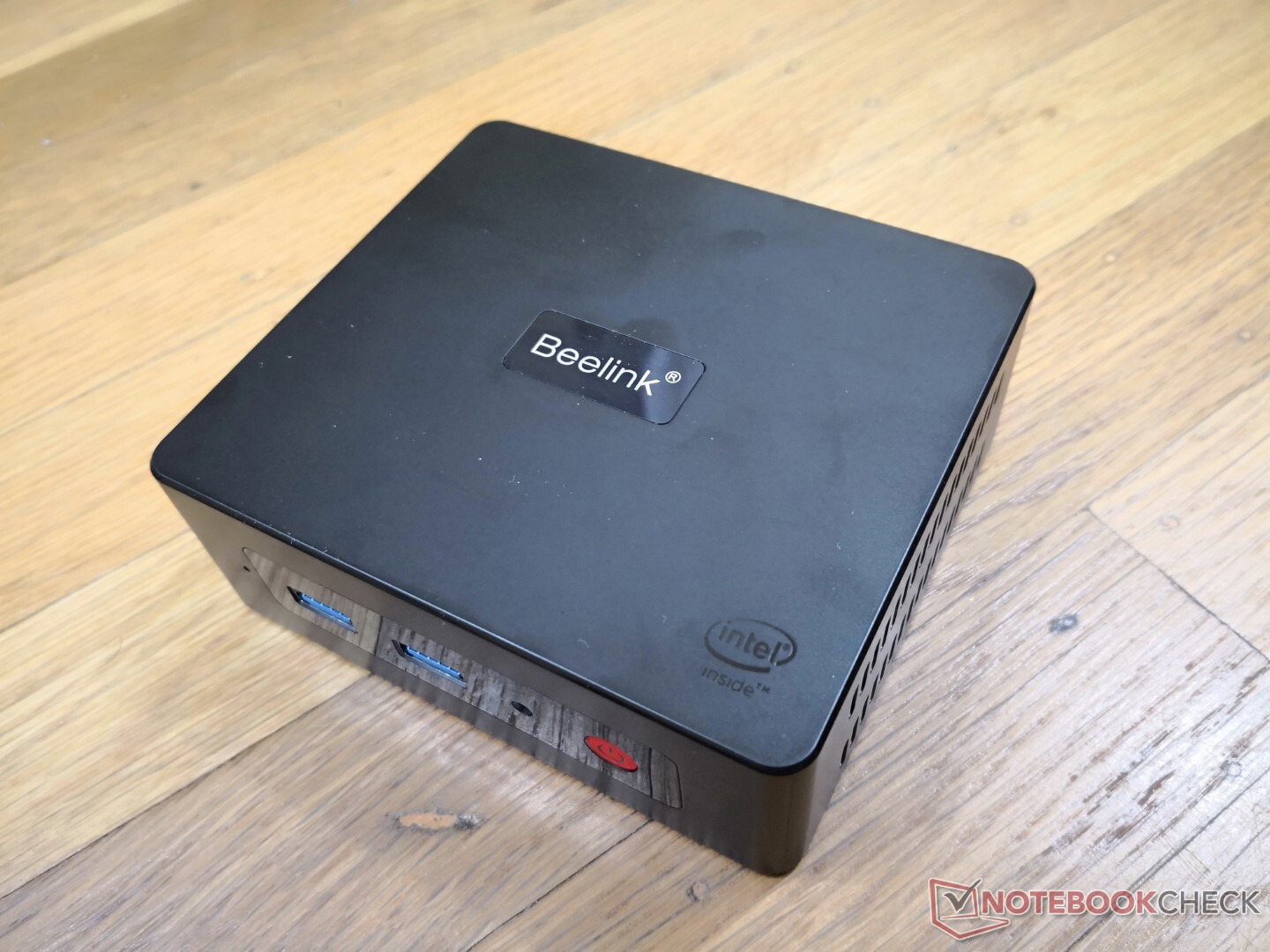

顶部面板是哑光的,而不是亮光的,以减少指纹。
顶部面板是哑光的,而不是亮光的,以减少指纹。

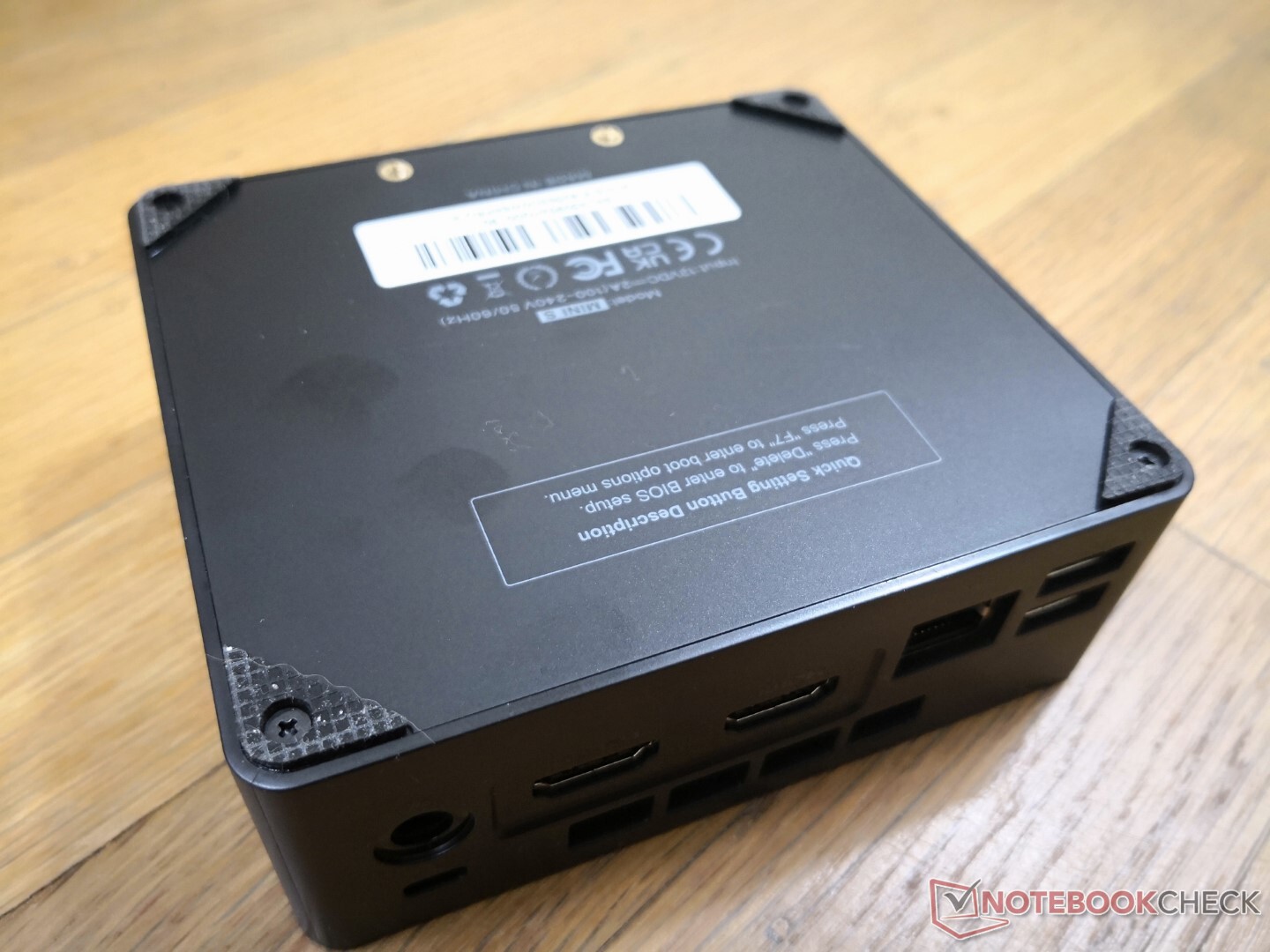

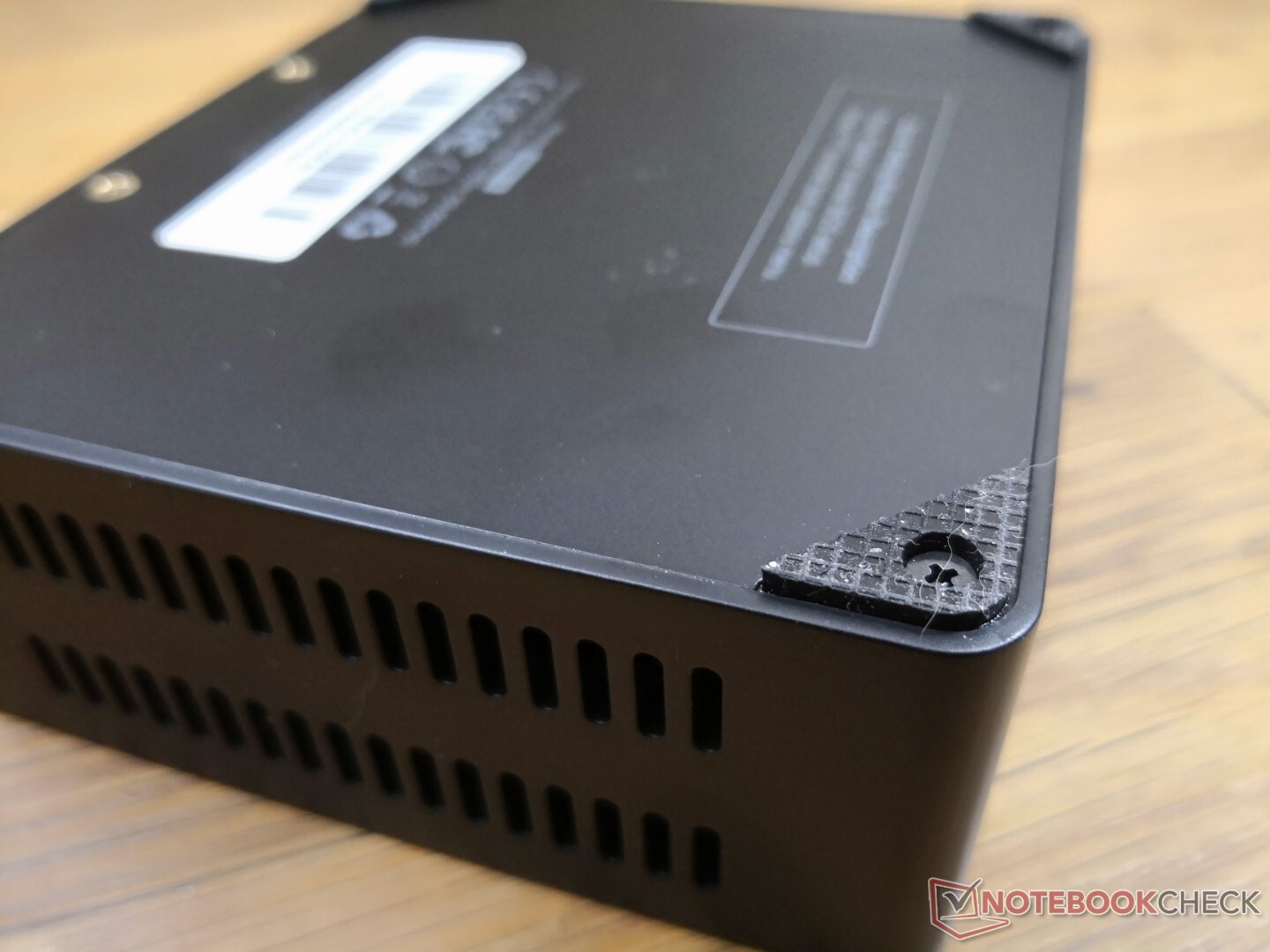

底部有橡胶脚垫,减少滑倒的机会
底部有橡胶脚垫,减少滑倒的机会
金属底盘比英特尔NUC更轻、更薄
金属底盘比英特尔NUC更轻、更薄
与英特尔NUC上的大扭转螺丝不同,Beelink上的螺丝需要一把螺丝刀。
与英特尔NUC上的大扭转螺丝不同,Beelink上的螺丝需要一把螺丝刀。

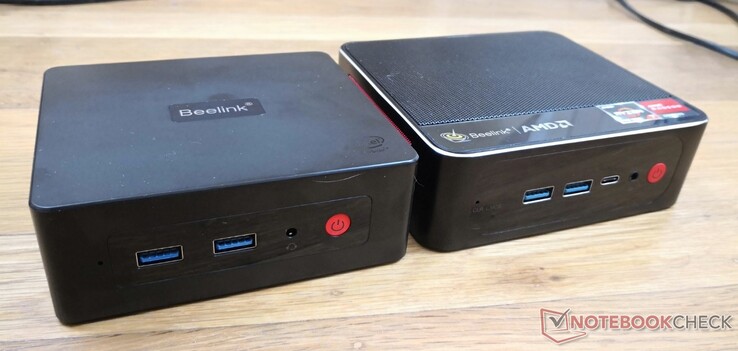

尺寸比较

128 mm 126 mm 51 mm 472 g124 mm 113 mm 42 mm 329 g124 mm 113 mm 41 mm 279 g124 mm 113 mm 41 mm 346 g128 mm 128 mm 32.5 mm 410 g117 mm 112 mm 37 mm 504 g

连接性 - 没有USB-C

端口选项与U59相同,但有一个主要例外:USB-C端口被取消。我们怀疑这是一项节约成本的措施。

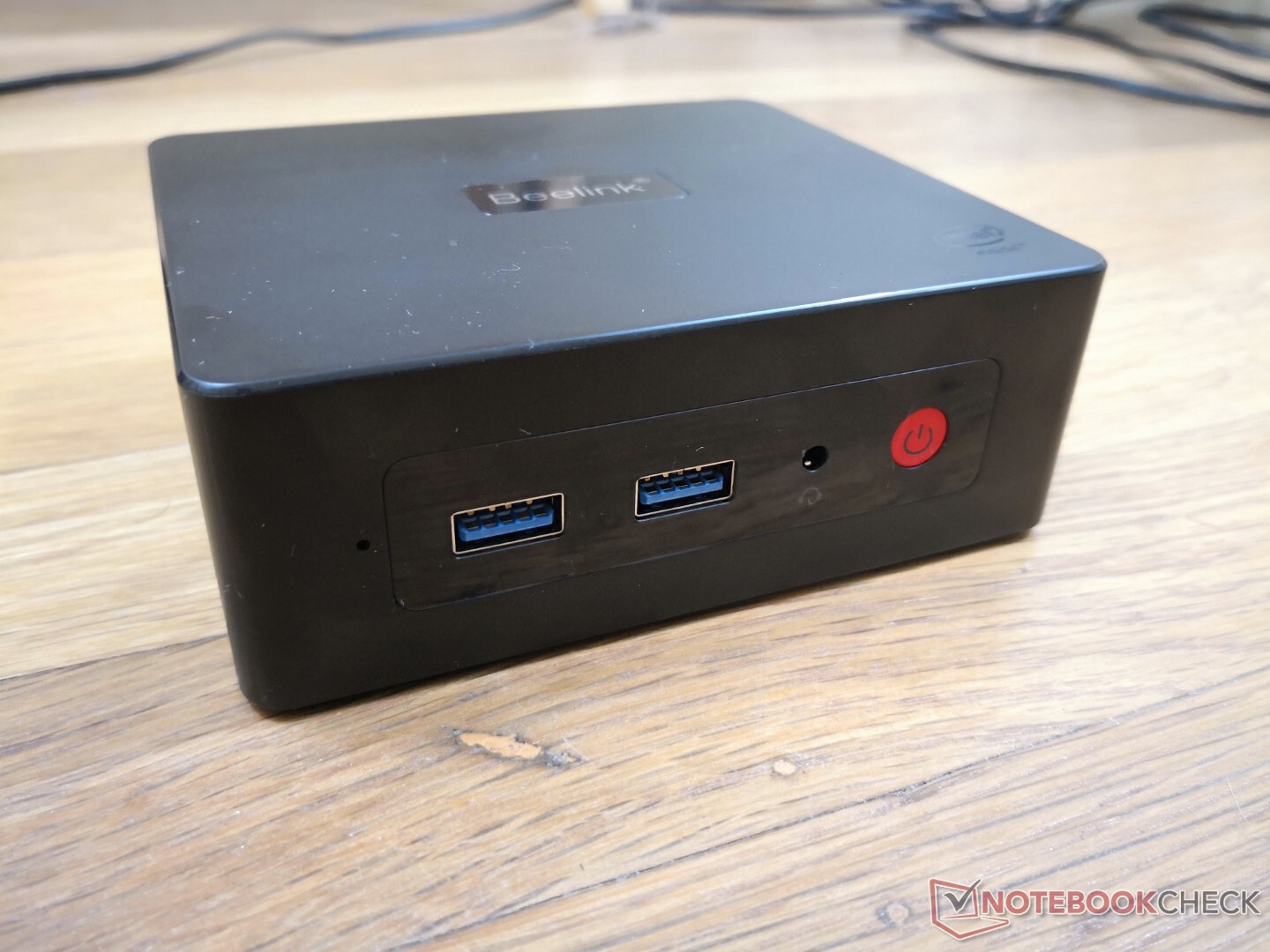

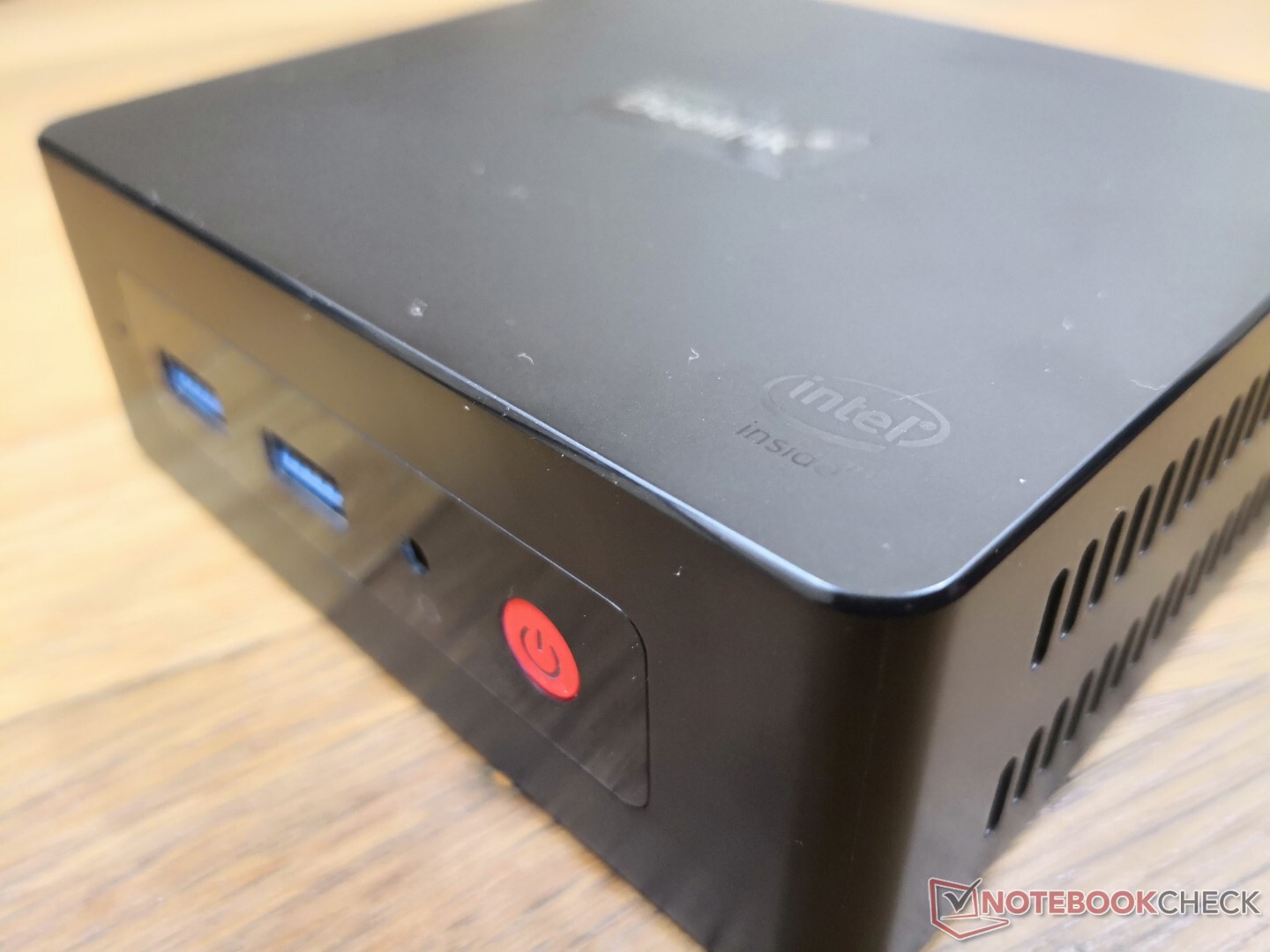

正面:2个USB-A 3.0,3.5毫米音频插孔,电源按钮
正面:2个USB-A 3.0,3.5毫米音频插孔,电源按钮
对。没有端口
对。没有端口

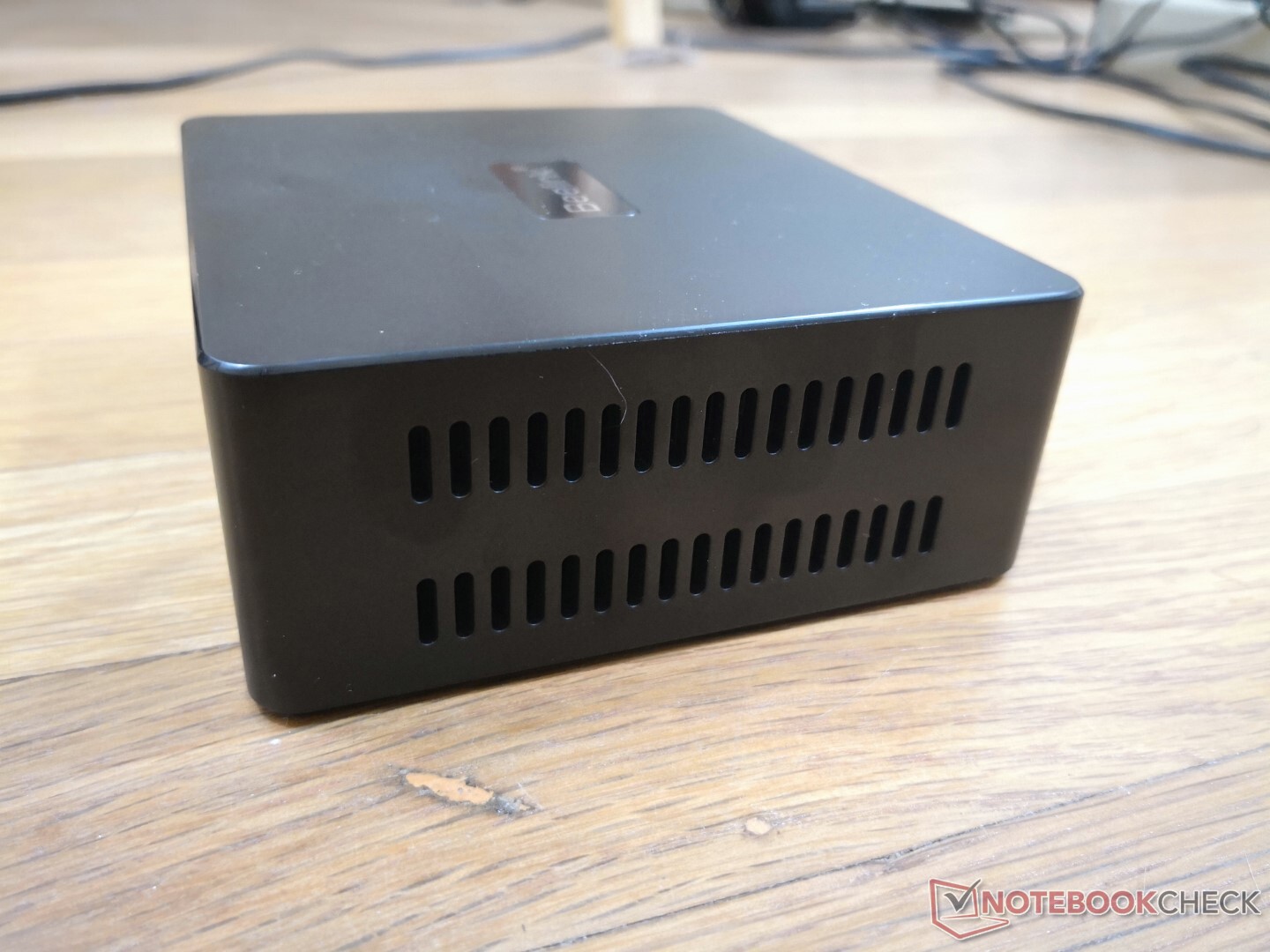

左边:没有端口
左边:没有端口

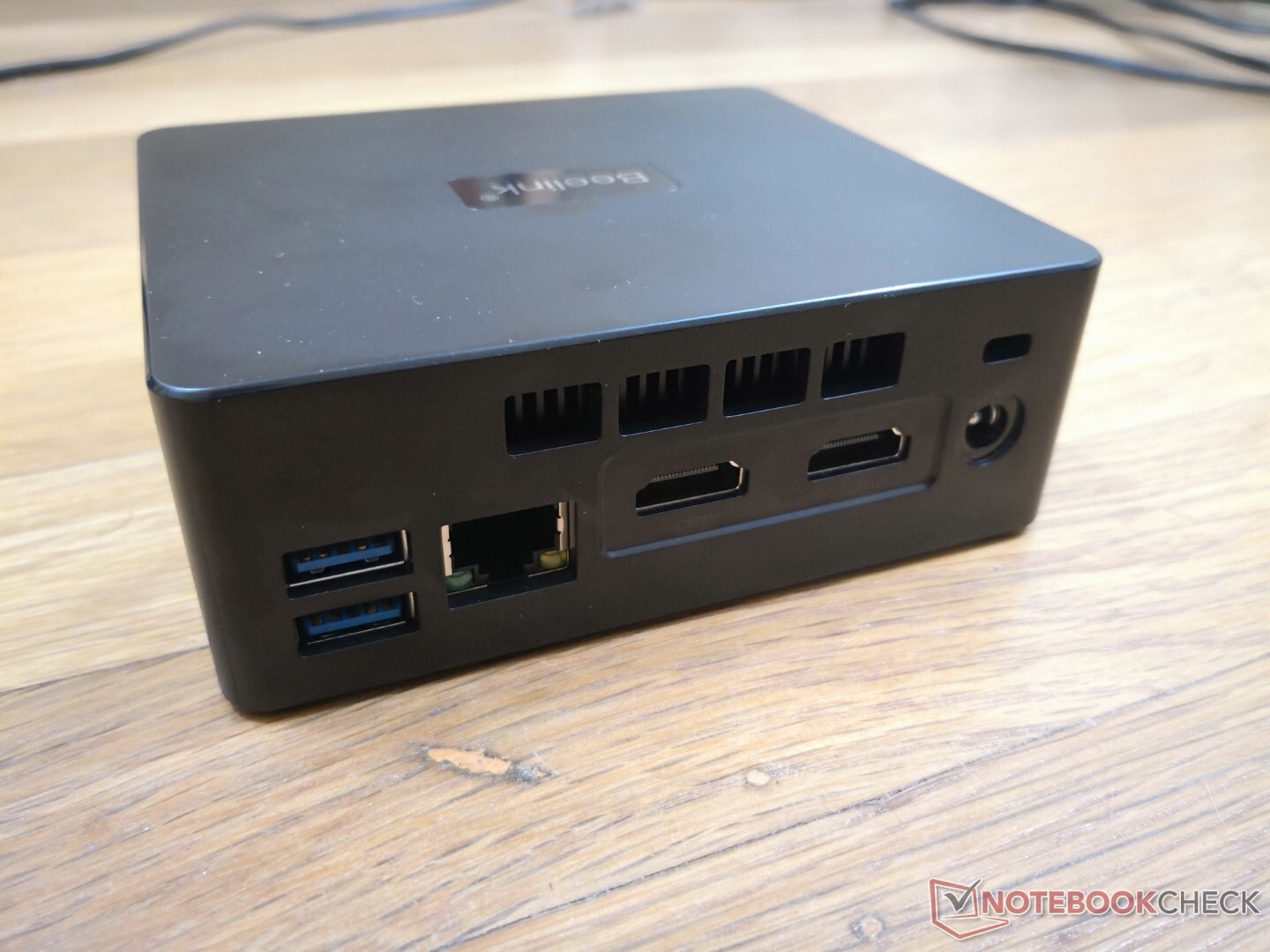

后部:2个USB-A 3.0,千兆RJ-45,2个HDMI 2.0,Kensington锁,AC适配器
后部:2个USB-A 3.0,千兆RJ-45,2个HDMI 2.0,Kensington锁,AC适配器

沟通

一个英特尔3165再次成为1x1 Wi-Fi 5和蓝牙4.2连接的标准配置。虽然以今天的标准来看很慢,但对于4K视频流来说还是足够快的。

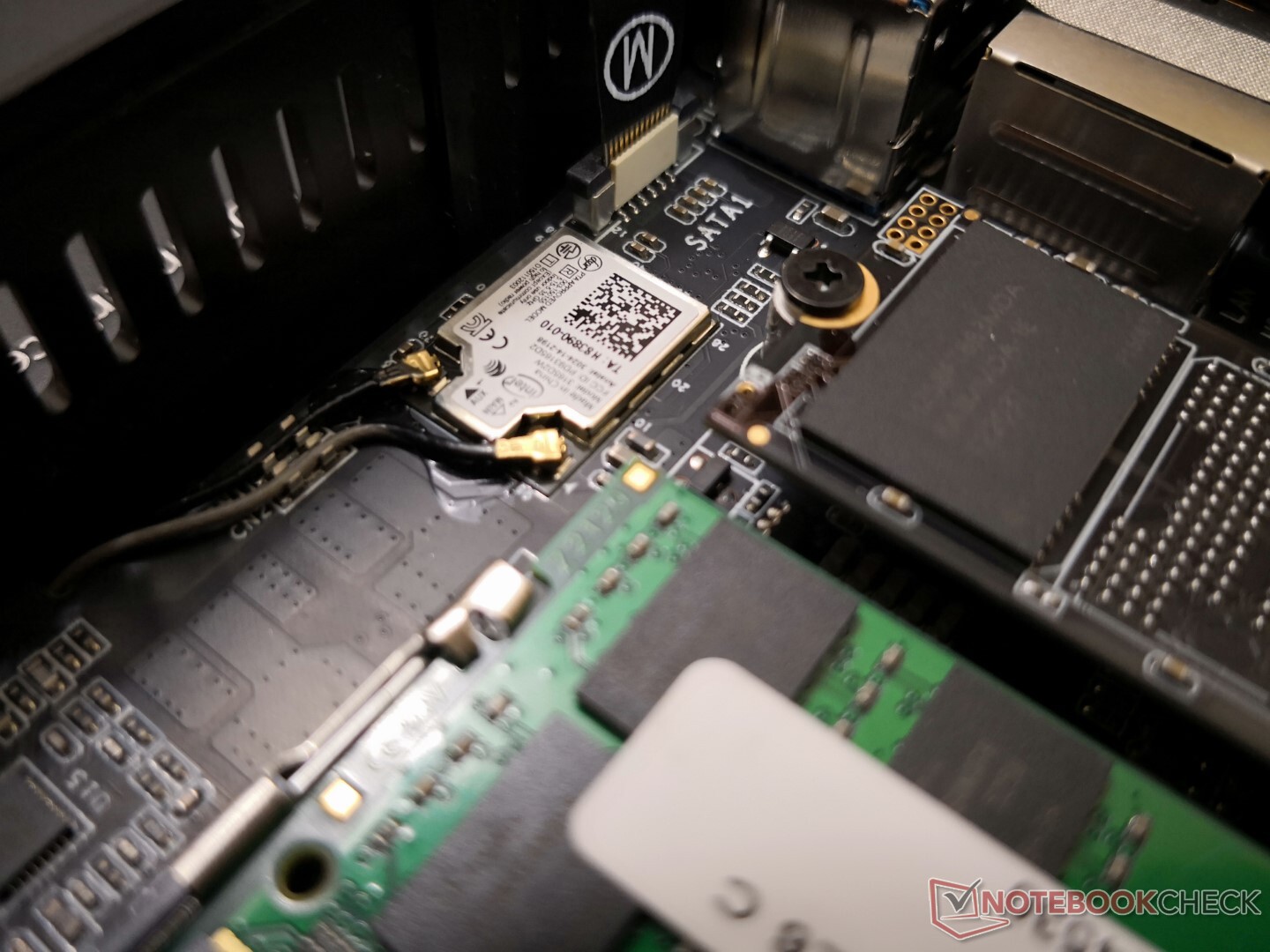

1216 WLAN模块是焊接的,不能升级
1216 WLAN模块是焊接的,不能升级
Networking
iperf3 transmit AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s ∼100%
Beelink SEi8
Intel Dual Band Wireless-AC 3165
200 (156min - 261max) MBit/s ∼12%
Beelink U59
Intel Dual Band Wireless-AC 3165
180 (157min - 201max) MBit/s ∼11%
GMK NucBox 3
Intel Dual Band Wireless-AC 7265
152 (106min - 184max) MBit/s ∼9%
iperf3 receive AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s ∼100%
GMK NucBox 3
Intel Dual Band Wireless-AC 7265
671 (648min - 684max) MBit/s ∼44%
Beelink U59
Intel Dual Band Wireless-AC 3165
346 (336min - 355max) MBit/s ∼23%
Beelink SEi8
Intel Dual Band Wireless-AC 3165
338 (320min - 344max) MBit/s ∼22%
iperf3 transmit AXE11000
Beelink U59 Mini-S
Intel Dual Band Wireless-AC 3165
188.4 (153min - 228max) MBit/s ∼100%
iperf3 receive AXE11000
Beelink U59 Mini-S
Intel Dual Band Wireless-AC 3165
322 (295min - 337max) MBit/s ∼100%
050100150200250300Tooltip
; iperf3 receive AXE11000; iperf 3.1.3: Ø321 (295-337)
; iperf3 transmit AXE11000; iperf 3.1.3: Ø188.4 (153-228)

维护

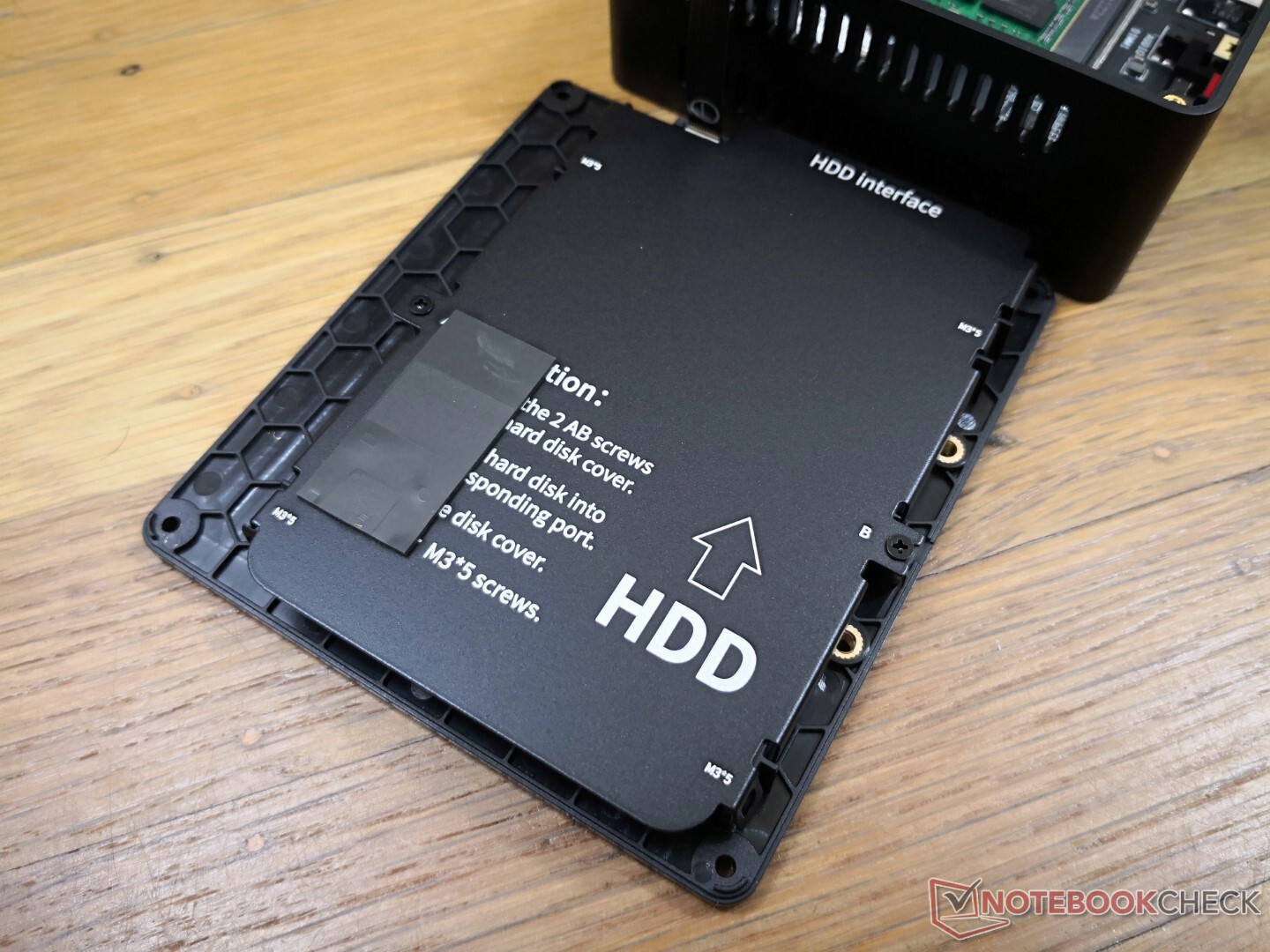

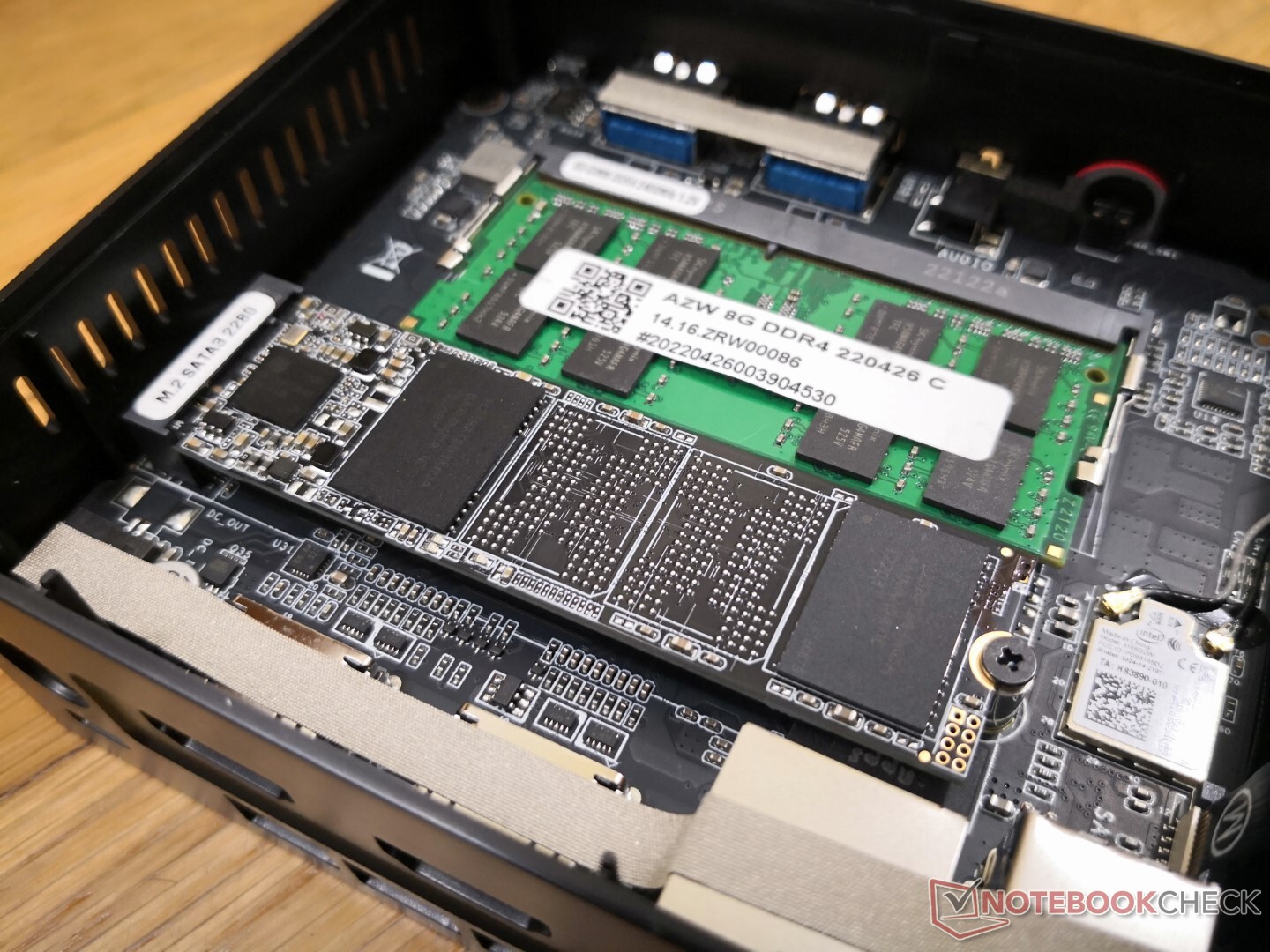

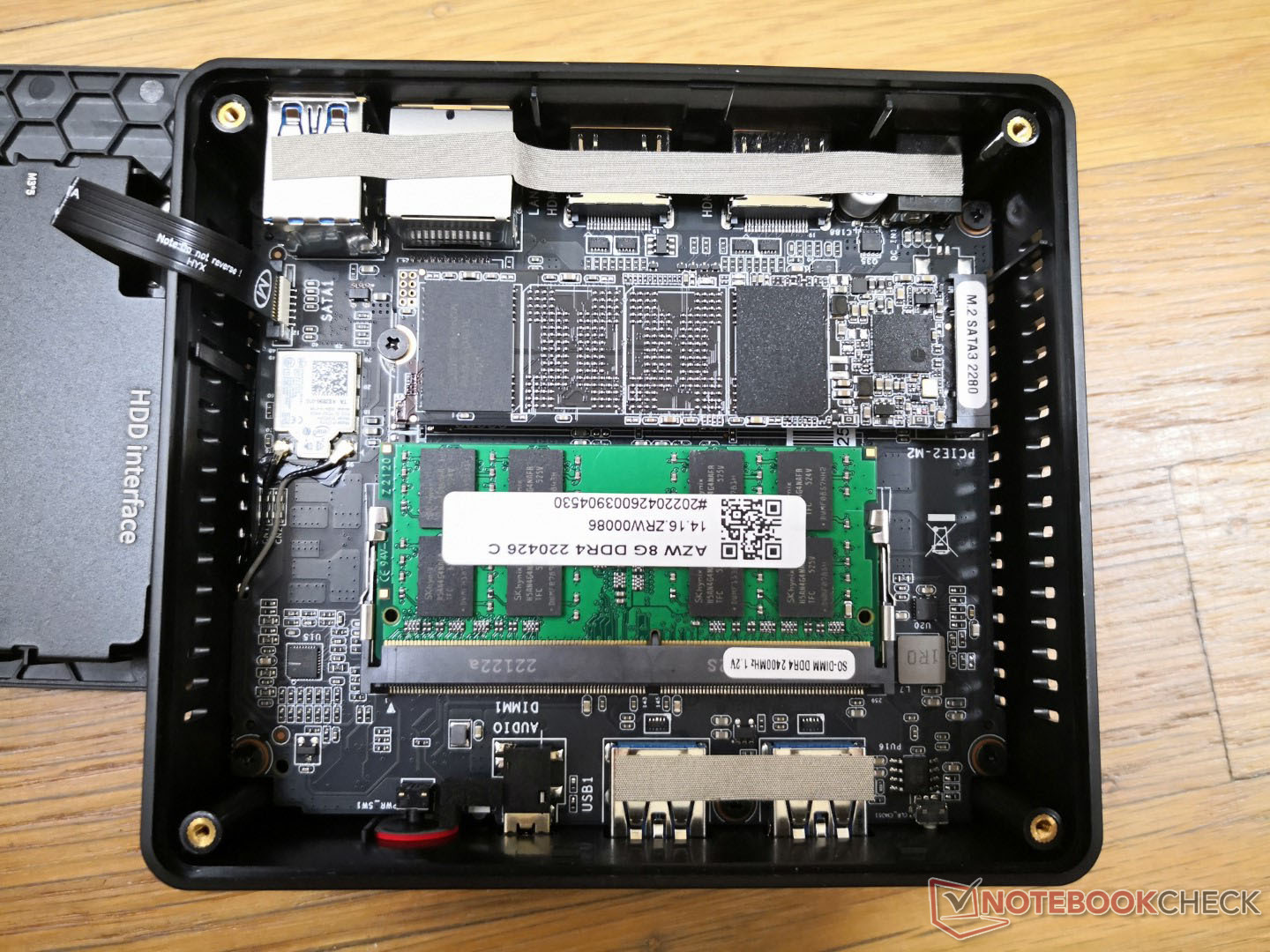

在卸下四角的4颗飞利浦螺丝后,底部面板很容易脱落。用户可以直接访问两个存储托架(1个M.2 2280 SATA III + 1个2.5英寸SATA III)和一个SODIMM DDR4插槽,支持高达16GB的单通道内存。

配件和保修

零售包装盒包括一个可拆卸的VESA安装支架,其上的螺丝可连接到设备的底板。还包括两条HDMI线。

如果在美国购买,则适用标准的一年有限保修。

业绩




测试条件

在运行以下任何基准测试之前,我们的测试装置被设置为Windows性能模式,以获得尽可能高的分数。除了通常的BIOS设置外,没有专门的应用程序来控制U59 Mini-S的特定功能或行为。

处理器 - 比Atom更快,比Core i3更慢

多线程性能可与双核四线程媲美。 酷睿i3-8109U而在单线程性能方面要慢20%到45%。尽管如此,赛扬N5095还是比前几代赛扬解决方案快,包括J4125 N4100 在多线程应用中最多可提高2倍。

在循环运行CineBench R15 xT时,性能的可持续性良好,没有大的下降。

Cinebench R15 Multi Loop

04080120160200240280320360400440480520560600640680720760Tooltip
Beelink U59 Mini-S Intel Celeron N5095: Ø353 (350.25-357.53)
Beelink SEi8 Intel Core i3-8109U: Ø320 (317.69-324.13)
Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)
Beelink U59 Intel Celeron N5095: Ø377 (375.08-378.57)
GMK NucBox 3 Intel Celeron J4125: Ø203 (171.15-207.16)
Zotac ZBOX MI642 Nano Intel Core i5-10210U: Ø514 (504.41-521.83)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.3: 64 Bit Multi-Core Score | 64 Bit Single-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
3095 Points ∼100% +285%
Intel NUC11TNKi5
Intel Core i5-1135G7
1974 Points ∼64% +146%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
1432 Points ∼46% +78%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1183 Points ∼38% +47%
Average Intel Celeron N5095
  (804 - 844, n=2)
824 Points ∼27% +2%
Beelink U59 Mini-S
Intel Celeron N5095
804 Points ∼26%
Beelink SEi8
Intel Core i3-8109U
772 Points ∼25% -4%
GMK NucBox 3
Intel Celeron J4125
430 Points ∼14% -47%
Chuwi UBook CWI509
Intel Celeron N4100
386 Points ∼12% -52%
Blackview AceBook 1
Intel Celeron N4120
376 Points ∼12% -53%
Chuwi LapBook Plus
Intel Atom x7-E3950
272 Points ∼9% -66%
Cinebench R20 / CPU (Single Core)
Intel NUC11TNKi5
Intel Core i5-1135G7
503 Points ∼100% +121%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
473 Points ∼94% +107%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
427 Points ∼85% +87%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
418 Points ∼83% +83%
Beelink SEi8
Intel Core i3-8109U
351 Points ∼70% +54%
Average Intel Celeron N5095
  (228 - 239, n=2)
234 Points ∼47% +3%
Beelink U59 Mini-S
Intel Celeron N5095
228 Points ∼45%
GMK NucBox 3
Intel Celeron J4125
170 Points ∼34% -25%
Blackview AceBook 1
Intel Celeron N4120
159 Points ∼32% -30%
Chuwi UBook CWI509
Intel Celeron N4100
152 Points ∼30% -33%
Chuwi LapBook Plus
Intel Atom x7-E3950
93 Points ∼18% -59%
Cinebench R23 / Multi Core
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
7719 Points ∼100% +258%
Intel NUC11TNKi5
Intel Core i5-1135G7
5098 (4930.91min - 5098.17max) Points ∼66% +136%
Average Intel Celeron N5095
  (2159 - 2219, n=2)
2189 Points ∼28% +1%
Beelink U59 Mini-S
Intel Celeron N5095
2159 (2113.79min - 2158.74max) Points ∼28%
Beelink SEi8
Intel Core i3-8109U
2004 (1983.59min - 2004.09max) Points ∼26% -7%
GMK NucBox 3
Intel Celeron J4125
1186 (1172.17min - 1186.25max) Points ∼15% -45%
Blackview AceBook 1
Intel Celeron N4120
965 (915.042min - 964.764max) Points ∼13% -55%
Cinebench R23 / Single Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1369 Points ∼100% +123%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1217 Points ∼89% +98%
Beelink SEi8
Intel Core i3-8109U
906 Points ∼66% +47%
Average Intel Celeron N5095
  (615 - 621, n=2)
618 Points ∼45% 0%
Beelink U59 Mini-S
Intel Celeron N5095
615 Points ∼45%
GMK NucBox 3
Intel Celeron J4125
438 Points ∼32% -29%
Blackview AceBook 1
Intel Celeron N4120
409 Points ∼30% -33%
Cinebench R15 / CPU Multi 64Bit
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1240 Points ∼100% +246%
Intel NUC11TNKi5
Intel Core i5-1135G7
794 (772.57min - 794.38max) Points ∼64% +122%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
580 Points ∼47% +62%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
522 (504.41min - 521.83max) Points ∼42% +46%
Beelink U59 Mini-S
Intel Celeron N5095
358 (350.25min - 357.53max) Points ∼29%
Beelink SEi8
Intel Core i3-8109U
324 (317.69min - 324.13max) Points ∼26% -9%
Average Intel Celeron N5095
  (221 - 379, n=3)
319 Points ∼26% -11%
Blackview AceBook 1
Intel Celeron N4120
234 (225.47min - 233.66max) Points ∼19% -35%
GMK NucBox 3
Intel Celeron J4125
207 (171.15min - 207.16max) Points ∼17% -42%
Chuwi UBook CWI509
Intel Celeron N4100
175 Points ∼14% -51%
Chuwi LapBook Plus
Intel Atom x7-E3950
125 Points ∼10% -65%
Cinebench R15 / CPU Single 64Bit
Intel NUC11TNKi5
Intel Core i5-1135G7
201 Points ∼100% +111%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
178 Points ∼89% +87%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
167 Points ∼83% +75%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
165 Points ∼82% +73%
Beelink SEi8
Intel Core i3-8109U
124.3 Points ∼62% +30%
Average Intel Celeron N5095
  (95.4 - 109, n=2)
102.2 Points ∼51% +7%
Beelink U59 Mini-S
Intel Celeron N5095
95.4 Points ∼47%
Blackview AceBook 1
Intel Celeron N4120
74.5 Points ∼37% -22%
Chuwi UBook CWI509
Intel Celeron N4100
67 Points ∼33% -30%
GMK NucBox 3
Intel Celeron J4125
63.1 Points ∼31% -34%
Chuwi LapBook Plus
Intel Atom x7-E3950
41 Points ∼20% -57%
Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus
Intel Atom x7-E3950
4564 Seconds * ∼100% -181%
GMK NucBox 3
Intel Celeron J4125
3032 Seconds * ∼66% -87%
Blackview AceBook 1
Intel Celeron N4120
2583 Seconds * ∼57% -59%
Beelink U59 Mini-S
Intel Celeron N5095
1624 Seconds * ∼36%
Average Intel Celeron N5095
  (1516 - 1624, n=2)
1570 Seconds * ∼34% +3%
Beelink SEi8
Intel Core i3-8109U
1328 Seconds * ∼29% +18%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
907 Seconds * ∼20% +44%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
892 Seconds * ∼20% +45%
Intel NUC11TNKi5
Intel Core i5-1135G7
600 Seconds * ∼13% +63%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
479 Seconds * ∼10% +71%
7-Zip 18.03 / 7z b 4
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
33282 MIPS ∼100% +202%
Intel NUC11TNKi5
Intel Core i5-1135G7
23280 MIPS ∼70% +111%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
16971 MIPS ∼51% +54%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
15043 MIPS ∼45% +37%
Average Intel Celeron N5095
  (11013 - 11168, n=2)
11091 MIPS ∼33% +1%
Beelink U59 Mini-S
Intel Celeron N5095
11013 MIPS ∼33%
Beelink SEi8
Intel Core i3-8109U
9489 MIPS ∼29% -14%
Blackview AceBook 1
Intel Celeron N4120
7436 MIPS ∼22% -32%
GMK NucBox 3
Intel Celeron J4125
5694 MIPS ∼17% -48%
Chuwi LapBook Plus
Intel Atom x7-E3950
4569 MIPS ∼14% -59%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC11TNKi5
Intel Core i5-1135G7
4738 MIPS ∼100% +52%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
4362 MIPS ∼92% +40%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4303 MIPS ∼91% +38%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
4014 MIPS ∼85% +28%
Beelink SEi8
Intel Core i3-8109U
3752 MIPS ∼79% +20%
Beelink U59 Mini-S
Intel Celeron N5095
3124 MIPS ∼66%
Average Intel Celeron N5095
  (3111 - 3124, n=2)
3118 MIPS ∼66% 0%
Blackview AceBook 1
Intel Celeron N4120
2412 MIPS ∼51% -23%
GMK NucBox 3
Intel Celeron J4125
2237 MIPS ∼47% -28%
Chuwi LapBook Plus
Intel Atom x7-E3950
1454 MIPS ∼31% -53%
Geekbench 5.3 / 64 Bit Multi-Core Score
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
6243 Points ∼100% +223%
Intel NUC11TNKi5
Intel Core i5-1135G7
4593 Points ∼74% +138%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
3877 Points ∼62% +101%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
3330 Points ∼53% +72%
Beelink U59 Mini-S
Intel Celeron N5095
1933 Points ∼31%
Average Intel Celeron N5095

1933 Points ∼31% 0%
Beelink SEi8
Intel Core i3-8109U
1880 Points ∼30% -3%
GMK NucBox 3
Intel Celeron J4125
1198 Points ∼19% -38%
Geekbench 5.3 / 64 Bit Single-Core Score
Intel NUC11TNKi5
Intel Core i5-1135G7
1396 Points ∼100% +117%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1121 Points ∼80% +74%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1111 Points ∼80% +73%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
1027 Points ∼74% +59%
Beelink SEi8
Intel Core i3-8109U
888 Points ∼64% +38%
Beelink U59 Mini-S
Intel Celeron N5095
644 Points ∼46%
Average Intel Celeron N5095

644 Points ∼46% 0%
GMK NucBox 3
Intel Celeron J4125
462 Points ∼33% -28%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
9.18 fps ∼100% +359%
Intel NUC11TNKi5
Intel Core i5-1135G7
6.63 fps ∼72% +232%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
4.37 fps ∼48% +119%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4.15 fps ∼45% +108%
Beelink SEi8
Intel Core i3-8109U
2.85 fps ∼31% +43%
Average Intel Celeron N5095
  (2 - 2.05, n=2)
2.03 fps ∼22% +2%
Beelink U59 Mini-S
Intel Celeron N5095
2 fps ∼22%
GMK NucBox 3
Intel Celeron J4125
1.26 fps ∼14% -37%
Blackview AceBook 1
Intel Celeron N4120
1.02 fps ∼11% -49%
Chuwi LapBook Plus
Intel Atom x7-E3950
0.98 fps ∼11% -51%
LibreOffice / 20 Documents To PDF
GMK NucBox 3
Intel Celeron J4125
159 s * ∼100% -49%
Blackview AceBook 1
Intel Celeron N4120
157 s * ∼99% -47%
Beelink U59 Mini-S
Intel Celeron N5095
106.5 s * ∼67%
Average Intel Celeron N5095
  (97 - 106.5, n=2)
101.8 s * ∼64% +4%
Beelink SEi8
Intel Core i3-8109U
79 s * ∼50% +26%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
68.8 s * ∼43% +35%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
67.3 s * ∼42% +37%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
62.2 s * ∼39% +42%
Intel NUC11TNKi5
Intel Core i5-1135G7
51.3 s * ∼32% +52%
R Benchmark 2.5 / Overall mean
Blackview AceBook 1
Intel Celeron N4120
1.649 sec * ∼100% -40%
GMK NucBox 3
Intel Celeron J4125
1.525 sec * ∼92% -29%
Beelink U59 Mini-S
Intel Celeron N5095
1.178 sec * ∼71%
Average Intel Celeron N5095
  (1.168 - 1.178, n=2)
1.173 sec * ∼71% -0%
Beelink SEi8
Intel Core i3-8109U
0.861 sec * ∼52% +27%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
0.695 sec * ∼42% +41%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
0.686 sec * ∼42% +42%
Intel NUC11TNKi5
Intel Core i5-1135G7
0.622 sec * ∼38% +47%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
0.616 sec * ∼37% +48%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
358 Points
Cinebench R15 OpenGL 64Bit
25.2 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
95.4 Points
Help
Performance Rating
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
99.8 pt ∼100%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
67 pt ∼67%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
43.3 pt ∼43%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
31.9 pt ∼32%
Average Intel Celeron N5095

31.1 pt ∼31%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30.4 pt ∼30%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
21 pt ∼21%
AIDA64 / FP32 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s ∼100% +439%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
3775 KRay/s ∼56% +203%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
2663 KRay/s ∼40% +114%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1245 KRay/s ∼19% 0%
Average Intel Celeron N5095
  (1244 - 1245, n=2)
1245 KRay/s ∼19% 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1244 KRay/s ∼19%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
726 KRay/s ∼11% -42%
AIDA64 / FPU Julia
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points ∼100% +284%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
20498 Points ∼74% +182%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
12985 Points ∼47% +79%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7466 Points ∼27% +3%
Average Intel Celeron N5095
  (7264 - 7466, n=2)
7365 Points ∼26% +1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7264 Points ∼26%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
4191 Points ∼15% -42%
AIDA64 / CPU SHA3
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s ∼100% +265%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
919 MB/s ∼50% +81%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
629 MB/s ∼34% +24%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
515 MB/s ∼28% +1%
Average Intel Celeron N5095
  (508 - 515, n=2)
512 MB/s ∼28% +1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
508 MB/s ∼27%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
300 MB/s ∼16% -41%
AIDA64 / CPU Queen
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
47528 Points ∼100% +118%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points ∼98% +113%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
23893 Points ∼50% +10%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21959 Points ∼46% +1%
Average Intel Celeron N5095
  (21801 - 21959, n=2)
21880 Points ∼46% 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21801 Points ∼46%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
19745 Points ∼42% -9%
AIDA64 / FPU SinJulia
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points ∼100% +344%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
3766 Points ∼85% +276%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
2152 Points ∼48% +115%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
1107 Points ∼25% +10%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1003 Points ∼23% 0%
Average Intel Celeron N5095
  (1002 - 1003, n=2)
1003 Points ∼23% 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points ∼23%
AIDA64 / FPU Mandel
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points ∼100% +345%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
10030 Points ∼59% +164%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
6615 Points ∼39% +74%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3967 Points ∼23% +4%
Average Intel Celeron N5095
  (3802 - 3967, n=2)
3885 Points ∼23% +2%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3802 Points ∼22%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
2231 Points ∼13% -41%
AIDA64 / CPU AES
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s ∼100% +250%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19099 MB/s ∼29% 0%
Average Intel Celeron N5095
  (19076 - 19099, n=2)
19088 MB/s ∼29% 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19076 MB/s ∼29%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
14698 MB/s ∼22% -23%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
8288 MB/s ∼12% -57%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
8170 MB/s ∼12% -57%
AIDA64 / CPU ZLib
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s ∼100% +99%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
258 MB/s ∼69% +37%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
190 MB/s ∼51% +1%
Average Intel Celeron N5095
  (187.7 - 190, n=2)
188.9 MB/s ∼51% +1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
187.7 MB/s ∼50%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
147.2 MB/s ∼39% -22%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
105 MB/s ∼28% -44%
AIDA64 / FP64 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s ∼100% +439%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
2058 KRay/s ∼57% +206%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
1440 KRay/s ∼40% +114%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s ∼19% 0%
Average Intel Celeron N5095
  (673 - 676, n=2)
675 KRay/s ∼19% 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
673 KRay/s ∼19%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
404 KRay/s ∼11% -40%
AIDA64 / CPU PhotoWorxx
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s ∼100% +128%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
16602 MPixel/s ∼98% +125%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
14060 MPixel/s ∼83% +90%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9294 MPixel/s ∼55% +26%
Average Intel Celeron N5095
  (7386 - 9294, n=2)
8340 MPixel/s ∼49% +13%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7386 MPixel/s ∼44%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
6210 MPixel/s ∼37% -16%

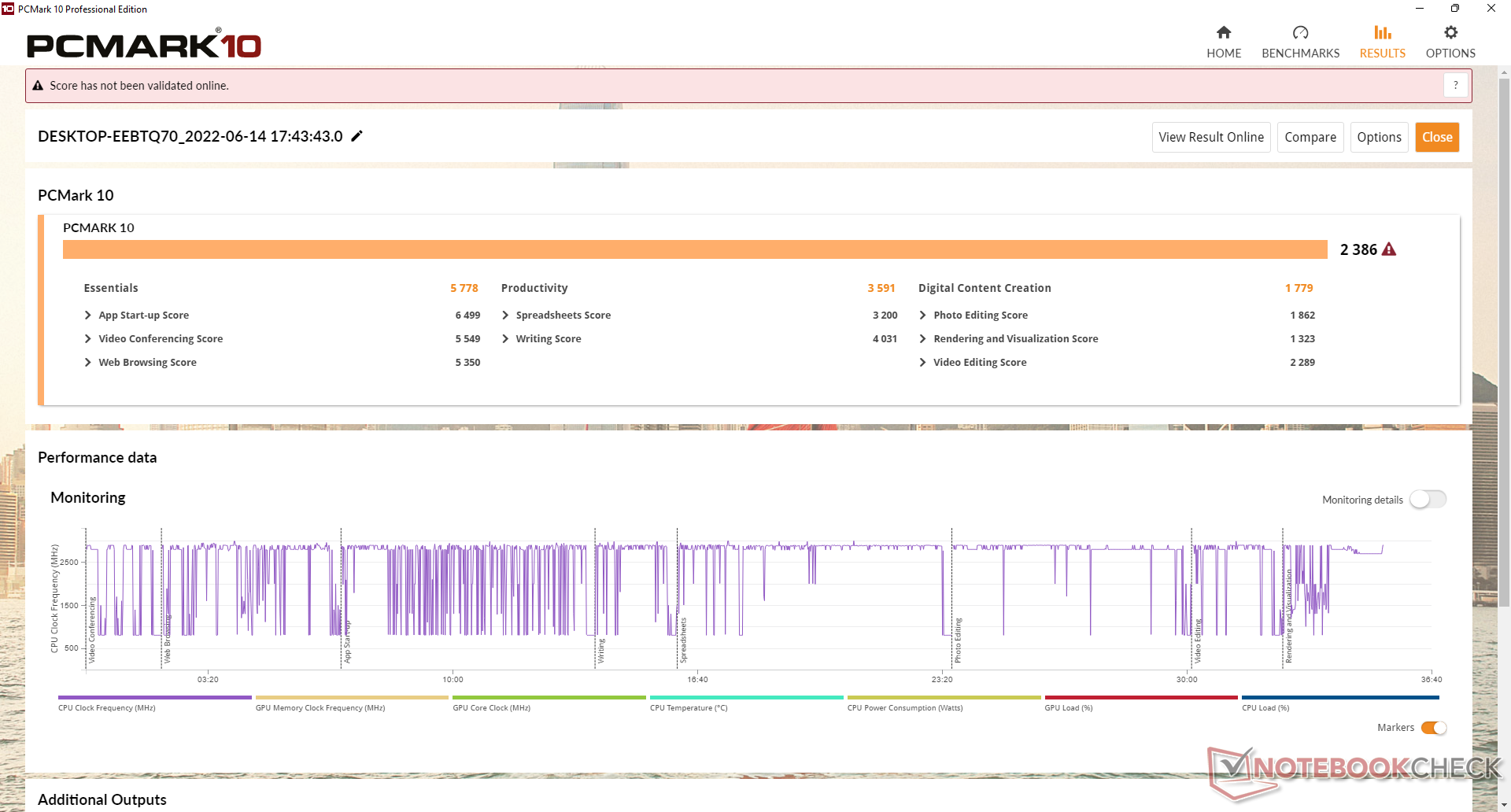

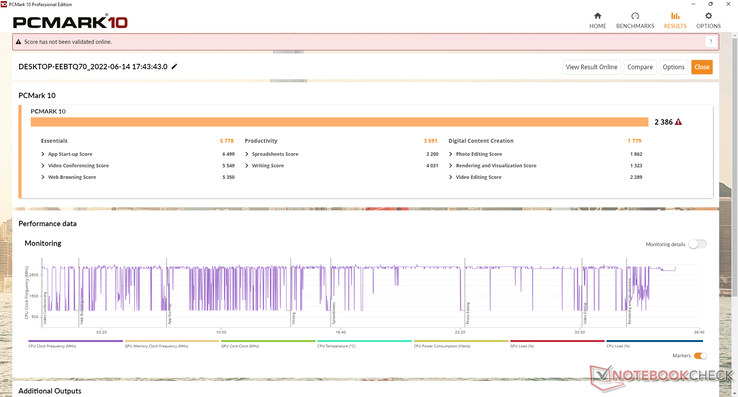

系统性能

PCMark的分数舒适地位于采用较早的赛扬J4125的迷你PC(如GMK NucBox 3)和采用Core i3 CPU的迷你PC(如Beelink SEi8)之间。

PCMark 10 / Score
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points ∼100% +89%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3791 Points ∼84% +59%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
3645 Points ∼81% +53%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
2410 Points ∼53% +1%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (2386 - 2410, n=2)
2398 Points ∼53% +1%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
2386 Points ∼53%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
1707 Points ∼38% -28%
PCMark 10 / Essentials
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points ∼100% +56%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
7861 Points ∼87% +36%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
7787 Points ∼87% +35%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
5874 Points ∼65% +2%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (5778 - 5874, n=2)
5826 Points ∼65% +1%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
5778 Points ∼64%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
4754 Points ∼53% -18%
PCMark 10 / Productivity
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
6333 Points ∼100% +76%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points ∼98% +72%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
6093 Points ∼96% +70%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
3623 Points ∼57% +1%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (3591 - 3623, n=2)
3607 Points ∼57% 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
3591 Points ∼57%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
2958 Points ∼47% -18%
PCMark 10 / Digital Content Creation
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points ∼100% +151%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3000 Points ∼67% +69%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
2746 Points ∼61% +54%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
1787 Points ∼40% 0%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (1779 - 1787, n=2)
1783 Points ∼40% 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
1779 Points ∼40%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
960 Points ∼21% -46%
CrossMark / Overall
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
490 Points ∼100%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)

490 Points ∼100% 0%
CrossMark / Productivity
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
561 Points ∼100%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)

561 Points ∼100% 0%
CrossMark / Creativity
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
434 Points ∼100%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)

434 Points ∼100% 0%
CrossMark / Responsiveness
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
469 Points ∼100%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)

469 Points ∼100% 0%
PCMark 10 Score
2386 points
Help
AIDA64 / Memory Copy
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
33609 MB/s ∼100% +98%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
26641 MB/s ∼79% +57%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
23009 MB/s ∼68% +36%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s ∼68% +35%
Average Intel Celeron N5095
  (16968 - 23009, n=2)
19989 MB/s ∼59% +18%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16968 MB/s ∼50%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
12738 MB/s ∼38% -25%
AIDA64 / Memory Read
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
30907 MB/s ∼100% +82%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
30757 MB/s ∼100% +82%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s ∼81% +47%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16942 MB/s ∼55%
Average Intel Celeron N5095
  (16406 - 16942, n=2)
16674 MB/s ∼54% -2%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16406 MB/s ∼53% -3%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
9928 MB/s ∼32% -41%
AIDA64 / Memory Write
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
34480 MB/s ∼100% +78%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30499 MB/s ∼88% +58%
Average Intel Celeron N5095
  (19340 - 30499, n=2)
24920 MB/s ∼72% +29%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s ∼68% +21%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19340 MB/s ∼56%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
17678 MB/s ∼51% -9%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
10380 MB/s ∼30% -46%
AIDA64 / Memory Latency
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
94.4 ns * ∼100% -63%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * ∼92% -50%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
86.4 ns * ∼92% -49%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
60.2 ns * ∼64% -4%
Average Intel Celeron N5095
  (58 - 60.2, n=2)
59.1 ns * ∼63% -2%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
58 ns * ∼61%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
56 ns * ∼59% +3%

* ... smaller is better

DPC延时

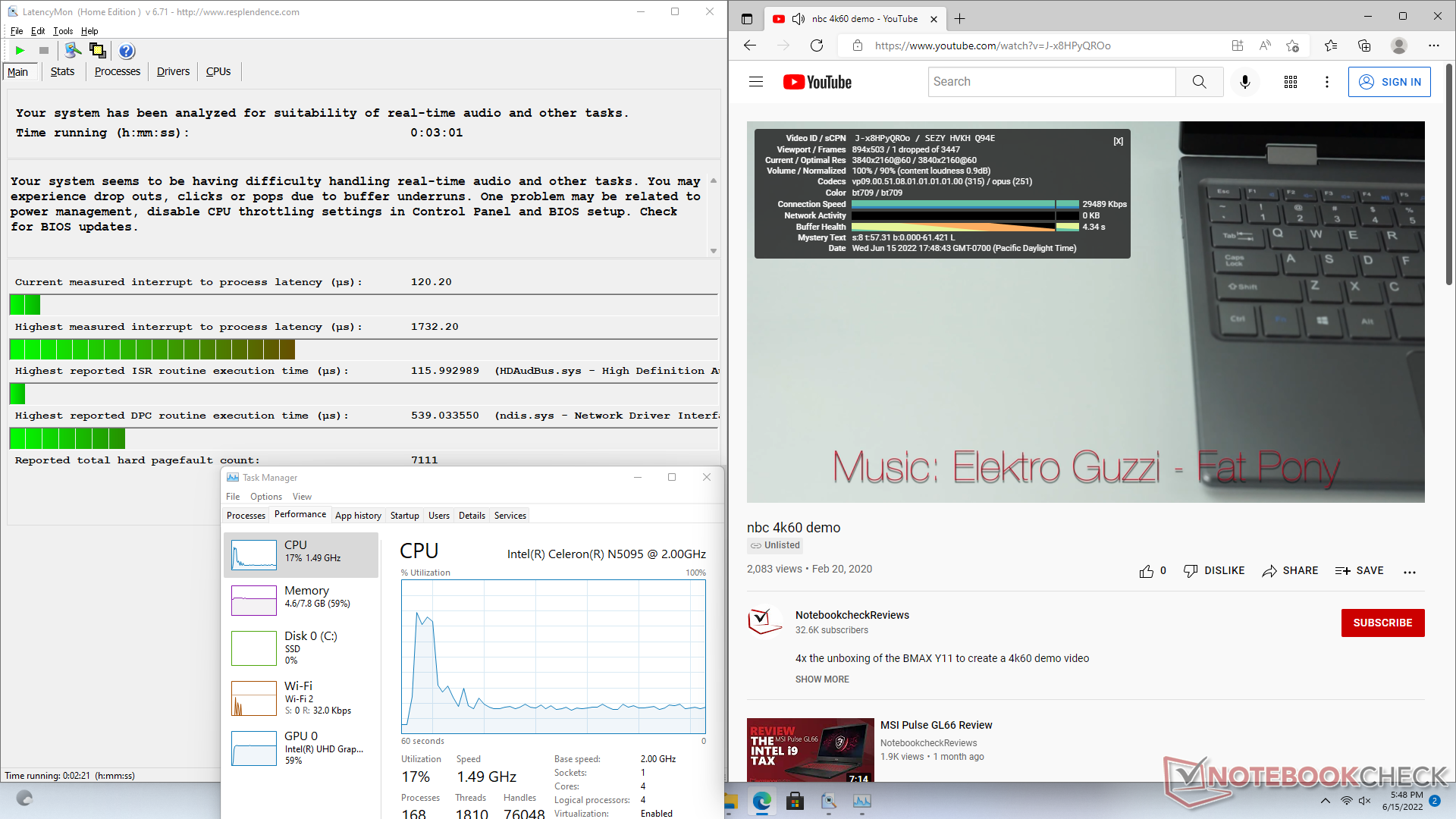

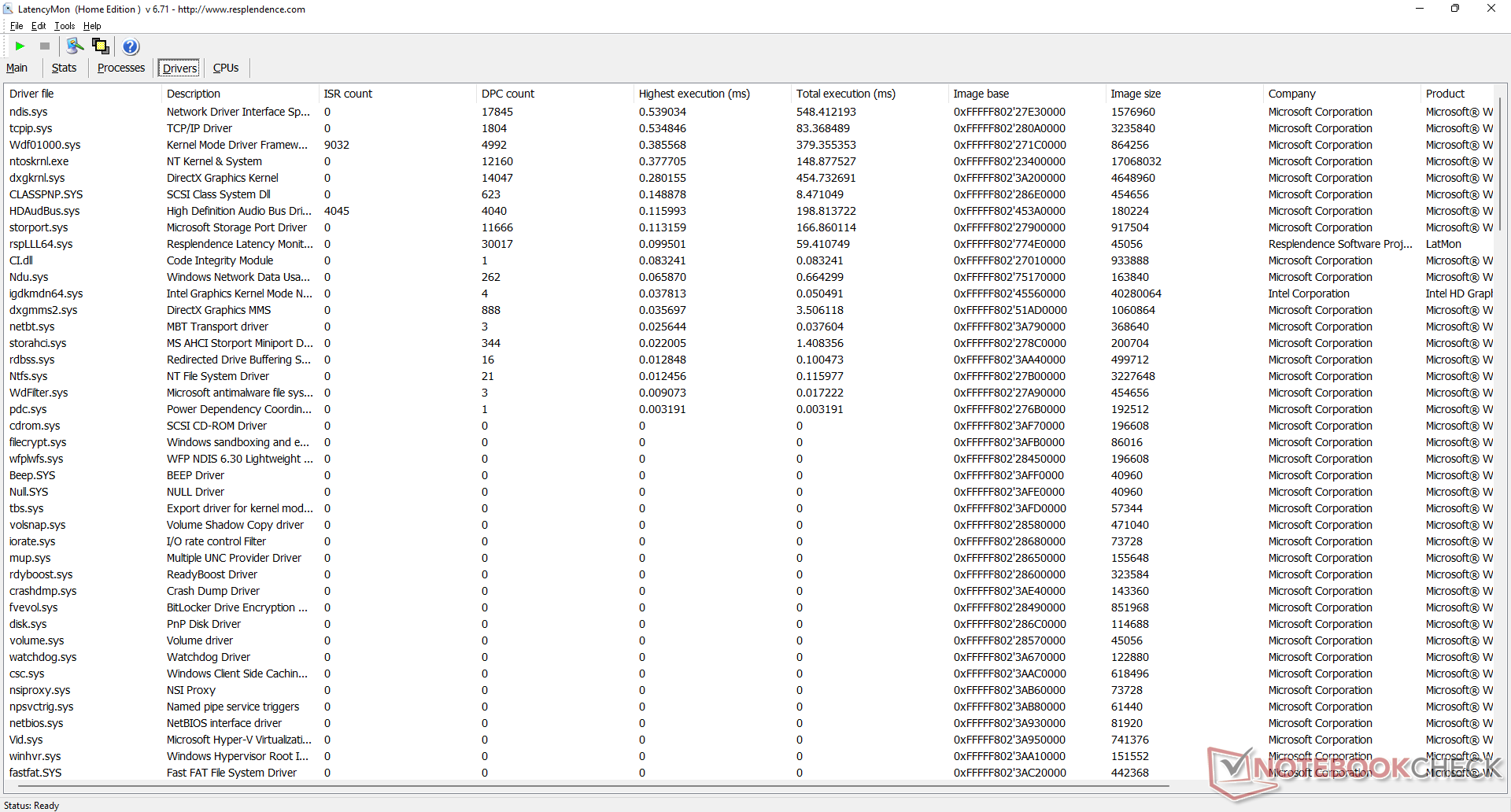

LatencyMon显示了在打开我们的主页的多个浏览器标签时的DPC问题。在我们的测试中,以60 FPS播放4K视频是顺畅的,而且CPU使用率相当低,只有一个丢帧。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
3231 μs * ∼100% -87%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
1913 μs * ∼59% -10%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
1732.2 μs * ∼54%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
765 μs * ∼24% +56%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * ∼16% +70%

* ... smaller is better

存储设备 - 多达两个内部驱动器

我们的设备发货时有一个不常见的硅动AZW 256G M.228 220426SATA III M.2固态硬盘,连续传输率最高约为500MB/s。虽然远不及NVMe解决方案的速度,但考虑到目标用户和赛扬CPU,这已经足够了。

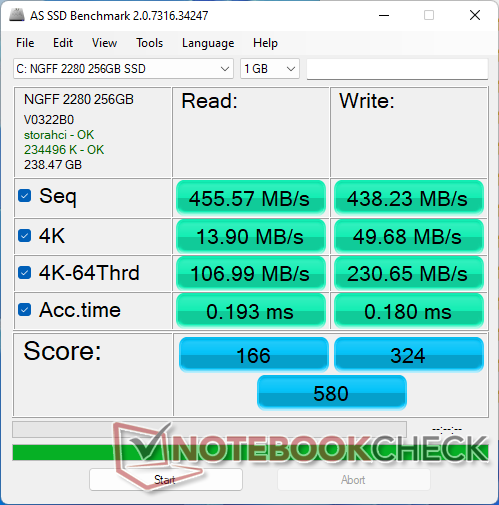

AS SSD
AS SSD

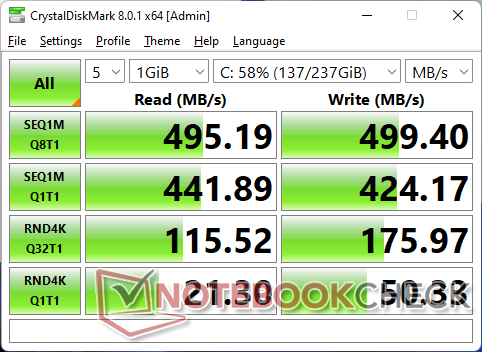

CDM 8
CDM 8
主要的M.2 2280 SATA III插槽。该模型不配备NVMe SSD。
主要的M.2 2280 SATA III插槽。该模型不配备NVMe SSD。
二级2.5英寸SATA III插槽
二级2.5英寸SATA III插槽
Silicon Motion AZW 256G M.228 220426 C SATA 3
CDM 5/6 Read Seq Q32T1: 495.3 MB/s
CDM 5/6 Write Seq Q32T1: 423.4 MB/s
CDM 5/6 Read 4K Q32T1: 140 MB/s
CDM 5/6 Write 4K Q32T1: 166.1 MB/s
CDM 5 Read Seq: 445.2 MB/s
CDM 5 Write Seq: 417.6 MB/s
CDM 5/6 Read 4K: 15.02 MB/s
CDM 5/6 Write 4K: 48.42 MB/s
Drive Performance Rating - Percent
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
94.6 pt ∼95%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
70.3 pt ∼70%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
56.7 pt ∼57%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
45.6 pt ∼46%
Beelink U59
Silicon Motion AZW 512G NV428
41.1 pt ∼41%
GMK NucBox 3
Netac S535N8/256GYN
32 pt ∼32%
DiskSpd
seq read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
734 (717.65min - 733.79max) MB/s ∼100% +57%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s ∼69% +9%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
490 (487.59min - 489.62max) MB/s ∼67% +5%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
468 (410.62min - 468.2max) MB/s ∼64%
Beelink U59
Silicon Motion AZW 512G NV428
402 (394.68min - 401.6max) MB/s ∼55% -14%
GMK NucBox 3
Netac S535N8/256GYN
201 (166.09min - 201.1max) MB/s ∼27% -57%
seq write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
700 (681.36min - 699.61max) MB/s ∼100% +61%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
470 (456.41min - 470.18max) MB/s ∼67% +8%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s ∼67% +7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
435 (387.34min - 434.74max) MB/s ∼62%
Beelink U59
Silicon Motion AZW 512G NV428
304 (291.46min - 304.28max) MB/s ∼43% -30%
GMK NucBox 3
Netac S535N8/256GYN
241 (89.76min - 241.17max) MB/s ∼34% -45%
seq q8 t1 read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
798 (733.79min - 797.55max) MB/s ∼100% +63%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
561 (469.24min - 560.5max) MB/s ∼70% +14%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
544 (436.87min - 543.62max) MB/s ∼68% +11%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
490 (435.79min - 489.54max) MB/s ∼61%
GMK NucBox 3
Netac S535N8/256GYN
484 (173.85min - 484.23max) MB/s ∼61% -1%
Beelink U59
Silicon Motion AZW 512G NV428
448 (407.08min - 448.01max) MB/s ∼56% -9%
seq q8 t1 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
775 (766.03min - 775.03max) MB/s ∼100% +59%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
515 (462.09min - 515.25max) MB/s ∼66% +6%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
504 (500.38min - 503.53max) MB/s ∼65% +3%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
488 (470.29min - 487.93max) MB/s ∼63%
Beelink U59
Silicon Motion AZW 512G NV428
295 (288.36min - 294.82max) MB/s ∼38% -40%
GMK NucBox 3
Netac S535N8/256GYN
235 (21.18min - 234.88max) MB/s ∼30% -52%
4k q1 t1 read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
57.1 (51.23min - 57.13max) MB/s ∼100% +257%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
40.1 (39.9min - 40.06max) MB/s ∼70% +151%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
21.6 (20.05min - 21.62max) MB/s ∼38% +35%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
16 (13.05min - 15.97max) MB/s ∼28%
Beelink U59
Silicon Motion AZW 512G NV428
13 (11.34min - 13.03max) MB/s ∼23% -19%
GMK NucBox 3
Netac S535N8/256GYN
7.53 (4.83min - 7.53max) MB/s ∼13% -53%
4k q1 t1 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
145.3 (143.17min - 145.33max) MB/s ∼100% +210%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
104 (103.95min - 104.38max) MB/s ∼72% +122%
GMK NucBox 3
Netac S535N8/256GYN
57.7 (45.42min - 57.74max) MB/s ∼40% +23%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
46.9 (43.93min - 46.94max) MB/s ∼32%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
46.4 (45.57min - 46.37max) MB/s ∼32% -1%
Beelink U59
Silicon Motion AZW 512G NV428
41.3 (26.85min - 41.32max) MB/s ∼28% -12%
4k q32 t16 read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
394 (375.15min - 393.85max) MB/s ∼100% +141%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
347 (346.15min - 346.94max) MB/s ∼88% +113%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285 (283.99min - 284.61max) MB/s ∼72% +75%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
163.2 (153.74min - 163.17max) MB/s ∼41%
Beelink U59
Silicon Motion AZW 512G NV428
136 (135.53min - 136max) MB/s ∼35% -17%
GMK NucBox 3
Netac S535N8/256GYN
88.1 (46.77min - 88.09max) MB/s ∼22% -46%
4k q32 t16 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
517 (500.32min - 517.03max) MB/s ∼100% +147%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
330 (329.53min - 329.95max) MB/s ∼64% +58%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
307 (253.88min - 307.24max) MB/s ∼59% +47%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
209 (190.39min - 209.23max) MB/s ∼40%
GMK NucBox 3
Netac S535N8/256GYN
164 (0.14min - 163.91max) MB/s ∼32% -22%
Beelink U59
Silicon Motion AZW 512G NV428
113 (106.48min - 113.38max) MB/s ∼22% -46%
AS SSD
Score Total
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
1386 Points ∼100% +139%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
1023 Points ∼74% +76%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
839 Points ∼61% +45%
Beelink U59
Silicon Motion AZW 512G NV428
615 Points ∼44% +6%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
580 Points ∼42%
GMK NucBox 3
Netac S535N8/256GYN
490 Points ∼35% -16%
Score Read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
457 Points ∼100% +175%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
449 Points ∼98% +170%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
304 Points ∼67% +83%
Beelink U59
Silicon Motion AZW 512G NV428
198 Points ∼43% +19%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
166 Points ∼36%
GMK NucBox 3
Netac S535N8/256GYN
151 Points ∼33% -9%
Score Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
687 Points ∼100% +112%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
375 Points ∼55% +16%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
324 Points ∼47% 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
324 Points ∼47%
Beelink U59
Silicon Motion AZW 512G NV428
321 Points ∼47% -1%
GMK NucBox 3
Netac S535N8/256GYN
256 Points ∼37% -21%
Seq Read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
700.68 MB/s ∼100% +54%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
527 MB/s ∼75% +16%
Beelink U59
Silicon Motion AZW 512G NV428
512 MB/s ∼73% +12%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
507 MB/s ∼72% +11%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
455.57 MB/s ∼65%
GMK NucBox 3
Netac S535N8/256GYN
391 MB/s ∼56% -14%
Seq Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
640.31 MB/s ∼100% +46%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
469 MB/s ∼73% +7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
438.23 MB/s ∼68%
GMK NucBox 3
Netac S535N8/256GYN
423.2 MB/s ∼66% -3%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
413.8 MB/s ∼65% -6%
Beelink U59
Silicon Motion AZW 512G NV428
364.5 MB/s ∼57% -17%
4K Read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
55.28 MB/s ∼100% +298%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
36.75 MB/s ∼66% +164%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
20.41 MB/s ∼37% +47%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
13.9 MB/s ∼25%
GMK NucBox 3
Netac S535N8/256GYN
11.78 MB/s ∼21% -15%
Beelink U59
Silicon Motion AZW 512G NV428
10.74 MB/s ∼19% -23%
4K Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
128.45 MB/s ∼100% +159%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
88.5 MB/s ∼69% +78%
GMK NucBox 3
Netac S535N8/256GYN
49.71 MB/s ∼39% 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
49.68 MB/s ∼39%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
42.52 MB/s ∼33% -14%
Beelink U59
Silicon Motion AZW 512G NV428
30.16 MB/s ∼23% -39%
4K-64 Read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
369.4 MB/s ∼100% +245%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
323.95 MB/s ∼88% +203%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
231.4 MB/s ∼63% +116%
Beelink U59
Silicon Motion AZW 512G NV428
135.7 MB/s ∼37% +27%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
106.99 MB/s ∼29%
GMK NucBox 3
Netac S535N8/256GYN
100.4 MB/s ∼27% -6%
4K-64 Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
494.85 MB/s ∼100% +115%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285.3 MB/s ∼58% +24%
Beelink U59
Silicon Motion AZW 512G NV428
254.3 MB/s ∼51% +10%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
230.65 MB/s ∼47%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
193.7 MB/s ∼39% -16%
GMK NucBox 3
Netac S535N8/256GYN
163.7 MB/s ∼33% -29%
Access Time Read
GMK NucBox 3
Netac S535N8/256GYN
0.256 ms * ∼100% -33%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.193 ms * ∼75%
Beelink U59
Silicon Motion AZW 512G NV428
0.173 ms * ∼68% +10%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.124 ms * ∼48% +36%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
0.103 ms * ∼40% +47%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
0.102 ms * ∼40% +47%
Access Time Write
GMK NucBox 3
Netac S535N8/256GYN
0.374 ms * ∼100% -108%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.269 ms * ∼72% -49%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.18 ms * ∼48%
Beelink U59
Silicon Motion AZW 512G NV428
0.174 ms * ∼47% +3%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
0.136 ms * ∼36% +24%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
0.095 ms * ∼25% +47%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0255075100125150175200225250275300325350375400425450475Tooltip
: Ø485 (394.52-487.59)

GPU性能 - 对游戏来说太慢了

图形性能很差,其结果甚至低于古老的UHD Graphics 62050%以上。不要指望能够运行最不需要的3D游戏,因为这款特殊的迷你电脑更多的是为FHD或4K视频流而设计。

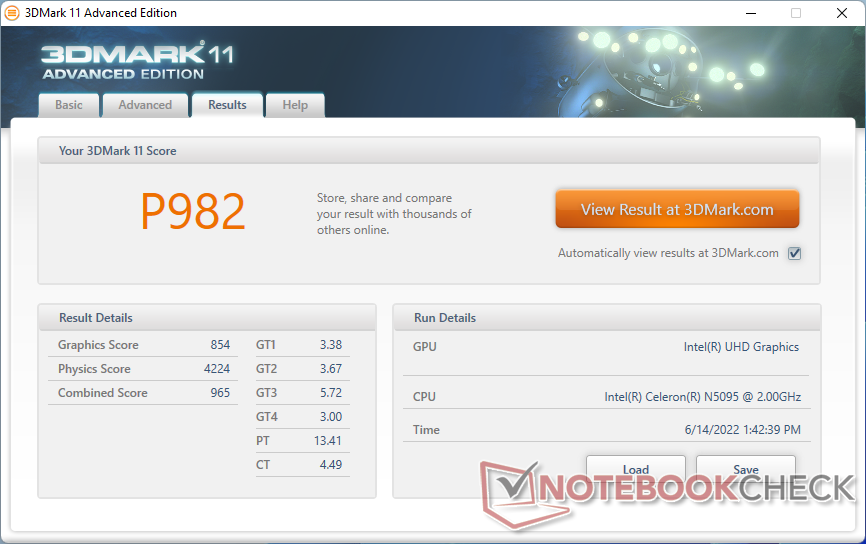

3DMark 11
3DMark 11

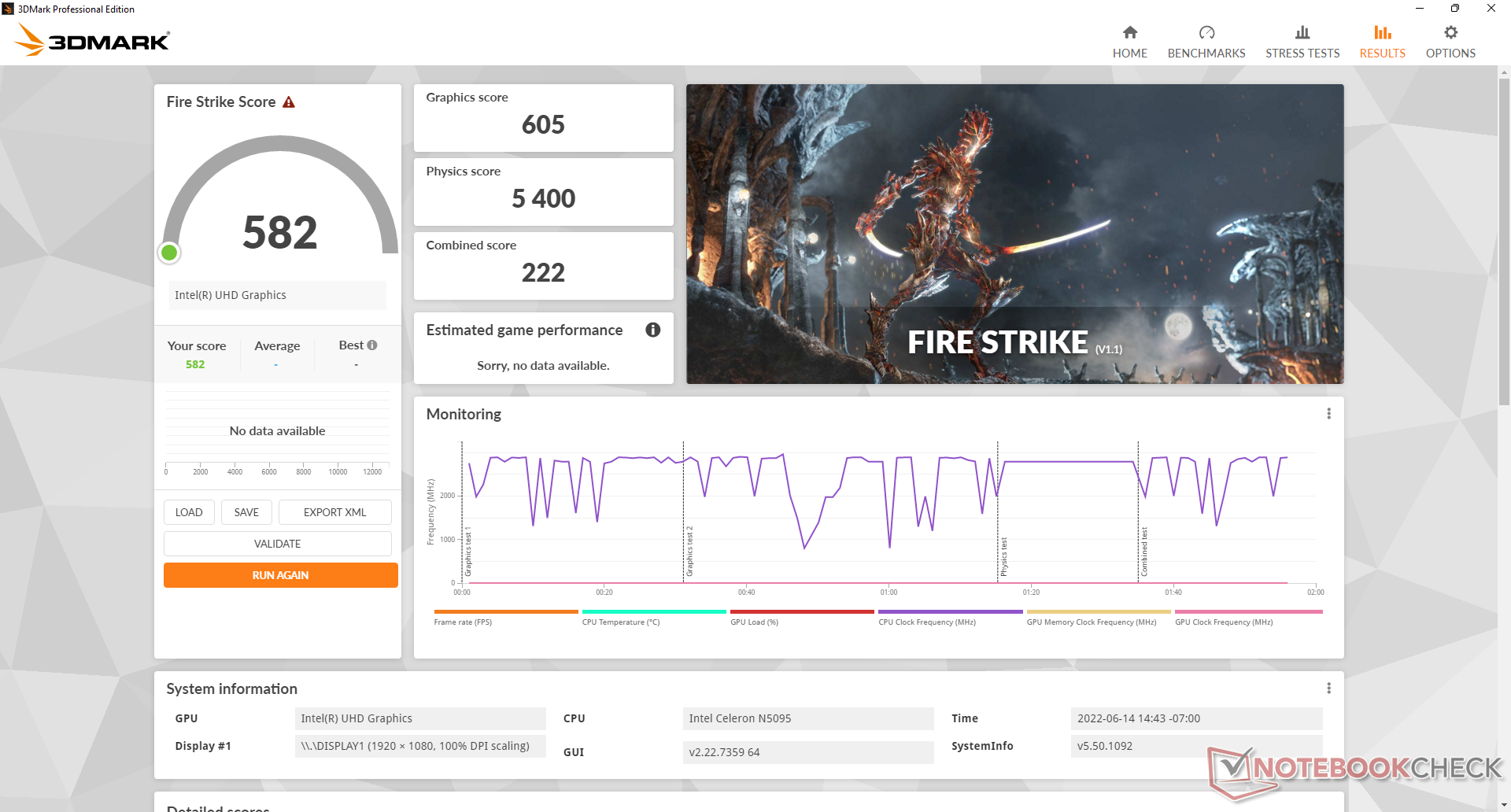

Fire Strike
Fire Strike

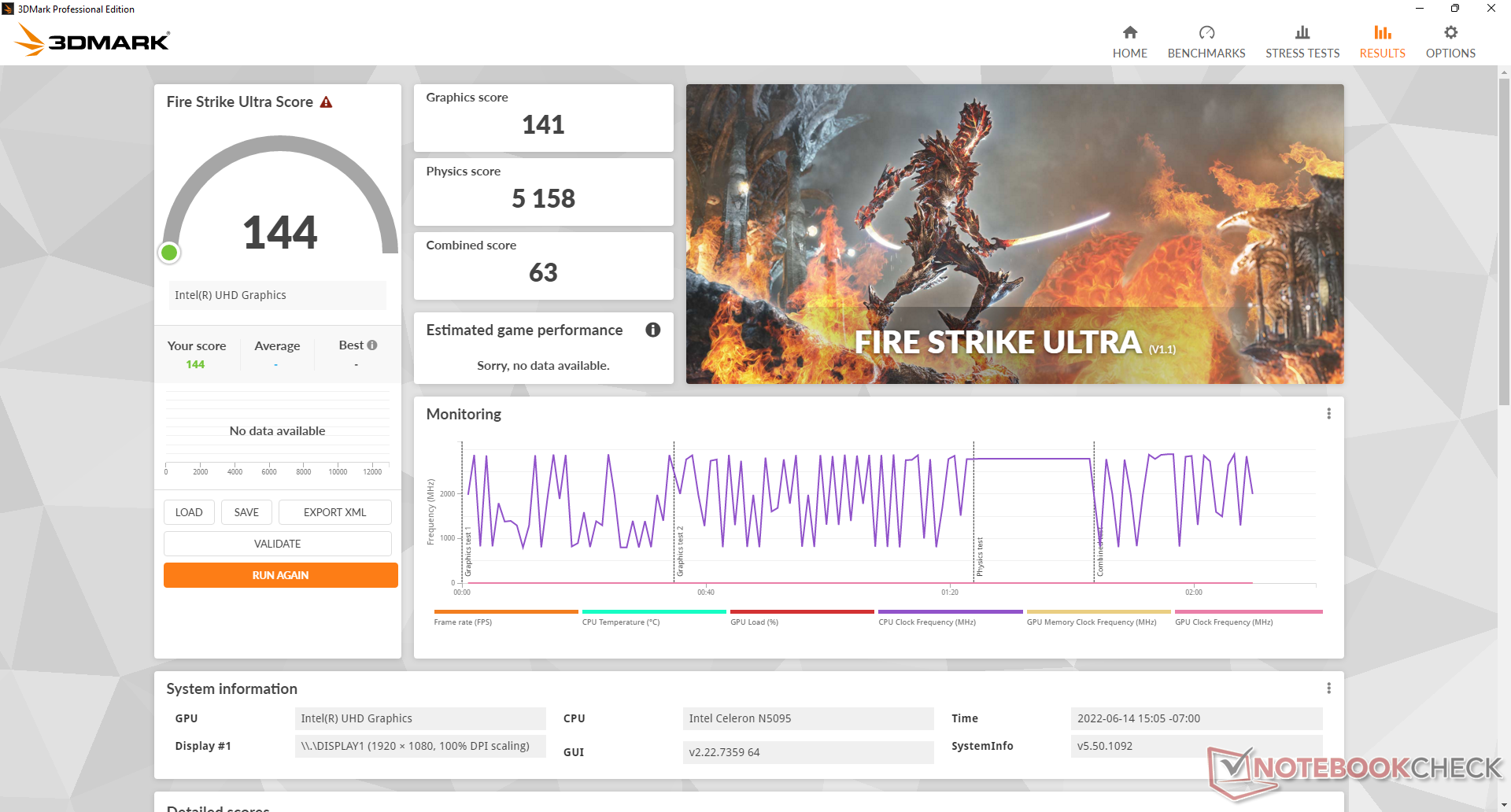

Fire Strike 超强
Fire Strike 超强

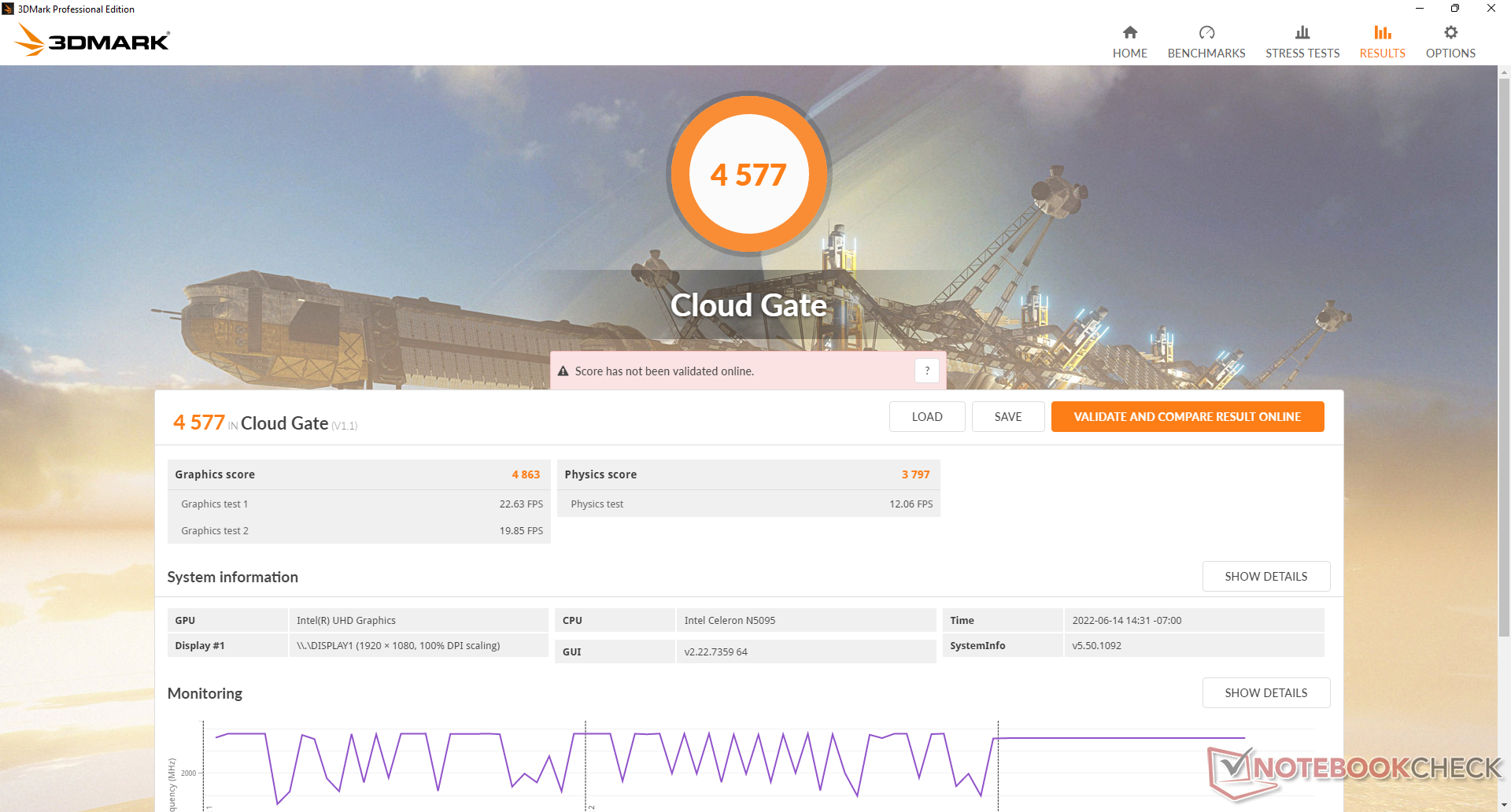

Cloud Gate
Cloud Gate
Time Spy
Time Spy

3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
25431 Points ∼100% +423%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
19330 Points ∼76% +297%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
18282 Points ∼72% +276%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
13022 Points ∼51% +168%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
10077 Points ∼40% +107%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, Intel Core i5-10210U
10057 Points ∼40% +107%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4863 Points ∼19%
Average Intel UHD Graphics (Jasper Lake 16 EU)
  (4210 - 5212, n=4)
4789 Points ∼19% -2%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
3997 Points ∼16% -18%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
3441 Points ∼14% -29%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
3057 Points ∼12% -37%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
2453 Points ∼10% -50%
1920x1080 Fire Strike Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
3579 Points ∼100% +492%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3152 Points ∼88% +421%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
2438 Points ∼68% +303%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
1715 Points ∼48% +183%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1283 Points ∼36% +112%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, Intel Core i5-10210U
1232 Points ∼34% +104%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
605 Points ∼17%
Average Intel UHD Graphics (Jasper Lake 16 EU)
  (392 - 679, n=4)
582 Points ∼16% -4%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
436 Points ∼12% -28%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
378 Points ∼11% -38%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
371 Points ∼10% -39%
2560x1440 Time Spy Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
1076 Points ∼100% +522%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1031 Points ∼96% +496%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
733 Points ∼68% +324%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
569 Points ∼53% +229%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
403 Points ∼37% +133%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
173 Points ∼16%
Average Intel UHD Graphics (Jasper Lake 16 EU)
  (129 - 182, n=3)
161.3 Points ∼15% -7%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
142 Points ∼13% -18%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
102 Points ∼9% -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
99 Points ∼9% -43%

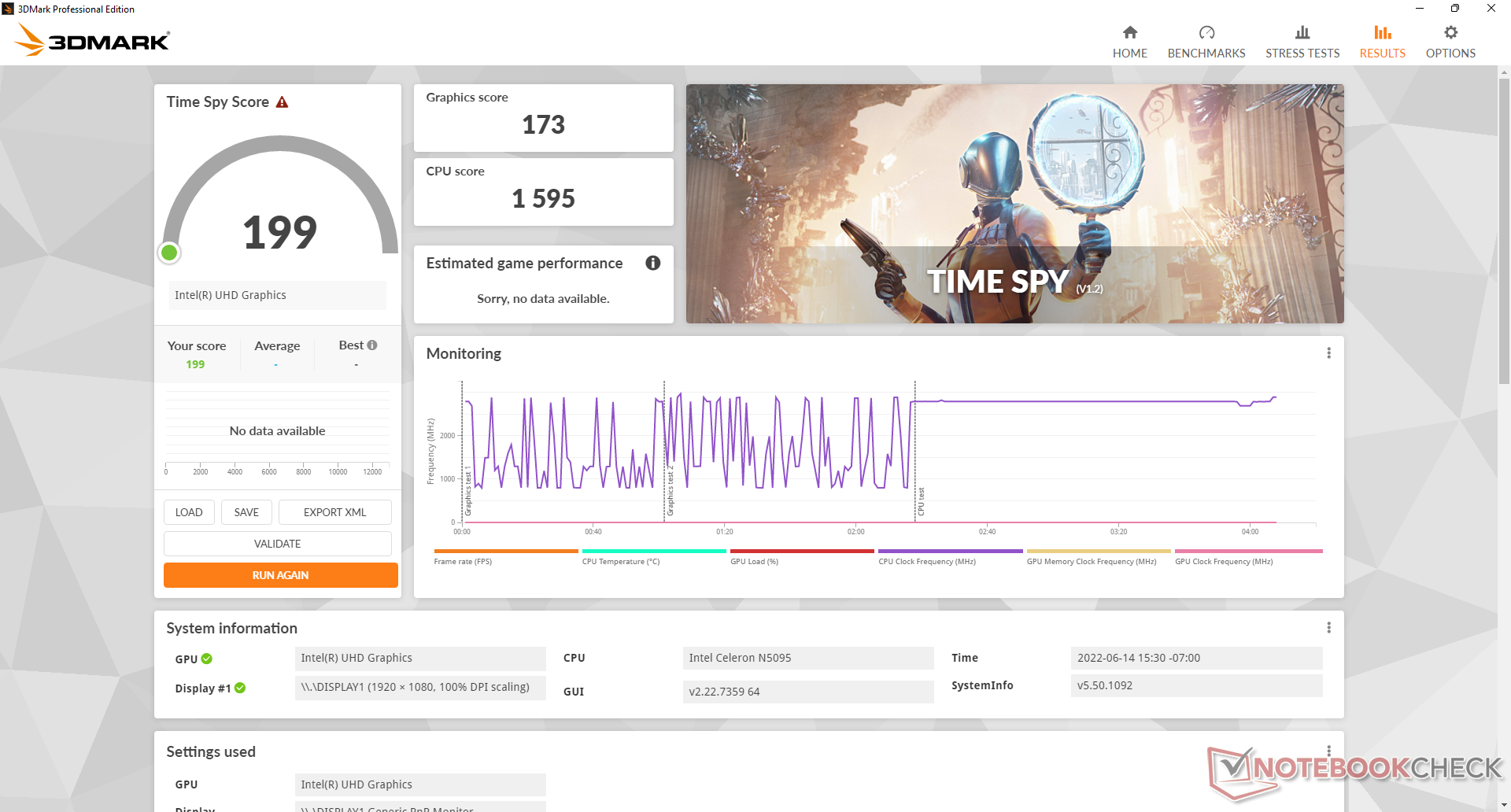

2560x1440 Time Spy Score
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
1221 Points ∼100% +514%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1161 Points ∼95% +483%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
825 Points ∼68% +315%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
636 Points ∼52% +220%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
462 Points ∼38% +132%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
199 Points ∼16%
Average Intel UHD Graphics (Jasper Lake 16 EU)
  (145 - 210, n=3)
184.7 Points ∼15% -7%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
161 Points ∼13% -19%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
117 Points ∼10% -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
113 Points ∼9% -43%
3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
5346 Points ∼100% +526%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5221 Points ∼98% +511%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
3535 Points ∼66% +314%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
2801 Points ∼52% +228%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1858 Points ∼35% +118%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
854 Points ∼16%
Average Intel UHD Graphics (Jasper Lake 16 EU)
  (554 - 894, n=4)
792 Points ∼15% -7%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
765 Points ∼14% -10%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
583 Points ∼11% -32%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
508 Points ∼10% -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
429 Points ∼8% -50%
3DMark 11 Performance
982 points
3DMark Cloud Gate Standard Score
4577 points
3DMark Fire Strike Score
582 points
3DMark Time Spy Score
199 points
Help
low med. high ultra
Dota 2 Reborn (2015) 58.3 20.7 11.6 10.8
Final Fantasy XV Benchmark (2018) 6.86
X-Plane 11.11 (2018) 13.3 7.54 7.07

排放

系统噪音 - 在大多数情况下都很安静

虽然该模型不是被动冷却的,但在实践中也是如此,因为在大多数负载中,风扇是闲置的或几乎听不到。例如,当运行3DMark 06的第一个基准场景时,在23 dB(A)的安静背景下,风扇噪音只有25 dB(A)左右。结果比我们在Beelink SEi8或英特尔NUC11上观察到的要安静得多,它们的硬件性能都更强大。

当CPU在Prime95下受到压力时,我们能够记录到34 dB(A)。当浏览或视频流的时间较长时,预计风扇噪音将在31 dB(A)范围内徘徊。

风扇噪音曲线(白色:背景,红色:系统空闲,蓝色:3DMark 06,绿色:Prime95压力)。
风扇噪音曲线(白色:背景,红色:系统空闲,蓝色:3DMark 06,绿色:Prime95压力)。

Noise Level

Idle
24.2 / 24.2 / 24.2 dB(A)
Load
25.1 / 33.9 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 23.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.340.636.439.22531.22929.9323124.623.52725.74022.322.52123.45023.324.823.324.16329.629.424.529.88024.223.826.323.210020.420.421.421.312519.918.615.618.616016.515.114.416.920016.815.915.527.925015.915.413.129.831518.41714.518.540017.416.216.118.550013.112.811.918.36301312.31217.780012.29.89.919.9100013.29.59.223.61250119.39.820.7160010.79.99.622200011.110.11023.2250011.610.310.226.4315011.110.710.725.1400011.2111117.8500011.511.211.312.7630011.711.511.512800012.712.511.512.7100001716.911.516.91250018.717.411.418.91600013.712.910.613.8SPL25.124.223.333.9N0.60.50.51.8median 13.1median 12.5median 11.5median 18.6Delta2.82.91.93.1hearing rangehide median Fan NoiseBeelink U59 Mini-S
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
Noise
-19%
-39%
-9%
-36%
off / environment *
23.3
24.5
-5%
24.8
-6%
24.5
-5%
27.8
-19%
Idle Minimum *
24.2
26.5
-10%
35.6
-47%
24.5
-1%
27.8
-15%
Idle Average *
24.2
26.5
-10%
35.6
-47%
24.5
-1%
33.9
-40%
Idle Maximum *
24.2
31.1
-29%
35.6
-47%
28.6
-18%
33.9
-40%
Load Average *
25.1
37.7
-50%
36.2
-44%
29.7
-18%
43.7
-74%
Load Maximum *
33.9
37.5
-11%
47.6
-40%
37.6
-11%
43.7
-29%
Witcher 3 ultra *
38
30.4

* ... smaller is better

温度

表面温度比预期的要高,即使在桌面上空转时,顶部的温度也高达40 C。当运行高要求的负载时,顶部的热点会略微上升到43摄氏度。空转的表面温度高,可以归因于在低处理负载时风扇空转,以保持系统尽可能的安静,直到需要风扇。

系统空闲(正面)
系统空闲(正面)
系统空闲(背面)
系统空闲(背面)
Prime95压力(前)。
Prime95压力(前)。
Prime95压力(背部)
Prime95压力(背部)

压力测试

系统空闲
系统空闲

运行Prime95会导致CPU时钟速率和温度分别飙升至2.8 GHz和87 C。为了保持87摄氏度的核心温度,时钟频率在很短的时间内最终会下降到2.5至2.6GHz。在测试开始时,CPU的功耗将高达16W,然后由于散热限制而稳定在13W。

Prime95压力
Prime95压力
Prime95+FurMark压力
Prime95+FurMark压力
CPU时钟(GHz) GPU时钟(MHz) CPU平均温度(°C)
系统空闲 -- -- 57
Prime95压力 2.6 -- 87
Prime95 + FurMark Stress 2.3 -- 86

能源管理 - 非常有效

消耗功率

在没有运行任何应用程序的情况下,该设备在桌面上空转时的耗电量约为7至8W,这比采用11代酷睿i5处理器的英特尔NUC11或采用10代酷睿i5处理器的NUC11更有效。 Zotac ZBox Nano.当运行游戏等更高要求的负载时,该系统平均只需18瓦,而上述英特尔和Zotac型号则分别为41瓦或33瓦。当然,Beelink Mini-S的GPU性能明显较慢,因此,较低的电力需求是可以预期的。

我们能够从小型(约7.9 x 4.8 x 3.4厘米)的36瓦交流适配器上测量到最大功耗为27瓦。这与原版U59的适配器相同。

Power Consumption
Off / Standbydarklight 1.3 / 0.66 Watt
Idledarkmidlight 7 / 7 / 7.6 Watt
Load midlight 18.3 / 27.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3, , x,
Beelink SEi8
i3-8109U, Iris Plus Graphics 655, Intel SSD 660p SSDPEKNW512G8, , x,
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 512G NV428, , x,
GMK NucBox 3
Celeron J4125, UHD Graphics 600, Netac S535N8/256GYN, , x,
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620, Western Digital WD Blue 3D WDBNCE5000PNC, , x,
Power Consumption
-43%
-101%
6%
42%
-56%
Idle Minimum *
7
7.5
-7%
11.5
-64%
6.7
4%
3
57%
8.9
-27%
Idle Average *
7
7.6
-9%
12.4
-77%
6.7
4%
3.1
56%
9
-29%
Idle Maximum *
7.6
9.2
-21%
12.9
-70%
7.4
3%
3.6
53%
9.9
-30%
Load Average *
18.3
41.1
-125%
40.7
-122%
16
13%
11.1
39%
33
-80%
Load Maximum *
27.1
41.4
-53%
73.5
-171%
25.6
6%
25.4
6%
58
-114%
Witcher 3 ultra *
43.9
13.1

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

No graph data

Power Consumption external Monitor

0510152025Tooltip
; Prime95 V28,10 Stress (external Monitor): Ø24.2 (22.9-27.1)
; Cinebench R15 Multi (external Monitor): Ø23 (20.9-23.9)
; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø14.7 (14.2-17.2)

Pros

+ 在大多数情况下都很安静
+ 支持2个内部存储
+ 两个视频输出
+ 价格低廉

Cons

- 没有SD卡读卡器或USB-C
- 只有单通道RAM
- 短的交流适配器电缆
- 缓慢的Wi-Fi

结论 - 适用于预算型HTPC设置

审查中。Beelink U59 Mini-S.测试装置由Beelink提供
审查中。Beelink U59 Mini-S.测试装置由Beelink提供

Beelink U59 Mini-S仅售200多美元,是你能找到的最便宜的迷你电脑之一,它满载内存、存储和Windows 11。在这么低的价格下,对于不愿意多花几百美元购买更快的Core ix驱动的迷你电脑,并且不愿意满足于Chromecast、Roku或Amazon Fire TV等数字媒体软件的用户来说,Mini-S可以是一个不错的选择。赛扬N5905并不是特别快,但它仍然比任何Atom选项更快,可以实现相对更流畅的操作和60FPS的优秀4K视频流。

Mini-S的显著亮点除了其经济性之外,还包括内部双存储选项和非常安静的风扇噪音。

有很多需要注意的角落,主要与该模型的功能不足有关。没有SD读卡器、USB-C、Wi-Fi 6或双通道内存。交流适配器的电线也有点短,只有大约1米。值得庆幸的是,这些挫折并没有对核心HTPC的体验造成太大影响。

价格和可用性

Beelink U59 Mini-S是,现在在亚马逊上有售。应用目前的优惠券后售价209美元,或通过Beelink官方网站售价229美元。.

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Beelink U59 Mini-S迷你电脑评论。超便宜的英特尔NUC HTPC替代品
Allen Ngo, 2022-06-20 (Update: 2022-06-20)
