Zotac ZBOX PI336 pico回顾。配备英特尔赛扬N6211和4GB内存的口袋电脑

沉默的迷你电脑! 在ZBOX PI336 pico的标签下,Zotac销售非常紧凑的台式电脑,可以很容易地放入你的裤袋。然而,目前基于Elkhart Lake SOC的模型并不总是令人信服。在这篇评论中,我们将通过大量的基准测试来了解Zotac ZBOX PI336 pico与英特尔赛扬N6211的性能如何。
Desktop Intel Mini PC

除了著名的GeForce 显卡外,Zotac还通过ZBOX系列提供了许多紧凑的台式电脑。在pico系列中,Zotac将一台完整的PC装在一个0.18升的小箱子里。这大约是传统DVD机箱的一半大小。没有主动冷却,这也意味着只使用了非常高效的组件。该SoC被称为英特尔赛扬N6211,属于Elkhart Lake系列。由于其低TDP,该SoC非常适用于这种使用场景。在工作内存方面,有4GB,不能扩展。存储方案也是固定的,只提供128GB。这款紧凑的电脑售价为370欧元(约378美元),包括Windows 11 Pro。像往常一样,Zotac提供36个月的保修期,注册后可选择延长至60个月。

ZBOX PI336 pico
Processor
Intel Celeron N6211 2 x 1.2 - 3 GHz, 20 W PL2 / Short Burst, 6 W PL1 / Sustained, Elkhart Lake
Graphics adapter
Intel UHD Graphics (Elkhart Lake 16 EU), Core: 750 MHz
Memory
4096 MB
, DDR4-3200 MT/s, soldered in
Storage
SanDisk DF4128, 128 GB
, 70 GB free
Soundcard
Realtek High Definition Audio
Connections
4 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, Card Reader: Micro SDHC/SDXC
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Wi-Fi 6E AX210 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.2
Size
height x width x depth (in mm): 20.7 x 115 x 76
Operating System
Microsoft Windows 11 Pro
Additional features

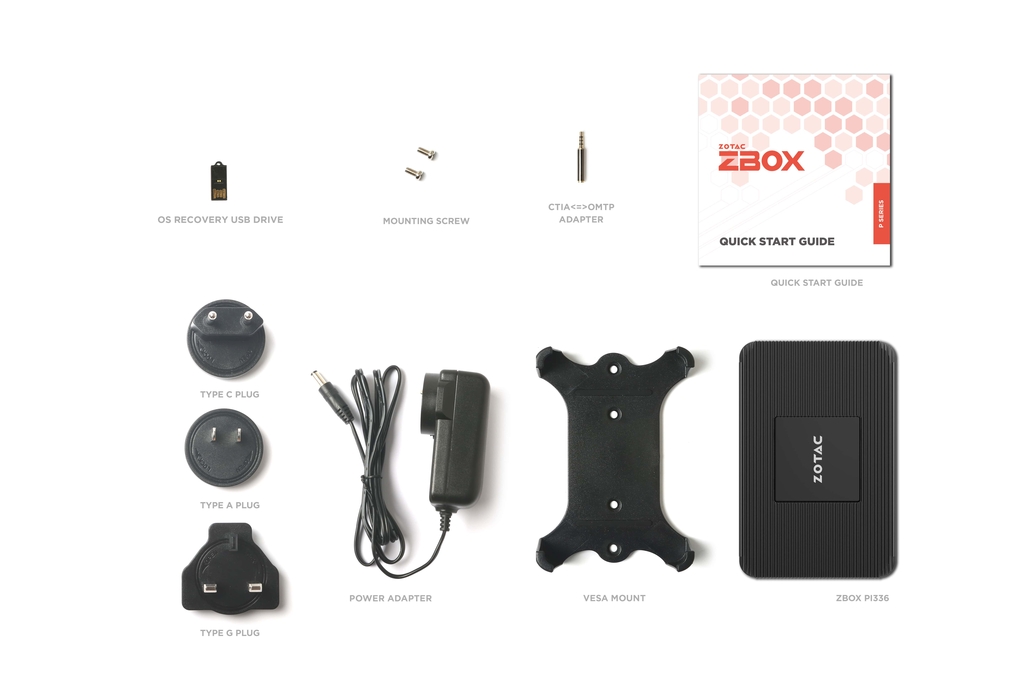

AC adapter, mounting bracket, USB drive with O/S recovery, 36 Months Warranty
Weight
293 g, Power Supply: 138 g
Price
370 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Zotac ZBOX PI336 pico的详细介绍

案例

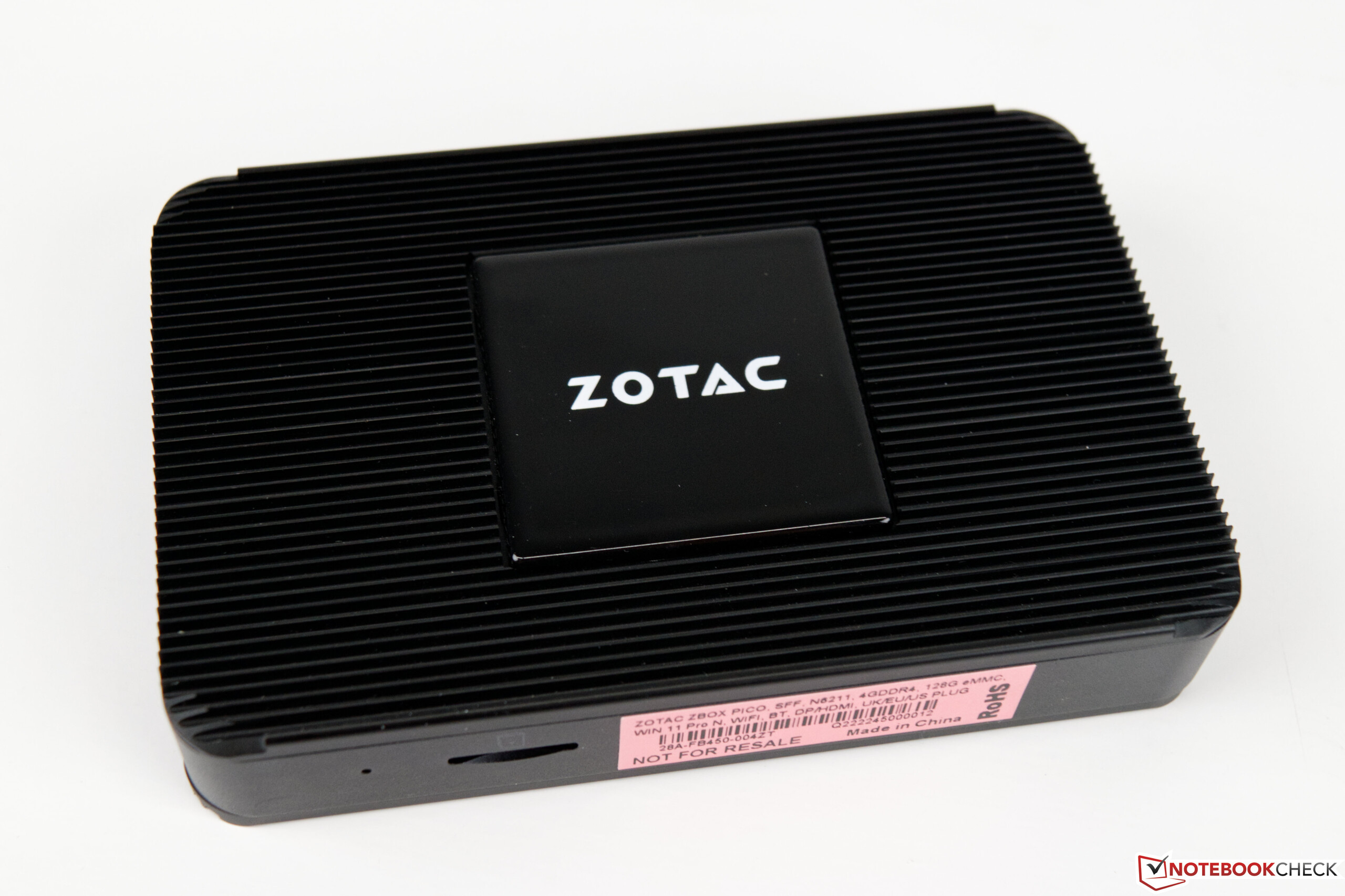

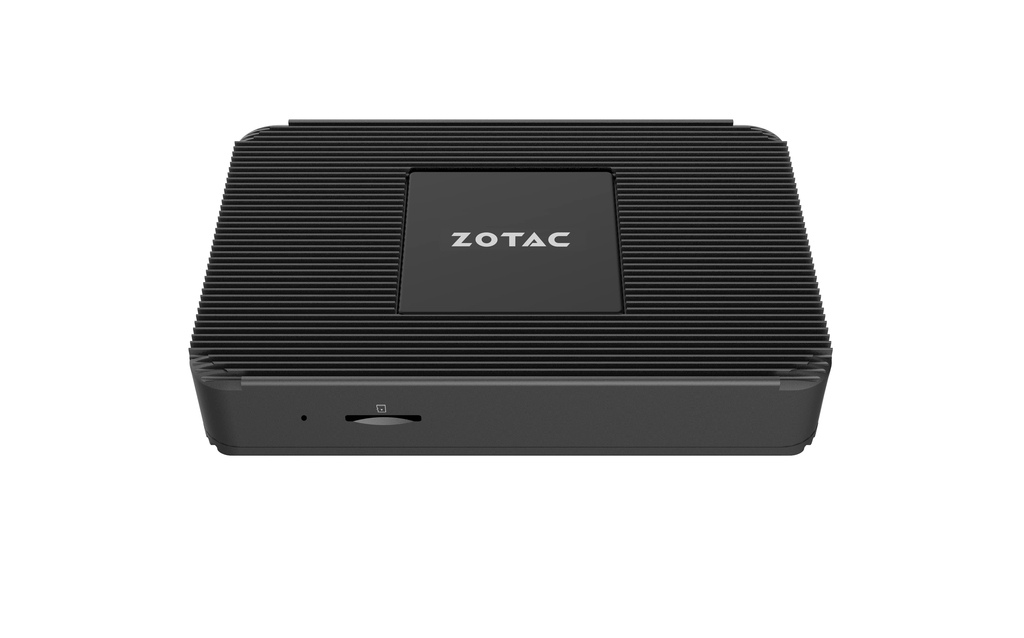

Zotac ZBOX PI336 pico完全保持黑色。铝制外壳也作为冷却元件,也导致其表面结构。从视觉和触觉上看,该设备似乎具有很高的质量,由于其紧凑的外壳,该迷你PC也非常坚固。那些不想把电脑直接放在桌子上的人,也可以用附带的VESA支架把它直接固定在显示器上。

Zotac ZBOX PI336 pico仅有300克(约10.6盎司),非常轻,而20瓦的电源又增加了140克(约5盎司)。

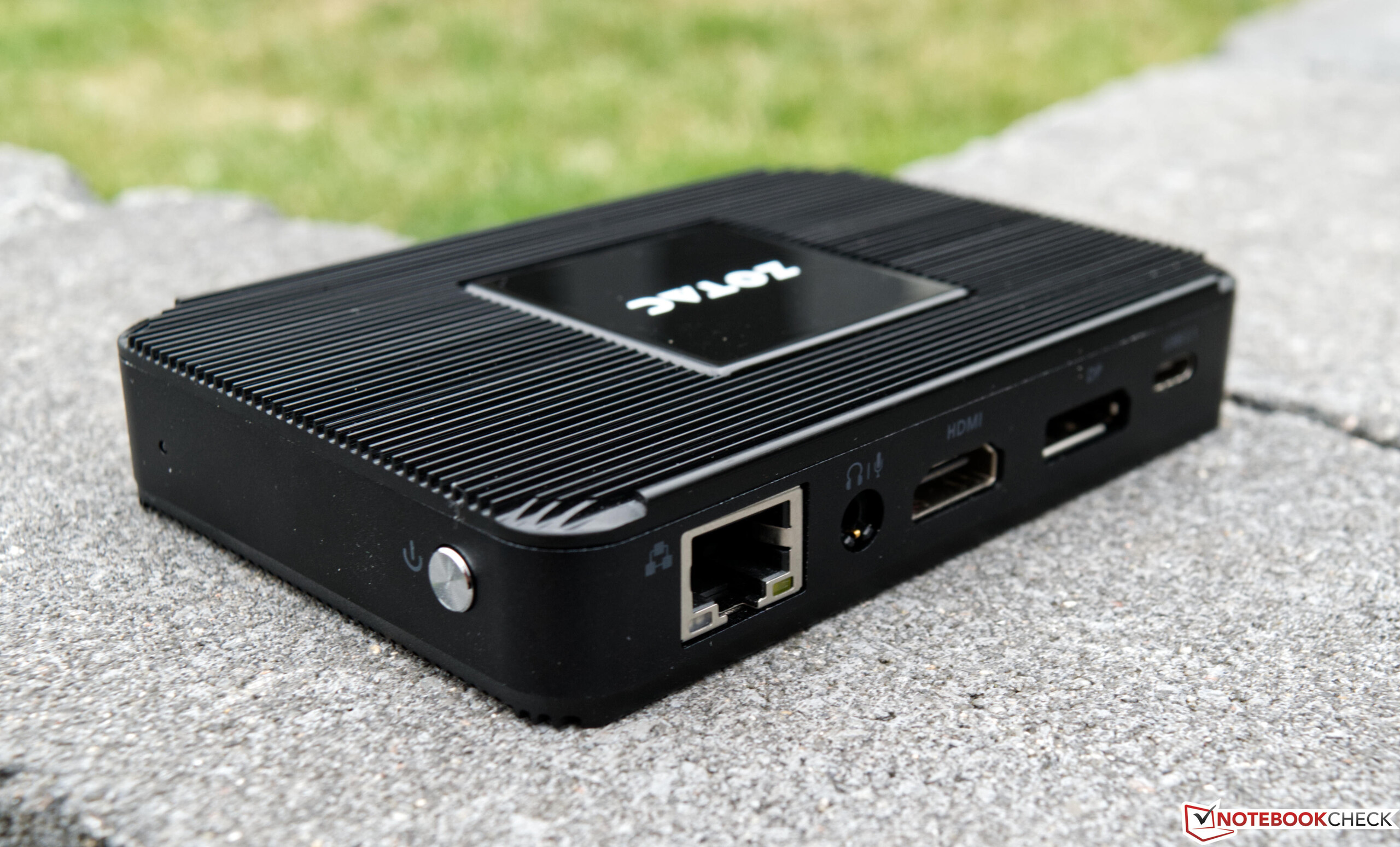

连接设备

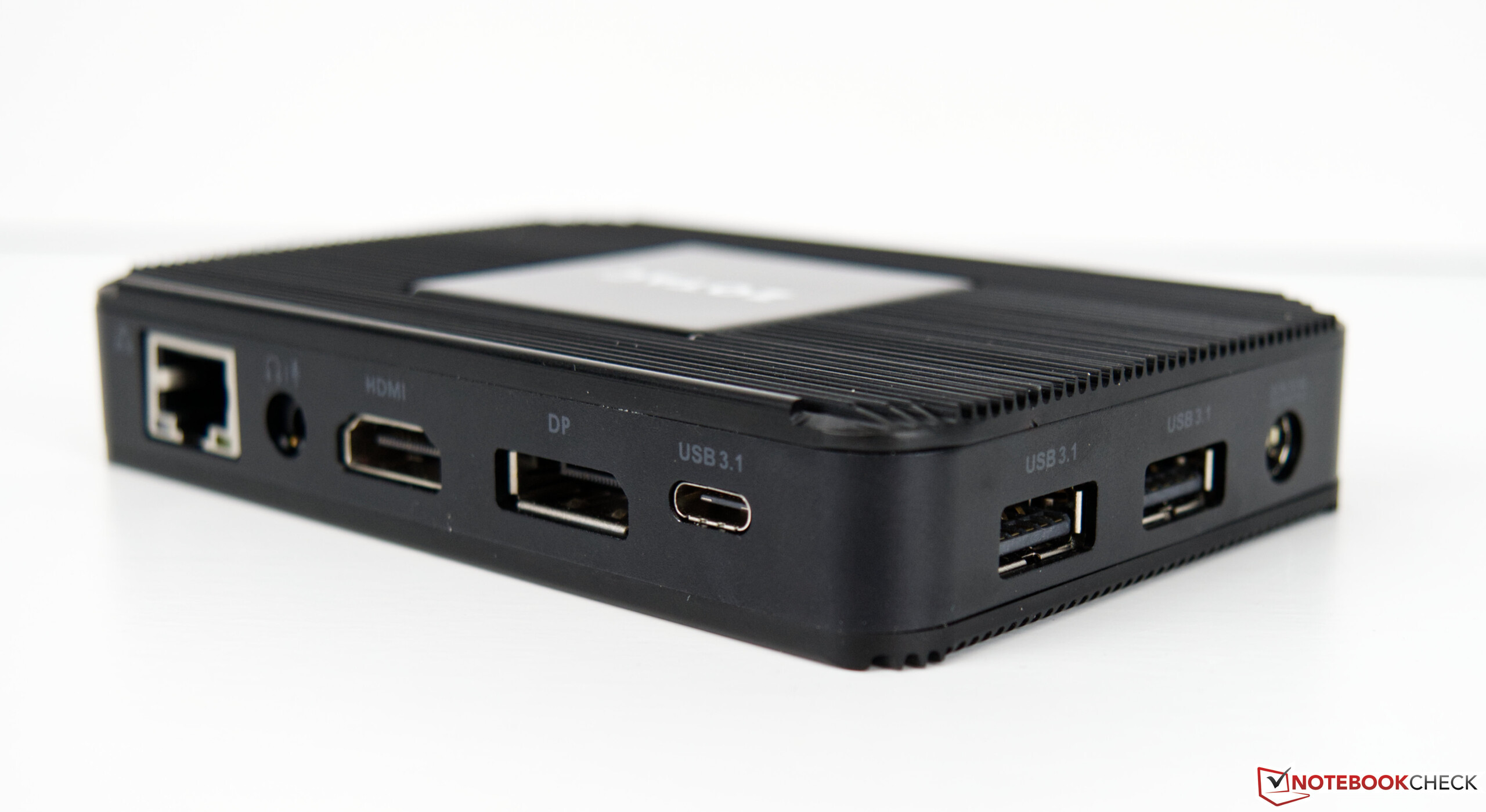

考虑到其微小的尺寸,Zotac ZBOX PI336 pico配备了良好的连接设备。三个USB 3.1连接足以满足普通办公用户的需求,单个USB Type-C连接也使用3.1标准。然而,不幸的是,这不能用于充电。WLAN和LAN,以及一个SD读卡器也是可用的,你可以使用HDMI和DisplayPort同时连接两个显示器。

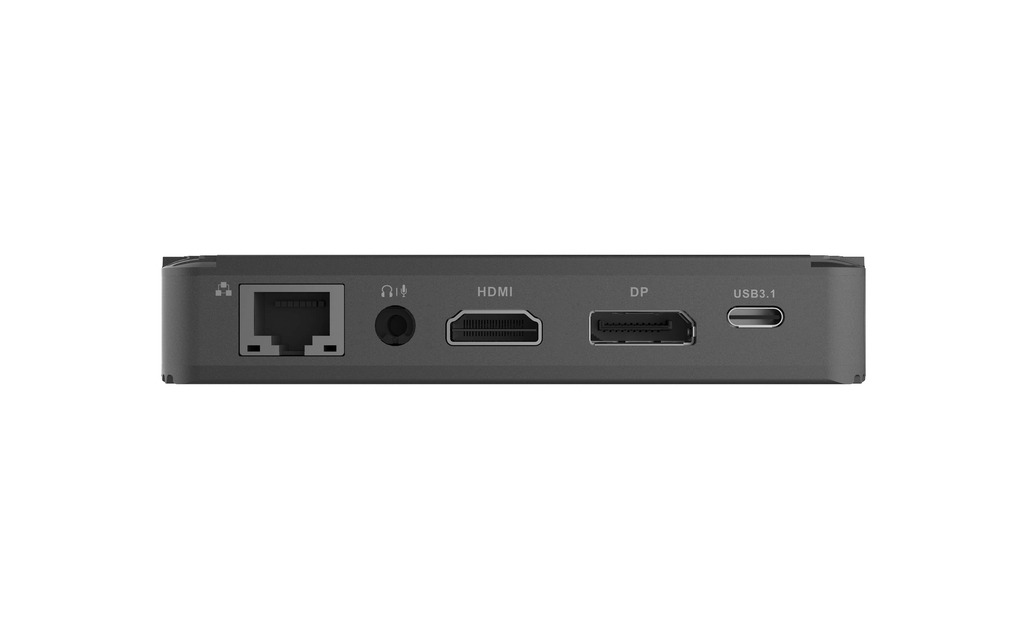

RJ45(10/100/1000以太网),耳机/麦克风组合端口,HDMI 2.0,DisplayPort 1.4,USB 3.1(1 Type-C)。
RJ45(10/100/1000以太网),耳机/麦克风组合端口,HDMI 2.0,DisplayPort 1.4,USB 3.1(1 Type-C)。

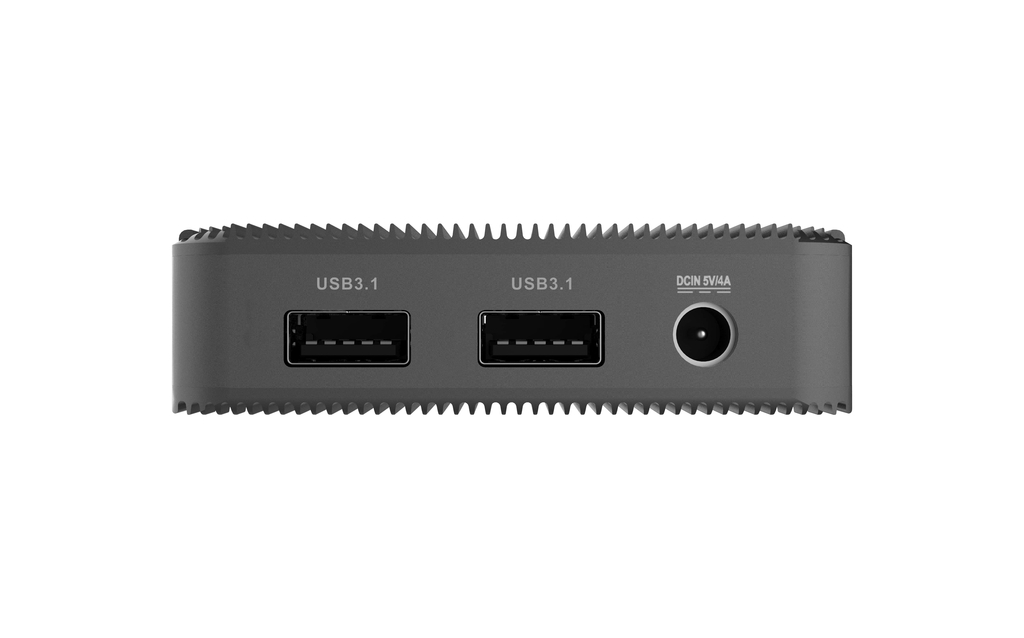

2个USB 3.1(Type-A),电源端口
2个USB 3.1(Type-A),电源端口

SD卡阅读器

虽然内置的microSD读卡器提供了USB-3速度,但它无法使用我们的测试卡(AV Pro SD microSD 128 GB V60)的全部性能。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Desktop
  (17 - 197, n=15, last 2 years)
83.6 MB/s ∼100% +242%
Zotac ZBOX PI336 pico
Intel Celeron N6211 (AV PRO MICROSD V60)
24.44 MB/s ∼29%
AC6-M Mini-PC
Intel Celeron J4125 (AV PRO MICROSD V60)
18.46 MB/s ∼22% -24%
Newsmay AC8 N6005
Intel Pentium Silver N6005 (AV Pro SD microSD 128 GB V60)
17.02 MB/s ∼20% -30%
maximum AS SSD Seq Read Test (1GB)
Average of class Desktop
  (17.7 - 223, n=15, last 2 years)
95.5 MB/s ∼100% +130%
Zotac ZBOX PI336 pico
Intel Celeron N6211 (AV PRO MICROSD V60)
41.45 MB/s ∼43%
AC6-M Mini-PC
Intel Celeron J4125 (AV PRO MICROSD V60)
21.03 MB/s ∼22% -49%
Newsmay AC8 N6005
Intel Pentium Silver N6005 (AV Pro SD microSD 128 GB V60)
17.7 MB/s ∼19% -57%

沟通

Zotac在ZBOX PI336 pico中使用了一个非常现行的Wi-Fi模块。英特尔Wi-Fi 6E AX210在测试中产生了非常好的传输速率,而且在6GHz频段也能工作,只要路由器支持。RJ-45连接代表了WLAN模块的替代方案,提供高达1 Gbps的传输速率。

Networking
iperf3 receive AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1848 (1731min - 1888max) MBit/s ∼100% +1%
Zotac ZBOX PI336 pico
Intel Wi-Fi 6E AX210
1827 (1760min - 1865max) MBit/s ∼99%
Average Intel Wi-Fi 6E AX210
  (1460 - 1827, n=3)
1586 MBit/s ∼86% -13%
Average of class Desktop
  (430 - 1851, n=8, last 2 years)
1196 MBit/s ∼65% -35%
Minisforum EliteMini TH50
MediaTek MT7921
776 (482min - 881max) MBit/s ∼42% -58%
iperf3 transmit AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1851 (1799min - 1897max) MBit/s ∼100% +34%
Zotac ZBOX PI336 pico
Intel Wi-Fi 6E AX210
1385 (1351min - 1401max) MBit/s ∼75%
Average Intel Wi-Fi 6E AX210
  (1299 - 1385, n=3)
1341 MBit/s ∼72% -3%
Average of class Desktop
  (572 - 1696, n=8, last 2 years)
1190 MBit/s ∼64% -14%
Minisforum EliteMini TH50
MediaTek MT7921
866 (502min - 950max) MBit/s ∼47% -37%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550160016501700175018001850Tooltip
; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1385 (1351-1401)
; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1827 (1760-1865)

担保

根据保修条件,在购买Zotac ZBOX PI336 pico时,Zotac为欧洲、中东、非洲和印度的国家提供36个月的保修。那些在购买后向制造商注册设备的人还可以免费将保修期延长到60个月。

业绩

处理器

这里使用的英特尔赛扬N6211提供了一个非常低的性能,只足以满足最简单的办公任务。相应地,我们的测试装置只在我们的测试领域中处于低端。即使是AC6-M迷你电脑也能经常明显超过Zotac的PI336 pico。问题往往在于有限的4GB内存,这妨碍了更好和更流畅的操作。

另一方面,该SoC的基本时钟速度为1.2GHz,如果条件允许,在Turbo操作中最高可达3.0GHz。在我们的测试装置中,PL值为6和20瓦,但从未达到20瓦。 在我们的实际测试中,Zotac ZBOX PI336 pico在不断保持PL1方面已经出现了一些问题,因此我们应该只看到在负载下不断达到约1.7GHz。

你可以在我们的 "CPU比较表 "中找到更多的比较和基准。 CPU比较表.

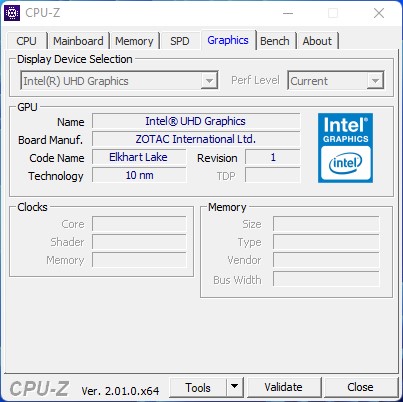

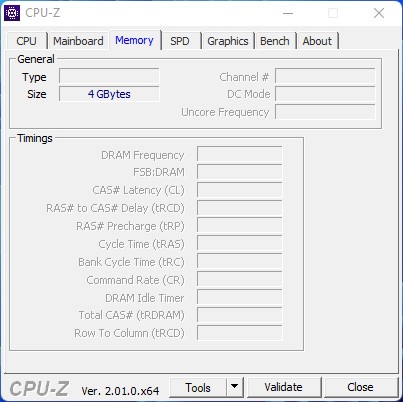

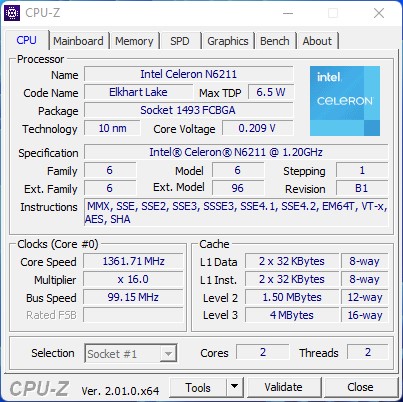

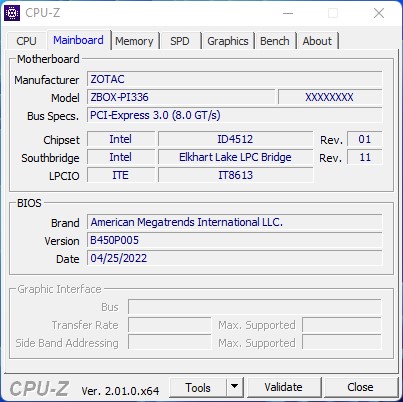

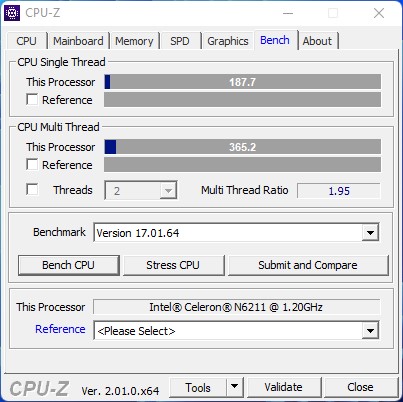

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

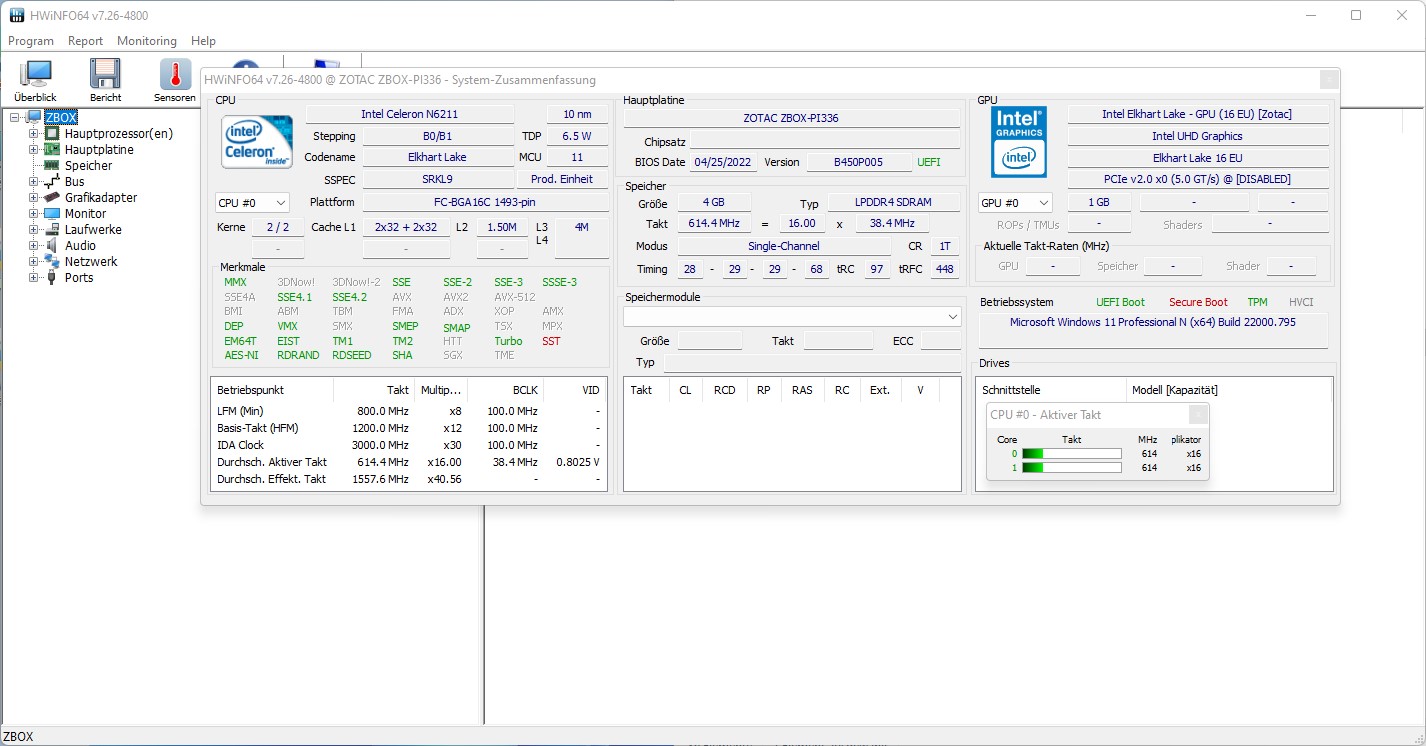

HWiNFO
Cinebench R15
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
242 Points ∼83% +218%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
240 Points ∼82% +216%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
212 Points ∼73% +179%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
162 Points ∼55% +113%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
123 Points ∼42% +62%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
77 Points ∼26% +1%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
76 Points ∼26%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
75.3 Points ∼26% -1%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2224 Points ∼23% +1638%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1919 (1862.02min - 1893.4max) Points ∼20% +1399%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
950 Points ∼10% +642%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
319 Points ∼3% +149%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
316 Points ∼3% +147%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
248 Points ∼3% +94%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
243 (199.13min - 242.53max) Points ∼3% +90%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
128 Points ∼1%
Cinebench R20
CPU (Single Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
582 Points ∼72% +234%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
567 Points ∼70% +226%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
560 Points ∼69% +222%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
401 Points ∼50% +130%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
266 Points ∼33% +53%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
174 Points ∼21%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
171 Points ∼21% -2%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
161 Points ∼20% -7%
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5185 Points ∼22% +1719%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4495 Points ∼19% +1477%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
2319 Points ∼10% +714%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
743 Points ∼3% +161%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
720 Points ∼3% +153%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
556 Points ∼2% +95%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
304 Points ∼1% +7%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
285 Points ∼1%
Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2.86 Points ∼9% +195%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2.8 Points ∼9% +189%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
2.51 Points ∼8% +159%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1.87 Points ∼6% +93%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.47 Points ∼5% +52%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.97 Points ∼3%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.92 Points ∼3% -5%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.84 Points ∼3% -13%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
25.6 Points ∼47% +1452%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
22 Points ∼41% +1233%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
10.78 Points ∼20% +553%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
4.14 Points ∼8% +151%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
3.59 Points ∼7% +118%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3.09 Points ∼6% +87%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3.06 Points ∼6% +85%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1.65 Points ∼3%
Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
12152 Points ∼74% +195%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
11811 Points ∼72% +187%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
11457 Points ∼70% +178%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
8184 Points ∼50% +99%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
6163 Points ∼38% +50%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
4120 Points ∼25%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3711 Points ∼23% -10%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
73115 Points ∼65% +999%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
64320 Points ∼57% +867%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
42350 Points ∼38% +537%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
15504 Points ∼14% +133%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
14261 Points ∼13% +114%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
10705 Points ∼9% +61%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
6653 Points ∼6%
Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3767 Seconds * ∼27%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2391 Seconds * ∼17% +37%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2379 Seconds * ∼17% +37%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1805 Seconds * ∼13% +52%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
516 Seconds * ∼4% +86%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
265 Seconds * ∼2% +93%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
229.3 Seconds * ∼2% +94%
wPrime 2.10
32m
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
49.66 s * ∼10%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
19.42 s * ∼4% +61%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
17.62 s * ∼4% +65%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
17.37 s * ∼3% +65%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
17.09 s * ∼3% +66%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5.895 s * ∼1% +88%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4.4 s * ∼1% +91%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
3.308 s * ∼1% +93%
1024m
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1561.178 s * ∼18%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
615 s * ∼7% +61%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
603 s * ∼7% +61%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
566 s * ∼7% +64%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
543 s * ∼6% +65%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
191.4 s * ∼2% +88%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
106.7 s * ∼1% +93%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
91.6 s * ∼1% +94%
X264 HD Benchmark 4.0
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
276.5 (274min - 278max) fps ∼75% +511%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
271.5 (259min - 276max) fps ∼74% +500%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
106.5 (106min - 109max) fps ∼29% +135%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
102 (100min - 118max) fps ∼28% +125%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
78.9 (77.1min - 81.7max) fps ∼21% +74%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
52.6 fps ∼14% +16%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
45.25 (44.7min - 45.7max) fps ∼12%
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
128 (122min - 128max) fps ∼58% +1181%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
112 (112min - 112max) fps ∼51% +1021%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
21.6 (21.5min - 22.1max) fps ∼10% +116%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
20.55 (20.4min - 20.7max) fps ∼9% +106%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
16.75 (16.7min - 16.9max) fps ∼8% +68%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
11.31 fps ∼5% +13%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
9.995 (9.97min - 10.2max) fps ∼5%
WinRAR - Result
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7722 KB/s ∼45% +956%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5481 KB/s ∼32% +650%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4297 KB/s ∼25% +488%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1695 KB/s ∼10% +132%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1525 KB/s ∼9% +109%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1140 KB/s ∼7% +56%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1048 KB/s ∼6% +43%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
731 KB/s ∼4%
TrueCrypt
AES Mean 100MB
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
10.8 GB/s ∼40% +1003%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7.4 GB/s ∼27% +656%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
6.1 GB/s ∼23% +523%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
2.6 GB/s ∼10% +166%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.9 GB/s ∼7% +94%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1.9 GB/s ∼7% +94%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.8 GB/s ∼7% +84%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.979 GB/s ∼4%
Twofish Mean 100MB
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2 GB/s ∼0% +1329%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.6 GB/s ∼0% +1043%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.919 GB/s ∼0% +556%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
0.403 GB/s ∼0% +188%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
0.346 GB/s ∼0% +147%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.266 GB/s ∼0% +90%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.262 GB/s ∼0% +87%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.14 GB/s ∼0%
Serpent Mean 100MB
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.2 GB/s ∼0% +1522%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.1 GB/s ∼0% +1386%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.525 GB/s ∼0% +609%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
0.23 GB/s ∼0% +211%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
0.21 GB/s ∼0% +184%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.182 GB/s ∼0% +146%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.178 GB/s ∼0% +141%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.074 GB/s ∼0%
Geekbench 5.4
Multi-Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7875 Points ∼27% +833%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7855 Points ∼27% +831%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5657 Points ∼20% +570%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1673 Points ∼6% +98%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1501 Points ∼5% +78%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1394 Points ∼5% +65%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
844 Points ∼3%
Single-Core
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1552 Points ∼76% +179%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1542 Points ∼76% +177%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
1453 Points ∼71% +161%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
606 Points ∼30% +9%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
556 Points ∼27%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
455 Points ∼22% -18%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
435 Points ∼21% -22%
Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7859 Points ∼25% +817%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7847 Points ∼25% +816%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5606 Points ∼18% +554%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1482 Points ∼5% +73%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1313 Points ∼4% +53%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
857 Points ∼3%
5.0 Single-Core
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1504 Points ∼36% +169%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1498 Points ∼36% +168%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
1453 Points ∼35% +160%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
603 Points ∼15% +8%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
559 Points ∼13%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
453 Points ∼11% -19%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
6434 Points ∼74% +149%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
6365 Points ∼73% +146%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
6238 Points ∼72% +141%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2585 Points ∼30%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
2555 Points ∼29% -1%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1922 Points ∼22% -26%
64 Bit Multi-Core Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
32434 Points ∼40% +799%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
31724 Points ∼39% +780%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
22045 Points ∼27% +511%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
5468 Points ∼7% +52%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
5399 Points ∼7% +50%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3606 Points ∼4%
3DMark 11 - 1280x720 Performance Physics
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
16783 Points ∼58% +955%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
13940 Points ∼48% +776%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
11662 Points ∼41% +633%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
3863 Points ∼13% +143%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
3659 Points ∼13% +130%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2794 Points ∼10% +76%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2693 Points ∼9% +69%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1591 Points ∼6%
7-Zip 18.03
7z b 4
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
57435 MIPS ∼41% +1345%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
54998 MIPS ∼39% +1284%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
26858 MIPS ∼19% +576%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
9964 MIPS ∼7% +151%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
7790 MIPS ∼6% +96%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
7494 MIPS ∼5% +89%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3974 MIPS ∼3%
7z b 4 -mmt1
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5905 MIPS ∼85% +128%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5739 MIPS ∼82% +121%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
4945 MIPS ∼71% +91%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
3515 MIPS ∼50% +36%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2593 MIPS ∼37%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2379 MIPS ∼34% -8%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2361 MIPS ∼34% -9%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
15.9 fps ∼34% +1707%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
14.5 fps ∼31% +1548%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
7.86 fps ∼17% +793%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.65 fps ∼4% +88%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.48 fps ∼3% +68%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.46 fps ∼3% +66%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.88 fps ∼2%
R Benchmark 2.5 - Overall mean
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.579 sec * ∼34% -15%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.577 sec * ∼34% -15%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1.371 sec * ∼30%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.137 sec * ∼25% +17%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.622 sec * ∼13% +55%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
0.4965 sec * ∼11% +64%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
0.493 sec * ∼11% +64%
LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
144.7 s * ∼37%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
143 s * ∼36% +1%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
124 s * ∼31% +14%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
92.9 s * ∼23% +36%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
50.4 s * ∼13% +65%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
49.3 s * ∼12% +66%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
48.7 s * ∼12% +66%
WebXPRT 3 - ---
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
278 Points ∼73% +212%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
274 Points ∼72% +207%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
257 Points ∼68% +188%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
146 Points ∼39% +64%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
89.2 Points ∼24%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
87.2 Points ∼23% -2%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
86.2 Points ∼23% -3%
Mozilla Kraken 1.1 - Total Score
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2288 ms * ∼3%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2276 ms * ∼3%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1396 ms * ∼2%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
670 ms * ∼1%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
602 ms * ∼1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
601 ms * ∼1%
3DMark - 1920x1080 Fire Strike Physics
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
24096 Points ∼59% +998%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
23903 Points ∼59% +989%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
13763 Points ∼34% +527%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
5122 Points ∼13% +133%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
4295 Points ∼11% +96%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3885 Points ∼10% +77%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3689 Points ∼9% +68%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2195 Points ∼5%

* ... smaller is better

Zotac ZBOX PI336 pico在Cinebench R15多重循环中的表现

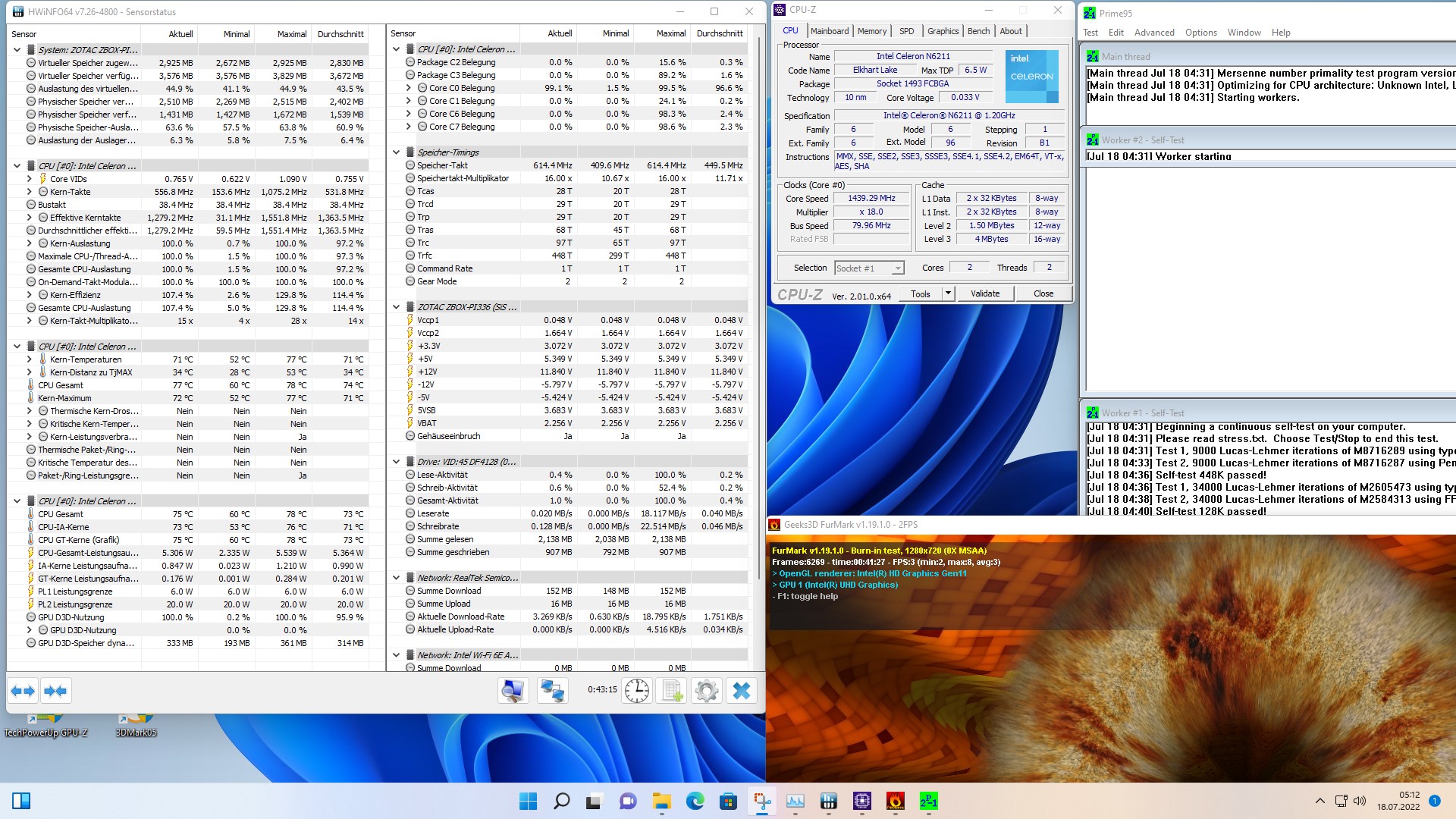

我们的负载测试,即用Cinebench R15 Multi loop模拟负载,表明Zotac ZBOX PI336 pico的冷却系统足以防止热窒息。平均为127.4分,在所有50次运行中结果保持稳定。

020406080100120140160180200220240260280300Tooltip
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)
AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)
MSI Cubi 5 10M Intel Core i3-10110U, Intel Core i3-10110U: Ø315 (308.88-317.27)
GMK NucBox K1 Intel Celeron J4125, Intel Celeron J4125: Ø238 (199.13-242.53)

应用性能和存储解决方案

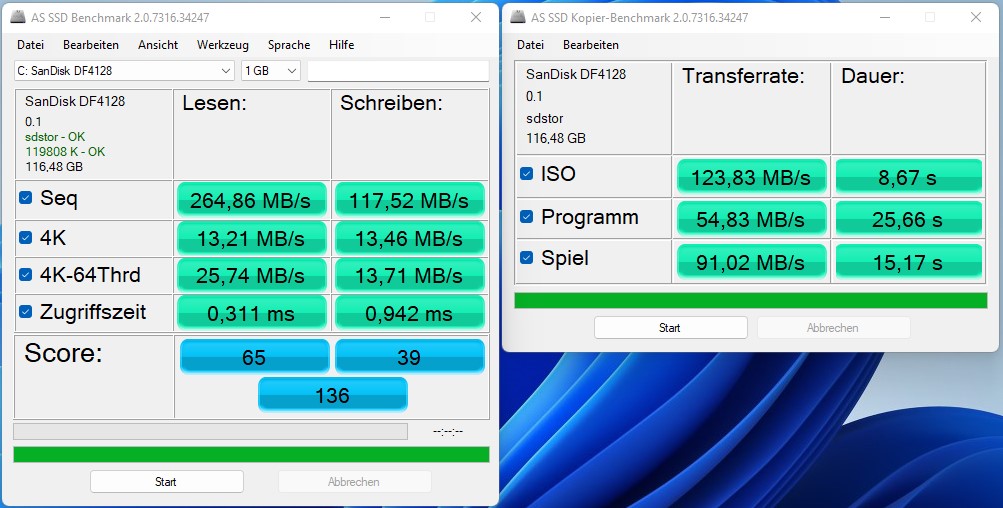

AS SSD
AS SSD

系统性能与弱小的处理器相对应。主观上,如果你给系统足够的时间,你可以用Zotac ZBOX PI336 pico来做一些工作。不幸的是,打开各种应用程序时的延迟是这里日常操作的一部分。内置的eMMC存储容量为128GB,除了安装Windows之外,还为一些小型应用程序提供了处理日常任务的空间。然而,低量的工作内存不时地造成问题。例如,我们甚至无法用PCMark 10成功运行一次,所以我们不能给你任何比较值。存储器不能扩展。另外,你只能使用SD卡读卡器。正如我们上面已经提到的,读卡器提供的传输速率更低。

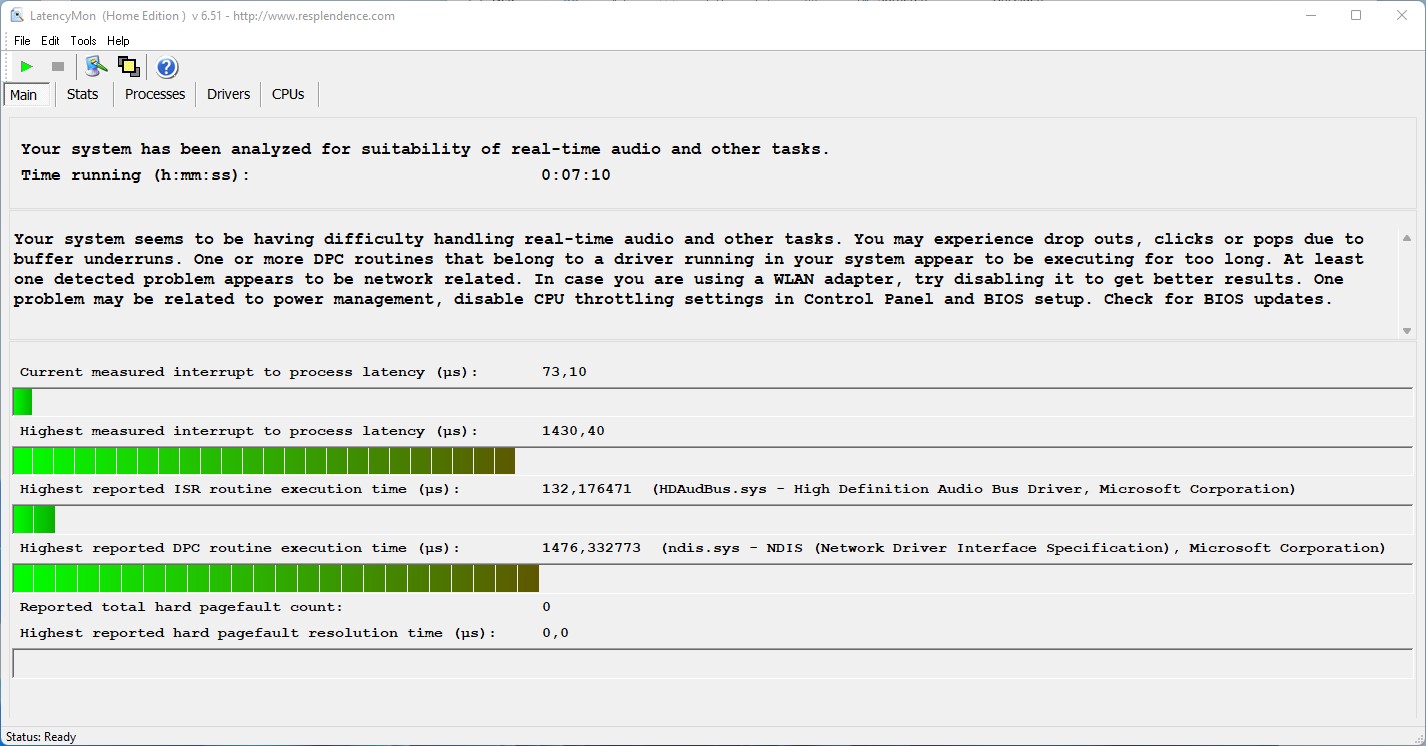

在DPC延迟方面,Zotac ZBOX PI336 pico也无法完全说服我们。另一方面,竞争对手在某些方面的表现甚至要差得多。但尽管如此,Zotac ZBOX PI336 pico在复制4K视频材料时有非常明显的问题。这意味着我们不认为它可以作为一个流媒体客户端使用。

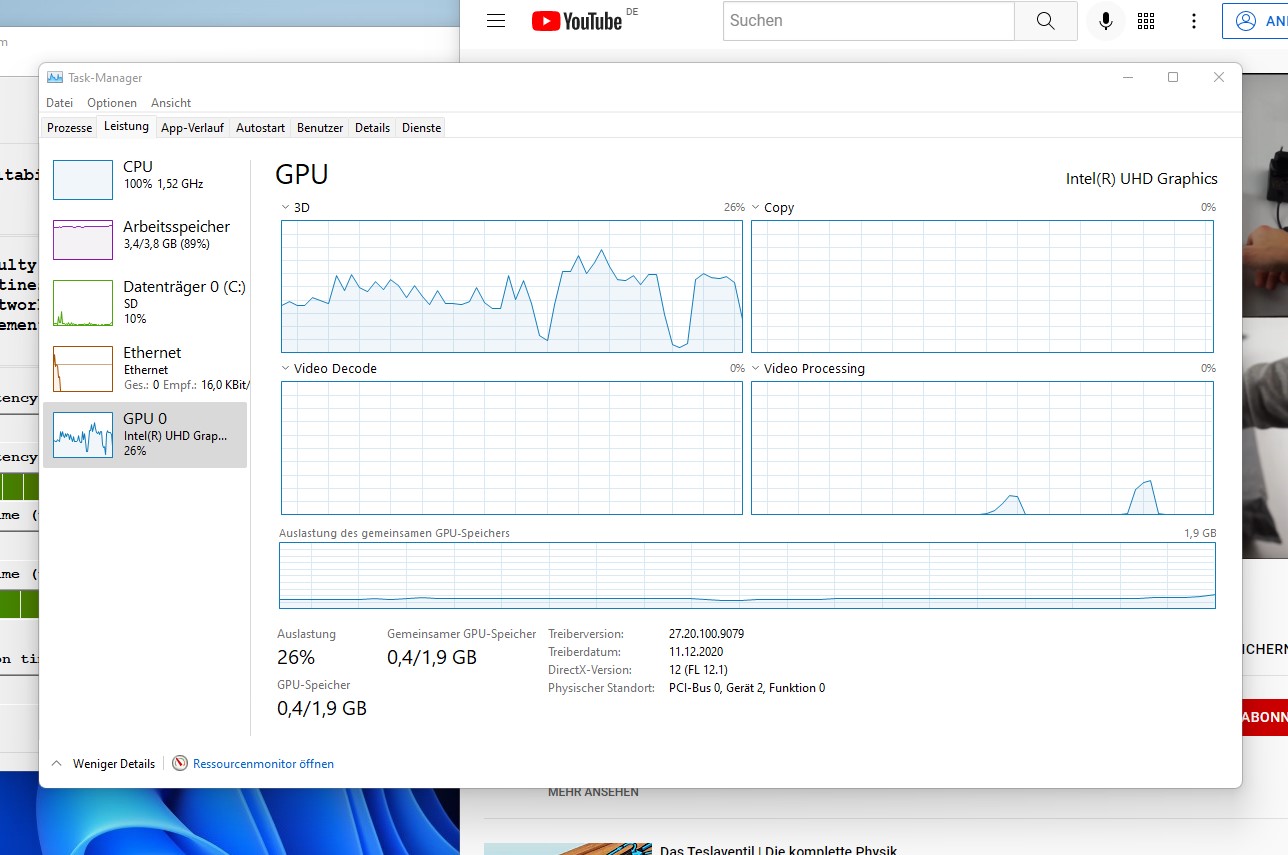

打开多个浏览器标签和播放4K视频时的最大延迟
打开多个浏览器标签和播放4K视频时的最大延迟
Prime95的10秒后的最大延迟
Prime95的10秒后的最大延迟

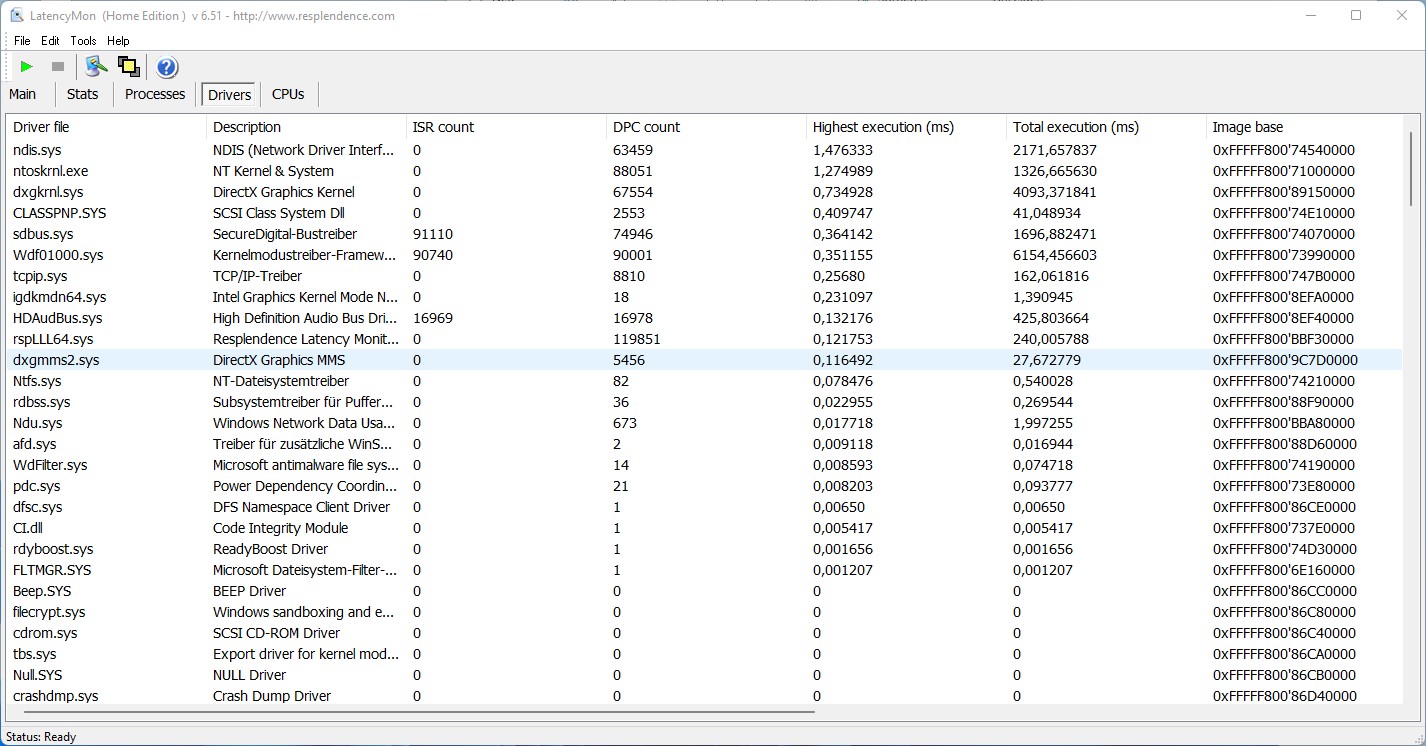

按最长的执行时间排序的驱动程序
按最长的执行时间排序的驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
3767 μs * ∼100% -155%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
2635 μs * ∼70% -78%
GMK NucBox K1, Intel Celeron J4125
Intel UHD Graphics 600
1717 μs * ∼46% -16%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1625 μs * ∼43% -10%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
1581 μs * ∼42% -7%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
1476.3 μs * ∼39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * ∼29% +25%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
349.5 μs * ∼9% +76%
ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4148 Points ∼100% +771%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points ∼84% +635%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
3414 Points ∼82% +617%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
959 Points ∼23% +101%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
631 Points ∼15% +33%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
476 Points ∼11%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
337 Points ∼8% -29%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
306 Points ∼100% +256%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276 Points ∼90% +221%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points ∼77% +173%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
86 Points ∼28% 0%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
86 Points ∼28%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
54 Points ∼18% -37%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
44 Points ∼14% -49%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
292 Points ∼100% +387%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
272 Points ∼93% +353%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points ∼79% +285%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
82 Points ∼28% +37%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
63 Points ∼22% +5%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
60 Points ∼21%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
42 Points ∼14% -30%
1024x600 Normal, Mandel Vector
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1280 Points ∼100% +1220%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points ∼83% +999%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
763 Points ∼60% +687%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
186 Points ∼15% +92%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
147 Points ∼11% +52%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
97 Points ∼8%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
79 Points ∼6% -19%
1024x600 Normal, Mandel Scalar
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1115 Points ∼100% +1387%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points ∼86% +1185%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
853 Points ∼77% +1037%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
226 Points ∼20% +201%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
137 Points ∼12% +83%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
75 Points ∼7%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
54 Points ∼5% -28%
1024x600 Normal, QJuliaRayTrace
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1205 Points ∼100% +658%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
1200 Points ∼100% +655%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points ∼83% +530%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
379 Points ∼31% +138%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
230 Points ∼19% +45%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
159 Points ∼13%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
118 Points ∼10% -26%
LuxMark v2.0 64Bit
Sala GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
2320 Samples/s ∼100% +1478%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1287 Samples/s ∼55% +776%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s ∼40% +539%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
397 Samples/s ∼17% +170%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
266 Samples/s ∼11% +81%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
147 Samples/s ∼6%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
129 Samples/s ∼6% -12%
Room GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
693 Samples/s ∼100% +756%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
547 Samples/s ∼79% +575%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s ∼65% +457%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
163 Samples/s ∼24% +101%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
109 Samples/s ∼16% +35%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
81 Samples/s ∼12%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
76 Samples/s ∼11% -6%
PCMark 10 - Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6507 Points ∼100%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6290 Points ∼97%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
5130 Points ∼79%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
2958 Points ∼45%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
2548 Points ∼39%
GMK NucBox K1, Intel Celeron J4125
Intel UHD Graphics 600
1831 Points ∼28%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
1806 Points ∼28%

* ... smaller is better

AIDA64 / Memory Copy
Average of class Desktop
  (6308 - 73501, n=36, last 2 years)
32570 MB/s ∼100% +107%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
19544 MB/s ∼60% +24%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
15737 MB/s ∼48%
Average Intel Celeron N6211

15737 MB/s ∼48% 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
13833 MB/s ∼42% -12%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
12604 MB/s ∼39% -20%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6308 MB/s ∼19% -60%
AIDA64 / Memory Read
Average of class Desktop
  (6292 - 74809, n=36, last 2 years)
33944 MB/s ∼100% +229%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
19769 MB/s ∼58% +92%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
10311 MB/s ∼30%
Average Intel Celeron N6211

10311 MB/s ∼30% 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10204 MB/s ∼30% -1%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
10095 MB/s ∼30% -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6576 MB/s ∼19% -36%
AIDA64 / Memory Write
Average of class Desktop
  (6866 - 72243, n=36, last 2 years)
33070 MB/s ∼100% +94%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
22485 MB/s ∼68% +32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
17031 MB/s ∼51%
Average Intel Celeron N6211

17031 MB/s ∼51% 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10449 MB/s ∼32% -39%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
10347 MB/s ∼31% -39%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6866 MB/s ∼21% -60%
AIDA64 / Memory Latency
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
144 ns * ∼100% -89%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
89.5 ns * ∼62% -17%
Average of class Desktop
  (56 - 153, n=36, last 2 years)
80.5 ns * ∼56% -6%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
76.3 ns * ∼53%
Average Intel Celeron N6211

76.3 ns * ∼53% -0%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
74 ns * ∼51% +3%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
73.2 ns * ∼51% +4%

* ... smaller is better

图形卡

Elkhart Lake SoC的iGPU提供了与我们在CPU测试中已经看到的类似性能。由于双核CPU较弱,iGPU在这里也无法创造奇迹。然而,竞争对手的 Intel Celeron J4125的竞争对手仍然可以在整体上略微超越。但你不应该对iGPU的要求超过纯2D输出。iGPU不适合游戏,甚至无法流畅地再现旧游戏。

3DMark 11 - 1280x720 Performance GPU
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2322 Points ∼100% +257%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1589 Points ∼68% +144%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1458 Points ∼63% +124%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1316 Points ∼57% +102%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1175 Points ∼51% +81%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
650 Points ∼28%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
613 Points ∼26% -6%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
602 Points ∼26% -7%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
589 Points ∼25% -9%
3DMark
1280x720 Ice Storm Standard Graphics
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
61979 Points ∼100% +171%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
41037 Points ∼66% +80%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
25631 Points ∼41% +12%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
22836 Points ∼37%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21465 Points ∼35% -6%
1920x1080 Ice Storm Extreme Graphics
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
40670 Points ∼100% +178%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
26409 Points ∼65% +80%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
20602 Points ∼51% +41%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
14650 Points ∼36%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14600 Points ∼36% 0%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14360 Points ∼35% -2%
1920x1080 Fire Strike Graphics
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1479 Points ∼100% +183%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1033 Points ∼70% +98%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
881 Points ∼60% +68%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
772 Points ∼52% +48%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
770 Points ∼52% +47%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
523 Points ∼35%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
455 Points ∼31% -13%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
446 Points ∼30% -15%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
433 Points ∼29% -17%
low med. high ultra
Dota 2 Reborn (2015) 24.3 10.9 5.8 5.2
Final Fantasy XV Benchmark (2018) 3.45 1.66
X-Plane 11.11 (2018) 7.76 4.97 4.64
Strange Brigade (2018) 9.2
3DMark 11 Performance
701 points
3DMark Ice Storm Standard Score
20892 points
3DMark Cloud Gate Standard Score
2873 points
3DMark Fire Strike Score
489 points
Help

排放

噪声排放

Zotac ZBOX PI336 pico中没有噪音排放。由于该系统是完全被动冷却的,所以它适合一些特殊的应用领域。在我们的测试装置中,我们也没有注意到任何其他噪音,例如在访问存储空间时。

温度

压力测试。FurMark+Prime95
压力测试。FurMark+Prime95

对于压力测试,我们同时运行Prime95和FurMark。CPU和iGPU必须共享配置的TDP,因此两个组件都不能发挥其全部性能。SoC的时钟速度几乎为1.4GHz,有时会加热到78℃(172°F)。同时,我们确定平均温度为73℃(163°F)。在常规使用过程中,当上网或运行办公应用程序时,SoC也会迅速达到其极限,这意味着你也可以预期这里有时会有高温度。由于是被动冷却,冷却阶段也非常迟缓。出于这个原因,我们建议你将该设备放在通风良好的地方。

压力测试期间的热量发展
压力测试期间的热量发展
压力测试期间的热量发展
压力测试期间的热量发展
压力测试期间的热量发展(电源)。
压力测试期间的热量发展(电源)。

消耗功率

Zotac ZBOX PI336 pico的功耗绝对是它的优势之一。由于采用了高效的SoC,空闲运行时的功耗仍然大大低于10瓦。即使在负载下,我们的测量设备也只显示最大11.8瓦。该电源能够提供高达20瓦的功率。

Power Consumption
Off / Standbydarklight 0.2 / 0.4 Watt
Idledarkmidlight 5.4 / 5.5 / 6.2 Watt
Load midlight 11.3 / 11.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power Consumption With External Monitor

01234567891011Tooltip
; Prime95 V28,10 Stress (external Monitor): Ø11.1 (10.3-11.8)
; Cinebench R15 Multi (external Monitor): Ø10.4 (8.99-10.9)
; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø11.3 (10.7-11.8)
; Idle 1min (external Monitor): Ø5.53 (5.4-6.18)

Pros

+ 非常紧凑
+ 无声冷却
+ 许多连接选项
+ 快速的Wi-Fi
+ 微型SD卡读卡器
+ 36个月的保修期,可选择延长至60个月
+ 有用的附件

Cons

- 慢速的SoC
- 有点贵
- 不能升级

结论 - 一台弱小的办公电脑

测试Zotac ZBOX PI336 pico,测试装置由Zotac德国提供
测试Zotac ZBOX PI336 pico,测试装置由Zotac德国提供

Zotac ZBOX PI336 pico是一款很小的PC,机箱体积仅有0.18升。通过英特尔赛扬N6211,你得到了一个双核处理器,结合4GB的内存,只是勉强满足了Windows 11的系统要求。很快就会发现,没有太多的空间用于额外的应用程序。因此,Zotac ZBOX PI336 pico也很难跟上竞争对手的步伐。该系统可以使用更多的工作内存,这也会降低打开各种应用程序时的一些延迟。我们也不认为现在使用双核SoC是最佳选择。基于英特尔赛扬J4125的竞争对手能够取得更好的结果,并在我们的测试中给出更好的主观印象。该处理器提供了四个原生核心,而且还能以其低能耗进行被动冷却。

Zotac ZBOX PI336 pico是一款非常紧凑和安静的PC,但以其性能,它可能很难进入潜在买家的愿望清单。

另一方面,连接设备很好,Zotac ZBOX PI336 pico提供所有必要的端口选项。此外,还有一个读卡器,即使它只是microSD格式的。

Zotac ZBOX PI336 pico售价约为370欧元(约378美元,例如从Mindfactory德国),考虑到提供的性能,这不是很实惠。至少,购买时包括一个Windows 11专业版许可,以及一个60个月的保修期选项。要想得到这些,你必须在制造商那里注册该设备作为第一个买家,否则你只能得到36个月的标准保修期。

Zotac ZBOX PI336 pico的替代品可能是微星Cubi5 10M,如果你可以不使用被动冷却。它可以从亚马逊并提供明显更多的性能。

Please share our article, every link counts!
.170
> Notebookcheck中文版(NBC中国) > 评测 > Zotac ZBOX PI336 pico回顾。配备英特尔赛扬N6211和4GB内存的口袋电脑
Sebastian Bade, 2022-07-26 (Update: 2022-07-26)
