Qualcomm Snapdragon 820 MSM8996

Qualcomm 820 MSM8996

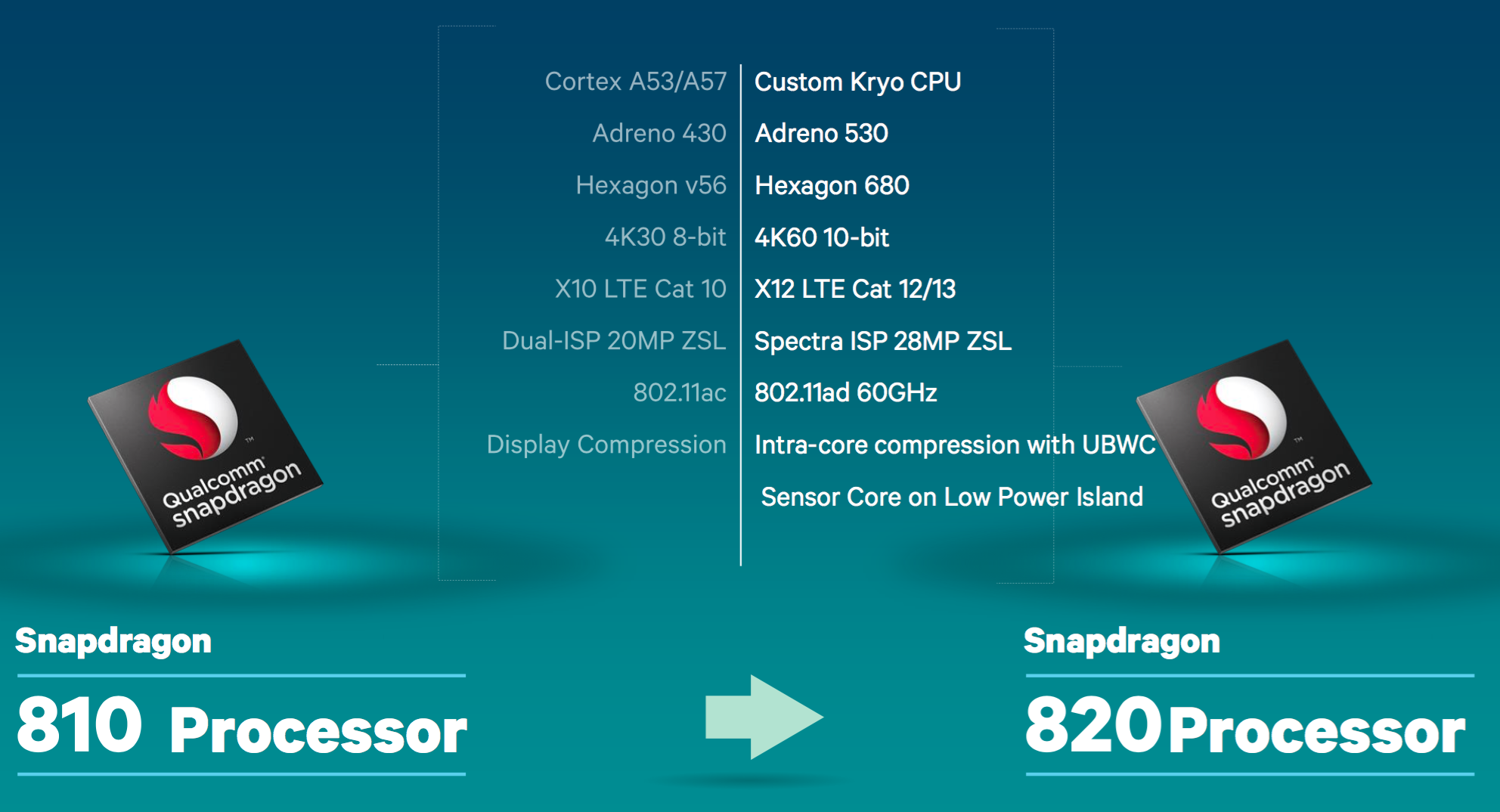

高通Snapdragon 820 MSM8996是一款使用在安卓平板电脑和智能手机中的高端ARM系统芯片。它发布于2015年12月,是Snapdragon 810的后续型号,将于2016年中上市。除四颗处理器核心(两颗低速核心和两颗高速Kyro核心)外,这块芯片还集成了Adreno 530显卡和LPDDR4内存控制器,支持Wi-Fi(802.11ad + MIMO),蓝牙4.1和LTE。

处理器

Snapdragon 820基于和ARM的big.LITTLE相似的概念,它结合了一个低功耗处理器组(两颗1.6GHz的Kyro核心)和一个高性能处理器组(两颗2.15GHz的Kyro核心)。每个处理器组的时钟频率可以单独调整(不过无法以核心为单位改变),最低速度为310MHz。高性能处理器组搭配了1.5MB的二级缓存,低功耗处理器组则为512KB。它们基于同样的架构,完全支持ARMv8-ISA指令集。

尽管只搭配了四颗核心,820的性能足以跻身智能手机和平板的高端移动处理器水平。

显卡

Adreno 530的性能超过前代的Adreno 430,特别是在高要求的测试软件中。因此它可以适合最新的安卓系统3D游戏,性能略低于Tegra X1显卡。

特性

Snapdragon 820提供了丰富的无线技术如蓝牙4.1,无线802.11a/b/g/n/ac/ad (60 GHz)以及MIMO,和支持LTE cat.12/13的双SIM手机网络模组。

这颗处理器可以通过硬件编码解码4K视频(H.264和H.265)。

功耗

由于采用了最新的14纳米制程技术,它的功效将相比20纳米的前代产品有明显提高。

SeriesQualcomm Snapdragon
CodenameKryo
Series: Snapdragon Kryo
Qualcomm Snapdragon 821 MSM8996 Pro2400 MHz4 / 4
» Qualcomm Snapdragon 820 MSM89962200 MHz4 / 4
Clock Rate2200 MHz
Level 2 Cache1.5 MB
Number of Cores / Threads4 / 4
Manufacturing Technology14 nm
FeaturesAdreno 530, LTE Hexagon 680 DSP, UMTS, GSM, WCDMA, Dual-SIM, eMMC 5.0, UHS-I, 802.11a/b/g/n/ac (2.4/5 GHz) + MIMO, Bluetooth 4.1, USB 3.0, Dual-Channel LPDDR4 Memory Controller
GPUQualcomm Adreno 530 ( - 624 MHz)
64 Bit64 Bit support
Announcement Date12/16/2015
Product Link (external)Qualcomm Snapdragon 820 MSM8996

Benchmarks

3DMark - Ice Storm Unlimited Physics 1280x720 offscreen
min: 20344     avg: 21095.3     median: 20948 (30%)     max: 21886 Points
3DMark - Sling Shot Extreme (ES 3.1) Unlimited Physics 2560x1440
min: 1232     avg: 1649.6     median: 1709.5 (55%)     max: 1935 Points
3DMark - Sling Shot OpenGL ES 3.0 Unlimited Physics 2560x1440
min: 1098     avg: 1595.6     median: 1709.5 (55%)     max: 1912 Points
Geekbench 3 - 64 Bit Multi-Core Score
min: 5117     avg: 5425.8     median: 5450 (14%)     max: 5645 Points
Geekbench 3 - 64 Bit Single-Core Score
min: 2080     avg: 2305.4     median: 2376 (50%)     max: 2398 Points
Geekbench 4.0 - Compute RenderScript Score
min: 0     avg: 5391.2     median: 6499 (79%)     max: 7085 Points
Geekbench 4.0 - 64 Bit Multi-Core Score
min: 0     avg: 3332.6     median: 3867 (14%)     max: 4097 Points
Geekbench 4.0 - 64 Bit Single-Core Score
min: 0     avg: 1357.6     median: 1647 (29%)     max: 1754 Points
Geekbench 4.1 - 64 Bit Single-Core Score
min: 1345     avg: 1628.6     median: 1662 (34%)     max: 1745 Points
Geekbench 4.1 - 64 Bit Multi-Core Score
min: 3534     avg: 3979.8     median: 4021 (25%)     max: 4201 Points
Mozilla Kraken 1.1 - Total Score *
min: 2244.4     avg: 3136     median: 3121.4 (5%)     max: 4398.3 ms
Sunspider - 1.0 Total Score *
0 ms (0%)
Octane V2 - Total Score
min: 7771     avg: 8879.7     median: 8987 (19%)     max: 9731 Points
Vellamo 3.x - Metal
min: 3487     avg: 3553.8     median: 3526.5 (95%)     max: 3675 Points
Vellamo 3.x - Multicore Beta
min: 3039     avg: 3495     median: 3580.5 (80%)     max: 3780 Points
Vellamo 3.x - Browser
min: 5344     avg: 5667.5     median: 5643.5 (75%)     max: 6039 Points
Quadrant Standard Edition 2.0
0 points (0%)
AnTuTu Benchmark v6 - Total Score
min: 115867     avg: 129628     median: 129257 (57%)     max: 144426 Points
AndEBench - Java
0 Iter./s (0%)
AndEBench - Native
0 Iter./s (0%)
PassMark PerformanceTest Mobile V1 - CPU Tests
min: 162632     avg: 172040     median: 170521 (63%)     max: 182968 Points
PCMark for Android - Work 2.0 battery life
min: 0     avg: 354.3     median: 390 (51%)     max: 482 Points
PCMark for Android - Computer Vision score
3105 Points (92%)
PCMark for Android - Storage score
2884 Points (63%)
PCMark for Android - Work 2.0 performance score
min: 4549     avg: 5245.5     median: 5288.5 (77%)     max: 5765 Points
PCMark for Android - Work performance score
min: 4589     avg: 5924.7     median: 5608 (68%)     max: 7637 Points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

v1.6b2
