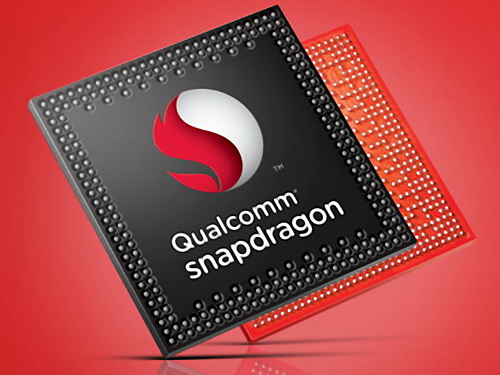

Qualcomm Snapdragon 617 MSM8952

Qualcomm 617 MSM8952

高通骁龙MSM8952 617基于ARMv8,是主要面向安卓平板电脑和智能手机的中端系统芯片,在2015年9月发布。除了8个速度高达1.5 / 1.2GHz(性能和节能核心组)的Cortex-A53核心,此系统芯片还集成了一个Adreno 405显卡与LPDDR3-1866内存控制器,支持Wi-Fi(802.11ac标准),蓝牙4.0 ,UMTS和LTE。相比较老的骁龙615,它的频率较低(后者最高1.7 GHz)。

处理器

Cortex-A53是非常流行的Cortex-A7的改进设计。除了新的64位ARMv8 ISA,它的内核还可提供其他的各种改进,如更好的分支预测。这带来了显著更高的单位时钟性能,甚至高于前代的Cortex-A9。

骁龙617的八个核心分为两个四核处理器组,分别为不同的模式优化。

 一个最高1.5GHz的核心组负责需求较高的应用,另一个最高1.2GHz的核心组负责高能效运行。

 它的八个核心可以同时激活,不过大部分应用将无法很好地利用八核心平行运算。

总体而言,骁龙617提供了类似于较老的骁龙600(Krait架构)的性能。

图形

它的另一项新功能是名为Adreno 405(最有可能的约550 MHz)的集成显卡。Adreno 400系列经过大幅重新设计,支持DirectX 11.2(FL 11_1)包括硬件曲面细分,OpenGL ES 3.1和OpenCL 1.2。此外,它的性能得到了改善显著,现在接近于Adreno 320和PowerVR G6200。

特性

骁龙617提供了多种无线技术,如蓝牙4.0,WLAN 802.11a / b / g / n/ AC以及双SIM卡手机模组,支持LTE cat. 4(最高达150 Mbps),WCDMA,CDMA,EV-DO,TD-SCDMA和GSM / EDGE。

该处理器可硬件编解码1080p视频和流播放最高2560 x 2048像素视频。它支持多种视频编码包括H.265(仅播放)。相机ISP将支持最高21万像素的传感器。

功耗

骁龙617采用28纳米LP工艺由台积电制造。根据技术参数,我们估计它适合中高端的中等或较大尺寸智能手机或平板电脑。

SeriesQualcomm Snapdragon
CodenameCortex-A53
Series: Snapdragon Cortex-A53
Qualcomm Snapdragon 6302200 MHz8 / 8
Qualcomm Snapdragon 6262200 MHz8 / 8
Qualcomm Snapdragon 6252000 MHz8 / 8
Qualcomm Snapdragon 4392000 MHz8 / 8
Qualcomm Snapdragon 4501800 MHz8 / 8
Qualcomm Snapdragon 4292000 MHz4 / 4
» Qualcomm Snapdragon 617 MSM89521500 MHz8 / 8
Qualcomm Snapdragon 616 MSM8939v21700 MHz8 / 8
Qualcomm Snapdragon 615 MSM89391700 MHz8 / 8
Qualcomm Snapdragon 610 MSM89361700 MHz4 / 4
Qualcomm Snapdragon 4351400 MHz8 / 8
Qualcomm Snapdragon 430 (MSM8937)1400 MHz8 / 8
Qualcomm Snapdragon 415 MSM89291400 MHz8 / 8
Qualcomm Snapdragon 425 (MSM8917)1400 MHz4 / 4
Qualcomm Snapdragon 410 MSM89161400 MHz4 / 4
Qualcomm Snapdragon 410 APQ80161200 MHz4 / 4
Clock Rate1500 MHz
Number of Cores / Threads8 / 8
Manufacturing Technology28 nm
FeaturesAdreno 405 GPU, Dual-Stream 802.11ac WLAN, Bluetooth, LTE Cat. 7, GPS (iZat Gen8C), 32/64 Bit LPDDR3-1866 Memory Controller
GPUQualcomm Adreno 405 ( - 550 MHz)
64 Bit64 Bit support
Announcement Date09/15/2015
Product Link (external)Qualcomm Snapdragon 617 MSM8952

Benchmarks

3DMark - Ice Storm Standard Physics 1280x720
min: 8656     avg: 8836.3     median: 8812 (6%)     max: 9041 Points
3DMark - Ice Storm Extreme Physics 1920x1080
min: 8761     avg: 8873     median: 8805 (10%)     max: 9053 Points
3DMark - Ice Storm Unlimited Physics 1280x720 offscreen
min: 9423     avg: 9572     median: 9597 (11%)     max: 9670 Points
3DMark - Sling Shot Extreme (ES 3.1) Unlimited Physics 2560x1440
min: 956     avg: 1061     median: 1083 (24%)     max: 1144 Points
3DMark - Sling Shot OpenGL ES 3.0 Unlimited Physics 2560x1440
min: 955     avg: 1052.3     median: 1060 (23%)     max: 1142 Points
Geekbench 3 - 64 Bit Multi-Core Score
min: 3032     avg: 3047     median: 3052 (8%)     max: 3057 Points
Geekbench 3 - 64 Bit Single-Core Score
min: 717     avg: 728     median: 720 (15%)     max: 747 Points
Geekbench 4.0 - 64 Bit Multi-Core Score
2092 Points (8%)
Geekbench 4.0 - 64 Bit Single-Core Score
698 Points (12%)
Linpack Android / IOS - Multi Thread
306.7 MFLOPS (10%)
Linpack Android / IOS - Single Thread
228.4 MFLOPS (22%)
Mozilla Kraken 1.1 - Total Score *
min: 10420     avg: 10899.6     median: 11053 (19%)     max: 11109 ms
Sunspider - 1.0 Total Score *
1227.9 ms (13%)
Octane V2 - Total Score
min: 3371     avg: 3573.4     median: 3527 (7%)     max: 3911 Points
AnTuTu v5 - Total Score
40780 Points (41%)
AnTuTu v6 - Total Score
min: 40876     avg: 44579.5     median: 45237 (16%)     max: 46968 Points
PCMark for Android - Work performance score
min: 3663     avg: 4586     median: 4723 (24%)     max: 5234 Points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

v1.8.1a
