NiPoGi CK10与英特尔酷睿i7-10810U的评测。小型办公电脑提供三个固态硬盘的空间

一台无声的办公电脑! 在能源价格持续上涨的时代,小型PC非常受欢迎,因为它比传统的台式机兄弟姐妹的能耗低得多。通过NiPoGi CK10,我们对这款小型六核办公电脑进行了测试。它是一个非常安静的设备,但它的SoC有多快?在我们的评论中,我们揭示了关于基于英特尔酷睿i7-10810U的NiPoGi CK10的所有你需要知道的信息。
Desktop Intel Mini PC Comet Lake
NiPoGi CK10
NiPoGi CK10

我们已经对中国的系统制造商Minipc Union很熟悉了,因为我们已经评测过这两家公司。 王牌魔术师AMR5以及 王牌魔术师TK11-A0 - 两款有趣的迷你PC。现在,另一个小型PC竞争者以我们的NiPiGi CK10审查样本的形式出现。该系统是基于一个 英特尔酷睿i7-10810U来自Comet Lake系列。尽管6个核心和12个线程听起来很有希望,但该SoC不再是街区上最新的孩子了。搭配16GB DDR4内存和512GB固态硬盘以及一个Windows许可证,该设备的价格约为600欧元。

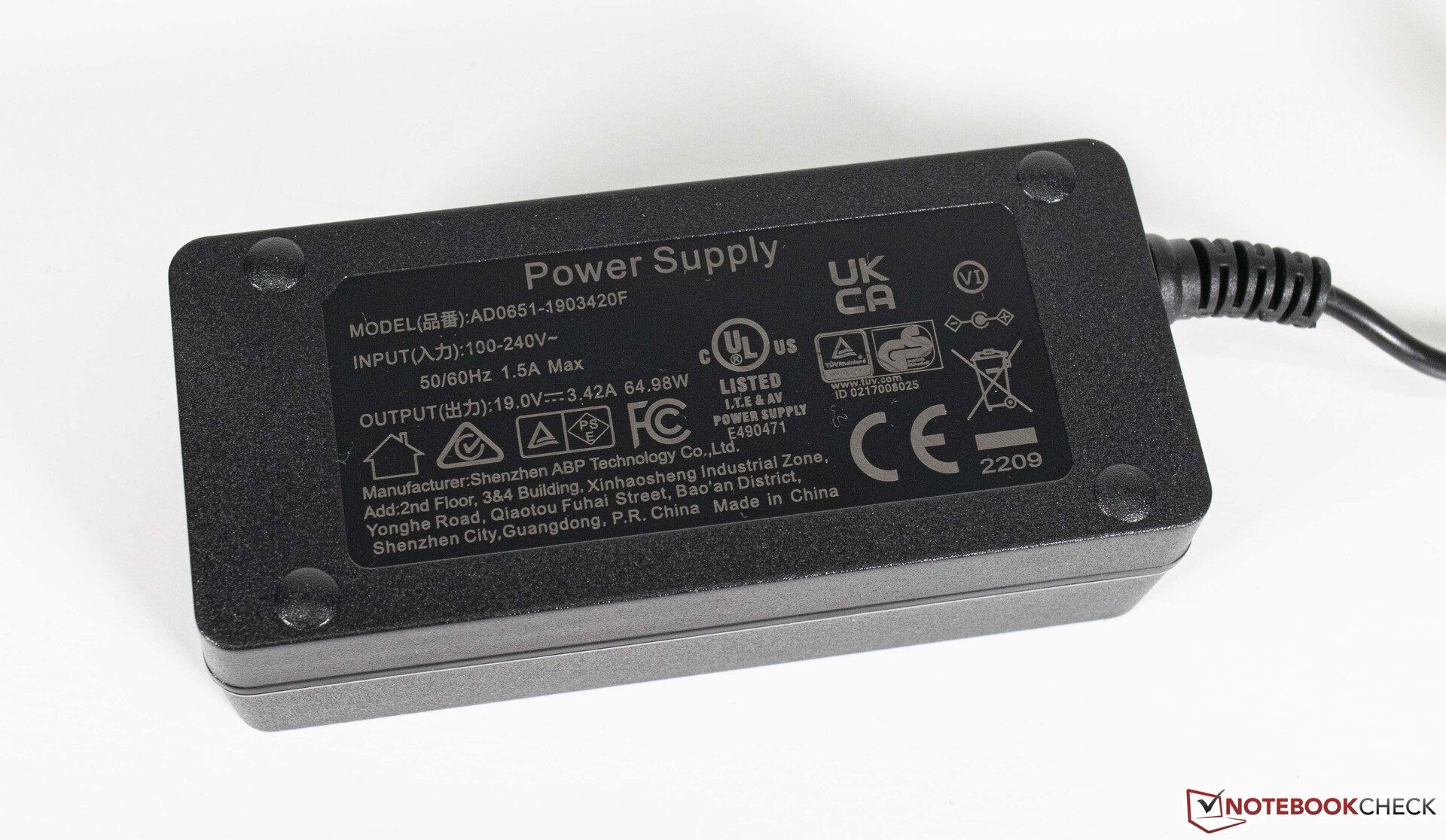

迷你电脑的包装很紧凑,包括一个65瓦的电源适配器和一个VESA支架,使该设备可以固定在显示器上。潜在竞争者的概况可以在下面的表格中找到。

Minipc Union NiPoGi CK10 - 10810U
Processor
Intel Core i7-10810U 6 x 1.1 - 4.9 GHz, 40 W PL2 / Short Burst, 15 W PL1 / Sustained, Comet Lake-U
Graphics adapter
Intel UHD Graphics 620, Core: 1150 MHz, Memory: 1333 MHz
Memory
16 GB
, DDR4 2666, 1 of 2 installed, max. 32 GB
Mainboard
Intel Comet Lake-U PCH-LP Premium

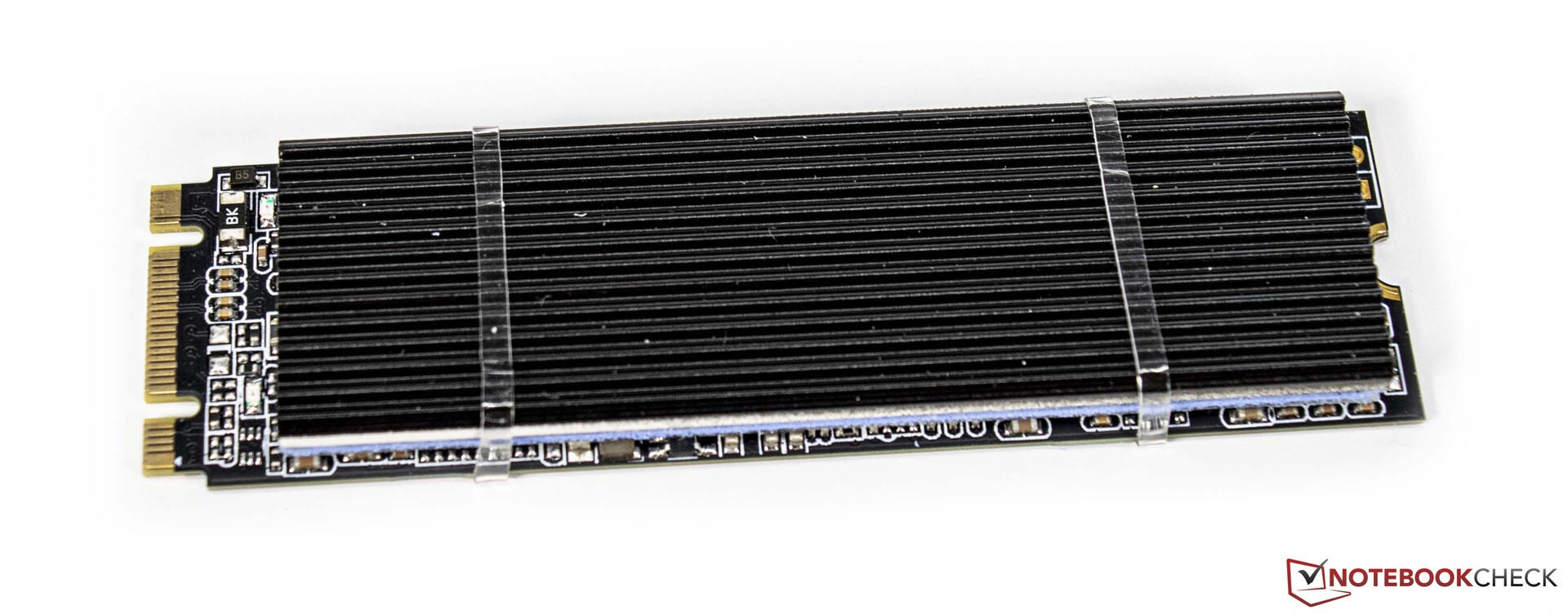

Storage
FPT310M8SSD512G, 512 GB
, M.2 2280 SATA SSD, 440 GB free
Soundcard
Intel Comet Lake PCH-LP - cAVS
Connections
5 USB 3.0 / 3.1 Gen1, 1 VGA, 2 HDMI
Networking
Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), RealTek Semiconductor, Device ID: C821 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 50 x 137.5 x 125
Operating System
Microsoft Windows 11 Pro
Additional features
12 Months Warranty
Weight
468 g, Power Supply: 233 g
Price
599 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Best Price
70.9 %
12/2022
Minipc Union NiPoGi CK10 - 10810U
i7-10810U, UHD Graphics 620
468 g50 mm
01/2022
Minisforum EliteMini HX90
R9 5900HX, Vega 8
60 mm
01/2022
Morefine S500+
R9 5900HX, Vega 8
697 g40 mm
06/2022
Minisforum EliteMini B550
R7 5700G, Vega 8
1.1 kg67 mm
02/2022
Minisforum EliteMini TH50
i5-11320H, Iris Xe G7 96EUs
763 g55.5 mm
09/2022
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
628 g72 mm
12/2021
Minisforum HM90
R9 4900H, Vega 8
55.5 mm
09/2022
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
586 g53 mm
NiPoGi CK10
NiPoGi CK10 - 包装

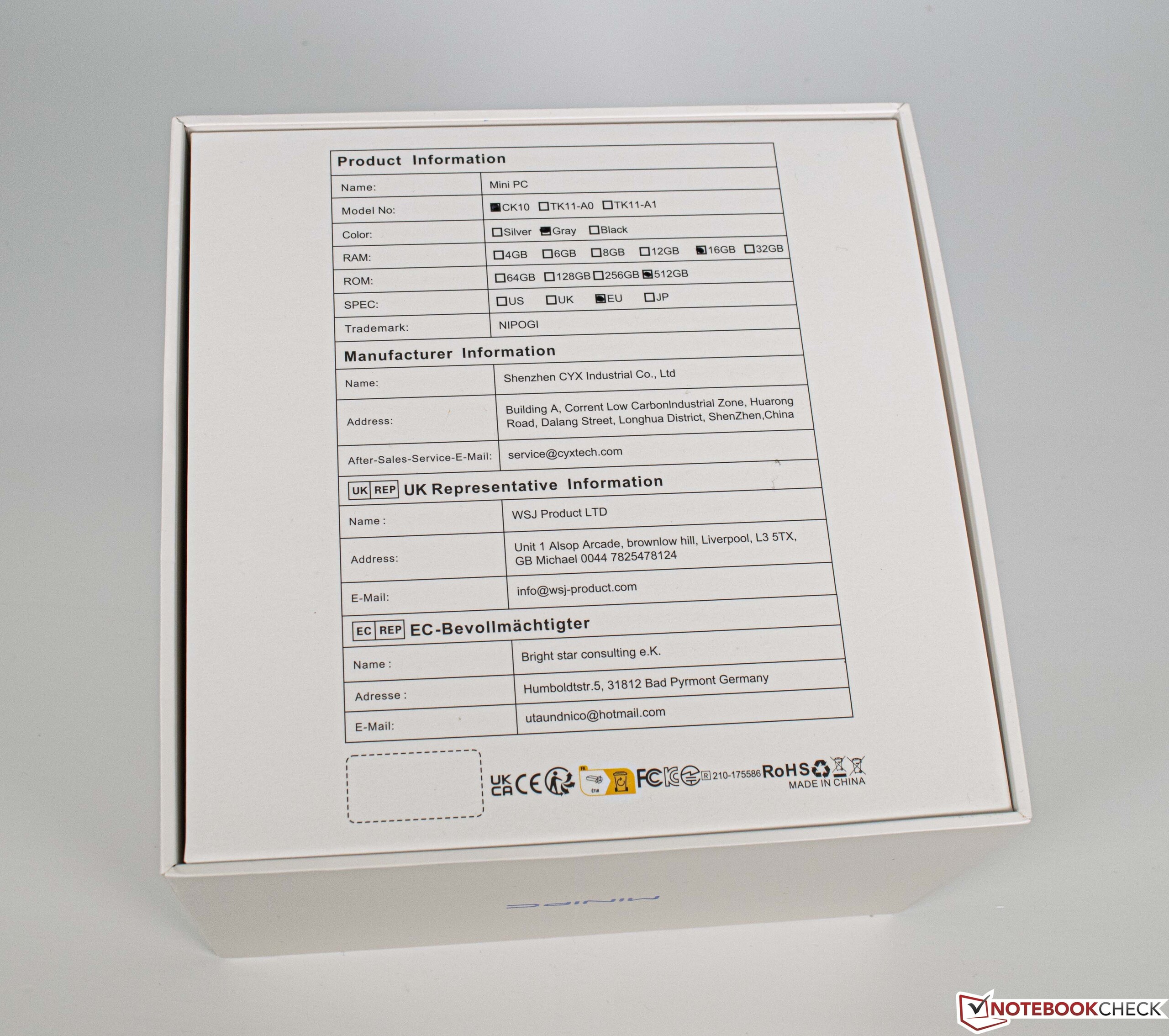

NiPoGi CK10 - 包装与规格
NiPoGi CK10
NiPoGi CK10
NiPoGi CK10

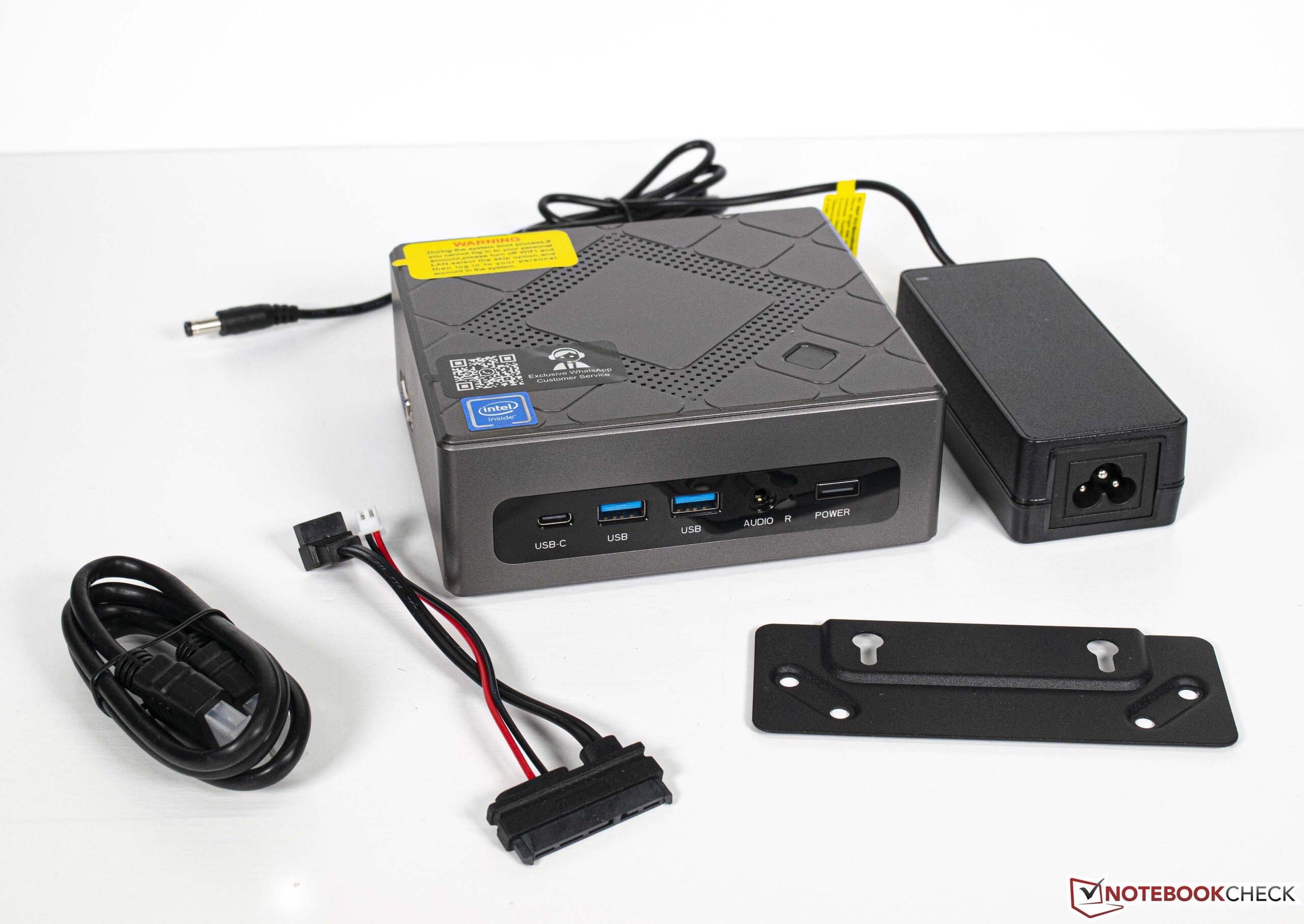

NiPoGi CK10 - 盒子里有什么?

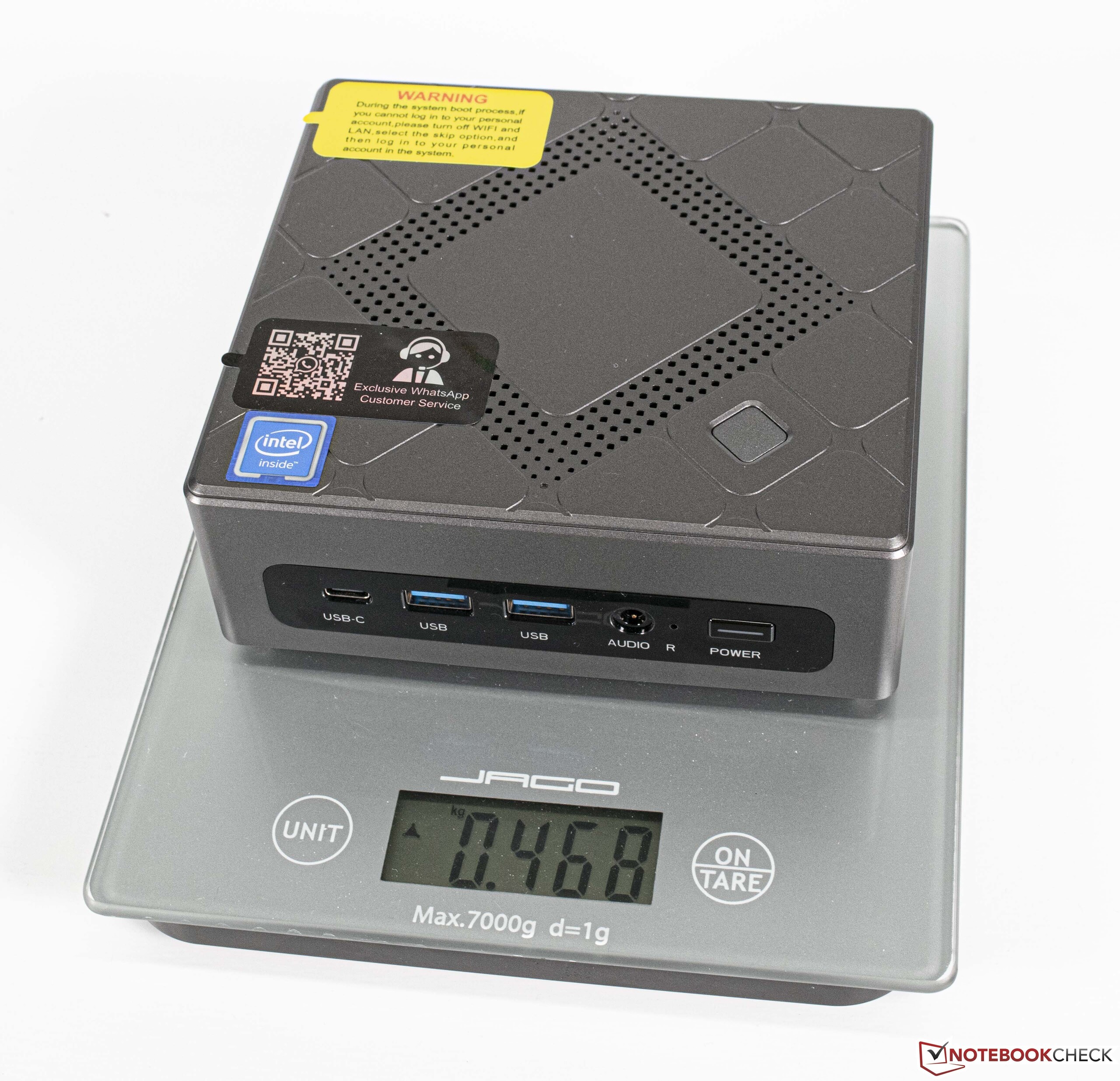

NiPoGi CK10与电子秤的比较
NiPoGi CK10
NiPoGi CK10

案例

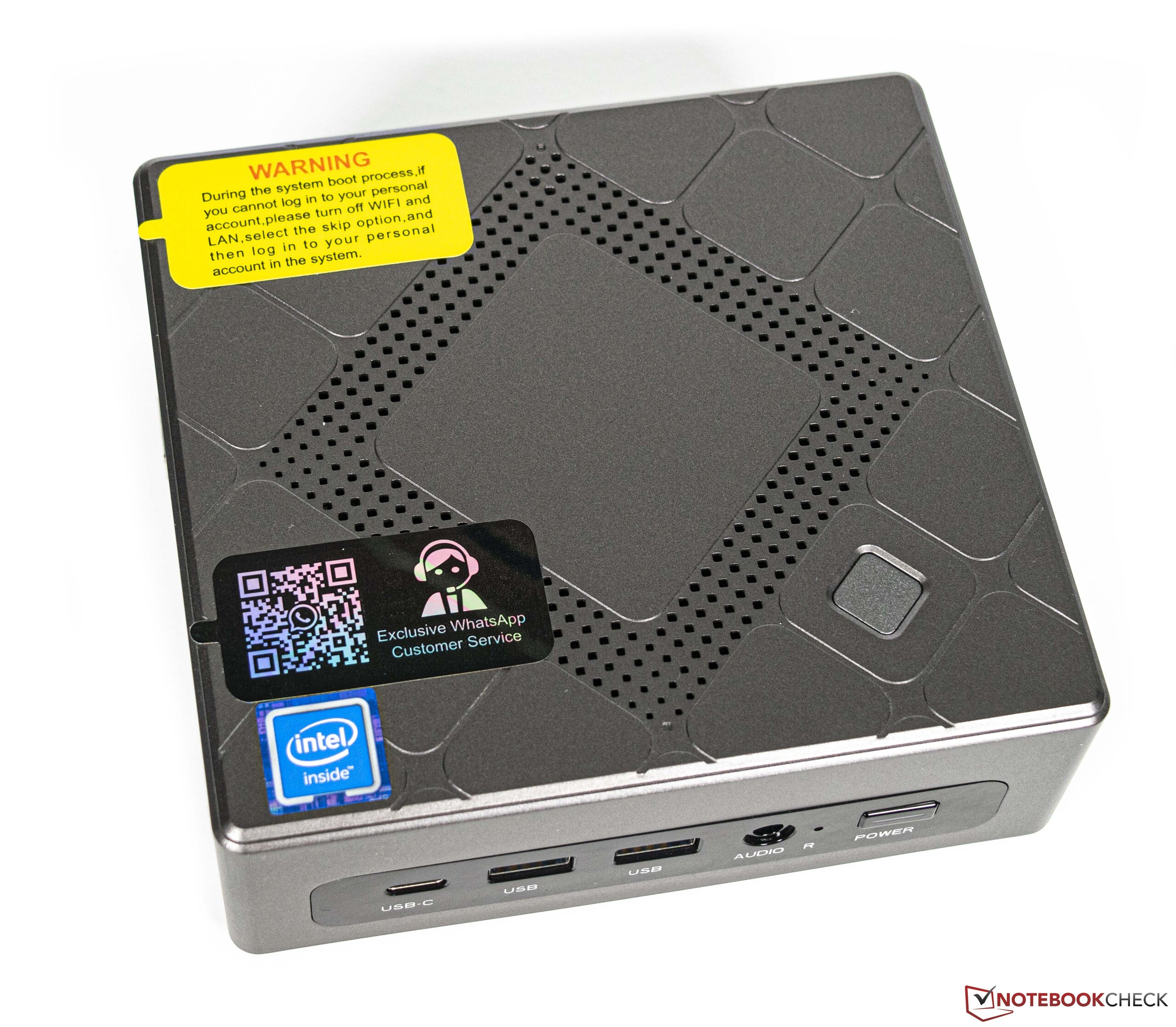

NiPoGi CK10是一款简单的迷你PC,没有特别的亮点可言。它的占地面积为13.7 x 12.5厘米,比许多竞争对手要小。从高度上看,这台紧凑型PC几乎正好是5厘米高。关于材料的选择,NiPoGi CK10主要由塑料制成。制造商完全避免了使用稳定的金属框架。一个假的指纹扫描仪在设备的顶部,表明这个箱子已经为额外的配置可能性做了准备。

尺寸比较

155 mm 130 mm 72 mm 628 g158 mm 166 mm 67 mm 1.1 kg149.6 mm 149.6 mm 55.5 mm 763 g138 mm 138 mm 53 mm 586 g137.5 mm 125 mm 50 mm 468 g145 mm 149 mm 40 mm 697 g297 mm 210 mm 1 mm 5.7 g

连接性

在外部接口方面,NiPoGi CK10提供了一个简单、标准的选择。总共五个USB端口是好的,对大多数用户来说应该是足够的。可用的Type-C端口不提供Thunderbolt支持。然而,VGA接口以怀旧的感觉弥补了这一点。模拟显示器端口有多有趣,将取决于用户自己。尽管如此,通过HDMI可以顺利操作多达两个现代显示器。

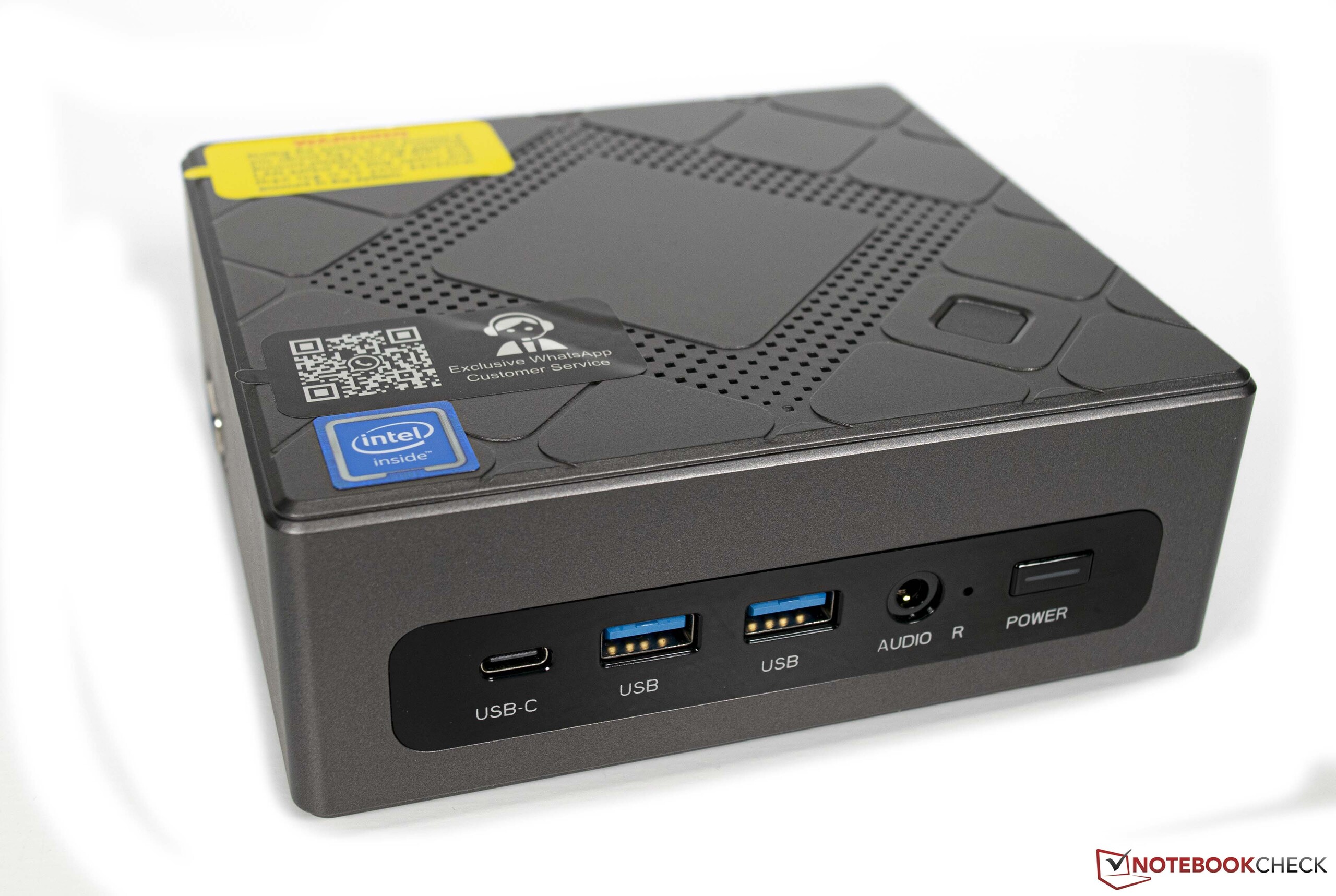

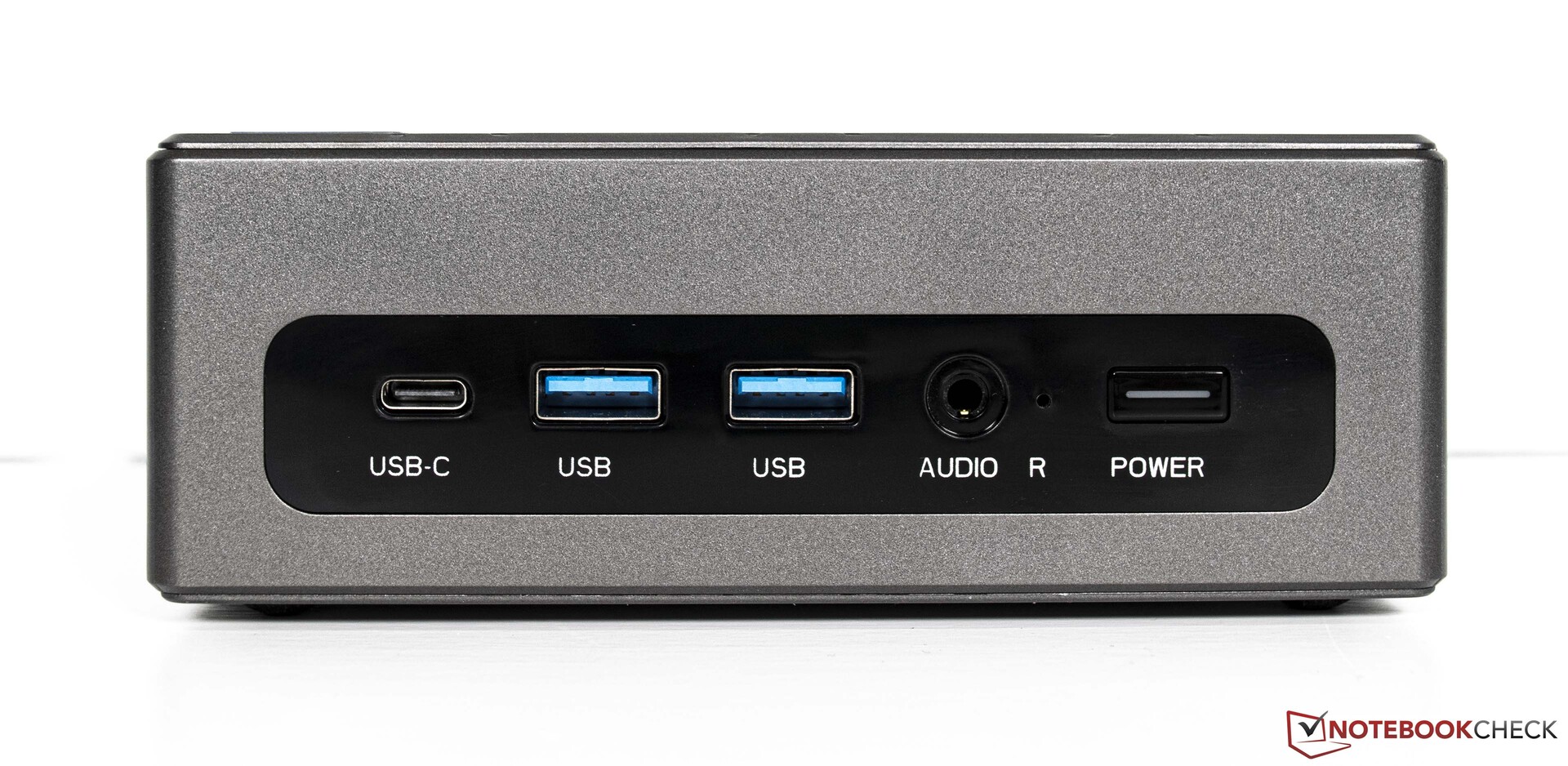

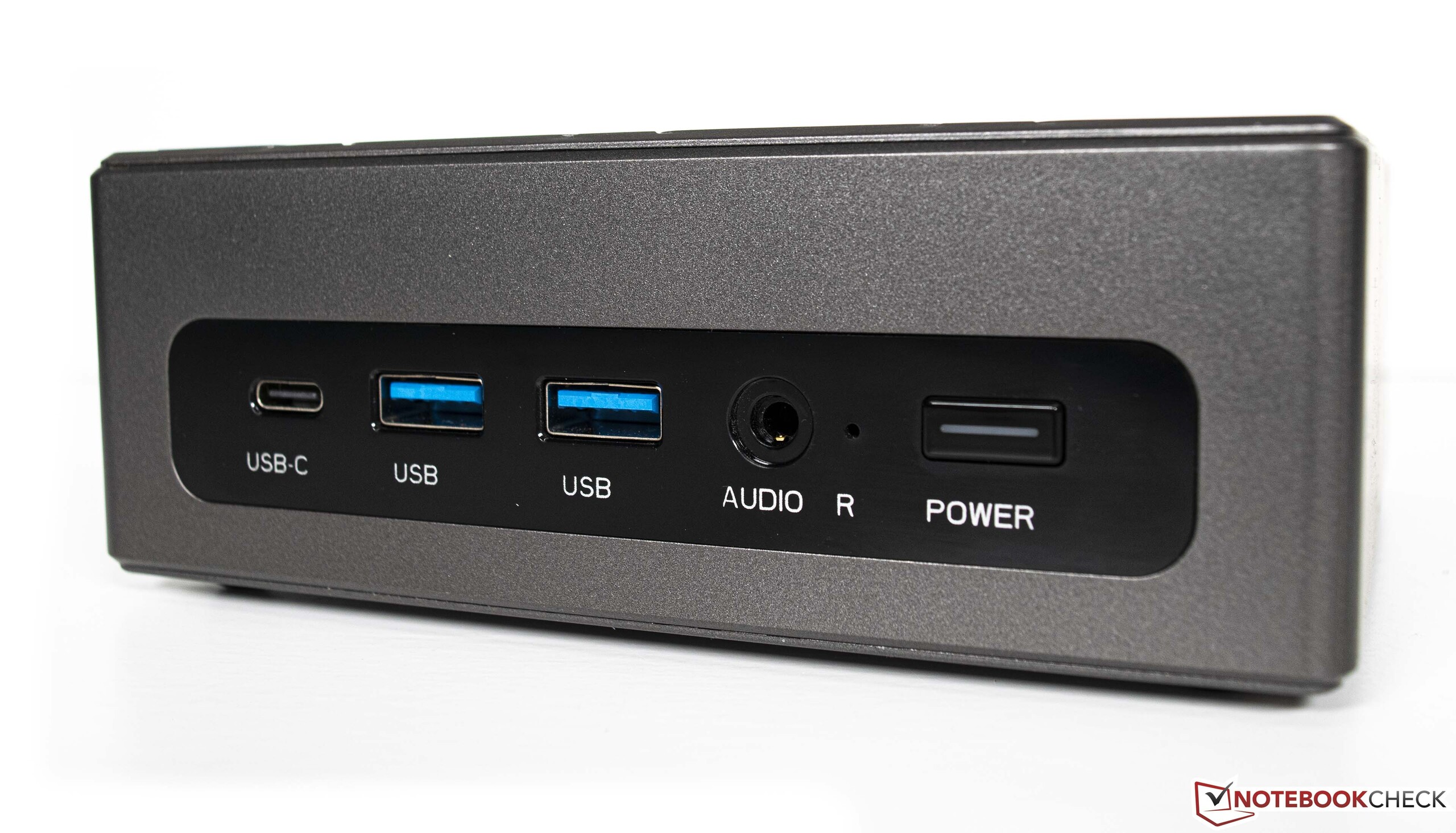

正面。USB C型(数据),2个USB 3.0,3.5毫米音频插孔,电源按钮
正面。USB C型(数据),2个USB 3.0,3.5毫米音频插孔,电源按钮

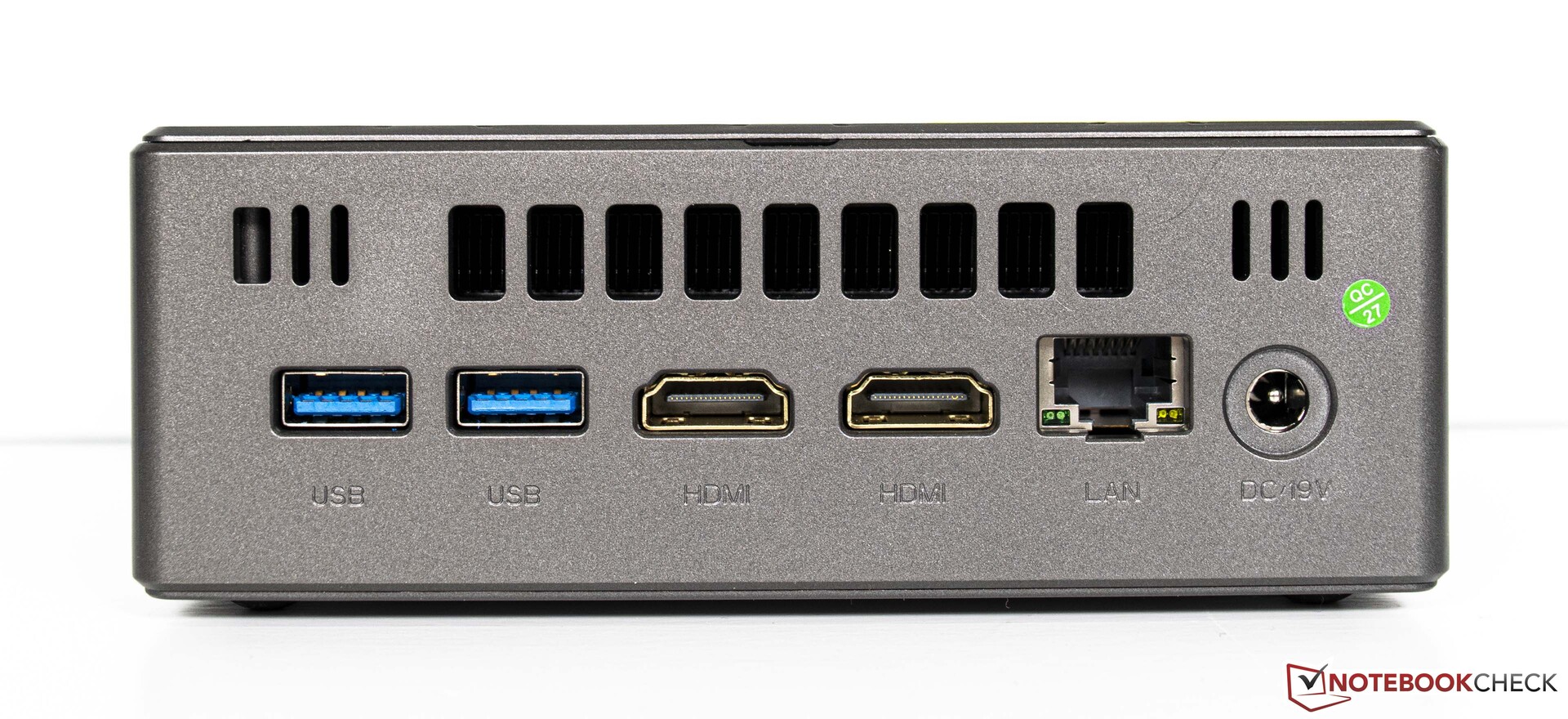

后侧:2个USB 3.0,2个HDMI,GBit LAN,主电源接口
后侧:2个USB 3.0,2个HDMI,GBit LAN,主电源接口

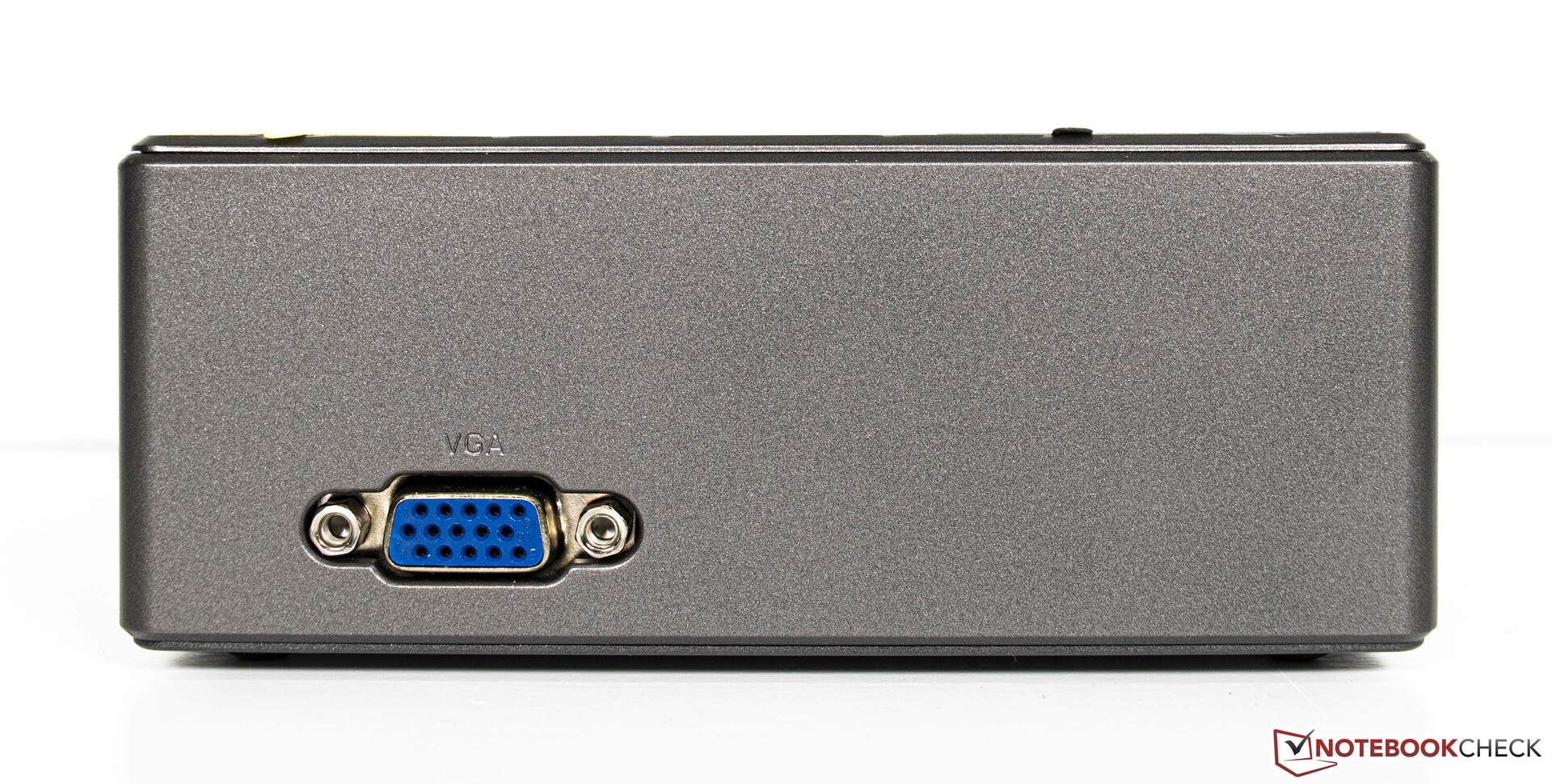

左侧。VGA端口
左侧。VGA端口

沟通

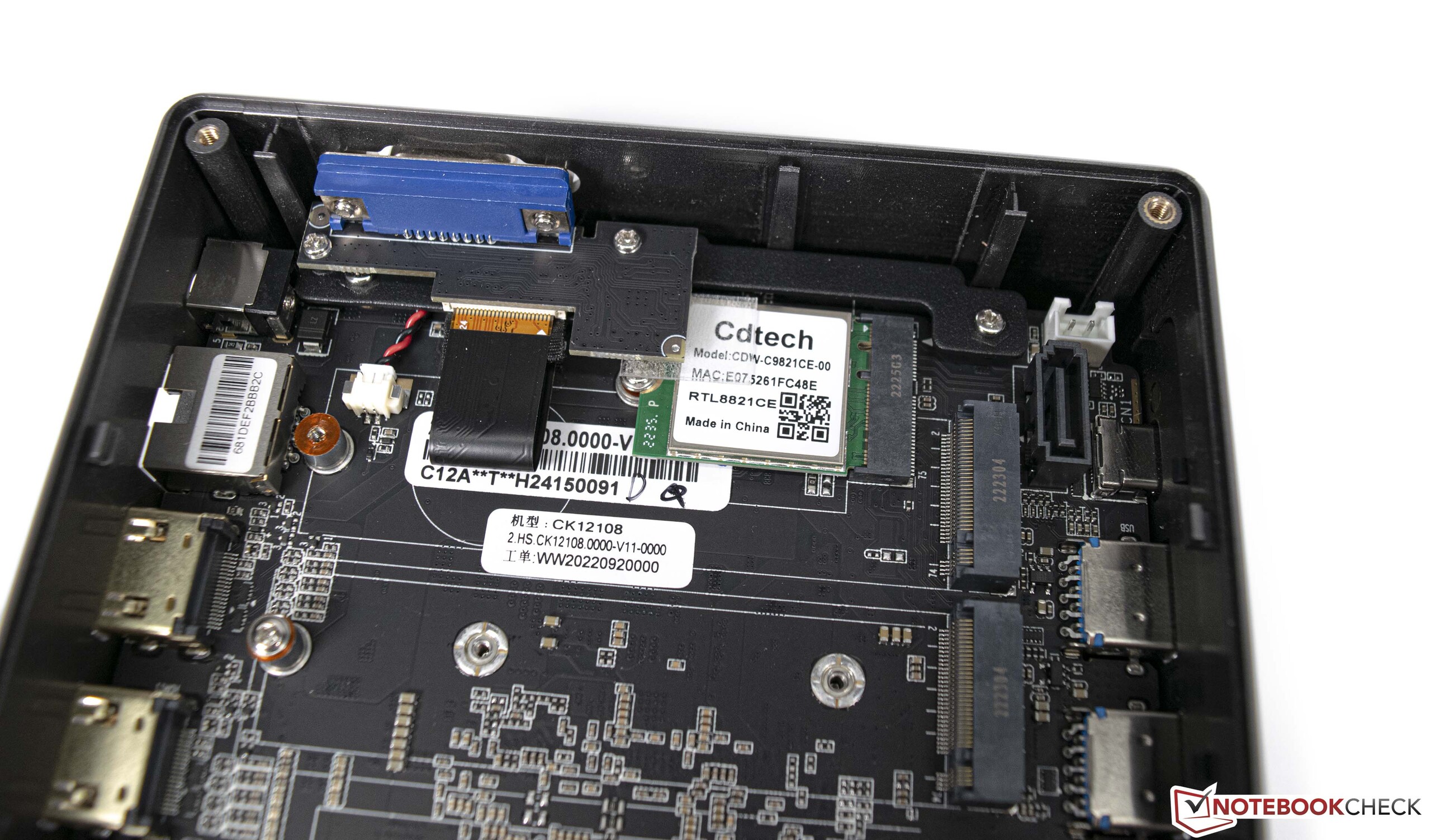

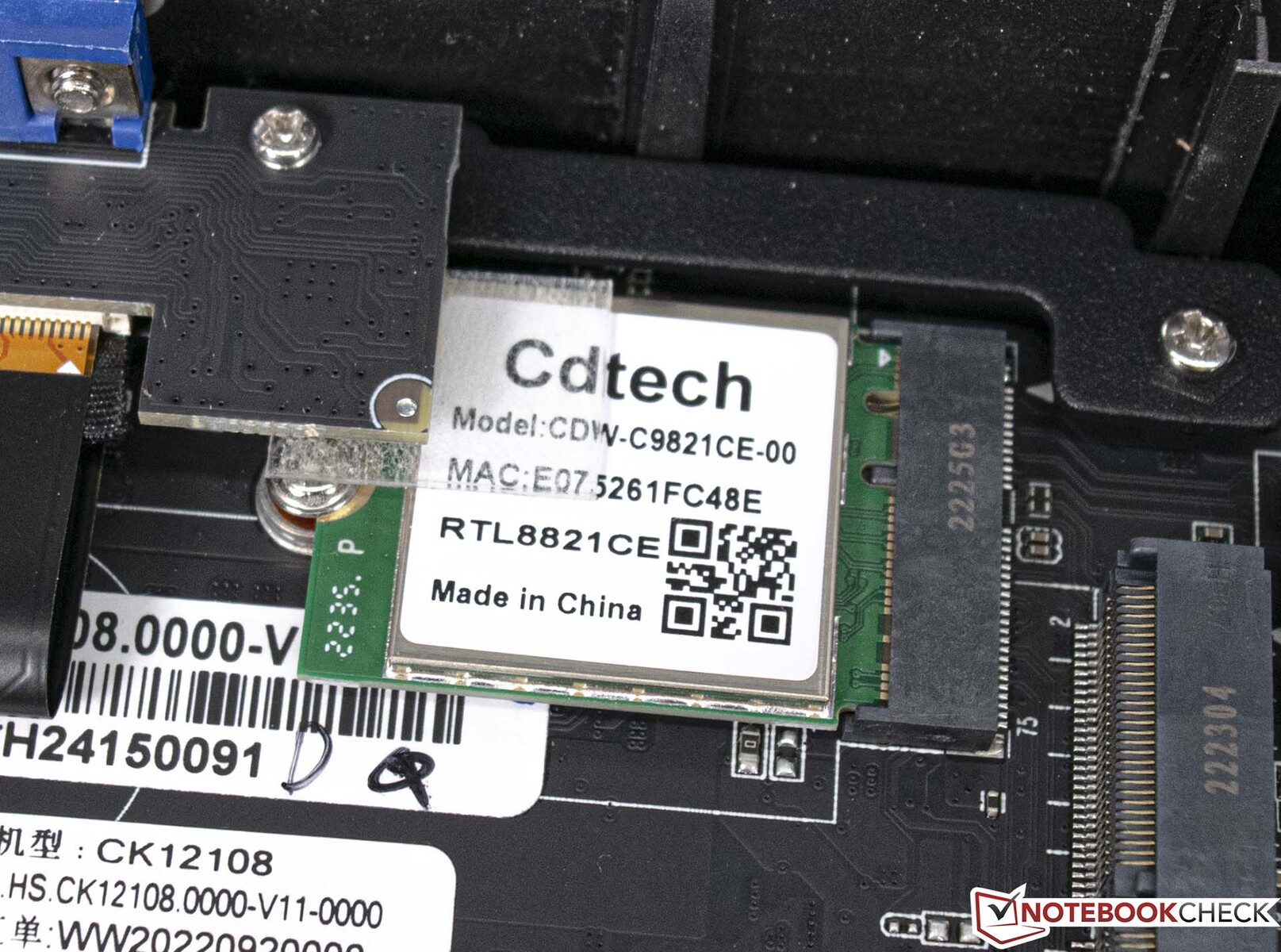

NiPoGi CK10中的Wi-Fi模块
NiPoGi CK10中的Wi-Fi模块

NiPoGi CK10内部隐藏着一个Realtek Wi-Fi模块。在测试过程中,当与我们的测试路由器--华硕ROG Rapture GT-AXE11000配对时,该无线模块未能提供令人信服的性能,令人遗憾。以相当大的差距,该测试样品在我们的比较表中排在最后。幸运的是,在使用有线连接时,可以实现高达1GBit/s的更快互联网连接。

Networking
iperf3 receive AXE11000
Average of class Mini PC
  (192.9 - 1796, n=96, last 2 years)
915 MBit/s +374%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 MBit/s +368%
Minisforum EliteMini TH50
MediaTek MT7921
776 MBit/s +302%
Minisforum EliteMini B550
MediaTek RZ608
430 MBit/s +123%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
390 MBit/s +102%
Average RealTek Semiconductor, Device ID: C821
  (192.9 - 349, n=2)
271 MBit/s +40%
Minipc Union NiPoGi CK10 - 10810U
RealTek Semiconductor, Device ID: C821
192.9 (95min - 196max) MBit/s
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 MBit/s +182%
Minisforum EliteMini TH50
MediaTek MT7921
866 MBit/s +152%
Average of class Mini PC
  (184.1 - 1776, n=96, last 2 years)
846 MBit/s +147%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
745 MBit/s +117%
Minisforum EliteMini B550
MediaTek RZ608
572 MBit/s +67%
Minipc Union NiPoGi CK10 - 10810U
RealTek Semiconductor, Device ID: C821
343 (170min - 362max) MBit/s
Average RealTek Semiconductor, Device ID: C821
  (272 - 343, n=2)
308 MBit/s -10%
050100150200250300350Tooltip
Minipc Union NiPoGi CK10 - 10810U; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)
Minipc Union NiPoGi CK10 - 10810U; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

维护

就目前而言,由于坚实的底座配置,升级是没有必要的。如果你仍然希望访问内置的组件,这可以很容易地实现,因为只需要拧开四个小螺丝,就可以拆下底板。在我们的测试样品中,可以容纳一个额外的插槽,用于进一步的SO DIMM模块,以及另外两个大容量存储设备。如果你想清洁风扇,则需要进一步拆卸,不会有特别大的问题。

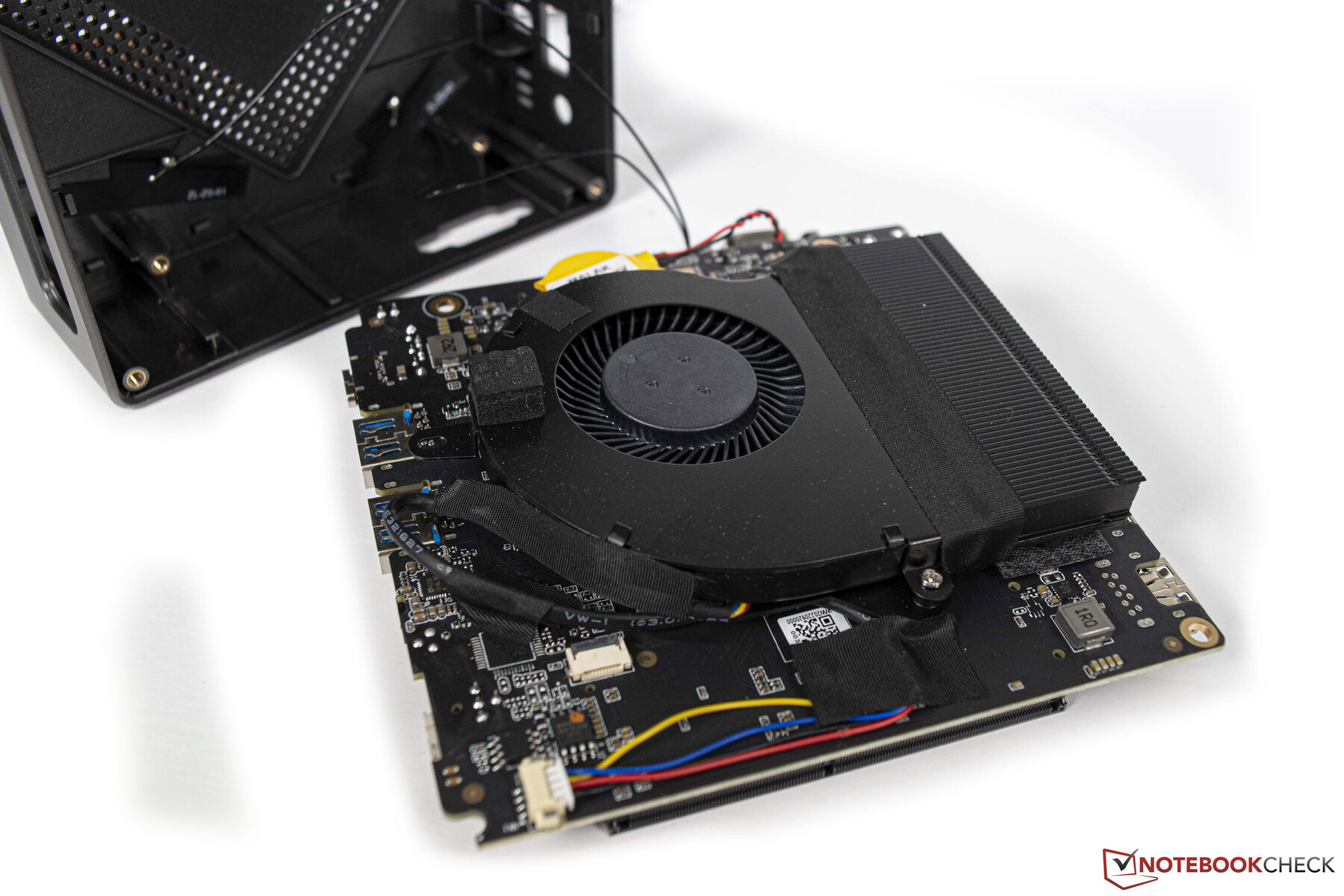

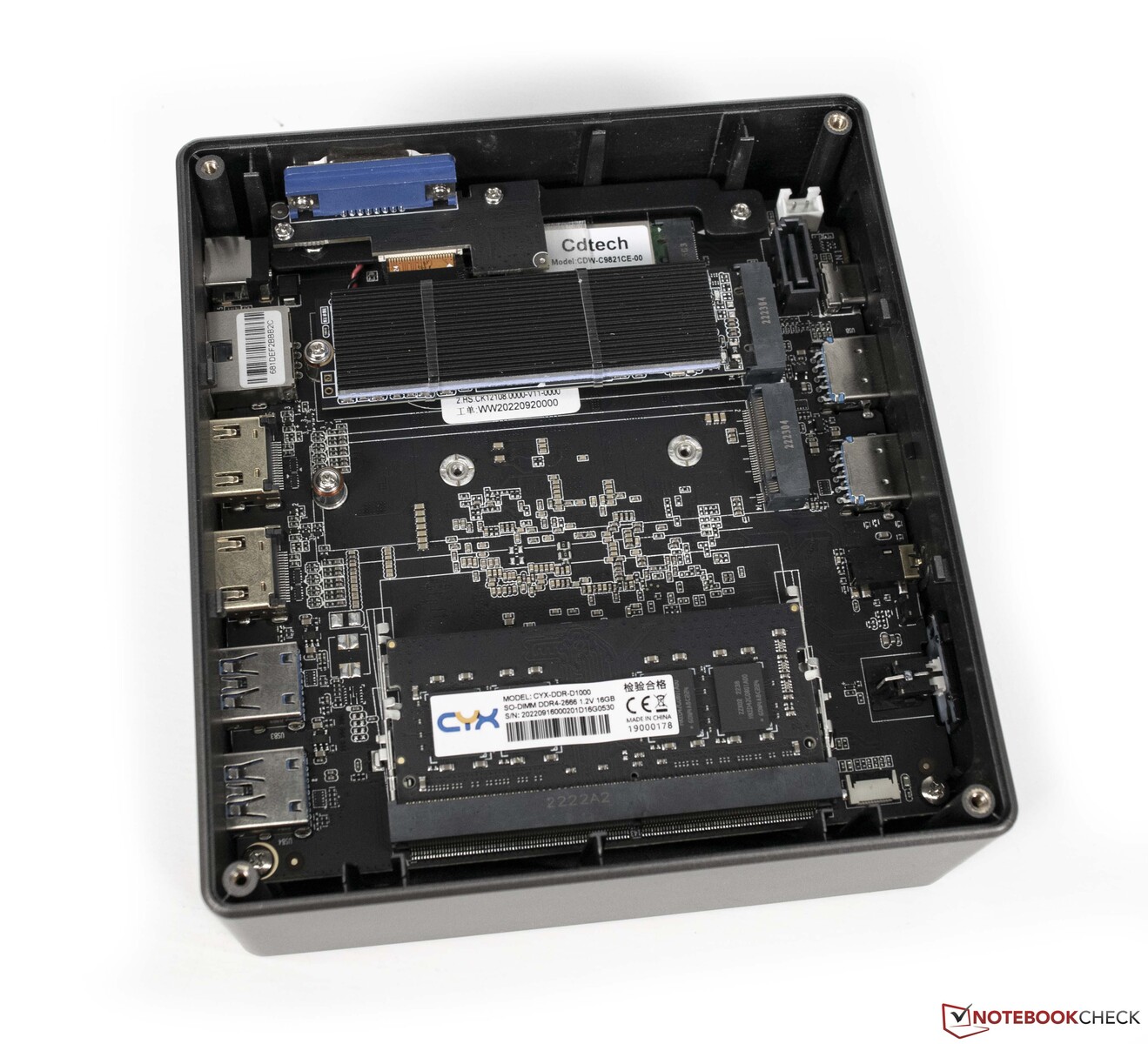

已打开的NiPoGi CK10
已打开的NiPoGi CK10

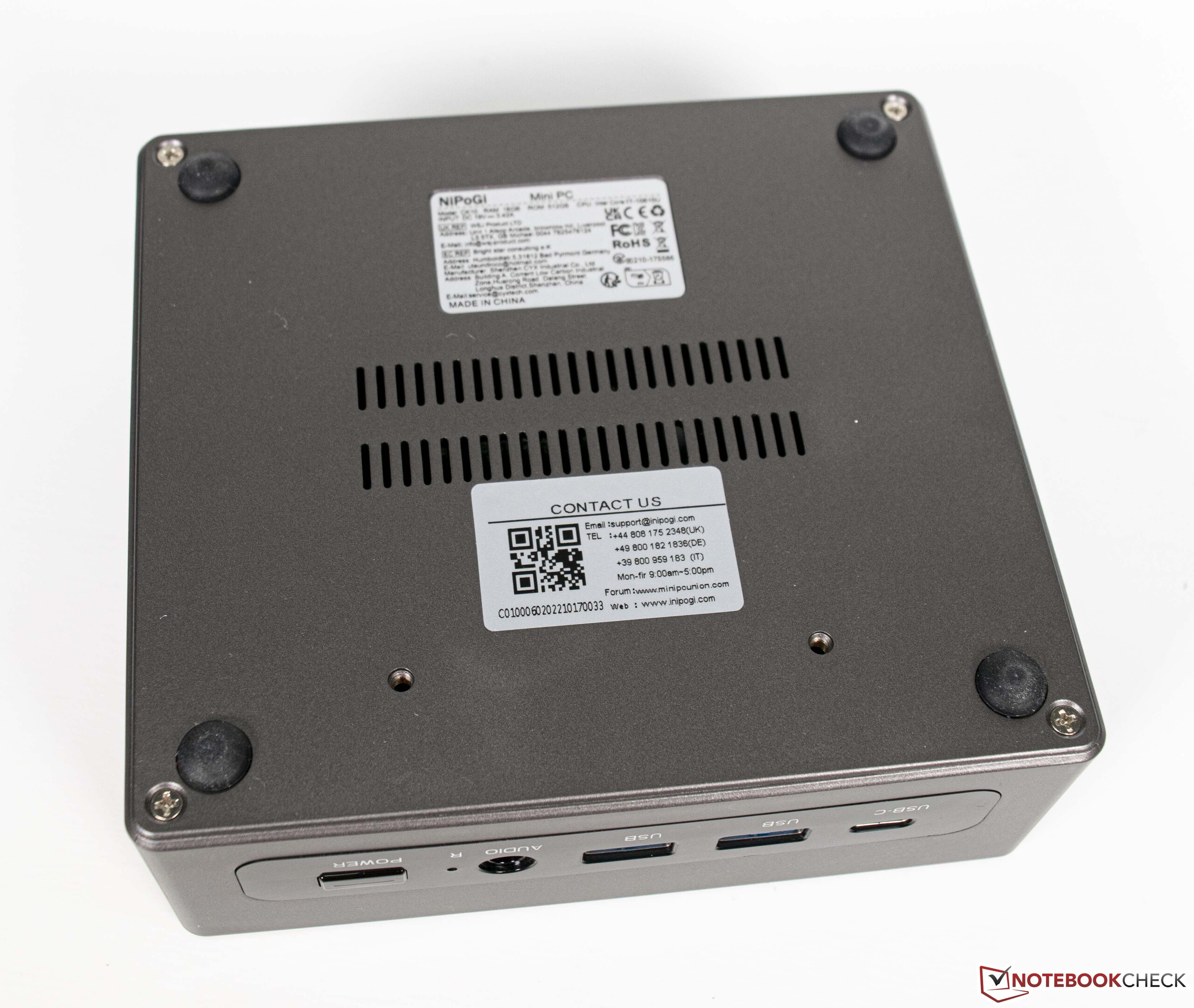

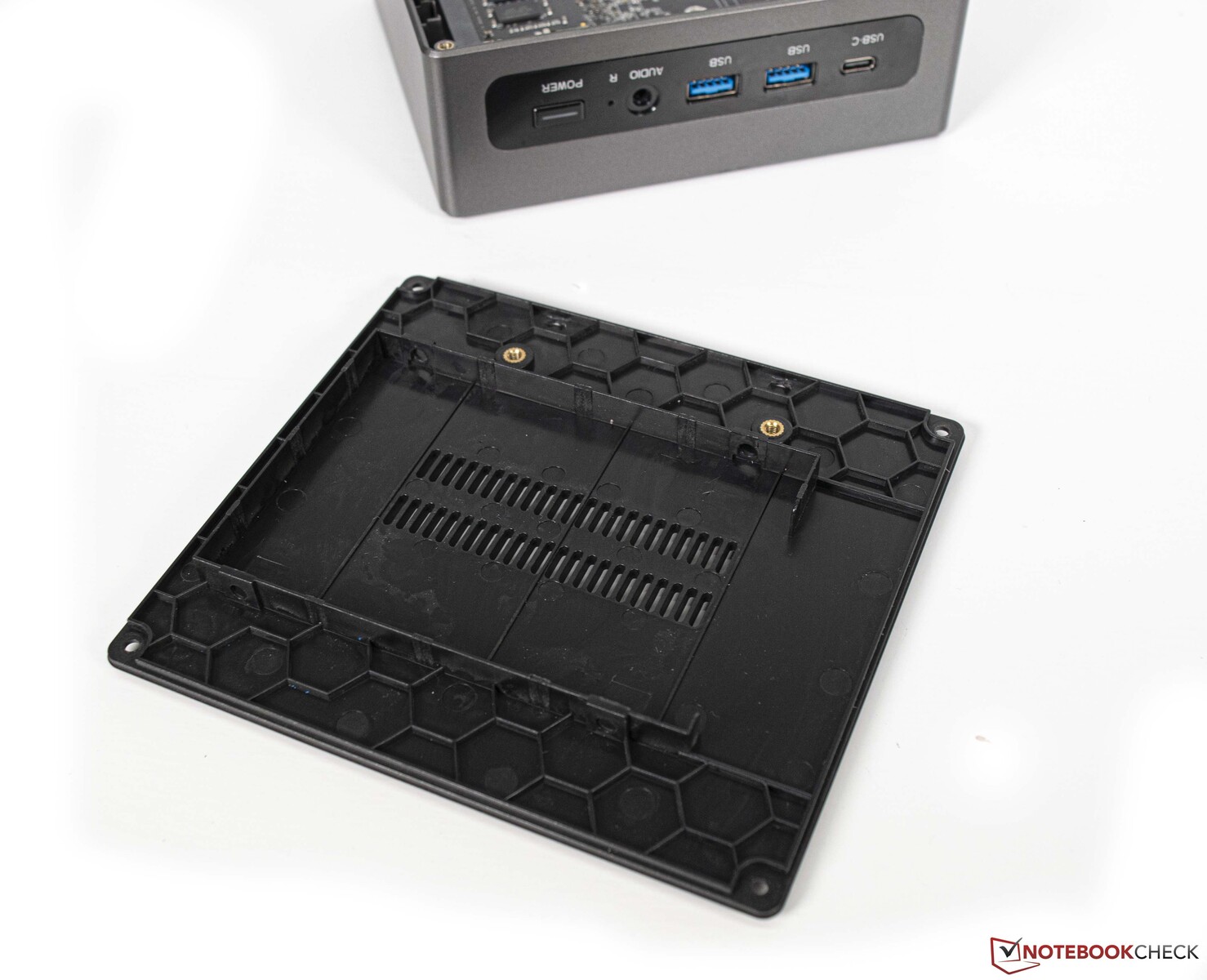

下箱盖
下箱盖
冷却装置的视图
冷却装置的视图

业绩

在基本水平上,英特尔酷睿i7-10810U适用于办公应用和轻型多线程工作负载,由于其12个线程,可以有效地处理。不幸的是,制造商只安装了一个内存模块,浪费了一些性能。内置的SSD也是如此,它只拥有SATA速度。

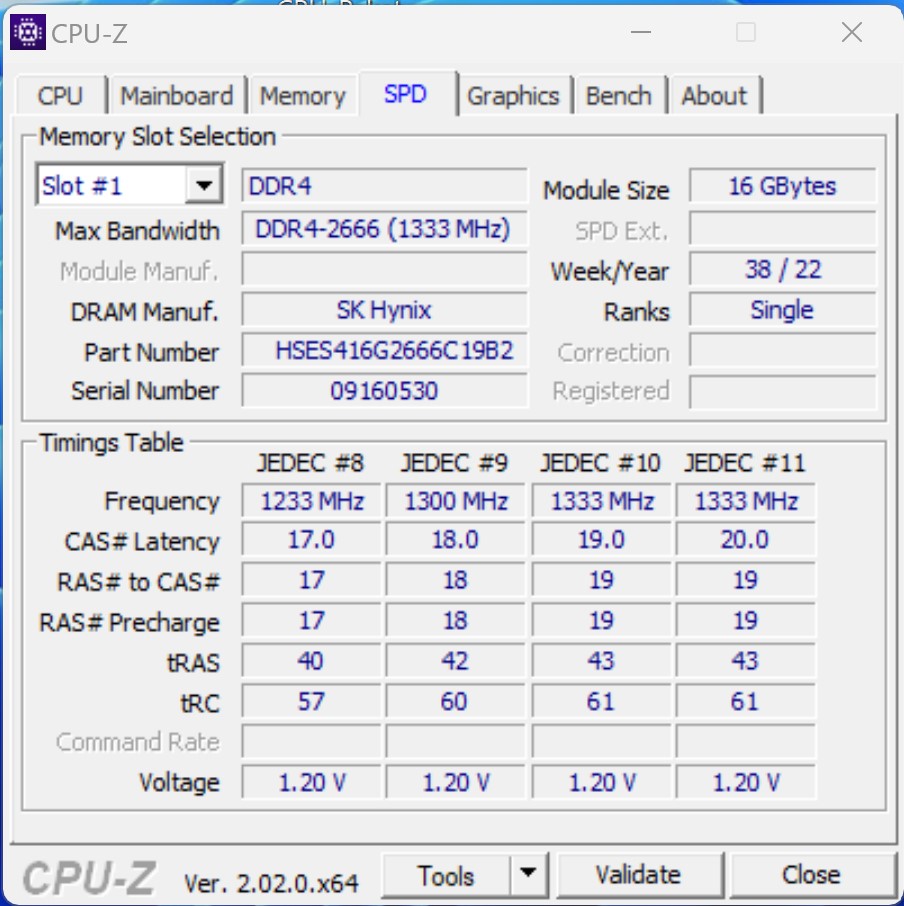

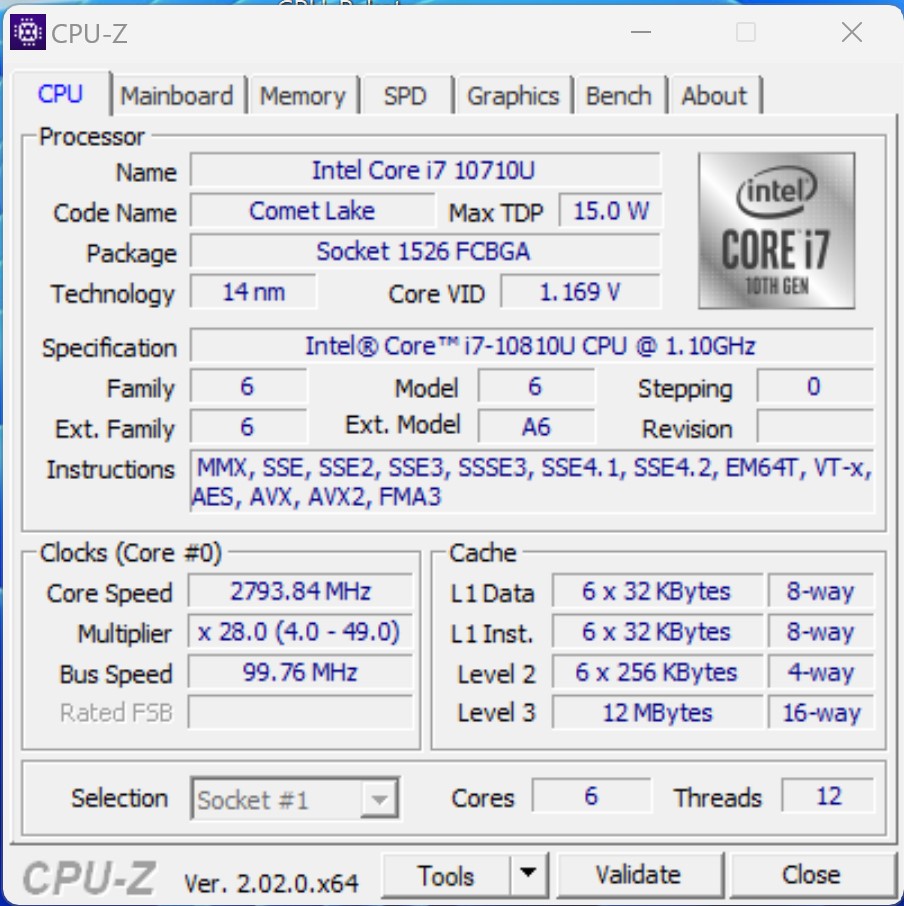

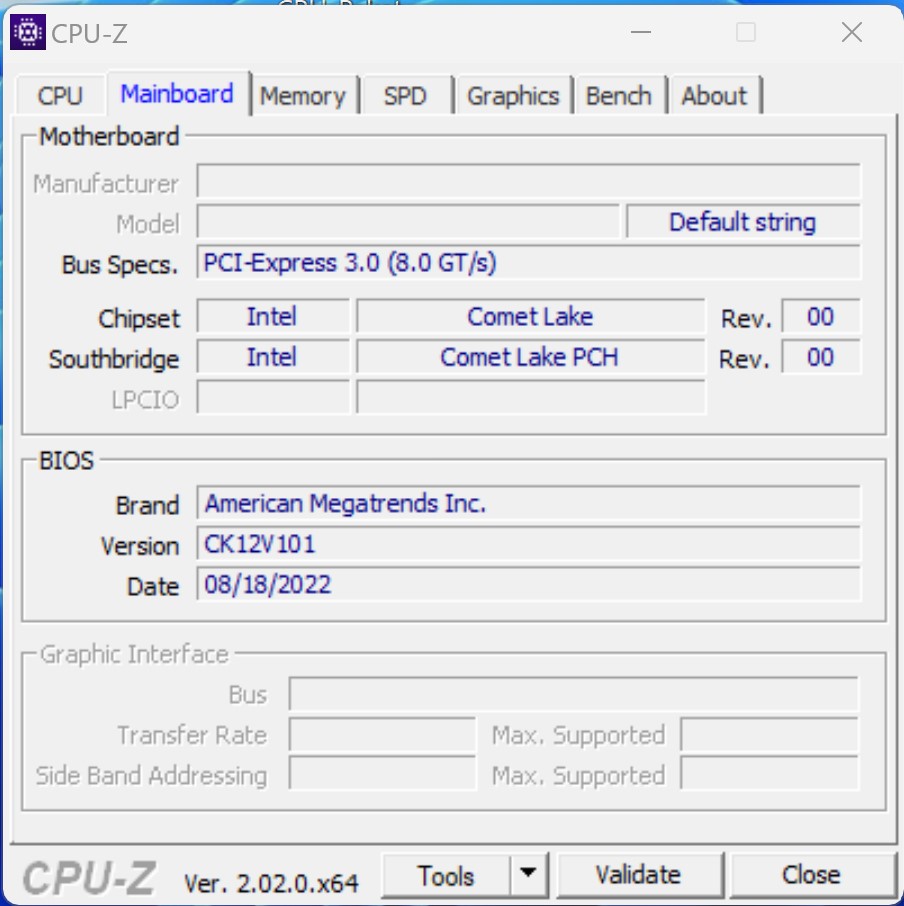

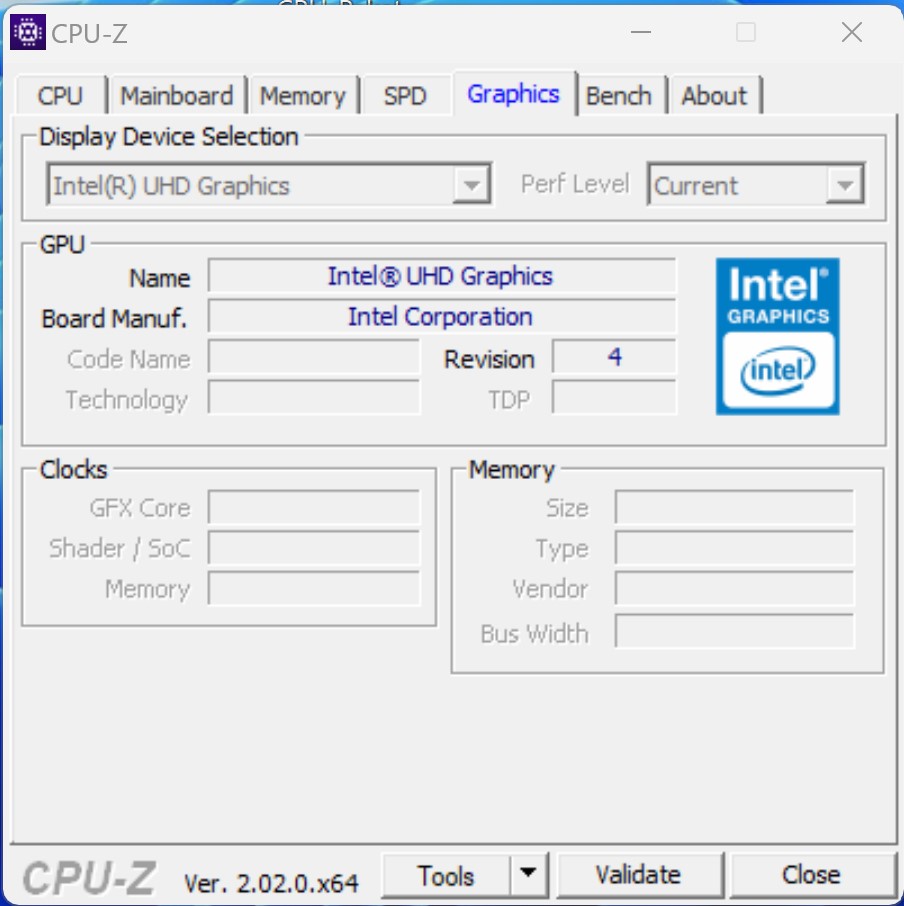

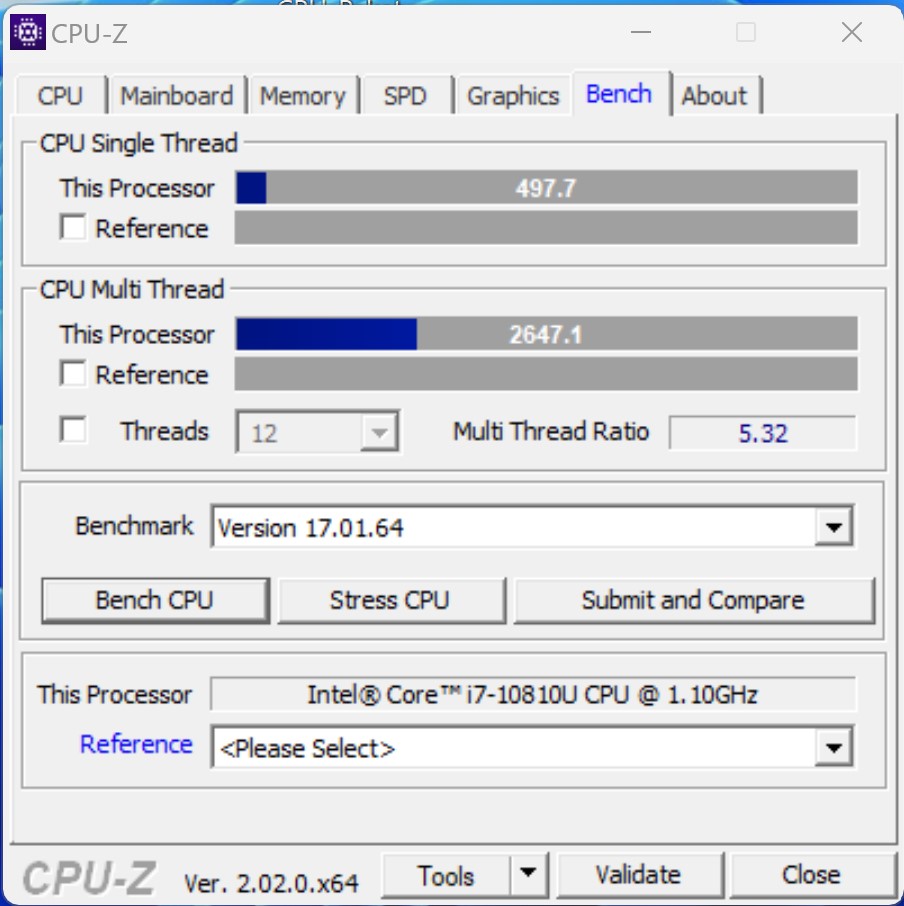

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

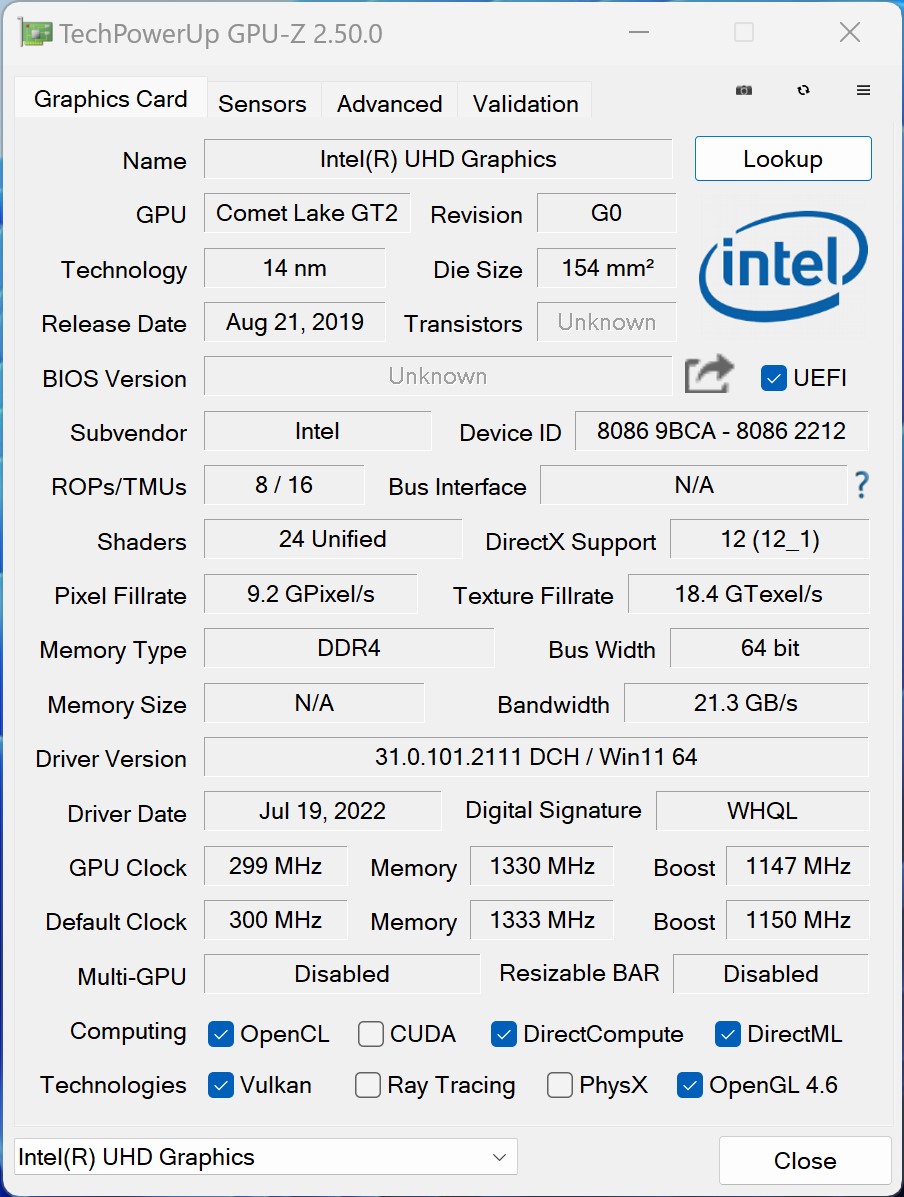

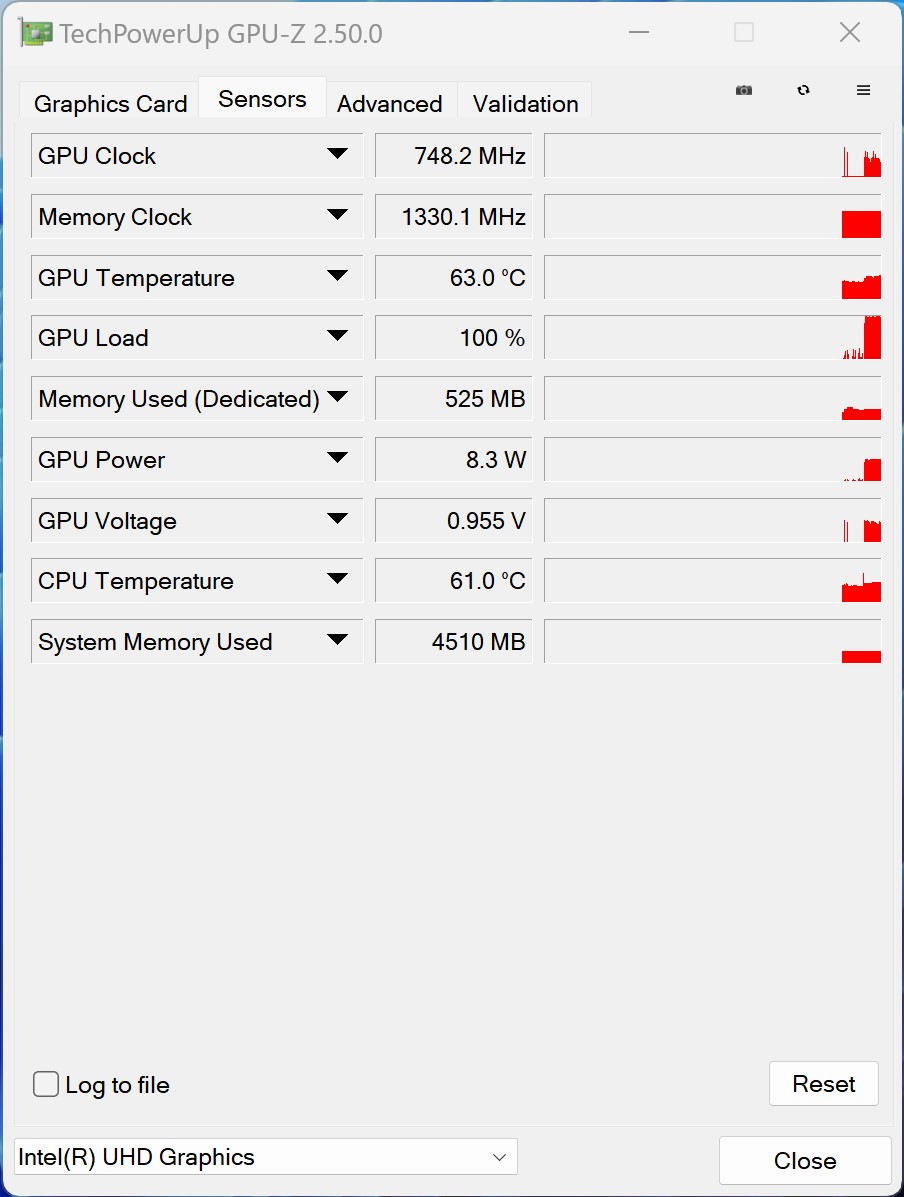

GPU-Z
GPU-Z

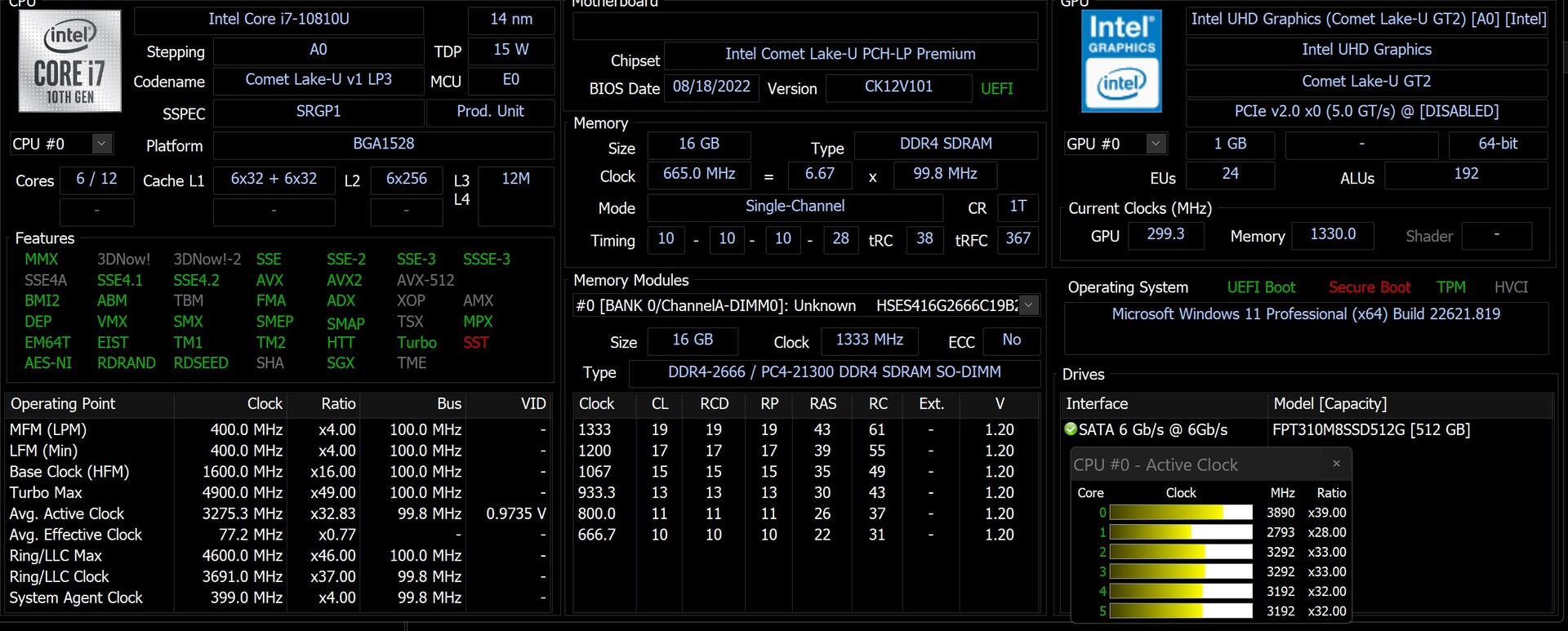

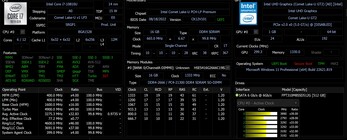

HWiNFO


测试条件

所有的性能测试都是使用出厂默认设置进行的。我们没有对SoC的功率限制进行任何改变。不过,BIOS允许改变这些值。

处理器

芯片 英特尔酷睿i7-10810U属于彗星湖系列,提供六个支持超线程的计算核心,总共12个线程。功率消耗被限制在40瓦(短期功率限制)和15瓦(长期功率限制),制造商在这方面表现得非常保守。冷却系统仍有储备,可以从SoC中哄骗更多性能。这意味着NiPoGi CK10难以跟上竞争对手的步伐。只有 王牌魔术师TK11-A0接近,并能在许多多线程基准测试中被击败。老化的 英特尔酷睿i7-10810U在与拥有原生8个核心的竞争对手相比时,显得很吃力。

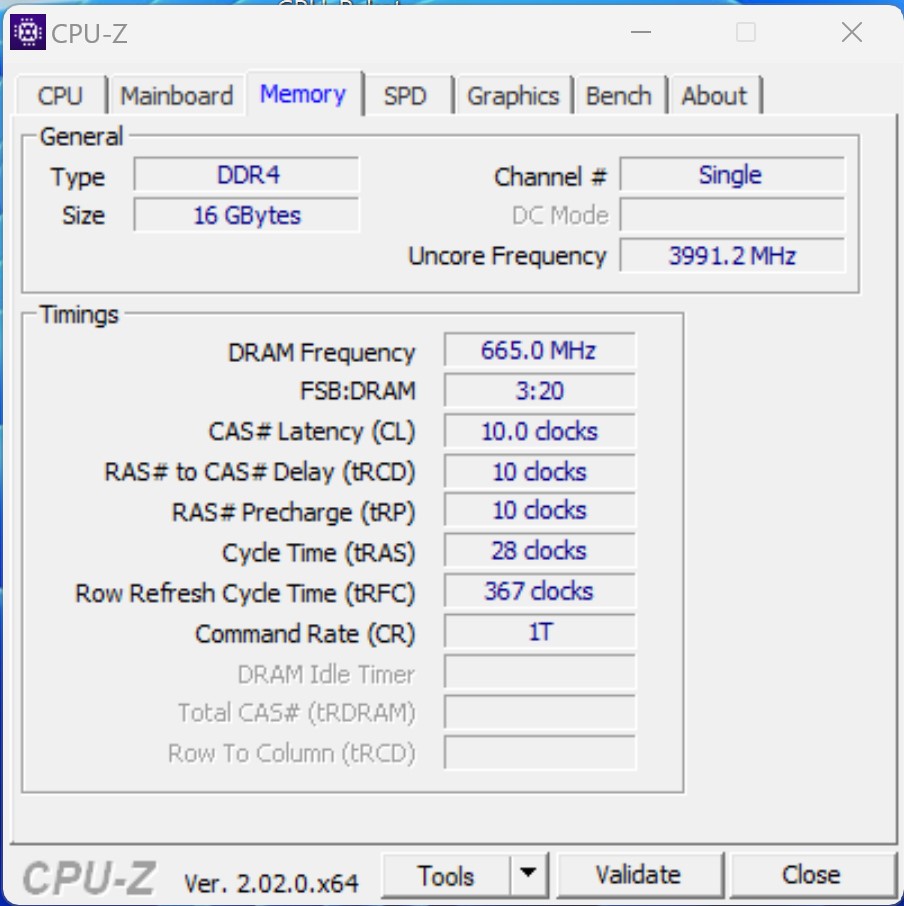

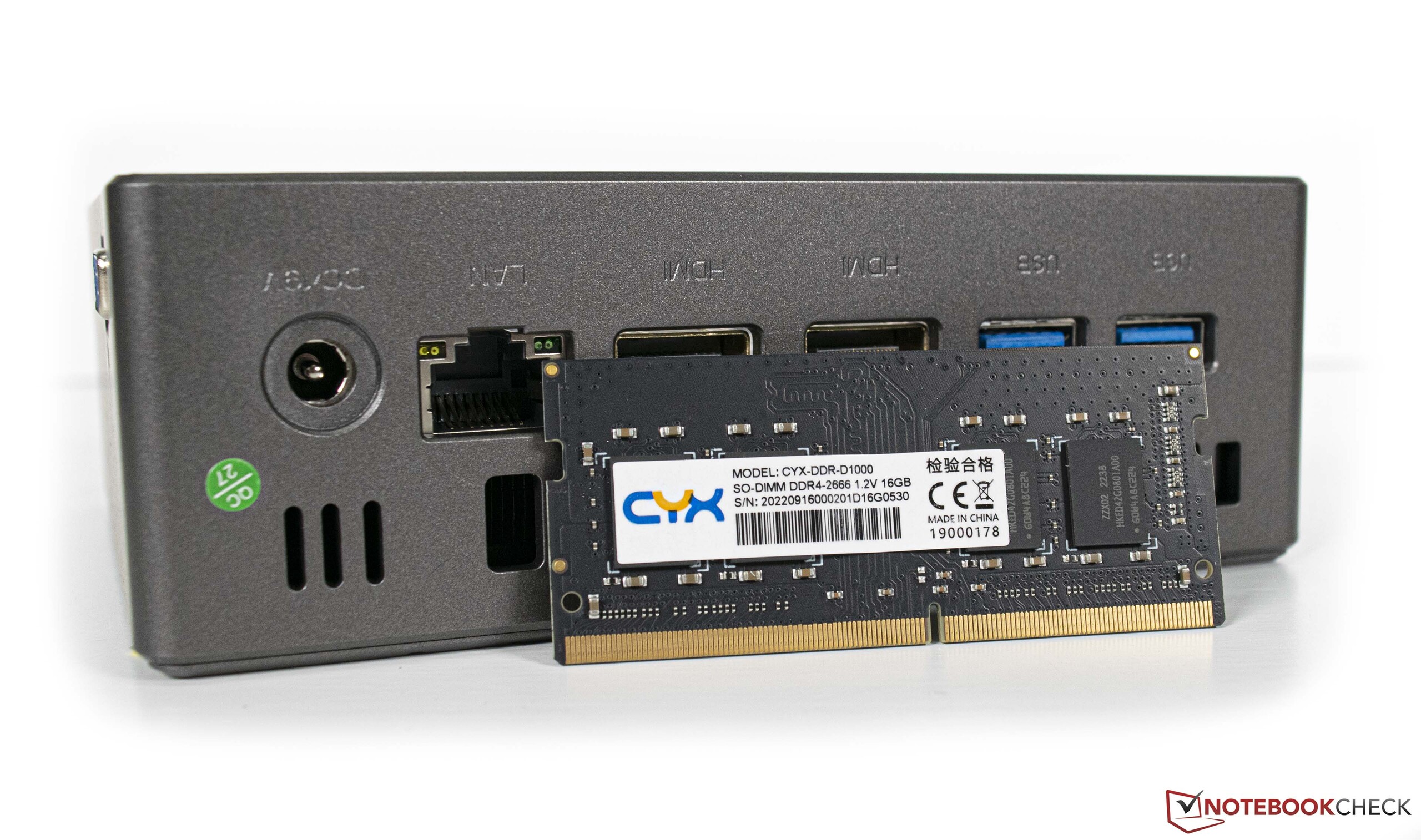

在内存基准测试中,单一的内置RAM模块对NiPoGi CK10是致命的。双通道模式只能使用两个内存模块,是整个系统都会受益的。

你可以找到其他的处理器基准测试 这里.

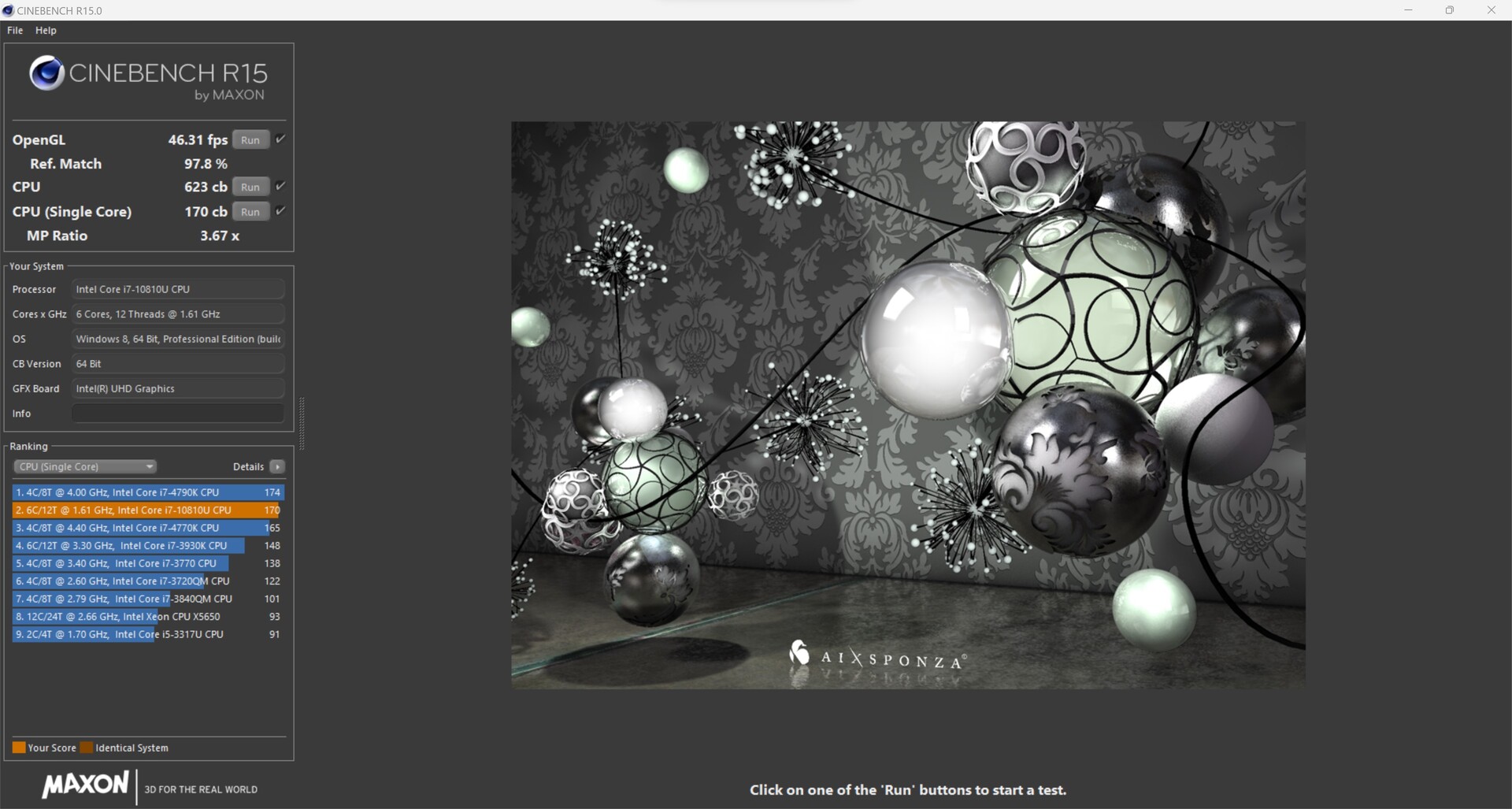

Cinebench R15
Cinebench R15

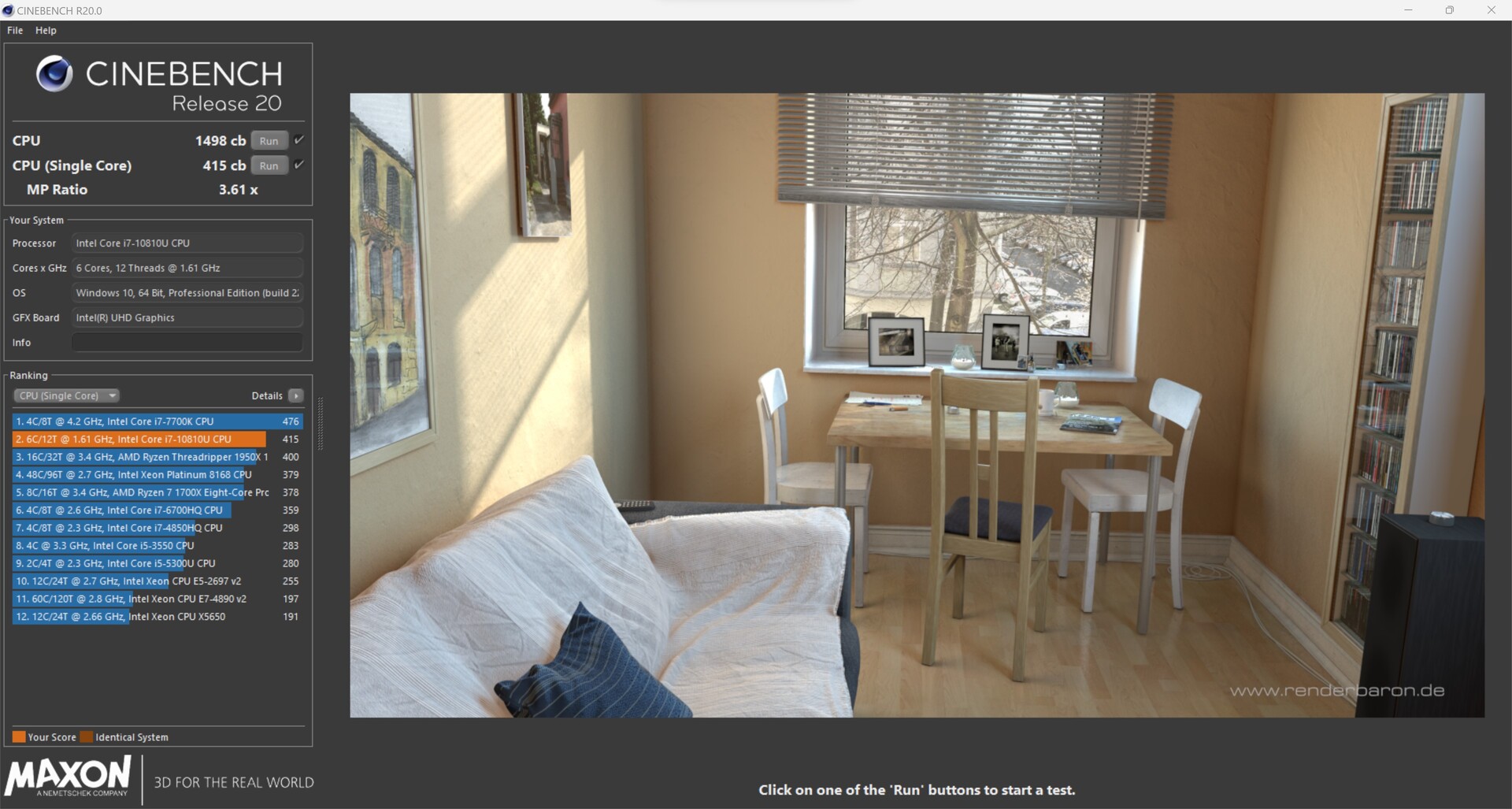

Cinebench R20
Cinebench R20

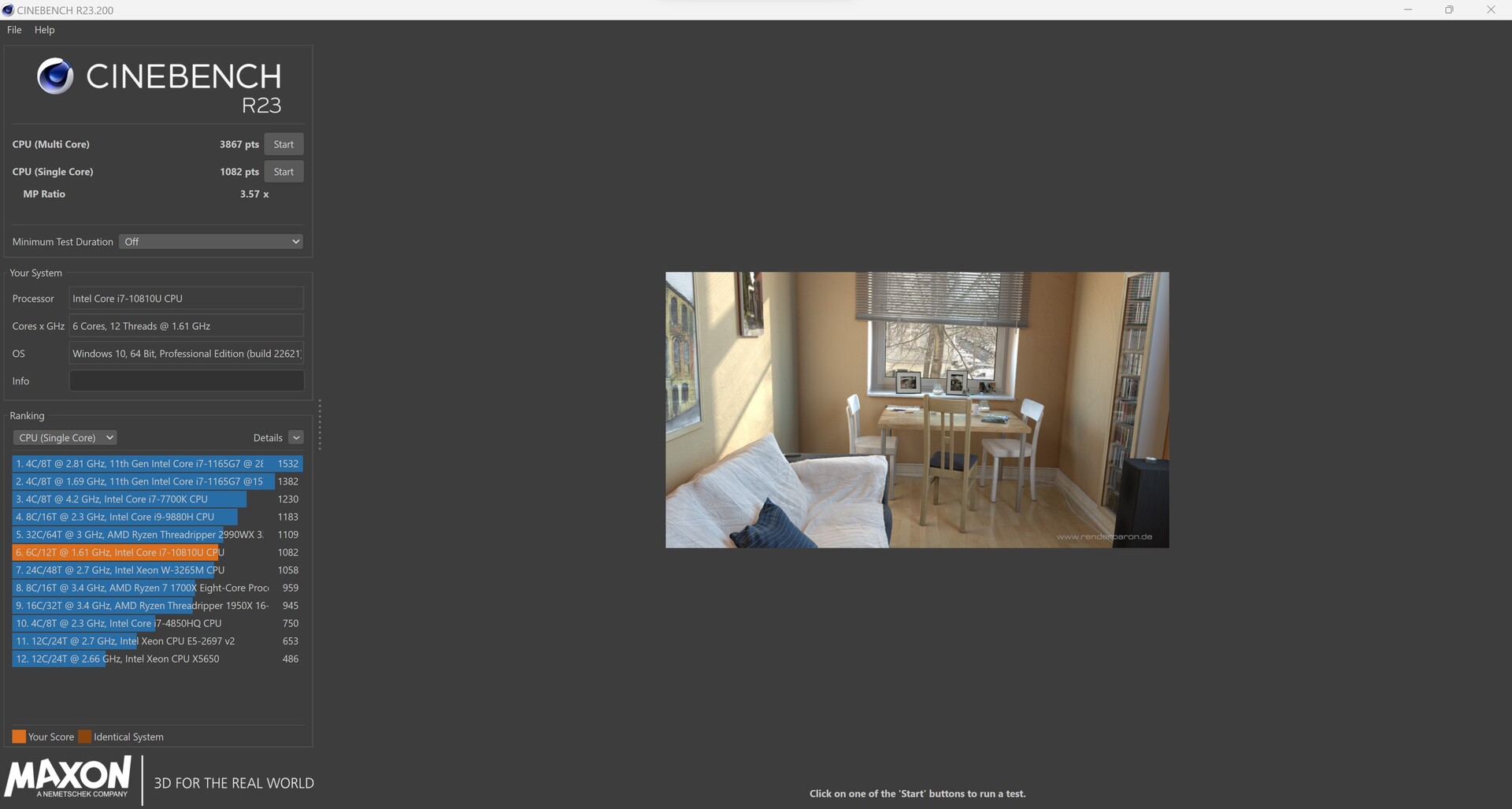

电影院R23
电影院R23
Performance Rating - Percent
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
46.8 pt
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
46.7 pt
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
46.5 pt
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
42 pt
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
41.5 pt
Minisforum EliteMini TH50 -2!
Intel Core i5-11320H, 3200 MHz
39.8 pt
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
35.7 pt
Average Intel Core i7-10810U

34.4 pt
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
33.5 pt
Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
243 Points +43%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
242 Points +42%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
240 Points +41%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
223 Points +31%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
212 Points +25%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
197 Points +16%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
194 Points +14%
Average Intel Core i7-10810U
  (161 - 183, n=5)
175.6 Points +3%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
170 Points
CPU Multi 64Bit
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2224 Points +257%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1980 Points +218%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
1967 Points +216%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1919 (1862.02min - 1893.4max) Points +208%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1265 Points +103%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
950 Points +52%
Average Intel Core i7-10810U
  (623 - 1064, n=4)
799 Points +28%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
623 Points
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
560 Points -10%
Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
585 Points +41%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
582 Points +40%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
567 Points +37%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
560 Points +35%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
534 Points +29%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
517 Points +25%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
505 Points +22%
Average Intel Core i7-10810U
  (396 - 447, n=5)
425 Points +2%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
415 Points
CPU (Multi Core)
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
5185 Points +246%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
4660 Points +211%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
4585 Points +206%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
4495 Points +200%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2975 Points +99%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
2319 Points +55%
Average Intel Core i7-10810U
  (1498 - 2344, n=5)
1778 Points +19%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
1498 Points
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1440 Points -4%
Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
2.87 Points +47%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2.86 Points +47%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
2.8 Points +44%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2.64 Points +35%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
2.51 Points +29%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
2.31 Points +18%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
2.24 Points +15%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
1.95 Points
Average Intel Core i7-10810U
  ()
1.95 Points 0%
CPU Multi 64Bit
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
25.6 Points +267%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
23.03 Points +230%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
22.79 Points +227%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
22 Points +215%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
14.78 Points +112%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
10.78 Points +54%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
6.98 Points
Average Intel Core i7-10810U
  ()
6.98 Points 0%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
6.37 Points -9%
Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
12152 Points +41%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
12113 Points +41%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
11811 Points +37%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
11457 Points +33%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
11098 Points +29%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
10395 Points +21%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
10173 Points +18%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
8591 Points
Average Intel Core i7-10810U
  ()
8591 Points 0%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
73115 Points +211%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
66237 Points +182%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
65380 Points +178%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
64320 Points +174%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
45363 Points +93%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
42350 Points +80%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
24499 Points +4%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
23491 Points
Average Intel Core i7-10810U
  ()
23491 Points 0%
Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
750 Seconds * -8%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
694 Seconds *
Average Intel Core i7-10810U
  (571 - 875, n=5)
689 Seconds * +1%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
516 Seconds * +26%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
399 Seconds * +43%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
265 Seconds * +62%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
252.1 Seconds * +64%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
247.3 Seconds * +64%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
229.3 Seconds * +67%
wPrime 2.10
32m
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
6.952 s *
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
6.799 s * +2%
Average Intel Core i7-10810U
  (4.86 - 6.95, n=2)
5.9 s * +15%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
5.895 s * +15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5.377 s * +23%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
4.4 s * +37%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
3.595 s * +48%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
3.308 s * +52%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
3.194 s * +54%
1024m
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
286.835 s * -7%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
267.369 s *
Average Intel Core i7-10810U
  (205 - 267, n=2)
236 s * +12%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
191.4 s * +28%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
156.33 s * +42%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
106.7 s * +60%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
98.635 s * +63%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
91.6 s * +66%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
82.9 s * +69%
X264 HD Benchmark 4.0
Pass 1
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
276.5 (274min - 278max) fps +95%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
271.5 (259min - 276max) fps +92%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
263.5 (262min - 266max) fps +86%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
234 (233min - 235max) fps +65%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
215 (213min - 217max) fps +52%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
165.55 (163.6min - 204max) fps +17%
Average Intel Core i7-10810U
  (141.6 - 153.7, n=2)
147.7 fps +4%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
141.6 (140.9min - 163.1max) fps
Pass 2
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
128 (122min - 128max) fps +227%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
116.8 (116.8min - 117.3max) fps +198%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
112 (112min - 112max) fps +186%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
111 (111min - 112max) fps +184%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
76 (75.7min - 76.3max) fps +94%
Average Intel Core i7-10810U
  (39.2 - 39.7, n=2)
39.4 fps +1%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
39.15 (39.1min - 42.7max) fps
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
36.7 (36.7min - 37.6max) fps -6%
WinRAR - Result
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
7722 KB/s +63%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
6960 KB/s +47%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6877 KB/s +45%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
5481 KB/s +15%
Average Intel Core i7-10810U
  (4747 - 4927, n=2)
4837 KB/s +2%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
4747 KB/s
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
4297 KB/s -9%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
4297 KB/s -9%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4185 KB/s -12%
TrueCrypt
AES Mean 100MB
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
10.8 GB/s +83%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
7.7 GB/s +31%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7.6 GB/s +29%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
7.4 GB/s +25%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7.4 GB/s +25%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
6.1 GB/s +3%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
5.9 GB/s
Average Intel Core i7-10810U
  (5.5 - 5.9, n=2)
5.7 GB/s -3%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5.3 GB/s -10%
Twofish Mean 100MB
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
2 GB/s +100%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2 GB/s +100%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1.6 GB/s +60%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1.5 GB/s +50%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1.1 GB/s +10%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
1 GB/s
Average Intel Core i7-10810U
  (0.956 - 1, n=2)
0.978 GB/s -2%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
0.919 GB/s -8%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.755 GB/s -24%
Serpent Mean 100MB
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
1.2 GB/s +112%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1.2 GB/s +112%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1.1 GB/s +94%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1.1 GB/s +94%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.7 GB/s +24%
Average Intel Core i7-10810U
  (0.566 - 0.64, n=2)
0.603 GB/s +7%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
0.566 GB/s
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
0.525 GB/s -7%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.448 GB/s -21%
Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7875 Points +100%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
7855 Points +100%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7818 Points +99%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
7224 Points +84%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6175 Points +57%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
5657 Points +44%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4898 Points +25%
Average Intel Core i7-10810U
  (3351 - 5553, n=5)
4350 Points +11%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
3934 Points
Single-Core
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1560 Points +28%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1552 Points +27%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1542 Points +26%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
1453 Points +19%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1430 Points +17%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1391 Points +14%
Average Intel Core i7-10810U
  (1219 - 1274, n=5)
1240 Points +2%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
1233 Points +1%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
1219 Points
Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7859 Points +100%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
7847 Points +100%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7806 Points +99%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
7624 Points +94%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6117 Points +56%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
5606 Points +43%
Average Intel Core i7-10810U
  (3924 - 5631, n=3)
4908 Points +25%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4841 Points +23%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
3924 Points
5.0 Single-Core
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1518 Points +24%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1504 Points +23%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1498 Points +23%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
1453 Points +19%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1385 Points +14%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1383 Points +13%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
1237 Points +1%
Average Intel Core i7-10810U
  (1220 - 1235, n=3)
1229 Points +1%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
1220 Points
Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
6517 Points +37%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
6434 Points +35%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
6365 Points +34%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
6238 Points +31%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5911 Points +24%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5854 Points +23%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
5287 Points +11%
Average Intel Core i7-10810U
  (4762 - 5281, n=3)
5082 Points +7%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
4762 Points
64 Bit Multi-Core Score
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
32434 Points +68%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
31835 Points +65%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
31724 Points +64%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
28402 Points +47%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
24495 Points +27%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
22045 Points +14%
Average Intel Core i7-10810U
  (19324 - 22533, n=3)
21447 Points +11%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
19324 Points
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
19288 Points 0%
3DMark 11 - 1280x720 Performance Physics
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
16783 Points +157%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
14277 Points +118%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
13940 Points +113%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
12608 Points +93%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
12199 Points +87%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
11662 Points +78%
Average Intel Core i7-10810U
  (6537 - 10599, n=5)
8591 Points +31%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
7792 Points +19%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
6537 Points
7-Zip 18.03
7z b 4
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
57435 MIPS +185%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
55046 MIPS +173%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
54998 MIPS +173%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
48976 MIPS +143%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
39207 MIPS +94%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
26858 MIPS +33%
Average Intel Core i7-10810U
  (16072 - 25244, n=5)
21290 MIPS +6%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
20163 MIPS
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
17636 MIPS -13%
7z b 4 -mmt1
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
5905 MIPS +27%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
5809 MIPS +25%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
5739 MIPS +24%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5249 MIPS +13%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
4945 MIPS +7%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4788 MIPS +3%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
4727 MIPS +2%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
4638 MIPS
Average Intel Core i7-10810U
  (4398 - 4794, n=5)
4561 MIPS -2%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
15.9 fps +206%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
14.8 fps +185%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
14.5 fps +179%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
12.9 fps +148%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
10.1 fps +94%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
7.86 fps +51%
Average Intel Core i7-10810U
  (3.81 - 6.45, n=5)
5.31 fps +2%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5.26 fps +1%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
5.2 fps
R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
0.7 sec *
Average Intel Core i7-10810U
  (0.651 - 0.717, n=5)
0.682 sec * +3%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.639 sec * +9%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
0.622 sec * +11%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
0.572 sec * +18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.537 sec * +23%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
0.4975 sec * +29%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
0.4965 sec * +29%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
0.493 sec * +30%
LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
68.2 s *
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
66 s * +3%
Average Intel Core i7-10810U
  (60.6 - 68.2, n=5)
65.4 s * +4%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
52 s * +24%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
51.1 s * +25%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
50.7 s * +26%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
50.4 s * +26%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
49.3 s * +28%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
48.7 s * +29%
WebXPRT 3 - Overall
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
284 Points +39%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
278 Points +36%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
274 Points +34%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
257 Points +25%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
255 Points +24%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
236 Points +15%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
227 Points +11%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
205 Points
Average Intel Core i7-10810U
  (202 - 207, n=5)
205 Points 0%
Mozilla Kraken 1.1 - Total
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
968 ms *
Average Intel Core i7-10810U
  (853 - 968, n=5)
901 ms * +7%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
767 ms * +21%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
724 ms * +25%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
670 ms * +31%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
646 ms * +33%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
604 ms * +38%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
602 ms * +38%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
601 ms * +38%
3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
23939 Points +183%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
23269 Points +175%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
22976 Points +171%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
18986 Points +124%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
17568 Points +107%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
13773 Points +63%
Average Intel Core i7-10810U
  (8470 - 11179, n=2)
9825 Points +16%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
9561 Points +13%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
8470 Points
1920x1080 Fire Strike Physics
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
25160 Points +179%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
24096 Points +168%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
23903 Points +166%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
20613 Points +129%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
18076 Points +101%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
13763 Points +53%
Average Intel Core i7-10810U
  (9003 - 11864, n=5)
10590 Points +18%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
9354 Points +4%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
9003 Points
2560x1440 Time Spy CPU
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
8191 Points +200%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7087 Points +160%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
6955 Points +155%
Minisforum HM90
AMD Ryzen 9 4900H, 3300 MHz
6523 Points +139%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5443 Points +100%
Minisforum EliteMini TH50
Intel Core i5-11320H, 3200 MHz
5210 Points +91%
Average Intel Core i7-10810U
  (2331 - 4127, n=5)
3331 Points +22%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
2867 Points +5%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, 1100 MHz
2728 Points

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
93.7 pt
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
84 pt
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
83.4 pt
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
83.3 pt
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
58.4 pt
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
51 pt
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
40.4 pt
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
30.5 pt
AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
15755 KRay/s +239%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
15061 KRay/s +224%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
13631 KRay/s +193%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
13460 KRay/s +189%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
9086 KRay/s +95%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
7489 KRay/s +61%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
5612 KRay/s +21%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
4654 KRay/s
AIDA64 / FPU Julia
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
100504 Points +283%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
86825 Points +231%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
85294 Points +225%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
80302 Points +206%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
57375 Points +119%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
31637 Points +21%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
26251 Points
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
24138 Points -8%
AIDA64 / CPU SHA3
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
3444 MB/s +227%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
2953 MB/s +181%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
2924 MB/s +178%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
2631 MB/s +150%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
2099 MB/s +100%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
1971 MB/s +87%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
1649 MB/s +57%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
1052 MB/s
AIDA64 / CPU Queen
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
105123 Points +86%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
101697 Points +80%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
97720 Points +73%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
94655 Points +67%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
67224 Points +19%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
56561 Points
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
52477 Points -7%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
46646 Points -18%
AIDA64 / FPU SinJulia
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
14477 Points +211%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
12792 Points +175%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
12202 Points +163%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
11929 Points +157%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
8294 Points +78%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
5011 Points +8%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
4648 Points
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
3964 Points -15%
AIDA64 / FPU Mandel
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
55452 Points +341%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
47597 Points +279%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
47010 Points +274%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
42220 Points +236%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
31389 Points +150%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
18770 Points +49%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
14905 Points +19%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
12560 Points
AIDA64 / CPU AES
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
135212 MB/s +655%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
119844 MB/s +569%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
115382 MB/s +544%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
78211 MB/s +337%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
76500 MB/s +327%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
75234 MB/s +320%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
58910 MB/s +229%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
17907 MB/s
AIDA64 / CPU ZLib
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
871 MB/s +198%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
851 MB/s +191%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
774 MB/s +165%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
747 MB/s +156%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
505 MB/s +73%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
410 MB/s +40%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
292 MB/s
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
265 MB/s -9%
AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
8425 KRay/s +233%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
8242 KRay/s +226%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
7193 KRay/s +185%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
7184 KRay/s +184%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
4636 KRay/s +83%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
4021 KRay/s +59%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
2997 KRay/s +19%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
2527 KRay/s
AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
30647 MPixel/s +203%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
26959 MPixel/s +167%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
19885 MPixel/s +97%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
19718 MPixel/s +95%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
19395 MPixel/s +92%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
14978 MPixel/s +48%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
14810 MPixel/s +47%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
10107 MPixel/s

NiPoGi CK10 Cinebench R15多环路

Cinebench R15的连续循环测试表明,内置的冷却系统并没有真正地对 英特尔酷睿i7-10810U.保守的调校确保了很短的涡轮增压时钟速度,这就是为什么我们在第一次运行后只观察到最小的性能损失。平均为612分,在所有50次运行中,性能都非常稳定。

01102203304405506607708809901100121013201430154016501760187019802090Tooltip
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)
Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

系统性能

基准测试的作用是强调该SoC已经超过两年了。从主观上看,由于相对较慢的固态硬盘和内存,系统性能的限制是明显的,它只能在单通道运行。有时在打开程序时可以观察到小的延迟。此外,低于平均水平的Wi-Fi性能也没有对工作流程产生有利影响。

PCMark 10 / Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
6507 Points +68%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
6290 Points +62%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
6214 Points +60%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
5761 Points +48%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
5565 Points +43%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
5130 Points +32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
4521 Points +16%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
3884 Points
PCMark 10 / Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
10385 Points +39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
10321 Points +38%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
10148 Points +36%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
10087 Points +35%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
9556 Points +28%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
9026 Points +21%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
8910 Points +19%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
7469 Points
PCMark 10 / Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
10196 Points +53%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
9941 Points +49%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
9856 Points +48%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
9539 Points +43%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
8277 Points +24%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
6832 Points +3%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
6657 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
6357 Points -5%
Performance Rating: Percent
CrossMark: Overall | Responsiveness | Creativity | Productivity
Performance Rating
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
92.7 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
89 pt
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
69.9 pt
CrossMark / Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1424 Points +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1373 Points +35%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
1300 Points +28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1245 Points +22%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
1018 Points
CrossMark / Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1271 Points +63%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1263 Points +62%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
1260 Points +62%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1224 Points +57%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
779 Points
CrossMark / Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1448 Points +39%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1379 Points +33%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
1241 Points +20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1193 Points +15%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
1038 Points
CrossMark / Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1453 Points +33%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1406 Points +29%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
1376 Points +26%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1306 Points +20%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
1092 Points
AIDA64 / Memory Copy
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
48650 MB/s +156%
Average of class Mini PC
  (6481 - 71990, n=108, last 2 years)
44339 MB/s +134%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
41969 MB/s +121%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
37840 MB/s +99%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
37616 MB/s +98%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
35423 MB/s +87%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
35051 MB/s +85%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
31638 MB/s +67%
Average Intel Core i7-10810U
  (18973 - 28662, n=2)
23818 MB/s +26%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
18973 MB/s
AIDA64 / Memory Read
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
46906 MB/s +139%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
46701 MB/s +138%
Average of class Mini PC
  (6914 - 75449, n=108, last 2 years)
44821 MB/s +128%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
43678 MB/s +123%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
42996 MB/s +119%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
40348 MB/s +106%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
38400 MB/s +96%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
38036 MB/s +94%
Average Intel Core i7-10810U
  (19621 - 30124, n=2)
24873 MB/s +27%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
19621 MB/s
AIDA64 / Memory Write
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
50353 MB/s +175%
Average of class Mini PC
  (6862 - 89318, n=108, last 2 years)
48301 MB/s +164%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
41806 MB/s +128%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
39154 MB/s +114%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
37475 MB/s +105%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
35371 MB/s +93%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
35158 MB/s +92%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
35146 MB/s +92%
Average Intel Core i7-10810U
  (18296 - 32064, n=2)
25180 MB/s +38%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
18296 MB/s
AIDA64 / Memory Latency
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
95.7 ns * -59%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
91.3 ns * -52%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
90.6 ns * -50%
Average of class Mini PC
  (44.9 - 154.6, n=108, last 2 years)
88.1 ns * -46%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
79.6 ns * -32%
Average Intel Core i7-10810U
  (60.2 - 94.3, n=2)
77.3 ns * -28%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
74.2 ns * -23%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
73.5 ns * -22%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
69 ns * -15%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
60.2 ns *

* ... smaller is better

DPC延迟

NiPoGi CK10在Edge中打开多个标签时有延迟问题。在播放4K Youtube视频时,延迟并没有恶化。的 英特尔酷睿i7-10810U的iGPU在播放这样的视频时,运行负荷约为35%。

打开多个浏览器标签和播放4K视频资料时的最大延迟
打开多个浏览器标签和播放4K视频资料时的最大延迟
Prime95十秒后的最大延时
Prime95十秒后的最大延时
按最高延迟排名的驱动程序
按最高延迟排名的驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
7414 μs *
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1867 μs * +75%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
1625 μs * +78%
Minisforum HM90, AMD Ryzen 9 4900H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B
1106 μs * +85%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
1106 μs * +85%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
765 μs * +90%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
659.1 μs * +91%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1
349.5 μs * +95%

* ... smaller is better

大容量存储

512 GB SATA SDSD
512 GB SATA SDSD

CK10由一个未知的固态硬盘驱动,存储容量为512GB。这是一款基于SATA的M.2 2280固态硬盘,在基准测试中可以明显看出。与NVMe SSD等更快的替代品相比,其缺点很明显。然而,4K读取性能处于一个良好的水平。这款迷你电脑可以配备多达三个大容量存储设备(2x M.2 2280,1x 2.5英寸)。

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
FPT310M8SSD512G
Sequential Read: 346.8 MB/s
Sequential Write: 395.5 MB/s
512K Read: 263.7 MB/s
512K Write: 307.5 MB/s
4K Read: 39.26 MB/s
4K Write: 83.54 MB/s
4K QD32 Read: 317.5 MB/s
4K QD32 Write: 338.2 MB/s
Drive Performance Rating - Percent
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
87.4 pt
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
85.7 pt
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
82.4 pt
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
71.1 pt
Minisforum HM90 -11!
Kingston OM8PDP3256B
68.6 pt
Morefine S500+
ADATA XPG Gammix S11L 1024GB
68.3 pt
Minisforum EliteMini TH50 -11!
Kingston OM8PDP3512B-AI1
64.8 pt
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
27.5 pt
DiskSpd
seq read
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2184 (2176.42min - 2183.52max) MB/s +602%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2082 (2067.58min - 2082.23max) MB/s +569%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2034 (2023.33min - 2033.61max) MB/s +554%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1713 (1703.57min - 1712.81max) MB/s +451%
Minisforum EliteMini TH50
Kingston OM8PDP3512B-AI1
1530 (1518.03min - 1529.75max) MB/s +392%
Minisforum HM90
Kingston OM8PDP3256B
1445 (1382.19min - 1445.15max) MB/s +365%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1319 (1307.78min - 1319.44max) MB/s +324%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
311 (298.22min - 311.01max) MB/s
seq write
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1792 (1662.17min - 1791.62max) MB/s +308%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1790 (1681.49min - 1789.9max) MB/s +308%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1277 (1270.04min - 1277.38max) MB/s +191%
Minisforum HM90
Kingston OM8PDP3256B
1211 (1193.91min - 1211.31max) MB/s +176%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1185 (1181.38min - 1184.95max) MB/s +170%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
977 (973.56min - 977.06max) MB/s +123%
Minisforum EliteMini TH50
Kingston OM8PDP3512B-AI1
551 (548.61min - 551.34max) MB/s +26%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
439 (396.15min - 438.89max) MB/s
seq q8 t1 read
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2525 (2269.25min - 2525.2max) MB/s +469%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2444 (2328.09min - 2444.09max) MB/s +450%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
2378 (2126.78min - 2378.31max) MB/s +436%
Minisforum EliteMini TH50
Kingston OM8PDP3512B-AI1
2353 (1911.6min - 2353.12max) MB/s +430%
Minisforum HM90
Kingston OM8PDP3256B
2177 (1922.11min - 2177.05max) MB/s +390%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2167 (2086.44min - 2166.57max) MB/s +388%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1973 (254.17min - 1973.17max) MB/s +344%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
444 (287.73min - 443.55max) MB/s
seq q8 t1 write
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1790 (1687.16min - 1790.13max) MB/s +288%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1769 (1687.39min - 1768.92max) MB/s +284%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1316 (1309.25min - 1315.54max) MB/s +185%
Minisforum HM90
Kingston OM8PDP3256B
1245 (1229.98min - 1245.08max) MB/s +170%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1200 (1191.05min - 1200.08max) MB/s +160%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
977 (973.56min - 976.5max) MB/s +112%
Minisforum EliteMini TH50
Kingston OM8PDP3512B-AI1
553 (493.25min - 553.44max) MB/s +20%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
461 (421.95min - 460.95max) MB/s
4k q1 t1 read
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
48.2 (48.04min - 48.16max) MB/s +24%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
47.4 (11.99min - 47.41max) MB/s +22%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
45.1 (43.96min - 45.09max) MB/s +16%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
44.4 (44.23min - 44.37max) MB/s +14%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
38.8 (38.52min - 38.82max) MB/s
Minisforum EliteMini TH50
Kingston OM8PDP3512B-AI1
38.2 (38.04min - 38.15max) MB/s -2%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
29.5 (29.27min - 29.48max) MB/s -24%
Minisforum HM90
Kingston OM8PDP3256B
27.1 (26.54min - 27.09max) MB/s -30%
4k q1 t1 write
Minisforum EliteMini TH50
Kingston OM8PDP3512B-AI1
218 (213.18min - 217.95max) MB/s +166%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
210 (122.22min - 209.88max) MB/s +156%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
196.3 (179.94min - 196.31max) MB/s +140%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
167 (54.54min - 166.59max) MB/s +104%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
160 (158.59min - 159.95max) MB/s +95%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
138 (136.12min - 137.6max) MB/s +68%
Minisforum HM90
Kingston OM8PDP3256B
125 (123.91min - 124.78max) MB/s +53%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
81.9 (80.7min - 81.87max) MB/s
4k q32 t16 read
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1063 (1053.81min - 1062.87max) MB/s +259%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1005 (1003.31min - 1005.12max) MB/s +240%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
991 (989.79min - 991.47max) MB/s +235%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
803 (785.8min - 802.75max) MB/s +171%
Minisforum EliteMini TH50
Kingston OM8PDP3512B-AI1
672 (664.88min - 671.89max) MB/s +127%
Minisforum HM90
Kingston OM8PDP3256B
589 (585.51min - 588.52max) MB/s +99%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
313 (311.66min - 312.85max) MB/s +6%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
296 (283.25min - 295.59max) MB/s
4k q32 t16 write
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1032 (1014.5min - 1032.27max) MB/s +214%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
976 (747.22min - 976.04max) MB/s +197%
Minisforum HM90
Kingston OM8PDP3256B
932 (920.96min - 931.78max) MB/s +183%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
890 (860.72min - 889.72max) MB/s +171%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
774 (725.33min - 774.03max) MB/s +135%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
659 (650.84min - 659.33max) MB/s +100%
Minisforum EliteMini TH50
Kingston OM8PDP3512B-AI1
528 (477.23min - 527.86max) MB/s +60%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
329 (317.87min - 329.01max) MB/s
AS SSD
Score Total
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2887 Points +1491%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2797 Points +1441%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
2722 Points +1400%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2248 Points +1139%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
2184 Points +1103%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
181.49 (344min) Points
Score Read
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1162 Points +204%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1152 Points +202%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1000 Points +162%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
855 Points +124%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
698 Points +83%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
382 Points
Score Write
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1251 Points +623%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1169 Points +576%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1152 Points +566%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1059 Points +512%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
992 Points +473%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
173 Points
Seq Read
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
2303.9 MB/s +370%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2260 MB/s +361%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2204 MB/s +350%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2048 MB/s +318%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1777 MB/s +263%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
490 MB/s
Seq Write
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1644 MB/s +311%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1603 MB/s +301%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1254 MB/s +214%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1145 MB/s +186%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
929 MB/s +132%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
400 MB/s
4K Read
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
57.87 MB/s +38%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
54.5 MB/s +30%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
52.54 MB/s +25%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
42.04 MB/s
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
39.71 MB/s -6%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
27.6 MB/s -34%
4K Write
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
185.32 MB/s +370%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
152.35 MB/s +287%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
144.1 MB/s +266%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
143.1 MB/s +263%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
121.3 MB/s +208%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
39.4 MB/s
4K-64 Read
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
891.59 MB/s +206%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
883.24 MB/s +203%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
711.88 MB/s +144%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
622 MB/s +113%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
465.3 MB/s +60%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
291.36 MB/s
4K-64 Write
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
984.11 MB/s +951%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
916 MB/s +878%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
823.51 MB/s +779%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
750.4 MB/s +701%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
745 MB/s +696%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
93.65 MB/s
Access Time Read
Morefine S500+
ADATA XPG Gammix S11L 1024GB
0.154 ms * -38%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
0.112 ms *
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
0.105 ms * +6%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
0.081 ms * +28%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
0.075 ms * +33%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
0.06 ms * +46%
Access Time Write
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
0.113 ms *
Morefine S500+
ADATA XPG Gammix S11L 1024GB
0.103 ms * +9%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
0.103 ms * +9%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
0.102 ms * +10%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
0.029 ms * +74%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
0.024 ms * +79%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8
