戴尔Latitude 7340 笔记本电脑评测: 0.减轻 22 磅,对性能的影响微乎其微

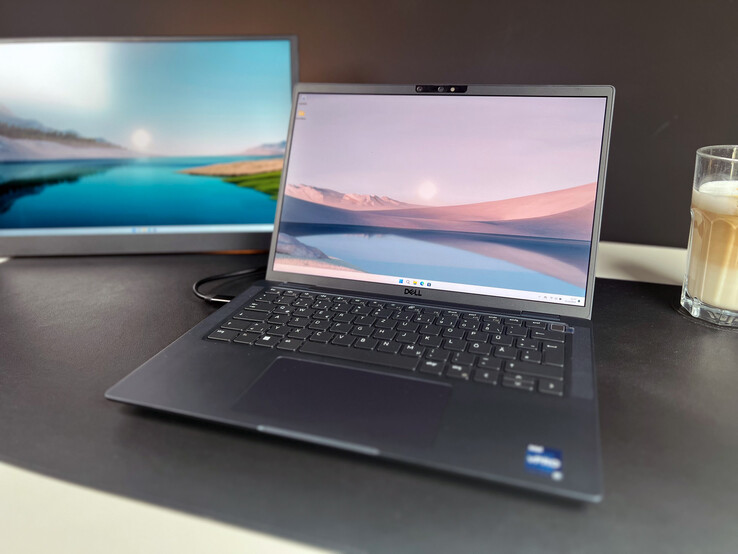

查看 14 英寸紧凑型 戴尔Latitude 7440几周前,我们曾评测过 14 英寸的小巧型戴尔 7440。戴尔Latitude 7340 的尺寸为 13.3 英寸,比它小了不到一英寸。尽管尺寸较小,但它拥有基本相同的规格,采用了 英特尔酷睿 i5-1345U
关键的问题是:外形尺寸的缩小是否会影响性能?考虑到散热、电池和其他组件的空间有限,更小的机箱能否保持相同的性能水平?这是我们对戴尔Latitude 7340 进行评测的主要重点。此外,测试对象还与其他小型笔记本电脑竞争,包括价格较低的 戴尔Latitude 3440以及功能更强大但价格更昂贵的 惠普蜻蜓 G4.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
---|---|---|---|---|---|---|---|
90.2 % | 10/2023 | Dell Latitude 13 7340 i5-1345U i5-1345U, Iris Xe G7 80EUs | 1.1 kg | 18.2 mm | 13.30" | 1920x1200 | |
90.3 % | 07/2023 | Dell Latitude 7440 i5-1345U, Iris Xe G7 80EUs | 1.2 kg | 17.95 mm | 14.00" | 2560x1600 | |
85.3 % | 06/2023 | Dell Latitude 3440 i5-1345U, Iris Xe G7 80EUs | 1.5 kg | 19.4 mm | 14.00" | 1920x1080 | |
89 % | 07/2022 | Dell Latitude 13 7330 i7-1265U, Iris Xe G7 96EUs | 1 kg | 16.96 mm | 13.30" | 1920x1080 | |
91.9 % | 07/2023 | HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs | 1.1 kg | 16.3 mm | 13.50" | 1920x1280 | |
87.4 % | 09/2023 | Lenovo ThinkBook Plus Gen4 IRU i7-1355U, Iris Xe G7 96EUs | 1.4 kg | 17.7 mm | 13.30" | 2880x1800 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名

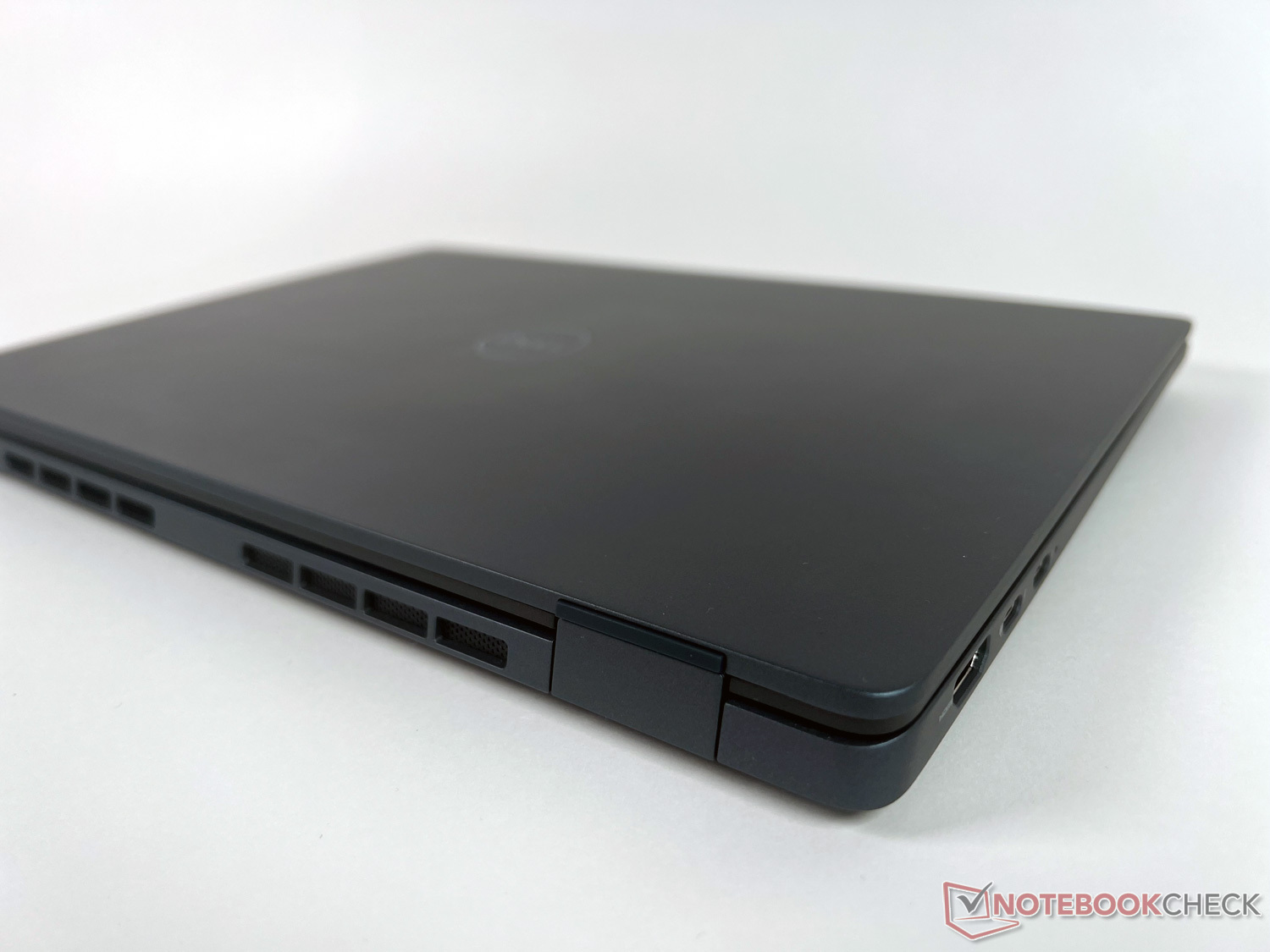

外壳和连接性 - 超轻、紧凑的镁合金外壳

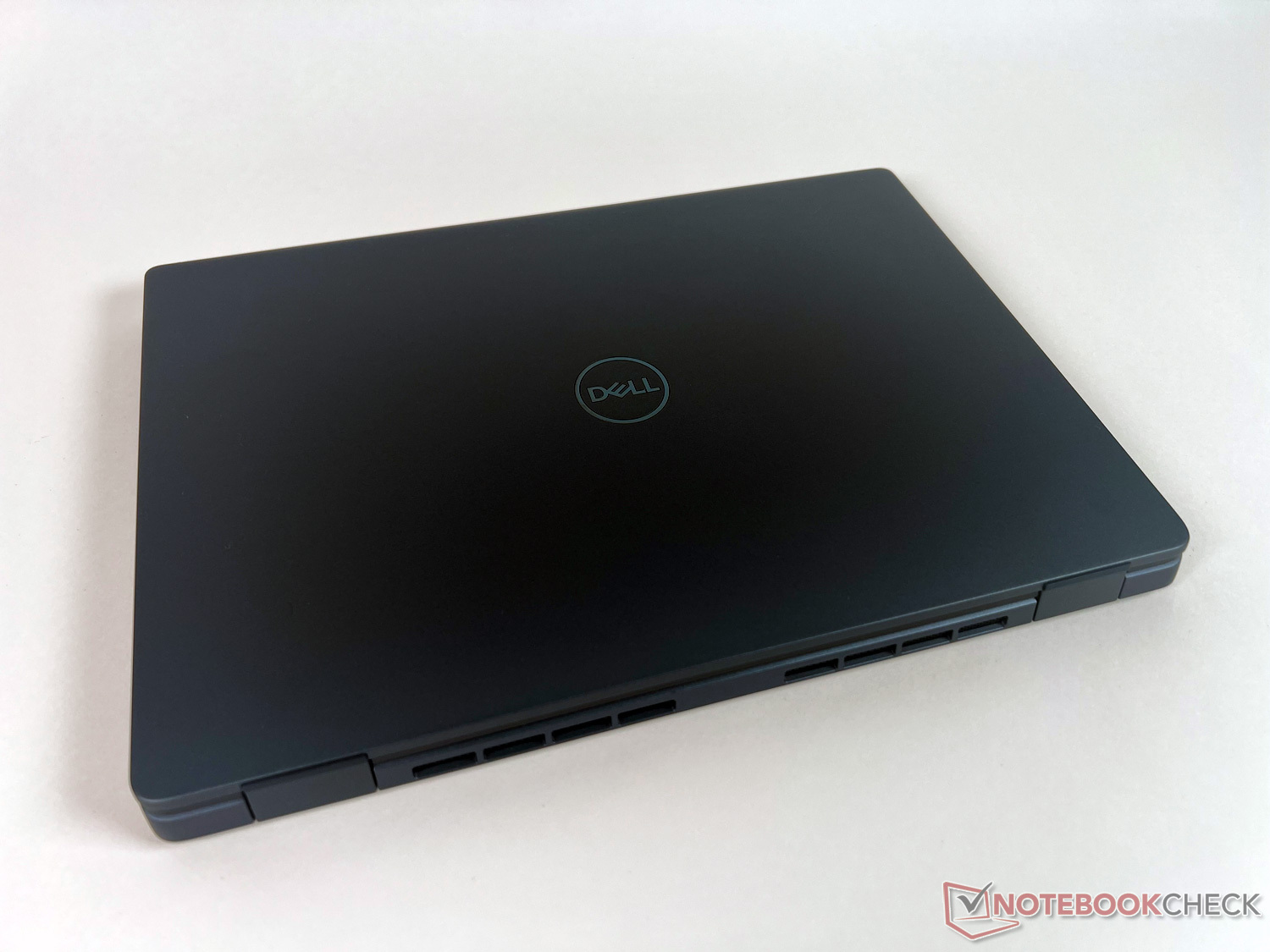

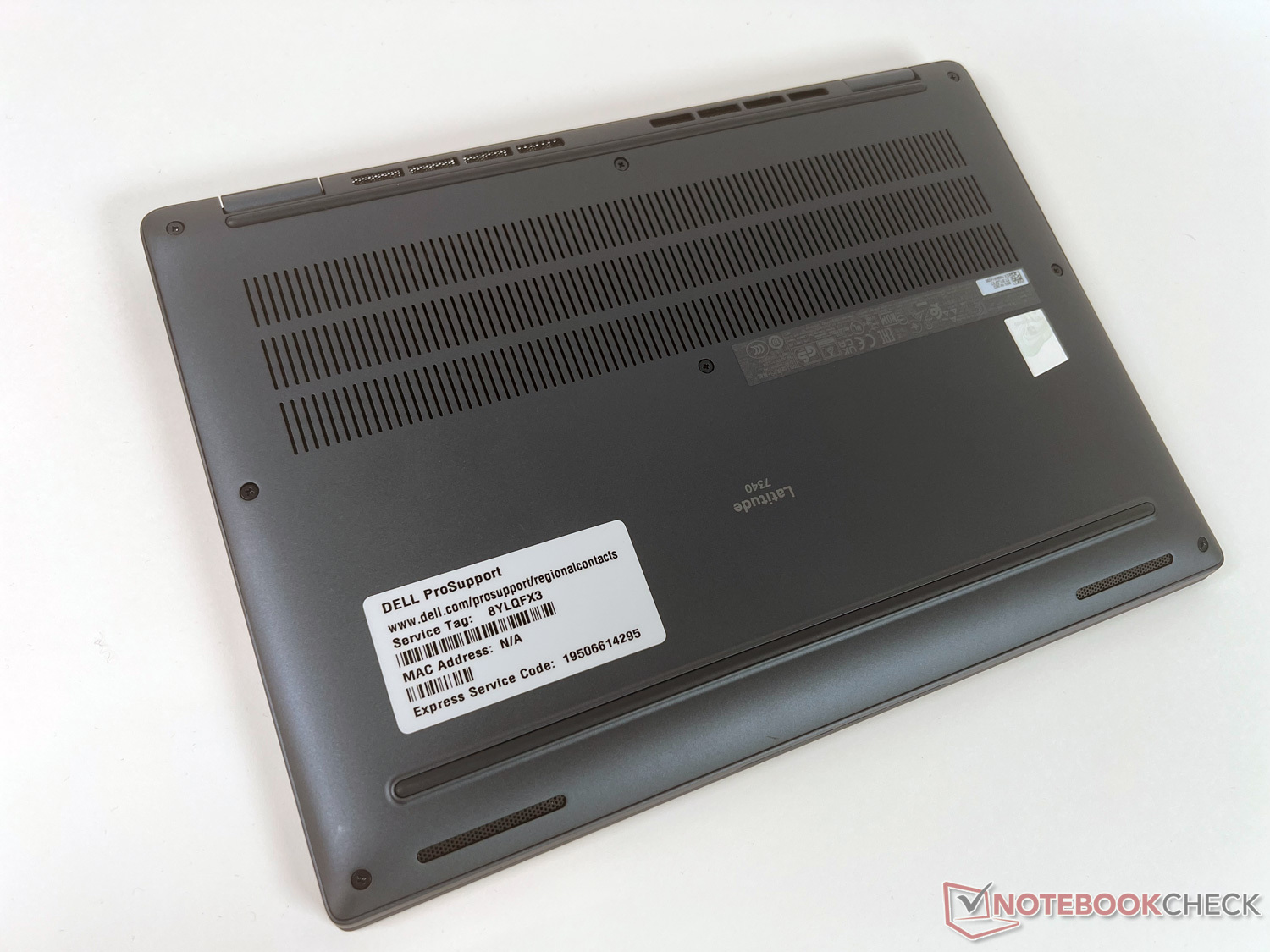

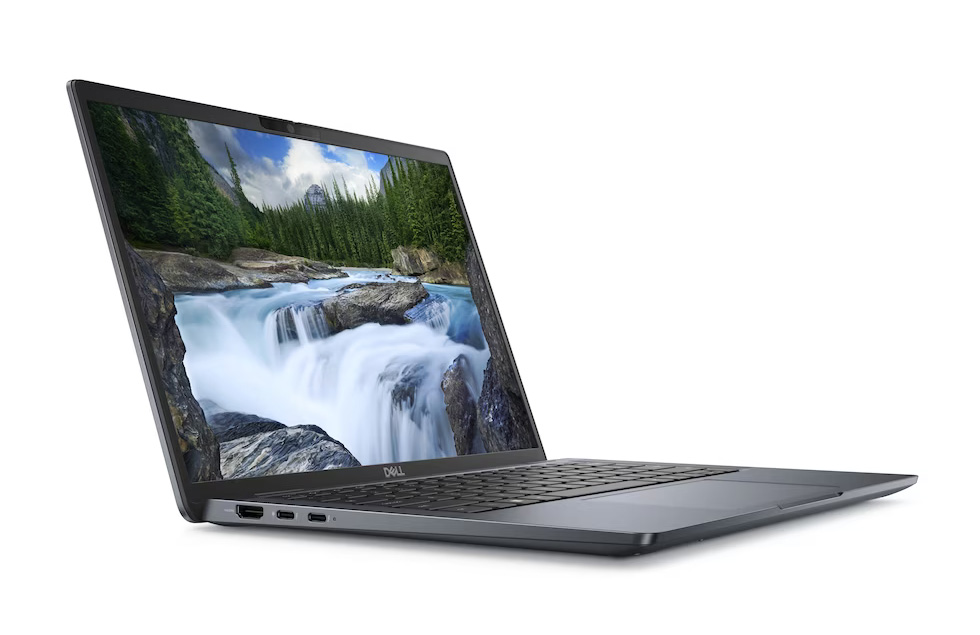

戴尔Latitude 7340 采用光滑、优质的镁合金边框,质感舒适,颜色为深灰色。超轻版的重量约为 2.4 磅,与其他 13.3 英寸笔记本电脑的重量相当。有趣的是,尽管显示屏尺寸较小,但与Latitude 7440 相比仅减轻了约 0.22 磅。因此,两者之间的差异并不明显。

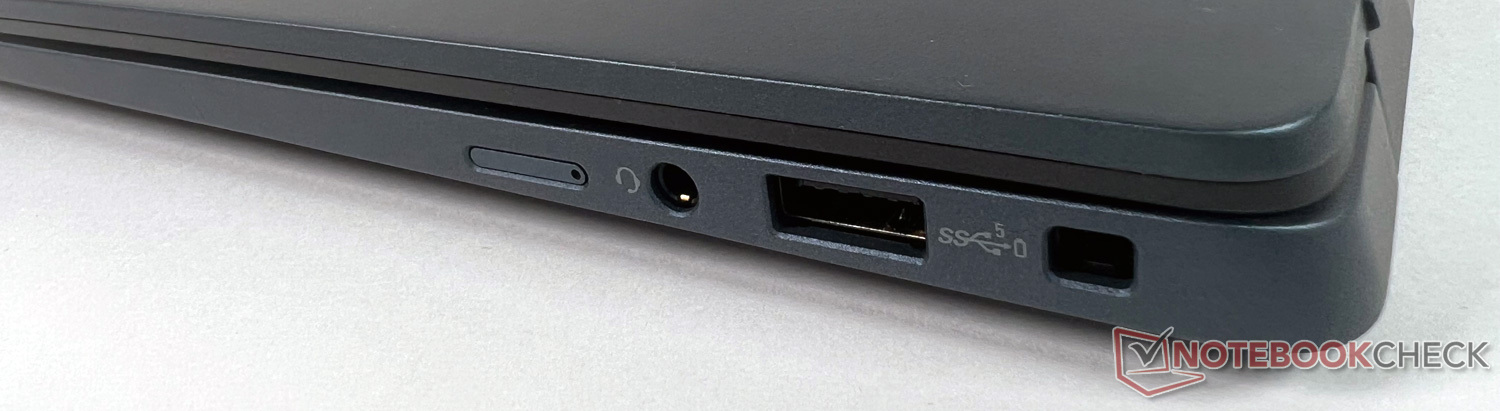

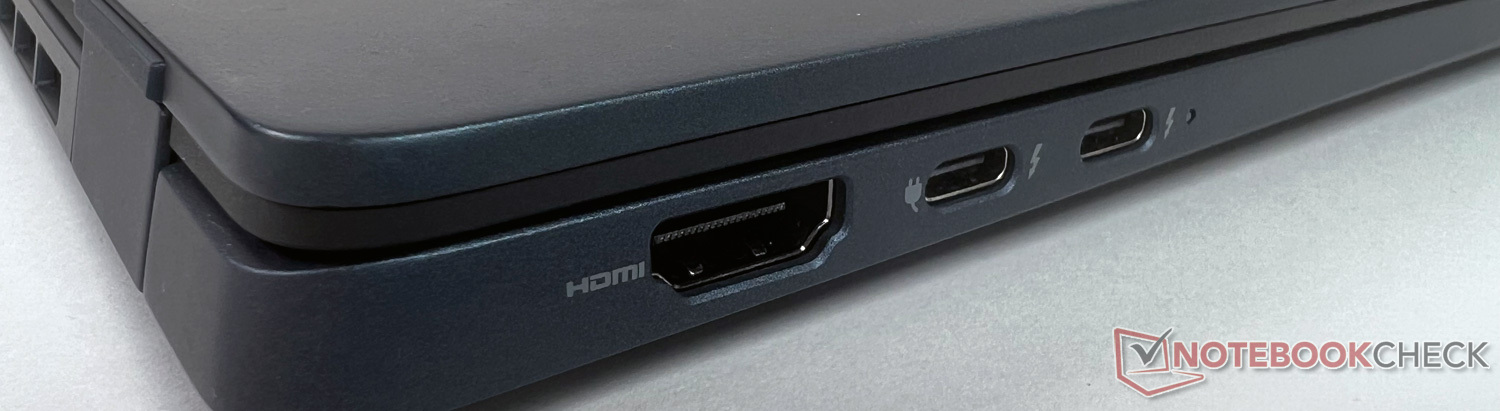

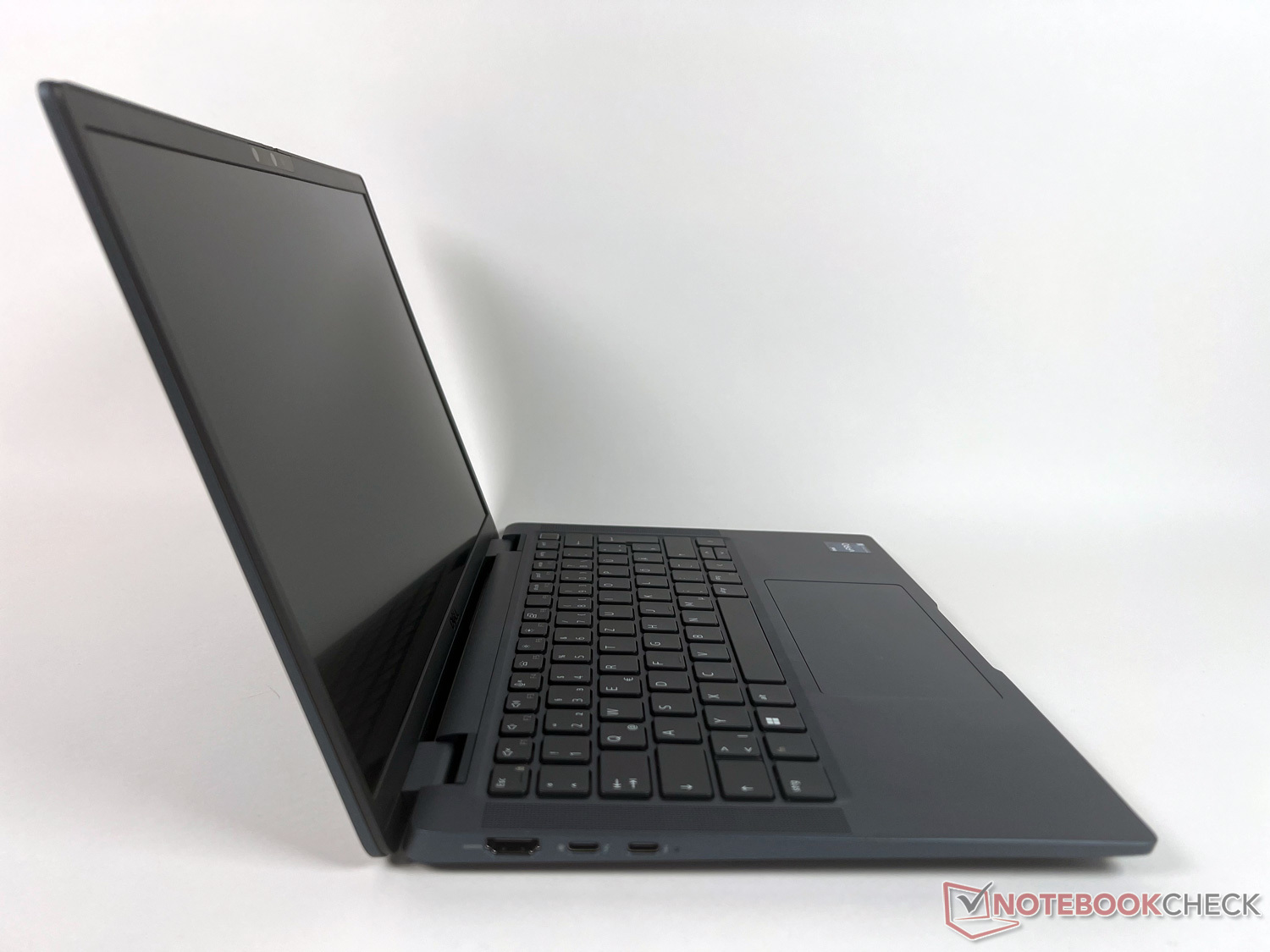

Latitude 7340 的左侧有两个 Thunderbolt 4 端口,每个端口都具有 DisplayPort 和 Power Delivery 功能。此外,还有一个 HDMI 端口和一个 USB 3.2 Type-A 端口。该设备提供可选的 LTE 移动连接(WWAN),并支持 Wi-Fi 6E 和蓝牙。 值得注意的是,WLAN 速度在 6 GHz 时表现出色,但与竞争对手相比,在这方面还存在不足。

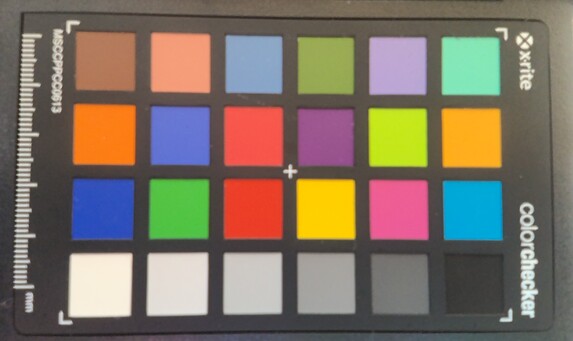

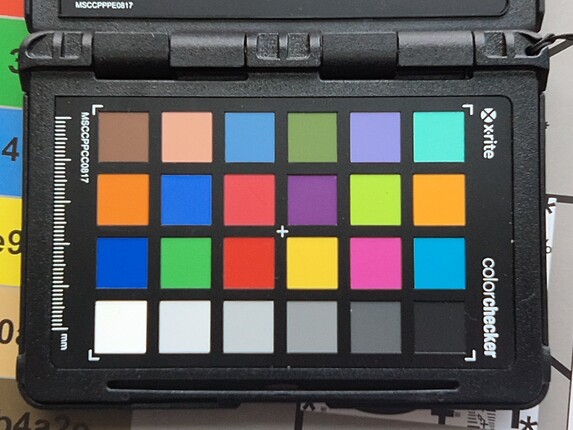

该笔记本内置 1080p 网络摄像头,可使用滑块手动遮盖。不过,值得注意的是,该摄像头不能准确捕捉色彩(11.8 ∆E),性能明显不如上一代产品 Latitude 7330.
在环保方面,戴尔选择取消塑料包装,体现了对可持续发展的承诺。

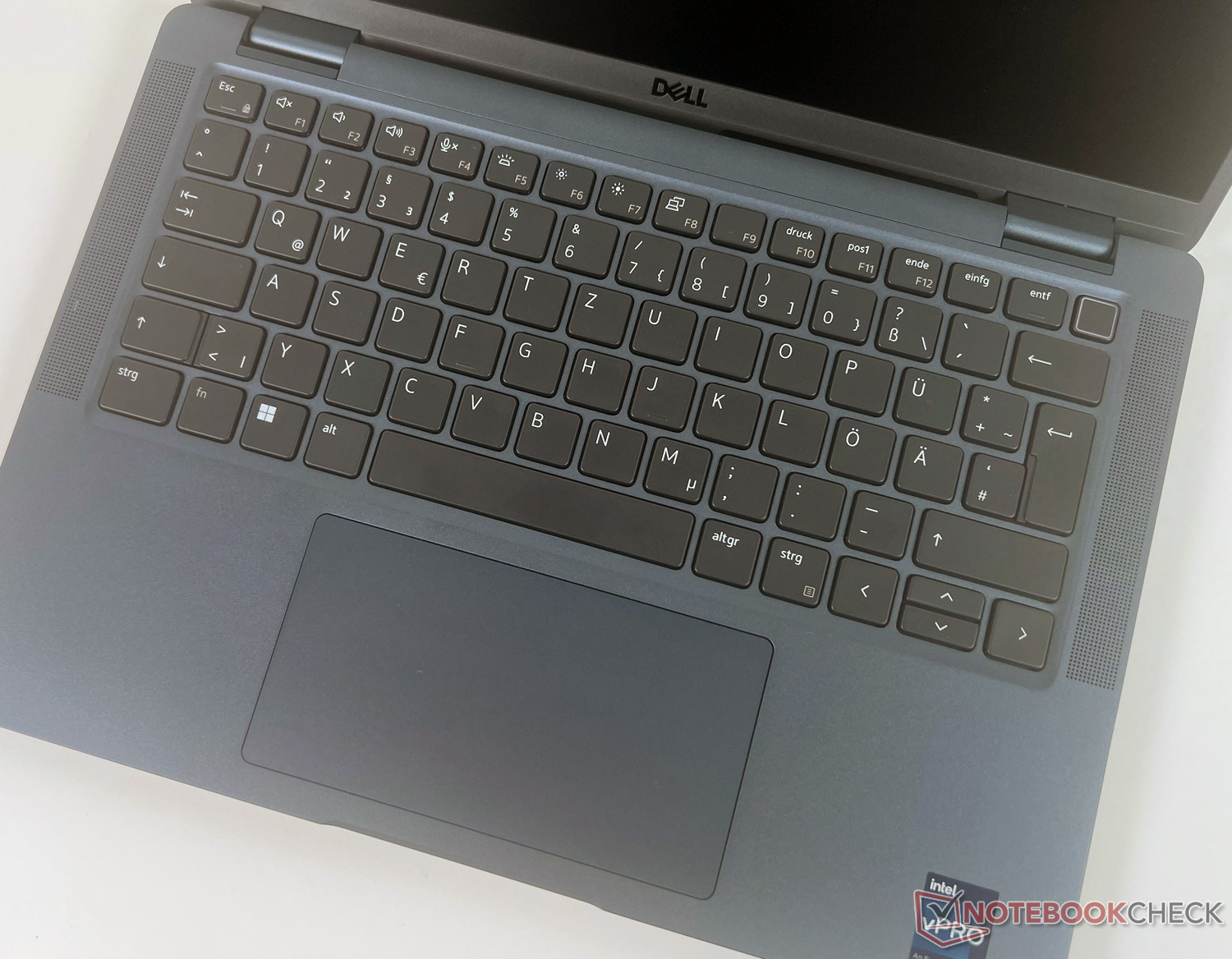

输入设备 - 小空间几乎得到最佳利用

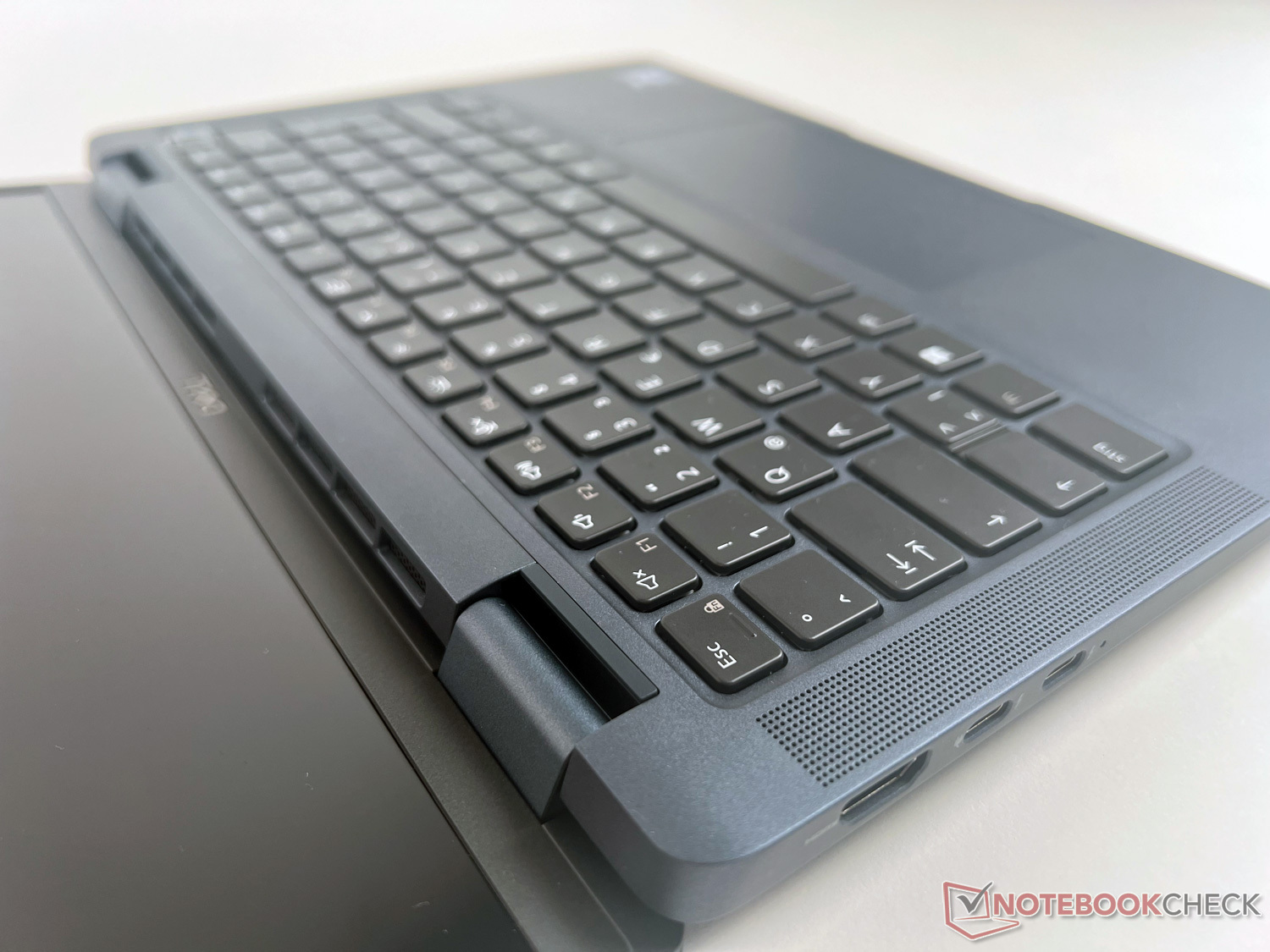

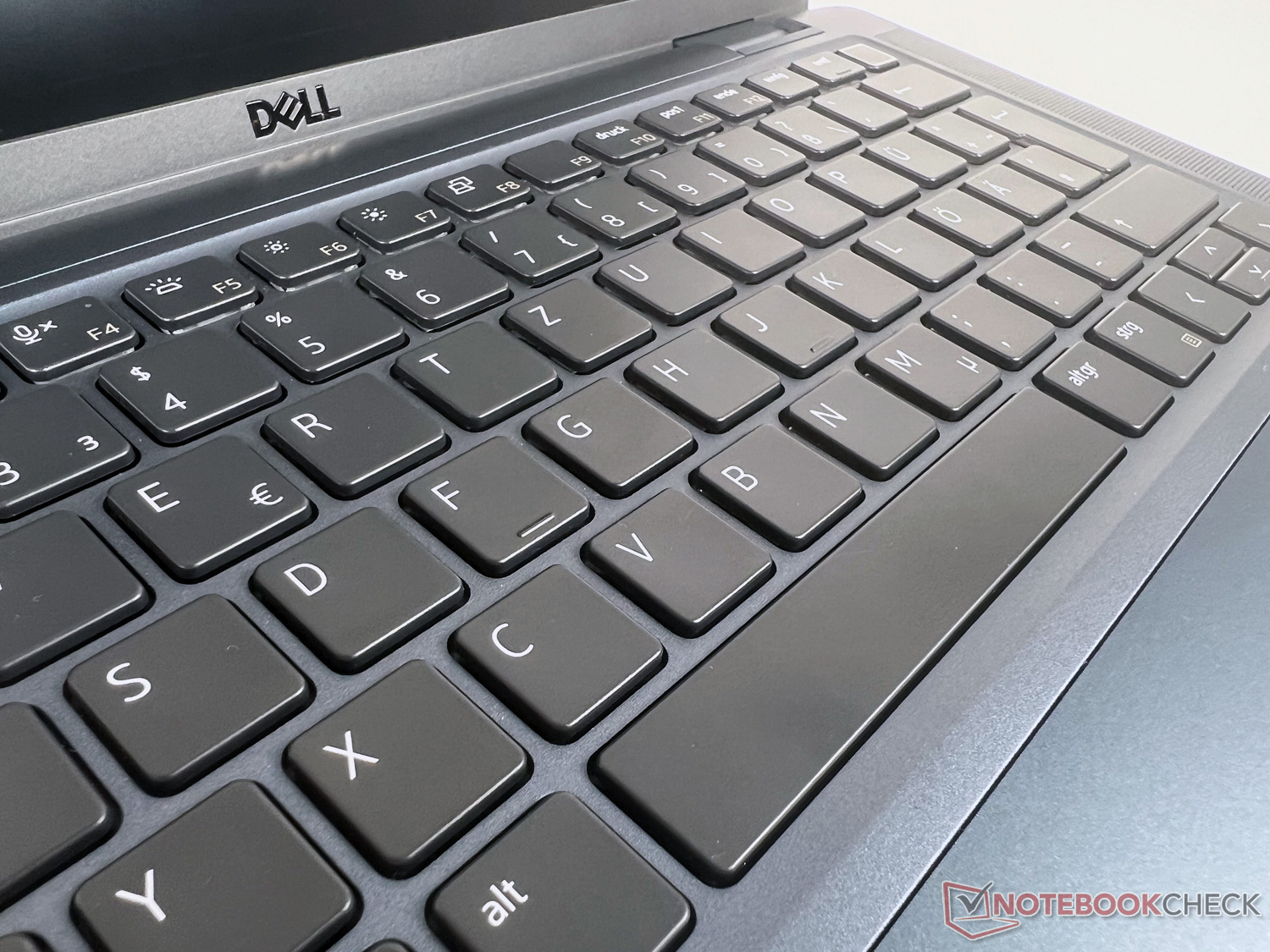

由于体积小巧,Latitude 7340 为键盘提供的空间有限。戴尔几乎利用了整个设备的宽度,只在左右两侧留出了 0.79 英寸的空间。除数字键盘外,这样的布局可容纳约 0.63 x 0.63 英寸的按键。

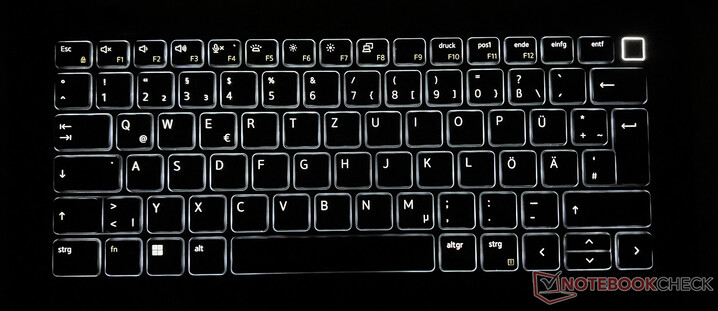

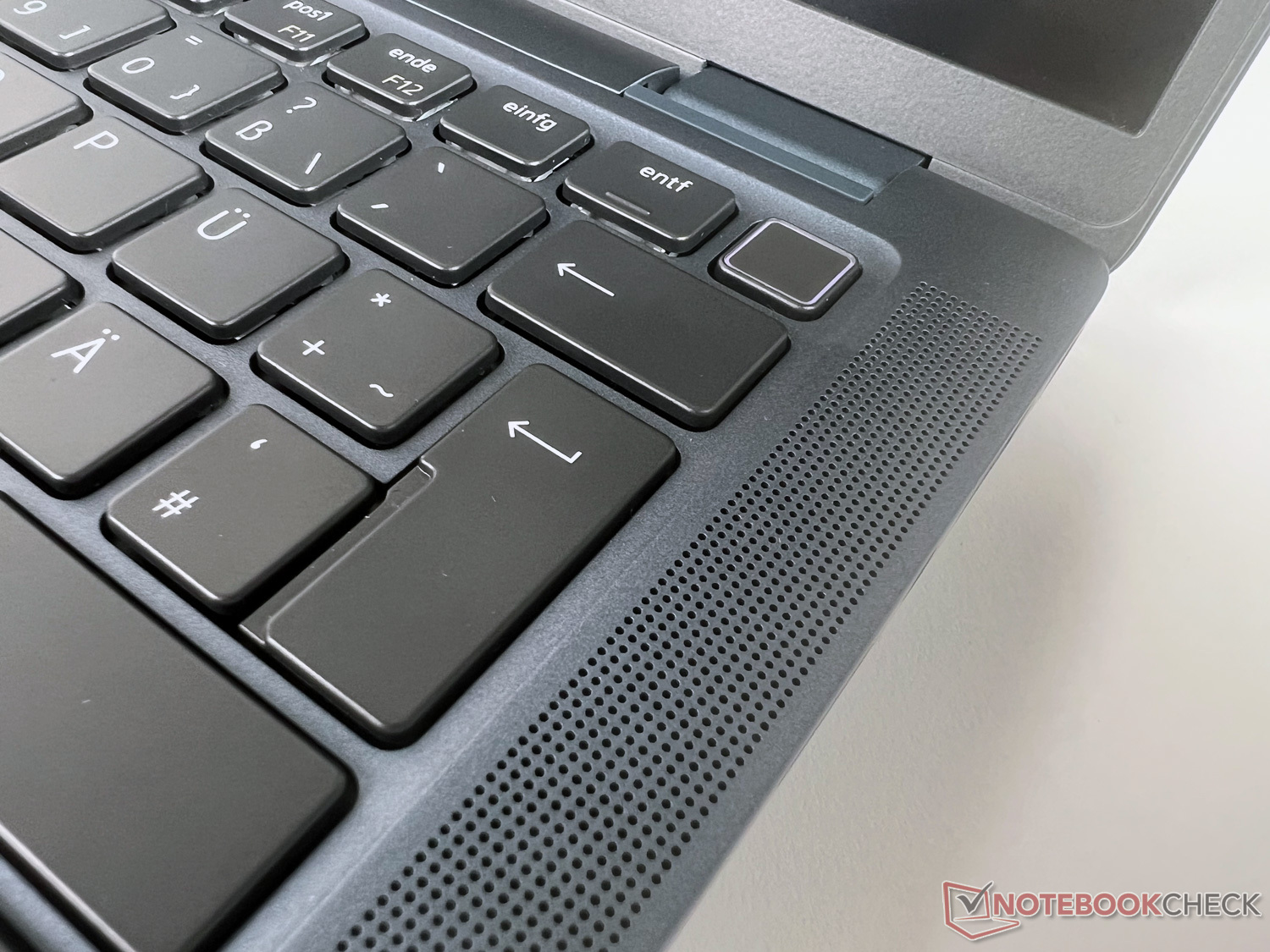

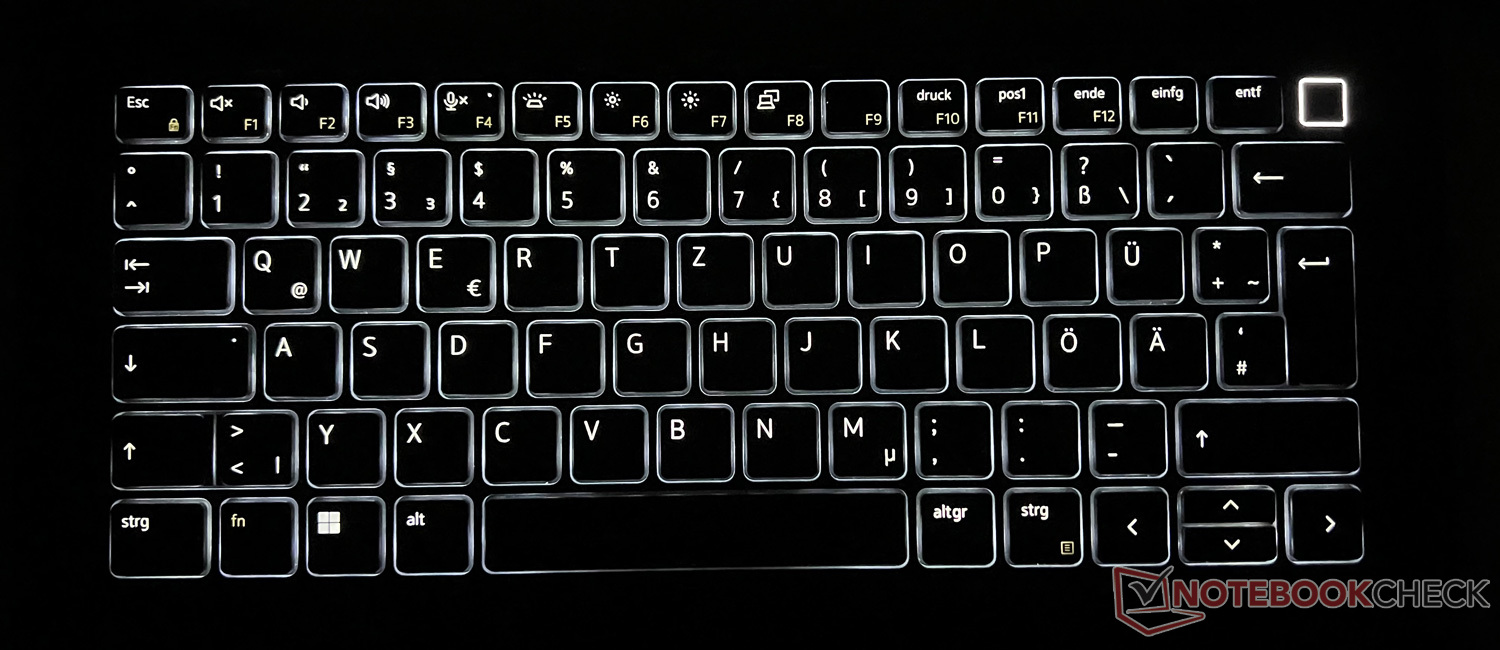

戴尔巧妙地将指纹传感器集成到了电源键的右上角。F1 至 F12 键保留了音量和亮度控制等传统功能。此外,用户还可以通过这些按键调节键盘的三档照明(关闭、昏暗、明亮)。
在下部区域,戴尔放置了一块 4.93 x 2.67 英寸的触摸板,触感舒适,点击声音小。总的来说,触摸板几乎没有什么可挑剔的地方,有助于实现完美的用户体验。
显示屏 - 哑光且足够明亮的 FHD+ 屏幕

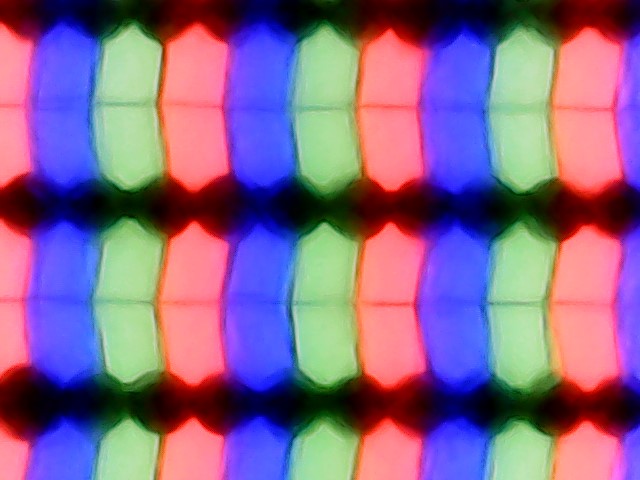

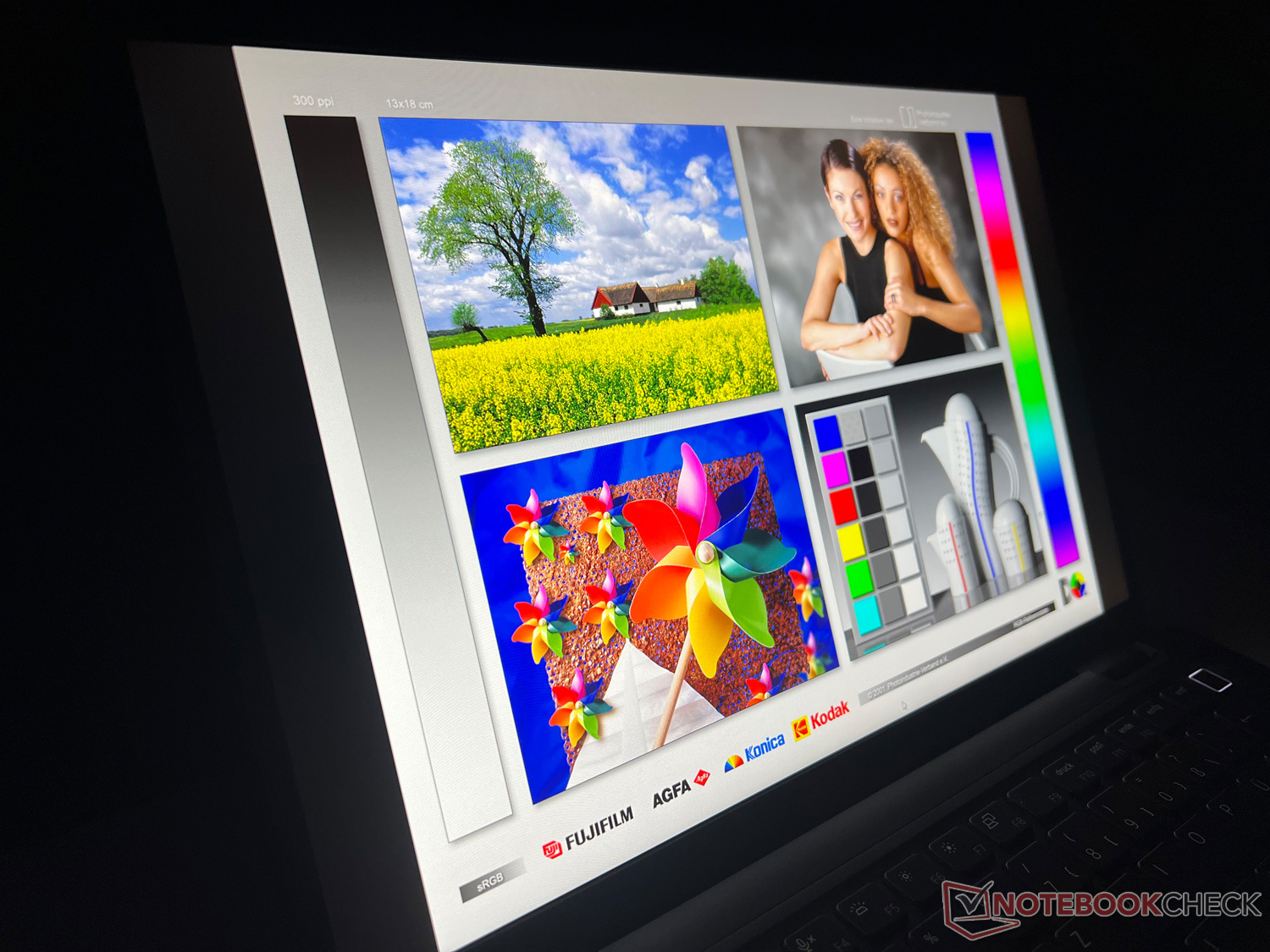

IPS 面板的宽高比为 16:10,分辨率为 1,920 x 1,200 像素(FHD+)。这种配置提供了一个略高的屏幕,这对紧凑型 13.3 英寸显示屏的观看体验产生了积极影响。

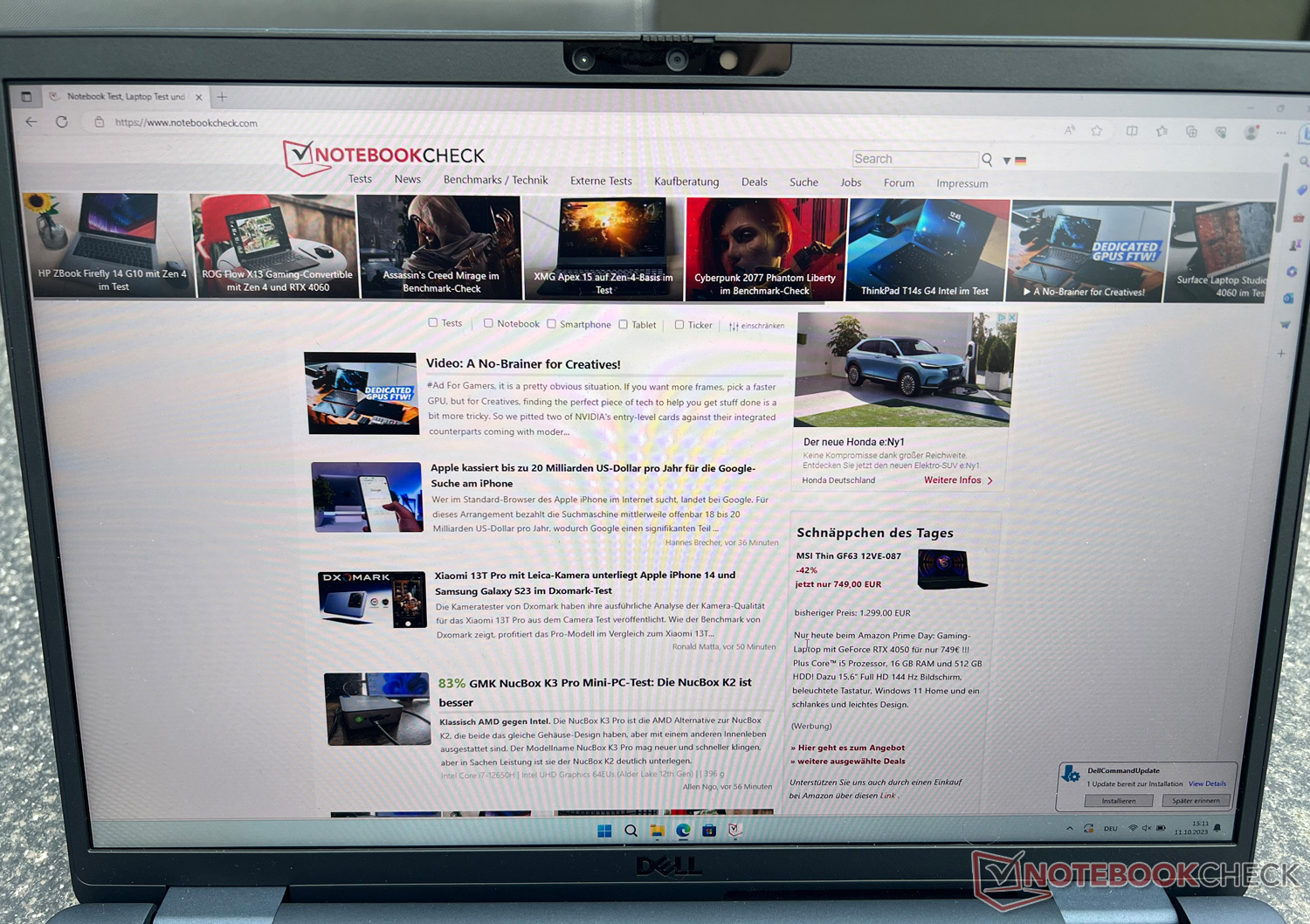

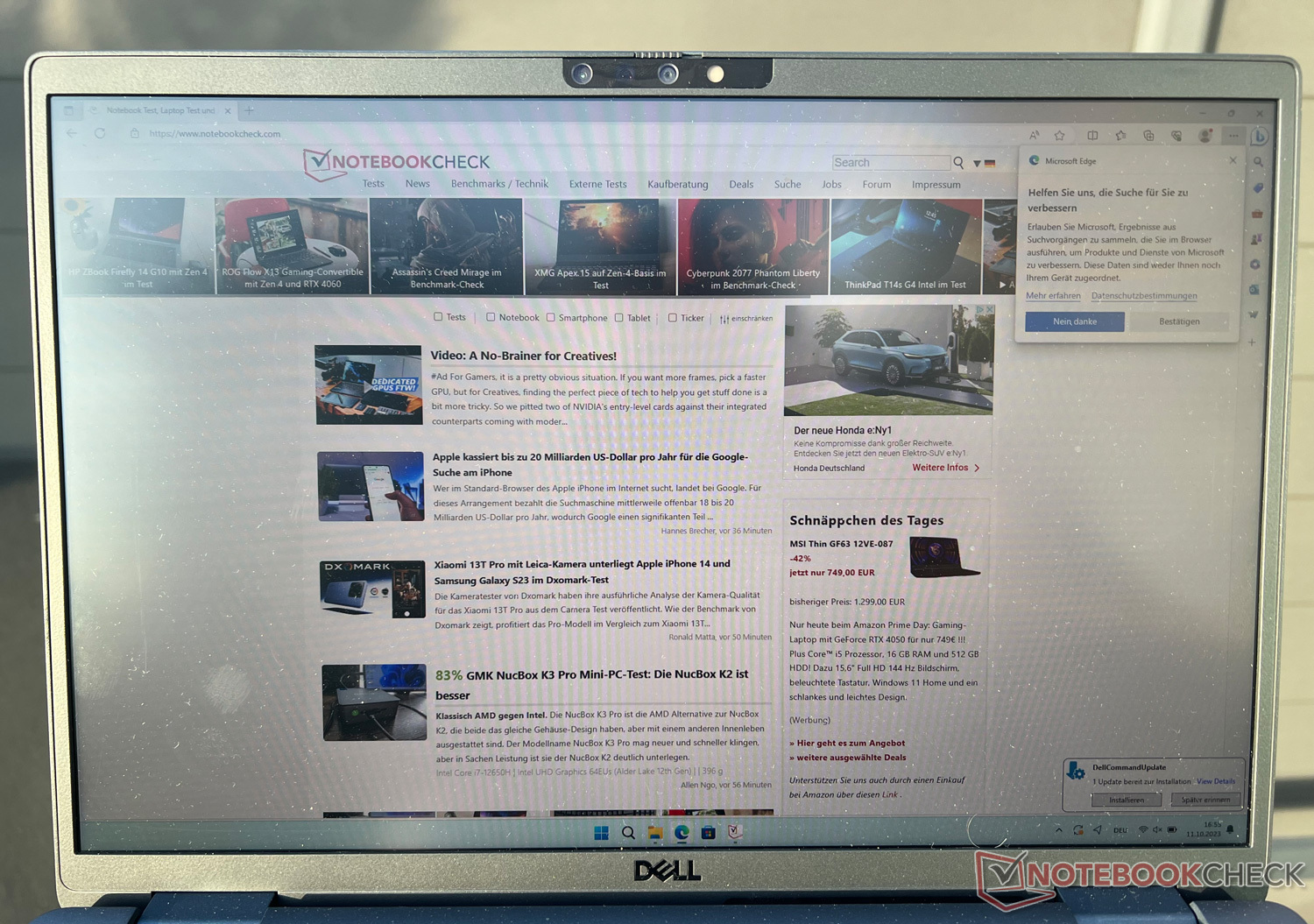

图像亮度值得称赞,平均超过 400 cd/m²,但略低于Latitude 7440的 1600p 面板值略低。这一特性与哑光显示屏相结合,使该设备能在户外有效使用。对于一款专为移动而设计的笔记本电脑来说,这一功能至关重要,尽管它并不总是有保证。

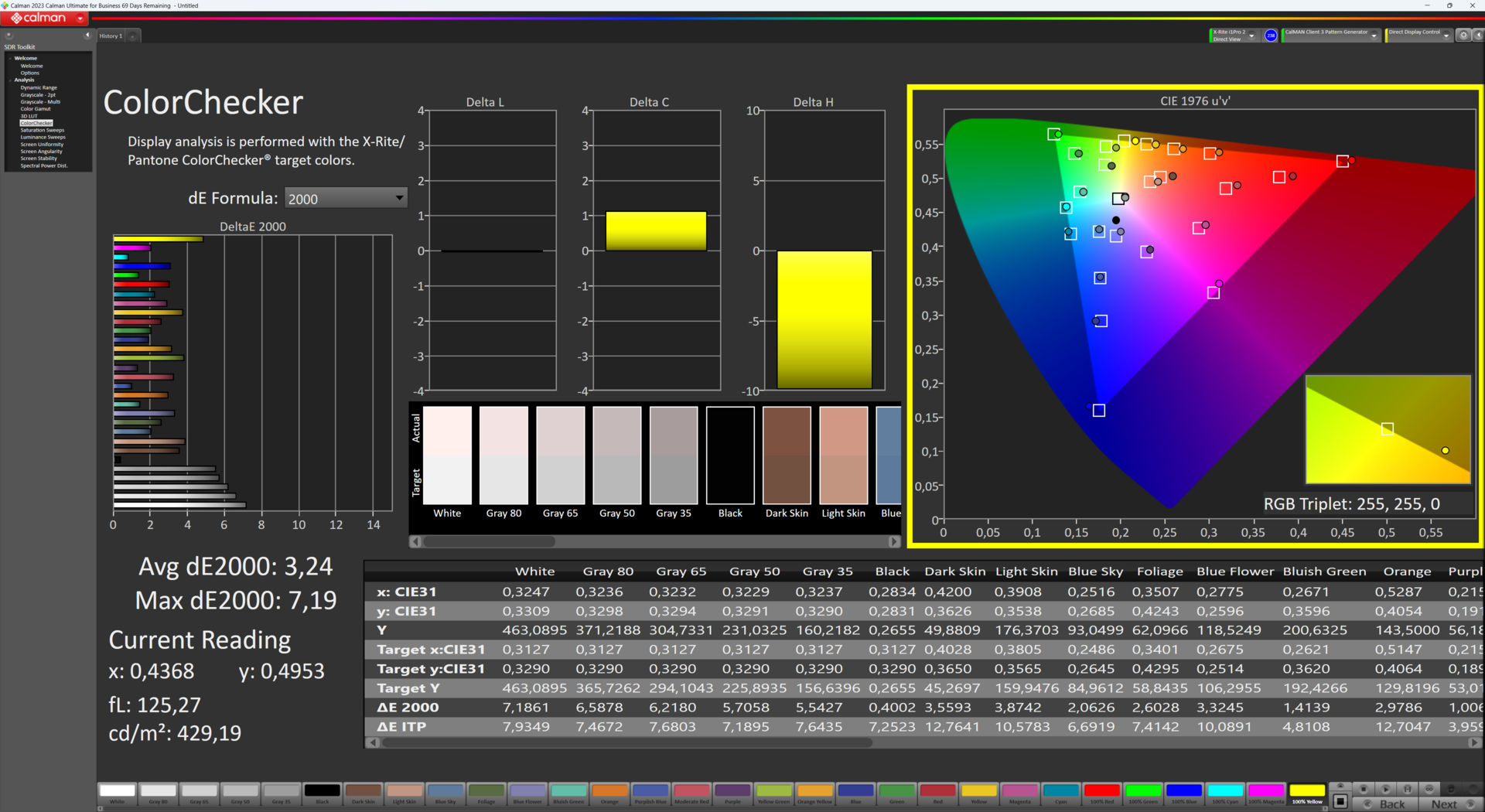

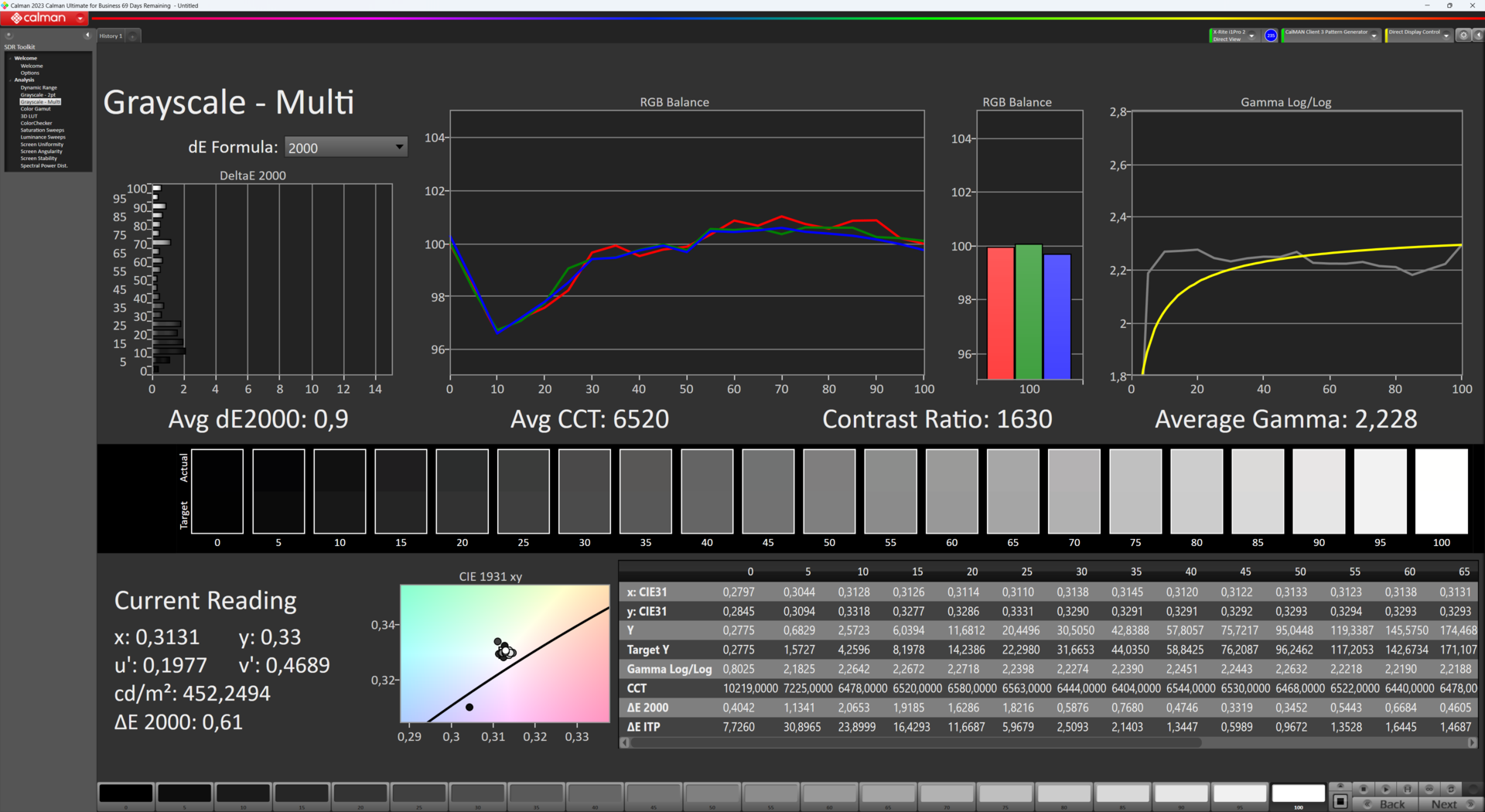

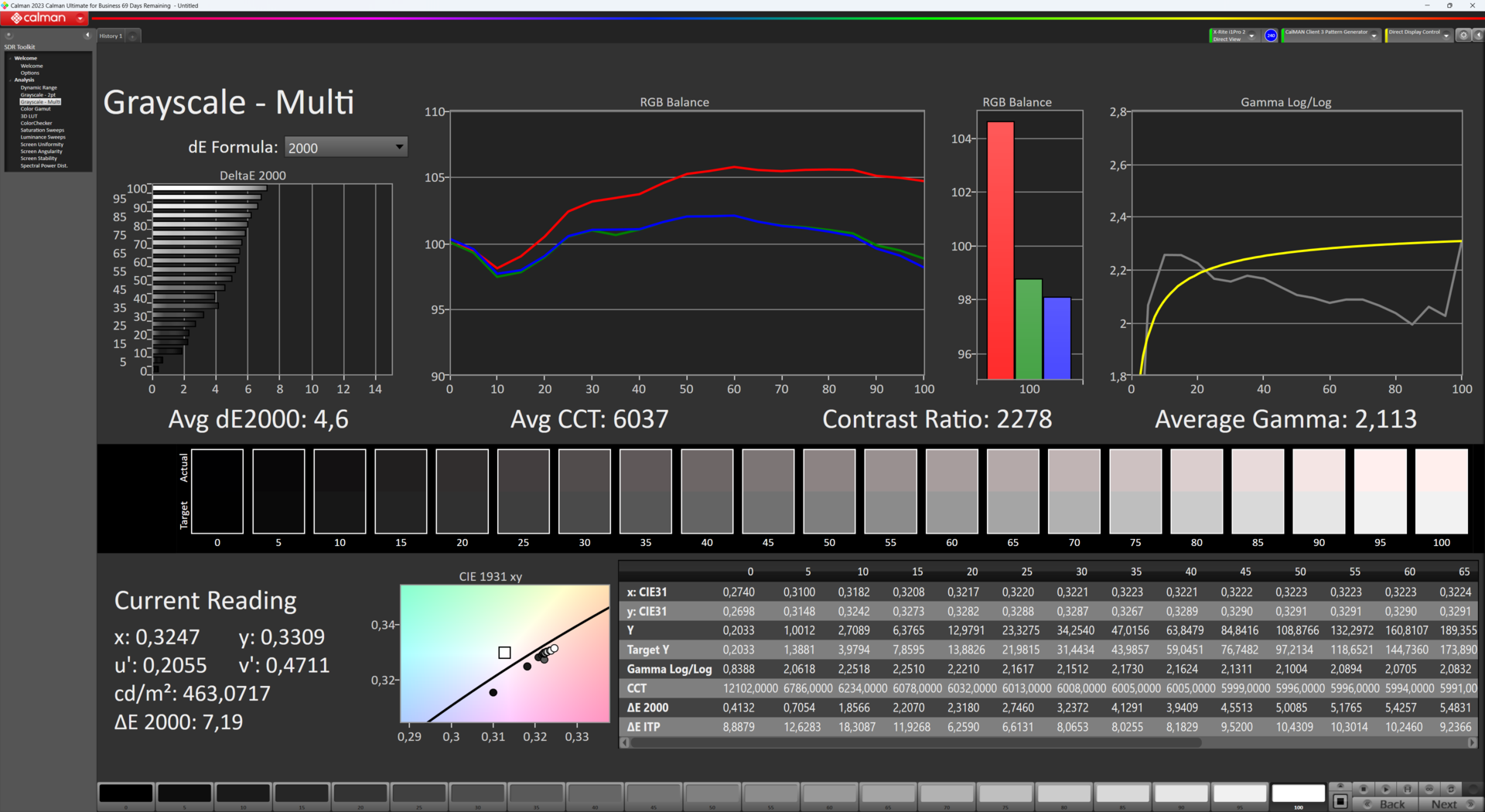

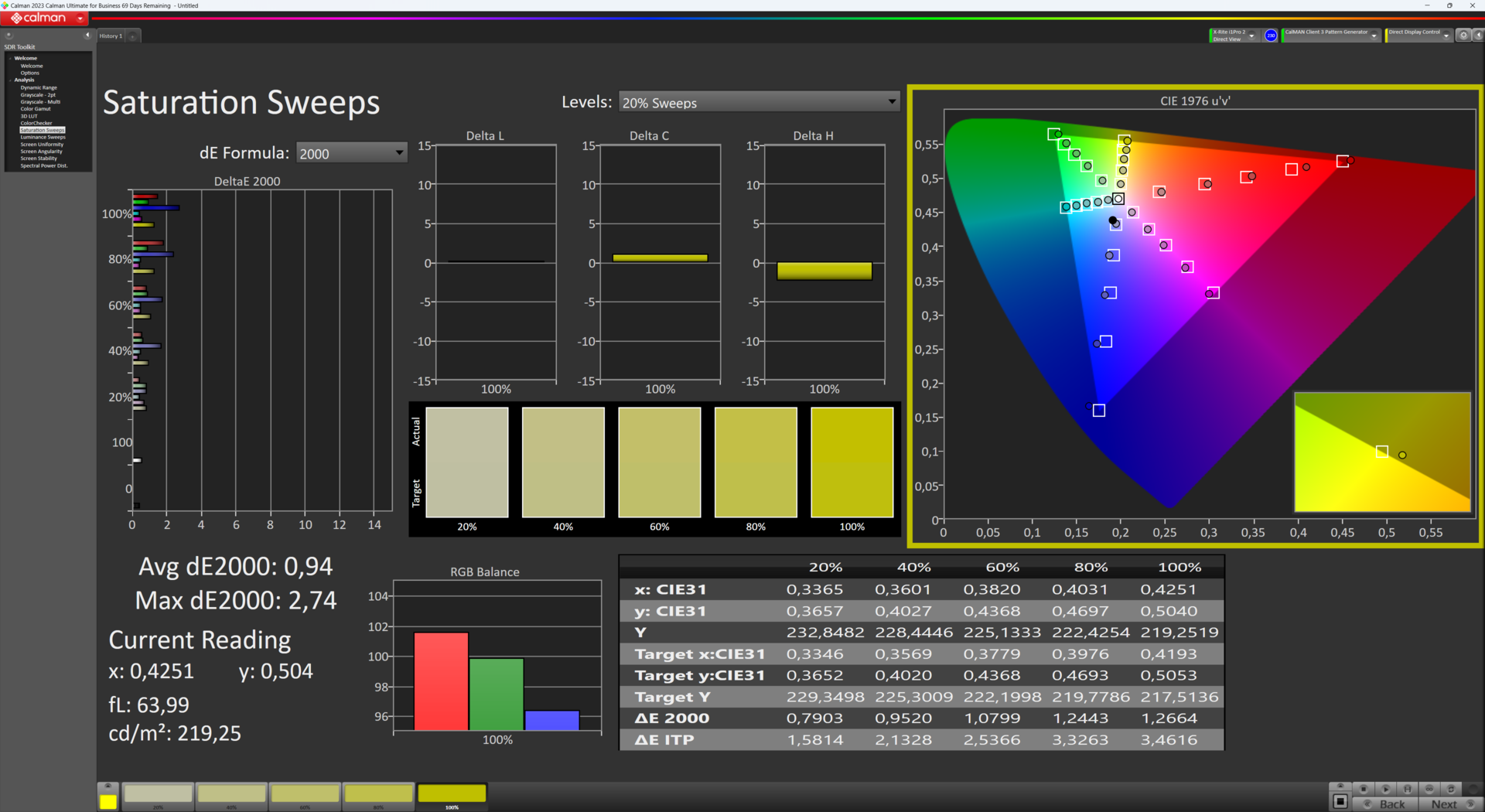

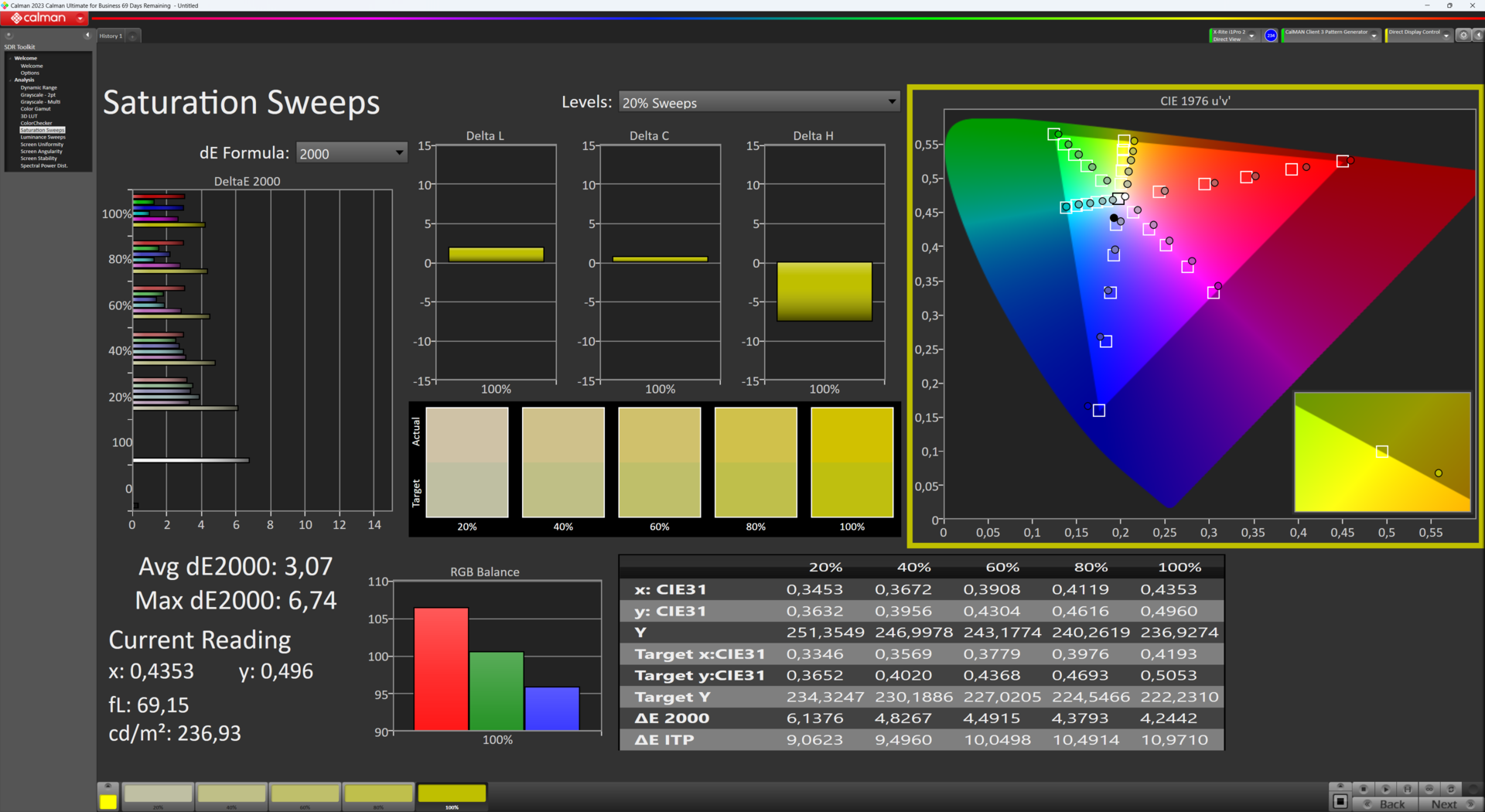

戴尔Latitude 7340 在测试的所有测量项目中都表现出色,没有出现任何明显的问题。虽然它的色彩空间覆盖率很高,但对于专业图形编辑来说可能还不够。不过,通过适当的校准,色彩还原能力可以得到显著提高。
|
Brightness Distribution: 87 %
Center on Battery: 465 cd/m²
Contrast: 2317:1 (Black: 0.2033 cd/m²)

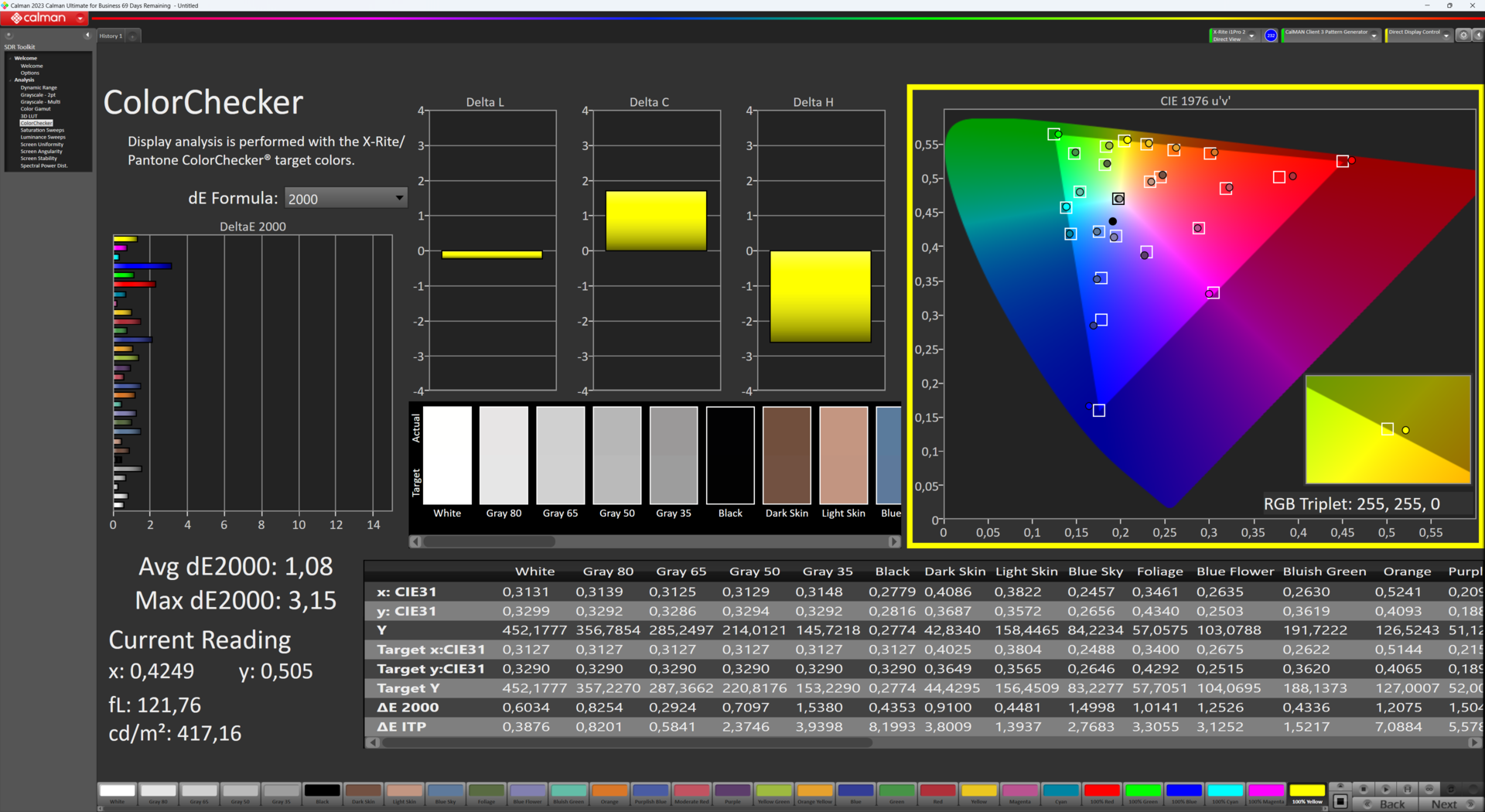

ΔE Color 3.24 | 0.5-29.43 Ø5, calibrated: 1.08
ΔE Greyscale 4.6 | 0.57-98 Ø5.3
67.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.8% sRGB (Argyll 2.2.0 3D)
65.9% Display P3 (Argyll 2.2.0 3D)
Dell Latitude 13 7340 i5-1345U Chi Mei 133JCG, IPS, 1920x1200, 13.30 | Dell Latitude 7440 AU Optronics B140QAX, IPS, 2560x1600, 14.00 | Dell Latitude 3440 BOE NE140FH, IPS, 1920x1080, 14.00 | Dell Latitude 13 7330 LG Philips 133WF9, IPS, 1920x1080, 13.30 | HP Dragonfly G4 Chi Mei CMN13C0, IPS, 1920x1280, 13.50 | Lenovo ThinkBook Plus Gen4 IRU SDC ATNA33AA06-0, OLED, 2880x1800, 13.30 | |
---|---|---|---|---|---|---|
Display | 10% | -38% | -1% | 3% | 32% | |
Display P3 Coverage | 65.9 | 75.4 14% | 40.4 -39% | 66.1 0% | 68.4 4% | 99.6 51% |
sRGB Coverage | 96.8 | 99.9 3% | 60.7 -37% | 93.5 -3% | 98.3 2% | 100 3% |
AdobeRGB 1998 Coverage | 67.8 | 76.2 12% | 41.8 -38% | 68.2 1% | 70.4 4% | 97.1 43% |
Response Times | -8% | 14% | 2% | -2% | 95% | |
Response Time Grey 50% / Grey 80% * | 51 ? | 56 ? -10% | 35.3 ? 31% | 48.4 ? 5% | 48.8 ? 4% | 1.9 ? 96% |
Response Time Black / White * | 29.04 ? | 30.8 ? -6% | 29.8 ? -3% | 29.6 ? -2% | 31.3 ? -8% | 2.1 ? 93% |
PWM Frequency | 60 ? | |||||
Screen | -12% | -39% | 7% | 6% | 1% | |
Brightness middle | 471 | 517.3 10% | 292.6 -38% | 460.1 -2% | 408.8 -13% | 367.5 -22% |
Brightness | 437 | 488 12% | 270 -38% | 445 2% | 399 -9% | 370 -15% |
Brightness Distribution | 87 | 88 1% | 88 1% | 89 2% | 90 3% | 98 13% |
Black Level * | 0.2033 | 0.34 -67% | 0.19 7% | 0.31 -52% | 0.32 -57% | |
Contrast | 2317 | 1521 -34% | 1540 -34% | 1484 -36% | 1278 -45% | |
Colorchecker dE 2000 * | 3.24 | 3.3 -2% | 4.63 -43% | 2.42 25% | 2.02 38% | 4.61 -42% |
Colorchecker dE 2000 max. * | 7.19 | 7.81 -9% | 17.1 -138% | 3.97 45% | 3.84 47% | 7.68 -7% |
Colorchecker dE 2000 calibrated * | 1.08 | 1.02 6% | 2.13 -97% | 0.77 29% | 0.61 44% | 0.66 39% |
Greyscale dE 2000 * | 4.6 | 5.6 -22% | 3.2 30% | 2.3 50% | 2.3 50% | 2.7 41% |
CCT | 6520 100% | 6804 96% | 7184 90% | 6262 104% | 6203 105% | 6079 107% |
Gamma | 2.37 93% | 2.34 94% | 2.23 99% | 2.2 100% | 2.17 101% | |
Total Average (Program / Settings) | -3% /
-7% | -21% /
-31% | 3% /
5% | 2% /
5% | 43% /
24% |
* ... smaller is better
Display Response Times
↔ Response Time Black to White | ||
---|---|---|
29.04 ms ... rise ↗ and fall ↘ combined | ↗ 14.6 ms rise | |
↘ 14.75 ms fall | ||
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 75 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms). | ||

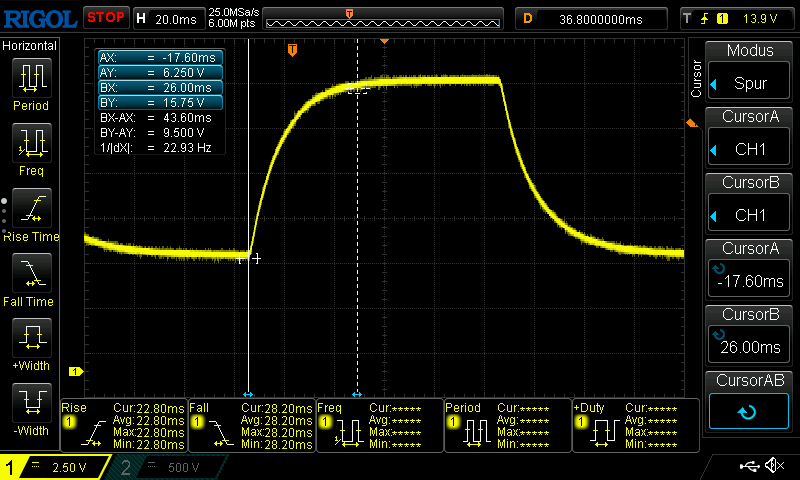

↔ Response Time 50% Grey to 80% Grey | ||
51 ms ... rise ↗ and fall ↘ combined | ↗ 22.8 ms rise | |
↘ 28.2 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 86 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms). |

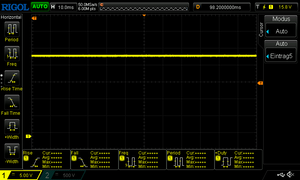

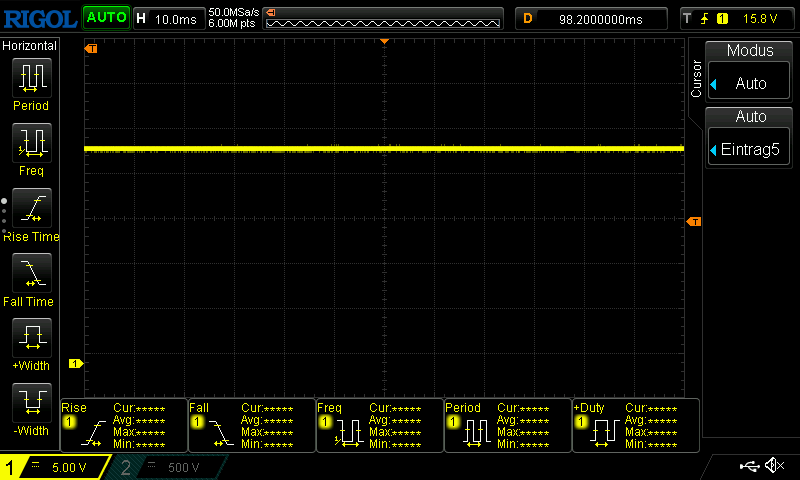

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17903 (minimum: 5 - maximum: 3846000) Hz was measured. |
性能 - Raptor Lake-U 配备 vPro,性能牺牲较小

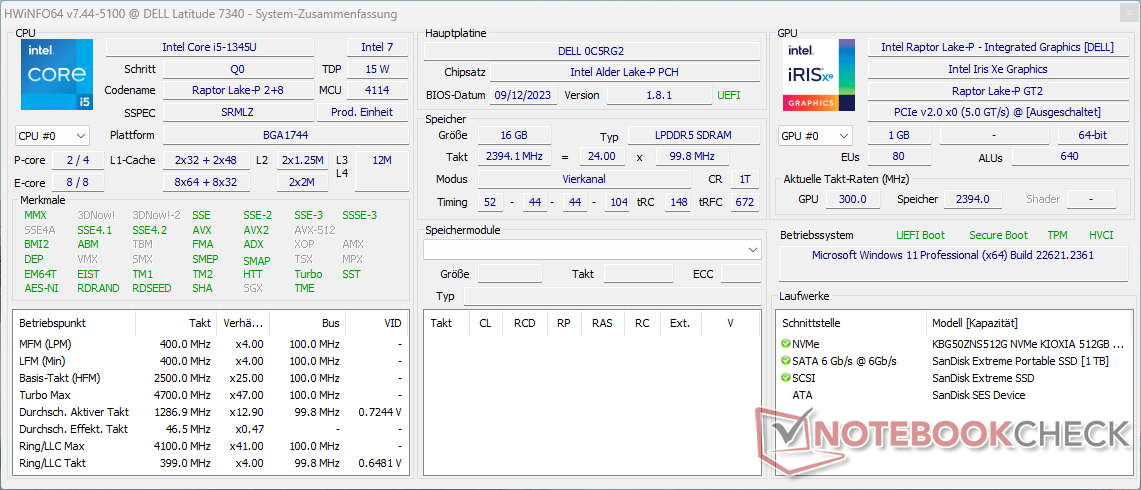

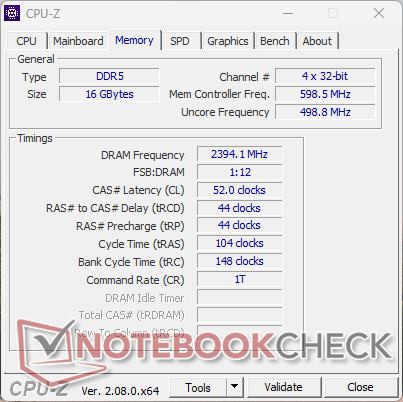

戴尔Latitude 7340 采用第 13 代英特尔处理器,支持 vPro。具体来说,它采用了英特尔英特尔酷睿 i5-1345U处理器,搭配英特尔 Iris Xe 图形处理器 (80 EUs)、16 GB LPDDR5 内存和 512 GB M.2 PCIe NVMe 固态硬盘。
此外,戴尔还提供其他几种配置,用户可以选择英特尔 酷睿 i5-1335U和 英特尔酷睿 i7-1365U处理器。
测试条件

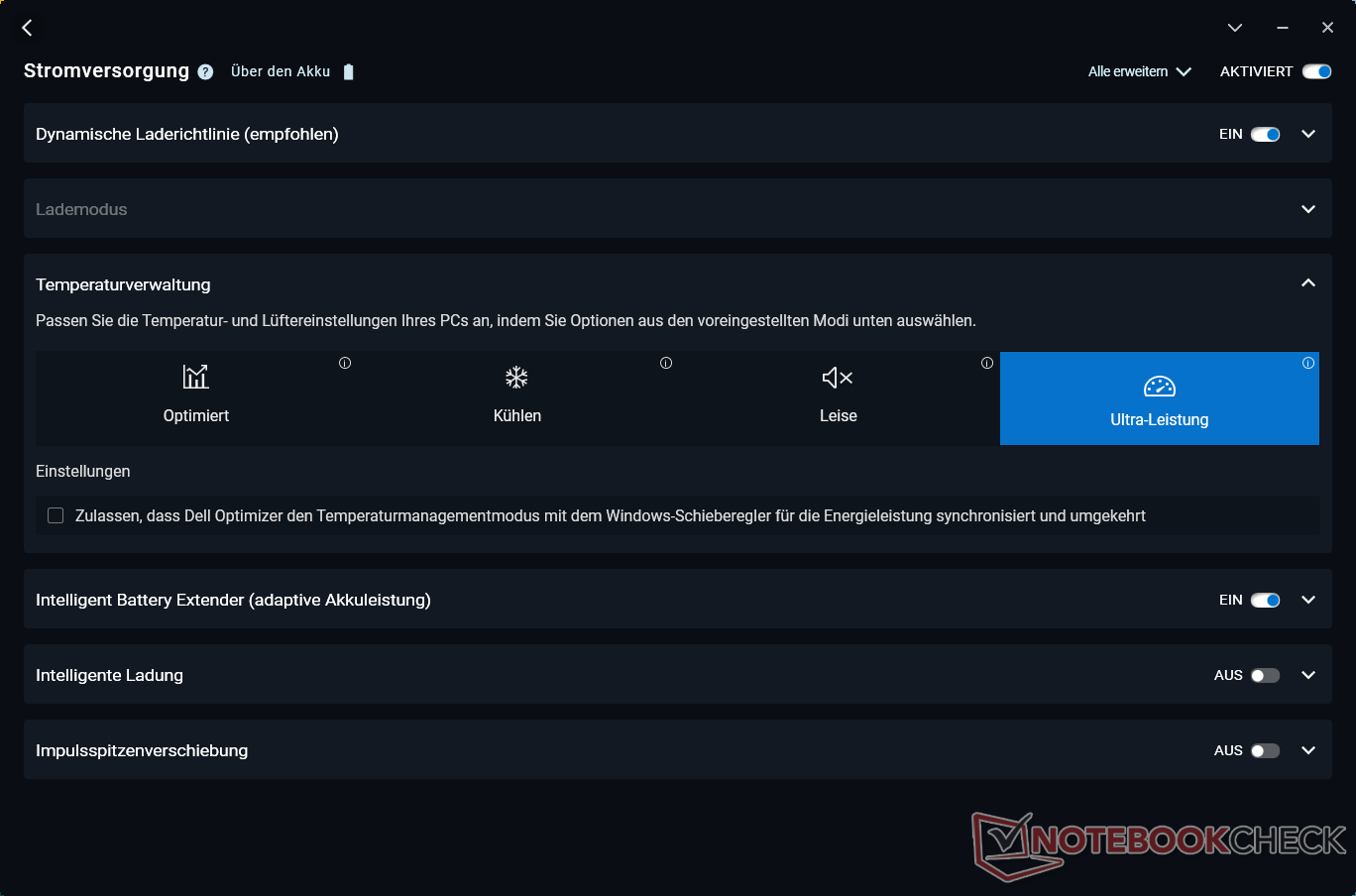

在性能测试中,我们主要使用了戴尔优化大师(Dell Optimizer)中的 "超性能 "模式,这是戴尔自己的软件。如果需要,该模式可将温度管理设置与 Windows 能源性能首选项同步。用户可以选择 "优化"、"冷却 "和 "安静 "等模式,根据自己的具体使用情况和偏好调整参数。
处理器

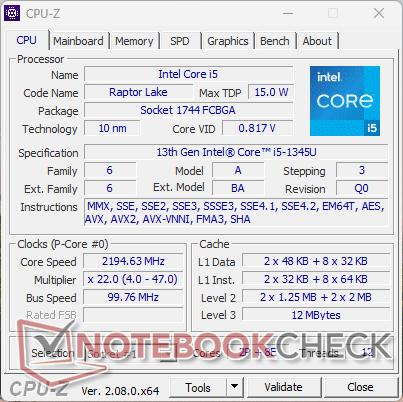

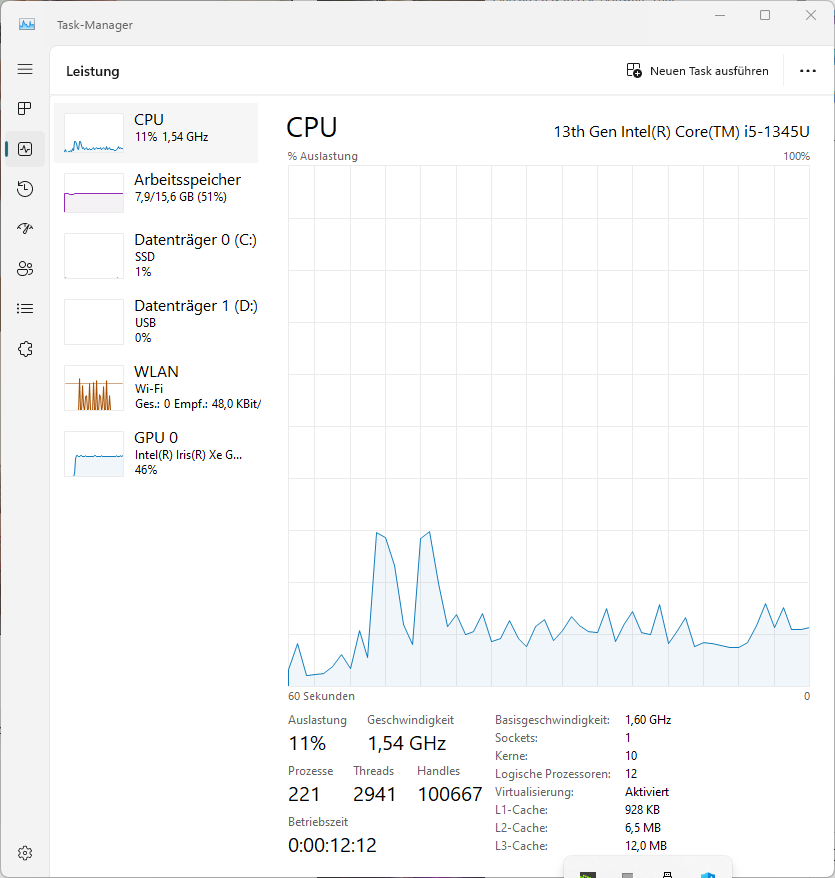

集成 英特尔酷睿 i5-1345U属于 Raptor Lake U 系列,共有十个内核(两个性能内核和八个效率内核),主频高达 4.7 GHz。它还支持 vPro 企业管理功能。
这款处理器也用于较大的 Latitude 7440中使用,其性能更佳。在我们的性能测试中,Latitude 7340 一直明显落后于稍大一些的同类产品。看来,更紧凑的尺寸及其相关限制对其整体性能产生了影响。
Latitude 7340 的性能与 13.3 英寸的Latitude 3440 相当,后者使用相同的 CPU,但级别较低。总的来说,这款评测机并没有充分发挥处理器的潜力,因此低于 CPU 的平均水平。
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Average of class Subnotebook | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
HP Dragonfly G4 | |
Dell Latitude 13 7330 | |
Average Intel Core i5-1345U | |
Dell Latitude 3440 | |
Dell Latitude 13 7340 i5-1345U |
Cinebench R23 / Multi Core | |
Average of class Subnotebook (2485 - 16201, n=68, last 2 years) | |
Dell Latitude 7440 | |
Average Intel Core i5-1345U (7710 - 9795, n=3) | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 13 7330 | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 3440 | |
HP Dragonfly G4 |
Cinebench R23 / Single Core | |
HP Dragonfly G4 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 7440 | |
Dell Latitude 13 7330 | |
Average Intel Core i5-1345U (1716 - 1757, n=3) | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 3440 | |
Average of class Subnotebook (598 - 1934, n=68, last 2 years) |
Cinebench R20 / CPU (Multi Core) | |
Average of class Subnotebook (810 - 6314, n=64, last 2 years) | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 13 7330 | |
Average Intel Core i5-1345U (2806 - 3610, n=3) | |
Dell Latitude 13 7340 i5-1345U | |
HP Dragonfly G4 | |
Dell Latitude 3440 |
Cinebench R20 / CPU (Single Core) | |
HP Dragonfly G4 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 3440 | |
Average Intel Core i5-1345U (656 - 661, n=3) | |
Dell Latitude 7440 | |
Dell Latitude 13 7330 | |
Average of class Subnotebook (216 - 738, n=64, last 2 years) |
Cinebench R15 / CPU Multi 64Bit | |
Average of class Subnotebook (514 - 2581, n=70, last 2 years) | |
Dell Latitude 7440 | |
Dell Latitude 13 7330 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average Intel Core i5-1345U (1193 - 1542, n=3) | |
HP Dragonfly G4 | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 3440 |
Cinebench R15 / CPU Single 64Bit | |
HP Dragonfly G4 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 13 7330 | |
Dell Latitude 7440 | |
Dell Latitude 13 7340 i5-1345U | |
Average Intel Core i5-1345U (237 - 244, n=3) | |
Dell Latitude 3440 | |
Average of class Subnotebook (91.8 - 280, n=62, last 2 years) |
Blender / v2.79 BMW27 CPU | |
Dell Latitude 13 7340 i5-1345U | |
HP Dragonfly G4 | |
Dell Latitude 3440 | |
Average Intel Core i5-1345U (332 - 495, n=3) | |
Dell Latitude 13 7330 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average of class Subnotebook (201 - 1600, n=66, last 2 years) | |
Dell Latitude 7440 |
7-Zip 18.03 / 7z b 4 | |
Average of class Subnotebook (16223 - 67444, n=57, last 2 years) | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average Intel Core i5-1345U (30098 - 40563, n=3) | |
Dell Latitude 3440 | |
HP Dragonfly G4 | |
Dell Latitude 13 7330 | |
Dell Latitude 13 7340 i5-1345U |
7-Zip 18.03 / 7z b 4 -mmt1 | |
HP Dragonfly G4 | |
Dell Latitude 3440 | |
Dell Latitude 13 7330 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average Intel Core i5-1345U (5212 - 5626, n=3) | |
Average of class Subnotebook (2197 - 6403, n=58, last 2 years) | |
Dell Latitude 7440 | |
Dell Latitude 13 7340 i5-1345U |
Geekbench 5.5 / Multi-Core | |
Average of class Subnotebook (4274 - 12580, n=65, last 2 years) | |
HP Dragonfly G4 | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 13 7340 i5-1345U | |
Average Intel Core i5-1345U (6300 - 8263, n=3) | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
Geekbench 5.5 / Single-Core | |
HP Dragonfly G4 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 13 7330 | |
Dell Latitude 7440 | |
Average of class Subnotebook (672 - 2350, n=65, last 2 years) | |
Average Intel Core i5-1345U (1613 - 1710, n=3) | |
Dell Latitude 3440 | |
Dell Latitude 13 7340 i5-1345U |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Average of class Subnotebook (1.5 - 19.4, n=56, last 2 years) | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 13 7330 | |
Average Intel Core i5-1345U (7.46 - 10.8, n=3) | |
Dell Latitude 3440 | |
HP Dragonfly G4 | |
Dell Latitude 13 7340 i5-1345U |
LibreOffice / 20 Documents To PDF | |
Average of class Subnotebook (40.1 - 120.5, n=57, last 2 years) | |
Dell Latitude 3440 | |
Dell Latitude 13 7330 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 7440 | |
HP Dragonfly G4 | |
Average Intel Core i5-1345U (40.3 - 49.8, n=3) | |
Dell Latitude 13 7340 i5-1345U |
R Benchmark 2.5 / Overall mean | |
Average of class Subnotebook (0.4397 - 1.236, n=57, last 2 years) | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 3440 | |
Average Intel Core i5-1345U (0.4948 - 0.4999, n=3) | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 13 7330 | |
HP Dragonfly G4 |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Average of class Subnotebook | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average Intel Core i5-1345U | |
HP Dragonfly G4 | |
Dell Latitude 3440 | |
Dell Latitude 13 7330 | |
Dell Latitude 13 7340 i5-1345U |
AIDA64 / FP32 Ray-Trace | |
Average of class Subnotebook (343 - 25961, n=57, last 2 years) | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average Intel Core i5-1345U (5500 - 8830, n=3) | |
Dell Latitude 3440 | |
HP Dragonfly G4 | |
Dell Latitude 13 7330 | |
Dell Latitude 13 7340 i5-1345U |
AIDA64 / FPU Julia | |
Average of class Subnotebook (11867 - 111109, n=57, last 2 years) | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 13 7330 | |
Average Intel Core i5-1345U (28617 - 43149, n=3) | |
Dell Latitude 3440 | |
HP Dragonfly G4 | |
Dell Latitude 13 7340 i5-1345U |
AIDA64 / CPU SHA3 | |
Average of class Subnotebook (453 - 4646, n=57, last 2 years) | |
Dell Latitude 7440 | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 | |
Average Intel Core i5-1345U (1459 - 2265, n=3) | |
Lenovo ThinkBook Plus Gen4 IRU | |
HP Dragonfly G4 | |
Dell Latitude 13 7340 i5-1345U |
AIDA64 / CPU Queen | |
Average of class Subnotebook (15447 - 115300, n=57, last 2 years) | |
HP Dragonfly G4 | |
Dell Latitude 13 7330 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 7440 | |
Dell Latitude 13 7340 i5-1345U | |
Average Intel Core i5-1345U (61382 - 62953, n=3) | |
Dell Latitude 3440 |
AIDA64 / FPU SinJulia | |
Average of class Subnotebook (1223 - 14944, n=57, last 2 years) | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 3440 | |
Average Intel Core i5-1345U (4077 - 5206, n=3) | |
HP Dragonfly G4 | |
Dell Latitude 13 7330 | |
Dell Latitude 13 7340 i5-1345U |
AIDA64 / FPU Mandel | |
Average of class Subnotebook (6379 - 59053, n=57, last 2 years) | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average Intel Core i5-1345U (13914 - 21556, n=3) | |
Dell Latitude 3440 | |
Dell Latitude 13 7330 | |
HP Dragonfly G4 | |
Dell Latitude 13 7340 i5-1345U |
AIDA64 / CPU AES | |
Average of class Subnotebook (638 - 161430, n=57, last 2 years) | |
Dell Latitude 7440 | |
Dell Latitude 13 7330 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 3440 | |
Average Intel Core i5-1345U (29897 - 41994, n=3) | |
HP Dragonfly G4 | |
Dell Latitude 13 7340 i5-1345U |
AIDA64 / CPU ZLib | |
Average of class Subnotebook (270 - 1123, n=57, last 2 years) | |
Dell Latitude 7440 | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average Intel Core i5-1345U (434 - 640, n=3) | |
HP Dragonfly G4 | |
Dell Latitude 13 7340 i5-1345U |
AIDA64 / FP64 Ray-Trace | |
Average of class Subnotebook (204 - 14018, n=57, last 2 years) | |
Dell Latitude 7440 | |
Dell Latitude 3440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average Intel Core i5-1345U (2812 - 4640, n=3) | |
HP Dragonfly G4 | |
Dell Latitude 13 7330 | |
Dell Latitude 13 7340 i5-1345U |
AIDA64 / CPU PhotoWorxx | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 7440 | |
HP Dragonfly G4 | |
Dell Latitude 13 7340 i5-1345U | |
Average of class Subnotebook (7622 - 53954, n=57, last 2 years) | |
Average Intel Core i5-1345U (22065 - 39231, n=3) | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
系统性能
最终,Latitude 7340 的系统性能略微落后于Latitude 7440,不过差距不大。同样,尽管某些竞争对手的性能更强,但候选测试机的性能仍处于测试领域的中下游水平。尽管如此,其性能足以超越前代产品 戴尔Latitude 7330,配备了质量更高的 英特尔酷睿 i7-1265U.它能有效地处理所有标准的办公任务,是一款小巧的办公设备的理想之选。
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Average of class Subnotebook (4384 - 7428, n=55, last 2 years) | |
Lenovo ThinkBook Plus Gen4 IRU | |
HP Dragonfly G4 | |
Dell Latitude 7440 | |
Average Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs (5276 - 5554, n=3) | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 3440 | |
Dell Latitude 13 7330 |
PCMark 10 / Essentials | |
Lenovo ThinkBook Plus Gen4 IRU | |
HP Dragonfly G4 | |
Dell Latitude 7440 | |
Dell Latitude 13 7330 | |
Average Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs (10352 - 10758, n=3) | |
Dell Latitude 3440 | |
Dell Latitude 13 7340 i5-1345U | |
Average of class Subnotebook (8890 - 11168, n=55, last 2 years) |
PCMark 10 / Productivity | |
Average of class Subnotebook (6213 - 10279, n=55, last 2 years) | |
HP Dragonfly G4 | |
Dell Latitude 7440 | |
Dell Latitude 13 7340 i5-1345U | |
Average Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs (6832 - 7189, n=3) | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
PCMark 10 / Digital Content Creation | |
Average of class Subnotebook (4093 - 9749, n=55, last 2 years) | |
HP Dragonfly G4 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 7440 | |
Average Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs (5530 - 6012, n=3) | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 3440 | |
Dell Latitude 13 7330 |
CrossMark / Overall | |
HP Dragonfly G4 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average of class Subnotebook (718 - 1876, n=61, last 2 years) | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 13 7330 | |
Average Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs (1416 - 1531, n=2) | |
Dell Latitude 3440 |
CrossMark / Productivity | |
HP Dragonfly G4 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average of class Subnotebook (685 - 1829, n=61, last 2 years) | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 13 7330 | |
Average Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs (1420 - 1504, n=2) | |
Dell Latitude 3440 |
CrossMark / Creativity | |
HP Dragonfly G4 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average of class Subnotebook (776 - 2210, n=61, last 2 years) | |
Dell Latitude 13 7340 i5-1345U | |
Average Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs (1482 - 1635, n=2) | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
CrossMark / Responsiveness | |
Lenovo ThinkBook Plus Gen4 IRU | |
HP Dragonfly G4 | |
Average of class Subnotebook (652 - 1899, n=61, last 2 years) | |
Dell Latitude 13 7340 i5-1345U | |
Average Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs (1226 - 1325, n=2) | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
PCMark 10 Score | 5338 points | |
Help |
AIDA64 / Memory Copy | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average of class Subnotebook (22781 - 95353, n=57, last 2 years) | |
HP Dragonfly G4 | |
Dell Latitude 7440 | |
Dell Latitude 13 7340 i5-1345U | |
Average Intel Core i5-1345U (38526 - 57716, n=3) | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
AIDA64 / Memory Read | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average of class Subnotebook (23831 - 86433, n=57, last 2 years) | |
Dell Latitude 7440 | |
HP Dragonfly G4 | |
Dell Latitude 13 7340 i5-1345U | |
Average Intel Core i5-1345U (41894 - 50185, n=3) | |
Dell Latitude 3440 | |
Dell Latitude 13 7330 |
AIDA64 / Memory Write | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 7440 | |
Dell Latitude 13 7340 i5-1345U | |
HP Dragonfly G4 | |
Average of class Subnotebook (23474 - 93382, n=57, last 2 years) | |
Average Intel Core i5-1345U (44821 - 72373, n=3) | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
AIDA64 / Memory Latency | |
Average of class Subnotebook (18.8 - 172, n=52, last 2 years) | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 7440 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average Intel Core i5-1345U (73.8 - 103.9, n=3) | |
HP Dragonfly G4 | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
* ... smaller is better

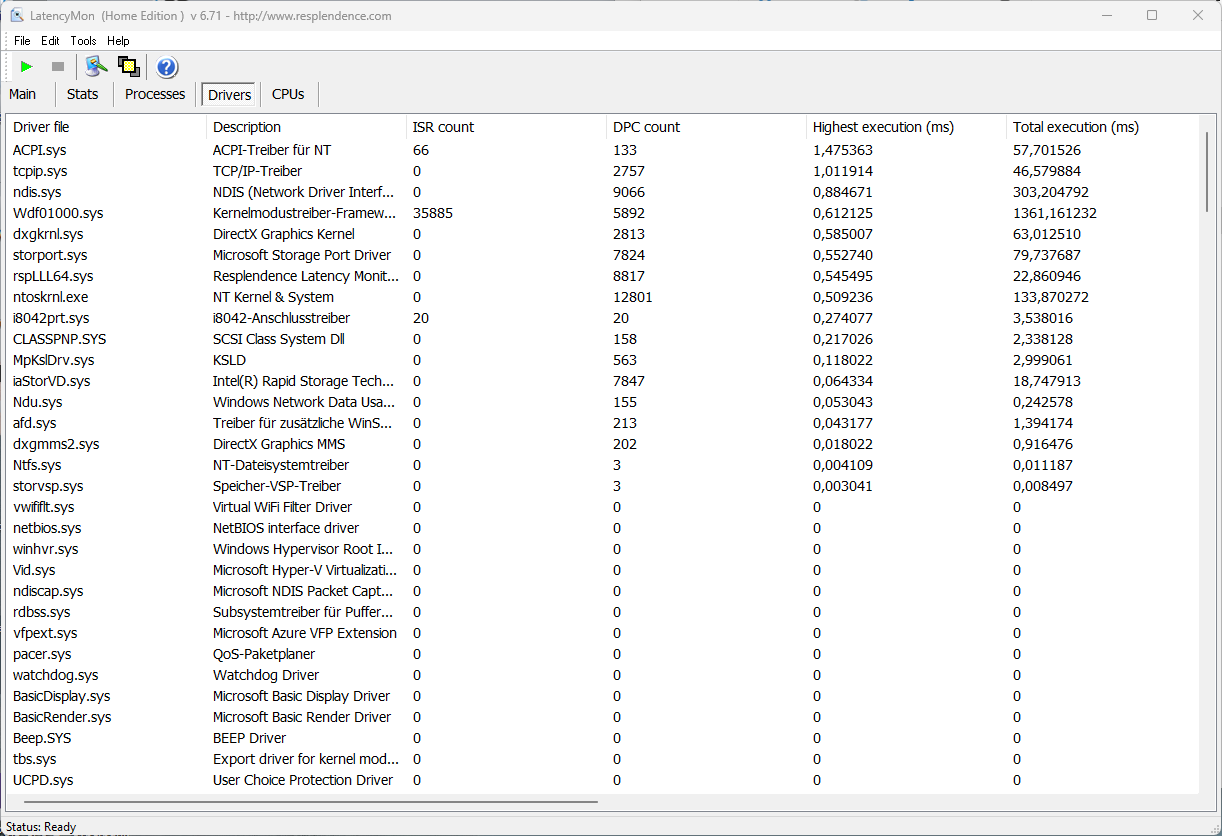

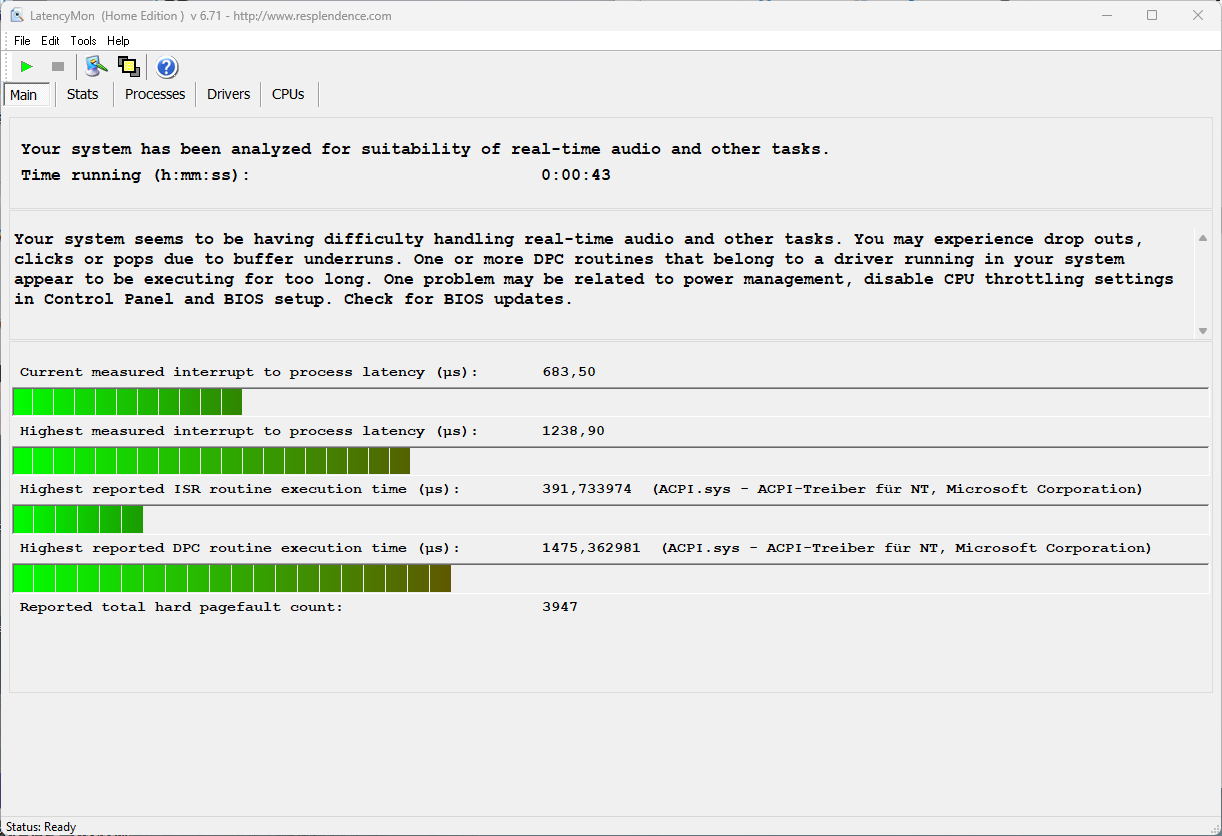

DPC 延迟
与同类笔记本电脑相比,测得的 DPC 延迟高于平均水平。这表明,戴尔Latitude 7340 可能不太适合实时音频或视频编辑任务;不过,这并不是这类笔记本电脑的标准使用情况。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Dell Latitude 3440 | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 7440 | |
HP Dragonfly G4 | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 13 7330 |
* ... smaller is better
存储设备
在大多数情况下,三星在 Latitude 7440超过了 Kioxa 512 GB SSD。尽管Latitude 7330 在比较领域中处于较低的位置,但它还是超越了前代产品,得分高于固态硬盘的平均水平。
* ... smaller is better
Continuous power reading: DiskSpd Read Loop, Queue Depth 8

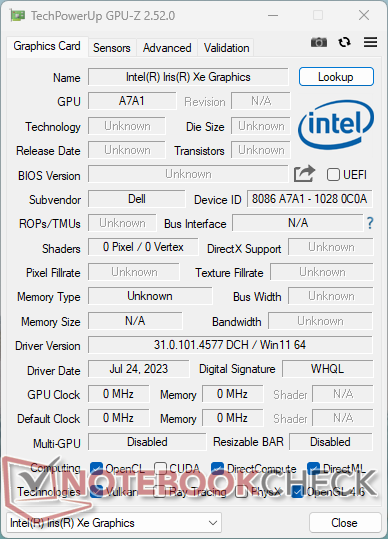

图形卡
戴尔决定不在Latitude 7340 中采用专用图形解决方案,这一决定符合轻型子笔记本电脑的概念。取而代之的是英特尔 Iris Xe 图形处理器(80 EUs),该处理器在 Latitude 7440对比机型中也有配备。
显然,这一设计因素并没有对图形性能产生重大影响。常见的 3DMark 基准测试通常显示,较小的机型仅略微落后于其 14 英寸的表兄弟,有时甚至领先。这些差异微不足道。
在测量游戏帧率方面,差异略微明显。Latitude 7340 每秒输出的帧数通常要少几帧,但这并不会真正影响游戏的可玩性。大多数游戏在最低设置下都能正常运行,这对于该级别的设备来说通常是可以接受的。

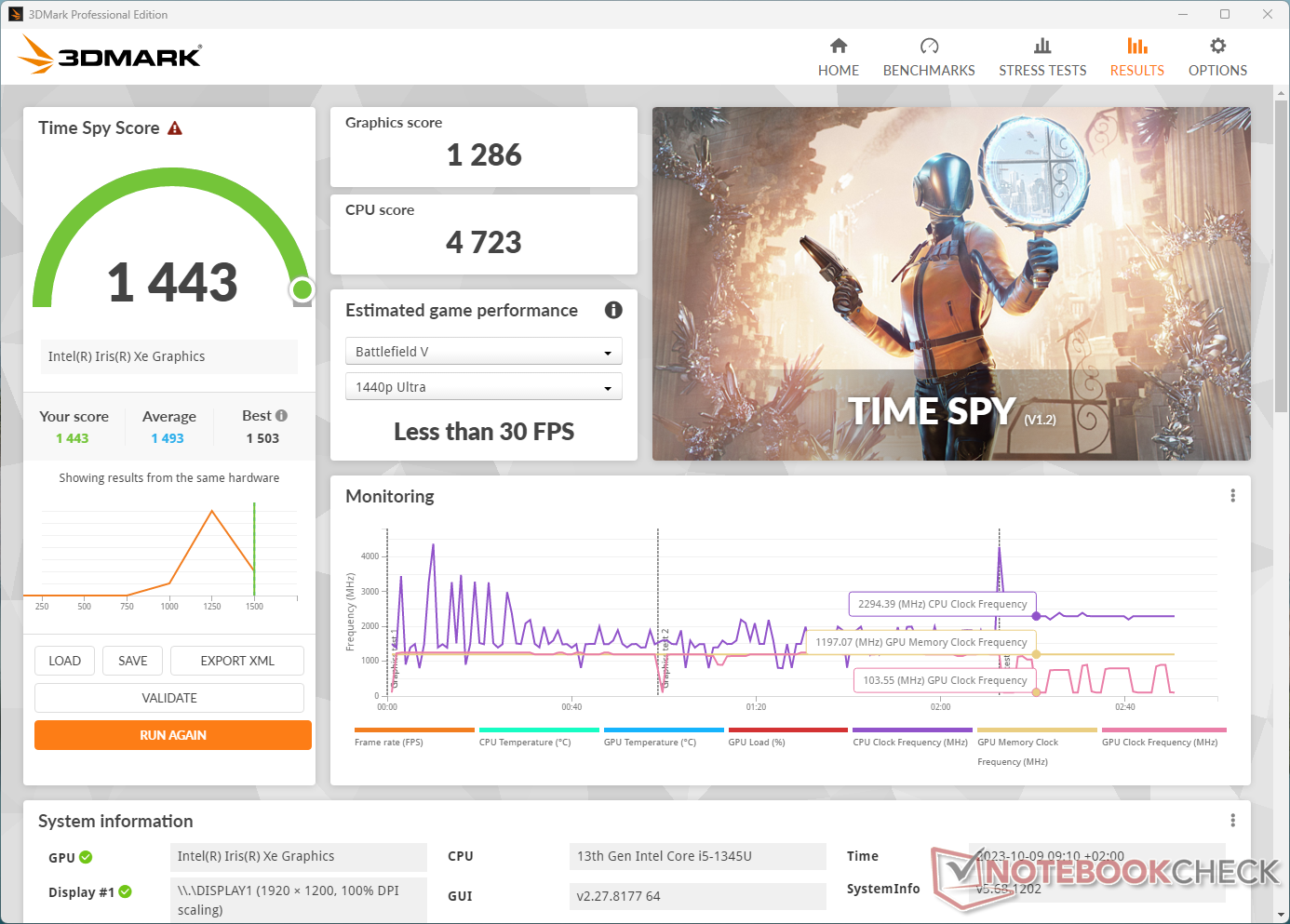

在 3DMarkTime Spy 压力测试中,96% 的成绩凸显了该机长期以来相对稳定的性能。基准测试显示,即使在电池模式下,大约 90% 的性能仍然可用。
3DMark Performance Rating - Percent | |
Average of class Subnotebook | |
Lenovo ThinkBook Plus Gen4 IRU -1! | |
HP Dragonfly G4 -1! | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 13 7330 | |
Dell Latitude 7440 -1! | |
Average Intel Iris Xe Graphics G7 80EUs | |
Dell Latitude 3440 -1! |

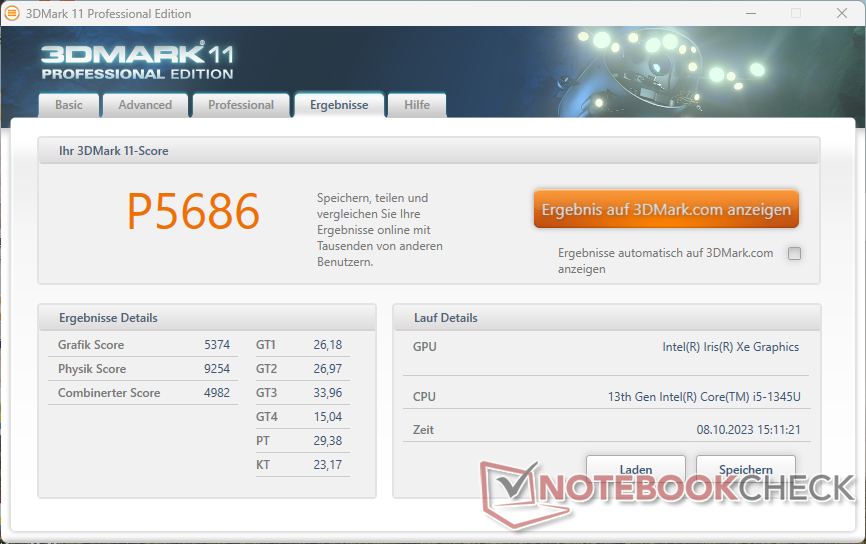

3DMark 11 Performance | 5686 points | |
3DMark Ice Storm Standard Score | 106842 points | |
3DMark Cloud Gate Standard Score | 18213 points | |

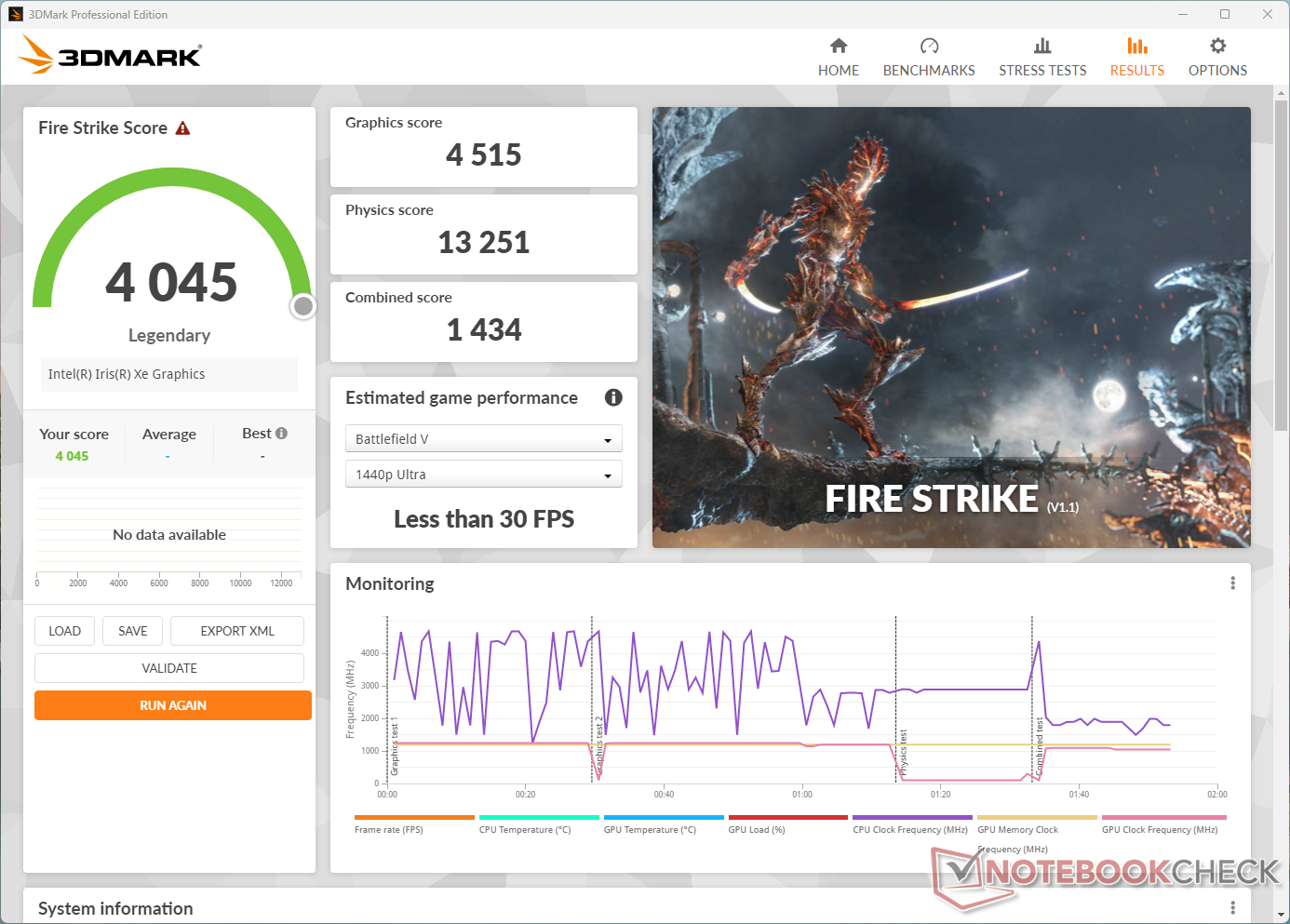

3DMark Fire Strike Score | 4045 points | |
3DMark Time Spy Score | 1443 points | |
Help |
* ... smaller is better
Performance Rating - Percent | |
Average of class Subnotebook | |
Lenovo ThinkBook Plus Gen4 IRU | |
HP Dragonfly G4 | |
Dell Latitude 7440 | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Average of class Subnotebook (8 - 44.2, n=57, last 2 years) | |
Lenovo ThinkBook Plus Gen4 IRU | |
HP Dragonfly G4 | |
Dell Latitude 7440 | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Average of class Subnotebook (5.01 - 67.5, n=47, last 2 years) | |
Lenovo ThinkBook Plus Gen4 IRU | |
HP Dragonfly G4 | |
Dell Latitude 7440 | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Average of class Subnotebook (5.24 - 50.1, n=51, last 2 years) | |
Lenovo ThinkBook Plus Gen4 IRU | |
Dell Latitude 7440 | |
HP Dragonfly G4 | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Average of class Subnotebook (17.7 - 86, n=51, last 2 years) | |
Lenovo ThinkBook Plus Gen4 IRU | |
HP Dragonfly G4 | |
Dell Latitude 7440 | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 13 7330 | |
Dell Latitude 3440 |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
Lenovo ThinkBook Plus Gen4 IRU | |
Average of class Subnotebook (29.4 - 109.1, n=58, last 2 years) | |
Dell Latitude 7440 | |
HP Dragonfly G4 | |
Dell Latitude 13 7340 i5-1345U | |
Dell Latitude 3440 | |
Dell Latitude 13 7330 |
Witcher 3 FPS chart
low | med. | high | ultra | QHD | |
GTA V (2015) | 84.3 | 74.9 | 20 | 8.64 | |
The Witcher 3 (2015) | 74.6 | 45.5 | 24.7 | 12.3 | |
Dota 2 Reborn (2015) | 95.5 | 68.8 | 51.6 | 47 | |
Final Fantasy XV Benchmark (2018) | 33.5 | 18.9 | 13.9 | 10.5 | |
X-Plane 11.11 (2018) | 40 | 28.7 | 25.1 | ||
Strange Brigade (2018) | 80.4 | 32.9 | 26.3 | 21 | |
Tiny Tina's Wonderlands (2022) | 21.16 | 16.53 | 10.21 | 9.87 | |
F1 22 (2022) | 58.8 | 33.6 | 30.9 | 23.4 |
排放与能源 - 安静、经济、耐用
系统噪音
在空闲模式下,设备运行安静。当使用内置硬件时,风扇会发出耳语般的声音,最高可达 38 dB(A)。这个音量是可以接受的,特别是因为风扇的运行稳定而均匀。
Noise Level
Idle |
| 25.02 / 25.02 / 25.02 dB(A) |
Load |
| 35.07 / 38.2 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25.02 dB(A) |
Dell Latitude 13 7340 i5-1345U Iris Xe G7 80EUs, i5-1345U, Kioxia BG5 KBG50ZNS512G | Dell Latitude 7440 Iris Xe G7 80EUs, i5-1345U, Samsung MZ9L4512HBLU-00BMV | Dell Latitude 3440 Iris Xe G7 80EUs, i5-1345U, Samsung PM9A1 MZVL2512HCJQ | Dell Latitude 13 7330 Iris Xe G7 96EUs, i7-1265U, Toshiba KBG40ZNS512G NVMe | HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB | Lenovo ThinkBook Plus Gen4 IRU Iris Xe G7 96EUs, i7-1355U, SK hynix PC801 HFS512GEJ9X115N | |
---|---|---|---|---|---|---|
Noise | 10% | -0% | 1% | 7% | -1% | |
off / environment * | 25.02 | 22.8 9% | 23.9 4% | 23.4 6% | 23.3 7% | 24.3 3% |
Idle Minimum * | 25.02 | 22.8 9% | 24.4 2% | 23.4 6% | 23.5 6% | 24.3 3% |
Idle Average * | 25.02 | 22.8 9% | 24.4 2% | 23.4 6% | 23.5 6% | 24.3 3% |
Idle Maximum * | 25.02 | 22.8 9% | 24.4 2% | 23.4 6% | 26.8 -7% | 24.3 3% |
Load Average * | 35.07 | 26.3 25% | 37.1 -6% | 37.8 -8% | 27.2 22% | 38.2 -9% |
Load Maximum * | 38.2 | 38.3 -0% | 40.2 -5% | 43 -13% | 35 8% | 41.8 -9% |
Witcher 3 ultra * | 30 | 38.2 | 39.2 | 32.7 | 41.9 |
* ... smaller is better

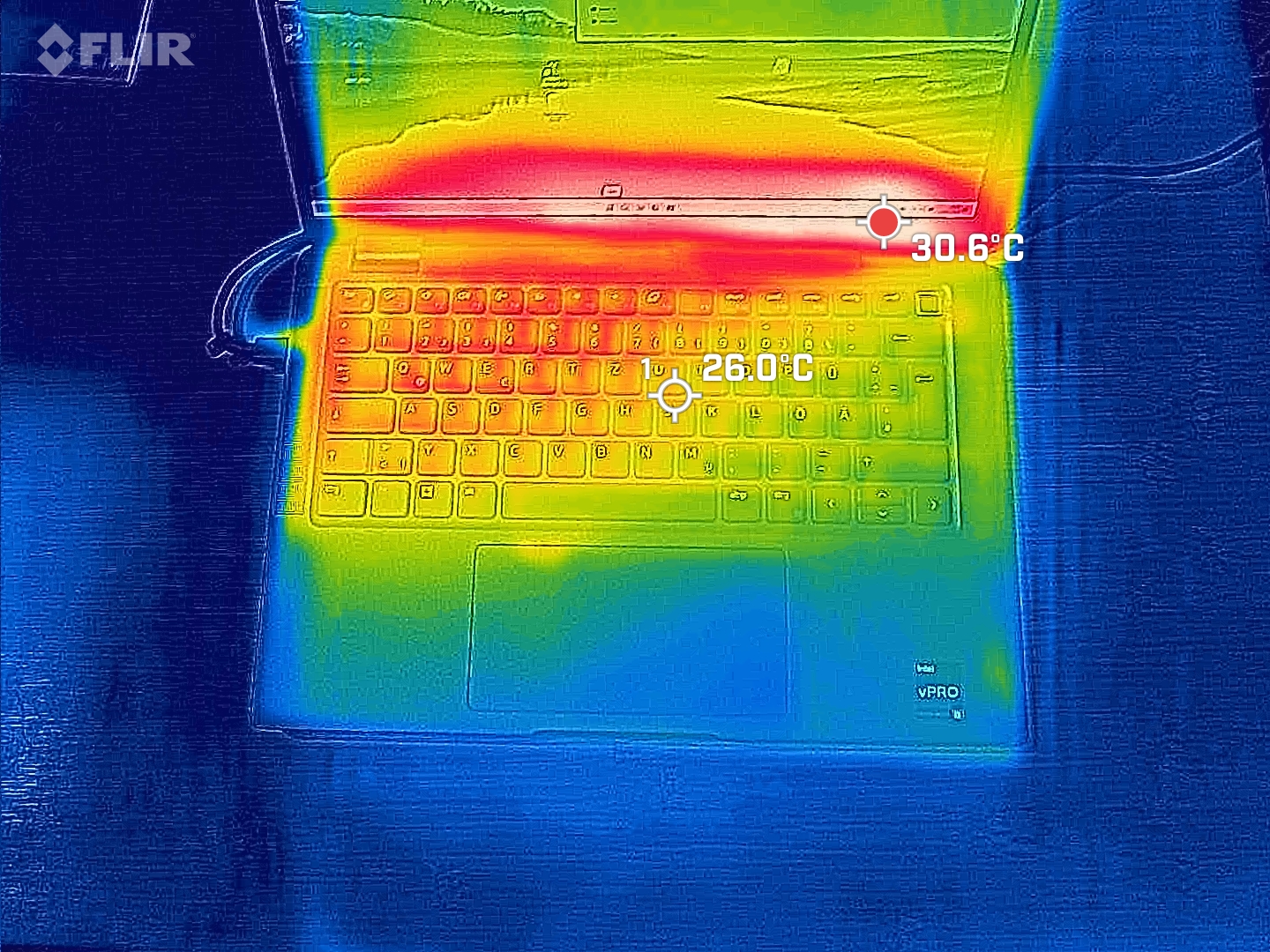

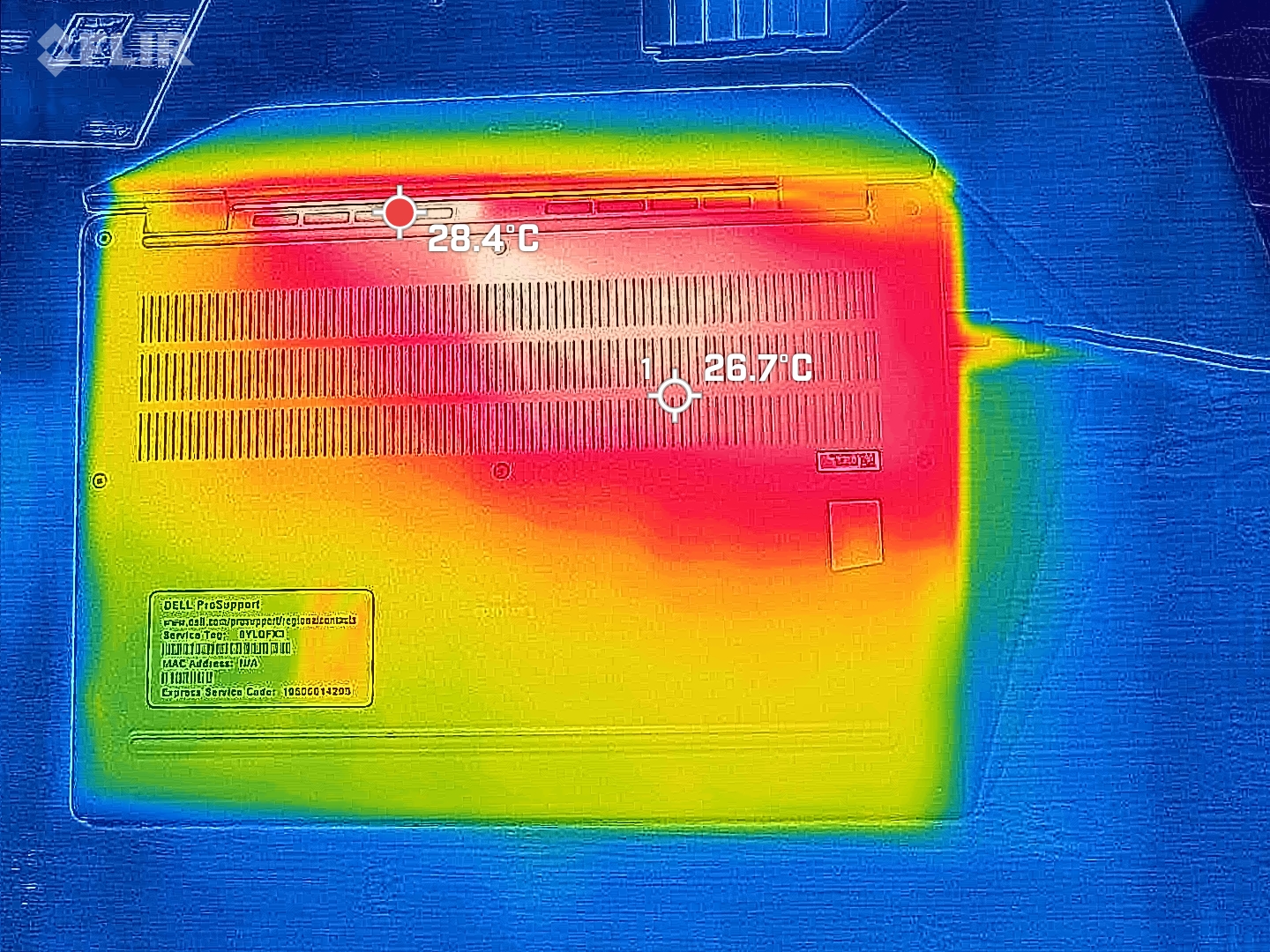

温度
有限的散热空间不会对机箱温度造成太大影响。在这方面,13 英寸Latitude 7340 略逊于 14 英寸 Latitude 7440尽管这两款设备都能保持低温且未出现异常。

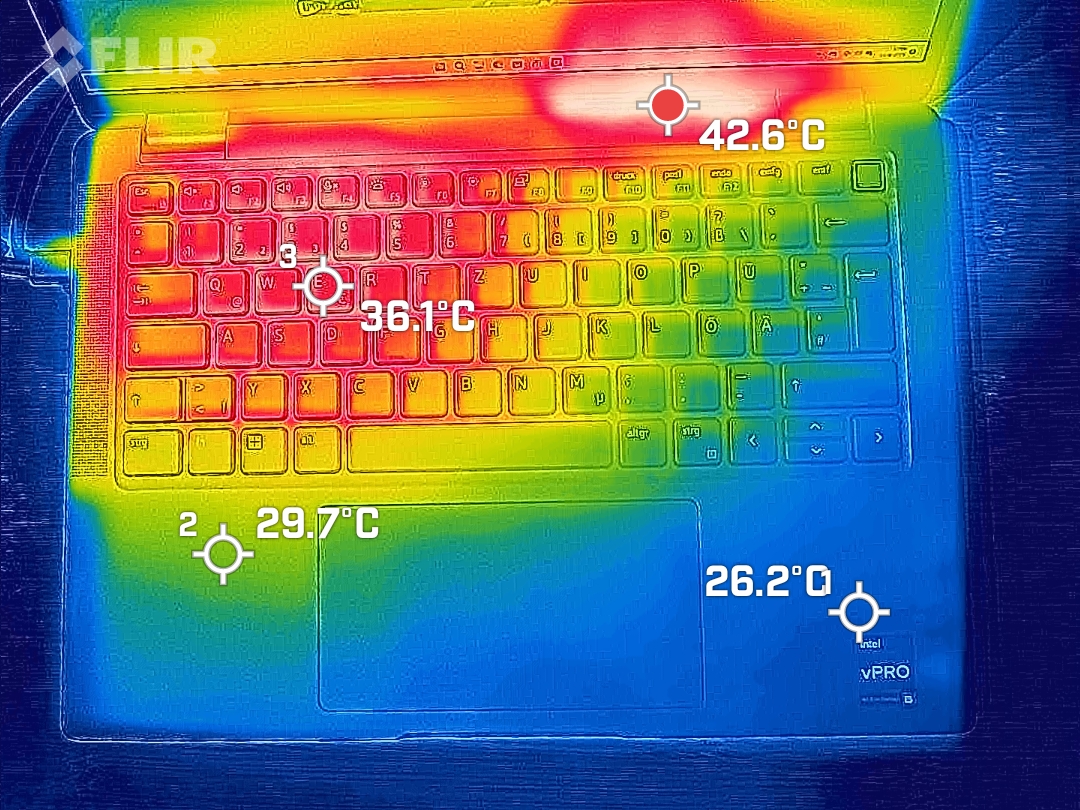

(+) The maximum temperature on the upper side is 34.3 °C / 94 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.

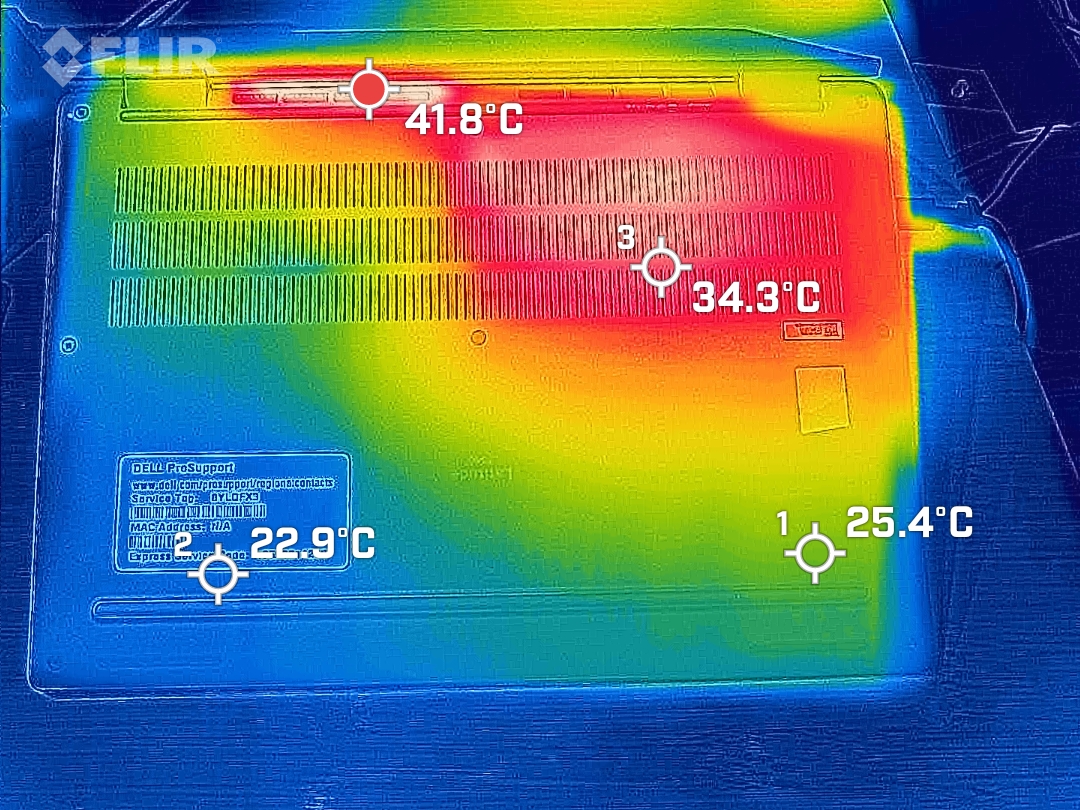

(+) The bottom heats up to a maximum of 37.6 °C / 100 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 27.5 °C / 82 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.1 °C / 82.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+0.2 °C / 0.3 F).
Dell Latitude 13 7340 i5-1345U Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs | Dell Latitude 7440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs | Dell Latitude 3440 Intel Core i5-1345U, Intel Iris Xe Graphics G7 80EUs | Dell Latitude 13 7330 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs | HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkBook Plus Gen4 IRU Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs | |
---|---|---|---|---|---|---|
Heat | -5% | -7% | 2% | -5% | -1% | |
Maximum Upper Side * | 34.3 | 39 -14% | 35.2 -3% | 38.6 -13% | 38.6 -13% | 34.2 -0% |
Maximum Bottom * | 37.6 | 40.6 -8% | 41 -9% | 42 -12% | 40.4 -7% | 35.8 5% |
Idle Upper Side * | 28.4 | 28 1% | 29.8 -5% | 23.8 16% | 28.2 1% | 28.6 -1% |
Idle Bottom * | 28.8 | 28.8 -0% | 32 -11% | 24.6 15% | 29 -1% | 30.4 -6% |
* ... smaller is better
扬声器
戴尔在这款小巧的笔记本电脑中总共安装了四个扬声器,其中两个朝上,两个朝下。立体声播放可以达到相对较高的音量,与大多数同类竞争产品相比,音质明显较好。
Dell Latitude 13 7340 i5-1345U audio analysis
(+) | speakers can play relatively loud (83 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 6.2% lower than median
(±) | linearity of bass is average (9.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(±) | linearity of highs is average (7.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%
耗电量
在能耗方面,Latitude 7340 的能效略高于 7440,这在意料之中,因为它的显示屏略小,分辨率也较低。我们测得的峰值功耗为 69 W,略高于规定的 65 W 电源功耗。
Off / Standby | / 0.9 Watt |
Idle | 2.37 / 6.19 / 14.1 Watt |
Load |
36.3 / 69.13 Watt |
Power consumption Witcher 3 / stress test
Power consumption with external monitor
电池寿命
Latitude 7340 虽然尺寸较小,但配备的 57 Wh 电池与 14 英寸的 Latitude 7440.较小的显示屏有助于延长电池续航时间,例如在 Wi-Fi 测试中明显延长了两个小时。总体而言,与大多数竞争对手相比,测试设备的运行时间明显更长。只有 蜻蜓 G4的电池容量更大,因此续航时间更长一些。
Dell Latitude 13 7340 i5-1345U i5-1345U, Iris Xe G7 80EUs, 57 Wh | Dell Latitude 7440 i5-1345U, Iris Xe G7 80EUs, 57 Wh | Dell Latitude 3440 i5-1345U, Iris Xe G7 80EUs, 54 Wh | Dell Latitude 13 7330 i7-1265U, Iris Xe G7 96EUs, 41 Wh | HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs, 68 Wh | Lenovo ThinkBook Plus Gen4 IRU i7-1355U, Iris Xe G7 96EUs, 56 Wh | Average of class Subnotebook | |
---|---|---|---|---|---|---|---|
Battery Runtime | -10% | -41% | -49% | 8% | -52% | -32% | |
WiFi v1.3 | 901 | 781 -13% | 528 -41% | 497 -45% | 954 6% | 481 -47% | 629 ? -30% |
Load | 176 | 164 -7% | 84 -52% | 192 9% | 76 -57% | 115.4 ? -34% | |
Reader / Idle | 1427 | 1314 | 2550 | 927 | 1252 ? |
Pros
Cons
评语 - 紧凑型笔记本电脑中的佼佼者,在测试中几乎没有弱点
如果将 13.3 英寸的戴尔Latitude 7340 与稍大一些的 14 英寸 Latitude 7440如果我们将 13.3 英寸的戴尔 7340 与稍大一些的 14 英寸 7440 进行比较,这里测试的这款超小型笔记本重量稍轻,体积更小巧,但由于硬件几乎完全相同,因此在许多方面都能跟上其较大系列的兄弟。虽然性能普遍略低,但差距是可控的。
由于采用了相同的电池,但功耗有所降低,因此延长了电池寿命。
最后,戴尔Latitude 7340 在我们的测试中被证明是一个小伙伴,它能够处理典型的办公任务,并凭借足够明亮的哑光显示屏适合户外使用。
如果你觉得 13.3 英寸的产品太小,那么 14 英寸的产品屏幕尺寸稍大,性能也更强一些。另一方面,如果内置处理器的性能无法满足你的需求,你可能会考虑选择同样小巧的 惠普蜻蜓 G4.
价格和供应情况
戴尔提供多种配置的Latitude 7340,起价约为 1589 美元。此次评测的 Ultralight 版本配备了英特尔酷睿 i5-1345U 处理器、16 GB DDR5 内存和 512 GB 固态硬盘,售价约为 1600 美元,可直接从戴尔公司购买,也可在Best Buy 等零售商处找到各种配置的产品。.
Dell Latitude 13 7340 i5-1345U
-
10/16/2023 v7
Marcus Schwarten
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
