Kaby Lake (酷睿 i7-7500U) 简短评测: 用了兴奋剂的Skylake

Till Schönborn (translated by Yuchen Wang), 09/03/2016
Laptop / Notebook Windows Kaby Lake Ultrabook

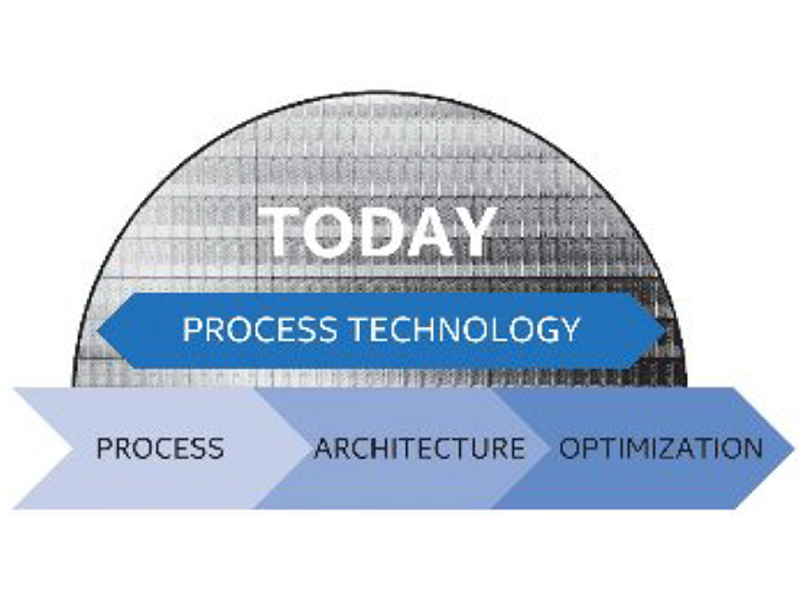

意外的能量。既不是新架构也不是新制程——英特尔的Kaby Lake系列处理器在优化后得到了明显的频率和性能提升。我们测试的是最新的酷睿i7-7500U。

Cinebench R11.5
CPU Single 64Bit
Intel Core i7-7500U
1.68 Points ∼100%
Intel Core i7-6700HQ
1.67 Points ∼99% -1%
Intel Core i7-6600U
1.57 Points ∼93% -7%
Intel Core i5-6300HQ
1.49 Points ∼89% -11%
Intel Core i7-6500U
1.45 Points ∼86% -14%
Intel Core i5-6300U
1.41 Points ∼84% -16%
Intel Core i5-6200U
1.33 Points ∼79% -21%
CPU Multi 64Bit
Intel Core i7-6700HQ
7.42 Points ∼100% +84%
Intel Core i5-6300HQ
5.42 Points ∼73% +34%
Intel Core i7-7500U
4.03 Points ∼54%
Intel Core i7-6600U
3.83 Points ∼52% -5%
Intel Core i7-6500U
3.55 Points ∼48% -12%
Intel Core i5-6300U
3.42 Points ∼46% -15%
Intel Core i5-6200U
3.19 Points ∼43% -21%
Cinebench R15
CPU Single 64Bit
Intel Core i7-6700HQ
147 Points ∼100% +1%
Intel Core i7-7500U
145 Points ∼99%
Intel Core i7-6600U
141 Points ∼96% -3%
Intel Core i5-6300HQ
136 Points ∼93% -6%
Intel Core i7-6500U
124 Points ∼84% -14%
Intel Core i5-6300U
122 Points ∼83% -16%
Intel Core i5-6200U
115 Points ∼78% -21%
CPU Multi 64Bit
Intel Core i7-6700HQ
662 Points ∼100% +82%
Intel Core i5-6300HQ
468 Points ∼71% +29%
Intel Core i7-7500U
363 Points ∼55%
Intel Core i7-6600U
347 Points ∼52% -4%
Intel Core i7-6500U
319 Points ∼48% -12%
Intel Core i5-6300U
305 Points ∼46% -16%
Intel Core i5-6200U
288 Points ∼44% -21%
X264 HD Benchmark 4.0
Pass 2
Intel Core i7-6700HQ
41.83 fps ∼100% +75%
Intel Core i5-6300HQ
31.29 fps ∼75% +31%
Intel Core i7-7500U
23.95 fps ∼57%
Intel Core i7-6600U
22.62 fps ∼54% -6%
Intel Core i7-6500U
20.95 fps ∼50% -13%
Intel Core i5-6300U
20.38 fps ∼49% -15%
Intel Core i5-6200U
19.04 fps ∼46% -21%
Pass 1
Intel Core i5-6300HQ
153.03 fps ∼100% +15%
Intel Core i7-6700HQ
147.4 fps ∼96% +11%
Intel Core i7-7500U
133.16 fps ∼87%
Intel Core i7-6600U
120.37 fps ∼79% -10%
Intel Core i7-6500U
107.55 fps ∼70% -19%
Intel Core i5-6300U
107.49 fps ∼70% -19%
Intel Core i5-6200U
101.29 fps ∼66% -24%
TrueCrypt
Serpent Mean 100MB
Intel Core i7-6700HQ
0.393 GB/s ∼100% +77%
Intel Core i5-6300HQ
0.249 GB/s ∼63% +12%
Intel Core i7-7500U
0.222 GB/s ∼56%
Intel Core i7-6600U
0.201 GB/s ∼51% -9%
Intel Core i7-6500U
0.191 GB/s ∼49% -14%
Intel Core i5-6300U
0.182 GB/s ∼46% -18%
Intel Core i5-6200U
0.171 GB/s ∼44% -23%
Twofish Mean 100MB
Intel Core i7-6700HQ
0.664 GB/s ∼100% +77%
Intel Core i5-6300HQ
0.418 GB/s ∼63% +11%
Intel Core i7-7500U
0.375 GB/s ∼56%
Intel Core i7-6600U
0.343 GB/s ∼52% -9%
Intel Core i7-6500U
0.321 GB/s ∼48% -14%
Intel Core i5-6300U
0.311 GB/s ∼47% -17%
Intel Core i5-6200U
0.288 GB/s ∼43% -23%
AES Mean 100MB
Intel Core i7-6700HQ
3.5 GB/s ∼100% +59%
Intel Core i5-6300HQ
2.5 GB/s ∼71% +14%
Intel Core i7-7500U
2.2 GB/s ∼63%
Intel Core i7-6600U
2 GB/s ∼57% -9%
Intel Core i7-6500U
1.8 GB/s ∼51% -18%
Intel Core i5-6200U
1.7 GB/s ∼49% -23%
Intel Core i5-6300U
1.6 GB/s ∼46% -27%
WinRAR - Result
Intel Core i7-6700HQ
3695 KB/s ∼100% +23%
Intel Core i7-7500U
3011 KB/s ∼81%
Intel Core i5-6300HQ
2861 KB/s ∼77% -5%
Intel Core i7-6600U
2635 KB/s ∼71% -12%
Intel Core i7-6500U
2355 KB/s ∼64% -22%
Intel Core i5-6200U
2041 KB/s ∼55% -32%
Super Pi Mod 1.5 XS 32M - ---
Intel Core i5-6300U
670.775 Seconds * ∼100% -23%
Intel Core i7-6500U
658.355 Seconds * ∼98% -20%
Intel Core i5-6300HQ
630.932 Seconds * ∼94% -15%
Intel Core i7-6700HQ
585.797 Seconds * ∼87% -7%
Intel Core i7-6600U
571.685 Seconds * ∼85% -4%
Intel Core i7-7500U
547.208 Seconds * ∼82%
3DMark 06 - CPU - ---
Intel Core i7-6700HQ
7063 Points ∼100% +44%
Intel Core i5-6300HQ
5766 Points ∼82% +17%
Intel Core i7-7500U
4921 Points ∼70%
Intel Core i7-6600U
4560 Points ∼65% -7%
Intel Core i7-6500U
4227 Points ∼60% -14%
Intel Core i5-6300U
4050 Points ∼57% -18%
Intel Core i5-6200U
3828 Points ∼54% -22%
Geekbench 3
32 Bit Multi-Core Score
Intel Core i7-6700HQ
11923 Points ∼100% +52%
Intel Core i5-6300HQ
9520 Points ∼80% +22%
Intel Core i7-7500U
7835 Points ∼66%
Intel Core i7-6600U
7082 Points ∼59% -10%
Intel Core i7-6500U
6092 Points ∼51% -22%
32 Bit Single-Core Score
Intel Core i7-7500U
3706 Points ∼100%
Intel Core i7-6600U
3384 Points ∼91% -9%
Intel Core i5-6300HQ
3301 Points ∼89% -11%
Intel Core i7-6700HQ
3194 Points ∼86% -14%
Intel Core i7-6500U
2816 Points ∼76% -24%
Mozilla Kraken 1.1 - Total Score
Intel Core i5-6200U
1285.7 ms * ∼100% -34%
Intel Core i5-6300HQ
1129.9 ms * ∼88% -17%
Intel Core i7-6500U
1103.9 ms * ∼86% -15%
Intel Core i7-6600U
1030.1 ms * ∼80% -7%
Intel Core i7-6700HQ
994.3 ms * ∼77% -3%
Intel Core i7-7500U
961.9 ms * ∼75%
Octane V2 - Total Score
Intel Core i7-6700HQ
37996 Points ∼100% +1%
Intel Core i7-7500U
37473 Points ∼99%
Intel Core i7-6600U
33639 Points ∼89% -10%
Intel Core i5-6300HQ
31710 Points ∼83% -15%
Intel Core i7-6500U
29745 Points ∼78% -21%
Intel Core i5-6200U
28320 Points ∼75% -24%

Legend


MSI CX72-7QL Intel Core i7-7500U, Intel HD Graphics 620,

Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)

Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370, Samsung CM871 MZ7LF192HCGS

Microsoft Surface Book Core i5 Intel Core i5-6300U, NVIDIA Maxwell GPU Surface Book, Samsung MZFLV256 NVMe

HP ProBook 640 G2-T9X60ET Intel Core i5-6200U, Intel HD Graphics 520, Samsung SSD PM871 MZNLN256HCHP

Acer Aspire V Nitro VN7-792G-55SF Intel Core i5-6300HQ, NVIDIA GeForce 945M, Toshiba MQ02ABD100H

Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX, Samsung SSD PM871 MZ7LN512HCHP

* ... smaller is better

3DMark 11 - 1280x720 Performance GPU
Iris Graphics 540 (i5-6260U; Dual-Channel)
2322 Points ∼100% +39%
Iris Graphics 540 (i7-6560U; Dual-Channel)
2101 Points ∼90% +26%
HD Graphics 620 (i7-7500U; Dual-Channel)
1668 Points ∼72%
HD Graphics 520 (i7-6600U; Dual-Channel)
1416 Points ∼61% -15%
HD Graphics 520 (i5-6200U; Dual-Channel)
1341 Points ∼58% -20%
HD Graphics 520 (i5-6200U; Dual-Channel)
1318 Points ∼57% -21%
HD Graphics 520 (i7-6500U; Dual-Channel)
1274 Points ∼55% -24%
HD Graphics 520 (i7-6600U; Single-Channel)
1264 Points ∼54% -24%
HD Graphics 520 (i7-6500U; Single-Channel)
1197 Points ∼52% -28%
HD Graphics 520 (i5-6200U; Single-Channel)
1124 Points ∼48% -33%
3DMark
1920x1080 Fire Strike Graphics
Iris Graphics 540 (i5-6260U; Dual-Channel)
1479 Points ∼100% +31%
HD Graphics 620 (i7-7500U; Dual-Channel)
1128 Points ∼76%
HD Graphics 520 (i7-6600U; Dual-Channel)
935 Points ∼63% -17%
HD Graphics 520 (i5-6200U; Dual-Channel)
861 Points ∼58% -24%
HD Graphics 520 (i7-6500U; Dual-Channel)
814 Points ∼55% -28%
HD Graphics 520 (i7-6500U; Single-Channel)
776 Points ∼52% -31%
HD Graphics 520 (i7-6600U; Single-Channel)
744 Points ∼50% -34%
HD Graphics 520 (i5-6200U; Single-Channel)
620 Points ∼42% -45%
1280x720 Cloud Gate Standard Graphics
Iris Graphics 540 (i5-6260U; Dual-Channel)
11893 Points ∼100% +27%
Iris Graphics 540 (i7-6560U; Dual-Channel)
11531 Points ∼97% +24%
HD Graphics 620 (i7-7500U; Dual-Channel)
9332 Points ∼78%
HD Graphics 520 (i5-6200U; Dual-Channel)
7904 Points ∼66% -15%
HD Graphics 520 (i5-6200U; Dual-Channel)
7745 Points ∼65% -17%
HD Graphics 520 (i7-6600U; Dual-Channel)
7505 Points ∼63% -20%
HD Graphics 520 (i7-6500U; Single-Channel)
6759 Points ∼57% -28%
HD Graphics 520 (i7-6500U; Dual-Channel)
6674 Points ∼56% -28%
HD Graphics 520 (i5-6200U; Single-Channel)
5963 Points ∼50% -36%
HD Graphics 520 (i7-6600U; Single-Channel)
5819 Points ∼49% -38%
LuxMark v2.0 64Bit
Room GPUs-only
HD Graphics 620 (i7-7500U; Dual-Channel)
309 Samples/s ∼100%
Iris Graphics 540 (i5-6260U; Dual-Channel)
306 Samples/s ∼99% -1%
HD Graphics 520 (i7-6600U; Dual-Channel)
224 Samples/s ∼72% -28%
Sala GPUs-only
Iris Graphics 540 (i5-6260U; Dual-Channel)
702 Samples/s ∼100% +9%
HD Graphics 620 (i7-7500U; Dual-Channel)
645 Samples/s ∼92%
HD Graphics 520 (i7-6600U; Dual-Channel)
529 Samples/s ∼75% -18%
Sims 4
1920x1080 High Preset
HD Graphics 620 (i7-7500U; Dual-Channel)
29.5 fps ∼100%
HD Graphics 520 (i5-6200U; Dual-Channel)
25.3 fps ∼86% -14%
HD Graphics 520 (i7-6600U; Dual-Channel)
21.8 fps ∼74% -26%
HD Graphics 520 (i5-6200U; Single-Channel)
16.6 fps ∼56% -44%
1366x768 Medium Preset
HD Graphics 620 (i7-7500U; Dual-Channel)
63 fps ∼100%
HD Graphics 520 (i5-6200U; Dual-Channel)
49.4 fps ∼78% -22%
HD Graphics 520 (i7-6600U; Dual-Channel)
46.7 fps ∼74% -26%
HD Graphics 520 (i5-6200U; Single-Channel)
40.5 fps ∼64% -36%
1024x768 Low Preset
HD Graphics 620 (i7-7500U; Dual-Channel)
186.8 fps ∼100%
HD Graphics 520 (i7-6600U; Dual-Channel)
182.6 fps ∼98% -2%
HD Graphics 520 (i5-6200U; Dual-Channel)
176.8 fps ∼95% -5%
HD Graphics 520 (i5-6200U; Single-Channel)
164.8 fps ∼88% -12%
BioShock Infinite
1366x768 High Preset
Iris Graphics 540 (i5-6260U; Dual-Channel)
39 fps ∼100% +26%
Iris Graphics 540 (i7-6560U; Dual-Channel)
35.7 fps ∼92% +16%
HD Graphics 620 (i7-7500U; Dual-Channel)
30.9 fps ∼79%
HD Graphics 520 (i7-6600U; Dual-Channel)
24.5 fps ∼63% -21%
HD Graphics 520 (i7-6500U; Dual-Channel)
22.2 fps ∼57% -28%
1366x768 Medium Preset
Iris Graphics 540 (i5-6260U; Dual-Channel)
46 fps ∼100% +26%
Iris Graphics 540 (i7-6560U; Dual-Channel)
42.2 fps ∼92% +15%
HD Graphics 620 (i7-7500U; Dual-Channel)
36.6 fps ∼80%
HD Graphics 520 (i7-6600U; Dual-Channel)
29.8 fps ∼65% -19%
HD Graphics 520 (i7-6500U; Dual-Channel)
26 fps ∼57% -29%
1280x720 Very Low Preset
Iris Graphics 540 (i5-6260U; Dual-Channel)
82 fps ∼100% +21%
Iris Graphics 540 (i7-6560U; Dual-Channel)
69.1 fps ∼84% +2%
HD Graphics 620 (i7-7500U; Dual-Channel)
67.8 fps ∼83%
HD Graphics 520 (i7-6600U; Dual-Channel)
55.7 fps ∼68% -18%
HD Graphics 520 (i7-6500U; Dual-Channel)
48.3 fps ∼59% -29%
Diablo III
1366x768 High AA:on
HD Graphics 620 (i7-7500U; Dual-Channel)
64.1 fps ∼100%
HD Graphics 520 (i5-6200U; Dual-Channel)
50.5 fps ∼79% -21%
HD Graphics 520 (i5-6200U; Single-Channel)
36.1 fps ∼56% -44%
1366x768 Medium / low
HD Graphics 620 (i7-7500U; Dual-Channel)
72.2 fps ∼100%
HD Graphics 520 (i5-6200U; Dual-Channel)
60.6 fps ∼84% -16%
HD Graphics 520 (i5-6200U; Single-Channel)
45.1 fps ∼62% -38%
1024x768 Low / off
HD Graphics 620 (i7-7500U; Dual-Channel)
105.9 fps ∼100%
HD Graphics 520 (i5-6200U; Dual-Channel)
94.2 fps ∼89% -11%
HD Graphics 520 (i5-6200U; Single-Channel)
68.2 fps ∼64% -36%
Crysis 3
1366x768 High Preset AA:FX AF:16x
Iris Graphics 540 (i5-6260U; Dual-Channel)
20 (min: 16, max: 26) fps ∼100% +36%
Iris Graphics 540 (i7-6560U; Dual-Channel)
19.6 fps ∼98% +33%
HD Graphics 620 (i7-7500U; Dual-Channel)
14.7 fps ∼74%
1366x768 Medium Preset AF:16x
Iris Graphics 540 (i5-6260U; Dual-Channel)
32.2 (min: 26, max: 44) fps ∼100% +39%
Iris Graphics 540 (i7-6560U; Dual-Channel)
27.6 fps ∼86% +19%
HD Graphics 620 (i7-7500U; Dual-Channel)
23.1 fps ∼72%
HD Graphics 520 (i7-6500U; Single-Channel)
13.5 fps ∼42% -42%
1024x768 Low Preset
Iris Graphics 540 (i5-6260U; Dual-Channel)
53.7 (min: 46, max: 72) fps ∼100% +41%
HD Graphics 620 (i7-7500U; Dual-Channel)
38.2 fps ∼71%
Iris Graphics 540 (i7-6560U; Dual-Channel)
37.6 fps ∼70% -2%
HD Graphics 520 (i7-6500U; Single-Channel)
20.4 fps ∼38% -47%
Metro: Last Light
1366x768 High (DX11) AF:16x
Iris Graphics 540 (i5-6260U; Dual-Channel)
22.8 fps ∼100% +30%
Iris Graphics 540 (i7-6560U; Dual-Channel)
21.9 fps ∼96% +25%
HD Graphics 620 (i7-7500U; Dual-Channel)
17.5 fps ∼77%
HD Graphics 520 (i5-6200U; Dual-Channel)
14.4 fps ∼63% -18%
1366x768 Medium (DX10) AF:4x
Iris Graphics 540 (i5-6260U; Dual-Channel)
38 fps ∼100% +33%
HD Graphics 620 (i7-7500U; Dual-Channel)
28.6 fps ∼75%
HD Graphics 520 (i5-6200U; Dual-Channel)
22.6 fps ∼59% -21%
1024x768 Low (DX10) AF:4x
Iris Graphics 540 (i5-6260U; Dual-Channel)
48.4 fps ∼100% +38%
HD Graphics 620 (i7-7500U; Dual-Channel)
35.2 fps ∼73%
HD Graphics 520 (i5-6200U; Dual-Channel)
28.7 fps ∼59% -18%
Dirt Rally
1920x1080 High Preset
Iris Graphics 540 (i5-6260U; Dual-Channel)
17.2 (min: 13, max: 30) fps ∼100% +11%
HD Graphics 620 (i7-7500U; Dual-Channel)
15.5 fps ∼90%
Iris Graphics 540 (i7-6560U; Dual-Channel)
14.3 fps ∼83% -8%
HD Graphics 520 (i5-6200U; Single-Channel)
12.5 fps ∼73% -19%
HD Graphics 520 (i5-6200U; Dual-Channel)
12.5 fps ∼73% -19%
1366x768 Medium Preset
Iris Graphics 540 (i5-6260U; Dual-Channel)
37.1 (min: 28, max: 63) fps ∼100% +5%
HD Graphics 620 (i7-7500U; Dual-Channel)
35.5 fps ∼96%
Iris Graphics 540 (i7-6560U; Dual-Channel)
30.4 fps ∼82% -14%
HD Graphics 520 (i5-6200U; Dual-Channel)
25.7 fps ∼69% -28%
HD Graphics 520 (i5-6200U; Single-Channel)
19.9 fps ∼54% -44%
1024x768 Ultra Low Preset
Iris Graphics 540 (i5-6260U; Dual-Channel)
177 (min: 156, max: 206) fps ∼100% +27%
HD Graphics 620 (i7-7500U; Dual-Channel)
139.9 fps ∼79%
Iris Graphics 540 (i7-6560U; Dual-Channel)
119.2 fps ∼67% -15%
HD Graphics 520 (i5-6200U; Dual-Channel)
113.3 fps ∼64% -19%
HD Graphics 520 (i5-6200U; Single-Channel)
70.6 fps ∼40% -50%
Battlefield 4
1366x768 High Preset
Iris Graphics 540 (i5-6260U; Dual-Channel)
31.3 (min: 29, max: 41) fps ∼100% +29%
HD Graphics 620 (i7-7500U; Dual-Channel)
24.3 fps ∼78%
HD Graphics 520 (i7-6600U; Dual-Channel)
18.8 fps ∼60% -23%
HD Graphics 520 (i5-6200U; Dual-Channel)
18.6 fps ∼59% -23%
HD Graphics 520 (i7-6500U; Dual-Channel)
17.1 fps ∼55% -30%
Iris Graphics 540 (i7-6560U; Dual-Channel)
11.4 fps ∼36% -53%
1366x768 Medium Preset
Iris Graphics 540 (i5-6260U; Dual-Channel)
45.1 (min: 39, max: 56) fps ∼100% +25%
HD Graphics 620 (i7-7500U; Dual-Channel)
36.1 fps ∼80%
HD Graphics 520 (i7-6600U; Dual-Channel)
29.6 fps ∼66% -18%
HD Graphics 520 (i5-6200U; Dual-Channel)
28.2 fps ∼63% -22%
HD Graphics 520 (i7-6500U; Dual-Channel)
26.7 fps ∼59% -26%
Iris Graphics 540 (i7-6560U; Dual-Channel)
18.4 fps ∼41% -49%
1024x768 Low Preset
Iris Graphics 540 (i5-6260U; Dual-Channel)
65 (min: 59, max: 87) fps ∼100% +22%
HD Graphics 620 (i7-7500U; Dual-Channel)
53.3 fps ∼82%
HD Graphics 520 (i7-6600U; Dual-Channel)
40.4 fps ∼62% -24%
HD Graphics 520 (i5-6200U; Dual-Channel)
39.8 fps ∼61% -25%
HD Graphics 520 (i7-6500U; Dual-Channel)
35.4 fps ∼54% -34%
Iris Graphics 540 (i7-6560U; Dual-Channel)
29.8 fps ∼46% -44%
The Witcher 3
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Iris Graphics 540 (i7-6560U; Dual-Channel)
fps
1366x768 Medium Graphics & Postprocessing
Iris Graphics 540 (i5-6260U; Dual-Channel)
12.8 (min: 8, max: 18) fps ∼100% +22%
Iris Graphics 540 (i7-6560U; Dual-Channel)
12 fps ∼94% +14%
HD Graphics 620 (i7-7500U; Dual-Channel)
10.5 fps ∼82%
HD Graphics 520 (i5-6200U; Dual-Channel)
8.1 fps ∼63% -23%
1024x768 Low Graphics & Postprocessing
Iris Graphics 540 (i5-6260U; Dual-Channel)
19.7 (min: 12, max: 26) fps ∼100% +25%
Iris Graphics 540 (i7-6560U; Dual-Channel)
17.8 fps ∼90% +13%
HD Graphics 620 (i7-7500U; Dual-Channel)
15.8 fps ∼80%
HD Graphics 520 (i5-6200U; Dual-Channel)
12 fps ∼61% -24%
World of Warships
1920x1080 High Preset AF:8x
Iris Graphics 540 (i5-6260U; Dual-Channel)
34.6 (min: 22, max: 49) fps ∼100% +33%
HD Graphics 620 (i7-7500U; Dual-Channel)
26 fps ∼75%
HD Graphics 520 (i5-6200U; Dual-Channel)
22 fps ∼64% -15%
HD Graphics 520 (i5-6200U; Single-Channel)
15.9 fps ∼46% -39%
1366x768 Medium Preset AF:Trilinear
Iris Graphics 540 (i5-6260U; Dual-Channel)
75 (min: 36, max: 97) fps ∼100% +37%
HD Graphics 620 (i7-7500U; Dual-Channel)
54.6 fps ∼73%
HD Graphics 520 (i5-6200U; Dual-Channel)
47 fps ∼63% -14%
HD Graphics 520 (i5-6200U; Single-Channel)
32.1 fps ∼43% -41%
1366x768 Low Preset AF:Trilinear
Iris Graphics 540 (i5-6260U; Dual-Channel)
120 (min: 63, max: 152) fps ∼100% +48%
HD Graphics 620 (i7-7500U; Dual-Channel)
81.3 fps ∼68%
HD Graphics 520 (i5-6200U; Dual-Channel)
69.2 fps ∼58% -15%
HD Graphics 520 (i5-6200U; Single-Channel)
45.2 fps ∼38% -44%
Star Wars Battlefront
1920x1080 High Preset AA:FX
HD Graphics 620 (i7-7500U; Dual-Channel)
10.2 fps ∼100%
Iris Graphics 540 (i7-6560U; Dual-Channel)
0 fps ∼0% -100%
1366x768 Medium Preset AA:FX
Iris Graphics 540 (i7-6560U; Dual-Channel)
22.9 fps ∼100% +1%
HD Graphics 620 (i7-7500U; Dual-Channel)
22.7 fps ∼99%
HD Graphics 520 (i7-6600U; Single-Channel)
15 fps ∼66% -34%
1024x768 Low Preset
HD Graphics 620 (i7-7500U; Dual-Channel)
40.3 fps ∼100%
Iris Graphics 540 (i7-6560U; Dual-Channel)
40.2 fps ∼100% 0%
HD Graphics 520 (i7-6600U; Single-Channel)
26 fps ∼65% -35%
Just Cause 3
1920x1080 High / On AA:FX AF:8x
Iris Graphics 540 (i5-6260U; Dual-Channel)
15.5 (min: 12, max: 19) fps ∼100% +44%
HD Graphics 620 (i7-7500U; Dual-Channel)
10.8 fps ∼70%
HD Graphics 520 (i7-6500U; Dual-Channel)
6.2 fps ∼40% -43%
1366x768 Medium / Off AF:4x
Iris Graphics 540 (i5-6260U; Dual-Channel)
28.6 (min: 23, max: 34) fps ∼100% +29%
HD Graphics 620 (i7-7500U; Dual-Channel)
22.2 fps ∼78%
HD Graphics 520 (i7-6500U; Dual-Channel)
16.7 fps ∼58% -25%
1024x768 Low / Off AF:2x
Iris Graphics 540 (i5-6260U; Dual-Channel)
35.9 (min: 24, max: 43) fps ∼100% +24%
HD Graphics 620 (i7-7500U; Dual-Channel)
29 fps ∼81%
HD Graphics 520 (i7-6500U; Dual-Channel)
21.6 fps ∼60% -26%
Rise of the Tomb Raider
1920x1080 High Preset AA:FX AF:4x
HD Graphics 620 (i7-7500U; Dual-Channel)
6.6 fps ∼100%
HD Graphics 520 (i7-6600U; Dual-Channel)
5.3 fps ∼80% -20%
Iris Graphics 540 (i7-6560U; Dual-Channel)
0 fps ∼0% -100%
1366x768 Medium Preset AF:2x
Iris Graphics 540 (i5-6260U; Dual-Channel)
15.3 (min: 13, max: 17) fps ∼100% +26%
HD Graphics 620 (i7-7500U; Dual-Channel)
12.1 fps ∼79%
HD Graphics 520 (i7-6600U; Dual-Channel)
9.6 fps ∼63% -21%
Iris Graphics 540 (i7-6560U; Dual-Channel)
0 fps ∼0% -100%
1024x768 Lowest Preset
Iris Graphics 540 (i5-6260U; Dual-Channel)
23.7 (min: 21, max: 27) fps ∼100% +25%
Iris Graphics 540 (i7-6560U; Dual-Channel)
21.5 fps ∼91% +14%
HD Graphics 620 (i7-7500U; Dual-Channel)
18.9 fps ∼80%
HD Graphics 520 (i7-6600U; Dual-Channel)
14.1 fps ∼59% -25%

Legend


MSI CX72-7QL Intel Core i7-7500U, Intel HD Graphics 620,

Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)

Acer Aspire V3-372-50LK Intel Core i5-6200U, Intel HD Graphics 520, Toshiba HG6 THNSNJ256G8NU

HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520, Hitachi Travelstar Z7K500 HTS725050A7E630

Lenovo ThinkPad Yoga 260 20FD001XGE Intel Core i7-6500U, Intel HD Graphics 520, Samsung SSD PM871 MZNLN256HCHP

Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U, Intel HD Graphics 520, Samsung SSD PM851 M.2 2280 256GB

Acer TravelMate P648-M-757N Intel Core i7-6500U, Intel HD Graphics 520, Lite-On CV1-8B256

Lenovo IdeaPad 710S-13ISK Intel Core i7-6560U, Intel Iris Graphics 540, Samsung PM951 NVMe MZVLV256

Intel NUC6i5SYH Intel Core i5-6260U, Intel Iris Graphics 540, Samsung SSD XP941 MZHPU256HCGL

HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520, Hitachi Travelstar Z7K500 HTS725050A7E630
low med. high ultra
Diablo III (2012) 105.9 72.2 64.1 37.8 fps
Counter-Strike: GO (2012) 166.3 112.8 70.5 42.7 fps
Crysis 3 (2013) 38.2 23.1 14.7 5.4 fps
BioShock Infinite (2013) 67.8 36.6 30.9 9.5 fps
Metro: Last Light (2013) 35.2 28.6 17.5 8.2 fps
Battlefield 4 (2013) 53.3 36.1 24.3 7.9 fps
Sims 4 (2014) 186.8 63 29.5 21.8 fps
Dirt Rally (2015) 139.9 35.5 15.5 12.5 fps
The Witcher 3 (2015) 15.8 10.5 fps
World of Warships (2015) 81.3 54.6 26 19.1 fps
FIFA 16 (2015) 78.4 50.9 29.3 fps
Star Wars Battlefront (2015) 40.3 22.7 10.2 fps
Assassin's Creed Syndicate (2015) 5.4 fps
Rainbow Six Siege (2015) 41.9 25.8 14.3 11.5 fps
Just Cause 3 (2015) 29 22.2 10.8 fps
Rise of the Tomb Raider (2016) 18.9 12.1 6.6 fps
XCOM 2 (2016) 19.8 7.6 5.2 fps
Far Cry Primal (2016) 20 10 8 fps
Hitman 2016 (2016) 14.5 19.7 11.7 fps
Overwatch (2016) 55.9 40.2 17.8 fps
Mirror's Edge Catalyst (2016) 28.8 17 7.1 fps

英特尔的Kaby Lake架构第一眼看上去十分无趣。它没有新的制程工艺,也没有新的微架构——这有点让我们想起2014年的Haswell架构处理器,它几乎没有带来任何值得一提的改进。

不过Kaby Lake并不只是给Skylake芯片简单地贴上了新标签。尽管14纳米的制程技术没有变化,但生产商实现了不少优化。这带来了更高的时钟频率,或者同频率更低的功耗。根据频率范围的不同,它的功效进步达到了15%到25%;不过更低频率的酷睿m系列和Y系列处理器的表现如何还需要进一步观察。我们也十分期待它的四核超低电压处理器。它们计划在2017年发布,应该将会带来近年来在15瓦处理器中最高的性能。

最后,最们还想赞扬一下改进了的视频解码器,不仅支持了最新编码如HEVC Main10,它也相比以往更高效。结合其他的功效改进,Kaby Lake处理器应该可以相比Skylake处理器实现更长的电池续航时间。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Kaby Lake (酷睿 i7-7500U) 简短评测: 用了兴奋剂的Skylake
Till Schönborn, 2016-09- 3 (Update: 2016-09-10)
Andreas Osthoff
Editor of the original article: Andreas Osthoff - Managing Editor Business Notebooks
