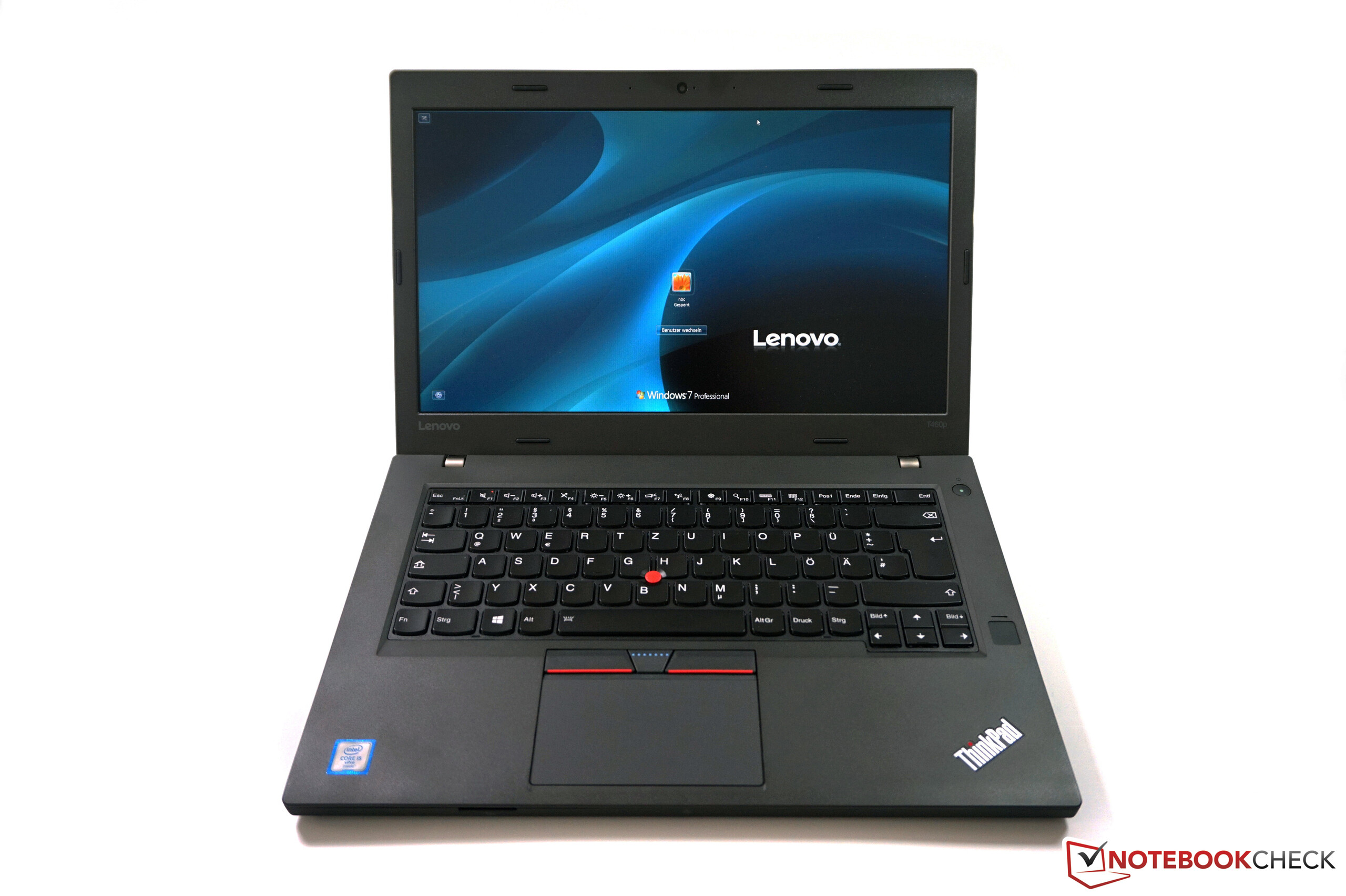

联想 ThinkPad T460p (Core i7, GeForce 940MX) 笔记本电脑简短评测

Name: Lenovo ThinkPad T460p-20FXS05500
Brand: Lenovo

一腔热血。 四核处理器和GeForce显卡装在了紧凑的14寸机身内——ThinkPad T460p显然不是一台普通的商务笔记本电脑。它的优秀性能也带来了高热量。

Till Schönborn, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 04/23/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Windows

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad T460p-20FXS05500

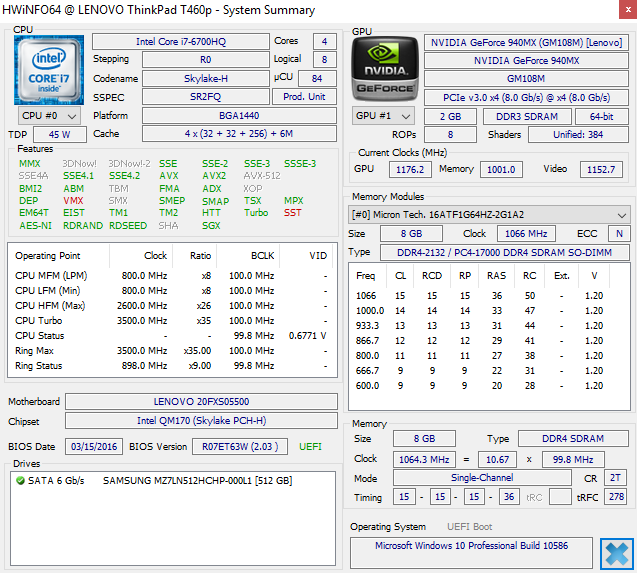

Processor

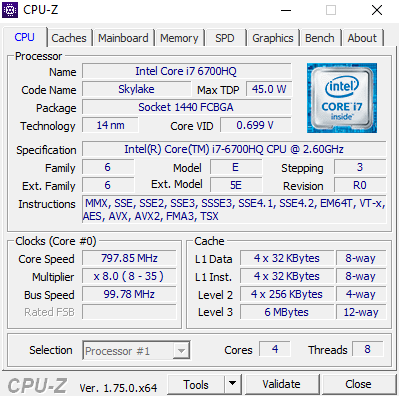

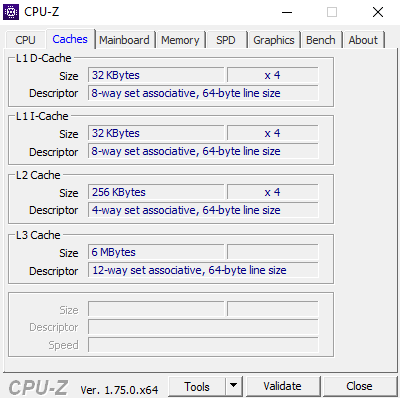

Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz, Skylake

Graphics adapter

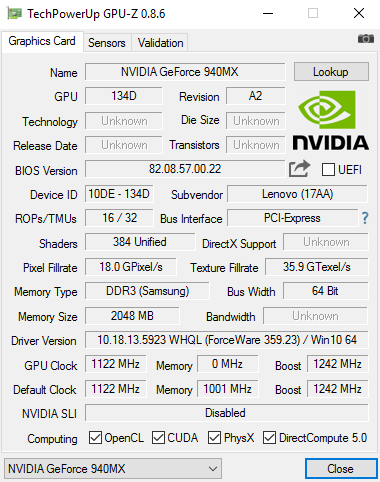

NVIDIA GeForce 940MX - 2048 MB VRAM, Core: 1176 MHz, Memory: 1000 MHz, DDR3, ForceWare 359.23, Optimus

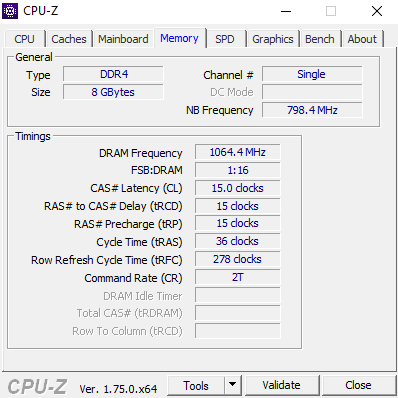

Memory

8 GB

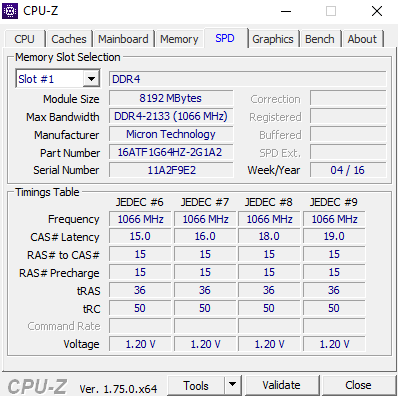

, 1x 8 GB DDR4-2133, 两个内存槽一个已占用

Display

14.00 inch 16:9, 2560 x 1440 pixel 210 PPI, VVX14T058J00, IPS, LED背光, glossy: no

Mainboard

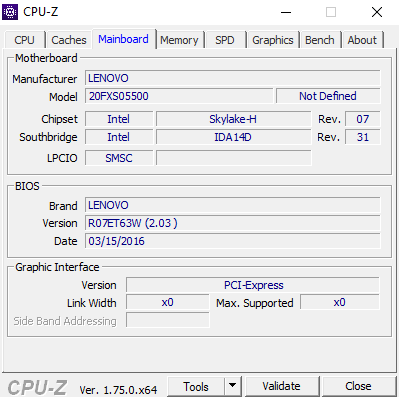

Intel Skylake QM170 (Skylake PCH-H)

Storage

Samsung SSD PM871 MZ7LN512HCHP, 512 GB

, 440 GB free

Soundcard

Intel Skylake PCH-H High Definition Audio Controller

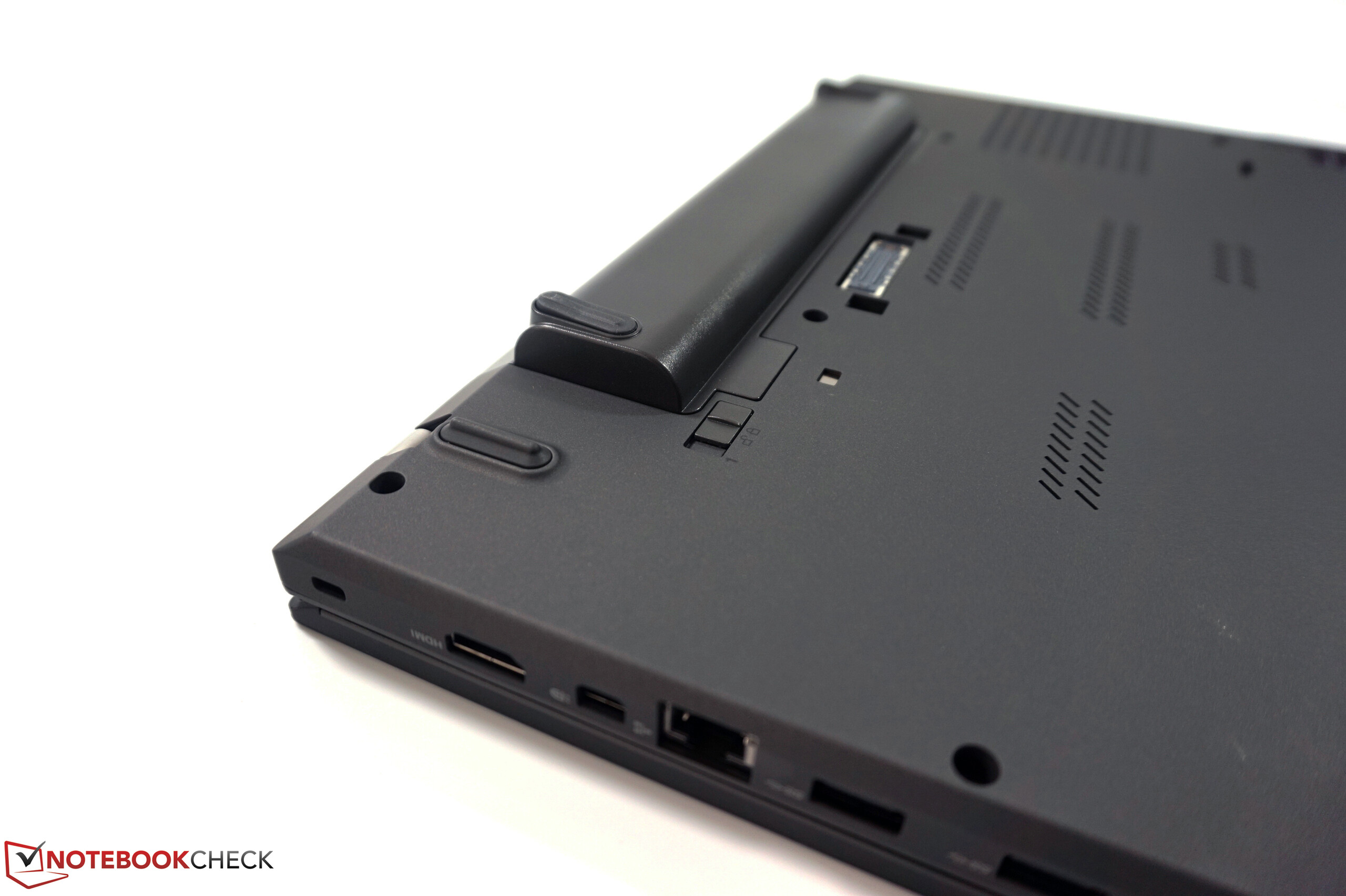

Connections

3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5毫米立体声耳机接口, Card Reader: 四合一 (MMC, SD, SDHC, SDXC), 1 SmartCard, 1 Fingerprint Reader

Networking

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 24.4 x 344 x 239

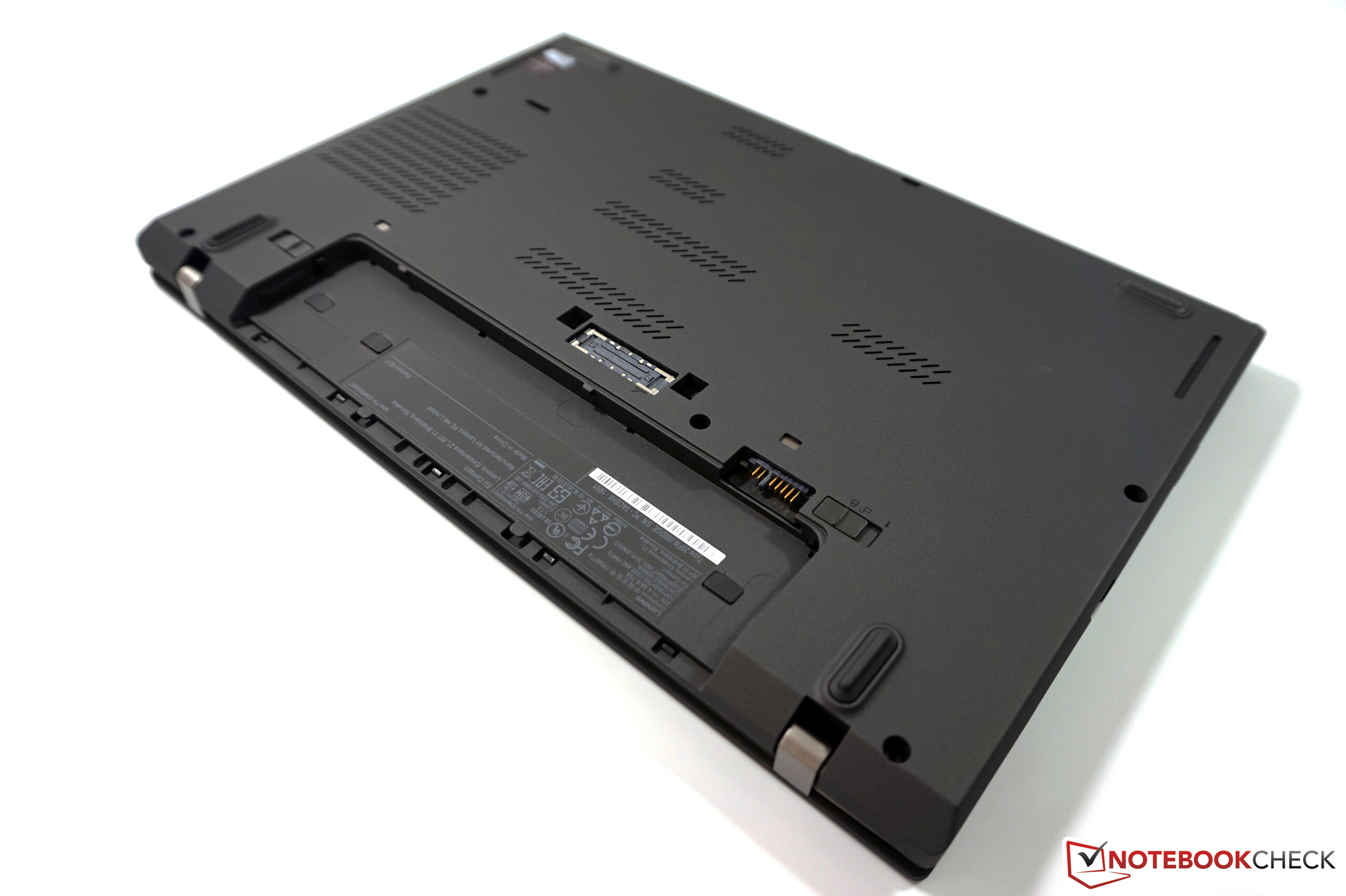

Battery

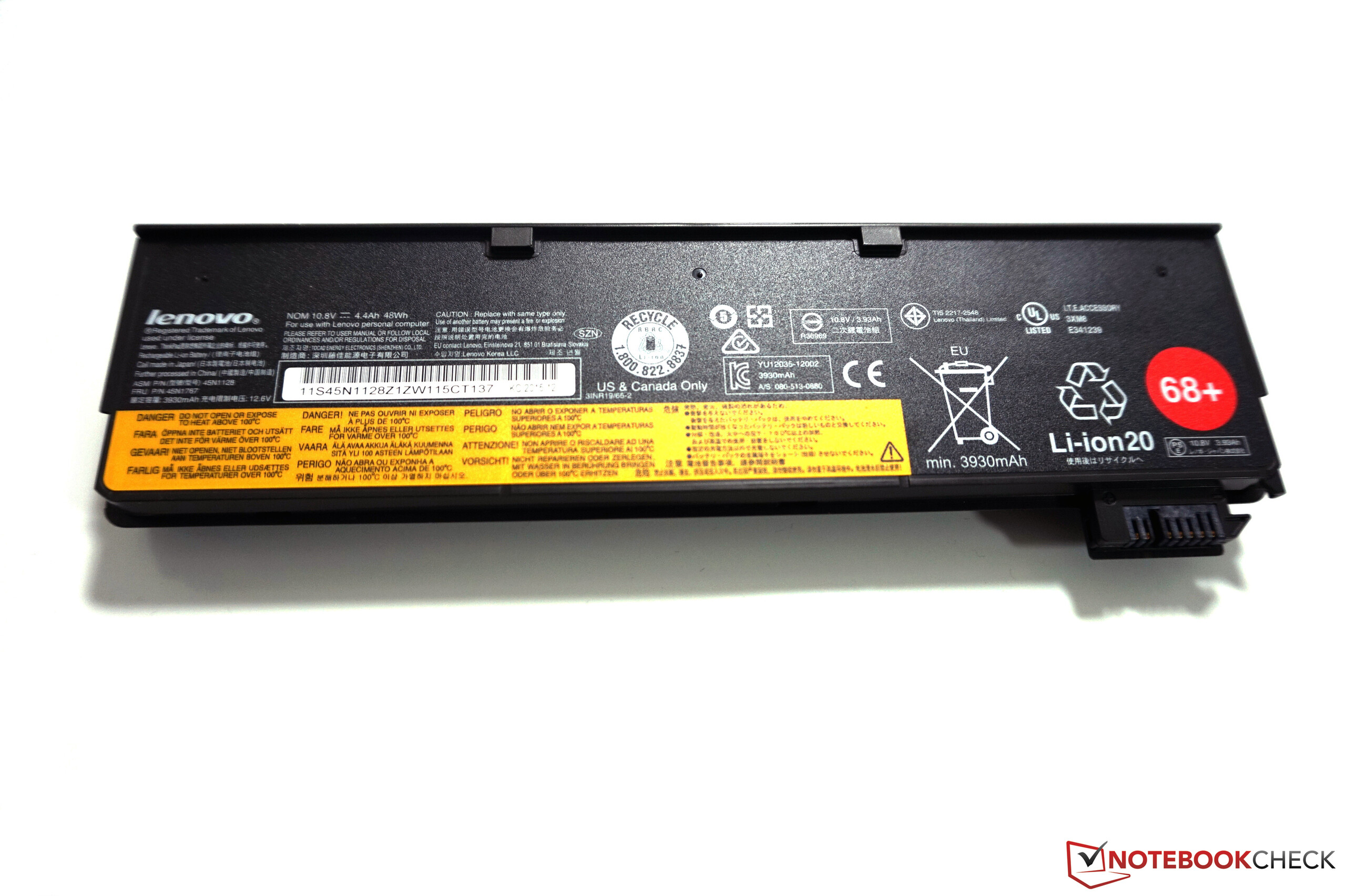

48 Wh Lithium-Ion, 6 芯

Operating System

Microsoft Windows 10 Pro 64 Bit

Camera

Webcam: 720p

Additional features

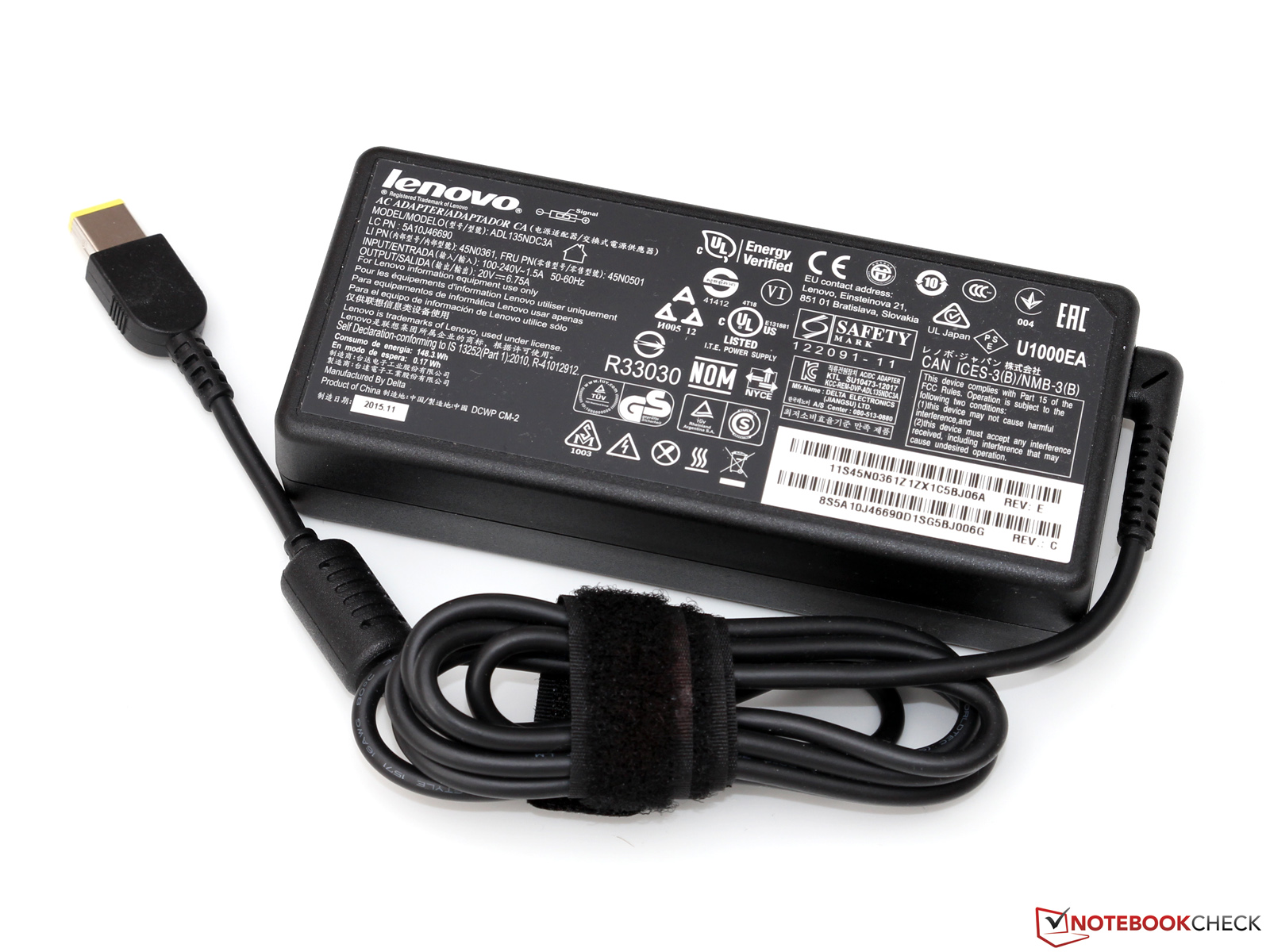

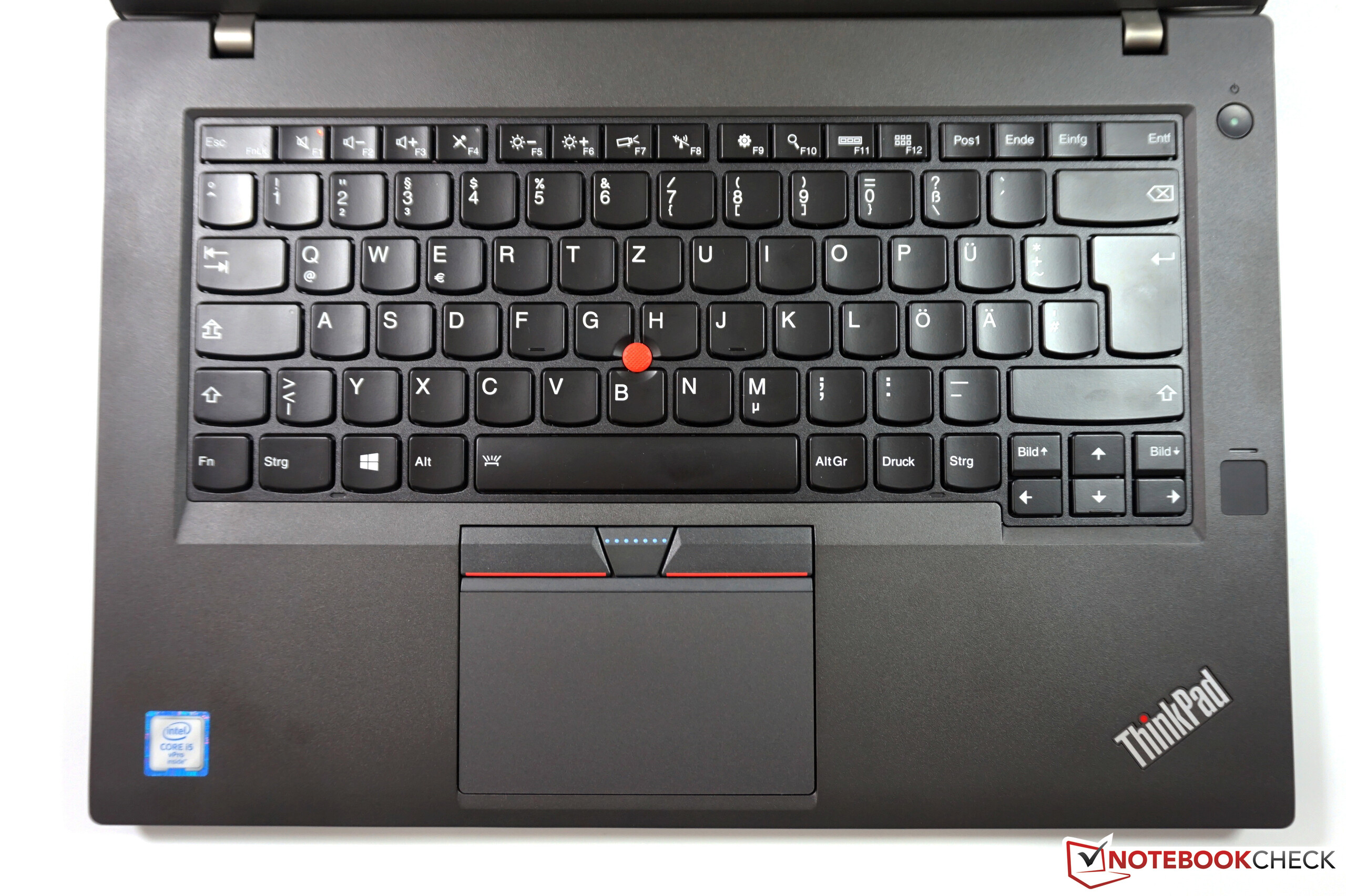

Speakers: 立体声, 2x 1 瓦, Keyboard: 孤岛式, Keyboard Light: yes, 135瓦电源适配器，快速开始说明，质保信息, 36 Months Warranty

Weight

1.856 kg, Power Supply: 550 g

Price

1400 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

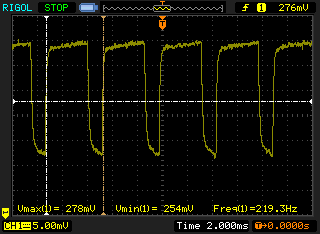

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

220 Hz

The display backlight flickers at 220 Hz (worst case, e.g., utilizing PWM) .

The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17915 (minimum: 5 - maximum: 3846000) Hz was measured.


280 cd/m²	286 cd/m²	279 cd/m²
281 cd/m²	290 cd/m²	283 cd/m²
269 cd/m²	269 cd/m²	283 cd/m²

Distribution of brightness

VVX14T058J00 tested with X-Rite i1Pro 2

Maximum: 290 cd/m² (Nits) Average: 280 cd/m² Minimum: 3 cd/m²
Brightness Distribution: 93 %
Center on Battery: 290 cd/m²
Contrast: 935:1 (Black: 0.31 cd/m²)
ΔE Color 3.88 | 0.5-29.43 Ø5
ΔE Greyscale 5.47 | 0.57-98 Ø5.3
96.64% sRGB (Argyll 1.6.3 3D)
63.3% AdobeRGB 1998 (Argyll 1.6.3 3D)
68.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.5% sRGB (Argyll 2.2.0 3D)
66.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.33

Download ICC File (X-Rite i1Pro 2)

	Lenovo ThinkPad T460p-20FXS05500 2560 x 1440 IPS-Panel	Lenovo ThinkPad T460p-20FW000DGE 1920 x 1080 IPS-Panel	Lenovo ThinkPad T460s-20FA003GGE 2560 x 1440 IPS-Panel	HP EliteBook 840 G3 T9X59ET#ABD 1920 x 1080 TN-Panel	Dell Latitude 14 7000 Series E7470 2560 x 1440 IPS-Panel
Display		-41%	2%	-26%	0%
Display P3 Coverage	66.9	38.78 -42%	68.7 3%	48.93 -27%	67.2 0%
sRGB Coverage	96.5	58.3 -40%	98.1 2%	73.7 -24%	95.9 -1%
AdobeRGB 1998 Coverage	68.8	40.08 -42%	70.4 2%	50.5 -27%	69.3 1%
Response Times		10%	-4%	-7%	-17%
Response Time Grey 50% / Grey 80% *	38.4 ?(14.8, 23.6)	30.8 ?(14.8, 26) 20%	35.6 ?(17.2, 18.4) 7%	43 ?(20, 23) -12%	48 ?(15, 33) -25%
Response Time Black / White *	24.8 ?(10.8, 14)	24.8 ?(6.8, 18) -0%	29.2 ?(14.4, 14.8) -18%	25 ?(9, 16) -1%	27 ?(7, 20) -9%
PWM Frequency	220		220 ?(90) 0%	204 ?(90) -7%
Screen		-3%	-5%	-48%	17%
Brightness middle	290	269 -7%	257 -11%	366 26%	380 31%
Brightness	280	255 -9%	248 -11%	336 20%	354 26%
Brightness Distribution	93	91 -2%	94 1%	87 -6%	81 -13%
Black Level *	0.31	0.24 23%	0.26 16%	0.65 -110%	0.26 16%
Contrast	935	1121 20%	988 6%	563 -40%	1462 56%
Colorchecker dE 2000 *	3.88	4.27 -10%	4.59 -18%	10.26 -164%	3.11 20%
Colorchecker dE 2000 max. *	8.19	8.82 -8%	9.72 -19%		6.73 18%
Greyscale dE 2000 *	5.47	2.95 46%	6.38 -17%	11.51 -110%	4.35 20%
Gamma	2.33 ^94%	2.12 ^104%	2.51 ^88%	2.4 ^92%	2.37 ^93%
CCT	6469 ^100%	7049 ^92%	6238 ^104%	12725 ^51%	6771 ^96%
Color Space (Percent of AdobeRGB 1998)	63.3	37 -42%	65 3%	47 -26%	62 -2%
Color Space (Percent of sRGB)	96.64	58.2 -40%	98 1%	74 -23%	96 -1%
Total Average (Program / Settings)		-11% / -9%	-2% / -3%	-27% / -35%	0% / 9%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

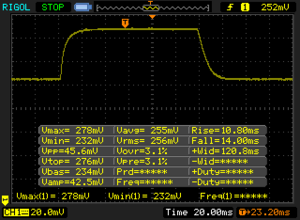

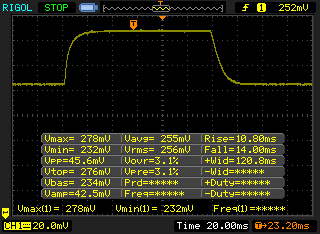

↔ Response Time Black to White
24.8 ms ... rise ↗ and fall ↘ combined	↗ 10.8 ms rise
24.8 ms ... rise ↗ and fall ↘ combined	↘ 14 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 52 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

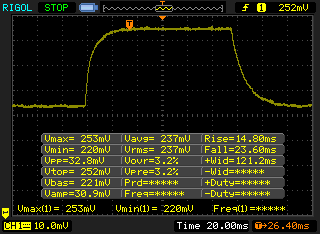

↔ Response Time 50% Grey to 80% Grey
38.4 ms ... rise ↗ and fall ↘ combined	↗ 14.8 ms rise
38.4 ms ... rise ↗ and fall ↘ combined	↘ 23.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 52 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms).

Cinebench R15 | Cinebench R11.5 | X264 HD Benchmark 4.0

Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ	147 Points
Lenovo ThinkPad T460p Intel Core i5-6440HQ	145 Points -1%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	142 Points -3%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	141 Points -4%
Lenovo ThinkPad T440p 20AN-006VGE Intel Core i7-4700MQ	134 Points -9%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U	119 Points -19%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	116 Points -21%
CPU Multi 64Bit
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ	662 Points
Lenovo ThinkPad T440p 20AN-006VGE Intel Core i7-4700MQ	532 Points -20%
Lenovo ThinkPad T460p Intel Core i5-6440HQ	513 Points -23%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	347 Points -48%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	334 Points -50%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U	322 Points -51%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	288 Points -56%

Cinebench R11.5
CPU Single 64Bit
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ	1.67 Points
Lenovo ThinkPad T460p Intel Core i5-6440HQ	1.66 Points -1%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	1.61 Points -4%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	1.57 Points -6%
Lenovo ThinkPad T440p 20AN-006VGE Intel Core i7-4700MQ	1.51 Points -10%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	1.31 Points -22%
CPU Multi 64Bit
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ	7.42 Points
Lenovo ThinkPad T460p Intel Core i5-6440HQ	5.91 Points -20%
Lenovo ThinkPad T440p 20AN-006VGE Intel Core i7-4700MQ	5.86 Points -21%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	3.83 Points -48%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	3.58 Points -52%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	3.18 Points -57%

X264 HD Benchmark 4.0
Pass 1
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ	147.4 fps
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	120.4 fps -18%
Pass 2
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ	41.83 fps
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	22.62 fps -46%

Cinebench R10 Shading 32Bit

8276

Cinebench R10 Rendering Multiple CPUs 32Bit

20010

Cinebench R10 Rendering Single 32Bit

5527

Cinebench R11.5 CPU Multi 64Bit

7.42 Points

Cinebench R11.5 OpenGL 64Bit

38.34 fps

Cinebench R11.5 CPU Single 64Bit

1.67 Points

Cinebench R15 CPU Single 64Bit

147 Points

Cinebench R15 CPU Multi 64Bit

662 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

38.08 fps

Help

... in comparison

	Lenovo ThinkPad T460p-20FXS05500 Samsung SSD PM871 MZ7LN512HCHP	Lenovo ThinkPad T460s-20FA003GGE Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	Lenovo ThinkPad T460s-20F9003SGE Samsung CM871 MZ7LF192HCGS	HP EliteBook 840 G3 T9X59ET#ABD Samsung SSD PM851 256 GB MZNTE256HMHP	Dell Latitude 14 7000 Series E7470 Samsung SSD PM851 M.2 2280 256GB
AS SSD		168%	-55%	-12%	-6%
Seq Read	510	2039 300%	471 -8%	505 -1%	495.5 -3%
Seq Write	448.3	1407 214%	163.3 -64%	231.6 -48%	283.7 -37%
4K Read	23.3	45.41 95%	14.18 -39%	25.24 8%	30.91 33%
4K Write	74	114.4 55%	34.38 -54%	72.4 -2%	85.1 15%
4K-64 Read	338	968 186%	85.4 -75%	362 7%	336.1 -1%
4K-64 Write	286.8	366 28%	33.4 -88%	190.6 -34%	170 -41%
Copy ISO MB/s	285	1135 298%	119.9 -58%

HD Tune

CrystalDiskMark 3.0

AS SSD

Samsung SSD PM871 MZ7LN512HCHP

Transfer Rate Minimum: 86.2 MB/s

Transfer Rate Maximum: 319.9 MB/s

Transfer Rate Average: 304 MB/s

Access Time: 0.1 ms

Burst Rate: 131.2 MB/s

CPU Usage: 2.1 %

PCMark 7 | PCMark 8

PCMark 7 - Score
Lenovo ThinkPad T460p-20FXS05500 GeForce 940MX, 6700HQ, Samsung SSD PM871 MZ7LN512HCHP	5585 Points
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	5194 Points -7%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	5190 Points -7%
Lenovo ThinkPad T460p HD Graphics 530, 6440HQ, Toshiba MQ01ACF050	3002 Points -46%

PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	3542 Points +8%
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	3344 Points +2%
Lenovo ThinkPad T460p-20FXS05500 GeForce 940MX, 6700HQ, Samsung SSD PM871 MZ7LN512HCHP	3292 Points
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	3231 Points -2%
Lenovo ThinkPad T460p HD Graphics 530, 6440HQ, Toshiba MQ01ACF050	3088 Points -6%
Lenovo ThinkPad T460s-20F9003SGE HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS	3024 Points -8%
Creative Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4338 Points +2%
Lenovo ThinkPad T460p-20FXS05500 GeForce 940MX, 6700HQ, Samsung SSD PM871 MZ7LN512HCHP	4241 Points
Lenovo ThinkPad T460s-20F9003SGE HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS	3644 Points -14%
Work Score Accelerated v2
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	4543 Points +2%
Lenovo ThinkPad T460p-20FXS05500 GeForce 940MX, 6700HQ, Samsung SSD PM871 MZ7LN512HCHP	4463 Points
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4442 Points 0%
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	4275 Points -4%
Lenovo ThinkPad T460s-20F9003SGE HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS	4121 Points -8%
Lenovo ThinkPad T460p HD Graphics 530, 6440HQ, Toshiba MQ01ACF050	4072 Points -9%

PCMark 7 Score		5585 points
PCMark 8 Home Score Accelerated v2		3292 points
PCMark 8 Creative Score Accelerated v2		4241 points
PCMark 8 Work Score Accelerated v2		4463 points
Help

... in comparison

3DMark 11 | 3DMark | SPECviewperf 12

3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	2636 Points
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	2313 Points -12%
Lenovo ThinkPad T440p 20AN-006VGE Intel Core i7-4700MQ, NVIDIA GeForce GT 730M	1713 Points -35%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	1416 Points -46%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U, Intel HD Graphics 520	1327 Points -50%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U, Intel HD Graphics 520	1264 Points -52%
Lenovo ThinkPad T460p Intel Core i5-6440HQ, Intel HD Graphics 530	1162 Points -56%

3DMark - 1920x1080 Fire Strike Graphics
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	1718 Points
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	1627 Points -5%
Lenovo ThinkPad T440p 20AN-006VGE Intel Core i7-4700MQ, NVIDIA GeForce GT 730M	1053 Points -39%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	935 Points -46%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U, Intel HD Graphics 520	800 Points -53%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U, Intel HD Graphics 520	744 Points -57%
Lenovo ThinkPad T460p Intel Core i5-6440HQ, Intel HD Graphics 530	672 Points -61%

SPECviewperf 12
1900x1060 Catia (catia-04)
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	11.62 fps +11%
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	10.47 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	9.71 fps -7%
1900x1060 Creo (creo-01)
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	10.15 fps +27%
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	7.97 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	6.68 fps -16%
1900x1060 Energy (energy-01)
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	0.32 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	0.08 fps -75%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	0.06 fps -81%
1900x1060 Maya (maya-04)
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	13.68 fps
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	10.89 fps -20%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	2.09 fps -85%
1900x1060 Medical (medical-01)
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	6.28 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	5.72 fps -9%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	1.7 fps -73%
1900x1060 Showcase (showcase-01)
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	6.91 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	6.05 fps -12%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	6.05 fps -12%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	2.95 fps +33%
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	2.22 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	1.81 fps -18%
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	22.64 fps +38%
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	16.4 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	14.65 fps -11%

3DMark 06 Standard Score		14195 points
3DMark 11 Performance		2805 points
3DMark Ice Storm Standard Score		41687 points
3DMark Cloud Gate Standard Score		8503 points
3DMark Fire Strike Score		1537 points
Help

... in comparison

Tomb Raider
1024x768 Low Preset
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	141.2 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	130.8 fps -7%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	83.1 fps -41%
Lenovo ThinkPad T460p Intel Core i5-6440HQ, Intel HD Graphics 530	65.1 fps -54%
1366x768 Normal Preset AA:FX AF:4x
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	68.4 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	66.1 fps -3%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	41.1 fps -40%
Lenovo ThinkPad T460p Intel Core i5-6440HQ, Intel HD Graphics 530	33.5 fps -51%
1366x768 High Preset AA:FX AF:8x
Lenovo ThinkPad T460p-20FXS05500 Intel Core i7-6700HQ, NVIDIA GeForce 940MX	37.4 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	36.4 fps -3%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	25.7 fps -31%
Lenovo ThinkPad T460p Intel Core i5-6440HQ, Intel HD Graphics 530	20 fps -47%

	low	med.	high	ultra
Diablo III (2012)	125.6	103	83.4	50.6
Counter-Strike: GO (2012)	182	156.8	107.2	57.9
Crysis 3 (2013)	44.3	26.1	19.6	7.3
Tomb Raider (2013)	141.2	68.4	37.4	18.5
BioShock Infinite (2013)	98.7	55.7	44.8	15.5
Metro: Last Light (2013)	52.5	39.8	24	12
Battlefield 4 (2013)	67.9	47	31.7	12.1
Thief (2014)	37.5	24.8	20	9.9
Sims 4 (2014)	173.4	68.7	38	29
Dirt Rally (2015)	145.4	57.3	29.7	13
FIFA 16 (2015)	126.8		68.6	43.5
Fallout 4 (2015)	36.5	22.9	12.3
Rise of the Tomb Raider (2016)	29.1	18.7	11.3

	Lenovo ThinkPad T460p-20FXS05500 6700HQ, GeForce 940MX	Lenovo ThinkPad T460p-20FW000DGE 6440HQ, HD Graphics 530	Lenovo ThinkPad T460s-20F9003SGE 6200U, HD Graphics 520	Lenovo ThinkPad T460s-20FA003GGE 6600U, HD Graphics 520	Dell Latitude 14 7000 Series E7470 6600U, HD Graphics 520
Noise		-11%	2%	0%	-1%
off / environment *	29.2	30 -3%	29.1 -0%	29.2 -0%	31.2 -7%
Idle Minimum *	29.2	33.7 -15%	29.1 -0%	29.2 -0%	31.2 -7%
Idle Average *	29.2	33.7 -15%	29.1 -0%	29.2 -0%	31.2 -7%
Idle Maximum *	29.2	33.7 -15%	29.1 -0%	29.2 -0%	31.2 -7%
Load Average *	33.5	36.2 -8%	32.3 4%	33.7 -1%	31.9 5%
Load Maximum *	38.8	41.9 -8%	36.6 6%	38.5 1%	31.9 18%

* ... smaller is better

Noise Level

Idle		29.2 / 29.2 / 29.2 dB(A)
Load		33.5 / 38.8 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: ECM8000 + Voltcraft SL-451 (15 cm distance) environment noise: 29.2 dB(A)

Max. Load

Idle


44.9 °C	41.1 °C	34.9 °C
51.6 °C	45.8 °C	35.1 °C
41.1 °C	41.1 °C	36.9 °C

Maximum: 51.6 °C
Average: 41.4 °C


33.7 °C	36.2 °C	42.2 °C
34.7 °C	48.1 °C	55.2 °C
35.1 °C	45.1 °C	43.8 °C

Maximum: 55.2 °C
Average: 41.6 °C

Power Supply (max.) 46.4 °C | Room Temperature 21.4 °C | Fluke 62 Max

(-) The average temperature for the upper side under maximal load is 41.4 °C / 107 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 51.6 °C / 125 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 55.2 °C / 131 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.6 °C / 85 F, compared to the device average of 29.5 °C / 85 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 41.1 °C / 106 F.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-13.4 °C / -24.1 F).

Power Consumption

Off / Standby	0.28 / 0.48 Watt
Idle	5 / 9.9 / 10.8 Watt
Load	52.4 / 89.8 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo ThinkPad T460p-20FXS05500 48 Wh	Lenovo ThinkPad T460p-20FW000DGE 48 Wh	Lenovo ThinkPad T440p 20AN-006VGE 100 Wh	Lenovo ThinkPad T460s-20FA003GGE 49 Wh	Dell Latitude 14 7000 Series E7470 55 Wh
Battery Runtime		-16%	58%	13%	50%
Reader / Idle	660	494 -25%	887 34%	833 26%
H.264	357	289 -19%	508 42%	397 11%
WiFi v1.3	298	265 -11%		340 14%	346 16%
Load	61	55 -10%	121 98%	62 2%	112 84%
WiFi			602

Battery Runtime

Idle (without WLAN, min brightness)		11h 00min
WiFi Websurfing		4h 58min
Big Buck Bunny H.264 1080p		5h 57min
Load (maximum brightness)		1h 01min

Pros

+ 坚固的机身

+ 稳定的屏幕转轴

+ 非常优秀的输入设备

+ 出色的IPS屏幕

+ 丰富的安全功能

+ 非常高的应用性能

+ 有限的游戏性能

+ 三年质保

Cons

- 不支持USB-C

- 不易于维护更新

- 笨重的135瓦电源适配器

- 高发热量

- 一般的电池续航

In review: Lenovo ThinkPad T460p. Test model courtesy of Campuspoint.

如果你想要寻找一台有高性能处理器的紧凑办公本的话，选择并不是很多。除了戴尔Latitude E5470，ThinkPad T460p就是唯一能够凭借四核处理器应付繁重多线程软件的14寸设备了。这可能对于一些用户来说已经足以称为购买的动力——不过这台ThinkPad也有其他的优势如坚固的机身，出色的输入设备和非常优秀的IPS屏幕。它的独立GeForce显卡也值得多支出一些预算，它是集成显卡速度的两倍。一些小问题如缺少USB-C接口，较为沉重的电源适配器和一般的电池续航都不会造成太大的困扰。

另外一个问题就比较难以解决了：随着导热胶和风扇的老化和积灰，它会更容易在负载下变得很热。你可能会说在实际使用中很少会一直全速运行，不过如果并非如此的话，那么为什么还要购买T460p这样高性能的设备呢？

它的处理器温度在夏天将会很容易接近100摄氏度。

如果你能够接受它的高温，就没有什么别的缘故不选择T460p了，搭配TPFanControl等散热风扇控制软件可能会是个好主意。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Lenovo ThinkPad T460p-20FXS05500 - 2016-04-18 04/18/2016 v5.1^(old)
Till Schönborn

Chassis

85 / 98 → 86%

Keyboard

94%

Pointing Device

84%

Connectivity

65 / 80 → 82%

Weight

65 / 20-67 → 96%

Battery

83%

Display

89%

Games Performance

64 / 68 → 95%

Application Performance

89 / 92 → 97%

Temperature

80%

Noise

94%

Audio

64%

Camera

50 / 85 → 59%

Average

77%

87%

Office - Weighted Average

Pricecompare

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1614 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想 ThinkPad T460p (Core i7, GeForce 940MX) 笔记本电脑简短评测

Till Schönborn, 2016-04-23 (Update: 2016-04-24)
