联想 ThinkPad Yoga 260 20FD001XGE 变形本简短评测

预设断点。 Yoga 260能否跟随ThinkPad X250的步伐呢?它是否能够凭借多变的模式成为更好的ThinkPad呢?联想给我们留下了不少值得质疑的地方。这对于经常100%给人好印象的ThinkPad来说让我们有些吃惊。
Convertible / 2-in-1 Skylake Windows Ultrabook Touchscreen
Lenovo ThinkPad Yoga 260 20FD001XGE (ThinkPad Yoga Series)
Processor
Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake
Graphics adapter
Intel HD Graphics 520, Core: 1000 MHz, Memory: 1067 MHz, DDR4
Memory
8 GB
, DDR4 单通道, 1插槽
Display
12.50 inch 16:9, 1920 x 1080 pixel, 10点触控, native pen support, LEN40E6 N125HCE-GN1, IPS, 360度转轴, glossy: no
Mainboard
Intel Skylake-U Premium PCH
Storage
Samsung SSD PM871 MZNLN256HCHP, 256 GB
Soundcard
Intel Skylake-U/Y PCH - High Definition Audio

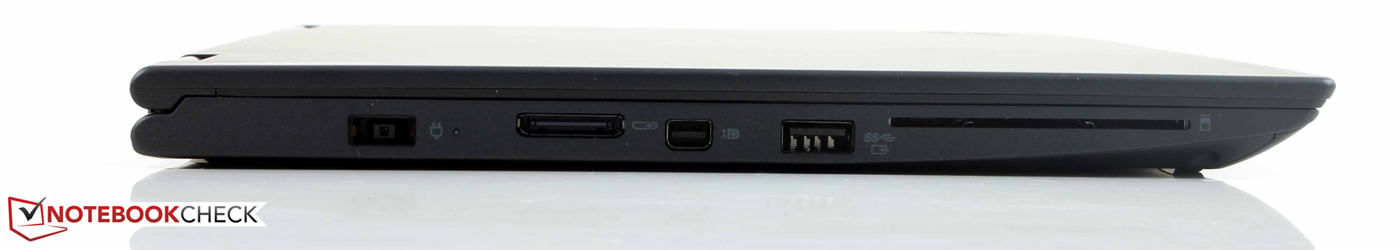

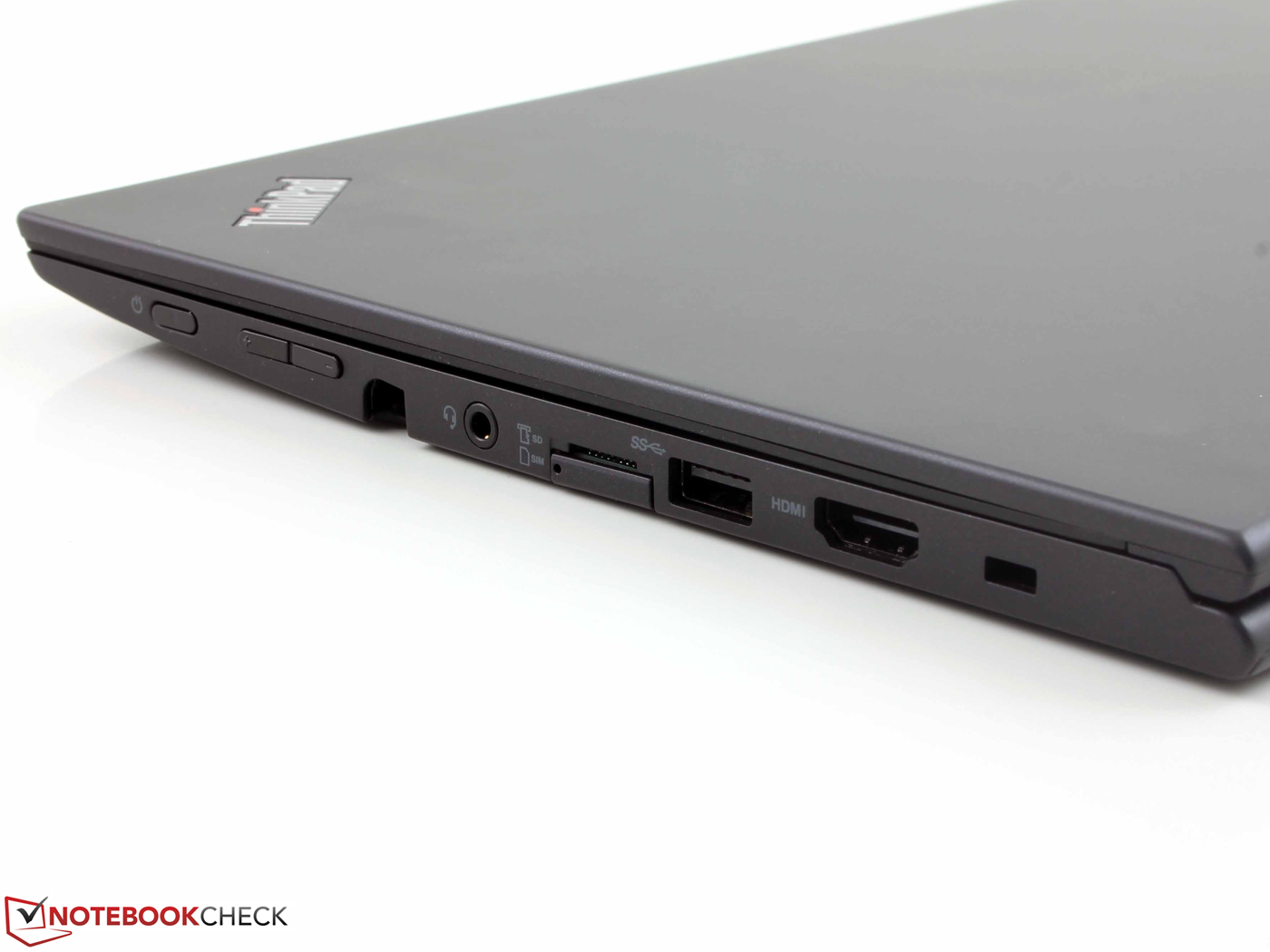

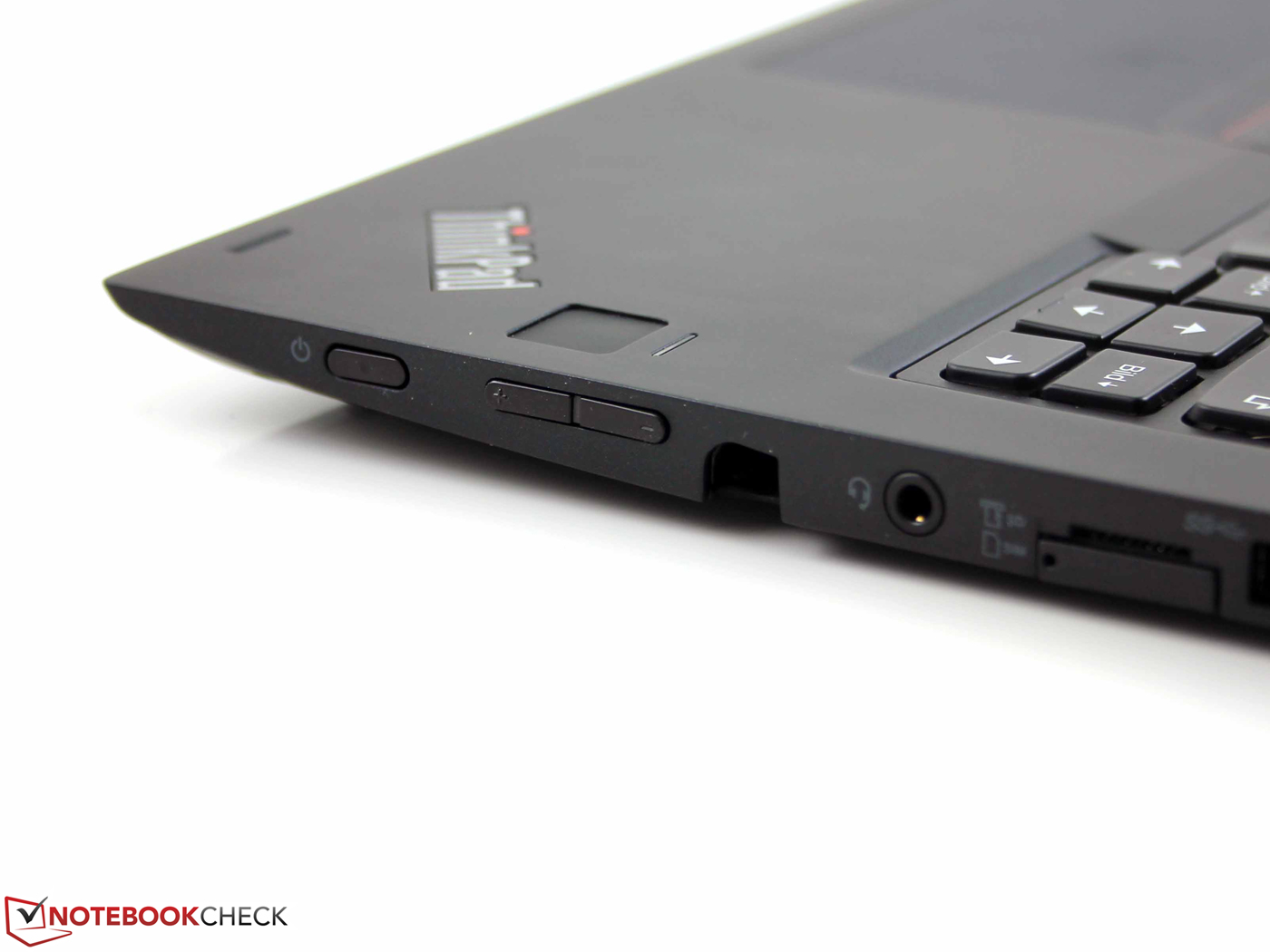

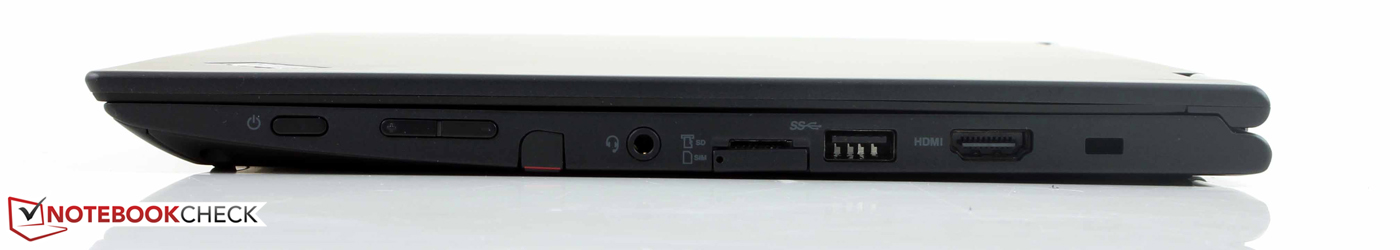

Connections
2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 耳机和麦克风插口, Card Reader: micro-SD, 1 SmartCard, 1 Fingerprint Reader, Brightness Sensor, 拓展坞接口
Networking
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Size
height x width x depth (in mm): 17.8 x 309.9 x 220
Battery
44 Wh Lithium-Ion, SMP
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD 1280x720
Additional features
Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: yes, 主动式手写笔, 24 Months Warranty
Weight
1.342 kg, Power Supply: 308 g
Price
1500 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



328
cd/m²
356
cd/m²
329
cd/m²
328
cd/m²
371
cd/m²
329
cd/m²
321
cd/m²
343
cd/m²
313
cd/m²
Distribution of brightness
LEN40E6 N125HCE-GN1 tested with X-Rite i1Pro 2
Maximum: 371 cd/m² (Nits) Average: 335.3 cd/m²
Brightness Distribution: 84 %
Center on Battery: 371 cd/m²
Contrast: 1279:1 (Black: 0.29 cd/m²)
ΔE Color 8.51 | 0.5-29.43 Ø5
ΔE Greyscale 9.23 | 0.57-98 Ø5.3
62% sRGB (Argyll 1.6.3 3D)
41% AdobeRGB 1998 (Argyll 1.6.3 3D)
44.55% AdobeRGB 1998 (Argyll 2.2.0 3D)
62.8% sRGB (Argyll 2.2.0 3D)
42.98% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.24
Lenovo ThinkPad Yoga 260 20FD001XGE
IPS FHD matt
HP Elitebook Revolve 810 G3
IPS HD glare
Lenovo Yoga 3 Pro
IPS UHD glare
Toshiba Satellite Radius 12 P20W-C-106
IPS FHD glare
Toshiba Portege Z20t-B-10C
IPS FHD matt
Display
9%
48%
-0%
Display P3 Coverage
42.98
46.85
9%
63.6
48%
42.63
-1%
sRGB Coverage
62.8
69.1
10%
94.7
51%
63.6
1%
AdobeRGB 1998 Coverage
44.55
48.42
9%
65
46%
44.1
-1%
Response Times
-27%
Response Time Grey 50% / Grey 80% *
64 ?(30, 34)
68 ?(27, 41)
-6%
Response Time Black / White *
30 ?(5, 25, Nano Seconds ns)
44 ?(13, 31)
-47%
PWM Frequency
Screen
7%
-22%
28%
-14%
Brightness middle
371
322
-13%
287
-23%
388
5%
342
-8%
Brightness
335
312
-7%
280
-16%
351
5%
301
-10%
Brightness Distribution
84
87
4%
88
5%
85
1%
76
-10%
Black Level *
0.29
0.32
-10%
0.792
-173%
0.32
-10%
0.393
-36%
Contrast
1279
1006
-21%
362
-72%
1213
-5%
870
-32%
Colorchecker dE 2000 *
8.51
5.19
39%
3.08
64%
1.83
78%
9.69
-14%
Colorchecker dE 2000 max. *
20.43
Greyscale dE 2000 *
9.23
4.36
53%
3.36
64%
2.17
76%
9.27
-0%
Gamma
2.24 98%
2.26 97%
2.5 88%
2.43 91%
2.95 75%
CCT
6759 96%
5985 109%
6087 107%
6703 97%
6010 108%
Color Space (Percent of AdobeRGB 1998)
41
44.3
8%
60
46%
40.4
-1%
Color Space (Percent of sRGB)
62
95
53%
Total Average (Program / Settings)
8% / 7%
-22% / -22%
16% / 24%
-7% / -10%

* ... smaller is better

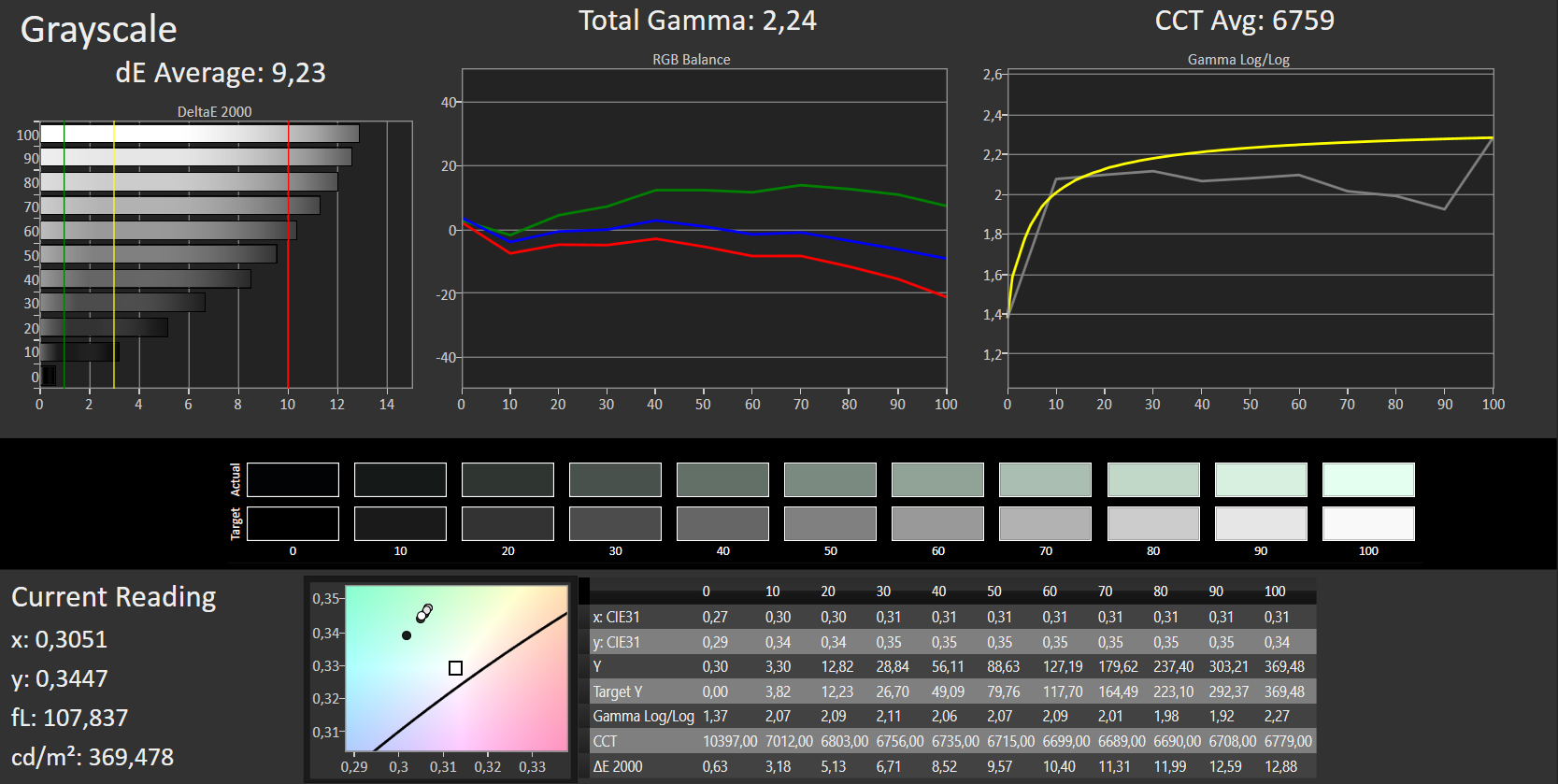

CalMAN Grayscale
CalMAN Grayscale

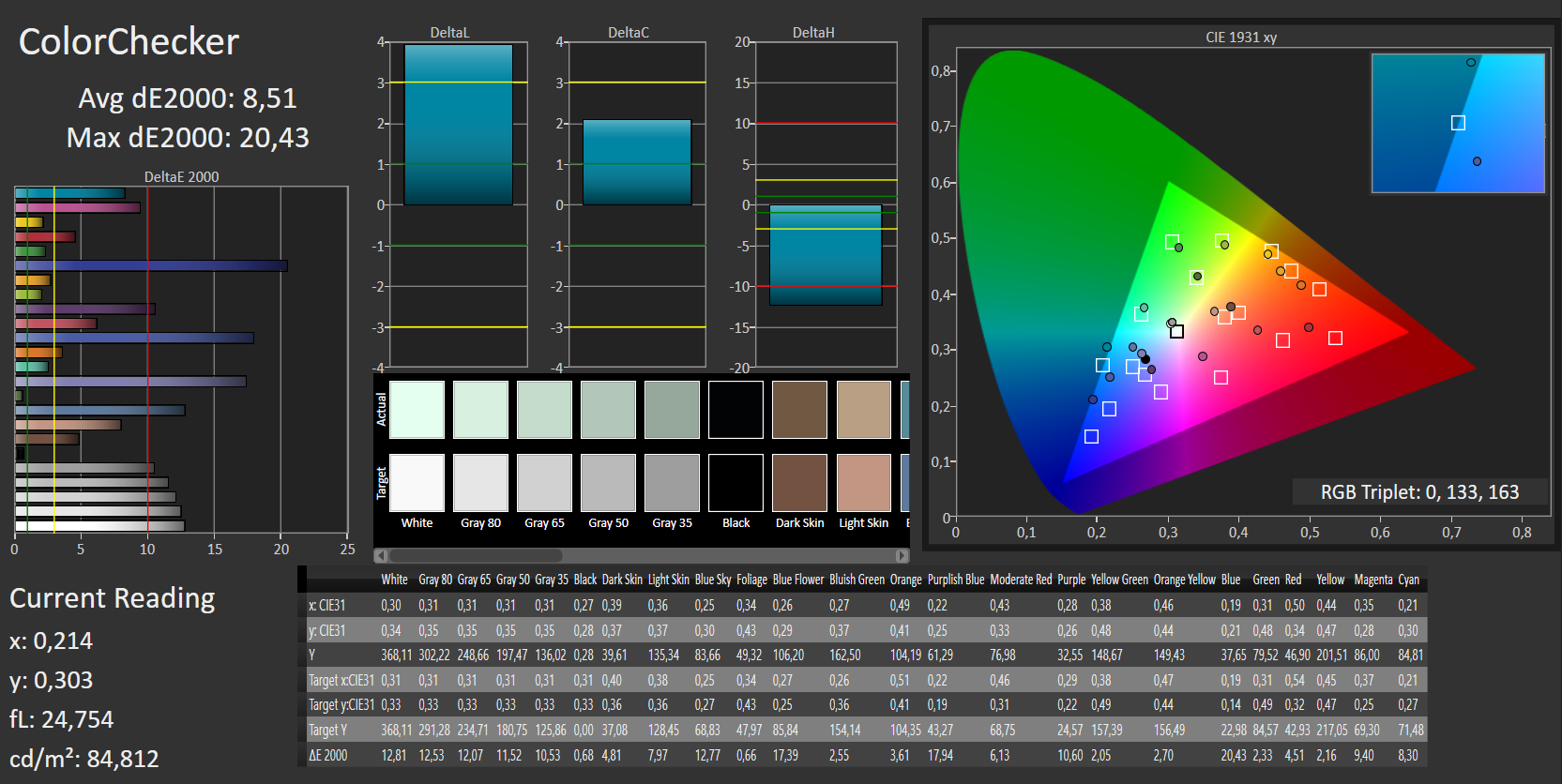

CalMAN ColorChecker
CalMAN ColorChecker

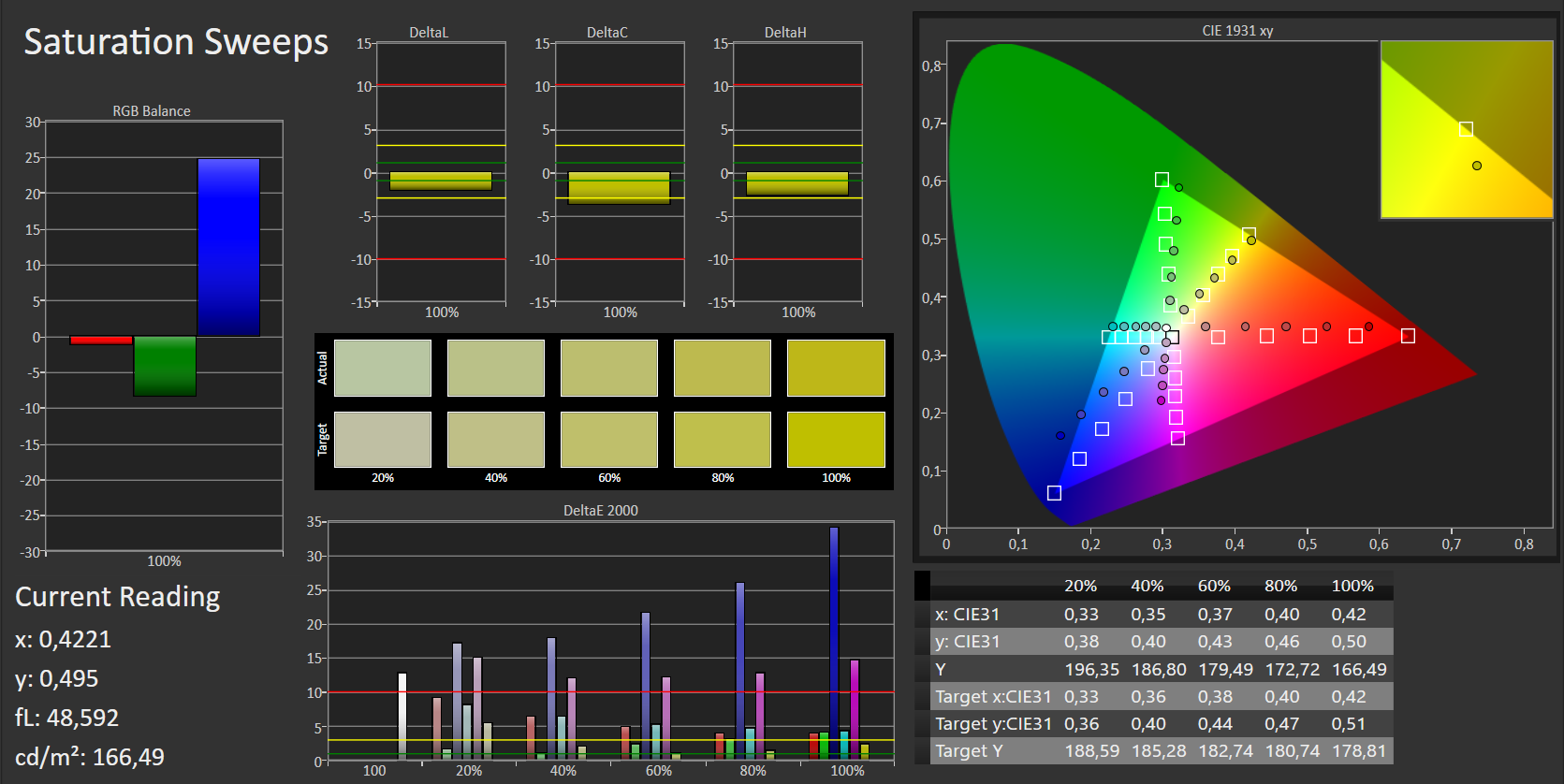

CalMAN Saturation Sweeps
CalMAN Saturation Sweeps

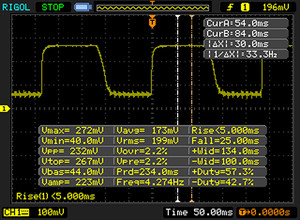

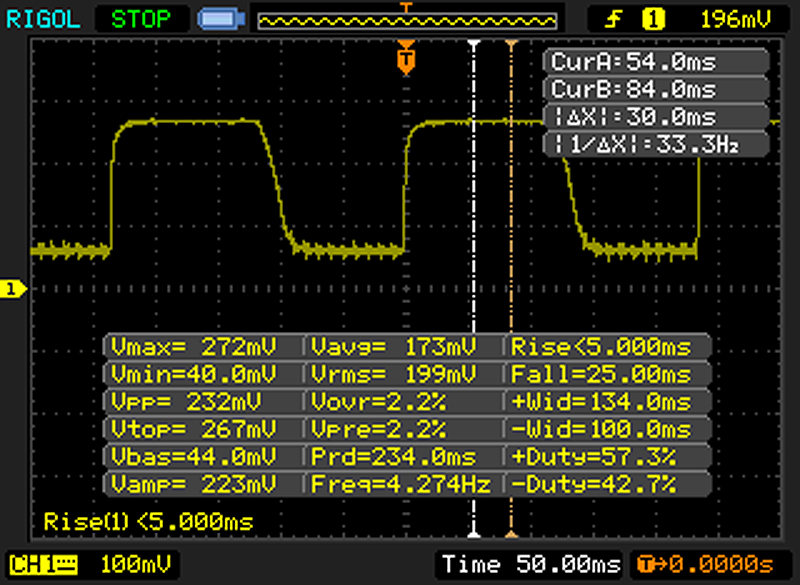

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
30 ms ... rise ↗ and fall ↘ combined↗ 5 ms rise
↘ 25 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 77 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.5 ms).

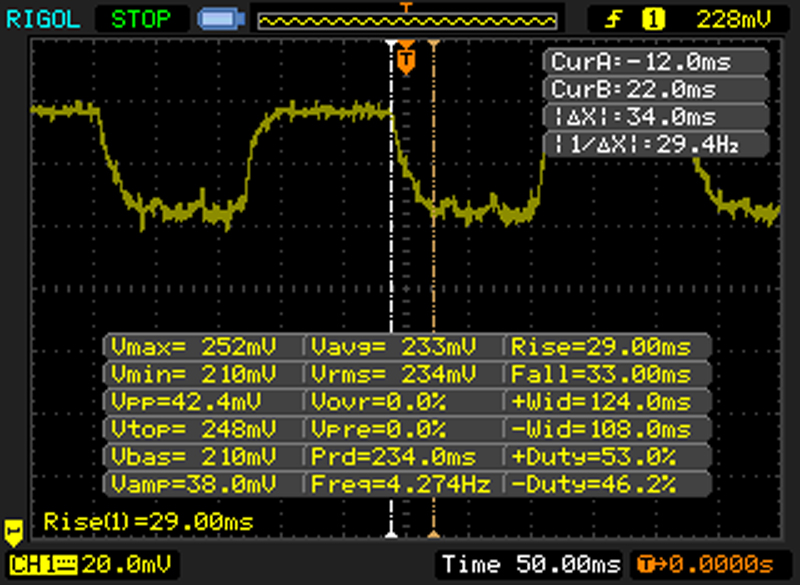

       Response Time 50% Grey to 80% Grey
64 ms ... rise ↗ and fall ↘ combined↗ 30 ms rise
↘ 34 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 97 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (33.7 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured.

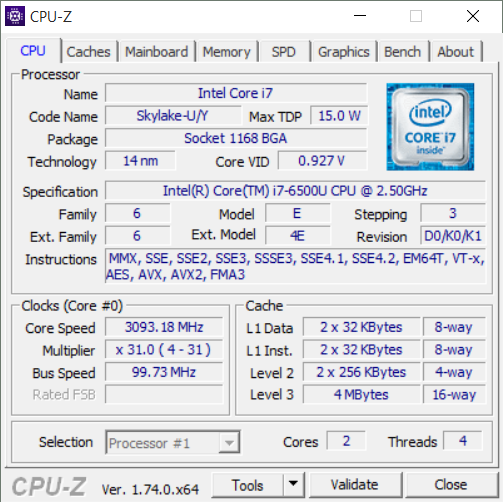

System info CPU-Z CPU

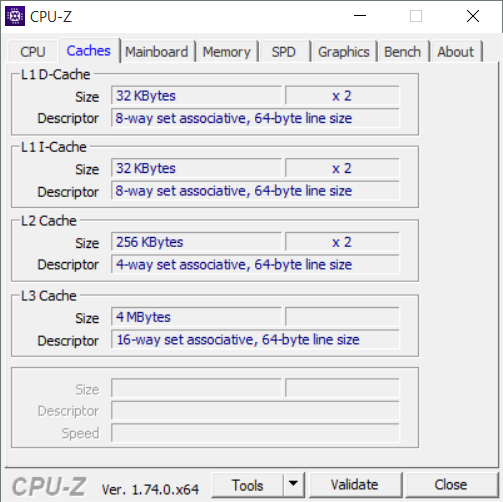

System info CPU-Z Cache

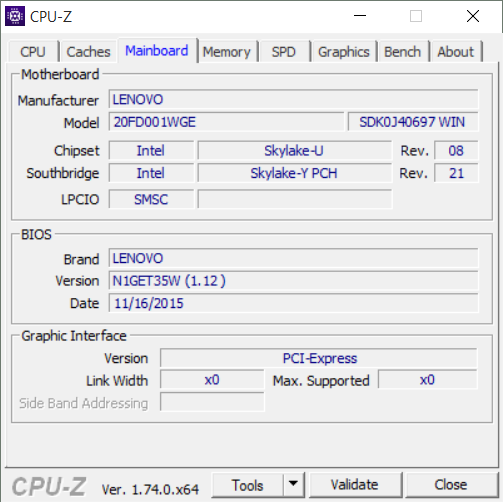

System info CPU-Z Mainboard

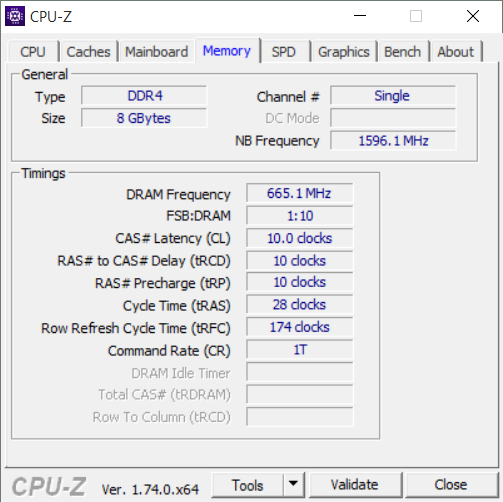

System info CPU-Z Memory

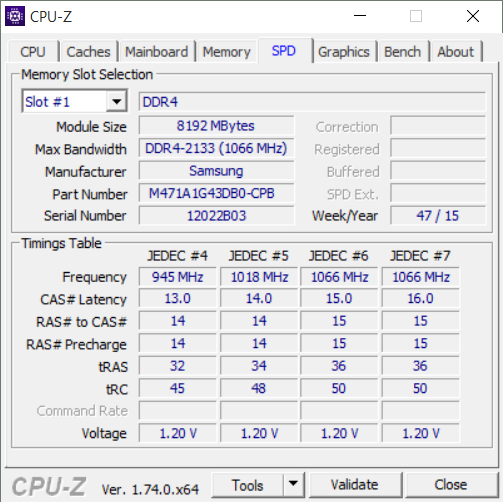

System info CPU-Z SPD

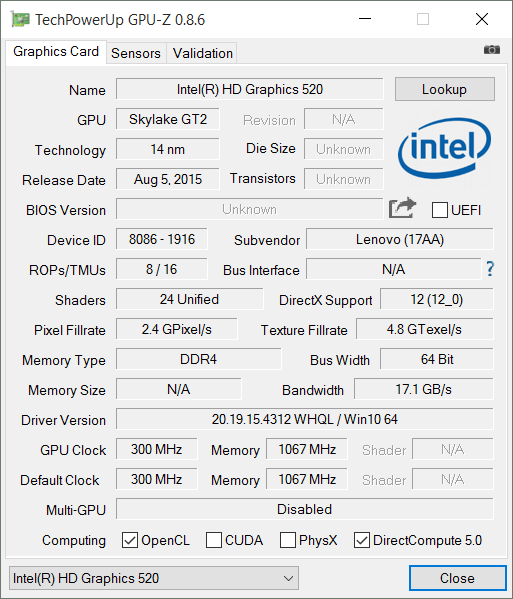

System info GPU-Z HD Graphics 520

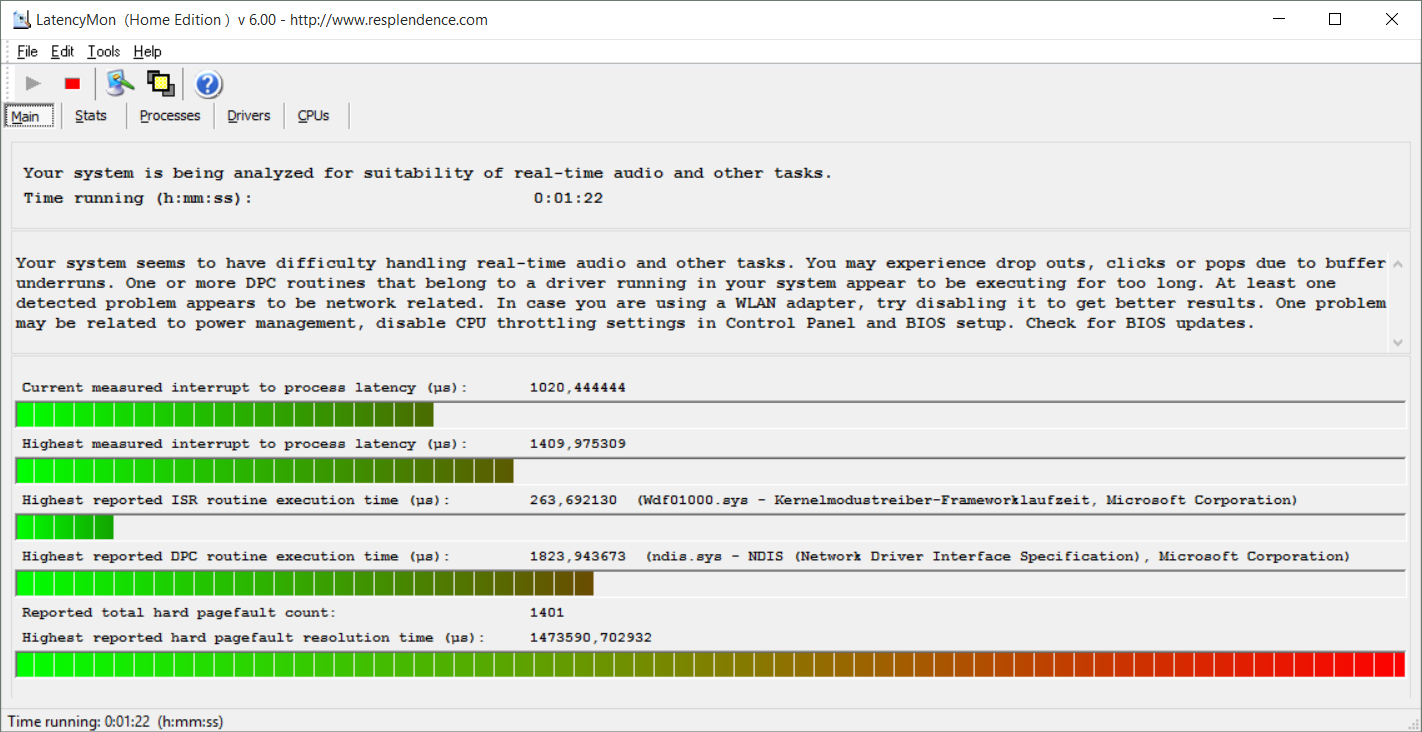

Latency discovered
Latency discovered
Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
128 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
130 Points +2%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
91 Points -29%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
125 Points -2%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
97 Points -24%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
264 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
289 Points +9%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
180 Points -32%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
317 Points +20%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
190 Points -28%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1.46 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
1.51 Points +3%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
1.13 Points -23%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1.34 Points -8%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
1.15 Points -21%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
2.94 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
3.16 Points +7%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
2.09 Points -29%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
3.54 Points +20%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
2.14 Points -27%
Cinebench R10
Rendering Single CPUs 64Bit (sort by value)
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
5195 Points
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
5068 Points
Rendering Multiple CPUs 64Bit (sort by value)
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
8939 Points
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
8486 Points
Cinebench R10 Rendering Single 32Bit
6361
Cinebench R11.5 CPU Single 64Bit
1.46 Points
Cinebench R11.5 CPU Multi 64Bit
2.94 Points
Cinebench R11.5 OpenGL 64Bit
27.31 fps
Cinebench R15 CPU Single 64Bit
128 Points
Cinebench R15 CPU Multi 64Bit
264 Points
Cinebench R15 OpenGL 64Bit
32.23 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
3263 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
3358 Points +3%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
2633 Points -19%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
2816 Points -14%
Creative Score Accelerated v2 (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
3952 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
3876 Points -2%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
3108 Points -21%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
3263 Points -17%
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
4368 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
4473 Points +2%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
3721 Points -15%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
3936 Points -10%
Storage Score v2 (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
4958 Points
PCMark 7
Score (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
5043 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
5322 Points +6%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
4650 Points -8%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
5204 Points +3%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
4421 Points -12%
Productivity (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
2581 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
2806 Points +9%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
2273 Points -12%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
2590 Points 0%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
2356 Points -9%
Computation (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
14727 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
17470 Points +19%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
17263 Points +17%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
15557 Points +6%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
12787 Points -13%
PCMark 7 Score
5043 points
PCMark 8 Home Score Accelerated v2
3263 points
PCMark 8 Creative Score Accelerated v2
3952 points
PCMark 8 Work Score Accelerated v2
4368 points
Help
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
PCMark 7
System Storage
5302
5222
-2%
5263
-1%
5430
2%
5379
1%
CrystalDiskMark 3.0
7%
10%
10%
15%
Read Seq
468.9
526
12%
529
13%
492.6
5%
530
13%
Write Seq
297.3
239.9
-19%
242.1
-19%
306.5
3%
473.3
59%
Read 512
397.9
420.5
6%
430.9
8%
408.9
3%
424.7
7%
Write 512
297.1
239.5
-19%
242.4
-18%
307.1
3%
446.9
50%
Read 4k
33.11
28.09
-15%
35.95
9%
33.48
1%
22.91
-31%
Write 4k
85.1
102.3
20%
104.5
23%
89.7
5%
88.2
4%
Read 4k QD32
398.3
389.8
-2%
339.8
-15%
323.9
-19%
295.6
-26%
Write 4k QD32
136.6
238.4
75%
240.6
76%
249
82%
197.3
44%
AS SSD
-3%
-10%
3%
Seq Read
482.3
511
6%
482.4
0%
513
6%
Seq Write
282.9
249.1
-12%
229.1
-19%
457.2
62%
4K Read
29.07
26.91
-7%
27.14
-7%
21.4
-26%
4K Write
70
90.3
29%
61.3
-12%
76.8
10%
Score Read
448
416
-7%
433
-3%
428
-4%
Score Write
361
299
-17%
283
-22%
305
-16%
Score Total
1037
924
-11%
934
-10%
954
-8%
Total Average (Program / Settings)
1% / 2%
-0% / 0%
6% / 9%
6% / 9%
Samsung SSD PM871 MZNLN256HCHP
Sequential Read: 468.9 MB/s
Sequential Write: 297.3 MB/s
512K Read: 397.9 MB/s
512K Write: 297.1 MB/s
4K Read: 33.11 MB/s
4K Write: 85.1 MB/s
4K QD32 Read: 398.3 MB/s
4K QD32 Write: 136.6 MB/s
3DMark - 1280x720 Cloud Gate Standard Score (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
5299 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
5369 Points +1%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
3673 Points -31%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
5589 Points +5%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
3585 Points -32%
3DMark 11 - 1280x720 Performance (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1333 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
1149 Points -14%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
756 Points -43%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1573 Points +18%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
775 Points -42%
3DMark 11 Performance
1333 points
3DMark Ice Storm Standard Score
46556 points
3DMark Cloud Gate Standard Score
5299 points
3DMark Fire Strike Score
721 points
Help
Crysis 3 - 1024x768 Low Preset (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
20.4 fps
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
12.5 fps -39%
Fifa 15 - 1366x768 High Preset AA:2x MS (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
35.6 fps
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
13.8 fps -61%
Battlefield Hardline - 1024x768 Low Graphics Quality (DX11) (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
36.2 fps
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
50.1 fps +38%
low med. high ultra
Crysis 3 (2013) 20.4 13.5
Fifa 15 (2014) 35.6 21.3
Battlefield Hardline (2015) 36.2 27.9 10.1
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
Noise
5%
9%
-7%
Idle Minimum *
31.5
29.1
8%
28.9
8%
32.5
-3%
Idle Average *
31.5
29.1
8%
30.1
4%
32.6
-3%
Idle Maximum *
32
29.1
9%
30.1
6%
32.6
-2%
Load Average *
36.4
35.6
2%
31.5
13%
41
-13%
Load Maximum *
36.6
37.2
-2%
31.9
13%
41
-12%
off / environment *
31.3

* ... smaller is better

Noise Level

Idle
31.5 / 31.5 / 32 dB(A)
Load
36.4 / 36.6 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm distance)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
Heat
-4%
-12%
-9%
-10%
Maximum Upper Side *
42.6
39.9
6%
42.1
1%
46.5
-9%
48.3
-13%
Maximum Bottom *
42.6
39.5
7%
37
13%
43
-1%
43.2
-1%
Idle Upper Side *
25.1
28.4
-13%
34.4
-37%
28.9
-15%
28.9
-15%
Idle Bottom *
25.3
28.8
-14%
31.7
-25%
28.4
-12%
27.7
-9%

* ... smaller is better

 24.2 °C25.1 °C24.7 °C
 24.1 °C24.6 °C24.5 °C
 23.4 °C23.5 °C23.9 °C
Maximum: 25.1 °C
Average: 24.2 °C
24.7 °C25.3 °C25 °C
24.2 °C24.9 °C24.7 °C
23.5 °C23.7 °C23.6 °C
Maximum: 25.3 °C
Average: 24.4 °C
Power Supply (max.)  28.1 °C | Room Temperature 22 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.6 °C / 109 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 42.6 °C / 109 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.2 °C / 76 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.5 °C / 85.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-1.4 °C / -2.5 F).
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
Power Consumption
5%
-10%
-88%
19%
Idle Minimum *
3.6
2.1
42%
3.7
-3%
8.8
-144%
2.4
33%
Idle Average *
6.3
4
37%
8.9
-41%
12.8
-103%
4.6
27%
Idle Maximum *
7.6
5.4
29%
10.7
-41%
13.7
-80%
5.6
26%
Load Average *
27.2
27.1
-0%
22
19%
38
-40%
15.6
43%
Load Maximum *
22.8
41.5
-82%
19.5
14%
39
-71%
30.7
-35%

* ... smaller is better

Power Consumption
Off / Standbydarklight 0.35 / 0.64 Watt
Idledarkmidlight 3.6 / 6.3 / 7.6 Watt
Load midlight 27.2 / 22.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad Yoga 260 20FD001XGE
44 Wh 6500U
HP Elitebook Revolve 810 G3
44 Wh 5600U
Lenovo Yoga 3 Pro
44 Wh M-5Y70
Toshiba Satellite Radius 12 P20W-C-106
42 Wh 6500U
Toshiba Portege Z20t-B-10C
72 Wh M-5Y71
Dell Latitude 13 7350
50 Wh M-5Y10
Battery Runtime
28%
18%
-30%
156%
102%
Reader / Idle
943
1103
17%
635
-33%
1616
71%
953
1%
WiFi v1.3
346
499
44%
241
-30%
760
120%
Load
92
113
23%
155
68%
348
278%
278
202%
H.264
428
379
787
472
WiFi
379
522
Battery Runtime
Idle (without WLAN, min brightness)
15h 43min
WiFi Websurfing
5h 46min
Load (maximum brightness)
1h 32min

Pros

+ 出色的输入设备和书写笔
+ 明亮的磨砂触控屏幕
+ 丰富接口和扩展坞
+ 低噪音
+ 丰富的可选配置
+ 安全功能

Cons

- 处理器降频严重
- 屏幕的色彩还原
- 机身的“预设断点”
- 麦克风录音效果有些失真
- 摄像头效果差
In review: Lenovo ThinkPad Yoga 260 20FD001XGE. Test model courtesy of Notebooksandmore.
In review: Lenovo ThinkPad Yoga 260 20FD001XGE. Test model courtesy of Notebooksandmore.

在联想的在线商店中,Yoga 260的最低售价已经达到了1131欧元(约8299人民币)。它搭配了一块高清IPS屏幕(触控,磨砂),酷睿i3处理器和128 GB固态硬盘。我们的测试机售价1480欧元(约10860人民币),它的配置仍然可以提高(16 GB内存,512 GB固态硬盘)。一台如此高价的设备需要更多来证明它的价值,而不只是ThinkPad的光环。

Yoga 260接受了这个挑战,接替ThinkPad X250超极本。它的输入设备采用全尺寸,我们很同意这个选择。这台360度变形本的其它方面和传统的ThinkPad X250很少有相似之处。把笔记本电脑变成平板依然是会议中少见的先进功能。同样它的帐篷模式也可以帮助用户更好地进行简报。不过,Yoga 260的磨砂触控屏幕和压感手写笔的组合则是独一无二了。用手写笔填写表格,记笔记——现在ThinkPad用户可以更有效地工作了。

只有一般的电池续航有些限制了它的实用性。不过幸好它的电池可以在两个小时内充满。我们很喜欢它明亮的磨砂触控屏幕。除此之外,OneLink加上拓展坞为它增加了不少外置接口,而不需要占用USB接口,它甚至还可以为Yoga 260充电。众多从低端(i3, 4 GB, 高清屏幕)到高端(i7, 512 GB, 全高清屏幕)的不同配置仍然存在。额外的LTE模组(M.2接口)和SIM卡槽可以让它使用移动网络连接而不需智能手机的帮助。低发热低噪音则让这台轻盈的变形本更加适合实际使用。

看起来并没有什么可挑剔的。不过为什么它“只”得到了86%的得分而停留在了优秀的水平?Yoga 260尽管支持多种使用模式,但没能超越它的“准前作”ThinkPad X250。我们很不满意它机身的一处会导致断裂的弱点。尽管手写笔槽可以放置手写笔并为它充电,设计师应该想办法避免这样的结构“弱点”。它屏幕的色彩还原较差,不过这可以通过校对程序改善。同时它的处理器在普通负载下就会有降频的问题。如果无法发挥应有的性能,那么还有什么必要选择最快的15瓦i7处理器呢?

我们认为,惠普的EliteBook Revolve 810 G3提供了更好的电池续航,是个值得考虑的备选方案。它同时支持拓展坞和LTE模组,不过品质优秀的IPS屏幕的1366x768分辨率有些过时。它的2000欧元(约14676人民币)售价显得有些过高。我们会更喜欢搭配全高清屏幕(抗反射贴膜)的Portégé Z20t-B。这款平板搭配键盘底座同样售价2000欧元(约14676人民币)。

因此,联想的Yoga 3 Pro仍然是在性价比上最大的竞争对手。它的屏幕分辨率达3200x1800像素,不过采用了镜面设计。他也缺少一些商务功能,如可升级空间,拓展坞和安全功能。我们还没有结束对东芝Satellite Radius 12 P20W-C的测试,不过我们已经可以说Radius 12是一款高品质的便携设备,它搭配了不错的输入设备但缺少专业功能(如可维护性,连接性和安全功能)。

最终用户面对的并不是一种选择:消费者或者企业如果有2000欧元预算的话,那么EliteBook Revolve 810 G3或者Portégé Z20t-B将会是更好的选择,如果“只有”1000到1500欧元预算的话那么Yoga 260是个不错的候选方案。它的入门机型售价更亲民,同时也提供了惠普和富士通高于2000欧元设备所具备的专业商务功能。戴尔搭配Core M-5Y10和全高清触控屏幕的Latitude 13 7350也值得一提,它的售价约1400欧元(约10273人民币)。它的电池续航达8小时42分钟(无线上网),配备了优秀的输入设备,高品质全高清屏幕和维护底座,稳定性和运算性能则是它的弱项。



注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

Lenovo ThinkPad Yoga 260 20FD001XGE - 04/18/2016 v5.1(old)
Sebastian Jentsch

Chassis
88 / 98 → 90%
Keyboard
92%
Pointing Device
94%
Connectivity
61 / 80 → 77%
Weight
71 / 35-78 → 84%
Battery
86%
Display
83%
Games Performance
57 / 68 → 84%
Application Performance
84 / 87 → 97%
Temperature
92%
Noise
90%
Audio
44 / 91 → 48%
Camera
50 / 85 → 59%
Average
76%
86%
Convertible - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 联想 ThinkPad Yoga 260 20FD001XGE 变形本简短评测
Sebastian Jentsch, 2016-02- 6 (Update: 2016-02- 7)
