搭载 AMD Ryzen AI 9 HX 370、价格不到 700 美元的经济型迷你 PC - Acemagic F3A 的详细评测

Name: Acemagic F3A
Brand: Acemagic

配备 Ryzen AI 的紧凑型动力装置。

Acemagic F3A 将 AMD-Ryzen-AI-9-HX-370 的强大性能与小巧的机身结合在一起，而且价格公道。在我们的详细评测中，我们分析了这款迷你 PC 在竞争中的表现。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 05/01/2025 🇺🇸 🇩🇪 ...
Mini PC Desktop AMD Zen 5 AI Radeon

评语：配备现代 AMD Ryzen AI 9 HX 370 的强大全能型机型

在我们的测试中，配备 AMD Ryzen AI 9 HX 370 的 Acemagic F3A 被证明是一款功能强大、用途广泛的迷你 PC。得益于其现代的 Zen 5 架构、快速的 DDR5 内存支持和高速固态硬盘，它为办公任务、多媒体工作和休闲游戏提供了令人印象深刻的系统性能。此外，其紧凑的结构、未来主义的设计和大量的连接选项也对该设备大有裨益。另一方面，在触感上，Acemagic F3A 无法与 Minisforum 或 Geekom 的竞争对手相比，后者的铝制外壳质量更高。

Test device courtesy of Acemagic

Download your licensed rating image as PNG / SVG

其高效的散热确保了即使在负载情况下也能保持稳定的温度。值得庆幸的是，Acemagic F3A 并没有犯任何重大错误。如果您正在寻找一款结构紧凑、功能强大的微型电脑，Acemagic F3A 将是一个极具吸引力的解决方案，而且它还拥有极高的性价比。

Pros

+ AMD Ryzen AI 9 HX 370 配备 12 个核心和 24 个线程

+ 强大的 iGPU（又称 AMD Radeon 890M

+ Vesa 安装选项

+ 双 2.5G LAN

+ 36 个月保修

+ 大量 USB 端口，包括 2x USB4

+ 主动式固态硬盘冷却

+ 运行安静

+ 诱人的价格

Cons

- 无 Wi-Fi 6E

- 机箱感觉有点廉价

- BIOS 选项少

- 没有 SD 读卡器

价格和供应情况

配备 AMD Ryzen AI 9 HX 370 的 Acemagic F3A mini PC 有多种配置，可直接向Acemagic 订购。裸机版本售价 679 美元，我们的测试配置（32 GB 内存、1 TB SSD）售价 809 美元。

评语：配备现代 AMD Ryzen AI 9 HX 370 的强大全能型机型
规格
外壳和连接
性能 - 配备 12 个内核的 AMD Ryzen AI 9

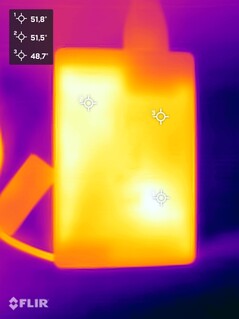

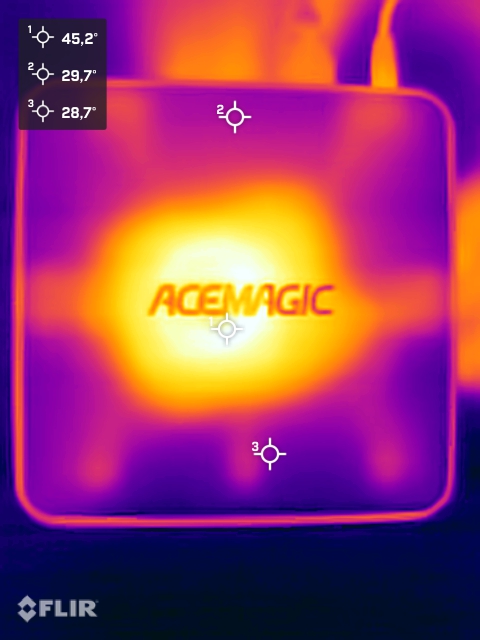

排放 - 负载情况下出奇的安静
电源管理--节俭但没有效率奇迹
Notebookcheck 总评分
Possible alternatives compared

Acemagic F3A 是一款性价比高、应用选择多样的现代迷你电脑。配备了 AMD Ryzen AI 9 HX 370，这款迷你 PC 性能强劲。其稍大的设计为大型冷却装置留出了空间，保证了在负载情况下的安静运行。稍后将详细介绍这一点。Acemagic F3A 既可以订购裸机（679 美元），也可以订购预装内存和固态硬盘的机型。

更多 Acemagic PC 评论：

规格

Acemagic F3A

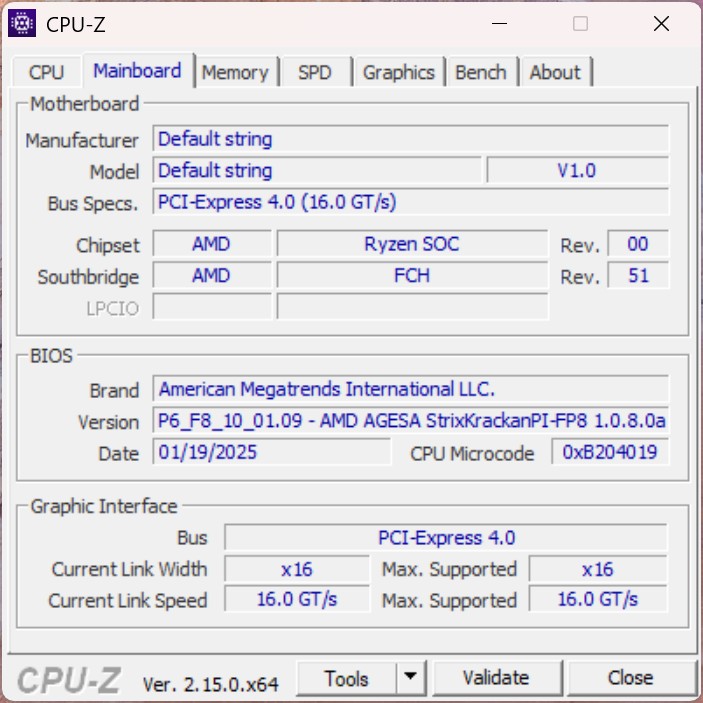

Processor

AMD Ryzen AI 9 HX 370 12 x 2 - 5.1 GHz, 70 W PL2 / Short Burst, 65 W PL1 / Sustained, Strix Point-HX (Zen 5/5c)

Graphics adapter

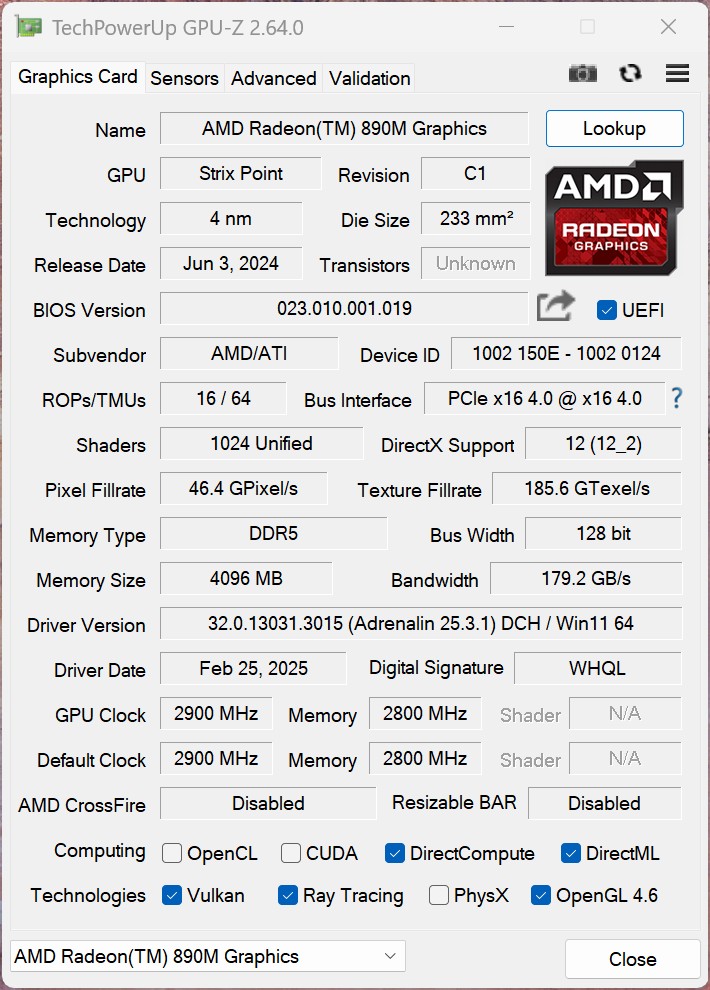

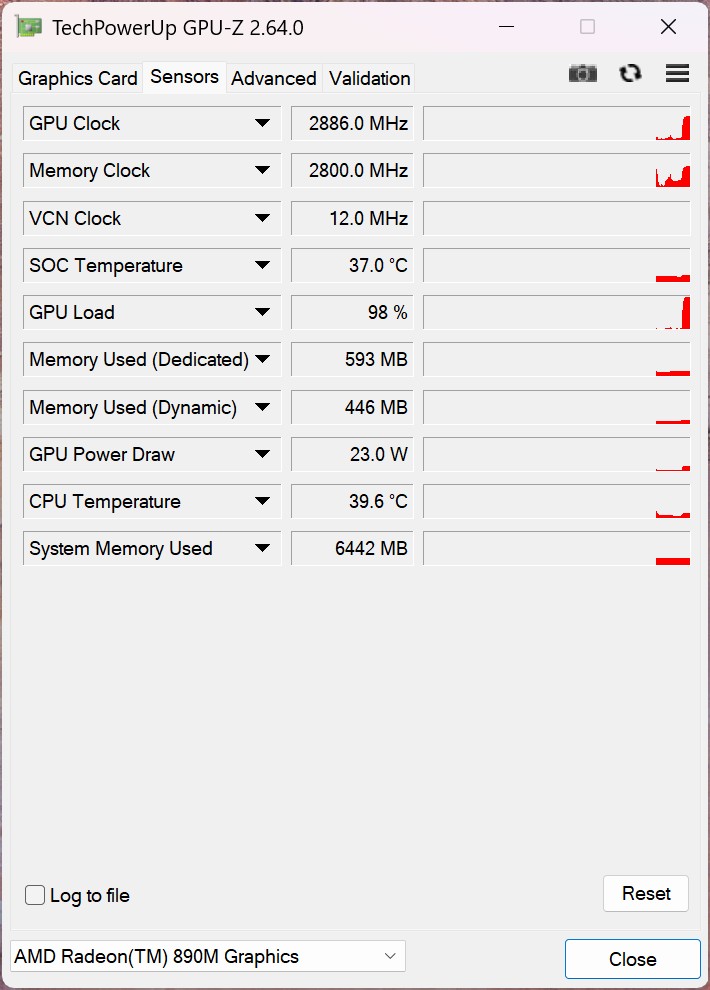

AMD Radeon 890M, Adrenalin 25.3.1

Memory

32 GB

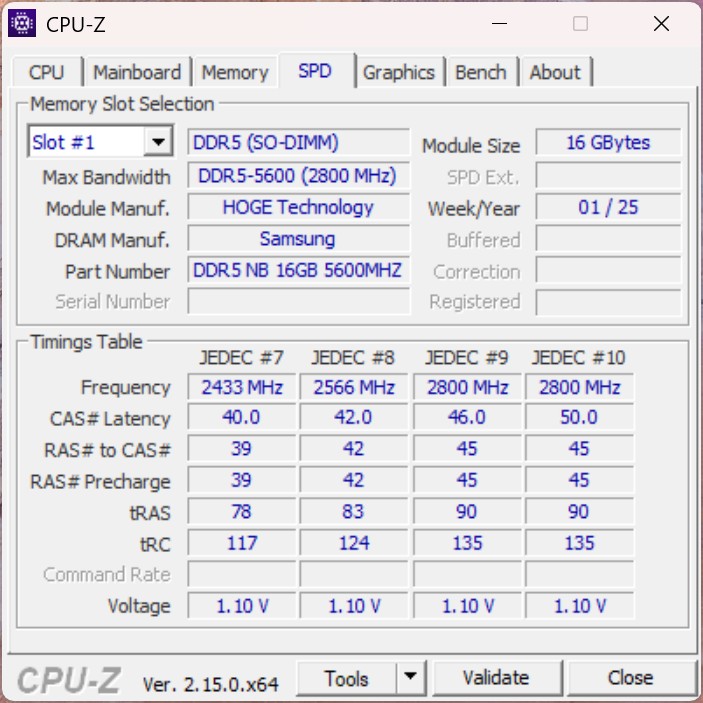

, DDR5-5.600MT/s, 2x SODIMM, max. 96 GB

Mainboard

AMD Promontory/Bixby FCH

Storage

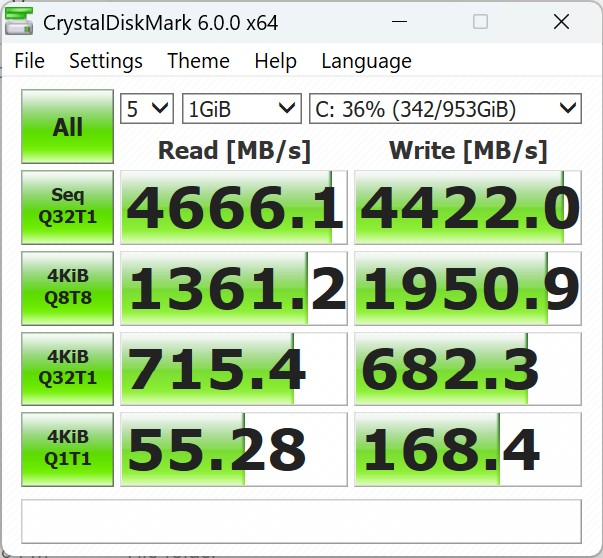

Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe, 1024 GB

, 900 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

4 USB 3.0 / 3.1 Gen1, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 1 HDMI, 3 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm , 2nd Realtek RTL8125 2.5GBe Family Ethernet Controller

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.3

Size

height x width x depth (in mm): 60 x 147 x 148

Operating System

Microsoft Windows 11 Pro

Additional features

120-watt power adapter, 36 Months Warranty

Weight

1.002 kg, Power Supply: 226 g

Price

789 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

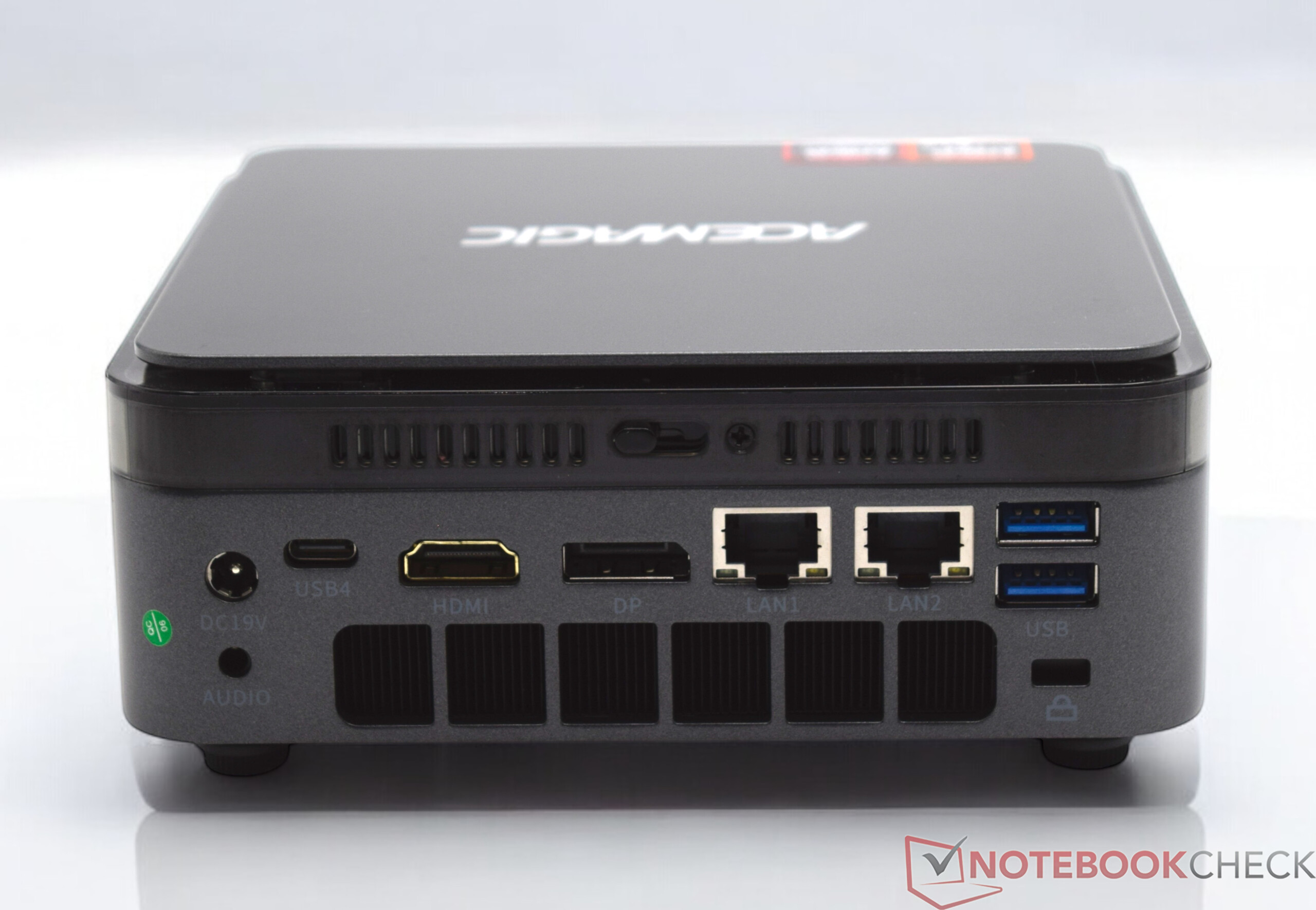

外壳和连接

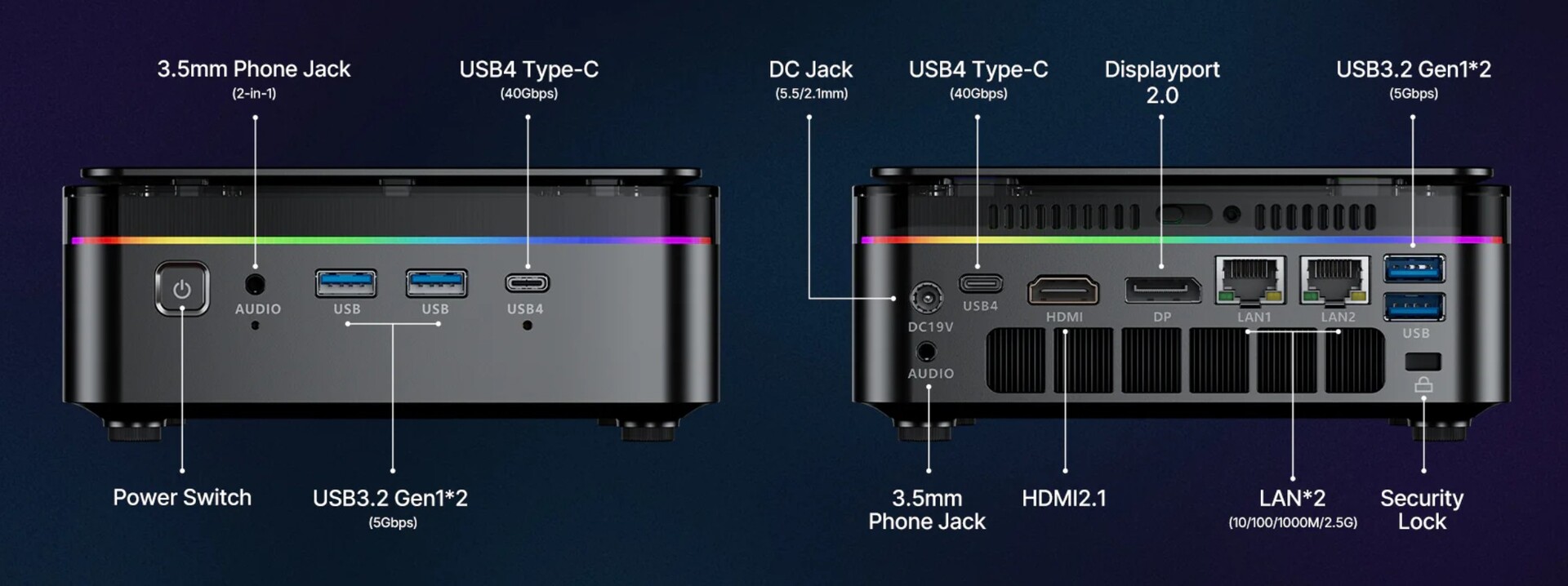

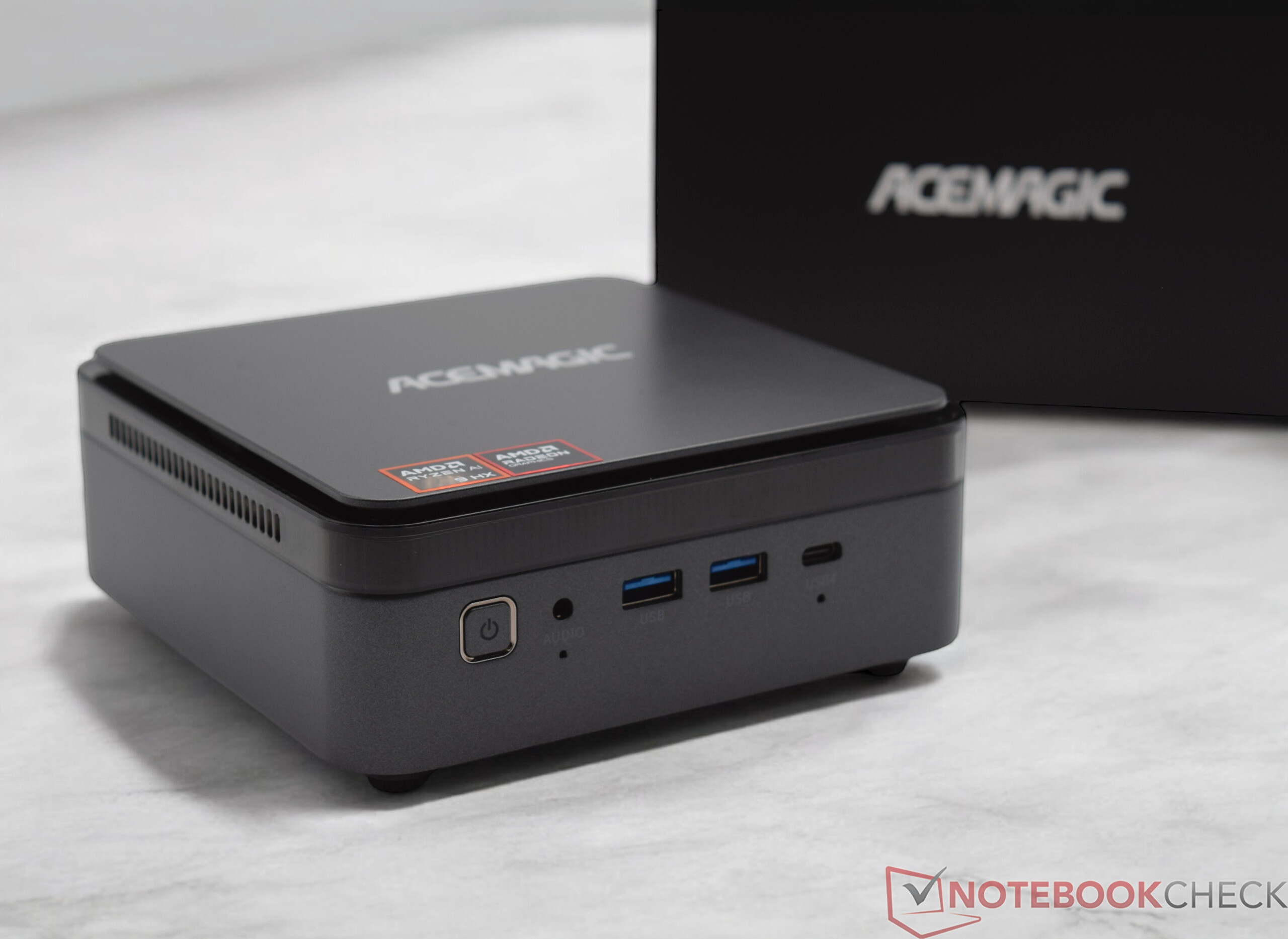

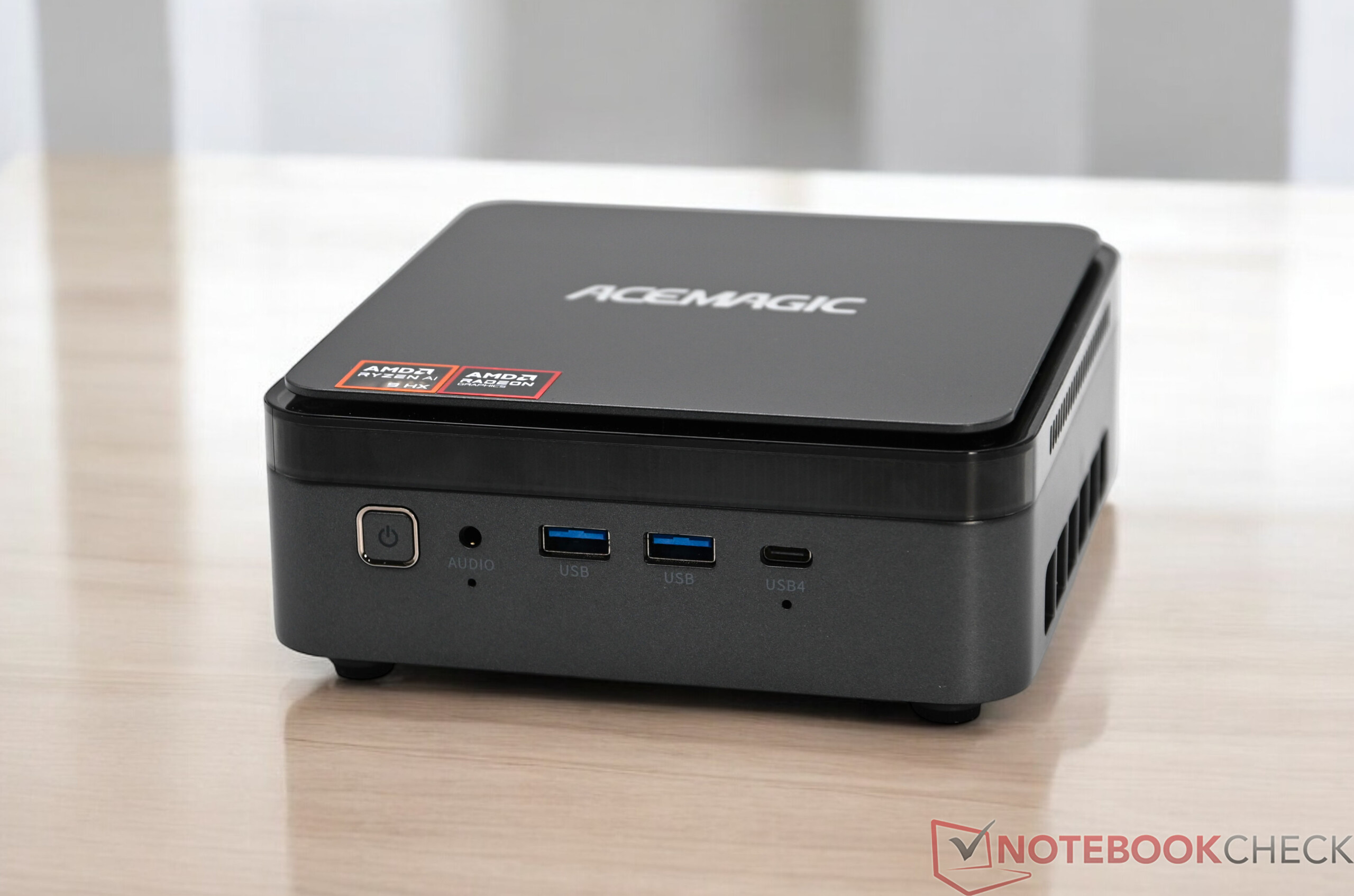

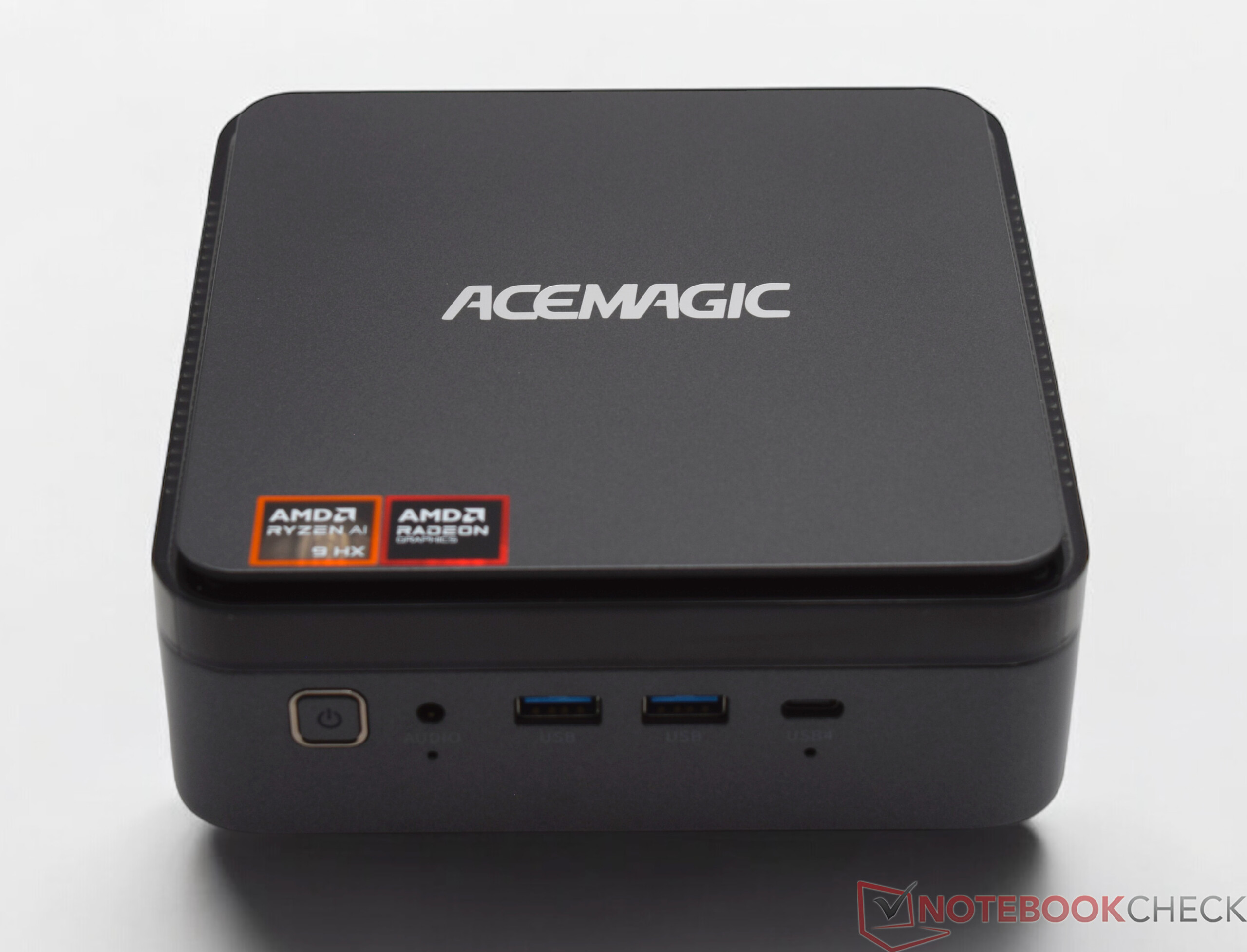

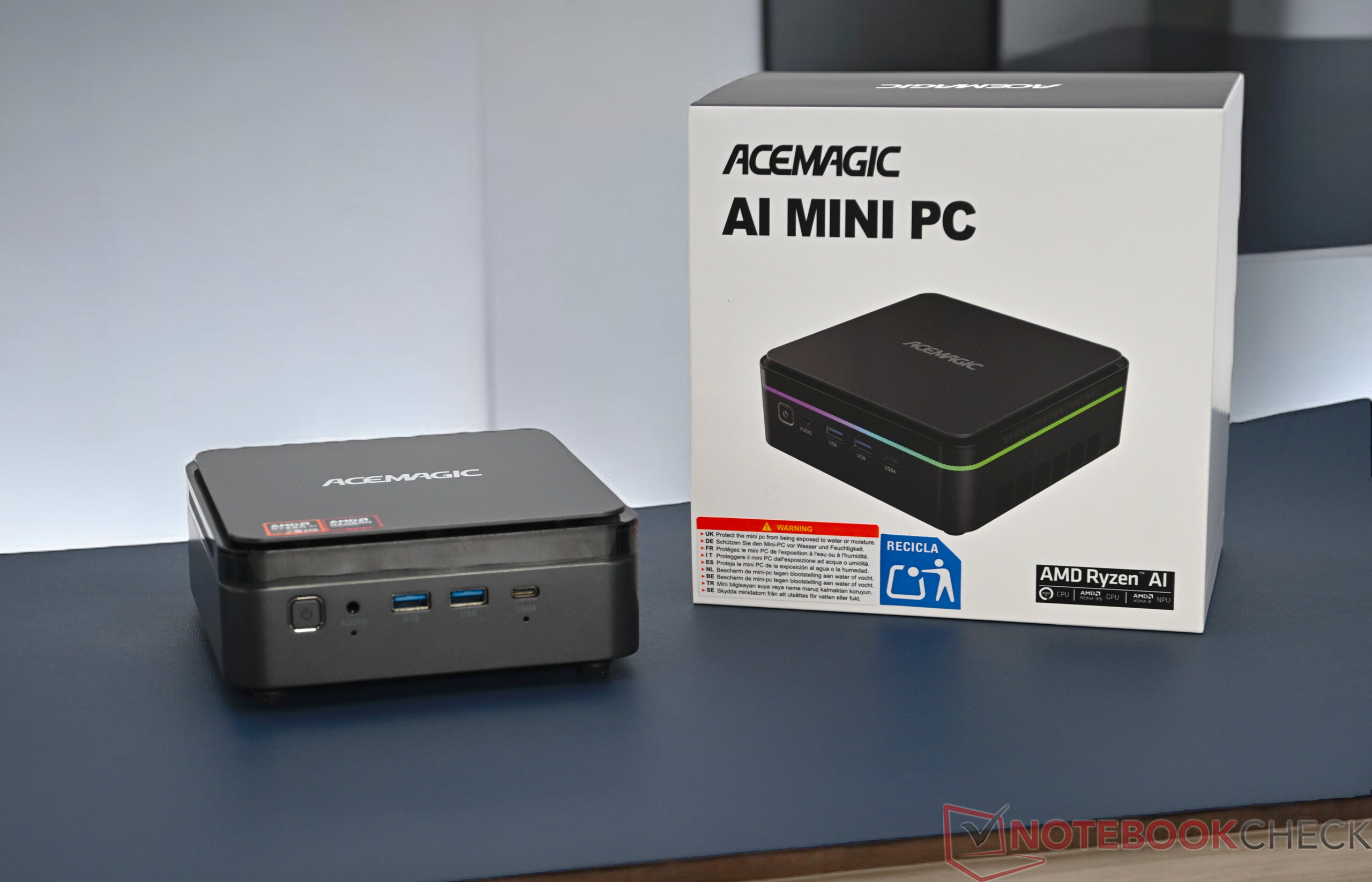

Acemagic F3A 是一款紧凑型迷你 PC，采用未来主义设计和 RGB 灯光。它的机箱尺寸为 147 × 147 × 56 毫米，内置带两个风扇的高效冷却系统。从外观上看，它主要使用塑料，但底部结构采用金属加固。在触感上，Acemagic F3A 无法与高品质的 Geekom A8 Max.其连接性包括多个 USB 端口（如两个 USB4 端口）以及 HDMI 和 DisplayPort。在网络连接方面，Acemagic F3A 提供两个 2.5G LAN 端口，支持 Wi-Fi 6 和蓝牙 5.2。

尺寸比较

Minisforum AI X1 Pro Acemagic F3A Acemagic F2A Minisforum AtomMan X7 Ti Geekom A8 Max, R7 8845HS Geekom GT1 Mega DIN A4 ❌

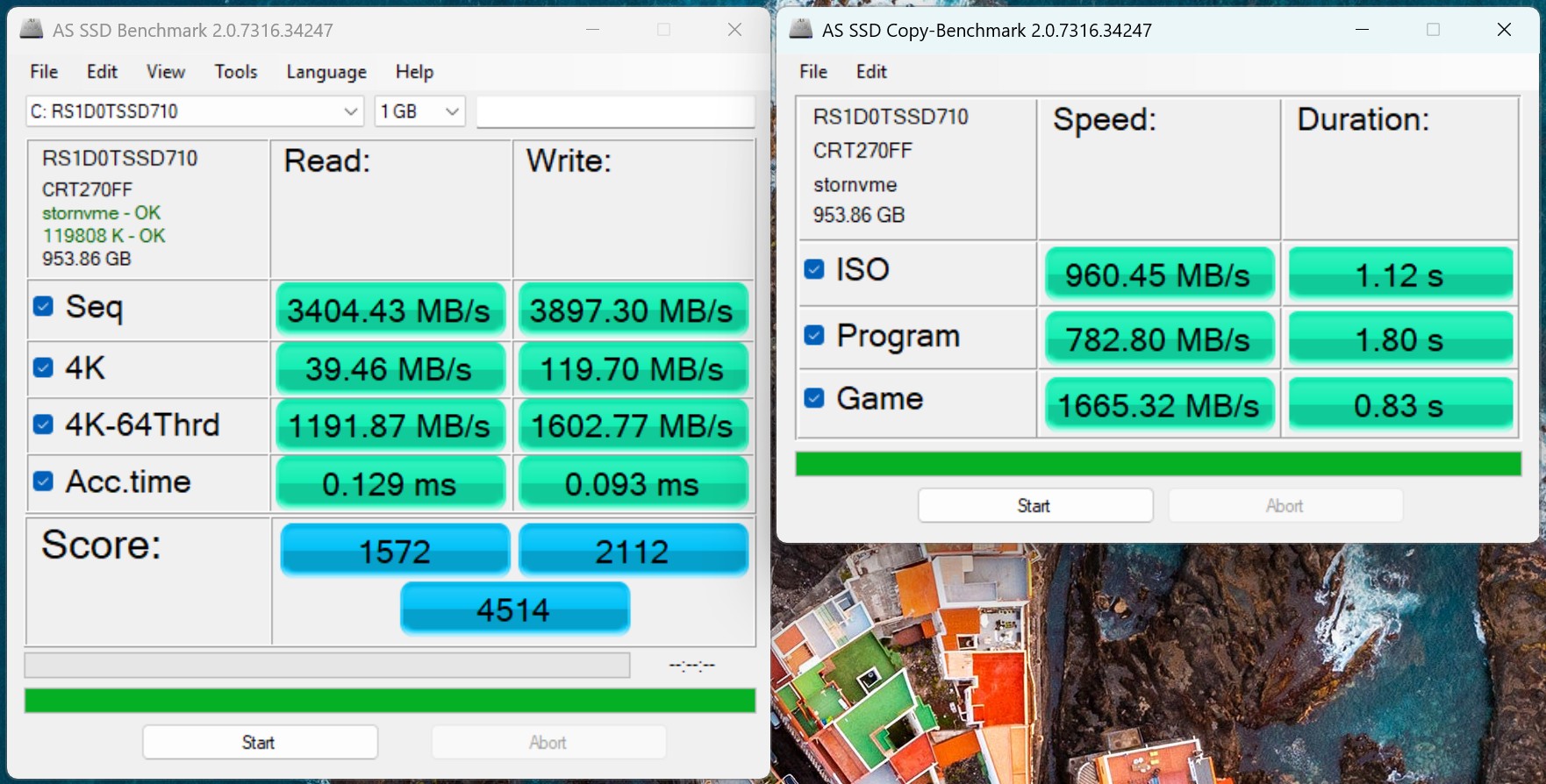

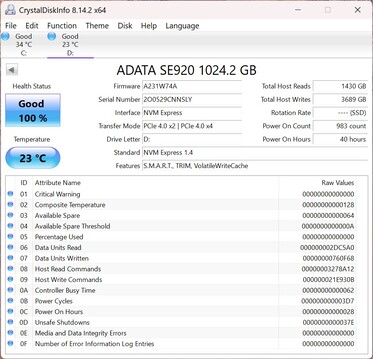

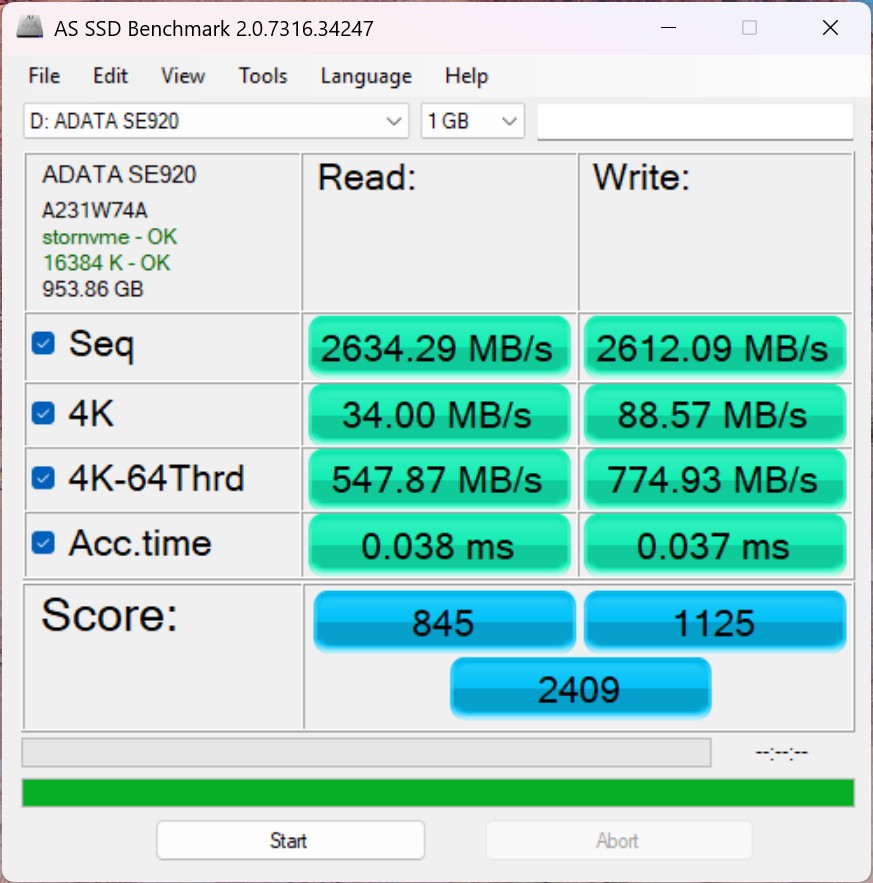

USB4 固态硬盘性能

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	3245.45 MB/s
Khadas Mind 2 Arc 8-Core, Ultra 7 155H, WD PC SN740 SDDPTQD-1T00	3165.4 MB/s
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	3158.19 MB/s
Average of class Mini PC (1611 - 3906, n=13, last 2 years)	2926 MB/s
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	2857.12 MB/s
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	2634.29 MB/s

Networking
iperf3 receive AXE11000 6GHz
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1806 (1779^min - 1816^max) MBit/s
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1770 (1584^min - 1790^max) MBit/s
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1761 (1734^min - 1774^max) MBit/s
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1485 (1435^min - 1510^max) MBit/s
Average of class Mini PC (684 - 1806, n=54, last 2 years)	1423 MBit/s
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	1149 (666^min - 1346^max) MBit/s
iperf3 transmit AXE11000 6GHz
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1787 (1743^min - 1853^max) MBit/s
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1615 (767^min - 1670^max) MBit/s
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1562 (1198^min - 1713^max) MBit/s
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1480 (1351^min - 1551^max) MBit/s
Average of class Mini PC (394 - 1800, n=54, last 2 years)	1368 MBit/s
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	1242 (1110^min - 1348^max) MBit/s
iperf3 receive AXE11000
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1599 (802^min - 1683^max) MBit/s +86%
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	973 (491^min - 984^max) MBit/s +13%
Average of class Mini PC (267 - 1796, n=106, last 2 years)	952 MBit/s +11%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	902 (793^min - 943^max) MBit/s +5%
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	888 (825^min - 926^max) MBit/s +3%
Average Realtek RTL8852BE (455 - 985, n=54)	860 MBit/s 0%

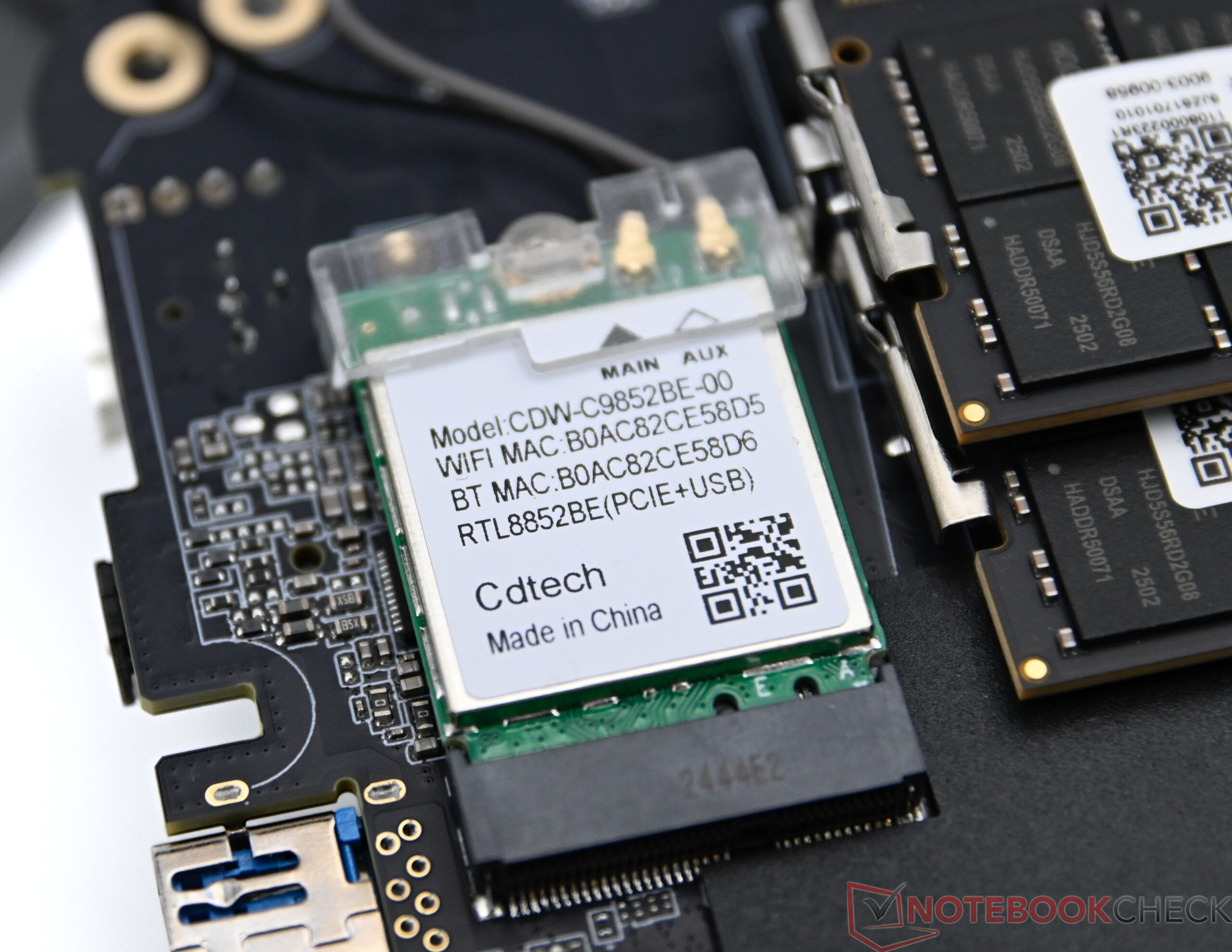

Acemagic F3A Realtek RTL8852BE	859 (809^min - 880^max) MBit/s
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	838 (728^min - 926^max) MBit/s -2%
iperf3 transmit AXE11000
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1566 (904^min - 1695^max) MBit/s +96%
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	967 (917^min - 1020^max) MBit/s +21%
Average of class Mini PC (251 - 1776, n=106, last 2 years)	886 MBit/s +11%
Acemagic F3A Realtek RTL8852BE	797 (736^min - 835^max) MBit/s
Average Realtek RTL8852BE (536 - 926, n=53)	794 MBit/s 0%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	771 (742^min - 814^max) MBit/s -3%
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	741 (690^min - 797^max) MBit/s -7%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	709 (369^min - 977^max) MBit/s -11%

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1788 (1743-1853)

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1805 (1779-1816)

Acemagic F3A Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø859 (809-880)

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø956 (491-984)

Acemagic F3A Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø797 (736-835)

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø967 (917-1020)

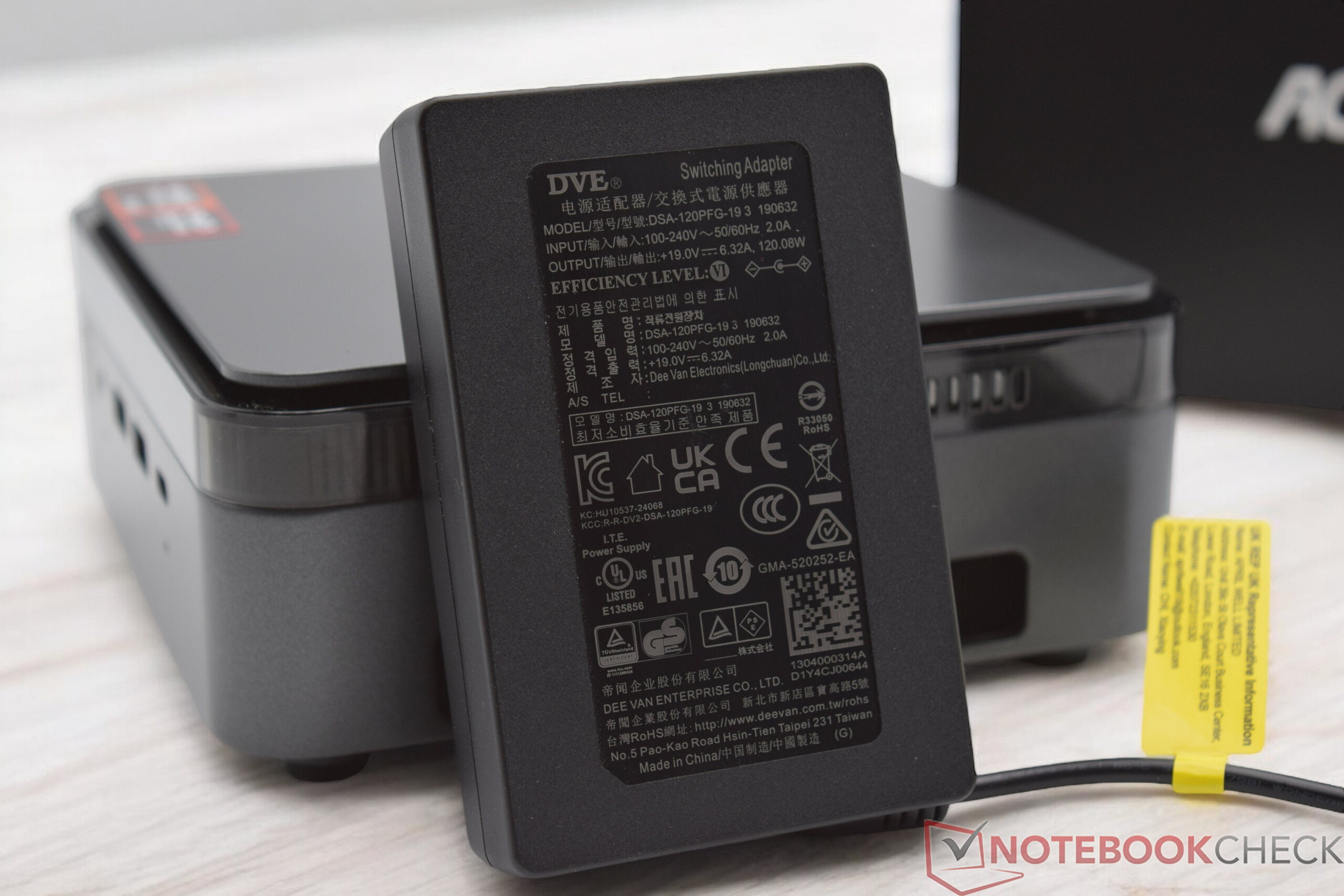

配件

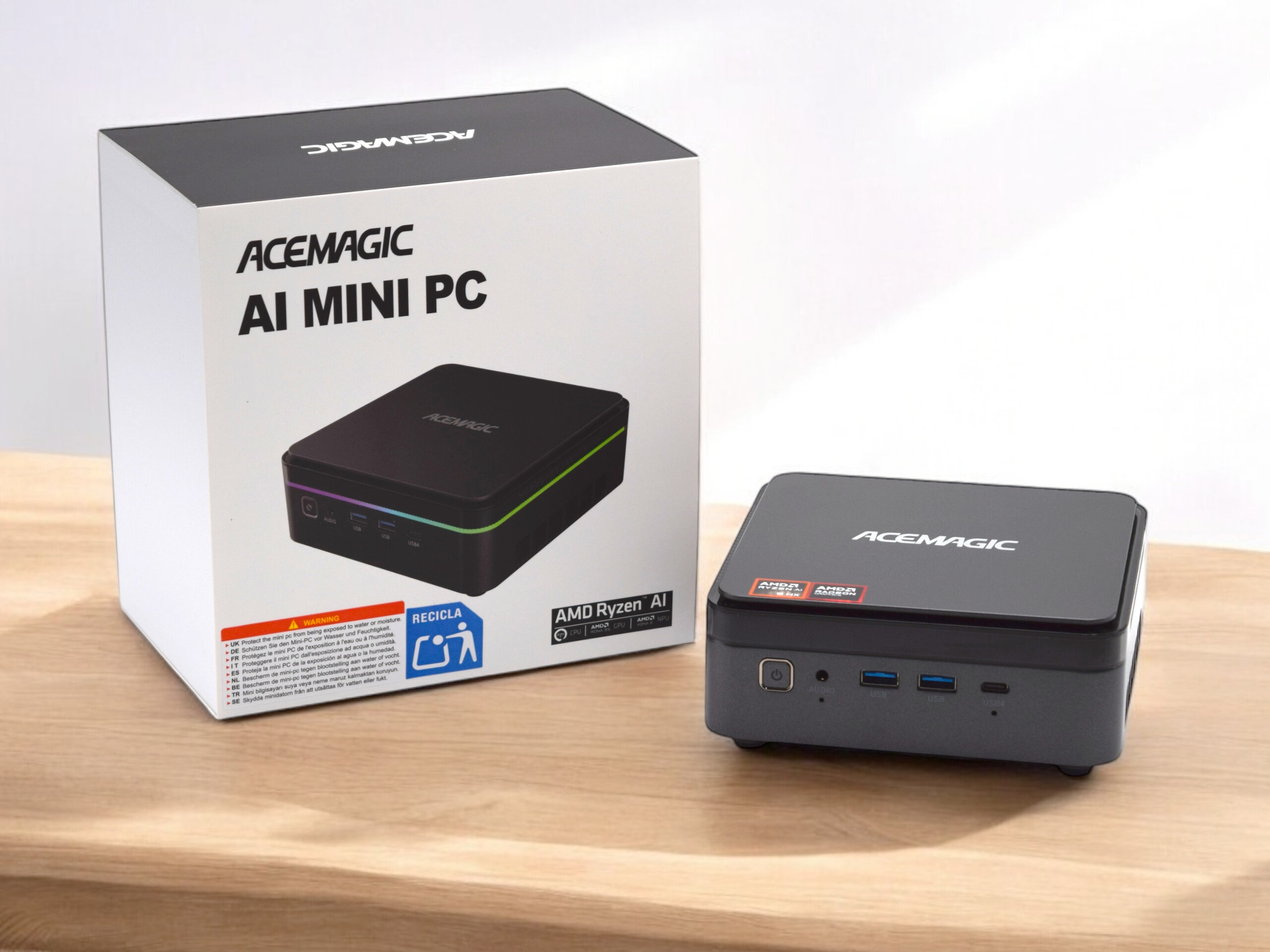

Acemagic 的配件不多：电脑的包装盒里只有设备本身、一个电源装置和一个带安装材料的 VESA 支架。

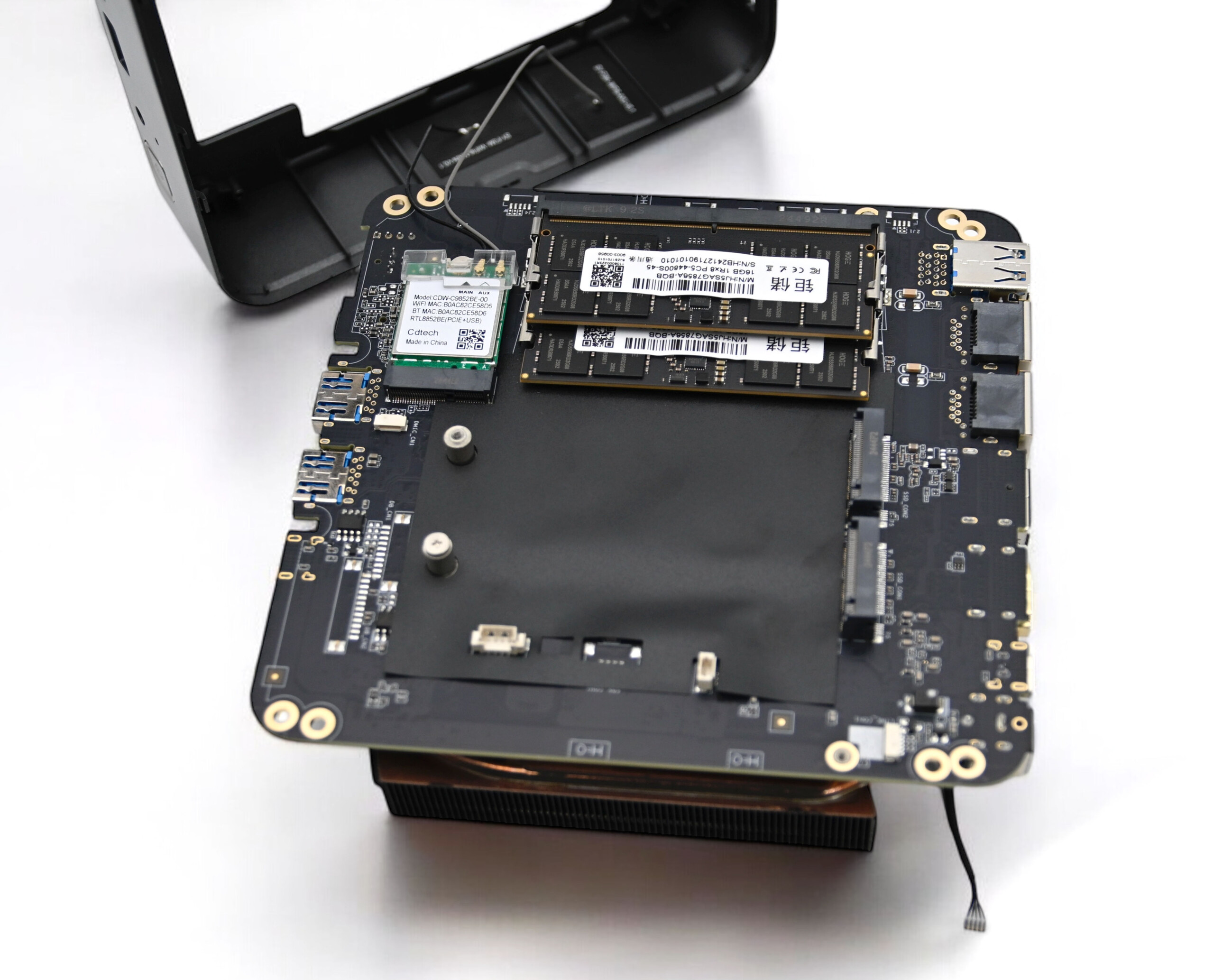

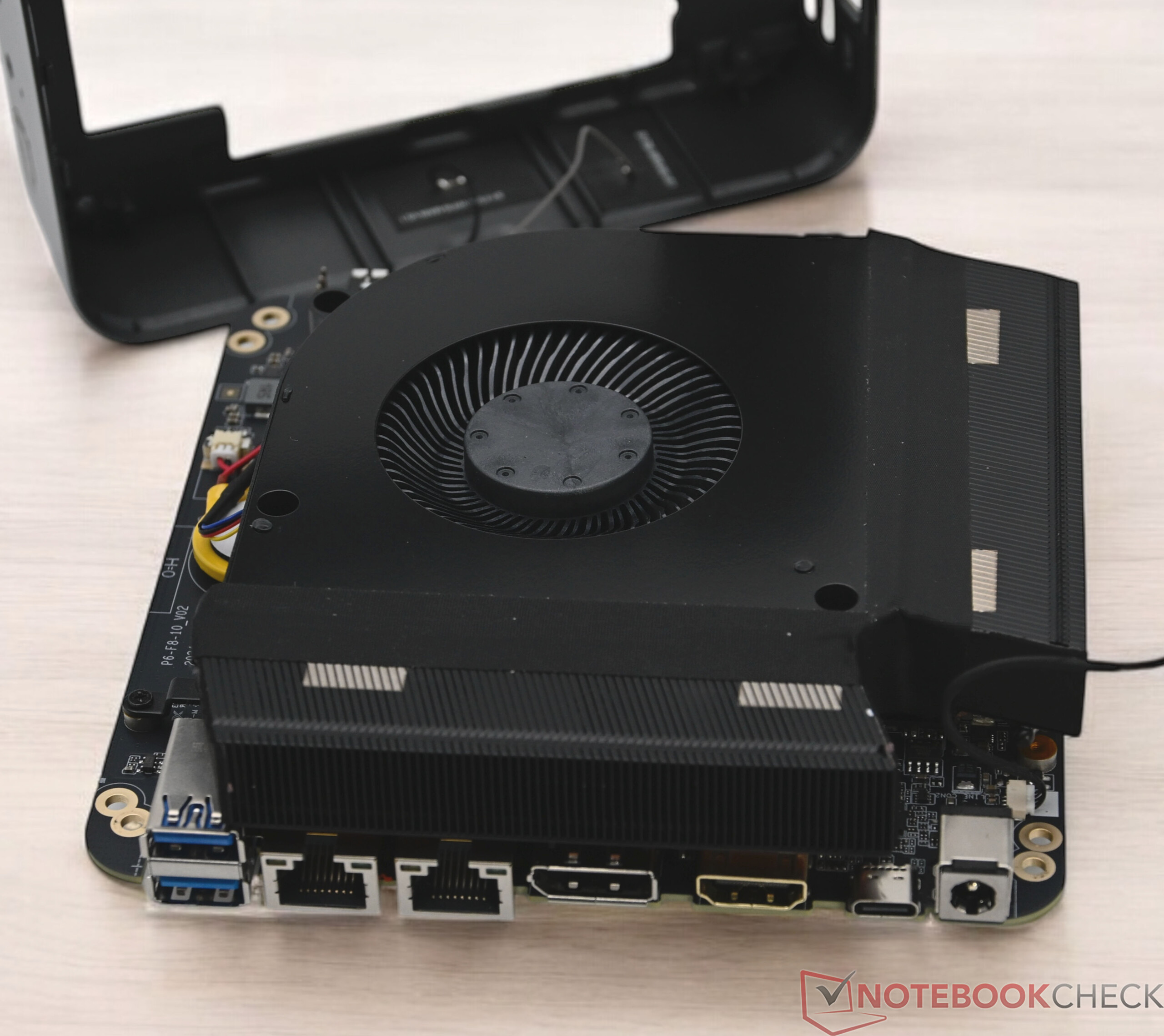

维护

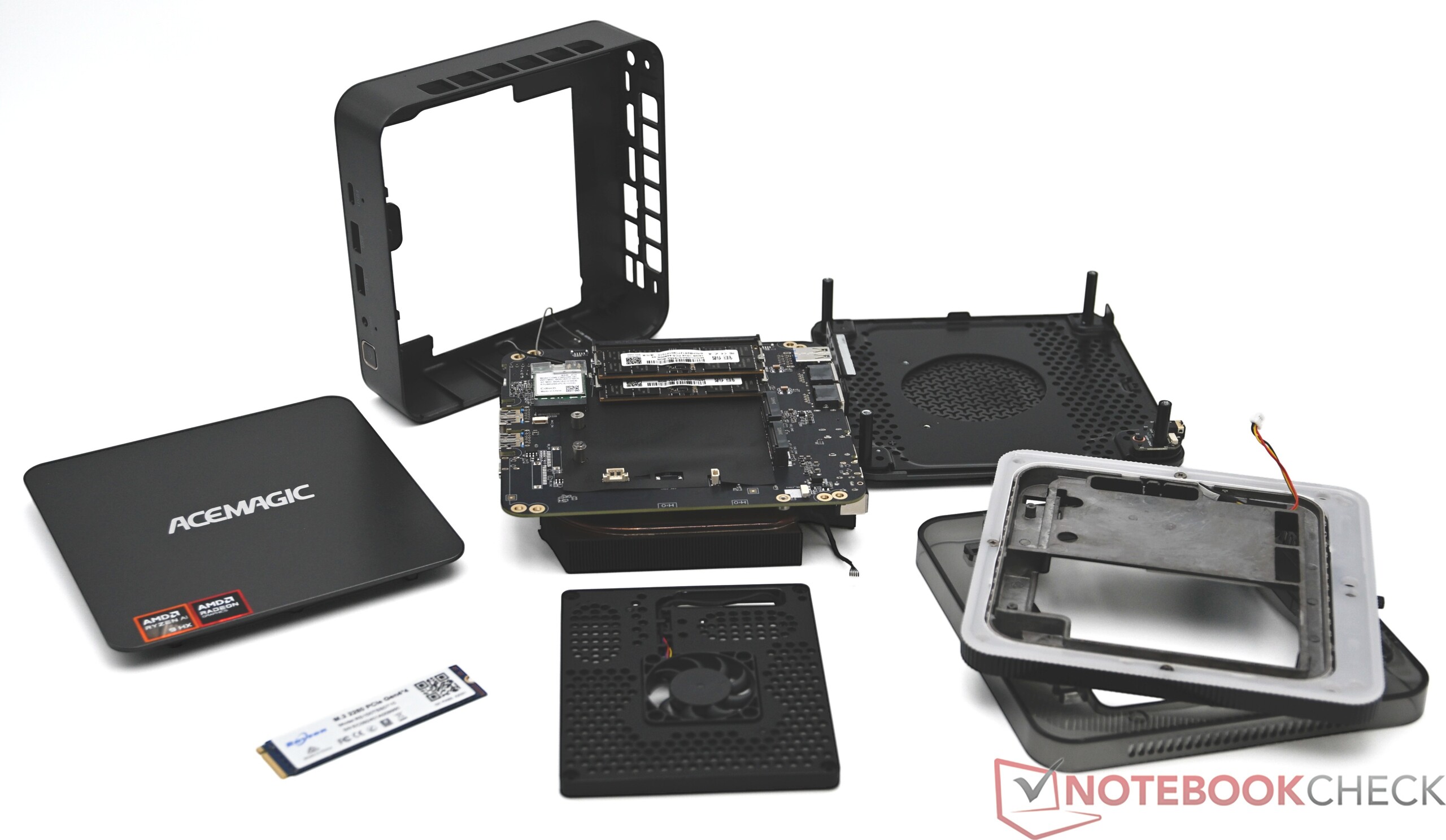

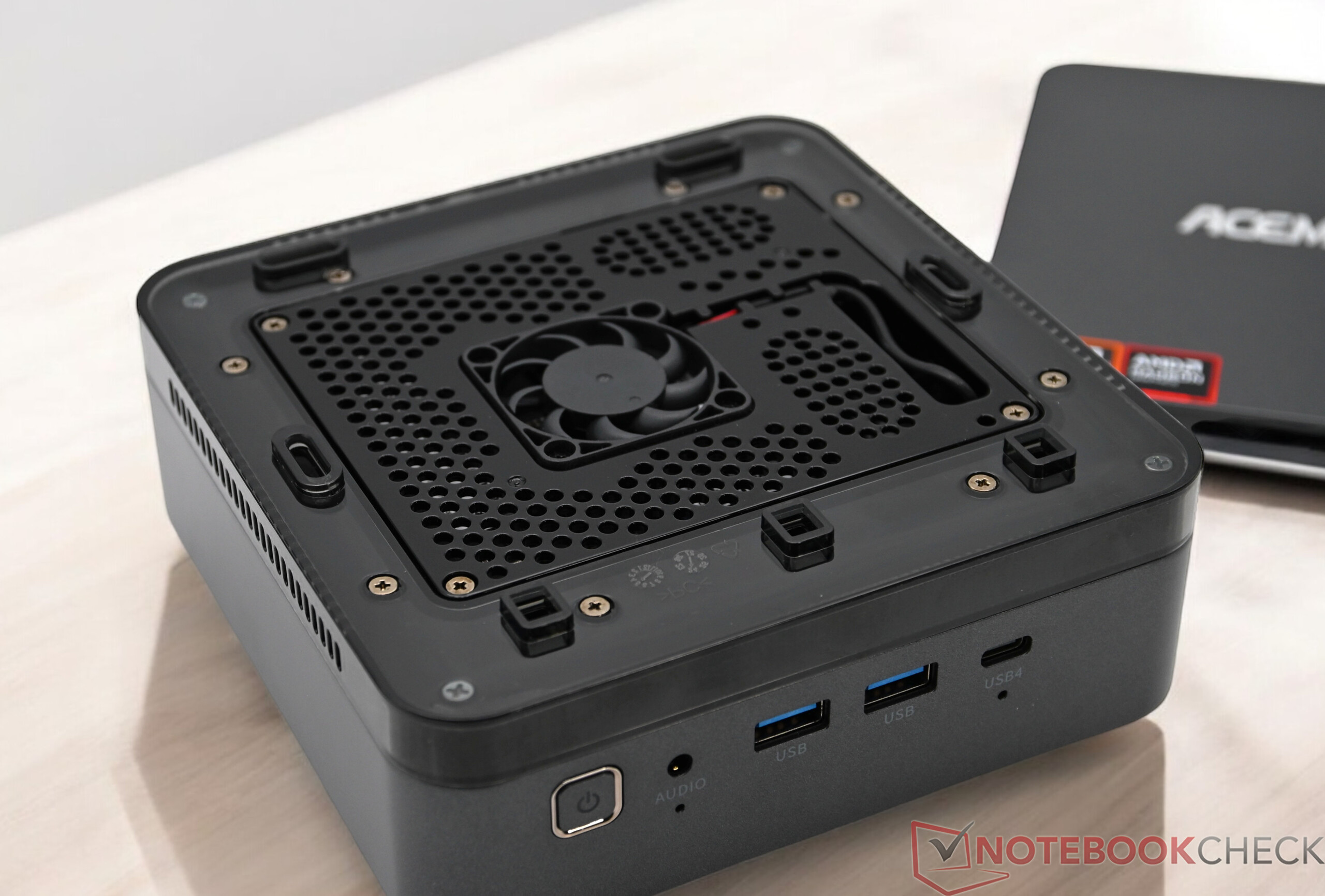

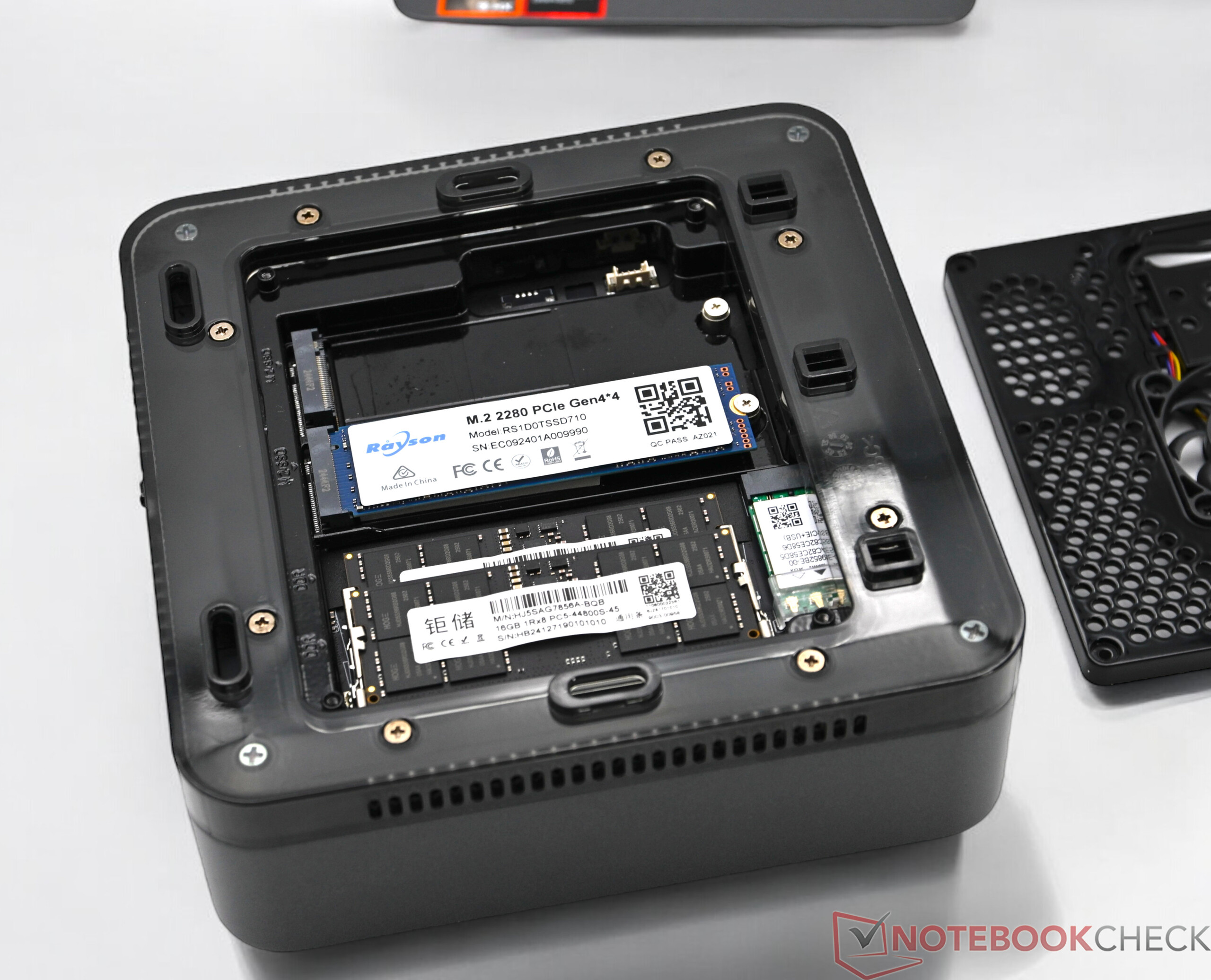

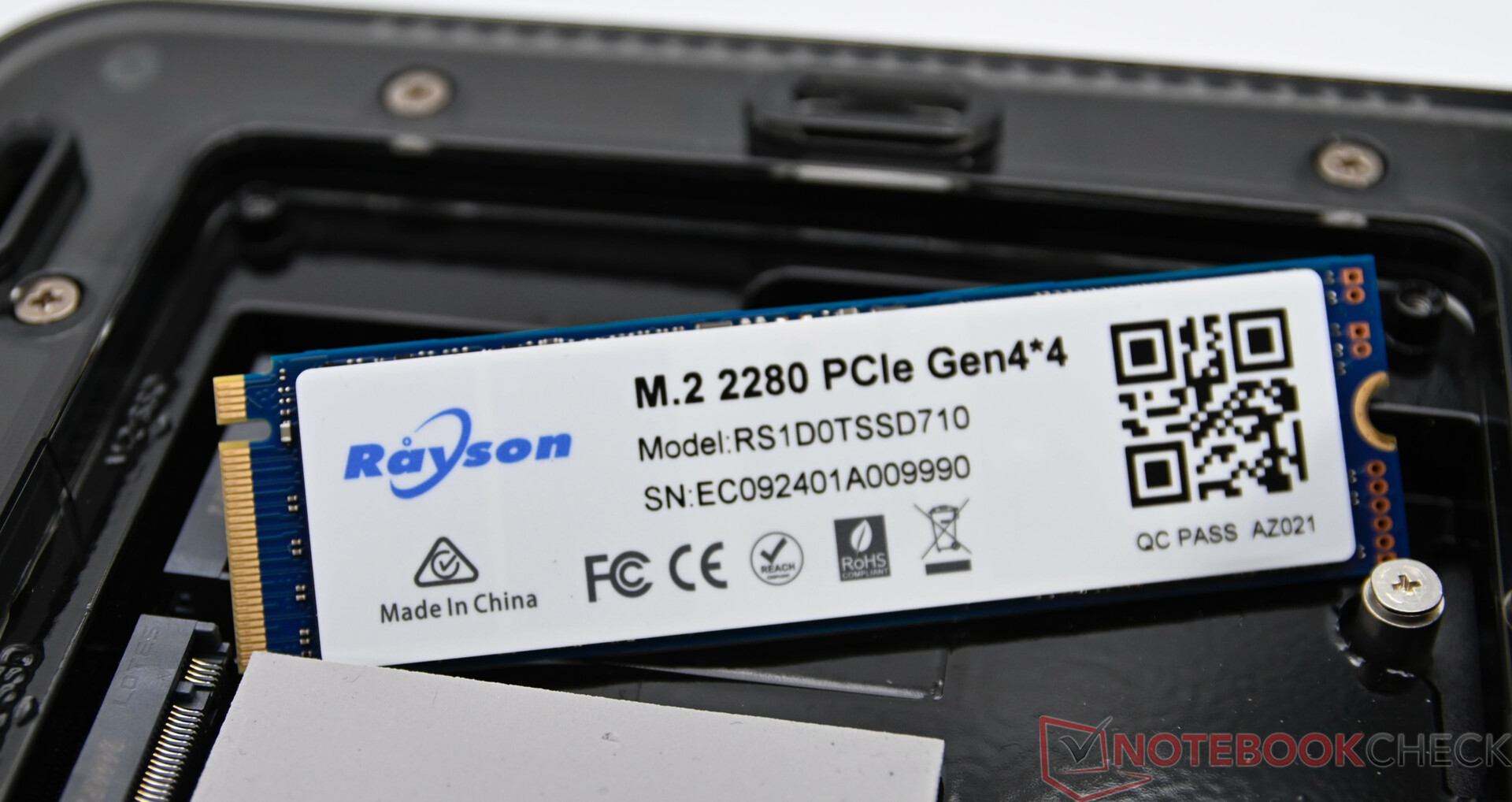

设备的内存和固态硬盘可以很容易地从顶部取出：首先要拧下几颗螺丝，但这并不是什么大难题。还可以进一步拆卸 Acemagic F3A。由于有关 Acemagic 和软件的话题仍然令一些用户感到胃痛，因此我们进行了完整的 Windows 安装。一般来说，无需使用制造商的驱动程序包即可安装操作系统。这主要是裸机版本购买者的兴趣所在。

请注意

无论制造商是哪家，建议在首次使用设备前重新安装预装的操作系统。

可持续性

小巧的 Acemagic F3A 只能进行有限的维修，但至少有 36 个月的保修期。纤薄的包装使运输变得简单。在可持续发展方面，制造商没有提供任何具体数值。此外，也没有关于可回收材料的详细信息。不过，值得庆幸的是，这款迷你电脑拥有良好的能效。

性能 - 配备 12 个内核的 AMD Ryzen AI 9

Acemagic F3A 配备 AMD Ryzen AI 9 HX 370（12 核、24 线程，主频高达 5.1 GHz）和集成的 Radeon 890M GPU，可为办公、多媒体任务和休闲游戏提供强大的性能。目前尚无替代配置。

测试条件

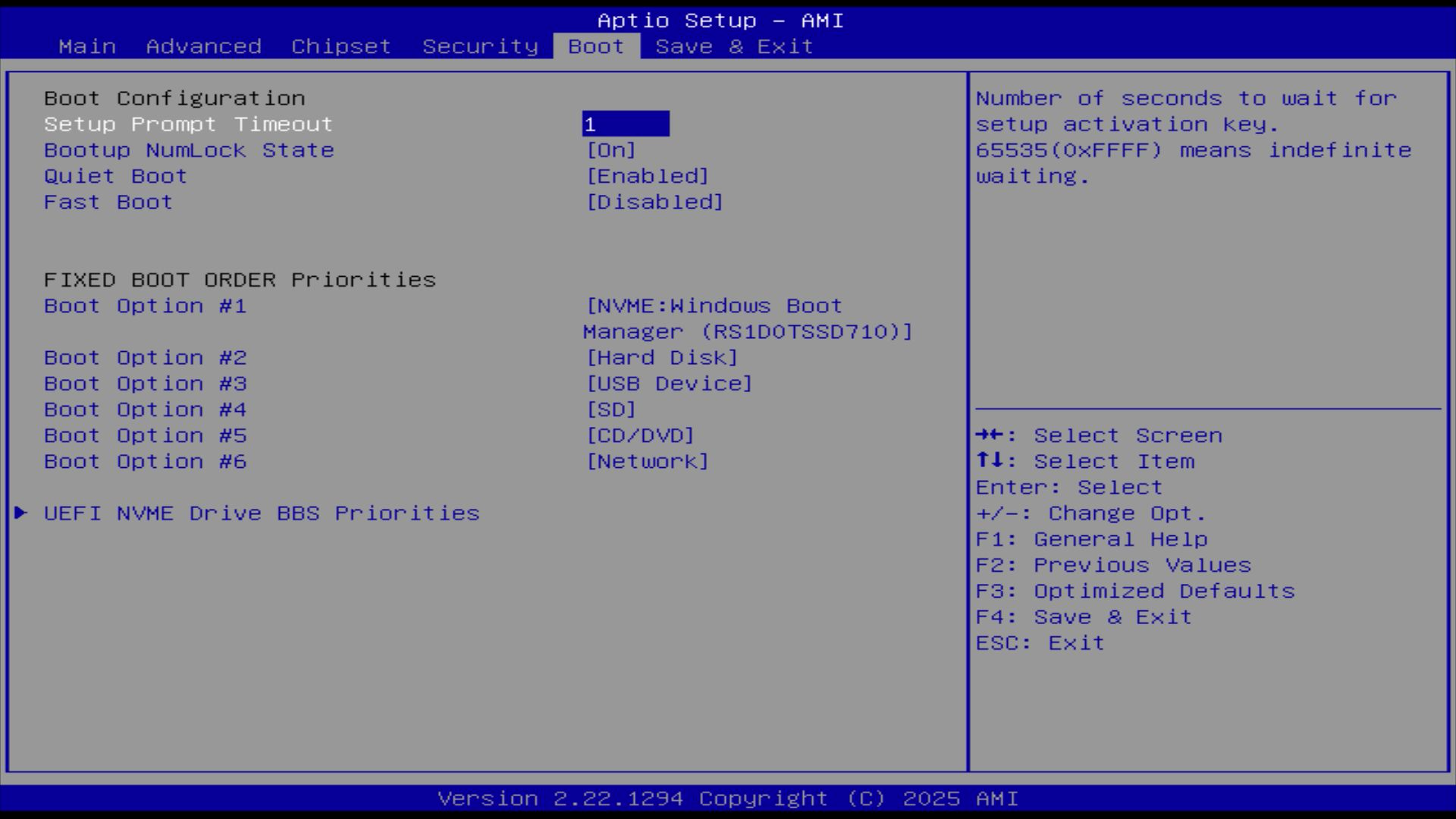

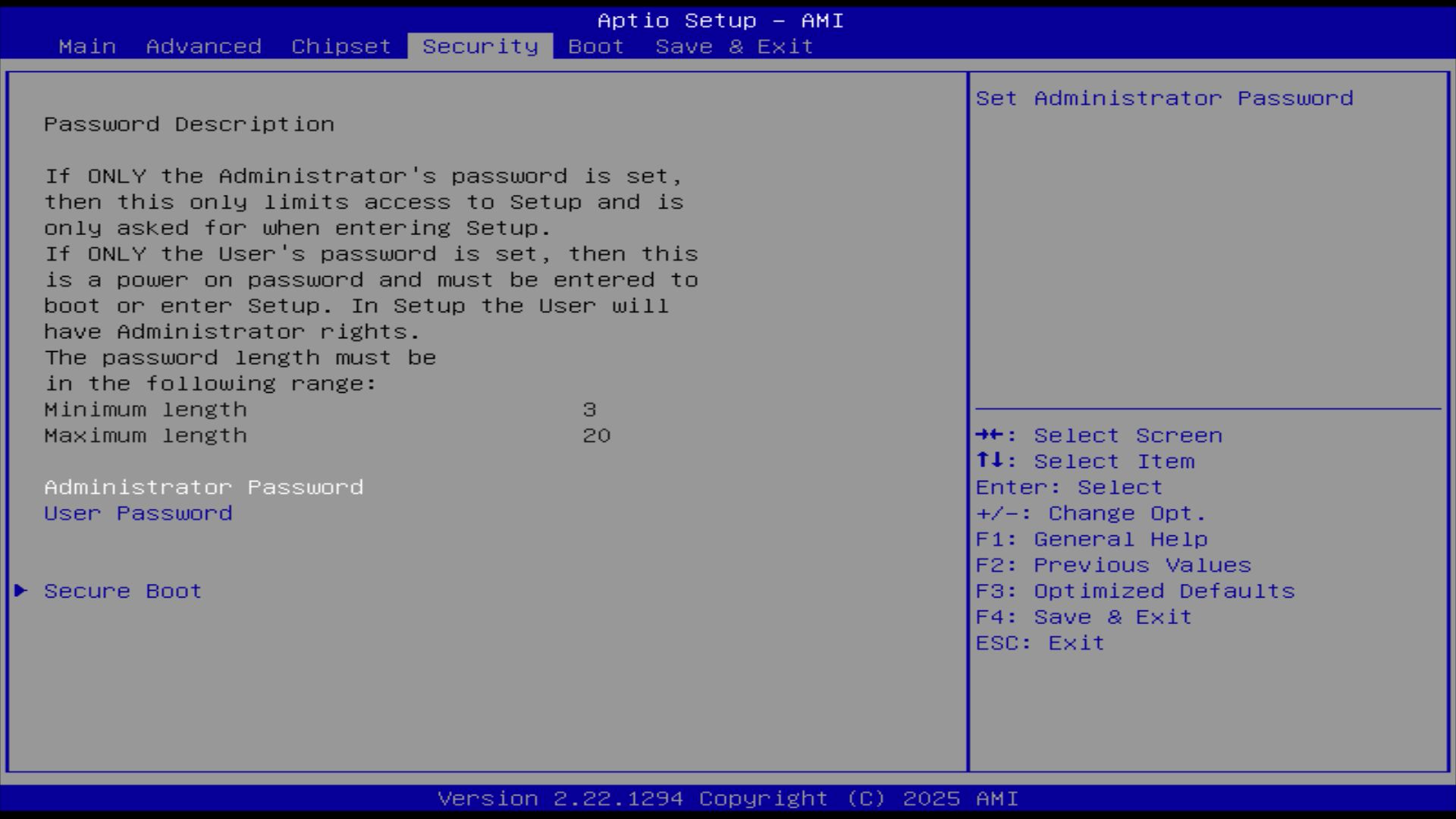

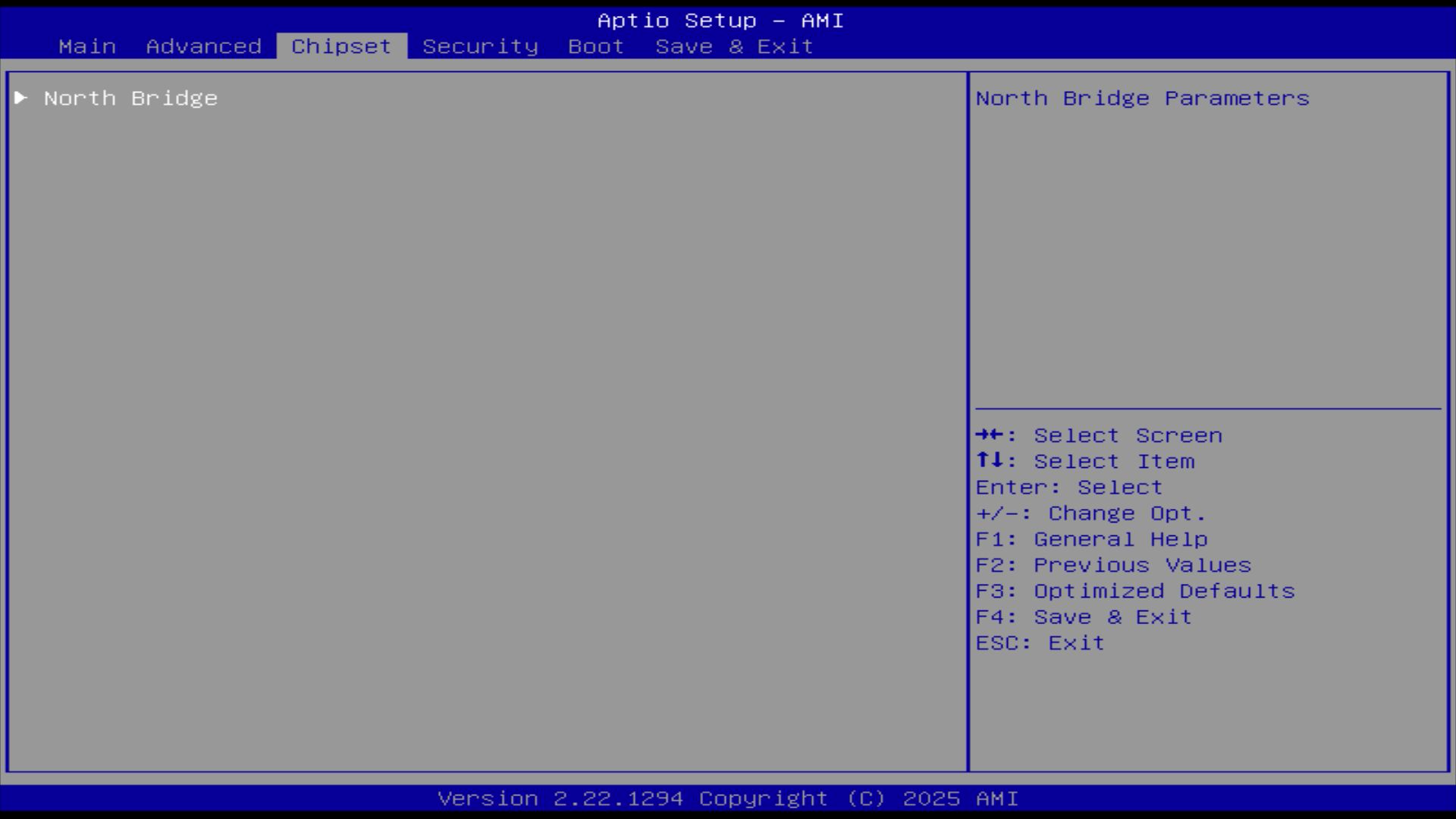

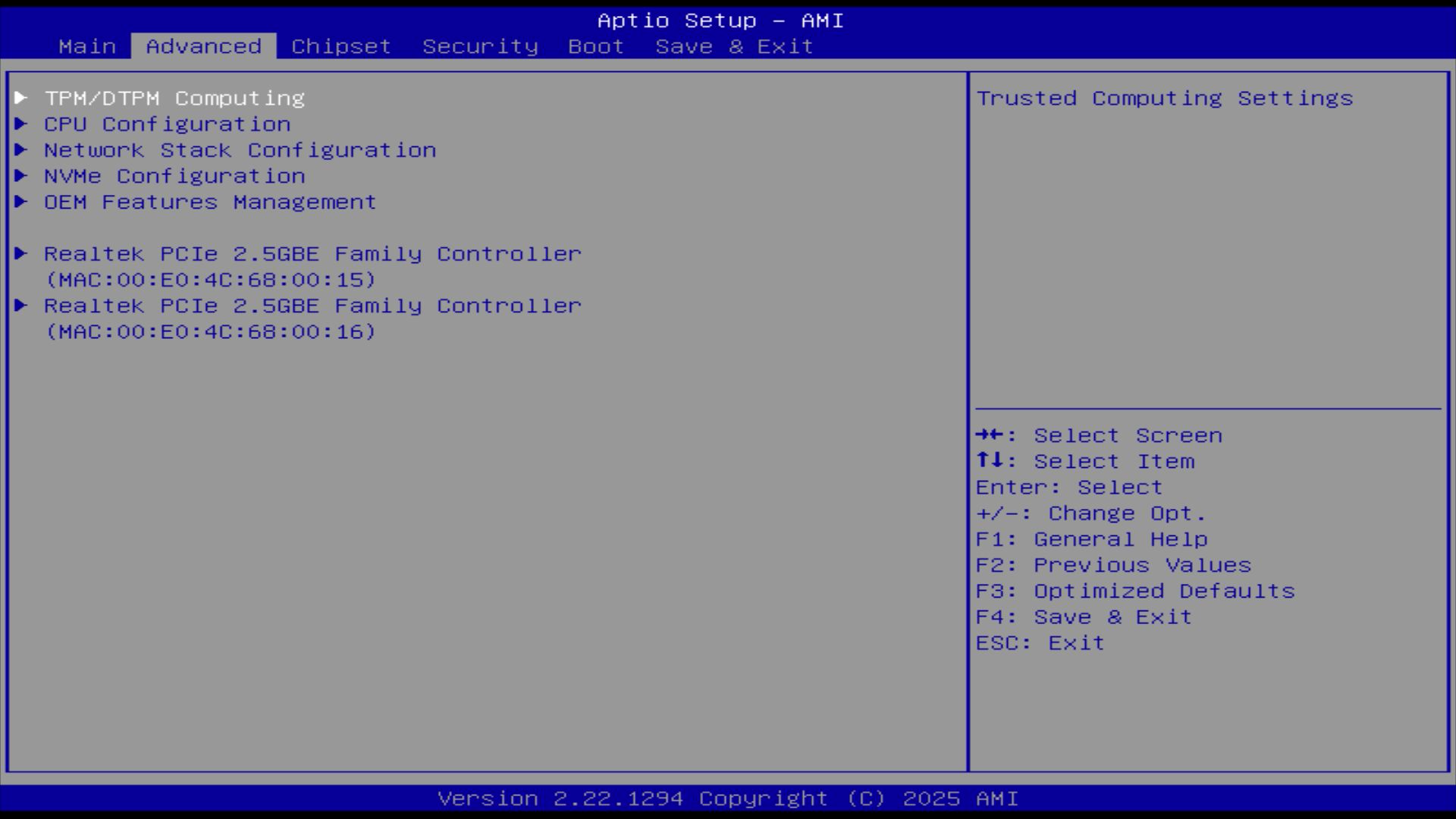

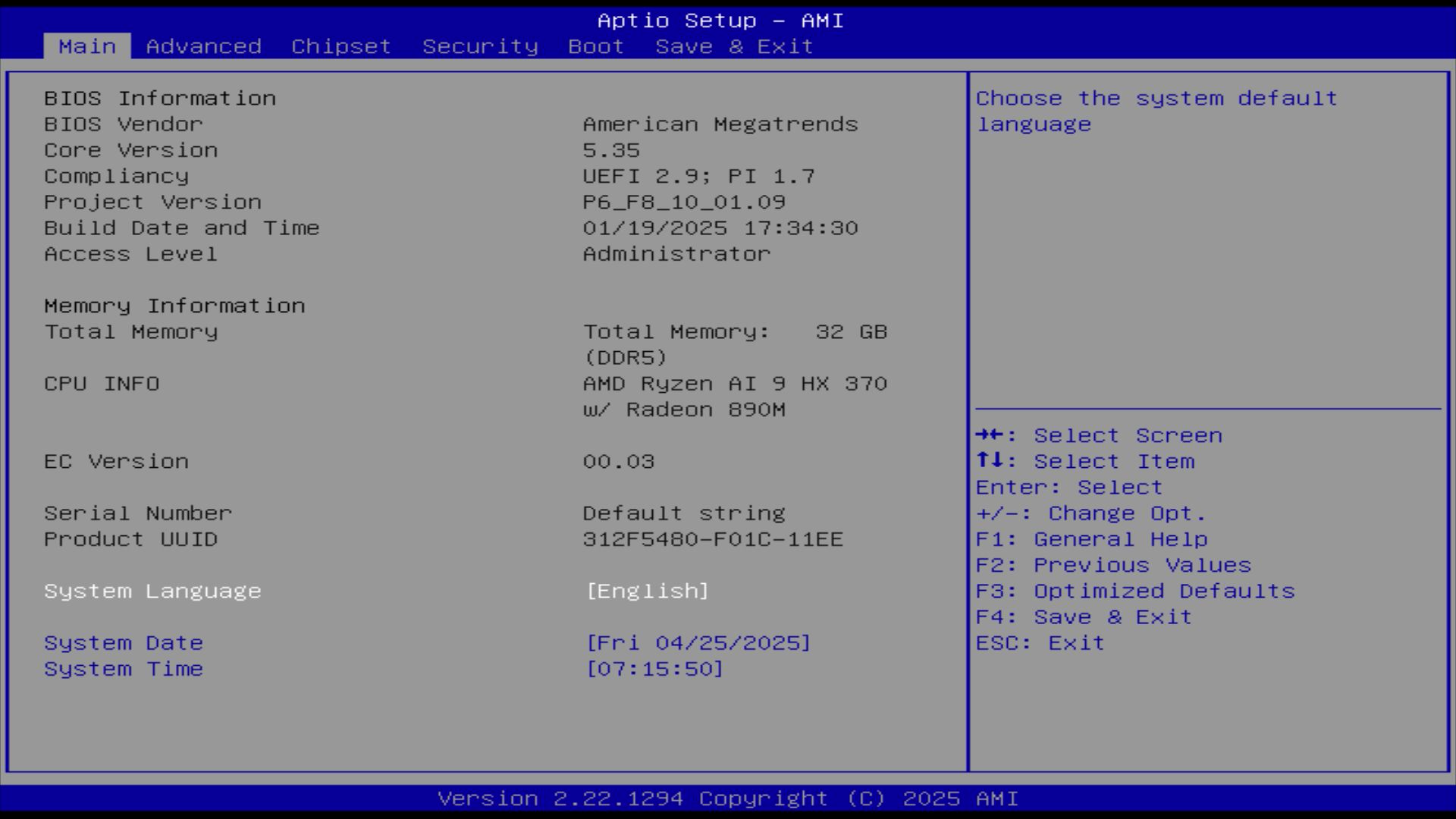

本评测中的所有测试均在设备出厂设置下进行。BIOS 本身只提供几个设置选项。

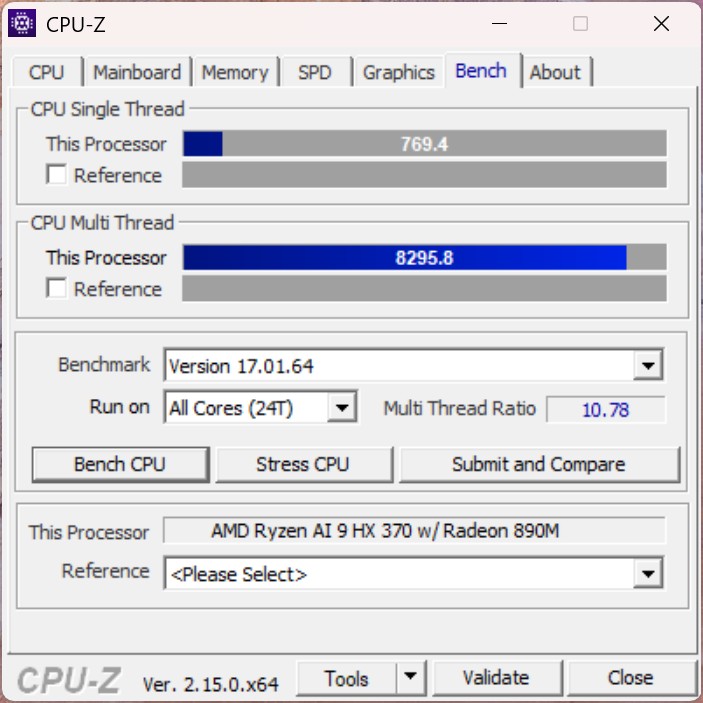

处理器

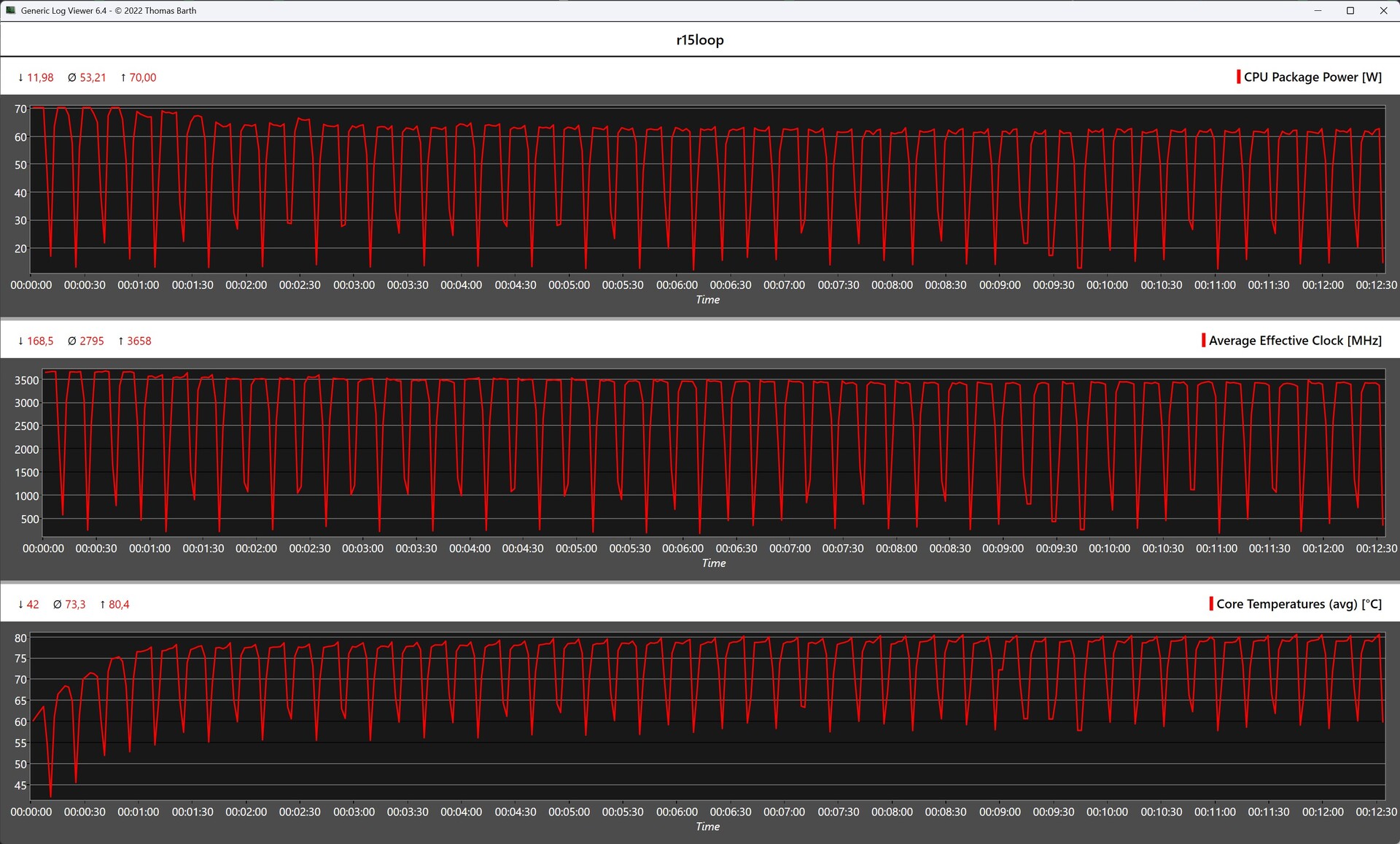

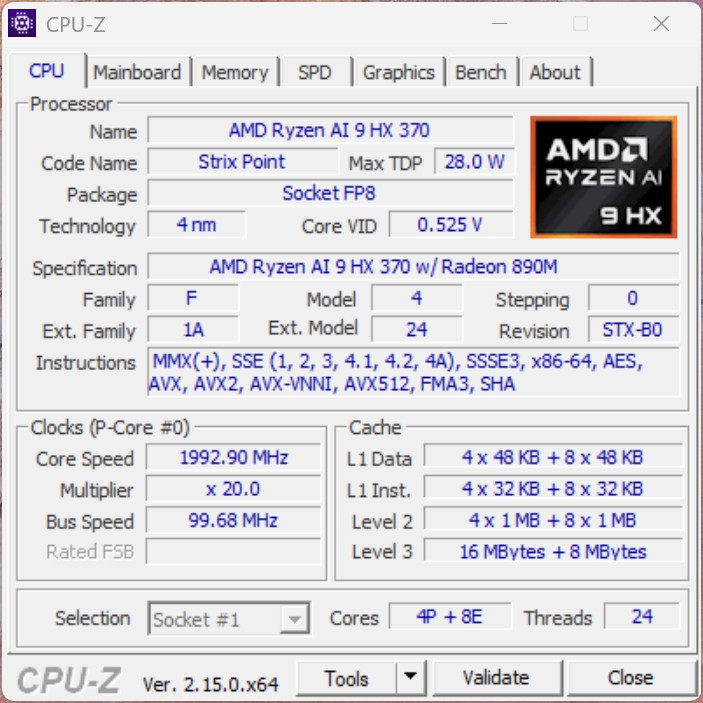

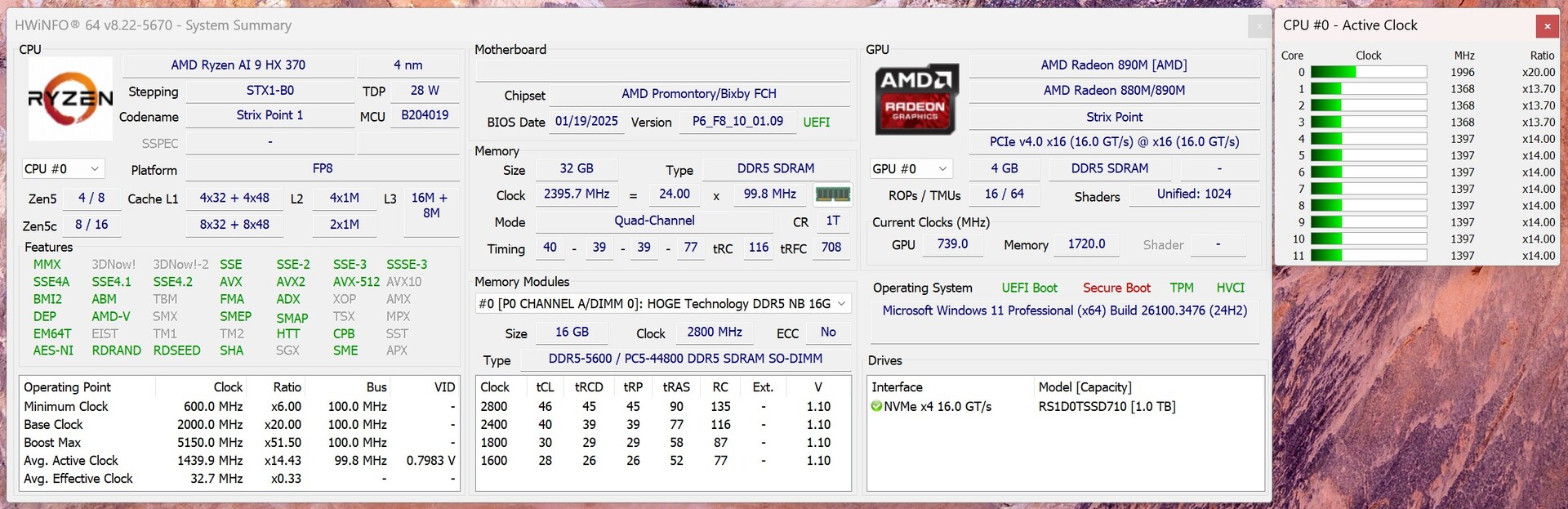

Acemagic F3A 内置的 AMD Ryzen AI 9 HX 370 是一款基于 Zen 5 架构的 12 核处理器，性能强劲，无论是单核还是多核应用都令人印象深刻。我们的测试样品在与 Minisforum AI X1 Pro的直接对比中仅以微弱劣势落败。

Performance Rating - Percent
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	62.6 pt
Acemagic F3A AMD Ryzen AI 9 HX 370	61 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	57.5 pt
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	57.2 pt
Geekom GT1 Mega Intel Core Ultra 9 185H	56.7 pt
Acemagic F2A Intel Core Ultra 7 155H	55.9 pt

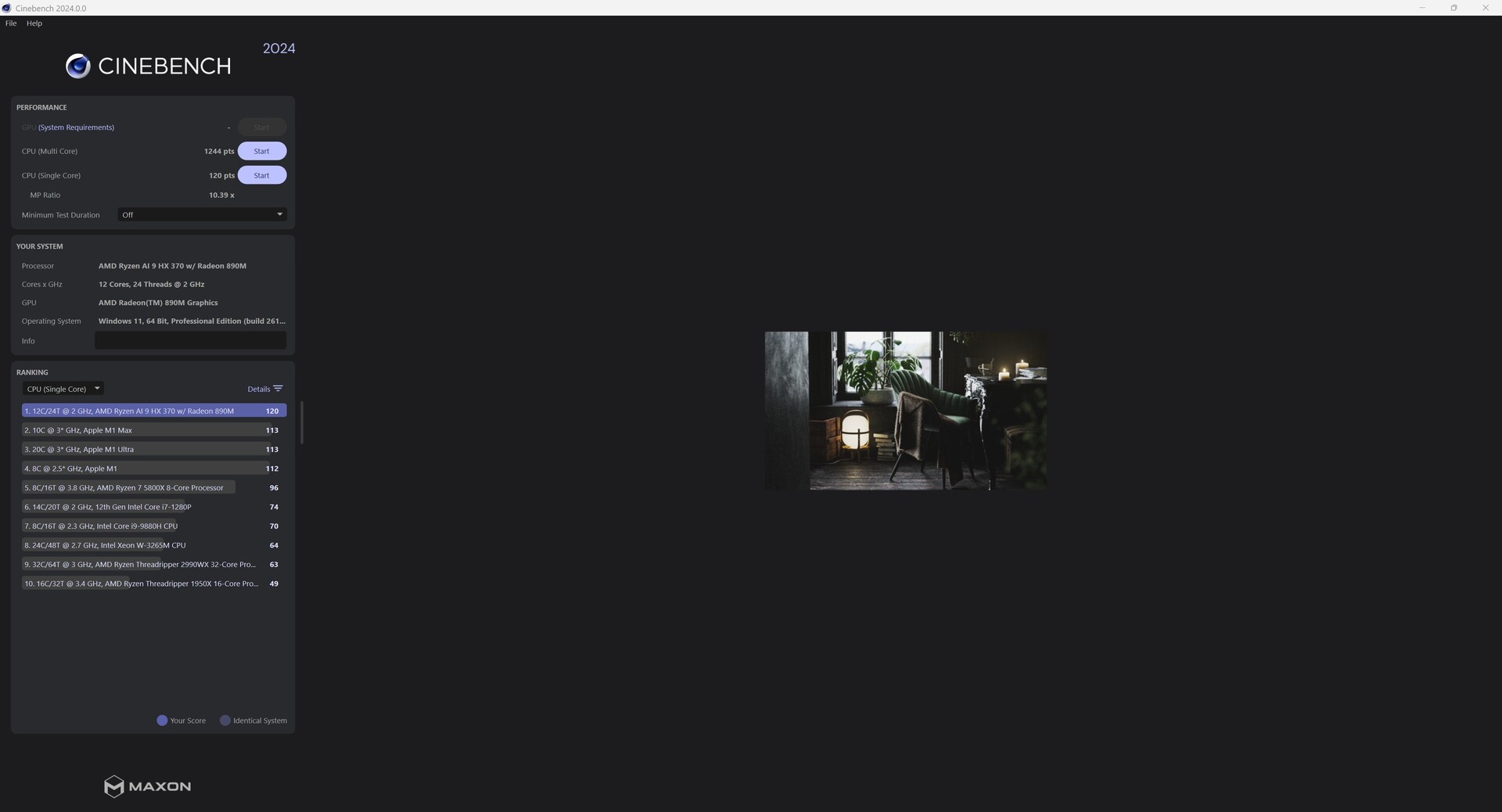

Cinebench 2024
CPU Multi Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1267 Points +2%
Acemagic F3A AMD Ryzen AI 9 HX 370	1244 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1067 Points -14%
Acemagic F2A Intel Core Ultra 7 155H	1022 Points -18%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	943 Points -24%
Geekom GT1 Mega Intel Core Ultra 9 185H	924 Points -26%
CPU Single Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	121 Points +1%
Acemagic F3A AMD Ryzen AI 9 HX 370	120 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	110 Points -8%
Geekom GT1 Mega Intel Core Ultra 9 185H	107 Points -11%
Acemagic F2A Intel Core Ultra 7 155H	106 Points -12%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	106 Points -12%

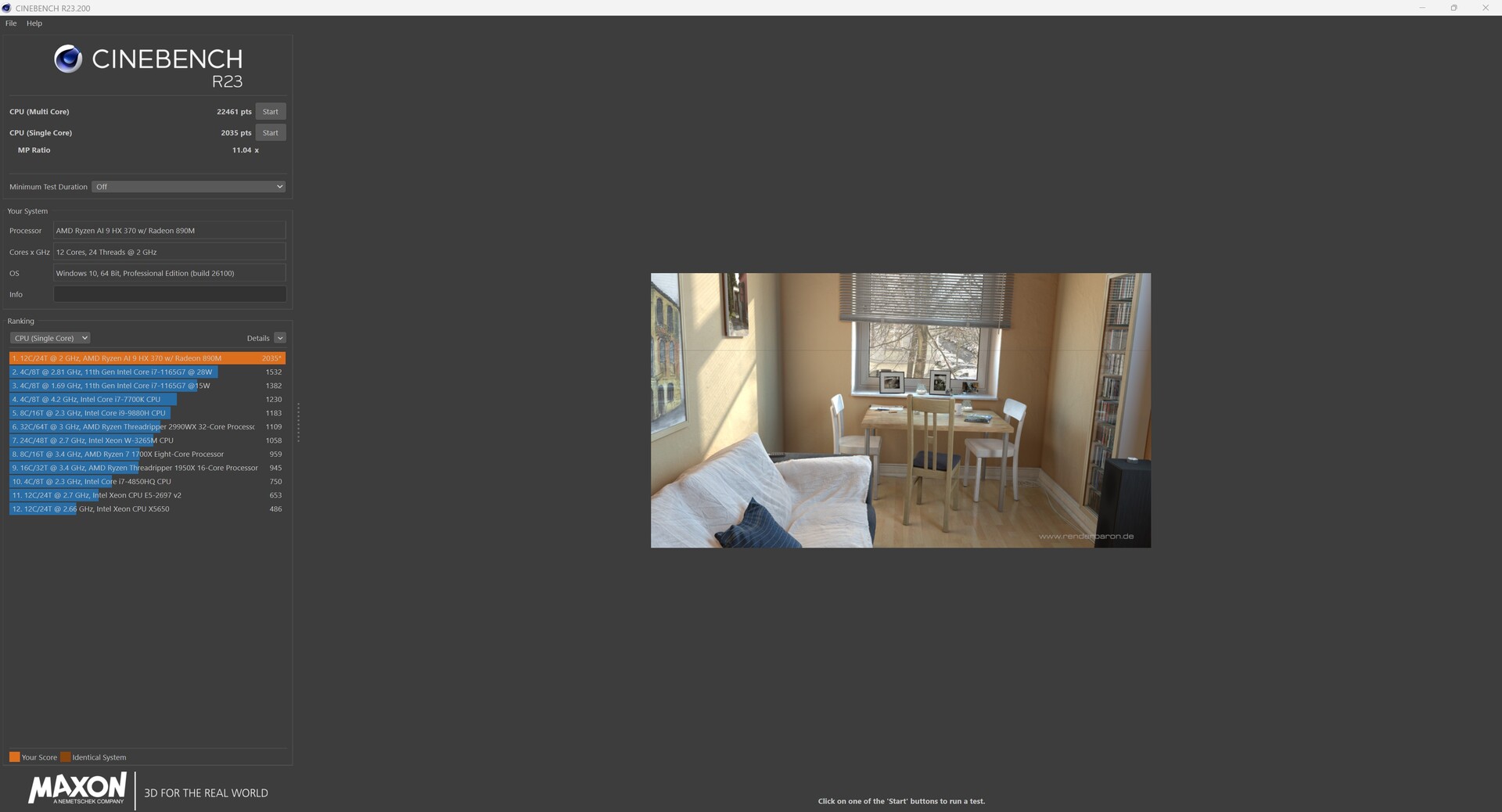

Cinebench R23
Multi Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	22836 Points +2%
Acemagic F3A AMD Ryzen AI 9 HX 370	22461 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	18608 Points -17%
Acemagic F2A Intel Core Ultra 7 155H	18497 Points -18%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	18016 Points -20%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	16350 Points -27%
Single Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2040 Points 0%
Acemagic F3A AMD Ryzen AI 9 HX 370	2035 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1851 Points -9%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1779 Points -13%
Geekom GT1 Mega Intel Core Ultra 9 185H	1774 Points -13%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points -13%

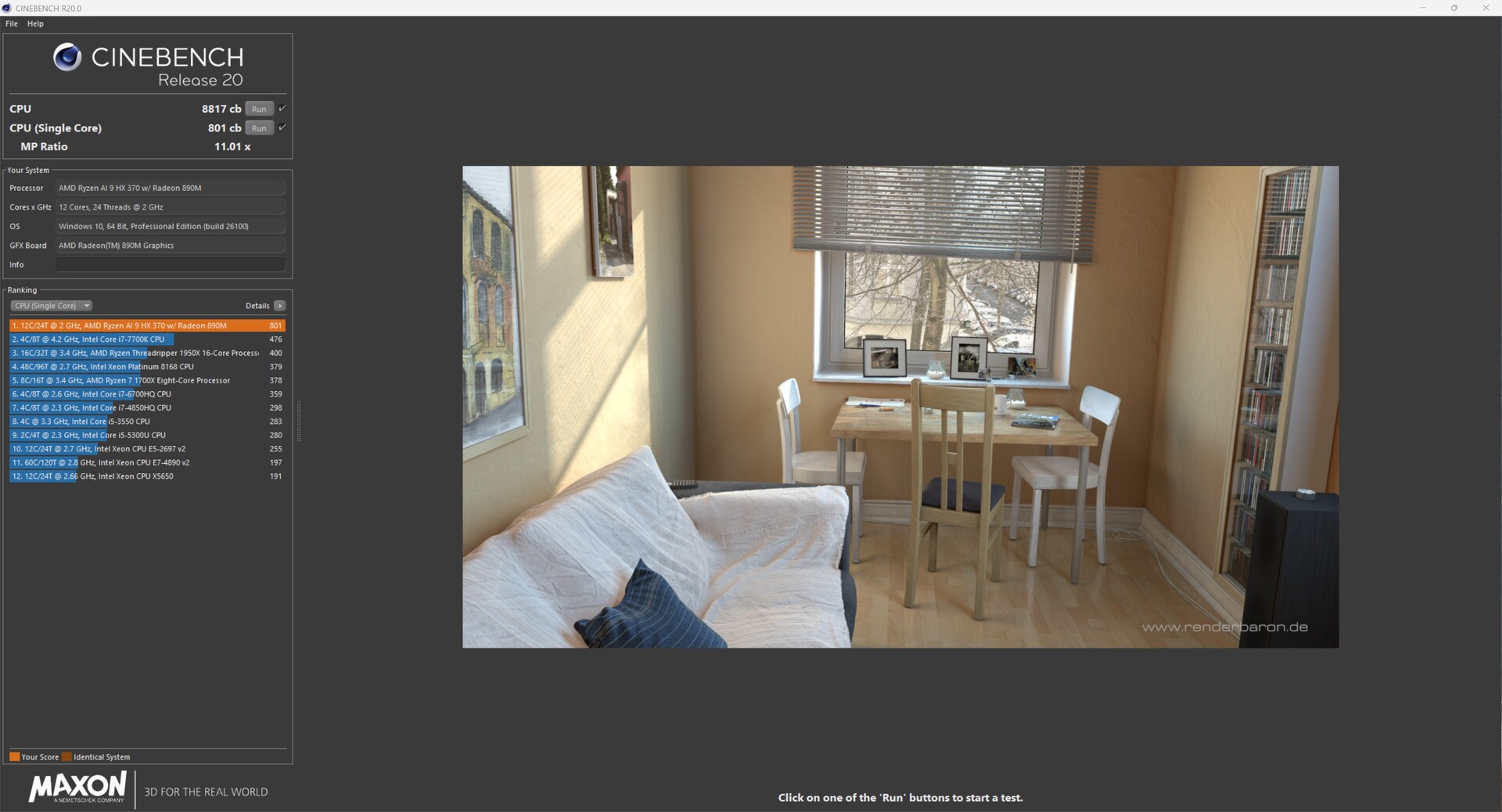

Cinebench R20
CPU (Multi Core)
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8969 Points +2%
Acemagic F3A AMD Ryzen AI 9 HX 370	8817 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7196 Points -18%
Geekom GT1 Mega Intel Core Ultra 9 185H	7192 Points -18%
Acemagic F2A Intel Core Ultra 7 155H	7188 Points -18%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	6428 Points -27%
CPU (Single Core)
Acemagic F3A AMD Ryzen AI 9 HX 370	801 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	798 Points 0%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	715 Points -11%
Geekom GT1 Mega Intel Core Ultra 9 185H	696 Points -13%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	690 Points -14%
Acemagic F2A Intel Core Ultra 7 155H	679 Points -15%

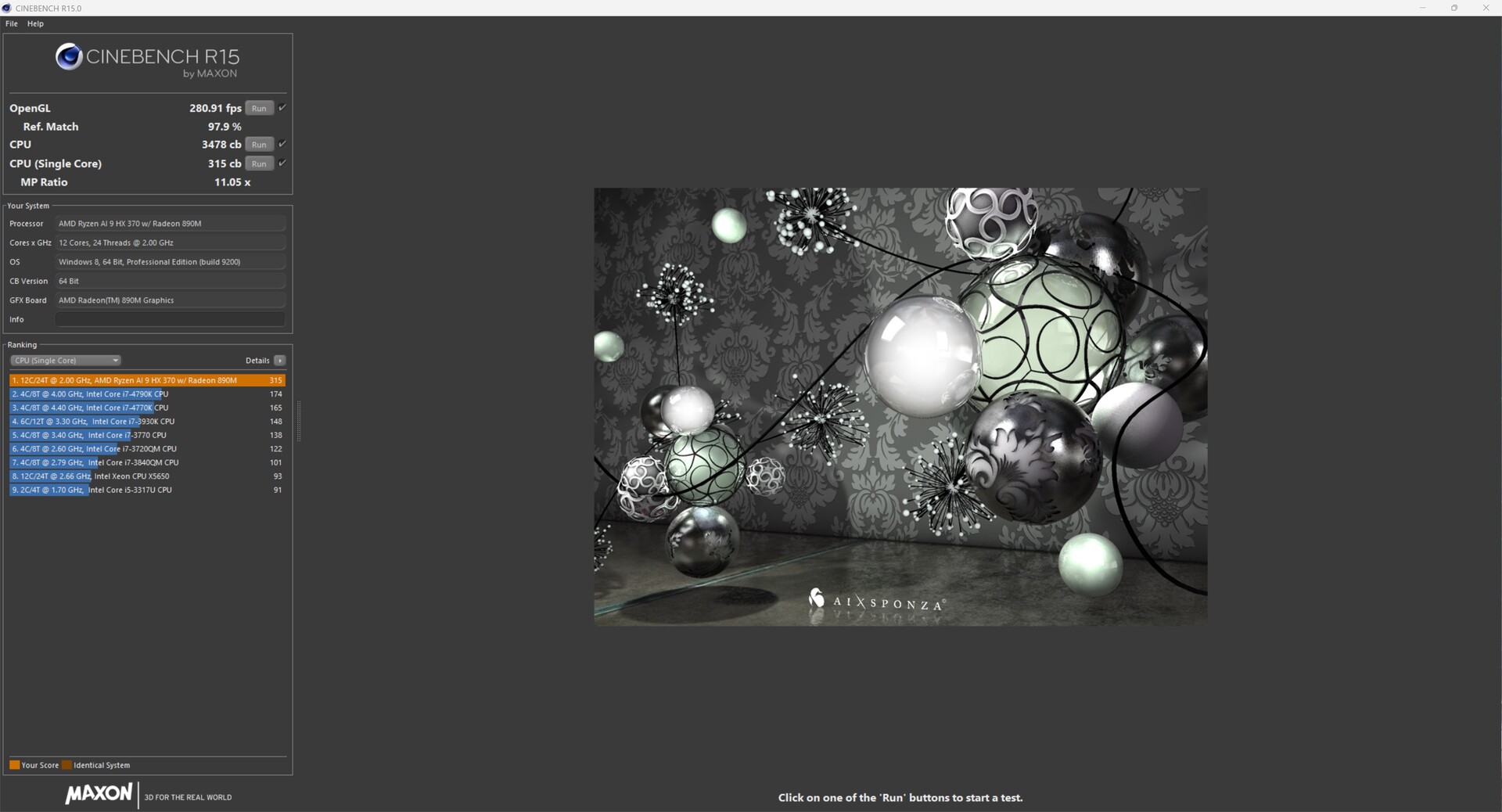

Cinebench R15
CPU Multi 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	3478 Points 0%
Acemagic F3A AMD Ryzen AI 9 HX 370	3478 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	2794 Points -20%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2746 Points -21%
Acemagic F2A Intel Core Ultra 7 155H	2738 Points -21%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2615 Points -25%
CPU Single 64Bit
Acemagic F3A AMD Ryzen AI 9 HX 370	315 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	311 Points -1%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	278 Points -12%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	268 Points -15%
Geekom GT1 Mega Intel Core Ultra 9 185H	262 Points -17%
Acemagic F2A Intel Core Ultra 7 155H	258 Points -18%

Cinebench R11.5
CPU Multi 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	41.17 Points +1%
Acemagic F3A AMD Ryzen AI 9 HX 370	40.69 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	34.34 Points -16%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	33.95 Points -17%
Acemagic F2A Intel Core Ultra 7 155H	33.49 Points -18%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	30.3 Points -26%
CPU Single 64Bit
Acemagic F3A AMD Ryzen AI 9 HX 370	3.7 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	3.69 Points 0%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	3.34 Points -10%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	3.27 Points -12%
Acemagic F2A Intel Core Ultra 7 155H	3.13 Points -15%
Geekom GT1 Mega Intel Core Ultra 9 185H	3.13 Points -15%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	15935 Points 0%
Acemagic F3A AMD Ryzen AI 9 HX 370	15927 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	14557 Points -9%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	14374 Points -10%
Geekom GT1 Mega Intel Core Ultra 9 185H	13997 Points -12%
Acemagic F2A Intel Core Ultra 7 155H	13938 Points -12%
Rendering Multiple CPUs 64Bit
Acemagic F3A AMD Ryzen AI 9 HX 370	103657 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	100569 Points -3%
Acemagic F2A Intel Core Ultra 7 155H	95005 Points -8%
Geekom GT1 Mega Intel Core Ultra 9 185H	91553 Points -12%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	88902 Points -14%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	87782 Points -15%

Blender
v2.79 BMW27 CPU
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	194 Seconds * -37%
Geekom GT1 Mega Intel Core Ultra 9 185H	191 Seconds * -35%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * -25%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	171 Seconds * -20%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	143 Seconds * -1%
Acemagic F3A AMD Ryzen AI 9 HX 370	142 Seconds *
v3.3 Classroom CPU
Geekom GT1 Mega Intel Core Ultra 9 185H	332 Seconds * -55%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	316 Seconds * -48%
Acemagic F2A Intel Core Ultra 7 155H	301 Seconds * -41%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	294 Seconds * -37%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	221 Seconds * -3%
Acemagic F3A AMD Ryzen AI 9 HX 370	214 Seconds *
v4.3 Barbershop CPU
Geekom GT1 Mega Intel Core Ultra 9 185H	1691 Seconds * -54%
Acemagic F2A Intel Core Ultra 7 155H	1636 Seconds * -49%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1566 Seconds * -42%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1454 Seconds * -32%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1151 Seconds * -5%
Acemagic F3A AMD Ryzen AI 9 HX 370	1101 Seconds *

wPrime 2.10
32m
Acemagic F3A AMD Ryzen AI 9 HX 370	3.743 s *
Acemagic F2A Intel Core Ultra 7 155H	3.523 s * +6%
Geekom GT1 Mega Intel Core Ultra 9 185H	3.271 s * +13%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	3.254 s * +13%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2.81 s * +25%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2.701 s * +28%
1024m
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	441.275 s * -455%
Geekom GT1 Mega Intel Core Ultra 9 185H	165.075 s * -108%
Acemagic F2A Intel Core Ultra 7 155H	139.617 s * -76%
Acemagic F3A AMD Ryzen AI 9 HX 370	79.441 s *
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	70.718 s * +11%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	50.536 s * +36%

X264 HD Benchmark 4.0
Pass 1
Geekom GT1 Mega Intel Core Ultra 9 185H	336.5 (329^min - 346^max) fps +10%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	335.5 (329^min - 340^max) fps +10%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	330 (327^min - 331^max) fps +8%
Acemagic F2A Intel Core Ultra 7 155H	325 (323^min - 328^max) fps +6%
Acemagic F3A AMD Ryzen AI 9 HX 370	306 (295^min - 307^max) fps
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	286.5 (284^min - 289^max) fps -6%
Pass 2
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	185.1 (184.7^min - 185.4^max) fps +8%
Acemagic F3A AMD Ryzen AI 9 HX 370	171.45 (170.8^min - 171.9^max) fps
Geekom GT1 Mega Intel Core Ultra 9 185H	161.5 (159.8^min - 163.8^max) fps -6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	158.2 (157.4^min - 158.8^max) fps -8%
Acemagic F2A Intel Core Ultra 7 155H	154.15 (153.8^min - 154.3^max) fps -10%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	149.8 (149.4^min - 151.1^max) fps -13%

WinRAR - Result
Geekom GT1 Mega Intel Core Ultra 9 185H	8563 KB/s +109%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7940 KB/s +94%
Acemagic F2A Intel Core Ultra 7 155H	7723 KB/s +89%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7275 KB/s +78%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	4759 KB/s +16%
Acemagic F3A AMD Ryzen AI 9 HX 370	4090 KB/s

TrueCrypt
AES Mean 100MB
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	15.3 GB/s 0%
Acemagic F3A AMD Ryzen AI 9 HX 370	15.3 GB/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	14.9 GB/s -3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	11.3 GB/s -26%
Geekom GT1 Mega Intel Core Ultra 9 185H	11 GB/s -28%
Acemagic F2A Intel Core Ultra 7 155H	10.6 GB/s -31%
Twofish Mean 100MB
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2.6 GB/s +4%
Acemagic F3A AMD Ryzen AI 9 HX 370	2.5 GB/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2.1 GB/s -16%
Geekom GT1 Mega Intel Core Ultra 9 185H	1.9 GB/s -24%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1.8 GB/s -28%
Acemagic F2A Intel Core Ultra 7 155H	1.7 GB/s -32%
Serpent Mean 100MB
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1.6 GB/s 0%
Acemagic F3A AMD Ryzen AI 9 HX 370	1.6 GB/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1.3 GB/s -19%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1.1 GB/s -31%
Geekom GT1 Mega Intel Core Ultra 9 185H	1.1 GB/s -31%
Acemagic F2A Intel Core Ultra 7 155H	1 GB/s -37%

Geekbench 5.5
Multi-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	14859 Points +13%
Geekom GT1 Mega Intel Core Ultra 9 185H	13763 Points +5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13392 Points +2%
Acemagic F3A AMD Ryzen AI 9 HX 370	13125 Points
Acemagic F2A Intel Core Ultra 7 155H	12662 Points -4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	12207 Points -7%
Single-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2076 Points 0%
Acemagic F3A AMD Ryzen AI 9 HX 370	2073 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1949 Points -6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1856 Points -10%
Geekom GT1 Mega Intel Core Ultra 9 185H	1852 Points -11%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points -16%

Geekbench 5.0
5.0 Multi-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	14828 Points +14%
Geekom GT1 Mega Intel Core Ultra 9 185H	13822 Points +7%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13228 Points +2%
Acemagic F3A AMD Ryzen AI 9 HX 370	12962 Points
Acemagic F2A Intel Core Ultra 7 155H	12438 Points -4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	12057 Points -7%
5.0 Single-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1952 Points +1%
Acemagic F3A AMD Ryzen AI 9 HX 370	1942 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1869 Points -4%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1821 Points -6%
Geekom GT1 Mega Intel Core Ultra 9 185H	1797 Points -7%
Acemagic F2A Intel Core Ultra 7 155H	1708 Points -12%

Geekbench 4.4
64 Bit Multi-Core Score
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	57060 Points +33%
Geekom GT1 Mega Intel Core Ultra 9 185H	49924 Points +17%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	49452 Points +15%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	47960 Points +12%
Acemagic F2A Intel Core Ultra 7 155H	45250 Points +6%
Acemagic F3A AMD Ryzen AI 9 HX 370	42842 Points
64 Bit Single-Core Score
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8277 Points +6%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	8092 Points +4%
Acemagic F3A AMD Ryzen AI 9 HX 370	7790 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7602 Points -2%
Geekom GT1 Mega Intel Core Ultra 9 185H	7516 Points -4%
Acemagic F2A Intel Core Ultra 7 155H	6927 Points -11%

3DMark 11 - 1280x720 Performance Physics
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	22207 Points +20%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	21875 Points +18%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	21286 Points +15%
Acemagic F2A Intel Core Ultra 7 155H	20846 Points +13%
Acemagic F3A AMD Ryzen AI 9 HX 370	18510 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	18130 Points -2%

7-Zip 18.03
7z b 4
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	82854 MIPS +4%
Acemagic F3A AMD Ryzen AI 9 HX 370	79910 MIPS
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	71934 MIPS -10%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	71161 MIPS -11%
Geekom GT1 Mega Intel Core Ultra 9 185H	71050 MIPS -11%
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS -17%
7z b 4 -mmt1
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	6582 MIPS +1%
Acemagic F3A AMD Ryzen AI 9 HX 370	6497 MIPS
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	6337 MIPS -2%
Geekom GT1 Mega Intel Core Ultra 9 185H	5657 MIPS -13%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	5560 MIPS -14%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS -16%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	27.9 fps +1%
Acemagic F3A AMD Ryzen AI 9 HX 370	27.5 fps
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	20.9 fps -24%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	20.7 fps -25%
Geekom GT1 Mega Intel Core Ultra 9 185H	20.2 fps -27%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps -29%

R Benchmark 2.5 - Overall mean
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * -18%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	0.4627 sec * -18%
Geekom GT1 Mega Intel Core Ultra 9 185H	0.4571 sec * -16%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	0.4435 sec * -13%
Acemagic F3A AMD Ryzen AI 9 HX 370	0.3927 sec *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	0.3892 sec * +1%

LibreOffice - 20 Documents To PDF
Acemagic F3A AMD Ryzen AI 9 HX 370	61.3 s *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	52.3 s * +15%
Geekom GT1 Mega Intel Core Ultra 9 185H	52.1 s * +15%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	50.1 s * +18%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	49.5 s * +19%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * +27%

WebXPRT 3 - Overall
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	336 Points +33%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	301 Points +19%
Geekom GT1 Mega Intel Core Ultra 9 185H	286 Points +13%
Acemagic F2A Intel Core Ultra 7 155H	276 Points +10%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	264 Points +5%
Acemagic F3A AMD Ryzen AI 9 HX 370	252 Points

Mozilla Kraken 1.1 - Total
Acemagic F2A Intel Core Ultra 7 155H	535 ms * -17%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	532 ms * -17%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	527 ms * -16%
Geekom GT1 Mega Intel Core Ultra 9 185H	518 ms * -14%
Acemagic F3A AMD Ryzen AI 9 HX 370	456 ms *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	419 ms * +8%

3DMark
1920x1080 Fire Strike Physics
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	28765 Points +1%
Acemagic F3A AMD Ryzen AI 9 HX 370	28620 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	26420 Points -8%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	26038 Points -9%
Acemagic F2A Intel Core Ultra 7 155H	25043 Points -12%
Geekom GT1 Mega Intel Core Ultra 9 185H	24366 Points -15%
2560x1440 Time Spy CPU
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	11481 Points +6%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	10990 Points +1%
Acemagic F3A AMD Ryzen AI 9 HX 370	10873 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	10795 Points -1%
Acemagic F2A Intel Core Ultra 7 155H	10014 Points -8%
Geekom GT1 Mega Intel Core Ultra 9 185H	9687 Points -11%

Super Pi mod 1.5 XS 1M - 1M
Acemagic F3A AMD Ryzen AI 9 HX 370	8.391 s *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8.224 s * +2%
Acemagic F2A Intel Core Ultra 7 155H	7.168 s * +15%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7.103 s * +15%
Geekom GT1 Mega Intel Core Ultra 9 185H	6.762 s * +19%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	6.751 s * +20%

Super Pi mod 1.5 XS 2M - 2M
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	17.746 s * -1%
Acemagic F3A AMD Ryzen AI 9 HX 370	17.647 s *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	17.504 s * +1%
Acemagic F2A Intel Core Ultra 7 155H	16.125 s * +9%
Geekom GT1 Mega Intel Core Ultra 9 185H	14.928 s * +15%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	14.879 s * +16%

Affinity Photo 2 - Combined (Multi CPU)
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1050 Points +2%
Acemagic F3A AMD Ryzen AI 9 HX 370	1025 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	813 Points -21%
Geekom GT1 Mega Intel Core Ultra 9 185H	792 Points -23%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	787 Points -23%
Acemagic F2A Intel Core Ultra 7 155H	770 Points -25%

SPECworkstation 4.0 - CPU Score
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1.28 Points +6%
Acemagic F3A AMD Ryzen AI 9 HX 370	1.21 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1.05 Points -13%
Geekom GT1 Mega Intel Core Ultra 9 185H	1.02 Points -16%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1.02 Points -16%
Acemagic F2A Intel Core Ultra 7 155H	0.98 Points -19%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

8797

Cinebench R10 Shading 64Bit

27186 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

103657 Points

Cinebench R10 Rendering Single CPUs 64Bit

15927 Points

Cinebench R10 Shading 32Bit

22867

Cinebench R10 Rendering Multiple CPUs 32Bit

56689

Cinebench R11.5 CPU Single 32Bit

3.34 Points

Cinebench R11.5 CPU Multi 32Bit

36.62 Points

Cinebench R11.5 CPU Single 64Bit

3.7 Points

Cinebench R11.5 CPU Multi 64Bit

40.69 Points

Cinebench R15 CPU Single 64Bit

315 Points

Cinebench R15 CPU Multi 64Bit

3478 Points

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 OpenGL 64Bit

280.91 fps

Cinebench R20 CPU (Single Core)

801 Points

Cinebench R20 CPU (Multi Core)

8817 Points

Cinebench R23 Multi Core

22461 Points

Cinebench R23 Single Core

2035 Points

Cinebench 2024 CPU Single Core

120 Points

Cinebench 2024 CPU Multi Core

1244 Points

Help

... in comparison

Performance Rating
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	92.4 pt
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	86.4 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	75.9 pt
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	69.7 pt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	66.1 pt
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	64.3 pt
Average of class Mini PC	52 pt

AIDA64 / FP32 Ray-Trace
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	36304 KRay/s +2%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	35454 KRay/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	26038 KRay/s -27%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	17544 KRay/s -51%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	17312 KRay/s -51%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	15184 KRay/s -57%
Average of class Mini PC (764 - 51004, n=113, last 2 years)	14398 KRay/s -59%

AIDA64 / FPU Julia
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	139919 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	138264 Points -1%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	107039 Points -23%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	91112 Points -35%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	88829 Points -37%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	78346 Points -44%
Average of class Mini PC (4140 - 214250, n=113, last 2 years)	69803 Points -50%

AIDA64 / CPU SHA3
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	5698 MB/s +3%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	5518 MB/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	4709 MB/s -15%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	4343 MB/s -21%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	4246 MB/s -23%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	3753 MB/s -32%
Average of class Mini PC (290 - 9399, n=113, last 2 years)	3090 MB/s -44%

AIDA64 / CPU Queen
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	117545 Points +181%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	89748 Points +115%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	87574 Points +110%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	87291 Points +109%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	86969 Points +108%
Average of class Mini PC (8172 - 184747, n=113, last 2 years)	81948 Points +96%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	41793 Points

AIDA64 / FPU SinJulia
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	18988 Points +1%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	18824 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	14943 Points -21%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	10759 Points -43%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	10289 Points -45%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	10247 Points -46%
Average of class Mini PC (408 - 29064, n=113, last 2 years)	9409 Points -50%

AIDA64 / FPU Mandel
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	74928 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	74000 Points -1%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	57314 Points -24%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	45718 Points -39%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	44874 Points -40%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	38945 Points -48%
Average of class Mini PC (2088 - 113499, n=113, last 2 years)	36431 Points -51%

AIDA64 / CPU AES
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	154066 MB/s +111%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	144741 MB/s +99%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	138481 MB/s +90%
Average of class Mini PC (3691 - 325960, n=113, last 2 years)	89829 MB/s +23%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	82828 MB/s +14%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	79852 MB/s +10%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	72870 MB/s

AIDA64 / CPU ZLib
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	1513 MB/s +3%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	1462 MB/s
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	1233 MB/s -16%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	1183 MB/s -19%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	1181 MB/s -19%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	1063 MB/s -27%
Average of class Mini PC (76.7 - 2039, n=113, last 2 years)	794 MB/s -46%

AIDA64 / FP64 Ray-Trace
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	19666 KRay/s +1%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	19551 KRay/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	14040 KRay/s -28%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	9284 KRay/s -53%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	9270 KRay/s -53%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	7925 KRay/s -59%
Average of class Mini PC (432 - 26952, n=113, last 2 years)	7708 KRay/s -61%

AIDA64 / CPU PhotoWorxx
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	51727 MPixel/s +9%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	47364 MPixel/s
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	47032 MPixel/s -1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	45560 MPixel/s -4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	39905 MPixel/s -16%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	33092 MPixel/s -30%
Average of class Mini PC (5296 - 51727, n=113, last 2 years)	30055 MPixel/s -37%

Cinebench R15 多连续测试

Acemagic F3A 中的 AMD Ryzen AI 9 HX 370 在连续负载情况下同样表现出色。在我们的测试中，它的最大功耗为 70 瓦，然后在 53 瓦时趋于平稳。总体而言，这款迷你 PC 的散热系统比 Minisforum AI X1 Pro 稍弱。不过，与 Acemagic F2A 相比，它的连续性能有了显著提高。

Acemagic F3A AMD Ryzen AI 9 HX 370, AMD Ryzen AI 9 HX 370: Ø3239 (3154.08-3427.89)

Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, AMD Ryzen AI 9 HX 370: Ø3424 (3388.97-3493.45)

Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, AMD Ryzen 7 8845HS: Ø2547 (2492.52-2619.34)

Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Core Ultra 9 185H: Ø2442 (2286.63-2795.05)

Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Intel Core Ultra 9 185H: Ø2784 (2721.64-2831.86)

Acemagic F2A Intel Core Ultra 7 155H, Intel Core Ultra 7 155H: Ø2759 (2690.7-2800.92)

系统性能

Acemagic F3A 凭借其强大的 Ryzen AI 9 APU、高速 DDR5 内存和 PCIe SSD，提供了令人印象深刻的系统性能。在内存基准测试中，我们的测试样品以微弱优势获得第一名。配备更快 LPDDR5x 内存的迷你 PC (Minisforum EliteMini AI370) 在这方面取得了更好的成绩。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	7577 Points +15%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	7510 Points +14%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	7232 Points +10%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	7120 Points +8%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	6993 Points +6%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	6577 Points

PCMark 10 / Essentials
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	11125 Points +20%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	11030 Points +19%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	10824 Points +17%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	10438 Points +13%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	10286 Points +11%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	9277 Points

PCMark 10 / Productivity
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	10484 Points +23%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	10422 Points +23%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	9742 Points +15%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	8901 Points +5%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	8797 Points +4%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	8497 Points

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1888 Points +35%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1816 Points +30%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1802 Points +29%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1771 Points +26%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1675 Points +19%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1402 Points

CrossMark / Responsiveness
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1864 Points +72%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1700 Points +57%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1496 Points +38%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1378 Points +27%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1222 Points +13%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1085 Points

CrossMark / Creativity
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	2211 Points +30%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	2052 Points +20%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1959 Points +15%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1929 Points +13%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1883 Points +10%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1707 Points

CrossMark / Productivity
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1827 Points +46%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1717 Points +37%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1714 Points +37%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1605 Points +28%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1589 Points +27%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1253 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, Radeon 890M	88377 MB/s +19%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	74350 MB/s
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	73624 MB/s -1%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	72702 MB/s -2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	71990 MB/s -3%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	67607 MB/s -9%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	62397 MB/s -16%
Average of class Mini PC (8377 - 89287, n=113, last 2 years)	50715 MB/s -32%

AIDA64 / Memory Read
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, Radeon 890M	99171 MB/s +15%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	85928 MB/s
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	84635 MB/s -2%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	79371 MB/s -8%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	75449 MB/s -12%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	64323 MB/s -25%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	60996 MB/s -29%
Average of class Mini PC (8974 - 100086, n=113, last 2 years)	51678 MB/s -40%

AIDA64 / Memory Write
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, Radeon 890M	98429 MB/s +15%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	87827 MB/s +2%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	86747 MB/s +1%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	85887 MB/s
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	72187 MB/s -16%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	70596 MB/s -18%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	65057 MB/s -24%
Average of class Mini PC (8762 - 100538, n=113, last 2 years)	55876 MB/s -35%

AIDA64 / Memory Latency
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	149 ns * -71%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	146.1 ns * -68%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	136.7 ns * -57%
Minisforum EliteMini AI370 AMD Ryzen AI 9 HX 370, Radeon 890M	108.5 ns * -24%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	99.8 ns * -14%
Average of class Mini PC (44.9 - 184.8, n=113, last 2 years)	92 ns * -6%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	90.3 ns * -4%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	87.2 ns *

* ... smaller is better

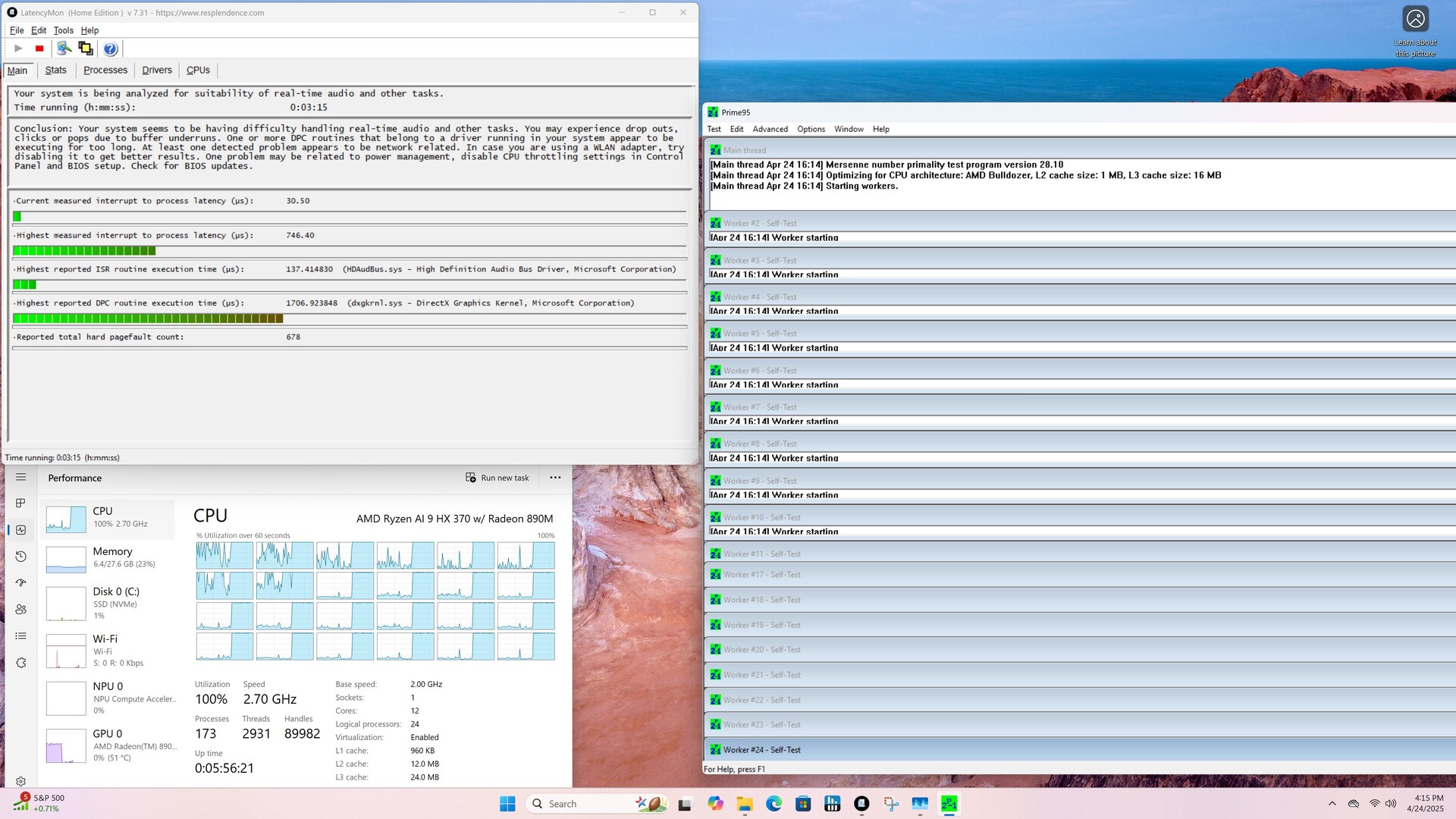

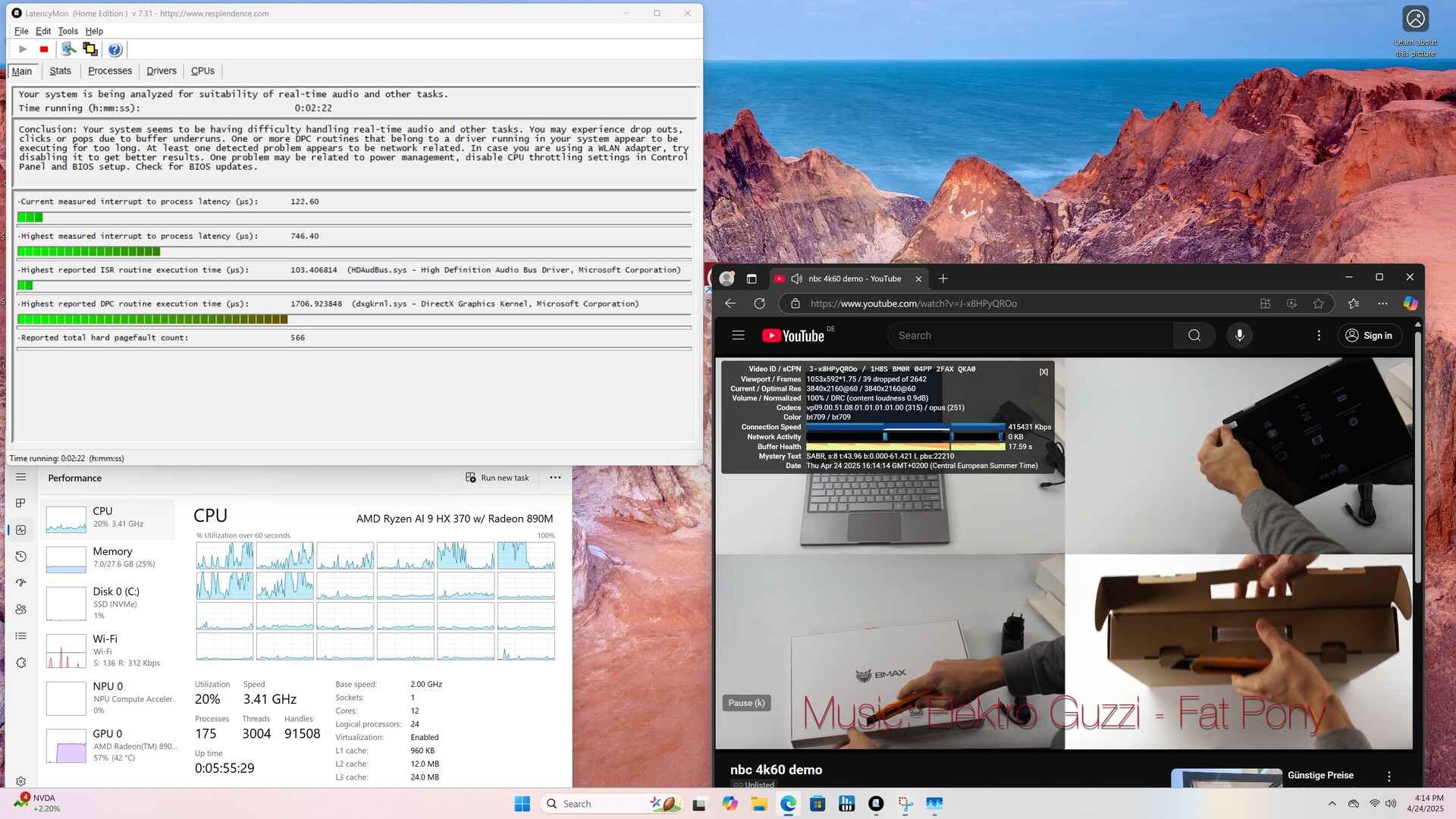

DPC 延迟

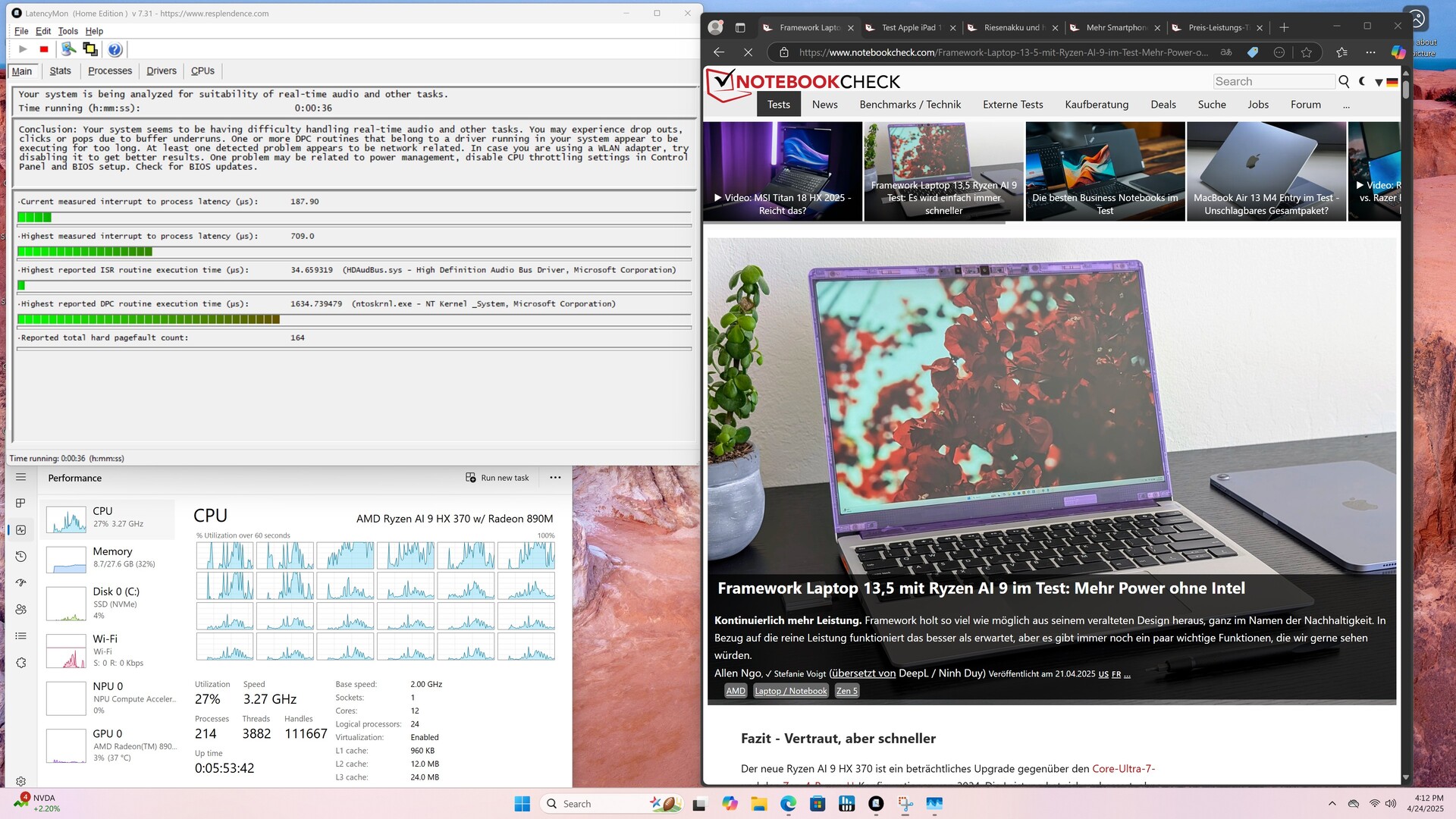

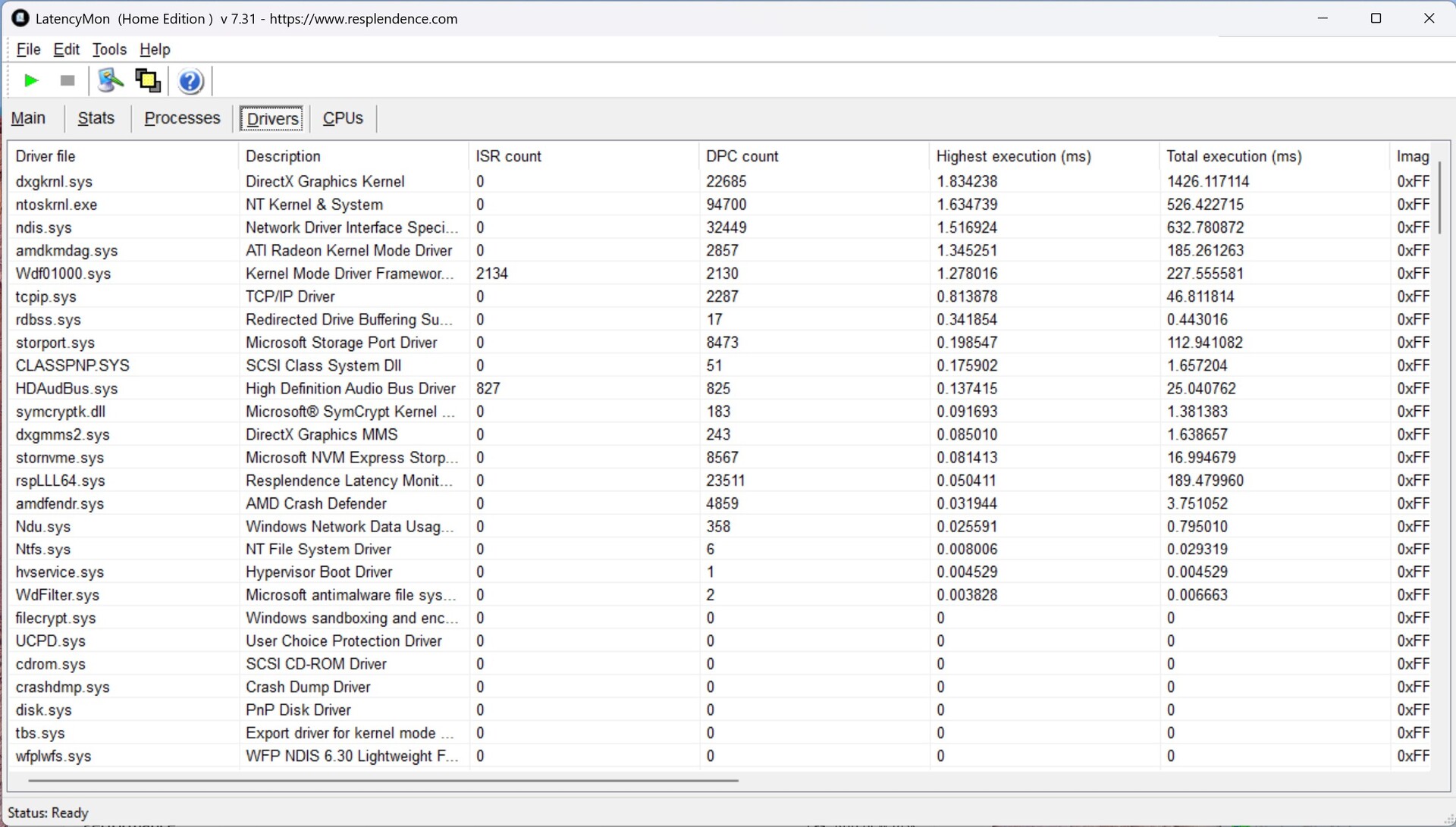

Acemagic F3A 在负载情况下的 DPC 延迟明显增加，例如在启动 Prime95 时。即使在负载情况下，它的数值也不理想，在播放 4K 测试视频时偶尔会出现丢帧。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	12282 μs * -570%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	2724 μs * -49%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	2069.2 μs * -13%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1834 μs *
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	1273 μs * +31%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	1145.7 μs * +38%

* ... smaller is better

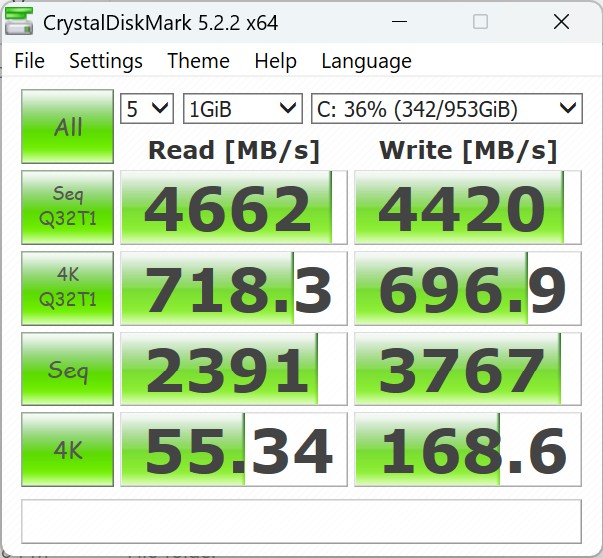

存储设备

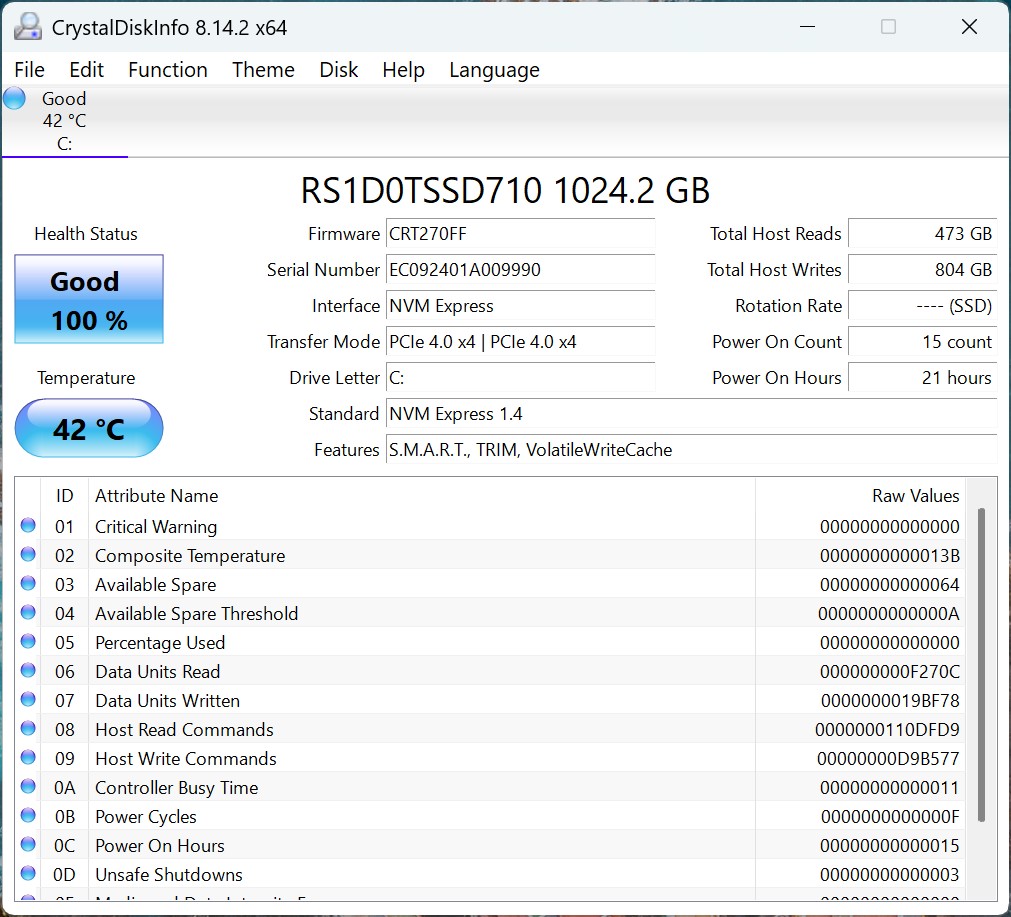

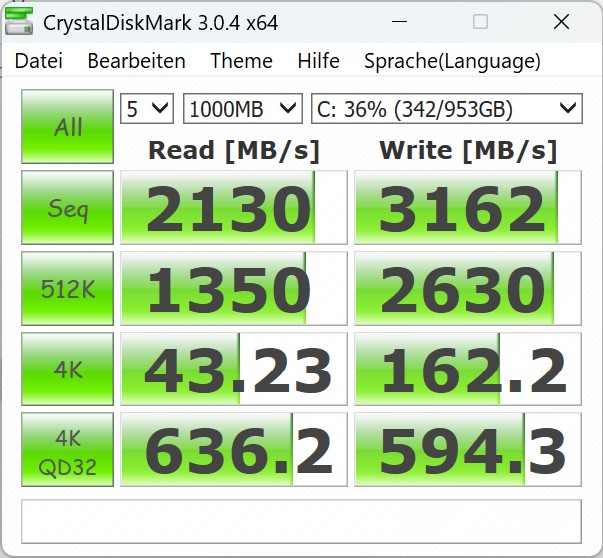

Acemagic F3A 配备了 NVMe 固态硬盘，在我们的测试中表现出了稳定的性能，即使它不是最快的固态硬盘之一。电脑大容量存储的散热效果非常出色，确保了测试中的稳定数值。F3A 最多支持两个 M.2 2280 固态硬盘。

AS SSD

DiskSpd

Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe

Sequential Read: 3404MB/s

Sequential Write: 3897MB/s

4K Read: 39.5MB/s

4K Write: 119.7MB/s

4K-64 Read: 1192MB/s

4K-64 Write: 1603MB/s

Access Time Read: 0.129ms

Access Time Write: 0.093ms

Copy ISO: 960.45MB/s

Copy Program: 782.8MB/s

Copy Game: 1665.32MB/s

Score Read: 1572Points

Score Write: 2112Points

Score Total: 4514Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	97.4 pt
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	68.3 pt
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	67.7 pt
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	61.1 pt
Average of class Mini PC	58.2 pt
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	54.7 pt
Acemagic F2A Kingston OM8SEP1024Q-A0	54.2 pt

DiskSpd
seq read
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	2914 (2870.58^min - 2913.74^max) MB/s +70%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2734 (2730.27^min - 2734.25^max) MB/s +60%
Average of class Mini PC (413 - 4357, n=113, last 2 years)	2376 MB/s +39%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	2368 (2316.29^min - 2367.68^max) MB/s +38%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2315 (2293.84^min - 2315.26^max) MB/s +35%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1711 (1699.16^min - 1711.28^max) MB/s
Acemagic F2A Kingston OM8SEP1024Q-A0	1674 (1242.56^min - 1673.54^max) MB/s -2%
seq write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3976 (425.08^min - 3975.57^max) MB/s +32%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3689 (3523.22^min - 3688.64^max) MB/s +22%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3386 (3076.94^min - 3385.64^max) MB/s +12%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3044 (2966.57^min - 3044.22^max) MB/s +1%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3017 (2911.9^min - 3016.54^max) MB/s
Average of class Mini PC (259 - 5595, n=113, last 2 years)	2621 MB/s -13%
Acemagic F2A Kingston OM8SEP1024Q-A0	1348 (1117.85^min - 1347.87^max) MB/s -55%
seq q8 t1 read
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	5060 (4781.3^min - 5060.16^max) MB/s +59%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	4803 (3979.98^min - 4803.15^max) MB/s +51%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	4676 (4310.07^min - 4675.81^max) MB/s +47%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	4087 (3505.93^min - 4087.35^max) MB/s +29%
Average of class Mini PC (397 - 8430, n=113, last 2 years)	3921 MB/s +23%
Acemagic F2A Kingston OM8SEP1024Q-A0	3194 (2810.81^min - 3194.17^max) MB/s 0%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3179 (2681.09^min - 3179.42^max) MB/s
seq q8 t1 write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3985 (52.74^min - 3985.01^max) MB/s +5%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3905 (3865.08^min - 3905.27^max) MB/s +3%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3781 (3521.62^min - 3780.75^max) MB/s
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3729 (3700.15^min - 3728.95^max) MB/s -1%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3205 (3185.7^min - 3204.75^max) MB/s -15%
Average of class Mini PC (271 - 6669, n=113, last 2 years)	2952 MB/s -22%
Acemagic F2A Kingston OM8SEP1024Q-A0	2212 (1222.43^min - 2212.27^max) MB/s -41%
4k q1 t1 read
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	63.5 (59.81^min - 63.5^max) MB/s +52%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	62.5 (62.22^min - 62.52^max) MB/s +50%
Average of class Mini PC (6.85 - 87.3, n=113, last 2 years)	55.8 MB/s +33%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	55.6 (50.92^min - 55.64^max) MB/s +33%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	51.4 (51.17^min - 51.36^max) MB/s +23%
Acemagic F2A Kingston OM8SEP1024Q-A0	47.3 (47.07^min - 47.31^max) MB/s +13%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	41.8 (39.53^min - 41.81^max) MB/s
4k q1 t1 write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	353 (348.24^min - 353.16^max) MB/s +190%
Average of class Mini PC (40.4 - 435, n=113, last 2 years)	195 MB/s +60%
Acemagic F2A Kingston OM8SEP1024Q-A0	187.2 (181.54^min - 187.2^max) MB/s +54%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	184.4 (177.6^min - 184.36^max) MB/s +52%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	167.6 (165.24^min - 167.62^max) MB/s +38%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	135.3 (124.1^min - 135.25^max) MB/s +11%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	121.6 (117.56^min - 121.64^max) MB/s
4k q32 t16 read
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2876 (2861.34^min - 2875.92^max) MB/s +75%
Acemagic F2A Kingston OM8SEP1024Q-A0	1824 (1239.47^min - 1824.09^max) MB/s +11%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1641 (1282.06^min - 1641.45^max) MB/s
Average of class Mini PC (102.3 - 4158, n=113, last 2 years)	1452 MB/s -12%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1143 (1091.01^min - 1142.98^max) MB/s -30%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	650 (624.87^min - 649.57^max) MB/s -60%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	492 (451.66^min - 492.1^max) MB/s -70%
4k q32 t16 write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2822 (709.76^min - 2821.52^max) MB/s +258%
Acemagic F2A Kingston OM8SEP1024Q-A0	1434 (1410.26^min - 1433.71^max) MB/s +82%
Average of class Mini PC (70.3 - 4288, n=113, last 2 years)	1351 MB/s +71%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	788 (756.12^min - 787.91^max) MB/s
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	502 (104.07^min - 502.15^max) MB/s -36%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	497 (467.49^min - 497.28^max) MB/s -37%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	323 (291.38^min - 323.31^max) MB/s -59%

AS SSD
Score Total
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	8215 Points +82%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	5180 Points +15%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	4987 Points +10%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	4748 Points +5%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	4514 Points
Acemagic F2A Kingston OM8SEP1024Q-A0	4412 Points -2%
Average of class Mini PC (507 - 10021, n=110, last 2 years)	4286 Points -5%
Score Read
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2779 Points +77%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1572 Points
Average of class Mini PC (172 - 3741, n=110, last 2 years)	1569 Points 0%
Acemagic F2A Kingston OM8SEP1024Q-A0	1561 Points -1%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1482 Points -6%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	1127 Points -28%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	1072 Points -32%
Score Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3987 Points +89%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3520 Points +67%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3177 Points +50%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2807 Points +33%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	2112 Points
Acemagic F2A Kingston OM8SEP1024Q-A0	2082 Points -1%
Average of class Mini PC (210 - 4371, n=110, last 2 years)	1955 Points -7%
Seq Read
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3927 MB/s +15%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3779 MB/s +11%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3587 MB/s +5%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3404 MB/s
Average of class Mini PC (483 - 6620, n=110, last 2 years)	3271 MB/s -4%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3200 MB/s -6%
Acemagic F2A Kingston OM8SEP1024Q-A0	3010 MB/s -12%
Seq Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3938 MB/s +1%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3897 MB/s
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	2741 MB/s -30%
Average of class Mini PC (277 - 5783, n=110, last 2 years)	2392 MB/s -39%
Acemagic F2A Kingston OM8SEP1024Q-A0	2369 MB/s -39%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2285 MB/s -41%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	1965 MB/s -50%
4K Read
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	83.6 MB/s +112%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	63.3 MB/s +60%
Average of class Mini PC (18.2 - 104.3, n=110, last 2 years)	59 MB/s +49%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	57.6 MB/s +46%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	48.4 MB/s +23%
Acemagic F2A Kingston OM8SEP1024Q-A0	41.8 MB/s +6%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	39.5 MB/s
4K Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	314 MB/s +162%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	238 MB/s +99%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	205 MB/s +71%
Acemagic F2A Kingston OM8SEP1024Q-A0	196.9 MB/s +64%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	193.2 MB/s +61%
Average of class Mini PC (40.8 - 366, n=110, last 2 years)	176.5 MB/s +47%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	119.7 MB/s
4K-64 Read
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2336 MB/s +96%
Acemagic F2A Kingston OM8SEP1024Q-A0	1218 MB/s +2%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1192 MB/s
Average of class Mini PC (94.3 - 3220, n=110, last 2 years)	1183 MB/s -1%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1041 MB/s -13%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	704 MB/s -41%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	677 MB/s -43%
4K-64 Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3279 MB/s +105%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3052 MB/s +90%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	2776 MB/s +73%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2340 MB/s +46%
Acemagic F2A Kingston OM8SEP1024Q-A0	1649 MB/s +3%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1603 MB/s
Average of class Mini PC (96.3 - 3731, n=110, last 2 years)	1539 MB/s -4%
Access Time Read
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	0.129 ms *
Average of class Mini PC (0.025 - 0.288, n=110, last 2 years)	0.09555 ms * +26%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	0.071 ms * +45%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.068 ms * +47%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	0.067 ms * +48%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.046 ms * +64%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	0.027 ms * +79%
Access Time Write
Acemagic F2A Kingston OM8SEP1024Q-A0	0.126 ms * -35%
Average of class Mini PC (0.014 - 0.706, n=110, last 2 years)	0.1101 ms * -18%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	0.093 ms *
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	0.023 ms * +75%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	0.02 ms * +78%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.019 ms * +80%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	0.014 ms * +85%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe; diskspd 2.0.17 f: Ø3164 (2746.39-3192.28)

Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (4364.17-4810.03)

Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4071 (3634.85-4086.93)

Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8 ; diskspd 2.0.17 f: Ø5055 (4738.1-5067.7)

Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4683 (3872.18-4767.25)

Acemagic F2A Kingston OM8SEP1024Q-A0; diskspd 2.0.17 f: Ø1320 (771.89-3141.95)

图形卡和游戏性能

Acemagic F3A 中安装的 AMD Radeon 890M iGPU 基于最新的 RDNA3+ 架构，取代了较早的 Radeon 780M。在当前的 iGPU 中，AMD Radeon 890M 是迄今为止速度最快的型号之一。这一点在基准测试中也很明显，AMD Radeon 890M 通常优于其竞争对手。不过，与 NvidiaGeForce RTX 4050 笔记本电脑相比，快速 iGPU 不得不承认失败。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average NVIDIA GeForce RTX 4050 Laptop GPU	100 pt
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	46.4 pt
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	45 pt
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	44 pt
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	41.5 pt
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	40.2 pt
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	39.5 pt

3DMark 11 - 1280x720 Performance GPU
Average NVIDIA GeForce RTX 4050 Laptop GPU (13339 - 32642, n=41)	28461 Points +87%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	15203 Points
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	14293 Points -6%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	13437 Points -12%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	13309 Points -12%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points -21%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	11691 Points -23%

3DMark
2560x1440 Time Spy Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (5107 - 9040, n=39)	7751 Points +137%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3610 Points +10%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3269 Points
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points -2%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3193 Points -2%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3144 Points -4%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2904 Points -11%
1920x1080 Fire Strike Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (13591 - 24007, n=39)	21010 Points +130%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9145 Points
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8726 Points -5%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	8647 Points -5%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	8344 Points -9%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points -16%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7599 Points -17%

Performance Rating - Percent
Average NVIDIA GeForce RTX 4050 Laptop GPU ^-1!	99.7 pt
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	49.4 pt
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	43.7 pt
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	43.4 pt
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	41.4 pt
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	37.8 pt
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	37.7 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Average NVIDIA GeForce RTX 4050 Laptop GPU (104.3 - 118.1, n=2)	111.2 fps +165%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	41.9 fps
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	40.1 fps -4%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	36.4 fps -13%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	36.4 fps -13%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	31.6 fps -25%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	29.7 fps -29%
Extreme Preset DX11
Average NVIDIA GeForce RTX 4050 Laptop GPU (101.9 - 114.6, n=2)	108.3 fps +153%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	42.8 fps
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	41.1 fps -4%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	37.5 fps -12%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	36.8 fps -14%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	33.2 fps -22%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	32.7 fps -24%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	78.3 fps +176%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	28.4 fps
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	27.7 fps -2%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	25.4 fps -11%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	20.1 fps -29%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	18.5 fps -35%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	17.1 fps -40%
1920x1080 Extreme HD Preset OpenGL AA:x8
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	75.9 fps +207%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	32.4 fps +31%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	24.7 fps
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	23.6 fps -4%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	21.9 fps -11%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	21.8 fps -12%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	18.3 fps -26%

Unigine Superposition
1280x720 720p Low
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	26742 Points +100%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13379 Points
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	12737 Points -5%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	12625 Points -6%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	12451 Points -7%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	10491 Points -22%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	10102 Points -24%
1920x1080 1080p High
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	9548 Points +127%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	4199 Points
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3976 Points -5%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3948 Points -6%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	3699 Points -12%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3391 Points -19%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3341 Points -20%
1920x1080 1080p Extreme
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	4072 Points +96%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2119 Points +2%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2079 Points
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1960 Points -6%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1920 Points -8%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1812 Points -13%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1808 Points -13%

ComputeMark v2.1
1024x600 Normal, Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (15719 - 16302, n=2)	16011 Points +33%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	12026 Points
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	9568 Points -20%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9395 Points -22%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7963 Points -34%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7480 Points -38%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	6270 Points -48%
1024x600 Normal, Fluid 3DTex
Average NVIDIA GeForce RTX 4050 Laptop GPU (1319 - 1360, n=2)	1340 Points +176%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	494 Points +2%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	492 Points +1%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	486 Points
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	477 Points -2%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	469 Points -3%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	427 Points -12%
1024x600 Normal, Fluid 2DTexArr
Average NVIDIA GeForce RTX 4050 Laptop GPU (1284 - 1334, n=2)	1309 Points +146%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	532 Points
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	507 Points -5%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	498 Points -6%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	487 Points -8%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	462 Points -13%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	422 Points -21%
1024x600 Normal, Mandel Vector
Average NVIDIA GeForce RTX 4050 Laptop GPU (3358 - 3456, n=2)	3407 Points +3%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3321 Points
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2519 Points -24%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2512 Points -24%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2039 Points -39%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1961 Points -41%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1620 Points -51%
1024x600 Normal, Mandel Scalar
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3618 Points
Average NVIDIA GeForce RTX 4050 Laptop GPU (3343 - 3578, n=2)	3461 Points -4%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2598 Points -28%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2531 Points -30%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1701 Points -53%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1594 Points -56%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1274 Points -65%
1024x600 Normal, QJuliaRayTrace
Average NVIDIA GeForce RTX 4050 Laptop GPU (6324 - 6665, n=2)	6495 Points +60%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	4070 Points
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	3476 Points -15%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3351 Points -18%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3244 Points -20%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3076 Points -24%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2444 Points -40%

LuxMark v2.0 64Bit
Room GPUs-only
Average NVIDIA GeForce RTX 4050 Laptop GPU (2967 - 3785, n=2)	3376 Samples/s +238%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	998 Samples/s
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	975 Samples/s -2%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	931 Samples/s -7%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	656 Samples/s -34%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	640 Samples/s -36%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	549 Samples/s -45%
Sala GPUs-only
Average NVIDIA GeForce RTX 4050 Laptop GPU (8036 - 9524, n=2)	8780 Samples/s +416%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2888 Samples/s +70%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2732 Samples/s +61%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	2319 Samples/s +36%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1702 Samples/s
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1649 Samples/s -3%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1570 Samples/s -8%

Affinity Photo 2 - Combined (Single / Multi GPU)
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	6468 Points +165%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	5308 Points +117%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	4928 Points +102%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2944 Points +20%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2444 Points
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1596 Points -35%

Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference

Performance Rating
Average NVIDIA GeForce RTX 4050 Laptop GPU	91.5 pt
Acemagic F3A	85.6 pt
Minisforum AI X1 Pro	85.1 pt
Geekom A8 Max, R7 8845HS	74.5 pt
Geekom GT1 Mega	53.7 pt
Acemagic F2A	50.1 pt
Minisforum AtomMan X7 Ti	48.6 pt

SPECworkstation 4.0 / Graphics Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +21%
Acemagic F3A	2.4 Points
Minisforum AI X1 Pro	2.21 Points -8%
Geekom A8 Max, R7 8845HS	2.08 Points -13%
Geekom GT1 Mega	1 Points -58%
Acemagic F2A	0.88 Points -63%
Minisforum AtomMan X7 Ti	0.86 Points -64%

SPECworkstation 4.0 / Accelerator Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	3.37 Points +42%
Minisforum AI X1 Pro	2.46 Points +4%
Acemagic F3A	2.37 Points
Geekom A8 Max, R7 8845HS	2.21 Points -7%
Geekom GT1 Mega	1.91 Points -19%
Acemagic F2A	1.7 Points -28%
Minisforum AtomMan X7 Ti	1.5 Points -37%

SPECworkstation 4.0 / Viewport Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +21%
Acemagic F3A	2.4 Points
Minisforum AI X1 Pro	2.21 Points -8%
Geekom A8 Max, R7 8845HS	2.08 Points -13%
Geekom GT1 Mega	0.999 Points -58%
Acemagic F2A	0.883 Points -63%
Minisforum AtomMan X7 Ti	0.859 Points -64%

SPECworkstation 4.0 / HandBrake
Minisforum AI X1 Pro	1.77 Points +3%
Acemagic F3A	1.72 Points
Acemagic F2A	1.42 Points -17%
Geekom GT1 Mega	1.4 Points -19%
Minisforum AtomMan X7 Ti	1.38 Points -20%
Geekom A8 Max, R7 8845HS	1.37 Points -20%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.28 Points -26%

SPECworkstation 4.0 / ONNX Inference
Minisforum AI X1 Pro	1.71 Points +6%
Acemagic F3A	1.62 Points
Geekom A8 Max, R7 8845HS	1.47 Points -9%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.46 Points -10%
Geekom GT1 Mega	1.09 Points -33%
Minisforum AtomMan X7 Ti	1.05 Points -35%
Acemagic F2A	1.01 Points -38%

	Acemagic F3A, AMD Radeon 890M Ryzen AI 9 HX 370	Minisforum AI X1 Pro, AMD Radeon 890M Ryzen AI 9 HX 370	Geekom A8 Max, R7 8845HS, AMD Radeon 780M R7 8845HS	Geekom GT1 Mega, Intel Arc 8-Core iGPU Ultra 9 185H	Minisforum AtomMan X7 Ti, Intel Arc 8-Core iGPU Ultra 9 185H	Acemagic F2A, Intel Arc 8-Core iGPU Ultra 7 155H	Average of class Mini PC
SPECviewperf 2020		-14%	-15%	-58%	-62%	-64%	-30%
3840x2160 Medical (medical-03)	17.1	15.2 -11%	12.7 -26%	7.07 -59%	4.23 -75%	5.05 -70%	8.3 ?(0.78 - 30.8, n=63, last 2 years) -51%
3840x2160 Energy (energy-03)	28.5	15.5 -46%	21.2 -26%	5 -82%	6.03 -79%	4.61 -84%	11.9 ?(0.52 - 44, n=63, last 2 years) -58%
3840x2160 Creo (creo-03)	36.8	34.1 -7%	34.9 -5%	19.8 -46%	18.5 -50%	17.9 -51%	31.1 ?(7.73 - 97.5, n=63, last 2 years) -15%
3840x2160 CATIA (catia-06)	26.6	23.1 -13%	25 -6%	11.7 -56%	11.1 -58%	10 -62%	18.9 ?(4.61 - 64.1, n=62, last 2 years) -29%
3840x2160 3ds Max (3dsmax-07)	25.2	21.9 -13%	21.4 -15%	15.5 -38%	14.9 -41%	12.9 -49%	22.8 ?(5.53 - 87.5, n=63, last 2 years) -10%
3840x2160 Siemens NX (snx-04)	71.9	68.7 -4%	66.2 -8%	5.68 -92%	6.24 -91%	5.7 -92%	38.2 ?(2.25 - 224, n=61, last 2 years) -47%
3840x2160 Maya (maya-06)	59.6	55.9 -6%	50.2 -16%	38.8 -35%	37.7 -37%	35.4 -41%	58.2 ?(11.8 - 223, n=63, last 2 years) -2%

3DMark 11 Performance		14434 points
3DMark Ice Storm Standard Score		135579 points
3DMark Cloud Gate Standard Score		38061 points
3DMark Fire Strike Score		8403 points
3DMark Fire Strike Extreme Score		4571 points
3DMark Time Spy Score		3652 points
3DMark Steel Nomad Score		692 points
Help

... in comparison

Performance Rating - Percent
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	98 pt
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	97.3 pt
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	92.8 pt
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	85 pt
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	78.6 pt
Acemagic F2A ^-2! Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	72.2 pt

GTA V
1024x768 Lowest Settings possible
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	166.2 (4.23^min, 71.4^P1) fps +3%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	165.6 (4.4^min, 111.1^P1) fps +3%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	165.2 (3.77^min, 100^P1) fps +3%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	163.6 (4.63^min, 111.1^P1) fps +2%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	161 (4.76^min, 100^P1) fps 0%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	161 (4.68^min, 100^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	74 (7.63^min, 50^P1) fps
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	71.9 (6.03^min, 47.6^P1) fps -3%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	65.4 (10.1^min, 45.5^P1) fps -12%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	43.5 (3.49^min, 32.3^P1) fps -41%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	41.2 (3.12^min, 30.3^P1) fps -44%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	31.3 (2.94^min, 22.7^P1) fps -58%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	167.6 (135.7^min) fps +24%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	155.1 (135.8^min) fps +15%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	135.4 (110^min) fps
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	110.5 (63^min) fps -18%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	106.5 (61^min) fps -21%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	103.2 (59.8^min) fps -24%
1920x1080 high (2/3)
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	91.7 (79.2^min) fps +2%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	91.6 (79.1^min) fps +2%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	90 (77.6^min) fps
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	87.8 (28.3^min) fps -2%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	79 (48.2^min) fps -12%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	77.3 (52.5^min) fps -14%

Cyberpunk 2077 2.2 Phantom Liberty
1920x1080 Low Preset (FSR off)
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	48.9 (40.6^min) fps
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	48.1 (41.3^min) fps -2%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	42.9 (36.7^min) fps -12%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	38 (33.3^min) fps -22%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	34.3 (29.1^min) fps -30%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	29.5 (24.1^min) fps -40%
1920x1080 High Preset (FSR off)
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	28.9 (24.5^min) fps +3%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	28.1 (24.1^min) fps
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	26.9 (22.2^min) fps -4%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	26 (22.6^min) fps -7%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	24 (20.6^min) fps -15%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	20.4 (13.8^min) fps -27%

Baldur's Gate 3
1280x720 Low Preset
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	68 (40.9^min, 42.3^P0.1, 59.6^P1) fps
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	67.9 (43.2^min, 47.8^P0.1, 55.8^P1) fps 0%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	61.2 (47.4^min, 49.5^P0.1, 53.8^P1) fps -10%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	57.6 (31.7^min, 33.6^P0.1, 37.9^P1) fps -15%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	50.5 (37.8^min, 38.4^P0.1, 42.2^P1) fps -26%
1920x1080 High Preset
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	29 (23.4^min, 23.8^P0.1, 25.6^P1) fps
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	28.8 (15.7^min, 23.2^P0.1, 26.3^P1) fps -1%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	26 (21.5^min, 21.8^P0.1, 23.1^P1) fps -10%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	25.4 (13.9^min, 14.3^P0.1, 16.3^P1) fps -12%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	22.6 (19.8^min, 19.9^P0.1, 20.4^P1) fps -22%

F1 24
1920x1080 Low Preset AA:T AF:16x
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	87.5 (69^min, 61^P1) fps
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	84.3 (70^min, 66^P1) fps -4%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	82.4 (57^min, 52^P1) fps -6%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	82 (62^min, 54^P1) fps -6%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	77.5 (58^min, 58^P1) fps -11%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	69.1 (57^min, 55^P1) fps -21%
1920x1080 High Preset AA:T AF:16x
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	58.5 (45^min, 34^P1) fps
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	54.8 (43^min, 45^P1) fps -6%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	54.4 (46^min, 42^P1) fps -7%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	53.4 (40^min, 32^P1) fps -9%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	51.8 (42^min, 42^P1) fps -11%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	48.4 (38^min, 39^P1) fps -17%

fps diagram - 30 mins Cyberpunk 2077 1,920 x 1,080 Ultra preset (FSR off)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M: Ø24.7 (23.3-25.5)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M: Ø23.8 (21.5-24.7)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M: Ø23 (20.6-23.4)

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core: Ø22.1 (18.6-24)

	low	med.	high	ultra
GTA V (2015)	161	152.7	74	31
The Witcher 3 (2015)	173	109.2	57.7	36.7
Dota 2 Reborn (2015)	135.4	104.7	90	82.5
Final Fantasy XV Benchmark (2018)	86	43.9	30.8
X-Plane 11.11 (2018)	88.8	68.6	53.3
Strange Brigade (2018)	179.7	74.5	63.8	54.6
Shadow of the Tomb Raider (2018)	114	49	44	37
Total War: Three Kingdoms (2019)	179.3	61.6	37.3	25.2
Forza Horizon 5 (2021)	160	77	69	35
Farming Simulator 22 (2021)	194.2	119.9	79	78.3
Baldur's Gate 3 (2023)	44.8	34.5	29	28.3
Cyberpunk 2077 2.2 Phantom Liberty (2023)	48.9	38.3	28.1	24.1
Total War Pharaoh (2023)	99.7	74	48.3	38.3
F1 24 (2024)	87.5	77.6	58.5
Civilization 7 (2025)	126.8	59.5	32.3

排放 - 负载情况下出奇的安静

噪音排放

得益于精心设计的机箱和高效的散热，Acemagic F3A 在闲置时仍能保持令人愉悦的安静。在负载情况下，风扇会发出轻微的声响，但相比之下仍然非常安静，最高可达 36 dB(A)。在低负载情况下，我们测得的声压级为 32.1 dB(A)，也明显优于 Acemagic F3A 的竞争对手。

Noise Level

Idle		28.4 / 28.5 / 28.7 dB(A)
Load		32.1 / 36 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 23.8 dB(A)

	Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M	Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M	Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M	Geekom GT1 Mega Ultra 9 185H, Arc 8-Core	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	Acemagic F2A Ultra 7 155H, Arc 8-Core
Noise		-6%	-3%	-18%	-9%	-10%
off / environment *	23.8	23.8 -0%	23.8 -0%	24.8 -4%	24.1 -1%	24.9 -5%
Idle Minimum *	28.4	28 1%	24 15%	25.4 11%	29.8 -5%	25.4 11%
Idle Average *	28.5	28.1 1%	24.1 15%	27.2 5%	29.9 -5%	25.7 10%
Idle Maximum *	28.7	28.2 2%	24.1 16%	27.5 4%	30 -5%	25.7 10%
Load Average *	32.1	38.4 -20%	42.7 -33%	50.9 -59%	37.3 -16%	47.8 -49%
Cyberpunk 2077 ultra *	35.8	38.5 -8%	42.5 -19%	50.8 -42%
Load Maximum *	36	41.8 -16%	42.6 -18%	50.9 -41%	43.5 -21%	49 -36%
Witcher 3 ultra *					40.2	45.23

* ... smaller is better

温度

Acemagic F3A 的机箱在怠速和负载情况下都基本保持凉爽。只有在顶部的中间位置才会明显升温。在压力测试中，Ryzen AI 9 HX 370 的温度曾短暂达到 74 ℃ 左右，这并不严重。APU 的平均工作功率为 61 瓦。

Max. Load

Idle

Cyberpunk


28.4 °C	28.3 °C	30.7 °C
32.5 °C	47.8 °C	30.3 °C
29.2 °C	29.6 °C	31.4 °C

Maximum: 47.8 °C
Average: 32 °C


34.2 °C	42.4 °C	34.7 °C
34.6 °C	26.5 °C	34.8 °C
35.3 °C	31.3 °C	32.8 °C

Maximum: 42.4 °C
Average: 34.1 °C

Power Supply (max.) 47.8 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


27.3 °C	28.4 °C	29.4 °C
28 °C	31.2 °C	29.7 °C
28.4 °C	28.4 °C	29.2 °C

Maximum: 31.2 °C
Average: 28.9 °C


28 °C	29.3 °C	27.6 °C
29.2 °C	26.5 °C	27.9 °C
27.9 °C	27.9 °C	27.9 °C

Maximum: 29.3 °C
Average: 28 °C

Power Supply (max.) 37.3 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


29.2 °C	29.4 °C	32.5 °C
32.5 °C	38.1 °C	32.5 °C
31.8 °C	32.2 °C	33 °C

Maximum: 38.1 °C
Average: 32.4 °C


34.5 °C	41.6 °C	33.2 °C
38.7 °C	27.5 °C	31.9 °C
34.7 °C	31.8 °C	33.3 °C

Maximum: 41.6 °C
Average: 34.1 °C

Power Supply (max.) 48.2 °C | Room Temperature 21.8 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 32 °C / 90 F, compared to the average of 32.3 °C / 90 F for the devices in the class Mini PC.
(-) The maximum temperature on the upper side is 47.8 °C / 118 F, compared to the average of 35.8 °C / 96 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(±) The bottom heats up to a maximum of 42.4 °C / 108 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 28.9 °C / 84 F, compared to the device average of 32.3 °C / 90 F.
(±) 3: The average temperature for the upper side is 32.4 °C / 90 F, compared to the average of 32.3 °C / 90 F for the class Mini PC.

电源管理--节俭但没有效率奇迹

正如我们的能效分析所显示的，在 Acemagic F3A 中，AMD Ryzen AI 9 HX 370 性能强劲，能耗适中。采用相同处理器的 Minisforum AI X1 Pro 甚至取得了更好的成绩。尽管如此，迷你电脑通常比传统台式电脑更加节俭，而 Acemagic F3A 的能效始终如一：在我们的测试中，其空闲功耗约为 8.5 至 12.6 瓦，而我们测得的平均负载功耗约为 69 瓦，峰值功耗约为 110 瓦。外置 120 瓦电源工作可靠，还能为升级提供储备。

Power Consumption

Off / Standby	1.45 / 1.58 Watt
Idle	8.5 / 11 / 12.6 Watt
Load	65.3 / 109.8 Watt


Key: min: , med: , max: Metrahit Energy

	Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M	Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M	Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M	Geekom GT1 Mega Ultra 9 185H, Arc 8-Core	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	Acemagic F2A Ultra 7 155H, Arc 8-Core	Average AMD Radeon 890M	Average of class Mini PC
Power Consumption		6%	23%	18%	2%	0%	20%	-4%
Idle Minimum *	8.5	8.6 -1%	3.1 64%	4.1 52%	8.2 4%	9.1 -7%	6.18 ?(2.7 - 8.6, n=12) 27%	9.52 ?(2.2 - 45.7, n=116, last 2 years) -12%
Idle Average *	11	9.4 15%	5.7 48%	6.6 40%	12.1 -10%	10.3 6%	8.2 ?(4.9 - 11.3, n=12) 25%	11.7 ?(2.59 - 47.5, n=114, last 2 years) -6%
Idle Maximum *	12.6	10 21%	8.3 34%	11.3 10%	14 -11%	14.4 -14%	9.77 ?(5.5 - 14, n=12) 22%	15 ?(2.6 - 49, n=116, last 2 years) -19%
Load Average *	65.3	70.2 -8%	68.3 -5%	65.8 -1%	53.1 19%	54.9 16%	65.6 ?(47.8 - 76, n=11) -0%	59 ?(12.9 - 170.6, n=116, last 2 years) 10%
Cyberpunk 2077 ultra external monitor *	68.8	70.7 -3%	78.7 -14%	69.4 -1%
Load Maximum *	109.8	97.7 11%	97.7 11%	104.8 5%	100.4 9%	110.4 -1%	79 ?(56.4 - 109.8, n=12) 28%	100.2 ?(25 - 423, n=116, last 2 years) 9%

* ... smaller is better

Efficiency overview

Performance Rating | Power Consumption

Performance Rating - Percent
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	99.4 pt
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	88.5 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	87.2 pt
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	83.8 pt
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	81.4 pt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	76.4 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	265 Points per Watt +19%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	223 Points per Watt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	211 Points per Watt -5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	205 Points per Watt -8%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	194.8 Points per Watt -13%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	183.7 Points per Watt -18%
Cinebench R23 Single Power Efficiency - external Monitor
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	60.1 Points per Watt +6%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	59 Points per Watt +4%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	56.7 Points per Watt 0%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	56.5 Points per Watt
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	55.6 Points per Watt -2%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	54.2 Points per Watt -4%
Cinebench R15 Multi Efficiency (external Monitor)
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	38.2 Points per Watt +14%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	33.4 Points per Watt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	31.3 Points per Watt -6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	31.2 Points per Watt -7%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	29.2 Points per Watt -13%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	26.6 Points per Watt -20%

Power consumption with external monitor

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Idle 1min (external Monitor): Ø11 (10.1-12.6)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Idle 1min (external Monitor): Ø9.42 (8.78-10)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; Idle 1min (external Monitor): Ø5.71 (3.94-8.33)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Idle 1min (external Monitor): Ø10.4 (9.08-14.4)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1920x1080 The Witcher 3 ultra (external Monitor): Ø48.4 (45.6-52.4)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø98.8 (87.7-109.8)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.4 (85.7-97.7)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø79.8 (68.4-97.7)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.2 (78.7-114)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø68.8 (65.1-74.7)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø70.7 (60.4-76.7)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø78.7 (67.5-85.3)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; 3DMark06 Return To Proxycon: Ø65.3 (54.1-73.8)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; 3DMark06 Return To Proxycon: Ø70.2 (53.5-76.7)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø68.4 (51.5-86.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 3DMark06 Return To Proxycon: Ø54.9 (50.2-57)

Power consumption with external monitor

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Prime95 V2810 Stress (external Monitor): Ø87.1 (81.7-102.1)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Prime95 V2810 Stress (external Monitor): Ø90.8 (82.3-101.1)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø77.2 (67.2-97.6)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Prime95 V2810 Stress (external Monitor): Ø99.6 (92-110.4)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Cinebench R15 Multi (external Monitor): Ø104 (101.5-105.8)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Cinebench R15 Multi (external Monitor): Ø91.1 (90.4-91.6)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø83.6 (69.8-92.8)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R15 Multi (external Monitor): Ø103 (99.2-107)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Cinebench R23 Single (external Monitor): Ø36 (32.5-68)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Cinebench R23 Single (external Monitor): Ø34.6 (32.8-50)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø29.6 (24.4-48.8)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Single (external Monitor): Ø32.7 (19.4-55.3)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Cinebench R23 Multi (external Monitor): Ø100.7 (95.3-105.9)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; Cinebench R23 Multi (external Monitor): Ø86.3 (81.9-90.8)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø77.4 (74.9-91.2)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Multi (external Monitor): Ø100.7 (97.2-108.6)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø68.4 (64.5-84.2)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø69.3 (67.6-71.8)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø74.3 (63.5-92.7)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49.7 (47.3-60.6)

Notebookcheck 总评分

在测试过程中，Acemagic F3A 的强大性能、紧凑设计和良好的连接性给我们留下了深刻印象。高效的散热和现代的设计为其锦上添花。制造商在机箱材料选择等方面的小瑕疵，仅在极小程度上破坏了它给人的良好印象。

Back to the verdict

Acemagic F3A - 04/26/2025 v8
Sebastian Bade

Chassis

71 / 98 → 73%

Connectivity

65 / 81 → 80%

Weight

75%

Games Performance

55 / 80 → 69%

Application Performance

83 / 92 → 90%

Workstation

58%

AI Performance

87%

Temperature

89%

Noise

84%

Average

53%

78%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
25%

Power Use
67.2%

Repairability
30%

Software Updates
39%

Total Sustainability Score: 26.9%

Possible alternatives compared

Image	Model / Review	Price	Weight	Dimensions
1. 77.9%	Acemagic F3A AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 1024 GB	Amazon: 1. $32.00 Mini PC CPU Fan for AceMagic... 2. $33.00 Mini PC Top Fan for AceMagic... List Price: 789€	1 kg	148 x 147 x 60 mm
2. 82.9%	Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 64 GB Memory, 1024 GB SSD	Amazon: 1. $1,399.90 MINISFORUM AI X1 Pro-370 Min... 2. $1,249.99 MINISFORUM Mini PC AI X1 Pro... 3. $909.90 MINISFORUM UM890 Pro Mini PC...	1.4 kg	195 x 195 x 42.5 mm
3. 82%	Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $699.00 GEEKOM A8 Max AI Mini PC, AM... 2. $549.00 GEEKOM AX8 Pro Ai Mini PC,AM... 3. $549.00 GEEKOM A8 Mini PC, AMD Ryzen... List Price: 899 EUR	681 g	132 x 135 x 46.9 mm
4. 78.8%	Geekom GT1 Mega Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 32 GB Memory, 2048 GB SSD	Amazon: 1. $989.00 GEEKOM GT1 Mega AI Mini PC,1... 2. $979.00 GEEKOM XT1 Mega AI Mini PC,1... 3. $989.00 GEEKOM IT1 Mega AI Mini PC,1... List Price: 1149 EUR	693 g	132 x 135 x 46.9 mm
5. 87.5% ^{v7 (old)}	Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $783.99 AtomMan X7 Ti Mini PC Intel ... 2. $779.90 AtomMan X7 Ti Mini PC Intel ... 3. $829.90 AtomMan X7 Ti Mini PC Intel ... List Price: 959€	863 g	145 x 145 x 48.6 mm
6. 83.4% ^{v7 (old)}	Acemagic F2A Intel Core Ultra 7 155H ⎘ Intel Arc 8-Core iGPU ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $54.99 PowerHOOD 19V AC/DC Adapter ... 2. $32.00 Mini PC CPU Fan for AceMagic... 3. $33.00 Mini PC Top Fan for AceMagic... List Price: 1199 EUR	768 g	146 x 146 x 57 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Editor of the original article: Daisy Dickson - Translator - 424 articles published on Notebookcheck since 2023

Translator: Ninh Ngoc Duy - Editorial Assistant - 529473 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 搭载 AMD Ryzen AI 9 HX 370、价格不到 700 美元的经济型迷你 PC - Acemagic F3A 的详细评测

Sebastian Bade, 2025-05- 1 (Update: 2025-05- 1)

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Asus ProArt P16 H7606WI Ryzen AI 9 HX 370, Radeon 890M	1213
Lenovo Legion 5 16IRX G9 i7-14650HX, NVIDIA GeForce RTX 4060 Laptop GPU	1235
Lenovo ThinkCentre Neo Ultra i7-14700, NVIDIA GeForce RTX 4060	1243
Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M	1244
Lenovo ThinkStation P3 Tiny-30H0006AGE i9-14900, T1000	1245
Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M	1267
Razer Blade 16 2025 RTX 5090 Ryzen AI 9 HX 370, GeForce RTX 5090 Laptop	1284
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Aorus X7 Pro 4870HQ, GeForce GTX 970M SLI	14203
Lenovo ThinkPad P1 G4-20Y4Z9DVUS i7-11800H, T1200 Laptop GPU	14344
MSI Creator Z16P B12UHST i9-12900H, GeForce RTX 3080 Ti Laptop GPU	14367
Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M	14434
MSI P65 8RF-451 - Creator i7-8750H, GeForce GTX 1070 Max-Q	14492
Lenovo ThinkPad P15v G3 21EM001AGE R7 PRO 6850H, RTX A2000 Laptop GPU	14564
Acer Nitro 5 AN517-53-54DQ i5-11300H, GeForce RTX 3050 4GB Laptop GPU	14587
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642

评语：配备现代 AMD Ryzen AI 9 HX 370 的强大全能型机型

Pros

Cons

价格和供应情况

Table of Contents

规格

外壳和连接

尺寸比较

USB4 固态硬盘性能

配件

维护

可持续性

性能 - 配备 12 个内核的 AMD Ryzen AI 9

测试条件

处理器

Cinebench R15 多连续测试

系统性能

DPC 延迟

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

图形卡和游戏性能

fps diagram - 30 mins Cyberpunk 2077 1,920 x 1,080 Ultra preset (FSR off)

排放 - 负载情况下出奇的安静

噪音排放

温度

电源管理--节俭但没有效率奇迹

Efficiency overview

Power consumption with external monitor

Power consumption with external monitor

Notebookcheck 总评分

Possible alternatives compared

Transparency
