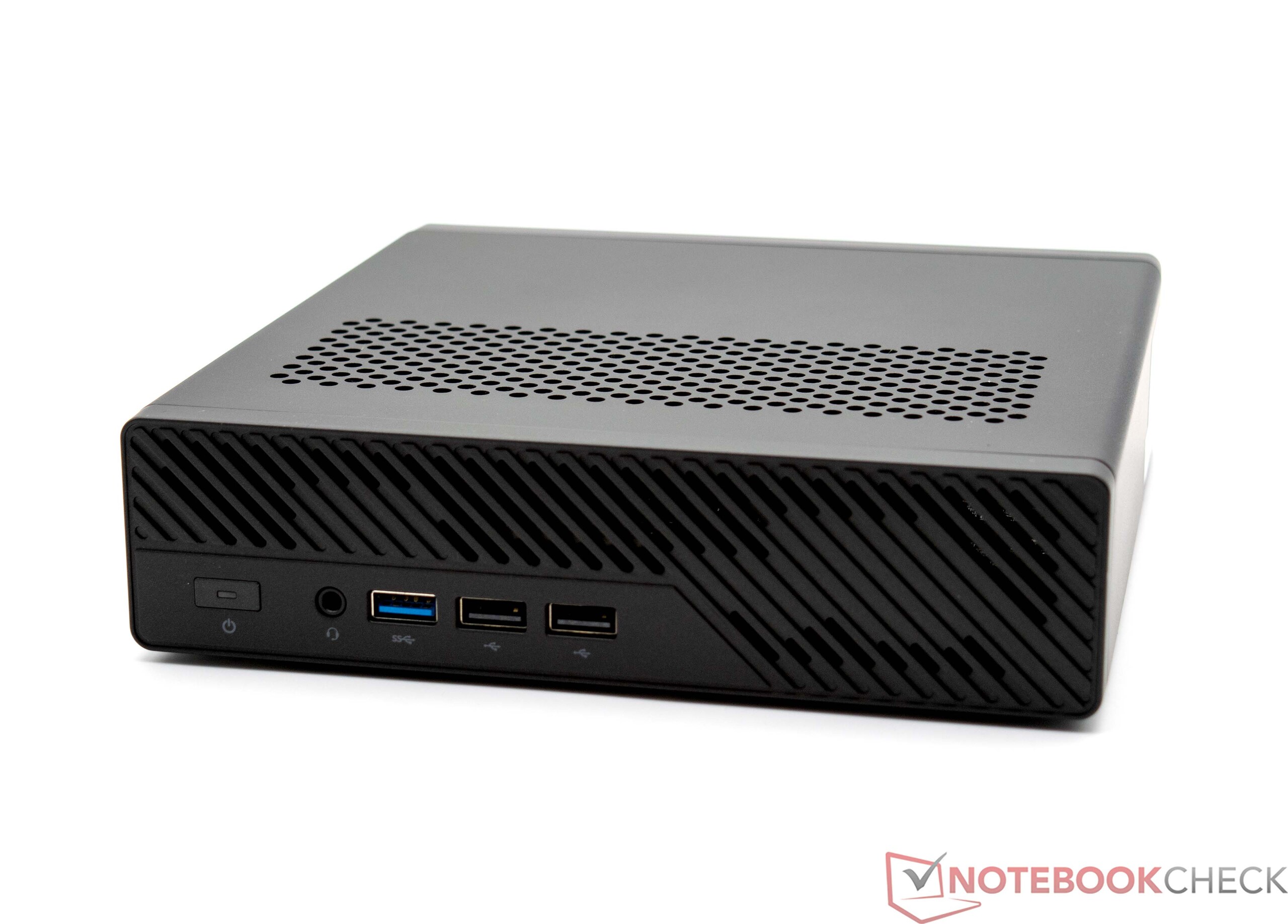

工作站评测:Minisforum MS-01 首次亮相,配备英特尔酷睿 i9-13900H,但缺少专用显卡前置工作站

工作站还是功能强大的办公电脑? 根据制造商的说法,Minisforum MS-01 是一款适用于高性能工作负载的工作站。它配备了英特尔酷睿 i9-13900H 处理器和快速 DDR5 内存,可容纳多个固态硬盘--这一切听起来都很有前景。MS-01 还有一个用于安装扩展卡的 PCIe x16 物理接口。在这篇评测中,我们将探讨 Minisforum 是否成功打造了一款功能强大的工作站,或者它是否只是一款适合日常使用的简单迷你 PC。
Mini PC Desktop Intel Raptor Lake Workstation

Minisforum 是微型 PC 市场上的知名品牌,拥有丰富的产品组合,可以应对各种可能发生的情况。这家来自远东的制造商迄今为止一直没有涉足工作站领域,而 Minisforum MS-01 将改变这一局面。该机型的最佳配置为 英特尔酷睿 i9-13900H和 32 GB 内存以及 1 TB SSD,并在我们的实验室进行了严格测试。Minisforum MS-01 的售价为 979 欧元,虽然也可以作为裸机订购,但绝对不便宜。不过,如果没有内存和固态硬盘,价格仍为 799 欧元。如果不需要英特尔酷睿 i9-13900H 的性能,这款紧凑型工作站还可以配备 英特尔酷睿 i5-12600H(499 欧元起)或 英特尔酷睿 i9-12900H(619 欧元起)。

在评测 Minisforum MS-01 之前,我们先来了解一些重要信息!

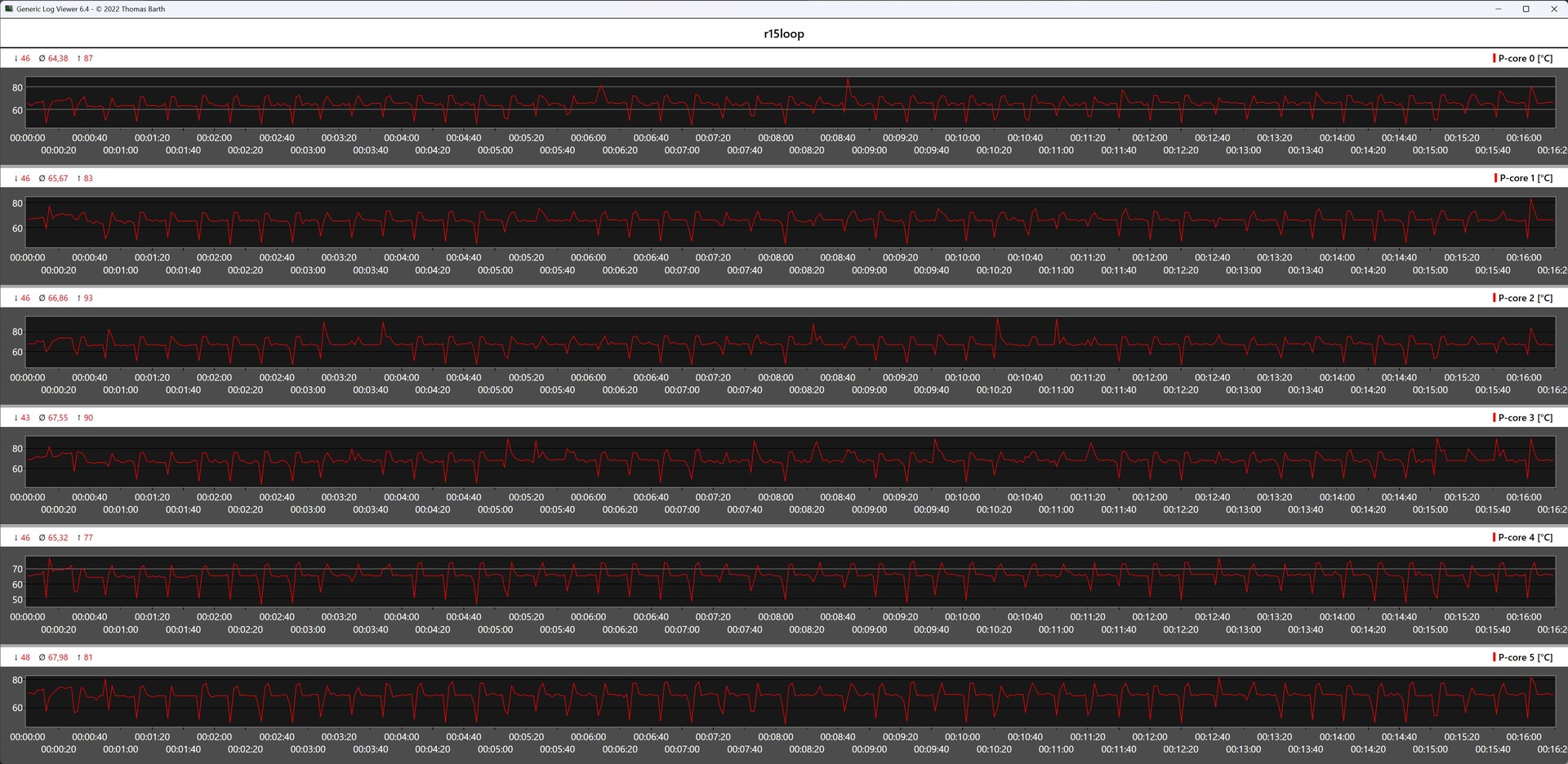

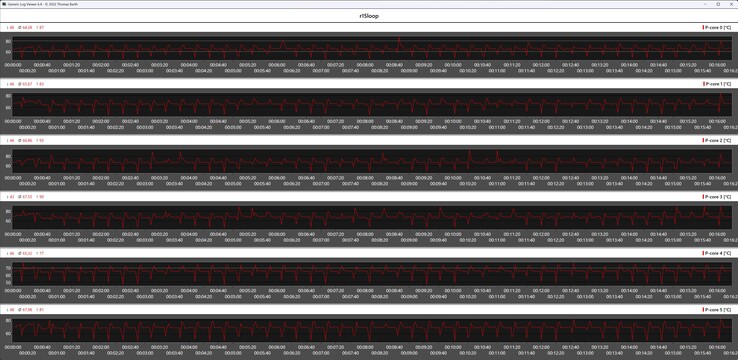

在我们的测试样品上进行的测试中,多次出现不可预知的死机现象。这些问题主要发生在较长的加载场景中,如 Cinebench R15 多循环。固态硬盘压力测试和 Adobe Premiere 基准测试有时也会出现问题。在这些测试中多次出现死机现象。当我们将处理器的功率限制降低到 35 瓦时,情况有所改善,但这导致 CPU 性能显著下降。为了进一步缩小问题范围,我们更换了内存、固态硬盘和电源装置等所有组件,但没有取得任何效果。最后,我们得出的结论是,这只能是英特尔酷睿 i9-13900H 本身的问题。我们已通知制造商,以寻求解决方案。Minisforum 计划尽快给我们寄来另一个样品。因此,只有在我们查看了替换设备之后,才能做出最终评估。

如果有人在使用 Minisforum MS-01 时遇到类似问题,请告诉我们。如果有人拥有 Minisforum MS-01,但没有遇到类似问题,也欢迎告诉我们。

Minisforum MS-01
Processor
Intel Core i9-13900H 14 x 1.9 - 5.4 GHz, 80 W PL2 / Short Burst, 60 W PL1 / Sustained, Raptor Lake-H
Graphics adapter
Memory
32 GB
, DDR5-5600 @5200
Mainboard
Intel Alder Lake-P PCH
Storage

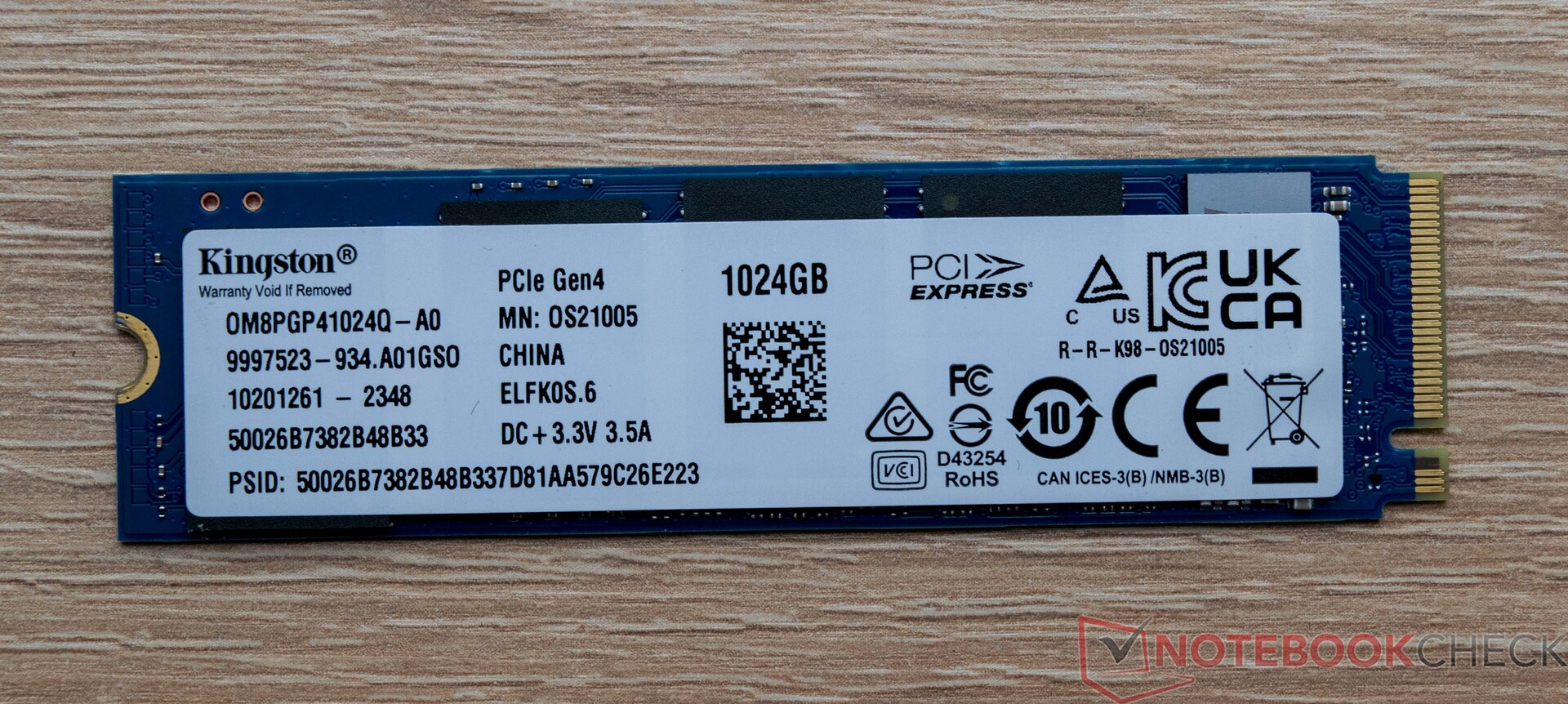

Kingston OM8PGP41024Q-A0, 1024 GB
, 930 GB free
Soundcard
Intel Raptor Lake-P/U/H PCH - cAVS
Connections
2 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, Audio Connections: 3.5mm Klinke, Intel Ethernet Controller I-226-LM, 2x SFP+ Port (Network Adapter X710)
Networking
Intel Ethernet Controller I226-V (10/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Size
height x width x depth (in mm): 48 x 189 x 196
Operating System
Microsoft Windows 11 Home
Additional features
180-Watt-Power-Supply, 24 Months Warranty
Weight
1.469 kg, Power Supply: 525 g
Price
979 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Memory
Weight
Height
81.5 %
05/2024
Minisforum MS-01
i9-13900H, Iris Xe G7 96EUs
32768 MB1.5 kg48 mm
83.4 %
04/2024
Acemagic F2A
Ultra 7 155H, Arc 8-Core
32768 MB768 g57 mm
82.8 %
04/2024
Geekom XT12 Pro
i9-12900H, Iris Xe G7 96EUs
32768 MB545 g37 mm
82.6 %
03/2024
Geekom A7
R9 7940HS, Radeon 780M
32768 MB417 g38 mm
82.4 %
05/2024
Minisforum Venus Series NAB9
i9-12900HK, Iris Xe G7 96EUs
32768 MB615 g55 mm
81.7 %
08/2023
Minisforum Venus Series NPB5
i5-13500H, Iris Xe G7 80EUs
16384 MB604 g55 mm
79.5 %
02/2024
Maxtang MTN-FP750
R7 7735HS, Radeon 680M
16384 MB601 g52 mm

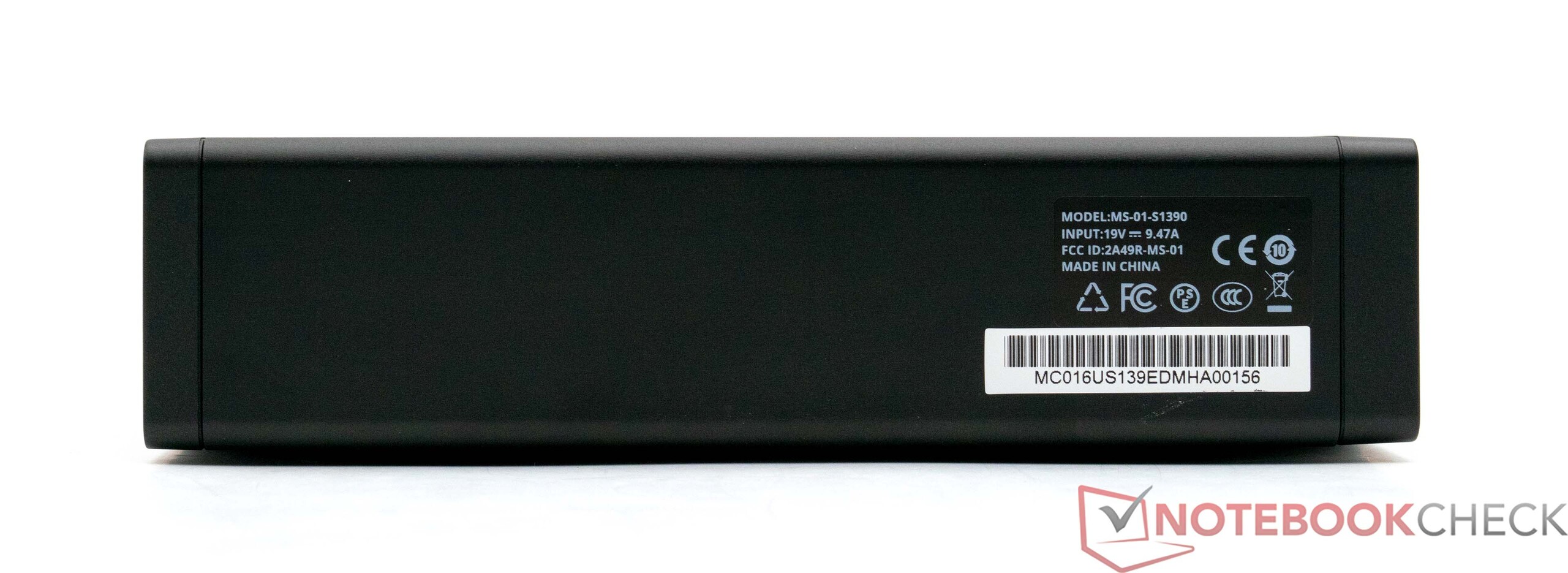

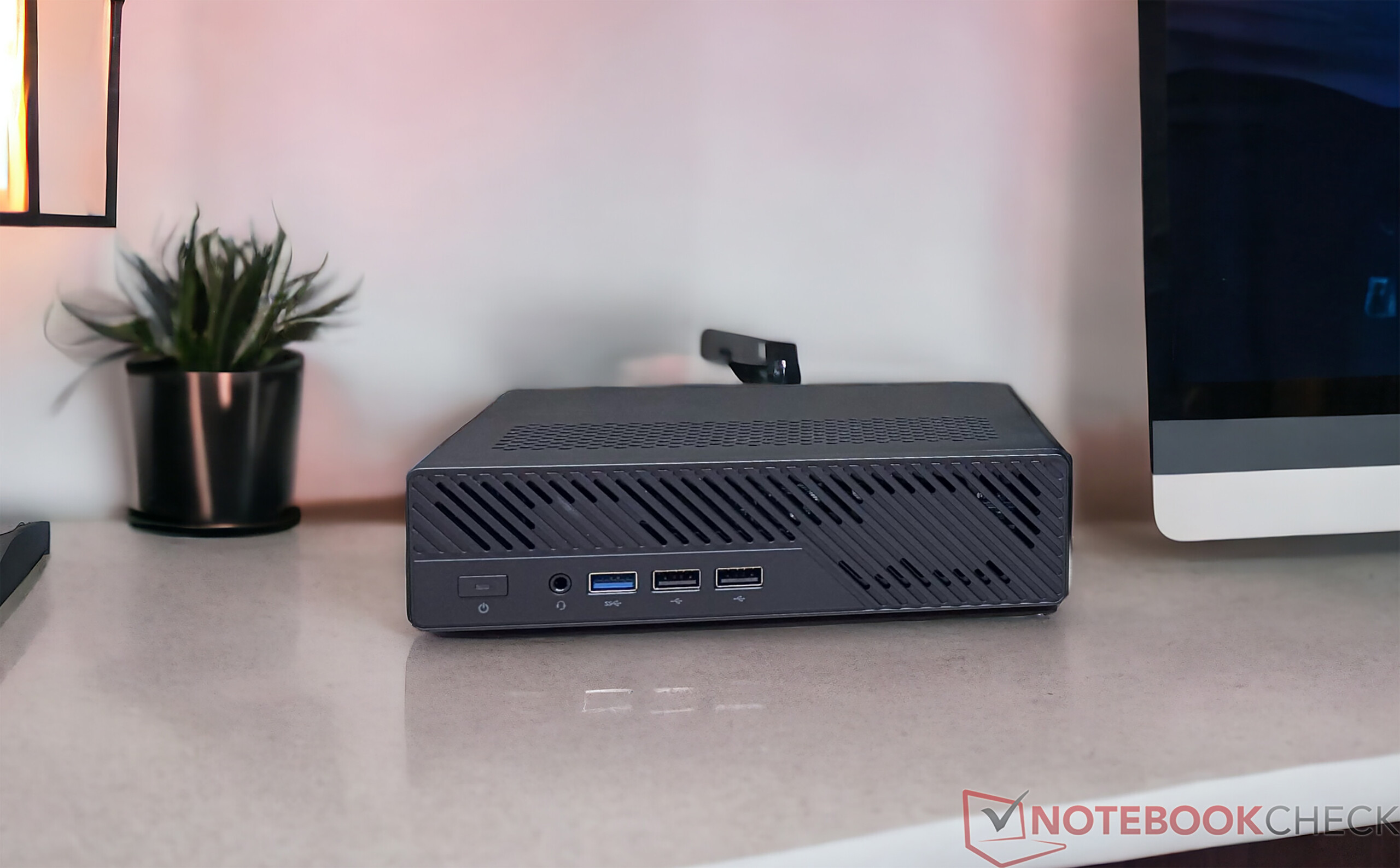

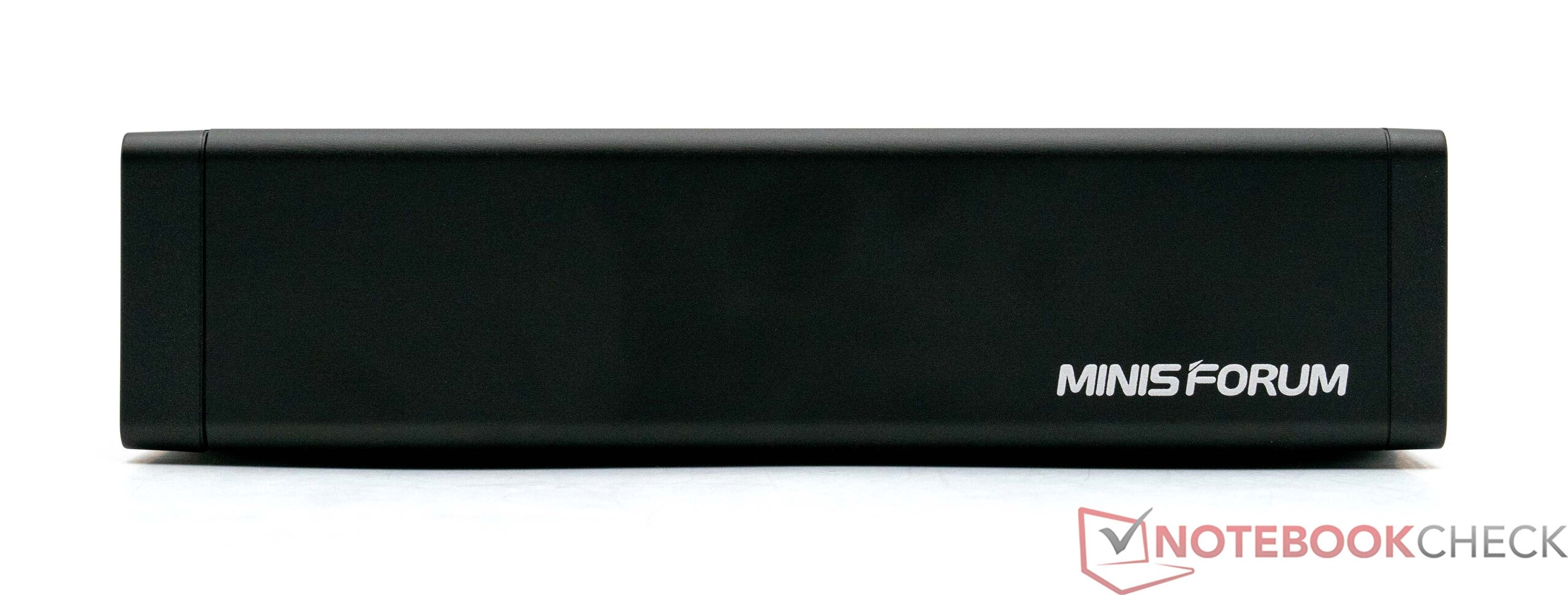

Minisforum MS-01 工作站详细介绍

迷你论坛 MS-01
迷你论坛 MS-01
迷你论坛 MS-01
迷你论坛 MS-01
迷你论坛 MS-01
迷你论坛 MS-01
迷你论坛 MS-01
迷你论坛 MS-01
迷你论坛 MS-01
迷你论坛 MS-01
迷你论坛 MS-01

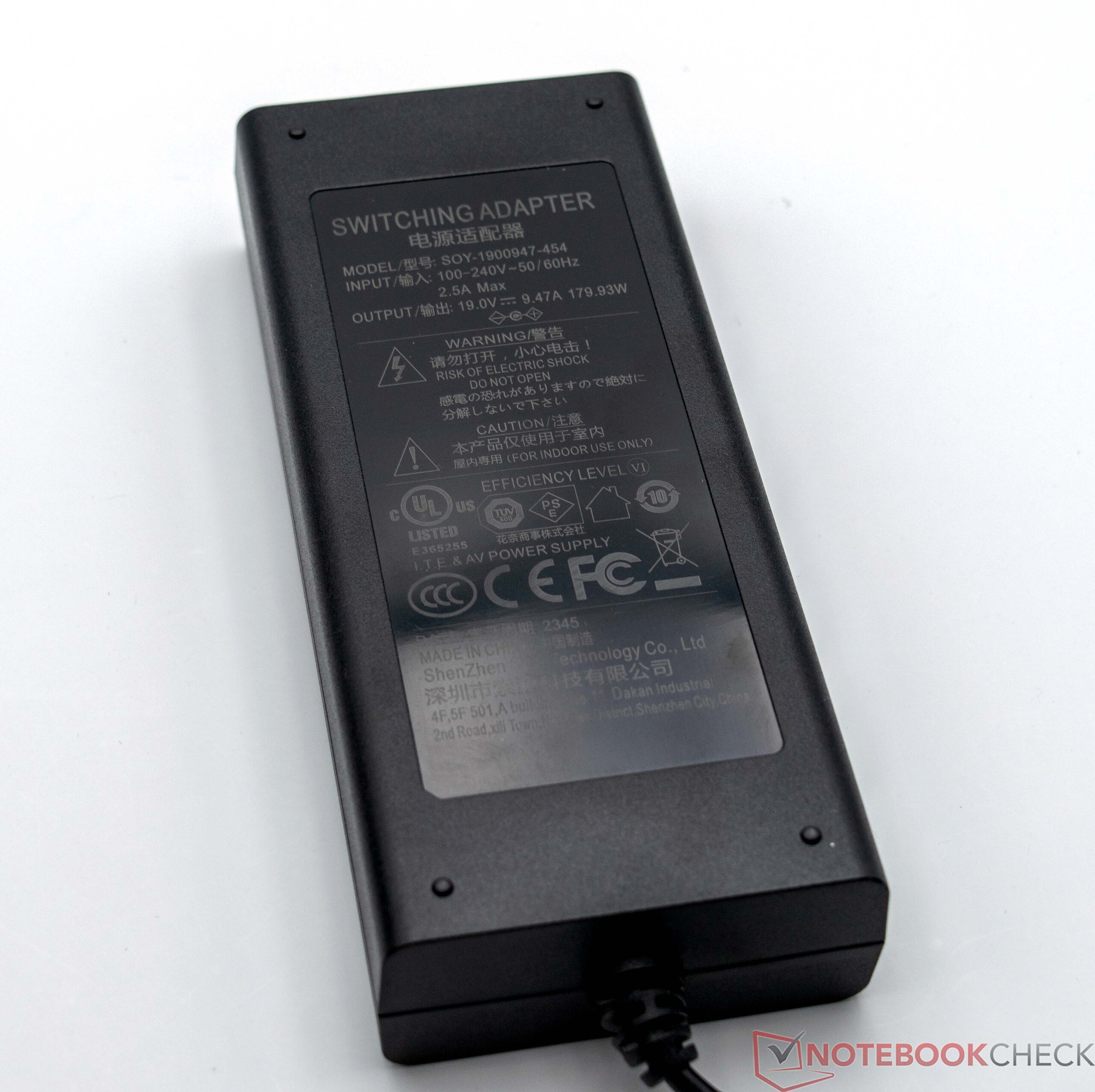

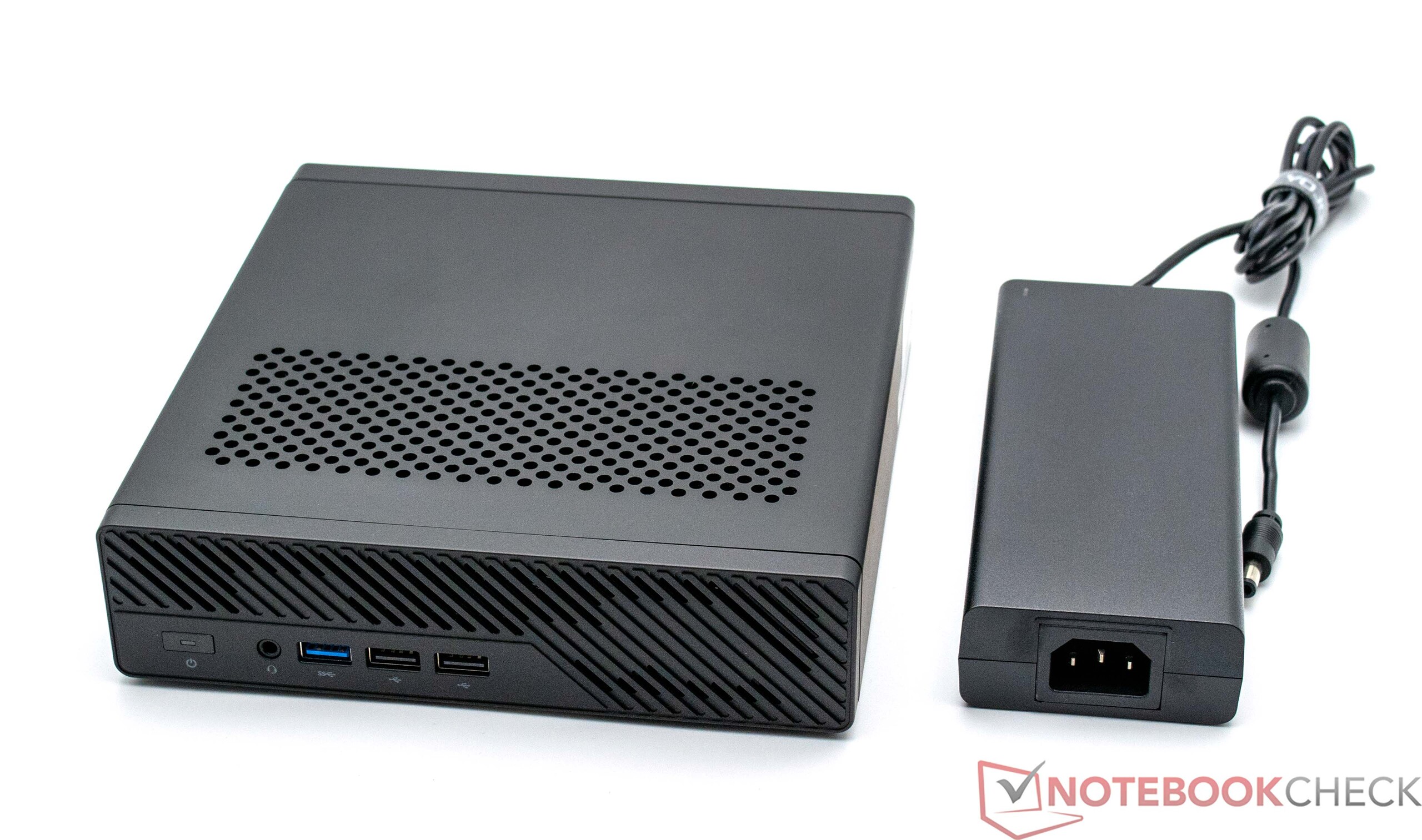

Minisforum MS-01 配有电源装置(19 V;9.47 A)
供电装置(19 V;9.47 A)

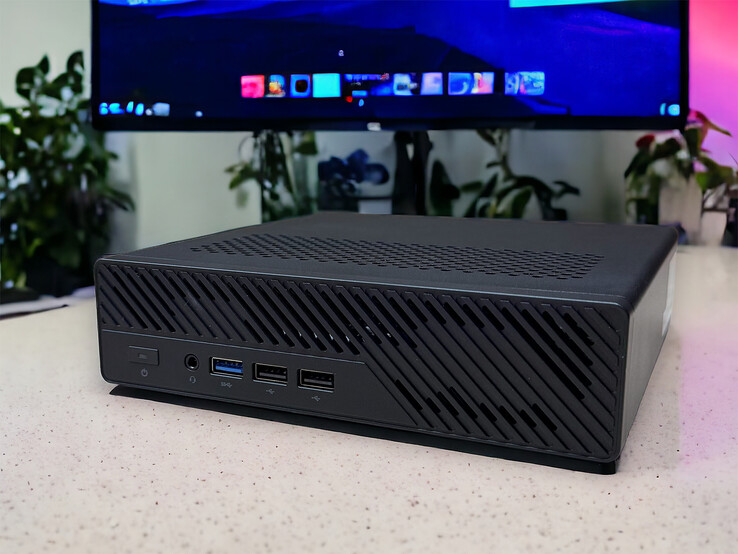

外壳 - 金属和塑料材质,工业风外观

从外观上看,Minisforum MS-01 与制造商以前的任何机型都不相似。相反,它的外观让人想起联想的 ThinkCentre 或惠普的 Elite Mini-800 型号等工业设备。虽然正面和背面采用了塑料装饰,但使用的材料主要是金属。Minisforum MS-01 在桌面上占用的空间比其他传统的迷你 PC 要大得多。没有视觉亮点,也没有必要。在做工方面没有什么可抱怨的。所有部件都制作精良,配合完美。需要强调的是其极高的稳定性,不过这也会对重量造成影响。Minisforum MS-01 的重量为 1.5 千克,与其他微型电脑相比明显偏重。180 瓦电源装置的重量为 525 克。

尺寸比较

189 mm 196 mm 48 mm 1.5 kg146 mm 146 mm 57 mm 768 g127 mm 127 mm 55 mm 615 g127 mm 127 mm 55 mm 604 g130 mm 128 mm 52 mm 601 g117 mm 112 mm 37 mm 545 g112 mm 112 mm 38 mm 417 g297 mm 210 mm 1 mm 5.7 g

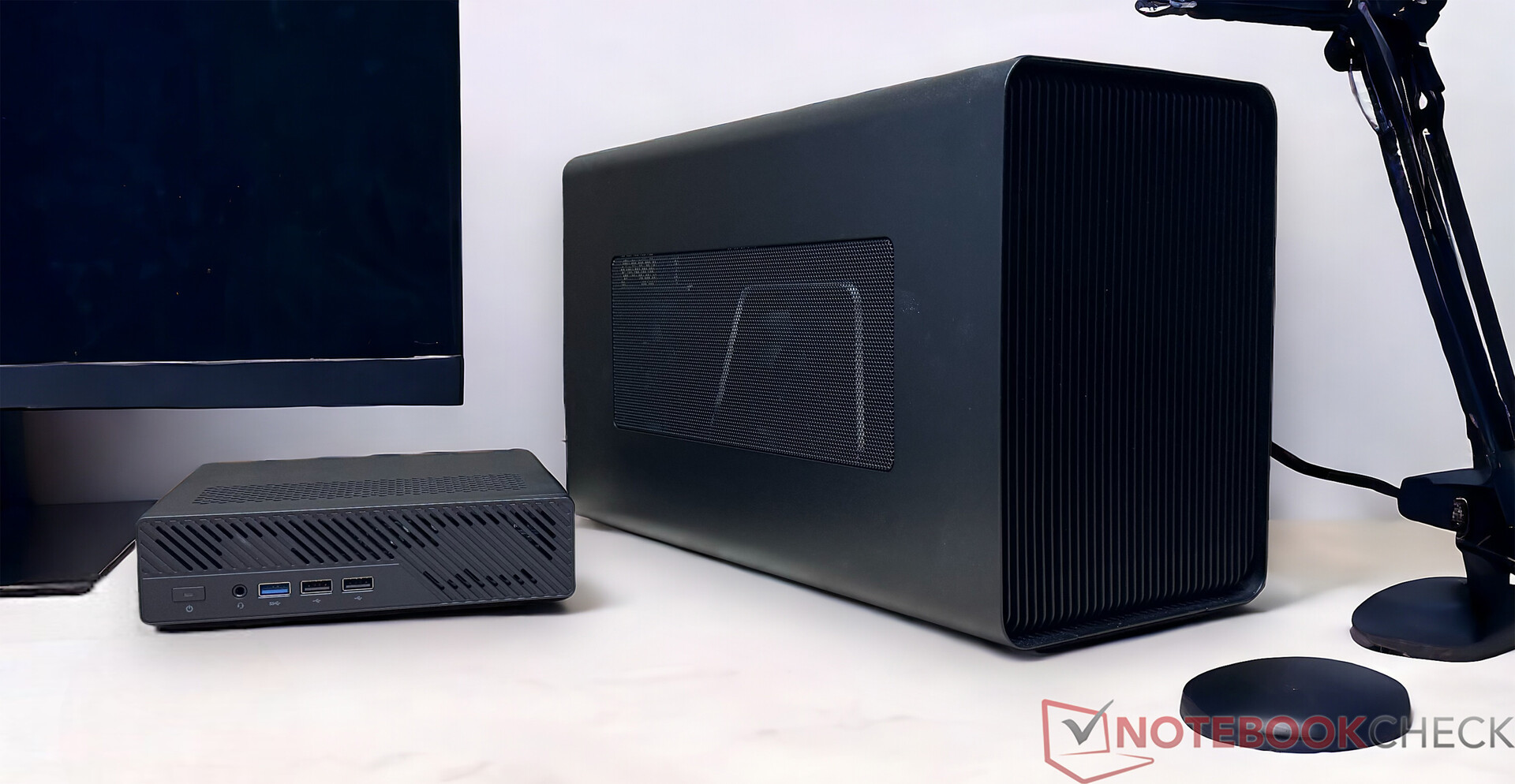

设备 - PCIe x16 内部接口和 2x USB4 外部接口

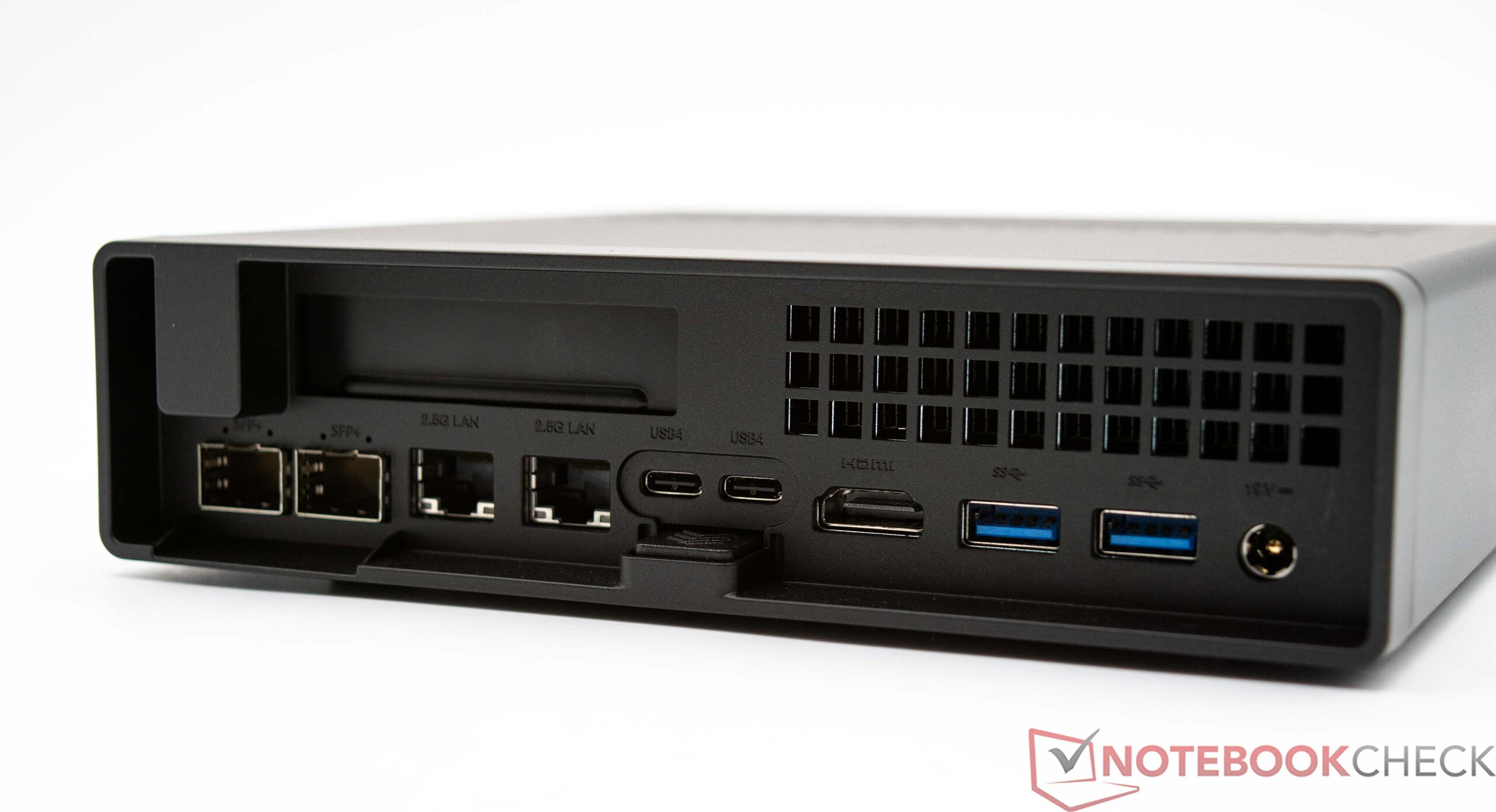

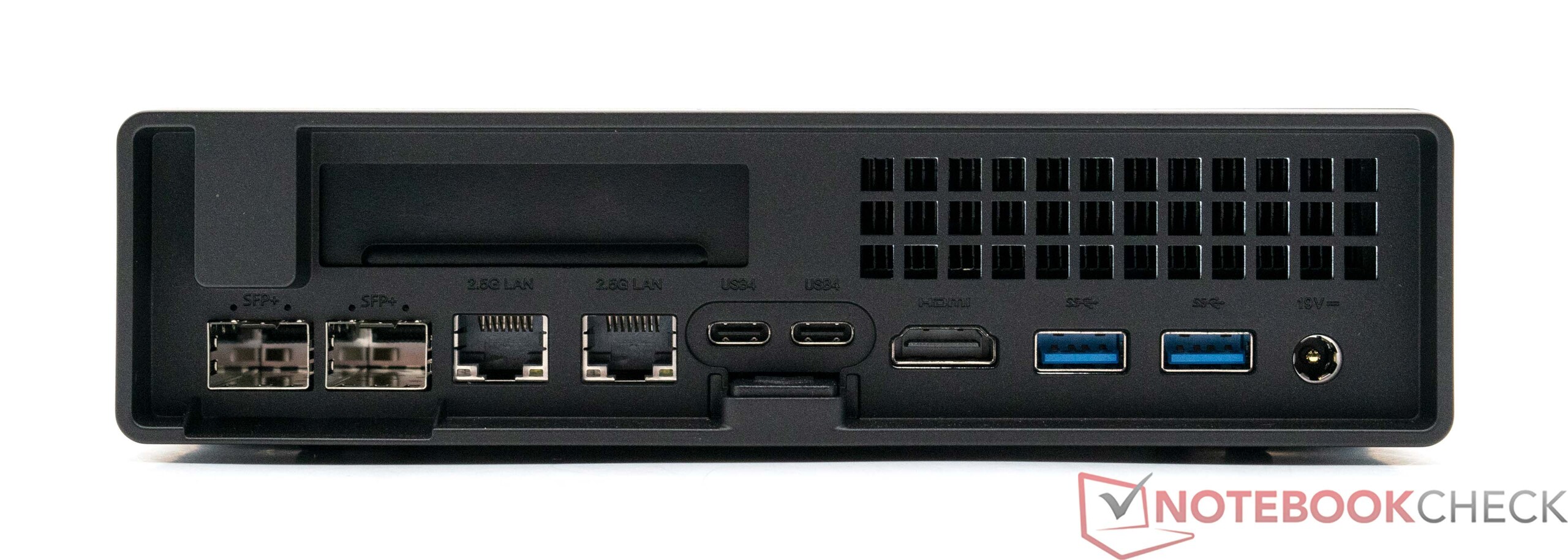

可用端口分布在机身前后。Minisforum MS-01 有 7 个 USB 端口,其中两个支持慢速 2.0 标准。不过,这对于输入设备来说绰绰有余。毕竟,Minisforum MS-01 还有两个 USB4 端口可以加分,它们位于机身后部的中间位置。另一方面,制造商在 HDMI 端口的数量上也很节省,因为只有一个连接选项明显少于我们常见的迷你 PC。同时,还可以通过 USB4 连接屏幕,这意味着 Minisforum MS-01 可以同时控制三个屏幕。Minisforum MS-01 甚至原生支持 8K 显示屏。不过,您只能使用 30 Hz 的刷新率。作为一项特殊功能,Minisforum MS-01 具有物理 PCIe x16 接口,可提供原生 PCIe 4.0 x8 速度。这意味着这款小巧的电脑可以配备专用显卡。不过,由于机箱只能安装半高的显卡,因此外形尺寸大大限制了机型的选择。只能使用单插槽设计进行散热。

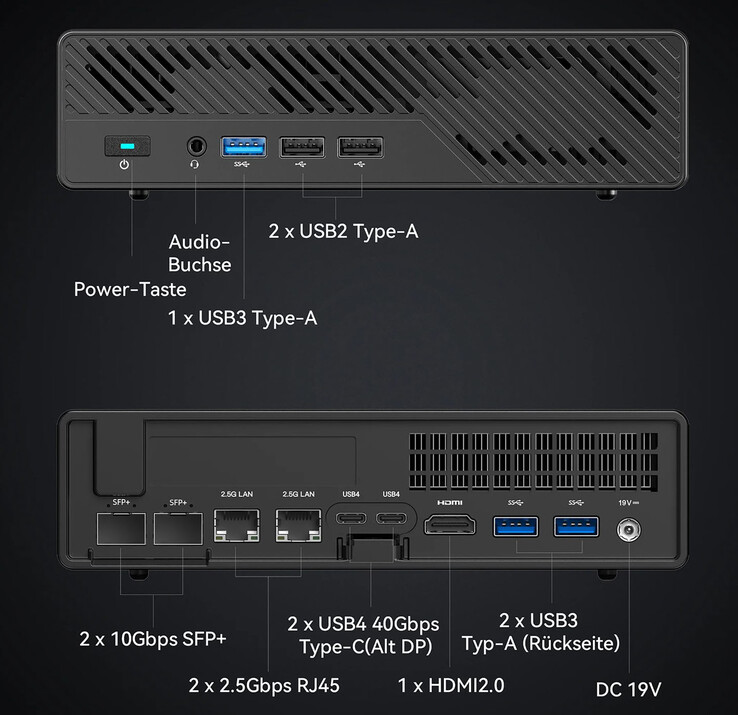

Minisforum MS-01 上的连接(来源:Minisforum)
Minisforum MS-01 上的连接(来源:Minisforum)

交流

无线局域网模块
无线局域网模块

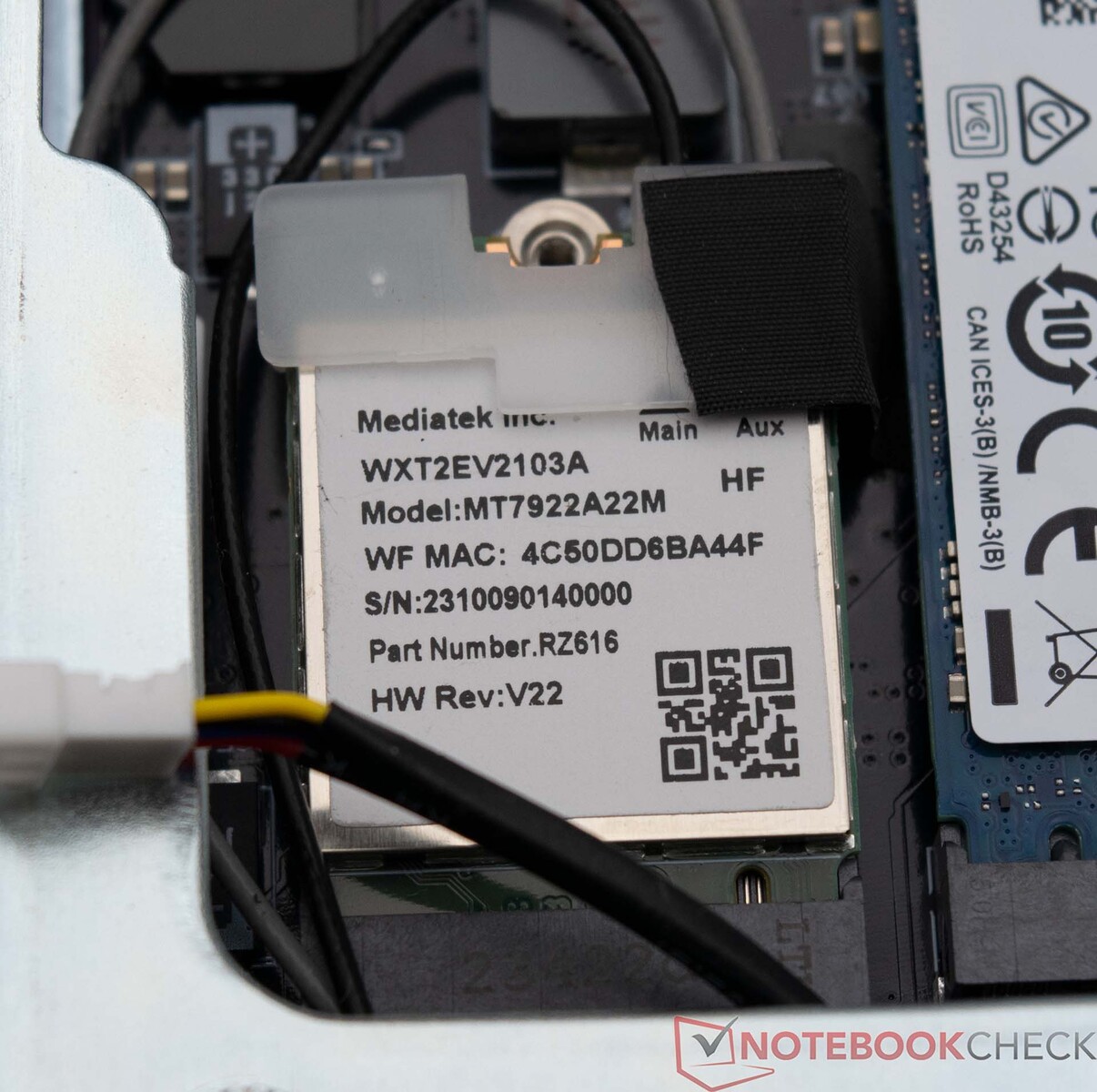

在 Minisforum MS-01 中,我们发现了一种以前曾多次接触过的 Wi-Fi 模块。联发科技 Wi-Fi 6E MT7922 无线局域网模块与我们的测试样品结合使用,取得了始终如一的优异成绩。无论是使用 5 GHz 无线网络,还是使用 6 GHz 频率范围,我们的测试样品几乎总是名列前茅。华硕 ROG Rapture GT-AXE11000 被用作测试路由器。除了无线连接,Minisforum MS-01 还提供了许多其他网络端口。MS-01 背面有两个 RJ45 插座。数据传输速率最高可达 2.5 GBit/s。此外,还可通过两个 SFP+ 接口加装其他网络适配器。

Networking
iperf3 receive AXE11000 6GHz
Acemagic F2A
Intel Wi-Fi 7 BE200 320MHz
1770 (1584min - 1790max) MBit/s +1%
Minisforum MS-01
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1753 (1734min - 1765max) MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
  (860 - 1771, n=28)
1437 MBit/s -18%
Geekom A7
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1375 (688min - 1438max) MBit/s -22%
Average of class Mini PC
  (390 - 1771, n=42, last 2 years)
1229 MBit/s -30%
Geekom XT12 Pro
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1152 (576min - 1273max) MBit/s -34%
iperf3 transmit AXE11000 6GHz
Minisforum MS-01
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1775 (877min - 1883max) MBit/s
Acemagic F2A
Intel Wi-Fi 7 BE200 320MHz
1615 (767min - 1670max) MBit/s -9%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
  (875 - 1775, n=27)
1461 MBit/s -18%
Geekom A7
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1367 (1268min - 1443max) MBit/s -23%
Geekom XT12 Pro
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1315 (691min - 1352max) MBit/s -26%
Average of class Mini PC
  (432 - 1775, n=43, last 2 years)
1190 MBit/s -33%
iperf3 receive AXE11000
Minisforum MS-01
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1771 (1719min - 1796max) MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
  (848 - 1775, n=41)
1442 MBit/s -19%
Average of class Mini PC
  (192.9 - 1796, n=90, last 2 years)
912 MBit/s -49%
Minisforum Venus Series NPB5
MediaTek RZ608
902 (865min - 926max) MBit/s -49%
Geekom XT12 Pro
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
892 (460min - 921max) MBit/s -50%
Geekom A7
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
858 (827min - 886max) MBit/s -52%
Maxtang MTN-FP750
Intel Wi-Fi 6 AX200
852 (802min - 903max) MBit/s -52%
Acemagic F2A
Intel Wi-Fi 7 BE200 320MHz
838 (728min - 926max) MBit/s -53%
Minisforum Venus Series NAB9
MediaTek MT7921
503 (371min - 687max) MBit/s -72%
iperf3 transmit AXE11000
Minisforum MS-01
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1732 (1659min - 1839max) MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
  (358 - 1785, n=41)
1342 MBit/s -23%
Minisforum Venus Series NPB5
MediaTek RZ608
951 (864min - 1006max) MBit/s -45%
Average of class Mini PC
  (184.1 - 1776, n=90, last 2 years)
843 MBit/s -51%
Geekom A7
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
831 (755min - 940max) MBit/s -52%
Maxtang MTN-FP750
Intel Wi-Fi 6 AX200
828 (743min - 896max) MBit/s -52%
Acemagic F2A
Intel Wi-Fi 7 BE200 320MHz
709 (369min - 977max) MBit/s -59%
Geekom XT12 Pro
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
589 (295min - 624max) MBit/s -66%
Minisforum Venus Series NAB9
MediaTek MT7921
531 (255min - 725max) MBit/s -69%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550160016501700175018001850Tooltip
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1746 (877-1883)
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1367 (1268-1443)
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1752 (1734-1765)
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1352 (688-1438)
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1770 (1719-1796)
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø858 (827-886)
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1732 (1659-1839)
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø831 (755-940)

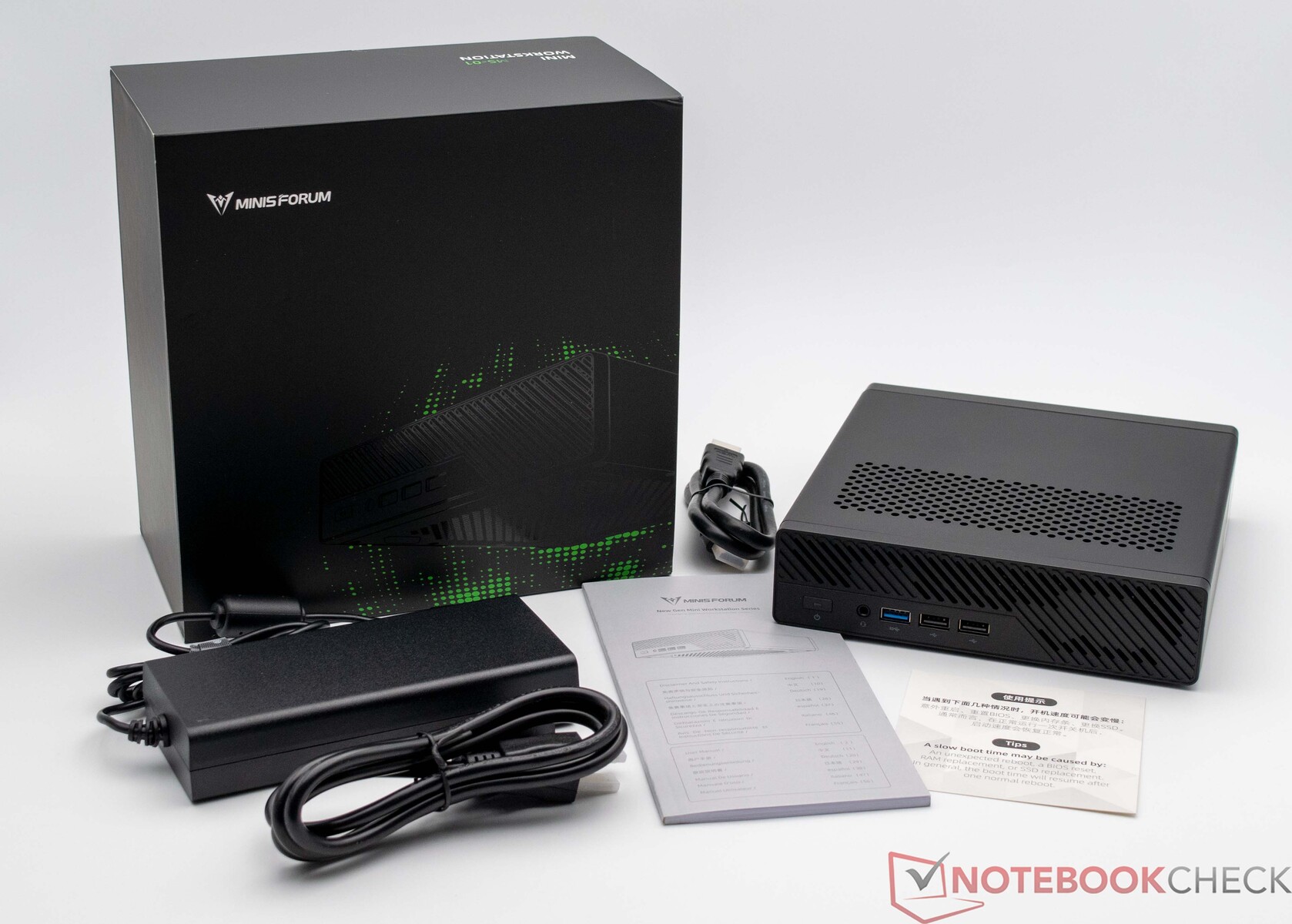

配件

Minisforum MS-01 的供货范围并不广泛。除了微型电脑本身,还包括 180 瓦电源装置和 HDMI 电缆。该设备还附带了一个用于安装 U.2 固态硬盘的适配器。

Minisforum MS-01 的供货范围
Minisforum MS-01 的供货范围

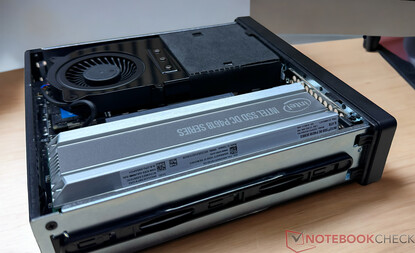

维护

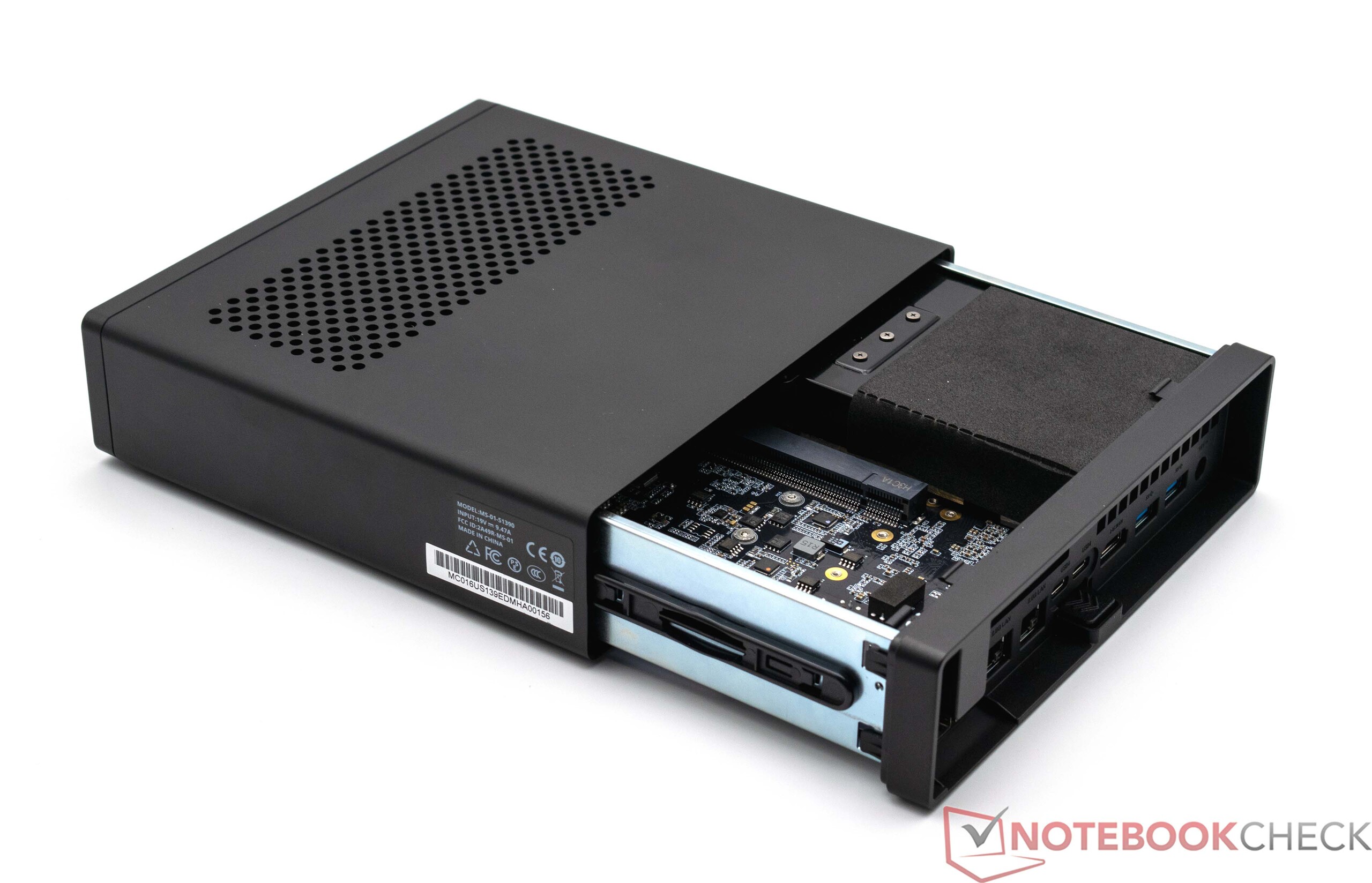

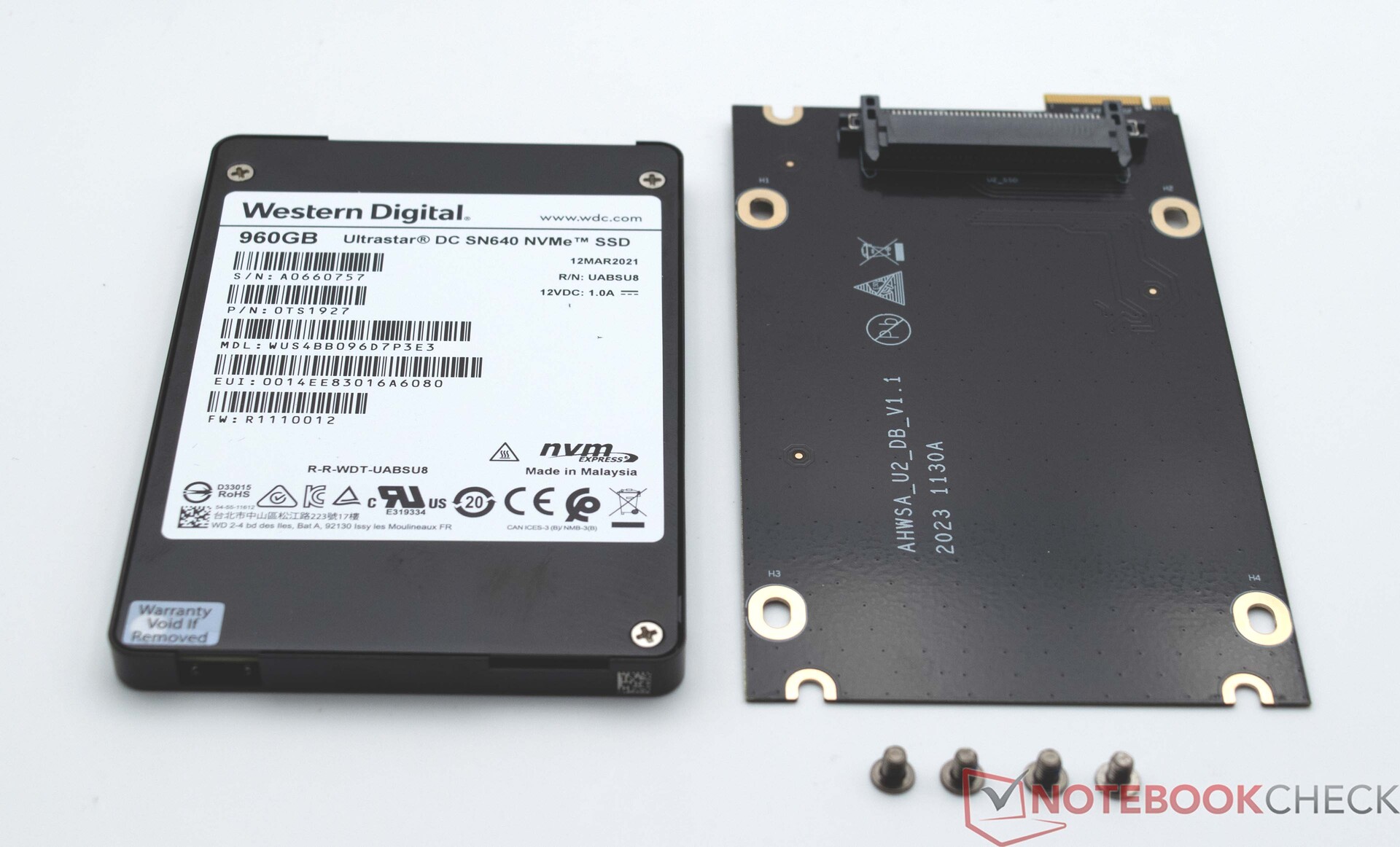

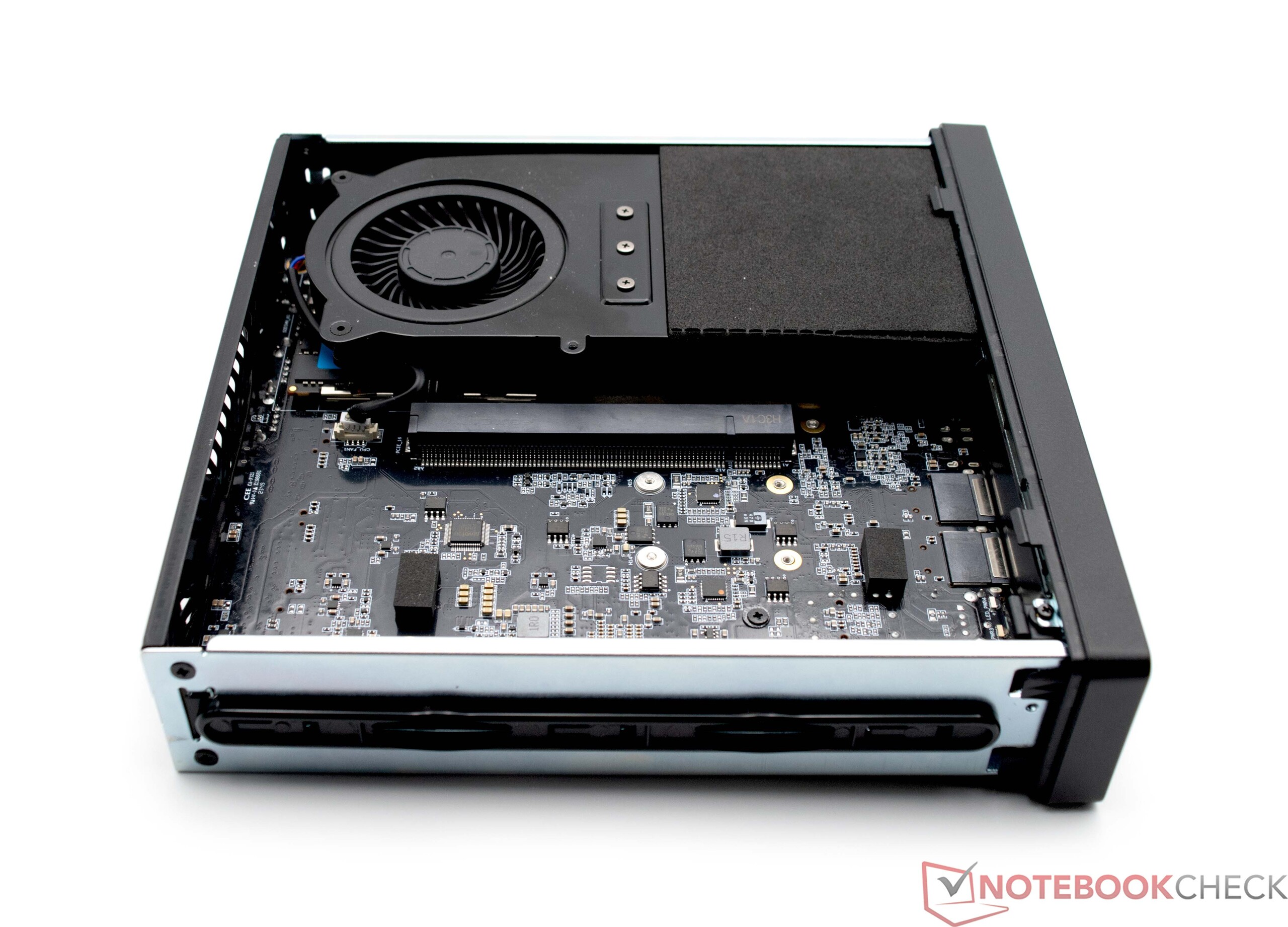

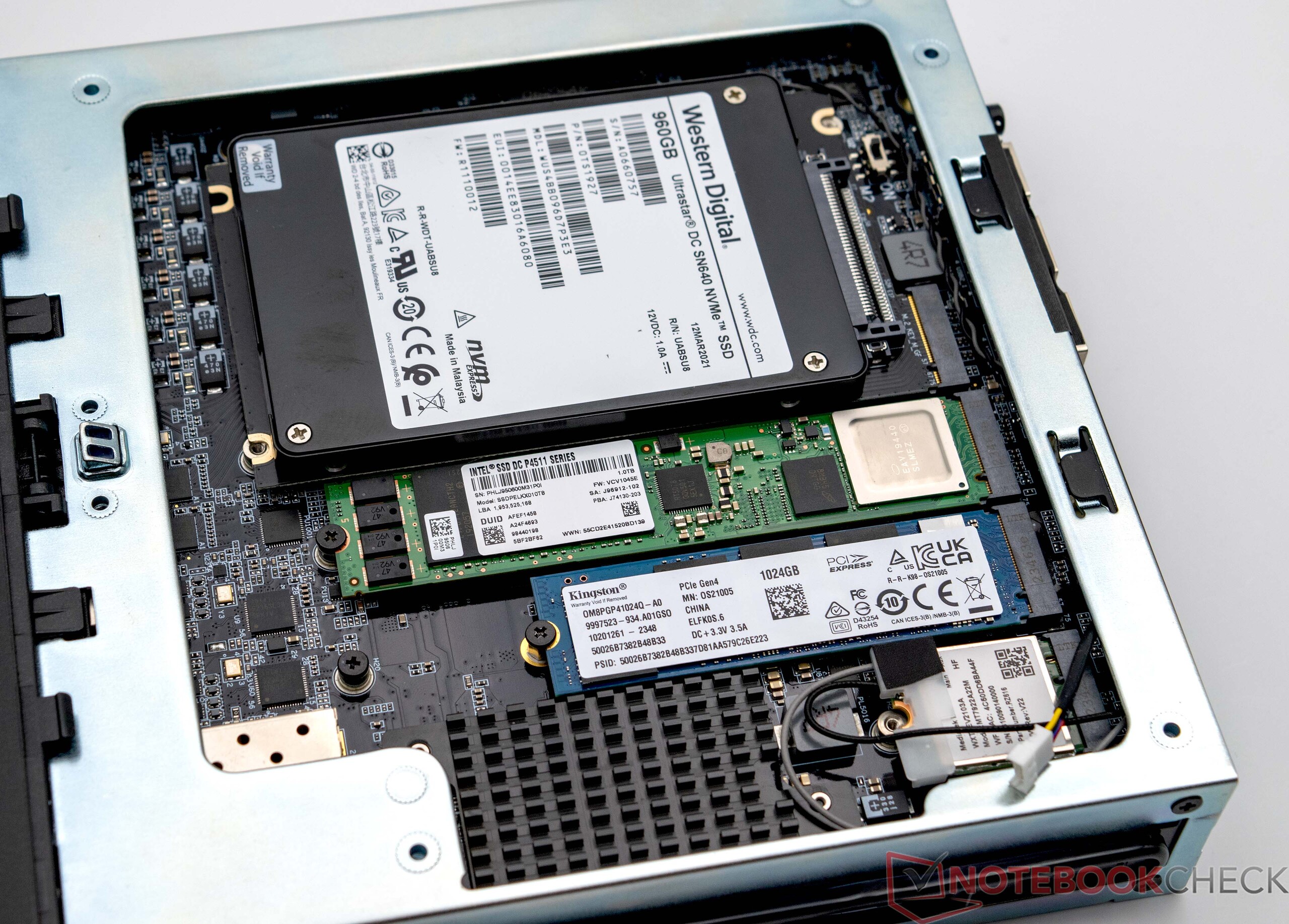

Minisforum MS-01 在设备方面没有任何问题。设备本身甚至无需工具即可打开。这在现实中非常有效。因此,如果购买的是裸机,就不可避免地要安装内存和固态硬盘,而这在没有工具的情况下是不可能实现的。两个 SO-DIMM 插槽位于 CPU 风扇正下方,固态硬盘可以安装在底部。不过,必须拆下带有另一个风扇的宽金属盖。Minisforum MS-01 只能安装 PCIe 固态硬盘。即使是 U.2 SSD 也可以安装,但必须使用随附的适配器。

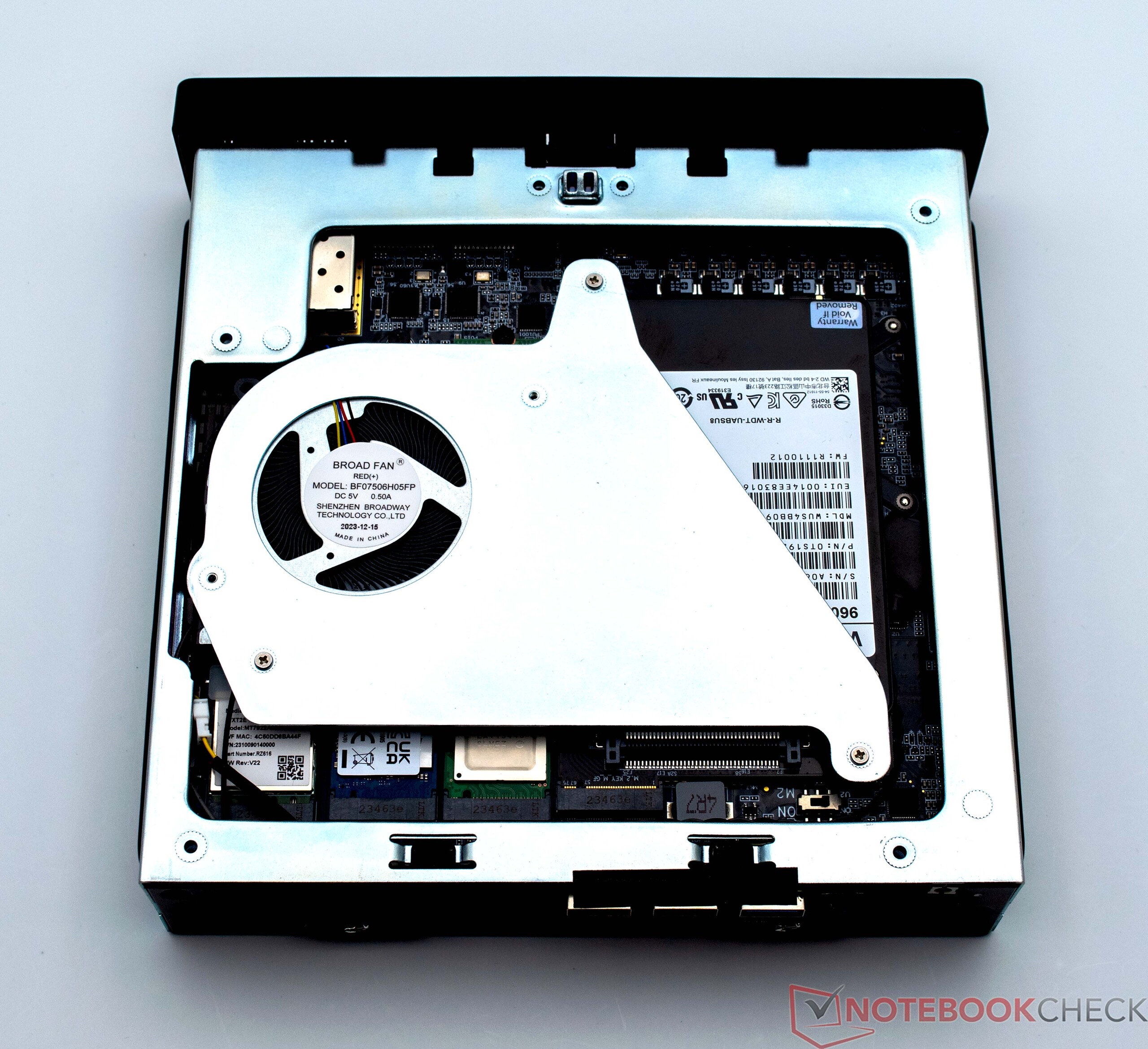

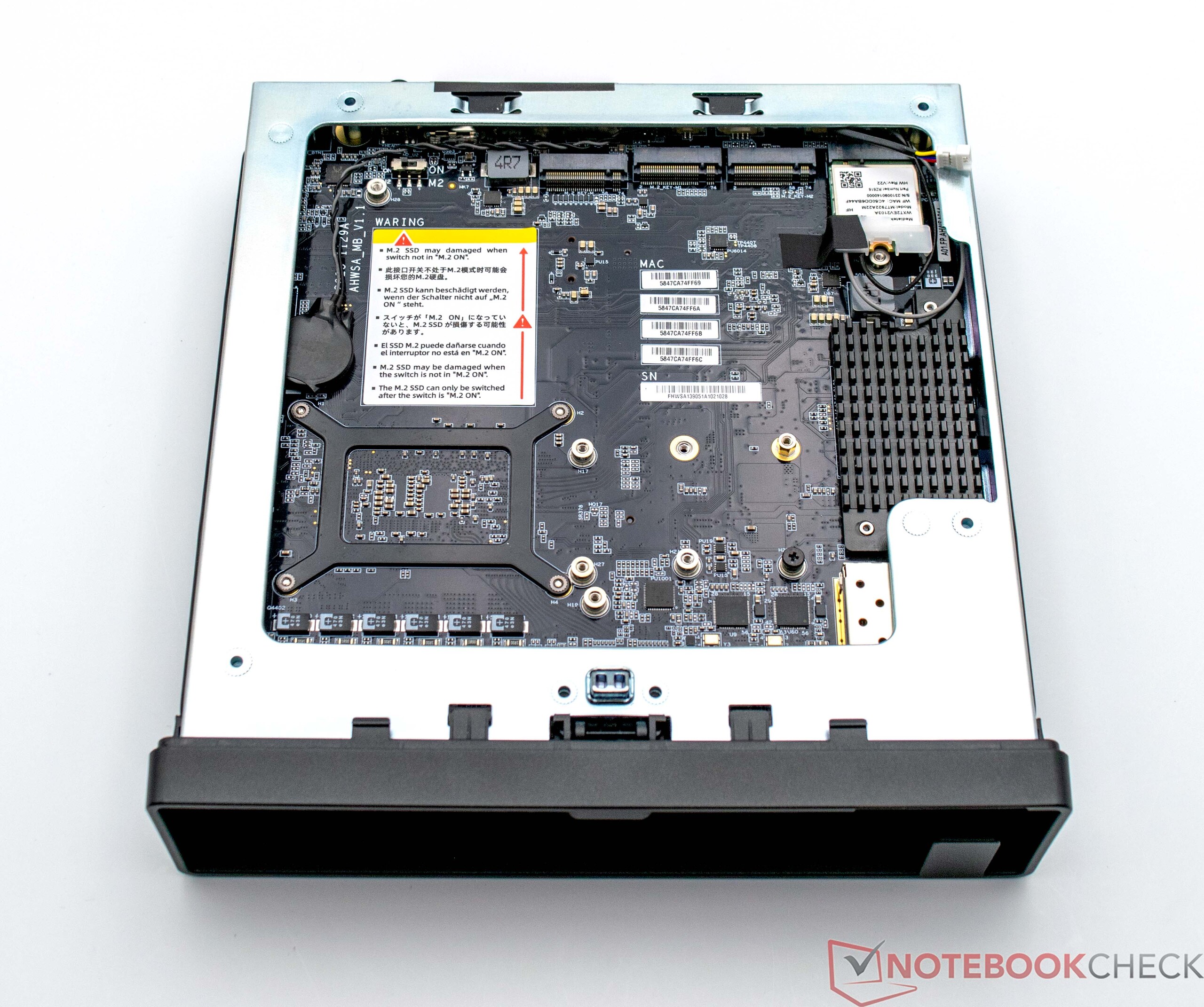

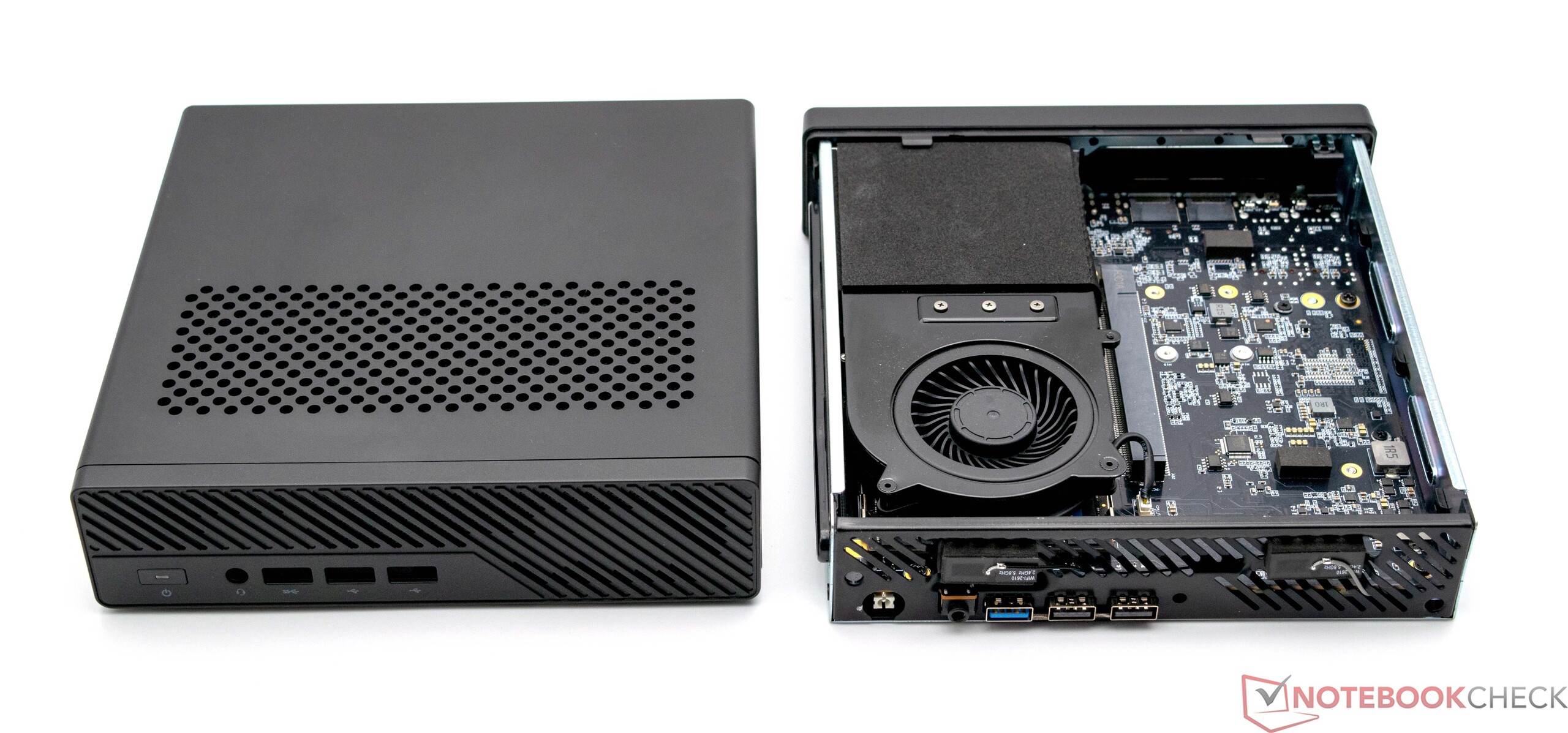

迷你论坛 MS-01 开放
迷你论坛 MS-01
迷你论坛 MS-01 开放
迷你论坛 MS-01 开放
迷你论坛 MS-01 开放
迷你论坛 MS-01 开放

性能 - Intel Raptor Lake-H,14 个核心和 20 个线程

Minisforum MS-01 配有 英特尔酷睿 i9-13900H顶级配置。此外,该机型还可配备 英特尔酷睿 i9-12900H,其性能可能几乎不会更差。不过,注重价格的买家也可以选择 英特尔酷睿 i5-12600H.这款系统芯片仍然拥有 12 个内核和 16 个线程,应该也能胜任大多数任务。

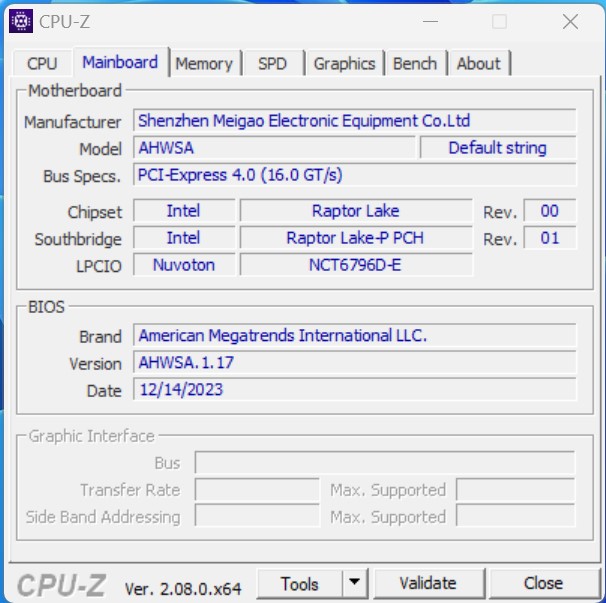

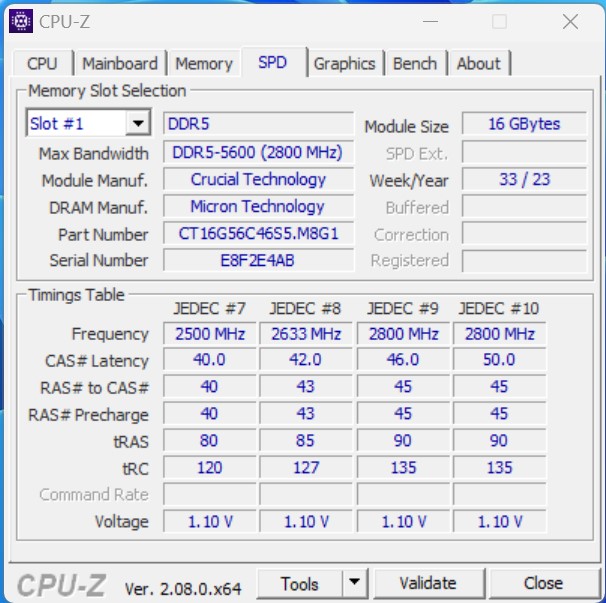

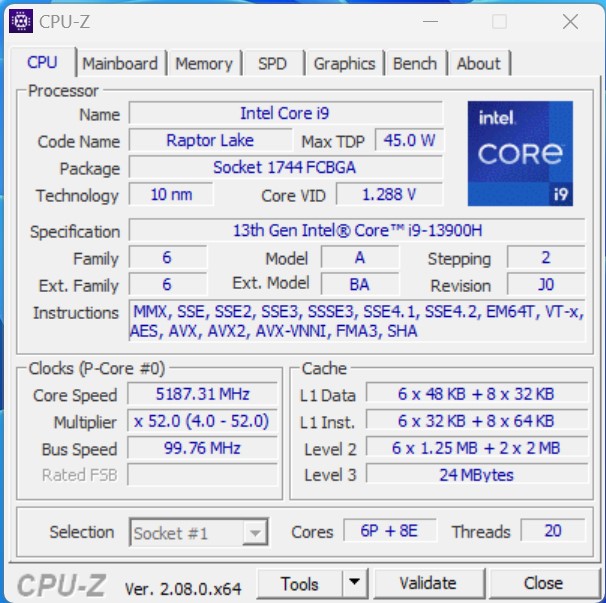

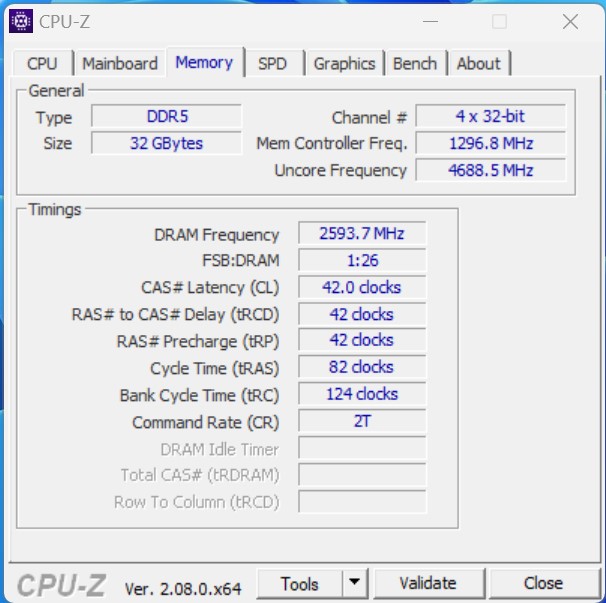

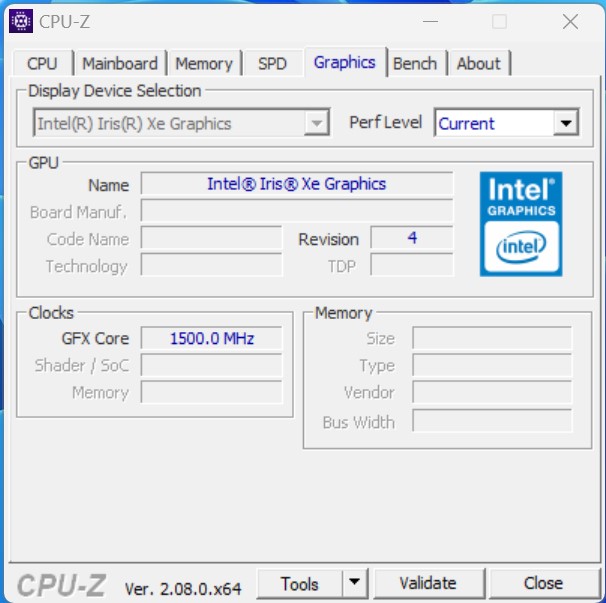

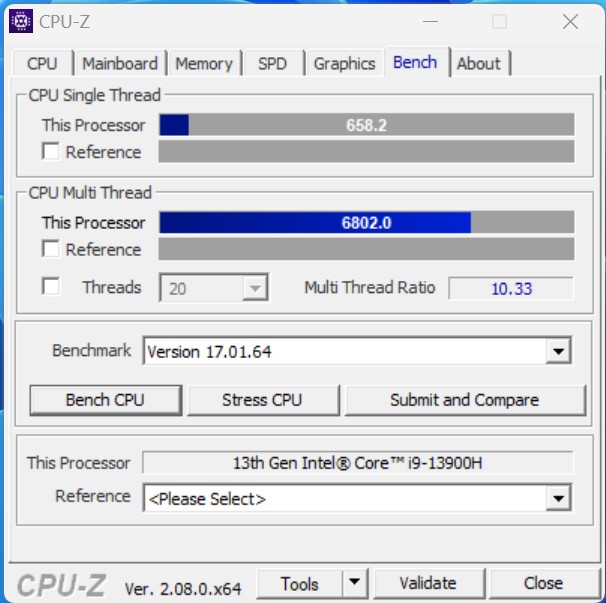

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

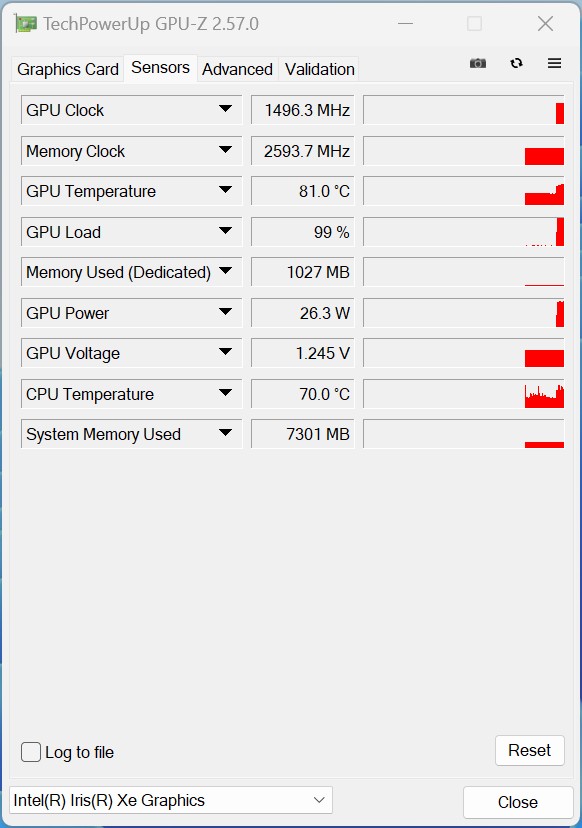

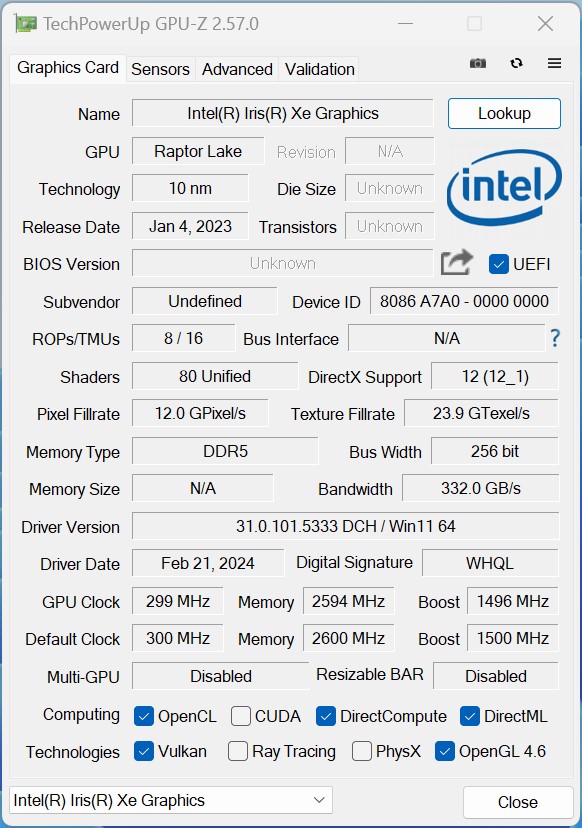

GPU-Z
GPU-Z

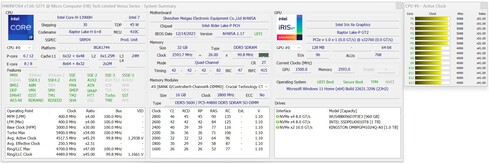

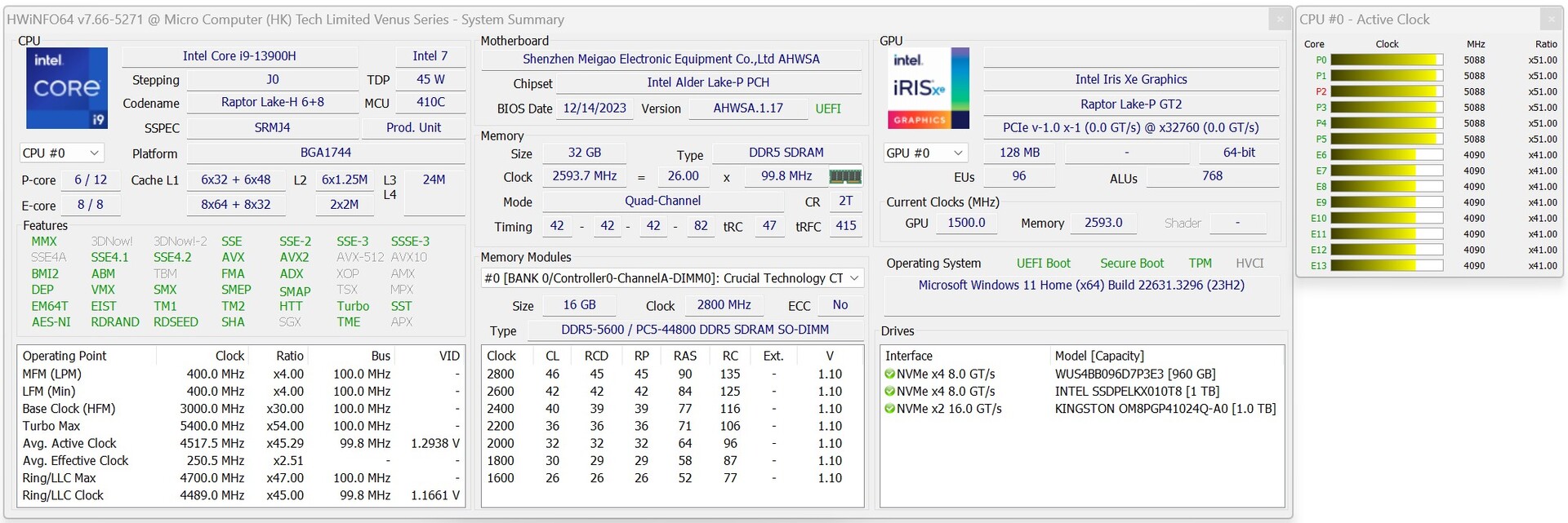

HWiNFO

测试条件

在 Minisforum MS-01 的所有性能测试中,我们都使用了 "最高性能 "功率方案。根据我们的测试标准,只有在能量和噪音测量中出现偏差。 测试标准.处理器 PL1(60 瓦)和 PL2(80 瓦)的功率限制没有根据交付状态而改变。

处理器

英特尔酷睿 i9-13900H
英特尔酷睿 i9-13900H

Minisforum MS-01 配备了 英特尔酷睿 i9-13900H的顶级配置。在性能方面,该 SoC 在我们的测试样本中表现出色,与 Geekom A7AMD Ryzen 9 7940HS.

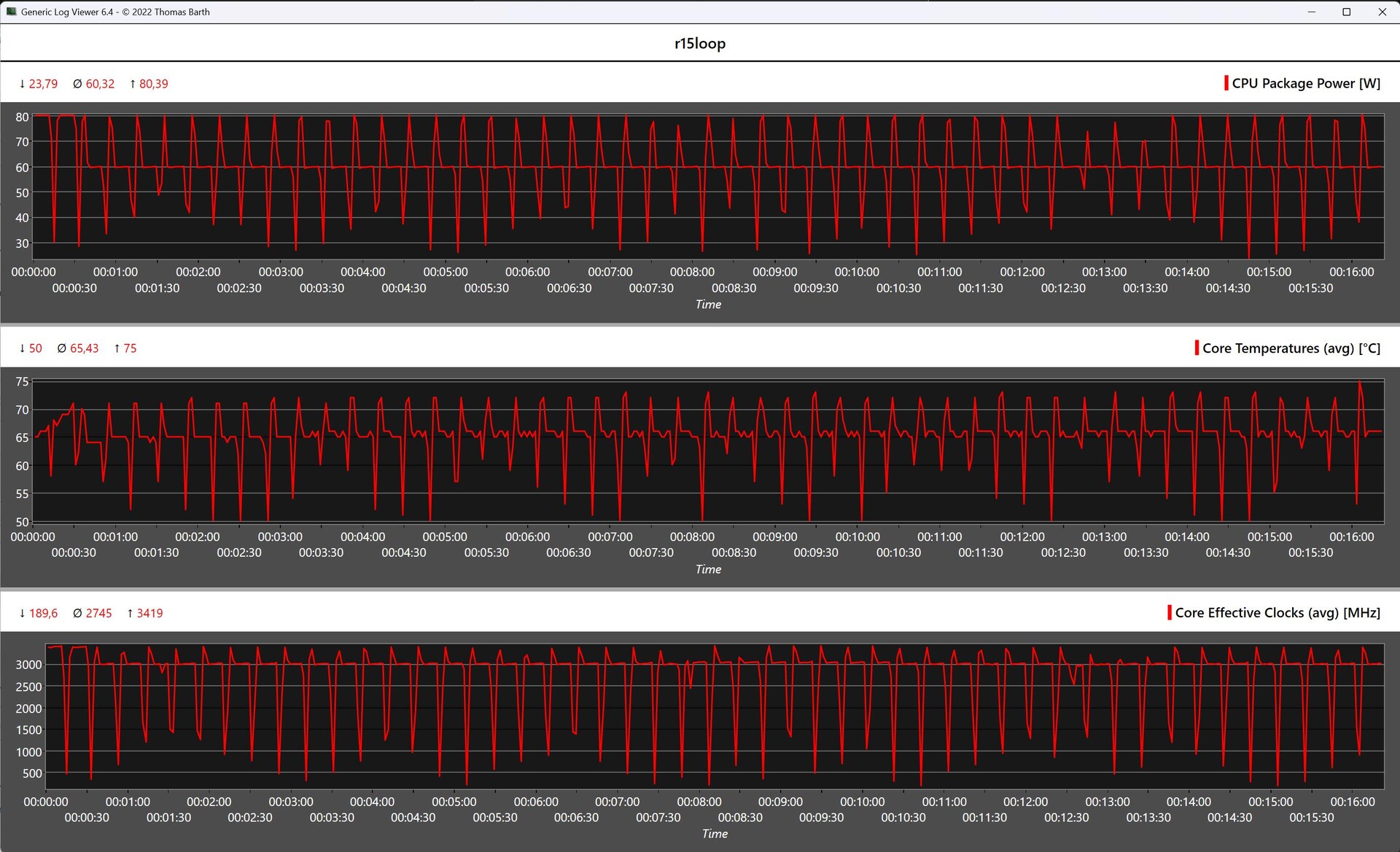

英特尔酷睿 i9-13900H 共提供 14 个内核和 20 个线程。Minisforum 为该处理器设定了高达 80 瓦的短期功耗限制。在连续负载情况下,应达到 60 瓦。在这一点上,我们已经超越了自己,可以确认性能限制。

有关进一步的比较和基准,请参阅我们的CPU 比较表

Cinebench R15
Cinebench R15

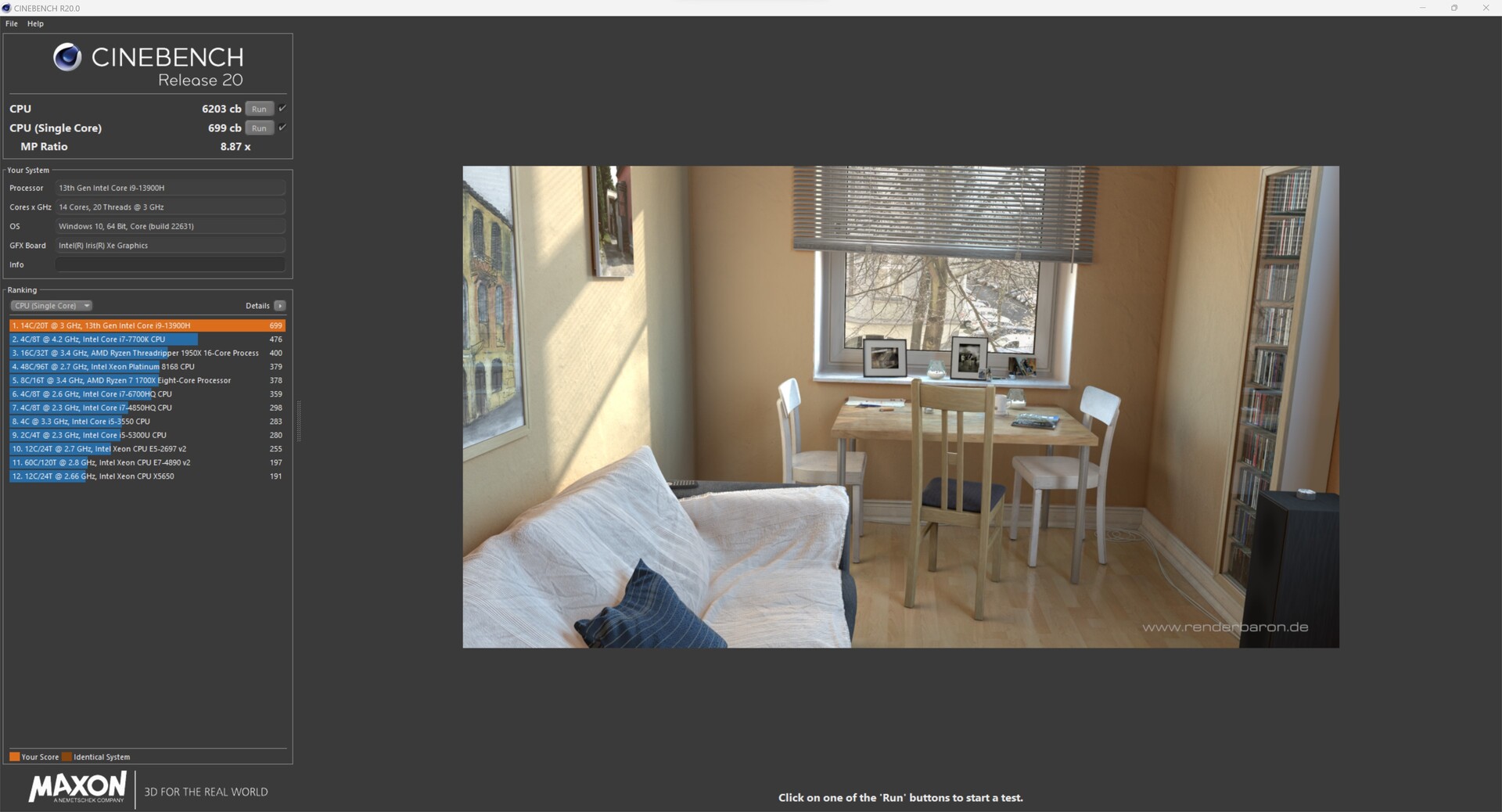

Cinebench R20
Cinebench R20

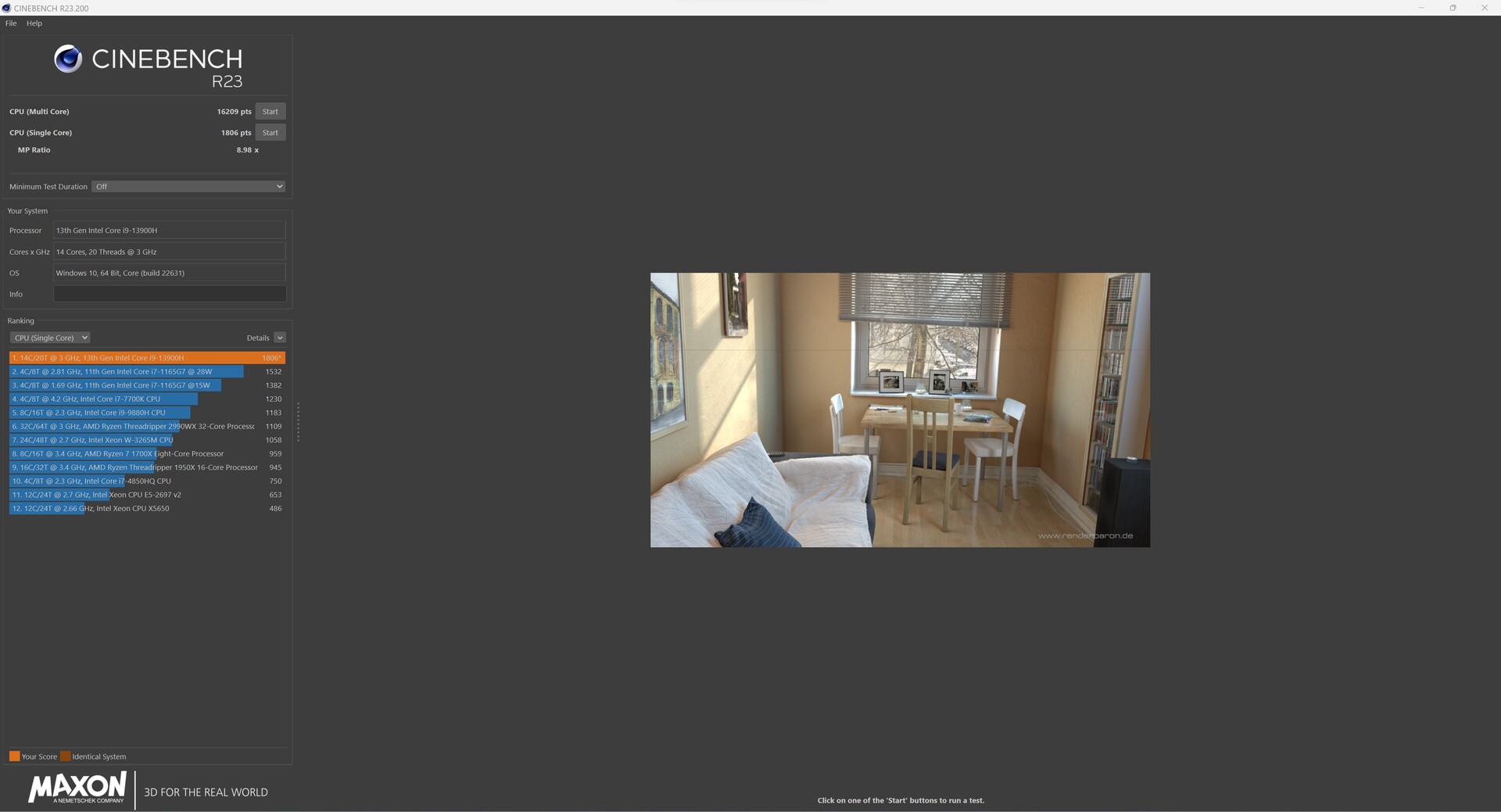

Cinebench R23
Cinebench R23

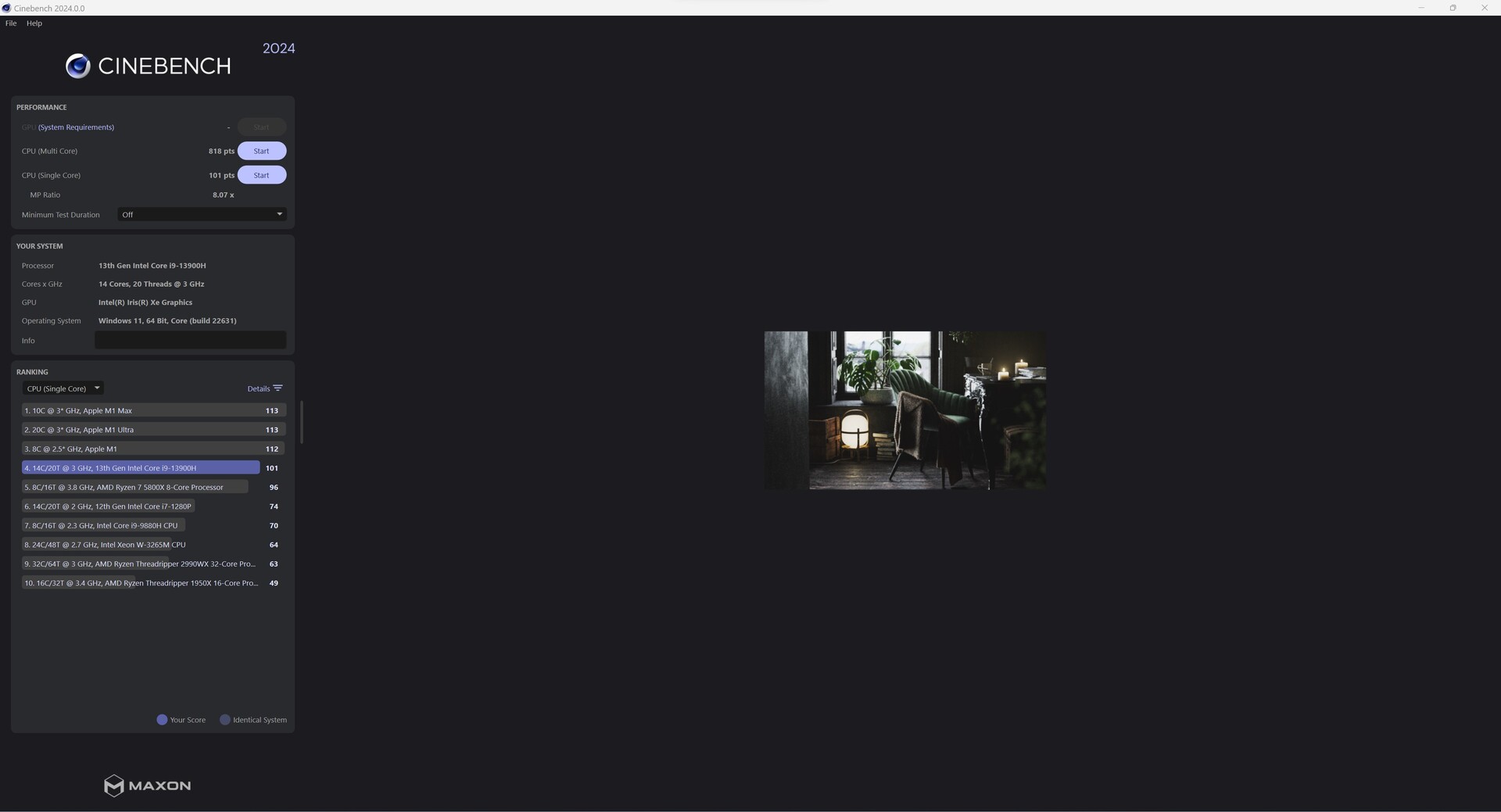

Cinebench 2024
Cinebench 2024
Performance Rating - Percent
Geekom A7
AMD Ryzen 9 7940HS
56.8 pt
Minisforum MS-01
Intel Core i9-13900H
55.5 pt
Acemagic F2A
Intel Core Ultra 7 155H
55.4 pt
Minisforum Venus Series NAB9
Intel Core i9-12900HK
55 pt
Minisforum Venus Series NPB5
Intel Core i5-13500H
54.7 pt
Geekom XT12 Pro
Intel Core i9-12900H
51.7 pt
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
48.7 pt
Cinebench 2024
CPU Single Core
Minisforum Venus Series NAB9
Intel Core i9-12900HK
114 Points +13%
Geekom A7
AMD Ryzen 9 7940HS
108 Points +7%
Geekom XT12 Pro
Intel Core i9-12900H
108 Points +7%
Minisforum Venus Series NPB5
Intel Core i5-13500H
106 Points +5%
Acemagic F2A
Intel Core Ultra 7 155H
106 Points +5%
Minisforum MS-01
Intel Core i9-13900H
101 Points
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
90 Points -11%
CPU Multi Core
Acemagic F2A
Intel Core Ultra 7 155H
1022 Points +25%
Geekom A7
AMD Ryzen 9 7940HS
922 Points +13%
Minisforum MS-01
Intel Core i9-13900H
818 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK
746 Points -9%
Minisforum Venus Series NPB5
Intel Core i5-13500H
706 Points -14%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
620 Points -24%
Geekom XT12 Pro
Intel Core i9-12900H
578 Points -29%
Cinebench R23
Multi Core
Acemagic F2A
Intel Core Ultra 7 155H
18497 Points +14%
Minisforum MS-01
Intel Core i9-13900H
16209 Points
Geekom A7
AMD Ryzen 9 7940HS
15556 Points -4%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
14659 Points -10%
Minisforum Venus Series NPB5
Intel Core i5-13500H
13542 Points -16%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
11072 Points -32%
Geekom XT12 Pro
Intel Core i9-12900H
11036 Points -32%
Single Core
Minisforum Venus Series NAB9
Intel Core i9-12900HK
1901 Points +5%
Geekom XT12 Pro
Intel Core i9-12900H
1824 Points +1%
Minisforum MS-01
Intel Core i9-13900H
1806 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
1775 Points -2%
Acemagic F2A
Intel Core Ultra 7 155H
1771 Points -2%
Geekom A7
AMD Ryzen 9 7940HS
1747 Points -3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1543 Points -15%

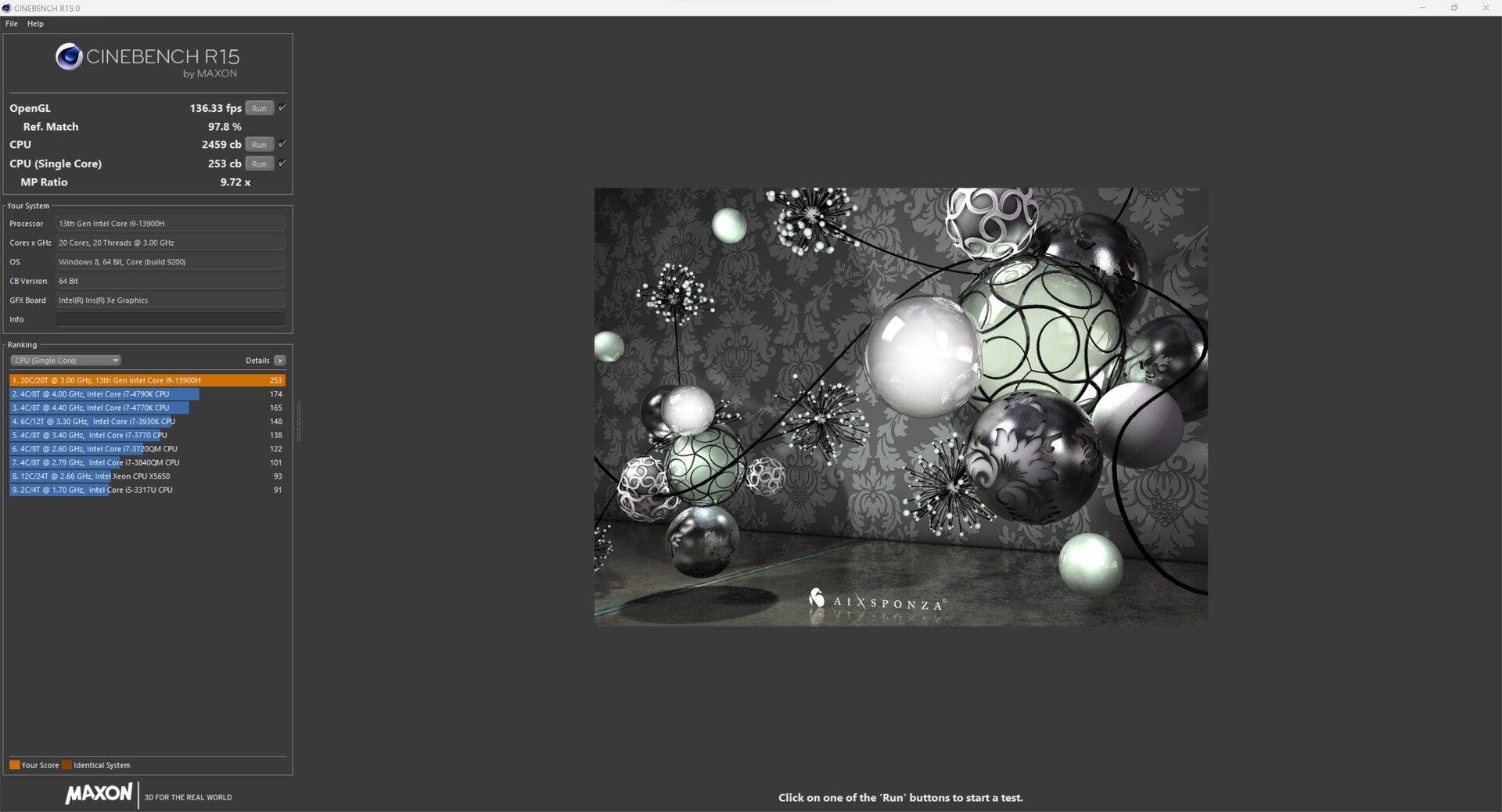

Cinebench R15
CPU Single 64Bit
Geekom A7
AMD Ryzen 9 7940HS
278 Points +10%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
270 Points +7%
Acemagic F2A
Intel Core Ultra 7 155H
258 Points +2%
Minisforum Venus Series NPB5
Intel Core i5-13500H
255 Points +1%
Minisforum MS-01
Intel Core i9-13900H
253 Points
Geekom XT12 Pro
Intel Core i9-12900H
251 Points -1%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
245 Points -3%
CPU Multi 64Bit
Acemagic F2A
Intel Core Ultra 7 155H
2738 Points +11%
Geekom A7
AMD Ryzen 9 7940HS
2470 Points 0%
Minisforum MS-01
Intel Core i9-13900H
2459 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
2304 Points -6%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
2249 Points -9%
Geekom XT12 Pro
Intel Core i9-12900H
2121 Points -14%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1795 Points -27%
Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB9
Intel Core i9-12900HK
734 Points +5%
Geekom XT12 Pro
Intel Core i9-12900H
701 Points 0%
Minisforum MS-01
Intel Core i9-13900H
699 Points
Geekom A7
AMD Ryzen 9 7940HS
692 Points -1%
Minisforum Venus Series NPB5
Intel Core i5-13500H
687 Points -2%
Acemagic F2A
Intel Core Ultra 7 155H
679 Points -3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
604 Points -14%
CPU (Multi Core)
Acemagic F2A
Intel Core Ultra 7 155H
7188 Points +16%
Geekom A7
AMD Ryzen 9 7940HS
6277 Points +1%
Minisforum MS-01
Intel Core i9-13900H
6203 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK
5691 Points -8%
Minisforum Venus Series NPB5
Intel Core i5-13500H
5108 Points -18%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
4339 Points -30%
Geekom XT12 Pro
Intel Core i9-12900H
4294 Points -31%
Cinebench R11.5
CPU Single 64Bit
Geekom A7
AMD Ryzen 9 7940HS
3.34 Points +11%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
3.26 Points +9%
Acemagic F2A
Intel Core Ultra 7 155H
3.13 Points +4%
Minisforum Venus Series NPB5
Intel Core i5-13500H
3.1 Points +3%
Minisforum MS-01
Intel Core i9-13900H
3 Points
Geekom XT12 Pro
Intel Core i9-12900H
2.99 Points 0%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
2.92 Points -3%
CPU Multi 64Bit
Acemagic F2A
Intel Core Ultra 7 155H
33.49 Points +13%
Geekom A7
AMD Ryzen 9 7940HS
29.8 Points +1%
Minisforum MS-01
Intel Core i9-13900H
29.65 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
28.34 Points -4%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
27.25 Points -8%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
21.27 Points -28%
Geekom XT12 Pro
Intel Core i9-12900H
21.11 Points -29%
Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB9
Intel Core i9-12900HK
15303 Points +11%
Minisforum Venus Series NPB5
Intel Core i5-13500H
14421 Points +5%
Geekom A7
AMD Ryzen 9 7940HS
14300 Points +4%
Acemagic F2A
Intel Core Ultra 7 155H
13938 Points +1%
Minisforum MS-01
Intel Core i9-13900H
13752 Points
Geekom XT12 Pro
Intel Core i9-12900H
13378 Points -3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
12156 Points -12%
Rendering Multiple CPUs 64Bit
Acemagic F2A
Intel Core Ultra 7 155H
95005 Points +19%
Minisforum Venus Series NPB5
Intel Core i5-13500H
85169 Points +7%
Geekom A7
AMD Ryzen 9 7940HS
84721 Points +6%
Minisforum MS-01
Intel Core i9-13900H
79856 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK
75947 Points -5%
Geekom XT12 Pro
Intel Core i9-12900H
69621 Points -13%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
61781 Points -23%
Blender - v2.79 BMW27 CPU
Geekom XT12 Pro
Intel Core i9-12900H
296 Seconds * -47%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
279 Seconds * -39%
Minisforum Venus Series NPB5
Intel Core i5-13500H
260 Seconds * -29%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
234 Seconds * -16%
Geekom A7
AMD Ryzen 9 7940HS
202 Seconds * -0%
Minisforum MS-01
Intel Core i9-13900H
201 Seconds *
Acemagic F2A
Intel Core Ultra 7 155H
178 Seconds * +11%
wPrime 2.10
32m
Geekom XT12 Pro
Intel Core i9-12900H
4.111 s * -31%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
3.934 s * -25%
Acemagic F2A
Intel Core Ultra 7 155H
3.523 s * -12%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
3.454 s * -10%
Minisforum Venus Series NPB5
Intel Core i5-13500H
3.268 s * -4%
Minisforum MS-01
Intel Core i9-13900H
3.141 s *
Geekom A7
AMD Ryzen 9 7940HS
2.648 s * +16%
1024m
Minisforum Venus Series NPB5
Intel Core i5-13500H
225.417 s * -26%
Geekom XT12 Pro
Intel Core i9-12900H
202.68 s * -13%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
186.394 s * -4%
Minisforum MS-01
Intel Core i9-13900H
179.496 s *
Acemagic F2A
Intel Core Ultra 7 155H
139.617 s * +22%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
104.757 s * +42%
Geekom A7
AMD Ryzen 9 7940HS
98.222 s * +45%
X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NPB5
Intel Core i5-13500H
336 (304min - 337max) fps +18%
Acemagic F2A
Intel Core Ultra 7 155H
325 (323min - 328max) fps +14%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
317.5 (292min - 319max) fps +12%
Geekom A7
AMD Ryzen 9 7940HS
292.5 (291min - 296max) fps +3%
Minisforum MS-01
Intel Core i9-13900H
284 (276min - 298max) fps
Geekom XT12 Pro
Intel Core i9-12900H
262 (259min - 282max) fps -8%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
234.5 (230min - 240max) fps -17%
Pass 2
Acemagic F2A
Intel Core Ultra 7 155H
154.15 (153.8min - 154.3max) fps +11%
Geekom A7
AMD Ryzen 9 7940HS
140.8 (138.2min - 144.7max) fps +2%
Minisforum MS-01
Intel Core i9-13900H
138.55 (135.5min - 145.8max) fps
Minisforum Venus Series NPB5
Intel Core i5-13500H
132.2 (107.8min - 142max) fps -5%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
125.05 (112.4min - 132max) fps -10%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
105.3 (105.2min - 105.7max) fps -24%
Geekom XT12 Pro
Intel Core i9-12900H
92.2 (91min - 114.5max) fps -33%
WinRAR - Result
Minisforum MS-01
Intel Core i9-13900H
9303 KB/s
Minisforum Venus Series NAB9
Intel Core i9-12900HK
8735 KB/s -6%
Geekom XT12 Pro
Intel Core i9-12900H
7945 KB/s -15%
Acemagic F2A
Intel Core Ultra 7 155H
7723 KB/s -17%
Geekom A7
AMD Ryzen 9 7940HS
7490 KB/s -19%
Minisforum Venus Series NPB5
Intel Core i5-13500H
7325 KB/s -21%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
6378 KB/s -31%
TrueCrypt
AES Mean 100MB
Geekom A7
AMD Ryzen 9 7940HS
15.1 GB/s +2%
Minisforum MS-01
Intel Core i9-13900H
14.8 GB/s
Minisforum Venus Series NPB5
Intel Core i5-13500H
13.3 GB/s -10%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
13 GB/s -12%
Geekom XT12 Pro
Intel Core i9-12900H
11.2 GB/s -24%
Acemagic F2A
Intel Core Ultra 7 155H
10.6 GB/s -28%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
10.3 GB/s -30%
Twofish Mean 100MB
Minisforum MS-01
Intel Core i9-13900H
2.5 GB/s
Minisforum Venus Series NPB5
Intel Core i5-13500H
2.2 GB/s -12%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
2.2 GB/s -12%
Geekom A7
AMD Ryzen 9 7940HS
2.1 GB/s -16%
Geekom XT12 Pro
Intel Core i9-12900H
1.9 GB/s -24%
Acemagic F2A
Intel Core Ultra 7 155H
1.7 GB/s -32%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1.5 GB/s -40%
Serpent Mean 100MB
Minisforum MS-01
Intel Core i9-13900H
1.4 GB/s
Geekom A7
AMD Ryzen 9 7940HS
1.3 GB/s -7%
Minisforum Venus Series NPB5
Intel Core i5-13500H
1.2 GB/s -14%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
1.2 GB/s -14%
Geekom XT12 Pro
Intel Core i9-12900H
1.1 GB/s -21%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1 GB/s -29%
Acemagic F2A
Intel Core Ultra 7 155H
1 GB/s -29%
Geekbench 5.5
Multi-Core
Minisforum MS-01
Intel Core i9-13900H
13014 Points
Acemagic F2A
Intel Core Ultra 7 155H
12662 Points -3%
Geekom A7
AMD Ryzen 9 7940HS
12261 Points -6%
Minisforum Venus Series NPB5
Intel Core i5-13500H
11465 Points -12%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
10378 Points -20%
Geekom XT12 Pro
Intel Core i9-12900H
10028 Points -23%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
7368 Points -43%
Single-Core
Geekom A7
AMD Ryzen 9 7940HS
2008 Points +8%
Minisforum MS-01
Intel Core i9-13900H
1867 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK
1866 Points 0%
Geekom XT12 Pro
Intel Core i9-12900H
1790 Points -4%
Minisforum Venus Series NPB5
Intel Core i5-13500H
1762 Points -6%
Acemagic F2A
Intel Core Ultra 7 155H
1746 Points -6%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1534 Points -18%
Geekbench 5.0
5.0 Multi-Core
Minisforum MS-01
Intel Core i9-13900H
12681 Points
Acemagic F2A
Intel Core Ultra 7 155H
12438 Points -2%
Geekom A7
AMD Ryzen 9 7940HS
12127 Points -4%
Minisforum Venus Series NPB5
Intel Core i5-13500H
11392 Points -10%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
10276 Points -19%
Geekom XT12 Pro
Intel Core i9-12900H
9892 Points -22%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
7319 Points -42%
5.0 Single-Core
Geekom A7
AMD Ryzen 9 7940HS
1918 Points +4%
Minisforum MS-01
Intel Core i9-13900H
1847 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK
1795 Points -3%
Minisforum Venus Series NPB5
Intel Core i5-13500H
1730 Points -6%
Geekom XT12 Pro
Intel Core i9-12900H
1710 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H
1708 Points -8%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1528 Points -17%
Geekbench 4.4
64 Bit Single-Core Score
Geekom A7
AMD Ryzen 9 7940HS
8253 Points +1%
Minisforum MS-01
Intel Core i9-13900H
8190 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK
7932 Points -3%
Minisforum Venus Series NPB5
Intel Core i5-13500H
7737 Points -6%
Geekom XT12 Pro
Intel Core i9-12900H
7635 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H
6927 Points -15%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
6412 Points -22%
64 Bit Multi-Core Score
Geekom A7
AMD Ryzen 9 7940HS
48723 Points +3%
Minisforum MS-01
Intel Core i9-13900H
47461 Points
Acemagic F2A
Intel Core Ultra 7 155H
45250 Points -5%
Minisforum Venus Series NPB5
Intel Core i5-13500H
42297 Points -11%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
39510 Points -17%
Geekom XT12 Pro
Intel Core i9-12900H
37359 Points -21%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
29047 Points -39%
3DMark 11 - 1280x720 Performance Physics
Geekom A7
AMD Ryzen 9 7940HS
22600 Points +4%
Minisforum MS-01
Intel Core i9-13900H
21786 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
21177 Points -3%
Acemagic F2A
Intel Core Ultra 7 155H
20846 Points -4%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
18553 Points -15%
Geekom XT12 Pro
Intel Core i9-12900H
16634 Points -24%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
13173 Points -40%
7-Zip 18.03
7z b 4
Geekom A7
AMD Ryzen 9 7940HS
70707 MIPS +12%
Acemagic F2A
Intel Core Ultra 7 155H
66438 MIPS +5%
Minisforum MS-01
Intel Core i9-13900H
63093 MIPS
Minisforum Venus Series NAB9
Intel Core i9-12900HK
55620 MIPS -12%
Minisforum Venus Series NPB5
Intel Core i5-13500H
52630 MIPS -17%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
48327 MIPS -23%
Geekom XT12 Pro
Intel Core i9-12900H
47146 MIPS -25%
7z b 4 -mmt1
Geekom A7
AMD Ryzen 9 7940HS
6744 MIPS +23%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
6136 MIPS +12%
Geekom XT12 Pro
Intel Core i9-12900H
5881 MIPS +7%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
5796 MIPS +6%
Minisforum Venus Series NPB5
Intel Core i5-13500H
5695 MIPS +4%
Acemagic F2A
Intel Core Ultra 7 155H
5485 MIPS 0%
Minisforum MS-01
Intel Core i9-13900H
5473 MIPS
HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom A7
AMD Ryzen 9 7940HS
20.6 fps +10%
Acemagic F2A
Intel Core Ultra 7 155H
19.6 fps +5%
Minisforum MS-01
Intel Core i9-13900H
18.7 fps
Minisforum Venus Series NAB9
Intel Core i9-12900HK
16.2 fps -13%
Minisforum Venus Series NPB5
Intel Core i5-13500H
14.6 fps -22%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
12.7 fps -32%
Geekom XT12 Pro
Intel Core i9-12900H
12.3 fps -34%
R Benchmark 2.5 - Overall mean
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
0.507 sec * -15%
Minisforum Venus Series NPB5
Intel Core i5-13500H
0.473 sec * -8%
Acemagic F2A
Intel Core Ultra 7 155H
0.4652 sec * -6%
Geekom XT12 Pro
Intel Core i9-12900H
0.4632 sec * -6%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
0.4391 sec * -0%
Minisforum MS-01
Intel Core i9-13900H
0.439 sec *
Geekom A7
AMD Ryzen 9 7940HS
0.4351 sec * +1%
LibreOffice - 20 Documents To PDF
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
54.8 s * -56%
Geekom A7
AMD Ryzen 9 7940HS
54.8 s * -56%
Acemagic F2A
Intel Core Ultra 7 155H
44.5 s * -27%
Minisforum Venus Series NPB5
Intel Core i5-13500H
44 s * -25%
Geekom XT12 Pro
Intel Core i9-12900H
39.6 s * -13%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
37.2 s * -6%
Minisforum MS-01
Intel Core i9-13900H
35.1 s *
WebXPRT 3 - Overall
Geekom A7
AMD Ryzen 9 7940HS
333 Points +5%
Minisforum MS-01
Intel Core i9-13900H
317 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
307 Points -3%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
301 Points -5%
Geekom XT12 Pro
Intel Core i9-12900H
291 Points -8%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
279 Points -12%
Acemagic F2A
Intel Core Ultra 7 155H
276 Points -13%
Mozilla Kraken 1.1 - Total
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
593 ms * -17%
Acemagic F2A
Intel Core Ultra 7 155H
535 ms * -6%
Minisforum Venus Series NPB5
Intel Core i5-13500H
517 ms * -2%
Geekom XT12 Pro
Intel Core i9-12900H
511 ms * -1%
Minisforum MS-01
Intel Core i9-13900H
506 ms *
Geekom A7
AMD Ryzen 9 7940HS
503 ms * +1%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
499 ms * +1%
3DMark
1920x1080 Fire Strike Physics
Minisforum Venus Series NPB5
Intel Core i5-13500H
27369 Points +13%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
26093 Points +7%
Geekom A7
AMD Ryzen 9 7940HS
25816 Points +6%
Acemagic F2A
Intel Core Ultra 7 155H
25043 Points +3%
Minisforum MS-01
Intel Core i9-13900H
24273 Points
Geekom XT12 Pro
Intel Core i9-12900H
22242 Points -8%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
21576 Points -11%
2560x1440 Time Spy CPU
Minisforum MS-01
Intel Core i9-13900H
10995 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
10814 Points -2%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
10402 Points -5%
Geekom A7
AMD Ryzen 9 7940HS
10397 Points -5%
Acemagic F2A
Intel Core Ultra 7 155H
10014 Points -9%
Geekom XT12 Pro
Intel Core i9-12900H
7985 Points -27%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
7275 Points -34%
Super Pi mod 1.5 XS 1M - 1M
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
9.048 s * -47%
Geekom XT12 Pro
Intel Core i9-12900H
7.454 s * -21%
Geekom A7
AMD Ryzen 9 7940HS
7.442 s * -21%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
7.281 s * -18%
Acemagic F2A
Intel Core Ultra 7 155H
7.168 s * -16%
Minisforum Venus Series NPB5
Intel Core i5-13500H
7.099 s * -15%
Minisforum MS-01
Intel Core i9-13900H
6.156 s *
Super Pi mod 1.5 XS 2M - 2M
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
21.596 s * -57%
Geekom A7
AMD Ryzen 9 7940HS
18.402 s * -34%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
16.498 s * -20%
Geekom XT12 Pro
Intel Core i9-12900H
16.424 s * -19%
Acemagic F2A
Intel Core Ultra 7 155H
16.125 s * -17%
Minisforum Venus Series NPB5
Intel Core i5-13500H
15.826 s * -15%
Minisforum MS-01
Intel Core i9-13900H
13.784 s *
Super Pi Mod 1.5 XS 32M - 32M
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
719.005 s * -105%
Geekom A7
AMD Ryzen 9 7940HS
529.929 s * -51%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
397.363 s * -13%
Geekom XT12 Pro
Intel Core i9-12900H
396.475 s * -13%
Acemagic F2A
Intel Core Ultra 7 155H
394.754 s * -13%
Minisforum MS-01
Intel Core i9-13900H
350.453 s *
Minisforum Venus Series NPB5
Intel Core i5-13500H
340.36 s * +3%

* ... smaller is better

Performance Rating - Percent
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
44.4 pt
Minisforum MS-01
Intel Core i9-13900H, 1900 MHz
42.6 pt
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
40.1 pt
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
39.6 pt
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
39.3 pt
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
37.5 pt
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
30.8 pt
Geekbench 5.5
Multi-Core
Minisforum MS-01
Intel Core i9-13900H, 1900 MHz
13014 Points
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
12662 Points -3%
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
12261 Points -6%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
11465 Points -12%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
10378 Points -20%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
10028 Points -23%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
7368 Points -43%
Single-Core
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
2008 Points +8%
Minisforum MS-01
Intel Core i9-13900H, 1900 MHz
1867 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
1866 Points 0%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
1790 Points -4%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
1762 Points -6%
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
1746 Points -6%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1534 Points -18%
Geekbench 5.0
5.0 Multi-Core
Minisforum MS-01
Intel Core i9-13900H, 1900 MHz
12681 Points
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
12438 Points -2%
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
12127 Points -4%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
11392 Points -10%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
10276 Points -19%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
9892 Points -22%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
7319 Points -42%
5.0 Single-Core
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
1918 Points +4%
Minisforum MS-01
Intel Core i9-13900H, 1900 MHz
1847 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
1795 Points -3%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
1730 Points -6%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
1710 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
1708 Points -8%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1528 Points -17%
Geekbench 4.4
64 Bit Single-Core Score
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
8253 Points +1%
Minisforum MS-01
Intel Core i9-13900H, 1900 MHz
8190 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
7932 Points -3%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
7737 Points -6%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
7635 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
6927 Points -15%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
6412 Points -22%
64 Bit Multi-Core Score
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
48723 Points +3%
Minisforum MS-01
Intel Core i9-13900H, 1900 MHz
47461 Points
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
45250 Points -5%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
42297 Points -11%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
39510 Points -17%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
37359 Points -21%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
29047 Points -39%
Geekbench 6.0
Single-Core
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
2603 Points +4%
Minisforum MS-01
Intel Core i9-13900H, 1900 MHz
2494 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
2494 Points 0%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
2381 Points -5%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
2325 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
2313 Points -7%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1992 Points -20%
Multi-Core
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
12882 Points +6%
Minisforum MS-01
Intel Core i9-13900H, 1900 MHz
12118 Points
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
12061 Points 0%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
11698 Points -3%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
10342 Points -15%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
9930 Points -18%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
7540 Points -38%
GPU OpenCL
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
33510 Points +91%
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
32752 Points +87%
Minisforum MS-01
Intel Core i9-13900H, 1900 MHz
17533 Points
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
15718 Points -10%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
15460 Points -12%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
14258 Points -19%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
14018 Points -20%
GPU Vulkan
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
30410 Points +30%
Minisforum MS-01
Intel Core i9-13900H, 1900 MHz
23364 Points
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
20794 Points -11%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
20199 Points -14%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
20070 Points -14%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
19053 Points -18%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
17543 Points -25%
Performance Rating
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
97.6 pt
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
79.7 pt
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
70.2 pt
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
61.4 pt
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
60.4 pt
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
58.2 pt
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
53 pt
Average of class Mini PC

49.5 pt
AIDA64 / FP32 Ray-Trace
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
25359 KRay/s +91%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
17544 KRay/s +32%
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
13251 KRay/s
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
12718 KRay/s -4%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
12389 KRay/s -7%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
11161 KRay/s -16%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
10476 KRay/s -21%
Average of class Mini PC
  (561 - 27538, n=102, last 2 years)
10276 KRay/s -22%
AIDA64 / FPU Julia
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
107540 Points +46%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
88829 Points +20%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
81722 Points +11%
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
73742 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
64350 Points -13%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
57280 Points -22%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
54166 Points -27%
Average of class Mini PC
  (3604 - 116903, n=102, last 2 years)
53828 Points -27%
AIDA64 / CPU SHA3
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
4753 MB/s +40%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
4246 MB/s +25%
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
3386 MB/s
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
3028 MB/s -11%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
2818 MB/s -17%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
2784 MB/s -18%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
2504 MB/s -26%
Average of class Mini PC
  (225 - 5096, n=102, last 2 years)
2360 MB/s -30%
AIDA64 / CPU Queen
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
118174 Points +35%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
99851 Points +14%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
90101 Points +3%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
89748 Points +3%
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
87544 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
85501 Points -2%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
82291 Points -6%
Average of class Mini PC
  (8172 - 119802, n=102, last 2 years)
70422 Points -20%
AIDA64 / FPU SinJulia
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
14663 Points +60%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
11831 Points +29%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
10247 Points +12%
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
9170 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
8417 Points -8%
Average of class Mini PC
  (408 - 15525, n=102, last 2 years)
7466 Points -19%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
7317 Points -20%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
7297 Points -20%
AIDA64 / FPU Mandel
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
57402 Points +63%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
45718 Points +29%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
44756 Points +27%
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
35318 Points
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
31933 Points -10%
Average of class Mini PC
  (1958 - 62378, n=102, last 2 years)
28435 Points -19%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
28106 Points -20%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
26850 Points -24%
AIDA64 / CPU AES
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
164414 MB/s +33%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
144741 MB/s +17%
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
123819 MB/s
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
112254 MB/s -9%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
100301 MB/s -19%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
95500 MB/s -23%
Average of class Mini PC
  (3691 - 177158, n=102, last 2 years)
77780 MB/s -37%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
54623 MB/s -56%
AIDA64 / CPU ZLib
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
1183 MB/s +24%
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
1020 MB/s +7%
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
951 MB/s
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
870 MB/s -9%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
790 MB/s -17%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
745 MB/s -22%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
674 MB/s -29%
Average of class Mini PC
  (74.8 - 1233, n=102, last 2 years)
600 MB/s -37%
AIDA64 / FP64 Ray-Trace
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
13517 KRay/s +78%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
9284 KRay/s +22%
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
7611 KRay/s
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
6817 KRay/s -10%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
6325 KRay/s -17%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
5998 KRay/s -21%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s -24%
Average of class Mini PC
  (308 - 14722, n=102, last 2 years)
5490 KRay/s -28%
AIDA64 / CPU PhotoWorxx
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
44996 MPixel/s
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
40570 MPixel/s -10%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
37433 MPixel/s -17%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
33092 MPixel/s -26%
Average of class Mini PC
  (4408 - 45560, n=102, last 2 years)
25222 MPixel/s -44%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
24903 MPixel/s -45%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
24858 MPixel/s -45%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
19153 MPixel/s -57%
Cinebench R10 Rendering Single 32Bit
9630
Cinebench R10 Shading 64Bit
24612 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
79856 Points
Cinebench R10 Rendering Single CPUs 64Bit
13752 Points
Cinebench R10 Shading 32Bit
22008
Cinebench R10 Rendering Multiple CPUs 32Bit
56403
Cinebench R11.5 CPU Multi 32Bit
26.68 Points
Cinebench R11.5 OpenGL 32Bit
113.99 fps
Cinebench R11.5 CPU Single 64Bit
3 Points
Cinebench R11.5 CPU Multi 64Bit
29.65 Points
Cinebench R11.5 OpenGL 64Bit
116.1 fps
Cinebench R11.5 CPU Single 32Bit
2.58 Points
Cinebench R15 CPU Single 64Bit
253 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
136.33 fps
Cinebench R15 CPU Multi 64Bit
2459 Points
Help

关于 Cinebench R15 多回路的 Minisforum MS-01

我们的测试系统仅在 CPU 风扇转速达到最大值的情况下运行了 Cinebench R15 连续循环。不过,从单项结果可以看出,性能损失是无法避免的。最终,Minisforum MS-01 的排名与 Geekom A7 差不多。

记录的遥测数据显示,两个 P 核心的温度明显升高,超过了 90 °C。尽管风扇全速运转,但 SoC 仍无法在较低温度下运行,尽管移动处理器一般都能承受高温。不过,我们也可以看到,80 瓦和 60 瓦的功率限制已经达到并得到遵守。

Cinebench R15 循环期间的 CPU 指标
Cinebench R15 循环期间的 CPU 指标
Cinebench R15 循环期间 P 核心的温度
Cinebench R15 循环期间 P 核心的温度
01452904355807258701015116013051450159517401885203021752320246526102755Tooltip
Minisforum MS-01 Intel Core i9-13900H, Intel Core i9-13900H: Ø2354 (2022.76-2582.31)
Acemagic F2A Intel Core Ultra 7 155H, Intel Core Ultra 7 155H: Ø2759 (2690.7-2800.92)
Geekom XT12 Pro Intel Core i9-12900H, Intel Core i9-12900H: Ø1545 (1395.97-2133.22)
Geekom A7 AMD Ryzen 9 7940HS, AMD Ryzen 9 7940HS: Ø2410 (2285.58-2581.81)
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1981 (1895.47-2262.7)
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Core i5-13500H: Ø1783 (1762.11-2310.94)
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, AMD Ryzen 7 7735HS: Ø1772 (1721.99-1800.59)

系统性能

系统整体性能基本良好。英特尔酷睿 i9-13900H 和 DDR5 内存的组合特别有用,有助于 Minisforum MS-01 充分发挥处理器的性能,而不受其他限制。在 AIDA64 基准测试中,内存性能也取得了优异的成绩。

PCMark 10 / Score
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
7455 Points +10%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
7120 Points +5%
Minisforum MS-01, Intel Core i9-13900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0
6802 Points
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
6435 Points -5%
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
6295 Points -7%
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
6280 Points -8%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
5722 Points -16%
PCMark 10 / Essentials
Minisforum MS-01, Intel Core i9-13900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0
12286 Points
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
11591 Points -6%
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
11273 Points -8%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
11125 Points -9%
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
11114 Points -10%
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
11035 Points -10%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
9933 Points -19%
PCMark 10 / Productivity
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
10291 Points +21%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
8901 Points +4%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
8829 Points +4%
Minisforum MS-01, Intel Core i9-13900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0
8526 Points
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
8212 Points -4%
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
8114 Points -5%
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
7924 Points -7%
CrossMark / Overall
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
1986 Points +11%
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
1982 Points +10%
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
1861 Points +4%
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
1860 Points +4%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
1802 Points 0%
Minisforum MS-01, Intel Core i9-13900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0
1797 Points
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1387 Points -23%
CrossMark / Responsiveness
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
2205 Points +46%
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
2110 Points +40%
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
1919 Points +27%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
1700 Points +12%
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
1540 Points +2%
Minisforum MS-01, Intel Core i9-13900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0
1512 Points
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1263 Points -16%
CrossMark / Creativity
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
2072 Points +2%
Minisforum MS-01, Intel Core i9-13900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0
2031 Points
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
1985 Points -2%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
1929 Points -5%
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
1907 Points -6%
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
1870 Points -8%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1376 Points -32%
CrossMark / Productivity
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
1996 Points +19%
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
1938 Points +15%
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
1831 Points +9%
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
1781 Points +6%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
1717 Points +2%
Minisforum MS-01, Intel Core i9-13900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0
1684 Points
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1443 Points -14%
AIDA64 / Memory Copy
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
69219 MB/s
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
67161 MB/s -3%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
62397 MB/s -10%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
57457 MB/s -17%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
45792 MB/s -34%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
44442 MB/s -36%
Average of class Mini PC
  (6481 - 71990, n=102, last 2 years)
43724 MB/s -37%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
30324 MB/s -56%
AIDA64 / Memory Read
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
73633 MB/s
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
65470 MB/s -11%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
64323 MB/s -13%
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
61542 MB/s -16%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
48963 MB/s -34%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
47960 MB/s -35%
Average of class Mini PC
  (6914 - 75449, n=102, last 2 years)
44399 MB/s -40%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
33938 MB/s -54%
AIDA64 / Memory Write
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
86810 MB/s +23%
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
70707 MB/s
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
65057 MB/s -8%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
59816 MB/s -15%
Average of class Mini PC
  (6862 - 89318, n=102, last 2 years)
47496 MB/s -33%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
47201 MB/s -33%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
45952 MB/s -35%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
33175 MB/s -53%
AIDA64 / Memory Latency
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
149 ns * -66%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
93.8 ns * -4%
Minisforum MS-01
Intel Core i9-13900H, Iris Xe G7 96EUs
89.9 ns *
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
89 ns * +1%
Average of class Mini PC
  (44.9 - 154.6, n=102, last 2 years)
88.4 ns * +2%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
79.9 ns * +11%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
78.2 ns * +13%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
74.7 ns * +17%

* ... smaller is better

DPC 延迟

我们已经记录了在 Edge 浏览器中打开多个标签页时延迟增加的情况,在播放 4K 测试视频时,延迟又略有增加。使用 Prime95 进行的简短负载测试并未导致延迟进一步增加。相比之下,我们的测试样本仍然表现出色,稳居第二。

打开多个浏览器标签页和播放 4K 视频时的最大延迟
打开多个浏览器标签页和播放 4K 视频时的最大延迟
Prime95 十秒后的最大延迟时间
Prime95 十秒后的最大延迟时间
按最长执行时间排列的驱动程序
按最长执行时间排列的驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
2724 μs * -193%
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
2151 μs * -131%
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
1616.1 μs * -74%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
1097.7 μs * -18%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
1026 μs * -10%
Minisforum MS-01
Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0
931 μs *
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
813.7 μs * +13%

* ... smaller is better

大容量存储器

1 TB SSD(金士顿)
1 TB SSD(金士顿)

Minisforum MS-01 可以安装各种不同的固态硬盘。不过,需要注意的是,这些固态硬盘必须是 NVMe 固态硬盘。MS-01 在外形尺寸方面也有优势,除了 80 毫米的标准长度外,还可以安装 110 毫米的固态硬盘。不过,较短的固态硬盘无法安装,或者更准确地说,无法连接。操作系统安装在金士顿的 1 TB SSD 上。固态硬盘的连接并不符合技术上的要求。这会影响传输速率,但这在日常使用中几乎不成问题。

我们对连续读取性能的测量结果表明,内置冷却装置无法保证最佳的冷却效果。性能总是会明显下降,但这只是短暂的。如果你想把事情做到极致,不想在系统中安装专用显卡,Minisforum MS-01 甚至可以配备总共四个大容量存储设备。我们进行了测试,在系统中安装了英特尔固态硬盘 DC P4618 PCIe 3.1 x8。

有关进一步的比较和基准,请参阅我们的比较表

配备三个固态硬盘的 Minisforum MS-01
配备三个固态硬盘的 Minisforum MS-01
带适配器的 U.2 固态硬盘
带适配器的 U.2 固态硬盘
使用 U.2 固态硬盘时的重要注意事项
使用 U.2 固态硬盘时的重要注意事项
Minisforum MS-01 和英特尔固态硬盘 DC P4618 PCIe 3.1 x8(应用示例)
Minisforum MS-01 和英特尔固态硬盘 DC P4618 PCIe 3.1 x8(应用示例)
AS 固态硬盘
AS 固态硬盘
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Kingston OM8PGP41024Q-A0
Sequential Read: 1523 MB/s
Sequential Write: 1589 MB/s
512K Read: 1337 MB/s
512K Write: 1515 MB/s
4K Read: 68.77 MB/s
4K Write: 297.1 MB/s
4K QD32 Read: 926 MB/s
4K QD32 Write: 690.6 MB/s
