众泰 Zbox pico PI430AJ 评测：全球首款采用主动 AirJet 技术的迷你 PC，在 0.055 加仑的机箱中为 Intel Core i3-N300 降温

Name: Zotac ZBOX PI430AJ
Brand: Zotac

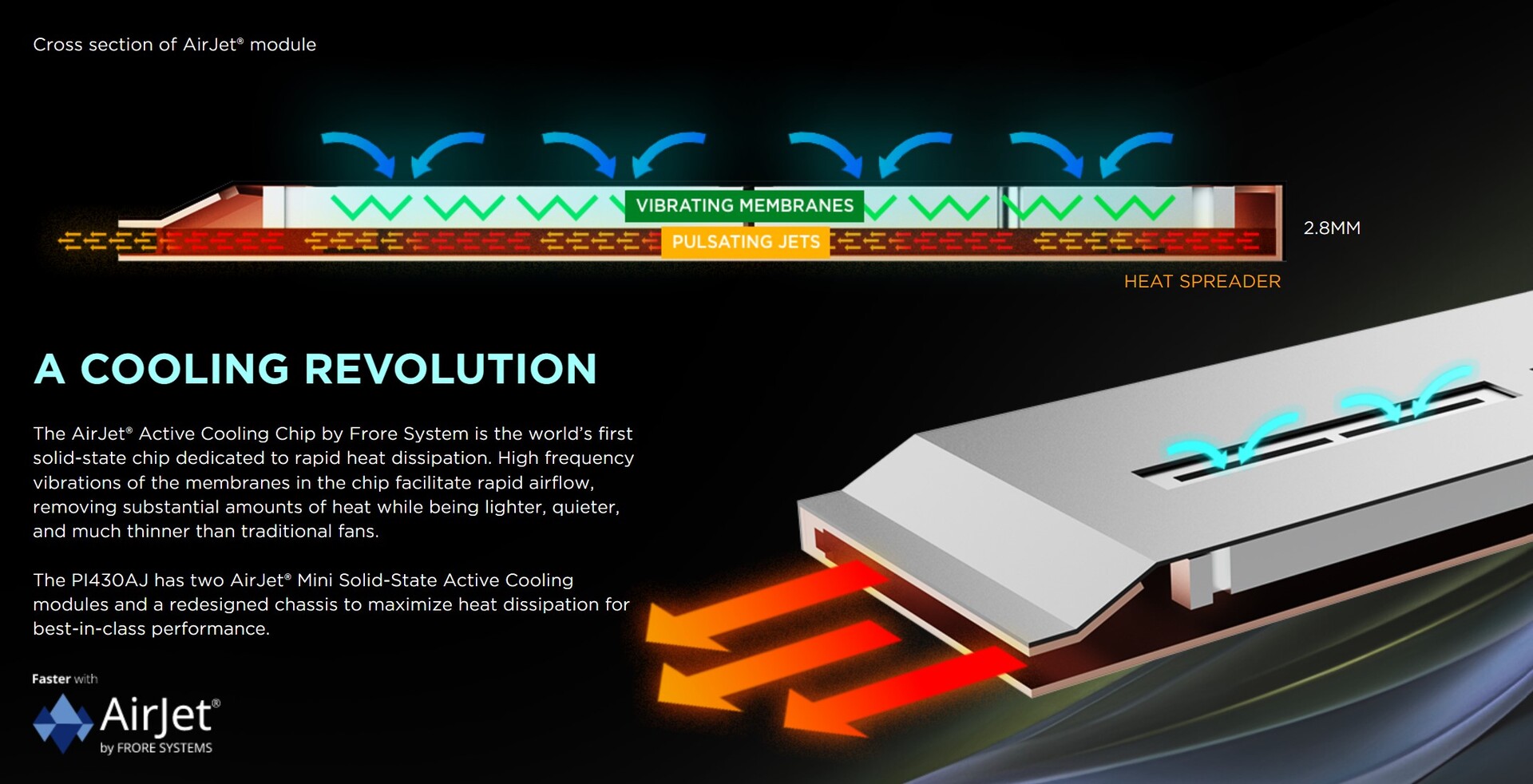

主动式 AirJet 冷却系统，无风扇。 Zotac 的紧凑型 pico 系列经历了一次重大升级。除了推出配备 8 个 Alder Lake 核心的全新英特尔酷睿 i3-N300 之外，众泰还是首家采用新型散热系统的生产商。该系统采用了两个主动式 AirJet 模块，即使在高负荷使用的情况下也能有效管理 SoC。我们对该系统的有效性进行了评估，并对众泰 Zbox pico PI430AJ 在日常使用中的整体性能进行了评估。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 01/19/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Alder Lake

一直以来，Zotac 都在以 pico 系列为笔名推出极其紧凑的 PC，专注于静音操作。不过，最新机型引入了重大变化。采用了新的英特尔酷睿 i3-N300采用全新英特尔酷睿 i3-N300，原生 8 核，增强了多线程性能，最突出的特点是集成了 AirJet 技术，用于冷却 SoC。众泰 Zbox pico PI430AJ 配备了 8GB LPDDR5 内存和 512GB NVMe 固态硬盘，该配置的售价约为 599.99 美元。虽然这一价格相对较高，但考虑到 500 美元范围内的竞争选择，创新散热装置的独特卖点不容忽视。我们对该设备的性能进行了仔细检查，以评估其有效性。我们还为本次评测编制了一份设备对比清单，其中包括相同价格范围内的设备。

Test device courtesy of Zotac Deutschland

Download your licensed rating image as PNG / SVG

Zotac ZBOX PI430AJ

Processor

Intel Core i3-N300 8 x - 3.8 GHz, 25 W PL2 / Short Burst, 7 W PL1 / Sustained, Alder Lake-N

Graphics adapter

Intel UHD Graphics 32EUs (Alder Lake), 31.0.101.4889 DCH

Memory

8 GB

, LPDDR5-4800

Mainboard

Intel Alder Lake-N PCH

Soundcard

Intel Alder Lake-N PCH - cAVS

Connections

3 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, Audio Connections: Mic / Audio combo Jack, Card Reader: microSD

Networking

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Wi-Fi 6 AX101 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 23.8 x 114.8 x 76

Operating System

Microsoft Windows 11 Pro

Additional features

35 Watt Power Adapter, 60 Months Warranty

Weight

318 g, Power Supply: 158 g

Price

560 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	price
69.9 %	01/2024	Zotac ZBOX PI430AJ i3-N300, UHD Graphics 32EUs	318 g	560 EUR
74.1 %	11/2023	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	440 g	239 EUR
73.5 %	09/2023	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	214 g	250 EUR
73.2 %	01/2024	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	828 g	299 EUR
71.1 %	08/2023	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	392 g	179 EUR
70.1 %	11/2023	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	272 g	189 EUR
68.2 %	03/2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	381 g	399 EUR
65.9 %	01/2023	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	209 g	280 EUR
	07/2022	Zotac ZBOX PI336 pico Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	293 g	370 EUR

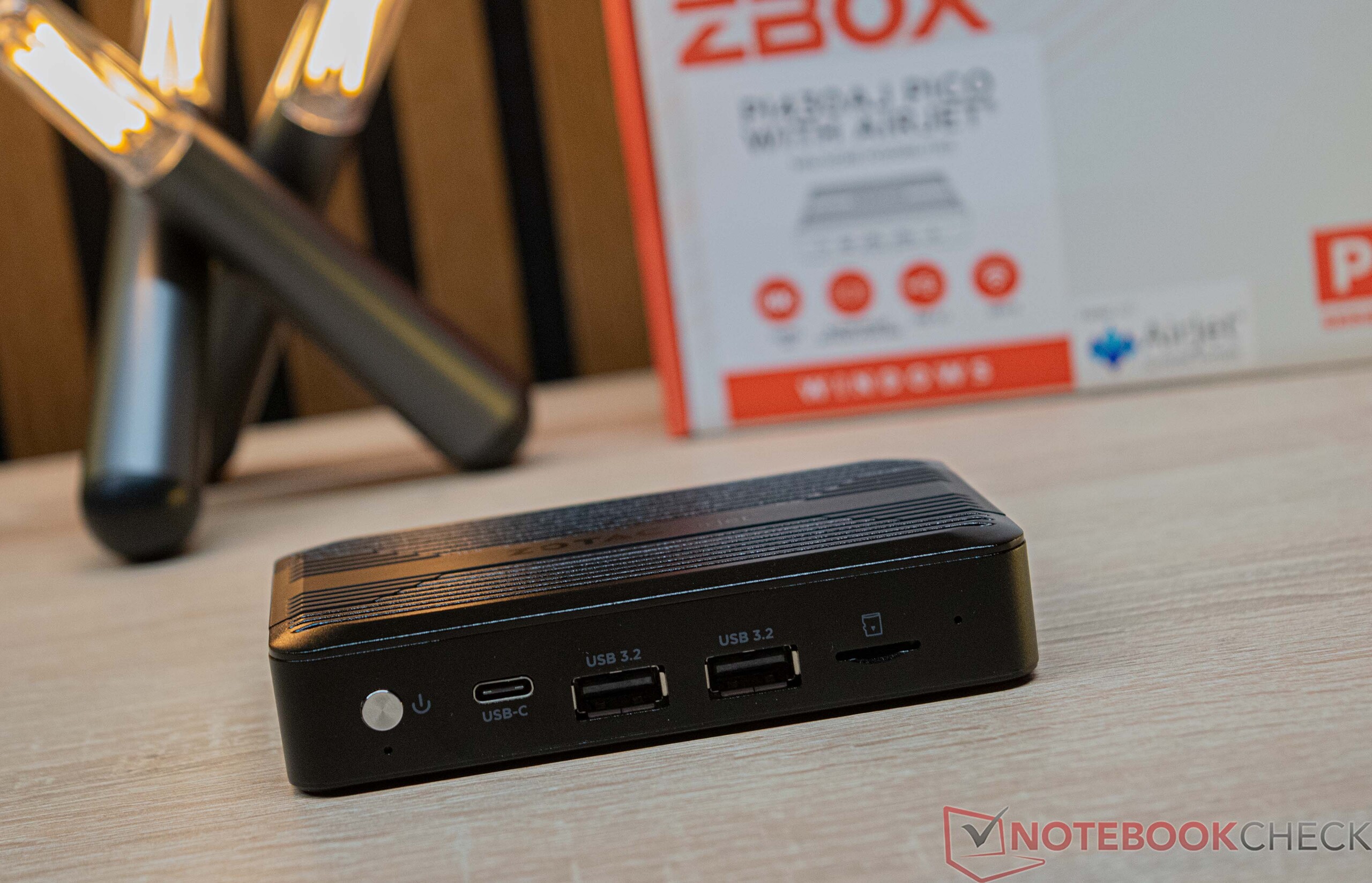

众泰 Zbox pico PI430AJ 详细信息

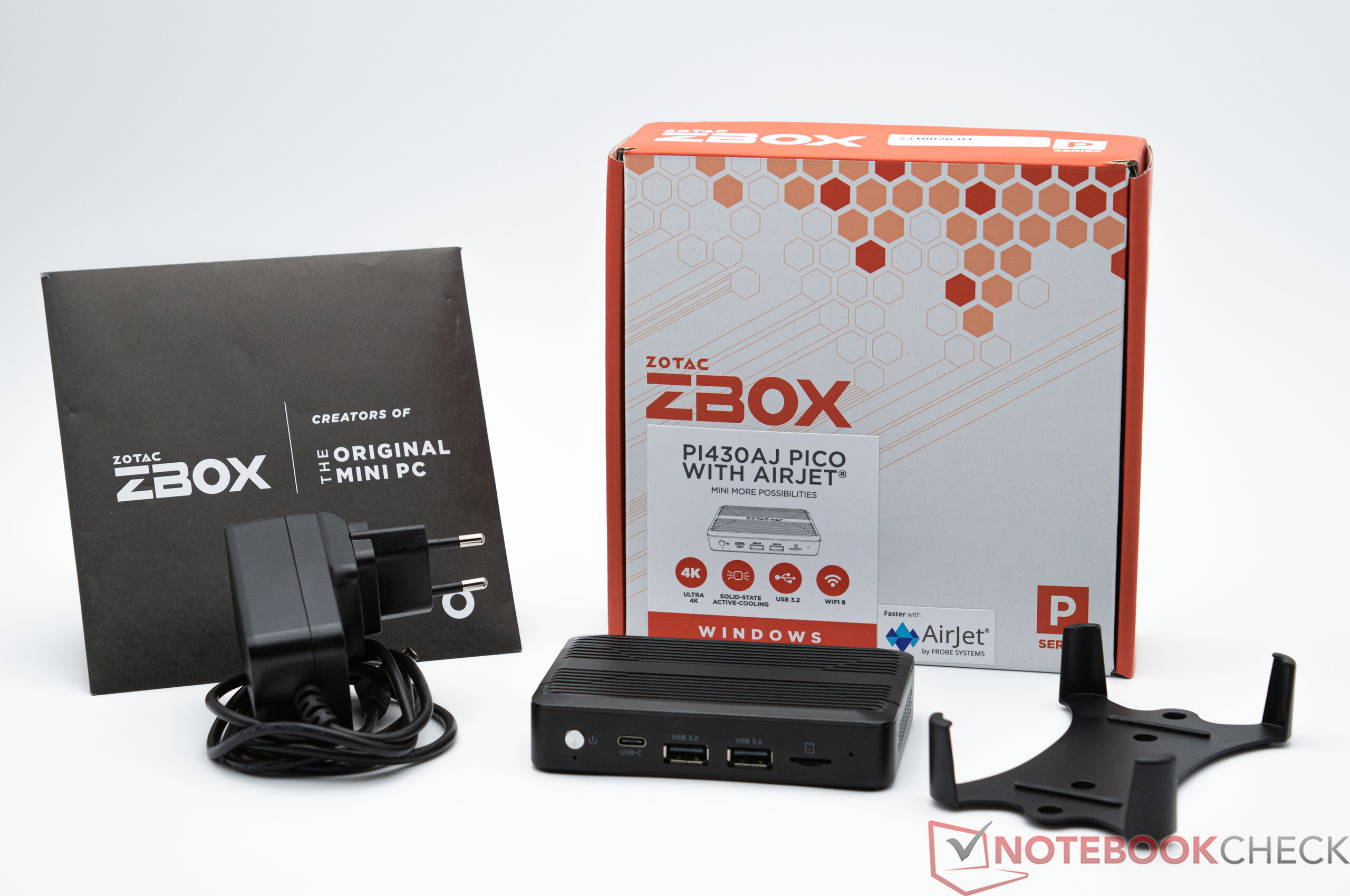

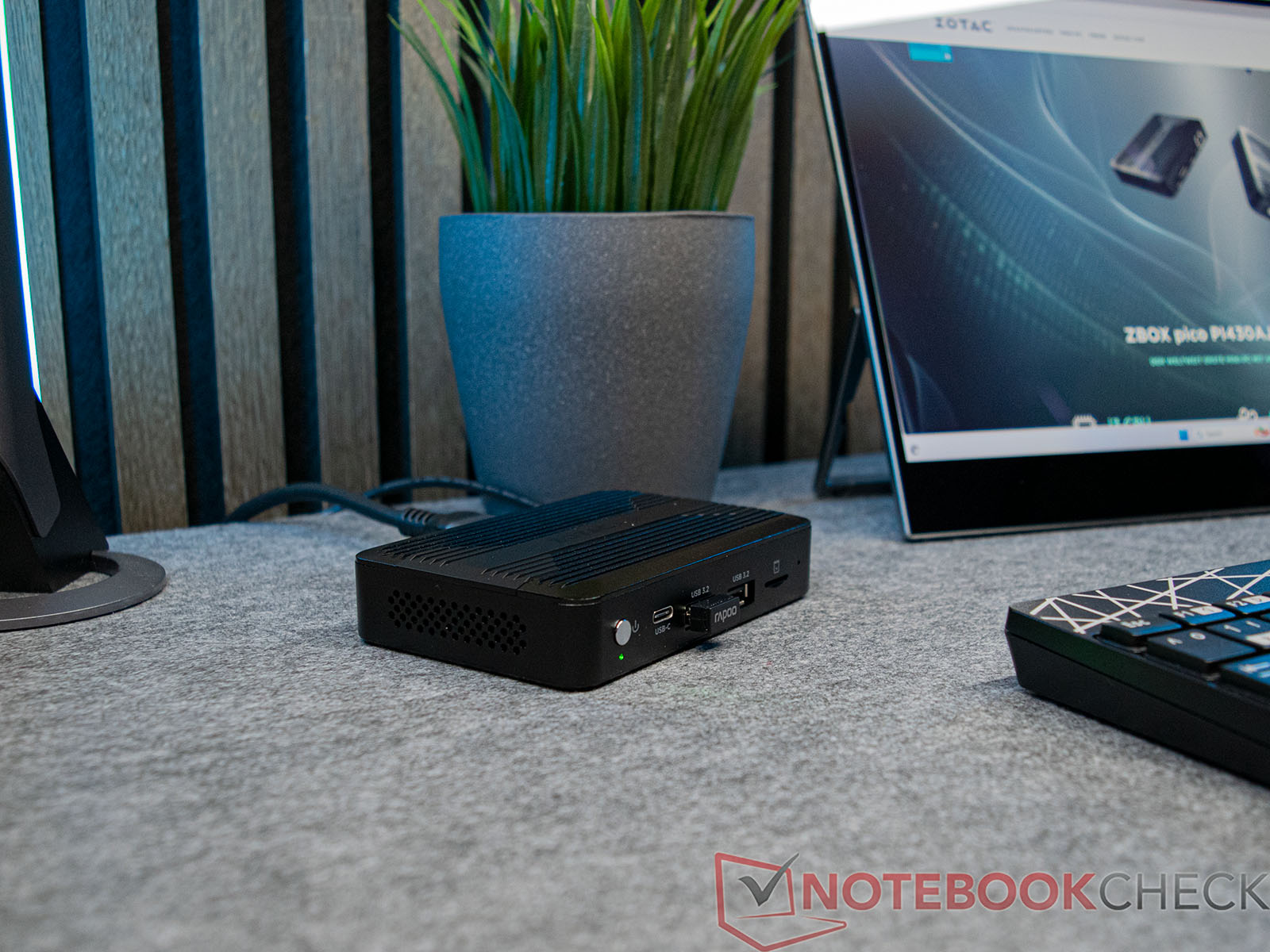

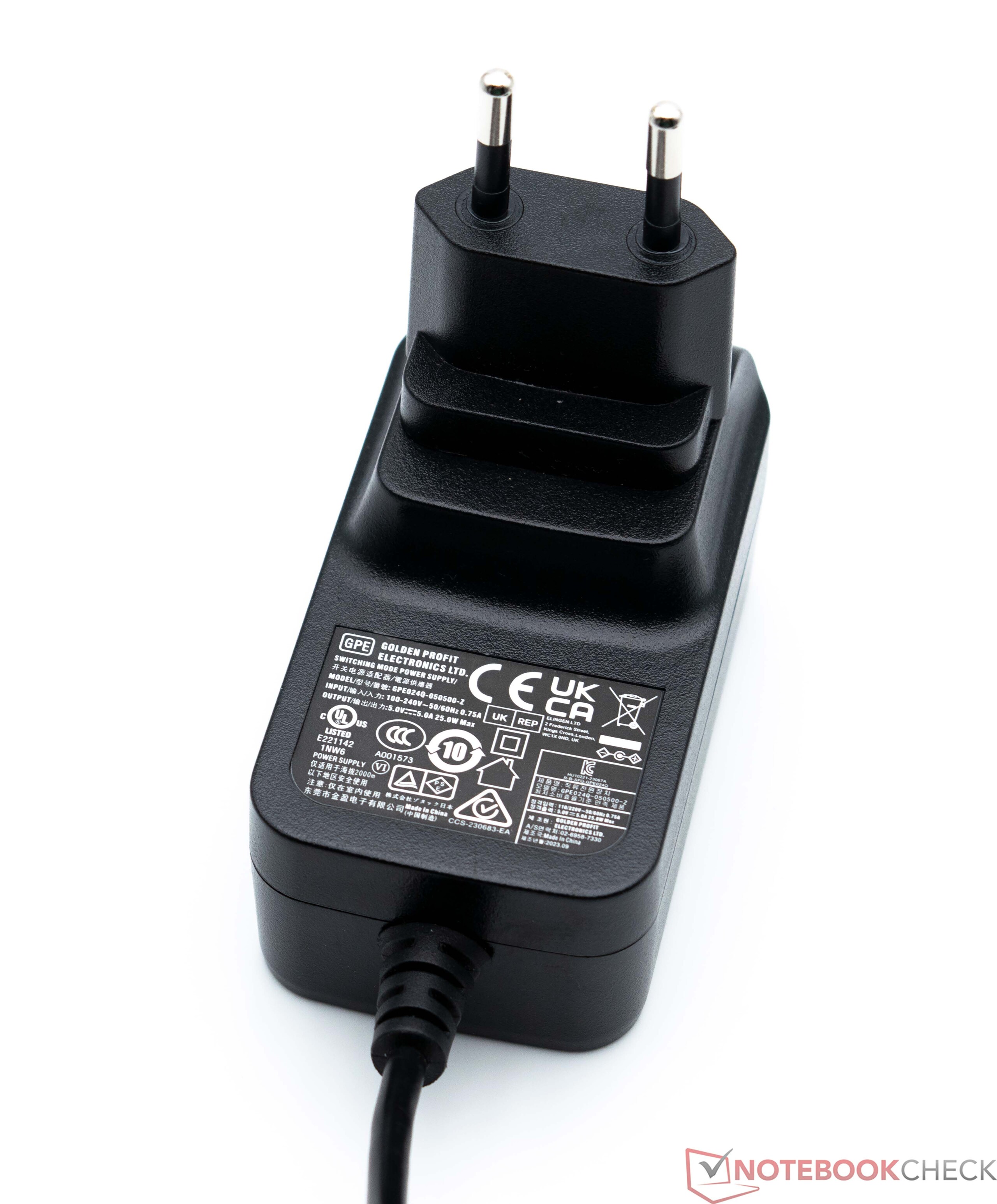

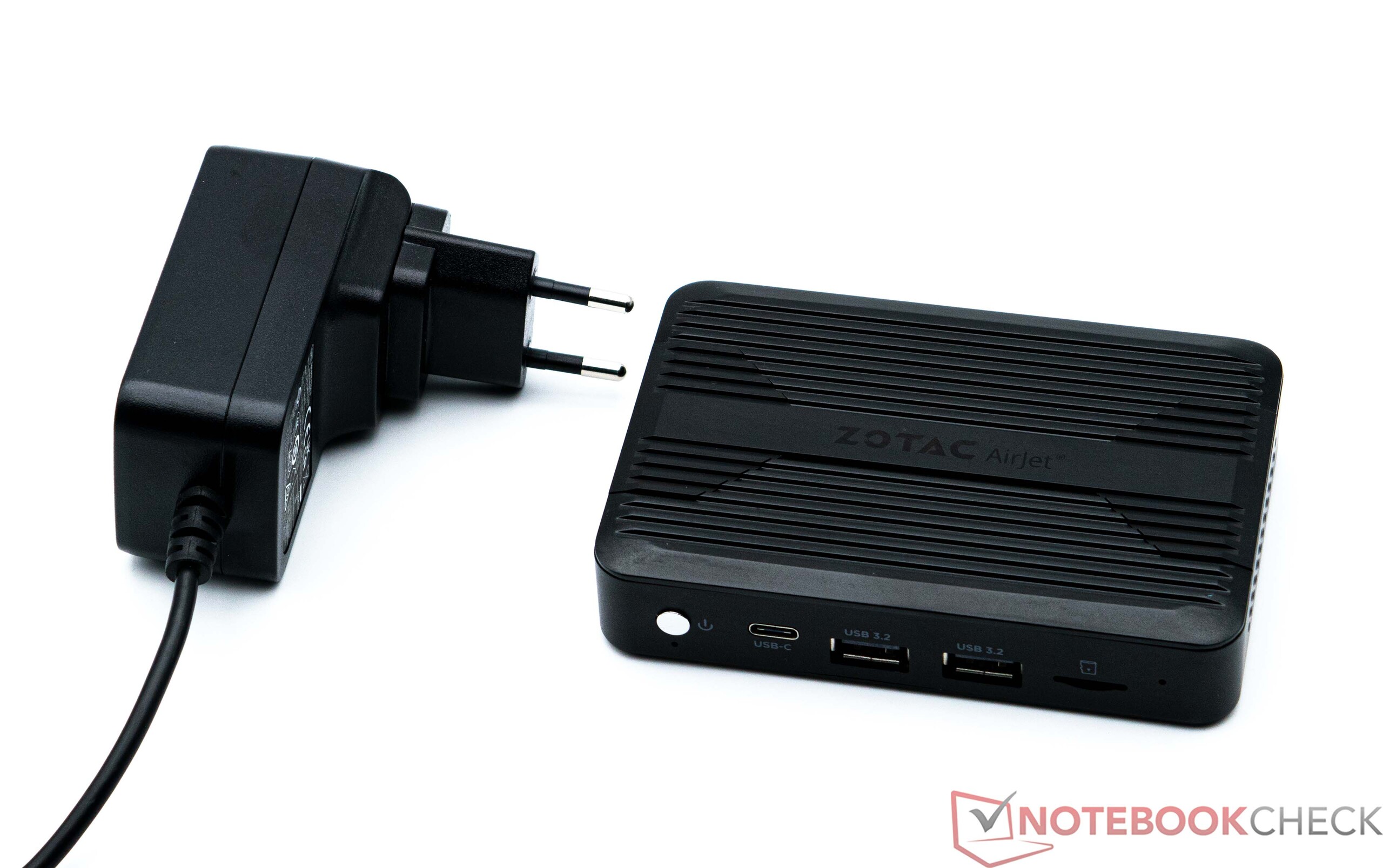

Zotac Zbox pico PI430AJ 和 25 瓦电源装置（5 V；5 A）

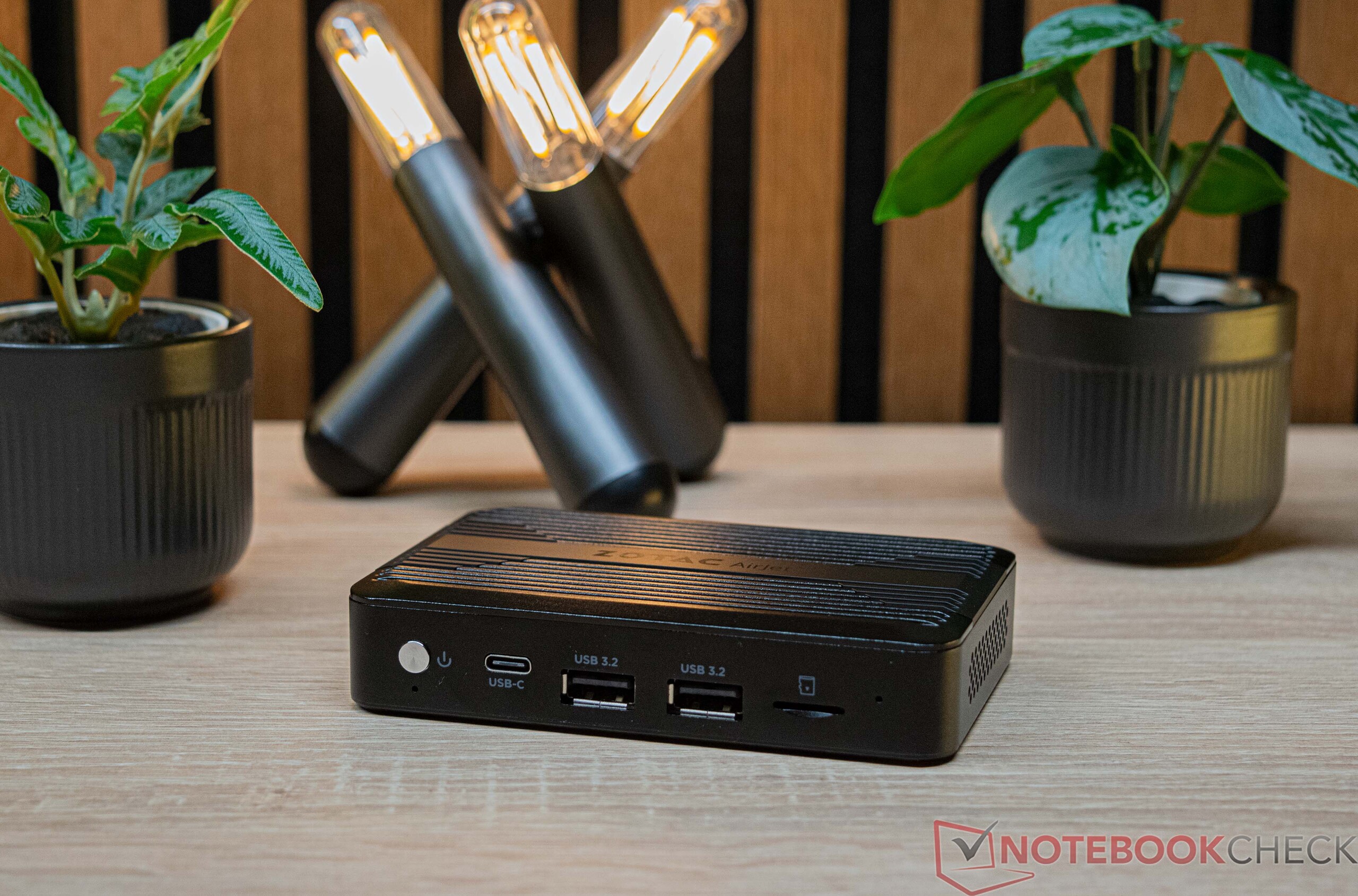

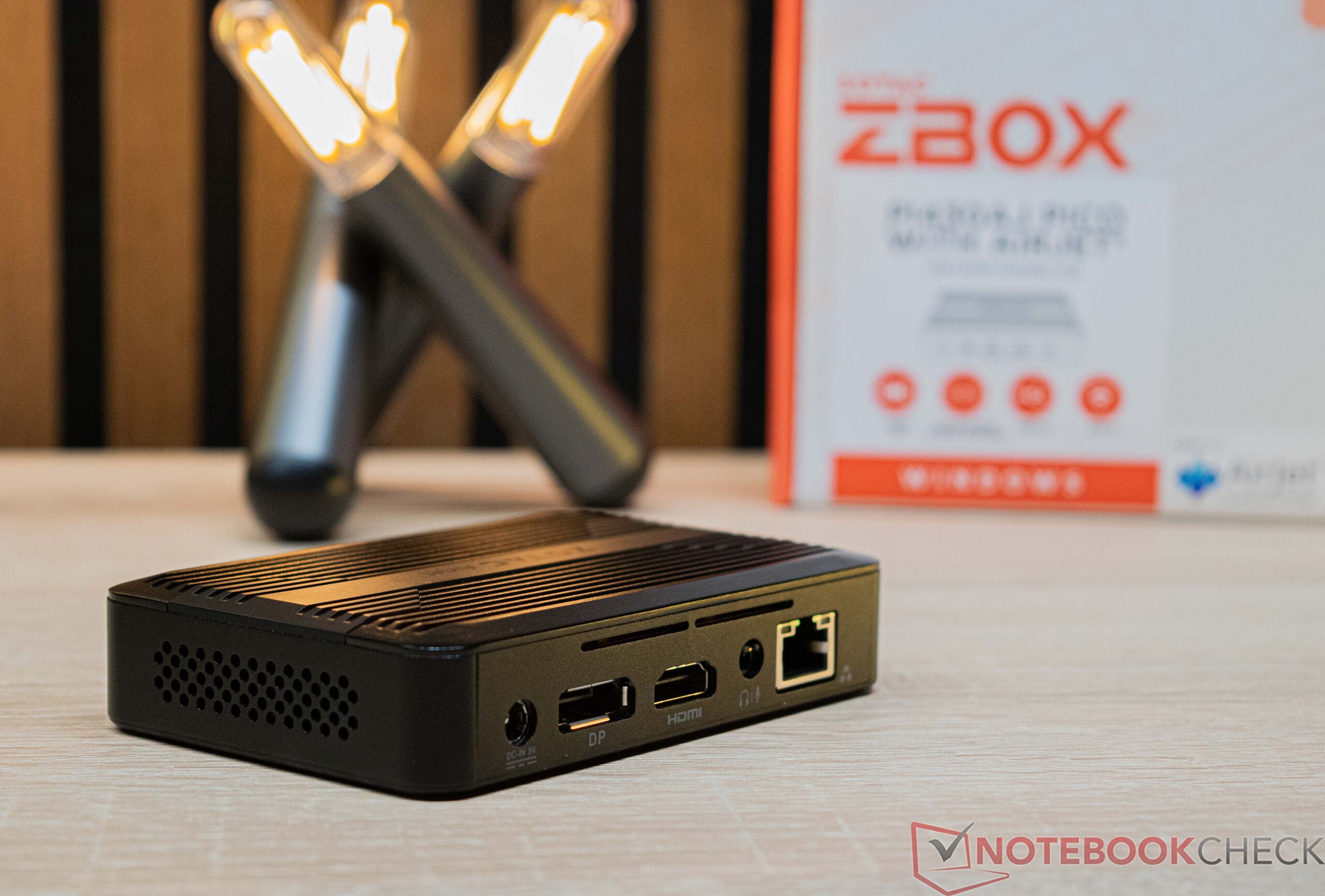

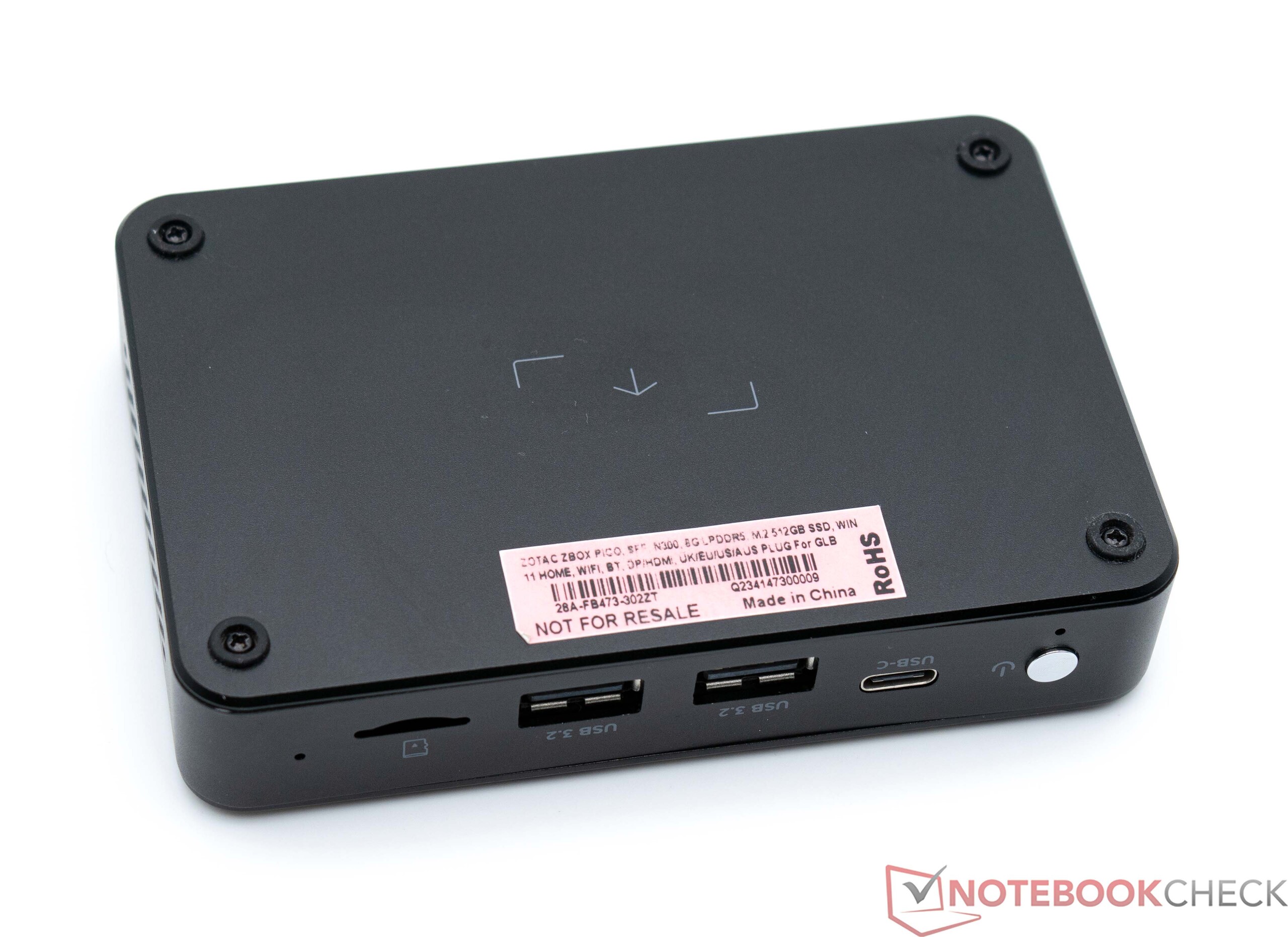

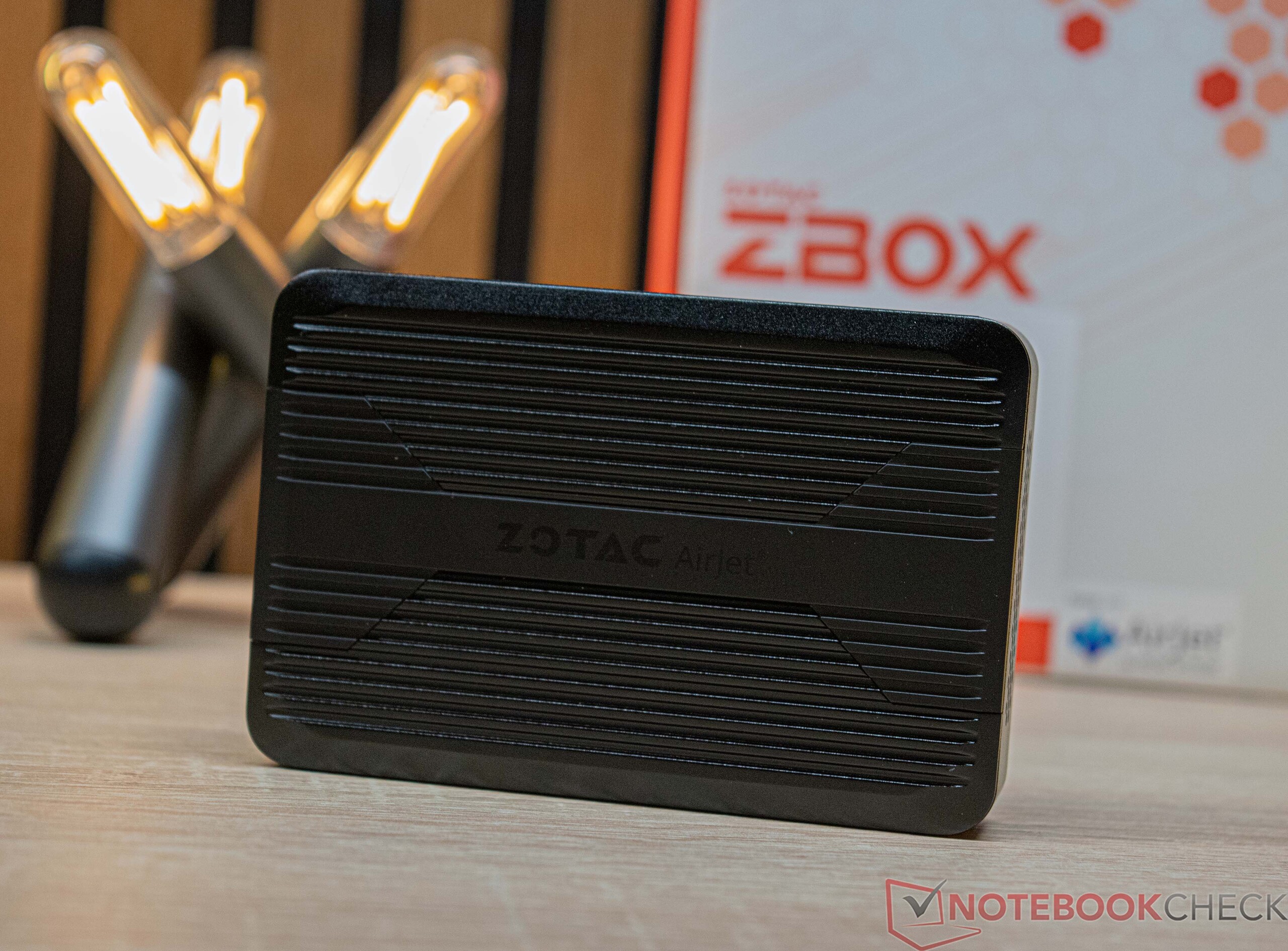

箱子 - 紧凑型 0.055 加仑铝制箱子

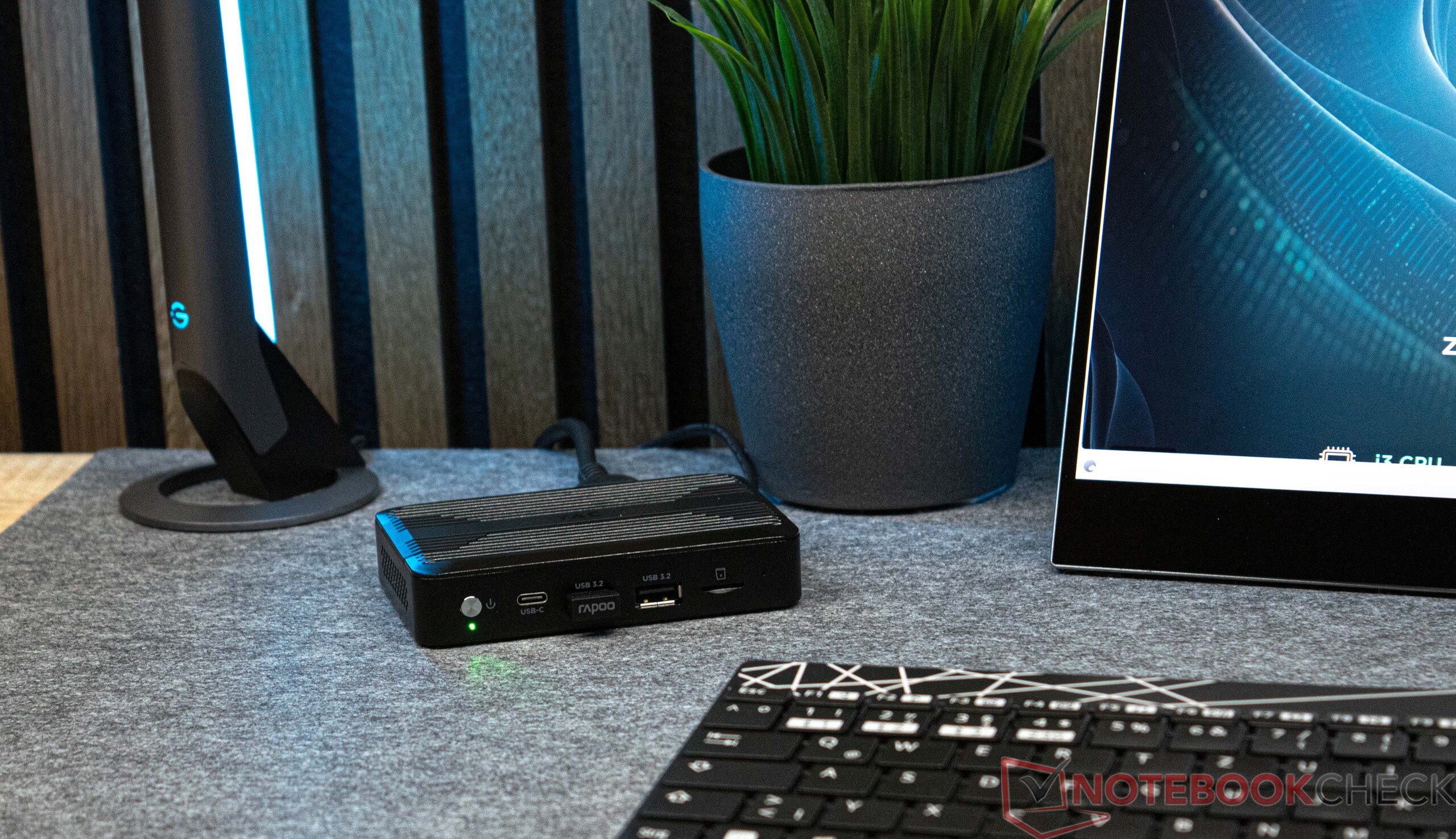

从外观上看，众泰 Zbox pico PI430A 与其前身众泰 Zbox PI336 pico.紧凑的外壳完全由铝制成，可作为散热介质。前代产品完全依靠被动散热，而 PI430A 则采用了双重散热方式，将主动 AirJet 技术与传统散热方式相结合。由于其出色的结构和完美的表面处理，该设备的微小结构非常稳定。与上一代产品相比，由于采用了主动冷却功能，其厚度略有增加，但外形依然纤薄，不足 24 毫米。这款小型 PC 的长度接近 15 厘米，深度仅为 7.6 厘米，为台式机使用提供了一个节省空间的解决方案。VESA 安装选项进一步增强了它的多功能性，所需的安装材料也方便地包括在包装内。

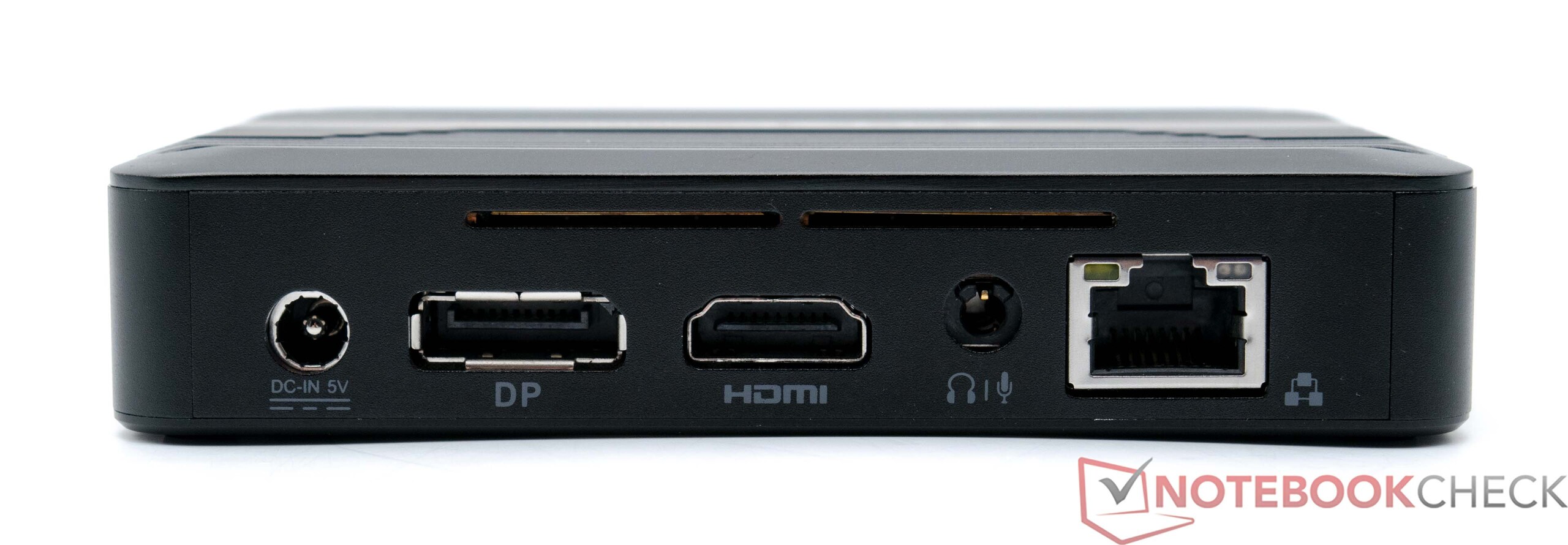

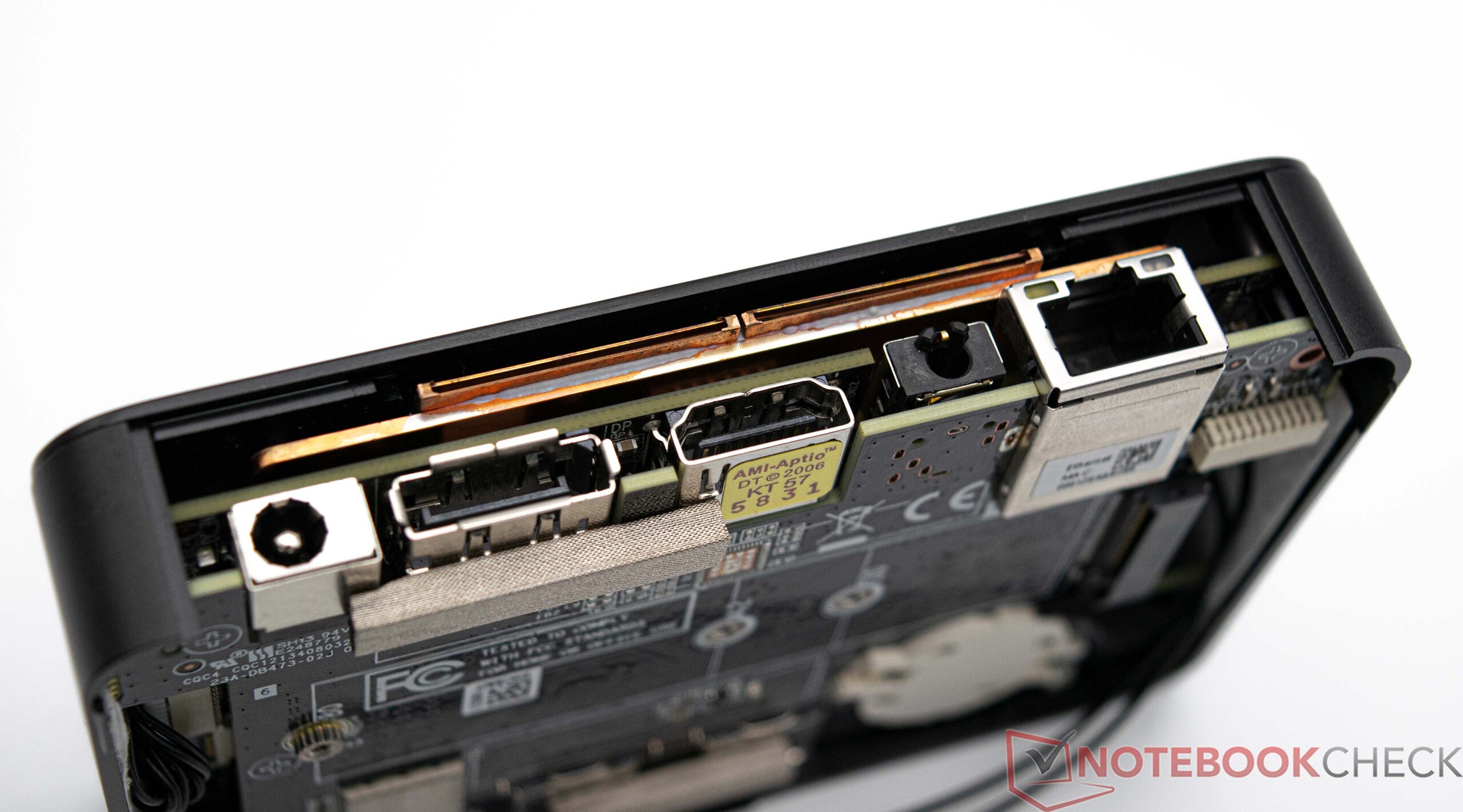

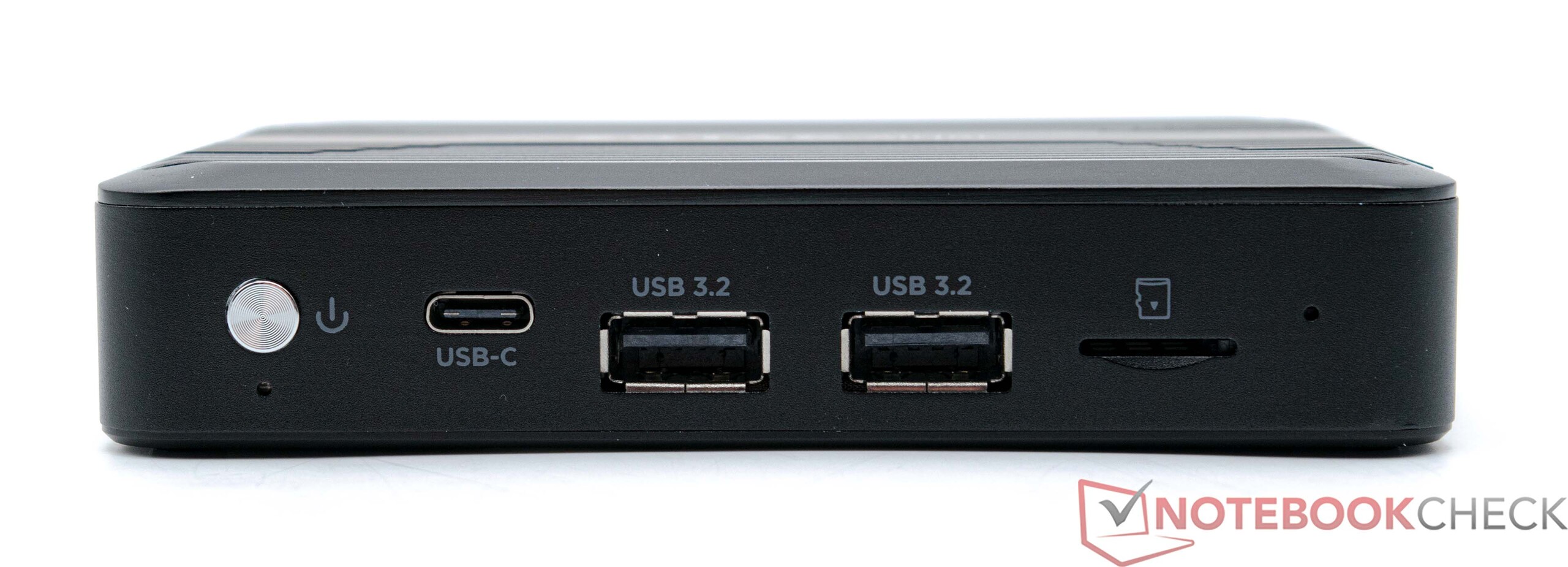

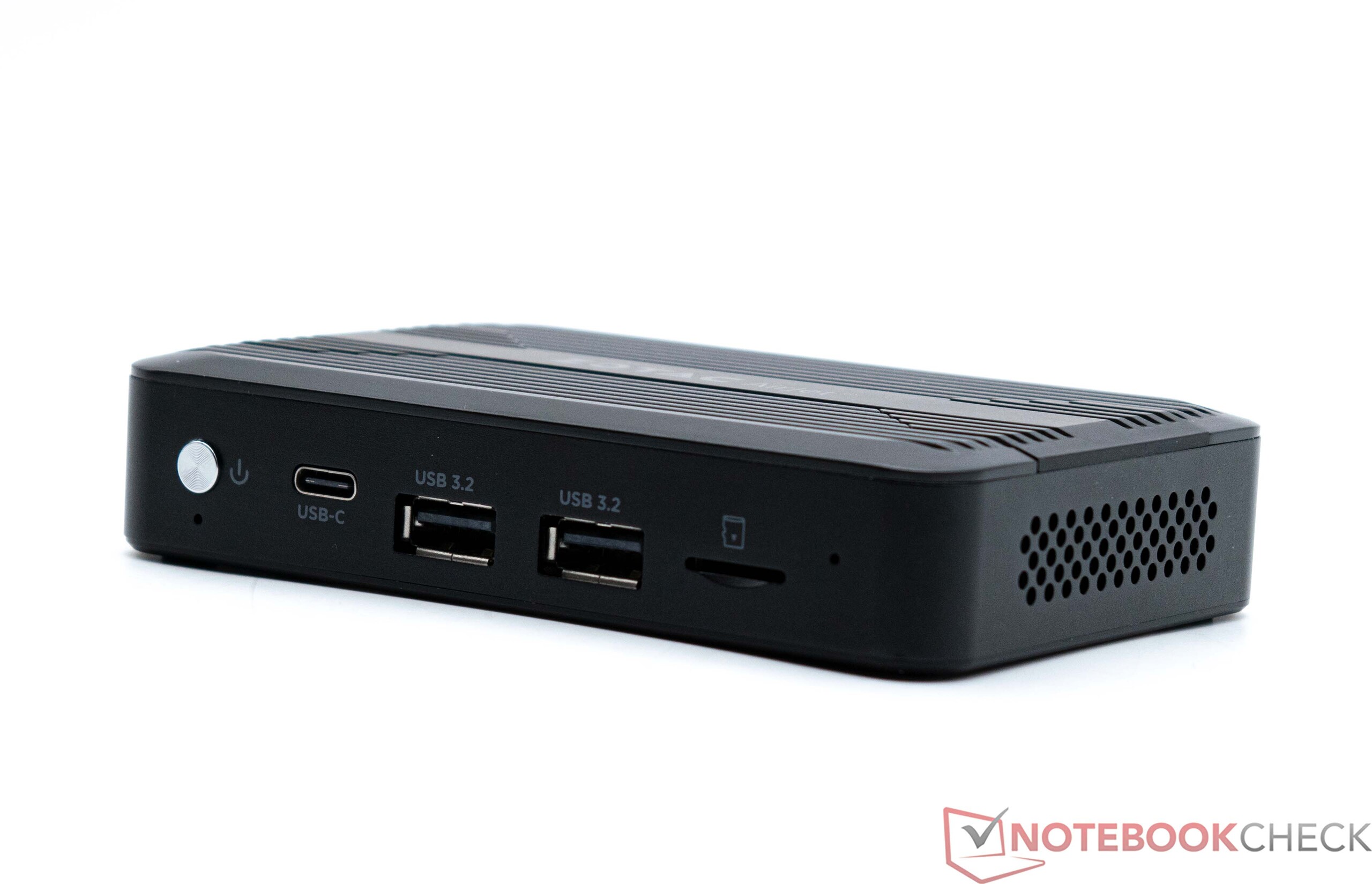

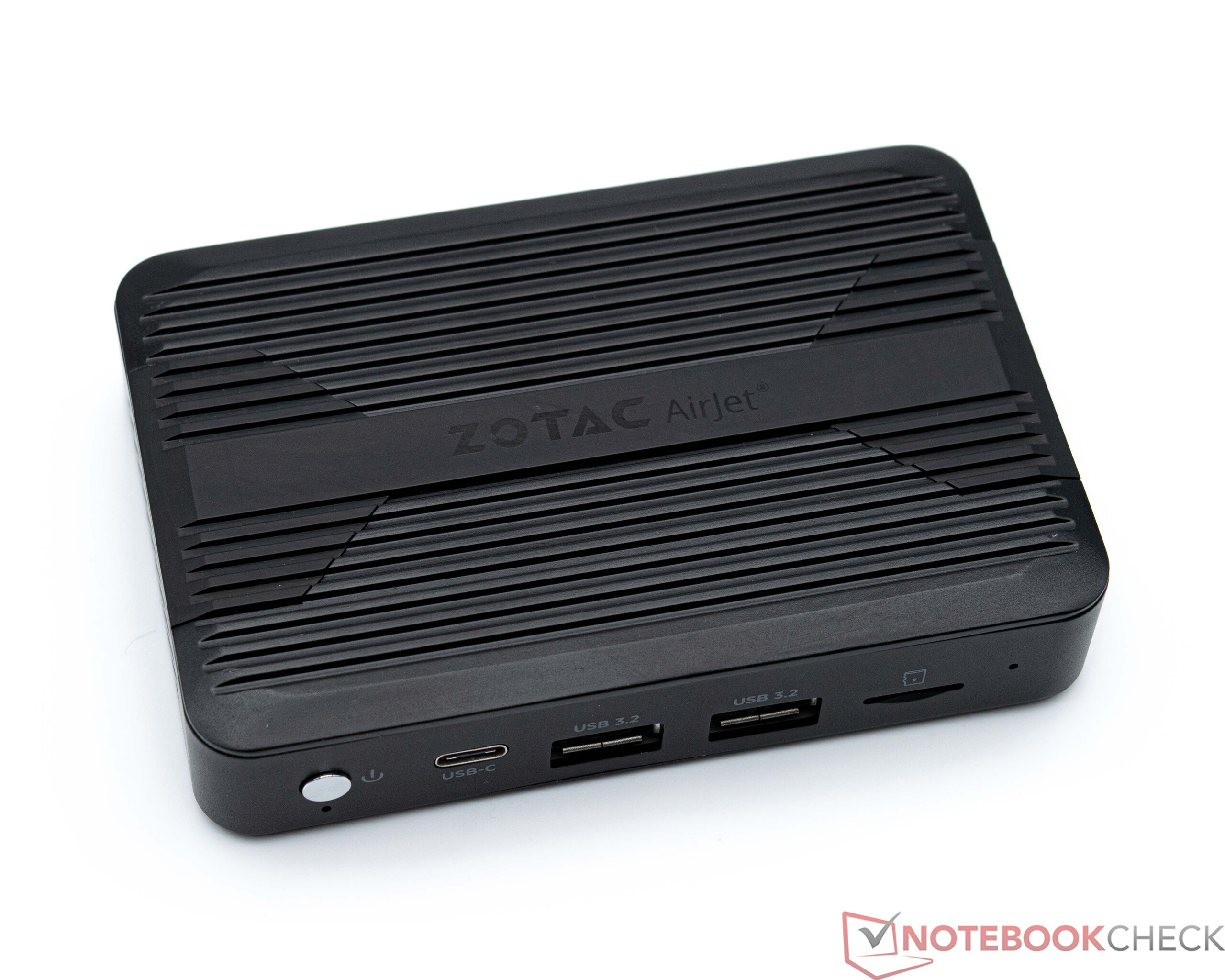

连接性

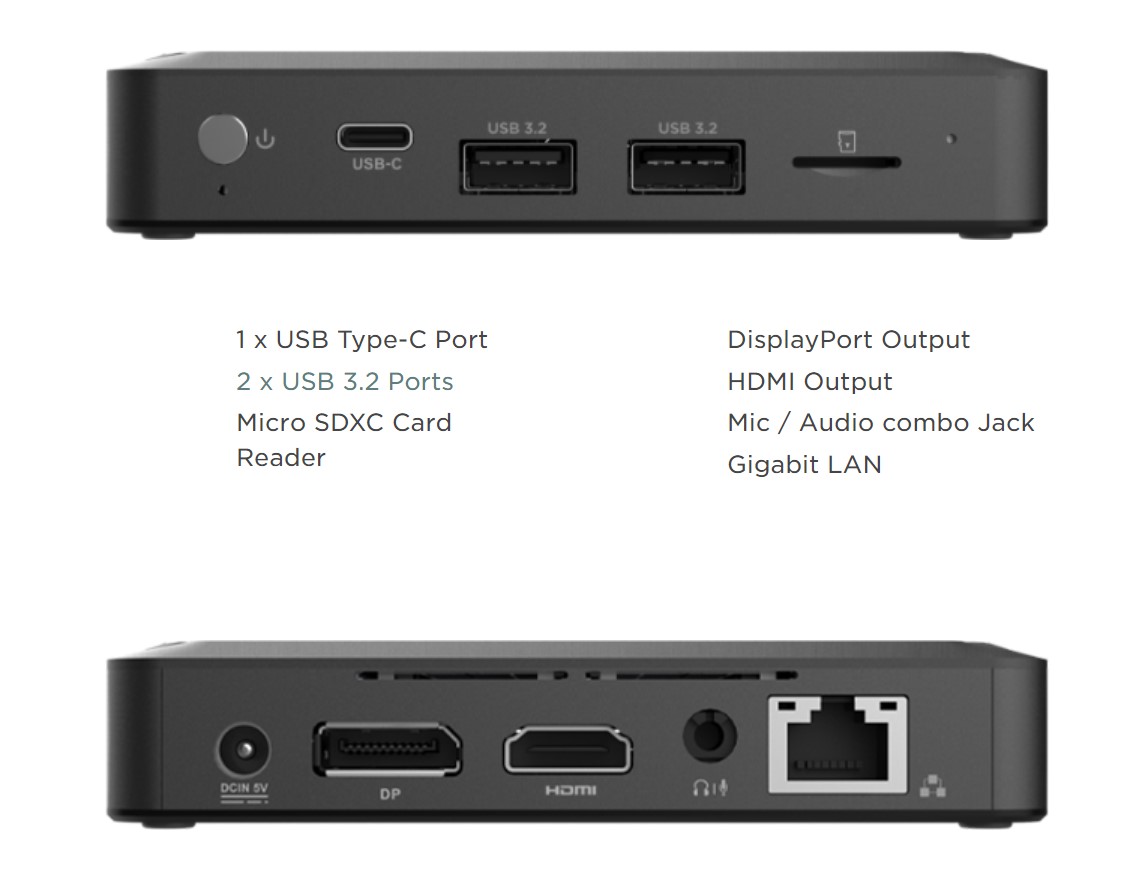

众泰 Zbox pico PI430A 虽然体积小，但却包含了所有必要的连接器。有三个 USB 3.2 端口，其中一个符合 Type-C 标准。不过，该设备不能通过 Type-C 接口供电。还有一个 microSD 读卡器以及用于连接显示器的 HDMI（2.0）和 DisplayPort（1.4）端口。

SD 读卡器

集成的 SD 读卡器仅支持 microSD 卡，速度为 USB 3。不过，我们的测试卡（AV Pro SD microSD 128 GB V60）无法充分发挥潜力。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Mini PC (16.9 - 181.8, n=17, last 2 years)	84.5 MB/s +117%
Zotac ZBOX PI430AJ Intel Core i3-N300 (AV Pro SD microSD 128 GB V60)	39 MB/s
Zotac ZBOX PI336 pico Intel Celeron N6211 (AV PRO MICROSD V60)	24.44 MB/s -37%
AC6-M Mini-PC Intel Celeron J4125 (AV PRO MICROSD V60)	18.46 MB/s -53%
Newsmay AC8 N6005 Intel Pentium Silver N6005 (AV Pro SD microSD 128 GB V60)	17.02 MB/s -56%
maximum AS SSD Seq Read Test (1GB)
Average of class Mini PC (18.2 - 200, n=17, last 2 years)	97.2 MB/s +135%
Zotac ZBOX PI336 pico Intel Celeron N6211 (AV PRO MICROSD V60)	41.45 MB/s 0%
Zotac ZBOX PI430AJ Intel Core i3-N300 (AV Pro SD microSD 128 GB V60)	41.41 MB/s
AC6-M Mini-PC Intel Celeron J4125 (AV PRO MICROSD V60)	21.03 MB/s -49%
Newsmay AC8 N6005 Intel Pentium Silver N6005 (AV Pro SD microSD 128 GB V60)	17.7 MB/s -57%

交流

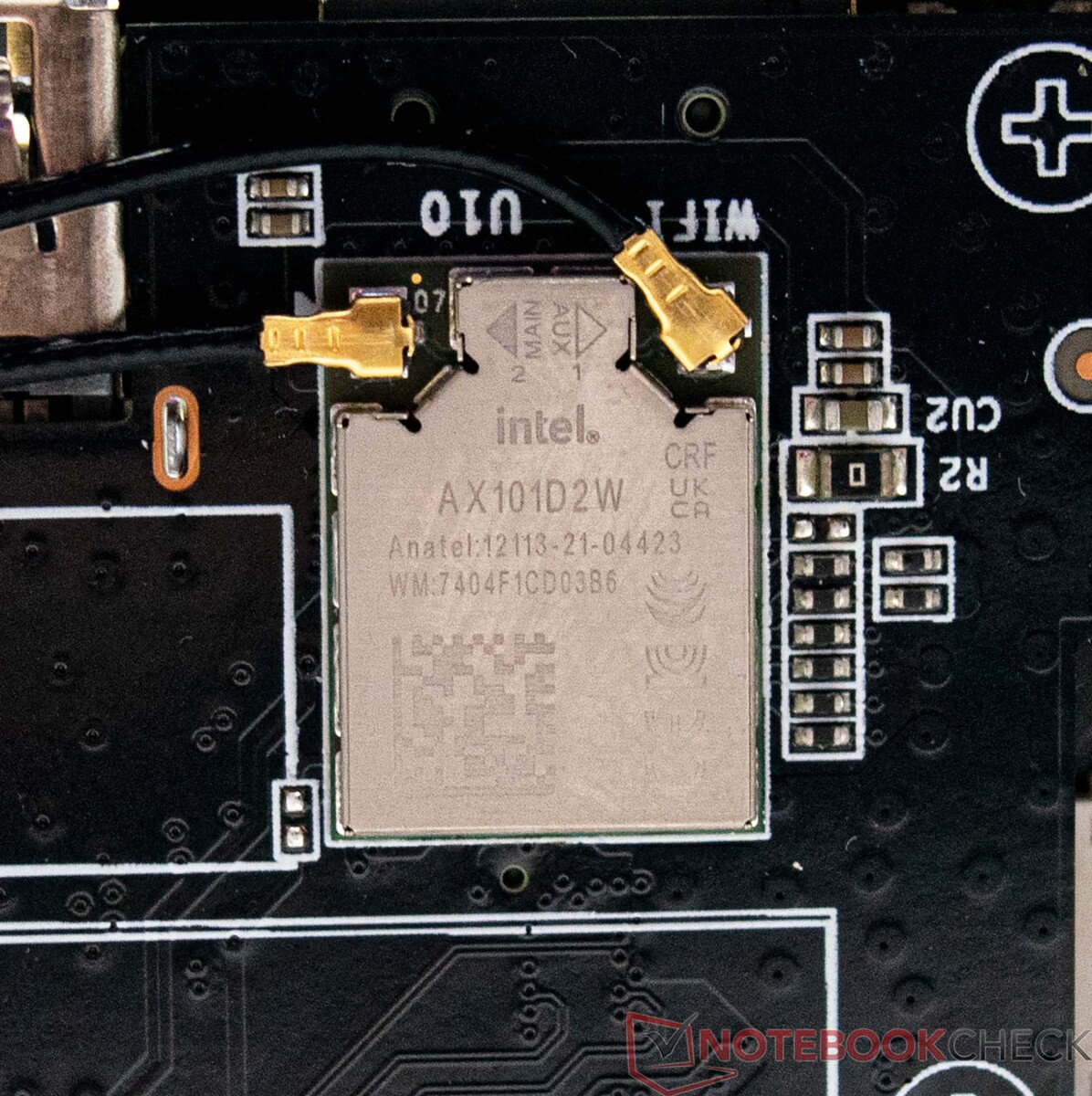

众泰 Zbox pico PI430AJ 随附的英特尔 Wi-Fi 6 AX101 模块不可更换，支持高达 2.4 GHz 和 5 GHz 的频率。它在测试中的表现一般。不过，它在发送和接收方面都显示出了一致的数值。我们测试的路由器是华硕 ROG Rapture GT-AXE11000。此外，这款迷你电脑还提供一个 RJ45 插座用于有线网络连接，数据传输速率最高可达 1 GBit/s。

Networking
iperf3 receive AXE11000
Asus ExpertCenter PN42-BBN200MV Intel Wi-Fi 6 AX201	1684 (1645^min - 1707^max) MBit/s +240%
Average of class Mini PC (192.9 - 1796, n=86, last 2 years)	897 MBit/s +81%
BOSGAME N95 Intel Dual Band Wireless-AC 8265	719 (702^min - 729^max) MBit/s +45%
Acemagic S1 Realtek RTL8852BE	503 (357^min - 676^max) MBit/s +2%
Zotac ZBOX PI430AJ Intel Wi-Fi 6 AX101	495 (473^min - 505^max) MBit/s
Average Intel Wi-Fi 6 AX101 (491 - 495, n=3)	493 MBit/s 0%
Trigkey G4 Intel Wi-Fi 6 AX101	491 (483^min - 495^max) MBit/s -1%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s -27%
Blackview MP80 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	361 (326^min - 365^max) MBit/s -27%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s -28%
iperf3 transmit AXE11000
Asus ExpertCenter PN42-BBN200MV Intel Wi-Fi 6 AX201	1527 (1473^min - 1571^max) MBit/s +217%
Average of class Mini PC (184.1 - 1776, n=86, last 2 years)	825 MBit/s +72%
Acemagic S1 Realtek RTL8852BE	536 (515^min - 553^max) MBit/s +11%
BOSGAME N95 Intel Dual Band Wireless-AC 8265	519 (510^min - 547^max) MBit/s +8%
Average Intel Wi-Fi 6 AX101 (481 - 505, n=3)	491 MBit/s +2%
Trigkey G4 Intel Wi-Fi 6 AX101	487 (459^min - 504^max) MBit/s +1%
Zotac ZBOX PI430AJ Intel Wi-Fi 6 AX101	481 (452^min - 509^max) MBit/s
Blackview MP80 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	274 (266^min - 281^max) MBit/s -43%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s -44%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s -62%

Zotac ZBOX PI430AJ Intel Wi-Fi 6 AX101; iperf3 receive AXE11000; iperf 3.1.3: Ø495 (473-505)

Acemagic S1 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø503 (357-676)

Zotac ZBOX PI430AJ Intel Wi-Fi 6 AX101; iperf3 transmit AXE11000; iperf 3.1.3: Ø481 (452-509)

Acemagic S1 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø536 (515-553)

保修

根据保修条件，购买 Zotac Zbox pico PI430AJ 时，Zotac 将提供 12 个月的标准保修。

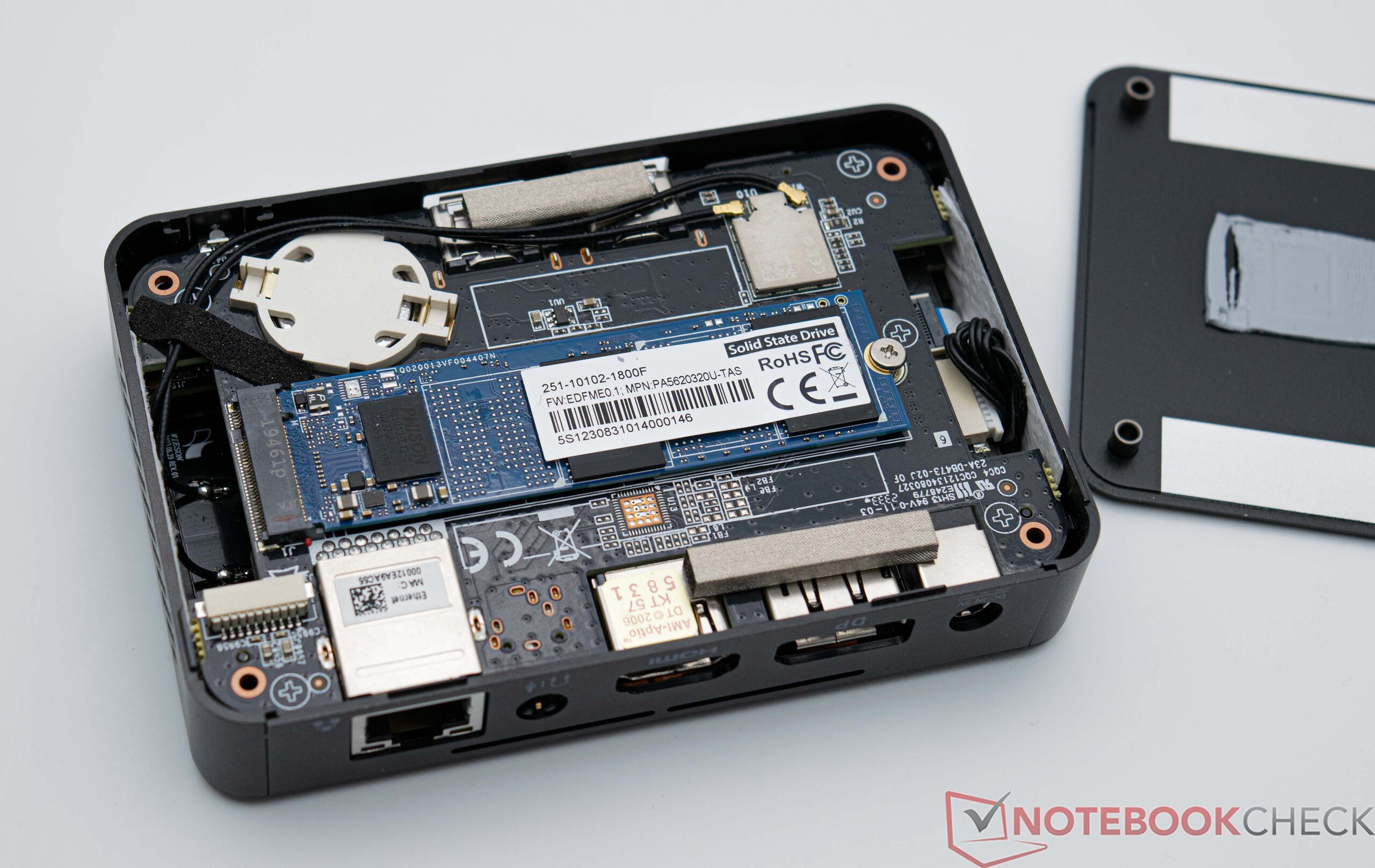

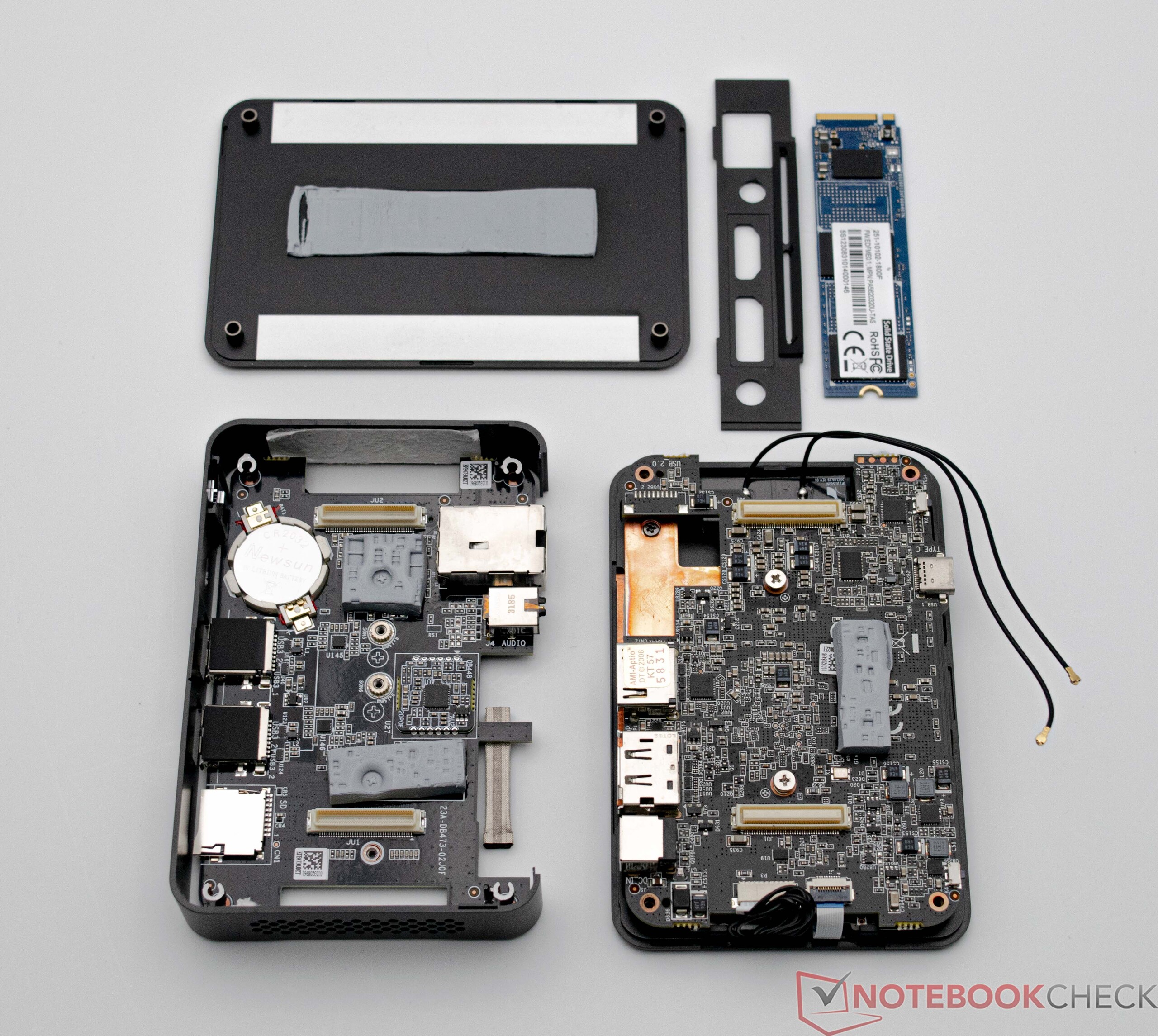

维护

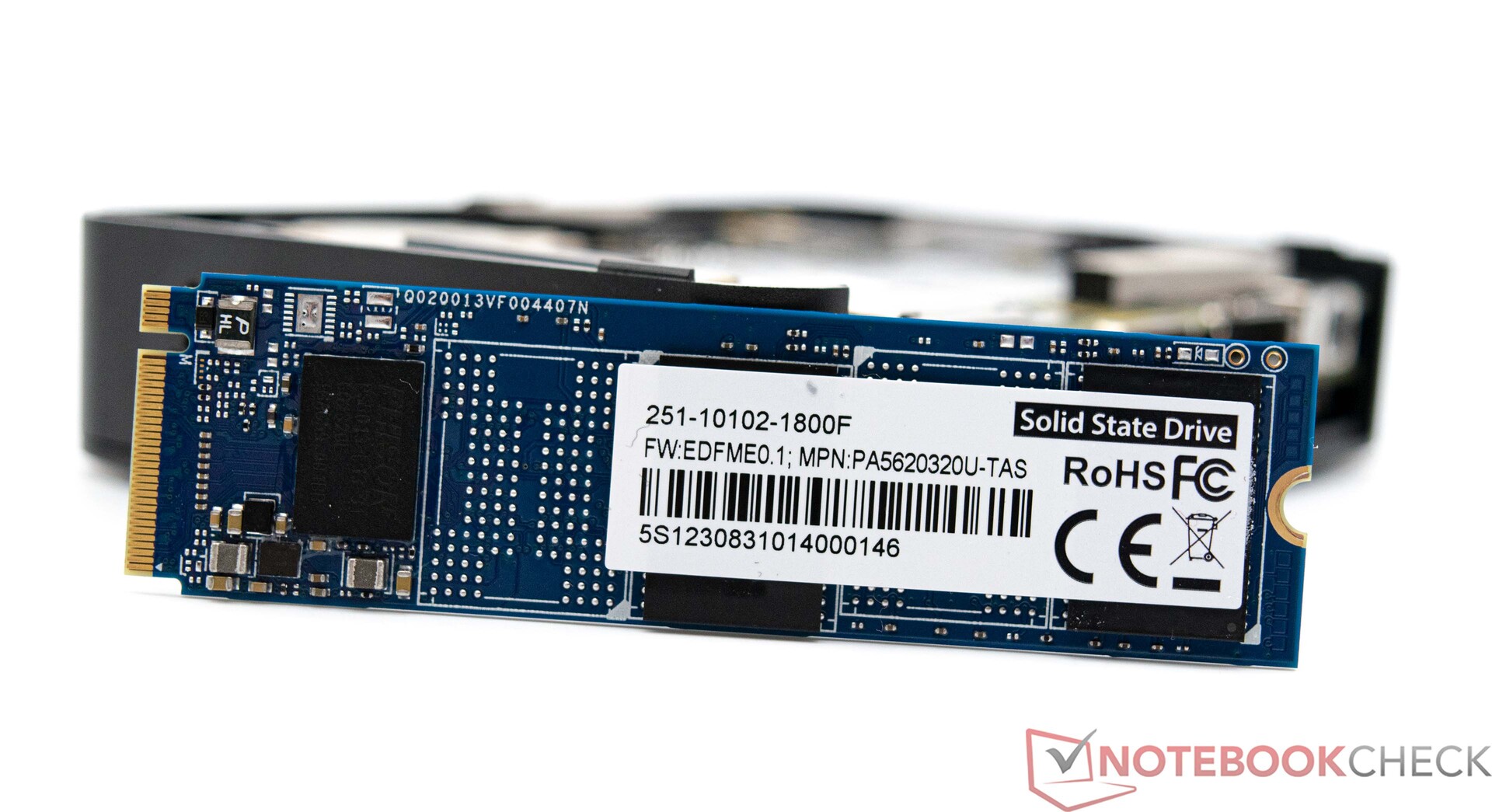

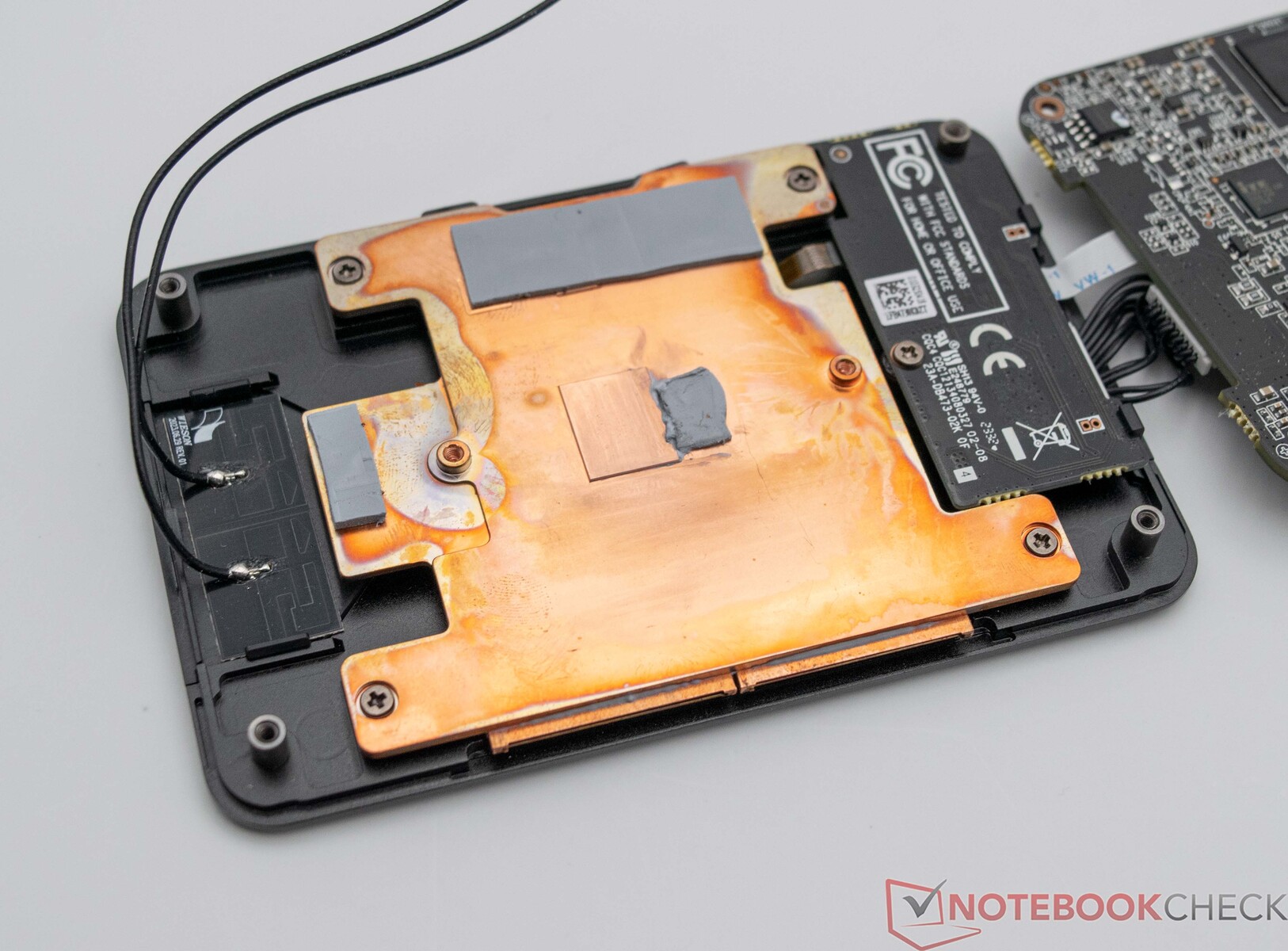

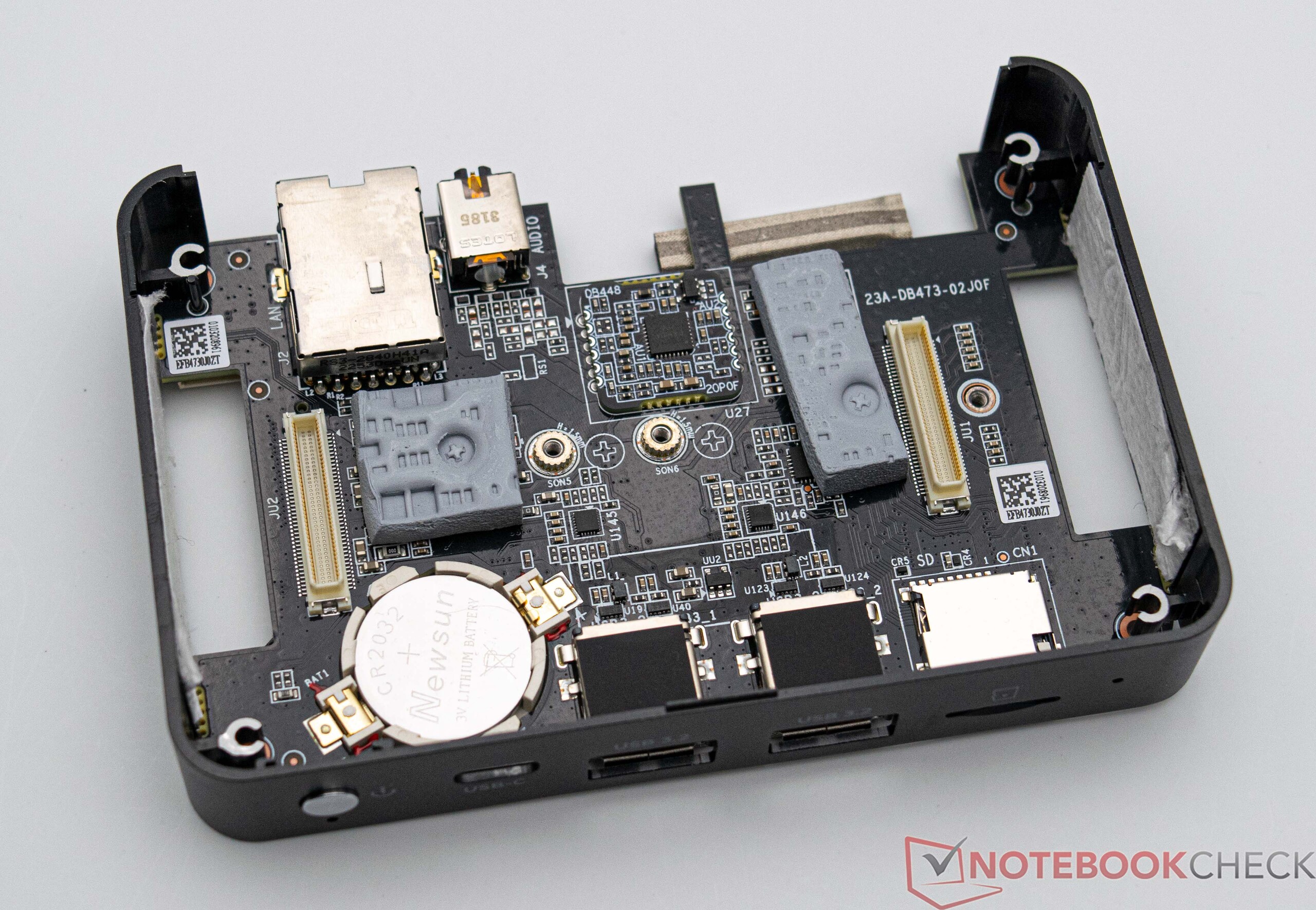

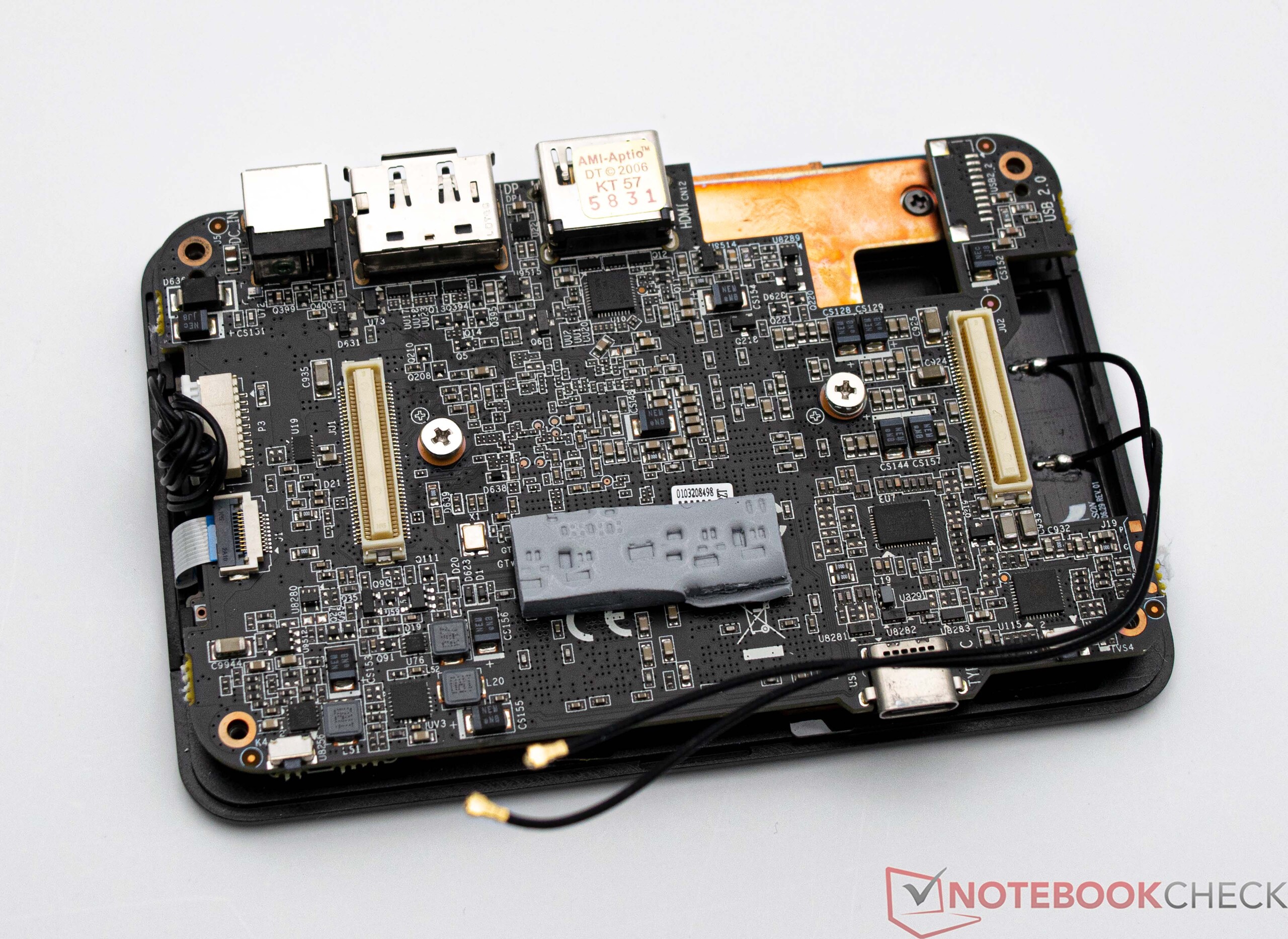

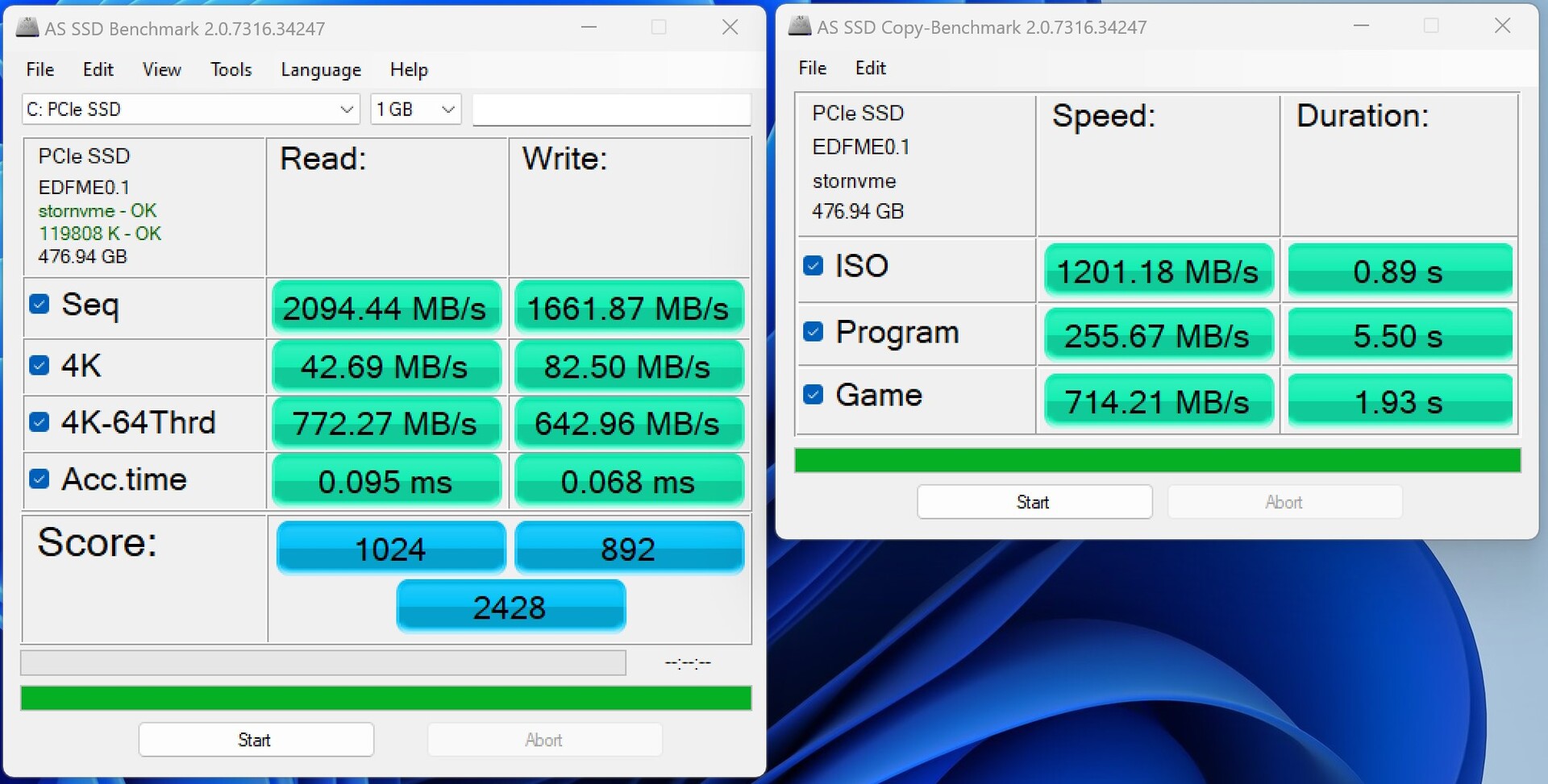

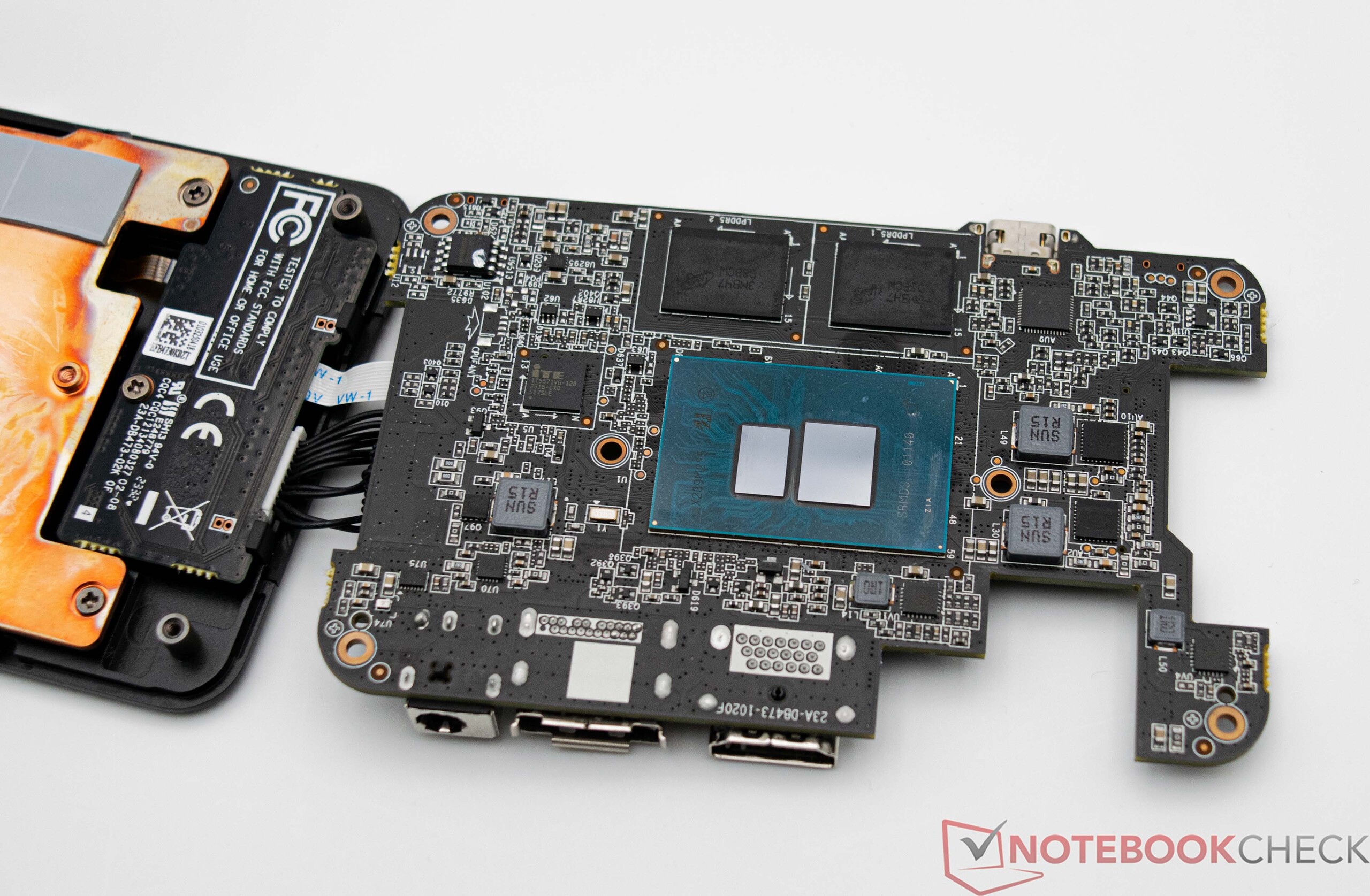

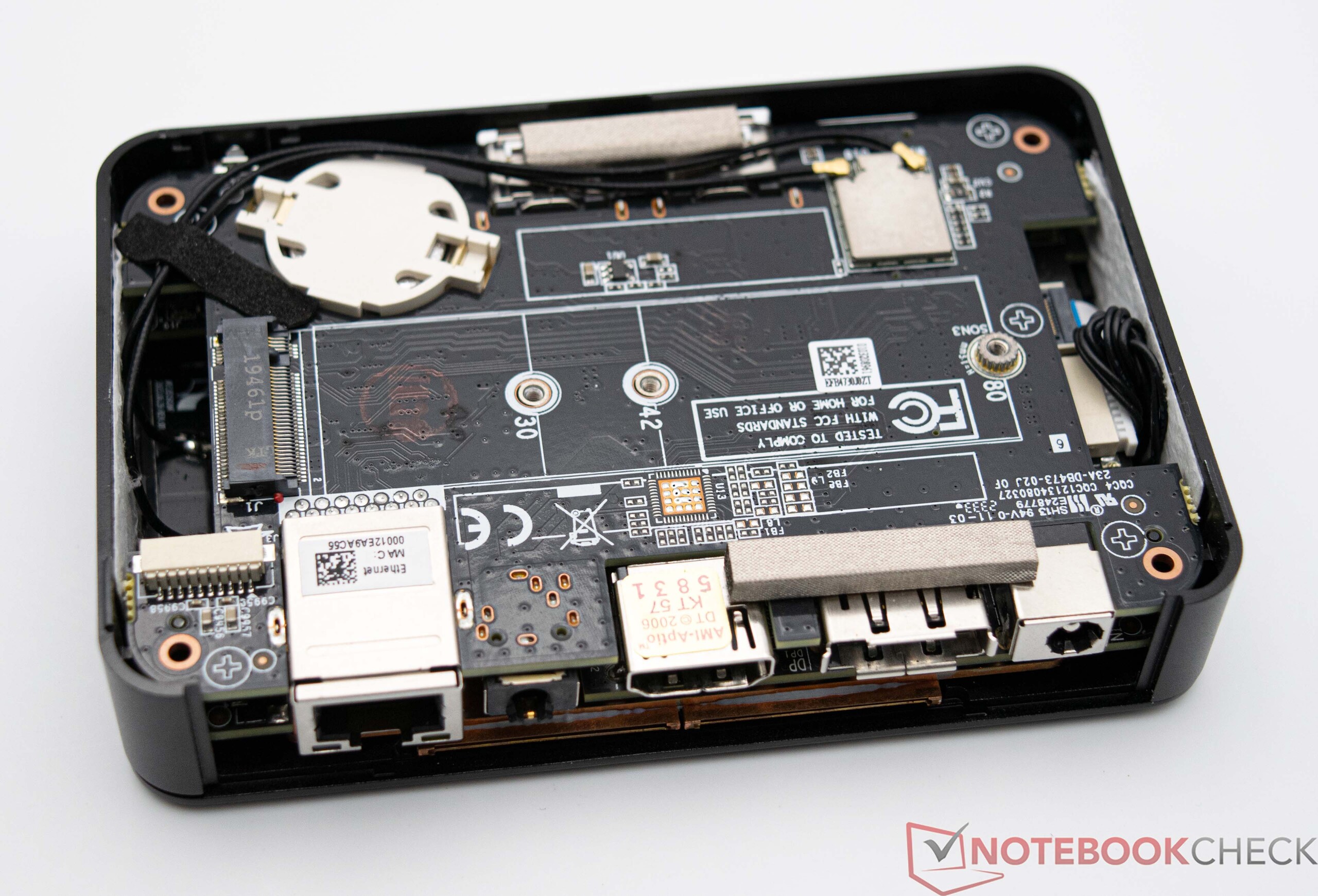

众泰 Zbox pico PI430AJ 需要的维护极少。如果购买的是裸机版本，安装固态硬盘是一个简单的过程。底部用四颗螺丝固定，可以轻松拆卸。拆卸设备时发现，生产商在侧面安装了小型防尘网，即使长时间使用也能保持内部清洁。由于集成的 AirJet 冷却装置是一个独立系统，直接作为散热器连接到处理器上，因此没有必要进一步拆卸来清洁风扇。几年后，可能值得考虑更换处理器上的散热膏。

性能 - 英特尔酷睿 i3（8 核

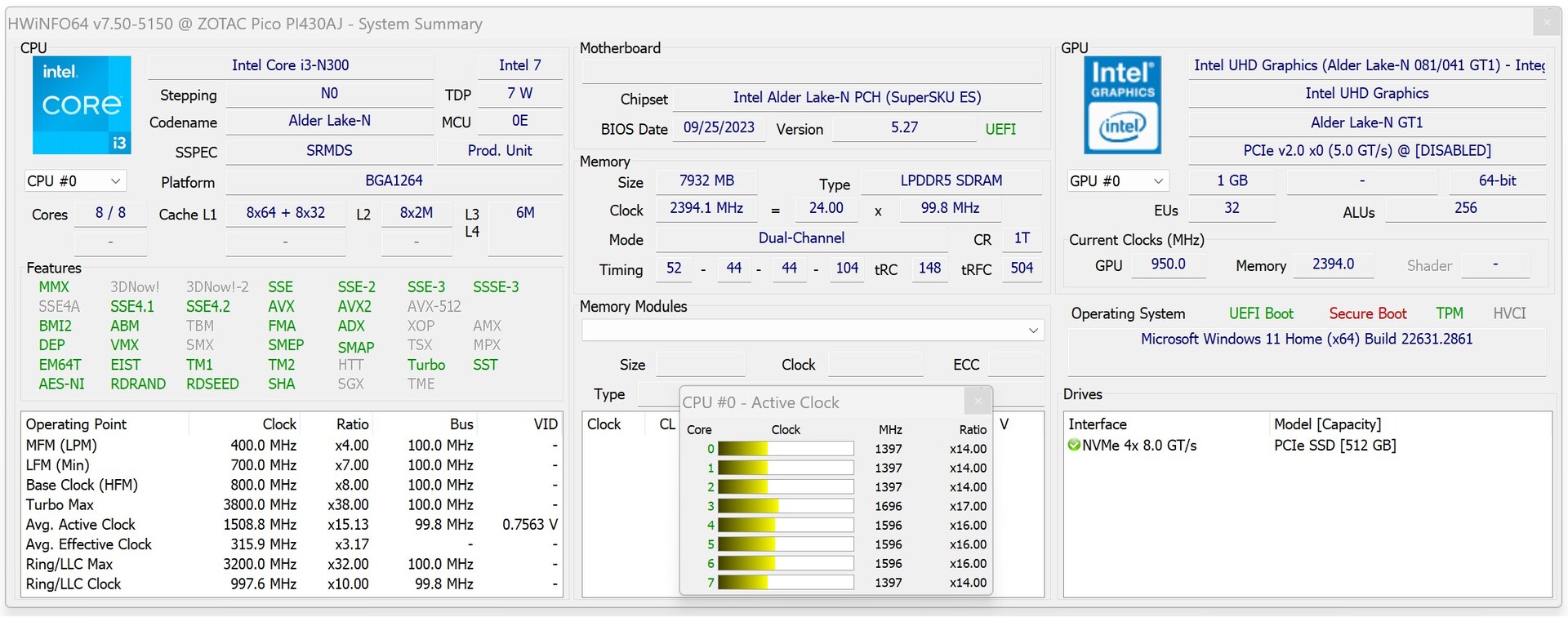

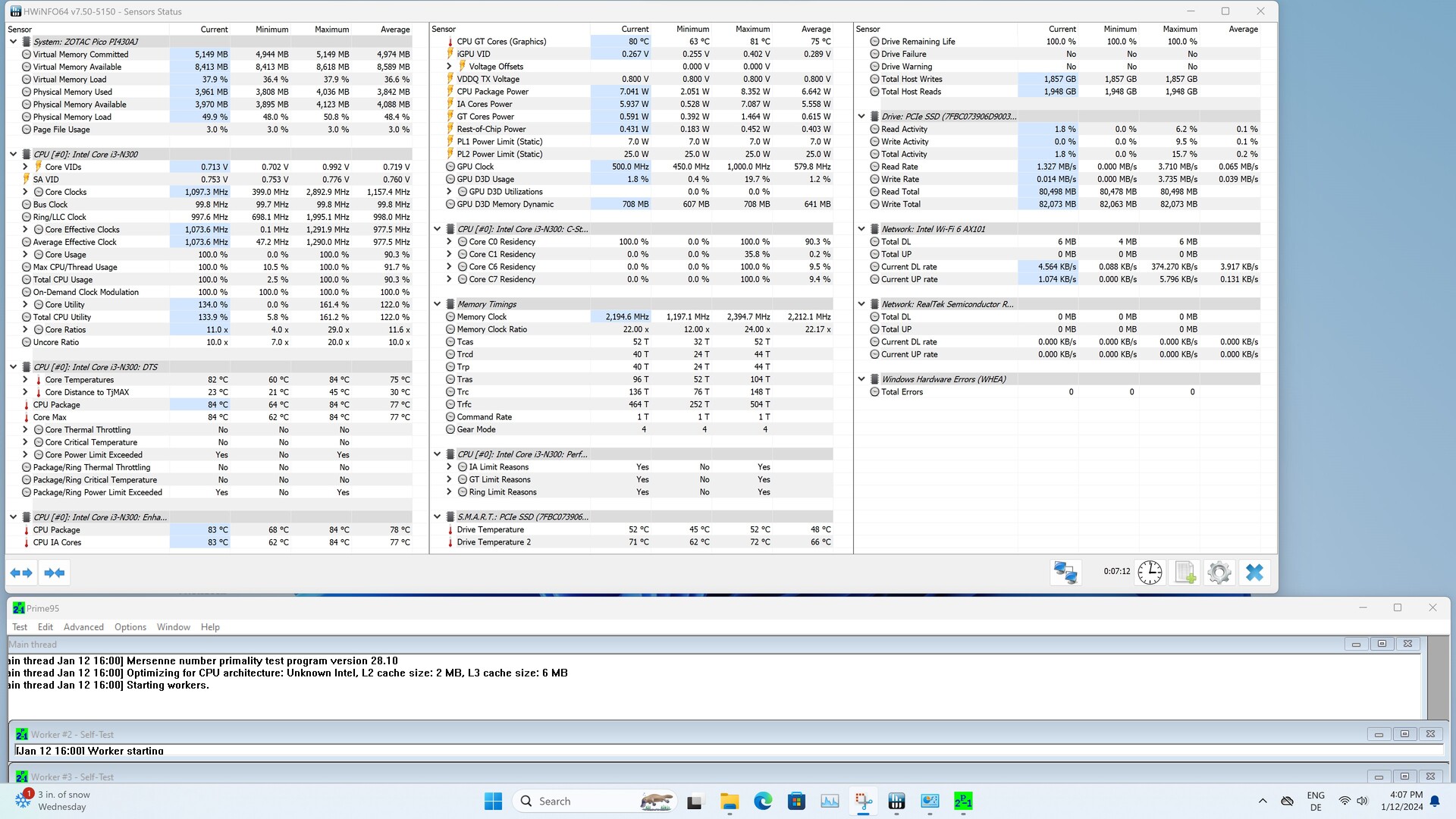

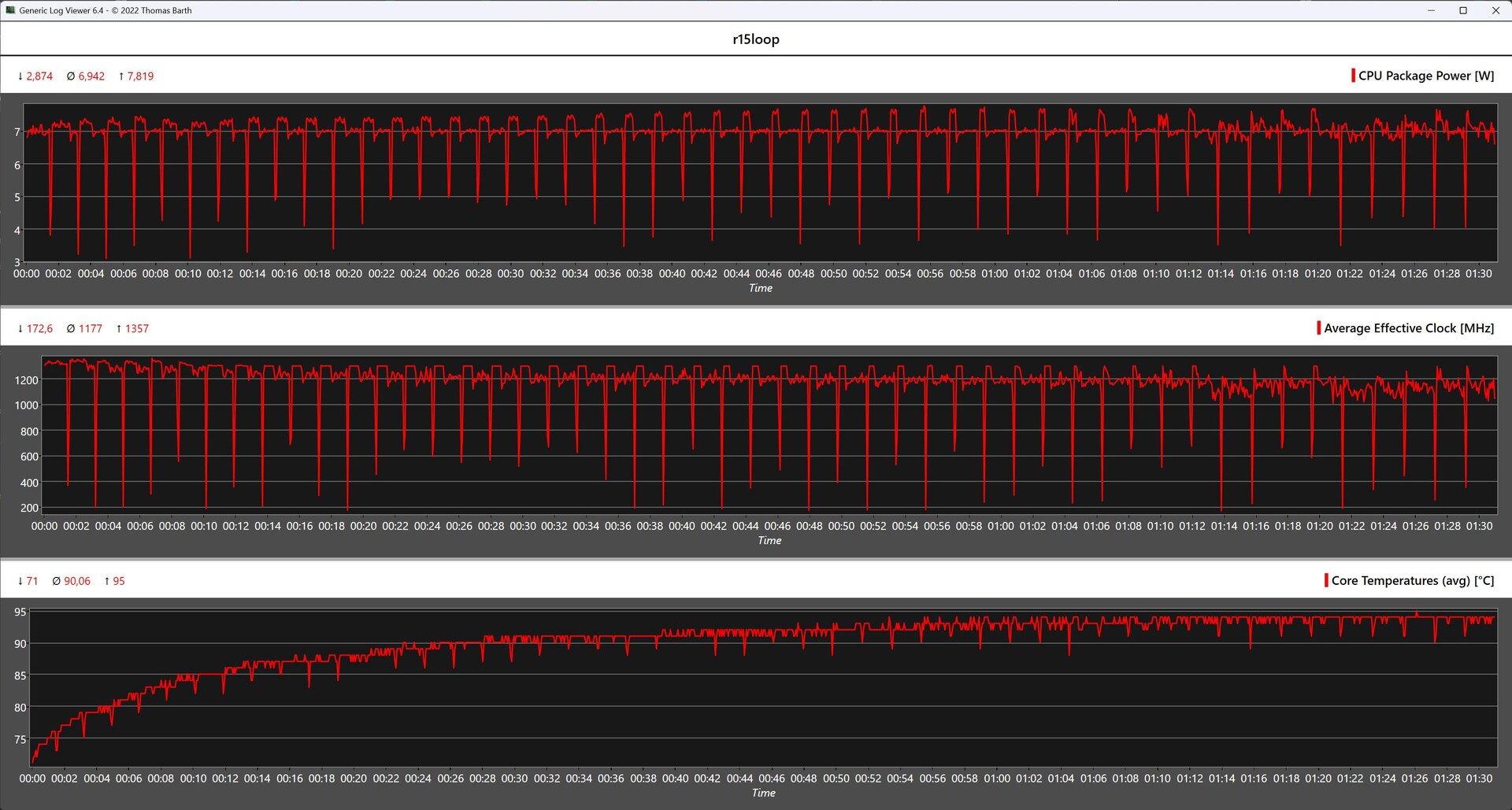

这款高效的 SoC 配备了英特尔酷睿 i3-N300，可提供八个本地计算内核。处理器的功耗限制为 7 至 25 瓦。在测试过程中，我们没有接近最大功耗限制。SoC 由焊接在电路板上的 8GB LPDDR5 内存提供支持。固态硬盘为 512 GB 型号，存储容量合适。

测试条件

我们使用最高性能能耗曲线进行了所有性能测试。不同的节能曲线仅用于能耗和体积测量。有关测试标准的更多详情，请点击这里.

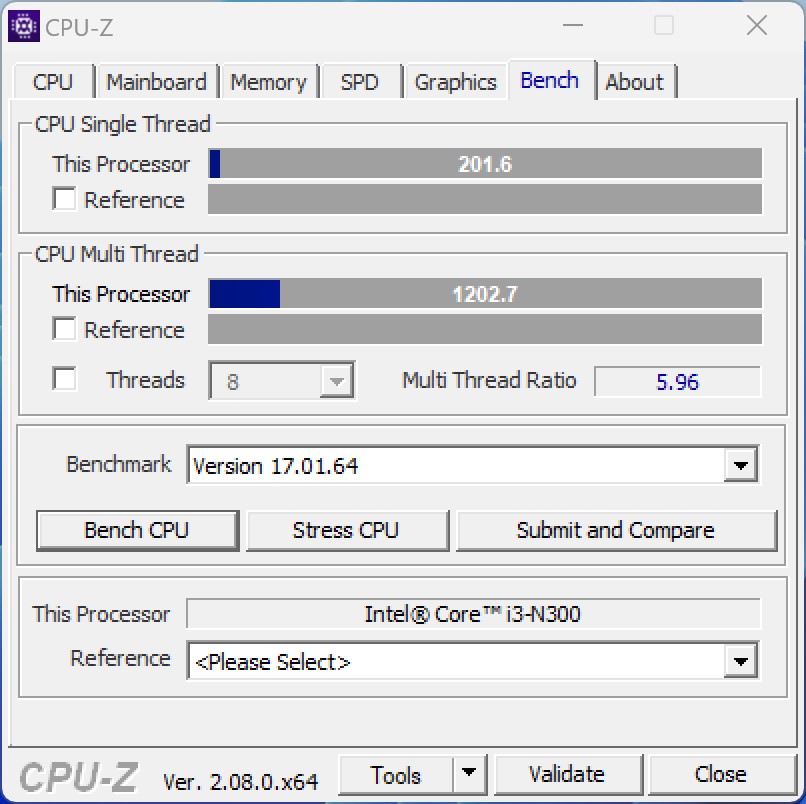

处理器

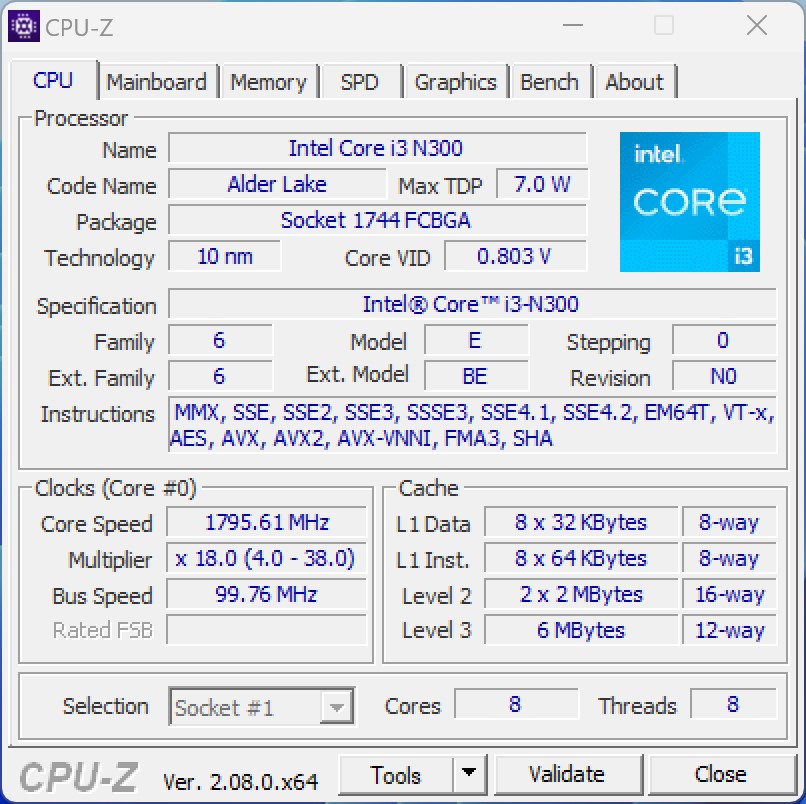

众泰 Zbox pico PI430AJ 采用英特尔酷睿 i3-N300。该 SoC 拥有 8 个内核，性能明显优于华硕 ExpertCenter PN42 中的英特尔 N200。根据其规格，我们的测试样本可获得高达 25 瓦的功率。然而，在测试过程中，我们无法接近这一数值，导致尽管采用了主动式 AirJet 冷却装置，但性能仅略高于竞争对手。在获得总体平均分后，这款小型 PC 排在第五位，仅在内部竞争中取得了胜利。不过，它在需要多核性能的特定测试中表现出色。这一点在 AIDA64 测试中非常明显，众泰 Zbox pico PI430AJ 以相当大的优势成为速度最快的设备。
有关处理器的其他基准测试可参见这里.

Performance Rating - Percent
Trigkey G4 Intel Processor N100, 1000 MHz	27.6 pt
Blackview MP80 Intel Processor N95, MHz	27 pt
BOSGAME N95 Intel Processor N95, MHz	27 pt
Acemagic S1 Intel Processor N95, MHz	26.8 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	24.1 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	22.4 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	21.7 pt
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	20.9 pt
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	17 pt

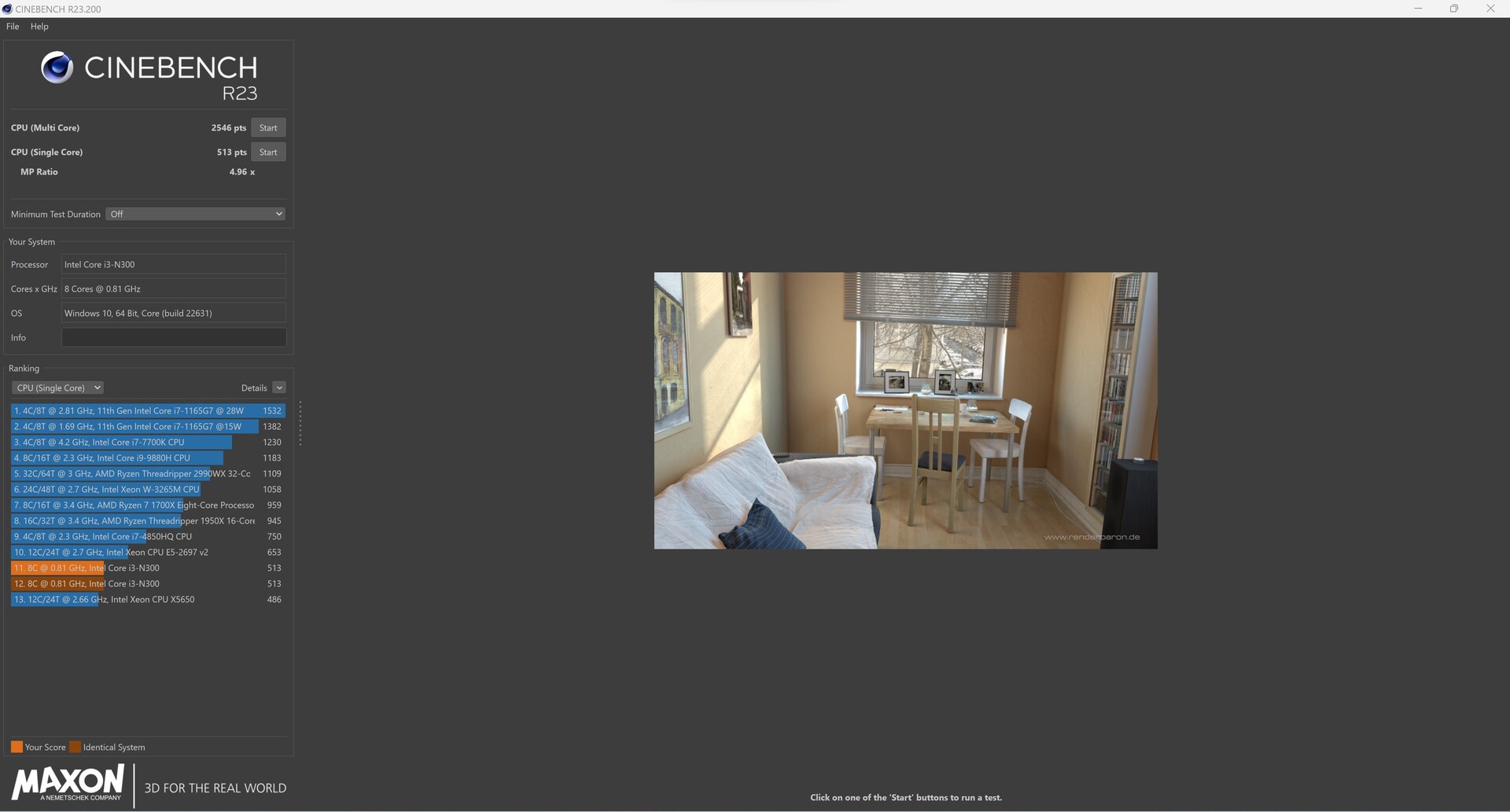

Cinebench R23
Single Core
Trigkey G4 Intel Processor N100, 1000 MHz	942 Points +84%
BOSGAME N95 Intel Processor N95, MHz	935 Points +82%
Acemagic S1 Intel Processor N95, MHz	933 Points +82%
Blackview MP80 Intel Processor N95, MHz	914 Points +78%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	700 Points +36%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	690 Points +35%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points +18%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	513 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	439 Points -14%
Multi Core
Trigkey G4 Intel Processor N100, 1000 MHz	2983 Points +17%
BOSGAME N95 Intel Processor N95, MHz	2785 Points +9%
Acemagic S1 Intel Processor N95, MHz	2769 Points +9%
Blackview MP80 Intel Processor N95, MHz	2686 Points +5%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2546 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2528 Points -1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points -16%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1406 Points -45%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	735 Points -71%

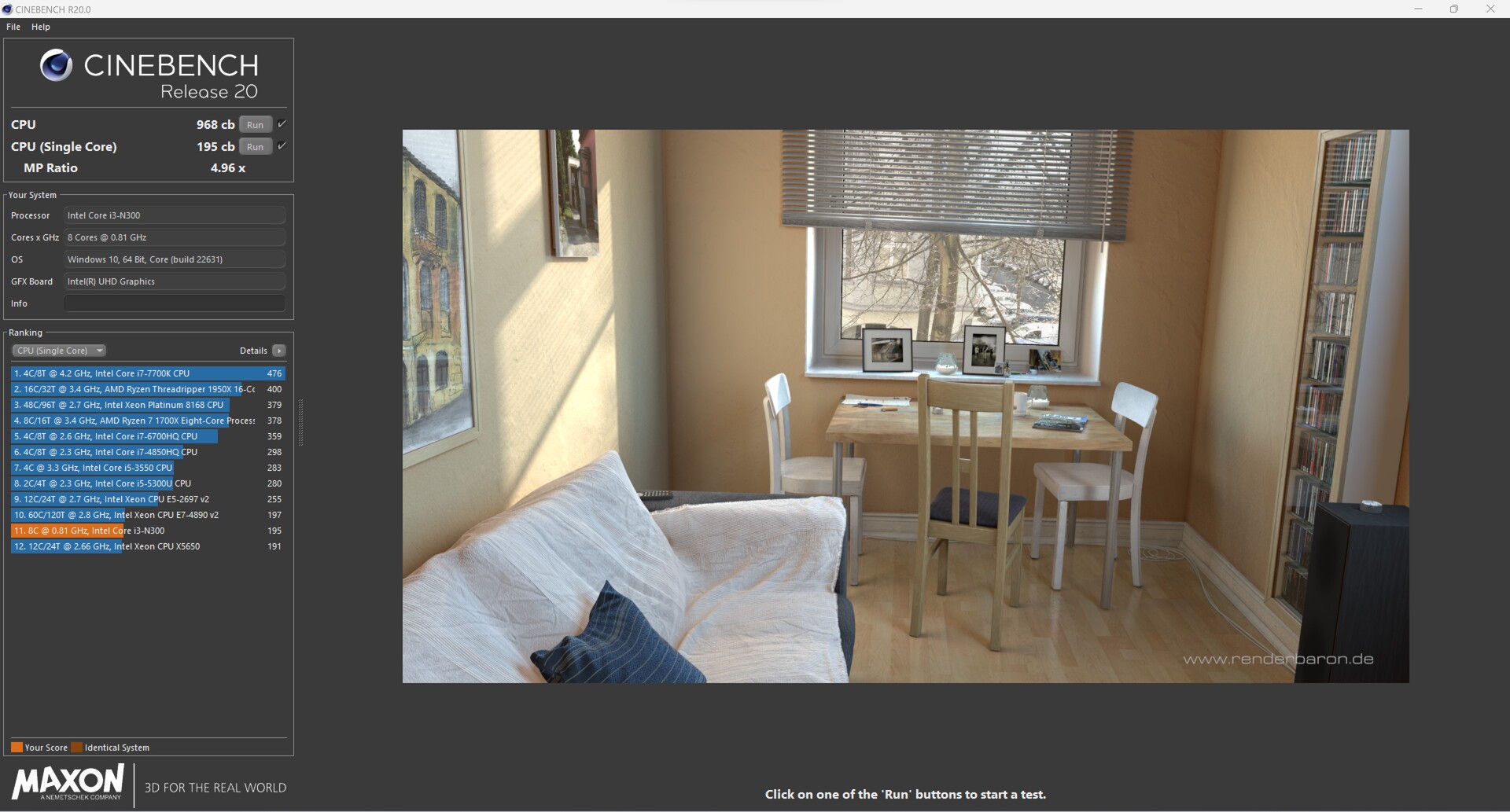

Cinebench R20
CPU (Single Core)
Trigkey G4 Intel Processor N100, 1000 MHz	358 Points +84%
BOSGAME N95 Intel Processor N95, MHz	357 Points +83%
Acemagic S1 Intel Processor N95, MHz	357 Points +83%
Blackview MP80 Intel Processor N95, MHz	350 Points +79%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	265 Points +36%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points +24%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points +19%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	195 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	174 Points -11%
CPU (Multi Core)
Trigkey G4 Intel Processor N100, 1000 MHz	1138 Points +18%
BOSGAME N95 Intel Processor N95, MHz	1067 Points +10%
Acemagic S1 Intel Processor N95, MHz	1050 Points +8%
Blackview MP80 Intel Processor N95, MHz	1029 Points +6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points +1%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	968 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points -15%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	542 Points -44%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	285 Points -71%

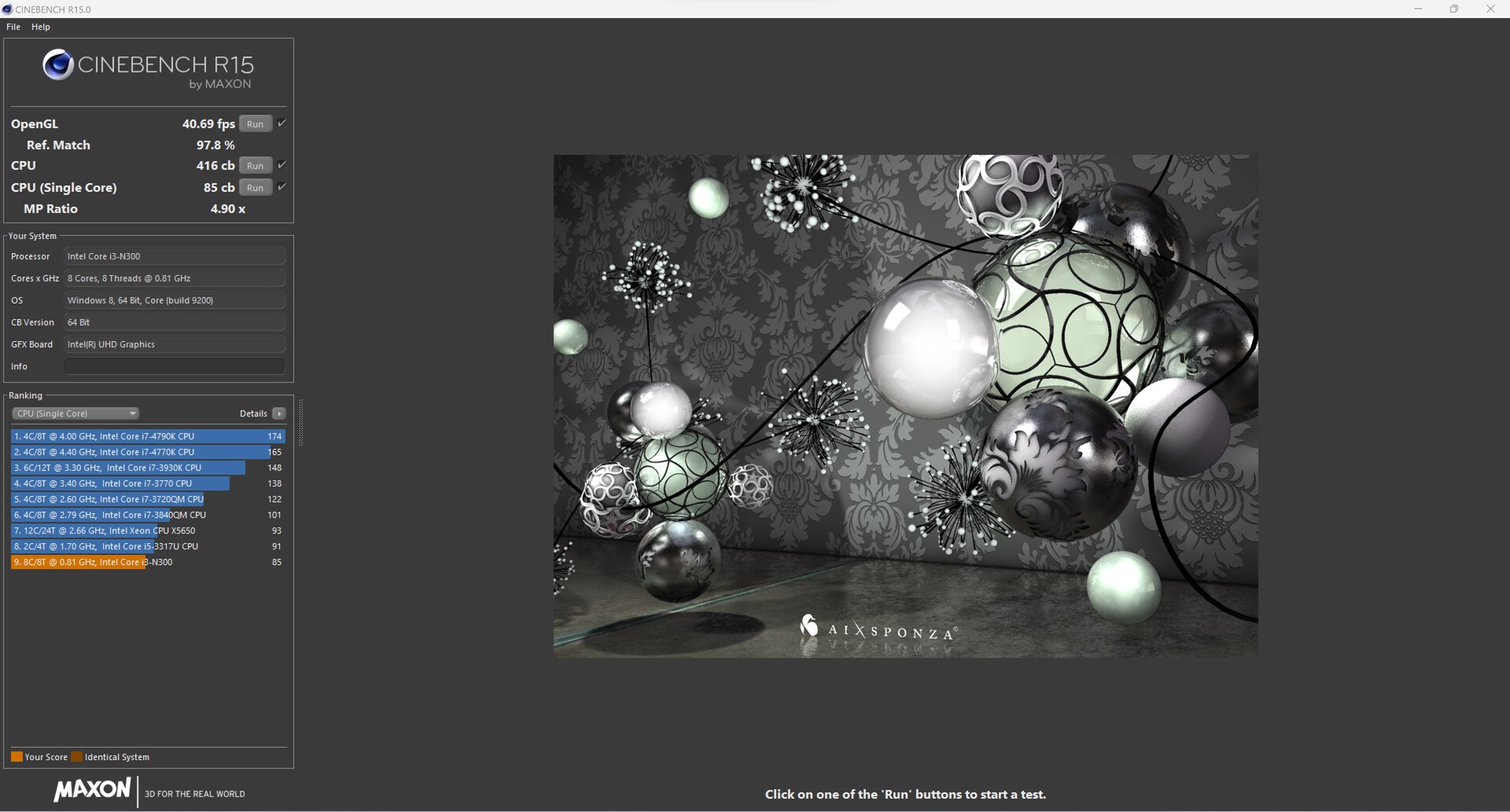

Cinebench R15
CPU Single 64Bit
BOSGAME N95 Intel Processor N95, MHz	155 Points +82%
Trigkey G4 Intel Processor N100, 1000 MHz	155 Points +82%
Acemagic S1 Intel Processor N95, MHz	154 Points +81%
Blackview MP80 Intel Processor N95, MHz	151 Points +78%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points +45%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	113 Points +33%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points +20%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	85 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	76 Points -11%
CPU Multi 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	477 Points +15%
BOSGAME N95 Intel Processor N95, MHz	452 Points +9%
Acemagic S1 Intel Processor N95, MHz	446 Points +7%
Blackview MP80 Intel Processor N95, MHz	434 Points +4%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	416 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points -14%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	219 Points -47%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	128 Points -69%

Cinebench R11.5
CPU Single 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	1.87 Points +83%
BOSGAME N95 Intel Processor N95, MHz	1.86 Points +82%
Acemagic S1 Intel Processor N95, MHz	1.85 Points +81%
Blackview MP80 Intel Processor N95, MHz	1.83 Points +79%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points +46%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1.36 Points +33%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points +23%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	1.02 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.97 Points -5%
CPU Multi 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	5.99 Points +13%
BOSGAME N95 Intel Processor N95, MHz	5.62 Points +6%
Acemagic S1 Intel Processor N95, MHz	5.55 Points +4%
Blackview MP80 Intel Processor N95, MHz	5.41 Points +2%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	5.32 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points -13%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	2.73 Points -49%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.65 Points -69%

Cinebench R10
Rendering Single CPUs 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	8227 Points +83%
Acemagic S1 Intel Processor N95, MHz	8177 Points +82%
Blackview MP80 Intel Processor N95, MHz	8080 Points +80%
BOSGAME N95 Intel Processor N95, MHz	7574 Points +68%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points +46%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	5971 Points +33%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points +16%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	4497 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	4120 Points -8%
Rendering Multiple CPUs 64Bit
Trigkey G4 Intel Processor N100, 1000 MHz	24225 Points +31%
BOSGAME N95 Intel Processor N95, MHz	22275 Points +21%
Acemagic S1 Intel Processor N95, MHz	22261 Points +21%
Blackview MP80 Intel Processor N95, MHz	20565 Points +11%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points +11%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	18450 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points -6%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	11030 Points -40%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	6653 Points -64%

wPrime 2.10
32m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	49.66 s * -184%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	25.99 s * -49%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * -10%
BOSGAME N95 Intel Processor N95, MHz	18.213 s * -4%
Blackview MP80 Intel Processor N95, MHz	17.521 s * -0%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	17.491 s *
Acemagic S1 Intel Processor N95, MHz	16.565 s * +5%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * +6%
Trigkey G4 Intel Processor N100, 1000 MHz	15.795 s * +10%
1024m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1561.178 s * -194%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	874.559 s * -65%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * -14%
BOSGAME N95 Intel Processor N95, MHz	568.939 s * -7%
Blackview MP80 Intel Processor N95, MHz	538.757 s * -1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * -1%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	531.113 s *
Acemagic S1 Intel Processor N95, MHz	519.662 s * +2%
Trigkey G4 Intel Processor N100, 1000 MHz	481.652 s * +9%

X264 HD Benchmark 4.0
Pass 1
Trigkey G4 Intel Processor N100, 1000 MHz	172.55 (171.6^min - 175.2^max) fps +62%
Blackview MP80 Intel Processor N95, MHz	163.3 (162.1^min - 163.7^max) fps +53%
BOSGAME N95 Intel Processor N95, MHz	162.4 (161.9^min - 162.4^max) fps +52%
Acemagic S1 Intel Processor N95, MHz	161.9 (158.9^min - 162.5^max) fps +52%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps +36%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps +6%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	106.6 (106^min - 107.2^max) fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	79.95 (79^min - 109.2^max) fps -25%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	45.25 (44.7^min - 45.7^max) fps -58%
Pass 2
Trigkey G4 Intel Processor N100, 1000 MHz	33.85 (33.7^min - 35^max) fps +17%
BOSGAME N95 Intel Processor N95, MHz	32.45 (32.4^min - 32.5^max) fps +12%
Blackview MP80 Intel Processor N95, MHz	32.4 (32.4^min - 32.4^max) fps +12%
Acemagic S1 Intel Processor N95, MHz	32.4 (32.4^min - 32.5^max) fps +12%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps +3%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	28.85 (28.2^min - 29.1^max) fps
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps -14%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	16.3 (16.2^min - 16.4^max) fps -44%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	9.995 (9.97^min - 10.2^max) fps -65%

WinRAR - Result
Trigkey G4 Intel Processor N100, 1000 MHz	2431 KB/s +27%
Acemagic S1 Intel Processor N95, MHz	2391 KB/s +25%
BOSGAME N95 Intel Processor N95, MHz	2362 KB/s +23%
Blackview MP80 Intel Processor N95, MHz	2277 KB/s +19%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s +14%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	2115 KB/s +10%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	1915 KB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	731 KB/s -62%

TrueCrypt
AES Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	3.2 GB/s +23%
Trigkey G4 Intel Processor N100, 1000 MHz	2.9 GB/s +12%
Blackview MP80 Intel Processor N95, MHz	2.8 GB/s +8%
BOSGAME N95 Intel Processor N95, MHz	2.7 GB/s +4%
Acemagic S1 Intel Processor N95, MHz	2.7 GB/s +4%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2.6 GB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s -4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s -8%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.979 GB/s -62%
Twofish Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	0.583 GB/s +20%
Trigkey G4 Intel Processor N100, 1000 MHz	0.538 GB/s +11%
Blackview MP80 Intel Processor N95, MHz	0.501 GB/s +4%
Acemagic S1 Intel Processor N95, MHz	0.498 GB/s +3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s +3%
BOSGAME N95 Intel Processor N95, MHz	0.492 GB/s +2%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	0.484 GB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s -24%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.14 GB/s -71%
Serpent Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	0.287 GB/s +21%
Trigkey G4 Intel Processor N100, 1000 MHz	0.262 GB/s +11%
Blackview MP80 Intel Processor N95, MHz	0.244 GB/s +3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s +3%
BOSGAME N95 Intel Processor N95, MHz	0.239 GB/s +1%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	0.237 GB/s
Acemagic S1 Intel Processor N95, MHz	0.236 GB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s -16%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.074 GB/s -69%

Geekbench 5.5
Multi-Core
Trigkey G4 Intel Processor N100, 1000 MHz	2796 Points +5%
Blackview MP80 Intel Processor N95, MHz	2793 Points +4%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2674 Points
BOSGAME N95 Intel Processor N95, MHz	2616 Points -2%
Acemagic S1 Intel Processor N95, MHz	2566 Points -4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points -11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points -23%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1540 Points -42%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	844 Points -68%
Single-Core
Trigkey G4 Intel Processor N100, 1000 MHz	1014 Points +62%
Blackview MP80 Intel Processor N95, MHz	1013 Points +62%
BOSGAME N95 Intel Processor N95, MHz	1007 Points +61%
Acemagic S1 Intel Processor N95, MHz	999 Points +60%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	928 Points +48%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points +28%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points +2%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	626 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	556 Points -11%

Geekbench 5.0
5.0 Multi-Core
Trigkey G4 Intel Processor N100, 1000 MHz	2753 Points +4%
Blackview MP80 Intel Processor N95, MHz	2737 Points +4%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2642 Points
BOSGAME N95 Intel Processor N95, MHz	2585 Points -2%
Acemagic S1 Intel Processor N95, MHz	2531 Points -4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points -10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points -23%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1518 Points -43%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	857 Points -68%
5.0 Single-Core
Trigkey G4 Intel Processor N100, 1000 MHz	1008 Points +64%
Blackview MP80 Intel Processor N95, MHz	1005 Points +63%
BOSGAME N95 Intel Processor N95, MHz	1000 Points +62%
Acemagic S1 Intel Processor N95, MHz	993 Points +61%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	891 Points +45%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points +31%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points +4%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	616 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	559 Points -9%

Geekbench 4.4
64 Bit Single-Core Score
Blackview MP80 Intel Processor N95, MHz	4553 Points +56%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	4552 Points +56%
Trigkey G4 Intel Processor N100, 1000 MHz	4518 Points +55%
BOSGAME N95 Intel Processor N95, MHz	4495 Points +54%
Acemagic S1 Intel Processor N95, MHz	4450 Points +53%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points +23%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2913 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2585 Points -11%
64 Bit Multi-Core Score
Trigkey G4 Intel Processor N100, 1000 MHz	10938 Points +11%
Blackview MP80 Intel Processor N95, MHz	10798 Points +9%
BOSGAME N95 Intel Processor N95, MHz	10299 Points +4%
Acemagic S1 Intel Processor N95, MHz	10228 Points +3%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	9989 Points +1%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	9894 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points -19%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3606 Points -64%

3DMark 11 - 1280x720 Performance Physics
Trigkey G4 Intel Processor N100, 1000 MHz	6129 Points +23%
Blackview MP80 Intel Processor N95, MHz	5806 Points +17%
BOSGAME N95 Intel Processor N95, MHz	5767 Points +16%
Acemagic S1 Intel Processor N95, MHz	5661 Points +14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points +2%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	4983 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points -14%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	2765 Points -45%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1591 Points -68%

7-Zip 18.03
7z b 4
Trigkey G4 Intel Processor N100, 1000 MHz	13255 MIPS +11%
BOSGAME N95 Intel Processor N95, MHz	12224 MIPS +2%
Acemagic S1 Intel Processor N95, MHz	12190 MIPS +2%
Blackview MP80 Intel Processor N95, MHz	12177 MIPS +2%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	11976 MIPS
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS -9%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	7146 MIPS -40%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3974 MIPS -67%
7z b 4 -mmt1
Trigkey G4 Intel Processor N100, 1000 MHz	3908 MIPS +63%
Acemagic S1 Intel Processor N95, MHz	3866 MIPS +61%
Blackview MP80 Intel Processor N95, MHz	3843 MIPS +60%
BOSGAME N95 Intel Processor N95, MHz	3803 MIPS +58%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	3230 MIPS +34%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS +30%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS +22%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2593 MIPS +8%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2403 MIPS

HWBOT x265 Benchmark v2.2 - 4k Preset
Trigkey G4 Intel Processor N100, 1000 MHz	3.49 fps +8%
Blackview MP80 Intel Processor N95, MHz	3.29 fps +2%
BOSGAME N95 Intel Processor N95, MHz	3.25 fps +1%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	3.22 fps
Acemagic S1 Intel Processor N95, MHz	3.17 fps -2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps -6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps -38%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1.52 fps -53%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.88 fps -73%

R Benchmark 2.5 - Overall mean
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.371 sec * -3%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	1.333 sec *
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * +10%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1.149 sec * +14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * +23%
Acemagic S1 Intel Processor N95, MHz	0.837 sec * +37%
BOSGAME N95 Intel Processor N95, MHz	0.834 sec * +37%
Blackview MP80 Intel Processor N95, MHz	0.83 sec * +38%
Trigkey G4 Intel Processor N100, 1000 MHz	0.824 sec * +38%

LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	144.7 s * -8%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	134 s *
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	120 s * +10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * +23%
Acemagic S1 Intel Processor N95, MHz	89.3 s * +33%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * +40%
BOSGAME N95 Intel Processor N95, MHz	74.6 s * +44%
Blackview MP80 Intel Processor N95, MHz	68.3 s * +49%
Trigkey G4 Intel Processor N100, 1000 MHz	67 s * +50%

WebXPRT 3 - Overall
Trigkey G4 Intel Processor N100, 1000 MHz	187.4 Points +80%
Blackview MP80 Intel Processor N95, MHz	183.4 Points +76%
BOSGAME N95 Intel Processor N95, MHz	179.4 Points +72%
Acemagic S1 Intel Processor N95, MHz	178.3 Points +71%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	171.3 Points +64%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points +49%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points +22%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	104.3 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	89.2 Points -14%

3DMark - 1920x1080 Fire Strike Physics
Trigkey G4 Intel Processor N100, 1000 MHz	6522 Points +18%
Blackview MP80 Intel Processor N95, MHz	6062 Points +10%
BOSGAME N95 Intel Processor N95, MHz	5952 Points +8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points +7%
Acemagic S1 Intel Processor N95, MHz	5701 Points +3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points 0%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	5528 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	4135 Points -25%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2195 Points -60%

* ... smaller is better

Performance Rating
Average of class Mini PC	100 pt
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	28.2 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	19.4 pt
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	11.2 pt
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	11.2 pt
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	10.7 pt
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	10.6 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	10 pt
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	9.2 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 27538, n=98, last 2 years)	9983 KRay/s +387%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	2051 KRay/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	1384 KRay/s -33%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s -39%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s -59%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	770 KRay/s -62%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	769 KRay/s -63%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	764 KRay/s -63%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	744 KRay/s -64%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	490 KRay/s -76%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 116903, n=98, last 2 years)	52529 Points +379%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	10963 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points -32%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	7292 Points -33%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4397 Points -60%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4144 Points -62%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4141 Points -62%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4140 Points -62%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	3970 Points -64%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	2932 Points -73%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 5096, n=98, last 2 years)	2296 MB/s +199%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	767 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s -33%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	466 MB/s -39%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	308 MB/s -60%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -62%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -62%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -62%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	270 MB/s -65%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	202 MB/s -74%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 119569, n=98, last 2 years)	69271 Points +264%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	23345 Points +23%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points +17%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	19025 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	8820 Points -54%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8663 Points -54%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8208 Points -57%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8186 Points -57%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8178 Points -57%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8172 Points -57%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 15525, n=98, last 2 years)	7328 Points +580%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	1078 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points -7%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	985 Points -9%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	432 Points -60%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -62%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -62%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -62%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -62%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	396 Points -63%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 62378, n=98, last 2 years)	27834 Points +403%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	5532 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points -28%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	3648 Points -34%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2220 Points -60%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2092 Points -62%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2089 Points -62%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2088 Points -62%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	1987 Points -64%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	1558 Points -72%

AIDA64 / CPU AES
Average of class Mini PC (3691 - 177158, n=98, last 2 years)	75245 MB/s +259%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	20979 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s -8%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	8752 MB/s -58%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8421 MB/s -60%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7961 MB/s -62%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7954 MB/s -62%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7951 MB/s -62%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7948 MB/s -62%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	7653 MB/s -64%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 1183, n=98, last 2 years)	582 MB/s +178%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	209 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s -10%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	133.4 MB/s -36%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	81.9 MB/s -61%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.7 MB/s -63%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.4 MB/s -63%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	76.7 MB/s -63%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	75.2 MB/s -64%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	74.9 MB/s -64%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 14722, n=98, last 2 years)	5332 KRay/s +369%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	1138 KRay/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	705 KRay/s -38%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s -41%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s -59%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	433 KRay/s -62%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -62%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -62%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	412 KRay/s -64%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	273 KRay/s -76%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (4408 - 44347, n=98, last 2 years)	24661 MPixel/s +66%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	14830 MPixel/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s -33%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	9467 MPixel/s -36%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6599 MPixel/s -56%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	5384 MPixel/s -64%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5333 MPixel/s -64%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5296 MPixel/s -64%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	5125 MPixel/s -65%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4408 MPixel/s -70%

Zotac Zbox pico PI430AJ 与 Cinebench-R15 连续循环对比

Cinebench R15 Continuous Loop 对 Zotac Zbox pico PI430AJ 的要求很高，导致温度升高。由于 CPU 温度升高，英特尔酷睿 i3-N300 难以保持稳定的高性能。遥测数据显示，随着 SoC 温度升高，性能逐渐下降。此外，在整个测试过程中，功耗从未超过 8 瓦，导致最终平均得分仅为 386 分。

Zotac ZBOX PI430AJ Intel Core i3-N300, Intel Core i3-N300: Ø386 (357.51-413.92)

Acemagic S1 Intel Processor N95, Intel Processor N95: Ø440 (431.21-442.98)

Blackview MP80 Intel Processor N95, Intel Processor N95: Ø425 (410.8-428.48)

Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel Processor N200: Ø210 (198.23-215.98)

BOSGAME N95 Intel Processor N95, Intel Processor N95: Ø421 (417.99-423.28)

Trigkey G4 Intel Processor N100, Intel Processor N100: Ø465 (453-467.97)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)

系统性能

由于英特尔酷睿 i3-N300与竞争对手相比，众泰 Zbox pico PI430AJ 在系统性能基准测试中的竞争力有限。虽然我们的测试系统在内存测试中表现出色，但运行过程中的明显延迟也不容忽视。

Performance Rating | PCMark 10

Performance Rating - Percent
Trigkey G4, Intel Processor N100 Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),	99.9 pt
Blackview MP80, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	99.5 pt
BOSGAME N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	98.5 pt
Acemagic S1, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	96.9 pt
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	92 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	76.8 pt
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),	68 pt

PCMark 10
Score
Blackview MP80, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	3220 Points +36%
Trigkey G4, Intel Processor N100 Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),	3207 Points +36%
BOSGAME N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	3192 Points +35%
Acemagic S1, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	3153 Points +33%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	2983 Points +26%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points +2%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),	2363 Points
Essentials
Trigkey G4, Intel Processor N100 Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),	7123 Points +31%
Blackview MP80, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	7079 Points +30%
BOSGAME N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	7021 Points +29%
Acemagic S1, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	6731 Points +24%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	6650 Points +22%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points +8%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),	5435 Points
Productivity
Trigkey G4, Intel Processor N100 Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),	5033 Points +84%
Blackview MP80, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	4993 Points +83%
Acemagic S1, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	4950 Points +81%
BOSGAME N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	4923 Points +80%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	4524 Points +66%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points +34%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),	2733 Points

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	820 Points +55%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	773 Points +46%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	764 Points +44%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	735 Points +39%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	666 Points +26%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	614 Points +16%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel UHD Graphics 32EUs (Alder Lake),	529 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points -6%

CrossMark / Responsiveness
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	895 Points +53%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	755 Points +29%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	710 Points +22%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	709 Points +21%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	661 Points +13%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel UHD Graphics 32EUs (Alder Lake),	584 Points
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	577 Points -1%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points -15%

CrossMark / Creativity
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	739 Points +44%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	721 Points +41%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	714 Points +39%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	676 Points +32%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	616 Points +20%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	560 Points +9%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel UHD Graphics 32EUs (Alder Lake),	513 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points -15%

CrossMark / Productivity
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	907 Points +71%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	843 Points +59%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	810 Points +53%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	808 Points +53%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	721 Points +36%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	688 Points +30%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points +5%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel UHD Graphics 32EUs (Alder Lake),	529 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (6481 - 70620, n=98, last 2 years)	42914 MB/s +48%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	29076 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 MB/s -24%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18937 MB/s -35%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	15737 MB/s -46%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	12715 MB/s -56%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8472 MB/s -71%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8458 MB/s -71%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8377 MB/s -71%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6481 MB/s -78%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 71285, n=98, last 2 years)	43571 MB/s +92%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	22746 MB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18451 MB/s -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	15464 MB/s -32%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	11247 MB/s -51%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	10311 MB/s -55%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9130 MB/s -60%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9027 MB/s -60%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8974 MB/s -61%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6914 MB/s -70%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 89318, n=98, last 2 years)	46636 MB/s +50%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	31007 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	30843 MB/s -1%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	21626 MB/s -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	17031 MB/s -45%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	14266 MB/s -54%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9047 MB/s -71%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8959 MB/s -71%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8762 MB/s -72%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6862 MB/s -78%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	146 ns * -92%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	125.8 ns * -65%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	124.9 ns * -64%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	120.6 ns * -58%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	119.8 ns * -57%
Average of class Mini PC (44.9 - 154.6, n=98, last 2 years)	87.8 ns * -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	76.3 ns * -0%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	76.1 ns *
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	74.1 ns * +3%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	52.9 ns * +30%

* ... smaller is better

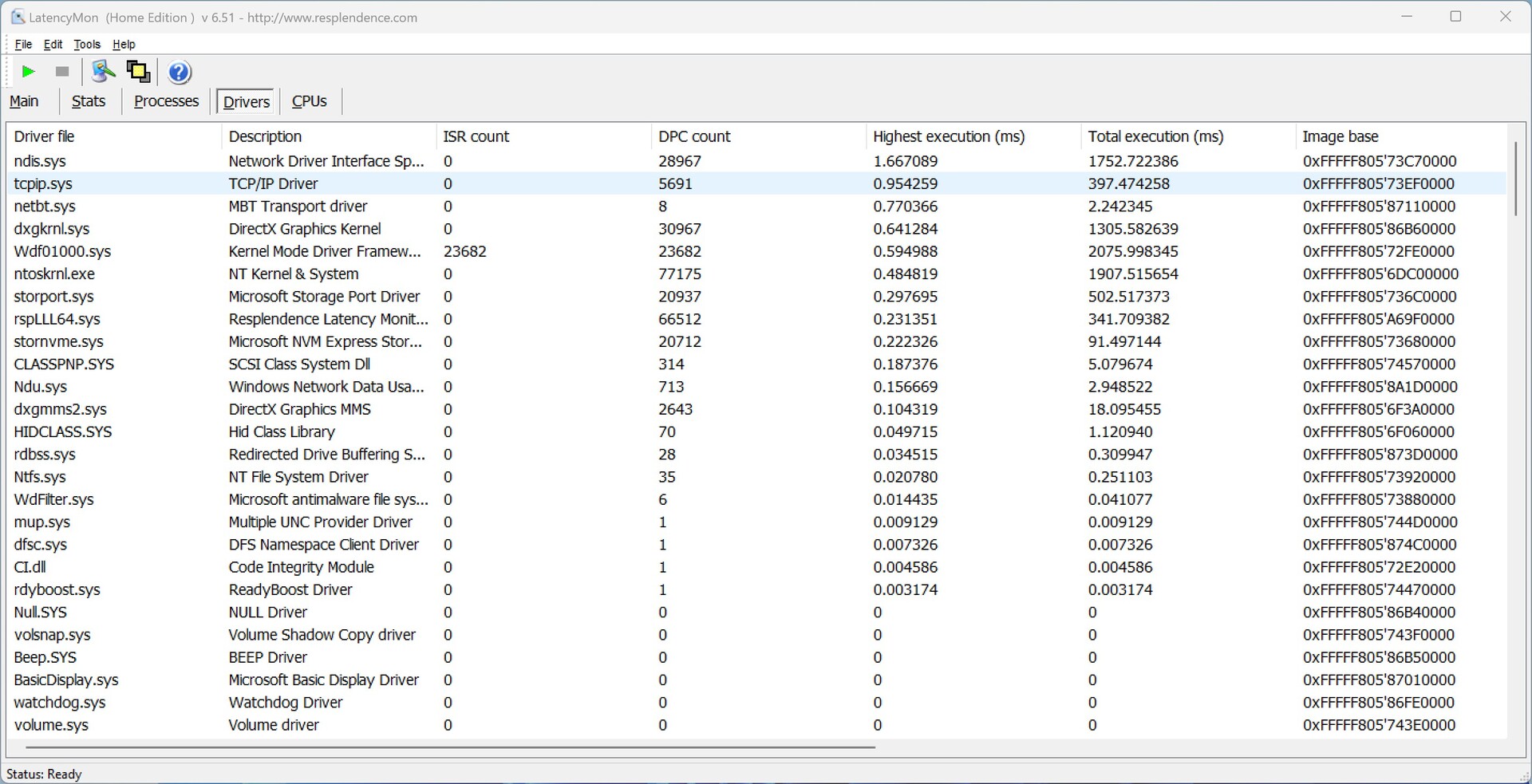

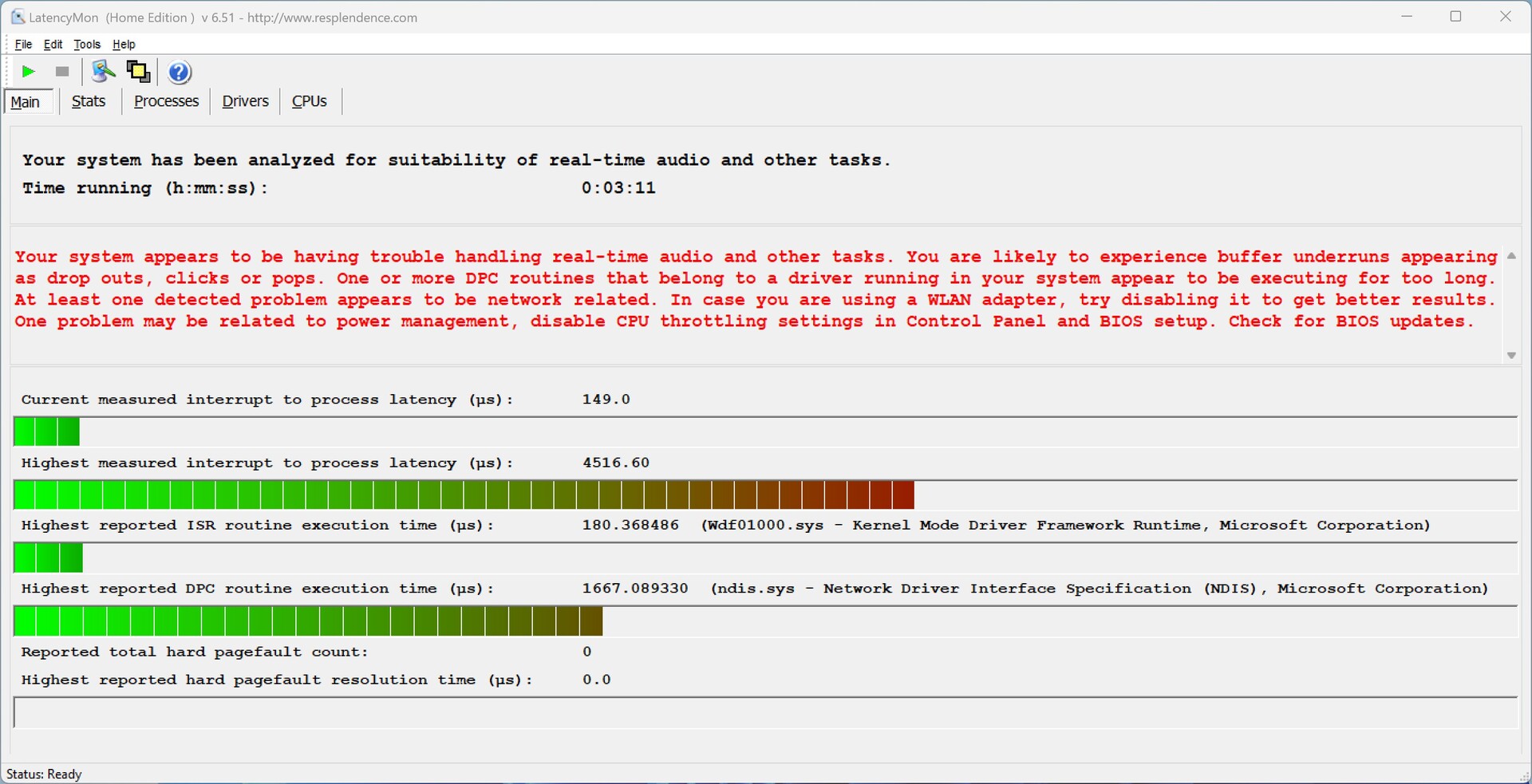

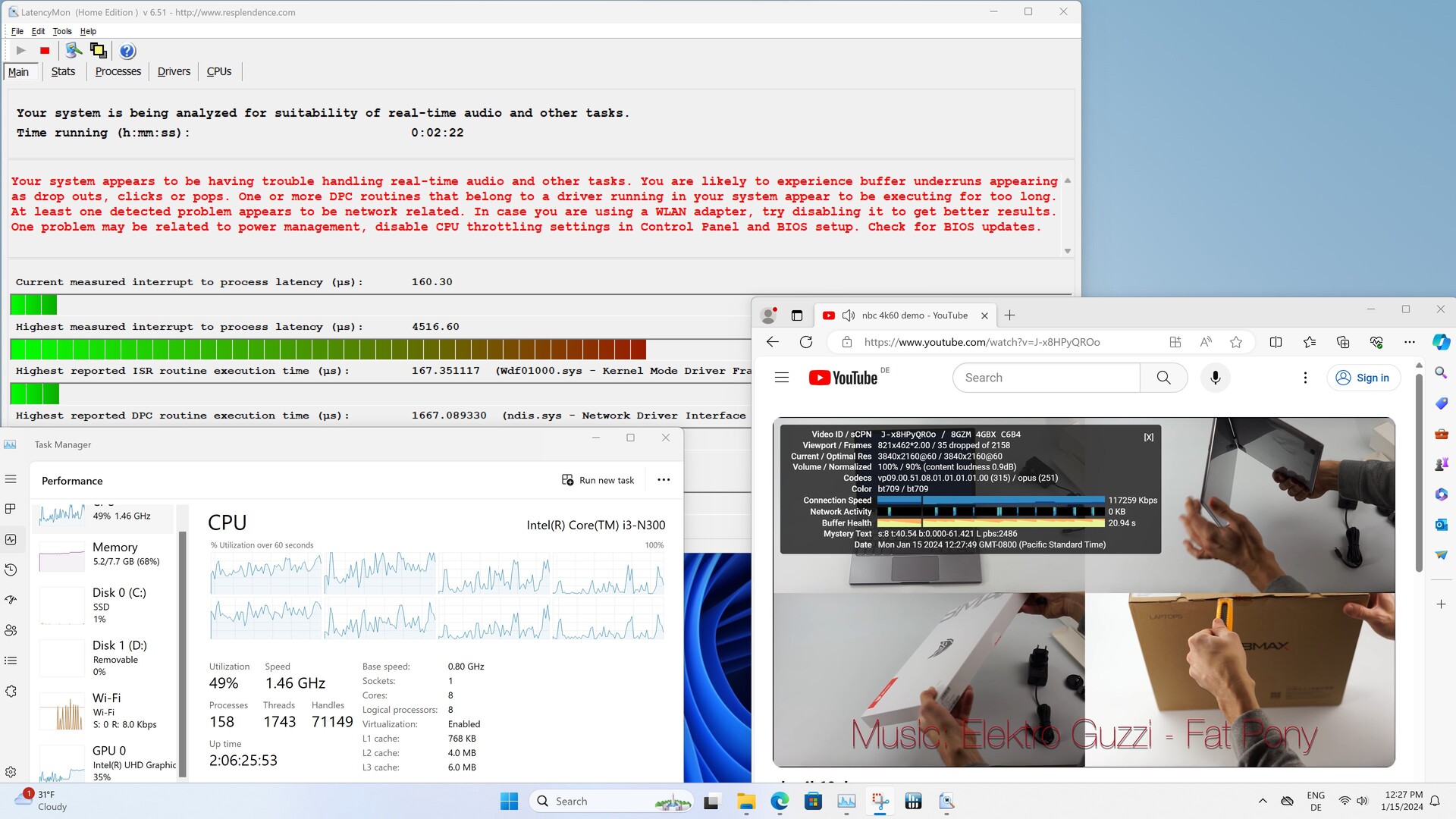

DPC 延迟

不出所料，我们在 Zotac Zbox pico PI430AJ 上观察到 DPC 延迟明显增加。我们的测试设备在简单的互联网浏览过程中没有出现任何问题。只有在播放 4K 测试视频时，延迟值才会增加，iGPU 的使用率约为 35%。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	5491 μs * -229%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	4075 μs * -144%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	3463 μs * -108%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel UHD Graphics 32EUs (Alder Lake),	1667 μs *
Zotac ZBOX PI336 pico, Intel Celeron N6211 Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128	1476.3 μs * +11%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	1165.5 μs * +30%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	817.1 μs * +51%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	561.2 μs * +66%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	367.2 μs * +78%

* ... smaller is better

存储设备

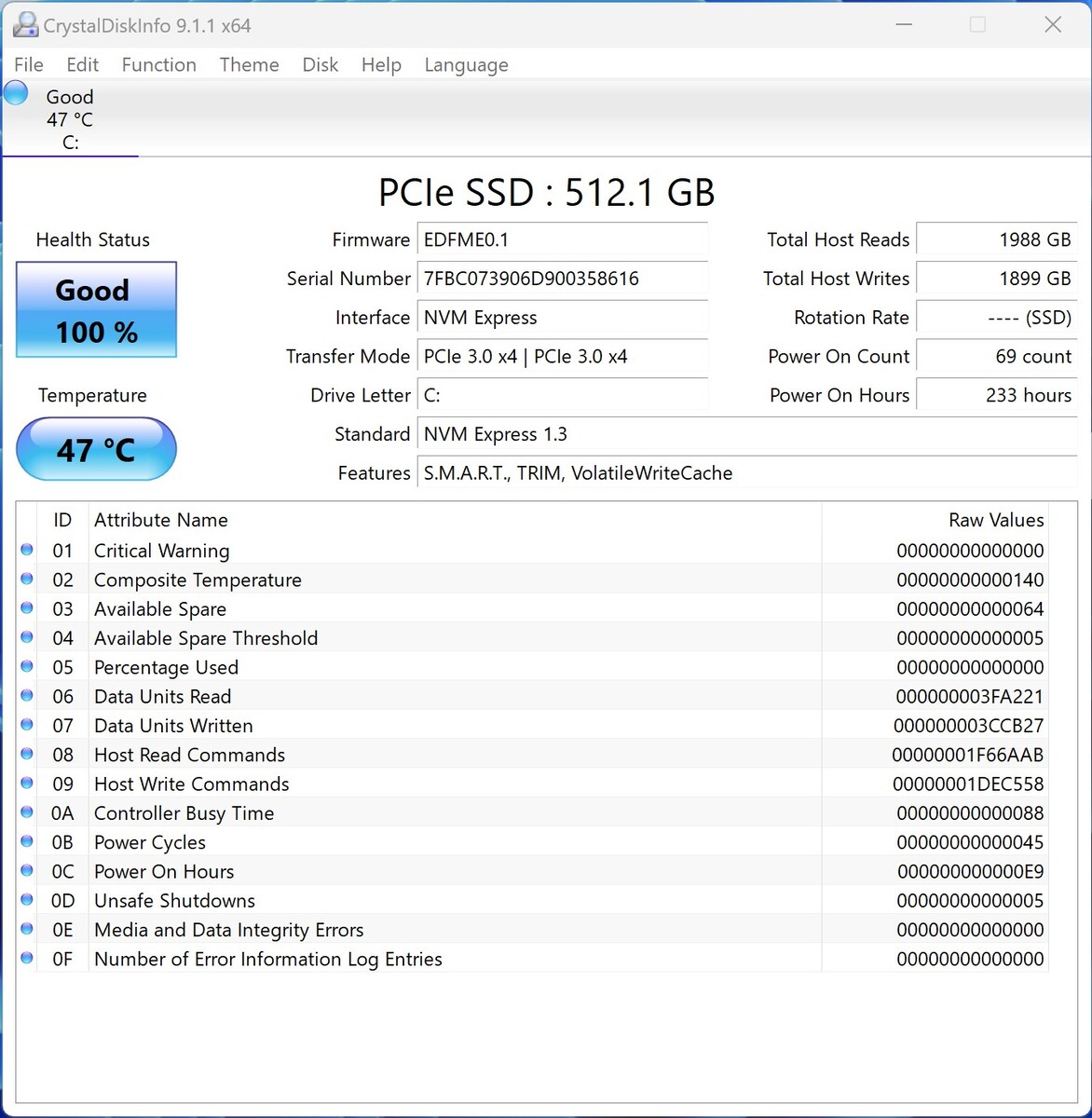

我们的众泰 Zbox pico PI430AJ 测试机配备了 512 GB NVMe 固态硬盘，制造商不详。至少内置型号完全使用了 M.2 接口。固态硬盘的性能值得称赞，与 Acemagic S1 中的 BiWin 型号不相上下。 Acemagic S1.

在测试过程中，我们没有遇到任何与固态硬盘温度有关的问题。固态硬盘从底部装入设备，也用于直接散热。除了预装的 3.15 英寸固态硬盘外，还可以容纳更短的固态硬盘。因此，如果您选择的是众泰 Zbox pico PI430AJ 的裸机版本，您可以灵活选择 1.18、1.65 或 3.15 英寸长的固态硬盘。

有关进一步的比较和基准，请参阅我们的比较表.

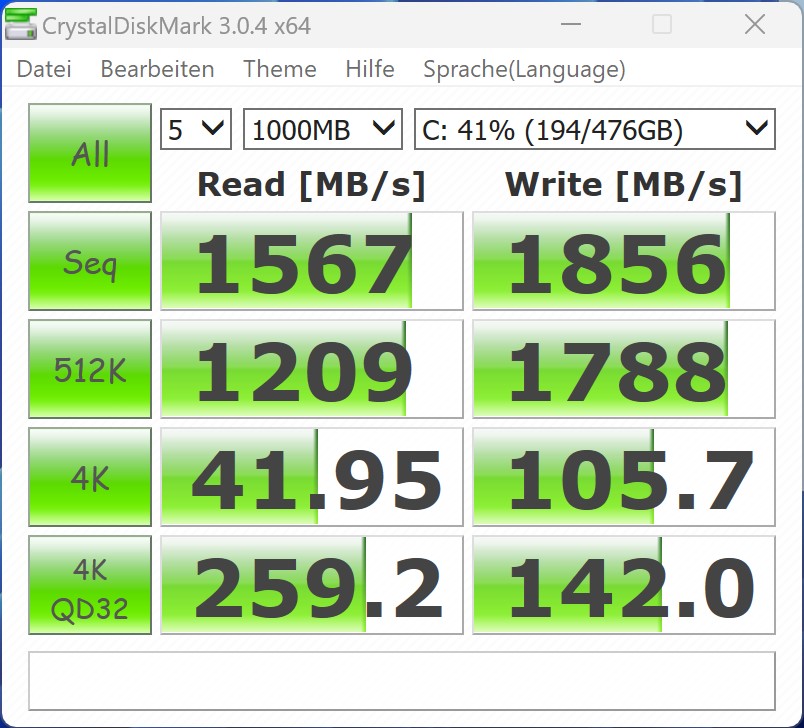

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Sequential Read: 1567 MB/s

Sequential Write: 1856 MB/s

512K Read: 1209 MB/s

512K Write: 1788 MB/s

4K Read: 41.95 MB/s

4K Write: 105.7 MB/s

4K QD32 Read: 259.2 MB/s

4K QD32 Write: 142 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	96.5 pt
Acemagic S1 BiWin CE480Y2D100-1TB	73.9 pt
Zotac ZBOX PI430AJ	70.8 pt
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	54.4 pt
BOSGAME N95 Kingston OM8SEP4256Q-A0	45.7 pt
Trigkey G4	45.1 pt
Blackview MP80 Netac NS512GSSD330	34 pt
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	33 pt
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	30.7 pt
Zotac ZBOX PI336 pico SanDisk DF4128	6.6 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4168, n=97, last 2 years)	2030 MB/s +43%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1948 (1560.49^min - 1947.92^max) MB/s +37%
Zotac ZBOX PI430AJ	1423 (1403.41^min - 1423.13^max) MB/s
Acemagic S1 BiWin CE480Y2D100-1TB	1354 (1350.96^min - 1354.32^max) MB/s -5%
BOSGAME N95 Kingston OM8SEP4256Q-A0	762 (757.28^min - 762.31^max) MB/s -46%
Trigkey G4	729 (705.12^min - 729.18^max) MB/s -49%
Blackview MP80 Netac NS512GSSD330	542 (541.31^min - 542.36^max) MB/s -62%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s -67%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s -68%
Zotac ZBOX PI336 pico SanDisk DF4128	250 (248.23^min - 249.69^max) MB/s -82%
seq write
Average of class Mini PC (222 - 5595, n=97, last 2 years)	2052 MB/s +13%
Zotac ZBOX PI430AJ	1819 (1798.9^min - 1818.93^max) MB/s
Acemagic S1 BiWin CE480Y2D100-1TB	1553 (1542.6^min - 1552.69^max) MB/s -15%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1535 (1194.25^min - 1534.56^max) MB/s -16%
BOSGAME N95 Kingston OM8SEP4256Q-A0	649 (644.49^min - 649.49^max) MB/s -64%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s -73%
Blackview MP80 Netac NS512GSSD330	476 (138.2^min - 475.75^max) MB/s -74%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s -75%
Trigkey G4	339 (329.88^min - 338.64^max) MB/s -81%
Zotac ZBOX PI336 pico SanDisk DF4128	105.7 (97.74^min - 105.7^max) MB/s -94%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=97, last 2 years)	3172 MB/s +41%
Zotac ZBOX PI430AJ	2247 (1802.96^min - 2246.68^max) MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2058 (1971.74^min - 2057.94^max) MB/s -8%
Acemagic S1 BiWin CE480Y2D100-1TB	1776 (1520.44^min - 1776.28^max) MB/s -21%
Trigkey G4	864 (619.52^min - 864.45^max) MB/s -62%
BOSGAME N95 Kingston OM8SEP4256Q-A0	820 (687.12^min - 820.02^max) MB/s -64%
Blackview MP80 Netac NS512GSSD330	556 (424.25^min - 556.44^max) MB/s -75%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s -76%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s -78%
Zotac ZBOX PI336 pico SanDisk DF4128	254 (201.55^min - 254.3^max) MB/s -89%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=97, last 2 years)	2233 MB/s +17%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2086 (1404.04^min - 2086.06^max) MB/s +9%
Zotac ZBOX PI430AJ	1912 (1899.6^min - 1912.44^max) MB/s
Acemagic S1 BiWin CE480Y2D100-1TB	1658 (1643.05^min - 1658.18^max) MB/s -13%
BOSGAME N95 Kingston OM8SEP4256Q-A0	684 (677.48^min - 683.67^max) MB/s -64%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s -73%
Blackview MP80 Netac NS512GSSD330	489 (220.62^min - 488.78^max) MB/s -74%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s -76%
Trigkey G4	346 (322.53^min - 346.45^max) MB/s -82%
Zotac ZBOX PI336 pico SanDisk DF4128	100.9 (42.78^min - 100.87^max) MB/s -95%
4k q1 t1 read
Acemagic S1 BiWin CE480Y2D100-1TB	59.4 (58.56^min - 59.37^max) MB/s +50%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	52.9 (39.99^min - 52.89^max) MB/s +34%
Average of class Mini PC (5.67 - 86.6, n=97, last 2 years)	51.5 MB/s +30%
BOSGAME N95 Kingston OM8SEP4256Q-A0	45.9 (45.49^min - 45.92^max) MB/s +16%
Zotac ZBOX PI430AJ	39.6 (39.16^min - 39.59^max) MB/s
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s -14%
Blackview MP80 Netac NS512GSSD330	32.5 (32.38^min - 32.5^max) MB/s -18%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s -35%
Zotac ZBOX PI336 pico SanDisk DF4128	13.7 (13.61^min - 13.69^max) MB/s -65%
Trigkey G4	8.85 (2.72^min - 8.85^max) MB/s -78%
4k q1 t1 write
Average of class Mini PC (22 - 425, n=97, last 2 years)	185.7 MB/s +78%
Trigkey G4	128.4 (124.08^min - 128.36^max) MB/s +23%
Acemagic S1 BiWin CE480Y2D100-1TB	128.1 (126.86^min - 128.09^max) MB/s +23%
Zotac ZBOX PI430AJ	104.4 (102.55^min - 104.35^max) MB/s
BOSGAME N95 Kingston OM8SEP4256Q-A0	96.7 (95.09^min - 96.72^max) MB/s -7%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s -8%
Blackview MP80 Netac NS512GSSD330	88.1 (66.88^min - 88.14^max) MB/s -16%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s -29%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	74 (57.85^min - 73.96^max) MB/s -29%
Zotac ZBOX PI336 pico SanDisk DF4128	13.8 (12.91^min - 13.8^max) MB/s -87%
4k q32 t16 read
Acemagic S1 BiWin CE480Y2D100-1TB	1175 (1165.24^min - 1174.82^max) MB/s +61%
Average of class Mini PC (26.1 - 2810, n=97, last 2 years)	1092 MB/s +50%
Zotac ZBOX PI430AJ	730 (680.59^min - 729.75^max) MB/s
Trigkey G4	581 (553.76^min - 581.49^max) MB/s -20%
BOSGAME N95 Kingston OM8SEP4256Q-A0	440 (438.98^min - 440.28^max) MB/s -40%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	324 (210.77^min - 323.72^max) MB/s -56%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s -64%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s -64%
Blackview MP80 Netac NS512GSSD330	179.4 (173.35^min - 179.35^max) MB/s -75%
Zotac ZBOX PI336 pico SanDisk DF4128	26 (24.84^min - 25.96^max) MB/s -96%
4k q32 t16 write
Average of class Mini PC (30.2 - 3983, n=97, last 2 years)	1088 MB/s +50%
Acemagic S1 BiWin CE480Y2D100-1TB	762 (759.1^min - 762.44^max) MB/s +5%
Zotac ZBOX PI430AJ	727 (723.65^min - 727.02^max) MB/s
BOSGAME N95 Kingston OM8SEP4256Q-A0	411 (406.46^min - 410.69^max) MB/s -43%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s -56%
Blackview MP80 Netac NS512GSSD330	276 (99.25^min - 275.55^max) MB/s -62%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s -64%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	142.2 (93.56^min - 142.15^max) MB/s -80%
Trigkey G4	70.3 (60.61^min - 70.32^max) MB/s -90%
Zotac ZBOX PI336 pico SanDisk DF4128	13.1 (12.24^min - 13.12^max) MB/s -98%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=95, last 2 years)	3560 Points +47%
Zotac ZBOX PI430AJ	2428 Points
Acemagic S1 BiWin CE480Y2D100-1TB	2427 Points 0%
Trigkey G4	1857 Points -24%
BOSGAME N95 Kingston OM8SEP4256Q-A0	1423 Points -41%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1396 Points -43%
Blackview MP80 Netac NS512GSSD330	796 Points -67%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points -70%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points -71%
Zotac ZBOX PI336 pico SanDisk DF4128	136 Points -94%
Score Read
Average of class Mini PC (61 - 3635, n=95, last 2 years)	1354 Points +32%
Zotac ZBOX PI430AJ	1024 Points
Acemagic S1 BiWin CE480Y2D100-1TB	1000 Points -2%
Trigkey G4	934 Points -9%
BOSGAME N95 Kingston OM8SEP4256Q-A0	522 Points -49%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	504 Points -51%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points -69%
Blackview MP80 Netac NS512GSSD330	265 Points -74%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points -77%
Zotac ZBOX PI336 pico SanDisk DF4128	65 Points -94%
Score Write
Average of class Mini PC (88 - 4185, n=95, last 2 years)	1564 Points +75%
Acemagic S1 BiWin CE480Y2D100-1TB	903 Points +1%
Zotac ZBOX PI430AJ	892 Points
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	631 Points -29%
BOSGAME N95 Kingston OM8SEP4256Q-A0	626 Points -30%
Trigkey G4	458 Points -49%
Blackview MP80 Netac NS512GSSD330	387 Points -57%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points -58%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points -77%
Zotac ZBOX PI336 pico SanDisk DF4128	39 Points -96%
Seq Read
Average of class Mini PC (291 - 6620, n=95, last 2 years)	2820 MB/s +35%
Zotac ZBOX PI430AJ	2094 MB/s
Acemagic S1 BiWin CE480Y2D100-1TB	1582 MB/s -24%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1233 MB/s -41%
Trigkey G4	794 MB/s -62%
BOSGAME N95 Kingston OM8SEP4256Q-A0	700 MB/s -67%
Blackview MP80 Netac NS512GSSD330	526 MB/s -75%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s -77%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s -78%
Zotac ZBOX PI336 pico SanDisk DF4128	264.86 MB/s -87%
Seq Write
Average of class Mini PC (240 - 5783, n=95, last 2 years)	1970 MB/s +19%
Zotac ZBOX PI430AJ	1662 MB/s
Acemagic S1 BiWin CE480Y2D100-1TB	1526 MB/s -8%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1125 MB/s -32%
BOSGAME N95 Kingston OM8SEP4256Q-A0	595 MB/s -64%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s -71%
Blackview MP80 Netac NS512GSSD330	466 MB/s -72%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s -79%
Trigkey G4	326 MB/s -80%
Zotac ZBOX PI336 pico SanDisk DF4128	117 MB/s -93%
4K Read
Average of class Mini PC (6.08 - 104.2, n=95, last 2 years)	55.5 MB/s +30%
Acemagic S1 BiWin CE480Y2D100-1TB	54.7 MB/s +28%
Trigkey G4	44.4 MB/s +4%
Zotac ZBOX PI430AJ	42.7 MB/s
BOSGAME N95 Kingston OM8SEP4256Q-A0	38.7 MB/s -9%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s -17%
Blackview MP80 Netac NS512GSSD330	30.2 MB/s -29%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	28.1 MB/s -34%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s -36%
Zotac ZBOX PI336 pico SanDisk DF4128	13.21 MB/s -69%
4K Write
Average of class Mini PC (30.9 - 366, n=95, last 2 years)	168.3 MB/s +104%
Trigkey G4	113.5 MB/s +38%
Acemagic S1 BiWin CE480Y2D100-1TB	108.9 MB/s +32%
BOSGAME N95 Kingston OM8SEP4256Q-A0	100.9 MB/s +22%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s +4%
Blackview MP80 Netac NS512GSSD330	84.3 MB/s +2%
Zotac ZBOX PI430AJ	82.5 MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	40.8 MB/s -51%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s -54%
Zotac ZBOX PI336 pico SanDisk DF4128	13.46 MB/s -84%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=95, last 2 years)	1016 MB/s +32%
Trigkey G4	810 MB/s +5%
Acemagic S1 BiWin CE480Y2D100-1TB	787 MB/s +2%
Zotac ZBOX PI430AJ	772 MB/s
BOSGAME N95 Kingston OM8SEP4256Q-A0	413 MB/s -47%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	353 MB/s -54%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s -69%
Blackview MP80 Netac NS512GSSD330	181.8 MB/s -76%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s -80%
Zotac ZBOX PI336 pico SanDisk DF4128	25.74 MB/s -97%
4K-64 Write
Average of class Mini PC (32.8 - 3598, n=95, last 2 years)	1199 MB/s +86%
Zotac ZBOX PI430AJ	643 MB/s
Acemagic S1 BiWin CE480Y2D100-1TB	641 MB/s 0%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	478 MB/s -26%
BOSGAME N95 Kingston OM8SEP4256Q-A0	466 MB/s -28%
Trigkey G4	312 MB/s -51%
Blackview MP80 Netac NS512GSSD330	256 MB/s -60%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s -63%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s -79%
Zotac ZBOX PI336 pico SanDisk DF4128	13.71 MB/s -98%
Access Time Read
Zotac ZBOX PI336 pico SanDisk DF4128	0.311 ms * -227%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms * -56%
Average of class Mini PC (0.022 - 0.489, n=95, last 2 years)	0.1025 ms * -8%
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.101 ms * -6%
Zotac ZBOX PI430AJ	0.095 ms *
Blackview MP80 Netac NS512GSSD330	0.077 ms * +19%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms * +20%
Acemagic S1 BiWin CE480Y2D100-1TB	0.076 ms * +20%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.073 ms * +23%
Trigkey G4	0.064 ms * +33%
Access Time Write
Zotac ZBOX PI336 pico SanDisk DF4128	0.942 ms * -1285%
Blackview MP80 Netac NS512GSSD330	0.136 ms * -100%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms * -94%
Average of class Mini PC (0.016 - 0.765, n=95, last 2 years)	0.1297 ms * -91%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms * -87%
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.109 ms * -60%
Acemagic S1 BiWin CE480Y2D100-1TB	0.098 ms * -44%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.074 ms * -9%
Zotac ZBOX PI430AJ	0.068 ms *
Trigkey G4	0.061 ms * +10%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Zotac ZBOX PI430AJ ; diskspd 2.0.17 f: Ø2259 (1922.88-2268.28)

Acemagic S1 BiWin CE480Y2D100-1TB: Ø1772 (1604.38-1776.91)

Blackview MP80 Netac NS512GSSD330: Ø551 (425.51-553.5)

Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G; diskspd 2.0.17 f: Ø1990 (1877.37-2058.56)

BOSGAME N95 Kingston OM8SEP4256Q-A0: Ø817 (676.33-820.44)

Trigkey G4 : Ø839 (658.14-865.55)

Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB: Ø498 (453.55-500.22)

Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)

Zotac ZBOX PI336 pico SanDisk DF4128: Ø256 (203.85-260.99)

图形卡

众泰 Zbox pico PI430AJ 的图像输出由配备 32 个 EU 的英特尔UHD Graphics 处理。尽管处理器没有达到最大功耗，但在同类竞争产品中，众泰 Zbox pico PI430AJ 表现出色，在合成 3D 测试中稳居第一。额外的执行单元（EU）和 DDR5 内存的使用使性能略有提高。

您可以在找到英特尔UHD Graphics

的其他基准测试。<br />

3DMark Performance Rating | 3DMark 11 | 3DMark | ComputeMark v2.1 | 3DMark 06

3DMark Performance Rating - Percent
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	98.2 pt
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	71.3 pt
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	67.6 pt
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	67.4 pt
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	65.9 pt
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	65.6 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	64.9 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	50.3 pt
Zotac ZBOX PI336 pico ^-1! Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	41.2 pt

3DMark 11 - 1280x720 Performance GPU
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	2194 Points
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1494 Points -32%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1492 Points -32%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1490 Points -32%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1485 Points -32%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1467 Points -33%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1349 Points -39%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	859 Points -61%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	650 Points -70%

3DMark
1280x720 Cloud Gate Standard Graphics
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	10945 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8548 Points -22%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8304 Points -24%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	8233 Points -25%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8035 Points -27%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	7604 Points -31%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7218 Points -34%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	5217 Points -52%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	3762 Points -66%
1920x1080 Fire Strike Graphics
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	1736 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1184 Points -32%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1172 Points -32%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1144 Points -34%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1124 Points -35%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1106 Points -36%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1080 Points -38%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	662 Points -62%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	523 Points -70%

ComputeMark v2.1
1024x600 Normal, Score
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	1042 Points
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	700 Points -33%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	670 Points -36%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	650 Points -38%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	638 Points -39%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	638 Points -39%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	628 Points -40%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	555 Points -47%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	476 Points -54%
1024x600 Normal, Fluid 3DTex
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	162 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	133 Points -18%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	122 Points -25%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	116 Points -28%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	116 Points -28%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	109 Points -33%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	103 Points -36%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	87 Points -46%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	86 Points -47%
1024x600 Normal, Fluid 2DTexArr
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	137 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	109 Points -20%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	106 Points -23%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	97 Points -29%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	95 Points -31%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	90 Points -34%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	83 Points -39%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	71 Points -48%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	60 Points -56%
1024x600 Normal, Mandel Vector
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	184 Points
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	143 Points -22%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	126 Points -32%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	126 Points -32%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	125 Points -32%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	122 Points -34%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	120 Points -35%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	105 Points -43%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	97 Points -47%
1024x600 Normal, Mandel Scalar
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	224 Points
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	144 Points -36%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	112 Points -50%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points -51%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points -51%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	109 Points -51%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	101 Points -55%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	86 Points -62%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	75 Points -67%
1024x600 Normal, QJuliaRayTrace
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	335 Points
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	243 Points -27%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	203 Points -39%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	197 Points -41%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	196 Points -41%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	194 Points -42%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	186 Points -44%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	185 Points -45%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	159 Points -53%

3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12203 Points +22%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	10165 Points +2%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	10088 Points +1%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	10026 Points +1%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	9971 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	9774 Points -2%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	8090 Points -19%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	6704 Points -33%

3DMark Performance Rating | Unigine Valley 1.0 | Unigine Heaven 4.0 | Unigine Superposition

3DMark Performance Rating - Percent
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	100 pt
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	84.9 pt
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	77 pt
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	74.7 pt
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	74.3 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	69.5 pt
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	60.4 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	49.3 pt

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	5.7 fps
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.3 fps -7%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.6 fps -19%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	4.6 fps -19%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.6 fps -19%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.1 fps -28%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	3.5 fps -39%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.5 fps -39%
1920x1080 Extreme HD Preset OpenGL AA:x8
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	6.5 fps
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6 fps -8%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.4 fps -17%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.3 fps -18%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	5.1 fps -22%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.8 fps -26%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	3.5 fps -46%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.5 fps -46%

Unigine Heaven 4.0
Extreme Preset DX11
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	9 fps
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.5 fps -17%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.2 fps -20%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.8 fps -24%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps -26%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.4 fps -29%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.8 fps -36%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4.3 fps -52%
Extreme Preset OpenGL
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	9.1 fps
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.2 fps -21%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6.9 fps -24%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps -26%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps -26%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.3 fps -31%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.4 fps -41%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4 fps -56%

Unigine Superposition
1280x720 720p Low
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	2799 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	2505 Points -11%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2141 Points -24%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1937 Points -31%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1924 Points -31%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1871 Points -33%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1607 Points -43%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	1358 Points -51%
1920x1080 1080p High
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	707 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	512 Points -28%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	500 Points -29%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	469 Points -34%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	468 Points -34%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	466 Points -34%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	454 Points -36%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	287 Points -59%

3DMark 06 Standard Score		9971 points
3DMark Vantage P Result		7913 points
3DMark 11 Performance		2390 points
3DMark Ice Storm Standard Score		45600 points
3DMark Cloud Gate Standard Score		7939 points
3DMark Fire Strike Score		1574 points
3DMark Fire Strike Extreme Score		787 points
Help

... in comparison

游戏性能

英特尔酷睿 i3-N300 的集成图形处理器 (iGPU) 改善了 3D 性能。英特尔酷睿 i3-N300与英特尔 N200 相比，集成 GPU（iGPU）的 Zotac Zbox pico PI430AJ 的 3D 性能有所提高，但并不适合高要求的 3D 游戏。它可以处理简单的休闲游戏或浏览器游戏，但对于性能要求更高的游戏，可以考虑选择像 Minisforum EliteMini UM780 XTX这样的选择才是明智之举。

Dota 2 Reborn: 1280x720 min (0/3) fastest | 1366x768 med (1/3)
Final Fantasy XV Benchmark: 1280x720 Lite Quality | 1920x1080 Standard Quality
X-Plane 11.11: 1280x720 low (fps_test=1) | 1920x1080 med (fps_test=2)

Dota 2 Reborn / min (0/3) fastest
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	76.6 (56.5^min) fps +73%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	74.2 (56^min) fps +68%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	69.7 (57.1^min) fps +58%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	69.3 (50.1^min) fps +57%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	68.7 (48^min) fps +55%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	61.2 (50.1^min) fps +38%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	44.2 (31.4^min) fps
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	35.1 (22.9^min) fps -21%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	24.3 (20.6^min) fps -45%

Dota 2 Reborn / med (1/3)
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	48.3 (34.8^min) fps +53%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	47.9 (41.8^min) fps +52%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	47.8 (40.4^min) fps +52%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	47.1 (39.2^min) fps +50%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	44.9 (33.7^min) fps +43%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	31.5 (23.9^min) fps
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	22.8 (14.3^min) fps -28%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	20.6 (14.9^min) fps -35%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	10.9 (8.1^min) fps -65%

Final Fantasy XV Benchmark / Lite Quality
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	14.2 fps
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	12.9 fps -9%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12.8 fps -10%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12.4 fps -13%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12.3 fps -13%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12 fps -15%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	7.13 fps -50%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.91 fps -58%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	3.45 fps -76%

Final Fantasy XV Benchmark / Standard Quality
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	7.98 fps
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6.33 fps -21%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.16 fps -23%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.88 fps -26%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.87 fps -26%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.63 fps -29%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.48 fps -56%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	3.27 fps -59%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	1.66 fps -79%

X-Plane 11.11 / low (fps_test=1)
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	24.7 fps +43%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	24.3 fps +40%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	22.5 fps +30%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	20.6 fps +19%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	17.3 fps
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	15.1 fps -13%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	11.3 fps -35%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	7.76 fps -55%

X-Plane 11.11 / med (fps_test=2)
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	15 fps +18%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	15 fps +18%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	14.7 fps +16%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	13.2 fps +4%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	12.7 fps
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	8.45 fps -33%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	4.97 fps -61%

	low	med.	high	ultra
GTA V (2015)	35.7	30.5
Dota 2 Reborn (2015)	44.2	31.5	24.1	22.1
Final Fantasy XV Benchmark (2018)	14.2	7.98	5.34
X-Plane 11.11 (2018)	17.3	12.7	10.7
Strange Brigade (2018)	32.5	13.7	11.5

排放--喷气式飞机的冷却系统并不安静

系统噪音

Zotac 为 Zbox pico PI430AJ 的处理器采用了新颖的冷却方式，使用了两个来自 Frore System 的 AirJet mini 冷却模块（每个模块的冷却能力为 5.25 瓦）。这些模块利用薄膜的高频振动产生大量气流来冷却内部组件。不过，正如我们的测量结果所示，该系统并不是在完全静音的状态下运行的。空闲时，音量非常低，约为 26.6 dB(A)。在中等负载情况下，噪音水平上升到 29.4 dB(A)。值得注意的是，峰值噪音水平略高于 40 dB(A)。此外，由于高频冷却噪音的影响，主观感觉音量可能会稍大一些。

Noise Level

Idle		26.7 / 26.7 / 26.8 dB(A)
Load		29.4 / 40.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25.5 dB(A)

	Zotac ZBOX PI430AJ i3-N300, UHD Graphics 32EUs	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Noise		-2%	2%	12%	-6%	-10%	-15%	-6%
off / environment *	25.5	25 2%	25.2 1%	25 2%	29.7 -16%	24.8 3%	30.4 -19%	30.2 -18%
Idle Minimum *	26.7	25.5 4%	25.4 5%	25 6%	30.2 -13%	30.6 -15%	31 -16%	30.2 -13%
Idle Average *	26.7	26.9 -1%	25.5 4%	25 6%	30.2 -13%	31.3 -17%	31.1 -16%	30.2 -13%
Idle Maximum *	26.8	27 -1%	25.5 5%	25 7%	30.2 -13%	32.1 -20%	31.8 -19%	30.2 -13%
Load Average *	29.4	34.3 -17%	32.3 -10%	25 15%	30.4 -3%	34.8 -18%	33.3 -13%	30.5 -4%
Load Maximum *	40.1	40.3 -0%	36.4 9%	25 38%	31.4 22%	37.1 7%	42.5 -6%	30.9 23%

* ... smaller is better

温度

除了主动散热装置外，机箱也是一种散热手段，沿袭了前代产品的模式。因此，与大多数其他迷你 PC 相比，我们观察到的机箱温度要高得多。热点温度高达 158 °F，表明热量积聚严重。在压力测试中，SoC 本身的温度达到 197.6 °F。值得注意的是，由于这是一个测试样品，而且有拆卸过的痕迹，因此可以推测出厂时使用的散热膏可能不是原装的。我们更换了处理器上的散热膏，结果温度略有降低。

Zotac Zbox pico PI430AJ - Stresst est (top) — Zotac Zbox pico PI430AJ - 压力测试（顶部）

Max. Load

Idle


67.5 °C	68.2 °C	69.5 °C
54.5 °C	58.8 °C	57 °C
65.5 °C	65.5 °C	64.7 °C

Maximum: 69.5 °C
Average: 63.5 °C


61.8 °C	61.3 °C	62.8 °C
61.9 °C	62.2 °C	62.7 °C
61.7 °C	61.1 °C	62.2 °C

Maximum: 62.8 °C
Average: 62 °C

Power Supply (max.) 53.2 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

(-) The average temperature for the upper side under maximal load is 63.5 °C / 146 F, compared to the average of 32.1 °C / 90 F for the devices in the class Mini PC.
(-) The maximum temperature on the upper side is 69.5 °C / 157 F, compared to the average of 35.4 °C / 96 F, ranging from 26 to 69.5 °C for the class Mini PC.
(-) The bottom heats up to a maximum of 62.8 °C / 145 F, compared to the average of 36.8 °C / 98 F
(-) In idle usage, the average temperature for the upper side is 48.3 °C / 119 F, compared to the device average of 32.1 °C / 90 F.

耗电量

我们不能断言众泰 Zbox pico PI430AJ 表现出了极度的节俭。即使在空闲模式下，我们的测量设备也显示插座功耗在 11.3 至 15.2 瓦之间。在中等负载情况下，我们观察到的功耗略低于 23 瓦，但峰值时曾短暂达到 28.5 瓦。但峰值持续时间很短，25 瓦的电源装置也能应付自如。

Power Consumption

Off / Standby	2.3 / 2.3 Watt
Idle	11.3 / 11.6 / 15.2 Watt
Load	22.8 / 28.5 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Zotac ZBOX PI430AJ i3-N300, UHD Graphics 32EUs	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Zotac ZBOX PI336 pico Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	Average Intel UHD Graphics 32EUs (Alder Lake)	Average of class Mini PC
Power Consumption		4%	33%	35%	44%	17%	33%	23%	55%	14%	-63%
Idle Minimum *	11.3	7.1 37%	4.9 57%	4.4 61%	3.5 69%	8.2 27%	6.1 46%	8.4 26%	5.4 52%	5.88 ?(3.5 - 11.3, n=4) 48%	9.75 ?(1.9 - 46.5, n=92, last 2 years) 14%
Idle Average *	11.6	12.1 -4%	7.1 39%	6 48%	3.6 69%	8.6 26%	6.9 41%	8.4 28%	5.5 53%	7 ?(4.6 - 11.6, n=4) 40%	11.7 ?(1.9 - 63, n=91, last 2 years) -1%
Idle Maximum *	15.2	13.9 9%	7.3 52%	9.7 36%	6.2 59%	10.4 32%	8.9 41%	11.1 27%	6.2 59%	9.35 ?(7 - 15.2, n=4) 38%	14.7 ?(2.6 - 68.9, n=92, last 2 years) 3%
Load Average *	22.8	23.8 -4%	20.6 10%	14.6 36%	20.4 11%	19.4 15%	20 12%	16.5 28%	11.3 50%	26.4 ?(22.8 - 30.1, n=4) -16%	51.9 ?(11.3 - 158.7, n=92, last 2 years) -128%
Load Maximum *	28.5	33 -16%	26.2 8%	30.2 -6%	25 12%	33.1 -16%	21.1 26%	26.3 8%	11.8 59%	39.3 ?(28.5 - 48.7, n=4) -38%	86 ?(18.1 - 271, n=92, last 2 years) -202%

* ... smaller is better

Power consumption with external monitor

Zotac ZBOX PI430AJ; Prime95 V2810 Stress (external Monitor): Ø24.4 (22.8-26.6)

Zotac ZBOX PI430AJ; Cinebench R15 Multi (external Monitor): Ø22.2 (19.7-22.8)

Zotac ZBOX PI430AJ; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø23 (22-28.5)

Zotac ZBOX PI430AJ; Idle 1min (external Monitor): Ø14.7 (14.5-15.2)

Zotac ZBOX PI430AJ; 3DMark06 Return To Proxycon: Ø23.5 (22.3-24.5)

Zotac ZBOX PI430AJ; Cinebench R23 Single (external Monitor): Ø17.2 (16.9-18.7)

Zotac ZBOX PI430AJ; Cinebench R23 Multi (external Monitor): Ø22.1 (19.5-22.8)

Pros

+ 铝制外壳，结构紧凑

+ 易于打开无风扇主动冷却装置

+ 无风扇主动冷却装置

+ intel 酷睿 i3-N300 配备 8 个内核

+ 与前代产品相比，性能大幅提升

+ LPDDR5 内存，性能良好

+ 固态硬盘性能稳定

Cons

- 高 DPC 延迟

- SoC 的低涡轮使用率

- 极高的表面温度

- 系统在极限状态下高效运行

结论 - 英特尔酷睿 i3-N300 带有限制条件

评测中的 Zotac Zbox pico PI430AJ - 由德国 Zotac 提供

这款迷你 PC 遵循了 Zotac 打造适合日常办公任务的紧凑型设备的方法，偏离了被动冷却装置的趋势，采用了两个主动 AirJet 模块来冷却英特尔酷睿 i3-N300。虽然这种冷却技术似乎很有前途，但测试结果表明，由于 PL1 的限制，在连续运行时只能为 SoC 提供约 7 瓦的功率，尽管如果冷却效果更好，其功率潜力可达 25 瓦。主动 AirJet 模块的综合冷却能力为 10.5 瓦，限制了性能。尽管英特尔酷睿 i3-N300 原生有 8 个计算单元，但在平均性能测试中，采用英特尔 N95 或英特尔 N100 处理器的竞争对手的性能要优于它。

众泰 Zbox pico PI430AJ 是全球首款配备主动 AirJet 冷却装置的微型 PC。不过，集成的英特尔酷睿 i3-N300 处理器未能充分发挥其潜力。

另一方面，其制造质量无可挑剔，铝制外壳给人留下了高档的印象。连接功能非常实用，提供了所有必要的功能。如果能将 USB-C 端口用于图像输出和供电，那将会非常有益。这样可以方便线缆管理，在连接显示器时消除不必要的杂乱。

总之，Zotac 率先推出了业内首款配备突破性散热系统的微型电脑。但在价位上--约 599.99 美元--竞争对手目前处于更有利的位置。

价格和供应情况

Zotac Zbox pico PI430AJ 目前无法购买。首批机型预计将在未来几周内到货。

Zotac ZBOX PI430AJ - 2024-01-17 01/17/2024 v7
Sebastian Bade

Chassis

84 / 98 → 85%

Connectivity

54 / 81 → 67%

Weight

86%

Games Performance

50%

Application Performance

74%

Temperature

46%

Noise

92%

Average

69%

70%

Mini PC - Weighted Average

Transparency

The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

众泰 Zbox pico PI430AJ 评测：全球首款采用主动 AirJet 技术的迷你 PC，在 0.055 加仑的机箱中为 Intel Core i3-N300 降温

潜在的竞争对手比较

众泰 Zbox pico PI430AJ 详细信息

箱子 - 紧凑型 0.055 加仑铝制箱子

尺寸比较

连接性

SD 读卡器

交流

保修

维护

性能 - 英特尔酷睿 i3（8 核

测试条件

处理器

Zotac Zbox pico PI430AJ 与 Cinebench-R15 连续循环对比

系统性能

DPC 延迟

存储设备

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

排放--喷气式飞机的冷却系统并不安静

系统噪音

温度

耗电量

Power consumption with external monitor

Pros

Cons

结论 - 英特尔酷睿 i3-N300 带有限制条件

价格和供应情况

Transparency

More articles related to this device

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Asus Zenbook UX303LN-R4141H 4510U, GeForce 840M	2378
Asus UX310UQ-FC396T i7-7500U, GeForce 940MX	2379
Lenovo ThinkPad T450s-20BWS1UT00 5200U, GeForce 940M	2380
Zotac ZBOX PI430AJ i3-N300, UHD Graphics 32EUs	2390
HP Pavilion 17-x110ng i5-7200U, Radeon R7 M440	2398
Samsung 550P5C-S08DE 3610QM, GeForce GT 650M	2410
Lenovo ThinkPad Yoga 14 4210U, GeForce 840M	2412
...
(max) R7 7800X3D, NVIDIA GeForce RTX 4090	72163
