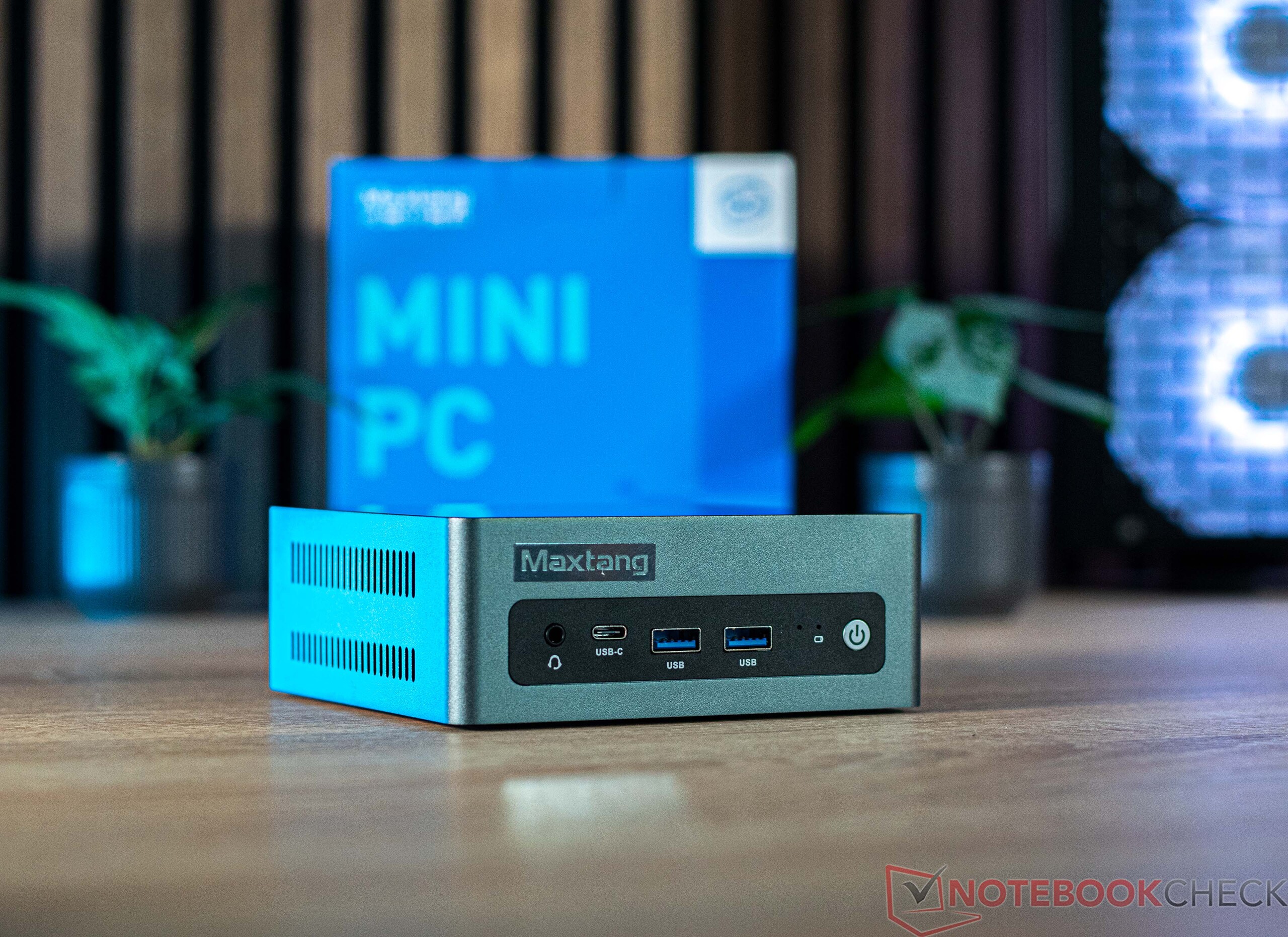

迈腾 MTN-ALN50 微型电脑评测：非常经济的办公电脑，配备英特尔酷睿 i3-N305 和 8 核，性能卓越

Name: Maxtang MTN-ALN50
Brand: Maxtang

英特尔酷睿 i3 - 不在后备计划中。 凭借英特尔酷睿 i3-N305，Maxtang MTN-ALN50 的日常性能令人印象深刻。得益于主动散热装置，原生 8 核处理器无需人为降速。在这篇评测中，我们分析了傲腾 MTN-ALN50 在竞争中的表现以及性价比是否合适。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 02/24/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Alder Lake

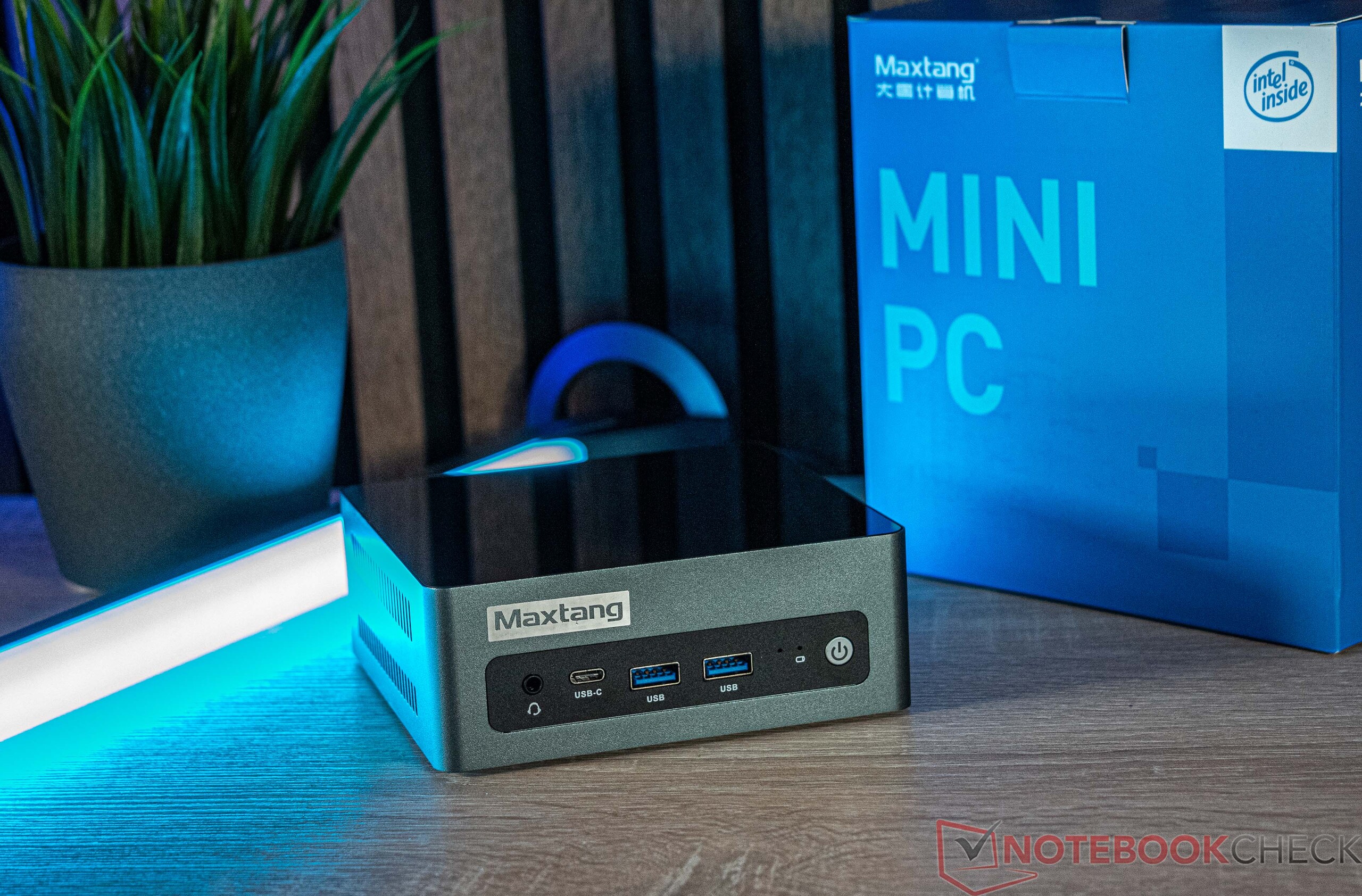

作为一家中国系统制造商，迈思唐主要专注于特殊工业解决方案，尽管目前产品组合中的一些微型 PC 也有可能成为日常办公的伴侣。最近测试的 MTN-FP750的技术数据并没有达到人们的预期。由于内置硬件的原因，人们对 Maxtang MTN-ALN50 的期望值要低一些。不过，Maxtang MTN-ALN50 配备了英特尔酷睿 i3-N305，拥有 8 个物理内核，性能应该会非常出色。处理器英特尔酷睿 i3-N305应该可以轻松超越英特尔 N95和英特尔 N100SoC 的性能。顺便提一下，Maxtang 也提供配备英特尔 N100 的 MTN-ALN50。作为裸机，价格从 115 美元起，而酷睿 i3 型号至少需要 276 美元。我们的测试样品配备 16GB 内存和 512GB 固态硬盘，价格为 348 美元。这听起来有点贵，但与众泰 Zbox Pico PI430AJ这已经是很便宜的价格了。我们还可以忽略一个事实，即供货范围内不包括操作系统。

您可以在下表中找到 Maxtang MTN-ALN50 的竞争对手。

Test device courtesy of Maxtang

Download your licensed rating image as PNG / SVG

Maxtang MTN-ALN50

Processor

Intel Core i3-N305 8 x 1.8 - 3.8 GHz, 35 W PL2 / Short Burst, 15 W PL1 / Sustained, Alder Lake-N

Graphics adapter

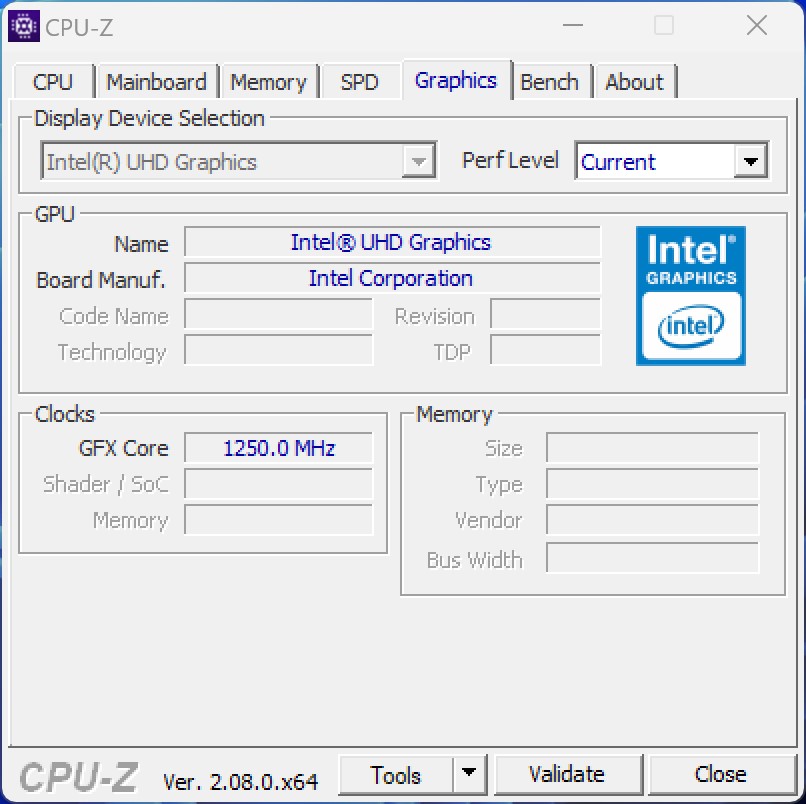

Intel UHD Graphics 32EUs (Alder Lake), Core: 1250 MHz, Memory: 1600 MHz, 31.0.101.4255 DCH

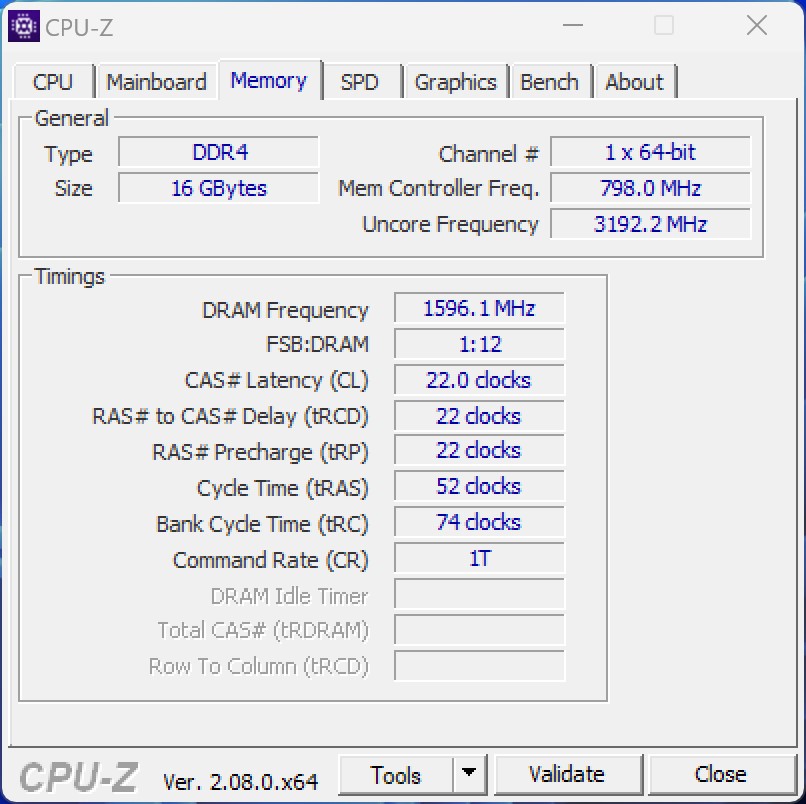

Memory

16 GB

, DDR4-3200, Single-Channel

Mainboard

Intel Alder Lake-N PCH

Storage

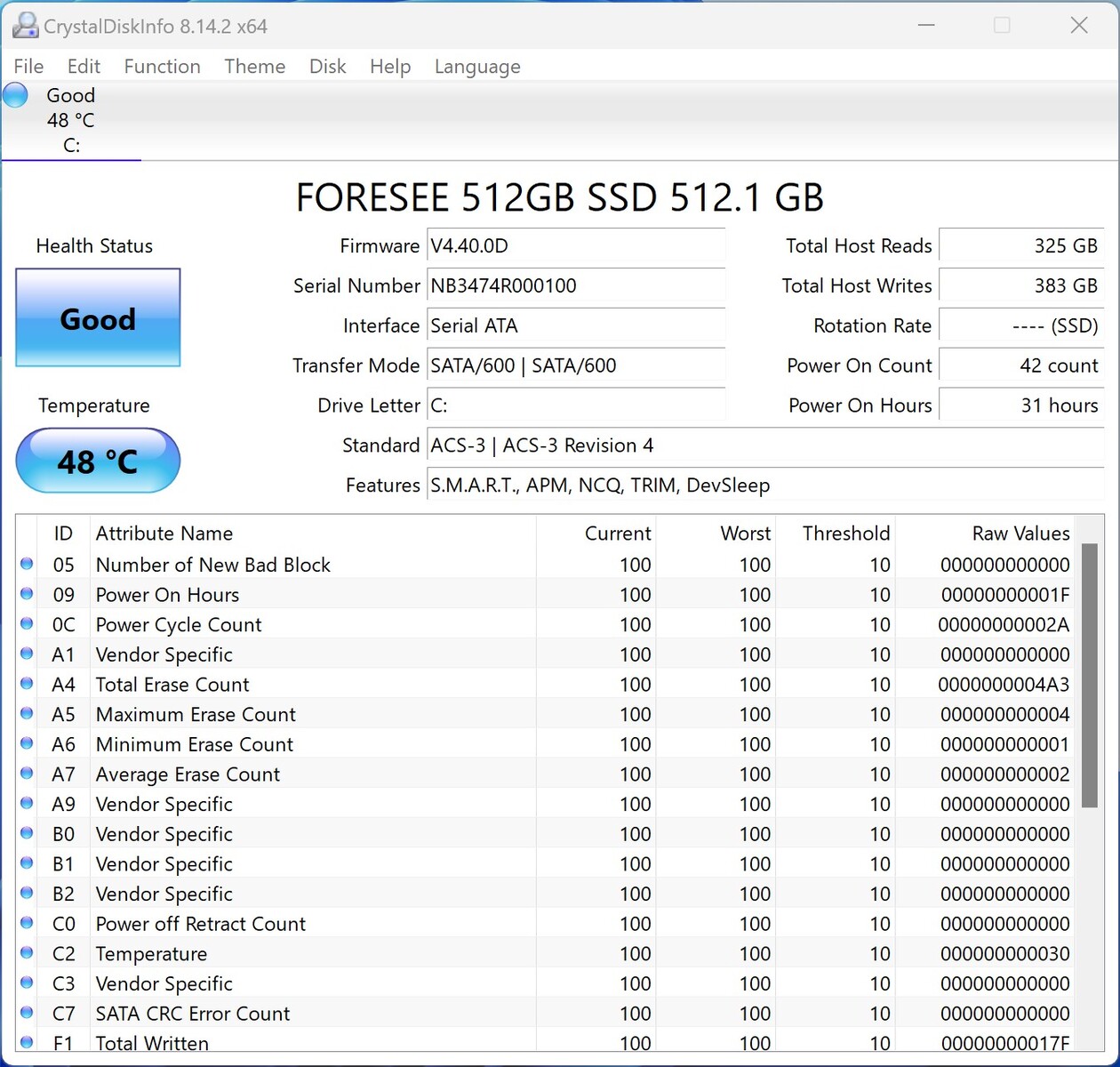

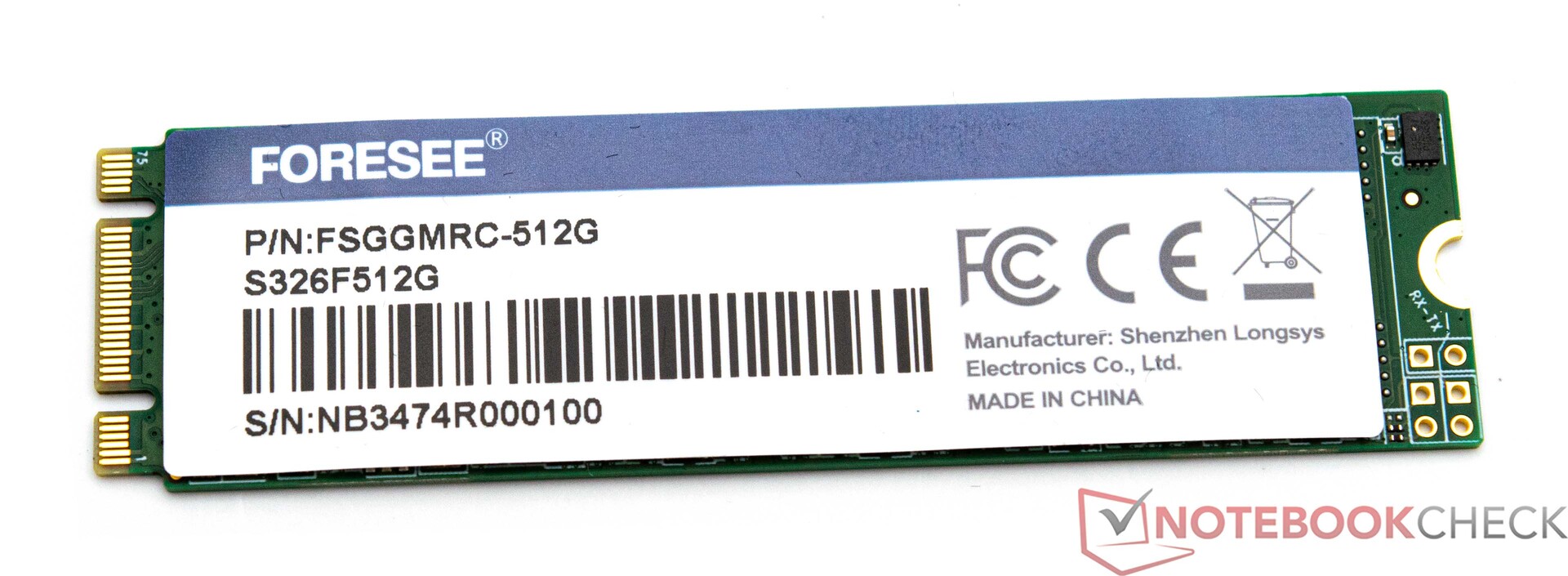

Foresee 512GB, 512 GB

, M.2 2280, SATA-SSD, 512 GB free

Soundcard

Intel Alder Lake-N PCH - cAVS

Connections

1 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3,5mm Klinke, 2nd RTL8125 2.5G LAN

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s)

Size

height x width x depth (in mm): 52.5 x 127 x 129

Additional features

60-Watt-Power-Adapter, VESA-Mount, 12 Months Warranty

Weight

685 g, Power Supply: 263 g

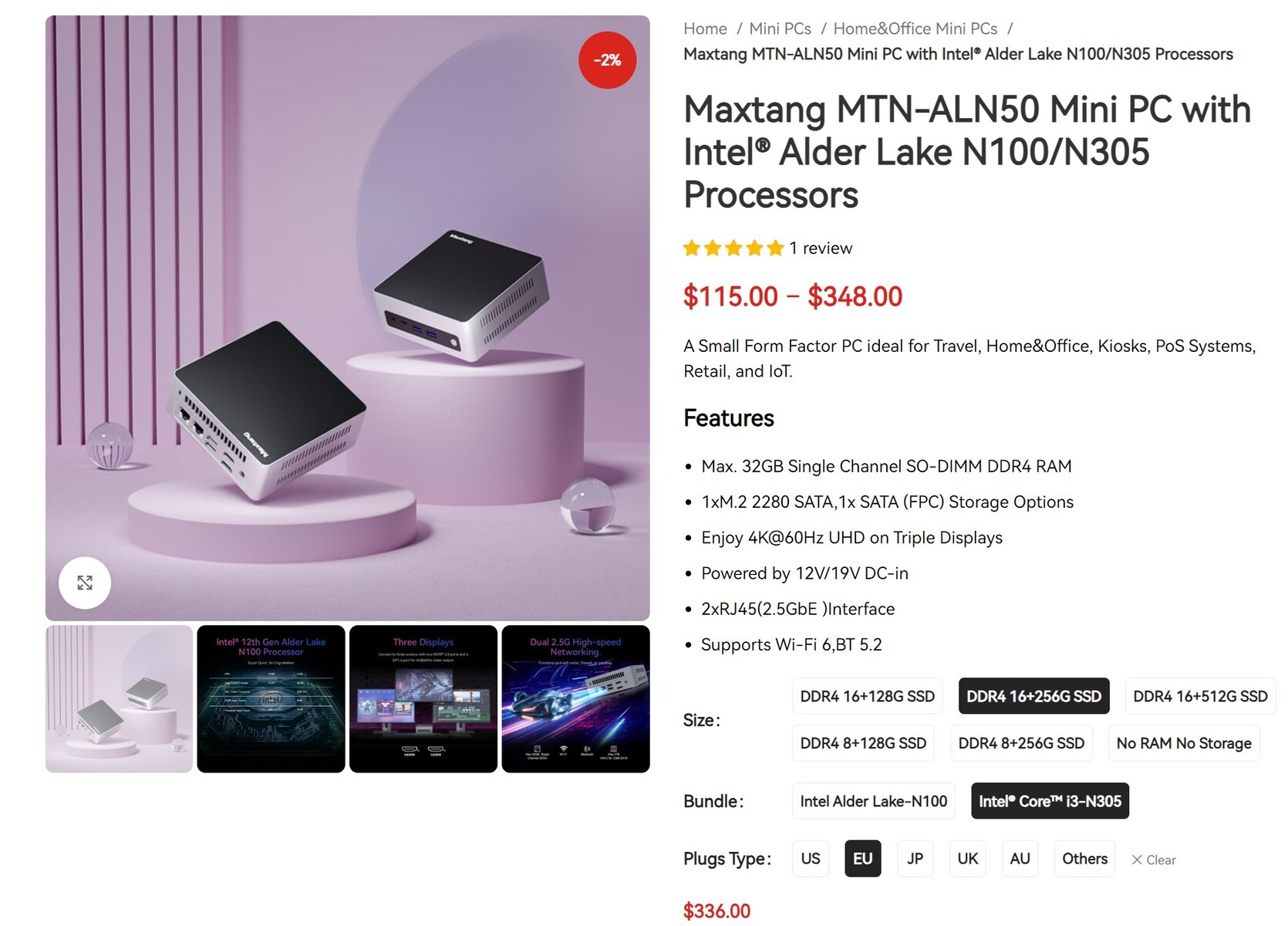

Price

348 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	price
73 %	02/2024	Maxtang MTN-ALN50 i3-N305, UHD Graphics 32EUs	685 g	348 USD
74.1 %	11/2023	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	440 g	239 EUR
73.5 %	09/2023	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	214 g	250 EUR
73.2 %	01/2024	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	828 g	299 EUR
71.1 %	08/2023	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	392 g	179 EUR
70.1 %	11/2023	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	272 g	189 EUR
69.9 %	01/2024	Zotac ZBOX PI430AJ i3-N300, UHD Graphics 32EUs	318 g	560 EUR
68.2 %	03/2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	381 g	399 EUR

麦斯唐 MTN-ALN50 详细信息

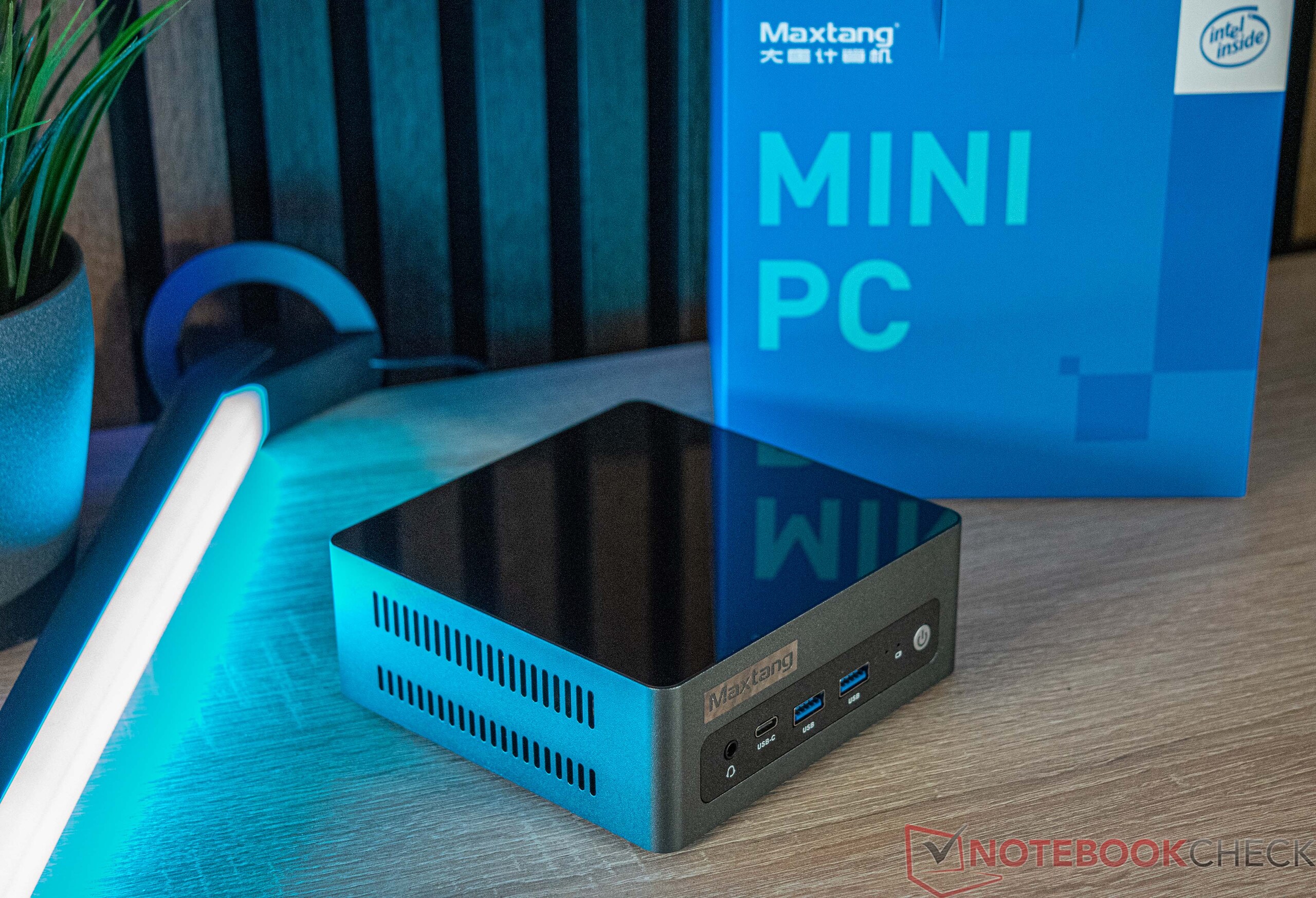

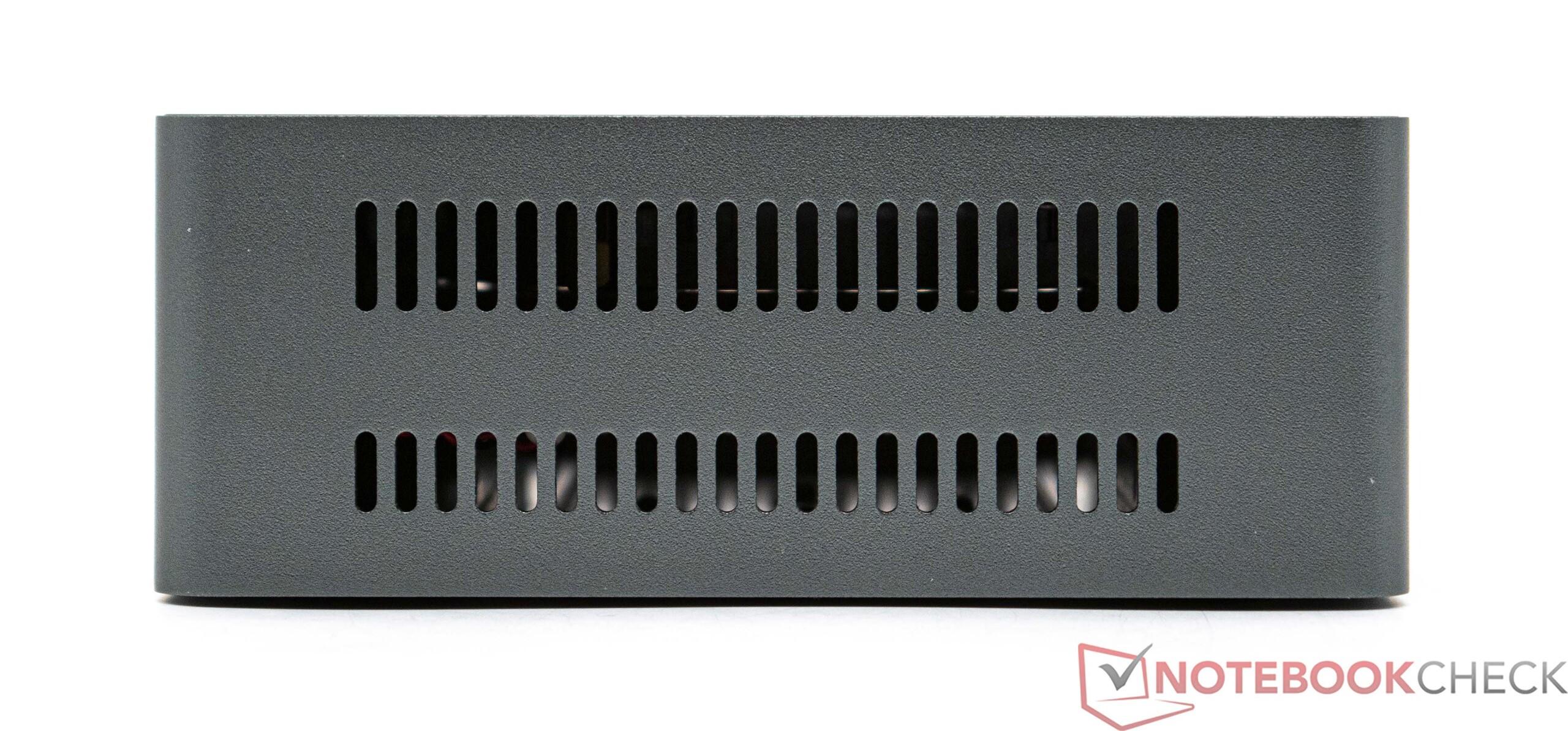

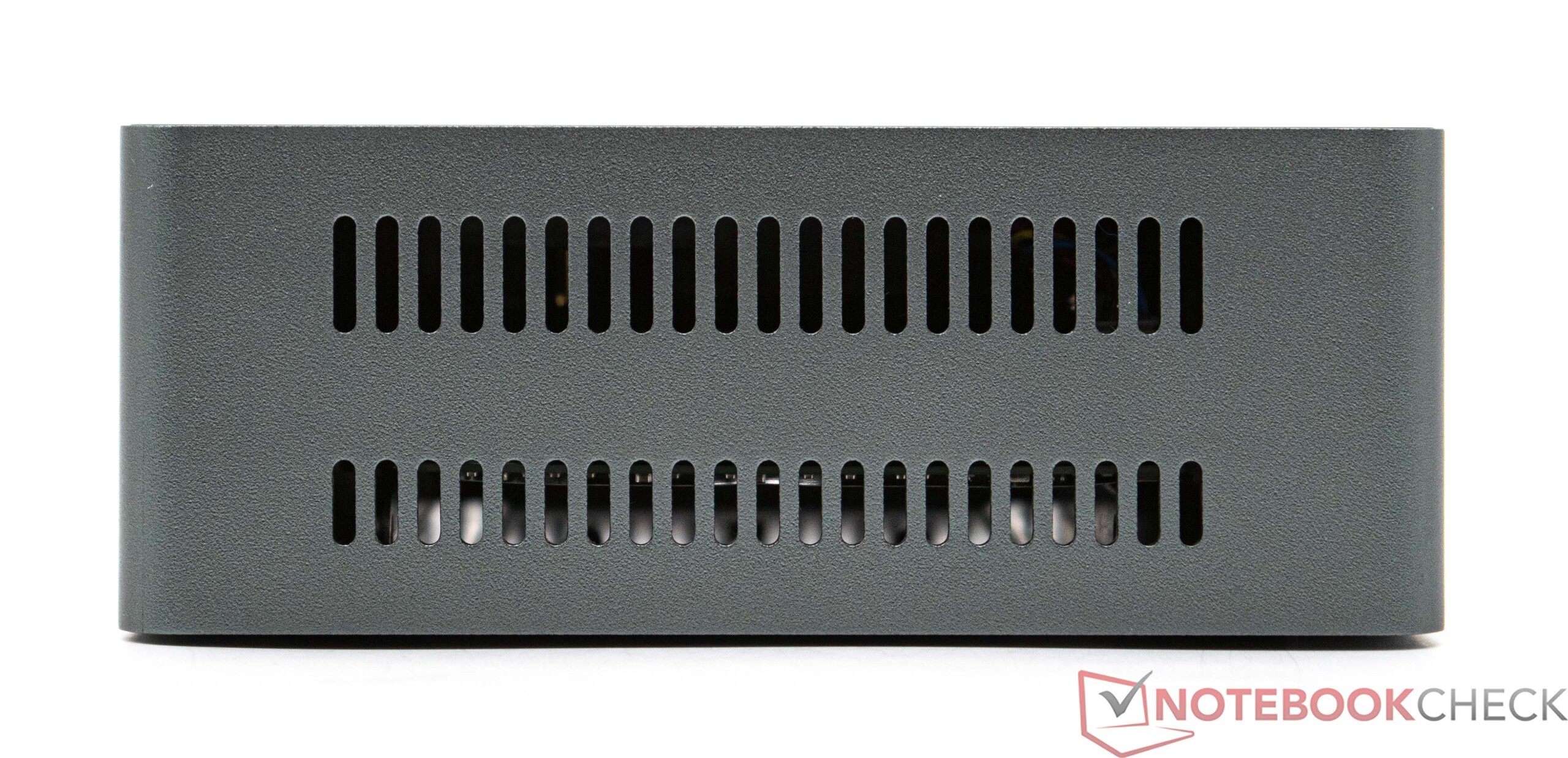

表壳 - 大量采用金属和塑料，表面高光处理

包括底板在内，Maxtang MTN-ALN50 的许多部件都由金属制成，这使设备具有很好的稳定性。只有机身顶部覆盖了一层黑色高光塑料外壳。这样一来，难免会留下指纹和微小划痕。由于结构坚固，Maxtang MTN-ALN50 重达 685 克，在同类产品中位居第二。只有华硕 ExpertCenter PN42 略重一些，为 828 克。我们的测试样本对桌面空间的要求并不高，约为 13 x 13 厘米。不过，竞争对手的产品要更经济一些。尽管重量不轻，但 Maxtang MTN-ALN50 可以使用 VESA 支架固定在显示器上。

在制造质量方面，我们希望看到更多的细节。边缘有些锋利。倒角或倒角边缘应该是这里的标准，可以在一定程度上改善这种情况。此外，我们的测试样品没有脚垫。这并不是技术上的缺点，因为底部没有通风槽，无法吸入新鲜空气。在咨询了制造商后，我们得到保证，这种情况并非普遍现象。原则上，所有 Maxtang MTN-ALN50 都应配备脚垫。

尺寸比较

Asus ExpertCenter PN42-BBN200MV Maxtang MTN-ALN50 Minipc Union NiPoGi GK3PLUS - N95 Acemagic S1 BOSGAME N95 Zotac ZBOX PI430AJ Blackview MP80 Trigkey G4 DIN A5 ❌

设备 - 不带无线局域网的简易标准

在连接性方面，Maxtang MTN-ALN50 一看就能满足您的一切需求。五个 USB 端口在同类产品中绰绰有余。此外，前置的 USB Type-C 端口还可用于图像输出，加上后置的两个 HDMI 输出，意味着可以同时使用三个屏幕。机身后部还有两个局域网插座，每个插座的网络速度最高可达 2.5 GBit/s。关于网络和 Maxtang MTN-ALN50，我们只能说这么多：是的，我们的测试样品没有安装 WLAN 模块。如果不事先安装 WLAN 天线，即使快速升级也是不可能的。不过，有一个空闲的 WLAN 模块插槽。任何购买微型电脑的人都应注意这一点。如果绝对需要无线连接，最简单快捷的解决方案当然是使用 USB WLAN 棒。不过，如果能预装 WLAN 天线，就更方便用户使用了。

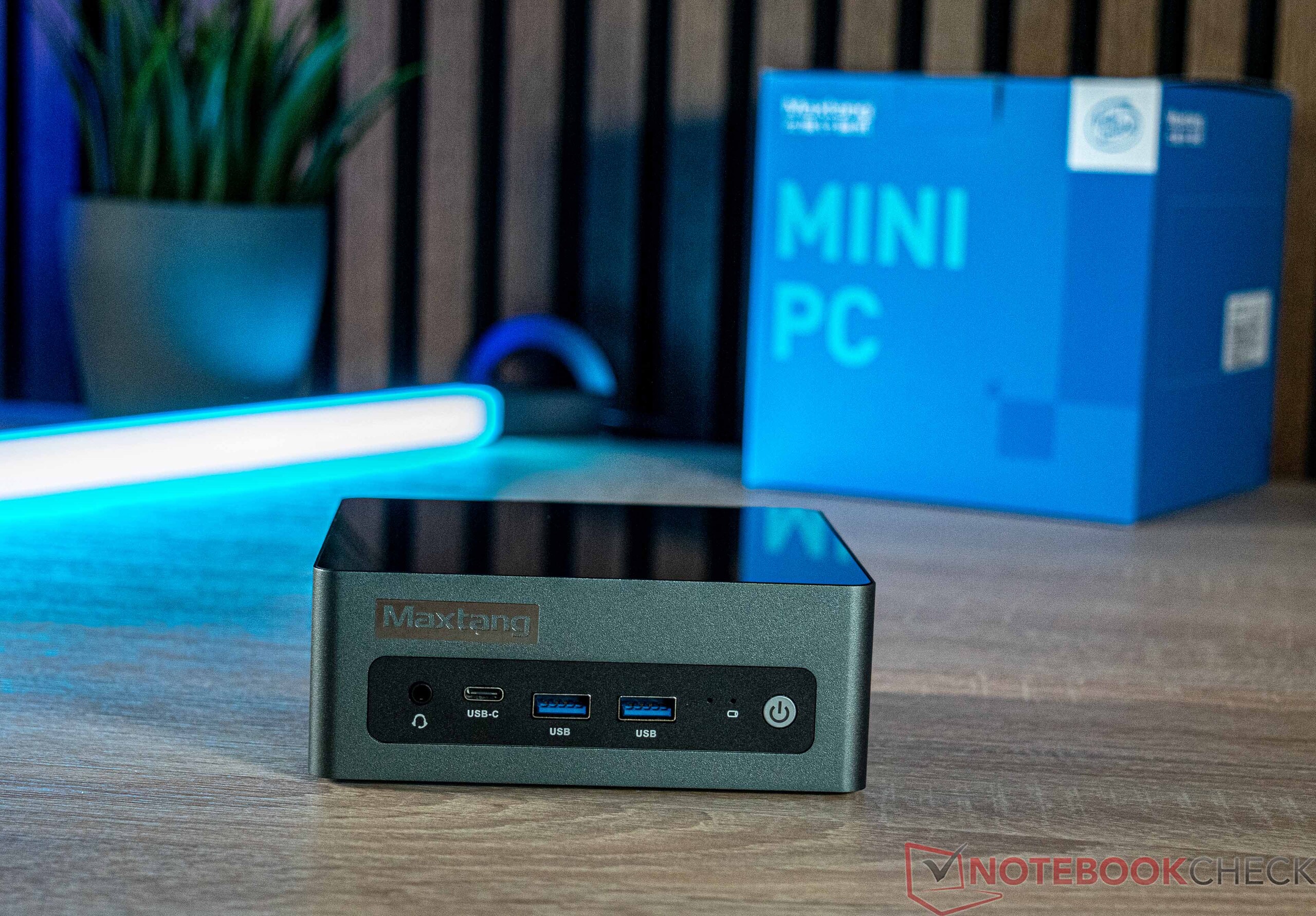

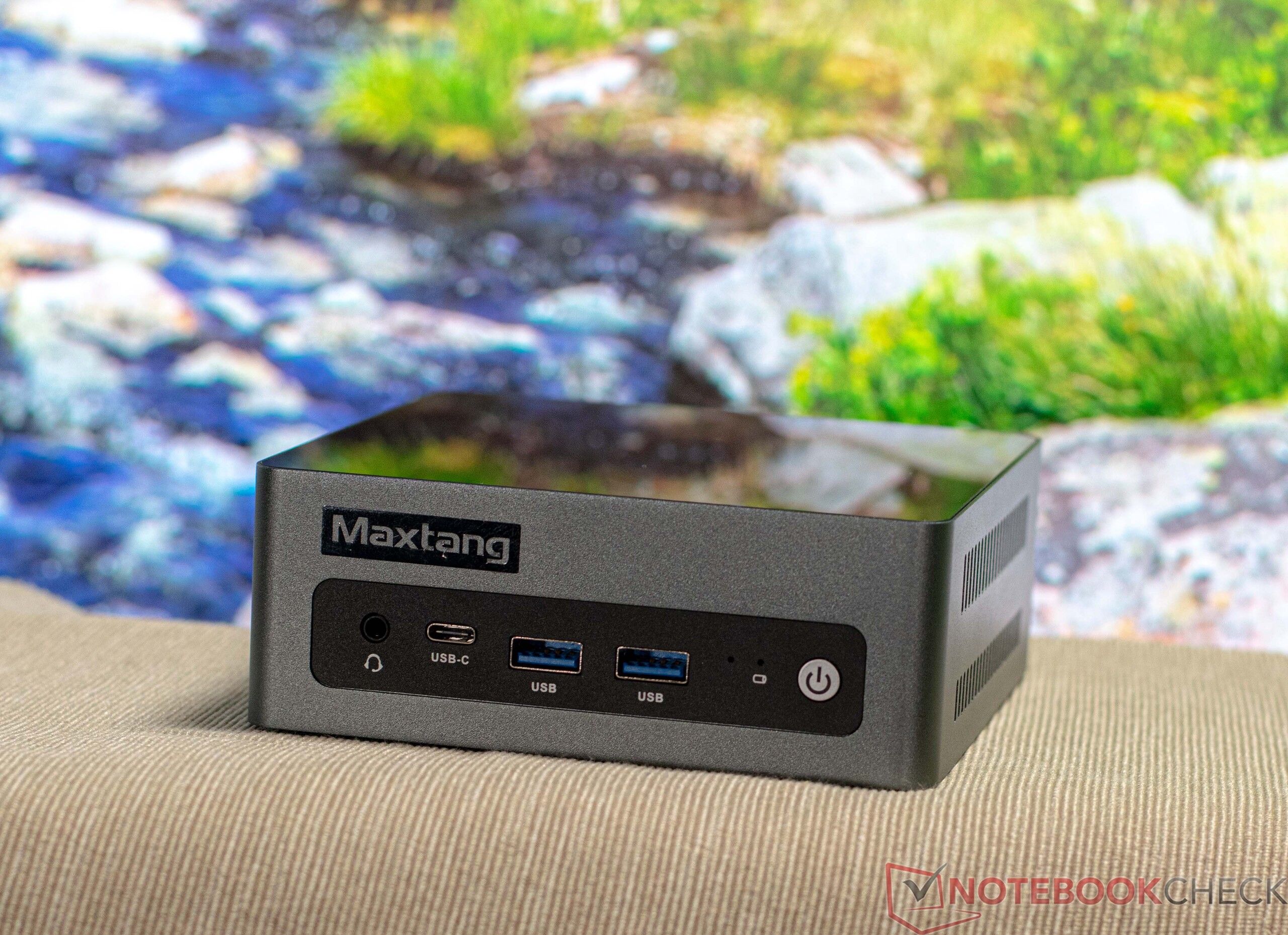

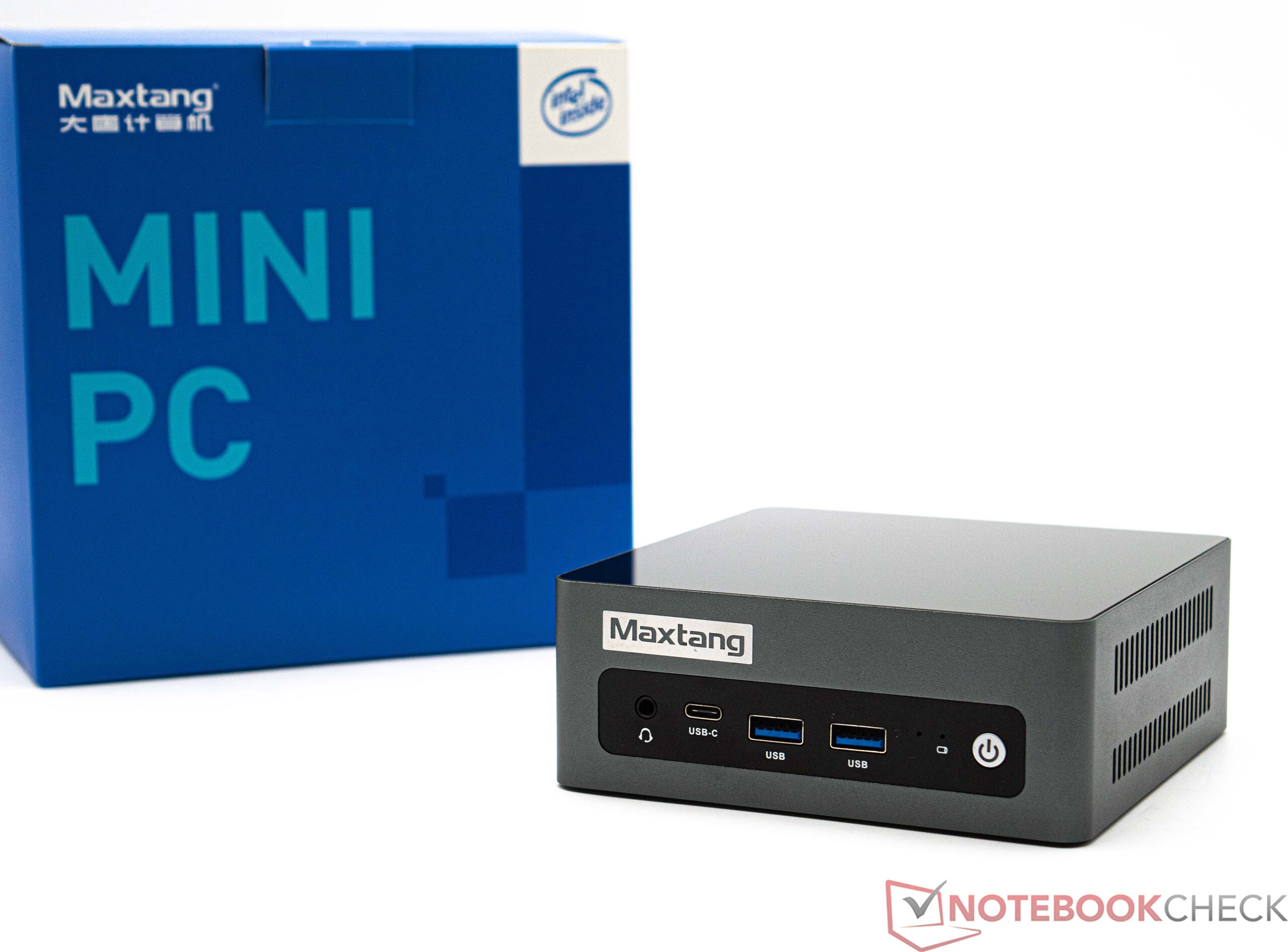

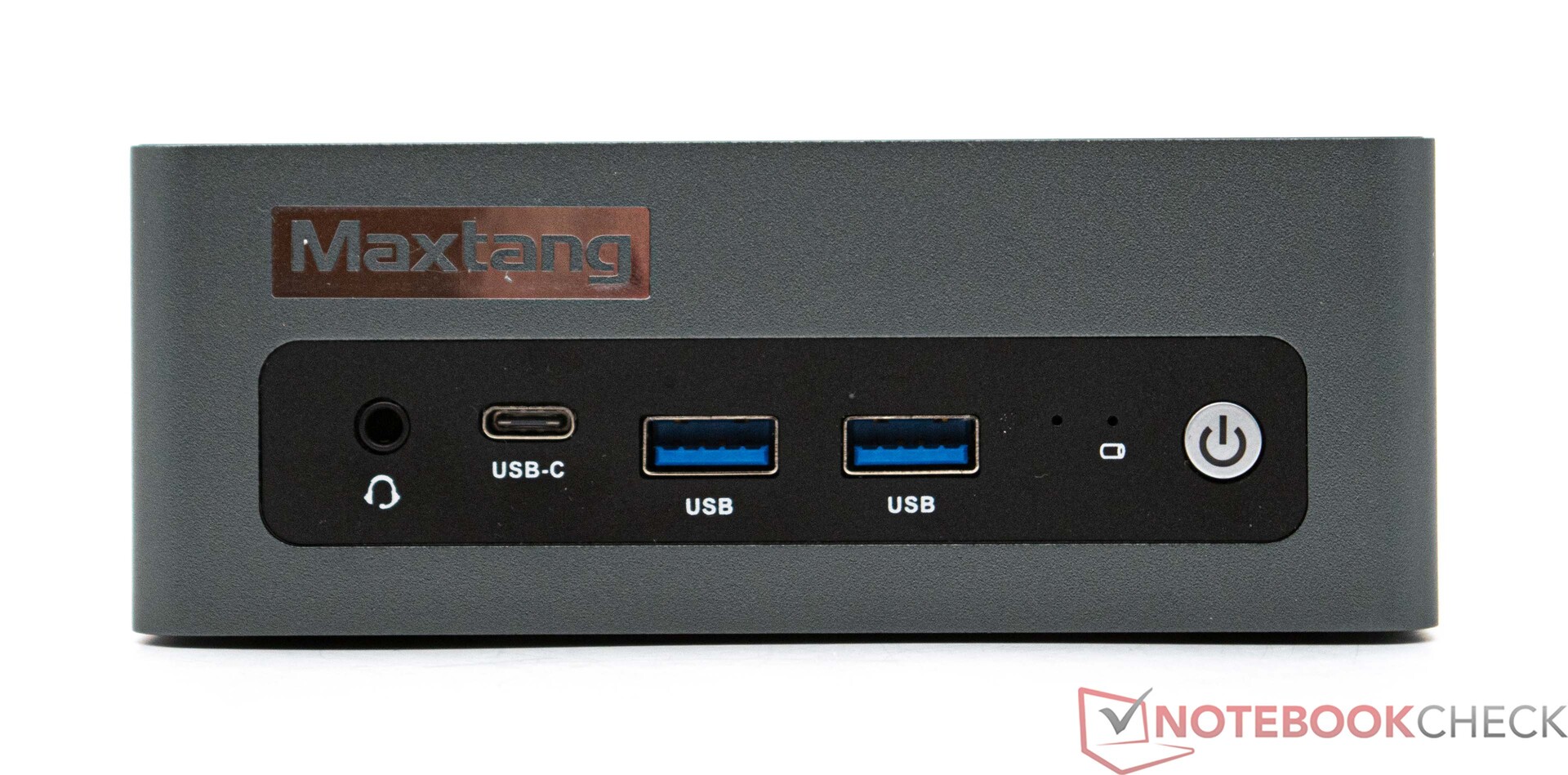

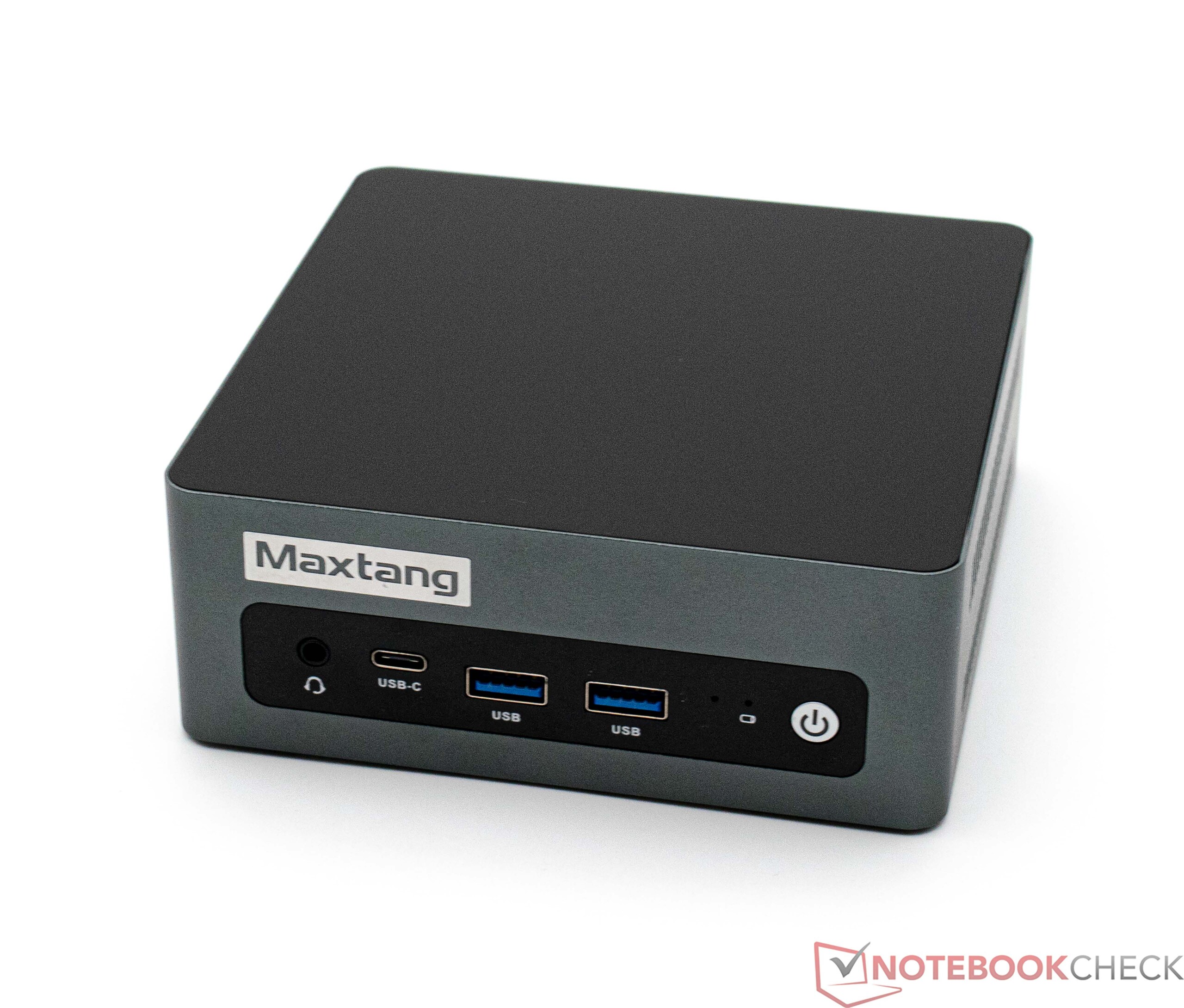

正面：3.5 毫米插孔（线路输出+麦克风输入）、1 个 USB-C（3.2 + DisplayPort 1.4）、2 个 USB 3.2、电源接通

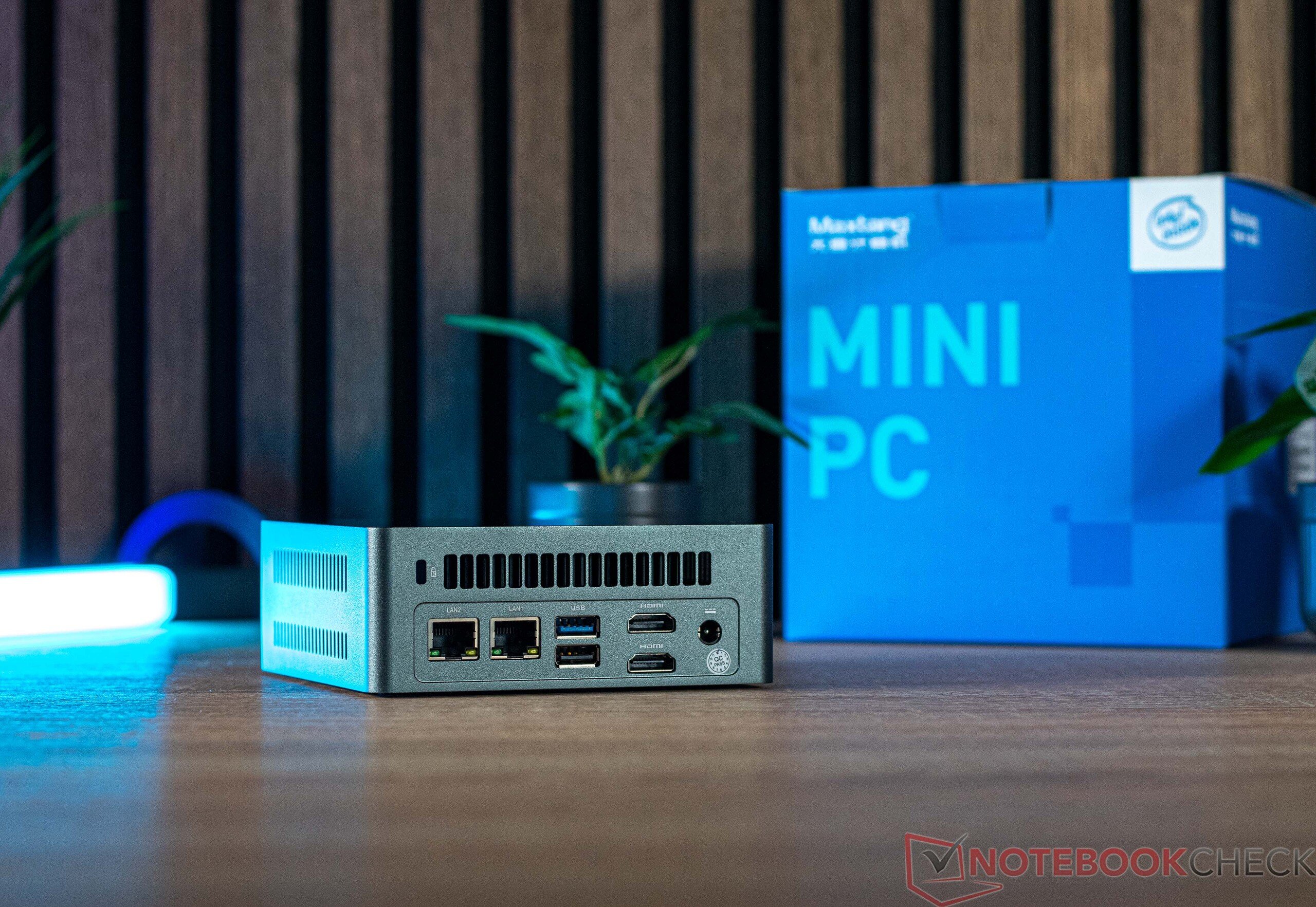

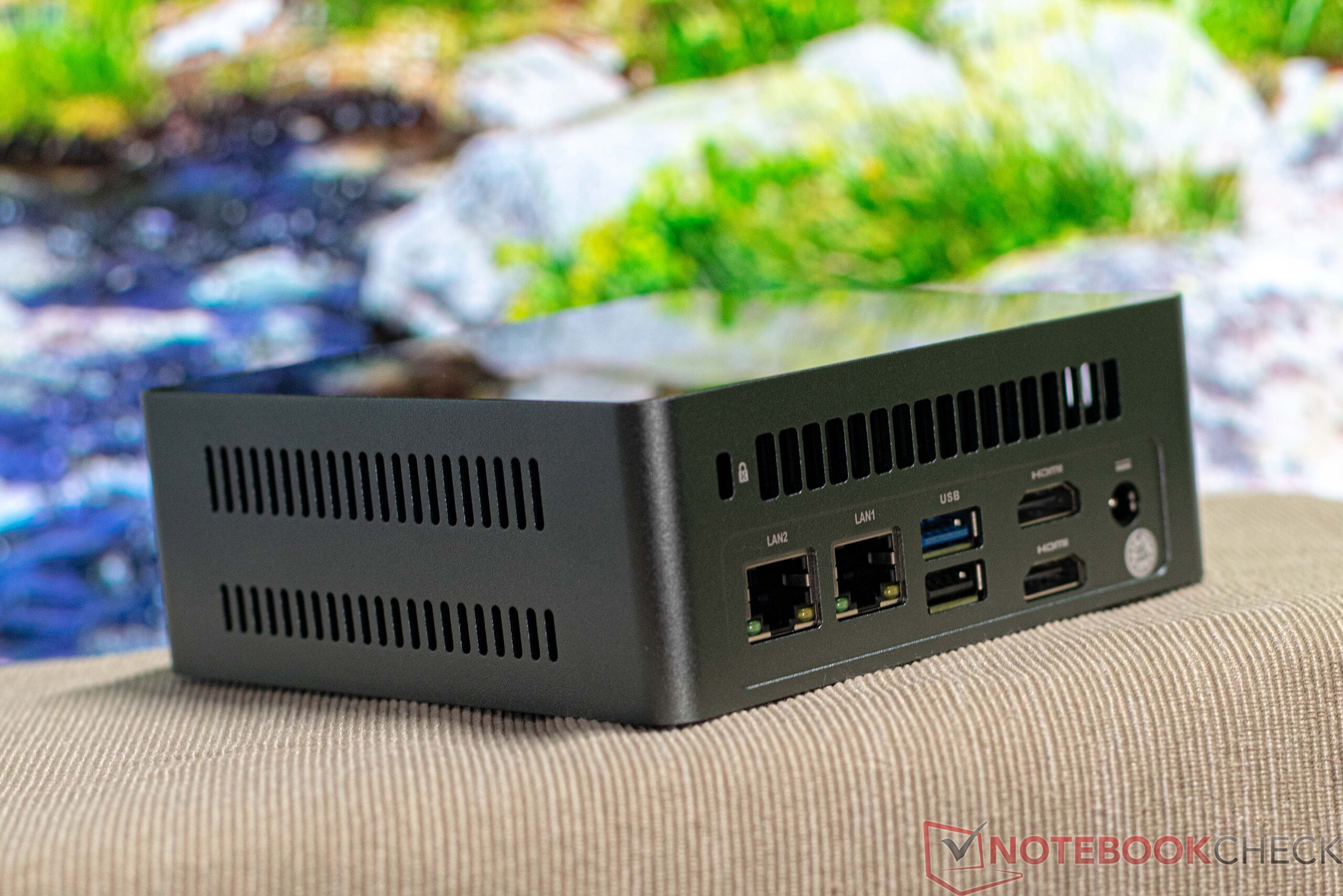

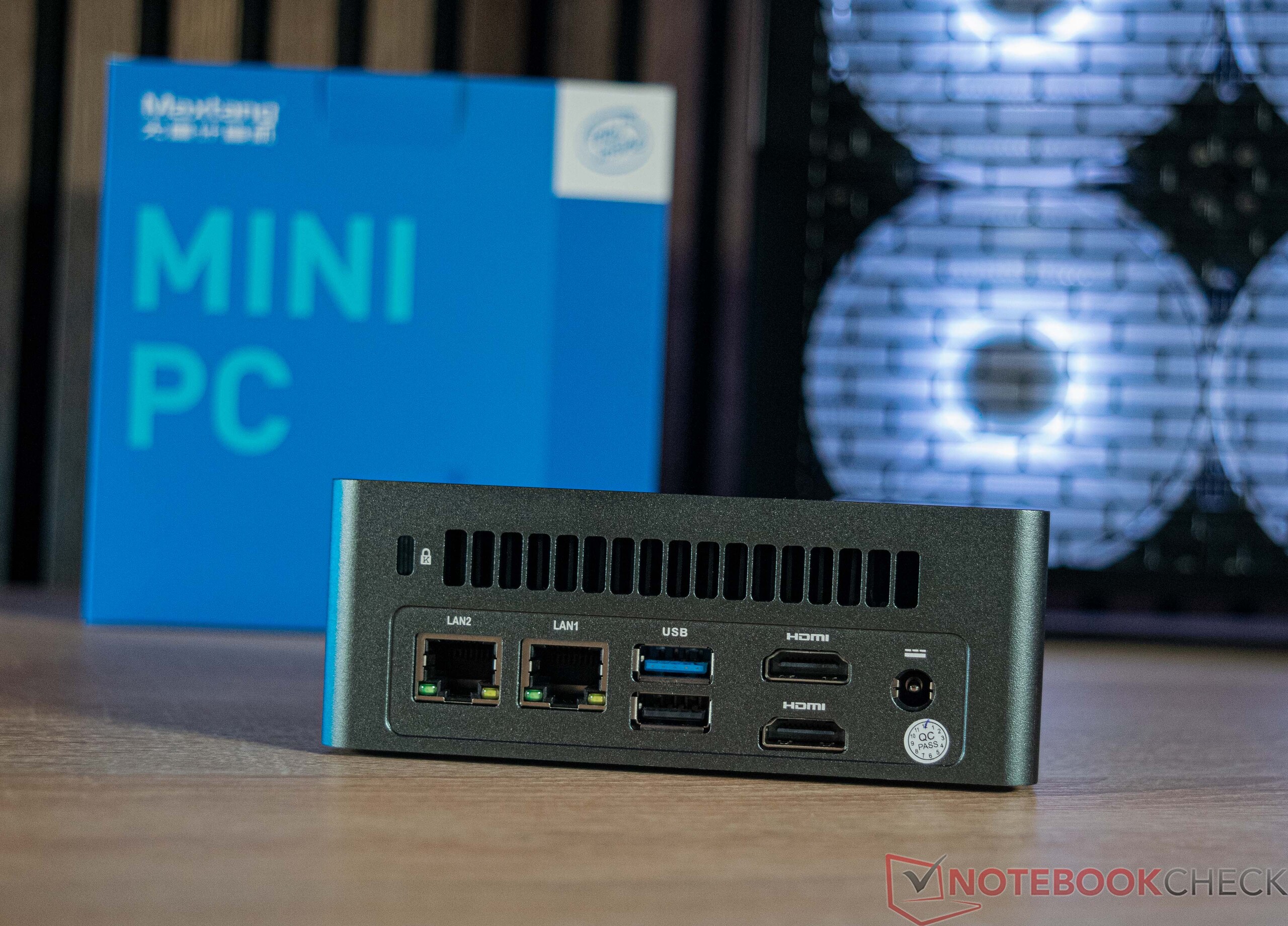

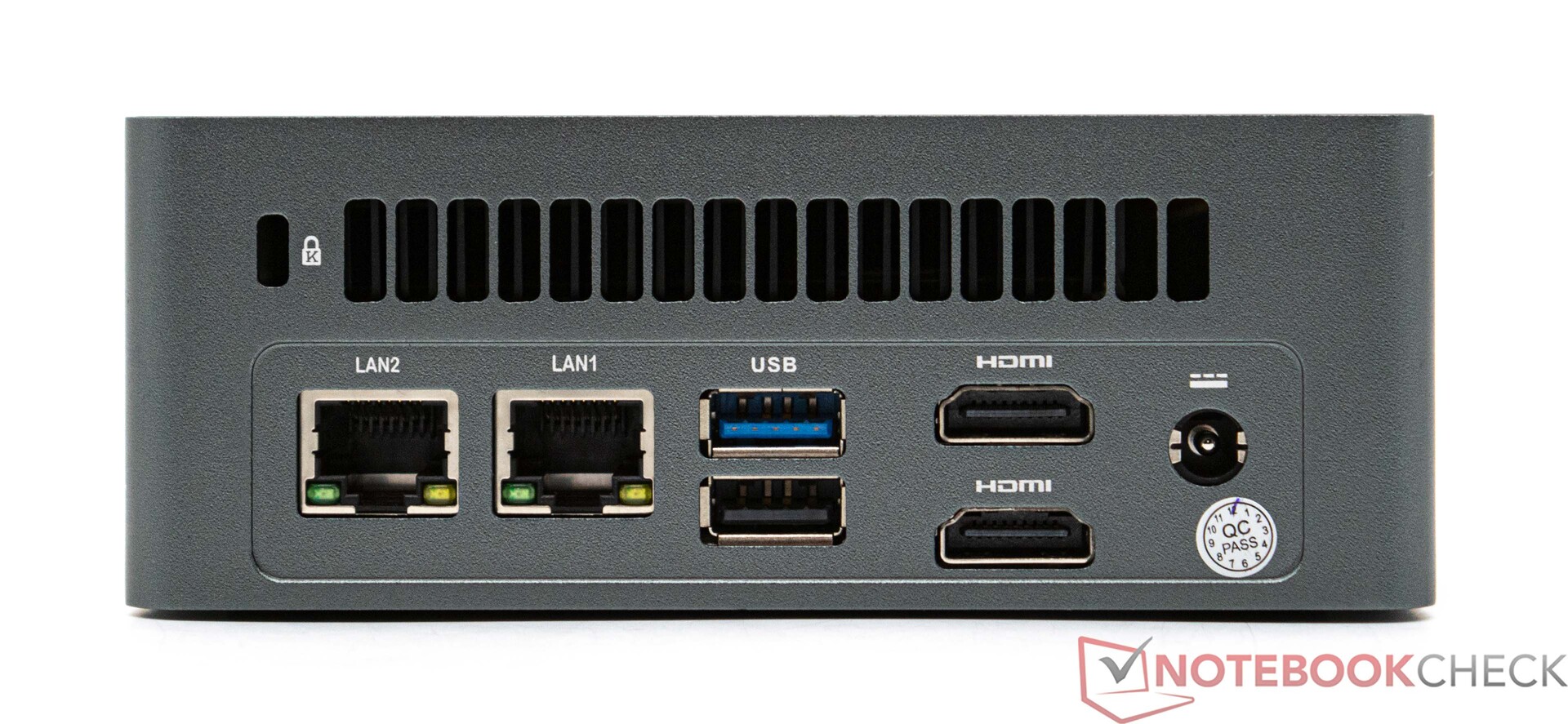

后部：2 个 2.5G LAN、1 个 USB 3.2、1 个 USB 2.0、2 个 HDMI 2.0 主电源连接（12 V；5 A）

配件

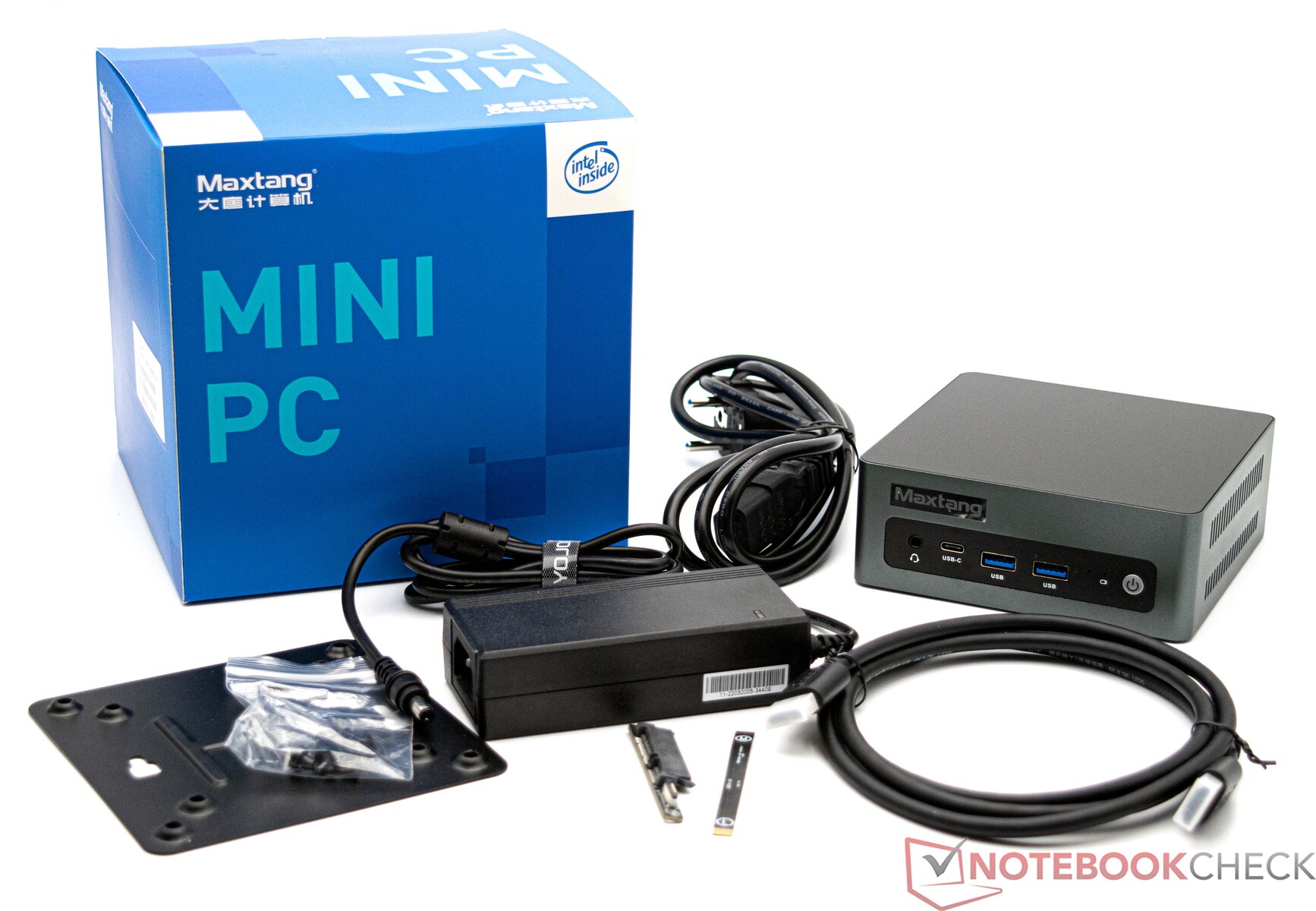

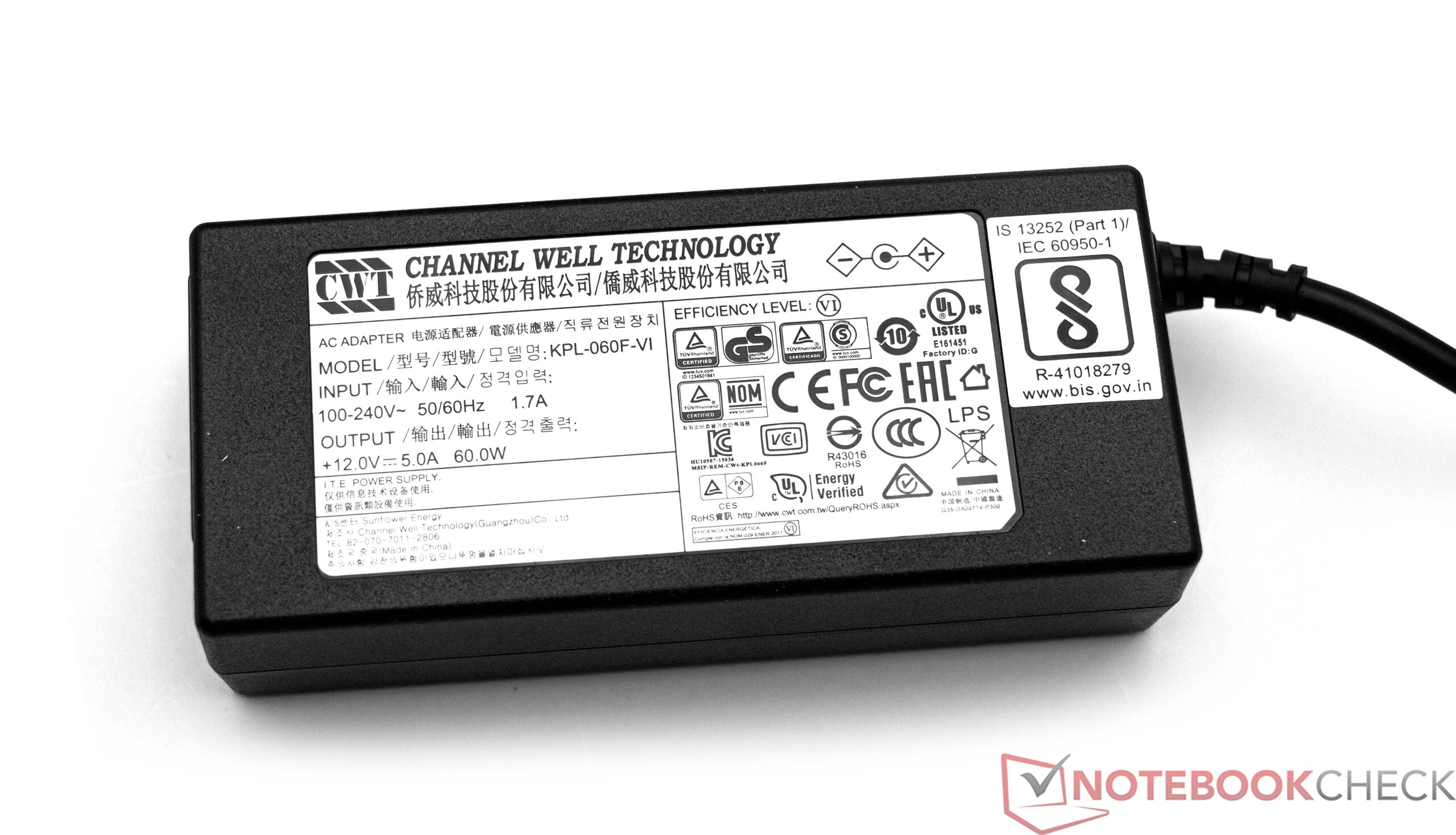

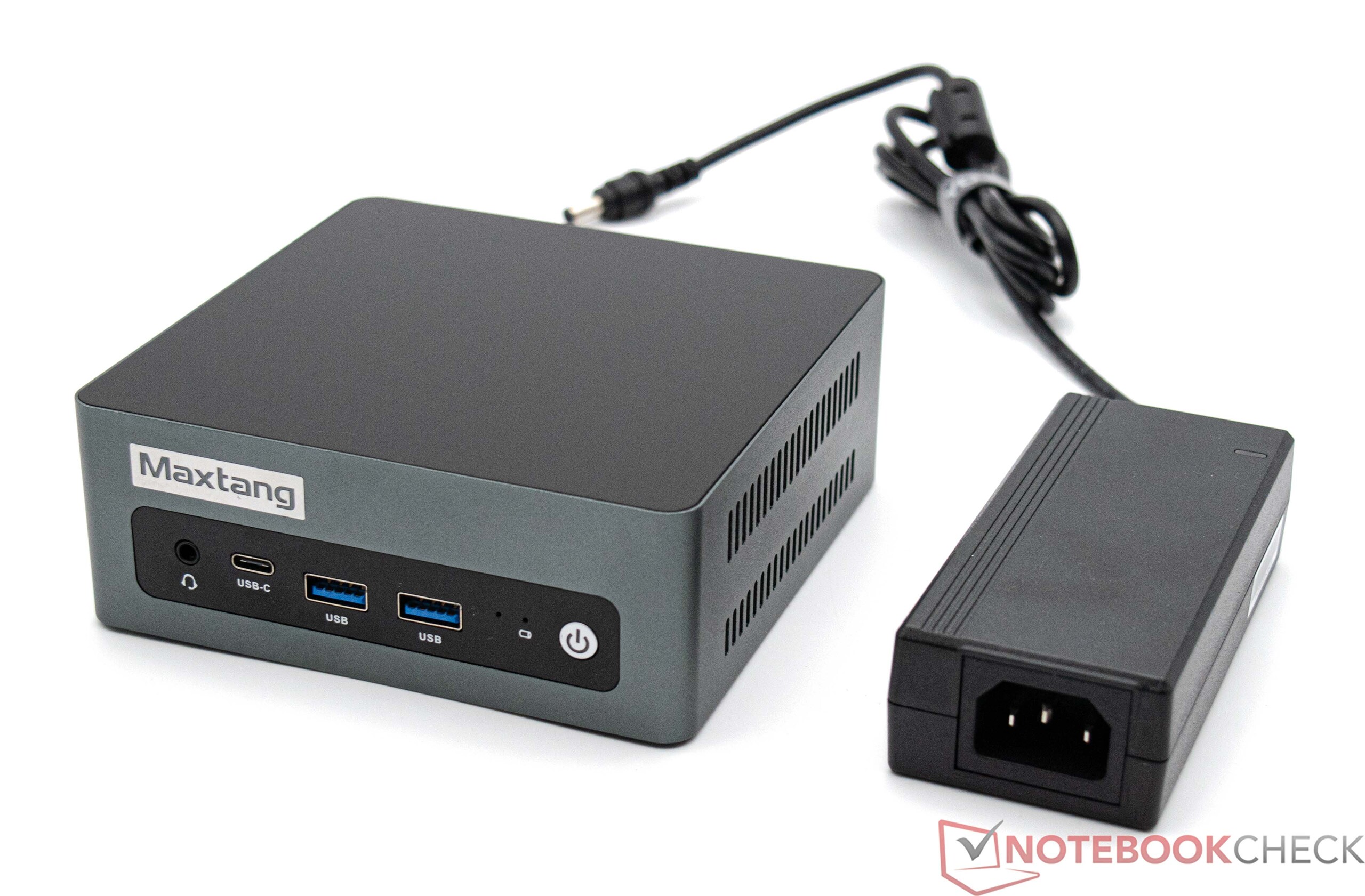

Maxtang MTN-ALN50 的交付范围包括操作所需的一切。除设备本身外，包装盒内还包括 60 瓦电源装置（12 V；5 A）和用于 VESA 安装的安装板。此外，还随附一条 HDMI 电缆和一份快速入门指南。

维护

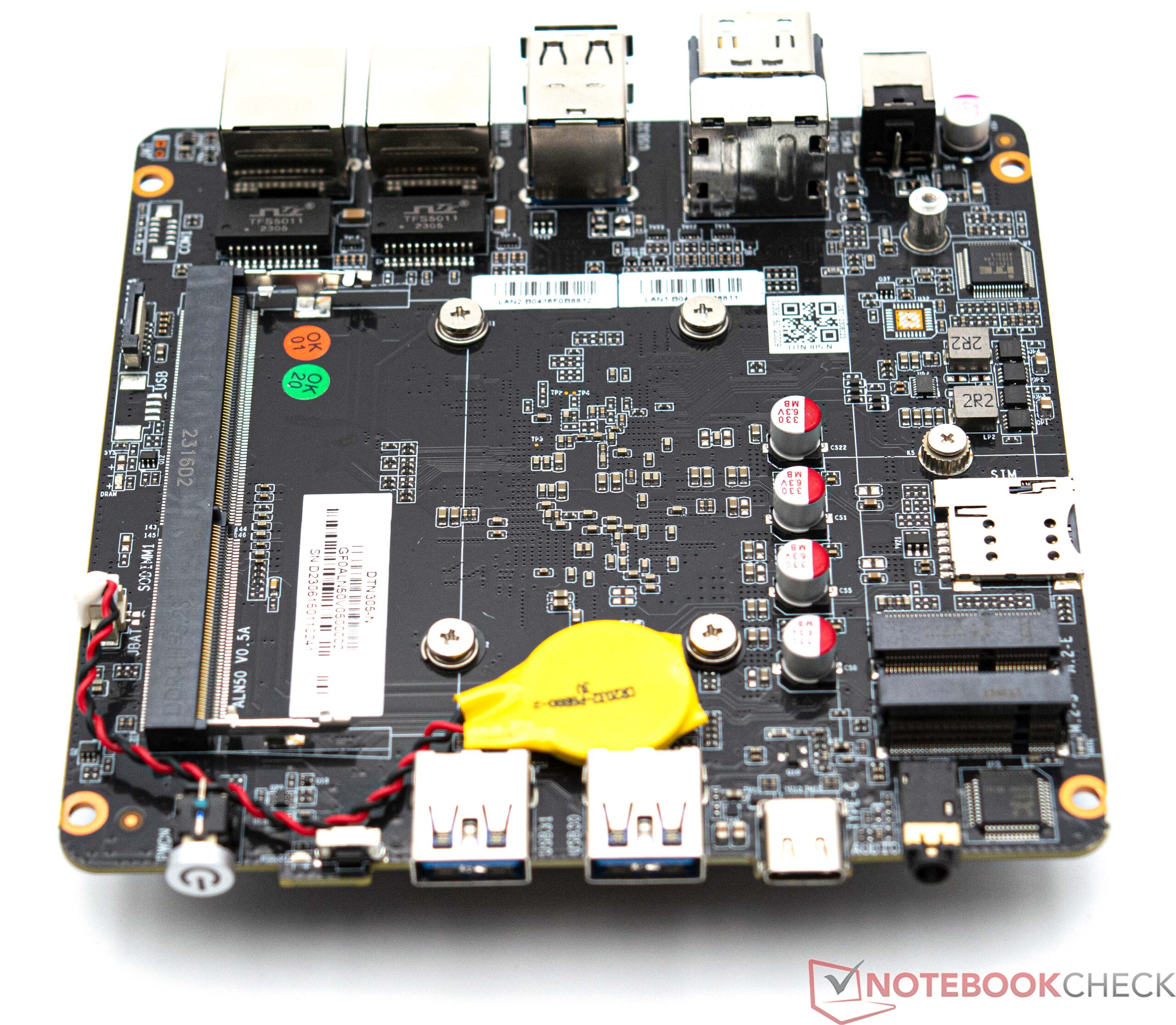

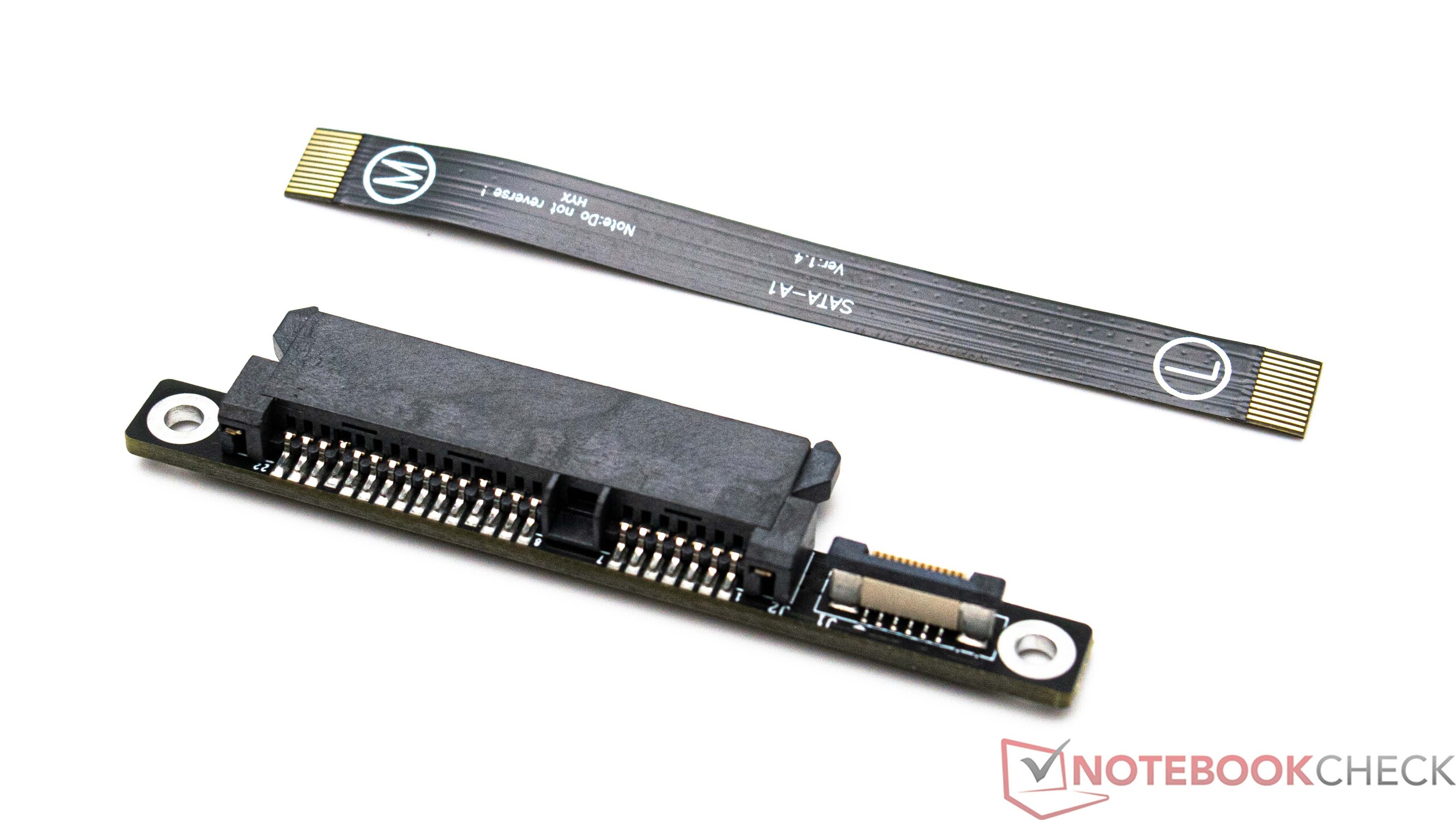

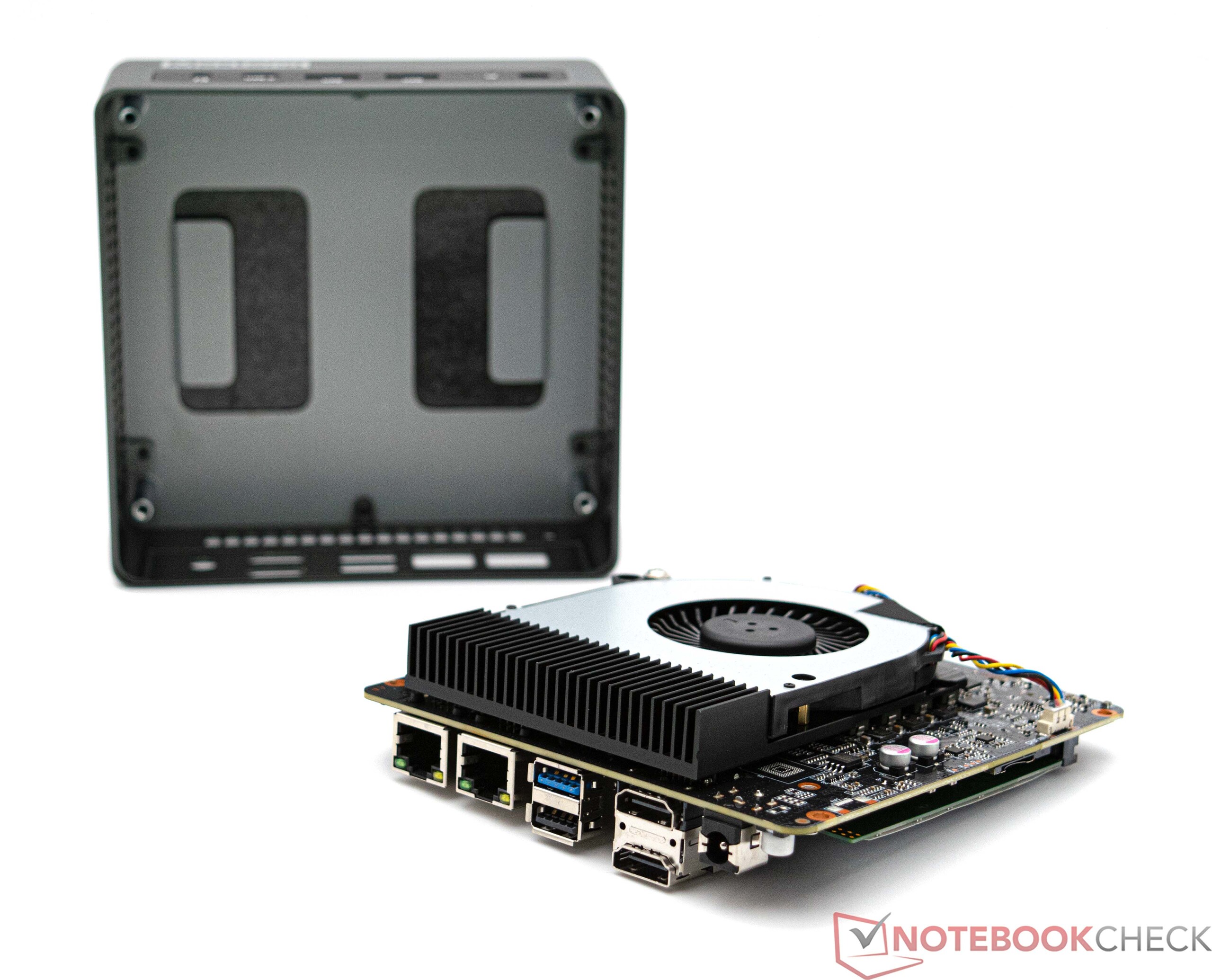

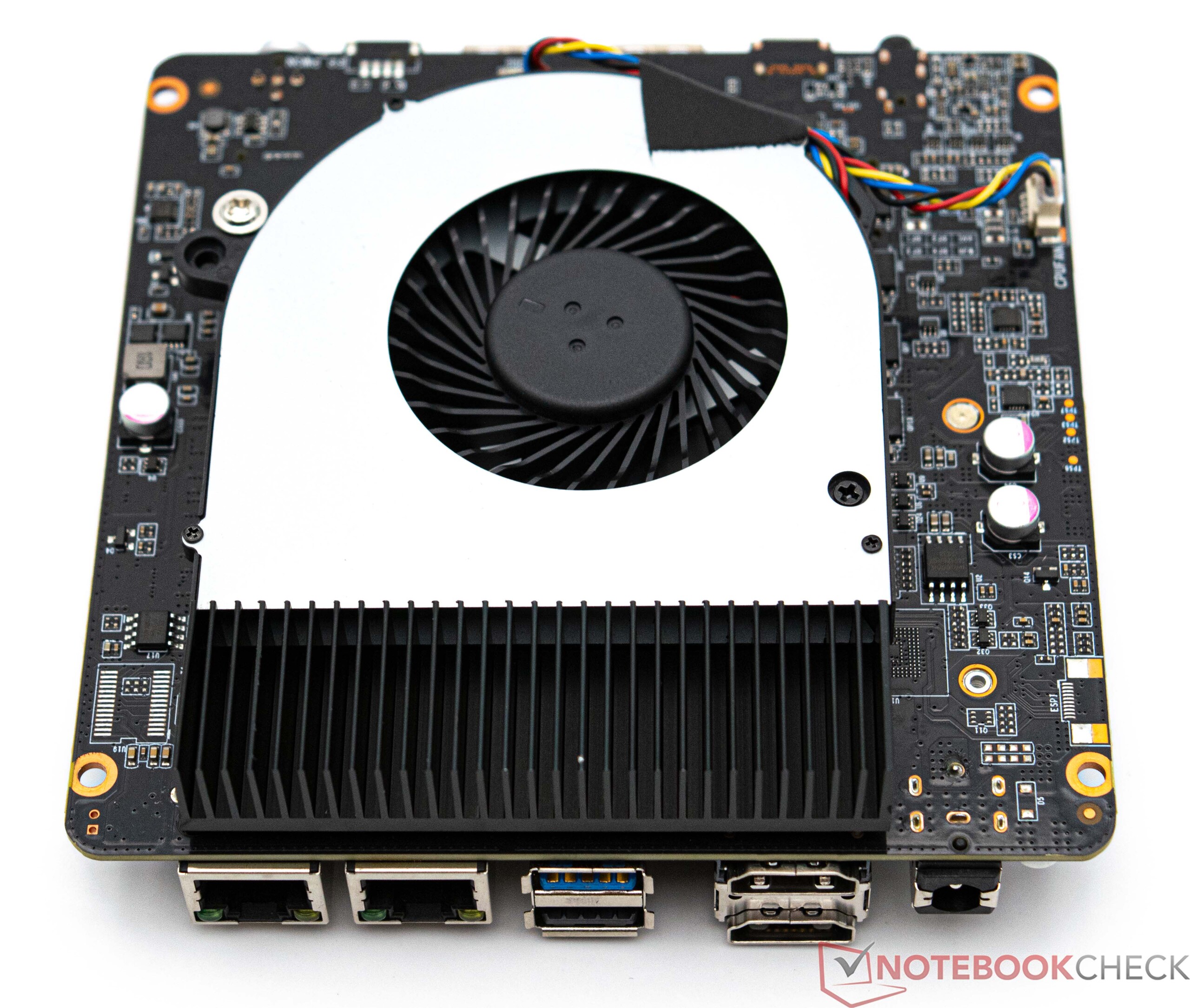

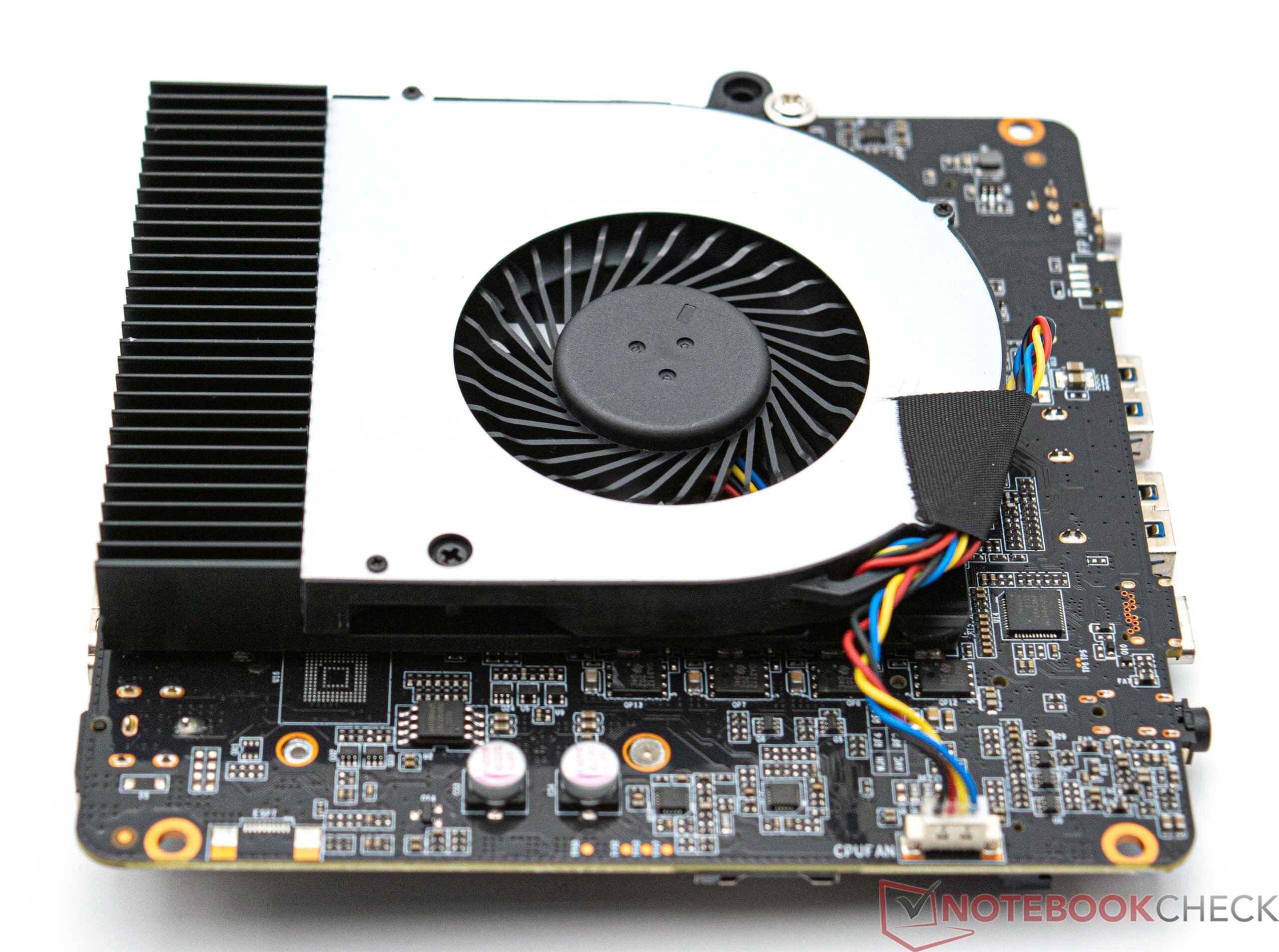

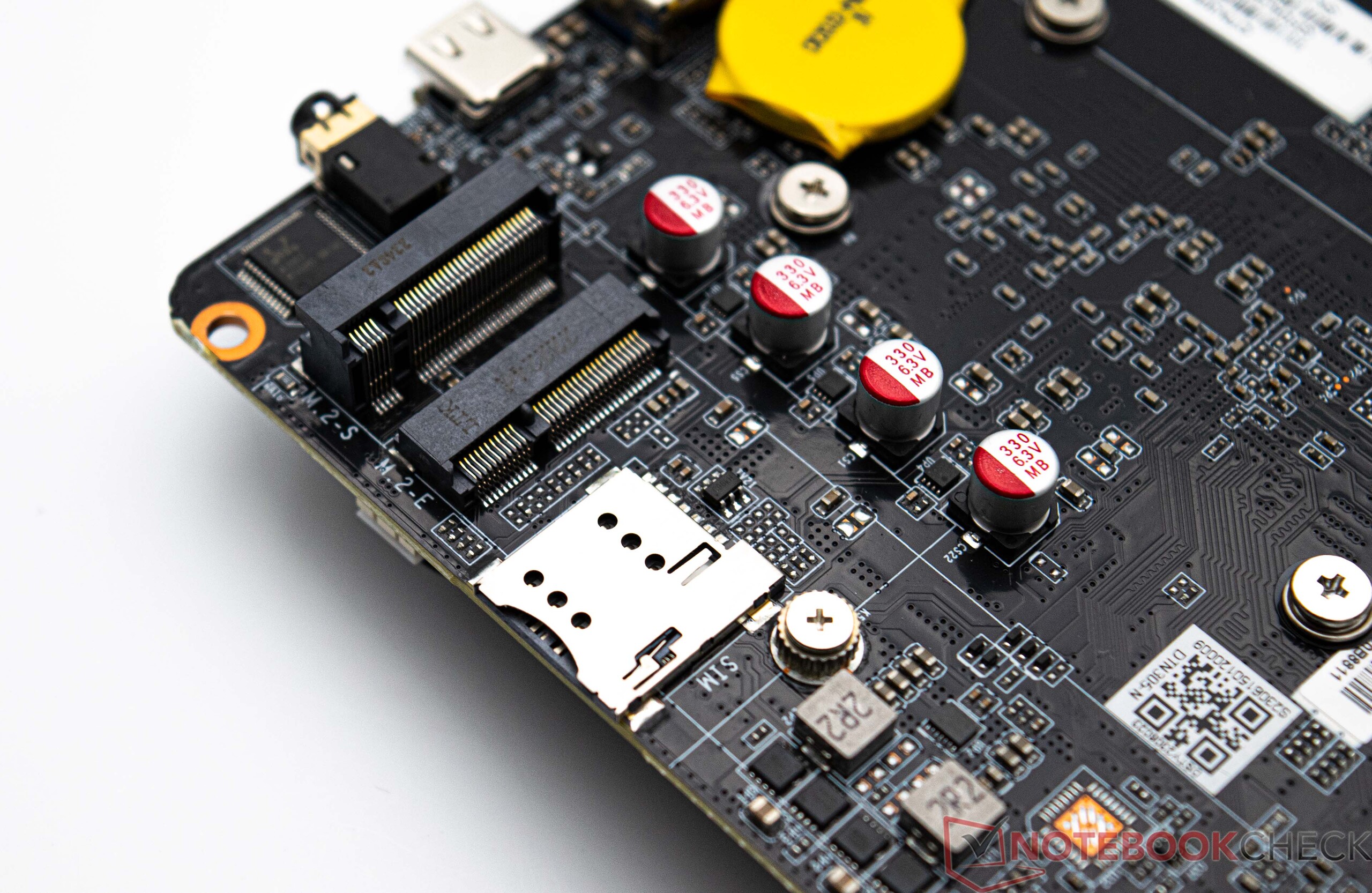

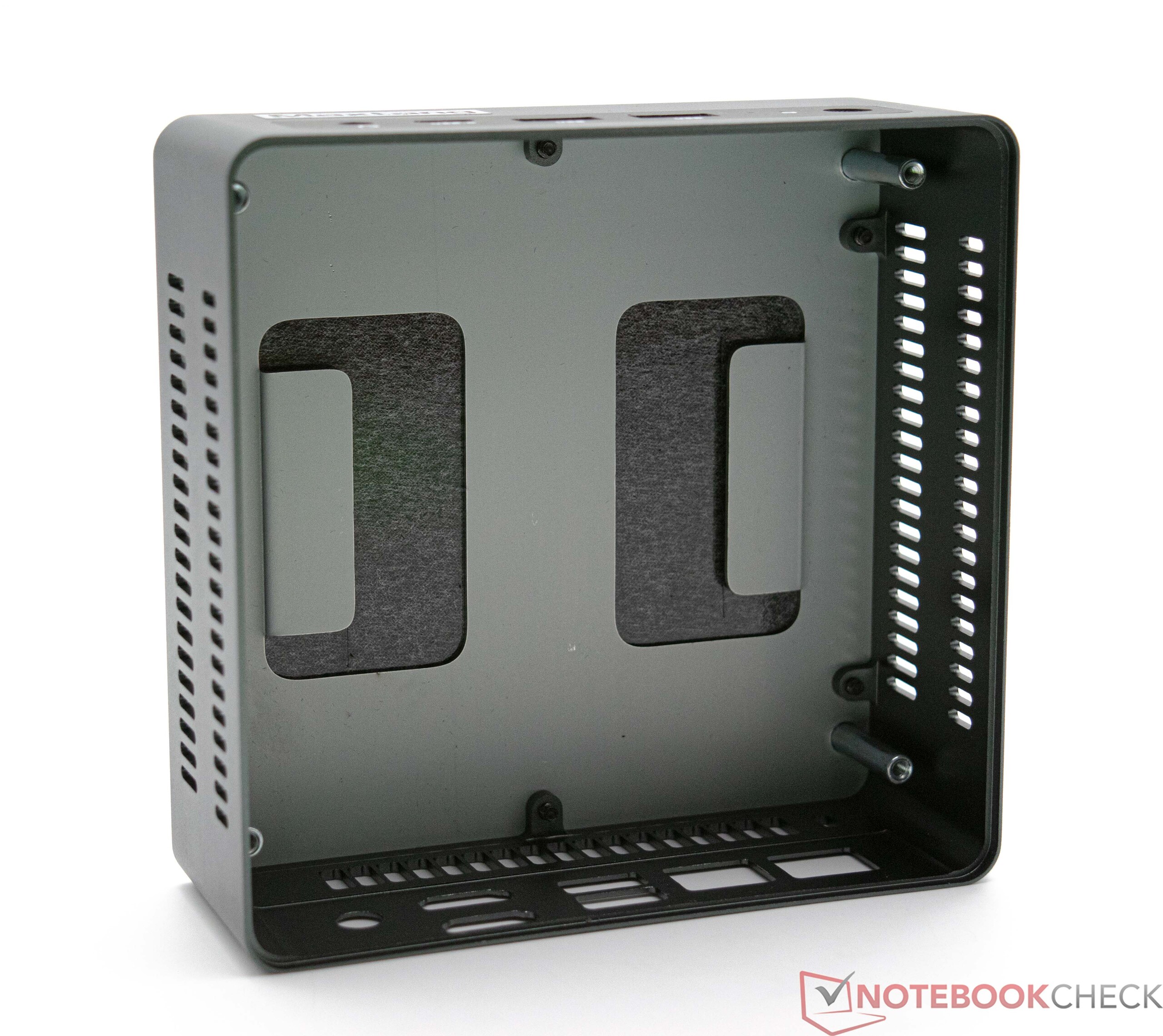

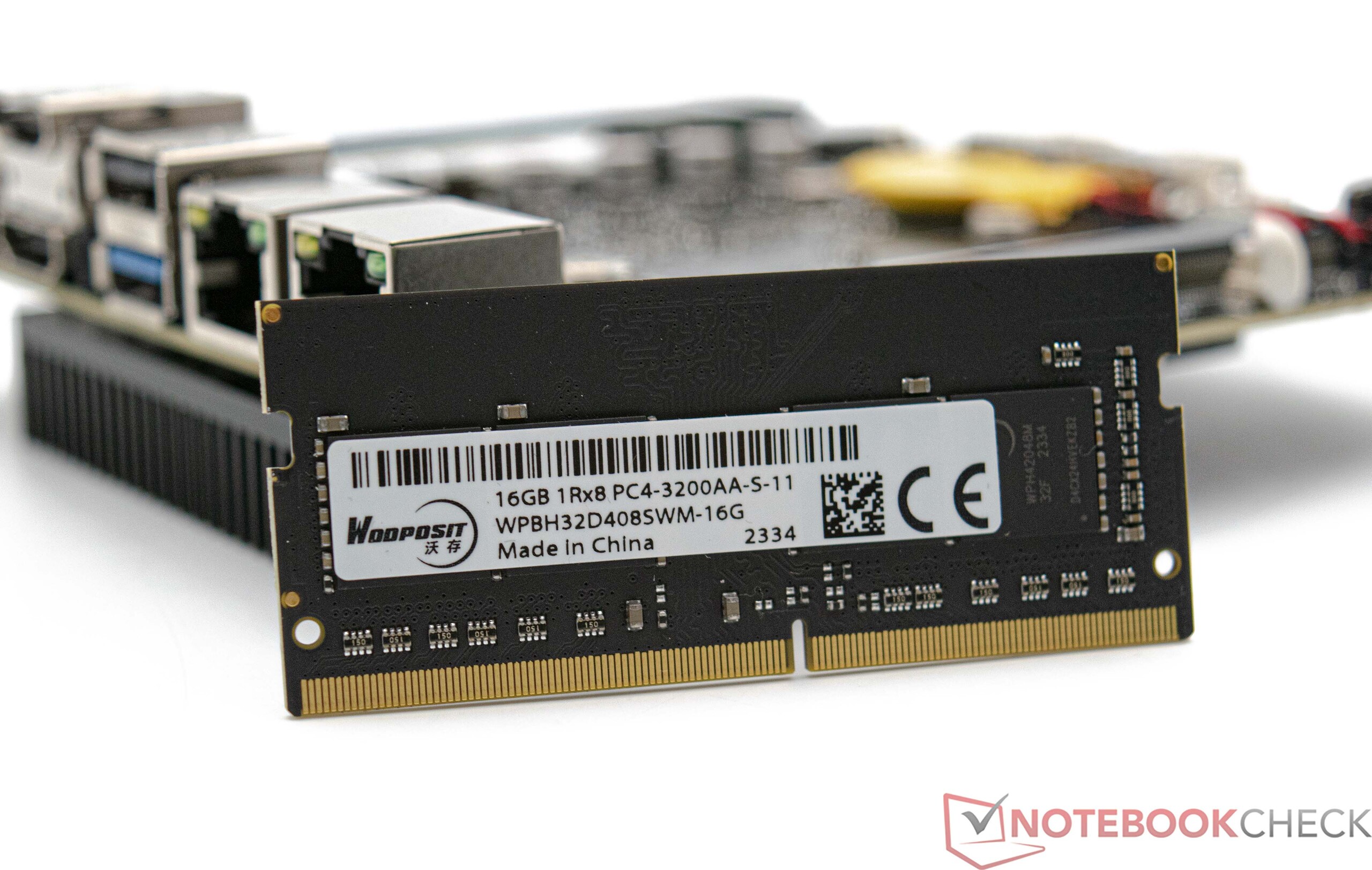

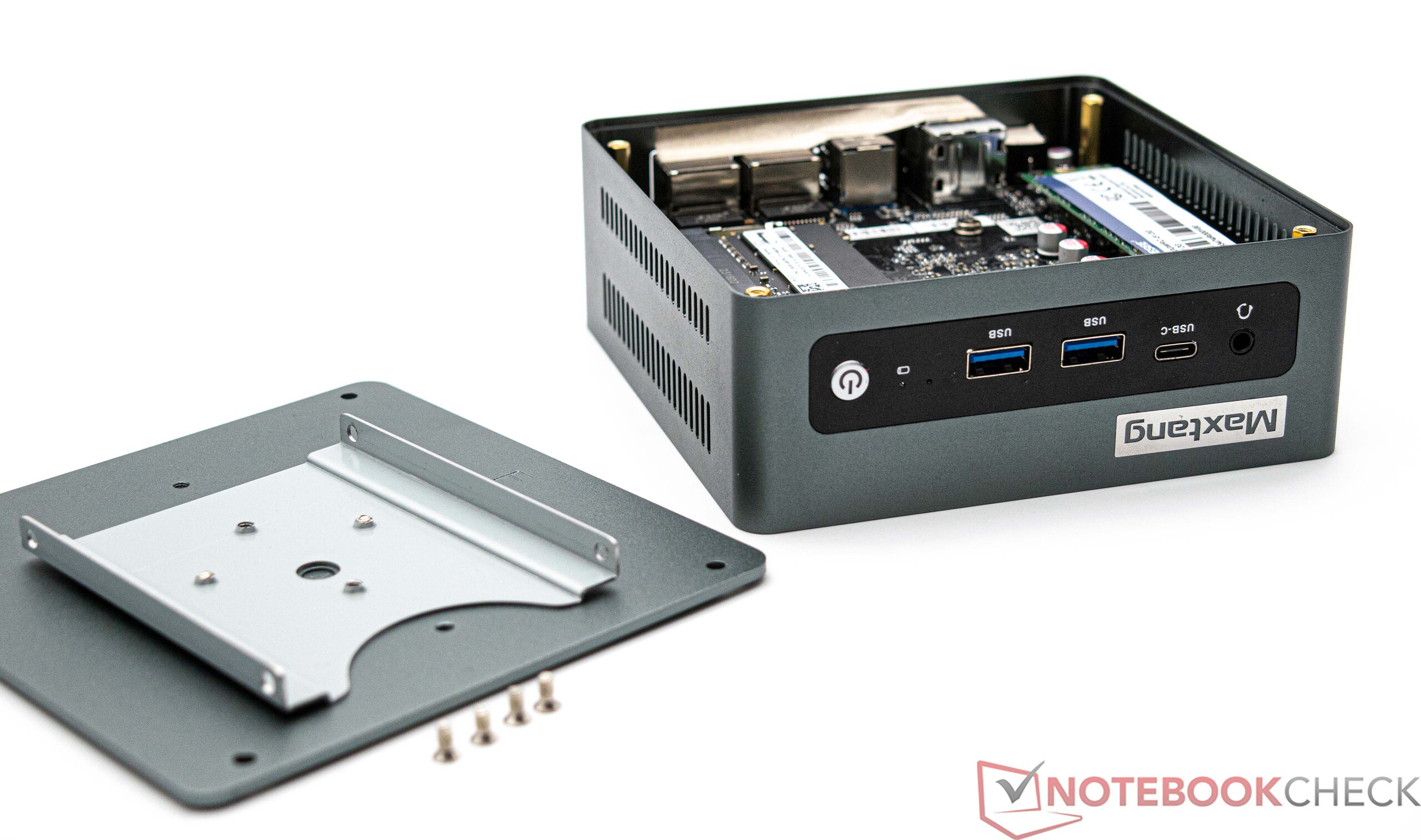

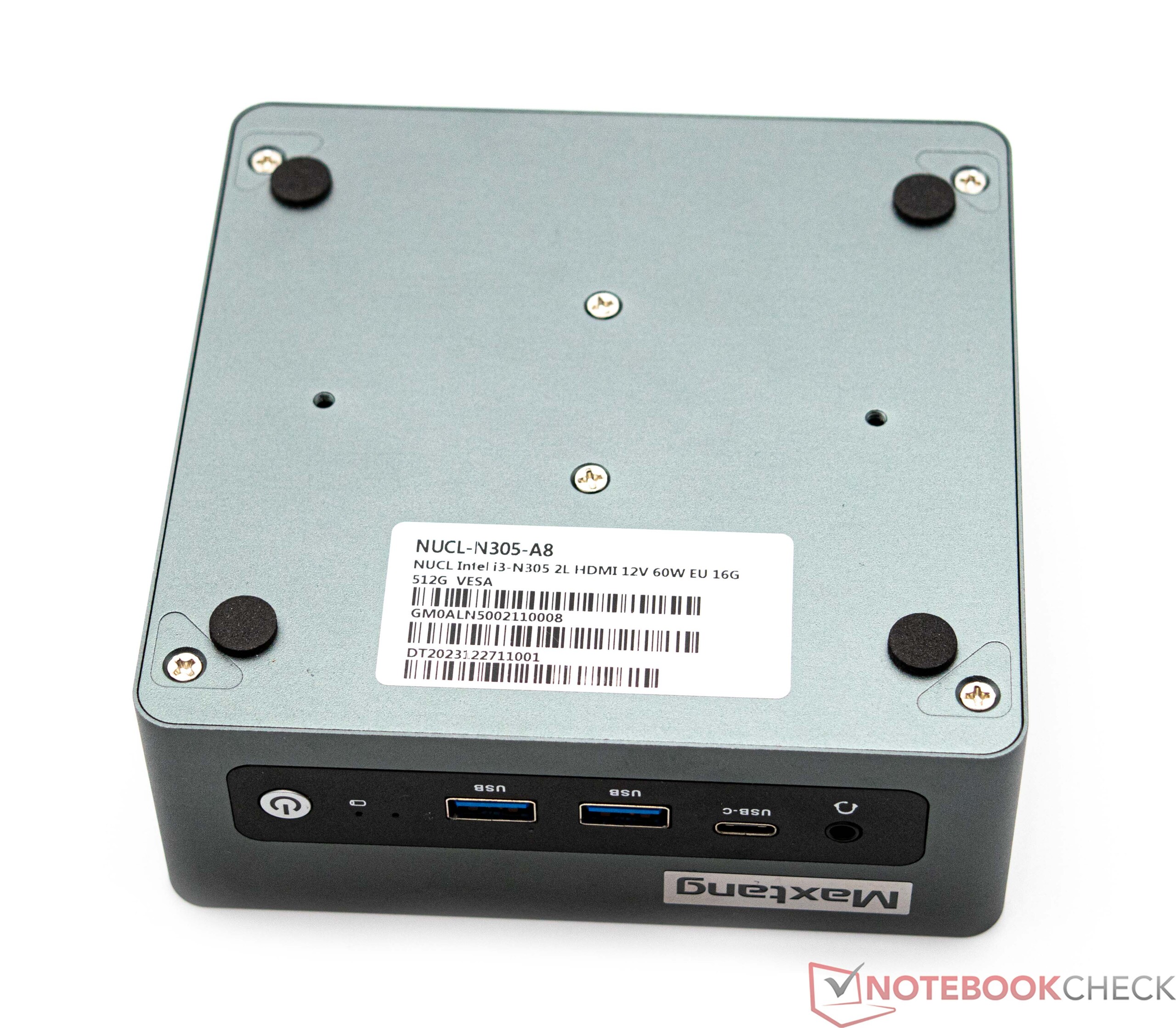

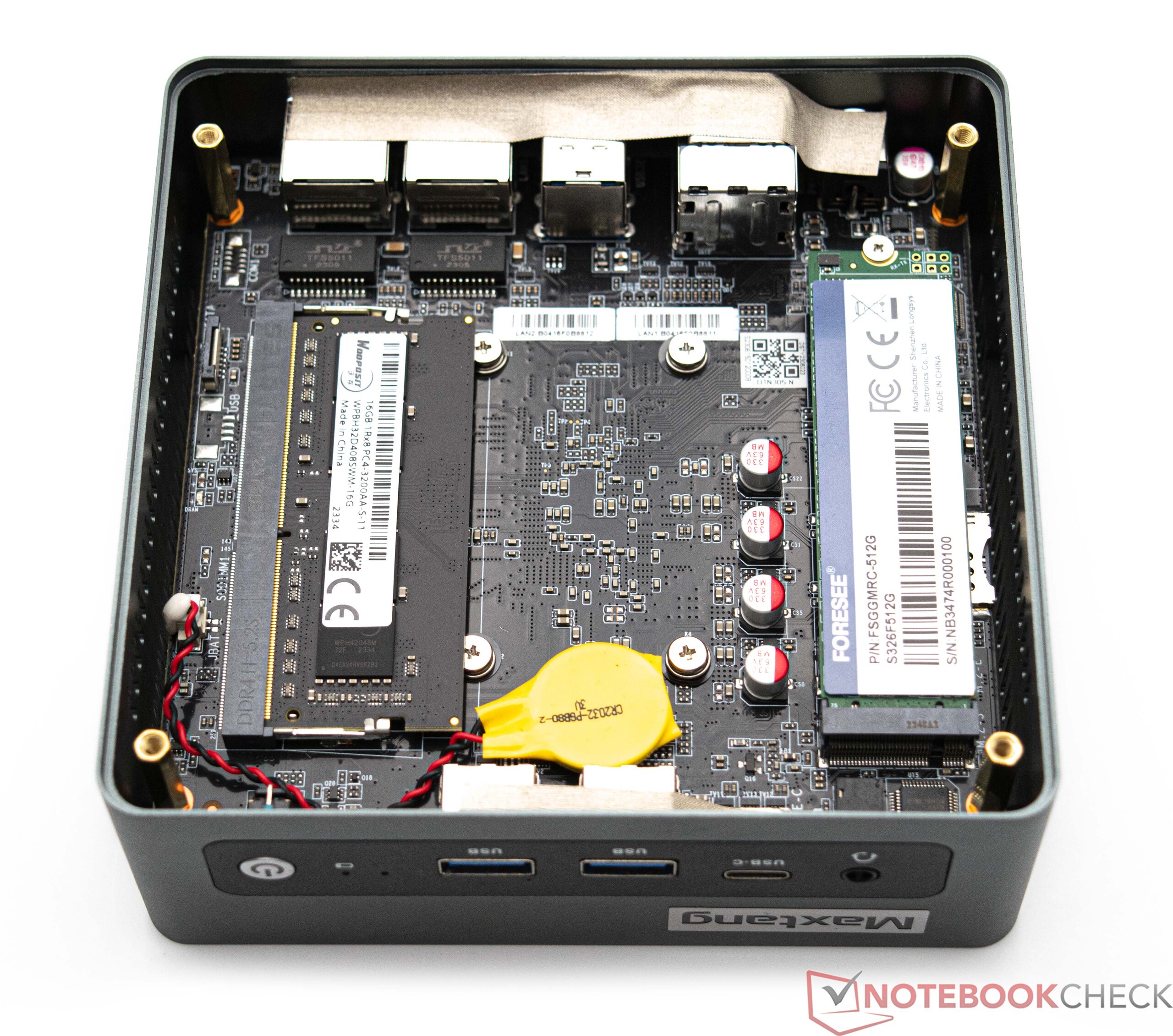

打开 Maxtang MTN-ALN50 的过程非常简单。底部有四颗螺丝将底板固定在机箱上。底板还可作为额外的 2.5 英寸数据载体的安装托盘。预装的内存和 M.2 固态硬盘也可以轻松取用。总体而言，Maxtang MTN-ALN50 的设计非常简洁，进一步拆卸也不成问题。

性能 - 英特尔酷睿 i3-N305 8 核心

微型电脑配备英特尔酷睿 i3-N305 - 这是一款经济型 SoC，可提供八个物理计算内核。处理器的功耗限制在 15 至 35 瓦之间。该 SoC 由 16 GB DDR4 内存支持，以 SO-DIMM 模块的形式安装。Maxtang MTN-ALN50 总共可配备多达 32 GB 的内存。不过，只能安装一个内存模块。英特尔酷睿 i3-N305 不支持双通道模式。固态硬盘为 512 GB 存储空间的型号，工作速度为 SATA，适合简单的办公使用。

测试条件

我们使用最高性能能耗曲线进行了所有性能测试。其他节能方案仅用于能耗测量和噪音测量。有关测试标准的更多详情，请点击这里.

处理器

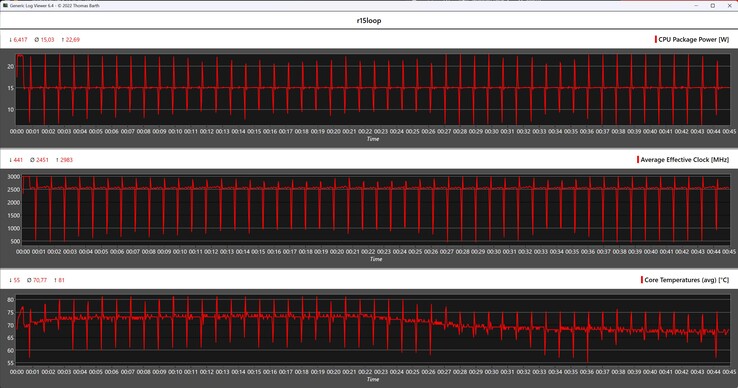

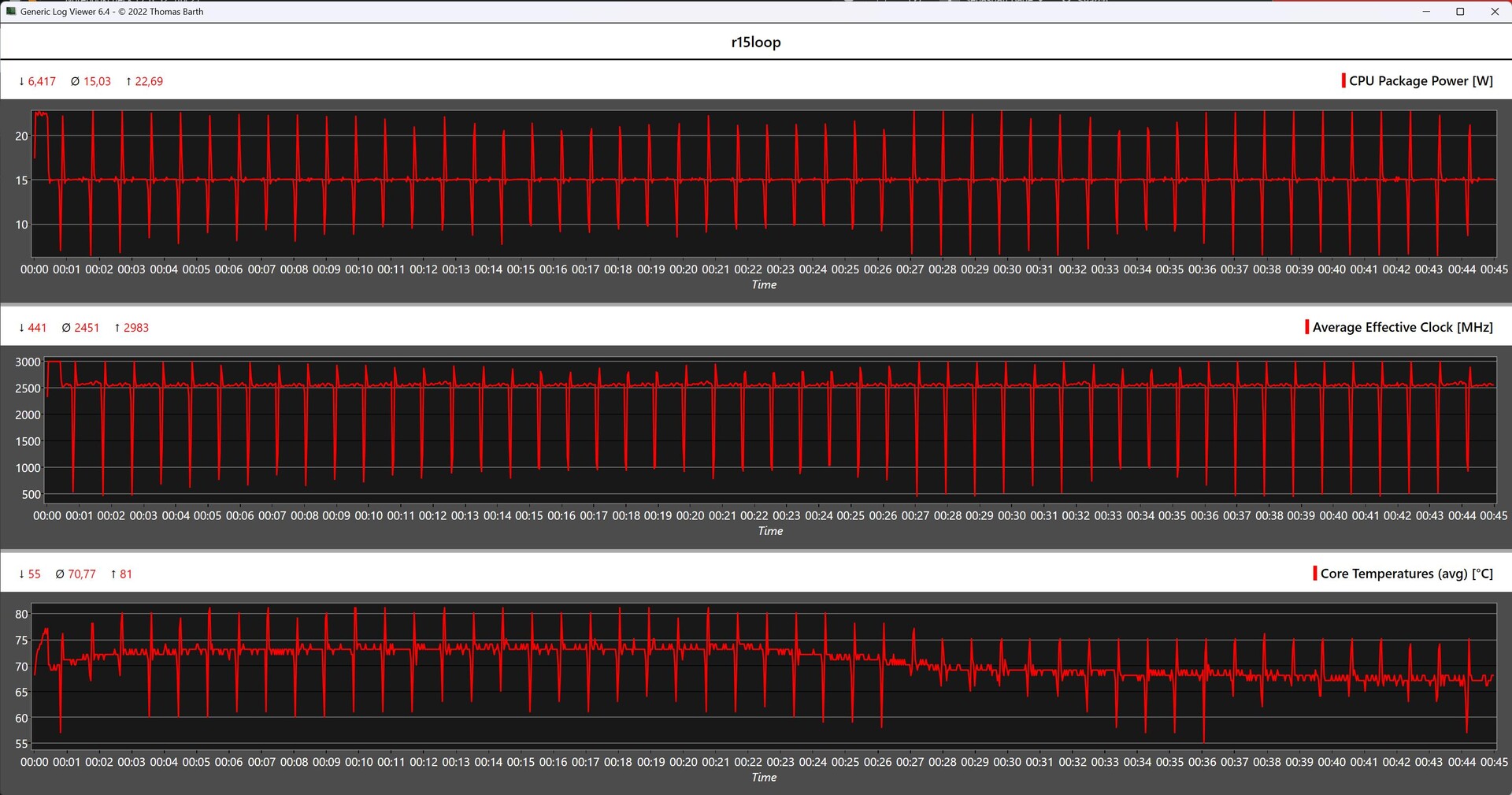

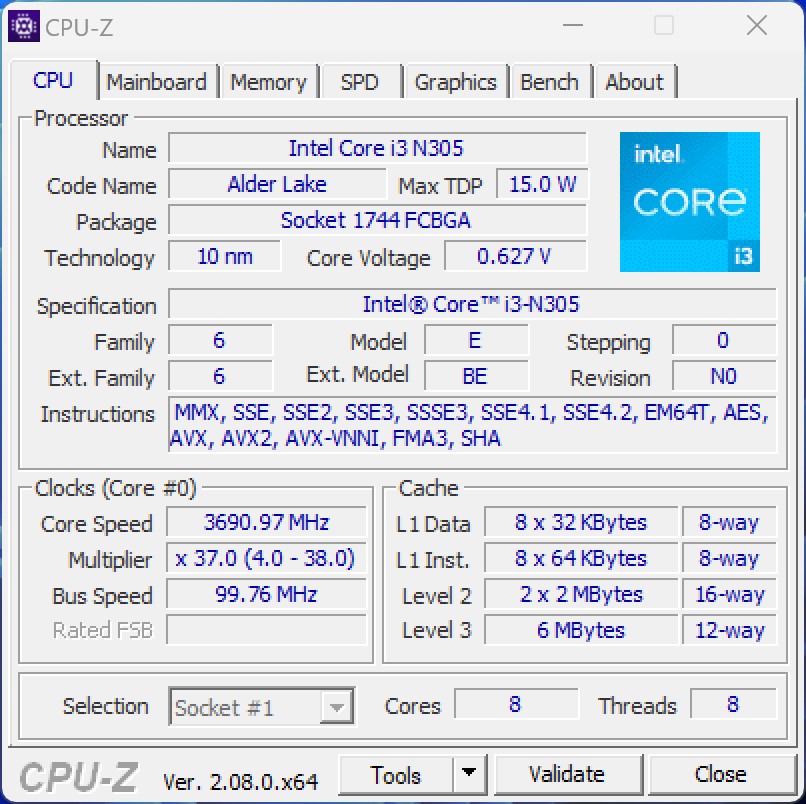

英特尔英特尔酷睿 i3-N305为 Maxtang MTN-ALN50 提供了必要的工作速度。凭借 8 个内核，该 SoC 明显优于竞争对手。即使与众泰 Zbox pico PI430AJ相比，我们的测试样品由于 TDP 限制较高，也能轻松应对。在连续负载情况下，铭瑄 MTN-ALN50 中的英特尔酷睿 i3-N305 可用功率最多为 15 瓦，不过短期内也有可能达到 35 瓦。在测试过程中，我们也可以多次看到这些限制，这说明内置散热系统的尺寸很合理。
，您可以在这里找到更多有关处理器的基准测试。这里.

Performance Rating - Percent
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	38 pt
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	31.1 pt
Trigkey G4 Intel Processor N100, 1000 MHz	27.6 pt
Blackview MP80 Intel Processor N95, MHz	27 pt
BOSGAME N95 Intel Processor N95, MHz	27 pt
Acemagic S1 Intel Processor N95, MHz	26.8 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	24.1 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	22.4 pt
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	20.9 pt

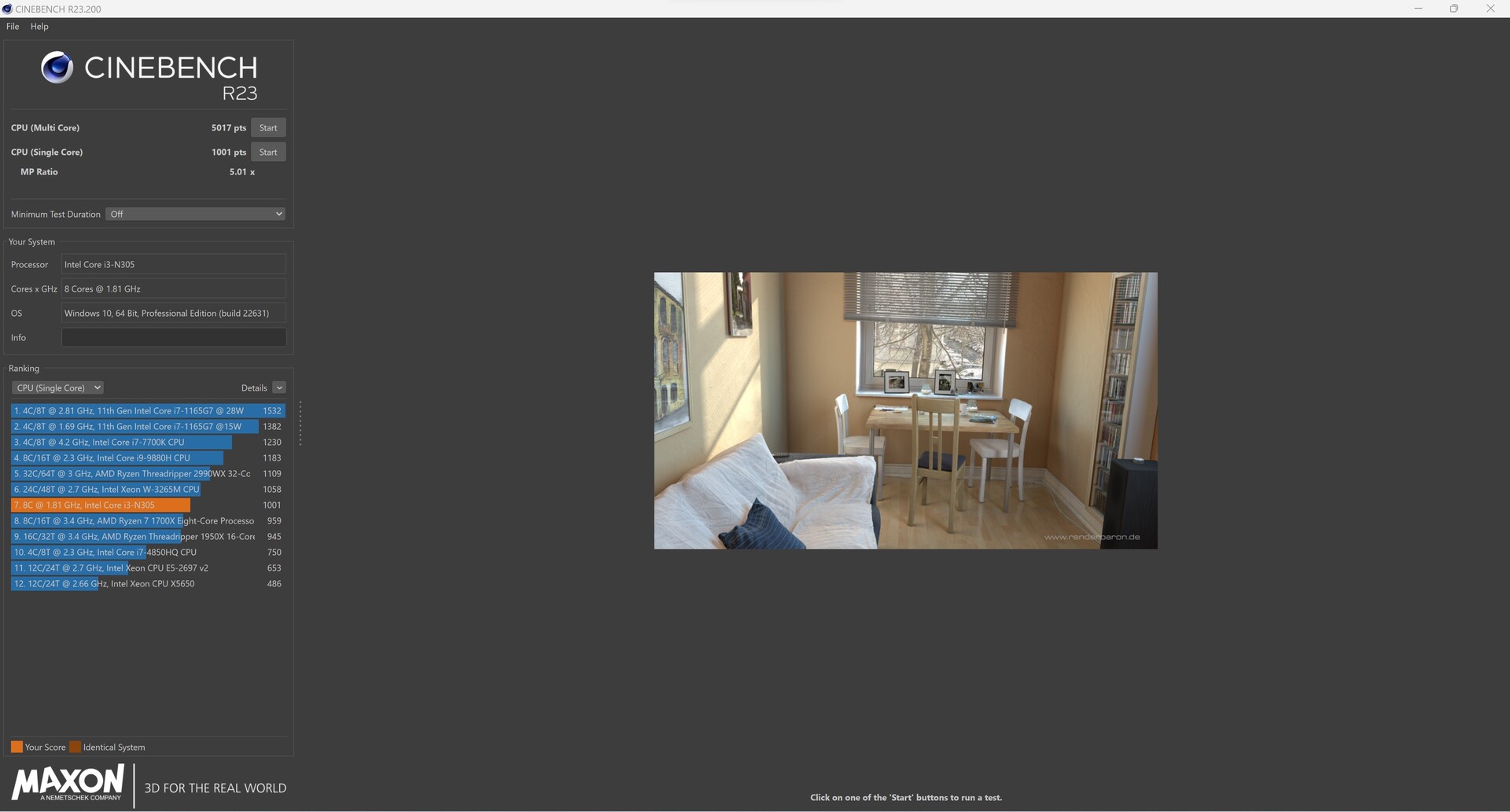

Cinebench R23
Single Core
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	1581 Points +58%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	1001 Points
Trigkey G4 Intel Processor N100, 1000 MHz	942 Points -6%
BOSGAME N95 Intel Processor N95, MHz	935 Points -7%
Acemagic S1 Intel Processor N95, MHz	933 Points -7%
Blackview MP80 Intel Processor N95, MHz	914 Points -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	700 Points -30%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	690 Points -31%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	513 Points -49%
Multi Core
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	5802 Points +16%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	5017 Points
Trigkey G4 Intel Processor N100, 1000 MHz	2983 Points -41%
BOSGAME N95 Intel Processor N95, MHz	2785 Points -44%
Acemagic S1 Intel Processor N95, MHz	2769 Points -45%
Blackview MP80 Intel Processor N95, MHz	2686 Points -46%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2546 Points -49%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2528 Points -50%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1406 Points -72%

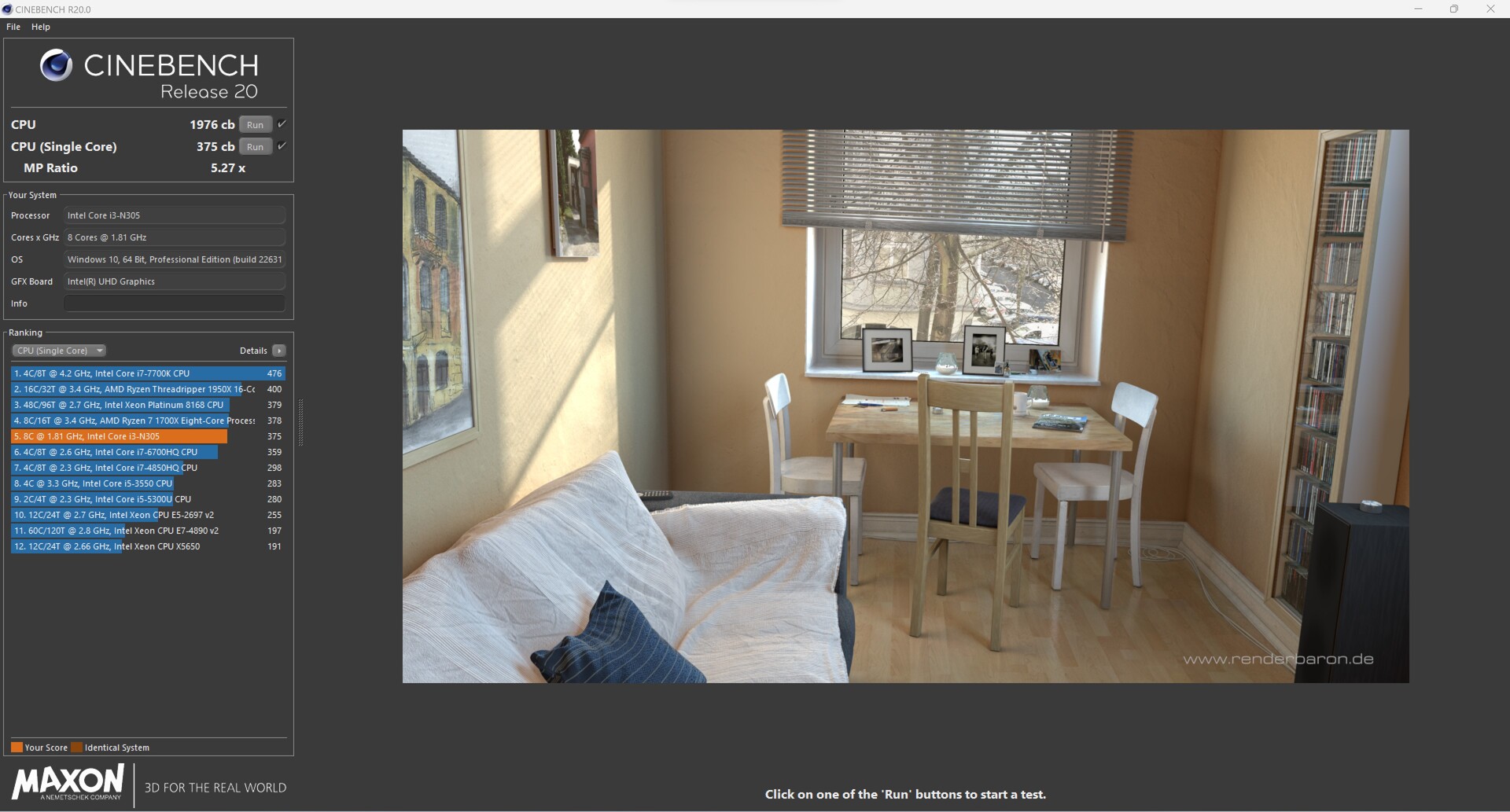

Cinebench R20
CPU (Single Core)
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	606 Points +62%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	375 Points
Trigkey G4 Intel Processor N100, 1000 MHz	358 Points -5%
BOSGAME N95 Intel Processor N95, MHz	357 Points -5%
Acemagic S1 Intel Processor N95, MHz	357 Points -5%
Blackview MP80 Intel Processor N95, MHz	350 Points -7%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	265 Points -29%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points -36%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	195 Points -48%
CPU (Multi Core)
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	2198 Points +11%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	1976 Points
Trigkey G4 Intel Processor N100, 1000 MHz	1138 Points -42%
BOSGAME N95 Intel Processor N95, MHz	1067 Points -46%
Acemagic S1 Intel Processor N95, MHz	1050 Points -47%
Blackview MP80 Intel Processor N95, MHz	1029 Points -48%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points -51%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	968 Points -51%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	542 Points -73%

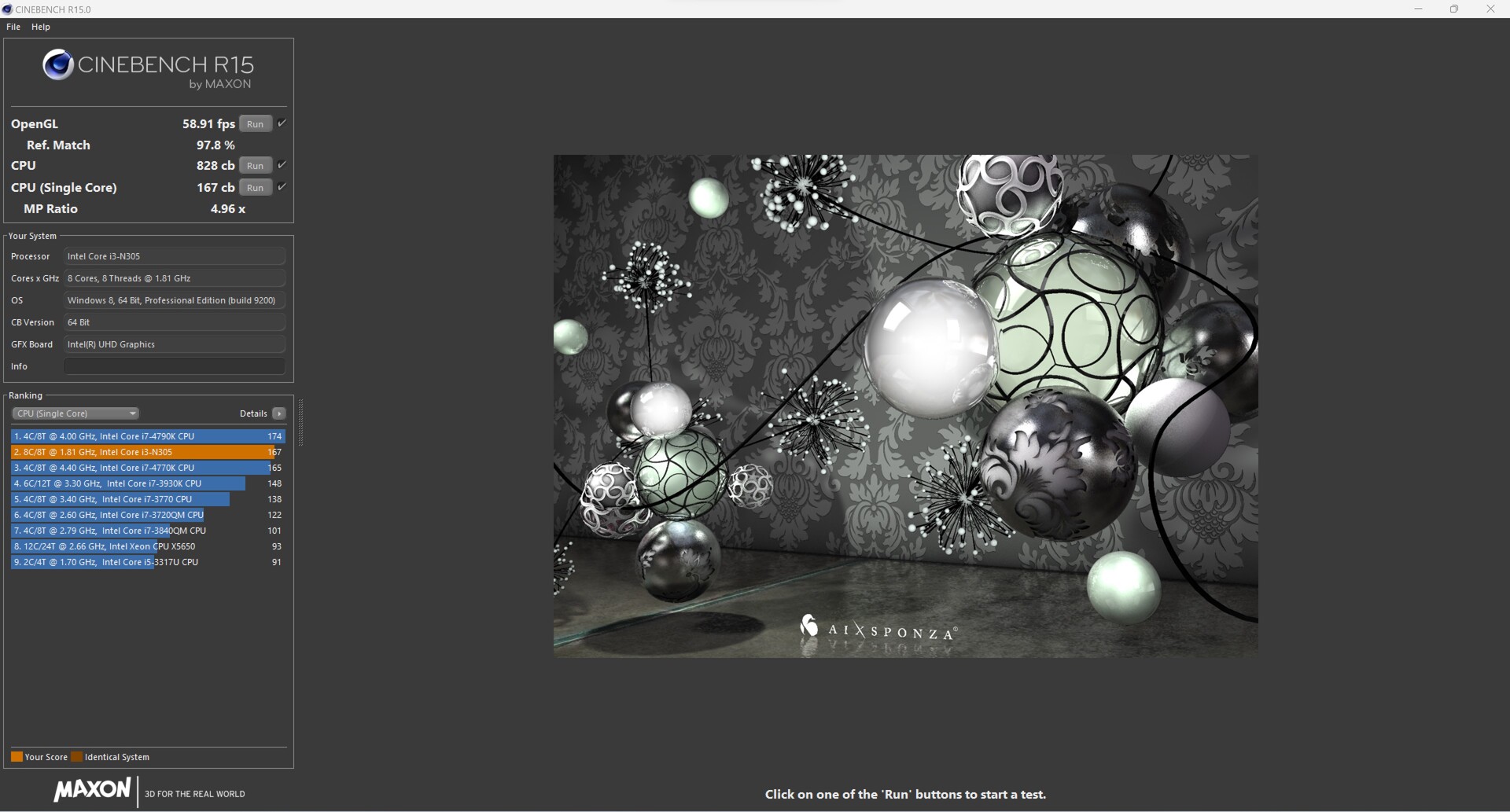

Cinebench R15
CPU Single 64Bit
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	227 Points +36%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	167 Points
BOSGAME N95 Intel Processor N95, MHz	155 Points -7%
Trigkey G4 Intel Processor N100, 1000 MHz	155 Points -7%
Acemagic S1 Intel Processor N95, MHz	154 Points -8%
Blackview MP80 Intel Processor N95, MHz	151 Points -10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points -26%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	113 Points -32%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	85 Points -49%
CPU Multi 64Bit
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	832 (719.93^min - 831.53^max) Points 0%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	828 Points
Trigkey G4 Intel Processor N100, 1000 MHz	477 Points -42%
BOSGAME N95 Intel Processor N95, MHz	452 Points -45%
Acemagic S1 Intel Processor N95, MHz	446 Points -46%
Blackview MP80 Intel Processor N95, MHz	434 Points -48%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	416 Points -50%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points -51%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	219 Points -74%

Cinebench R11.5
CPU Single 64Bit
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	2.79 Points +37%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	2.04 Points
Trigkey G4 Intel Processor N100, 1000 MHz	1.87 Points -8%
BOSGAME N95 Intel Processor N95, MHz	1.86 Points -9%
Acemagic S1 Intel Processor N95, MHz	1.85 Points -9%
Blackview MP80 Intel Processor N95, MHz	1.83 Points -10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points -27%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1.36 Points -33%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	1.02 Points -50%
CPU Multi 64Bit
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	10.99 Points +4%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	10.6 Points
Trigkey G4 Intel Processor N100, 1000 MHz	5.99 Points -43%
BOSGAME N95 Intel Processor N95, MHz	5.62 Points -47%
Acemagic S1 Intel Processor N95, MHz	5.55 Points -48%
Blackview MP80 Intel Processor N95, MHz	5.41 Points -49%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	5.32 Points -50%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points -51%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	2.73 Points -74%

Cinebench R10
Rendering Single CPUs 64Bit
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	12816 Points +46%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	8768 Points
Trigkey G4 Intel Processor N100, 1000 MHz	8227 Points -6%
Acemagic S1 Intel Processor N95, MHz	8177 Points -7%
Blackview MP80 Intel Processor N95, MHz	8080 Points -8%
BOSGAME N95 Intel Processor N95, MHz	7574 Points -14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points -25%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	5971 Points -32%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	4497 Points -49%
Rendering Multiple CPUs 64Bit
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	40308 Points +3%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	39133 Points
Trigkey G4 Intel Processor N100, 1000 MHz	24225 Points -38%
BOSGAME N95 Intel Processor N95, MHz	22275 Points -43%
Acemagic S1 Intel Processor N95, MHz	22261 Points -43%
Blackview MP80 Intel Processor N95, MHz	20565 Points -47%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points -48%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	18450 Points -53%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	11030 Points -72%

wPrime 2.10
32m
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	25.99 s * -219%
BOSGAME N95 Intel Processor N95, MHz	18.213 s * -124%
Blackview MP80 Intel Processor N95, MHz	17.521 s * -115%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	17.491 s * -115%
Acemagic S1 Intel Processor N95, MHz	16.565 s * -103%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * -102%
Trigkey G4 Intel Processor N100, 1000 MHz	15.795 s * -94%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	8.142 s *
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	3.405 s * +58%
1024m
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	874.559 s * -255%
BOSGAME N95 Intel Processor N95, MHz	568.939 s * -131%
Blackview MP80 Intel Processor N95, MHz	538.757 s * -119%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * -118%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	531.113 s * -116%
Acemagic S1 Intel Processor N95, MHz	519.662 s * -111%
Trigkey G4 Intel Processor N100, 1000 MHz	481.652 s * -96%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	246.308 s *
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	98.307 s * +60%

X264 HD Benchmark 4.0
Pass 1
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	203.5 (203^min - 212^max) fps
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	199.3 (185.2^min - 248^max) fps -2%
Trigkey G4 Intel Processor N100, 1000 MHz	172.55 (171.6^min - 175.2^max) fps -15%
Blackview MP80 Intel Processor N95, MHz	163.3 (162.1^min - 163.7^max) fps -20%
BOSGAME N95 Intel Processor N95, MHz	162.4 (161.9^min - 162.4^max) fps -20%
Acemagic S1 Intel Processor N95, MHz	161.9 (158.9^min - 162.5^max) fps -20%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps -29%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	106.6 (106^min - 107.2^max) fps -48%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	79.95 (79^min - 109.2^max) fps -61%
Pass 2
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	55.6 (55.4^min - 64^max) fps
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	50.05 (48.1^min - 56.3^max) fps -10%
Trigkey G4 Intel Processor N100, 1000 MHz	33.85 (33.7^min - 35^max) fps -39%
BOSGAME N95 Intel Processor N95, MHz	32.45 (32.4^min - 32.5^max) fps -42%
Blackview MP80 Intel Processor N95, MHz	32.4 (32.4^min - 32.4^max) fps -42%
Acemagic S1 Intel Processor N95, MHz	32.4 (32.4^min - 32.5^max) fps -42%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps -47%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	28.85 (28.2^min - 29.1^max) fps -48%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	16.3 (16.2^min - 16.4^max) fps -71%

WinRAR - Result
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	7944 KB/s +141%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	3300 KB/s
Trigkey G4 Intel Processor N100, 1000 MHz	2431 KB/s -26%
Acemagic S1 Intel Processor N95, MHz	2391 KB/s -28%
BOSGAME N95 Intel Processor N95, MHz	2362 KB/s -28%
Blackview MP80 Intel Processor N95, MHz	2277 KB/s -31%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s -34%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	2115 KB/s -36%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	1915 KB/s -42%

TrueCrypt
AES Mean 100MB
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	11.6 GB/s +97%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	5.9 GB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	3.2 GB/s -46%
Trigkey G4 Intel Processor N100, 1000 MHz	2.9 GB/s -51%
Blackview MP80 Intel Processor N95, MHz	2.8 GB/s -53%
BOSGAME N95 Intel Processor N95, MHz	2.7 GB/s -54%
Acemagic S1 Intel Processor N95, MHz	2.7 GB/s -54%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2.6 GB/s -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s -59%
Twofish Mean 100MB
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	1.7 GB/s +55%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	1.1 GB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	0.583 GB/s -47%
Trigkey G4 Intel Processor N100, 1000 MHz	0.538 GB/s -51%
Blackview MP80 Intel Processor N95, MHz	0.501 GB/s -54%
Acemagic S1 Intel Processor N95, MHz	0.498 GB/s -55%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s -55%
BOSGAME N95 Intel Processor N95, MHz	0.492 GB/s -55%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	0.484 GB/s -56%
Serpent Mean 100MB
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	1.1 GB/s +104%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	0.539 GB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	0.287 GB/s -47%
Trigkey G4 Intel Processor N100, 1000 MHz	0.262 GB/s -51%
Blackview MP80 Intel Processor N95, MHz	0.244 GB/s -55%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s -55%
BOSGAME N95 Intel Processor N95, MHz	0.239 GB/s -56%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	0.237 GB/s -56%
Acemagic S1 Intel Processor N95, MHz	0.236 GB/s -56%

Geekbench 5.5
Multi-Core
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	6015 Points +30%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	4644 Points
Trigkey G4 Intel Processor N100, 1000 MHz	2796 Points -40%
Blackview MP80 Intel Processor N95, MHz	2793 Points -40%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2674 Points -42%
BOSGAME N95 Intel Processor N95, MHz	2616 Points -44%
Acemagic S1 Intel Processor N95, MHz	2566 Points -45%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points -49%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1540 Points -67%
Single-Core
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	1572 Points +45%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	1083 Points
Trigkey G4 Intel Processor N100, 1000 MHz	1014 Points -6%
Blackview MP80 Intel Processor N95, MHz	1013 Points -6%
BOSGAME N95 Intel Processor N95, MHz	1007 Points -7%
Acemagic S1 Intel Processor N95, MHz	999 Points -8%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	928 Points -14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points -26%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	626 Points -42%

Geekbench 5.0
5.0 Multi-Core
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	6005 Points +34%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	4497 Points
Trigkey G4 Intel Processor N100, 1000 MHz	2753 Points -39%
Blackview MP80 Intel Processor N95, MHz	2737 Points -39%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2642 Points -41%
BOSGAME N95 Intel Processor N95, MHz	2585 Points -43%
Acemagic S1 Intel Processor N95, MHz	2531 Points -44%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points -47%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1518 Points -66%
5.0 Single-Core
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	1501 Points +40%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	1072 Points
Trigkey G4 Intel Processor N100, 1000 MHz	1008 Points -6%
Blackview MP80 Intel Processor N95, MHz	1005 Points -6%
BOSGAME N95 Intel Processor N95, MHz	1000 Points -7%
Acemagic S1 Intel Processor N95, MHz	993 Points -7%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	891 Points -17%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points -25%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	616 Points -43%

Geekbench 4.4
64 Bit Single-Core Score
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	6801 Points +42%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	4796 Points
Blackview MP80 Intel Processor N95, MHz	4553 Points -5%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	4552 Points -5%
Trigkey G4 Intel Processor N100, 1000 MHz	4518 Points -6%
BOSGAME N95 Intel Processor N95, MHz	4495 Points -6%
Acemagic S1 Intel Processor N95, MHz	4450 Points -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points -25%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2913 Points -39%
64 Bit Multi-Core Score
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	23138 Points +31%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	17690 Points
Trigkey G4 Intel Processor N100, 1000 MHz	10938 Points -38%
Blackview MP80 Intel Processor N95, MHz	10798 Points -39%
BOSGAME N95 Intel Processor N95, MHz	10299 Points -42%
Acemagic S1 Intel Processor N95, MHz	10228 Points -42%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	9989 Points -44%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	9894 Points -44%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points -45%

3DMark 11 - 1280x720 Performance Physics
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	12041 Points +35%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	8926 Points
Trigkey G4 Intel Processor N100, 1000 MHz	6129 Points -31%
Blackview MP80 Intel Processor N95, MHz	5806 Points -35%
BOSGAME N95 Intel Processor N95, MHz	5767 Points -35%
Acemagic S1 Intel Processor N95, MHz	5661 Points -37%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points -43%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	4983 Points -44%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	2765 Points -69%

7-Zip 18.03
7z b 4
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	24893 MIPS +17%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	21239 MIPS
Trigkey G4 Intel Processor N100, 1000 MHz	13255 MIPS -38%
BOSGAME N95 Intel Processor N95, MHz	12224 MIPS -42%
Acemagic S1 Intel Processor N95, MHz	12190 MIPS -43%
Blackview MP80 Intel Processor N95, MHz	12177 MIPS -43%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	11976 MIPS -44%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS -45%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	7146 MIPS -66%
7z b 4 -mmt1
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	4934 MIPS +20%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	4105 MIPS
Trigkey G4 Intel Processor N100, 1000 MHz	3908 MIPS -5%
Acemagic S1 Intel Processor N95, MHz	3866 MIPS -6%
Blackview MP80 Intel Processor N95, MHz	3843 MIPS -6%
BOSGAME N95 Intel Processor N95, MHz	3803 MIPS -7%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	3230 MIPS -21%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS -24%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	2403 MIPS -41%

HWBOT x265 Benchmark v2.2 - 4k Preset
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	5.62 fps
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	5.33 fps -5%
Trigkey G4 Intel Processor N100, 1000 MHz	3.49 fps -38%
Blackview MP80 Intel Processor N95, MHz	3.29 fps -41%
BOSGAME N95 Intel Processor N95, MHz	3.25 fps -42%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	3.22 fps -43%
Acemagic S1 Intel Processor N95, MHz	3.17 fps -44%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps -46%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1.52 fps -73%

R Benchmark 2.5 - Overall mean
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	1.333 sec * -74%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	1.149 sec * -50%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * -35%
Acemagic S1 Intel Processor N95, MHz	0.837 sec * -9%
BOSGAME N95 Intel Processor N95, MHz	0.834 sec * -9%
Blackview MP80 Intel Processor N95, MHz	0.83 sec * -8%
Trigkey G4 Intel Processor N100, 1000 MHz	0.824 sec * -8%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	0.766 sec *
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	0.547 sec * +29%

LibreOffice - 20 Documents To PDF
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	134 s * -72%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	120 s * -54%
Acemagic S1 Intel Processor N95, MHz	89.3 s * -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * -3%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	77.9 s *
BOSGAME N95 Intel Processor N95, MHz	74.6 s * +4%
Blackview MP80 Intel Processor N95, MHz	68.3 s * +12%
Trigkey G4 Intel Processor N100, 1000 MHz	67 s * +14%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	53.7 s * +31%

WebXPRT 3 - Overall
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	256 Points +34%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	190.4 Points
Trigkey G4 Intel Processor N100, 1000 MHz	187.4 Points -2%
Blackview MP80 Intel Processor N95, MHz	183.4 Points -4%
BOSGAME N95 Intel Processor N95, MHz	179.4 Points -6%
Acemagic S1 Intel Processor N95, MHz	178.3 Points -6%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	171.3 Points -10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points -18%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	104.3 Points -45%

3DMark - 1920x1080 Fire Strike Physics
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, 900 MHz	14530 Points +28%
Maxtang MTN-ALN50 Intel Core i3-N305, 1800 MHz	11357 Points
Trigkey G4 Intel Processor N100, 1000 MHz	6522 Points -43%
Blackview MP80 Intel Processor N95, MHz	6062 Points -47%
BOSGAME N95 Intel Processor N95, MHz	5952 Points -48%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points -48%
Acemagic S1 Intel Processor N95, MHz	5701 Points -50%
Zotac ZBOX PI430AJ Intel Core i3-N300, MHz	5528 Points -51%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 1000 MHz	4135 Points -64%

* ... smaller is better

Performance Rating
Average of class Mini PC	97.2 pt
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	55.9 pt
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	46.3 pt
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	26.5 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18.3 pt
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	10.6 pt
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	10.4 pt
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	10.1 pt
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	10 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9.5 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 27538, n=99, last 2 years)	10007 KRay/s +131%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	5201 KRay/s +20%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	4334 KRay/s
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	2051 KRay/s -53%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	1384 KRay/s -68%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s -81%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	770 KRay/s -82%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	769 KRay/s -82%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	764 KRay/s -82%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	744 KRay/s -83%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 116903, n=99, last 2 years)	52649 Points +154%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	26713 Points +29%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	20768 Points
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	10963 Points -47%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	7292 Points -65%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4397 Points -79%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4144 Points -80%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4141 Points -80%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4140 Points -80%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	3970 Points -81%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 5096, n=99, last 2 years)	2303 MB/s +67%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	1381 MB/s
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	1224 MB/s -11%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	767 MB/s -44%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	466 MB/s -66%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	308 MB/s -78%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -79%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -79%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -79%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	270 MB/s -80%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 119569, n=99, last 2 years)	69580 Points +71%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	45281 Points +12%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	40581 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	23345 Points -42%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	19025 Points -53%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8663 Points -79%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8208 Points -80%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8186 Points -80%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8178 Points -80%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8172 Points -80%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 15525, n=99, last 2 years)	7339 Points +215%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	3399 Points +46%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	2333 Points
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	1078 Points -54%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	985 Points -58%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	432 Points -81%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -83%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -83%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -83%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -83%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 62378, n=99, last 2 years)	27876 Points +169%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	12241 Points +18%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	10378 Points
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	5532 Points -47%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	3648 Points -65%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2220 Points -79%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2092 Points -80%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2089 Points -80%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2088 Points -80%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	1987 Points -81%

AIDA64 / CPU AES
Average of class Mini PC (3691 - 177158, n=99, last 2 years)	75619 MB/s +208%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	25624 MB/s +4%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	24535 MB/s
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	20979 MB/s -14%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	8752 MB/s -64%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8421 MB/s -66%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7961 MB/s -68%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7954 MB/s -68%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7951 MB/s -68%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7948 MB/s -68%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 1183, n=99, last 2 years)	585 MB/s +31%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	448 MB/s
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	358 MB/s -20%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	209 MB/s -53%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	133.4 MB/s -70%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	81.9 MB/s -82%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.7 MB/s -83%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.4 MB/s -83%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	76.7 MB/s -83%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	74.9 MB/s -83%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 14722, n=99, last 2 years)	5342 KRay/s +155%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	2801 KRay/s +34%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	2096 KRay/s
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	1138 KRay/s -46%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	705 KRay/s -66%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s -78%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	433 KRay/s -79%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -79%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -79%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	412 KRay/s -80%

AIDA64 / CPU PhotoWorxx
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	34108 MPixel/s +123%
Average of class Mini PC (4408 - 44347, n=99, last 2 years)	24663 MPixel/s +61%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	15326 MPixel/s
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	14830 MPixel/s -3%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	9467 MPixel/s -38%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6599 MPixel/s -57%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	5384 MPixel/s -65%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5333 MPixel/s -65%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5296 MPixel/s -65%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4408 MPixel/s -71%

Maxtang MTN-ALN50 与 Cinebench R15 多环对比

Cinebench R15 连续循环测试向我们展示了内置冷却系统在连续负载下的表现。在第一次运行过程中，英特尔酷睿 i3-N305 的 Turbo 时钟能带来更多好处。之后，我们只看到一个非常短的峰值，然后 SoC 继续以 15 瓦的功率运行。我们的测试样品完成了测试，取得了平均 796 分的优异成绩。

Maxtang MTN-ALN50 Intel Core i3-N305, Intel Core i3-N305: Ø796 (767.84-856.33)

Acemagic S1 Intel Processor N95, Intel Processor N95: Ø440 (431.21-442.98)

Blackview MP80 Intel Processor N95, Intel Processor N95: Ø425 (410.8-428.48)

Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel Processor N200: Ø210 (198.23-215.98)

BOSGAME N95 Intel Processor N95, Intel Processor N95: Ø421 (417.99-423.28)

Trigkey G4 Intel Processor N100, Intel Processor N100: Ø465 (453-467.97)

Zotac ZBOX PI430AJ Intel Core i3-N300, Intel Core i3-N300: Ø386 (357.51-413.92)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, Intel Core i3-1215U: Ø752 (719.93-831.53)

系统性能

良好的 CPU 性能也确保了在系统性能基准测试中取得优异成绩。只有在内存测试中，我们的测试样品不得不承认输给了众泰 Zbox pico PI430AJ.如果 Maxtang 也使用 DDR5 内存，那么英特尔酷睿 i3-N305 的整体性能可能会有更大的提升。尽管如此，Maxtang MTN-ALN50 仍能很好地应对日常使用。

Performance Rating | PCMark 10

Performance Rating - Percent
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE, Intel Core i3-1215U Intel Core i3-1215U, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kioxia BG5 KBG50ZNT256G	100 pt
Maxtang MTN-ALN50, Intel Core i3-N305 Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake), Foresee 512GB	68.6 pt
Trigkey G4, Intel Processor N100 Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),	67.6 pt
Blackview MP80, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	67.4 pt
BOSGAME N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	66.7 pt
Acemagic S1, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	65.7 pt
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	62.2 pt
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),	45.7 pt

PCMark 10
Score
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE, Intel Core i3-1215U Intel Core i3-1215U, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kioxia BG5 KBG50ZNT256G	5053 Points +40%
Maxtang MTN-ALN50, Intel Core i3-N305 Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake), Foresee 512GB	3614 Points
Blackview MP80, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	3220 Points -11%
Trigkey G4, Intel Processor N100 Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),	3207 Points -11%
BOSGAME N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	3192 Points -12%
Acemagic S1, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	3153 Points -13%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	2983 Points -17%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),	2363 Points -35%
Essentials
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE, Intel Core i3-1215U Intel Core i3-1215U, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kioxia BG5 KBG50ZNT256G	10681 Points +54%
Trigkey G4, Intel Processor N100 Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),	7123 Points +3%
Blackview MP80, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	7079 Points +2%
BOSGAME N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	7021 Points +1%
Maxtang MTN-ALN50, Intel Core i3-N305 Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake), Foresee 512GB	6947 Points
Acemagic S1, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	6731 Points -3%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	6650 Points -4%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),	5435 Points -22%
Productivity
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE, Intel Core i3-1215U Intel Core i3-1215U, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kioxia BG5 KBG50ZNT256G	6919 Points +45%
Trigkey G4, Intel Processor N100 Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),	5033 Points +5%
Blackview MP80, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	4993 Points +4%
Acemagic S1, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	4950 Points +3%
BOSGAME N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	4923 Points +3%
Maxtang MTN-ALN50, Intel Core i3-N305 Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake), Foresee 512GB	4784 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	4524 Points -5%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),	2733 Points -43%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE, Intel Core i3-1215U Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kioxia BG5 KBG50ZNT256G	1333 Points +51%
Maxtang MTN-ALN50, Intel Core i3-N305 Intel UHD Graphics 32EUs (Alder Lake), Foresee 512GB	881 Points
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	820 Points -7%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	773 Points -12%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	764 Points -13%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	735 Points -17%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	666 Points -24%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	614 Points -30%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel UHD Graphics 32EUs (Alder Lake),	529 Points -40%

CrossMark / Responsiveness
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE, Intel Core i3-1215U Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kioxia BG5 KBG50ZNT256G	1178 Points +54%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	895 Points +17%
Maxtang MTN-ALN50, Intel Core i3-N305 Intel UHD Graphics 32EUs (Alder Lake), Foresee 512GB	764 Points
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	755 Points -1%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	710 Points -7%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	709 Points -7%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	661 Points -13%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel UHD Graphics 32EUs (Alder Lake),	584 Points -24%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	577 Points -24%

CrossMark / Creativity
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE, Intel Core i3-1215U Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kioxia BG5 KBG50ZNT256G	1401 Points +58%
Maxtang MTN-ALN50, Intel Core i3-N305 Intel UHD Graphics 32EUs (Alder Lake), Foresee 512GB	887 Points
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	739 Points -17%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	721 Points -19%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	714 Points -20%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	676 Points -24%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	616 Points -31%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	560 Points -37%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel UHD Graphics 32EUs (Alder Lake),	513 Points -42%

CrossMark / Productivity
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE, Intel Core i3-1215U Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kioxia BG5 KBG50ZNT256G	1320 Points +44%
Maxtang MTN-ALN50, Intel Core i3-N305 Intel UHD Graphics 32EUs (Alder Lake), Foresee 512GB	919 Points
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	907 Points -1%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	843 Points -8%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	810 Points -12%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	808 Points -12%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	721 Points -22%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	688 Points -25%
Zotac ZBOX PI430AJ, Intel Core i3-N300 Intel UHD Graphics 32EUs (Alder Lake),	529 Points -42%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	54953 MB/s +140%
Average of class Mini PC (6481 - 70620, n=99, last 2 years)	42930 MB/s +87%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	29076 MB/s +27%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	22938 MB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18937 MB/s -17%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	12715 MB/s -45%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8472 MB/s -63%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8458 MB/s -63%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8377 MB/s -63%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6481 MB/s -72%

AIDA64 / Memory Read
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	48927 MB/s +110%
Average of class Mini PC (6914 - 71285, n=99, last 2 years)	43615 MB/s +87%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	23286 MB/s
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	22746 MB/s -2%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18451 MB/s -21%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	11247 MB/s -52%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9130 MB/s -61%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9027 MB/s -61%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8974 MB/s -61%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6914 MB/s -70%

AIDA64 / Memory Write
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	65473 MB/s +187%
Average of class Mini PC (6862 - 89318, n=99, last 2 years)	46629 MB/s +104%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	31007 MB/s +36%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	22849 MB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	21626 MB/s -5%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	14266 MB/s -38%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9047 MB/s -60%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8959 MB/s -61%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8762 MB/s -62%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6862 MB/s -70%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	146 ns * -225%
Acemagic S1 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	125.8 ns * -180%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	124.9 ns * -178%
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	120.6 ns * -169%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	119.8 ns * -167%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U, UHD Graphics 64EUs	102.2 ns * -128%
Average of class Mini PC (44.9 - 154.6, n=99, last 2 years)	87.8 ns * -96%
Zotac ZBOX PI430AJ Intel Core i3-N300, UHD Graphics 32EUs	76.1 ns * -69%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	52.9 ns * -18%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	44.9 ns *

* ... smaller is better

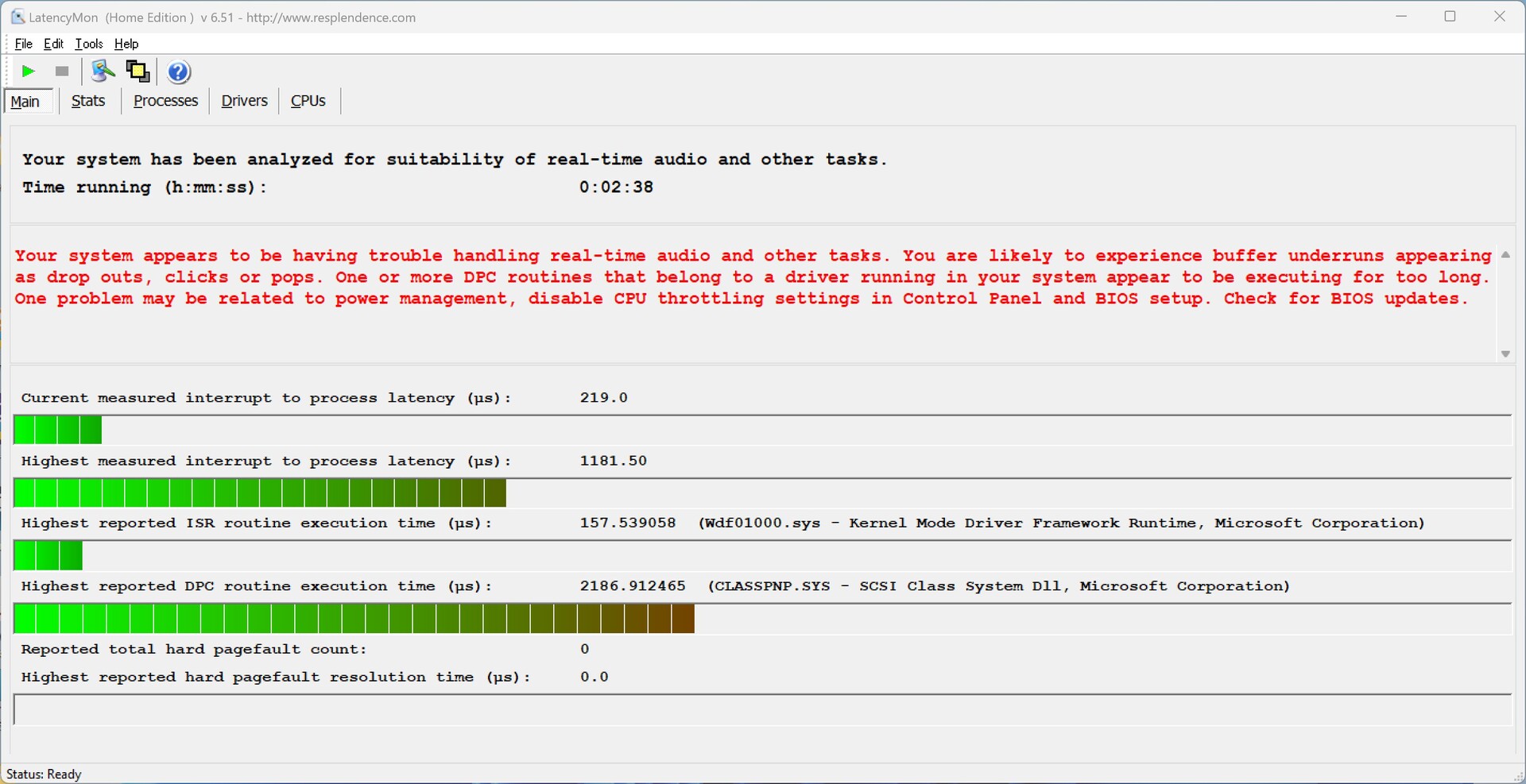

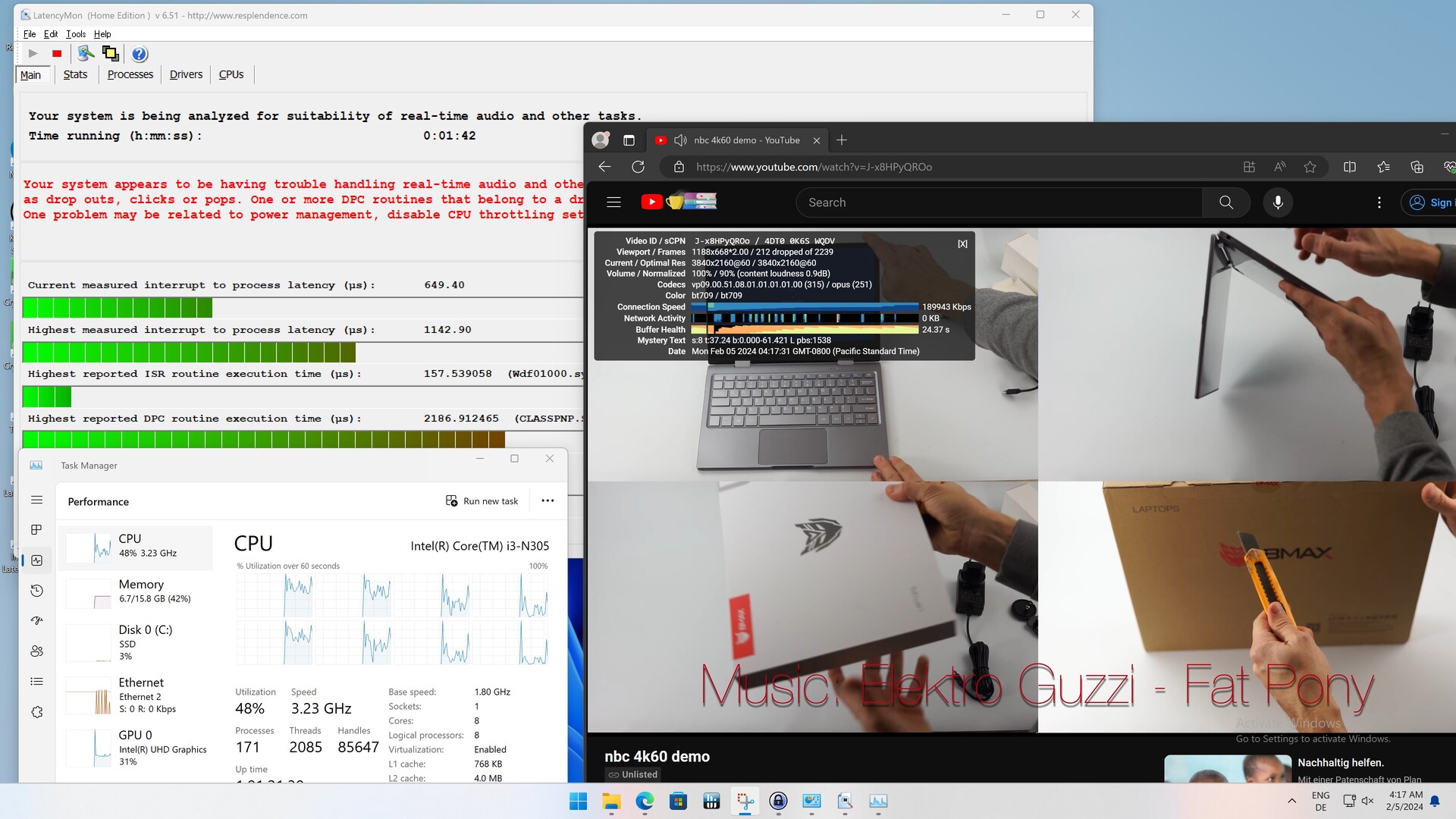

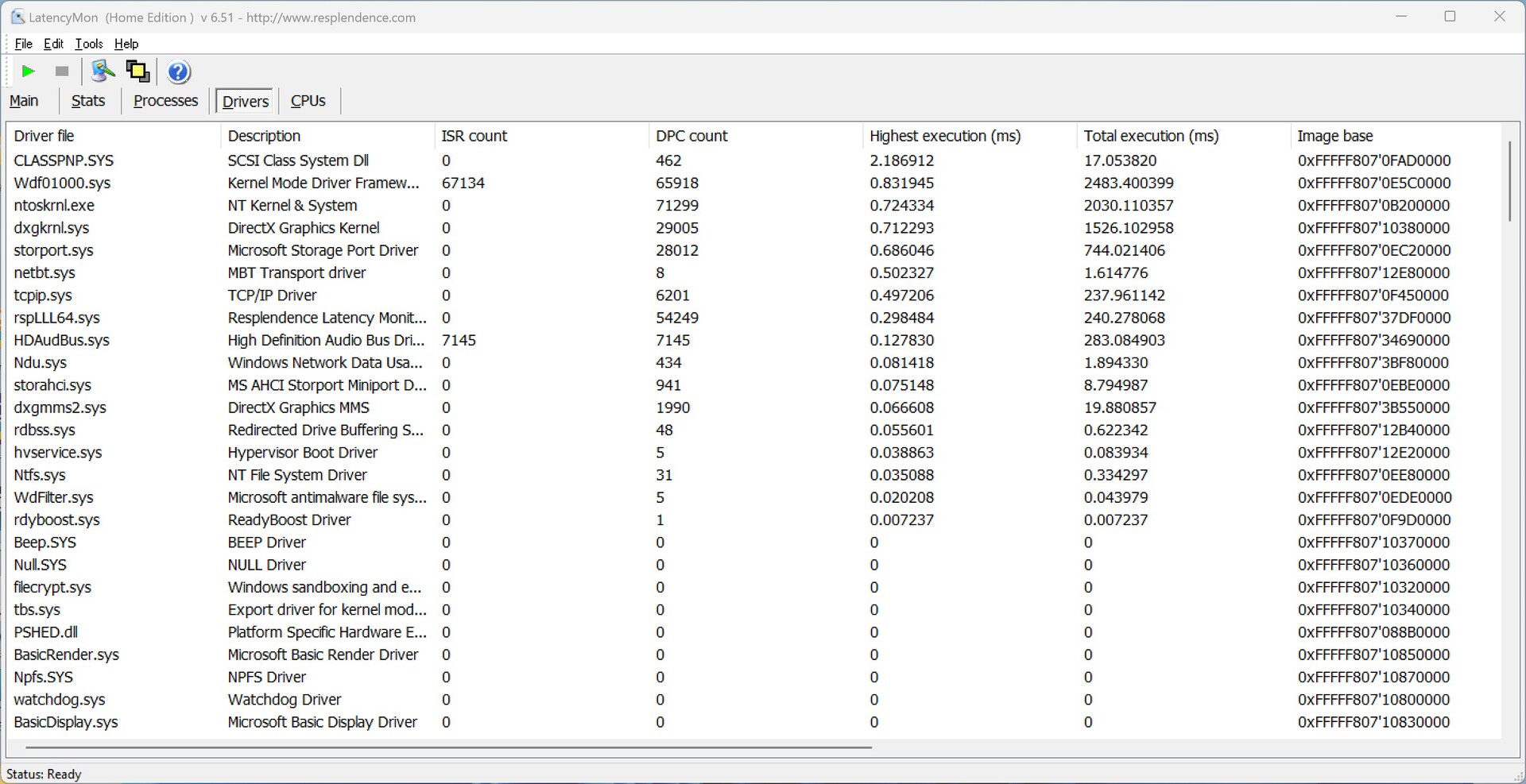

DPC 延迟

我们在上网（在 Edge 浏览器中打开多个网站）时达到了此处记录的 DPC 值。在播放 4K 测试视频或使用 Prime95 进行压力测试时，DPC 值也没有发生变化。原则上，Maxtang MTN-ALN50 可以用于流媒体播放，但必须满足较低的分辨率。遗憾的是，4K 回放无法在不丢帧的情况下完成。iGPU 的使用率约为 31%。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	5491 μs * -151%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	4075 μs * -86%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	3463 μs * -58%
Maxtang MTN-ALN50, Intel Core i3-N305 Intel UHD Graphics 32EUs (Alder Lake), Foresee 512GB	2186.9 μs *
Zotac ZBOX PI336 pico, Intel Celeron N6211 Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128	1476.3 μs * +32%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	1165.5 μs * +47%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	817.1 μs * +63%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	561.2 μs * +74%
Acemagic S1, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB	367.2 μs * +83%

* ... smaller is better

大容量存储器

Maxtang MTN-ALN50的测试样品中安装了一块来自Foresee的512 GB固态硬盘。不过，安装的型号只能以 SATA 速度工作，这在基准测试中也有明显体现。不过，传输速率仍足以满足日常使用。在压力测试中，我们没有发现任何温度问题。Maxtang MTN-ALN50 还可以配备第二个大容量存储设备。所需的连接适配器和插座已包含在供货范围内。

更多比较和基准，请参阅我们的比较表.

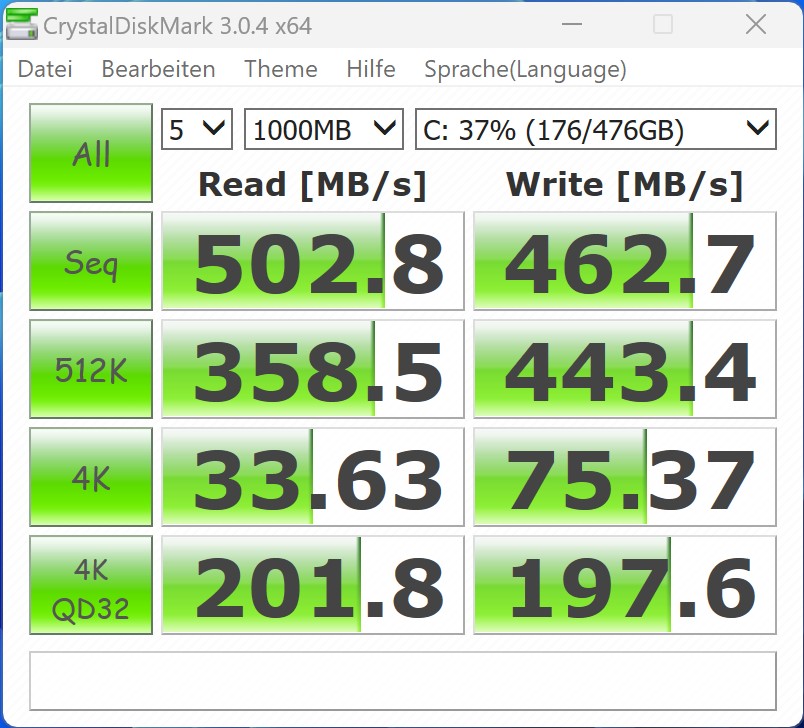

CrystalDiskMark 3.0

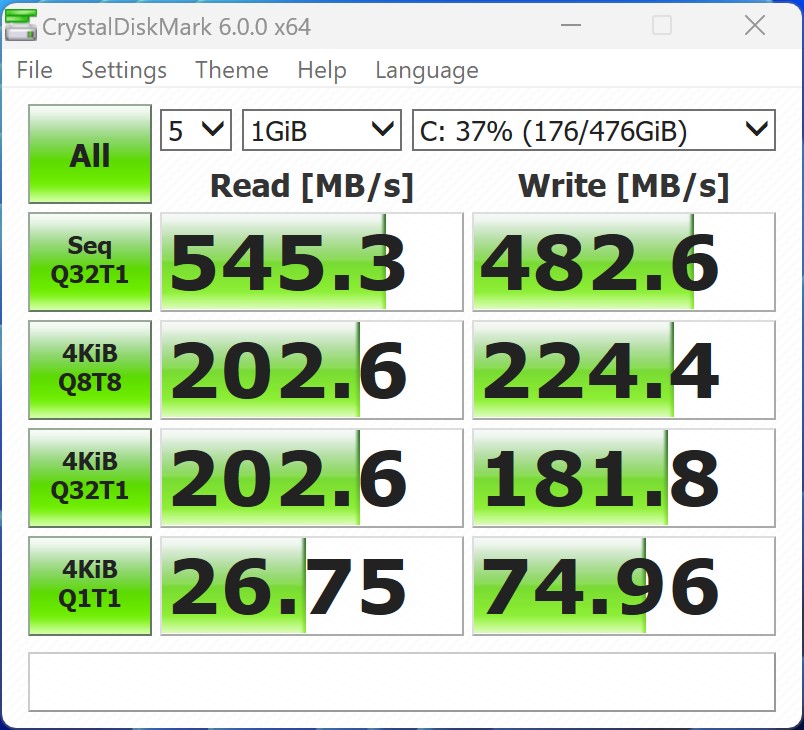

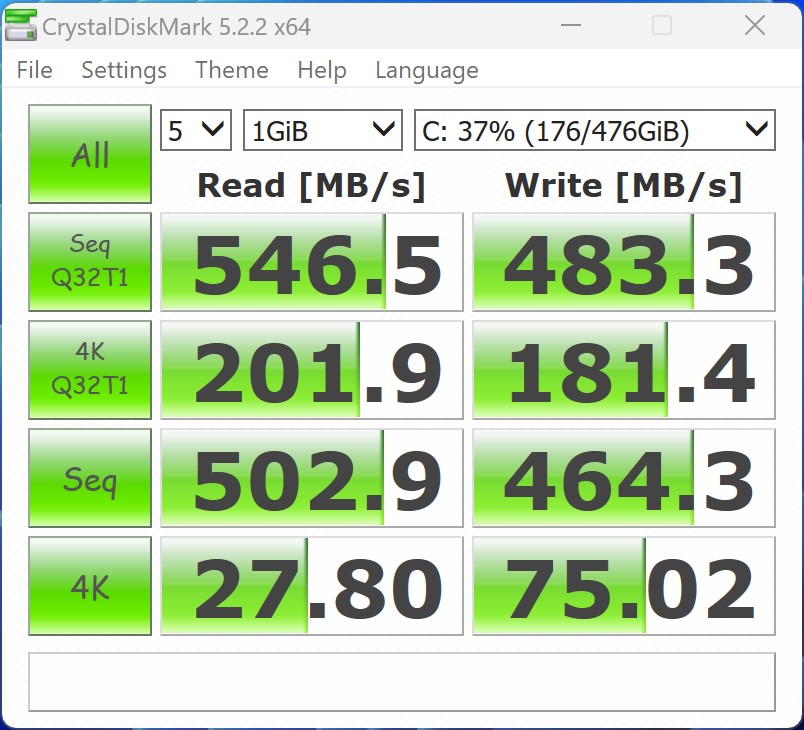

CrystalDiskMark 5.2 / 6

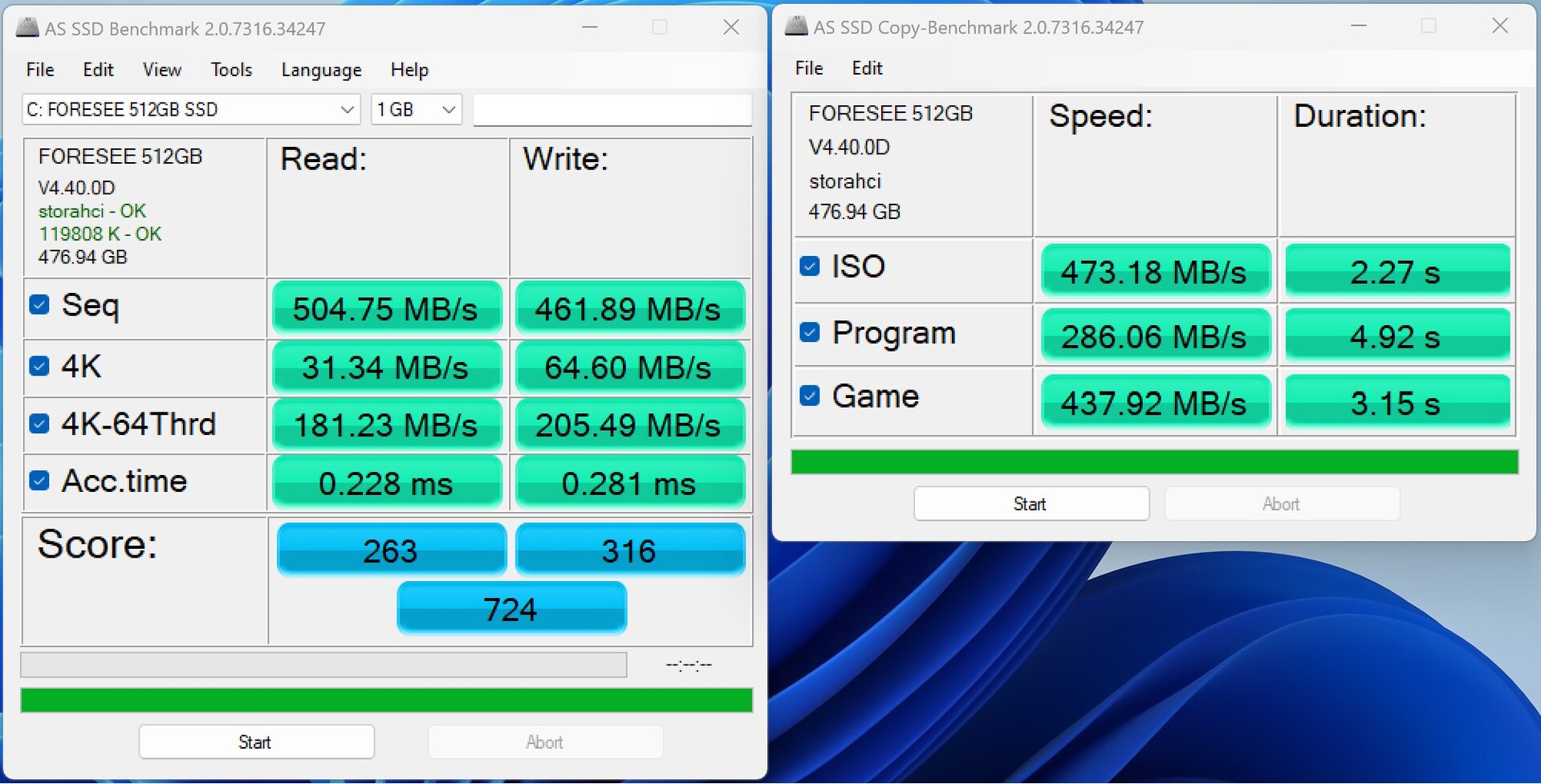

AS SSD

DiskSpd

Foresee 512GB

Sequential Read: 502.8 MB/s

Sequential Write: 462.7 MB/s

512K Read: 358.5 MB/s

512K Write: 443.4 MB/s

4K Read: 33.63 MB/s

4K Write: 75.37 MB/s

4K QD32 Read: 201.8 MB/s

4K QD32 Write: 197.6 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	94.3 pt
Acemagic S1 BiWin CE480Y2D100-1TB	71.6 pt
Zotac ZBOX PI430AJ	68.7 pt
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	52.7 pt
Trigkey G4	43.5 pt
BOSGAME N95 Kingston OM8SEP4256Q-A0	43.3 pt
Blackview MP80 Netac NS512GSSD330	31.5 pt
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	30.7 pt
Maxtang MTN-ALN50 Foresee 512GB	22.1 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4168, n=98, last 2 years)	2036 MB/s +350%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1948 (1560.49^min - 1947.92^max) MB/s +331%
Zotac ZBOX PI430AJ	1423 (1403.41^min - 1423.13^max) MB/s +215%
Acemagic S1 BiWin CE480Y2D100-1TB	1354 (1350.96^min - 1354.32^max) MB/s +200%
BOSGAME N95 Kingston OM8SEP4256Q-A0	762 (757.28^min - 762.31^max) MB/s +69%
Trigkey G4	729 (705.12^min - 729.18^max) MB/s +61%
Blackview MP80 Netac NS512GSSD330	542 (541.31^min - 542.36^max) MB/s +20%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s +2%
Maxtang MTN-ALN50 Foresee 512GB	452 (363.13^min - 452.08^max) MB/s
seq write
Average of class Mini PC (222 - 5595, n=98, last 2 years)	2070 MB/s +353%
Zotac ZBOX PI430AJ	1819 (1798.9^min - 1818.93^max) MB/s +298%
Acemagic S1 BiWin CE480Y2D100-1TB	1553 (1542.6^min - 1552.69^max) MB/s +240%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1535 (1194.25^min - 1534.56^max) MB/s +236%
BOSGAME N95 Kingston OM8SEP4256Q-A0	649 (644.49^min - 649.49^max) MB/s +42%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s +8%
Blackview MP80 Netac NS512GSSD330	476 (138.2^min - 475.75^max) MB/s +4%
Maxtang MTN-ALN50 Foresee 512GB	457 (452.57^min - 457.39^max) MB/s
Trigkey G4	339 (329.88^min - 338.64^max) MB/s -26%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=98, last 2 years)	3188 MB/s +559%
Zotac ZBOX PI430AJ	2247 (1802.96^min - 2246.68^max) MB/s +364%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2058 (1971.74^min - 2057.94^max) MB/s +325%
Acemagic S1 BiWin CE480Y2D100-1TB	1776 (1520.44^min - 1776.28^max) MB/s +267%
Trigkey G4	864 (619.52^min - 864.45^max) MB/s +79%
BOSGAME N95 Kingston OM8SEP4256Q-A0	820 (687.12^min - 820.02^max) MB/s +69%
Blackview MP80 Netac NS512GSSD330	556 (424.25^min - 556.44^max) MB/s +15%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s +4%
Maxtang MTN-ALN50 Foresee 512GB	484 (360.5^min - 483.68^max) MB/s
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=98, last 2 years)	2250 MB/s +371%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2086 (1404.04^min - 2086.06^max) MB/s +336%
Zotac ZBOX PI430AJ	1912 (1899.6^min - 1912.44^max) MB/s +300%
Acemagic S1 BiWin CE480Y2D100-1TB	1658 (1643.05^min - 1658.18^max) MB/s +247%
BOSGAME N95 Kingston OM8SEP4256Q-A0	684 (677.48^min - 683.67^max) MB/s +43%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s +9%
Blackview MP80 Netac NS512GSSD330	489 (220.62^min - 488.78^max) MB/s +2%
Maxtang MTN-ALN50 Foresee 512GB	478 (470.6^min - 478.45^max) MB/s
Trigkey G4	346 (322.53^min - 346.45^max) MB/s -28%
4k q1 t1 read
Acemagic S1 BiWin CE480Y2D100-1TB	59.4 (58.56^min - 59.37^max) MB/s +126%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	52.9 (39.99^min - 52.89^max) MB/s +101%
Average of class Mini PC (5.67 - 86.6, n=98, last 2 years)	51.8 MB/s +97%
BOSGAME N95 Kingston OM8SEP4256Q-A0	45.9 (45.49^min - 45.92^max) MB/s +75%
Zotac ZBOX PI430AJ	39.6 (39.16^min - 39.59^max) MB/s +51%
Blackview MP80 Netac NS512GSSD330	32.5 (32.38^min - 32.5^max) MB/s +24%
Maxtang MTN-ALN50 Foresee 512GB	26.3 (25.91^min - 26.27^max) MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s -2%
Trigkey G4	8.85 (2.72^min - 8.85^max) MB/s -66%
4k q1 t1 write
Average of class Mini PC (22 - 425, n=98, last 2 years)	188.1 MB/s +156%
Trigkey G4	128.4 (124.08^min - 128.36^max) MB/s +75%
Acemagic S1 BiWin CE480Y2D100-1TB	128.1 (126.86^min - 128.09^max) MB/s +75%
Zotac ZBOX PI430AJ	104.4 (102.55^min - 104.35^max) MB/s +42%
BOSGAME N95 Kingston OM8SEP4256Q-A0	96.7 (95.09^min - 96.72^max) MB/s +32%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s +31%
Blackview MP80 Netac NS512GSSD330	88.1 (66.88^min - 88.14^max) MB/s +20%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	74 (57.85^min - 73.96^max) MB/s +1%
Maxtang MTN-ALN50 Foresee 512GB	73.4 (71.63^min - 73.43^max) MB/s
4k q32 t16 read
Acemagic S1 BiWin CE480Y2D100-1TB	1175 (1165.24^min - 1174.82^max) MB/s +1049%
Average of class Mini PC (26.1 - 2967, n=98, last 2 years)	1111 MB/s +986%
Zotac ZBOX PI430AJ	730 (680.59^min - 729.75^max) MB/s +614%
Trigkey G4	581 (553.76^min - 581.49^max) MB/s +468%
BOSGAME N95 Kingston OM8SEP4256Q-A0	440 (438.98^min - 440.28^max) MB/s +330%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	324 (210.77^min - 323.72^max) MB/s +217%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s +154%
Blackview MP80 Netac NS512GSSD330	179.4 (173.35^min - 179.35^max) MB/s +75%
Maxtang MTN-ALN50 Foresee 512GB	102.3 (101.76^min - 102.32^max) MB/s
4k q32 t16 write
Average of class Mini PC (30.2 - 3983, n=98, last 2 years)	1111 MB/s +432%
Acemagic S1 BiWin CE480Y2D100-1TB	762 (759.1^min - 762.44^max) MB/s +265%
Zotac ZBOX PI430AJ	727 (723.65^min - 727.02^max) MB/s +248%
BOSGAME N95 Kingston OM8SEP4256Q-A0	411 (406.46^min - 410.69^max) MB/s +97%
Blackview MP80 Netac NS512GSSD330	276 (99.25^min - 275.55^max) MB/s +32%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s +24%
Maxtang MTN-ALN50 Foresee 512GB	209 (205.92^min - 208.55^max) MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	142.2 (93.56^min - 142.15^max) MB/s -32%
Trigkey G4	70.3 (60.61^min - 70.32^max) MB/s -66%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=96, last 2 years)	3606 Points +398%
Zotac ZBOX PI430AJ	2428 Points +235%
Acemagic S1 BiWin CE480Y2D100-1TB	2427 Points +235%
Trigkey G4	1857 Points +156%
BOSGAME N95 Kingston OM8SEP4256Q-A0	1423 Points +97%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1396 Points +93%
Blackview MP80 Netac NS512GSSD330	796 Points +10%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points +2%
Maxtang MTN-ALN50 Foresee 512GB	724 Points
Score Read
Average of class Mini PC (61 - 3635, n=96, last 2 years)	1370 Points +421%
Zotac ZBOX PI430AJ	1024 Points +289%
Acemagic S1 BiWin CE480Y2D100-1TB	1000 Points +280%
Trigkey G4	934 Points +255%
BOSGAME N95 Kingston OM8SEP4256Q-A0	522 Points +98%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	504 Points +92%
Blackview MP80 Netac NS512GSSD330	265 Points +1%
Maxtang MTN-ALN50 Foresee 512GB	263 Points
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points -12%
Score Write
Average of class Mini PC (88 - 4185, n=96, last 2 years)	1585 Points +402%
Acemagic S1 BiWin CE480Y2D100-1TB	903 Points +186%
Zotac ZBOX PI430AJ	892 Points +182%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	631 Points +100%
BOSGAME N95 Kingston OM8SEP4256Q-A0	626 Points +98%
Trigkey G4	458 Points +45%
Blackview MP80 Netac NS512GSSD330	387 Points +22%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points +18%
Maxtang MTN-ALN50 Foresee 512GB	316 Points
Seq Read
Average of class Mini PC (291 - 6620, n=96, last 2 years)	2834 MB/s +461%
Zotac ZBOX PI430AJ	2094 MB/s +315%
Acemagic S1 BiWin CE480Y2D100-1TB	1582 MB/s +213%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1233 MB/s +144%
Trigkey G4	794 MB/s +57%
BOSGAME N95 Kingston OM8SEP4256Q-A0	700 MB/s +39%
Blackview MP80 Netac NS512GSSD330	526 MB/s +4%
Maxtang MTN-ALN50 Foresee 512GB	505 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s -7%
Seq Write
Average of class Mini PC (240 - 5783, n=96, last 2 years)	1986 MB/s +330%
Zotac ZBOX PI430AJ	1662 MB/s +260%
Acemagic S1 BiWin CE480Y2D100-1TB	1526 MB/s +230%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1125 MB/s +144%
BOSGAME N95 Kingston OM8SEP4256Q-A0	595 MB/s +29%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s +5%
Blackview MP80 Netac NS512GSSD330	466 MB/s +1%
Maxtang MTN-ALN50 Foresee 512GB	462 MB/s
Trigkey G4	326 MB/s -29%
4K Read
Average of class Mini PC (6.08 - 104.3, n=96, last 2 years)	56 MB/s +79%
Acemagic S1 BiWin CE480Y2D100-1TB	54.7 MB/s +75%
Trigkey G4	44.4 MB/s +42%
Zotac ZBOX PI430AJ	42.7 MB/s +36%
BOSGAME N95 Kingston OM8SEP4256Q-A0	38.7 MB/s +24%
Maxtang MTN-ALN50 Foresee 512GB	31.3 MB/s
Blackview MP80 Netac NS512GSSD330	30.2 MB/s -4%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	28.1 MB/s -10%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s -12%
4K Write
Average of class Mini PC (30.9 - 366, n=96, last 2 years)	170.3 MB/s +164%
Trigkey G4	113.5 MB/s +76%
Acemagic S1 BiWin CE480Y2D100-1TB	108.9 MB/s +69%
BOSGAME N95 Kingston OM8SEP4256Q-A0	100.9 MB/s +56%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s +33%
Blackview MP80 Netac NS512GSSD330	84.3 MB/s +30%
Zotac ZBOX PI430AJ	82.5 MB/s +28%
Maxtang MTN-ALN50 Foresee 512GB	64.6 MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	40.8 MB/s -37%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=96, last 2 years)	1030 MB/s +468%
Trigkey G4	810 MB/s +347%
Acemagic S1 BiWin CE480Y2D100-1TB	787 MB/s +334%
Zotac ZBOX PI430AJ	772 MB/s +326%
BOSGAME N95 Kingston OM8SEP4256Q-A0	413 MB/s +128%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	353 MB/s +95%
Blackview MP80 Netac NS512GSSD330	181.8 MB/s 0%
Maxtang MTN-ALN50 Foresee 512GB	181.2 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s -13%
4K-64 Write
Average of class Mini PC (32.8 - 3598, n=96, last 2 years)	1216 MB/s +493%
Zotac ZBOX PI430AJ	643 MB/s +214%
Acemagic S1 BiWin CE480Y2D100-1TB	641 MB/s +213%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	478 MB/s +133%
BOSGAME N95 Kingston OM8SEP4256Q-A0	466 MB/s +127%
Trigkey G4	312 MB/s +52%
Blackview MP80 Netac NS512GSSD330	256 MB/s +25%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s +17%
Maxtang MTN-ALN50 Foresee 512GB	205 MB/s
Access Time Read
Maxtang MTN-ALN50 Foresee 512GB	0.228 ms *
Average of class Mini PC (0.022 - 0.489, n=96, last 2 years)	0.1019 ms * +55%
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.101 ms * +56%
Zotac ZBOX PI430AJ	0.095 ms * +58%
Blackview MP80 Netac NS512GSSD330	0.077 ms * +66%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms * +67%
Acemagic S1 BiWin CE480Y2D100-1TB	0.076 ms * +67%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.073 ms * +68%
Trigkey G4	0.064 ms * +72%
Access Time Write
Maxtang MTN-ALN50 Foresee 512GB	0.281 ms *
Blackview MP80 Netac NS512GSSD330	0.136 ms * +52%
Average of class Mini PC (0.016 - 0.765, n=96, last 2 years)	0.1287 ms * +54%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms * +55%
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.109 ms * +61%
Acemagic S1 BiWin CE480Y2D100-1TB	0.098 ms * +65%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.074 ms * +74%
Zotac ZBOX PI430AJ	0.068 ms * +76%
Trigkey G4	0.061 ms * +78%

* ... smaller is better

Continuous reading: DiskSpd Read Loop, Queue Depth 8

Maxtang MTN-ALN50 Foresee 512GB; diskspd 2.0.17 f: Ø511 (387.91-516.33)

Acemagic S1 BiWin CE480Y2D100-1TB: Ø1772 (1604.38-1776.91)

Blackview MP80 Netac NS512GSSD330: Ø551 (425.51-553.5)

Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G; diskspd 2.0.17 f: Ø1990 (1877.37-2058.56)

BOSGAME N95 Kingston OM8SEP4256Q-A0: Ø817 (676.33-820.44)

Trigkey G4 : Ø839 (658.14-865.55)

Zotac ZBOX PI430AJ ; diskspd 2.0.17 f: Ø2259 (1922.88-2268.28)

Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB: Ø498 (453.55-500.22)

图形卡

Maxtang MTN-ALN50 的图像输出由配备 32 个 EU 的英特尔UHD Graphics 处理。不过，我们已经看到，处理器的良好性能发展并不影响 iGPU 的 3D 性能。与众泰 Zbox pico PI430AJ相比，我们的测试样品并不突出。在某些情况下，我们还能看到稍差的结果，但这也可以理解为测量误差。
，您可以在这里找到更多有关英特尔UHD Graphics 的基准测试。这里.

3DMark Performance Rating | 3DMark 11 | 3DMark | ComputeMark v2.1 | 3DMark 06

3DMark Performance Rating - Percent
Average AMD Radeon 780M	100 pt
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE ^-7! Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i3-1215U	41.7 pt
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	21 pt
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	19.1 pt
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	15 pt
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	14.1 pt
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	13.8 pt
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	13.5 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	13.1 pt
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	12.5 pt

3DMark 11 - 1280x720 Performance GPU
Average AMD Radeon 780M (7868 - 13932, n=35)	12196 Points +358%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i3-1215U	4215 Points +58%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	2662 Points
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	2194 Points -18%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1494 Points -44%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1492 Points -44%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1490 Points -44%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1485 Points -44%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1467 Points -45%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1349 Points -49%

3DMark
1280x720 Cloud Gate Standard Graphics
Average AMD Radeon 780M (27771 - 50924, n=15)	45229 Points +260%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i3-1215U	20374 Points +62%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	12558 Points
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	10945 Points -13%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8548 Points -32%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8304 Points -34%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	8233 Points -34%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8035 Points -36%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	7604 Points -39%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7218 Points -43%
1920x1080 Fire Strike Graphics
Average AMD Radeon 780M (4550 - 8538, n=34)	7595 Points +289%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i3-1215U	3447 Points +76%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	1954 Points
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	1736 Points -11%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1184 Points -39%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1172 Points -40%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1144 Points -41%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1124 Points -42%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1106 Points -43%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1080 Points -45%

ComputeMark v2.1
1024x600 Normal, Score
Average AMD Radeon 780M (7230 - 10495, n=7)	9322 Points +707%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	1155 Points
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	1042 Points -10%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	700 Points -39%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	670 Points -42%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	650 Points -44%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	638 Points -45%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	638 Points -45%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	628 Points -46%
1024x600 Normal, Fluid 3DTex
Average AMD Radeon 780M (371 - 484, n=7)	453 Points +226%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	162 Points +17%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	139 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	133 Points -4%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	122 Points -12%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	116 Points -17%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	116 Points -17%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	103 Points -26%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	87 Points -37%
1024x600 Normal, Fluid 2DTexArr
Average AMD Radeon 780M (384 - 502, n=7)	465 Points +272%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	137 Points +10%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	125 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	109 Points -13%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	106 Points -15%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	97 Points -22%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	95 Points -24%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	90 Points -28%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	83 Points -34%
1024x600 Normal, Mandel Vector
Average AMD Radeon 780M (1871 - 2984, n=7)	2505 Points +1065%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	215 Points
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	184 Points -14%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	143 Points -33%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	126 Points -41%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	126 Points -41%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	125 Points -42%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	122 Points -43%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	120 Points -44%
1024x600 Normal, Mandel Scalar
Average AMD Radeon 780M (1878 - 2808, n=7)	2481 Points +764%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	287 Points
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	224 Points -22%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	144 Points -50%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	112 Points -61%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points -62%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points -62%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	109 Points -62%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	101 Points -65%
1024x600 Normal, QJuliaRayTrace
Average AMD Radeon 780M (2521 - 3849, n=7)	3418 Points +779%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	389 Points
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	335 Points -14%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	243 Points -38%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	203 Points -48%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	197 Points -49%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	196 Points -50%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	194 Points -50%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	186 Points -52%

3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Average AMD Radeon 780M (37928 - 45612, n=8)	41875 Points +198%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	14041 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12203 Points -13%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	10165 Points -28%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	10088 Points -28%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	10026 Points -29%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	9971 Points -29%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	9774 Points -30%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	8090 Points -42%

3DMark Performance Rating | Unigine Valley 1.0 | Unigine Heaven 4.0 | Unigine Superposition

3DMark Performance Rating - Percent
Average AMD Radeon 780M	100 pt
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	26.9 pt
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	26.7 pt
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	23 pt
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	20.8 pt
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	20.2 pt
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	20.1 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	18.8 pt
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	16.1 pt

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Average AMD Radeon 780M (17.7 - 25, n=6)	22.3 fps +266%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	6.1 fps
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	5.7 fps -7%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.3 fps -13%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.6 fps -25%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	4.6 fps -25%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.6 fps -25%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.1 fps -33%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.5 fps -43%
1920x1080 Extreme HD Preset OpenGL AA:x8
Average AMD Radeon 780M (12.2 - 21.7, n=6)	18.9 fps +145%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	7.7 fps
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	6.5 fps -16%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6 fps -22%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.4 fps -30%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.3 fps -31%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	5.1 fps -34%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.8 fps -38%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.5 fps -55%

Unigine Heaven 4.0
Extreme Preset DX11
Average AMD Radeon 780M (31.1 - 36.8, n=6)	33.8 fps +302%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	9 fps +7%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	8.4 fps
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.5 fps -11%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.2 fps -14%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.8 fps -19%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps -20%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.4 fps -24%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.8 fps -31%
Extreme Preset OpenGL
Average AMD Radeon 780M (26 - 34.5, n=6)	31.6 fps +281%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	9.1 fps +10%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	8.3 fps
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.2 fps -13%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6.9 fps -17%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps -19%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps -19%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.3 fps -24%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.4 fps -35%

Unigine Superposition
1280x720 720p Low
Average AMD Radeon 780M (9725 - 12139, n=6)	11222 Points +444%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	2799 Points +36%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	2505 Points +22%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2141 Points +4%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	2061 Points
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1937 Points -6%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1924 Points -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1871 Points -9%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1607 Points -22%
1920x1080 1080p High
Average AMD Radeon 780M (3127 - 3648, n=6)	3397 Points +348%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	759 Points
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	707 Points -7%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	512 Points -33%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	500 Points -34%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	469 Points -38%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	468 Points -38%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	466 Points -39%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	454 Points -40%

3DMark 06 Standard Score		14041 points
3DMark Vantage P Result		9948 points
3DMark 11 Performance		2979 points
3DMark Ice Storm Standard Score		54112 points
3DMark Cloud Gate Standard Score		11257 points
3DMark Fire Strike Score		1791 points
3DMark Fire Strike Extreme Score		869 points
3DMark Time Spy Score		613 points
Help

... in comparison

游戏性能

英特尔酷睿 i3-N305 iGPU 的 3D 性能有限英特尔酷睿 i3-N305只适用于要求不高的游戏。英特尔UHD Graphics 应该也能应付休闲游戏或浏览器游戏。使用 AMD Radeon 780M的性能明显更高，例如在 Minisforum EliteMini UM780 XTX.

Dota 2 Reborn: 1280x720 min (0/3) fastest | 1366x768 med (1/3)
Final Fantasy XV Benchmark: 1280x720 Lite Quality | 1920x1080 Standard Quality
X-Plane 11.11: 1280x720 low (fps_test=1) | 1920x1080 med (fps_test=2)

Dota 2 Reborn / min (0/3) fastest
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i3-1215U	100.7 (79.2^min) fps +61%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	76.6 (56.5^min) fps +23%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	74.2 (56^min) fps +19%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	69.7 (57.1^min) fps +12%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	69.3 (50.1^min) fps +11%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	68.7 (48^min) fps +10%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	62.5 (47.4^min) fps
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	44.2 (31.4^min) fps -29%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	35.1 (22.9^min) fps -44%

Dota 2 Reborn / med (1/3)
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i3-1215U	74.6 (57.5^min) fps +70%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	48.3 (34.8^min) fps +10%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	47.9 (41.8^min) fps +9%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	47.8 (40.4^min) fps +9%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	47.1 (39.2^min) fps +8%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	44.9 (33.7^min) fps +3%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	43.8 (34.9^min) fps
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	31.5 (23.9^min) fps -28%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	20.6 (14.9^min) fps -53%

Final Fantasy XV Benchmark / Lite Quality
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i3-1215U	30.6 fps +64%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	18.7 fps
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	14.2 fps -24%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	12.9 fps -31%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12.8 fps -32%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12.4 fps -34%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12.3 fps -34%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	12 fps -36%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.91 fps -68%

Final Fantasy XV Benchmark / Standard Quality
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i3-1215U	16.5 fps +70%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	9.73 fps
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	7.98 fps -18%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6.33 fps -35%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.16 fps -37%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.88 fps -40%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.87 fps -40%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.63 fps -42%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.48 fps -64%

X-Plane 11.11 / low (fps_test=1)
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	32.4 fps
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i3-1215U	29.1 fps -10%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	24.7 fps -24%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	24.3 fps -25%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	22.5 fps -31%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	20.6 fps -36%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	17.3 fps -47%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	11.3 fps -65%

X-Plane 11.11 / med (fps_test=2)
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i3-1215U	24.9 fps +15%
Maxtang MTN-ALN50 Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305	21.6 fps
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	15 fps -31%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	15 fps -31%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	14.7 fps -32%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	13.2 fps -39%
Zotac ZBOX PI430AJ Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N300	12.7 fps -41%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	8.45 fps -61%

	low	med.	high	ultra
GTA V (2015)	55.6	46.4
The Witcher 3 (2015)	38.1		12.3	5.5
Dota 2 Reborn (2015)	62.5	43.8	25.1	23.1
Final Fantasy XV Benchmark (2018)	18.7	9.73	6.92
X-Plane 11.11 (2018)	32.4	21.6	20.1
Far Cry 5 (2018)	20	9	9	8
Strange Brigade (2018)	41.3	13.5	13.5	14.5
Shadow of the Tomb Raider (2018)	16.5	9.2	8.6
Far Cry New Dawn (2019)	21	11	10	9
F1 2020 (2020)	35.4	18.8	14	8.7
F1 2021 (2021)	46	18.3	16.5	10.5
GRID Legends (2022)	27.3	21.1	15.9
Prince of Persia The Lost Crown (2024)		37	26.7	24

排放量 - 不算突出，但也不错

噪音排放

英特尔酷睿 i3-N305 采用紧凑型主动冷却装置。我们的测量结果表明，Maxtang MTN-ALN50 在空闲模式下可以静音运行，尽管在平均负载下仅能达到略高于 33.4 dB(A)。不过，在峰值时，我们记录到的声压级为 43 dB(A)，使迷你 PC 的声音清晰可闻。尽管如此，最大噪音水平并不会持续达到。与本次评测中的竞争对手相比，我们的测试样品在这方面表现稍差。不过，从表现来看，声压级在日常使用中还是可以接受的。

Noise Level

Idle		25.1 / 25.1 / 25.1 dB(A)
Load		34.5 / 43 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25 dB(A)

	Maxtang MTN-ALN50 i3-N305, UHD Graphics 32EUs	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Noise		-2%	3%	12%	-7%	-10%	-16%	-7%
off / environment *	25	25 -0%	25.2 -1%	25 -0%	29.7 -19%	24.8 1%	30.4 -22%	30.2 -21%
Idle Minimum *	25.1	25.5 -2%	25.4 -1%	25 -0%	30.2 -20%	30.6 -22%	31 -24%	30.2 -20%
Idle Average *	25.1	26.9 -7%	25.5 -2%	25 -0%	30.2 -20%	31.3 -25%	31.1 -24%	30.2 -20%
Idle Maximum *	25.1	27 -8%	25.5 -2%	25 -0%	30.2 -20%	32.1 -28%	31.8 -27%	30.2 -20%
Load Average *	34.5	34.3 1%	32.3 6%	25 28%	30.4 12%	34.8 -1%	33.3 3%	30.5 12%
Load Maximum *	43	40.3 6%	36.4 15%	25 42%	31.4 27%	37.1 14%	42.5 1%	30.9 28%

* ... smaller is better

温度

Maxtang MTN-ALN50 的外壳仅有轻微发热。在压力测试过程中，我们看到处理器本身的最高温度为 90 °C，这是在压力测试开始后才直接达到的。随着测试的进行，CPU 温度稳定在略低于 80 °C。不过，我们也发现无法达到 PL2 值（35 瓦）。由于温度上升过快，英特尔酷睿 i3-N305 的最高功率仅为 24 瓦，随后功率降至 15 瓦。不过，这意味着 SoC 在英特尔为酷睿 i3-N305 设定的规格范围内工作。

Max. Load

Idle


32 °C	33.5 °C	33.7 °C
31.5 °C	33 °C	31.8 °C
32.4 °C	33.1 °C	33.2 °C

Maximum: 33.7 °C
Average: 32.7 °C


32.6 °C	32.7 °C	32.7 °C
33 °C	33.2 °C	33 °C
33.2 °C	33.1 °C	33.1 °C

Maximum: 33.2 °C
Average: 33 °C

Power Supply (max.) 34.3 °C | Room Temperature 21.8 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 32.7 °C / 91 F, compared to the average of 32.1 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 33.7 °C / 93 F, compared to the average of 35.5 °C / 96 F, ranging from 26 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 33.2 °C / 92 F, compared to the average of 36.9 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 32.1 °C / 90 F.

耗电量

由于英特尔酷睿 i3-N305 性能更强，因此功耗看起来比竞争对手略低。尽管如此，我们还是在测试中看到了相当低的数值。在空闲模式下，电源只需提供 3.9 至 7.2 瓦的功率。在峰值时，我们记录到的功率略低于 49 瓦，尽管在持续负载情况下显示屏上仅显示约 30 瓦。最大输出功率为 60 瓦，电源装置的尺寸足够大。制造商在这里没有使用专用连接，这意味着也可以使用其他电源装置。不过，必须确保电压正确，因为 Maxtang MTN-ALN50 只提供 12 伏电压。

Power Consumption

Off / Standby	0.05 / 0.67 Watt
Idle	3.9 / 7 / 7.2 Watt
Load	30.1 / 48.7 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Maxtang MTN-ALN50 i3-N305, UHD Graphics 32EUs	Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Trigkey G4 N100, UHD Graphics 24EUs (Alder Lake-N)	Zotac ZBOX PI430AJ i3-N300, UHD Graphics 32EUs	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Average Intel UHD Graphics 32EUs (Alder Lake)	Average of class Mini PC
Power Consumption		-39%	10%	11%	31%	-22%	-60%	2%	-10%	-94%
Idle Minimum *	3.9	7.1 -82%	4.9 -26%	4.4 -13%	3.5 10%	8.2 -110%	11.3 -190%	6.1 -56%	5.88 ?(3.5 - 11.3, n=4) -51%	9.75 ?(1.9 - 46.5, n=92, last 2 years) -150%
Idle Average *	7	12.1 -73%	7.1 -1%	6 14%	3.6 49%	8.6 -23%	11.6 -66%	6.9 1%	7 ?(4.6 - 11.6, n=4) -0%	11.7 ?(1.9 - 63, n=91, last 2 years) -67%
Idle Maximum *	7.2	13.9 -93%	7.3 -1%	9.7 -35%	6.2 14%	10.4 -44%	15.2 -111%	8.9 -24%	9.35 ?(7 - 15.2, n=4) -30%	14.7 ?(2.6 - 68.9, n=92, last 2 years) -104%
Load Average *	30.1	23.8 21%	20.6 32%	14.6 51%	20.4 32%	19.4 36%	22.8 24%	20 34%	26.4 ?(22.8 - 30.1, n=4) 12%	51.9 ?(11.3 - 158.7, n=92, last 2 years) -72%
Load Maximum *	48.7	33 32%	26.2 46%	30.2 38%	25 49%	33.1 32%	28.5 41%	21.1 57%	39.3 ?(28.5 - 48.7, n=4) 19%	86 ?(18.1 - 271, n=92, last 2 years) -77%

* ... smaller is better

Power consumption with external monitor

Maxtang MTN-ALN50; Prime95 V2810 Stress (external Monitor): Ø34.5 (31-47.3)

Maxtang MTN-ALN50; Cinebench R15 Multi (external Monitor): Ø36.9 (30.3-42.2)

Maxtang MTN-ALN50; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø26.1 (23.5-39.1)

Maxtang MTN-ALN50; Idle 1min (external Monitor): Ø7.16 (7.03-7.64)

Maxtang MTN-ALN50; 3DMark06 Return To Proxycon: Ø30.1 (26.3-33.2)

Maxtang MTN-ALN50; Cinebench R23 Single (external Monitor): Ø21.6 (20.6-28.9)

Maxtang MTN-ALN50; Cinebench R23 Multi (external Monitor): Ø32.9 (29.1-40)

Pros

+ 外壳非常坚固

+ 易于打开

+ 英特尔酷睿 i3-N305 配备 8 个内核

+ 日常可用的性能

+ 机箱温度低

+ 双 2.5G LAN

+ 可同时使用三台显示器

Cons

- 高 DPC 延迟

- 无无线局域网

- 尖角外壳

结论 - 经济实惠的英特尔酷睿 i3-N305 处理器，日常使用的好帮手

Maxtang MTN-ALN50 是一款简单的微型电脑，没有任何视觉亮点。制造商选择的材料主要包括金属，这给设备带来了出色的稳定性，但也带来了重量相对较重的副作用。不过，就制造质量而言，我们已经在测试中看到了更好的设备。此外 MTN-FP750也表明 Maxtang 可以做得更好。外壳上的倒角是这里的关键词。就性能而言，我们几乎没有任何批评意见。处理器英特尔酷睿 i3-N305虽然不是最快的处理器之一，但这款 SoC 的功耗仅为 15 瓦，可提供 8 个计算核心。加上主动散热装置，即使在负载情况下也能提供足够的性能。遗憾的是，虽然 SoC 也能处理 DDR5 内存，但 Maxtang 在这里只安装了 DDR4 内存。

Maxtang MTN-ALN50 的有趣之处在于采用了英特尔酷睿 i3-N305。该 SoC 性能卓越，但在制造质量方面还有待提高。

在连接性方面，我们的意见有些分歧。一方面，Maxtang MTN-ALN50 拥有两个 2.5G LAN 连接。另一方面，它没有 WLAN 模块，用户必须自行加装。尽管如此，该设备还是为此提供了一个插槽。其余的连接都是标准连接，与同类产品相比没有明显的附加值。Maxtang MTN-ALN50 的主要卖点仍然是经济实惠、性能良好的处理器。采用类似 SoC 的同类迷你 PC（如 Zotac Zbox pico PI430AJ）目前非常罕见，价格也高出许多。

价格和供应情况

Maxtang MTN-ALN50 的测试配置可直接从制造商处购买，价格为348 美元。.

Maxtang MTN-ALN50 - 2024-02-08 02/08/2024 v7
Sebastian Bade

Chassis

74 / 98 → 76%

Connectivity

41 / 81 → 51%

Weight

80%

Games Performance

54%

Application Performance

81%

Temperature

93%

Noise

92%

Average

74%

73%

Mini PC - Weighted Average

Transparency

The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Dell XPS 15 (9530-0538) 4712HQ, GeForce GT 750M	2971
Toshiba Satellite L70-B-130 4710HQ, Radeon R9 M265X	2977
HP Pavilion 15-aw004ng W8Y60EA A10-9600P, Radeon R8 M445DX	2979
Maxtang MTN-ALN50 i3-N305, UHD Graphics 32EUs	2979
Acer Aspire E15 E5-553G-109A A12-9700P, Radeon R8 M445DX	2992
Acer Aspire E5-774G-78NA 6500U, GeForce 940MX	3008
Dell Inspiron 17 7746-3863 5200U, GeForce 845M	3019
...
(max) R7 7800X3D, NVIDIA GeForce RTX 4090	72163

迈腾 MTN-ALN50 微型电脑评测：非常经济的办公电脑，配备英特尔酷睿 i3-N305 和 8 核，性能卓越

潜在的竞争对手比较

麦斯唐 MTN-ALN50 详细信息

表壳 - 大量采用金属和塑料，表面高光处理

尺寸比较

设备 - 不带无线局域网的简易标准

配件

维护

性能 - 英特尔酷睿 i3-N305 8 核心

测试条件

处理器

Maxtang MTN-ALN50 与 Cinebench R15 多环对比

系统性能

DPC 延迟

大容量存储器

Continuous reading: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

排放量 - 不算突出，但也不错

噪音排放

温度

耗电量

Power consumption with external monitor

Pros

Cons

结论 - 经济实惠的英特尔酷睿 i3-N305 处理器，日常使用的好帮手

价格和供应情况

Transparency

More articles related to this device
