NiPoGi GK3 Plus N95评测。用于办公的英特尔N95紧凑型迷你电脑

Name: Minipc Union NiPoGi GK3PLUS - N95
Brand: Minipc Union

一款适合日常办公使用的现代SoC! 这家中国系统制造商正在推销一款新的办公迷你电脑，其名称为NiPoGi GK3 Plus N95。NiPoGi GK3 Plus N95配备了英特尔奔腾N95，基于英特尔目前的Alder Lake N SoC，该SoC在2023年初的CES上首次演示。在我们的广泛评论中，找出全新的SoC的性能如何，以及NiPoGi GK3 Plus N95如何在我们的测试课程中谈判。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 03/02/2023 🇺🇸 🇩🇪 ...

Alder Lake Desktop Mini PC Windows

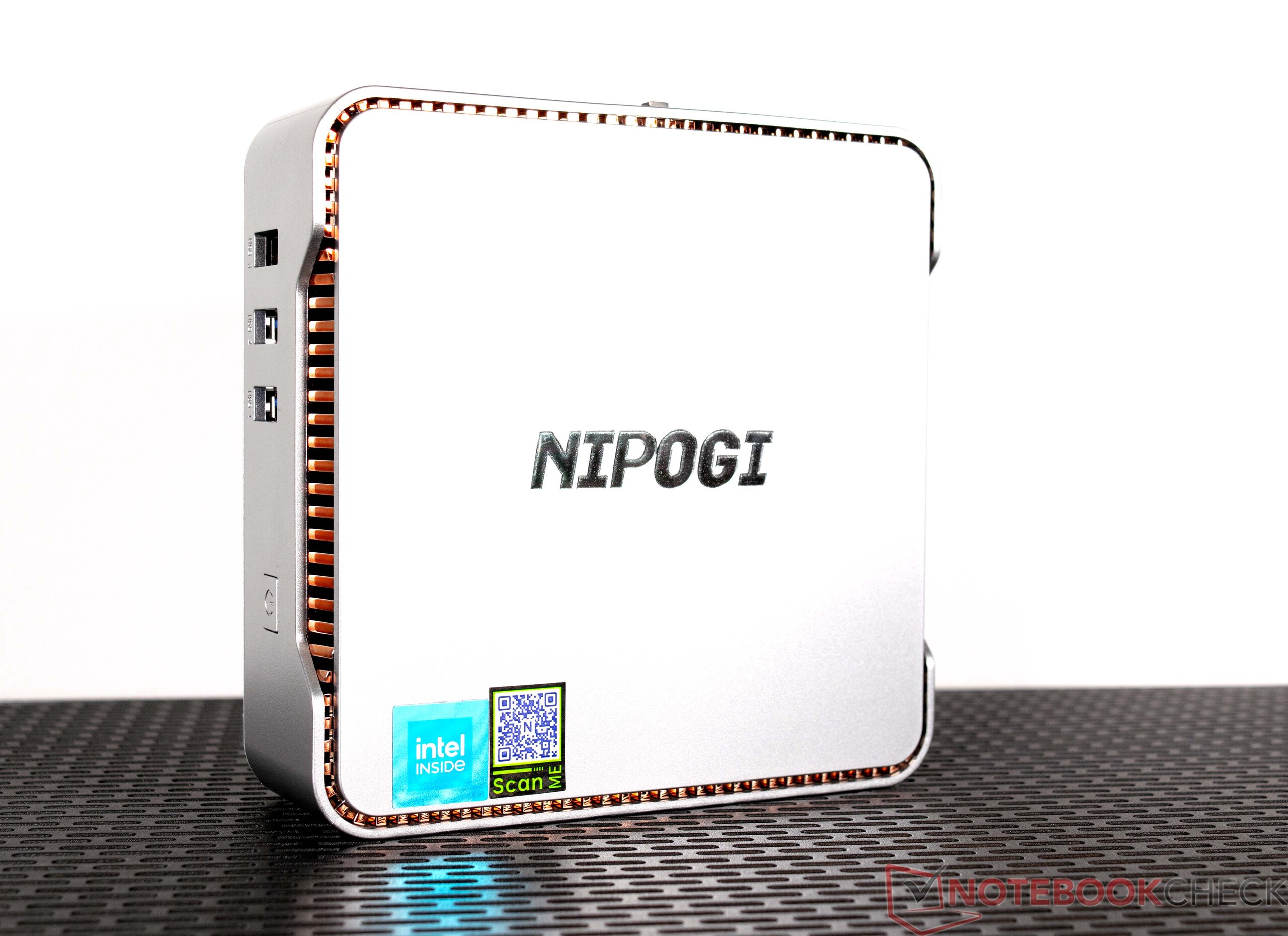

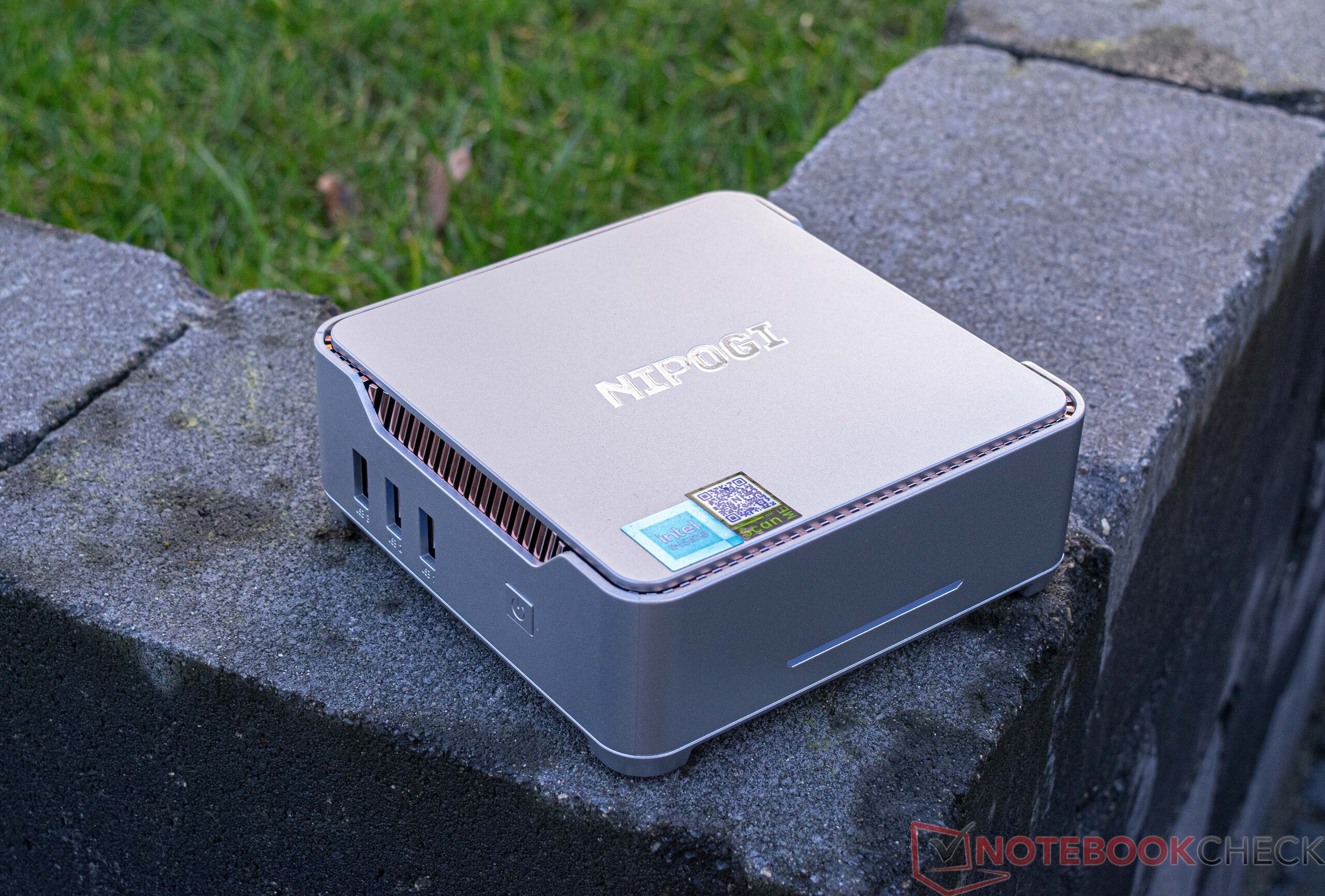

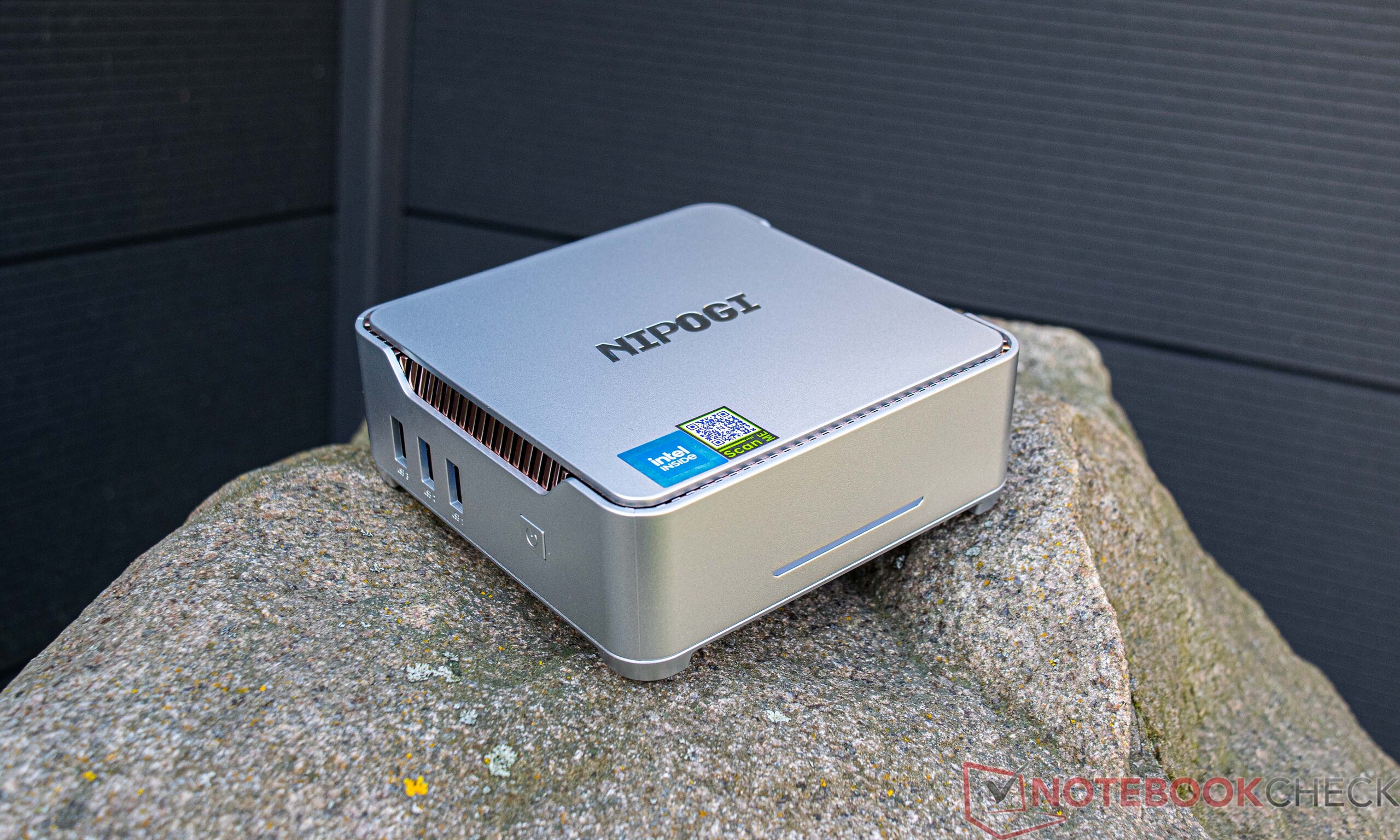

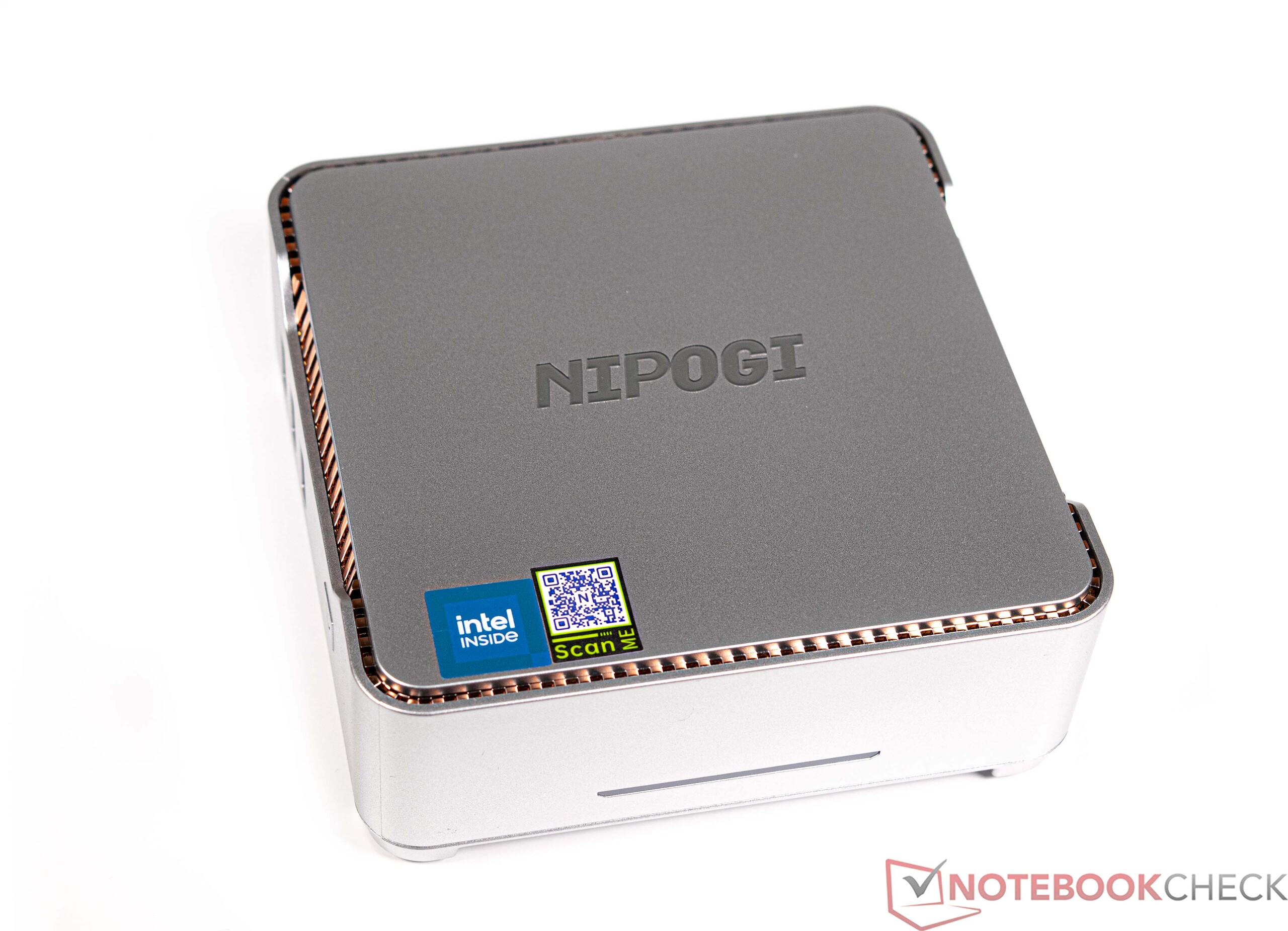

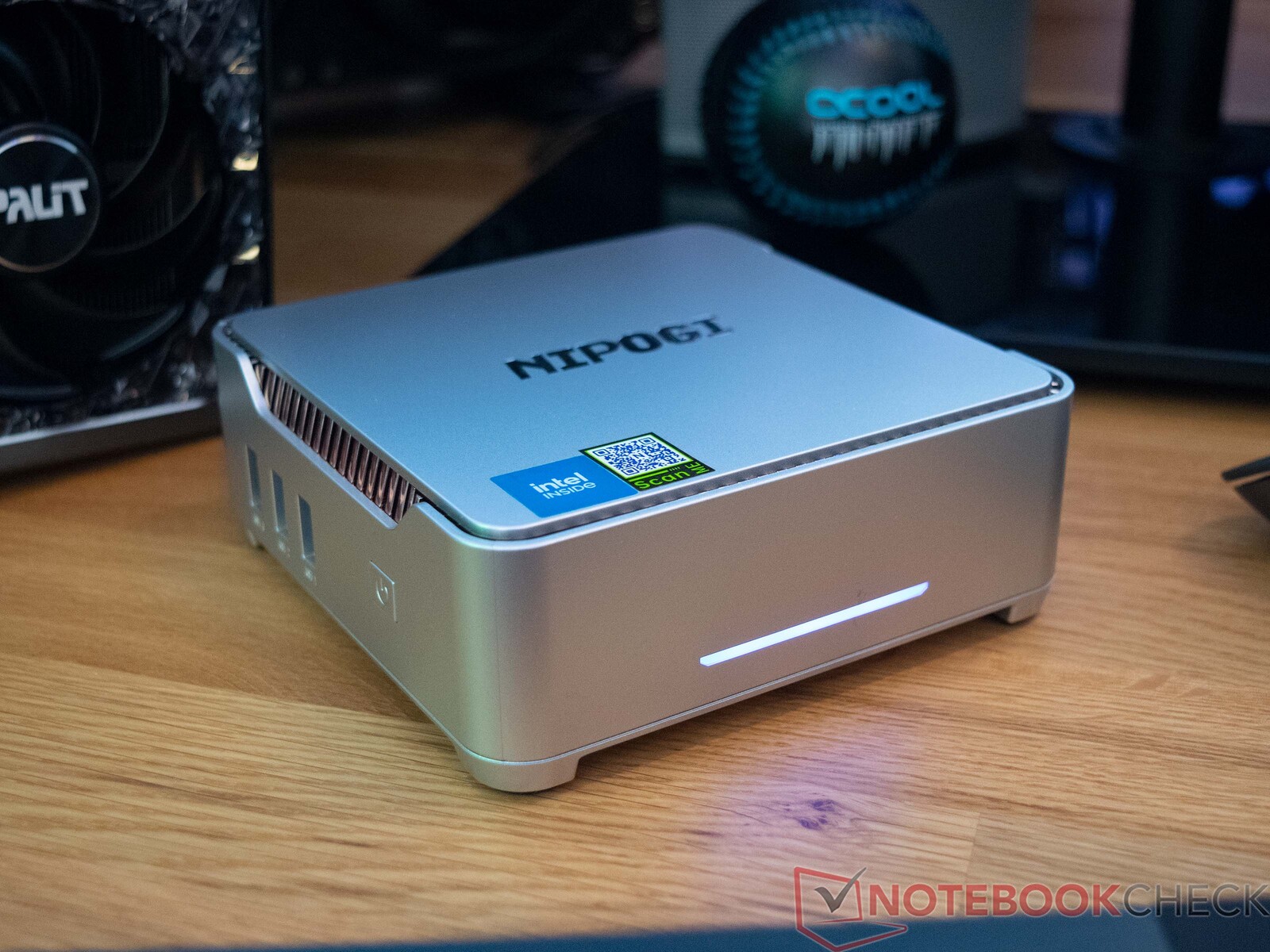

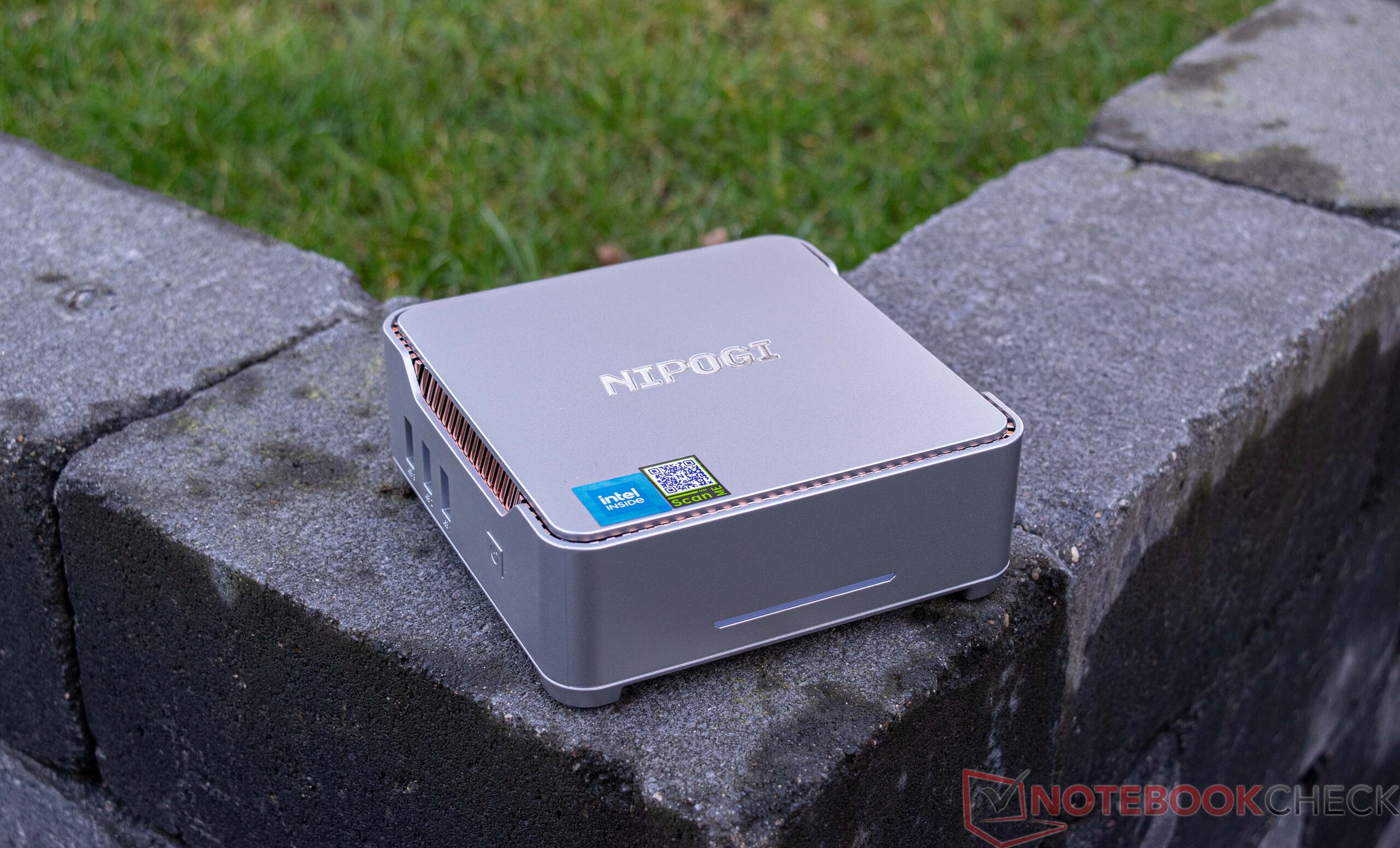

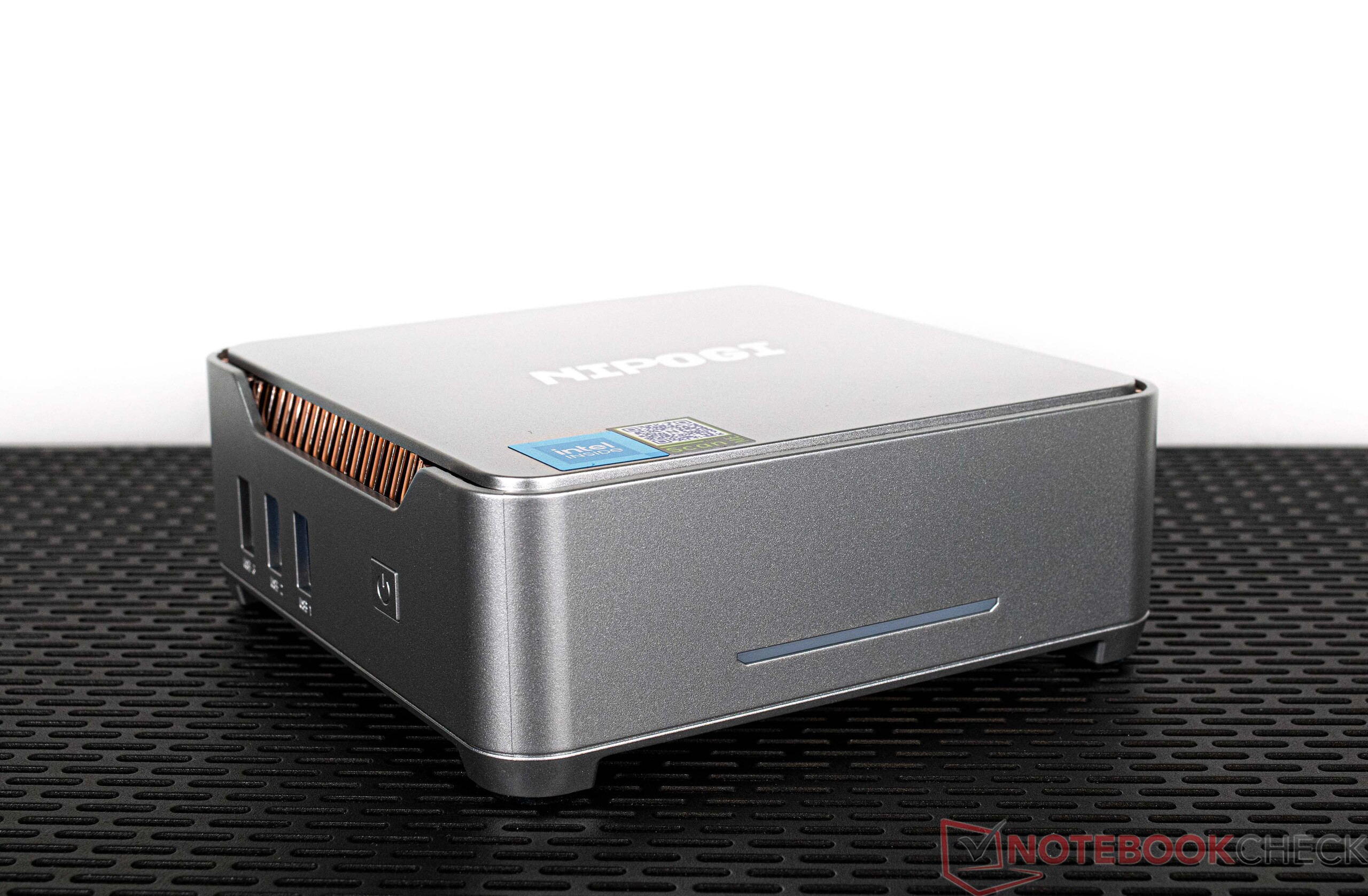

通过NiPoGi GK3 Plus N95，Minipc Union正在销售一款基于全新的Alder Lake N SoC的迷你PC。将这块SoC与16GB内存和512GB固态硬盘搭配使用，该系统制造商为大多数办公应用提供了坚实的基础。目前，NiPoGi N95的价格为299美元，可以直接通过亚马逊购买。价格中包括专业版的Windows 11。

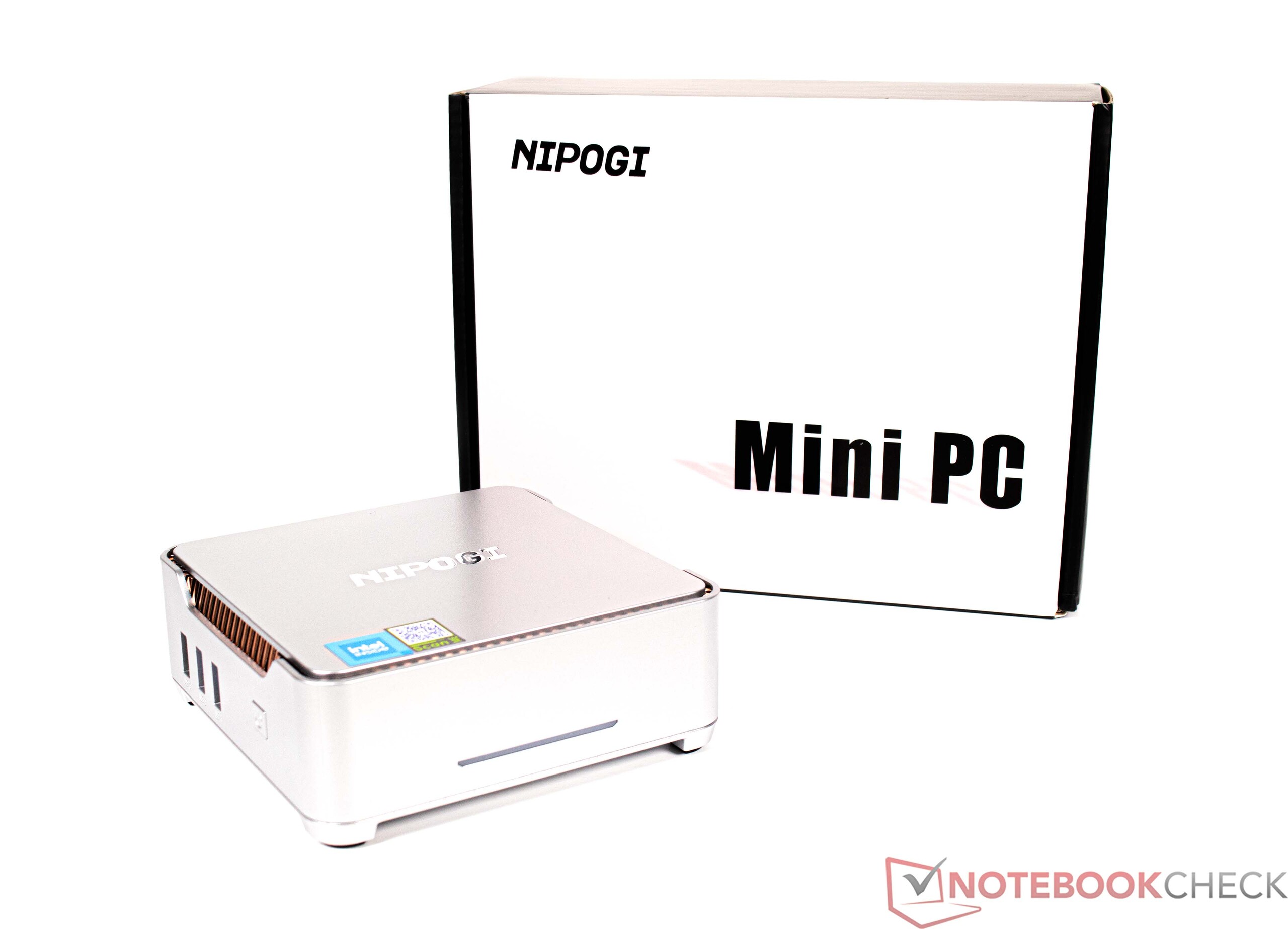

这款迷你电脑包装紧凑，包括一个30瓦的电源装置和一个VESA支架，可将设备安装在兼容的显示器上。

Minipc Union NiPoGi GK3PLUS - N95

Processor

Intel Processor N95 4 x - 3.4 GHz, 15 W PL2 / Short Burst, 10 W PL1 / Sustained, Alder Lake-N

Graphics adapter

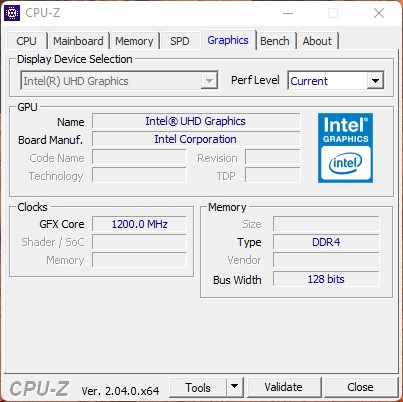

Intel UHD Graphics 24EUs (Alder Lake-N), Core: 1200 MHz, 31.0.101.3417 DCH

Memory

16 GB

, DDR4 2666, 1 from 1 used, max. 16 GB

Mainboard

Intel Alder Lake-N PCH

Storage

Kimtigo KTB900SM28/512GB, 512 GB

, M.2 2280 (SATA), 450 GB free

Connections

2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 2 HDMI, 1 Kensington Lock, Audio Connections: 3,5mm

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 47 x 132 x 132

Operating System

Microsoft Windows 11 Pro

Additional features

12 Months Warranty

Weight

381 g, Power Supply: 125 g

Price

399 EUR

Links

Minipc Union homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Resolution
68.2 %	03/2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	381 g	47 mm	x
65.9 %	01/2023	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	209 g	43.5 mm	x
	02/2022	Newsmay AC8 N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	534 g	48 mm	x
66.5 %		Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	496 g	34.2 mm	x
	08/2022	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	1.3 kg	40 mm	x
	06/2022	Nofflink M500-5405U Pentium 5405U, UHD Graphics 610	657 g	39 mm	x

NiPoGi GK3 Plus N95的详细介绍

特点

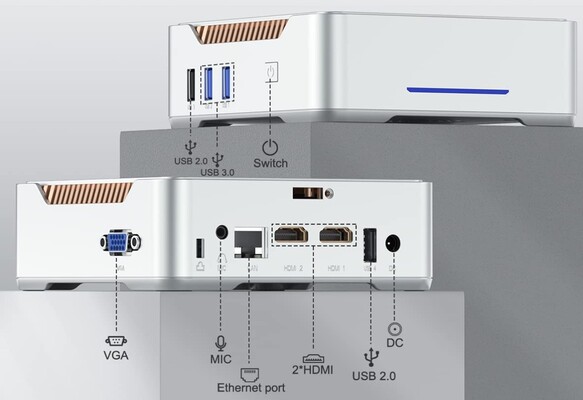

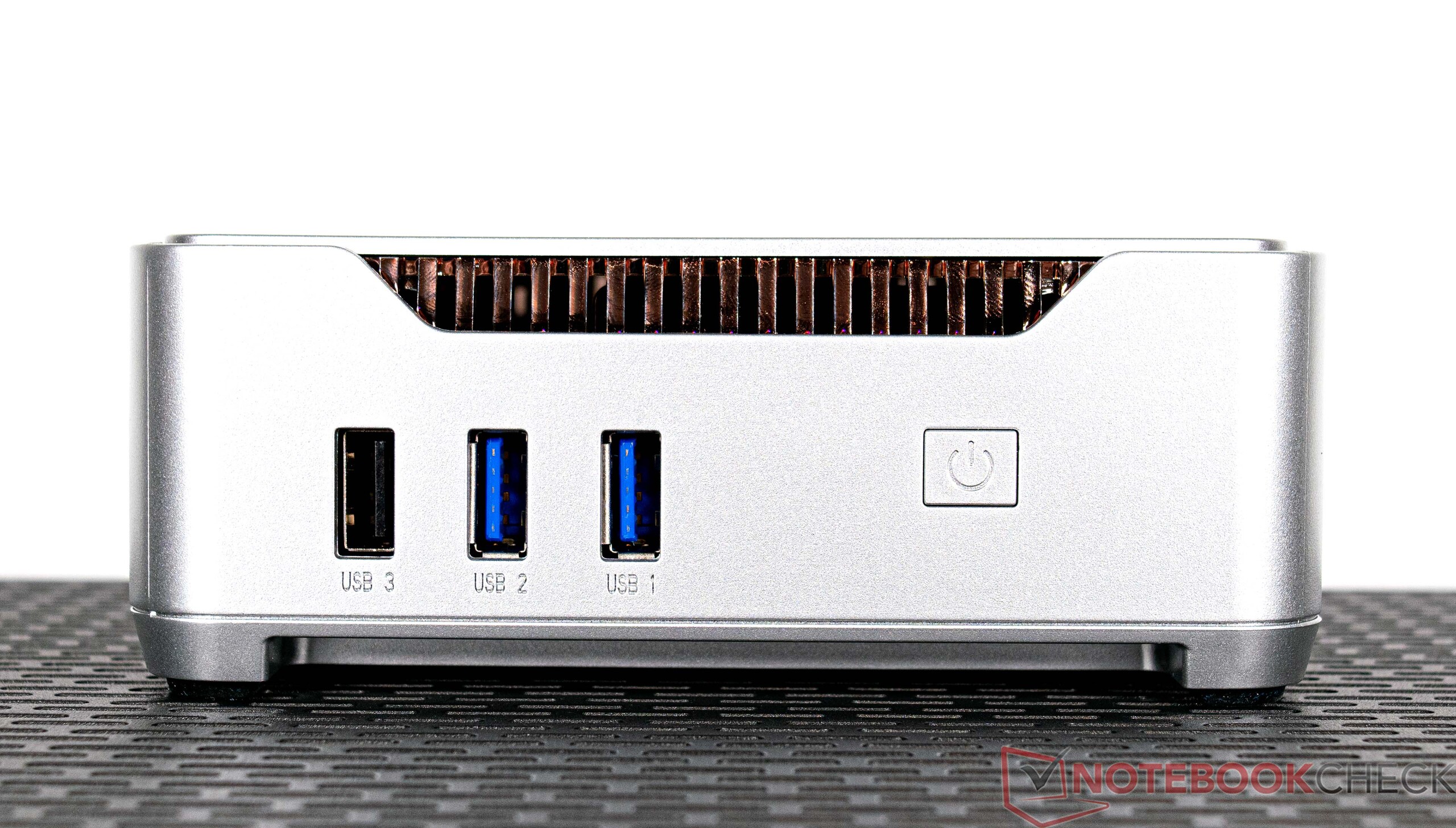

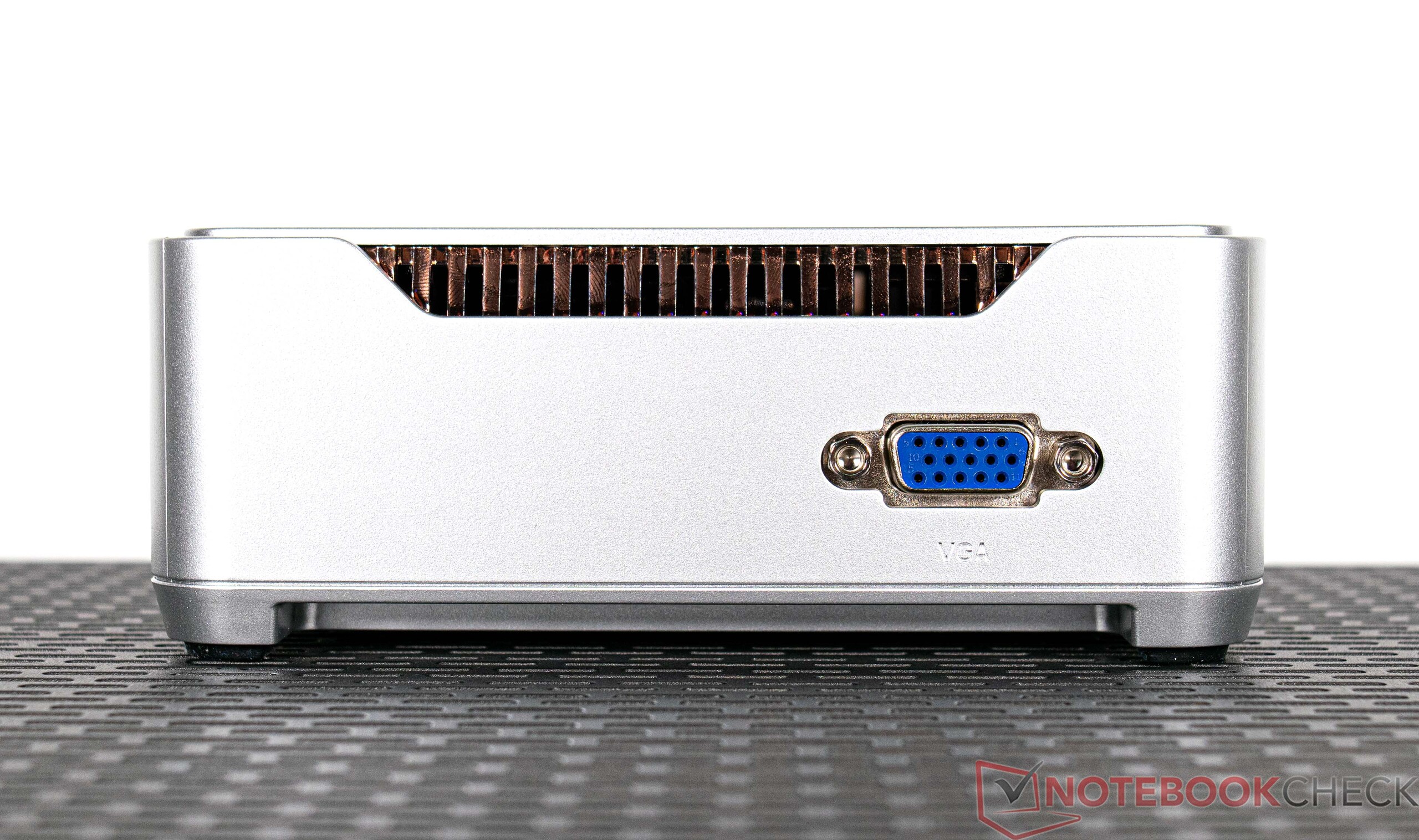

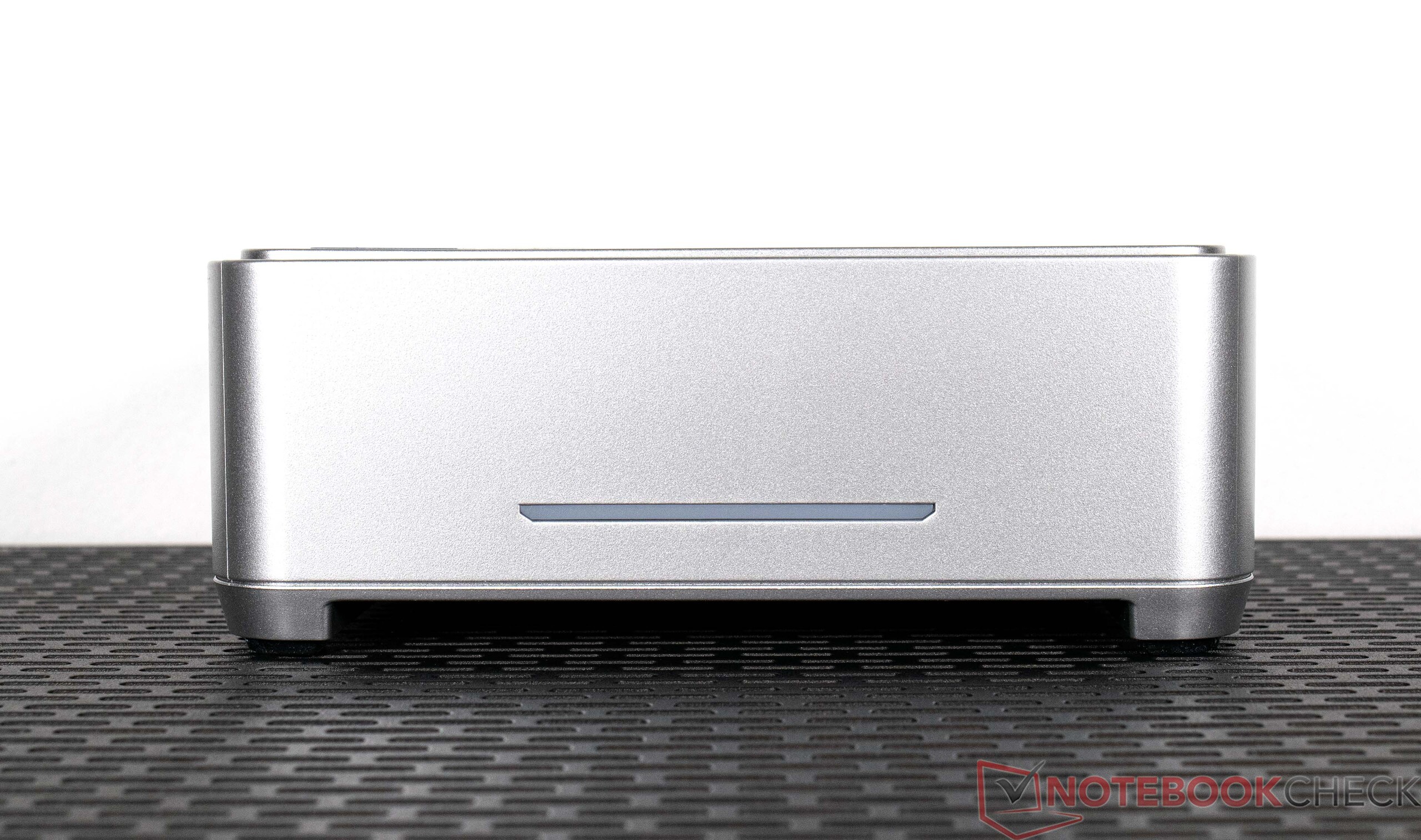

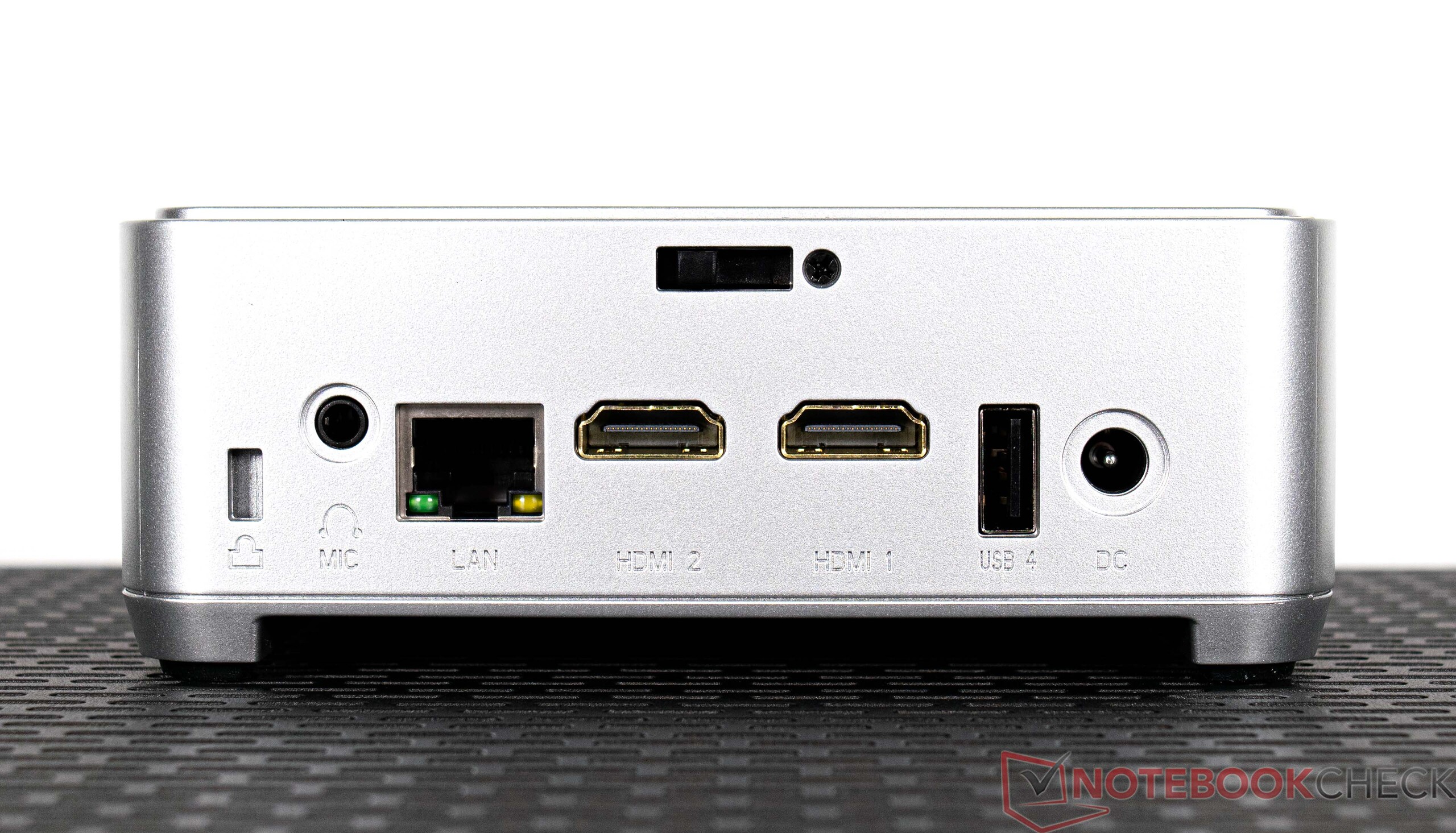

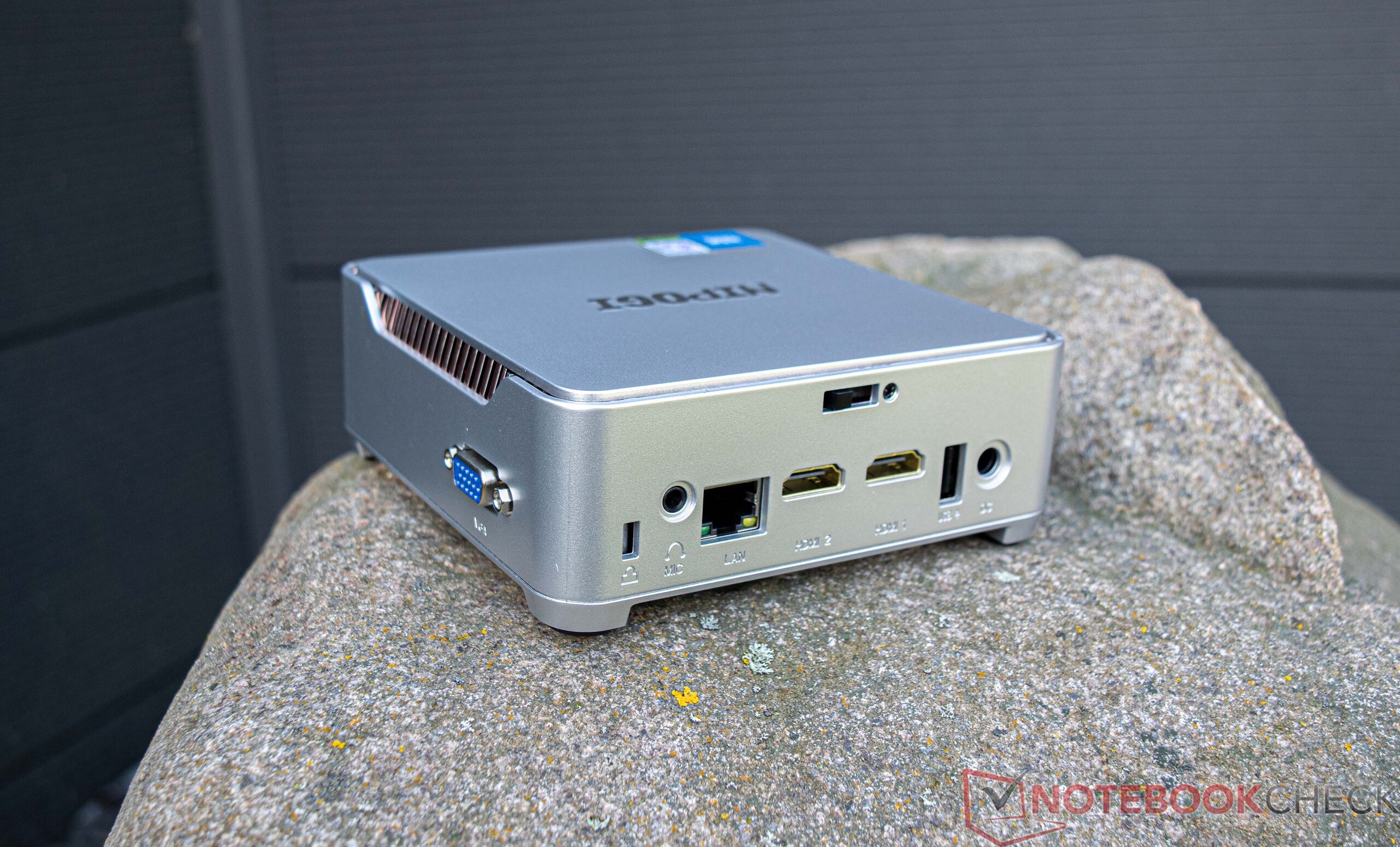

基本上，NiPoGi GK3 Plus N95配备了所有重要的接口。总的来说，我们有4个USB Type-A和两个HDMI接口，支持4K60。另外，迷你电脑还提供了一个模拟VGA接口，可以使用老式显示器。此外，还有一个网络插座，但没有SD读卡器或USB-C接口。端口的位置很好，由于它们选择的位置，应该可以避免电缆的纠缠。

Size comparison

Newsmay Neosmay S2-B560TPM Minipc Union NiPoGi GK3PLUS - N95 Newsmay AC8 N6005 Nofflink M500-5405U Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A5 ❌

沟通

在NiPoGi GK3 Plus N95内部，我们有一个来自Realtek的WiFi模块，支持蓝牙4.2。我们使用华硕ROG Rapture GT-AXE11000进行性能测试。所记录的传输和接收性能远远低于同类平均水平。与对比设备相比，我们的评测样本仅能胜过王牌魔术师T8Pro.RJ45接口提供了一个比无线网络通信更快的选择。然而，超过1GBit/s在这里是不可能的。

Networking
iperf3 receive AXE11000
Nofflink M500-5405U MediaTek RZ608	975 (958^min - 997^max) MBit/s +172%
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	964 (933^min - 986^max) MBit/s +169%
Average of class Mini PC (192.9 - 1796, n=86, last 2 years)	897 MBit/s +151%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s +1%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (354 - 365, n=5)	360 MBit/s +1%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s -19%
iperf3 transmit AXE11000
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	858 (810^min - 882^max) MBit/s +219%
Nofflink M500-5405U MediaTek RZ608	832 (730^min - 860^max) MBit/s +209%
Average of class Mini PC (184.1 - 1776, n=86, last 2 years)	825 MBit/s +207%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (184.1 - 274, n=5)	242 MBit/s -10%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s -16%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s -32%

Minipc Union NiPoGi GK3PLUS - N95; iperf3 receive AXE11000; iperf 3.1.3: Ø352 (180-362)

Minipc Union NiPoGi GK3PLUS - N95; iperf3 transmit AXE11000; iperf 3.1.3: Ø265 (136-276)

辅料

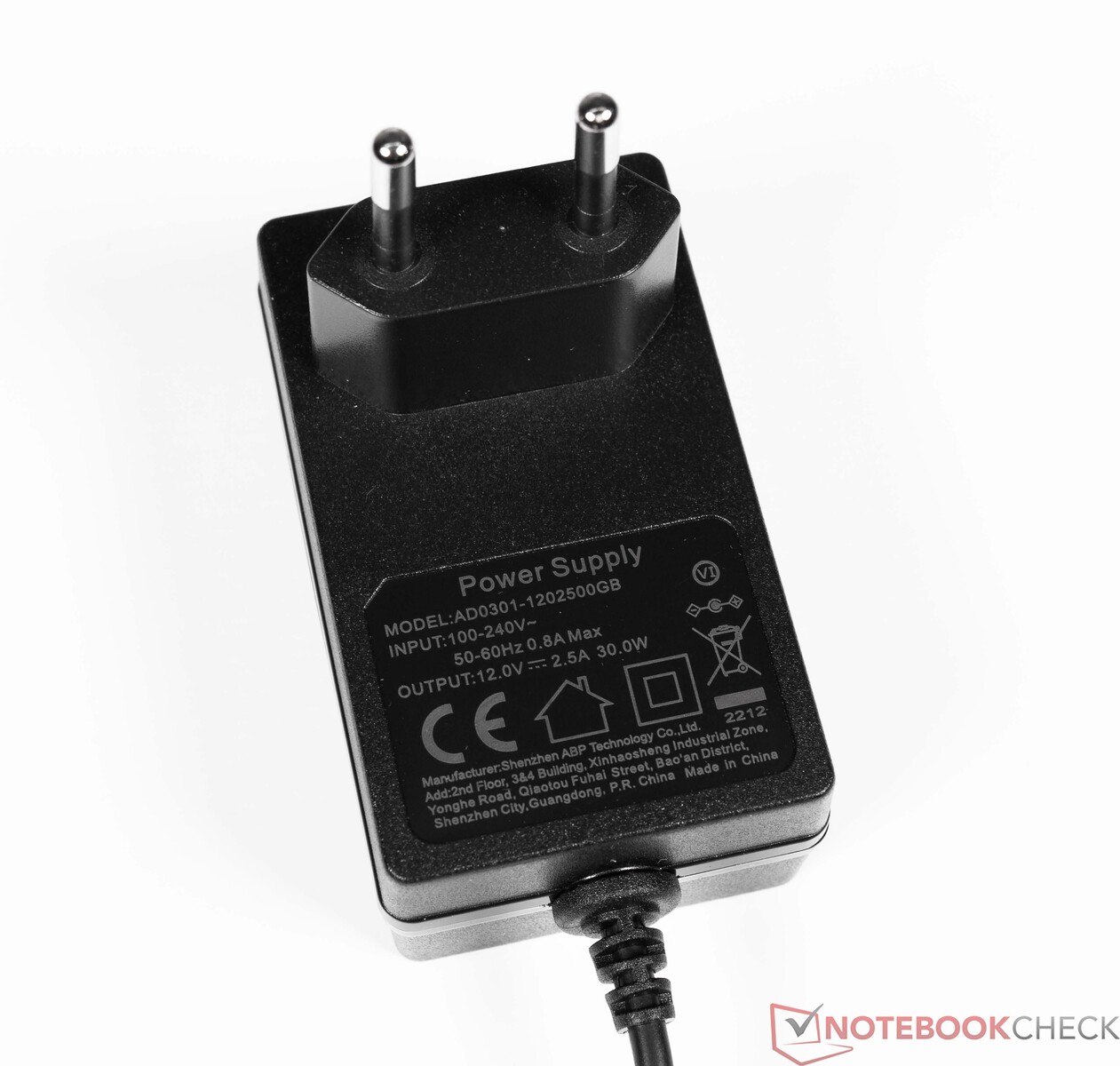

除了设备本身，这台迷你电脑只配备了一个小型的30瓦电源装置，以及一条HDMI线和一个用于安装在显示器上的安装板（VESA安装）。

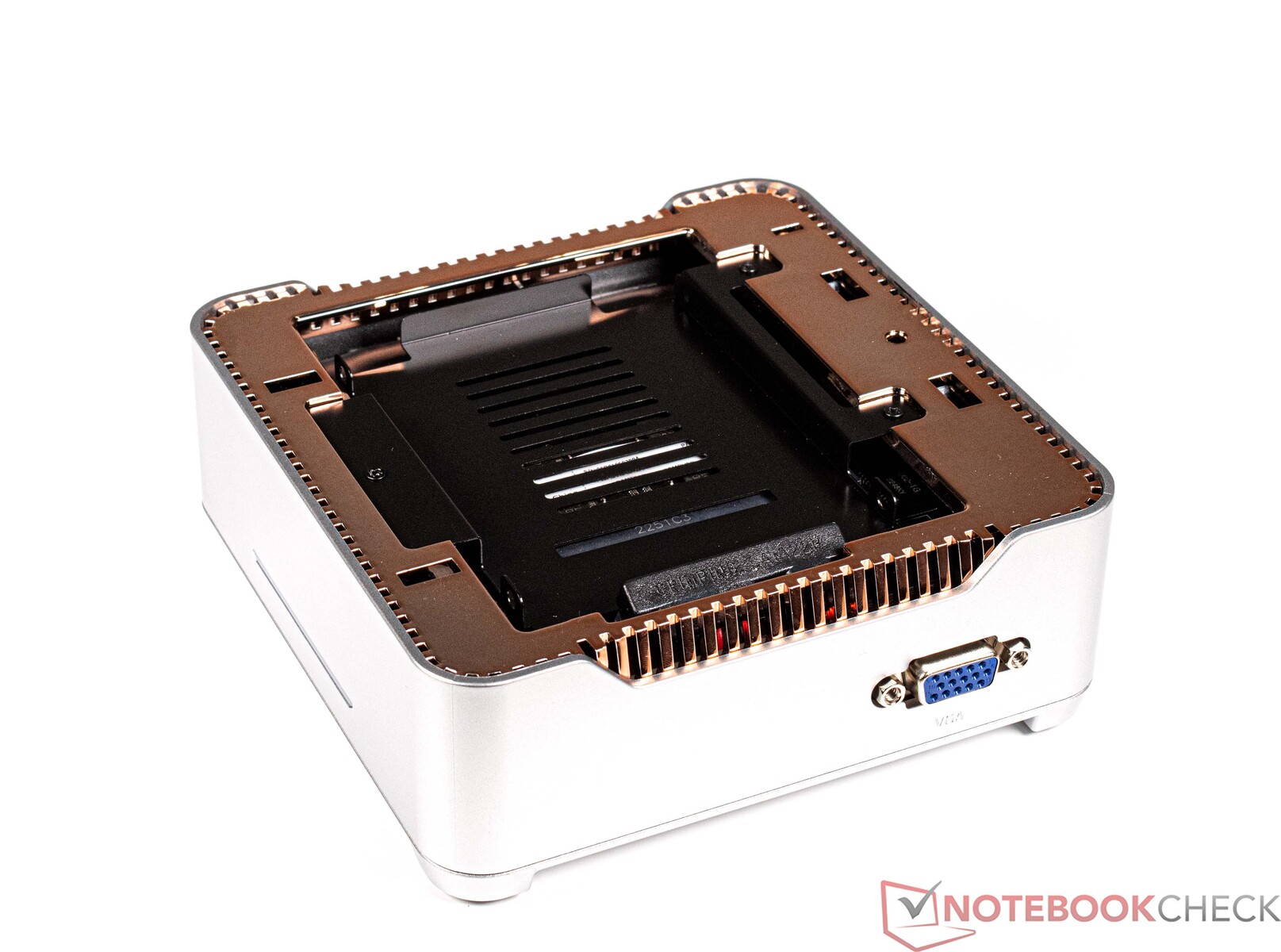

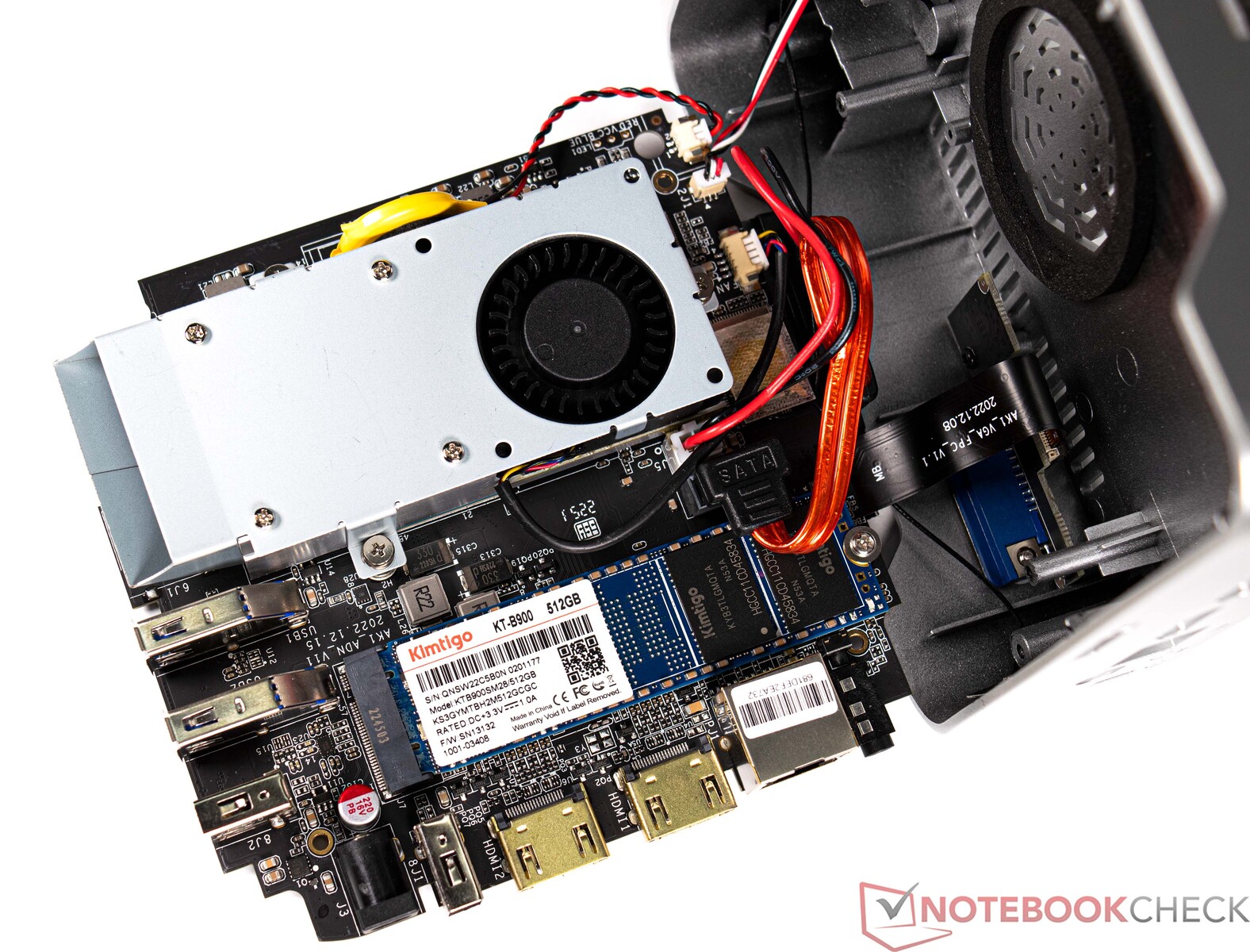

维护

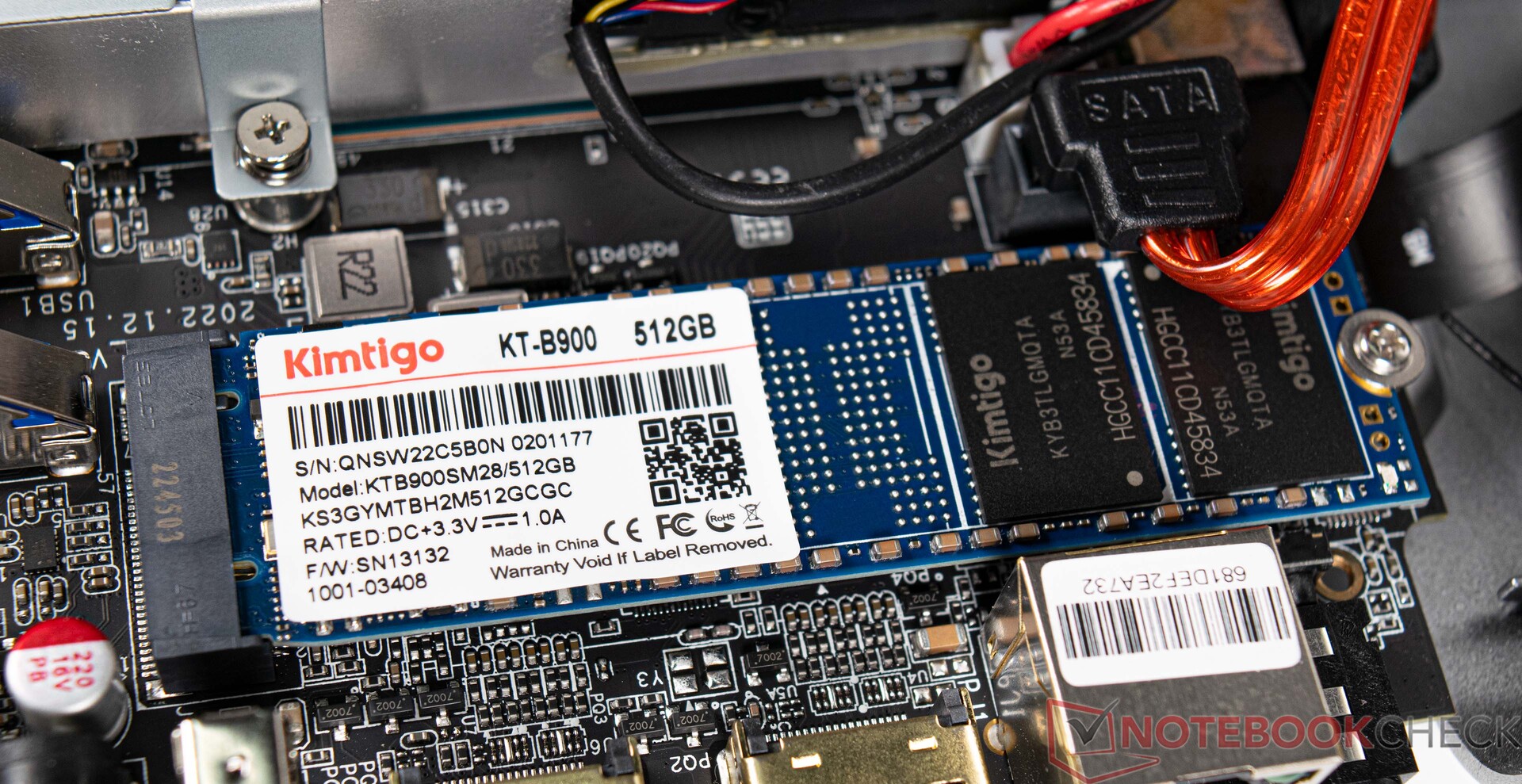

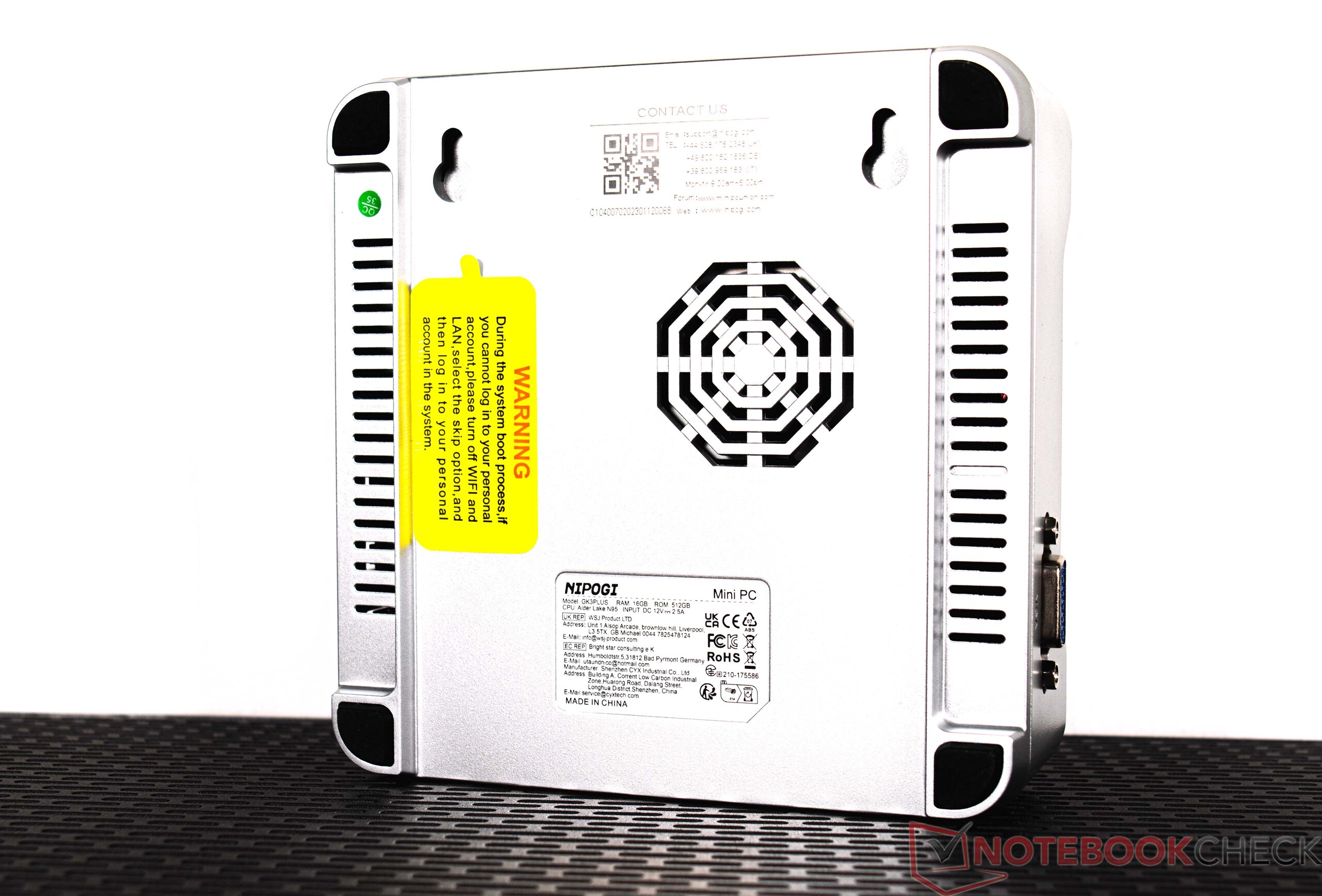

有了NiPoGi GK3 Plus N95，可能的维护任务或可升级的选项被限制到最低限度。该设备只提供一个SO-Dimm插槽。反过来说，这意味着不能安装更多的内存。只有第二个大容量存储设备可以相对快速和容易地安装。为了实现这一点，必须拆掉盖子，但幸运的是这只涉及到底座上的一个螺丝。然而，2.5英寸大容量存储设备的高度必须不超过7毫米。NiPoGi GK3 Plus N95的所有电缆都已存在。任何希望清洁风扇或更换M.2 SSD的人都必须进一步拆卸设备，但这至少是相当容易处理的。

性能 - 经济型英特尔N95提供4个原生核心

的英特尔奔腾N95是一个原生的四核SoC，为其预期用途提供了坚实的基础。NiPoGi GK3 Plus N95配备了16GB的宽松内存。

测试条件

所有的性能测试都是使用高性能能源配置文件进行的，以达到最佳性能。不同的节能措施只在耗电量和噪音水平分析中发挥作用。关于我们测试标准的更多细节，可以在这里找到这里.

处理器

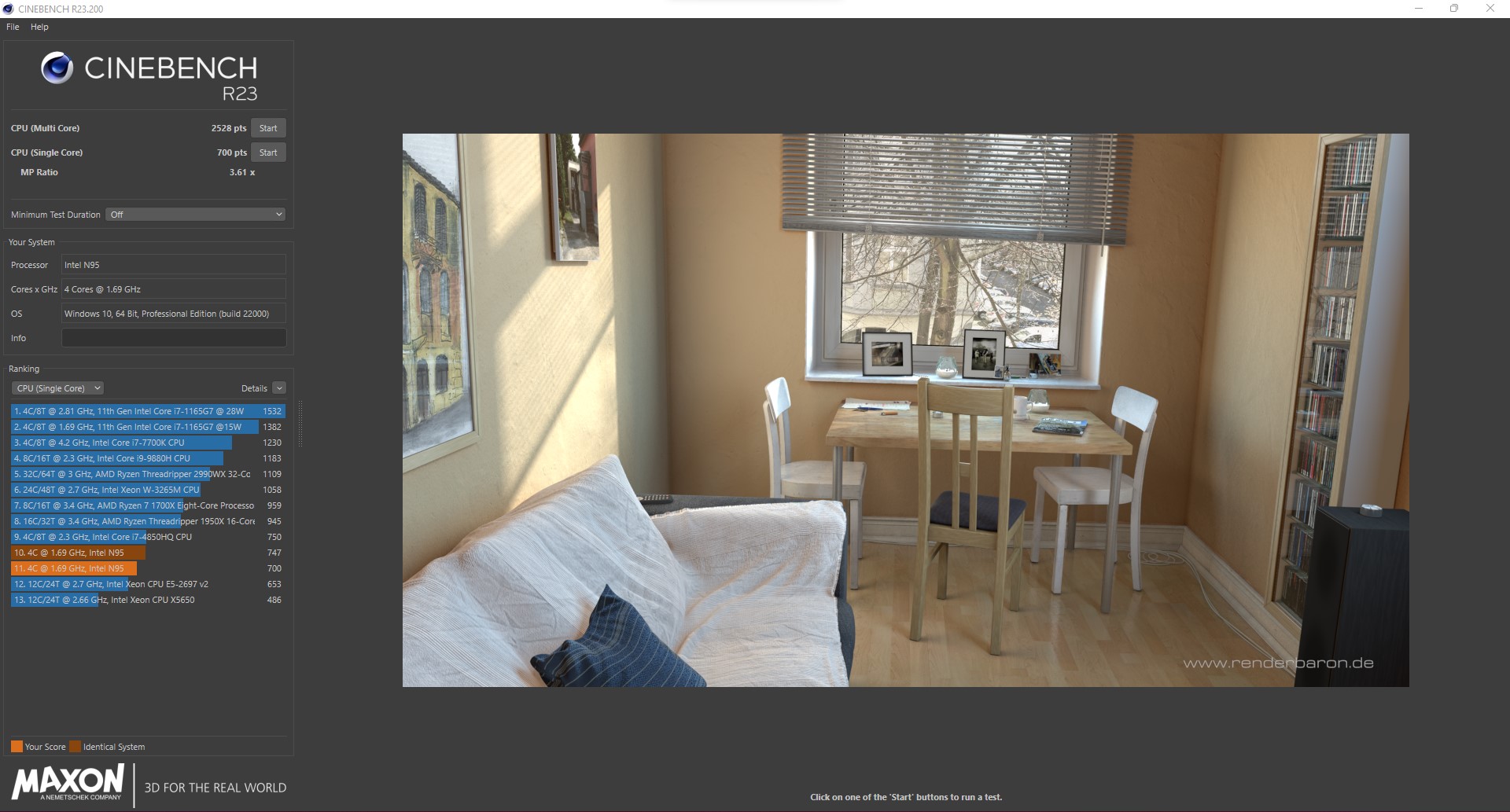

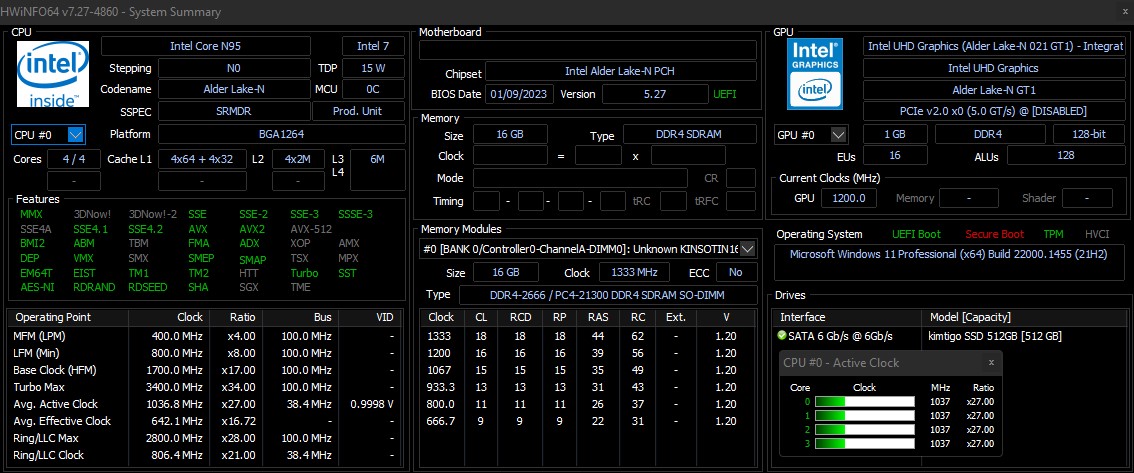

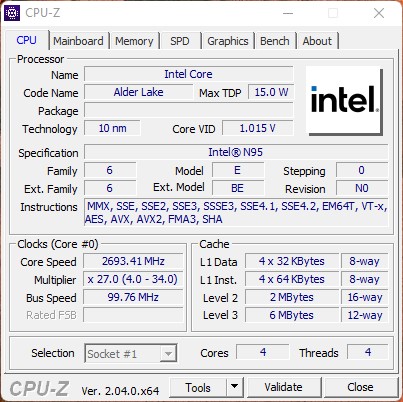

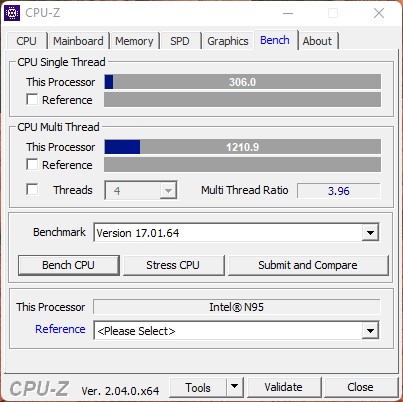

ǞǞǞ英特尔N95拥有四个原生核心，最大提升时钟速度可达3.4GHz。在测试中，NiPoGi GK3 Plus N95表现出良好的性能，甚至可以跟上英特尔酷睿i5-11400T中发现的 Newsmay Neosmay S2.然而，在进行多核基准测试时，情况并非如此，四核机器无法跟上Neosmay S2中的原生六核。尽管如此，与英特尔奔腾银N6005相比，英特尔N95在前面有20%左右的优势。制造商将NiPoGi GK3 Plus N95的功率限制分别定义为15瓦（PL2）和10瓦（PL1）。

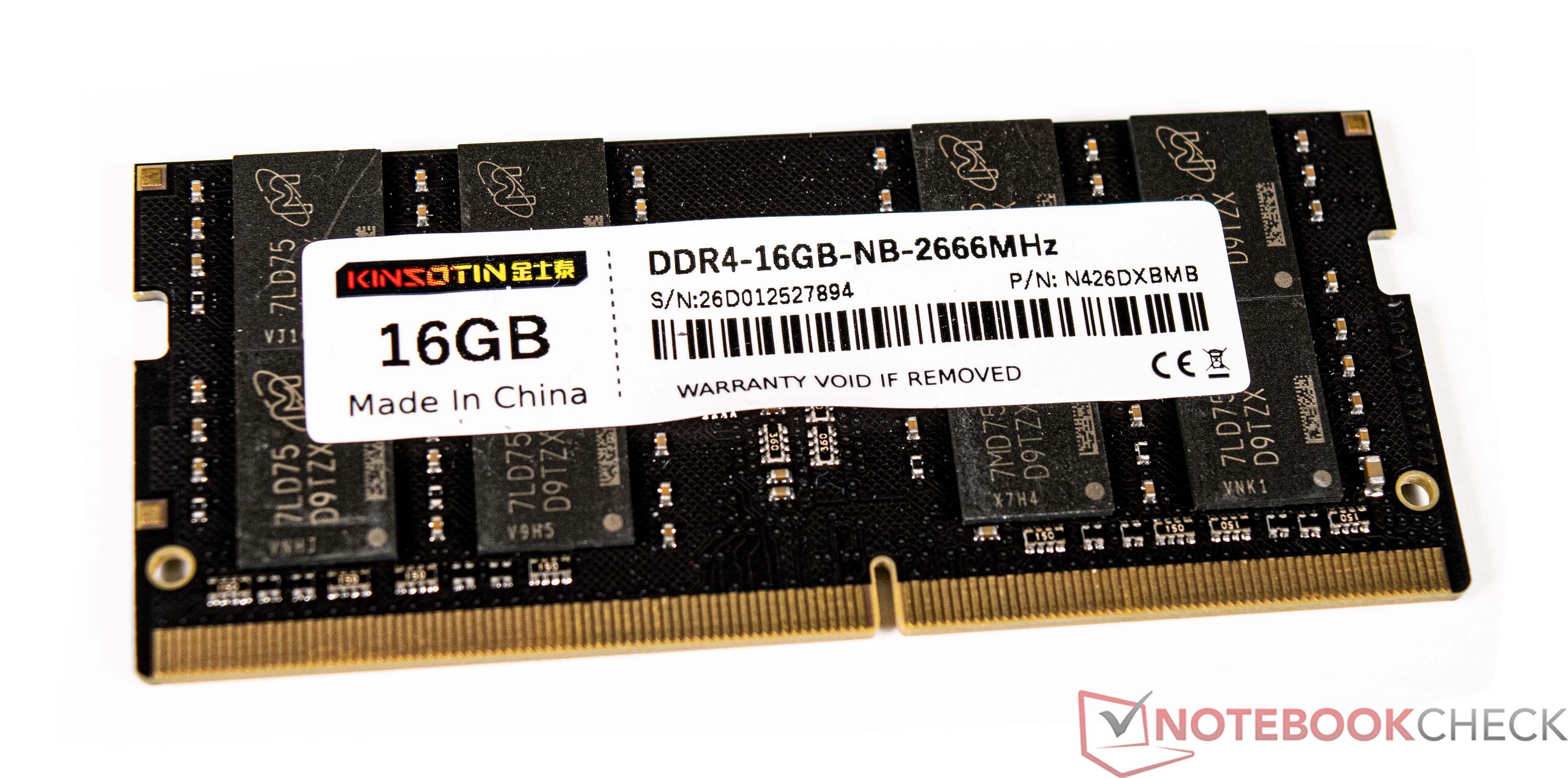

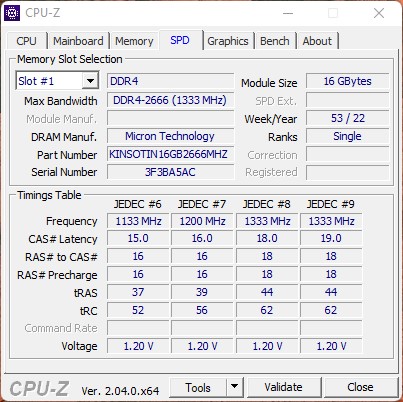

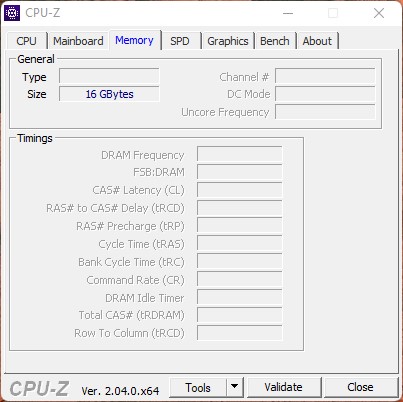

不幸的是，有点可疑的内存配置是该SoC的败笔，因为NiPoGi只为该设备配备了一个SO-Dimm模块，有16GB DDR4 2666 MT/s。然而，该SoC支持高达4800MT/s的DDR5。尽管如此，3200MT/s作为DDR4的选项，将是更好的选择，以实现更多的性能。反正NiPoGi GK3 Plus N95不可能进行双通道操作，因为它只有一个SO-Dimm插槽。

更多的处理器基准测试可以在下面找到这里.

Performance Rating - Percent
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	34.1 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	27 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	26.9 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	26.7 pt
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	24.7 pt

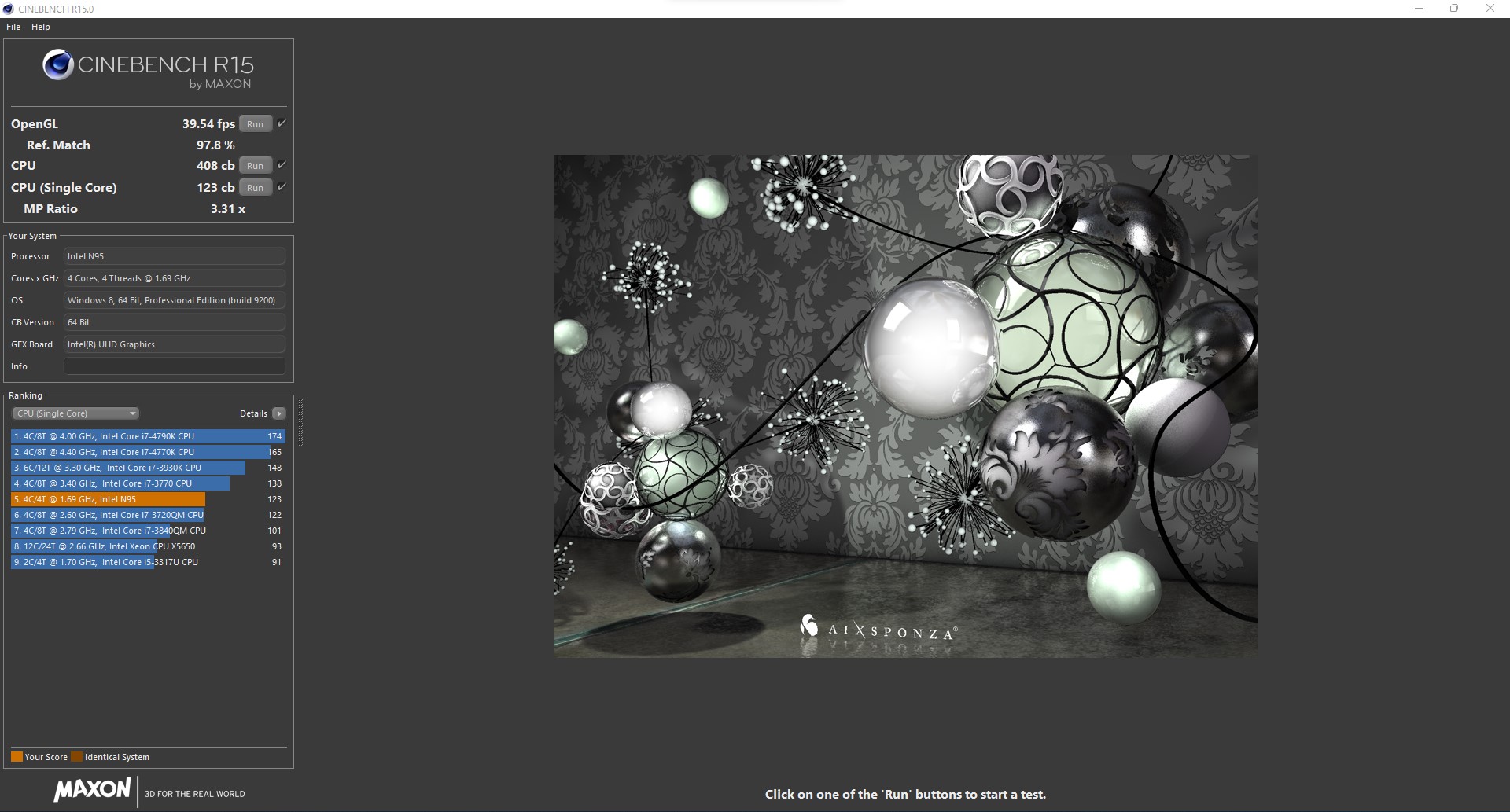

Cinebench R15
CPU Single 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	153 Points +24%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points -17%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	94 Points -24%
CPU Multi 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	642 Points +57%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points -10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points -12%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points -22%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	239 Points -41%

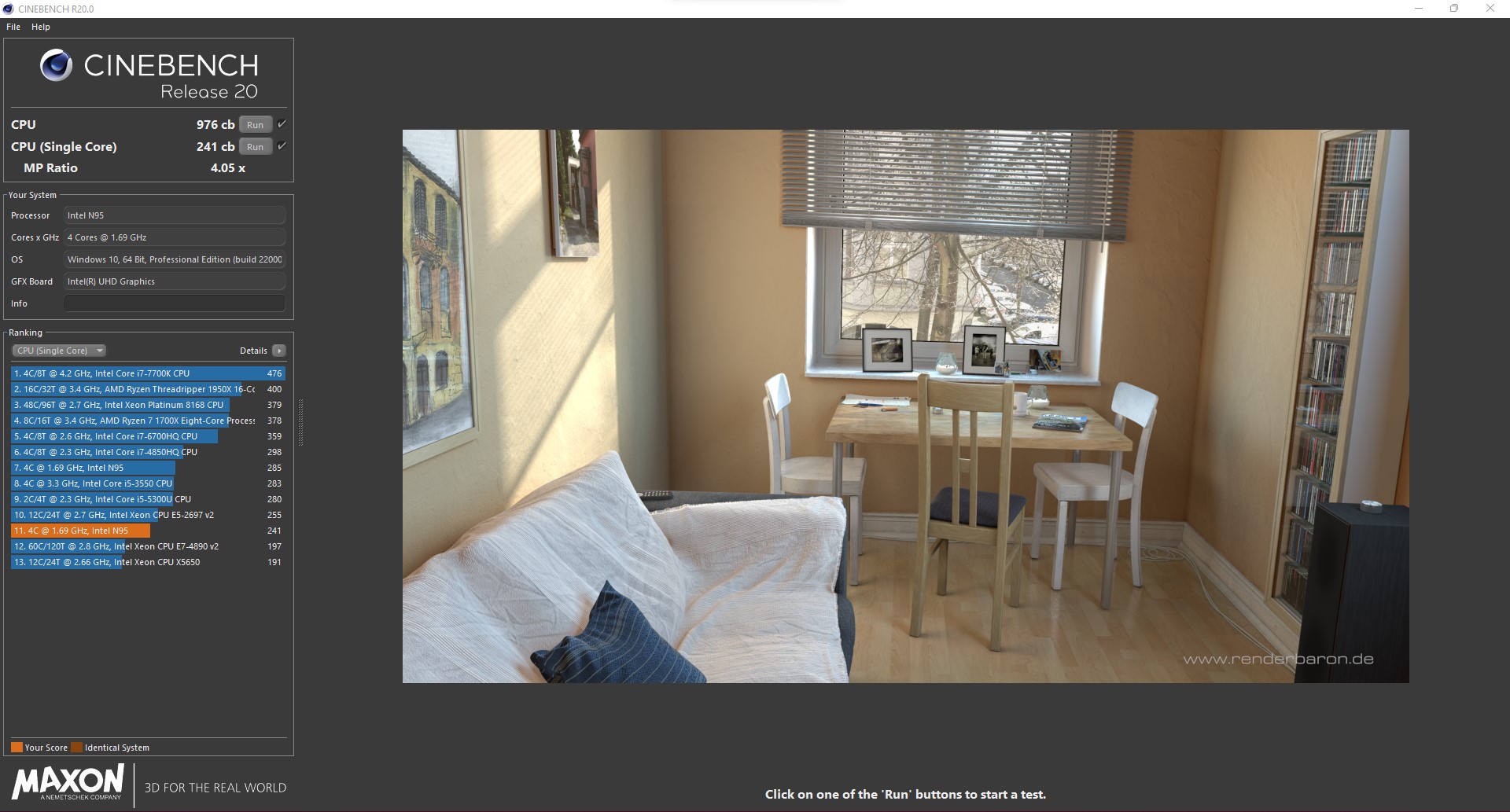

Cinebench R20
CPU (Single Core)
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	378 Points +57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points +10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points -3%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	208 Points -14%
CPU (Multi Core)
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1500 Points +54%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points -15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points -26%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	535 Points -45%

Cinebench R11.5
CPU Single 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1.79 Points +20%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points -16%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1.09 Points -27%
CPU Multi 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7.3 Points +41%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points -10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points -20%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	2.7 Points -48%

Cinebench R10
Rendering Single CPUs 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	8290 Points +26%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points -6%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points -17%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points -20%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	4704 Points -28%
Rendering Multiple CPUs 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	25835 Points +26%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points -20%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points -24%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	10418 Points -49%

Blender - v2.79 BMW27 CPU
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	2168 Seconds * -88%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * -57%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * -35%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds * -34%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	704 Seconds * +39%

wPrime 2.10
32m
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	22.797 s * -39%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * -20%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * -17%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * -4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7.804 s * +53%
1024m
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	714.014 s * -33%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * -15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * -13%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	261.299 s * +51%

X264 HD Benchmark 4.0
Pass 1
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	154.5 (154.4^min - 155.1^max) fps +6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps -17%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps -22%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps -30%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	83.4 (83.2^min - 85.2^max) fps -43%
Pass 2
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	40 (40^min - 40.1^max) fps +35%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps -15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps -17%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps -27%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	15.7 (15.6^min - 15.9^max) fps -47%

WinRAR - Result
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4409 KB/s +102%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	2048 KB/s -6%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s -18%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s -25%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s -30%

TrueCrypt
AES Mean 100MB
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4.2 GB/s +75%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s +8%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s +4%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s +4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1.4 GB/s -42%
Twofish Mean 100MB
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.648 GB/s +30%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s -19%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s -26%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s -26%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	0.246 GB/s -51%
Serpent Mean 100MB
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.414 GB/s +70%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s -19%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	0.145 GB/s -40%

Geekbench 5.5
Multi-Core
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	3510 Points +47%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points -30%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1393 Points -42%
Single-Core
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1146 Points +43%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points -18%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points -21%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points -25%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	600 Points -25%

Geekbench 5.0
5.0 Multi-Core
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	3495 Points +47%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points -17%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1381 Points -42%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points -45%
5.0 Single-Core
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1130 Points +41%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points -21%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points -25%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	603 Points -25%

Geekbench 4.4
64 Bit Single-Core Score
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4855 Points +35%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	2970 Points -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points -18%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points -20%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points -29%
64 Bit Multi-Core Score
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	17082 Points +77%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points -18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points -19%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	5806 Points -40%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points -44%

3DMark 11 - 1280x720 Performance Physics
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7319 Points +44%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points -16%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points -28%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	3279 Points -36%

7-Zip 18.03
7z b 4
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	19699 MIPS +69%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS -6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS -6%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS -15%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	6557 MIPS -44%
7z b 4 -mmt1
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4157 MIPS +33%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS +13%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS -1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS -6%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	2563 MIPS -18%

HWBOT x265 Benchmark v2.2 - 4k Preset
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	5.24 fps +73%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps -33%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps -34%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps -46%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1.24 fps -59%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * -16%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1.183 sec * -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * -10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.792 sec * +23%

LibreOffice - 20 Documents To PDF
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	108.9 s * -35%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * -29%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * -28%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * -16%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	62.4 s * +22%

WebXPRT 3 - Overall
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	208 Points +34%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points -6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points -18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points -21%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	104.2 Points -33%

Mozilla Kraken 1.1 - Total
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1971 ms * -59%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms * -31%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * -28%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * -13%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	887 ms * +28%

3DMark - 1920x1080 Fire Strike Physics
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	10064 Points +70%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points -6%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points -7%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points -27%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	3836 Points -35%

* ... smaller is better

Performance Rating
Average of class Mini PC	100 pt
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	57.8 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21 pt
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	16.1 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	10 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 27538, n=98, last 2 years)	9983 KRay/s +1242%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	5279 KRay/s +610%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s +67%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1241 KRay/s +67%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	897 KRay/s +21%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	744 KRay/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s -44%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 116903, n=98, last 2 years)	52529 Points +1223%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	23312 Points +487%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points +88%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7446 Points +88%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	4029 Points +1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	3970 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points -40%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 5096, n=98, last 2 years)	2296 MB/s +750%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	1522 MB/s +464%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s +90%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	513 MB/s +90%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	280 MB/s +4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	270 MB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s -38%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 119569, n=98, last 2 years)	69271 Points +747%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	55222 Points +575%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points +173%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 Points +171%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	15686 Points +92%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8178 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points -4%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 15525, n=98, last 2 years)	7328 Points +1696%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	4059 Points +895%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	1382 Points +239%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points +146%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1000 Points +145%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points -3%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 62378, n=98, last 2 years)	27834 Points +1301%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	13839 Points +596%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points +99%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3954 Points +99%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	2053 Points +3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	1987 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points -36%

AIDA64 / CPU AES
Average of class Mini PC (3691 - 177158, n=98, last 2 years)	75245 MB/s +846%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	55995 MB/s +604%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19354 MB/s +143%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s +143%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7954 MB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s -20%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	5229 MB/s -34%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 1183, n=98, last 2 years)	582 MB/s +677%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	294 MB/s +293%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s +151%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188 MB/s +151%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	103.1 MB/s +38%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	74.9 MB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s -19%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 14722, n=98, last 2 years)	5332 KRay/s +1194%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	2866 KRay/s +596%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s +64%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s +64%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	505 KRay/s +23%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	412 KRay/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s -48%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (4408 - 44347, n=98, last 2 years)	24661 MPixel/s +459%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	12524 MPixel/s +184%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	12141 MPixel/s +175%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s +125%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7654 MPixel/s +74%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4408 MPixel/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s -43%

Cinebench R15循环赛

ǞǞǞ英特尔N95从Cinebench R15的连续循环分析中可以看出，英特尔N95的性能在负载下是非常可控的。所有运行的结果都是一致的。只有被动冷却的 Newsmay AC8在这里显示了小的弱点。相比之下，NiPoGi GK3 Plus N95能够以平均404分的成绩获得第二名。

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel Celeron N5095: Ø371 (367.43-373.05)

Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel Core i5-11400T: Ø664 (657.83-681.7)

Nofflink M500-5405U Intel Pentium Gold 5405U, Intel Pentium Gold 5405U: Ø238 (236.3-238.86)

系统性能

我们的系统性能基准测试也显示了良好的CPU性能，我们的审查系统自信地获得了第二名。然而Newsmay Neosmay S2拥有原生的六个核心，在基准测试中得分更高。然而，我们在内存测试领域看到了完全不同的情况。不理想的内存配置造成了损失，因此，NiPoGi GK3 Plus N95远远落后于对比设备。

Performance Rating | PCMark 10

Performance Rating - Percent
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	100 pt
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	77.2 pt
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	65 pt
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	64.6 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	64.4 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	62.4 pt

PCMark 10
Score
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	3975 Points +33%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	2983 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points -15%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points -19%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	2365 Points -21%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points -21%
Essentials
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	8679 Points +31%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	6650 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points -12%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points -15%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points -18%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	5425 Points -18%
Productivity
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	5656 Points +25%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	4524 Points
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	4056 Points -10%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points -15%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points -19%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points -22%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1125 Points +69%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	666 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points -26%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	481 Points -28%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points -29%

CrossMark / Productivity
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1160 Points +61%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	721 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points -23%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points -26%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	518 Points -28%

CrossMark / Creativity
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1094 Points +78%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	616 Points
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	449 Points -27%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points -29%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points -29%

CrossMark / Responsiveness
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1113 Points +68%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	661 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points -25%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	477 Points -28%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points -39%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (6481 - 70620, n=98, last 2 years)	42914 MB/s +562%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	28606 MB/s +341%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 MB/s +242%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	19209 MB/s +196%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16422 MB/s +153%
Average Intel Processor N95 (6481 - 12715, n=5)	8657 MB/s +34%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6481 MB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6308 MB/s -3%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 71285, n=98, last 2 years)	43571 MB/s +530%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	27412 MB/s +296%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	20405 MB/s +195%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16615 MB/s +140%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	15464 MB/s +124%
Average Intel Processor N95 (6914 - 11247, n=5)	8729 MB/s +26%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6914 MB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6576 MB/s -5%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 89318, n=98, last 2 years)	46636 MB/s +580%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	31261 MB/s +356%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	30843 MB/s +349%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	18659 MB/s +172%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	18612 MB/s +171%
Average Intel Processor N95 (6862 - 14266, n=5)	9343 MB/s +36%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6866 MB/s 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6862 MB/s

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	146 ns *
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	144 ns * +1%
Average Intel Processor N95 (119.8 - 185.2, n=5)	140.3 ns * +4%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	87.9 ns * +40%
Average of class Mini PC (44.9 - 154.6, n=98, last 2 years)	87.8 ns * +40%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	74.1 ns * +49%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	69.7 ns * +52%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	59.3 ns * +59%

* ... smaller is better

PCMark 10 Score		2983 points
Help

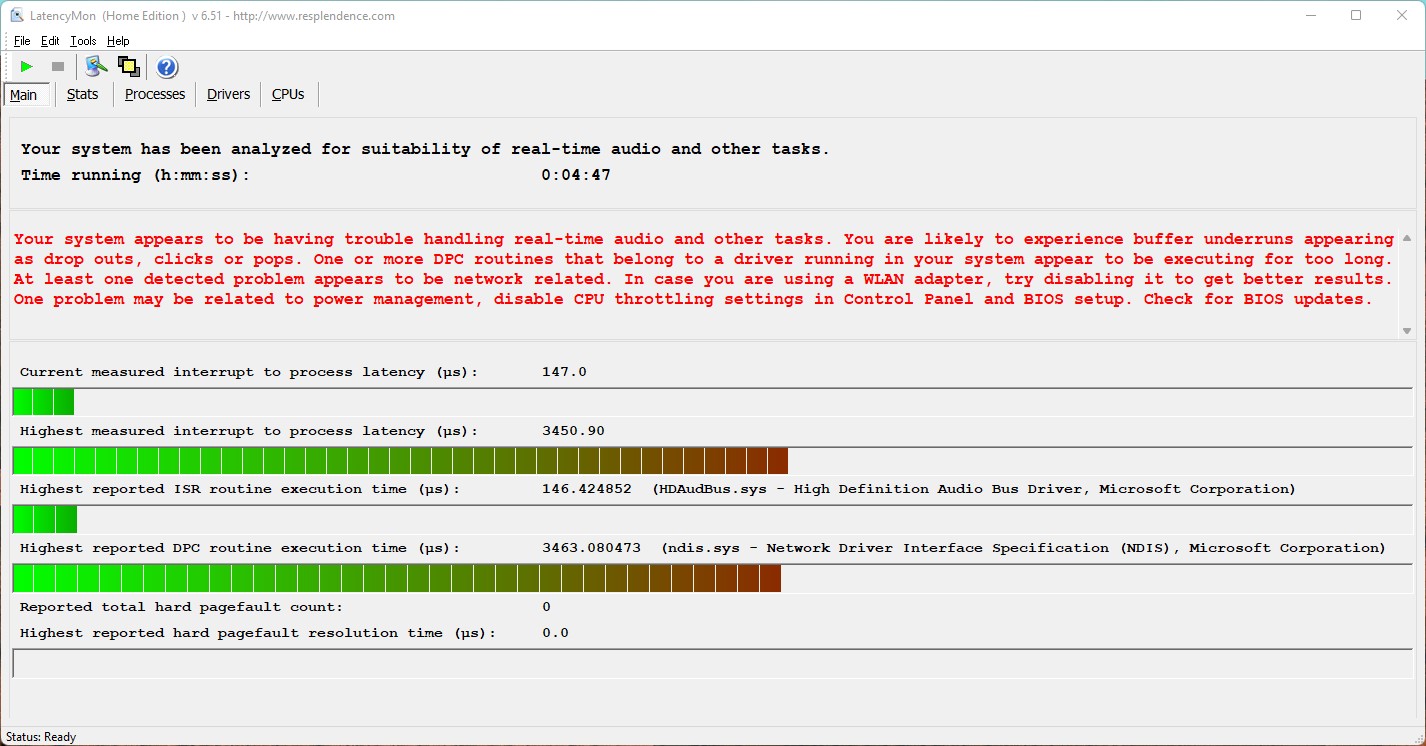

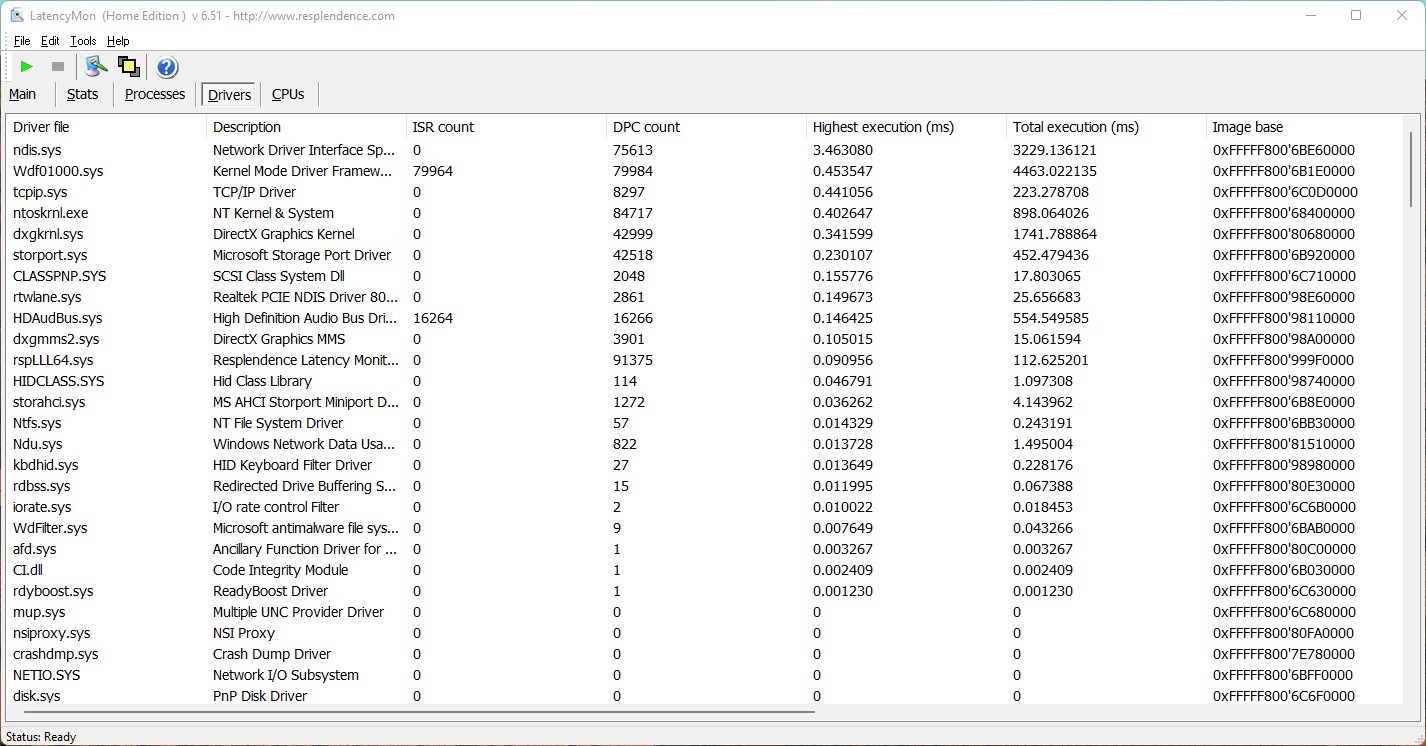

DPC延迟

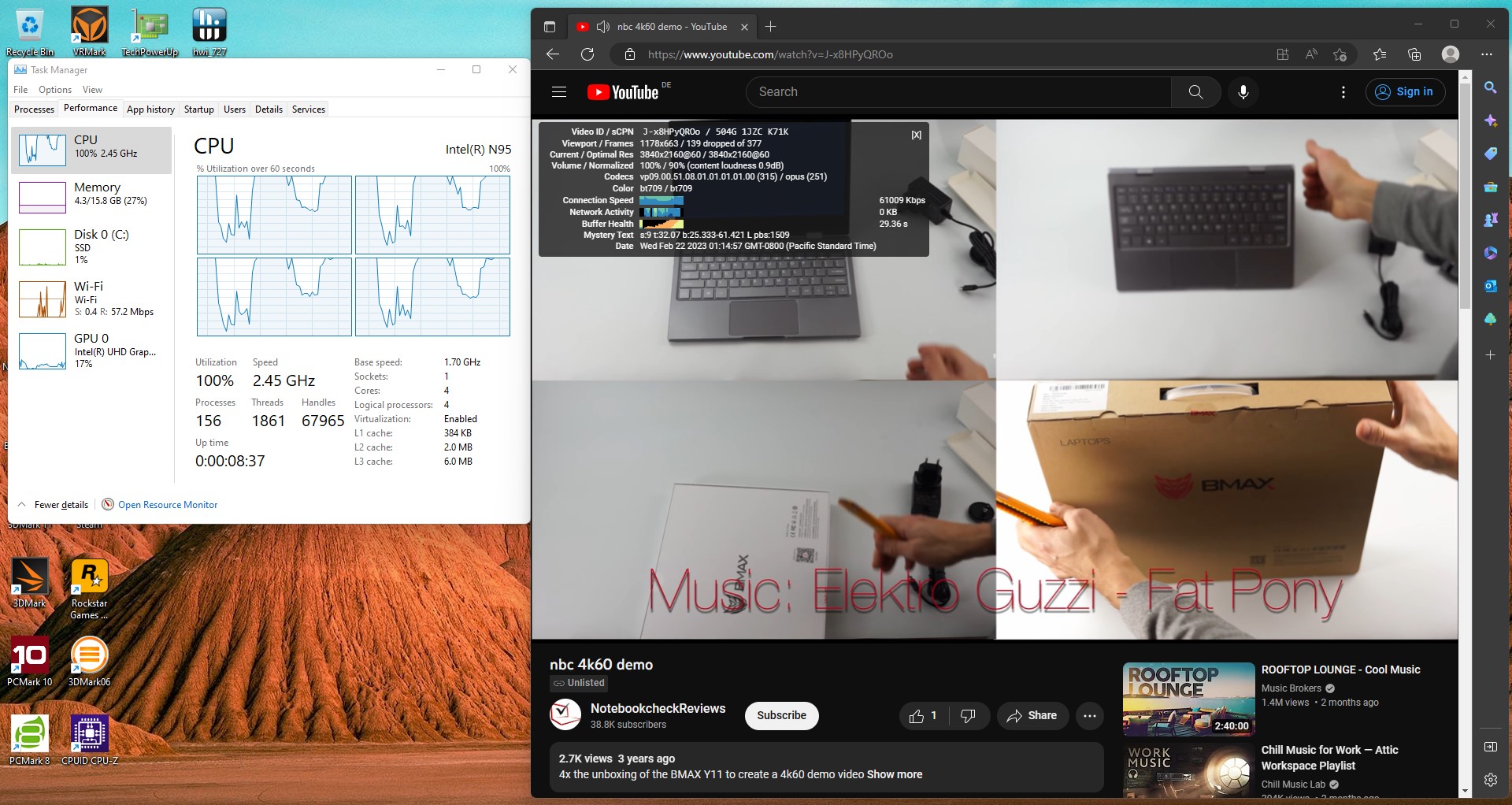

NiPoGi GK3 Plus N95在Edge浏览器中打开多个标签时已经出现了延迟问题。当SoC被推到极限时，我们的评测设备在播放4K测试视频时出现了越来越多的问题。这使得跳帧成为一天中的主流。只有在将分辨率降低到1080p后，SoC的负荷才会持续降低，并没有导致额外的跳帧。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	4075 μs * -18%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	3463 μs *
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2635 μs * +24%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1232.3 μs * +64%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	751.7 μs * +78%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	687.3 μs * +80%

* ... smaller is better

大容量存储

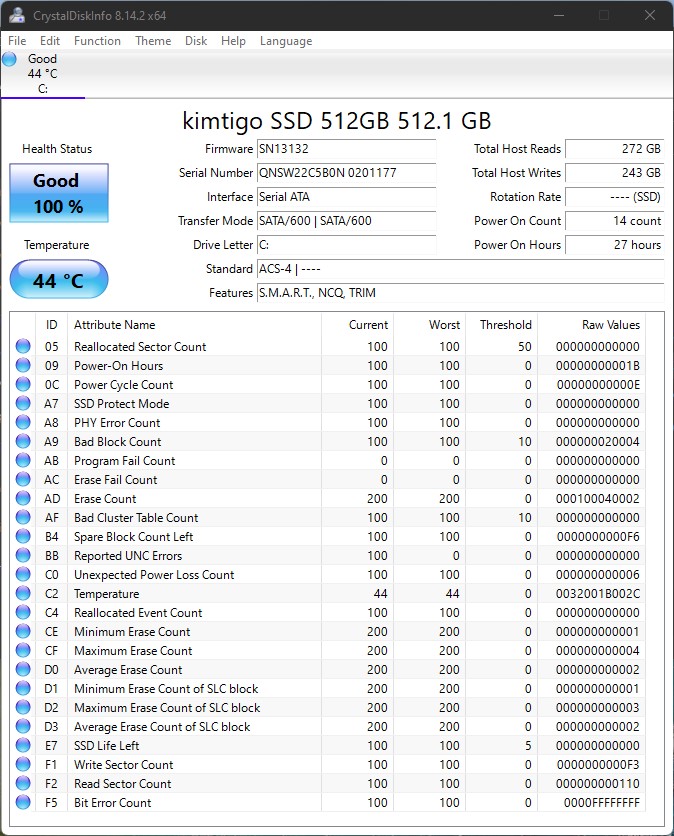

ANiPoGi GK3 Plus N95包含一个512GB的SSD。然而，所安装的模型只使用SATA速度，这样一来，就比更快的NVMe SSD差很多。制造商是Kimtigo--一家在这些海岸线上不那么知名的公司。相比之下，这里使用的模型提供的性能足以确保第二名。一个额外的2.5英寸插槽仍然是免费的，这意味着NiPoGi GK3 Plus N95最多可以容纳两个大容量存储驱动器。

关于进一步的比较和基准测试。看看我们的比较表.

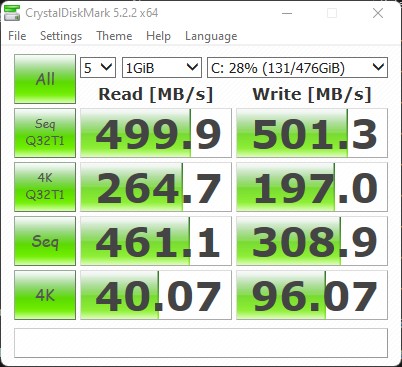

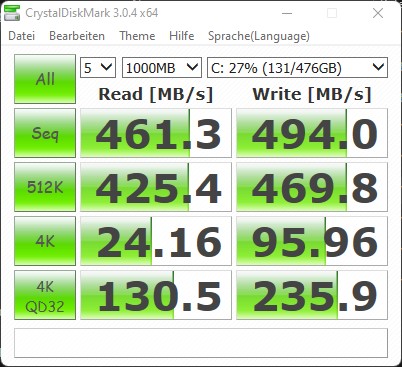

CrystalDiskMark 3.0

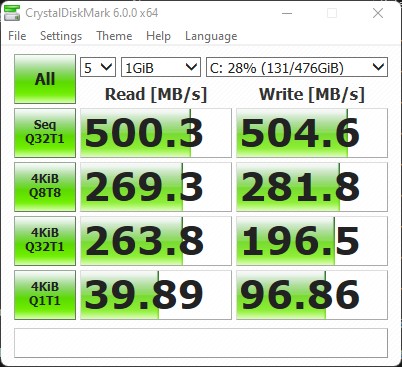

CrystalDiskMark 5.2 / 6

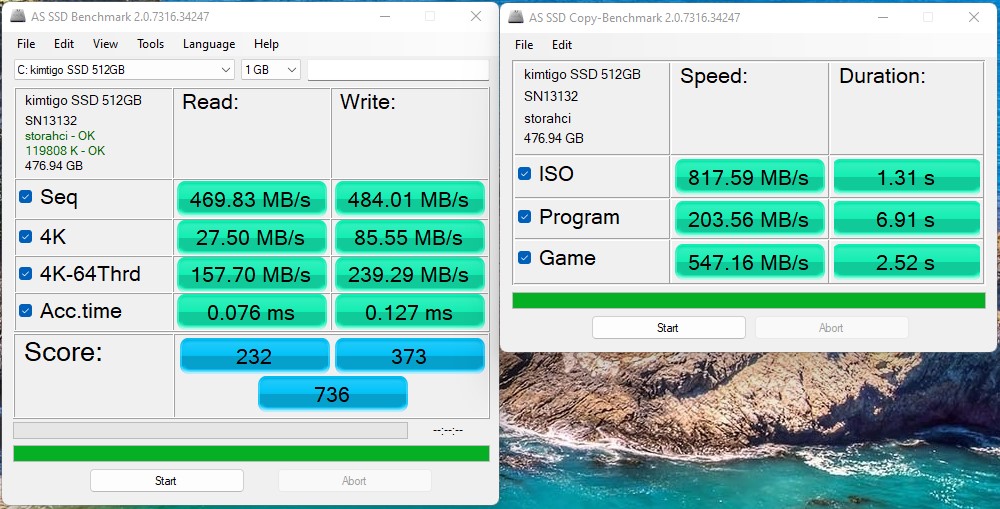

AS SSD

DiskSpd

Kimtigo KTB900SM28/512GB

Sequential Read: 461.3 MB/s

Sequential Write: 494 MB/s

512K Read: 425.4 MB/s

512K Write: 469.8 MB/s

4K Read: 24.16 MB/s

4K Write: 95.96 MB/s

4K QD32 Read: 130.5 MB/s

4K QD32 Write: 235.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	91.8 pt
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	81.3 pt
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	30.2 pt
Average Kimtigo KTB900SM28/512GB	30.2 pt
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	27.5 pt
Newsmay AC8 N6005 Lexar 128GB SSD	26.9 pt
Nofflink M500-5405U Qunion P20A NGFF 512GB	22.7 pt
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.5 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4168, n=97, last 2 years)	2030 MB/s +342%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	802 (778.67^min - 802.37^max) MB/s +75%
Nofflink M500-5405U Qunion P20A NGFF 512GB	517 (507.3^min - 516.74^max) MB/s +13%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s +11%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s +3%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s
Average Kimtigo KTB900SM28/512GB ()	459 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s -5%
seq write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2380 (607.54^min - 2380.06^max) MB/s +382%
Average of class Mini PC (222 - 5595, n=97, last 2 years)	2052 MB/s +315%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s
Average Kimtigo KTB900SM28/512GB ()	494 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s -1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s -6%
Nofflink M500-5405U Qunion P20A NGFF 512GB	428 (406.85^min - 428.26^max) MB/s -13%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s -17%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=97, last 2 years)	3172 MB/s +529%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2453 (2244.5^min - 2453.25^max) MB/s +387%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s +9%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s +9%
Nofflink M500-5405U Qunion P20A NGFF 512GB	538 (487.24^min - 538.13^max) MB/s +7%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s
Average Kimtigo KTB900SM28/512GB ()	504 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s -11%
seq q8 t1 write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2378 (615.51^min - 2377.75^max) MB/s +358%
Average of class Mini PC (228 - 6669, n=97, last 2 years)	2233 MB/s +330%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s
Average Kimtigo KTB900SM28/512GB ()	519 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s -1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s -10%
Nofflink M500-5405U Qunion P20A NGFF 512GB	445 (424.04^min - 444.81^max) MB/s -14%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s -33%
4k q1 t1 read
Average of class Mini PC (5.67 - 86.6, n=97, last 2 years)	51.5 MB/s +99%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	42.1 (41.43^min - 42.13^max) MB/s +63%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s +31%
Nofflink M500-5405U Qunion P20A NGFF 512GB	28.2 (26.65^min - 28.17^max) MB/s +9%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s +2%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s
Average Kimtigo KTB900SM28/512GB ()	25.9 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s -50%
4k q1 t1 write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	195.3 (151.02^min - 195.34^max) MB/s +103%
Average of class Mini PC (22 - 425, n=97, last 2 years)	185.7 MB/s +93%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s +4%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s
Average Kimtigo KTB900SM28/512GB ()	96 MB/s 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s -23%
Nofflink M500-5405U Qunion P20A NGFF 512GB	45.2 (19.09^min - 45.17^max) MB/s -53%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s -77%
4k q32 t16 read
Average of class Mini PC (26.1 - 2810, n=97, last 2 years)	1092 MB/s +320%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	509 (301.38^min - 508.59^max) MB/s +96%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s +2%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s
Average Kimtigo KTB900SM28/512GB ()	260 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s -29%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s -35%
Nofflink M500-5405U Qunion P20A NGFF 512GB	169.9 (165.74^min - 169.94^max) MB/s -35%
4k q32 t16 write
Average of class Mini PC (30.2 - 3983, n=97, last 2 years)	1088 MB/s +320%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	590 (520.84^min - 590.29^max) MB/s +128%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s +23%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s +11%
Nofflink M500-5405U Qunion P20A NGFF 512GB	272 (255.67^min - 271.76^max) MB/s +5%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s
Average Kimtigo KTB900SM28/512GB ()	259 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s -35%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=95, last 2 years)	3560 Points +384%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	3347 Points +355%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points
Average Kimtigo KTB900SM28/512GB ()	736 Points 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points -5%
Nofflink M500-5405U Qunion P20A NGFF 512GB	688 Points -7%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points -18%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points -79%
Score Read
Average of class Mini PC (61 - 3635, n=95, last 2 years)	1354 Points +484%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1068 Points +360%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points +38%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points
Average Kimtigo KTB900SM28/512GB ()	232 Points 0%
Nofflink M500-5405U Qunion P20A NGFF 512GB	230 Points -1%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points -6%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points -42%
Score Write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1717 Points +360%
Average of class Mini PC (88 - 4185, n=95, last 2 years)	1564 Points +319%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points +6%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points
Average Kimtigo KTB900SM28/512GB ()	373 Points 0%
Nofflink M500-5405U Qunion P20A NGFF 512GB	334 Points -10%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points -16%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points -44%
Seq Read
Average of class Mini PC (291 - 6620, n=95, last 2 years)	2820 MB/s +500%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2203.6 MB/s +369%
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s +9%
Nofflink M500-5405U Qunion P20A NGFF 512GB	494.9 MB/s +5%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s +4%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s
Average Kimtigo KTB900SM28/512GB ()	470 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s -8%
Seq Write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2189.3 MB/s +352%
Average of class Mini PC (240 - 5783, n=95, last 2 years)	1970 MB/s +307%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s
Average Kimtigo KTB900SM28/512GB ()	484 MB/s 0%
Nofflink M500-5405U Qunion P20A NGFF 512GB	431.8 MB/s -11%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s -15%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s -20%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s -29%
4K Read
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	56.28 MB/s +105%
Average of class Mini PC (6.08 - 104.2, n=95, last 2 years)	55.5 MB/s +102%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s +29%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s
Average Kimtigo KTB900SM28/512GB ()	27.5 MB/s 0%
Nofflink M500-5405U Qunion P20A NGFF 512GB	25.8 MB/s -6%
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s -15%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s -41%
4K Write
Average of class Mini PC (30.9 - 366, n=95, last 2 years)	168.3 MB/s +97%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	119.31 MB/s +39%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s
Average Kimtigo KTB900SM28/512GB ()	85.6 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s -3%
Nofflink M500-5405U Qunion P20A NGFF 512GB	59.78 MB/s -30%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s -56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s -57%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=95, last 2 years)	1016 MB/s +544%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	791.75 MB/s +402%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s +49%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s
Average Kimtigo KTB900SM28/512GB ()	157.7 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	157.18 MB/s 0%
Nofflink M500-5405U Qunion P20A NGFF 512GB	154.49 MB/s -2%
Newsmay AC8 N6005 Lexar 128GB SSD	59.4 MB/s -62%
4K-64 Write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1378.5 MB/s +477%
Average of class Mini PC (32.8 - 3598, n=95, last 2 years)	1199 MB/s +402%
Newsmay AC8 N6005 Lexar 128GB SSD	272.3 MB/s +14%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s
Average Kimtigo KTB900SM28/512GB ()	239 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	237.24 MB/s -1%
Nofflink M500-5405U Qunion P20A NGFF 512GB	231.08 MB/s -3%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s -43%
Access Time Read
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.205 ms * -170%
Nofflink M500-5405U Qunion P20A NGFF 512GB	0.15 ms * -97%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms * -95%
Newsmay AC8 N6005 Lexar 128GB SSD	0.139 ms * -83%
Average of class Mini PC (0.022 - 0.489, n=95, last 2 years)	0.1025 ms * -35%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms *
Average Kimtigo KTB900SM28/512GB ()	0.076 ms * -0%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	0.035 ms * +54%
Access Time Write
Nofflink M500-5405U Qunion P20A NGFF 512GB	0.267 ms * -110%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.203 ms * -60%
Newsmay AC8 N6005 Lexar 128GB SSD	0.145 ms * -14%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms * -4%
Average of class Mini PC (0.016 - 0.765, n=95, last 2 years)	0.1297 ms * -2%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms *
Average Kimtigo KTB900SM28/512GB ()	0.127 ms * -0%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	0.1 ms * +21%

* ... smaller is better

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB: Ø498 (453.55-500.22)

Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)

Newsmay AC8 N6005 Lexar 128GB SSD: Ø545 (496.4-547.82)

Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280: Ø444 (380-447.8)

Nofflink M500-5405U Qunion P20A NGFF 512GB: Ø318 (33.55-523.45)

显卡和游戏性能

该设备的图形解决方案由英特尔UHD图形提供，有16个EUs。与其竞争对手相比，合成测试的性能非常好。然而，我们不应该忘记，我们面对的是一个简单的iGPU，不适合玩图形复杂的3D游戏。然而，这台办公电脑可以被信任为直接的基于浏览器或休闲游戏。

其他英特尔UHD Graphics 基准测试可以在这里找到.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Newsmay Neosmay S2-B560TPM ^-1! Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	100 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	71.9 pt
Newsmay AC8 N6005 ^-1! Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	54.5 pt
Nofflink M500-5405U ^-1! Intel UHD Graphics 610, Intel Pentium Gold 5405U	44.3 pt
Minipc Union Ace Magician T8Pro ^-1! Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	43.9 pt
Geekom MiniAir 11 Special Edition ^-1! Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	41.2 pt

3DMark 11 - 1280x720 Performance GPU
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	2551 Points +74%
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1589 Points +8%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1467 Points
Nofflink M500-5405U Intel UHD Graphics 610, Intel Pentium Gold 5405U	930 Points -37%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	859 Points -41%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -43%

3DMark
1920x1080 Ice Storm Extreme Graphics
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	37635 Points +41%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	26628 Points
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	22189 Points -17%
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	20602 Points -23%
Nofflink M500-5405U Intel UHD Graphics 610, Intel Pentium Gold 5405U	20443 Points -23%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	19919 Points -25%
1280x720 Cloud Gate Standard Graphics
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	11485 Points +43%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8035 Points
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	5895 Points -27%
Nofflink M500-5405U Intel UHD Graphics 610, Intel Pentium Gold 5405U	5414 Points -33%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	5217 Points -35%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4958 Points -38%
1920x1080 Fire Strike Graphics
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	1768 Points +64%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1080 Points
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	881 Points -18%
Nofflink M500-5405U Intel UHD Graphics 610, Intel Pentium Gold 5405U	693 Points -36%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	662 Points -39%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	637 Points -41%
2560x1440 Time Spy Graphics
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	317 Points

Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition

Unigine Heaven 4.0
Extreme Preset OpenGL
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	9.5 fps +51%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	6.3 fps
Nofflink M500-5405U UHD Graphics 610, Pentium 5405U, Qunion P20A NGFF 512GB	4 fps -37%
Minipc Union Ace Magician T8Pro UHD Graphics (Jasper Lake 16 EU), Celeron N5095, FPT310M4SSD256G	4 fps -37%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	2.2 fps -65%
Extreme Preset DX11
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	9.5 fps +48%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	6.4 fps
Nofflink M500-5405U UHD Graphics 610, Pentium 5405U, Qunion P20A NGFF 512GB	4.5 fps -30%
Minipc Union Ace Magician T8Pro UHD Graphics (Jasper Lake 16 EU), Celeron N5095, FPT310M4SSD256G	4.3 fps -33%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	2.4 fps -62%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	5.9 fps +44%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	4.1 fps
Nofflink M500-5405U UHD Graphics 610, Pentium 5405U, Qunion P20A NGFF 512GB	3.7 fps -10%
Minipc Union Ace Magician T8Pro UHD Graphics (Jasper Lake 16 EU), Celeron N5095, FPT310M4SSD256G	3.5 fps -15%
1920x1080 Extreme HD Preset OpenGL AA:x8
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	7.3 fps +52%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	4.8 fps
Minipc Union Ace Magician T8Pro UHD Graphics (Jasper Lake 16 EU), Celeron N5095, FPT310M4SSD256G	3.5 fps -27%
Nofflink M500-5405U UHD Graphics 610, Pentium 5405U, Qunion P20A NGFF 512GB	3.4 fps -29%

Unigine Superposition
1280x720 720p Low
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	2704 Points +45%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	1871 Points
Minipc Union Ace Magician T8Pro UHD Graphics (Jasper Lake 16 EU), Celeron N5095, FPT310M4SSD256G	1358 Points -27%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	1139 Points -39%
1920x1080 1080p High
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	700 Points +54%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	454 Points
Minipc Union Ace Magician T8Pro UHD Graphics (Jasper Lake 16 EU), Celeron N5095, FPT310M4SSD256G	287 Points -37%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	276 Points -39%

3DMark 06 Standard Score		9774 points
3DMark Vantage P Result		5527 points
3DMark 11 Performance		1672 points
3DMark Ice Storm Standard Score		42372 points
3DMark Cloud Gate Standard Score		6710 points
3DMark Fire Strike Score		1009 points
3DMark Fire Strike Extreme Score		497 points
3DMark Time Spy Score		363 points
Help

... in comparison

	low	med.	high	ultra
GTA V (2015)	44.7	36.6	5.87
Dota 2 Reborn (2015)	69.7	44.9	18.2	17
Final Fantasy XV Benchmark (2018)	12	5.63
X-Plane 11.11 (2018)	22.5	14.7	13.6
Strange Brigade (2018)	26.9	10.1	9.5	10.6

排放 - 经济但不安静

噪声排放

内置的冷却系统不大，但在空闲和低负荷运行时相对安静。在负载情况下，我们的测量设备在一段时间后记录到了最高42.5分贝（A）。除了Nofflink M500之外，NiPoGi GK3 Plus N95的声音明显高于同类设备，很难被忽视。然而，从主观上讲，风扇的噪音不能被认为是分散注意力的。压力测试模拟了一种极端情况，不太可能是日常使用情况的典型。因此，在正常使用和平均负荷下，NiPoGi GK3 Plus N95是令人愉快的安静，登记的噪音为33 dB(A)。

Noise Level

Idle		31 / 31.1 / 31.8 dB(A)
Load		33.3 / 42.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30.4 dB(A)

	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	Nofflink M500-5405U Pentium 5405U, UHD Graphics 610
Noise		8%	9%	-1%	-2%
off / environment *	30.4	30.2 1%	29.6 3%	30.2 1%	29.8 2%
Idle Minimum *	31	30.2 3%	29.6 5%	31.8 -3%	30.2 3%
Idle Average *	31.1	30.2 3%	29.6 5%	32.7 -5%	30.2 3%
Idle Maximum *	31.8	30.2 5%	29.6 7%	33.1 -4%	30.2 5%
Load Average *	33.3	30.5 8%	30 10%	35.8 -8%	39.1 -17%
Load Maximum *	42.5	30.9 27%	32.9 23%	37.1 13%	45.5 -7%

* ... smaller is better

温度

在负载下，NiPoGi GK3 Plus N95的外壳明显升温。我们所经历的较小的热点，特别是在风扇出口区域，并没有对性能产生任何额外影响。SoC在负载下最高达到了86℃。然而，这个数字只是在开机后立即达到的，SoC仍然能够在短时间内以高达15瓦的功率运行。随后，我们记录的温度略低，平均为73℃。

消耗功率

说到NiPoGi GK3 Plus N95的耗电量，我们看到的数字一直很低。在远低于10瓦的情况下，该设备在闲置时运行非常经济。即使在负载情况下，21.1瓦的峰值仍然可以被认为是低耗电。电源单元可以提供最大30瓦的功率，因此不会有太大的压力。恰恰相反，我们仍然清楚地看到了额外的可选大容量存储设备的容量。

Power Consumption

Off / Standby	0.36 / 0.72 Watt
Idle	6.1 / 6.9 / 8.9 Watt
Load	20 / 21.1 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	Nofflink M500-5405U Pentium 5405U, UHD Graphics 610	Average Intel UHD Graphics 24EUs (Alder Lake-N)	Average of class Mini PC
Power Consumption		-19%	12%	-264%	-57%	-15%	-133%
Idle Minimum *	6.1	8.4 -38%	4.8 21%	23.7 -289%	8.1 -33%	6.4 ?(3.5 - 9.8, n=9) -5%	9.75 ?(1.9 - 46.5, n=92, last 2 years) -60%
Idle Average *	6.9	8.4 -22%	4.8 30%	23.7 -243%	8.6 -25%	7.88 ?(3.6 - 12.1, n=9) -14%	11.7 ?(1.9 - 63, n=91, last 2 years) -70%
Idle Maximum *	8.9	11.1 -25%	6.7 25%	40.8 -358%	16.2 -82%	9.8 ?(6.2 - 13.9, n=9) -10%	14.7 ?(2.6 - 68.9, n=92, last 2 years) -65%
Load Average *	20	16.5 17%	15.9 20%	55.8 -179%	32.1 -61%	20.4 ?(12.9 - 27.6, n=9) -2%	51.9 ?(11.3 - 158.7, n=92, last 2 years) -160%
Load Maximum *	21.1	26.3 -25%	28.4 -35%	74.5 -253%	38.5 -82%	30.6 ?(21.1 - 46.2, n=9) -45%	86 ?(18.1 - 271, n=92, last 2 years) -308%
Witcher 3 ultra *					25.6

* ... smaller is better

Power consumption with an external monitor

Minipc Union NiPoGi GK3PLUS - N95; Prime95 V2810 Stress (external Monitor): Ø20.3 (19.3-20.9)

Minipc Union NiPoGi GK3PLUS - N95; Cinebench R15 Multi (external Monitor): Ø19.3 (19-19.6)

Minipc Union NiPoGi GK3PLUS - N95; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø15.4 (14.9-21.1)

Minipc Union NiPoGi GK3PLUS - N95; Idle 1min (external Monitor): Ø7.2 (6.82-13.1)

Pros

+ 结构紧凑

+ 吸引人的设计

+ 现代和节能的SoC

+ 良好的系统性能

+ 负载下稳定的CPU性能

+ 可使用的各种端口

+ 低功耗

+ 可安装两个大容量存储设备

+ VESA安装

Cons

- 有限的图形性能

- 次优的RAM配置

- 没有SD卡读卡器

- 缓慢的WLAN

- 高DPC延迟

- 只有一个SO-DIMM插槽

结论 - 一个好的，但不是完美的迷你电脑

NiPoGi GK3 Plus N95是基于全新的英特尔N95因此可以被认为是一款超现代的机器。这款四核机器的性能很好，可以与英特尔酷睿i5-11400T然而，内置的内存只运行在2,666MT/s，是我们最大的批评点。该系统将受益于最佳配置，也为其提供了更多的动力。此外，我们本以为会实施DDR5，因为制造商只采用了单通道RAM。这意味着从一开始就牺牲了性能。这本来可以通过使用更快的RAM来弥补。

建造质量很好，尽管我们不反对使用更高级的材料。关于端口的种类，不能有任何抱怨。足够数量的USB和两个HDMI接口是标准配置，对大多数用户来说应该是足够的。由于它的SATA连接，不应该对内置的SSD有更多期待。然而，这个模型比一般的硬盘驱动器要快，而且512GB的存储量也很慷慨。

通过新的英特尔N95，NiPoGi GK3 Plus N95提供了一个高效的SoC，具有良好的日常使用性能。

尽管如此，我们觉得有必要批评一下内置的WLAN模块。在这里，一个现代的Wi-Fi 6模块会是更好的选择。此外，Wi-Fi模块无法提供令人印象深刻的快速数据传输率。然而，我们看到了集成英特尔N95的潜力，特别是考虑到该设备的预期用途。NiPoGi GK3 Plus N95的价格约为299美元，与Nofflink M500相同。然而，NiPoGi GK3 Plus N95，由于它的英特尔N95总体而言，目前是更好的包装，在日常使用中明显更快。

价格和可用性

目前，NiPoGi GK3 Plus N95可以在亚马逊上购买，价格为299美元.

Minipc Union NiPoGi GK3PLUS - N95 - 2023-02-25 02/25/2023 v7
Sebastian Bade

Chassis

79 / 98 → 81%

Connectivity

50 / 81 → 61%

Weight

85%

Games Performance

46%

Application Performance

75%

Noise

82%

Average

70%

68%

Mini PC - Weighted Average

NiPoGi GK3 Plus N95评测。用于办公的英特尔N95紧凑型迷你电脑

潜在的竞争对手比较

NiPoGi GK3 Plus N95的详细介绍

特点

Size comparison

沟通

辅料

维护

性能 - 经济型英特尔N95提供4个原生核心

测试条件

处理器

Cinebench R15循环赛

系统性能

DPC延迟

大容量存储

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

显卡和游戏性能

排放 - 经济但不安静

噪声排放

温度

消耗功率

Power consumption with an external monitor

Pros

Cons

结论 - 一个好的，但不是完美的迷你电脑

价格和可用性

More articles related to this device

Transparency
