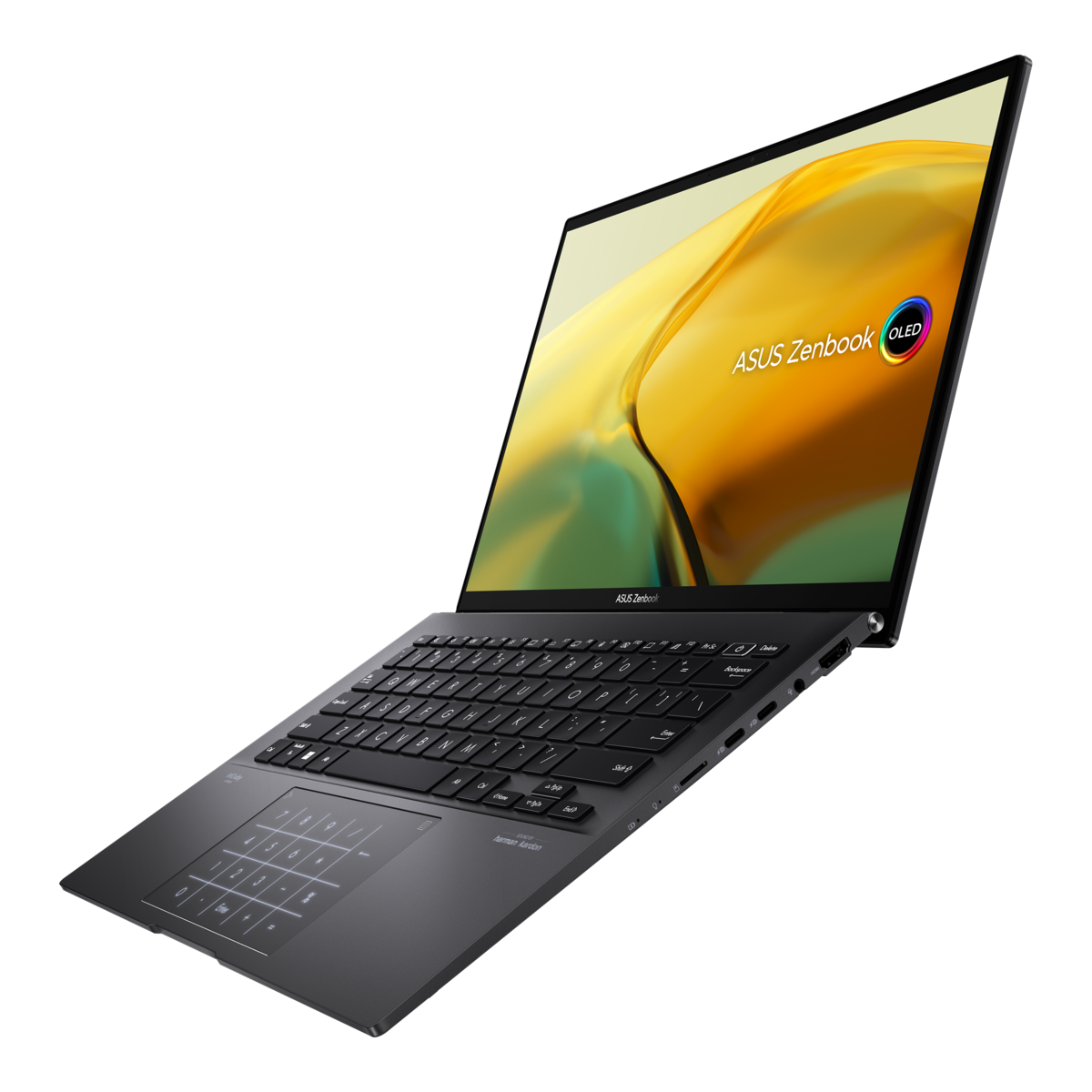

Asus ZenBook 14 UM3402Y

Specifications

Asus ZenBook 14 UM3402Y
Asus ZenBook 14 UM3402Y (ZenBook 14 Series)
Processor
AMD Ryzen 7 7730U 8 x 2 - 4.5 GHz, 42 W PL2 / Short Burst, 30 W PL1 / Sustained, Barcelo-U Refresh
Graphics adapter
AMD Radeon RX Vega 8 (Ryzen 4000/5000) - 512 MB VRAM, Core: 2000 MHz, Memory: 2133 MHz, LPDDR4X, 31.0.12034.4
Memory
16 GB
, 5033 MHz, Dual-Channel, 40-39-45-90
Display
14.00 inch 16:10, 2880 x 1800 pixel 243 PPI, 10-point capacitive, Samsung ATNA40YK07-1, IPS, glossy: yes, 90 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
Micron 2400 MTFDKBA512QFM, 512 GB
Soundcard
AMD Zen - Audio Processor - HD Audio Controller
Connections
3 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, Audio Connections: 3.5 mm headset, Card Reader: MicroSD, 1 Fingerprint Reader
Networking
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3
Size
height x width x depth (in mm): 16.9 x 313.6 x 220.6
Battery
75 Wh Lithium-Polymer
Operating System
Microsoft Windows 11 Home
Camera
Webcam: 1080p30
Primary Camera: 2 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, MyAsus, 12 Months Warranty
Weight
1.402 kg, Power Supply: 221 g
Price
870 USD



Pricecompare

Average Score: 82.65% - good
Average of 2 scores (from 2 reviews)
price: - %, performance: 80%, features: 63%, display: 90% mobility: 80%, workmanship: 79%, ergonomy: 79%, emissions: 87%

Reviews for the Asus ZenBook 14 UM3402Y

85.3% 华硕Zenbook 14 UM3402Y笔记本评测:新的Ryzen 7 7730U名称,旧的Zen 3性能 | Notebookcheck
受欢迎的Zenbook 14今年回来了,配备了新的Ryzen 7000 U系列CPU,刷新了外观,以及熟悉的90 Hz DCI-P3 OLED触摸屏。然而,整体性能更符合过去的中档超极本。
How to open ASUS Zenbook 14 (UM3402) - disassembly and upgrade options
Source: Laptop Media English
Support, online available, Short, Date: 11/01/2023
80% Tolle Akkulaufzeit zum kleinen Preis
Source: PC Welt German DE→zh-CN
Single Review, online available, Long, Date: 02/14/2024
Rating: Total score: 80%

Comment

AMD Vega 8:

基于Vega架构的Ryzen APU的集成图形卡,具有8个CU(= 512着色器)和最高1.750 MHz的频率。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


R7 7730U: 基于 Zen 3 的八核 APU,适用于笔记本电脑,主频为 2 GHz 至 4.5 GHz,配备 Vega 8 iGPU(8 个 CU,主频高达 2,000 MHz)。2022 Ryzen 7 5825U 的更新版,规格不变。» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.402 kg: 这是11到13寸的超大尺寸平板电脑,亚笔记本电脑,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
