联想ThinkPad X13 Gen 1笔记本电脑评测:装配了AMD Renoir的最速13英寸笔记本

紧凑的Ryzen力量。 作为最新的小型ThinkPad笔记本电脑,联想ThinkPad X13 Gen 1是传统ThinkPad X系列的延续。 对2020版本来说,AMD版本的名称与Intel型号相同-而且性能要好得多。买家仍然要忍受没有Thunderbolt的情况,但是性能优势是如此之大,以至于我们不认为这是一个很重要的因素。
Benjamin Herzig, 👁 Andreas Osthoff (translated by Zewei Shen),
AMD Business Laptop / Notebook Renoir Ryzen (Zen) ThinkPad Ultrabook Windows
Lenovo ThinkPad X13-20UGS00800 (ThinkPad X13 Series)
Processor
AMD Ryzen 7 PRO 4750U 8 x 1.7 - 4.1 GHz, Renoir PRO (Zen 2)
Graphics adapter
AMD Radeon RX Vega 7
Memory
16384 MB
, DDR4双通道板载内存
Display
13.30 inch 16:9, 1920 x 1080 pixel 166 PPI, B133HAK01.1, IPS LED, glossy: no, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
Samsung SSD PM981a MZVLB512HBJQ, 512 GB
, PCIe-NVMe, M.2 2280, 444 GB free
Soundcard
Realtek ALC3287
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 组合音频, Card Reader: microSD, 1 SmartCard, 1 Fingerprint Reader
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Size
height x width x depth (in mm): 16.9 x 311.9 x 217.2
Battery
48 Wh Lithium-Polymer
Camera
Webcam: 720p HD, 红外,ThinkShutter cover
Additional features

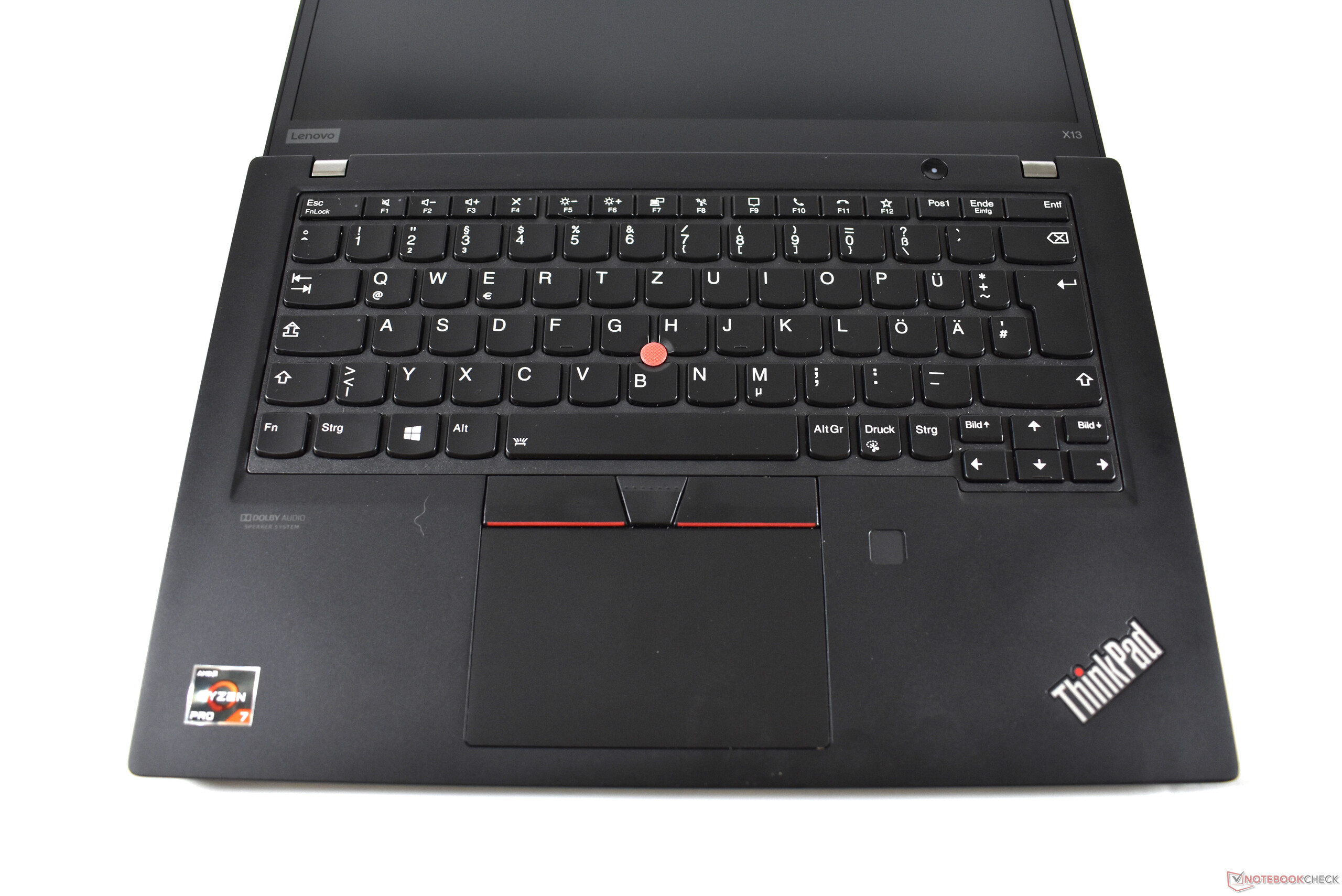

Speakers: 立体声扬声器, Keyboard: Chiclet键盘,键盘背光, Keyboard Light: yes, 65瓦充电器, 36 Months Warranty
Weight
1.287 kg, Power Supply: 370 g
Price
1000 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
90 %
10/2020
Lenovo ThinkPad X13-20UGS00800
R7 PRO 4750U, Vega 7
1.3 kg16.9 mm13.30"1920x1080
89 %
02/2020
Lenovo ThinkPad X395
R3 PRO 3300U, Vega 6
1.3 kg16.9 mm13.30"1920x1080
89 %
09/2020
Dell Latitude 7310
i7-10610U, UHD Graphics 620
1.2 kg18.3 mm13.30"1920x1080
91 %
10/2020
Lenovo ThinkPad T14s-20UJS00K00
R7 PRO 4750U, Vega 7
1.3 kg16.1 mm14.00"1920x1080
88 %
08/2020
Lenovo ThinkPad X13-20T20033GE
i5-10210U, UHD Graphics 620
1.3 kg16.9 mm13.30"1920x1080

Size & weight comparison

329 mm 227 mm 17.9 mm 1.5 kg329 mm 225.8 mm 16.1 mm 1.3 kg323.5 mm 217.1 mm 14.9 mm 1.1 kg311.9 mm 217.2 mm 16.9 mm 1.3 kg306.5 mm 203.2 mm 18.3 mm 1.2 kg

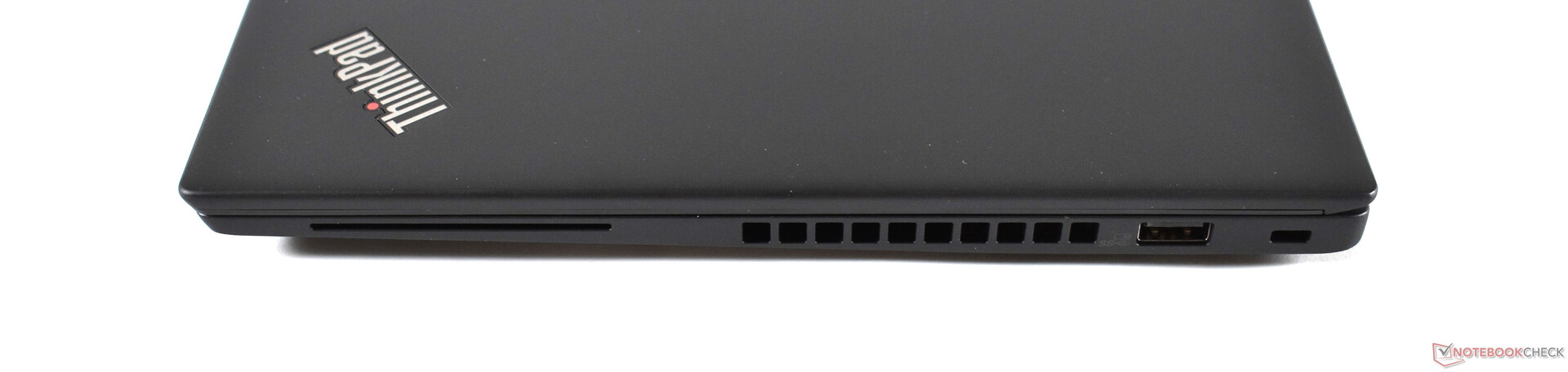

Right: SmartCard reader, USB 3.0 Type-A, Kensington lock
Right: SmartCard reader, USB 3.0 Type-A, Kensington lock

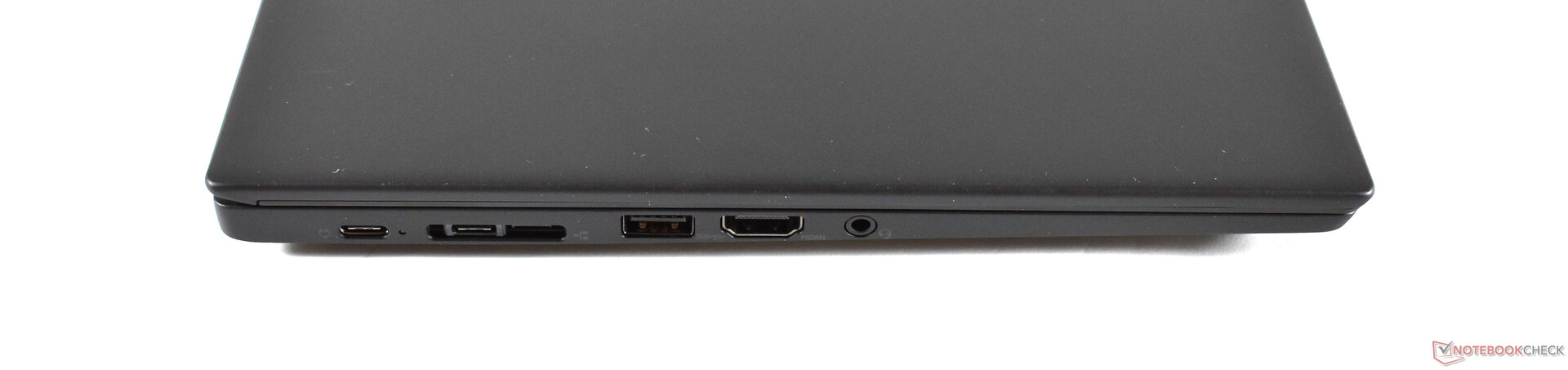

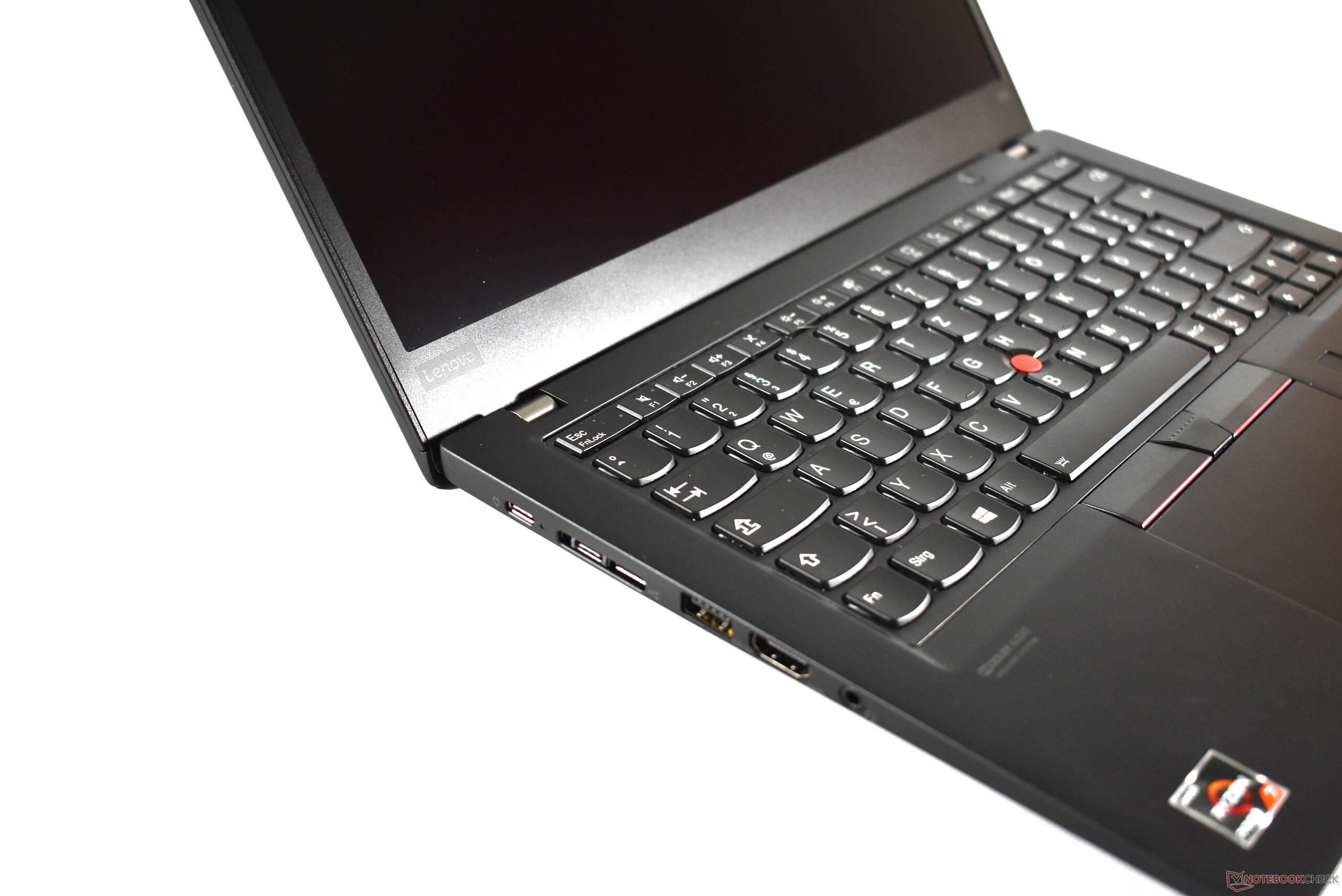

Left: 2x USB 3.1 Gen 2 Type-C, miniEthernet/docking-port, USB 3.0 Type-A, HDMI 2.0, combo audio
Left: 2x USB 3.1 Gen 2 Type-C, miniEthernet/docking-port, USB 3.0 Type-A, HDMI 2.0, combo audio
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Latitude 7310
  (Toshiba Exceria Pro M501 64 GB UHS-II)
169.3 MB/s ∼100% +125%
Lenovo ThinkPad T14s-20UJS00K00
  (Toshiba Exceria Pro M501 64 GB UHS-II)
78.4 MB/s ∼46% +4%
Lenovo ThinkPad X13-20UGS00800
  (Toshiba Exceria Pro M501 64 GB UHS-II)
75.4 MB/s ∼45%
Lenovo ThinkPad X395

74.1 MB/s ∼44% -2%
Average of class Subnotebook
  (8 - 195, n=149)
64.7 MB/s ∼38% -14%
Lenovo ThinkPad X13-20T20033GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
37.3 MB/s ∼22% -51%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 7310
  (Toshiba Exceria Pro M501 64 GB UHS-II)
195.5 MB/s ∼100% +130%
Lenovo ThinkPad X395

86.2 MB/s ∼44% +1%
Lenovo ThinkPad T14s-20UJS00K00
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.5 MB/s ∼44% 0%
Lenovo ThinkPad X13-20UGS00800
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.1 MB/s ∼44%
Average of class Subnotebook
  (17.7 - 251, n=150)
80.7 MB/s ∼41% -5%
Lenovo ThinkPad X13-20T20033GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
52.1 MB/s ∼27% -39%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad X13-20T20033GE
Intel Wi-Fi 6 AX201
1573 (1352min - 1701max) MBit/s ∼100% +18%
Lenovo ThinkPad T14s-20UJS00K00
Intel Wi-Fi 6 AX200
1370 (1218min - 1490max) MBit/s ∼87% +3%
Lenovo ThinkPad X13-20UGS00800
Intel Wi-Fi 6 AX200
1335 (1208min - 1544max) MBit/s ∼85%
Average Intel Wi-Fi 6 AX200
  (523 - 1640, n=69)
1120 MBit/s ∼71% -16%
Dell Latitude 7310
Intel Wi-Fi 6 AX201
1003 (646min - 1257max) MBit/s ∼64% -25%
Average of class Subnotebook
  (30.9 - 1658, n=185)
659 MBit/s ∼42% -51%
Lenovo ThinkPad X395
Intel Wireless-AC 9260
652 (539min - 675max) MBit/s ∼41% -51%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad T14s-20UJS00K00
Intel Wi-Fi 6 AX200
1270 (656min - 1344max) MBit/s ∼100% +41%
Dell Latitude 7310
Intel Wi-Fi 6 AX201
1188 (988min - 1327max) MBit/s ∼94% +32%
Average Intel Wi-Fi 6 AX200
  (447 - 1645, n=68)
1016 MBit/s ∼80% +13%
Lenovo ThinkPad X13-20UGS00800
Intel Wi-Fi 6 AX200
903 (452min - 920max) MBit/s ∼71%
Lenovo ThinkPad X13-20T20033GE
Intel Wi-Fi 6 AX201
756 (654min - 835max) MBit/s ∼60% -16%
Lenovo ThinkPad X395
Intel Wireless-AC 9260
628 (493min - 645max) MBit/s ∼49% -30%
Average of class Subnotebook
  (36 - 1614, n=185)
614 MBit/s ∼48% -32%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1335 (1208-1544)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø887 (452-920)
ColorChecker
6.5 ∆E
6.1 ∆E
6.3 ∆E
2.7 ∆E
7.8 ∆E
7.4 ∆E
0.9 ∆E
8.8 ∆E
12.7 ∆E
3.3 ∆E
2.8 ∆E
4.1 ∆E
3.4 ∆E
2.5 ∆E
12.2 ∆E
1.5 ∆E
5.2 ∆E
11.1 ∆E
4.9 ∆E
6.8 ∆E
5 ∆E
4.7 ∆E
4.5 ∆E
10 ∆E
ColorChecker Lenovo ThinkPad X13-20UGS00800: 5.89 ∆E min: 0.89 - max: 12.71 ∆E
317
cd/m²
315
cd/m²
298
cd/m²
312
cd/m²
331
cd/m²
320
cd/m²
305
cd/m²
320
cd/m²
320
cd/m²
Distribution of brightness
B133HAK01.1
X-Rite i1Pro 2
Maximum: 331 cd/m² Average: 315.3 cd/m² Minimum: 3.2 cd/m²
Brightness Distribution: 90 %
Center on Battery: 331 cd/m²
Contrast: 1576:1 (Black: 0.21 cd/m²)
ΔE Color 6.1 | 0.6-29.43 Ø5.7, calibrated: 1.2
ΔE Greyscale 6.3 | 0.64-98 Ø5.9
95.4% sRGB (Argyll 3D) 60.7% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.77
Lenovo ThinkPad X13-20UGS00800
B133HAK01.1, IPS LED, 1920x1080, 13.30
Lenovo ThinkPad X395
LP133WF7-SPB1, IPS, 1920x1080, 13.30
Dell Latitude 7310
AU Optronics B133HAN, IPS, 1920x1080, 13.30
Lenovo ThinkPad T14s-20UJS00K00
N140HCG-GQ2, IPS , 1920x1080, 14.00
Lenovo ThinkPad X13-20T20033GE
Lenovo B133HAK01.1, IPS, 1920x1080, 13.30
Response Times
-2%
16%
46%
5%
Response Time Grey 50% / Grey 80% *
56.8 (29.2, 27.6)
55 (26, 29)
3%
40.8 (22.4, 18.4)
28%
32.4 (16.4, 16)
43%
52.8 (26, 26.8)
7%
Response Time Black / White *
30 (16.8, 13.2)
32 (18, 14)
-7%
28.8 (14.8, 14)
4%
15.2 (6.8, 8.4)
49%
29.2 (16.8, 12.4)
3%
PWM Frequency
26040 (50)
Screen
18%
16%
19%
-1%
Brightness middle
331
356
8%
332.7
1%
404
22%
359
8%
Brightness
315
336
7%
329
4%
371
18%
342
9%
Brightness Distribution
90
88
-2%
89
-1%
88
-2%
90
0%
Black Level *
0.21
0.16
24%
0.25
-19%
0.34
-62%
0.21
-0%
Contrast
1576
2225
41%
1331
-16%
1188
-25%
1710
9%
Colorchecker DeltaE2000 *
6.1
3.6
41%
2.15
65%
1.4
77%
6.7
-10%
Colorchecker DeltaE2000 max. *
10
5.5
45%
3.89
61%
3.2
68%
10.9
-9%
Colorchecker DeltaE2000 calibrated *
1.2
1.11
7%
1.09
9%
0.8
33%
1.3
-8%
Greyscale DeltaE2000 *
6.3
4.7
25%
2.5
60%
1.6
75%
7.4
-17%
Gamma
2.77 79%
2.92 75%
2.3 96%
2.13 103%
2.85 77%
CCT
6938 94%
6222 104%
6347 102%
6480 100%
6309 103%
Color Space (Percent of AdobeRGB 1998)
60.7
61
0%
64.1
6%
63
4%
61.7
2%
Color Space (Percent of sRGB)
95.4
96
1%
99.4
4%
97.9
3%
95.9
1%
Total Average (Program / Settings)
8% / 15%
16% / 16%
33% / 23%
2% / -0%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

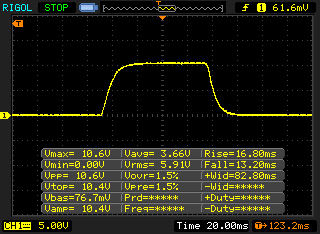

       Response Time Black to White
30 ms ... rise ↗ and fall ↘ combined↗ 16.8 ms rise
↘ 13.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 73 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.3 ms).
       Response Time 50% Grey to 80% Grey
56.8 ms ... rise ↗ and fall ↘ combined↗ 29.2 ms rise
↘ 27.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 92 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (38.6 ms).

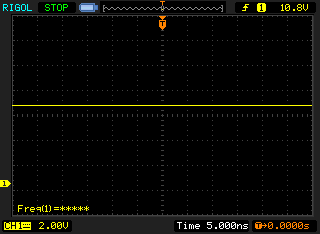

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9596 (minimum: 5 - maximum: 142900) Hz was measured.

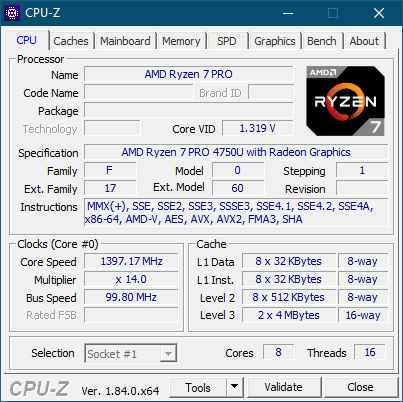

CPU-Z
CPU-Z

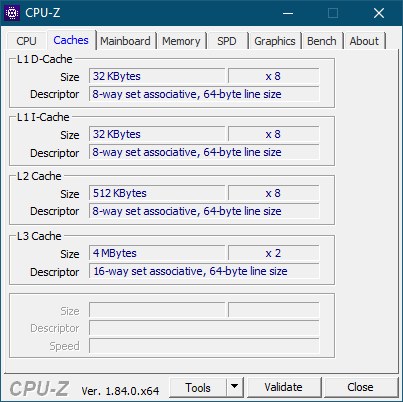

CPU-Z Caches
CPU-Z Caches

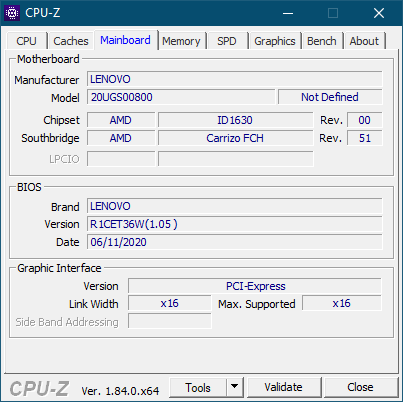

CPU-Z Mainboard
CPU-Z Mainboard

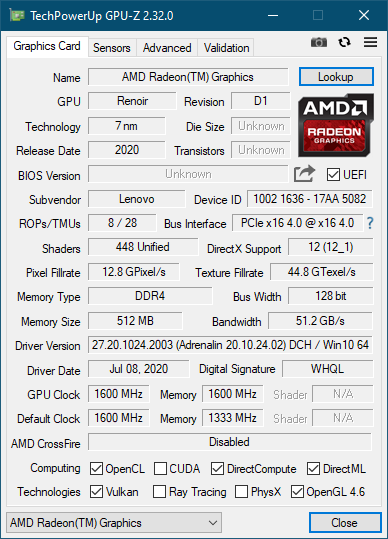

GPU-Z
GPU-Z

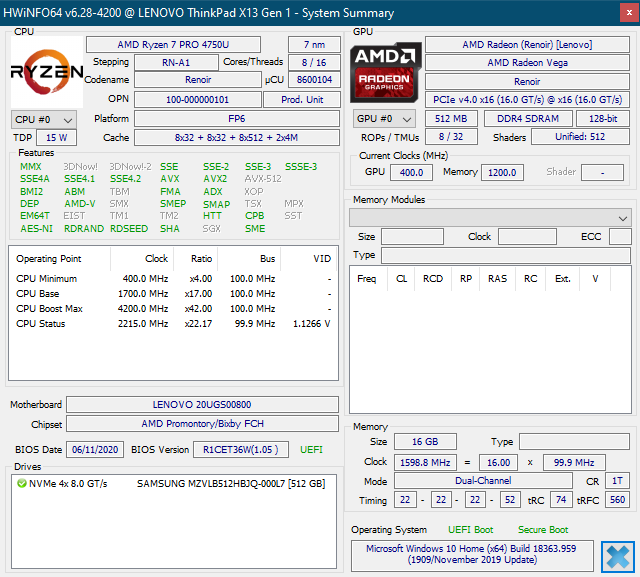

HWiNFO
HWiNFO

05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350Tooltip
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U, AMD Ryzen 7 PRO 4750U: Ø1173 (1057.08-1287.21)
Lenovo ThinkPad X395 AMD Ryzen 3 PRO 3300U, AMD Ryzen 3 PRO 3300U: Ø416 (400.15-479.45)
Dell Latitude 7310 Intel Core i7-10610U, Intel Core i7-10610U: Ø546 (539.87-548.66)
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U, AMD Ryzen 7 PRO 4750U: Ø1311 (1300.6-1345.67)
Lenovo ThinkPad X13-20T20033GE Intel Core i5-10210U, Intel Core i5-10210U: Ø571 (548.08-726.48)
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00 Intel Core i7-10510U, Intel Core i7-10510U: Ø594 (493.81-731.25)
Lenovo ThinkPad T14-20S1S06B00 Intel Core i5-10210U, Intel Core i5-10210U: Ø618 (591.33-706.24)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.1 - 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Average AMD Ryzen 7 PRO 4750U
  (2935 - 3302, n=4)
3138 Points ∼100% +7%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
3050 Points ∼97% +4%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
2935 Points ∼94%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
1505 Points ∼48% -49%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
1441 Points ∼46% -51%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
1428 Points ∼46% -51%
Average of class Subnotebook
  (110 - 3839, n=81)
1388 Points ∼44% -53%
Dell Latitude 7310
Intel Core i7-10610U
1283 Points ∼41% -56%
Cinebench R20 / CPU (Single Core)
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
475 Points ∼100%
Average AMD Ryzen 7 PRO 4750U
  (461 - 479, n=4)
471 Points ∼99% -1%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
468 Points ∼99% -1%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
441 Points ∼93% -7%
Dell Latitude 7310
Intel Core i7-10610U
440 Points ∼93% -7%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
416 Points ∼88% -12%
Average of class Subnotebook
  (73 - 583, n=80)
379 Points ∼80% -20%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
351 Points ∼74% -26%
Cinebench R15 / CPU Multi 64Bit
Average AMD Ryzen 7 PRO 4750U
  (1287 - 1413, n=4)
1364 Points ∼100% +6%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
1346 (1300.6min - 1345.67max) Points ∼99% +5%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
1287 (1057.08min - 1287.21max) Points ∼94%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
731 Points ∼54% -43%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
726.48 (548.08min - 726.48max) Points ∼53% -44%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
706 (591.33min - 706.24max) Points ∼52% -45%
Dell Latitude 7310
Intel Core i7-10610U
549 (539.87min - 548.66max) Points ∼40% -57%
Lenovo ThinkPad X395
AMD Ryzen 3 PRO 3300U
481 Points ∼35% -63%
Average of class Subnotebook
  (32 - 1626, n=355)
407 Points ∼30% -68%
Cinebench R15 / CPU Single 64Bit
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
184 Points ∼100%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
183 Points ∼99% -1%
Average AMD Ryzen 7 PRO 4750U
  (180 - 184, n=4)
182 Points ∼99% -1%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
181 Points ∼98% -2%
Dell Latitude 7310
Intel Core i7-10610U
179 Points ∼97% -3%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
167 Points ∼91% -9%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
166 Points ∼90% -10%
Lenovo ThinkPad X395
AMD Ryzen 3 PRO 3300U
126 Points ∼68% -32%
Average of class Subnotebook
  (20 - 219, n=340)
124 Points ∼67% -33%
Blender 2.79 / BMW27 CPU
Average of class Subnotebook
  (4.2 - 6277, n=72)
1126 Seconds * ∼100% -179%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
823 Seconds * ∼73% -104%
Dell Latitude 7310
Intel Core i7-10610U
816 Seconds * ∼72% -102%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
769 Seconds * ∼68% -91%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
765 Seconds * ∼68% -90%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
403 Seconds * ∼36%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
367 Seconds * ∼33% +9%
Average AMD Ryzen 7 PRO 4750U
  (340 - 403, n=4)
364 Seconds * ∼32% +10%
7-Zip 18.03 / 7z b 4 -mmt1
Dell Latitude 7310
Intel Core i7-10610U
4708 MIPS ∼100% +6%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4521 MIPS ∼96% +2%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
4467 MIPS ∼95% +1%
Average AMD Ryzen 7 PRO 4750U
  (4413 - 4467, n=4)
4443 MIPS ∼94% 0%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
4438 MIPS ∼94%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
4315 MIPS ∼92% -3%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
4269 MIPS ∼91% -4%
Average of class Subnotebook
  (1653 - 15198, n=67)
4156 MIPS ∼88% -6%
7-Zip 18.03 / 7z b 4
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
39649 MIPS ∼100% +7%
Average AMD Ryzen 7 PRO 4750U
  (37081 - 42173, n=4)
39621 MIPS ∼100% +7%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
37081 MIPS ∼94%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
18187 MIPS ∼46% -51%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
17978 MIPS ∼45% -52%
Average of class Subnotebook
  (2692 - 44827, n=67)
17835 MIPS ∼45% -52%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
17699 MIPS ∼45% -52%
Dell Latitude 7310
Intel Core i7-10610U
17339 MIPS ∼44% -53%
Geekbench 5.1 - 5.3 / 64 Bit Single-Core Score
Dell Latitude 7310
Intel Core i7-10610U
1250 Points ∼100% +8%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
1211 Points ∼97% +5%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
1157 Points ∼93%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
1149 Points ∼92% -1%
Average AMD Ryzen 7 PRO 4750U
  (1117 - 1157, n=4)
1144 Points ∼92% -1%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
1093 Points ∼87% -6%
Average of class Subnotebook
  (310 - 1740, n=68)
1073 Points ∼86% -7%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
1017 Points ∼81% -12%
Geekbench 5.1 - 5.3 / 64 Bit Multi-Core Score
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
6444 Points ∼100% +15%
Average AMD Ryzen 7 PRO 4750U
  (5456 - 6609, n=4)
6027 Points ∼94% +8%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
5600 Points ∼87%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
4256 Points ∼66% -24%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4122 Points ∼64% -26%
Dell Latitude 7310
Intel Core i7-10610U
3820 Points ∼59% -32%
Average of class Subnotebook
  (591 - 7590, n=68)
3771 Points ∼59% -33%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
3156 Points ∼49% -44%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
9.55 fps ∼100% +15%
Average AMD Ryzen 7 PRO 4750U
  (8.33 - 10.3, n=4)
9.38 fps ∼98% +13%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
8.33 fps ∼87%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4.85 fps ∼51% -42%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
4.68 fps ∼49% -44%
Average of class Subnotebook
  (0.63 - 11, n=67)
4.6 fps ∼48% -45%
Dell Latitude 7310
Intel Core i7-10610U
4.56 fps ∼48% -45%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
4.32 fps ∼45% -48%
LibreOffice / 20 Documents To PDF
Average of class Subnotebook
  (32.3 - 281, n=52)
80.8 s ∼100% +38%
Average AMD Ryzen 7 PRO 4750U
  (58.4 - 73.4, n=4)
63.9 s ∼79% +9%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
60 s ∼74% +3%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
59.3 s ∼73% +2%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
58.4 s ∼72%
Dell Latitude 7310
Intel Core i7-10610U
56.1 s ∼69% -4%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
53.8 s ∼67% -8%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
51.7 s ∼64% -11%
R Benchmark 2.5 / Overall mean
Average of class Subnotebook
  (0.554 - 2.43, n=57)
0.839 sec * ∼100% -37%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
0.719 sec * ∼86% -17%
Lenovo ThinkPad X13-20T20033GE
Intel Core i5-10210U
0.706 sec * ∼84% -15%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
0.679 sec * ∼81% -11%
Dell Latitude 7310
Intel Core i7-10610U
0.659 sec * ∼79% -8%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
0.616 sec * ∼73% -0%
Average AMD Ryzen 7 PRO 4750U
  (0.61 - 0.617, n=4)
0.614 sec * ∼73% -0%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
0.613 sec * ∼73%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1287 Points
Cinebench R15 OpenGL 64Bit
62.4 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
184 Points
Help
PCMark 10
Digital Content Creation
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
5109 Points ∼100% +4%
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (4436 - 5347, n=4)
4949 Points ∼97% +1%
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
4905 Points ∼96%
Lenovo ThinkPad X13-20T20033GE
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB512HBJQ
3243 Points ∼63% -34%
Dell Latitude 7310
UHD Graphics 620, i7-10610U, Samsung SSD PM981a MZVLB512HBJQ
3225 Points ∼63% -34%
Lenovo ThinkPad X395
Vega 6, R3 PRO 3300U, Samsung SSD PM981a MZVLB256HBHQ
3158 Points ∼62% -36%
Average of class Subnotebook
  (405 - 5795, n=153)
2813 Points ∼55% -43%
Productivity
Dell Latitude 7310
UHD Graphics 620, i7-10610U, Samsung SSD PM981a MZVLB512HBJQ
7607 Points ∼100% +7%
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
7098 Points ∼93%
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (6877 - 7364, n=4)
7078 Points ∼93% 0%
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
6877 Points ∼90% -3%
Lenovo ThinkPad X13-20T20033GE
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB512HBJQ
6792 Points ∼89% -4%
Average of class Subnotebook
  (1014 - 8682, n=153)
5538 Points ∼73% -22%
Lenovo ThinkPad X395
Vega 6, R3 PRO 3300U, Samsung SSD PM981a MZVLB256HBHQ
5484 Points ∼72% -23%
Essentials
Dell Latitude 7310
UHD Graphics 620, i7-10610U, Samsung SSD PM981a MZVLB512HBJQ
9667 Points ∼100% +2%
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
9490 Points ∼98%
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
9034 Points ∼93% -5%
Lenovo ThinkPad X13-20T20033GE
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB512HBJQ
9027 Points ∼93% -5%
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (8529 - 9490, n=4)
8954 Points ∼93% -6%
Lenovo ThinkPad X395
Vega 6, R3 PRO 3300U, Samsung SSD PM981a MZVLB256HBHQ
7351 Points ∼76% -23%
Average of class Subnotebook
  (2062 - 10113, n=153)
7270 Points ∼75% -23%
Score
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
4956 Points ∼100%
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
4890 Points ∼99% -1%
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (4639 - 4983, n=4)
4867 Points ∼98% -2%
Dell Latitude 7310
UHD Graphics 620, i7-10610U, Samsung SSD PM981a MZVLB512HBJQ
4437 Points ∼90% -10%
Lenovo ThinkPad X13-20T20033GE
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB512HBJQ
4184 Points ∼84% -16%
Lenovo ThinkPad X395
Vega 6, R3 PRO 3300U, Samsung SSD PM981a MZVLB256HBHQ
3606 Points ∼73% -27%
Average of class Subnotebook
  (743 - 5549, n=156)
3430 Points ∼69% -31%
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
5573 Points ∼100%
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
5570 Points ∼100% 0%
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (5053 - 5573, n=4)
5408 Points ∼97% -3%
Dell Latitude 7310
UHD Graphics 620, i7-10610U, Samsung SSD PM981a MZVLB512HBJQ
5232 Points ∼94% -6%
Lenovo ThinkPad X13-20T20033GE
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB512HBJQ
5114 Points ∼92% -8%
Lenovo ThinkPad X395
Vega 6, R3 PRO 3300U, Samsung SSD PM981a MZVLB256HBHQ
4356 Points ∼78% -22%
Average of class Subnotebook
  (1283 - 5628, n=265)
4121 Points ∼74% -26%
Home Score Accelerated v2
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
4640 Points ∼100% +7%
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (4158 - 4640, n=4)
4358 Points ∼94% 0%
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
4349 Points ∼94%
Lenovo ThinkPad X13-20T20033GE
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB512HBJQ
3789 Points ∼82% -13%
Dell Latitude 7310
UHD Graphics 620, i7-10610U, Samsung SSD PM981a MZVLB512HBJQ
3783 Points ∼82% -13%
Lenovo ThinkPad X395
Vega 6, R3 PRO 3300U, Samsung SSD PM981a MZVLB256HBHQ
3260 Points ∼70% -25%
Average of class Subnotebook
  (1027 - 4410, n=294)
3137 Points ∼68% -28%
PCMark 8 Home Score Accelerated v2
4349 points
PCMark 8 Work Score Accelerated v2
5573 points
PCMark 10 Score
4956 points
Help
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
1501.8 μs * ∼100%

* ... smaller is better

Lenovo ThinkPad X13-20UGS00800
Samsung SSD PM981a MZVLB512HBJQ
Lenovo ThinkPad X395
Samsung SSD PM981a MZVLB256HBHQ
Dell Latitude 7310
Samsung SSD PM981a MZVLB512HBJQ
Lenovo ThinkPad X13-20T20033GE
Samsung SSD PM981a MZVLB512HBJQ
Average Samsung SSD PM981a MZVLB512HBJQ

CrystalDiskMark 5.2 / 6
-4%
9%
5%
9%
Write 4K
95.65
129.37
35%
135.2
41%
131.1
37%
141 (88.1 - 185, n=21)
47%
Read 4K
37.47
41.6
11%
50.67
35%
45.48
21%
48.6 (35.8 - 65.2, n=21)
30%
Write Seq
2032
2334.44
15%
2155
6%
2042
0%
2019 (931 - 2896, n=21)
-1%
Read Seq
2207
2150.9
-3%
2504
13%
2259
2%
2021 (1136 - 2754, n=21)
-8%
Write 4K Q32T1
516.6
233.99
-55%
395.6
-23%
429.1
-17%
447 (326 - 556, n=21)
-13%
Read 4K Q32T1
387
325.72
-16%
394.5
2%
370.7
-4%
477 (332 - 585, n=21)
23%
Write Seq Q32T1
2977
2347.6
-21%
2987
0%
2963
0%
2868 (934 - 2994, n=21)
-4%
Read Seq Q32T1
3556
3563.2
0%
3564
0%
3564
0%
3504 (3269 - 3568, n=21)
-1%
Samsung SSD PM981a MZVLB512HBJQ
CDM 5/6 Read Seq Q32T1: 3556 MB/s
CDM 5/6 Write Seq Q32T1: 2977 MB/s
CDM 5/6 Read 4K Q32T1: 387 MB/s
CDM 5/6 Write 4K Q32T1: 516.6 MB/s
CDM 5 Read Seq: 2207 MB/s
CDM 5 Write Seq: 2032 MB/s
CDM 5/6 Read 4K: 37.47 MB/s
CDM 5/6 Write 4K: 95.65 MB/s

Continuous load reading: DiskSpd Read Loop, Queue Depth 8

010020030040050060070080090010001100120013001400150016001700180019002000210022002300240025002600270028002900300031003200330034003500Tooltip
: Ø3475 (3053.64-3532.8)
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad T14s-20UJS00K00
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
5399 Points ∼100% +15%
Average AMD Radeon RX Vega 7
  (3993 - 5422, n=10)
4894 Points ∼91% +4%
Lenovo ThinkPad X13-20UGS00800
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
4690 Points ∼87%
Lenovo ThinkPad T15 Gen1-20S7S02U00
NVIDIA GeForce MX330, Intel Core i7-10510U
4616 Points ∼85% -2%
Lenovo ThinkPad X395
AMD Radeon RX Vega 6 (Ryzen 2000/3000), AMD Ryzen 3 PRO 3300U
3325 Points ∼62% -29%
Dell Latitude 7310
Intel UHD Graphics 620, Intel Core i7-10610U
1960 Points ∼36% -58%
Lenovo ThinkPad X13-20T20033GE
Intel UHD Graphics 620, Intel Core i5-10210U
1862 Points ∼34% -60%
Average of class Subnotebook
  (230 - 12199, n=424)
1617 Points ∼30% -66%
3DMark
2560x1440 Time Spy Graphics
Lenovo ThinkPad T15 Gen1-20S7S02U00
NVIDIA GeForce MX330, Intel Core i7-10510U
1059 Points ∼100% +12%
Lenovo ThinkPad X13-20UGS00800
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
949 Points ∼90%
Average AMD Radeon RX Vega 7
  (728 - 1084, n=10)
948 Points ∼90% 0%
Average of class Subnotebook
  (85 - 3276, n=85)
692 Points ∼65% -27%
Lenovo ThinkPad X13-20T20033GE
Intel UHD Graphics 620, Intel Core i5-10210U
421 Points ∼40% -56%
Dell Latitude 7310
Intel UHD Graphics 620, Intel Core i7-10610U
415 Points ∼39% -56%
1920x1080 Fire Strike Graphics
Lenovo ThinkPad T14s-20UJS00K00
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
3593 Points ∼100% +19%
Lenovo ThinkPad T15 Gen1-20S7S02U00
NVIDIA GeForce MX330, Intel Core i7-10510U
3581 Points ∼100% +19%
Average AMD Radeon RX Vega 7
  (2407 - 3593, n=10)
3125 Points ∼87% +4%
Lenovo ThinkPad X13-20UGS00800
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
3019 Points ∼84%
Lenovo ThinkPad X395
AMD Radeon RX Vega 6 (Ryzen 2000/3000), AMD Ryzen 3 PRO 3300U
2245 Points ∼62% -26%
Lenovo ThinkPad X13-20T20033GE
Intel UHD Graphics 620, Intel Core i5-10210U
1332 Points ∼37% -56%
Dell Latitude 7310
Intel UHD Graphics 620, Intel Core i7-10610U
1325 Points ∼37% -56%
Average of class Subnotebook
  (222 - 8743, n=304)
1304 Points ∼36% -57%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad X13-20UGS00800
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
22904 Points ∼100%
Average AMD Radeon RX Vega 7
  (16972 - 25720, n=7)
22836 Points ∼100% 0%
Lenovo ThinkPad X395
AMD Radeon RX Vega 6 (Ryzen 2000/3000), AMD Ryzen 3 PRO 3300U
16787 Points ∼73% -27%
Lenovo ThinkPad T15 Gen1-20S7S02U00
NVIDIA GeForce MX330, Intel Core i7-10510U
15595 Points ∼68% -32%
Dell Latitude 7310
Intel UHD Graphics 620, Intel Core i7-10610U
10505 Points ∼46% -54%
Average of class Subnotebook
  (1484 - 53539, n=318)
8912 Points ∼39% -61%
3DMark 11 Performance
4897 points
3DMark Cloud Gate Standard Score
18790 points
3DMark Fire Strike Score
2720 points
3DMark Time Spy Score
1082 points
Help
low med. high ultra
The Witcher 3 (2015) 56.1 17.6 fps
Dota 2 Reborn (2015) 90.5 69.9 42.2 39.5 fps
X-Plane 11.11 (2018) 37.2 28.5 25.6 fps
Shadow of the Tomb Raider (2018) 44.4 17 fps
Total War: Three Kingdoms (2019) 49.3 15 fps

Noise Level

Idle
29.1 / 29.1 / 29.1 dB(A)
Load
31.1 / 31.8 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 29.1 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.635.333.9402526.125.425.231.33130.229.628.634.14028.128.826.729.35026.825.126.927.76327.625.225.4258025.82423.424.610026.124.624.324.812524.62322.323.616024.723.622.524.220025.722.622.423.725024.522.923.423.731522.621.121.62240021.120.519.920.850020.720.218.920.263020.920.219.220.380019.419.118.219.4100020.119.517.618.6125019.519.417.11816002019.116.417.2200019.919.316.116.725001918.915.916.831502120.21616.5400020.119.315.716.5500019.118.415.716.3630016.816.415.616.1800016.116.115.716100001615.915.615.91250015.815.715.515.71600015.615.415.215.6SPL31.831.129.129.9N1.61.51.21.4median 20.1median 19.4median 17.1median 18Delta1.11.12.32.7hearing rangehide median Fan NoiseLenovo ThinkPad X13-20UGS00800
Max. Load
 32.9 °C39.9 °C44.1 °C
 30.3 °C37.7 °C44.8 °C
 28.7 °C29.9 °C34.2 °C
Maximum: 44.8 °C
Average: 35.8 °C
42 °C42.1 °C34.5 °C
39.4 °C40.3 °C33.9 °C
30.5 °C31 °C28.9 °C
Maximum: 42.1 °C
Average: 35.8 °C
Power Supply (max.)  38.9 °C | Room Temperature 20.6 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 35.8 °C / 96 F, compared to the average of 30.6 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 44.8 °C / 113 F, compared to the average of 35.7 °C / 96 F, ranging from 22 to 57 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 42.1 °C / 108 F, compared to the average of 39.6 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.8 °C / 75 F, compared to the device average of 30.6 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.2 °C / 93.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.4 °C / 83.1 F (-5.8 °C / -10.5 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.935.42525.228.23128.629.74026.7325026.928.16325.4288023.426.810024.332.712522.327.316022.534.620022.448.125023.458.631521.661.140019.960.250018.959.263019.263.680018.265.5100017.666.3125017.165160016.465.1200016.165250015.960.131501660.1400015.762.8500015.758.3630015.661.7800015.7551000015.650.51250015.542.31600015.231.7SPL29.174.8N1.235.3median 17.1median 60.1Delta2.37.835.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseLenovo ThinkPad X13-20UGS00800Apple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad X13-20UGS00800 audio analysis

(±) | speaker loudness is average but good (74.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.7% lower than median
(-) | bass is not linear (17.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(+) | mids are linear (3.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3% away from median
(±) | linearity of highs is average (8.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20% difference to median)
Compared to same class
» 61% of all tested devices in this class were better, 7% similar, 32% worse
» The best had a delta of 8%, average was 19%, worst was 50%
Compared to all devices tested
» 43% of all tested devices were better, 9% similar, 48% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 19%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Power Consumption
Off / Standbydarklight 0.41 / 0.78 Watt
Idledarkmidlight 6 / 8.9 / 11.3 Watt
Load midlight 34.2 / 37.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad X13-20UGS00800
R7 PRO 4750U, Vega 7, Samsung SSD PM981a MZVLB512HBJQ, IPS LED, 1920x1080, 13.30
Lenovo ThinkPad X395
R3 PRO 3300U, Vega 6, Samsung SSD PM981a MZVLB256HBHQ, IPS, 1920x1080, 13.30
Dell Latitude 7310
i7-10610U, UHD Graphics 620, Samsung SSD PM981a MZVLB512HBJQ, IPS, 1920x1080, 13.30
Lenovo ThinkPad X13-20T20033GE
i5-10210U, UHD Graphics 620, Samsung SSD PM981a MZVLB512HBJQ, IPS, 1920x1080, 13.30
Average AMD Radeon RX Vega 7

Average of class Subnotebook

Power Consumption
14%
16%
11%
4%
-5%
Idle Minimum *
6
4
33%
2.7
55%
2.9
52%
4.33 (2.6 - 6, n=10)
28%
6.33 (2.6 - 36, n=664)
-6%
Idle Average *
8.9
6.3
29%
4.4
51%
5.6
37%
7.63 (4.8 - 10.7, n=10)
14%
9.53 (5 - 39, n=664)
-7%
Idle Maximum *
11.3
9.3
18%
4.8
58%
8.9
21%
9.55 (5.6 - 12.6, n=10)
15%
11.8 (3.9 - 55, n=664)
-4%
Load Average *
34.2
34
1%
33.4
2%
30.1
12%
38.3 (28 - 49, n=10)
-12%
33.6 (6.3 - 79.2, n=654)
2%
Load Maximum *
37.2
42
-13%
69.7
-87%
61.3
-65%
47.1 (31 - 67.5, n=10)
-27%
41.1 (7.6 - 111, n=657)
-10%

* ... smaller is better

Battery Runtime
NBC WiFi Websurfing Battery Test 1.3 (Edge Chromium)
8h 42min
NBC WiFi Websurfing Battery Test 1.3 max Brightness (Edge Chromium)
7h 01min
Big Buck Bunny H.264 1080p
8h 15min
Load (maximum brightness)
1h 32min
Lenovo ThinkPad X13-20UGS00800
R7 PRO 4750U, Vega 7, 48 Wh
Lenovo ThinkPad X395
R3 PRO 3300U, Vega 6, 48 Wh
Dell Latitude 7310
i7-10610U, UHD Graphics 620, 52 Wh
Lenovo ThinkPad T14s-20UJS00K00
R7 PRO 4750U, Vega 7, 57 Wh
Lenovo ThinkPad X13-20T20033GE
i5-10210U, UHD Graphics 620, 48 Wh
Average of class Subnotebook

Battery Runtime
66%
30%
38%
42%
12%
Reader / Idle
1103
2246
652 (87 - 2735, n=573)
H.264
495
620
25%
792
60%
704
42%
521 (182 - 1312, n=142)
5%
WiFi v1.3
522
655
25%
758
45%
612
17%
559
7%
504 (206 - 991, n=285)
-3%
Load
92
227
147%
106
15%
127
38%
163
77%
123 (40 - 369, n=595)
34%

Pros

+ CPU性能比X395和Intel X13好得多
+ GPU性能几乎处于入门独立GPU级别
+ 出色的输入设备
+ 坚固的镁合金和玻璃纤维底盘
+ 许多端口和安全功能
+ 屏幕好
+ 安静又低温
+ 保修期长
+ Wi-Fi 6
+ 可更换键盘

Cons

- -板载RAM
- 没有Thunderbolt 3

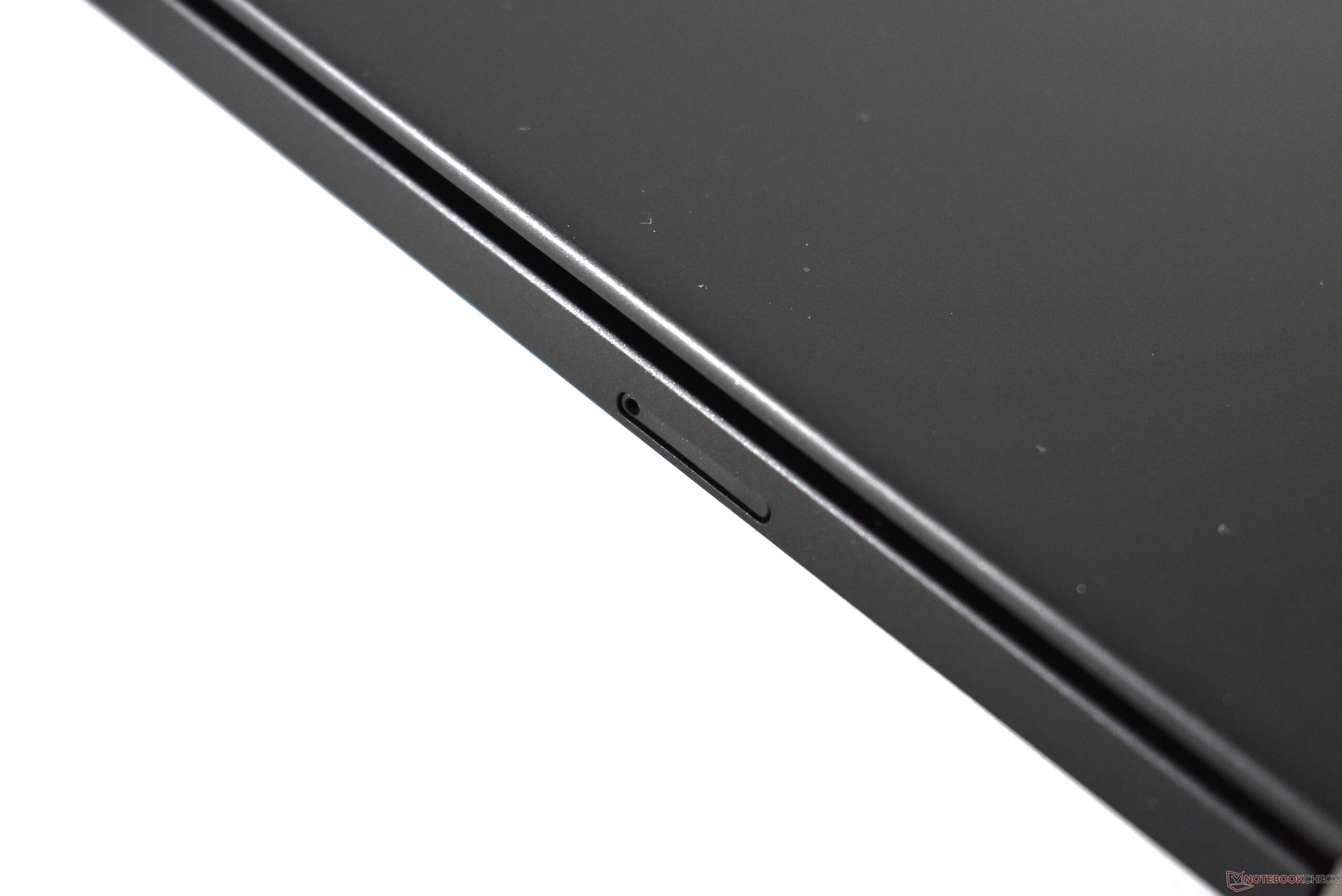

- microSD插槽难以触及
- 比14英寸ThinkPads更暗的LCD
- 续航时间比T14和Intel X13差
- 较小的键盘

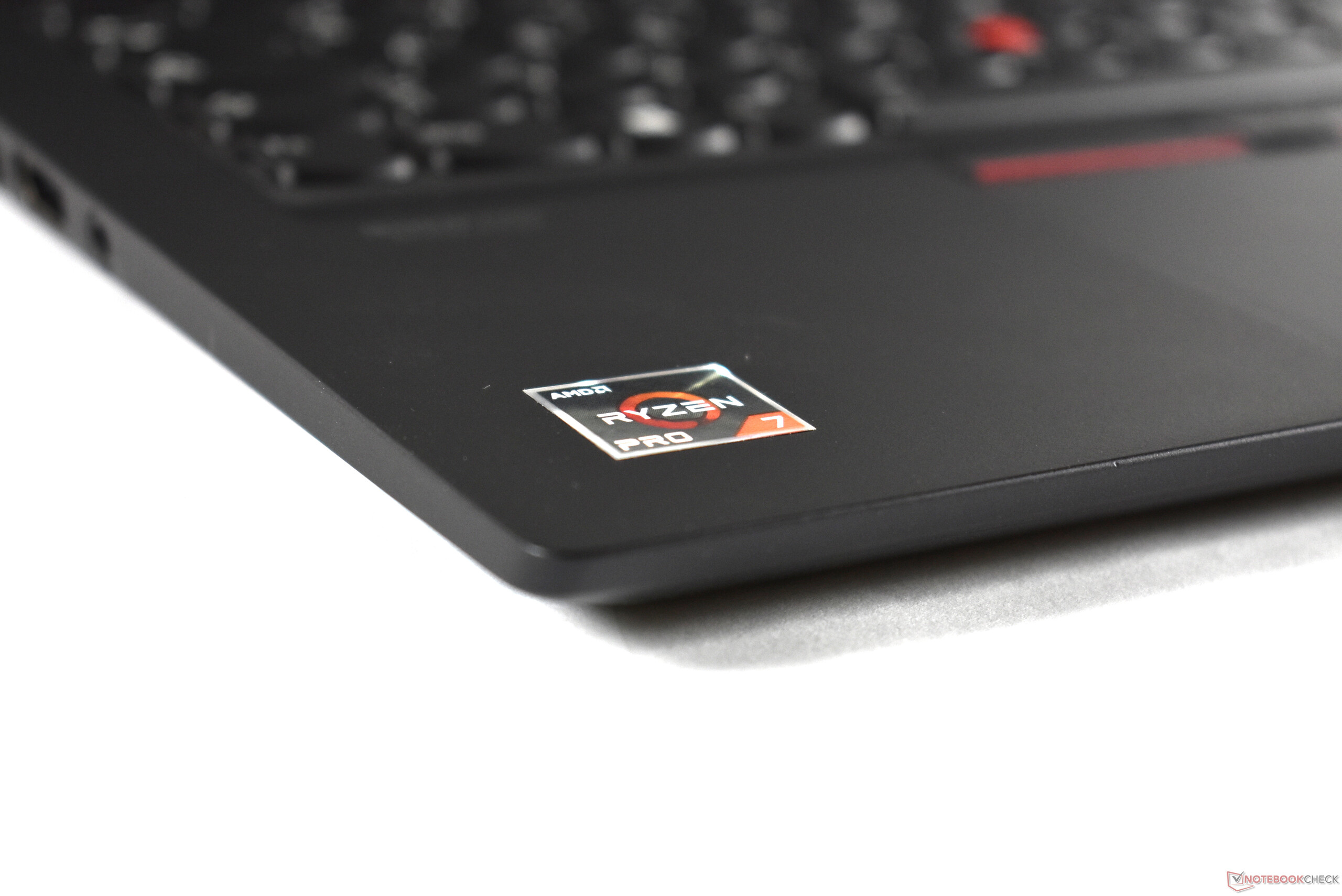

In review: Lenovo ThinkPad X13 Gen 1. Test sample supplied by

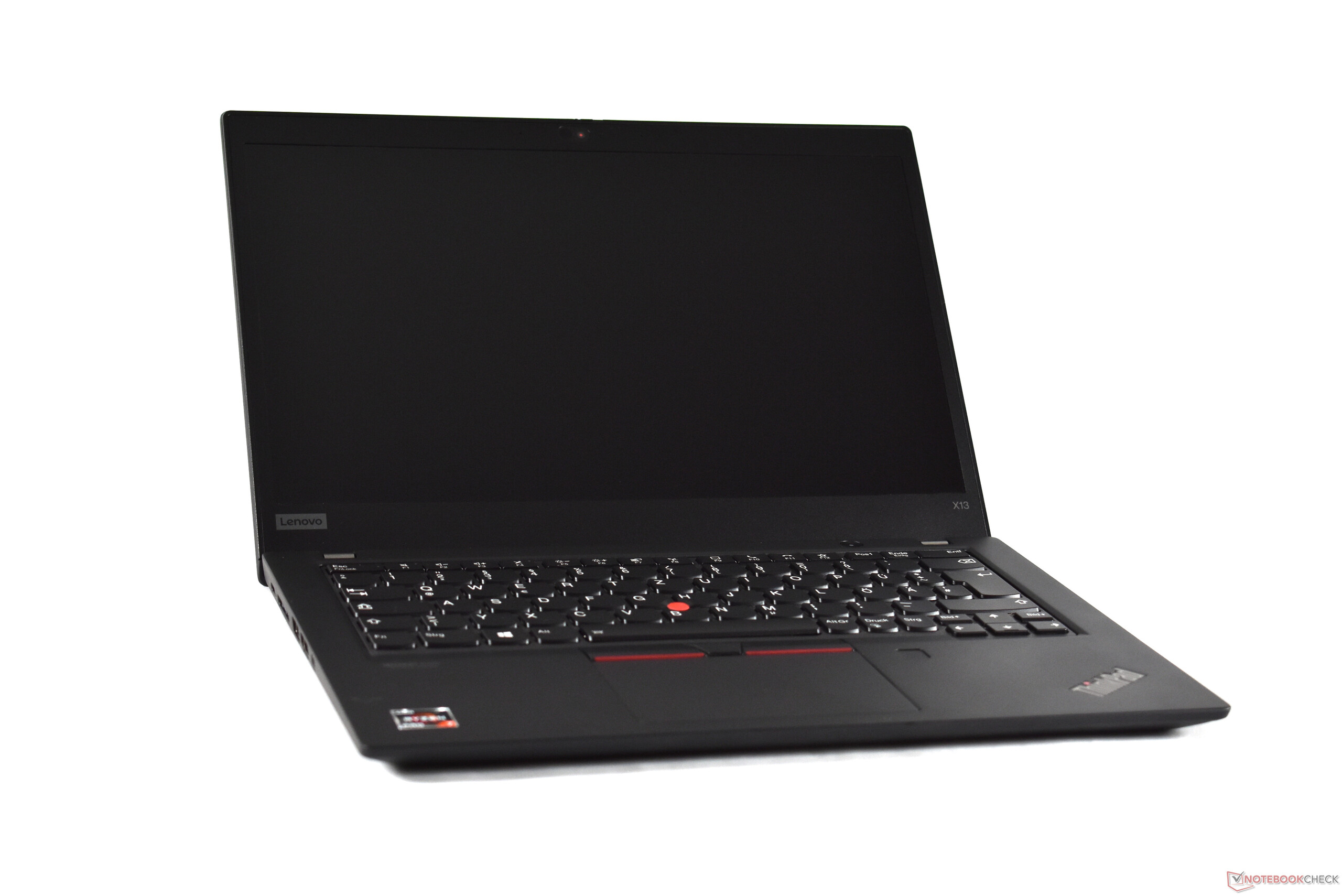

In review: Lenovo ThinkPad X13 Gen 1. Test sample supplied by

Ryzen 4000目前在笔记本电脑领域为AMD赢得了市场份额。为此,业务部门可能会发挥重要作用。像Lenovo ThinkPad X13 Gen 1这样的传统紧凑型超极本可能是企业市场争夺战中的重量级选手。

由于联想保留着经过历练的ThinkPad X390 / X395的设计,具有八个内核的AMD Renoir CPU显然是本次评测的主角。没有其他配备13.3英寸屏幕的ThinkPad笔记本电脑可以提供如此快速的处理器。英特尔版本的X13和Dell Latitude 7310与ThinkPad X13 AMD的竞争力相去甚远。 GPU性能也是如此,几乎足以与低端独立GPU竞争。

尽管性能出色,但ThinkPad X13 Gen 1仍可保持安静运行。联想X13的其他优势包括ThinkPad输入设备,端口数量,良好的磨砂屏幕和坚固的镁质外壳。与ThinkPad X395相比,Wi-Fi 6也值得一提。

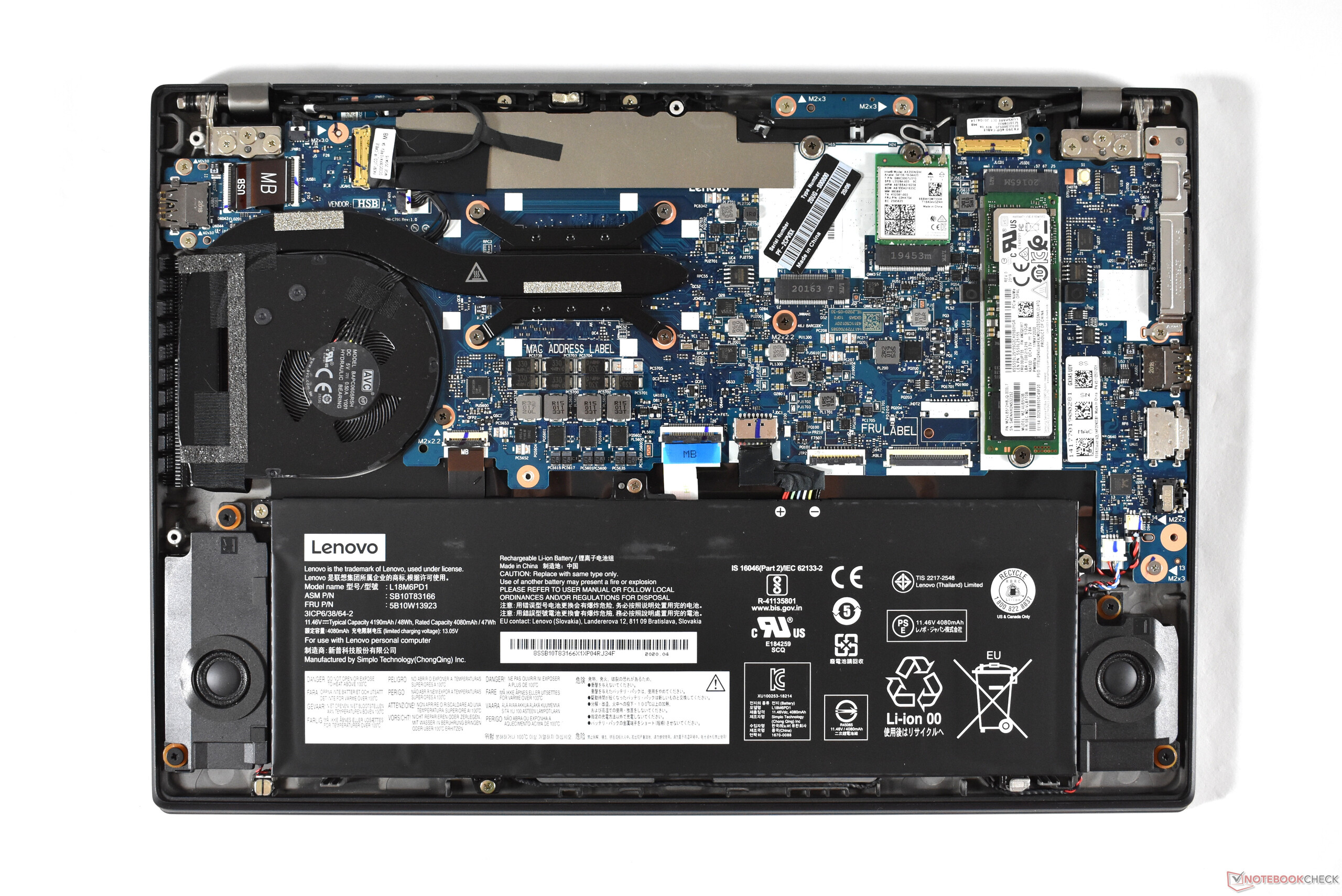

同时,大多数问题都是直接从先前的模型上继承过来的,例如难以触及的microSD插槽或板载的RAM。与ThinkPad T14s Gen 1相比,X13具有易于更换的键盘,但前者续航时间更长,并且键盘尺寸更小。说到续航:除了缺少的Thunderbolt 3端口以外,这是与Intel ThinkPad X13相比唯一的小缺点之一。

一台带劲的超极本:没有多少便携式笔记本电脑可以提供与ThinkPad X13 Gen 1相似的性能。最大的竞争对手是更大的ThinkPad和HP EliteBook 835 G7。

我们可以全力推荐配备AMD Ryzen 4000的Lenovo ThinkPad X13 Gen 1。如果一定要13.3英寸笔记本电脑,那么提供相同性能水平的选择就不多了。一个问题可能是带有AMD CPU的稍大一些的Lenovo ThinkPad T14s Gen 1的竞争。对于大多数用户而言,T14可能是更好的选择。

Lenovo ThinkPad X13-20UGS00800 - 08/13/2020 v7
Benjamin Herzig

Chassis
89 / 98 → 90%
Keyboard
89%
Pointing Device
92%
Connectivity
72 / 75 → 96%
Weight
72 / 20-75 → 94%
Battery
80%
Display
85%
Games Performance
62 / 78 → 80%
Application Performance
91 / 85 → 100%
Temperature
91%
Noise
97%
Audio
64 / 91 → 71%
Camera
34 / 85 → 40%
Average
78%
90%
Subnotebook - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 联想ThinkPad X13 Gen 1笔记本电脑评测:装配了AMD Renoir的最速13英寸笔记本
Benjamin Herzig, 2020-10-31 (Update: 2020-10-31)
Benjamin Herzig
Editor of the original article: Benjamin Herzig - Editor
